LAR-type receptor phosphotyrosine-phosphatases (LAR-RPTPs) are presynaptic adhesion molecules that interact trans-synaptically with multitudinous postsynaptic adhesion molecules, including SliTrks, SALMs, and TrkC. Via these interactions, LAR-RPTPs are thought to function as synaptogenic wiring molecules that promote neural circuit formation by mediating the establishment of synapses. To test the synaptogenic functions of LAR-RPTPs, we conditionally deleted the genes encoding all three LAR-RPTPs, singly or in combination, in mice before synapse formation. Strikingly, deletion of LAR-RPTPs had no effect on synaptic connectivity in cultured neurons or in vivo, but impaired NMDA-receptor-mediated responses. Deletion of LAR-RPTPs decreased NMDA-receptor-mediated responses by a trans-synaptic mechanism. In cultured neurons, deletion of all LAR-RPTPs led to a reduction in synaptic NMDA-receptor EPSCs, without changing the subunit composition or the protein levels of NMDA-receptors. In vivo, deletion of all LAR-RPTPs in the hippocampus at birth also did not alter synaptic connectivity as measured via AMPA-receptor-mediated synaptic responses at Schaffer-collateral synapses monitored in juvenile mice, but again decreased NMDA-receptor mediated synaptic transmission. Thus, LAR-RPTPs are not essential for synapse formation, but control synapse properties by regulating postsynaptic NMDA-receptors via a trans-synaptic mechanism that likely involves binding to one or multiple postsynaptic ligands.
In the brain, neurons wire to form distinct neural circuits that are important for processing information. Neural circuit wiring requires growth of axons towards target regions, self-avoidance of axons and dendrites, axon-dendrite target selection, and formation and specification of synapses (Hassan and Hiesinger, 2015; Yogev and Shen, 2014; Zipursky and Sanes, 2010). The molecular mechanisms governing synapse formation and specification remain largely unknown.
Synaptic cell-adhesion molecules form trans-synaptic complexes that are thought to initiate synapse formation, maintain synapse stability, and regulate synapse properties (Südhof, 2018). Multiple synaptic cell-adhesion molecules have been identified, among which LAR-RPTPs (a.k.a. type IIA PTPRs) are prominent because strong evidence suggests that they are key drivers of synapse formation (Joo et al., 2014; Kwon et al., 2010; Li et al., 2015; Takahashi et al., 2011; Um et al., 2014; Yim et al., 2013). LAR-RPTPs are type I transmembrane proteins encoded by three genes in vertebrates (PTPRS, PTPRD, and PTPRF) (Pulido et al., 1995). LAR-RPTPs are composed of a large extracellular sequence containing three immunoglobulin-like (Ig) domains and multiple (4-8) fibronectin-3 (FN3) repeats, and of a similarly large intracellular sequence containing two phospho-tyrosine phosphatase (PTP) domains (Figure 1A). LAR-RPTPs mediate essential functions in and outside of the brain during development (Elchebly et al., 1999; Uetani et al., 2006; Wallace et al., 1999), but are also highly expressed in mature neurons where they are thought to be presynaptic (Um and Ko, 2013). Cell-adhesion interactions of LAR-RPTPs with numerous postsynaptic partners, including NGL-3, TrkC, SALMs, SliTrks, and IL1RAPs, suggest a major role for LAR-RPTPs in synapse formation (Choi et al., 2016; Kwon et al., 2010; Li et al., 2015; Lin et al., 2018; Takahashi et al., 2011; Takahashi et al., 2012; Um et al., 2014; Woo et al., 2009; Yoshida et al., 2012; Yoshida et al., 2011) (Figure 1B). Moreover, LAR-RPTP binding to postsynaptic partners is regulated by alternative spicing, indicating a dynamic complex (Choi et al., 2016; Li et al., 2015; Yamagata et al., 2015a; Yamagata et al., 2015b).
In C. elegans, the LAR-RPTP ortholog PTP3 is expressed in two isoforms that differ in their extracellular domains. The longer PTP-3A isoform is similar to vertebrate LAR-RPTPs, is specifically localized at synapses, and controls synapse morphology (Ackley et al., 2005). The shorter PTP-3B isoform lacks the Ig domains as well as the first four FN3 repeats, and functions in axon guidance (Ackley et al., 2005). Drosophila expresses two type IIA LAR-RPTPs, DLAR and Ptp69D, that have similar structures and are essential for axon guidance and for target recognition at neuromuscular junctions (NMJs) (Desai et al., 1997; Krueger et al., 1996) and at retinal photoreceptors (Clandinin et al., 2001; Maurel-Zaffran et al., 2001). Loss-of-function mutants of DLAR in Drosophila exhibit smaller NMJs, larger active zones, and presynaptic release deficits (Kaufmann et al., 2002).
Thus, the results from studies of invertebrate LAR-RPTPs establish that they perform a major role in neuronal development, and additionally suggest a function in synapse formation and/or specification of synapse properties. However, the understanding of vertebrate LAR-RPTPs is less advanced. Elegant biochemical and structural studies demonstrated tight interactions of presynaptic LAR-RPTPs with a diverse set of postsynaptic adhesion molecules, including SliTrks, SALMs, TrkC, IL1-RAPs, and NGL3, suggesting that LAR-RPTPs function as synaptic adhesion molecules (Karki et al., 2018; Kwon et al., 2010; Lie et al., 2016; Lin et al., 2018; Um et al., 2014; Woo et al., 2009; Yamagata et al., 2015a; Yamagata et al., 2015b). This hypothesis is supported by extensive data demonstrating that the various postsynaptic interactors of LAR-RPTPs perform important synaptic functions (Choi et al., 2016; Kwon et al., 2010; Li et al., 2015; Lie et al., 2016; Takahashi et al., 2012; Valnegri et al., 2011; Woo et al., 2009; Yim et al., 2013; Yoshida et al., 2012). However, the data on the functions of LAR-RPTPs themselves are less clear. RNAi-mediated knockdowns of LAR-RPTPs in cultured neurons produced a massive loss of synapses and an impairment in neurotransmitter release (Dunah et al., 2005; Han et al., 2018; Ko et al., 2015) consistent with a key role for LAR-RPTPs in synapse formation, but constitutive LAR-RPTP KOs did not cause gross abnormalities in the overall brain structure or evidence of synapse loss (Elchebly et al., 1999; Horn et al., 2012). Constitutive PTPRD and PTPRS KO mice also exhibited reductions in body weight, postnatal lethality, and behavioral abnormalities that include ataxia, abnormal limb flexion, and memory deficits (Kolkman et al., 2004; Meathrel et al., 2002; Uetani et al., 2000; Wallace et al., 1999). However, these mice display only modest changes of synaptic transmission, such as a reduction in presynaptic release probability and in LTP (Horn et al., 2012; Uetani et al., 2000). At this point, no mice lacking all LAR-RPTPs have been analyzed, and it is thus possible that the relative lack of phenotypes observed for single LAR-RPTP KOs is due to functional redundancy among LAR-RPTPs. Moreover, no conditional deletions of LAR-RPTPs were examined at the synaptic levels, and developmental compensation could also have ameliorated an otherwise stronger phenotype.
To definitively examine the functions of LAR-RPTPs at synapses, we here characterized the effect of their deletions in hippocampal neurons using well-controlled genetic manipulations. We found that LAR-RPTPs do not perform an essential role in synapse formation, but are important for shaping the properties of excitatory synapses. Specifically, we demonstrate that LAR-RPTPs maintain the synaptic localization of NMDA- receptors (NMDARs) both in cultured neurons and in vivo, without affecting AMPA-receptor- (AMPAR-) mediated responses.

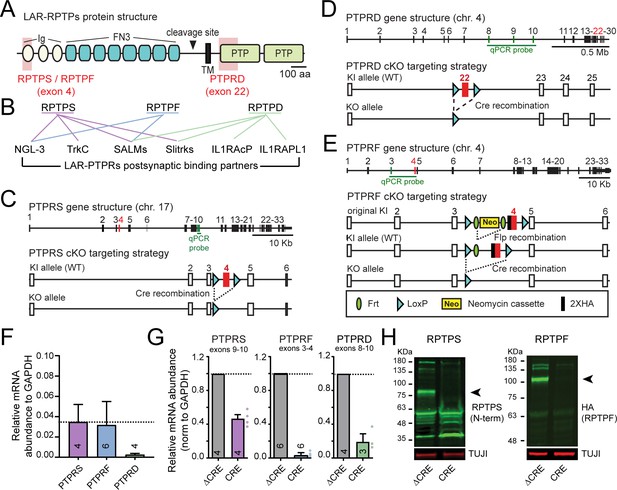

To better understand the role of LAR-RPTPs in synapse formation and/or specification of synapse properties, we obtained previously described conditional KO (cKO) mice for PTPRS (Bunin et al., 2015) and PTPRD (Farhy-Tselnicker et al., 2017) in which exons 4 and 22 were targeted, respectively (Figure 1A,C,D). In addition, we newly generated cKO mice for PTPRF in which we targeted exon 4 and introduced a N-terminal HA-epitope tag (Figure 1A,E). We validated the genetic strategy for all cKO mice by culturing hippocampal neurons from newborn mice, infecting the neurons at DIV4 with lentiviruses expressing an inactive mutant version of Cre recombinase (ΔCRE, used as a control) or active Cre recombinase (CRE; both Cre’s are EGFP-tagged, contain a nuclear localization signal and are expressed under control of the ubiquitin promoter; see Kaeser et al., 2011). We then analyzed the neurons at DIV12.
Immunoblotting using an antibody to the ectodomain of PTPRS confirmed that PTPRS was undetectable in PTPRS cKO neurons after Cre expression (Figure 1H, left). Similarly, PTPRF protein, as monitored by immunoblotting with an anti-HA antibody, was absent in PTPRF cKO neurons expressing Cre (Figure 1H, right). Finally, RT-PCR demonstrated that PTPRD mRNAs were deleted in PTPRD cKO neurons after Cre expression (Figure 1G). Thus, the LAR-RPTP cKO mice we are using enable conditional deletion of all LAR-RPTPs as predicted.
To delete all LAR-RPTP isoforms, we crossed PTPRS, PTPRF and PTPRD single cKO mice to generate triple LAR-RPTP cKO mice. We then investigated whether LAR-RPTPs control synaptogenesis by culturing hippocampal neurons from newborn PTPRS, PTPRF, and PTPRD single cKO mice as well as from triple LAR-RPTP cKO mice. We infected the neurons at DIV4 with lentiviruses encoding ΔCre (as a control) or Cre, and analyzed them at DIV12. We immunostained excitatory and inhibitory synapses using antibodies to vGluT1 and vGAT, respectively, and immunolabeled dendrites using MAP2 (Figure 2A,E). Strikingly, neither the single deletions of PTPRS, PTPRF, or PTPRD nor the triple deletion of all LAR-RPTPs altered the density of excitatory (Figure 2A–B) or inhibitory synapses (Figure 2E–F). Moreover, the size and staining intensity of vGluT1 and vGAT puncta were unchanged by LAR-RPTP deletions (Figure 2C–D,G–H). These data show that LAR-RPTPs, despite recruiting postsynaptic markers in artificial synapse formation assays (Bomkamp et al., 2019; Woo et al., 2009; Yoshida et al., 2011), are not required for synapse formation as such.

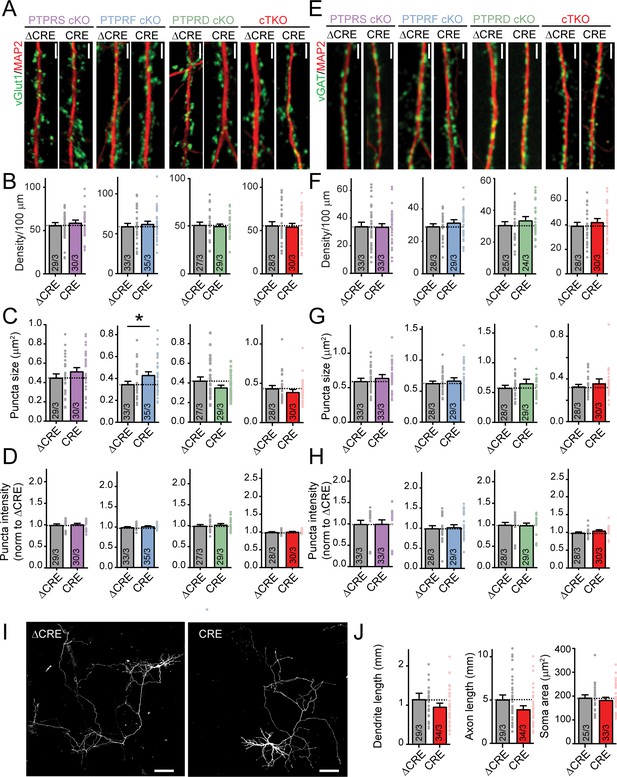

To examine whether the LAR-RPTP deletion alters neuronal development, we sparsely transfected cKO neurons expressing Cre or ΔCre with tdTomato, and analyzed their dendritic arborization, axon length, and soma size. However, deletion of all LAR-RPTPs in a neuron did not induced detectable changes in three basic morphological features (dendrites, axons, and cell body size), suggesting that LAR-RPTPs are not required for the basic development of neurons (Figure 2I–J).
The lack of an essential role for LAR-RPTPs in the postmitotic development of neurons and/or in synapse formation is surprising, prompting us to assess a possible function of LAR-RPTPs in the elaboration of the electrical properties of neurons or in synaptic transmission.
Using patch-clamp recordings, we found that cultured neurons lacking individual LAR-RPTPs exhibit a normal capacitance and input resistance, consistent with a lack of effect on neuronal development (Figure 4—figure supplement 1A–C). Deletion of all LAR-RPTP isoforms induced a small reduction (~15%) in neuronal capacitance, but again did not affect the input resistance (Figure 4—figure supplement 1D).

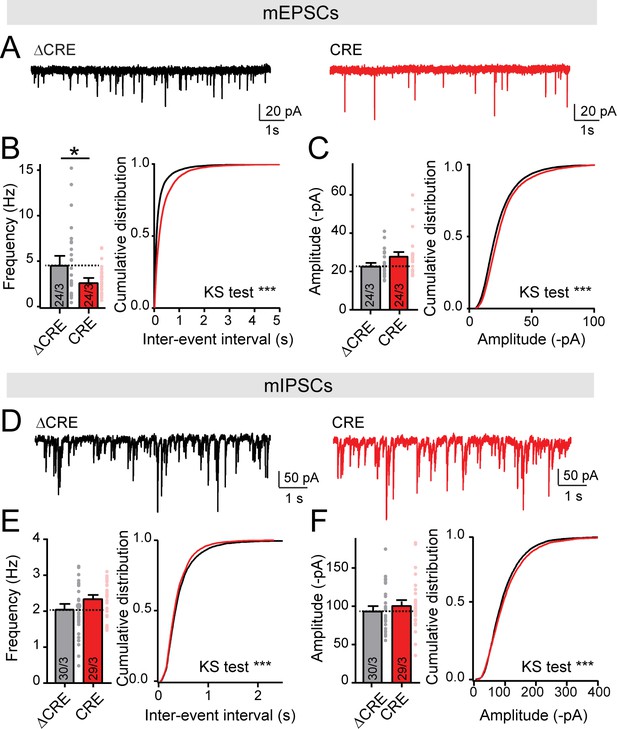

Recordings of spontaneous mEPSCs or mIPSCs from control neurons and neurons lacking all LAR-RPTPs, obtained as described above, uncovered a significant decrease (~40%) in mEPSC but not in mIPSC frequency (Figure 3A–B,D–E). Neither the mEPSC nor the mIPSC amplitudes exhibited major changes (Figure 3C,F). We also observed a small but non-significant decrease in the amplitude of evoked AMPAR-mediated EPSCs (Figure 4A). Evoked NMDAR-mediated EPSCs, in contrast, exhibited a major decrease in amplitude (~40% decrease; Figure 4B). As a result of the decrease in NMDAR- but not AMPAR-EPSCs, the NMDA/AMPA ratio was also greatly decreased (~60%; Figure 4C–D). This selective impairment in postsynaptic NMDAR-mediated synaptic responses was not caused by a cell-autonomous postsynaptic function of LAR-RPTPs because postsynaptic deletions of LAR-RPTPs in sparsely transfected neurons had no effect on the NMDA/AMPA ratio (Figure 4E–F).

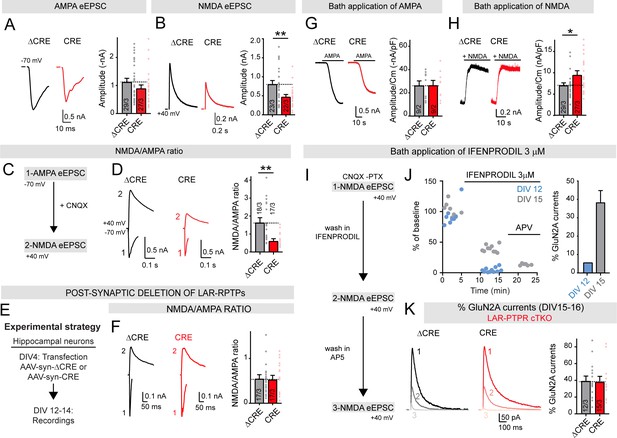

To test whether the selective decrease in NMDAR-EPSC amplitudes caused by the LAR-RPTP deletion might be due to a loss of total surface NMDARs, we quantified currents elicited in cultured hippocampal neurons by bath application of AMPA or NMDA (Figure 4G–H, Figure 4—figure supplement 1E–F). The current density of AMPAR-mediated responses was unchanged by the LAR-RPTP deletion (Figure 4G, Figure 4—figure supplement 1E). Strikingly, the current density of NMDAR-mediated responses was significantly enhanced, and not decreased (Figure 4H, Figure 4—figure supplement 1F). This result indicates that the decrease in evoked NMDAR-EPSCs is not due to a loss of surface NMDARs, but is caused by a loss of specifically synaptic NMDARs. To probe for a potential change in NMDAR protein levels or other components of synapses, we additionally analyzed the proteome of control and LAR-RPTP-deficient hippocampal neurons by quantitative immunoblotting (Figure 5). We detected no major changes in any protein examined, including NMDAR subunits, active zone proteins, or components of the neurotransmitter release machinery (Figure 5).
We also explored the possibility that the LAR-RPTP deletion might have changed the NMDAR composition, and quantified the relative inhibition of NMDAR-EPSCs by Ifenprodil, a selective GluN2A inhibitor. However, we detected no difference in Ifenprodil sensitivity between control (ΔCRE) or LAR-RPTP KO (CRE) neurons (Figure 4I–K). Overall, the electrophysiology and immunoblotting results support the morphological finding that LAR-RPTPs are not required for synapse formation and maintenance (Figure 2), and reveal that LAR-RPTPs are essential for the maintenance of synaptic NMDARs via a trans-synaptic mechanism. In addition, the deletion of LAR-PTPRs may have had a modest effect on the release probability as judged by the decrease in mEPSC frequency, but this effect was small since it did not cause an impairment in AMPAR-mediated EPSCs.
Our results so far show that in cultured hippocampal neurons, LAR-RPTPs are not essential for synapse formation, but are required to control postsynaptic NMDAR. However, analyses of cultured neurons can misidentify or overlook major functions of a gene because of the necessarily non-physiological nature of neuronal cultures. To further explore the functions of LAR-RPTPs, we conditionally deleted all LAR-RPTPs in vivo. LAR-RPTPs are expressed at high levels in the hippocampus in both CA3 and CA1 pyramidal cells not only during development, but also in adult mice (Figure 6—figure supplement 1A) (Saunders et al., 2018). To study the role of LAR-RPTPs in vivo, we performed bilateral stereotactic injections of AAVs expressing inactive (ΔCre, control) or active Cre-recombinase into the CA3 region of newborn LAR-RPTP triple cKO mice (Wu et al., 2019). We then analyzed the properties of CA3 to CA1 Schaffer-collateral synapses in acute hippocampal slices at P30-37, using whole-cell patch-clamp recordings from CA1 pyramidal neurons (Figure 6A).

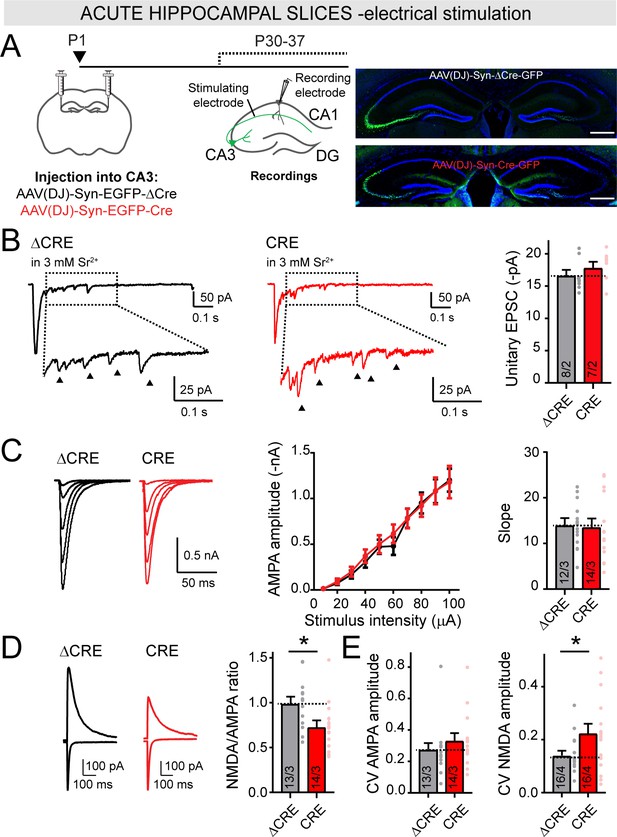

Measurements of spontaneous sEPSCs (Figure 6—figure supplement 1B–C) and of unitary synaptic AMPAR-mediated events using Sr2+ in the extracellular medium (Figure 6B) showed that the presynaptic LAR-RPTP deletion caused a small but significant decrease in the frequency of sEPSCs, but had little effect on the amplitude of sEPSCs or of unitary EPSCs that reflects the size of AMPAR-mediated synaptic responses. Moreover, input/output measurements as a function of electrical Schaffer-collateral stimulation demonstrated that the LAR-RPTP deletion caused no change in AMPAR-mediated synaptic strength or synaptic connectivity (Figure 6C), consistent with the lack of an effect of the LAR-RPTP deletion on AMPARs or synapse numbers observed in cultured neurons. However, the presynaptic deletion of LAR-RPTPs in CA3 neurons led to a significant reduction in the NMDAR/AMPAR ratio in CA1 neurons (Figure 6D), similar to what we observed in hippocampal culture neurons (Figure 4C–D). Furthermore, we detected a modest increase in the coefficient of variation (CV) of NMDAR-EPSCs, but not of AMPAR-EPSCs (Figure 6E). Viewed together, these data indicate that deletion of all LAR-RPTPs in postmitotic neurons in vivo prior to synapse formation did not impede synaptogenesis, but caused a decrease in NMDAR-mediated synaptic responses without affecting AMPAR-mediated synaptic responses.
The relative reduction in the NMDAR/AMPAR ratio in vivo (Figure 6D) was smaller than that observed in cultured neurons (Figure 4C–D). This difference might be due to incomplete targeting of CA3 inputs in vivo, prompting us to employ an optogenetic approach to eliciting synaptic responses. To circumvent the problem of incomplete infection of CA3 region neurons, we bilaterally co-injected newborn LAR-RPTP cKO mice with two AAVs. The first AAV encoded a Cre-dependent channelrhodopsin (ChiEF) (Lin et al., 2009) that was fused to tdTomato for visualization (AAV-DIO-ChiEF-tdTomato), while the second AAV encoded EGFP-fused Cre-recombinase under the control of the synapsin promoter (Figure 7A). As control, we used age and sex-matched BL6 mice, injected with the same set of AAVs. We sacrificed injected mice at P30 and performed whole-cell recordings from CA1 pyramidal neurons in acute hippocampal slices in response to optical stimulation of CA3 region neurons (Figure 7A). The presynaptic deletion of LAR-RPTP caused a large reduction in the NMDAR/AMPAR ratio (Figure 7B), confirming the results obtained with electrical stimulation (Figure 6D).
Synaptic cell-adhesion molecules control synapse formation and synapse specification throughout life, and thereby shape the organization and properties of neural circuits (Südhof, 2018). LAR-RPTPs are abundant presynaptic cell-adhesion molecules that are thought to be major drivers of synapse formation (reviewed in Takahashi and Craig, 2013; Um and Ko, 2013). LAR-RPTPs interact with a large number of key postsynaptic adhesion molecules, and these interactions are thought to mediate the synaptogenic function of LAR-RPTPs (reviewed in Won and Kim, 2018). Moreover, in Drosophila and C. elegans LAR-RPTPs are important regulators of synapse morphology and target specificity, consistent with a function in synapse formation (Ackley et al., 2005; Clandinin et al., 2001; Kaufmann et al., 2002). However, in vertebrates the synaptic functions of LAR-RPTPs are less clear because different approaches have yielded distinct results, and because the synaptic phenotypes of conditional deletions of LAR-RPTPs, arguably the most rigorous approach to examining their functions, have not been explored.
To address this important question, we have now generated single and triple conditional LAR-RPTP KO mice, and studied the role of LAR-RPTPs in synapse formation and synaptic transmission in cultured neurons and in vivo. This approach enabled us to avoid three potential difficulties associated with studies of the synaptic functions of LAR-RPTPs by other approaches. First, by using conditional genetic deletions in neurons after neurogenesis but before synapse formation, we eliminated the effects of LAR-RPTP deletions on earlier developmental stages in which LAR-RPTPs are known to have major roles (Chagnon et al., 2004; Meathrel et al., 2002; Uetani et al., 2006; Wallace et al., 1999). Second, by targeting all LAR-RPTP genes, we ruled out the possibility of overlooking phenotypes that may have been occluded by redundancy among the three LAR-RPTP genes. Third, by studying manipulations both in cultured neurons and in vivo, we avoided potential culture artifacts, but at the same time were able to examine molecular mechanisms more precisely using culture conditions.
Surprisingly, our results demonstrate that LAR-RPTPs do not perform an essential role in synapse formation as such in vertebrate neurons. LAR-RPTPs were not required for establishing or maintaining synaptic connections in cultured neurons (Figures 2 and 3) or in vivo in a well-defined hippocampal circuit (Figures 6 and 7). Specifically, single deletion of individual LAR-RPTPs or global deletion of all LAR-RPTPs did not change the number of excitatory or inhibitory synapses, did not induce alterations in axonal outgrowth or dendritic branching, and did not affect the synaptic connectivity of hippocampal Schaffer collaterals as measured by AMPAR-mediated input/output curves. Thus, similar to neurexins (Südhof, 2017) but different from latrophilins (Sando et al., 2019), LAR-PTPRs are not required for the formation or maintenance of synapses in hippocampal neurons. Naturally these results are not at odds with a role for LAR-RPTPs in axon guidance and other developmental processes, a role that has been well established (Coles et al., 2011; Desai et al., 1997; Garrity et al., 1999; Krueger et al., 1996; Nakamura et al., 2017; Sun et al., 2000; Uetani et al., 2006) and would not have become manifest in our experimental design.
However, our results demonstrate that LAR-RPTPs do perform an important function in shaping synapse properties in mature neurons by controlling postsynaptic NMDAR-mediated responses. This function is consistent with the continued high-level expression of LAR-RPTPs in mature neurons (Figure 6—figure supplement 1A). In cultured neurons, we showed that the LAR-RPTP deletion caused a decrease in NMDAR-EPSCs that was due to a relative loss of NMDARs from postsynaptic sites and not to a decrease in NMDAR proteins levels. We observed a large decrease in synaptic NMDAR-EPSCs evoked by action potentials, but a significant increase in NMDAR-responses elicited by direct NMDA application (Figure 4). The decrease in synaptic NMDAR-EPSCs was likely due to a presynaptic mechanism since the postsynaptic LAR-RPTP deletion had no effect on NMDAR-EPSCs (Figure 4). The NMDAR phenotype was confirmed in vivo, where we demonstrated that the presynaptic LAR-RPTP deletion did not impair postsynaptic AMPAR-mediated synaptic responses, but decreased the ratio of NMDAR- to AMPAR-EPSCs (Figures 6 and 7). The LAR-PTPR function in regulating NMDARs resembles that of neurexin-1, suggesting a possible mechanistic convergence (Dai et al., 2019).
Our findings suggest that at least in hippocampal CA3-CA1 synapses, the current hypotheses about LAR-RPTP functions need to be revised. These results indicate that the well-described interactions of LAR-RPTPs with various postsynaptic adhesion molecules (Choi et al., 2016; Kwon et al., 2010; Li et al., 2015; Lin et al., 2018; Takahashi et al., 2011; Takahashi et al., 2012; Um et al., 2014; Woo et al., 2009; Yoshida et al., 2012; Yoshida et al., 2011) may, at least in part, control the properties of NMDARs. Thus, LAR-RPTPs major function at the synapse appears to be to enable proper specification of synaptic properties, and not to mediate actual establishment of synapses and wiring of circuits. However, we would like to caution that naturally our study is also subject to several limitations. Our analyses were restricted to synaptic connectivity and to AMPAR- and NMDAR-mediated synaptic responses, and we did not examine other synaptic properties such as various forms of plasticity that may or may not be impaired. It is possible that in addition to the robust effect of the LAR-RPTP deletions on NMDAR-EPSCs, the deletions also have an effect, albeit smaller, on release probability as suggested by their modest impact on mEPSC frequency, which would agree well with previous studies (Horn et al., 2012; Uetani et al., 2000). Moreover, we explored only one particular brain region (the hippocampus), and focused on only one particular synapse (Schaffer-collateral synapses). It is plausible that the deletion of LAR-RPTP could have a different phenotype in other brain regions and other synapses. Finally, we did not rule out potential redundancy of LAR-RPTPs with other unrelated cell-adhesion molecules, such as neurexins. Despite these limitations, however, our results indicate that in hippocampal synapses, LAR-RPTPs are important determinants of synapse properties that contribute to regulating NMDAR mediated responses at synapses and thereby shape the properties of neural circuits.
PTPRS cKO mice were purchased from the UC Davis KOMP repository (Ptprs_tm1c_D11, ES cell clone ID: DEPD00535_1_D11, RRID: IMSR_KOMP:CSD76529-1c-Mbp) (Bunin et al., 2015). PTPRD mice with cKO mice potential were obtained from the Welcome Trust Sanger Institute (Ptprdtm2a(KOMP)Wtsi, colony prefix MEXY, ESC clone ID: EPD0581_9_D04, RRID: IMSR_EM:11805) (Farhy-Tselnicker et al., 2017), and crossed to Flp mice to remove the Neo cassette (Jackson Laboratory, JAX:005703, RRID: IMSR_JAX:005703). PTPRF cKO mice were generated as previously described (Sclip et al., 2016), by flanking exon 4 with loxP sites. An HA-tag was introduced in front of the first Ig domain in PTPRF mice to tag the protein (see Figure 1A and Figure 1E for the targeting strategy). PTPRF mice were also crossed to Flp mice to remove the Neo cassette. PTPRS, PTPRF and PTPRD mice were genotyped by PCR using the following standard program: 95°C 2', (94°C 30'', 60°C 30'', 72°C 1' x 35 cycles), 72°C 7'. The following oligonucleotide primers were used: AS15044 TTTCTGGCACTGCAGGGTTTCCCAAG, and AS15045 TCTGAATGGAGCACACCCTTAAGCCC for PTPRS single cKO (190 bp bands present in WT mice, 366 bp band in PTPRS cKO mice), AS15091 GGAGCTTGGAATAACCAGGA, AS15092 TACCATGCTACAGGTAGCAG and AS15093 CGGTAGAATTTCGACGACCT for PTPRF single cKO (297 bp bands present in WT mice, 369 bp band in PTPRF cKO mice), and AS15148 ATGTTTAGCTGGCCCAAATG, and AS15149 CGCTTCCTC GTGCTTTACGGTAT for PTPRD single cKO (379 bp bands present in WT mice, 526 bp band in PTPRD cKO mice). PTPRS, PTPRD and PTPRF single cKO mice were crossed together to homozygosity to obtain LAR-RPTP triple cKO mice. C57BL/6J (Jackson Laboratory, JAX:000664, RRID: IMSR_JAX:000664) mice were purchased from the Jackson laboratory. Mice were group-housed on a 12 hr light-dark cycle with access to food and water ad libitum. Animal experiments were conducted following protocols approved by the Administrative Panel on Laboratory Animal Care at Stanford University (Protocol number APLAC-20787).
The following plasmids were used: lentiviral vectors expressing EGFP tagged Cre recombinase (FUW-NL-EGFP-CRE) or EGFP tagged ΔCre recombinase (FUW-NL-EGFP-ΔCRE) under the Ubiquitin promoter, lentivirus helper plasmids (VSVG expression vector, pRRE and pRSV-REV), lentiviral vectors expressing tdTomato under the synapsin promoter (FSW-tdTomato), pAAV-Syn-EGFP-CRE and pAAV-Syn-EGFP-ΔCRE, AAV-DJ helper plasmids (pHelper and pRC-DJ), pAAV-CAG-DIO-ChiEF-tdTomato.
Lentiviruses expressing EGFP-CRE and EGFP-ΔCRE under the control of the Ubiquitin promoter were produced as previously described (Kaeser et al., 2011). Briefly, FUW-NL-EGFP-CRE or FUW-NL-EGFP-ΔCRE plasmids were co-transfected with helper plasmids (VSVG expression vector, pRRE and pRSV-REV) in HEK293T cells using calcium phosphate. After 48 hr, cell media containing the lentiviruses were collected, snap-frozen in liquid N2, and stored at −80 C.
AAVs (serotype DJ) expressing Synapsin-EGFP-CRE and Synapsin-EGFP-ΔCRE, CAG-DIO-ChiEF-tdTomato were prepared by co-transfecting them into HEK293T cells with pHelper and pRC-DJ plasmids. Transfected cells were collected 72 hr later, lysed, and loaded into a iodixanol gradient. The 40% iodixanol fraction containing the virus was harvested, washed and concentrated with a 100,000 MWCO filter. AAVs were stored at −80 C before use.
Neuronal cultures were prepared from PTPRS, PTPRF, PTPRD single cKO mice or LAR-RPTP triple cKO pups at P0. Both female and male mice were used. Briefly, hippocampi were dissected and digested with papain, plated on Matrigel coated coverslip in 24-well plates. Cells were cultured in Neurobasal media supplemented with B27 supplement, Glutamax and 2 mM AraC for 12–16 days. For neuronal morphology studies (Figure 2I–J), neurons were sparsely transfected at DIV9 with synapsin-tdTomato using a modified calcium phosphate protocol. Briefly, 1 μg of plasmid/well was diluted in 15 μl of water, mixed with 15 μl of 2X HBS (containing 280 mM NaCl, 1.5 mM Na2HPO4, 50 mM HEPES, pH = 7.10) and incubated for 10 min. This solution was added to the neuronal cultures (30 μl/well) and incubated for 30 min. Cells were fixed with 4% PFA at DIV12-14, mounted onto a superfrost slides and imaged with Nikon confocal using a 10x dry objective. The length of dendrites and axons was analysed with Metamorph software. For sparse transfection of Cre or ΔCre recombinase (Figure 4E–F), neurons were transfected with the same protocol at DIV4, using 0.5 μg of AAV-syn-EGFP-CRE or AAV-syn-EGFP-ΔCRE plasmids.
Neurons were lysed directly in sample buffer and used for immunoblotting experiments. Proteins were separated by SDS-PAGE using 4–20% mini protean TGX precast gels (Bio-Rad). Proteins were transferred onto nitrocellulose membranes for 10 min at 2.5 V using the Trans-blot turbo transfer system (Bio-Rad). Membranes were blocked in Tris-buffered saline (5% no-fat milk powder, 0.1% Tween20) for 1 hr at room temperature. Primary antibodies were diluted in the same buffer and incubated overnight at 4°C. The following antibodies were used at 1:1000 dilution: PTPRS (PAC9986, RRID: AB_2802087), HA (901515, Biolegend, RRID: AB_2565334), PAN-RPTP (75–194, Neuromab, RRID: AB_2174700), Nrxns (G394, RRID: AB_2800397), CASK (75–000, Neuromab, RRID: AB_2068730), RBP2 (4193, RRID: AB_2617050), RIM (U1565, RRID: AB_2617054), Liprin (4396, RRID: AB_2617056), Bassoon (141021, Synaptic Systems, RRID: AB_2066979), Velis (U049, RRID: AB_2802084), Mint (P932, RRID: AB_2802085), Synaptobrevin 2 (104211, Synaptic Systems, RRID: AB_887811), Synaptophysin (101011, Synaptic Systems, RRID: AB_887824), Syntaxin 1A (HPC-1, RRID: AB_887843), Synaptotagmin 1 (105011, Synaptic Systems, RRID: AB_887832), Complexin 1–2 (L669, RRID: AB_2802086), GluN1 (114 011, Synaptic systems, RRID: AB_887750), GluN2A (A6473, Invitrogen, RRID: AB_10376044), GluN2B (75–097, Neuromab, RRID: AB_10673405), GluA1 (182003, Synaptic Systems, RRID: AB_2113441), GluA2 (182103, Synaptic Systems, RRID: AB_2113732), PSD-95 (75–028, Neuromab, RRID: AB_2292909), PAN-SHANK (75–089, Neuromab, RRID: AB_10672418), Tubulin (T2200, Sigma, RRID: AB_262133). Combinations of the following IRDye secondary antibodies were used (1:10.000 dilution): IRDye 800CW donkey anti mouse (926–32212, RRID: AB_621847), IRDye 680LT donkey anti mouse (926–68022, RRID: AB_10715072), IRDye 800CW donkey anti rabbit (926–32213, RRID: AB_621848), IRDye 680LT donkey anti rabbit (926–68023, RRID: AB_10706167), from LI-COR. Pseudo colours were then applied to the signals. Detection of the signal was obtained by Odyssey CLx imaging systems (LI-COR). Quantification was performed with Image Studio 5.2 free software.
Total mRNA was extracted from mouse tissues using the RNeasy Plus Mini Kit (Qiagen, Germany) according to manufacturer instructions. PTPRS, PTPRF and PTPRD transcript levels were measured by RT-PCR using the following predesigned FAM-dye coupled detection assays obtained from Integrated DNA Technologies (IDT, Coralville, IO, USA): Mm.PT.58.5137799, Mm.PT.58.45964964, Mm.PT.58.14060589. Mouse GAPDH (4352932E, Applied Biosystems, Warrington, UK) was used as internal control. The qPCR assay was performed using the TaqMan Fast Virus 1-Step Master Mix (Thermo Scientific).
For immunostaining in neuronal cultures, cells were fixed with 4% PFA, washed in PBS, permeabilized with 0.1% TritonX-100 in PBS for 3 min, blocked with 5% NGS in PBS for 1 hr and incubated with primary antibodies overnight at 4°C (anti-vGluT1, AB5905 Millipore, RRID: AB_2301751; VGAT, AB5062P, Millipore, RRID: AB_2301998; MAP2, CPCA-MAP2, Encor Biotechnology, RRID: AB_2138173). Cells were then washed and incubated with secondary antibodies (1:500, Alexa 488, 545, 633, Invitrogen) and mounted with Southern biotech mounting media. Serial confocal z-stack images (1 µm intervals at 2048 × 2048 resolution) were acquired using a Nikon confocal microscope (A1Rsi) with a 60x oil objective (PlanApo, NA1.4). All acquisition parameters were kept constant among different conditions within experiments.
AAV viruses (AAD(DJ) serotype) were produced as previously described and injected in P1 pups using a glass micropipette attached to a 10 μl Hamilton syringe (Model 1801N). To target the dorsal CA3, the following coordinates were used: 0.9 mm anterior from the lambda, 1.3 mm from the midline and 0.9–1.5 mm below the scull. Whole cells voltage clamp recordings in acute hippocampal slices were performed at P30 to P35.
Acute coronal brain slices containing the dorsal hippocampus were prepared from P30-35 LAR-RPTP triple cKO (LAR-RPTP cTKO) or BL6 mice. Isofluorane-anethesized mice were decapitated, their brain removed and trimmed, and placed in an ice-cold oxygenated (95% O2, 5% CO2) cutting solution that contained (in mM): 228 sucrose, 26 NaHCO3, 11 glucose, 2.5 KCl, 1 NaH2PO4, 7 MgCl2, 0.5 CaCl2. 250μm-thick slices were cut with a Leica vibratome (VT1200S) and recovered for 30 min at 32°C in oxygenated ACSF solution containing (in mM): 119 NaCl, 2.5 KCl, 1.3 MgCl2, 2.5 CaCl2, 11 glucose, 1 NaH2PO4, and 26 NaHCO3. Brain slices were then moved to a holding chamber filled with oxygenated ACSF at room temperature for 30 min-1 h.
For recordings from cultured neurons, dissociated hippocampal neurons were cultured on coverslips and placed in the recording chamber between DIV12-16. For recordings from dorsal hippocampal slices, an incision was made between the CA3 and the CA1 region and the slices were moved to the recording chamber mounted onto an Axioskop FS-2 upright microscope (Zeiss). The microscope was equipped with DIC and fluorescence filters, and a LED source connected to the back port of the microscope via an optic fiber. Both cell culture and brain slices were maintained at ~32°C via a dual-T344 temperature controller (Warner Instruments). Brain slices were continuously perfused with normal oxygenated ACSF (at about 1 ml/min perfusion rate). Electrical signals were recorded at 25 kHz with a two channel Axoclamp 700B amplifier (Axon Instruments), digitalized with a Digidata 1440 digitizer (Molecular devices) that was in turn controlled by Clampex 10.7 (Molecular Devices).
Synaptic currents were recorded using a pipette solution that contained (in mM): 135 Cs methanesulfonate, 8 NaCl, 10 HEPES, 2 ATP-Mg and 0.3 GTP-Na, 0.1 spermine, seven phosphocreatine, 0.3 EGTA, and 5 QX314 (300 mOsm l−1, pH 7.3 adjusted with CsOH), and an external solution (standard ACSF) that contained (in mM): 119 NaCl, 2.5 KCl, 1.3 MgCl2, 2.5 CaCl2, 11 glucose, 1 NaH2PO4, and 26 NaHCO3. The following pharmacological agents were used: picrotoxin (100 μM, GABAAR blocker, Tocris Bioscience; used in Figure 3A–C, Figure 4A–F Figure 4I–K, Figure 6B–E, Figure 7A–C, Figure 6—figure supplement 1B–C); CNQX (10 μM, AMPAR blocker, Tocris Bioscience; used in Figure 3D–F, Figure 4C–F, Figure 4I–K), AP5 (50 μM, NMDAR blocker, Tocris Bioscience; used in Figure 3D–F, Figure 3I–K), TTX (1 μM, voltage gated sodium channel blocker, American Radiolabeled chemicals, for Figure 3A–F, Figure 4G–H), Ifenprodil (3 μM, GluN2B blocker, Tocris Bioscience; used in Figure 4I–K).
AMPA-receptor-mediated EPSCs were recorded at holding potentials of −70 mV, whereas NMDA-receptor-mediated EPSCs were recorded at +40 mV and quantified at the peak in recordings from cultured neurons (Figure 4D,F), or at 50 ms after the stimulus artefact in recordings from acute slices (Figures 6D and 7B).
For the experiments in Figure 4G, ACSF containing 1 μM AMPA, 100 μM CTZ (Tocris Bioscience), and 1 μM TTX was perfused into the recording chamber containing ACSF with 1 μM TTX. For the experiments in Figure 4H, ACSF containing 10 μM NMDA, 10 μM glycine, and 1 μM TTX was perfused into the recording chamber containing ACSF with 1 μM TTX. NMDA-receptor-mediated currents were recorded at +40 mV and measured at the peak.
For optogenetic experiments, EPSCs in Figure 7A–C were evoked by 1 ms blue light pulses and recorded in presence of 1 μM TTX and 1 mM 4-AP in the extracellular solution.
Experiments in Figure 6B were performed in ACSF with 0 mM Ca2+ and 3 mM Sr2+ to induce AMPA-receptor-mediated ‘asynchronous’ EPSCs upon stimulation of Schaffer-collateral inputs 100 μM PTX was added to the bath to block GABAA-receptors). The peak amplitudes of unitary EPSCs were measured between 50–500 ms after the stimulus artefact.
For mIPSC recordings in Figure 3D, the following internal solution was used (in mM): 135 CsCl2, 10 HEPES, 1mM EGTA, 4 ATP-Na and 0.4 GTP-Na (300 mOsm l−1, pH 7.3 adjusted with CsOH).
Electrophysiological data were analysed using Clampfit 10.4 (Molecular Devices) or Igor Pro 4.07 (WaveMetrics, Lake Oswego, OR). Statistical analysis was done using the GraphPad Prism software.
Mechanisms of PTPσ-Mediated presynaptic differentiationFrontiers in Synaptic Neuroscience 11:17.https://doi.org/10.3389/fnsyn.2019.00017
Functional significance of the LAR receptor protein tyrosine phosphatase family in development and diseasesBiochemistry and Cell Biology 82:664–675.https://doi.org/10.1139/o04-120
Neuroendocrine dysplasia in mice lacking protein tyrosine phosphatase sigmaNature Genetics 21:330–333.https://doi.org/10.1038/6859
Ptpσ drives excitatory presynaptic assembly via various extracellular and intracellular mechanismsThe Journal of Neuroscience 38:6700–6721.https://doi.org/10.1523/JNEUROSCI.0672-18.2018
Receptor protein tyrosine phosphatase sigma regulates synapse structure, function and plasticityJournal of Neurochemistry 122:147–161.https://doi.org/10.1111/j.1471-4159.2012.07762.x
The structure of SALM5 suggests a dimeric assembly for the presynaptic RPTP ligand recognitionProtein Engineering, Design and Selection 31:147–157.https://doi.org/10.1093/protein/gzy012
Mice lacking leukocyte common antigen-related (LAR) protein tyrosine phosphatase domains demonstrate spatial learning impairment in the two-trial water maze and hyperactivity in multiple behavioural testsBehavioural Brain Research 154:171–182.https://doi.org/10.1016/j.bbr.2004.02.006
Trans-synaptic adhesions between netrin-G ligand-3 (NGL-3) and receptor tyrosine phosphatases LAR, protein-tyrosine phosphatase Delta (PTPdelta), and PTPsigma via specific domains regulate excitatory synapse formationJournal of Biological Chemistry 285:13966–13978.https://doi.org/10.1074/jbc.M109.061127
The LAR/PTP Delta/PTP sigma subfamily of transmembrane protein-tyrosine-phosphatases: multiple human LAR, PTP Delta, and PTP sigma isoforms are expressed in a tissue-specific manner and associate with the LAR-interacting protein LIP.1PNAS 92:11686–11690.https://doi.org/10.1073/pnas.92.25.11686
Protein tyrosine phosphatases PTPδ, PTPσ, and LAR: presynaptic hubs for synapse organizationTrends in Neurosciences 36:522–534.https://doi.org/10.1016/j.tins.2013.06.002
Structural basis for LAR-RPTP/Slitrk complex-mediated synaptic adhesionNature Communications 5:5423.https://doi.org/10.1038/ncomms6423
LAR-RPTPs: synaptic adhesion molecules that shape synapse developmentTrends in Cell Biology 23:465–475.https://doi.org/10.1016/j.tcb.2013.07.004
Structural basis for LAR-RPTP-Mediated synaptogenesisMolecules and Cells 41:622–630.https://doi.org/10.14348/molcells.2018.0202
Cellular and molecular mechanisms of synaptic specificityAnnual Review of Cell and Developmental Biology 30:417–437.https://doi.org/10.1146/annurev-cellbio-100913-012953
Graeme W DavisReviewing Editor; University of California, San Francisco, United States
Gary L WestbrookSenior Editor; Oregon Health and Science University, United States
Graeme W DavisReviewer; University of California, San Francisco, United States
In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.
The authors test the function of LAR-RPTPs by conditional deletion of all RPTP isoforms, first in neuronal cell culture and then in vivo in the hippocampal network where these isoforms are known to be expressed. Despite a large developmental literature on the function of these intriguing molecules, the authors discover no major anatomical deficits when all isoforms are removed. Rather, both in vitro and in vivo, the authors describe diminished NMDA receptor abundance, assessed primarily through electrophysiological synaptic recordings. This finding is important and of broad relevance to the field of developmental neuroscience.
Decision letter after peer review:
Thank you for submitting your article "LAR receptor phospho-tyrosine phosphatases regulate NMDA-receptor responses" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Graeme W Davis as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Gary Westbrook as the Senior Editor. The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.
This is a straightforward and definitive study from Sclip and Sudhof. The findings are important and of broad relevance to the field of developmental neuroscience, and may well lead to interesting new experiments in the realm of synaptic plasticity, learning and behavior in the future. I advise against requiring such experiments in the current manuscript, which already presents a thorough characterization and primary observation that can be built upon in the future.
The only major comment concerns suggested text revisions.
Although the data establish that synaptic NMDAR responses are decreased, it remains uncertain that this effect is mediated by re-localization of synaptic NMDARs to extrasynaptic sites. One alternative explanation is that RPTPs trans-synaptically modulate NMDAR properties, rather than their localization. The best solution to solve this point would be to remove the conclusion from the impact statement and Abstract, and to provide instead a balanced presentation of how NMDAR responses may be modulated by RPTPs in the Discussion section. In my view, this would not lower the overall impact of the study because the main conclusion is that IIa RPTPs on their own do not control synaptogenesis.https://doi.org/10.7554/eLife.53406.sa1
The only major comment concerns suggested text revisions.
Although the data establish that synaptic NMDAR responses are decreased, it remains uncertain that this effect is mediated by re-localization of synaptic NMDARs to extrasynaptic sites. One alternative explanation is that RPTPs trans-synaptically modulate NMDAR properties, rather than their localization. The best solution to solve this point would be to remove the conclusion from the impact statement and Abstract, and to provide instead a balanced presentation of how NMDAR responses may be modulated by RPTPs in the Discussion section. In my view, this would not lower the overall impact of the study because the main conclusion is that IIa RPTPs on their own do not control synaptogenesis.
We changed the Abstract and the impact statement according to the suggestion of the reviewers.
“LAR-type receptor phosphotyrosine-phosphatases (LAR-RPTPs) are presynaptic adhesion molecules that interact trans-synaptically with multitudinous postsynaptic adhesion molecules, including SliTrks, SALMs, and TrkC. […] Thus, LAR-RPTPs are not essential for synapse formation, but control synapse properties by regulating postsynaptic NMDA-receptors via a trans-synaptic mechanism that likely involves binding to one or multiple postsynaptic ligands.”
“LAR-RPTPs are not essential for synapse formation, but they are important determinants of synapse properties as they contribute to regulating postsynaptic NMDA receptor function.”https://doi.org/10.7554/eLife.53406.sa2
