Mutations associated with human neural tube defects display disrupted planar cell polarity in Drosophila

  1. Ashley C Humphries
  2. Sonali Narang
  3. Marek Mlodzik  Is a corresponding author
  1. Department of Cell, Developmental and Regenerative Biology, United States
  2. Icahn School of Medicine at Mount Sinai, United States
  3. Graduate School of Biomedical Sciences, United States


Planar cell polarity (PCP) and neural tube defects (NTDs) are linked, with a subset of NTD patients found to harbor mutations in PCP genes, but there is limited data on whether these mutations disrupt PCP signaling in vivo. The core PCP gene Van Gogh (Vang), Vangl1/2 in mammals, is the most specific for PCP. We thus addressed potential causality of NTD-associated Vangl1/2 mutations, from either mouse or human patients, in Drosophila allowing intricate analysis of the PCP pathway. Introducing the respective mammalian mutations into Drosophila Vang revealed defective phenotypic and functional behaviors, with changes to Vang localization, post-translational modification, and mechanistic function, such as its ability to interact with PCP effectors. Our findings provide mechanistic insight into how different mammalian mutations contribute to developmental disorders and strengthen the link between PCP and NTD. Importantly, analyses of the human mutations revealed that each is a causative factor for the associated NTD.

eLife digest

As an embryo develops, its cells must work together to build mature tissues and organs. During the formation of the nervous system, for example, a sheet of cells destined to become the brain and spinal cord folds up into a tube spanning the length of the embryo. Normally, this tube – known as the ‘neural tube’ – zips up, and the cells that will eventually become skin and other surrounding tissues close in over it.

If the neural tube does not close completely, different parts of the spinal cord or brain can remain unprotected. This can cause diseases called neural tube defects, such as spina bifida, which is characterized by holes in the backbone exposing the spinal cord and surrounding membranes. Patients with neural tube defects can have similar genetic mutations, for example, in the genes controlling a process called “planar cell polarity”, or PCP for short.

Cells arranged in flat sheets use the PCP process to sense direction, and it is this process that allows structures, such as the scales on a fish or the hairs on a mouse, to all point in the same direction. PCP is also important in embryonic development: sheets of cells that can sense direction correctly can therefore move collectively to complete complex tasks (such as closing the neural tube). However, no-one knew whether the specific PCP gene mutations implicated in neural tube defects in humans actually affected the cells’ ability to sense direction, or indeed whether they were even involved in causing the diseases.

Humphries et al. set out to find out more about these mutations using fruit flies as a model system. The fruit fly is widely used to study the genes and signals involved in direction sensing, especially PCP. Problems with PCP produce easily measurable changes in the wing and eye, showing what went wrong and how badly.

Humphries et al. genetically engineered fruit flies to have the same mutations as human patients and revealed that these mutations did indeed alter cells’ ability to sense direction. These experiments also showed that each mutation did so in a different way, and with varying severity. This explained why the same mutations caused different levels of neural defects in mice (which are commonly used to study human diseases) and suggests that they might contribute to neural tube disorders in humans.

These results show potential connections between neural tube defects and direction sensing in cells. In the future, this study and follow-up work could help researchers to understand what types of mutation have the most impact, which may eventually allow doctors to better predict who is most at risk of being affected by these conditions.


Neural tube closure defects (NTDs) are common congenital malformations in humans, affecting approximately 1 in 1000 births. During embryogenesis, the neural plate undergoes shaping, before neural folds develop and elevate, contact, and then fuse at the midline to create the closed tube structure that will form the spinal cord and brain (Copp et al., 2003). Studies in Xenopus, zebrafish, and subsequently mouse, revealed a role for planar cell polarity (PCP) signaling in this process. Further, it was demonstrated that Looptail (Lp) mice, with mutations in the mVangl2 locus (see below), fail to establish a neural plate width that will allow for bending and closure (Etheridge et al., 2008; Wallingford and Harland, 2002; Wang et al., 2006a; Ybot-Gonzalez et al., 2007). Consistent with a role in neurulation, Vangl2 (an orthologue of the Drosophila PCP core gene Van Gogh/Vang) is expressed broadly in the neural plate prior to, during, and after closure (Kibar et al., 2001). Interestingly, the second orthologous mouse gene, Vangl1, is also expressed in this tissue; however, its expression is more restricted, showing a complementary pattern with Vangl2 (Doudney et al., 2005; Torban et al., 2008; Torban et al., 2007).

Lp was originally defined by two independent mutations (D255E and S464N) in mVangl2 that map to the C-terminal tail. Both display an identical phenotype, with homozygous mice developing craniorachischisis, a completely open neural tube (Kibar et al., 2001; Murdoch et al., 2001). At the molecular level, the mutations were found to disrupt binding between Vangl2 and effectors and also showed reduced membrane localization, decreased protein levels, and defective phosphorylation of Vangl2 (Devenport and Fuchs, 2008; Gao et al., 2011; Guyot et al., 2011; Murdoch et al., 2014; Song et al., 2010; Torban et al., 2004; Torban et al., 2007). Overall, this led to suggestions that the mutants are loss-of-function (LOF), and that Vangl2 is a rate-limiting component in a dosage-sensitive pathway. However, this is in contrast to the earliest genetic studies, which suggested a semi-dominant mutation with incomplete penetrance. This was due to the presence of a looped tail phenotype in the majority of, but not all heterozygotes, caused by delay of posterior neuropore closure (Copp et al., 1994; Strong and Hollander, 1949). Since the original identification of the Vangl2Lp alleles, other PCP mutant mice were found to develop NTDs, implicating the pathway defects as a disease risk factor (Andre et al., 2012; Curtin et al., 2003; Etheridge et al., 2008; Hamblet et al., 2002; Merte et al., 2010; Murdoch et al., 2003; Wang et al., 2006a; Wang et al., 2006b). Due to this strong correlation, efforts began to investigate whether human NTD patients might also exhibit mutations in PCP components.

A number of mutations were identified in patient populations in VANGL1 and VANGL2, as well as additional core PCP and associated proteins (reviewed in Juriloff and Harris, 2012). In each case, the mutation was heterozygous and, interestingly, familial mutations could be found to result in different disease severity among family members. However, this is perhaps not surprising given the complex etiology of NTDs, which are thought to result from a mixture of genetic and environmental factors. Furthermore, digenic mutations were also discovered among PCP genes, consistent with a multifactorial hypothesis, whereby additional factors would be required to achieve a threshold for disease progression (Allache et al., 2012; Beaumont et al., 2019; Chen et al., 2018b; De Marco et al., 2012; Merello et al., 2015; Wang et al., 2018). This is additionally supported by chimeric mouse studies using the Lp allele that showed an all-or-nothing effect in developing craniorachischisis (Musci and Mullen, 1990).

Despite the progress in identifying mutations within PCP components, data is lacking as to whether these mutations are in fact pathological, with only a few studies addressing this question to date (Iliescu et al., 2014; Kibar et al., 2007; Lei et al., 2010; Reynolds et al., 2010). Furthermore, evidence has emerged that the mVangl2Lp allele may in fact be a dominant negative mutation (Song et al., 2010; Yin et al., 2012), indicating there is more to investigate surrounding its molecular behavior. In addition, a recessive mVangl2Lp mutation was discovered (with substitution R259L) that gave an apparently normal phenotype in heterozygotes. In this case, only 47% of homozygote animals displayed a looped tail and 12% developed spina bifida, a milder NTD as compared to craniorachischisis, leading to the suggestion that this Lp mutation is a hypomorphic Vangl2 LOF allele (Guyot et al., 2011; Wang et al., 2006b; Yin et al., 2012).

Polarization of epithelial cells, and cells in general, is critical for the morphogenesis and function of mature tissues, with perturbation of cellular polarity and tissue organization implicated in numerous diseases. Epithelial cell polarity can be derived in two axes, apical-basal and orthogonal to the plane of the epithelium, which is referred to as planar cell polarity (PCP). PCP establishment is governed by members of the conserved non-canonical Wnt/Frizzled-PCP pathway. Besides the four-pass trans-membrane protein Vang (Vangl1 and Vangl2 in mammals, see above), which was - like all other core PCP factors - originally discovered in Drosophila (Taylor et al., 1998), a.k.a. strabismus/stbm (Wolff and Rubin, 1998), they include the atypical cadherin Flamingo (Fmi; Celsr in mammals), the seven-pass transmembrane protein Frizzled (Fz; Fzd in vertebrates with several family members), and the cytoplasmic proteins Dishevelled (Dsh; Dvl in mammals), Diego (Dgo; Inversin/Diversin in vertebrates), and Prickle (Pk). The pathway is synonymous with the asymmetric localization of these core members, which form into two sub-complexes on opposite sides of a given cell, creating an intracellular bridge to convey polarity across the tissue. The complexes also direct spatially restricted downstream signaling through tissue-specific effectors, leading to cytoskeletal rearrangement in the majority of cases (Adler, 2012; Goodrich and Strutt, 2011; Humphries and Mlodzik, 2018; Singh and Mlodzik, 2012; Vladar et al., 2009; Yang and Mlodzik, 2015).

Asymmetric localization of PCP complexes is directly observable in cells of the Drosophila wing where they align to the proximal-distal axis. Molecular interactions promote the formation of stable complexes at proximal (Fmi-Vang-Pk) and distal (Fmi-Fz-Dsh-Dgo) cell membranes, with Fmi forming a homotypic interaction across cells. In the wing, signaling leads to the formation of a single-actin rich hair at the distal vertex of each cell. While in other tissues displaying visible PCP features, phenotypes can include fate specification or coordinated cell movement (Adler, 2012; Goodrich and Strutt, 2011; Humphries and Mlodzik, 2018; Singh and Mlodzik, 2012). For example, in the Drosophila eye, PCP signaling is responsible for determining the differential fate specification of photoreceptors R3 and R4, which also directs rotation and subsequent orientation of the photoreceptor clusters, referred to as ommatidia. These signaling events in turn lead to a mirror-image arrangement of ommatidia across the dorso-ventral midline, or equator. Disruption of PCP in the wing leads to misorientation of cellular hairs or multiple wing hairs (Adler, 2012; Goodrich and Strutt, 2011; Humphries and Mlodzik, 2018; Singh and Mlodzik, 2012), while in the eye chirality or rotation defects of the ommatidia are observed (Mlodzik, 1999; Strutt and Strutt, 1999).

The importance of PCP during vertebrate development and disease has also become widely recognized (Goodrich and Strutt, 2011; Humphries and Mlodzik, 2018; Simons and Mlodzik, 2008; Wang and Nathans, 2007). The PCP pathway is highly conserved in vertebrates, with different tissues displaying PCP readouts or defects upon misregulation (Goodrich and Strutt, 2011; Wang and Nathans, 2007; Yang and Mlodzik, 2015). One example of this is the above mentioned mVangl2Lp, and the first example of a link between PCP signaling and NTDs (Kibar et al., 2001; Murdoch et al., 2001). Based on the fact that several human patient-derived VANGL1/2 mutations exist, and the availability of comparable mouse alleles, we set out to investigate how these alleles impact PCP signaling functionally in a uniform defined genetic background. For this we utilized Drosophila. Overall, we focused on six mutations located in the C-terminal tail of Vang, where all molecular interactions have been thus far mapped. We observed that all resulted in aberrant PCP signaling and phenotypes, however, to varying degrees. In the majority of cases, the mutation was dominant, either hypermorphic gain-of-function or dominant negative, leading to altered protein localization of both alleles in vivo. We were also able to show that one mutation was indeed hypomorphic in its behavior. Taken together, our analyses demonstrate in molecular detail the nature of the different VANGL1/2 alleles. These alleles display defective PCP signaling in vivo, indicating their causative association with the NTD phenotypes of the human patient mutations.


Mutations associated with mammalian NTD can be found throughout the C-terminal tail of Vangl genes

The mammalian core PCP genes Vangl1/2, and Vang in Drosophila, play essential roles in planar polarity signaling. Vang interacts genetically with each PCP core gene. It has further been demonstrated that it also can physically interact with all other members of the PCP complex, and the interaction sites with the cytoplasmic PCP core factors have been mapped to its C-terminal domain (Bastock et al., 2003; Darken et al., 2002; Das et al., 2004; Humphries and Mlodzik, 2018; Jenny et al., 2005).

While mutations have been observed along the entire span of the VANGL1/2 genes in human NTD patients, mutations known to be causative for NTD in the mouse all map to the C-terminal tail (Chen et al., 2013; El-Hassan et al., 2018; Guyot et al., 2011; Kibar et al., 2001; Murdoch et al., 2001). We were interested to explore whether the different mutations observed in human patients could impact PCP phenotypically. Furthermore, we set out to investigate how mutations found in both the mouse and human patients affected signaling at a molecular and functional level. For this, we turned to Drosophila as it allows for intricate and quantitative analyses, and is a genetically simpler system with less redundancy - there is only one Vang gene in flies - that, importantly, shows functional and mechanistic conservation (Adler, 2002; Adler, 2012; Goodrich and Strutt, 2011; Singh and Mlodzik, 2012). We chose to focus our attention on mutations within the C-terminal tail due to the functional importance of this region.

A number of C-terminal mutations have been discovered to date in both mice and humans and are detailed in Figure 1—source data 1. For our study, we selected two mutations from the mouse and four mutations from human patients for further analysis, these include D255E and R259L identified in mouse Vangl2 (Guyot et al., 2011; Kibar et al., 2001), M328T and R517H found in human VANGL1 (Kibar et al., 2007; Merello et al., 2015), and R270H and R353C from human VANGL2 (Kibar et al., 2011; Lei et al., 2010; Figure 1). These mutations were selected for varying reasons. Firstly, we were interested to compare mouse D255E and R259L in a genetically uniform background, as the mutations are only a few residues apart, and strikingly the more conservative mutation (D255E) displays a more severe phenotype as compared to R259L in mouse models (Guyot et al., 2011; Kibar et al., 2001). Secondly, R270H was selected, as the residue is absolutely conserved across all species, and it covers two independent mutational events, as a mutation in VANGL1 was also observed at the equivalent residue (see Figure 1B) in a digenic combination along with a CELSR1 mutation (Chen et al., 2018a; Kibar et al., 2007). Thirdly, M328T was chosen because information to date suggests this mutation may be a LOF allele (Reynolds et al., 2010), and R353C as it was suggested that effector binding may be reduced (Lei et al., 2010; Figure 1B). Finally, we selected R517H, a highly conserved residue with a conservative mutation where the bioinformatic prediction of its tolerance was unclear (Figure 1—source data 1). Overall, we analyzed mutations from both VANGL1 and −2, investigated mutations spread along the length of the C-terminal tail (Figure 1A), compared conservative as well as drastic substitutions, and focused on well conserved sites across species.

Description of Vang mutations.

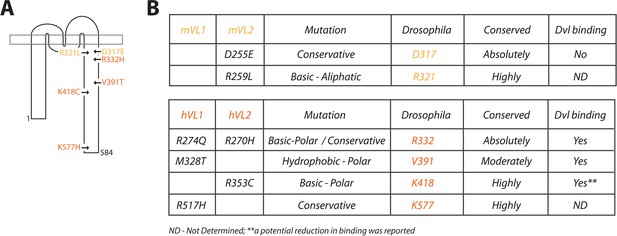

(A) Schematic showing the location of investigated mutations along the C-terminal tail of Vang. Mutations highlighted in yellow were originally identified in the mouse, mutations highlighted in orange were found in human NTD patients (see supplement for references). (B) Table displaying information concerning the selected mutations from mouse (top) and human patients (below). Details include: original mammalian mutation, nature of the mutational change (e.g. D to E is listed as conservative as both are acidic residues), equivalent residue in Drosophila Vang, whether the mutated residue is conserved among species, and whether the respective mutated Vangl protein was able to retain binding to the effector protein Dishevelled (Dvl).

Figure 1—source data 1

Summary of NTD-associated mammalian mutations found to date within the C-terminal tail of Vangl/VANGL genes.

Drosophila provides a sensitive system for investigating the effect of mutations on PCP

To compare mutations in vivo in Drosophila, we took advantage of the Gal4/UAS system to allow for regulated expression of our transgenes (Brand and Perrimon, 1993). We also included a Flagx3-tag and an attB (bacterial attachment) site. To enable site-specific recombination, constructs were then introduced into a fly strain containing an attP (phage attachment) docking site, along with PhiC31 integrase activity to mediate integration between the attB and P sites (Bischof et al., 2013; Bischof et al., 2007). Thus, by using the same attP docking site, we ensured insertion of the transgenes at a constant genetic locus and thus equivalent expression for accurate comparison. We chose to introduce mutations into the Drosophila Vang gene, rather than use mouse Vangl2 or human VANGL1/2, to preserve native signaling and to reduce genetic complexity. As the equivalent residues have different numbers in Vang, as compared to the mouse or human orthologues, the mutations we investigated are referred by their numbers in Drosophila, here and throughout the paper, and are as follows: D317E, R321L, R332H, V391T, K418C and K577H (see Figure 1B for comparison to mammalian residue numbers).

In order to first test the contribution of individual mutations, we performed an overexpression experiment. Driving expression of wild-type (wt-)Vang with actin-Gal4 (ac >WT) led to a moderate hair reorientation phenotype (Figure 2C and D). This allowed us to compare whether mutations showed a gain- or loss-of-function phenotype with respect to the positive (wt-Vang) and negative (Vang-/-) control. A change or an increase in phenotype quality or strength as compared to wt-Vang overexpression could suggest a dominant negative effect or a gain-of-function in activity, while a decrease in strength would suggest a reduction in protein function or stability.

Figure 2 with 1 supplement see all

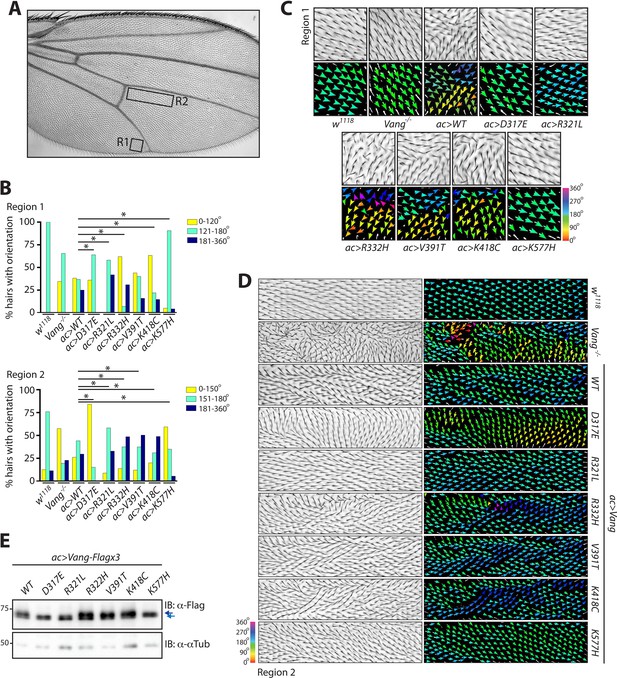

Behavior of over-expressed Drosophila Vang carrying C-terminal mutations.

(A) Overview of an adult wing highlighting the analyzed regions of hair reorientation. (B) Quantification of the percentage of actin hairs oriented within a specific angle range upon actin-Gal4 driven overexpression (ac>) of the different Vang mutant proteins and wild-type Vang. Also included for comparison is Vang-/- and w1118 (a genetically wild-type wing that displays no phenotype). Graph is shown for region 1 (upper) and region 2 (lower). Angles from three independent wings were combined, and data binned to allow analysis using a Chi-squared test. * indicates p<0.001 (C) Example images of hair reorientation in region 1 in the indicated genotypes. Top panel shows adult wing, bottom panel shows the corresponding angles of hair orientation visualized through color (see 360 degree color scale, bottom right). Angles were determined using the Fuji plugin FijiWingsPolarity (Dobens et al., 2018). (D) Example images of hair reorientation in region 2. Left panel shows adult wing, and right panel the corresponding angles of hair orientation. (E) Western blot of wing disc lysates from the indicated genotypes. While similar levels of expression are observed, a difference in Vang mobility is notable for D317E, R321L and K577H, as indicated by blue arrows.

Figure 2—source data 1

Raw data from the quantification of hair reorientation summarized in Figure 2.

Upon overexpression of wt-Vang, we observed consistent hair reorientation in specific regions of the wing. We therefore chose two regions that would be suitable for qualitative and quantitative analyses of the different mutants, with region 1 showing a more severe PCP phenotype as compared to region 2 (Figure 2A). Different mutations displayed different patterns of hair reorientation within these regions, confirming the system had an appropriate degree of sensitivity for this type of analysis. In region 1, D317E, R321L and K577H showed a distinct phenotype as compared to wt-Vang (over)expression. In fact, their hair pattern was more similar to that of Vang-/- wings or a genetically wild-type wing (w1118), included as a reference control that has no phenotype. In contrast, R332H, V391T and K418C all showed hair reorientation patterns similar to the gain-of-function (GOF) effect of wt-Vang overexpression (Figure 2C and Figure 2—figure supplement 1B). We also observed comparable changes in hair reorientation within region 2. In this case, D317E and K577H mirrored the phenotype of Vang-/-, while R321L showed similarity to the reference control (w1118). R332H, V391T and K418C again showed similar patterns to the GOF overexpression of wt-Vang (Figure 2D and Figure 2—figure supplement 1B).

To quantify hair patterns, we utilized FijiWingsPolarity (Dobens et al., 2018), which determines the orientation of each hair within a given region, relative to the proximal-distal (P-D) axis. For visualization purposes, hair orientation angles are represented through arrows and a color gradient (Figure 2C and D). Through quantification of hair orientation angles, we were able to show that in region 1 all mutations with the exception of V391T had a significant alteration in hair reorientation as compared to wt-Vang overexpression, while in region 2 all mutations showed significant divergence from the wt-Vang (Figure 2B). To allow for statistical analysis, the data were pooled into three bins of angle orientation; normal orientation as determined by the reference control w1118 (green), as well as a more anterior reorientation (yellow) or posterior reorientation (blue). The full spectrum of angles in 30° segments also reflected the changes in pattern (Figure 2—figure supplement 1A).

We confirmed that similar levels of protein expression were observed for each transgene (due to our experimental design). However, interestingly, D317E, R321L and K577H all showed a notable change in protein mobility (Figure 2E). This mobility shift was also observable in samples from Vang-/- tissue and in transfection experiments in S2 cells (Figure 2—figure supplement 1C and Figure 4C). It has previously been demonstrated that Vang is phosphorylated leading to a mobility change and associated band shift on gels (Kelly et al., 2016; Strutt et al., 2019). Accordingly, phosphatase treatment altered wt-Vang mobility, but it did not impact any of the mutants suggesting that their phosphorylation is reduced or lost (Figure 2—figure supplement 1C). As Vang phosphorylation is associated with membrane localization and function, this suggests that the D317E, R321L and K577H mutants are defective in one or both of these regards (Kelly et al., 2016; Strutt et al., 2019).

Dominant behavior and protein localization defects in the majority of mutations

To further investigate the effect of the respective mutation in the overexpression system, we analyzed protein localization in the pupal wing at ~25 hr APF, by which time wt-Vang is predominantly localized to the plasma membrane (Figure 3B). Besides comparing the localization of the mutants themselves, we also assessed any dominant effects by examining their effect on the localization of co-expressed wt-Vang. We expressed wt-Vang directly via the actin promoter (ac-Vang-GFP) within physiological levels throughout the whole wing blade/animal and simultaneously used engrailed(en)-Gal4 to overexpress the transgenes in the posterior compartment of the wing (Figure 3A and Figure 3—figure supplement 1A). This allowed for comparison of the localization of wt-Vang-GFP in the anterior (control) vs. posterior (transgene expression) compartments.

Figure 3 with 1 supplement see all

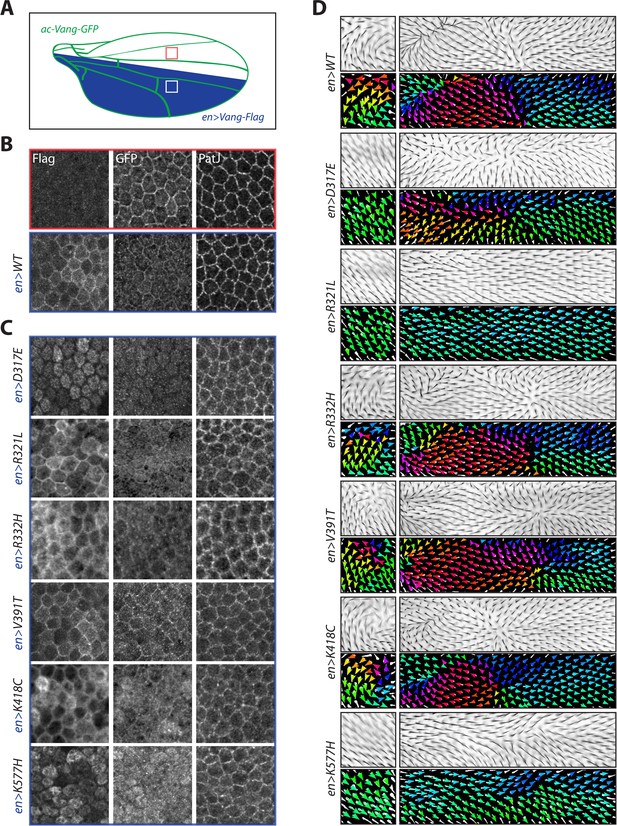

Overexpression of Vang transgenes affects localization of wild-type Vang.

(A) Schematic showing regions of expression of different transgenes along the Drosophila wing blade. A direct actin-promoter driven (ac-Vang-GFP) construct is expressed at homeostatic levels throughout the wing blade, engrailed-Gal4 drives expression of wild-type Vang-Flag or each of the associated mutant proteins in the posterior compartment of the wing. (B) Representative immunofluorescence images of regions from the anterior and posterior regions of a pupal wing overexpressing wild-type Vang-Flag in the posterior region. Note recruitment of Vang-Flag to the membrane in the posterior region (blue), and concomitant reduction in membrane localization of Vang-GFP in the posterior (blue) vs. anterior (red) compartment. The junctional marker PatJ shows consistent membrane labeling in both regions. (C) Representative immunofluorescence images of regions from the posterior compartment of pupal wings overexpressing the indicated Vang-Flag constructs. Note differences in localization of Vang-Flag mutants as compared to wild-type Vang (B), as well as altered wt-Vang-GFP localization. The junctional marker PatJ was unaffected in each case. (D) Regions of adult wing showing hair reorientation phenotypes in the indicated genotypes. Note the similarity in pattern between overexpression of WT, R332H, V391T and K418C mutants (swirls, cf. GOF in Figure 2—figure supplement 1), as compared to R321L (wild-type orientation), and D317E and K577H (downwards reorientation, cf. LOF in Figure 2—figure supplement 1) in posterior region of the wing. Color range is same as in Figure 2.

Overexpression of wt-Vang in the posterior compartment showed distinct membrane localization (as expected), visualized through Flag staining, while no signal was observed in the anterior compartment (Figure 3B). Vang-GFP (expressed from ac-Vang-GFP) also showed distinct membrane staining with levels reduced in the posterior compartment as compared to the anterior, suggestive of competition from the overexpressed Vang-Flag for membrane recruitment (Figure 3B). The junctional marker PatJ was unaffected by Vang expression (Figure 3B).

Consistent with their overexpression phenotypes, a number of changes to localization were observed for the different mutants. D317E and K577H were largely localized to the cytoplasm, and strikingly also altered the localization of wt-Vang-GFP in the posterior compartment (Figure 3C). In contrast, R321L behaved similarly to wt-Vang in both its localization and effect on Vang-GFP. R332H and K418C displayed a less distinct membrane localization that was echoed by diffuse Vang-GFP localization in the posterior compartment (Figure 3C). V391T showed distinct membrane localization with slightly increased membrane levels of Vang-GFP, as compared to controls (Figure 3B and C). In all cases, Vang-GFP and PatJ staining were unaffected in the anterior compartment (Figure 3—figure supplement 1B).

Overall, the localization data is consistent with our observed hair reorientation phenotypes, as well as protein mobility data (Figure 2). D317E and K577H behave like dominant negative, antimorph alleles. They cause hair reorientation patterns similar to Vang-/- (Figure 3D and Figure 3—figure supplement 1B). The similarity in pattern to Vang-/- can be explained, as in these like in Vang-/- the protein is lacking from the membrane (Figure 3C). However, these mutants do not represent ‘simple’ LOF alleles, as they are dominantly affecting the localization of wt-Vang. R321L also displayed changes to protein mobility but did not lead to significant hair reorientation when overexpressed; its largely normal membrane localization and lack of effect on wt-Vang-GFP suggest it is a hypomorphic allele with reduced protein function (Figures 2 and 3C). R332H and K418C also appear to act in a dominant fashion, but in this case the protein is recruited to the membrane, where it could have a dominant effect on signaling (Figure 3C). In contrast, the staining of V391T and slight increase in accompanying Vang-GFP membrane localization suggest it may act as a mild GOF to enhance Vang signaling (Figure 3C).

Mutants show altered membrane localization in rescue conditions

To confirm that the localization of the mutant proteins was not due to interference from endogenous Vang, we next assayed its localization in a Vang-/- background. Here, we used actin-Gal4 driven expression with which, due to the higher than endogenous expression levels of the transgenes (via the Gal4 amplification), we observed a gain-of-function phenotype with wt-Vang (Figure 4A). Despite this effect, we observed hair reorientation patterns in the absence of endogenous Vang that were consistent with the experiments described above. D317E and K577H displayed hair reorientation patterns similar to Vang-/-, while R332H, V391T and K418C showed a similar phenotype of hair orientation swirls as compared to overexpressed wt-Vang. Furthermore, R321L showed a more ‘complete rescue’, supporting its behavior as a hypomorph in protein function and thus a ‘weaker GOF’ phenotype, which resembles a better rescue of the Vang-/- background (Figure 4A and Figure 4—figure supplement 1B).

Figure 4 with 1 supplement see all

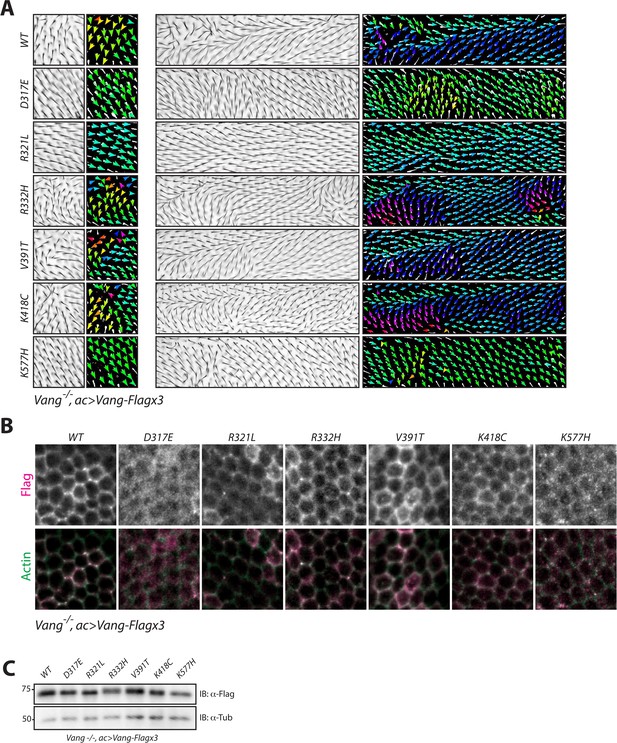

NTD mutations affect membrane localization of Vang.

(A) Regions 1 and 2 of the adult wing (see Figure 2A) showing hair reorientation phenotypes in the indicated genotype. Note similarity in pattern between WT, R332H, V391T and K418C mutants (swirls, cf. GOF in Figure 2—figure supplement 1), as compared to R321L (wild-type orientation), and D317E and K577H (downwards reorientation, cf. LOF in Figure 2—figure supplement 1). Color range is same as in Figure 2. (B) Representative immunofluorescence images of pupal wings upon expression of Vang-Flag or indicated mutant Vang proteins using actin-Gal4 driver. Note changes to Vang localization as shown through Flag staining (red), and the degree of overlap with actin (stained with Phalloidin, green) which marks the membrane (C) Western blot of wing discs from the indicated genotypes. Note that all transgenes were expressed at similar levels. Differences in mobility are also observed as in Figure 2 and Figure 2—figure supplement 1.

Analysis of Flag staining for the transgenes revealed similar localization patterns as compared to the overexpression experiment in a wt control background (Figure 3). Wt-Vang localized distinctly at the membrane, indicated by an overlap with cortical actin stain (Figure 4B), while R321L and V391T showed slightly reduced and enhanced membrane localization, respectively. Furthermore, R332H and K418C displayed a diffuse membrane localization, and D317E and K577H failed to localize to the membrane (Figure 4B). We again confirmed that expression levels of each transgene were equivalent, and expected changes in protein mobility were detectable (Figure 4C).

Taken together, our data are consistent with the conclusions that D317E and K577H act as dominant-negative mutations with reduced membrane localization, while R332H and K418C act as dominant mutations that exert their effect at the membrane. R321L behaves like a hypomorph with reduced protein function, and V391T is a mild GOF enhancing protein function.

Rescue experiments in the eye confirm loss-of-function and gain-of-function behavior

To confirm and further refine the suggested mechanistic effects of mutations in altering Vang function, we analyzed their phenotype in the absence of endogenous Vang in an additional tissue. For this, we used the Drosophila eye, which shows generally weaker GOF effects with high expression levels of Vang as compared to the wing.

For consistency, we used actin-Gal4 (ac >Vang) to express the transgenes, and we also performed experiments with sep-Gal4, an eye specific driver related to and based on the sevenless/sev enhancer and promoter, that gives lower levels and spatially restricted expression (Fanto et al., 2000). PCP phenotypes in the eye are characterized by changes in ommatidial chirality as well as orientation (Figure 5A). Introduction of ac >Vang Flag in the Vang-/- background resulted in a near perfect rescue with very minor chirality and orientation defects. As this phenotype was trending toward an overexpression phenotype of Vang, this suggested that the levels were just marginally too high for a complete rescue (Figure 5B). In contrast, due to its weaker expression sep >Vang Flag showed only a partial rescue (Figure 5B). By comparing phenotypes with both Gal4 drivers, we were thus able to better ascertain how the mutants affected Vang function.

Figure 5 with 1 supplement see all

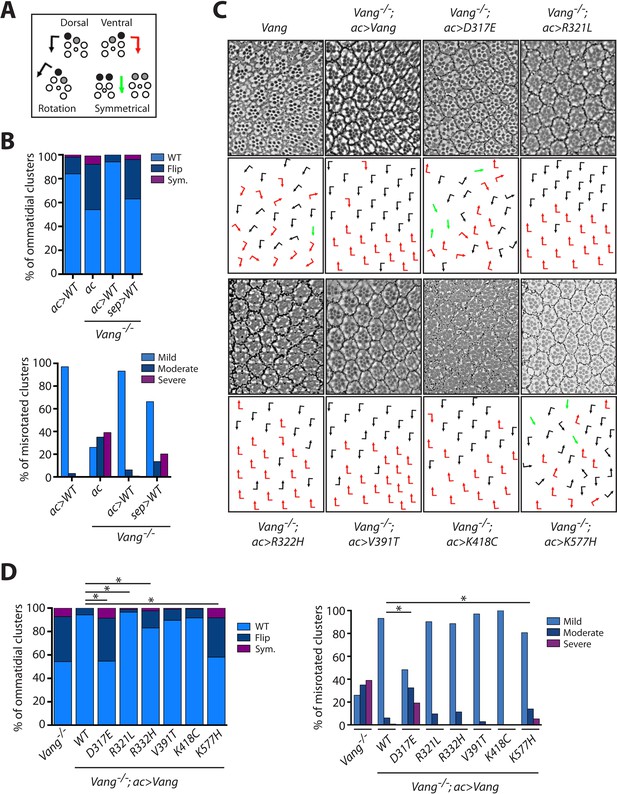

Vang-/- rescue experiments with individual mutations reveal the nature of how they affect Vang function.

(A) Schematic representation of the chiral forms of ommatidial clusters within the Drosophila eye. Dorsal chirality is represented by black arrows, ventral chirality by red arrows, and symmetrical (achiral) clusters by green arrows. The varying degree to which each cluster rotated during development is denoted by the angle of each arrow. (B) Quantification of the percentage of different chiral forms of clusters in the indicated genotypes (top). These include wild-type (WT), a flipped chiral form (Flip), or a symmetrical cluster (Sym.). Quantification of the percentage of misrotated clusters in the associated genotypes (bottom). Misrotation was split into three categories, mild is wild-type +/- 10 degrees, moderate is +/- 10–30 degrees from wild-type, and severe is +/- > 30 degrees misrotation from wild-type. Note that rescue with actin-Gal4 results in a mild overexpression phenotype due to the expression strength with this driver, (also Figure 5—figure supplement 1), while sep-Gal4 shows a weaker rescue due to its weaker and restricted (not all R-cells) expression. (C) Tangential eye sections of the region flanking the dorso-ventral midline (equator) in the indicated genotypes after rescue with actin-Gal4 driver, anterior is left and dorsal is up. (D) Quantification of percentage of different chiral forms of clusters in the indicated genotypes (left). Quantification of percentage of misrotated clusters in the indicated genotypes (right). Data were analyzed using a Chi-squared test: * indicates p<0.001.

Figure 5—source data 1

Raw data from the quantification of eye chirality and rotation defects summarized in Figure 5.

With both drivers, D317E and K577H showed very limited rescue in regards to chirality and only partial rescue in orientation, overall displaying a similar phenotype to Vang-/- (Figure 5C,D and Figure 5—figure supplement 1). This is consistent with their antimorphic nature; however, the partial rescue we observe suggests the mutants retain some activity. With actin-Gal4, R321L displayed a significantly better rescue of chirality (as compared to wt-Vang control), while with sep-Gal4 the rescue was less efficient both in terms of chirality and orientation (Figure 5C,D and Figure 5—figure supplement 1). Together this confirmed that R321L is a mild hypomorphic LOF allele and that the better rescue level observed with ac-Gal4, as compared to wt-Vang, is due to the higher expression levels. R332H showed a significant enhancement in chiral defects, as compared to control wt-Vang, with the actin-driver, as well as more significant orientation defects with the sep-driver. K418C showed a phenotype similar to wt-Vang (Figure 5C,D and Figure 5—figure supplement 1). While, V391T trended towards more severe chiral defects with the actin-driver, with a significantly better rescue of orientation with the sep-driver (Figure 5C,D and Figure 5—figure supplement 1). Taken together with the wing data, this supports the notion that V391T is a mild hypermorph with GOF activity.

Mutations associated with reduced membrane localization or loss in protein function disrupt effector binding

Due to the defects associated with the different mutants, we wished to determine how they might affect effector binding. As many of the mammalian studies have focused on the interaction between Dishevelled (Dvl) and Vangl, we first examined the binding between Dsh and Vang, the Drosophila orthologues. We expressed wt-Vang-Flag and mutant constructs in S2 cells and tested for their interaction with Dsh-GFP by pull-down. D317E, R321L and K577H all showed a reduced ability to interact with Dsh-GFP (Figure 6A), while normal binding, comparable to wt-Vang, was observed for R332H, V391T and K418C (Figure 6B). Next we tested binding between the different Vang mutants and Prickle (Pk), the main effector and cytoplasmic interaction partner of Vang in vivo. The same pattern of binding was observed, with a reduction in binding to D317E, R321L and K577H, but no change with R332H, V391T and K418C (Figure 6C and D). This is consistent with the affected membrane association of the first three Vang mutations and our previous functional and phenotypic assertions (summarized in Figure 6E).

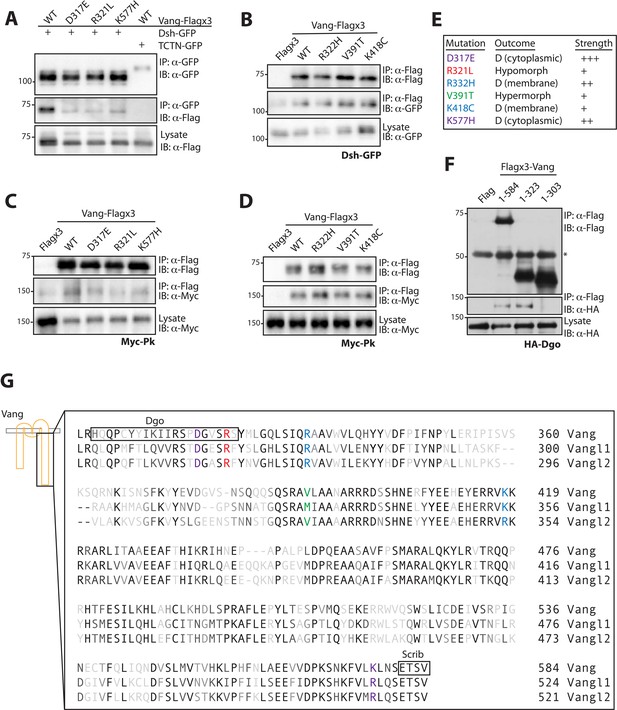

Mutations associated with LOF phenotypes display reduced effector binding.

(A) Western blot showing binding between Dsh-GFP and Vang-Flag wild-type or the indicated mutants. Note that Vang-Flag wild-type binds to Dsh-GFP but not the negative control Tctn-GFP. The D317E, R321L and K557H mutants show reduced binding as compared to wild-type Vang. (B) Western blot showing binding between Vang-Flag wild-type or the indicated mutants and Dsh-GFP. The Vang constructs are able to bind to Dsh to the same degree, while no binding is observed with Flag alone. (C) Western blot showing binding between Vang-Flag wild-type or the indicated mutants and Myc-Pk. The D317E, R321L and K577H mutants show a markedly weaker interaction with Myc-Pk as compared to wild-type Vang. (D) Western blot showing binding between Vang-Flag wild-type or the indicated mutants and Myc-Pk. The Vang constructs are able to bind Pk to the same degree. (E) Summary of the phenotypic outcome of investigated mutations, D, (cytoplasmic) and (membrane) distinguish between the two types of dominant mutations observed, which is based on their cellular localization. Colors are assigned based on different outcomes, also shown is the relative phenotypic strength of each mutation (see Figures 3 and 4). (F) Western blot showing the regions of Vang required for interaction with Dgo. Note that full-length Vang (1-584) and a construct containing residues 1–323 of Vang are able to interact with HA-Dgo. While a construct containing residues 1–303 does not interact, suggesting residues 304–323 in Vang are essential for its interaction with Dgo. (G) Schematic showing the C-terminal sequence of Vang, and human Vangl1 and Vangl2. Mutated residues are highlighted in colors associated with their phenotypic outcome as in E. Also highlighted are regions of Vang essential for its interaction with Dgo and Scribble, note their proximity to specific residues.

Furthermore, these interaction data suggest a trend whereby D317E, R321L and K577H all lead to a general reduction in effector binding. Interestingly, analyzing the location of these mutants along the C-terminal tail, they map in close proximity to regions of specific effector binding sites (Figure 6G). K557H is situated near to the PDZ binding motif which is involved in Scribble (Scrib) binding (Scrib is required for PCP and has been shown to interact with Vang in both mice and Drosophila [Courbard et al., 2009; Montcouquiol et al., 2003]). We were able to show that Dgo binding requires amino acids 304–323 (Figure 6F) and D317E and R321L map within this region. As demonstrated, these mutations do not show specificity for a particular effector but instead a general reduction in binding. This correlation suggests that sites of effector binding along the C-terminal tail highlight regions of high sensitivity for Vang functionality, not just for binding to a particular effector, but in general for the integrity of the entire protein.


Our analyses revealed a differential and causative behavior for the NTD-associated Vangl mutants. Drosophila provides unprecedented depth to the analysis of PCP in the respective mutations through its well-established and detailed in vivo PCP features, the possibilities to study the NTD-mutations in an otherwise wild-type background as well as in the Vang-/- context, and both quantitative and qualitative nature of the assays for PCP. Taken together, our data revealed that the mutations analyzed fall into different functional categories and that all patient derived mutations tested are indeed causative of PCP defects, and hence likely causative of NTD in the patients.

Functional definition of both dominant negative and gain-of-function mutations

The detailed analyses of the NTD-associated mutations revealed specific functional features. For example, the R321L mutation (all numbers refer to the residues in Drosophila Vang, see Figure 1 for the respective numbers in mouse and human, unless otherwise indicated) behaves like a mild hypomorphic LOF allele, as demonstrated largely by a lack of phenotype upon over-expression and through the level of rescue observed. This is consistent with data from the Vangl2Lp-R259L mouse, where only mild NTD defects were observed, along with no difference in membrane localization or levels (Guyot et al., 2011). In our system, besides reduced membrane localization, we also observed its aberrant mobility in western blot assays, an indication that functionality of the protein was decreased, as well as diminished ability to bind effectors. Differences in protein mobility, localization, and effector binding were also observed for D317E and K577H. In contrast to R321L, however, both mutants failed to localize to the membrane, which was reflected in a hair orientation phenotype reminiscent of a Vang-/- wing. Furthermore, both mutants showed largely no rescue in the respective assays. D317E displayed a stronger phenotype as compared to K577H, which correlated with the severity of subcellular mislocalization, highlighting the sensitivity and accuracy of the Drosophila assays.

Expression of D317E and K577H transgenes also led to mislocalization of wild-type Vang, revealing mechanistic insight into the dominant nature of these mutations. For D317E, this is consistent with data from the mouse (D255E), with our data further demonstrating that the mutation does indeed act in a dominant negative manner. It was previously demonstrated that Sec24b promotes the selective sorting of Vangl2 into vesicles for ER to Golgi transport, and that the Vangl2Lp(D255E) allele fails to undergo this process (Merte et al., 2010). It has been demonstrated that the Vangl2Lp mouse shows reduced membrane protein levels, thought to result from the protein becoming trapped in the ER and subsequently targeted for degradation. While this might suggest a ‘simple’ LOF phenotype, the ability of Vangl1 and Vangl2 to interact complicates matters (Yin et al., 2012). Further, it was demonstrated that Vangl1 is missing from the membrane in Vangl2Lp mice but not in a Vangl2 knock-out, with Vangl2Lp also displaying a more severe phenotype (Song et al., 2010; Yin et al., 2012). Additionally, a dominant effect was observed in regard to the phosphorylation of wild-type Vangl2, which was reduced upon co-expression of the Vangl2Lp mutant (Gao et al., 2011). This is consistent with - and reminiscent of - our dominant relocalization observations and, due to the hair reorientation pattern caused in our experiments, our data support the rationale that the original Vangl2Lp alleles are dominant negative mutations and not LOF. This is in alignment with the original genetic studies performed in the mouse that proposed semi-dominance (Copp et al., 1994; Strong and Hollander, 1949).

The patient derived K577H mutation had not previously been investigated. Here, we demonstrate that it is causative for PCP defects, and interestingly showed mechanistic similarity to D317E (the original Vangl2Lp mutation, see above), functioning like a dominant negative. Therefore, our data provide a link between the NTD mouse mutations and a human mutation and support the idea that mutations that affect PCP signaling in distinct ways could all contribute to NTD pathology. In line with this notion, we also observed that R332H and K418C displayed dominant activity in functional assays, consistent with the hypothesis that they are also causative in NTD. However, their phenotypic impact was different. These mutants retained effector binding and were localized to the membrane, even if not as distinctly as wild-type Vang. Additionally, the hair re-orientation phenotype observed was reminiscent of a GOF effect of Vang, which results from the non-polar localization of core PCP proteins at the membrane. As their interaction with cytoplasmic effectors and phosphorylation appear to be retained, this points to R332H and K418C behaving as hypermorphs with an effect on the PCP signaling complexes at the membrane. However, due to the relatively high expression levels of our transgenes we were not able to find conditions to analyze changes to protein asymmetry. Nonetheless, taken together and most importantly, the above-mentioned human patient mutations, cause dominant PCP defects, K577H with a dominant negative function, and R332H and K418C as hypermorphic alleles, and thus are likely causative of the NTDs.

Finally, we obtained data suggestive of V391T functioning as a mild hypermorph GOF. Although in the majority of assays V391T behaved similarly to R332H and K418C, its membrane localization appeared more robust, and rescue experiments were suggestive of the mutation leading to a milder GOF, and not dominant behavior, as was seen with R332H and K418C. Nonetheless, the data for this human mutation is again consistent with it also being causative of NTD.

Drosophila as model to define causative nature of human mutations

While there are caveats of using any specific system, including Drosophila, the ability to phenocopy and refine results suggested from the mouse, for example in the case of the original Vangl2Lp, and to demonstrate sensitivity through quantitative analyses, highlights its utility in exploring the functionality and potential causative nature of human NTD-associated mutations. In fact, our assays were both able to reveal additional functional insight into mutations that had been studied previously by other means and to define functional and mechanistic behavior of previously unstudied human mutations. A popular system to investigate the different mutations is to analyze their localization in MDCK cells. In this assay, the mouse Vangl2Lp allele, D255E, was detected within the ER, and showed reduced stability and proteosomal degradation, echoing phenotypes from the mouse (Gravel et al., 2010). The same assay also showed defective localization for S464N, R259L and R274Q (equivalent to R332H in our assay), with all mutations displaying very similar phenotypes (Iliescu et al., 2014; Iliescu et al., 2011). While a useful assay to reveal potentially damaging effects upon Vangl1/2, it does not capture the true nature of the mutation as our in vivo assays do. For example, R259L is milder in phenotype as compared to S464N and displays membrane localization in vivo, which is not captured in the MDCK assay. In contrast, our assays capture these features in the Drosophila in vivo system. Furthermore our results define that R274Q/R270H in hVANGL1/2, respectively (R332H in Drosophila), likely has dominant negative activity. The result in MDCK cells for both R259L and R274Q is also at odds with experiments performed in zebrafish. Both mutants behaved similarly to wild-type protein in overexpression and rescue experiments (Guyot et al., 2011; Reynolds et al., 2010). The lack of phenotype from the zebrafish experiments suggests that, while suitable for mutations that have a strong pathological effect, this system may not be sensitive enough to reveal phenotypic and functional insight with milder mutations.

In line with this hypothesis, the zebrafish system did show phenotypic behavior for the Vangl2Lp mutations, mouse D255E and S464N, and additionally human M328T, with all performing as LOF in assays in the fish (Reynolds et al., 2010). Our data also revealed that mouse D255E (D317E in Drosophila) displayed LOF characteristics, for example diminished effector binding. However, our assays allow us to conclude further, as discussed above, that the mutant displays dominant negative function. In contrast, our data are not consistent with the zebrafish findings for human M328T. The equivalent Drosophila mutant, V391T, displayed a mild GOF phenotype. This residue was the least conserved among the mutations tested, and while it is methionine in human and mouse Vangl1, the equivalent residue is valine in mouse, human and frog Vangl2, as well as in Drosophila Vang. The differences in phenotypic outcome may be due to this discrepancy, and thus investigating the phenotypic behavior of Vangl2 with an equivalent mutation in a mammalian assay could provide further insight. This result also implies, as is to be expected, that the most conserved residues between systems will give the most reliable functional insight. Nonetheless, we were able to define that a mutation at this residue causes a dominant PCP defect, suggesting its importance for overall Vang function in PCP in general and NTD in particular.

As discussed above, our data set reveals graded phenotypes in vivo, with different mutations displaying more or less severe PCP defects. However, we could not find a pattern to correlate the severity observed with features of the different residues, for example, whether they occurred originally in VANGL1 vs. VANGL2, if the substitution was more conservative or drastic, or whether familial or sporadic. This suggests that it is the location of the residue that exhibits a mutational change as the most important factor in determining phenotypic strength. A prime example of this is the comparison of the two mouse Vangl2Lp alleles with a conservative substitution D255E and more drastic substitution R259L. While they are located in a similar region, the closer proximity of D255E downstream of the transmembrane domain, which also correlates with the Dgo interaction region, suggests it is a functionally more important residue and site, for protein integrity. Consistent with this notion, our observations that the mutations that display LOF characteristics, D255E, R259L and K577H, all map close to regions of effector binding, suggest that these regions are important for the general functional and structural integrity of Vang family proteins. While we cannot rule out that the reduced binding observed for D317E and K577H is due to their mislocalization and inaccessibility to effector proteins, this is clearly not the case for R321L which is localized to the membrane. We therefore favor the above hypothesis and believe these mutants lead to a general structural defect. While many of the NTD mutations may interfere with Vang/Vangl function by affecting its structure, it is also possible that they hit as yet unknown motifs or sites of post-translational modification. For example, R274/270, in human VANGL1/2, respectively (R332 in Drosophila), forms part of a putative D-box ubiquitination motif (Iliescu et al., 2014), and two mutations found in the N-terminus of human patients are mapped to phosphorylation sites important for Vang function (Gao et al., 2011; Kibar et al., 2009; Lei et al., 2010). Overall, this suggests that there is much more to be revealed in determining both the contribution of PCP mutants to NTD, and that analyzing such NTD-associated mutations will reveal important mechanistic insight into Vang/Vangl function in general, in both developmental and disease contexts.

Materials and methods

Key resources table
Reagent type
(species) or
DesignationSource or
Gene (Drosophila melanogaster)VangPubmed ID: 35922Dmel_CG807, CG8075, Dmel\CG8075, Stbm, Strabismus, Van GoghChromosome 2R,
NT_033778.4 (9103238…9106796)
Genetic reagent (Drosophila melanogaster)w[1118]FlyBase ID:
Reference control
Genetic reagent (Drosophila melanogaster)Vang[6]BloomingtonDrosophilaStock Center6918Null allele
Genetic reagent (Drosophila melanogaster)UAS-Vang- Flagx3This PaperInsertion into BDSC stock 9752 - PBAC{yellow[+]-attP-3B}VK00037
Can be obtained from Mlodzik Laboratory, ISMMS
Genetic reagent (Drosophila melanogaster)UAS-Vang-D317E-Flagx3This PaperInsertion into BDSC
stock 9752 - PBAC{yellow[+]-attP-3B}VK00037
Can be obtained from Mlodzik Laboratory, ISMMS
Genetic reagent (Drosophila melanogaster)UAS-Vang-R321L-Flagx3This PaperInsertion into BDSC stock 9752 - PBAC{yellow[+]-
Can be obtained from
Mlodzik Laboratory, ISMMS
Genetic reagent (Drosophila melanogaster)UAS-Vang-R332H-Flagx3This PaperInsertion into BDSC stock 9752 - PBAC{yellow[+]-attP-3B}VK00037
Can be obtained from Mlodzik Laboratory, ISMMS
Genetic reagent (Drosophila melanogaster)UAS-Vang-
This PaperInsertion into BDSC stock 9752 - PBAC{yellow[+]-attP-3B}VK00037
Can be obtained from Mlodzik Laboratory, ISMMS
Genetic reagent (Drosophila melanogaster)UAS-Vang-K418C-Flagx3This PaperInsertion into BDSC stock 9752 - PBAC{yellow[+]-attP-3B}VK00037
Can be obtained from Mlodzik Laboratory, ISMMS
Genetic reagent (Drosophila melanogaster)UAS-Vang-K577H-Flagx3This PaperInsertion into BDSC stock 9752 - PBAC{yellow[+]-attP-3B}VK00037
Can be obtained from Mlodzik Laboratory, ISMMS
Genetic reagent (Drosophila melanogaster)Vang[6],UAS-Vang-Flagx3This PaperRecombined stock
Can be obtained from Mlodzik Laboratory, ISMMS
Genetic reagent (Drosophila melanogaster)Vang[6],UAS-Vang-D317E-Flagx3This PaperRecombined stock
Can be obtained from Mlodzik Laboratory, ISMMS
Genetic reagent (Drosophila melanogaster)Vang[6],UAS-Vang-R321L-Flagx3This PaperRecombined stock
Can be obtained from
Mlodzik Laboratory, ISMMS
Genetic reagent (Drosophila melanogaster)Vang[6],UAS-Vang-R332H-Flagx3This PaperRecombined stock
Can be obtained from Mlodzik Laboratory, ISMMS
Genetic reagent (Drosophila melanogaster)Vang[6],UAS-Vang-V391T-Flagx3This PaperRecombined stock
Can be obtained from Mlodzik Laboratory, ISMMS
Genetic reagent (Drosophila melanogaster)Vang[6],UAS-Vang-K418C-Flagx3This PaperRecombined stock
Can be obtained from Mlodzik Laboratory, ISMMS
Genetic reagent (Drosophila melanogaster)Vang[6],UAS-Vang-K577H-Flagx3This PaperRecombined stock
Can be obtained from Mlodzik Laboratory, ISMMS
Genetic reagent (Drosophila melanogaster)actin-Gal4BloomingtonDrosophilaStock Center3954
Genetic reagent (Drosophila melanogaster)ac-Vang-GFPGift from David Strutt, University of Sheffield, UK
Genetic reagent (Drosophila melanogaster)en-Gal4BloomingtonDrosophilaStock Center1973
Genetic reagent (Drosophila melanogaster)sep-Gal4(Fanto et al., 2000)
Cell line (Drosophila melanogaster)S2Thermo Fisher Scientific69007Stock tested for contamination, characterized by isozyme and karyotype analysis
Transfected construct (Drosophila melanogaster)pUAS-Vang-Flagx3This Paper (Bischof et al., 2007)pUASTattB vectorCloned using NotI-XbaI
Can be obtained from Mlodzik Laboratory, ISMMS
Transfected construct (Drosophila melanogaster)pUAS-Vang-D317E-Flagx3This PaperMade using SDM
Can be obtained from Mlodzik Laboratory, ISMMS
Transfected construct (Drosophila melanogaster)pUAS-Vang-
This PaperMade using SDM
Can be obtained from Mlodzik Laboratory, ISMMS
Transfected construct (Drosophila melanogaster)pUAS-Vang-
This PaperMade using SDM
Can be obtained from Mlodzik Laboratory, ISMMS
Transfected construct (Drosophila melanogaster)pUAS-Vang-V391T-Flagx3This PaperMade using SDM
Can be obtained from Mlodzik Laboratory,
Transfected construct (Drosophila melanogaster)pUAS-Vang-K418C-Flagx3This PaperMade using SDM
Can be obtained from Mlodzik Laboratory, ISMMS
Transfected construct (Drosophila melanogaster)pUAS-Vang-K577H-Flagx3This PaperMade using SDM
Can be obtained from Mlodzik Laboratory, ISMMS
Transfected construct (Drosophila melanogaster)pAc5.1-Gal4Gift from Andreas Jenny, AECOM, USA
Transfected construct (Drosophila melanogaster)pAc5.1-Dsh-GFP(Simons et al., 2009)
Transfected construct (Drosophila melanogaster)pAc5.1-Myc-PkGift from Andreas Jenny, AECOM, USA
construct (Drosophila melanogaster)
pAc5.1-HA-DgoGift from Andreas Jenny, AECOM, USA
Transfected construct (Drosophila melanogaster)pTub-Tctn-GFPThis PaperpCaSpeRTubGFP vector with pUAST MCSCloned using BglII-XhoI
Can be obtained from Mlodzik Laboratory, ISMMS
Transfected construct (Drosophila melanogaster)pAc5.1-Flagx3Gift from Andreas Jenny, AECOM, USA
Transfected construct (Drosophila melanogaster)pAc5.1-Flag-VangThis PaperpAc5.1-Flag vectorCloned using NotI-XbaI
Can be obtained from Mlodzik Laboratory, ISMMS
Transfected construct (Drosophila melanogaster)pAc5.1-Flag-
Vang 1–323
This PaperpAc5.1-Flag vectorCloned using NotI-XbaI
Can be obtained from Mlodzik Laboratory, ISMMS
Transfected construct (Drosophila melanogaster)pAc5.1-Flag-Vang-1–303This PaperpAc5.1-Flag vectorCloned using NotI-XbaI
Can be obtained from Mlodzik Laboratory, ISMMS
AntibodyFlagSigma AldrichM21:5000 IB/I:50 IF
Sigma AldrichGTU-881:1000
AntibodyGFPRoche7.1 and 13.11:1000
AntibodyPatJGift from Jun Wu, ISMMS, USA1:500
AntibodyMycSanta Cruz Biotechnology9E101:1000
based reagent
Sequence-based reagentTCTN-fGGAAGATCTATGAAGGAAGTGPCR primer
Sequence-based reagentTCTN-rCCGCTCGAGGCAAAGTTGPCR primer
Sequence-based reagentVang-584-rATATCTAGATTATACGGATGTTTCGGAGTTPCR primer
Sequence-based reagentVang-323-rATATCTAGATTAGTAGGAGCGCGAAACGCCPCR primer
Sequence-based reagentVang-303-rATATCTAGATTAGTGTCGCAGCTCTAGTAAPCR primer
Commercial assay or kitEffecteneQiagen301427
Commercial assay or kitGFP-Trap AgaroseChromotekgta
Software, algorithmFijiWingsPolarity(Dobens et al., 2018)
OtherLambda Protein PhosphataseNEBP0753S

Fly strains

Request a detailed protocol

Flies were raised on standard medium, and maintained at 25°C unless otherwise stated. To generate UAS-Vang-Flagx3 transgenic flies, Vang-Flagx3 (Kelly et al., 2016) was PCR-amplified using phusion high-fidelity DNA polymerase (Thermo Scientific) and cloned into the pUAST-attB vector (Bischof et al., 2007) using NotI-XbaI sites. Point mutants were created using site-directed mutagenesis, the primers used can be found in the key resources table.

Plasmids were verified by Sanger sequencing (GENEWIZ) and sent to BestGene Inc for insertion into BDSC stock number 9752 - PBAC{yellow[+]-attP-3B}VK00037.

S2 culture, pull-downs, and immunoblotting

Request a detailed protocol

S2 cells were grown according to standard procedures in Schneider’s Medium (Gibco) supplemented with 10% heat-inactivated Fetal Bovine Serum (Gibco). Effectene (QIAGEN) was used to transfect plasmids into S2 cells according to manufacturer’s protocols. For details of constructs used please refer to the key resources table. Cells were transfected for ~48 hr before lysis in buffer containing 50 mM Tris-HCl pH 7.5, 150 mM NaCl, 1 mM EDTA and 1% Triton-X-100.

For pull-down experiments with Flag, 10 μl of anti-Flag M2 affinity gel was used per sample (Sigma Aldrich). Lysates were incubated with affinity gel at 4°C, followed by two washes with buffer containing 50 mM Tris-HCl pH 7.5, 350 mM NaCl, 1 mM EDTA and two washes with buffer containing 50 mM Tris-HCl pH 7.5, 500 mM NaCl, 1 mM EDTA, 0.1% SDS. For GFP pull-down, GFP-Trap agarose was used (Chromotek). In this case, cells were lysed in buffer containing; 10 mM Tris-HCl pH7.5, 150 mM NaCl, 0.5 mM EDTA, and 1% Triton-X-100. This was diluted prior to agarose incubation as per the manufacturer’s protocol. Lysates were incubated with 20 μl agarose at 4°C followed by four washes with buffer containing 10 mM Tris-HCl pH7.5, 350 mM NaCl, 0.5 mM EDTA. For both pull-downs, samples were eluted through boiling at 95°C in 5x final sample buffer. Wing discs were dissected from third instar larvae and lysates prepared by boiling collected discs at 95°C in 5x final sample buffer. To perform phosphatase treatment, lysates were exposed to lambda protein phosphatase (NEB) for 30 min at 30°C.

Lysates were resolved by polyacrylamide gel electrophoreses and transferred to nitrocellulose membrane. The primary antibodies and concentration used for immunoblotting can be found in the key resources table. HRP conjugated secondary antibodies were used at 1:5000 (Jackson ImmunoResearch Laboratories).

Drosophila dissection and immunohistochemistry

Request a detailed protocol

Adult wings were collected in PBS containing 0.1% Triton-X-100 (PBST) and incubated for 1 hr at room temperature before mounting in 80% glycerol in PBS. Pupal wings were dissected and fixed in 4% paraformaldehyde containing 0.1% Triton-X-100 for 45 mins–1 hr. Tissue was washed with PBST twice and incubated in 5% donkey or goat serum containing PBST for 15 min. Primary antibodies were added and tissue incubated overnight at 4°C. Tissue was washed three times with PBST before incubation with fluorescent secondary antibodies and phalloidin diluted in 5% serum PBST for 2–4 hr at room temperature. Samples were washed four times with PBST and mounted in Vectashield media (Vector Labs). Primary antibodies used are listed in the key resources table. Secondary antibodies were from Jackson ImmunoResearch Laboratories (1:200) and Phalloidin from Molecular Probes (1:1000). Eye sections were prepared as previously described (Gaengel and Mlodzik, 2008), and eyes were sectioned near the equatorial region for analysis.

Imaging, quantification and statistical analysis

Request a detailed protocol

Imaging of adult wings and eye sections was performed on a Zeiss Axioplan microscope, imaging of pupal wings was carried out on either a Leica SP5 or Zeiss 880 confocal microscope. Hair reorientation angles were quantified using the FijiWingsPolarity plugin, details of which can be found in Dobens et al. (2018). To perform the quantification, equivalent regions were cropped from three wings in each genotype. Angles of polarity were determined utilizing the plugin and the angles from each genotype combined. For statistical analysis, angles were divided into three categories: anterior reorientation, wild-type, and posterior reorientation. This satisfied the conditions of a valid Chi-squared test. Adult eye sections were assigned chirality by hand and orientation angle was defined using ImageJ. For statistical analysis, a Chi-squared test was performed.

Experimental design

Request a detailed protocol

In all cases, experiments were performed on at least 3 distinct occasions to ensure technical replication. To ensure biological replication for experiments involving Drosophila tissue, 3–10 individual flies were examined for phenotypic similarity. All images and blots within the study were selected as the most representative of the population or findings after this analysis. This approach and sample size is consistent with previous studies performed in our laboratory that have generated reproducible data.

Statistical analysis

Request a detailed protocol

In all cases, unless otherwise stated a Chi-square test was performed. This analysis was performed as it is an accepted test for differences between binned distributions as is the case for our data, and so our analysis examined whether we could disprove to a certain level of significance, the null hypothesis that two data sets are drawn from the same population distribution function. For analysis of actin rotation due to the low values in the medium and severe categories these categories were combined and a Fisher’s exact test was performed. The Fisher’s exact test was performed in place of the Chi-square test as the low sample size in specific categories meant conditions of the latter would not be satisfied leading to inaccurate analysis. All analyses were done using Prism software and N value and p values are detailed in tables below.

Figure 2B - Region 1p valueFigure 2B - Region 2p value
ac > WT vs. ac > D317E<0.0001ac > WT vs. ac > D317E<0.0001
ac > WT vs. ac > R321L<0.0001ac > WT vs. ac > R321L<0.0001
ac > WT vs. ac > R332H<0.0001ac > WT vs. ac > R332H<0.0001
ac > WT vs. ac > V391T0.1083ac > WT vs. ac > V391T<0.0001
ac > WT vs. ac > K418C<0.0001ac > WT vs. ac > K418C<0.0001
ac > WT vs. ac > K577H<0.0001ac > WT vs. ac > K577H<0.0001
Figure 2BRegion 1 NRegion 2 N
Vang -/-188739
Figure 5D- Chiralityp valueFigure 5D - Rotationp value
ac > WT vs. ac > D317E<0.0001ac > WT vs. ac > D317E<0.0001
ac > WT vs. ac > R321L0.0267ac > WT vs. ac > R321L0.3948
ac > WT vs. ac > R332H0.0004ac > WT vs. ac > R332H0.2055
ac > WT vs. ac > V391T0.068ac > WT vs. ac > V391T0.2481
ac > WT vs. ac > K418C0.2935ac > WT vs. ac > K418C0.0017
ac > WT vs. ac > K577H<0.0001ac > WT vs. ac > K577H0.0015
Figure 5DChirality - NRotation - N
Vang -/-526177
Figure 5—figure supplement 1B -
p valueFigure 5—figure supplement 1B -
p value
ac > WT vs. ac > D317E<0.0001ac > WT vs. ac > D317E0.0003
ac > WT vs. ac > R321L0.0225ac > WT vs. ac > R321L0.0048
ac > WT vs. ac > R332H0.1896ac > WT vs. ac > R332H0.0001
ac > WT vs. ac > V391T0.2827ac > WT vs. ac > V391T<0.0001
ac > WT vs. ac > K418C0.1779ac > WT vs. ac > K418C0.5566
ac > WT vs. ac > K577H0.0043ac > WT vs. ac > K577H0.0267
Figure 5—figure supplement 1BChirality - NRotation - N
Vang -/-365100

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. Source data files have been provided for Figures 1, 2 and 5.


    1. Brand AH
    2. Perrimon N
    Targeted gene expression as a means of altering cell fates and generating dominant phenotypes
    Development 118:401–415.
    1. Musci TS
    2. Mullen RJ
    All-or-none craniorachischisis in Loop-tail mutant mouse chimeras
    Development 110:229–237.
    1. Taylor J
    2. Abramova N
    3. Charlton J
    4. Adler PN
    Van Gogh: a new Drosophila tissue polarity gene
    Genetics 150:199–210.
    1. Wolff T
    2. Rubin GM
    Strabismus, a novel gene that regulates tissue polarity and cell fate decisions in Drosophila
    Development 125:1149–1159.

Article and author information

Author details

  1. Ashley C Humphries

    1. Department of Cell, Developmental and Regenerative Biology, New York, United States
    2. Icahn School of Medicine at Mount Sinai, New York, United States
    3. Graduate School of Biomedical Sciences, New York, United States
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0737-801X
  2. Sonali Narang

    1. Department of Cell, Developmental and Regenerative Biology, New York, United States
    2. Icahn School of Medicine at Mount Sinai, New York, United States
    3. Graduate School of Biomedical Sciences, New York, United States
    Present address
    1. Department of Pathology, NYU School of Medicine, New York, United States
    2. Laura and Isaac Perlmutter Cancer Center, NYU School of Medicine, New York, United States
    Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  3. Marek Mlodzik

    1. Department of Cell, Developmental and Regenerative Biology, New York, United States
    2. Icahn School of Medicine at Mount Sinai, New York, United States
    3. Graduate School of Biomedical Sciences, New York, United States
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Investigation, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0628-3465


National Institute of General Medical Sciences (R35 GM127103)

  • Marek Mlodzik

National Eye Institute (R01 EY013256)

  • Marek Mlodzik

European Molecular Biology Organization

  • Ashley C Humphries

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.


The authors thank members of the Mlodzik lab for helpful suggestions and discussions during the development of the project. We thank Giovanna Collu and Robert Krauss for constructive comments on the manuscript. In particular we are grateful to Neeta Bala, who generated the pTub-Tctn-GFP vector, Jun Wu for the PatJ antibody, and David Strutt (University of Sheffield) for generously providing the ac-GFP-Vang transgenic fly strain. We also thank the ISMMS microscopy CoRE, where confocal microscopy was performed and was in part supported by the Tisch Cancer Institute P30 CA196521 grant from the NCI. This research was supported by National Institutes of Health grants R35 GM127103 and R01 EY013256 (to MM) and EMBO (post-doctoral fellowship to ACH).

Version history

  1. Received: November 12, 2019
  2. Accepted: March 31, 2020
  3. Accepted Manuscript published: April 1, 2020 (version 1)
  4. Version of Record published: April 23, 2020 (version 2)


© 2020, Humphries et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.


  • 2,384
  • 344
  • 15

Views, downloads and citations are aggregated across all versions of this paper published by eLife.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Ashley C Humphries
  2. Sonali Narang
  3. Marek Mlodzik
Mutations associated with human neural tube defects display disrupted planar cell polarity in Drosophila
eLife 9:e53532.

Share this article

Further reading

    1. Developmental Biology
    Edgar M Pera, Josefine Nilsson-De Moura ... Ivana Milas
    Research Article

    We previously showed that SerpinE2 and the serine protease HtrA1 modulate fibroblast growth factor (FGF) signaling in germ layer specification and head-to-tail development of Xenopus embryos. Here, we present an extracellular proteolytic mechanism involving this serpin-protease system in the developing neural crest (NC). Knockdown of SerpinE2 by injected antisense morpholino oligonucleotides did not affect the specification of NC progenitors but instead inhibited the migration of NC cells, causing defects in dorsal fin, melanocyte, and craniofacial cartilage formation. Similarly, overexpression of the HtrA1 protease impaired NC cell migration and the formation of NC-derived structures. The phenotype of SerpinE2 knockdown was overcome by concomitant downregulation of HtrA1, indicating that SerpinE2 stimulates NC migration by inhibiting endogenous HtrA1 activity. SerpinE2 binds to HtrA1, and the HtrA1 protease triggers degradation of the cell surface proteoglycan Syndecan-4 (Sdc4). Microinjection of Sdc4 mRNA partially rescued NC migration defects induced by both HtrA1 upregulation and SerpinE2 downregulation. These epistatic experiments suggest a proteolytic pathway by a double inhibition mechanism:

    SerpinE2 ┤HtrA1 protease ┤Syndecan-4 → NC cell migration.

    1. Developmental Biology
    2. Neuroscience
    Kristine B Walhovd, Stine K Krogsrud ... Didac Vidal-Pineiro
    Research Article

    Human fetal development has been associated with brain health at later stages. It is unknown whether growth in utero, as indexed by birth weight (BW), relates consistently to lifespan brain characteristics and changes, and to what extent these influences are of a genetic or environmental nature. Here we show remarkably stable and lifelong positive associations between BW and cortical surface area and volume across and within developmental, aging and lifespan longitudinal samples (N = 5794, 4–82 y of age, w/386 monozygotic twins, followed for up to 8.3 y w/12,088 brain MRIs). In contrast, no consistent effect of BW on brain changes was observed. Partly environmental effects were indicated by analysis of twin BW discordance. In conclusion, the influence of prenatal growth on cortical topography is stable and reliable through the lifespan. This early-life factor appears to influence the brain by association of brain reserve, rather than brain maintenance. Thus, fetal influences appear omnipresent in the spacetime of the human brain throughout the human lifespan. Optimizing fetal growth may increase brain reserve for life, also in aging.
