Super-resolution microscopy reveals coupling between mammalian centriole subdistal appendages and distal appendages

  1. Weng Man Chong
  2. Won-Jing Wang
  3. Chien-Hui Lo
  4. Tzu-Yuan Chiu
  5. Ting-Jui Chang
  6. You-Pi Liu
  7. Barbara Tanos
  8. Gregory Mazo
  9. Meng-Fu Bryan Tsou
  10. Wann-Neng Jane
  11. T Tony Yang  Is a corresponding author
  12. Jung-Chi Liao  Is a corresponding author
  1. Institute of Atomic and Molecular Sciences, Academia Sinica, Taiwan
  2. Institute of Biochemistry and Molecular Biology, National Yang Ming University, Taiwan
  3. Division of Cancer Therapeutics, The Institute of Cancer Research, United Kingdom
  4. Dermatology Service, Department of Medicine, Memorial Sloan Kettering Cancer Center, United States
  5. Cell Biology Program, Memorial Sloan-Kettering Cancer Center, United States
  6. Institute of Plant and Microbial Biology, Academia Sinica, Taiwan
  7. Graduate Institute of Biomedical Electronics and Bioinformatics, National Taiwan University, Taiwan
  8. Department of Electrical Engineering, National Taiwan University, Taiwan
Research Article
  • Cited 0
  • Views 1,101
  • Annotations
Cite this article as: eLife 2020;9:e53580 doi: 10.7554/eLife.53580

Abstract

Subdistal appendages (sDAPs) are centriolar elements that are observed proximal to the distal appendages (DAPs) in vertebrates. Despite the obvious presence of sDAPs, structural and functional understanding of them remains elusive. Here, by combining super-resolved localization analysis and CRISPR-Cas9 genetic perturbation, we find that although DAPs and sDAPs are primarily responsible for distinct functions in ciliogenesis and microtubule anchoring, respectively, the presence of one element actually affects the positioning of the other. Specifically, we find dual layers of both ODF2 and CEP89, where their localizations are differentially regulated by DAP and sDAP integrity. DAP depletion relaxes longitudinal occupancy of sDAP protein ninein to cover the DAP region, implying a role of DAPs in sDAP positioning. Removing sDAPs alter the distal border of centrosomal γ-tubulins, illustrating a new role of sDAPs. Together, our results provide an architectural framework for sDAPs that sheds light on functional understanding, surprisingly revealing coupling between DAPs and sDAPs.

Introduction

The mammalian centrosome is a microtubule organizing center (MTOC) that plays a crucial role in various biological processes, such as mitotic spindle organization and cell polarity regulation (Oakley et al., 1990; Bystrevskaya et al., 1988; Bornens, 2012). A centrosome consists of a pair of rod-shaped centrioles, i.e. a mother centriole and a daughter centriole, and the pericentriolar material (PCM). γ‐tubulin is considered as the major microtubule (MT)‐nucleating factor of the PCM by forming the γ-tubulin ring complex (γTuRC) as the nucleation template (Moritz et al., 1995; Zheng et al., 1995; Pereira and Schiebel, 1997; Wiese and Zheng, 1999). The size of the PCM indicated by the signal of γ‐tubulin changes with the cell cycle, from a tightly packed PCM in the interphase to a large aggregate during mitosis, with the mother and daughter centrioles as the core (Khodjakov and Rieder, 1999; Robbins et al., 1968; Sonnen et al., 2012).

The mother centriole is structurally differentiated from the daughter centriole by the presence of two appendage structures close to its distal end, namely distal appendages (DAPs) and subdistal appendages (sDAPs). DAPs are essential for centriole-membrane docking and primary cilia formation (Tanos et al., 2013; Ye et al., 2014; Schmidt et al., 2012; Ishikawa et al., 2005; Joo et al., 2013). We and others have identified a number of distal appendage (DAP) proteins, including C2CD3, CEP83, CEP89, SCLT1, FBF1 and CEP164 (Tanos et al., 2013; Ye et al., 2014; Graser et al., 2007; Wei et al., 2013; Sillibourne et al., 2013; Joo et al., 2013). We have also used super-resolution microscopy to map the molecular architecture of mammalian DAPs toward the distal end of the mother centriole (Yang et al., 2018). Super-resolved images showed that DAPs are composed of DAP blades of nine-fold symmetry, as observed in electron microscopy (EM), and the novel structure of the DAP matrix between adjacent blades. The Loncarek group further used correlative super-resolution microscopy and EM to show the precise localization of DAP proteins relative to the electron dense structure of DAPs (Bowler et al., 2019), improving the architectural mapping of the DAPs. We also found that CEP89 occupies two longitudinal layers, one close to the DAP region and the other close to the putative subdistal appendage (sDAP) region, proximally adjacent to the DAP region shown in a number of EM images of the mother centrioles.

Some EM images showed variations in the number of sDAPs, such as 2 to 12 sDAP stems in human endotheliocytes (Bystrevskaya et al., 1992; Bystrevskaya et al., 1988), illustrating the dynamic nature of sDAPs. That is, in contrast to an exact number of nine DAPs per centriole, the number of sDAPs may be different in different centrioles (Uzbekov and Alieva, 2018). Even when sDAPs do form a complete ring of nine-fold symmetry, their morphology is different from that of DAPs (Paintrand et al., 1992; Uzbekov and Alieva, 2018). Each sDAP stem is composed of one pair of electron-dense signals on the sides, where one of these signals is associated with the A-tubule of a MT triplet of the mother centriole and the other is associated with the C-tubule of an adjacent MT triplet (Bystrevskaya et al., 1988; Paintrand et al., 1992). The longitudinal positions of mammalian sDAPs may also vary along the mother centriole. For centrioles of motile cilia, the structure at the longitudinal position proximal to the DAPs is the basal foot, a ‘badminton-shaped’ structure that is largely different from the sDAPs in the mother centriole (Anderson, 1972; Bornens, 2012; Bystrevskaya et al., 1988). The basal foot is oriented to align with the beating direction of motile cilia, suggesting its role in mechanical coupling or anchoring (Gibbons, 1961; Clare et al., 2014). We and others have identified a series of sDAP proteins, including ODF2, CEP128, centriolin, CCDC68, CCDC120, ninein and CEP170 (Mazo et al., 2016; Huang et al., 2017; Guarguaglini et al., 2005; Nakagawa et al., 2001; Ou et al., 2002; Mogensen et al., 2000; Schrøder et al., 2012). Although the structural presence of sDAPs are routinely observed in EM images, detailed geometrical information to describe the locations of these proteins relative to each other remains largely missing.

Although DAPs and sDAPs are mostly adjacent to each other in mammalian centrioles, their functions are distinct. DAPs are responsible for ciliogenesis and ciliary vesicle docking (Tanos et al., 2013; Schmidt et al., 2012; Joo et al., 2013). sDAPs are mostly considered to serve roles in MT anchoring (Vorobjev and Chentsov, 1982; Bystrevskaya et al., 1988; Bornens, 2002; Delgehyr et al., 2005). EM images show that MTs terminate at the tips of sDAPs, but one can also see many other MTs around the centrioles (Vorobjev and Chentsov, 1982; Mogensen et al., 2000). Direct functional evidence remains to be shown. Centriole MT aster reformation after MT depolymerization is delayed in ninein or CEP170 knockout or knockdown cells (Delgehyr et al., 2005; Guarguaglini et al., 2005). However, both ninein and CEP170 have two localization populations, one at the centriole proximal end, and the other in the region close to sDAPs (Sonnen et al., 2012). Thus, it cannot be confirmed whether the phenotypes are due to abolished sDAPs or to a damaged centriole proximal end. It is also unclear whether the MT anchoring of the sDAPs requires γ‐tubulin or γTuRC as a nucleating factor. Other functional roles of sDAPs have also been reported. We have previously shown that, despite being dispensable for ciliogenesis, depletion of sDAPs together with the loss of the centriole proximal end protein CNAP1 results in the detachment of cilia and Golgi, affecting the positioning of primary cilia (Mazo et al., 2016). Another study on sDAP protein CEP128 found that CEP128 is implicated in RAB11 vesicle trafficking at the primary cilia, in which CEP128 depletion results in a defect in TGF-β/bone morphogenetic protein (BMP) signaling and abnormal organ development in zebrafish (Mönnich et al., 2018).

Studies of the DAP–sDAP relationship are also very limited. As mentioned above, our previous super-resolution imaging result showed dual localizations of CEP89, potentially one localization in the DAP region and the other close to the sDAP region, but no functional studies have been performed to check whether CEP89 is associated with sDAPs or not. In RPE-1 cells, a genetic knockout of the most upstream sDAP protein ODF2 was shown to abolish the recruitment of other sDAP components (Mazo et al., 2016), but neither the DAP assembly (Tanos et al., 2013) nor the ability of the mutant centrioles to grow cilia (Mazo et al., 2016) was grossly impacted. Similarly, reduction of an upstream DAP protein, CEP83 in CEP83 mutated fibroblasts, did not affect the localization of ODF2 (Failler et al., 2014), suggesting that DAPs and sDAPs are two independent elements. However, separate studies showed that a null ODF2 knockout in the mouse F9 cell line abolished both the distal and subdistal appendages (Ishikawa et al., 2005), and that partial truncation of ODF2 could abolish sDAPs without affecting DAPs (Tateishi et al., 2013), revealing a more complicated relationship between the two structures. Together, despite their proximity to each other, whether distal and subdistal appendages are structurally or functionally related to each other remains elusive.

In this study, we systematically characterized the super-resolved molecular architecture of sDAPs using direct stochastic optical reconstruction microscopy (dSTORM). We mapped the spatial organization of multiple sDAP-related proteins and generated a three-dimensional model. Intriguingly, we found structural coupling between DAP and sDAP proteins. We have also directly observed the role of sDAPs on MT anchoring and further illustrated the selective involvement of γ‐tubulins on MT templating. Together, our studies systematically reveal the super-resolved architecture of sDAPs, suggest potential DAP–sDAP structural connections, and implicate a regulatory mechanism of MT anchoring around the centrosome.

Results

Super-resolution microscopy reveals that the completeness of ring occupancies by sDAP proteins depends on the cell cycle

To characterize sDAP architecture systematically, we imaged multiple sDAP proteins reported previously (Mazo et al., 2016; Huang et al., 2017; Tateishi et al., 2013; Mönnich et al., 2018) by dSTORM super-resolution microscopy. ODF2, CEP128, centriolin, CCDC68, ninein and CEP170 of sDAPs were imaged. A centriole proximal end protein CNAP1, known to be associated with some sDAP proteins (e.g. ninein, CEP170), was also imaged (Mazo et al., 2016). It is known that the organization of centriole proteins may change with cell-cycle phases (Guarguaglini et al., 2005). Here, we only focus on the geometric arrangement of proteins in the quiescent state, where primary cilia are grown or ready to grow. RPE-1 cells were serum starved for at least 24 hr to synchronize cells to the G0 phase before proceeding to imaging.

We first examined whether sDAP proteins form rings with a nine-fold symmetry like those formed by DAP proteins. We conducted two-color staining of the DAP protein SCLT1 and an sDAP protein of interest using dSTORM with Alexa Fluor 647 and Cy3B organic dyes. We used SCLT1 as a marker in widefield imaging to pick centrioles approximately viewed from the axial view by means of the well-defined ring structure of SCLT1 that is crudely observable in conventional widefield microscopy (Figure 1a,d). We then imaged the channel for an sDAP protein of interest using super-resolution microscopy and examined the radial distributions of the sDAP protein. Interestingly, we found different angular integrities of sDAP proteins among the images of the same protein as well as among those of different sDAP proteins (Figure 1a and d). As shown in Figure 1a, the majority of CEP170 rings are not intact. Statistically, CEP170 exhibits a wider range of radial distributions under serum-fed (cell proliferating) conditions than under serum-starved (cell resting) conditions (Figure 1b and c). In contrast to CEP170, the relatively upstream sDAP protein CEP128 is better organized during the cell-resting phase and during the proliferating phase (Figure 1d). Circular expansion of signals along the polar coordinate of the ring illustrates that ~50% of ring occupancy is missing under serum-fed conditions, whereas ~25% is missing under serum-starved conditions (Figure 1e and f). It is interesting to note that 24-hr serum starvation, which promotes ciliogenesis in around 60% of RPE-1 cells (Lo et al., 2019), does have an effect on the completeness of ring occupancy of ciliogenesis-independent sDAP proteins. In addition, sDAPs may not always possess a nine-punctum pattern like that of DAPs in RPE-1 cells. Our results not only show inconsistent occupancies of sDAPs, but also demonstrate a variation in sDAP ring completeness, probably in different cell phases, in the presence or absence of serum. Furthermore, our super-resolution fluorescence study enables us to discriminate occupancy variations of an upstream sDAP protein (CEP128) and of a peripheral sDAP protein (CEP170).

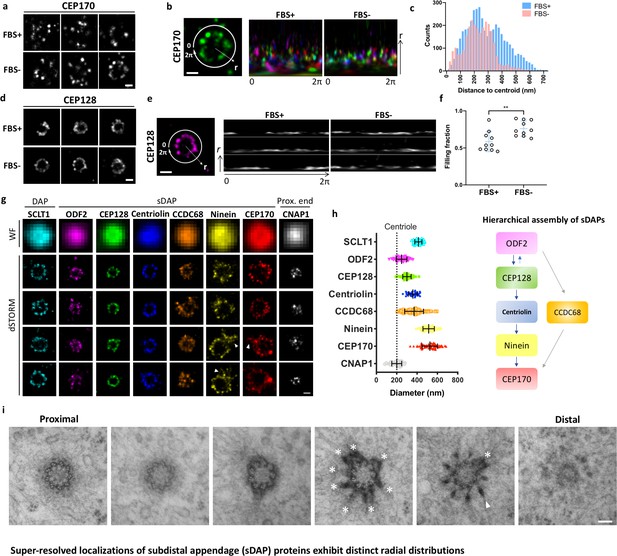

Figure 1 with 1 supplement see all
Super-resolved localizations of subdistal appendage (sDAP) proteins exhibit distinct radial distributions.

(a) Axial-view direct stochastic optical reconstruction microscopy (dSTORM) images of CEP170 under serum-supplied (FBS+) and serum-starved (FBS–) conditions. (b) Image analysis revealing that, under the proliferating condition (FBS+), CEP170 exhibits a relatively random radial distribution compared to that under the resting (FBS–) G0 phase. Each color represents a data value for different centrioles. (c) Statistical analysis of the radial distribution of CEP170 under FBS+ and FBS– conditions. n = 10 centrioles for both conditions, p<0.05. (d) Axial-view dSTORM images of CEP128 under serum-supplied (FBS+) and serum-starved (FBS–) conditions. (e) Image analysis revealing that CEP128 rings are less organized under the proliferating condition (FBS+) than under the resting phase (FBS–). (f) Statistical analysis showing the completeness of the ring-shaped occupancy of CEP128 under FBS+ and FBS– conditions. **p<0.01. (g) Representative dSTORM super-resolution images of axial-view centrioles showing the radial distribution of the distal appendage (DAP) protein SCLT1, various sDAP proteins, and the centriole proximal-end (Prox. end) protein CNAP1, which were not resolvable under wide-field (WF) imaging. ‘Overhang structures’ (arrowheads) were sometimes observed in the ninein and CEP170 rings. (h) (Left) Mean diameter analysis revealing size differences among the proteins in panel (g). Supplementary file 1 lists the dimensional details. The diameters of ODF2 and CNAP1 were similar to that of the centriole wall measured from the electron microscopy (EM) images (dotted line). (Right) A schematic figure summarizing previous studies on the hierarchical assembly of sDAPs. (i) Serial transmission EM (TEM) sections of an RPE-1 mother centriole. The centriole, reconstituted by TEM analysis with serial sectioning, reveals an approximately nine-fold distribution of sDAP in RPE-1 cells. Asterisks and the arrowhead indicate sDAPs and DAP, respectively. Bars: panels (a, b, d, e, g) = 200 nm; panel (i) = 100 nm.

ODF2 is close to the centriole microtubule wall whereas ninein and CEP170 are close to the sDAP tips

To understand the architecture of sDAP proteins with nearly full occupancies at the sDAPs, we pre-selected centrioles based on whether we saw a ring or not for an sDAP protein of interest under widefield microscopy, and further analyzed these centrioles with super-resolution microscopy. As shown in Figure 1g and h, the sDAP proteins are in ring shapes of different sizes, ranging approximately from 250 nm to 600 nm in diameter. Among them, ODF2 forms the smallest ring with a diameter similar to that of the centriole MT wall (~200 nm), suggesting its close proximity to the centriole. By contrast, ninein and CEP170 occupy a much wider space, with a diameter of around 600 nm, larger than the diameter of outer DAP proteins such as FBF1 and SCLT1. Multiple studies have characterized the spatial organization of sDAP proteins via immuno-EM (Guarguaglini et al., 2005; Huang et al., 2017) or structured illumination (SIM) microscopy (Sonnen et al., 2012; Huang et al., 2017; Kashihara et al., 2019). In line with previous SIM studies, our dSTORM images also show a range of 250–600 nm in diameter for various sDAP proteins. The difference is that SIM is limited by the ~100 nm lateral imaging resolution, whereas dSTORM can achieve a resolution of 20 nm. Taking advantage of the resolving power of dSTORM imaging, our work is able to map the molecular architecture in more detail.

When correlating the occupancies of sDAP proteins from ODF2 to CEP170 to the reported assembly hierarchy of sDAPs as illustrated in Figure 1h (Mazo et al., 2016; Huang et al., 2017), we found that the smaller the size of the protein distribution, the more upstream it is in the hierarchy. Occasionally, an overhang-like structure (Figure 1g, marked by arrowhead) was observed for ninein and CEP170. To better understand whether this overhang-like structure is a basal foot-like protrusion or a part of a neighboring daughter centriole, we performed 3D two-color super-resolution imaging of CEP170 and a DAP protein CEP164 using expansion microscopy (Figure 1—figure supplement 1A). When looking at these images together with conventional epifluorescent microscopy imaging (Figure 1—figure supplement 1B), one can see that the extra signal most probably comes from the proximal end localization of CEP170 on the daughter centriole, and not from an overhang structure of the sDAPs. To further investigate the arrangement of the sDAP stems, we performed TEM sectioning of RPE-1 centrioles in the axial view, as shown in Figure 1i. The TEM images reveal that sDAP stems can be mostly observed in the same section with a nine-fold arrangement. It is also interesting to note that the sDAP stems are mostly wider than those of DAPs, similar to the observations recorded in previous work by the Bornens group (Paintrand et al., 1992). From the EM image, it seems that the stems of sDAPs are more flexible in shape and distribution than those of DAPs, potentially explaining the finding that nine-fold distribution is less obvious for the localization of sDAP proteins.

Lateral super-resolution images reveal sDAP as a triangular structure

We defined the longitudinal position of sDAP proteins by means of dual color dSTORM super-resolution imaging. Each sDAP protein was immuno-stained together with the DAP protein SCLT1, which served as a position reference. As shown in Figure 2a and b, CEP128 forms a compact layer at about 160 nm proximal to the SCLT1 layer of the DAPs. ODF2 covers a broader longitudinal region with two populations separating in two layers, which respectively localize at ~100 nm and ~200 nm proximal to the DAP protein SCLT1. Centriolin also covers a longitudinal range that seemingly possesses a single layer, although we cannot rule out the possibility of two very close layers. Ninein and CEP170 localize both to the sDAP region and to the centriole proximal end marked by CNAP1. The two layers are separated by ~350 nm. Figure 2c shows the alignment of sDAP proteins according to their longitudinal positions. CEP128 is sandwiched between the two ODF2 layers, with centriolin localized above them. Ninein and CEP170 localize radially outward from centriolin. The composite image of these sDAP proteins shows a left-right symmetric structure and each unit is triangular in shape. A schematic model for the positioning of sDAP proteins is illustrated in Figure 2d. The cartoon of the centriole is constructed on the basis of an EM side view image of RPE-1 cells in which the scale is adjusted to be comparable to that of the dSTORM images. Assuming that CEP170 is localized at the tip of sDAP, as observed in the previous immune-EM study (Guarguaglini et al., 2005), ODF2 is located at the centriole wall and its two layers occupy the two ends of the sDAP root, that is the portion of an sDAP stem connecting to the centriole wall. Other sDAP proteins fill up the triangular structure. CEP128 is right at the border between the centriole MT and the sDAP stem. Centriolin is located at the middle portion of an sDAP stem, whereas ninein is close to the tips of sDAPs.

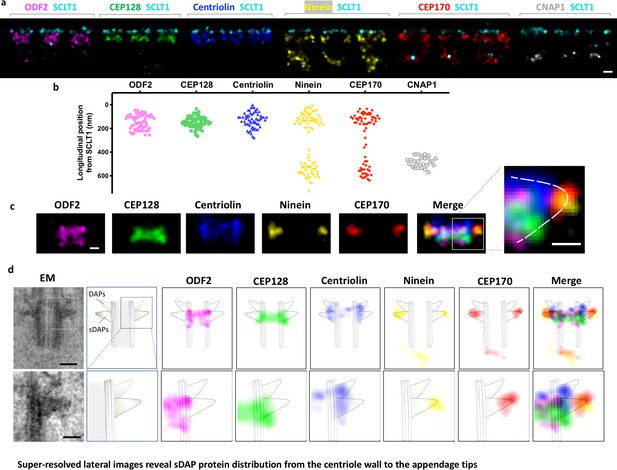

Super-resolved lateral images reveal sDAP protein distribution from the centriole wall to the appendage tips.

(a) Representative lateral-view two-color dSTORM images of sDAP–SCLT1 pairs revealing the longitudinal positions of various sDAP proteins relative to SCLT1. (b) A scatter plot describing the longitudinal positions of sDAP proteins relative to SCLT1. (c) dSTORM images of each sDAP protein were aligned using SCLT1 as a reference and combined into a composite image (n > 7 centrioles each). The composite images were then aligned and merged according to their average longitudinal position. (Inset) A magnified image showing the triangular-like arrangement of the sDAP structure (dashed line). (d) (Top panel) Composite dSTORM images of each sDAP protein in panel (c) overlaid with a mother centriole cartoon model, which is depicted from the TEM image of RPE-1 cells (left) to illustrate the potential localization of sDAPs on the sDAP stems. (Bottom panel) Magnified view of the inset in panel (d). Bars: panels (a, d) (top) = 200 nm; panel (c) (inset), (d) (bottom) = 100 nm.

Axial and lateral images compose a 3D molecular map of sDAPs

Combining sDAP measurements from our axial and lateral dSTORM images (Figure 3a), we generated a 3D molecular model illustrating the localization of various sDAP proteins on a centriole model (Figure 3b, Video 1). The model of the centriole and the DAPs is based on previous TEM serial sections of the monkey oviduct basal body (Anderson, 1972); the sDAP model is constructed on the basis of the TEM study of centrioles from a human lymphoblastoma cell line (Paintrand et al., 1992) and our sDAP TEM results (Figure 1i). Note that because the structures of sDAPs are dynamic (Uzbekov and Alieva, 2018), this model only represents one possible organization of sDAPs in a subset of centrioles, such that other settings may also exist. ODF2, CEP128 and centriolin lie close to the centriole MT wall. CEP170 and ninein are mostly at the sDAP tips. To gain further structural insight, we also included the DAP structure from our previous work in our model (Figure 3b–e). Note that both the sDAP protein ODF2 and the DAP protein CEP89 are two layered structures (Figure 3d,e). The proximal layer of ODF2 is at the lowest position among the sDAP proteins studied; while the distal layer of ODF2 lies in close proximity to the core DAP protein CEP83 (i.e. ~60 nm proximal to SCLT1 as we previously reported; Yang et al., 2018). The distal layer CEP89 lies at the distal end of DAPs; while its proximal layer is proximal to CEP83 and lies in the sDAP region. These observations suggest a potential structural relationship between sDAPs and DAPs.

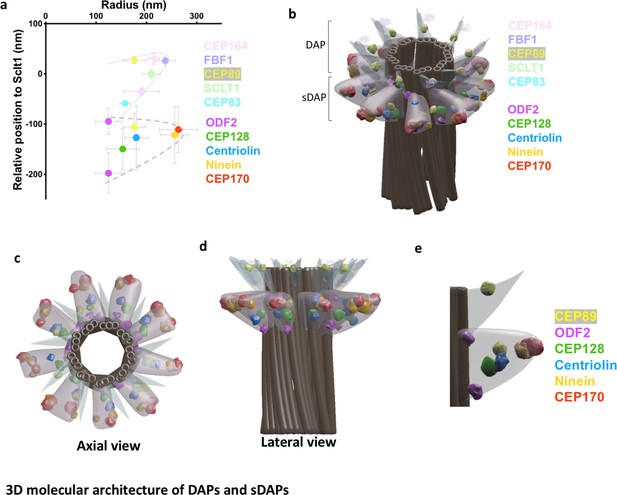

3D molecular architecture of DAPs and sDAPs.

(a) Relative localization of DAP and sDAP proteins in radial and lateral directions revealing the slanted arrangement of a DAP (dotted line) and the triangular structure of an sDAP (dashed line). (b) A 3D model of a mother centriole, illustrating the localization of various sDAP and DAP proteins for one of the possible arrangements when all nine sDAPs are present. (c) An axial view of the 3D model in panel (b) viewed from the distal end of the centriole, illustrating the radial positions of CEP89 and various sDAP proteins. (d) Lateral view of the model in panel (c). (e) Close view of the sDAP and the DAP in panel (d). ODF2 localizes at both ends of the sDAP and close to the centriole wall; CEP89 localizes on the DAP as well as in the sDAP region.

Video 1
3D view of a mother centriole model containing (i) DAP and sDAP proteins, (ii) a 3D molecular model of a mother centriole with reference to the centriole, sDAP, and DAP from previous centriole, and (iii) TEM results (Anderson, 1972; Paintrand et al., 1992) and our sDAP TEM results (Figure 1i), together with sDAP results from axial and lateral dSTORM images (Figure 3a).

ODF2 and CEP89 localizations are differentially regulated by DAP and sDAP integrity

To understand the relationship of ODF2 and DAPs/sDAPs, we conducted DAP depletion (i.e. CEP83 CRISPR/Cas9 knockout) and sDAP depletion (i.e. CEP128 CRISPR/Cas9 knockout) to check their effects on ODF2 localization with dSTORM. Successful knockout of CEP83 or CEP128 in RPE-1 cells were confirmed by immunoblotting (Figure 4a). Lateral super-resolution images of ODF2 reveal that ODF2 has two localizations distal and proximal to CEP128 in wild-type cells (Figures 2c and 4b). Surprisingly, in DAP or sDAP knockout cells, single-layered ODF2 was observed (Figure 4b and e). In particular, the proximal layer of ODF2 was absent upon CEP128 depletion, where SCLT1 was used as a reference of the longitudinal position. To examine whether this change in ODF2 is caused by a potential change in ODF2 configuration upon CEP128 depletion as reported previously (Kashihara et al., 2019), in addition to the original antibody targeting the N terminus of ODF2 (aa #39–200) (denoted as ODF2-N in Figure 4b), we used another antibody targeting the C terminus of ODF2 (aa #800 to the C terminus, denoted as ODF2-C) for further study (Figure 4c). dSTORM imaging of ODF2-C revealed that in wild-type cells, ODF2-C distribution is wider than ODF2-N distribution in the radial direction (Figure 4b, c and d). In addition, the distal edge of ODF2-C is closer to SCLT1 than that of ODF2-N, reaching further toward the centriole distal end. Interestingly, when CEP128 is depleted, distributions of both ODF2-N and ODF2-C become thinner. The gap between ODF2-N/C and SCLT1 of CEP128–/– cells is larger than that of the wild-type cells, illustrating both narrowing and shifting of ODF2 occupancy upon sDAP CEP128 depletion. These observations imply that CEP128, as the binding partner of ODF2 (Kashihara et al., 2019), regulates the organization of ODF2. Whether this ODF2 thin layer in CEP128-/- cells is originated from the ODF2 layer at DAP region or the one at sDAP region remains to be examined. One speculation is that the sDAP depletion results in the removal of ODF2 in the sDAP layer. Similarly, in CEP83-depleted centrioles, one layer of ODF2 was absent (Figure 4e). This observation implies that ODF2 is associated with both DAPs and sDAPs as a downstream protein of CEP83 and CEP128, respectively. Previous studies on the role of ODF2 with regard to DAPs and sDAPs have been controversial (Tanos et al., 2013; Ishikawa et al., 2005; Tateishi et al., 2013). Our results structurally confirm that ODF2 is involved in hierarchical relationships with both DAP and sDAP proteins (Tateishi et al., 2013; Mazo et al., 2016). Note that our finding here of one layer of ODF2 as a downstream protein of CEP128 explains our previous genetic studies showing reduced ODF2 levels due to CEP128 depletion (Mazo et al., 2016).

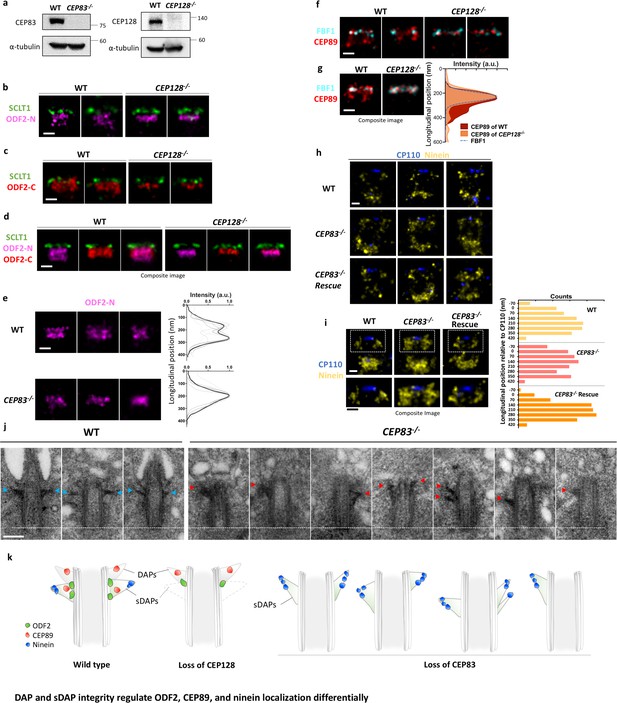

Figure 4 with 1 supplement see all
DAP and sDAP integrity regulates ODF2, CEP89, and ninein localization differentially.

(a) Immunoblotting confirming knockout of CEP83 or CEP128 in RPE-1 cells. WT, wild-type RPE-1 cells; CEP128–/–, CEP128 knockout RPE-1 cells. (b, c) Representative two-color dSTORM images of (b) the N-terminus of ODF2 and (c) the C-terminus of ODF2 with SCLT1 in WT cells and CEP128–/– cells. (d) Two-color dSTORM images in panels (b) and (c) aligned and combined according to their longitudinal positions relative to SCLT1 (n = 5 centrioles per group). (e) (Left) Representative dSTORM images of ODF2 in WT and CEP83 knockout RPE-1 cells (CEP83–/–). (Right) Intensity profile of WT and CEP83–/– cells (WT, n = 7 centrioles; CEP83–/–, n = 6 centrioles) showing that ODF2 becomes a single-layer structure when CEP83 is depleted. (f) Representative two-color dSTORM images of CEP89 and FBF1 in WT and CEP128–/cells. (g) (Left) Two-color dSTORM images in panel (e) aligned and combined according to their longitudinal positions relative to FBF1 (WT, n = 5 centrioles; CEP128–/–, n = 6 centrioles). (Right) Intensity profile of the images in the left panel showing that the lower layer of CEP89 is absent in the CEP128–/– cells. (h) Representative two-color dSTORM images of ninein and CP110 in WT, CEP83–/–, and CEP83–/– cells stably expressing wild-type CEP83 protein (CEP83–/–Rescue). (i) (Left, top) Two-color dSTORM images in panel (g) aligned and combined according to their longitudinal positions relative to CP110 (WT, n = 5 centrioles; CEP83–/, n = 6 centrioles; CEP83–/–Rescue, n = 5 centrioles). (Left, bottom) Magnified images of the insets in the top row. (Right) Histograms for the images on the left revealing that ninein is distributed towards the centriole distal end in CEP83–/– cells as compared to that in WT and CEP83–/–Rescue cells. (j) TEM of the mother centriole of WT and CEP83–/RPE-1 cells. sDAPs in the WT and CEP83–/cells are marked by blue and red arrowheads, respectively. (k) Cartoon model illustrating the changes in sDAP protein localization upon CEP128 depletion and the variations of sDAP structure upon CEP83 depletion. Bars = 200 nm.

We also examined the sDAP association of CEP89, a putative DAP protein that also exhibits a two-layered localization, by checking the effect of CEP89 localization upon sDAP depletion (CEP128 CRISPR/Cas9 knockout). Intriguingly, the proximal layer of CEP89 was absent when sDAP was depleted (Figure 4f and g). While DAP was depleted, CEP89 signal was reduced as compared to that in the wild type cells (Figure 4—figure supplement 1). That is, similar to ODF2, CEP89 has dual roles associated with both DAPs and sDAPs. These findings suggest an interesting structural–functional interplay between DAP and sDAP structures.

Ninein covers a broadened longitudinal region toward the centriole distal end upon DAP removal

To further examine the interaction of sDAPs and DAPs, we checked whether ninein at sDAPs is affected by DAP depletion. Surprisingly, super-resolution images show that in DAP-depleted CEP83–/cells, ninein at the sDAPs covers a longitudinal region larger than that in wild-type cells (Figure 4g and h). Using CP110 as a reference to indicate the distal boundary of the centriole, we find that the broadened longitudinal region of ninein spans from the sDAP region to the region originally occupied by DAPs. In addition, when CEP83 is stably expressed in CEP83–/cells (CEP83–/ Rescue), the sDAP distribution of ninein is restored (Figure 4h and i). To examine the differences in sDAP structures between wild type and CEP83–/– RPE-1 cells, we performed TEM with the results shown in Figure 4j. In wild-type cells, sDAPs mostly maintained their longitudinal position close to and proximal to the DAPs, but their shapes varied in different centrioles or even in the same centriole (Figure 4j, left panel). Surprisingly, we found that the positions and shapes of the stems of sDAPs are largely varying in CEP83-depleted cells were highly variable (Figure 4j, right panel). That is, the sDAP structure is much less stable when DAPs are missing. Specifically, a few examples show that sDAP tips may point toward the distal end with a thicker stem, consistent with what we observed in ninein super-resolution images of CEP83–/– cells (Figure 4h and i). In other cases, sDAPs can localize at the middle region of the centriole, occupy the same side of the centriole, miss one side of occupancy, or localize at different longitudinal positions in the same centriole. These large variations imply that the loss of DAPs via CEP83 depletion affects the structural stability of sDAPs, providing further evidence that DAPs and sDAPs are structurally related to each other (Figure 4k). Note that laterally oriented centrioles were preselected by the pattern of centrin and ninein under widefield imaging prior to dSTORM imaging; therefore, unlike the asymmetry of sDAP stems observed in the EM images of CEP83–/– cells (Figure 4j, right panel), asymmetry of ninein is less obvious in the ninein super-resolution images of CEP83–/– cells (Figure 4h).

sDAP depletion eliminates the anchoring of a subset of microtubules around the mother centriole

Previous studies have shown that the absence of ninein reduced microtubule (MT) regrowth after nocodazole-induced MT depolymerization (Delgehyr et al., 2005). However, it is unclear whether this outcome results from the ninein population of the sDAP region or that of the centriole proximal end. To validate whether sDAPs do play a MT-anchoring role, we examined α-tubulin localization in wild-type and CEP128–/– RPE-1 cells during the serum-starved G0 phase. In widefield images, no observable difference is found in terms of centrioles serving as the center of MT networks (Figure 5a and b). Many MT fibers still originate from the centrioles in the sDAP-depleted cells, and it is not obvious that sDAPs serve as a MT-anchoring site. An axial view of MTs around the mother centriole obtained using super-resolution microscopy can sometimes show reduced MT numbers in CEP128–/cells (Figure 5c and d), but it remains challenging to confirm whether the effect is due to sDAP depletion. Excitingly, by overlaying multiple lateral super-resolved α-tubulin images of wild-type and CEP128–/cells, we are able to find a void region of MTs in the sDAP region of CEP128–/– cells (Figure 5e, f and g). While previous EM studies have revealed the proximity of MTs and sDAPs (Mogensen et al., 2000), this is the first evidence from high-resolution imaging to show that loss of sDAPs results in loss of MT attachments. It illustrates a direct role for sDAP in MT anchoring. In addition to sDAP's role in anchoring MTs, our lateral-view images also show another subset of MTs that terminate at the DAP region (Figure 5e and f). These DAP-associated MTs do not seem to be affected by sDAP depletion.

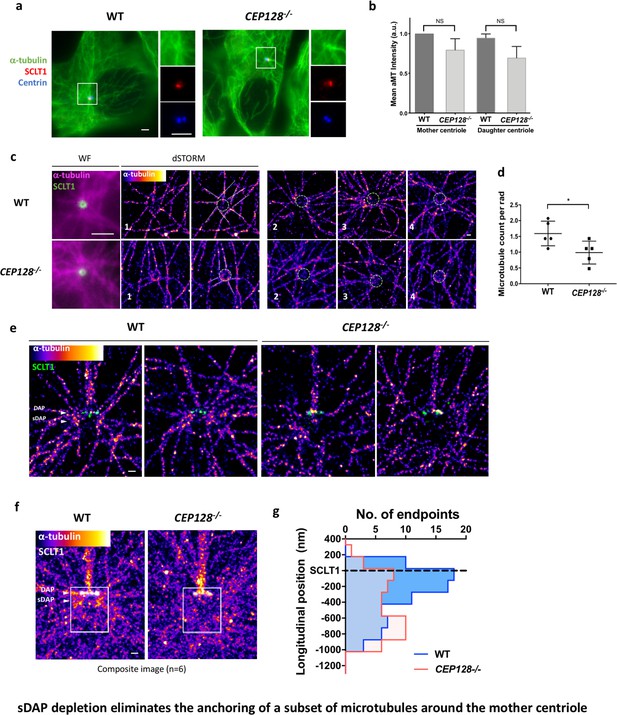

Figure 5 with 2 supplements see all
sDAP depletion eliminates the anchoring of a subset of microtubules around the mother centriole.

(a) Representative immunofluorescence images of α-tubulins in WT and CEP128–/– RPE-1 cells. Centrin was the centriole marker whereas SCLT1 was the mother-centriole-specific marker. (Inset) Magnified images showing the organization of α-tubulin fibers around the centriole. (b) Analysis of mean α-tubulin intensity around mother and daughter centrioles in WT and CEP128–/– cells. NS, not significant. (c) (Left) dSTORM images revealing fewer α-tubulin fibers arranged around the CEP128–/ centriole (white dotted line) as compared to the WT centriole. (Right) Representative dSTORM images of α-tubulin fibers in WT and CEP128–/centrioles. SCLT1 is co-stained as a marker for the axial centriole view (green dashed line). (d) Statistical analysis counting the number of α-tubulin fibers per radian (rad) around the WT and CEP128–/centrioles (n = 5 centrioles each), *p<0.05. Figure 5—figure supplement 1 details the analysis approach. (e) Representative lateral dSTORM images revealing the organization of centrosomal α-tubulin fibers around the WT and CEP128–/centrioles in the longitudinal direction. (f) dSTORM images in panel (e) aligned and combined using SCLT1 as a position reference. (g) Statistical analysis counting the number of α-tubulin fibers at various longitudinal positions around the WT and CEP128–/centrioles (WT, n = 78 data points; CEP128–/, n = 57 data points, p<0.01). Figure 5—figure supplement 2 shows the analysis strategy. Bars: (a, c) (WF images) = 2 μm; (c, e, f) = 200 nm.

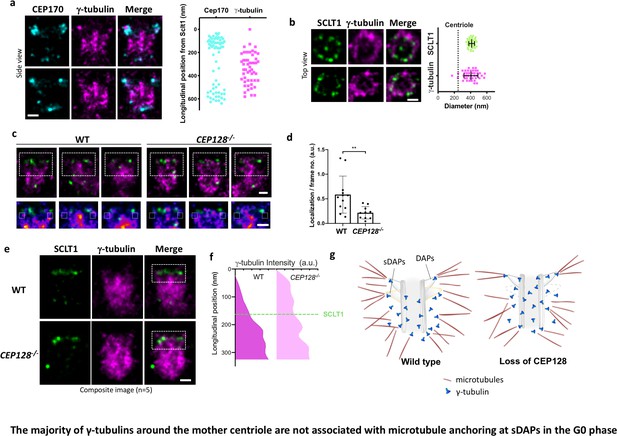

The majority of γ-tubulins around the mother centriole are not associated with microtubule anchoring at sDAPs in the G0 phase

As γ-tubulin of γTuRC is considered as the nucleation template of MTs, we examined whether γ-tubulin serves this role at the tips of sDAPs for the MTs anchored there. As expected, γ-tubulins are highly enriched close to the centriole (Figure 6a). Intriguingly, super-resolution imaging shows that most γ-tubulins cover the longitudinal region of the mother centriole from the proximal end to the height of the sDAPs (Figure 6a), leaving the region between the DAPs and sDAPs less populated. The diameter of the γ-tubulin occupied region is about 400 nm, larger than the diameter of the centriole (Figure 6b). That is, γ-tubulins in the G0 phase are mostly confined to a well-defined cylindrical position outside the mother centriole. This confined cylindrical distribution of γ-tubulins provides a better-defined localization of the previously known tightly packed PCM in the interphase, which is very different from the broad distribution of PCM-bound γ-tubulins during mitosis. When compared to the distribution of α-tubulin of wild-type centrioles shown in Figure 5f, the distal α-tubulin enrichment close to the sDAP region is different from the relatively uniform longitudinal distribution of γ-tubulin. Therefore, it is likely that there are at least two populations of γ-tubulins, a major population that does not anchor α- and β-tubulins and localizes along the mother centriole, and the other associated with MT anchoring at the sDAP region. To further examine the localization of γ-tubulin at the sDAP tip, we compare the signals of γ-tubulin in the region potentially close to the sDAP tip between wild-type and CEP128–/– cells (Figure 6c). Averaging the signals of several centrioles shows statistically significant signal reduction in the sDAP tip region of CEP128–/– cells (Figure 6d). What is surprising is the difference of γ-tubulin occupancy along the mother centriole between wild-type and CEP128–/cells (Figure 6e and f). Instead of being longitudinally confined to the level of the sDAPs shown in wild-type centrioles, the distribution of γ-tubulin in CEP128–/centrioles spreads toward the distal end of the mother centriole close to the level of the DAPs. That is, sDAPs spatially regulate the distal boundary of γ-tubulins along the centriole. Furthermore, this population of γ-tubulins may not anchor MTs, because we observed decreased α-tubulin population at the distal end of the mother centriole in the CEP128–/cells. as summarized in a speculative model in Figure 5g. Again, this result shows the presence of at least two populations of γ-tubulins in the G0 phase. It is possible that a population of γ-tubulins at the sDAP tips is responsible for the nucleation of specific MTs from the sDAPs, although the specific functions of these MTs remain elusive.

The majority of γ-tubulins around the mother centriole are not associated with microtubule anchoring at sDAPs in the G0 phase.

(a) (Left) Representative dSTORM images revealing the longitudinal positions of γ-tubulins with respect to CEP170. (Right) Scatter plot comparing the longitudinal positions of γ-tubulin with that of CEP170 (n > 7 centrioles); the longitudinal position of SCLT1 is set as zero. (b) (Left) Representative dSTORM images revealing the radial distribution of γ-tubulins. SCLT1 is the marker for an axial centriole view. (Right) Mean diameter analysis revealing that the radial distribution of γ-tubulins is similar to that of SCLT1. The dotted line indicates the diameter of the centriole wall measured in EM images. (c) (Top) Representative lateral two-color dSTORM images revealing the organization of centrosomal γ-tubulin in the WT and CEP128–/– centrioles. (Bottom) Magnified images of the inset in the top row. (d) Statistical analysis measuring γ-tubulin intensity around sDAPs (insets in panel [c]) in the WT and CEP128–/– centrioles (both WT and CEP128–/, n = 5 centrioles), **, p<0.01. (e) Two-color dSTORM images in panel (c) aligned and combined according to the longitudinal position of γ-tubulin relative to SCLT1 (n = 5 centrioles). (f) Statistical analysis of γ-tubulin intensity in the insets in panel (e) revealing that γ-tubulins are distributed towards the centriole distal end upon CEP128 depletion. (g) A model speculating on the role of sDAPs in microtubule anchoring. The loss of CEP128 relaxes the distribution of γ-tubulins toward the centriole distal end, whereas microtubules fail attach to the centriole at sDAPs upon CEP128 depletion. Bars = 200 nm.

Discussion

We have mapped the molecular architecture of sDAPs together with DAPs using super-resolution microscopy to gain a more comprehensive structural understanding of the distal end of the mother centriole. Unlike the more consistent nine-fold symmetric structures of DAP proteins, sDAP proteins are less organized, either with an incomplete occupancy of the ring or a spreading radial distribution. For those sDAPs possessing a more complete ring-shaped occupancy, ODF2, CEP128, and centriolin form better-defined nine puncta-like structures, whereas CCDC68, ninein, and CEP170 distribute more randomly around a ring. ODF2 localizes close to the upper and lower ends of the root of an sDAP attaching to the centriolar MTs. The distal layer of ODF2 is downstream of the DAP protein CEP83, whereas the proximal layer of ODF2 is downstream of the sDAP protein CEP128. CEP128 localizes slightly outside of ODF2 radially and in between the two layers of ODF2 longitudinally. The genetic and localization relationships of ODF2 and CEP128 are consistent with the finding that these two proteins form a protein complex to work together as an sDAP component (Kashihara et al., 2019). Centriolin localizes slightly outside and distal to CEP128 in the central region of an sDAP. CEP89, in addition to its DAP layer, also has a longitudinal sDAP layer downstream of CEP128 localizing distal to centriolin, close to the distal border of an sDAP. Ninein and CEP170 both localize toward the tip of an sDAP and have relatively broad radial and longitudinal distributions. They potentially serve as key components for functions of sDAP tips, such as anchoring a subset of MTs around the mother centriole. Note that the measurement may differ depending on the epitope regions of the protein of interest, as observed using ODF2 antibodies that recognize each terminus of the protein (Figure 4d). This difference in structural arrangement may be related to the different functions of the N and C termini of ODF2 suggested in previous studies (Ishikawa et al., 2005; Kashihara et al., 2019), with the N terminus of ODF2 found to be the interacting domain for CEP128.

In addition to the dual roles of ODF2 and CEP89 on DAPs and sDAPs, we found that the longitudinal distribution of sDAP ninein is regulated by DAPs. Depleting DAPs results in the spreading of the ninein covering the longitudinal region from the sDAPs all the way toward the distal end of the mother centriole. That is, DAPs serve as a distal border of sDAPs. The structural arrangement of sDAPs is dependent on the structural arrangement of DAPs. Previously, the DAPs and the sDAPs were considered to be independent components serving distinct roles at the distal end of the mother centriole. Removal of sDAPs does not influence ciliogenesis, which requires proper functions of DAPs (Mazo et al., 2016). sDAP protein localizations are still observed upon depletion of DAPs (Joo et al., 2013). On the other hand, using super-resolution microscopy, we show here that DAPs and sDAPs are not entirely independent, with at least two proteins serving dual roles and with ninein positioning affected by the DAP structure (Figure 4i).

We also provide direct evidence that sDAP-specific CEP128 knockout depletes MT population close to the sDAPs, further confirming that sDAPs anchor a subset of MTs around the mother centriole (Figure 6g). This result clarifies the previous conclusion of ninein’s role in MT anchoring as an sDAP element (Delgehyr et al., 2005; Mogensen et al., 2000). The exact functions of this subset of sDAP-anchoring MTs remains unclear due to the challenge of tracing individual MT filaments, even with our 20-nm super-resolution capability. One speculation would be related to the mechanosensation of cells through this subset of sDAP-anchoring MTs. It is known that for a motile cilium, the component proximal to DAPs is a cone-shaped basal foot, whose orientation is aligned to its beating direction, serving as a mechanical coupling element at the ciliary base (Clare et al., 2014; Bornens, 2012; Gibbons, 1961). Because a primary cilium does not actively beat, it is speculated that mechanosensation is required in all orientations. Thus the ring-shaped sDAPs are formed at the centriolar distal end to anchor mechanosensing MTs in all circumferential directions. It would be interesting to examine mechanical coupling phenotypes in other types of polarized cells that have primary cilia, such as inner medulla collecting duct (IMCD) cells or Madin-Darby canine kidney (MDCK) cells. Another possibility is that this subset of MTs partially bridges a centriole and Golgi apparatus, because we have previously shown that even though Golgi remains adjacent to a centriole in single knockout of CEP128–/–, double knockouts of CEP128–/ and CNAP1–/– result in centriole-Golgi dissociation (Mazo et al., 2016). Because of the complex MT network surrounding the mother centriole, we were not able to determine whether the sDAP-linked MTs reach Golgi or not.

As γTuRC is the initiating template of a MT, we expected that the locations where γ-tubulins are populated would be where more α-tubulin signals are found if an MT nucleation site remains as an anchoring site. Surprisingly, their distributions around the mother centriole are inconsistent when observing them using super-resolution microscopy. In wild type cells, α-tubulin signals are mostly associated with DAPs and sDAPs, whereas γ-tubulins are mostly localized along the mother centriole below sDAPs. Although CEP128 depletion results in reduced α-tubulin close to the sDAP region, an unexpected increasing population of γ-tubulin is observed around the region between sDAPs and DAPs (Figure 6g). From these results, we can speculate that, in the G0 quiescent phase, there is one population of γ-tubulins involved in MT anchoring at sDAPs, and another population of γ-tubulins localized along the centriole that is not associated with the α-tubulin population. The latter population comprises the majority of centrosomal γ-tubulins and wraps around the mother centriole at a well-defined cylindrical confinement with sDAPs as their distal constraint. It is possible that these γ-tubulins are anchored at the compact PCM structure outside the mother centriole, with a diameter larger than the centriole wall, illustrating a clear shape of the confined PCM during interphase. It is also possible that this major γ-tubulin population in G0 phase serves as a reservoir of MT nucleating sites, which enables quick initiation of MT growth once the cells re-enter the cell cycle. Besides, as suggested by a previous study showing that MT initiation and anchoring may be independent processes (Delgehyr et al., 2005), it is also likely that these γ-tubulins can first initiate MT nucleation around the centriole and later be associated with some MT-anchoring proteins, such as ninein, to anchor MT to sDAPs. The function of this major γ-tubulin population may be interesting to address in future studies.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or
reference
IdentifiersAdditional
information
Cell line (Homo-sapiens)hTERT RPE-1ATCCCRL-4000Identity authenticated with STR Profiling by ATCC
Transfected construct (Homo-sapiens)CEP83-MycLo et al., 2019
AntibodyFBF1 (rabbit polyclonal)Proteintech, Rosemont, IL, USA11531–1-AP1/200
AntibodySCLT1 (rat polyclonal)Tanos et al., 20131/250
AntibodyCEP89 (rat polycloncal)Tanos et al., 20131/500
AntibodyODF2-N (rabbit polyclonal)Sigma-AldrichHPA0018741/200
AntibodyODF2-C (rabbit polyclonal)Abcamab438401/200
AntibodyCEP128 (rabbit polyclonal)Abcamab1187971/200
AntibodyCENTRIOLIN (mouse monoclonal)Santa Cruzsc-3655211/200
AntibodyNINEIN (rabbit polyclonal)BethylA301-5041/1000
AntibodyNINEIN (mouse monoclonal)Santa Cruzsc-3764201/500
AntibodyCEP170 (rabbit polyclonal)Abcamab725051/400
AntibodyCCDC68Proteintech26301–1-AP1/400
AntibodyC-NAP1Santa Cruzsc-3905401/200
Antibodyγ-tubulinSigma-AldrichT65571/500
Antibodyα-tubulinSanta Cruzsc-322931/500
AntibodyCentrin (mouse monoclonal)Millipore04–16241/400
Recombinant DNA reagentgRNA cloning vectorAddgene#41824
Recombinant
DNA reagent
CEP128 gRNA(Mazo et al., 2016)gRNA2 (5′-GCTGCCAGATCAACGCACAGGG-3′), gRNA4 (5′-GAGTCAGCTCTGAGATCTGAAGG-3′), gRNA5 (5′ GCAGCTGAACTTCAGCGCAATGG-3′)
Recombinant DNA reagentCEP83 gRNA(Mazo et al., 2016)gRNA1 (5′-GGTGGAGACAGTGGATTGACAGG-3′), gRNA2 (5′-GATATTAACTCCACAAAAATTGG-3′)
Software, algorithmMetamorphMolecular Device
Software, algorithmImageJNIH

Antibodies

The primary antibodies used in this study are listed in Supplementary file 1 Table 2. Secondary antibodies used in this work were Alexa Fluor 488 (mouse A21202 and rabbit A21206; Thermo Fisher Scientific, Waltham, MA, USA), Alexa Fluor 647 (anti-mouse A21236, anti-rabbit A21245, anti-rat A21247; Thermo Fisher Scientific) and Cy3B-conjugated antibody, which was custom-made as described previously (Yang et al., 2018). Briefly, 10 mg/ml Cy3B maleimide (PA63131, GE Healthcare, Pittsburgh, PA, USA) dissolved in DMOS/DMF (1:1) was mixed with IgG antibodies (rabbit 711-005-152, rat 712-005-153; Jackson ImmunoResearch, West Grove, PA, USA) at a 1:1 ratio by volume. 0.67 M borate buffer (1859833, Thermo Fisher Scientific) was then added to the mixture, achieving a final concentration of 4%. The reaction mixture was protected from light and incubated at room temperature for 1 hr. The mixture was cleaned up using purification resin (1860513, Thermo Fisher Scientific) to remove excess dye and stored at 4°C until later use.

Cell culture and immunofluorescence staining

Request a detailed protocol

Human retinal pigment epithelial cells (RPE-1) were purchased from ATCC (CRL-4000, Manassas, VA, USA) and were cultured in DMEM/F-12 medium (1:1; 11330–032, Gibco, Thermo Fisher Scientific, Waltham, MA, USA) supplemented with 10% fetal bovine serum (SH30109, Hyclone, GE Healthcare, Chicago, IL, USA) at 37°C with 5% CO2. The identity of the cell line has been authenticated using STR Profiling Analysis by ATCC with a 100% match. A mycoplasma contamination test was performed by collecting cell culture medium without antibiotics for 24 hr and processing this medium by PCR using EZ-PCR mycoplasma detection kit (EZ-PCR Mycoplasma Detection Kit, 20-700-20, Biological Industries, CT, USA), according to the manufacturer's protocol. This cell line is not in the list of commonly misidentified cell lines maintained by the International Cell Line Authentication Committee. Prior to immunofluorescence staining, cells were cultured on poly-L-Lysine coated coverslips and then serum starved for 24 hr before fixing with methanol at −20°C. For staining of CCDC68, CEP170 and ninein, cells were first extracted with PTEM buffer for 2 min before proceeding to ice-cold methanol fixation. The PTEM buffer contained 20 mM PIPES, 0.2% Triton X-100, 10 mM EGTA and 1 mM MgCl2 and was prepared at pH 6.8. After fixation, cells were permeabilized with 0.1% PBST (PBS with 0.1% Triton X-100) for 10 min before blocking with 3% BSA for 30 min. Primary antibodies at optimized dilution prepared with 0.1% BSA in PBST were then added to cells for 1 hr. To remove unbound antibodies, cells were washed three times with 0.1% PBST, and then incubated with optimally diluted secondary antibodies for 1 hr. Finally, cells were washed three times with 0.1% PBST and stored in PBS with sodium azide at 4°C until later use.

Immunoblotting

Request a detailed protocol

Cells were washed with ice-cold PBS twice and lysed with 1% NP-40 buffer (20 mM Tris-HCl [pH 7.5], 150 mM NaCl, 1 mM EDTA, 1% NP-40 and 1x protease inhibitor cocktail [ROC-04693132001, Sigma-Aldrich]). Total cell lysates were incubated on ice for 20 min and centrifuged (14,000 x g, 10 min, 4°C). Following the protein quantification assay (500–0116, Bio-Rad, Hercules, CA USA), 30 μg proteins from wild-type and knockout cells were analyzed by 8% SDS-PAGE. Proteins were transferred to PVDF membrane and incubated with the indicated antibodies, before signals were detected using the Western Lightning Plus reagent (PK-NEL105, PerkinElmer, Waltham, MA, USA).

CRISPR/Cas9-mediated generation of CEP83–/– and CEP128–/– cells

Request a detailed protocol

A CRISPR/Cas9 gene targeting technique was used to inactivate CEP83 or CEP128 in RPE-1 cells as described previously (Mazo et al., 2016). The targeting sequence of the gRNA was as followed:

CEP128 gRNA2 (5′-GCTGCCAGATCAACGCACAGGG-3′), CEP128 gRNA4 (5′-GAGTCAGCTCTGAGATCTGAAGG-3′), CEP128 gRNA5 (5′ GCAGCTGAACTTCAGCGCAATGG-3′), CEP83 gRNA1 (5′-GGTGGAGACAGTGGATTGACAGG-3′), and CEP83 gRNA2 (5′-GATATTAACTCCACAAAAATTGG-3′). Multiple gRNAs targeting different exons for CEP128 were used to achieve complete protein depletion. Briefly, the targeting sequences were cloned into the gRNA cloning vector (#41824, Addgene, Cambridge, MA, USA) via the Gibson assembly method (New England Biolabs, Ipswich, MA, USA). gRNA was co-expressed with Cas9 protein in RPE-1 cells using reagents from the Church group (Esvelt et al., 2013) (Addgene: http://www.addgene.org/crispr/church/). Knockout cell lines were obtained through clonal propagation and then confirmed by genotyping and immunoblotting.

Generation of CEP83–/–Rescue cells

Request a detailed protocol

CEP83 construct synthesis and generation of CEP83/ Rescue cells was as previously described Lo et al. (2019). Briefly, CEP83 cDNA amplified from a HELA cDNA library was first cloned into a pRK5M vector that tagged protein with Myc-epitope at the protein C-terminus. The CEP83-Myc sequence was subcloned into a pBabe-puro3 vector and then transfected into 293FT (R70007, Thermo Fisher Scientific) cells together with V-SVG and pCMV-gag-pol plasmids for lentivirus generation. The virus was collected 48 hr post infection. 3 ml of the viral stock was used to infect 5 × 105 CEP83–/RPE-1 cells seeded onto a 60 mm plate. Cells were selected 2 days after infection and maintained in culture medium containing 2 µg/ml puromycin (p8833, Sigma-Aldrich).

Transmission electron microscopy

Request a detailed protocol

RPE-1 cells were grown on Aclar film (Electron Microscopy Sciences, Hatfield, PA, USA)-based coverslips and fixed in 4% paraformaldehyde (15710, Electron Microscopy Sciences) and 2.5% glutaraldehyde (G5882, Sigma-Aldrich, St. Louis, MO, USA) with 0.1% tannic acid in PBS buffer at 37°C for 30 min. Cells were then further postfixed in 1% OsO4 in PBS buffer for 30 min on ice. After dehydrating in a graded series of ethanol, the cells were then infiltrated and embedded in EPON812 resin (Catalog #14120, Electron Microcopy Sciences) to generate a resin sample. A microtome (Ultracut UC6; Leica, Wetzlar, Germany) was used to cut the sample into serial sections (~90 nm thickness), which were then stained with 1% uranyl acetate and 1% lead citrate. Samples were imaged using FEI Tecnai Spirit G2 and a JOEL JEM-1400plus transmission electron microscope.

dSTORM imaging and image analysis

Request a detailed protocol

For dSTORM imaging, Alexa Fluor 647 antibody (1:200) and Cy3B-conjugated antibody (1:100) were used as secondary antibodies. In general, the protein of interest was stained with Alexa Fluor 647 antibody whereas the reference protein, for example SCLT1, was stained with Cy3B-conjugated antibody. The dSTORM imaging system included a modified inverted microscope (Eclipse Ti-E, Nikon, Tokyo, Japan) and a laser merge module (ILE, Spectral Applied Research, Richmond Hill, Ontario, Canada) with individual controllers for three light sources. To illuminate samples in the wide field, photon beams from a 637 nm laser (OBIS 637 LX 140 mW, Coherent, Santa Clara, CA, USA), a 561 nm laser (Jive 561 150 mW, Cobolt, Solna, Sweden) and a 405 nm laser (OBIS 405 LX 100 mW, Coherent) were homogenized (Borealis Conditioning Unit, Spectral Applied Research) and focused with a 100 × 1.49 NA oil immersion objective (CFI Apo TIRF, Nikon). To minimize z-axis drift, a perfect focusing system (PFS, Nikon) was used. During dSTORM imaging, the 647 nm and 561 nm laser lines were operated at a high intensity of ~1–5 kW/cm2 to quench most of the fluorescence from Alexa 647 and Cy3B, respectively. A weak 405 nm beam was used to activate a portion of the dyes, converting them from a dark state to an excitable state. For single-color imaging of Alexa 647, signals were filtered with a bandpass filter (700/75, Chroma, Bellows Falls, VT, USA); for two-color imaging, the Alexa 647 channel was first recorded, and then the Cy3B channel was acquired with the corresponding filter (593/40, Chroma).

The collected fluorescent signal was filtered through a single-band emission filter and acquired on an EMCCD (Evolve 512 Delta, Photometrics, Tucson, AZ, USA) with a pixel size of 93 nm. For each dSTORM image, 10,000–20,000 frames were acquired every 20 ms (exposure time). Individual single-molecule peaks were localized using MetaMorph Superresolution Module (Molecular Devices, Sunnyvale, CA, USA) based on a wavelet segmentation algorithm. Super-resolution images were cleaned with a Gaussian filter with a radius of 1 pixel. For imaging sample preparation, cells grown on coverslips were placed in an imaging chamber (Chamlide magnetic chamber, Live Cell Instrument, Seoul, Korea) and immersed in dSTORM imaging buffer. The buffer included TN buffer at pH 8.0, and an oxygen-scavenging system consisting of 60–100 mM mercaptoethylamine (MEA, 30070, Sigma-Aldrich) at pH 8.0, 0.5 mg/mL glucose oxidase (G2133, Sigma-Aldrich), 40 mg/mL catalase (C40, Sigma-Aldrich), and 10% (w/v) glucose (G8270, Sigma-Aldrich).

To correct lateral position drift, fiducial markers (Tetraspeck, T7279, Thermo Fisher Scientific) were added to the sample at a dilution of 1/200 before imaging. The drift was measured and corrected with ImageJ via frame-by-frame correlation of the fiducial markers. Chromatic aberration between the long and short wavelength channels was compensated with a customized algorithm relocating each pixel of a 561 nm image to its targeted position in the 647 nm channel with a predefined correction function obtained by a parabolic mapping of multiple calibration beads. For axial imaging of the DAPs, a ring pattern of SCLT1 was used to identify the top view orientation. For lateral imaging, the rod-like pattern of SCLT1 was used as an indicator of the lateral view of the centriole-cilium. To determine the diameter of the sDAP proteins, a radial position of an individual super-resolved punctum was measured and the distance between each punctum and the center was defined as the radius. To correlate dSTORM with EM images, signal of CEP170 was used to align with the tip of the sDAP contour on the electron micrograph.

3D model illustration

Request a detailed protocol

The 3D mother centriole structure model was drawn with the 3D illustration software Blender (Blender Foundation, Amsterdam, The Netherlands). The dimensions of the model were based on the mean localization positions measured from the dSTORM images (Figure 1 and Figure 2) in this study, images from our previous work (Yang et al., 2018) and information from previous studies (Anderson, 1972).

Expansion microscopy

Request a detailed protocol

For expansion microscopy, cells were fixed with 4% PFA (15710, Electron Microscopy Sciences) for 10 min before blocking. ATTO647N (40839, anti-rabbit-IgG, Sigma-Aldrich) and Alexa Fluor 488 secondary antibodies were used in immunostaining. Stained cells were then incubated in 0.1 mg/ml acryloyl-X (A20770, Thermo Fisher Scientific) solution in DMSO overnight at 4°C, followed by washing twice for 15 min each with PBS. For in-situ polymer synthesis, monomer solution (1x PBS, 2M NaCl, 8.6% sodium acrylate [408220, Sigma-Aldrich], 2.5% acrylamide [01697, Sigma-Aldrich], 0.15% N,N'-methylenebisacrylamide [M7279, Sigma-Aldrich]) was prepared as described previously (Asano et al., 2018). Samples were incubated with the monomer solution plus 0.2% ammonium persulfate (A3678, Sigma-Aldrich) and 0.2% TEMED (T7024, Sigma-Aldrich) at 4°C for 10 min in a wet chamber before transferred to 37°C for 1 hr for polymerization. Proteinase K (P8107S, New England Biolabs) was diluted 8 units/ml in digestion buffer containing 50 mM Tris-HCl (pH 8), 1 mM EDTA, 0.5% Triton X-100, 0.8 M NaCl and applied directly to gels for 1 hr at room temperature in the dark. After digestion, coverslips were removed carefully. For sample expansion, gels were immersed in water for 20 min. This step was repeated 2–3 times in fresh water until gels were totally expanded. The expanded gels were imaged with 1.49NA 100x objective operated in a spinning disk confocal mode. 3D stack was acquired every 200 nm in z axis. 3D images were rendered with ImageJ.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
    Microtubule minus-end anchorage at Centrosomal and non-centrosomal sites: the role of ninein
    1. MM Mogensen
    2. A Malik
    3. M Piel
    4. V Bouckson-Castaing
    5. M Bornens
    (2000)
    Journal of Cell Science 113:3013–3023.
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
    CEP110 and ninein are located in a specific domain of the centrosome associated with centrosome maturation
    1. YY Ou
    2. GJ Mack
    3. M Zhang
    4. JB Rattner
    (2002)
    Journal of Cell Science 115:1825–1835.
  28. 28
  29. 29
    Centrosome-microtubule nucleation
    1. G Pereira
    2. E Schiebel
    (1997)
    Journal of Cell Science 110:295.
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43

Decision letter

  1. Anna Akhmanova
    Senior and Reviewing Editor; Utrecht University, Netherlands
  2. Laurence Pelletier
    Reviewer; Mount Sinai Hospital, Canada

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Centrioles are cylindrical microtubule-based structures that form the core of the major microtubule-organizing center, the centrosome, and also serve as basal bodies of cilia and flagella. Centriole functions partly depend of protrusions emerging from centriole surface, which are termed distal and subdistal appendages. This paper nicely combines super-resolution microscopy and CRISPR-Cas9 knockouts in human cells to reveal the molecular organization of centriole appendages. These data confirm previous observations and provide novel insight into the architecture of centriole appendages and also contribute to the ongoing discussion about the functional role and interdependence of these structures.

Decision letter after peer review:

Thank you for submitting your article "Super-resolution microscopy reveals coupling between mammalian centriole subdistal appendages and distal appendages" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Anna Akhmanova as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Laurence Pelletier (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

In this manuscript, Wong and colleagues present imaging of sub-distal appendage (SDAP) architecture using quantitative dSTORM. The authors show that different SDAP proteins display different radial distributions around the mother centrioles. The authors then use similar analyses to map the lateral position occupied by each of the SDAP analysed and generate an axial and lateral composite view of SDAP organization, which suggests that ODF2 and CEP89 distribution are localized to both DAPs and SDAP region consistent with a potential positional relationship between these structures. The authors then go on to show that ODF2, CEP89 and Ninein distribution is differentially regulated upon the perturbation of DAP and SDAP integrity using CRISPR KO cell lines. The authors then demonstrate a small but reproducible reduction in the number of microtubules anchored in the vicinity of SDAP in CEP128 KO cells. Finally, the authors present data suggesting that the majority of γ-tubulin adjacent to the mother centriole does not appear to correlate with anchored microtubules at SDAPs in cells that are in G0 phase. Overall, this is a very nice paper, with high-quality quantitative sub-diffraction imaging of centriolar appendages. Although some of the data is somewhat preliminary, the results presented here expose both a positional and functional relationship between DAPs and SDAPs and begin to reveal a more direct role for SDAPs in microtubule anchoring at centrosomes, which will stimulate further work in these areas.

Essential revisions:

1) The most important problem with this work is that conclusions derived from STORM-based analyses are not corroborated by ultrastructural analysis.

Specifically, Figure 3 shows a 3D model of SDAPs. The model shows nine subdistal appendages. Since SDAPs occupy more than one microtubule triplet, the model presented in Figure 3 might not reflect the actual organization of SDAPs in RPE-1 cells. In addition, it is not obvious how this model was deduced from presented STORM data, which itself did not reveal a nine-fold distribution of most SDAP proteins. The authors will either need prove their model by performing EM analysis, or clarify that this is a speculative model. As it is now, it may suggest the wrong concept of SDAP architecture in mammalian cells. Please see PMID: 30045886, a recent review on this subject.

Further, in Figure 4I, which summarizes the localization changes of SDAP proteins in Cep128-/- and Cep83-/- cells, some type of appendage is drawn at the distal centriole end. Do authors mean to say that in the absence of distal appendages, subdistal appendages form at the centriole's very distal ends? If so, it would be critical to perform an EM analysis of wild type and knockout centrioles and to show whether there are any structural changes associated with centriole distal ends. Otherwise, it needs to be clear that the model is speculative. The cartoon in Figure 6G is not corroborated by STORM or ultrastructural analysis either.

In summary, it should be possible to perform some classical EM to, at minimum, to investigate whether in knockout cells lacking DAPs sub distal-like structures form at the distal ends of centrioles. If the models and cartoons cannot be proven by EM, then it would be essential to state very clearly that these models and cartoons are speculative.

2) Figure 4A-C. The authors show that after Cep128 and Cep83 knockout ODF2 STORM signal changes, losing its proximal portion after Cep128 removal. The same seems to occur after Cep83 depletion but it is not clear from Figure 4D which portion of ODF2 is lost after Cep83 depletion. However, based on 4B and C, there is a ~50 nm gap between Sclt-1 and ODF2 protein signals in Cep128-/- cells. Also, the brightest portion of the ODF2 signal is shifted for additional ~50 nm toward centriole proximal end. This is not consistent with the authors' interpretation of the data. Since it has been previously shown that ODF2 interacts with Cep128 via its N terminus which extends further away from centrioles, one interpretation why ODF2 signal changes in Cep128-/- cells could be that without its natural binding partner, it changes its configuration from more to less extended, changing the shape of the STORM signal.

3) The quality of some STORM images raises concerns. For instance, even a well characterized distal appendage protein SCLT-1, which is known to reproducibly localizes to nine discrete foci here on longitudinally analyzed centrioles shows a highly variable and irreproducible pattern. This raises a question about the reproducibility and reliability of other STORM signals, specifically in Figure 4G-H and 6C where Ninein and Γ-tubulin signals are very variable from one centriole to another. CP110 signal in Figure 4G is also of a poor quality, showing nonspecific signals. It is not clear how reliably it detects centriole distal ends. RPE-1 cells used in this study are supposed to be serum starved and, based on published data, majority of cells should have a cilium and should not have CP110 at centrioles.

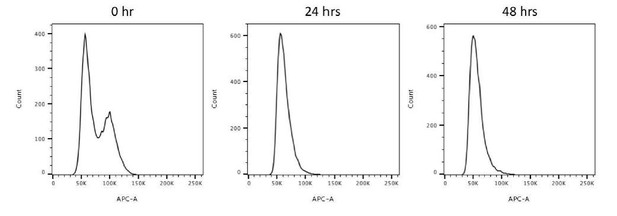

Related to this: The authors use 24hours of FBS to synchronize cells in G0 and allow for, or not, cilia formation. Do the authors know how robust the G0 arrest and what % ciliation they achieve? It is unclear from looking at the data if they are imaging ciliated cells or not. More robust cell cycle arrest protocols could have been used or an additional cilia marker incorporated in their analysis to ensure differences observed in the +/- FBS conditions represents cell cycle modulation or the presence or not of a primary cilium.

4) Introduction: The authors claim that no clear EM image of SDAPs has been reported for human RPE-1 cells. This statement seems inaccurate, considering that there is a plethora of electron micrographs showing both sets of appendages in this cell line (for instance: PMID: 30988386, PMID: 23253480, PMID: 26675238, PMID: 25686250, PMID: 26880200... and more). It thus appears that SDAPs of RPE-1 cells are documented across literature appear to be present in variable number, that they can adopt various morphology (based on electron densities) and that they are associated with microtubules at their ends.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Super-resolution microscopy reveals coupling between mammalian centriole subdistal appendages and distal appendages" for further consideration by eLife. Your revised article has been evaluated by Anna Akhmanova (Senior Editor) and two reviewers.

The manuscript has been improved but there are some remaining issues raised by reviewer 1 that need to be addressed before acceptance, as outlined below. Addressing these comments should not require any new experiments, but please take the various concerns and suggestions seriously and modify the paper accordingly. Please provide a point-by-point rebuttal explaining the changes that you have made.

Reviewer #1:

In the revised manuscript, the biggest issue remains the interpretation of the data and the model.

The authors have performed TEM analysis to understand the organization of subdistal appendages in starved RPE-1 cells (now shown in Figure 1I). They concluded that the TEM analysis supports the nine-ness in the organization of sDAS. However, there are several issues with this interpretation and, consequently, with the model.

Subsection 'ODF2 is close to the centriole microtubule wall whereas ninein and CEP170 are close to the sDAP tips' states that "The TEM images reveal that sDAP backbone can be mostly observed in the same section with a nine-fold arrangement". It appears that this conclusion was derived from only one cross-sectioned centriole (which is not adequate). The number of centrioles analyzed in cross section is not indicated But I saw only one analyzed centriole with eight instead of nine distinguishable sDA densities (marked by the asterix, one density which is detected in two adjacent sections is marked twice). So, in my view, presented electron micrograph clashes with author's interpretation. It demonstrates the lack of heterogeneity in the appearance of SDA in EM and questions the nine-fold arrangement of sDAs,

The authors explained (subsection 'Axial and lateral images compose a 3D molecular map of sDAPs' and rebuttal) that they used two studies to model SDAs. These are: Anderson et al., (PMID: 5064817), a study performed in cells from Rhesus monkey oviduct, and Paintrand et al., (PMID: 1486002), a study conducted on isolated centrioles from lymphoblastoid cell line.

Anderson study explores basal bodies which sport only one basal foot positioned in the middle of the basal body longitudinal axes. Moreover, the authors say that the "structure at the longitudinal position proximal to the DAPs is the basal foot, a 'badminton-shaped' structure largely different from the sDAPs in the mother centriole". It is, therefore, confusing how can Anderson model was used to model SDAs in RPE-1.

Paintrand study, another work used to model SDAs, describes centrioles isolated from lymphoblastoid cells. Since during centriole isolation the heads of SDAs are frequently lost, their conical appearance may as well be perturbed So, again, it is not clear how SDAs from this study can be taken as a benchmark for modeling od sDAs in intact cells. It is not obvious whether authors realize that most centriole electrographs presented in Paintrand study were additionally digitally modified (rotationally averaged) with the purpose to highlight specific discussion points. Such averaging will inevitably result in the appearance of nine subdistal appendages. Centrioles from the same study that were not rotationally averaged clearly show a variable number of sDAs and their more conical shape of sDA's densities (for instance see Figure 10.)

Therefore, the following interpretation of sDA morphology in the introduction paragraph needs to be changed. After all, author's own EM data is not in agreement with their own description.

Introduction: "When sDAPs do form a complete ring of a nine-fold symmetry, its symmetric pattern is different from that of DAPs (Uzbekov and Alieva, 2018), with one pairs of parallel electron-dense "spokes" in each arm, where one of the spokes is associated with the A-tubule of a MT triplet of the mother centriole and the other is associated with the C-tubule of an adjacent MT triplet...". It is also unclear why was Uzbekov and Alieva cited here, the centriole in question is taken over from Paintrand study.

EM analysis of SDAs of longitudinally positioned centrioles is now included in the manuscript (Figure 4J). It reveals variability in the shape of sDAs. All six appendages in wild type RPE cells are different in their morphology (not all have the same triangular shape) and they don't point in the same direction. It would be useful to accordingly adjust the interpretation in subsection 'Ninein covers a broadened longitudinal region toward the centriole distal end upon DAP removal'.

EM analysis of sDAs in Cep83-/- cells has revealed centrioles with somewhat uneven length and with sDAs positioned at various distances from both centriole's ends. Fewer sDA EM densities are also present in Cep83-\- cells. How this asymmetry is not reflected in the radial distribution of STORM Ninein signal, which remained more-less symmetrical organized around mother centriole? It is surprising that, given this revelation, the analysis of additional sDAPs has not been added to the analysis.

Introduction: "Loncarek group further used correlative super-resolution microscopy and EM to show precise localization of DAP proteins relative to the electron dense blade structure (Bowler et al., 2019), improving the architectural mapping of the DAPs". Please note that Bowler at al. used tomography to elucidate the organization of DA's electron densities, which argued against the notion that DAs are organized as blades.

The text says: "To understand the architecture of protein complexes at their mature stage in terms of structural occupancy, we further analyzed super-resolution images of those with nearly full ring occupancies for each sDAP protein.

What does it mean their mature stage? Were centrioles somehow pre-selected for imaging based on whether they saw a ring or not by wide field microscopy? Structural occupancy is unclear. I think that I understand the meaning, but the sentence could be re-phrased.

Arbitrary terminology seems to be used to describe the morphology of sDAs ("SDAP backbone", "sDAP arms", "spokes", "badminton-shaped, "root"...). It is confusing. sDA's parts are usually described as a head and a stem. At least these terms need to be defined.

Further proofreading is necessary. Some sentences are illogical; it is hard to understand what they meant. For instance: The title of the Figure 6 says: "γ tubulins around mother centriole do not nucleate MT anchoring at the sDAPs in the G0 phase". What does it mean that anchoring is not nucleated? The abbreviation "sDAP" appears erroneously used on some places. "sDAP protein" and "DAP protein" is also used, although "P" already stands for "protein"...

https://doi.org/10.7554/eLife.53580.sa1

Author response

Essential revisions:

1) The most important problem with this work is that conclusions derived from STORM-based analyses are not corroborated by ultrastructural analysis.

Specifically, Figure 3 shows a 3D model of SDAPs. The model shows nine subdistal appendages. Since SDAPs occupy more than one microtubule triplet, the model presented in Figure 3 might not reflect the actual organization of SDAPs in RPE-1 cells. In addition, it is not obvious how this model was deduced from presented STORM data, which itself did not reveal a nine-fold distribution of most SDAP proteins. The authors will either need prove their model by performing EM analysis, or clarify that this is a speculative model. As it is now, it may suggest the wrong concept of SDAP architecture in mammalian cells. Please see PMID: 30045886, a recent review on this subject.

Originally we used TEM images of centrioles from previous studies (PMID: 5064817 by Anderson and PMID: 1486002 by Bornens' team) to deduce the architecture of the centriole and sDAP backbone as well as our dSTORM data to deduce the localization of sDAP proteins. Here to confirm the organization of sDAP backbone in RPE-1 cells, we have followsfollows the reviewer's suggestion and performed serial TEM sectioning of RPE-1 centrioles in the axial view, shown in Figure 1I. The TEM data reveals that sDAP backbone can be mostly observed in the same section with a nine-fold arrangement. It is also interesting to note that the sDAP arms are mostly wider than those of DAPs, similar to the observation recorded in Bornens' paper. Therefore, in our model, we constructed a nine-fold distribution of sDAPs. We have added this figure to the main text to support our model (Figure 1I). From the EM image, it seems that the arms of sDAPs are more flexible in shape and distribution than those of DAPs, potentially reflecting why the nine-fold symmetry is less obvious for the localization of sDAP proteins. We have stated the structural characteristics of the sDAP EM image as discussed above in the main text.

Our 3D model was constructed by combining measurements from previous studies, our current TEM results, and our dSTORM data, aiming to provide a view of the potential sDAP structure. Nonetheless, we also cannot rule out that sDAPs in RPE-1 cells may also be a dynamic structure as reported in PMID: 30045886, and therefore this sDAP structure may possibly reflect the organization of sDAPs at a subset of centrioles. We have thus edited the manuscript from subsection 'Axial and lateral images compose a 3D molecular map of sDA' to clarify this.

Further, in Figure 4I, which summarizes the localization changes of SDAP proteins in Cep128-/- and Cep83-/- cells, some type of appendage is drawn at the distal centriole end. Do authors mean to say that in the absence of distal appendages, subdistal appendages form at the centriole's very distal ends? If so, it would be critical to perform an EM analysis of wild type and knockout centrioles and to show whether there are any structural changes associated with centriole distal ends. Otherwise, it needs to be clear that the model is speculative. The cartoon in Figure 6G is not corroborated by STORM or ultrastructural analysis either.

In summary, it should be possible to perform some classical EM to, at minimum, to investigate whether in knockout cells lacking DAPs sub distal-like structures form at the distal ends of centrioles. If the models and cartoons cannot be proven by EM, then it would be essential to state very clearly that these models and cartoons are speculative.

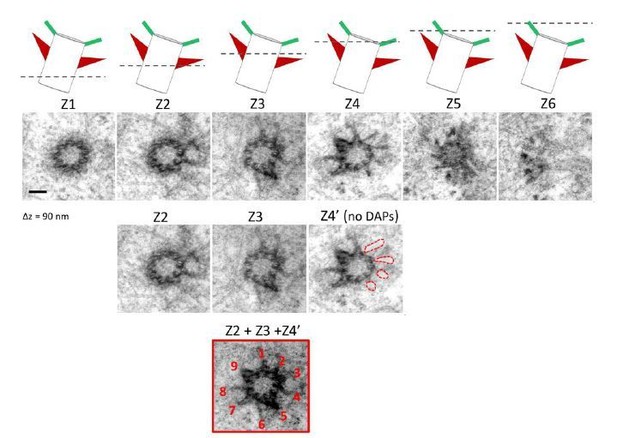

Thanks for the reviewer's comment. We have followsfollows the suggestion and performed TEM to examine the differences of sDAP structures between wild type and CEP83-/- RPE-1 cells, as shown in Figure 4J. In wild type cells, sDAPs (or sub distal-like structure as mentioned by the reviewer) mostly maintain their longitudinal position, with the triangular arms pointing toward the direction close to perpendicular to the centriole orientation (Figure 4J, left panel). Surprisingly, we found that the positions and shapes of the arms of sDAPs are largely varying in CEP83 depleted cells, showing with more examples to illustrate the variations (Figure 4J, right panel). That is, the sDAP structure is much less stable when DAPs are missing. Specifically, a few examples show that sDAP tips may point toward the distal end with a thicker arm, consistent with what we observed in ninein super-resolution images of CEP83-/- cells. This is in line with the previous TEM study of CEP164 knockdown RPE-1 centrioles (PMID: 23253480), where EM images show that sDAPs are titled toward the distal end. In other cases, sDAPs can localize at the middle region of the centriole, occupy the same side of the centriole, miss one side of occupancy, or localize at different longitudinal positions in the same centriole. These large variations imply that the loss of DAPs via CEP83 depletion affects the structural stability of sDAPs, reassuring that DAPs and sDAPs are structurally related to each other.

In accordance with these TEM results, we have revised our cartoon model for CEP83-/- centrioles to demonstrate possible structural variations (Figure 4K).

2) Figure 4A-C. The authors show that after Cep128 and Cep83 knockout ODF2 STORM signal changes, losing its proximal portion after Cep128 removal. The same seems to occur after Cep83 depletion but it is not clear from Figure 4D which portion of ODF2 is lost after Cep83 depletion. However, based on 4B and C, there is a ~50 nm gap between Sclt-1 and ODF2 protein signals in Cep128-/- cells. Also, the brightest portion of the ODF2 signal is shifted for additional ~50 nm toward centriole proximal end. This is not consistent with the authors' interpretation of the data. Since it has been previously shown that ODF2 interacts with Cep128 via its N terminus which extends further away from centrioles, one interpretation why ODF2 signal changes in Cep128-/- cells could be that without its natural binding partner, it changes its configuration from more to less extended, changing the shape of the STORM signal.

We thank the reviewer for providing us insight into the potential change of ODF2 configuration upon CEP128 depletion. To further examine the idea, we used two different antibodies targeting both the N terminus and C terminus of ODF2 to examine their distribution differences in wild type and CEP128 depleted cells. The ODF2 antibody (HPA001874, Σ-Aldrich) we used in the manuscript targets the N terminus of ODF2, i.e. aa #39-200, out of its 829 amino acids, referred to as ODF2-N. We used another commercial antibody (ab43840, Abcam) that targets the C terminus of ODF2 (aa #800 to the C terminus), referred to as ODF2-C. dSTORM imaging of ODF2-C reveals that in wild type cells, ODF2-C distribution is wider than ODF2-N distribution in the radial direction (Figure 4B, 4C). In addition, ODF2-N extends more toward the proximal end than ODF2-C in the longitudinal direction, consistent with the CEP128 interaction result in PMID30623524. The distal edge of ODF2-C is closer to SCLT1 than that of ODF2-N, more reaching the centriole distal end. Interestingly, when CEP128 is depleted, distributions of both ODF2-N and ODF2-C become thinner. The gap between ODF2-N/C and SCLT1 of CEP128-/- cells is larger than that of the wild type cells, illustrating both narrowing and shifting of ODF2 occupancy upon sDAP CEP128 depletion. These observations imply that CEP128, as the binding partner of ODF2, regulates the organization of ODF2. We have added these results to Figure 4B-4D in the main text (subsection 'ODF2 and CEP89 localizations are differentially regulated by DAP and sDAP integrity'). It remains to be examined what exactly the thinner layer of ODF2 in CEP128-/- cells belongs to. One speculation is that the sDAP depletion results in the removal of ODF2 in the sDAP layer. We have stated clearly that this is only a speculation in the main text.

3) The quality of some STORM images raises concerns. For instance, even a well-characterized distal appendage protein SCLT-1, which is known to reproducibly localizes to nine discrete foci here on longitudinally analyzed centrioles shows a highly variable and irreproducible pattern. This raises a question about the reproducibility and reliability of other STORM signals, specifically in Figure 4G-H and 6C where Ninein and Γ-tubulin signals are very variable from one centriole to another. CP110 signal in Figure 4G is also of a poor quality, showing nonspecific signals. It is not clear how reliably it detects centriole distal ends. RPE-1 cells used in this study are supposed to be serum starved and, based on published data, majority of cells should have a cilium and should not have CP110 at centrioles.

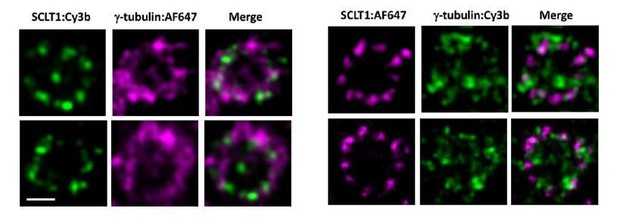

In dual color dSTORM imaging, we used Alexa Fluor 647 (AF647) and Cy3b dyes for immunostaining. Out of the two dyes, AF647 performs better than Cy3b in terms of its blinking property, which provides images with a more homogeneous intensity. Therefore, we always mark our protein of interest with AF647 and use Cy3b as the reference marker. The aim of Figure 6B was to measure the diameter of γ-tubulin. Therefore, in Figure 6B, γ-tubulin was marked by AF647 dye while SCLT1 was used as a reference for the axial orientation. To illustrate the difference, here we have also imaged the SCLT1/γ-tubulin pair in a reverse manner, i.e. marking SCLT1 with AF647 and γ-tubulin with Cy3b as shown in Author response image 1, Right panel). It can be seen that SCLT1 shows a nine-fold distribution and γ-tubulin occupies a radial distribution similar to that in our original image.

Author response image 1
Representative dSTORM images revealing the radial distribution of γ-tubulins.

SCLT1 serves as a marker for an axial centriole view. (Left Panel) Figure 6b in the manuscript in which SCLT1 is marked by Cy3b dye and γ-tubulin by AF647. (Right panel) Staining of the SCLT1/γ-tubulin pair in a reverse manner, i.e. marking SCLT1 with AF647 dye and γ-tubulin with Cy3b. Bar = 200nm.

With regard to the imaging of CP110, we understand that serum starvation triggers ciliogenesis and CP110 should be absent on ciliated centrioles. We chose to use 24-hour starvation on purpose because it will give us ~60% ciliated cells (as we previously reported in PMID31455668, Author response image 2), allowing us to find centrioles both perpendicular and parallel to the glass surface and thus to perform axial and lateral imaging, respectively. Since we lacked the location reference marker of DAPs in CEP83 depleted cells that we usually used, in order to compare the longitudinal distribution of ninein between wild type and CEP83 depleted cells, we thus searched for laterally oriented centrioles with CP110 to enable longitudinal localization of proteins of interest.

Author response image 2
A bar graph comparing the percentage of ciliated RPE-1 cells after serum starvation (SF) for 24 hour (1 day) and 48 hours (2 days).

Figure excerpted from figure 1C of our previous work (PMID31455668).

CP110 is present on daughter and mother centrioles, which would be seen as two dots in close proximity to each other. To distinguish mother centriole CP110 from that of the daughter centriole, we used both centrin and ninein as a marker. For a laterally oriented mother centriole, centrin is observed in wide field imaging as a rod-shaped structure (centriole) with ninein at the sDAP region perpendicular to the centriole, whereas CP110 on a mother centriole localizes at the edge of the centriole 'rod' close to ninein at sDAP region (as shown in Author response image 3). For our dSTORM imaging, we used this method to help us determine the distal end of a mother centriole.

Author response image 3
Wide field imaging of centriole in the lateral view.

Bar = 2um.

To reassure the validity of our results, here we have also used CEP97 as the distal end marker. As compared to wild type cells, ninein distribution in CEP83-/- cells is more relaxed and extended (as shown in Author response image 4). Ninein seems to localize in a closer proximity to CEP97 in CEP83-/- cells as compared to in wild type cells. This data is consistent with our dSTORM data using CP110 as the distal end marker.

Author response image 4
Dual Color dSTORM imaging of Ninein and CEP97.

Bars = 200nm.

Related to this: The authors use 24hours of FBS to synchronize cells in G0 and allow for, or not, cilia formation. Do the authors know how robust the G0 arrest and what % ciliation they achieve? It is unclear from looking at the data if they are imaging ciliated cells or not. More robust cell cycle arrest protocols could have been used or an additional cilia marker incorporated in their analysis to ensure differences observed in the +/- FBS conditions represents cell cycle modulation or the presence or not of a primary cilium.

We have performed flow cytometry for cycling, 24-hour and 48-hour serum starved RPE-1 cells to study the cell population for each cell phase. We found that both 24 hours and 48 hours of serum starvation drove most of the cells to the G0/G1 population (Author response image 5). In terms of ciliation, we studied the ciliation frequencies upon 24-hour and 48-hour serum starvation in our previous work (PMID31455668), which were around 60% and 80%, respectively (Author response image 2).

In our study, we need to image both laterally oriented and axially oriented centrioles. From our experience, we found that centrioles in RPE-1 cells starved for 48 hours were mostly laterally oriented, whereas cells starved for 24 hours showed centrioles in various orientations. We therefore chose 24-hour starvation as the time point for our study. In addition, we used this time point for all our images in this work to maintain consistency of the data.

Author response image 5
Flow cytometry analysis of 0, 24, 48-hour serum starved RPE-1 cells.

This data reveals that 24-hour and 48-hour serum starvations drive most cells to the G0/G1 population.

4) Introduction: The authors claim that no clear EM image of SDAPs has been reported for human RPE-1 cells. This statement seems inaccurate, considering that there is a plethora of electron micrographs showing both sets of appendages in this cell line (for instance: PMID: 30988386, PMID: 23253480, PMID: 26675238, PMID: 25686250, PMID: 26880200... and more). It thus appears that SDAPs of RPE-1 cells are documented across literature appear to be present in variable number, that they can adopt various morphology (based on electron densities) and that they are associated with microtubules at their ends.

We thank the reviewer for the advice. We have removed the sentence 'no clear EM image of SDAPs has been reported for human RPE-1 cells' in the Introduction to avoid confusion. The list of articles suggested by the reviewer includes TEM images of PRE-1 centriole in the lateral view upon CEP120 knockout (PMID: 30988386), CEP164 knockdown (PMID: 23253480), WDR8 knockdown (PMID: 26675238), EHD1 knockdown (PMID: 25686250) and NEDD1 overexpression (PMID: 26880200). CEP164 is a DAP protein among these proteins. Interestingly, from the siCEP164 EM images (PMID: 23253480), we also observed tilted sDAP structure similar to that of our CEP83 depleted RPE-1 centrioles (Figure 1G of PMID: 23253480). This data echoes with our observation that loss of DAP affects sDAP stability, suggesting a structural relationship between them.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Reviewer #1:

In the revised manuscript, the biggest issue remains the interpretation of the data and the model.

The authors have performed TEM analysis to understand the organization of subdistal appendages in starved RPE-1 cells (now shown in Figure 1I). They concluded that the TEM analysis supports the nine-ness in the organization of sDAS. However, there are several issues with this interpretation and, consequently, with the model.

Subsection 'ODF2 is close to the centriole microtubule wall whereas ninein and CEP170 are close to the sDAP tips' states that "The TEM images reveal that sDAP backbone can be mostly observed in the same section with a nine-fold arrangement". It appears that this conclusion was derived from only one cross-sectioned centriole (which is not adequate). The number of centrioles analyzed in cross section is not indicated but I saw only one analyzed centriole with eight instead of nine distinguishable sDA densities (marked by the asterix, one density which is detected in two adjacent sections is marked twice). So, in my view, presented electron micrograph clashes with author's interpretation. It demonstrates the lack of heterogeneity in the appearance of SDA in EM and questions the nine-fold arrangement of sDAs,

We thank the reviewer for the comments. The serial cross-sectioned TEM images in Figure 1I are from one centriole (as shown in Figure Author response image 6A). To further elaborate our finding, we have reassured the alignment of images Z4 and Z5 using the original EM images as shown in Figure Author response image 6B. By further aligning the nine triplets of the centriole, we find that the missing sDAP in image Z4 between two adjacent triplets is indeed present in image Z5. We have stacked the serial TEM images and removed interference from the DAP signal to form a composite image and illustrate the nine sDAP EM signals (Author response image 6C, D). We have also performed an additional centriole TEM sectioning as shown in Figure Author response image 7. After stacking and removing signals from DAP, we also observed nine sDAPs in this centriole. We agree with the reviewer and a recent review about sDAPs (Uzbekov and Alieva, 2018) that sDAPs are dynamic and varying structures, especially in the number of appendages as we mentioned in the Introduction that the range of 2-12 sDAPs has been reported. We do not intend to use our TEM images to claim a consistent nine-fold organization of sDAPs as that of the DAPs, as we have shown that in the beginning of the Results section (Figure 1A-1F). Our 3D model represents one potential organization of sDAPs, assuming the condition when the sDAP region is fully occupied and each sDAP stem is found between two microtubule triplets. We have also emphasized as in subsection 'Axial and lateral images compose a 3D molecular map of sDAPs' that our model is an example for the potential organization of a subset of sDAPs with the sentence 'Note that because the structures of sDAPs are dynamic (Uzbekov and Alieva, 2018), this model only represents one possible organization of sDAPs in a subset of centrioles, such that other settings may also exist.'

Author response image 6
Serial TEM imaging of a mother centriole in a wild type RPE-1 cell from Figure 1I.

(A) The serial TEM sections from Figure 1I. Longitudinal difference between each plane is around 90 nm (B) TEM images of the Z4 and Z5 planes assuring alignment of the images. Similarity in background signals between the two planes are indicated by dashed line and arrows. (C) (Left top panel) A cartoon illustrating the orientation of the Z4 and Z5 planes of the centriole; a dashed line represents the z position of the TEM section. (Left middle panel) Rotational alignment of MT triplets in Z5 plane to that of the Z4 plane; the nine DAPs are indicated by numbers in green. (Left bottom panel) Removal of DAP signal (marked by red circular shapes) in the Z5' image. (Right) Stacking of Z4 and Z5'' images to reveal the position of the nine sDAP stems as indicated by numbers in red. Bars = 100 nm.

Author response image 7
Serial TEM imaging of a mother centriole in a wild type RPE-1 cell.

The cartoon in the upper panel illustrates the orientation of the centriole; a dashed line represents the z position of each TEM section (Z1-Z6, from proximal to centriole distal end) with a longitudinal difference of around 90 nm each. The Z4' image is derived from Z4 with the DAP signal removed. The composite image composed of Z2, Z3 and Z4' reveals the presence of nine sDAP stems. Bar = 100 nm.

The authors explained (subsection 'Axial and lateral images compose a 3D molecular map of sDAPs'and rebuttal) that they used two studies to model SDAs. These are: Anderson et al., (PMID: 5064817), a study performed in cells from Rhesus monkey oviduct, and Paintrand et al., (PMID: 1486002), a study conducted on isolated centrioles from lymphoblastoid cell line.

Anderson study explores basal bodies which sport only one basal foot positioned in the middle of the basal body longitudinal axes. Moreover, the authors say that the "structure at the longitudinal position proximal to the DAPs is the basal foot, a 'badminton-shaped' structure largely different from the sDAPs in the mother centriole". It is, therefore, confusing how can Anderson model was used to model SDAs in RPE-1.

Paintrand study, another work used to model SDAs, describes centrioles isolated from lymphoblastoid cells. Since during centriole isolation the heads of SDAs are frequently lost, their conical appearance may as well be perturbed So, again, it is not clear how SDAs from this study can be taken as a benchmark for modeling od sDAs in intact cells. It is not obvious whether authors realize that most centriole electrographs presented in Paintrand study were additionally digitally modified (rotationally averaged) with the purpose to highlight specific discussion points. Such averaging will inevitably result in the appearance of nine subdistal appendages. Centrioles from the same study that were not rotationally averaged clearly show a variable number of sDAs and their more conical shape of sDA's densities (for instance see Figure 10.)

Therefore, the following interpretation of sDA morphology in the introduction paragraph needs to be changed. After all, author's own EM data is not in agreement with their own description.

We thank the reviewer for the comments. The two models from Anderson's TEM study and Paintrand's study, which we used as references for our 3D centriole model, were actually used to construct (1) the centriole wall with the distal appendages and (2) the subdistal appendages, respectively. The same as we mentioned above, we agree with the reviewer that the number of sDAP varies as shown in Figure 9 of Paintrand's paper Figure , in which a range of around 3-9 sDAPs can be observed. We also realize that some of the images in Paintrand's study were rotationally averaged. However, the presence of nine sDAP stems was also observed in a few of the non-averaged images as shown in Figure 3 Figure and Figure 9 from Paintrand's work. Again, we do not intend to emphasize a consistent nine-fold arrangement of sDAP. Our model represents one of the potential arrangements existing in a subset of sDAPs, as we clarified in subsection 'Axial and lateral images compose a 3D molecular map of sDAPs'. The main goal of constructing a 3D model is to provide a schematic view on the potential positioning of sDAP proteins on the mother centriole.

To avoid confusion, we have edited the sentences to further clarify the construction of our 3D model and emphasize the dynamic nature of sDAP structure starting from subsection 'Axial and lateral images compose a 3D molecular map of sDAPs' as follows: "The model of the centriole and the DAPs are based on previous TEM serial sections of the monkey oviduct basal body (Anderson, 1972); the sDAP model is constructed based on the TEM study of centrioles from a human lymphoblastoma cell line (Paintrand et al., 1992) and our sDAP TEM results (Figure 1I). Note that because the structures of sDAPs are dynamic (Uzbekov and Alieva, 2018), this model only represents one possible organization of sDAPs in a subset of centrioles, such that other settings may also exist."

Introduction: " When sDAPs do form a complete ring of a nine-fold symmetry, its symmetric pattern is different from that of DAPs (Uzbekov and Alieva, 2018), with one pairs of parallel electron-dense "spokes" in each arm, where one of the spokes is associated with the A-tubule of a MT triplet of the mother centriole and the other is associated with the C-tubule of an adjacent MT triplet...". It is also unclear why was Uzbekov and Alieva cited here, the centriole in question is taken over from Paintrand study.

With regard to the reference, the reason we cite the article (Uzbekov and Alieva, 2018) is because it is the first comprehensive review paper comparing and summarizing the difference between sDAPs and DAPs, supporting our statement that the symmetric pattern of sDAPs is different from that of DAPs. We have also included Paintrand work as a reference for nine-fold symmetric morphology of the sDAPs.

To clarify, we have edited the Introduction as follows:

"Some EM images showed variations in the number of sDAPs, such as 2 to 12 sDAP stems in human endotheliocytes (Bystrevskaya et al., 1992, Bystrevskaya et al., 1988), illustrating the dynamic nature of sDAPs. That is, in contrast to the exact number of nine DAPs per centriole, the number of sDAPs may be different in different centrioles (Uzbekov and Alieva, 2018). Even when sDAPs do form a complete ring of a nine-fold symmetry, its morphology is different from that of DAPs (Paintrand et al., 1992, Uzbekov and Alieva, 2018). Each sDAP stem is composed of one pair of electron-dense signals on the sides, where one of them is associated with the A-tubule of a MT triplet of the mother centriole and the other is associated with the C-tubule of an adjacent MT triplet (Bystrevskaya et al., 1988, Paintrand et al., 1992)."

EM analysis of SDAs of longitudinally positioned centrioles is now included in the manuscript (Figure 4J). It reveals variability in the shape of sDAs. All six appendages in wild type RPE cells are different in their morphology (not all have the same triangular shape) and they don't point in the same direction. It would be useful to accordingly adjust the interpretation in subsection 'Ninein covers a broadened longitudinal region toward the centriole distal end upon DAP removal'.

We thank the reviewer's suggestion and have changed the sentence in subsection 'Ninein covers a broadened longitudinal region toward the centriole distal end upon DAP removal' as follows:

"In wild type cells, sDAPs mostly maintained their longitudinal position close to and proximal to the DAPs, but their shapes varied in different centrioles or even in the same centriole."

EM analysis of sDAs in Cep83-/- cells has revealed centrioles with somewhat uneven length and with sDAs positioned at various distances from both centriole's ends. Fewer sDA EM densities are also present in Cep83-\- cells. How this asymmetry is not reflected in the radial distribution of STORM Ninein signal, which remained more-less symmetrical organized around mother centriole? It is surprising that, given this revelation, the analysis of additional sDAPs has not been added to the analysis.

Comparing our EM analysis of Cep83-/- cells with our dSTORM images for longitudinal distribution of ninein (Figure 4H, middle panel), we agree with the reviewer that the ninein dSTORM signal does not show a high level of asymmetry. This is related to our centriole pre-selection process prior to dSTORM imaging. Since the DAP proteins are absent in CEP83-/- cells, SCLT1 or any other large diameter DAP protein cannot be used as a marker for the centriole orientation. Therefore, when we imaged ninein in CEP83-/- cells, ninein itself was also used as an orientation marker. In our experiment, we co-stained CP110, ninein and centrin in CEP83-/- cells as shown in Figure Author response image 8. To identify a laterally oriented mother centriole, centrin is observed in widefield imaging as a rod-shaped structure (centriole) with ninein at the sDAP region perpendicular to the centriole; while CP110 on a mother centriole localizes at the edge of the centriole 'rod' close to ninein at sDAP region, serving as a reference for the distal end. With this pre-selection process, the ninein that lacks either left or right signal at the sDAP region (similar to those CEP83-/- cells that lack one of the electron density signals at sDAPs) would not be selected because it was challenging to assure that these centrioles were parallel to the imaging plane and thus to image them from a lateral view point. The ninein selected for dSTORM imaging would be the one with both left and right signals. Indeed, in the dSTORM imaging, the ninein signal is less asymmetric (Figure 4H, middle panel), but their distribution pattern is comparable to one of the EM images in CEP83-/- cells (Figure 4J, right panel) in which sDAPs are present on both sides and occupy a wider longitudinal space than those of the wild type cells. Thus, our ninein images reflect its distribution in a subset of centrioles, and this centriole pre-selection process should be the reason why the left-right asymmetry is less obvious in dSTORM images of ninein. To clarify this, we have added a sentence in subsection 'Ninein covers a broadened longitudinal region toward the centriole distal end upon DAP removal' as follows: "Note that laterally oriented centrioles were preselected by the pattern of centrin and ninein under widefield imaging prior to dSTORM imaging; therefore, unlike the asymmetry of sDAP stems observed in the EM images of CEP83-/- cells (Figure 4J, right panel), asymmetry of ninein is less obvious in the ninein super-resolution images of CEP83-/- cells (Figure 4H)."

Author response image 8
Widefield imaging of a centriole in the lateral view.

Bar = 2um.

Introduction: "Loncarek group further used correlative super-resolution microscopy and EM to show precise localization of DAP proteins relative to the electron dense blade structure (Bowler et al., 2019), improving the architectural mapping of the DAPs". Please note that Bowler at al. used tomography to elucidate the organization of DA's electron densities, which argued against the notion that DAs are organized as blades.

We thank the reviewer's comment. Bowler's paper suggested that each DAP is anchored to the centriole by a triangle shaped base with their centriole EM images, and indeed only stated that their finding of the triangle shaped base "gives a perception of a 'blade'". To avoid confusion, we changed the sentence in the Introduction as follows: "Loncarek group further used correlative super-resolution microscopy and EM to show precise localization of DAP proteins relative to the electron dense structure of DAPs (Bowler et al., 2019), improving the architectural mapping of the DAPs."

The text says: "To understand the architecture of protein complexes at their mature stage in terms of structural occupancy, we further analyzed super-resolution images of those with nearly full ring occupancies for each sDAP protein.

What does it mean their mature stage? Were centrioles somehow pre-selected for imaging based on whether they saw a ring or not by wide field microscopy? Structural occupancy is unclear. I think that I understand the meaning, but the sentence could be re-phrased.

When we mapped the radial distribution of sDAP proteins, we purposely searched for the ring-like structure of sDAP proteins by widefield microscopy prior to dSTORM imaging. That is, in the reviewer's word, a subset of centrioles was pre-selected based on whether we saw a ring or not by widefield microscopy. Our goal was to understand the radial arrangement of sDAP proteins when they formed a ring-like structure. The term 'mature stage' was used to define such centrioles. To clarify, we have rephrased the sentences in subsection 'ODF2 is close to the centriole microtubule wall whereas ninein and CEP170 are close to the sDAP tips' as follows.

"To understand the architecture of sDAP proteins with nearly full occupancies at the sDAPs, we pre-selected centrioles based on whether we saw a ring or not for an sDAP protein of interest by widefield microscopy and further analyzed them with super-resolution microscopy."

Arbitrary terminology seems to be used to describe the morphology of sDAs ("SDAP backbone", "sDAP arms", "spokes", "badminton-shaped, "root"...). It is confusing. sDA's parts are usually described as a head and a stem. At least these terms need to be defined.

We used 'DAP arm' as in the Boren's paper (Paintrand et al., 1992) to represent a single sDAP stem, 'DAP backbone' to describe the entire sDAP structure on the mother centriole and 'spokes' to refer to the electron dense signal on each side of a sDAP stem. To avoid confusion, we have adapted the term 'sDAP stem(s)' for sDAP arm or backbone and removed the term 'spokes'.

The term 'root' means the portion of a sDAP stem which connects the centriole wall. We have further clarified its definition when it first appeared in subsection 'Lateral super-resolution images reveal sDAP as a triangular structure'.

Further proofreading is necessary. Some sentences are illogical; it is hard to understand what they meant. For instance: The title of the Figure 6 says: "γ tubulins around mother centriole do not nucleate MT anchoring at the sDAPs in the G0 phase". What does it mean that anchoring is not nucleated?

We thank the reviewer for the reminder. To avoid confusion, we have corrected the title of Figure 6 to "A majority of γ-tubulins around the mother centriole are not associated with MT anchoring at sDAPs in the G0 phase". We have also proofread the entire manuscript carefully and made several changes in the manuscript.

The abbreviation "sDAP" appears erroneously used on some places. "sDAP protein" and "DAP protein" is also used, although "P" already stands for "protein"...

We also noticed that various short forms exist in the literature for distal appendages (e.g. DA, DAP, DAPs) and subdistal appendages (e.g. sDA, SDA, sDAP, sDAPs). In our work, we used sDAP and DAP as the abbreviation for subdistal appendage and distal appendage, respectively, following papers such as PMID: 24882706, PMID: 24231678 and PMID: 29514088. These terms are defined when they first appear in the Introduction.

https://doi.org/10.7554/eLife.53580.sa2

Article and author information

Author details

  1. Weng Man Chong

    Institute of Atomic and Molecular Sciences, Academia Sinica, Taipei, Taiwan
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5548-1628
  2. Won-Jing Wang

    Institute of Biochemistry and Molecular Biology, National Yang Ming University, Taipei, Taiwan
    Contribution
    Resources, Data curation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9733-0839
  3. Chien-Hui Lo

    Institute of Biochemistry and Molecular Biology, National Yang Ming University, Taipei, Taiwan
    Contribution
    Validation, Investigation, Visualization
    Competing interests
    No competing interests declared
  4. Tzu-Yuan Chiu

    Institute of Atomic and Molecular Sciences, Academia Sinica, Taipei, Taiwan
    Contribution
    Resources, Data curation, Methodology
    Competing interests
    No competing interests declared
  5. Ting-Jui Chang

    Institute of Atomic and Molecular Sciences, Academia Sinica, Taipei, Taiwan
    Contribution
    Data curation, Validation, Methodology
    Competing interests
    No competing interests declared
  6. You-Pi Liu

    Institute of Atomic and Molecular Sciences, Academia Sinica, Taipei, Taiwan
    Contribution
    Data curation, Methodology
    Competing interests
    No competing interests declared
  7. Barbara Tanos

    Division of Cancer Therapeutics, The Institute of Cancer Research, London, United Kingdom
    Contribution
    Resources
    Competing interests
    No competing interests declared
  8. Gregory Mazo

    Dermatology Service, Department of Medicine, Memorial Sloan Kettering Cancer Center, New York, United States
    Contribution
    Resources
    Competing interests
    No competing interests declared
  9. Meng-Fu Bryan Tsou

    Cell Biology Program, Memorial Sloan-Kettering Cancer Center, New York, United States
    Contribution
    Resources, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2159-8836
  10. Wann-Neng Jane

    Institute of Plant and Microbial Biology, Academia Sinica, Taipei, Taiwan
    Contribution
    Resources, Investigation
    Competing interests
    No competing interests declared
  11. T Tony Yang

    1. Graduate Institute of Biomedical Electronics and Bioinformatics, National Taiwan University, Taipei, Taiwan
    2. Department of Electrical Engineering, National Taiwan University, Taipei, Taiwan
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Investigation, Visualization, Methodology
    For correspondence
    tonyyang@ntu.edu.tw
    Competing interests
    No competing interests declared
  12. Jung-Chi Liao

    Institute of Atomic and Molecular Sciences, Academia Sinica, Taipei, Taiwan
    Contribution
    Conceptualization, Supervision, Funding acquisition, Investigation, Project administration
    For correspondence
    jcliao@iams.sinica.edu.tw
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4323-6318

Funding

Ministry of Science and Technology, Taiwan (107-2112-M-001-037)

  • Weng Man Chong
  • Tzu-Yuan Chiu
  • Ting-Jui Chang
  • You-Pi Liu
  • T. Tony Yang
  • Jung-Chi Liao

Ministry of Science and Technology, Taiwan (107-2313-B-001-009)

  • Weng Man Chong
  • Tzu-Yuan Chiu
  • Ting-Jui Chang
  • You-Pi Liu
  • T. Tony Yang
  • Jung-Chi Liao

Academia Sinica (2317-1040300)

  • Weng Man Chong
  • Tzu-Yuan Chiu
  • Ting-Jui Chang
  • You-Pi Liu
  • T. Tony Yang
  • Jung-Chi Liao

Ministry of Science and Technology, Taiwan (108-2313-B-010-001)

  • Won-Jing Wang
  • Chien-Hui Lo

Ministry of Science and Technology, Taiwan (108-2628-B-010-007)

  • Won-Jing Wang
  • Chien-Hui Lo

Ministry of Science and Technology, Taiwan (108-2638-B-010-001 -MY2)

  • Won-Jing Wang

National Institutes of Health (GM088253)

  • Meng-Fu Bryan Tsou

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by the Ministry of Science and Technology (MOST), Taiwan 107–2112 M-001-037, 107–2313-B-001–009, and the Academia Sinica Career Development Award 2317–1040300 to WMC, T-JC, T-YC, Y-PL, TTY, and J-CL; by a MOST (108–2313-B-010–001, 108–2628-B-010–007, and 108–2638-B-010–001-MY2) award to W-JW and C-H L; and by an NIH grant GM088253 to M-FBT. This work was also supported in part by the Electron Microscopy Facility in NYMU.

Senior and Reviewing Editor

  1. Anna Akhmanova, Utrecht University, Netherlands

Reviewer

  1. Laurence Pelletier, Mount Sinai Hospital, Canada

Publication history

  1. Received: November 13, 2019
  2. Accepted: April 2, 2020
  3. Accepted Manuscript published: April 3, 2020 (version 1)
  4. Version of Record published: April 21, 2020 (version 2)

Copyright

© 2020, Chong et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,101
    Page views
  • 255
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Neuroscience
    Aditi Banerjee et al.
    Short Report
    1. Cell Biology
    2. Developmental Biology
    Xiaofei Bai et al.
    Research Article
