TorsinB overexpression prevents abnormal twisting in DYT1 dystonia mouse models

  1. Jay Li
  2. Chun-Chi Liang
  3. Samuel S Pappas  Is a corresponding author
  4. William T Dauer  Is a corresponding author
  1. Medical Scientist Training Program, University of Michigan, United States
  2. Cellular and Molecular Biology Graduate Program, University of Michigan, United States
  3. Department of Neurology, University of Michigan, United States
  4. Peter O’Donnell Jr. Brain Institute, Departments of Neuroscience and Neurology & Neurotherapeutics, University of Texas Southwestern, United States
Research Article
  • Cited 1
  • Views 591
  • Annotations
Cite this article as: eLife 2020;9:e54285 doi: 10.7554/eLife.54285

Abstract

Genetic redundancy can be exploited to identify therapeutic targets for inherited disorders. We explored this possibility in DYT1 dystonia, a neurodevelopmental movement disorder caused by a loss-of-function (LOF) mutation in the TOR1A gene encoding torsinA. Prior work demonstrates that torsinA and its paralog torsinB have conserved functions at the nuclear envelope. This work established that low neuronal levels of torsinB dictate the neuronal selective phenotype of nuclear membrane budding. Here, we examined whether torsinB expression levels impact the onset or severity of abnormal movements or neuropathological features in DYT1 mouse models. We demonstrate that torsinB levels bidirectionally regulate these phenotypes. Reducing torsinB levels causes a dose-dependent worsening whereas torsinB overexpression rescues torsinA LOF-mediated abnormal movements and neurodegeneration. These findings identify torsinB as a potent modifier of torsinA LOF phenotypes and suggest that augmentation of torsinB expression may retard or prevent symptom development in DYT1 dystonia.

Introduction

DYT1 dystonia is a dominantly inherited movement disorder that is caused by 3 bp in-frame deletion (ΔE mutation) in the TOR1A gene that encodes the torsinA protein (Ozelius et al., 1997). Only ~30% of mutation carriers exhibit symptoms, which vary in severity from mild to severely debilitating (Albanese et al., 2011; Akbari et al., 2012). Treatments include deep brain stimulation, which is invasive, and anticholinergic drugs, which provide incomplete relief and are plagued by side effects (Saunders-Pullman et al., 2002; Vidailhet et al., 2005). These treatments suppress symptoms; no therapies are based on disease pathogenesis or alter the emergence of symptoms.

TorsinA is a nuclear envelope/endoplasmic reticulum (NE/ER) resident AAA+ protein (ATPase Associated with diverse cellular Activities) (Ozelius et al., 1997). Multiple lines of evidence demonstrate that the DYT1 mutation impairs torsinA function (Tanabe et al., 2009; Liang et al., 2014; Weisheit and Dauer, 2015; Goodchild and Dauer, 2005). The DYT1 mutation reduces protein stability and impairs interaction with cofactors (LAP1 and LULL1) that appear important for torsinA ATPase activity (Goodchild and Dauer, 2005; Naismith et al., 2009; Zhao et al., 2013).

Prior work demonstrates conserved functions for torsinA and torsinB. Their sequences are 68% identical and 85% similar, and they share cofactors LAP1 and LULL1 (Ozelius et al., 1999; Goodchild and Dauer, 2005; Brown et al., 2014; Laudermilch et al., 2016). TorsinA null mice and mice homozygous for the DYT1 mutation exhibit neural-selective abnormalities of NE structure (NE ‘budding’) (Goodchild et al., 2005; Kim et al., 2010). Several observations suggest that this neural specificity results from markedly lower levels of torsinB in neurons compared with non-neuronal cells. The appearance of neuronal NE budding in torsinA mutants coincides with lower levels of torsinB during early brain maturation (Tanabe et al., 2016). shRNA knockdown of torsinB in torsinA null non-neuronal cells recapitulates the ‘neuronal-like’ NE budding phenotype (Kim et al., 2010). Moreover, conditional CNS deletion of both torsinA and torsinB causes NE budding in neuronal and non-neuronal (e.g. glia) cells, and overexpressing torsinB significantly reduces NE budding in torsinA null developing neurons in vitro (Tanabe et al., 2016).

Based on these data, we hypothesized that altering torsinB levels would modulate motor and neuropathological phenotypes of DYT1 mouse models. We pursued epistatic analyses of torsinA loss-of-function (LOF) and both torsinB reduction and overexpression, assessing established torsinA-related neuropathological and behavioral phenotypes. We demonstrate that torsinB bidirectionally modifies these phenotypes. Reducing levels of torsinB in DYT1 models (Tor1a-/- or Tor1aΔE/-) causes a dose-dependent worsening of behavioral and neuropathological phenotypes. Conversely, overexpressing torsinB from the ROSA26 locus dramatically reduces the emergence of motor and neuropathological phenotypes in two DYT1 models. Our findings demonstrate that torsinB is a genetic modifier of torsinA LOF disease-related phenotypes and suggest that enhancing torsinB function may be a viable therapeutic strategy in DYT1 dystonia.

Results

TorsinB null mice exhibit no apparent organismal or neuropathological phenotypes

To study the role of torsinB as a modifier of torsinA LOF, we first assessed whether torsinB null mice exhibit any pathological phenotypes. Intercrosses of Tor1b+/- mice yield Tor1b-/- mice that are indistinguishable from wild-type littermate controls. These mutants gain weight similarly to littermate controls (Figure 1—figure supplement 1A), and do not exhibit brain abnormalities when assessed by Nissl stain (Figure 1—figure supplement 1B). Glial fibrillary acidic protein (GFAP) immunohistochemistry did not demonstrate any areas of gliosis (Figure 1—figure supplement 1C). Tor1b-/- mice exhibit normal cortical thickness (Figure 1—figure supplement 1D) and do not display abnormal limb clasping during tail suspension (Figure 1—figure supplement 1E). These findings enabled us to assess the role of torsinB levels on torsinA LOF-related phenotypes without the confound of additive abnormalities.

TorsinB deletion worsens torsinA-related motor and neuropathological phenotypes

Emx1-Cre expresses in cortical and hippocampal excitatory neurons and glia (Gorski et al., 2002). This Cre field includes the motor cortex, which is a critical component of the forebrain cortico-striatal network strongly implicated in the expression of dystonic symptoms (Ikoma et al., 1996; Gilio et al., 2003; Gilbertson et al., 2019). Disruption of this network has been observed in several dystonia mouse models (Maltese et al., 2014; Sciamanna et al., 2014; Maltese et al., 2017; Maltese et al., 2018), and numerous clinical electrophysiological findings associate cortical dysfunction to dystonic movements in humans (Ridding et al., 1995; Edwards et al., 2003; McDonnell et al., 2007; Bara-Jimenez et al., 1998; Bara-Jimenez et al., 2000; Aglioti et al., 2003; Quartarone et al., 2003; Edwards et al., 2006). Emx1-Cre conditional deletion of torsinA (Emx1(A)-CKO, Table 1, Figure 1—figure supplement 2A) significantly reduces cortical thickness (Figure 1D), but does not significantly alter the number of CUX1+ (marker for cortical layer II-IV) or CTIP2+ (marker for cortical layer V-VI) cortical neurons (Figure 1E–F; Arlotta et al., 2005; Ferrere et al., 2006). Emx1(A)-CKO mice appear grossly normal, and only a subset of these mice exhibit limb clasping during tail suspension (Table 1, Figure 1F; Liang et al., 2014). Consistent with prior studies, conditionally deleting both torsinA and torsinB with Emx1-Cre (Emx1(A+B)-CKO, Figure 1—figure supplement 2A) does not cause overt brain structural abnormalities at birth (Goodchild et al., 2005): cortical thickness and the number of CTIP2+ cells do not differ significantly from littermate controls at postnatal day 0 (P0) (Figure 1—figure supplement 2B–C). At P28, however, Emx1(A+B)-CKO mice exhibit significant cell loss (Figure 1A) and profound gliosis (Figure 1B) in Cre expressing regions (cerebral cortex and hippocampus). The hindbrain, which is not in the Cre field, appears normal (Figure 1—figure supplement 3). The cerebral cortex is significantly thinner in Emx1(A+B)-CKO than in Emx1-CKO mice (64.8% vs. 10.4% reduction compared to littermate controls, respectively; Figure 1A,C). Overall Emx1(A)-CKO CUX1+ and CTIP2+ cell counts (Figure 1D–1E) and cortical neuron soma size (Figure 1—figure supplement 4A) are unchanged compared to controls. However, restricted counting of CTIP2+ neurons in layer Vb demonstrates a 10.4% reduction in Emx1-CKO mice (Figure 1—figure supplement 4B), suggesting a highly specific loss of cells in this sublayer contributes to the reduction in cortical thickness. Emx1(A+B)-CKO mice exhibit significant reductions of CUX1+ and CTIP2+ neurons in sensorimotor cortex (Figure 1D–E), demonstrating that torsinB removal increases the susceptibility of multiple cortical neuron populations to torsinA LOF. Consistent with the enhanced neuropathological phenotype, torsinB removal significantly worsens the behavioral phenotype (Figure 1F). These mice display reduced postnatal growth (Figure 1—figure supplement 5A) and begin to exhibit early lethality beginning in the third postnatal week (Figure 1—figure supplement 5B). The humane endpoint for survival and behavioral analyses was P28, precluding studies beyond this age. Considered together with the observation that Tor1b-/- mice appear normal, these data suggest that torsinB expression is an essential contributor to neuronal viability on the torsinA null background.

Figure 1 with 5 supplements see all

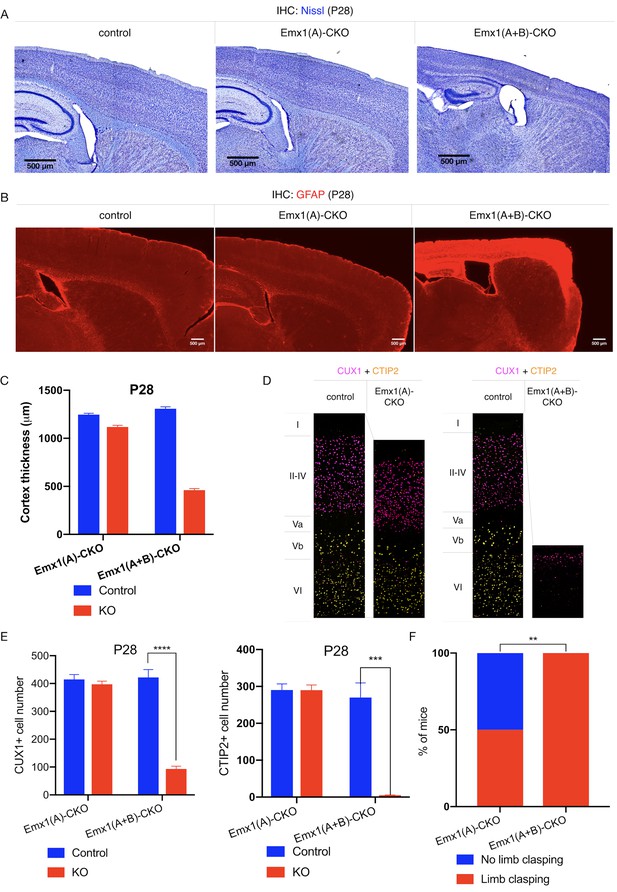

TorsinB deletion worsens torsinA-related motor and neuropathological phenotypes.

(A) Nissl staining of P28 Emx1(A)-CKO and Emx1(A+B)-CKO mice. Emx1(A+B)-CKO mice exhibit significant atrophy of Cre-expressing brain regions including cortex (*) and hippocampus (^). (B) GFAP staining of P28 Emx1(A)-CKO and Emx1(A+B)-CKO brains. Emx1(A+B)-CKO mice exhibit severe reactive gliosis in Cre-expressing regions, including the cerebral cortex and the hippocampus. (C) Cortical thickness of P28 Emx1(A)-CKO and Emx1(A+B)-CKO mice. Cortical thickness is reduced by 10.4% in Emx1(A)-CKO mice (unpaired t-test t16 = 5.834, p<0.0001; control n = 9, Emx1(A)-CKO n = 9). Cortical thickness is reduced by 64.8% in Emx1-dCKO (unpaired t-test t11 = 30.16, p<0.0001; control n = 4, Emx1(A+B)-CKO n = 9). (D) Representative images from CUX1 and CTIP2 stained cerebral cortex of Emx1(A)-CKO and Emx1(A+B)-CKO mice and their respective littermate controls. (E) CUX1 and CTIP2 counts in P28 Emx1(A)-CKO and Emx1(A+B)-CKO mice. CUX1+ neurons are not significantly reduced in Emx1(A)-CKO mice (unpaired t-test t16 = 0.8469, p=0.4095; control n = 9, Emx1(A)-CKO n = 9). CUX1+ cells are significantly reduced in Emx1(A+B)-CKO mice (77.0% reduction; unpaired t-test t8 = 12.86, p<0.0001, control n = 4, Emx1(A+B)-CKO n = 6). CTIP2+ neurons are not significantly reduced in Emx1(A)-CKO sensorimotor cortex (unpaired t-test t16 = 0.02552, p=0.98; control n = 9; Emx1(A)-CKO n = 9). CTIP2+ neurons are significantly reduced in Emx1(A+B)-CKO sensorimotor cortex (98.6%; unpaired t-test t7 = 7.636, p=0.0001, control n = 4, Emx1(A+B)-CKO n = 5). (F) Proportion of Emx1(A)-CKO and Emx1(A+B)-CKO mice exhibiting limb clasping during tail suspension. A significantly greater proportion of Emx1(A+B)-CKO compared to Emx1(A)-CKO mice exhibit limb clasping during tail suspension (Chi square test χ2 = 9.1, p=0.0026; Emx1(A)-CKO n = 12, Emx1(A+B)-CKO n = 14).

Table 1
Features of mouse models used in this study.

Characteristics of DYT1 dystonia mouse models including extent of Cre field, behavioral phenotype, and neuropathological phenotype.

ModelGenotypeCre fieldOrganismal/behavioral phenotypeHistologic findingsRationale for useImpact of torsinB modulation
Emx1(A)-CKOEmx1-Cre; Tor1aKO/flxForebrain excitatory, prominent in cortex and hippocampusNormal appearing
Limb clasping in a subset of mice
Forebrain-selective neurodegenerationForebrain motor loop involvement
Mild behavioral and neuropathology findings to assess combined torsinA and B LOF
Reduction:
Worsened neuropathology and behavior
Emx1-SKIEmx1-Cre; Tor1aΔE/flxForebrain excitatory, prominent in cortex and hippocampusNormal appearing
Limb clasping in a subset of mice
Forebrain-selective neurodegeneration milder than that seen in Emx1-CKOForebrain motor loop involvement
Presence of disease mutant torsinA
Reduction:
Dose-dependent worsening of neuropathology and behavior
Nes(A)-CKONestin-Cre; Tor1aKO/flxEntire nervous systemLack of postnatal weight gain
Early lethality by 3rd postnatal week
Overtly abnormal postures at rest
Degeneration in multiple sensorimotor regionsClear and robust phenotypes
Widespread involvement of nervous system
Overexpression:
Prevention of lethality, restored weight gain
Prevention of degeneration and gliosis
Nes-SKINestin-Cre; Tor1aΔE/flxEntire nervous systemReduced postnatal weight gain
Overt postural and developmental phenotypes at rest
Degeneration in multiple sensorimotor regionsWidespread involvement of nervous system
Presence of disease mutant torsinA
Overexpression:
Restored weight gain
Prevention of degeneration and gliosis
Dlx(A)-CKODlx5/6-Cre; Tor1aKO/flxForebrain GABAergic and cholinergic, including all striatal neuronsLimb clasping and trunk twisting; symptoms respond to drugs used in human patientsSelective degeneration of dorsal striatal cholinergic interneuronsPredictive validity
Time course of motor abnormalities mimics that of human patients
Overexpression:
Prevention of abnormal limb clasping and twisting movements
Prevention of cholinergic interneuron degeneration

TorsinB deletion dose-dependently worsens a DYT1 model

To investigate the impact of torsinB reduction in the presence of DYT1 disease mutant (ΔE) torsinA, we examined ΔE torsinA ‘selective-knock-in’ (SKI) mice (Liang et al., 2014). In Emx1-SKI mice (Emx1-Cre; Tor1aΔE/flx), one floxed copy of torsinA is deleted upon Cre recombination, leaving isolated expression of ΔE disease mutant torsinA (Tor1aΔE/-) in Emx1-Cre expressing excitatory forebrain neurons (Table 1, Figure 2A). We performed a torsinB gene dosage study on Emx1-SKI mice assessing mutants heterozygous (Emx1-SKI;Tor1b+/-) or homozygous (Emx1-SKI;Tor1b-/-) for a Tor1b null allele (Figure 2A, Figure 2—figure supplement 1A).

Figure 2 with 1 supplement see all

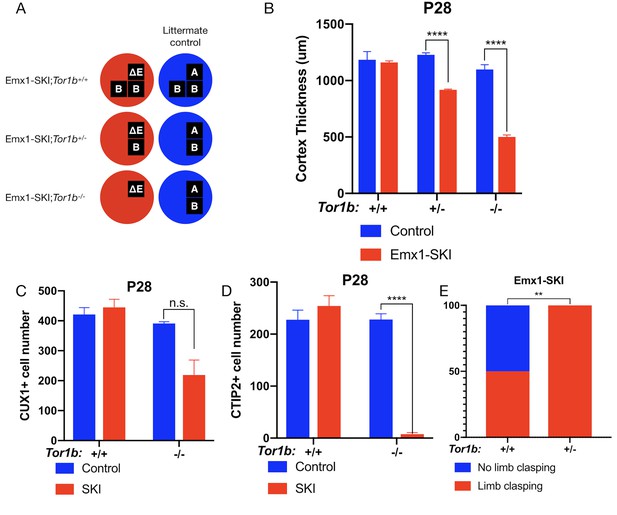

TorsinB dose-dependently worsens a DYT1 model.

(A) Illustration of examined genotypes. Each row of boxes within the circles denote the presence or absence of Tor1a (top row) or Tor1b (bottom row) alleles following Cre recombination. The presence of a letter (‘A’ ‘ΔE’ or ‘B’) indicates an intact allele, whereas the absence of a letter indicates a deleted allele. (B) Cortical thickness of P28 Emx1-SKI;Tor1b+/+, Emx1-SKI;Tor1b+/-, and Emx1-SKI;Tor1b-/- mice. TorsinB loss reduces cortical thickness in Emx1-SKI mice in a dose-dependent manner (2% reduction in Emx1-SKI;Tor1b+/+, 25.2% reduction in Emx1-SKI;Tor1b+/-, and 54.5% decrease in Emx1-SKI;Tor1b-/-; two way ANOVA main effect of background genotype F1,13 = 128.3, p<0.0001, age F2,13 = 62.65, p<0.0001, and interaction F2,13 = 36.98, p<0.0001; Sidak’s multiple comparisons test p=0.9323 for Tor1b+/+, p<0.0001 for Tor1b+/-, p<0.0001 for Tor1b-/-; Tor1b+/+ control n = 3; Emx1-SKI n = 5, Tor1b+/- control n=3, Emx1-SKI n = 3, Tor1b-/- control n=2, Emx1-SKI n = 3). (C) CUX1+ cell counts in sensorimotor cortex of P28 Emx1-SKI;Tor1b+/+ and Emx1-SKI;Tor1b-/- mice. There is no significant reduction in the number of CUX1+ cells in Emx1-SKI;Tor1b+/+ sensorimotor cortex (unpaired t-test t16 = 0.8469, p=0.4095; control n = 3, SKI n = 5). Simultaneous deletion of two torsinB alleles reduces CUX1+ cell counts by 44.0% (unpaired t-test t3 = 2.655, p=0.0766; control n = 2, SKI n = 3) though this reduction does not reach statistical significance. (D) CTIP2+ cell counts in sensorimotor cortex of P28 Emx1-SKI;Tor1b+/+ and Emx1-SKI;Tor1b-/- mice. CTIP2+ neuronal cell counts are not reduced in Emx1-SKI;Tor1b+/+ mice (unpaired t-test t6 = 0.8844, p=0.4105; control n = 3, SKI n = 5). CTIP2+ cell counts in Emx1-SKI;Tor1b-/- are significantly reduced by 96.6% (unpaired t-test t3 = 24.44, p<0.0001; control n = 2, SKI n = 3). (E) Proportion of Emx1-SKI;Tor1b+/+ and Emx1-SKI;Tor1b+/- mice exhibiting limb clasping during tail suspension. A significantly greater proportion of Emx1-SKI;Tor1b+/- mice exhibit limb clasping during tail suspension compared to Emx1-SKI;Tor1b+/+ (Chi square test χ2 = 7.441, p=0.0064; Emx1-SKI;Tor1b+/+n = 12, Emx1-SKI;Tor1b+/- n = 11).

The cortical thickness of Emx1-SKI mice does not differ significantly from littermate controls and these mice have normal numbers of CUX1+ and CTIP2+ cells (Figure 2B–D). Ablation of a single torsinB allele (Emx1-SKI;Tor1b+/-) significantly reduces cortical thickness but not CUX1+ or CTIP2+ neuron counts (Figure 2B, Figure 2—figure supplement 1C). The cortical thickness of mice with complete loss of torsinB (Emx1-SKI;Tor1b-/-) is normal at birth (Figure 2—figure supplement 1B), but by P28 is dramatically reduced to an extent further than in Emx1-SKI;Tor1b+/- mice (Figure 2B). At P28, Emx1-SKI;Tor1b-/- mice also exhibit a nonsignificant reduction of CUX1+ neurons (60.9%, p=0.0766) and a significant reduction of CTIP2+ neurons (Figure 2C–D). These data highlight that torsinB reduction dose dependently worsens ΔE torsinA LOF-mediated phenotypes. Consistent with a dose-dependent worsening of neuropathology, removal of a single torsinB allele (Emx1-SKI;Tor1b+/-) significantly worsened the behavioral phenotype (Figure 2E).

A novel Cre-dependent torsinB overexpression allele

Having established the critical nature of endogenous torsinB expression in the context of torsinA LOF, and the developmental- and dose-dependent effects of torsinB expression level, we next explored whether enhancing torsinB levels could suppress or prevent torsinA LOF phenotypes. We generated a torsinB overexpression (B-OE) allele by knocking the Tor1b cDNA into the ROSA26 locus (Figure 3A). The Tor1b cDNA is preceded by a floxed ‘stop’ cassette, rendering this allele Cre dependent. This design allows for Cre activation of torsinB overexpression in the same spatiotemporal pattern as Cre deletion of the floxed Tor1a allele.

Figure 3 with 3 supplements see all

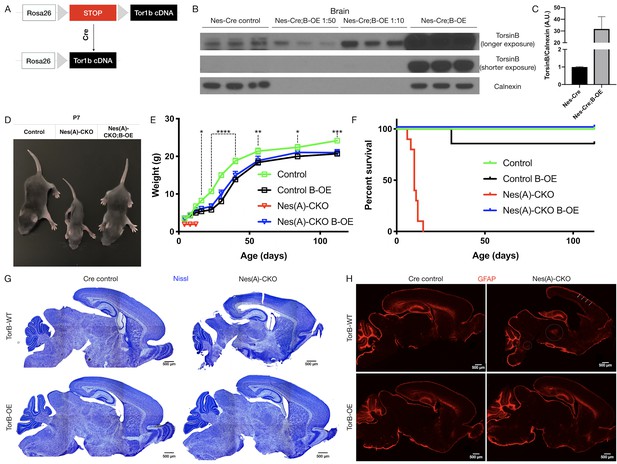

TorsinB augmentation eliminated all phenotypes in CNS conditional torsinA null mice.

(A) Cartoon illustration of ROSA26 locus engineered to express torsinB. Top: In absence of Cre, torsinB expression is prevented by a floxed ‘STOP’ cassette. Bottom: TorsinB is expressed following Cre deletion of the floxed ‘STOP’ cassette. (B) Western blot analysis of whole brain lysates probed with an anti-torsinB antibody. Mice expressing both the Nestin-Cre and B-OE alleles exhibit Cre-dependent overexpression of torsinB. (C) Quantification of western blots of whole brain lysates from Nestin-Cre and Nestin-Cre;B-OE littermates probed with anti-torsinB antibody. The B-OE allele causes significant torsinB overexpression (unpaired t-test t4 = 2.947, p=0.0421; Nestin-Cre n = 3, Nestin-Cre;B-OE n = 3). Quantification was performed by comparing torsinB expression in Cre control samples to that of Nestin-Cre;B-OE samples diluted 1:50. (D) Image of Cre control, Nes(A)-CKO, and Nes(A)-CKO;B-OE littermates at P7 (in order left to right). TorsinB overexpression restores postnatal growth. (E) Growth curves of Cre control, Cre control;B-OE, N(esA)-CKO, and Nes(A)-CKO;B-OE mice. TorsinB overexpression almost entirely restores growth in N-CKO mice (two-way repeated measures ANOVA main effect of genotype F2, 17 = 14.16, p=0.0002, main effect of age F9, 153 = 775.7 p<0.0001, interaction F18, 153 = 6.727, p<0.0001; asterisks denote the following p-values from Tukey’s multiple comparisons tests: *=p < 0.05, **=p < 0.01, **=p < 0.001, ****=p < 0.0001; Cre control n = 7, Cre control;B-OE n = 6, N(A)-CKO;B-OE n = 7). (F) Survival curves of Cre control, Cre control;B-OE, Nes(A)-CKO, and Nes(A)-CKO;B-OE mice. TorsinB overexpression eliminates lethality in N-CKO mice (Gehan-Breslow-Wilcoxon method χ2 = 36.16, p<0.0001; Cre control n = 7, Cre control;B-OE n = 7, Nes(A)-CKO n = 10, Nes(A)-CKO;B-OE n = 7). (G) Nissl staining of P8 brains from Cre control, Cre control;B-OE, Nes(A)-CKO, and Nes(A)-CKO;B-OE mice. TorsinB overexpression eliminates the morphological defects characteristic of Nes(A)-CKO mice. (H) GFAP staining of P8 brains from Cre control, Cre control;B-OE, Nes(A)-CKO, and Nes(A)-CKO;B-OE mice. GFAP immunostaining illustrates the characteristic gliotic changes in Nes(A)-CKO cortex (arrows), thalamus, deep cerebellar nuclei, and hindbrain (circles). TorsinB overexpression eliminates gliotic changes in Nes(A)-CKO mice.

We validated the B-OE mouse line by measuring levels of torsinB in brain lysates from Nestin-Cre mice, in which the Cre recombinase is active in the cells that give rise to the entire nervous system (Tronche et al., 1999). As expected, torsinB is selectively overexpressed only in mice harboring both the Cre and B-OE alleles (Figure 3B–C). This analysis demonstrates that the B-OE allele supports marked overexpression of torsinB, likely in part because of the included woodchuck hepatitis virus posttranscriptional regulatory element. Nestin-Cre;B-OE mice exhibit normal torsinB expression in liver (a Cre negative tissue), demonstrating that overexpression is selective and Cre-dependent (Figure 3—figure supplement 1A–B). Quantification of control torsinB levels and diluted torsinB overexpression levels indicates a ~30 fold increase of torsinB expression (Figure 3C). We next tested whether torsinB level impacts torsinA expression, as past studies suggest that torsinA and torsinB have reciprocal timing and tissue patterns of expression (Kim et al., 2010; Tanabe et al., 2016). TorsinB overexpression did not significantly alter torsinA expression in brain lysates, indicating that there is not a direct regulatory relationship between levels of these proteins (Figure 3—figure supplement 2A–B). These findings confirm that this line functions as designed. We employed this line to explore whether torsinB overexpression can rescue torsinA LOF phenotypes.

TorsinB augmentation eliminates all phenotypes in CNS conditional torsinA null mice

Prior work demonstrates that torsinB overexpression significantly suppresses a torsinA LOF cellular phenotype in vitro. To determine if torsinB overexpression can rescue torsinA LOF behavioral and neuropathological phenotypes in vivo, we ingressed the Cre-dependent B-OE allele onto the Nestin-Cre torsinA conditional knockout (Nes(A)-CKO) background. Nes(A)-CKO mice exhibit early lethality, lack of postnatal weight gain, overtly abnormal twisting movements, and gliosis in multiple sensorimotor brain regions (Table 1; Liang et al., 2014), robust phenotypes that can be harnessed to determine if exogenous torsinB can compensate for torsinA LOF. We analyzed four genotypes: Nestin-Cre; Tor1aflx/+ (Cre control), Nestin-Cre; Tor1aflx/+; B-OE (Cre control;B-OE), Nestin-Cre; Tor1aflx/- (Nes(A)-CKO), and Nestin-Cre; Tor1aflx/-; B-OE (Nes(A)-CKO;B-OE). Consistent with prior work, Nes(A)-CKO mice weighed less than their littermates controls and exhibited 100% lethality by P15 (Figure 3C–E; Liang et al., 2014). As described previously, Nes(A)-CKO mice demonstrated overt abnormal twisting movements and stiff postures (Liang et al., 2014). TorsinB overexpression completely eliminated these abnormal movements (Figure 3—figure supplement 3A). Strikingly, torsinB overexpression also eliminated Nes(A)-CKO lethality and significantly rescued postnatal growth (Figure 3C–E). The widespread non-physiologic levels of torsinB produced by the B-OE allele impaired bodyweight in Nestin-Cre control mice (Figure 3D; comparing Cre control and Cre control;B-OE), but did not induce overt motor abnormalities or reduce survival (Gehan-Breslow-Wilcoxon method χ2 = 1, p=0.3173; Cre control n = 7, Cre control;B-OE n = 7). Nissl staining at P8 (prior to lethality) demonstrated the expected Nes(A)-CKO neuropathology, including Nes(A)-CKO brains exhibited enlarged lateral ventricles and a reduction in overall brain size compared to Cre controls (Figure 3G, Figure 3—figure supplement 3B). Brain morphology and size appeared normal in both Cre control;B-OE and Nes(A)-CKO;B-OE mice at the same age (Figure 3F, Figure 3—figure supplement 3B). Consistent with prior work, the brains of Nes(A)-CKO mice exhibited GFAP staining reflecting gliosis in the cerebral cortex, thalamus, brainstem, and deep cerebellar nuclei (Figure 3G; (Liang et al., 2014). In striking contrast, torsinB overexpression prevented these gliotic changes (Figure 3G).

TorsinB overexpression rescues ΔE torsinA phenotypes

The rescue of the Nes(A)-CKO model demonstrates that torsinB can significantly ameliorate torsinA LOF phenotypes, even when torsinA is absent from the entire central nervous system. However, DYT1 dystonia is dominantly inherited demonstrating that heterozygous ΔE mutation is pathogenic in humans (Ozelius et al., 1997). TorsinA is proposed to function in oligomeric complexes (Chase et al., 2017; Laudermilch and Schlieker, 2016; Demircioglu et al., 2019), suggesting that the ΔE torsinA allele may exert dominant negative effects (Torres et al., 2004; Goodchild and Dauer, 2004). This raises the question of whether torsinB overexpression can rescue torsinA LOF phenotypes in the presence of ΔE torsinA.

We employed the Nestin-Cre selective-knock-in model (Nes-SKI), in which Cre recombination results in isolated expression of ΔE torsinA (Tor1aΔE/-) in the entire central nervous system (Table 1; Liang et al., 2014). These mice exhibit reduced postnatal growth and reactive gliosis and neurodegeneration in a similar but milder pattern as in Nes(A)-CKO (Liang et al., 2014). We combined this model with the B-OE allele and analyzed four genotypes: Cre control (Nestin-Cre; Tor1aflx/+), Cre control;B-OE (Nestin-Cre; Tor1aflx/+; B-OE), Nes-SKI (Nestin-Cre Tor1aΔE/flx), and Nes-SKI;B-OE (Nestin-Cre; Tor1aΔE/flx; B-OE). We hypothesized that torsinB overexpression would rescue mouse phenotypes in the presence of ΔE torsinA.

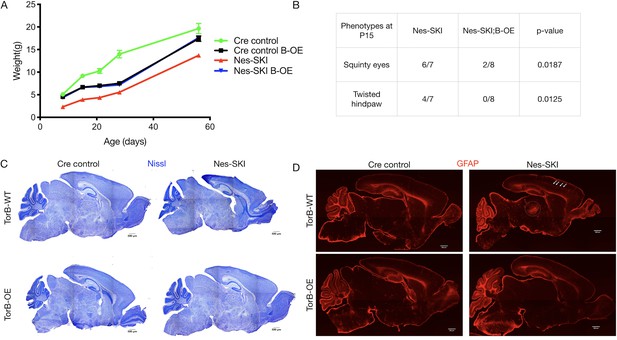

TorsinB overexpression restored postnatal growth and prevented neurodegeneration in Nes-SKI mice (Figure 4). Nes-SKI;B-OE mice gained significantly more weight than Nes-SKI mice. While Nes-SKI mice weighed significantly less than Cre control littermates at all ages measured (Tukey’s multiple comparisons test, p<0.0001 at P8, p<0.0001 at P15, p=0.0001 at P21, p=0.0002 at P28, p=0.0056 at P56; Figure 4A), torsinB overexpression partially rescued postnatal growth from P8-P28 and fully restored normal weight by P56 in Nes-SKI;B-OE mice (Tukey’s multiple comparisons test, Nes-SKI;B-OE vs. Cre control, p=0.3972) (Figure 4A). Cre control;B-OE mice exhibited reduced weight compared to Cre controls with normal endogenous torsinB before P56, and weighed significantly more than Nes-SKI mice (Figure 4A). This intermediate weight was similar to the Cre control;B-OE mice in the N(A)-CKO study (Figure 3D). Nes-SKI mice exhibit abnormal postural phenotypes at rest (Liang et al., 2014). TorsinB overexpression significantly reduced the prevalence of squinty eyes and twisted hindpaws at P15 (Figure 4B). As expected, Nes-SKI mice had gross morphologic disruption of brain structure (Figure 4C) and gliosis in multiple sensorimotor regions (Figure 4D). TorsinB overexpression abolished both of these neuropathological phenotypes (Figure 4C–D). These data demonstrate that the presence of ΔE torsinA does not blunt the ability of torsinB overexpression to rescue torsinA LOF phenotypes.

TorsinB overexpression rescues ΔE torsinA phenotypes.

TorsinB overexpression prevents striatal cholinergic interneuron degeneration and dystonic-like movements. (A) Growth curves of Cre control, Cre control;B-OE, Nes-SKI, and Nes-SKI;B-OE mice. Nes-SKI mice exhibited reduced postnatal growth, which was partially rescued by torsinB overexpression (two-way repeated measures ANOVA main effect of genotype F3, 26 = 60.65, p<0.0001, main effect of age F1.828, 47.53 = 794.8 p<0.0001, interaction F12, 104 = 9.831, p<0.0001; Cre control n = 7, Cre control;B-OE n = 8, Nes-SKI n = 7, Nes-SKI;B-OE n = 8). (B) Table of overtly abnormal postural and developmental phenotypes displayed by Nes-SKI and Nes-SKI;B-OE mice at P15. TorsinB overexpression reduces phenotypes that are prevalent in Nes-SKI mice (squinty eyes: Chi square test χ2 = 5.529, p=0.0187; twisted hindpaw: Chi square test χ2 = 6.234, p=0.0125). (C) Nissl staining of P10 brains from Cre control, Cre control;B-OE, Nes-SKI, and Nes-SKI;B-OE mice. TorsinB overexpression eliminates the morphological defects characteristic of Nes-SKI mice. (D) GFAP staining of P10 brains from Cre control, Cre control;B-OE, Nes-SKI, and Nes-SKI;B-OE mice. GFAP immunostaining illustrates the characteristic gliotic changes in Nes-SKI, including in cortex (arrows) and thalamus (circle). TorsinB overexpression eliminates gliotic changes in Nes-SKI mice.

TorsinB overexpression prevents striatal cholinergic interneuron degeneration and dystonic-like movements

Conditional deletion of torsinA from the forebrain using Dlx5/6-Cre (‘Dlx(A)-CKO’) produces a robust DYT1 model with high face and predictive validity (Table 1; Pappas et al., 2015). These mutants develop abnormal limb and trunk twisting movements as juveniles that are responsive to anti-muscarinic drugs such as trihexyphenidyl, mimicking key features of the human phenotype (Greene et al., 1995; Bressman et al., 2000; Cloud and Jinnah, 2010). Coincident with the emergence of these movements, these animals exhibit a highly selective loss of dorsal striatal cholinergic interneurons (ChIs), cells that have been implicated in dystonia pathophysiology in electrophysiological studies (Eskow Jaunarajs et al., 2015; Pappas et al., 2015; Scarduzio et al., 2017). The disease relevant time course of motor features, clear endpoints, and predictive validity of this model provide a critical system for evaluating the potential benefit of torsinB overexpression in a torsinA LOF pathophysiological in vivo setting. To explore the ability of the B-OE allele to suppress or prevent phenotypes in this model, we first confirmed that this allele functions as expected with the Dlx5/6-Cre transgene and assessed for any behavioral effects caused by overexpressing torsinB in this Cre field. Mice carrying the Dlx5/6-Cre and the B-OE allele selectively overexpressed torsinB in the forebrain in a Cre-dependent manner (Figure 5—figure supplement 1A). TorsinB overexpression in the Dlx5/6-Cre field (Dlx5/6-Cre;B-OE) caused no abnormalities of postnatal growth (Figure 5—figure supplement 1B) or survival (all mice survived; data not shown) compared to mice only expressing Dlx5/6-Cre. Further, Dlx5/6-Cre;B-OE mice exhibited normal juvenile reflexes, including negative geotaxis, surface righting, and forelimb hang (Figure 5—figure supplement 1C).

Having confirmed the proper functioning and lack of toxicity of the B-OE allele when activated in the Dlx5/6-Cre field, we next examined the effect of torsinB overexpression on Dlx-CKO motor and neuropathological phenotypes. We examined four genotypes: Dlx5/6-Cre; Tor1aflx/+ (Cre control), Dlx5/6-Cre; Tor1aflx/+; B-OE (Cre control;B-OE), Dlx5/6-Cre; Tor1aflx/- (Dlx(A)-CKO), and Dlx5/6-Cre; Tor1aflx/-; B-OE (Dlx(A)-CKO;B-OE). Overexpression of torsinB significantly suppressed abnormal twisting movements in Dlx(A)-CKO mice. We recorded 1 min tail suspension videos at age P70, and two observers blind to genotype scored each video for duration of abnormal movements. Dlx(A)-CKO mice exhibited limb clasping for an average of 36.9 ± 5.3 s (mean ± SEM). TorsinB overexpression (Dlx(A)-CKO;B-OE) significantly reduced the time spent clasping (2.5 ± 1. 1 s, mean ± SEM) by over 10-fold (Figure 5A). Notably, the duration of clasping in Dlx(A)-CKO;B-OE did not differ significantly from their littermate controls. We also assessed the mice for the presence of trunk twisting during tail suspension. This phenotype occurred in most (9 of 11) Dlx(A)-CKO mice but was completely eliminated by the B-OE allele (0/15 trunk twisting, p<0.0001 compared to Dlx(A)-CKO; Figure 5B). Neither Cre control nor Cre control;B-OE mice exhibited trunk twisting while suspended (data not shown). These data demonstrate the ability of torsinB to suppress motor phenotypes in a validated DYT1 model.

Figure 5 with 2 supplements see all

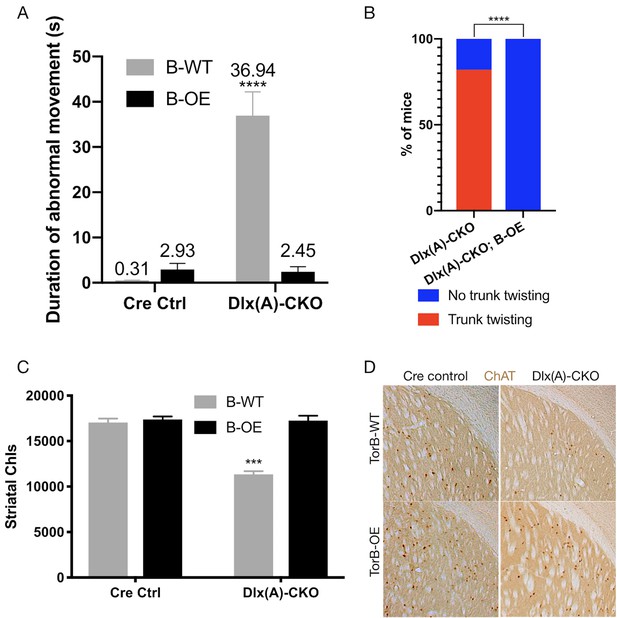

TorsinB overexpression prevents striatal cholinergic interneuron degeneration and dystonic-like movements.

(A) Duration of abnormal movements during one minute of tail suspension in P70 Cre control, Cre control;B-OE, Dlx(A)-CKO, and Dlx(A)-CKO;B-OE mice. TorsinB overexpression significantly reduces severity of limb clasping (two-way ANOVA main effect of genotype F1,44 = 47.45, p<0.0001, torsinB level F1,44 = 36.86, p<0.0001, and interaction F1,44 = 49.96, p<0.0001; Cre control n = 10, Cre control;B-OE n = 12, Dlx(A)-CKO n = 11, Dlx(A)-CKO;B-OE n = 15). (B) Prevalence of trunk twisting in Dlx(A)-CKO and Dlx(A)-CKO;B-OE mice. TorsinB overexpression significantly reduces prevalence of trunk twisting (Chi square test χ2 = 18.77, p<0.0001; Dlx(A)-CKO n = 11, Dlx(A)-CKO; B-OE n = 15). (C) Stereologic counts of striatal cholinergic interneurons in P70 Cre control, Cre control;B-OE, Dlx(A)-CKO, and Dlx(A)-CKO;B-OE brains. TorsinB overexpression prevents ChI degeneration characteristic of Dlx(A)-CKO mice (two-way ANOVA main effect of genotype F1,22 = 52.45, p<0.0001, ROSA-Tor1b allele F1,22 = 45.54, p<0.0001, and interaction F1,22 = 41.90, p<0.0001; Cre control n = 6, Cre control;B-OE n = 6, Dlx(A)-CKO n = 7, Dlx(A)-CKO;B-OE n = 7). (D) Representative images of P70 striatum immunostained with antibody to ChAT. ChAT+ cell density is reduced in Dlx(A)-CKO striatum while it appears normal in Dlx(A)-CKO;B-OE striatum.

We analyzed the brains of all four genotypes to identify potential neuropathological correlates of the B-OE-mediated behavioral rescue. TorsinB overexpression did not change cortical thickness, striatal volume, striatal Nissl+ small and medium cell number, or striatal GFAP immunoreactivity in Dlx(A)-CKO or Cre control mice (Figure 5—figure supplement 2A–D). TorsinB overexpression completely prevented the loss of dorsal striatal ChIs that have been linked to motor and electrophysiologic abnormalities in dystonia mouse models (Maltese et al., 2014; Pappas et al., 2015; Eskow Jaunarajs et al., 2015; Scarduzio et al., 2017; Pappas et al., 2018; Eskow Jaunarajs et al., 2019; Richter et al., 2019). Analysis using unbiased stereology demonstrated that Dlx(A)-CKO mice had 33.5% fewer ChIs compared to Cre controls, whereas the B-OE allele completely prevented this loss (Figure 5C–D). Dlx(A)-CKO;B-OE mice did not statistically differ from Cre controls (mean ± SEM of 17039 ± 534 vs. 17252 ± 432 cells, respectively). Considered together, these data demonstrate the ability of torsinB to potently suppress DYT1-related motor and neuropathological phenotypes.

Discussion

Our studies establish torsinB as a bidirectional modulator of torsinA dystonia-related motor phenotypes. We demonstrate that reductions of torsinB cause a dose-dependent worsening of neuropathological and motor abnormalities in multiple DYT1 models, including one containing the pathogenic ΔE disease mutation. In contrast, torsinB supplementation essentially eliminates the phenotypes in these models. These data suggest that torsinB may be an effective therapeutic target in DYT1 dystonia.

These data advance understanding of the relationship of torsinB to DYT1 pathogenesis. Prior studies established a role for torsinB in the tissue selectivity and timing of torsinA-related cell biological phenotype of NE budding (Kim et al., 2010; Tanabe et al., 2016). These new data provide proof-of-principle evidence that torsinB enhancing therapies may modify disease course. Increasing the expression or function of torsinA itself is an alternative approach. However, torsinA-targeted therapies would similarly increase levels of mutant ΔE torsinA, potentially worsening disease severity via a dominant negative mechanism. TorsinB-targeted therapies, in contrast, should bypass this risk. The nonphysiologic torsinB overexpression of the B-OE allele in the Nestin-Cre field caused reduced growth in Cre control mice, highlighting potential adverse consequences of this approach. The B-OE mice grossly overexpress torsinB at a level ~30 times higher than controls (Figure 3B, Figure 3—figure supplement 1A). Considering that removal of a single torsinB allele is sufficient to worsen behavioral and neuropathological readouts (Figure 2B and E), it is likely that more modest overexpression will provide protective effects. Future work will be needed to determine the therapeutic window of torsinB supplementation.

Along these lines, future therapeutic translation of this work requires the identification of safe and effective methods to modulate torsinB. One future direction will be to identify compounds or signaling pathways that impact torsinB expression. Cell culture-based genetic screens to identify torsinB-related pathways, and high-throughput systems to screen compounds that increase torsinB expression are two in vitro approaches that could lead to further preclinical testing. Gene therapies to enhance torsinB expression are also an important strategy to explore, whether through viral-mediated delivery of torsinB itself, or antisense oligonucleotides to stabilize torsinB transcripts or boost its expression. A significant advantage of AAV-mediated expression compared to our mouse genetic approach is that the dose of AAV injection is adjustable, which could help elucidate the therapeutic window of torsinB overexpression.

The interplay between torsinA LOF and torsinB levels is reminiscent of spinal muscular atrophy (SMA), a disease linked to LOF of the SMN1 gene (Kolb and Kissel, 2015). The disease course of SMA is characterized by highly variable severity and age of onset, which is caused in large part by differences in copy number of SMN2, a duplicate of SMN1 that can attenuate SMN1 loss (Arnold et al., 2016; Bharucha-Goebel and Kaufmann, 2017; Garcia-Lopez et al., 2018). In our dystonia mouse models, a similar relationship exists where torsinB levels bidirectionally modulate the severity of torsinA LOF, worsening mouse phenotypes when reduced and attenuating them when overexpressed. The effect of differences in torsinB expression on DYT1 penetrance and severity in human subjects is unknown. Further human genetic studies will be required to explore this question. The most direct correlative method would be to compare torsinB expression level in neural tissue samples from subjects with varying symptom severity and to compare manifesting and non-manifesting DYT1 mutation carriers. However, postmortem samples from patients with inherited dystonia are exceedingly rare, especially at the young ages that would be most relevant to predicting disease course. An alternative would be to assess torsinB levels in non-neural samples from living patients, but mouse data demonstrate opposing patterns of torsinA and torsinB expression in CNS and peripheral tissues (Jungwirth et al., 2010; Kim et al., 2010). A potential alternative approach is to derive neurons from fibroblasts of control subjects, non-manifesting DYT1 mutation carriers, and manifesting carriers of varying severity. Assessment of torsinB levels in these cells could provide hints into the role of torsinB in disease severity or penetrance.

Neurodegeneration is one of the primary readouts in this study, whereas inherited isolated dystonia is commonly thought to be characterized by abnormal function within a structurally normal brain. Postmortem studies are limited, however, and volumetric imaging studies provide conflicting evidence (Tanabe et al., 2009; Paudel et al., 2012; den Dunnen, 2013; Ramdhani and Simonyan, 2013). Future studies are required to fully assess potential neuropathological changes in DYT1 dystonia, especially considering that a diverse range of basal ganglia insults cause acquired dystonia (Pettigrew and Jankovic, 1985; Timmermann et al., 2010; Bansil et al., 2012). Considerable evidence suggests that striatal cholinergic dysfunction is a key feature contributing to this disorder (Pappas et al., 2015; Eskow Jaunarajs et al., 2015; Deffains and Bergman, 2015), supporting our focus on these cells. Our findings that torsinB overexpression prevents both striatal ChI degeneration and twisting movements further strengthens the relationship between dysfunction of these cells and DYT1-related abnormal movements.

This study provides further evidence that torsinA-LOF mediated neurodegeneration is cell autonomous. Previous data have demonstrated that in torsinA Cre conditional knockout mice, neurodegeneration is selective to Cre expressing brain regions (Liang et al., 2014; Weisheit and Dauer, 2015). Furthermore, Dlx(A)-CKO and cholinergic-selective deletion of torsinA exhibit indistinguishable degree and topography of striatal ChI degeneration (Pappas et al., 2015; Pappas et al., 2018). Our rescue studies utilize Cre recombinase to delete torsinA and activate torsinB overexpression in the same spatiotemporal pattern, demonstrating a cell autonomous rescue of torsinA LOF-mediated neurodegeneration. A related question raised by our results is whether neuronal or glial torsinB overexpression contributes to the to prevention of neurodegeneration. While Nestin-Cre expresses in neural progenitor cells that give rise to both neurons and glia (Tronche et al., 1999), Dlx5/6-Cre is exclusive to forebrain GABAergic and cholinergic neurons (Monory et al., 2006), suggesting that neuron-specific torsinB overexpression is sufficient to prevent neurodegeneration.

Our findings advance the understanding of the role of torsinB in DYT1 dystonia and demonstrate that torsinB expression is a bidirectional modifier of torsinA LOF phenotypes. TorsinB overexpression is a potent disease-modifier, reducing both the prevalence and severity of abnormal movements, and fully preventing neuropathological abnormalities. These data provide a strong rationale and identify future directions to continue exploring torsinB as a target for DYT1 dystonia therapeutics.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
AntibodyRabbit polyclonal α-GFAPDakoCat#Z0334
RRID:AB_10013382
IHC(1:2000)
AntibodyRabbit polyclonal α-CUX1Santa Cruz BiotechnologyCat#sc-13024
RRID:AB_2261231
IHC(1:200)
AntibodyRat monoclonal α-CTIP2AbcamCat#ab18465 RRID:AB_2064130IHC(1:500)
AntibodyGoat polyclonal α-ChATMilliporeCat#AB144P RRID:AB_90560IHC(1:200)
AntibodyDonkey α-rabbit IgG,
Alexa Fluor 555 conjugated
InvitrogenCat#A-31572 RRID:AB_162543IHC(1:800)
AntibodyDonkey α-rat IgG,
Alexa Fluor 488 conjugated
InvitrogenCat# A-21208 RRID:AB_141709IHC(1:800)
AntibodyDonkey α-goat IgG, biotin-SP conjugatedJackson ImmunoresearchCat#705-065-147 RRID:AB_2340397IHC(1:800)
AntibodyRabbit polyclonal α-torsinAAbcam#ab34540 RRID:AB_2240792WB(1:10,000)
AntibodyRabbit polyclonal α-torsinBKind gift of
Schlieker lab
N/AWB(1:1,000)
AntibodyGoat α-rabbit IgG,
HRP-linked
Cell SignalingCat#7074 RRID:AB_2099233WB(1:20,000)
AntibodyRabbit polyclonal α-CalnexinEnzo Life SciencesCat#ADI-SPA-860-F RRID:AB_11178981WB(1:20,000)
Sequence-based reagentLox-gtFIntegrated DNA TechnologiesPCR primersCTG ACA CAG TGA GTG AAG GTG C
Sequenced-based reagentLox-gtRIntegrated DNA TechnologiesPCR primersGGT GCT GAG GAA GTG CTG TG
Sequenced-based reagentFrt-gtFIntegrated DNA
Technologies
PCR primersAGG GGC CAT AGA GTG GTT AGG
Sequenced-based reagentFrt-gtRIntegrated DNA
Technologies
PCR primersCTT AGC CGC
TTT GTG CTG
Sequenced-based reagentRosa-gtFIntegrated DNA TechnologiesPCR primersAGT CGC TCT GAG TTG TTA TCA G
Sequenced-based reagentRosa-gtRIntegrated DNA TechnologiesPCR primersCTG ACA CAG TGA GTG AAG GTG C
Commercial assay or kitABC KitVectastainCat#PK6100 RRID:AB_2336819Use kit directions
Commercial assay or kitProlong Gold AntifadeThermo
Scientific
Cat#P36930Use kit directions
Software, algorithmStereoinvestigatorMBF Biosciencehttps://www.mbfbioscience
.com/stereo-investigator _
N/A
Software, algorithmImageJNIHhttps://imagej.nih.gov/ij/;
RRID:SCR_003070
N/A
Software, algorithmPrismGraphpadhttp://www.graphpad.com; RRID:SCR_002798N/A
Strain, strain
background (M. musculus, male and female)
Tor1b+/-University of Connecticut Center for Mouse Genome ModificationN/AB6;129 hybrid
Strain, strain background (M. musculus, male and female)Tor1atm1Wtd/JThe Jackson
Laboratory
RRID:IMSR_JAX:006251B6;129 hybrid
Strain, strain
background
(M. musculus, male and female)
Tor1atm3.1Wtd/JThe Jackson
Laboratory
RRID:IMSR_JAX:025832B6;129 hybrid
Strain, strain background (M. musculus, male and female)STOCK Tor1atm2Wtd/JThe Jackson LaboratoryRRID:IMSR_JAX:025637B6;129 hybrid
Strain, strain background (M. musculus, male and female)Tor1abΔE floxed Tor1b/+This paper (University of Connecticut
Center for Mouse Genome
Modification)
N/AB6;129 hybrid
Mouse line will be
submitted and
available from The Jackson Laboratory
Strain, strain background (M. musculus, male and female)Emx1tm1(cre)Krj/JThe Jackson LaboratoryRRID:IMSR_JAX:005628B6;129 hybrid
Strain, strain
background (M. musculus,
male and female)
Tg(dlx5a-cre)1Mekk/JThe Jackson LaboratoryRRID:IMSR_JAX:008199B6;129 hybrid
Strain, strain background (M. musculus, male and female)Tg(Nes-cre)1kln/JThe Jackson LaboratoryRRID:IMSR_JAX:003771B6;129 hybrid
Strain, strain background
(M. musculus, male and female)
B-OEThis paper (from Biocytogen)N/AB6;129 hybrid
Mouse line will be submitted and available from The Jackson Laboratory

Generation and maintenance of mice

Request a detailed protocol

Nestin-Cre, Emx1-Cre, and Dlx5/6-Cre mice were obtained from the Jackson Laboratory. Tor1b+/- and Tor1a ΔE floxed Tor1b mice were generated at the University of Connecticut Center for Mouse Genome Modification. Standard methods were used to engineer the Tor1a and Tor1b loci to include the ΔE mutation and loxP sites flanking exon 3–5 of Tor1b. The torsinB overexpression B-OE mouse line was generated with Biocytogen using CRISPR/Extreme Genome Editing technology, which increases homologous recombination efficiency over standard CRISPR/Cas9 technology. Mice were maintained in our mouse colonies at the University of Michigan and the University of Texas Southwestern Medical Center. Mice were genotyped for Tor1a, Cre recombinase, Tor1b, and Tor1a/Tor1b double floxed as previously described (Liang et al., 2014; Tanabe et al., 2016). Genotyping of novel lines (Tor1a ΔE floxed Tor1b and B-OE) is described in Table 2 below. Primer sequences are located in the Key Resources Table.

Table 2
Genotyping PCR programs and band sizes.
GenePrimer nameCycleBand sizes
Tor1a ΔE floxed Tor1bLox-gtF94°C, 3 min; 94°C, 30 s; 61.5°C, 30 s; 72°C, 30 s, 34 cycles; 72°C, 5 minWT – 245 bp
Floxed– 336 bp
Lox-gtR
Frt-gtF
Frt-gtR
B-OERosa-gtF94°C, 3 min; 94°C, 30 s; 61°C, 30 s; 72°C, 30 s, 30 cycles; 72°C, 5 minWT – 469 bp
Mutant – 188 bp
Rosa-gtR
Mut-R

The following breeding schemes were used to generate experimental animals and littermate Cre controls in our studies:

  • TorsinB KO: Tor1b+/-xTor1b+/-

  • A-CKO (Emx1): Cre; Tor1a+/-xTor1aflx/flx

  • A+B-CKO (Emx1): Cre; Tor1ab+/-xTor1a/Tor1bflx/flx

  • SKI;Tor1b+/+(Emx1 and Nestin): Cre; Tor1aΔE/+Tor1aflx/flx

  • SKI;Tor1b+/-(Emx1): Cre; Tor1aΔE/+Tor1a/Tor1bflx/flx

  • SKI;Tor1b-/-(Emx1): Cre; Tor1a/Tor1b ΔE floxed torsinB/+Tor1a/Tor1bflx/flx

  • B-OE (Dlx5/6 and Nestin): Cre; Tor1a+/-xTor1aflx/flx; B-OE.

Mice were housed in a temperature- and light-controlled room and provided access to food and water ad libitum. Mice of all genotypes were housed together to prevent environmental bias. Animals were housed 2–5/cage on a 12 hr light/dark cycle. All behavioral testing occurred during the light cycle. Age and sex-matched littermates were used as controls for all experiments. All controls unless noted otherwise were Cre+ controls. All procedures complied with national ethical guidelines regarding the use of rodents in scientific research and were approved by the University of Michigan and University of Texas Southwestern Institutional Animal Care and Use Committees.

Immunohistochemistry

Request a detailed protocol

Immunohistochemistry in Emx1-Cre studies (Figures 12) was performed as previously described (Liang et al., 2014). Immunohistochemistry in torsinB rescue studies (Figures 3–5) was performed as previously described (Pappas et al., 2015).

Mice were anesthetized with an intoxicating dose of ketamine xylazine and then transcardially perfused with 0.1 M phosphate buffered saline (PBS) followed by 4% paraformaldehyde in 0.1 M PB. Brains were extracted, postfixed in in 4% paraformaldehyde in 0.1 M overnight and then cryoprotected in 20% sucrose in 0.1 M PB. For Emx1-Cre studies (Figures 12), 16 μm sections were collected onto glass slides. Unstained tissue sections were permeablized using PBS containing 0.3% Triton X-100 followed by blocking in 10% normal donkey serum (NDS) for 1 hr at room temperature (RT). The sections were incubated with primary antibodies at 4°C overnight (GFAP 1:2000, CUX1 1:200, CTIP2 1:500). Tissue sections were then washed and incubated with fluorophore conjugated secondary (1:1,000) antibodies for 2 hr at RT. Sections were mounted onto charged glass slides and coverslipped with prolong gold antifade mounting medium.

Nestin-Cre (Figures 3,4) and Dlx5/6-Cre studies (Figure 5), serial 40 μm sections were generated and stored in PBS. For fluorescence staining, free-floating sections were washed in PBS with 0.1% Triton X-100 (PBS-Tx), blocked in 5% NDS, and incubated overnight with primary antibody (GFAP 1:2000). Sections were then washed with PBS-Tx, and incubated with secondary antibodies (1:800) for 1 hr at RT. For DAB staining, sections were washed in PBS-Tx and endogenous peroxidase activity was extinguished by blocking with 0.3% H2O2. Sections were then blocked by 5% NDS and incubated in primary antibody (ChAT 1:200) overnight at 4°C. Sections were then washed with PBS-Tx, incubated in biotinylated secondary antibody (1:800) for 1 hr at RT, and then in avidin-biotin peroxidase complex (Vectastain Elite ABC Kit Standard; PK6100, Vector Laboratories, Burlingame, CA) for 1 hr at RT. Sections were then incubated with 3,3’ diaminobenzidine (Sigma D4418) and quenched with PBS to stop further staining. Sections were then mounted onto charged glass slides, dried overnight, dehydrated in ascending ethanols, cleared in xylenes, and coverslipped with permount mounting medium.

For Nissl staining in all studies, brain sections mounted on gelatin-coated slides were dried overnight, rehydrated in descending ethanols, incubated for 3 min in 0.005% cresyl violet solution with acetic acid, dehydrated in ascending ethanols, cleared in xylenes, and coverslipped with permount mounting medium.

Cell counting and morphologic analysis

Request a detailed protocol

All cell counts and brain morphology measurements (striatal volume, cortical thickness) were performed by investigators blinded to genotype using a Zeiss Axio Imager M2 microscope. CUX1 and CTIP2 immunoreactive neurons were quantified in the sensorimotor cortex as follows. A 400 μm x 1,600 μm region of interest was generated using 16 μm sagittal sections for all animals at AP bregma + 0–2 mm and ML 1.20–1.32 mm. The images were viewed in ImageJ and cells expressing neuronal subtype markers were quantified by investigators blinded to genotype.

Stereology on striatal small and medium sized Nissl stained neurons and ChAT immunoreactive neurons was performed as previously described (Pappas et al., 2015). Cortical thickness and striatal volume were measured as previously described (Pappas et al., 2015). Brain area was measured in sagittal sections by creating a contour around the brain in the section corresponding to ML 1.44 mm (Franklin and Paxinos, 2013) and measuring area of the tracing using Stereoinvestigator.

Western blotting

Request a detailed protocol

Mice were anesthetized using isoflurane and decapitated. Striatum, cerebellum, whole brain, or liver were dissected in tris buffered saline (TBS). Tissue was placed into microcentrifuge tubes with 150 μL lysis buffer (TBS with 1% sodium dodecyl sulfate, 1 mM Dithiothreitol, and Halt Protease Inhibitor Cocktail [Thermo Scientific #78430]) and homogenized using a plastic plunger. Supernatants were collected after centrifugation at 12,000 rpm for 10 min. Bradford protein assay was performed to assess protein concentration final lysates prepared in the same lysis buffer at 1 μg/μL including sample-loading buffer (Invitrogen NP0007). Samples were boiled for 5 min. 5 μg of protein and Dual Precision Plus protein standard (Bio-Rad #1610374) were loaded and run on 4–12% Bis-Tris gels (Invitrogen NP0323PK2). Protein was then transferred (350 mA for 1 hr at 4°C) onto a 0.22 μm PVDF membrane in transfer buffer with 10% methanol. Membranes were washed in TBS containing 0.1% Tween-20 (TBS-T). Membranes were blocked with 5% non-fat dry milk in TBS-T and incubated with primary antibody (torsinB 1:1,000, torsinA 1:10,000, calnexin 1:20,000) overnight at 4°C. Membranes were then washed with TBS-T and incubated with horseradish peroxidase-conjugated anti-rabbit secondary antibody (1:20,000) for 1 hr at RT. Bands were visualized using Supersignal West Pico PLUS chemiluminescent substrate (Thermo Scientific #34580) and exposed to CL-XPosure film (Thermo Scientific #34090). Developed films were scanned and protein bands were quantified using ImageJ.

Tail suspension testing

Request a detailed protocol

Mice were picked up by the tail and suspended above the home cage for one minute while and video recorded by a camera. two observers blinded to experimental group graded videos for duration and presence of abnormal movements. Limb clasping was defined as a sustained abnormal posture with forepaws or hind paws tightly clasped together. Trunk twisting was defined as presence of twisting of the trunk to the point where both dorsal and ventral sides of the mouse are visible. Note that trunk twisting is distinct from lateral bending that control mice exhibit in an attempt to right themselves.

Preweaning reflexes

Request a detailed protocol

Forelimb hang: Mice were suspended by the forelimbs using a 3 mm wire and the latency to fall was measured at P10 age. A cutoff of 30 s was used.

Negative geotaxis: Mice were placed on a wire grid, and the grid was tilted to an angle of 45° with the mice facing downward. Mice were assigned a score based on the following system: 3 – no movement, 2 – able to move but unable to turn around and face upward, 1 – able to turn and face upward but unable to climb the wire grid, and 0 – able to climb the wire grid. three trials were conducted with 30 s between trials on each designed day (ages P8, P10, P12).

Surface righting reflex: Mice were placed upside down on a flat surface and time to righting was measured using a stopwatch with a cutoff of 30 s. three trials were conducted on each testing day (P8, P10, P12) with 30 s of rest between trials.

Statistics

All data sets are presented as mean ± SEM unless otherwise noted. Two-way ANOVAs, t-tests, and Chi square tests were performed using Graphpad prism software. Graphs were generated using the same software. Details regarding specific statistical tests, samples sizes, and p-values are located in the figure legends for each respective panel.

References

  1. 1
  2. 2
    Clinical features, DYT1 mutation screening and genotype-phenotype correlation in patients with dystonia from Iran
    1. MT Akbari
    2. Z Zand
    3. GA Shahidi
    4. M Hamid
    (2012)
    Medical Principles and Practice : International Journal of the Kuwait University, Health Science Centre 21:462–466.
    https://doi.org/10.1159/000336783
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
    Paxinos and Franklin's the Mouse Brain in Stereotaxic Coordinates
    1. KBJ Franklin
    2. G Paxinos
    (2013)
    Amsterdam: Academic Press an Imprint of Elsevier.
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64

Decision letter

  1. Harry T Orr
    Reviewing Editor; University of Minnesota, United States
  2. Kate M Wassum
    Senior Editor; University of California, Los Angeles, United States
  3. Pedro Gonzalez-Alegre
    Reviewer; University of Pennsylvania, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The data presented in this revised manuscript very nicely demonstrate that torsinB levels in the CNS modulate phenotypes derived from torsinA dysfunction in different mouse models. The implications, which are substantial, include that torsinB expression should be evaluated as a potential modifier of disease penetrance (only a third of DYT1 mutation carriers develop dystonia) and that strategies to enhance torsinB expression in neurons at the appropriate developmental time could provide significant therapeutic benefit. Overall, the described work is well done. The authors very nicely addressed concerns raised with the initial submission.

Decision letter after peer review:

Thank you for submitting your manuscript "TorsinB overexpression prevents abnormal twisting in DYT1 dystonia mouse models " for consideration by eLife. Your manuscript has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation was overseen by Kate Wassum as the Senior Editor. The reviewers and the Reviewing Editor drafted this decision letter to help you prepare a revised submission.

Summary:

The work presented in this manuscript evaluates the role of torsinB expression as a potential modifier of DYT1 dystonia. DYT1 is caused by dominant mutations in TOR1A (encoding for the protein torsinA). The data very nicely demonstrate that torsinB levels in the CNS modulate phenotypes derived from torsinA dysfunction in different mouse models. The implications, which are substantial, include that torsinB expression should be evaluated as a potential modifier of disease penetrance (only a third of DYT1 mutation carriers develop dystonia) and that strategies to enhance torsinB expression in neurons at the appropriate developmental time could provide significant therapeutic benefit. Overall, the described work is well done. Yet, there are some areas needed to improve clarity prior to publication.

Essential revisions:

1) Characterization of the torsinB overexpression (Figure 3B) – there needs to be quantification of at least three samples with quantification shown in Figure 3 including the western blots. In addition, Figure 3 supplement n's/group need to be increased to 3 for statistical analysis.

2) Legend to Figure 3 needs to be corrected. Figure 3 has 8 images (A-H) yet the legend only describes A-G, skipping over the images of mice in Figure 3D.

3) TorsinA and B are very similar and seem to be expressed in the same cells. What is relative level of expression of torsinB to torsinA? The work would also be improved by showing further evidence of torsinB deletion by western blot or immunostaining.

4) The authors use multiple genetic mouse models in these studies to assess whether torsinB expression would impact behavioral and neuropathological phenotypes in models of DYT1. The description of the genetic makeup of the animal models used in the experiments throughout is somewhat confusing in the text and the figures. It is usually best that descriptions of the animals make clear the genetic modifications contained within the animal without having to decipher too much. When referring to the mice as Emx1-CKO and Emx1-dCKO, it is not clear what is conditionally knockout out. In general, the terminology is unclear for the different models and should be simplified, especially in the figures. In addition, Figure 1 is too small.

5) While it is appreciated that Emx1 expressing cortical pyramidal neurons project to the neurons in the striatum critically involved involved in basal ganglia function, is cortical dysfunction of these torsin genes implicated in dystonia? The assessment of the cortical phenotype in these models is performed well, it is unclear if the knockout of these genes in the cortex affects any striatal phenotypes? This is especially important given the focus in the field on striatal changes.

6) There is significant data provided on the clasping phenotype (such as worsening when torsinB is knocked out in the setting of torsinA mutants). It would be valuable to learn what other consequences on motor function this genetic interaction has. It is simply a worsening on clasping but otherwise motor function is similar? Or there is a significant worsening of motor function including abnormal spontaneous locomotion, rotarod, abnormal behavior in-cage observation, etc? With the current behavioral description, it is difficult for the reader to get a sense of how this interaction exacerbates phenotypes?

7) The behavior data should be included for the torsinB overexpression experiment in the Nestin-Cre background. This helps to demonstrate the functional change in these mice.

8) Is Dlx5/6 expressed in cholinergic neurons in the striatum? Is the observed change in striatal cholinergic neuron number cell autonomous?

9) In figure 3B, what is the exact genetic makeup of the animal shown in the Nes-Cre +, B-OE -, lane? Shouldn't there be a torsinB band in this lane?

10) Are the causes of cortical thinning with no changes on neuronal numbers due to reduced neuronal volume, reduced number of neurites, length of terminals, etc? This might help understand if/how torsinA function influences neuronal development of plasticity in a cell autonomous manner.

11) It would be helpful to know the neuronal versus glial contribution to torsinB expression in the overexpression model.

12) There is some evidence that overexpression torsinA might carry toxic consequences, making simply gene transfer as a therapeutic strategy challenging. Being a paralog, it is very likely that torsinB overexpression (i.e., AAV-driven) might not be ideal as it could also be toxic (in fact, the data presented here on mouse weight suggests this possibility). In the discussion, and based on what we currently know about torsinB, I challenge the authors to speculate how would they identify small molecules or design oligos that could de-repress or stabilize torsinB expression in CNS. Have they queried the Connectivity Map (CMap) for small molecular that upregulate torsinB? How do they propose to move forward? Similarly, how would they evaluate of torsinB expression moedulates penetrance or expressivity in patients and non-manifesting carriers? This would spice up a somewhat brief discussion.

13) Data concerning the behavior assessments that were described in the text as "data not shown" should be included.

https://doi.org/10.7554/eLife.54285.sa1

Author response

Summary:

The work presented in this manuscript evaluates the role of torsinB expression as a potential modifier of DYT1 dystonia. DYT1 is caused by dominant mutations in TOR1A (encoding for the protein torsinA). The data very nicely demonstrate that torsinB levels in the CNS modulate phenotypes derived from torsinA dysfunction in different mouse models. The implications, which are substantial, include that torsinB expression should be evaluated as a potential modifier of disease penetrance (only a third of DYT1 mutation carriers develop dystonia) and that strategies to enhance torsinB expression in neurons at the appropriate developmental time could provide significant therapeutic benefit. Overall, the described work is well done. Yet, there are some areas needed to improve clarity prior to publication.

Essential revisions:

1) Characterization of the torsinB overexpression (Figure 3B) – there needs to be quantification of at least three samples with quantification shown in Figure 3 including the western blots. In addition, Figure 3 supplement n's/group need to be increased to 3 for statistical analysis.

We agree that it is critical to further characterize torsinB overexpression. We have run new western blots with n = 3/genotype (Figure 3B). We simultaneously ran undiluted and diluted samples from torsinB overexpressing mice to enable quantification within the linear range. Assessment of these blots demonstrates approximately 30-fold increased torsinB expression via the torsinB overexpression allele as compared to controls (Figure 3C). We have also now repeated the western blots of torsinA in the brain and torsinB in the liver (Figure 3—figure supplement 1A-B and Figure 3—figure supplement 2A-B, respectively n = 3 / group).

2) Legend to Figure 3 needs to be corrected. Figure 3 has 8 images (A-H) yet the legend only describes A-G, skipping over the images of mice in Figure 3D.

We regret this oversight, and a correction has been made in the legend of Figure 3.

3) TorsinA and B are very similar and seem to be expressed in the same cells. What is relative level of expression of torsinB to torsinA?

TorsinA and torsinB appear to be expressed ubiquitously at different levels in different cell types. We previously reported that non-neuronal cells express significantly higher absolute levels of torsinB than torsinA, while absolute levels of torsinA are significantly higher in neurons (Kim et al., 2010.. Importantly, these quantitative immunoblotting experiments were performed only after normalizing conditions for anti-torsinA and anti-torsinB antibodies using lysates from cells expressing either GFP-torsinA or GFP-torsinB (allowing us to control for differing sensitivity of the antibodies).

The work would also be improved by showing further evidence of torsinB deletion by western blot or immunostaining.

We previously characterized the torsinB null and torsin (A+B) “double floxed” mouse lines by western blot analysis (Tanabe et al., 2016. The torsinB null mouse line achieves complete removal of torsinB protein, and the torsin (A+B) floxed line demonstrates selective deletion of torsinA and torsinB. We believe that these published data validate the torsinB null and torsin (A+B) floxed CKO models. We agree that immunohistochemical analysis of torsinB would be an excellent addition to enable more cell-type specific analyses. Unfortunately, in our experience, none of the currently available antibodies against torsinB are suitable for immunohistochemistry.

4) The authors use multiple genetic mouse models in these studies to assess whether torsinB expression would impact behavioral and neuropathological phenotypes in models of DYT1. The description of the genetic makeup of the animal models used in the experiments throughout is somewhat confusing in the text and the figures. It is usually best that descriptions of the animals make clear the genetic modifications contained within the animal without having to decipher too much. When referring to the mice as Emx1-CKO and Emx1-dCKO, it is not clear what is conditionally knockout out. In general, the terminology is unclear for the different models and should be simplified, especially in the figures. In addition, Figure 1 is too small.

We thank you for the feedback and agree that the nomenclature for multiple models made parts of the manuscript difficult to understand. We have reworked the model nomenclature to more directly highlight the manipulated genes. For example, our previous name of “Emx1-CKO” is now Emx1(A)-CKO, indicating that torsinA is deleted conditionally. The double conditional knockout mice are now Emx1(A+B)-CKO, indicating that both torsinA and torsinB are deleted conditionally. This system better highlights the torsin genes deleted in the Cre field of each model and improves clarity and readability.

We also adjusted the nomenclature in the gene dosage study (Figure 2). The mouse line that we previously called “Emx1-SKI-B2” (Emx1 selective knock-in mouse with 2 intact torsinB alleles), is now “Emx1-SKI;Tor1b+/+”, while mice lacking one or both torsinB alleles are now represented as “Emx1-SKI;Tor1b+/-” and “Emx1-SKI;Tor1b-/-,” respectively. We believe that these changes greatly improve the clarity of the different models. We also enlarged and reformatted Figure 1, as requested.

5) While it is appreciated that Emx1 expressing cortical pyramidal neurons project to the neurons in the striatum critically involved involved in basal ganglia function, is cortical dysfunction of these torsin genes implicated in dystonia? The assessment of the cortical phenotype in these models is performed well, it is unclear if the knockout of these genes in the cortex affects any striatal phenotypes? This is especially important given the focus in the field on striatal changes.

We have focused on several striatal phenotypes in the present study because they are robust, repeatable endpoints temporally linked with abnormal movements and with clear implications in disease. However, we did not intend to imply that dystonia is based solely in basal ganglia dysfunction. Indeed, clinical electrophysiological studies of dystonia patients (including DYT1) highlight several prominent cortical features such as deficient cortical inhibition, maladaptive cortical plasticity, and abnormal sensorimotor function (reviewed in Hallett et al., 2011), which drove our decision to target forebrain inhibitory neurons using the Dlx5/6-Cre line (Pappas et al., 2015; Pappas et al., 2014). The link between cortical function and dystonia symptoms has been clarified in the Emx1-Cre section.

We previously assessed gliosis, neurodegeneration, and several cell biological endpoints (e.g., perinuclear ubiquitin accumulation and Hrd1 mislocalization) in the Emx1-Cre model (Liang et al., 2014. These deficits were highly selective to the cerebral cortex, with the most severe changes occurring in layer 5 of the sensorimotor cortex, and no changes observed in the striatum. These and all other data from our laboratory demonstrate that these phenotypes are restricted to the regions with torsinA knockout or mutant knock-in, strongly supporting a cell autonomous defect for these structural and molecular phenotypes. A discussion of cell-autonomous neurodegeneration has been included in the Discussion section. It is certainly feasible that disruption of cortical neurons could also result in abnormal striatal neuronal activity and dysfunction of basal ganglia output. We have not yet explored these possible functional changes in Emx1-Cre based models. Determination of the downstream functional effects of torsinA dysfunction is an important future direction, but one we believe is beyond the scope of the current study.

6) There is significant data provided on the clasping phenotype (such as worsening when torsinB is knocked out in the setting of torsinA mutants). It would be valuable to learn what other consequences on motor function this genetic interaction has. It is simply a worsening on clasping, but otherwise motor function is similar? Or there is a significant worsening of motor function including abnormal spontaneous locomotion, rotarod, abnormal behavior in-cage observation, etc? With the current behavioral description, it is difficult for the reader to get a sense of how this interaction exacerbates phenotypes?

Essentially all torsinA loss of function phenotypes appear to be exacerbated by removal of torsinB, including neurodegenerative, molecular, and organismal endpoints. Unfortunately, motor behavioral examination of these models is confounded by early lethality when both torsinA and torsinB are deleted. For example, we previously reported that deleting both torsinA and torsinB leads to lethality during development and maturation in several distinct models, including Dlx5/6-Cre, Synapsin-Cre, and Nestin-Cre lines (Tanabe et al., 2016; Figure S4, Table S1). Similarly, the Emx1-(A+B)-CKO model exhibits severe hypoactivity in the homecage, lack of growth or weight gain, delayed maturation, and appears moribund during the third week of life. Indeed, the University of Michigan IACUC determined that the Emx1-(A+B)-CKO model must be euthanized by P28 as a humane endpoint. While we are unable to perform open field or rotarod testing on these young and significantly smaller pups, we notice anecdotally that motor development appears to be delayed. We have added survival data and growth curves to this manuscript (Figure 1—figure supplement 3A-B).

7) The behavior data should be included for the torsinB overexpression experiment in the Nestin-Cre background. This helps to demonstrate the functional change in these mice.

This data has been included in table format in the revised manuscript (Figure 3—figure supplement 3A).

One point that we felt needed to be addressed in the manuscript is the ability of torsinB to rescue abnormal phenotypes in the presence of ΔE torsinA. The torsinB dosage study on the Emx1-SKI genetic background clearly demonstrates that torsinB reduction has a meaningful interaction in the presence of the disease allele, but it does not address rescue.

To date, no conclusive evidence has demonstrated that torsinA and torsinB function within the same complex. However, given the possibility that the torsinA ΔE allele exerts dominant negative effects, it is critical to address the ability of torsinB to rescue mutant torsinA phenotypes. We therefore added new data using the “Nes-SKI” model that expresses Tor1aΔE/- in the nervous system (Nestin-Creselective knockin; first characterized in Liang et al., 2014). TorsinB overexpression rescued Nes-SKI phenotypes including neurodegeneration, gliosis, and behavioral and developmental endpoints (Figure 4). These data demonstrate that torsinB can ameliorate mutant torsinA LOF phenotypes.

8) Is Dlx5/6 expressed in cholinergic neurons in the striatum? Is the observed change in striatal cholinergic neuron number cell autonomous?

Dlx5/6-Cre is expressed in progenitors that give rise to GABAergic and cholinergic neurons, including ChIs (Monory et al., 2006). We previously demonstrated a near complete loss of somatic torsinA immunoreactivity in the entire striatum of Dlx-CKO mice (Pappas et al., 2015). In ongoing work in the laboratory, we laser microdissected striatal ChIs from postnatal day 14 (P14) Dlx-CKO and control mice, finding a 5-fold reduction in torsinA mRNA (even with the “contamination” of afferent axon terminals of extra-striatal torsinA positive neurons that project onto ChI [i.e., centromedian/parafascicular thalamic neurons, corticostriatal neurons, and midbrain dopaminergic neurons]).

To address whether ChI neurodegeneration is cell autonomous, we previously reported characterization of a Chat-Cre Tor1a-CKO mouse line (Pappas et al., 2018 eLife). These cholinergic-selective knockout mice demonstrated the same temporal and spatial topographic pattern of cell loss in the dorsal striatum, while sparing ventral striatal and basal forebrain cholinergic neurons, despite similar extent and timing of torsinA loss in those populations (as demonstrated by immunostaining at P0). We have added a section to the Discussion section emphasizing the cell autonomous nature of torsinA-LOF mediated neurodegeneration.

9) In figure 3B, what is the exact genetic makeup of the animal shown in the Nes-Cre +, B-OE -, lane? Shouldn't there be a torsinB band in this lane?

We regret that the presented blot was unclear. The genotype of this control sample is Nestin-Cre; Tor1a+/+; Tor1b+/+. TorsinB is present and a band is visible at a higher exposure, however, due to gross overexpression of torsinB in the adjacent sample, we chose to display a shorter exposure.

To clarify this issue, we have updated Figure 3B to demonstrate torsinB expression in 3 samples from each genotype, including multiple dilutions of the torsinB overexpression lysates, and higher and lower exposures of the same membrane. This allowed us to better demonstrate and quantify the extent of torsinB overexpression without unintentionally masking the presence of torsinB in control lysates.

10) Are the causes of cortical thinning with no changes on neuronal numbers due to reduced neuronal volume, reduced number of neurites, length of terminals, etc? This might help understand if/how torsinA function influences neuronal development of plasticity in a cell autonomous manner.

We have conducted an assessment of neuronal volume in Emx1-CKO mice. We observe no changes to average soma size. These data have been added as Figure 1—figure supplement 4A and suggest that gross changes to neuronal soma morphology may not contribute to cortical thinning.

We previously observed reactive gliosis in layer V of Emx1-CKO and Emx1-SKI mice (Liang et al., 2014). While there is not a statistically significant reduction in overall CTIP2+ neuron count in the Emx1-CKO model, we do observe a statistically significant reduction of ~10% in CTIP2+ neurons in layer Vb. This data has been incorporated into the manuscript as Figure 1—figure supplement 4B. This highly selective neurodegeneration may contribute to the cortical thinning observed in Emx1-CKO mice.

11) It would be helpful to know the neuronal versus glial contribution to torsinB expression in the overexpression model.

We employed a floxed-stop Rosa26-locus torsinB strategy, enabling us to overexpress in a variety of cell types based on the Cre used to activate the overexpression allele. Nestin-Cre is expressed in neural progenitor cells that give rise to both neurons and glia (Tronche et al., 1999). In contrast, Dlx5/6-Cre is active in the cells that give rise to forebrain GABAergic and cholinergic neurons, and is exclusive to neurons (Monory et al., 2006). The complete rescue observed with neuronal selective torsinB overexpression demonstrates that glial overexpression is dispensable for rescue in our models. In the revised manuscript, we address neuron vs. glia and cell autonomous degeneration/rescue in the Discussion section.

12) There is some evidence that overexpression torsinA might carry toxic consequences, making simply gene transfer as a therapeutic strategy challenging. Being a paralog, it is very likely that torsinB overexpression (i.e., AAV-driven) might not be ideal as it could also be toxic (in fact, the data presented here on mouse weight suggests this possibility). In the discussion, and based on what we currently know about torsinB, I challenge the authors to speculate how would they identify small molecules or design oligos that could de-repress or stabilize torsinB expression in CNS. Have they queried the Connectivity Map (CMap) for small molecular that upregulate torsinB? How do they propose to move forward? Similarly, how would they evaluate of torsinB expression moedulates penetrance or expressivity in patients and non-manifesting carriers? This would spice up a somewhat brief discussion.

We agree that these are critical points. Two clear future directions of this work are to identify safe translational strategies for torsinB supplementation and to study the role of torsinB in dystonia penetrance and expressivity.

We are currently developing a torsinB-expressing AAV strategy, with the goal of titrating the expression of torsinB levels to determine a therapeutic window for rescue of torsinA LOF. Based on extensive experience with these models, we anticipate that a much lower level of overexpression will be sufficient for rescue. We are also in the process of developing compounds and identifying pathways that modulate torsinB expression, primarily via screening technologies in cells modified to report torsinB expression. Nevertheless, we believe that a genetic approach – e.g. an mRNA stabilizing ASO, or CRISPR-based torsinB activation – is likely to the approach that is most efficacious and least likely to have off target effects.

The potential role of torsinB in dystonia penetrance and expressivity is an interesting concept that we have grappled with but is technically challenging. Postmortem samples from patients with inherited dystonia are exceedingly rare and poorly annotated, essentially eliminating the possibility of assessing the relative levels of torsinA and torsinB in neural tissue. Moreover, our model suggests that the levels during childhood are the key determinants, raising questions about the relevance of protein levels decades later. To potentially overcome these issues, we are collecting fibroblast samples from manifesting, non-manifesting and control subjects, and will assess mRNA and proteins levels during neural maturation. Our revised manuscript now addresses these points in the Discussion section.

13) Data concerning the behavior assessments that were described in the text as "data not shown" should be included.

We added tables of limb clasping in torsinB null mice (Figure 1—figure supplement 1E) and of Nestin-Cre-(A)-CKO phenotypes (Figure 3—figure supplement 3A).

https://doi.org/10.7554/eLife.54285.sa2

Article and author information

Author details

  1. Jay Li

    1. Medical Scientist Training Program, University of Michigan, Ann Arbor, United States
    2. Cellular and Molecular Biology Graduate Program, University of Michigan, Ann Arbor, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Chun-Chi Liang
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8146-4450
  2. Chun-Chi Liang

    Department of Neurology, University of Michigan, Ann Arbor, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Writing - review and editing
    Contributed equally with
    Jay Li
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8345-8564
  3. Samuel S Pappas

    Peter O’Donnell Jr. Brain Institute, Departments of Neuroscience and Neurology & Neurotherapeutics, University of Texas Southwestern, Dallas, United States
    Contribution
    Conceptualization, Supervision, Writing - original draft, Writing - review and editing
    For correspondence
    samuel.pappas@utsouthwestern.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6980-2058
  4. William T Dauer

    1. Department of Neurology, University of Michigan, Ann Arbor, United States
    2. Peter O’Donnell Jr. Brain Institute, Departments of Neuroscience and Neurology & Neurotherapeutics, University of Texas Southwestern, Dallas, United States
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Writing - review and editing
    For correspondence
    william.dauer@utsouthwestern.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1775-7504

Funding

Bachmann-Strauss Dystonia and Parkinson Foundation

  • William T Dauer

National Institutes of Health (R01 NS077730)

  • William T Dauer

Tyler’s Hope for a Dystonia Cure Foundation

  • William T Dauer

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank the members of the Dauer lab for their careful reading and suggestions for this manuscript. We also thank Christian Schlieker for the kind gift of the antibody to torsinB, Vivian Nguyen for technical assistance and Daniel Levin for careful behavioral analyses. This project was supported by: Tyler’s Hope for a Dystonia Cure Foundation; NIH R01 NS077730; Bachmann Strauss Dystonia and Parkinson Foundation.

Ethics

Animal experimentation: All procedures complied with national ethical guidelines regarding the use of rodents in scientific research and were approved by the University of Michigan (Protocol #00006600 and Protocol #00008870) and University of Texas Southwestern (Protocol #102767) Institutional Animal Care and Use Committees. Every effort was made to minimize both number of mice utilized as well as suffering.

Senior Editor

  1. Kate M Wassum, University of California, Los Angeles, United States

Reviewing Editor

  1. Harry T Orr, University of Minnesota, United States

Reviewer

  1. Pedro Gonzalez-Alegre, University of Pennsylvania, United States

Publication history

  1. Received: December 9, 2019
  2. Accepted: March 23, 2020
  3. Accepted Manuscript published: March 23, 2020 (version 1)
  4. Version of Record published: April 8, 2020 (version 2)

Copyright

© 2020, Li et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 591
    Page views
  • 70
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: PubMed Central, Crossref, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Developmental Biology
    2. Immunology and Inflammation
    Samuel Liegeois, Dominique Ferrandon
    Insight
    1. Developmental Biology
    2. Stem Cells and Regenerative Medicine
    Louise Menendez et al.
    Research Article
