Ca2+ entry through NaV channels generates submillisecond axonal Ca2+ signaling

  1. Naomi AK Hanemaaijer
  2. Marko A Popovic
  3. Xante Wilders
  4. Sara Grasman
  5. Oriol Pavón Arocas
  6. Maarten HP Kole  Is a corresponding author
  1. Department of Axonal Signaling, Netherlands Institute for Neuroscience (NIN), Royal Netherlands Academy of Arts and Sciences (KNAW), Netherlands
  2. Cell Biology, Neurobiology and Biophysics, Department of Biology, Faculty of Science, Utrecht University, Netherlands
Research Article
  • Cited 0
  • Views 2,241
  • Annotations
Cite this article as: eLife 2020;9:e54566 doi: 10.7554/eLife.54566

Abstract

Calcium ions (Ca2+) are essential for many cellular signaling mechanisms and enter the cytosol mostly through voltage-gated calcium channels. Here, using high-speed Ca2+ imaging up to 20 kHz in the rat layer five pyramidal neuron axon we found that activity-dependent intracellular calcium concentration ([Ca2+]i) in the axonal initial segment was only partially dependent on voltage-gated calcium channels. Instead, [Ca2+]i changes were sensitive to the specific voltage-gated sodium (NaV) channel blocker tetrodotoxin. Consistent with the conjecture that Ca2+ enters through the NaV channel pore, the optically resolved ICa in the axon initial segment overlapped with the activation kinetics of NaV channels and heterologous expression of NaV1.2 in HEK-293 cells revealed a tetrodotoxin-sensitive [Ca2+]i rise. Finally, computational simulations predicted that axonal [Ca2+]i transients reflect a 0.4% Ca2+ conductivity of NaV channels. The findings indicate that Ca2+ permeation through NaV channels provides a submillisecond rapid entry route in NaV-enriched domains of mammalian axons.

eLife digest

Nerve cells communicate using tiny electrical impulses called action potentials. Special proteins termed ion channels produce these electric signals by allowing specific charged particles, or ions, to pass in or out of cells across its membrane. When a nerve cell ‘fires’ an action potential, specific ion channels briefly open to let in a surge of positively charged ions which electrify the cell. Action potentials begin in the same place in each nerve cell, at an area called the axon initial segment. The large number of sodium channels at this site kick-start the influx of positively charged sodium ions ensuring that every action potential starts from the same place.

Previous research has shown that, when action potentials begin, the concentration of calcium ions at the axon initial segment also increases, but it was not clear which ion channels were responsible for this entry of calcium. Channels that are selective for calcium ions are the prime candidates for this process. However, research in squid nerve cells gave rise to an unexpected idea by suggesting that sodium channels may not exclusively let in sodium but also allow some calcium ions to pass through. Hanemaaijer, Popovic et al. therefore wanted to test the routes that calcium ions take and see whether the sodium channels in mammalian nerve cells are also permeable to calcium.

Experiments using fluorescent dyes to track the concentration of calcium in rat and human nerve cells showed that calcium ions accumulated at the axon initial segment when action potentials fired. Most of this increase in calcium could be stopped by treating the neurons with a toxin that prevents sodium channels from opening. Electrical manipulations of the cells revealed that, in this context, the calcium ions were effectively behaving like sodium ions. Human kidney cells were then engineered to produce the sodium channel protein. This confirmed that calcium and sodium ions were indeed both passing through the same channel.

These results shed new light on the relationship between calcium ions and sodium channels within the mammalian nervous system and that this interplay occurs at the axon initial segment of the cell. Genetic mutations that ‘nudge’ sodium channels towards favoring calcium entry are also found in patients with autism spectrum disorders, and so this new finding may contribute to our understanding of these conditions.

Introduction

Ca2+ ions crossing the neuronal plasma membrane are critically involved in depolarization and distribute in the cytosol in spatial microdomains and organelles to regulate a wide range of processes ranging from gene expression to fast transmitter release (Berridge, 2006; Neher and Sakaba, 2008). In axons, voltage-gated Ca2+ (CaV) channels at presynaptic terminals open in response to a single action potential (AP), raising intracellular Ca2+ concentrations ([Ca2+]i) in nanodomains from ~50 nM up to ~10 µM to increase transmitter vesicle release rates by the power of ~4 (Helmchen et al., 1997; Schneggenburger and Neher, 2000). In response to APs, large and local [Ca2+]i transients are typically also observed in the axon initial segment (AIS) and nodes of Ranvier (Callewaert et al., 1996; Bender and Trussell, 2009; Yu et al., 2010; Gründemann and Clark, 2015; Zhang and David, 2016; Clarkson et al., 2017). At these sites, Ca2+ currents have been implicated in AP initiation and propagation by a local depolarizing action of the inward current or by activating the large conductance, Ca2+- and voltage-dependent K+ (BKCa) channels modulating burst firing probability and limiting frequency-dependent AP failure rates (Bender and Trussell, 2009; Yu et al., 2010; Hirono et al., 2015). The CaV channel subtypes identified in axons are both cell type- and species-dependent and include the T-, P/Q- or N-type CaV channels (Callewaert et al., 1996; Bender and Trussell, 2009; Yu et al., 2010; Gründemann and Clark, 2015; Zhang and David, 2016). At the AIS in particular the T-type Ca2+ channel mediates AP-dependent Ca2+ influx (Bender and Trussell, 2009; Martinello et al., 2015; Fukaya et al., 2018; Jin et al., 2019). However, in the prefrontal cortical pyramidal neuron AIS about 70% of the AP-evoked [Ca2+]i remains following pharmacological block of T-type CaV channels (Clarkson et al., 2017). Furthermore, evidence for a clustering of T-type CaV channels at the AIS is ambiguous and immunofluorescence or immuno-gold labeling studies show a density which is comparable to somatodendritic or spine compartments (McKay et al., 2006; Martinello et al., 2015).

Several other mechanisms may contribute to axoplasmic [Ca2+]i elevations in the AIS. Firstly, Ca2+ levels could rise due to Ca2+-induced Ca2+ release from intracellular sources such as the endoplasmic reticulum (ER). Most AISs contain ER cisternae organelles consisting of stacks of membranes expressing the store-operated ryanodine receptor (RyR), inositol 1,4,5-triphosphate receptor 1(IP3R1) and sarcoplasmic ER Ca2+ ATPase (SERCA) pumps (Benedeczky et al., 1994; King et al., 2014; Antón-Fernández et al., 2015). The coupling of transmembrane Ca2+ entry with intracellular store release may generate a local activity-dependent rise of [Ca2+]i. However, a contribution of ER stores to AIS [Ca2+]i remains to be directly demonstrated. Secondly, near the peak of the AP the electrogenic Na+-Ca2+ exchanger (NCX) reverses direction and imports Ca2+. A reverse mode of operation has not only been implicated in pathological [Ca2+]i elevations in axons during hypoxia and injury (Stys et al., 1991; Iwata et al., 2004), but also occurs during trains of APs in nodes and neighboring internodes (Zhang and David, 2016). Finally, one alternative pathway that has yet to be directly examined in mammalian cortical axons involves the voltage-gated Na+ (NaV) channels. Studies in the squid giant axon combining electrophysiological recordings with Ca2+ imaging showed that an early component of depolarization-induced Ca2+ entry is tetrodotoxin (TTX)-sensitive (Baker et al., 1971; Meves and Vogel, 1973; Brown et al., 1975). Voltage-clamp recordings from axons and perfusing distinct ionic solutions provided a quantitative estimate that NaV channels may pass divalent Ca2+ ions with permeability ratios (PCa/PNa) up to 0.10 (Hille, 1972; Meves and Vogel, 1973). Ca2+ permeability of NaV channels has also been shown in cardiac cells and hippocampal neurons (Akaike and Takahashi, 1992; Aggarwal et al., 1997; Santana et al., 1998) but whether this extends to the cortical axons remains to be examined.

Here, using wide-field Ca2+ imaging with a high-speed CCD camera enabling detection of [Ca2+]i changes at high sensitivity and high temporal resolution (Jaafari et al., 2014; Ait Ouares et al., 2016), we explored the various pathways of Ca2+ entry in axons of rat thick-tufted neocortical layer 5 (L5) pyramidal neurons. We found that during subthreshold depolarizations [Ca2+]i transients were highly compartmentalized to the AIS and nodes of Ranvier. While these transients were amplified by ER store release, the trigger was only modestly accounted for by CaV channels. The largest fraction of activity-dependent [Ca2+]i was TTX-sensitive and overlapped with the rapid gating of NaV channels. Experiments in HEK-293 cells transfected with the human NaV1.2 channel confirmed that TTX-sensitive Na+ currents were sufficient to generate [Ca2+]i elevations. Together, the data suggest that [Ca2+]i dynamics in the mammalian AIS are predominantly mediated by a rapid Ca2+ entry through NaV channels.

Results

Activity-dependent compartmentalized Ca2+ entry in layer five axons

Thick-tufted L5 pyramidal neurons, also called L5B or pyramidal tract neurons, are the largest pyramidal neurons in the cortex and integrate synaptic inputs from all cortical layers, playing a central role in cognitive tasks including perception (Groh et al., 2010; Ramaswamy and Markram, 2015; Takahashi et al., 2016). Their large axons (~1.5 µm in diameter) send long-range output projections to the thalamus, striatum and spinal cord, but within the cortex branch sparsely and have a trajectory perpendicular to the pia providing an excellent anatomical arrangement to image and record from. To optically record the spatial profile of axonal [Ca2+]i we made somatic whole-cell patch-clamp recordings from neurons filled with the high-affinity Ca2+ indicator Oregon Green BAPTA 1 (OGB-1, 100 µM) and imaged epifluorescence signals along the proximal region of the main axon (Figure 1). We first used subthreshold depolarizations evoked by artificial excitatory postsynaptic potentials (a-EPSPs, 100 Hz, peak depolarization 17.0 ± 0.6 mV, n = 15; Figure 1a). Examination of the spatial profile revealed that Ca2+ signals were observed in the AIS and hot spots separated with regular distances along the axon (locations 2, 4 and 6; Figure 1a). In order to examine whether the [Ca2+]i hot spots corresponded to nodes of Ranvier, we post-hoc stained for βIV-spectrin and biocytin, and found indeed overlap between subthreshold [Ca2+]i rise and spectrin-enriched sites (Figure 1b). In the same cells we examined the spatial profile of Δ[Ca2+]i in response to a single AP evoked with a brief square current injection (Figure 1c). As expected from back- and forward-propagating APs with much higher depolarizations (~100 mV), large [Ca2+]i transients were observed widespread throughout all axonal and somatodendritic domains. Population analysis showed that AP-induced [Ca2+]i transients were similar between AIS and nodes (one-way ANOVA followed by Tukey’s multiple comparison test, p<0.0001, differences between all groups were significant (p<0.05) except between AIS and node (p=0.13) and between internode (IN) and dendrites (p=0.85); Figure 1c,d). Interestingly, also during a-EPSPs the [Ca2+]i transients in the AIS and the first nodes were highly comparable, while [Ca2+]i signals in the internodal and dendritic domains were an order of magnitude smaller (one-way ANOVA with Tukey’s multiple comparison test, p<0.0001, differences between all groups were significant (p<0.0001), except between AIS and node (p=0.38) and IN and Dend (p=0.97); Figure 1a,d). Similar experiments in L5 neocortical pyramidal neurons in slices from human temporal cortex also revealed a-EPSP evoked Δ[Ca2+]i in the AIS, but not in the dendrite, suggesting that subthreshold sensitive [Ca2+]i transients are conserved across mammalian species (Figure 1—figure supplement 1). Together, these results show that activity-dependent [Ca2+]i transients are spatiotemporally compartmentalized and Ca2+ entry dynamics are similar in the axoplasm of the AIS and nodes.

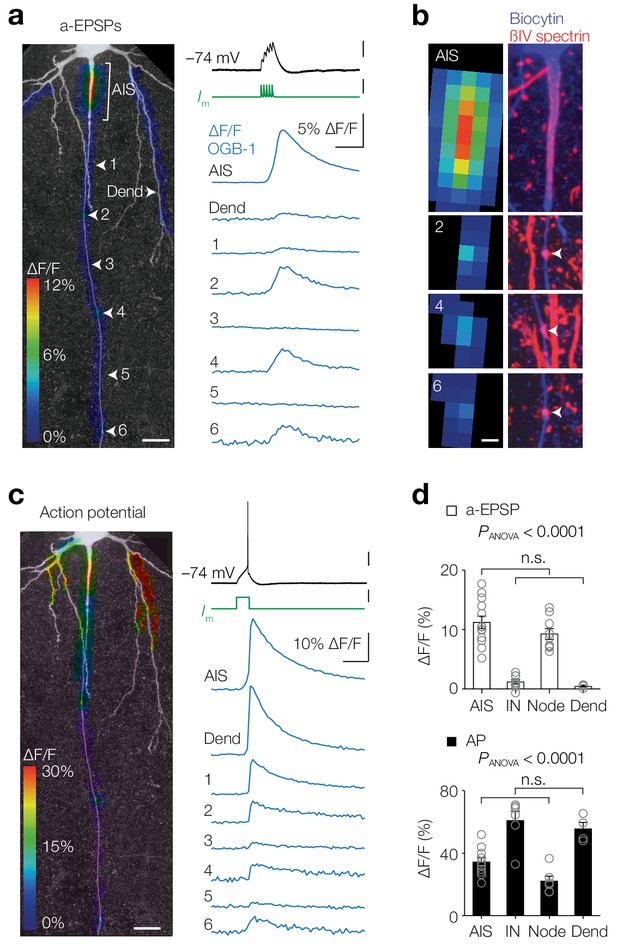

Figure 1 with 1 supplement see all
Activity-dependent compartmentalized Ca2+ entry in layer five axons.

(aLeft, Color-coded maximal ∆F/F of OGB-1 imaged in a L5 pyramidal neuron axon in response to an a-EPSP (five subthreshold current injections at 100 Hz) overlaid with a z-projection of biocytin-streptavidin (grey) of the same neuron. White arrowheads indicate regions of interest from which example traces are shown right. Scale bar, 20 µm. Right, ∆F/F traces from locations specified left. For illustrative purposes, ∆F/F traces represent averages of ~400 trials. Top to bottom scale bars, 10 mV, 1 nA, 5% ∆F/F, 100 ms. (b) Left, higher magnification of the regions of interest shown in a. Right, maximal z-projection of biocytin-streptavidin (blue) and ßIV spectrin (red). White arrows indicate nodes or Ranvier. Sites with a-EPSP-evoked [Ca2+]i transients were all positive to ßIV spectrin (n = 15 AISs and 23 nodes from n = 15 axons). Scale bar, 5 µm. (c) Same axon and locations as in a with color-coded maximal ∆F/F in response to an AP. Scale bars, 20 mV, 0.5 nA, 10% ∆F/F, 100 ms and 20 µm. (d) Top, Population data for peak ∆F/F in response to a-EPSPs in the AIS (n = 13), first internode (IN, n = 9), the first Node (n = 9) and basal dendrite (Dend, n = 4), one-way ANOVA with Tukey’s multiple comparisons test, p<0.0001, Bottom, peak ∆F/F in response to a single AP in the AIS (n = 10), first internode (IN, n = 6), the first Node (n = 6) and basal dendrite (Dend, n = 4), one-way ANOVA with Tukey’s multiple comparisons test, p<0.0001. Open circles represent individual cells and bars show the population mean ± s.e.m. Data available in Figure 1—source data 1. See also Figure 1—figure supplement 1.

Giant saccular organelle amplifies activity-dependent [Ca2+]i transients in the AIS

The thick-tufted L5 pyramidal neuron AIS contains a unique variant of cisternal organelle characterized by a continuous tubular organization of smooth ER, called the giant saccular organelle (Antón-Fernández et al., 2015). Cisternal organelles with smooth ER express synaptopodin (synpo), RyR, the IP3 receptor 1, and SERCA that are thought to contribute to Ca2+ release, buffering and storage (Bas Orth et al., 2007; King et al., 2014). We hypothesized that these organelles could generate Ca2+-induced Ca2+-release, thereby contributing to domain-selective activity-dependent [Ca2+]i transients (Figure 1). Triple immunostaining for synpo, Ankyrin G and biocytin confirmed that the cisternal organelle was present along the entire axis of the AIS and spatially overlapped with the subthreshold-evoked [Ca2+]i transients (n = 19; Figure 2a,b). However, while subthreshold depolarization-induced Ca2+ transients were present in the nodes, synaptopodin expression was not detected (n = 10 nodes; Figures 1 and 2a). To experimentally test whether AIS Ca2+-store release contributes to activity-dependent [Ca2+]i transients we performed experiments with standard intracellular solution and subsequently re-patched the same cell with a solution containing ryanodine (200 µM, blocking RyR-mediated Ca2+ release) and heparin (5 mg/ml, competitively inhibiting IP3-evoked Ca2+ release; Figure 2c). Blocking Ca2+ release significantly lowered ΔF/F Ca2+ peak transients in the AIS, both for the subthreshold- and AP-evoked [Ca2+]i changes (a-EPSP, 53.2% reduction, p=0.006; AP, 34.3% reduction, p=0.02, one-tailed ratio paired t-tests, n = 5; Figure 2d). Consistent with the AIS-specific location of the giant saccular organelle, store blockers had no effect on AP-evoked Δ[Ca2+]i in the basal dendrite (p=0.48, n = 3; Figure 2d). Furthermore, since the stores contribute significantly to AIS Ca2+ levels, blocking store release could act as a low-pass filter for Ca2+ level kinetics, reducing rise and decay times. However, blocking Ca2+-store release did not alter the rise- or decay time kinetics in the AIS (τact, p=0.52; τde-act, p=0.18, two-tailed paired t-tests, n = 5; Figure 2e). These data suggest that the giant saccular organelle amplifies activity-dependent [Ca2+]i changes selectively in the AIS.

Giant saccular organelle amplifies activity-dependent Δ[Ca2+]i in the AIS.

(a) Example color-coded maximal ∆F/F profile (100 μM OGB-1) in response to a-EPSPs in the AIS (top) and Node (bottom) compared to z-projections for synaptopodin (Synpo, yellow), Ankyrin-G (AnkG, red) and biocytin/streptavidin (blue) of the same axon. White arrows indicate the locations of nodes, in the imaged axon (blue) and a neighboring one, both without synaptopodin. The many small Synpo positive puncta are likely co-localized with subclasses of spines (Benedeczky et al., 1994; Bas Orth et al., 2007). Scale bars, 10 µm and 1 µm. (b) The length of synaptopodin fluorescence linearly scales with Ankyrin G length. Red trace, linear regression fit with y = 1.005 x – 0.95, r2 = 0.966, ****p<0.0001, n = 19. (c) Schematic of Ca2+-induced Ca2+ release by internal ER stores. (d) Top, example ∆F/F (OGB-1) transients from AIS (left) and dendrite (right) in response to an AP (Vm, black) in control conditions (blue) and re-patched with blockers (green). Scale bars, 10% ∆F/F, 50 mV and 50 ms. Bottom, population data of the peak ∆F/F in the AIS in response to a-EPSP (white bars) and AP (black bars) before and after store release block, one-tailed ratio paired t-tests, **p=0.0060, *p=0.021, n = 5. Open circles and connecting lines represent paired recordings from individual cells and bars show the population mean ± s.e.m. (e) Top, Ca2+ transients fitted with a single exponential function (red) to the rise (left) and decay time (right) in response to an AP, red number indicates the τ. Bottom, comparison of the rise and decay time (two-tailed paired t-tests, τact, p=0.52, τde-act, p=0.18, n = 5). Open circles and connecting lines represent paired recordings from individual cells and bars show the population mean ± s.e.m. Data available in Figure 2—source data 1.

CaV channels and NCX have a limited role in activity-dependent Ca2+ entry at the AIS

Ca2+ release from internal stores is likely triggered by Ca2+ entry via neuronal voltage-dependent plasmalemmal routes. To test whether AIS [Ca2+]i changes require Ca2+ from the extracellular space, we bath applied 2.5 mM of the Ca2+ chelator EGTA which effectively lowered the extracellular Ca2+ concentration ([Ca2+]o) from 2 mM to ~437 nM, thereby reducing the driving force for Ca2+ (see Materials and methods). Ca2+ imaging at the AIS (OGB-1, 100 µM) showed that EGTA almost fully abolished the subthreshold-evoked Δ[Ca2+]i (90.7% reduction, one-tailed ratio paired t-test, p=0.0031, n = 4; Figure 3a,b). Similarly, the AP-generated Δ[Ca2+]i was almost extinguished after bath application of EGTA (92.8% reduction, p=0.0011, n = 4; Figure 3a,b).

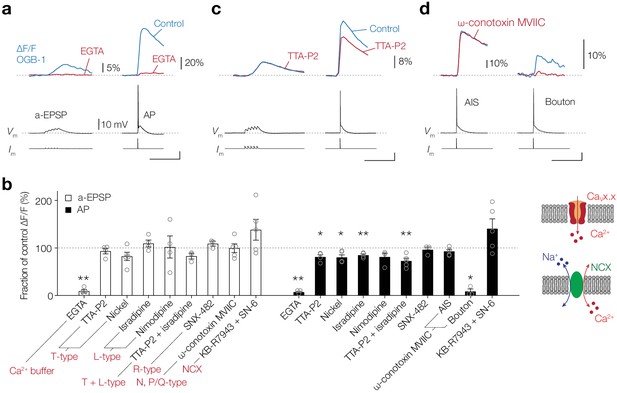

CaV channels play a partial role in activity-dependent Ca2+ entry at the AIS.

(aTop, example traces of ∆F/F (100 μM OGB-1) in the AIS evoked by an a-EPSP (left) and AP (right), before (blue) and after (red) bath application of EGTA (2.5 mM). Bottom, somatic Vm and current-clamp protocols. Scale bars bottom right, 20 mV, 100 ms. (b) Left, population data for the effect of an extracellular Ca2+ buffer, CaV channel blockers and NCX on the peak ∆[Ca2+]i signal in the AIS in response to an a-EPSP (open bars) and AP stimulation (closed bars). Data are shown as ratio to the pre-drug peak Ca2+ responses measured in the same neuron. One-tailed ratio paired t-tests, *p<0.05 and **p<0.01. Open circles represent individual cells and the bars show the mean ± s.e.m. Right, schematics of Ca2+ entry in the axoplasm via CaV channels (top) or NCX (bottom). (c) Top, example traces of ∆F/F in the AIS evoked by an a-EPSP (left) and AP (right), before (blue) and after (red) bath application of TTA-P2 (1 µM). Bottom, somatic Vm and current-clamp protocols. Scale bar, 20 mV, 100 ms. (d) Top, example traces of ∆F/F evoked by an AP in the AIS (left) and presynaptic bouton of the same neuron (right), before (blue) and after (red) puff application of ω-conotoxin MVIIC (2 µM). Bottom, somatic Vm and current-clamp protocols. Scale bar, 20 mV, 100 ms. Data available in Figure 3—source data 1.

Next, we hypothesized that the transmembrane pathway for Ca2+ entry in the AIS during subthreshold stimuli could be explained by the low-voltage gated CaV channels (T- and R-type). However, bath application of the highly selective T-type (CaV3.1–3) blocker TTA-P2 (1 µM, Choe et al., 2011) or nickel (Ni2+, 100 µM) did not significantly reduce Ca2+ signals (one-tailed ratio paired t-tests; TTA-P2, p=0.17, n = 4; Ni2+, p=0.063, n = 5; Figure 3b,c). We next blocked R-type CaV channels, by puffing SNX-482 (500 nM) locally to the AIS, but this did not lead to a reduction in subthreshold [Ca2+]i rise either (SNX-482, p=0.11, n = 3). Furthermore, consistent with their more depolarized voltage range of activation, the L-type channels did not affect subthreshold Δ[Ca2+]i (20 µM isradipine, p=0.14; 10 µM nimodipine, p=0.41, both n = 4; Figure 3b) and the block of N-type and P/Q-type channels, by local application of ω-conotoxin MVIIC (2 µM) to the AIS, also failed to reduce Ca2+ signals (p=0.42, n = 5; Figure 3b). Furthermore, a combined block of T- and L-type channels did not affect the peak ΔF/F in the AIS (TTA-P2 and isradipine, p=0.12, n = 3; Figure 3b).

Although application of the T-type blockers TTA-P2 and Ni2+ was ineffective to block subthreshold [Ca2+]i rise, in the same neurons it did reduce the peak ΔF/F evoked by a single AP by almost 20% (TTA-P2, 18.7%, p=0.021, n = 4; Ni2+, 19.7% block, p=0.013, n = 5; Figure 3b,c). In addition, isradipine reduced the AP-evoked Δ[Ca2+]i in the AIS by 14.9% (isradipine, p=0.0070, n = 4) and the alternative L-type blocker nimodipine showed a non-significant blocking trend (nimodipine, p=0.060, n = 4; Figure 3b). A combined application of T- and L-type channel blockers (1 µM TTA-P2 and 20 µM isradipine) caused a 27.2% reduction of peak ΔF/F, showing a sublinear summation of two blocking agents (TTA-P2 and isradipine, p=0.0071, n = 5; Figure 3b). In contrast, the R-type CaV channel blocker SNX-482 (500 nM) did not reduce the AP-evoked Δ[Ca2+]i (SNX-482, p=0.29, n = 3; Figure 3b). Local application of the ω-conotoxin MVIIC (2 µM) showed a non-significant trend to block the peak ΔF/F (6.8%, p=0.064, n = 5; Figure 3b). As a positive control experiment, we imaged a collateral bouton of the same neuron and used local application of ω-conotoxin MVIIC which almost completely abolished the peak ΔF/F by 91.5%, consistent with the presence of N- and P/Q-type CaV channel subtypes in presynaptic terminals (p=0.021, n = 3; Figure 3b). Finally, given the unexpected remaining [Ca2+]i transients in the AIS in the presence of CaV channel blockers, we hypothesized that NCX may contribute to activity-dependent [Ca2+]i increase in the AIS. At the resting membrane potential NCX exports Ca2+ from the cytoplasm to maintain [Ca2+]i near ~50 nM, however Na+ entry may promote instantaneous Ca2+ influx by a reverse mode of operation (Yu and Choi, 1997; Stys and LoPachin, 1997Figure 3b). To examine its contribution, we pharmacologically blocked NCX by combined bath application of KB-R7943 (20 µM) and SN-6 (10 µM). The results showed, however, no change in the subthreshold nor AP-evoked Δ[Ca2+]i (two-tailed ratio paired t-tests, a-EPSP, p=0.16; AP, p=0.13, n = 5, respectively; Figure 3b).

In summary, these data show that while transmembrane Ca2+ influx from the extracellular space is required for activity-evoked Δ[Ca2+]i, none of the CaV channels played a role in the subthreshold depolarization, whereas T- and L-type CaV channels partially contributed to the AP-evoked influx.

Subthreshold- and AP-evoked Ca2+ entry at the AIS requires TTX-sensitive channels

What could be the source of the remaining component of Ca2+ influx at the AIS? Both in hippocampal neurons and heart muscle cells, Ca2+ currents have been described which are not blocked by Ni2+ nor by other known CaV channel antagonists, but instead are sensitive to the highly selective NaV channel blocker (TTX), and therefore called ICa(TTX) (Akaike and Takahashi, 1992; Aggarwal et al., 1997). In Na+-free extracellular solution ICa(TTX) resembles the Na+ current and activates at potentials as negative as –70 mV while peaking at –30 mV (Akaike and Takahashi, 1992). To examine the presence of ICa(TTX) in L5 axons we took advantage of the low-affinity indicator Oregon Green BAPTA 5N (OGB-5N, 1 mM; Figure 4a), which gives smaller fluorescent signals but is linear over a wider range of [Ca2+]i compared to OGB-1 (K20 µM vs. 170 nM, respectively). We used the voltage-clamp configuration and injected depolarizing ramps of 50 ms with increasing slopes (from 0.0 to 0.55 mV ms–1) with a maximum peak at ~95% of the AP threshold (Figure 4b), thereby studying the same depolarization range and duration as the a-EPSPs used in Figures 13. The results showed that Ca2+ influx was strongly compartmentalized to the AIS and nodal axolemma (Figure 4a) consistent with the a-EPSP evoked OGB-1 transients (Figure 1). Remarkably, bath application of TTX almost completely abolished [Ca2+]i elevations, even at depolarizations above the AP threshold (at –54.5 mV, 92.8% block, Cohen’s d: 1.88, two-way ANOVA, p<0.0001, n = 4; Figure 4b,c). As an alternative to TTX we used the quaternary amine NaV channel inhibitor QX-314, which plugs the open state of the NaV channel from the internal side. Similar to TTX, with 6 mM QX-314 added to the pipette solution voltage ramps did not evoke Ca2+ transients (at –54.5 mV, 94.8% block, Cohen’s d: 1.92, control vs. QX-314, p<0.0001, n = 4, TTX vs. QX-314, p=0.97, n = 4; Figure 4c). Although QX-314 at this concentration has been reported to also block voltage-gated Ca2+ currents (Talbot and Sayer, 1996), subthreshold-evoked [Ca2+]i was not mediated by CaV channels (Figure 3b). The near complete block by two distinct NaV channel blockers therefore indicates an important role of NaV channels in mediating subthreshold axonal Ca2+ influx.

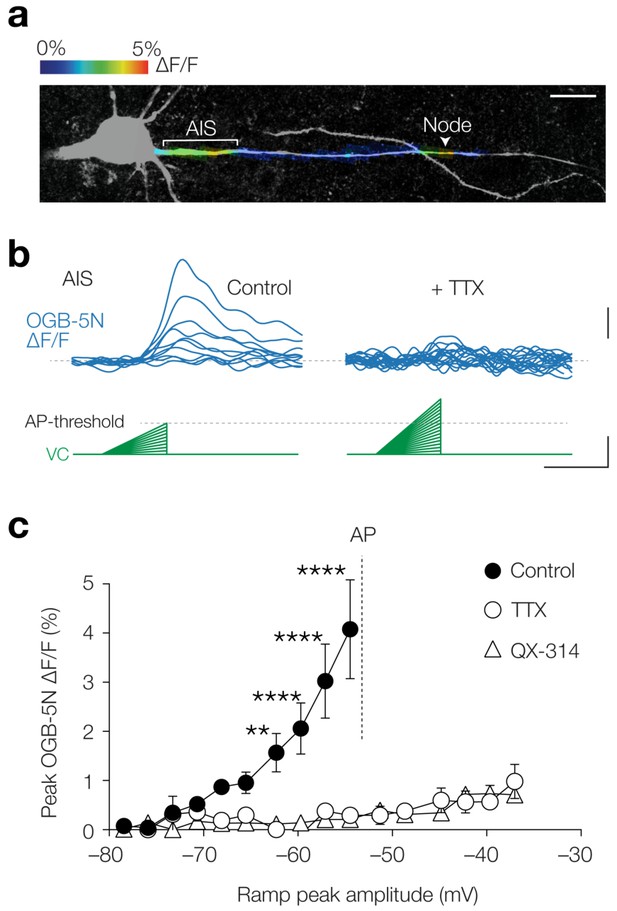

Subthreshold [Ca2+]i changes are TTX sensitive.

(a) Example image of color-coded maximal ∆F/F (1 mM OGB-5N) along the proximal axon in response to a voltage ramp from –78.5 mV to maximally –54.5 mV. Acquisition rate was 125 Hz. The color-coded image is overlaid with a maximal z-projection of a confocal scan of biocytin/streptavidin staining (grey) of the same axon. Note the compartmentalized Ca2+ influx at the AIS and node (indicated by a white arrow). Scale bar, 20 µm. (b) Example traces of OGB-5N ΔF/F reveal increasing Ca2+ responses to voltage ramps with increasing incline in control (left) but not in TTX (1 µM, right). Traces filtered with one-pass binomial (three point). Scale bars, 1% ∆F/F, 10 mV and 50 ms. (c) Population data for maximal OGB-5N ΔF/F versus voltage ramp peaks in control (closed circles, n = 4), in TTX (open circles, n = 4) or QX-314 (open triangles, 6 mM, n = 4). Two-way ANOVA with Tukey’s multiple comparisons test, **p<0.01, ****p<0.0001. AP threshold is indicated with a gray line. Data are shown as mean ± s.e.m. Data available in Figure 4—source data 1.

We next investigated whether NaV channels also contribute to AP-evoked Δ[Ca2+]i (Figure 5a). To dissociate a putative role of NaV channels to pass Ca2+ ions from generating the AP depolarization of ~100 mV we first imaged Ca2+ at the AIS in current-clamp, subsequently applied 1 µM TTX and imaged Ca2+ transients evoked by the recorded AP waveform injected as a voltage command (‘AP-clamp’). The results showed a near complete abolishment of Δ[Ca2+]i in the presence of TTX (one-way ANOVA with Tukey’s multiple comparisons test, CC vs. VC, 89.5% reduction, p<0.0001, n = 7; Figure 5a,b). However, this [Ca2+]i peak amplitude reduction could also be due to an incomplete voltage- and space-clamp of the AIS for fast voltage transients. The small diameter of the axon has a high axial resistance, acting as a low-pass filter for the antidromic AIS action potentials (Hamada et al., 2016) which also may attenuate the orthodromic voltage spread into the axon. To examine the possibility that axonal APs are attenuated in the somatic AP clamp configuration, we optically recorded JPW3028, a fast fluorescent voltage indicator that remains stable over long recording periods and is highly linear over a large voltage range (~250 mV, Figure 5—figure supplement 1). Consistent with the voltage loss, when we injected the AP-clamp in the soma in the presence of TTX and optically recorded Vm in the AIS, we observed a significant ~2 fold reduction in the AP peak amplitude (one-way ANOVA with Tukey’s multiple comparisons test, VC vs. CC, p=0.014; Figure 5a,c). To restore peak depolarization in the presence of TTX and reliably compare the Ca2+ transients evoked by equal depolarization, we doubled the amplitude of the somatic AP-clamp (VC ×2). With this protocol both the peak depolarization and AP half-width in the AIS were indistinguishable from the control APs (peak JPW, VC ×2 vs. CC, one-way ANOVA with Tukey’s multiple comparisons test, p=0.75, n = 4, Figure 5c, half-width in JPW, VC ×2 vs. CC, one-way ANOVA with Tukey’s multiple comparisons test, p=0.36, n = 4, not shown). TTX blocked 65.5% of the AP-evoked Δ[Ca2+]i (peak OGB-5N, Cohen’s d: 5.49, VC ×2 vs. CC, p<0.0001, n = 8; Figure 5b). Taken together, these data suggest that a large fraction of both subthreshold-depolarization and AP-evoked Ca2+ ions enter the axoplasm through TTX-sensitive channels at the AIS.

Figure 5 with 1 supplement see all

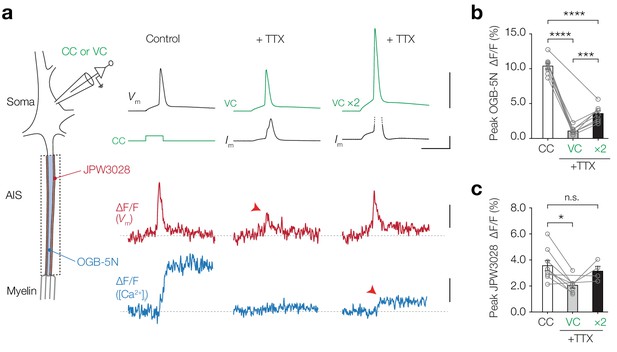

AP-evoked [Ca2+]i changes are TTX sensitive.

(aLeft, schematic of the experimental setup; electrophysiological recording from the soma and fluorescence recording from AIS. Right, example traces from electrophysiology (recorded traces in black, applied commands in green), ∆F/F JPW3028 (red) for voltage imaging and ∆F/F OGB-5N (blue) for Ca2+ imaging. Left panel shows example traces from a current clamp recording, middle panel was performed in AP-clamp in the presence of TTX (1 µM) and right panel was performed in AP-clamp scaled two-fold (VC ×2) in the presence of TTX. The JPW3028 and OGB-5N experiments were performed in separate cells. Scale bars from top to bottom, 100 mV, 5 nA, 5 ms, 2% ∆F/F and 5% ∆F/F. (b) Peak OGB-5N ΔF/F in response to an AP (n = 8), AP clamp + TTX (VC, n = 7) and double AP clamp + TTX (VC ×2, n = 8). One-way ANOVA with Tukey’s multiple comparisons test, ***p=0.0005, ****p<0.0001, n = 8. Circles and connecting lines represent paired recordings in individual cells and bars show the population mean ± s.e.m. (c) Peak JPW3028 ΔF/F in response to an AP (n = 9), AP clamp + TTX (VC, n = 7) and double AP clamp + TTX (VC ×2, n = 4). One-way ANOVA with Tukey’s multiple comparisons test, *p=0.014. Circles and connecting lines represent paired recordings in individual cells and bars show the population mean ± s.e.m. Data available in Figure 5—source data 1. See also Figure 5—figure supplement 1.

Axonal [Ca2+]i follows gating kinetics of NaV channels

Whether ICa(TTX) is carried by a specific TTX-sensitive CaV channel or reflects Ca2+ permeating directly through the NaV channel remains debated (Santana et al., 1998; Cruz et al., 1999; Heubach et al., 2000; Chen-Izu et al., 2001; Guatimosim et al., 2001). We hypothesized that if Ca2+ ions enter the AIS cytoplasm by flowing through NaV channels, ICa(TTX) should reflect the time course of INa. To measure submillisecond rapid events with fluorescence in the small axon (diameter ~1.5 µm), we optimized multiple imaging parameters enabling the acquisition of fluorescence at 20 kHz (see Materials and methods). Using a Na+-sensitive indicator (sodium-binding benzofuran isophthalate, SBFI, 1 mM) in combination with OGB-5N (1 mM) showed that the two indicators were indistinguishable in their rising phase during an AP, suggesting that Ca2+ entry at the AIS may be as rapid as Na+ entry (Figure 6—figure supplement 1).

In order to quantify the kinetics of INa and ICa more directly, we next used a voltage-clamp approach. Near ~20°C and –40 mV, NaV channels open at least one order of magnitude faster compared to the T-type CaV channels (~200 µs [Schmidt-Hieber and Bischofberger, 2010] vs. ~5 ms [Perez-Reyes et al., 1998], respectively) which may be sufficiently different to compare against the kinetics of optically recorded [Ca2+]i at the AIS. To determine the specific activation kinetics of INa and T-type ICa (ICaT) in L5 pyramidal neurons we measured total inward current (INa + ICa,) by depolarizing the soma with a step to –35 mV and pharmacologically isolated Na+ and Ca2+ current components by bath application of 1 µM TTX or 100 µM Ni2+, respectively (Figure 6a). The activation time constant of the total inward current was identical to INa (single exponential fit τtotal = 438.2 µs vs. τNa = 440.3 µs, one-way ANOVA with Tukey’s multiple comparison test, p>0.999, n = 6), whereas the total current was substantially faster in comparison to ICaTtotal = 438.2 µs vs. τCaT = 4.8 ms, p<0.0001, n = 5; Figure 6a). The initial fraction of the inward current was thus primarily generated by INa. The large difference in gating could provide a temporal window to distinguish Ca2+ entry via NaV channels or T-type CaV channels. Theoretical and experimental work show that low-affinity Ca2+ indicators, like OGB-5N, are capable of tracking rapidly activating Ca2+ currents when imaged at high speed: the first time derivative of ΔF/F (dΔF/F dt–1) overlaps with electrically recorded ICa, providing a mean to optically resolve the time course of ICa (Sabatini and Regehr, 1998; Jaafari et al., 2014; Ait Ouares et al., 2016).

Figure 6 with 1 supplement see all
Temporal derivative of AIS [Ca2+]i mirrors the opening kinetics of NaV channels.

(aTop to bottom, total inward current in response to a voltage-clamp step to –35 mV (blue) and after application of 1 μM TTX (black), INa; the difference between the total current and the TTX-sensitive current, ICaT, obtained after application of 100 μM Ni2+, voltage clamp protocol (green). Scale bars, 10 nA and 50 ms. (b) Top to bottom: ΔF/F OGB-5N of an AIS imaged at 20 kHz before and after application of 1 μM TTX, the electrically recorded somatic INa of the same neuron overlaid with the first temporal derivative of ΔF/F (–d(ΔF/F) dt-1) representing ICa_opt, voltage clamp protocol. Optically and electrically recorded traces filtered with a 3-point binomial filter for 100 iterations. Red arrows indicate the rapid component visible in the ΔF/F and in the overlaid INa and ICa_opt. Scale bars, 20% ΔF/F, 10%–1/6.3 nA and 50 ms. (c) Top to bottom: ICa_opt, INa and ICaT fit with a Boltzmann sigmoid function (red). Slope values are indicated. Scale bar, 5 ms. (d) Population data for the slope values for INa (n = 17), ICa_opt (n = 10) and ICaT (n = 5). One-way ANOVA with Tukey’s multiple comparisons test, ****p<0.0001. Open circles represent individual cells, bars indicate the population mean ± s.e.m. Data available in Figure 6—source data 1. See also Figure 6—figure supplement 1.

Imaging OGB-5N (1 mM) at 20 kHz in the AIS we observed that ΔF/F comprised of two separate time courses, a fast initial rise followed by a slower rising phase (Figure 6b). Both components were almost completely abolished by TTX, leaving only a small transient reflecting putatively ICaT (n = 6). We quantitatively compared the activation time constants of INa, ICa_opt (dΔF/F dt–1) and ICaT by resampling the electrically recorded INa and ICaT to 20 kHz and filtering both electrical and optical traces identically (see Materials and methods). Multiple hallmarks of INa matched with ICa_opt: both traces showed a rapid inward component, followed by inactivation and a persistent component (Figure 6b,c). In comparison, ICaT lacked both the rapid activation and inactivation time constants (Figure 6a,c). Given the lower signal-to-noise ratio in the optical traces we fitted Boltzmann sigmoid functions to the rising phase to compare the slopes of the optically and electrically recorded currents (Figure 6c). The average slope of ICa_opt was significantly faster compared to the activation of ICaT (~500 µs vs. ~2.5 ms, respectively, one-way ANOVA with Tukey’s multiple comparison test, p<0.0001) and slower compared to INa (~500 µs vs. ~200 µs, ICa_opt vs. INap<0.0001; Figure 6c,d). The small difference between INa and ICa_opt may be explained by the equilibration time of OGB-5N (~200 µs) (Ait Ouares et al., 2016), local differences between NaV channels in the soma and AIS or the presence of Ca2+-store release in the AIS. Together, the findings indicate that the current mediating [Ca2+]i at the AIS resembles NaV channel kinetics.

Calcium influx through NaV1.2 channels

The results suggest that Ca2+ ions could enter the cytoplasm by permeation through the NaV channel pore. Previous studies showed Ca2+ influx through the cardiac NaV1.5 channel (Cruz et al., 1999; Guatimosim et al., 2001). To examine whether Nachannel isoforms of the axon initial segment also enable Ca2+ influx we performed experiments in HEK-293 cells which were transfected with the human gene SCN2A encoding NaV1.2 channel with auxiliary β1 and β2 subunits and EGFP tag (Materials and methods; Figure 7a). Whole-cell recording revealed Na+ currents in EGFP+ cells but not in non-transfected cells (average peak current density –115.7 ± 28.4 pA/pF, n = 10 vs. –3.7 ± 1.9 pA/pF at –20 mV, n = 5, respectively; Figure 7b). The inward currents were completely abolished by 1 µM TTX (96.1 ± 1.3%, n = 7, one-tailed Wilcoxon matched-pairs signed rank test, p=0.0078, Figure 7c) and the voltage-dependence of activation and inactivation revealed midpoints at –25.4 ± 2.1 mV and –74.1 ± 3.9 mV, respectively (n = 10, Figure 7d,e), consistent with previous work (Ben-Shalom et al., 2017), indicating a highly selective expression of NaV1.2 channels. Next, we filled the transfected cells with 100 µM OGB-1 and imaged the fluorescence changes in response to a train of depolarizing pulses (200 Hz for 1 s, –120 to –30 mV steps; Figure 7f). We observed an increase in ΔF/F in every EGFP+ cell, indicating an influx of Ca2+ (average peak 0.46 ± 0.18% ΔF/F, range: 0.06–1.4% ΔF/F, n = 7; Figure 7f–h). To test whether the [Ca2+]i increase required NaV channel opening we bath applied TTX (1 µM), revealing a significant decrease in the peak ΔF/F (92.1 ± 3.8% reduction, one-tailed Mann Whitney test, p=0.012, n = 4; Figure 7h). The results indicate that molecular expression and opening of NaV1.2 channels suffices to mediate transmembrane Ca2+ influx.

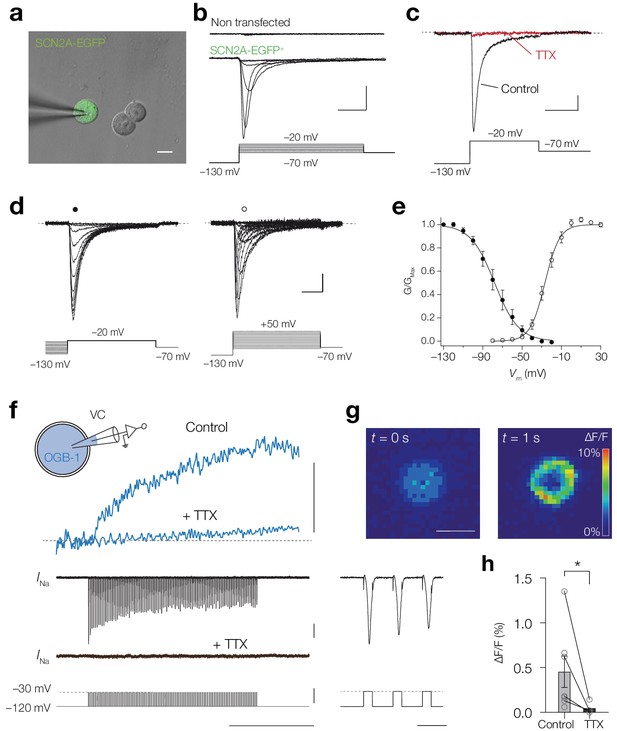

NaV1.2 channels mediate a Ca2+ influx.

(a) Combined brightfield and fluorescence image of a whole-cell recording from a SCN2A-EGFP+ HEK-293 cell (green). Scalebar, 10 μm. (b) Example traces of INa recorded in response to depolarizing voltage command potentials (bottom) for a non-transfected (top) and SCN2A-EGFP+ cell (middle), scale bars indicate 0.5 nA and 5 ms. (c) Peak INa traces before (black) and after TTX application (red) in response to a depolarizing voltage step (bottom), scale bars indicate 100 pA and 10 ms. (d) Example current traces of steady-state inactivation (left) and activation protocols (right), scale bars indicated 100 pA and 5 ms. (e) Population data for steady-state activation and inactivation curves, circles and error bars indicate mean ± s.e.m. Lines represent Boltzmann fits to the mean data. (f) Schematic of the experiment: a SCN2A-EGFP+ HEK-293 cell was recorded in voltage-clamp and filled with OGB-1 (0.1 mM) after which a train of depolarizing pules (–120 to –30 mV, 200 Hz, 1 s) was applied, top to bottom, ΔF/F before and after bath application of 1 μM TTX (blue), the recorded currents and voltage command potentials, right, magnification of the first three action currents, scale bars from top to bottom represent 1% ΔF/F, 0.5 nA, 100 mV, 500 ms and 10 ms. (g) Color-coded average ΔF/F of 100 frames before onset (left) and at the end (right) of the voltage command, scale bar indicates 10 μm. (h) OGB-1 ΔF/F is significantly higher in control (n = 7) than after application of TTX (n = 4), one-tailed Mann Whitney test, p=0.0121. Data available in Figure 7—source data 1.

Estimating Ca2+ conductivity of NaV channels with computational modeling

Our findings are in agreement with the depolarization-induced Ca2+ entry in the squid axon which is tetrodotoxin (TTX)-sensitive and reflected a 1% conductivity of NaV channels for Ca2+ ions (Baker et al., 1971). To estimate the conductivity ratios (gCa/gNa) in L5 axons we performed computational simulations. Ca2+ entry through NaV channels was implemented by adding an ohmic Ca2+ ion mechanism into a mathematical 8-state NaV channel model that calculated the current carried by Ca2+ (ICa(Na)) and Na+ (INa) (see Materials and methods). A single compartment containing INa and ICa(Na) together with high voltage-gated and T type-gated CaV channel models (ICaH and ICaT, respectively) showed that with an axonal AP waveform ICa(Na) is activated during the first microseconds of AP onset, rapidly inactivates and is temporally separated from ICaH and ICaT (Figure 8—figure supplement 1). Next, to estimate the gCa/gNa we made a multicompartmental model of a L5 pyramidal neuron (Figure 8a, including detailed reconstructions of the AIS and nodal domains (see Figure 2a within Hamada et al., 2016). Based on multiple experimentally recorded parameters we constrained the model AP and found that a peak conductance density of NaV channels of 16,000 and 850 pS µm–2 in the AIS and soma, respectively, reproduced the recorded AP and matched with AP-evoked Δ[Na+]i imaged in the AIS (see Materials and methods and Figure 8a). Subsequently, [Ca2+]i was simulated based on mathematical equations representing Ca2+ diffusion and extrusion, endogenous stationary Ca2+ buffers (taken together as κs) and was supplemented with the buffering capacities of the specific Ca2+ indicators (Fink et al., 2000) (see Materials and methods). The Ca2+ extrusion threshold and rates were adjusted to approximate the experimentally imaged peak and decay time course of measured OGB-5N ΔF/F in the AIS (Figure 8—figure supplement 2). To determine the absolute rise in [Ca2+]i produced exclusively by NaV channels, we performed additional experiments in which we imaged [Ca2+]i while blocking CaV channels that contributed to AP-evoked Δ[Ca2+]i: T- and L-type calcium channels (TTA-P2 and isradipine, respectively, see Figure 3b). Using calibrated ratiometric bis-Fura-2 (200 μM) imaging, we found that during 1 AP, Ca2+ entry though NaV channels induces a peak Δ[Ca2+]i of 55.6 nM (n = 4; Figure 8b, Figure 8—figure supplement 2). Since ~35% of AP-evoked Δ[Ca2+]i is caused by internal store amplification (Figure 2d) ~36 nM is mediated by transmembrane Ca2+ entry via NaV channels (Figure 8b). We subsequently simulated these experiments in the multicompartmental model by removing CaV channels and including the buffering properties of 200 µM bis-Fura-2. Varying endogenous buffering (κs) between 1 and 100 we updated gCa/gNa to obtain a 36 nM rise of free [Ca2+]i at the AIS. A κs of ~100 corresponds to dendritic buffering capacities (Cornelisse et al., 2007), while axonal buffering capacities are reported to be lower (10–40, Klingauf and Neher, 1997; Jackson and Redman, 2003; Delvendahl et al., 2015). When changing κs between 10–40 the gCa/gNa ratio was 0.38% (κs = 10: 0.37%, κs = 40: 0.39%; Figure 8c).

Figure 8 with 2 supplements see all

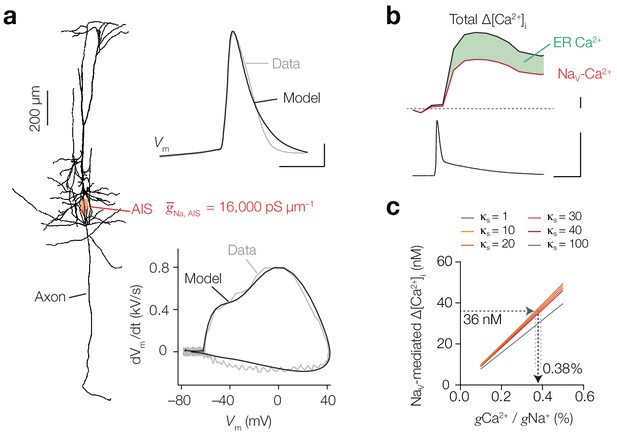

Computational simulation of Ca2+ conductivity by NaV channels predicts a conductivity ratio of 0.38%.

(aLeft, morphology of the conductance-based multi-compartmental model. Right, NaV channel density in the AIS was estimated by optimizing to Δ[Na+]i, Vm (top) and phase-plane plot (bottom) in simulation (black) to the experimental data (gray). Scale bars, 200 µm, 20 mV and 0.5 ms. (b) Example trace of calibrated ratiometric imaging of bis-Fura2 to measure absolute changes in Δ[Ca2+]i in response to a single AP (bottom), the experiment was performed in the presence of T- and L-type CaV blockers, so Δ[Ca2+]i is mediated by Nav channels (red) and amplified by internal store release (35%, green), scale bars indicate 10 nM, 100 mV and 10 ms. (c) Dependence of NaV-mediated peak AP Δ[Ca2+]i on conductance ratio (gCa/gNa) for varying endogenous buffer capacities (κs = 1–100). Δ[Ca2+]i was measured and modeled in a cell with 200 μM bis-Fura-2 present and T- and L-type CaV channels blocked. See also Figure 8—figure supplement 1 and Figure 8—figure supplement 2.

Spatiotemporal distribution of Ca2+ entry routes under physiological conditions

Using the 0.38% conductivity ratio we next evaluated how Ca2+ currents through NaV and CaV channels spatiotemporally varied across the neuronal compartments without the buffering capacities of externally applied Ca2+ dyes (Figure 9a,b and Figure 8—figure supplement 2). The simulations showed that the Δ[Ca2+]from one AP reached a peak concentration of ~800 nM in the AIS (Figure 9a,b). Due to the high density of NaV channels in the AIS they contribute to the majority of Δ[Ca2+]i and cause a rise of [Ca2+]i within submillisecond from the start of the AP (450 nM within <150 µs from AP threshold, red arrow in Figure 9b). These results are likely to provide an underestimate of the total Δ[Ca2+]i since in the model Ca2+ release from giant saccular organelle was not simulated, which would result in a total AP-evoked Δ[Ca2+]i of ~1.2 µM. In the basal dendritic branches the AP has a slower rise time and broader half-width, causing dendritic [Ca2+]i to accumulate slower and to higher concentrations, consistent with our experimental findings (Figure 1). Because the dendritic NaV channel density is substantially lower, their contribution to the total [Ca2+]i is negligible. The distinct contribution of NaV and CaV channels to [Ca2+]i is clearly visible when comparing the different Ca2+ currents in the AIS, showing that the majority of the total ICa during an AP is carried by ICa(Na) (Figure 9c). Simulations predict that the ICa(Na) rapidly inactivates during the AP while ICa activates more slowly and has an incomplete inactivation during the AP repolarization, likely becoming the dominant contribution to [Ca2+]i during the afterdepolarization and high-frequency spike generation (Figure 9c and Figure 8—figure supplement 1).

NaV channels produce submillisecond near-micromolar [Ca2+]i at the AIS.

(a) Color coded shape plot of simulated [Ca2+]i in the axon, dendrites and soma activated by an AP in current clamp without Ca2+ indicator. (b) The modeled [Ca2+]i in the AIS, Soma and Dendrite (locations specified in a). The total [Ca2+]i (black) is divided in a NaV (red) and CaV (green) channel mediated fraction. Bottom, Vm in the same compartments. Scale bars, 400 nM for all [Ca2+]i plots, 50 mV and 1 ms. (c) Top, ICa in response to an AP (bottom) in the AIS. Middle, ICa on expanded scale. Ca2+ extrusion contributes to ICa total, but is not shown. Scale bars bottom, 50 mV and 1 ms. (d) Top, example traces of somatic APs in control (black) and after bath application of TTA-P2 and Isradipine (green, left) and EGTA (red, right). Resting membrane potential and AP voltage threshold are indicated by the dotted grey lines. Red arrows indicate the significant changes in ADP (with TTA-P2 + Isradipine) and AP width and AHP (with EGTA). Capacitance transients are removed for clarity. Scale bars indicate 50 mV, 2.5 nA, 1 ms. Bottom, population data of AP half-width before and after blocking T– and L–type CaV channels (left, p=0.61, two-tailed paired t-test, n = 5) and before and after preventing Ca2+ influx by bath application of EGTA (right, *p=0.035, two-tailed paired t-test, n = 4), see also Table 1. (e) Schematic of Ca2+ permeation through a NaV channel activating a Ca2+–dependent BK channel.

Our experiments and computational simulations show that [Ca2+]i changes mediated by CaV or NaV channels act at distinct spatiotemporal scales. To experimentally test the differential impact of Ca2+ influx on the AP waveform, we analyzed the somatically recorded APs when using distinct blockers most effective in modulating [Ca2+]i in the AIS (Figure 3). Blocking both T- and L-type CaV channels, contributing to ~27% to AP-evoked Ca2+ at the AIS (Figure 3), significantly reduced the afterdepolarization and showed a trend to reduce the afterhyperpolarization (ADP, p=0.039 and AHP, p=0.055, respectively, two-tailed paired t-tests, n = 5), without affecting other AP properties (p>0.30; Figure 9d and Table 1). In contrast, when lowering [Ca2+]o with EGTA, which abolished all AIS Ca2+ influx (Figure 3), the AP half-width significantly increased and the AHP was reduced (AP half-width, p=0.035 and AHP, p=0.043, two-tailed paired t-tests, n = 4; Figure 9d, Table 1). These results are consistent with the temporal differences in AP-evoked AIS [Ca2+]i and suggest that NaV-mediated Ca2+ entry may act to open BKCa channels (Figure 9e), thereby driving K+ efflux and facilitating axonal AP repolarization.

Table 1
Effect of Ca2+ entry on AP waveform.
RMP
(mV)
AP threshold
(mV)
AP amplitude
(mV)
AP half-width
(μs)
AHP
(mV)
ADP
(mV)
Control–77.4 ± 2.5–67.1 ± 3.0110.9 ± 12.5612.7 ± 24.75.6 ± 2.17.6 ± 2.5
TTA-P2 + isradipine–76.0 ± 2.9–65.0 ± 4.1109.3 ± 3.3634.5 ± 49.63.2 ± 2.94.6 ± 3.3
Paired t-tests (n = 5)p=0.32p=0.30p=0.33p=0.61p=0.055p=0.039*
Control–70.4 ± 1.6–59.3 ± 3.9102.4 ± 1.8753.8 ± 45.93.7 ± 3.86.5 ± 3.4
EGTA–71.8 ± 3.6–65.4 ± 1.8103.5 ± 2.41031.5 ± 39.625.5 ± 4.311.7 ± 1.5
Paired t-tests (n = 4)p=0.69p=0.19p=0.27p=0.035*p=0.043*p=0.17
  1. Overview of mean and s.e.m. of AP properties compared between control and toxin experiments recorded at the soma. RMP, resting membrane potential, AHP, fast afterhyperpolarization, ADP, afterdepolarization. The APs were elicited by large and brief current injections (~6 nA for 0.5 ms) to obtain temporally aligned APs between trials and image OGB-1 fluorescence (Figure 3). AP amplitude, AHP and ADP were measured relative to the AP threshold. If the AHP or ADP was not detectable as a local peak, the membrane potential at the time point as in control was used (see EGTA example Figure 9d). P values are results of two-tailed paired t-tests before and after toxin application. Data available in Table 1—source data 1.

Discussion

In the present study we identified Ca2+ permeation through NaV channels as a source for activity-dependent Ca2+ entry in mammalian axons. The findings were supported by independent and converging lines of evidence, ranging from anatomical compartmentalized [Ca2+]i transients at sites with high NaV channel densities, a pharmacological block by TTX, an overlap of optically recorded ICa with NaV channel gating and molecular evidence for Ca2+ influx mediated by the NaV1.2 channel. In axonal domains NaV channels are thus not only involved in electrically generating the upstroke of the action potential, but also contribute to cytoplasmic Ca2+ signaling.

Ca2+ entry in the L5 pyramidal neuron AIS was in part mediated by T- and L-type CaV channels (Figure 3 and Figure 5) in keeping with previous studies showing that CaV channel subtypes mediate activity-dependent Ca2+ changes in both central- and peripheral nervous system axons (Callewaert et al., 1996; Bender and Trussell, 2009; Yu et al., 2010; Gründemann and Clark, 2015; Zhang and David, 2016; Clarkson et al., 2017). However, when quantifying the specific fraction of block CaV channels explained only ~35% of the total Ca2+ entry during a single AP (Figure 3). These results are consistent with recent 2-photon Ca2+ imaging from the prefrontal cortical pyramidal neuron AIS, showing that ~70% of the [Ca2+]i transients evoked by a train of three APs remains in the presence of T-type CaV channel block (Clarkson et al., 2017). Here, we found that for APs the remaining ~65% of [Ca2+]i increase is actually TTX-sensitive and this accounted even for >90% of the subthreshold-induced [Ca2+]i changes (Figure 4 and Figure 5). That Ca2+ enters through NaV channels builds on landmark studies showing that the initial component of depolarization-induced Ca2+ entry in the squid giant axon is tetrodotoxin (TTX)-sensitive (Baker et al., 1971; Meves and Vogel, 1973; Brown et al., 1975). Squid axons even generate rapid spikes in the sole presence of Ca2+ ions (Watanabe et al., 1967). A TTX-sensitive Ca2+ current has also been identified in hippocampal neurons (Akaike and Takahashi, 1992) and more extensively investigated in cardiac myocytes (Aggarwal et al., 1997; Santana et al., 1998; Cruz et al., 1999; Heubach et al., 2000; Chen-Izu et al., 2001). The incomplete selectivity of toxins and blockers for Ca2+ channels continued, however, to cast doubt about the precise identity of the TTX-sensitive Ca2+ current (Cruz et al., 1999; Chen-Izu et al., 2001; Sun et al., 2008). Indeed, an alternative explanation for some of the present results is that TTX blocks a CaV channel subtype. This has been reported at very high concentrations (30 µM) for CaV3.3 (Sun et al., 2008), which is higher than what we used (1 µM). Although we cannot exclude the presence of a TTX-sensitive CaV channel at the AIS that is not blocked by one of the compounds used in the pharmacological screening (Figure 3), our optically recorded ICa provides biophysical evidence that the TTX-sensitive Ca2+ current follows the same rapid activation time course as the Na+ channel pore, incompatible with T-type channel kinetics (Figure 6). Importantly, in further support that NaV channels give rise to cytoplasmic Ca2+ changes, heterologous expression of α- and β-subunits of NaV1.2, known to be expressed in the rodent and human AIS (Garrido et al., 2003; Hu et al., 2009; Tian et al., 2014), showed that the channel proteins expressed in isolation were sufficient to mediate Ca2+ influx (Figure 7). These results are in support of the findings by Lederer and colleagues showing that heterologous expression of hNaV1.5 channel produces depolarization-evoked [Ca2+]i, if expressed with its β subunits (Cruz et al., 1999; Guatimosim et al., 2001).

From an evolutionary point of view, some Ca2+ permeation of NaV channels is not surprising. NaV channels evolved from the CaV channel superfamily and share molecular structure both in their pore sequence and intracellular regulatory domains (Zakon, 2012; Ben-Johny et al., 2014). Furthermore, the Born radii for Na+ and Ca2+ are comparable (1.68 and 1.73 Å, respectively) and Ca2+ ions are known to enter the NaV channel pore to block Na+ permeation in a concentration-dependent manner (Lewis, 1979; Armstrong and Cota, 1999). Interestingly, single residue mutations in the selectivity filter of NaV channels suffices to increase Ca2+ ion permeation (Heinemann et al., 1992; Naylor et al., 2016). Our calculations indicate that the conductivity of the NaV channel for Ca2+ is ~0.4% (Figure 7). If we assume there exists proportionality between permeability and conduction we can apply the equation of permeability ~ conductance/concentration × valency2 (Baker et al., 1971; Meves and Vogel, 1973). With our extracellular solutions [Ca2+]o/[Na+]o being 0.0148 and the valence ratio (Ca2+/Na+)2 being four we can calculate that NaV channels in mammalian axons have a PCa/PNa ratio of 0.06. Notably, the value is in range of direct recordings for PCa/PNa in the sciatic nerve and squid axons (0.10 and 0.14, Hille, 1972; Meves and Vogel, 1973) as well as recordings from NaV1.5 channels revealing PCa/PNa ratios of ~0.04 (Cruz et al., 1999). Such permeability is orders of magnitude lower than PCa/PNa ratios of acetylcholine receptors or NMDA receptors (1.0 and 17, respectively) (Lewis, 1979; Iino et al., 1997). An independence of Na+ and Ca2+ ions, modeled as ohmic conductances, will be a major simplification of the NaV channel under multi-ion conditions. Molecular dynamic studies of NaV channels showed that ionic interactions between Na+ and Ca2+ at the channel pore are complex (Corry, 2013; Boiteux et al., 2014; Naylor et al., 2016). The energy barrier of the selectivity filter strongly favors Na+ ions but can be flexible, changing in conformational states and consistent with modest Ca2+ permeation (Corry, 2013; Boiteux et al., 2014; Naylor et al., 2016). In future experiments it will be interesting to obtain more detailed permeability ratios (PCa/PNa) by recording changes in Erev with varying intra- and extracellular concentrations, fitting the data to mathematical solutions such as the electro-diffusion theory of Goldman-Hodgkin-Katz (GHK) extended with surface charge potentials (Lewis, 1979; Campbell et al., 1988), or using Eyring–Läuger theory based on individual ionic rate constants (Läuger, 1973). Such experiments would in particular be interesting for NaV1.6, the main isoform expressed in axonal domains (Lorincz and Nusser, 2010; Kole and Stuart, 2012).

Although the Ca2+ conductivity of the channels is small it achieves near–micromolar Ca2+ changes in axons as NaV channels are clustered to very high densities (~1000 channels µm–2) at the AIS and nodes of Ranvier (Neumcke and Stämpfli, 1982; Lorincz and Nusser, 2010; Kole and Stuart, 2012). Consistent with this idea, our imaging experiments showed that also nodes of Ranvier produced subthreshold-activated Ca2+ entry (Figure 1 and Figure 4), suggesting that NaV channel mediated Ca2+ entry could play similar roles in these domains. At the AIS, the rapid opening of high densities of NaV channels may further act as a trigger to amplify [Ca2+]i via the activation of ryanodine receptors, mediating ER store release of Ca2+ from the giant saccular organelle, which extends continuously along the AIS of thick-tufted L5 pyramidal neurons (Figure 2).

The rapid inactivation of NaV channels compared to the slow inactivation of CaV channels will lead to voltage- and time-dependent changes in the relative contribution of NaV and CaV channels to [Ca2+]i. In axons, a single AP will mostly lead to NaV-mediated Ca2+ entry while an increasing number of APs, or longer sustained depolarization, will lead to an accumulation of Ca2+ mediated byCaV channel activation. Indeed, Ca2+ entry via CaV channels has been identified as a major contributor to Ca2+ entry in sciatic nerve or Purkinje axons during trains of APs or prolonged depolarization for hundreds of milliseconds (Callewaert et al., 1996; Zhang and David, 2016). However, in vivo recordings from L5 pyramidal neurons show that they typically fire sparsely and on average ~1–4 Hz (de Kock et al., 2007) and the half-width of axonal APs is about ~300 µs (Kole et al., 2007). In this view, NaV-mediated Ca2+ entry may be the main source for activity-dependent [Ca2+]i in the excitable domains of axons under physiological conditions.

What could be the functional role of NaV-mediated Ca2+ entry in axon initial segments and nodes of Ranvier? One downstream target of submembranous axoplasmic [Ca2+]i may be regulation of NaV inactivation kinetics via their Ca2+/calmodulin domain at their C-terminus as has been demonstrated for multiple NaV subtypes, including NaV1.2 and NaV1.6 (Sarhan et al., 2012; Reddy Chichili et al., 2013; Ben-Johny et al., 2014; Wang et al., 2014). Another target of NaV-mediated Ca2+ could be to open axonal large-conductance BKCa channels. The BKCa channel opens with the cooperative action of membrane voltage and [Ca2+]i ≥10 µM to repolarize APs and shorten their duration (Berkefeld et al., 2010). Across cell types there are considerable variations in the magnitude and time course of BKCa currents due to differences in nanodomain coupling with CaV channel isoforms. BKCa channels are exclusively activated by P/Q-type CaV channels in cerebellar Purkinje neurons with short AP durations (Womack et al., 2004), but in rat chromaffin cells with wider APs, BKCa channels are coupled with the Q- and slower activating L-type CaV channels (Prakriya and Lingle, 1999). Also in L5 pyramidal neurons BKCa activation shortens the duration of somatic APs from ~1 ms to ~600 µs (Yu et al., 2010; Bock and Stuart, 2016; Roshchin et al., 2018). Considering the brief duration of axonal APs in the L5 pyramidal neurons (~300 µs, Kole et al., 2007) NaV channels may provide both a precisely-timed voltage-dependent activation, via Na+ current, as well as a [Ca2+]i rise within 150 µs (Figure 9), to rapidly open BKCa channels and shape axonal AP repolarization. In agreement with this conjecture our data show that T- and L-type CaV channels are too slow to mediate somatic AP repolarization, leaving open the possibility that a NaV-BKCa channel nanodomain coupling provides the required Ca2+ signal. Firm evidence for such interaction would require mutating the selectivity filter of NaV channels to abolish Ca2+ but not Na+ permeation. Recent two-photon Ca2+ uncaging experiments already showed that the [Ca2+]i rise at the first node of Ranvier in L5 axons opens nodal BKCa channels to shorten the AP duration and facilitate the generation of high firing rates in the proximal axon (Roshchin et al., 2018). Further downstream from the initiation site nodal BKCa channels in Purkinje axons play a role in augmenting the hyperpolarization following APs and facilitate recovery from NaV inactivation to prevent propagation failures (Hirono et al., 2015). The dual permeation of axonal NaV channels for Na+ and Ca2+ ions may thus serve a common function; mediating the rapid electrical upstroke of the AP and via Ca2+ signaling activating K+ efflux to recover from inactivation and accelerating NaV channel availability for the next AP, representing a fine-tuning specifically to the needs of axonal AP generation and conduction fidelity.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Gene (human)SCN2AGenscript, USA (Ben-Shalom et al., 2017)
Gene (human)SCN1B/SCN2BGenscript, USA (Ben-Shalom et al., 2017)
Cell line (Homo-sapiens)HEK-293T/17ATCCCat#: CRL-11268,
RRID:CVCL_1926
Commercial assay or kitGeneJET Plasmid Maxiprep kitThermoFisher, USACat#: K0491
Chemical compound, drugRyanodineTocrisCat#: 1329
Chemical compound, drugHeparinTocrisCat#: 2812
Chemical compound, drugTTA-P2AlomoneCat#: T-155
Chemical compound, drugIsradipineTocrisCat#: 2004
Chemical compound, drugNickelSigmaCat#: N6136
Chemical compound, drugNimodipineTocrisCat#: 0600/100
Chemical compound, drugSNX-482TocrisCat#: 2945
Chemical compound, drugω-conotoxin MVIICTocrisCat#: 1084
Chemical compound, drugKB-R7943TocrisCat#: 1244
Chemical compound, drugSN-6TocrisCat#: 2184
Chemical compound, drugTTXTocrisCat#: 1069
Chemical compound, drugQX-314AlomoneCat#: Q-150
Chemical compound, drugEGTASigmaCat#: E0396 (low extracellular Ca2+),
Cat#: 3777 (HEK-cell experiments)
Chemical compound, drugCNQXHelloBioCat#: HB0205
Chemical compound, drugD-AP5HelloBioCat#: 0225
Chemical compound, drugZD-7288TocrisCat#: 1000
Chemical compound, drugXE991TocrisCat#: 2000
Chemical compound, drugGabazineSigmaCat#: S106
Chemical compound, drugOGB-5NInvitrogenCat#: O6812
Chemical compound, drugOGB-1InvitrogenCat#: O6806
Chemical compound, drugBis-Fura2BiotiumCat#: 50045Discontinued
Chemical compound, drugSBFIInvitrogenCat#: 10033152
Chemical compound, drugJPW3028Potentiometric ProbesJPW3028
Antibodyanti-synaptopodin (Rabbit polyclonal)SigmaCat#: S9442,
RRID:AB261570
(1:500)
AntibodyAnti-ankyrinG (mouse monoclonal)NeuromabCat#: 75–146,
RRID:AB_10673030)
(1:100)
AntibodyAnti-βIV spectrin (mouse monoclonal)NeuromabCat#: 75–377,
RRID:AB_2315818)
(1:250)
Otherstreptavidin Alexa-488 conjugateInvitrogenCat#: S32354,
RRID:AB_2315383
(1:500)
Software, algorithmNeuroplexRedShirt ImagingRRID:SCR_016193
Software, algorithmAxographAxographRRID:SCR_014284Version 1.7.0
Software, algorithmGraphPad PrismGraphPad PrismRRID:SCR_002798Version 8.4.2
Software, algorithmFIJISchindelin et al., 2012RRID:SCR_002285
Software, algorithmμManagerEdelstein et al., 2014RRID:SCR_016865
Software, algorithmNEURONHines and Carnevale, 2001RRID:SCR_005393
Software, algorithmMaxchelatorBers et al., 2010RRID:SCR_000459
Software, algorithmFrameSplitterBattefeld et al., 2018https://github.com/Kolelab/Image-analysis

Ethical approval

Request a detailed protocol

All animal experiments were performed in compliance with the European Communities Council Directive 2010/63/EU effective from 1 January 2013. They were evaluated and approved by the national CCD authority (license AVD8010020172426) and by the KNAW animal welfare and ethical guidelines and protocols (DEC NIN 14.49, DEC NIN 12.13, IvD NIN 17.21.01 and 17.21.03). Written informed consent was obtained from patients and all procedures on human tissue were performed with the approval of the Medical Ethical Committee of the Amsterdam UMC, location VuMC and in accordance with Dutch license procedures and the Declaration of Helsinki. All data were anonymized.

Tissue collection

Request a detailed protocol

Young-adult male Wistar rats (RjHan:WI) were used at an age between P21 and P35 (Charles River Laboratories and Janvier labs). Animals were deeply anaesthetized by 3% isoflurane inhalation, decapitated and 300 µm parasagittal slices containing the primary somatosensory cortex were cut with a Vibratome (1200S, Leica Microsystems B.V.) within ice-cold artificial cerebrospinal fluid (ACSF) of the following composition (in mM): 125 NaCl, 3 KCl, 25 glucose, 25 NaHCO3, 1.25 Na2H2PO4, 1 CaCl2, 6 MgCl2, saturated with 95% O2 and 5% CO2 (pH 7.4). Following a recovery period at 35°C for 35–45 min slices were stored at room temperature in the ACSF. Human slices were obtained from non-pathological cortex removed for the surgical treatment of deeper brain structures for mesial temporal lobe epilepsy. After resection, a block of the temporal lobe was placed within 30 s in ice-cold artificial cerebrospinal fluid (ACSF) slicing solution which contained in (mM): 110 choline chloride, 26 NaHCO3, 10 D-glucose, 11.6 sodium ascorbate, 7 MgCl2, 3.1 sodium pyruvate, 2.5 KCl, 1.25 NaH2PO4, and 0.5 CaCl2 (300 mOsm) and transported to the laboratory, as described in detail previously (Testa-Silva et al., 2014). Transition time between resection of the tissue and preparation of the slices was <15 min. Neocortical slices (~350 µm thickness) were cut in an ice-cold slicing solution, stored for 30 min at 34°C, and afterwards switched to room temperature in standard ACSF. Slices were subsequently transported (<15 min) towards the NIN (KNAW) in continuously carbogenated ACSF.

Cell lines

Request a detailed protocol

Human embryonic kidney 293 cells (HEK 293T/17 cell line, CRL-11268 obtained from ATCC) were cultured in growth medium consisting of equal parts of Dulbecco’s modified Eagle’s medium (DMEM) (DMEM Glutamax, Gibco, Thermo Fisher Scientific) and Ham’s F10 nutrient mix (Gibco, Thermo Fisher Scientific), supplemented with 10% fetal calf serum (FCS) and 1% penicillin–streptomycin. Cells were split twice a week by trypsinization and grown at 37°C with a humidified atmosphere containing 5% CO2. STR profiling confirmed a 100% match with the HEK 293T cellline (ATCC). Human SCN2A (D-splice variant), encoding for the alpha subunit of the NaV1.2 channel was cloned in pcDNA3.1-IRES-GFP, and SCN1B/SCN2B, encoding for beta subunits 1 and 2, was cloned into pcDNA3.1. These vectors were described previously (Ben-Shalom et al., 2017) and obtained from Genscript (Genscript, USA). The constructs were amplified in Stbl3 bacteria (Genscript, USA) and were purified using the GeneJET Plasmid Maxiprep kit (ThermoFisher, USA) according to the manufacturer’s protocols. The plasmids were transiently transfected into 70% confluent HEK-293 cells plated in 12-well plates. Per well, the transfection cocktail contained 500 ng pcDNA3.1-SCN2A-IRES-GFP, 290 ng pcDNA3.1-SCN1B- IRES-SCN2B and 5 μL of polyethylenimine (PEI) diluted in 100 μL 1% saline, incubated for 20 min at room temperature before addition to the culture medium. Cells were incubated with 100 μL of transfection cocktail in 1 mL of culture medium for 24 hr at 37°C in a humidified atmosphere containing 5% CO2. Cells were trypsinised and used for electrophysiological recording typically 48 hr after transfection.

Electrophysiological recording from neurons

Request a detailed protocol

For patch-clamp recording, slices were transferred to a customized upright microscope (BX51WI, Olympus Nederland BV, or LNscope, Luigs and Neumann, Ratingen, Germany). The transmitted light path consisted of a custom made 850 nm Light Emitting Diode (LED) light source (LZ1-10R602, LED Engin, CA), collimated using an aspheric condenser lens (ACL50832U-B, Thorlabs, Germany) and adapted to the microscope lamp port using a custom 3D printed adapter and passed through an oblique or Dodt illumination condenser (WI-OBCD, Olympus). The top 50 µm of the slice surface was visualized using an optical pathway consisting of a 60× water immersion objective (N.A. 1.0, LUMPLFLN60XW, Olympus or N.A. 1.1, LUMPLFLN60XW, Olympus), 2× intermediate zoom attachment (U-ECA, Olympus), camera splitter (U-TRU, Olympus) with inbuilt 180 mm tube lens on the back port and a 0.63× demagnifier (U-TV0.63XC, Olympus) projected the final image onto a high resolution CCD camera (CoolSNAP-EZ, Photometrics), which was operated using μManager (Edelstein et al., 2014). Based on the bright-field image large L5 neurons with an intact axon parallel and close to the surface were targeted for recording. Current-clamp recordings were made with Dagan BVC-700A amplifiers (Dagan Corporation, MN, USA) or AxoClamp 900A (Molecular Devices Limited, UK). An Axopatch 200B (Molecular Devices) was used for voltage-clamp and AP-clamp experiments. The microscope bath was perfused with oxygenated (95% O2, 5% CO2) ACSF consisting of (in mM): 125 NaCl, 3 KCl, 25 glucose, 25 NaHCO3, 1.25 Na2H2PO4, 2 CaCl2, and 1 MgCl2. Patch pipettes were pulled from borosilicate glass (Harvard Apparatus, Edenbridge, Kent, UK) pulled to an open tip of 3–6 MΩ resistance. For all current-clamp, subthreshold voltage-clamp ramp and AP-clamp recordings the intracellular solution contained (in mM): 130 K-Gluconate, 10 KCl, 4 Mg-ATP, 0.3 Na2-GTP, 10 HEPES and 10 Na2-phosphocreatine (pH 7.25 adjusted with KOH, 280 mOsmol kg−1). The liquid junction potential difference of –13.5 mV was corrected in all recordings. For morphological reconstruction, 5 mg ml−1 biocytin was routinely added. Voltage recordings were analogue low-pass filtered at 10 kHz (Bessel) and digitally sampled at 100 kHz using A-D converter (ITC-18, HEKA Elektronik Dr. Schulze GmbH, Germany) and data acquisition software Axograph X (v.1.5.4, Axograph Scientific, NSW, Australia). Bridge-balance and capacitances were fully compensated based on small current injections leading to minimal voltage errors. The recording temperature was 33 ± 1°C. Only cells with a stable bridge-balance (<25 MΩ), resting membrane potential and AP shape throughout the recording session were included in the analysis.

For voltage-clamp recordings of INa and ICa (Figure 5) the bath was perfused with oxygenated (95% O2, 5% CO2) extracellular recording solution consisting of (in mM): 100 NaCl, 3 KCl, 25 glucose, 25 NaHCO3, 1.25 Na2H2PO4, 2 CaCl2, 1 MgCl2, 5 4-AP, 20 TEA-Cl, 0.02 CNQX, 0.05 D-AP5, 0.02 ZD-7288, 0.01 XE991 and 0.003 Gabazine (SR-95531). The intracellular solution contained (in mM): 130 CsCl, 10 TEA-Cl, 10 HEPES, 4 Mg-ATP, 5 Na2-phosphocreatine and 0.3 Na2-GTP (pH 7.25 adjusted with CsOH, 280 mOsmol kg−1). A liquid junction potential of –5.6 mV was applied to the recordings. Series resistance was routinely compensated to >75% and the linear leak and capacitance off-line subtracted using a P/9 protocol with 10-fold scaled pulses. Current recordings were analogue low-pass filtered at 10 kHz (Bessel) and digitally sampled at 100 kHz using A-D converter (ITC-18, HEKA Elektronik Dr. Schulze GmbH, Germany) and data acquisition software Axograph X (v.1.5.4, Axograph Scientific, NSW, Australia). To improve voltage-clamp of the large and rapid Na+ currents the recordings were made at room temperature (~20°C).

Electrophysiological recordings from HEK-293 cells

Request a detailed protocol

For recordings from HEK-293 cells they were transferred to a recording chamber which was continuously perfused with extracellular solution, containing (in mM): 135 NaCl, 4.5 KCl, 2 CaCl2, 1 MgCl, 10 HEPES and 11 Glucose. The intracellular solution contained (in mM): 110 CsF, 10 NaCl, 20 EGTA and 10 HEPES. In the OGB-1 experiments, we added 100 µM OGB-1, EGTA was omitted and CsF raised to 120 mM instead of 110 mM. The liquid junction potential difference of –10 mV was corrected for. Whole-cell patch-clamp recordings were made ~48 hr after transfection. Cells were recorded at room temperature (~20°C) and continuously perfused with extracellular solution at a flow rate of 1.5 mL∙min–1. Patch pipettes were pulled to a resistance of 2–3 MΩ. Round, isolated cells with a diameter >10 μm, a smooth cell surface and a moderate EGFP fluorescent signal were selected for recordings (Figure 7a). HEK-293 cells had an average capacitance of 9.19 ± 0.70 pF (n = 16). The holding potential was –70 mV and voltage dependence of activation of NaV1.2 was determined by an activating protocol consisting of a hyperpolarizing pulse to –130 mV (20 ms) followed by step pulses from –80 mV to +50 mV with increments of 10 mV for 20 ms. Voltage dependence of inactivation was assessed with voltage pulses from –130 mV to –30 mV with increments of 10 mV for 100 ms duration, followed by a depolarizing pulse to –20 mV for 20 ms. A P/5 leak subtraction protocol (10-fold scaling) was used to subtract remaining capacitive and leak currents. Series resistance was not compensated.

Blockers and toxins

Request a detailed protocol

EGTA and blockers were added to the appropriate concentration to the ACSF and perfused. The extracellular Ca2+ ([Ca2+]o) was lowered by bath application of 2.5 mM EGTA and using the online maxchelator tool (https://somapp.ucdmc.ucdavis.edu/pharmacology/bers/maxchelator/CaMgATPEGTA-TS.htm; Bers et al., 2010) we calculated the remaining [Ca2+]o to be 437 nM, based on a recording temperature of 35°C, a pH of 7.4 and an ionic strength of 0.15 M of the free ions in our solution. To limit hyperexcitability in the presence of EGTA, we added synaptic blockers to the ACSF (20 µM CNXQ and 50 µM D-AP5) and kept the a-EPSP voltage peak amplitude constant by reducing the amplitude of the current injections in both control and EGTA measurements (Figure 2). To prevent precipitation of Ni2+ we used phosphate-free extracellular solutions containing (in mM): 126.25 NaCl, 3 KCl, 25 glucose, 25 NaHCO3, 2 CaCl2, 1 MgCl2 and 0.1 Ni2+. A > 10% increase in fluorescence baseline was observed in some experiments (3 out of 8 recordings), which were subsequently excluded. Two blockers (SNX-478 and ω-conotoxin MVIIC) were not perfused but were locally puffed using a Picospritzer III (Intracel) for 3 s ending 0.5 s before imaging to avoid vibration artifacts. Bovine serum albumin (0.1 mg/ml) was added to the rACSF before ω-conotoxin MVIIC was introduced to minimize non-specific binding of the drug.

Ca2+ and Na+ imaging

Request a detailed protocol

To optically record [Ca2+]i and [Na+]i in axons, membrane impermeable Ca2+ and/or Na+ indicators were added to intracellular solutions. For Ca2+ we used OGB-1 (100 µM), OGB-5N (1 mM) or bis-Fura-2 (200 µM) and for Na+ imaging we used sodium-binding benzofuran isophthalate (SBFI, 1–1.5 mM). Patch pipettes were first filled with dye-free solution for half of the tapered part of the pipette tip, then backfilled with the dye-containing solution. Fluorescence intensity at the AIS was monitored during dye loading and imaging started only when the indicators were fully equilibrated (typically after 0.5–1 hr). Optical recordings of Ca2+ or Na+ dye fluorescence changes were obtained with wide-field epifluorescence microscopy. Fluorescence was collected by the same 60× water immersion objective, passed through the microscope tube lens (U-TR30IR, Olympus) and projected onto a rapid data-acquisition camera with relatively low spatial resolution (80 × 80 pixels) but high dynamic range (14 bits) and low read noise (NeuroCCD-SM, RedShirtImaging LLC, Decatur, GA) via a 0.1× or 0.35× demagnifier. The CCD frame corresponded to an area of approximately 320 or 91 µm2 in the object plane with each individual pixel receiving light from an area of ∼4 × 4 or 1.1 × 1.1 µm2, respectively. High-speed recordings (20 kHz) were always performed with the 0.35× demagnifier and with 3 × 3 binning of pixels on the chip, the ultimate pixel sizes in these recordings were ∼3.4 × 3.4 µm2. The two recordings from human cells were performed under a 100× NA 1.1 Nikon objective (MRL07920) in combination with a 0.1× demagnifier, resulting in a pixel size of ∼2.4 × 2.4 µm2 (see Figure 1—figure supplement 1).

The epifluorescence light path consisted of an excitation LED light source, which was collimated using an aspheric lens (ACL5040U-A, Thorlabs, Germany) and the appropriate excitation filter, dichroic mirror and emission filter. For OGB-1 and OGB-5N excitation a 470 nm LED was used (SP-01-B4, Luxeon Star LEDs, Canada), the excitation light was filtered with 475/30 nm (475 nm center wavelength, 30 nm wide) excitation filter, reflected to the preparation by a dichroic mirror with a central wavelength of 500 nm and the fluorescence light was passed through a 520 nm barrier filter (U-MWB2 cube, Olympus). For SBFI excitation, LED light (365 nm LED, LZ1-10UV00, Ledengin, USA) was filtered by 357/44 nm filter (FF01-357/44-25, Semrock), a dichroic mirror with edge at 415 nm (Di03-R405-t1−25 × 36, Semrock) reflected excitation light to the sample and the emission light was then passed through a long-pass colored glass filter with the edge at 400 nm (FGL400, Thorlabs). For combined Na+ and Ca2+ imaging (Figure 6—figure supplement 1), the light from the 365 and 470 LEDs was combined by a dichroic mirror with edge at 458 nm (FF458-Di02, Semrock) and the filter set switched between trials. Light was directed through a fluorescence illuminator (BX-RFA, Olympus) equipped with a rectangular field stop providing an open area of 150 × 250 µm to reduce phototoxicity (U-RFSS, Olympus). The cell body was positioned just outside the field stop and the axon in the middle parallel to the long side (see e.g. Figure 1).

The critical benefit of epifluorescence measurements over two-photon imaging is increased light collection (~90% quantum efficiency, low-read noise of the CCD camera) enabling a high sensitivity and temporal fidelity. We optimized all imaging parameters to obtain maximal signal to noise ratio, which allowed us to image at the maximum acquisition rate of 20 kHz. In addition to the light collection optimization and selective targeting of superficial neurons, multiple trials were averaged to improve signal-to-noise ratio (typically 20–40). Fluorescence signals were temporally aligned to the electrophysiological voltage or current signals. For optical recording of ICa, which requires the transformation of ΔF/F into the first time derivative, Ca2+ binding to the indicator must be proportional to [Ca2+]i and the endogenous buffering capacity to be low. Based on the submillisecond equilibration time of OGB-5N and imaging at the maximally possible frame rate of 20 kHz it was recently shown that in CA1 hippocampal neurons these conditions are met and optically recorded ICa tracks electrically recorded ICa, enabling the identification of CaV channel subtypes in dendrites (Jaafari et al., 2014). Considering the low buffering capacities of endogenous buffers in the axon (κs ≈ 20) (Jackson and Redman, 2003; Delvendahl et al., 2015), we employed this technique in the AIS. Ca2+ imaging in HEK-293 cells was performed with 0.1 mM OGB1 added to the HEK-293 cell intracellular solution (from which EGTA was omitted). The fluorescence was recorded during a 200 Hz 1 s train of depolarizing pulses from –120 to –30 or –20 mV (corrected for liquid junction potential).

Voltage imaging

Request a detailed protocol

Voltage imaging in neurons was performed as reported previously (Hamada et al., 2017). Neurons were filled with intracellular solution containing JPW3028 (0.8 mM) for typically 1 hr at room temperature, after which the patch pipette was retracted and the dye was left to diffuse into the lipid membranes for 1–4 hr. Subsequently the bath temperature was increased to 35°C and the cell was re-patched with normal intracellular solution. A 530 nm LED (SP-05-G4, Luxeon Star LEDs, Canada) was used for excitation of the dye. The excitation light was filtered with a 530/20 nm filter (BP510-550, Olympus), reflected to the sample by a dicroic mirror with a center wavelength of 570 nm (DM570, Olympus) and the emission light filtered by a 590 longpass filter (BA590, Olumpys). Data were collected at 20 kHz and low-pass filtered by a binomial filter (one pass) and averaged over 20–30 trials. Voltage imaging in HEK-293 cells was performed identically, with the only exception being that the experiments were performed at 20°C and the dye diffused equally in the small round cells, so imaging experiments were initiated 20 min after obtaining whole-cell configuration. The cells were maintained at –75 mV holding potential and the fluorescence of JPW3028 recorded at 1 kHz. The voltage command consisted of 100 ms steps of 50 mV increasing steps with a maximal step of +250 mV relative to holding potential. The average ΔF/F per voltage step was defined as the first 20 frames of each bleach corrected and normalized voltage step.

Imaging data analysis

Request a detailed protocol

Imaging data analysis was performed using Neuroplex (Redshirt imaging), Axograph and Excel. Fluorescence signals were always background-subtracted. To correct for bleach effects, every 5th trial was recorded without current injection. A first order exponential was fitted to the average of the bleach trials and normalized to the peak. The average of the signal trials was divided by this trace to correct for bleach decay. Values for each ROI were defined as a fractional fluorescence change (ΔF/Fbaseline), where Fbaseline is the raw intensity average of 10 frames before the signal (subthreshold or AP) was initiated. Pixels were color coded with ‘physics’ color scheme from FIJI image processing software (NIH, USA) (Schindelin et al., 2012). For both OGB-1 and OGB-5N, we recorded the fluorescence in response to subthreshold stimuli, single APs and multiple APs. The ΔF/F response to subthreshold stimuli and a single AP was always below dye saturation. For OGB-1, we recorded trains of APs and observed that a single AP was 25 ± 2.7% of dye saturation (n = 8) and for OGN-5N, we observed a linear increase from 1 to 3 APs (n = 3), indicating that the fluorescence of a single AP was far from dye saturation.

Optical current measurements

Request a detailed protocol

To compare kinetics between electrically and optically recorded currents, electrical currents were first downsampled to 20 kHz (optical acquisition rate). The optical trace was differentiated and then inverted (to mimic INa, which is conventionally depicted as a negative, inward current). All current traces were then filtered with a 3-window binomial filter of 50–150 iterations (generally 100). The traces were baselined to the current before the onset of the fast current and normalized to the peak of the current. Because the ICa_opt traces were too noisy to be fitted with a single exponential fit, conventionally used to obtain activation rise time, we used a Boltzmann sigmoid function to obtain the slopes of the traces.

y= bottom+ top-bottom1+ex-x0k

We fitted all traces using Axograph and the slope values (k) were used to compare activation kinetics. Although the INa peak amplitude recorded at the soma highly varied between neurons (–36.61 ± 6.53 nA), the slope was nearly constant (207 ± 0.007 µs, n = 17).

Ratiometric imaging

Request a detailed protocol

To estimate the absolute [Na+]i and [Ca2+]i in response to a single AP, we used a ratiometric imaging approach. Patch pipettes were front filled with clear intracellular solution and back-filled with intracellular solution containing 1.5 mM SBFI (Invitrogen) or 200 µM bis-Fura-2 hexapotassium salt (bF2, Biotium). Fluorescent emission of ratiometric indicators depends on the ionic concentration and the excitation wavelength where an increase in [Ca2+]i produces an increase in bF2 fluorescence with the wavelength of 340 nm but a decrease with 385 nm. On the other hand, with SBFI an increase in [Na+]i decreases SBFI fluorescence at 340 nm but does not alter at 385 nm excitation wavelength. Using the ratio (R) corrects for differences in cytosolic volume or dye concentration differences along imaged compartments (Langer and Rose, 2009). The sources of excitation light were two LEDs (Thorlabs) with peaks at 340 nm and 385 nm, fitted with band pass excitation filters at 340/22 and 387/11 nm (FF01-340/22-25 and FF01-387/11-25, Semrock) and combined by a dichroic mirror with a central wavelength of 376 nm (FF376-Di01−25 × 36, Semrock). The excitation light was reflected to the sample by a dichroic mirror with a central wavelength at 405 nm (Di01-R405−25 × 36, Semrock) and passed through the objective to the sample. The fluorescent emission signals were passed through a 420 long pass filter (Thorlabs). Ratiometric imaging was performed by alternatingly triggering each LED at the frame rate of the camera, as described previously (Miyazaki and Ross, 2015). This was achieved by combining custom designed Arduino/Parallax machines with Cyclops LED drivers. These hardware solutions allowed us to digitally control the voltage driving the LED, thus having maximum control over excitation light intensity. Fluorescence emission signals originating from each LED were separated with custom written software (FrameSplitter.txt, Battefeld et al., 2018). The camera operated at 0.5–1.0 kHz, resulting in a ratiometric frame rate of 0.25–0.5 kHz. Per experiment the fluorescent signals were averaged for 40 to 120 trials. The ratio R was defined as F1/F2, where F1 and F2 are the background-subtracted fluorescence intensities at excitation with 340 nm and 385 nm, respectively.

Calibration of ratiometric imaging

Request a detailed protocol

In order to scale ratiometric bF2 signals to absolute changes in Ca2+ concentration, we used the standard equation for ratiometric measurements (equation 1 in Figure 8—figure supplement 2Grynkiewicz et al., 1985), which depends on KD, the dissociation constant, Rmin and Rmax, the ratio in zero and dye-saturating Ca2+, respectively and the scaling factor (Sf2/Sb2), defined as the fluorescence intensity at excitation with 385 nm of zero Ca2+ divided by saturating Ca2+. These values were determined in an ex situ calibration, by measuring the ratiometric signal of solutions containing 0 Ca2+ and a high [Ca2+] (Figure 8—figure supplement 2). The solutions closely mimicked intracellular solutions and contained (in mM): 110 K-gluconate, 4.4 or 21 KCl, 0 or 10 CaCl2, 3.8 or 5.36 MgCl2, 10 HEPES, 4 Mg-ATP, 0.3 Na2-GTP, 10 Na2-phosphocreatine, 10 EGTA, and 0.2 bF2. The final free [Ca2+] depends on interaction between Ca2+, Mg2+ and EGTA and was calculated using the maxchelator tool (Bers et al., 2010).

[Ca2+]min was 0 and [Ca2+]max was 4.39 µM. We repeated the calibration experiment three times. In our experimental setting, the KD of bF2 was 507.3 ± 5.7 nM, which matches with the reported value of 525 nM in the presence of Mg2+ (Molecular Probes Handbook, Thermofischer). We then performed ratiometric imaging in the AIS in response to a single AP. ∆R/R was calculated by dividing every ratio by the average of the baseline ratio before the onset of the AP (similar to the conventional ∆F/F). We used the KD as determined from our calibration experiments. The Rmin was scaled to be ~95% of Rbaseline to result in resting [Ca2+]i of 50 nM and Rmax as established in the calibration experiments. If the LED intensity of the cellular recording was different from the calibration intensity used during the calibration experiments, the Rmax was corrected linearly, assuming that Rmin/Rmax was constant. These experiments showed that after a single AP, [Ca2+]free in the AIS rises with 55.6 ± 12.6 nM (see Figure 8—figure supplement 2).

Because Rmin and Rmax were not measured in situ we verified the Δ[Ca2+]free with an alternative analysis that is independent of the exact values for KD, Rmin and Rmax (equation 2 in Figure 8—figure supplement 2Langer and Rose, 2009). In this approach, changes in fluorescence ratio ΔR/R0 (%) are plotted versus [Ca2+]free, showing a nearly linear increase in ΔR/R0 (%) for low [Ca2+]free (see Figure 8—figure supplement 2). A linear fit to the region of [Ca2+]i between 0 and 193 nM indicated that a 1% increase in ΔR/RbF2 corresponded to a Δ[Ca2+]i of ~10.4 nM (R2 = 0.99, six concentrations, n = 3 repetitions). We measured an AP-evoked Δ[Ca2+]free of 52.5 ± 12.2 nM (Figure 8—figure supplement 2), in good support of the standard Ca2+ measurement approach. We analyzed the ratiometric SBFI data only using this second approach, which is standard for SBFI measurements (Langer and Rose, 2009). The two base calibration solutions contained (in mM): 130 K-Gluconate or Na-Gluconate, 10 KCl of NaCl, 0.3 Tris2-GTP or Na2-GTP, 10 HEPES, 4 Mg2+ATP, 10 Tris2-phospocreatine or Na2-phospocreatine, and 1.5 SBFI, pH 7.25 adjusted with Tris base. These two base solutions provided a range of 0–160.6 mM [Na+]. When normalized to the ratio obtained in Na+-free solution (R0), a 1% increase in ΔR/RSBFI corresponded to a Δ[Na+]i of 0.35 mM for Δ[Na+]i between 0 and 48 mM (R2 = 0.98; eight concentrations, n = 3 repetitions, Figure 8—figure supplement 2). An AP evoked a Δ[Na+]i of 1.49 ± 0.2 mM (Figure 8—figure supplement 2).

Immunofluorescence staining

Request a detailed protocol

Following imaging experiments, the slices were fixed using 4% PFA in 0.1 M phosphate-buffered saline (PBS), pH 7.4 for 20 min and stored in 0.1 M PBS, pH 7.4 at 4°C. For triple immunohistological labeling the slices were washed three times in PBS and then incubated in a blocking solution (10% normal goat serum, 0.5% Triton X-100 in PBS) at room temperature for two hours, followed by 24 hr incubation at room temperature in the blocking solution containing primary antibodies: streptavidin Alexa-488 conjugate (1:500; Invitrogen), primary antibody for giant saccular organelle Synaptopodin (rabbit; 1:500; Sigma-Aldrich Chemie) and antibody for AIS marker: Ankyrin G (mouse; 1:100; Neuromab) or ßIV-spectrin (mouse; 1:250; Neuromab, see also Key Resources Table). The slices were 3x washed in 0.1 M PBS and then incubated with secondary antibodies: Alexa-555 goat anti rabbit IgG (1:500; Invitrogen) and Alexa 633 goat anti mouse IgG (1:500; Invitrogen). Subsequently, the slices were 3x washed in 0.1 M PBS and mounted with Vectashield mounting medium with 4,6-diamidino-2-phenylindole (DAPI; Vector Laboratories). Images (bit depth, 8) were collected as described previously (Hamada et al., 2016). To align confocal images and the Ca2+ fluorescence images of the RedShirt CCD camera (Figures 1, 2 and 4) we used the original calibrated images of the two systems. The maximum Ca2+ fluorescence image was calibrated within the original optical path. We overlaid the maximum Ca2+ fluorescence image of the RedShirt camera and the maximum projection of the streptavidin image of the neuron morphology from confocal microscopy within ImageJ and applied only a rotation translation to visually match the two images based on the AP-evoked Ca2+ signals spreading into dendrites and axons.

Model simulations with single compartment

Request a detailed protocol

All model simulations were performed with NEURON (v.7.5) (Hines and Carnevale, 2001). A single compartment was created with length and diameter dimensions of 10 µm and nseg = 10, with specific membrane capacitance of 1.0 µF cm–2, specific membrane resistance of 25 kΩ cm2 and specific axial resistivity of 150 Ω cm. The resting membrane potential set to –77 mV using e_pass. Conductance models for Ca2+ were based on the high-voltage activated (CaH) and a T-type CaV channel model (CaT) obtained from ModelDB (https://senselab.med.yale.edu/ModelDB/) (Mainen and Sejnowski, 1996). Ca2+ conductivity of NaV channels was modeled by including a standard ohmic Ca2+ ion mechanism with a reversal potential (eca) of +140 mV into a mathematical 8-state Na+ conductance model, computing simultaneously voltage- and time-dependence of the Ca2+ current ICa(Na) and INa based on experimentally constrained rate constants of somatodendritic and axonal INa (Schmidt-Hieber and Bischofberger, 2010). The kinetics of the voltage-gated conductance models was examined by fitting the current rise times with an exponential function for a –35 mV command potential, resampling the simulated traces to 20 kHz. The results showed that the INa in the model activated with 240 µs and ICa(Na) (0.5% conductivity ratio) with 280 µs. In comparison, ICaT activated with 4.88 ms and ICaH with 6.51 ms. These time constants are well in range of the experimentally determined values for the TTX- and Ni2+-sensitive components recorded at the soma (Figure 5). For Figure 8—figure supplement 1 we used an AP recorded from the L5 pyramidal neuron AIS at 100 kHz (threshold-to-peak, 94 mV; half-width duration of 285 µs [Hallermann et al., 2012] as the command potential in VectorPlay linked to the SEClamp function in NEURON (with Rs being infinitely small). Single compartmental models were run at dt of 10 µs at a nominal temperature of 33°C.

Model simulations with a multicompartmental model

Request a detailed protocol

Conductance-based multi-compartmental simulations were performed with an anatomically realistic reconstructed rat L5 pyramidal neuron (NeuroMorpho.Org ID: NMO_75667, Neuron Name 2014-04-01_1). The morphology was acquired with a confocal microscope at 2048 × 2048 pixels (1.0 µm z-steps, Leica SP8) using a 40× oil immersion objective (NA 1.3) scanning both the biocytin-streptavidin fluorescence and the ßIV-spectrin fluorescence. Uncompressed image stacks (~20 GB) were imported and reconstructed into Neurolucida (v.10, MBF Bioscience Inc, Germany), compartmentalized for the AIS and nodes as described previously (Hamada et al., 2016) and imported with the 3D import tool in NEURON (Carnevale and Hines, 2006). Multicompartmental simulations were performed to estimate the detailed ionic accumulation, concentration and diffusion in the proximal sites of the axon and match our experimental recordings as close as possible. Ca2+ diffusion, buffering and pump (cdp) mechanisms were implemented based on the algorithms described in the NEURON book (Chapter 9, example 9.8 in Carnevale and Hines, 2006) and on a previously published Ca2+ model (Fink et al., 2000) (available at ModelDB, accession number 125745, https://senselab.med.yale.edu/ModelDB/). We implemented cdp.mod (Fink et al., 2000) with the following alterations: we removed all SERCA related parameters, updated some starting values to our experimental conditions and extended the models to report not only [Ca2+]i, but also to simulate the Ca2+ indicator response ΔF/F, using the equation:

F = [dye]free+ c*[Ca2++ buffer][dye]total

With c being a constant to scale simulated ΔF/F. Because the equation was used to match the simulation to experimental data with regard to the temporal dynamics of Ca2+ extrusion, the absolute amplitude of ΔF/F was not used and c was set to a nominal value of 6. The different Ca2+ indicators used experimentally were implemented by adjusting the concentration of the exogenous buffer, and its known or measured KD. Static Ca2+ buffering properties of endogenous organelles (κs) were simulated with a TBufs of 100–400 µM and KDs of 10 µM, to mimic a κs of 10–40 (Jackson and Redman, 2003; Delvendahl et al., 2015).

To constrain the peak Na+ conductance densities (g-Na) we injected a 3 ms square current pulse in the somatic compartment and iteratively adjusted g-Na and g-K. We varied both their peak conductance densities as well as the voltage-dependence of activation of NaV and KV channels by constraining the model AP to the experimentally recorded AP of the same neuron, with the aim to match the AP both in the V-t as well as the phase-plane dimensions recorded and simulated at 100 kHz (Figure 7c). To further constrain g-Na we compared the AP-evoked [Na+] with the experimental recordings using the ratiometric indicator SBFI, yielding a Δ[Na+]i of on average ~1.5 ± 0.2 mM (n = 5, imaged at 0.5 kHz; Figure 8—figure supplement 2). CaV channels were incorporated based on previously published models (Mainen and Sejnowski, 1996) and CaV channel conductance was separated in high- and low-voltage (T-type) activated channels and was varied between 2 and 4 pS µm–2 in the AIS, 8 and 4 pS µm–2 in the soma and ranged between 0.5 and 4 pS µm–2 in the dendrites.

Statistics and data availability

Request a detailed protocol

All statistical tests were done in GraphPad Prism 8 (version 8.1.2, GraphPad Software, Inc). Sample sizes for the pharmacological experiments were estimated based on the following assumptions: to observe a 50% block (based on Bender and Trussell, 2009) with 25% standard deviation (relative to mean) with a power of 0.8 and a type I error probability of 0.05, we would need a minimum of 4 paired recordings per treatment (PS Software version 3.1.6).

The cutoff significance level (P) was 0.05. Control peak ΔF/F values at the AIS in response to both subthreshold and AP signals were tested for normality. Since both data sets passed the D’Agostino and Pearson normality test, parametric tests were used to test all differences between peak OGB-1 ΔF/F. To compare the spatial differences in signal amplitude we used one-way ANOVAs with multiple comparisons with Tukey correction for false positives. A linear regression was used to assess the synaptopodin and AIS marker length (Ankyrin G or ß4-spectrin) relationship. We used one-tailed ratio (compared log differences in the data set) paired t-test when analyzing all our toxin data. Differences between toxin and control give a measure of absolute reduction; differences between logarithms give a measure of relative reduction log toxin – log control = log (toxin/control). One tailed test was used on the premise that toxins reduce Ca2+ signals. The exception was the effect of NCX for which we used a two-tailed ratio paired t-test. The OGB-5N peaks in response to subthreshold depolarizations passed the D’Agostino and Pearson normality test and to compare the effects of TTX and QX-314 on subthreshold Ca2+ responses we used two-way-ANOVA with Sidak’s correction for false positives. The following data sets passed the Shapiro-Wilk test for normality, so we compared the means using parametric tests: rise and decay times of OGB1 before and after Ca2+ store release block, peak ΔF/F JPW3028, peak ΔF/F OGB-5N and slopes of INa, ICa_opt and ICa, the ratio of subthreshold peak to AP peak between sodium (SBFI) and calcium (OGB-5N) fluorescence. The following data did not pass the Shapiro-Wilk test for normality, so we compared the means using nonparametric tests: the slope AP peak between sodium (SBFI) and calcium (OGB-5N) fluorescence, the peak INa and peak OGB-1 ΔF/F in HEK-293 cells. All data generated or analyzed are in the manuscript or supporting files. The source data files are provided for Figures 17 and Table 1. The NEURON model morphology is available at NeuroMorpho.Org ID: NMO_75667, Neuron Name 2014-04-01_1 and the mod file used to model Ca2+ diffusion and buffering is available at ModelDB, accession 125745 (https://senselab.med.yale.edu/ModelDB/), with adjustments described in ‘Model simulations with a multicompartmental model’.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
    The NEURON Book
    1. NT Carnevale
    2. ML Hines
    (2006)
    Cambridge University Press.
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
    A new generation of Ca2+ indicators with greatly improved fluorescence properties
    1. G Grynkiewicz
    2. M Poenie
    3. RY Tsien
    (1985)
    The Journal of Biological Chemistry 260:3440–3450.
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87
  88. 88
  89. 89
  90. 90
  91. 91
  92. 92
  93. 93

Decision letter

  1. Merritt Maduke
    Reviewing Editor; Stanford University School of Medicine, United States
  2. Richard W Aldrich
    Senior Editor; The University of Texas at Austin, United States
  3. Merritt Maduke
    Reviewer; Stanford University School of Medicine, United States
  4. Bernardo L Sabatini
    Reviewer; Howard Hughes Medical Institute, Harvard Medical School, United States
  5. James S Trimmer
    Reviewer; University of California, Davis, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The source of calcium entry at sites of action-potential initiation has been incompletely understood. In this study, quantitative electrophysiological, imaging, and computational approaches are used to demonstrate that voltage-gated sodium channels have a minor permeability to calcium that mediates a significant portion of depolarization-dependent calcium influx. This novel finding provides a comprehensive explanation of axonal calcium entry in mammalian cells.

Decision letter after peer review:

Thank you for submitting your article "Ca2+ entry through NaV channels generates submillisecond axonal Ca2+ signaling" for consideration by eLife. Your article has been reviewed by four peer reviewers, including Merritt Maduke as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Richard Aldrich as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Bernardo L Sabatini (Reviewer #3); James S Trimmer (Reviewer #4).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This comprehensive study seeks to show that a source of calcium at the axon initial segment is permeation of Ca2+ through voltage gated Na channels. The quality and variety of quantitative electrophysiological, imaging and computational approaches that are brought to this problem is impressive. The question has been addressed previously in pyramidal cells and other neurons, and a general previous conclusion is that various calcium selective channels, CaVs, are at play. However, in previous investigations, inhibition of CaVs was only able to partially block influx, indicating an incomplete understanding. Here, the authors add to the story by concluding that the small calcium permeability of voltage-gated sodium channels (NaVs) to Ca mediates a significant portion of depolarization-dependent Ca influx in mammalian cells. This novel finding will be of wide interest. However, some key control experiments are essential to support the conclusions. In addition, a reframing of the Introduction and Discussion is essential to clarify the contribution of this report. The results are organized well and do a good job building the story. With the requested controls together with a reframed Introduction and Discussion, this paper should be a very enjoyable read.

Essential revisions:

1) A major concern deals with the use of CaV blockers in Figure 3. There are no positive controls for any of the 7 compounds. Yet the reader needs to take this array of negative results as major support for the work's conclusions. For the peptides, SNX, conotoxin, there is no indication that the drugs were applied using solutions in which protein binding was pre-inhibited with BSA or cytochrome C. While at ~1 μm it likely won't matter much; however, it is a standard step. With puffing of the drug, the final concentration would be expected to be ~10% of the pipette concentration, again calling up the need for a positive control.

Figure 3 also shows that there are small reductions with TTA, Ni, Isradepine, Nimodipine. If you add those up, and take into account the point above, then perhaps a significant amount of the Ca enters through CaVs, and thus the relative contribute of NaVs and CaVs remains uncertain. Perhaps combinations of blockers could give a more accurate picture.

2) Figure 5 is a fascinating and creative experiment that potentially provides a potent argument for the NaV source of Ca. However, there remain concerns of whether the voltage signals before and after the TTX+voltage increase manipulation are really reflective of equivalent membrane potentials. How linear is the JPW signal? And how stable? How does the signal linearity change when the there is a large overshoot? If the transients are not an accurate reflection of the relative magnitude of AIS voltage change then the experiment is less compelling. Since the author are masters of bleb recording, why not use this to get a more direct Vm assessment than V imaging?

3) Electrophysiological analysis. The authors should analyze AP properties recorded in current-clamp data. The APs half-width and after-depolarization should be characterized. Each independent pharmacological manipulation should be compared to the control condition and the EGTA condition, which should provide constraints on the effect of calcium influx on the AP waveform. Of particular interest is whether calcium influx through voltage-gated calcium or sodium channels has particular importance for calcium-activated potassium channels, which may be linked through nanodomain signaling. An example of this effect might be seen in the Vm traces of Figure 3A and C (the Aps look quite different with T-type block), but it is not discussed. Furthermore, slight differences in AP waveform can have profound effects on calcium influx through voltage-gated calcium channels. These effects should be ruled out when relevant. This analysis should be accompanied by discussion of NaV-mediated calcium influx's function in the AIS. For example, if the small calcium signal produced by T-Type channels is primarily responsible for shaping the afterdepolarization, then the authors should speculate on the function of the NaV-mediated calcium signal.

The results of these analyses are relevant for an overstated claim in the first paragraph of the Discussion. The authors write "[sodium channels] generate local and rapid Ca-dependent biochemical signaling". No experiment or analysis was done to directly evaluate this claim. Ca-dependent biochemical signaling is not addressed at all. This could be tested by examining the opening of Ca-activated K channels by NaV-dependent Ca influx. The "local" part may also be problematic. If local means "in the same subcellular domain as the open Ca-permeable channel" then this is trivially true. If it means something about nanodomain signaling, this has not been examined (but might potential be with analysis of Ca-activated K channels).

4) It would also be of interest to know if NaV-mediated calcium influx impacts cellular firing patterns, such as spike accommodation. It is not clear from the manuscript whether this analysis could be performed without additional experimentation – if so, it is certainly worth analyzing the data in hand to discover such potential effects.

5) Ca release is blocked by applying 200 μm ryanodine and 5 mg/ml heparin to the intracellular solution, resulting in a nearly 50% reduction of the Ca signal. This is ~ 20 times more ryanodine than is usually bath applied to block store release. How is this concentration justified and could it possibly have any off-target effects at that dose?

6) What efforts were made to confirm that Ca signals are not saturating? This would impact kinetics or additive effects greatly.

7) Writing. The authors attempt to make two claims that are misleading and unnecessary for the impact of the manuscript. First, they claim that NaV-mediated calcium signals are a novel finding. They do this in the Abstract and in the first paragraph of the Discussion. However, they cite the multiple papers that have reported this phenomenon in squid axons. I suggest that the authors couch the novelty of their result in this literature, and instead claim that this source is novel in mammalian cells, as is done in the third paragraph of the Discussion. This would clarify the contribution of this report and deflect any unnecessary criticism about the accuracy of its claims.

Next, they write, "the source of Ca transients at the axon initial segment and nodes of Ranvier.… is less understood". I find that this does not accurately represent the state of the literature. There is significant knowledge related to calcium signaling in axons, including their effect on AP waveform via their interaction with calcium-activated potassium channels and the role of calcium channels in generating cell-type specific firing patterns. Accompanying these effects are multiple papers that use pharmacological compounds to identify the source of the calcium influx, all of which have failed to completely block axonal calcium signals. This point is key to the novelty and impact of Popovic et al.'s manuscript. Instead of arguing ambiguously that axonal calcium signaling is poorly understood, we recommend that Popovic et al. explicitly discuss how the inability to completely block axonal calcium signals, together with the historical observation of a TTX-sensitive calcium current, demand a revision of our current model for mammalian axonal calcium signaling. This framework would be more accurate, informative, and erudite. This consideration should be propagated throughout the entire manuscript.

8) In the spirit of rigor and transparency contributing to reproducibility, the authors need to provide more detail on toxin and blockers used. This should include both the source and the source and catalog numbers, similar to what they included for amplifiers, objectives, etc. Attempts to reproduce and/or extend this work rely of using the correct reagents and there is little to no detail on exactly what was used. This also holds for the antibodies used for the immunolabeling. The authors state they used these antibodies: Synaptopodin (rabbit; 1:500; Sigma-Aldrich Chemie); Ankyrin G (mouse; 1:100; Neuromab) and ßIV-spectrin (mouse; 1:250; Neuromab). However, from their websites, Sigma sells six different rabbit anti-synaptopodin antibodies, and NeuroMab distributes four different anti-Ankyrin G antibodies, and two different anti- ßIV-spectrin antibodies, all six in two different forms (pure and tissue culture supernatant). In looking at the website info the different antibodies against these targets have very different characteristics, supporting the importance of defining which specific ones were used. We suggest the authors include catalog numbers and RRID numbers for unambiguous identification of the reagents used. eLife suggests/requires a key resources table to promote rigor and transparency. This would be an effective way to include these details.

https://doi.org/10.7554/eLife.54566.sa1

Author response

Essential revisions:

1) A major concern deals with the use of CaV blockers in Figure 3. There are no positive controls for any of the 7 compounds. Yet the reader needs to take this array of negative results as major support for the work's conclusions. For the peptides, SNX, conotoxin, there is no indication that the drugs were applied using solutions in which protein binding was pre-inhibited with BSA or cytochrome C. While at ~1 μm it likely won't matter much; however, it is a standard step. With puffing of the drug, the final concentration would be expected to be ~10% of the pipette concentration, again calling up the need for a positive control.

We have now performed new experiments to examine the efficacy of drug application. More specifically, we repeated the ω-conotoxin MVIIC (a N-, P-/Q-type CaV channel blocker) puffing experiment with addition of 0.1% BSA in the ASCF, to reduce nonspecific binding of the drug. The effect of the drug was not altered; ω-conotoxin MVIIC led to a non-significant trend to reduce the AP-evoked Ca2+ influx in the AIS by ~7% (n = 5, see Results and Figure 3B). In contrast, as a positive control experiment we imaged the Ca2+ in collateral boutons from the same axons, where the pressure application of the toxin from the same pipette reduced the AP-induced Ca2+ influx by ~90% (see Results, P = 0.021, n = 3; Figure 3B).

Figure 3 also shows that there are small reductions with TTA, Ni, Isradepine, Nimodipine. If you add those up, and take into account the point above, then perhaps a significant amount of the Ca enters through CaVs, and thus the relative contribute of NaVs and CaVs remains uncertain. Perhaps combinations of blockers could give a more accurate picture.

The channels that significantly contributed to AP-evoked Ca2+ influx were T- and L-type CaV channels. To address whether their block is additive and thereby accounts for a larger fraction of the Ca2+ influx we performed new experiments combining the T- and L-type blockers TTA-P2 and isradipine, respectively. We did not combine all four blockers, since they have shared targets and combining blockers with the same targets is in essence similar to increasing the blocker concentration, which may lead to off-target effects. TTA-P2 and isradipine were selected since they individually showed the most robust effect (least variance). The observed block was a 27.2% reduction in the AP-evoked peak in ∆F/F (relative to control, P = 0.0071, n = 5; Figure 3B). This block was less in comparison to the linear sum of block 33.6% (TTA-P2, 18.7% + Isradipine, 14.9%) and further underscores the idea that voltage-gated Ca2+ channels at the AIS are not the only source for Ca2+ influx.

2) Figure 5 is a fascinating and creative experiment that potentially provides a potent argument for the NaV source of Ca. However, there remain concerns of whether the voltage signals before and after the TTX+voltage increase manipulation are really reflective of equivalent membrane potentials. How linear is the JPW signal? And how stable? How does the signal linearity change when the there is a large overshoot? If the transients are not an accurate reflection of the relative magnitude of AIS voltage change then the experiment is less compelling. Since the author are masters of bleb recording, why not use this to get a more direct Vm assessment than V imaging?

We are pleased to read the reviewers appreciated the experimental design. Regarding the possibility to record in whole-cell patch-clamp configuration from axon blebs; this approach has its advantages and disadvantages. While it has excellent signal-to-noise for voltage recordings, in transected axon blebs intracellular Ca2+ is increased and plays a role in the cytoskeletal organization for resealing and regrowth (Bradke et al. Nat Rev Neurosci 13, 2012). Since the focus of the present study is the dynamics of intracellular Ca2+ under physiological conditions we decided that electrical recording (or imaging) from blebs will have confounding effects.

Using a high-speed imaging experiments strategy, we can record from unperturbed axons. The synthetic dye JPW has a very fast activation time constant (~11 µs) and is linear over a large voltage range (–125 to 125 mV, Ehrenberg et al., Biophys J 51, 1987) making it the voltage-sensitive dye of choice to track fast action potentials in neurons and in particular in axons (Cohen et al. Cell 180, 2020; Popovic et al. The Journal of Physiology 589, 2011). The reviewers raised two concerns regarding voltage imaging in this experiment: the stability and the linearity of the voltage dye. To address the first concern, we measured the baseline fluorescence of all recordings shown in Figure 5 and did not observe a change in baseline fluorescence between conditions (data not shown, P = 0.452, ordinary one-way ANOVA, n = 9), confirming that the dye is stable over the time period in which the experiments were performed. To address the linearity of the dye: we agree that linearity had not been examined over the larger voltage range as was used here (from resting membrane potential to +170 mV). In the revised manuscript we addressed this in HEK293 cells, in which a reliable and stable voltage-clamp can be maintained. We performed experiments in which JPW3028 fluorescence was imaged while clamping the cell across the range of potentials used in the AP-clamp experiment in Figure 5. The results show that the relationship between JPW ∆F/F and membrane potential is linear between –75 up to +175 mV, with Pearson’s correlation coefficient r > 0.99 in all cells recorded (see Figure 5—figure supplement 1).

3) Electrophysiological analysis. The authors should analyze AP properties recorded in current-clamp data. The APs half-width and after-depolarization should be characterized. Each independent pharmacological manipulation should be compared to the control condition and the EGTA condition, which should provide constraints on the effect of calcium influx on the AP waveform. Of particular interest is whether calcium influx through voltage-gated calcium or sodium channels has particular importance for calcium-activated potassium channels, which may be linked through nanodomain signaling. An example of this effect might be seen in the Vm traces of Figure 3A and C (the Aps look quite different with T-type block), but it is not discussed. Furthermore, slight differences in AP waveform can have profound effects on calcium influx through voltage-gated calcium channels. These effects should be ruled out when relevant. This analysis should be accompanied by discussion of NaV-mediated calcium influx's function in the AIS. For example, if the small calcium signal produced by T-Type channels is primarily responsible for shaping the afterdepolarization, then the authors should speculate on the function of the NaV-mediated calcium signal.

We agree with the reviewers the AP changes may be informative and add to our understanding of the function of NaV mediated Ca2+ influx. In the revised version we now show the analysis of individual APs recorded from the soma in Figure 9 and Table 1. Two conditions with the largest effect on Ca2+ influx were compared: the combined block of T- and L-type CaV channels and preventing all Ca2+ influx by lowering extracellular Ca2+ concentration by bath application of EGTA (Figure 3). Blocking T- and L-type Ca2+ channels reduced the afterdepolarization while leaving the AP half-width unaffected (ADP, mean difference = –2.9 mV, P = 0.042, FWHM, mean difference = 0.05 ms, P = 0.17, n = 5). In contrast, lowering extracellular Ca2+ by EGTA increased the AP half-width and afterhyperpolarization (AP half-width, mean difference = 0.29 ms, P = 0.018, AHP, mean difference = +19.1 mV P = 0.048, n = 4). These data suggest that the Ca2+ sources affect somatic AP shape differentially: the T- and L-type channels play a role in the delayed afterdepolarization while in the EGTA condition, also the submillisecond-rapid NaV-mediated Ca2+ entry is abolished, which potentially provides a route to activate BK channels and shorten the AP half-width. While we have not directly examined BKCa channels, these data are consistent with the work of Bock and Stuart, 2016, and Yu et al., 2010, showing that Iberiotoxin (IbTx)-mediated block of BKCa channels increases the AP width duration at the soma of L5 neurons and AIS. Interestingly, local IbTx application at the first node of Ranvier also increases the half-width duration where Ca2+ uncaging shortens the half-width (Roshchin et al., 2018). We have now included these ideas in the Discussion.

The results of these analyses are relevant for an overstated claim in the first paragraph of the Discussion. The authors write "[sodium channels] generate local and rapid Ca-dependent biochemical signaling". No experiment or analysis was done to directly evaluate this claim. Ca-dependent biochemical signaling is not addressed at all. This could be tested by examining the opening of Ca-activated K channels by NaV-dependent Ca influx. The "local" part may also be problematic. If local means "in the same subcellular domain as the open Ca-permeable channel" then this is trivially true. If it means something about nanodomain signaling, this has not been examined (but might potential be with analysis of Ca-activated K channels).

With local we were referring to the fact that the AIS and nodes show hot spots for Ca2+ influx (Figure 1). However, we agree with the reviewers we do not have evidence for biochemical signaling and removed such claims from the manuscript. Our data indicate that AP width is Ca2+ dependent but T- and L-type Ca2+ channel independent, leaving open the possibility that rapid NaV-channel mediated Ca2+ influx is a trigger for BK channel opening (Figure 9 and Table 1). These findings are well in agreement with the work of Roshchin et al., 2018, showing that AIS and node of Ranvier Ca2+ activates BK channel-mediated repolarization of the AP in the L5 pyramidal neuron. Nevertheless, to provide direct evidence that it is the NaV-mediated Ca2+ entry that activates BK channels would require knocking down the molecular mechanism mediating the transfer of Ca2+ through the pore, performing direct voltage-clamp of BK currents, etc. Such additional experiments go beyond the aim of the present study to identify the sources of axonal Ca2+ entry.

4) It would also be of interest to know if NaV-mediated calcium influx impacts cellular firing patterns, such as spike accommodation. It is not clear from the manuscript whether this analysis could be performed without additional experimentation – if so, it is certainly worth analyzing the data in hand to discover such potential effects.

This point has been answered in more detail above in point #3.

5) Ca release is blocked by applying 200 μm ryanodine and 5 mg/ml heparin to the intracellular solution, resulting in a nearly 50% reduction of the Ca signal. This is ~ 20 times more ryanodine than is usually bath applied to block store release. How is this concentration justified and could it possibly have any off-target effects at that dose?

The ryanodine concentration we used is indeed 20 times higher compared to the reported low affinity Kd of RyRs (10 µM, Sutko et al. Pharmacol Rev. 49, 1997). This is a similar concentration as applied previously in combination with high speed imaging (Jaafari, De Waard and Canepari, 2014). These authors found no impact on peak ∆F/F evoked by single AP-induced Ca2+ in dendrites with blockers before and after intracellular application of ryanodine receptor block. If off-target effects are present they are thus not detectable in dendrites. That we find a change in the AIS is consistent with the large ER organelle in these pyramidal neurons (Figure 2).

6) What efforts were made to confirm that Ca signals are not saturating? This would impact kinetics or additive effects greatly.

In some of our imaging experiments we also recorded the fluorescence in response to multiple APs for both OGB-1 and OGB-5N. We observed, however, that the peak ∆F/F in response to a single AP is well below dye saturation (OGB-1, 25 ± 2.7 %, n = 8 and OGB-5N, saturation not observed with 3 spikes, n = 3). We are therefore confident that the Ca2+ fluorescence we quantified in this paper (subthreshold stimuli and a single AP) are in the ∆F/F range from dye saturation.

7) Writing. The authors attempt to make two claims that are misleading and unnecessary for the impact of the manuscript. First, they claim that NaV-mediated calcium signals are a novel finding. They do this in the Abstract and in the first paragraph of the Discussion. However, they cite the multiple papers that have reported this phenomenon in squid axons. I suggest that the authors couch the novelty of their result in this literature, and instead claim that this source is novel in mammalian cells, as is done in the third paragraph of the Discussion. This would clarify the contribution of this report and deflect any unnecessary criticism about the accuracy of its claims.

We have now revised these statements, removed primary claims and thoroughly rewrote the Abstract, Introduction and parts of the Discussion. The first line in the Discussion now reads “We identified Ca2+ permeation through NaV channels as a source for activity-dependent Ca2+ entry in mammalian axons”.

Next, they write, "the source of Ca transients at the axon initial segment and nodes of Ranvier.… is less understood". I find that this does not accurately represent the state of the literature. There is significant knowledge related to calcium signaling in axons, including their effect on AP waveform via their interaction with calcium-activated potassium channels and the role of calcium channels in generating cell-type specific firing patterns. Accompanying these effects are multiple papers that use pharmacological compounds to identify the source of the calcium influx, all of which have failed to completely block axonal calcium signals. This point is key to the novelty and impact of Popovic et al.'s manuscript. Instead of arguing ambiguously that axonal calcium signaling is poorly understood, we recommend that Popovic et al. explicitly discuss how the inability to completely block axonal calcium signals, together with the historical observation of a TTX-sensitive calcium current, demand a revision of our current model for mammalian axonal calcium signaling. This framework would be more accurate, informative, and erudite. This consideration should be propagated throughout the entire manuscript.

We thank the reviewer for the suggestion about positioning the research findings. As indicated above, we have followed the suggestions and revised the manuscript. More specifically, we toned down novelty claims and now more clearly indicate how Ca2+ influx through NaV channels confirms and extends previous studies reporting TTX-dependent and CaV -dependent Ca2+ influx in axons.

8) In the spirit of rigor and transparency contributing to reproducibility, the authors need to provide more detail on toxin and blockers used. This should include both the source and the source and catalog numbers, similar to what they included for amplifiers, objectives, etc. Attempts to reproduce and/or extend this work rely of using the correct reagents and there is little to no detail on exactly what was used. This also holds for the antibodies used for the immunolabeling. The authors state they used these antibodies: Synaptopodin (rabbit; 1:500; Σ-Aldrich Chemie); Ankyrin G (mouse; 1:100; Neuromab) and ßIV-spectrin (mouse; 1:250; Neuromab). However, from their websites, Σ sells six different rabbit anti-synaptopodin antibodies, and NeuroMab distributes four different anti-Ankyrin G antibodies, and two different anti- ßIV-spectrin antibodies, all six in two different forms (pure and tissue culture supernatant). In looking at the website info the different antibodies against these targets have very different characteristics, supporting the importance of defining which specific ones were used. We suggest the authors include catalog numbers and RRID numbers for unambiguous identification of the reagents used. eLife suggests/requires a key resources table to promote rigor and transparency. This would be an effective way to include these details.

We have included a completed Key Resources table in the Materials and methods section.
