Abstract

Embryos must communicate instructions to their constituent cells over long distances. These instructions are often encoded in the concentration of signals called morphogens. In the textbook view, morphogen molecules diffuse from a localized source to form a concentration gradient, and target cells adopt fates by measuring the local morphogen concentration. However, natural patterning systems often incorporate numerous co-factors and extensive signaling feedback, suggesting that embryos require additional mechanisms to generate signaling patterns. Here, we examine the mechanisms of signaling pattern formation for the mesendoderm inducer Nodal during zebrafish embryogenesis. We find that Nodal signaling activity spans a normal range in the absence of signaling feedback and relay, suggesting that diffusion is sufficient for Nodal gradient formation. We further show that the range of endogenous Nodal ligands is set by the EGF-CFC co-receptor Oep: in the absence of Oep, Nodal activity spreads to form a nearly uniform distribution throughout the embryo. In turn, increasing Oep levels sensitizes cells to Nodal ligands. We recapitulate these experimental results with a computational model in which Oep regulates the diffusive spread of Nodal ligands by setting the rate of capture by target cells. This model predicts, and we confirm in vivo, the surprising observation that a failure to replenish Oep transforms the Nodal signaling gradient into a travelling wave. These results reveal that patterns of Nodal morphogen signaling are shaped by co-receptor-mediated restriction of ligand spread and sensitization of responding cells.

Introduction

Developing embryos often transmit instructions using morphogens, diffusible signaling molecules that induce concentration-dependent responses in target cells. In the most common conception of morphogen function, ligands spread from a localized source to form a concentration gradient (Lander, 2007; Müller et al., 2013; Stapornwongkul and Vincent, 2021). Cells within the gradient infer their position by sensing the local ligand concentration and initiate a position-appropriate gene expression program (Rogers and Schier, 2011; Stumpf, 1966; Wolpert, 1969). Examples of gradient-driven patterning in animal embryos are plentiful; vertebrate germ layer induction (McDowell and Gurdon, 1999; Schier, 2003; Shen, 2007), dorsoventral organization of the neural tube (Ericson et al., 1997; Yamada et al., 1993), and digit patterning (Raspopovic et al., 2014; Sheth et al., 2012) all rely on graded profiles of signaling molecules. Principles derived from these examples have recently guided the design of synthetic patterning systems. Engineered gradients have been used to pattern fields of cultured human cells (Li et al., 2018; Toda et al., 2020) and to replace an endogenous morphogen gradient in the Drosophila wing disk (Stapornwongkul et al., 2020). The biological and physical processes that set the shape of morphogen gradients are therefore of key importance to understanding developmental patterning and to the design of synthetic developmental systems.

Diffusion plays a central role in classical models of morphogen gradient formation (Müller et al., 2013; Stapornwongkul and Vincent, 2021). Ligand diffusion from a localized source is sufficient to create a concentration gradient that expands outward over time (Berg, 1993). Adding removal of the morphogen (through degradation, internalization, or other means) to the model confers stability (Crick, 1970). In such models, a steady-state gradient that does not further change in time can form (Wartlick et al., 2009). The shape of this steady-state gradient reflects a balance between ligand mobility and stability. Increasing the diffusion rate lengthens the gradient, whereas faster removal shortens it (Wartlick et al., 2009). Although simple, such diffusion-removal models approximate the behavior of several well-studied morphogens (Kicheva et al., 2012). Recent biophysical studies have shown that fluorescently tagged morphogens in Drosophila (Kicheva et al., 2007; Zhou et al., 2012) and zebrafish (Müller et al., 2012; Yu et al., 2009; Zinski et al., 2017) have diffusion rates consistent with known ranges of action. Similarly, receptor-mediated ligand capture provides a plausible mechanism for morphogen removal and has been shown to be a determinant of gradient range in some cases (Yu et al., 2009; Baeg et al., 2004; Chen and Struhl, 1996; Lecuit and Cohen, 1998; Ribes and Briscoe, 2009; Scholpp and Brand, 2004).

While these simple principles seem sufficient to explain gradient formation, diffusive transport may carry inherent limitations (Müller et al., 2013). For example, diffusing ligands could be difficult to contain without physical boundaries between tissues (Kornberg and Guha, 2007), and receptor saturation could preclude stable gradient formation (Kerszberg and Wolpert, 1998). Embryos may therefore need additional layers of control to spread signaling in a controlled fashion. Indeed, developmental signaling circuits often incorporate extensive feedback on morphogen production and sensing (Rogers and Schier, 2011; Freeman, 2000; Freeman and Gurdon, 2002; Meinhardt, 2009). In these systems, the shapes of signaling pattern can be determined by the action of feedback rather than the biophysical properties of signaling molecules. For example, it has been argued that positive feedback on ligand production can substitute for diffusion as a mechanism of morphogen dispersal. In this scheme, a cascade of short-range interactions—one tier of cells induces signal production in the next—can propagate signaling in space, even when the ligand itself is poorly diffusive. Such ‘relay’ mechanisms have been invoked to explain germ layer patterning in zebrafish (van Boxtel et al., 2015), as well as Wnt and Nodal signal spread in micropatterned stem cell colonies (Chhabra et al., 2019; Liu, 2021). Negative feedback can also shape signaling gradients, for example, by scaling patterns to fit tissue size (Almuedo-Castillo et al., 2018; Ben-Zvi et al., 2008), restricting signaling in space (Chen and Struhl, 1996), or turning off pathway activity when it is no longer needed (van Boxtel et al., 2015; Golembo et al., 1996). Due to the abundance of mechanisms that can contribute to signaling pattern shape, the mechanisms of gradient formation remain points of contention, even for well-studied morphogens.

Here, we examine the mechanism of gradient formation for the canonical morphogen Nodal. Nodals are TGFβ family ligands that function by binding to cell surface receptor complexes consisting of Type I and Type II activin receptors and EGF-CFC family co-receptors (Schier, 2003; Shen, 2007; Gritsman et al., 1999). Receptor complex formation induces phosphorylation and nuclear accumulation of the transcription factor Smad2, which cooperates with nuclear cofactors to activate Nodal target genes (Massagué et al., 2005). In early vertebrate embryos, Nodal signaling orchestrates germ layer patterning: exposure to high, intermediate, and low levels of Nodal correlates with selection of endodermal, mesodermal, and ectodermal fates, respectively (Dougan et al., 2003; Gritsman et al., 2000; Thisse et al., 2000; Vincent et al., 2003). Nodal signaling is under both positive and negative feedback control. Nodal ligands induce the expression of nodal genes (Meno et al., 1999), as well as of leftys (Meno et al., 1999; Chen and Schier, 2002), diffusible inhibitors of Nodal signaling. These feedback loops are conserved throughout vertebrates and therefore appear crucial to the function of the patterning circuit (Shen, 2007).

Zebrafish mesendoderm is patterned by two Nodal signals, Cyclops and Squint (Shen, 2007; Dougan et al., 2003). The physiologically relevant ligands are heterodimers between Cyclops or Squint and a third TGFβ family member, Vg1 (Bisgrove et al., 2017; Montague and Schier, 2017; Pelliccia et al., 2017). Gradient formation is initiated by secretion of Nodal ligands from the extraembryonic yolk syncytial layer (YSL), below the embryonic margin. Over time, the Nodal patterning circuit generates a gradient of signaling activity that, at the onset of gastrulation, extends approximately 6–8 cell tiers from the margin (van Boxtel et al., 2015; Dubrulle et al., 2015; Harvey and Smith, 2009; Rogers et al., 2017). Mutations that markedly expand signaling range (e.g. lefty1;lefty2) result in profound phenotypic defects and embryonic lethality (Rogers et al., 2017). Proper development therefore relies on the generation of a correct Nodal signaling gradient.

Early studies with ectopically expressed Nodal ligands in zebrafish supported a model of diffusive spread (Chen and Schier, 2001). Direct observation of diffusion using GFP-tagged Cyclops and Squint ligands suggested short and intermediate ranges of activity, respectively (Müller et al., 2012). In this model, the distance that ligands can diffusively travel during the ~2 hr prior to gastrulation is a crucial determinant of gradient range. More recently, it was argued that Nodal signal spread was driven instead by positive feedback (van Boxtel et al., 2015). In this model, a feedback-driven relay spreads signaling activity away from the margin, and spread is stopped by the onset of Lefty production. In contrast to the diffusion-driven model, the range of signaling is set by the properties of the feedback circuit (e.g. the time required for a cell to switch on Nodal production and the delay in onset of Lefty production).

In this study, we re-examine the mechanisms that regulate Nodal signaling gradient formation in zebrafish embryos. We find that endogenous Nodal ligands can spread over a normal range in the absence of signaling feedback and relay, suggesting that diffusion is sufficient for gradient formation. Unexpectedly, we discover that the EGF-CFC co-receptor Oep is a potent regulator of the range of both Cyclops and Squint; in mutants lacking oep, Nodal activity is near-uniform throughout the embryo. We also find that Oep, although traditionally regarded as a permissive signaling factor, sets cell sensitivity to Nodal ligands. We incorporate these observations into a mathematical model for Nodal signal spread and predict that replenishment of Oep by zygotic expression is required for gradient stability. Finally, we verify a surprising prediction of the model: in zygotic oep mutants, which cannot replace Oep after it has been consumed, Nodal signaling propagates outward from the margin as a traveling wave. These findings illustrate how the embryo uses an unappreciated property of Oep—regulation of the rate of ligand capture—to set the range, shape, and intensity of the Nodal signaling gradient.

Results

The Nodal signaling gradient forms in the absence of feedback

The Nodal signaling gradient may reflect the diffusive properties of Nodal ligands secreted from the YSL or the action of signaling feedback and relay. To characterize the contribution of diffusion specifically, we set out to visualize the Nodal gradient in mutants that lack signaling feedback and relay altogether. This goal presented two key challenges. First, endogenous Nodal ligands have not been successfully visualized by antibody staining or fluorescent tagging in zebrafish. Second, knocking out the full complement of all known Nodal feedback regulators—for example lefty1, lefty2, cyclops, squint, dpr2 (Zhang et al., 2004), etc—in combination is impractical. To address these two limitations, we were inspired by previous approaches for clone-mediated perturbations to morphogen gradients (Baeg et al., 2004; Belenkaya et al., 2004; Cadigan et al., 1998; Eldar and Barkai, 2005; Entchev et al., 2000) and developed a ‘sensor’ cell assay (Figure 1A). In this approach, we transplant Nodal-sensitive (‘sensor’) cells from a gfp-injected donor embryo to the margin of a host that is Nodal-insensitive and therefore lacks feedback. We then visualize signaling in the sensor cells by immunostaining for phosphorylated Smad2 (pSmad2) and GFP. Because host cells cannot respond to Nodal, they cannot modulate signal spread by either positive or negative feedback. For example, a transcriptional relay that spreads nodal expression would not form in this scenario. In addition, the sensor cells ‘report’ on their local Nodal concentration via pSmad2 staining intensity, enabling us to sample the activity of endogenous, untagged ligands. For the experiments described here, we use sensor cells from Mvg1 donors. These cells are Nodal-sensitive but cannot produce functional Nodal-Vg1 heterodimers and therefore cannot spread signaling via positive feedback (Montague and Schier, 2017). To pilot the sensor cell assay, we transplanted cells from an Mvg1 donor into a wild-type host (Figure 1B, upper panel). The Mvg1 sensors exhibited α-pSmad2 staining intensity similar to their wild-type neighbors, and quantification of staining across replicate embryos revealed similar signaling gradients for host and sensor cells (Figure 1B, lower panel; blue and red points, respectively). This result demonstrates that transplanted sensor cells accurately report on their local signaling environment. We further note that sensor cell migration after transplant does not appear to compromise the assay, as sensor cells exhibit signaling intensities appropriate for their position at the time of embryo fixation. This outcome is consistent with previous observations that cell rearrangement at the margin is minimal prior to gastrulation (Dubrulle et al., 2015; Helde et al., 1994; Wilson et al., 1993).

Figure 1 with 2 supplements see all

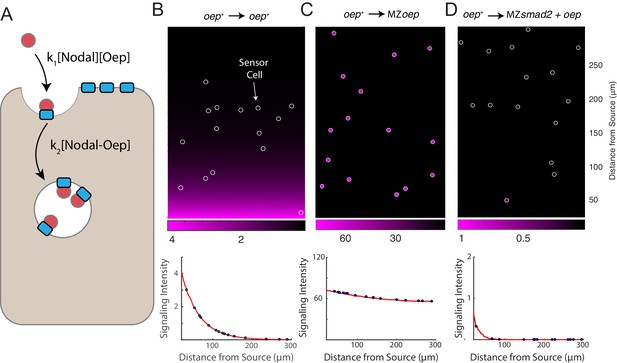

Nodal gradient formation in the absence of feedback.

(A) Schematic of sensor cell assay. Mvg1 donor embryos were marked by injecting gfp mRNA at the 1-cell stage. At high stage, just before the onset of Nodal signaling, GFP-marked sensor cells were transplanted from the animal pole of the donor to the margin of a Nodal-insensitive host. At 50% epiboly, embryos were fixed and immunostained for GFP and Nodal signaling activity (α-pSmad2). Imaging of chimeric embryos (far right) enables inference of the gradient shape from α-pSmad2 staining (magenta) in sensor cells (green). Because host embryos lack the ability to respond to Nodal, YSL-derived Nodal ligands are responsible for the shape of the Nodal signaling gradient. (B) Control visualization of the Nodal signaling gradient in wild-type hosts using a sensor cell assay. Upper panel; Mvg1 sensor cells (yellow) were transplanted to the margin of a wild-type host. Nodal signaling was visualized by α-pSmad2 staining (magenta), and sensor cell boundaries were segmented with an automated pipeline (white curves). YSL boundaries are marked with dashed white curves. Lower panel; quantification of staining intensity in host (blue) and sensor (red) cells across replicate embryos. Nuclei were segmented from DAPI signal using an automated analysis pipeline implemented in MATLAB. Sensor and host cells were identified as being clearly GFP positive or negative, respectively. Solid curves represent sliding window averages. Plot was derived from three replicate embryos. (C) Sensor cell assay in MZsmad2 host embryos. Upper panel; GFP-marked Mvg1 sensor cells (yellow) were transplanted to the margin of MZsmad2 host embryos. Nodal signaling was visualized with α-pSmad2 staining (magenta). Sensor cell boundaries are marked with white outlines, and YSL boundaries are marked with dashed white curves. Lower panel; quantification of host (blue) and sensor (red) cell staining intensities were carried out as in (B). Plot was derived from six replicate embryos.

Figure 1—source data 1

In Figure 1B, sensor cell assay results were quantified by segmenting nuclei and classifying each nucleus as host- or donor-derived by GFP intensity.

The quantified fluorescence intensities are organized in this table. Each row corresponds to an individual nucleus. The following characteristics were quantified: average GFP pixel intensity (‘GFP’), average pixel intensity for α-pSmad2 staining (‘pSmad2Raw’), α-pSmad2 staining intensity normalized to background (‘pSmad2 Normalized’), average DAPI pixel intensity (‘DAPI’), distance from the embryonic margin in μm (‘marginDist’), GFP staining status (‘GFP_Flag’, 0 denotes a cell host nucleus, one denotes a sensor cell nucleus), and embryo replicate number (‘Embryo Number’). We note that normalized α-pSmad2 staining was used to generate the figure panel.

https://cdn.elifesciences.org/articles/54894/elife-54894-fig1-data1-v2.xlsx
Figure 1—source data 2

In Figure 1C, sensor cell assay results were quantified by segmenting nuclei and classifying each nucleus as host- or donor-derived by GFP intensity.

The quantified fluorescence intensities are organized in this table. Each row corresponds to an individual nucleus. The following characteristics were quantified: average GFP pixel intensity (‘GFP’), average pixel intensity for α-pSmad2 staining (‘pSmad2Raw’), α-pSmad2 staining intensity normalized to background (‘pSmad2 Normalized’), average DAPI pixel intensity (‘DAPI’), distance from the embryonic margin in μm (‘marginDist’), GFP staining status (‘GFP_Flag’, 0 denotes a cell host nucleus, one denotes a sensor cell nucleus), and embryo replicate number (‘Embryo Number’). We note that normalized α-pSmad2 staining was used to generate the figure panel.

https://cdn.elifesciences.org/articles/54894/elife-54894-fig1-data2-v2.xlsx

We next applied this approach to MZsmad2 host embryos, which lack all Nodal signaling. Smad2 is required to activate Nodal-dependent gene expression, and zebrafish MZsmad2 embryos phenocopy mutants lacking Nodal ligands (Dubrulle et al., 2015). We verified that MZsmad2 embryos lack pSmad2 (Figure 1—figure supplement 1) but continue to express cyclops and squint in the YSL (Figure 1—figure supplement 2). Expression of both Nodals was excluded from the blastoderm, confirming that these mutants are incapable of Nodal autoregulation (Figure 1—figure supplement 2). Mvg1 sensor cells transplanted into MZsmad2 mutants exhibit clear Nodal signaling activity several cell tiers from the margin (Figure 1C, upper panel), while signaling was completely absent in host cells. Quantification of staining in MZsmad2 hosts (Figure 1C, lower panel) revealed a Nodal signaling gradient similar in range to that of wild-type controls (Figure 1B., lower panel; half-distances of 45 and 37 μm for MZsmad2 and wild type, respectively). Together, these experiments suggest that YSL-derived Nodal ligands can form a gradient of normal range without help from signaling feedback and relay.

Nodal signaling range is expanded in the absence of Oep

The above results support a model in which diffusion drives Nodal spread. However, it remains unclear how the embryo sets the range of ligand dispersal. Biophysical studies with GFP-tagged Nodals suggest that ligand mobility may be hindered by interaction with extracellular factors, as measured diffusion rates for both Cyclops and Squint are >10 fold lower than for free GFP (Müller et al., 2012). However, no factors that explain hindered mobility of endogenous ligands have been identified. Cell surface receptor complexes are clear candidates for this role (Wang et al., 2016), because transient ligand capture or receptor-mediated endocytosis could constrain the gradient (Wartlick et al., 2009), and receptors have been shown to regulate gradient range for other signals (Baeg et al., 2004; Chen and Struhl, 1996; Lecuit and Cohen, 1998; Okabe et al., 2014).

To test whether receptor complex components regulate the range of Nodal signaling, we performed sensor cell transplants in embryos lacking the essential Nodal co-receptor Oep (MZoep mutants Gritsman et al., 1999). We found that Mvg1 sensor cells detected Nodal activity over a dramatically longer range in MZoep hosts than in wild-type controls (Figure 2A,B). Indeed, transplanting sensor cells to the animal pole revealed that Nodal ligand activity can be detected throughout the embryo when Oep is absent (Figure 2D,E). To test whether loss of Oep affects both Nodal ligands similarly, we performed sensor cell assays in MZoep;sqt and MZoep;cyc double mutants. Loss of Oep led to an expanded range of action for both Cyclops (i.e. in MZoep;sqt mutants) and Squint (i.e. in MZoep;cyc mutants), and the signaling ranges in both double mutants were comparable to that observed in the MZoep single mutant (Figure 2—figure supplement 1). We note that long-range Nodal signaling in oep mutants does not reflect residual Nodal signaling between Mvg1 sensor cells, as signaling intensity was independent of sensor cell density (Figure 2—figure supplement 2). Although endogenous Nodal ligands have not been detectable to date and the sensor assay is the most sensitive reporter for signaling by Nodal ligands, we ectopically expressed GFP-tagged Squint in a transplanted clone of source cells. Direct ligand visualization also revealed an expanded range of secreted Nodal in MZoep mutants compared to wild type (Figure 2—figure supplement 3).

Figure 2 with 3 supplements see all

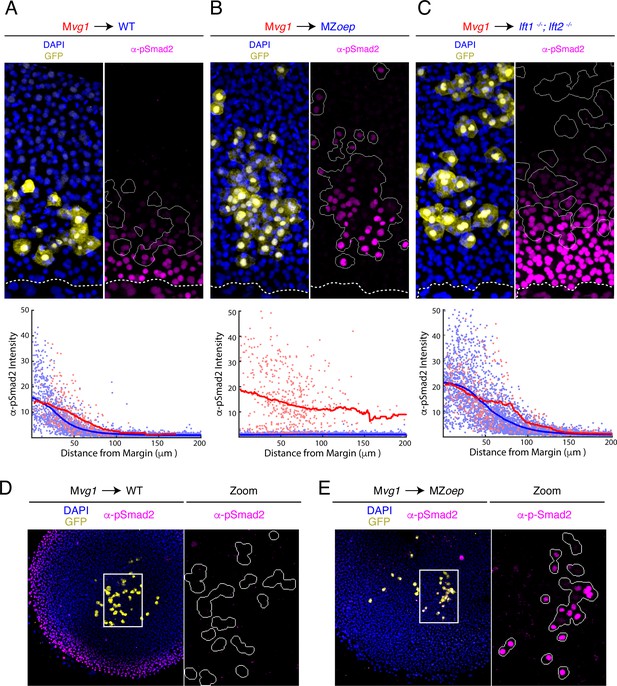

The Nodal gradient is expanded in MZoep mutants.

(A-C) Sensor cell assay and gradient quantifications in (A) wild type, (B) MZoep, and (C) lft1-/-;lft2-/- embryos. Mvg1 sensor cells were marked with GFP (yellow) and transplanted to the margin of host embryos. Nodal signaling activity is measured by α-pSmad2 immunostaining (magenta). YSL boundaries are marked with dashed curves and sensor cell boundaries are outlined in solid white in all α-pSmad2 panels. Gradient quantifications for each experiment are below images; host and sensor cell staining intensities are plotted as blue and red points, respectively. Sliding window averages are plotted as solid curves. Plots for wild type, MZoep, and lft1-/-;lft2-/- backgrounds were derived from 8, 10, and 8 replicate embryos, respectively. Decay parameters for single-exponential model fits (±95% confidence bounds) are −0.02 ± 0.004 μm−1,–0.007 ± 0.002 μm−1 and −0.013 ± 0.002 μm−1 for wild-type, MZoep and lft1-/-;lft2-/ hosts, respectively. (D) Left panel; Mvg1 sensor cells (yellow) were transplanted directly to the animal pole of a wild-type host. The endogenous Nodal signaling gradient is visible at the embryonic margin (magenta). White box highlights region expanded for detail view in right panel. Right panel; Nodal signaling activity is absent in both host and sensor cells. (E) Left panel; Mvg1 sensor cells (yellow) were transplanted to the animal pole of an MZoep embryo. Nodal signaling is absent at the embryonic margin. White box highlights region expanded in the right panel. Right; sensor cells detect Nodal at the animal pole (magenta).

Figure 2—source data 1

In Figure 2A, sensor cell assay results were quantified by segmenting nuclei and classifying each nucleus as host- or donor-derived by GFP intensity.

The quantified fluorescence intensities are organized in this table. Each row corresponds to an individual nucleus. The following characteristics were quantified: average GFP pixel intensity (‘GFP’), average pixel intensity for α-pSmad2 staining (‘pSmad2Raw’), α-pSmad2 staining intensity normalized to background (‘pSmad2 Normalized’), average DAPI pixel intensity (‘DAPI’), distance from the embryonic margin in μm (‘marginDist’), GFP staining status (‘GFP_Flag’, 0 denotes a cell host nucleus, one denotes a sensor cell nucleus), and embryo replicate number (‘Embryo Number’). We note that normalized α-pSmad2 staining was used to generate the figure panel.

https://cdn.elifesciences.org/articles/54894/elife-54894-fig2-data1-v2.xlsx
Figure 2—source data 2

In Figure 2B, sensor cell assay results were quantified by segmenting nuclei and classifying each nucleus as host- or donor-derived by GFP intensity.

The quantified fluorescence intensities are organized in this table. Each row corresponds to an individual nucleus. The following characteristics were quantified: average GFP pixel intensity (‘GFP’), average pixel intensity for α-pSmad2 staining (‘pSmad2Raw’), α-pSmad2 staining intensity normalized to background (‘pSmad2 Normalized’), average DAPI pixel intensity (‘DAPI’), distance from the embryonic margin in μm (‘marginDist’), GFP staining status (‘GFP_Flag’, 0 denotes a cell host nucleus, one denotes a sensor cell nucleus), and embryo replicate number (‘Embryo Number’). We note that normalized α-pSmad2 staining was used to generate the figure panel.

https://cdn.elifesciences.org/articles/54894/elife-54894-fig2-data2-v2.xlsx
Figure 2—source data 3

In Figure 2C, sensor cell assay results were quantified by segmenting nuclei and classifying each nucleus as host- or donor-derived by GFP intensity.

The quantified fluorescence intensities are organized in this table. Each row corresponds to an individual nucleus. The following characteristics were quantified: average GFP pixel intensity (‘GFP’), average pixel intensity for α-pSmad2 staining (‘pSmad2Raw’), α-pSmad2 staining intensity normalized to background (‘pSmad2 Normalized’), average DAPI pixel intensity (‘DAPI’), distance from the embryonic margin in μm (‘marginDist’), GFP staining status (‘GFP_Flag’, 0 denotes a cell host nucleus, one denotes a sensor cell nucleus), and embryo replicate number (‘Embryo Number’). We note that normalized α-pSmad2 staining was used to generate the figure panel.

https://cdn.elifesciences.org/articles/54894/elife-54894-fig2-data3-v2.xlsx

In summary, the sensor assays reveal a remarkable gradient expansion in MZoep mutants when compared with the effect of other mutations that alter Nodal signaling range. For example, the expansion of the signaling gradient in lefty1;lefty2 mutant embryos, which lack negative feedback on Nodal signaling (Rogers et al., 2017; Figure 2C), is mild compared to our observations in MZoep embryos (Figure 2B,C). These results demonstrate that receptor complexes play key roles in constraining the spread of Nodal signals from the YSL.

Oep regulates the range and intensity of Nodal signaling through ligand capture

EGF-CFC proteins such as Oep are typically regarded as permissive factors for Nodal signaling. Oep facilitates the assembly of receptor-ligand complexes but is not thought to regulate signaling beyond conferring competence (Zhang et al., 1998). However, our finding that Nodal ligand range is expanded in the absence of Oep suggests that it has unappreciated regulatory roles. The simplest way to accommodate this result is to stipulate that Oep levels set the rate of capture of diffusing Nodal ligands. Through this mechanism, Oep could control the range of Nodal activity by regulating the rate of receptor-mediated ligand internalization (i.e. the effective ligand degradation rate). This model makes two testable predictions. First, increasing Oep levels should enhance cell sensitivity to Nodal ligands by facilitating capture by receptor complexes. Second, increasing Oep levels should reduce the range of Nodal signaling by increasing the effective degradation rate.

To test whether Oep regulates cell sensitivity, we asked whether overexpressing oep in sensor cells increases their responsiveness to endogenous Nodals. We transplanted cells from Mvg1 embryos injected with oep and gfp mRNAs or with gfp alone to the margin of wild-type embryos and immunostained for GFP and pSmad2. Sensors with increased Oep levels stained more brightly for pSmad2 than neighboring host cells (Figure 3B), while sensors injected with gfp alone matched the behavior of their neighbors (Figure 3A). Interestingly, we found that the oep-overexpressing sensors detected Nodal further from the margin than the host cells, suggesting that the Nodal ligand gradient extends beyond the domain of detectable signaling in normal embryos (Figure 3B). We note that the increased sensitivity of the oep-overexpressing sensors does not reflect the action of hyperactive-positive feedback on Nodal production, as Mvg1 cells are incapable of producing functional Nodal-Vg1 heterodimers. These results suggest that, in addition to being required for signaling competence, Oep regulates sensitivity to Nodal ligands.

Figure 3 with 1 supplement see all

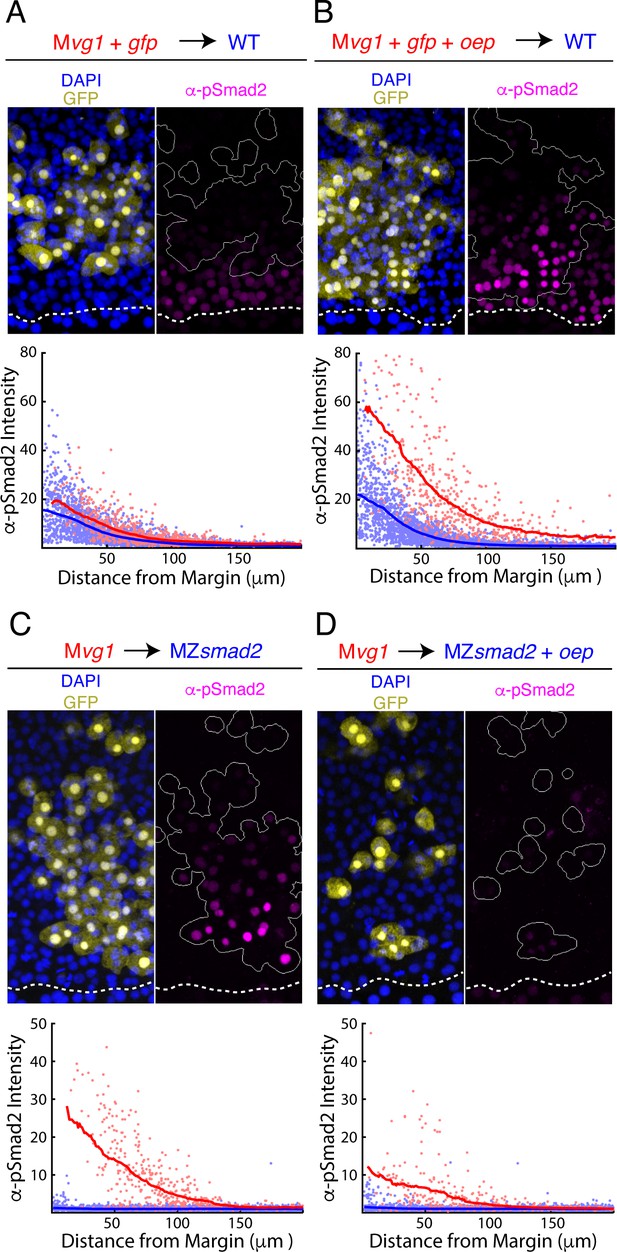

Oep levels regulate Nodal ligand capture and signaling range.

(A–B) Oep overexpression increases sensitivity to Nodal ligands. (A) Upper panel: control transplant of GFP-marked Mvg1 sensor cells (yellow) to the margin of wild-type hosts. Nodal signaling activity was measured by α-pSmad2 immunostaining (magenta). In all panels, YSL boundaries are marked with dashed white curves, and sensor cells have been outlined in solid white in all α-pSmad2 panels. Lower panel: quantification of Nodal signaling in sensor (red) and host cells (blue) across replicate embryos. Sliding window averages are plotted as solid curves. Plot was derived from eight replicate embryos. (B) Upper panel: transplant of sensor cells from an Mvg1 donor injected with gfp and 110 pg oep mRNA at the one-cell stage to the margin of wild-type hosts. Sensor cells (yellow) exhibit enhanced Nodal signaling activity (magenta) compared to their host-derived neighbors. Lower panel; staining of host (blue) and sensor (red) cells was quantified as in (A). Plot was derived from nine replicate embryos. (C-D) Oep overexpression restricts Nodal spread. (C) Upper panel: sensor cell measurement of the Nodal gradient in MZsmad2 embryos. Mvg1 sensor cells were marked with GFP (yellow), and Nodal signaling activity was measured by α-pSmad2 immunostaining (magenta). Lower panel: quantification of Nodal signaling in sensor (red) and host cells (blue) was quantified as in (A). Plot was derived from nine replicate embryos. (D) Upper panel: Mvg1 sensor cell measurement of the Nodal signaling gradient in MZsmad2 hosts injected with 110 pg oep mRNA at the one-cell stage. Lower panel; gradients were quantified as in (A). Plot was derived from nine replicate embryos.

Figure 3—source data 1

In Figure 3A, sensor cell assay results were quantified by segmenting nuclei and classifying each nucleus as host- or donor-derived by GFP intensity.

The quantified fluorescence intensities are organized in this table. Each row corresponds to an individual nucleus. The following characteristics were quantified: average GFP pixel intensity (‘GFP’), average pixel intensity for α-pSmad2 staining (‘pSmad2Raw’), α-pSmad2 staining intensity normalized to background (‘pSmad2 Normalized’), average DAPI pixel intensity (‘DAPI’), distance from the embryonic margin in μm (‘marginDist’), GFP staining status (‘GFP_Flag’, 0 denotes a cell host nucleus, one denotes a sensor cell nucleus), and embryo replicate number (‘Embryo Number’). We note that normalized α-pSmad2 staining was used to generate the figure panel.

https://cdn.elifesciences.org/articles/54894/elife-54894-fig3-data1-v2.xlsx
Figure 3—source data 2

In Figure 3B, sensor cell assay results were quantified by segmenting nuclei and classifying each nucleus as host- or donor-derived by GFP intensity.

The quantified fluorescence intensities are organized in this table. Each row corresponds to an individual nucleus. The following characteristics were quantified: average GFP pixel intensity (‘GFP’), average pixel intensity for α-pSmad2 staining (‘pSmad2Raw’), α-pSmad2 staining intensity normalized to background (‘pSmad2 Normalized’), average DAPI pixel intensity (‘DAPI’), distance from the embryonic margin in μm (‘marginDist’), GFP staining status (‘GFP_Flag’, 0 denotes a cell host nucleus, one denotes a sensor cell nucleus), and embryo replicate number (‘Embryo Number’). We note that normalized α-pSmad2 staining was used to generate the figure panel.

https://cdn.elifesciences.org/articles/54894/elife-54894-fig3-data2-v2.xlsx
Figure 3—source data 3

In Figure 3C, sensor cell assay results were quantified by segmenting nuclei and classifying each nucleus as host- or donor-derived by GFP intensity.

The quantified fluorescence intensities are organized in this table. Each row corresponds to an individual nucleus. The following characteristics were quantified: average GFP pixel intensity (‘GFP’), average pixel intensity for α-pSmad2 staining (‘pSmad2Raw’), α-pSmad2 staining intensity normalized to background (‘pSmad2 Normalized’), average DAPI pixel intensity (‘DAPI’), distance from the embryonic margin in μm (‘marginDist’), GFP staining status (‘GFP_Flag’, 0 denotes a cell host nucleus, one denotes a sensor cell nucleus), and embryo replicate number (‘Embryo Number’). We note that normalized α-pSmad2 staining was used to generate the figure panel.

https://cdn.elifesciences.org/articles/54894/elife-54894-fig3-data3-v2.xlsx
Figure 3—source data 4

In Figure 3D, sensor cell assay results were quantified by segmenting nuclei and classifying each nucleus as host- or donor-derived by GFP intensity.

The quantified fluorescence intensities are organized in this table. Each row corresponds to an individual nucleus. The following characteristics were quantified: average GFP pixel intensity (‘GFP’), average pixel intensity for α-pSmad2 staining (‘pSmad2Raw’), α-pSmad2 staining intensity normalized to background (‘pSmad2 Normalized’), average DAPI pixel intensity (‘DAPI’), distance from the embryonic margin in μm (‘marginDist’), GFP staining status (‘GFP_Flag’, 0 denotes a cell host nucleus, one denotes a sensor cell nucleus), and embryo replicate number (‘Embryo Number’). We note that normalized α-pSmad2 staining was used to generate the figure panel.

https://cdn.elifesciences.org/articles/54894/elife-54894-fig3-data4-v2.xlsx

To test whether Oep levels modulate Nodal range, we asked whether overexpression of oep could restrict signaling. We performed sensor cell assays in MZsmad2 hosts injected with oep mRNA at the one-cell stage. Overexpression of Oep indeed reduced the range and intensity of Nodal signaling (Figure 3D) when compared with uninjected hosts (Figure 3C). We note that the choice of MZsmad2 hosts was important for interpretation of the experiment. As Oep sensitizes cells to Nodal ligands, increasing expression in signaling-competent host embryos could lead to increased signaling by triggering Nodal positive feedback. Nodal signaling is disabled downstream of the receptor in MZsmad2 mutants, allowing us to specifically test Oep’s role in regulating ligand range without this confound.

To further test the idea that Oep restricts Nodal spread, we analyzed the distribution of fluorescently-tagged Squint in embryos expressing excess oep. In the first experiment, we visualized the range of Squint-sfGFP gradients generated by transplanted source cells in hosts lacking oep (MZoep) and hosts overexpressing oep (MZoep injected with oep mRNA). Consistent with our sensor cell results, overexpression of oep resulted in marked shortening of the Squint-sfGFP gradient relative to MZoep (Figure 2—figure supplement 3). In a second experiment, we expressed Halo-tagged Vg1 and Squint in the YSL and monitored their accumulation in sensor cells (Figure 3—figure supplement 1). Embryos producing tagged ligands were generated by injecting mRNAs encoding vg1-halotag and squint directly into the YSL shortly after its formation (1k-cell stage). To concentrate and clearly visualize the Halo-tagged ligand, we transplanted sensor cells from a donor embryo injected with oep mRNA to the animal pole, akin to a morphotrap approach (Stapornwongkul et al., 2020; Almuedo-Castillo et al., 2018; Harmansa et al., 2017; Harmansa et al., 2015). Halo-tagged ligand accumulated in the animal pole sensors in MZoep hosts but not in wild-type hosts. This accumulation was prevented by overexpressing oep in the MZoep hosts. Together, these results indicate that Oep regulates both the range and intensity of Nodal signaling.

A simple model incorporating Oep-Nodal interaction reproduces experimental observations

We formulated a simple mathematical model of Nodal gradient formation to explore whether Oep-mediated capture of diffusing Nodal ligands is sufficient to explain our experimental data (Figure 4A). In the model, Nodal is secreted at a constant rate at one end of a two-dimensional tissue and diffuses freely until it is captured by a free receptor complex. We stipulate that ligand-receptor association follows pseudo first-order kinetics (i.e. that the free receptor concentration can be regarded as constant) and that internalization of receptor-ligand complexes is also first-order. To track integration of signaling activity, we also incorporate phosphorylation of Smad2 with a rate proportional to ligand-receptor complex concentration. Where possible, parameter values were taken from the literature. Model details and a summary of the rates used in simulations are presented in Supplementary file 1.

A simple model of Nodal diffusion and capture reproduces experimental observations.

(A) Schematic of Nodal diffusion-capture model. Simulations were performed on a two-dimensional tissue of 100 μm x 300 μm. Nodal molecules are secreted at a constant rate from a localized source at one boundary of the tissue (i.e. 0 < x < 5 μm) and diffuse freely until capture by cell surface receptors (‘Oep’). Ligand-receptor complexes are removed from the system by internalization. To track signaling activity, Smad2 phosphorylation is simulated with rate proportional to the concentration of receptor-ligand complexes. (B-D) Simulation of transplant experiments. In each simulation, the behavior of sensor cells (white outlines) is compared with the behavior of the host embryo (remainder of tissue). Parameters were independently set for host and sensor regions, allowing for simulation of experiments with mutations and overexpression. Signaling activity (i.e. [pSmad2]) is plotted in magenta. Upper panels present representative simulations with randomly-positioned sensor cells. Lower panels depict quantified signaling intensities for sensor cells from the panel above (blue points) and average intensities derived from replicate simulations (red curves). (B) Wild-type gradient simulation. Sensor cells with normal Oep levels are transplanted into a host with normal Oep levels. A stable gradient forms, and signaling is identical in sensor cells and neighboring regions. (C) Gradient expansion in MZoep mutants. Sensor cells contain normal Oep levels, but host cells lack Oep. Sensor cells detect ligand throughout the tissue. (D) Gradient contraction with oep overexpression. Sensor cells contain normal Oep levels, whereas host cells lack Smad2, but overexpress oep. Signaling is absent in the host tissue—due to lack of Smad2—but elevated receptor expression restricts Nodal spread to the sensors.

This simple model reproduces a signaling gradient with a scale and shape consistent with our observations in wild-type embryos (Figure 4B). To reproduce our experimental data, we simulated sensor cell assays (Figure 4B–D, sensor cells highlighted with white outlines). Expansion of the Nodal ligand gradient in MZoep mutants can be reproduced by simulating ‘hosts’ with the receptor concentration set to zero (Figure 4C). Similarly, restriction of signaling range via oep overexpression could be reproduced by increasing receptor levels in host cells, but not in the sensors (Figure 4D). A model in which Nodal capture rate is set by Oep concentration can therefore reproduce our major experimental findings.

Loss of Oep replenishment transforms nodal signaling dynamics

The simplified model presented above assumes that free receptor cannot be depleted by ligand binding. While convenient, this condition may be difficult for the embryo to achieve in practice. For example, maintaining receptors at high concentration would preclude depletion but could also prevent ligand from traveling long distances before capture. Another way for the embryo to avoid depletion would be to continually replace receptor components as they are consumed by ligand binding. To explore the role of receptor complex replacement in gradient formation, we explicitly incorporated receptor production and degradation into the model (Figure 5A).

Figure 5 with 1 supplement see all

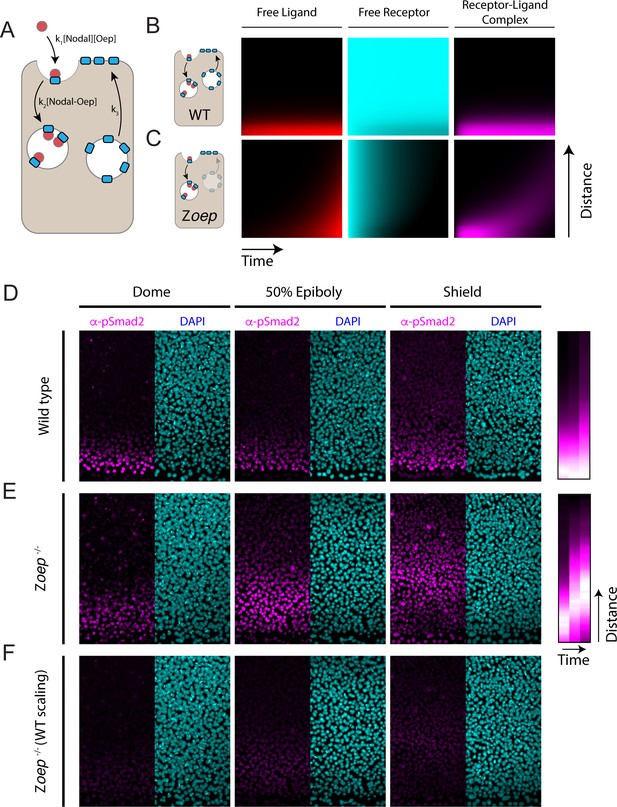

Loss of Oep replacement destabilizes the Nodal signaling gradient.

(A) Schematic of model incorporating production and consumption of receptors. Simulations presented here were performed on a one-dimensional tissue with length 300 μm. Oep replacement is assumed to be constant with rate k3, and Oep removal reflects a combination of constitutive and ligand-dependent endocytosis. In panels A and B, simulations are presented as kymographs; each image column shows the state of the system with the source at the bottom and animal pole at the top. Time proceeds from left to right. (B) Simulation of a wild-type gradient. With continual receptor replacement, the system achieves an exponential steady state gradient with length scale set by the ligand diffusion rate and receptor abundance. The free ligand, free receptor, and receptor-ligand complex concentrations are plotted from left to right in red, cyan, and magenta, respectively. (C) Simulation of gradient formation in a zygotic oep mutant. Simulation details are identical to (B), but with receptor replacement rate (k3) set to zero. The system fails to establish a steady state due to gradual consumption and degradation of receptors. Over time, the Nodal ligand gradient expands (red) to drive a propagating wave of signaling activity (i.e. receptor occupancy, magenta). (D) Time course of Nodal signaling activity in wild-type embryos. Representative α-pSmad2 (magenta) and DAPI (cyan) are shown for dome, 50% epiboly and shield stages (left, middle and right panels, respectively). Compilation of signaling gradients across replicates (far right) shows the establishment of the signaling gradient. Composite gradients were derived from 5, 6, and 6 replicate embryos for dome, 50% epiboly and shield stages, respectively. (E) Time course of Nodal signaling activity in zygotic oep mutants. Over time, the signaling pattern evolves from a gradient (dome stage) to a band displaced far from the margin (shield) as the wave travels outward. Compilation of signaling gradients across replicates (far right) illustrates the outward propagation of signaling. Composite gradients were derived from 7, 6, and 3 replicate embryos for dome, 50% epiboly, and shield stages, respectively. (F) Time course of Nodal signaling activity in zygotic oep mutants presented with pixel scaling equal to that used in (D). In accord with simulations, the wave of signaling propagates with a lower intensity than signaling at the margin of wild-type embryos.

Simulations incorporating receptor production and consumption generate stable exponential gradients (Figure 5B) with length scales comparable to our measurements in zebrafish embryos. To test the consequences of losing co-receptor replacement, we simulated gradient formation in a system that begins with a finite supply of free receptors that are not replaced. This change results in a surprising transformation of Nodal signaling dynamics; simulations with finite co-receptor supply generate a traveling wave of Nodal signaling that propagates outward from the ligand source (Figure 5C, magenta). These dynamics reflect the gradual consumption of co-receptors due to ligand binding and subsequent endocytosis (Figure 5C, cyan). Initially, when co-receptor is plentiful, the source generates a decaying gradient of signaling. Over time, receptors close to the source are depleted, allowing Nodal ligands to rapidly traverse this space, ultimately reaching a new population of sensitive cells. We note that wave formation does not critically depend on our assumptions regarding the mechanism of co-receptor downregulation; a model that incorporates Oep trafficking and recycling also supports our key conclusions (Figure 5—figure supplement 1). In sum, these simulations raise the possibility that co-receptor replenishment is a key determinant of the Nodal gradient shape.

To test this idea, we measured Nodal signaling patterns in zygotic oep mutants (Zoep) (Schier et al., 1997). This background reproduces the key assumptions of the model above: Zoep mutants begin with a finite supply of maternally provided oep mRNA but cannot express additional oep from the zygotic genome (Zhang et al., 1998). Indeed, previous studies have shown that maternally deposited oep mRNA is undetectable in Zoep mutants by germ ring stage (Zhang et al., 1998) and that oep mRNA is depleted from wild-type embryos by 60% epiboly in the absence of zygotic transcription (Vopalensky et al., 2018). We performed α-pSmad2 immunostaining in wild-type and Zoep mutant embryos at three timepoints following the initiation of Nodal secretion (dome, 50% epiboly and shield stages). Consistent with previous observations, the wild-type Nodal signaling profile monotonically decreases from the margin, decaying to background over ~8 cell tiers (Figure 5D). Strikingly, in Zoep mutants, Nodal signaling is restricted to the margin at dome stage (Figure 5E, left), but propagates outward to form a broad band of signaling by shield stage (Figure 5E, right). As predicted by the model, loss of co-receptor replacement by zygotic expression thus transforms a steady-state exponential gradient into a wave of Nodal signaling that propagates toward the animal pole. We note that, in accordance with model simulations, overall signaling intensity is lower in Zoep mutants due to lower overall co-receptor levels (Figure 5F). These results highlight the importance of continued co-receptor replacement in shaping the pattern of Nodal signaling.

Discussion

In this study, we set out to identify mechanisms that determine the Nodal signaling gradient range and shape. We find that endogenous Nodals secreted from the YSL can drive signaling over a normal range in the absence of feedback and relay mechanisms (Figure 1). We go on to demonstrate that expression of Oep, a Nodal co-receptor, regulates the spread (Figure 2), potency (Figure 3), and shape (Figure 5) of Nodal activity. We present a simple computational model that explains the Nodal signaling gradient in terms of free ligand diffusion and binding to cell surface receptor complexes (Figure 4). In this description, Oep regulates the range of ligand spread and sensitivity of embryonic cells by setting the rate of ligand capture. This simple model accommodates our main observations—gradient formation without feedback, increased signaling range in co-receptor mutants, restricted range with increased co-receptor expression, and a signaling wave in the absence of co-receptor replenishment.

Diffusion has long been regarded as an attractive mechanism for signal dispersal in tissues (Crick, 1970). Indeed, signaling patterns consistent with simple diffusion-degradation mechanisms—for example single-exponential gradients with length scales of ~10–100 µm— are common in developing tissues (Kicheva et al., 2012). Viewed in this light, the regulatory complexity of developmental patterning circuits is striking; if diffusion is sufficient to generate observed signaling patterns, why are co-factors and extensive feedback loops so common? One possible answer is that diffusion carries inherent disadvantages. For example, it has been argued that diffusible ligands would be impractical to contain without physical boundaries (Kornberg and Guha, 2007), and that diffusion-driven gradients would not be a reliable source of positional information (Wolpert, 2016). We and others have proposed feedback-centered Nodal patterning models that offer a way around these dilemmas (Müller et al., 2012; van Boxtel et al., 2015; Chen and Schier, 2002; Rogers et al., 2017; Nakamura et al., 2006). However, it has not been possible to clearly test whether feedback is required for the dispersal of endogenous ligands. This study is the first to examine the shape of the Nodal signaling gradient in the absence of feedback and relay. We found that a gradient of approximately normal range and shape can form even when feedback is disabled.

Recent studies in zebrafish embryos (van Boxtel et al., 2015) and human gastruloids (Liu, 2021) have proposed that long-range Nodal signaling relies on a positive feedback-driven relay. In zebrafish, this conclusion was based on the observations that Nodal signaling induces nodal gene expression (Meno et al., 1999) and the expression domain of a synthetic Nodal reporter gene coincides with, but does not extend beyond, the nodal expression domain (van Boxtel et al., 2015). While these findings are consistent with relay-driven transport, these previous zebrafish studies did not test whether the range of Nodal signaling indeed depends on nodal autoregulation and contracts when autoinduction is disrupted. Our findings directly address this question and reveal that relay mechanisms are not necessary for the generation of a Nodal signaling gradient in zebrafish. Nodal gene expression in the YSL is sufficient to establish a Nodal signaling gradient.

In human gastruloids, engineered gradients created with juxtaposed ‘sender’ and ‘receiver’ cells revealed that Nodal signaling is attenuated when receiver cells are nodal mutants (Liu, 2021). This experiment demonstrates that nodal autoregulation supports the spread of Nodal signaling; however, since nodal expression in sender cells was also reduced in this context, it remains unclear if autoregulation is required for maintaining the initial nodal source or for generating a relay of nodal expression.

It is conceivable that different tissues require distinct implementations of the Nodal-Lefty patterning system. For example, the rapid pace of zebrafish mesendodermal patterning may make diffusion the only viable Nodal transport mechanism, while slower development in mammalian embryos may permit the use of multi-step, feedback-driven transport mechanisms. Different features of the Nodal-Lefty system (activator-inhibitor signaling; differential diffusivity; positive and negative feedback) might be distinctly employed for pattern formation in different contexts.

Our study identifies new roles for EGF-CFC co-receptors in Nodal signaling. Oep has been traditionally regarded as a permissive factor for signaling Zhang et al., 1998; it facilitates Nodal association with Activin receptors (Cheng et al., 2003; Reissmann et al., 2001; Yeo and Whitman, 2001) but was not thought to regulate gradient shape or cell sensitivity (Gritsman et al., 1999; Zhang et al., 1998). Our observations suggest that— similar to receptors for Dpp (Lecuit and Cohen, 1998), Hh (Chen and Struhl, 1996) and Wg (Baeg et al., 2004)—Oep is a key determinant of the mobility and potency of its cognate ligand. Indeed, far from being a bystander in gradient formation, Oep is one of the strongest regulators of Nodal range yet discovered. This finding also suggests a potential explanation for a key feature of the Nodal patterning circuit: differential diffusivity between Nodal ligands and Lefty proteins. GFP-tagged Cyclops and Squint diffuse substantially slower than free GFP, whereas tagged Lefty proteins diffuse rapidly (Müller et al., 2012). This feature of Nodal ligands is consistent with a hindered diffusion model in which interactions with immobile binding partners leads to a slow ‘effective’ diffusion rate, even if free molecules diffuse rapidly (Müller et al., 2013; Müller et al., 2012). Our data raise the possibility that the differential diffusivity of Nodal and Lefty proteins originates in rates of capture by available receptor complexes.

Oep-mediated ligand capture and signaling sensitization results in short-range enhancement and long-range inhibition of Nodal signaling: close to the Nodal source, Oep binds Nodal and stimulates signaling, whereas far from the source, little Nodal is available due to Oep-mediated capture close to the source. Despite its distinct molecular roles, the Nodal signaling factor Oep thus has a function reminiscent of the Nodal inhibitor Lefty. Lefty is produced at the margin, but diffuses rapidly to inhibit Nodal signaling far from the source. A common theme for Nodal regulators is therefore to counteract the inherent potential for long-range Nodal diffusion and signaling and to restrict Nodal signaling to a domain near the ligand source.

Our results suggest that the embryo’s strategy for replenishing Oep is a key point of control over the signaling pattern. We found that, without this replacement, the Nodal signaling pattern is qualitatively transformed from a stable gradient into a propagating wave. Interestingly, a signaling wave of this type was predicted in a theoretical study of morphogen gradient formation by Kerszberg and Wolpert, 1998. In fact, they used this phenomenon to argue that receptor saturation would make stable gradients difficult to achieve by diffusive transport. Our results suggest that consumption of receptors can create precisely this type of unstable behavior, but that the embryo achieves a stable gradient through continual turnover of the receptor pool. Though not employed during mesendodermal patterning, this phenomenon could provide a simple means of repurposing the Nodal patterning circuit to create dynamic waves of signaling in other contexts. For example, in left-right patterning the consumption of Oep by Nodal might support the anterior spread of the expression of the Nodal gene southpaw (Long et al., 2003). More generally, signaling waves have emerged as a mechanism to coordinate diverse processes such as cell migration (Aoki et al., 2017), tissue regeneration (De Simone et al., 2021), and apoptosis (Cheng and Ferrell, 2018). Signaling feedback is generally invoked to explain these phenomena. However, our results suggest receptor depletion as an alternative, feedback-free mechanism of signaling wave formation. Finally, we speculate that the precise dynamics of Oep replacement might contribute additional interesting functions to patterning systems. For example, signaling-dependent receptor expression could confer robustness to fluctuations in source-derived morphogen production (Barkai and Shilo, 2009; Eldar et al., 2003).

The surprising dispensability of positive feedback for gradient formation parallels our findings on the role of negative feedback in Nodal patterning (Rogers et al., 2017). In that work, we showed that Lefty-mediated feedback—despite its extensive conservation across animals—was dispensable for normal development in zebrafish. Lefty was instead required for robustness; intact feedback loops enabled the embryo to correct exogenous perturbations to signaling. This raises the intriguing possibility that Nodal positive feedback serves a similar purpose. Though dispensable for gradient formation per se, positive feedback may help to ensure that a gradient of the appropriate shape and intensity forms even in the face of mutations, environmental insults or signaling noise.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or
reference
IdentifiersAdditional
information
Gene
(Danio rerio)
oep (tdgf1)ZFINZDB-GENE-990415–198
Gene
(Danio rerio)
ndr1 (sqt)ZFINZDB-GENE-990415–256
Gene
(Danio rerio)
ndr2 (cyc)ZFINZDB-GENE-990415–181
Gene
(Danio rerio)
smad2ZFINZDB-GENE-990603–7
Gene
(Danio rerio)
vg1 (gdf3)ZFINZDB-GENE-980526–389
Gene
(Danio rerio)
lft1ZFINZDB-GENE-990630–10
Gene
(Danio rerio)
lft2ZFINZDB-GENE-990630–11
Strain, strain background (Danio rerio)ABZIRCZDB-GENO-960809–7
Strain, strain background (Danio rerio)TLZIRCZDB-GENO-990623–2
Genetic reagent (Danio rerio)oeptz57Hammerschmidt et al., 1996RRID:ZDB-ALT-980203-1256
Genetic reagent (Danio rerio)sqttcz35Feldman et al., 1998RRID:ZDB-ALT-000913-2
Genetic reagent (Danio rerio)cycm294Sampath et al., 1998RRID:ZDB-ALT-980203-609
Genetic reagent (Danio rerio)smad2vu99Dubrulle et al., 2015RRID:ZDB-ALT-150807-1
Genetic reagent (Danio rerio)vg1a165Montague and Schier, 2017RRID:ZDB-ALT-180515-7
Genetic reagent (Danio rerio)lft1a145Rogers et al., 2017RRID:ZDB-ALT-180417-4
Genetic reagent (Danio rerio)lft2a146Rogers et al., 2017RRID:ZDB-ALT-180417-5
Recombinant DNA reagentpJZoepFlag1-2Zhang et al., 1998Template for in vitro transcription
Recombinant DNA reagentSV40NLS-sfgfp in pCS2+Gift from Dr. Jeffrey FarrellTemplate for in vitro transcription
Recombinant DNA reagentsqt-sfGFP in pCS2+Montague and Schier, 2017Template for in vitro transcription
Recombinant DNA reagentvg1-halotag in pCS2+This studyPlasmid can be obtained by reaching out to N.L.Template for in vitro transcription.
Recombinant DNA reagentsqt in pCS2+Müller et al., 2012Template for in vitro transcription
AntibodyAnti-phospho-smad2/3
(rabbit monoclonal)
Cell Signaling Technology#183381:1000 dilution
AntibodyAnti-GFP
(chicken monoclonal)
Aves Labs(RRID:AB_2307313)1:1000 dilution
AntibodyAnti-eCdh1
(mouse monoclonal)
BD Biosciences#610181
(RRID:AB_397580)
1:100 dilution
AntibodyGoat α-rabbit Alexa 647 conjugate
(goat monoclonal)
Thermo-Fisher ScientificA-21245
(RRID:AB_2535813)
1:2000 dilution
AntibodyGoat α-chicken Alexa 488
(goat monoclonal)
Thermo-Fisher ScientificA-11039
(RRID:AB_142924)
1:2000 dilution
AntibodyGoat α -mouse IgG (H + L)-Alexa 488
(goat monoclonal)
Thermo-FisherA-32723
(RRID:AB_2633275)
1:750 dilution
Peptide, recombinant proteinPronaseMillipore Sigma53702
Commercial assay or kitmMessage mMachine Sp6 kitThermo-FisherAM1340
Commercial assay or kitE.Z.N.A. Cycle PureOmega Bio-TekD6492-01
Commercial assay or kitE.Z.N.A. Total RNA Kit IOmega Bio-TekR6834-01
Chemical compound, drugkDa Alexa488-dextran conjugateThermo-FisherD34682
Chemical compound, drugJanelia Fluor HaloTag Ligand 646PromegaGA1120
Software, algorithmImageJ/FIJIImageJ/FIJIRRID:SCR_002285Image Analysis
Software, algorithmMATLABMathworksRRID:SCR_001622Image Analysis, Simulations

Genotyping

Request a detailed protocol

Genomic DNA was isolated via the HOTSHOT method from either excised adult caudal fin tissue or individual fixed embryos (Meeker et al., 2007). Genotyping was carried out via PCR under standard conditions followed by restriction enzyme digest when appropriate. For brevity, allele designations were omitted in the rest of the text. lefty1a145: The lefty1a145 allele contains a 13-base-pair deletion that destroys a PshAI restriction site and was detected as in Rogers et al., 2017. lefty2a146: The lefty2a146 allele contains an 11-base-pair deletion and was detected as described (Rogers et al., 2017). squintcz35 : The squintcz35 allele contains a ~ 1.9 kb insertion and was detected as in Feldman et al., 1998. cyclopsm294 : The cyclopsm294 allele contains a single nucleotide polymorphism (SNP) that destroys an AgeI restriction site and was detected as described (Sampath et al., 1998). oeptz57 : The oeptz57 allele contains a SNP that introduces a Tsp45I restriction site (Zhang et al., 1998; Hammerschmidt et al., 1996). The allele was detected via PCR amplification with primers AC102 and AC103 flanking the SNP followed by Tsp45I digestion overnight. A wild-type allele yields an undigested band of 285 bp, while a mutant allele yields bands of 140 bp and 145 bp. vg1a165 : The vg1a165 allele contains a 29 bp deletion and was detected as described (Montague and Schier, 2017). smad2vu99: The smad2vu99 allele contains a SNP that introduces a BtsCI restriction site (Dubrulle et al., 2015). The allele was detected via PCR amplification with primers NL-89 and NL-91 flanking the SNP followed by BtsCI digestion overnight. A wild-type allele yields an undigested band of 298 bp, while a mutant allele yields bands of 221 bp and 77 bp.

Zebrafish husbandry and fish lines

Request a detailed protocol

Fish were maintained per standard laboratory procedures (Westerfield, 1993). Embryos were raised at 28.5°C in embryo medium (250 mg/L Instant Ocean salt, 1 mg/L methylene blue in reverse osmosis water adjusted to pH seven with NaHCO3) and staged according to a standard staging series (Kimmel et al., 1995). Wild-type fish and embryos represent the TLAB strain. Lefty1, lefty2, squint, cyclops, oep, and vg1 mutant fish were maintained as previously described (Montague and Schier, 2017; Rogers et al., 2017; Zhang et al., 1998; Feldman et al., 1998; Sampath et al., 1998). Cyc+/-;oep-/-, and sqt+/-;oep-/- double mutants were generated by incrossing cyc+/-;oep+/- or sqt+/-;oep+/- respectively and rescuing them with an injection of 55 pg oep mRNA at the one-cell stage. Smad2-/- germline carrier fish were obtained by germline transplantation, using Smad2+/- incross progeny as germ cell donors (Ciruna et al., 2002). Germline carrier embryos were obtained by either incrossing EK fish or crossing dmrt1E3ins-/- female fish to dmrt1E3ins-/+ male fish. The dmrt1E3ins-/- and dmrt1E3ins-/+ fish were gifts from Kaitlyn A. Webster/Kellee R. Siegfried and were used with the intent of biasing germline carriers to female adult fates (Webster et al., 2017).

For experiments shown in the text, mutant embryos were derived as follows: MZoep embryos were obtained by crossing oep-/- adults; Zoep embryos were obtained by crossing oep ± females with oep-/- males (see genotyping below); MZsmad2 embryos were obtained by crossing smad2-/- germline carrier adults; Mvg1 embryos were obtained by crossing vg1-/- females with TLAB males; lft1-/-;lft2-/- embryos were obtained by crossing lft1-/-;lft2-/- adults; sqt+/+;MZoep, sqt+/-;MZoep, and sqt-/-;MZoep embryos were obtained by crossing sqt+/-;oep-/- adults; cyc+/+;MZoep, cyc+/-;MZoep, and cyc-/-;MZoep embryos were obtained by crossing cyc+/-;oep-/- adults.

mRNA synthesis and microinjection

Request a detailed protocol

pCS2 +vectors containing the CDS of either SV40NLS-sfgfp or oep were linearized with NotI and subsequently purified with the E.Z.N.A. Cycle Pure (Omega) kit. Purified templates were transcribed using the mMESSAGE mMACHINE SP6 (Invitrogen/Thermo Fisher Scientific) kit, and the resulting gfp and oep capped mRNAs were purified with the E.Z.N.A. Total RNA Kit I (Omega). Capped mRNA concentrations were evaluated via NanoDrop (Thermo Fisher Scientific) spectrophotometry. Kits were used per manufacturer’s respective protocols.

Sensor cell transplant experiments

Request a detailed protocol

Mvg1 sensor donors were injected with either 1 nl of 55 pg/nl gfp mRNA or 1 nl of 55 pg/nl gfp mRNA +110 pg/nl oep mRNA (Figure 3B) at the one-cell stage. MZsmad2 +oep hosts (Figure 3D) were injected with 1 nl of 110 pg/nl oep mRNA at the one-cell stage. Prior to injection, both donor and host embryos were enzymatically dechorionated using 1 mg/ml Pronase (Millipore Sigma). After injection, embryos were raised at 28.5°C in 1% agarose-coated plastic dishes in embryo medium. At high stage, donor and host embryos were placed in 1X Danieau’s buffer, and ~5–10 blastomeres were transplanted from the animal pole of donor embryos to the margin of host embryos, unless specified otherwise. After transplantation, host embryos were returned to embryo medium and raised to 50% epiboly at 28.5°C before fixation.

α-pSmad2 immunostaining

Request a detailed protocol

The protocol was modified from Rogers et al., 2017. Briefly, embryos were fixed in 4% formaldehyde overnight at 4°C in 1x PBSTw (1x PBS + 0.1% (v/v) Tween 20), washed in 1x PBSTw, dehydrated in a MeOH/PBST series (25%, 50%, 75%, and 100% MeOH), and stored at −20°C until staining. Embryos were rehydrated in a MeOH/PBSTr (1x PBS + 1% (v/v) Triton X-100) series (75%, 50%, and 25% MeOH), washed 3x in PBSTr, and manually de-yolked. Embryos were then incubated for 2 hr at room temperature (RT) in antibody binding buffer (PBSTr +1% (v/v) DMSO) before overnight incubation with 1:1000 α-pSmad2 antibody (Cell Signaling Technology #18338) and, when required, 1:1000 α-GFP antibody (Aves Labs AB_2307313) in antibody binding buffer at 4°C. After 1° antibody incubation, embryos were washed 6X with PBSTr before a 30 min RT incubation in antibody binding buffer. Embryos were then incubated in 1:2000 goat α-rabbit Alexa 647 conjugate (ThermoFisher A-21245) and, when required, 1:2000 goat α-chicken Alexa 488 conjugate (ThermoFisher A-11039) in antibody binding buffer. Embryos were then washed 6X with PBSTr and 1X PBSTw respectively before a 30 min RT incubation with DAPI. Embryos were washed 3X in PBSTr before dehydration in a MeOH/PBSTw series (50% and 100% MeOH). Embryos were stored at −20°C in MeOH until imaging.

Embryo clearing and imaging

Request a detailed protocol

Embryos were first cleared in 2:1 benzyl benzoate:benzyl alcohol (BBBA) (Yokomizo et al., 2012). After clearing, embryos were mounted in BBBA in individual wells of a 15-well multitest slide (MP Biomedicals). Mounting was performed under a Zeiss Stemi 2000 stereoscope fitted with a Nightsea adaptor system with UV filters and light head to enable embryo visualization. Embryos were then cracked with forceps before placement of a #1.5 coverslip, approximately flattening the embryos. The coverslip was secured with adhesive tape before imaging on a Zeiss LSM-700 inverted confocal microscope.

smFISH probe synthesis

Request a detailed protocol

Single-molecule fluorescent in situ hybridization (smFISH) probes against the coding sequences of cyclops and squint were designed using the Stellaris Probe Designer, with oligo length 18–22 bp and minimum spacing length two nucleotides. Probes were then checked for cross-reactivity between orthologs (probes with <4 mismatches were discarded) and ordered with 3’ C7 amino group modifications (IDT). Thirty-nine probes against cyclops and 44 against squint were purchased. Probe libraries for each gene were pooled, dehydrated in a Speedvac, and resuspended in water at a concentration of 1 mM. Probes were then coupled to Atto-647N NHS ester (Millipore Sigma #18373) per supplier protocol and purified with the Zymo Oligo Clean and Concentrator kit. Probe concentration was then determined using NanoDrop (Thermo Fisher Scientific) spectrophotometry.

smFISH staining and imaging

Request a detailed protocol

The smFISH staining protocol is modified from previous reports (Oka and Sato, 2015; Stapel et al., 2016). Briefly, embryos were fixed in 4% formaldehyde overnight at 4°C in 1x PBSTw (1x PBS + 0.1% (v/v) Tween 20), washed in 1x PBSTw, dehydrated in a MeOH/PBST series (50% and 100% MeOH), and stored at −20°C until staining. Embryos were rehydrated in a MeOH/PBSTw (50% and 100% PBSTw) series before manual deyolking. Embryos were then incubated in pre-hybridization buffer (preHB) (10% formamide, 2x SSC, 0.1% (v/v) TritonX-100), 0.02% (w/v) BSA, and 2 mM ribonucleoside-vanadyl complex (NEB) for 30 min at 30°C before overnight incubation with 10 nM probes in hybridization buffer (10% (w/v) dextran sulfate (MW 500,000) in preHB) at 30°C in the dark. After staining, embryos were washed 2 × 30 min at 30°C in hybridization wash solution (10% (v/v) formamide, 2x SSC, 0.1% (v/v) Triton X-100) before a brief wash in 2x SSC +0.1% (v/v) Tween-20. Finally, embryos were incubated for 20 min at 30°C in 0.2X SSC before a 15-min incubation in DAPI and 2 × 2 x SSC +0.01% Tween washes.

For membrane staining, 1:100 α-eCdh1 antibody (BD Biosciences #610181) was added overnight with the probes in hybridization buffer. After the 20 min 0.2X SSC wash, 1:750 Goat α -mouse IgG (H + L)-Alexa 488 (ThermoFisher A32723) in PBSTw was added, and embryos were incubated for 2 hr at RT in the dark. Embryos were washed 6X with PBSTw before a 15 min DAPI incubation and 2 × 2 x SSC +0.01% Tween washes.

For mounting, embryos were kept in 2X SSC, cut from the margin to the animal pole with a scalpel, and mounted in 2X SSC on a standard glass slide between two double-sided adhesive tape bridges (3M Scotch). A #1.5 coverslip then approximately flattens the embryo and is secured in place by the adhesive tape. Mounted embryos were then imaged on a Zeiss LSM-880 inverted confocal using the Airyscan detector.

Image segmentation

Request a detailed protocol

Staining intensities for individual nuclei were compiled for Figures 13. Nuclei were segmented from DAPI channel images using a custom pipeline implemented in MATLAB as described previously (Rogers et al., 2017). Before segmentation, each image stack was manually inspected to identify acceptable z-bounds. Lower bounds were chosen to exclude internal YSL nuclei from the segmentation. Briefly, for each slice, out-of-plane background signal was approximated by blurring adjacent Z-slices with a Gaussian smoothing kernel and subtracted. Nuclei boundaries were identified using an adaptive thresholding routine (http://homepages.inf.ed.ac.uk/rbf/HIPR2/adpthrsh.htm). Spurious objects were discarded by morphological filtering (area threshold followed by image opening with a disc-shaped structuring element).

Three-dimensional objects were compiled from the two-dimensional segmentation results with a simple centroid-matching scheme. A disc of diameter five pixels was defined centered at the centroid of each two-dimensional object, and three-dimensional objects were identified by object labeling with a 6-connected neighborhood. Intuitively, this procedure matches objects whose centroids are separated by <10 pixels (i.e. twice the disc diameter used prior to object matching). Objects that fail to span at least 2 Z-slices were discarded. Fluorescence intensities in the DAPI, GFP and pSmad2 channels were compiled as average pixel intensities within the three-dimensional segmentation boundaries.

Genotyping of Zoep, cyc;oep, and sqt;oep mutant embryos

Request a detailed protocol

Crosses leading to homozygous Zoep, cyc;oep, and sqt;oep mutant embryos were generated from non-homozygous parents. Specifically, Zoep embryos were generated by crossing an oep-/- male against a oep+/- female; cyc;oep embryos were generated from a cross between cyc+/-;oep-/- parents; sqt;oep embryos were generated from a cross between sqt+/-;oep-/- parents. To identify the genotype of embryos used for imaging, each embryo was manually cut into halves (i.e. through the animal pole) with a clean scalpel after pSmad2 immunostaining. One half of the embryo was dehydrated for clearing and imaging (as described in the α-pSmad2 immunostaining methods section), and the other was used for genomic DNA preparation and genotyping. Genotyping was carried out for each mutation as summarized above. For Zoep staining, genotyping was carried out as described for 30% epiboly and 50% epiboly stages; this revealed that Zoep embryos could be clearly identified by average staining intensity. Shield-stage Zoep embryos were identified by staining intensity.

Sensor cell identification and gradient quantification

Request a detailed protocol

All gradient quantifications in Figures 13 plot nuclear staining intensity as a function of distance from the embryonic margin. Because the margin boundary is curved in our flat mounts, these distances are not a simple function of position within the image. A semi-automated routine was therefore implemented in MATLAB to calculate the distance from the margin for each nucleus. In brief, the YSL-embryo boundary was manually identified and drawn using maximum intensity projections of the DAPI channel. This boundary was then converted into a binary mask and a distance transform was applied. After the distance transform, every pixel in the image adopts a value equal to its distance to the closest non-zero pixel (i.e. the margin contour); the distance from the margin for each nucleus was defined as the pixel intensity of the distance transform image at the corresponding centroid position.

In order to quantify the gradients in Nodal-insensitive host embryos, sensor cells had to be specifically identified. A classification scheme based on nuclear GFP intensity was therefore devised. Because there was some background α-GFP staining, even in cells that did not receive gfp mRNA, the approximate baseline GFP intensity was identified by taking a sliding window median of GFP staining intensity as a function of nuclear distance from the margin. GFP+ cells were identified as having nuclei brighter than 3-fold above the local baseline, and GFP- cells were identified as having staining intensity at or below the local baseline. These thresholds are stringent and resulted in some false-negative nuclear classifications (e.g. likely GFP+ nuclei that failed to be classified as such). However, they do ensure that the nuclei plotted in the main text represent only clear GFP+ or GFP- populations. This analysis was also performed using less stringent thresholds and manual correction of results, which generated comparable conclusions to the results presented in the paper.

After calculation of GFP staining status and distance from the margin for each nucleus, average gradients were compiled. To facilitate comparison between replicate embryos, the pSmad2 staining intensities were normalized to the baseline intensity (i.e. average nuclear intensity of all nuclei falling between 150 and 200 µm) from the margin. After this normalization, data from each embryo were pooled, and average gradients were compiled with a sliding window average (solid curves in quantified gradients in Figures 13) with a window size of 20 µm. Due to sparse sampling of the gradients by sensor cells, some statistical fluctuations in average gradient shape are evident (e.g. the ‘hump’ in Figure 2C).

YSL-specific expression and visualization of Halo-tagged Vg1-Squint heterodimers

Request a detailed protocol

In Figure 3—figure supplement 1, visualization of Halo-tagged Vg1-Squint heterodimers was achieved using a modified sensor cell assay. Donor and host embryos were collected in 1X E3 medium at the one-cell stage and immediately dechorionated with 1 mg/ml Pronase (Protease type XIV from Streptomyces griseus, Millipore Sigma). Host embryos for the MZoep +oep mRNA condition were injected with 110 pg oep mRNA at the one-cell stage. Wild-type donor embryos were injected with 110 pg oep mRNA and 0.6 ng of 3 kDa Alexa 488-dextran conjugate (Invitrogen) at the one-cell stage. Sensor cells derived from oep-injected donors were used to enhance the sensitivity of the assay. As increased oep expression improves ligand capture (Figure 2B), fluorescent ligand accumulation was easier to observe using these sensors.

Between the 512-cell stage and the 1 k-cell stage, when the YSL has become an obvious structure, the YSL of host embryos was injected at four adjacent points with 0.065 nl of 255 ng/µl vg1-HaloTag mRNA, 167 ng/µl squint mRNA, and 90 ng/µl gfp mRNA. Injected host embryos were left to recover in 1X E3 medium at 28.5°C for 20 min before being transferred to 1.5 mL non-stick surface micro-centrifuge tubes (VWR) filled with 250 µl of 200 nM Janelia Fluor HaloTag Ligand (Promega) that had been diluted in 1X E3 medium. Tubes were then placed at a shallow ~10° angle and left in the dark at 28.5°C for 1 hr.

After staining, embryos were transferred into 1X Ringer’s solution (116 mM NaCl, 2.8 mM KCl, 1 mM CaCl2, 5 mM HEPES) for transplantation. Cells were transplanted from the animal pole of oep-injected wild-type donor embryos to the animal pole of host embryos. After transplantation, host embryos were left to recover in 1X Ringer’s solution for 10 min before being transferred back to 1.5 mL non-stick surface micro-centrifuge tubes (VWR) filled with 250 µl of 200 nM Janelia Fluor HaloTag Ligand (Promega) that had been diluted in 1X E3 medium. Tubes were again placed at a shallow ~10° angle and left in the dark at 28.5°C.

Thirty min before imaging, embryos were removed from HaloTag ligand solution and washed 2 × 7 min in 1X E3 medium in separate wells of a 1% agarose-coated plastic 6-well plate. After washing, embryos were mounted in 1% low melting point agarose on glass-bottom Petri dishes (VWR) with animal poles facing the coverslip. After initial agarose droplets containing embryos had set, the entire coverslip was covered in 1% low melting point agarose and subsequently covered in 1X E3 medium after setting.

Embryos were imaged on a confocal microscope with Olympus IX83 stand, UPL S APO 30x silicon oil objective, Yokogawa CSU-W1 confocal scanner unit, and Hamamatsu ORCA-Fusion camera. Adjacent Z slices were taken with 3 µm spacing.

Visualization of Squint-sfGFP gradients with transplanted source cells

Request a detailed protocol

In Figure 2—figure supplement 3, ectopic Squint-sfGFP gradients were generated in wild-type, MZoep and oep-overexpressing MZoep hosts using transplanted source cells. This was carried out as described previously (Müller et al., 2012). Briefly, wild-type donors were injected with 250 pg sqt-sfgfp mRNA and 0.2 ng of 10 kDa Alexa647-dextran conjugate (ThermoFisher) at the one-cell stage. MZoep +oep hosts were injected with 110 pg oep mRNA at the one-cell stage. All embryos were stored in 1% agarose-coated plastic plates in 1X E3 medium at 28.5°C after injection.

At sphere stage, embryos were transferred to 1X Ringer’s solution for transplantation. Approximately 50 source cells were removed from donor embryos and left briefly in 1X Ringer’s solution to allow for the dissipation of any cellular debris and residual secreted ligand before approximately transplantation to the animal pole of host embryos. Embryos were left in 1X Ringer’s solution for 10 min to recover before being transferred to 1X E3 medium in 1% agarose coated plates at 28.5°C in the dark. After 1 hr and 40 min from the time of the last transplantation, embryos were mounted in 1% low-melting point agarose on glass-bottom Petri dishes and imaged by confocal microscopy as described in the previous section.

Gradients were quantified as previously described (Müller et al., 2012). Briefly, maximum intensity projections comprising 15 consecutive confocal slices were prepared for each embryo. A region of interest adjacent to the transplanted clone (approximately 150 μm long by 40 μm wide) was extracted from each projection image. Average background intensities from ungrafted control embryos were subtracted, fluorescence intensities were averaged within 1 μm bins, and curves were smoothed by sliding window averaging (window size of 5 μm). The resulting curves were sampled every 5 μm. Each curve was normalized to the fluorescence intensity immediately adjacent to the source.

Kymograph preparation in Figure 5D and E

Request a detailed protocol

In the experimental section of Figure 5, kymographs were presented that average the behavior of replicate embryos (bars to the right of representative images in Figure 5D and E). To prepare these kymographs, the distance from the margin for each pixel in the maximum intensity projection α-pSmad2 image was calculated as described in the above section. Pixels were then binned by distance from the margin and averaged across embryos to generate the plots in Figure 5. Each vertical bar in the plot was drawn for all of the data from a given stage (from left to right: dome, 50% epiboly and shield). Color scalings were selected for visibility and are not equivalent between the wild-type and Zoep datasets.

Gradient simulations

Request a detailed protocol

Sensor cell assay simulations were implemented in MATLAB using the PDE toolbox. Simulations were carried out on a two-dimensional rectangular slab (100 × 300 µm) with no-flux boundary conditions. The Nodal source was simulated as a thin strip of tissue (the first 5 µm) that produced Nodal at a constant rate. Sensor cells were simulated as small circular domains with permeable boundaries (6 µm diameter) in which parameters (e.g. presence or absence of free receptors) could be set independently of the rest of the tissue. Simulations were run ~2.5 hr of simulation time in an effort to mimic the normal duration of Nodal gradient spread in zebrafish embryos. Simulations are described in detail in the SI (Reproduction of sensor cell assay with gradient simulations). Plots in Figure 4 depict the entire tissue domain at the conclusion of the simulations.

Simulations incorporating receptor production and replacement were implemented in MATLAB using pdepe. Simulations were carried out on a one-dimensional tissue (300 µm long) with no-flux boundary conditions. The Nodal source was simulated as a thin strip of tissue (the first 5 µm) that produced Nodal at a constant rate. Simulations were run for ~2.5 hr of simulation time in an effort to mimic the normal duration of Nodal gradient spread in zebrafish embryos. Simulations are described in detail in the SI (Gradient simulations accounting for receptor production and consumption). Plots in Figure 5B and C are kymographs summarizing the state of the system at regularly sampled times. Each column of kymograph shows the concentration of a given component at each position in the system (‘YSL’ at the bottom), and adjacent columns are separated by 20 s of simulation time. Kymographs begin plotting data at t = 0 to capture the transients associated with gradient formation. Pixel scalings (i.e concentration scales) are not identical between Figure 5b and c; scalings were chosen to maximize data visibility. Due to the absence of receptor replacement, concentrations of free receptor and receptor-ligand complexes are markedly lower in Figure 5c (in accordance with experimental data in Zoep mutants, see Figure 5F).

Appendix 1

Computational Models of Nodal Gradient Formation

Reproduction of sensor cell assay with gradient simulations

Simulations presented in Figure 4 were implemented using the MATLAB PDE toolbox. The host embryo was represented as a two-dimensional rectangular slab (100 × 300 µm). ‘Sensor cells’ were simulated as circular domains of 6 µm diameter—with independently set simulation parameters— scattered throughout the rectangular domain. Equations governing the model are specified as below:

N(x,t)t=DN2Nx,t-k1Nx,tR+k-1C(x,t)
Cx,tt=k1Nx,tR-k-1Cx,t-k2Cx,t
Sx,tt=ksCx,t-k-sS(x,t)

Where N(x,t), C(x,t), and S(x,t) refer to the concentration of free Nodal, Nodal-Receptor complex, and pSmad2 at position x at time t, respectively. Parameter values are summarized in the table below. All boundaries are specified as no-flux, and Nx,t=0=0 and Sx,t=0=0 were assumed for initial conditions. The Nodal source was simulated by specifying a constant Nodal production rate (λN) for points lying in the region 0 ≤ x5. For simplicity, we assume the receptor concentration, R, to be constant at each position throughout the simulation. Simulations were run for ~2.5 hours of simulation time to mimic the normal duration of Nodal spread in zebrafish embryos.

Remarks:

  1. These simulations instantiate a simple model of morphogen gradient formation—constant synthesis at a localized source coupled with linear degradation—that has been discussed at length elsewhere (Rogers and Schier, 2011; Wartlick et al., 2009; Zhou et al., 2012; Lander et al., 2002). The steady state gradient for this is a single exponential with length scale set by the diffusion constant and effective Nodal degradation rate (i.e. through complexing with the receptor). Small deviations from this expectation arise due to the finite size of the Nodal source domain.

  2. For the plots in the main text, we track signaling through S, the concentration of phosphorylated Smad2. We assume the phosphorylation rate to be first-order with respect to the ligand-receptor complex—effectively that unphosphorylated Smad2 is neither depletable nor present in high enough concentrations to reveal saturation of receptor complex kinase activity—and the dephosphorylation rate to be first order with respect to S. Intuitively, this means that S reflects receptor occupancy over a time window of ~1/k-s. Signaling could also be tracked as the concentration of occupied receptor and yields qualitatively similar results.

  3. For simulations of sensor cells transplanted into MZoep hosts (Figures 2B, 4C), the receptor concentration (R) was set to zero outside of the sensor cell boundaries. Within these boundaries, R was kept at the ‘wild-type’ level (i.e. at the same levels as in the simulations from Figure 4b). We note that the increased signaling intensity in this background reflects the fact that binding with receptor is the only available degradation pathway for the ligand; when R=0, available ligand concentrations are substantially higher throughout the “embryo”.

  4. For simulations of sensor cells transplanted into oep-overexpressing hosts (i.e. MZsmad2 + oep mRNA, Figures 3d, 4d), R was increased by a factor of 2 throughout the host regions, and ks was set to zero to mimic the absence of Smad2. Simulation parameters within the sensor cell regions retained their ‘wild-type’ values.

Gradient simulations accounting for receptor production and consumption

The model presented in Figure 5 explicitly accounts for production and consumption of receptor components. For the figure panels, the model was simulated on a 1-dimensional domain of length 300 µm. Model equations were specified as follows:

N(x,t)t=DN2Nx,t-k1Nx,tR(x,t)+k-1C(x,t)
R(x,t)t=k3-k1Nx,tR(x,t)+k-1Cx,t-k-RR(x,t)
Cx,tt=k1Nx,tR-k-1Cx,t-k2Cx,t

Here, N(x,t), R(x,t), and C(x,t) refer to the concentration of free Nodal, free receptor and receptor-Nodal complexes, respectively, at position x and time t. No-flux boundary conditions were assumed at both ends of the domain, and Nodal was produced at a constant rate λN within a source domain covering 0x5. Nx,t=0 and Cx,t=0 were initiated at zero throughout the field, and Rx,t=0 was set to λR/k-R for all positions. Simulations were implemented in MATLAB using pdepe.

  1. In this model, receptor synthesis is treated as constitutive throughout the field, and degradation occurs through ligand-dependent and ligand-independent mechanisms. The ligand-dependent pathway occurs through degradation of receptor-ligand complexes (schematically represented as endocytosis in Figures 4 and 5, rate k2Cx,t). The ligand-independent pathway is assumed to be first-order with respect to free receptor (rate k-RR(x,t)).

  2. Direct degradation of the receptor—once we have made the step of assuming constitutive production– is required to achieve steady state concentrations of free receptor outside the domain of ligand diffusion. In the absence of this degradation route, receptor levels increase without bound far from the source as the synthesis term is not coupled to receptor levels. We note that this constitutive degradation explains the gradual decrease of free receptor levels far from the source in the Figure 4C; without replacement, ligand-independent degradation would eventually remove all of the receptor in the system. We include this degradation mechanism in the ‘Zoep’ simulations for parity, however the signaling wave occurs even with k-R set to 0.

  3. Ligand-dependent removal of receptor is the key requirement for appearance of the signaling wave in Zoep mutants. While we regard ligand-dependent endocytosis of receptor complexes as biologically plausible, our model is agnostic to the actual mechanism. Other mechanisms can be imagined; for example, irreversible inactivation of receptor-ligand complexes that remain on the cell surface could also support formation of a wave provided that the ligand does not dissociate. Indeed, we suspect that any mechanism through which ligand binding renders receptors incapable further ligand capture or signaling would support wave formation.

  4. For Figure 5B and C, we summarize the simulation results for each component with kymographs. Each column of these images shows the state of the 1-dimensional system—with source at the bottom and ‘animal pole’ at the top—at each point. Simulation time proceeds from left to right, and each plot represents two hours of simulation time. We note that, with biologically reasonable parameters, we observe formation of a stable gradient with receptor replacement and clear propagation of the wave without receptor replacement.

  5. We chose to use a diffusion rate of 30 μm2/sec for the Nodal ligand. We note that this rate is substantially faster than the effective diffusion rate observed by Muller et al. We chose this value to illustrate that—even for a highly diffusive ligand— short-range gradients can be generated by efficient capture. Use of the previously measured diffusion rate (~3 μm2/sec) does not compromise formation of the wave and is therefore not critical for the conclusions of the paper. Instead, this change results in a traveling wave with a ‘narrower’ profile, as diffusing ligand does not travel as far into a field of free receptor before capture.

Model Parameters

ParameterDescriptionValueIntuition for valueReference
λNNodal source production rate8e-6 μM/sec~3 Nodal ligand molecules/min per cell-
DNFree Nodal diffusion rate30 μm2/secMSD of ~ 650 μm after 2 hrMüller et al., 2012
k1Nodal-Receptor association rate10/ μM*secMean time to capture of ~ 2 s at initial Oep concentrationDe Crescenzo et al., 2003
k-1Nodal-Receptor dissociation rate6.25e-4/secMean time to dissociation of 25 minDe Crescenzo et al., 2003
k2Nodal-Receptor complex internalization rate1.7e-3/secMean time to internalization of 10 minJullien and Gurdon, 2005
k3Receptor production rate1.6e-5 μM/secApproximately 0.7 molecules/sec produced by a cell of 10 μm diameter-
k-RReceptor degradation rate (ligand independent)2.7e-4/secAverage lifetime of 1 hr-
N(x,t = 0)Free ligand initial condition0 μM for all xEmbryo starts out with no Nodal.-
R(x,t = 0)Free receptor initial condition0.06 μM for all xApproximately 2900 molecules for a cell of 10 μm diameterDyson and Gurdon, 1998
C(x,t = 0)Nodal-Receptor complex initial condition0 μM for all xEmbryo starts out with no receptor-ligand complexes.-

Gradient simulations accounting for receptor trafficking

Cell culture studies have suggested that canonical TGF-β receptors are internalized at the same rate whether bound or unbound by ligand (Anders et al., 1997). However, the model presented in Figure 5 assumes that the rate of receptor endocytosis increases upon ligand binding (i.e. k2 > k-R). As discussed in remark three in the previous section, this mechanistic assumption is not critical for wave formation. Instead, the key requirement is that ligand binding results in an increase in the effective clearance rate of receptors. For the TGF-β system, this requirement can be satisfied at the level of receptor trafficking; active receptors are ‘downregulated’ after endocytosis (Mitchell et al., 2004), while inactive receptors are recycled back to the plasma membrane. To demonstrate that this mechanism could support wave formation, we formulated a model that explicitly accounts for endosomal trafficking.

N(x,t)t=DN2Nx,t-k1Nx,tRout(x,t)+k-1Cout(x,t)
Rout(x,t)t=k3-k1Nx,tRoutx,t+k-1Coutx,t-k-RRoutx,t+kreRin(x,t)
Coutx,tt=k1Nx,tRout(x,t)-k-1Coutx,t-k-RCoutx,t
Rinx,tt=k-RRoutx,t-klysRinx,t-kreRin(x,t)
Cinx,tt=k-RCoutx,t-klysCinx,tF

Here, N(x,t), Rout(x,t), Coutx,t,Rin(x,t), and Cin(x,t) refer to the concentration of free Nodal, free external receptor, external receptor-Nodal complexes, internalized free receptor and internalized Nodal-receptor complexes, respectively, at position x and time t. No-flux boundary conditions were assumed at both ends of the domain, and Nodal was produced at a constant rate λN within a source domain covering 0x5Nx,t=0, Coutx,t=0, Rinx,t=0 and Cinx,t=0 were initiated at zero throughout the field, and Routx,t=0 was set to λR/k-R for all positions. Simulations were implemented in MATLAB using pdepe. Example simulation results are presented in Figure 5—figure supplement 1.

Remarks:

  1. This model assumes that the rates of internalization of free and bound receptors are identical (internalization rate constant of k-R in both cases). Ligand binding increases the rate of receptor clearance at the level of receptor trafficking; the rate of clearance of Cin increases by a factor F over internalized free receptor (Rin).

  2. As in the model presented in the previous section, Zoep mutants were simulated by setting the receptor synthesis rate (k3) to 0. This results in the same transformation we observed before; with receptor replacement the signaling gradient is stable, without replacement signaling propagates outward.

  3. We regard the trafficking rates (k-R,kre and klys) as approximate but biologically plausible. The residence time of receptors at the plasma membrane is set by k-R (average lifetime ~1 hr), and our chosen value is consistent with measurements of TGF-β receptors in cell culture (Mitchell et al., 2004), as well as Activin receptors in Xenopus embryos (Jullien and Gurdon, 2005). Selections for kre and klys lead to residence times in the endosomal compartments of ~20 min for activated and inactivated receptors. The choices for these values can tune the rate of wave propagation, but are not critical for the qualitative behavior within plausible ranges of variation.

Trafficking Model Parameters

ParameterDescriptionValueIntuition for valueReference
λNNodal source production rate4e-5 μM/sec~15 Nodal ligand molecules/min-
DNFree Nodal diffusion rate30 μm2/secMSD of ~ 650 μm after 2 hrMüller et al., 2012
k1Nodal-Receptor association rate10/μM*secMean time to capture of ~ 2 s at initial Oep concentrationDe Crescenzo et al., 2003
k-1Nodal-Receptor dissociation rate6.25e-4/secMean time to dissociation of 25 minDe Crescenzo et al., 2003
k3Receptor production rate1.6e-5 μM/secApproximately 0.7 molecules/sec produced by a cell of 10 μm diameter-
k-RReceptor internalization rate2.7e-4/secAverage lifetime of 1 hr-
kreReceptor recycling rate8.3e-4/secAverage residence of ~ 20 min in endosome before recycling to membrane-
klysLysosomal trafficking rate8.9e-05Average residence time of ~ 3 hr in endosome before clearance-
FFactor increase in clearance rate10Activated receptors reside in endosome for ~ 20 min before clearance-
N(x,t = 0)Free ligand initial condition0 μM for all xEmbryo starts out with no Nodal.-
R(x,t = 0)Free receptor initial condition0.06 μM for all xApproximately 2900 molecules for a cell of 10 μm diameterDyson and Gurdon, 1998
C(x,t = 0)Nodal-Receptor complex initial condition0 μM for all xEmbryo starts out with no receptor-ligand complexes.-

Data availability

Source data files have been provided for all quantified immunofluorescence datasets.

References

  1. Book
    1. Berg HC
    (1993)
    Random Walks in Biology
    NJ, USA: Princeton University Press.
  2. Conference
    1. Ericson J
    2. Briscoe J
    3. Rashbass P
    4. van Heyningen V
    5. Jessell TM
    (1997)
    Graded sonic hedgehog signaling and the specification of cell fate in the ventral neural tube
    Cold Spring Harbor Symposia on Quantitative Biology. pp. 451–466.
    1. Lecuit T
    2. Cohen SM
    (1998)
    Dpp receptor levels contribute to shaping the Dpp morphogen gradient in the Drosophila wing imaginal disc
    Development 125:4901–4907.
  3. Book
    1. Westerfield M
    (1993)
    The Zebrafish Book: A Guide for the Laboratory Use of Zebrafish (Brachy Danio rerio
    OR, USA: Zebrafish International Resource Center.

Decision letter

  1. Lilianna Solnica-Krezel
    Reviewing Editor; Washington University School of Medicine, United States
  2. Naama Barkai
    Senior Editor; Weizmann Institute of Science, Israel
  3. David Umulis
    Reviewer; Purdue University, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

In developing embryos cells make fate decisions using morphogens, diffusible signaling molecules that induce concentration-dependent responses in target cells. The manuscript by Lord et al., addresses the question of how the Nodal morphogen gradient forms in developing zebrafish embryo. This work offers two main findings: first, diffusion is sufficient for the Nodal gradient formation without a relay of Nodal production; second, the co-receptor Oep shapes the Nodal gradient and restricts its range by ligand capture.

Decision letter after peer review:

Thank you for sending your article entitled "The pattern of Nodal morphogen signaling is shaped by co-receptor expression" for peer review at eLife. Your article is being evaluated by 3 peer reviewers, and the evaluation is being overseen by a Reviewing Editor and Naama Barkai as the Senior Editor.

Given the number of questions and concerns raised by the three reviewers about the data, their interpretation and conclusions drawn, the manuscript requires significant amount of experimental work before it can be accepted at eLife. The reviewers expressed skepticism whether the authors could address them within two months under normal circumstances. Below I summarize the key questions and concerns expressed by the reviewers and the experiments considered by the reviewers as essential. I also include the complete reviews for your perusal.

1. There was a consensus that the proposed model that Nodal signaling activity is not determined by signaling feedback but rather is set by the EGF-CFC co-receptor Oep, to be novel and significant. However, they also thought these main conclusions are quite speculative at this point. A main issue is that the distribution of Nodal ligands in the various experimental conditions is indirectly inferred from the levels of downstream pSmad2 signaling. Specifically, direct observation of the ligands in different oep homozygous and heterozygous mutant and overexpression backgrounds can help to resolve some of the key issues raised by all reviewers. This would rule out that the effects are due to changed balance in positive and negative feedback in signaling rather than ligand distributions. The Schier lab has visualized these ligands in the past (Müller et al., 2012) and could address this issue directly by comparing ligand distributions in WT and MZoep mutants, as well as in oep overexpression condition.

2. The genetic background used for the sensor cells (Mvg1) is a major concern for the analysis and interpretation of these experiments. Although, Vg1 can form heterodimers with both Nodal ligands and is required for their endogenous activity, residual Nodal signaling still persists in MZvg1 mutant embryos (Pellicia et al., eLife. 2017). Accordingly, injection of relatively low doses of squint mRNA (10pg) in MZvg1 mutant embryos is sufficient to induce Goosecoid expression (Montague et al., eLife. 2017; Pellicia et al., eLife. 2017). Therefore, the "sensor" cell assay should be repeated using sqt;cyc double mutant cells to ensure all positive feedback signaling is absent.

3. Moreover, it will be crucial to demonstrate the requirement for ligand-induced acceleration of endocytosis (this is beyond normal endocytosis model that rely on constitutive endocytosis).

4. In addition, there are several simulation questions, which need addressing (please also see the individual reviews below).

a. The rate for λ n is not provided.

b. In supplemental material for the model description: The model requires a very high endocytosis rate for the traveling wave to work.- on the order of 1.7*10-3/sec (supplement table). This is 10-20 times faster than estimates for BMP receptors and endocytosis (Pomreinke et al. 2017), however not measured here. This leads to a half-life of 6.8 minutes. That is much faster than other turnover studies from Ed Leof's data for TGF-β endocytosis in a number of cell culture studies inconsistent with modeling studies in TGF-β.

5. The transplanted cells do not seem to remain highly cohesive and rather spread within the blastoderm (Figures 1, 2 and 3). This is an important issue, as a given sensor cell might end up positioned away from the margin, but have initially been located close to the YSL and therefore received a very high dose of Nodal ligands, independently of long-range ligand diffusion. Thus, the authors should analyze sensor cell dispersion post-transplantation and their p-Smad2 signaling status in a more dynamic manner.

6. To support the rationale of Oep loss and traveling wave, the level of maternal RNA over time should be analyzed by RT PCR to quantify maternal RNA loss to see if consistent with timing of wave or cite where this data is available.

7. The authors claim that the p-Smad2 gradient is expanded in MZoep host embryos. However, there are hardly any cells quantified for the control transplants at more than 100µms distance from the margin. The authors should address this issue.

8. Both the number of transplanted sensor cells and their distance to the YSL is highly variable across experimental conditions (compare Figures 1, 2 and 3). This renders the interpretation of the results difficult. Therefore, the authors should perform a detailed analysis of the p-Smad2 behavior as a function of the number of transplanted sensor cells and their distance to the YSL. Perhaps, by binning their data in sub-classes and plotting the variability in p-Smad2 staining across the transplanted cell cluster.

9. Related to that, in the simulations in Figure 4 the size of the clones is very small compared to the experimental data and one cannot get an impression of any position-dependent differences in signaling activity. The level of signaling as a function of position differs in the different experimental conditions – the simulations should allow assessing whether the model adequately captures these changes.

10. A central claim in this manuscript is that the Oep co-receptor critically modulates the diffusion range of the Nodal ligands. The Oep overexpression experiments in Figure 3 show opposite phenotypes. In Figure 3B there is a very large oep overexpressing clone which touches the margin and shows pSmad signaling several cell diameters away from the margin. In Figure 3D a sensor clone in oep overexpressing background shows almost no signal at a comparable distance to the margin. How do the authors reconcile this?

11. The authors state (lines 165-167) that "Loss of Oep led to an expanded range of action of both Cyclops and Squint" based on the "sensor" experiment performed in MZoep;sqt and MZoep;cyc double mutant. However, this conclusion is supported by single images from these double mutants without any quantification. To make this conclusion, such experiments need to be quantified as illustrated in Figure 1B. This is important, as this result would imply that it is Oep that discriminates between Cyc and Sqt ligands and their distinct signaling range, demonstrated by earlier work from the Schier lab and also in this manuscript.

Reviewer #1:

1. To address the key question of how the Nodal signaling gradient is formed in zebrafish embryos and the relative contributions of Nodal ligand diffusion and feedback signaling for this process, the authors established a transplantation-based "sensor" cell assay. However, the genetic background used for the sensor cells (Mvg1) is a major concern for the analysis and interpretation of these experiments. Although, Vg1 can form heterodimers with both Nodal ligands and is required for their endogenous activity, residual Nodal signaling still persists in MZvg1 mutant embryos (Pellicia et al., eLife. 2017). Accordingly, injection of relatively low doses of squint mRNA (10pg) in MZvg1 mutant embryos is sufficient to induce Goosecoid expression (Montague et al., eLife. 2017; Pellicia et al., eLife. 2017). Therefore, the "sensor" cell assay should be repeated using sqt;cyc double mutant cells to ensure all positive feedback signaling is abolished.

2. The transplanted cells do not seem to remain highly cohesive and rather spread within the blastoderm (Figures 1, 2 and 3). This is an important issue, as a given sensor cell might end up positioned away from the margin, but have initially been located close to the YSL and therefore received a very high dose of Nodal ligands, independently of long-range ligand diffusion. Thus, the authors should analyze sensor cell dispersion post-transplantation and their p-Smad2 signaling status in a more dynamic manner.

3. Both the number of transplanted sensor cells and their distance to the YSL is highly variable across experimental conditions (compare Figures 1, 2 and 3). This renders the interpretation of the results difficult. Therefore, the authors should perform a detailed analysis of the p-Smad2 behavior as a function of the number of transplanted sensor cells and their distance to the YSL. Perhaps, by binning their data in sub-classes and plotting the variability in p-Smad2 staining across the transplanted cell cluster.

4. A central claim in this manuscript is that the Oep co-receptor critically modulates the diffusion range of the Nodal ligands. In Figures 3c and d, the authors claim that modulating Oep levels in MZsmad2 hosts dramatically reduces the range of p-Smad2 activation in sensor cells. While this seems to be the case when comparing the data in Figures 3c and d, this is not the case when looking at the example for the same control experiment in Figure 1c (Mvg1 → MZsmad2). Why would this be the case?

5. The authors claim that "by facilitating capture of Nodal ligands, Oep regulates range and intensity of the Nodal activity gradient". Although the author's theoretical model is consistent with this interpretation, this remains to be experimentally tested. For this, the authors could analyze the intra- versus extracellular distribution of Nodal ligands ligands in homo- and heterozygous oep mutant embryos, in Zoep mutants and upon oep overexpression in a wt background.

6. Additionally, the authors should experimentally measure the diffusion dynamics of both Nodal ligands in homo- and heterozygous oep mutant embryos, in Zoep mutants and upon oep overexpression in a wt background. Furthermore, it would be interesting to perform similar measurements for Lefty 1 and 2, given the authors suggestion that binding to Oep results in different diffusion ranges for Nodals and Leftys.

7. The dynamics of Oep decay in zygotic oep mutants should be studied in this study.

8. Is the function of Oep in controlling the Nodal signaling range specific? Or would modulating Activin receptor expression produce similar phenotypes?

9. It is unclear why the transplantation assays are reproduced using different parameters from those used to simulate the Nodal signaling gradient in Figure 5. Can the authors comment on why this is? It would be preferable to use similar parameters to reproduce both the transplantation assays and the in vivo gradients.

10. It would be interesting to test whether Lefty overexpression in the MZoep background is sufficient to reduce the Nodal signaling range in sensor cells.

Reviewer #2:

In the paper by Lord et al., the authors address two important questions regarding the formation of the Nodal gradient (Cyclops and Squint) from the YSL 6-8 cells into the margin- a pathway that is also regulated by Nodal inhibitors lefty1/2. First, the authors address a recent hypothesis that the nodal signaling gradient is formed by a sequence of positive feedback expression events in a relay that initiates in YSL and that diffusion or transport is not the mechanism of gradient formation. In the process of addressing this, they identify the role for the co-receptor Oep that "sets cell sensitivity" to Nodal. Overall, addressing the feedback question in MZsmad2 embryo hosts with clones of nodal sensitive cells establishes gradient formation in the absence of feedback- this is quite a challenging but convincing experiment to determine the range of Nodal without feedback.

In regards to MZoep mutants, the behavior of MZoep is consistent with co-receptor activity- increasing sensitivity by presumably increasing the formation of receptor competent receptor complexes, while simultaneously impacting gradient spread due to additional ligand capture. Basically- increase the frequency of ligand capture shapes the gradient by reducing the length scale, related to the dimensionless Thiele modulus (ratio of the reaction rate to diffusion rate). The behavior of systems without feedback in the presence of a co-receptor are very well developed and known, so it is unclear what new information is provided by the simulations in figure 4 that behaves similarly to other systems with receptors, binders, and ligand capture. In the model and supplemental materials for the model, the first test assumes "pseudo first-order kinetics"- making the gradient formation a linear ODE at steady-state and it is shown that 4A-it forms a gradient; in 4B- when there's no decay by setting receptor levels to zero, the gradient expands- increasing the rate of decay by receptors reduces the range. Thus 4A-4D really prove things that are widely known in general and have been shown analytically and numerically in many papers. Some papers that have carried out similar but more developed analysis on trapping and/or endocytosis with and without diffusion include the following: (Lander, Nie and Wan, 2002; Lander, 2007) (Coppey et al., 2007; Coppey et al., 2008) (Eldar et al., 2003) (Lander et al., 2020) (Umulis et al., 2006) (Hornung, Berkowitz and Barkai, 2005) some more effort looking at previous co-receptor simulations or mathematical studies that relate binders to gradients should be considered.

Next, in figure 5C, the experiment suggests development of a traveling wave due to receptor depletion. This only occurs in the simulation when there is a "ligand-induced" increase in endocytosis. The preponderance of evidence in cell culture and for other TGF-β ligand-receptor systems, supports an alternative hypothesis- that receptors are constitutively turned over at a constant rate dependent on the turn-over of the membrane via clathrin-mediated endocytosis. The evidence for a positive feedback on the rate of receptor endocytosis in this system that is essential to the underlying hypothesis is not provided. The system that doesn't have ligand-induced endocytosis will not lead to a traveling wave.

The hypothesis for the wave here in the simulation relies on too many unsubstantiated requirements- and is therefore speculative. It requires rapid and ligand-induced endocytosis, loss of receptors and no resupply by maternal transcript (PCR not shown) and operating far from saturation- or it would be a flat signal.

To support the hypothesis, experiments could be attempted to:

1. Determine how close to saturation the receptors are via determining maximum signaling achievable in overexpressed sqt. If it is near saturation, then excess nodal will lead to no increases in PSmad2.

2. Determine the level of maternal RNA over time by RT PCR to quantify maternal RNA loss to see if consistent with timing of wave or cite where this data is available.

3. Block or use endocytosis deficient clones to better determine the validity of the critical ligand-induced endocytosis hypothesis.

4. Identify whether Oep is part of the receptor complex or if it dissociates before signaling- the model is predicated on the co-receptor functioning as the receptor. It is hard to envision a system where to co-receptor is part of the complex for TGF-β and signaling, and then if it is not a part of the complex, then how is ligand-induced rapid endocytosis of the Oep achieved?

In addition there are many simulation questions:

– the rate for λ n is not provided,

In supplemental material for the model description: The model requires a very high endocytosis rate for the traveling wave to work.- on the order of 1.7*10-3/sec (supplement table). This is 10-20 times faster than estimates for BMP receptors and endocytosis (Pomreinke et al., 2017), however not measured here. This leads to a half-life of 6.8 minutes. That is much faster than other turnover studies from Ed Leof's data for TGF-β endocytosis in a number of cell culture studies inconsistent with modeling studies in TGF-β.

The units for parameter k1 are not correct in the parameter table- the nodal-receptor association rate. Perhaps, they should be (uM sec)-1. Otherwise the units in the differential equations are not consistent. Also the reference is for BMPRII binding rate. The dissociation constant (assuming the rate parameter units is a typo) is then 6.25 X 10-5 μm or 6.25*10-2 nM. This is quite high and would saturate receptors at 0.12 nM. Here are some constants from Aykul et al.

Ligand Interacting ka(s-1M-1s-1) kd(s-1) Kd(nM)

Nodal ACTRIIA 2.0×104 2.0×10-3 100

ACTRIIB ~4.9×104 (est) ~4.9×10-4 (est) ~10 (est)

BMPRII 3.1×105 4.6×10-5 0.149

ALK4 ~4.6×104 (est) ~3.2×10-4 (est) ~15 (est)

ALK7 No Binding

Cripto-1 1.0×104 2.6×10-4 16

Cryptic 5.5×102 1.0×10-3 2,000 †

Reviewer #3:

The manuscript by Lord et al., addresses the question of how the Nodal morphogen gradient forms during zebrafish development. This work makes two main points: (1) the Nodal gradient can be established by diffusion alone without a relay of Nodal production; (2) the co-receptor Oep shapes the Nodal gradient and restricts its range by ligand capture. While the presented observations are novel, relevant and important for understanding the mechanism of gradient formation in this system, the conclusions and interpretation require further support. In particular:

1. A main issue is that the distribution of Nodal ligands in the various experimental conditions is indirectly inferred from the levels of downstream pSmad2 signaling. The conclusions are strongly worded, implying proportionality between Nodal ligand levels and pSmad2 levels, eg. in MZSmad2 (line 146-147) and MZoep embryos (line 174-175). However, the pSmad2 levels in this system are dependent not only on the level of activators (Sqt, Cyc), but also on the level of negative regulators such as lefty1 and 2. Although lef1, lef2 are key negative regulators, they might not be the only Nodal-dependent negative feedback on pSmad2. Thus, it is difficult to rule out the possibility that the effects that the authors are seeing on pSmad2 range in the MZSmad2 and MZoep embryos are due to modified negative feedback, rather than distribution of Sqt and Cyc. The Schier lab has visualized these ligands in the past (Müller et al., 2012) and could address this issue directly by comparing ligand distributions in WT and MZoep mutants, as well as in oep overexpression condition.

2. The Oep overexpression experiments in Figure 3 show opposite phenotypes. In Figure 3B there is a very large oep overexpressing clone which touches the margin and shows pSmad signaling several cell diameters away from the margin. In Figure 3D a sensor clone in oep overexpressing background shows almost no signal at a comparable distance to the margin. How do the authors reconcile this?

3. In the simulations in Figure 4 the size of the clones is very small compared to the experimental data and one cannot get an impression of any position-dependent differences in signaling activity. The level of signaling as a function of position differs in the different experimental conditions – the simulations should allow assessing whether the model adequately captures these changes.

4. To draw their conclusions, the authors make certain assumptions about cell rearrangements in this tissue (or the lack thereof). These assumptions are not stated or justified. This needs to be done both for interpreting the results in MZSmad2 and MZoep embryos, but also in the traveling wave experiments in Figure 5 where they look at a later stage (Schield).

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "The pattern of Nodal morphogen signaling is shaped by co-receptor expression" for further consideration by eLife. Your revised article has been evaluated by Naama Barkai (Senior Editor) and a Reviewing Editor.

The manuscript has been improved and the reviewers were satisfied with the revisions. However, the reviewers requested that your response to point 5 (regarding cell rearrangements) should be incorporated into the main text of the manuscript. This is important, so that readers are aware of the assumptions that are made in interpreting the experimental data and know what these assumptions are based on. Not all readers will be familiar with the zebrafish system and this information will make the study more accessible to a wider audience.

https://doi.org/10.7554/eLife.54894.sa1

Author response

1. There was a consensus that the proposed model that Nodal signaling activity is not determined by signaling feedback but rather is set by the EGF-CFC co-receptor Oep, to be novel and significant. However, they also thought these main conclusions are quite speculative at this point. A main issue is that the distribution of Nodal ligands in the various experimental conditions is indirectly inferred from the levels of downstream pSmad2 signaling. Specifically, direct observation of the ligands in different oep homozygous and heterozygous mutant and overexpression backgrounds can help to resolve some of the key issues raised by all reviewers. This would rule out that the effects are due to changed balance in positive and negative feedback in signaling rather than ligand distributions. The Schier lab has visualized these ligands in the past (Müller et al., 2012) and could address this issue directly by comparing ligand distributions in WT and MZoep mutants, as well as in oep overexpression condition.

We agree that direct visualization of the Nodal ligand gradient would be of great value. However, the reagents required to perform this task for endogenous ligands remain unavailable despite considerable effort. Indeed, it has been a central goal of our and other labs over the past 20 years to visualize endogenous Nodals by generating high-quality 𝛼-Squint and 𝛼-Cyclops antibodies and transgenic lines with fluorescently-tagged ligands. Unfortunately, these efforts have consistently failed due to the presumably very low levels of endogenous Nodal ligands in vivo. The sensor cell assay is the best and currently only answer to these limitations as it represents a very clear and quantitative read-out of Nodal signaling in zebrafish. This assay supports our conclusions about the spatial distribution of Nodal signaling activity.

While we cannot detect endogenous ligands, the reviewers are correct to point out that ligand visualization has been achieved via exogenous overexpression of fluorescently-tagged Nodals1. Following the suggestions of the reviewers, we performed two independent experiments to directly visualize fluorescently tagged Nodals in wild-type and MZoep mutants. First, we extended the experiments described in Müller et al., 20121 to visualize ectopic gradients of GFP-tagged Squint produced by transplanted sources in wild-type, Mzoep and oep-overexpressing MZoep host embryos (Figure 2. Supplement 3). Quantification of these gradients reveals that the Nodal gradient is extended in the absence of Oep. Notably, the gradient was shortened relative to wild type by overexpressing oep in MZoep hosts. Second, we used a variant of our sensor cell assay to directly visualize HALOtagged ligands secreted from the YSL (Figure 3 Supplement 1). This approach is akin to the morphotrap approach used in recent studies of morphogen signaling and distribution. In this experiment, mRNAs encoding vg1-HALO and squint were injected into the YSL, which corresponds to the endogenous Nodal expression domain. Sensor cells from donor embryos injected with oep mRNA were transplanted to the animal pole of these hosts. Ligand captured by the sensor cells was visualized by staining with HALO ligand and subsequent confocal microscopy. Notably, sensor cells accumulate substantial ligand in MZoep hosts (but not wild type), indicating an expanded range of travel from the YSL in the absence of the co-receptor. Taken together, these experiments with fluorescently-tagged, overexpressed ligand corroborate and extend our original findings. We note, however, that the sensor cell assay using pSmad2 as a read-out remains the only approach that enables inference of the distribution of endogenous, untagged ligands.

2. The genetic background used for the sensor cells (Mvg1) is a major concern for the analysis and interpretation of these experiments. Although, Vg1 can form heterodimers with both Nodal ligands and is required for their endogenous activity, residual Nodal signaling still persists in MZvg1 mutant embryos (Pellicia et al., eLife. 2017). Accordingly, injection of relatively low doses of squint mRNA (10pg) in MZvg1 mutant embryos is sufficient to induce Goosecoid expression (Montague et al., eLife. 2017; Pellicia et al., eLife. 2017). Therefore, the "sensor" cell assay should be repeated using sqt;cyc double mutant cells to ensure all positive feedback signaling is absent.

We went to great lengths in using vg1 mutant sensor cells instead of wild-type cells as sensors to minimize potential relay effects by Vg1-Nodal heterodimers. These heterodimers account for most if not all Nodal signaling in vivo and cannot form in the absence of Vg1. Even if there were very low levels of homodimeric ligands generated, this could not explain the activation of Nodal signaling in sensor cells far from the source, as outlined in detail below.

1. We find no evidence that sensor cells influence one another’s behaviors at a distance. If the Mvg1 sensors were able to propagate signaling via residual positive feedback, we would expect to observe higher signaling levels in sensors with nearby neighbors. However— as detailed in response to comment 8 below— we find that Nodal sensitivity is independent of proximity to other sensor cells. This result further justifies our conclusion that positive feedback is effectively removed in Mvg1 embryos (Figure 2 Supplement 2).

2. We have extensively studied vg1 mutants in both published2 and unpublished work. In Mvg1 embryos, cyclops and squint are expressed at approximately normal levels in the YSL, yet phosphorylated Smad2 is absent or strongly reduced (see updated Figure 1 Supplement 1 in the attached manuscript) and Nodal-induced gene expression is absent2,3. These observations show that even at the source of endogenous Nodal signals, potential Nodal homodimers are largely inactive in Mvg1 mutants. It is therefore highly unlikely that Mvg1 sensor cells could propagate signaling via release of Squint or Cyclops homodimers. Moreover, to generate a relay, Nodal-Vg1 heterodimers produced in the YSL of MZoep mutants would still have to travel to the closest sensor cells, which are often located far from the YSL.

3. The reviewers are correct that injection of 10 pg of squint mRNA into MZvg1 mutant embryos is sufficient to induce gsc expression. This argues that Squint can — in principle — be biologically active in the absence of Vg1. However, this activity depends on non-physiological expression levels; a 10 pg mRNA injection is not a ‘relatively low dose’. Calculations using the predicted molecular weight of the in vitro transcribed mRNA indicate that 10 pg corresponds to approximately 12 million transcripts, or about 12,000 transcripts per cell at the 1000-cell stage. We have extensively quantified squint transcript abundance using single-molecule FISH in wild-type embryos. In the blastula, the highest expressing cells contain only ~50 molecules. We note that Pellicia et al. found reducing the dose to 1 pg of squint mRNA (~1,200 transcripts per cell at the 1000-cell stage) —though still a large amount — was insufficient to induce Nodal target expression in vg1 mutants3. It is therefore virtually impossible for sensor cells—even if they are subject to high levels of Nodal signaling— to express squint in the amounts required to drive homodimeric Nodal signaling.

3. Moreover, it will be crucial to demonstrate the requirement for ligand-induced acceleration of endocytosis (this is beyond normal endocytosis model that rely on constitutive endocytosis).

The reviewers are correct that our model used ligand-dependent increase in the rate of endocytosis as a proxy for receptor clearance. We are happy to include alternative models because this particular molecular implementation is not strictly required to reproduce our major findings (e.g. wave formation in Zoep mutants). Rather, the key requirement is that ligand binding increases the effective rate of clearance of the receptor. We did not intend to make strong mechanistic claims about Oep endocytosis, trafficking or degradation. Our major finding is that Oep has unappreciated functions— regulation of ligand range through capture— that make the regulation of its expression particularly interesting. This led us to the striking discovery of the Zoep signaling wave. The purpose of the original model was to build intuition for this phenomenon using the simplest principles available.

Following the reviewers’ suggestions, we formulated a new model in which bound and unbound receptors are internalized with equal rates, but the rate of lysosomal trafficking is increased by ligand occupancy. In the newly-added Figure 5 Supplement 1 we show that this trafficking-oriented model also predicts a signaling wave in the Zoep mutants. We note that mechanistic basis exists to include ligand-dependent trafficking rates in the model. Activation-dependent receptor downregulation is a well recognized feature of TGF-b signaling4-6 and is included in published quantitative models of its function7. Importantly, activity-enhanced degradation of Nodal receptors has been described in zebrafish for the stages we examine in the paper8.

We have added the trafficking-oriented model to the resubmitted manuscript as a supplementary figure. We have also revised the manuscript to include a discussion of the molecular mechanisms that can support wave formation (Supplemental Text: Gradient simulations accounting for receptor trafficking).

4. In addition, there are several simulation questions, which need addressing (please also see the individual reviews below).

We thank the reviewers for their thoughtful evaluation of our model. We address the specific concerns highlighted by the editor below.

a. The rate for λ n is not provided

We apologize for the oversight. We selected a Nodal synthesis rate of 8 x 10-6 µM/s at the source. This corresponds to an approximate synthesis rate of ~3 molecules/min per cell within the source domain.

b. In supplemental material for the model description: The model requires a very high endocytosis rate for the traveling wave to work.- on the order of 1.7*10-3/sec (supplement table). This is 10-20 times faster than estimates for BMP receptors and endocytosis (Pomreinke et al. 2017), however not measured here. This leads to a half-life of 6.8 minutes. That is much faster than other turnover studies from Ed Leof's data for TGF-β endocytosis in a number of cell culture studies inconsistent with modeling studies in TGF-β.

There are several studies that support the plausibility of our endocytosis rate. We are aware of the TGF-b system measurements from the Leof lab, however, embryonic Nodal signaling differs from TGF-b signaling in differentiated cells in many respects. We therefore based our parameter choice on measurements from the Gurdon lab that were carried out in Xenopus animal cap cells using Activin, a signal from the Nodal family of TGF-b ligands9. In this more relevant context, antibody uptake experiments demonstrate that labeled surface receptors are completely internalized within 30 minutes. Rapid endocytosis of Nodal receptors is also supported by measurements in cell culture using a bona fide Nodal ligand10; pulse-chase experiments demonstrate that bound Nodal ligands are completely internalized and degraded within 60 minutes of presentation. We believe that these studies are sufficient to motivate our choice of internalization rate.

Further, the suggested rate for BMP receptor internalization is not strongly supported. The cited paper11 does not contain any measurements of BMP receptor stability. The value the reviewer appears to be referring to (λBMP = 8.9 × 10−5/s, approximately 20-fold lower than the endocytosis rate in our original model) represents the measured stability of overexpressed BMP2b-Dendra2 in an FDAP experiment. Given the availability of high-quality, direct measurements of receptor endocytosis rates for Nodal family ligands—both in embryos and cell culture— we do not see the value in relying on indirect measurements derived for a different ligand family.

That said, wave formation in Zoep mutants can be accommodated using slower rates of receptor internalization as suggested by the reviewer. The trafficking-oriented model (discussed in comment 3 above) assumes a constitutive receptor internalization rate of 2.7 x10-4/s, giving an average lifetime of ~1 hour on the cell surface for both bound and unbound receptors. This parameter selection still leads to a stable signaling gradient in ‘wild type’ simulations and a traveling wave in ‘Zoep’ simulations (see Figure 5 Supplement 1 in the attached revised manuscript). The key predictions of our models are therefore robust to substantial variation in internalization rate.

We have added an explanation for this parameter choice to the supplementary text (Supplemental Text: Gradient simulations accounting for receptor trafficking).

5. The transplanted cells do not seem to remain highly cohesive and rather spread within the blastoderm (Figures 1, 2 and 3). This is an important issue, as a given sensor cell might end up positioned away from the margin, but have initially been located close to the YSL and therefore received a very high dose of Nodal ligands, independently of long-range ligand diffusion. Thus, the authors should analyze sensor cell dispersion post-transplantation and their p-Smad2 signaling status in a more dynamic manner.

We shared the reviewers concerns about the role of cell movement in the sensor cell assay. This consideration was the purpose of performing control transplants into wild-type embryos. If transplanted sensors were accumulating Nodal close to the margin before moving toward the animal pole, we would observe high pSmad2 staining sensor cells far from the margin in wild-type embryos. This was not the case (see e.g. manuscript Figure 1B). Further, sensors transplanted directly to the animal pole of MZoep embryos still detected Nodal (Figures 2D,E). Explaining this result with migration would require the cells to traverse the entire embryo twice—down to the margin and back again— while retaining a memory of their Nodal signaling history. These experiments suggest that migration plays at best a very minor role in the readout of the sensor cells.

Additionally, our lab has performed extensive analysis of cell movement over the past decade. Endogenous marginal cells maintain their position relative to the margin during blastula stages12. Cells transplanted to the margin at early blastula stages— into wild-type or MZoep hosts— only begin to migrate upward after internalization during gastrulation13. Given that our analysis is carried out in blastula stages (i.e. prior to internalization), cell migration is a negligible concern.

6. To support the rationale of Oep loss and traveling wave, the level of maternal RNA over time should be analyzed by RT PCR to quantify maternal RNA loss to see if consistent with timing of wave or cite where this data is available.

We thank the reviewers for the comment and regret omission of the relevant citation in the original manuscript. Zhang et al. showed that maternal oep mRNA is no longer detectable at the germ ring stage in zygotic oep mutants14 (see Zhang et al., Cell 1998; Figure 5L). Moreover, a recent paper from the Vastenhouw lab15 measured oep transcript stability in the absence of zygotic transcription. They report that maternal transcripts are undetectable by 60% epiboly (within ~30 minutes of the final time point included in Figure 5). Further, they noted over-representation of ‘destabilizing’ codons in the oep transcript, consistent with rapid turnover. These findings suggest that the maternal oep supply is exhausted in the correct time window to support wave formation. We have added these considerations to the revised manuscript.

7. The authors claim that the p-Smad2 gradient is expanded in MZoep host embryos. However, there are hardly any cells quantified for the control transplants at more than 100µms distance from the margin. The authors should address this issue.

We agree that the paper would be improved by a more formal treatment of this issue. A statistical analysis indicates that the differences between the two gradients are significant. The difference in average staining intensity of sensor cells falling between 100 and 150 µm from the margin in wild-type and MZoep backgrounds is significant (Welch’s t-test, p = 4.4e-11). The difference between all cells in wild-type hosts (both host-derived and donor-derived) and sensor cells in the MZoep background within this spatial domain also tests as significant (Welch’s t-test, p = 2.2e-12). Further, comparing fit parameters for single-exponential decay models supports our conclusion that the gradient is significantly expanded in MZoep mutants (exponential decay constants +95% confidence bounds are -0.02 + 0.004 µm-1 and -0.007 + 0.002 µm-1 for wildtype and MZoep, respectively). We therefore do not find it likely that the differences between wild-type and MZoep embryos arises due to sampling issues associated with the transplant assay. We have added these considerations to the revised manuscript.

8. Both the number of transplanted sensor cells and their distance to the YSL is highly variable across experimental conditions (compare Figures 1, 2 and 3). This renders the interpretation of the results difficult. Therefore, the authors should perform a detailed analysis of the p-Smad2 behavior as a function of the number of transplanted sensor cells and their distance to the YSL. Perhaps, by binning their data in sub-classes and plotting the variability in p-Smad2 staining across the transplanted cell cluster.

We agree with the reviewers that this is a potentially interesting dimension to our dataset. We have performed the analysis and added it to the revised manuscript as Figure 2 Supplement 2.

In short, cell clustering does not appear to alter the behavior of the Mvg1 sensors. We calculated the deviation of each sensor’s pSmad2 staining intensity from the average intensity given its position (i.e. the residual with respect to the red curve in Figure 2b). If sensor cell clustering led to an increase in Nodal sensitivity—for example, through positive feedback interactions— we would expect to see cells with more neighbors have higher residuals. However, we observe no clear relationship between these quantities (Figure 2 Supplement 2C). Further, we find no relationship between the total number of sensor cells transplanted into each embryo and their signaling behavior (Figure 2 Supplement 2D). These results support the use of the sensor cell assay as a reliable readout of the Nodal gradient.

9. Related to that, in the simulations in Figure 4 the size of the clones is very small compared to the experimental data and one cannot get an impression of any position-dependent differences in signaling activity. The level of signaling as a function of position differs in the different experimental conditions – the simulations should allow assessing whether the model adequately captures these changes.

We thank the reviewer for the comment. To make the figures more easily comparable with the experimental data, we performed new simulations in which an increased number of sensors are randomly distributed throughout the field. By quantifying the signaling intensity in these sensors across replicate simulations, we compiled ‘gradient’ measurements comparable to the plots in Figures 1-3. These simulations illustrate the key features of the experimental data—i.e. oep absence extends the gradient, while oep overexpression shortens it— that are required to understand the model presented in Figure 5. The updated analyses have been added to Figure 4 in the revised main text.

10. A central claim in this manuscript is that the Oep co-receptor critically modulates the diffusion range of the Nodal ligands. The Oep overexpression experiments in Figure 3 show opposite phenotypes. In Figure 3B there is a very large oep overexpressing clone which touches the margin and shows pSmad signaling several cell diameters away from the margin. In Figure 3D a sensor clone in oep overexpressing background shows almost no signal at a comparable distance to the margin. How do the authors reconcile this?

This concern appears to arise from a misunderstanding. Both experiments are consistent with Oep regulating the diffusion range of Nodal ligands. In Figure 3B, the sensor cells overexpress Oep. This results in enhanced ligand capture and hypersensitivity to Nodal in the sensors. In Figure 3D the host cells overexpress Oep. As the host cells—which lack Smad2— capture Nodal at an enhanced rate, less ligand is available for the sensor cells, resulting in little detectable signaling activity. These phenotypes are two sides of the same coin and are the purpose of the figure. We also note that both of these effects are reproduced in the computational model of Figure 4 (see panels C and D in the attached revised manuscript). We have clarified these conclusions in the revised manuscript.

11. The authors state (lines 165-167) that "Loss of Oep led to an expanded range of action of both Cyclops and Squint" based on the "sensor" experiment performed in MZoep;sqt and MZoep;cyc double mutant. However, this conclusion is supported by single images from these double mutants without any quantification. To make this conclusion, such experiments need to be quantified as illustrated in Figure 1B. This is important, as this result would imply that it is Oep that discriminates between Cyc and Sqt ligands and their distinct signaling range, demonstrated by earlier work from the Schier lab and also in this manuscript.

The revised manuscript now contains gradient quantifications for MZoep;sqt and MZoep;cyc mutant embryos (see revised Figure 2 Supplement 1). These quantifications bear out that both Squint and Cyclops signal over a long range in the absence of Oep; the sensor cells exhibit clearly increased pSmad2 staining over background even 150 µm from the YSL. However, we stress that we do not claim that Oep has differential effects on Squint and Cyclops, nor do we believe that this point is crucial to the paper. Indeed, we are currently agnostic as to whether Oep is responsible for the range difference between Squint and Cyclops. The purpose of this figure was to demonstrate that both Cyclops and Squint can signal over a long range in the absence of Oep.

References:

1. Muller, P. et al. Differential diffusivity of Nodal and Lefty underlies a reaction-diffusion patterning system. Science 336, 721-724, doi:10.1126/science.1221920 (2012).

2. Montague, T. G. & Schier, A. F. Vg1-Nodal heterodimers are the endogenous inducers of mesendoderm. Elife 6, doi:10.7554/eLife.28183 (2017).

3. Pelliccia, J. L., Jindal, G. A. & Burdine, R. D. Gdf3 is required for robust Nodal signaling during germ layer formation and left-right patterning. Elife 6, doi:10.7554/eLife.28635 (2017).

4. Anders, R. A., Arline, S. L., Dore, J. J. & Leof, E. B. Distinct endocytic responses of heteromeric and homomeric transforming growth factor beta receptors. Mol Biol Cell 8, 2133-2143, doi:10.1091/mbc.8.11.2133 (1997).

5. Mitchell, H., Choudhury, A., Pagano, R. E. & Leof, E. B. Ligand-dependent and independent transforming growth factor-beta receptor recycling regulated by clathrinmediated endocytosis and Rab11. Mol Biol Cell 15, 4166-4178, doi:10.1091/mbc.e04-030245 (2004).

6. Dore, J. J., Jr. et al. Mechanisms of transforming growth factor-beta receptor endocytosis and intracellular sorting differ between fibroblasts and epithelial cells. Mol Biol Cell 12, 675-684, doi:10.1091/mbc.12.3.675 (2001).

7. Vizan, P. et al. Controlling long-term signaling: receptor dynamics determine attenuation and refractory behavior of the TGF-beta pathway. Sci Signal 6, ra106, doi:10.1126/scisignal.2004416 (2013).

8. Zhang, L. et al. Zebrafish Dpr2 inhibits mesoderm induction by promoting degradation of nodal receptors. Science 306, 114-117, doi:10.1126/science.1100569 (2004).

9. Jullien, J. & Gurdon, J. Morphogen gradient interpretation by a regulated trafficking step during ligand-receptor transduction. Genes Dev 19, 2682-2694, doi:10.1101/gad.341605 (2005).

10. Le Good, J. A. et al. Nodal stability determines signaling range. Curr Biol 15, 31-36, doi:10.1016/j.cub.2004.12.062 (2005).

11. Pomreinke, A. P. et al. Dynamics of BMP signaling and distribution during zebrafish dorsal-ventral patterning. Elife 6, doi:10.7554/eLife.25861 (2017).

12. Dubrulle, J. et al. Response to Nodal morphogen gradient is determined by the kinetics of target gene induction. Elife 4, doi:10.7554/eLife.05042 (2015).

13. Carmany-Rampey, A. & Schier, A. F. Single-cell internalization during zebrafish gastrulation. Curr Biol 11, 1261-1265, doi:10.1016/s0960-9822(01)00353-0 (2001).

14. Zhang, J., Talbot, W. S. & Schier, A. F. Positional cloning identifies zebrafish one-eyed pinhead as a permissive EGF-related ligand required during gastrulation. Cell 92, 241251, doi:10.1016/s0092-8674(00)80918-6 (1998).

15. Vopalensky, P., Pralow, S. & Vastenhouw, N. L. Reduced expression of the Nodal coreceptor Oep causes loss of mesendodermal competence in zebrafish. Development 145, doi:10.1242/dev.158832 (2018).

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

The manuscript has been improved and the reviewers were satisfied with the revisions. However, the reviewers requested that your response to point 5 (regarding cell rearrangements) should be incorporated into the main text of the manuscript. This is important, so that readers are aware of the assumptions that are made in interpreting the experimental data and know what these assumptions are based on. Not all readers will be familiar with the zebrafish system and this information will make the study more accessible to a wider audience.

We are grateful to the reviewers for their thorough review and we are happy to hear that they were satisfied with our revisions. We agree that the manuscript would be improved by adding a discussion of cell rearrangements in the sensor cell assay to the main text. We have made the following changes:

1. Cell rearrangement in the sensor cell assay is now explicitly addressed in the first Results section. We describe the controls used to rule out problems caused by cell rearrangements after transplant. Additionally, we added citations from the literature to support our claim that rearrangement is minimal prior to gastrulation in zebrafish.

2. We clarified and expanded the paragraph on relay-mediated spread of Nodal signaling in the discussion to incorporate insights from a recent preprint.

3. We expanded the paragraph on signaling waves in the discussion to provide better context for our discovery of a depletion wave in Zoep mutants.
