Spatially compartmentalized phase regulation of a Ca2+-cAMP-PKA oscillatory circuit

  1. Brian Tenner
  2. Michael Getz
  3. Brian Ross
  4. Donya Ohadi
  5. Christopher H Bohrer
  6. Eric Greenwald
  7. Sohum Mehta
  8. Jie Xiao
  9. Padmini Rangamani  Is a corresponding author
  10. Jin Zhang  Is a corresponding author
  1. Department of Biophysics and Biophysical Chemistry, The Johns Hopkins University School of Medicine, United States
  2. Department of Pharmacology, University of California, San Diego, United States
  3. Chemical Engineering Graduate Program, University of California, San Diego, United States
  4. Department of Mechanical and Aerospace Engineering, University of California, San Diego, United States
  5. Department of Chemistry and Biochemistry, University of California, San Diego, United States
Research Article
  • Cited 1
  • Views 538
  • Annotations
Cite this article as: eLife 2020;9:e55013 doi: 10.7554/eLife.55013

Abstract

Signaling networks are spatiotemporally organized to sense diverse inputs, process information, and carry out specific cellular tasks. In β cells, Ca2+, cyclic adenosine monophosphate (cAMP), and Protein Kinase A (PKA) exist in an oscillatory circuit characterized by a high degree of feedback. Here, we describe a mode of regulation within this circuit involving a spatial dependence of the relative phase between cAMP, PKA, and Ca2+. We show that in mouse MIN6 β cells, nanodomain clustering of Ca2+-sensitive adenylyl cyclases (ACs) drives oscillations of local cAMP levels to be precisely in-phase with Ca2+ oscillations, whereas Ca2+-sensitive phosphodiesterases maintain out-of-phase oscillations outside of the nanodomain. Disruption of this precise phase relationship perturbs Ca2+ oscillations, suggesting the relative phase within an oscillatory circuit can encode specific functional information. This work unveils a novel mechanism of cAMP compartmentation utilized for localized tuning of an oscillatory circuit and has broad implications for the spatiotemporal regulation of signaling networks.

Introduction

Cyclic adenosine monophosphate (cAMP) and Ca2+ act as essential second messengers in almost every cell type and regulate many functional pathways within a cell, such as hormonal signal transduction, metabolism, and secretion (Clapham, 2007; Sassone-Corsi, 2012). In some cell types, including neurons, cardiomyocytes, and pancreatic β cells, these messengers’ concentrations oscillate intracellularly (Dupont et al., 2011; Dyachok et al., 2006), and the oscillations encode critical signaling information (e.g. signal strength, duration, and target diversity) into parameters such as frequency and amplitude (Berridge et al., 1998; De Pittà et al., 2008; Parekh, 2011). This phenomenon is perhaps best exemplified in β cells, where oscillations of Ca2+ drive pulsatile insulin secretion (Rorsman and Ashcroft, 2018) and oscillating cAMP levels (Nesher et al., 2002; Tengholm, 2012). Furthermore, Ca2+, cAMP, and the downstream cAMP-dependent kinase protein kinase (PKA) constitute a highly coordinated oscillatory circuit responsible for integrating metabolic and signaling information (Ni et al., 2011). In addition to temporal control, biochemical pathways are also spatially organized within the cell (Smith and Scott, 2002; White and Anderson, 2005). Both Ca2+ and cAMP are highly spatially compartmentalized and form signaling microdomains or nanodomains (Calebiro and Maiellaro, 2014; Petersen, 2002). While Ca2+ levels are locally controlled by channels, pumps, and intracellular buffering systems (Clapham, 2007; Stern, 1992), cAMP is thought to be regulated via controlled synthesis by adenylyl cyclases (ACs) and degradation by phosphodiesterases (PDEs) (Bender and Beavo, 2006; Defer et al., 2000). Despite extensive studies on cAMP compartmentation, the mechanisms that spatially constrain this mobile second messenger await to be fully elucidated (Saucerman et al., 2014; Lohse et al., 2017; Musheshe et al., 2018; Bock et al., 2020; Zhang et al., 2020). Furthermore, it is not clear how the spatial regulation of a second messenger influences its dynamic behaviors in the context of coordinated oscillations.

In this study, we investigated the spatiotemporal organization of the Ca2+-cAMP-PKA oscillatory circuit in MIN6 β cells and discovered that the relative oscillatory phase between cAMP/PKA and Ca2+ is spatially regulated within signaling nanodomains. By combining dynamic live-cell imaging, super-resolution microscopy, and computational modeling, we further found that fine-scale, compartment-specific perturbations of this precise phase regulation impact Ca2+ oscillations in β cells. These findings suggest that the relative phase in oscillatory signaling circuits, like the amplitude and frequency, represents yet another mode of informational encoding and processing, which is subjected to spatiotemporal regulation within the cell.

Results

The relative phase of β cell cAMP and Ca2+ oscillations is compartmentalized

In order to study the spatiotemporal relationship between key players of the Ca2+-cAMP-PKA circuit, we chose to focus our attention on an important class of molecular scaffolds, A-kinase anchoring proteins (AKAPs), which are responsible for recruiting PKA to specific substrates at distinct subcellular locations. In several excitable cell types, the plasma membrane (PM)-localized scaffold protein AKAP79 (rodent ortholog AKAP150) has been shown to organize a macromolecular complex with binding partners that include PKA, the voltage-gated Ca2+ channel CaV1.2, Protein Kinase C (PKC), the Ca2+/calmodulin-dependent protein phosphatase calcineurin, Ca2+-sensitive ACs, AMPA receptors, and many others (Gold et al., 2011). Due to the extensive and multivalent nature of AKAP79/150 (as the scaffold is commonly referred) and a report describing the functional impairment of glucose-stimulated insulin secretion (GSIS) in pancreatic β cells upon its knock-out (Hinke et al., 2012), we hypothesized that the AKAP79/150 scaffold might play an important role in the spatiotemporal regulation of the Ca2+-cAMP-PKA oscillatory circuit. Specifically, we were interested in testing if AKAP79/150 is able to create a spatially-distinct compartment in which recruitment of signaling effectors can locally fine-tune and reshape signaling dynamics within the circuit (Beene and Scott, 2007; Greenwald and Saucerman, 2011).

To test this hypothesis, we monitored intracellular cAMP and Ca2+ using the FRET-based cAMP biosensor (Ci/Ce)Epac2-camps (Everett and Cooper, 2013) and the red Ca2+ indicator RCaMP (Akerboom et al., 2013). We measured cAMP concentration changes in the immediate vicinity of AKAP150 in mouse MIN6 β cells by using (Ci/Ce)Epac2-camps fused to the full-length AKAP79 scaffold (gene AKAP5) (Figure 1a). Although human AKAP79 and the rodent AKAP150 share only 53% sequence identity overall, the interaction motifs and association between the AKAP scaffold and other key signaling players such as PKA, the voltage-gated calcium channel, adenylyl cyclases, and calcineurin are highly conserved (Willoughby et al., 2010; Zhang et al., 2016). The primary difference between these two closely related scaffolds is the presence of an internal repetitive amino acid sequence of unknown function in AKAP150 (Robertson et al., 2009). The functional equivalence of AKAP79 and AKAP150 has been demonstrated in several reciprocal knock-out and recovery experiments in which AKAP79 or AKAP150 was knocked out and expression of the other was shown to rescue a measured phenotype (Hoshi et al., 2005; Zhang et al., 2011). As a control, we also targeted the cAMP probe to the general plasma membrane by adding a lipid modification domain (Wachten et al., 2010). These targeted biosensors allowed us to compare the dynamics within the AKAP79/150-specific compartment versus the general plasma membrane compartment (Figure 1a).

Figure 1 with 2 supplements see all

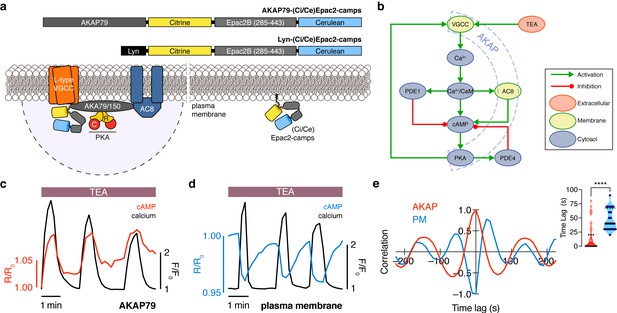

The phase of oscillating cAMP is shifted between the AKAP79/150 compartment and the general plasma membrane compartment, relative to Ca2+.

(a) Depiction of the AKAP79/150 and plasma membrane compartments, including the targeted cAMP biosensor (Ci/Ce)Epac2-camps to measure the compartment-specific cAMP signaling. Schematics of the lyn-(Ci/Ce)Epac2-camps and AKAP79-(Ci/Ce)Epac2-camps sensors are shown above. (b) Network diagram describing the key players in the β cell Ca2+-cAMP-PKA oscillatory circuit. (c) Representative single-cell trace of in-phase oscillating responses of AKAP79-(Ci/Ce)Epac2-camps and RCaMP, whole-cell fluorescence measured. Red trace is cAMP (cyan direct channel divided by CY-FRET channel) and black trace is Ca2+ (RFP). (d) Representative single-cell trace of out-of-phase oscillating responses of lyn-(Ci/Ce)Epac2-camps and RCaMP, whole-cell fluorescence measured. Blue trace is cAMP (cyan direct channel divided by CY-FRET channel) and black trace is Ca2+ (RFP). (e) Cross-correlation between the oscillatory Ca2+ and cAMP signals from the representative in-phase AKAP79 (red) and out-of-phase plasma membrane (PM, blue) responses from c, d. Time lag (sec) between the cAMP and Ca2+ signals for the two compartments (AKAP79/150, red, is 13 ± 3 sec n=60 and PM, blue, is 47 ± 4 s n=24). ****p<0.0001; unpaired two-tailed Student’s t-test.

Although both targeted sensors were trafficked to and distributed along the plasma membrane (Figure 1—figure supplement 1a,b), we observed notable differences in their respective cAMP signals relative to Ca2+ oscillations after triggering the circuit (Figure 1b) with tetraethylammonium chloride (TEA, 20 mM), a potent K+ channel blocker. cAMP oscillations measured within the AKAP79/150 compartment were in-phase with oscillating Ca2+, such that each transient spike in intracellular Ca2+ was closely associated with a transient increase in cAMP (Figure 1c) (n = 60 cells). This was in sharp contrast to cAMP oscillations measured within the general plasma membrane compartment, where each local Ca2+ peak corresponded to a local trough in cAMP (n = 24), followed by a slow reversal of both signals to a pre-stimulated baseline (Figure 1d). While these out-of-phase cAMP-Ca2+ oscillations were consistent with those observed in the cytoplasm of β cells (Landa et al., 2005; Ni et al., 2011), in-phase cAMP-Ca2+ oscillations had not previously been observed under these conditions. To quantify the cAMP-Ca2+ phase relationship, we measured the lag time by calculating the cross-correlation between the two normalized, oscillatory signals and finding the shortest delay yielding the maximum correlation (see Appendix 1 for details) (Figure 1e). In-phase cAMP oscillations corresponded to short lag times (typically <20 s), while out-of-phase oscillations mostly possessed longer lag times. Within the AKAP79/150 compartment, cAMP lagged behind Ca2+ by an average of only 13 ± 3 s (mean ± SEM, n = 60); however, cAMP within the general plasma membrane compartment oscillated with a lag time of 47 ± 4 s (n = 24) behind Ca2+ (Figure 1e). In order to measure these different cAMP dynamics within the same cells, we transfected MIN6 cells with two cAMP sensors of different targeting sequences and colors, AKAP79-(Ci/Ce)Epac2-camps and the red cytosolic cAMP sensor R-FlincA (Ohta et al., 2018). After stimulating the signaling circuit, we observed anti-correlated cAMP oscillations, indicating that cAMP oscillates with different phases between the cytosol/plasma membrane and the immediate vicinity of AKAP79/150 within the same cell (n = 25) (Figure 1—figure supplement 2). This stark difference in the cAMP-Ca2+ phase relationship suggests that the relative phase of this oscillatory circuit is compartmentalized and hints at differential regulation of the circuit between the AKAP79/150 compartment and the general plasma membrane compartment.

Oscillatory phase is regulated by balanced activities of Ca2+-sensitive ACs and PDEs

Given that in-phase cAMP oscillations were only observed within the AKAP79/150 compartment (Figure 1c) and that out-of-phase cAMP oscillations were observed in the general plasma membrane compartment (Figure 1d) and the cytoplasm (Ni et al., 2011), we hypothesized that Ca2+ oscillations are coupled to cAMP oscillations by a ubiquitous mechanism throughout the cell, while additional mechanisms specifically regulate the phase relationship within the AKAP79/150 compartment. We first sought to identify the component that is responsible for coupling cAMP dynamics to Ca2+ dynamics globally. Since TEA induces continuous Ca2+ oscillations, we determined the temporal relationship between Ca2+ and cAMP at the general plasma membrane more precisely by measuring the impulse response of the circuit following a transient membrane depolarization. After the addition of KCl (15 mM) followed by a subsequent washout to elicit a transient influx of Ca2+ (Dou et al., 2015), we observed a synchronous cAMP decrease (n = 20) followed by a return to baseline (Figure 2a). These data suggest that increasing cytosolic Ca2+ was coupled to a decrease in cAMP at the plasma membrane through Ca2+-sensitive AC or PDE activities. Given that Ca2+-inhibited ACs (AC5, AC6) have low specific activity in both the presence and absence of physiological Ca2+, as well as relatively low expression in the pancreas (Defer et al., 2000), we instead focused on probing the role of PDEs. The Ca2+-dependent PDE1 family in β cells, specifically PDE1C, has been implicated in modulating GSIS (Han et al., 1999). Indeed, acute addition of 8MM-IBMX (100 μM), a relatively selective PDE1 inhibitor, effectively uncoupled cAMP dynamics from Ca2+ oscillations (Figure 2b, Figure 2—figure supplement 1a) (n = 18), indicating that Ca2+-triggered activation of PDE1 mediates the transient cAMP decreases. We also observed that the overall increase in cAMP led to an increase in the Ca2+ oscillation frequency, consistent with the previously identified role of cAMP/PKA in regulating the Ca2+ oscillations (Ni et al., 2011). We tested the roles of two additional families of abundant PDEs in pancreatic β cells, PDE3 and PDE4, by acute pharmacologic inhibition. While treating cells with either milrinone (PDE3 inhibitor, 10 μM, n = 12) or rolipram (PDE4 inhibitor, 1 μM, n = 15) slightly increased cAMP levels, neither inhibitor had an effect on cAMP-Ca2+ coupling or relative phase (Figure 2—figure supplement 1b,c). These data suggest that PDE1 is the key component that couples Ca2+ and cAMP oscillations within this signaling circuit.

Figure 2 with 3 supplements see all

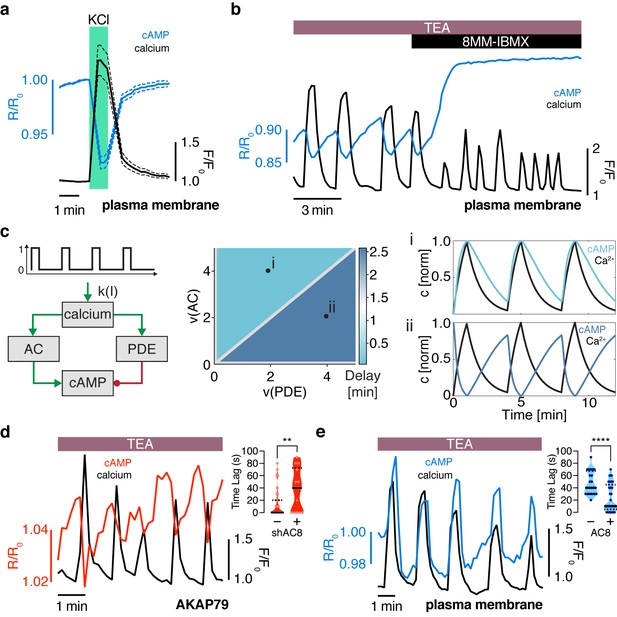

The oscillation phase is regulated by a balance between Ca2+-sensitive AC and PDE activity.

(a) Impulse response of plasma membrane cAMP (blue) to a spike in Ca2+ entry (black), triggered by KCl-mediated membrane depolarization (wash in/out). The transient decrease in PM-cAMP is coupled to the transient increase in intracellular Ca2+. (b) Acute inhibition of Ca2+-sensitive PDE1 decouples the out-of-phase PM-cAMP oscillations from Ca2+ oscillations, as observed in this representative cell trace (Ca2+ – black, PM-cAMP – blue). (c) The oscillatory phase of cAMP can be manipulated by tuning the relative activity of Ca2+-sensitive PDE and AC, as demonstrated by a simplified mathematical model. The schematic shows the network architecture. The relative activities of AC and PDE, denoted as v(AC) and v(PDE), control the delay between Ca2+ and cAMP. Point (i), with high AC activity and low PDE, shows in phase oscillations of Ca2+ and cAMP, whereas point (ii), with high PDE and low AC activity shows out of phase oscillations. These dynamics are shown in the line graphs. (d) Knocking down AC8 is correlated with an increase in the time lag for oscillatory cAMP at the AKAP79/150 microdomain (37 ± 9 s, n = 11), indicating more cells exhibiting out-of-phase cAMP oscillations (representative cell trace, Ca2+ – black, AKAP79/150-cAMP – red). (e) Over-expressing AC8 is sufficient to reverse the phase at the PM to in-phase (23 ± 2 s, n = 56) (representative cell trace, Ca2+ – black, PM cAMP – blue). **p=0.0014, ****p<0.0001; unpaired two-tailed Student’s t-test.

How is the phase relationship between Ca2+- and cAMP-regulated within distinct signaling compartments? In order to gain a more quantitative understanding of the regulation of the cAMP-Ca2+ phase relationship, we created a simplified well-mixed mathematical model involving Ca2+, cAMP, and Ca2+-driven PDE and AC activity components (Cooper et al., 1995; Figure 2c, see Appendix 1 for details). This simple circuit represents the key aspects of the oscillatory cAMP-Ca2+ circuit and is applicable to different signaling compartments. Opposite to the Ca2+-stimulated PDE1 (Ang and Antoni, 2002) is the Ca2+-stimulated AC8 (gene Adcy8) (Masada et al., 2009; Masada et al., 2012), an abundant Ca2+-sensitive transmembrane AC isoform in β cells that has been shown to mediate sustained insulin secretion and associate with the AKAP79/150 scaffold (Dou et al., 2015; Willoughby and Cooper, 2006; Willoughby et al., 2010). By computationally manipulating the activity of each arm, we found that cAMP can oscillate either out-of-phase or in-phase when a Ca2+ pulse train is used as an input (Figure 2c). In particular, when the relative activity of PDE1 is greater than the activity of AC8, Ca2+-driven cAMP degradation dominates, resulting in an out-of-phase cAMP-Ca2+ relationship. On the other hand, if the relative activity of AC8 is greater than that of PDE1, Ca2+-stimulated cAMP production is favored, and an in-phase relationship is observed, consistent with previous modeling studies (Fridlyand et al., 2007; Peercy et al., 2015).

Thus, our simplified model indicates that the phase relationship can be tuned by altering the relative strength between Ca2+-sensitive ACs and PDEs (Figure 2c). This model provided a blueprint for understanding the interplay between the Ca2+-stimulated AC/PDE balance and the cAMP-Ca2+ phase relationship within the AKAP79/150 compartment. Based on the findings from our model, we predicted that decreasing the relative contribution of AC8 will shift the cAMP-Ca2+ phase relationship from in-phase to out-of-phase. To test this prediction, we knocked down endogenous AC8 in MIN6 cells as previously done (Raoux et al., 2015) and observed that most cells exhibited out-of-phase cAMP oscillations within the AKAP79/150 compartment (average lag time 37 ± 9 s, n = 11) (Figure 2d), indicating an AC8-specific role in mediating the cAMP-Ca2+ phase signature.

Conversely, increasing the relative contribution of AC8, for example, by increasing the concentration of AC8 throughout the PM, should shift the cAMP-Ca2+ phase relationship from out-of-phase to in-phase. To test this prediction, we overexpressed full-length AC8 and examined the effect in the general plasma membrane compartment. Interestingly, we found that AC8 overexpression reversed the out-of-phase cAMP-Ca2+ phase relationship in a titratable manner, where the percentage of in-phase oscillating cells correlated with increasing amounts of co-transfected AC8 (average lag time 23 ± 2 s, n = 56) (Figure 2e, Figure 2—figure supplement 2a–d). In order to examine the effects of the targeted cAMP biosensors on AC8 expression, we also measured endogenous AC8 levels in cells transfected with either lyn-(Ci/Ce)Epac2-camps or AKAP79-(Ci/Ce)Epac2-camps and observed no significant difference (Figure 2—figure supplement 3a,b). These data demonstrate that higher levels of AC8 are sufficient to reverse the cAMP phase at the plasma membrane. In summary, these phase-manipulation experiments suggest that the cAMP-Ca2+ phase relationship is representative of a sensitive, compartmentalized balance between the Ca2+-stimulated activities of PDE1 and AC8.

Membrane-localized AKAP150:AC8 nanoclusters regulate cAMP-Ca2+ oscillatory phase

The close spatial juxtaposition between the AKAP79/150 and general plasma membrane compartments presents a significant challenge for cAMP compartmentation, in that cAMP oscillations must be distinctly regulated within these adjacent signaling domains. Indeed, how cAMP, a rapidly diffusing small molecule, is spatially compartmentalized in cells is not yet completely understood, especially given the relatively low catalytic efficiency of a single cAMP-producing AC and degrading PDE (Conti et al., 2014; Lohse et al., 2017; Bock et al., 2020; Zhang et al., 2020). Given that AKAP79/150 exists in nanoclusters at the plasma membrane in multiple cell types (Mo et al., 2017; Zhang et al., 2016) and associates with AC8 in β cells (Willoughby et al., 2010), we hypothesized that AC8 could form nanoclusters on the plasma membrane of MIN6 cells and compartmentalize cAMP dynamics. To test this hypothesis, we examined the spatial organization of AC8 and AKAP150 at the membrane using Stochastic Optical Reconstruction Microscopy (STORM). We found that AKAP150 molecules were organized in clusters with a mean radius of 127 ± 9 nm and an average nearest-neighbor spacing of 313 ± 20 nm between cluster centers (n = 20) (Figure 3a and Figure 3—figure supplement 1), consistent with several recent reports demonstrating AKAP79/150’s tendency to form nanoclusters in other cell types (Mo et al., 2017; Purkey et al., 2018; Tajada et al., 2017; Zhang et al., 2016). Thus, the AKAP79/150 compartment-specific cAMP phase is likely representative of the balanced cAMP generation and degradation within these AKAP clusters.

Figure 3 with 3 supplements see all

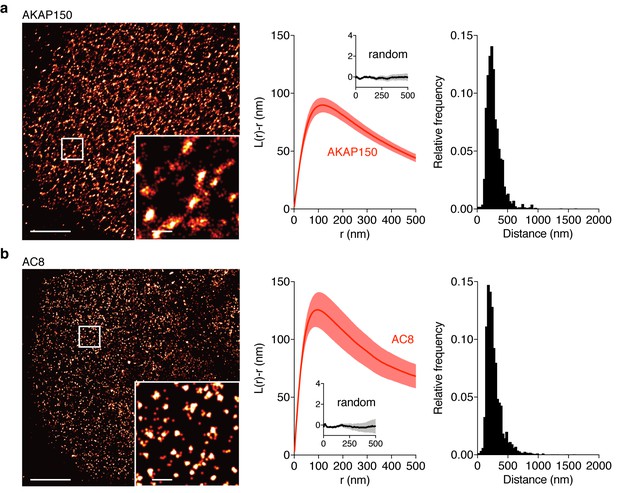

AKAP150 and AC8 both form nanoclusters at the surface of MIN6 β cells.

(a) Representative super-resolution STORM image of the AKAP150 scaffold (scale 5 μm, inset 500 nm). Ripley-K analysis measures the average radii of the nanoclusters and indicates that AKAP150 forms clusters of 127 ± 9 nm, n = 20 (uniform random distribution control in inset). The nearest-neighbor distance distribution describes the distance between nanoclusters (average distance for AKAP150 is 313 ± 20 nm). (b) Representative super-resolution STORM image of Ca2+-sensitive AC8 (scale 5 μm, inset 500 nm) depicts AC8 nanoclusters of average radius 88 ± 8 nm and average nearest-neighbor distance 292 ± 16 nm, n = 16.

Due to the known interaction between AKAP79/150 and AC8 (Willoughby et al., 2010) and diffusion of membrane-localized signaling complexes, we next probed the spatial organization and mobility of AC8. We found AC8 also distributes non-uniformly at the plasma membrane and forms clusters with a mean radius of 88 ± 8 nm and an average nearest-neighbor spacing of 292 ± 16 nm between cluster centers (n = 16) (Figure 3b; Figure 3—figure supplement 1). In order to measure the degree of colocalization between AKAP150 and AC8 nanoclusters, we also performed 2-color STORM and observed 72% of AKAP150 localizations were co-clustered with AC8 localizations, suggesting the presence of AKAP150:AC8 co-clustered nanodomains (Figure 3—figure supplement 2a–e). Next, to determine the mobility of AC8 molecules within the timescale of the oscillatory circuit’s period, we performed Fluorescence Recovery After Photobleaching (FRAP) with EGFP-tagged AC8 and found AC8 diffuses slowly at the membrane, and that there exists a significant immobile fraction (DAC8 = 0.019 ± 0.002 μm2/s, avg. % immobile = 42.3%, n = 16) (Figure 3—figure supplement 3).

With the evidence of the nanoscale organization of AKAP150 and AC8 on the plasma membrane, we further hypothesized that the increased spatial density of Ca2+-driven cAMP sources within the AKAP150 clusters, in conjunction with dispersed PDE1 in the cytosol (Bender and Beavo, 2006; Goraya et al., 2008), is important in compartmentalizing cAMP production and mediating the in-phase cAMP signal. To test this idea, we sought to build a mathematical framework to describe the spatial compartmentalization of the in- and out-of-phase cAMP-Ca2+ oscillations. Briefly, we expanded our network motif model (Figure 2c) by including a 3D spatial component with cAMP diffusion (DcAMP = 60 μm2/s; Agarwal et al., 2016) and incorporating our previously published well-mixed β cell model (Ni et al., 2011). We used the AKAP79/150:AC8 cluster pattern measurements from the STORM imaging to set model parameters in a hexagonal prism domain (200 nm edge, 600 nm depth), with one immobile AKAP79/150:AC8 cluster centered in the domain for simulation (Figure 4a, see Appendix 1 for model development details). By localizing AC8 within the AKAP79/150:AC8 cluster on the plasma membrane face and leaving PDE1 well-mixed throughout the volume, we could simulate Ca2+-driven cAMP oscillations that were in-phase within the immediate vicinity of a cluster, but sharply transitioned out-of-phase outside the cluster. Specifically, during a Ca2+ influx event, Ca2+-triggered cAMP production dominated at the center of the AKAP79/150 cluster while Ca2+-triggered cAMP degradation was favored outside the cluster at the PM and in the center of the unit volume (Figure 4a). Not surprisingly, the regime that recapitulates this phase relationship is sensitive to the spatially-restricted AC8/PDE1 balance and the diffusivity of cAMP. For example, by increasing the AC8 concentration within the cluster, the Ca2+-driven cAMP generative flux could exceed the rate of cAMP degradation by PDE1 and thus cAMP and Ca2+ oscillations could exist in-phase within both compartments (Figure 4—figure supplement 1). Alternatively, assuming that AC8 clustering is driven by AKAP150:AC8 interactions, weakening this interaction would then reduce the AC8 cluster stabilization and lead to a redistribution of AC8 away from the nanoclusters and a decrease in the local concentration of AC8 within the clusters (Figure 4b). Without the high local concentration of AC8 driving a net positive cAMP production within an AKAP79/150 cluster, the spatial domain where cAMP oscillates in-phase with Ca2+ is predicted to shrink while the out-of-phase regime expands and can reverse the phase at the cluster center (Figure 4c).

Figure 4 with 1 supplement see all

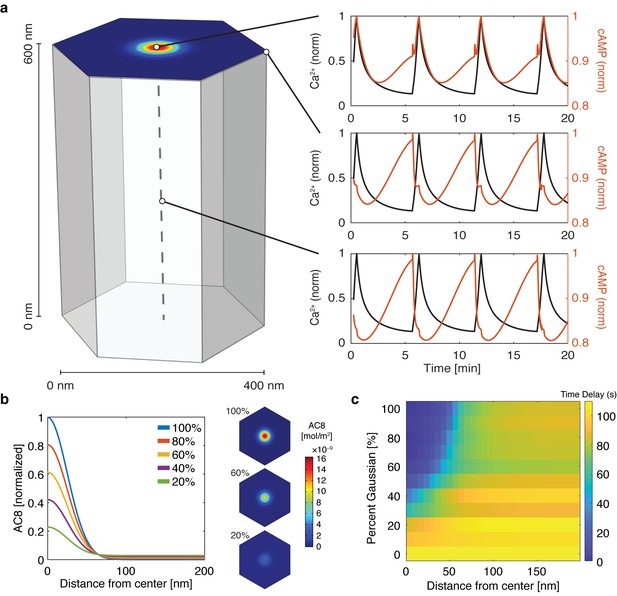

cAMP-Ca2+ phase relationship can be described by a 3D reaction-diffusion model involving clusters of AKAP79/150 and AC8.

(a) 3D reaction-diffusion model with a single AKAP79/150:AC8 co-cluster positioned at the PM in the β cell in a hexagonal prism volume. cAMP oscillates in-phase immediately within the AKAP79/150:AC8 nanocluster due to the high effective concentration of AC8, but out-of-phase at the PM or cytosol due to the presence of PDE1 (cAMP – red, Ca2+– blue). (b) Disruption of the AKAP79/150:AC8 interaction can redistribute AC8 from within the cluster to the PM, shown by the half-Gaussian cross-sections and representative AC8 concentration heatmaps at the PM. (c) Heatmap depicting the time lag (s) for AC8 distribution (% Gaussian) and spatial distance (nm) from cluster center along PM.

To test this prediction, we overexpressed the amino terminus of AC8 (AC81-106) required for interaction with AKAP79/150 (Willoughby et al., 2010) to compete with the binding of endogenous AC8 to the endogenous AKAP150 scaffold. The disruption of the AKAP150:AC8 interaction was validated using a proximity ligation assay (PLA) to visualize the AKAP150:AC8 interaction in situ. Compared to non-transfected cells, cells expressing the AC81-106 peptide had a 39 ± 4% reduction in the PLA signals, indicating a decrease in the AKAP150:AC8 interaction (Figure 5—figure supplement 1a,b). Furthermore, STORM imaging showed that overexpression of the AC81-106 peptide led to a decrease in the percentage of AC8 single-molecule localizations within AC8 nanoclusters (n = 9) (Figure 5a), consistent with the predicted redistribution of AC8 molecules (Figure 4b). To test the impact of loss of AC8 molecules from the nanoclusters on the oscillation phase, we measured AKAP79/150-localized cAMP in the presence of AC81-106 and observed a significant increase in the average lag time (43 ± 6 s, n = 33) (Figure 5b). This is due to a higher proportion of cells exhibiting out-of-phase cAMP oscillations, indicating that the AKAP79/150:AC8 competitor peptide was sufficient in reversing the phase relationship in the AKAP79/150 compartment. Interestingly, we also observed many cells displaying irregular Ca2+ oscillations, as indicated by a disruption in the periodic timing of individual cells’ Ca2+ peaks (Figure 5b, left). This nanoscale perturbation establishes the regulatory role of the AKAP79/150:AC8 interaction in mediating the compartmentalized cAMP-Ca2+ phase relationship.

Figure 5 with 1 supplement see all

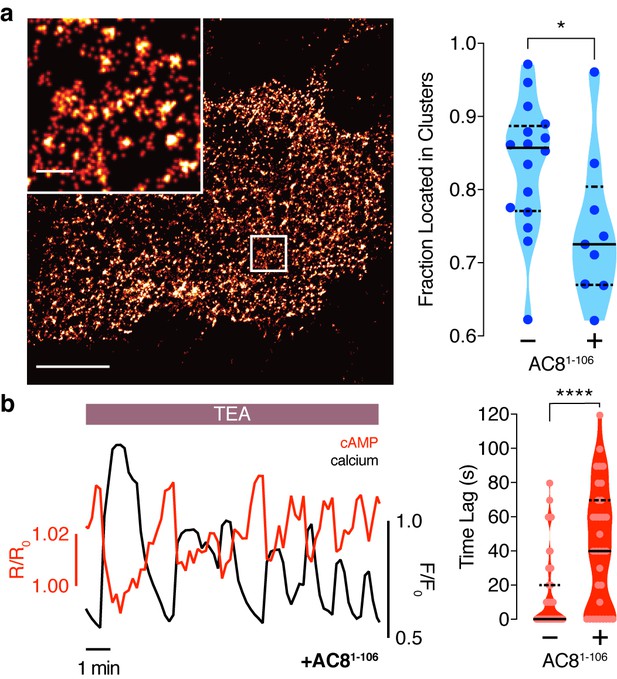

Disruption of the AKAP79/150:AC8 interaction is associated with a redistribution of AC8 at the PM and a phase shift of cAMP at the AKAP79/150 nanodomain.

(a) Over-expression of the N-terminus of AC8, which is necessary and sufficient for mediating the AKAP79/150:AC8 interaction, redistributes AC8 from within nanoclusters to the general PM, as seen in the STORM image (scale 5 μm, inset 500 nm) and measured by the percent of localizations that fall into nanoclusters. (b) Disruption of the AKAP79/150:AC8 interaction lengthens the time lag between the cAMP (red) and Ca2+ (black) signals at the AKAP79/150 compartment (avg. time lag in absence of disruptor is 13 ± 3 s, n = 60, and in presence of disruptor 43 ± 6 s, n = 33) due to more cells displaying out-of-phase cAMP oscillations. *p=0.0341, ****p<0.0001; unpaired two-tailed Students t-test.

AKAP79/150-mediated phase relationship is critical for regulating oscillatory Ca2+

Next we systematically examined the impact of perturbing the precisely regulated phase relationship within the AKPA79/150 compartment. Due to the modulatory role of PKA in the Ca2+-cAMP-PKA oscillatory circuit and the interaction between PKA and AKAP79/150, we wondered how the in-phase cAMP oscillations with respect to Ca2+ are translated into PKA activities and if spatial compartmentalization of the phase relationship is also maintained at the PKA activity level. Therefore, we extended our 3D model to include AKAP79/150-associated PKA (see Appendix 1 for model details). In this extended model, PKA activity oscillations exhibit distinct phase relationships with respect to Ca2+ within and outside of the AKAP79/150 compartment (Figure 6—figure supplement 1a). To test this prediction, we fused our FRET-based biosensor for PKA activity (AKAR4) (Depry et al., 2011) to either full-length AKAP79 or the PM-targeting motif and expressed the sensors in MIN6 cells. Upon TEA stimulation, PKA activity was observed to oscillate with a lag time of 25 ± 6 s (n = 15) within the AKAP79/150 compartment but with a lag time of 55 ± 8 s (n = 12) (Figure 6—figure supplement 1b–e) at the general plasma membrane, indicating that the compartmentalized phase relationship is preserved from cAMP to PKA.

Spatiotemporal organization of PKA signaling and its phosphorylation targets via AKAPs have been implicated in regulating several important pathways. For example, PKA has been shown to phosphorylate CaV1.2 in an AKAP79/150-dependent manner, and this modification can influence the open probability of the channel (Murphy et al., 2014), suggesting a mechanistic link between local cAMP/PKA activity and global oscillatory Ca2+. Thus, we sought to study the functional role of the spatially compartmentalized cAMP-Ca2+ phase relationship in regulating intracellular Ca2+ dynamics. We measured Ca2+ oscillations by RCaMP in the presence of either the EGFP-tagged AKAP79/150:AC8 disruptor peptide, AC81-106, or EGFP alone as a control. Population-wide differences in Ca2+ dynamics, such as strength and timing, were observed in AC81-106-transfected cells and visualized in heat maps depicting the normalized Ca2+ signal per cell versus time (Figure 6a). Interestingly, we found that the expression of the disruptor peptide was correlated with a significant decrease in the peak ratio between the second Ca2+ peak and the first Ca2+ peak (control average −1.6%, n = 270; AC81-108 average −10.8%, n = 562) post TEA addition, indicative of less sustained oscillations (Figure 6b,c). In addition to intracellular Ca2+ concentration, the precise timing of internal oscillatory events is critical for modulating β cell functions such as glucose homeostasis and pulsatile insulin secretion (Fridlyand et al., 2010). In the presence of the disruptor peptide, cells also exhibited a longer elapsed time between oscillatory Ca2+ peaks (control average 3.9 ± 0.1 min, n = 270; AC81-108 average 4.6 ± 0.1 min, n = 562), suggesting that the timing of the signaling circuit was disturbed (Figure 6b,c). It is well established that besides the precise timing, the regularity of cytoplasmic Ca2+ in β cells is crucial in mediating pulsatile insulin secretion from the pancreas (Gilon et al., 2002; Schmitz et al., 2002). By stratifying the disruptor peptide-expressing cell population into ‘low, ‘medium,’ and ‘high’ expressers and performing a blinded classification of responding cells based on the regularity of the Ca2+ oscillation (see Appendix 1 for details), we found a positive correlation between the percentage of cells exhibiting irregular oscillations and the expression level of the disruptor peptide (42% for low-expressing vs. 68% for high-expressing AC81-106 disruptor) (Figure 6d). Taken together, these data signify that the compartmentalized cAMP-Ca2+ phase relationship regulates the oscillatory Ca2+ signal and plays an important role in determining the pace, regularity, and sustainability of the Ca2+ oscillations.

Figure 6 with 2 supplements see all

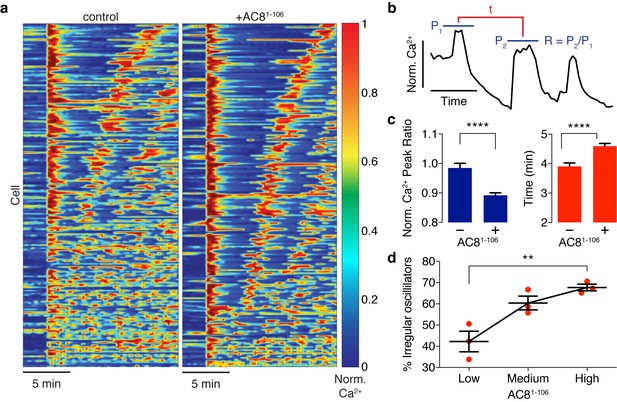

Ca2+ oscillatory dynamics are affected by expression of the disruptor peptide in β cells.

(a) Heatmaps depicting Ca2+ oscillations for 220 randomly selected cells co-expressing EGFP alone (control, left) or EGFP-tagged AC81-106 (AKAP79/150:AC8 disruptor, right), ordered by a mixed parameter describing the time lag between the first two Ca2+ peaks and the avg. timelag between all Ca2+ peaks. (b) Schematic describing two Ca2+ oscillatory parameters: the ratio between the first two Ca2+ peaks (R = P2 / P1) and the interpeak timing (t). (c) The peak ratio R is decreased in the presence of the AKAP79/150:AC8 disruptor (left), indicating less of a sustained Ca2+ oscillatory response. Over-expression of the disruptor also lengthens the timing between peaks (right). (d) The level of disruptor peptide expression is correlated with an increase in the percentage of cells exhibiting irregular oscillations (total n = 562). p=0.0054, ordinary one-way ANOVA.

Discussion

Biological oscillations represent a rich way of encoding information using the amplitude and frequency. Here, we show the phase in an oscillatory signaling circuit represents a novel mode of informational encoding for which the phase itself can be spatiotemporally regulated. In the case of the Ca2+-cAMP-PKA circuit, the oscillatory cAMP/PKA phase relative to a widespread Ca2+ signal is distinctly regulated within two adjacent membrane compartments through intracellular organization of scaffolds and signaling effectors. Localized perturbation of this spatial phase signature disrupts global Ca2+ oscillations and thus has far-reaching consequences on the functional landscape of the β cell.

Compartmentalization of cAMP/PKA signaling is instrumental in processing a diverse set of inputs and mediating specific cellular functions; however, the mechanistic details of compartmentalization await to be fully elucidated (Musheshe et al., 2018). Given the measured kinetic rates of most ACs and PDEs, the generation of local cAMP gradients around single enzymes appears unfeasible (Conti et al., 2014). Context-dependent discrepancies in some of the kinetics (i.e. differences between in vitro and in vivo measurements) and slower cAMP diffusion due to buffering have been shown to be important for cAMP compartmentalization (Bock et al., 2020; Zhang et al., 2020). Here, we propose the nanoscale organization of key cAMP effectors and regulators as a novel mechanism for cAMP compartmentation. Despite the slow rates measured for individual ACs, we computationally and experimentally describe conditions in which the generation of compartmentalized cAMP can emerge from the clustering of many relatively immobile AC8 enzymes at the membrane and bulk distribution of PDE1 in the cytoplasm. Alterations to this nanoscale organization lead to dysregulated Ca2+ oscillations, demonstrating the functional importance of maintaining this organization. This system also serves as a nanoscale demonstration of how a cell can translate a global signal (Ca2+) into a compartmentalized signal (cAMP/PKA activity) by local activation and global inhibition, a strategy that is likely utilized in many other cellular contexts (Levchenko et al., 2000; Purvis and Lahav, 2013).

In order to understand the functional impact of the nanoscale architecture, it is important to also consider the discrete scale of such signaling organization. According to our rough estimates, approximately 15–150 individual AC8 molecules comprise AKAP150:AC8 nanoclusters (see Materials and methods for STORM-based estimation). To investigate the role of small molecule numbers, we recast our previous network motif model as a stochastic system and simulated the impact of changing initial conditions of PDE1 and AC8. We found that even in these discrete simulations, the previously noted phase relationships are preserved. As the balance between PDE and AC is perturbed, the system moves from an in-phase to an out-of-phase cAMP response with respect to Ca2+. Interestingly, we also noted that increasing the number of AC8 molecules leads to a reduction of the noise in the cAMP response. Thus, we predict that tuning AC8 cluster size might be a biological design strategy of nanoclusters to maintain accurate responses to perturbations (Figure 6—figure supplement 2a–d).

The interplay between Ca2+ and cAMP is very intricate, and multiple mechanisms could contribute to the observed dysregulated signaling effects upon perturbation of the AKAP79/150-compartmentalized cAMP-Ca2+ phase (Figure 6a–d). AKAPs can recruit PKA to regulate channel activities (Dell'Acqua et al., 2006; Mo et al., 2017; Torres-Quesada et al., 2017), such as in the regulation of voltage-mediated Ca2+ entry via PKA-dependent phosphorylation of CaV1.2 (Murphy et al., 2014) or the modulation of store-operated Ca2+ entry by both PKA-dependent STIM1 and Orai1 phosphorylation (Thompson and Shuttleworth, 2015; Zhang et al., 2019). Additional levels of regulatory feedback within the Ca2+-cAMP-PKA oscillatory circuit have also been identified, such as a negative feedback loop involving PKA phosphorylation of AC8, thereby fine-tuning the circuit dynamics (Willoughby et al., 2012).

The precisely regulated Ca2+ and cAMP oscillations are likely functionally important as insulin secretion requires coordination between Ca2+, cAMP, and PKA. Localized cAMP/PKA signaling at the AKAP79/150 scaffold and the in-phase oscillations of cAMP and Ca2+ within this compartment might play a critical role in regulating insulin secretion due to close interactions between AKAP79/150 and insulin secretory granules via CaV1.2 (Barg et al., 2001). Several important processes and components of the secretory machinery have been identified as targets of PKA signaling here, such as PKA-dependent mobilization of granules (Renström et al., 1997) and modulation of the synaptosomal protein SNAP25 (Gao et al., 2016). These PKA phosphorylation events may be highly coordinated with oscillations of Ca2+, which drive the exocytosis process for pulsatile insulin secretion. In addition to PKA-dependent secretory control, cAMP has recently been implicated to play a direct role in fusion pore formation via the cAMP-regulated guanine exchange factor Epac (Guček et al., 2019). Compartmentalized phase regulation of the Ca2+-cAMP-PKA oscillatory circuit at the AKAP79/150 macromolecular complex is likely involved in the regulation of many β cell processes, in addition to insulin secretion, and more work will be needed to further establish the mechanisms involved in decoding the information embedded in the local phase relationship.

The Ca2+-cAMP-PKA oscillatory circuit in pancreatic β cells integrates many important regulators of cellular function, and the precise coordination of each is required for proper signaling control. Here, we have uncovered a spatiotemporal organization of the circuit where the oscillatory phase between cAMP/PKA and Ca2+ depends on the spatial proximity of the AKAP79/150 scaffold protein and AC8. The construction principles of this signaling nanodomain, including the spatial distributions of sinks and sources, likely represent a generalized strategy for the generation of other compartmentalized signals and provide a unique modality in which cells embed, process, and produce signaling information.

Materials and methods

Key resources table
Reagent type (species)
or resource
DesignationSource or referenceIdentifiersAdditional
information
Cell line (Mus musculus)MIN6Dr. Jun-Ichi Miyazaki,
Osaka University
RRID:CVCL_0431
Chemical compound, drugTetraethylammonium
chloride (TEA)
SigmaT226520 mM
Chemical compound, drug8-Methoxymethyl-3-isobutyl-
1-methylzanthine (8MM-IBMX)
Sigma-AldrichM2547100 μM
Chemical compound, drugMilrinoneAlexisCat# ALX-270–083 M00510 μM
Chemical compound, drugRolipramAlexisCat# ALX-270–1191 μM
Chemical compound, DrugKClSigma-AldrichP954115 mM
Commercial assay or kitLipofectamine-2000Invitrogen11668019
Recombinant DNA reagentpCDNA3 AKAR4PMID:20838685
Recombinant DNA reagent(Ci/Ce)Epac2-campsDr. Dermot Cooper,
University of Cambridge
Recombinant DNA reagentAKAP79 (AKAP5, Homo sapiens)Dr. John D. Scott,
University of Washington
Recombinant DNA reagentAC8 (Adcy8, Rattus norvegicus)Dr. Dermot Cooper,
University of Cambridge
Recombinant DNA reagentShAdcy8 PlasmidDr. Jochen Lang,
University of Bordeaux
ShAdcy8 #2
Recombinant DNA reagentRCaMPDr. Loren Looger,
Janelia Farms
Recombinant DNA reagentR-FlincADr. Kazuki Horikawa,
Tokushima University
Graduate School
Commercial assay or kitDuolink in situ red starter kitSigmaDUO92101
Commercial assay or kitDuolink in situ Probemaker MINUSSigmaDUO92010
Commercial assay or kitDuolink in situ Probemaker PLUSSigmaDUO92009
AntibodyAnti-AC8, rat polyclonalAbcamab1966861:2000
AntibodyAnti-AKAP150, rat polyclonalMillipore Sigma07–2101:500
AntibodyAnti-AKAP79, mouse monoclonalBD6103141:500
AntibodyGoat anti-rabbit AlexaFluor647ThermoFisher ScientificA212451:1000
AntibodyGoat anti-mouse AlexaFluor568ThermoFisher ScientificA110311:1000
Software, algorithmFIJIhttps://imagej.net/FijiRRID:SCR_014294
Software, algorithmMetaFluorhttps://www.moleculardevices.com/RRID:SCR_002285
Software, algorithmMATLABhttps://www.mathworks.com/RRID:SCR_001622
Software, algorithmGraphPad Prismhttps://www.graphpad.com/
scientific-software/prism/
RRID:SCR_002798
Software, algorithmCOPASIhttp://copasi.org/ Hoops et al., 2006RRID:SCR_014260
Software, algorithmVirtual Cellhttps://vcell.org/ Cowan et al., 2012RRID:SCR_007421

Gene construction

Request a detailed protocol

For AKAP79-(Ci/Ce)Epac2-camps, AKAP79 (gene AKAP5, from Dr. John D. Scott) was PCR amplified to have HindIII/BamHI digestion sites, and (Ci/Ce)Epac2-camps (from Dr. Dermot Cooper) was PCR amplified to have BamHI/EcoRI digestions sites. Both fragments were inserted into a pcDNA3 (Invitrogen) backbone for mammalian expression (cAMP sensor is C-terminal to AKAP79). For AKAP79-AKAR4, a similar approach was taken where AKAR4 was dropped between BamHI/EcoRI. For AC8 (gene Adcy8, from Dr. D. Cooper), AC81-108, Gibson Assembly was used to insert the genes into the pcDNA3 mammalian expression vector. The ShAdcy8 construct for Adcy8 knockdown was previously verified and a gift from Dr. Jochen Lang. RCaMP was a gift from Dr. Loren Looger.

Cell culture

Request a detailed protocol

MIN6 cells (a mouse insulinoma β cell line, gift from Dr. Jun-Ichi Miyazaki) were plated onto sterilized glass coverslips in 35 mm dishes and grown to 50–90% confluency in DMEM (10% FBS, 4.5 g/L glucose) at 37°C with 5% CO2. Identity was verified by phenotype (Ca2+ oscillations, morphology, and insulin secretion). Recurrent mycoplasma testing was performed and results were negative. Cells were transfected using Lipofectamine 2000 (Invitrogen) for 20–48 hr before imaging.

Imaging

Request a detailed protocol

Cells were washed twice with Hank’s balanced salt solution buffer and maintained in the dark at room temperature. Cells were imaged on a Zeiss Axiovert 200M microscope with a cooled charge-coupled device camera (MicroMAX BFT512, Roper Scientific, Trenton, NJ) controlled by METAFLUOR 6.2 software (Universal Imaging, Downingtown, PA). Dual cyan/yellow emission from FRET used a 420DF20 excitation filter, a 450DRLP dichroic mirror, and two emission filters [475DF40 for CFP and 535DF25 for YFP]. RFP fluorescence was imaged using a 568D55 excitation filter, a 600DRLP dichroic mirror, and a 653DF95 emission filter. GFP fluorescence was imaged using a 480DF30 excitation filter, a 505DRLP dichroic mirror, and a 535DF45 emission filter. YFP fluorescence was imaged using a 495DF40 excitation filter, a 515DRLP dichroic mirror, and a 535DF25 emission filter. These filters were alternated by a filter-changer Lambda 10–2 (Sutter Instruments, Novato, CA). Exposure time was 50–500 ms, and images were taken every 10–30 s.

For confocal imaging, images were collected with a C2 plus on a Nikon Ti2 inverted microscope equipped with a Plan Apo lambda 60x oil immersion objective NA 1.4. YFP fluorescence was excited with the 488 nm line from a LU-N4 laser. Images were acquired with a DUVB detector collecting emission from 495 nm to 600 nm with a virtual spectral GaAsP detector controlled by NIS Elements software. The pinhole was set at 30 μm. Frame size was 1024 × 1024 pix.

For FRAP acquisition, cells were imaged using a C2 plus mounted on a Nikon Ti2 with a 488 nm laser (LU-N4 laser engine, Nikon Instruments) and sensitivity PMT detector (C2-DU3, Nikon) with 525/50 nm bandpass filter. The excitation light is reflected by a dichroic mirror 405/488/561/640 and focused through an Apo 100 × 1.49 NA objective. Image stacks were acquired in Galvano mode with unidirectional scanning with a 488 nm laser at 1.5% laser power with frame size 512 × 512 at scan zoom 2, one frame per second and 97.1 µm pinhole size. Small stimulation ROIs were drawn at the plasma membrane. The total FRAP series contained three images before bleaching (obtained with 2 s intervals), two cycles of ROI bleaching with the 488 nm laser at 100% laser power (5 frames at one frame per second), and two minutes of continuous acquisition to monitor fluorescence recovery.

Image analysis

Request a detailed protocol

Fluorescence images were background-corrected by subtracting the fluorescence intensity of background with no cells from the emission intensities of cells expressing fluorescent reporters. Cells for experiments using the targeted biosensors were manually segmented from microscopy images based on emission intensity (YFP) and RCaMP (RFP) using custom-written Java and MATLAB scripts and whole-cell fluorescence emission was measured. The ratio of yellow/cyan emission (AKAR4) or cyan/yellow emission (Epac2-camps) and RFP intensity were then calculated at different time points using MATLAB scripts. The values of all-time courses were normalized by dividing each by the average basal value before drug addition. FRAP measurements were background-subtracted, bleach-corrected, and normalized, and fit to a previously described diffusion-dominant model (Ellenberg et al., 1997; Phair et al., 2004). For the AKAP150:AC8 disruption experiments, cells were segmented with custom CellProfiler (Broad Institute) pipelines based on RCaMP (RFP) fluorescence emission, and both RFP and GFP fluorescence intensities (EGFP-AC81-106) per cell were measured every 30 s. Graphpad Prism eight was used for visualization and statistical analysis. Custom-written MATLAB scripts were used for correlation analysis and regularity classification.

Super-resolution imaging (STORM)

Request a detailed protocol

For fixed-cell stochastic optical reconstruction microscopy (STORM) imaging, cells were fixed with 4% paraformaldehyde (PFA) and 0.2% glutaraldehyde (GA) for 20 min and then washed with 100 mM glycine in HBSS to quench the free PFA. Cells were permeabilized and blocked in a permeabilization solution with 0.1% Triton X-100, 0.2% bovine serum albumin, 5% goat serum, and 0.01% sodium azide in HBSS. The cells were then incubated overnight at 4°C with an anti-AC8 antibody (Abcam, ab196686) at a 1:2000 dilution or an anti-AKAP150 (Millipore Sigma, 07–210) antibody at a 1:500 dilution, followed by 1 to 2 hr with goat anti-rabbit Alexa 647–conjugated antibody (ThermoFisher Scientific, A21245) at 1:1000 dilution. For the 2-color STORM experiments, cells were incubated with both the anti-AC8 antibody (1:2000 dilution) and an anti-AKAP79 antibody that recognizes a conserved epitope in AKAP150 (BD, 610314; raised against the C-terminal 248 residues of AKAP79 which shares 70% similarity with a region in AKAP150; 1:500 dilution), followed by a 2 hr incubation with a goat anti-rabbit Alexa 647-conjugated antibody (1:1000 dilution) and a goat anti-mouse Alexa 568-conjugated antibody (ThermoFisher Scientific, A11031; 1:1000 dilution). The cells were then post-fixed again in 4% PFA and 0.2% GA, quenched with 100 mM glycine in HBSS, and washed with HBSS to prepare for imaging. Immediately before imaging, the medium was changed to STORM-compatible buffer (50 mM Tris-HCl, pH 8.0, 10 mM NaCl, and 10% glucose) with glucose oxidase (560 μg/ml), catalase (170 μg/ml), and mercapto-ethylamide (7.7 mg/ml). STORM images were obtained using a Nikon Ti total internal reflection fluorescence (TIRF) microscope with N-STORM, an Andor IXON3 Ultra DU897 EMCCD, and a 100 × oil immersion TIRF objective. Photoactivation was driven by a Coherent 405 nm laser, while excitation was driven with a Coherent 647 nm laser or Coherent 561 nm laser.

All image analysis and image reconstruction were performed using both Nikon Elements analysis software and custom-written MATLAB scripts. Blinking correction was performed by implementing the pairwise Distance Distribution Correction (DDC) algorithm (Bohrer et al., 2019). Cluster property measurements were performed using Ripley-K analysis and custom mean-shift MATLAB code for segmentation, as described before (Mo et al., 2017). Co-clustering measurements were made using custom MATLAB scripts implementing Getis-Franklin pattern analysis, as described previously (Getis and Franklin, 1987; Mo et al., 2017). Briefly, we first calculated the degree of local clustering of AKAP150 molecules using the L(r) spatial statistic at r = 200 nm which counts the number of AKAP150 localizations within 200 nm (length scale of nanoclusters) of each AKAP150 localization, normalized appropriately. We then calculated Lcross(r) at r = 200 nm which counts the number of AC8 localizations within 200 nm of each AKAP150 localization, normalized appropriately. Plots of Lcross(200) vs. L(200) were generated and an L threshold of 150 was chosen based on the proportion of localizations found within clusters from the mean-shift segmentation analysis, and used to divide the plot into quadrants to calculate the proportion of AKAP150 localizations co-clustered with AC8 as previously described (Mo et al., 2017).

We obtained a very rough estimate of AC8 molecules within nanoclusters from our blink-corrected STORM datasets by assuming background localizations outside the cell are due to single secondary antibodies with conjugated dyes. We measured an average of 2 localizations per secondary antibody outside the cell and approximately 50 localizations per AC8 nanocluster within the cell. Estimating a labeling stoichiometry of 0.4–1.5 secondary antibodies per primary antibody and 0.4–1.5 primary antibodies per AC8 molecule (Zanacchi et al., 2017; Nieuwenhuizen et al., 2015), we can roughly approximate the number of AC8 molecules per nanocluster to be between 15 and 150 molecules/cluster (N = 3 cells).

Proximity ligation assay

Request a detailed protocol

Antibodies for AC8 and AKAP150, mentioned in STORM section, were buffer exchanged into DPBS and conjugated with MINUS or PLUS oligos, following the Sigma DuoLink in situ Probemaker kits. PLA experiments were performed using the Duolink in situ red kit for PLAs according to the provided protocol. The only protocol modification was to extend the amplification time by 50 min. Briefly, cells were fixed and permeabilized as in the STORM experiments before incubation with PLUS and MINUS oligo-conjugated primary antibodies for 30 min at 37°C each, with washes after each step. Ligation of the nucleotides and amplification of the strand occurred sequentially by incubating cells with first ligase then polymerase and detection solution. PLA experiments with AKAP95 antibodies from different species were used as positive controls in HEK293T cells, and experiments with just one oligo-labeled primary antibody or the other were our negative control. Images were acquired on a Nikon Ti Eclipse epifluorescence scope with z-control and maximum intensity projections were created. A cross section of the DAPI-stained nucleus (3.6–5 μm) was also acquired and the number of dots per cell was counted using the nucleus as reference.

Statistical analysis

Request a detailed protocol

Statistics, such as means, SEMs, and comparisons were calculated using Graphpad Prism 8 software. Experiments comparing multiple conditions were analyzed using one-way ANOVA or unpaired t-tests. Statistical significance was assessed using p<0.05 as a cutoff. Experiments were repeated >3 times. Individual cells with high expression of the AKAP79/150-fused biosensors were removed from analysis (see Appendix 1 for details).

Appendix 1

cAMP analysis and quantification

AKAP79-(Ci/Ce)Epac2-camps transfected cells displayed cAMP oscillations that were either in-phase or out-of-phase with their respective Ca2+ signal. This was in sharp contrast to responsive lyn-(Ci/Ce)Epac2-camps transfected cells where all cells yielded only out-of-phase oscillations. We found a strong correlation between the AKAP79-fused sensor expression level and the observed cAMP-Ca2+ phase relationship, with cells having lower levels of sensor present displaying predominantly in-phase cAMP oscillations and cells with higher levels of the AKAP79/150-fused biosensor exhibiting out-of-phase oscillations (Appendix 1—figure 1). Overexpression of the AKAP79 scaffold likely changed the stoichiometry of the signaling complexes and resulted in unsuccessful targeting of the biosensor to functional AKAP79/150 domains, and so in this manuscript we considered only TEA-responsive cells below an AKAP79 expression threshold determined by the YFP fluorescence (Appendix 1—figure 1).

Time lag calculation

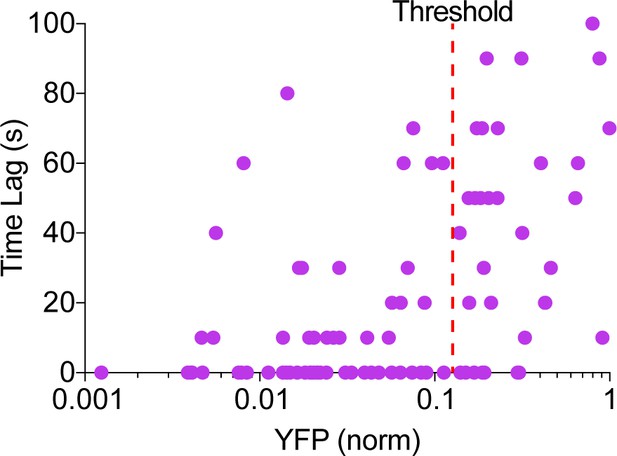

Due to the heterogeneity of cellular Ca2+ and cAMP/PKA activity oscillatory responses in each cell (i.e. variations in frequency, amplitude, and regularity), we sought an applicable metric to describe the phase relationship. Here we measure the lag time (sec) between the Ca2+ signal trace and the cAMP/PKA activity signal trace. Specifically, we high-pass filtered both the Ca2+ and cAMP/PKA activity traces (approximately 20 min) to subtract out slowly varying baseline changes, normalized the traces so that the maximum intensity/FRET ratio was set to 1, and then computed the cross-correlation to measure the signal overlap for different lag times. To calculate the lag time, we identified peaks in the cross-correlation passing a peak prominence cutoff and found the absolute value of the shortest lag time corresponding to a peak maximum. For in-phase oscillations, the lag time was typically small (τ ≤20 s) due to the two signal traces oscillating in synchrony. On the other hand, out-of-phase oscillations typically corresponded to longer lag times (τ >20 s) due to the anti-phasic relationship seen in the peak timing and peak shape. Analysis was performed with custom scripts in MATLAB and Java, and pipelines in CellProfiler.

Quantification of nanodomain perturbation effects on global Ca2+

In order to measure the effects of AKAP79/150:AC8 disruption on Ca2+ dynamics, we transiently transfected and expressed AC81-106 in MIN6 cells and measured Ca2+ with RCaMP. For quantification of the interpeak timing and peak ratio, we first selected cells that responded to the TEA treatment, identified Ca2+ peaks passing a peak prominence cutoff, and finally calculated the avg. time between peak maxima and RFP intensity ratio between the second and first Ca2+ peak maxima. To find the percentage of cells with regular vs. irregular Ca2+ oscillations, we randomized all Ca2+ traces from the experimental and control samples and performed a blinded classification to sort the single cell traces as regular, irregular, or nonresponsive. Analysis was performed with custom scripts in MATLAB and Java, and pipelines in CellProfiler.

Computational modeling

Well-mixed system

Assumptions
  • Signaling components are present in large enough quantities that concentration changes are smooth and move in a deterministic fashion.

  • Well-mixed kinetic rate constants contain conversion factors between compartments, that is membrane to cytosol.

  • Binding interactions occur rapidly enough such that any kinetic parameter, k, remains constant on surfaces (Berry, 2002).

  • AKAP does not alter the activity of the catalytic subunits of Protein kinase A (PKA) instead it only affects localization.

  • Ca2+ independent activity of Adenylyl cyclase (AC) is of the same strength as inactive Ca2+ dependent Adenylyl cyclase (AC8) and stays at a constant value.

Modeling well-mixed chemical reactions

Mass-action kinetics

We generated an ordinary differential equation (ODE) for every species using mass-action kinetics for each binding interaction. The law of mass-action states that the rate of a chemical reaction is proportional to the product of the concentration of the reactants raised to the power of their stoichiometric coefficient (Guldberg and Waage, 1879). Mass-action kinetics rely on the assumption that the rate constant, k, is constant over time. For example, consider the one-reaction system:

A+2B3C,

where the forward and backward rates are k1 and k2. The differential equations describing the dynamics of species A,B, and C under mass-action kinetics are:

d[A]dt =k2[C]3-k1[A][B]2 d[B]dt =2k2[C]3-2k1[A][B]2 d[C]dt =3k1[A][B]2-3k2[C]3.

Michaelis-Menten kinetics

We used Michaelis-Menten kinetics to model the kinetics of enzyme-catalyzed reactions. When a reaction is catalyzed by an enzyme with kinetic properties kcat and KM,

SE P

then the reaction rate is given by

d[S]dt=kcat[E][S]KM+[S]=d[P]dt.

For Michaelis-Menten kinetics, concentrations of reactants and products must be in large enough quantities, and one of the following conditions must apply: the concentration of the substrate is much larger than the concentration of products, [S][p], and/or the energy released in the reaction is very large, ΔG0.

Model development

We constructed a biochemical network to represent interactions between Ca2+ and cAMP in β-cells, Figure 1b, (Fridlyand and Philipson, 2016; Ni et al., 2011) after a depolarization event. The computational model considered the dynamics of calcium, potassium, leaky, and calcium-sensitive potassium channels (Appendix 1—table 1). Importantly, we included feedback of PKA with KATP channels and the inclusion of Ca2+-sensitive ACs and PDEs. The model contains a total of 92 parameters with 11 free parameters. The values of the parameters are constrained through both previously peer-reviewed publication results (Ang and Antoni, 2002; Boras et al., 2014; Lai et al., 2015; Masada et al., 2009; Ni et al., 2011) and with new experimental results using obtained FRET measurements. To constrain source and sink activation rates, previously published literature of AC and PDE stimulus-response curves (of related isoforms) was utilized (Ang and Antoni, 2002; Masada et al., 2009). COPASI was used to calculate initial guesses for kinetic activation parameters. FRET measurements took precedence over binding curves, especially for the spatial model where further fitting routines were performed to refine the model. Model variations were performed to attain both semi-physiological concentrations (within the ranges of the sensor) and phase (period and relation) information. Predictions are made on qualitative behavior as opposed to quantitative as proper parameter fitting would require much more data than available for this system.

Values and reaction sets used in the well-mixed model can be found in Appendix 1—tables 15. The network of interactions was constructed using COPASI (version 4.23, build 184)

(http://www.nrcam.uchc.edu, http://copasi.org/) (Hoops et al., 2006). The model was built in COPASI to leverage the inbuilt fitting techniques for initial parameter guesses pre-FRET.

Well-mixed computational results

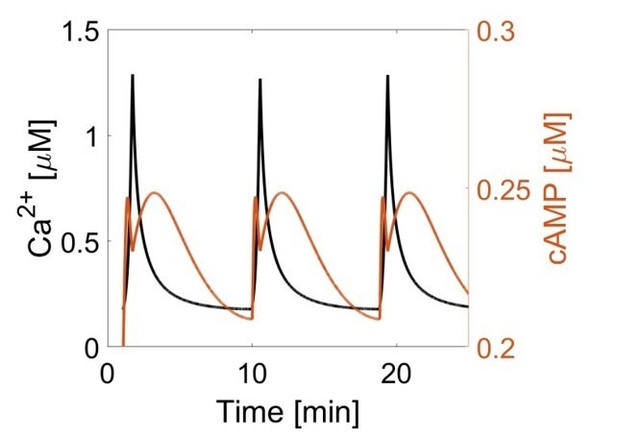

The network shown in Figure 1b has been shown to exhibit oscillations through cAMP variation due to the action of PKA on IP3 receptors and KATP plasma membrane channels. This network has been studied in many labs previous work (Fridlyand et al., 2007; Fridlyand et al., 2003; Han et al., 1999; Ni et al., 2011) and has been explored to show:

Our model results agree with the above findings.

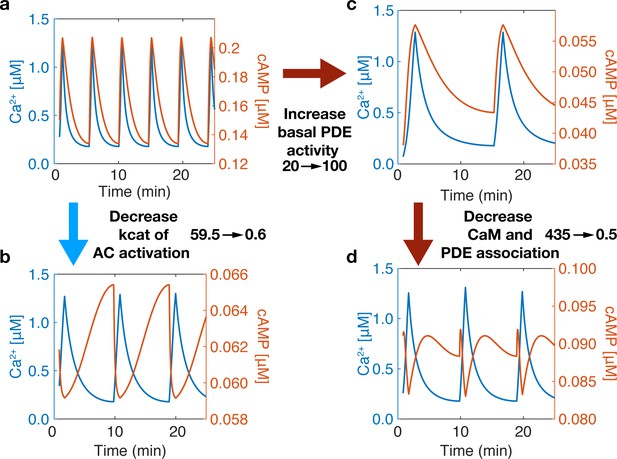

Variations in the connection strength of sources and sinks also introduced another finding— changing the component’s (source or sink) variability in the regime of Ca2+ spiking (0.1-1.2 µM) a switch in-phase can also be observed, Appendix 1—figure 2. Compared to well-mixed results, Appendix 1—figure 2a, by decreasing the activation rate of CaMAC from 59.5 to 0.6 s−1, a switch to out-of-phase can occur, Appendix 1—figure 2c. Yet, we notice how increasing basal PDE activity does not switch the phase Appendix 1—figure 2b, only after subsequently decreasing PDE and CaM association does the phase change Appendix 1—figure 2d. This is due to both changes being required for the activity variation of PDE to outperform that of AC. These findings lead to more questions about how source and sink activities relate in a variable Ca2+ regime.

Well-mixed reaction tables

Appendix 1—table 1
Voltage gated channel reactions.
#SpeciesExpressionParametersRef.
1Membrane VoltagedVdt=-ICa-IK-IL-IKCaCmCm = 5.3 pFNi et al., 2011
2Ca2+ currentICa=gCam(V-ECa)gCa = 600 pS,
ECa = 100 mV
Ni et al., 2011
3Fraction of open VGCC
(at steady state)
m=121+tanhV-v1v2v1 = -20 mV,
v2 = 24 mV
Ni et al., 2011
4K+ currentIK=gKw(V-EK)gK = 240 pS,
ECa = -75 mV
Ni et al., 2011
5Fraction of open K+ channels
(at steady state)
dwdt=Φ(ww)τϕ = 35 1sNi et al., 2011
6Time constant for K+
channel open probability
τ=1coshV-v32v4v3 = -16 mV
v4 = 11.2 mV
Ni et al., 2011
7leak currentIL=gL(V-EL)gL = 150 pS,
EL = -75 mV
Zhang et al., 2005
8Ca2+ gated K+ currentIKCa=gKCaCaCa+KKCa(V-EK)gKCa = 2000 pS,
ECa = -75 mV,
KKCa = 5 μM
Ni et al., 2011
Appendix 1—table 2
Ca2+flux and reactions.
#ReactionReaction fluxKinetic parametersRef.
9→ CajCav(1+kPKAV[PKA])+jCalkPKAV = 3000 s−1 · µM−1Ni et al., 2011
10jCaVfi(-αICa-vLPM[Ca])fi = 1 x 10−5
α = 0.0045 μM · fA−1 · s−1
vLPM = 75 s−1
Ni et al., 2011
11jCaICkIP3R[PKA]A[Ca]1+A[Ca]+[B][Ca]2([Castores][Ca])Vs[Ca]2Ks2+[Ca]2Ks = 10 µM,
Castores = 1.56 µM,
Vs = 0.1 µM · s−1,
kIP3R = 0.05,
A = 0.2869µM−1,
B = 2.869µM−2,
C = 0.2133
Ni et al., 2011
122Ca + CaM ↔ Ca2CaMkf[Ca][CaM]kr[Ca2CaM]kf = 3.6 s-1 ⋅ µM−1,
kr = 8 s-1
Lai et al., 2015
13Ca + Ca2CaM ↔ Ca3CaMkf[Ca][Ca2CaM]kr[Ca3CaM]kf=11 s-1 ⋅ µM−1,
kr = 195 s-1
Lai et al., 2015
14Ca + Ca3CaM ↔ Ca4CaMkf[Ca][Ca3CaM]kr[Ca4CaM]kf = 59 s-1⋅µM−1,
kr = 500 s-1
Lai et al., 2015
15AC + Ca2CaMCaM ↔ CaM · ACkf[AC][Ca2CaM]kr[CaM  AC]kf = 1.7 s-1 ⋅ µM−1,
kr = 10 s-1
Masada et al., 2009; Masada et al., 2012
16CaM · AC + 2Ca ↔ AC*Kcat[Ca][CaM  AC]Ca+Kmkr[AC ]Kcat = 59.5 s-1,
Km = 0.1 μM,
kr = 10 s-1
Masada et al., 2009; Masada et al., 2012
17PDE + Ca2CaM ↔ CaM · PDEkf[PDE][Ca2CaM]kr[CaM  PDE]kf = 435 s-1 ⋅ µM−1,
kr = 1 s-1
Ang and Antoni, 2002
18CaM · PDE + 2Ca ↔ PDE*Kcat[Ca][CaM  PDE]Ca+Kmkr[PDE ]Kcat = 1.81 s-1,
Km = 0.18 μM,
kr = 1 s-1
Ang and Antoni, 2002
19PDE + Ca4CaM ↔ PDE*kf[PDE][Ca4CaM]kr[PDE ]kf = 435 s-1 ⋅ µM−1,
kr = 1 s-1
Ang and Antoni, 2002
  1. *denotes the activated form

Appendix 1—table 3
cAMP reactions.
#ReactionReaction fluxKinetic parametersRef.
20→ cAMPkbase([CaM  AC]+[AC]+[ACind])+kact[AC]kbase = 0.1 s-1,
kact = 0.785 s-1
Leonid E. Fridlyand & Philipson, 2016; Ni et al., 2011
21cAMP→kbase[cAMP][CaM  PDE]+[PDE][cAMP]+Km+kact[cAMP][PDE ][cAMP]+Kmkbase = 0.2 s-1,
Km = 0.6 μM
kact = 2.5 s-1
Ni et al., 2011; Fridlyand and Philipson, 2016
22cAMP→Vind[cAMP][cAMP]+KmVind = 2.5 μMs−1,
Km = 1.4 μM
Ni et al., 2011; Fridlyand and Philipson, 2016
23cAMP + R2 → R2bkf[cAMP][R2]kr[R2b]kf = 1 s-1 ⋅ µM−1,
kr = 0.00033 s-1
Boras et al., 2014
24cAMP + R2b → R2bakf[cAMP][R2b]kr[R2ba]kf = 1 s-1 ⋅ µM−1,
kr = 0.00105 s-1
Boras et al., 2014
25cAMP + R2b → R2bbkf[cAMP][R2b]kr[R2bb]kf = 1 s-1 ⋅ µM−1,
kr = 0.00132 s-1
Boras et al., 2014
26cAMP + R2ba → R2bbakf[cAMP][R2ba]kr[R2bba]kf = 1 s-1 ⋅ µM−1,
kr = 0.0013 s-1
Boras et al., 2014
27cAMP + R2bb → R2bbakf[cAMP][R2bb]kr[R2bba]kf = 1 s-1 ⋅ µM−1,
kr = 0.00103 s-1
Boras et al., 2014
28cAMP + R2bba → R2bbaakf[cAMP][R2bba]kr[R2bbaa]kf = 1 s-1 ⋅ µM−1,
kr = 0.0114 s-1
Boras et al., 2014
29PKA + R2 → R2Ckf[PKA][R2]-kr[R2C]kf = 1 s-1 ⋅ µM−1,
kr = 1.26E-7 s-1
Boras et al., 2014
30PKA + R2b → R2bcCkf[PKA][R2b]kr[R2bC]kf = 1 s-1 ⋅ µM−1,
kr = 2.52E-7 s-1
Boras et al., 2014
Appendix 1—table 4
cAMP reactions (cont.).
#ReactionReaction fluxKinetic parametersRef.
31PKA + R2ba → R2ba Ckf[PKA][R2ba]kr[R2baC]kf = 1 s−1 · µM−1
kr = 3.4E-6 s-1
Boras et al., 2014
32PKA + R2bba → R2bba Ckf[PKA][R2bba]kr[R2bbaC]kf = 1 s−1 · µM−1,
kr = 0.000936 s-1
Boras et al., 2014
33PKA + R2bbaa → R2bbaa Ckf[PKA][R2bbaa]kr[R2bbaaC]kf = 1 s−1 · µM−1,
kr = 0.645 s-1
Boras et al., 2014
34cAMP + R2C → R2b Ckf[cAMP][R2C]kr[R2bC]kf = 1 s−1 · µM−1 ,
kr = 0.000659 s-1
Boras et al., 2014
35cAMP + R2b C → R2ba Ckf[cAMP][R2bC]kr[R2baC]kf = 1 s−1 · µM−1 ,
kr = 0.0142 s-1
Boras et al., 2014
36cAMP + R2ba C → R2bbc Ckf[cAMP][R2baC]kr[R2bbaC]kf = 1 s−1 · µM−1,
kr = 0.0142 s-1
Boras et al., 2014
37cAMP + R2bba C → R2bbaa Ckf[cAMP][R2bbaC]kr[R2bbaaC]kf = 1 s−1 · µM−1,
kr = 7.84 s-1
Boras et al., 2014
38PKA + R2b C → R2b C2kf[PKA][R2bC]kr[R2bC2]kf = 1 s−1 · µM−1,
kr = 0.00324 s-1
Boras et al., 2014
39PKA + R2C → R2C2kf[PKA][R2C]kr[R2C2]kf = 1 s-1 · µM−1,
kr = 2.81E-6 s-1
Boras et al., 2014
40PKA + R2ba C → R2ba C2kf[PKA][R2baC]kr[R2baC2]kf = 1 s−1 · µM−1,
kr = 0.666 s-1
Boras et al., 2014
41cAMP + R2C2→ R2b C2kf[cAMP][R2C2]kr[R2bC2]kf = 1 s−1 · µM−1,
kr = 0.762 s-1
Boras et al., 2014
42cAMP + R2b C2→ R2ba C2kf[cAMP][R2bC2]kr[R2baC2]kf = 1 s−1 · µM−1,
kr = 2.91 s-1
Boras et al., 2014
Appendix 1—table 5
Initial conditions.
#SpeciesInitial valueRef.
IC1AC81 µM
IC2ACind1 µM
IC3Ca2+1 µM
IC4CaM10 µM
IC5cAMP0.1 µM
IC6PDE11 µM
IC7PDE40.4 µM
IC8R2C20.4 µM
IC9V−60 mV

Minimal model to explore Ca2+-cAMP phase behavior

Based on the well-mixed model, we propose a minimal circuit to understand the phase behavior of Ca2+-cAMP. Consider the system in Figure 2c, where Ca2+ is the stimulus which uses a pulse train to set influx times, AC is an activator, PDE1C is an inhibitor, and cAMP is the response element.

Assumptions

The system is in a state such that the change in cAMP allows for further Ca2+ influx in a semi-predictable manner, as represented by the pulse train. Therefore, this system is deemed to be stable if there exists a Ca2+ value that gives a stable solution for cAMP. All constants must be positive to remain physically relevant. We assume that there exists a constant independent source and sink within the system. The Ca2+-dependent and independent sources are localized homogeneously on the membrane, with both sinks located uniformly in the cytosol. For simplicity, we assume that the activation function for both AC and PDE1C are linear functions of Ca2+ of the form aS+b.

Governing Equations

We define a stimulus (S, Ca2+) and a response element (R, cAMP). The well-mixed rate of change function for cAMP is then given by,

dRdt = v1a1S+b1-v2a2S+b2R+vip-vidR

Here, v1 denotes the velocity of cAMP production by AC, v2 the rate of degradation by PDE, and vip and vid the rates of independent production and degradation respectively.

Analytical solutions for the minimal model

To analyze if the system lies in an in- or out-of-phase state we find the direction of the system change after initialization to S0 [i.e. the basal stimulus (initial concentration of Ca2+)]. First, we must solve for R0 (initial concentration of cAMP) by setting dRdt=0, we find:

R0 = v1a1S0+b1+vipv2a2S0+b2+vid

We start the system at equilibrium and prescribe a discontinuous pulse of S from S0 to Sh, akin to VGCC opening allowing Ca2+ flux. Therefore, solving for the sign of R, we obtain

dRdt|t=0=v1(a1Sh+b1)+vip(v2(a2Sh+b2)+vid)v1(a1S0+b1)+vipv2(a2S0+b2)+viddRdt|t=0=(v1a1(v2b2+vid)v2a2(v1b1+vip))(ShS0)v2(a2S0+b2)+vid

Since we consider the sign we can then characterize the solution by

v1a1(v2b2+vid)v2a2(v1b1+vip)>1in phase (low τ)v1a1(v2b2+vid)v2a2(v1b1+vip)=1transition (flat line)v1a1(v2b2+vid)v2a2(v1b1+vip)<1out of phase (high τ)

This model was then computationally run to confirm the results with arbitrary parameters (Figure 2c). The system was simulated with all parameters set to 1 except v1 and v2 at values of 4 and 2, respectively and vice-versa. The pulse train is ON for 1 sec (Sh = 10) and OFF for 3 sec (S0 = 1), and repeats until the simulation total time is reached.

Numerical implementation of the minimal model

We performed numerical simulations in MATLAB R2018b and checked against analytic solutions provided in the previous section. Minimal model solutions are shown in Figure 2c.

Stochastic implementation of the minimal model

To further explore the possible effects of noise and small numbers of molecules on the simplified four component model, we created a stochastic version of the model. Due to the nature of stochastic simulations, all reactions were rewritten to multistep interactions. In order to allow for oscillatory kinetics at the membrane, a Lotka-Volterra model (in a larger volume, for numerical stability) was utilized to simulate depolarization events shown in Appendix 1—table 8. The system was solved using the Gibson method in the Virtual Cell modeling platform. All Ca2+, AC, and PDE reactions are shown in Appendix 1—tables 69.

Appendix 1—table 6
Initial conditions for the stochastic model.
SpeciesNumber of molecules in the system
Ca2+10
PDE45
PDE*5
AC10–200 (log scale)
s010000
s41000
Appendix 1—table 7
Compartment volumes for the stochastic model.
CompartmentCompartment size
Cytosol0.083 μm3
Membrane0.28 μm2
Oscillator6563.0 μm2
Appendix 1—table 8
Lotka-Volterra model to initiate the membrane depolarization events.
#ReactionParameters
1s0 → 2s0Kf = 1.7 s−1
2s0 + s4 → 2s4Kf = 1 μm2 ⋅ molecule-1 ⋅ s-1
3s4 →Kf = 1.7 s-1
Appendix 1—table 9
simplified model reactions for the stochastic model.
#ReactionParameters
4s4 → > s4 + Ca2+Kf = 150 s−1
5Ca2+Kf = 500 μm−2 ⋅ molecule ⋅ s−1 ⋅ μM−1
6AC + Ca2+ → AC*Kf = 200 s−1 ⋅ μM−1 Kr = 300 s−1
7AC* → > cAMP + AC*Kf = 300 s−1
8AC → cAMP + ACKf = 5 s−1
9PDE + Ca2+ → PDE*Kf = 150 s−1 ⋅ μM−1 Kf = 100 s−1
10PDE + cAMP → PDEKf = 50 s−1 ⋅ μM−1
11PDE* + cAMP → PDE*Kf = 1000 s−1 ⋅ μM−1
12→ cAMPJ = 9000 μm−2 ⋅ molecule ⋅ s−1
13cAMP →Kf = 50 s−1

Solutions to the stochastic model are shown in Figure 6—figure supplement 2. The Virtual Cell Model, ‘Minimum Stochastic Model BetaCell’ by user ‘mgetz’, can be accessed within the VCell software (available at https://vcell.org). The Virtual Cell is supported by NIH Grant R24 GM134211 from the National Institute for General Medical Sciences (Cowan et al., 2012; Schaff et al., 1997).

Simulations of the full spatial systems

For computational simplification, simulations were performed with a Gaussian profile on the top boundary, the size of the domain and Gaussian profile were informed by STORM images, Figure 3. The system is a hexagonal prism with outer diameter of 0.4 µm and depth 0.6 µm with periodic boundary conditions in the x and y planes, see Figure 4a. The top plane is assumed to be the membrane and the bottom is a no-flux condition. For the membrane plane, a Gaussian profile was normalized such that the average value is 4 x 10−10 mol/m2. The Ca2+ sensitive AC initial condition (Gaussian profile) is fixed for all simulation times by setting the diffusion constant to ≈0. To test the effect of localization, a percentage of AC mass was moved from the Gaussian profile into a uniform profile (a 25% Localization means that 25% of the total AC mass is within the Gaussian profile and the remaining 75% is within the uniform profile). Examples of surface profiles at multiple % localizations can be seen in Figure 4b.

Assumptions

  • Membrane patterns are pre-existing and not affected by a single signaling event such that no diffusion occurs.

  • Clustering events were approximated by a Gaussian profile in the center of the hexagonal prism.

Model development

Although the well-mixed system shows the ability to oscillate in and out-of-phase in a well-behaved manner, the spatial model will not produce this effect if a homogeneous boundary is present. Previous studies have looked at spatial gradients in the context of cAMP and PKA and found out that localization of some species is necessary for the system to demonstrate different behaviors (Yang et al., 2016). Therefore, when moving to a 3D spatial map, we must consider how the two solution regimes can be recovered. Experimental data suggest that AKAP dimerizes and may form oligomers (Gao et al., 2011; Gold et al., 2011), which is important for the function of these cells (Zhang et al., 2013). This could allow spatial instabilities like those seen in Haselwandter et al., 2015 used to describe post synaptic domains. The final Gaussian profile on the top boundary had the size of the domain and Gaussian profile informed by STORM images of AC clustering (Figure 3). Statistics of the images show that, on average, 90% of the AC sits within 54 nm of the cluster center. The system was determined to be 0.35 x 0.35 x 0.6 µm hexagonal prism with a Gaussian standard deviation of 25 nm.

The kinetic parameters used were the same as for the well-mixed model, except for a few cases in which tuning through surface/volume relationships was needed. Post fitting was performed to further refine the relationship between PDE and AC through use of obtained FRET measurements (see section 4). Due to the large computational expense of the model, the PDE interactions were reduced to two steps (Appendix 1—table 10).

Appendix 1—table 10
Ca2+ Flux and reactions modified from Appendix 1—table 2.
#ReactionReaction fluxKinetic parametersRef.
S1→ Ca2+jCaV(1+kPKAV[PKA])+JCaIkPKAV = 100 μM-1FRET constraint
S2jCaVfi(-αICa-vLPM[Ca])fi = 1 x 10−6,
α = 4.15 x 105mol · m−2 · A−2 · s−1,,
vLPM = 7.5 x 10−4m · s−1
Ni et al., 2011
S3jCaICkIPAR[PKA]A[Ca]1+A[Ca]+[B][Ca]2([Castores][Ca])Vs[Ca]2Ks2+[Ca]2Ks = 10 μM,
Castores = 1.56 μM,
Vs = 0.1 µM · s−1,
kIP3R = 0.05 μM-1s-1,
A = 0.2869 μM-1,
B = 2.869 μM-2,
C = 0.2133
Ni et al., 2011
S4AC + Ca2CaM ↔ CaM · ACkf[AC][Ca2CaM]kr[CaM  AC]kf = 10.8 s-1 · µM−1,
kr = 10 s-1
FRET constraint
S5CaM · AC + 2Ca2+ ↔ AC*Kcat[Ca][CaM  AC]Ca+Kmkr[AC ]Kcat = 90 s-1,
Km = 1 μM,
kr = 10 s-1
FRET constraint
S6PDE + Ca2CaM ↔ CaM · PDEkf[PDE][Ca2CaM]kr[CaM  PDE]kf = 0.25 s-1 · µM−1,
kr = 1 s-1
FRET constraint
S7CaM · PDE + 2Ca2+ ↔ PDE*Kcat[Ca][CaM  PDE]Ca+Kmkr[PDE ]Kcat = 60 s-1,
Km = 1 μM,
kr = 1 s-1
FRET constraint
S8PDE + Ca4CaM ↔ PDE*kf[PDE][Ca4CaM]kr[PDE ]kf = 0.25 s-1 · µM−1,
kr = 1 s-1
FRET constraint

Numerical simulation

The well-mixed network was imported into COMSOL Multiphysics5.4 (Build:295), to solve the spatial model with inhomogeneous boundary conditions at the plasma membrane.

Reaction-Diffusion Partial differential equations (PDEs)

Consider the same one-reaction system as the well-mixed system:

A+2B3C,

where the forward and backward rates are k1 and k2. But, now we spatially discretize the system, the partial differential equations describing the dynamics of species A,B, and C with unrestricted diffusion are then:

[A]t=DA2[A]+k2[C]3k1[A][B]2[B]t=DB2[B]+2k2[C]32k1[A][B]2[C]t=DC2[C]+3k1[A][B]23k2[C]3.

Where 2 is the Laplacian and DA is a diagonal matrix of diffusion coefficients for component A. Yet within the cell, all reactions do not occur in the free volume. In fact, most interactions occur on a membrane surface, which requires a different boundary condition.

Reactions on the system boundary

Now let us assume the previous reaction occurs on the boundary and C is a membrane species on surface Ω

A+2B3C,

This would mean within the volume there is only free diffusion,

[A]t=DA2[A][B]t=DB2[B]

At the surface we would have a Neumann boundary condition, that is, a defined flux occurring into the boundary normal. We define the reaction as a flux occurring at a membrane surface (Ω)

A(x,t)n^(x)|Ω=k2[C]3k1[A][B]2B(x,t)n^(x)|Ω=2k2[C]32k1[A][B]2C(x,t)n^(x)|Ω=3k1[A][B]23k2[C]3

Here, n^ is the unit normal to Ω. We therefore have defined a flux between the volume and the membrane Ω. Finally, we consider Ω as a 2-dimensional surface existing at the system boundary with free diffusion of C;

[C]t =DCΔ[C]

where Δ is the surface Laplacian.

PKA spatial response mirrors cAMP

PKA with full diffusion values (10μm2s) did not follow cAMP dynamics and only elicited a single global response. We asked if this was due to AKAP patterning at the surface, which should mirror the AC profile at the surface. Adding this interaction into the model did not allow any sizable spatial gradient of PKA to develop. Recent work has suggested the PKA catalytic subunit in the presence of non-excess cAMP is effectively activated but its diffusion is restricted (Smith et al., 2017). By varying the diffusion constant, we found PKA activity could follow cAMP dynamics in the nanocluster and PM compartments in our computational model for restricted diffusivities (Figure 6–figure supplement 1a). We experimentally tested this prediction using the AKAP79-fused and PM-targeted PKA activity sensors and found that indeed PKA activity did follow the cAMP-Ca2+ phase relationship within the two compartments (Figure 6–figure supplement 1b-d). This suggests that anchored PKA holoenzyme action is much more restricted than originally anticipated.

Comparisons with experimental data

Raw FRET data (Figure 1) was used for model refinement of the cAMP-Ca2+ phase relationship. The experimental and model data were qualitatively compared against each other to preserve oscillation time, amplitude, range, and waveform. Although a quantitative calibration was not performed to map FRET ratio to cAMP concentration, we utilized the fact that these sensors are known to measure cAMP in the range of ≈0.1-10 µM to constrain our model. Voltage-gated channel sensitivities were not tuned, and only connection strengths between CaM to ACs and PDEs, which are largely less constrained in comparison, were varied. Values modified from the well-mixed model values can be found in Appendix 1—tables 1013.

Model validation and predictions

The model generated predictions relating concentration perturbations (AC, PDE, etc.), disruption of patterning (AC binding disruption), and their changes to the phase of the signal. The system, once moved to the spatial model, was allowed free parameters along the six-component axis for CaM connection and cAMP production strength of ACs and PDEs. This includes the flux differential between basal and activated ACs and PDEs.

Reaction tables of modified well-mixed parameters for the spatial model

Appendix 1—table 11
cAMP reactions modified from Appendix 1—table 3.
#ReactionReaction fluxKinetic parametersRef.
S9→ cAMPkbase([CaM  AC]+[AC]+[ACind])+kact[AC ]kbase = 0.2 s-1,
kact = 23.55 s-1,
ACind = 3 x 10−8
FRET constraint
S10cAMP →kbase[cAMP][CaM  PDE]+[PDE][cAMP]+Km+kact[cAMP][PDE ][cAMP]+Kmkbase = 0.6 s-1,
Km = 0.6 µM
kact = 720 s-1
FRET constraint
S11cAMP →Vind[cAMP][cAMP]+KmVind = 0.25 µM · s−1,
Km = 1.4 µM
FRET constraint
S122cAMP + R2C2 → R2C + PKAkf[cAMP]2[R2C2]kr[R2C][PKA]kf = 20 min−1 · µM−2,
kr = 12 min−1 · µM−1
S132cAMP + R2C → R2 + PKAkf[cAMP]2[R2C]kr[R2][PKA]kf = 20 min−1 · µM−2,
kr = 12 min−1 · µM−1
Appendix 1—table 12
Additional AKAP interactions for the spatial model.
#ReactionReaction fluxKinetic parametersRef
S14AKAP + R2 → AKAP-R2kf[R2][AKAP-R2C2]-kr[AKAP-R2]kf = 1 s−1 · µM−1
kf = 0.1 s-1
Est.
S15AKAP + R2C → AKAP-R2Ckf[R2C][AKAP-R2C2]-kr[AKAP-R2C]kf = 1 s−1 · µM−1
kf = 0.1 s-1
Est.
S16AKAP + R2C2 → AKAP-R2C2kf[R2C2][AKAP-R2C2]-kr[AKAP-R2C2]kf = 1 s−1 · µM−1
kf = 0.1 s-1
Est.
S172cAMP + AKAP-R2C2 → AKAP-R2C + PKAkf[cAMP]2[AKAPR2C2]kr[AKAPR2C][PKA]kf = 20 min−1 · µM−2,
kr = 12 min−1 · µM−2
S182cAMP + AKAP-R2C → AKAP-R2 + PKAkf[cAMP]2[AKAPR2C]kr[AKAPR2][PKA]kf = 20 min−1 · µM−2,
kr = 12 min−1 · µM−2
Appendix 1—table 13
Initial conditions and diffusion coefficients used in the model.
#SpeciesInitial valueDiffusionRef.
SIC1Ca2+0.001 µM100 μm2s(Donahue and Abercrombie, 1987), Est. from steady state
SIC2CaM2.9 µM10 μm2sEst. from steady state*
SIC3Ca2CaM0.1 µM10 μm2sEst. from steady state*
SIC4Ca3CaM4 x 10−3 µM10 μm2sEst. from steady state*
SIC5Ca4CaM1 x 10−2 µM10 μm2sEst. from steady state*
SIC6R20.04 µM10 μm2sEst. from steady state*
SIC7R2C20.2 µM10 μm2sEst. from steady state*
SIC8PKA0.05 µM0.01 μm2sEst. from steady state, diffusion fitted
SIC9PDE10.9 µM10 μm2sEst. from steady state*
SIC10PDE1act1 x 10−3 µM10 μm2sEst. from steady state*
SIC11CaMPDE11 x 10−3 µM10 μm2sEst. from steady state*
SIC12AC4 x 10−10 molm20Est.
SIC13CaMAC0 molm20Est.
SIC14ACact0 molm20Est.
SIC15ACind4 x 10−10 molm21 μm2sEst.
SIC16V−60 mV1 μm2sFridlyand et al., 2003; Ni et al., 2011
SIC17cAMP4 x 10−6 µM60 μm2sAgarwal et al., 2016, Est. from steady state
  1. *For all cytosolic species without well-constrained diffusions, we used 10 μm2s

    For all membrane species without well-constrained diffusions we used 1 μm2s

Appendix 1—figure 1
Phase of cAMP correlates with the expression level of the AKAP79-(Ci/Ce)Epac2-camps.

Scatter plot of the time lag (sec) and the YFP donor channel intensity (normalized to non-saturating maximum) for each cell expressing AKAP79-(Ci/Ce)Epac2-camps. Cells with higher expression of the probe correlated with a longer time lag, therefore a YFP intensity threshold was designated for analysis purposes.

Appendix 1—figure 2
Phase is driven by activity variability within the Ca2+ oscillatory regime.

The phase of the system can be switched by tuning the association of CaM to sources (ACs) and sinks (PDEs). (a) At base system conditions, the system acts in an in-phase manner. (b) Decreasing the rate of Ca2+ association to the AC-CaM complex causes the phase to switch to out-of-phase. (c) Increasing basal PDE activity does not allow a phase switch only after decreasing PDE and CaM association rates will the system allow a phase switch (d). A phase switch is controlled by the variability in the activity of source or sink. If the sink dominates, then the system is out-of-phase. If the source dominates, the system is in-phase.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
    Modeling of Ca2+ flux in pancreatic beta-cells: role of the plasma membrane and intracellular stores
    1. LE Fridlyand
    2. N Tamarina
    3. LH Philipson
    (2003)
    American Journal of Physiology. Endocrinology and Metabolism 285:E138–E154.
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
    The cyclic AMP pathway
    1. P Sassone-Corsi
    (2012)
    Cold Spring Harbor Perspectives in Biology 4:a011148.
    https://doi.org/10.1101/cshperspect.a011148
  69. 69
  70. 70
  71. 71
    High frequency insulin pulsatility and type 2 diabetes: from physiology and pathophysiology to clinical pharmacology
    1. O Schmitz
    2. B Brock
    3. M Hollingdal
    4. CB Juhl
    5. N Pørksen
    (2002)
    Diabetes & Metabolism 28:4S14–420.
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87
  88. 88
  89. 89
  90. 90
  91. 91

Decision letter

  1. Satyajit Mayor
    Reviewing Editor; Marine Biological Laboratory, United States
  2. Jonathan A Cooper
    Senior Editor; Fred Hutchinson Cancer Research Center, United States
  3. André Nadler
    Reviewer; European Molecular Biology Laboratory (EMBL), Germany

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Second messengers, typically small molecules such as cAMP and ions such as Ca2+, regulate a variety of intracellular processes. Understanding their spatial and temporal distributions as well as their dynamics is important to appreciate the spatial biochemistry controlled by these agents. In their manuscript the authors have been able to map exactly this for the oscillations of cAMP and Ca2+. Their analysis reports that the local oscillations of cAMP occur out-of-phase with respect to the oscillations of Ca2+, but in-phase in the rest of the cell. This has implications for the spatial and temporal control of the biochemistry regulated by this second messenger.

Decision letter after peer review:

Thank you for submitting your article "Spatially compartmentalized phase regulation of a Ca2+-cAMP-PKA oscillatory circuit" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Jonathan Cooper as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: André Nadler (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The manuscript by Tenner et al. describes how spatial confinement of AMP cyclases can entrain the temporal concentration profile of its product cAMP to an oscillating calcium concentration profile. They address an extremely interesting topic that is currently receiving well-deserved attention: The notion that cells encode information not only through on/off switches in the respective signaling circuits but also in the dynamic profiles of the signaling responses. They provide compelling evidence for a two-state system featuring either in-phase or out-of-phase cAMP/calcium oscillations. They use FRET sensors targeted either to a specific (signaling) nano-compartment (AKAP79/150) at the plasma membrane or to the general plasma membrane to demonstrate that these states are due to distinct signaling dynamics on the nanoscale, a conclusion that is further underlined by simulations from a kinetic model describing this behavior.

They propose that a cluster of multiple calcium-sensitive ACs in the membrane shift the balance for the calcium-sensitive cAMP pool to become in-phase with the calcium signal itself, at increased calcium levels. In contrast, in regions away from the clusters, calcium-sensitive cAMP degradation by PDEs during periods of increased calcium drives the cAMP levels to become out-of-phase. In fact, the study goes full circle in illustrating how the spatially induced driving of a phase shift (calcium -> cAMP) could be related to the maintenance of the calcium oscillatory signal itself (via PKA). In general, the authors provide a well written narrative that includes microscopy of protein organisation at the nanometer scale, local and dynamic measurements of activity, and a modelling frame to interpret the data. Overall, this is a very interesting manuscript which would be of considerable general interest (and suitable for eLife) after a number of revisions to strengthen the experimental support for its core hypothesis.

Essential revisions:

A) AC8 nanoclustering and measurement of localized cAMP:

1) Although the STORM images of AKAP79 and AC8 make a plausible case that they are colocalized in nanoclusters a more convincing case would be made if the authors had carried out 2-color STORM.

The authors suggest that a cluster needs to contain 'many' AC8 proteins. Please provide a number: The authors have STORM data as well as simulations. For the reaction diffusion model the authors need to assume that the membrane patterns (AKAP79/150 – AC8 clusters) are immobile. If the domain should be immobile not with respect to a calcium-cAMP oscillation (on the order of 10s of seconds) it would be important to provide data to support this (FRAP, SPT or sequential imaging). How does a cluster of a few molecules of AC8, along with its scaffolding protein remain immobile in the fluid membrane? Is it known what generates and holds the AKAP79/150 compartment in place?

2) How critical is AC8 nanoclustering? Clearly under endogenous expression levels a displacement from the AKAP79/150 compartment disrupts the regularity of the calcium oscillations. But that is under the condition of the PDE activity that is present everywhere in the cytosol. What if the requirement is a calcium-dependent increase of cAMP production above the baseline? Then simple over expression of AC8 should be enough to entrain the calcium oscillations properly. Indeed, Figure 2E seems to suggest that to be a possibility. How critical is nanoclustering of AC8 in such a scenario of overexpression?

B) Sensor design

While the utilized sensor design based on the human protein may be of broader general interest, here a human protein (AKAP79) is used for targeting to a signaling nanodomain in a mouse cell line. The human and the mouse proteins are only 53% identical, thus it is not clear if they can in fact functionally substitute for each other, ensuring that the sensor indeed localized to the AKAP150/79 compartment.

This could for instance be confirmed using the already utilized AKAP150 antibody and an anti-FP antibody in a STORM (or other super-resolution) colocalization experiment. It would be better to generate a construct using the mouse protein and show in representative datasets that the observed phase-shift of cAMP oscillations is still observed. It is also not clear how the presence of a second protein pool (with likely different affinities for interacting proteins), in addition to the endogenous AKAP150 pool, would affect the outcome of the modelling. Possible complications may be discussed.

C) Perturbation of protein concentrations

The authors use overexpression of proteins as perturbations (e.g. for AC8). They do not, however, provide data on the actual changes of protein levels – only the amount of plasmid used for transfection is reported in Figure 2—figure supplement 2. The authors should quantify the changes of AC8 expression on the protein level, ideally in absolute numbers, however, if this is not possible, a combination of immunofluorescence data (to give the reader an estimate of the cell-to-cell variability) and western blot data would be sufficient here.

Does AKAP79 overexpression have an effect on endogenous AC8 expression levels?

Given that AKAP150 and AC8 physically interact, it is possible that their expression levels are co-regulated. Thus, it is at least conceivable that AK79 overexpression (through the FRET construct) could change AC8 expression levels. Given that AC8 concentration is a key factor in determining the phase offset of calcium/cAMP oscillations, this should be tested by quantifying AC8 on the protein level for overexpression of both the Lyn- and the AKAP79 based FRET constructs.

This could be done by western blot or MS to get an idea on the effect on the cell population level, but also by immunofluorescence imaging data on the single cell level (colocalization experiments using both anti-FP and anti-AC8 antibodies to estimate the effects of cell-to-cell variability).

D) Modelling Issues:

The modelling is competently done with well-established software in the field. The authors have made a couple of design decisions that should be probed: (1) the use of Michaelis-Menten enzyme kinetics, rather than multi-step mass-action (2) Not using stochastic calculations. The stochastic analysis would have yielded some estimates of noise in the system that might be interesting. While the mapping between model and experiment seems reasonable, an estimate of noise in the system due to the low numbers of the molecules involved would be worth exploring.

The authors also present two models which both explain the experimental data: (a, in Figure 2) A simpler one, where the concentration of AC8 serves as a (global) switch between out-of-phase and in-phase calcium and cAMP oscillations and (b, in Figure 4) a more complex one that predicts localized cAMP oscillations in the specific AKAP79/150 clusters which are out-of-phase with the (global) cAMP oscillations in the cytosol. All modelling is restricted to simulations, if the statement made in the supplementary information (subsection “Model development”) is to be interpreted correctly. This is a significant limitation for the entire manuscript, as all conclusions are (at least partially) based on choices for parameters that the authors made instead of parameters values that were derived from fitting the model to experimental data which would be much more stringent.

Ideally, the authors should fit their two models to a large, representative dataset and use Akaike's information criterion to decide which one is the more suited one. I understand that this will likely not be possible due to the high number of free parameters – it is unlikely that a fitting algorithm would find a true global minimum, as the available data probably are not sufficient constrains. However, this in turn means that deciding which model is to be preferred has to be done by testing predictions where the two models differ significantly.

The following two predictions where both models would yield diametrically opposing outcomes:

i) The 3D reaction diffusion model predicts that cAMP oscillations in the AKAP79/150 compartments and cAMP oscillations in the bulk cytosol are out of phase in the same cell (see Figure 4). This can be tested by combining the AKAP79-based FRET sensor with a cytosolic, intensiometric, RFP-based cAMP sensor such as R-FlincA (Ohta et al., 2018). If the authors observe a clear phase shift between these two reporters, it would constitute very strong evidence in support of the 3D reaction-diffusion model. The current datasets only report one type of compartment per cell, yet the striking difference between compartments in the same cell is where the model predictions differ most dramatically.

ii) Localized oscillations depend on the assumption that AC diffusion is (close to) zero. Thus, the authors should measure AC diffusion at the plasma membrane. A key assumption of their model is that at least a fraction of the total protein pool should be completely immobile. Furthermore, this fraction should increase in an AKAP150 overexpression background.

E) Final punchline that these elegant biophysical findings are important for some aspect of physiology is not very compelling. The authors should come with a more surgically-dissected physiological parameter that depends on the phase relationship between Ca and CaM, and at least provide this in their Discussion section.

https://doi.org/10.7554/eLife.55013.sa1

Author response

Essential revisions:

A) AC8 nanoclustering and measurement of localized cAMP:

1) Although the STORM images of AKAP79 and AC8 make a plausible case that they are colocalized in nanoclusters a more convincing case would be made if the authors had carried out 2-color STORM.

We thank the reviewer for this suggestion. We tested different protocols for visualizing AC8 and AKAP150 nanoclusters in the same fixed cell and finally successfully performed 2-color STORM experiments (Figure 3—figure supplement 1). We quantified the degree of co-clustering of AC8 and AKAP150 using Getis-Franklin analysis (Getis and Franklin, 1987; Mo et al., 2017). We found that approximately 72% of AKAP150 localizations are co-clustered with AC8 localizations (Figure 3—figure supplement 1). These data corroborate our earlier data showing AC8:AKAP150 interaction (Figure 5—figure supplement 1A,B), further strengthen the validity of our spatial model, and have been incorporated into the revised manuscript.

The authors suggest that a cluster needs to contain 'many' AC8 proteins. Please provide a number: The authors have STORM data as well as simulations.

We thank the reviewers for this comment. Estimating the number of AC8 molecules from simulations is not possible because the simulations use a continuum description of the chemical species with the goal of identifying possible mechanisms underlying the in-phase and out-of-phase dynamics of calcium and cAMP. For ease of computation, we use surface densities and concentrations of the various species involved. Since we do not use molecular models of different species interaction, we cannot use the simulations to estimate the number of AC8 molecules. That sort of estimate requires molecular dynamic simulations that consider the structure of AC8 and AC8 membrane interactions, which is outside the scope of the present work.

Experimentally, counting the absolute number of proteins within cellular structures with STORM/PALM has traditionally been very difficult due to blinking artifacts, unknown labeling efficiencies, and specific acquisition parameters (Durisic et al., 2014; Jung, Fujimoto and Chiu, 2017) and is a very active field of investigation (Zanacchi et al., 2017; Thevathasan et al., 2019). However, we can obtain a very rough estimate of AC8 molecules within nanoclusters from our blink-corrected STORM datasets by assuming background localizations outside the cell are due to single secondary antibodies with conjugated dyes. Estimating a labeling stoichiometry of 0.4-1.5 secondary antibodies per primary antibody and 0.4-1.5 primary antibodies per AC8 molecule (Zanacchi et al., 2017; Nieuwenhuizen et al., 2015), we can roughly approximate the number of AC8 molecules per nanocluster to be between 15 to 150 molecules/cluster (N=3 cells). We have included this estimation in the Discussion section of the revised manuscript.

For the reaction diffusion model the authors need to assume that the membrane patterns (AKAP79/150 – AC8 clusters) are immobile. If the domain should be immobile not with respect to a calcium-cAMP oscillation (on the order of 10s of seconds) it would be important to provide data to support this (FRAP, SPT or sequential imaging). How does a cluster of a few molecules of AC8, along with its scaffolding protein remain immobile in the fluid membrane? Is it known what generates and holds the AKAP79/150 compartment in place?

Indeed, our simulations assume that the AKAP79/150-AC8 clusters are relatively immobile or diffuse slowly, within the timescale of the oscillatory circuit. Per the reviewer’s request, we performed Fluorescence Recovery After Photobleaching (FRAP) experiments using GFP-tagged AC8 and found that AC8 indeed diffuses slowly with a t1/2 recovery of 61 ± 20 sec (avg ± SD) and an apparent diffusivity Dapp of 0.019 ± 0.002 μm2/sec (Figure 3—figure supplement 2, n = 16 cells). In addition, recovery of AC8 is incomplete, indicating a large immobile fraction at the membrane (extrapolated, avg. immobile fraction = 42.3%). These new data are included as Figure 3—figure supplement 2 in the revised manuscript. Restricted diffusion and clustering of receptors and scaffolds at the membrane is observed in many biological systems and in some cases can be attributed to an association with cytoskeletal elements (Sanderson, 2012; Trimble and Grinstein, 2015). Relevant to this study, clustering of the AKAP79/150 scaffold has been observed in other contexts (Mo et al., 2017; Zhang et al., 2016) and is known to interact with actin and cadherins (Gorski et al., 2005). It will be interesting in the near future to further investigate the role played by the AKAP scaffold in the observed restricted diffusion of AC8.

2) How critical is AC8 nanoclustering? Clearly under endogenous expression levels a displacement from the AKAP79/150 compartment disrupts the regularity of the calcium oscillations. But that is under the condition of the PDE activity that is present everywhere in the cytosol. What if the requirement is a calcium-dependent increase of cAMP production above the baseline? Then simple over expression of AC8 should be enough to entrain the calcium oscillations properly. Indeed, Figure 2E seems to suggest that to be a possibility. How critical is nanoclustering of AC8 in such a scenario of overexpression?

We thank the reviewer for these questions. In this study, we provide evidence that not only does entrainment of calcium and calcium-dependent increases of cAMP occur within MIN6 β cells, but rather these in-phase oscillations occur in a compartmentalized fashion. Based on our modeling analysis, AC8 nanoclustering is necessary but not sufficient for compartmentalized “phase” regulation, i.e. in-phase calcium and cAMP oscillations only occurring within the AKAP79/150-specific compartment. As shown in Figure 5B, disruption of the AC8 nanoclustering leads to loss of in-phase oscillations. We also modeled the case where AC8 is overexpressed but nanoclustering still exists, which we now present in Figure 4—figure supplement 1. In this case, increasing the concentration of nanoclustered AC8 by 50% drives calcium-stimulated cAMP oscillations to be in-phase with calcium both in the AKAP79/150-AC8 cluster center as well as outside the cluster at the plasma membrane (Figure 4—figure supplement 1). This is due to the additional calciumactivated cAMP flux from the cluster counteracting the cAMP degradation by PDE1 at the cytosol and general plasma membrane, which is consistent with the in-phase cAMP-calcium relationship that we observed at the general plasma membrane when AC8 was overexpressed (Figure 2C,E). Thus AC8 overexpression disrupts the compartmentalization and leads to calcium and cAMP entrainment in a global manner (Figure 2C,E and Figure 4—figure supplement 1).

B) Sensor design

While the utilized sensor design based on the human protein may be of broader general interest, here a human protein (AKAP79) is used for targeting to a signaling nanodomain in a mouse cell line. The human and the mouse proteins are only 53% identical, thus it is not clear if they can in fact functionally substitute for each other, ensuring that the sensor indeed localized to the AKAP150/79 compartment.

This could for instance be confirmed using the already utilized AKAP150 antibody and an anti-FP antibody in a STORM (or other super-resolution) colocalization experiment. It would be better to generate a construct using the mouse protein and show in representative datasets that the observed phase-shift of cAMP oscillations is still observed. It is also not clear how the presence of a second protein pool (with likely different affinities for interacting proteins), in addition to the endogenous AKAP150 pool, would affect the outcome of the modelling. Possible complications may be discussed.

We thank the reviewer for highlighting the important distinction between AKAP79 and AKAP150. Human AKAP79 and the rodent ortholog AKAP150 indeed share 53% sequence homology, however, the interaction motifs and association between the AKAP scaffold and the key signaling players (i.e. PKA, voltage-gated calcium channel, adenylyl cyclases, calcineurin, etc.) are conserved (Willoughby et al., 2010; Zhang and Shapiro, 2016). The primary difference between the two closely related scaffolds is the presence of an internal repetitive amino acid sequence of unknown function in AKAP150 (Robertson et al., 2009). The functional equivalence of AKAP79 and AKAP150 is demonstrated in several reciprocal knock-out and recovery experiments in which AKAP79 or AKAP150 is knocked out and expression of the other recovers a measured phenotype (Hoshi, Langeberg and Scott, 2005; Zhang et al., 2011). Specifically, relevant to this study, AC8 has also been shown to interact with both AKAP79 and AKAP150 (Willoughby et al., 2010). Thus, we believe AKAP79 can be considered functionally equivalent to AKAP150 in our experimental context and can report the AKAP150 compartment-specific signaling dynamics in the MIN6 β cells. We have incorporated these additional discussions about AKAP79 and AKAP150 in the revised manuscript.

We apologize for the lack of clarity regarding how expression of the AKAP79 scaffold might affect endogenous AKAP150-specific signaling dynamics. Indeed, signaling scaffold expression is tightly regulated in many biological systems in order to ensure association and stoichiometry of key enzymes within macromolecular complexes (Levchenko, Bruck and Sternberg, 2000). Thus, the effects of AKAP79 expression must be considered in this compartmentalized signaling study. Interestingly, we found a correlation between the expression level of the AKAP79-tethered cAMP sensor (AKAP79-Epac2-camps) and the observed lag time between calcium and AKAP79-specific cAMP (Appendix—figure 1). Cells with high expression of the AKAP79 sensor correlated with longer lag times and closely resembled the out-of-phase cAMP-calcium relationship at the general plasma membrane (Figure 1D). This suggests that additional AKAP scaffolds might “dilute” the associated signaling proteins per scaffold including, but not limited to, AC8, and this stoichiometric change might have downstream consequences. This balance would likely be interesting to investigate in the future, both computationally and experimentally; however, for the present study, we chose an empirically-derived expression cutoff in order to study and compare AKAP79/150 specific signaling between cells (Appendix—figure 1).

C) Perturbation of protein concentrations

The authors use overexpression of proteins as perturbations (e.g. for AC8). They do not, however, provide data on the actual changes of protein levels – only the amount of plasmid used for transfection is reported in Figure 2—figure supplement 2. The authors should quantify the changes of AC8 expression on the protein level, ideally in absolute numbers, however, if this is not possible, a combination of immunofluorescence data (to give the reader an estimate of the cell-to-cell variability) and western blot data would be sufficient here.

We thank the reviewers for this suggestion. Originally, we overexpressed untagged AC8 due to the limited spectral space we had at our disposal (red RCaMP and cyan-yellow PM-targeted Epac2-camps). In order to measure the relative expression of transfected AC8, we tagged AC8 with GFP and transfected 50ng, 250ng, and 1000ng in MIN6 β cells, as previously described. After thresholding for GFP+ cells, we observed a positive correlation in the average GFP intensity per cell for increasing amounts of GFP-AC8 plasmid, indicating that indeed we are titrating the AC8 concentration in the perturbation experiment (Figure 2—figure supplement 2B). We have incorporated these data into a panel in Figure 2—figure supplement 2.

Does AKAP79 overexpression have an effect on endogenous AC8 expression levels?

Given that AKAP150 and AC8 physically interact, it is possible that their expression levels are co-regulated. Thus, it is at least conceivable that AK79 overexpression (through the FRET construct) could change AC8 expression levels. Given that AC8 concentration is a key factor in determining the phase offset of calcium/cAMP oscillations, this should be tested by quantifying AC8 on the protein level for overexpression of both the Lyn- and the AKAP79 based FRET constructs.

This could be done by western blot or MS to get an idea on the effect on the cell population level, but also by immunofluorescence imaging data on the single cell level (colocalization experiments using both anti-FP and anti-AC8 antibodies to estimate the effects of cell-to-cell variability).

Per the reviewer’s request, we transfected MIN6 β cells with lyn-Epac2-camps or AKAP79-Epac2-camps and stained for endogenous AC8 in order to see if expression of the tagged constructs affected AC8 expression.

At the single cell level, we assayed endogenous AC8 expression using immunocytochemistry and we found no significant difference in the average AC8 intensity between cells expressing the targeted cAMP sensors and untransfected cells (Figure 2—figure supplement 3A).

To assess the potential expression effects on a population level, we performed Western blots and probed for AC8 in MIN6 cells transfected with the targeted cAMP sensors or Cerulean alone (as a transfection/expression control). We measured robust transfection and expression efficiency of the sensors as well as the Cerulean-only control by probing for fluorescent protein (Figure 2—figure supplement 3B). Although we measured a small increase in AC8 expression for the two targeted sensor samples compared to the Cerulean only control (AKAP79, P = 0.0134; lyn, P = 0.0979), we found no significant difference in AC8 expression between the two targeted sensors (P = 0.4373, Figure 2—figure supplement 3B, N = 4 replicates). This demonstrates that the compartmentalized cAMP-Ca2+ phase difference we observe is not due to different expression levels of endogenous AC8. These new data are included as Figure 2—figure supplement 3.

D) Modelling Issues:

The modelling is competently done with well-established software in the field. The authors have made a couple of design decisions that should be probed: (1) the use of Michaelis-Menten enzyme kinetics, rather than multi-step mass-action (2) Not using stochastic calculations. The stochastic analysis would have yielded some estimates of noise in the system that might be interesting. While the mapping between model and experiment seems reasonable, an estimate of noise in the system due to the low numbers of the molecules involved would be worth exploring.

We thank the reviewer for raising these issues. The choice of using Michaelis-Menten enzyme kinetics as opposed to multi-step mass-action was made on the basis of limiting the number of free parameters in the reaction model while retaining the kinetic features. Multistep mass-action models are often used in cases where all the intermediary states are known and sufficient kinetic data exists to resolve the rates of the intermediary steps. In this case, since our focus was on calcium-cAMP dynamics, we chose to collapse the many reaction steps into a Michaelis-Menten framework.

To strengthen this assumption, we conducted simulations using multistep reaction kinetics and the Michaelis-Menten formulation. As shown in Author response image 1, there was no discernible difference in the kinetics of AC and PDE. In the multistep reaction formulation, we needed to add 3 parameters that were not present in the Michaelis-Menten formulation. Based on this analysis, we retained the Michaelis-Menten formulation. The multi-step model was solved with kinetic parameter values found in Table 1.

Table 1: Kinetic parameters for the multi-step model plotted in Author response image 1.

Author response image 1
of CaM+2Ca, CaMAC+2Ca, and CaMPDE+2Ca, were represented as multi step reactions with rates in the table given below.

The system still exhibits in-phase and out-of-phase qualitative responses, with an additional 3 parameters. Since additional parameters did not affect outcome, we retained the Michaelis-Menten formulation.

In order to probe the role of low molecule number in determining the dynamics of calcium and cAMP in the model, we have rewritten the entire model to be compatible with Virtual Cell’s stochastic solver, built on Smoldyn. We have thus far verified that the deterministic model in Virtual Cell gives us results similar to those obtained in the finite element modeling software COMSOL. This step is important to establish the model outcome to be independent of solver modalities (Virtual Cell uses finite volume methods while COMSOL uses finite element methods).

Next, we translated the four-component deterministic model into its stochastic counterpart. Most stochastic solvers require that the reactions be written in their elementary form; therefore, we rewrote the Michaelis-Menten kinetic reactions into multi-step mass-action kinetics.

We recast our network motif model comprised of Ca2+, cAMP, PDE1, and AC8 as a stochastic system of equations and ran multiple simulations to approximate the probabilistic response of cAMP to an oscillatory Ca2+ input signal (details are presented in Appendix 1—table 6, Appendix 1—table 7, Appendix 1—table 8, Appendix 1—table 9). We find that the in-and out-of-phase relationships observed in the deterministic model are also found in the stochastic model. These important findings suggest that the oscillatory phase relationship persists at the scale of individual molecules and supports the previous results of our deterministic modeling (Figure 6—figure supplement 2A-C). Furthermore, we found that the level of noise in the system is reduced as the number of AC8 molecules increases (Figure 6—figure supplement 2D). This conclusion is interesting and suggests that noise in cAMP production/degradation can be curtailed when AC8 counts are high due to clustering or other methods of co-association. These new data are included in the revised manuscript as Figure 6—figure supplement 2.

The authors also present two models which both explain the experimental data: (a, in Figure 2) A simpler one, where the concentration of AC8 serves as a (global) switch between out-of-phase and in-phase calcium and cAMP oscillations and (b, in Figure 4) a more complex one that predicts localized cAMP oscillations in the specific AKAP79/150 clusters which are out-of-phase with the (global) cAMP oscillations in the cytosol. All modelling is restricted to simulations, if the statement made in the supplementary information (subsection “Model development”) is to be interpreted correctly. This is a significant limitation for the entire manuscript, as all conclusions are (at least partially) based on choices for parameters that the authors made instead of parameters values that were derived from fitting the model to experimental data which would be much more stringent.

Ideally, the authors should fit their two models to a large, representative dataset and use Akaike's information criterion to decide which one is the more suited one. I understand that this will likely not be possible due to the high number of free parameters – it is unlikely that a fitting algorithm would find a true global minimum, as the available data probably are not sufficient constrains. However, this in turn means that deciding which model is to be preferred has to be done by testing predictions where the two models differ significantly.

We apologize for any confusion and would like to clarify an important point here – we really only use one model. The simpler model in Figure 2C is a smaller network model. This model is amenable to mathematical analysis that serves to identify the role of the network motif and the relative contributions of AC and PDE (v(AC) and v(PDE) in Figure 2C) in governing the time delay between calcium and cAMP oscillations. Without incorporating all the reactions and the kinetic parameters, such a model can give us insight into the underlying behavior. What the reviewer identifies as the second model, is in fact, an expanded version of the first model, with detailed biochemical reactions and more parameters. In the revised manuscript, we clarified that there really is only one model that is presented in two different levels of detail.

Currently, the spatial model is fit by visual inspection to the experimental model for oscillation time, phase, and amplitude (assuming that fluorescence is proportional to concentration). These design decisions are now elaborated in Appendix 1. One of the challenges with using more stringent, quantitative fitting routines such as particle swarm or evolutionary programming, in this case, is the size and scale of the spatial resolution of the measurements. Despite our simple fitting approach, we are reasonably confident that the model captures the key physics in the spatial control of phase and oscillations of calcium-cAMP as demonstrated by our model validation and prediction.

The following two predictions where both models would yield diametrically opposing outcomes:

i) The 3D reaction diffusion model predicts that cAMP oscillations in the AKAP79/150 compartments and cAMP oscillations in the bulk cytosol are out of phase in the same cell (see Figure 4). This can be tested by combining the AKAP79-based FRET sensor with a cytosolic, intensiometric, RFP-based cAMP sensor such as R-FlincA (Ohta et al., 2018). If the authors observe a clear phase shift between these two reporters, it would constitute very strong evidence in support of the 3D reaction-diffusion model. The current datasets only report one type of compartment per cell, yet the striking difference between compartments in the same cell is where the model predictions differ most dramatically.

We thank the reviewers for this suggestion to use the red R-FlincA and the cyan-yellow FRET-based Epac2-camps for multiplexed detection of cAMP dynamics. In previous attempts, we found it difficult to measure cAMP dynamics in more than one compartment in the same cell presumably due to binding competition effects. Despite the technical challenges, in this case, we observed anti-correlated cAMP oscillations in MIN6 cells expressing appropriate levels of cytosolic R-FlincA and AKAP79-localized Epac2-camps, suggesting the coexistence of the compartmentalized phase relationship, consistent with our model (Figure 1—figure supplement 2, n = 25 cells). We have added these data as Figure 1—figure supplement 2 in the revised manuscript.

ii) Localized oscillations depend on the assumption that AC diffusion is (close to) zero. Thus, the authors should measure AC diffusion at the plasma membrane. A key assumption of their model is that at least a fraction of the total protein pool should be completely immobile. Furthermore, this fraction should increase in an AKAP150 overexpression background.

We agree with the reviewer and have measured the AC8 diffusion at the plasma membrane. The measured diffusion coefficient value of 0.019 ± 0.002 μm2/sec is very low and indeed there is a significant immobile fraction of AC8 at the membrane (Figure 3—figure supplement 2), validating the model assumption. This data has been included as Figure 3—figure supplement 2 in the revised manuscript.

E) Final punchline that these elegant biophysical findings are important for some aspect of physiology is not very compelling. The authors should come with a more surgically-dissected physiological parameter that depends on the phase relationship between Ca and CaM, and at least provide this in their Discussion section.

We thank the reviewer for bringing this issue to our attention. We have now added discussions about the impact of the spatially-segregated oscillation phase relationship between Ca2+ and cAMP on β cell insulin secretion in the revised manuscript.

https://doi.org/10.7554/eLife.55013.sa2

Article and author information

Author details

  1. Brian Tenner

    1. Department of Biophysics and Biophysical Chemistry, The Johns Hopkins University School of Medicine, Baltimore, United States
    2. Department of Pharmacology, University of California, San Diego, La Jolla, United States
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Validation, Investigation, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
  2. Michael Getz

    Chemical Engineering Graduate Program, University of California, San Diego, La Jolla, United States
    Contribution
    Software, Formal analysis, Validation, Visualization, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9886-8454
  3. Brian Ross

    Department of Pharmacology, University of California, San Diego, La Jolla, United States
    Contribution
    Data curation, Software, Investigation, Visualization, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9020-627X
  4. Donya Ohadi

    Department of Mechanical and Aerospace Engineering, University of California, San Diego, La Jolla, United States
    Contribution
    Data curation, Software, Formal analysis, Validation, Writing - review and editing
    Competing interests
    No competing interests declared
  5. Christopher H Bohrer

    Department of Biophysics and Biophysical Chemistry, The Johns Hopkins University School of Medicine, Baltimore, United States
    Contribution
    Data curation, Software, Formal analysis, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Eric Greenwald

    Department of Pharmacology, University of California, San Diego, La Jolla, United States
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Writing - review and editing
    Competing interests
    No competing interests declared
  7. Sohum Mehta

    Department of Pharmacology, University of California, San Diego, La Jolla, United States
    Contribution
    Conceptualization, Resources, Supervision, Investigation, Visualization, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4764-8579
  8. Jie Xiao

    Department of Biophysics and Biophysical Chemistry, The Johns Hopkins University School of Medicine, Baltimore, United States
    Contribution
    Project administration, Writing - review and editing
    Competing interests
    Reviewing editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1433-5437
  9. Padmini Rangamani

    1. Chemical Engineering Graduate Program, University of California, San Diego, La Jolla, United States
    2. Department of Mechanical and Aerospace Engineering, University of California, San Diego, La Jolla, United States
    Contribution
    Conceptualization, Supervision, Investigation, Project administration, Writing - review and editing
    For correspondence
    padmini.rangamani@eng.ucsd.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5953-4347
  10. Jin Zhang

    1. Department of Pharmacology, University of California, San Diego, La Jolla, United States
    2. Department of Chemistry and Biochemistry, University of California, San Diego, La Jolla, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Project administration, Writing - review and editing
    For correspondence
    jzhang32@ucsd.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7145-7823

Funding

National Institutes of Health (R01 DK073368)

  • Jin Zhang

U.S. Department of Defense (DOD AFOSR FA9550-18-1-0051)

  • Padmini Rangamani
  • Jin Zhang

Office of Naval Research (ONR N00014-17-1-2628)

  • Padmini Rangamani

National Institutes of Health (R35 CA197622)

  • Jin Zhang

National Institutes of Health (5T32 GM007231)

  • Christopher H Bohrer

National Institutes of Health (R01 GM112008)

  • Jie Xiao

National Institutes of Health (R35 GM127075)

  • Jie Xiao

Johns Hopkins University (Johns Hopkins Discovery Award)

  • Jie Xiao
  • Jin Zhang

Johns Hopkins University (Hamilton Innovation Research Award)

  • Jie Xiao

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Dr. John D Scott for providing AKAP79, Dr. Dermot Cooper for providing (Ci/Ce)Epac2-camps and AC8, Dr. Loren Looger for providing RCaMP, Dr. Kazuki Horikawa for providing R-FlincA and Dr. Jochen Lang for providing the shAC8 construct. We thank Dr. Susan Taylor for critical reading of the manuscript. We also thank the members of the Nikon Imaging Center at UCSD for help with fluorescence microscopy experiments, and the Neuroscience Imaging Center at the Moore’s Cancer Center for help with the STORM acquisition and analysis. This work was supported by NIH R01 DK073368 and R35 CA197622 (to JZ), DOD AFOSR FA9550-18-1-0051 (to PR and JZ), ONR N00014-17-1-2628 (to PR), NIH R01 GM112008 and R35 GM127075 (to JX), NIH T32GM007231 (to CHB), Johns Hopkins Discovery Award (to JX and JZ) and Hamilton Innovation Rsearch Award (to JX).

Senior Editor

  1. Jonathan A Cooper, Fred Hutchinson Cancer Research Center, United States

Reviewing Editor

  1. Satyajit Mayor, Marine Biological Laboratory, United States

Reviewer

  1. André Nadler, European Molecular Biology Laboratory (EMBL), Germany

Publication history

  1. Received: January 9, 2020
  2. Accepted: October 7, 2020
  3. Version of Record published: November 17, 2020 (version 1)

Copyright

© 2020, Tenner et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 538
    Page views
  • 88
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

  1. Further reading

Further reading

    1. Biochemistry and Chemical Biology
    Donghyuk Shin et al.
    Research Article Updated

    Legionella pneumophila causes a severe pneumonia known as Legionnaires’ disease. During the infection, Legionella injects more than 300 effector proteins into host cells. Among them are enzymes involved in altering the host-ubiquitination system. Here, we identified two LegionellaOTU (ovarian tumor)-like deubiquitinases (LOT-DUBs; LotB [Lpg1621/Ceg23] and LotC [Lpg2529]). The crystal structure of the LotC catalytic core (LotC14-310) was determined at 2.4 Å. Unlike the classical OTU-family, the LOT-family shows an extended helical lobe between the Cys-loop and the variable loop, which defines them as a unique class of OTU-DUBs. LotB has an additional ubiquitin-binding site (S1’), which enables the specific cleavage of Lys63-linked polyubiquitin chains. By contrast, LotC only contains the S1 site and cleaves different species of ubiquitin chains. MS analysis of LotB and LotC identified different categories of host-interacting proteins and substrates. Together, our results provide new structural insights into bacterial OTU-DUBs and indicate distinct roles in host–pathogen interactions.

    1. Biochemistry and Chemical Biology
    2. Microbiology and Infectious Disease
    Qi Yang et al.
    Research Article Updated

    The Spike protein of SARS-CoV-2, its receptor-binding domain (RBD), and its primary receptor ACE2 are extensively glycosylated. The impact of this post-translational modification on viral entry is yet unestablished. We expressed different glycoforms of the Spike-protein and ACE2 in CRISPR-Cas9 glycoengineered cells, and developed corresponding SARS-CoV-2 pseudovirus. We observed that N- and O-glycans had only minor contribution to Spike-ACE2 binding. However, these carbohydrates played a major role in regulating viral entry. Blocking N-glycan biosynthesis at the oligomannose stage using both genetic approaches and the small molecule kifunensine dramatically reduced viral entry into ACE2 expressing HEK293T cells. Blocking O-glycan elaboration also partially blocked viral entry. Mechanistic studies suggest multiple roles for glycans during viral entry. Among them, inhibition of N-glycan biosynthesis enhanced Spike-protein proteolysis. This could reduce RBD presentation on virus, lowering binding to host ACE2 and decreasing viral entry. Overall, chemical inhibitors of glycosylation may be evaluated for COVID-19.
