Miga-mediated endoplasmic reticulum–mitochondria contact sites regulate neuronal homeostasis

  1. Lingna Xu
  2. Xi Wang
  3. Jia Zhou
  4. Yunyi Qiu
  5. Weina Shang
  6. Jun-Ping Liu
  7. Liquan Wang
  8. Chao Tong  Is a corresponding author
  1. MOE Key Laboratory for Biosystems Homeostasis & Protection and Innovation Center for Cell Signaling Network, Life Sciences Institute, Zhejiang University, China
  2. Institute of Ageing Research, Hangzhou Normal University College of Medicine, China
  3. The Second Affiliated Hospital, School of Medicine, Zhejiang University, China
Research Article
  • Cited 0
  • Views 976
  • Annotations
Cite this article as: eLife 2020;9:e56584 doi: 10.7554/eLife.56584

Abstract

Endoplasmic reticulum (ER)–mitochondria contact sites (ERMCSs) are crucial for multiple cellular processes such as calcium signaling, lipid transport, and mitochondrial dynamics. However, the molecular organization, functions, regulation of ERMCS, and the physiological roles of altered ERMCSs are not fully understood in higher eukaryotes. We found that Miga, a mitochondrion located protein, markedly increases ERMCSs and causes severe neurodegeneration upon overexpression in fly eyes. Miga interacts with an ER protein Vap33 through its FFAT-like motif and an amyotrophic lateral sclerosis (ALS) disease related Vap33 mutation considerably reduces its interaction with Miga. Multiple serine residues inside and near the Miga FFAT motif were phosphorylated, which is required for its interaction with Vap33 and Miga-mediated ERMCS formation. The interaction between Vap33 and Miga promoted further phosphorylation of upstream serine/threonine clusters, which fine-tuned Miga activity. Protein kinases CKI and CaMKII contribute to Miga hyperphosphorylation. MIGA2, encoded by the miga mammalian ortholog, has conserved functions in mammalian cells. We propose a model that shows Miga interacts with Vap33 to mediate ERMCSs and excessive ERMCSs lead to neurodegeneration.

Introduction

Intracellular organelles with membranes are characteristic features of eukaryotic cells. The compartmentalization of the cytoplasm enables specific cellular activities occur in restricted regions. The physical contacts between different organelles at defined loci allow both material and information exchange between organelles (Phillips and Voeltz, 2016; Eisenberg-Bord et al., 2016). ER–mitochondria contact sites (ERMCSs) are the most studied organelle contacts, which have been observed repeatedly in ultrastructural electron microscopy (Morré et al., 1971; Franke and Kartenbeck, 1971) and subcellular fractionation studies (Pickett et al., 1980; Meier et al., 1981).

ERMCSs play various roles including phospholipid exchange and calcium flux between ER and mitochondria (Krols et al., 2016). ERMCSs also function as platforms for mitochondrial division (Friedman et al., 2011), coupling mitochondrial DNA synthesis with mitochondrial fission (Lewis et al., 2016), autophagosome formation (Hamasaki et al., 2013), and mitophagy (Böckler and Westermann, 2014). Although ERMCSs changes have been reported in Alzheimer’s disease (Schreiner et al., 2015; Hedskog et al., 2013) and metabolic diseases such as obesity (Arruda et al., 2014), there is no direct evidence indicating that defective ERMCSs led to disease conditions. The physiological consequences of defective ERMCSs were not clear.

The tethering molecules mediating ERMCSs in yeast form a protein complex called ER–mitochondria encounter structure (ERMES) which contains the outer membrane mitochondrial proteins Mdm10 and Mdm34, cytosolic protein Mdm12, and integral ER protein Mmm1 (Lang et al., 2015). The ER protein complex EMC (Lahiri et al., 2014; Voss et al., 2012) and Ltc1/Lam6 (Murley et al., 2015; Elbaz-Alon et al., 2015) have also been reported to regulate contacts between ER and mitochondria. In mammalian cells, multiple proteins have been reported to tether ER and mitochondria. Mitochondrial voltage-dependent anion-selective channel protein 1 (VDAC1) and the ER Ca2+ channel IP3R are a pair of molecules mediating ERMCSs in mammals (Szabadkai et al., 2006). Although debatable, MFN2, the mitofusin that is required for mitochondrial outer membrane fusion, has been reported to tether ER and mitochondria through homotypic interactions (Naon et al., 2016). ER protein VAPB and the mitochondrial protein PTPIP51 bind to each other to tether the two organelles (Stoica et al., 2014). Recent studies in flies revealed that Miro, a mitochondrial protein containing two GTPase domains and two Ca2+-sensing EF hand domains, regulates ERMCS (Lee et al., 2016; Lee et al., 2018). In addition, proteins such as PACS2 (Simmen et al., 2005), Drp1 (Friedman et al., 2011), and Atg14 (Hamasaki et al., 2013) have also been reported to be localized to the ERMCSs. The loss of single pair of tethering molecules usually has mild effects to ERMCS, which is likely due to redundancy. The components and the organization of ERMCS are still not fully understood.

Many studies showed that ERMCSs are dynamic structures that undergo active remodeling upon different stimuli (Yang et al., 2018; Valm et al., 2017; Guo et al., 2018). However, it is not clear how the tethering molecules are regulated in response to different cellular needs.

Our previous study identified a family of mitochondrial proteins called Mitoguardin (Miga) (Zhang et al., 2016). Miga contains a function unknown domain that is highly conserved from Caenorhabditis elegans to humans. Miga localizes on the outer membrane of mitochondria and promotes mitochondrial fusion through interaction with mitoPLD, a divergent family member of the phospholipase D family that is required for the fusion of mitochondrial outer membranes (Huang et al., 2011). Loss of Miga leads to fragmented mitochondria and reduced mitochondrial functions. Flies lacking Miga do not grow beyond the early pupal stage. The mosaic eyes in flies with Miga mutant clones degenerate with aging. Mammals have two Miga proteins: MIGA1 and MIGA2. Mice with single or double knockout (KO) of Miga1 and Miga2 are viable. Both Miga2 and Miga1/2 KO mice showed reduced body weight and body fat. Under high-fat diet consumption, Miga2 KO mice has minimal lipidosis (Podrini et al., 2015). In a combined association study, an SNP located in Miga1 was shown to be associated with subscapular skin-fold thickness in humans and back fat thickness in pigs (Lee et al., 2011). In addition, the female Miga1/2 KO mice were shown to be sub-fertile with reduced ovarian activity, oocyte quality, and embryo developmental potentials (Liu et al., 2017; Liu et al., 2016). Miga2 KO mice also has immune defects and showed severe depression (Fan et al., 2019; Gao et al., 2017). A most recent study showed that MIGA2 binds VAP proteins in ER and is involved in forming contacts between mitochondria, the ER, and lipid droplets. They also demonstrated that MIGA2 is required for adipocyte differentiation (Freyre et al., 2019).

In this study, we found that Miga interact with Vap33 to mediate ERMCSs. Miga is phosphorylated by casein kinase I (CKI) and Ca²+/calmodulin-dependent protein kinase II (CaMKII) at multiple sites, which affect the interaction between Miga and Vap33 and fine-tuned Miga activity. The extra ERMCSs caused by overexpression of Miga or other tethering molecules led to severe neurodegeneration, which might shed light on the molecular mechanisms underlying neurodegenerative diseases such as Alzheimer’s disease.

Results

Miga overexpression led to increased ERMCS and severe retinal degeneration

Our previous studies indicated that a mitochondrial outer membrane protein Miga is required for neuronal homeostasis (Zhang et al., 2016). Miga forms a complex with MitoPLD, which promotes mitochondrial fusion through regulating mitochondrial membrane lipid composition. Interestingly, we found that Miga overexpression led to severe retinal degeneration in fly eyes. We used GMR-Gal4, a Gal4 driver expressing in the developing eyes, to drive UAS-Miga expression and examined the adult fly eyes at days 1 and 30. The adult eyes with Miga overexpression looked grossly normal from outside. However, when we examine the retina with the transmission electron microscopy (TEM) analysis (Figure 1A–D), we found that both the rhabdomere numbers and sizes were greatly reduced in the Miga overexpressing fly eyes, and the reductions were progressively enhanced with aging (Figure 1I–L).

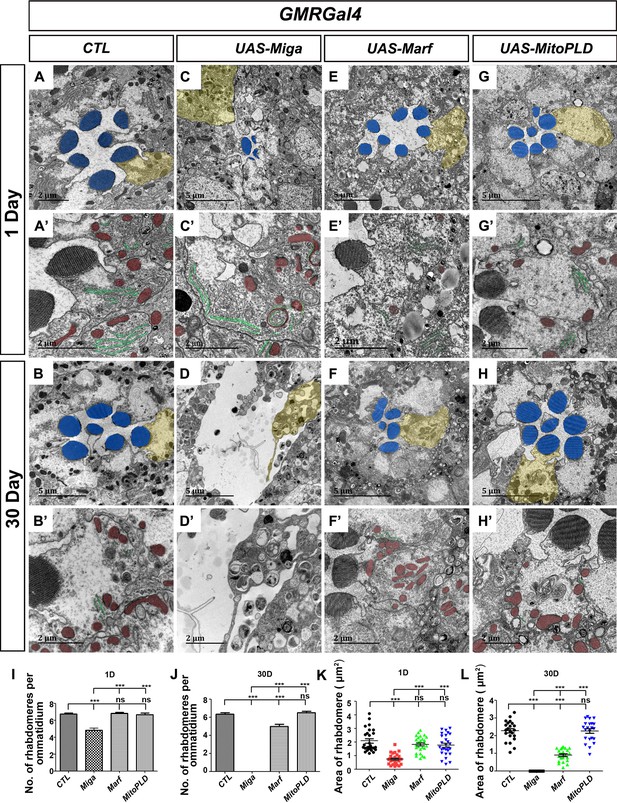

Miga overexpression led to severe retinal degeneration.

TEM analysis was performed for the retina thin sections of young (1 Day) and old (30 Day) flies with indicated genotypes. (A–B’) The ommatidia of the control (CTL) flies showed seven photoreceptor cells with intact rhabdomeres (highlighted with blue pseudo-color) at both the young (A, A’) and old (B, B’) stages. (C–D’) GMR-Gal4 driven Miga overexpression resulted in reduction of rhabdomere number and size in the 1-day-old flies (C, C’) and the loss of photoreceptor cells in 30-day-old flies (D, D’). Large amount of circular membrane structures accumulated in the photoreceptor cells. ER tubules (green) attached to the mitochondria (red) were increased in the photoreceptor cells (C’). (E–F) GMR-Gal4-driven Marf overexpression did not change the number and size of rhabdomeres in the 1-day-old flies (E, E’), but slightly reduced the number and size of rhabdomeres in the 30-day-old animals (F, F’). (G–H’) GMR-Gal4-driven MitoPLD overexpression did not affect the number and size of rhabdomeres in both 1-day and 30-day-old animals. (A’–H’) are enlarged views of the photoreceptor cells highlighted with yellow pseudo-color in (A–H). The ER tubules was marked with green pseudo-color and the mitochondria was marked by the red pseudo-color. (I) Quantification of the rhabdomere numbers per ommatidia in the 1-day-old flies with indicated genotypes. n = 12 for each genotype, data are represented as mean + SD. ns, not significant; ***, p<0.001; one-way ANOVA/Bonferroni’s multiple comparisons test. (J) Quantification of the rhabdomere numbers per ommatidia in the 30-day-old flies with indicated genotypes. n = 12 for each genotype, data are represented as mean + SD. ns, not significant; ***, p<0.001; one-way ANOVA/Bonferroni’s multiple comparisons test. (K) Quantification of the rhabdomere size in the 1-day-old flies with indicated genotypes. n = 27 for each genotype, data are represented as mean + SD. ns, not significant; ***, p<0.001; one-way ANOVA/Bonferroni’s multiple comparisons test. (L) Quantification of the rhabdomere size in in the 30-day-old flies with indicated genotypes. n = 22 for each genotype, data are represented as mean + SD. ns, not significant; ***, p<0.001; one-way ANOVA/Bonferroni’s multiple comparisons test.

We wondered whether the retinal degeneration of the Miga overexpressing eyes was due to the increased mitochondrial fusion. Therefore, we overexpressed Marf, the Drosophila mitofusin (Sandoval et al., 2014), and MitoPLD in a same manner as we overexpressed Miga (Figure 1E–H). Surprisingly, neither Marf nor MitoPLD overexpression reduced the rhabdomere numbers or sizes in 1-day-old flies. Overexpression of Marf, but not MitoPLD, reduced the rhabdomere numbers in 30 days old flies, but the degeneration phenotype was much milder than that in Miga overexpressing eyes (Figure 1I–L).

We carefully examined the retina in 1-day-old flies and saw many circular shaped membrane structures inside the photoreceptor cells. Some of the circular, membraned structures were found to be donut-shaped mitochondria with closely attached ER tubules (Figure 1C’). There were also regular shaped mitochondria with close contacts with ER (Figure 1C’), which were seldom seen in wild-type control eyes (Figure 1A′). The proximity between ER and mitochondria at the contact sites were close to 10 nm and the ribosomes were excluded (Figure 1C’). Although several studies suggested that MFN2, the mammalian Marf homolog, mediated ERMCSs (Phillips and Voeltz, 2016; de Brito and Scorrano, 2008), we did not observe any increase in ERMCS when Marf was overexpressed in the fly eyes (Figure 1E′, 1F′). MitoPLD overexpression did not affect ERMCSs either (Figure 1G′, 1H′). These data suggested that Miga might have a function to establish ERMCSs and extra ERMCSs led to neurodegeneration.

Miga forms complex with Vap33 and mediates ERMCSs

To understand Miga function, we performed tandem immunoprecipitation (IP) in the cultured S2 cells with FLAG-HA tandem tagged overexpressed Miga and examined its binding partner with mass spectrometry (Figure 2—source data 4). The ER protein Vap33 was one of the binding partners of Miga. The mammalian Vap33 orthologs are VAPA and VAPB. Both proteins are ER proteins mediating contacts between ER and other organelles. Point mutation in VAPB has been identified in amyotrophic lateral sclerosis (ALS) patients (Nishimura et al., 2004; Kabashi et al., 2013). Recent study in mammalian cells found that MIGA2 form a complex with VAP proteins (Freyre et al., 2019). We confirmed the interaction between Vap33 and Miga by IP. Miga and Vap33 could pull down each other in both directions. Interestingly, Vap33P58S, the ALS disease mimicking Vap33 mutation, had lower affinity to Miga than its wild type (Figure 2A).

Figure 2 with 1 supplement see all

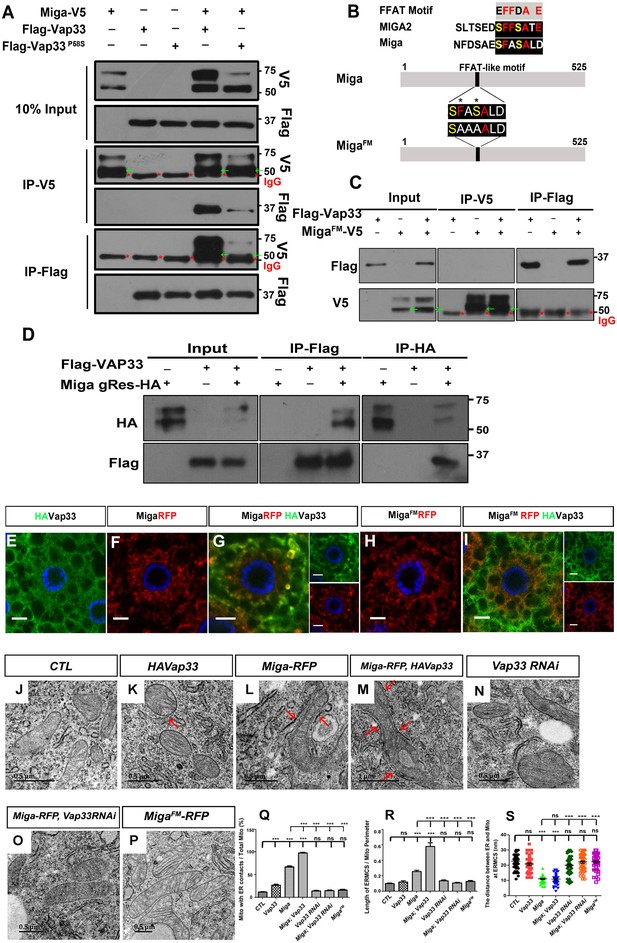

Miga forms complex with Vap33 and mediates ERMCSs.

(A) Miga-V5 and Vap33-Flag could pull down each other in both directions in the IP assay when both were overexpressed in S2 cells. The affinity between Miga-V5 and Vap33P58S-Flag was reduced compared with that between Miga-V5 and wildtype Vap33-Flag. Miga-V5 showed two bands in most of the blots. The lower bands have a molecular weight close to 50 KD (indicated with green arrows), which were often merged with the IgG heavy chain (indicated with red *) in the blots after IP experiments. (B) A scheme to show the typical FFAT motif, the FFAT-like motifs in human MIGA2 and Drosophila Miga protein, and the amino acid changed in MigaFM. (C) MigaFM-V5 and Vap33-Flag failed to pull down each other in the IP assay. MigaFM-V5 showed two bands in most of the blots. The lower bands have a molecular weight close to 50 KD (indicated with green arrows), which were often merged with the IgG heavy chain (indicated with red *) in the blots after IP experiments. (D) Genomic rescue fragment of Miga with HA tags (Miga gRes-HA, mimics the endogenous Miga expression level ) and Vap33-Flag were expressed in S2 cells and the IP assays were perfromed by IP with anti-HA or IP with anti-Flag antibodies. Miga and Vap33 could pull down each other in this condition. (E–I) HA-tagged Vap33 (green), RFP-tagged Miga or MigaFM (red) were overexpressed in fat body tissues with indicated combinations. When Vap33 and Miga were co-expressed, they colocalized with each other (G) and the patterns of both proteins were different from the patterns when they were expressed individually (E, F). (H, I) MigaFM over-expression failed to recruit Vap33. (J–P) TEM of the fat body tissues with indicated genotypes. Miga overexpression increased ERMCSs (L). Co-expression of Miga and Vap33 further increased ERMCSs (M). Vap33 RNAi did not affect ERMCSs (N). Miga overexpression could not induce ERMCS increase when Vap33 were knock down by RNAi (O). MigaFM overexpression did not affect ERMCSs (P). The red arrows indicate the ERMCSs. (Q) Quantification of the proportion of mitochondria with ERMCSs. n = 6 images for each genotype. Data are represented as mean + SD. ns, not significant; ***, p<0.001; one-way ANOVA/Bonferroni’s multiple comparisons test. (R) Quantification of ratio between the length of ERMCSs and the mitochondrial perimeter. n = 16 for each genotype. Data are represented as mean + SD. ns, not significant; ***, p<0.001; one-way ANOVA/Bonferroni’s multiple comparisons test. (S) Quantification of the distance between ER and mitochondria at ERMCSs. n = 50 for each genotype. Data are represented as mean + SD. ns, not significant; ***, p<0.001; one-way ANOVA/Bonferroni’s multiple comparisons test.

VAP proteins interact with its partner through an FFAT motif EFFDAXE (Murphy and Levine, 2016). Miga has a conserved sequence that is similar to the FFAT motif but with two acidic amino acids changed to serine. We prepared an FFAT motif mutant form of Miga (MigaFM) with the 247th phenylalanine and the 249th serine residues changed to alanine (Figure 2B). MigaFM failed to bind to Vap33 (Figure 2C). We expressed a genomic rescue construct of Miga (Zhang et al., 2016) that contains the genomic fragment of Miga and a 3 × HA tag fused at the C-terminus just before the stop codon of Miga and a Flag tagged Vap33 in S2 cells and performed IP experiments. Since the genomic rescue construct of Miga contains the regulatory sequences from Miga locus, it likely expresses Miga in an endogenous level. Indeed, the level Miga-HA was much less than the level of overexpressed ones. We found that Miga and Vap33 could pull down each other in this condition (Figure 2D). We expressed both wildtype and mutant Miga with Vap33 in fly fat body tissues. Vap33 had a diffused pattern when it was expressed alone (Figure 2E). Both Miga and MigaFM showed mitochondrial patterns when they were expressed alone (Figure 2F and H). When Vap33 and Miga were co-expressed, Vap33 was recruited by Miga and the two proteins were co-localized (Figure 2G). However, MigaFM expression failed to recruit Vap33 and its own pattern did not change upon Vap33 expression (Figure 2I). To test whether Miga overexpression indeed could increase ERMCSs, we examined the fly fat body tissues with TEM. In the wildtype larvae fat body tissues, around 12% mitochondria had contacts with ER (Figure 2J and Q) and ERMCS length occupied about 12% of the mitochondrial perimeter (Figure 2J and R). The average distance between ER and mitochondria at the ERMCSs is around 22 nm (Figure 2J and S). Vap33 overexpression alone increased the mitochondrial proportion that have contacts with ER (Figure 2K and Q). However, it did not significantly change the ERMCS length for each mitochondrion (Figure 2K and R). The distance between ER and mitochondria at the ERMCSs in fat body slightly reduced (Figure 2K and S). Miga overexpression not only dramatically increased the mitochondrial frequency associated with ER (Figure 2L and Q), but also increased the average ERMCS length for each mitochondrion (Figure 2L and R). It also greatly reduced the proximity between ER and mitochondria at the ERMCSs (Figure 2L and S). Expressing Miga together with Vap33 further increased the ERMCS incidence and length (Figure 2M and Q–R) suggesting that Miga and Vap33 together could establish ERMCSs. Vap33 RNAi did not significantly affect ERMCS formation in fly fat body (Figure 2N and Q–R). However, ERMCS increase caused by Miga overexpression was canceled by Vap33 RNAi (Figure 2O and Q–R). Similarly, MigaFM overexpression failed to affect ERMCS formation in fat body tissues (Figure 2P–S). These data suggest that the interaction between Miga and Vap33 through FFAT motif is critical for establishing ERMCSs. When Miga was overexpressd, we observed enhanced mitochondrial fusion and increased mitochondrial length (Figure 2—figure supplement 1Zhang et al., 2016). However, when MigaFM was overexpressed, the mitochondria length was significantly shorter than that in the wild-type Miga overexpressed tissues (Figure 2—figure supplement 1).

The interaction between Vap33 and Miga is required for Miga overexpression induced neurodegeneration

Since the interaction between Vap33 and Miga is required for establishing ERMCSs, we wondered whether it is also required for the eye degeneration caused by Miga overexpression. We therefore used GMR-Gal4 to drive MigaFM expression and examined the eye morphology in 1-day-old animals. Although MigaFM expressing eyes had some donut shaped mitochondria, they were not closely associated with ER membranes (Figure 3A′–C′). Both rhabdomere numbers and shapes were comparable to the controls (Figure 3A–C, F and G). Vap33 RNAi alone did not show obvious eye defects (Figure 3E–E′, 3F, 3G). Knockdown Vap33 in the Miga overexpressed retina significantly revived the retinal defects caused by Miga overexpression (Figure 3D, F and G). Although there were donut-shaped mitochondria inside the photoreceptor cells, the rhabdomere shapes and sizes were largely normal (Figure 3D′). These data suggested that the eye defects caused by Miga overexpression require the interaction between Miga and Vap33.

Figure 3 with 2 supplements see all

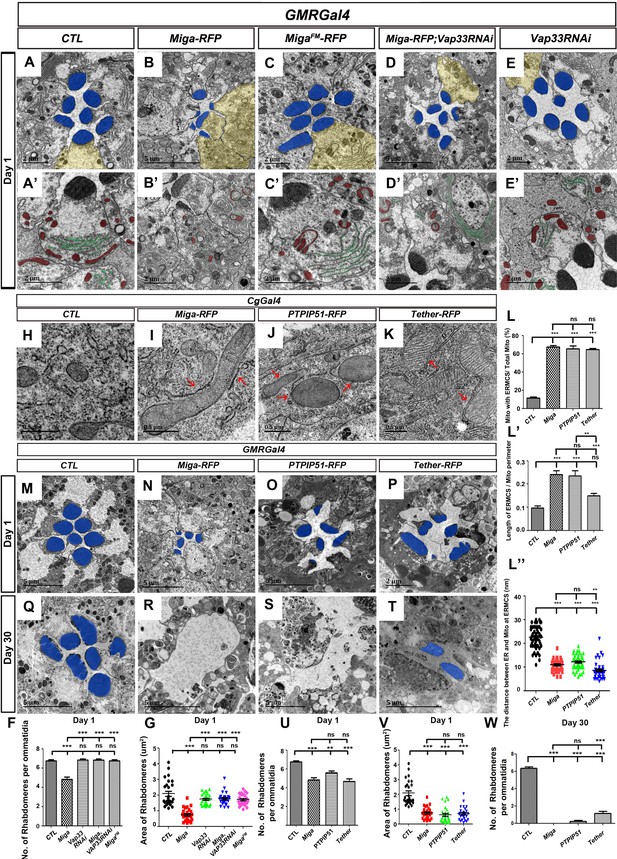

Increased ERMCSs led to neurodegeneration.

The interaction between Miga and Vap33 is critical for the eye degeneration caused by Miga overexpression. TEM analysis was performed for the retina thin sections of 1-day-old flies with indicated genotypes. (A, A’) The ommatidia of the control (CTL) flies showed seven photoreceptor cells with intact rhabdomeres (highlighted with blue pseudo-color). (B, B’) GMR-Gal4 driven Miga-RFP overexpression resulted in reduced number and size of rhabdomeres in the 1-day-old flies. (C, C’) GMR-Gal4-driven MigaFM-RFP overexpression did not affect the number and size of rhabdomeres in the 1-day-old flies. (D, D’) GMR-Gal4-driven Miga-RFP overexpression together with Vap33 RNAi did not affect the number and size of rhabdomeres in the 1-day-old flies. (E, E’) GMR-Gal4-driven Vap33 RNAi did not cause obvious defects in the 1-day-old fly eyes. (A'-E') were enlarged views of the photoreceptor cells highlighted with yellow pseudo-color in (A–E). (F) Quantification of the rhabdomere numbers per ommatidia of fly eyes with indicated genotypes. n = 12 for each genotype, data are represented as mean + SD. ns, not significant; ***, p<0.001; one-way ANOVA/Bonferroni’s multiple comparisons test. (G) Quantification of the rhabdomere size of the fly eyes with indicated genotypes. n = 27 for each genotype, data are represented as mean + SD. ns, not significant; ***, p<0.001; one-way ANOVA/Bonferroni’s multiple comparisons test. (H–K) TEM analysis was performed for the fat body thin sections of the early third instar larvae with indicated genotypes. Miga-RFP, human PTPIP51-RFP and the artificial ER- mitochondrial tether (Tether-RFP) overexpression led to increase of ERMCS. Red arrows indicate ERMCSs. (L–L’’) Quantification of the ERMCSs in the fat body tissues with indicated genotypes. Data are represented as mean + SD. ns, not significant; **, p<0.01, ***, p<0.001; one-way ANOVA/Bonferroni’s multiple comparisons test. (M–T) TEM analysis was performed for the retina thin sections of 1-day (MP) and 30-day-old flies (Q–T) with indicated genotypes. Miga, PTPIP51 and Tether overexpression led to severe retinal degeneration in fly eyes with aging. (U) Quantification of the rhabdomere numbers per ommatidia of the fly eyes with indicated genotypes. n = 12 for each genotype, Data are represented as mean + SD. ns, not significant; **, p<0.01, ***, p<0.001; one-way ANOVA/Bonferroni’s multiple comparisons test. (V) Quantification of the rhabdomere size of the fly eyes with indicated genotypes. n = 27 for each genotype, data are represented as mean + SD. ns, not significant; **, p<0.01, ***, p<0.001; one-way ANOVA/Bonferroni’s multiple comparisons test. (W) Quantification of the rhabdomere numbers of the fly eyes with indicated genotypes. n = 12 for each genotype, data are represented as mean + SD. ns, not significant; ***, p<0.001; one-way ANOVA/Bonferroni’s multiple comparisons test.

In addition to eye degeneration, Miga overexpression in muscle also caused flight muscle degeneration in aged (30 days old) flies. However, MigaFM overexpression only led to very mild muscle degeneration phenotypes in the aged animals (Figure 3—figure supplement 1). These data suggested that the interaction between Miga and Vap33 is critical for the defects caused by Miga overexpression.

The interaction between Vap33 and Miga increased ERMCSs and led to eye degeneration. We speculated whether the degeneration was caused by the increasing ERMCSs. In mammals, it has been reported that a protein called PTPIP51 could interact with VAPA/B and mediate ERMCSs (Stoica et al., 2014). There is no homolog of PTPIP51 in flies. We expressed the human PTPIP51 in fly fat bodies and found that the human PTPIP51 is sufficient to increase ERMCS (Figure 3H–J and L-L′′). We therefore overexpressed the human PTPIP51 and examined the adult fly eyes at days 1 and 30 by TEM. PTPIP51 overexpressed eyes had reduced rhabdomere numbers and sizes from day 1 (Figure 3O, U and V). The degeneration was progressively worse with aging. In the 30-day-old flies, most ommatidia lost all rhabdomeres (Figure 3W), which is similar to Miga overexpression (Figure 3R and W). We also designed a molecular tether with a mitochondrial localization signal from human mitochondrial protein Akap1, a linker, an RFP, and 39 amino acids from the FFAT motif region of Miga (Figure 3—figure supplement 2A). The tether interacted with Vap33 nicely (Figure 3—figure supplement 2B). When we overexpressed it in fly fat body tissues, we could see ERMCS increase (Figure 3K, 3L–L′′). When this tether was expressed in the eyes, it also led to reduced rhabdomere numbers and sizes in 1-day-old flies (Figure 3P, U and V) and the majority of rhabdomeres were lost in the 30 day old flies (Figure 3T and W). These data suggested that artificially increasing ERMCSs led to severe neurodegeneration in fly eyes.

FFAT motif is important for Miga physiological functions

Since Miga overexpression led to ERMCS increase, we wondered whether Miga was required to establish ERMCSs. We examined the ERMCSs in the fly fat body tissues of wild type and Miga mutant third instar larvae. However, we did not observe any obvious ERMCS decrease in Miga mutants (Figure 4A–C). Since ERMCSs were not prevalent in the fat body tissues, the mild reduction was difficult to be detected. This may explain why Vap33 RNAi also did not affect ERMCSs in the fat body tissues.

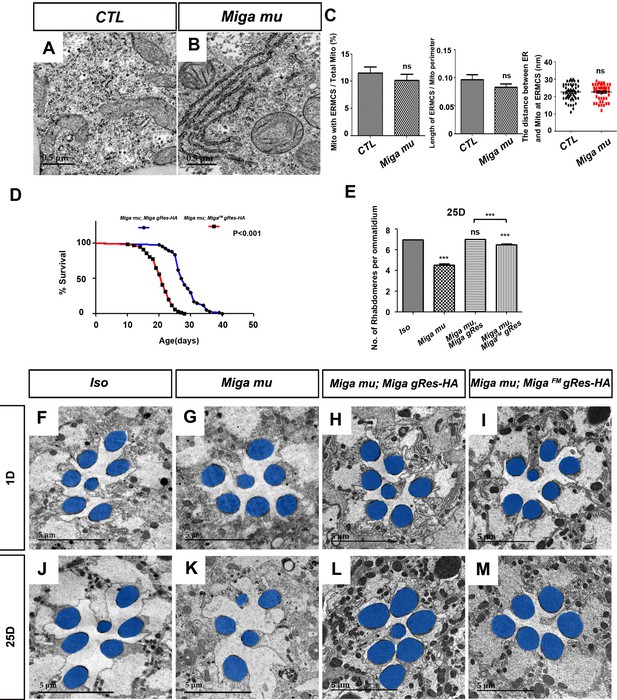

FFAT motif is important for the physiological functions of Miga.

(A, B) TEM analysis was performed for the fat body thin sections of the early third instar larvae with indicated genotypes. The loss of Miga did not affect MERCS significantly in fat body tissues. (C) Quantification of the ERMCSs in the fat bodies of the indicated genotypes. ns, not significant; two-tailed unpaired t-test. (D) The genomic fragment of Miga with FFAT motif mutated (MigaFMgRes-HA) could rescue the fatality of Miga mutants (Miga mu), but the rescued flies (Miga mu; MigaFM gRes-HA) have reduced life span compared with Miga mutants rescued with wildtype Miga genomic fragment (Miga mu; Miga gRes-HA). The male flies were analyzed. p<0.001, log rank test; n = 100 flies. (E) Quantification of the rhabdomere numbers per ommatidia of the fly eyes with indicated genotypes n = 50 for each genotype, data are represented as mean + SD. ns, not significant; ***, p<0.001; one-way ANOVA/Bonferroni’s multiple comparisons test. (F–M) TEM analysis was performed for the retina thin sections of 1-day and 25-day-old flies with indicated genotypes. The seventh/eighth photoreceptor cells often degenerated in the 25-day-old Miga mu; MigaFM gRes-HA flies. The rhabdomeres were highlighted with blue pseudo-color.

Our previous study showed that Miga loss led to early pupal fatality and the mosaic eyes with Miga mutant clones showed progressive degeneration (Zhang et al., 2016). The genomic fragment containing only Miga could rescue the fatality and the eye degeneration phenotypes. To test whether the interaction between Miga and Vap33 play any role in the physiological conditions, we made a Miga genomic rescue transgene (MigaFM gRes HA) with mutated FFAT motif to ensure that MigaFM expression levels and patterns mimicked those of endogenous Miga proteins. MigaFM genomic rescue transgene could rescue the Miga mutant fatality, but the life span of the MigaFM rescued flies was shorter than those of the ones with wildtype genomic rescue transgene (Figure 4D). We also examined the eyes of the genomic rescued adult flies at days 1 and 25. The seventh/eighth photoreceptor cells often degenerated in the 25 day old MigaFM rescued flies, which is barely seen in the wildtype Miga rescued flies (Miga mu; Miga gRes HA) (Figure 4E–M). These data suggested although Miga loss did not decrease ERMCSs in fat body tissues, the FFAT motif is critical for Miga physiological functions.

Miga was phosphorylated at multiple clusters

When we performed the western blot to detect the interaction between Vap33 and Miga, we realized that Miga shows multiple bands and the higher bands have larger molecular weights than the predicted molecular weights (Figure 2A). Interestingly, expressing together with Vap33 increased the amount of upper shift bands of Miga (Figure 2A), suggesting that Miga modification was regulated.

We then immunoprecipitated Miga from the cultured S2 cells with V5-tagged overexpressed Miga and performed mass spectrometry analysis. Many phosphorylation sites were identified in Miga (Figure 5A). To confirm that the upper shift of Miga was indeed due to hyperphosphorylation, we expressed V5-tagged Miga in S2 cells and treated cell lysates with or without λ-phosphatase and examined Miga by western blot with anti-V5 antibody. The phosphatase-treated group showed only one band that run faster than the lowest band in the untreated groups (Figure 5B), suggesting that the upper shift of the bands was due to Miga hyperphosphorylation. Due to technical difficulty, one large peptide with multiple serine/threonine (Ser/Thr) was missing in the mass spectrometry analysis. Since hyperphosphorylation usually takes place in clustered sites, we defined seven Ser/Thr clusters and performed the mutagenesis at one cluster per time to examine whether the upper shift of Miga was affected (Figure 5A,C). Consistent with the mass spectrometry data, mutated Ser/Thr in clusters I, II, III, and V but not in clusters IV, VI, and VII affected the Miga band shifts (Figure 5A,C). Indeed, mutating Ser/Thr to Ala in I, II, and III clusters together abolished the shift of the upper band and mutating Ser/Thr to Glu in these clusters mimic the upper shift of Miga (Figure 5D). Mutating Ser/Thr in cluster V affected both upper and lower band shifts, suggesting that cluster V phosphorylation accounted for Miga basal phosphorylation. We then examined which kinases are required for Miga hyperphosphorylation. The inhibitor treatments revealed that the CKI inhibitor D4476 inhibited the Miga upper band shift (Figure 5E). The CKI family of serine/threonine protein kinases is involved in regulations of many important signaling pathways and play many critical cellular functions (Knippschild et al., 2005). Coexpressing CKIα with Miga increased the upper band proportion vs lower bands (Figure 5F). Several Ser residues in cluster V were predicted by the online program GPS (http://gps.biocuckoo.cn/) (Xue et al., 2011) and NetPhos 3.1 (http://www.cbs.dtu.dk/services/NetPhos/) (Blom et al., 2004) as potential CaMKII phosphorylation sites. CaMKII is a serine/threonine protein kinase that is regulated by the Ca²+/calmodulin complex. CaMKII is involved in many signaling cascades and cellular events (Takemoto-Kimura et al., 2017). We overexpressed CaMKII along with Miga and examined whether the addition of CaMKII changes the mobility shift of Miga. Considering that the mobility shift might be small, we used phospho-tag gel that increases the mobility shift of the phospho-proteins to detect the band shift of Miga. With co-expression of CaMKII, we observed slight up-shift of both lower and upper bands of Miga (Figure 5G). We also detected a slight band shift reduction for both lower and upper bands of Miga when CaMKII was knocked down (Figure 5H). These data suggest that CKI and CaMKII are kinases required for Miga phosphorylation.

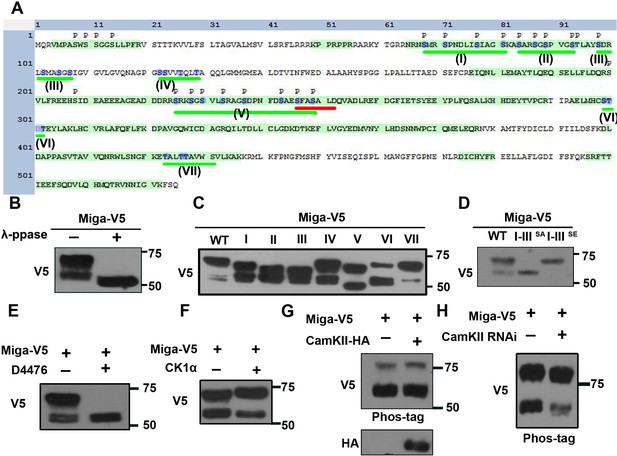

Miga was phosphorylated at multiple clusters.

(A) A diagram showed the protein sequence of Miga. The sequences highlighted with green color were the peptides identified in the mass spectrometry analysis. The phosphorylation sites identified in the mass spectrometry analysis were labeled with ‘p’. The Ser/Thr clusters were underlined with green lines and labeled with I-VII sequentially. The blue color highlighted the amino acid residues were mutated to Ala or Glu in our study. The FFAT motif was underlined with red line. (B) λ-phosphatase treatment abolished the upper shift of V5-tagged Miga protein in the western blot assay. (C) V5-tagged Miga proteins with mutated Ser/Thr in cluster I, II, III, IV, V, VI or VII were analyzed by western blot and the mobility shift of the mutated proteins were compared with the wildtype Miga. (D) Miga proteins with Ser/Thr residues in cluster I-III mutated to Ala (I-IIISA) or Glu (I-IIISE) were analyzed by western blot the mobility shifts of the mutated proteins were compared with the wildtype Miga (WT). (E) CKI inhibitor D4476 inhibited the shift of the upper band of Miga. (F) Coexpressing CKIα with Miga increased the proportion of the upper band vs lower bands. (G) Overexpressed CAMKII together with Miga led to up-shift of both lower and upper bands of Miga in a phospho-tag gel. (H) Phospho-tag gel analysis together with western blot indicated that a slight reduction of band shift when CAMKII was knocked down.

Hyperphosphorylation regulates ERMCS formation and fine-tuned Miga activity

Interestingly, Ser246 and Ser249 in cluster V were two phospho-Ser residues located inside the FFAT motif. In the classical FFAT motifs, those two positions were the acidic amino acids E or D. We hypothesized that the phosphorylation of these two serine residues is required for the interaction between Miga and Vap33 and the phosphorylation provides an opportunity to regulate the ERMCS formation. Mutating Ser246 and Ser249 to Ala indeed abolished the interaction between Miga and Vap33 (Figure 6B) and failed to increase ERMCSs when it was overexpressed in fly fat bodies (Figure 6A). There were eight Ser residues inside the cluster V. Mutating the other six serine residues outside the FFAT motif also greatly reduced the affinity between Miga and Vap33 (Figure 6—figure supplement 1). These data suggested that cluster V phosphorylation is required for the interaction between Miga and Vap33.

Figure 6 with 4 supplements see all

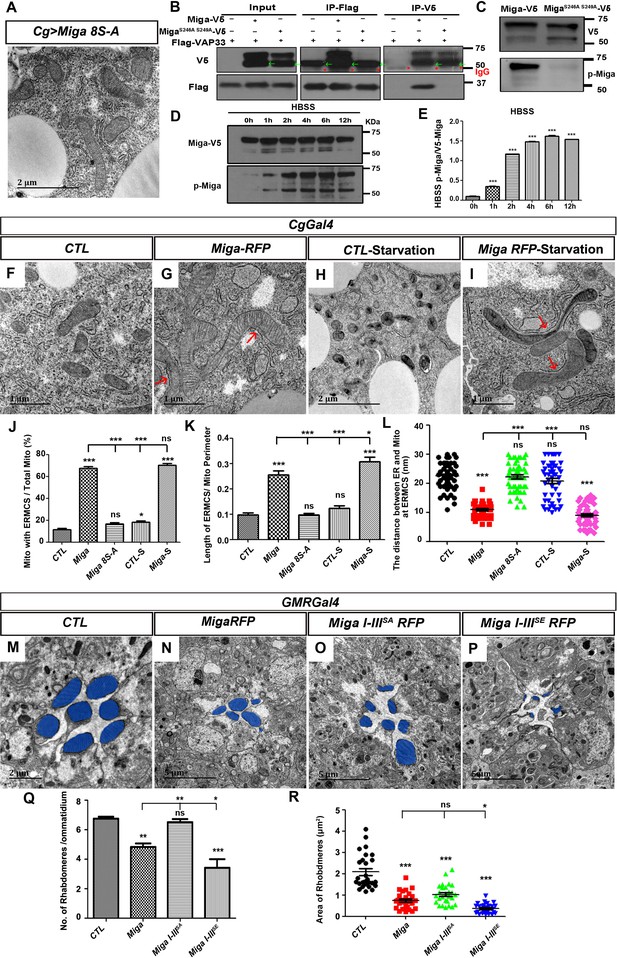

Hyper-phosphorylation regulates ERMCS formation and fine-tuned activity of Miga.

(A) TEM analysis was performed for the fat body thin sections of the early third instar larvae. Overexpression of the mutant form of Miga with Ser residues in the V cluster mutated to Ala (Miga 8S-A) did not affect ERMCSs in fat body tissues. (B) Miga with Ser 246 and Ser 249 mutated to Ala (MigaS246A, S249A) fail to bind to Vap33. MigaS246A, S249A-V5 showed two bands in most of the blots. The lower bands have a molecular weight close to 50 KD (indicated with green arrows), which were often merged with the IgG heavy chain (indicated with red *) in the blots after IP experiments. (C) A phospho-specific antibody of Miga (p-Miga) recognize overexpressed wildtype Miga-V5 but not MigaS246A, S249A-V5. Western blot with anti-V5 antibody indicated that both proteins were expressed at comparable levels. (D, E) HBSS treatment increased the phosphorylation on the Ser246 and Ser249 residues. (E) was the quantification of the ratios between p-Miga and total V5 tagged Miga when the cells were treated with HBSS. n = 3. Data are represented as mean + SD. ns, not significant; *, p<0.05, **, p<0.01, ***, p<0.001; one-way ANOVA/Bonferroni’s multiple comparisons test. (F–I) TEM analysis was performed for the thin sections of fly early third instar larval fat body tissues with indicated genotypes and treatments. Starvation was performed by treating the dissected fat body tissues with HBSS for 6 hr. (J–L) Quantification of the ERMCSs in the fat body tissues with indicated genotypes and treatments. Data are represented as mean + SD. ns, not significant; *, p<0.05, **, p<0.01, ***, p<0.001; one-way ANOVA/Bonferroni’s multiple comparisons test. Starvation slightly increased the proportion of mitochondria with ERMCSs in the control group (CTL-S). When Miga was overexpressed, starvation increased the length of ERMCSs per mitochondria. (M–P) TEM analysis was performed for the retina thin sections of 1-day-old flies with indicated genotypes. Overexpression of Miga I-IIISE led to more severe eye defects than the overexpression of wild type Miga or Miga I-IIISA. Overexpression Miga I-IIISA had the weakest eye defects when compared with the overexpression of the wildtype Miga or the overexpression of Miga I-IIISE. The rhabdomeres were highlighted with blue pseudo-color. (Q) Quantification of the rhabdomere numbers per ommatidia in the fly eyes with indicated genotypes. n = 12 for each genotype, data are represented as mean + SD. ns, not significant; *, p<0.05, **, p<0.01, ***, p<0.001; one-way ANOVA/Bonferroni’s multiple comparisons test. (R) Quantification of the rhabdomere size in the fly eyes with indicated genotypes. n = 27 for each genotype, data are represented as mean + SD. ns, not significant; *, p<0.05, ***, p<0.001; one-way ANOVA/Bonferroni’s multiple comparisons test.

To evaluate the FFAT motif phosphorylation, we generated an antibody specifically recognizing Ser246 and Ser249 phosphorylation. The antibody was proved to be specific because it only recognized the wild type Miga but not MigaS246A, S249A when they were overexpressed in S2 cells (Figure 6C).

It has been reported that starvation enhances ERMCS formation (Yang et al., 2018). In the wild-type fly fat body, starvation slightly increased the proportion of mitochondria with ERMCSs (Figure 6H and J). When Miga was overexpressed in fat body, ERMCSs were greatly increased (Figure 6G and J–L). Upon starvation, although there is no further increase of the proportions of mitochondria with ERMCSs, the ERMCS length was increased (Figure 6I–L). We wonder whether Miga FFAT motif phosphorylation was increased with starvation. We used Hank's balanced salt solution (HBSS) to treat the cultured S2 cells with V5-tagged overexpressed Miga and examined the Ser246 and Ser249 phosphorylation with western blot at different time points. The Ser246 and Ser249 phosphorylation levels were indeed increased with the HBSS treatments (Figure 6D–E). Similarly, our previous study showed that mitochondrial oxidative phosphorylation uncoupler CCCP treatment increased ERMCS (Yang et al., 2018). We also detected Ser246 and Ser249 phosphorylation increase in CCCP-treated cells (Figure 6—figure supplement 2), although the upper shift of Miga phosphorylation bands was abolished upon this treatment. These data suggested that FFAT motif phosphorylation regulated ERMCS establishment.

In addition to cluster V phosphorylation, Miga was also hyperphosphorylated in the I, II, and, III clusters. To understand how Miga hyperphosphorylation in the first three clusters regulates Miga activity, we overexpressed wild-type Miga, Miga I-IIISA, and Miga I-IIISE in various tissues and examined their effects. In the larvae fat body tissues, wild-type Miga, Miga I-IIISA or Miga I-IIISE overexpression all could increase ERMCSs. There was no obvious difference between these three forms (Figure 6—figure supplement 3), suggesting that Miga hyperphosphorylation in these clusters did not affect Miga ability to mediate ERMCSs. Using GMR-Gal4 to express the three forms of Miga in the developing eyes, we found that all forms cause eye defects and degeneration. Among the three forms of Miga, Miga I-IIISE caused most severe reduction of rhabdomere numbers and size, while Miga I-IIISA overexpression led to the mildest defects (Figure 6M–R). Similarly, in the adult muscle, Miga I-IIISE overexpression led to muscle degeneration and around 50% flight muscles were affected, while only 40% or 20% flight muscles were affected when wild-type Miga or Miga I-IIISA were overexpressed (Figure 6—figure supplement 4). These data suggested that Miga I-IIISE was more active than the wild-type control and Miga I-IIISA. The hyperphosphorylation in the first three clusters could fine-tune Miga activity.

The mammalian homolog of Miga, MIGA2, had conserved function in ERMCS formation

Miga has two mammalian homologs, MIGA1 and MIGA2. Both proteins are mitochondrial outer membrane proteins. We then tested whether MIGA1 and MIGA2 could interact with VAPA/B and promote ERMCS formation. Although the FFAT motif was identical in MIGA1 and MIGA2, MIGA1 had low affinity to VAP proteins. We used IP and detected its interaction with VAPA only in one direction (Figure 7—figure supplement 1). MIGA2 interacted with both VAPA and VAPB (Figure 7A–B). Mutating the FFAT motif in MIGA2 (MIGA2-mu) abolished the interaction between VAPB and MIGA2 (Figure 7C). These data were consistent with the results that has been recently reported by Freyre et al. Using COS7 cells, they demonstrated that MIGA2 interacts with both overexpressed and endogenous VAP proteins and the interaction depends on the FFAT motif in MIGA2 and the MSP (Major Sperm Protein) domain in VAP proteins (Freyre et al., 2019). When we overexpressed human MIGA2 in fly fat body, mitochondria were swollen and ERMCSs were increased (Figure 7D–G).

Figure 7 with 1 supplement see all

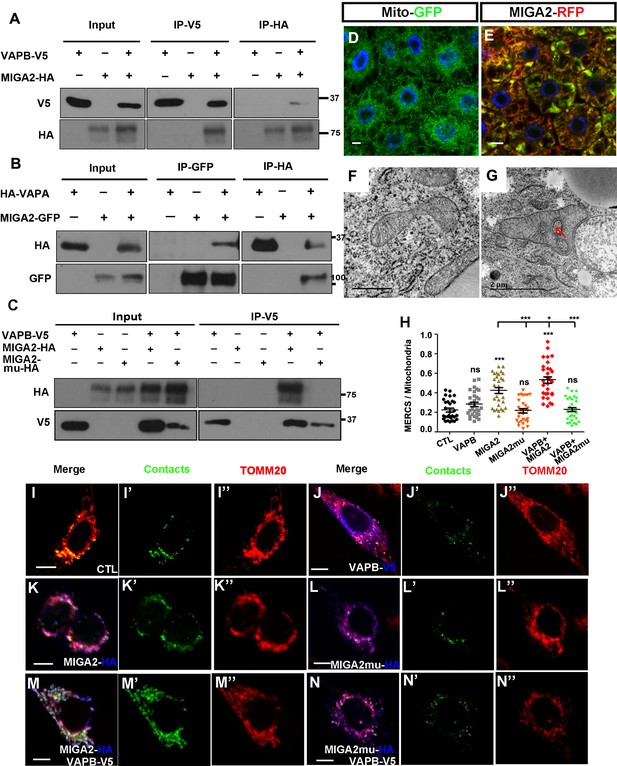

The mammalian homolog of Miga, MIGA2, had conserved function in ERMCS formation.

(A) MIGA2-HA and VAPB-V5 could pull down each other in both directions in the IP assay. (B) MIGA2-GFP and VAPA-HA could pull down each other in both directions in the IP assay. (C) Mutating the FFAT motif in MIGA2 (MIGA2-mu) abolished the interaction between VAPB and MIGA2 in the IP assay. (D and E) Human MIGA2RFP (red) ectopically overexpressed in fly fat body tissues led to the change of MitoGFP (green) patterns. (F and G) TEM analysis were performed for the early third instar larval fat body tissues with MitoGFP (F) or MIGA2RFP together with MitoGFP overexpressed (G). MIGA2RFP overexpression increased ERMCS. (H–N”) MIGA2 overexpression but not MIGA2-mu overexpression increased the signals of MERCSs. VAPB co-expression with MIGA2 further increased MERCSs. (H) Quantification of the ratio between contacts and the total mitochondrial signals of the cells with indicated genotypes. n = 30 for each genotype, ns, not significant; *, p<0.05, ***, p<0.001; one-way ANOVA/Bonferroni’s multiple comparisons test. (I–N’’) A genetic encoded split-GFP based MERCS reporter (green) stably expressed in U2OS cells was used to indicate MERCS. Mitochondria were labeled with anti-TOMM20 staining (red). The expression of VAPB, MIGA2 or MIGA2-mu were indicated by anti-V5 or anti-HA staining (blue).

We previously developed a genetically encoded reporter using split super-folder GFP protein for labeling ERMCSs. MIGA2, but not MIGA2-mu, overexpression increased the ERMCS reporter signals. Co-expression of VAPB with MIGA2, but not MIGA2-mu, further increased the ERMCS reporter signals (Figure 7H–N’’), suggesting that the interaction between MIGA2 and VAP proteins mediated ERMCSs.

Discussion

ERMCS mediates the crosstalk between ER and mitochondria. VAP proteins are ER membrane proteins that often serve as an ‘entry point’ to tether different organelles to ER and mediate the communications between ER and the tethered organelles (Eisenberg-Bord et al., 2016). VAP proteins contains the MSP domain that binds to proteins with FFAT motifs. In ALS patients, a point mutation in the VAPB MSP domain was identified (Nishimura et al., 2004). The resultant mutant VAPB has reduced affinity to the FFAT motif containing proteins (Murphy and Levine, 2016). Indeed, the disease mutation mimic Vap33 had less affinity to Miga than its wild type form. The reduction of organelle contacts including ERMCSs might contribute to the disease conditions in the ALS patients. In this study, we found that increasing ERMCSs by enhancing the interaction between Miga and VAP proteins also led to neurodegeneration, suggesting that the proper amount of contacts and the right distance between ER and mitochondria are critical for neuronal homeostasis.

Although Miga overexpression greatly increased ERMCSs in both fly eyes and fat body tissues, the loss of Miga did not have obvious effects on the ERMCSs in fly fat body tissues. The ERMCSs (10–30 nm), especially the tight contacts (about 10 nm), are rare in the wild type fly fat body. It might be the reason for the difficulty to detect ERMCS reduction in this tissue. We introduced a Miga genomic rescue fragment with point mutations in the FFAT motif in Miga mutant animals in this study. Although it rescued the fatality of Miga mutant, the rescued animals were short lived and had eye degeneration. It suggested that the interaction between Miga and Vap33 had physiological importance. It is interesting that the rescued animals always losing R7/R8 upon aging but not other photoreceptor cells, while the loss of photoreceptor cells in Miga mutant animals during aging did not have preference to any particular photoreceptor cells. Drosophila has compound eyes composed with repeat units call ommatidia (Chou et al., 1999). Each ommatidia consists of eight photoreceptors: the outer photoreceptor cells R1–R6 and the inner photoreceptor cells R7 and R8. The R1–R6 cells express a single opsin Rh1 and are involved in image formation and motion detection. The R7 cells express one of two opsins Rh3 and Rh4. The R8 cells are localized beneath the R7 and express one of the three opsins: Rh3, Rh5, and Rh6. R7 and R8 cells are involved in color vision and polarized light detection. However, we did not observe obvious difference of ERMCSs between the outer and inner photoreceptor cells. Further investigation is required to understand why the FFAT motif in Miga is particularly important for the inner photoreceptor cells. MigaFM rescued the lethality of Miga mutants, suggesting that at least some functions of Miga do not need its FFAT motif. The study in mammalian cells indicated that MIGA2 links mitochondria to lipid droplets (LD) through its C-terminal region and is required for adipocyte differentiation. The LD interaction region of MIGA2 is conserved in fly Miga protein. It needs further investigation whether Miga plays a role in lipid metabolism in Drosophila.

It has been reported that the ERMCSs marked the mitochondrial fission positions (Friedman et al., 2011). However, presenting ERMCS is not sufficient to induce mitochondrial fission. It has been observed that both mitochondrial fission and fusion could happen at ERMCSs (Guo et al., 2018). When Miga is overexpressed, we observed increased number of mitochondria with ERMCSs, increased ERMCS length per mitochondrion, and decreased distance between ER and mitochondria at the ERMCSs. Instead of promoting mitochondrial fission, we observed enhanced mitochondrial fusion and dramatically increased mitochondrial length when Miga was overexpressed (Zhang et al., 2016). Interestingly, when MigaFM was overexpressed, there is no increase of ERMCSs and the mitochondria length was also significantly shorter than that in the wildtype Miga overexpressed tissues (Figure 2—figure supplement 1). It has been suggested that Miga function in mitochondrial fusion might be coupled with its function in mediating ERMCSs.

In this study, we found that Miga was hyperphosphorylated at multiple sites. The phosphorylation on the cluster V was essential for the interaction between Miga and VAP protein and the interaction mediated ERMCS establishment. Upon cell stress stimuli, such as starvation, the phosphorylation was increased and so was the ERMCSs. Therefore, the phosphorylation in the cluster V provides a switch to modulate ERMCSs and the subsequent communications between ER and mitochondria. In addition to the cluster V, Miga was also phosphorylated at multiple sites in the clusters I, II, and III. The phosphorylation of these sites was enhanced by the interaction between Miga and Vap33. However, the phosphorylation of these sites did not affect Miga ability to form ERMCSs. Our data indicated that the phosphorylation in the clusters I, II, and III could enhance Miga activity. It would be interesting to know how the phosphorylation affects Miga activity. Although phosphatase treatment abolished the higher molecular weight bands seen in western blot analysis, we cannot exclude that another unknown post-translation modification might also contribute to the molecular weight changes in Miga.

In this study, we identified that CKI and CaMKII were required for Miga phosphorylation. ERMCSs play a key role in calcium flux between ER and mitochondria. The activity of CaMKII is regulated by Ca²+/calmodulin. Therefore, the local concentration of calcium might function as a trigger to modulate CaMKII activity and further modify the ERMCSs through the phosphorylation of Miga. We found that the reduction of mobility shift of Miga upon the RNAi of CaMKII was much smaller than that in the cluster V mutants, suggesting that other kinases are involved in the phosphorylation of the cluster V in Miga. We did not perform experiments to test whether CKI or CamKII could modify Miga overexpression phenotypes in fly eyes because of the shutdown of facilities during COVID-19 pandemic. It would be interesting to know whether these kinases are required for Miga overexpression mediated eye degeneration.

It has been reported that presenilins and γ-secretase activity are concentrated in the ERMCSs (Del Prete et al., 2017). Increased ERMCSs have also been observed in the fibroblasts from patients with sporadic Alzheimer’s disease (Area-Gomez et al., 2012). However, whether ERMCS change is the cause or the consequence of the diseases was not known. Our data provided evidence that enhanced ERMCSs by Miga overexpression or other means cause severe degeneration in neurons and muscles. It provided a direct evidence that enhanced ERMCSs is devastating to the cellular homeostasis and leads to neurodegeneration.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional information
Gene (Drosophila melanogaster)MigaGenBankFLYB:FBgn0030037
Gene (Drosophila melanogaster)marfGenBankFLYB:FBgn0029870
Gene (Drosophila melanogaster)MitoPLDGenBankFLYB:FBgn0261266
Gene (Drosophila melanogaster)Vap33GenBankFLYB:FBgn0029687
Gene (Homo- sapiens )Miga1GenBankHGNC:24741
Gene (Homo- sapiens )PTPIP51GenBankHGNC:25550
Gene (Homo- sapiens )Miga2GenBankHGNC:23621
Gene (Homo- sapiens )VAPAGenBankHGNC:12648
Gene (Homo- sapiens )VAPBGenBankHGNC:12649
Cell line (Drosophila melanogaster)S2This paperFLYB:FBtc0000181; RRID:CVCL_Z992
Cell line (Homo sapiens)U2OSThis paperCLS Cat# 300364/p489_U-2_OS, RRID:CVCL_0042
Cell line (Homo sapiens)HelaThis paperCLS Cat# 300194/p772_HeLa, RRID:CVCL_0030
Antibodyanti-HA (Rabbit monoclonal)Cell SignalingCell Signaling Technology Cat# 3724, RRID:AB_1549585WB (1:1000)
Antibodyanti-GFP (Rabbit polyclonal)MBLMBL International Cat# 598, RRID:AB_591819WB (1:1000)
 antibodyanti-Flag (mouse monoclonal)SigmaSigma-Aldrich Cat# F3165, RRID:AB_259529WB (1:1000)
Antibodyanti-V5 (mouse monoclonal)InvitrogenInvitrogen: R96025WB(1:5000)
IF(1:500)
AntibodyP-Miga (Rabbit monoclonal)GL BioChem LtdWB (1:5000-1:10000)
Chemical compound, drugPhos-tag acrylamideBoppardBoppard:
300–93523
100 μM
Chemical compound, drugD4470SelleckSelleck:S764280 μM
Chemical compound, drugCCCPSigmaSigma:C275910 μM
Chemical compound, drugHBSSThermoFisherThermoFisher: 14025076
Chemical compound, drugPhosSTOPSigmaSigma: 4906837001
 chemical compound, drugFLAG peptideAPExBIOAPExBIO:
A6001
Chemical compound, drugParaformaldehydeElectron Microscopy SciencesElectron Microscopy Sciences: 157114%
Chemical compound, drugCacodylic acidElectron Microscopy SciencesElectron Microscopy Sciences:
12201
1.4%
Chemical compound, drugGlutaraldehydeElectron Microscopy SciencesElectron Microscopy Sciences:
16020
1%
Chemical compound, drugOsmium tetroxideElectron Microscopy SciencesElectron Microscopy Sciences:
19152
2%
Chemical compound, drugPropylene oxideSigmaSigma:82320
Chemical compound, drugEmbed 812Electron Microscopy SciencesElectron Microscopy Sciences:
14900
Chemical compound, drugDDSAElectron Microscopy SciencesElectron Microscopy Sciences:
13710
Chemical compound, drugNMAElectron Microscopy SciencesElectron Microscopy Sciences:19000
Chemical compound, drugDMP-30Electron Microscopy SciencesElectron Microscopy Sciences:13600
Chemical compound, drugUranyl acetateElectron Microscopy SciencesElectron Microscopy Sciences:
22400
4%
Chemical compound, drugLead nitrateElectron Microscopy SciencesElectron Microscopy Sciences:
17800
2.5%
Chemical compound, drugToluidine blueElectron Microscopy SciencesElectron Microscopy Sciences:
22050
OtherHA beadsSigmaSigma:E6779
OtherFlag beadsSigmaSigma, A2220
OtherProtein A Sepharose 4 Fast Flow beadsGE HealthcareGE Healthcare:
17-5280-01
Sequence-based reagentCaMKII_FThis paperdsRNA primersTAATACGACTCACTATAGGGGCAAAGTCCGCTTATTCTCGTTCTT
Sequence-based reagentCaMKII_RThis paperdsRNA primersTAATACGACTCACTATAGGGAATTCTTTGGCTCCCCTCATGC
Sequence-based reagentCaMKII_FThis paperReal-time PCR primersATCCCAACATAGTGCGGCTACATGA
Sequence-based reagentCaMKII_RThis paperReal-time PCR primersAAGTCAGCGAGTTTCACTGCTGCA

Molecular cloning

Request a detailed protocol

The plasmid pUASattB-RFP was constructed by inserting cDNA of red fluorescent protein (RFP) into pUASattB vector through exogenous restriction sites of KpnI and XbaI. To generate pUASattB Miga-RFP, Miga cDNA was cloned into the pUAS attB-RFP vector, RFP was fused to the C terminus of Miga. To generate pUASattB MigaFM-RFP, the 247th Phe residue and the 249th Ser residue in Miga were mutated to Ala through site directed mutagenesis. pUASattBMigaS246A, S249A-RFP was generated through site directed mutagenesis to mutate the 246th Ser and 249th Ser residues to Ala. pUASattB Miga I-IIISA-RFP was generated by site directed mutagenesis to change the 68th, 71st, 77th, 81st, 84th, 87th, 89th, 93rd, 98th, 102nd, 105th, and 107th Ser residues to Ala. pUASattB Miga I-IIISE-RFP was generated by site directed mutagenesis to change the 68th, 71st, 77th, 81st, 84th, 87th, 89th, 93rd, 98th, 102nd, 105th, and 107th Ser residues to Glu. pUASattB Miga 8SA-RFP was generated by site directed mutagenesis to change the 225th, 228th, 230th, 233rd, 237th, 243rd, 246th, and 249th Ser residues to Ala. pattB Miga gRes-HA was generated by cloning Miga genomic DNA with its upstream and downstream 1.5 kb sequence into pattB vector, 3xHA tag was inserted just before the stop codon in the coding sequence (Zhang et al., 2016). pattB MigaFM gRes-HA was generated by introduce point mutations to change the 247th Phe residue and the 249th Ser residue to Ala in the Miga genomic DNA fragments and subcloned into pattB vector. The genomic DNA fragment including Miga’s gene span together with upstream and downstream 1.5 kb sequences and 3xHA tag was inserted just before the stop codon in the coding sequence. pUASattB PTPIP51-RFP was generated by cloning the full length human PTPIP51 cDNA into pUASattB-RFP vector. To generate pAC-Miga-V5 plasmid, Miga cDNA was sub-cloned into the pAC-His-V5 vector (Invitrogen), V5 was fused to the C terminus of Miga. pAC Miga I-V5 was generated by site-directed mutagenesis to change the 68th, 71st, 77th, 81st Ser residues to Ala. pAC Miga II-V5 was generated by site-directed mutagenesis to change the 84th, 87th, 89th, 93rd Ser residues to Ala. pAC Miga III-V5 was generated by site-directed mutagenesis to change the 98th, 102nd, 105th, and 107th Ser residues to Ala. pAC Miga IV-V5 was generated by site-directed mutagenesis to change the 122nd, 123rd Ser residues to Ala and the 126th, 129th Thr residues to Ala. pAC Miga V-V5 was generated by site-directed mutagenesis to change the 225th, 228th, 230th, 233rd, 237th, 243rd, 246th, and 249th Ser residues to Ala. pAC Miga VI-V5 was generated by site-directed mutagenesis to change the 299th Ser residue to Ala, 300th, 302nd Thr residues to Ala and 301st Asp residue to Ala. pAC Miga VII-V5 was generated by site-directed mutagenesis to change the 423rd, 426th , 427th Thr residues to Ala and 431st Ser residue to Ala. pAC Miga I-IIISA-V5 was generated by site-directed mutagenesis to change the 68th, 71st, 77th, 81st, 84th, 87th, 89th, 93rd, 98th, 102nd, 105th, and 107th Ser residues to Ala. pAC Miga I-IIISE-V5 was generated by site-directed mutagenesis to change the 68th, 71st, 77th, 81st, 84th, 87th, 89th, 93rd, 98th, 102nd, 105th, and 107th Ser residues to Glu. pAC-Miga 6S-A-V5 was generated by site-directed mutagenesis to change the 225th, 228th, 230th, 233rd, 237th, 243rd Ser residues to Ala. pAC-Miga 8S-A-V5 was generated by site-directed mutagenesis to change the 225th, 228th, 230th, 233rd, 237th, 243rd ,246th and 249th Ser residues to Ala. pUASVap33-FLAG, pUAS Vap33P58S-FLAG, pUAS CK1α have been described before (Tsuda et al., 2008; Jia et al., 2004). The plasmid pUASattB CamkII-HA was generated by cloning the full length CamKII cDNA into pUASattB vector with a N-terminal 3xHA tag. The plasmid pAC-Tether-V5 was generated by cloning the mitochondrial targeting sequence of human mitochondrial protein Akap1 (MAIQFRSLFPLALPGMLALLGWWWFFSRKK), a linker sequence (AEAAAKEAAAKEAAAKA), an RFP full length cDNA, and 39 amino acids sequence from FFAT motif region (229aa-267aa) of Miga into pAC-His-V5 vector. pUASattB-Tether was generated by cloning the mitochondrial targeting sequence of human mitochondrial protein Akap1 (MAIQFRSLFPLALPGMLALLGWWWFFSRKK), a linker sequence (AEAAAKEAAAKEAAAKA), an RFP full length cDNA, and 39 amino acids sequence from FFAT motif region (229aa-267aa) of Miga into pUASattB vector. pUASattB Miga-FLAG-HA was generated by cloning the full length Miga cDNA into pUASattB vector with a FLAG tag (DYKDDDDK) and a HA tag (YPYDVPDYA) fused to the C-terminal of Miga. The plasmid pcDNA3.1-MIGA2-HA was generated by cloning Miga2 cDNA into pcDNA3.1 vector with a 3xHA tag fused to the C-terminus. pcDNA3.1-MIGA2 mu-HA was generated by site-directed mutagenesis to change the 293rd, 294th Phe residues of MIGA2 to Ala . The plasmid pcDNA3.1-MIGA2-EGFP was generated by cloning Miga2 cDNA into pcDNA3.1 vector with a C-terminal EGFP tag. The plasmid pcDNA3.1-VAPB-V5 was generated by cloning VAPB cDNA into pcDNA3.1 vector with a C-terminal V5 tag. The plasmid pcDNA3.1-VAPA-HA was generated by cloning VAPA cDNA into pcDNA3.1 vector with a N-terminal 3xHA tag.

Fly strains

Request a detailed protocol

The fly strains used in this study were listed in the Supplementary file 1. All the transgenic strains were generated by the standard way. All the transgenic flies were generated by PhiC31-mediated transgenesis to integrate the DNA fragments at specific sites in the genome. Therefore, the transgenes presumably are single copy insertions.

Cell culture, transfection and treatments

Request a detailed protocol

S2 cells were originally from Invitrogen. HeLa cells and the U2OS cells were originally from ATCC. These cells were recently authenticated and tested for contamination. S2 cells were cultured in a 25°C incubator in Schneider insect cell culture medium (Sigma, S0146). HeLa cells and the U2OS cell lines stable transfected with ERMCS reporters were cultured in a 37°C incubator with 5% CO2 in Dulbecco’s modified Eagle’s medium (Life Technologies, C11995500CP). Both the culture mediums were supplemented with 10% fetal bovine serum (Life Technologies, 10091148) and 50 IU/mL penicillin/streptomycin (Biological Industries, 03-031-1B). Plasmids were transfected by using lipo2000 (Life Technologies, 11668019) as a transfection reagent. 48 hr after transfection, the cells were harvested and used for immunoprecipitation assay, western blotting or immuno-staining.

For drug treatment, 80 μM CKI inhibitor D4470 (Selleck, S7642) was added into the medium for 48 hr and DMSO was added as a control. For HBSS treatment, cells were cultured in HBSS (ThermoFisher, 14025076) for indicated period before harvest. For CCCP (Sigma, C2759) treatment, 10 μM CCCP was added to the culture medium for indicated period before harvest. For λ-ppase treatment, the cells were harvested and lysed in lysis buffer (150 mM NaCl, 50 mM Tris-HCl, 0.5% NP-40, protease inhibitor, pH 8.0) and incubated with λ-ppase for 1 hr at 30°C before western blot analysis.

RNA interference (RNAi) in Drosophila S2 cells

Request a detailed protocol

Drosophila RNAi experiments were carried out as previously described. The dsRNA targeting CaMKII was generated by annealing reverse complimented RNA strains generated by in vitro transcription from a template amplified by PCR using following primers: CaMKII-F: 5’-TAATACGACTCACTATAGGGGCAAAGTCCGCTTATTCTCGTTCTT-3’; CaMKII-R: 5’-TAATACGACTCACTATAGGGAATTCTTTGGCTCCCCTCATGC-3’. dsRNA was transfected to the S2 cells with the liposome RNAi max (Life Technologies, 13778 150). After 3 days, cells were transfected with pAC-Miga-V5. After 2 more days, cells were collected for real-time quantitative PCR and western blot. The primers used for the real time PCR are: CamKII-F: 5’-ATCCCAACATAGTGCGGCTACATGA-3’; CamKII-R: 5’-AAGTCAGCGAGTTTCACTGCTGCA-3’. RpLP0-F: 5'-CTAAGCTGTCGCACAAATGGC-3', RpLP0-R: 5'-ATCTCCTTGCGCTTCTTGGA-3'.

Immunofluorescence

Request a detailed protocol

The fat body tissues or the cultured cells were fixed in 4% paraformaldehyde (Sigma-Aldrich, 158127) for 45 min, followed by permeabilizing in PBST (PBS with 0.1% Triton X-100 (Sangon Biotech, T0694)). Samples were incubated with primary antibody at 4°C overnight. After washing with PBST, samples were then incubated with secondary antibodies for 1 hr at room temperature in dark. After that, samples were mounted in 80% glycerol (Sangon Biotech, A100854) with 5 ng/μL DAPI (Invitrogen, D-1306) followed by confocal microscopy (Cal Zeiss, LSM710, Oberkochen, Germany).

TEM analysis

Request a detailed protocol

For the adult fly eyes, fly head was dissected and fixed in EM eye solutions (1.4% cacodylic acid (Electron Microscopy Sciences,12201), 4% paraformaldehyde (Electron Microscopy Sciences, 15711), and 1% Glutaraldehyde (Electron Microscopy Sciences,16020), pH7.2.) for more than 48 hr at 4°C. Samples were then washed five times with Millipore water, and post-fixed with 2% osmium tetroxide (Electron Microscopy Sciences, 19152) for about 2 hr. After rinsing five times with Millipore water, samples were gradually dehydrated through a graded series of ethanol (50%, 70%, 80%, 90%, 95%, and 100%, respectively). After that, samples were dehydrated in propylene oxide (PO) (Sigma, 82320) for three times with 30 min for each time. And then, samples were embedded in Eponate 12 resin, which was made up from Embed 812 (Electron Microscopy Sciences, 14900), DDSA (Electron Microscopy Sciences, 13710), NMA (Electron Microscopy Sciences,19000) and DMP-30 (Electron Microscopy Sciences, 13600). The samples were then cured in 65°C for 48 hr. For the fat body and the muscle tissues, the initial fixation solution is 2.5% glutaraldehyde (Electron Microscopy Sciences, 16020) and the samples were washed with PBS after fixation. All the other steps were same as those used for the fly eyes. The samples were cut into 50 nm thin sections and stained with 4% uranyl acetate (Electron Microscopy Sciences, 22400) and 2.5% lead nitrate (Electron Microscopy Sciences, 17800) for electron microscopy analysis (Hitachi Ltd., HT7700, Tokyo, Japan). For the semi-thin sections of muscle tissues, the samples were cut into 1.5 μm thin sections and stained with toluidine blue (Electron Microscopy Sciences, 22050) and examine under a light microscopy (Nikon Corporation, ECLIPSE 80i, Tokyo, Japan).

Co-immunoprecipitation and western blotting

Request a detailed protocol

Cells were lysed in lysis buffer (150 mM NaCl, 50 mM Tris-HCl pH 8.0,1 mM EDTA, 0.5% Triton-100 (for HeLa cell); 150 mM NaCl,50 mM Tris-HCl pH 8.0, 10 mM NaF, 1 mM Na3VO4,1% NP-40, 10% glycerol, 1.5 mM EDTA pH 8.0 (for S2 cell)), supplemented with protease inhibitors PMSF, aprotinin, pepstatin, leupeptin, and phosphatase inhibitor PhosSTOP (sigma, 4906837001). Samples were centrifuged at 16000 g for 10 min and supernatant were collected and incubated with HA beads (Sigma, E6779) or Flag beads (Sigma, A2220) or V5 antibody followed with Protein A Sepharose 4 Fast Flow beads (GE Healthcare, 17-5280-01) for 2–4 hr at 4°C. Spin down the beats at 500 g for 30 s. Then washed with lysis buffer for three times and add SDS running buffer to the beads and proceed to western blot analysis. For western blotting analysis, proteins were separated by SDS–PAGE, and transferred onto a PVDF membrane. The membrane was then blocked with 5% non-fat milk (Sangon Biotech, A600669) in TBST buffer and incubated with primary antibodies in TBST with 5% non-fat milk overnight at 4°C. The membranes were then washed in TBST and incubated with HRP labeled secondary antibodies (1:5000 in TBST with 5% non-fat milk) for 1 hr at RT. The membranes were then washed in TBST and developed with ECL reagents (Cyanagen Srl, XLS3-0020) and exposed. Quantification of protein bands was done with Image J software.

Phos-tag SDS-PAGE

Request a detailed protocol

Phos-tag SDS-PAGE was performed with 7% polyacrylamide gels containing 100 μM Phos-tag acrylamide (Boppard, 300–93523) and 200 μM MnCl2. After electrophoresis, Phos-tag acrylamide gels were washed with transfer buffer (50 mM Tris, 384 mM glycine, 0.1% SDS, 20% methanol) containing 10 mM EDTA for 20 min and with transfer buffer without EDTA for 10 min. The proteins on the gel was transferred onto PVDF membranes followed with regular western blot procedure.

Antibodies

Anti-HA antibody (Cell Signaling: #3724) was used with 1:1000 dilution in both western blot and immunofluorescence staining. Anti-GFP antibody (MBL: 598) was used with 1:1000 dilution in western blot. Anti-Flag antibody (Sigma: F3165) was used with 1:1000 dilution in western blot. Anti-V5 antibody (Invitrogen: R96025) was used with 1:5000 dilution in western blot and 1:500 dilution in immunofluorescence staining. Miga phospho-specific antibody was generated by GL BioChem Ltd. Phosphorylated peptide GSDPNFDSAE(S)pFA(S)pA was used as an antigen to immune the rabbits. The antibody was tested by ELESA assays and western blot (1:5000).

Mass spectrometry

Request a detailed protocol

To identify Miga’s binding proteins, FLAG-HA tagged Miga was overexpressed in S2 cells for 48 hr. Cells were lysed in lysis buffer (150 mM NaCl,50 mM Tris-HCl pH 8.0, 10 mM NaF, 1 mM Na3VO4,10% NP-40, 10% glycerol, 1.5 mM EDTA pH 8.0) and Miga was pulled down by FLAG beads and eluted with FLAG peptide (APExBIO, A6001) twice. The eluted fractions then subjected for pull-down assay with HA beads. Then the pull-down products were separated by SDS-PAGE. The gel was dyed with Coomassie brilliant blue for 30 min and then de-colored by de-staining solution (75% alcohol, acetic acid, and H2O). Then the gel was cut and subjected to the LC-MS/MS analysis.

To identify the modifications on Miga protein, V5 tagged Miga was overexpressed in S2 cells for 48 hr. Cells were lysed in lysis buffer and IP with V5 beats. The proteins were separated by SDS-PAGE and dyed by Coomassie brilliant blue for 30 min and then incubated with de-staining solution (75% alcohol, acetic acid, and H2O). The gel corresponding to the size of Miga (50–75 KDa) was cut. In gel digestion was performed with trypsin at 37°C overnight. Peptides were extracted with 50% acetonitrile/ 5% formic acid, followed by 100% acetonitrile. Peptides were dried to completion and resuspended in 2% acetonitrile/ 0.1% formic acid. The tryptic peptides were dissolved in 0.1% formic acid (solvent A), directly loaded onto a home-made reversed-phase analytical column (15 cm length, 75 μm i.d.). The gradient was comprised of an increase from 6% to 23% solvent B (0.1% formic acid in 98% acetonitrile) over 16 min, 23% to 35% in 8 min and climbing to 80% in 3 min then holding at 80% for the last 3 min, all at a constant flow rate of 400 nl/min on an EASY-nLC 1000 UPLC system.

The peptides were subjected to NSI source followed by tandem mass spectrometry (MS/MS) in Q Exactive Plus (Thermo) coupled online to the UPLC. The electrospray voltage applied was 2.0 kV. The m/z scan range was 350 to 1800 for full scan, and intact peptides were detected in the Orbitrap at a resolution of 70,000. Peptides were then selected for MS/MS using NCE setting as 28 and the fragments were detected in the Orbitrap at a resolution of 17,500. A data-dependent procedure that alternated between one MS scan followed by 20 MS/MS scans with 15.0 s dynamic exclusion. Automatic gain control (AGC) was set at 5E4. The resulting MS/MS data were processed using Proteome Discoverer 1.3. Tandem mass spectra were searched against Miga protein sequence. Trypsin/P was specified as cleavage enzyme allowing up to two missing cleavages. Mass error was set to 10 ppm for precursor ions and 0.02 Da for fragment ions. Phosphorylation of serine, threonine and tyrosine were specified as fixed modification and oxidation on Met was specified as variable modifications. Peptide confidence was set at high, and peptide ion score was set >20.

Lifespan analysis

Request a detailed protocol

The Drosophila of each genotype were collected and housed at a density of 10 flies per vial (n = 100). All flies were kept in a constant temperature and humidity environment with 12 hr on/off light cycle. The number of surviving animals was counted and transferred to fresh food every 2 days.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
    Patterning of the R7 and R8 photoreceptor cells of Drosophila evidence for induced and default cell-fate specification
    1. WH Chou
    2. A Huber
    3. J Bentrop
    4. S Schulz
    5. K Schwab
    6. LV Chadwell
    7. R Paulsen
    8. SG Britt
    (1999)
    Development 126:607–616.
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51

Decision letter

  1. Benoît Kornmann
    Reviewing Editor; University of Oxford, United Kingdom
  2. Suzanne R Pfeffer
    Senior Editor; Stanford University School of Medicine, United States
  3. Benoît Kornmann
    Reviewer; University of Oxford, United Kingdom

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Your timely discovery of the interaction between the mitochondrial protein Miga and the endoplasmic reticulum protein Vap33 in Drosophila is in line with the very recent analogous discovery of the Klemm group in mammals. Moreover, your discovery of the phosphoregulation of this binding, where phosphate group additions compensate for the poorly acidic nature of Miga's "di-phenylalanine in acidic track" (FFAT) motif sheds a new light in the regulation of FFAT motifs, which play pleiotropic roles in organelle interactions.

Decision letter after peer review:

Thank you for submitting your article "Miga mediated endoplasmic reticulum-mitochondria contact sites regulate neuronal homeostasis" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Benoit Kornmann as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Suzanne Pfeffer as the Senior Editor.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, when editors judge that a submitted work as a whole belongs in eLife but that some conclusions require a modest amount of additional new data, as they do with your paper, we are asking that the manuscript be revised to either limit claims to those supported by data in hand, or to explicitly state that the relevant conclusions require additional supporting data.

Our expectation is that the authors will eventually carry out the additional experiments and report on how they affect the relevant conclusions either in a preprint on bioRxiv or medRxiv, or if appropriate, as a Research Advance in eLife, either of which would be linked to the original paper.

Summary:

In the present manuscript, Xu et al. Identify Vap33, an ER protein, as a binding partner for Miga, a mitochondrial protein. They show that vap33 binds Miga through a FFAT motif. When overexpressing Miga, this causes a massive increase in ER mitochondria contacts, which is dependent upon binding to Vap33. This increase in contacts, whether it is caused by Miga overexpression of by more artificial means (expression of a mammalian or completely artificial tethering protein) is toxic for omatidial development. The authors also show that while loss of miga is lethal, the lethality can be complemented by the expression of a Miga mutant form unable to bind vap33, indicating that Miga's essential role is not via Vap33 binding and the promotion of ER-mitochondria contacts. Moreover, lack of Miga or Vap33 has little impact on existing ER-mitochondria contacts. Finally, the authors show that Miga's FFAT (two phenylalanines in acidic tract) motif is unconventional, in that it is not really acidic, but can be made acidic through phosphorylation of serine residues, thus tuning affinity to Vap33.

Revisions for this paper:

As you will read from the attached reviews, the works was deemed interesting, yet insufficiently supported at places. In particular, most of the data here are from overexpression experiments. The interaction of Vap33 and Miga is not shown for proteins expressed at endogenous levels and the physiological implication of overexpressing the proteins are not straightforward. In particular, the ALS causing mutations are thought to reduce vapb binding to FFAT motifs, while the overexpression herein would rather increase it. Moreover, the text is at places incomplete or imprecise. In particular, the study of Freire et al., 2020, which shows interaction with mammalian Miga-2 and VAP and predates the present study by a few months should be much more thoroughly cited.

Revisions expected in follow-up work:

Pull down should be attempted with endogenously expressed proteins.

Reviewer #1

This is carefully executed and exciting story but its main problem is that it comes after Freyre et al., 2019, who already demonstrate binding of VAP and miga in cultured mammalian cells. Given the novelty of the Freyre publication and the need for "scooping protection", this need not preclude publication. However, it is important that this previous work is properly acknowledged along the whole manuscript and not as a side note in the Introduction. Freyre et al. already demonstrated VAP-Miga binding, the dependency upon the degenerated FFAT motif, the effect in increasing ER-mitochondria contacts by Miga overexpression, the relocalization of VAP to mitochondria upon miga overexpression.

Additional point:

– Miga has at least one function that doesn't require Vap33 binding, since lethality of a miga mutant can be rescued by expressing a FFAT-less Miga. What is/are this/ese function(s)? Do they relate to mitochondrial fusion. Is there any genetic interaction between Miga and mitoPLD or Marf to support this? A discussion of the other function(s) of Miga would be useful.

Reviewer #2

The manuscript by Xu and Wang et al. reports on mitoguardin (MIGA) mediated interaction between the ER and mitochondria and a critical function in maintenance of the retina. The results presented here confirm published work on the mammalian ortholog MIGA2, and add interesting new data on the activation of MIGA by phosphorylation. The function of ERMCs in neuronal homeostasis are also highly relevant, and the insights will be of high interest to the general readership of eLife. This reviewer recommends publication after the following points have been addressed.

The novelty of the paper relates to the characterization of Miga function in neurodegeneration (e.g. Figure 1, and 4), and the characterization of Miga activation by phosphorylation (Figure 5).

For a general reader it is not trivial to recognize the cell types and sub-cellular structures described in Figure 1. It would be helpful to segment and label the rhabdomeres, as well as indicate the outline of mitochondria and the ER in all panels that are compared. The areas enlarged in the figure panels called e.g. A', B' etc. should be outlined in the corresponding panels showing lower magnification, e.g. A, B etc. This also applies for the panels in Figure 3.

It would be helpful to include an introductory sentence to the kinases studied in Figure 5, spell out CK and CamKII when used first, and explain what is known about their function, possibly even already in the Introduction. While the inhibitor experiments in Figure 5 are very convincing it is not clear why the WT condition in Figure 5C and the untreated condition in Figure 5F (which should be the same conditions) are showing almost the opposite band intensities between non-phosphorylated and phosphorylated Miga-V5. This reviewer is also not confident in agreeing with the claimed effect of CamKII. The data in Figure 5G and H rather indicate that CamKII RNAi increases MIGA phosphorylation. The unphosphorylated bands in the phostag gels seem less intense than in controls. Consider changing the text to explain this figure panels better, or interpret the data differently.

The interaction with the VAP proteins was recently reported in work on mammalian MIGA2, and this work should be cited in the section reporting the interaction between Vap33 and Miga. This also applies for the Introduction and the text to Figure 2 and Figure 7. It is a strength of this paper to show that the molecular properties of mitoguardins are evolutionarily conserved and the authors might want to highlight this fact instead of ignoring it.

The text to Figure 7A is confusing and does not match the labelling of the figure panels. E.g. the interaction between MIGA2 and VAPA and VAPB is shown in the panel, and the text indicates that MIGA1 is shown. The text jumps to Figure 7N before the rest of the panels are described. Consider the relevant corrections and changes in the text.

The reason for the changes in relative abundance of full length MIGA-V5 and p-MIGA shown in Figure 6B are not clear. Are the authors suggesting that phosphorylation of the p-clusters I-III occur independently of starvation and only p-cluster V is modified after starvation? Or is this increase in phosphorylation contributed only from endogenous Miga. It seems important to show that the increase of p-Miga in Figure 6G is inhibited after the addition of the kinase inhibitors.

VAP proteins are tail anchored proteins and C-terminal tagging might be problematic in particular when using a FLAG tag which is highly charged. This could explain the issues with the Co-IP experiments reported in Figure 7. Have the authors considered using N-terminally tagged.

The Materials and methods section indicates the use of 10% NP-40 in the lysis and IP buffer used for mass spectrometry proteomics. Please double check the amount of detergent and correct the text if needed.

Reviewer #3

Xu et al., argue that Miga interact with the Vap33 protein through its FFAT-like motif and regulates ERMCSs. They argue that this interaction and elevated ERMCSs can promote photoreceptor degeneration. They also show that Miga can be regulated through phosphorylation and this phosphorylation is required for Vap33 binding as well ERMCSs formation.

Overall, this manuscript is well structured with interesting discovery on the function and regulation of Miga in ERMCSs and neurodegeneration. A major concern is that much of the work is based overexpression data but it can be considered for publication after addressing my concerns below:

1) Figure 2D-H,

a) Please show a separate channel for Figure 2F and H. It is difficult to compare expression patterns with merged channels.

b) Figure 2D-F, co-expression of Vap33 and Miga leads to a different expression pattern of both proteins, indicating the interaction/co-localization of the two protein may be due to an artifact from over-expression. Please try IP/IF with endogenous proteins (such as Miga gRES HA, mentioned later in the manuscript)

c) If the Miga-Vap33 protein interaction is weak at basal level, then how significant is this interaction in the cell. This is an important question that needs to be addressed.

2) The authors argue that Miga changes its expression pattern upon Vap33 co-expression: "many circular structures appeared". However, there are already some circular structures with Miga expression alone (Figure 2E). More representative images and proper quantification are required to make this statement.

3) Figure 2J: The authors argue that: Vap33 overexpression alone increased the mitochondrial proportion that have contacts with ER. However, I don't see a mitochondria-ER contact in this image. Please label where the contact is.

4) As Vap33 is linked to ALS, does Vap33-RNAi also suppresses the flight muscle degeneration in Miga over-expression flies?

5) Vap33-P58S, is associated with ALS. However, Vap33-P58S variant impairs the interaction with FFAT motif containing proteins (such as OSBP), suggesting that loss of Vap33-FFAT interaction is associated with ALS. However, in this manuscript, the authors argue that increased Vap33-Miga interaction lead to neurodegeneration. They should discuss this. Does overexpression of Vap33-P58S variant modify the photoreceptor loss in Miga over-expressing flies?

6) Subsection “Miga was phosphorylated at multiple clusters”. Please explain how CKI inhibitor D4476 is identified.

7) In the same section the authors claim that: Several Ser residues in cluster V were predicted as potential CaMKII phosphorylation sites. Please specify how phosphorylation sites prediction is performed.

8) As CKI and CaMKII regulates Miga phosphorylation. And the author argue that this phosphorylation is required for ERMCSs formation. Can CKI and CaMKII modify the photoreceptor defect observed in Miga overexpression flies?

https://doi.org/10.7554/eLife.56584.sa1

Author response

Revisions for this paper:

As you will read from the attached reviews, the works was deemed interesting, yet insufficiently supported at places. In particular, most of the data here are from overexpression experiments. The interaction of Vap33 and Miga is not shown for proteins expressed at endogenous levels and the physiological implication of overexpressing the proteins are not straightforward. In particular, the ALS causing mutations are thought to reduce vapb binding to FFAT motifs, while the overexpression herein would rather increase it. Moreover, the text is at places incomplete or imprecise. In particular, the study of Freire et al., 2020, which shows interaction with mammalian Miga-2 and VAP and predates the present study by a few months should be much more thoroughly cited.

Revisions expected in follow-up work:

Pull down should be attempted with endogenously expressed proteins.

During the revision process, we made several attempts to address this problem. We had two anti-Miga antibodies that we generated in this study, but none of them worked properly in immunoprecipitation. We then expressed a genomic rescue construct of Miga with HA tag fused to its C-terminus, which likely expressed in an endogenous level. We do not have anti- VAP33 antibody and fail to obtain from colleagues in other country because of the outbreak of COVID-19 and shut down of many facilities. we overexpressed Flag tagged VAP33 and performed IP experiments. Since VAP33 overexpression only marginally increased ERMCSs in our experimental settings, we think the overexpression might not be very problematic. We included these data in the revised manuscript (Figure 2D). Although the experimental condition is not ideal, that is the best we can do now.

Reviewer #1

This is carefully executed and exciting story but its main problem is that it comes after Freyre et al., 2019, who already demonstrate binding of VAP and miga in cultured mammalian cells. Given the novelty of the Freyre publication and the need for "scooping protection", this need not preclude publication. However, it is important that this previous work is properly acknowledged along the whole manuscript and not as a side note in the Introduction. Freyre et al. already demonstrated VAP-Miga binding, the dependency upon the degenerated FFAT motif, the effect in increasing ER-mitochondria contacts by Miga overexpression, the relocalization of VAP to mitochondria upon miga overexpression.

Thanks for the comments. In the revised manuscript, we thoroughly acknowledged the

previous publication.

Additional point:

– Miga has at least one function that doesn't require Vap33 binding, since lethality of a miga mutant can be rescued by expressing a FFAT-less Miga. What is/are this/ese function(s)? Do they relate to mitochondrial fusion. Is there any genetic interaction between Miga and mitoPLD or Marf to support this? A discussion of the other function(s) of Miga would be useful.

We did not test the genetic interaction between the FFAT-less Miga and MitoPLD or Marf. In this study, we found that when MigaFM was overexpressed, there is no increase of ERMCSs and the mitochondria length was also significantly shorter than that in the wildtype Miga overexpressed tissues (Figure 2—figure supplement 1). It suggested that Miga functions in mitochondrial fusion might be coupled with its function in mediating ERMCSs. The study in mammalian cells indicated that MIGA2 links mitochondria to lipid droplets (LD) through its C-terminal region and is required for adipocyte differentiation. The LD interaction region of MIGA2 is conserved in fly Miga protein. It needs further investigation whether Miga plays a role in lipid metabolism in Drosophila. We add discussion regarding to this point in the revised manuscript.

Reviewer #2

The manuscript by Xu and Wang et al. reports on mitoguardin (MIGA) mediated interaction between the ER and mitochondria and a critical function in maintenance of the retina. The results presented here confirm published work on the mammalian ortholog MIGA2, and add interesting new data on the activation of MIGA by phosphorylation. The function of ERMCs in neuronal homeostasis are also highly relevant, and the insights will be of high interest to the general readership of eLife. This reviewer recommends publication after the following points have been addressed.

The novelty of the paper relates to the characterization of Miga function in neurodegeneration (e.g. Figure 1, and 4), and the characterization of Miga activation by phosphorylation (Figure 5).

For a general reader it is not trivial to recognize the cell types and sub-cellular structures described in Figure 1. It would be helpful to segment and label the rhabdomeres, as well as indicate the outline of mitochondria and the ER in all panels that are compared. The areas enlarged in the figure panels called e.g. A', B' etc. should be outlined in the corresponding panels showing lower magnification, e.g. A, B etc. This also applies for the panels in Figure 3.

Thanks for the advice. We made the changes accordingly.

It would be helpful to include an introductory sentence to the kinases studied in Figure 5, spell out CK and CamKII when used first, and explain what is known about their function, possibly even already in the Introduction. While the inhibitor experiments in Figure 5 are very convincing it is not clear why the WT condition in Figure 5C and the untreated condition in Figure 5F (which should be the same conditions) are showing almost the opposite band intensities between non-phosphorylated and phosphorylated Miga-V5. This reviewer is also not confident in agreeing with the claimed effect of CamKII. The data in Figure 5G and H rather indicate that CamKII RNAi increases MIGA phosphorylation. The unphosphorylated bands in the phostag gels seem less intense than in controls. Consider changing the text to explain this figure panels better, or interpret the data differently.

The introduction of the kinases was added in the revised manuscript. The difference between the original Figure 5C and Figure 5F was because of the different sample preparation procedures. The samples in original 5C were prepared by adding SDS loading buffer directly to the pelleted cells. The samples in original Figure 5F were prepared by using lysis buffer to treat cells for 1hour, centrifuging for 10 minutes with high speed, collecting 20 uL supernatant and then adding SDS loading buffer (the rest of the supernatant was collected for IP experiments). The long preparation procedure for original Figure 5F likely reduced the phosphorylation in the protein samples. Now we changed Figure 5F with a new image in which the samples were prepared in the same way as Figure 5C. Since the phosphatase activity is very high in the lysates and the p-Miga is often de-phosphorylated. It is meaningful to compare the bands intensity and shift for the samples prepared side by side but not between different experiments.

Figure 5G and H were phostag gel, the band shift in both images indicating CamKII might contribute to the phosphorylation of Miga. The overall intensity was low in the CamKII RNAi groups. We repeated the experiment several times, the RNAi group always have lower expression of Miga (both higher bands and lower bands). It needs further investigation to know why the expression level of Miga was low in the CaMKII RNAi group. Never the less, the mobility shift of both the lower bands and the upper bands was slower than the controls, indicating CaMKII contributes to the mobility shift in the control cells. We changed the image of Figure 5H with a better exposure time to show both bands of Miga. We also made some changes in the text and included discussions about the kinases in the revised manuscript.

The interaction with the VAP proteins was recently reported in work on mammalian MIGA2, and this work should be cited in the section reporting the interaction between Vap33 and Miga. This also applies for the Introduction and the text to Figure 2 and Figure 7. It is a strength of this paper to show that the molecular properties of mitoguardins are evolutionarily conserved and the authors might want to highlight this fact instead of ignoring it.

Thanks for the comments. We acknowledged the recent publication of Miga thoroughly in the revised manuscript.

The text to Figure 7A is confusing and does not match the labelling of the figure panels. E.g. the interaction between MIGA2 and VAPA and VAPB is shown in the panel, and the text indicates that MIGA1 is shown. The text jumps to Figure 7N before the rest of the panels are described. Consider the relevant corrections and changes in the text.

Sorry for the confusion. We added the MIGA1 IP results in the new supplemental figure (Figure 7—figure supplement 1). We also reorganized the Figure 7 to make the flow better.

The reason for the changes in relative abundance of full length MIGA-V5 and p-MIGA shown in Figure 6B are not clear. Are the authors suggesting that phosphorylation of the p-clusters I-III occur independently of starvation and only p-cluster V is modified after starvation? Or is this increase in phosphorylation contributed only from endogenous Miga. It seems important to show that the increase of p-Miga in Figure 6G is inhibited after the addition of the kinase inhibitors.

We prefer the first possibility suggested by the reviewer. We tried to detect the phosphorylation of endogenous Miga with this antibody and fail to obtained positive signals with or without HBSS treatments. Therefore, the p-Miga signals detected in MIga-V5 expression samples likely is the phosphorylated Miga-V5 protein. RNAi CAMKII did not change the level of p-Miga significantly. We think CAMKII might phosphorylate cluster V on the other sites rather than the S246 and S249 in the FFAT motif recognized by the phosph-specific antibody of Miga. We believe that there are other kinases also responsible for Miga’s phosphorylation. We discussed this point in the revised manuscript.

VAP proteins are tail anchored proteins and C-terminal tagging might be problematic in particular when using a FLAG tag which is highly charged. This could explain the issues with the Co-IP experiments reported in Figure 7. Have the authors considered using N-terminally tagged.

It is a good suggestion. The Vap33 vector with Flag tag was tagged at the N-terminus. And the VAPA vector was also tagged at the N-terminus. The VAPB vector used here was tagged with V5 tag and it is tagged at the C-terminus. It has normal ER distribution, forms complex with MIGA2, and increases ERMCSs when co-expressed with MIGA2, suggesting VAPB-V5 functions normal. To prevent the confusion of the tag positions, we re-labeled the VAP proteins as Flag-Vap33, VAPA-HA, and V5-VAPB in the revised figures.

The Materials and methods section indicates the use of 10% NP-40 in the lysis and IP buffer used for mass spectrometry proteomics. Please double check the amount of detergent and correct the text if needed.

It is not correct. We changed it.

Reviewer #3

Xu et al., argue that Miga interact with the Vap33 protein through its FFAT-like motif and regulates ERMCSs. They argue that this interaction and elevated ERMCSs can promote photoreceptor degeneration. They also show that Miga can be regulated through phosphorylation and this phosphorylation is required for Vap33 binding as well ERMCSs formation.

Overall, this manuscript is well structured with interesting discovery on the function and regulation of Miga in ERMCSs and neurodegeneration. A major concern is that much of the work is based overexpression data but it can be considered for publication after addressing my concerns below:

1) Figure 2D-H,

a) Please show a separate channel for Figure 2F and H. It is difficult to compare expression patterns with merged channels.

Thanks for the comments. We split the channels in the revised manuscript as suggested.

b) Figure 2D-F, co-expression of Vap33 and Miga leads to a different expression pattern of both proteins, indicating the interaction/co-localization of the two protein may be due to an artifact from over-expression. Please try IP/IF with endogenous proteins (such as Miga gRES HA, mentioned later in the manuscript)

During the revision process, we made several attempts to address this problem. We had two anti-Miga antibodies we generated in this study, but none of them worked properly in immunoprecipitation. We then expressed a genomic rescue construct of Miga with HA tag fused to its C-terminus as suggested by reviewer 2, which likely expressed in an endogenous level. We do not have anti- VAP33 antibody and fail to obtain from colleagues in other country because of the outbreak of COVID-19 and shut down of many facilities. Since VAP33 overexpression only slightly increase ERMCSs in our experimental settings, we overexpressed Flag tagged VAP33 and performed IP experiments. We included these data in the revised manuscript. Although the experimental condition is not ideal, that is the best we can do now.

c) If the Miga-Vap33 protein interaction is weak at basal level, then how significant is this interaction in the cell. This is an important question that needs to be addressed.

As we showed in Figure 4D-M, a genomic rescue fragment of Miga with FFAT motif mutated cannot fully rescue the Miga mutant phenotypes. The rescued flies have reduced life span and retinal degeneration. These data suggested that the interaction between Miga-Vap33 indeed has physiological significance.

2) The authors argue that Miga changes its expression pattern upon Vap33 co-expression: "many circular structures appeared". However, there are already some circular structures with Miga expression alone (Figure 2E). More representative images and proper quantification are required to make this statement.

The circular structures might not be a precise description of the structures we are trying to describe. We removed this statement in the revised manuscript.

3) Figure 2J: The authors argue that: Vap33 overexpression alone increased the mitochondrial proportion that have contacts with ER. However, I don't see a mitochondria-ER contact in this image. Please label where the contact is.

The increase of the mitochondrial proportion that have contacts with ER was modest when Vap33 was overexpression alone. The conclusion was drawing from statistic measurements and it might be hard to see from a single image. We changed an image with ERMCSs and label it with arrow in the revised manuscript.

4) As Vap33 is linked to ALS, does Vap33-RNAi also suppresses the flight muscle degeneration in Miga over-expression flies?

We did not perform this experiment due to the shutdown of EM facility on the campus during the epidemics of COVID-19. It has been reported before that the loss of Vap33 cause severe muscle defects. It is difficult to predict whether Vap33-RNAi could rescue Miga-overexpression phenotypes in muscles.

5) Vap33-P58S, is associated with ALS. However, Vap33-P58S variant impairs the interaction with FFAT motif containing proteins (such as OSBP), suggesting that loss of Vap33-FFAT interaction is associated with ALS. However, in this manuscript, the authors argue that increased Vap33-Miga interaction lead to neurodegeneration. They should discuss this. Does overexpression of Vap33-P58S variant modify the photoreceptor loss in Miga over-expressing flies?

We believe both loss and gain of ERMCS is devastating to the neuronal homeostasis. We discussed this in the manuscript as following “In ALS patients, a point mutation in the VAPB MSP domain was identified. The resultant mutant VAPB has reduced affinity to the FFAT motif containing proteins ). Indeed, the disease mutation mimic Vap33 had less affinity to Miga than its wild type form. The reduction of organelle contacts including ERMCSs might contribute to the disease conditions in the ALS patients.” In the revised manuscript, we further emphasized that both reduction and increase of ERMCS are devastating to the cellular homeostasis and leads to neurodegeneration.

For a similar reason described above, we did not perform the experiments suggested here.

6) Subsection “Miga was phosphorylated at multiple clusters”. Please explain how CKI inhibitor D4476 is identified.

We did a small-scale kinase inhibitor screening with the screen wellR kinase inhibitor library (BML-2832 Version 2.2) and found that an inhibitor called 5-Iodotubericidin could inhibit the band shift. However, this inhibitor is not very specific. It inhibits ERK2, adenosine kinase, CKI, CKII, we then tried several other inhibitors including D4476 and found that only this one can inhibit the band shift nicely. During the screening, we also have some other hits that cannot be confirmed by further experiments. It is not very surprising, since most of the inhibitors in this library are not very specific. To simplify the story and make reader easy to follow, we only described D4476 in the manuscript.

7) In the same section the authors claim that: Several Ser residues in cluster V were predicted as potential CaMKII phosphorylation sites. Please specify how phosphorylation sites prediction is performed.

We used online program GPS (http://gps.biocuckoo.cn/) and NetPhos 3.1 (http://www.cbs.dtu.dk/services/NetPhos/) did the prediction. We add the description in the revised manuscript.

8) As CKI and CaMKII regulates Miga phosphorylation. And the author argue that this phosphorylation is required for ERMCSs formation. Can CKI and CaMKII modify the photoreceptor defect observed in Miga overexpression flies?

Because the shutdown of the EM facility, we could not perform the experiments requested here. It is hard to predict whether the knockdown of these kinases will modify the photoreceptor defects in Miga overexpressed flies because these kinases have many different substrates and CKI is important for several signaling pathways for eye development.

https://doi.org/10.7554/eLife.56584.sa2

Article and author information

Author details

  1. Lingna Xu

    MOE Key Laboratory for Biosystems Homeostasis & Protection and Innovation Center for Cell Signaling Network, Life Sciences Institute, Zhejiang University, Hangzhou, China
    Contribution
    Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft
    Contributed equally with
    Xi Wang
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0534-8781
  2. Xi Wang

    MOE Key Laboratory for Biosystems Homeostasis & Protection and Innovation Center for Cell Signaling Network, Life Sciences Institute, Zhejiang University, Hangzhou, China
    Contribution
    Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft
    Contributed equally with
    Lingna Xu
    Competing interests
    No competing interests declared
  3. Jia Zhou

    MOE Key Laboratory for Biosystems Homeostasis & Protection and Innovation Center for Cell Signaling Network, Life Sciences Institute, Zhejiang University, Hangzhou, China
    Contribution
    Data curation, Formal analysis, Validation, Investigation, Visualization
    Competing interests
    No competing interests declared
  4. Yunyi Qiu

    MOE Key Laboratory for Biosystems Homeostasis & Protection and Innovation Center for Cell Signaling Network, Life Sciences Institute, Zhejiang University, Hangzhou, China
    Contribution
    Data curation, Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  5. Weina Shang

    MOE Key Laboratory for Biosystems Homeostasis & Protection and Innovation Center for Cell Signaling Network, Life Sciences Institute, Zhejiang University, Hangzhou, China
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  6. Jun-Ping Liu

    Institute of Ageing Research, Hangzhou Normal University College of Medicine, Hangzhou, China
    Contribution
    Resources, Investigation, Project administration
    Competing interests
    No competing interests declared
  7. Liquan Wang

    The Second Affiliated Hospital, School of Medicine, Zhejiang University, Hangzhou, China
    Contribution
    Resources, Investigation, Project administration
    Competing interests
    No competing interests declared
  8. Chao Tong

    1. MOE Key Laboratory for Biosystems Homeostasis & Protection and Innovation Center for Cell Signaling Network, Life Sciences Institute, Zhejiang University, Hangzhou, China
    2. Institute of Ageing Research, Hangzhou Normal University College of Medicine, Hangzhou, China
    3. The Second Affiliated Hospital, School of Medicine, Zhejiang University, Hangzhou, China
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    ctong@zju.edu.cn
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6521-5465

Funding

National Natural Science Foundation of China (91754103)

  • Chao Tong

National Natural Science Foundation of China (31622034)

  • Chao Tong

National Natural Science Foundation of China (31571383)

  • Chao Tong

National key research and developmental program of China (2017YFC1001100)

  • Chao Tong

National key research and developmental program of China (2017YFC1001500)

  • Chao Tong

Natural Science Foundation of Zhejiang Province (LR16C070001)

  • Chao Tong

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We are grateful to THFC, BDSC, and DGRC for providing fly strains and cDNA clones. Dr. Tong is supported by National Natural Science Foundation of China (91754103, 31622034, 31571383), National Key Research & Developmental Program of China (2017YFC1001100, 2017YFC1001500), Natural Science Foundation of Zhejiang Province, China (LR16C070001), Fundamental research funds for the central universities. Dr. Tong is a Qianjiang Scholar. We are also grateful for the technical supports provided by Dr. Bing Yang, LSI Mass Spectrometry Facility, and Imaging Core.

Senior Editor

  1. Suzanne R Pfeffer, Stanford University School of Medicine, United States

Reviewing Editor

  1. Benoît Kornmann, University of Oxford, United Kingdom

Reviewer

  1. Benoît Kornmann, University of Oxford, United Kingdom

Publication history

  1. Received: March 3, 2020
  2. Accepted: July 9, 2020
  3. Accepted Manuscript published: July 10, 2020 (version 1)
  4. Version of Record published: July 23, 2020 (version 2)

Copyright

© 2020, Xu et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 976
    Page views
  • 207
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    2. Cell Biology
    Catherine G Triandafillou et al.
    Research Article

    Heat shock induces a conserved transcriptional program regulated by heat shock factor 1 (Hsf1) in eukaryotic cells. Activation of this heat shock response is triggered by heat-induced misfolding of newly synthesized polypeptides, and so has been thought to depend on ongoing protein synthesis. Here, using the budding yeast Saccharomyces cerevisiae, we report the discovery that Hsf1 can be robustly activated when protein synthesis is inhibited, so long as cells undergo cytosolic acidification. Heat shock has long been known to cause transient intracellular acidification which, for reasons which have remained unclear, is associated with increased stress resistance in eukaryotes. We demonstrate that acidification is required for heat shock response induction in translationally inhibited cells, and specifically affects Hsf1 activation. Physiological heat-triggered acidification also increases population fitness and promotes cell cycle reentry following heat shock. Our results uncover a previously unknown adaptive dimension of the well-studied eukaryotic heat shock response.

    1. Cell Biology
    Vasyl Ivashov et al.
    Research Article

    How cells adjust nutrient transport across their membranes is incompletely understood. Previously, we have shown that S. cerevisiae broadly re-configures the nutrient transporters at the plasma membrane in response to amino acid availability, through endocytosis of sugar- and amino acid transporters (AATs) (Müller et al., 2015). A genome-wide screen now revealed that the selective endocytosis of four AATs during starvation required the α-arrestin family protein Art2/Ecm21, an adaptor for the ubiquitin ligase Rsp5, and its induction through the general amino acid control pathway. Art2 uses a basic patch to recognize C-terminal acidic sorting motifs in AATs and thereby instructs Rsp5 to ubiquitinate proximal lysine residues. When amino acids are in excess, Rsp5 instead uses TORC1-activated Art1 to detect N-terminal acidic sorting motifs within the same AATs, which initiates exclusive substrate-induced endocytosis. Thus, amino acid excess or starvation activate complementary α-arrestin-Rsp5-complexes to control selective endocytosis and adapt nutrient acquisition.
