Harmful DNA:RNA hybrids are formed in cis and in a Rad51-independent manner

  1. Juan Lafuente-Barquero
  2. Maria Luisa García-Rubio
  3. Marta San Martin-Alonso
  4. Belén Gómez-González  Is a corresponding author
  5. Andrés Aguilera  Is a corresponding author
  1. Centro Andaluz de Biología Molecular y Medicina Regenerativa-CABIMER, Universidad de Sevilla-CSIC-Universidad Pablo de Olavide, Spain
Research Article
  • Cited 0
  • Views 804
  • Annotations
Cite this article as: eLife 2020;9:e56674 doi: 10.7554/eLife.56674

Abstract

DNA:RNA hybrids constitute a well-known source of recombinogenic DNA damage. The current literature is in agreement with DNA:RNA hybrids being produced co-transcriptionally by the invasion of the nascent RNA molecule produced in cis with its DNA template. However, it has also been suggested that recombinogenic DNA:RNA hybrids could be facilitated by the invasion of RNA molecules produced in trans in a Rad51-mediated reaction. Here, we tested the possibility that such DNA:RNA hybrids constitute a source of recombinogenic DNA damage taking advantage of Rad51-independent single-strand annealing (SSA) assays in the yeast Saccharomyces cerevisiae. For this, we used new constructs designed to induce expression of mRNA transcripts in trans with respect to the SSA system. We show that unscheduled and recombinogenic DNA:RNA hybrids that trigger the SSA event are formed in cis during transcription and in a Rad51-independent manner. We found no evidence that such hybrids form in trans and in a Rad51-dependent manner.

Introduction

R loops are structures formed by a DNA:RNA hybrid and the complementary displaced single stranded DNA (ssDNA). They were observed naturally as programmed events in specific genomic sites such as the S regions of Immunoglobulin genes in mammals or mitochondrial DNA (Chang et al., 1985; García-Muse and Aguilera, 2019; Yu et al., 2003), where they play specific functions by promoting class switch recombination or DNA replication, respectively; but also as unscheduled non-programmed structures upon dysfunction of RNA binding proteins involved in the assembly or processing and export of the protein-mRNA particle (mRNP) such as the THO complex or the SRSF1 splicing factor (Huertas and Aguilera, 2003; Li and Manley, 2005). Also, they have been inferred in the rDNA regions of the bacterial chromosome upon Topo I inactivation (Drolet et al., 1995). Accumulated evidence indicates that R loops are detected from yeast to humans in many transcribed regions of the eukaryotic genome in wild-type cells, in cells defective in several metabolic processes covering from RNA processing to DNA replication and repair and in cells deficient in specific chromatin factors (Bhatia et al., 2014; García-Muse and Aguilera, 2019; García-Rubio et al., 2015; Herrera-Moyano et al., 2014; Mischo et al., 2011; Paulsen et al., 2009; Schwab et al., 2015). The biological consequences of such R loop structures are diverse and include replication stress, DNA breaks and genome instability that can be detected as hyperrecombination, plasmid loss or gross chromosomal rearrangements (García-Muse and Aguilera, 2019). Indeed, DNA:RNA hybrids have been inferred by their potential to induce DNA damage and recombination, but they can also be directly detected via different methodologies. These include electrophoresis detection after nuclease treatment, bisulfite mutagenesis or either in situ immunofluorescence or DNA:RNA Immuno-Precipitation (DRIP) using the S9.6 anti-DNA:RNA monoclonal antibody (García-Muse and Aguilera, 2019).

The increasing number of reports showing R loop accumulation in different organisms from bacteria to human cells, and the relevance of their functional consequences, whether on genome integrity, chromatin structure and gene expression suggest that most DNA:RNA hybrids are compatible with a co-transcriptional formation (García-Muse and Aguilera, 2019). This is consistent with the idea that it is the RNA produced in cis the one that invades the duplex DNA, a reaction that can be facilitated by DNA sequence and supercoiling (Stolz et al., 2019) as well as by nicking of the DNA template (Roy et al., 2010). The evidence of DNA:RNA hybrid formation at breaks has matured in the last years (Cohen et al., 2018; D'Alessandro et al., 2018; Li et al., 2016; Ohle et al., 2016; Teng et al., 2018; Yasuhara et al., 2018) although the source and role of such hybrids remains still controversial (Aguilera and Gómez-González, 2017; Puget et al., 2019). Of note, genome-wide mapping results have been interpreted in diverse manners by different labs. Whereas some claim that DNA:RNA hybrids detected around DNA breaks mostly accumulate at transcribing sites (Cohen et al., 2018), in agreement with their co-transcriptional formation, others suggest that there is no preference for DNA:RNA hybrids to form at transcribed loci in human cells (D'Alessandro et al., 2018), implying a scenario in which DNA:RNA hybrids at break sites would form either de novo or with RNAs produced at different loci (in trans). Moreover, it has been shown in yeast that short RNAs can be used as templates for the recombinational repair of DSBs in a reaction catalyzed by Rad52 (Keskin et al., 2014).

DNA:RNA hybrids can also form in vitro with the aid of the bacterial DNA strand exchange protein RecA (Kasahara et al., 2000; Zaitsev and Kowalczykowski, 2000). In vivo, DNA:RNA hybrids are formed with RNAs produced in trans as intermediates in the course of ribonucleoprotein-mediated reactions such as telomerase and CRISPR-Cas9 ribonucleoprotein involved in specific reactions (Collins, 2000; Jinek et al., 2012). They have also been reported to have regulatory roles in gene expression when formed by long non-coding RNAs (lncRNAs) at in trans loci such as the cases of the GAL lncRNA in yeast (Cloutier et al., 2016) or the APOLO lncRNA in plants (Ariel et al., 2020). In summary, despite the accumulating evidence that in vivo DNA:RNA hybrids formed in cis constitute a threat for genome stability, an open question is whether DNA:RNA hybrids also form in trans as a potential source of recombinogenic DNA damage. To our knowledge, this has only been addressed in the yeast Saccharomyces cerevisiae (Wahba et al., 2013). By S9.6 immunofluorescence (IF) and a yeast artificial chromosome-based genetic assay that measures gross chromosomal rearrangements, it was inferred that DNA:RNA hybrids could be formed with RNAs produced in trans by a reaction catalyzed by the eukaryotic DNA strand exchange protein Rad51 (Wahba et al., 2013). Nevertheless, the fact that the detected gross chromosomal rearrangements could depend on Rad51 and that the S9.6 antibody can also recognize dsRNAs (Hartono et al., 2018; König et al., 2017; Silva et al., 2018), prompted us to address this question using a different approach. Using Rad51-independent recombination assays in which the initiation region could be unambiguously delimited, we do not find evidence for recombinogenic DNA:RNA hybrids forming in trans. Instead, we provide genetic evidence that DNA:RNA hybrids compromising genome integrity are formed in cis and in a Rad51-independent manner.

Results

A new genetic assay to detect recombinogenic DNA:RNA hybrids with RNA produced in trans

We developed a new genetic assay to infer the formation of recombinogenic DNA:RNA hybrids with RNAs produced in trans. It is based on two plasmids, one containing the recombination system and the LacZ gene in cis (GL-LacZ recombination system), and another one providing the in trans LacZ transcripts (tetp:LacZ) (Figure 1). The bacterial LacZ gene consists of a 3 Kb sequence with high G+C content previously reported to be hyper-recombinant and difficult to transcribe in DNA:RNA hybrid-accumulating strains, such as tho mutants (Chávez et al., 2001).

Figure 1 with 1 supplement see all

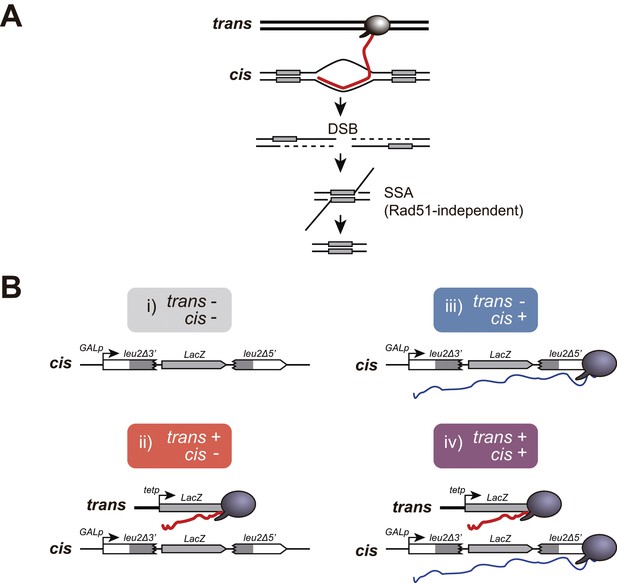

A new genetic assay to detect recombinogenic DNA:RNA hybrids in trans.

(A) DSBs induced in between direct repeats by DNA:RNA hybrids putatively formed with RNA produced in trans would be repaired by Rad51-independent Single-Strand Annealing (SSA) causing the deletion of one of the repeats. A DSB is depicted for simplicity, but other recombinogenic lesions such as nicks or ssDNA gaps cannot be ruled out. (B) Schematic representation of the recombination assay to study the recombinogenic potential RNA produced by transcription (Trx) in cis or in trans. Four combinations were studied: i) no transcription, with GL-LacZ construct turned transcriptionally off (2% glucose) and an empty plasmid; ii) transcription in trans, with GL-LacZ construct turned transcriptionally off (2% glucose) and the tetp:LacZ construct; iii) transcription in cis, with GL-LacZ construct turned transcriptionally on (2% galactose) and an empty plasmid; and iv) transcription in cis and in trans, with GL-LacZ construct turned transcriptionally on (2% galactose) and the tetp:LacZ construct.

The GL-LacZ recombination system is a leu2 direct-repeat construct carrying the LacZ gene in between and under the GAL1 inducible promoter so that this construct is transcribed as a single RNA unit driven from the GAL1 promoter (Piruat and Aguilera, 1998). Single-Strand Annealing (SSA) events cause the deletion of the LacZ sequence and one of the leu2 repeats leading to Leu+ recombinants in a Rad51-independent manner (Figure 1A). To provide LacZ transcripts in trans, we used a fusion construct containing the complete bacterial LacZ gene sequence under the doxycycline-inducible tet promoter (tetp:LacZ). As a control of no expression in trans, we used transformants with an empty plasmid to avoid any possible effect from leaky transcription from the tet promoter in the presence of doxycycline.

Yeast strains carrying both GL-LacZ recombination system and the tetp:LacZ construct were used to assay SSA events in the four different possible conditions: i) no transcription, with GL-LacZ construct turned transcriptionally off (2% glucose) and an empty plasmid; ii) transcription in trans, with GL-LacZ construct turned transcriptionally off (2% glucose) and the tetp:LacZ construct; iii) transcription in cis, with GL-LacZ construct turned transcriptionally on (2% galactose) and an empty plasmid; and iv) transcription in cis and in trans, with GL-LacZ construct turned transcriptionally on (2% galactose) and the tetp:LacZ construct (Figure 1B).

RNAs produced in trans are not a spontaneous source of recombinogenic DNA damage

The analysis of recombination in wild-type cells revealed that whereas the stimulation of transcription in cis elevated the frequency of recombination threefold, the stimulation of transcription in trans driven from the tetp:LacZ construct had no effect on recombination (Figure 2A). These results already suggest that homologous transcripts coming from a different locus do not represent a detectable source of genetic instability in wild-type conditions and thus argue against the hypothesis that spontaneous DNA:RNA hybrids could be formed with mRNAs generated in trans. However, it is known that mRNA coating protects DNA from co-transcriptional RNA hybridization. Thus, we wondered if transcripts produced in trans could induce recombination in mRNP-defective mutants such as those of the THO complex. Hence, we performed our experiments in mft1∆ and hpr1∆ mutant strains. mft1∆ and hpr1∆ enhanced recombination slightly when transcription in cis was switched off (Figure 2A), likely as a consequence of leaky transcription form the GAL1 promoter in glucose (Figure 1—figure supplement 1). More significantly and in agreement with previous reports (Chávez et al., 2000), recombination frequencies rocketed when transcription was stimulated in cis. However, transcription activation in trans did not enhance recombination, as it would be expected if additional DNA:RNA hybrids could form with RNA produced in trans.

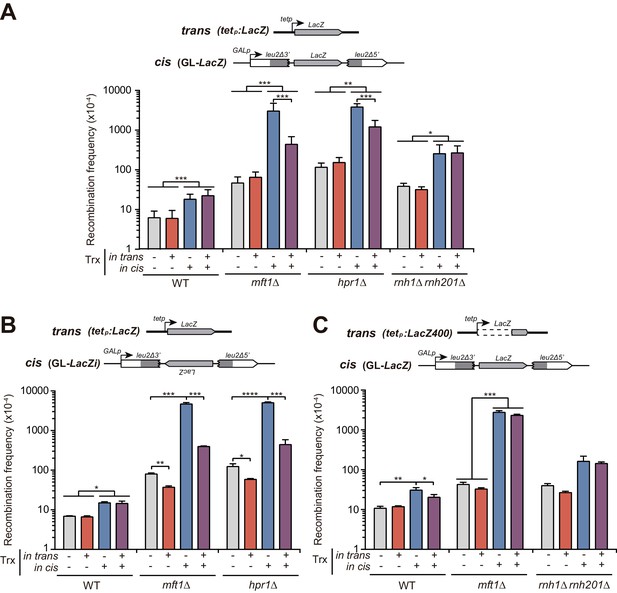

Analysis of the effect on genetic recombination of RNA produced in cis or in trans.

(A) Recombination analysis in WT (W303), rnh1Δ rnh201Δ (HRN2.10C), mft1Δ (WMK.1A) and hpr1Δ (U678.4C) strains carrying GL-LacZ plasmid system (pRS314-GL-LacZ) plus either the pCM190 empty vector or the same vector carrying the LacZ gene (pCM179). (B) Recombination analysis in WT (W303), mft1Δ (WMK.1A) and hpr1Δ (U678.4C) strains carrying GL-LacZi plasmid plus either the pCM190 empty vector or the same vector carrying the sequence of the LacZ gene (pCM179). (C) Recombination analysis in WT (W303), rnh1Δ rnh201Δ (HRN2.10C) and mft1Δ (WMK.1A) strains carrying GL-LacZ plasmid system (pRS314-GL-LacZ) plus either the pCM190 empty vector or the same vector carrying the last 400 bp from the 3’ end of the LacZ gene (pCM190:LacZ400). In all panels, average and SEM of at least three independent experiments consisting in the median value of six independent colonies each are shown. *, p≤0.05; **, p≤0.01; ***, p≤0.001; ****, p≤0.0001 (unpaired Student’s t-test).

Instead, under conditions of high transcription of the recombination system (transcription in cis), RNA driven from an ectopic locus (transcription in trans) led to a partial suppression of the hyper-recombination. The reason for such suppression might involve the potential ability of the remotely produced RNAs to interfere with transcription occurring at the GL-LacZ construct. Given that a DNA:RNA hybrid produced in the template DNA strand can impair transcription elongation (Tous and Aguilera, 2007), one possibility would be that this interference is mediated by DNA:RNA hybrids formed between the RNA produced in trans and the transcribed DNA strand of the GL-LacZ construct. To rule out this possibility, we used an alternative recombination system (GL-LacZi), in which the LacZ sequence was inverted so that the LacZ transcript produced in trans would not be able to anneal with the transcribed DNA strand of the GL-LacZi system (Figure 2B). We detected a strong hyper-recombination in hpr1∆ cells when the LacZ sequence was transcribed in agreement with previous reports and with the fact that it has been shown that it is the length (and the GC content) but not the orientation of the lacZ sequence what impairs transcription and triggers hyper-recombination (Chávez and Aguilera, 1997; Chávez et al., 2001). Surprisingly, the production of RNAs in trans from the tet::LacZ construct also led to a reduction of the hyper-recombination in this system. Furthermore, in this case, the suppression was stronger and was also observed in glucose, when transcription in cis was off. This could be explained because, in this scenario, the RNA produced in trans is complementary to the mRNA produced in cis. Consequently, they can hybridize together forming a dsRNA that would preclude the possibility to form DNA:RNA hybrids at the GL-LacZi construct.

Since transcription from the long LacZ gene is inefficient and leads to unstable RNA products, particularly in tho mutants (Chávez et al., 2001), we made a new construct with only the last 400 bp of LacZ (tetp:LacZ400) (Figure 2C). Strikingly, in this case, we observed no suppression of the tho-induced hyper-recombination by the production of RNA in trans. More importantly and again, recombination frequencies were not significantly enhanced by transcription in trans in any of the strains or conditions tested, further arguing against mRNA produced in trans as a possible source of recombinogenic DNA:RNA hybrids.

The THO complex is thought to prevent R-loops mainly by promoting a proper mRNA-protein assembly (Luna et al., 2019), whereas the two RNase H enzymes efficiently degrade the RNA moiety of DNA:RNA hybrids once formed (Cerritelli and Crouch, 2009). Thus, to favor DNA:RNA hybrid accumulation, we used cells lacking both RNases H1 and H2 and we determined the impact on SSA. Figure 2A and C show that rnh1∆ rnh201∆ cells elevated the recombination frequency when transcription was stimulated in cis, as expected. Importantly, the recombination frequencies were not altered by producing transcripts in trans, arguing again against the recombinogenic potential of putative DNA:RNA hybrids formed with RNAs produced in trans.

In order to confirm DNA:RNA hybrid formation in these different sequence contexts, we performed DRIP experiments at the LacZ sequence (Figure 3) and we observed that DNA:RNA hybrids accumulate in both, hpr1∆ and rnh1∆ rnh201∆ mutants, and in all GL-LacZ, tet:LacZ and GL:lacZi sequences as expected, despite the technical difficulty of detecting increases in hybrid accumulation in plasmids, since they cause plasmid loss.

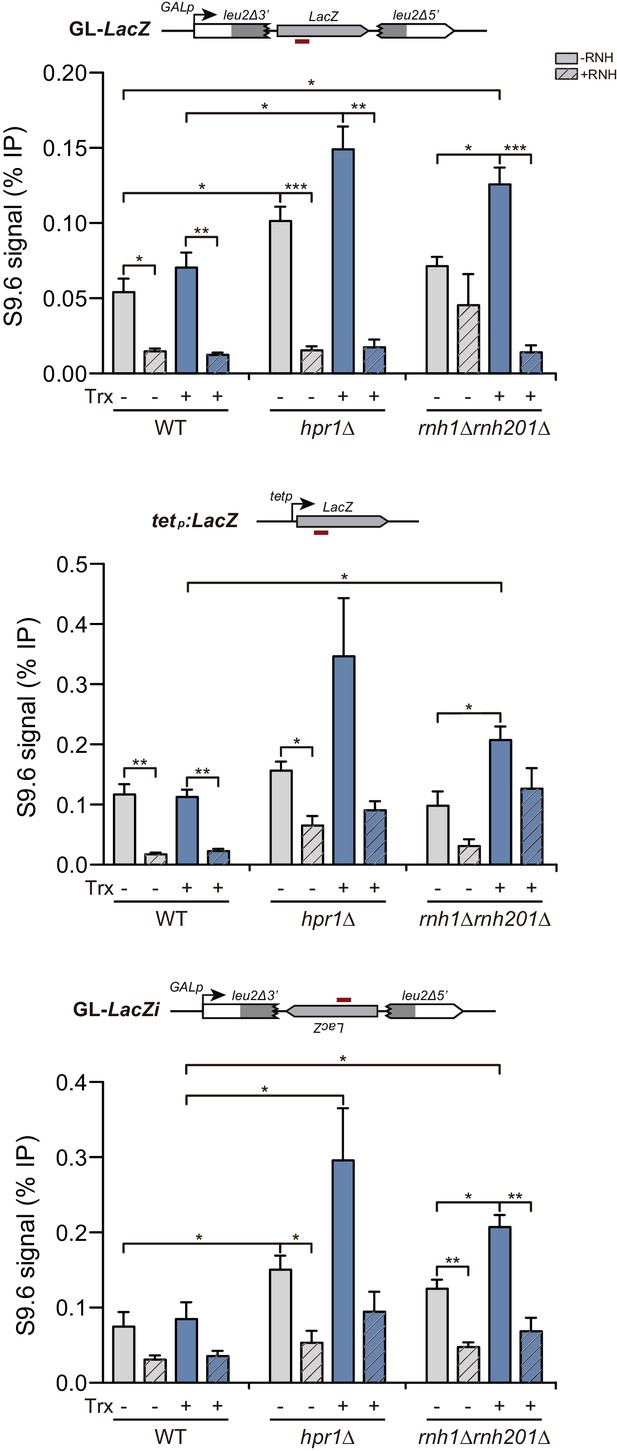

Detection of co-transcriptional DNA:RNA hybrids in hpr1Δ and rnh1Δ rnh201Δ mutants at the LacZ-containing constructs under the GAL1 or tet promoters.

DNA:RNA Immuno-Precipitation (DRIP) with the S9.6 antibody in WT (W303), hpr1Δ (U678.4C) and rnh1Δ rnh201Δ (HRN2.10C) strains in asynchronous cultures treated or not in vitro with RNase H in the GL-LacZ, tetp:LacZ and GL-LacZi constructs turned transcriptionally off (2% glucose or 5 μg/mL doxycycline) or on (2% galactose and in the absence of doxycycline). Average and SEM of three independent experiments are shown *, p≤0.05; **, p≤0.01; ***, p≤0.001 (unpaired Student’s t-test).

Given that the levels of transcription from the GAL1 and tet promoters used for the constructs are very different (Figure 1—figure supplement 1), we decided to perform recombination tests with similar constructs in which the promoters were interchanged. Thus, we studied recombination in the TL-LacZ recombination system (Santos-Pereira et al., 2013) and used a GAL:LacZ construct to produce the LacZ transcripts from a remote locus. Figure 4 shows that, whereas transcription at the TL-LacZ recombination system enhanced recombination as previously published (Santos-Pereira et al., 2013), again no significant stimulation of recombination was detected when RNAs were produced in trans in either wild-type, hpr1∆ or rnh1∆ rnh201∆ cells even when the RNA was generated from the strong GAL1 promoter.

Analysis of the effect on genetic recombination of RNA produced in cis or in trans with different promoters.

Recombination analysis in WT (W303), hpr1Δ (U678.4C) and rnh1Δ rnh201Δ (HRN2.10C) carrying TL-LacZ plasmid system (pCM184-TL-LacZ) plus either the pRS416 empty vector or the same vector carrying the LacZ gene (pRS416-GALLacZ). In this case, the four combinations studied were: i) no transcription, with TL-LacZ construct turned transcriptionally off (5 μg/mL doxycycline) and an empty plasmid; ii) transcription in trans, with TL-LacZ construct turned transcriptionally off (5 μg/mL doxycycline) and the GAL-LacZ construct switched on (2% galactose); iii) transcription in cis, with TL-LacZ construct turned transcriptionally on and an empty plasmid; and iv) transcription in cis and in trans, with TL-LacZ construct turned transcriptionally on and the GAL-LacZ construct switched on (2% galactose). Average and SEM of at least three independent experiments consisting in the median value of six independent colonies each are shown. *, p≤0.05; **, p≤0.01; ***, p≤0.001; ****, p≤0.0001 (unpaired Student’s t-test).

Finally, since all experiments were performed in plasmid-born systems in the original W303 background bearing the rad5-G535R mutation (Fan et al., 1996), we integrated the GL-LacZ system in the chromosome of a RAD5 wild-type strain to ascertain that the rad5-G535R mutation did not affect the results as well as to confirm that the results were the same in a chromosome locus. As it can be seen in Figure 5, transcription of the chromosomal recombination system promoted a 30-fold increase in recombination levels in the tho mutant hpr1∆ with respect to the WT, in agreement with all previous data showing that co-transcriptional DNA:RNA hybrids are a potent source of recombination. By contrast, mRNA produced at a different locus had no effect on recombination, neither in wild-type cells nor in the tho mutant hpr1∆. Hence, altogether, these results argue that, in contrast to mRNA produced in cis, RNA produced at a particular locus does not lead to recombinogenic DNA damage at regions located in trans.

Analysis of the effect on genetic recombination of RNA produced in trans of chromosome III.

Recombination analysis in WT (WGLZN), hpr1Δ (HGLZN) strains carrying the GL-LacZ recombination system integrated in chromosome III. Strains were transformed with empty vector pCM190 or the same vector carrying the LacZ gene (pCM179). Average and SEM of at least three independent experiments are shown consisting in the median value of six independent colonies each. **, p≤0.01; ****, p≤0.0001 (unpaired Student’s t-test).

Rad51 is not required for DNA:RNA hybridization

We next wondered about the possible role of the recombination protein Rad51 in DNA:RNA hybridization. To examine this, we analyzed in hpr1∆ cells the effect of transcribing the ectopic tet:LacZ construct on recombination in our direct-repeat systems when these were not transcribed (Figure 6). It is important to remark that the recombination events detected in our assays are deletions occurring by SSA between direct repeats, which do not require Rad51 (Pardo et al., 2009). Indeed, in agreement with SSA annealing being Rad51-independent, RAD51 deletion caused no significant changes in the recombination frequencies in our assay. Thus, any conclusion about Rad51-dependency or independency of the hybridization inferred from our assay is not contaminated by a possible direct role of Rad51 in the event we are studying. Importantly, we observed no differences when RAD51 was deleted in hpr1∆ cells even when the LacZ sequence was expressed from the plasmid containing the tet::LacZ construct. This result argues against Rad51 facilitating or impeding the formation of DNA:RNA hybrids with RNAs produced in trans.

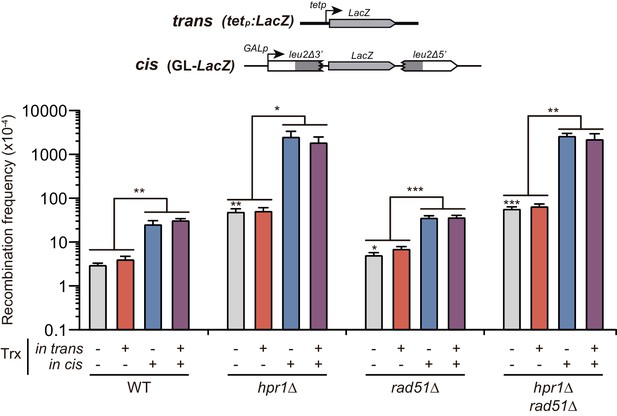

Analysis of the effect on genetic recombination of RNA produced in trans with or without Rad51.

Recombination analysis in WT (W303), hpr1Δ (U678.1C), rad51Δ (WSR51.4A) and hpr1Δ rad51Δ (HPR51.15A) strains carrying GL-LacZ plasmid system (pRS314-GL-LacZ) plus either the pCM190 empty vector or the same vector carrying the LacZ gene (pCM179). Average and SEM of at least three independent experiments consisting in the median value of six independent colonies each are shown. *, p≤0.05; **, p≤0.01, ***, p≤0.001 (unpaired Student’s t-test).

We then wondered whether the formation of known recombinogenic DNA:RNA hybrids formed in cis, such as those reported in the hpr1∆ mutant, requires Rad51. For this purpose, we studied the effect in the strong hyper-recombination phenotype of hpr1∆ when transcription was induced in cis. As shown in Figure 6, the absence of Rad51 had no effect on the hyper-recombination observed, as hpr1∆ rad51∆ cells elevated the recombination frequency more than 70-fold with respect to rad51∆, similarly to Rad51+ cells. This result clearly indicates that the in cis DNA:RNA hybrid-mediated hyper-recombination phenotype is actually independent on Rad51.

In parallel, we studied the formation of Rad52 foci, a marker of recombinogenic DNA breaks (Lisby et al., 2001), in which case we used AID overexpression to enhance the recombinogenic potential of R loops (Gómez-González and Aguilera, 2007) and RNase H overexpression to remove DNA:RNA hybrids (Figure 7A). In agreement with the role of the THO complex in R loop prevention, hpr1∆ caused an increase in Rad52 foci that was enhanced by AID overexpression and suppressed by RNase H overexpression, as previously reported (Alvaro et al., 2007; García-Pichardo et al., 2017; Wellinger et al., 2006). By contrast, the accumulation of Rad52 foci observed in rad51∆ cells was not affected by either AID or RNase H overexpression. This result argues that R loops are not the cause for the genetic instability observed in the absence of Rad51. The accumulation of Rad52 foci in rad51∆ cells is rather likely due to the accumulation of unrepaired recombination intermediates, as previously suggested (Alvaro et al., 2007). Importantly, hpr1∆ rad51∆ cells showed a similar result, further supporting that the accumulation of recombinogenic damage in hpr1∆ cells is independent on Rad51. Consequently, we next directly measured DNA:RNA hybrid accumulation by immunodetection with the S9.6 antibody on metaphase spreads. Figure 7B illustrates that the number of cells with S9.6 positive signal was similar in hpr1∆ and in hpr1∆ rad51∆ cells. Altogether, these results demonstrate that the Rad51 protein is not required for the DNA:RNA hybrid formation previously reported in THO mutants.

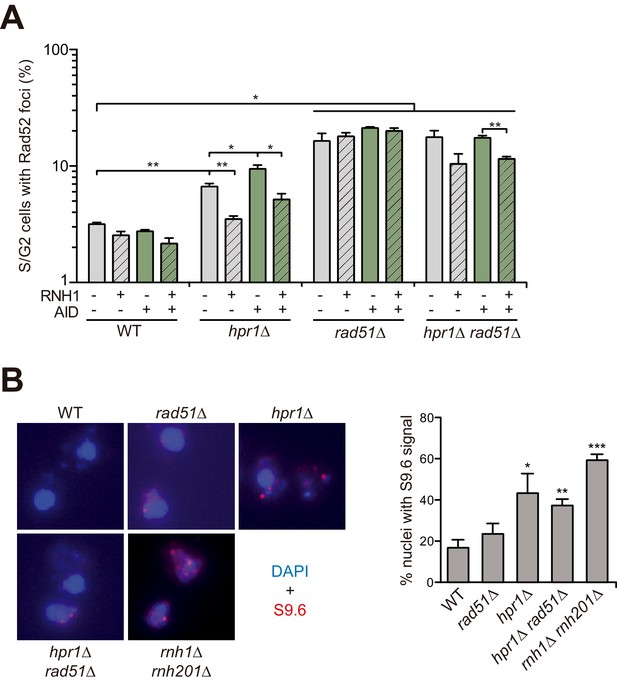

The increased genetic instability and DNA:RNA hybrids of hpr1∆ are independent on Rad51.

(A) Spontaneous Rad52-YFP foci formation in WT (W303), hpr1Δ (U678.1C), rad51Δ (WSR51.4A) and hpr1Δ rad51Δ (HPR51.15A) strains carrying the empty vectors pCM184 and pCM189, or a combination of both carrying the RNH1 or AID genes as indicated in the legend. (B) Representative images and value of the percent of the total nuclei scored that stained positively for DNA:RNA hybrids in chromatin spreads stained with the S9.6 antibody in WT (W303), hpr1Δ (U678.1C), rad51Δ (WSR51.4A), hpr1Δ rad51Δ (HPR51.15A) and RNH-R (rnh1Δ rnh201Δ) strains. In both panels, average and SEM of at least three independent experiments performed with more than 100 cells are shown. *, p≤0.05; **, p≤0.01, ***, p≤0.001 (unpaired Student’s t-test).

Discussion

We have devised a new genetic assay to infer whether the source of DNA:RNA hybrids compromising genome integrity could potentially come from RNAs produced in trans. To reach this conclusion, we used an SSA assay. It is well established that SSA events are Rad51-independent; they do not require DNA strand exchange, but just annealing between resected single-stranded DNA (ssDNA) for which the action of Rad52 is sufficient (Figure 1A; Pardo et al., 2009). Our constructs show that, in contrast to the RNA produced at the site where SSA occurs, an RNA produced in a remote locus does not induce an increase in homology-directed repair. Importantly, recombination is not induced by in trans RNA production even when the major DNA:RNA removal machinery is absent (rnh1∆ rnh201∆ mutant) or when the RNA coating functions preventing DNA:RNA hybrid formation are impaired (tho mutants), arguing against the idea that harmful DNA:RNA hybrids could spontaneously form in trans and constitute a menace for genome integrity. Co-transcriptional R-loops are responsible for the hyper-recombination of hpr1∆ as reported previously (Huertas and Aguilera, 2003). Putative DNA:RNA hybrids formed in trans would be expected to further increase recombination levels. Instead, the simultaneous induction of transcription in cis and in trans (Figure 2A) reduced the strong hyper-recombinogenic effect of tho mutants. The fact that this suppressor effect was augmented when one of the LacZ sequences was inverted (Figure 2B) and prevented by a shorter LacZ construct (Figure 2C), which was reported to be more stable in tho mutant backgrounds (Chávez et al., 2001), suggests that the free RNA itself, and not in the form of DNA:RNA hybrids formed at the template DNA strand, plays some role in preventing the hyper-recombination, likely because stable RNAs can interfere with transcription at a homologous locus. However, no suppressor effect was observed when the recombination system was placed in a chromosome (Figure 5) or when the ectopic RNA was transcribed from the GAL1 promoter (Figures 2 and 4).

DNA:RNA hybrids formed with an RNA produced in trans were previously suggested to threaten genome integrity (Wahba et al., 2013). This conclusion was based on experiments performed with a yeast artificial chromosome after the induction of transcription of a homologous region placed at chromosome III. Recombination involving multiple substrates was first reported in S. cerevisiae, in which an induced-DSB triggered recombination between two other homologous fragments at different chromosomes (Ray et al., 1989). Tri-parental recombination assays have been successfully used since then to define specific features of the HR reaction as well as for studies of Break-Induced Recombination (BIR) or translocations and chromosomal rearrangements occurring between ectopic regions (Pardo and Aguilera, 2012; Piazza et al., 2017; Ruiz et al., 2009). However, such events are not the most adequate to infer recombination initiation unless this has been artificially induced (as is the case of an HO-induced DSB). Hence, the assay used to infer the potential of DNA:RNA hybrids formed with RNAs produced in trans to induce genetic instability (Wahba et al., 2013) relied on an RNA fragment produced at a (first) DNA region that could form a DNA:RNA hybrid with a (second) ectopic homologous DNA region that would promote its deletion or loss, leading to a genetically detectable phenotype. Thus, this assay does not exclude the possibility that the RNA forms the hybrid in cis inducing subsequently a DSB that would stimulate the recombination events studied (Figure 6). Indeed, this event would demand the action of Rad51 for DNA strand invasion, consistent with the results obtained (Wahba et al., 2013). Therefore, the increased genetic instability observed could be explained by the invasion of the 3’ end of a DNA break induced by the DNA:RNA hybrid formed at the first site (Figure 8) rather than implying that Rad51 is required for the RNA to invade the second DNA sequence.

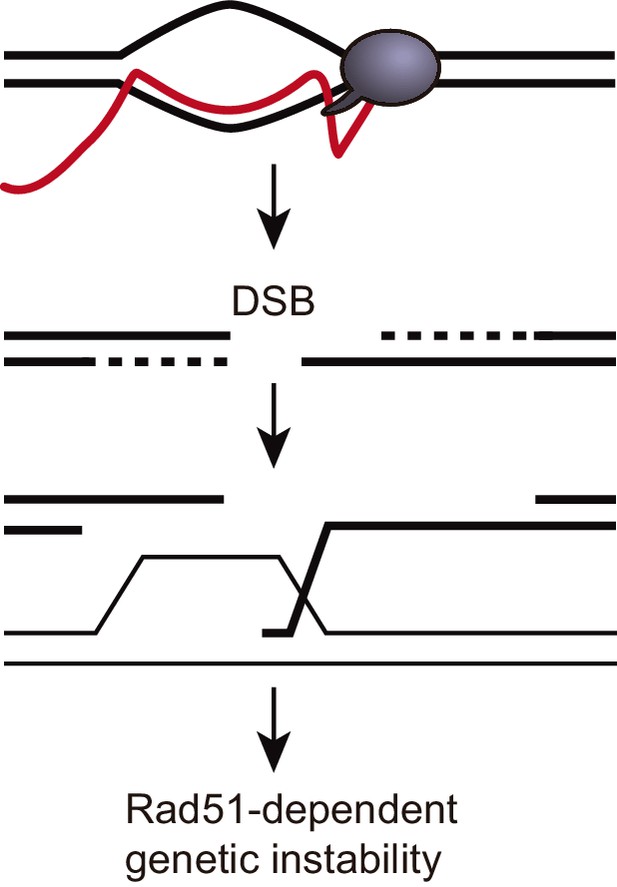

A model to explain how DNA:RNA hybrids could induce Rad51-dependent genetic instability in trans.

DNA:RNA hybrid produced in cis can induce a DSB in the same sequence. The 3’ end of such a DSB could invade an ectopic homologous sequence and destabilize it. This DNA strand invasion event would require Rad51. In this model, genetic instability caused by hybrids in trans would be Rad51-dependent without the need of invoking a Rad51-mediated DNA:RNA hybrid formation in trans. A DSB is depicted for simplicity, but other recombinogenic lesions such as nicks or ssDNA gaps cannot be ruled out.

In our case, however, we show that the hyper-recombinogenic potential of DNA:RNA hybrids is Rad51-independent (Figure 4). Our assays involve two leu2 homologous repeats that recombine by Rad51-independent SSA. Indeed, as expected, RAD51 deletion caused no decrease in the observed recombination frequencies in our assay (Figure 5). Recombination between the leu2 repeats could be originated by either a DNA:RNA hybrid in cis or by a DSB occurring in between the repeats, or as suggested previously for tho mutants, by a bypass mechanism involving template switching (Gómez-González et al., 2009). It is worth noting that although we are depicting the SSA reactions as being initiated by a DSB (Figures 1 and 8), we cannot discard that the initial lesion triggered by a hybrid is a nick or ssDNA gap, as previously proposed for tho mutants (Gómez-González et al., 2009).

Similarly, a DSB occurring at the locus where the RNA in trans was generated could give rise to Leu+ recombinants in our assay. However, such recombination events would be Rad51-dependent, as they will require a Rad51-dependent invasion into the GL-LacZ construct (Figure 8). Hence, the Leu+ recombinants obtained in rad51∆ mutant cells (Figure 5) can only be explained by Rad51-independent events occurring in cis, at the GL-LacZ construct. Strikingly, the fact that we detected no significant increase in Leu+ recombinants by inducing transcription in trans, either in RAD51 or rad51∆ backgrounds rules out the possibility that recombinogenic DNA:RNA hybrids form in trans in our assay. It was previously shown that S9.6 signal detected by IF was reduced by rad51∆ in metaphase spreads (Wahba et al., 2013). By contrast, we detected S9.6 signal in metaphase spreads of the hpr1∆ mutant of the THO complex in both RAD51 and rad51∆ backgrounds (Figure 7B). The uncertainty about the identity of the structures detected by IF using the S9.6 antibody, which also recognizes dsRNA (Hartono et al., 2018; König et al., 2017; Silva et al., 2018), and the possibility that chromosomal spreads could preferentially visualize the rDNA regions, in which high levels of dsRNA structures formed by the rRNAs, makes difficult to make conclusions on S9.6 IFs in this case.

Thus, we have found no evidence for a Rad51-facilitated strand invasion from RNAs produced in trans. Further arguing against any major role of this recombinase in R loop metabolism or function, none of the so far reported DNA:RNA hybrid interactomes has identified RAD51 (Cristini et al., 2018; Nadel et al., 2015; Wang et al., 2018). The fact that, in vitro, RecA can catalyze an inverse DNA strand exchange reaction with DNA or RNA thus promoting the assimilation of a transcript into duplex DNA (Kasahara et al., 2000; Zaitsev and Kowalczykowski, 2000) does not argue that this is the case for unscheduled recombinogenic R loops in vivo. More likely, the biological significance of this process relies on its use for replication initiation of prokaryotic cells as originally proposed (Zaitsev and Kowalczykowski, 2000), for replication-dependent recombination to restart stalled forks (Pomerantz and O'Donnell, 2008) or even for transcription-induced origin-independent replication (Stuckey et al., 2015). Hence, DNA:RNA hybridization could occur in trans under regulated conditions but not spontaneously as unscheduled and harmful structures that would put genome integrity into risk. Thus, the assimilation of a transcript into a duplex DNA in trans would be tightly regulated and limited to specific reactions such as the case of telomerase or CRISPR and possibly other proteins yet to be discovered. For other cases, such as that of the GADP45 factor that binds to promoters harboring hybrids formed by lncRNAs (Arab et al., 2019), it is unclear whether such hybrids are formed in trans and in a GADP45-dependent manner.

Altogether, our results suggest that RNAs do not form hybrids in trans, so that the previously reported induction of Rad51-dependent ectopic genetic instability would be explained by R loop-mediated DNA breaks in cis.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or
reference
IdentifiersAdditional
information
Genetic reagent
Saccharomyces cerevisiae
W303 background strains with different gene deletionsvarious(See Materials and methods section)
Recombinant DNA reagentYeast expression plasmids and recombination systemsvarious(See Materials and methods section)
Sequence-based reagentPrimers for DRIP and RT-PCRCondalab(See Materials and methods section)
AntibodyCy3 conjugated anti-mouse (goat monoclonal)Jackson laboratoriesCat# 115-165-003, RRID:AB_2338680IF (1:1000)
AntibodyS9.6 anti DNA:RNA hybrids (mouse monoclonal)ATCC Hybridoma cell lineCat#
HB-8730, RRID:CVCL_G144
DRIP (1 mg/ml) and IF (1:1000)
Commercial assay, kitMacherey-Nagel DNA purificationMacherey- NagelCat#
740588.250
Commercial assay, kitQiagen’s RNeasyQuiagenCat# 75162
Commercial assay, kitReverse Transcription kitQiagenCat # 205311
Peptide, recombinant proteinZymolyase 20TUS BiologicalZ1001(50 mg/ml)
Chemical compound, drugDoxycyclin hyclateSigma-AldrichD9891(5 mg/ml)
Peptide, recombinant proteinProteinase K (PCR grade)RocheCat # 03508811103
Peptide, recombinant proteinRnase ARocheCat # 10154105103
Software, algorithmGraphPad Prism V8.4.2GraphPad Software,
La Jolla, CA, USA
RRID:SCR_002798
OtheriTaq Universal SYBR GreenBio-RADCat # 1725120
OtherDAPI stainInvitrogenD13061 µg/mL

Yeast strains and Plasmids

Request a detailed protocol

Strains used were the wild-type W303-1A (MATa ade2-1 can1- 100 his3-11,15 leu2-3,112 trp1-1 ura3-1 rad5-G535R) and its isogenic hpr1∆::HIS3 mutant U678-1C (MATa) and U678-4C (MATα), mft1∆::KANMX mutant (WMK.1A) (Chávez and Aguilera, 1997), rnh1Δ::KANMX rnh201Δ::KANMX (RNH-R), rad51∆::KANMX (WSR51.4A) (González-Barrera et al., 2002), and hpr1∆::HIS3MX rad51∆::KANMX (HPR51.15A) from this study. rnh1Δ::KAN rnh201Δ::KAN (HRN2.8A) and the wild-type HRN2.8A were from Huertas and Aguilera, 2003. Wild-type (WGLZN) and hpr1∆HIS3 mutant were made in this study by insertion of the GL-LacZ::NATMX at the LEU2 locus in Chromosome III of a W303-1A strain corrected for RAD5 (Moriel-Carretero and Aguilera, 2010).

Yeast plasmids pCM179, pCM184, pCM189 and pCM190 were previously published (Garí et al., 1997). pRS314-GL-LacZ (Piruat and Aguilera, 1998) and pRS314-GL-LacZi plasmids with recombination systems were built as follows. The BamHI fragment containing the LacZ sequence from pPZ (Straka and Hörz, 1991), was inserted in both sense and antisense orientations with respect to the promoter, respectively, into the BglII site of pRS314GLB (Piruat and Aguilera, 1998). pCM184TL-lacZ (Santos-Pereira et al., 2013) pRS416 and pRS416-GALlacZ were described previously (Prado et al., 1997). pCM184:AID was built by inserting the AID ORF from pCM189:AID (Santos-Pereira et al., 2013) into the NotI site of pCM190. pCM190-tet::LacZ400 was built by cloning the KpnI-BamHI 400 bp fragment of the 3' from the LacZ gene into KpnI-BamHI digested pCM190. Plasmids pCM189:AID, pCM184:RNH1 (Santos-Pereira et al., 2013), and pWJ1344 (Lisby et al., 2001) were also previously published.

Yeast transformation

Request a detailed protocol

Yeast transformation was performed using the lithium acetate method as previously described (Gietz et al., 1995).

Recombination assays

Request a detailed protocol

Cells transformed were grown in selective media containing 2% glucose and 5 μg/mL of doxycycline (kept in the dark) to repress transcription from the GAL1 and tet promoter, respectively. Recombination frequencies were calculated as previously described as means of at least three median frequencies obtained each from six independent colonies isolated in the appropriate medium for the selection of the required plasmids (Gómez-González et al., 2011). Briefly, transformants were cultured for at 3–4 days (until acquiring similar colony size) in the appropriate selective media containing either 2% glucose or 2% galactose and recombinants were obtained by plating appropriate dilutions in selective medium. To calculate total number of cells, plates with the same requirements as for the original transformation were used. All plates were grown for 3–4 days at 30°C. The average and SEM of at least three independent transformants was plotted for each figure but the numerical data can be seen in Figure 2—source data 1, Figure 4—source data 1, Figure 5—source data 1 and Figure 6—source data 1.

Transcription analysis

Request a detailed protocol

Mid-log cultures were grown with either glucose or galactose and with or without 5 μg/ml doxycycline (kept in the dark). Total RNA was obtained using Qiagen’s RNeasy kit and used for cDNA synthesis with the QuantiTect Reverse Transcription kit with random primers (Qiagen) according to instruction. Real-time quantitative PCR was performed using iTaq universal SYBR Green (Biorad) with a 7500 Real-Time PCR machine (Applied Biosystems). Primers sequences used for this analysis were LacZT1-Fw (GCGCCGTGGCCTGAT), LacZT1-Rv (GTGCAGCGCGATCGTAATC), Intergenic-Fw (TGTTCCTTTAAGAGGTGATGGTGAT) and Intergenic-Rv (GTGCGCAGTACTTGTGAAAACC). The exact values obtained are shown in Figure 1—figure supplement 1—source data 1.

DRIP assays

Request a detailed protocol

DNA:RNA hybrids were measured in cultures with either glucose or galactose and either with or without 5 μg/ml doxycycline (kept in the dark). Cultures were collected, washed with chilled water, resuspended in 1.4 mL spheroplasting buffer (1 M sorbitol, 10 mM EDTA pH 8, 0.1% β-mercaptoethanol, 2 mg/ml Zymoliase 20T) and incubated at 30°C for 30 min. The spheroplasts were pelleted (5 min at 7000 rpm) rinsed with water and homogeneously resuspended in 1.65 mL of buffer G2 (800 mM Guanidine HCl, 30 mM Tris-Cl pH 8, 30 mM EDTA pH 8, 5% Tween-20, 0.5% Triton X-100). Samples were treated with 40 μl 10 mg/ml RNase A for 30 min at 37°C and 75 μl of 20 mg/ml proteinase K (Roche) for 1 hr at 50°C. DRIP was performed mainly as described (Ginno et al., 2012) with few differences. DNA was extracted gently with chloroform:isoamyl alcohol 24:1. Precipitated DNA, washed twice with 70% EtOH, resuspended gently in TE and digested overnight with 50 U of HindIII, EcoRI, BsrGI, XbaI and SspI, 2 mM spermidine and 2.5 μl BSA 10 mg/ml. Half of the DNA was treated with 8 μL RNase H (New England BioLabs) overnight 37°C as RNase H control. RNA-DNA hybrids were immunoprecipitated using S9.6 monoclonal antibody (hybridoma cell line HB-8730) coupled to Dynabeads Protein A (Invitrogen) for 2 hr at 4°C and washed 3 times with 1x binding buffer. DNA was eluted in 100 μL elution buffer (50 mM Tris pH 8.0, 10 mM EDTA, 0.5% SDS) treated 45 min with 7 μL proteinase K 20 mg/ml at 55°C and purified with Macherey-Nagel DNA purification kit. Primers sequences used for this analysis were LacZT1-Fw (GCGCCGTGGCCTGAT) and LacZT1-Rv (GTGCAGCGCGATCGTAATC). The average and SEM of at least three independent transformants was plotted but the numerical data can be seen in Figure 3—source data 1.

Detection of Rad52-YFP foci

Request a detailed protocol

Spontaneous Rad52-YFP foci from mid-log growing cells carrying plasmid pWJ1344 were visualized and counted by fluorescence microscopy in a Leica DC 350F microscope, as previously described (Lisby et al., 2001). More than 200 S/G2 cells where inspected for each experimental replica. The average and SEM of at least three independent transformants was plotted but the numerical data can be seen in Figure 7—source data 1.

S9.6 immunofluorescence of yeast chromosome spreads

Request a detailed protocol

The procedure performed is similar to Chan et al., 2014 with some modifications. Briefly, mid-log cultures (OD600 = 0.5–0.8) were grown at 30°C; 10 ml of them were collected, washed in cold spheroplasting buffer (1.2 M sorbitol, 0.1 M potassium phosphate and 0.5 MgCl2 at pH 7) and then digested by adding 10 mM DTT and 150 mg/ml of Zymolyase 20T to the same buffer. The digestion was performed for 10 min (37°C) and stopped by mixing the samples with the solution 2 (0.1 M MES, 1M sorbitol, 1 mM EDTA, 0.5 mM MgCl2, pH 6.4). Later, spheroplasts were centrifuged carefully 8 min at 800 rpm, lysed with 1% vol/vol Lipsol and fixed on slides using Fixative solution (4% paraformaldehyde/3.4% sucrose). The spreading was carried out using a glass rod and the slides were dried from 2 hr to overnight in the extraction hood.

For the immuno-staining, the slides were first washed in PBS 1X in coplin jars and then blocked in blocking buffer (5% BSA, 0.2% milk in PBS 1X) over 10 min in humid chambers. Afterwards, slides were incubated with the primary monoclonal antibody S9.6 (1 mg/ml) in a humid chamber 1 hr at 23°C. After washing the slides with PBS 1X for 10 min, the slides were incubated 1 hr at 23°C in the dark with the secondary antibody Cy3 conjugated goat anti-mouse (Jackson laboratories, #115-165-003) diluted 1:1000 in blocking buffer. Finally, the slides were mounted with 50 μl of Vectashield (Vector laboratories, CA) with 1X DAPI and sealed with nail polish. For each experiment, more than 100 nuclei were visualized and counted to obtain the fraction of nuclei with DNA:RNA hybrids. The average and SEM of at least three independent transformants was plotted but the numerical data can be seen in Figure 7—source data 1.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
    Mutations in the RNA polymerase II transcription machinery suppress the hyperrecombination mutant hpr1 Delta of Saccharomyces cerevisiae
    1. HY Fan
    2. KK Cheng
    3. HL Klein
    (1996)
    Genetics 142:749–759.
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
    Transcription and double-strand breaks induce similar mitotic recombination events in Saccharomyces cerevisiae
    1. S González-Barrera
    2. M García-Rubio
    3. A Aguilera
    (2002)
    Genetics 162:603–614.
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
    RecA protein-dependent R-loop formation in vitro
    1. M Kasahara
    2. JA Clikeman
    3. DB Bates
    4. T Kogoma
    (2000)
    Genes & Development 14:360–365.
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
    A novel pairing process promoted by Escherichia coli RecA protein: inverse DNA and RNA strand exchange
    1. EN Zaitsev
    2. SC Kowalczykowski
    (2000)
    Genes & Development 14:740–749.

Decision letter

  1. Wolf-Dietrich Heyer
    Reviewing Editor; University of California, Davis, United States
  2. Jessica K Tyler
    Senior Editor; Weill Cornell Medicine, United States
  3. Wolf-Dietrich Heyer
    Reviewer; University of California, Davis, United States
  4. Catherine H Freudenreich
    Reviewer; Tufts University, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Using a clever genetic system in the budding yeast Saccharomyces cerevisiae the authors test whether R-loops can form in trans, meaning that a transcript from locus A could lead to R-loop formation in locus B. Moreover, they test whether R-loop formation is dependent on Rad51, the eukaryotic RecA family recombinase. Using their genetic system and the S9.6 antibody to detect R-loops in wild type and strains with mutations known to affect R-loop, conclusive data are shown that R-loops only form in cis and that R-loops in this genetic system are independent of Rad51. Overall, this work significantly enriches the discussion in the R-loop field and provides an alternative view point of an earlier publication that suggested R-loop formation in trans being catalyzed by Rad51.

Decision letter after peer review:

Thank you for submitting your article "Harmful DNA:RNA hybrids are formed in cis and in a Rad51-independent manner" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Wolf-Dietrich Heyer as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Jessica Tyler as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Catherine H Freudenreich (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is 'in revision at eLife'. Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

Using a clever genetic system in the budding yeast Saccharomyces cerevisiae the authors test whether R-loop can form in trans, meaning that a transcript from locus A could lead to R-loop formation in locus B. Moreover, they test whether R-loop formation is dependent on Rad51, the eukaryotic RecA family recombinase. Using their genetic system and cytological analysis of Rad52 foci and the S9.6 antibody to detect R-loops in wild type and strains with mutations known to affect R-loop, conclusive data are shown that R-loops only form in cis and that R-loops in this genetic system are independent of Rad51. Overall, this work significantly enriches the discussion in the R-loop field and provides an alternative view point of an earlier publication that suggested R-loop formation in trans being catalyzed by Rad51.

Essential revisions:

1) The pGal promoter induces very high transcription in the presence of galactose (often 500X or more induction). The level is likely very different (much less) for the tet promoter, which is generally only induced 2-3X upon addition of doxycycline. This could significantly affect the results – e.g. the cis vs. trans effects could really be a matter of different transcription levels. Transcription levels from each promoter really need to be determined- this is a very important control. The exact induction conditions used, including concentrations and induction times, need to be spelled out in the Materials and methods and should be consistent with those used during the RT-PCR experiment to test transcript levels. In the absence of being able to do the experiment on the constructs used (which would be optimal), at least it could be cited if this lab has used the same promoters and induction conditions in the past, and a caveat inserted if transcription levels are different. It would also be good to switch the promoters and make sure the result holds, as there could be issues of differences in timing of transcription as well.

2) In Figure 2 the authors relate recombination frequencies in their assays to RNA:DNA hybrid formation without measuring hybrids directly. This is a major weakness that significantly limits data interpretation. For instance, I am very surprised that the "cis" recombination frequency of the inverted LacZ reporter is essentially as high as the regular lacZ construct. This result implies that hybrid formation is insensitive to the orientation of the reporter when in many reported cases, R-loop formation is strongly orientation-dependent. Of course, another hypothesis is that (stalled) transcription itself triggers recombination, not R-loops. Without data on R-loop formation, one cannot disentangle transcription from co-transcriptional R-loop formation. The authors must use DRIP-based assay to quantify R-loop levels in the various sequence contexts and under the various genetic backgrounds to establish that their assay is reflective of R-loop levels. Using bisulfite-based readouts to measure R-loop distributions and lengths across the LacZ region would be even better. Without this data, the claim that this new genetic assay can "infer the formation of recombinogenic DNA:RNA hybrids" is unsubstantiated.

3) Source data:

The source data file should be labeled better. Missing are:

-what the numbers in the table are (rates of Leu+ x 10^-4?)

-which data goes with which figure panel

-average and SEM numbers should be shown in the data table

The exact p values not reported and could be added to source data file.

N values can be discerned from the source data file but it would be nice for them to be stated in the figure legends.

https://doi.org/10.7554/eLife.56674.sa1

Author response

Essential revisions:

1) The pGal promoter induces very high transcription in the presence of galactose (often 500X or more induction). The level is likely very different (much less) for the tet promoter, which is generally only induced 2-3X upon addition of doxycycline. This could significantly affect the results – e.g. the cis vs. trans effects could really be a matter of different transcription levels. Transcription levels from each promoter really need to be determined- this is a very important control. The exact induction conditions used, including concentrations and induction times, need to be spelled out in the Materials and methods and should be consistent with those used during the RT-PCR experiment to test transcript levels. In the absence of being able to do the experiment on the constructs used (which would be optimal), at least it could be cited if this lab has used the same promoters and induction conditions in the past, and a caveat inserted if transcription levels are different. It would also be good to switch the promoters and make sure the result holds, as there could be issues of differences in timing of transcription as well.

Thank you for this comment. We have addressed this issue by switching the promoters (new Figure 4) and, indeed, the result holds. In addition, we have checked the transcription levels by RT-PCR (new Figure 1—figure supplement 1) and indicated the exact time and conditions of induction of transcription in the Materials and methods section for further support.

As a consequence, it now reads:

‘Given that the levels of transcription from the GAL and tet promoters, used for the constructs are very different (Figure 1—figure supplement 1), we decided to perform recombination tests with similar constructs in which the promoters were switched. […] Figure 4 shows that, whereas transcription at the TL-LacZ recombination system enhanced recombination as previously published (Santos-Pereira et al., 2013), again no significant stimulation of recombination was detected when RNAs were produced in trans in either wild-type, hpr1∆ or rnh1rnh201∆ cells even when the RNA was generated from the strong GAL1 promoter.’

2) In Figure 2 the authors relate recombination frequencies in their assays to RNA:DNA hybrid formation without measuring hybrids directly. This is a major weakness that significantly limits data interpretation. For instance, I am very surprised that the "cis" recombination frequency of the inverted LacZ reporter is essentially as high as the regular lacZ construct. This result implies that hybrid formation is insensitive to the orientation of the reporter when in many reported cases, R-loop formation is strongly orientation-dependent. Of course, another hypothesis is that (stalled) transcription itself triggers recombination, not R-loops. Without data on R-loop formation, one cannot disentangle transcription from co-transcriptional R-loop formation. The authors must use DRIP-based assay to quantify R-loop levels in the various sequence contexts and under the various genetic backgrounds to establish that their assay is reflective of R-loop levels. Using bisulfite-based readouts to measure R-loop distributions and lengths across the LacZ region would be even better. Without this data, the claim that this new genetic assay can "infer the formation of recombinogenic DNA:RNA hybrids" is unsubstantiated.

We have determined the RNA:DNA hybrids at the various sequence contexts by DRIP as suggested. Results are shown in new Figure 3. We have observed that DNA:RNA hybrids accumulate in both, hpr1∆ and rnh1∆ rnh201∆ mutants as expected.

On the other hand, the hyper-recombination of hpr1∆ when the transcribed sequence is inverted has been previously reported. In those previous studies we showed that the length (and the GC content) and not the orientation of the sequence impairs transcription and triggers hyper-recombination (Chavez et al., 2001). This is now remarked on as follows:

‘We detected a strong hyper-recombination in hpr1∆ cells when the LacZ sequence was transcribed in agreement with previous reports and with the fact that it has been shown that it is the length (and the GC content) but not the orientation of the lacZ sequence what impairs transcription and triggers hyper-recombination (Chavez and Aguilera, 1997; Chavez et al., 2001).’

Thus, R-loop formation was also expected in the inverted sequence as indeed it is shown in the new results of Figure 3. Perhaps we did not explain ourselves properly. In this study we do not pursue to show that co-transcriptional R-loops are responsible for the hyper-recombination of hpr1∆ since, which was reported previously (Huertas et al., 2003), as now stated in the Discussion. We aim to probe that RNAs do not have any recombinogenic potential when produced from an ectopic locus, in trans, in contrast to RNAs produced in cis. We hope we have now clarified the message.

3) Source data:

The source data file should be labeled better. Missing are:

-what the numbers in the table are (rates of Leu+ x 10^-4?)

-which data goes with which figure panel

-average and SEM numbers should be shown in the data table

The exact p values not reported and could be added to source data file.

N values can be discerned from the source data file but it would be nice for them to be stated in the figure legends.

Performed as requested. The source data files now include average and SEM values as well as all the both the exact p values and the asterisks for the statistics depicted in all the graphs. Thank you.

https://doi.org/10.7554/eLife.56674.sa2

Article and author information

Author details

  1. Juan Lafuente-Barquero

    Centro Andaluz de Biología Molecular y Medicina Regenerativa-CABIMER, Universidad de Sevilla-CSIC-Universidad Pablo de Olavide, Seville, Spain
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Writing - review and editing
    Competing interests
    No competing interests declared
  2. Maria Luisa García-Rubio

    Centro Andaluz de Biología Molecular y Medicina Regenerativa-CABIMER, Universidad de Sevilla-CSIC-Universidad Pablo de Olavide, Seville, Spain
    Contribution
    Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  3. Marta San Martin-Alonso

    Centro Andaluz de Biología Molecular y Medicina Regenerativa-CABIMER, Universidad de Sevilla-CSIC-Universidad Pablo de Olavide, Seville, Spain
    Contribution
    Formal analysis
    Competing interests
    No competing interests declared
  4. Belén Gómez-González

    Centro Andaluz de Biología Molecular y Medicina Regenerativa-CABIMER, Universidad de Sevilla-CSIC-Universidad Pablo de Olavide, Seville, Spain
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Writing - original draft, Writing - review and editing
    For correspondence
    gomezb@us.es
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1655-8407
  5. Andrés Aguilera

    Centro Andaluz de Biología Molecular y Medicina Regenerativa-CABIMER, Universidad de Sevilla-CSIC-Universidad Pablo de Olavide, Seville, Spain
    Contribution
    Conceptualization, Supervision, Funding acquisition, Writing - original draft, Writing - review and editing
    For correspondence
    andres.aguilera@cabimer.es
    Competing interests
    Reviewing editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4782-1714

Funding

Ministerio de Economía y Competitividad (BFU2016-75058-P)

  • Andrés Aguilera

European Regional Development Fund

  • Andrés Aguilera

Spanish Association Against Cancer

  • Belén Gómez-González

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

Research was supported by the Spanish Ministry of Economy and Competitiveness (BFU2016-75058-P) and the European Union (FEDER). BG-G was funded by a grant from the Spanish Association Against Cancer (AECC).

Senior Editor

  1. Jessica K Tyler, Weill Cornell Medicine, United States

Reviewing Editor

  1. Wolf-Dietrich Heyer, University of California, Davis, United States

Reviewers

  1. Wolf-Dietrich Heyer, University of California, Davis, United States
  2. Catherine H Freudenreich, Tufts University, United States

Publication history

  1. Received: March 5, 2020
  2. Accepted: August 3, 2020
  3. Accepted Manuscript published: August 4, 2020 (version 1)
  4. Version of Record published: August 17, 2020 (version 2)

Copyright

© 2020, Lafuente-Barquero et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 804
    Page views
  • 138
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Chromosomes and Gene Expression
    Hajnalka L Pálinkás et al.
    Research Article

    Numerous anti-cancer drugs perturb thymidylate biosynthesis and lead to genomic uracil incorporation contributing to their antiproliferative effect. Still, it is not yet characterized if uracil incorporations have any positional preference. Here, we aimed to uncover genome-wide alterations in uracil pattern upon drug treatments in human cancer cell line models derived from HCT116. We developed a straightforward U-DNA sequencing method (U-DNA-Seq) that was combined with in situ super-resolution imaging. Using a novel robust analysis pipeline, we found broad regions with elevated probability of uracil occurrence both in treated and non-treated cells. Correlation with chromatin markers and other genomic features shows that non-treated cells possess uracil in the late replicating constitutive heterochromatic regions, while drug treatment induced a shift of incorporated uracil towards segments that are normally more active/functional. Data were corroborated by colocalization studies via dSTORM microscopy. This approach can be applied to study the dynamic spatio-temporal nature of genomic uracil.

    1. Chromosomes and Gene Expression
    2. Computational and Systems Biology
    Carlos F Buen Abad Najar et al.
    Research Article Updated

    Single-cell RNA sequencing provides powerful insight into the factors that determine each cell’s unique identity. Previous studies led to the surprising observation that alternative splicing among single cells is highly variable and follows a bimodal pattern: a given cell consistently produces either one or the other isoform for a particular splicing choice, with few cells producing both isoforms. Here, we show that this pattern arises almost entirely from technical limitations. We analyze alternative splicing in human and mouse single-cell RNA-seq datasets, and model them with a probabilistic simulator. Our simulations show that low gene expression and low capture efficiency distort the observed distribution of isoforms. This gives the appearance of binary splicing outcomes, even when the underlying reality is consistent with more than one isoform per cell. We show that accounting for the true amount of information recovered can produce biologically meaningful measurements of splicing in single cells.
