Optogenetic control of gut bacterial metabolism to promote longevity

  1. Lucas A Hartsough
  2. Mooncheol Park
  3. Matthew V Kotlajich
  4. John Tyler Lazar
  5. Bing Han
  6. Chih-Chun J Lin
  7. Elena Musteata
  8. Lauren Gambill
  9. Meng C Wang  Is a corresponding author
  10. Jeffrey J Tabor  Is a corresponding author
  1. Department of Bioengineering, United States
  2. Huffington Center on Aging, United States
  3. Department of Chemical and Biomolecular Engineering, United States
  4. Department of Molecular & Human Genetics, Baylor College of Medicine, United States
  5. Systems, Synthetic, and Physical Biology Program, Rice University, United States
  6. Howard Hughes Medical Institute, United States
  7. Department of Biosciences, United States

Abstract

Gut microbial metabolism is associated with host longevity. However, because it requires direct manipulation of microbial metabolism in situ, establishing a causal link between these two processes remains challenging. We demonstrate an optogenetic method to control gene expression and metabolite production from bacteria residing in the host gut. We genetically engineer an Escherichia coli strain that secretes colanic acid (CA) under the quantitative control of light. Using this optogenetically-controlled strain to induce CA production directly in the Caenorhabditis elegans gut, we reveal the local effect of CA in protecting intestinal mitochondria from stress-induced hyper-fragmentation. We also demonstrate that the lifespan-extending effect of this strain is positively correlated with the intensity of green light, indicating a dose-dependent CA benefit on the host. Thus, optogenetics can be used to achieve quantitative and temporal control of gut bacterial metabolism in order to reveal its local and systemic effects on host health and aging.

Introduction

Microbiome studies have identified correlations between bacteria and host aging (Kundu et al., 2017; O'Toole and Jeffery, 2015). For example, 16S rRNA and metagenomic DNA sequencing are used to associate the presence or abundance of specific bacteria to human centenarians (Biagi et al., 2016; Claesson et al., 2012; Claesson et al., 2011). However, given the complexity and heterogeneity of the human gut environment, these approaches are unable to elucidate how a specific microbial species contributes to longevity.

The nematode Caenorhabditis elegans has a short and easily-measured lifespan, features that have revolutionized our understanding of the molecular genetics of aging and longevity (Kenyon, 2010). Studies using C. elegans also provide mechanistic insight into the association between bacterial species and host longevity (Gusarov et al., 2013; Kim, 2013). Importantly, recent studies have revealed that bacterial metabolism can produce specific products to directly influence the aging process in the host C. elegans or modulate the effects of environmental cues on C. elegans lifespan (Cabreiro et al., 2013; Pryor et al., 2019; Virk et al., 2016). These findings highlight the significance of bacterial metabolism in regulating host physiology during the aging process and have inspired interest in directly manipulating bacterial metabolism in situ in the host gastrointestinal (GI) tract.

In several recent studies, researchers have administered antibiotic- or carbohydrate-based small molecule inducers to modulate gene expression from gut bacteria (Kotula et al., 2014; Lim et al., 2017; Mimee et al., 2015). While this approach can be used to perform in situ analyses of gut bacterial-host interactions (Lim et al., 2017), chemical effectors may have unwanted side-effects on host or microbial physiology and are subject to slow and poorly-controlled transport and degradation processes that ultimately limit their precision.

Optogenetics combines light and genetically-engineered photoreceptors to enable unrivaled control of biological processes (Olson and Tabor, 2014). Previously, we and others have engineered photoreceptors that regulate bacterial gene expression in response to specific wavelengths of light (Levskaya et al., 2005; Li et al., 2020; Ohlendorf et al., 2012; Ong and Tabor, 2018; Ong et al., 2018; Ramakrishnan and Tabor, 2016; Ryu and Gomelsky, 2014; Schmidl et al., 2014). These photoreceptors have been used to achieve precise quantitative (Olson et al., 2017; Olson et al., 2014), temporal (Chait et al., 2017; Milias-Argeitis et al., 2016; Olson et al., 2017; Olson et al., 2014), and spatial (Chait et al., 2017; Levskaya et al., 2005; Ohlendorf et al., 2012; Tabor et al., 2011) control of bacterial gene expression in in vitro culture conditions. They have also been used to characterize and control transcriptional regulatory circuits (Chait et al., 2017; Olson et al., 2014; Tabor et al., 2009) and bacterial metabolic pathways (Fernandez-Rodriguez et al., 2017; Tandar et al., 2019) in vitro. Here, we hypothesized that optogenetic control of bacterial gene expression might provide a new way to fine-tune bacterial metabolism in the host GI tract with high temporal precision and no unwanted side-effects.

We address this possibility using the E. coli and C. elegans interaction model, an optically transparent system with known mechanistic links between bacterial metabolism and host longevity. In particular, CA is an exopolysaccharide synthesized and secreted by E. coli that can extend the lifespan of the host C. elegans by modulating mitochondrial dynamics (Han et al., 2017). First, we engineer E. coli strains that express fluorescent reporter proteins under control of our previously engineered green light-activated, red light de-activated two-component system CcaSR (Schmidl et al., 2014). We then expose worms carrying these engineered E. coli in their GI tracts to time-varying green and red light signals to demonstrate optical activation and de-activation of bacterial gene expression in worm gut. Next, we genetically engineer an E. coli strain that biosynthesizes CA under control of CcaSR, and utilize green light to induce CA production from this strain in the gut of the host C. elegans. Our experiments reveal that green light-induced CA from bacteria residing in the host gut is sufficient to modulate mitochondrial dynamics and lifespan. We use this approach to investigate the local effect of CA production on intestinal cells in a time-controlled manner and its systemic effect on organisms in a tunable way, neither of which is possible using the previous methods of administering purified CA to worms or feeding worms E. coli mutants that constitutively overproduce CA. This work paves the way for future studies of bacterial-host interactions with high temporal, spatial, and quantitative control without the shortcomings of chemical inducers.

Results

To demonstrate optogenetic control over gut bacterial gene expression, we first engineered E. coli strain LH01, wherein CcaSR controls expression of superfolder green fluorescent protein (sfgfp), and mcherry is expressed constitutively to facilitate identification of the bacteria (Figure 1a, Figure 1—figure supplement 1, Supplementary file 1a, 1b). In LH01, green light-exposure switches CcaS to an active state in the presence of chromophore phycocyanobilin (PCB), wherein it phosphorylates the response regulator CcaR. Phosphorylated CcaR then activates transcription of sfgfp from the PcpcG2-172 output promoter. Red light reverts active CcaS to the inactive form, de-activating sfgfp expression (Figure 1a).

Figure 1 with 4 supplements see all

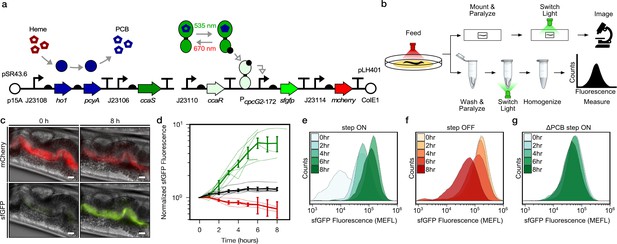

Optogenetic control of C.elegans gut bacterial gene expression.

(a) Strain LH01, which harbors two plasmids: pSR43.6, which encodes the biosynthesis of the PCB chromophore, and pLH401, which encodes the CcaSR TCS with GFP as output and constitutive mCherry production. DNA element legend: origins of replication (circles), promoters (bent arrows), ribosome binding sites (semi-circles), open reading frames (block arrows), transcriptional terminators (vertical lines with flat tops). Protein legend: Dark green protein (CcaS), light green protein (CcaR), black circle (phosphoryl group). Signal legend: filled gray arrows (biochemical or biophysical process), open gray arrows (signal transduction). (b) Microscopy and cytometry workflows. All begin with worms fed bacteria grown in the precondition light condition. Microscopy samples were then paralyzed and imaged while exposed to the experimental light condition. Cytometry samples were washed and paralyzed, exposed to the experimental light condition, and finally homogenized before cytometry. (c) Fluorescence microscopy images 0 and 8 h after green light exposure in the step ON experiment. Scale bar: 10 μm. (d) Response dynamics in the step ON (green) and step OFF (red) microscopy experiments. Black: ΔPCB strain (step ON experiment). Individual- (light lines) and multi-worm average (dark lines) data are shown. n = 7, 4, 6 worms for green, red, black data sets (measured over 2, 3, 1 days, respectively). Error bars: SEM. (e–g) Flow cytometry histograms for response dynamics experiments. MEFL: molecules of equivalent fluorescein.

We then reared two groups of C. elegans from the larval to the adult stage on plates of LH01 under red or green light, respectively (Figure 1b). Next, we washed away external bacteria, applied the paralyzing agent levamisole to prevent expulsion of gut contents, and transferred the worms to agar pads. Finally, we switched the applied light color from red to green (step ON), or green to red (step OFF), and used epi-fluorescence microscopy to image the resulting changes in sfGFP and mCherry fluorescence in the gut lumen over time (Figure 1c). In the step ON experiment, sfGFP fluorescence in the worm gut lumen starts low, begins to increase within 2 hr, and reaches a saturated high level at 6 hr (Figure 1d). On the other hand, in the step OFF experiment, sfGFP fluorescence begins high, and decreases exponentially between hours 1–7 (Figure 1d). This light response is abolished when the PCB biosynthetic operon is removed (ΔPCB) (Figure 1d), demonstrating that changes in sfGFP fluorescence are due to CcaSR photoswitching in the worm gut.

Next, we used flow cytometry to analyze these bacterial light responses with single-cell resolution. Specifically, we reared worms on light sensing bacteria in red and green light as before, but then washed, paralyzed, and placed them into microtubes prior to light switching (Figure 1b). At several time points over the course of 8 hr, we homogenized the animals, harvested the gut contents, sorted bacterial cells, and measured fluorescence via flow cytometry. We observed that our engineered bacteria remain intact in the host gut (Figure 1—figure supplement 2) and respond to light in a unimodal fashion (Figure 1e–g). The temporal dynamics and PCB dependence of the gene expression responses recapitulate the microscopy results (Figure 1—figure supplement 3). We also confirmed that residual bacteria on the exterior of worms do not contribute to the flow cytometry measurements (Figure 1—figure supplement 4). Together, these microscopy and flow cytometry experiments demonstrate that we can use optogenetics to rapidly and reversibly induce gene expression of E. coli residing in the C. elegans gut.

Next, we sought to utilize our optogenetic method to modulate the production of specific metabolites in bacteria residing in the gut of live hosts. Bacterial genes involved in the same metabolic process are often clustered into operons and co-regulated at the transcriptional level. We took advantage of this coordinated mode of regulation and chose the cps operon and its transcription activator RcsA for testing optogenetic control of bacterial metabolism. The cps operon in E. coli consists of 19 genes that encode enzymes required for the biosynthesis and secretion of CA (Torres-Cabassa and Gottesman, 1987), and CA-overproducing bacterial mutants Δlon and Δhns promote longevity in the host C. elegans (Han et al., 2017). To place CA biosynthesis under optogenetic control, we engineered E. coli strain MVK29 which lacks genomic rcsA, and expresses a heterologous copy of rcsA under the control of CcaSR (Figure 2a, Supplementary file 1a, 1b). We first examined whether MVK29 could respond to green light and induce CA production and secretion. To this end, we grew the strain in batch culture under red or green light and quantified supernatant CA levels. In red light, MVK29 secretes CA to concentrations below the limit of detection of the assay, similar to the ΔrcsA mutant (Figure 2b). Green light, on the other hand, induces MVK29 to secrete high levels of CA, and removal of the PCB biosynthetic operon abolishes this response (Figure 2b). Moreover, mutation of the CcaS catalytic histidine to a non-functional alanine (H534A), or the CcaR phosphorylation site from an aspartic acid to a non-functional asparagine (D51N) abolishes detectable CA production (Figure 2b). Importantly, the level of secreted CA increases sigmoidally with the increasing intensity of green light (Figure 2c), which is consistent with the response of CcaSR (Schmidl et al., 2014). We conclude that we have placed CA production under the control of CcaSR, and that we can use light to tune the biosynthesis and secretion of bacterial metabolites.

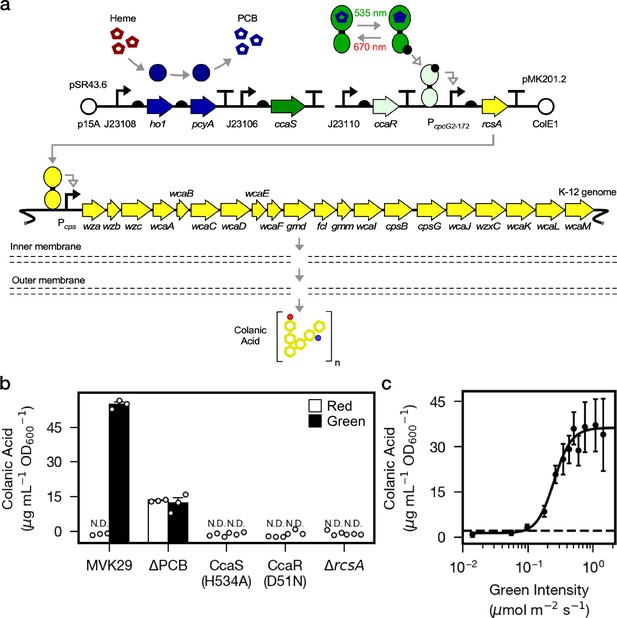

Optogenetic control of colanic acid biosynthesis.

(a) Strain MVK29, harboring two plasmids: pSR43.6, which encodes the biosynthesis of the PCB chromophore, and pMK201.2, which includes rcsA under the optogenetic control of CcaSR. RcsA activates transcription of the CA biosynthetic operon, ultimately producing CA. (b) CA secretion levels for MVK29 and control strains exposed to red and green light. JW1935-1 is the E. coli rcsA background strain used in this study. N.D.: below assay limit of detection. (c) Green light intensity versus CA secretion level for MVK29. Data points represent three biological replicates collected on a single day. Dashed line: limit of detection. Error bars indicate standard deviation of the three biological replicates.

We then used this approach to study a gut bacterial metabolite-host interaction pathway in vivo. We first focused on cellular phenotypes in the worm gut that directly interact with bacteria and examined mitochondrial morphology that is known to be affected by CA (Han et al., 2017). Lon is an ATP-dependent protease that degrades RcsA, and its deletion mutant Δlon shows increased CA production (Han et al., 2017). When grown on Δlon mutant bacteria, worms exhibit elevated mitochondrial fragmentation in intestinal cells, similar to worms with CA supplementation (Han et al., 2017). To determine whether light-induced CA overproduction in MVK29 could affect the host as effectively as the CA overproduction caused by the Δlon mutant, we reared two different transgenic worm strains, expressing either mitochondrially-localized GFP (mito-GFP) or mitochondrially-localized RFP (mito-RFP) in the intestine (Supplementary file 1b), on the plate with MVK29 and exposed the plate to red light. For each worm strain, we continued to expose one group to red light but switched a second to green for an additional 6 hr (unparalyzed light-exposure, Figure 3a). After paralyzing the worms with levamisole, we immediately imaged intestinal cell mitochondrial morphology using confocal microscopy and categorized the morphology into the tubular, intermediate, or fragmented (Figure 3b). We found that green light increases mitochondrial fragmentation in MVK29-fed worms, but not in worms fed a MVK29 ΔPCB control strain that does not respond to light (Figure 3c, Figure 3—figure supplement 1). Thus, our light-inducible CA biosynthetic strain recapitulates the effect of the Δlon mutant or purified CA on the host.

Figure 3 with 1 supplement see all

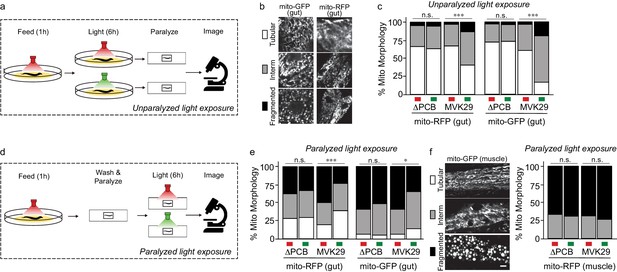

Light-regulated CA secretion modulates C.elegans mitochondrial dynamics.

(a) Schematic of experiment for activating CA biosynthesis in situ using unparalyzed light-exposure conditions. (b) Representative images of the mitochondrial network of anterior intestinal cells visualized by either mitochondrially-localized GFP (mito-GFP) or RFP (mito-RFP) immediately distal to the pharynx are scored as fragmented, intermediate, or tubular. Scale bars: 5 μm. (c) Mitochondrial morphology profiles of intestinal cells in unparalyzed worms fed MVK29 while exposed to red or green light for 6 hr. (d) Schematic of experiment for activating CA biosynthesis in situ using paralyzed light-exposure conditions (e) Mitochondrial morphology profiles of intestinal cells in worms fed the indicated strain, and then paralyzed for 6 hr while exposed to red or green light. (f) Representative images of mitochondrial morphology in muscular cells, and the quantification of these images using worms fed the indicated strain, and then paralyzed for 6 hr while exposed to red or green light. The Chi-Squared Test of Homogeneity was used to calculate p-values between conditions in c, e, and f. Combined results are shown from multiple independent replicates and see Figure 3—figure supplement 1 for data of each replicate.

We next set out to induce CA production directly from bacteria residing within the host gut and examine its effect on intestinal mitochondria. To this end, we removed worms from plates, washed away external bacteria, paralyzed them using levamisole to stop bacteria being expelled from the gut, exposed them to green or red light for 6 hr, and then imaged intestinal mitochondrial morphology using confocal microscopy (paralyzed light-exposure, Figure 3d). In these conditions, CA production is inactivated on the plate and worms are only exposed to CA produced from bacteria residing with the host gut. Unexpectedly, we found that 6 hr of levamisole treatment does not kill worms but leads to mitochondrial hyper-fragmentation in the intestine (Figure 3c,e), possibly due to the inhibitory effect of levamisole on mitochondrial NADH-oxidizing enzymes (Köhler and Bachmann, 1978) and its associated mitochondrial stress. This hyper-fragmentation phenotype was not observed in worms treated with levamisole less than 1 hr. This stress-induced fragmentation resembles mitochondrial changes related to aging and age-related neurodegenerative diseases (Cho et al., 2009; Exner et al., 2007; Sebastián et al., 2017). Interestingly, we found that green light exposure suppresses stress-induced hyperfragmentation in paralyzed worms bearing MVK29 in the gut (Figure 3e, Figure 3—figure supplement 1). Importantly, we found no such effects in worms bearing the ΔPCB, CcaS(H534A), CcaR(D51N) or ΔrcsA mutant strains (Figure 3e, Figure 3—figure supplement 1), suggesting that this protective effect is a result of light-induced CA overproduction in the gut. As a control using transgenic worms expressing mito-GFP in the muscle, we also examined muscular mitochondrial morphology under paralyzed light-exposure conditions. We found that 6 hr levamisole treatment induces mitochondrial hyper-fragmentation in the muscle as it does in the intestine, but that light-induced CA production from the gut bacteria does not protect muscular mitochondria against hyper-fragmentation (Figure 3f, Figure 3—figure supplement 1). These results not only show that optogenetics can be utilized to induce CA secretion from gut-borne E. coli in vivo, but also reveal a local protective effect of CA on intestinal cells.

Finally, we examined how the extent of light-induced CA production relates to host lifespan extension. We first confirmed that green-light-exposed MVK29 can induce CA overproduction to a level comparable to the Δlon mutant (Figure 4a, Figure 4—figure supplement 1), and neither the Δlon nor the ΔrcsA mutant responds to light (Figure 4a). Next, beginning at the day-1 adult stage, we exposed worms bearing MVK29 to red, or low and high green light intensities resulting in intermediate or saturating levels of CA secretion in vitro (Figure 2c, Figure 4—figure supplement 1), and measured their lifespans. We found that green light exposure extends worm lifespan compared to red light exposure (Figure 4b). Furthermore, the extent of lifespan extension at high green light intensity is 1.7-fold higher than that at low intensity (Figure 4b, Supplementary file 1c), suggesting a dose-dependent effect. In parallel, we measured the lifespan of worms bearing the CA-overproducing Δlon mutant and showed that the lifespan extension caused by Δlon is independent of light exposure (Figure 4c). The extent of lifespan extension caused by Δlon is comparable to that caused by MVK29 (Figure 4b,c, Supplementary file 1c), which is consistent with the result that Δlon and green-light-exposed MVK29 induce CA overproduction to a similar level (Figure 4a). In addition, the lifespan of worms bearing the ΔrcsA mutant is also light-independent and is comparable to that of MVK29 worms under red light (Figure 4d, Supplementary file 1c). These results suggest that optogenetic control is sufficient to induce bacterial production of pro-longevity compounds and improve host health. Unlike administration of a bacterial mutant, optogenetic control of bacterial metabolism can modulate a host-level phenotype in a dose-dependent manner.

Figure 4 with 1 supplement see all

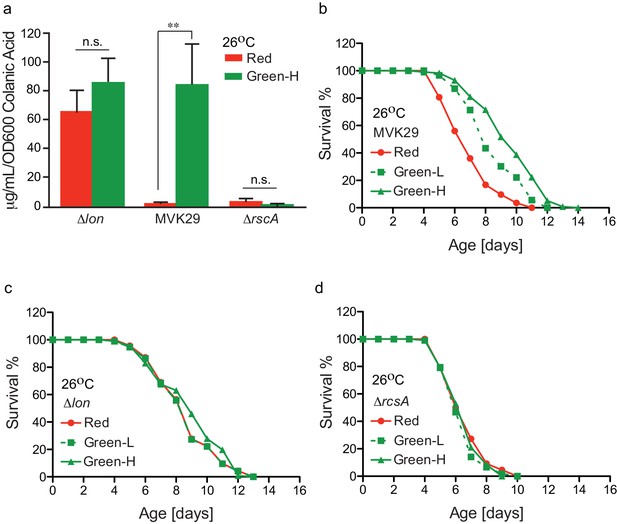

Optogenetically-regulated CA biosynthesis extends worm lifespan.

(a) Green light induces CA overproduction in MVK29 to a level comparable to the ∆lon mutant, and neither the ∆lon or the ∆rcsA mutant changes its CA levels in response to the green light exposure. Green-H indicates a high green light intensity yielding high levels of CA production. **p<0.01 by student’s t-test. Experiments were conducted at 26°C. (b) When exposed to green light, worms grown on MVK29 live longer than those exposed to red light, and the magnitude of lifespan extension correlates with green light intensity (p<0.0001 green vs. red, log-rank test). Green-L indicates a low level of green light intensity resulting in intermediate levels of CA production. Experiments were conducted at 26°C. (c–d) The lifespans of worms grown on the ∆lon (c) or the ∆rcsA (d) controls are not affected by light condition (p>0.1 green vs. red, log-rank test). Experiments were conducted at 26°C.

Discussion

Our method has broad applications for studying microbe-host interactions in situ. For example, we have identified about two dozen additional E. coli genes that are unrelated to CA biosynthesis and that enhance worm longevity when knocked out (Han et al., 2017), though the mechanisms by which they act remain largely unclear. By using light to induce their expression in the gut and measuring acute host responses such as changes in mitochondrial dynamics, the role of these genes in gut microbe-host interactions could be further explored. In another example, the quorum-sensing peptide CSF and nitric oxide, both of which are produced by Bacillus subtilis during biofilm formation, have been found to extend worm lifespan through downregulation of the insulin-like signaling pathway (Donato et al., 2017). We have recently ported CcaSR into B. subtilis and demonstrated that it enables rapid and precise control of gene expression dynamics (Castillo-Hair et al., 2019). The method we report here should enable optogenetic control of gene expression and metabolite production in B. subtilis and in situ studies of how this important Gram-positive model bacterium impacts longevity as well.

Multiple photoreceptors could also be combined to study more complex microbe-host interaction pathways. Specifically, we and others have co-expressed CcaSR with independently-controllable blue/dark and red/far-red reversible light sensors to achieve simultaneous and independent control of the expression of up to three genes in the same bacterial cell (Fernandez-Rodriguez et al., 2017; Olson et al., 2017; Tabor et al., 2011). Such optogenetic multiplexing could be performed in situ and used to study potential synergistic, antagonistic, or other higher-order effects of multiple bacterial genes or pathways. A large number of eukaryotic photoreceptors have also been developed, enabling optical control of many cell- and neurobiological processes (Deisseroth, 2015; Gautier et al., 2014; Goglia and Toettcher, 2019; Leopold et al., 2018). Bacterial and eukaryotic photoreceptors could be combined to enable simultaneous optical manipulation of bacterial and host pathways to interrogate whether or how they interact. Optogenetics could also be used to manipulate bacterial and/or host pathways at specific locations within the gut to examine location- or tissue-dependent phenomena.

Finally, optogenetic approaches could be extended to other bacteria or hosts. Although E. coli is an important model of Gram-negative bacteria, it is not a natural symbiont of C. elegans. Because E. coli does not stably colonize in the C. elegans gut, we have to paralyze worms to facilitate longer-term experiments. It would be interesting future work to port CcaSR or other bacterial photoreceptors into native C. elegans symbionts (Zhang et al., 2017) or pathogens (Couillault and Ewbank, 2002) and apply them for studying the physiological and pathological effects of bacterial symbionts in vivo in non-paralyzing hosts. Moreover, it is likely that light can also be used to control gut bacterial gene expression in other model hosts such as flies, zebrafish, or mammals. Red-shifted wavelengths and corresponding optogenetic tools (Ong et al., 2018; Ryu and Gomelsky, 2014) may prove superior for less optically transparent or larger animals. Overall, by enabling precision control of bacterial gene expression and metabolism in situ, we believe that optogenetics will greatly improve our understanding of a wide range of microbe-host interactions. In particular, through aiding the digestion of ingested food, intestinal bacteria alter their gene expression and metabolism and can consequently generate specific metabolites to influence other microbes and the host in close proximity. Understanding dynamic diet-microbe-host interplays demands a quantitative method to manipulate bacterial gene expression in a temporally controlled manner. For example, upon the supplementation of a specific food source, turning on or off a specific gene in bacteria and in turn examining molecular changes in the host would help reveal primary nodes in the complex diet-microbe-host network. Given their quantitative nature, rapid and reversible switching ability, and suitability for in vivo application, optogenetic approaches will provide a new toolbox for this area of research to decipher how mechanistically microbial genetic factors participate in those diet-microbe-host interplays and contribute to host health and diseases.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or referenceIdentifiersAdditional information
Recombinant DNA reagentpLH401This paperGenBank: MN617156Constitutive ccaR expression, PcpcG2-172:sfgfp, constitutive mcherry expression
Recombinant DNA reagentpLH405This paperGenBank: MN617157PcpcG2-172:gfpmut3*, constitutive mcherry expression
Recombinant DNA reagentpLH407This paperGenBank: MN617158Constitutive mcherry expression
Recombinant DNA reagentpLH412This paperGenBank: MN617159Constitutive ccaS(H534A), ho1, and pcyA expression
Recombinant DNA reagentpLH413This paperGenBank: MN617160Constitutive ccaR(D51N) expression, PcpcG2-172:rcsA
Recombinant DNA reagentpSR43.6Schmidl et al., 2014GenBank: MN617163Constitutive expression of ccaS, ho1, and pcyA
Recombinant DNA reagentpSR49.2Schmidl et al., 2014GenBank: MN617164Constitutive expression of ccaS
Recombinant DNA reagentpMVK201.2This paperGenBank: MN617161Constitutive expression of ccaR, PcpcG2-172:rcsA
Recombinant DNA reagentpMVK228This paperGenBank: MN617162Constitutive expression of ccaS
Stain, strain background (Escherichia coli)BW25113Baba et al., 2006CGSC#: 7626Keio parent strain
Stain, strain background (Escherichia coli)ΔrcsABaba et al., 2006CGSC: JW1935-1Low CA production mutant from the Keio collection
Stain, strain background (E. coli)ΔlonBaba et al., 2006CGSC: JW0429-1High CA production mutant from the Keio collection
Genetic reagent (C. elegans)zu391Hermann et al., 2005CGC ID: JJ1271glo-1(zu391) X
Genetic reagent (C. elegans)zcIs17Han et al., 2017CGC ID: SJ4143zcIs17[Pges-1::mito-GFP]
Genetic reagent (C. elegans)zcIs14Han et al., 2017CGC ID: SJ4103zcIs14[Pmyo-3::mito-GFP]
Genetic reagent (C. elegans) MW2241This paperraxIs145[Pges-1::mito-RFP]
Genetic reagent (C. elegans)e2117Han et al., 2017CGC ID: CB4121 sqt-3(e2117) V

E. coli plasmids, strains, and media

Request a detailed protocol

Plasmids used in this study are described in Supplementary file 1a. Genbank accession numbers are given in the Key Resources Table. All plasmids constructed in this study were assembled via Golden Gate cloning (Engler et al., 2009). Primers were ordered from IDT (Coralville, IA). Assembled plasmids were transformed into E. coli NEB10β (New England Biolabs) for amplification and screening. All plasmid sequences were confirmed by Sanger sequencing (Genewiz; S. Plainfield, NJ). To construct pLH401 and pLH405, pSR58.6 (Schmidl et al., 2014) was modified by inserting an mCherry expression cassette composed of a constitutive promoter (J23114; http://parts.igem.org/Promoters/Catalog/Anderson), RBS (BBa_B0034; http://parts.igem.org/Part:BBa_B0034), mCherry, and a synthetic transcriptional terminator (L3S1P52 [Chen et al., 2013]). To construct pLH405, pLH401 was further modified by exchanging the superfolder GFP gene (sfgfp) for gfpmut3*. pMVK201.2 was built by modifying pSR58.6 to control expression of rcsA.

All E. coli strains are described in Supplementary file 1b. ΔrcsA (JW1935-1) was obtained from the Coli Genetic Stock Center. Δlon (JW0429-1) was obtained from the Keio E. coli knockout library (Baba et al., 2006), a gift from the Herman lab. All E. coli strains were maintained in LB media supplemented with appropriate antibiotics (chloramphenicol 34 μg/mL, spectinomycin 100 μg/mL, kanamycin 100 μg/mL) in a shaking incubator at 37°C and 250 rpm unless otherwise noted.

C. elegans strains and media

Request a detailed protocol

C. elegans strain information is listed in Supplementary file 1b and the Key Resources Table. JJ1271, SJ4143, SJ4103 and CB4121 were provided by the Caenorhabditis Genetics Center (University of Minnesota), which is funded by the NIH office of Research Infrastructure Programs (P40 OD010440). For generating the transgenic line MW2241, the N-terminal 55 amino acids sequence of tomm-20 is fused with RFP and 3XHA tags, and the fusion is cloned into a vector containing the ges-1 promoter. The DNA mixture is then injected into the gonad of young adult worms using the standard C. elegans microinjection protocol to generate transgenic strains carrying extrachromosomal arrays. The integrated transgenic strain is obtained by exposing the extrachromosomal line to 4000 rads of gamma irradiation in 5.9 min and backcrossed to wild type for more than 10 times. Worms were grown at 20°C on 1.7% NGM-agar plates in 60 mm Petri dishes inoculated with a lawn of E. coli (CGSC str. BW28357), as described in the CGC WormBook (wormbook.org), unless otherwise specified. The common strain E. coli OP50 was not used for worm feeding, as it produces approximately 50% more CA during normal growth than BW25113 (Han et al., 2017). M9 buffer for C. elegans (abbreviated M9Ce to distinguish from E. coli M9 media) was composed of 3 g KH2PO4, 6 g Na2HPO4, 5 g NaCl, 1 mL 1 M MgSO4, H2O to 1 L, and sterilized by autoclaving (wormbook.org).

Optogenetic control of CA production

View detailed protocol

For the experiments in Figures 2 and 3 mL starter cultures of appropriate E. coli strains were inoculated from a −80°C freezer and grown 12 hr at 37°C. These starters were diluted to OD600 = 1×10−2 in M9 minimal media (1x M9 salts, 0.4% w/v glucose, 0.2% w/v casamino acids, 2 mM MgSO4, 100 μM CaCl2) supplemented with appropriate antibiotics. The M9/cell mixtures were then distributed into 3 mL aliquots in 15 mL clear polystyrene culture tubes and grown at 37°C in a shaking incubator at 250 rpm while illuminated with the appropriate light wavelength and intensity, using the Light Tube Array (LTA) device (Gerhardt et al., 2016). After 22 hr, cultures were removed and iced to halt growth and the OD600 was measured. Culture samples were collected for CA quantification.

For CA quantification experiments in Figure 4 and Figure 4—figure supplement 1, the same preculturing, dilutions, and media conditions were utilized. However, the Light Plate Apparatus (LPA), a 24 well-plate design of the LTA (Gerhardt et al., 2016), was used for red and green illumination of cultures. 1 mL cultures were aliquoted into wells of a 24-well plate that corresponded with programmed red and green light intensities. Cultures grew for 22 hr in a 26°C shaking incubator at 250 rpm. Following, plates were placed on ice for 10 min, and in parallel, OD600 for each condition was measured. Samples were then processed for CA quantification.

CA quantification

Request a detailed protocol

We adapted a previous CA quantification protocol (Dische, 1947; Dische and Shettles, 1948) that takes advantage of the fact that it is the only exopolysaccharide produced in our E. coli strains that incorporates fucose. In particular, we quantified the amount of fucose in cell-derived exopolysaccharides (EPS), and used that value as a proxy CA levels. First, EPS was liberated from cells by boiling 2 mL of culture for 15 min. in a 15 mL conical tube. The sample was then centrifuged in 1.5 mL Eppendorf tubes for 15 min. at 21,000 x g. Then, 0.7 mL of supernatant was dialyzed against water for at least 12 hr using Pur-A-Lyzer Midi 3500 dialysis mini-tubes (Sigma-Aldrich, PURD35100-1KT) to remove monomeric fucose from the sample.

Fucose monomers were then liberated from the EPS polymers by hydrolyzing 0.2 mL of dialyzed media with 0.9 mL of H2SO4 solution (6:1 v/v acid:water). This mixture was boiled in a 15 mL conical for 20 min and then cooled to room temperature. The absorbance at 396 nm and 427 nm was measured. Next, 25 μL of 1 M L-cysteine HCl was added and mixed thoroughly by pipetting. The absorbance at 396 nm and 427 nm was measured again. Simultaneously, absorbance measurements of L-fucose standards pre- and post-L-cysteine addition were also recorded. Absorbance change, given by D in the formula below, were used to compare the L-fucose standard samples to the dialyzed culture samples and estimate the L-fucose concentration in the dialyzed product.

D= ((Apost396Apre396)(Apost427Apre427))

Preparation of NGM-agar plates for worm feeding

Request a detailed protocol

3 mL E. coli starter cultures were inoculated from −80°C freezer stocks and grown for 12 hr at 37°C. These starters were then diluted to OD600 = 1×10−6 in M9 minimal media supplemented with appropriate antibiotics. The M9/cell mixture was then distributed into 3 mL aliquots in 15 mL clear polystyrene culture tubes and grown at 37°C in a shaking incubator at 250 rpm while illuminated with the appropriate light in the LTA. Once cultures reached OD600 = 0.1–0.4, tubes were iced for 10 min and subsequently concentrated to OD600 ~ 20 by centrifugation (4°C, 4000 rpm, 10 min) and resuspension in fresh M9 media. 400–600 μL of dense bacterial culture was then applied to sterile NGM-agar plates and allowed to dry in a dark room, or a room with green overhead safety lights if cultures were preconditioned in green light. Plates were wrapped in foil and refrigerated at 4°C for no more than 5 days until needed.

Time-lapse microscopy

Request a detailed protocol

To obtain age-synchronized worm cultures, axenized C. elegans (strain glo-1) eggs were isolated and allowed to arrest in L1 by starvation in M9 buffer (distinct from M9 media: 3 g KH2PO4, 6 g Na2HPO4, 5 g NaCl, 1 mL 1M MgSO4, and water to 1 L, sterilized by autoclaving at 121°C for 20 min) at room temperature for 12–18 hr. 10–100 larvae were transferred to a previously prepared NGM-agar plate containing a lawn of the appropriate bacterial strain. The plate was then placed in a 20°C incubator and illuminated with appropriate optogenetic light provided by a single LED positioned 1 cm above the Petri dish. Adult worms were transferred to a fresh plate as necessary to maintain only a single generation.

Individual worms aged 1–3 days were removed from the dish and prepared for time-lapse epifluorescence imaging. A 1.5% agar pad was prepared using M9 buffer as previously described (Ryu and Gomelsky, 2014), and punched into ½” circles with a hollow punch. A 4 μL droplet of 2 mM levamisole was deposited on a pad and five adult worms were transferred from the NGM plate to the droplet. An additional 4 μL of levamisole solution was added, and the worms were gently washed to remove external bacteria. Worms were then transferred to a fresh pad with a 4 μL droplet of levamisole solution, which was allowed to dry, thereby co-localizing and aligning the worms on the pad. The pad was then inverted and placed into a 13 mm disposable microscopy petri dish with a #1.5 coverslip on the bottom (Cell E and G; Houston, TX). Another coverslip was placed on the top of the pad in the dish to curtail evaporation.

The dish was then placed on the stage of a Nikon Eclipse Ti-E inverted epifluorescence microscope (Nikon Instruments, Inc; Melville, NY). Complete paralysis was induced by incubating the dish at room temperature (~23°C) for 30 min. Meanwhile, worms were exposed to appropriate preconditioning light supplied by a circular array of 8 LEDs (4 × 660 nm, 4 × 525 nm) mounted to the microscope condenser ring, about 2 cm above the Petri dish. Light was then switched from the preconditioning to the experimental wavelength, and worms were imaged periodically using 10x, 40x, and 60x objectives. For each time point, the LEDs were turned off and images acquired in the brightfield (DIC) and fluorescent channels. Afterwards, the LEDs were turned on again to maintain optogenetic control.

Epifluorescence image analysis

Request a detailed protocol

All epifluorescence images were analyzed using the Nikon Elements software package (Nikon Instruments, Inc; Melville, NY). The mCherry signal was used as a marker for the gut lumen, and only cells in this region were included in the analysis. Image ROIs were created by thresholding the sfGFP signal to identify the boundaries of cell populations. Out of focus regions were eliminated from analysis. The average sfGFP pixel intensity inside the ROIs was calculated and recorded for each time point.

Flow cytometry

Request a detailed protocol

1–3-day-old glo-1 worms were prepared for flow cytometry of the microbiome constituents by washing, using a protocol adapted from previous work (Portal-Celhay et al., 2012). Groups of 5 worms were washed 2x in a 5 μL droplet of lytic solution: C. elegans M9 buffer containing 2 mM levamisole, 1% Triton X-100, and 100 mg/mL ampicillin. The worms were then washed 2x in 5 μL droplets of M9 buffer containing 2 mM levamisole only. Finally, the worms were transferred to clear 0.5 mL Eppendorf tubes containing 50 μL of M9 buffer + 2 mM levamisole, ensuring that five worms were deposited in the liquid contained in each tube. Each tube was then exposed to light by placing it within one well of a 24-well plate (AWLS-303008, ArcticWhite LLC) atop a Light Plate Apparatus (LPA) containing green and red LEDs47 for 8 hr at room temperature. In separate control experiments, we demonstrated that any stray bacteria that may escape the worms over this period, or which were inadvertently added to the 50 μL of M9 buffer, are incapable of responding to optogenetic light (Figure 1—figure supplement 4).

At the conclusion of the experiment, tubes were removed from the plate and immediately chilled in an ice slurry for 10 min in the dark. Worms were homogenized using an anodized steel probe sterilized between samples via 70% ethanol treatment and flame before being cooled.

Next, we used our previous antibiotic-based fluorescent protein maturation protocol (Olson et al., 2014) to allow unfolded proteins to mature while preventing the production of new protein. In particular, 250 μL PBS containing 500 mg/mL Rifampicin was added to the 50 μL homogenized worm samples and transferred to cytometry tubes. These tubes were incubated in a 37°C water bath for precisely 1 hr, then transferred back to an ice slurry.

These samples were measured on a BD FACScan flow cytometer. For gating, an FSC/SSC polygon gate was first created using non-fluorescent bacteria grown in vitro at 37°C (Figure 1—figure supplement 2). Events outside this region were excluded as non-bacterial material. To isolate the engineered gut bacteria, only events with a high mCherry signal (FL3 >1200 a.u., FL3 gain: 999) were included (Figure 1—figure supplement 4). Samples were measured until 20,000 events were recorded or the sample was exhausted.

Flow cytometry data analysis

Request a detailed protocol

All flow cytometry data (FCS format) were analyzed using FlowCal (Castillo-Hair et al., 2016) and Python 2.7. We wrote a standard cytometry analysis workflow that truncated the initial and final 10 events to prevent cross-sample contamination, removed events from saturated detector bins at the ends of the detection range, and added 2D density gate on SSC/FSC retaining the densest 75% of events (Figure 1—figure supplement 2). GFPmut3* fluorescence units were converted into standardized units of molecules of equivalent fluorescein (MEFL) using a fluorescent bead standard (Rainbow calibration standard; cat. no. RCP-30-20A, Spherotech, Inc) as described previously (Castillo-Hair et al., 2016). Finally, to eliminate events associated with C. elegans autofluorescence (Figure 1—figure supplement 2), any events in the region FL1 ≤ 1200 MEFL were discarded.

Mitochondrial fragmentation assays

Request a detailed protocol

Synchronized L1 worms (strain ges-1) were applied to NGM-agar plates containing bacterial strain BW25113 and allowed to develop until adulthood. This parental bacterial strain is used to allow all worms to develop at the same rate, avoiding any developmental/growth effects the experimental strains may exert on the worms. All experimental bacterial strains were preconditioned in red light with optogenetic light provided by a single LED positioned 1 cm above the Petri dish.

After 3–5 days (between days 1–3 of adulthood), worms allocated for the experiment were transferred to experimental strains for approximately 60–90 min and exposed to red light to thoroughly inoculate the GI tract without inducing CcaSR. In the case of the unparalyzed worms, red or green light was then applied for an additional 6 hr. For the paralyzed worm experiments, 1.5% low-melt agar pads were prepared as described above and placed on individual slides. About 15 adult worms were transferred from the experimental strain Petri dish to an agar pad containing 10 μL of C. elegans M9 buffer + 2 mM levamisole (M9Ce+Lev), where worms were gently washed before being transferred to a fresh pad also containing 10 μL of M9Ce+Lev. The majority of M9Ce+Lev on the pad was allowed to evaporate, which causes the worms to align longitudinally before a cover slip was applied. Slides were then exposed to either red or green light by placing them under a single LED positioned 1 cm above the Petri dish for 6 hr. Afterward, intestinal and muscular cells were imaged using confocal microscopy (Olympus Fluoview 3000) in the brightfield and GFP/RFP channels.

Confocal microscopy image analysis

Request a detailed protocol

All confocal images for an experiment were randomized and the mitochondrial networks of each were blindly classified by another researcher independently as either tubular, fragmented, or intermediate. Tubular samples were marked by a high degree of network connectivity throughout. Fragmented samples were composed almost exclusively of isolated clusters of fluorescence with high circularity. Intermediate samples contained regions of both types. Scores were then de-randomized and aggregated. For each experimental strain, the red and green light conditions were compared for statistical significance using the chi-squared test of homogeneity.

Lifespan experiments

Request a detailed protocol

3 mL starter cultures of Δlon, ΔrcsA or MVK29 were inoculated from −80°C freezer stocks into LB supplemented with appropriate antibiotics and grown shaking for 12 hr at 37°C at 250 rpm. These cultures were diluted to OD600 = 1×10−6 in 27 mL M9 media supplemented with appropriate antibiotics. 1.5 mL of each M9/cell mixture was added to each of 18 wells on three 24-well plates and grown in 3 LPA devices under the appropriate light conditions at 37°C and 250 rpm. Once cultures reached OD600 = 0.1–0.4, all tubes were iced for 10 min and subsequently concentrated 10 times by centrifugation (4°C, 4000 rpm, 10 min). Approximately, 50 μL of this dense bacterial culture was then applied to sterile NGM-agar plates with no antibiotics and allowed to dry in a dark room. The plates were then illuminated with the appropriate light wavelength and intensity for 16 hr at room temperature, and immediately used for lifespan assays.

During the longitudinal lifespan assay, exposure to white light is limited to the minimal level. To reach this goal, the sqt-3(e2117) temperature sensitive mutant (Supplementary file 1b) was used to perform longitudinal analyses at 25°C, which avoids time-consuming animal transfer without interrupting normal reproduction. sqt-3(e2117) is a collagen mutant of C. elegans that reproduces normally but is embryonically lethal at 26°C and has been used previously in longitudinal studies (Han et al., 2017; Wang et al., 2014). Worms were age-synchronized by bleach-based egg isolation followed by starvation in M9 buffer at the L1 stage for 36 hr. Synchronized L1 worms were grown on BW25113 E. coli at 15°C until the L4 stage, when worms were transferred to 24-well plates (~15 worms/well) with Δlon, ΔrcsA or MVK29 (Supplementary file 1b). The plates were placed in LPA devices. LPA LEDs were programmed to illuminate wells with constant red (10 μmol/m2/s), low-intensity green (0.25 μmol/m2/s), or high-intensity green light (10 μmol/m2/s). The apparatus was then transferred to a 26°C incubator. The number of living worms remaining in each well was counted every day. Death was indicated by total cessation of movement in response to gentle mechanical stimulation. Statistical analyses were performed with SPSS (IBM Software) using Kaplan-Meier survival analysis and the log-rank test (Supplementary file 1c).

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files.

References

    1. Dische Z
    (1947)
    A new specific color reaction of hexuronic acids
    J Biological Chem 167:189–198.
    1. Dische Z
    2. Shettles LB
    (1948)
    A specific color reaction of methylpentoses and a spectrophotometric micromethod for their determination
    J Biological Chem 175:595–603.
    1. Köhler P
    2. Bachmann R
    (1978)
    The effects of the antiparasitic drugs levamisole, thiabendazole, praziquantel, and chloroquine on mitochondrial electron transport in muscle tissue from Ascaris suum
    Molecular Pharmacology 14:155–163.

Decision letter

  1. Jan Gruber
    Reviewing Editor; Yale-NUS College, Singapore
  2. Jessica K Tyler
    Senior Editor; Weill Cornell Medicine, United States
  3. William Mair
    Reviewer; Harvard T H Chan School of Public Health, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The reviewers and editors feel that the approach and techniques presented are exciting, with important future applications – especially given progress on extension the approach to e.g. B. subtilis. You convincingly demonstrate the utility and value of your novel optogenetic approach for investigating bacterial metabolism.

Decision letter after peer review:

Thank you for submitting your article "Optogenetic control of gut bacterial metabolism to promote longevity" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Jessica Tyler as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: William Mair (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission. We all feel that you when you resubmit the revised paper, it should be as a "Tools and Resources" paper rather than an article, given the methodological nature of your study.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, when editors judge that a submitted work as a whole belongs in eLife but that some conclusions require a modest amount of additional new data, as they do with your paper, we are asking that the manuscript be revised to either limit claims to those supported by data in hand, or to explicitly state that the relevant conclusions require additional supporting data.

Our expectation is that the authors will eventually carry out the additional experiments and report on how they affect the relevant conclusions either in a preprint on bioRxiv or medRxiv, or if appropriate, as a Research Advance in eLife, either of which would be linked to the original paper.

Summary:

Hartsough et al. present a method to optogenetically control the production of colanic acid (CA) from a genetically engineered E. coli strain. Using this E. coli strain as a feed for C. elegans, the authors show CA production directly in the animal gut and its local effects in altering mitochondrial dynamics in the gut. The authors corroborate findings from a previous publication from Han et al., 2017, showing effects on C. elegans lifespan and intestinal mitochondrial network.

The concept of modifying host biology via optogenetic control of gut flora is novel and would be fitting for the scope of eLife. However, the reviewers had some concerns regarding some of the claims regarding biological insights as presented. Given the current COVID-19 situation, we feel that asking for additional experiments and novel biological findings would be beyond the scope of a revision, but the reviewers suggested that additional data or edits may help clarify how this work is distinct from Han et al., 2017, why an optogenetic approach is better than the standard genetic approaches and what the strength and weaknesses of this approach are.

Essential revisions:

1) One of the key claims made by the authors is that the optogenetic approach allows for more fine scale control of metabolite production and further that they "investigate how the lifespan extending effect of CA relates to CA levels". However, aside from one ex vivo assay (Results, Figure 2B/C), the amount of CA being secreted (or taken up by the host) is not reported. The authors claim, but don't actually show a relationship of lifespan with CA level, just green-light intensity. The relative CA production levels of the engineered strains under green light vs. the over-producing mutants should ideally be quantified and both compared to realistic exposure levels in vivo of conventionally grown C. elegans. If this cannot be done without additional experiments, the authors should be careful to temper their claims here.

2) A related concern is how do the authors know that the effects are not mediated by CA produced and secreted on plates. They attempt to answer this question using levamisole paralyzed worms – but the mitochondrial morphology of paralyzed worms seems very different (hyper fragmented, Figure 3D) form non-paralyzed – as the authors themselves concede. I agree that there appears to be some rescue effect in MVK29 exposed to green light – but it would be preferable to show benefits of in situ expression without the overlaying levamisole detriment.

3) The mitochondrial fragmentation results are obviously motivated by the findings in Han et al., 2017, but are not well introduced/explained. In the fifth paragraph of the Results it is stated that exposure to light-induced CA secretion increases fragmentation. But in the next paragraph that light-induced CA secretion decreases mitochondrial fragmentation caused by levamisole treatment. The interpretation of these conflicting results-and their relevance to other systems lacking stress induced mitochondrial fragmentation-is unclear and should be more clearly discussed.

4) In addition to local effects in the gut, were the authors able to see effects in distal tissues? An experiment investigating effects of light-induced CA production in the gut, affecting body wall muscle mitochondrial network similar to Han et al., 2017, could strengthen the current manuscript and show expected systemic effects of CA and not just local.

5) This work relies on a non-standard gut microbe for C. elegans and requires that the animals be paralyzed to maintain colonization through measurement. This is addressed only in passing in the Discussion, but altogether still gives pause. Yes, E. coli is "this important Gram-positive model bacterium," but it isn't in fact a very important bacterium to this host. Limitations and open questions that should be made explicitly are: Whether host uptake of metabolites produced by a symbiont would differ from that of a food source, whether/how this approach could be extended to bacteria other than E. coli and how such interactions might play out in a community context and whether / how optogenetics could be used to study this question.

6) As a standard C. elegans feeding strain, OP50 is naturally lon deficient. Can the authors comment on the levels of CA production from their light-induced methods as compared to the regular OP50? If no such data is available, this should still be discussed.

7) The authors make a claim regarding the relative magnitude of lifespan effects of purified CA vs. CA produced using their optogenetic approach. However, it appears that claim is based on comparison of lifespan effects with previously published results. Such comparisons are risky because differences in lab, feeding conditions, and strain. It would also have been preferable to have a CA "fed" control and it would further have been interesting to carry out a study of optogenetic induction in the presence of exogenous CA. In the absence of a CA fed control, the authors should be careful with their claims regarding effect size.

8) There were some concerns over the exclusive use of GFP with a mito targeting sequence as the reporter because this only labels mitochondria if they are functionally importing the GFP. In addition there seems to be a lot of noise from intestinal gut granules and aggregates in Figure 3B. These data could be improved if an additional label of mitochondria was used – either a membrane marker or dye, in order to ensure the changes seen are reflecting changes to mitochondrial network morphology and not GFP aggregation, or non-mitochondrial localized GFP signal. The authors should be careful to make these limitations clear.

9) Lifespan of control and treated animals in general appear shorter than would be expected. E.g. in Figure 4, the lifespan of worms fed the E. coli background strain JW1935-1 is considerably short. Can the authors comment on any previous studies with C. elegans lifespan on this strain and if this is expected? Are there other optogenetic background strains available?

https://doi.org/10.7554/eLife.56849.sa1

Author response

Essential revisions:

1) One of the key claims made by the authors is that the optogenetic approach allows for more fine scale control of metabolite production and further that they "investigate how the lifespan extending effect of CA relates to CA levels". However, aside from one ex vivo assay (Results, Figure 2B/C), the amount of CA being secreted (or taken up by the host) is not reported. The authors claim, but don't actually show a relationship of lifespan with CA level, just green-light intensity. The relative CA production levels of the engineered strains under green light vs. the over-producing mutants should ideally be quantified and both compared to realistic exposure levels in vivo of conventionally grown C. elegans. If this cannot be done without additional experiments, the authors should be careful to temper their claims here.

We appreciate the reviewer’s comment on the comparison of CA levels among different conditions. Technically, it is currently impossible to measure CA levels in bacteria grow on solid agar plates or in the worm gut, or in the host cells. Thus, our conclusion is based on the ex vivo assay using liquid culture and the positive relationship between green-light intensity and the amount of CA being secreted. Based on the reviewer’s suggestion, we have revised the text to explicitly state this relationship. In addition, we have included new results presenting a direct comparison of CA levels between the Δlon mutant and the light inducible strain (new Figure 4A).

2) A related concern is how do the authors know that the effects are not mediated by CA produced and secreted on plates. They attempt to answer this question using levamisole paralyzed worms – but the mitochondrial morphology of paralyzed worms seems very different (hyper fragmented, Figure 3D) form non-paralyzed – as the authors themselves concede. I agree that there appears to be some rescue effect in MVK29 exposed to green light – but it would be preferable to show benefits of in situ expression without the overlaying levamisole detriment.

We understand the reviewer’s concern on the possible confounding effect of levamisole. We agree that levamisole is an imperfect means by which to paralyze the worms, resulting in undesired changes to host mitochondrial morphology. Unfortunately, host paralysis and cessation of host peristaltic activity is required to measure the effect of CA production in vivo; otherwise, bacteria would be expelled before sufficient amount of CA accumulated to affect mitochondrial morphology in the host. We have tried several alternative means of immobilizing the host for this experiment, and only levamisole is sufficient to stop bacteria expulsion from the gut and keeps worms alive after 6 hours of the treatment.

Regarding the concern that CA may be produced on the plate instead of in the host, in the context of Figure 3 (new Figure 3E and F), note that neither bacteria nor worms on the plate are exposed to green light (which induces CA production). Worms are only exposed to green light after they have been removed from the plate and paralyzed. Thus, we conclude that the effect on mitochondrial morphology is mediated by CA produced from bacteria inside the host gut. In the context of Figure 4, we expect that CA produced from bacteria on the plate and in the host gut both contribute to the lifespan-extending effect. Currently, we cannot experimentally separate these two processes. In the revised manuscript, we have included new diagram figure panels to illustrate the experimental design (new Figure 3A and D) and improved the language to introduce the experimental design more clearly and increase the textual clarity of the related claims.

3) The mitochondrial fragmentation results are obviously motivated by the findings in Han et al., 2017, but are not well introduced/explained. In the fifth paragraph of the Results it is stated that exposure to light-induced CA secretion increases fragmentation. But in the next paragraph that light-induced CA secretion decreases mitochondrial fragmentation caused by levamisole treatment. The interpretation of these conflicting results-and their relevance to other systems lacking stress induced mitochondrial fragmentation-is unclear and should be more clearly discussed.

Thank the reviewer for pointing out this concern. We have revised the manuscript to (1) better introduce the previously published findings, (2) explain the new results more clearly, and (3) discuss the potential difference between these two conditions.

4) In addition to local effects in the gut, were the authors able to see effects in distal tissues? An experiment investigating effects of light-induced CA production in the gut, affecting body wall muscle mitochondrial network similar to Han et al., 2017, could strengthen the current manuscript and show expected systemic effects of CA and not just local.

As the reviewer suggested, we have examined the effect of CA on mitochondrial morphology in the muscle using day-2-old young adults. We found that light-induced CA production from the gut bacteria does not affect muscular mitochondria. We conclude that (1) CA acts locally in intestinal cells, and (2) the protective effect of CA against age-associated fragmentation in muscular mitochondria that we observed previously (Han et al., 2017) is likely associated with the lifespan extending effect of CA, which may be secondary to the change in the intestine. We thank the reviewer for his/her suggestion, which help us distinguish the local effect of CA in the intestine and its systemic effect on other tissues.

5) This work relies on a non-standard gut microbe for C. elegans and requires that the animals be paralyzed to maintain colonization through measurement. This is addressed only in passing in the Discussion, but altogether still gives pause. Yes, E. coli is "this important Gram-positive model bacterium," but it isn't in fact a very important bacterium to this host. Limitations and open questions that should be made explicitly are: Whether host uptake of metabolites produced by a symbiont would differ from that of a food source, whether/how this approach could be extended to bacteria other than E. coli and how such interactions might play out in a community context and whether / how optogenetics could be used to study this question.

We appreciate the insightful suggestions from the reviewer to discuss the application of this new method in natural endosymbiont bacteria beyond E. coli. In the

Discussion, we note that we have recently demonstrated optogenetic control of gene expression in Bacillus subtilis, and suggest its possible application in studying Gram-positive bacterial-host interactions and longevity. Based on the reviewer’s suggestion, we have included additional discussions on 1) the difference in metabolite uptake from a symbiont and a food source, 2) the application of the E. coli optogenetic approach in host organisms where E. coli is a natural symbiont, 3) the development of new optogenetic approaches in different bacterial systems.

6) As a standard C. elegans feeding strain, OP50 is naturally lon deficient. Can the authors comment on the levels of CA production from their light-induced methods as compared to the regular OP50? If no such data is available, this should still be discussed.

Thank the reviewer for the suggestion. We haven’t directly compared to the level of CA from OP50 and the light-inducible bacterial strain. In the Han et al., 2017 paper, we reported that OP50 shows a 50% higher CA level than BW25113 and Δlon shows a 4-fold higher CA level than BW25113. In the current work, we found that the CA levels from Δlon and the light-inducible strain are similar (new Figure 4A). Based on this comparison, we conclude that the level of CA production from OP50 is lower than that from the light-inducible strain. We have included these information (subsection “Optogenetic control of CA production”).

7) The authors make a claim regarding the relative magnitude of lifespan effects of purified CA vs. CA produced using their optogenetic approach. However, it appears that claim is based on comparison of lifespan effects with previously published results. Such comparisons are risky because differences in lab, feeding conditions, and strain. It would also have been preferable to have a CA "fed" control and it would further have been interesting to carry out a study of optogenetic induction in the presence of exogenous CA. In the absence of a CA fed control, the authors should be careful with their claims regarding effect size.

We appreciate the reviewer’s comment. In our experiments (Figure 4), we have chosen the Δlon mutant as a positive control and a comparative reference for the effect of CA produced using the optogenetic approach, since the lifespan-extending effect of Δlon is stronger than CA supplementation and CA supplementation does not enhance the lifespan extension by the loss of lon (as shown in the Han et al., 2017 paper). In Figure 4 and Supplementary file 1C, all the lifespan assays were conducted in parallel for direct comparison. We found that the lifespan extension caused by the light-inducible strain is comparable to that caused by Δlon. Based on light-inducible = Δlon (in this work) and Δlon > CA (Han et al., 2017), we concluded that light-inducible > CA. We agree with the reviewer that we should be more careful with our claims, since we did not directly include CA supplementation as a control. We have revised text in the Introduction and Results to state this claim more precisely.

8) There were some concerns over the exclusive use of GFP with a mito targeting sequence as the reporter because this only labels mitochondria if they are functionally importing the GFP. In addition there seems to be a lot of noise from intestinal gut granules and aggregates in Figure 3B. These data could be improved if an additional label of mitochondria was used – either a membrane marker or dye, in order to ensure the changes seen are reflecting changes to mitochondrial network morphology and not GFP aggregation, or non-mitochondrial localized GFP signal. The authors should be careful to make these limitations clear.

We appreciate the reviewer’s suggestion, and we have conducted this experiment using another RFP reporter that localized to the mitochondrial membrane, in which the Nterminal 55 amino acids sequence of C. elegans tomm-20 is fused with RFP. Using this new reporter, we have validated the results using mito-GFP (new Figure 3C, E and Figure 3—figure supplement 1).

9) Lifespan of control and treated animals in general appear shorter than would be expected. E.g. in figure 4, the lifespan of worms fed the E. coli background strain JW1935-1 is considerably short. Can the authors comment on any previous studies with C. elegans lifespan on this strain and if this is expected? Are there other optogenetic background strains available?

Thank the reviewer for pointing this out. We are sorry that we did not explain this experimental design more clearly. The lifespan assay was conducted at 26 degrees using the sqt-3(e2117) temperature sensitive mutant that reproduces normal but is embryonically lethal at 26 degrees. In this way, we can perform the experiment at the restrictive temperature to avoid animal transfer that causes white light exposure, while not using floxuridine/FUDR that interrupts normal reproduction and alters bacterial metabolism. We have used this method previously in the Han et al., 2017 paper, and the mean lifespan is 8.7 ± 0.1 days. Thus, the lifespan, ~6.5 days, shown in Figure 4 is slightly shorter. We think this is not due to the E. coli strain background given that the lifespan of Δlon is also shorter, ~ 9 days (this work) vs. ~11 days (in Han et al., 2017). The possible explanation is that light exposure may shorten the lifespan of C. elegans (PMID: 29500338). In the revised manuscript, we have explained the experimental design more clearly (subsection “Lifespan experiments”) and included the temperature information in figure panels (new Figure 4B-D).

https://doi.org/10.7554/eLife.56849.sa2

Article and author information

Author details

  1. Lucas A Hartsough

    Department of Bioengineering, Houston, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  2. Mooncheol Park

    Huffington Center on Aging, Houston, United States
    Contribution
    Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  3. Matthew V Kotlajich

    Department of Bioengineering, Houston, United States
    Contribution
    Conceptualization, Data curation, Methodology
    Competing interests
    No competing interests declared
  4. John Tyler Lazar

    Department of Chemical and Biomolecular Engineering, Houston, United States
    Contribution
    Data curation, Formal analysis, Validation, Investigation, Methodology
    Competing interests
    No competing interests declared
  5. Bing Han

    Huffington Center on Aging, Houston, United States
    Present address
    Children's Hospital & Institutes of Biomedical Sciences, Fudan University, Shanghai, China
    Contribution
    Conceptualization, Validation, Investigation, Visualization, Methodology
    Competing interests
    No competing interests declared
  6. Chih-Chun J Lin

    1. Huffington Center on Aging, Houston, United States
    2. Department of Molecular & Human Genetics, Baylor College of Medicine, Houston, United States
    Present address
    Department of Molecular Biology and Genetics, Cornell University, Ithaca, United States
    Contribution
    Data curation, Formal analysis, Investigation, Visualization, Methodology
    Competing interests
    No competing interests declared
  7. Elena Musteata

    Systems, Synthetic, and Physical Biology Program, Rice University, Houston, United States
    Contribution
    Validation
    Competing interests
    No competing interests declared
  8. Lauren Gambill

    Systems, Synthetic, and Physical Biology Program, Rice University, Houston, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1490-2449
  9. Meng C Wang

    1. Huffington Center on Aging, Houston, United States
    2. Department of Molecular & Human Genetics, Baylor College of Medicine, Houston, United States
    3. Howard Hughes Medical Institute, Houston, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Funding acquisition, Writing - original draft, Writing - review and editing
    For correspondence
    wmeng@bcm.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5898-6007
  10. Jeffrey J Tabor

    1. Department of Bioengineering, Houston, United States
    2. Systems, Synthetic, and Physical Biology Program, Rice University, Houston, United States
    3. Department of Biosciences, Houston, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Investigation, Writing - original draft, Writing - review and editing
    For correspondence
    jeff.tabor@gmail.com
    Competing interests
    No competing interests declared

Funding

National Institutes of Health (1R21NS099870-01)

  • Jeffrey J Tabor

National Institutes of Health (DP1DK113644)

  • Meng C Wang

National Institutes of Health (R01AT009050)

  • Meng C Wang

National Aeronautics and Space Administration (NSTRF NNX11AN39H)

  • Lucas A Hartsough

John S. Dunn Foundation

  • Meng C Wang
  • Jeffrey J Tabor

Welch Foundation

  • Meng C Wang
  • Jeffrey J Tabor

National Institutes of Health (R01AG062257)

  • Meng C Wang

Howard Hughes Medical Institute

  • Meng C Wang

National Defense Science and Engineering Graduate

  • John Tyler Lazar

National Science Foundation (Research Fellowship)

  • Elena Musteata

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The LED array used to illuminate C. elegans plates was designed by Brian Landry and Sebastián Castillo-Hair. The mounting hardware for the microscope LED array was designed by Ravi Sheth. We thank Ravi Sheth for discussions during early stages of the project. We thank Dr. Joel Moake for the use of his cytometer. This work was supported by the John S Dunn Foundation (JJT and MCW), the Welch Foundation (JJT and MCW), the US National Institutes of Health 1R21NS099870-01 (JJT), DP1DK113644 (MCW), R01AT009050 (MCW), R01AG062257 (MCW), and the Howard Hughes Medical Institute (MCW). LAH was supported by a NASA Office of the Chief Technologist Space Technology Research Fellowship (NSTRF NNX11AN39H). JTL was supported by a US National Defense Science and Engineering Graduate Fellowship. EM was supported by a US National Science Foundation Graduate Research Fellowship.

Senior Editor

  1. Jessica K Tyler, Weill Cornell Medicine, United States

Reviewing Editor

  1. Jan Gruber, Yale-NUS College, Singapore

Reviewer

  1. William Mair, Harvard T H Chan School of Public Health, United States

Publication history

  1. Received: March 12, 2020
  2. Accepted: December 7, 2020
  3. Version of Record published: December 16, 2020 (version 1)

Copyright

© 2020, Hartsough et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 5,953
    Page views
  • 836
    Downloads
  • 33
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Lucas A Hartsough
  2. Mooncheol Park
  3. Matthew V Kotlajich
  4. John Tyler Lazar
  5. Bing Han
  6. Chih-Chun J Lin
  7. Elena Musteata
  8. Lauren Gambill
  9. Meng C Wang
  10. Jeffrey J Tabor
(2020)
Optogenetic control of gut bacterial metabolism to promote longevity
eLife 9:e56849.
https://doi.org/10.7554/eLife.56849

Further reading

    1. Developmental Biology
    2. Neuroscience
    Sweta Parab, Olivia A Card ... Ryota L Matsuoka
    Research Article Updated

    Fenestrated and blood-brain barrier (BBB)-forming endothelial cells constitute major brain capillaries, and this vascular heterogeneity is crucial for region-specific neural function and brain homeostasis. How these capillary types emerge in a brain region-specific manner and subsequently establish intra-brain vascular heterogeneity remains unclear. Here, we performed a comparative analysis of vascularization across the zebrafish choroid plexuses (CPs), circumventricular organs (CVOs), and retinal choroid, and show common angiogenic mechanisms critical for fenestrated brain capillary formation. We found that zebrafish deficient for Gpr124, Reck, or Wnt7aa exhibit severely impaired BBB angiogenesis without any apparent defect in fenestrated capillary formation in the CPs, CVOs, and retinal choroid. Conversely, genetic loss of various Vegf combinations caused significant disruptions in Wnt7/Gpr124/Reck signaling-independent vascularization of these organs. The phenotypic variation and specificity revealed heterogeneous endothelial requirements for Vegfs-dependent angiogenesis during CP and CVO vascularization, identifying unexpected interplay of Vegfc/d and Vegfa in this process. Mechanistically, expression analysis and paracrine activity-deficient vegfc mutant characterization suggest that endothelial cells and non-neuronal specialized cell types present in the CPs and CVOs are major sources of Vegfs responsible for regionally restricted angiogenic interplay. Thus, brain region-specific presentations and interplay of Vegfc/d and Vegfa control emergence of fenestrated capillaries, providing insight into the mechanisms driving intra-brain vascular heterogeneity and fenestrated vessel formation in other organs.

    1. Developmental Biology
    Arun Devotta, Hugo Juraver-Geslin ... Jean-Pierre Saint-Jeannet
    Research Article Updated

    Natriuretic peptide signaling has been implicated in a broad range of physiological processes, regulating blood volume and pressure, ventricular hypertrophy, fat metabolism, and long bone growth. Here, we describe a completely novel role for natriuretic peptide signaling in the control of neural crest (NC) and cranial placode (CP) progenitors formation. Among the components of this signaling pathway, we show that natriuretic peptide receptor 3 (Npr3) plays a pivotal role by differentially regulating two developmental programs through its dual function as clearance and signaling receptor. Using a combination of MO-based knockdowns, pharmacological inhibitors and rescue assays we demonstrate that Npr3 cooperate with guanylate cyclase natriuretic peptide receptor 1 (Npr1) and natriuretic peptides (Nppa/Nppc) to regulate NC and CP formation, pointing at a broad requirement of this signaling pathway in early embryogenesis. We propose that Npr3 acts as a clearance receptor to regulate local concentrations of natriuretic peptides for optimal cGMP production through Npr1 activation, and as a signaling receptor to control cAMP levels through inhibition of adenylyl cyclase. The intracellular modulation of these second messengers therefore participates in the segregation of NC and CP cell populations.
