Regulation of canonical Wnt signalling by the ciliopathy protein MKS1 and the E2 ubiquitin-conjugating enzyme UBE2E1

  1. Katarzyna Szymanska
  2. Karsten Boldt
  3. Clare V Logan
  4. Matthew Adams
  5. Philip A Robinson
  6. Marius Ueffing
  7. Elton Zeqiraj
  8. Gabrielle Wheway  Is a corresponding author
  9. Colin A Johnson  Is a corresponding author
  1. Leeds Institute of Medical Research, School of Medicine, University of Leeds, United Kingdom
  2. Institute of Ophthalmic Research, Center for Ophthalmology, University of Tübingen, Germany
  3. Astbury Centre for Structural Molecular Biology, School of Molecular and Cellular Biology, Faculty of Biological Sciences, University of Leeds, United Kingdom
  4. Faculty of Medicine, University of Southampton, Human Development and Health, UK, United Kingdom
  5. University Hospital Southampton NHS Foundation Trust, United Kingdom

Abstract

Primary ciliary defects cause a group of developmental conditions known as ciliopathies. Here, we provide mechanistic insight into ciliary ubiquitin processing in cells and for mouse model lacking the ciliary protein Mks1. In vivo loss of Mks1 sensitises cells to proteasomal disruption, leading to abnormal accumulation of ubiquitinated proteins. We identified UBE2E1, an E2 ubiquitin-conjugating enzyme that polyubiquitinates β-catenin, and RNF34, an E3 ligase, as novel interactants of MKS1. UBE2E1 and MKS1 colocalised, and loss of UBE2E1 recapitulates the ciliary and Wnt signalling phenotypes observed during loss of MKS1. Levels of UBE2E1 and MKS1 are co-dependent and UBE2E1 mediates both regulatory and degradative ubiquitination of MKS1. We demonstrate that processing of phosphorylated β-catenin occurs at the ciliary base through the functional interaction between UBE2E1 and MKS1. These observations suggest that correct β-catenin levels are tightly regulated at the primary cilium by a ciliary-specific E2 (UBE2E1) and a regulatory substrate-adaptor (MKS1).

Editor's evaluation

It has long been recognized that ciliary dysfunction leads to increased canonical Wnt signaling but the mechanism has been elusive. Your work connecting β-catenin stability to Mks1 through Ube2e1 is an important advance in understanding this mechanism. I am certain that your work will stimulate more effort in this important area.

https://doi.org/10.7554/eLife.57593.sa0

Introduction

Primary cilia are microtubule-based organelles that sense and transduce extracellular signals on many mammalian cells. The cilium has essential roles throughout development during mechanosensation (Praetorius and Spring, 2001; Nauli et al., 2003), in transduction of multiple signalling pathways (Huangfu et al., 2003; Simons et al., 2005; Schneider et al., 2005) and in the establishment of left-right asymmetry (Nonaka et al., 1998). Primary cilia have a complex ultrastructure with compartmentalisation of molecular components that together form functional modules. Mutations in proteins that are structural or functional components of the primary cilium cause a group of human inherited developmental conditions known as ciliopathies (Adams et al., 2008). Examples of ciliopathies include Meckel-Gruber syndrome (MKS) and Joubert syndrome (JBTS). Many proteins that are mutated in ciliopathies, including the MKS1 protein (Szymanska and Johnson, 2012; Reiter et al., 2012), localise to the transition zone (TZ), a compartment of the proximal region of the cilium. Mutations in the MKS1 gene cause about 15% of MKS, a lethal neurodevelopmental condition that is the most severe ciliopathy (Khaddour et al., 2007).

The MKS1 protein contains a B9/C2 domain with homologies to the C2 (calcium/lipid-binding) domain of the synaptotagmin-like and phospholipase families (Kyttälä et al., 2006). MKS1 interacts with TMEM67, the transmembrane receptor encoded by the TMEM67 gene (Dawe et al., 2007), and two other B9/C2-domain containing proteins, B9D1 and B9D2 (Gupta et al., 2015). B9D1, B9D2, and MKS1 are predicted to bind lipids in the ciliary membrane, and all three have been shown to localise at the ciliary TZ (Bialas et al., 2009) forming components of a functional module (known as the ‘MKS-JBTS module’). This module contains other transmembrane proteins (TMEMs), namely the Tectonic proteins (TCTN1-3), TMEM17, TMEM67, TMEM231, and TMEM237, as well as other C2-domain proteins (jouberin, RPGRIP1L, and CC2D2A) (Garcia-Gonzalo et al., 2011; Sang et al., 2011; Huang et al., 2011). TZ proteins are thought to form a diffusion barrier at the base of the cilium that restricts entrance and exit of both membrane and soluble proteins (Garcia-Gonzalo and Reiter, 2012). The compartmentalisation of the cilium is essential for the regulated translocation of signalling intermediates, most notably during Sonic hedgehog (Shh) signalling (Chih et al., 2011), and mutations of TZ components invariably cause Shh signalling defects during development (Weatherbee et al., 2009). For example, mouse embryos from the Mks1Krc knock-out mutant line have severe Shh signalling and left-right patterning defects during early embryonic development (Weatherbee et al., 2009). Previously, we have described the Mks1 knock-out mouse line, for which mutant embryos have deregulated, increased canonical Wnt/β-catenin signalling and increased proliferation defects in the cerebellar vermis and kidney (Wheway et al., 2013).

Other studies have shown that the ciliary apparatus restricts the activity of canonical Wnt/β-catenin signalling (Corbit et al., 2008; Lancaster et al., 2011; Simons et al., 2005), although the mechanistic detail by which signal transduction is regulated remains unclear. One regulatory pathway involves the ciliary TZ protein jouberin (also known as AHI1), which shuttles β-catenin between the cytosol and nucleus in order to regulate Wnt signalling (Lancaster et al., 2011). However, ubiquitin-dependent proteasomal degradation by the ubiquitin-proteasome system (UPS) is the best-characterised mechanism for regulating canonical Wnt signalling (Aberle et al., 1997). In the absence of a Wnt signal, cytoplasmic β-catenin is phosphorylated in a complex of proteins (referred to as the destruction complex) that include axin, adenomatous polyposis coli (APC), and glycogen synthase kinase 3 (GSK-3)(Ikeda et al., 1998; Munemitsu et al., 1995; Rubinfeld et al., 1996). Subsequent ubiquitination of β-catenin leads to its degradation by the proteasome, meaning that in the absence of Wnt signalling the steady state levels of cytoplasmic β-catenin are low. Part of this regulation appears to be mediated by a functional association of the ciliary apparatus with the UPS (Gerdes et al., 2007), and UPS components have been shown to interact with ciliopathy proteins (e.g. USP9X and lebercilin) (den Hollander et al., 2007). RPGRIP1L (a ciliary TZ protein mutated in a range of ciliopathies including MKS and JBTS) has been reported to interact with the proteasome proteins, PSMD3 and PSMD5 (Gerhardt et al., 2015). Furthermore, discrete localisation of ubiquitin has been observed at the ciliary base suggesting that UPS processing can be constrained and regulated by the cilium (Gerhardt et al., 2015). However, the mechanistic basis to substantiate the association between the UPS and ciliary apparatus remains unclear and, in particular, it is unknown if the pathomechanism of Wnt signalling defects in ciliopathies depends on defective regulation of β-catenin localisation and processing by ciliary proteins.

Here, we describe the interaction and functional association of MKS1 with ciliary UPS components, specifically the E2 ubiquitin-conjugating enzyme UBE2E1 (also known as UbcH6) and the E3 ubiquitin ligating enzyme RNF34. In addition to ciliogenesis defects, loss of MKS1 causes deregulation of both proteasome activity and canonical Wnt/β-catenin signalling. These cellular phenotypes are also observed after loss of UBE2E1. MKS1 and UBE2E1 colocalise during conditions of cilia resorption, and levels of MKS1 and UBE2E1 are co-dependent. We show that in the absence of MKS1, levels of ubiquitinated proteins, including β-catenin, are increased. Furthermore, polyubiquitination of MKS1 is dependent on both UBE2E1 and RNF34, and lysine (Lys)63-linked polyubiquitination of MKS1 is dependent on UBE2E1. This suggests that regulation of intracellular signalling, specifically canonical Wnt/β-catenin signalling, can be regulated and constrained at the primary cilium by a ciliary-specific E2 and MKS1, a substrate-adaptor.

Results

Mks1 mutation causes deregulation of proteasome activity

Loss of ciliary basal body proteins perturbs both UPS function and Wnt signalling (Gerdes et al., 2007), and we have previously reported de-regulated increases of canonical Wnt signalling in Mks1-/- mutant mice (Wheway et al., 2013). To investigate the mechanistic basis for regulation of canonical Wnt/β-catenin signalling and possible UPS processing of β-catenin by a ciliary protein, we first characterised these processes in cells and tissues lacking functional MKS1. We derived immortalised dermal fibroblasts from a human MKS patient, carrying compound heterozygous MKS1 mutations [c.472C > T]+[IVS15-7_35del29] causing the predicted nonsense and splice-site null mutations [p.R158*]+[p.P470fs*562] (Khaddour et al., 2007; Figure 1—figure supplement 1a) leading to loss of MKS1 protein (Figure 1—figure supplement 1b-c). MKS1-mutated fibroblasts had decreased cilia incidence and length (Figure 1—figure supplement 1d), and de-regulated canonical Wnt/β-catenin signalling (Figure 1a). MKS1-mutated fibroblasts had moderately increased levels of total β-catenin and the Wnt downstream target cyclin D1 (Figure 1a). SUPER-TOPFlash reporter assays confirmed that increased levels of β-catenin in MKS1-mutated fibroblasts caused de-regulated increases in canonical Wnt signalling in response to Wnt3a (a canonical Wnt ligand; Figure 1b). Treatment with the non-specific proteasome inhibitor MG-132 also increased levels of phosphorylated β-catenin (Figure 1a). Since β-catenin is phosphorylated to mark it for processing by the 26 S proteasome, we also tested if proteasome enzymatic activity was affected in MKS1-mutated fibroblasts. We observed increased proteasome activity, which was inhibited by treatment with lactacystin that targets the 20 S catalytic core of the proteasome, as well as moderate increased levels of the proteasome subunit α7 (Figure 1c). This was accompanied by increased levels of mono- and poly-ubiquitinated proteins in the MKS1-mutated fibroblasts following protease inhibition (Figure 1—figure supplement 1e).

Figure 1 with 2 supplements see all

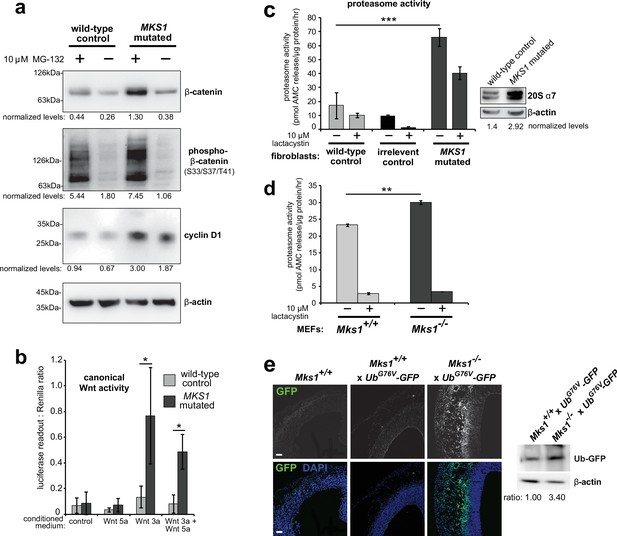

Deregulation of canonical Wnt signalling and proteasome activity following loss or mutation of MKS1.

(a) Immunoblots for total soluble β-catenin, phospho-β-catenin, cyclin D1 and β-actin (loading control) in either wild-type normal or MKS1-mutated immortalised human fibroblasts from an MKS patient (MKS-562) following treatment with MG-132 proteasome inhibitor (+) or vehicle control (-). (b) SUPER-TOPFlash assays of canonical Wnt signalling activity in human MKS1-mutated fibroblasts compared to wild-type control fibroblasts following treatment with control conditioned medium, Wnt5a, Wnt3a, or a mixture of Wnt3a and Wnt5a media, as indicated. Statistical significance of pairwise comparisons is shown (* indicates p < 0.05, paired two-tailed Student t-test). Error bars indicate s.e.m. with results shown for four independent biological replicates. (c) Proteasome activity assays for wild-type or MKS1-mutated human fibroblasts or an irrelevant control (ASPM-mutant fibroblasts), following treatment with c-lactacystin-β-lactone (+) or vehicle control (-). Statistical significance of pairwise comparison as for (b); *** indicates p < 0.001 for three independent biological replicates. Immunoblots show levels of the 20 S proteasome α7 subunit compared to β-actin loading control. (d) Protease activity assays of crude proteasome preparations from Mks1+/+ or Mks1-/- mouse embryonic fibroblasts (MEFs), expressed as pmol AMC released per µg proteasome per hr. Treatment with lactacystin is the assay control. Statistical analysis as for (b); ** indicates p < 0.01 for three independent biological replicates. (e) Accumulation of GFP-tagged ubiquitin (GFP; green) in Mks1-/- x UbG76V-GFP E12.5 embryonic cerebral neocortex treated with MG-262 proteasome inhibitor. Immunoblot for GFP in Mks1-/- x UbG76V-GFP and wild-type littermate E12.5 embryo protein lysates, with immunoblotting for β-actin as a loading control, showing accumulation of GFP-tagged ubiquitin (Ub-GFP) in Mks1-/-.

Figure 1—source data 1

Characterisation of MKS1-mutated human patient fibroblasts: full western blots.

https://cdn.elifesciences.org/articles/57593/elife-57593-fig1-data1-v2.pdf

To substantiate an in vivo association between de-regulated canonical Wnt signalling and proteasome activity in the ciliopathy disease state, we crossed the Mks1 knock-out mouse line (Wheway et al., 2013) with the UbG76V-GFP transgenic reporter line. UbG76V-GFP constitutively degrades GFP-ubiquitinated proteins, leading to an absence of GFP signal if proteasome processing is unimpaired (Lindsten et al., 2003). Confirming our observations with human MKS1-mutated fibroblasts, Mks1-/- x UbG76V-GFP mouse embryonic fibroblasts (MEFs) also had de-regulated proteasome enzymatic activity (Figure 1d) compared to Mks1+/+ x UbG76V-GFP wild-type littermate MEFs. Furthermore, after intra-peritoneal injection of MG-262 into pregnant dams at E11.5, Mks1-/- x UbG76V-GFP mutant embryos at embryonic day E12.5 had increased levels of GFP, detected by both epifluorescence confocal microscopy and western blotting, in the neocortex (Figure 1e) and other tissues (Figure 1—figure supplement 2) compared to wild-type littermate controls. This suggests that in mutant mice abnormally high levels of polyubiquitinated proteins stimulate increased proteasome function (Figure 1d) that facilitates protein degradation and maintenance of correct levels of polyubiquitinated proteins in the cell. Upon proteasome inhibition, GFP-polyubiquitinated proteins accumulated in mutant mice tissues, indicating that there is a defect of abnormal increased protein polyubiquitination in mice lacking Mks1. Furthermore, these defects accompanied increased levels of active β-catenin in the neuroepithelium of Mks1-/- x UbG76V-GFP mutant ventricular zone (Figure 1—figure supplement 2).

MKS1 interacts with the E2 ubiquitin-conjugation enzyme UBE2E1, with colocalisation during cilia resorption

To understand why mutation or loss of MKS1 causes de-regulated increases of both proteasome activity and canonical Wnt/β-catenin signalling, we sought to identify MKS1-interacting proteins. We performed a yeast two-hybrid screen using amino acids 144–470 of MKS1 that contain the B9/C2 domain as bait (Figure 2a) and identified the E2 ubiquitin conjugation enzyme UBE2E1 (also known as UbcH6) (Hong et al., 2008) as an interactant of MKS1 (Figure 2b). We confirmed this interaction by a ‘one-to-one’ yeast two-hybrid assay (Figure 2c). Additionally, we identified the E3 ubiquitin ligase RNF34 and confirmed its interaction and colocalisation with MKS1 (Figure 2—figure supplement 1). In support of a possible role of MKS1 in regulating ubiquitinated signalling proteins, UBE2E1 has been described to function as an E2 with the E3 JADE-1 during the ubiquitination of β-catenin (Chitalia et al., 2008). We therefore further substantiated the interaction of UBE2E1 with MKS1. We purified GST-tagged UBE2E1 and confirmed the interaction between MKS1 and UBE2E1 by a GST pull-down assay (Figure 2d). The interaction between endogenous MKS1 and UBE2E1 was confirmed by co-immunoprecipitations (co-IPs) using anti-MKS1 (Figure 2e). This was further corroborated when an interaction between endogenous UBE2E1 and exogenously expressed cmyc-tagged MKS1 was detected by co-IP with an anti-UBE2E1 antibody (Figure 2f).

Figure 2 with 1 supplement see all

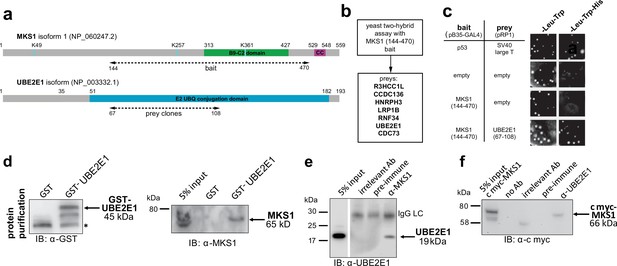

The E2 ubiquitin conjugation enzyme UBE2E1 interacts with MKS1.

(a) Domain structure of MKS1 and UBE2E1 proteins for the indicated isoform showing the locations of the B9/C2 domain, putative ubiquitinated lysines in blue (predicted by UbPred), a predicted coiled-coil (CC) motif, and the E2 ubiquitin (UBQ) conjugation domain in UBE2E1. Numbering indicates the amino acid residue. Dashed lines indicate the region used as ‘bait’ in MKS1 for the yeast two-hybrid assay and the ‘prey’ clones in the UBE2E1 interactant. (b) List of preys identified in the MKS1 Y2H screen (c) Left panel: yeast ‘one-to-one’ assays for the indicated bait, prey and control constructs. Right panel: only colonies for the positive control (p53+ SV40 large T) and MKS1 bait+ UBE2E1 prey grew on triple dropout (-Leu -Trp -His) medium. (d) GST-UBE2E1 purified from bacterial extracts (left panel) pulled down endogenous MKS1 from ARPE19 whole cell extract. (e) Co-immunoprecipitation (co-IP) of endogenous UBE2E1 by rabbit polyclonal anti-MKS1, but not pre-immune serum or an irrelevant antibody (Ab; anti cmyc); IgG light chain (LC) is indicated. (f) Co-IP of exogenously expressed cmyc-MKS1 by anti-UBE2E1 but not pre-immune serum or an irrelevant antibody.

Figure 2—source data 1

The E2 ubiquitin conjugation enzyme UBE2E1 interacts with MKS1: full western blots.

https://cdn.elifesciences.org/articles/57593/elife-57593-fig2-data1-v2.pdf

The UBE2E1-MKS1 interaction is required for cilia resorption

Having confirmed UBE2E1-MKS1 interaction in vitro and in cells, we next assessed if this was important for cilia function. UBE2E1 and MKS1 co-localised at the basal body in a subset of confluent, ciliated hTERT-immortalised retinal pigment epithelium RPE1 and ARPE19 cells during G0 of the cell cycle following serum starvation for 48 hr (Li et al., 2011 Figure 3a–d). Serum starvation, followed by re-addition of serum for 3 hr, caused rapid cilia resorption (Li et al., 2011) with further significant colocalisation of UBE2E1 and MKS1 at the basal body (Figure 3b and d). This suggests that the interaction between MKS1 and UBE2E1 is particularly important during the process of cilia resorption.

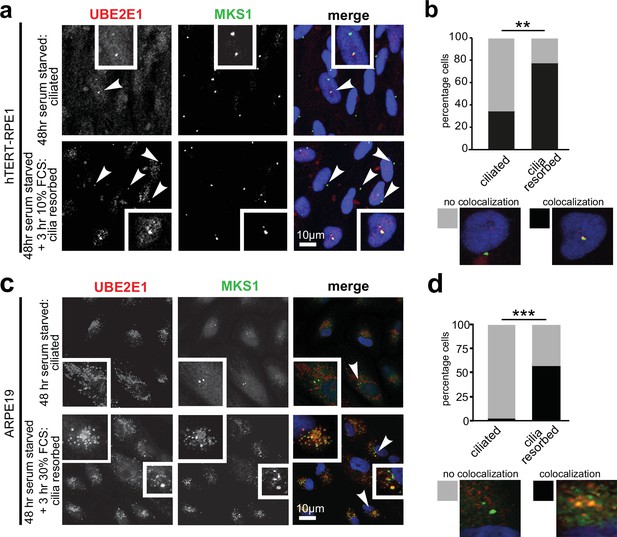

Co-localisation of MKS1 and UBE2E1 under conditions of ciliary resorption.

(a) MKS1 (green) and UBE2E1 (red) partially colocalise at the basal body/centrosome in human wild-type hTERT-RPE1 cells, particularly when induced to resorb cilia by treatment with 10% FCS after 72 hr of serum starvation. White arrowheads indicate cells magnified in insets. Scale bar = 10 µm. (b) Bar graph indicates the percentage of cells in which MKS1 and UBE2E1 co-localise at the basal body (black), and the percentage without co-localisation (grey) for three independent biological replicates, with examples shown of representative cells. (c) Figure details as for (a) showing partial co-localisation of MKS1 and UBE2E1 in human ARPE19 cells. (d) Bar graph details as for (b). Data in (b) and (d) were analysed by two-way ANOVA followed by Tukey’s multiple comparison test (statistical significance of comparisons indicated by ** p < 0.01, *** p < 0.001).

UBE2E1 mutation or loss causes ciliogenesis defects, and de-regulated increases in both proteasome activity and Wnt/β-catenin signalling

Since correct UPS function appears to be required for ciliogenesis (Gerhardt et al., 2015), we next asked if loss or mutation of UBE2E1 had an effect on ciliogenesis. UBE2E1 is an enzyme that transfers ubiquitin to a substrate, with or without the presence of an E3, in a reaction that is dependent on an active enzymatic domain. To assess if enzymatic activity of UBE2E1 is necessary for correct ciliogenesis, we mutated the active site cysteine residue 131 to serine (Nuber et al., 1996) to make a dominant negative (DN) catalytically inactive form of UBE2E1. Over-expression of the Cys131Ser form of UBE2E1 caused significant loss and shortening of cilia in mouse inner medullary collecting duct (mIMCD3) cells (Figure 4a–b), suggesting that catalytically active UBE2E1 is required for normal ciliogenesis. Over-expression of wild-type (WT) UBE2E1 had a moderate dominant negative effect on cilia length only (Figure 4a–b).

Figure 4 with 1 supplement see all

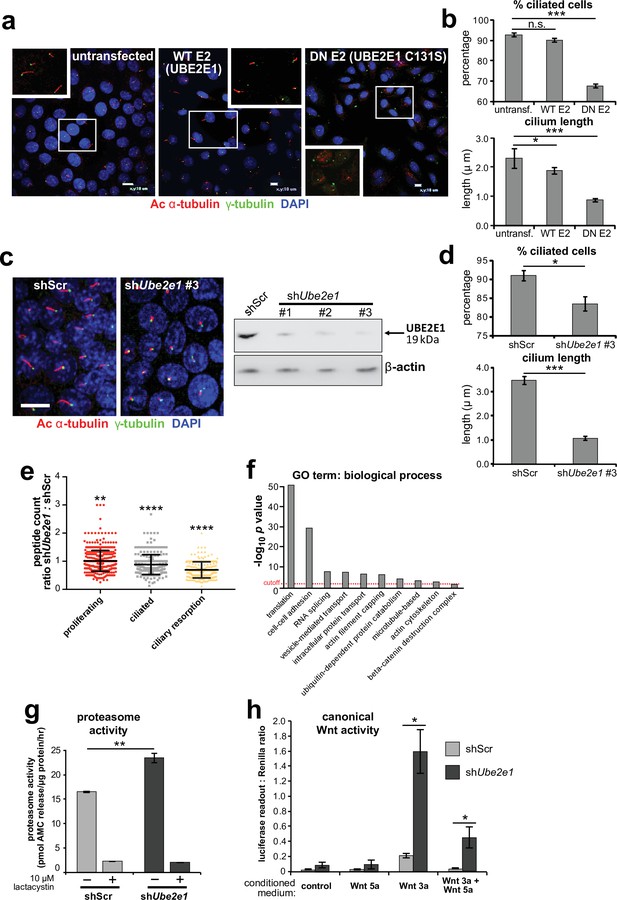

UBE2E1 is required for regulation of ciliogenesis, proteasome activity, and canonical Wnt signalling.

(a) Primary cilia in mIMCD3 cells following transfection with either wild-type (WT) UBE2E1 (E2) or dominant negative (DN) UBE2E1 carrying the active site mutation C131S, compared to mock-transfected negative control. Scale bars = 10 μm. (b) For experiments shown in (a), statistical significance of pairwise comparisons with control (untransf.) for three independent biological replicates are shown (n.s. not significant, * p < 0.05, ** p < 0.01, *** p < 0.001; unpaired two-tailed Student t-test; error bars indicate s.e.m.). (c) shRNA-mediated knockdown of Ube2e1 in stably-transfected mIMCD3 cell-line #3 causes decreased ciliary incidence and length. Scale bar = 10 μm. Immunoblot shows loss of UBE2E1 protein expression compared to β-actin loading control following shRNA knockdown. (d) Bar graphs quantifying decreased ciliary incidence and length with statistical analysis as for (b). (e) Scatter plot of relative differences in the proteins pulled-down by anti-MKS1 immunoprecipitations, under different conditions of ciliogenesis (proliferating cells, ciliated cells, cells undergoing ciliary resorption), expressed as the ratios of peptide counts for shScr: shUbe2e1 knockdowns. Statistical significance of pairwise comparisons for each set of ratios was calculated as for (b) (paired two-tailed Student t-tests). Error bars indicate s.d. Full data-sets are available in Figure 4—source data 1. (f) Bar graph of -log10 p values for significantly enriched GO terms (biological processes) for proteins included in (e), with cut-off for p < 0.05 indicated by the red dashed line. Enrichment for GO terms was analyzed by using DAVID (https://david.ncifcrf.gov/). (g) Protease activity assays of crude proteasome preparations from shScr and shUbe2e1 mIMCD3 knockdown cells, showing increased proteasomal activity in shUbe2e1 as assayed by pmol AMC released per μg proteasome per hour. Treatment with lactacystin is the assay control. Statistical significance of pairwise comparisons as for (b). (h) SUPER-TOPFlash assays of canonical Wnt signalling activity in shUbe2e1 cells compared to shScr following treatment with control conditioned medium, Wnt5a, Wnt3a, or a mixture of Wnt3a and Wnt5a media, as indicated. Statistical significance of pairwise comparisons of at least four independently replicated experiments as for (b).

Figure 4—source data 1

Mass spectrometry results for MKS1 pull-downs from mIMCD3 cells across different conditions of ciliogenesis.

The data-set lists proteins (identified by ≥3 unique peptide counts) pulled-down by anti-MKS1 immunoprecipitations, under different conditions of ciliogenesis (proliferating cells, ciliated cells, cells undergoing ciliary resorption). Columns A and B: protein and gene name. Column C: protein accession number. Columns G to L: peptide counts identified by LC-MS/MS mass spectrometry (columns F and M indicating non-specific peptide counts following BSA washes), with counts heat-mapped red (high) to green (low). Column N: χ2 tests of peptide counts for shScr compared to shUbe2e1 knockdown cells, across different conditions of ciliogenesis (red highlighted cells indicate χ2 test p < 0.05). Columns Q to S: shScr:shUbe2e1 peptide count ratios (derived from columns G to L), with values < 1 indicating decreased peptide counts following shUbe2e1 knockdown. Columns U to Z: indicate if a particular protein was identified in a significantly enriched biological process under the indicated GO terms (row 2).

https://cdn.elifesciences.org/articles/57593/elife-57593-fig4-data1-v2.pdf
Figure 4—source data 2

UBE2E1 is required for regulation of ciliogenesis, proteasome activity, and canonical Wnt signalling: full western blot.

https://cdn.elifesciences.org/articles/57593/elife-57593-fig4-data2-v2.xlsx

To model the effect of UBE2E1 loss on ciliogenesis, we first used pooled and individual siRNA duplexes targeting Ube2e1 in mIMCD3 cells. This affected ciliogenesis in mIMCD3 cells by reducing cilia incidence and length, but achieved only moderate knockdown of UBE2E1 protein levels (Figure 4—figure supplement 1a). To ensure more robust, long-term knockdown of UBE2E1, we derived stably-transfected mIMCD3 cell-lines with three different Ube2e1 shRNA constructs. Each Ube2e1 shRNA construct reduced UBE2E1 protein levels (compared to cells expressing scrambled shRNA), and significantly reduced both numbers of ciliated cells and mean cilium length (Figure 4c–d). To understand the effect loss of Ube2e1 had on Mks1, we pulled down Mks1 at different ciliogenesis stages in control cells and cells with stable knockdown of Ube2e1 followed by identification of interacting proteins by LC-MS/MS mass spectrometry analysis (Figure 4e,f, Figure 4—source data 1). We observed significant decreases in peptide counts for shUbe2e1 knockdown cells across different conditions of ciliogenesis (Figure 4—source data 1; χ2 test p < 0.05), particularly under conditions of ciliary resorption (Figure 4e). Analysis for enrichment of GO terms identified specific biological processes that included ‘cell-cell adhesion’, ‘ubiquitin-dependent protein catabolism’, ‘actin filament capping’, and ‘beta-catenin destruction complex’ (Figure 4f). Interestingly, the ‘actin filament capping’ term includes known interactants of ciliopathy proteins such as filamin A (Flna) (Adams et al., 2012; Figure 4—figure supplement 1b).

Since UBE2E1 and MKS1 both interact and co-localise, we next determined if UBE2E1 loss reiterates the cellular phenotypes caused by MKS1 loss or mutation. Indeed, we observed increased proteasome enzymatic activity compared to scrambled shRNA (shScr) negative control cells (Figure 4g). Furthermore, in agreement with MKS1-mutated fibroblasts and Mks1-/- MEFs, shUbe2e1 knock-down cells had de-regulated canonical Wnt/β-catenin signalling in response to Wnt3a (Figure 4h). This was accompanied by increased levels of mono- and poly-ubiquitinated proteins in shUbe2e1 knock-down cells following proteasome inhibition (Figure 4—figure supplement 1c), also consistent the effect observed in MKS1-mutated fibroblasts. These data highlight a possible important role of UBE2E1 in mediating correct protein ubiquitination, proteasome function and Wnt signalling in the context of cilia. The striking similarities in ciliary phenotypes suggest a close functional association between MKS1 and UBE2E1, and led us to hypothesise that they are placed in the same regulatory pathway.

Mutual inhibition of MKS1 and UBE2E1 protein levels

To further investigate the possible functional association between MKS1 and UBE2E1, we tested if de-regulated Wnt signalling could be rescued by over-expression experiments. In a control experiment, expression of cmyc-tagged MKS1 partially rescued normal canonical Wnt signalling responses to Wnt3a in MKS1-mutated fibroblasts (Figure 5a). However, expression of FLAG-tagged UBE2E1 led to almost complete rescue of normal Wnt signalling responses (Figure 5a). Conversely, expression of MKS1 in shUbe2e1 knock-down cells also rescued canonical Wnt signalling (Figure 5b), suggesting co-dependency between MKS1 and UBE2E1. We confirmed this following transient siRNA knockdown of MKS1 that caused significantly increased levels of UBE2E1 in cells (Figure 5c). In the reciprocal experiment, MKS1 protein levels were significantly increased in shUbe2e1 knock-down cells, particularly under conditions of ciliary resorption (Figure 5c). To further support co-dependency, we over-expressed both MKS1 and UBE2E1. At higher levels of UBE2E1, we observed a moderate decrease in MKS1 levels (Figure 5d). Conversely, expression of high levels of MKS1 caused a decrease in UBE2E1 protein levels (Figure 5d). These results show a striking co-dependency in protein levels between MKS1 and UBE2E1, suggesting inhibitory roles for each of these proteins on the protein level of the other.

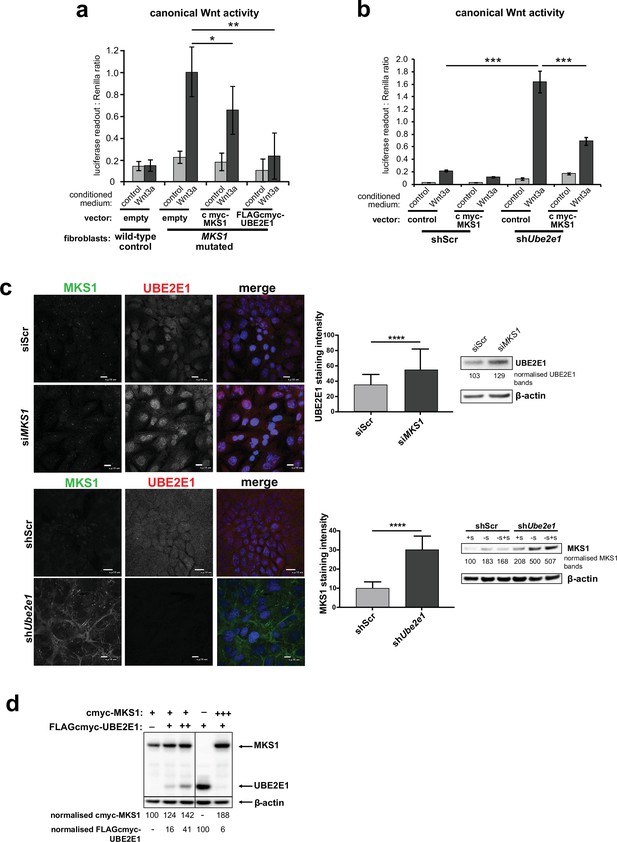

Co-dependant regulation of MKS1 and UBE2E1.

(a) SUPER-TOPFlash assays in wild-type or MKS1-mutated fibroblasts, following transient co-transfection with either exogenous control, MKS1-cmyc or UBE2E1-FLAG-cmyc, and treatment with either Wnt3a or control conditioned medium. Statistical significance of the indicated pairwise comparisons with control for three independent biological replicates are shown (* p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001; unpaired two-tailed Student t-test; error bars indicate s.e.m.) (b) SUPER-TOPFlash assays in shScr and shUbe2e1 cell-lines, following transient co-transfection with either exogenous cmyc-MKS1 or empty plasmid construct (control) and treatment with either Wnt3a or control conditioned medium, as indicated. Statistical comparisons as for (a). (c) Top panel: increased per cell staining intensity for UBE2E1 following MKS1 siRNA knockdown Bottom panel: increased per cell staining intensity for MKS1 in Ube2e1 mIMCD3 knockdown cells Scale bars = 10 µm. Bar graphs quantitate staining intensities for three independent biological replicates. Statistical significance of pairwise comparisons as for (a), error bars indicate s.e.m. Western blots (panels on right) show increased UBE2E1 protein levels for siMKS1 knockdown cells, and increased MKS1 protein levels for shUbe2e1 cells. Quantitation of band intensities were normalised to β-actin loading control. (d) HEK293 cells were transiently transfected with control vector (-), constant (+) or high (+++) levels of cmyc-MKS1 and/or FLAG-cmyc-UBE2E1. Levels were normalised to β-actin loading control. MKS1 levels moderately decreased with increasing levels of UBE2E1, whereas high levels of MKS1 caused loss of UBE2E1.

Figure 5—source data 1

Co-dependant regulation of MKS1 and UBE2E1: full western blots.

https://cdn.elifesciences.org/articles/57593/elife-57593-fig5-data1-v2.pdf

MKS1 is polyubiquitinated and its polyubiquitination depends on UBE2E1

UBE2E1 is an E2 ubiquitin conjugating enzyme, and we next tested the obvious hypothesis that it participates in polyubiquitination and targeting MKS1 for degradation. We therefore investigated if MKS1 is indeed tagged with ubiquitin chains and if absence of UBE2E1 affects ubiquitination of MKS1. We determined MKS1 levels and its polyubiquitination status in different ciliogenesis conditions, namely: proliferating cells (grown in normal medium supplemented with serum); ciliated cells (quiescent cells grown in serum-deprived medium); and cells undergoing ciliary resorption (grown in serum-deprived medium, followed by serum re-addition for 3 hr). shUbe2e1 knock-down cells consistently had significantly increased levels of MKS1 as well as polyubiquitinated MKS1 (Figure 6a; p < 0.05 two-way ANOVA between shScr and shUbe2e1). The highest levels of MKS1 were observed in cells undergoing cilia resorption, when MKS1 and UBE2E1 co-localisation is the strongest. Despite modest statistical significance, this finding was consistent between biological replicates. Furthermore, expression of exogenous UBE2E1 led to moderate decreases in MKS1 levels for both shScr and shUbe2e1 knock-down cells, suggesting that UBE2E1 inhibits both MKS1 levels and polyubiquitination of this protein.

Figure 6 with 1 supplement see all

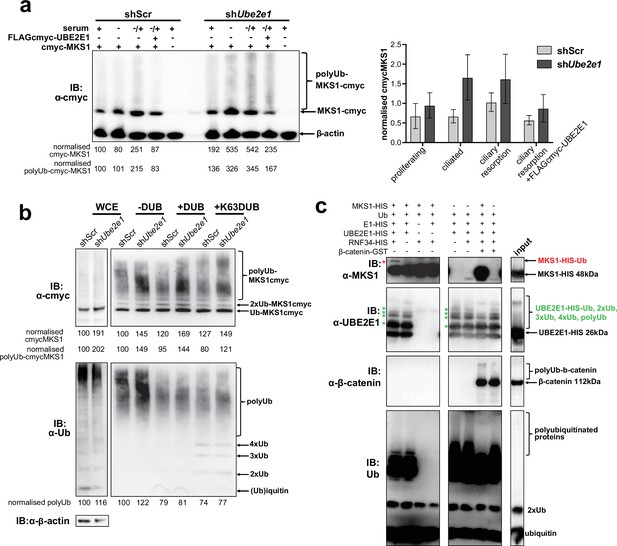

MKS1 is ubiquitinated and its ubiquitynation depends on UBE2E1.

(a) shScr and shUbe2e1 mIMCD3 knockdown cells transiently transfected with cmyc-MKS1 and/or FLAG-cmyc-UBE2E1 under different conditions of ciliogenesis: proliferating cells grown in media containing serum (+); ciliated cells grown in the absence of serum (-); and cells undergoing ciliary resorption grown in the absence of serum followed by 2 hr incubation in media with serum (-/+). Increased levels of cmyc-MKS1 and smears representing poly-ubiquitinated (polyUb) cmyc-MKS1 in shUbe2e1 cells are indicated. Addition of exogenous FLAG-cmyc-UBE2E1 partially rescued correct MKS1 levels and ubiquitination. Normalised band intensities for the whole cmyc-MKS1 staining and only polyUb-cmyc-MKS1 are shown below the blots. Bar graph quantitates cmyc-MKS1 levels normalised to β-actin levels for three independent biological replicates. Data was analysed by two-way ANOVA followed by Tukey’s multiple comparison test (statistical significance of comparison between shScr and shUbe2e1 is p < 0.05, error bars represent s.d.). (b) TUBE experiment confirming ubiquitination of cmyc-MKS1. Consistently increased levels of polyubiquitinated cmyc-MKS1 were observed in shUbe2e1 knockdown cells. Broad-range deubiquitinating enzymes (+ DUB) and K63-specific (+ K63 DUB) deubiquitinating enzyme were used to assess the type of MKS1 ubiquitination. Normalised band intensities are shown below the blots. (c) In vitro ubiquitination assay for MKS1-HIS, UBE2E1-HIS, RNF34-HIS, E1-HIS, Ub, and β-catenin-GST fusion proteins. The MKS1 blot shows possible mono-ubiquitination of MKS1 (red asterisk) in the presence of UBE2E1 and RNF34. Auto-ubiquitination of UBE2E1 (green asterisks indicate the addition of one, two, three, four and poly-ubiquitin chains) was inhibited by MKS1. This was further inhibited by addition of β-catenin, but β-catenin addition by itself did not affect UBE2E1 polyubiquitination. although β-catenin was polyubiquitinated by UBE2E1.

Figure 6—source data 1

MKS1 is ubiquitinated and its ubiquitynation depends on UBE2E1: full western blots.

https://cdn.elifesciences.org/articles/57593/elife-57593-fig6-data1-v2.pdf

To substantiate the central role of UBE2E1 in regulating MKS1 levels, we confirmed that shUbe2e1 cells had increased levels of polyubiquitinated cmyc-tagged MKS1 using TUBE (Tandem Ubiquitin Entity) assays. Total polyubiquitinated proteins from cell extracts were pulled-down using TUBEs bound to agarose beads, resolved by SDS-PAGE and analysed by western blotting using an anti-cmyc antibody. TUBE assays confirmed that MKS1 was polyubiquitinated (Figure 6b, upper panel). Treatment of pull-downs with either a pan-specific deubiquitinase (DUB) and a DUB specific for K63-linked polyubiquitination confirmed that MKS1 polyubiquitination occurred through both K63 and other ubiquitin lysine linkages such as K48 (Figure 6b, lower panel). Importantly, these results suggest that ubiquitination of MKS1 has dual functions in targeting this protein for degradation, as well as other regulatory functions through K63. Although UBE2E1 could be an E2 in an MKS1 degradation pathway, our data suggests that loss of UBE2E1 caused an increase in the levels of polyubiquitinated MKS1 consistent with an inhibitory function for UBE2E1 in ubiquitinating MKS1. To test this alternative hypothesis, we therefore performed in vitro ubiquitination assays in which purified MKS1 was used as a substrate of the reaction, purified UBE2E1 was the E2 and RNF34 was a possible cognate E3. We observed that UBE2E1 underwent auto-ubiquitination and that ubiquitination was enhanced but not dependent on RNF34 (Figure 6c, Figure 6—figure supplement 1a). MKS1 inhibited UBE2E1 ubiquitination, suggesting that this could be the basis for the co-dependent regulation of protein levels. This action was attenuated by addition of β-catenin, but β-catenin by itself did not inhibit UBE2E1 ubiquitination. However, poly-ubiquitination of β-catenin appeared to be dependent on MKS1, suggesting that UBE2E1 and MKS1 are co-regulators of β-catenin ubiquitination.

MKS1 and UBE2E1 interact to regulate Β-catenin ubiquitination

Monoubiquitination by UBE2E1 has been previously described (Schumacher et al., 2013) and UBE2E1 has also been shown to be an E2 ubiquitin-conjugating enzyme required for β-catenin polyubiquitination (Chitalia et al., 2008). These studies suggest that UBE2E1 has dual functions as an E2 in regulating protein function (for example, through monoubiquitination of MKS1) or targeting them for degradation (for example, polyubiquitination of β-catenin). We therefore asked the question if the co-dependent regulation of MKS1 and UBE2E1 could regulate cellular β-catenin levels. We first confirmed that MKS1 and β-catenin interact (Figure 7, Figure 4—source data 1) and that shUbe2e1 knock-down cells have increased levels of β-catenin (Figure 7a), consistent with the up-regulated canonical Wnt/β-catenin signalling that we observed in these cells (Figure 4h). Consistent with the mutual inhibition of MKS1 and UBE2E1, TUBE pull-down assays confirmed that levels of polyubiquitinated β-catenin increased following MKS1 knockdown (Figure 7b). As expected, levels of polyubiquitinated β-catenin further increased in the presence of the catalytically-inactive dominant negative (DN) form of UBE2E1 compared to wild-type (WT) UBE2E1 (Figure 7b). We also observed increased levels of phosphorylated β-catenin following loss of MKS1 (Figure 1a, Figure 6—figure supplement 1b) but no effect on γ-tubulin levels (Figure 6—figure supplement 1b) and no consistent effect on levels of non-phosphorylated (active) β-catenin (Figure 6—figure supplement 1b-c). Specific localisation of phosphorylated β-catenin at the base of cilia increased following MKS1 loss (Figure 7c), suggesting that this is the cellular location where the phosphorylated form of β-catenin is processed by UBE2E1 for polyubiquitination. We reasoned that, in steady state conditions, UBE2E1 could mediate correct polyubiquitination levels of β-catenin, followed by subsequent targeted degradation, maintaining regulated levels of canonical Wnt signalling. In the event of high levels of the E2, caused by absence of the regulator MKS1, β-catenin is over-polyubiquitated and its levels increase leading to dysregulation of canonical Wnt signalling (Figure 7d). These observations indicate that correct β-catenin levels are tightly regulated at the primary cilium by a ciliary-specific E2 (UBE2E1) and a regulatory substrate-adaptor (MKS1).

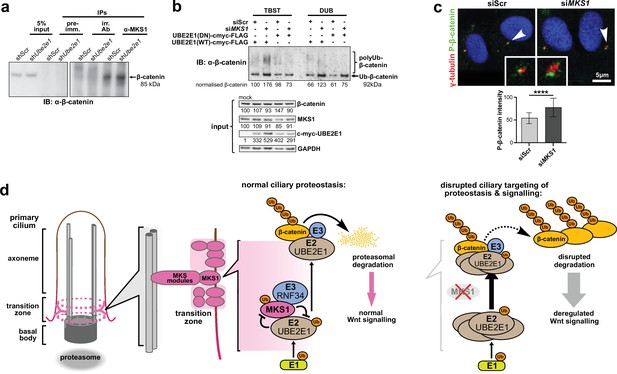

MKS1 and UBE2E1 interact to regulate β-catenin ubiquitination.

(a) Immunoblot showing increased co-immunoprecipitation of β-catenin by anti-MKS1 in shUbe2e1 knockdown cells compared to shScr control cells. (b) TUBE pulldown followed by β-catenin immunoblotting, showing polyubiquitination of β-catenin was increased following MKS1 knockdown and in the presence of the wild-type (WT) UBE2E1. Inactive form of UBE2E1 (DN) had not had effect on polyubiquitination of β-catenin, highlighting the importance of this UBE2E1 in β-catenin degradation. (c) Immunofluorescence staining of hTERT-RPE1 cells showing co-localisation of phosphorylated (P)-β-catenin (green) with γ-tubulin (red) at the base of cilia (arrowheads). P-β-catenin localisation significantly increased following siMKS1 knockdown (paired two-tailed Student t-test, **** p < 0.0001 for three independent biological replicates; > 40 cells quantified per replicate). Scale bar = 5 μm. (d) Schematic representation of UPS regulation of MKS1 and β-catenin protein levels at the ciliary apparatus. Protein levels of MKS1 (pink) and UBE2E1 (light brown) are co-dependant through regulation at the base of the cilium. MKS1 localises to the TZ (dashed pink lines) and is mono-/bi-ubiquitinated by a complex that includes UBE2E1 and RNF34 (blue). MKS1 and UBE2E1 regulate each other, what has an effect on downstream UBE2E1 role in regulation of polyubiquitination of β-catenin (yellow). The correct regulation between these proteins facilitates normal proteasomal function and canonical Wnt signalling (small pink arrow). Both processes are de-regulated following MKS1 mutation of loss (red cross), causing aberrant accumulation of UBE2E1 and polyubiquitinated β-catenin and disrupted tethering to the ciliary apparatus.

Figure 7—source data 1

MKS1 and UBE2E1 interact to regulate β-catenin ubiquitination: full western blots.

https://cdn.elifesciences.org/articles/57593/elife-57593-fig7-data1-v2.pdf

Discussion

A number of studies suggest that the primary cilium or basal body constrains canonical Wnt/β-catenin signalling activity (Lancaster et al., 2011; Corbit et al., 2008; Simons et al., 2005; Abdelhamed et al., 2019), and de-regulated, increased signalling is one of the hallmarks of the ciliopathy disease state. Canonical Wnt/β-catenin signalling is aberrantly up-regulated in several ciliopathy animal models, and, in particular, in postnatal cystic kidneys (Kim et al., 2009; Lancaster et al., 2009). We have shown previously that homozygous Mks1-/- mouse embryos also have up-regulated canonical Wnt signalling, reduced numbers of primary cilia and increased proliferation in the cerebellar vermis and kidney (Wheway et al., 2013). The mechanistic detail of Wnt signalling de-regulation in ciliopathies remains unclear and controversial. A key question remains whether this ciliary signalling defect is a secondary consequence of cilia loss, or if it is directly and causally related to the loss of function of specific cilium proteins. Several studies support the latter hypothesis, including one study that suggests that jouberin, a component of the TZ/basal body, may modulate Wnt/β-catenin signalling by facilitating nuclear translocation of β-catenin in response to Wnt stimulation (Lancaster et al., 2009). Regulation of Wnt signalling appears to be also mediated by a functional association of the basal body with the UPS (Gerdes et al., 2007), through which signalling pathway components such as β-catenin are degraded (Aberle et al., 1997). Early studies showed that the basal body and the proteasome can colocalise (Fabunmi et al., 2000; Wigley et al., 1999) and normal, regulated Wnt signalling has been shown to be dependent on the interaction of the basal body protein BBS4 with RPN10, a component of the proteasome (Gerdes et al., 2007). Rpgrip1l-/- knock-out mice have decreased proteasome activity, and a component of the proteasome (Psmd2), was shown to interact with Rpgrip1l (Gerhardt et al., 2015). Loss of RPGRIP1L does not alter the amount of MKS1 at the ciliary transition zone of mouse embryonic fibroblasts (Wiegering et al., 2018), but one explanation for the higher proteasome activity that we observe is that MKS1 deficiency results in an increased levels of RPGRIP1L. Our results suggest that loss or mutation of MKS1 had no consistent effect on RPGRIP1L levels (Figure 6—figure supplement 1c), although UBE2E1 regulation of the levels of other ciliary proteins is a mechanism that warrants further investigation. Furthermore, a number of other UPS proteins have been implicated in ciliopathies including TOPORS, an E3 ligase located at the basal body and cilium that is mutated in retinitis pigmentosa (RP) (Chakarova et al., 2007), and TRIM32, an E3 mutated in Bardet-Biedl syndrome (BBS) (Chiang et al., 2006). Interestingly, TRIM32 has been shown to interact with UBE2E1 (Napolitano et al., 2011). UPS components have also been shown to interact with ciliopathy proteins, such as USP9X with lebercilin (den Hollander et al., 2007), and the UPS was an enriched biological module that we identified in a whole genome siRNA screen of ciliogenesis (Wheway et al., 2015). These observations therefore support a specific role for MKS1 in UPS-mediated proteostasis and signalling regulation.

Here, we demonstrate that loss of MKS1 causes aberrant accumulation of β-catenin (Figure 1a) and aberrantly increased proteasome activity (Figure 1c–d). The increase in proteasomal activity may be a non-specific response to cellular stress in the absence of MKS1, but our discovery and validation of direct interactions of MKS1 with two proteins (UBE2E1 and RNF34) in the ubiquitination cascade suggest that loss of MKS1 causes a more specific defect. We confirmed biochemical and functional interactions of MKS1 with both UBE2E1 and RNF34 (Figure 2c–f, Figure 2—figure supplement 1), as well as their co-localisation with the basal body (Figure 3, Figure 2—figure supplement 1). Loss or dominant negative expression of UBE2E1 mimicked the cellular phenotype of MKS1 mutants (Figure 4a–d and g–h), suggesting a functional interaction between MKS1 and UBE2E1 at the cilium. Using western blotting (Figure 5d) we substantiated an inverse correlation between MKS1 and UBE2E1 protein levels in the cell, and using in vitro ubiquitination assays (Figure 6c, Figure 6—figure supplement 1a) we show that this is due (at least in part) to ubiquitination of MKS1 by UBBE2E1. We suggest that this interaction between MKS1 and UBE2E1 plays a role in regulating Wnt signalling at the base of the primary cilium. In support of this, we demonstrated a functional interaction between UBE2E1, MKS1 and β-catenin (Figure 7a and b) and that phosphorylated β-catenin localised at the base of the cilium (Figure 7c), presumably prior to UPS processing. However, alternative interpretations of our data are that UBE2E1 could occupy an E2 binding position on MKS1 preventing MKS1 degradation, or that MKS1 binds to UBE2E1 to facilitate UBE2E1 ubiquitination and degradation.

Our data indicates that MKS1 acts as a novel substrate-adaptor that interacts with UPS components and β-catenin, thereby regulating levels of β-catenin through normal degradation during Wnt signalling. MKS1 could mediate the degradation of β-catenin by controlling the stability and the localisation of UBE2E1 at the ciliary apparatus, and perhaps ensuring the correct processing of ubiquitinated β-catenin through close proximity to the proteasome at the ciliary base. This suggestion is supported by the biochemical interaction of another ciliopathy protein, Rpgrip1l, with proteasome proteins and the discrete localisation of ubiquitin at the ciliary base (Gerhardt et al., 2015). Catalytically active UBE2E1 regulated ciliogenesis (Figure 4b and d), which implies that UBE2E1-mediated ubiquitination of substrates such as MKS1 and β-catenin is required for ciliogenesis (Wen et al., 2010; Liang et al., 2008). In addition, we show for the first time, that MKS1 is polyubiquitinated with non-degradative K63-linked chains, which have been shown to have scaffolding roles in other cell signalling networks by bridging together large signalling complexes (Hu and Sun, 2016). Since MKS1 contains a predicted lipid-binding B9/C2 domain, MKS1 may therefore act as a membrane anchor to ensure the spatial organisation and co-ordinated regulation of both the β-catenin destruction complex (Corbit et al., 2008) and UPS components at the ciliary apparatus. Loss of MKS1 would lead to the disruption of both the structure and function of the ciliary transition zone, preventing regulated ciliary signalling and β-catenin degradation (Figure 7d). In summary, our results indicate that the MKS1-UBE2E1 complex plays a key role in the degradation of β-catenin, which in turn facilitates correct cell function and signalling. Our data provide a mechanistic explanation for Wnt signalling defects in ciliopathies and highlights new potential targets in the UPS for therapeutic intervention.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Strain, strain background (Mus musculus)B6;129P2-Mks1tm1a(EUCOMM)WtsiWellcome Trust Sanger InstituteEM:05429RRID:IMSR_EM:05429
Strain, strain background (Mus musculus)B6.Cg-Tg(ACTB-Ub*G76V/GFP)1Dant/JJackson Laboratory, Maine, USA008111RRID:IMSR_JAX:008111
Cell line (Mus musculus)mIMCD3ATCCCRL-2123RRID:CVCL_0429
Cell line (Homo sapiens)hTERT-RPE1ATCCCRL-4000RRID:CVCL_4388
Cell line (Homo sapiens)ARPE-19ATCCCRL-2302RRID:CVCL_0145
Cell line (Homo sapiens)HEK293ATCCACS-4500RRID:CVCL_4V93
Cell line (Homo sapiens)MKS-562 fibroblastsKhaddour et al., 2007MKS1 compound heterozygote mutations
Transfected construct (Homo sapiens)pCMV-cmyc-MKS1Dawe et al., 2009full-length cDNA (NM_017777); see Cloning, plasmid constructs and transfection
Transfected construct (Homo sapiens)pGEX5X-1-UBE2E1Hong et al., 2008construct used to generate UBE2E1 protein
Transfected construct (Homo sapiens)pCMV-UBE2E1-FLAG-cmycHong et al., 2008
Transfected construct (Homo sapiens)pCMV-UBE2E1 (DN) -FLAG-cmycthis paperc.341T > A, p.C131S UBE2E1 active site dominant negative (DN) mutation; see Cloning, plasmid constructs and transfection
Transfected construct (Mus musculus)Ube2e1 shRNAOrigeneTR502364Cells selected using 0.5 μg/ml puromycin for five passages
Transfected construct (Mus musculus)Ube2e1 siRNADharmacon ON-TARGET PLUS siRNAL-062416-01-0005
Transfected construct (Mus musculus)Mks1 siRNADharmacon ON-TARGET PLUS siRNAL-063962-01-0005
AntibodyAnti-cmyc, clone 9E10 (mouse monoclonal)Sigma-Aldrich Co. Ltd.M4439RRID:AB_439694WB: 1:1,000
AntibodyAnti-acetylated-α-tubulin, clone 6-11B-1 (mouse monoclonal)Sigma-Aldrich Co. Ltd.MABT868RRID:AB_2819178IF: 1:1,000
AntibodyAnti-HA, clone HA-7 (mouse monoclonal)Sigma-Aldrich Co. Ltd.H9658RRID:AB_260092WB: 1:100
AntibodyAnti-GFP (rabbit polyclonal)Living Colors A.v. Peptide Antibody632,377RRID:AB_2313653IF: 1:100
AntibodyAnti-UBE2E1, clone 42/UbcH6 (mouse monoclonal)BD Biosciences Inc611,218RRID:AB_398750IF: 1:100WB: 1:500
AntibodyAnti-UBE2E1 (rabbit polyclonal)Aviva Systems BiologyARP43012_P050RRID:AB_2048646IF: 1:100WB: 1:500
AntibodyAnti-γ-tubulin (rabbit polyclonal)Sigma-Aldrich Co. Ltd.T5192RRID:AB_261690IF: 1:500
AntibodyAnti-β-actin, clone AC-15 (mouse monoclonal)Abcam Ltd.ab6276RRID:AB_2223210WB: 1:5,000
AntibodyAnti-cyclin D1, clone A-12 (mouse monoclonal)Santa Cruz Biotechnology Incsc-8396RRID:AB_627344WB: 1:1,000
AntibodyAnti-phospho-β-catenin (rabbit polyclonal)Cell Signalling Technology Inc9,561RRID:AB_331729WB: 1:1,000IF: 1:100
AntibodyAnti-β-catenin, clone D10A8 (rabbit monoclonal)Cell Signalling Technology Inc8,480RRID:AB_2798305WB: 1:1,000IF: 1:100
AntibodyAnti-mono- and polyubiquitinylated conjugates, clone FK2 (mouse monoclonal)Enzo Life Sciences, IncENZ-ABS840RRID:AB_10541840WB: 1:1,000
AntibodyAnti-20S proteasome α7 subunit, clone MCP72 (rabbit monoclonal)Enzo Life Sciences IncBML-PW8110RRID:AB_10538395WB: 1:1,000IF: 1:100
AntibodyAnti-MKS1 (rabbit polyclonal)Dawe et al., 2007; Näthke et al., 1996WB: 1:500IF: 1:100
AntibodyAnti MKS1 (rabbit polyclonal)Proteintech16206–1-APRRID:AB_10637856WB: 1:500IF: 1:100
AntibodyAnti-ubiquitin, clone P4D1 (mouse monoclonal)Santa Cruz Biotechnology, Incsc-8017RRID:AB_2762364
Peptide, recombinant proteinMKS1-HISProteintech Group, IncAg9504
Peptide, recombinant proteinUBE2E1-HISEnzo Life Sciences, IncUW8710
Peptide, recombinant proteinRNF34-HISNovus BiologicalsNBP2-23440
Peptide, recombinant proteinβ-catenin-GSTAbcamAb63175
Commercial assay or kit20 S fluorophore substrate Suc-LLVY-AMCEnzo Life Sciences IncBML-P802-0005
Commercial assay or kitDual-Luciferase Reporter Assay systemPromega Corp.E1910
Commercial assay or kitUbiquitination kitEnzo Life Sciences, IncBML-UW0400
Commercial assay or kitTUBE assaysLifeSensors, Malvern, PA, USAUM-402
Chemical compound, drugMG-132Sigma-Aldrich Co. Ltd.C2211treatment at 10 μM for 3 hr
Software, algorithmPrism7GraphPad Software Inc

Informed consent for use of patients in research

Request a detailed protocol

Informed consent was obtained from all participating families or patients, with studies approved by the Leeds (East) Research Ethics Committee (REC no. 08 /H1306/85) on 4th July 2008.

Animals

The animal studies described in this paper were carried out under the guidance issued by the Medical Research Council in Responsibility in the Use of Animals for Medical Research (July 1993) in accordance with UK Home Office regulations under the Project Licence no. PPL40/3349. B6;129P2-Mks1tm1a(EUCOMM)Wtsi heterozygous knock-out mice were derived from a line generated by the Wellcome Trust Sanger Institute and made available from MRC Harwell through the European Mutant Mouse Archive http://www.emmanet.org/ (strain number EM:05429). The UbG76V-GFP line (25) B6.Cg-Tg(ACTB-Ub*G76V/GFP)1Dant/J (strain number 008111) was obtained from the Jackson Laboratory, Maine, USA. Genotyping was done by multiplex PCR on DNA extracted from tail tips or the yolk sac of E11.5-E15.5 embryos, or ear biopsies of adult mice. Primer sequences: exon 2 F: TGGGGAAGGACCTCATAGACT, exon 4 R: CGCCAGAATTCTCCAGTTTC, exon 4 F: AGCGTGGTTGTTCTTGATGA, exon 6 R: GGATTCCGCACTGAGACAAC, exon 16 F: AACCGGCGAATCTTCACTTA, exon 18 R: GGGGCTCACAAGGTCCTG. Proteasome inhibition treatment of Mks1 x UbG76V-GFP mice using MG-262 was carried out as previously described (Lindsten et al., 2003).

Preparation of tissue sections

Request a detailed protocol

Mouse embryos or tissue for IF staining were lightly fixed in 0.4% paraformaldehyde, soaked in 30% sucrose/PBS, frozen in OCT embedding medium and cut into 5 μm sections on a cryostat. Fresh-frozen sections were left unfixed and processed for immunofluorescent staining by standard techniques.

Cells

Mouse inner medullary collecting duct (mIMCD3), human retinal pigment epithelium cells immortalised with human telomerase reverse transcriptase (hTERT-RPE1) and immortalised adult retinal pigment epithelium (ARPE19) cells were grown in Dulbecco’s minimum essential medium (DMEM)/Ham’s F12 supplemented with 10% foetal calf serum at 37 °C/5% CO2. Human embryonic kidney (HEK293) cells were cultured in DMEM with 10% foetal calf serum at 37 °C/5% CO2. Cell-lines were maintained by weekly passaging under standard conditions and tested every 3 months for mycoplasma. Cell lines were sourced from American Type Culture Collection (ATCC) and used between passages 15–25. Cell-lines have been previously verified using arrayCGH and RNA-sequencing (Wheway et al., 2015) (Short Read Archive accession numbers SRX1411364, SRX1353143, SRX1411453, and SRX1411451). The derivation and culture of mouse embryonic fibroblasts (MEFs) has been described previously (Xu, 2001). MEFs were grown in DMEM/Ham’s F12 supplemented with 10% foetal calf serum and 1% penicillin streptomycin at 37 °C/5% CO2. Fibroblasts from a normal undiseased control, a patient (MKS-562) with a compound heterozygous MKS1 mutation, and a female patient with a homozygous ASPM mutation, were immortalised following transduction with an amphotropic retrovirus encoding the hTERT catalytic subunit of human telomerase, and maintained in Fibroblast Growth Medium (Genlantis Inc San Diego, CA) supplemented with 0.2 mg/ml geneticin. Patient MKS-562, a compound heterozygote for the MKS1 mutations [c.472C > T]+[IVS15-7_35del29] causing the predicted nonsense and splice-site mutations [p.R158*]+[p.P470fs*562], has been described previously (Khaddour et al., 2007). Proteasome inhibition treatment was carried out using 10 μM final concentration of the inhibitor dissolved in DMSO for 16 hr (unless otherwise stated). DMSO was used as the vehicle-only negative control.

Cloning, plasmid constructs, and transfection

Request a detailed protocol

Human MKS1 was cloned into the pCMV-cmyc vector as described previously (Dawe et al., 2009). The pGEX5X-1-UBE2E1 and pCMV-UBE2E1-FLAG-cmyc constructs have been described previously (Hong et al., 2008). The c.341T > A, p.C131S active site dominant negative (DN) missense mutation was introduced into pCMV-UBE2E1-FLAG-cmyc using the QuickChange mutagenesis kit (Stratagene Inc) and verified by DNA sequencing. For transfection with plasmids, cells at 80% confluency were transfected using Lipofectamine 2000 (Invitrogen Inc) according to the manufacturer’s instructions and as described previously (Dawe et al., 2009). Cells transfected with plasmids expressing Ube2e1 shRNA (Origene) were selected for using 0.5 μg/ml puromycin for five passages. Transfection with Dharmacon ON-TARGET PLUS siRNAs was carried out using Lipofectamine RNAiMAX according to the manufacturer’s instructions and as described previously (Dawe et al., 2009). To assess co-dependency of protein levels, 1 μg of cmyc-MKS1 was co-transfected with 1, 2.5, and 5 μg of FLAG-cmyc-UBE2E1. To investigate if an increased amount of MKS1 would have an effect on UBE2E1 levels, 3 μg of cmyc-MKS1 were co-transfected with 1 μg FLAG-cmyc-UBE2E1. After 24 hr incubation with transfection complexes, cells were treated with 100 μg/ml cycloheximide for 4 hr. Ubiquitination of cmyc-MKS1 in mIMCD3 cells was assessed after treatment with proteasome inhibitor (MG-132 at 10 μM) for 3 hr.

Antibodies

The following primary antibodies were used: mouse anti-cmyc clone 9E10, mouse anti-acetylated-α-tubulin clone 6-11B-1, mouse anti-HA (Sigma-Aldrich Co. Ltd.), rabbit anti-GFP (‘Living Colors A.v. Peptide Antibody’) and mouse anti-UBE2E1 (BD Biosciences Inc); rabbit-anti-γ-tubulin and mouse anti-β-actin clone AC-15 (Abcam Ltd.); mouse anti-cyclin D1 clone A-12 (Santa Cruz Biotechnology Inc); rabbit anti-phospho-β-catenin and rabbit anti-β-catenin (Cell Signalling Technology Inc); and mouse anti-mono- and polyubiquitinylated conjugates clone FK2 and rabbit anti-20S proteasome α7 subunit (Enzo Life Sciences Inc). Rabbit anti-MKS1 has been described previously (Dawe et al., 2007; Näthke et al., 1996). Secondary antibodies were AlexaFluor488-, and AlexaFluor568-conjugated goat anti-mouse IgG and goat anti-rabbit IgG (Molecular Probes Inc) and HRP-conjugated goat anti-mouse immunoglobulins and goat anti-rabbit immunoglobulins (Dako Inc).

Immunofluorescence and confocal microscopy

Request a detailed protocol

Cells were seeded at 1.5 × 105 cells/well on glass coverslips in six-well plates, 24 hr before transfection and 48–96 hr before fixation. Cells were fixed in ice-cold methanol (5 min at 4 °C) or 2% paraformaldehyde (20 min at room temperature). Permeabilisation, blocking methods and immunofluorescence staining were essentially as described previously (Valente et al., 2010). Confocal images were obtained using a Nikon Eclipse TE2000-E system, controlled and processed by EZ-C1 3.50 (Nikon Inc) software. Images were assembled using Adobe Photoshop CS3 and Adobe Illustrator CS2.

Yeast 2-hybrid screening

Request a detailed protocol

The B9/C2 domain of human MKS1 (amino acids 144–470; Figure 4a) was cloned into the Gal4 vector pB27 and screened against a human fetal brain RP1 prey cDNA library. Yeast-2-hybrid screens were performed by Hybrigenics SA as described previously (Dawe et al., 2009). Confirmatory ‘1-to-1’ pairwise assays for selected interactants were performed with the MatchMaker Two-Hybrid System 3 (Clontech Inc).

GST fusion protein purification

Request a detailed protocol

GST-UBE2E1 fusion protein was prepared essentially as described previously (Hong et al., 2008), with protein expression induced at 20 °C using 0.2 mM IPTG for 4 hr.

Proteasome activity assays

Request a detailed protocol

Crude proteasomal fractions were prepared from cells (Hoffman et al., 1992) and incubated with the 20 S fluorophore substrate Suc-LLVY-AMC (Enzo Life Sciences Inc). Fluorescence of each proteasomal preparation was measured on a Mithras LB940 (Berthold Technologies Inc) fluorimeter and adjusted against a calibration factor calculated from a standard curve to give activity measurements in pmol AMC release/µg cell lysate/hour. Treatment of cells with 10 μM of the proteasome inhibitors MG-132, MG-262 or c-lactacystin-β-lactone were positive controls for the assay. Results reported are from at least five independent biological replicates.

Canonical Wnt activity (SUPER-TOPFlash) luciferase assays

Request a detailed protocol

For luciferase assays of canonical Wnt activity, we grew cells in 12-well plates and co-transfected with 0.5 μg SUPER-TOPFlash firefly luciferase construct (Veeman et al., 2003) (or FOPFlash, as a negative control); 0.5 μg of expression constructs (pCMV-cmyc-MKS1, or empty pCMV-cmyc vector); and 0.05 μg of pRL-TK (Promega Corp; Renilla luciferase construct used as an internal control reporter). We obtained Wnt3a- or Wnt5a-conditioned media from stably-transfected L cells with Wnt3a or Wnt5a expression vectors (ATCC). Control media was from untransfected L cells. Activities from firefly and Renilla luciferases were assayed with the Dual-Luciferase Reporter Assay system (Promega Corp.) on a Mithras LB940 (Berthold Technologies Inc) fluorimeter. Minimal responses were noted with co-expression of the FOP Flash negative control reporter construct. Raw readings were normalised with Renilla luciferase values. Results reported are from at least four independent biological replicates.

Purification of UBE2E1 protein

Request a detailed protocol

UBE2E1-FLAGcmyc was transfected into HEK293T cells using Lipofectamine 2000 (ThermoFisher Scientific inc) Cells were incubated with transfection complexes for 3 hr, and changed to normal growing medium for further 16 hr incubation. Cells were then incubated with 10 µM MG-132 for 5 hr and whole cell extracts (WCE) prepared as described previously (Johnson et al., 2001). Protein lysate was incubated with ANTI-FLAG M2 affinity gel (Sigma-Aldrich Co. LLC) and purified UBE2E1-FLAGcmyc was eluted from the beads following the manufacturer’s instructions.

In vitro ubiquitination assays

Request a detailed protocol

To assess in vitro ubiquitination, we used a ubiquitination kit (Enzo Life Sciences, Inc) according to the manufacturer’s protocol, supplemented with MKS1-HIS (Proteintech Group, Inc), UBE2E1-HIS (Enzo Life Sciences, Inc), RNF34-HIS (Novus Biologicals) and β-catenin-GST (Novus Biologicals) fusion proteins in a total volume of 30 µl. Samples were incubated for 1.5 hr at 37 °C followed by SDS-PAGE and western blotting.

TUBE assays

Request a detailed protocol

Agarose-bound TUBE assays were used as recommended by the manufacturer (LifeSensors, Malvern, PA, USA). mIMCD3 cells were transiently transfected with cmyc-MKS1 and treated with proteasome inhibitor (MG-132 at 10 µM) for 2 hr before harvesting. Lysis buffer was based on RIPA supplemented with 50 mM Tris-HCl pH7.5, 0.15 M NaCl, 1 mM EDTA, 1% NP40, 10% glycerol, DUB inhibitors (50 µM PR619 and 5 mM 1,10-phenanthroline) and protease inhibitors. 5 µM BRISC was used as K63 deubiquitinating enzyme. In short, cells were harvested after incubation with proteasome inhibitor and proteins were extracted using TUBE lysis buffer following standard procedures. Protein concentration was measured using Lowry assay and about 750 µg of protein was used in the pull down. Cell lysates were incubated with uncoupled agarose beads to remove unspecific binding proteins and were subsequently incubated with equilibrated 40 µl TUBE-agarose beads for 2 hr at 4 °C on a rocker. Beads were spun down, washed, eluted and neutralised. Samples were then split into three for incubation with TBST, DUB and BRISC for 1 hr at 37 °C. Samples were run on SDS-PAGE followed by western blotting using standard protocols. Membranes were blotted with mouse anti-cmyc (clone 9E10, Sigma-Aldrich Co. Ltd.), Ub-HRP (P4D1, Santa Cruz Biotechnology, Inc) and rabbit anti-β-catenin (Cell Signalling Technology Inc).

Co-Immunoprecipitation and mass spectrometry

Request a detailed protocol

Whole cell extracts (WCE) were prepared and co-IP performed essentially as described previously (Johnson et al., 2001). Co-IPs used either 5 µg affinity-purified mouse monoclonals (MAbs), or 5–10 µg purified IgG fractions from rabbit polyclonal antisera, coupled to protein G- and/or protein A-sepharose beads (GE Healthcare UK Ltd.). Proteins were eluted from beads with 0.2 M glycine HCl pH2.5. Samples were neutralised by addition of 0.1 volume 1 M Tris HCl ph8.5. After elution, proteins were precipitated with chloroform and methanol and subjected to in-solution tryptic cleavage as described previously (Gloeckner et al., 2009). LC-MS/MS analysis was performed on Ultimate3000 nano RSLC systems (Thermo Scientific) coupled to a Orbitrap Fusion Tribrid mass spectrometer (Thermo Scientific) by a nano spray ion source (Boldt et al., 2016). Mascot (Matrix Science, Version 2.5.1) was used to search the raw spectra against the human SwissProt database for identification of proteins. The Mascot results were verified by Scaffold (version Scaffold_4.8.8, Proteome Software Inc, Portland, OR, USA) to validate MS/MS-based peptide and protein identifications.

Western blotting

Request a detailed protocol

Soluble protein was analysed by SDS-PAGE using 4–12% Bis-Tris acrylamide gradient gels and western blotting was performed according to standard protocols using either rabbit polyclonal antisera (final dilutions of x200-1000) or MAbs (x1000-5000). Appropriate HRP-conjugated secondary antibodies (Dako Inc) were used (final dilutions of x10000-25000) for detection by the enhanced chemiluminescence ‘Femto West’ western blotting detection system (Pierce Inc). Chemiluminescence was detected using a BioRad ChemiDoc MP Imaging System and Image Lab software. Volumetric analysis of immunoblot bands was performed using Image Lab software (Bio Rad). Full blots are shown in the source data files associated with each figure and figure supplement, as appropriate.

Statistical analyses

Request a detailed protocol

Normal distribution of data (for SUPER-TOPFlash assays, proteasome activity assays, cilia length measurements) was confirmed using the Kolmogorov-Smirnov test (GraphPad Software). Paired or unparied comparisons were analysed with either Student’s two-tailed t-test, χ2 tests or other tests as detailed in figure legends as appropriate using InStat (GraphPad Software). Results reported are from at least three independent biological replicates.

Data availability

Data generated or analysed during this study are included in the manuscript and supporting files. Imaging data for gels and blots is collated as both original files of the full unedited files, and figures with the uncropped gels or blots with the relevant bands highlighted. Full, uncropped western blots are provided in figure supplements, as appropriate for all figures. Source data files are also included for Figure 4e-f, and for all gels and blots displayed in Figures 1-7 (apart from Figure 1e, Figure 1-figure supplement 1 panel e for beta-actin western, Figure 4-figure supplement 1 panel a). Supplementary data to support Figure 4e-f and Figure 4-figure supplement 1b is available from University of Leeds at https://doi.org/10.5518/814.

References

    1. Hoffman L
    2. Pratt G
    3. Rechsteiner M
    (1992)
    Multiple forms of the 20 S multicatalytic and the undefined26 S ubiquitin/ATP-dependent proteases from rabbit reticulocyte lysate
    The Journal of Biological Chemistry 267:22362–22368.
  1. Book
    1. Xu J
    (2001)
    Preparation, Culture, and Immortalization of Mouse Embryonic Fibroblasts. Current Protocols in Molecular Biology
    Wiley.

Decision letter

  1. Gregory J Pazour
    Reviewing Editor; University of Massachusetts Medical School, United States
  2. Piali Sengupta
    Senior Editor; Brandeis University, United States
  3. Gregory J Pazour
    Reviewer; University of Massachusetts Medical School, United States
  4. Christoph Gerhardt
    Reviewer; Heinrich Heine University Düsseldorf, Germany

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

Thank you for submitting your article "Regulation of canonical Wnt signalling by the ciliopathy protein MKS1 and the E2 ubiquitin-conjugating enzyme UBE2E1" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Gregory J Pazour as Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Piali Sengupta as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Christoph Gerhardt (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This manuscript from Szymanska et al., explored MKS1 regulation of canonical Wnt signaling and uncovered a role for the E2 ubiquitin conjugating enzyme Ube2e1 in the degradation of phosphorylated β catenin. This paper addresses an important question in the field as to why ciliary dysfunction causes increased canonical Wnt signaling. The data convincing shows that the loss of MKS1 elevates canonical Wnt signaling. They then identify the E2 ligase Ube2e1 as an Mks1 binding protein by yeast two-hybrid and explore the role of Ube2e1 and Mks1 in regulating β catenin levels. The supporting data has significant problems that will need to be addressed before publication. First, many of the conclusions depend on small differences in band intensity. These differences are often not quantitated or if they are quantitated, it is not clear that the experiments were performed more than once. Statistical analysis also needs to be improved. Many experiments lack statistical tests; others use t-tests to compare multiple variables without any correction for multiple analysis. Secondly, as described below, the quality of several experiments needs to be improved if they are to be used to support the conclusions of the paper.

Essential revisions:

1. Data analysis is lacking. A number of figures lack quantitative analysis. Most lack details about the statistical analysis performed. It is not clear what "#" means in the graphs. It appears that a simple t-test were used for multiple comparisons without correction. Figure legends need to indicate the n of the experiment and the statistical test used.

2. Why would increased proteasomal activity (Figure 1C) cause GFP to accumulate in the UbG76V line? It seems that increased proteasomal activity would decrease (or not change) GFP accumulation.

3. GST pulldown in Figure 2D is not convincing. The background in the control lane is darker than the experimental lane and could obscure a band of the intensity seen in the GST-UBE2E1 pulldown.

4. Figure 3b: There is little or no difference between the "no colocalization" and "colocalization" images. There may be a quantitative difference in the centrosomal staining seen in the panels in 3a but this would need to be measured.

5. Figure 5c. Western blots need to be added. Why is the level of nuclear Ube2e1 relevant to the work?

6. The conclusion that increased expression of UBE2E1 decreases MKS1 levels (5d) is not convincing.

7. The details of what was done in Figure 6b are lacking but a number of points are confusing. Why doesn't the band marked "MKS1cmyc-Ub"show up in the Ub western blot? Would we expect all ubiquitinated proteins to be detected in the Ub blot? If so, then this blot is not evidence of K63 polyubiquitination of the MKS1. The differences between the lanes in the c-myc blot are not convincing. I would expected the DUBs to reduce the extent of polyubiquitination, which should have brought the smears of poly-Ub-MKS1cmyc down the gel, but this is not seen.

8. Figure 6c is problematic. First, both MKS1-GST and Ub-GST are used and a GST western blot is used as evidence of Ub ligation onto MKS1. Ub needs a different tag from its substrate to be convincing. Second, the patterns of the proteins in the blots do not match the guide at the top. Rnf34-His is found in lanes where it was not added. UbE2E1-Flag is only seen in the one of the lanes where it is supposed to be present. This seems to be an unduly complicated figure with UbE2E1-Flag and UbE2E1-His showing different results. There is no explanation of this in the figure legend or text.

9. Figure 6e is too low quality to be interpreted.

10. The staining of the neuroepithelium (S2) with the anti-acetylated tubulin antibody shows decreased cytoplasmic staining and no evidence of ciliary label. Better cilia markers, higher magnification and quantification are needed to make this point. This is also a problem in S1D where the MKS mutant cells have strong cytoplasmic label. It is unclear what the arrow is pointing at, but there is no evidence that it is a cilium.

11. It was published that phospho-β-catenin (S33/S37/T41) is degraded by the proteasome at the base of cilia (Corbit et al., 2008; Gerhardt et al., 2015). Szymanska et al., showed that the amount of phospho-β-catenin (S33/S37/T41) is increased by MKS1 deficiency, although proteasome activity is enhanced in MKS1 mutant cells. How can this discrepancy be explained? The authors did not provide a sufficient explanation. An explanation could be that MKS1 affects Wnt signaling and proteasome activity in two different ways. But this needs to be shown. As they mentioned in the discussion, another transition zone protein, RPGRIP1L, positively regulates proteasome activity (Gerhardt et al., 2015). Previously, it was shown that the loss of RPGRIP1L does not alter the amount of MKS1 at the ciliary transition zone of mouse embryonic fibroblasts (Wiegering et al., 2018) but maybe MKS1 deficiency results in an increased amount of RPGRIP1L at the transition zone of human and mouse fibroblasts leading to the higher proteasome activity the authors observed. Or mutations in MKS1 change the ciliary amount of BBS4 and/or OFD1 which also govern proteasome activity (Liu et al., 2014).

12. Furthermore, some examinations should be performed in another way to allow a more precise interpretation. For example, the authors quantified phospho-β-catenin (S33/S37/T41) and β-catenin. In MKS1 deficient cells, the amount of both proteins is higher. In my opinion, an important control measurement is missing. The authors should additionally measure the amount of non-phospho-β-catenin (S33/S37/T41). Since Szymanska et al., suggest that MKS1 and UBE2E1 colocalize at the ciliary base, they should also measure the amount of hosphor-β-catenin (S33/S37/T41) not only by Western blotting (overall cellular amount) but also at the ciliary base by fluorescence intensity measurements in MKS1 deficient human or mouse fibroblasts. This kind of measurement was performed in hTERT-RPE1 cells which were treated with siRNA against MKS1 (Figure 6f) but in these cells the amount of γ-tubulin seems to be increased. Maybe, the increased amount of hosphor-β-catenin (S33/S37/T41) is caused by the higher amount of γ-tubulin. It cannot be excluded that several cilia overlap because this image lacks ciliary axoneme staining. In regard to the colocalization of MKS1 and UBE2E1, the authors should perform an analysis such as FRET or in situ PLA which confirms that both proteins localize close enough together to interact at the ciliary base.

13. The proteasome activity assay uses the 20S fluorophore substrate Suc-LLVY-AMC to measure activity. The general view is that the proteasome degrades this substrate independently of ubiquitination (Gan et al., 2019). Despite of this, Szymanska et al., observe an enhanced proteasome activity in cells deficient for UBE2E1, an E2 ubiquitin-conjugation enzyme. This data should be carefully controlled in order to test whether the proteasome activity assay results are reliable. It would be helpful to check whether proteasome activity assays in which other substrates are used that are degraded by the proteasome without ubiquitination provide the same results. If this is the case, UBE2E1 may indirectly regulate proteasome activity by taking part in the ubiquitination of a protein that regulates proteasome activity.

14. In human there are approximately 40 E2 enzymes, therefore each E2 is likely to act with multiple E3s (there are over a 1000) with E3s likely to be the main driver of target specificity. Authors have not controlled their experiments, or at least have not showed it in the manuscript, with any other E2s. Consequently, there is a real risk that the findings simply confirm that cilia and MKS1 are regulated by UPS rather than that UBE2E1 is a specific regulator in this system.

15. With regard to immunoprecipitations and ubiquitination assays. Firstly inputs (for each analyzed protein in each sample) and/or loading controls are not always shown (e.g. Figure 2) which makes interpretation of results difficult.

16. Details are lacking about the conditions of the IP experiments used to detect ubiquitinated proteins (6b,d,e). If these were performed under native conditions, the ubiquitin being detected by western blot could be on any protein that complexes with the target of the precipitation. E2 ligases may have a large number of interactors.

17. As far as the UBE2E1 knockdown model. In the MS analysis in Figure 3, I am quite surprised that there is still such a strong recovery of UBE2E1 peptides from UBE2E1 silenced line. Is this not an impediment to this model? Does this not suggest that this cell line still has sufficient, functioning UBE2E1? Also again, it is hard to estimate if the MKS1 specific observations would not be replicated by silencing other E2s.

18. Lack of inputs in Figure 6a,b,d and e make interpretation of the critical claims from this manuscript difficult. If there is an effect of UBE2E1 on MKS1 total protein levels inputs of UBE2E1, MKS1 and loading controls for all samples in 6a 6b and 6d should clarify this. Currently, the only demonstration of the claimed protein increase is in Figure 5d and it is not repeated 3 times to allow for statistical analysis. Furthermore, it looks very marginal (numbers are not greatly affected either 113-107-96 with appreciation that WB is not really a quantitative technique) and unlikely to be significant. It is possible that even if direct, changes caused by UBE2E1 to MKS1and vice versa are completely irrespective of protein levels or stability and affect localization and function through chains other than K48.

19. Authors should clarify statements regarding degradation and UBE2E1 dual function, as alternative explanations have not been ruled out. UBE2E1 action on MKS1 could be indirect. The increase in b-catenin levels in Figure 6d is very hard to interpret without loading controls.

20. There are multiple alternative explanations for the observations presented in this manuscript, which renders figure 7 a bit uncertain. For example, UBE2E1 could be involved in ubiquitination of an MKS1 targeting E3 or DUB and that could be the reason for the observed changes. It would be more forthcoming to highlight this in the manuscript.

References:

Corbit, K., Shyer, A., Dowdle, W., Gaulden, J., Singla, V., Chen, M., Chuang, P., Reiter, J., 2008. Kif3a constrains β-catenin-dependent Wnt signalling through dual ciliary and non-ciliary mechanisms. Nat. Cell Biol. 10, 70-76.

Gan, J., Leestemaker, Y., Sapmaz, A., Ovaa, H., 2019. Highlighting the Proteasome: Using Fluorescence to Visualize Proteasome Activity and Distribution. Front. Mol. Biosci. 6, 14.

Gerhardt, C., Lier, J., Burmühl, S., Struchtrup, A., Deutschmann, K., Vetter, M., Leu, T., Reeg, S., Grune, T., Rüther, U., 2015. The transition zone protein Rpgrip1l regulates proteasomal activity at the primary cilium. J. Cell Biol. 210, 115-133.

Liu, Y., Tsai, I., Morleo, M., Oh, E., Leitch, C., Massa, F., Lee, B., Parker, D., Finley, D., Zaghloul, N., Franco, B., Katsanis, N., 2014. Ciliopathy proteins regulate paracrine signaling by modulating proteasomal degradation of mediators. J. Clin. Invest. 124, 2059-2070.

Wheway, G., Abdelhamed, Z., Natarajan, S., Toomes, C., Inglehearn, C., Johnson, C., 2013. Aberrant Wnt signalling and cellular over-proliferation in a novel mouse model of Meckel-Gruber syndrome.. Dev. Biol. 377, 55-66.

Wiegering, A., Dildrop, R., Kalfhues, L., Spychala, A., Kuschel, S., Lier, J., Zobel, T., Dahmen, S., Leu, T., Struchtrup, A., Legendre, F., Vesque, C., Schneider-Maunoury, S., Saunier, S., Rüther, U., Gerhardt, C., 2018. Cell type-specific regulation of ciliary transition zone assembly in vertebrates. EMBO J. 37, pii: e97791.

https://doi.org/10.7554/eLife.57593.sa1

Author response

Essential revisions:

1. Data analysis is lacking. A number of figures lack quantitative analysis. Most lack details about the statistical analysis performed.

All information about statistical analysis is now included in figure legends and in the Methods and Materials section.

It is not clear what "#" means in the graphs.

The relevant graphs have been redrawn to make clear the pair-wise comparisons under test

It appears that a simple t-test were used for multiple comparisons without correction.

Statistical tests corrected for multiple comparisons (ANOVA) have been used for Figure 3b and 3d and 6a.

Figure legends need to indicate the n of the experiment and the statistical test used.

We have addressed this point in all figure legends as appropriate

2. Why would increased proteasomal activity (Figure 1C) cause GFP to accumulate in the UbG76V line? It seems that increased proteasomal activity would decrease (or not change) GFP accumulation.

UbG76V embryos were treated with a proteasome inhibitor that will prevent degradation of ubiquitinated proteins. Although this procedure was detailed in the Methods and Materials section, we now make this clear in the main text and figure legends, in order to aid interpretation of our observation that loss of Mks1 caused abnormal accumulation of ubiquitinated proteins. Since we also observed a concomitant increase in proteasome activity, we interpret this increase as a response to facilitate the degradation of abnormal amounts of polyubiquitinated proteins. Therefore, when the proteasome is inhibited we observe higher levels of GFP.

3. GST pulldown in Figure 2D is not convincing. The background in the control lane is darker than the experimental lane and could obscure a band of the intensity seen in the GST-UBE2E1 pulldown.

We display a new western blot in Figure 2d from a separate biological replicate of this pulldown

4. Figure 3b: There is little or no difference between the "no colocalization" and "colocalization" images. There may be a quantitative difference in the centrosomal staining seen in the panels in 3a but this would need to be measured.

We have increased the size of magnified insets in Figure 3b and 3d to make the punctate staining at basal bodies more clear. We have attempted to calculate co-localization values between the red (UBE2E1) and green (MKS1) channels (using z-stacks of these channels), but this has been difficult to compare between biological replicates for the two cell-lines because of the variable staining pattern of UBE2E1 in nuclei. We therefore feel that a simple scoring based on presence or absence of UBE2E1 at basal bodies is the most representative of the data.

5. Figure 5c. Western blots need to be added. Why is the level of nuclear Ube2e1 relevant to the work?

We have included the western blots in Figure 5c as requested. We have analysed the overall levels of UBE2E1 localization, including that localized at nuclei, in the “staining intensity” data because it is consistent with the overall increase of protein levels that we observe following western blotting of whole cell extracts. Both data support our contention that MKS1 and UBE2E1 protein levels are co-regulated.

6. The conclusion that increased expression of UBE2E1 decreases MKS1 levels (5d) is not convincing.

In Figure 5d, we have used a clearer western blot from a separate biological replicate of this experiment. (The full blot is included in Suppl. Figure 6). This experiment was conducted three times with consistent results that all demonstrate the co-dependency of protein levels between MKS1 and UBE2E1.

7. The details of what was done in Figure 6b are lacking but a number of points are confusing. Why doesn't the band marked "MKS1cmyc-Ub"show up in the Ub western blot?

The details of methodology for the assay shown in Figure 6b are now included in the Materials and Methods and in the figure legend. In response the second point, the pull-downs bring down all ubiquitinated proteins (the agarose beads are cross-linked to four separate ubiquitin-binding domains) which will be detected by the anti-ubiquitin antibody. Consequently, the specific “MKS1cmyc-Ub” band will be lost in the smear of all ubiquitinated proteins.

Would we expect all ubiquitinated proteins to be detected in the Ub blot? If so, then this blot is not evidence of K63 polyubiquitination of the MKS1.

We agree that all ubiquitinated proteins will be detected in the Ub blot, but this blot is included (in the bottom panel of Figure 6b) as an essential control to show that the K63-specific de-ubiquitinating enzyme (DUB) is active and that the TUBE assay has worked. The top panel of Figure 6b with the anti-cmyc blot shows decreased levels of MKS1 after K63-DUB treatment in comparison to TBST (100 and 149 vs 80 and 121 AUs), suggesting that MKS1-cmyc is at least partially polyubiquitinated with K63 ubiquitin chains.

The differences between the lanes in the c-myc blot are not convincing. I would expected the DUBs to reduce the extent of polyubiquitination, which should have brought the smears of poly-Ub-MKS1cmyc down the gel, but this is not seen.

We now include normalised band intensities for polyUb-cmycMKS1 under the blots in the top panel of Figure 6b, which shows modest yet consistent decreases in polyubiquitination after DUB and K63DUB treatments, for multiple biological replicates of this experiment. However, we agree that de-ubiquitination was not efficient, even following the manufacturer’s protocol, meaning that quantitation between replicates has been problematic. We therefore provide data in Figure 6b as representative of this set of experiments.

8. Figure 6c is problematic. First, both MKS1-GST and Ub-GST are used and a GST western blot is used as evidence of Ub ligation onto MKS1. Ub needs a different tag from its substrate to be convincing.

We agree with this important point, and have gone to considerable efforts to repeat the entire experiment using untagged Ub and His-tagged MKS1 (now displayed in new Figure 6c). This new data shows both mono-ubiquitination of MKS1 and poly-ubiquitination of β-catenin that is dependent on MKS1. (The old data is also shown in Figure 6—figure supplement 1a since it is consistent with these conclusions).

Second, the patterns of the proteins in the blots do not match the guide at the top. Rnf34-His is found in lanes where it was not added.

We apologize for this error in labelling the lanes and have corrected the figure.

UbE2E1-Flag is only seen in the one of the lanes where it is supposed to be present.

We have replaced the input UBE2E1 with a His-tagged protein, and the UBE2E1-FLAG data is included in Figure 6—figure supplement 1a (see above).

This seems to be an unduly complicated figure with UbE2E1-Flag and UbE2E1-His showing different results. There is no explanation of this in the figure legend or text.

We have repeated and simplified the presentation of this entire set of assays (now shown in Figure 6c, with the previous data shown in Figure 6—figure supplement 1a). Figure 6c demonstrates that UBE2E1 undergoes auto-ubiquitination and that ubiquitination is enhanced but not dependent on RNF34. MKS1 inhibits UBE2E1 ubiquitination, suggesting that this could be the basis for the co-dependency of protein levels (data shown in Figure 5c-d). This action is attenuated by addition of β-catenin, but β-catenin by itself does not inhibit UBE2E1 ubiquitination, suggesting that UBE2E1 and MKS1 are co-regulators of β-catenin ubiquitination (also see below, point 9).

9. Figure 6e is too low quality to be interpreted.

This experiment has been repeated and is now shown in Figure 7b. Consistently for all replicates, we observe an increase of polyubiquitinated β-catenin following loss of MKS1 and over-expression of active (wild-type; WT) UBE2E1. This suggests that when MKS1 and active UBE2E1 are present, normal poly-ubiquitination and degradation of β-catenin is taking place. Upon loss of MKS1, this process is disrupted leading to abnormally high levels of highly polyubiquitinated β-catenin. Poly-ubiquitination of β-catenin is much reduced in the presence of inactive (dominant negative; DN) UBE2E1, again suggesting that UBE2E1 and MKS1 are co-regulators of β-catenin ubiquitination.

10. The staining of the neuroepithelium (S2) with the anti-acetylated tubulin antibody shows decreased cytoplasmic staining and no evidence of ciliary label. Better cilia markers, higher magnification and quantification are needed to make this point. This is also a problem in S1D where the MKS mutant cells have strong cytoplasmic label. It is unclear what the arrow is pointing at, but there is no evidence that it is a cilium.

Unfortunately, in our hands, the anti-acetylated tubulin antibody gives variable results on fresh-frozen tissue sections and primary dermal fibroblasts, so we have removed this data in Suppl. Figure 2. We have retained the data showing the increase of activated β-catenin, consistent with data shown in Figure 1a-b.

This is also a problem in S1D where the MKS mutant cells have strong cytoplasmic label.

We agree, but IF staining with this label does not preclude accurate quantitation of cilia incidence and length in these cells and this does seem to be a consistent cellular phenotype in MKS1-mutated cell-lines (see Wheway et al., 2013).

11. It was published that phospho-β-catenin (S33/S37/T41) is degraded by the proteasome at the base of cilia (Corbit et al., 2008; Gerhardt et al., 2015). Szymanska et al., showed that the amount of phospho-β-catenin (S33/S37/T41) is increased by MKS1 deficiency, although proteasome activity is enhanced in MKS1 mutant cells. How can this discrepancy be explained? The authors did not provide a sufficient explanation.

We now make the following potential mechanism clearer in the Discussion: phospho-β-catenin after being phosphorylated needs to be ubiquitinated, probably by UBE2E1 (Chitalia et al., 2008) at the base of the cilium. Our data indicates that MKS1 is necessary to facilitate correct ubiquitination of β-catenin by UBE2E1. Due to the lack of MKS1, UBE2E1 levels increase, which increases polyubiquitination of phosphorylated β-catenin localized at the ciliary base. We observe a concomitant increase in proteasome activity, and suggest that this up-regulation is in response to increased levels of poly-ubiquitinated proteins, including β-catenin, but the levels appear to overload the ability of the proteasome to process them for degradation. As a consequence, there is abnormal accumulation of β-catenin at the ciliary base, where it awaits its degradation, leading to de-regulation of canonical Wnt signalling.

An explanation could be that MKS1 affects Wnt signaling and proteasome activity in two different ways. But this needs to be shown. As they mentioned in the discussion, another transition zone protein, RPGRIP1L, positively regulates proteasome activity (Gerhardt et al., 2015). Previously, it was shown that the loss of RPGRIP1L does not alter the amount of MKS1 at the ciliary transition zone of mouse embryonic fibroblasts (Wiegering et al., 2018) but maybe MKS1 deficiency results in an increased amount of RPGRIP1L at the transition zone of human and mouse fibroblasts leading to the higher proteasome activity the authors observed. Or mutations in MKS1 change the ciliary amount of BBS4 and/or OFD1 which also govern proteasome activity (Liu et al., 2014).

We have addressed this point by using the best available commercial antibody, against RPGRIP1L, and doing a series of western blots following both MKS1 knockdown and in MKS1-mutated fibroblasts (Figure 7—figure supplement 1a-b). RPGRIP1L protein levels were indeed increased in MKS1-mutated fibroblasts compared to normal controls (HDF), but this result was not confirmed by MKS1 knockdown. We therefore conclude that the potential regulatory action of MKS1 on RPGRIP1L warrants further investigation, but is somewhat beyond the current remit and focus of this study.

12. Furthermore, some examinations should be performed in another way to allow a more precise interpretation. For example, the authors quantified phospho-β-catenin (S33/S37/T41) and β-catenin. In MKS1 deficient cells, the amount of both proteins is higher. In my opinion, an important control measurement is missing. The authors should additionally measure the amount of non-phospho-β-catenin (S33/S37/T41).

We have measured levels of non-phospho-β-catenin in both MKS1 knockdown and in MKS1-mutated fibroblasts (Figure 7—figure supplement 1a-b). Β-catenin protein levels were marginally increased following MKS1 knockdown but this result was not confirmed in MKS1-mutated fibroblasts. We conclude that there does not appear to be an overall effect on the levels of non-phospho-β-catenin.

Since Szymanska et al., suggest that MKS1 and UBE2E1 colocalize at the ciliary base, they should also measure the amount of phospho-β-catenin (S33/S37/T41) not only by Western blotting (overall cellular amount) but also at the ciliary base by fluorescence intensity measurements in MKS1 deficient human or mouse fibroblasts.

We present new data in Figure 7—figure supplement 1b to support the data in Figure 7c, showing an increase in phospho-β-catenin at the base cilia but no overall change in non-phospho-β-catenin levels following MKS1 knockdown. We used γ-tubulin staining to define regions-of-interest to ensure that the analyses were limited to the ciliary base; there is no perturbation of γ-tubulin levels following MKS1 knockdown (Figure 7—figure supplement 1b).

This kind of measurement was performed in hTERT-RPE1 cells which were treated with siRNA against MKS1 (Figure 6f) but in these cells the amount of γ-tubulin seems to be increased.

We have confirmed that there is no difference in γ-tubulin levels at the ciliary base following MKS1 knockdown (Figure 7—figure supplement 1a). We have changed the field of view presented in Figure 7c to clarify the observation.

Maybe, the increased amount of phospho-β-catenin (S33/S37/T41) is caused by the higher amount of γ-tubulin. It cannot be excluded that several cilia overlap because this image lacks ciliary axoneme staining.

We agree that this is a possibility, but we have never observed that MKS1 knock-down or mutant cells have multiple cilia (for example, see Wheway et al., 2013).

In regard to the colocalization of MKS1 and UBE2E1, the authors should perform an analysis such as FRET or in situ PLA which confirms that both proteins localize close enough together to interact at the ciliary base.

We used multiple assays that included Y2H, GST pulldown and IP, and IF microscopy to show that MKS1 and UBE2E1 biochemically interact and co-localise. Importantly, Y2H assays indicate that there is a direct interaction between MKS1 and UBE2E1, and we therefore judge that proximity assays such as FRET and PLA would be merely confirmatory.

13. The proteasome activity assay uses the 20S fluorophore substrate Suc-LLVY-AMC to measure activity. The general view is that the proteasome degrades this substrate independently of ubiquitination (Gan et al., 2019). Despite of this, Szymanska et al., observe an enhanced proteasome activity in cells deficient for UBE2E1, an E2 ubiquitin-conjugation enzyme. This data should be carefully controlled in order to test whether the proteasome activity assay results are reliable. It would be helpful to check whether proteasome activity assays in which other substrates are used that are degraded by the proteasome without ubiquitination provide the same results.

In all relevant assays, we have used proteasome inhibitors to control for its activity. These experiments were conducted in three different cell lines (Figure 1c and d, Figure 4g) always with the control of proteasome inhibitor treatment. In addition, we have used “irrelevant control” cells (mutated for the centrosomal protein ASPM; Figure 1c), which have proteasome activity levels similar to those observed in control cells. We therefore judge that the experiments are well-controlled as presented and that they reflect a reproducible biological effect. Furthermore, in data that we present here, proteasome protein levels appear to be up-regulated, consistent with the increase in activity (see Figure 1c, Figure 7—figure supplement 1b). We therefore do not think that additional proteasome activity assays will provide additional insight above the conventional, accepted assays of activity that we already report.

If this is the case, UBE2E1 may indirectly regulate proteasome activity by taking part in the ubiquitination of a protein that regulates proteasome activity.

We agree that this is a possibility, but another alternative is that loss of UBE2E1 causes dysregulation of another E2 or E2s that cause aberrant increase of polyubiquitinated proteins and hence increase in proteasome activity in degradation of polyubiquitinated proteins. Discriminating between these alternatives is, we feel, beyond the focus of the manuscript.

14. In human there are approximately 40 E2 enzymes, therefore each E2 is likely to act with multiple E3s (there are over a 1000) with E3s likely to be the main driver of target specificity. Authors have not controlled their experiments, or at least have not showed it in the manuscript, with any other E2s. Consequently, there is a real risk that the findings simply confirm that cilia and MKS1 are regulated by UPS rather than that UBE2E1 is a specific regulator in this system.

The specific localization and interactions of UBE2E1, and reciprocal co-regulation of MKS1 and UBE2E1, argue that UBE2E1 is a specific co-regulator. In particular, the dominant negative (DN) mutant C131S of UBE2E1 has specific and significant effects on ciliogenesis. However, we agree that degradation of MKS1 (rather than co-regulation) is likely to be mediated by another E2 (for example, Ube2l3, Ube2k, Ube2n or Ube2m; see Figure 4e-f source data 1) because polyubiquitination of MKS1 is inhibited, rather than enhanced, by UBE2E1 (see Figure 6a).

15. With regard to immunoprecipitations and ubiquitination assays. Firstly inputs (for each analyzed protein in each sample) and/or loading controls are not always shown (e.g. Figure 2) which makes interpretation of results difficult.

Input material (whole cell extracts; WCE) and loading controls are now shown for the TUBE assays (Figure 6b and 7b). Input material is also shown for the pulldowns in Figure 2d-f (also see below, point 18).

16. Details are lacking about the conditions of the IP experiments used to detect ubiquitinated proteins (6b,d,e). If these were performed under native conditions, the ubiquitin being detected by western blot could be on any protein that complexes with the target of the precipitation. E2 ligases may have a large number of interactors.

We apologize for this oversight and now provide further details of the methodology used in our IP experiments. We now make clear that we used denaturing conditions for the western blots. We note that TUBE assays (Figure 6b and 7b) pull-down all poly-ubiquitinated proteins and the western blot is then performed to visualize the protein of interest.

17. As far as the UBE2E1 knockdown model. In the MS analysis in Figure 3, I am quite surprised that there is still such a strong recovery of UBE2E1 peptides from UBE2E1 silenced line. Is this not an impediment to this model? Does this not suggest that this cell line still has sufficient, functioning UBE2E1? Also again, it is hard to estimate if the MKS1 specific observations would not be replicated by silencing other E2s.

We think that the reviewers may have misinterpreted what is shown in Figure 4e: the peptide count ratios are for the various different protein species immunoprecipitated by anti-MKS1 from the shScrambled control vs the shUbe2e1 cell-lines (with the raw data tabulated in Figure 4e-f source data 1, columns Q-S). We do not observe recovery of Ube2e1 peptides under these conditions, but there are moderate levels of other E2s (Ube2l3, Ube2k, Ube2n and Ube2m). Successful Ube2e1 knock-down in the shUbe2e1 cell-line is demonstrated in Figure 4c.

18. Lack of inputs in Figure 6a,b,d and e make interpretation of the critical claims from this manuscript difficult. If there is an effect of UBE2E1 on MKS1 total protein levels inputs of UBE2E1, MKS1 and loading controls for all samples in 6a 6b and 6d should clarify this.

Input material is now shown for Figures 2d-f, 6b-c and 7a-b (also see point 15). Input recombinant proteins are also shown individually for the in vitro ubiquitination assays (Figure 6c, Figure 6—figure supplement 1a).

Currently, the only demonstration of the claimed protein increase is in Figure 5d and it is not repeated 3 times to allow for statistical analysis. Furthermore, it looks very marginal (numbers are not greatly affected either) 113-107-96…

In Figure 5d, we have used a clearer western blot from a separate biological replicate of this experiment (see also response to point 6).

..with appreciation that (WB is not really a quantitative technique) and unlikely to be significant.

As mentioned above (point 6), this experiment was conducted three times with consistent results that all demonstrate the co-dependency of protein levels between MKS1 and UBE2E1. We have not provided a statistical analysis of the replicates for this assay exactly for the reasons stated by the reviewer for this assay (the ECL method for western blot visualization is difficult to optimize for semi-quantitative purposes).

It is possible that even if direct, changes caused by UBE2E1 to MKS1and vice versa are completely irrespective of protein levels or stability and affect localization and function through chains other than K48.

The TUBE data shown in Figure 6b suggests that MKS1 is modified by K63 ubiquitination. We have also attempted to confirm this directly by LC-MS/MS analysis of peptide species, but unfortunately, in our hands, the B9 domain appears to be particularly resistant to standard trypsin digestion and even the trypsin/Lys-C protocol for tightly folded proteins does not provide coverage of the predicted modified lysine groups in MKS1.

19. Authors should clarify statements regarding degradation and UBE2E1 dual function, as alternative explanations have not been ruled out. UBE2E1 action on MKS1 could be indirect.

The interpretation of our data is that the direct interaction between MKS1 and UBE2E1 mediates K63 mono/bi-ubiquitination of MKS1, modulating MKS1 function, ciliogenesis and other known downstream functions such as β-catenin polyubiquitination. However, we assume that another E2 or E2s regulate degradation/polyubiquitination of MKS1.

The increase in b-catenin levels in Figure 6d is very hard to interpret without loading controls.

To aid interpretation of our data, we have provided loading controls and a new TUBE assay has been performed (Figure 7b).

20. There are multiple alternative explanations for the observations presented in this manuscript, which renders figure 7 a bit uncertain. For example, UBE2E1 could be involved in ubiquitination of an MKS1 targeting E3 or DUB and that could be the reason for the observed changes. It would be more forthcoming to highlight this in the manuscript.

In response to point 19 above, we now provide alternative interpretations of our data in the Discussion, but the most parsimonious explanation of our findings are summarized in Figure 7d. in the main text we now state: “…alternative interpretations of our data are that UBE2E1 could occupy an E2 binding position on MKS1 preventing MKS1 degradation, or that MKS1 binds to UBE2E1 to facilitate UBE2E1 ubiquitination and degradation”

https://doi.org/10.7554/eLife.57593.sa2

Article and author information

Author details

  1. Katarzyna Szymanska

    Leeds Institute of Medical Research, School of Medicine, University of Leeds, Leeds, United Kingdom
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Project administration, Validation, Visualization, Writing – original draft, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7736-5225
  2. Karsten Boldt

    Institute of Ophthalmic Research, Center for Ophthalmology, University of Tübingen, Tübingen, Germany
    Contribution
    Data curation, Formal analysis, Investigation, Writing - original draft, Writing – review and editing
    Competing interests
    No competing interests declared
  3. Clare V Logan

    Leeds Institute of Medical Research, School of Medicine, University of Leeds, Leeds, United Kingdom
    Contribution
    Data curation, Formal analysis, Investigation, Writing – review and editing
    Competing interests
    No competing interests declared
  4. Matthew Adams

    Leeds Institute of Medical Research, School of Medicine, University of Leeds, Leeds, United Kingdom
    Contribution
    Data curation, Formal analysis, Investigation, Writing – review and editing
    Competing interests
    No competing interests declared
  5. Philip A Robinson (deceased)

    Leeds Institute of Medical Research, School of Medicine, University of Leeds, Leeds, United Kingdom
    Contribution
    , Conceptualization, Formal analysis, Methodology, Writing – review and editing, Software
    Competing interests
    No competing interests declared
  6. Marius Ueffing

    Institute of Ophthalmic Research, Center for Ophthalmology, University of Tübingen, Tübingen, Germany
    Contribution
    Data curation, Funding acquisition, Methodology, Writing - original draft, Software, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9045-182X
  7. Elton Zeqiraj

    Astbury Centre for Structural Molecular Biology, School of Molecular and Cellular Biology, Faculty of Biological Sciences, University of Leeds, Leeds, United Kingdom
    Contribution
    Formal analysis, Methodology, Writing – review and editing, Software, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0239-5926
  8. Gabrielle Wheway

    1. Leeds Institute of Medical Research, School of Medicine, University of Leeds, Leeds, United Kingdom
    2. Faculty of Medicine, University of Southampton, Human Development and Health, UK, Southampton, United Kingdom
    3. University Hospital Southampton NHS Foundation Trust, Southampton, United Kingdom
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Project administration, Validation, Visualization, Writing – original draft, Writing – review and editing
    For correspondence
    G.Wheway@soton.ac.uk
    Competing interests
    No competing interests declared
  9. Colin A Johnson

    Leeds Institute of Medical Research, School of Medicine, University of Leeds, Leeds, United Kingdom
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Project administration, Writing – review and editing, Software, Visualization, Writing – original draft, Writing – review and editing
    For correspondence
    c.johnson@leeds.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2979-8234

Funding

Medical Research Council (MR/M000532/1)

  • Colin A Johnson

European Community's Seventh Framework Programme FP7/2009 Health (241955 SYSCILIA)

  • Colin A Johnson

Wellcome Trust (204378/Z/16/Z)

  • Gabrielle Wheway

Wellcome Trust (105615/Z/14/Z)

  • Katarzyna Szymanska

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This paper is dedicated to the memory of P Robinson, our valued collaborator, colleague and friend. We are very grateful to D Evans, J Bilton, C McCartney and M Reay for technical support. We thank E Pitt for hTERT immortalization of MKS1 patient fibroblasts. We thank A Monk, K Passam and T Simpson of Nikon UK Ltd. for technical support and advice on confocal microscopy. We are grateful to R T Moon (University of Washington) for the SUPER-TOPFlash and FOPFlash constructs, and S Kang (Korea University) for the UBE2E1 constructs. The anti-MKS1 antibody was a gift from N Katsanis, Duke University Medical Center. We acknowledge funding from the UK Medical Research Council (Doctoral Training Award for GW, project grant MR/M000532/1 to CAJ) The research also received funding from the European Community’s Seventh Framework Programme FP7/2009 under grant agreement no: 241,955 SYSCILIA. KS was funded by Wellcome Trust Institutional Strategic Support Funding to University of Leeds (105615/Z/14/Z) and GW was funded by a Wellcome Trust Seed Award in Science (204378/Z/16/Z).

Ethics

Informed consent was obtained from all participating families or patients, with studies approved by the Leeds (East) Research Ethics Committee (REC no. 08/H1306/85) on 4th July 2008.

The animal studies described in this paper were carried out under the guidance issued by the Medical Research Council in Responsibility in the Use of Animals for Medical Research (July 1993) in accordance with UK Home Office regulations under the Project Licence no. PPL40/3349.

Senior Editor

  1. Piali Sengupta, Brandeis University, United States

Reviewing Editor

  1. Gregory J Pazour, University of Massachusetts Medical School, United States

Reviewers

  1. Gregory J Pazour, University of Massachusetts Medical School, United States
  2. Christoph Gerhardt, Heinrich Heine University Düsseldorf, Germany

Publication history

  1. Preprint posted: January 9, 2020 (view preprint)
  2. Received: April 5, 2020
  3. Accepted: February 10, 2022
  4. Accepted Manuscript published: February 16, 2022 (version 1)
  5. Version of Record published: February 25, 2022 (version 2)

Copyright

© 2022, Szymanska et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 515
    Page views
  • 90
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Katarzyna Szymanska
  2. Karsten Boldt
  3. Clare V Logan
  4. Matthew Adams
  5. Philip A Robinson
  6. Marius Ueffing
  7. Elton Zeqiraj
  8. Gabrielle Wheway
  9. Colin A Johnson
(2022)
Regulation of canonical Wnt signalling by the ciliopathy protein MKS1 and the E2 ubiquitin-conjugating enzyme UBE2E1
eLife 11:e57593.
https://doi.org/10.7554/eLife.57593

Further reading

    1. Biochemistry and Chemical Biology
    2. Cell Biology
    Haikel Dridi et al.
    Research Article Updated

    Age-dependent loss of body wall muscle function and impaired locomotion occur within 2 weeks in Caenorhabditis elegans (C. elegans); however, the underlying mechanism has not been fully elucidated. In humans, age-dependent loss of muscle function occurs at about 80 years of age and has been linked to dysfunction of ryanodine receptor (RyR)/intracellular calcium (Ca2+) release channels on the sarcoplasmic reticulum (SR). Mammalian skeletal muscle RyR1 channels undergo age-related remodeling due to oxidative overload, leading to loss of the stabilizing subunit calstabin1 (FKBP12) from the channel macromolecular complex. This destabilizes the closed state of the channel resulting in intracellular Ca2+ leak, reduced muscle function, and impaired exercise capacity. We now show that the C. elegans RyR homolog, UNC-68, exhibits a remarkable degree of evolutionary conservation with mammalian RyR channels and similar age-dependent dysfunction. Like RyR1 in mammals, UNC-68 encodes a protein that comprises a macromolecular complex which includes the calstabin1 homolog FKB-2 and is immunoreactive with antibodies raised against the RyR1 complex. Furthermore, as in aged mammals, UNC-68 is oxidized and depleted of FKB-2 in an age-dependent manner, resulting in ‘leaky’ channels, depleted SR Ca2+ stores, reduced body wall muscle Ca2+ transients, and age-dependent muscle weakness. FKB-2 (ok3007)-deficient worms exhibit reduced exercise capacity. Pharmacologically induced oxidization of UNC-68 and depletion of FKB-2 from the channel independently caused reduced body wall muscle Ca2+ transients. Preventing FKB-2 depletion from the UNC-68 macromolecular complex using the Rycal drug S107 improved muscle Ca2+ transients and function. Taken together, these data suggest that UNC-68 oxidation plays a role in age-dependent loss of muscle function. Remarkably, this age-dependent loss of muscle function induced by oxidative overload, which takes ~2 years in mice and ~80 years in humans, occurs in less than 2–3 weeks in C. elegans, suggesting that reduced antioxidant capacity may contribute to the differences in lifespan among species.

    1. Cell Biology
    Desiree Schatton et al.
    Research Article

    Proliferating cells undergo metabolic changes in synchrony with cell cycle progression and cell division. Mitochondria provide fuel, metabolites, and ATP during different phases of the cell cycle, however it is not completely understood how mitochondrial function and the cell cycle are coordinated. CLUH is a post-transcriptional regulator of mRNAs encoding mitochondrial proteins involved in oxidative phosphorylation and several metabolic pathways. Here, we show a role of CLUH in regulating the expression of astrin, which is involved in metaphase to anaphase progression, centrosome integrity, and mTORC1 inhibition. We find that CLUH binds both the SPAG5 mRNA and its product astrin, and controls the synthesis and the stability of the full-length astrin-1 isoform. We show that CLUH interacts with astrin-1 specifically during interphase. Astrin-depleted cells show mTORC1 hyperactivation and enhanced anabolism. On the other hand, cells lacking CLUH show decreased astrin levels and increased mTORC1 signaling, but cannot sustain anaplerotic and anabolic pathways. In absence of CLUH, cells fail to grow during G1, and progress faster through the cell cycle, indicating dysregulated matching of growth, metabolism and cell cycling. Our data reveal a role of CLUH in coupling growth signaling pathways and mitochondrial metabolism with cell cycle progression.
