Abstract

A hallmark of CRISPR-Cas immunity systems is the CRISPR array, a genomic locus consisting of short, repeated sequences (‘repeats’) interspersed with short, variable sequences (‘spacers’). CRISPR arrays are transcribed and processed into individual CRISPR RNAs that each include a single spacer, and direct Cas proteins to complementary sequences in invading nucleic acid. Most bacterial CRISPR array transcripts are unusually long for untranslated RNA, suggesting the existence of mechanisms to prevent premature transcription termination by Rho, a conserved bacterial transcription termination factor that rapidly terminates untranslated RNA. We show that Rho can prematurely terminate transcription of bacterial CRISPR arrays, and we identify a widespread antitermination mechanism that antagonizes Rho to facilitate complete transcription of CRISPR arrays. Thus, our data highlight the importance of transcription termination and antitermination in the evolution of bacterial CRISPR-Cas systems.

Introduction

CRISPR-Cas systems are adaptive immune systems found in many bacteria and archaea (Wright et al., 2016). The hallmark of CRISPR-Cas systems is the CRISPR array, which is composed of multiple alternating, short, identical ‘repeat’ sequences, interspersed with short, variable ‘spacer’ sequences. A critical step in CRISPR immunity is biogenesis (Wright et al., 2016), which involves transcription of a CRISPR array into a single, long precursor RNA that is then processed into individual CRISPR RNAs (crRNAs), with each crRNA containing a single spacer sequence. crRNAs associate with an effector Cas protein or Cas protein complex, and direct the Cas protein(s) to an invading nucleic acid sequence that is complementary to the crRNA spacer and often includes a neighboring Protospacer Adjacent Motif (PAM). This leads to cleavage of the invading nucleic acid by a Cas protein nuclease, in a process known as ‘interference’.

CRISPR arrays can be expanded by acquisition of new spacer/repeat elements at one end of the array, in a process known as adaptation. The ability to become immune to newly encountered invaders is presumably a strong selective pressure that promotes adaptation (Bradde et al., 2020; Martynov et al., 2017), although shorter CRISPR arrays appear to be strongly favored in bacteria (Weissman et al., 2018). Little is known about factors that negatively influence CRISPR array length. It has been hypothesized that increased array length is selected against because of the potential for individual crRNAs to become less effective as the effector complex is diluted among more crRNA variants (Bradde et al., 2020; Martynov et al., 2017; Rao et al., 2017). The diversity of potential invaders and the mutation frequency of invaders have also been proposed to impose selective pressure on array length (Martynov et al., 2017). Lastly, array length is known to be impacted by deletions caused by homologous recombination between repeats (Gudbergsdottir et al., 2011; Kupczok et al., 2015).

Rho is a broadly conserved bacterial transcription termination factor. Rho terminates transcription only when nascent RNA is untranslated (Mitra et al., 2017). Hence, the primary function of Rho is to suppress the transcription of spurious, non-coding RNAs that initiate as a result of pervasive transcription (Lybecker et al., 2014; Peters et al., 2012; Wade and Grainger, 2014). To terminate transcription, Rho must load onto nascent RNA at a ‘Rho utilization site’ (Rut). The precise sequence and structure requirements for Rho loading are not fully understood, but Ruts typically have a high C:G ratio, limited secondary structure, and are enriched in YC dinucleotides (Mitra et al., 2017; Nadiras et al., 2018). However, the overall sequence/structure specificity of Ruts is believed to be low, and a large proportion of the Salmonella Typhimurium genome is predicted to be capable of functioning as a Rut (Nadiras et al., 2018). Once Rho loads onto nascent RNA, it translocates along the RNA in a 5’ to 3’ direction using its helicase activity. Rho typically catches the RNA polymerase (RNAP) within 60–90 nucleotides, leading to transcription termination, with termination typically occurring at an RNAP pause site (Mitra et al., 2017).

The activity of Rho can be inhibited by a variety of mechanisms that collectively are referred to as ‘antitermination’. Antitermination mechanisms can be grouped into two classes: targeted and processive (Goodson and Winkler, 2018). Targeted antitermination affects a single site and does not otherwise alter the properties of the transcription complex. For example, targeted antitermination could involve occlusion of a single Rho loading site by an RNA-binding protein. Processive antitermination, on the other hand, involves modification of the transcription machinery such that RNAP becomes resistant to termination for the remainder of that transcription cycle (Goodson and Winkler, 2018). This typically occurs due to association of a protein or protein complex with the elongating RNAP due to sequence-specific cis-acting elements in the DNA or nascent RNA. One of the best-studied processive antitermination mechanisms occurs on ribosomal RNA (rRNA) and involves the Nus factor complex. The Nus factor complex consists of five proteins, NusA, NusB, NusE (ribosomal protein S10), NusG, and SuhB, that bind to both nascent RNA and elongating RNAP. Nus complex formation begins with sequence-specific association of NusB/E with a short RNA element known as ‘BoxA’. Association of the Nus complex with both RNAP and the BoxA leads to formation of a loop in the nascent RNA (Bubunenko et al., 2013; Burmann et al., 2010; Huang et al., 2020; Singh et al., 2016). The most recently identified member of the Nus complex, SuhB, is recruited to elongating RNAP in a boxA-dependent manner (Singh et al., 2016), interacts with NusA, NusG, RNAP, and the nascent RNA, and is required for assembly and activity of the Nus factor complex (Dudenhoeffer et al., 2019; Huang et al., 2020; Huang et al., 2019; Wang et al., 2007). The Nus factor complex prevents Rho termination (Squires et al., 1993; Torres et al., 2004) in a BoxA-dependent manner (Aksoy et al., 1984; Li et al., 1984; Squires et al., 1993), and BoxA elements are found in phylogenetically diverse copies of rRNA (Arnvig et al., 2008; Sen et al., 2008).

Like rRNA, CRISPR array transcripts are non-coding and often long, making them ideal substrates for Rho (Pougach et al., 2010). Here, we show that Rho termination provides selective pressure against increased CRISPR array length in bacteria. Moreover, we show that BoxA-mediated antitermination is a widespread mechanism by which bacteria protect their CRISPR arrays from Rho termination. Disrupting BoxA-mediated antitermination leads to premature Rho termination within CRISPR arrays that renders later spacers ineffective for CRISPR immunity.

Results

Salmonella Typhimurium CRISPR arrays have functional boxA sequences upstream

We identified boxA-like sequences a short distance upstream of both CRISPR arrays (CRISPR-I and CRISPR-II) in S. Typhimurium, which encodes a single, type I-E CRISPR-Cas system (Figure 1A). The putative boxA sequences are 78 and 77 bp upstream of the first repeat in the CRISPR-I and CRISPR-II arrays, respectively. To facilitate studies of the S. Typhimurium CRISPR-Cas system, which is transcriptionally silenced by H-NS (Navarre et al., 2006), we introduced a strong, constitutive promoter (Luo et al., 2015) in place of cas3 (Figure 1A). This promoter drives transcription of the cas8e-cse2-cas7-cas5-cas6e-cas1-cas2 operon, and our ChIP-qPCR data for RNAP indicate that transcription continues through the boxA into the CRISPR array (Figure 1—figure supplement 1); in wild-type S. Typhimurium cells that lack the constitutive promoter upstream of cas8e, we detected little RNAP occupancy within the CRISPR array, suggesting that there is no active promoter between cas2 and the start of the array. We also introduced a strong, constitutive promoter upstream of the CRISPR-II array, immediately downstream of the queE gene (Figure 1A), reasoning that this would mimic transcriptional readthrough from queE. Transcription from this promoter also covers the putative boxA. To determine whether the putative boxA elements upstream of the CRISPR arrays are genuine, we measured association of TAP-tagged SuhB with elongating RNAP at the CRISPR-II array using ChIP-qPCR, which detects indirect association of SuhB with the DNA (Singh et al., 2016). Our data indicate robust association of SuhB with the region immediately downstream of the putative boxA, but not with the highly transcribed rpsA gene that is not associated with a boxA (Figure 1B). By contrast, we detected substantially reduced SuhB association with the same genomic region in a strain containing a single base pair substitution in the boxA that is expected to abrogate NusB/E association (Baniulyte et al., 2017; Berg et al., 1989; Nodwell and Greenblatt, 1993), with SuhB association being similar to that at rpsA. The level of SuhB association with rpsA was not substantially altered by the mutation in the CRISPR-II boxA. We conclude that the CRISPR-II array transcript includes a functional upstream BoxA. For almost 40 years, the Nus factor complex was believed to be a dedicated rRNA regulator, with no other known bacterial targets (Sen et al., 2008). We recently identified a novel function for the Nus factor complex – autoregulation of suhB – and we provided evidence for many additional targets (Baniulyte et al., 2017). Identification of CRISPR arrays as a novel target for the Nus factor complex further increases the number of known targets and provides new opportunities for investigating the mechanism by which Nus factors prevent Rho termination.

Figure 1 with 1 supplement see all
boxA elements upstream of both CRISPR arrays in Salmonella Typhimurium.

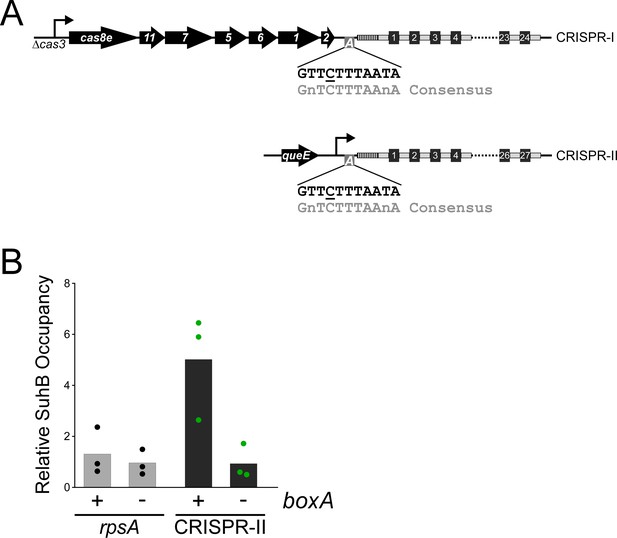

(A) Schematic of the two CRISPR arrays in S. Typhimurium. Repeat sequences are represented by gray rectangles and spacer sequences are represented by black squares. Spacers are numbered within the array, with spacer one being closest to the leader sequence (dashed rectangle). The CRISPR-I array is co-transcribed with the upstream cas genes. For the work presented in this study, the cas3 gene was deleted and replaced with a constitutive promoter. Similarly, a constitutive promoter was inserted immediately downstream of queE, upstream of the CRISPR-II array. boxA elements (boxes containing an ‘A’) are located immediately upstream of the leader sequences of both CRISPR arrays. (B) Relative occupancy of SuhB-TAP, determined by ChIP-qPCR, within the highly expressed rpsA gene (gray bars), or at the boxA sequence upstream of CRISPR-II (black bars). Occupancy was measured in a strain with an intact boxA upstream of CRISPR-II (AMD710), or a single base-pair substitution within the boxA (underlined base in (A); AMD711). Values shown with bars are the average of three independent biological replicates, with dots showing each individual datapoint.

BoxA-mediated antitermination of S. Typhimurium CRISPR arrays

We hypothesized that BoxA-mediated association of the Nus factor complex with RNAP at the S. Typhimurium CRISPR arrays prevents premature Rho-dependent transcription termination. To test this hypothesis, we constructed lacZ transcriptional reporter fusions that contain a constitutive promoter followed by the sequence downstream of the queE gene (upstream of the CRISPR-II array), extending to either the 2nd (‘short fusion’) or the 11th (‘long fusion’) spacer of the array (Figure 2A). We constructed equivalent fusions that contain a single base pair substitution in the boxA that is expected to abrogate NusB/E association (Figure 1B; Baniulyte et al., 2017; Berg et al., 1989; Nodwell and Greenblatt, 1993). We then measured β-galactosidase activity for each of the four fusions in cells grown with/without bicyclomycin (BCM), a specific inhibitor of Rho (Mitra et al., 2017). In the absence of BCM, expression of the long fusion but not the short fusion was substantially reduced by mutation of the boxA (Figure 2B). By contrast, expression of all fusions was similar for cells grown in the presence of BCM (Figure 2B). Thus, our data are consistent with BoxA-mediated, Nus factor antitermination of the CRISPR array, with Rho termination occurring between the 2nd and 11th spacer when antitermination is disrupted. Surprisingly, expression levels of both the short and long fusions were substantially higher in cells grown with BCM, even with an intact boxA (Figure 2B). By contrast, expression of a control reporter fusion that includes an intrinsic terminator upstream of lacZ was not affected by BCM treatment (Figure 2C); the intrinsic terminator substantially reduces, but does not abolish, lacZ expression (Stringer et al., 2014). We conclude that some Rho termination occurs upstream of the boxA in both the long and short CRISPR array reporter fusions. We also observed that expression of the long fusion was lower than that of the short fusion, even with an intact boxA, suggesting that Nus factors are unable to prevent all instances of Rho termination within the CRISPR array.

BoxA-mediated antitermination of a CRISPR array.

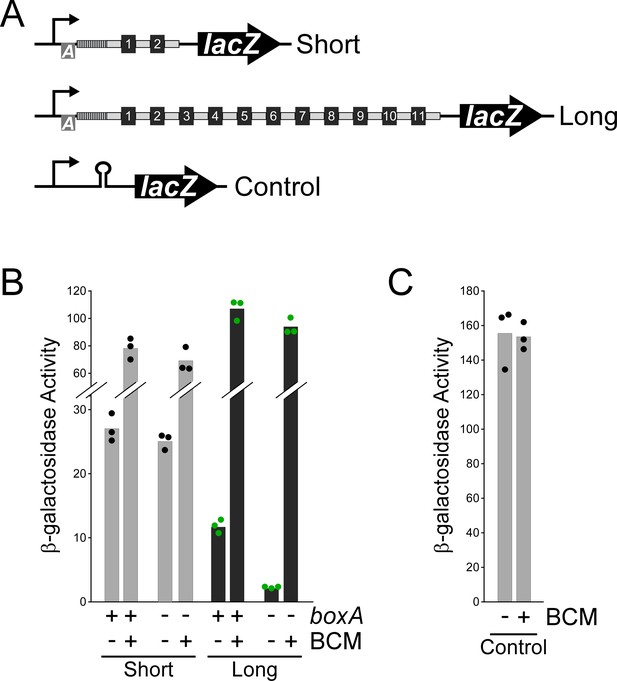

(A) Schematic of short (pGB231 and pGB237) and long (pGB250 and pGB256) lacZ reporter gene transcriptional fusions to the CRISPR-II array, and a control transcriptional fusion (pJTW060) that includes an intrinsic terminator upstream of lacZ. (B) β-galactosidase activity of the short and long lacZ reporter gene fusions with either an intact (pGB231 and pGB250) or mutated (pGB237 and pGB256) boxA sequence, in cells grown with/without addition of the Rho inhibitor bicyclomycin (BCM). (C) β-galactosidase activity of the control lacZ reporter gene fusion (pJTW060) that includes an intrinsic terminator upstream of lacZ, in cells grown with/without BCM. Values shown with bars are the average of three independent biological replicates, with dots showing each individual datapoint.

Antitermination of S. Typhimurium CRISPR arrays facilitates the use of spacers throughout the arrays

Our data indicate that CRISPR arrays in S. Typhimurium are protected from premature Rho termination by Nus factor association with RNAP via the BoxA sequences. However, this does not necessarily mean that CRISPR-Cas function is affected by antitermination, since low levels of crRNA may be sufficient for Cas proteins to bind target DNA. We previously investigated the specificity of the Cascade complex of Cas proteins in Escherichia coli. Our data indicated that Cascade can bind to DNA targets with as few as 5 bp between the crRNA and the target DNA; consequently, the endogenous E. coli crRNAs direct Cascade binding to >100 chromosomal sites (Cooper et al., 2018), with all of the binding events involving very limited base-pairing that is insufficient for DNA cleavage by the Cas3 nuclease. The E. coli CRISPR-Cas system is a type I-E system, similar to that in S. Typhimurium. Given this similarity, we hypothesized that S. Typhimurium Cascade would also bind chromosomal targets, and that we could measure the effectiveness of different CRISPR array spacers by measuring the degree to which those spacers direct Cascade binding to cognate chromosomal sites. We used ChIP-seq to measure FLAG3-Cas5 (a Cascade subunit) association with the S. Typhimurium chromosome in cells expressing crRNAs from both CRISPR arrays. Note that we used a different constitutive promoter upstream of the CRISPR-II array to that described above for ChIP of SuhB, although the promoter was inserted at the same location (see Methods). As expected, we detected association of Cas5 with a large number (236) of chromosomal regions (Figure 3A, Supplementary file 1). These binding sites are associated with five strongly enriched sequence motifs that correspond to a PAM sequence and the seed regions of spacers 1, 2, 3, 4, and 11 from the CRISPR-I array (Figure 3B). These enriched motifs indicate that the optimal PAM in S. Typhimurium is AWG. We then attempted to identify the corresponding crRNA spacer for all 236 Cascade-binding sites (see Materials and methods). Thus, we were able to uniquely associate 152 binding sites with a single spacer from one of the two CRISPR arrays (Supplementary file 2). To test the quality of these spacer assignments, we repeated the ChIP-seq experiment in a strain where the CRISPR-I array had been deleted. Consistent with our spacer assignments, Cas5 association decreased specifically at all DNA sites assigned to spacers from the CRISPR-I array (Figure 3—figure supplement 1). By comparing the ChIP-seq data from wild-type and CRISPR-I deleted cells, we were able to unambiguously associate an additional 32 Cascade-binding sites with a single spacer from one of the two CRISPR arrays (these binding sites had previously been associated with multiple possible spacers; Supplementary file 2).

Figure 3 with 1 supplement see all
Extensive off-target binding of S. Typhimurium Cascade.

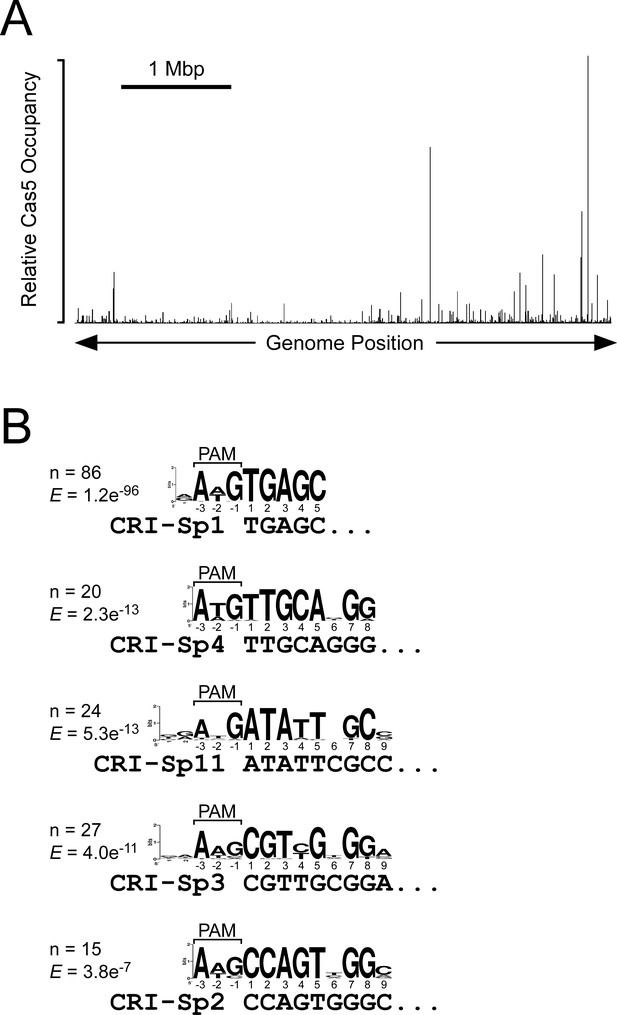

(A) Relative FLAG3-Cas5 occupancy across the S. Typhimurium genome as measured by ChIP-seq in strain AMD678. (B) Enriched sequence motifs in Cascade-bound regions, as identified by MEME (Bailey and Elkan, 1994). Sequence matches to the AWG PAM and to the seed sequence of specific spacers are indicated. The number of Cascade-bound genomic regions containing each sequence motif is indicated, as is the enrichment score ("E") generated by MEME (Bailey and Elkan, 1994).

We next measured FLAG3-Cas5 association with the S. Typhimurium chromosome in cells containing a single base pair substitution in the boxA upstream of CRISPR-II that is expected to abrogate NusB/E association (Figure 1B; Baniulyte et al., 2017; Berg et al., 1989; Nodwell and Greenblatt, 1993). We observed no difference in Cas5 binding between the wild-type and mutant cells for sites associated with spacers from the CRISPR-I array, or sites associated with spacers 1–2 from the CRISPR-II array (Figure 4A; Supplementary file 2). By contrast, mutation of the CRISPR-II boxA led to decreases of between 3.7- and 10.7-fold in Cas5 binding to sites associated with spacers 9–23 from the CRISPR-II array (Figure 4A–B; Supplementary file 2). This effect was reversed by addition of BCM to the boxA mutant cells (Figure 4C; Supplementary file 2), indicating that reduced Cascade binding associated with spacers 9–23 of CRISPR-II is due to premature Rho termination of the array. Consistent with our reporter gene fusion data (Figure 2B), addition of BCM to cells with an intact boxA led to an increase in Cascade binding associated with spacers 9–23 of the CRISPR-II array (Figure 4—figure supplement 1; Supplementary file 2), supporting the notion that the BoxA prevents only a subset of premature Rho termination events.

Figure 4 with 2 supplements see all
The CRISPR-II boxA facilitates use of all spacers by preventing premature Rho termination.

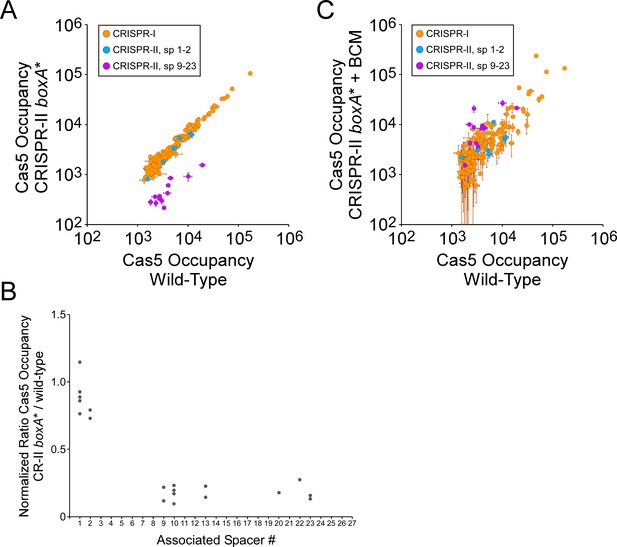

(A) Comparison of FLAG3-Cas5 ChIP-seq occupancy at off-target chromosomal sites in cells with an intact CRISPR-II boxA (AMD678; x-axis), and cells with a single base-pair substitution in the CRISPR-II boxA (‘boxA*”; AMD685; y-axis). Cascade binding associated with spacers from CRISPR-I is indicated by orange datapoints. Cascade binding associated with spacers 1–2 from CRISPR-II is indicated by light blue datapoints. Cascade binding associated with spacers 9–23 from CRISPR-II is indicated by purple datapoints. Values plotted are the average of two independent biological replicates. Error bars represent one standard-deviation from the mean. (B) Normalized ratio of FLAG3-Cas5 occupancy associated with spacers from CRISPR-II. Values are plotted according to the associated spacer, and are normalized to the average value for sites associated with spacers from CRISPR-I. (C) Comparison of FLAG3-Cas5 ChIP-seq occupancy at off-target chromosomal sites in cells with an intact CRISPR-II boxA (AMD678; x-axis), and cells with a single base-pair substitution in the CRISPR-II boxA (‘boxA*”; AMD685) that were treated with bicyclomycin (BCM; y-axis).

We also measured FLAG3-Cas5 association with the S. Typhimurium chromosome in cells containing a single base-pair substitution in the boxA upstream of the CRISPR-I array. Mutation of the CRISPR-I boxA had no impact on Cas5 binding to sites associated with spacers from the CRISPR-II array or spacers 1–5 from the CRISPR-I array (Figure 4—figure supplement 2A; Supplementary file 2). By contrast, mutation of the CRISPR-I boxA led to a decrease in Cas5 binding to sites associated with spacers 9–17 from the CRISPR-I array (Figure 4—figure supplement 2A), with the magnitude of the effect increasing as a function of the position of the spacer in the array (Figure 4—figure supplement 2B). This effect was reversed by addition of BCM to the boxA mutant cells (Figure 4—figure supplement 2C; Supplementary file 2), indicating that reduced Cascade binding using spacers 9–17 of CRISPR-I is due to premature Rho termination of the array. Unexpectedly, Cas5 binding associated with CRISPR-I spacers 18–23 was unaffected by the boxA mutation (Figure 4—figure supplement 2B), suggesting the existence of an additional promoter within spacer 16 or 17. Overall, the effect of mutating the CRISPR-I boxA was smaller than that of mutating the CRISPR-II boxA, suggesting that more RNAP can evade Rho termination at CRISPR-I.

To confirm that the effects of mutating the boxA sequences are due to the inability to recruit the Nus factor complex, we measured FLAG3-Cas5 association with the S. Typhimurium chromosome in cells containing a defective Nus factor. We were unable to delete either nusB or suhB, suggesting that all Nus factors are essential in S. Typhimurium. Hence, we introduced a single-base substitution into the chromosomal copy of the nusE gene, resulting in the N3H amino acid substitution. The equivalent change in the E. coli NusE leads to a defect in Nus factor complex function (Baniulyte et al., 2017). Note that mutation of nusE also resulted in a ~ 147 kb deletion of the chromosome at an unlinked site (See Materials and methods for details of the deletion). Mutation of nusE led to a decrease in Cascade binding to sites associated with spacers 9–23 from the CRISPR-II array and spacers 13–17 from the CRISPR-I array (Figure 5A; Supplementary file 2). The effect of the nusE mutation on Cascade binding was smaller than that of the boxA mutations; however, the Nus factor complex is likely to retain partial function in the nusE mutant strain. To rule out the possibility that the chromosomal deletion in the nusE mutant strain was responsible for the effect on Cascade binding, we complemented the strain with plasmid-expressed wild-type NusE. Complementation led to an increase in the binding of Cas5 to sites associated with spacers 9–23 from the CRISPR-II array and spacers 13–17 from the CRISPR-I array (Figure 5B; Supplementary file 2), consistent with a specific effect of mutating nusE. Similarly, addition of BCM to the nusE mutant cells resulted in an increase in the binding of Cas5 to sites associated with spacers 9–23 from the CRISPR-II array and spacers 13–17 from the CRISPR-I array (Figure 5C; Supplementary file 2), indicating that reduced Cascade binding using spacers 9–23 of CRISPR-II and spacers 13–17 from the CRISPR-I array in the nusE mutant is due to premature Rho termination of the arrays. Based on the effects of mutating the boxA sequences and the effect of mutating nusE, we conclude that Nus factors prevent premature transcription termination of both S. Typhimurium CRISPR arrays, and that this has a direct impact on the ability of S. Typhimurium to use the majority of spacers in the CRISPR arrays.

Nus factors facilitate use of all spacers by preventing premature Rho termination.

(A) Comparison of FLAG3-Cas5 ChIP-seq occupancy at off-target chromosomal sites in nusE+ (AMD678; x-axis), and nusE mutant cells (‘nusE*”; AMD698) containing an empty vector (pBAD24-amp; y-axis). Cascade binding associated with spacers 1–12 from CRISPR-I, and spacers 1–2 from CRISPR-II, is indicated by orange datapoints. Cascade binding associated with spacers 13–17 from CRISPR-I is indicated by gray datapoints. Cascade binding associated with spacers 9–23 from CRISPR-II is indicated by purple datapoints. Values plotted are the average of two independent biological replicates. Error bars represent one standard-deviation from the mean. (B) Comparison of FLAG3-Cas5 ChIP-seq occupancy at off-target chromosomal sites in nusE+ (AMD678; x-axis) or nusE mutant cells (‘nusE*”; AMD698) expressing a plasmid-encoded (pAMD239) copy of wild-type nusE (y-axis). (C) Comparison of FLAG3-Cas5 ChIP-seq occupancy at off-target chromosomal sites in nusE+ cells (AMD678; x-axis), and nusE mutant cells (‘nusE*”; AMD698) containing an empty vector and treated with bicyclomycin (BCM; y-axis).

Immune activity of the Vibrio cholerae CRISPR-Cas system requires BoxA-mediated antitermination

Our data clearly indicate that BoxA-mediated antitermination is required for the activity of later spacers in the S. Typhimurium CRISPR arrays. However, we measured activity of spacers by their ability to direct Cascade binding, not interference. Moreover, we artificially induced expression of the S. Typhimurium cas genes and CRISPR arrays because their transcription is normally silenced by H-NS (Lucchini et al., 2006; Navarre et al., 2006); indeed, there is no evidence from phylogenetic analysis for recent activity of Salmonella CRISPR-Cas systems (Shariat et al., 2015). To address these limitations, we turned to the type I-E CRISPR-Cas system found in V. cholerae of the classical biotype. This CRISPR-Cas system is naturally active in immunity (Box et al., 2016), and has a putative boxA upstream of a 39-spacer CRISPR array (Figure 6—figure supplement 1). We constructed three derivatives of V. cholerae strain A50: (i) a Δcascade mutant in which all cas genes are deleted except cas1 and cas2, (ii) a Δcas1 mutant that lacks cas1 but retains all other cas genes and hence is proficient for interference, and (iii) a boxAmut Δcas1 double mutant that has a two base pair substitution in the boxA. We constructed a collection of plasmids containing protospacers matching the 39 spacers in the V. cholerae A50 CRISPR array, each flanked by an optimal PAM (Box et al., 2016). We also constructed a control plasmid that lacks a protospacer. We pooled these plasmids and attempted to introduce them into each of the three strains by conjugation. Successful transconjugants were pooled, and the protospacer sequences were PCR-amplified and sequenced. We calculated the conjugation efficiency for each protospacer-containing plasmid into the Δcas1 (boxA+) and boxAmut Δcas1 strains, normalizing to the conjugation efficiency of each plasmid into the Δcascade strain and to the conjugation efficiency of the control plasmid that lacks a protospacer. We observed low conjugation efficiencies (0.01–10% of the control plasmid conjugation efficiency) for the majority of protospacers tested with the Δcas1 strain, with only protospacer 39, and to a lesser extent protospacer 38, avoiding CRISPR-Cas immunity (Figure 6). Thus, spacers 1–37 are active in CRISPR-Cas immunity in V. cholerae. For the boxAmut Δcas1 strain, conjugation efficiencies for protospacers 1–19 were essentially unchanged with respect to the boxA+ strain. By contrast, conjugation efficiencies for spacers 20–37 were substantially higher (44.5-fold to 262-fold) in the boxAmut Δcas1 strain than in the boxA+ strain (Figure 6). For spacers 28–36 and 38–39, conjugation efficiencies in the boxAmut Δcas1 strain were similar to those of the control plasmid, indicating a lack of interference (Figure 6; note that spacer 26 is an exact copy of spacer 10; Figure 6—figure supplement 1). We conclude that an intact boxA is needed to prevent premature Rho termination within the V. cholerae CRISPR array; in the absence of a functional BoxA, many of the spacers in the CRISPR array are rendered obsolete.

Figure 6 with 1 supplement see all
Conjugation efficiencies of protospacer-containing plasmids into Vibrio cholerae.

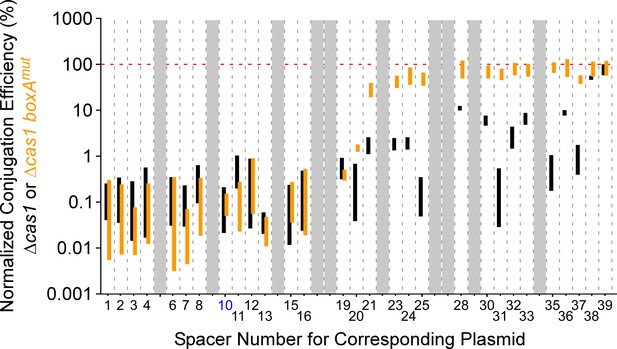

Normalized conjugation efficiency (%) of protospacer-containing plasmids into Δcas1 (KS2094) or boxAmut Δcas1 (KS2206) V. cholerae A50. Bars indicate the range of conjugation efficiencies across two replicate experiments, with the spacer corresponding to each plasmid indicated on the x-axis. Black and orange bars indicate efficiency values for the Δcas1 strain and boxAmut Δcas1 strain, respectively. Note that spacers 10 and 26 are identical, with data only shown for spacer 10 (blue text). The red horizontal, dashed line indicates 100% conjugation efficiency (i.e. the same efficiency as the control plasmid that lacks a protospacer). Greyed-out regions indicate protospacer-containing plasmids with <50 sequence reads in the control sample for at least one of the two replicates.

BoxA-mediated antitermination of bacterial CRISPR arrays is phylogenetically widespread

Given that Rho is found in >90% of bacterial species (D'Heygère et al., 2013), and Nus factors are broadly conserved (Figure 7—figure supplement 1; Supplementary file 3; note that we assessed conservation of NusB rather than other members of the Nus factor complex because each of the other proteins has a second function, separate to its role in the complex), we reasoned that species other than S. enterica and V. cholerae may use the Nus factor complex to facilitate expression of their CRISPR arrays. Hence, we performed a phylogenetic analysis of sequences associated with CRISPR arrays. Among sequences found between a cas2 gene and a downstream CRISPR array in 187 bacterial genera (each genus represented only once; see Materials and methods for details of sequence selection), there was a strongly enriched sequence motif that is a striking match to the known boxA consensus from E. coli (Figure 7A; Supplementary file 4; Arnvig et al., 2008; Baniulyte et al., 2017). This motif was detected in 52 of the 187 genera examined, predominantly for genera in the Proteobacteria, Bacteroidetes and Cyanobacteria phyla. The boxA consensus is known to vary between species, diverging from the E. coli sequence with increasing evolutionary distance (Arnvig et al., 2008). Hence, it is possible that boxA sequences were missed upstream of CRISPR arrays in bacterial genera that are less closely related to E. coli. Given that the Proteobacteria likely share a more recent common ancestor with phyla other than the Bacteroidetes and Cyanobacteria (Bern and Goldberg, 2005), we propose that boxA sequences upstream of CRISPR arrays either (i) evolved in a very early bacterial ancestor but were not detected in our analysis due to boxA sequence divergence, or (ii) evolved independently in multiple bacterial lineages. Regardless of its evolutionary history, it is clear that this phenomenon is distributed broadly across the bacterial kingdom.

Figure 7 with 2 supplements see all
Widespread conservation of boxA sequences upstream of CRISPR arrays in diverse bacterial genera.

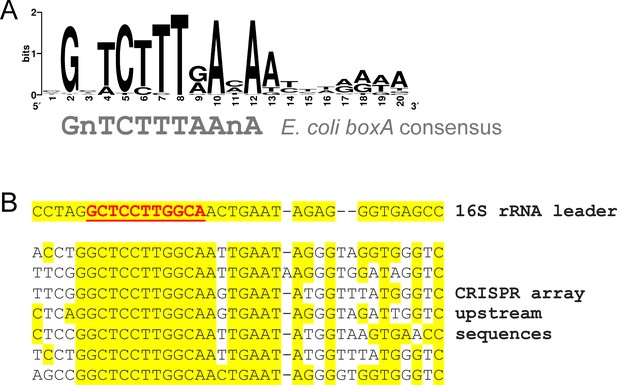

(A) Sequence motif found by MEME (Bailey and Elkan, 1994) to be significantly enriched upstream of 52 CRISPR arrays spread across the bacterial kingdom (from 187 tested; MEME E-value = 7.1e−69). (B) A sequence alignment of sequences upstream of CRISPR arrays and ribosomal RNA genes in Aquifex aeolicus. The known boxA sequence upstream of ribosomal RNA genes is underlined and in red text. Yellow shading indicates identical bases.

Conservation of boxA sequences upstream of CRISPR arrays in cyanobacterial species is unexpected because these species lack rho (D'Heygère et al., 2013). The putative boxA sequences upstream of cyanobacterial CRISPR arrays differ from the boxA consensus sequence derived from E. coli (Figure 7—figure supplement 2). As discussed above, this could reflect divergence of NusB/E sequence specificity, or may be an indication that these putative boxA sequences are false positives. We reasoned that rRNA loci in cyanobacteria would have boxA sequences upstream, and that these could be used to determine if the boxA consensus sequence in cyanobacteria differs from that in E. coli. We searched for enriched sequence motifs in rRNA upstream sequences from the nine species for which we identified putative boxA sequences upstream of CRISPR arrays. The most strongly enriched sequence motif from the rRNA upstream regions is a close match to the putative boxA sequences upstream of CRISPR arrays from the same species (Figure 7—figure supplement 2), and there were no enriched sequence motifs that were more similar to the E. coli boxA consensus. We conclude that the boxA sequences upstream of cyanobacterial CRISPR arrays are genuine.

Discussion

Rho poses a barrier to CRISPR array transcription

Our data highlight the importance of transcription antitermination in the process of CRISPR biogenesis. Rho termination is a widely conserved, and often essential process in bacteria. Given that CRISPR arrays and the upstream leader sequences are non-coding, they represent likely substrates for Rho. Thus, Rho may be an unavoidable barrier to expression of longer CRISPR arrays, necessitating an antitermination activity. Although Rho has some specificity for sites of loading and termination, newly acquired spacers in a CRISPR array have sequences that cannot be ‘anticipated’; a ‘bad’ spacer, that is one that promotes Rho loading or termination, could inactivate a large portion of the array by causing premature Rho termination. This phenomenon is exacerbated by the fact that new spacers are added to the upstream end of the array with respect to the direction of transcription. Since spacers only impact cell fitness when the cognate invader is encountered, a bad spacer could be acquired in a CRISPR array and become fixed in the population, inactivating later spacers in the array before cells require immunity using those spacers. We speculate that Rho termination acts as a selective pressure to limit adaptation in species that lack an antitermination mechanism, perhaps explaining why most CRISPR arrays have only a few spacers (Weissman et al., 2018). The spacers most affected by Rho termination will be at the leader-distal ends of CRISPR arrays, meaning that they are the ‘older’ spacers. This may reduce the selective pressure to prevent Rho termination if the immunity provided by these older spacers is not beneficial due to a reduced likelihood of encountering the cognate invader.

BoxA-mediated antitermination is a phylogenetically widespread mechanism to prevent premature Rho-dependent transcription termination of CRISPR arrays

We have identified a widely conserved mechanism to counteract premature Rho termination of CRISPR arrays: BoxA-mediated antitermination. The phylogenetic distribution of CRISPR arrays with an associated boxA suggests that this mechanism of CRISPR array antitermination has evolved independently on multiple occasions (Supplementary file 4). Moreover, BoxA-mediated antitermination of CRISPR arrays is likely to be even more widely distributed than our analysis suggests, because boxA sequences that diverge from the E. coli consensus may have been missed. Indeed, previous studies of BoxA-mediated antitermination have shown that the boxA consensus varies across the bacterial kingdom (Arnvig et al., 2008; Das et al., 2008). This is highlighted by the fact that, in a separate analysis, we identified putative boxA sequences upstream of five CRISPR arrays in Aquifex aeolicus (Figure 7B). Prediction of these boxA sequences, which differ considerably from those in E. coli and S. Typhimurium, was only possible because of prior experimental work identifying the rRNA boxA in A. aeolicus (Das et al., 2008).

Our data suggest that even in the presence of an antitermination mechanism, Rho termination can still impact CRISPR array transcription. Specifically, we showed that inhibition of Rho led to increased use of later spacers in the two S. Typhimurium CRISPR arrays even in the presence of an intact boxA (Figure 4—figure supplement 1). Similarly, the last two spacers of the V. cholerae CRISPR array failed to elicit interference even in wild-type cells (Figure 6), suggesting that Rho termination occurs before the end of the array. Thus, it seems likely that even with an antitermination mechanism in place, Rho termination can limit the effective length of CRISPR arrays.

Curiously, there appear to be boxA sequences upstream of CRISPR arrays in several species of the Cyanobacteria phylum (Supplementary file 4; Figure 7—figure supplement 2), despite almost all species in this phylum lacking rho (D'Heygère et al., 2013). We propose two possible explanations. First, there may be an alternative transcription termination mechanism in cyanobacteria that can be antagonized by the Nus factor complex. Second, Nus factor association with RNAP transcribing a CRISPR array likely generates an RNA loop, since the BoxA is tethered to RNAP by the Nus factors. Loop formation could impact crRNA processing by modulating base-pairing interactions in the nascent RNA. BoxA-mediated RNA loop formation has been proposed to facilitate folding and processing of rRNA (Bubunenko et al., 2013; Singh et al., 2016). Such a function need not be mutually exclusive with transcription antitermination.

Are there alternative antitermination mechanisms for CRISPR arrays?

Our search for enriched sequence motifs upstream of CRISPR arrays used arrays from 187 bacterial species. Most of these species have type I CRISPR-Cas systems, often in combination with additional types. Fifty of the 52 species with a putative boxA sequence upstream of a CRISPR array have at least one type I system, with the other two species each having only a type III system. By contrast, none of the 15 species with only a type II-C CRISPR-Cas system have boxA sequences upstream of their arrays. We reasoned that this might be because at least some species with type II-C CRISPR-Cas systems have their CRISPR arrays oriented opposite to cas2, rather than co-directionally (Dugar et al., 2013; Zhang et al., 2013); when extracting sequences adjacent to CRISPR arrays for sequence analysis (Figure 7A), we assumed that cas2 and CRISPR arrays are oriented co-directionally. Indeed, it is possible that boxA sequences were missed for other types of CRISPR array for the same reason. To test the possibility that there are boxA sequences on the cas2-distal side of the 15 type II-C CRISPR arrays included in our analysis, we replaced the sequences between cas2 and CRISPR arrays with the 300 nt from the opposite end of the CRISPR arrays for all 15 species, and repeated the search for enriched sequence motifs; sequences used for the other 172 species remained the same. We did not detect a putative boxA adjacent to any of the type II-C arrays (Supplementary file 5), suggesting that these species use a different mechanism to circumvent Rho termination within their CRISPR arrays. Indeed, repeat sequences in many type II-C CRISPR-Cas systems contain promoters, such that each spacer in the array is transcribed from a promoter immediately upstream (Charpentier et al., 2015; Dugar et al., 2013; Mir et al., 2018; Zhang et al., 2013). We propose that this provides an alternative mechanism to avoid Rho termination, obviating the need for a boxA sequence.

Given that many bacterial CRISPR arrays lack an upstream boxA, even in species that are closely related to Salmonella, we anticipate that there are additional mechanisms of CRISPR array antitermination. These are likely to be processive antitermination mechanisms, since targeted antitermination would be incompatible with the dynamic nature of CRISPR arrays. Nonetheless, we note that targeted antitermination mechanisms may be important for preventing Rho termination in the leader sequences upstream of CRISPR arrays, which are often long and non-coding. Indeed, a targeted antitermination mechanism has been described for CRISPR array leader sequences in Pseudomonas aeruginosa (Lin et al., 2019). Alternatives to BoxA-mediated antitermination of CRISPR arrays could include antitermination by NusG homologues such as RfaH (Goodson et al., 2017; Goodson and Winkler, 2018; Kang et al., 2018), or inhibition of Rho activity by cis-acting RNA elements, similar to the Put element of phage HK022 (King and Weisberg, 2003). An alternative possibility is that CRISPR array processing by Cas6 may be so efficient in some bacterial species that the CRISPR array transcript is processed downstream of Rho, preventing Rho from catching RNAP on the RNA. Lastly, there may be mechanisms to circumvent Rho termination that are independent of processive antitermination, such as the repeat-internal promoters found in type II-C CRISPR-Cas systems (Charpentier et al., 2015; Dugar et al., 2013; Mir et al., 2018; Zhang et al., 2013).

Conclusions

In conclusion, we have identified Rho termination as an important player in CRISPR biogenesis, and we have identified a widespread mechanism to counteract premature Rho termination of CRISPR arrays. We anticipate that studies of CRISPR biogenesis in other bacterial species will reveal novel antitermination mechanisms, and that bacteriophage have evolved mechanisms to counteract antitermination as an anti-CRISPR strategy. Lastly, the potential for Rho termination should be considered for biotechnological applications that require arrays with multiple spacers. Indeed, a recent study showed that including a boxA upstream of a 10-spacer CRISPR array substantially improves the efficiency of multiplexed CRISPRi in Legionella pneumophila (Ellis et al., 2020).

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or
reference
IdentifiersAdditional
information
Strain
(Salmonella Typhimurium)
14028sDOI:10.1128/JB.01233–09
Strain (Salmonella Typhimurium)AMD678This study14028s PKAB-TG::Δcas3, FLAG3-cas5, PKAB-TG::CRISPR-IISupplementary file 6
Strain (Salmonella Typhimurium)AMD679This studyAMD678 ΔCRISPR-I::thyASupplementary file 6
Strain (Salmonella Typhimurium)AMD684This studyAMD678 CRISPR-I boxA(C4A)Supplementary file 6
Strain (Salmonella Typhimurium)AMD685This studyAMD678 CRISPR-II boxA(C4A)Supplementary file 6
Strain (Salmonella Typhimurium)AMD698This studyAMD678 nusE(N3H)Supplementary file 6
Strain (Salmonella Typhimurium)AMD710This study14028s PKAB-TG::Δcas3, FLAG3-cas5, suhB-TAP, PJ23119-thyA::CRISPR-IISupplementary file 6
Strain
(Salmonella Typhimurium)
AMD711This studyAMD710 CRISPR-II boxA(C4A)Supplementary file 6
Strain (Vibrio cholerae)KS1234DOI: 10.1128/JB.00747–15
Strain (Vibrio cholerae)KS2094This studyKS1234 Δcas1Supplementary file 6
Strain (Vibrio cholerae)KS2206This studyKS1234 Δcas1 boxAmut (C4A, T5G)Supplementary file 6
Strain (Vibrio cholerae)BJO185DOI: 10.1128/JB.00747–15
Strain (Escherichia coli)S17DOI: 10.1016/0378-1119(90)90147-J
AntibodyAnti-E. coli RNA Polymerase β Antibody (Mouse monoclonal)BioLegendCatalog # 663903ChIP (1 µL)
AntibodyMonoclonal anti-FLAG M2 antibody (Mouse monoclonal)SIGMACatalog # F1804ChIP-seq (2 µL)
Recombinant DNA reagentpBAD24-amp (plasmid)DOI: 10.1128/jb.177.14.4121–4130.1995
Recombinant DNA reagentpAMD239 (plasmid)This studypBAD24-nusE
Recombinant DNA reagentpGEM-T (plasmid)Promega, Catalog # A1360
Recombinant DNA reagentpVS030 (plasmid)This studypGEM-T-TAP-thyA-TAP
Recombinant DNA reagentpJTW064 (plasmid)DOI: 10.1128/JB.01007–13
Recombinant DNA reagentpGB231 (plasmid)This studypJTW064 with CRISPR-II upstream region and up to spacer 2Supplementary file 6
Recombinant DNA reagentpGB237 (plasmid)This studypJTW064 with CRISPR-II upstream region and up to spacer 2, boxA(C4A)Supplementary file 6
Recombinant DNA reagentpGB250 (plasmid)This studypJTW064 with CRISPR-II upstream region and up to spacer 11Supplementary file 6
Recombinant DNA reagentpGB256 (plasmid)This studypJTW064 with CRISPR-II upstream region and up to spacer 11, boxA(C4A)Supplementary file 6
Recombinant DNA reagentp958 (plasmid)DOI: 10.1128/JB.00747–15
Recombinant DNA reagentpAMD244 (plasmid)This studypKS958 with V. cholerae A50 protospacer 1Supplementary file 6
Recombinant DNA reagentpAMD245 (plasmid)This studypKS958 with V. cholerae A50 protospacer 2Supplementary file 6
Recombinant DNA reagentpAMD246 (plasmid)This studypKS958 with V. cholerae A50 protospacer 3Supplementary file 6
Recombinant DNA reagentpAMD247 (plasmid)This studypKS958 with V. cholerae A50 protospacer 4Supplementary file 6
Recombinant DNA reagentpAMD248 (plasmid)This studypKS958 with V. cholerae A50 protospacer 5Supplementary file 6
Recombinant DNA reagentpAMD249 (plasmid)This studypKS958 with V. cholerae A50 protospacer 6Supplementary file 6
Recombinant DNA reagentpAMD250 (plasmid)This studypKS958 with V. cholerae A50 protospacer 7Supplementary file 6
Recombinant DNA reagentpAMD251 (plasmid)This studypKS958 with V. cholerae A50 protospacer 8Supplementary file 6
Recombinant DNA reagentpAMD252 (plasmid)This studypKS958 with V. cholerae A50 protospacer 9Supplementary file 6
Recombinant DNA reagentpAMD253 (plasmid)This studypKS958 with V. cholerae A50 protospacer 11Supplementary file 6
Recombinant DNA reagentpAMD254 (plasmid)This studypKS958 with V. cholerae A50 protospacer 12Supplementary file 6
Recombinant DNA reagentpAMD255 (plasmid)This studypKS958 with V. cholerae A50 protospacer 13Supplementary file 6
Recombinant DNA reagentpAMD256 (plasmid)This studypKS958 with V. cholerae A50 protospacer 14Supplementary file 6
Recombinant DNA reagentpAMD257 (plasmid)This studypKS958 with V. cholerae A50 protospacer 15Supplementary file 6
Recombinant DNA reagentpAMD258 (plasmid)This studypKS958 with V. cholerae A50 protospacer 16Supplementary file 6
Recombinant DNA reagentpAMD259 (plasmid)This studypKS958 with V. cholerae A50 protospacer 17Supplementary file 6
Recombinant DNA reagentpAMD260 (plasmid)This studypKS958 with V. cholerae A50 protospacer 19Supplementary file 6
Recombinant DNA reagentpAMD262 (plasmid)This studypKS958 with V. cholerae A50 protospacer 20Supplementary file 6
Recombinant DNA reagentpAMD263 (plasmid)This studypKS958 with V. cholerae A50 protospacer 21Supplementary file 6
Recombinant DNA reagentpAMD264 (plasmid)This studypKS958 with V. cholerae A50 protospacer 22Supplementary file 6
Recombinant DNA reagentpAMD265 (plasmid)This studypKS958 with V. cholerae A50 protospacer 23Supplementary file 6
Recombinant DNA reagentpAMD266 (plasmid)This studypKS958 with V. cholerae A50 protospacer 24Supplementary file 6
Recombinant DNA reagentpAMD267 (plasmid)This studypKS958 with V. cholerae A50 protospacer 25Supplementary file 6
Recombinant DNA reagentpAMD268 (plasmid)This studypKS958 with V. cholerae A50 protospacer 10/26Supplementary file 6
Recombinant DNA reagentpAMD269 (plasmid)This studypKS958 with V. cholerae A50 protospacer 27Supplementary file 6
Recombinant DNA reagentpAMD270 (plasmid)This studypKS958 with V. cholerae A50 protospacer 28Supplementary file 6
Recombinant DNA reagentpAMD271 (plasmid)This studypKS958 with V. cholerae A50 protospacer 29Supplementary file 6
Recombinant DNA reagentpAMD272 (plasmid)This studypKS958 with V. cholerae A50 protospacer 30Supplementary file 6
Recombinant DNA reagentpAMD273 (plasmid)This studypKS958 with V. cholerae A50 protospacer 31Supplementary file 6
Recombinant DNA reagentpAMD274 (plasmid)This studypKS958 with V. cholerae A50 protospacer 32Supplementary file 6
Recombinant DNA reagentpAMD275 (plasmid)This studypKS958 with V. cholerae A50 protospacer 33Supplementary file 6
Recombinant DNA reagentpAMD276 (plasmid)This studypKS958 with V. cholerae A50 protospacer 34Supplementary file 6
Recombinant DNA reagentpAMD277 (plasmid)This studypKS958 with V. cholerae A50 protospacer 35Supplementary file 6
Recombinant DNA reagentpAMD278 (plasmid)This studypKS958 with V. cholerae A50 protospacer 36Supplementary file 6
Recombinant DNA reagentpAMD279 (plasmid)This studypKS958 with V. cholerae A50 protospacer 37Supplementary file 6
Recombinant DNA reagentpAMD280 (plasmid)This studypKS958 with V. cholerae A50 protospacer 38Supplementary file 6
Recombinant DNA reagentpAMD281 (plasmid)This studypKS958 with V. cholerae A50 protospacer 39Supplementary file 6
Chemical compound, drugBicyclomycinSanta Cruz Biotechnology, IncCatalog # sc-391755
Chemical compoundProtein A Sepharose CL-4B MediumCytiva (Formerly GE Healthcare Life Sciences)Catalog # 17078001
Chemical compoundIgG Sepharose 6 Fast Flow MediumCytiva (Formerly GE Healthcare Life Sciences)Catalog # 17096901

Strains and plasmids

Request a detailed protocol

All strains, plasmids, and oligonucleotides used in this study are listed in Supplementary files 6 and 7, respectively. All Salmonella strains are derivatives of Salmonella enterica subspecies enterica serovar Typhimurium 14028s (Jarvik et al., 2010). Strains AMD678, AMD679, AMD684, AMD685, AMD698, AMD710, and AMD711 were generated using the FRUIT recombineering method (Stringer et al., 2012). To construct AMD678, oligonucleotides JW8576 and JW8577 were used to N-terminally FLAG3-tag cas5. Then, oligonucleotides JW8610 + JW8611 and JW8797 + JW8798 were used for insertion of a constitutive PKAB-TG promoter (Burr et al., 2000) in place of cas3, and upstream of the CRISPR-II array, respectively. AMD679, AMD684, AMD685, and AMD698 are derivatives of AMD678 and were generated using oligonucleotides (i) JW8913 and JW8914 to amplify thyA and replace the CRISPR-I array, (ii) JW8904-JW8907 for introduction of a CRISPR-I boxA mutation (C4A), (iii) JW8568-JW8571 for introduction of a CRISPR-II boxA mutation (C4A), and (iv) JW9441-JW9444 for introduction of a nusE mutation (N3H). Mutation of nusE was associated with deletion of a 146.6 kb region, from genome position 1654295 to 1800903 (determined from ChIP-seq reads spanning the deletion). It is unclear whether this deletion is required for viability. AMD710 and AMD711 were derived from AMD678 and AMD685, respectively. They were constructed using oligonucleotides JW9355 + JW9356 to C-terminally TAP-tag suhB, with pVS030 (see below) as a PCR template. The constitutive PKAB-TG promoter (Burr et al., 2000) upstream of the CRISPR-II array was replaced by PJ23119-thyA, using oligonucleotides JW9627 + JW9628 and a strain containing thyA driven by the PJ23119 promoter as a template for colony PCR.

All V. cholerae strains are derivatives of A50 (Mutreja et al., 2011). In-frame unmarked deletions and point mutations were constructed using splicing by overlap extension (SOE) PCR (Horton et al., 1989) and introduced through conjugation with E. coli SM10λpir using pCVD442-lac (Donnenberg and Kaper, 1991). Constructs were generated using oligonucleotides (i) KS1297-KS1300 for introduction of a 672 bp in-frame deletion in cas1 (leaving a 204 bp non-functional allele), and (ii) KS1368-KS1371 for introduction of the boxA mutation (C4A, T5G).

The plasmid pAMD239 was constructed by using oligonucleotides JW9674 and JW9675 to amplify nusE from wild-type 14028s. The resulting DNA fragment was cloned into pBAD24 (Guzman et al., 1995) digested with HindIII and NheI. For the construction of pVS030, duplicate sets of TAP tags were colony PCR-amplified from a TAP-tagged strain of E. coli (Butland et al., 2005) using oligonucleotides JW6401 + JW6445 and JW6448 + JW6406. Oligonucleotides JW6446 + JW6447 were used to colony PCR-amplify thyA, as described previously (Stringer et al., 2012). All three DNA fragments were cloned into the pGEM-T plasmid (Promega) digested with SalI and NcoI.

Plasmids pGB231, pGB237, pGB250, pGB256 were constructed by PCR-amplifying and cloning a truncated S. Typhimurium 14028s CRISPR-II array (to the 2nd or 11th spacer) and 292 bp of upstream sequence into the NsiI and NheI sites of the pJTW064 plasmid (Stringer et al., 2014) with either a wild-type or mutant boxA sequence. A constitutive promoter was introduced upstream of the CRISPR-II sequence, creating a transcriptional fusion to lacZ. The following primers were used to PCR-amplify each CRISPR-II truncation: JW9381 + JW9383 (pGB231 and pGB237), JW9381 + JW9605 (pGB250 and pGB256). Fusions carrying boxA mutations were made by amplifying CRII from AMD678 template, which contains a boxA(C4A) mutation.

Protospacer plasmids pAMD244-pAMD260 and pAMD262-pAMD281 were constructed by cloning each spacer from the V. cholerae A50 CRISPR array into HindIII-digested pKS958 (Box et al., 2016) using In-Fusion (Clonetech). The protospacer plasmid matching array spacer 18 contained a point mutation and was discarded.

ChIP-qPCR

Request a detailed protocol

Strains 14028s, AMD678, AMD710, and AMD711 were subcultured 1:100 in LB and grown to an OD600 of 0.5–0.8. ChIP and input samples were prepared and analyzed as described previously (Stringer et al., 2014). For ChIP of β, 1 µl anti-β (RNA polymerase subunit) antibody was used. For ChIP of SuhB-TAP, IgG Sepharose was used in place of Protein A Sepharose. Enrichment of ChIP samples was determined using quantitative real-time PCR with an ABI 7500 Fast instrument, as described previously (Aparicio et al., 2005). Enrichment was calculated relative to a control region, within the sseJ gene (PCR-amplified using oligonucleotides JW4477 + JW4478), which is expected to be free of SuhB and RNA polymerase. Oligonucleotides used for qPCR amplification of the region within the CRISPR-I array were JW9305 + JW9306. Oligonucleotides used for qPCR amplification of the region surrounding the CRISPR-II boxA were JW9329 + JW9330. Oligonucleotides used for qPCR amplification of the region within rpsA were JW9660 + JW9661. Occupancy values represent background-subtracted enrichment relative to the control region.

ChIP-seq

Request a detailed protocol

All ChIP-seq experiments were performed in duplicate. Cultures were inoculated 1:100 in LB with fresh overnight cultures of AMD678, AMD679, AMD684, and AMD685. Cultures of AMD678, AMD684, and AMD685 were split into two cultures at an OD600 of 0.1, and bicyclomycin was added to one of the two cultures to a concentration of 20 µg/mL. At an OD600 of 0.5–0.8, cells were processed for ChIP-seq of FLAG3-Cas5, following a protocol described previously (Stringer et al., 2014). For ChIP-seq using derivatives of the nusE mutant strain (AMD698), AMD698 containing either empty pBAD24 or pAMD239, was subcultured 1:100 in LB supplemented with 100 µg/mL ampicillin and 0.2% arabinose. AMD698 + pBAD24 cultures were split into two cultures at an OD600 of 0.1. Bicyclomycin was added to one of the two cultures to a concentration of 20 µg/mL. At an OD600 of 0.5–0.8, cells were processed for ChIP-seq of FLAG3-Cas5, following a protocol described previously (Stringer et al., 2014).

ChIP-seq data analysis

Request a detailed protocol

Peak calling from ChIP-seq data was performed as previously described (Fitzgerald et al., 2014). To assign specific crRNA spacer sequences to Cascade-binding sites, we extracted 101 bp regions centered on each ChIP-seq peak for ChIP-seq data generated from AMD678. Overlapping regions were merged and the central position was used as a reference point for downstream analysis. We refer to this position as the ‘peak center’. We then searched each ChIP-seq peak region for a perfect match to positions 1–5 of each spacer from the CRISPR-I and CRISPR-II arrays, in addition to an immediately adjacent AAG or ATG sequence (the expected PAM sequence). Additionally, we searched each ChIP-seq peak region for a perfect match to positions 1–5 and positions 7–8 of each spacer from the CRISPR-I and CRISPR-II arrays without an associated PAM. Spacers were only assigned to a ChIP-seq peak if they had a unique match to a spacer sequence. This yielded 152 uniquely assigned peak-spacer combinations from the 236 ChIP-seq peaks. Enriched sequence motifs within the 236 peak regions (Figure 3B) were identified using MEME (v5.0.1, default parameters) using 101 bp sequences surrounding peak centers (Bailey and Elkan, 1994).

To determine relative sequence read coverage at each ChIP-seq peak center, we used Rockhopper (McClure et al., 2013) to determine relative sequence coverage at every genomic position on both strands for each ChIP-seq dataset. We then summed the relative sequence read coverage values on both strands for each peak center position to give peak center coverage values (Supplementary file 2). To refine the assignment of spacers to ChIP-seq peaks, we compared peak center coverage values for each peak in ChIP-seq datasets from AMD678 (CRISPR-I+) and AMD679 (ΔCRISPR-I) strains. We calculated ratio of peak center coverage values in the first replicates of AMD679:AMD678 data, and repeated this for the second replicates, generating two ratio values. Based on ratio values assigned to peak centers that were already uniquely assigned to a spacer, we conservatively assumed that peak centers with both ratios < 0.2 should be assigned a CRISPR-I spacer, whereas peak centers with both ratios > 1.0 should be assigned a CRISPR-II spacer. Thus, we were able to uniquely assign spacers to an additional 32 peak centers that had previously been assigned multiple spacers. For example, if a peak center had previously been assigned two spacers from CRISPR-I and one spacer from CRISPR-II, we could uniquely assign the spacer from CRISPR-II if both ratios were >1.0.

For data plotted in Figures 4 and 5, S2, S3, and S4, values for peak center coverage were normalized in one replicate (two biological replicates were performed for all ChIP-seq experiments) by summing the values at all peak centers to be analyzed (i.e. peak centers that could be uniquely assigned to a spacer) and multiplying values in the second replicate by a constant such that the summed values for each replicate were the same.

β-Galactosidase assays

Request a detailed protocol

S. Typhimurium 1402814028s containing pGB231, pGB237, pGB250, pGB256, or pJTW060 was grown at 37°C in LB medium to an OD600 of 0.4–0.6. 810 μL of culture was pelleted and resuspended in 810 μL of Z buffer (0.06 M Na2HPO4, 0.04 M NaH2PO4, 0.01 M KCl, 0.001 M MgSO4) + 50 mM β-mercaptoethanol + 0.001% SDS + 20 μL chloroform. Cells were lysed by brief vortexing. β-Galactosidase reactions were started by adding 160 μL 2-Nitrophenyl β-D-galactopyranoside (4 mg/mL) and stopped by adding 400 μL of 1 M Na2CO3. The duration of the reaction and OD420 readings were recorded. β-galactosidase activity was calculated as 1000 * (A420/(A600)(time [min] * volume [mL])).

High-throughput assessment of plasmid conjugation into Vibrio cholerae

Request a detailed protocol

Protospacer plasmids and an empty pKS958 control were transformed into E. coli S17 (Parke, 1990). All E. coli S17 strains containing protospacer plasmids were grown at 37°C in LB supplemented with 30 µg/mL chloramphenicol to an OD600 of 0.3–1.0, and then pooled proportionally, with the exception of the cultures harboring protospacer plasmids 38, 39, and empty pKS958, where only 1/10th of the amount of cells was added to the pool. The plasmid pool was transferred to V. cholerae strains BJO185, KS2094, and KS2206 by conjugation, as previously described (Box et al., 2016). Following plasmid transfer, 100 µL of the cell mixture from each conjugation sample was plated at 37°C on LB agar supplemented with 75 µg/mL kanamycin and 2.5 µg/mL chloramphenicol. The next day, colonies were scraped from the plates. In the second replicate, scraped cells were resuspended in 10 mL M9 minimal medium and pelleted by centrifugation. In the first replicate, scraped cells were resuspended in LB to an OD600 of 0.1, grown without antibiotic selection at 37°C with shaking for 4 hr and pelleted. ~1 µL of cells from each pellet added to 20 µL dH2O and incubated at 95 °C for 10 min. From each cell resuspension, 1.0 µL was used as a template in a PCR reaction with universal forward oligonucleotide JW10344 and reverse index oligonucleotides JW10345 for BJO185 template, JW10346 for KS2094 template, and JW10347 for KS2206 templates. Sequencing was performed using an Illumina Next-Seq instrument (Wadsworth Center Applied Genomic Technologies Core). Sequence reads were assigned to each protospacer-containing plasmid by searching for an exact match to a 10 nt sequence within the protospacer using a custom Python script (Supplementary file 8). Any plasmids for which we mapped fewer than 50 sequence reads in the Δcascade sample for either replicate were discarded from the analysis. To calculate normalized conjugation efficiency for each protospacer-containing plasmid into the Δcas1 (boxA+) and boxAmut Δcas1 strains, we first normalized all sequence read counts to the corresponding value for the Δcascade strain. We then normalized these values to the value for the control plasmid that lacks a protospacer.

Phylogenetic analysis of CRISPR array boxA conservation

Request a detailed protocol

Cas2 protein sequences were extracted from the PF09707 and PF09827 PFAM families (Finn et al., 2016; Sonnhammer et al., 1997). These sequences were then used to search a local collection of bacterial genome sequences using tBLASTn (Altschul et al., 1990). We then selected the 612 sequences with perfect matches to full-length Cas2 sequences. We further refined this set of sequences by arbitrarily selecting only one sequence per genus. We then extracted 300 bp downstream of each cas2 gene. We trimmed the 3′ end of each sequence at the first instance of a 15 bp repeat, which is likely to be the beginning of a CRISPR array, since cas2 is often found upstream of a CRISPR array. Any sequences that lacked a 15 bp repeat, or were trimmed to <20 bp, were discarded. We used MEME (v5.1.1, default parameters, except for selecting ‘search given strand only’) (Bailey and Elkan, 1994) to identify enriched sequence motifs in the remaining 187 sequences (Supplementary file 4). The type(s) of CRISPR-Cas system found in each species, and sequences flanking CRISPR arrays in species with type II-C CRISPR-Cas systems were determined using the CRISPRCasdb (Pourcel et al., 2020) and CRISPRFinder webservers (Grissa et al., 2007).

Phylogenetic analysis of nusB conservation

Request a detailed protocol

Conservation of nusB across the bacterial kingdom was assessed using the Aquerium tool (Adebali and Zhulin, 2017).

Analysis of sequences flanking CRISPR arrays in A. aeolicus

Request a detailed protocol

Sequences flanking CRISPR arrays in A. aeolicus were extracted using the CRISPRFinder webserver (Grissa et al., 2007). Subsequences were aligned with each other and ribosomal RNA leader sequencing using CLUSTAL Omega (Sievers and Higgins, 2014).

Accession numbers

Request a detailed protocol

Raw ChIP-seq data are available from EBI ArrayExpress/ENA using accession number E-MTAB-7242. Raw sequencing data for conjugation experiments involving V. cholerae are available from EBI ArrayExpress/ENA using accession number E-MTAB-9631.

References

  1. 1
  2. 2
  3. 3
  4. 4
    Chromatin immunoprecipitation for determining the association of proteins with specific genomic sequences in vivo
    1. O Aparicio
    2. JV Geisberg
    3. E Sekinger
    4. A Yang
    5. Z Moqtaderi
    6. K Struhl
    (2005)
    In: F. M Ausubel, R Brent, R. E Kingston, D. D Moore, J. G Seidman, J. A Smith, K Struhl, editors. Current Protocols in Molecular Biology. Hoboken: John Wiley & Sons. pp. 21.3.1–21.321.
  5. 5
  6. 6
    Fitting a mixture model by expectation maximization to discover motifs in biopolymers
    1. TL Bailey
    2. C Elkan
    (1994)
    Proceedings. International Conference on Intelligent Systems for Molecular Biology. pp. 28–36.
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69

Decision letter

  1. Blake Wiedenheft
    Reviewing Editor; Montana State University, United States
  2. Gisela Storz
    Senior Editor; National Institute of Child Health and Human Development, United States
  3. Joseph Bondy-Denomy
    Reviewer; UCSF, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

While the mechanisms of CRISPR RNA-guided defense have been the subject of intense investigation, the regulatory mechanisms that govern the transcription of CRISPR loci remains relatively obscure. Here Stringer et al. demonstrate that Rho and Nus play opposing roles in regulating the length of CRISPR transcripts. Longer CRISPR transcripts result in more guides and may provide broad spectrum resistance, but short transcripts may result in higher concentrations of certain guides, providing higher levels of protection from fewer pathogens.

Decision letter after peer review:

Thank you for submitting your article "Transcription Termination and Antitermination of Bacterial CRISPR Arrays" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Gisela Storz as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Joe Bondy-Denomy (Reviewer #2).

The reviewers have discussed the reviews with one another, and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, we are asking editors to accept manuscripts that they judge can stand as eLife papers without additional data, even if they feel that additional experiments would make the manuscript stronger. While the reviewers have identified additional experiments that would improve this work, and you are welcome to add these to the revised manuscript if conditions allow, the only required experiments are computational in nature.

Summary:

The authors construct a series of genetic mutants and use molecular methods to show that CRISPR transcription is terminated by Rho and that the Nus complex blocks Rho-dependent termination, resulting in longer CRISPR transcripts. The paper is well written, the results are convincing, and the work is of interest of a broad audience. However, it is not clear why the competing activities of Rho and Nus are important for regulation of these systems. When and where is the regulation of Rho and Nus relevant to the biological control of CRISPR expression? Are expression levels of Rho and Nus controlled in response to phage infection or plasmid conjugation?

Essential revisions:

Please include data for the H-NS knockout or explain why this is not included. Explain where the natural transcriptional start sites are located relative to the engineered promoter. Leader sequences are typically AT-rich and contain the promotor. What is the relevance of a GC-rich "Rut" if it is upstream of the natural promoter?

The authors detect SuhB occupancy in the CRISPR-II boxA region of S. Typhimurium (Figure 1), and from that observation conclude that Nus factors are also involved. SuhB is a relatively new addition to the Nus complex and only recently found to play a role in rRNA expression (Singh et al., 2016). It is unclear whether SuhB is always associated with Nus antitermination complexes, or if it might work alone, or with other factors at different promoters. Given this uncertainty and caveats of the Nus deletion/mutation experiments presented here, it is essential that the authors either perform additional experiments to test for relevant Nus factor(s) at the putative boxA sequences of both CRISPR arrays in S. Typhimurium, or revise the text to be more clear about the role of SuhB and the inferred role of Nus.

The authors show the high conservation of NusB in bacteria (Figure 7—figure supplement 1) to support the notion that Nus-mediated antitermination is a general mechanism employed in diverse CRISPR loci. However, it was SuhB which was detected at the CRISPR-II boxA sequence. The phylogenetic analysis should be performed on SuhB. Phylogenetic comparisons of CRISPRs, BoxA, SuhB and NusB may be necessary to speculate about the widespread distribution of this mechanism.

Figure 2B: Given the large difference in BCM treatment for the long construct, which has an ~10 fold impact over the BoxA mutation (which also has a 10-fold impact), this strong effect of the drug might necessitate a control transcript/fusion to assess the uptick in lacZ from any locus? Or is this BCM effect specific to the CRISPR array and therefore there is a second (or third or fourth) equally potent/important site that the authors have not identified?

Clarify why some experiments were only performed with CRISPR-II (Figures 1 and 2), while some were only performed with CRISPR-I (Figure 3 and Figure 1—figure supplement 1). Observations made about one locus were assumed to apply to the other. Include data for SuhB/Nus occupancy at boxA sequences for both CRISPR loci, and the effects of bicyclomycin on expression for each loci or explain why this has been omitted.

The boxA-dependent stimulation of promoter-distal spacer activity is assumed to be through a mechanism of antitermination. However, the data might equally support the possibility that SuhB facilitates/stimulates crRNA maturation rather than promoting antitermination, much like what was discovered at the rRNA operon (Singh et al., 2016). To distinguish between the two possibilities, it is necessary to check for RNAP occupancy at promoter -proximal vs -distal spacers or test the efficiency of CRISPR RNA processing with and without SuhB. Alternatively, temper the conclusion that the mechanism is antitermination SuhB dependent antitermination.

Clarify the statistical methods used in the ChIP-seq experiments. For example, in Figure 4A, it appears as though the purple data points indeed cluster away from the orange, but in Figure 4—figure supplement 2A, it is less clear which of the blue data points cluster away from the orange data points in a statistically significant manner.

Throughout the manuscript, it is implied that the proposed antitermination mechanism occurs in all CRISPR-Cas types, while experimental data was collected for only two Type I systems. It is important to explicitly state which CRISPR Type(s) were found to harbor boxA sequences (Figure 7A) to support the possibility that a general mechanism has been discovered and to clarify how this conclusion relates to the work presented by Lin et al., 2019.

Figure 7 was generated while working under the assumption that CRISPR arrays appear downstream of cas2. While this may be true for some CRISPR-Cas systems, this approach excludes many systems with slightly different genomic architectures. For a more unbiased approach, search for boxA sequences directly upstream of the first repeat in a CRISPR array. This approach is anticipated to provide more reliable evidence to support the general prevalence of boxA sequences upstream of CRISPR arrays.

The authors speculate that "Rho termination acts as a selective pressure to limit adaptation in species that lack an antitermination mechanism". However, the possible role of Rho in limiting adaption seems indirect at best. If Rho-dependent termination limits the number of different spacers that can be expressed from a single locus then this will limit selective pressures that maintain "older spacers", but the advantage this afford the host is unclear. Furthermore, role of Nus would be expected to have an opposing impact on CRISPR length, so it is unclear how this explains an abundance of short CRISPRs and the authors do not clarify how these observations fit with the numerous genomes that do have long CRISPRs.

Results first paragraph, specify what CRISPR-Cas Type and subtype you are working with.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Transcription Termination and Antitermination of Bacterial CRISPR Arrays" for further consideration by eLife. Your revised article has been evaluated by Gisela Storz (Senior Editor) and Blake Wiedenheft (Reviewing Editor).

We have reviewed the rebuttal and the revised manuscript. The revision sufficiently addresses the reviewer's concerns, with one important exception.

The authors provide convincing experimental evidence for the competing roles of Rho and Nus in CRISPR transcription, but I am still not convinced by the arguments about the how these factors impact CRISPR length.

One of the reviewers raised this concern during the review. They pointed to the following statement: "Rho termination acts as a selective pressure to limit adaptation in species that lack an antitermination mechanism". However, as the reviewer pointed out, "the possible role of Rho in limiting adaption seems indirect at best." In the rebuttal, the authors address the comment by stating that "Our data are insufficient to conclude that the presence of Rho causes many CRISPR arrays to be short, but we think this is likely in cases where there isn't an antitermination mechanism, and hence we discuss this, clearly framed as speculation." I agree that it is appropriate to speculate in the Discussion, but the third sentence of the Abstract states "We show that Rho termination functionally limits the length of bacterial CRISPR arrays". Data presented by the authors, clearly demonstrates that Rho limits the length of CRISPR transcripts and Nus antagonizes Rho-dependent termination, but as the reviewer points out, "the possible role of Rho in limiting adaption (i.e., length of the CRISPR locus) seems indirect at best".

Please clarify statements connecting the role of Rho to CRISPR length. Speculation should be omitted form the Abstract. In addition, please clarify the following statement "type II-C CRISPR-Cas systems have their CRISPR arrays oriented opposite to cas3". I suspect that the context of this statement is important, but I have read this several times and it still seems to me like the authors are suggestion that type-II systems have a cas3. Please clarify.

https://doi.org/10.7554/eLife.58182.sa1

Author response

Summary:

The authors construct a series of genetic mutants and use molecular methods to show that CRISPR transcription is terminated by Rho and that the Nus complex blocks Rho-dependent termination, resulting in longer CRISPR transcripts. The paper is well written, the results are convincing, and the work is of interest of a broad audience. However, it is not clear why the competing activities of Rho and Nus are important for regulation of these systems. When and where is the regulation of Rho and Nus relevant to the biological control of CRISPR expression. Are expression levels of Rho and Nus controlled in response to phage infection or plasmid conjugation?

We have expanded the Discussion to speculate on the significance of Rho termination and antitermination for crRNA expression. We believe that Rho termination, a highly conserved and often essential activity in bacteria, inevitably poses a barrier to the expression of longer CRISPR arrays, necessitating an antitermination mechanism. Whether antitermination is subject to regulation in response to environmental cues such as invading phage/plasmids is unknown, but we include this possibility as speculation.

Essential revisions:

Please include data for the H-NS knockout or explain why this is not included. Explain where the natural transcriptional start sites are located relative to the engineered promoter. Leader sequences are typically AT-rich and contain the promotor. What is the relevance of a GC-rich "Rut" if it is upstream of the natural promoter?

The cas genes and both CRISPR arrays in Salmonella are transcriptionally silenced by H-NS; there is no known in vitro growth condition that induces their expression. Hence, we are forced to rely on mutant strains to study the Salmonella CRISPR-Cas system. We chose to introduce promoters in the chromosome. For the CRISPR-I array, we inserted the promoter upstream of cas8e, and for the CRISPR-II array we inserted the promoter immediately downstream of queE. Thus, these promoters mimic transcription read-through from the cas operon and queE mRNAs, respectively. Given the requirement that a Rut be located in untranslated RNA, we presume that the Rut for CRISPR-I is downstream of cas2, and the Rut for CRISPR-I is downstream of queE. We note that a previous study of the Escherichia coli CRISPR-Cas system identified a promoter within the leader of the CRISPR-I array. However, our ChIP-qPCR data for RNA polymerase (Figure 1—figure supplement 1) clearly indicate that the majority of CRISPR array transcription in our engineered strain of Salmonella comes from read-through of the cas gene mRNA. Hence, in situations where the cas genes are transcribed, we would expect considerable read-through into the CRISPR array. We have expanded the description of the first supplementary figure to highlight the significance of this result.

Deleting hns would presumably induce expression of both CRISPR arrays, but there are several reasons to avoid this strategy. First, hns is essential in Salmonella, so deleting hns would require a secondary mutation. Second, even with a secondary mutation, deleting hns causes a large growth defect, and likely has pleiotropic effects. Third, we have shown previously that H-NS silences many cryptic promoters within genes in E. coli, so deleting hns might result in transcription from promoters within the cas genes.

The authors detect SuhB occupancy in the CRISPR-II boxA region of S. Typhimurium (Figure 1), and from that observation conclude that Nus factors are also involved. SuhB is a relatively new addition to the Nus complex and only recently found to play a role in rRNA expression (Singh et al., 2016). It is unclear whether SuhB is always associated with Nus antitermination complexes, or if it might work alone, or with other factors at different promoters. Given this uncertainty and caveats of the Nus deletion/mutation experiments presented here, it is essential that the authors either perform additional experiments to test for relevant Nus factor(s) at the putative boxA sequences of both CRISPR arrays in S. Typhimurium, or revise the text to be more clear about the role of SuhB and the inferred role of Nus.

We and others have shown that SuhB is an integral part of the Nus factor complex. SuhB is recruited to elongating RNAP complexes in a BoxA-dependent manner, and extensive genetic data are consistent with an essential role within the complex. We note that three recent structural studies (Dudenhoeffer et al., 2019, Huang et al., 2019 and Huang et al., 2020) show that SuhB is required for assembly and activity of the Nus factor complex. We have expanded our description of the Nus factor complex, and specifically the role of SuhB, to clarify this point.

The authors show the high conservation of NusB in bacteria (Figure 7—figure supplement 1) to support the notion that Nus-mediated antitermination is a general mechanism employed in diverse CRISPR loci. However, it was SuhB which was detected at the CRISPR-II boxA sequence. The phylogenetic analysis should be performed on SuhB. Phylogenetic comparisons of CRISPRs, BoxA, SuhB and NusB may be necessary to speculate about the widespread distribution of this mechanism.

All the proteins in the Nus factor complex, with the exception of NusB, are known to have functions outside the complex. SuhB is an inositol monophosphatase. A phylogenetic comparison of suhB could be misleading, since SuhB could be conserved due to its function as an inositol monophosphatase. We now explain in the text why we chose to only look at conservation of nusB.

Figure 2B: Given the large difference in BCM treatment for the long construct, which has an ~10 fold impact over the BoxA mutation (which also has a 10-fold impact), this strong effect of the drug might necessitate a control transcript/fusion to assess the uptick in lacZ from any locus? Or is this BCM effect specific to the CRISPR array and therefore there is a second (or third or fourth) equally potent/important site that the authors have not identified?

We agree with this concern and we have assayed an additional lacZ fusion where the CRISPR array sequence (including the upstream region) has been replaced with an intrinsic terminator from Escherichia coli. We have previously shown that this terminator substantially reduces, but does not abolish, expression of the reporter gene. We chose to include an intrinsic terminator because it sensitizes the reporter to increases in expression. The control reporter showed no change in expression upon addition of BCM. These data are now included in Figure 2.

Clarify why some experiments were only performed with CRISPR-II (Figures 1 and 2), while some were only performed with CRISPR-I (Figure 3 and Figure 1—figure supplement 1). Observations made about one locus were assumed to apply to the other. Include data for SuhB/Nus occupancy at boxA sequences for both CRISPR loci, and the effects of bicyclomycin on expression for each loci or explain why this has been omitted.

We only looked at SuhB occupancy at one locus for the sake of simplicity. The strains required for these experiments are not trivial to make – they require multiple rounds of recombineering – and we reasoned that the result from one array could likely be extrapolated to the other, especially in light of the multiple, independent lines of evidence linking the Nus factor complex to both CRISPR arrays.

The boxA-dependent stimulation of promoter-distal spacer activity is assumed to be through a mechanism of antitermination. However, the data might equally support the possibility that SuhB facilitates/stimulates crRNA maturation rather than promoting antitermination, much like what was discovered at the rRNA operon (Singh et al., 2016). To distinguish between the two possibilities, it is necessary to check for RNAP occupancy at promoter -proximal vs -distal spacers or test the efficiency of CRISPR RNA processing with and without SuhB. Alternatively, temper the conclusion that the mechanism is antitermination SuhB dependent antitermination.

We looked at RNAP occupancy using ChIP-qPCR (data not in the manuscript), but the absolute occupancy numbers are too low to confidently conclude anything from these data. Hence, we chose to use reporter assays, which are more sensitive. We believe the reporter assays make a strong case that it is the antitermination function that is required for activity of the leader-distal spacers. Two additional lines of evidence support an antitermination function for boxA sequences. First, the patterns of spacer usage in the boxA mutants of both Salmonella and Vibrio are consistent with premature transcription termination. Second, the apparent termination within the CRISPR array of the SalmonellaboxA mutants is reversed by bicyclomycin, a Rho inhibitor. Nonetheless, we have added some text to leave open the possibility that the Nus factor complex might affect crRNA maturation either instead of, or in addition to antitermination. This is particularly relevant in light of an observation we made when revisiting the conservation of boxA sequences upstream of CRISPR arrays. Many cyanobacterial species appear to have a boxA upstream of their CRISPR arrays, but these species also lack rho, a point that had previously escaped our attention. We were concerned that the sequences upstream of cyanobacterial CRISPR arrays might not be genuine boxA sequences, especially since these sequences differ at key positions from the consensus boxA sequence derived from E. coli. To more thoroughly assess whether the cyanobacterial sequences are genuine boxA sequences, we searched for conserved sequences upstream of ribosomal RNA loci in the same set of species, based on the assumption that each ribosomal RNA upstream region would likely contain one boxA sequence. The most enriched sequence from cyanobacterial ribosomal RNA upstream regions is a very close match to the putative boxA sequences upstream of the cyanobacterial CRISPR arrays, and there are no enriched sequences that more closely resemble the E. coliboxA consensus; hence, we are confident that the cyanobacterial boxA sequences upstream of CRISPR arrays are genuine. These data are included in a new supplementary figure. Given that cyanobacterial species lack rho, we conclude that the BoxA elements in cyanobacterial CRISPR array RNAs have a function that is distinct from antagonizing Rho. We propose two possible functions. First, there may be an unknown transcription termination mechanism in cyanobacteria that the Nus factor complex can inhibit. Second, the Nus factor complex may be required to loop the RNA between the BoxA sequence and the transcribing RNA polymerase, perhaps to promote crRNA processing. This latter possibility could also apply in species that have rho.

Clarify the statistical methods used in the ChIP-seq experiments. For example, in Figure 4A, it appears as though the purple data points indeed cluster away from the orange, but in Figure 4—figure supplement 2A, it is less clear which of the blue data points cluster away from the orange data points in a statistically significant manner.

We considered using a statistical test to determine which datapoints in Figures 4, 5, Figure 3—figure supplement 1 and Figure 4—figure supplement 2 have significantly lower Cas5 occupancy than expected by chance. However, this is not a straightforward analysis, largely because we did not define a null hypothesis before doing the experiment. We think the magnitude of the effects observed, and the trends as they relate to spacer position within the two arrays, are more important than p-values, and we hope the data speak for themselves in that regard. We note that the ratios of Cas5 binding in boxA mutant vs wild-type strains are shown in Figures 4B and Figure 4—figure supplement 2B. We do not show these ratios in Figure 5 because there is nothing to normalize to. Lastly, we have reworded three instances where we previously described differences as “significant”.

Throughout the manuscript, it is implied that the proposed antitermination mechanism occurs in all CRISPR-Cas types, while experimental data was collected for only two Type I systems. It is important to explicitly state which CRISPR Type(s) were found to harbor boxA sequences (Figure 7A) to support the possibility that a general mechanism has been discovered and to clarify how this conclusion relates to the work presented by Lin et al., 2019.

This is a very interesting point, and one we had not considered. We have modified Supplementary file 4 to show the different types of CRISPR-Cas system associated with each species listed. Of the 187 species tested, only 17 lack a type I CRISPR-Cas system (many have multiple types). 15 of these 17 species have only a type II-C system, and none of these 15 species have an identified boxA sequence between cas2 and their CRISPR arrays. Thus, their appears to be a mutually exclusive relationship between type II-C systems and the presence of boxA sequences between cas2 and CRISPR arrays. Beyond this, it is difficult to conclude much. There are two species with only a type III system that have a putative boxA, suggesting that boxA-mediated antitermination is not exclusive to type I systems.

We wondered why type II-C systems might lack boxA sequences. For the two well-characterized type II-C systems, the CRISPR array is adjacent to cas2, but is unusual in that it is transcribed in the opposite orientation to cas2. Hence, the sequences we used to search for boxA sequences may be from the wrong side of the type II-C CRISPR arrays. To test this possibility, we repeated the search for enriched sequence motifs using 300 nt sequences from the other side of the 15 type II-C arrays (sequences from other 172 species were unchanged). We did not identify a boxA sequence adjacent to any of the 15 type II-C arrays. Previous work on type II-C systems has shown that some type II-C repeats contain a promoter, such that each spacer has its own promoter immediately upstream. Not many type II-C systems have been studied, but it has been suggested that this phenomenon is true for most type II-C repeats. We suspect that this provides an alternative way to avoid Rho termination. We now raise this possibility in the Discussion.

While there are clearly parallels between our work and that of Lin et al., we have identified a processive antitermination mechanism (i.e. a mechanism that modifies the RNA polymerase to make it resistant to Rho throughout the transcription unit) that applies to entire CRISPR arrays and is phylogenetically widespread, whereas Lin et al. identified a targeted antitermination mechanism (i.e. a mechanism that prevents one instance of Rho loading) that applies to leader sequences in a narrow range of species. A processive antitermination mechanism rather than a targeted antitermination mechanism is important because the sequences of newly acquired spacers cannot be anticipated.

Figure 7 was generated while working under the assumption that CRISPR arrays appear downstream of cas2. While this may be true for some CRISPR-Cas systems, this approach excludes many systems with slightly different genomic architectures. For a more unbiased approach, search for boxA sequences directly upstream of the first repeat in a CRISPR array. This approach is anticipated to provide more reliable evidence to support the general prevalence of boxA sequences upstream of CRISPR arrays.

We agree that this would be an interesting analysis, but it is technically a lot more challenging than the analysis focused on cas2. For example, we would need to determine the orientation of every CRISPR array, and we would need to define an upstream window to search within. We actually tried to do this analysis, but struggled to find a way to extract sequences upstream of all CRISPR arrays in batch, and to get the correct orientation. Aligning the CRISPR array relative to cas2 likely identifies the correct orientation in most cases, with the exception of type II-C systems described above. Moreover, cas2 provides a natural upstream barrier. We believe that the existing analysis makes a strong enough case that BoxA-mediated antitermination is phylogenetically widespread.

The authors speculate that "Rho termination acts as a selective pressure to limit adaptation in species that lack an antitermination mechanism". However, the possible role of Rho in limiting adaption seems indirect at best. If Rho-dependent termination limits the number of different spacers that can be expressed from a single locus then this will limit selective pressures that maintain "older spacers", but the advantage this afford the host is unclear. Furthermore, role of Nus would be expected to have an opposing impact on CRISPR length, so it is unclear how this explains an abundance of short CRISPRs and the authors do not clarify how these observations fit with the numerous genomes that do have long CRISPRs.

Our data are insufficient to conclude that the presence of Rho causes many CRISPR arrays to be short, but we think this is likely in cases where there isn’t an antitermination mechanism, and hence we discuss this, clearly framed as speculation. Of note, we show that in Salmonella, mutating the boxA can impact spacers as early as spacer 9 (relative to the leader), and potentially further upstream than that (we have no data for spacers 3-8 in the CRISPR-II array). We also cannot say with any degree of certainty that other antitermination mechanisms exist, but we suspect they do, and that would explain how some species with rho have long CRISPR arrays. We think it is possible that many species lack any antitermination mechanism for their CRISPR arrays, which would be consistent with them having short arrays. Again, we are careful to frame this as speculation.

Results first paragraph, specify what CRISPR-Cas Type and subtype you are working with.

Fixed.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

The authors provide convincing experimental evidence for the competing roles of Rho and Nus in CRISPR transcription, but I am still not convinced by the arguments about the how these factors impact CRISPR length.

One of the reviewers raised this concern during the review. They pointed to the following statement: "Rho termination acts as a selective pressure to limit adaptation in species that lack an antitermination mechanism". However, as the reviewer pointed out, "the possible role of Rho in limiting adaption seems indirect at best." In the rebuttal, the authors address the comment by stating that "Our data are insufficient to conclude that the presence of Rho causes many CRISPR arrays to be short, but we think this is likely in cases where there isn't an antitermination mechanism, and hence we discuss this, clearly framed as speculation." I agree that it is appropriate to speculate in the Discussion, but the third sentence of the Abstract states "We show that Rho termination functionally limits the length of bacterial CRISPR arrays". Data presented by the authors, clearly demonstrates that Rho limits the length of CRISPR transcripts and Nus antagonizes Rho-dependent termination, but as the reviewer points out, "the possible role of Rho in limiting adaption (i.e., length of the CRISPR locus) seems indirect at best".

Please clarify statements connecting the role of Rho to CRISPR length. Speculation should be omitted form the Abstract. In addition, please clarify the following statement "type II-C CRISPR-Cas systems have their CRISPR arrays oriented opposite to cas3". I suspect that the context of this statement is important, but I have read this several times and it still seems to me like the authors are suggestion that type-II systems have a cas3. Please clarify.

We have modified the Abstract, which now states “We show that Rho can prematurely terminate transcription of bacterial CRISPR arrays” rather than “We show that Rho termination functionally limits the length of bacterial CRISPR arrays”. We have also added “and antitermination” to the last sentence of the Abstract.

The statement “type II-C CRISPR-Cas systems have their CRISPR arrays oriented opposite to cas3” has a typo – it should be “cas2” rather than “cas3”; we have fixed this error, and added the clarifying text: “when extracting sequences adjacent to CRISPR arrays for sequence analysis (Figure 7A), we assumed that cas2 and CRISPR arrays are oriented co-directionally”. In other words, even if there had been boxA sequences upstream of the CRISPR arrays for species with a type II-C system, we were probably looking on the wrong site of the array in our initial analysis.
