1. Chromosomes and Gene Expression
Download icon

Bisulfite treatment and single-molecule real-time sequencing reveal D-loop length, position, and distribution

  1. Shanaya Shital Shah
  2. Stella R Hartono
  3. Frédéric Chédin
  4. Wolf-Dietrich Heyer  Is a corresponding author
  1. Department of Microbiology and Molecular Genetics, University of California, Davis, United States
  2. Department of Molecular and Cellular Biology, University of California, Davis, United States
Tools and Resources
  • Cited 1
  • Views 705
  • Annotations
Cite this article as: eLife 2020;9:e59111 doi: 10.7554/eLife.59111

Abstract

Displacement loops (D-loops) are signature intermediates formed during homologous recombination. Numerous factors regulate D-loop formation and disruption, thereby influencing crucial aspects of DNA repair, including donor choice and the possibility of crossover outcome. While D-loop detection methods exist, it is currently unfeasible to assess the relationship between D-loop editors and D-loop characteristics such as length and position. Here, we developed a novel in vitro assay to characterize the length and position of individual D-loops with near base-pair resolution and deep coverage, while also revealing their distribution in a population. Non-denaturing bisulfite treatment modifies the cytosines on the displaced strand of the D-loop to uracil, leaving a permanent signature for the displaced strand. Subsequent single-molecule real-time sequencing uncovers the cytosine conversion patch as a D-loop footprint. The D-loop Mapping Assay is widely applicable with different substrates and donor types and can be used to study factors that influence D-loop properties.

Introduction

Homologous recombination (HR) is a universal DNA repair pathway that is vital to genome maintenance and the repair of double-stranded DNA breaks, stalled or collapsed forks and inter-strand crosslinks (Kowalczykowski et al., 2016; San Filippo et al., 2008; Wright et al., 2018). Repair by HR begins by resection of the broken DNA molecule leaving a single-stranded DNA (ssDNA) with a free 3′-OH end. The Rad51 protein forms a filament on the ssDNA and carries out DNA strand invasion into a homologous duplex donor. The Rad54 motor protein translocates along the three-strand intermediate that has been formed by the invasion (Wright and Heyer, 2014). It simultaneously displaces Rad51, while threading out a heteroduplex DNA (hDNA) and a displaced strand. This activity results in the formation of a metastable intermediate called a displacement loop (D-loop). The D-loop comprises a single-stranded displaced strand, an hDNA, and a DNA strand-exchange junction at each extremity of the hDNA. The D-loop can then be extended by DNA synthesis, using the donor DNA as a template. In a pathway known as synthesis-dependent strand annealing (SDSA), the extended D-loops are disrupted, allowing the newly extended end to anneal to the second end of the break. SDSA always results in a non-crossover (NCO) outcome. Alternatively, the second end of the break can anneal to the displaced strand of the extended D-loop, leading to the formation of a double-Holliday junction (dHJ) (Kowalczykowski, 2015; Pâques and Haber, 1999). Theoretically, a dHJ may also form when both ends of the broken DNA simultaneously invade a donor, as discussed in Wright et al., 2018. The dHJ may then be dissolved into a non-crossover or nucleolytically resolved into a non-crossover or a crossover outcome (Wright et al., 2018). Crossover products are disfavored in somatic cells as they have the potential to lead to genomic rearrangements or loss of heterozygosity (Li and Heyer, 2008).

D-loops are key intermediates in HR

The D-loop intermediate is a vital regulatory point in HR, and several factors regulate D-loop formation as well as disruption (Wright et al., 2018). Factors that form a D-loop may affect D-loop properties such as D-loop position and length, which may, in turn, influence the likelihood of a D-loop disruption. The following D-loop properties influence D-loop disassembly. First, the position of a D-loop will influence whether or not the 3′-OH end of invading DNA is incorporated into the hDNA. D-loops containing an annealed 3′-OH end are primed for an extension by a DNA polymerase and are less likely to be reversed (Li and Heyer, 2009). Conversely, D-loops with a 3′-flap may become a loading pad for D-loop disruption enzymes. Helicases and/or topoisomerases such as Sgs1-Top3-Rmi1, Mph1, and Srs2 reverse D-loops with different specificities (Fasching et al., 2015; Liu et al., 2017; Piazza et al., 2019; Prakash et al., 2009; Putnam et al., 2009). Internal D-loops also increase the possibility of a second invasion near the 3′-end, either in the same donor (Wright et al., 2018) or a different donor DNA (multi-invasions) and the formation of potential genomic rearrangements (Piazza and Heyer, 2018). Second, the presence of mismatches within hDNA enhances the D-loop disruption in a process termed heteroduplex rejection (Chakraborty et al., 2016; Honda et al., 2014). Thus, D-loops formed ectopically at heterologous sites would have a higher likelihood of reversal than at fully homologous donors, influencing the choice of the donor (Chakraborty et al., 2016). Third, the length of a D-loop might influence D-loop stability and likely their susceptibility to disruption enzymes. Long extended D-loops are also more likely to have second-end capture, leading to dHJ formation and the possibility of a crossover outcome (Wright et al., 2018). In summary, D-loop properties that influence D-loop reversibility regulate donor choice, the possibility of forming dHJ, and a crossover outcome, as well as multi-invasions and resultant genomic rearrangements (Piazza and Heyer, 2018; Piazza et al., 2019). Thus, these features underline the importance of studying D-loop characteristics.

Furthermore, several interlinked factors influence D-loop characteristics. First is the resection length, where longer resected tracts permit the formation of longer D-loops. However, in vivo hypo-resection is usually rare, as evidenced by the highly processive resection machinery (Mimitou and Symington, 2011). As resection tract length increases, it allows for more possible internal invasions, influencing D-loop position, length, and potentially also donor choice. Internal D-loops could be disrupted to try end-invasion again, the hDNA may be extended or migrated towards the 3′-end, or the 3′-flap may be cleaved or involved in a second invasion at a different site (Wright et al., 2018). Second, Rad51 filament properties such as length, position, composition (inclusion of accessory factors) and stability, may influence Rad54 translocation activity with subsequent effects on D-loop characteristics. Third, the length of homology between the invading and donor DNA decides the longest possible D-loop length. Subsequently, long homology lengths are associated with increased crossovers (Inbar et al., 2000). Fourth, the topology at donor site or chromatin remodelers altering DNA topology may influence the position and length of a D-loop that is highly favored in negatively supercoiled regions (Wright et al., 2018). Lastly, the extent of DNA synthesis may or may not directly reflect the length of the extended D-loop. The nascent D-loop can either be extended past the initial point of invasion with DNA synthesis or be migrated along with DNA synthesis. Thus, the gene conversion tracts (Guo et al., 2017; Neuwirth et al., 2007) that reflect the length of recombination-associated DNA synthesis do not necessarily mirror the length of the D-loop. Yet gene conversion tract lengths positively correlate with a crossover outcome (Guo et al., 2017). In summary, D-loop properties, as well as factors that influence D-loop properties, impact the repair outcome. Thus, it is crucial that an assay that permits the characterization of D-loops at the single-molecule level to be developed.

Current methods for D-Loop detection and their limitations

Since D-loops are dynamic in nature, it has been challenging to develop an experimental method to study D-loops. Recent advancements in the study of nascent and extended D-loop dynamics includes the development of the D-loop capture and the D-loop extension assays, as well as modifications to a widely-used assay called the D-loop assay (Piazza and Heyer, 2018; Piazza et al., 2019; Wright and Heyer, 2014). Though D-loop assays typically utilize a short,~100 nt ssDNA as the broken strand, Wright and Heyer, 2014 showed that D-loops formed using physiological length ssDNA substrates with a 5′-duplex DNA may better recapitulate D-loop dynamics in vitro. Wright and Heyer, 2014 also developed a restriction-digestion based assay to map the location of D-loops across the region of homology. However, the assay is limited by the presence and distribution of unique restriction sites across the homologous region. Moreover, the method relies on the use of a supercoiled duplex donor to restrict D-loop length. Additionally, the distance between two restriction sites should be greater than the maximum possible D-loop length in a supercoiled donor to distinguish between the D-loops formed at the two sites. Hence, while the restriction-digestion mapping assay broadly reveals D-loop distribution in a population of in vitro D-loops, it cannot define the length of individual D-loops.

In vivo detection of D-loops has been even more challenging, especially somatic D-loops. Meiotic single-end invasions (SEIs) that likely represent a particular form of extended D-loop destined to becoming a crossover are detected using 2D-gel electrophoresis (Hunter and Kleckner, 2001). Recently, using a proximity-ligation-based method, Piazza and colleagues demonstrated the ability to quantitatively measure somatic nascent D-loop formation in vivo (Piazza et al., 2018). The sensitivity of the assay relies on preserving the D-loops through psoralen-crosslinking. However, the crosslinking efficiency limits the assay by prohibiting the detection of D-loops shorter than the crosslinking density of ~500 bp. Thus, the assay falls short in the ability to distinguish a change in D-loop signal caused by a change in D-loop length or an alteration in D-loop quantity among a population of cells. Other assays either detect extended D-loops, a downstream product of nascent D-loop (Hicks et al., 2011; Piazza et al., 2018), or measure the extent of DNA synthesis via gene conversion tracts (Guo et al., 2017; Neuwirth et al., 2007), and thus, do not reflect the dynamic nascent D-loop properties. Thus, there is an unmet need for a method allowing the study of D-loop properties, such as its length, position, and distribution.

Here, we developed a novel high-throughput assay to detect for the first time the length and position of D-loops formed in vitro at the single-molecule level and near base-pair resolution. Subsequent analysis of individual D-loops reveals the distribution of D-loop lengths and position in a population of D-loops. Lack of enrichment or a crosslinking step permits relatively unbiased D-loop analysis. The assay is based on non-denaturing bisulfite sequencing, adapted from the approach used to map R-loops that are formed by RNA invasion in DNA (Malig et al., 2020; Yu et al., 2003). The method allows easy multiplexing of several D-loop samples with high coverage. The method is accompanied by computational analysis and data visualization pipeline for D-loop profiling. The method is widely applicable to study (i) D-loops formed with a wide range of ssDNA substrates and donor DNA, (ii) factors altering D-loop properties (iii) D-loop disruption factors and their preferences for D-loop features. We also discuss the limitations and possible refinements of this method.

Results

Setting up the D-loop mapping assay with several layers of internal control

To establish and optimize the D-loop Mapping Assay (DMA), we started by using a size-restricted D-loop sample formed in vitro. To do this, we used a supercoiled plasmid as a dsDNA donor to perform an in vitro D-loop reaction (Figure 1A; Wright and Heyer, 2014). For every 10.4 bp of hDNA generated in the D-loop, one negative supercoil from the dsDNA is consumed. Plasmids purified from E. coli have a mean supercoiling density of σ = −0.07 supercoil/turn (Champion and Higgins, 2007), which we verified independently (Solinger et al., 2002). Thus three kbp plasmids such as those used in this study should contain ~20 ± 5 negative supercoils, meaning that they can accommodate a maximum of ~210 ± 50 bp hDNA, even if the length of the invading homologous ssDNA is longer. Longer D-loops would cause the introduction of compensatory positive supercoils, which is energetically unfavorable. By contrast, fully relaxed plasmids carrying D-loops ~ 210 bp long are expected to be in the lowest possible energy state and thus favored at equilibrium (Wright et al., 2018). Thus, such an experimental setup allowed us to establish the DMA by predefining the expected lengths of the D-loops.

Schematic of a novel D-loop Mapping Assay (DMA).

(A) Schematic of an in vitro D-loop reaction with a supercoiled dsDNA donor. Substrates have different lengths of homology (shown in blue line) to the supercoiled dsDNA donor. The substrates also have a 98 bp 5′ non-homologous duplex DNA to mimic physiological invading DNA. The D-loops would be restricted to be ~210 ± 50 nt in size, due to the supercoiling density of the donor DNA. (B) Schematic of the D-loop mapping assay (DMA) (for details, see Materials and methods). For a D-loop on a supercoiled dsDNA, the dsDNA is cropped here to only depict the strand invasion. Primers specific to the donor outside the region of homology (indicated by brown arrowheads) and having an additional universal primer sequence (in green) were used. Initially, only the primer sequence indicated by brown arrowheads would anneal to the target DNA. Barcodes were added to the amplicons via a second round of PCR using the universal primer sequence (green arrow ahead indicates primer location). Hairpin adaptors were added during library preparation (shown in orange), for single-molecule real-time sequencing. (C) Schematic depiction of the five internal controls for the DMA.

Once formed, the D-loop reactions were stopped and subjected to bisulfite treatment at room temperature to allow cytosine-to-uracil conversions on the single-stranded displaced strand. Using primers that are non-biased to conversion and outside the region of homology, the DNA was PCR amplified, purified, and subjected to single-molecule real-time sequencing (Figure 1B). The sequencing reads were then processed, mapped to the reference sequence, and analyzed to reveal cytosine conversion regions as D-loop footprints. The cytosine conversion regions were defined as D-loop footprints only when they crossed a pre-specified peak threshold. The peak threshold was implemented to filter out any background cytosine conversions from spontaneous DNA breathing (for details, see Materials and methods).

Negative controls at each step of the analysis further enhanced the strength of this well-defined in vitro design (Figure 1C). First, a > 1,000 bp non-homologous dsDNA region, where no D-loop footprint is expected, flanked the homologous region. This serves as an internal negative control within each sequencing read. Second, the homology window itself can be further altered by using ssDNA substrates of different lengths, varying in this study from 197 nt to 931 nt. Third, D-loop footprints should not exceed 260 nt for D-loops formed using supercoiled dsDNA donors. This control holds true only for topologically restricted supercoiled donors, and not linear dsDNA donors. Fourth, we expect D-loop footprints to exist only on reads originating from the top strand of dsDNA donor plasmids that is displaced upon strand invasion. The bottom-strand, by contrast, should not harbor any footprints. This represents a further internal control within each sample. Lastly, an experimental negative control can be generated by using a D-loop reaction performed in the absence of invading ssDNA or the Rad51 recombinase. Without ssDNA or Rad51, no strand invasion footprint is expected. Thus, these predicted positions and/or length of D-loops will provide confidence that the footprints derived solely from D-loops.

D-loops are positioned within the homology window, while D-loop length is restricted by the supercoiling density of the dsDNA donor

D-loop footprints are strand-specific, and D-loop levels detected by DMA correlate with gel-based quantitation

We implemented the controlled experimental set-up described above and analyzed in vitro D-loops formed using three ssDNA substrates with different homology lengths of 197 nt (ds98-197-78ss), 607 nt (ds98-607) and 931 nt (ds98-931). Before subjecting to DMA, D-loop formation with each substrate was confirmed by gel visualization (Figure 2—figure supplement 1A–C). The results from DMA obtained using each substrate type and a supercoiled donor are shown as footprint maps in Figure 2A–C. For the D-loops with ds98-931, 264 individual D-loop footprint-containing reads were recovered out of a total of 1,340 reads from the top strand (Figure 2A). Overall, we detected 485 independent D-loop footprints among 3,621 top-strand reads over >3 replicates, representing a 13.4% formation efficiency (Figure 2D). These D-loop footprints were overwhelmingly strand-specific, as expected. Only 26 (0.43%) footprint-containing reads were recovered out of nearly 6,000 bottom-strand reads (Figure 2D). Thus, the top and the bottom-strand show a > 30 fold difference in their bisulfite reactivity. Similarly, for the D-loops with ds98-607 substrate, 310 (11.59%) of the 2,673 top-strand reads had a D-loop footprint. While only 6 (0.1%) of the 5,797 bottom-strand reads had a footprint (>100 fold lower than the percentage of footprints found on the top-strand) (Figure 2D). Lastly, with the ds98-197-78ss substrate, 75 (6.1%) of the 1,229 top-strand reads and 7 (0.2%) of the 3,494 bottom-strand reads had a footprint. Importantly, when D-loop reactions were performed in the absence of Rad51 or ssDNA, no footprints were observed among 3,119 top-strand reads and 2,651 bottom-strand reads. Thus, the D-loop footprints recovered by DMA depict the expected strand-specificity and DNA strand invasion-specificity.

Figure 2 with 1 supplement see all

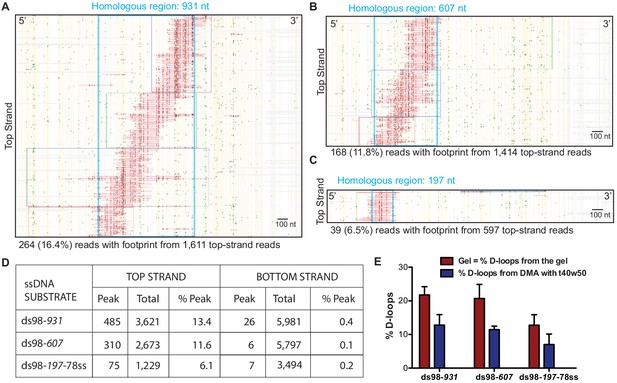

Mapping D-loops formed on a supercoiled donor by DMA.

(A, B, C) Footprint maps depicting reads with a D-loop footprint. Reads were derived from an in vitro D-loop reaction performed with a supercoiled donor and ds98-931, ds98-607, or ds98-197-78ss substrates, respectively. Only reads from the top strand of dsDNA donor that contains a footprint are shown here. Here and in all subsequent figures with a footprint map, each horizontal line represents one read molecule (or amplicon). Vertical yellow lines indicate the position of each cytosine across the read sequence. The status of each cytosine along the sequence is color-coded with green representing C-T conversions. The status of cytosine is changed to red if the C-T conversions cross the peak threshold and are defined as D-loop footprints. Unless otherwise mentioned, the peak threshold is t40w50 (requiring at least 40% cytosines converted to thymine in a stretch of 50 consecutive cytosines). The reads are clustered based on the position of footprints in a 5′ to 3′ direction. The faintly colored boxes indicate the clusters. The blue dotted box represents region homologous to the invading substrate. The text below the map summarizes the number of reads containing a footprint (depicted in the map) and the total top-strand reads analyzed for that sample. Some of the footprints seem to extend slightly beyond the region of homology. This may be due inclusion of converted cytosines from DNA breathing close to the D-loop. Scale bar is 100 nt. (D) Table summarizing the total number of reads containing a footprint as ‘peak’ and the total number of reads analyzed as ‘total’ for each strand. ‘% Peak’ indicates the percentage of reads containing a footprint calculated by dividing the number of reads containing a footprint by the total number of reads for that strand. The data represents a cumulation from >3 independent replicates. (E) Quantitation of D-loops from the gel in Figure 2—figure supplement 1 is compared to the percentage of reads with D-loop footprint, as observed by DMA. Mean ± SD (n = 3).

Note that for the D-loop samples, usually, there was a > 2 fold abundance of the bottom-strand reads compared to the top-strand reads. This is because during the bisulfite modification of cytosines, there is some unavoidable nicking of the ssDNA. Since with the D-loop samples, only the top strand is expected to be bisulfite-modified, nicking leads to unavoidable loss of some top-strand DNA post PCR amplification. Confirming this, the samples devoid of a D-loop, such as those without Rad51 or ssDNA, had a comparable number of top and bottom-strand reads. Thus, the difference in the number of total top and bottom-strand reads we detected only reflects the specificity of the assay for imprinting D-loops.

In line with this loss of some top-strand molecules, the percentage of top-strand reads containing a D-loop footprint (% D-loops from the DMA) was always lower than the percentage of D-loops visualized on a gel (Figure 2E). The D-loop levels from both gel-based (Figure 2—figure supplement 1A–C) and DMA assay (Figure 2D) were quantified relative to the uninvaded donor. With the ds98-931 substrate, 22% D-loops were quantified from the gel-based detection, while ~13% D-loops were measured from the DMA assay (Figure 2E). Similar observations were made for the substrates with shorter homologies: ds98-607, 21% gel assay and 12% DMA; ds98-197-78ss, 12% gel assay and 7% DMA. Thus, for all three substrates, consistently,~60% of the D-loops visualized on the gel were detected by the DMA assay. While Figure 2D depicts the total reads analyzed for each substrate, data from each replicate are available in Source data 1. In summary, despite slightly lower D-loop levels detected by DMA, the relative D-loop levels were comparable across the two orthogonal D-loop detection assays (Figure 2E).

Position of D-loops formed by a supercoiled donor is restricted within the homology window, while their distribution reveals an enrichment at the 3′-end of homology

Next, we looked at the position of individual D-loops relative to the dsDNA sequence. Most of the D-loop footprints were confined within the 931 nt region of homology (depicted by a blue box in the footprint map) for the ds98-931 substrate (Figure 2A). As we reduced the length of homology shared between the ssDNA substrate and the dsDNA donor, the position of the D-loop footprints changed to reflect this differential homology length (Figure 2A–C). Even with a ds98-197-78ss substrate having only 197 nt homology to a 3,000 bp donor DNA, all the D-loop footprints were confined within the 197 nt homology window. Thus, the D-loop footprints were specific to homology, irrespective of the length of homology.

Next, we examined the distribution of the D-loop position within the homology window for each substrate type. As evident from the visual appearance of D-loop footprints clustered based on their position on the footprint map, the D-loops seemed enriched at the 3′-end of homology (Figure 2A–C). We quantified the distribution of D-loop position as the fraction of D-loops found within 100 nt bins non-exclusively. The distribution of D-loops across the homology length for ds98-931 and ds98-607 substrate is shown in Figure 3A and B, respectively. Similar to the results from a restriction-digest based assay (Wright and Heyer, 2014), there was an enrichment of D-loops near the 3′-end of ssDNA, while the 5′-end of homology had the lowest D-loop presence. This observation may support the model that Rad51 filament grows preferentially in a 5′-to-3′ direction (Qiu et al., 2013; Špírek et al., 2018), making it more likely for the D-loops to assemble at the 3′-end of homology than at the 5′-end. Only D-loops in which the 3′-OH end is incorporated into the hDNA are competent for D-loop extension (Li and Heyer, 2009). Alternatively, the enrichment of D-loops at the 3′-end might be due to the higher physical flexibility of ssDNA at the 3′-end compared to the 5′-end that is near a duplex DNA. Lastly, for the ds98-197-78ss substrate, due to the small window size of only 197 nt, the distribution of D-loop position is less informative, but is shown in Figure 3C.

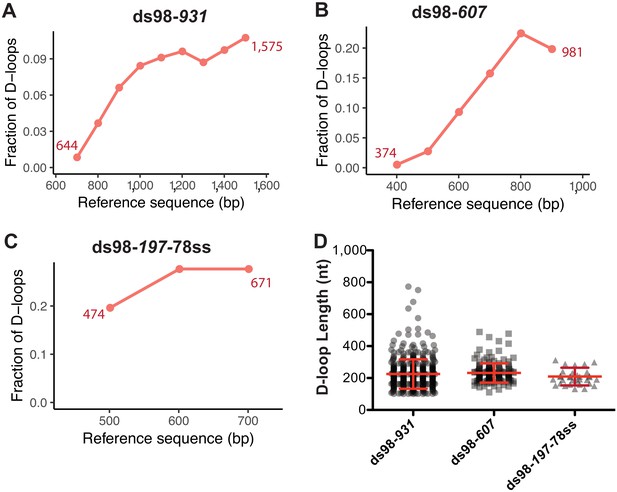

Distribution of D-loop lengths and position, when formed on a supercoiled donor.

(A, B, C) Distribution of D-loop footprints across the region of homology for the ds98-931, ds98-607, or ds98-197-78ss substrates, respectively. Here, and in all subsequent graphs, the distribution is measured by binning each footprint in 100 nt bins across the homology non-exclusively. The numbers by the plotted line represent the beginning and end of the exact region of homology for each substrate type on the reference sequence. (D) Dot plot showing the distribution of D-loop lengths seen with each substrate type in the DMA assay. In red is Mean ± SD (n = 3).

Note that a slight drop in the frequency of D-loops was seen in the last ~100 nt of homology near the 3’-end for the ds98-931 and ds98-607 substrates (Figure 3A,B). This drop in the frequency could be due to end bias in calling a D-loop footprint and/or in binning the D-loop coverage. Since no D-loop is expected after the last nucleotide of homology, there would be fewer, if any, cytosine conversions after the 3′-end of homology. Hence, the window of peak threshold used may be slightly smaller, not including the last cytosine as often as it should. Additionally, lack of D-loops at the other side of the homology end may create a slight drop in the coverage frequency with 100 nt bins. However, the overall trend is not expected to change drastically. In summary, for long homology windows, a distribution of D-loop coverage provides insight towards biases in the D-loop position.

Length of D-loops with a supercoiled donor is restricted by the supercoiling density of the donor

To determine the length of individual D-loops in nucleotides, we measured the length of the footprints. The precise margins of a D-loop footprint are influenced by a combination of the peak threshold used to define a footprint and the bisulfite conversion efficiency (see later discussion on peak thresholds).

As stated earlier, with a supercoiling density of ~20 ± 5 in the donor DNA, D-loops are expected to have a maximum length of ~210 ± 50 nt, irrespective of the homology length. We observed that D-loop footprints have an average length of 259 ± 93 nt and 231 ± 60 nt distributed across the region of homology with the ds98-931 and ds98-607 substrates, respectively (Figure 3D). With the 197 nt homology substrate (ds98-197-78ss), the average D-loop length was 206 ± 48 nt (Figure 3D). Thus, when using a super-coiled donor, D-loop length is tightly regulated by the supercoiling density of dsDNA irrespective of the size of homology between the substrate and the donor.

Note that these average lengths are slightly higher than the maximum expected length of ~210 ± 50 nt for ds98-931 and ds98-607 substrates. This slightly higher average length is due to a small fraction (<5–10%) of footprints that were much longer than expected (>350 nt) with a supercoiled donor (Figure 3D, Figure 2—figure supplement 1D). These longer D-loops were nevertheless still within the maximum possible length based on the region of homology that is shared between the ssDNA substrate and the supercoiled duplex donor. Such long D-loop footprints may either be due to a small fraction of nicked (relaxed) plasmids in the reaction or due to branch migration of D-loops during the bisulfite treatment. Since the D-loops formed on supercoiled donors are very stable at room temperature (Wright and Heyer, 2014), branch migration appears to be the less likey explanation. Additionally, separation of the D-loop reactions on a gel revealed that 5–10% of the supercoiled plasmid was nicked/relaxed (Figure 2—figure supplement 1A–B). Nicked plasmids would have unrestricted topology, allowing the formation of D-loops that span the entire region of homology. Thus, we conclude that these longer D-loops are the result of nicked dsDNA molecules. Since most of the footprints had the D-loop length expected from the topological limit, it seems that branch migration, if at all, was minimal on supercoiled donors. This suggests that no significant changes in D-loop length or position occur during the bisulfite treatment. For the ds98-197-78ss substrate the average D-loop length of 206 nt was slightly larger than the 197 nt length of homology. The 197 nt homology comprises only 43 cytosines, lower than the required minimum of 50 cytosines with a t40w50 threshold. With a conversion rate greater than 40%, surrounding cytosines maybe incorporated in a peak, resulting in slight overestimation of D-loop length when the homology length is close to the threshold limit. In fact, with a t40w40 threshold, the average D-loop length was 191 ± 41 nt.

In summary, the lack of footprints outside the region of homology, their absence on the bottom-strand, their dependence on the formation of a D-loop, and their uniform length restricted by the supercoiling density of the donor provide high confidence that the footprints represent D-loops.

Characterization of D-loops formed on a linear donor reveal enrichment of D-loops at the 3′-end and depict a wide range of D-loop lengths across the region of homology

After establishing the assay using a supercoiled donor, a linearized plasmid, free of topological constraints, was used as a donor to map the D-loops in a topologically uninhibited manner. Again, a range of ssDNA substrates was used with varying lengths of homology to the donor (ds98-915, ds98-607, ds98-197-78ss), different sequences (ds98-931 vs. ds98-915) or presence of a non-homologous 3′-flap (ds98-915-78ss) (Figure 4A). Substrates with different homology lengths with respect to the donor were used to determine whether this would result in corresponding changes in D-loop length distribution. While substrates with similar homology length but different homologous sequences to the donor were used to test for any sequence bias contributing to the D-loop distribution. The ds98-931 and ds98-915 substrates differ in sequence by >33%, and the sequences are provided in the Key Resources Table. Lastly, the substrate with a non-homologous 3′-flap was used to test if 3′-heterology affects the enrichment of D-loops at the 3′-end of homology.

Figure 4 with 3 supplements see all

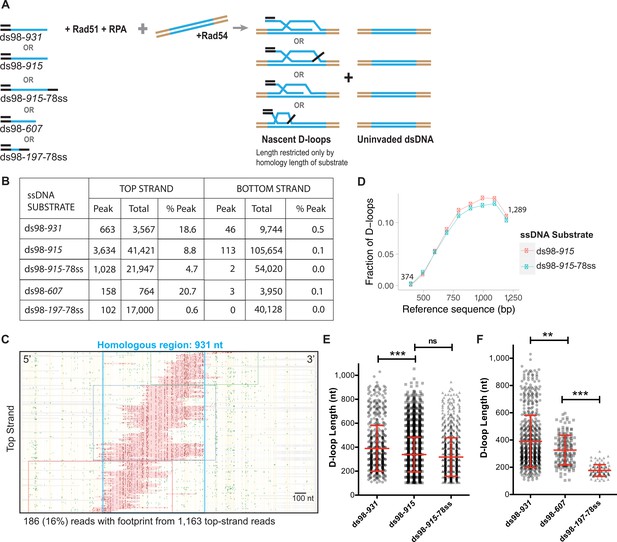

Characteristics of the D-loops formed on a linear donor.

(A) Schematic of the in vitro D-loop reaction involving linear dsDNA donor and various substrates. The blue lines indicate the homology between the substrate and the donor. These substrates can form different D-loops depending on their homology size, homology position, and flanking heterology. Linear donors lack topological restrictions. (B) Table summarizing the total number of reads containing a footprint as ‘peak’ and the total number of reads analyzed as ‘total’ for each strand. ‘% Peak’ indicates the percentage of reads containing a footprint. The data represents a cumulation from >3 independent replicates. Refer to Figure 4—figure supplement 1. (C) Footprint map of D-loop sample formed with ds98-931 and a linear donor. Refer to Figure 4—figure supplement 2 for other footprint maps. (D) Comparing the distribution of D-loop position between an invading substrate with (ds98-915-78ss) and without (ds98-915) a non-homologous 3′-end (n = 3). (E) Distribution of D-loop lengths observed for the three substrates with ~900 nt homology to the donor. Mean ± SEM in red (n = 3). (E) Dot plot showing a distribution of D-loop lengths seen with substrates having ~900 nt homology to the donor in the DMA assay. In red is Mean ± SD (n = 3). *** indicates p-value<0.0005, ns indicates non-significant using a two-tailed, Student’s t-test. (F) Dot plot showing a distribution of D-loop lengths seen with substrates having different lengths of homology to the donor in the DMA assay. In red is Mean ± SD (n = 3). ** indicates p-value<0.005, ***<0.0005, using a two-tailed, Student’s t-test.

As expected, the D-loop footprints for each of these substrate types were specifically seen only on the top strand, as evident in the cumulative read data (Figure 4B). A total of ~800–3,700 (10–18%) D-loops were observed among ~4,000–40,000 top-strand reads (Figure 4B). Again, while the bottom-strand comprised ~13,000–100,000 reads, it had <0.1% of reads with a footprint. (Here, a 10-fold difference in the total number of reads analyzed was due to upgrade in Pacific Biosciences sequencing system, from Sequel -I to Sequel – II. See Material and methods). Thus, even with a linear, topologically unrestricted donor, the D-loops were mapped with high strand-specificity (>100 fold). Relative D-loop levels quantified from DMA correlated with the D-loop levels from the gel-based assay (Figure 4—figure supplement 1A,B). Although, as expected from previous observations with negatively supercoiled donors, the D-loop levels estimated from DMA were lower than the ones from the gel.

Moreover, the D-loop footprints were essentially all found within the window of homology for each substrate type, as evident from individual footprint maps (Figure 4C, Figure 4—figure supplement 2A–C), attesting to the homology-specificity of the footprints. In some cases, less than 0.4% of footprints were found outside the region of homology (Figure 4—figure supplement 2B). These footprints were found on both the top strand and bottom-strand reads, attesting their origin to be due to DNA breathing in a C-rich region. Next, the distribution of the D-loop position with a linear donor revealed an enrichment at the 3′-end of homology (Figure 4D, Figure 4—figure supplement 2D,E), similar to the D-loops formed using a supercoiled donor. Moreover, the presence of a non-homologous 3′-flap in ds98-915-78ss sample did not significantly alter the distribution of the D-loop position (Figure 4D) compared to the ds98-915 sample. Despite the flap, the D-loops were enriched at the 3′-end of homology in a similar fashion. Since the non-homologous flap is only 78 nt long, it may not alter the distribution of Rad51 filament significantly, resulting in similar D-loop allocations. It may be interesting to test if a non-homologous flap longer than the average D-loop length of 450 nt has any effect on D-loop distribution.

The distribution of D-loops was also unaltered by changes in the homology sequence between the ds98-931 and ds98-915 substrates (Figure 4D, Figure 4—figure supplement 2D). This suggests that differences in cytosine distribution across the homology do not significantly alter D-loop distribution, as long as the % CG is not very low. In these cases, the % CG were >40%. Thus, these observations further support the 5′-to-3′ directionality of the Rad51 filament growth (Qiu et al., 2013; Špírek et al., 2018).

Interestingly, there was no preferred D-loop length. Instead, a broad range of D-loop lengths was observed, independent of the substrate type (Figure 4E,F). The lengths of the D-loops ranged from ~100 nt to a maximum spanning the entire length of homology. D-loops as long as 900 nt were seen with the long substrates (ds98-915, ds98-931, and ds98-915-78ss) at a frequency of ~5% of the total D-loops (Figure 4E). The minimum D-loop size of 100 nt is limited by the peak threshold (of t40w50) used to define a D-loop footprint. An average D-loop length of ~390 nt was noted with the 900 nt homology series substrates. There was a slight, yet significant difference in the D-loop lengths between the ds98-915 and ds98-931, with a difference in mean of 60 nt. Two factors may contribute to this difference in D-loop lengths. One, the 16 nt longer homology in ds98-931 may contribute to relatively longer average D-loop length. Second, the two substrates differ in their homologous sequences. The ds98-915 substrate includes 192 cytosines, while the ds98-931 has 187 cytosines within the region of homology. Thus, the relatively less frequent cytosine distribution in ds98-931, despite the longer homology length, may consequently result in the observed increase in the mean D-loop length. However, there was no statistical difference in D-loop lengths between the ds98-915 and ds98-915-78ss substrates, suggesting that the 78 nt 3′-flap does not alter D-loop lengths. Overall, >40% of footprints were longer than the average length of 400 nt for each of these three substrates. Thus, the differences in the homology sequence or the presence of a non-homologous 3′-flap did not significantly alter the distribution of D-loop lengths.

As expected, the average D-loop length decreased from ~390 nt to ~320 nt, when the homology length was reduced to 607 nt using the ds98-607 substrate (Figure 4F). The maximum D-loop length for the ds98-607 substrate was 600 nt, restricted only by the homology length. About 6% of the D-loops were longer than 500 nt, traversing across the region of homology. Similarly, the D-loops formed with the ds98-197-78ss substrate had an average length of 176 nt, and ~73% spanned the entire region of homology. The minimum D-loops length observed was ~100 nt limited by the peak threshold of t40w50. In summary, our results demonstrate that homology length defines the maximum observable D-loop length, and in turn, influences the average D-loop length. Note that since the D-loops formed on a linear donor are relatively less stable than those on a supercoiled donor (Wright and Heyer, 2014), it is possible that the footprints may reflect all changes in D-loop length and position that occurred over the course of the bisulfite treatment.

Formation of multi-invasions, where a single substrate forms D-loops simultaneously in multiple donor molecules, was shown both in vitro and in vivo (Wright and Heyer, 2014; Piazza et al., 2017). However, multi-invasions cannot be detected by this assay, since each donor molecule is separately analyzed. Instead, in some cases (~2–5%), multiple D-loop footprints are seen within a single read (Figure 4—figure supplement 2A–C), representing a single donor. This may be due to multiple invasions of one or more substrates into a single donor at two different sites (Figure 4—figure supplement 2F). Multiple invasions from a single substrate at two sites within a donor may arise due to the formation of two Rad51 filaments separated by a gap. However, Rad54 may be able to translocate through such a gap, making these kinds of multiple invasions a rarity. Alternatively, two substrates invading a single donor may also give rise to dual footprints. Conversely, two D-loop footprints on a single read may also arise due to inefficient cytosine conversions across a long D-loop, possibly due to the continued presence of RPA on the displaced strand. Unless the two footprints are separated by >200 nt (~50 cytosines), it is currently hard to distinguish between the two possibilities.

RAD51 and RAD54 also form D-loops of varying lengths similar to Rad51 and Rad54 and depict an enrichment of D-loops at the 3′-end

We also similarly tested the D-loop mapping assay on D-loops formed using the human recombination proteins RAD51, RAD54, and RPA. The rationale for using human proteins was to test whether the D-loop length and distribution was an inherent property of the yeast Rad51 recombinase. In vitro D-loop reactions with human proteins were performed using the ds98-931 substrate and a supercoiled donor (Figure 4—figure supplement 3A) or a linearized donor (Figure 4—figure supplement 3C). With both donor types, the D-loop footprints were again specifically seen within the homologous region (Figure 4—figure supplement 3B,D) and on the top strand (Supplementary file 1). The distribution of D-loops was similar to the D-loops produced by the yeast proteins. An enrichment of D-loops was seen at the 3′-end of homology, irrespective of the donor type (Figure 4—figure supplement 3E). Average D-loop length seen with a supercoiled donor was 252 ± 78 nt as expected, while with a linear donor, the average length was 320 ± 140 nt (Figure 4—figure supplement 3F). The average D-loop length from a linear donor was slightly lower than the 410 nt seen with yeast proteins. Conformingly, only 21% of the D-loops were longer than 400 nt with human recombinant proteins compared to >40% seen with yeast recombinants. Only one D-loop spanned the entire length of homology. Thus, compared to the yeast proteins, human proteins seemed to be less efficient under the conditions used in forming longer D-loops. As evident from observation of the D-loops on an agarose gel (Figure 4—figure supplement 3G,H), the efficiency of D-loop formation was also much lower, with only 3% using a linear donor. This could be due to the poor stability of the RAD51 filament. It may also suggest a role for RAD51 accessory factors in stabilizing the RAD51 filament and altering its properties to promote more efficient D-loop formation (San Filippo et al., 2008). Concomitantly, the percentage of D-loops observed on a gel correlated well with the frequency of D-loop footprint (Figure 4—figure supplement 3H). Thus, the D-loop Mapping Assay can be broadly used to test the effect of recombinant proteins across various species on D-loop properties.

Optimization of the D-loop Mapping Assay

Temperature conditions for bisulfite treatment

The bisulfite conversion is most efficient at 70°C for 30 min (Yi et al., 2017). Such high temperatures would be deleterious for our purpose as it would cause D-loop dissolution (Wright and Heyer, 2014) or increased DNA breathing. We, therefore, varied temperature and time conditions to minimize background conversion from DNA breathing and to prevent branch migration and dissolution of D-loops, while retaining good bisulfite conversion efficiency. We tested the following temperature and time combinations: 37°C for 30 min, 37°C for 4 hr, 30°C for 1 hr, RT (25°C) for 3 hr, RT for 4 hr, while keeping everything else constant. A D-loop reaction performed in the absence of ssDNA substrate was used as a negative control to test for non-specific conversions. The bottom-strand of dsDNA and the 1,000 bp of non-homologous sequence on top strand also acted as internal negative controls.

A 4 hr incubation at 37°C showed cytosine conversion patches even outside the homologous region and on the bottom-strand (Figure 5—figure supplement 1A), indicating enhanced DNA breathing at 37°C (note that the number of reads analyzed was lower as the lower throughput RS-II sequencing platform was used). Incubation at 37°C is also known to enhance D-loop migration and dissolution (Wright and Heyer, 2014). Bisulfite treatment at 37°C for 30 min and at RT for 3 hr showed better recovery of D-loops compared to other treatment conditions (Figure 5—figure supplement 1A–C), depicting a higher fraction of reads with a D-loop footprint. To minimize potential D-loop migration, we opted for a 3 hr incubation at RT as the optimal condition for the bisulfite treatment.

Defining a peak threshold – t40w50 is an optimum peak threshold

A footprint is called based on a predefined peak threshold that can be altered in the analysis pipeline. A peak threshold is a minimum conversion frequency (t) required within a minimum window size (w) of consecutive cytosines to call a footprint. The ‘t’ parameter in a peak threshold should be lower than the average conversion efficiency of bisulfite treatment to minimize false-negative footprints. Conversely, the ‘w’ parameter is set to eliminate false positives from spontaneous DNA breathing.

An ssDNA (pBSKS- circular DNA) was spiked into an in vitro D-loop reaction sample to measure the efficiency of cytosine conversion. 58% of the 420 cytosines were converted on average in each individual read, and 100% of the 21 reads had cytosine conversion (Figure 5—figure supplement 2A,B). The cumulative cytosine conversion efficiency was thus, 58%. This finding implies that choosing a ‘t’ value lower than 58% should prevent false elimination of true footprints. Note that the conversion efficiency will always be less than 100% since non-denaturing conditions are applied.

To optimize the ‘w’ parameter, we examined spontaneous DNA breathing in the dsDNA (uninvaded) sample along with an in vitro D-loop sample. Footprints arising from spontaneous DNA breathing would be present on both the top and bottom-strands of the dsDNA, as well as in the regions lacking homology to the ssDNA substrate. We tested two window sizes of 20 and 50 consecutive cytosines with a range of ‘t’ parameters, 25, 30, 40, and 60%, hereby denoted as t25w20, for example (Figure 5A, Figure 5—figure supplement 2B,C). For a D-loop sample, with peak thresholds of t40w50 and t60w20, almost no footprints were observed on the bottom-strand or in the flanking non-homologous regions (Figure 5A, Figure 5—figure supplement 2C). With t40w20, 1.4% of bottom-strand reads had such non-specific footprints. Lowering the conversion frequency (t) to 25% significantly increased footprints on the bottom-strand, along with a concomitant increase in the percent of footprints detected on the top strand. 11.6% and 8.8% of bottom-strand reads had a footprint with t25w20 and t25w50, respectively, compared to ~40% top-strand footprints (Figure 5A, Figure 5—figure supplement 2C). We conclude that at least a t40 conversion threshold is required to eliminate the majority of footprints arising from spontaneous DNA breathing. To further eliminate false positives among the D-loop footprints, we decided on the next least stringent condition of t40w50 with no detectable non-specific footprints. While t60w20 also eliminated background footprints, the frequency ‘t’ requirement was higher than the average conversion frequency seen. Hence, most of the genuine top-strand D-loop footprints were lost, reducing the percentage of D-loops to 8% (Figure 5A). Thus, with respect to specificity, the t40w50 peak threshold is the most optimal for detecting D-loop footprints.

Figure 5 with 2 supplements see all

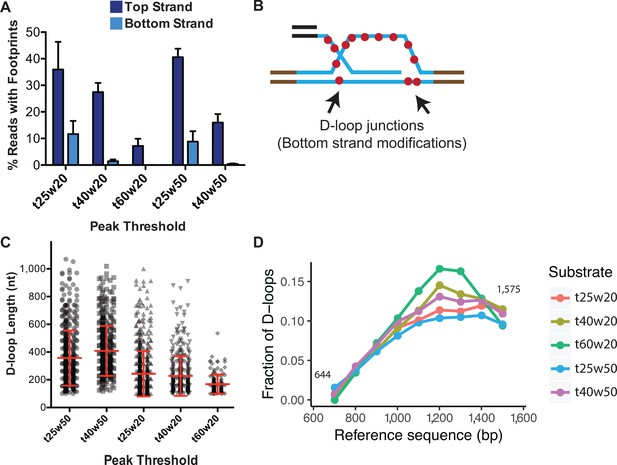

Effect of varying peak thresholds on D-loop levels, length, and position.

(A) Percentage of reads with footprint when called with different peak thresholds for D-loops formed with ds98-931 and a linear donor. For each peak threshold, ‘t’ represents the minimum conversion frequency of cytosines, ‘w’ represents the window size requiring the minimum number of consecutive cytosines. Refer to Figure 5—figure supplement 2. (B) Schematic representation of potentially short, bottom-strand footprints derived from the D-loop junctions. (C) Changes in the distribution of D-loop lengths as defined with different peak thresholds. D-loops formed with ds98-931, and a linear donor are depicted. Mean ± SD (n = 3) in red. (D) Distribution of the position of D-loop footprints when defined with different peak thresholds.

Interestingly, while the t40w50 threshold eliminates the majority of bottom-strand footprints, at the t25w20 threshold, a large number of bottom-strand reads showed two footprints within a read (Figure 5—figure supplement 2B). These two short footprints within a single read may have arisen at the two junctions of a D-loop, where the bottom-strand may be single-stranded (Figure 5B). RPA may bind at the 3′ junction of a D-loop (Sneeden et al., 2013), indicating that at least 25 nt (the binding site size of RPA) single-stranded region may be present on the bottom-strand. However, it is currently not possible to determine if they truly represent D-loop junctions, or simply arise from breathing of the DNA. The footprints outside the region of homology on the bottom-strand surely arise from the breathing of the DNA.

Effect of different peak thresholds on D-loop length and distribution

While optimization of peak threshold helped minimize false positives and false negatives, we wondered if it had any effect on the overall D-loop features. To address the effect of peak thresholds on D-loops called, we examined D-loop lengths and distribution under the various peak threshold conditions with the ds98-931 substrate and a linear donor.

In terms of the D-loop lengths, as one may expect, more short-length footprints were called with the low stringency conditions. With t25w50, 22% of the footprints were shorter than 250 nt, compared to 5% with a t40w50 threshold. Consequently, the average D-loop length with a t25w50 threshold was 357 nt compared to 410 nt with a t40w50 threshold (Figure 5C). Additionally, lowering the window size from w50 to w20 further lowered the average D-loop length. The average length was 220 nt for t40w20, with 59% of the D-loops being shorter than 200 nt. Thus, with lower window size, more of the short D-loop footprints were captured along with some footprints potentially arising from spontaneous DNA breathing, leading to an overall reduction in average D-loop length.

Note that genuine-D-loops shorter than 250 bp would be most affected by the window size. This is because a window size of 20 would result in a minimum D-loop size of 80–100 bp, considering a CG distribution of >40%. While using a window of 50, the minimum D-loop size would be 120–200 bp. Hence, for w = 50, D-loops that were originally 180 bp would be slightly overestimated in size as 200–250 bp, assuming that the cytosine conversion frequency permits it. On the other hand, longer D-loops will be unaffected by the window size. The length of genuine D-loops will also be unaffected by a change in conversion frequency below the average bisulfite conversion frequency.

Lastly, changes in peak threshold did not affect the overall distribution of D-loops within the homology window (Figure 5D). Thus, despite the detection of short non-specific footprints at lower thresholds, there was no bias in the position of these non-specific footprints, meaning that there was no overall change in their distribution.

Discussion

We have developed a novel D-loop mapping assay to determine the length, position, and distribution of in vitro formed D-loops for the first time. The method provides information on individual D-loop molecules with almost base-pair precision. The method is high-throughput, sensitive, and readily applicable to various kinds of D-loops. It can be broadly used to test the effect of various homologous recombination factors on D-loop characteristics. It is also possible to extend the assay to map other DNA intermediates/structures that include some regions of ssDNA. Using the D-loop Mapping Assay we could show that Rdh54/Tid1 antagonizes Rad54 in D-loop formation and restricts D-loops length (Shah et al., 2020).

Using the novel DMA, we have shown that without a topological barrier, D-loop length can vary widely, in some cases stretching as long as the homology permits. These differences in D-loop length may either reflect differential Rad51 filament lengths or variations in the processivity of Rad54 in forming hDNA. Moreover, the D-loops are enriched at the 3′-end of homology, similar to previous observations (Wright and Heyer, 2014). This enrichment confirms the directionality of the Rad51 filament in a 5′-to-3′ direction (Qiu et al., 2013). The 3′ enrichment may also suggest that the branchpoint with the 3′-OH end of ssDNA better activates the motor activity of the Rad54 translocase. Furthermore, the presence or absence of a topological barrier also does not alter the distribution of the D-loop position across the region of homology. The D-loops are enriched at the 3′-end, irrespective of topological barriers or D-loop size. Lastly, the presence of a 78 nt non-homologous 3′-flap has no significant effect on the distribution of D-loop length or position. It may be interesting to test if a longer heterology at the 3′ end would alter the distribution of D-loop position and/or length. Thus, DMA can provide valuable insights on D-loop characteristics, that may help reveal the roles of D-loop modulators and their regulation of D-loop dynamics.

Advantages and limitations of the D-loop mapping assay

The D-loop Mapping Assay provides the following advantages:

  1. DMA provides a tool to determine, for the first time, the lengths of individual D-loops and their distribution in a population of D-loops formed in vitro with near base-pair resolution.

  2. DMA allows mapping the exact position of each D-loop in reference to the donor dsDNA sequence. Distribution of the D-loop position can reveal any biases in the position of a D-loop within a region of homology. For instance, it revealed that D-loops are more frequently formed at the 3′-end of the homology.

  3. Relative D-loop levels detected by DMA are comparable across the different D-loop samples.

  4. The in vitro DMA is backed by several controls that allow testing the specificity of the assay within each sample and also within each read molecule.

  5. There is no bias in the length of the D-loop mapped by the DMA above the 120–200 nt threshold limit. The bias is avoided due to the lack of a D-loop enrichment step or a D-loop crosslinking step. Hence, short and long D-loops are mapped with similar frequencies as evident from the vast and equal distribution of D-loop lengths on a linear donor.

  6. DMA is a highly sensitive method to detect and map D-loops. DMA can map D-loops formed with efficiency as low as ~1–2% using Sequel-I or as low as ~0.05% with the Sequel-II system (higher coverage).

  7. DMA allows multiplexing of samples with up to 50–200 barcoded samples analyzed simultaneously. This provides speedy and cost-efficient high-throughput analysis.

The D-loop mapping assay is limited in the following ways:

  1. The minimum detectable D-loop length is limited by the peak threshold used for the analysis of DMA. The peak threshold is used to ensure confidence in that a conversion patch is derived from a genuine D-loop and not spontaneous breathing of the duplex DNA. D-loops shorter than 120–200 nt are undetectable with a threshold window of 50.

  2. There is lower confidence in the precise length of those D-loops whose length approaches or is lower than the threshold window. This is because the length may be slightly overestimated due to the requirement of a minimum threshold window. However, D-loop with a length longer than the threshold window is not affected.

  3. As with any D-loop assay, some unstable D-loops may be lost during the bisulfite treatment. Some D-loop molecules may also be lost due to the nicking of ssDNA during bisulfite treatment. Despite this, due to the lack of experimental bias, D-loops can be compared across different samples.

  4. Some long D-loops may be misidentified as short D-loops due to insufficient bisulfite conversion within the treatment time period. The insufficient bisulfite conversion might be due suboptimal room temperature treatment condition or due to incomplete RPA removal by proteinase K. However, optimizing the conversion threshold by using a spiked ssDNA control helps minimize the possibility of underestimated D-loop lengths or false negatives.

  5. Some short D-loops may be misrepresented as long footprints due to any potential D-loop migration during the course of bisulfite treatment. However, D-loops are presumed to be relatively stable at room temperature, as no D-loop dissolution is observed over time (Wright and Heyer, 2014). Moreover, most of the footprints representing supercoiled D-loops had the expected size, minimizing the possibility of branch migration, especially on supercoiled donors.

Lastly, we suggest some potential technical alterations to the DMA that may improve the conversion efficiency or the D-loop detection levels.

  1. The proteinase K digestion and removal of RPA from the displaced strand may be less efficient without the presence of a detergent. To minimize the possibility of RPA bound on the displaced strand during bisulfite conversion, we suggest testing the use of CTAB detergent along with proteinase K for any potential improvement in the D-loop footprint signal. CTAB, unlike SDS, is known to prevent D-loop migration (Allers and Lichten, 2000).

  2. Currently 35 cycles are performed during each round of PCR. The high cycle number may be promoting the 2-fold bias currently observed among the top and bottom-strand reads. Reducing the cycle number during PCR-1 may help reduce the strand bias. However, these are minor changes and may not significantly change the overall footprint map or relative comparison across different samples.

Materials and methods

Key resources table
Reagent type (species)
or resource
DesignationSource or referenceIdentifiersAdditional information
Recombinant DNA reagent (plasmid)pBSKS (-) strandWright and Heyer, 2014Used to test bisulfite conversion efficiency
Recombinant DNA reagent (plasmid)pBSphix1200Wright and Heyer, 2014
Wright and Heyer, 2014
AmpUsed as dsDNA donor in D-loop assay in supercoiled or linear form
Recombinant protein (S. cerevisiae)Rad54Wright and Heyer, 2014
Recombinant protein (S. cerevisiae)Rad51Van Komen et al., 2006
Recombinant protein (S. cerevisiae)RPABinz et al., 2006
OligonucleotideUNI+Donor-PB-FThis paperGCAGTCGAACATGTAGCTGACTCAGGTCACTCACACTTCCTGGTTGATGG
OligonucleotideUNI+ PhiX-PB-RThis paperTGGATCACTTGTGCAAGCATCACATCGTAGATCTACACGACGGGGAGTCA
OligonucleotidepBS-915nt-subs-RThis paperGGTATCGATAAGCTTCCATGgcatttgtttcagggttatttg
OligonucleotidepBS-51-931nt-subs-FThis paperCGTATCTAGACTGCAgaacggaaaacatccttcatag
OligonucleotidepBS-1013nt subs-RThis paperCGTATCTAGACTGCAgaagtcatgattgaatcg
OligonucleotidepBS-1013nt subs-FThis paperGGTATCGATAAGCTTCCATGgttaatgccactcctctcccga
Oligonucleotide3`-non-tailed-NcoI-915This paperGATAAGCTTCCATGGCAT
OligonucleotideUNI+pBSKS-FThis paperGCAGTCGAACATGTAGCTGACTCAGGTTTTTGATTTATAAGGGATTTTG
OligonucleotideUNI+pBSKS-RThis paperTGGATCACTTGTGCAAGCATCACATCGTAGTTTATTTTTCTAAATACATTCAAATAT
Oligonucleotide100-merWright and Heyer, 2014ctggtcataatcatggtggcgaataagtacgcgttcttgcaaatcaccagaaggcggttcctgaatgaatgggaagccttcaagaaggtgataagcagga
Oligonucleotideds98-197-78ssWright and Heyer, 2014Homologous sequence (197 nt): ctggtcataatcatggtggcgaataagtacgcgttcttgcaaatcaccagaaggcggttcctgaatgaatgggaagccttcaagaaggtgataagcaggagaaacatacgaaggcgcataacgataccactgaccctcagcaatcttaaacttcttagacgaatcaccagaacggaaaacatccttcatagaaattt
Oligonucleotideds98-607Wright and Heyer, 2014Homologous sequence (607 nt): gaagtcatgattgaatcgcgagtggtcggcagattgcgataaacggtcacattaaatttaacctgactattccactgcaacaactgaacggactggaaacactggtcataatcatggtggcgaataagtacgcgttcttgcaaatcaccagaaggcggttcctgaatgaatgggaagccttcaagaaggtgataagcaggagaaacatacgaaggcgcataacgataccactgaccctcagcaatcttaaacttcttagacgaatcaccagaacggaaaacatccttcatagaaatttcacgcggcggcaagttgccatacaaaacagggtcgccagcaatatcggtataagtcaaagcacctttagcgttaaggtactgaatctctttagtcgcagtaggcggaaaacgaacaagcgcaagagtaaacatagtgccatgctcaggaacaaagaaacgcggcacagaatgtttataggtctgttgaacacgaccagaaaactggcctaacgacgtttggtcagttccatcaacatcatagccagatgcccagagattagagcgcatgacaagtaaaggacggttgtcagcgtcataagaggttttac
Oligonucleotideds98-931This paperHomologous sequence (931 nt): gaacggaaaacatccttcatagaaatttcacgcggcggcaagttgccatacaaaacagggtcgccagcaatatcggtataagtcaaagcacctttagcgttaaggtactgaatctctttagtcgcagtaggcggaaaacgaacaagcgcaagagtaaacatagtgccatgctcaggaacaaagaaacgcggcacagaatgtttataggtctgttgaacacgaccagaaaactggcctaacgacgtttggtcagttccatcaacatcatagccagatgcccagagattagagcgcatgacaagtaaaggacggttgtcagcgtcataagaggttttacctccaaatgaagaaataacatcatggtaacgctgcatgaagtaatcacgttcttggtcagtatgcaaattagcataagcagcttgcagacccataatgtcaatagatgtggtagaagtcgtcatttggcgagaaagctcagtctcaggaggaagcggagcagtccaaatgtttttgagatggcagcaacggaaaccataacgagcatcatcttgattaagctcattagggttagcctcggtacggtcaggcatccacggcgctttaaaatagttgttatagatattcaaataaccctgaaacaaatgcttagggattttattggtatcagggttaatcgtgccaagaaaagcggcatggtcaatataaccagtagtgttaacagtcgggagaggagtggcattaacaccatccttcatgaacttaatccactgttcaccataaacgtgacgatgagggacataaaaagtaaaaatgtctacagtagagtcaatagcaaggccacgacgcaatggagaaagacggagagcgccaacggcgtccatctcgaaggagtcgccagcgataaccggagtagttgaaatggtaataagac
Oligonucleotideds98-915This paperHomologous sequence (915 nt): gaagtcatgattgaatcgcgagtggtcggcagattgcgataaacggtcacattaaatttaacctgactattccactgcaacaactgaacggactggaaacactggtcataatcatggtggcgaataagtacgcgttcttgcaaatcaccagaaggcggttcctgaatgaatgggaagccttcaagaaggtgataagcaggagaaacatacgaaggcgcataacgataccactgaccctcagcaatcttaaacttcttagacgaatcaccagaacggaaaacatccttcatagaaatttcacgcggcggcaagttgccatacaaaacagggtcgccagcaatatcggtataagtcaaagcacctttagcgttaaggtactgaatctctttagtcgcagtaggcggaaaacgaacaagcgcaagagtaaacatagtgccatgctcaggaacaaagaaacgcggcacagaatgtttataggtctgttgaacacgaccagaaaactggcctaacgacgtttggtcagttccatcaacatcatagccagatgcccagagattagagcgcatgacaagtaaaggacggttgtcagcgtcataagaggttttacctccaaatgaagaaataacatcatggtaacgctgcatgaagtaatcacgttcttggtcagtatgcaaattagcataagcagcttgcagacccataatgtcaatagatgtggtagaagtcgtcatttggcgagaaagctcagtctcaggaggaagcggagcagtccaaatgtttttgagatggcagcaacggaaaccataacgagcatcatcttgattaagctcattagggttagcctcggtacggtcaggcatccacggcgctttaaaatagttgttatagatattcaaataaccctgaaacaaatgc
Oligonucleotideds98-915-78ssThis paperHomologous sequence (915 nt): gaagtcatgattgaatcgcgagtggtcggcagattgcgataaacggtcacattaaatttaacctgactattccactgcaacaactgaacggactggaaacactggtcataatcatggtggcgaataagtacgcgttcttgcaaatcaccagaaggcggttcctgaatgaatgggaagccttcaagaaggtgataagcaggagaaacatacgaaggcgcataacgataccactgaccctcagcaatcttaaacttcttagacgaatcaccagaacggaaaacatccttcatagaaatttcacgcggcggcaagttgccatacaaaacagggtcgccagcaatatcggtataagtcaaagcacctttagcgttaaggtactgaatctctttagtcgcagtaggcggaaaacgaacaagcgcaagagtaaacatagtgccatgctcaggaacaaagaaacgcggcacagaatgtttataggtctgttgaacacgaccagaaaactggcctaacgacgtttggtcagttccatcaacatcatagccagatgcccagagattagagcgcatgacaagtaaaggacggttgtcagcgtcataagaggttttacctccaaatgaagaaataacatcatggtaacgctgcatgaagtaatcacgttcttggtcagtatgcaaattagcataagcagcttgcagacccataatgtcaatagatgtggtagaagtcgtcatttggcgagaaagctcagtctcaggaggaagcggagcagtccaaatgtttttgagatggcagcaacggaaaccataacgagcatcatcttgattaagctcattagggttagcctcggtacggtcaggcatccacggcgctttaaaatagttgttatagatattcaaataaccctgaaacaaatgc
Commercial enzymeBsa1New England BiolabsCatalog: #R0535STo linearize pBSphix1200
Commercial enzymePhusion-U polymeraseThermo FischerCatalog: #PN-F555S
Commercial kitEpitect Bisulfite kitQiagenCatalog: #59104DMA
Commercial kitSMRTbell Template Prep Kit 1.0Pacific BiosciencesCatalog: #100-259-100DMA
Commercial reagentSera-Mag SpeedBead Carboxylate-Modified Magnetic particles (Hydrophobic)SigmaCatalog: #PN-65152105050250DMA
Commercial reagentAMPure PBPacific BiosciencesCatalog: #100-265-900DMA
Commercial reagentSYBR Gold Nucleic Acid StainInvitrogenCatalog: #S11494

In vitro D-loop assay ssDNA substrate preparation

Request a detailed protocol

ds98-607 and ds98-197-78ss were created as described in Wright and Heyer, 2014. Additionally, ds98-931, ds98-915, and ds98-915-78ss substrates were created similarly. The pBSbase phagemid vector was cloned to comprise either the 931 nt or the 915 nt homologies. The 931 or 915 nt homology inserts were amplified from pBSphiX1200 by using pBS-51-931nt-subs-F and pBS-1013nt-subs-R or pBS-1013nt-subs-F and pBS-915nt-subs-R primers respectively. The substrates were then spliced out from the cloned phagemids as previously described (Wright and Heyer, 2014).

In vitro D-loop formation

Request a detailed protocol

D-loop reactions were performed as described in Wright and Heyer, 2014 with the following modifications. The reactions used a linearized or supercoiled pBSphix1200 plasmid donors. All D-loop reactions were carried out at 30°C. Homologous ssDNA was added at 3 nM with the 3 kb donor dsDNA also present at 3 nM (molecules). Rad51 was saturating with respect to the invading ssDNA (1 Rad51 to 3 nts ssDNA), and RPA was added at one heterotrimer to 25 nt ssDNA, while Rad54 was added at 18 nM monomers. 1x buffer was used as described in Wright and Heyer, 2014. The order of addition was: Rad51 + ssDNA, 10 min incubation; then RPA, 10 min incubation; and finally, Rad54 + linear dsDNA, 15 min incubation. In case a supercoiled dsDNA was used instead of a linear dsDNA donor, the reaction was carried on for 10 min to achieve maximum D-loop formation and prevent D-loop disruption based on Wright and Heyer, 2014. The reactions had a final volume of 25 µl. Reactions were stopped with 2 mg/ml Proteinase K (2.5 μl of 20 mg/ml Proteinase K) and 10 mM EDTA (0.5 μl of 0.5 M EDTA). The reaction was then split, such that 9 μl of the reaction was added to a tube containing 0.2% SDS (0.2 μl of 10% SDS) and 1x DNA loading dye for gel visualization (2.8 μl of 6x dye). This fraction of the reaction was deproteinized by incubating at room temperature (RT) for 1–2 hr. Subsequently, the samples were separated on a 0.8% TBE agarose gel at 70 V for ~3 hr. The gel was stained with SYBR Gold Stain for 30 min at RT, before visualization. The remainder of the D-loop reaction (19 μl) was incubated at room temperature (RT) for 30 min to allow deproteinization, before proceeding to bisulfite treatment for the D-loop Mapping Assay (DMA). Note that SDS was avoided in this fraction of the D-loop sample to prevent branch migration of D-loops (Allers and Lichten, 2000). The reaction volume ensures that >50 ng of dsDNA was incorporated into the bisulfite reaction.

D-loop mapping assay (DMA)

Non-denaturing bisulfite treatment

Request a detailed protocol

Once deproteinized, the D-loops were treated with 85 μl of sodium bisulfite and 35 μl of DNA protecting reagent from the Qiagen ‘Epitect Bisulfite Kit’ at RT for 3 hr. RT was used for the treatment instead of the recommended higher temperatures to avoid D-loop disruption and migration as well as to avoid DNA denaturation. The bisulfite reaction was stopped by adding 310 μl BL buffer spiked with 3.1 μl of carrier RNA, following the kit instructions. The RNA was added since the dsDNA concentration is <100 ng preventing non-specific binding to the column. The bisulfite reaction was completed using the kit and finally eluted in 18 μl of EB buffer.

Two-step PCR

Request a detailed protocol

For the first round of PCR, primers were designed complementary to the non-homologous regions of the dsDNA donor, more than 500 nt upstream and downstream of the homology. The primers contained a ‘universal’ primer sequence at their 5′-end (UNI+Donor-PB-F, UNI+Phix-PB-R). In case of the spiked in pBSKS- ssDNA used to test the bisulfite conversion efficiency (see below), the primers were modified to be unbiased, lacking a cytosine in the forward primer or guanine in the reverse primer. Thus, both the bisulfite-modified and unmodified DNA were amplified. Reactions were performed using ThermoFischer PhusionU DNA polymerase (ThermoFisher PN F555S) to produce high-fidelity, long-range single-band products, despite the presence of uracil in the bisulfite-treated DNA. 0.5 μl of eluted bisulfite DNA was used as input. PCR conditions: 98°C 2 min, [98°C 30 s, 55°C 30 s, 72°C 3 min]x35 cycles, 72°C 10 min, store at 10°C. Reactions were purified by 0.7x Sera-Mag SpeedBead Carboxylate-Modified Magnetic particles (Hydrophobic) (PN 65152105050250) and eluted in 50 μl of 1x TE pH 7.5. For the second round of PCR, the primers contained the universal primer sequence and a symmetric barcode sequence at the 5′-end. Barcode sequences were obtained from https://github.com/PacificBiosciences/Bioinformatics-Training/blob/master/barcoding/pacbio_384_barcodes.fasta. 0.5 μl of PCR-1 elution was used as input. PCR conditions: 98°C 2 min, [98°C 30 s, 64°C 30 s, 72°C 3 min] x 35 cycles, 72°C 10 min, store at 10°C. All PCR reactions were purified using 0.7x Sera-Mag beads and eluted in 50 μl of 1x TE pH 7.5.

AMPure bead purification

Request a detailed protocol

AMPure PB beads from PacBio (PN 100-265-900) were used. 0.7x volume, or as specified, of AMPure beads, were added to the DNA. The DNA was allowed to bind to the beads by shaking on a VWR vortex mixer at speed-2 at room temperature. After quick centrifugation, the tube was placed on a magnetic bead rack. 30–60 s was given to allow bead separation towards the magnet, and then the supernatant was carefully removed. The beads were then washed with freshly prepared 70% ethanol. Ethanol was added without disturbing the beads, incubated for 30 s, and pipetted out. The wash was repeated. Finally, the tube was briefly centrifuged and placed on the magnetic rack to remove any residual ethanol. After a 30–60 s air-dry, the beads were resuspended in 1x TE pH 7.5. The beads were shaken on the vortex for 2–3 min to allow elution of DNA, before placing them back on the rack to pipette out the DNA. DNA concentration was measured by NanoDrop.

Amplicon pooling

Request a detailed protocol

In order to multiplex the sequencing, PCR amplicons from various D-loop reactions were pooled before library preparation. Barcoded amplicons that were AMPure purified from the second PCR reaction were pooled in equimolar concentration. Ideally, for a Sequel-I or Sequel-II run, the amplicons were pooled to have a final concentration of 2–3 μg DNA. We usually pooled approximately 40–60 samples (depending on the PacBio system used for sequencing, see below). The pooled amplicons were concentrated using a 0.7x AMPure bead wash and eluted in 37 μl of EB buffer (obtained from SMRTbell Template Prep Kit 1.0). The DNA concentration was measured by Nanodrop to have at least 2 μg DNA.

SMRTbell library preparation

Request a detailed protocol

The PacBio Sequel or RS-II system was used to achieve long-read, single-molecule resolution sequencing of D-loop footprints. SMRTbell Template Prep Kit 1.0 (PN 100-259-100) from PacBio was used for preparing the libraries. Libraries were built as per the ‘Procedure and Checklist – 2 kb Template Preparation and Sequencing’ protocol (PN 001-143-835-08) from PacBio with some modifications. The DNA repair reaction was carried out for 30 min at 37°C. Ligation was done for 1 hr instead of 15 min at 25°C. Finally, the DNA library was eluted in 12 μl of Epitect Bisulfite buffer. SMRTbell libraries were quantified by Qubit or NanoDrop, and their size was cross-validated using gel electrophoresis or Agilent Genomic’s 2100 Bioanalyzer. Libraries were sequenced on a PacBio RS-II, Sequel-I or -II instrument with 10 hr movie times and a V2 primer.

Note that depending on the PacBio sequencing instrument used, the quality and quantity of output varied. For RS-II runs, only 8–10 samples were multiplexed and generated 500–1,000 reads per sample. For Sequel-I runs, ~50 different samples were multiplexed, resulting in ~3,000–5,000 reads per sample. For Sequel-II runs, ~50 samples were pooled as well but resulted in >20,000 reads per sample. The Sequel-II instrument may permit multiplexing ~200 samples without loss of data or undersampling. Moreover, the D-loop levels detected by the Sequel-II system were relatively lower than those quantified from Sequel-I. This might be due to oversequencing the uninvaded DNA molecules.

Computational data processing

Circular consensus sequence (CCS) generation

Request a detailed protocol

Default parameters of SMRT link v6.0 with ccs 3.0.0. commit 1035 f6f for (PacBio RS-II and Sequel-I) or v8.0 (for Sequel-II) were used for processing subreads into CCS reads. As part of default parameters, a minimum subread quality of at least 90% was processed into CCS with a minimum pass filter of 3.

Duplicate read removal

Request a detailed protocol

We used dedupe2.sh from package BBMap V37.90 (https://sourceforge.net/projects/bbmap/) with default parameters except for mid = 98, nam = 4, k = 31, and e = 30. An average of <5% reads were removed as duplicates in the combined datasets.

Gargamel computational pipeline

The Gargamel pipeline (available at https://github.com/srhartono/footLoop_sh) allows users to map reads, assign strands, call single-molecule D-loop footprints as peaks of C-to-Tconversion, perform clustering on peaks, and visualize the data, similar to the pipeline described in Malig et al., 2020.

Read mapping

Request a detailed protocol

Reads were mapped to the dsDNA reference sequence using Bismark v0.20.0 (Krueger and Andrews, 2011) (part of the footLoop.pl pipeline). The reference sequence included a 100 bp buffer off the beginning and end positions. Bismark default settings were used except for a slightly relaxed minimum score threshold (--rdg 2,1 --rfg 2,1 --score_min L,0,–0.8) and bowtie 2.2.6 (--bowtie2) was used. Truncated reads shorter than 50% of their expected length were discarded. After removing truncated reads, the median length of reads was 2,500 bp, which is the expected size. Altogether, the stringent requirements imposed for circular consensus, duplicate removal, mapping, and size, ensured the selection of very high-quality reads.

Strand assignment

Request a detailed protocol

For each read, strandedness was assigned based on conversion patterns. Reads with insufficient conversions (C-to-T<6 and G-to-A<6) could not be assigned and were named ‘unknown’. Likewise, if the number of C-to-T conversions was within + / - 10% of G-to-A conversions on a read, then the strandedness was considered unknown. Such ‘unknown’ strand reads represented less than ~5% of the total pool.

Otherwise, reads with predominant C-to-Tor G-to-A conversions were assigned as non-template (top) or template (bottom) strand, respectively. Ambiguous regions carrying indels due to PacBio sequencing errors were masked (including a 5 bp buffer around the indel) so as not to distort the conversion frequency calculation. bottom-strand reads were more frequently observed (>2 fold) than the top strand (or the displaced strand of a D-loop). This is likely due to a PCR bias in amplification of uracil containing DNA and/or nicking of the displaced ssDNA on a D-loop, which is often associated with the bisulfite treatment.

Peak calling

Request a detailed protocol

A threshold-based sliding window method was used to call tracts of C-to-Tconversion referred to as D-loop peak. Unless otherwise specified, the windows spanned 50 consecutive cytosines and were moved across each read one cytosine at a time. (To mitigate sequence biases, we defined the window size based on a number of consecutive cytosines rather than a fixed length of nucleotides.) For each window, we calculated the C-to-Tconversion frequency and called a window D-loop positive if a minimum of 40% cytosines were converted. Positive windows were further extended if neighboring windows also satisfied the 40% threshold. Upon encountering a window with conversion frequency less than the threshold, the peak was terminated, and its boundaries recorded.

We tested a combination of window sizes (20, 30, and 50 cytosines) and conversion thresholds (25%, 30%, and 40%); the results were qualitatively similar except that more positive peaks were recovered for less stringent conditions. A window size of 50 cytosines and minimal C-to-Tconversion of 40% permitted a good combination of specificity and sensitivity.

Clustering and data visualization

Request a detailed protocol

All D-loop peaks were clustered based on their location from 5′ to 3′ end. Reads from each strand that contained a D-loop peak were visualized as a separate footprint map. The footprint map depicts position on cytosine in reference sequence as yellow vertical lines. Each horizontal line in the footprint map depicts a different read molecule. The color of cytosine for each read is changed to green for every C-to-T modification. For a stretch of C-to-T conversions that cross the peak threshold, the color is changed to red, representing a footprint. A separate footprint map is formed for reads that contain a footprint, and for reads devoid of a footprint. Reads representing the top and bottom-strand are also separately visualized.

Optimizing peak threshold and determining bisulfite conversion efficiency

Request a detailed protocol

We spiked in ssDNA (pBlueScript KS- circular DNA) in an in vitro D-loop sample to test bisulfite conversion efficiency and to optimize the peak calling threshold. pBSKS- ssDNA was prepared as described in Wright and Heyer, 2014. The D-loop sample formed from ds98-931 and a linear donor was spiked with 0.03 nM (1/100th of ds98-931/dsDNA) pBSKS- ssDNA molecules. The ssDNA was spiked along with the ds98-931 substrate in the D-loop reaction. UNI+pBSKS-F and UNI+pBSKS-R primers (devoid of cytosines/guanines) were used to amplify the spiked ssDNA during the PCR-1 step of DMA.

Analysis of D-loop footprints

Quantitation of D-loops from reads

Request a detailed protocol

D-loops were quantified by calculating the percentage of reads from each strand (top or bottom) containing a D-loop footprint.

D-loop length analysis

Request a detailed protocol

D-loop length was calculated from each D-loop footprint by subtracting the location in nucleotides of the 5′-end of the peak from the 3′-end of the peak as defined by the peak calling process. Refer to source code for the R script. The average D-loop length was calculated by averaging all the D-loop lengths from a replicate.

Distribution of D-loop position

Request a detailed protocol

The distribution of D-loop position within a given sample was analyzed using the following R packages: GenomicRanges (Lawrence et al., 2013), readr, and tidyverse. GenomicRanges from Bioconductor was used to bin D-loops based on their position into 100 bp bins. The coverage of D-loops within each bin was calculated and normalized to the total number of D-loops for that sample. The distribution of D-loops within the homology window is depicted as a line graph. Refer to source code for the R script.

Data availability

Request a detailed protocol

The computational pipeline for mapping reads, strand assignment, peak calling, clustering, data visualization, and D-loop analysis is available from GitHub (https://github.com/srhartono/footLoop_sh).

Data availability

All data generated or analyzed during this study are included in the manuscript and supporting files. Source data files have been provided for all numerical data.

References

  1. Book
    1. Kowalczykowski SC
    2. Hunter N
    3. Heyer W-D
    (2016)
    DNA Recombination
    Cold Spring Harbor Laboratory Press.

Decision letter

  1. Maria Spies
    Reviewing Editor; University of Iowa, United States
  2. Jessica K Tyler
    Senior Editor; Weill Cornell Medicine, United States
  3. Anna Malkova
    Reviewer; University of Iowa, United States
  4. Andrew J Deans
    Reviewer; St Vincent's Institute of Medical Research, Australia

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Displacement loops (D-loops) are important intermediates in homologous recombination, translesion DNA synthesis and repair of broken DNA replication forks. Currently available methods to detect the size of the displaced strand in a D-loop have low resolution. This paper describes development of a novel in vitro technique for characterization of the length and positions of individual D-loops with near base-pair resolution, and also allows the assessment of the distribution of D-loops in a population of molecules. The displaced strand is marked by converting cytosines to uracils and mapping the D-loops through single-molecule real time sequencing. The technique will have wide application in biochemical investigations of D-loop biology, and aid in the analysis of various factors that have been proposed to act on D-loop formation, stability, and processing.

Decision letter after peer review:

Thank you for submitting your article "Bisulfite treatment and single-moleculereal real-time sequencing reveals D-loop length, position and distribution" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by Maria Spies as the Reviewing Editor and Jessica Tyler as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Anna Malkova (Reviewer #1); Andrew J Deans (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, we are asking editors to accept without delay manuscripts, like yours, that they judge can stand as eLife papers without additional data, even if they feel that they would make the manuscript stronger. Thus the revisions requested below only address clarity and presentation.

Summary:

D-loops are important intermediate in homologous recombination, translesion DNA synthesis and repair of broken replication forks. Currently available methods to detect D-loops and the size of the displaced strand generally have low resolution. The reviewers and the reviewing editor agreed that the authors have developed a novel in vitro technique for characterization of the length and position of individual D-loops with near base-pair resolution, which also allows the assessment of the distribution of D-loops in a population of molecules. The displaced strand is marked by converting cytosines to uracils and mapping the D-loops by through single-molecule real time sequencing. The technique will have wide application in biochemical investigations of D-loop biology, and aid in the analysis of various factors that have been proposed to act on D-loop formation, stability, and processing.

Essential revisions:

The reviewers concur that overall, the paper will be of high interest for researchers in DNA repair and recombination. While a series of excellent controls are used to confirm the quality of this approach and no additional experiments are necessary, the reviewers felt that the authors need to better acknowledge some of the limitations of the assay. Please address the following questions:

1) The authors believe that the modifications introduced by bisulfite map only affect the final D-loop positions. Is it possible that some changes in the D-loop length, positioning, etc., can occur after the addition of bisulfite, and therefore the resulting picture represents the map of all changes that happened with D-loop during that time?

2) Please expand the explanation why a significant difference in the length distribution was observed between the ds98-915 and ds98-931 substrates (Figure 4E).

Similarly, subsection “Characterization of D-loops formed on a linear donor reveal enrichment of D-loops at the 3′-end and depict a wide range of D-loop lengths across the region of homology”: Please discuss the different amounts of D-loop formation for the different substrates (Figure 4B). E.g. why is D-loop formation more efficient (20.7% peaks) with the ds98-607 substrate than with the ds98-915 substrate (8.8% peaks)?

3) It is not clear why for human proteins the percentage of D-loops observed on a gel correlated with the frequency determined by DMA, while it was not the case for yeast proteins.

4) Figure 5—figure supplement 1: how are the "top" and "bottom" strands distinguished in this figure?

5) Figure 2A: Why the first several reads extend beyond the region of homology (to the right)?

Also, subsection “Length of D-loops with a supercoiled donor is restricted by the supercoiling density of the donor”: The authors might want to comment on the average D-loop length for the ds-98-197-78ss substrate being longer than the homology. Is that due to the peak calling algorithm including non-converted Cs at the window borders into the peak? If so, the authors could consider letting the peaks terminate at the last converted C in the window.

6) Figure 2—figure supplement 1D: How was the percentage of D-loops longer than 360nt calculated?

7) Figure 4—figure supplement 2B: The frequency of D-loops protruding to the right of the region of homology appears especially high. Is there a reason for this high level?

8) Subsection “Position of D-loops formed by a supercoiled donor is restricted within the homology window, while their distribution reveals an enrichment at the 3′-end of homology”: Please clarify the argument how enrichment of D-loops close to the 3'end of ssDNA supports the model that Rad51 filament grows preferentially in a 5'-3' direction. Isn't the entire ssDNA coated with RAD51 filament in this assay? Could the result point to an increased likelihood that the 3'-end is flexible or available for pairing.

https://doi.org/10.7554/eLife.59111.sa1

Author response

Essential revisions:

The reviewers concur that overall, the paper will be of high interest for researchers in DNA repair and recombination. While a series of excellent controls are used to confirm the quality of this approach and no additional experiments are necessary, the reviewers felt that the authors need to better acknowledge some of the limitations of the assay. Please address the following questions:

1) The authors believe that the modifications introduced by bisulfite map only affect the final D-loop positions. Is it possible that some changes in the D-loop length, positioning, etc., can occur after the addition of bisulfite, and therefore the resulting picture represents the map of all changes that happened with D-loop during that time?

We agree that it would be more accurate to say that the footprints represent the map of all conversions that occurred on a D-loop over the bisulfite incubation time. However, D-loops are presumed to be relatively stable at room temperature, as no D-loop dissolution is observed over time (Wright et al., 2014). Moreover, since most of the footprints from a ds98-931 or ds98-607 substrate are ~200 nt in length, D-loop migration on at least a supercoiled donor appears to be minimal. Nevertheless, since this is still a possibility, especially for linear donors, we will change the statements accordingly in the manuscript and describe the caveat. See subsection “Effect of Different Peak Thresholds on D-Loop Length and Distribution”, subsection “Advantages and Limitations of the D-loop Mapping Assay” (Point 5) and subsection “D-loop Mapping Assay (DMA)”.

2) Please expand the explanation why a significant difference in the length distribution was observed between the ds98-915 and ds98-931 substrates (Figure 4E).

Similarly, subsection “Characterization of D-loops formed on a linear donor reveal enrichment of D-loops at the 3′-end and depict a wide range of D-loop lengths across the region of homology”: Please discuss the different amounts of D-loop formation for the different substrates (Figure 4B). E.g. why is D-loop formation more efficient (20.7% peaks) with the ds98-607 substrate than with the ds98-915 substrate (8.8% peaks)?

D-loops formed from ds98-915 and ds98-931 substrates differ in mean D-loop length by 60 nt. Apart from the 16 nt difference in homology length, ds98-915 and ds98-931 are substrates with different sequences (with some overlapping sequence) and variable D-loop formation efficiencies. Differences in the sequence and the distribution/frequency of cytosines may impact the length of individual peaks defined. This may have a subsequent effect on the average D-loop length. For instance, ds98-915 has within the homology sequence, 192 cytosines. While ds98-931 has only 187 cytosines despite the longer homology. Thus, the slightly less frequent cytosine distribution in ds98-931 may contribute to the 60 nt increase in mean D-loop length. We incorporate this explanation in the subsection “Characterization of D-loops formed on a linear donor reveal enrichment of D-loops at the 3′-end and depict a wide range of D-loop lengths across the region of homology”.

In Figure 4B: The ds98-931 substrate forms D-loops with an efficiency comparable to the ds98-607 substrate. This trend is captured by both gel-based assay and the DMA assay. The ds98-915 possesses different homologous sequence in comparison to ds98-931, which is the likely cause for the different D-loop formation efficiency. Additionally, ds98-915 D-loops were mapped using Sequel-II, instead of Sequel-I (used for most other D-loop samples). Sequel-II generates 5x more reads per sample than Sequel-I. Sequel-II is observed to have some bias towards sequencing the uninvaded DNA, resulting in a relatively lower quantification of the D-loop level. Similarly, two of the three independent replicates for the ds98-915-78ss substrate was sequenced by Sequel-II system. The D-loop level observed by the replicates from Sequel-II were lower (7%, 3.7%) than the one from Sequel-I (22.6%). Nevertheless, the trend of relative D-loop levels remains comparable to the gel-based assay. We added this caveat of Sequel systems in the Materials and methods section.

3) It is not clear why for human proteins the percentage of D-loops observed on a gel correlated with the frequency determined by DMA, while it was not the case for yeast proteins.

The percentage of D-loops observed on gel correlate with that determined by DMA with both yeast and human proteins. The D-loops from the yeast protein show a statistically significant linear correlation, with an R square value of 0.7. The correlation with human proteins visually appears stronger due to the very low D-loop formation efficiency (1.5-3%). We are currently unable to get a correlation R square value for human proteins due to low sample number (only 4 samples in total, compared to >20 samples with yeast protein).

4) Figure 5—figure supplement 1: how are the "top" and "bottom" strands distinguished in this figure?

The footprints maps depicted in Figure 5—figure supplement 1 are representative of the top strands. Thank you for pointing this out, we made the correction in Figure 5—figure supplement 1, and added description in the figure legend.

5) Figure 2A: Why the first several reads extend beyond the region of homology (to the right)?

Also, subsection “Length of D-loops with a supercoiled donor is restricted by the supercoiling density of the donor”: The authors might want to comment on the average D-loop length for the ds-98-197-78ss substrate being longer than the homology. Is that due to the peak calling algorithm including non-converted Cs at the window borders into the peak? If so, the authors could consider letting the peaks terminate at the last converted C in the window.

The first several reads extend beyond the region of homology, potentially due to DNA breathing close to the 3’-end of a D-loop. If a C outside the 3’-end of homology is converted, and if the threshold permits, that C may be included in the peak defined. We clarify this now in the figure legend.

The average D-loop length for ds98-197-78ss is slightly longer (206 nt) than the expected 197 nt, mainly because the length of homology is very close to the threshold limit of t40w50. Within the 197 nt homology, there exists 43 cytosines, slightly lower than the minimum requirement of 50 consecutive cytosines. So, if the conversion rate is higher than 40% within these cytosines, the pipeline would stretch the D-loop length to beyond 197 nt, to incorporate the surrounding additional 7 cytosines, until the footprint crosses the threshold of t40w50. In fact, when t40w40 threshold is used, the average D-loop length is 191 ± 41 nt. We clarify this in the subsection “Length of D-loops with a supercoiled donor is restricted by the supercoiling density of the donor”.

6) Figure 2—figure supplement 1D: How was the percentage of D-loops longer than 360nt calculated?

Percentage of D-loops longer than 350 nt was calculated as the percentage of total D-loops analyzed for that sample. We clarify this now in the figure legend of Figure 2—figure supplement 1D.

7) Figure 4—figure supplement 2B: The frequency of D-loops protruding to the right of the region of homology appears especially high. Is there a reason for this high level?

There is no specific reason for it, except that the region is relatively C-rich. Although it is rare for a C-rich DNA region to undergo breathing, when breathing does occur, it very quickly leads to modification of nearby Cs due to the presence of a mismatch bubble. The modified C-rich region thus ends up crossing the threshold of t40w50 in some cases and is captured as a footprint in DMA. However, this is very rare, detected as ~60 (0.4%) footprints out of 14,790 total reads analyzed for that sample. Supporting the possibility that it arises due to DNA breathing, the bottom-strand reads also contain footprint in that region at a frequency of 0.2%. We added a representation of footprints detected on the bottom-strand for the sample in Figure 4—figure supplement 2B. We clarify this now in the figure legend, as well as in the subsection “Characterization of D-loops formed on a linear donor reveal enrichment of D-loops at the 3′-end and depict a wide range of D-loop lengths across the region of homology”.

8) Subsection “Position of D-loops formed by a supercoiled donor is restricted within the homology window, while their distribution reveals an enrichment at the 3′-end of homology”: Please clarify the argument how enrichment of D-loops close to the 3'end of ssDNA supports the model that Rad51 filament grows preferentially in a 5'-3' direction. Isn't the entire ssDNA coated with RAD51 filament in this assay? Could the result point to an increased likelihood that the 3'-end is flexible or available for pairing.

At the single-molecule level, it is possible that potentially not every single ssDNA molecule is saturated with Rad51. However, the 5’-to-3’ directional Rad51 filament growth would ensure that a Rad51 protein randomly bound on ssDNA, would result in subsequent Rad51 cooperativity covering preferentially the 3’-end of ssDNA. The relatively higher presence of Rad51 at 3’-end may enrich for D-loops in that region.

However, we agree, that it is also possible that the higher flexibility of ssDNA at the 3’-end may also increase likelihood of D-loop in that region. We added this point to the subsection “Position of D-loops formed by a supercoiled donor is restricted within the homology window, while their distribution reveals an enrichment at the 3′-end of homology”.

https://doi.org/10.7554/eLife.59111.sa2

Article and author information

Author details

  1. Shanaya Shital Shah

    Department of Microbiology and Molecular Genetics, University of California, Davis, Davis, United States
    Contribution
    Conceptualization, Software, Formal analysis, Investigation, Visualization, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2881-2794
  2. Stella R Hartono

    Department of Molecular and Cellular Biology, University of California, Davis, Davis, United States
    Contribution
    Software, Writing - review and editing
    Competing interests
    No competing interests declared
  3. Frédéric Chédin

    Department of Molecular and Cellular Biology, University of California, Davis, Davis, United States
    Contribution
    Supervision, Writing - review and editing
    Competing interests
    No competing interests declared
  4. Wolf-Dietrich Heyer

    1. Department of Microbiology and Molecular Genetics, University of California, Davis, Davis, United States
    2. Department of Molecular and Cellular Biology, University of California, Davis, Davis, United States
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Project administration, Writing - review and editing
    For correspondence
    wdHeyer@ucdavis.edu
    Competing interests
    Reviewing editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7774-1953

Funding

National Institutes of Health (GM 58015)

  • Wolf-Dietrich Heyer

National Institutes of Health (CA 92276)

  • Wolf-Dietrich Heyer

National Institutes of Health (GM 120607)

  • Frédéric Chédin

National Institutes of Health (P30 CA 93373)

  • Wolf-Dietrich Heyer

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank members of the Heyer laboratory, especially Aurele Piazza and William Wright, for stimulating discussions. We thank Diedre Reitz for helpful feedback on the manuscript. We also thank members of the Chedin laboratory, in particular, Lionel Sanz, for providing AMPure beads and Maika Malig for technical help. We also thank the DNA core technologies at UC Davis and the UC Berkeley Genomics Facility for providing PacBio sequencing services. This research used core services supported by P30 CA93373 and was supported by NIH grants GM58015 and CA92276 to W.-D.H. and NIH grant GM120607 to FC.

Senior Editor

  1. Jessica K Tyler, Weill Cornell Medicine, United States

Reviewing Editor

  1. Maria Spies, University of Iowa, United States

Reviewers

  1. Anna Malkova, University of Iowa, United States
  2. Andrew J Deans, St Vincent's Institute of Medical Research, Australia

Publication history

  1. Received: May 20, 2020
  2. Accepted: October 27, 2020
  3. Accepted Manuscript published: November 13, 2020 (version 1)
  4. Version of Record published: November 27, 2020 (version 2)

Copyright

© 2020, Shah et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 705
    Page views
  • 121
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Chromosomes and Gene Expression
    2. Genetics and Genomics
    Xiaolu Wei et al.
    Research Article Updated

    Large blocks of tandemly repeated DNAs—satellite DNAs (satDNAs)—play important roles in heterochromatin formation and chromosome segregation. We know little about how satDNAs are regulated; however, their misregulation is associated with genomic instability and human diseases. We use the Drosophila melanogaster germline as a model to study the regulation of satDNA transcription and chromatin. Here we show that complex satDNAs (>100-bp repeat units) are transcribed into long noncoding RNAs and processed into piRNAs (PIWI interacting RNAs). This satDNA piRNA production depends on the Rhino-Deadlock-Cutoff complex and the transcription factor Moonshiner—a previously described non-canonical pathway that licenses heterochromatin-dependent transcription of dual-strand piRNA clusters. We show that this pathway is important for establishing heterochromatin at satDNAs. Therefore, satDNAs are regulated by piRNAs originating from their own genomic loci. This novel mechanism of satDNA regulation provides insight into the role of piRNA pathways in heterochromatin formation and genome stability.

    1. Chromosomes and Gene Expression
    2. Structural Biology and Molecular Biophysics
    Inigo Urrutia-Irazabal et al.
    Research Article Updated

    The PcrA/UvrD helicase binds directly to RNA polymerase (RNAP) but the structural basis for this interaction and its functional significance have remained unclear. In this work, we used biochemical assays and hydrogen-deuterium exchange coupled to mass spectrometry to study the PcrA-RNAP complex. We find that PcrA binds tightly to a transcription elongation complex in a manner dependent on protein:protein interaction with the conserved PcrA C-terminal Tudor domain. The helicase binds predominantly to two positions on the surface of RNAP. The PcrA C-terminal domain engages a conserved region in a lineage-specific insert within the β subunit which we identify as a helicase interaction motif present in many other PcrA partner proteins, including the nucleotide excision repair factor UvrB. The catalytic core of the helicase binds near the RNA and DNA exit channels and blocking PcrA activity in vivo leads to the accumulation of R-loops. We propose a role for PcrA as an R-loop suppression factor that helps to minimize conflicts between transcription and other processes on DNA including replication.
