Telomerase biogenesis requires a novel Mex67 function and a cytoplasmic association with the Sm7 complex

  1. Yulia Vasianovich
  2. Emmanuel Bajon
  3. Raymund J Wellinger  Is a corresponding author
  1. Department of Microbiology and Infectious Diseases, Faculty of Medicine and Health Sciences, Université de Sherbrooke, Canada
Research Article
  • Cited 0
  • Views 293
  • Annotations
Cite this article as: eLife 2020;9:e60000 doi: 10.7554/eLife.60000

Abstract

The templating RNA is the core of the telomerase reverse transcriptase. In Saccharomyces cerevisiae, the complex life cycle and maturation of telomerase includes a cytoplasmic stage. However, timing and reason for this cytoplasmic passage are poorly understood. Here, we use inducible RNA tagging experiments to show that immediately after transcription, newly synthesized telomerase RNAs undergo one round of nucleo-cytoplasmic shuttling. Their export depends entirely on Crm1/Xpo1, whereas re-import is mediated by Kap122 plus redundant, kinetically less efficient import pathways. Strikingly, Mex67 is essential to stabilize newly transcribed RNA before Xpo1-mediated nuclear export. The results further show that the Sm7 complex associates with and stabilizes the telomerase RNA in the cytoplasm and promotes its nuclear re-import. Remarkably, after this cytoplasmic passage, the nuclear stability of telomerase RNA no longer depends on Mex67. These results underscore the utility of inducible RNA tagging and challenge current models of telomerase maturation.

Introduction

Telomeres are essential nucleoprotein structures that protect linear eukaryotic chromosome ends from detrimental repair processes as well as natural replication-associated shortening (Hayflick, 1965; Harley et al., 1990; Wellinger and Zakian, 2012; de Lange, 2018). In stem, germ, and most cancer cells, the enzyme telomerase maintains telomeric DNA at a functional length, which is key for the unlimited proliferation capacity of these cells (Shay, 2016; Roake and Artandi, 2020). Telomerase synthesizes telomeric repeats de novo using a reverse transcriptase activity and its internal RNA as a template (Greider and Blackburn, 1985; Greider and Blackburn, 1987). Unicellular eukaryotes such as yeasts express telomerase constitutively. Notably, the overall telomerase composition and aspects of telomerase dynamics are strikingly conserved between yeast and higher eukaryotes (Vasianovich and Wellinger, 2017). This makes yeast a great model organism to study telomerase behavior and for predicting this process in higher eukaryotes.

Telomerase is a complex ribonucleoprotein machine. The non-coding RNA, called TLC1 in Saccharomyces cerevisiae, is at the heart of the telomerase holoenzyme. It harbors a template for telomeric DNA synthesis and acts as a scaffold for telomerase-associated proteins (Wellinger and Zakian, 2012). The repertoire of the budding yeast telomerase proteins includes the Est2 catalytic subunit and several additional proteins such as Est1, Est3, Pop1, Pop6, Pop7, the Sm7, and Yku70/Yku80 complexes, which all are required for telomerase function in vivo. Like most yeast snRNAs, the major form of TLC1 is a poly-A- RNA Pol II transcript, which has a TMG cap at the 5’-end and associates with the ring-shaped heptameric Sm7 complex at its 3’-end (Chapon et al., 1997; Seto et al., 1999). This Sm7 complex is crucial for RNA maturation, including 5’-TMG capping and 3’-end processing, and is absolutely essential for the stability of both telomerase and snRNAs (Rymond, 1993; Roy et al., 1995; Seto et al., 1999; Coy et al., 2013; Shukla and Parker, 2014).

TLC1 is an extremely low abundance RNA. According to different estimates, only 10–30 mature TLC1 molecules are present in a haploid yeast cell, thus severely limiting the quantity of functional telomerase complexes (Mozdy and Cech, 2006; Gallardo et al., 2008; Bajon et al., 2015). As a result, the 64 chromosome ends present in a haploid cell after DNA replication must rely on a very limited number of telomerase RNPs for their maintenance. In fact, the available nuclear telomerase arsenal may be even lower, as at steady state, 30–40% of TLC1 molecules reside in the cytoplasm (Gallardo et al., 2008). However, the reason for the cytoplasmic localization of telomerase RNA is still unclear.

One hypothesis stipulates that the TLC1 RNA shuttles to the cytoplasm as a part of its biogenesis process (Ferrezuelo et al., 2002; Gallardo et al., 2008). According to this model, TLC1 gets exported to the cytoplasm to associate with some of its protein subunits, followed by re-import of the RNP to the nucleus. However, which telomerase subunits bind to TLC1 in the cytoplasm is unclear. Furthermore, the current view of telomerase biogenesis suggests that the 3’-stabilizing Sm7 ring binds telomerase RNA very early in its life cycle, prior to RNA export to the cytoplasm (Gallardo et al., 2008). Consistently, the SmB, D1, and D3 subunits of the Sm7 complex contain NLS sequences, suggesting that the ring can get imported into the nucleus on its own (Bordonné, 2000). In addition, TMG capping, which requires Sm7, appears functional when TLC1 export is blocked (Gallardo et al., 2008). Finally, since the Sm7 complex is crucial for the stability of telomerase RNA (Seto et al., 1999), it would be expected to associate with TLC1 at the earliest possible stages. However, in both yeast and mammals, snRNAs that belong to the Sm7 class are exported to the cytoplasm to assemble with the Sm7 complex (Fischer et al., 2011; Becker et al., 2019). Therefore, if TLC1 follows a path similar to snRNAs, newly synthesized telomerase RNA may temporarily shuttle to the cytoplasm to assemble with the Sm7 proteins, which would contradict the above model. In addition, the cytoplasm may also be the final destination for TLC1 molecules, where old dysfunctional telomerase RNAs would be degraded. Therefore, the cytoplasmic TLC1 fraction may be a complex mix of both old degrading molecules as well as newly synthesized RNA transcripts that undergo assembly with protein subunits.

There is evidence that nucleo-cytoplasmic export of telomerase RNA is mediated by the Xpo1/Crm1 exportin and re-import is dependent on Mtr10 as well as Kap122 (Ferrezuelo et al., 2002; Gallardo et al., 2008). However, molecular details of TLC1 transport by these factors are missing, for example it is unclear at what stage and in which state TLC1 may shuttle to the cytoplasm or whether it gets exported permanently for degradation.

The Xpo1/Crm1 exportin belongs to the family of karyopherins which transport cargo RNA and proteins through nuclear pores using a RanGTP – RanGDP gradient (Köhler and Hurt, 2007). Many RNA species, such as snRNAs, rRNAs, and tRNAs depend on Xpo1 for their export. In contrast, transport of mRNA relies on the Mex67 export receptor (Segref et al., 1997; Santos-Rosa et al., 1998), which is structurally unrelated to karyopherins and does not depend on a RanGTP gradient (Köhler and Hurt, 2007). Inactivation of Mex67 leads to nuclear accumulation of mRNA (Segref et al., 1997; Santos-Rosa et al., 1998). In addition, in the absence of Mex67, poly-A+ RNA appears to be extremely unstable, which was attributed to untimely RNA decay due to the export block (Tudek et al., 2018). Notably, Mex67 is also somehow implicated in the cytoplasmic export of Xpo1-transported cargoes, such as snRNA, rRNA, and tRNA, raising a question of why these RNA species require two export receptors (Yao et al., 2007; Faza et al., 2012; Chatterjee et al., 2017; Becker et al., 2019). In fact, the precise function of Mex67 and the molecular details of its RNA export role are unknown.

In this study, we aimed to dissect the dynamic, life-cycle-dependent localization of telomerase RNA molecules via single molecule fluorescence in situ hybridization (smFISH) microscopy. For this purpose, we required a tool that would discriminate and selectively visualize new vs pre-existing matured telomerase RNA transcripts within the total TLC1 population. Fluorescent imaging of telomerase RNA molecules tagged with the MS2 repeats has been successfully used in the past (Gallardo et al., 2011; Cusanelli et al., 2013; Bajon et al., 2015). However, constitutive RNA tagging has its limitations: it captures the general RNA population at its steady state and therefore cannot reveal the dynamics of specific RNA subpopulations, such as new or old TLC1 molecules. In order to identify these fractions in the total TLC1 population and to reveal their specific behavior, we converted the constitutive TLC1-MS2 tagging system into an inducible one using a recombination-induced tag exchange approach (Verzijlbergen et al., 2010). In this system, controlled induction of TLC1 tagging with the MS2 repeats results in gradual appearance of new TLC1-MS2 molecules, which can be easily distinguished from the bulk untagged TLC1 population using an MS2-specific FISH probe. At the same time, untagged TLC1 molecules that lack the MS2-specific signal will represent the pre-existing TLC1 fraction which for simplicity will be referred to as old TLC1 molecules.

Using this inducible TLC1 tagging tool, we show that very rapidly after transcription, newly produced telomerase RNA molecules are temporarily exported to the cytoplasm, consistent with the shuttling model. Old TLC1 transcripts also tend to accumulate in the cytoplasm likely for degradation purposes. Therefore, the results show that the cytoplasmic TLC1 RNA is per se a heterogeneous population comprised of both new and old telomerase RNA transcripts. The data also show that Xpo1 and Kap122, previously shown to influence subcellular TLC1 localization, affect the shuttling of newly synthesized TLC1 molecules. Notably, cytoplasmic export of TLC1 is entirely dependent on Xpo1, whereas telomerase RNA re-import to the nucleus seems to involve not only Kap122 but also other less efficient import mechanisms. Strikingly, Mex67 plays an entirely unexpected role in the biogenesis of telomerase RNA. While cells without the Xpo1 exportin sequester all newly synthesized TLC1 in the nucleus, disruption of Mex67 leads to a drastically different phenotype, resulting in a complete loss of new TLC1 transcripts. This phenotype is recapitulated in a mex67-5 xpo1-1 double mutant and, remarkably, is suppressed by inactivation of the nuclear exosome subunit RRP6. Thus, Mex67 is crucial for stabilization of telomerase RNA in the nucleus immediately after transcription and prior to export – a function that may be required for other RNA species as well. Finally, we show that similar to snRNAs, telomerase RNA assembles with the Sm7 complex in the cytoplasm. This association is essential for the stability of TLC1 RNA in the cytoplasm and its re-import to the nucleus. Cytoplasmic association of telomerase RNA with the Sm7 complex implies that the downstream Sm7-dependent events such as 5’- and 3’-end RNA processing occur after TLC1 returns to the nucleus. Therefore, in this study we challenge the current view of telomerase RNA biogenesis by adding Mex67 as a novel player essential for nuclear TLC1 stability right after transcription, and by localizing the Sm7-binding step to the cytoplasm after the export of TLC1. These results underscore the general utility and validity of an inducible tagging system to probe dynamic localization details during the life cycle of any RNA.

Results

Inducible TLC1-[MS2-IN] tagging system

The MS2 tag used in earlier studies for constitutive TLC1 RNA tagging comprises 10 MS2 stem loops in the proximity to the TLC1 3’-end, just upstream of the Sm7 binding site (Gallardo et al., 2011; Bajon et al., 2015). To convert this construct into an inducible tagging system (named TLC1-[MS2-IN]), a recombination cassette was placed upstream of the 10xMS2 array (Figure 1A). The recombination cassette contained the TLC1 3’-end, the natMX4 selection marker and was flanked by the loxP sites. The TLC1-[MS2-IN] construct was integrated in the TLC1 genomic locus to allow for endogenous RNA expression levels. Under normal conditions, wild type TLC1 RNA transcripts are expressed from the TLC1-[MS2-IN] locus (Figure 1B). However, induction of recombination by Cre-recombinase will lead to the excision of the fragment flanked by the loxP sites and join the MS array sequence downstream to the TLC1 3’-end (Figure 1A,B). As a result, tagged TLC1-MS2 molecules will start to be transcribed from the recombined TLC1-[MS2-IN] locus. In addition, a non-replicating episome containing the selection marker and the wild type TLC1 3’-end will be produced upon recombination (Figure 1A). To induce recombination, we used a constitutively expressed Cre-recombinase fused to the estradiol-binding domain (Cre-EBD). Cre-EBD enters the nucleus only in the presence of β-estradiol, which allows for rapid and controlled induction of TLC1-[MS2-IN] recombination (Logie and Stewart, 1995).

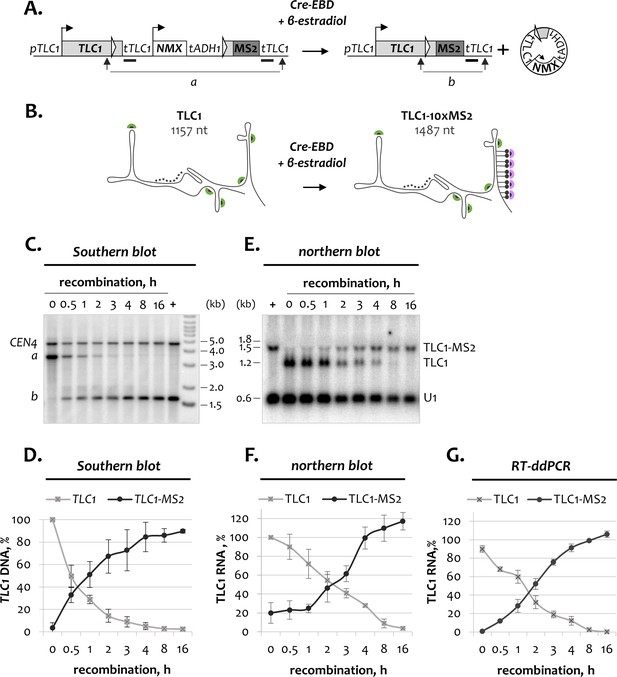

Kinetics of inducible TLC1-MS2 tagging.

(A) Schematic of the TLC1-[MS2-IN] DNA locus before and after recombination. Thick black bars indicate the TLC1 probe used for Southern blot analysis in C. Arrows mark restriction fragments (a and b) detected by the TLC1 probe. NMX – natMX4 cassette. (B) Schematic of tagged and untagged TLC1 RNA before and after recombination, respectively. Dotted line indicates the TLC1 probe used for northern blot analysis in E. Green and purple half-circles indicate TLC1- and MS2-specific smFISH probes, respectively. (C) Southern blot analysis of the TLC1-[MS2-IN] locus following induction of recombination. The position of the TLC1 probe hybridizing to restriction fragments a and b is depicted in A. CEN4 – loading control. ‘+’ - positive recombined control. DNA marker sizes are indicated on the right (kb). (D) Quantification of the Southern blot shown in C. Fractions relative to 0 hr (for unrecombined TLC1 locus) and to the positive recombined control (+) (for recombined TLC1-MS2 locus) are shown. Error bars indicate SD, n = 3. (E) Northern blot analysis of untagged TLC1 and tagged TLC1-MS2 RNA transcripts following induction of TLC1-[MS2-IN] recombination. Position of the TLC1 probe used to detect TLC1 species is shown in B. U1 – loading control. ‘+’ - positive recombined control. RNA sizes are indicated on the left (kb), 1.8 kb corresponds to 18S rRNA. (F). Quantification of the northern blot shown in E. Fractions relative to 0 hr (for untagged TLC1) and to the positive recombined control (+) (for tagged TLC1-MS2) are shown. Error bars indicate SD, n = 3. (G) RT-ddPCR quantification of untagged TLC1 and tagged TLC1-MS2 RNA transcripts following induction of recombination. Fractions relative to the positive recombined control are shown. Error bars indicate SD, n = 2.

After addition of β-estradiol to the exponentially growing cultures, recombination of the TLC1-[MS2-IN] genomic locus was followed for 16 hr by Southern blotting (Figure 1C,D). In addition, appearance of tagged TLC1-MS2 RNA transcripts was monitored by northern blotting and RT-ddPCR (Figure 1E–G). During the experiment, a cloned strain with the recombined TLC1-[MS2-IN] locus was used as a reference to monitor the efficiency of recombination and TLC1-MS2 tagging. Southern blot analysis showed that TLC1-[MS2-IN] recombination occurred very rapidly, reaching almost 50% after 30 min of β-estradiol addition to the culture (Figure 1C,D). Conversion of the TLC1-[MS2-IN] locus into TLC1-MS2 was nearly complete after 4 hr, reaching approximately 90% relative to the reference strain. At the RNA level, we also observed gradual disappearance of the shorter untagged TLC1 molecules and appearance of the longer TLC1-MS2 RNA species (Figure 1E,F). After 2.5 hr of recombination induction, nearly half of TLC1 molecules had acquired a tag, whereas by the end of the time course, the TLC1 population consisted almost exclusively of tagged TLC1-MS2 molecules. Independent quantification of tagged and untagged TLC1 species throughout the experiment by RT-ddPCR yielded results consistent with the northern blot analysis (Figure 1G). Therefore, the inducible recombination system constructed in this study is functional and allows TLC1-MS2 tagging in a fast and controlled manner.

Tracking subcellular distribution of telomerase RNA fractions

The turnover of the TLC1 RNA population was also monitored by the two-color smFISH analysis. For this approach, we used a combination of TLC1-specific probes that detect all TLC1 RNA species, and MS2-specific probes that hybridize only to newly tagged molecules (Figure 1B). The specificity of the probes was confirmed using a tlc1Δ control strain, that lacked either TLC1 or MS2 FISH signals (Figure 2—figure supplement 1A).

Before recombination induction, TLC1-[MS2-IN] cells contained only TLC1-specific foci, indicating that only untagged TLC1 RNA was expressed at the 0 hr time point (Figure 2A). At this stage (called steady state), the average number of TLC1 RNA was ~10 molecules/cell, which is consistent with previous reports (Figure 2B, Figure 2—figure supplement 1B; Gallardo et al., 2008; Bajon et al., 2015). After induction of recombination, old foci hybridizing only with TLC1 probes slowly disappeared, whereas new foci hybridizing with both TLC1 and MS2 probes gradually accumulated (Figure 2A,B, Figure 2—figure supplement 1B,C). The first MS2-specific foci appeared as early as 30 min after β-estradiol addition (Figure 2A,B, Figure 2—figure supplement 1C). By the end of the 16 hr time course, the tagged TLC1-MS2 fraction constituted more than 80% of total observed TLC1 molecules (Figure 2B,C). However, a small fraction of TLC1 foci remained untagged even after 16 hr of recombination. These might be attributed to late recombination events that occur in a sub-population of cells (Figure 1D).

Figure 2 with 1 supplement see all

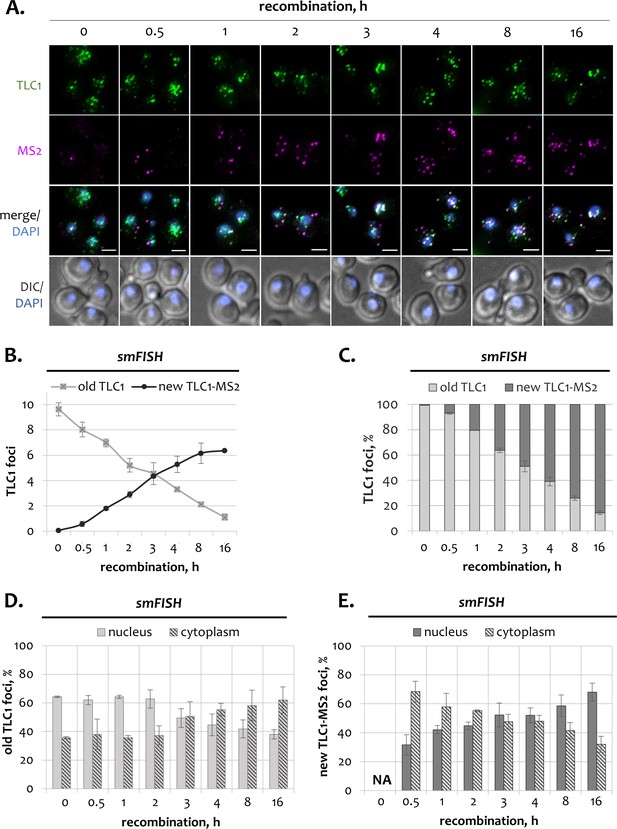

Subcellular distribution of telomerase RNA fractions in wild type cells.

(A) Two-color smFISH analysis of untagged old TLC1 (green) and tagged new TLC1-MS2 molecules (purple) in wild type cells following induction of recombination. TLC1-Cy3 and MS2-Cy5 probes were used. Scale bar, 2 μm. (B) Average number of old and new TLC1 foci observed by smFISH following recombination induction. 50–100 cells from three independent experiments were scored. Error bars indicate SD. (C) Relative fractions of old and new TLC1 foci observed by smFISH following recombination induction. 50–100 cells from three independent experiments were scored. Error bars indicate SD. (D, E). Relative nuclear and cytoplasmic fractions of old (D) and new (E) TLC1 foci observed by smFISH following recombination induction. NA – not applicable. 50–100 cells from three independent experiments were scored. Error bars indicate SD.

In order to verify that the TLC1-[MS2-IN] system does not disrupt the telomerase RNA function or RNP biogenesis, we performed telomere length analysis before and after recombination (Figure 2—figure supplement 1D). Consistent with previous reports, clones with the recombined TLC1-MS2 locus had stable and functional telomeres that were only slightly shorter than wild type telomeres (Gallardo et al., 2011; Bajon et al., 2015). TLC1-MS2 clones isolated after recombination induction also had a slightly reduced number of TLC1 molecules compared to wild type cells (Figure 2—figure supplement 1E, top). At present we do not know the reason for this minor reduction of RNP abundance, but virtually all functions of the enzyme, and in particular its enzymatic activity, remain unaffected by the tag (Gallardo et al., 2011; Bajon et al., 2015). Importantly, the nucleo-cytoplasmic distribution of TLC1 foci remained unchanged after inducible TLC1 tagging, validating that our system is suitable to track subcellular movements of old and new TLC1 molecules separately (Figure 2—figure supplement 1E, bottom).

At steady state (0 hr time point), the majority of TLC1 molecules resided in the nucleus (60–70%), whereas the remaining 30–40% localized in the cytoplasm (Figure 2D). However, this distribution started to change after induction of recombination. Over time, old untagged TLC1 molecules gradually accumulated in the cytoplasm, whereas their nuclear fraction declined. After 16 hr of recombination, the majority of old TLC1 molecules resided in the cytoplasm, as opposed to predominantly nuclear TLC1 localization at steady state (Figure 2D). Hence, old telomerase RNA accumulates in the cytoplasm at the end of its life cycle. Nevertheless, even by the end of the time course, a significant fraction of the remaining old TLC1 molecules still localized in the nucleus (Figure 2D).

Quantification of the subcellular distribution of new TLC1-MS2 molecules revealed a peculiar behavior. In contrast to steady state, early in the time course, i.e. immediately after RNA transcription, new TLC1-MS2 molecules localized predominantly in the cytoplasm (Figure 2E). This behavior persisted for approximately 2 hr, followed by gradual return of new molecules to the nucleus and re-establishment of steady state at the end of the time course. The apparent slow dynamics of TLC1 re-localization to the nucleus could also be due to delayed recombination events that occur in a fraction of asynchronous culture (Figure 1D). We conclude that at early stages after transcription, TLC1 molecules are exported to the cytoplasm but eventually shuttle back to the nucleus.

In summary, the inducible TLC1 tagging system in combination with the two-color smFISH approach allows to study and quantify in detail the behavior of new and old TLC1 molecules as separate fractions. Old molecules tend to accumulate in the cytoplasm where they are likely to be degraded. On the other hand, the majority of newly synthesized telomerase RNA temporarily localizes in the cytoplasm followed by their gradual return to the nucleus and re-establishment of steady state.

Xpo1 and Kap122 are involved in nucleo-cytoplasmic shuttling of newly synthesized TLC1 transcripts

The Xpo1 exportin and Kap122 importin were previously implicated in the subcellular distribution of TLC1 (Gallardo et al., 2008). In order to establish whether Xpo1 and Kap122 are required for the shuttling of newly synthesized TLC1 molecules, we analyzed the dynamic localization of tagged TLC1 in the absence of these proteins.

First, we tested whether export of new TLC1 molecules to the cytoplasm is dependent on the Xpo1 exportin (Figure 3A,B). For this purpose, cells harboring a temperature-sensitive xpo1-1 allele were shifted to the restrictive temperature (37°C) 1 hr before recombination induction. After addition of β-estradiol, xpo1-1 mutants were monitored for additional 8 hr at 37°C, at which point cells had completely stopped dividing. In xpo1-1 cells kept at the permissive temperature, new TLC1 molecules followed similar localization dynamics as in wild type cells, temporarily localizing in the cytoplasm at early stages and eventually flowing back to the nucleus (Figure 3—figure supplement 1C). However, in xpo1-1 cells incubated at the restrictive temperature, a drastic accumulation of newly transcribed TLC1 molecules in the nucleus was observed (Figure 3A,B). A slight increase in the cytoplasmic TLC1-MS2 fraction early in the time course (Figure 3B, 1 h) could be explained by incomplete inactivation of Xpo1. The accumulation of new TLC1 molecules in the nucleus observed in xpo1-1 cells at 37°C was not due to the increase in temperature, as new TLC1 molecules in wild type cells grown at 37°C reached a normal steady state distribution, though with a slightly faster dynamics (Figure 3—figure supplement 1D). These data directly demonstrate that the early temporary export of newly synthesized TLC1 molecules to the cytoplasm depends on the Xpo1 exportin. Moreover, Xpo1-mediated transport is the only mechanism responsible for the export of new telomerase RNA, as upon Xpo1 inactivation virtually all TLC1 transcripts are retained in the nucleus for up to 8 hr (Figure 3B). Notably, in xpo1-1 mutants incubated at 37°C but not at 25°C, a higher amount of new TLC1-MS2 RNA was detected as compared to wild type cells (Figure 3D; Figure 3—figure supplement 1F). Although xpo1-1 mutants grown at 37°C initially have a faster recombination kinetics, this cannot explain the increased amount of TLC1 RNA at the end of the experiment (Figure 3—figure supplement 1A,B). Consistent with the northern blot quantification, we also observed a larger number of new TLC1 foci in xpo1-1 mutant cells at the restrictive temperature (Figure 3E). Again, this effect is due to inactivation of Xpo1 rather than the elevated temperature, as wild type cells grown at 30 and 37°C have comparable numbers of new TLC1 foci (Figure 3—figure supplement 1G). These data show that in the absence of functional Xpo1 when the cytoplasmic export of TLC1 is completely blocked, newly made telomerase RNA persists in the nucleus and accumulates to higher levels than in export-competent cells.

Figure 3 with 1 supplement see all

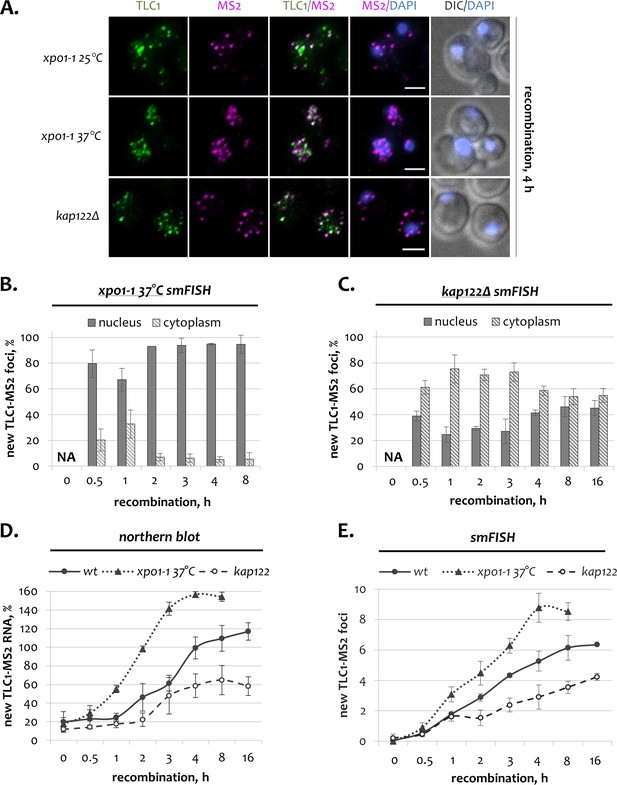

Dynamics of newly transcribed telomerase RNA in the absence of Xpo1 and Kap122.

(A) Two-color smFISH analysis of untagged TLC1 and tagged TLC1-MS2 molecules in xpo1-1 and kap122 mutants after 4 hr of recombination. TLC1-Cy3 and MS2-Cy5 probes were used. Scale bar, 2 μm. (B, C). Relative nuclear and cytoplasmic fractions of new TLC1 foci observed by smFISH following recombination induction in xpo1-1 (B) and kap122 (C) mutants. NA – not applicable. 50–100 cells from three independent experiments were scored. Error bars indicate SD. (D). Northern blot quantification of untagged TLC1 and tagged TLC1-MS2 RNA transcripts following recombination induction in wild type, xpo1-1 and kap122 cells. Fractions relative to the positive recombined control are shown. Error bars indicate SD, n = 3. (E) Average number of new TLC1 foci observed by FISH following recombination induction in wild type, xpo1-1 and kap122 cells. 50–100 cells from three independent experiments were scored. Error bars indicate SD.

To test if Kap122 is involved in the nuclear re-import of new TLC1 molecules, we followed telomerase RNA via inducible tagging in kap122Δ cells (Figure 3A,C). For the first 60 min after recombination induction in kap122Δ mutants, newly synthesized TLC1 RNA behaved similarly to wild type cells, localizing predominantly in the cytoplasm (Figures 2E and 3C). In wild type cells, the nuclear TLC1 fraction started to significantly increase thereafter, being almost equal to the cytoplasmic level after 2 hr and predominant after 3 hr (Figure 2E). However, in kap122Δ cells, the nuclear fraction began to recuperate only 3 hr after recombination induction and never reached the wild type level, always remaining below 50% of total new molecules (Figure 3C). This effect is not due to slower progress of recombination, as the recombination kinetics in kap122Δ cells was comparable to wild type (Figure 3—figure supplement 1A,B). In fact, by the end of the time course, new TLC1 molecules had reached the steady state nucleo-cytoplasmic distribution that was characteristic of kap122Δ mutants before recombination induction (Figures 3C, 16 h; Figure 3—figure supplement 1E). Therefore, these results show that Kap122 supports the rapid re-import of new molecules to the nucleus after the cytoplasmic stage. However, the late re-import of new TLC1 into the nucleus in kap122Δ mutants suggests the existence of a secondary RNA import pathway. Indeed, telomere length in kap122Δ mutants with steady state distribution of TLC1 molecules is only slightly shorter than in wild type cells (Figure 2—figure supplement 1D).

Also, if the cytoplasmic telomerase RNA does not return to the nucleus in a timely fashion in the absence of Kap122, it may become subject to degradation. As a result, even if the nuclear fraction is held low, the nucleo-cytoplasmic TLC1 ratio in kap122Δ cells will increase over time. Consistent with this scenario, the level of new TLC1-MS2 RNA in kap122Δ mutants is about 2-fold lower than in wild type cells, as analyzed by northern blotting (Figure 3D). Consistently, a similar reduction in the number of new TLC1-MS2 foci in the absence of Kap122 was also observed by smFISH (Figure 3E). These data indicate that new cytoplasmic TLC1 molecules, which due to the absence of Kap122 are not rapidly transported back to the nucleus, become prone to degradation. As a result, the total quantity of telomerase RNA decreases. Therefore, while a redundant secondary TLC1 import pathway may exist, it is less efficient than the primary Kap122 pathway as it cannot prevent TLC1 losses in the cytoplasm.

The nuclear stability of new telomerase RNA transcripts requires Mex67

Transport of mRNAs, pre-ribosomal subunits and tRNA to the cytoplasm depends on the Mex67 export receptor (Segref et al., 1997; Santos-Rosa et al., 1998; Yao et al., 2007; Faza et al., 2012; Chatterjee et al., 2017). In addition, Mex67 is required for the nuclear export of snRNAs and may be implicated in TLC1 transport (Wu et al., 2014; Becker et al., 2019). Therefore, we tested whether Mex67 affected the dynamics of newly synthesized TLC1 molecules. For this purpose, we performed inducible TLC1 tagging experiment in a temperature-sensitive mex67-5 mutant. Similar to xpo1-1 cells, mex67-5 mutants were pre-incubated at the restrictive temperature (37°C) for 1 hr, treated with β-estradiol and monitored for 8 hr at 37°C. mex67-5 cells grown at the permissive temperature (25°C) were used as a control. Northern blot quantification showed efficient accumulation of new TLC1-MS2 RNA at 25°C, which after 8 hr of recombination induction reached 80% relative to the recombined reference strain (Figure 4A,B). Steady appearance of new TLC1 foci at the permissive temperature was also detected by smFISH (Figure 4C,D). Surprisingly, at the restrictive temperature, new TLC1 RNA was almost undetectable either by northern blot or smFISH (Figure 4A–D). This absence of new TLC1 molecules was not due to a defect in TLC1-[MS2-IN] recombination, as the kinetics of recombination was the same both at 25 and 37°C (Figure 4—figure supplement 1A). In addition, untagged TLC1 RNA gradually disappeared at 37°C at a rate that was only slightly faster than at 25°C (Figure 4—figure supplement 1B). Therefore, these results suggest that in the absence of Mex67, new TLC1 molecules are either not produced, i.e. the gene is not transcribed, or they are extremely unstable.

Figure 4 with 2 supplements see all

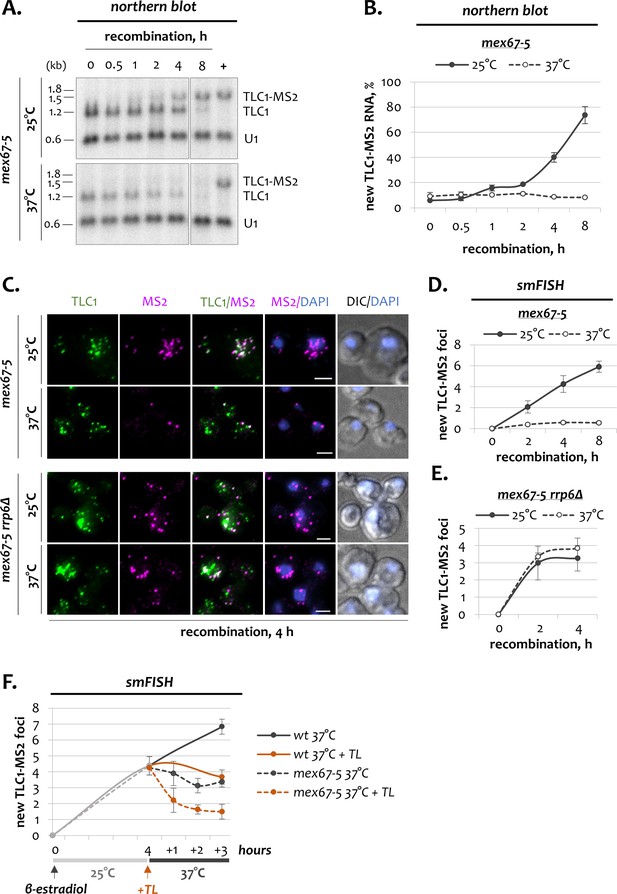

Dynamics of telomerase RNA fractions upon inactivation of Mex67.

(A) Northern blot analysis of untagged TLC1 and tagged TLC1-MS2 RNA transcripts following induction of recombination in mex67-5 cells grown at 25 and 37°C. Position of the TLC1 probe used to detect TLC1 species is shown in Figure 1B. U1 – loading control. ‘+’ - positive recombined control. RNA sizes are indicated on the left (kb), 1.8 kb corresponds to 18S rRNA. (B) Quantification of the northern blots shown in A. Fractions relative to the positive recombined control (+) are shown. Error bars indicate SD, n = 3. (C) Two-color smFISH analysis of untagged TLC1 and tagged TLC1-MS2 molecules in mex67-5 cells grown at 25 and 37°C after 4 hr of recombination. Scale bar, 2 μm. (D, E) Average number of new TLC1-MS2 foci detected by smFISH following recombination induction in mex67-5 (D) and mex67-5 rrp6Δ (E) cells grown at 25 and 37°C. 50–100 cells from three independent experiments were scored. Error bars indicate SD. (F). Average number of new TLC1-MS2 foci detected by smFISH in mex67-5 and wild type cells grown in the presence of thiolutin. After addition of β-estradiol, cells were grown for 4 hr at 25°C, followed by addition of thiolutin (TL) and temperature shift to 37°C. 50–100 cells from three (mex67-5) and two (wt) independent experiments were scored. Error bars indicate SD.

To distinguish between these two scenarios, we combined the temperature shift and a transcription block into a single experiment (Figure 4F; Figure 4—figure supplement 1D). First, mex67-5 cells were treated with β-estradiol for 4 hr at the permissive temperature to allow proper formation of new TLC1 molecules (Figure 4F). During this stage, accumulation of new TLC1 molecules in mex67-5 cells was comparable to wild type. After shifting the temperature to 37°C, production of new TLC1 molecules continued in wild type cells, but stopped abruptly in mex67-5 mutants, as expected from the above (Figure 4F; Figure 4—figure supplement 1D). If the dysfunctional Mex67 at the restrictive temperature abrogated TLC1 transcription, then an additional transcription block would not be expected to aggravate the mex67-5 phenotype. However, addition of the RNA polymerase inhibitor thiolutin before shifting the temperature to 37°C resulted in an even further loss of new TLC1 molecules (Figure 4F). These data indicate that in mex67-5 cells incubated at the restrictive temperature, TLC1 transcription is functional. In addition, the level of RNA Pol II detected at the TLC1 locus was comparable in mex67-5 cells grown at 25 and 37°C, further confirming that TLC1 transcription is not affected by inactivation of the Mex67 protein (Figure 4—figure supplement 1E). As a further test for the instability of the newly transcribed TLC1 RNA in mex67-5 cells, we induced TLC1-[MS2-IN] recombination in mex67-5 rrp6Δ cells, in which the nuclear exosome complex, responsible for RNA quality control and decay, is inactive. Strikingly, deletion of RRP6 completely suppressed the mex67-5 phenotype, as in mex67-5 rrp6Δ cells grown at the restrictive temperature, new TLC1 RNA molecules accumulated to the same level as at the permissive conditions (Figure 4C,E; Figure 4—figure supplement 1F,G). These data directly show that in the absence of Mex67, new TLC1 transcripts undergo rapid degradation by the nuclear exosome and indicate that Mex67 is essential for stabilization of TLC1 RNA immediately after transcription and prior to export. At the same time, the stability of pre-existing and matured molecules does not seem to be affected by dysfunctional Mex67 (Figure 4C; Figure 4—figure supplement 1B). To confirm that Mex67 acts upstream of the Xpo1 exportin, we combined mex67-5 and xpo1-1 temperature-sensitive alleles in the same strain. In mex67-5 xpo1-1 cells grown at the permissive temperature, newly synthesized TLC1 molecules accumulated with normal kinetics (Figure 4—figure supplement 2A–C). However, at 37°C, new TLC1 RNA was almost undetectable in a double mutant, thus completely recapitulating the phenotype of mex67-5 cells. These data confirm that Mex67 indeed functions upstream of Xpo1, stabilizing newly transcribed TLC1 RNA prior to their cytoplasmic export.

While the vast majority of newly synthesized TLC1 RNA was unstable in the absence of Mex67, a few molecules still could be detected (Figure 4C,D). Notably, these remaining TLC1 foci almost exclusively accumulated at the nuclear periphery (Figure 4C; Figure 4—figure supplement 1C). This observation became even more striking in mex67-5 rrp6Δ double mutant cells, in which the vast majority of new molecules displayed this localization (Figure 4C; Figure 4—figure supplement 1H). Therefore, in addition to its essential role in stabilizing new TLC1 molecules, Mex67 acts as a prerequisite for the Xpo1-mediated export of TLC1 transcripts.

Collectively, the data thus demonstrate that Mex67 performs an entirely new and unexpected function in the biogenesis of telomerase RNA. Unlike in cells deficient for the Xpo1 exportin, which accumulate new telomerase RNA transcripts in the nucleus (Figure 3A,B), inactivation of Mex67 leads to an inability to produce stable and export-competent new TLC1 molecules (Figure 4).

The Sm7 complex is required for TLC1 stability after cytoplasmic export and for its re-import to the nucleus

According to our new data, Mex67 is essential for stability of newly synthesized telomerase RNA before its nuclear export (Figure 4). However, it is dispensable for stability of old molecules that have passed through the cytoplasm and returned to the nucleus. This suggests that after export to the cytoplasm, new TLC1 RNA acquires certain features that render it stable in the absence of a functional Mex67 protein. The Sm7 complex is well known to stabilize telomerase RNA as well as most snRNAs by binding near the RNA 3’-end (Seto et al., 1999). Notably, recent data are consistent with the idea that snRNAs shuttle to the cytoplasm to associate with the Sm7 proteins (Becker et al., 2019). Therefore, we hypothesized that telomerase RNA may also need to shuttle to the cytoplasm for the assembly with the Sm7 complex and Sm7-mediated stabilization.

To verify this idea, we took advantage of a mutated tlc1-Sm2T allele which disrupts Sm7 binding to TLC1 and renders it unstable (Seto et al., 1999). We modified the inducible TLC1-[MS2-IN] locus such that before recombination, wild type TLC1 RNA proficient in Sm7 binding is expressed. However, after the recombination switch, the new RNA molecules will harbor the tlc1-Sm2T mutation at their 3’-end (Figure 5—figure supplement 1A). Since only the tlc1-Sm2T RNAs have the MS2 tag, these molecules can be identified and tracked within the cell.

At the beginning of the time course, tlc1-Sm2T-MS2 molecules shuttle to the cytoplasm (Figures 5A, B, 1 h). However, to our surprise, these molecules never returned to the nucleus and remained in the cytoplasm (Figures 5B, 4 h). This suggests that the Sm7 complex is required for re-import of new TLC1 transcripts to the nucleus. Although the kinetics of TLC1-[Sm2T-MS2-IN] recombination were normal (Figure 5—figure supplement 1B), the level of tagged tlc1-Sm2T-MS2 RNA remained low over the entire time course, as detected by northern blotting using the TLC1 or MS2 probes (Figure 5C,D). Consistently, the number of newly synthesized tlc1-Sm2T-MS2 foci was also lower than in wild type cells (Figure 5—figure supplement 1C). This indicates that new tlc1-Sm2T-MS2 transcripts are unstable, as expected (Seto et al., 1999). As a result of TLC1 loss, cells with the recombined TLC1-[Sm2T-MS2-IN] locus eventually undergo senescence and switch to a recombination-dependent telomere maintenance with the survivor telomere phenotype (Figure 5—figure supplement 1D). Since the remaining tlc1-Sm2T RNA accumulates in the cytoplasm (Figure 5B), we hypothesized that even in the absence of Sm7 binding, newly transcribed TLC1 molecules are processed and exported from the nucleus normally, yet they become unstable and disappear after export to the cytoplasm. This scenario would predict that blocking the export of tlc1-Sm2T molecules to the cytoplasm should render them more stable. Indeed, in tlc1-Sm2T xpo1-1 cells grown at the restrictive temperature, new tlc1-Sm2T RNA molecules accumulated in the nucleus and were more abundant than at the permissive conditions, when tlc1-Sm2T RNA shuttled to the cytoplasm (Figure 5A,E–G; Figure 5—figure supplement 1E). Therefore, our data show that newly synthesized telomerase RNA is stable in the nucleoplasm, even without the Sm7 complex. The Sm7 complex binds new TLC1 RNA only after its export to the cytoplasm, where this association becomes essential for TLC1 stability as well as for re-import of the molecules back into the nucleus.

Figure 5 with 1 supplement see all

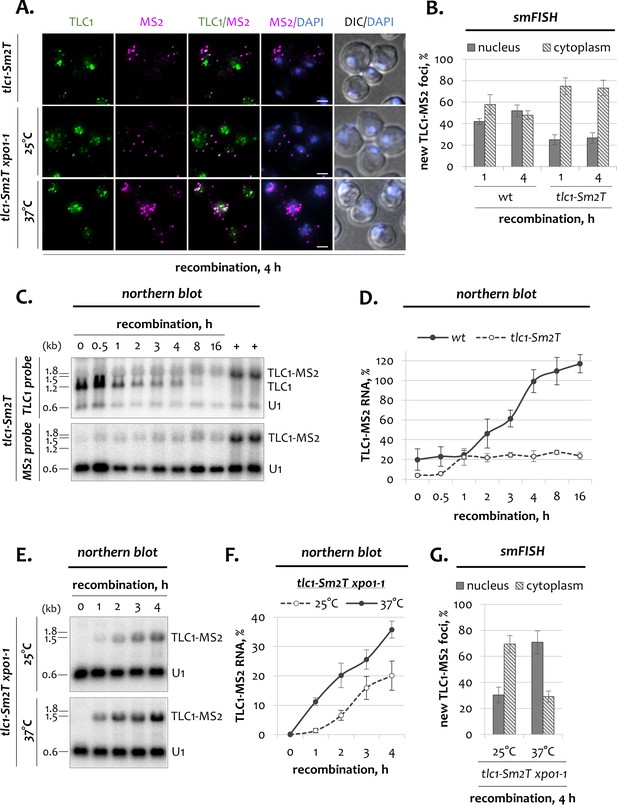

Dynamics of telomerase RNA fractions in tlc1-Sm2T mutants.

(A) Two-color smFISH analysis of untagged TLC1 and tagged TLC1-MS2 molecules in tlc1-Sm2T and tlc1-Sm2T xpo1-1 mutants after 4 hr of recombination. TLC1-Cy3 and MS2-Cy5 probes were used. Scale bar, 2 μm. (B) Relative nuclear and cytoplasmic fractions of tagged TLC1-MS2 foci detected by smFISH in wild type and tlc1-Sm2T cells after 1 hr and 4 hr of recombination. 50–100 cells from three independent experiments were scored. Error bars indicate SD. (C) Northern blot analysis of untagged TLC1 and tagged TLC1-MS2 RNA transcripts following induction of recombination in tlc1-Sm2T cells. The top blot was hybridized with the TLC1 probe depicted in Figure 1B. The bottom blot was hybridized with the MS2-specific probe. U1 – loading control. ‘+’ - positive recombined controls. RNA sizes are indicated on the left (kb), 1.8 kb corresponds to 18S rRNA. (D) Quantification of the tagged TLC1-MS2 RNA from the MS2-specific northern blot shown in C. Fractions relative to the positive recombined controls (+) are shown. Error bars indicate SD, n = 2. Quantification of the tagged TLC1-MS2 RNA in wild type cells from Figure 1E,F is shown as a reference. (E) Northern blot analysis of tagged TLC1-MS2 RNA transcripts following induction of recombination in tlc1-Sm2T xpo1-1 cells grown at 25 and 37°C. The blot was hybridized with the MS2-specific probe. U1 – loading control. RNA sizes are indicated on the left (kb), 1.8 kb corresponds to 18S rRNA. (F) Quantification of the northern blot shown in (E). Fractions relative to the positive recombined controls are shown. Error bars indicate SD, n = 2. (G) Relative nuclear and cytoplasmic fractions of tagged TLC1-MS2 foci detected by smFISH in tlc1-Sm2T xpo1-1 cells grown at 25 and 37°C after 4 hr of recombination. 50–100 cells from two independent experiments were scored. Error bars indicate SD.

Discussion

As for any RNA species, the cellular pool of telomerase RNA encompasses a variety of molecules at different stages of biogenesis. Conventional imaging methods that rely on RNA-specific probes or tags visualize the total RNA pool and therefore yield information about the steady state RNA distribution. However, the diverse characteristics of various RNA sub-populations generally remain hidden in such assays. In this study, we overcame this limitation by combining fluorescent imaging with an inducible RNA tagging approach and applying it to the telomerase RNA TLC1. In this system, an inducible recombination event leads to a rearrangement of the TLC1 genomic locus and the expression of TLC1 molecules tagged with MS2 repeats (Figure 1). Using a probe specific for the MS2 tag, we can selectively identify and analyze newly synthesized telomerase RNA transcripts within a heterogeneous TLC1 population and track their specific movements by smFISH (Figure 2). In addition, the dynamic behavior of TLC1 transcripts that remain untagged after recombination is complete, provides clues about the old or matured TLC1 molecules.

At steady state, 30–40% of telomerase RNA molecules localize in the cytoplasm (Figures 2D, 0 h) (Gallardo et al., 2008). However, the nature of the cytoplasmic TLC1 molecules remained enigmatic. According to the nucleo-cytoplasmic shuttling model, telomerase RNA gets exported to the cytoplasm for biogenesis purposes (Ferrezuelo et al., 2002; Gallardo et al., 2008). It was possible that TLC1 also accumulated in the cytoplasm at the end of its life cycle. Using the inducible TLC1 tagging approach, we show that in fact both models apply. Accordingly, we observed a temporary accumulation of newly synthesized TLC1 transcripts in the cytoplasm immediately after recombination induction, followed by their gradual return to the nucleus and re-establishment of a steady state RNA distribution (Figure 2E). Thus, our results provide direct evidence for the nucleo-cytoplasmic TLC1 shuttling model and narrow down this process to an early post-transcriptional event. Moreover, we show that old untagged TLC1 RNA accumulates in the cytoplasm by the end of the time course experiment (Figures 2D, 16 h), indicating a possible cytoplasmic decay of TLC1 molecules at the end of their life cycle. It still needs to be determined what triggers the exit of old transcripts from the nucleus. Nevertheless, a significant number of old TLC1 molecules remained in the nucleus by the end of the time course (Figures 2D, 16 h). Hence, it is possible that telomerase RNA may also get degraded via a nuclear mechanism. In addition, we cannot exclude that TLC1 RNA undergoes additional rounds of shuttling at later stages of its life cycle. However, we favour the idea that untagged TLC1 foci that remain in the nucleus are the result of late recombination events that occurred in a subset of cells (Figure 1C–G). In this scenario, by the end of the time course, the majority of untagged TLC1 molecules are truly ‘old’ and localize in the cytoplasm for degradation, whereas a subset of untagged TLC1 is still functional and operates in the nucleus. Consistent with this idea, telomerase RNA has a very long-half life and can remain functional for much longer than 60 min, exceeding the length of one full cell cycle (Chapon et al., 1997; Larose et al., 2007).

The Xpo1 exportin and Kap122 importin were previously shown to affect the subcellular distribution of telomerase RNA (Gallardo et al., 2008). However, we aimed to understand whether these karyopherins are responsible for the nucleo-cytoplasmic shuttling of newly synthesized telomerase RNA transcripts (Figure 3A–C). Importantly, our results show that export of new telomerase RNA is entirely dependent on the Xpo1 exportin. Accordingly, in cells with dysfunctional Xpo1, newly transcribed TLC1 molecules accumulated exclusively in the nucleus, which would not be the case if an additional export receptor participated in telomerase RNA export (Figure 3A,B). On the other hand, Kap122 importin promotes the re-import of new TLC1 molecules to the nucleus, as following export in kap122Δ cells, most TLC1 molecules remained in the cytoplasm (Figure 3A,C). However, unlike TLC1 export which depends exclusively on Xpo1, nuclear re-import of new telomerase RNA molecules appears to be mediated by several importins. Accordingly, at later stages after the recombination initiation, the nuclear TLC1 fraction gradually increased in kap122Δ cells (Figure 3C). This alternative pathway could be dependent on Mtr10, which was previously shown to affect subcellular TLC1 localization (Ferrezuelo et al., 2002; Gallardo et al., 2008). Existence of a secondary Kap122-independent re-import mechanism for newly synthesized TLC1 transcripts is also supported by the fact that telomere maintenance is only mildly affected in the absence of Kap122 (Figure 2—figure supplement 1D). Interestingly, the maximal level of newly synthesized TLC1 RNA is decreased in kap122Δ cells (Figure 3D,E), suggesting that TLC1 that cannot re-enter the nucleus is degraded during the cytoplasmic phase. Therefore, a cooperation of several importins, including Kap122, facilitates a quick and efficient return of new TLC1 transcripts to the nucleus (Figure 6). Failure or delay in such re-import may lead to loss of telomerase RNA.

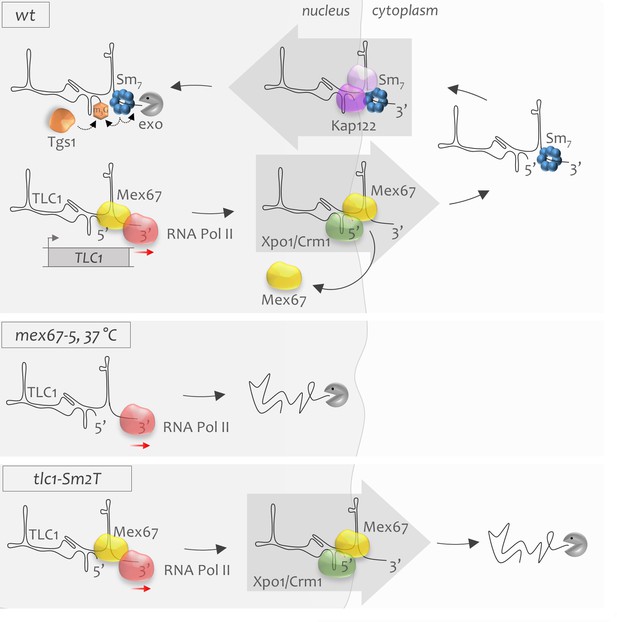

The model of early stages of telomerase RNA biogenesis.

WT: Telomerase RNA is transcribed by RNA polymerase II (red sphere). Mex67 possibly associates co-transcriptionally with telomerase RNA, ensures its stability and protects the RNA 3’-end. Mex67 might also deliver TLC1 to the nuclear pores where it may associate as an adaptor with the Xpo1 exportin. Xpo1 mediates cytoplasmic export of new telomerase RNA transcripts. Mex67 will disembark from TLC1 in the cytoplasm and is recycled back to the nucleus. During the cytoplasmic stage, the heptameric Sm7 complex binds the 3’-end of TLC1 which is required for stabilization of the RNA. Sm7 binding may also promote TLC1 re-import to the nucleus. Nuclear re-import of TLC1 is mediated by Kap122 and other importins. Upon re-entry to the nucleus, TLC1 undergoes Sm7-mediated 5’-TMG capping and 3’-end processing, which terminates the biogenesis cycle of telomerase RNA. mex67-5, 37°C: When Mex67 is dysfunctional, TLC1 is transcribed but is extremely unstable, which leads to rapid degradation of newly synthesized telomerase RNA transcripts in the nucleus. tlc1-Sm2T: Mutant TLC1 RNA that cannot associate with the Sm7 complex is stable in the nucleus. However, after export to the cytoplasm, it becomes unstable and undergoes quick degradation.

There is evidence that the karyopherin-unrelated export receptor Mex67 may cooperate with the Xpo1 exportin in the cytoplasmic export of several RNA species, including snRNAs, rRNAs and tRNAs (Yao et al., 2007; Faza et al., 2012; Chatterjee et al., 2017; Becker et al., 2019). However, the molecular mechanism of this Mex67 function is not well understood. Here, we decided to test whether Mex67 affects the nucleo-cytoplasmic shuttling of new telomerase RNA transcripts. Strikingly, newly synthesized TLC1 molecules almost completely disappear upon inactivation of Mex67 (Figure 4A–D). Using thiolutin-induced transcription block and RNA Pol II ChIP experiments, we ruled out the possibility that dysfunctional Mex67 causes the defect in TLC1 transcription (Figure 4F; Figure 4—figure supplement 1E). Instead, inactivation of Mex67 results in a nearly complete loss of new telomerase RNA after transcription – a phenotype that can be fully suppressed by removal of the Rrp6 exosome component (Figure 4C,E; Figure 4—figure supplement 1F,G). The few TLC1 foci that remained detectable upon inactivation of Mex67 almost exclusively localized at the nuclear border (Figure 4C; Figure 4—figure supplement 1C), suggesting that in the absence of Mex67, new TLC1 transcripts quickly degrade in the nucleus and never make it to the cytoplasm. In addition, new TLC1 RNA was also unstable in a mex67-5 xpo1-1 double mutant grown at the restrictive temperature (Figure 4—figure supplement 2), similar to the phenotype observed in mex67-5 single mutants (Figure 4A–D). Altogether, these data show that Mex67 is essential for the nuclear stability of newly transcribed telomerase RNA prior to its Xpo1-mediated cytoplasmic export. On the other hand, old TLC1 molecules, which remained untagged during the experiment, were not destabilized by inactivation of Mex67 (Figure 4C, Figure 4—figure supplement 1B).

An earlier study reported that in mex67-5 cells grown at the restrictive temperature, telomerase RNA molecules are lost from the cytoplasm, which was interpreted as nuclear accumulation of TLC1 RNA (Wu et al., 2014). Our data here show that newly synthesized molecules largely contribute to the cytoplasmic TLC1 fraction and their disappearance in the absence of Mex67 indeed results in a decrease in the cytoplasmic TLC1 RNA. Notably, in this situation the nuclear TLC1 signal is composed of only matured or old RNA and there is no accumulation of new TLC1 molecules in the nucleus. Hence, the power of our inducible RNA tagging approach allows a much more targeted and detailed assessment of the dynamics of the complex TLC1 RNA population.

Similar to our results, depletion of Mex67 was shown to cause rapid nuclear degradation of all newly transcribed poly-A+ mRNAs (Tudek et al., 2018). This untimely RNA decay was attributed to the role of Mex67 as an mRNA export receptor. Mechanistically, it was suggested that this effect involves Nab2 that binds to poly-A+ tails and protects RNA transcripts from degradation (Hector et al., 2002; Schmid et al., 2015). The authors hypothesized that upon export block by Mex67 inactivation, Nab2 cannot be recycled from its substrate. Thus, accumulating poly-A+ RNA tails will sequester the nuclear Nab2 pool away from newly formed RNA, rendering them unstable (Tudek et al., 2018). It is important to note that the vast majority of TLC1 (95%) is generated directly via the Nrd1/Nab3 non-coding RNA termination pathway (Noël et al., 2012). So far, Nab2 has not been implicated in this pathway, but we cannot exclude the possibility that other maturation factors specific to the non-coding RNA termination pathway could play a role similar to Nab2. Hence, the model suggested by Tudek et al. could also explain premature degradation of new TLC1 transcripts upon inactivation of Mex67 observed in our study (Figure 4). However, very much distinct from the above model, our results argue that Mex67 does not act as a classical TLC1 export receptor and an export block cannot explain the degradation of new TLC1 molecules. First, we show that export of new telomerase RNA molecules to the cytoplasm is entirely dependent on Xpo1 (Figure 3A,B). If Mex67 operated in parallel with Xpo1 in TLC1 export, at least a fraction of new telomerase RNA molecules would be expected to eventually reach the cytoplasm in xpo1-1 cells grown at the restrictive temperature, which we did not observe (Figure 3A,B). Second and more importantly, although inactivation of Xpo1 completely blocks TLC1 in the nucleus, these molecules are perfectly stable and their number even increases beyond the level observed in wild type cells (Figure 3D,E). This means that at least for telomerase RNA, an export block per se does not lead to nuclear RNA decay. In other words, while in cells with dysfunctional Mex67 newly transcribed TLC1 RNA is completely lost, it is retained and accumulates in the nucleus in xpo1-1 mutants grown at the restrictive temperature (Figure 4A–D). This suggests that Mex67 acts upstream of Xpo1 and plays an unexpected role in stabilization of newly transcribed TLC1 molecules before their cytoplasmic export (Figure 6).

Hence, our results indicate a novel role of Mex67 in stabilization of telomerase RNA which to our knowledge is the first time that Mex67 is implicated in a function distinct from RNA export. Mex67 is known to bind at least to some of its cargoes co-transcriptionally (Dieppois et al., 2006; Wende et al., 2019). It has been proposed that such early association with its RNA substrates may assist in proper 3’-end RNA maturation and protection (Forrester et al., 1992; Hammell et al., 2002; Qu et al., 2009). Failure to execute this function may lead to elimination of faulty transcripts as was previously reported for other 3’-end processing mutants (Minvielle-Sebastia et al., 1991; Forrester et al., 1992; Hammell et al., 2002). There was some evidence that Mex67 may be able to associate with telomerase RNA (Wu et al., 2014), and our results here firmly establish that Mex67 protects the 3’-end of TLC1 from nuclear degradation by Rrp6 (Figure 4C,E; Figure 4—figure supplement 1F–H; Figure 6). Moreover, since Mex67 can bind to both RNA and nuclear pore components, it may be responsible for a quick delivery of new transcripts to the nuclear pore where they are stabilized and exported by Xpo1. The latter is consistent with our finding that the few newly synthesized molecules that are still visible in the mex67-5 mutant localize at the nuclear border (Figure 4C). Given that Mex67 has been implicated in the life cycle of diverse RNA classes, we speculate that Mex67 may perform a stabilization function for the poly-A+ RNA species as it does for telomerase RNA.

Since old TLC1 molecules underwent at least one round of nucleo-cytoplasmic shuttling, we reasoned that during this shuttling, telomerase RNA must have acquired a property that renders it insensitive to the loss of Mex67. Hence, we asked which telomerase subunits could confer TLC1 stability after export to the cytoplasm. Using a modified inducible TLC1 tagging system in which the new TLC1 RNA carries a tlc1-Sm2T mutation, we demonstrate that TLC1 RNA deficient in Sm7 binding accumulates in the cytoplasm (Figure 5; Figure 5—figure supplement 1). Given the nuclear instability of the wild type RNA in the absence of Mex67 (see above), we conclude that the Sm7 complex associates with the TLC1 RNA in the cytoplasm and that this association in turn stabilizes the RNA. Recently a cytoplasmic association with the Sm7 complex has also been suggested for snRNAs (Becker et al., 2019). Similarly, nuclear export and cytoplasmic Sm7 binding is also a characteristic of mammalian snRNAs (Fischer et al., 2011).

The data reported here challenge the current view of telomerase biogenesis by placing the Sm7 binding step after export of telomerase RNA to the cytoplasm (Figure 6). The new model incorporates the idea that in the nucleus, newly synthesized poly-A- telomerase RNA (Noël et al., 2012) first requires stabilization by Mex67, which may also usher TLC1 to nuclear pores. Whether the Mex67 association occurs co-transcriptionally or in coordination with the 3’-end formation or even after transcript release remains to be determined. Failure to associate with Mex67 results in immediate degradation of new TLC1 transcripts via the nuclear exosome. Next, the RNA is transported to the cytoplasm which absolutely requires Xpo1. This karyopherin does not bind RNA directly and we still do not know what the TLC1 adaptor for Xpo1 is. In this regard, our data are consistent with the possibility that Mex67 itself plays this role in addition to its stabilizing function in the nucleus (Figure 6). If Mex67 indeed acts as an adaptor between TLC1 RNA and Xpo1 exportin, it would likely translocate through the nuclear membrane with the Xpo1-TLC1 complex. Once in the cytoplasm, the TLC1 RNA must rapidly associate with the Sm7 complex, given that Mex67 will likely disembark from the RNA at the nuclear pore exit and get recycled back into the nucleus (Stewart, 2007). At this stage then, the Sm7 complex is required for TLC1 RNA stabilization, and in turn, TLC1 stability allows for other telomerase subunits to associate with the maturing RNP. If this step is compromised, TLC1 molecules undergo degradation in the cytoplasm. Whether the cytoplasmic exosome, the Xrn1 nuclease or other machineries perform this function remains to be determined. Eventually, the telomerase RNP is re-imported to the nucleus primarily via Kap122, but alternative and less efficient import pathways do exist (Figure 3C). Finally, our model suggests that the final 5’-TMG capping and 3’-end processing of telomerase RNA occurs in the nucleus after its re-import and is dependent on the presence of the Sm7-complex, possibly analogous to snRNA maturation (Becker et al., 2019). This final step may thus occur on a relatively mature telomerase RNP, which is entirely feasible given a predicted close proximity of the 5’- and 3’-ends of telomerase RNA (Cech, 2004; Dandjinou et al., 2004). It is also consistent with the fact that active telomerase RNPs only contain 5’-TMG capped telomerase RNAs (Bosoy et al., 2003). Maturation of telomerase RNA may also serve as a final stabilization step for TLC1 RNA and render it insensitive to loss of Mex67, as observed above (Figure 4C).

Our study thus elucidates many of the early events of telomerase RNA biogenesis. However, later stages of TLC1 life cycle remain enigmatic, e.g., does telomerase RNA continue to cycle between the nucleus and the cytoplasm or whether these and final shuttling rounds rely on the same machinery as the initial export and re-import. Although our data show that Mex67 is dispensable for TLC1 stability after the first round of shuttling (Figure 4), it might still act as a TLC1-Xpo1 adaptor for the subsequent rounds of export. Alternatively, TLC1 might use a different adaptor for later shuttling steps or even rely on a different karyopherin (such as Los1 or Msn5).

As in yeast, the generation and stabilization of human telomerase RNA relies on the association with several proteins, including dyskerin, NHP2 and NOP10 as well as factors involved in the non-coding RNA maturation pathway such as PARN (Hoareau-Aveilla et al., 2006; Fu and Collins, 2007; Walne et al., 2007; Moon et al., 2015; Nguyen et al., 2015). Mutations in PARN, dyskerin or NOP10 cause severe genetic disorders, emphasizing the functional significance of these telomerase subunits and RNA maturation mechanisms (Vulliamy et al., 2006; Walne et al., 2007). Furthermore, the loss of telomerase RNA due to PARN mutations is amenable to reversion by small molecules that thus may alleviate the severe associated disease (Brenner and Nandakumar, 2020). However, certain details of human telomerase biogenesis remain enigmatic. For example, how and when do dyskerin and NOP10 associate with telomerase RNA and is association with these subunits needed for RNA processing? Inducible RNA tagging tools as described in this study should greatly aid in teasing out these maturation steps and may provide missing links in human telomerase biogenesis.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
Strain, strain background (S. cerevisiae)All strains (W303)Supplementary file 1
Gene (S. cerevisiae)TLC1Saccharomyces
Genome Database
TLC1;
SGD:S000006657
Gene (S. cerevisiae)tlc1-Sm2Tdoi:10.1038/43694
Gene (S. cerevisiae)XPO1, CRM1Saccharomyces Genome DatabaseYGR218W;
SGD:S000003450
Gene (S. cerevisiae)xpo1-1gift from Pascal Chartrand doi:10.1016/s0092-8674(00)80370–0temperature-sensitive allele
Gene (S. cerevisiae)MEX67Saccharomyces Genome DatabaseYPL169C;
SGD:S000006090
Gene (S. cerevisiae)mex67-5gift from Marlene Oeffinger doi:10.1093/emboj/16.11.3256
doi:10.1038/nbt.1832
temperature-sensitive allele
Gene (S. cerevisiae)KAP122Saccharomyces Genome DatabaseYGL016W;
SGD:S000002984
Gene (S. cerevisiae)RRP6Saccharomyces Genome DatabaseYOR001W; SGD:S000005527
Chemical
compound, drug
β-estradiolSigmaCat#: E8875Recombination induction, 12.5 μM final
Chemical compound, drugClonNAT, nourseothricin sulfateBioShopCat#: NUR001Selection, 100 μg/ml final
Chemical compound, drugThiolutinAbcamCat#: ab143556Transcription block, 3 μg/ml final
Chemical compound, drugPara-formaldehyde solution, 32%Electron Microscopy SciencesCat#: 15714FISH, 4% final
Chemical compound, drugRibonucleoside vanadyl complex, 200 mMNew England BiolabsCat#: S1402SFISH, 20 mM final
Chemical compound, drugFormamideSigmaCat#: F9037FISH, 40% final
Chemical compound, drugSalmon sperm DNAInvitrogenCat#: 15632–011FISH, 0.4 mg/ml final
Chemical compound, drugtRNA from E. coliRocheCat#: 10109541001FISH, 0.4 mg/ml final
Chemical compound, drugPoly-L-lysine, 0.01%SigmaCat#: P4707
Chemical compound, drugDAPISigmaCat#: D9542FISH, 0.5 µg/ml final
Chemical compound, drugp-phenylenediamineSigmaCat#: P6001
Commercial assay or kitCy3 Mono-Reactive dyeCytivaCat#: PA23001
Commercial assay or kitCy5 Mono-Reactive dyeCytivaCat#: PA25001
Commercial assay or kitThermoScientific Pierce Protein A/G Magnetic BeadsThermoScientificCat#: 88802ChIP, 50 µl per sample
AntibodyAnti-RNA Polymerase II RPBI (mouse monoclonal antibody, clone 8WG16)CedarlaneCat#: 664906ChIP (5 μl per sample)
Peptide, recombinant proteinXmnI (restriction enzyme)New England BiolabsCat#: R0194L
Peptide, recombinant proteinAleI-v2 (restriction enzyme)New England BiolabsCat#: R0685L
Peptide, recombinant proteinXhoI (restriction enzyme)New England BiolabsCat#: R0146L
Peptide, recombinant proteinLyticaseSigmaCat#: L2524FISH, 5 U/ml final
Recombinant DNA reagentAll plasmidsSupplementary file 2
Sequence-based reagentAll primersSupplementary file 3
Software, algorithmSnapGene 2.1http://www.snapgene.com/RRID:SCR_015052
Software, algorithmImageQuant TL 8.2 (Cytiva)https://www.cytivalifesciences.com/en/is/shop/protein-analysis/molecular-imaging-for-proteins/imaging-software/imagequant-tl-8-2-image-analysis-software-p-09518RRID:SCR_018374
Software, algorithmGraphPad Prism 8http://www.graphpad.com/RRID:SCR_002798
Software, algorithmZEN 3.1 2019 (Zeiss)https://www.zeiss.com/microscopy/int/products/microscope-software/zen.htmlRRID:SCR_013672

Strains and plasmids

Request a detailed protocol

Strains used in this study are derivatives of W303. All strains are listed in Supplementary file 1. To express the inducible tagging system, the TLC1-[MS2-IN] cassette was integrated in the TLC1 genomic locus. The TLC1-[MS2-IN] cassette containing the mid-TLC1 sequence, loxP site, TLC1 3’-end, natMX4 cassette, ADH1 terminator, loxP site, 10xMS2 repeats followed by a duplicated TLC1-3’ end, was amplified by PCR from pYV132 using qTLC1-F and TLC1 AvaI-R primers (plasmids and primers used in the study are listed in Supplementary file 2 and Supplementary file 3, respectively). In the modified TLC1-[Sm2T-MS2-IN] tagging system, the sequence encoding the Sm7-binding site (ATTTTTGG) in the duplicated TLC1 3’-end downstream of the 10xMS2 array was mutated into ATTGG, resulting in the expression of the tlc1-Sm2T mutant RNA upon recombination. To express such system, the TLC1-[Sm2T-MS2-IN] cassette was amplified from pYV142 using qTLC1-F and TLC1 AvaI-R primers. To express the Cre-EBD recombinase in wild type, kap122 and tlc1-Sm2T backgrounds, pTW40 was linearized with NdeI and integrated at the his3 locus. To express Cre-EBD in xpo1-1, xpo1-1 tlc1-Sm2T, mex67-5, mex67-5 rrp6Δ and mex67-5 xpo1-1 mutants, pYV144 was linearized with NdeI and integrated at the ura3 locus. YV359, YV360 recombined controls are clonNAT-sensitive derivatives of YV349 and YV352. kap122Δ and rrp6Δ mutants were constructed by a one step replacement of the KAP122 and RRP6 genes, respectively, with the kanMX4 cassette, amplified from pRS400 using YV395_KAP122_F1 and YV396_KAP122_R1 primers for the deletion of KAP122, and rrp6Δ_for and rrp6Δ_rev primers for the deletion of RRP6. The mex67-5 xpo1-1 double mutant strain was constructed by a one step replacement of the MEX67 gene in YV365, YV366 with the mex67-5-kanMX6 cassette, amplified from the Y11429 strain (gift from M. Oeffinger lab) using YV518_MEX67-237 and YV519_MEX67+278 primers.

pEB36 was constructed via multiple cloning steps. Sequence containing the fragment of the TLC1 gene (665–1145 bp), the loxP site, the TLC1 3’-end (1146–1301 bp) followed by 148 bp of the downstream sequence, the natMX4 cassette (consisting of the TEF promoter, the NATR gene and TEF terminator), the loxP site, 10xMS2 repeats and the duplicated TLC1 3’-end (1146–1301 bp) followed by 1156 bp of the downstream sequence was cloned in pRS306 between BamHI and EcoRI restriction sites. pYV132 was constructed via multiple cloning steps, resulting in addition of the ADH1 terminator sequence downstream of the TEF terminator in pEB36. pYV142 was constructed via multiple cloning steps, which led to the replacement of the Sm7-binding site (ATTTTTGG) in the duplicated TLC1 3’-end of pYV132 with ATTGG sequence. pYV144 was constructed by replacing AatII - SacII HIS3-containing fragment of pTW40 with AatII - SacII URA3-containing fragment of pRS306. All plasmids constructed in this study were verified by sequencing.

Yeast culture

Request a detailed protocol

For inducible TLC1-[MS2-IN] tagging experiments in wild-type cells (YV349, YV352; Figures 1 and 2), kap122 mutants (YV355, YV356; Figure 3) and tlc1-Sm2T mutants (YV390, YV391; Figure 5), cells were pre-cultured overnight in SC-HIS media supplemented with clonNAT (100 μg/ml) and grown at 30°C in SC complete medium without clonNAT from OD 0.1 to 0.4. Recombination was induced with 12.5 μM β-estradiol (Sigma) and monitored for the duration of the time course. For the experiments at the restrictive temperature (Figure 3—figure supplement 1D,G), wild type cells (YV349, YV352) were shifted to 37°C 1 hr before addition of β-estradiol and grown for 8 hr at 37°C. For the experiments with the temperature-sensitive mutants xpo1-1 (YV365, YV366 [Figure 3]; YV403, YV404 [Figure 5A,E–G]); mex67-5 (YV385, YV386; YV399, YV400 [Figure 4A–E]) and mex67-5 xpo1-1 (YV417, YV418 [Figure 4—figure supplement 2]), cells were pre-cultured overnight at 25°C in SC-HIS-URA (xpo1-1 and mex67-5 xpo1-1) and SC-LEU-URA (mex67-5) supplemented with clonNAT (100 μg/ml) and grown at 25°C in SC-HIS (xpo1-1 and mex67-5 xpo1-1) and SC-LEU (mex67-5) without clonNAT from OD 0.1 to 0.3. Cells were divided in two cultures and grown at 25 or 37°C for 1 hr. Recombination was induced with 12.5 μM β-estradiol and monitored for the indicated period of time at 25 or 37°C. For the experiment described in Figure 4F, wild type (YV349, YV352) and mex67-5 cells (YV385, YV386) were pre-cultured overnight at 25°C in SC-HIS (wild type) and SC-LEU-URA (mex67-5) supplemented with clonNAT (100 μg/ml) and grown at 25°C in SC complete (wild type) and SC-LEU (mex67-5) media without clonNAT from OD 0.1 to 0.4. After addition of β-estradiol (12.5 μM), cells were grown at 25°C for 4 hr. Thiolutin (3 μg/ml, Abcam) was added to half of the cultures for 15 min. Thiolutin-treated and -untreated cultures were split and grown at 25 or 37°C for 3 hr. In all experiments, cell aliquots were collected for DNA, RNA and FISH analysis at regular time points. OD of cell cultures was maintained below 0.8 throughout the length of experiments.

To isolate recombined control strain (YV359, YV360), YV349 or YV352 cells were grown in YEPD media without clonNAT, treated with 12.5 μM β-estradiol overnight, plated on YEPD media for single colonies and replica-plated on YEPD + clonNAT (100 μg/ml) plates. clonNAT-sensitive clones were isolated.

Southern blotting

Request a detailed protocol

Genomic DNA was extracted using phenol-chloroform (Sambrook et al., 1989). To monitor the TLC1-[MS2-IN] recombination, DNA was digested with XmnI and AleI-v2 (NEB), resolved on a 0.8% agarose-1x TBE gel, transferred on a Hybond-XL nylon membrane (Cytiva) and hybridized to 32P-labeled TLC1 and CEN4-1.5 kb probes. Probes were obtained by PCR amplification (see Supplementary file 3 for primer sequences), followed by random priming labeling procedure (Feinberg and Vogelstein, 1983). For telomere length analysis, DNA was digested with XhoI (NEB) and subjected to agarose gel electrophoresis and transfer as described above. Blots were hybridized to a 32P-labeled pCT300 probe (300 bp fragment containing 280 bp of telomeric repeats derived from pYLPV [Wellinger et al., 1993]) and PCR-amplified 32P-labeled CEN4-1.6 kb probe. Blots were visualized using Typhoon FLA9000 (Cytiva) and quantified via Image Quant TL software (Cytiva).

To quantify the fraction of the unrecombined TLC1-[MS2-IN] DNA, the ratio between the fragment ‘a’ intensity (Figure 1A) at the time point x and the time point 0 (100% unrecombined locus) was calculated. To quantify the recombined TLC1-[MS2-IN] DNA fraction, the ratio between the fragment ‘b’ intensity at the time point x and in the recombined control strain (YV359, YV360) (100% recombined locus) was calculated. Intensity of fragments ‘a’ and ‘b’ was normalized to the CEN4 loading control.

Northern blotting

Request a detailed protocol

RNA extraction and northern blotting were performed as described previously (Laterreur et al., 2018). In brief, RNA was extracted 2x with phenol/chloroform/isoamyl alcohol (25:24:1) and 1x with chloroform/isoamyl alcohol (24:1). RNA was mixed with NaOAc (150 mM), glycogen (50 μg) and precipitated in 2x volume of 100% ethanol at −20°C. 10 μg of RNA was mixed with 1x MOPS (pH 7), 3.7% formaldehyde, 45% formamide and 1x RNA dye. Samples were migrated on a 1.1% agarose-1x MOPS (pH 7)–2% formaldehyde gel and transferred on a Hybond N+ membrane (Cytiva). After UV-crosslinking, the membrane was hybridized to 32P-labeled TLC1 or non-aminoallyl MS2 probe. The membrane was simultaneously hybridized to the U1 probe used to detect the U1 RNA as a loading control. The TLC1 probe was obtained by PCR amplification (see Supplementary file 3 for primer sequences), followed by random priming labeling procedure (Feinberg and Vogelstein, 1983). An oligonucleotide non-aminoallyl MS2 and U1 probes were obtained by 5’-end labeling (Sambrook et al., 1989). Blots were visualized using Typhoon FLA9000 (Cytiva) and quantified via Image Quant TL software (Cytiva).

To quantify the fraction of untagged TLC1 RNA, the ratio between the intensities of the TLC1 band at the time point x and the time point 0 (100% untagged TLC1) was calculated. To quantify the fraction of tagged TLC1-MS2 fraction, the ratio between the intensities of the TLC1-MS2 band at the time point x and in the recombined control strain (YV359, YV360) (100% tagged TLC1-MS2) was calculated. Intensity of the TLC1 and TLC1-MS2 bands was normalized to the U1 loading control.

RT-qPCR and ddPCR

Request a detailed protocol

RNA integrity was assessed with the Agilent 2100 Bioanalyzer (Agilent Technologies). Reverse transcription was performed on 2 µg total RNA using Transcriptor reverse transcriptase, random hexamers, dNTPs (Roche Diagnostics) and 10 units of RNAseOUT (Invitrogen) in a total volume of 10 µl following the manufacturer’s protocol. For ddPCR setup part, qPCR reactions were performed in 10 µl in 384 well plates on a CFX-384 thermocycler (BioRad) with 5 μl of 2X PerfeCTa SYBR Green Supermix (Quantabio), 10 ng of cDNA and 200 nM primer pair solutions. The following cycling conditions were used: 3 min at 95°C; 50 cycles: 15 s at 95°C, 30 s at 60°C, 30 s at 72°C. Primer design and validation were evaluated as described elsewhere (Brosseau et al., 2010).

Droplet Digital PCR (ddPCR) reactions included 10 µl of 2X QX200 ddPCR EvaGreen Supermix (Bio-Rad), 240 ng of cDNA and 200 nM primer pair solutions in a 20 μl total volume. Each reaction mix was converted into droplets with the QX200 droplet generator (Bio-Rad). Droplet-partitioned samples were then transferred to a 96-well plate, sealed and cycled in a C1000 deep well Thermocycler (Bio-Rad) under the following cycling protocol: 95°C for 5 min, 50 cycles: 95°C for 30 s, 60°C for 1 min, 72°C for 30 s; post-cycling steps: 4°C for 5 min and 90°C for 5 min. RNA concentration (copies/ul) was determined using the QX200 reader (Bio-Rad) (Taylor et al., 2015). To quantify the fraction of old untagged TLC1 molecules, the ratio between untagged TLC1 RNA concentration (determined by primers TLC1.AB.qsc.F3 and TLC1.A.lna.qsc.R4; Supplemetary file 3) and total TLC1 concentration (primers TLC1.AB.qsc.F1 and TLC1.AB.qsc.R1) was calculated. To quantify the fraction of new tagged TLC1-MS2 molecules, the ratio between tagged TLC1-MS2 RNA concentration (determined by primers TLC1.AB.qsc.F3 and TLC1.B.qsc.R1) and total TLC1 concentration (primers TLC1.AB.qsc.F1 and TLC1.AB.qsc.R1) was calculated.

Fluorescence in situ hybridization (FISH)

Request a detailed protocol

Cell fixation and preparation of spheroplasts was performed as previously described (Gallardo and Chartrand, 2011). Hybridization with the probes was performed as in Gallardo and Chartrand, 2011 with slight modifications. Spheroplasts were washed with 2x SSC (2 × 5 min) and with 2x SSC containing 40% formamide (1 × 5 min) at room temperature. Centrifugation between washes was done at 1500 g for 3 min. Cells were resuspended in 2x SSC containing 40% formamide and incubated for 1 hr at 37°C. A mix of five TLC1-specific probes (Supplementary file 3) were conjugated with the Cy3 fluorophore (Cytiva), and the MS2 probe was conjugated with the Cy5 fluorophore according to the manufacturer’s instructions. 10 ng of TLC1-Cy3 probe mix and 10 ng of the MS2-Cy5 probe were mixed with 4 μl of competitor DNA (10 mg/ml solution of 1:1 sonicated salmon sperm DNA (Invitrogen) / E. coli tRNA (Roche)), 50 μl of solution F (80% formamide and 10 mM NaHPO4, pH 7.5). The probe solution was heated at 95°C for 5 min and mixed with 50 μl of solution H (4x SSC, 20 mM ribonucleoside vanadyl complex (NEB), BSA 4 μg/ml). Spheroplasts were centrifuged at 1500 g for 3 min and resuspended in the probe mix. Hybridization was performed overnight at 37°C. After hybridization, cells were washed in 2x SSC 40% formamide for 6 min, 2x SSC 0.1% Triton X-100 for 6 min and 1x PBS for 6 min at room temperature. Cells were incubated in DAPI (Sigma) 0.5 µg/ml for 3 min and washed in 1x PBS for 3 min. Cells were resuspended in a small volume of 1x PBS and immobilized on coverslips coated with 0.01% poly-lysine (Sigma) for 30 min. Unattached cells were washed away from the coverslips with 70% ethanol and sequentially incubated in 70% ethanol, 2x SSC, 1x PBS and 100% ethanol for 3 s. After drying, coverslips were mounted on the microscope slides with the mounting medium (86% glycerol, 1 mg/ml p-phenylenediamine (Sigma)−1x PBS).

Image acquisition was performed using Zeiss mRm Axiocam mounted on an Axio Observer Z1 inverse microscope. To illuminate TLC1-Cy3, X-cite Arc lamp and 43HE filter (Zeiss) were used. For MS2-Cy5 channel, Zeiss Colibri LED 625 nm was used in combination with 77HE filter. DAPI was visualized with Zeiss Colibri LED 365 nm 62HE filter. Exposure times were 3 s for Cy3 and Cy5, and 500 ms for DAPI. Single plane images spanning 3 μm with steps of 200 nm were projected in a z-stack to facilitate data analysis. Image analysis and constrained iterative deconvolution was performed using ZEN 3.1 2019 software (Zeiss). Foci counting was performed manually. Foci with the colocalized TLC1- and MS2-specific signal were counted as new TLC1 molecules. Foci with only the TLC1-specific signal were counted as old TLC1 molecules. Relative TLC1 fractions (%) were calculated as a ratio of new or old molecules to the total number of TLC1 RNA. Relative nuclear or cytoplasmic TLC1 fractions (%) were calculated as a ratio of old or new molecules localized inside or outside the nucleus (as determined by DAPI staining) to the total number of old or new molecules detected in a single cell. For each experiment (time point), 50–100 single cells from two or three independent experiments were scored.

Chromatin immunoprecipitation (ChIP)

Request a detailed protocol

200 ml of culture was pre-grown overnight at 25°C in SC-LEU-URA supplemented with clonNAT (100 μg/ml), followed by incubation at 25°C SC-LEU without clonNAT from OD 0.1 to 0.3. Cells were divided in two cultures (100 ml each) and grown at 25 or 37°C for 1 hr. Recombination was induced by addition of 12.5 μM β-estradiol (Sigma) for 2 hr at 25 or 37°C. ChIP was performed as described in Pasquier and Wellinger, 2020 using 3 µl of RNA Polymerase II mouse monoclonal antibody (8WG16, Cedarlane) and 50 µl equilibrated ThermoScientific Pierce Protein A/G Magnetic Beads (ThermoScientific). Immunoprecipitated and input DNAs were subjected to qPCR at the TLC1 locus using TLC1_G_for1 and TLC1_G_rev1 primers (Supplementary file 3). U1 RT F2 and U1 RT R2 primers were used for the qPCR at the control U1 locus. qPCR reactions were performed in 10 µl in 384 well plates on a CFX-384 thermocycler (BioRad) with 5 μl of 2X PerfeCTa SYBR Green Supermix (Quantabio), 3 µl of DNA, and 200 nM final (2 µl) primer pair solutions. Each sample was done in technical triplicates. The following cycling conditions were used: 3 min at 95°C; 50 cycles: 15 s at 95°C, 30 s at 60°C, 30 s at 72°C. The amount of immunoprecipitated DNA at the TLC1 locus was normalized to the U1 locus and presented as the % of input.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
    Polyadenylation of telomerase RNA in budding yeast
    1. C Chapon
    2. TR Cech
    3. AJ Zaug
    (1997)
    RNA 3:1337–1351.
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
    Molecular Cloning: A Laboratory Manual
    1. J Sambrook
    2. EF Fritsch
    3. T Maniatis
    (1989)
    Cold Spring Harbor Laboratory Press.
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63

Decision letter

  1. Andrés Aguilera
    Reviewing Editor; CABIMER, Universidad de Sevilla, Spain
  2. James L Manley
    Senior Editor; Columbia University, United States
  3. Francoise Stutz
    Reviewer; University of Geneva, Switzerland
  4. Vincent Geli
    Reviewer; French National Centre for Scientific Research, France

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Using an induced Cre-dependent recombination system to replace expression of the endogenous TLC1 gene by an MS2-tagged TLC1 RNA, the authors show that the mRNA export receptor Mex67 is essential for TLC1 RNA biogenesis and stability of newly synthesized transcripts in the nucleus before they are exported by Xpo1, and that MS2-tagged the TLC1 3' mutant unable to bind the Sm7 complex crucial for processing are unstable and mainly detected in the cytoplasm, indicating that the Sm7-dependent processing steps occur in the cytoplasm. The manuscript provides new and relevant information to understand telomerase biogenesis related to a new role for the Mex67 RNA export factor.

Decision letter after peer review:

Thank you for submitting your article "Telomerase biogenesis requires a novel Mex67 function and a cytoplasmic association with the Sm7 complex" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by Andrés Aguilera as the Reviewing Editor and James Manley as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Francoise Stutz (Reviewer #1); Vincent Geli (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

Yeast TLC1 RNA biogenesis and processing have mostly been analyzed so far by examining the effect of a variety of mutations on endogenous steady state TLC1 RNA pools. This new study uses an induced Cre-dependent recombination system to replace expression of the endogenous TLC1 gene by an MS2-tagged TLC1 RNA, so that they can distinguish the old untagged TLC1 from the newly synthesized TLC1. This elegant approach allows a detailed description of the steps leading to the formation of a mature TLC1 RNA in the nucleus, and finally to its degradation in the cytoplasm. The study confirms that the export receptor Xpo1 is the only one involved in the nuclear export of TLC1 transcripts, which are then reimported via Kap122 but probably also other import receptors. Importantly, the authors show that the mRNA export receptor Mex67 is essential for TLC1 RNA biogenesis and stability of newly synthesized transcripts in the nucleus before they are exported by Xpo1. Finally, the authors show that MS2-tagged TLC1 3' mutant unable to bind the Sm7 complex crucial for processing are unstable and mainly detected in the cytoplasm, indicating that the Sm7-dependent processing steps occur in the cytoplasm and are essential for reimport into the nucleus.

Although several molecular details underlying TLC1 biogenesis have still to be worked out, this study provides a novel more complete view of the TLC1 RNA life cycle with well-designed and rigorously controlled experiments. The manuscript is very clearly written and referenced and is appropriate for publication, provided they respond to the questions raised below.

Essential revisions:

1) Several lines of evidence indeed suggest that TLC1-MS2 is not fully functional: TLC1-MS2 RNA is less abundant (Figure 1E), form less foci (Figure 2B) and is trapped in the cytoplasm for a long period after recombination (Figure 2E). Accordingly the telomeres are short in TLC1-MS2 (Figure 2—figure supplement 1) and in contrast to cells expressing TLC1-Sm2T (Seto et al., 1999), TLC1-Sm2T-MS2 cells senesce and eventually form type II survivors. Could the authors argue about this point?

2) The claim that the Mex67 effect is independent of transcription regulation seems to rely basically on the use of thiolutin as a transcription blocker in an "epistasis" type of experiment. Since it is assumed that TLC1 will get degraded in the nucleus in the mex67-5 mutant, would it be possible to inactivate either the nuclear exosome (Rrp6) or Rat1 and somehow more convincingly demonstrate that it is truly a degradation machinery that is responsible for the loss of TLC1. Alternatively the authors could try to demonstrate (through RNAPII ChIP) that transcription is not altered in the mex67-5 mutant.

3) Could the authors demonstrate that the increased "new" nuclear TLC1 in xpo1-1 mutants is decreased in a mex67-5 mutant.

https://doi.org/10.7554/eLife.60000.sa1

Author response

Essential revisions:

1) Several lines of evidence indeed suggest that TLC1-MS2 is not fully functional: TLC1-MS2 RNA is less abundant (Figure 1E), form less foci (Figure 2B) and is trapped in the cytoplasm for a long period after recombination (Figure 2E). Accordingly the telomeres are short in TLC1-MS2 (Figure 2—figure supplement 1).

This first part of point 1) questions whether tagging the TLC1 RNA leads to a loss of function. As we mentioned and now elaborate in more detail (subsection “Tracking subcellular distribution of telomerase RNA fractions”, third paragraph), the tagged RNA does accumulate to a slightly lower level than the WT. We don’t know the reason for this but wish to emphasize that the slightly lower level of the RNA does not mean loss of functionality of the telomerase RNP. We carried out extensive control experiments on this issue (all published in Gallardo et al., 2011, and Bajon et al., 2015). In all assays, we were unable to detect any loss in functionality of the RNP per se, including telomerase enzymatic activity (Gallardo et al., 2011). Therefore, we concluded in these papers before and here too that the RNP per se is active as WT, but the RNA is somewhat less abundant, explaining the slightly shorter telomeres. For this manuscript here particularly important, the nucleo-cytoplasmic partitioning of the tagged RNA is exactly the same as for WT untagged RNA (see Figure 2—figure supplement 1E).

And in contrast to cells expressing TLC1-Sm2T (Seto et al., 1999), TLC1-Sm2T-MS2 cells senesce and eventually form type II survivors. Could the authors argue about this point?

Now, this second part of point 1) is a different issue. The reason why the cells in the referenced Seto/Cech study of ‘99 look like they maintain telomeres with the tlc1-Sm2T RNA molecule is twofold:

– First, Seto/Cech use a tlc1Δ::LEU2 strain in which they express the various TLC1 alleles, including the tlc1-Sm2T allele, from a plasmid borne gene copy. It is well known that plasmid-based gene expression results in an overexpression of the gene in question. Thus, they slightly overexpress the tlc1-Sm2T allele. All our genes are expressed from the genomic locus of TLC1.

– Secondly, the strain used in the Cech study is also rad52Δ, which thus cannot bypass telomerase problems with HR mediated telomere maintenance. We observe that tlc1-Sm2T expressing strains that are RAD52wt will senesce and form survivors (see Figure 5—figure supplement 1D). Hence, the apparent difference in the results is explained by higher expression and a strong selection of viable cells in the Seto et al., 1999, experiments. We actually think, but have not tested, that expressing the tlc1-Sm2T allele from the genomic locus in a RAD52wt strain would also yield survivors.

2) The claim that the Mex67 effect is independent of transcription regulation seems to rely basically on the use of thiolutin as a transcription blocker in an "epistasis" type of experiment. Since it is assumed that TLC1 will get degraded in the nucleus in the mex67-5 mutant, would it be possible to inactivate either the nuclear exosome (Rrp6) or Rat1 and somehow more convincingly demonstrate that it is truly a degradation machinery that is responsible for the loss of TLC1. Alternatively the authors could try to demonstrate (through RNAPII ChIP) that transcription is not altered in the mex67-5 mutant.

This indeed is an important point with great suggestions for experiments, thanks a bundle for that. We actually carried out both experiments. First, the experiment with a mex67-5 rrp6Δ double mutant strain at restrictive temperature bears out precisely what the reviewer predicted, namely complete suppression of the new RNA loss phenotype in the nucleus (new Figure 4C, E and Figure 4—figure supplement 1F-H). I am still amazed of how well this worked. Secondly, we did the RNA Pol II ChIP and compared Pol II loading on TLC1 at permissive vs. restrictive temperature for the mex67-5 cells. The results show pretty much equal Pol II loading and hence again fully support the notion that transcription is not affected in this condition (new Figure 4—figure supplement 1E). Both experiments are described in the subsection “The nuclear stability of new telomerase RNA transcripts requires Mex67”. Adding these two results to our story allows us to quite confidently conclude that the disappearance of the newly transcribed TLC1 RNA molecules in the mex67-5 cells at high temperature is due to degradation and not a loss of transcription.

3) Could the authors demonstrate that the increased "new" nuclear TLC1 in xpo1-1 mutants is decreased in a mex67-5 mutant.

In essence, the question is whether the mex67-5ts is epistatic to the xpo1-1ts. After much effort and way too much time, we actually were able to generate the double mutant. In brief, the result is exactly as the reviewer suspected: the mex67-5ts xpo1-1ts strain shows the same phenotype as the mex67-5ts alone and mex67-5ts thus is epistatic to xpo1-1ts (see new Figure 4—figure supplement 2A-C; subsection “The nuclear stability of new telomerase RNA transcripts requires Mex67”).

https://doi.org/10.7554/eLife.60000.sa2

Article and author information

Author details

  1. Yulia Vasianovich

    Department of Microbiology and Infectious Diseases, Faculty of Medicine and Health Sciences, Université de Sherbrooke, Sherbrooke, Canada
    Present address
    Department of Medicine, Faculty of Medicine and Health Sciences, Research Institute of the McGill University Health Center (RI-MUHC), McGill University, Montreal, Canada
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing - original draft
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1643-794X
  2. Emmanuel Bajon

    Department of Microbiology and Infectious Diseases, Faculty of Medicine and Health Sciences, Université de Sherbrooke, Sherbrooke, Canada
    Present address
    Department of Biochemistry, Faculty of Medicine, Université de Montréal, Montreal, Canada
    Contribution
    Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1588-2953
  3. Raymund J Wellinger

    Department of Microbiology and Infectious Diseases, Faculty of Medicine and Health Sciences, Université de Sherbrooke, Sherbrooke, Canada
    Contribution
    Conceptualization, Resources, Data curation, Supervision, Funding acquisition, Project administration, Writing - review and editing
    For correspondence
    Raymund.Wellinger@Usherbrooke.ca
    Competing interests
    Reviewing editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6670-2759

Funding

Canada Research Chairs (CRC in telomere biology)

  • Raymund J Wellinger

Canadian Institutes of Health Research (FDN154315)

  • Raymund J Wellinger

Fonds de Recherche du Québec - Santé (Post-Doc Fellowship)

  • Yulia Vasianovich

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank the members of the Wellinger lab for constructive discussions and suggestions. We are very grateful to Emeline Pasquier, Gabriel St-Laurent, Erin Bonnell, Hannah Neumann, and Clara Diaz for their help with the revision experiments. We thank Pascal Chartrand, Erin Bonnell, and Emeline Pasquier for critical reading of the manuscript. We also thank Pascal Chartrand and Marlene Oeffinger labs for generously sharing xpo1-1 and mex67-5 strains. This work was supported by a grant from the Canadian Institutes of Health Research (RJW)(FDN154315); funding from the Centre de Recherche sur le Vieillissement (RJW); and a post-doctoral fellowship from the Fonds de Recherche du Quebec Santé to YV.

Senior Editor

  1. James L Manley, Columbia University, United States

Reviewing Editor

  1. Andrés Aguilera, CABIMER, Universidad de Sevilla, Spain

Reviewers

  1. Francoise Stutz, University of Geneva, Switzerland
  2. Vincent Geli, French National Centre for Scientific Research, France

Publication history

  1. Received: June 14, 2020
  2. Accepted: October 22, 2020
  3. Accepted Manuscript published: October 23, 2020 (version 1)
  4. Version of Record published: November 5, 2020 (version 2)

Copyright

© 2020, Vasianovich et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 293
    Page views
  • 64
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Chromosomes and Gene Expression
    2. Genetics and Genomics
    Fanny Eyboulet et al.
    Research Article

    Nuclear export of messenger RNAs (mRNAs) is intimately coupled to their synthesis. pre-mRNAs assemble into dynamic ribonucleoparticles as they are being transcribed, processed, and exported. The role of ubiquitylation in this process is increasingly recognized but, while a few E3 ligases have been shown to regulate nuclear export, evidence for deubiquitylases is currently lacking. Here we identified deubiquitylase Ubp15 as a regulator of nuclear export in Saccharomyces cerevisiae. Ubp15 interacts with both RNA polymerase II and the nuclear pore complex, and its deletion reverts the nuclear export defect of E3 ligase Rsp5 mutants. The deletion of UBP15 leads to hyper-ubiquitylation of the main nuclear export receptor Mex67 and affects its association with THO, a complex coupling transcription to mRNA processing and involved in the recruitment of mRNA export factors to nascent transcripts. Collectively, our data support a role for Ubp15 in coupling transcription to mRNA export.

    1. Cell Biology
    2. Chromosomes and Gene Expression
    Leah Bury et al.
    Research Article Updated

    Although originally thought to be silent chromosomal regions, centromeres are instead actively transcribed. However, the behavior and contributions of centromere-derived RNAs have remained unclear. Here, we used single-molecule fluorescence in-situ hybridization (smFISH) to detect alpha-satellite RNA transcripts in intact human cells. We find that alpha-satellite RNA-smFISH foci levels vary across cell lines and over the cell cycle, but do not remain associated with centromeres, displaying localization consistent with other long non-coding RNAs. Alpha-satellite expression occurs through RNA polymerase II-dependent transcription, but does not require established centromere or cell division components. Instead, our work implicates centromere–nucleolar interactions as repressing alpha-satellite expression. The fraction of nucleolar-localized centromeres inversely correlates with alpha-satellite transcripts levels across cell lines and transcript levels increase substantially when the nucleolus is disrupted. The control of alpha-satellite transcripts by centromere-nucleolar contacts provides a mechanism to modulate centromere transcription and chromatin dynamics across diverse cell states and conditions.
