Label-free imaging of immune cell dynamics in the living retina using adaptive optics

  1. Aby Joseph  Is a corresponding author
  2. Colin J Chu
  3. Guanping Feng
  4. Kosha Dholakia
  5. Jesse Schallek
  1. The Institute of Optics, University of Rochester, United States
  2. Translational Health Sciences, University of Bristol, United Kingdom
  3. Department of Biomedical Engineering, University of Rochester, United States
  4. Flaum Eye Institute, University of Rochester, United States
  5. Department of Neuroscience and the Del Monte Institute for Neuroscience, University of Rochester, United States
  6. Center for Visual Science, University of Rochester, United States
Research Advance
  • Cited 0
  • Views 993
  • Annotations
Cite this article as: eLife 2020;9:e60547 doi: 10.7554/eLife.60547

Abstract

Our recent work characterized the movement of single blood cells within the retinal vasculature (Joseph et al. 2019) using adaptive optics ophthalmoscopy. Here, we apply this technique to the context of acute inflammation and discover both infiltrating and tissue-resident immune cells to be visible without any labeling in the living mouse retina using near-infrared light alone. Intravital imaging of immune cells can be negatively impacted by surgical manipulation, exogenous dyes, transgenic manipulation and phototoxicity. These confounds are now overcome, using phase contrast and time-lapse videography to reveal the dynamic behavior of myeloid cells as they interact, extravasate and survey the mouse retina. Cellular motility and differential vascular responses were measured noninvasively and in vivo across hours to months at the same retinal location, from initiation to the resolution of inflammation. As comparable systems are already available for clinical research, this approach could be readily translated to human application.

Introduction

A robust and noninvasive method for directly imaging immune cells in humans has not been established, limiting our understanding of autoimmune and inflammatory disease. Immune cells typically provide weak optical contrast requiring exogenous or transgenic labeling for detection even in animal models. The eye is optimally suited to image immune responses in vivo (Rosenbaum et al., 2002). As the only transparent organ in mammals, no inflammatory surgical or environmental perturbation is required. However, aberrations of the otherwise clear optics of the eye limit achievable image resolution. We employed a custom adaptive-optics-scanning-light-ophthalmoscope (AOSLO) to image the mouse eye. By correcting for the eye’s aberrations, single-cell resolution provides detailed imaging of photoreceptors to erythrocytes (Joseph et al., 2019; Liang et al., 1997; Roorda and Duncan, 2015). Incorporating our recent advance (Guevara-Torres et al., 2020) on AOSLO phase contrast approaches (Chui et al., 2012; Scoles et al., 2014; Sulai et al., 2014; Guevara-Torres et al., 2015; Guevara-Torres et al., 2016) allowed deep tissue detection of translucent immune cells. We combined and applied these strategies and serendipitously discovered that immune cells and their dynamics could be imaged without labeling using 796 nm near-infrared light, to which the eye is less sensitive, and at far lower levels (200–500 µW) than multiphoton systems, which can be phototoxic (Galli et al., 2014). This new approach builds on our ability to quantify single-cell blood flow in vessels (Joseph et al., 2019) revealing the dynamic interplay of blood flow and single immune cells in response to inflammation in the living eye. Our approach is in a similar power range to those already employed safely in human AOSLO studies, where phase contrast approaches have also been used to study other retinal cell types (Scoles et al., 2014; Rossi et al., 2017). This speaks to the feasibility of translating this technique to the clinic.

Results

To model an immune response, ocular injection of lipopolysaccharide (LPS) was used to provide an acute but self-resolving inflammatory stimulus: endotoxin induced uveitis (EIU) (Chu et al., 2016). Potential immune cells were observed adjacent to retinal veins only after image registration, frame averaging and time-lapse imaging (Figure 1A, Video 1). Membrane remodeling, pseudopodia formation and motility (consistent with immune cell structure and function) were visible, distinct from static neurons or macroglia (Figure 1B and Video 2). Within post-capillary venules, leukocyte rolling, crawling, and trans-endothelial migration behaviors were detectable (Figure 1C, Videos 3 and 4). Heterogeneity in cell distribution, size and morphology was imaged with multiple cell types in different stages of interaction (Figure 1D).

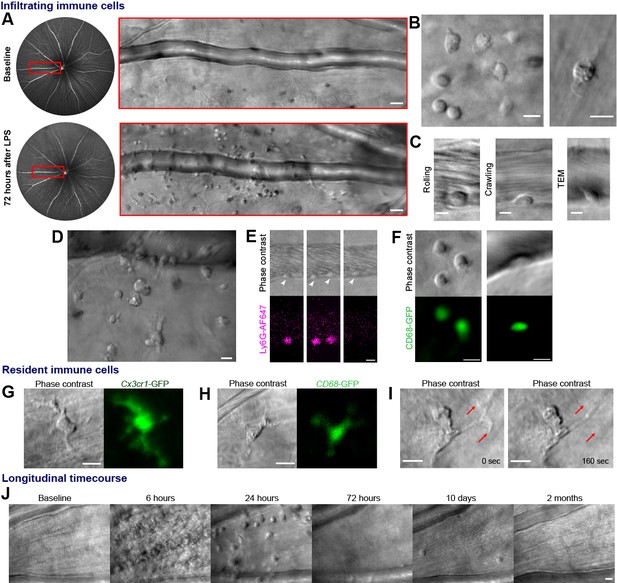

Figure 1 with 1 supplement see all
Label-free adaptive optics imaging of infiltrating and tissue resident immune cells in the retina.

(A) Widefield image showing venule baseline and 72 hr after LPS injection. AOSLO montage (red rectangle) detects dispersed immune cells. (B) Detail of heterogeneous immune cells. (C) Intravascular trans-endothelial migration (TEM) stages are visible. (D) Field adjacent to vein 72 hr after LPS. (E) Simultaneous phase-contrast and anti-Ly6G fluorescence reveals leukocyte rolling (arrowheads) and (F) CD68-GFP reporter shows extravascular and intravascular cells. (G) Representative examples of tissue-resident myeloid cells from Cx3cr1-GFP and (H), CD68-GFP reporter mice showing colocalization of fluorescence with label-free cells. (I) Phase-contrast image of process remodeling. (J) Longitudinal imaging (hours-to-months) at same location following LPS injection. Scale bars = 10 µm, except in A = 50 µm. Representative images from cohort of eleven (A to D, J) and three C57BL/6J mice (E), three CD68-GFP mice (F and H) and four Cx3cr1-GFP mice (G and I).

Video 1
Demonstration of image post-processing.

(a) Raw adaptive optics scanning light ophthalmoscope (AOSLO) corrected 796 nm phase contrast imaging of C57BL/6J mouse retina. Real-time video obtained at 25 fps acquisition (labelled ‘raw acquisition’) demonstrating movement from respiration and cardiac motion. Image following custom frame-registration. Application of 25 frame temporal averaging and accelerated time-lapse (labelled ‘frame averaging’). Top row, cluster of infiltrated immune cells 6 hr post-LPS. Bottom row, tissue resident cell in healthy retina adjacent to a retinal capillary. Scale bars = 10 μm.

Video 2
Label-free AOSLO time-lapse video demonstrating heterogenous immune cell populations and motility.

Two magnified locations from Figure 1b showing 796 nm phase contrast video acquired at 25 frames/second from two C57BL/6J mouse retinas 24 hr post-LPS injection. The second segment of the video is a full 4.98-degree AOSLO field at a retinal vein 48 hr after LPS injection, revealing a diversity of cell morphologies and motility patterns. Videos have undergone post-processing as described, 25–50 frame temporal averaging. Scale bars = 10 μm.

Video 3
Leukocyte rolling and crawling in an inflamed retinal post-capillary venule.

796 nm phase contrast AOSLO images taken at 6 hr post-LPS injection with 25 frame temporal averaging. Descriptive overlays provided. Scale bar = 10 μm.

Video 4
Examples of diverse immune cell behaviour observable by AOSLO phase contrast imaging.

796 nm reflectance AOSLO images at 6 or 24 hr post-LPS using between 5 to 50 frame averaging. Examples include post-capillary venule leukocyte rolling, transendothelial migration and perivascular leukocyte accumulation, venous leukocyte rolling and crawling with and against blood flow direction, mid tissue infiltrating leukocyte swarming, perivascular cell process contact with intravascular cell and cell migration toward lumen of retinal vein. Scale bars = 10 μm.

We verified these cells comprised neutrophil and monocyte populations by fluorescent marker co-localization. Simultaneous phase contrast and confocal fluorescence AOSLO revealed most leukocytes rolling along venular endothelium were neutrophils using intravenous anti-Ly6G fluorescent antibody labeling, although the proportion may be higher as only 10% of circulating leukocytes may be labeled using this method (Bucher et al., 2015; Figure 1E, Video 5). Conversely, CD68GFP/+ mice distinguished a population of cells were infiltrating monocytes and macrophages present both in vessels and extravasated into retinal tissue (Figure 1F). More cells were visible using phase contrast than by fluorescence labeling, demonstrating its utility for comprehensively detecting diverse and mixed cellular populations. Tissue resident myeloid cells were also visible by AOSLO phase contrast even in healthy eyes without LPS injection. These were confirmed as microglia or hyalocytes by colocalization of Cx3cr1GFP/+ and CD68GFP/+ fluorescence (Figure 1G–I; Lazarus, 1994). Phase contrast even revealed subcellular features, including structures that could represent internal processes such as endosomes (Figure 1H, Video 6; Uderhardt et al., 2019).

Video 5
Neutrophil endothelial rolling within a post-capillary venule confirmed using fluorescent labeling with anti-Ly6G antibody.

Representative example of retinal vein imaged six hours post LPS injection. Simultaneous aligned acquisition of 796 nm phase contrast (top panel) and anti-Ly6G conjugated AlexaFluor 647 (positively labeling neutrophils in bottom panel) using confocal AOSLO fluorescence. Scale bar = 10 μm.

Video 6
Cx3cr1-GFP+ tissue resident cell with motile processes.

Simultaneous aligned acquisition of 796 nm phase contrast (left panel) and GFP fluorescence (right panel) in healthy retina from Cx3cr1GFP/+ reporter mouse. Second section demonstrates process retraction in tissue resident myeloid cell. Third section illustrates diversity of morphology observed. Forth section highlights visible subcellular features in this population. Scale bar = 10 μm.

As our approach is uniquely non-invasive, repeated imaging at the same tissue location permits longitudinal study throughout the initiation, peak and resolution of an immune response across hours to months within individual eyes (Figure 1J, Video 7). To quantify immune cell behaviour in these studies, we had to distinguish immune cells from surrounding tissue by using semi-automated deep learning strategy (Falk et al., 2019). This correlated well with counts made by masked human observers (R2 = 0.99, p=0.004, Video 8 (final segment)).

Video 7
Repeated longitudinal imaging of the same retinal location from initial inflammation to resolution.

Representative recordings from one C57BL/6J mouse eye at the same anatomical location in the retina, identifiable by peripapillary location and capillary and vascular landmarks. Recorded prior to and 6, 24, 72 hr, 10 days and 2 months following a single LPS injection. Scale bar = 10 μm.

Video 8
U-Net cell tracking trace example.

Recording from C57BL/6J mouse retina at 6 hr post-LPS injection. Whole field imaged and quantified is shown on the left side. Magnification of one representative cell on the right. Scale bar = 16 μm. Trace is marked with an overlaid magenta line. Second section shows validation of U-Net cell count results against masked human observers across time demonstrating significant correlation.

Immune cell metrics were quantified in six mice over five timepoints following LPS injection (Figure 2A–C). Compared to baseline (28.9 ± 34.1 cells/mm2, Mean ± SD) a seven-fold influx of cells was detected by 6 hr post-injection (208.3 ± 108.6 cells/mm2) rising to over an 18-fold increase by 24 hr (510.4 ± 441 cells/mm2) before returning toward baseline at 72 hr (59.0 ± 27.8 cells/mm2) and 10 days (69.4 ± 41.7 cells/mm2). AOSLO also allowed cell motility quantification with maximum cell displacement observed at 6 hr (16.1 ± 9.9 µm, n = 12 cells). Despite peak infiltration at 24 hr, motility was greatly reduced (4.6 ± 4.3 µm, n = 58 cells), best appreciable by longitudinal imaging, consistent with Resolvin-mediated suppression of chemotaxis (Schwab et al., 2007).

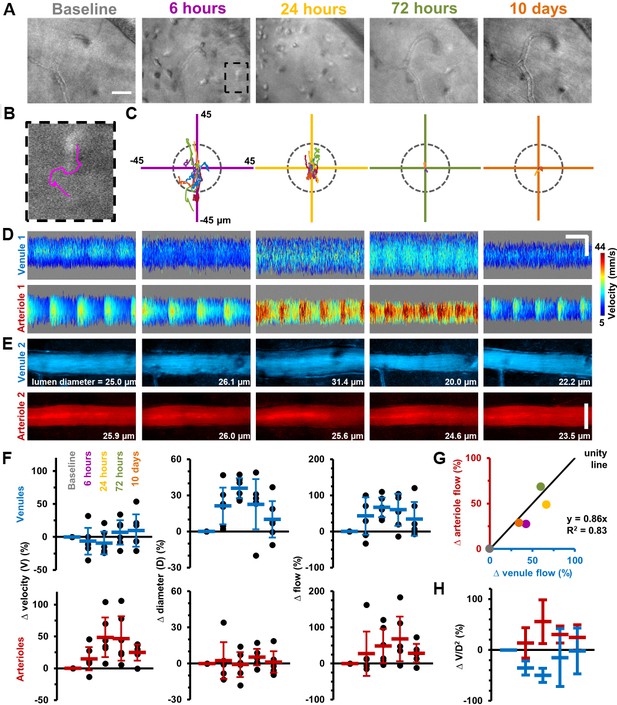

Figure 2 with 1 supplement see all
Longitudinal non-invasive measurement of combined immune cell dynamics and vascular flow.

Measurements of neighbouring venules, arterioles and connecting parenchyma in six C57BL/6J mice given EIU. (A) AOSLO phase-contrast images of same region across five timepoints relative to LPS injection, in a representative mouse. Scale bar = 30 µm. (B) Magnified image of one cell (marked overlay) with tracked trace (100 s). (C) Cell displacements for total cohort at indicated timepoints, in six mice. Displacement traces normalized to each cell starting position. Grey dashes indicate radius of typical cell size (13 µm). (D) Space-time images with overlaid single-cell blood velocity, in a representative mouse. Arteriolar velocity increases then resolves. Scale bars = 200 ms horizontal, 30 µm vertical. (E) Vessel diameter visualized in motion-contrast images of venules (blue) and arterioles (red), in a representative mouse. Venule diameter dilates then resolves. Scale bar = 30 µm. (F) Population values of RBC velocity change relative to baseline, lumen diameter and flow rate for venules and arterioles, in six mice. Vein diameter (p=0.008) and artery velocity (p=0.036) exhibit significant changes across time (Friedman test, n = 6 mice). Mean+ SD shown. (G) Correlation of change in flow between arterioles and venules (colors correspond to timepoints in A), in six mice. (H) Change in ratio V/D2, plotted across timepoints from F (V = velocity, D = diameter), in six mice (mean ±1 SD). Flow-rate is proportional to the product V*D2. Since V and D were independently measured, and since change in flow in arterioles and venules was found to be conserved in G, plotting the ratio of the two shows the relative contributions of each independent variable to the change in flow, in arterioles and venules. This in effect shows the functionally opposing behaviours of the two vessel types in response to inflammation.

As retinal tissue is not depressurized by this intravital system, true vascular alterations arising from inflammation can be isolated and correlated to simultaneous immune cell measurements. Adapting our recent work (Joseph et al., 2019), red blood cell (RBC) velocimetry, vessel dilation and flow-rate changes were quantified in this same cohort of mice (Figure 2D–H). AOSLO revealed micron-level vascular dilations and heterogeneous changes in blood flow in arterioles and venules in response to LPS. Total blood flow increased in the retinal circulation, yet elevated flow in arterioles and venules was achieved in fundamentally different ways. Venules dilated on average 36% (±8%) at 24 hr post-LPS injection facilitating a total flow increase of 67% (±27%) relative to baseline. Conversely, arterioles also showed a total flow increase, however with minimal dilation and a dramatic elevation in RBC velocity (48% (±31%) increase in arteriole RBC velocity at 24 hr) (Figure 2D–F). Despite these different mechanisms, conservation of flow was confirmed as arterioles and venules showed correlated changes in flow over time (R2 = 0.83, for linear-fit, Figure 2G–H). Velocity, dilation and flow began resolution toward baseline levels by 10 days post-injection.

Thus, we found that arterioles and venules have functionally opposing behaviors when it comes to modulating volumetric blood flow in inflammation, via opposing changes in lumen diameter and blood velocity. Venules modulate blood flow primarily by changing their diameter while arterioles respond primarily not by a change in diameter but by showing increased blood velocity (Figure 2H). In our current study, by measuring both blood velocity and lumen diameter, which gives us total flow rate (Figure 2F), we build on previous reports that found venular widening in association with inflammation (using diameter measurements alone, and using fundus photography) (Sun et al., 2009). However, diameter measurements alone would not have given a complete picture of volumetric blood flow rate and would have missed the functionally opposing behaviours of arterioles and venules shown in Figure 2H. In summary, our single-cell velocimetry combined with AO-resolution diameter measurements adds to our understanding of hemodynamic control in response to inflammation, achieved by applying our recently developed blood flow measurement tool (Joseph et al., 2019).

Discussion

This study advances our understanding of the immune response by imaging both the nuanced differences of vascular perfusion with the first detailed imaging of single immune cell activity imaged without labels. Unlike other approaches, inflammatory surgery is not required; the label-free feature avoids confounds from exogenous fluorescent dyes, gene haplo-insufficiency from transgenic labels and using near-infrared light avoids significant phototoxicity inherent to multiphoton platforms (Galli et al., 2014; You et al., 2018). This therefore provides the closest fidelity conditions to an unperturbed biological system achievable, which is critical particularly in the context of immune cell behaviours. These advantages are greatest in relation to human translation, where exogenous manipulation and tissue biopsy are often prohibitive. Correlative study using mice to understand AOSLO phase contrast cell morphologies would be highly informative, but there are labeling limitations even in murine systems, and it is rarely possible to label more than three markers simultaneously in vivo. This means populations not already known can be missed, whereas by phase contrast AOSLO any cell causing reasonable scatter of light could be detected, ensuring a more comprehensive characterization of true tissue infiltration.

Our choice of imaging wavelength (796 nm) provided minimal phototoxicity, greater theoretical penetration through the eye’s anterior optics and minimal absorption in the retina without scatter typical of short visible wavelengths. Furthermore, we have previously published a detailed wave-optics simulation to determine the source of contrast in our imaging modality (Guevara-Torres et al., 2020), where we found that the combination of this wavelength and other imaging parameters rendered imaging contrast to translucent cells.

Perivascular imaging of immune cells with AOSLO appeared to capture transendothelial migration (TEM). The axial resolution of our system (<16 µm) and known diameters of mouse retinal veins (30–50 µm) (Joseph et al., 2019) demonstrates vessel bisection in the majority of images, rather than cells residing above or below the focal plane of imaging. Furthermore, parallel orientation and motility of cells as they interact with the vascular wall would indicate that they are meeting mechanical resistance as they pass through the vascular wall. Figure 1—figure supplement 1, second-half of Video 2 and Video 4 show that dynamic and motile cells often pause and slow as they meet the vascular barrier; a finding consistent with diapedesis as seen in transendothelial migration. Such behaviors would not be expected if cells were moving above or below the vessel, nor would they be optically visible due to the imaging constraints of the system axial resolution described above.

Consistent with all AOSLO approaches, in our approach, relatively clear optical media is required and severe cataract or vitritis during peak inflammation can limit successful imaging. In our study, this affected 25% of the eyes given EIU. A further limitation is that deeper retinal structures are not as well visualized due to the nature of contrast (Guevara-Torres et al., 2020). Moreover, the choroid, which is often involved in ocular inflammation, is challenging to image due to the scatter and absorption of the RPE. Nevertheless, our approach here on inner retinal pathology likely extends deep within the retina as work by Scoles et al., 2017 with a similar detection strategy, has identified a putative macrophage by morphology and motility, deep in the retina of a retinal dystrophy patient. This suggests deeper retinal imaging of immune cells could be possible with further study and refinement. Our work reinforces this exciting finding as we now demonstrate, with transgenic markers in the mouse, that tissue immune cells are reliably detectable by label-free phase-contrast AOSLO.

There are numerous benefits if this approach can be applied to the human eye. Retinal diseases could be characterized for contributions by immune cells for the first time at a quantitative single-cell basis, which has the potential to redefine their clinical status and classification. Active retinal inflammation can only be assessed currently using surrogate biomarkers such as macular edema, vascular involvement or subjective detection of overspill of infiltrating cells into the vitreous cavity. By providing a direct method to diagnose the presence of active immune cells, more accurate diagnosis and differentiation from clinically challenging masquerade entities such as ocular lymphoma would be of great benefit. Finally, accurate monitoring of cellular infiltration to detect early response to treatment could avoid the use of excessive or ineffective therapy in patients with uveitis, yet alone support the screening of novel agents in clinical trials. Furthermore, this could allow study of the many systemic diseases and infections that manifest in the eye. By providing this proof of concept, as AOSLO systems are already available for clinical research, the approach stands to be rapidly tested for translation to human application. Our approach is in a similar power range to those already employed safely in human AOSLO studies, where phase contrast approaches have also been used to study photoreceptors and other retinal cells using a similar light source and wavelength (Scoles et al., 2014; Rossi et al., 2017). This speaks to the feasibility of translating this technique to the clinic. While some studies Rossi et al., 2017 have used up to ~280 µW of NIR light, other studies Liu et al., 2017 have used 115–130 µW of NIR light.

We also recognize the following challenges to translating our approach to use in human beings. The larger eye motion of the human eye without anesthesia will include saccades and drift that may impact image registration critical for stable time-lapse videography. Nevertheless, only a single image is required over any sparse time interval and therefore may be more lenient to this challenge. The investigation is rate-limited by the biology of immune cell dynamics, as most cells move relatively slowly, so will require patient cooperation over extended periods of imaging time. As we demonstrate, however, that single-cell surveillance can be observed over minutes, the approach would be feasible in a single imaging session, and thus still shorter than comparable tests in the clinic such as electroretinography. Next, on the imaging side, there will be ~4 times reduced axial imaging resolution in the human eye compared to the mouse eye due to the ~2 times smaller numerical aperture (Geng et al., 2012). This may impact the axial specificity or contrast of the single immune cell dynamics visualized in humans. However, other translucent cell types have been successfully imaged using human AOSLO (Chui et al., 2012; Scoles et al., 2014; Sulai et al., 2014; Rossi et al., 2017; Scoles et al., 2017), holding promise that our approach presented here can be translated to humans.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
Strain, strain background (M. musculus, males)Wildtype C57BL/6J miceThe Jackson LaboratoryRRID:IMSR_JAX:000664, JAX Stock number 000664six to 12 weeks old
Strain, strain background (M. musculus, males)Cx3cr1-GFP Cx3cr1tm1Litthemizygous miceThe Jackson LaboratoryRRID:IMSR_JAX:005582, JAX Stock number 005582six to 8 months old
Strain, strain background (M. musculus, males)Tg(CD68-EGFP)1Drg hemizygous miceThe Jackson LaboratoryRRID:IMSR_JAX:026827, JAX Stock number 026827six to 12 weeks old
AntibodyAlexa Fluor 647 anti-mouse Ly-6G antibody (1A8 clone)
for labeling (Mouse monoclonal)
BioLegendCatalogue number: 1276102 µg total prepared in 100 µl PBS

Mouse strains

Request a detailed protocol

All mice were sourced from The Jackson Laboratory (Bar Harbor, Maine, USA) and maintained at the University of Rochester in compliance with all guidelines from the University Committee on Animal Resources and according to the Association for Research in Vision and Ophthalmology statement for the Use of Animals in Ophthalmic and Vision Research. Mice were fed with standard laboratory chow ad libitum and housed under a 12 hr light-dark cycle. The following numbers, types, sex and ages of mice were used: Six C57BL/6J mice (JAX stock number 000664, males, 6–12 weeks old) were analyzed for longitudinal study of immune cell motility and blood flow after induction of EIU with LPS (Figure 2). A seventh mouse was rejected from analysis due to anterior media opacities arising from EIU, at peak inflammation, as determined by expert users. Three C57BL/6J mice (males, 6–12 weeks old) were used for Ly6G antibody labeling (Figure 1E). Three hCD68-GFP mice (stock number 026827, males, 6–12 weeks old) were used for positive confirmation of fluorescent infiltrating monocytes and macrophages (Figure 1F and H). Four Cx3cr1-GFP hemizygotes (stock number 005582, males, 6–8 months old) were used for positive confirmation of fluorescent tissue-resident myeloid cells (Figure 1G and I). Further details are included in the transparent reporting form published.

Mouse preparation for imaging

Request a detailed protocol

Mice underwent anesthetic induction with intraperitoneal Ketamine (100 mg/kg) and Xylazine (10 mg/kg) before maintenance on 1% v/v isofluorane and supplemental oxygen through a nose cone. Pupils were dilated with a single drop of 1% tropicamide and 2.5% phenylephrine (Akorn, Lake Forest, IL). Internal temperature was controlled using an external heating pad adjusted to maintain continuous 37°C with monitoring via a rectal probe electrical thermometer (Physiosuite, Kent). A custom rigid contact lens of 1.6 mm base curve, 3 mm diameter and +10 Dioptre correction (Advanced Vision Technologies, Lakewood, Colorado) was placed centrally on the cornea and lubrication of the eye maintained by aqueous lubricant (GenTeal, Alcon Laboratories, Fort Worth, TX) during imaging. The eye was imaged in free space meaning there was no physical contact with the AOSLO, ensuring no compression causing alteration of intraocular pressure.

Endotoxin-induced uveitis model

Request a detailed protocol

Following anesthesia, intravitreal injection with a 34-gauge Hamilton microsyringe through the pars plana was used to deliver 0.5 ng of lipopolysaccharide (LPS) from E. coli 055:B5 (Sigma) in a 1 µL volume of phosphate buffered saline (PBS) (Chu et al., 2016). Only one eye of each mouse was injected and used for the study.

Intravenous antibody labeling

Request a detailed protocol

2 µg of primary conjugated anti-mouse Ly6G-Alexa Fluor 647 (clone 1A8, Biolegend) diluted into 200 µl PBS were injected intravenously via tail vein 10 mins prior to imaging as previously published (Marki et al., 2018; Woodfin et al., 2011).

AOSLO imaging

Request a detailed protocol

Mice were imaged with a custom adaptive optics scanning light ophthalmoscope (AOSLO), using near-infrared light (796∆17 nm, 200–500 µW, super luminescent diode: S790-G-I-15, Superlum, Ireland) (Joseph et al., 2019; Geng et al., 2012). The measured imaging spatial resolution was: lateral: 0.77 µm for 520 nm fluorescence and 1.2 µm for 796 nm reflectance (Joseph et al., 2019; Geng et al., 2012). Similarly, the confocal axial resolution was 10.5 µm for 520 nm fluorescence. For phase-contrast imaging, the axial depth of focus is narrow in the mouse (numerical aperture = 0.49) and provides optimal contrast in a thin optical section less than the diameter of most retinal cell types as described by us previously (Guevara-Torres et al., 2020). Given this numerical aperture, nearly 50 diopters of focus covers the mouse retina meaning that cells outside the plane of optimal focus will be rendered invisible due to defocus blur. Phase-contrast imaging referred to in the context of this paper, was achieved by purposefully displacing the detector axially to a plane conjugate to the highly reflective RPE/choroid complex, to enable detection of forward and multiply scattered light from translucent cells, as detailed in our recent publication (Guevara-Torres et al., 2020). In a subset of experiments for confirmation of immune cell types, fluorescence was simultaneously imaged using 488 nm excitation (220-330 µW) and 520Δ35 emission for GFP, and 640 nm excitation and 676Δ29 emission for Alexa Fluor 647 (excitation laser diode: iChrome MLE, Toptica Photonics, Farmington, New York, USA; emission filters: FF01-520/35-25 and FF01-676/29-25, Semrock, Rochester, New York, USA). For AOSLO data acquisition and electronics control, we implemented a Xilinx ML605 Virtex-6 based FPGA circuit board (Xilinx Inc, San Jose, CA) integrated with two Analog Device EVAL-AD9984AEBZ circuit boards (Analog Device Inc, Cambridge, MA) for up to six channels of data acquisition from the AOSLO; two imaging channels were used for this study. Mice also underwent imaging with HRA+OCT Spectralis (Heidelberg Engineering, Germany). Reversible severe vitritis or cataract precluding AOSLO imaging occurred at a peak inflammation timepoint in 25% of eyes induced with EIU in our work.

For simultaneous fluorescence and NIR phase-contrast imaging we corrected for LCA using independent focusing of the different imaging channels (Geng et al., 2012). A calibration mouse was used with fluorescein labelled blood plasma to align the visible and NIR channels to the same anatomical locations/focal planes (Joseph et al., 2019). TCA too was corrected online using small shifts of the entrance pupil, and offline during registration (Granger et al., 2018).

Aberration measurement and correction with adaptive optics

Request a detailed protocol

Aberrations in the mouse eye were measured and corrected with a closed-loop adaptive optics system operating at 13 corrections per second, built at the University of Rochester and described previously (Joseph et al., 2019; Geng et al., 2012). Aberrations were measured with a Hartmann-Shack wavefront sensor using a 904 nm wavefront beacon (QFLD-905–10S, QPhotonics, Ann Arbor, Michigan, USA) imaged onto the retina. Aberration correction was achieved with a continuous membrane deformable mirror with 97 actuators (DM-97–15, ALPAO, France).

Imaging videography

Request a detailed protocol

The AOSLO is a raster-scanning instrument with a resonant scanner frequency of 15 kHz and 25 Hz orthogonal scanning rendering the retina at 25 frames per second. Point scanning readout was achieved by two photomultiplier tubes (PMTs) for visible and near infrared wavelengths (H7422–40 and H7422–50, Hamamatsu, Japan). Frame size was 608 by 480 pixels and the image distortion introduced by sinusoidal scanning was corrected in real-time (Yang et al., 2015). Field sizes were between 2 and 5 degrees of visual angle corresponding to 68–170 microns in retinal space. Typical imaging sessions lasted ~2 hr and semi-continuous video acquisition of a target retinal location was conducted for up to 30 min. AOSLO retinal data was visualized in real-time to facilitate user tracking, correction and optimization and saved for subsequent post-processing.

Image registration and time-lapse analysis

Request a detailed protocol

To correct for residual motion of the eye, image registration was performed with custom software (Yang et al., 2015; Dubra and Harvey, 2010). Time-lapse videos were generated using running frame-averaging of 25–50 frames (from 25 Hz native frame rate of AOSLO) with ImageJ and Fiji (National Institutes of Health, USA) (Schindelin et al., 2012). Montaging multiple fields in Figure 1a was performed by stitching and blending overlapping 4.98 degree fields manually using Adobe Photoshop (Version: CS6 Extended v13.0.1 × 64).

Statistical analysis

Request a detailed protocol

Pearson correlation and Freidman tests were performed using Prism 7.0 (GraphPad Software) and linear curve-fitting in MATLAB 2020a, version 9.8.0.

Cell migration measurement

Request a detailed protocol

Retinal locations were imaged for 100 s for six mice at five timepoints (baseline, 6, 24, 72 hr and 10 days post LPS injection). Sixty AOSLO phase-contrast videos were used to analyse the migration of extravasated cells. Registered videos were pre-processed by cropping to 512 × 400 pixels and temporally averaged with five frames. A customized semi-automated deep-learning based cell tracking software was employed to track and quantify the migration behavior of cells. The software consisted of a deep learning-based cell detector with an encoder-decoder U-Net backbone architecture (Falk et al., 2019; Tsai et al., 2019). The U-Net was trained on phase-contrast AOSLO images with the centroids of 387 cells manually identified by expert graders obtained from four mice at either 6 or 24 hr post LPS injection. Immune cell data from mice imaged for training were excluded from the final analysis of the results in this paper. The trained U-Net outputs a probability map for each frame of a video that was thresholded (>=90%) to identify the centroids of cells. The cell counts of a video were calculated by averaging the number of detected objects in the first 25 frames (5 s). To track the cells, centroid positions detected by the U-Net in adjacent frames were linked with a nearest neighbor search algorithm (Tsai et al., 2019). The deep learning strategy facilitated tracking of a large number of cells across multiple frames captured at different time points across inflammation. Once the heavy burden of tracking this population over a large data set was complete, a human user provided quality control of the automated outputted traces to confirm tracking fidelity. Traces due to incorrect linkage (for example, a single trace that falsely jumped between two adjacent cells) were manually rejected based on visual inspection (Figure 2b, Video 8). To quantify cell migration, two quantities were extracted from the traces: 1. cell displacement which is defined as the displacement of a cell over 100 s. 2. confinement ratio which is defined as the ratio of cell displacement and the total path length over 100 s. Traces in Figure 2c indicate the total positional movement and direction of movement relative to cell position in the first second of data collection. The U-Net based cell detection was performed with Python 3.7 and PyTorch 1.0.1, while the tracking and quantification procedures were based on MATLAB.

Blood flow measurement

Request a detailed protocol

Single cell blood flow was imaged and measured with near infrared light using our recently published approach (Joseph et al., 2019), for the same six mice and five timepoints as above, in an arteriole and venule surrounding the tissue location at which the cell migration measurements above were done. Briefly, a fast 15 kHz beam (796∆17 nm) was scanned across a vessel of interest to image passing blood cells without requiring contrast agent. Cellular-scale blood velocity and vessel diameter were quantified automatically. Given the small size of even the largest mouse retinal vessels (<45 µm inner diameter in healthy mice), the spatial resolution of our approach accurately measured the inner lumen diameter with micrometer precision, accounting for vessel tortuosity, vascular wall thickness and cell-free plasma layer. Additionally, the temporal resolution of the velocity detection approach was more than sufficient to measure and account for cardiac pulsatility in flow, as demonstrated previously. This ensured accurate measurement of the average blood velocity through the vessel. Combined, the volumetric flow rate through the vessel was quantified label-free. The non-invasive approach enabled us to track blood flow longitudinally from hours to weeks over the course of inflammation without requiring invasive injections or euthanasia after a single timepoint was imaged.

Code and data availability statement

Request a detailed protocol

Single-cell blood flow was measured using our recently published approach (Joseph et al., 2019), with custom code written in MATLAB R2017a (Version 9.2, with Image Processing Toolbox, MathWorks, MA). Source code is available in public repository here: Joseph, 2020 https://github.com/abyjoseph1991/single_cell_blood_flow (copy archived at https://github.com/elifesciences-publications/single_cell_blood_flow_2). AOSLO dataset has been made available at a public repository here: https://doi.org/10.5281/zenodo.2658767.

References

  1. 1
  2. 2
  3. 3
  4. 4
    Registration of 2D Images from Fast Scanning Ophthalmic Instruments
    1. A Dubra
    2. Z Harvey
    (2010)
    In: B. M Dawant, G. E Christensen, C. J Michael, D. F Rueckert, editors. Biomedical Image Registration, Lecture Notes in Computer Science. Heidelberg, Berlin: Springer. pp. 60–71.
    https://doi.org/10.1007/978-3-642-31340-0
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31

Decision letter

  1. Anna Akhmanova
    Senior Editor; Utrecht University, Netherlands
  2. Johnny Tam
    Reviewing Editor; NIH, United States
  3. Johnny Tam
    Reviewer; NIH, United States
  4. Timothy Secomb
    Reviewer; The University of Arizona, United States
  5. Tyson Kim
    Reviewer

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The authors present a novel adaptive optics-based method to visualize the motion of immune cells in the mouse retinal circulation without cell labeling. This simultaneous non-invasive imaging of blood flow and immune cells opens up new possibilities for investigating the role of the vasculature in inflammation and immune responses.

Decision letter after peer review:

Thank you for submitting your article "Label-free imaging of immune cell dynamics in the living retina using adaptive optics" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Johnny Tam as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Anna Akhmanova as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Timothy Secomb (Reviewer #2); Tyson Kim (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, we are asking editors to accept without delay manuscripts, like yours, that they judge can stand as eLife papers without additional data, even if they feel that they would make the manuscript stronger. Thus the revisions requested below only address clarity and presentation.

The reviewers raised some specific and useful suggestions. I have combined them into a single review below to help improve the clarity and presentation of the work.

Summary:

Building upon their prior eLife article, the authors have extended their approach to image immune cells that are most easily seen in an endotoxin-induced mouse model of uveitis. The authors present a novel approach to directly image the motion of immune cells in the mouse retinal circulation, without the use of dyes or contrast agents. The ability to carry out longitudinal non-invasive imaging alongside confirmatory experiments with fluorescently-tagged cells is compelling. This simultaneous non-invasive imaging of blood flow and immune cells in the mouse retinal circulation opens up new possibilities for investigating the role of the vasculature in inflammation and immune responses. The work is clearly and concisely presented.

Essential revisions:

1) The novelty and impact of this manuscript is based on the specific implementation and potential for human application. The authors allude to human imaging in the Introduction and Conclusion, and often describe their work in a broader context of ocular imaging. However, there is currently inadequate description of relevance and consideration for human use. The authors should include a robust description of potential human applications and limitations in the Discussion section of the manuscript. This imaging method may provide an exquisite level of quantitative assessment in retinitis, uveitis, and ocular lymphoma. It may also offer immune surveillance in a number of systemic diseases.

2) In order to better understand the variation in cells observed both across difference mice as well as in different areas within an eye, it is suggested to clarify whether any variability was observed across the different mouse eyes, and if available, across the different areas imaged in the eye. For example, in Figure 1, it's not clear if this impressive degree of cells is observed on the other veins too. Clarifying the variability would be extremely helpful for documenting how representative this data is for the purposes of maximizing repeatability. In the eLife transparent reporting form, specifying the number/type of each mice used for each experiment in addition to the measurement replication and technical replicates would be useful.

3) It's possible that not all cells are fluorescently tagged (especially in the case of the Ly6G-Alexa Fluor 647 tail vein injection). Presumably, only those cells that are in the proximity of the injection bolus will be efficiently labeled. This should be clarified in the manuscript.

4) Can the authors say anything about why microscopy at this particular wavelength shows up the immune cells?

5) The authors should comment on the ability/inability to image deeper structure including the subretinal space and choroid, which are highly involved in many immune-mediated pathologies of the eye.

6) How might this imaging method perform with vitritis and media opacity, which are often important features of uveitis? It would be valuable to describe or show data on the performance of this imaging approach with media opacity (vitritis, cataract).

7) The authors perform imaging with near infrared light (796nm) at power levels of 200-500 microwatts. Given the implications for human application and the broad readership of eLife, the authors should comment on prospective safety in human application, such as for the power levels of near infrared light (796 nm, 200-500 microwatts).

https://doi.org/10.7554/eLife.60547.sa1

Author response

Essential revisions:

1) The novelty and impact of this manuscript is based on the specific implementation and potential for human application. The authors allude to human imaging in the Introduction and Conclusion, and often describe their work in a broader context of ocular imaging. However, there is currently inadequate description of relevance and consideration for human use. The authors should include a robust description of potential human applications and limitations in the Discussion section of the manuscript. This imaging method may provide an exquisite level of quantitative assessment in retinitis, uveitis, and ocular lymphoma. It may also offer immune surveillance in a number of systemic diseases.

We agree with the idea that there is tremendous clinical potential and we are grateful for the encouragement to highlight this exciting future prospect. We have expanded the Discussion for a more robust description of human applications and limitations.

There are numerous benefits if this approach can be applied to the human eye. […] However, other translucent cell types have been successfully imaged using human AOSLO (Rossi et al., 2017, Chui et al., 2012, Scoles et al., 2014, Scoles et al., 2017), holding promise that our approach presented here can be translated to man.”

As addressed in revisions above, we agree that there is great interest in human application. However, we would also highlight that the novelty and impact of this work is applicable to visualizing CNS immune cells in one of the most widely used models in biomedical science to date, the mouse. We feel the readership will also appreciate that this approach facilitates a far wider range of science applications than only the clinically translational potential.

2) In order to better understand the variation in cells observed both across difference mice as well as in different areas within an eye, it is suggested to clarify whether any variability was observed across the different mouse eyes, and if available, across the different areas imaged in the eye. For example, in Figure 1, it's not clear if this impressive degree of cells is observed on the other veins too. Clarifying the variability would be extremely helpful for documenting how representative this data is for the purposes of maximizing repeatability. In the eLife transparent reporting form, specifying the number/type of each mice used for each experiment in addition to the measurement replication and technical replicates would be useful.

For demonstration and brevity, we had originally placed only a few visual examples of venous infiltrating cells (Figure 1). However, we agree that the argument is more compelling with multiple examples. Therefore, we provide a new supplementary figure (Figure 2—figure supplement 1): a catalog of infiltrating cells of six mice in veins on both sides of the optic disc.

Furthermore, like most retinal insults or chronic disease, the manifestation of the disease phenotype is geographic. Variation exists between veins of the same eye and within eyes from different mice (inter and intraocular variation). The variation could be accounted for by known variability of the EIU model and biological response (Chu et al., 2016). While this variation may initially appear to reduce “repeatability”, we contend that the power of our approach is this very ability to focus in on a single retinal location and track it longitudinally without surgery or histology, to provide an internal control. This is the basis of our data in Figures 1 and 2 of the paper and is perhaps the greatest testament to reducing experimental variability within cohorts, post-mortem artifact, and the aforementioned phenotype variability that is present in most retinal disease.

To the reviewers’ further comments, the Materials and methods section has been updated:

“The following numbers, types, sex and ages of mice were used: Six C57BL/6J mice (JAX stock number 000664, males, 6-12 weeks old) were analyzed for longitudinal study of immune cell motility and blood flow after induction of EIU with LPS (Figure 2). […] Four Cx3cr1-GFP hemizygotes (stock number 005582, males, 6-8 months old) were used for positive confirmation of fluorescent tissue-resident myeloid cells (Figure 1G and I).”

Numbers and types of mice have also been added to Figure 1 legend as:

“Representative images from cohort of eleven (A to D, J) and three C57BL/6J mice (E), three CD68-GFP mice (F and H) and four Cx3cr1-GFP mice (G and I).”

These numbers have also been summarized in the eLife transparent reporting form as requested by the reviewers.

3) It's possible that not all cells are fluorescently tagged (especially in the case of the Ly6G-Alexa Fluor 647 tail vein injection). Presumably, only those cells that are in the proximity of the injection bolus will be efficiently labeled. This should be clarified in the manuscript.

We concur with this limitation and the manuscript text has been amended (see below). The antibody is known to be specific, so fluorescent cells are almost certain to be neutrophils, yet we rightly cannot be certain of the identity of the unlabeled population in this context and have altered the text. For reader’s reference, previous work has shown the main population in EIU are neutrophils (Chu et al., 2016) and the technique is widely used, yet one of the few studies to show data on labelling efficiency identifies only 10% of circulating leukocytes are tagged. (Bucher et al., 2015).

Text altered to:

“Simultaneous phase contrast and confocal fluorescence AOSLO revealed most leukocytes rolling along venular endothelium were neutrophils using intravenous anti-Ly6G fluorescent antibody labelling, though the proportion may be higher as only 10% of circulating leukocytes may be labelled using this method (Bucher et al., 2015) (Figure 1E, Video 5 ).”

4) Can the authors say anything about why microscopy at this particular wavelength shows up the immune cells?

Our choice of imaging wavelength was driven by the following considerations: First, NIR (near infrared) light (796 nm) provided lower phototoxicity regimes for imaging the retina than visible light. This means that higher light levels of NIR can be used without phototoxicity or subject discomfort. This is a similar strategy employed by many ophthalmoscopy approaches such as NIR fluorescence imaging, commercial OCT and SLO. Second, the use of NIR also provides optical benefit of greater theoretical penetration into the retinal tissue without scatter typical of short visible wavelengths and was favorably transmitted by the anterior optics and cells of the retina with minimal absorption.

We also point the readers to our recent publication (Guevara-Torres et al., 2020) that provides a detailed wave-optics simulation to determine the source of contrast in this modality using this particular wavelength (796 nm). In those simulations, we found that the combination of this wavelength and other imaging parameters rendered contrast to a large catalog of translucent retinal cells.

Having stated this, we have not tested other wavelengths for phase-contrast imaging, and expect there to be a tradeoff of light-budget, scatter and subject comfort using shorter wavelength (visible) light. Despite a few theoretical benefits, we are reluctant to state more in the manuscript as it would be speculative and not based in scientific rigor.

In summary, we agree with the need to highlight these aspects. We summarize the above and address the reviewers’ comments in the revised manuscript:

“Our choice of imaging wavelength (796 nm) provided both minimal phototoxicity and greater theoretical penetration through the eye’s anterior optics and minimal absorption in the retina without scatter typical of short visible wavelengths. Furthermore, we have previously published a detailed wave-optics simulation to determine the source of contrast in our imaging modality (Guevara-Torres et al., 2020), where we found that the combination of this wavelength and other imaging parameters rendered reasonable contrast to translucent cells.”

5) The authors should comment on the ability/inability to image deeper structure including the subretinal space and choroid, which are highly involved in many immune-mediated pathologies of the eye.

Agreed. Our phase-contrast approach relies on imaging cells in front of the backscattered light from RPE/choroid complex (described in detail by Guevara-Torres et al., 2020). As such, we expect contrast will be lower when attempting to image the subretinal and choroidal space due to scatter/absorption of the RPE. Importantly though, these values are expected to be non-zero (as measured and modeled by Guevara-Torres et al., 2020).

In the current manuscript, we focus upon inflammation of the inner retina, vasculature and peripapillary region, which is still frequently involved in many forms of ocular inflammation. While it might seem challenging to image deeper cell structures, we draw the readers’ attention to Scoles et al., 2017, (we thank the reviewers for highlighting this omission), which uses a similar approach to visualize a dynamic structure suspected to be a macrophage next to the photoreceptor layer of the human retina, in response to retinal disease. Whilst the cell type could not be confirmed, it raises the possibility that in certain contexts deeper retinal imaging of immune cells with phase contrast approaches could be possible, even in humans.

To address the above, we have revised the Discussion and included the Scoles et al., 2017 reference:

“A further limitation is that deeper retinal structures are not as well visualized due to the nature of contrast (Guevara-Torres et al., 2020). […] Our work reinforces this exciting finding as we now demonstrate, with transgenic markers in the mouse, that tissue immune cells are reliably detectable by label-free phase-contrast AOSLO.”

6) How might this imaging method perform with vitritis and media opacity, which are often important features of uveitis? It would be valuable to describe or show data on the performance of this imaging approach with media opacity (vitritis, cataract).

We agree with the reviewers that this is an important point and address it in the following ways. First, as mentioned in point 4 above, this is an additional benefit of using NIR light as anterior scatter may be mitigated to a small extent. However, severe vitritis, cataract or other significant media opacities do affect almost all ophthalmological imaging approaches that use light and therefore will be a formidable hurdle to overcome. AO imaging is subject to the same degradation due to scatter.

Our new supplementary figure, Figure 2—figure supplement 1, provides examples of the variation of retinal inflammation in the mouse where imaging is still possible. We expect the initial deployment of this technique will find greatest success in the study of primary retinal inflammation. Many types of posterior uveitis do not develop severe vitritis or anterior chamber inflammation that would result in prohibitive loss of optical clarity. In cases that do, imaging soon after the initiation of treatment when media opacity improves can still provide important biological insight.

The occurrence of vitritis limiting imaging in our cohorts has now been included in the transparent reporting form. We have also added the following clarifications to the manuscript.

Discussion:

“Consistent with all AOSLO approaches, in our approach, relatively clear optical media is required and severe cataract or vitritis during peak inflammation can limit successful imaging. In our study, this affected 25 % of the eyes given EIU.”

Materials and methods:

“Reversible severe vitritis or cataract precluding AOSLO imaging occurred at a peak inflammation timepoint in 25% of eyes induced with EIU in our work.”

Of note, however, the EIU model arguably develops more severe vitritis than seen in most diseases or disease models and induces inflammation (including hypopyon) of the anterior optics (Chu et al., 2016). Our images show empirically that it is still possible to get sufficient image contrast and resolution in many cases.

7) The authors perform imaging with near infrared light (796nm) at power levels of 200-500 microwatts. Given the implications for human application and the broad readership of eLife, the authors should comment on prospective safety in human application, such as for the power levels of near infrared light (796 nm, 200-500 microwatts).

Thank you for highlighting this. We have included the following new text in revised manuscript:

“Our approach is in a similar power range to those already employed safely in human AOSLO studies, where phase contrast approaches have also been used to study neuronal and photoreceptor cells using a similar light source and wavelength (Rossi et al., 2017, Scoles et al. 2014). […] While some studies (Rossi et al. 2017) used up to ~280 µW of NIR light, other studies (Liu et al. 2017) have used 115-130 µW of NIR light.”

In addition to the above edits in the manuscript, we draw the reviewers’ attention to Rossi et al., 2017 for precedence in compliance with the ANSI standard in the human retina. While we have provided this for clarity for the readership, we are reluctant to state more in the manuscript as the ANSI light safety standard applies only to the human eye and it is difficult to apply it directly to the mouse eye due to species difference, photopigment density, subtended visual angle, visual acuity limits, lack of fovea and strong pigmentation of the RPE, among others, that make a direct comparison between human and mouse challenging.
