Conformation of the nuclear pore in living cells is modulated by transport state

  1. Joan Pulupa
  2. Harriet Prior
  3. Daniel S Johnson
  4. Sanford M Simon  Is a corresponding author
  1. Laboratory of Cellular Biophysics, Rockefeller University, United States
  2. Department of Physics and Astronomy, Hofstra University, United States
Research Article
  • Cited 1
  • Views 855
  • Annotations
Cite this article as: eLife 2020;9:e60654 doi: 10.7554/eLife.60654

Abstract

While the static structure of the nuclear pore complex (NPC) continues to be refined with cryo-EM and x-ray crystallography, in vivo conformational changes of the NPC remain under-explored. We developed sensors that report on the orientation of NPC components by rigidly conjugating mEGFP to different NPC proteins. Our studies show conformational changes to select domains of nucleoporins (Nups) within the inner ring (Nup54, Nup58, Nup62) when transport through the NPC is perturbed and no conformational changes to Nups elsewhere in the NPC. Our results suggest that select components of the NPC are flexible and undergo conformational changes upon engaging with cargo.

Introduction

Recent advances in structural biology have allowed the characterization of the static structures of large macromolecular complexes. However, describing the conformational changes of proteins within these complexes, especially when the proteins are in their native cellular context, has proven challenging. In this paper, we establish a technique to visualize the orientations of domains of proteins in vivo and we apply this technique to study the conformational changes in the nuclear pore complex (NPC).

The scaffold of the NPC is a cylindrical channel composed of proteins that form an eight-spoked core with an axis perpendicular to the nuclear envelope (Alber et al., 2007; Kim et al., 2018; Kosinski et al., 2016; Mosalaganti et al., 2018). NPCs are composed of ~30 distinct proteins called nucleoporins (Nups) represented in 8, 16, or 32-fold copy number. An individual yeast NPC is composed of ~500 Nups for a total mass of ~66 MDa (Rout and Blobel, 1993), whereas a vertebrate NPC has ~1000 total Nups (Hoelz et al., 2011) fpr a tptal mass of ~109 MDa (Reichelt et al., 1990). From the scaffold of the NPC, relatively unstructured domains of Nups protrude into the lumen of the cylinder. These are known as ‘FG-nups’ because they contain repeat motifs of phenylalanine-glycine that interact with cargo and its chaperones, known as the importins, exportins, or karyopherins (kaps). While the organizing principles of the NPC are shared across eukaryotes, there are notable variations even between human cell lines. Differential expression levels (D'Angelo et al., 2012; Lupu et al., 2008) and stoichiometries (Ori et al., 2013) of Nups are observed between different cell types. Furthermore, within the mammalian NPC, different Nups have been shown to have different residence times, which has led to the suggestion that those with shorter residence times may serve adaptor or regulatory functions (Rabut et al., 2004). The additional mass of the mammalian NPC exists in the absence of substantial changes to the size of the central channel, raising the possibility that the mammalian NPC is subject to additional regulation.

In the adherent cell lines used in this study, the nuclei tend to be flattened ovoids and the NPCs on the basal surface share a common orientation with their central axis perpendicular to the coverslip. Since each component of the NPC is in 8-fold symmetry, it is a compelling test structure to assay conformational changes in vivo. Using polarized-total internal reflection fluorescence microscopy (pol-TIRFM), we monitored the orientation of mEGFP-based sensors incorporated into different domains of individual NPCs in living cells. Previously, to measure the organization of various Nups with respect to the NPC we used fluorescence anisotropy. We determined the organization of the Y-shaped complex with respect to the NPC (Kampmann et al., 2011) and characterized the orientations and rigidity of the FG-Nup domains (Atkinson et al., 2013; Mattheyses et al., 2010). The anisotropy approach used polarized light to excite many dozens of NPCs and then measure the emission parallel and perpendicular to the excitation.

In this study, we examine the orientation of components of the scaffold and establish that the conformation of the inner ring of the NPC is modulated by both transport state and specific transport factors. To monitor conformational changes in the scaffold of the NPC, we built orientational sensors by rigidly attaching mEGFP to different Nup domains. We conjugated the alpha helix at the amino terminus of mEGFP to the carboxyl terminus of a Nup domain. Thus, the orientation of mEGFP is fixed to that of the Nup. The orientation of mEGFP can be monitored because the excitation dipole is fixed within the molecule. The strength of mEGFP excitation is proportional to cos2(Θ), where Θ is the angle between the excitation light and the excitation dipole. To monitor the orientation of the mEGFP, we excited the fluorophore sequentially with light polarized in two orthogonal directions. To restrict excitation to the basal surface of the cell we created the two polarized fields using excitation by total internal reflection (TIR). Because the basal nuclear envelope is parallel to our coverslip, the NPCs embedded in the nuclear envelope are oriented relative to the optical axis of our microscope. Therefore, we could monitor the orientation of Nups within individual NPCs in living cells. Our results show a rearrangement of the structural core of the NPC, in particular of the inner ring Nups, in response to manipulations of transport through the NPC.

Results

The orientation of Nup-mEGFP fusion proteins can be monitored with polarized-total internal reflection fluorescence microscopy (pol-TIRFM)

We alternated the polarization of the excitation field between p^-polarized light (perpendicular to the coverslip and parallel to the nucleo-cytoplasmic axis of each NPC) and s^-polarized light (parallel to the coverslip and perpendicular to the nucleo-cytoplasmic axis of each NPC). We then measured the light emitted from each Nup orientational sensor in response to the two orthogonal polarizations of TIRF illumination (Figure 1A).

Figure 1 with 1 supplement see all

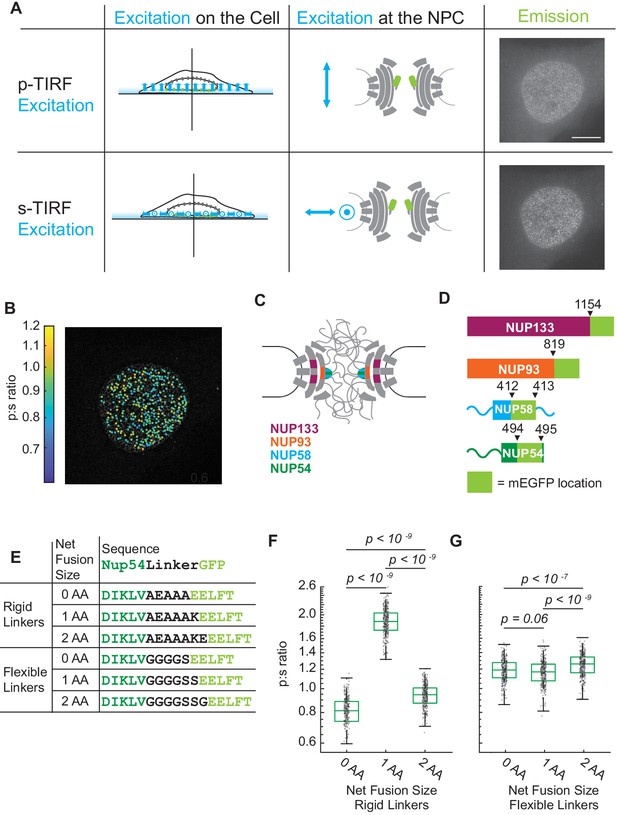

The orientation of Nup-mEGFP fusion proteins can be measured in individual NPCs with pol-TIRFM.

(A) Using pol-TIRFM, the bottom of the nucleus is illuminated and Nup-mEGFP fusion proteins are excited with p^-polarized or s^-polarized light. p^-excitation is parallel and s^-excitation is perpendicular to the nucleocytoplasmic axis of the NPC. The emission from Nup54-mEGFP fusion proteins in HeLa cells in response to each excitation is shown in the right column. (Scale bar = 10 µm). (B) p:s ratios, a measurement of orientation of mEGFP, are calculated for each NPC and represented with a color scale. (C) Schematic of the NPC indicating the Nups studied. (D) Schematic of the mEGFP placement within the Nups. (E) Nup54-mEGFP constructs with flexible or rigid linkers in between the Nup and the mEGFP. With each additional amino acid in a rigid alpha helix, the mEGFP rotates 103° relative to the Nup, which does not happen with a flexible linker. (F) The p:s ratios of Nup54-mEGFP494 fusion proteins with a rigid linker shift with the addition of each amino acid. (G) The p:s ratios of Nup54-mEGFP494 fusion proteins with a flexible linker do not shift upon amino acid additions. (n = 300 NPCs, 10 cells, boxes indicate quartiles, center bars indicate medians, one-way ANOVA with post-hoc Tukey test).

We probed for conformational changes in the NPC with orientational sensors in Nup133, Nup93, Nup54, and Nup58. Nup133 is a member of the Y-shaped complex, which forms two reticulated rings at both the nuclear and cytoplasmic faces of the NPC (Bui et al., 2013). Nup93 is a member of the Nup93 complex (along with Nup205, Nup188, Nup155, and Nup53) and Nup54 and Nup58 are members of the Nup62 complex (along with Nup62). Both the Nup93 and Nup62 complexes localize to the inner ring (Vollmer and Antonin, 2014), between the two reticulated rings of Y-shaped complexes. The Nup93 complex is embedded within the NPC scaffold, and the Nup62 complex sits adjacent, closer to the lumen of the nuclear pore (Kosinski et al., 2016). Therefore, our orientational sensors were localized to three different structural positions within the NPC (Figure 1C).

Plasmids encoding putative orientational sensors were engineered to encode each Nup fused via an alpha helix to mEGFP. We removed the first four amino acids of the mEGFP because they are not resolved in the crystal structure, suggesting that they are not rigid. We transfected these plasmids into HeLa cells (Figure 1A, Figure 1—figure supplement 1). With an algorithm that uses a Laplacian of blob-detection method (Pulupa, 2020) the distribution of total intensities of the puncta observed was only a single peak indicating we are detecting individual NPCs. The algorithm extracted light emitted in response to p^ and s^ excitation to calculate what we refer to as the p:s ratio (Figure 1B, Figure 1—figure supplement 1). If the mEGFP is rigidly conjugated to a Nup that is properly incorporated into the NPC, then changes of the p:s ratio represent changes in orientation of the domain of the Nup to which the mEGFP is conjugated.

If the mEGFP is held rigidly relative to a Nup, then changing the length of the alpha-helical linker by a single amino acid should rotate the mEGFP ~103° around the axis of the alpha helix. Therefore, if our reporter is a proxy for the orientation of the Nup, the p:s ratio should shift with the number of amino acids in the linker. This hypothesis was tested by inserting rigid or flexible linkers of different lengths between mEGFP and the terminal structured alpha helix of Nup54 (Figure 1E), which is defined as residues 456–494 (Solmaz et al., 2011). The constructs were transiently transfected into HeLa cells, and the p:s ratios were measured in living cells 24–48 hr post transfection. The p:s ratio shifted with different lengths of the rigid linkers, confirming that the dipole of the mEGFP is a proxy for the orientation of the Nup54 (Figure 1F). No difference in p:s ratio was observed with varying lengths of the flexible linkers (Figure 1G). Thus, we developed a criterion whereby orientational sensors are considered functional if the p:s ratio shifts upon the addition of a single amino acid.

Using this criterion, we confirmed that we have orientational sensors with mEGFP conjugated to Nup133, Nup93, Nup58, and Nup54 (Figure 2A–D). We saw distinct shifts in the p:s ratio when constructs differed by a single amino acid. An exception was when mEGFP was placed at the carboxyl terminus of Nup54. This domain is currently unresolved in any crystal structure, and the p:s ratio did not change upon rotating the linker alpha helix (Figure 2E). This indicates that this domain of Nup54 is not held rigidly, consistent with the inability to crystallize this domain of the protein and suggests the carboxyl terminus is a flexible domain. For any specific Nup-mEGFP, variations in the p:s ratio in different NPCs were not detected with respect to position along the basal surface of the nucleus (Figure 1—figure supplement 1), indicating a shared orientation for these NPCs.

Varying the length of the linker between the Nup and the mEGFP by single amino acids to test validity of the orientational sensors.

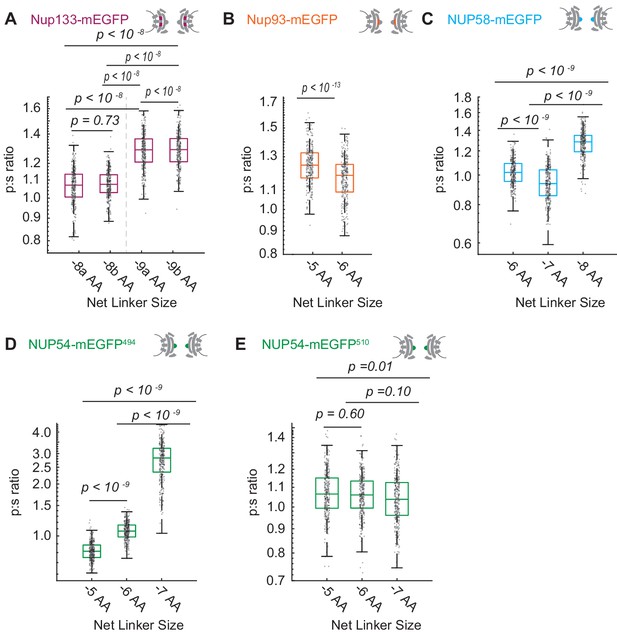

(A) Nup133-mEGFP, with linkers of different lengths at its carboxyl terminus, conjugated to mEGFP. A change in the linker length by a single amino acid changes the p:s ratio. Pairs of different rigid alpha-helical linkers of the same length generate indistinguishable p:s ratios. (B) Nup93-mEGFP with different linker lengths to mEGFP at the carboxyl terminus. One deleted amino acid shifts the p:s ratio. (C) Nup58 with the mEGFP at the carboxyl terminus of the coiled-coiled domain. Each subsequent deletion of a single amino acid alters the p:s ratio. (D) Nup54-mEGFP494 with the mEGFP at the carboxyl terminus of the coiled-coiled domain (Amino Acid: 494). Each subsequent deletion of a single amino acid changes the p:s ratio. (E) Nup54-mEGFP510 with the mEGFP at the carboxyl-terminus of the protein (Amino Acid: 510). Each subsequent deletion of a single amino acid does not alter the p:s ratio. Detailed linker descriptions are available in Supplementary file 1. (n = 300 NPCs, 10 cells, boxes indicate quartiles, center bars indicate medians, one-way ANOVA with post-hoc Tukey test for A, C-E, Student's t-test for B).

The orientations of inner ring nups change after starvation

In yeast, starvation inhibits the import of cargo with nuclear localization sequences, or NLS-tagged cargo (Stochaj et al., 2000). We tested the effects of starvation on the orientation of Nups. Cells were starved for 24 hr in Hank’s Balanced Salt Solution (HBSS). We confirmed the rates of nucleo-cytoplasmic trafficking were attenuated using a photoactivatable nuclear transport cargo (Yumerefendi et al., 2015Figure 3—figure supplement 1).

After starvation there were no detectable changes in the orientations of Nup133 and Nup93 (Figure 3A–B, Figure 3—figure supplement 2A–D). These results are consistent with the NPC retaining its orientation relative to the coverslip. The consistency across the basal surface of the nucleus shows the nuclear envelope is not distorted post-starvation.

Figure 3 with 3 supplements see all

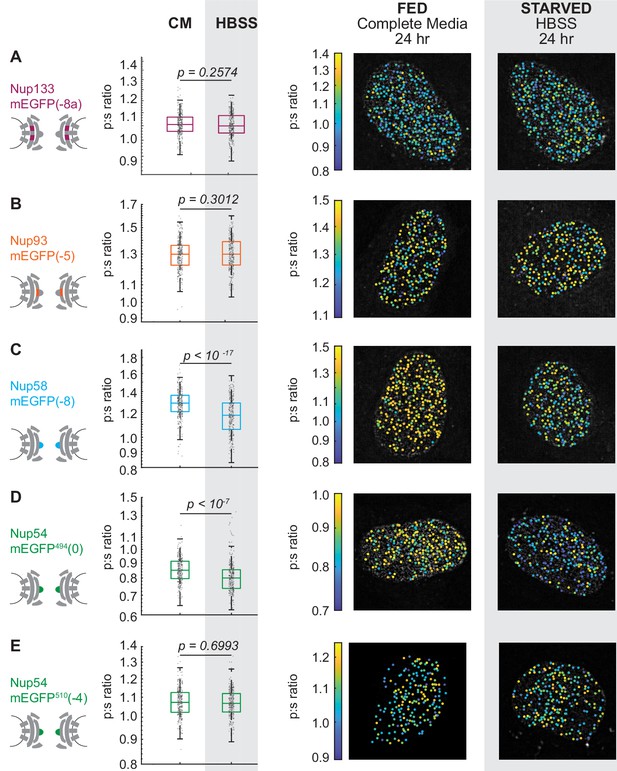

The Inner Ring Nups, Nup54 and Nup58, are reorganized with respect to the NPC after starvation.

Cells were maintained in complete media (CM) or starved for 24 hr in HBSS prior to imaging. The p:s ratios and representative images are presented for: (A) Nup133-mEGFP(−8a), (B) Nup93-mEGFP(–5), (C) Nup58-mEGFP(−8), (D) Nup54-mEGFP494(0), and (E) Nup54-mEGFP510(−4). The orientation changed for Nup58-mEGFP and Nup54-mEGFP494. For additional linker lengths, see Figure 3—figure supplement 2. HeLa cells were imaged 48 hr post transfection. (n = 300 NPCs, 10 cells, boxes indicate quartiles, center bars indicate medians, Student's t-test).

In contrast, conformational reporters Nup58 and amino acid 494 in Nup54 (Nup54-mEGFP494, or Nup54494) exhibited significant shifts post-starvation (Figure 3C–D, Figure 3—figure supplement 2E–H). These orientational shifts in select alpha helices of Nup54 and Nup58 reflected a reorganization of these inner ring Nups relative to the NPC. The orientation shift of Nup54494 was also seen in Nup54 orientational sensors where the FG-Nup domain was eliminated (Figure 3—figure supplement 3). This result suggests that these orientational changes are propagated throughout the inner ring, independent of whether the individual Nup54 polypeptide containing the orientational sensor is bound to a kap. No shift was observed in the previously described reporter at amino acid 510 in Nup54 (Nup54-mEGFP510, or Nup54510), the carboxyl terminus (Figure 3E). These results suggest a change of orientation of select alpha-helical domains of Nup58 and Nup54 in the absence of a change in the orientation of the rest of the NPC.

Nup-mEGFP orientational reporters are functional

To ensure that the Nup-mEGFP fusion proteins are functional and to improve the signal to noise, we used CRISPR/Cas9 to create cell lines in which both endogenous copies of either Nup133 or Nup54 are replaced with their fluorescent orientational sensor equivalent.

We confirmed that these cell lines are homozygous (Figure 4—figure supplement 1) and observed no changes in cell growth or morphology (Figure 4A–B). These cell lines also shared the property that single amino acid alterations in the linker length shifted the p:s ratio (Figure 4C–D). The Nup133 and Nup54 CRISPR cell lines exhibit similar p:s ratios to the transient transfections. However, we measure a difference in the p:s ratio of a little above one in the Nup133 CRISPR cell lines and below one in the transient transfections. This difference may reflect a slight alteration in NPC structure between two different cell types or is a methodological consequence of either variable incorporation levels of fluorescent Nup133 in the transient transfection or the higher background fluorescence in the transient transfection, which might slightly lower the ratio from above 1 to below 1.

Figure 4 with 2 supplements see all

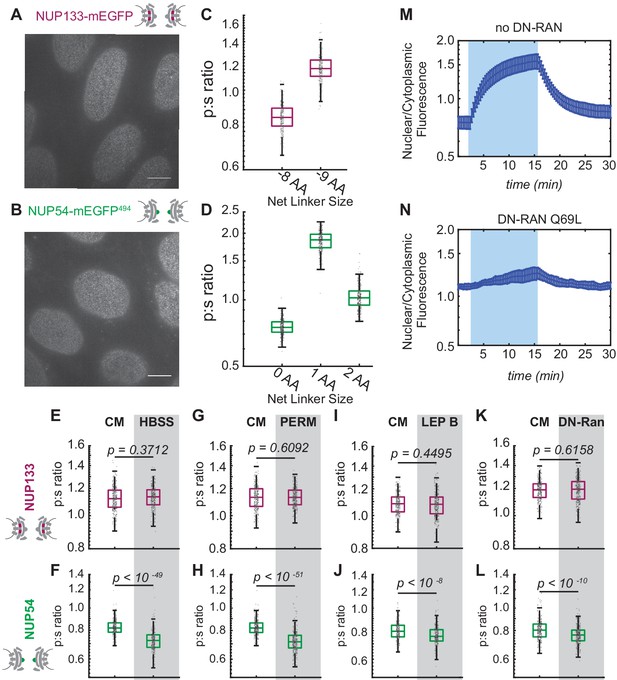

Conformational changes of the Inner Ring of the NPC revealed by perturbations of cargo state in CRISPR cell lines.

(A-B) No morphological distortions are detected in cell lines endogenously expressing orientational sensors. (C) Nup133-mEGFP cell lines with the mEGFP at the carboxyl-terminus of the protein with different linker lengths. One deleted amino acid shifts the p:s ratio. (D) Nup54-mEGFP494 cell lines with the mEGFP at the carboxyl-end of the coiled-coiled domain of the protein with constructs of different linker lengths. One deleted amino acid shifts the p:s ratio. Detailed linker descriptions are available in Supplementary file 2. (E-F) Orientational sensor cell lines were maintained in CM or starved for 24 hr in HBSS. (G-H) CRISPR cell lines mock permeabilized or digitonin-permeabilized prior to imaging. (I-J) CRISPR cell lines mock treated or treated with leptomycin B prior to imaging. (K-L) CRISPR cell lines with or without transient expression of dominant-negative Ran. (n = 300 NPCs, 10 cells, boxes indicate quartiles, center bars indicate medians, Student's t-test). (M-N) The average change in the ratio of nuclear/cytoplasmic fluorescence in HeLa cells with and without dominant-negative Ran transiently expressed (n = 6, mean reported ± SEM with error bars). The shaded region represents the time of blue light LANS activation.

When starved, the CRISPR cell lines mimicked the results of the transiently transfected cell lines (Figure 4E–F, Figure 4—figure supplement 2); the orientation of Nup54494 exhibited a significant change but the orientation of the Nup133 did not shift after starvation. Just as in the transient transfections, Nup54 was reorganized when transport was reduced.

The orientation of inner ring Nup54 changes after blocking nuclear export

To further test whether attenuating nuclear-cytoplasmic trafficking changes the orientation of domains of Nup54, we used three additional approaches: permeabilization of the plasma membrane with digitonin, treatment with leptomycin B, and expression of dominant-negative Ran.

At a certain concentration, digitonin can selectively permeabilize the plasma membrane while leaving the nuclear membrane intact, resulting in the loss of many cytoplasmic components and the cessation of nuclear-cytoplasmic trafficking (Adam et al., 1992). After digitonin permeabilization, we monitored cells to ensure that the nuclear envelope remained intact (Figure 5—figure supplement 1A) and we confirmed that the cells were capable of translocating specific NLS-tagged cargos (Figure 5—figure supplement 1D–E). When we permeabilize cells and incubate in transport buffer plus 1.5% (wt/vol) 360kD polyvinylpyrrolidone to mimic cytosolic conditions, we observed a distinct shift in the orientation of Nup54494 compared to the orientation of Nup54494 in unpermeabilized cells grown in complete media. We saw no change in the orientation of Nup133 in permeabilized cells compared to Nup133 in unpermeabilized cells grown in complete media (Figure 4G–H).

Leptomycin B blocks nuclear export by inhibiting crm1 (exportin-1), an evolutionarily conserved export factor (Kudo et al., 1999). We treated our cells with 25 nM leptomycin B for 15 hr and observed an orientational shift of Nup54494 but no change to the orientation of Nup133 (Figure 4I–J).

To disrupt both import and export, we expressed a dominant-negative Ran. Ran is a GTPase that mediates nuclear transport (Moore and Blobel, 1993). Ran undergoes GTP- hydrolysis in the cytosol that causes the Ran-Kap1-β export complex to dissociate from the NPCs, thereby replenishing Kap1-β in the cytosol. Ran-Q69L is a dominant-negative mutant that cannot perform GTP-hydrolysis, thereby blocking Ran-dependent import and export (Bischoff et al., 1994).

We confirmed that cells transiently expressing BFP-RanQ69L for 24 hr were not capable of nuclear-cytoplasmic trafficking by using a light induced nuclear shuttle (Figure 4M–N). Nup54494 was rearranged once again with respect to the NPC but the Nup133 did not change orientation after cells were transfected with a dominant-negative Ran (Figure 4K–L).

These results suggest that attenuating the transport of NLS-driven cargo shifts the orientation of select alpha-helical domains of inner ring Nups. The direction of the p:s ratio shift of Nup54-mEGFP494 is consistent among all mechanisms of reducing cargo flux.

Altering karyopherin content at the NPC changes the conformation of Nup54

After digitonin permeabilization and removal of cytosol, a pool of endogenous karyopherins (kaps) remain associated with the NPCs for a period of hours (Kapinos et al., 2017). These kaps can be dissociated from the NPC by introducing Ran-GTP to the nuclear periphery (Figure 5A, Figure 5—figure supplement 1F–H). Then, the population of kaps can be restored by adding exogenous proteins, which we have purified and have determined to be capable of transporting NLS-tagged cargo (Figure 5—figure supplement 1D–E). We have chosen to reintroduce Kap1-β and Kap1-α. The Kap-β (or importin-β) family of kaps encompasses over 20 proteins in mammalian cells. We reintroduced Kap1-β, a 97 kDa import receptor that regulates the canonical import pathway (Kimura et al., 2017). Kap1-β interacts with Kap1-α, a 58 kDa adaptor that acts to import classic NLS-tagged cargos (Pumroy and Cingolani, 2015).

Figure 5 with 1 supplement see all

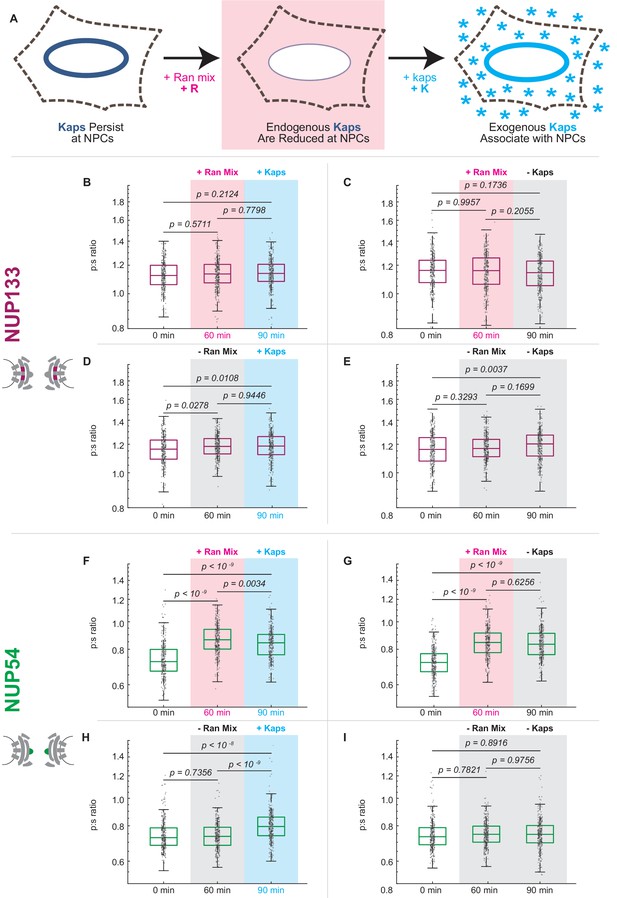

Karyopherin content at the nuclear periphery induces conformational changes in Nup54-mEGFP494 but not Nup133-mEGFP.

(A) Digitonin permeabilization allows the introduction of transport factors to the nuclear periphery. (B-E) Nup133-mEGFP does not experience a shift in orientation after removal of endogenous kaps or addition of exogenous kaps. (F-I) The orientation of Nup54-mEGFP494 changes after removal of endogenous kaps or introduction of exogenous kaps. Pink boxes indicate the addition of Ran mix, blue boxes indicate the addition of kaps, and gray boxes indicate a buffer change with no additional transport factors. (n = 300 NPCs, 30 cells, boxes indicate quartiles, center bars indicate medians, one-way ANOVA with post-hoc Tukey test).

Removing endogenous kaps shifted the orientation of Nup54494 in one direction and restoration of kaps reversed this shift (Figure 5F–I). Upon addition of kaps alone, the orientation of Nup54494 shifted back towards its position prior to permeabilization. Although the orientation does not totally shift back towards the initial value, we are only supplying two of the many species of kaps present in the NPC in a living cell and no NLS-tagged cargo. In contrast, dissociation or restoration of kaps at the NPC did not produce changes in the orientation of Nup133 (Figure 5B–E).

The arrangement of inner ring Nup62 changes after starvation

To test whether the orientational shifts in Nup54494 were coincident with a spatial reorganization of inner ring Nups, we measured the proximity of multiple copies of Nup62 in a single NPC to each other by Förster resonance energy transfer (FRET). We engineered a homozygous cell line where Nup62 was replaced with a copy of Nup62 with FRET sensors (mEGFP290 and mCherry321) on opposite sides of an alpha-helical domain of Nup62 (Figure 6). This alpha helix lies between the coiled-coiled anchor region and a flexible FG-repeat region of Nup62 and is an elongated region that has been predicted to interact with a structured region of Nup54 (Sharma et al., 2015). We measured FRET with acceptor photobleaching and quantified FRET efficiency. The FRET efficiency of these sensors was increased post-starvation, consistent with inner ring Nups experiencing a conformational shift (Figure 6). The increase in FRET is consistent with the FG-Nup domains being in a more coaligned, physically closer positions and the NPC being in a more constricted state.

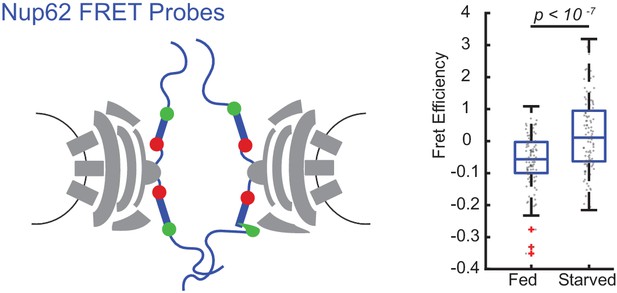

FRET between Nup62 ‘finger’ domains increases after starvation.

Under starvation conditions, FRET increased between Nup62 ‘finger’ domains. (A) Schematic of Nup62 FRET probe labeling scheme. (B) FRET efficiency for HeLa cells were imaged 48 hr post transfection. Cells were kept in CM or starved for 24 hr in HBSS (n = 100 NPCs, 10 cells, boxes indicate quartiles, bars indicate medians, Student's t-test).

Discussion

A number of recent studies have reported variability in the organization and diameter of NPCs. Super-resolution imaging has been used to visualize NPCs at different developmental stages of X. laevis oocytes, demonstrating that the organization and diameter of the NPCs changes over time (Sellés et al., 2017). By cryo-ET using sub-tomogram averaging in either transport competent or transport inhibited cells, two distinct structural states are observed with differences in the central transporter, suggesting that this region might undergo conformational changes upon engagement of cargo (Eibauer et al., 2015; Zwerger et al., 2016). In HeLa cells, NPCs from the same cell were observed with cryo-ET to be more similar in inner diameter than those from other cells, suggesting that the diameter might change as a result of a cell’s specific physiological state (Mahamid et al., 2016). While this manuscript was in review, cryo-EM tomograms revealed in situ NPCs taken from S. cerevisiae cells in exponential growth phase were ~20 nm larger in diameter than isolated NPCs from S. cerevisiae, underscoring the potential flexibility of the NPC (Allegretti et al., 2020). Structural studies based on two discrete crystal states of short peptides of three inner channel ring Nups, Nup58, Nup54, and Nup62, have led to the proposal that the structured regions of these inner ring Nups cycle between a dilated ring of 40–50 nm in diameter and a constricted ring of 20 nm in diameter. This Ring Cycle hypothesis suggests that this ring undergoes conformational changes and directly regulates cargo import and export (Melcák et al., 2007; Sharma et al., 2015; Solmaz et al., 2013; Solmaz et al., 2011). It has also been proposed that the evolution of the NPC into a complex sized over ~109 MDa was in part driven by the need to cushion the huge diameter changes of the central transport channel by a large and deformable surrounding protein matrix (Hoelz et al., 2011).

The conformational changes we observe in the NPCs of living cells may be coincident with cargo translocation or may be an indication that the scaffold of the NPC serves as a dynamic gate that can regulate nuclear trafficking. These conformational changes are consistent with observations that NPC diameter is altered in HeLa cells under different physiological conditions (Mahamid et al., 2016) and with observations of NPCs with different diameters from S. cerevisiae (Allegretti et al., 2020). Our results are also consistent with the Ring Cycle hypothesis. Further studies will be needed to determine the exact conformations we are monitoring in this study, and to what extent the conformations we observe align with these models. In addition to changes in orientation, we also observe increases in FRET in the FG-regions of Nup62 upon starvation, which is consistent with a spatial rearrangement and constriction of the NPC diameter. The NPC structure as a whole may be modulated by cargo load and identity. Compositional and structural flexibilities in the NPC underscore the complexity of this macromolecular complex, and their effects on transport and regulation remain exciting future avenues of research in the field.

The experiments we present have been done at the level of single active NPCs in which altered conformations are correlated to the loading of kaps. Our results are consistent with orientational changes to the inner ring of the NPC in response to changes in transport state. Although we cannot yet calculate the magnitude of the angle changes of these alpha helices, we can say with confidence that these alpha helices are experiencing a rearrangement with respect to the NPC after they are confronted with perturbations in transport. Further, these orientational shifts are confined to the inner ring, the most constricted portion of the NPC: similar changes are not detected when probes are placed in other locations. It is possible that those regions are moving translationally and thus escaping our detection, which is sensitive only to orientation changes with respect to the nucleo-cytoplasmic axis.

The imaging technique presented here allows for the monitoring of Nup orientational changes within many individual NPCs simultaneously in a single living cell. We used this approach to look at dynamics of assembly of HIV-1 in vivo (Johnson et al., 2018). This technique builds upon on our previous work (Atkinson et al., 2013; Kampmann et al., 2011; Mattheyses et al., 2010) to provide tools to directly observe the conformations and orientational dynamics of Nups in living cells. By expanding this technique into pol-TIRFM, we have developed tools to that allow us to directly observe the orientational changes of Nups within a single NPC in living cells and to track these changes over time with different cargo conditions.

This light microscopy technique can be used to probe the orientations of different domains within an individual protein either on its own or as part of a macromolecular complex. By allowing one to not only localize a protein, but to also monitor the orientations of different domains within a protein, this technique can provide insights into various molecular mechanisms. Polarization microscopy can be used to monitor the dynamics and organization of domains of other macromolecular complexes in vivo and in vitro, including the ribosome, proteasome, centriole, and cilia. Although to use this technique in vivo, the macromolecular complex to be studied would need to have an axis that can be defined with respect to the illumination field, these geometric limitations only exist in vivo. Using nanofabrication techniques, a macromolecular complex or substrate can be conjugated with respect to the coverslip and the orientation of a dynamic domain can be monitored. Although the technique currently requires a carboxyl-terminal alpha helix of a peptide domain of interest to be conjugated to the amino alpha helix of a fluorescent protein, development of orientationally confined fluorescent probes will allow the domain of any protein to be tagged and monitored.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or referenceIdentifiersAdditional information
Antibodyα- karyopherin α1/6 (2D9) (rat monoclonal)Santa Cruzsc-101540
RRID:AB_2133549
IF 1:500
Antibodyα-kap1ß/impß −1 (3E9) (mouse monoclonal)Abcamab2811
RRID:AB_2133989
IF 1:1000
Antibodyanti-Rabbit IgG (H+L) Cross-Adsorbed Secondary Antibody, Alexa Fluor 488 (goat polyclonal)InvitrogenCAT # A-11008
RRID:AB_2534074
IF 1:2000
Antibodyanti-Mouse IgG (H+L) Cross-Adsorbed Secondary Antibody, Alexa Fluor 594 (goat polyclonal)InvitrogenCAT # A-11005
RRID:AB_141372
IF 1:2000
Antibodyanti-GFP: Living Colors A.v. Monoclonal Antibody (JL-8)ClontechCAT # 632381
RRID:AB_2313808
WB 1:1000
Antibodyanti-Mouse IgG (Fab specific)–Peroxidase antibody (goat polyclonal)Sigma-AldrichCAT # A9917
RRID:AB_258476
WB 1:50,000
AntibodyAnti-β-Actin antibody, Ac-74 (mouse monoclonal)Sigma-AldrichCAT # A5316
RRID:AB_476743
WB 1:1000
Strain, strain background (Escherichia coli)BL21-CodonPlus (DE3)-RILAgilentCAT # 230245Chemically competent cells
Chemical compound, drugDulbecco’s Modified Eagle’s MediumGibcoCAT # 11995–065
Chemical compound, drugFetal Bovine SerumSigma-AldrichCAT #F4135
Chemical compound, drugHanks Balanced Salt Solution with Calcium and MagnesiumGibcoCAT # 14025076
Chemical compound, drugLeptomycin BSigma-AldrichCAT # L291325 nM
Chemical compound, drugFibronectinGibcoCAT # 33010018
Chemical compound, drugParaformaldehydeElectron Microscopy SciencesCAT #157114% w/v
Chemical compound, drugPBS, pH 7.4GibcoCAT # 10010023
Chemical compound, drugNormal Donkey SerumSigma-AldrichCAT # 5664602.5% v/v
Chemical compound, drugNormal Goat SerumSigma-AldrichCAT # NS02L2.5% v/v
Chemical compound, drugBovine Serum AlbuminSigma-AldrichCAT #A21531% v/v
Chemical compound, drugSlowFade Diamond Antifade MountantInvitrogenCAT # S36972
Chemical compound, drugFuGENE 6 Transfection ReagentPromegaCAT #E2691
Chemical compound, drugOpti-MEM I Reduced Serum Medium, no phenol redGibcoCAT # 11058021
Chemical compound, drugDigitonin, High Purity – CalbiochemMilliporeCAT # 300410; CAS 11024-24-134 µg/mL
Chemical compound, drug360kD polyvinylpyrrolidone (PVP)Sigma-AldrichCAT #PVP360; CAS 9003-39-81.5% w/v
Chemical compound, drugR-phycoerythrinThermoFisherCAT # P801500 ng/mL
Chemical compound, drugisopropyl β-D-1-thiogalactopyranoside (IPTG)Sigma-AldrichCAT # I55020.5 mM
Chemical compound, drugBenzonase NucleaseEMD MilliporeCAT # 7074625 U/mL
Chemical compound, drugrLysozyme SolutionEMD MilliporeCAT # 7111012 U/mL
Chemical compound, drugcOmplete, EDTA-free Protease Inhibitor CocktailRocheCAT # 11873580001
Chemical compound, drugImidazoleAlfa AesarCAT #47274; CAS 288-32-4
Chemical compound, drugNi-NTA AgaroseQiagenCAT # 30250
Chemical compound, drugGuanosine-5'-Triphosphate Disodium SaltFisher ScientificCAT # AAJ16800MC; CAS 56001-37-70.1 mM
Chemical compound, drugAdenosine 5'-triphosphate disodium salt (ATP disodium salt) hydrateVWRCAT # TCA0157; CAS 34369-07-81 mM
Chemical compound, drugCreatine phosphateSigma-AldrichCAT # CRPHO-RO; CAS 71519-72-71 mg/mL
Chemical compound, drugCreatine Phosphokinase, Porcine HeartSigma-AldrichCAT # 238395; CAS 9001-15-415 U/mL
Chemical compound, drugNucBlue Live ReadyProbes Reagent (Hoechst 33342)ThermoFisherCAT # R37605
Chemical compound, drugFuGENE HD Transfection ReagentPromegaCAT # E2311
Chemical compound, drugPuromycinInvivogenCAT # ant-pr-5
Cell line (Homo-sapiens)HeLa CellsATCCCCL-2
RRID:CVCL_0030
Cell line (Homo-sapiens)Hap1 CellsHorizonN/A
Cell line (Homo-sapiens)Nup133_mEGFP(−9)This PaperN/ACRISPR-edited Hap1 cell line expressing Nup133_mEGFP(−9)
Cell line (Homo-sapiens)Nup133_mEGFP(−8)This PaperN/ACRISPR-edited Hap1 cell line expressing Nup133_mEGFP(−8)
Cell line (Homo-sapiens)Nup54-mEGFP494(0)This PaperN/ACRISPR-edited Hap1 cell line expressing Nup54-mEGFP494(0)
Cell line (Homo-sapiens)Nup54-mEGFP494(1)This PaperN/ACRISPR-edited Hap1 cell line expressing Nup54-mEGFP494(1)
Cell line (Homo-sapiens)Nup54-mEGFP494(2)This PaperN/ACRISPR-edited Hap1 cell line expressing Nup54-mEGFP494(2)
Cell line (Homo-sapiens)Nup62_mCherry290_mEGFP321This PaperN/ACRISPR-edited Hap1 cell line expressing Nup62_mCherry290_mEGFP321
Sequence-based reagentCloning Primer Nup54 CRISPR ForwardThis PaperPCR primersCACCCGATCTAGAAGATATAAAGC (guide bolded)
Sequence-based reagentCloning Primer Nup54 CRISPR ReverseThis PaperPCR primersAAACGCTTTATATCTTCTAGATCG
Sequence-based reagentCloning Primer Nup133 CRISPR ForwardThis PaperPCR primersCACCGCTCAGTGAGTACTTACCGG (guide bolded)
Sequence-based reagentCloning Primer Nup133 CRISPR ReverseThis PaperPCR primersAAACCCGGTAAGTACTCACTGAGC
Sequence-based reagentPCR Primer Nup54 ForwardThis PaperPCR primersCCTGTGACTAGCTTGCAGTT
Sequence-based reagentPCR Primer Nup54 ReverseThis PaperPCR primersACCTCTGATGTGGATGGTTTC
Sequence-based reagentPCR Primer Nup133 ForwardThis PaperPCR primersAGTCCAATCCTTACTTCGAGTTT
Sequence-based reagentPCR Primer Nup133 ReverseThis PaperPCR primersAGGAACAACAACTGACACATTTC
Recombinant DNA reagentNup133_mEGFP(−8a)
(plasmid)
Kampmann et al., 2011Addgene # 163417Mammalian expression of Nup133 fused at carboxy-terminus to mEGFP with total net fusion of (−8 amino acids)
Recombinant DNA reagentNup133_mEGFP(−8b)
(plasmid)
Kampmann et al., 2011Addgene #163418Mammalian expression of Nup133 fused at carboxy-terminus to mEGFP with total net fusion of (−8 amino acids)
Recombinant DNA reagentNup133_mEGFP(−9a)
(plasmid)
Kampmann et al., 2011Addgene # 163419Mammalian expression of Nup133 fused at carboxy-terminus to mEGFP with total net fusion of (−9 amino acids)
Recombinant DNA reagentNup133_mEGFP(−9b)
(plasmid)
Kampmann et al., 2011Addgene # 163420Mammalian expression of Nup133 fused at carboxy-terminus to mEGFP with total net fusion of (−9 amino acids)
Recombinant DNA reagentNup93_mEGFP(−5)
(plasmid)
This paperAddgene # 163421Mammalian expression of Nup93 fused at carboxy-terminus to mEGFP with total net fusion of (−5 amino acids)
Recombinant DNA reagentNup93_mEGFP(−6)
(plasmid)
This paperAddgene # 163422Mammalian expression of Nup93 fused at carboxy-terminus to mEGFP with total net fusion of (−6 amino acids)
Recombinant
DNA reagent
Nup58_mEGFP(−6)
(plasmid)
This paperAddgene # 163423Mammalian expression of Nup58 with mEGFP (missing first six amino acids) at position 412
Recombinant DNA reagentNup58_mEGFP(−7)
(plasmid)
This paperAddgene # 163424Mammalian expression of Nup58 with mEGFP (missing first seven amino acids) at position 412
Recombinant DNA reagentNup58_mEGFP(−8)
(plasmid)
This paperAddgene # 163425Mammalian expression of Nup58 with mEGFP (missing first eight amino acids) at position 412
Recombinant DNA reagentNup54-mEGFP494(0)
(plasmid)
This paperAddgene # 163426Mammalian expression of Nup54 with mEGFP (missing first five amino acids) at amino acid 494 with five amino acid rigid alpha helical linker
Recombinant DNA reagentNup54-mEGFP494(1)
(plasmid)
This paperAddgene # 163427Mammalian expression of Nup54 with mEGFP (missing first five amino acids) at amino acid 494 with six amino acid rigid alpha-helical linker
Recombinant DNA reagentNup54-mEGFP494(2)
(plasmid)
This paperAddgene # 163428Mammalian expression of Nup54 with mEGFP (missing first five amino acids) at amino acid 494 with seven amino acid rigid alpha helical linker
Recombinant DNA reagentNup54-mEGFP494(flex0)(plasmid)This paperAddgene # 163429Mammalian expression of Nup54 with mEGFP (missing first five amino acids) at amino acid 494 with five amino acid flexible alpha-helical linker
Recombinant DNA reagentNup54-mEGFP494(flex1)(plasmid)This paperAddgene # 163430Mammalian expression of Nup54 with mEGFP (missing first five amino acids) at amino acid 494 with six amino acid flexible alpha-helical linker
Recombinant DNA reagentNup54-mEGFP494(flex2)(plasmid)This paperAddgene # 163431Mammalian expression of Nup54 with mEGFP (missing first five amino acids) at amino acid 494 with seven amino acid flexible alpha helical linker
Recombinant DNA reagentNup54_mEGFP494(−4)
(plasmid)
This paperAddgene # 163432Mammalian expression of Nup54 with mEGFP (missing first four amino acids) at amino acid 494
Recombinant DNA reagentNup54_mEGFP494(−5)
(plasmid)
This paperAddgene # 163433Mammalian expression of Nup54 with mEGFP (missing first five amino acids) at amino acid 494
Recombinant DNA reagentNup54_mEGFP494(−6)
(plasmid)
This paperAddgene # 163434Mammalian expression of Nup54 with mEGFP (missing first six amino acids) at amino acid 494
Recombinant DNA reagentNup54_mEGFP510(−4)
(plasmid)
This paperAddgene # 163435Mammalian expression of Nup54 with mEGFP (missing first five amino acids) at the carboxy-terminus with total net fusion of (−4) amino acids
Recombinant DNA reagentNup54_mEGFP510(−5)
(plasmid)
This paperAddgene # 163436Mammalian expression of Nup54 with mEGFP (missing first five amino acids) at the carboxy-terminus with total net fusion of (−5) amino acids
Recombinant DNA reagentNup54_mEGFP510(−6)
(plasmid)
This paperAddgene # 163437Mammalian expression of Nup54 with mEGFP (missing first five amino acids) at the carboxy-terminus with total net fusion of (−6) amino acids
Recombinant DNA reagentpSpCas9(BB)−2A-Puro (PX459) V2.0
(plasmid)
Ran et al., 2013Addgene # 62988
Recombinant DNA reagentpTriEx-mCherry::LANS4
(plasmid)
Yumerefendi et al., 2015Addgene #60785
Recombinant DNA reagentBFP-RanQ69L
(plasmid)
This paperAddgene # 163438Mammalian expression of RanQ69L with tag-BFP
Recombinant DNA reagentpET28-RAN
(plasmid)
Günter BlobelAddgene # 163439Ran in pET28 protein expression backbone
Recombinant DNA reagentpET28_KPNA1
(plasmid)
This paperAddgene #163440KPNA1 in pET28 protein expression backbone
Recombinant DNA reagentpET28-KPNB1
(plasmid)
This paperAddgene # 163441KPNB1 in pET28 protein expression backbone
Recombinant DNA reagentpET28-NTF2
(plasmid)
This paperAddgene # 163442NTF2 in pET28 protein expression backbone
Recombinant DNA reagentNup54 no FG-mEGFP494(0)This paperAddgene # 164269Mammalian expression of Nup54 without the FG-Nup domain, with mEGFP (missing the first 5 amino acids) at amino acid position 494 with a rigid alpha helix of 5 amino acids at the carboxyl end of mEGFP
Recombinant DNA reagentNup54 no FG-mEGFP494(1)This paperAddgene # 164270Mammalian expression of Nup54 without the FG-Nup domain, with mEGFP (missing the first 5 amino acids) at amino acid position 494 with a rigid alpha helix of 6 amino acids at the carboxyl end of mEGFP
Recombinant DNA reagentNup54 no FG-mEGFP494(2)This paperAddgene # 164271Mammalian expression of Nup54 without the FG-Nup domain, with mEGFP (missing the first 5 amino acids) at amino acid position 494 with a rigid alpha helix of 7 amino acids at the carboxyl end of mEGFP
Recombinant DNA reagentNLS-tdTomatoThis paperAddgene # 163443Bacterial expression of His-tagged, SV40 NLS-tagged tdTomato in the modified pRSETB protein expression backbone
Software, algorithmMetamorph Ver 7.7.8Molecular Deviceshttps://www.moleculardevices.com/products/cellular-imaging-systems/acquisition-and-analysis-software/metamorph-microscopy#gref
Software, algorithmMatLab 2019AMathworkshttps://www.mathworks.com/
Software, algorithmFijiSchindelin et al., 2012https://imagej.net/Fiji/Downloads
Software, algorithmCRISPR Guide RNA DesignBenchlinghttps://www.benchling.com/crispr/
Software, algorithmAdobe IllustratorAdobehttps://www.adobe.com/products/illustrator.html

Cell lines and growth

Request a detailed protocol

HeLa (ATCC, CCL-2), Hap1 (Horizon Discovery, Cambridge, UK), and Hap1-derived Nup-mEGFP cell lines (this paper) were cultured in Dulbecco’s Modified Eagle’s Medium (DMEM, Gibco, Waltham, MA), supplemented with l-glutamine and sodium pyruvate (from here-on referred to as DMEM) and 10% (vol/vol) fetal bovine serum (FBS, Sigma, St. Louis, MO) in humidified incubators at 37C and in a 5% pCO2 atmosphere, using standard sterile techniques. HeLa cells were recently acquired from ATCC and Hap1 cell lines were acquired from Horizon Discovery. Cells were negative for mycoplasma.

For starvation experiments, cells were imaged, then washed 3x with PBS and placed in 1x Hank’s Balanced Salt Solution with calcium and magnesium (HBSS, Gibco) for 24 hr and imaged. For leptomycin B experiments, cells were either treated with 25 nM leptomycin B (Sigma) or vector (methanol) for 15 hr, at which point both were imaged.

Imaging conditions

Request a detailed protocol

Cells were seeded onto MatTek dishes with no. 1.5 coverslips. For HeLa cells, the dishes were uncoated, but for Hap1 cells (all CRISPR cell lines) the dishes were coated with fibronectin (Gibco). During imaging, the media was replaced with cell imaging media [HBSS (Sigma), 10 mM HEPES, pH7.4], supplemented with 10% FBS (vol/vol, Sigma).

Microscopy: general

Request a detailed protocol

Cells were imaged on a custom-built microscope, based on an inverted IX-81 frame (Olympus Life Sciences, Tokyo, Japan) and equipped with a custom-built through-the-objective (100X UAPON 1.49 NA, Olympus and 100x UAPON 1.51 NA, Olympus Life Sciences) polarized TIRFM illuminator equipped with a 405 nm laser (100 mW LuxX diode laser, Omicron, Rodgau-Dudenhofen, Germany), a 488 nm laser (100 mW LuxX diode laser, Omicron), a 594 nm laser (100 mW diode-pumped solid-state laser, Cobolt AB, Stockholm, Sweden), and a 647 nm laser (100 mW LuxX diode laser, Omicron) (Johnson et al., 2014). For live-cell and permeabilized-cell experiments, the temperature was maintained at 37C throughout imaging using custom-built housing.

The excitation TIR light was azimuthally scanned at 200 Hz with mirror galvanometers (Nutfield Technology, Cranberry Township, PA). An electro-optic modifier (EOM, Conoptics, Danbury, CT) and a quarter-wave-plate (Thorlabs, Newton, NJ) before the galvanometers controlled the polarization of the 488 nm laser.

The galvanometers, EOM, camera shutter, and 488 laser shutter were all driven by a multifunctional data acquisition board (PCIe-6323, 577, National Instruments, Austin, TX) and controlled from custom written software in LabView (National Instruments) (Johnson et al., 2014). All emission light was collected after it was passed through a multiband polychroic (zt405/488/594/647rpc 2 mm substrate, Chroma, Bellows Falls, VT) to isolate the excitation light from the emitted light.

Images were collected on a CMOS camera (Flash-4.0, Hamamatsu Photonics, Middlesex, NJ) connected with Hamamatsu Camera Link interface to a workstation (Precision Model T7500, Dell, Austin, TX) running image acquisition software (Metamorph, Molecular Devices, San Jose, CA) (Johnson et al., 2014).

Microscopy: pol-TIRFM of mEGFP Nups

Request a detailed protocol

A sequence of 20 images was taken with alternating p^- and s^-excitation in TIR. Each individual p^ or image had an exposure time of 5 ms (laser power: 100 mW), and a new image was collected every 15 ms.

All image analysis was automated with author-written analysis algorithms written in MATLAB. 10  and 10 s^ images for a given timepoint were summed to form a single p^ and a single s^ image for each time point. Camera background was subtracted from each image. A region of the cell containing the nucleus was chosen by the user for automated detection and identification of NPCs, to prevent the analysis algorithm from considering any cytoplasmic puncta. NPCs were identified via an automated algorithm (Pulupa, 2020) using the Laplacian of Gaussian (LoG) algorithm written by Garcia, 2020, based on Lindeberg, 1998. NPCs were excised from a background subtracted image (top-hat filtered), and both polarizations were fit to a Gaussian. If either polarization did not fit to a Gaussian, the data point was rejected. The intensities from the original (not-top-hat filtered but camera background subtracted and summed) images were then extracted for analysis by taking the value from the maximum intensity pixel from each punctum at each polarization. A p:s ratio was then calculated for each punctum.

Microscopy: immunofluorescence

Request a detailed protocol

Cells were imaged with 488 laser (laser power: 5 mW) and 594 laser (laser power: 5 mW) for 200 ms.

Cells were grown on MatTek dishes at 37C in 5% pCO2. Cells were fixed with 4% (wt/vol) paraformaldehyde in PBS for 15 min at room temperature. They were then washed 3 times for 5 min in PBS, and then permeabilized with 0.1% (vol/vol) Triton X-100 in PBS for 10 min. Cells were then blocked for 1 hr in blocking buffer (0.1% vol/vol) Triton X-100, 2.5% normal donkey serum, 2.5% normal goat serum, and 1% BSA (all from Sigma). Primary antibodies were then added in blocking buffer and incubated overnight at 4C in a humid chamber. Cells were then washed 3 times for 5 min in PBS and then incubated with secondary antibody in 0.1% (vol/vol) Triton X-100 in PBS for 1–2 hr at room temperature. Dishes were dried and mounted with SlowFade Diamond Antifade Mountant (Invitrogen, Waltham, MA). Antibodies used: monoclonal rat-α-karyopherin α1/6 (2D9, Santa Cruz, Santa Cruz, CA, RRID:AB_2133549) at 1:500, monoclonal mouse-α-kap1β/impβ−1 (3E9, Abcam, Cambridge, MA, RRID:AB_2133989) at 1:1000, goat α-rat (AF488, RRID:AB_2534074) at 1:2000, goat α-mouse (AF594, RRID:AB_141372) from Invitrogen (1:2000). Images were quantified using FIJI software (National Institutes of Health, Bethesda, MD) (Schindelin et al., 2012). The nuclear rim was defined as a region of interest by thresholding the fluorescent image of karyopherin 1β (Kap1β) and converting into a binary image. The image was then used to form a mask by: filling holes, eroding, outlining, and dilating. This mask was then used to quantify intensity from Kap1β and Kap1α channels.

Microscopy: light activated nuclear shuttle (LANS)

Request a detailed protocol

Cells were imaged every 20 s with 594 laser (laser power: 5 mW, 200 ms exposure time) for 2 min, then 594 laser acquisitions (laser power: 5 mW, 200 ms exposure time) were interleaved with pulses of 488 acquisitions (laser power: 3 mW, 2 s exposure time) every 20 s for 13 min, and then cells were imaged every 20 s with 594 excitation light (laser power: 5 mW, 200 ms exposure time) for 15 min with no 488 excitations. All excitations were done in a ‘semi’-TIRF excitation mode, which restricts fluorescence to a few micrometers near to the coverslip to illuminate more of the cytosol. Regions of the nucleus and the cytosol were manually selected in FIJI (Schindelin et al., 2012), avoiding fluorescent aggregates, and quantified for determination of the nuclear fluorescence/cytoplasmic fluorescence over time.

Microscopy: FRET

Request a detailed protocol

Cells were seeded onto fibronectin-coated MatTek dishes as described above. For starvation conditions, cells were grown 1 day then washed 3x with PBS and placed in 1x Hank’s Balanced Salt Solution with calcium and magnesium (HBSS, Gibco) for 24 hr and imaged. For control condition, cells were grown 2 days then placed in cell imaging media as described above. Cells were imaged with the 488 laser (laser power: 15 mW, 200 ms exposure time) and the 594 laser (laser power: 30 mW, 200 ms exposure time). The mCherry was then bleached by imaging every second with the 594 laser (laser power: 30 mW, 950 ms exposure time) for 1 min. Cells were then imaged again with the 488 laser (laser power: 15 mW, 200 ms exposure time) and the 594 laser (laser power: 30 mW, 200 ms exposure time).

FRET quantification

Request a detailed protocol

NPCs are manually identified in pre-bleached images in Metamorph and then tracked to a post-bleach image. The maximum value pixel is quantified. Apparent FRET efficiencies are calculated by: as previously described FRETeff=(IpostIpre)Ipost (Verveer et al., 2006).

Transfections

Request a detailed protocol

Nups and LANS constructs were transfected 48 hr before imaging, with Fugene6 (Promega, Madison, WI). DN-Ran was transfected 16 hr before imaging. Cells were transfected with 1 µg DNA (for LANS and Nup133-mEGFP), 500 ng DNA (BFP-DNRan and Nup93-mEGFP), or 250 ng DNA (Nup54-mEGFP) and 3 µL FuGENE6 (Promega) in Opti-Mem I (Gibco) to a final volume of 100 µL according to the manufacturer’s instructions.

Digitonin permeabilization

Request a detailed protocol

Cells were permeabilized as previously described (Adam et al., 1992). Cells were incubated on ice for 5 min. Then cells were washed in cold transport buffer (TB) (20 mM HEPES, 110 mM potassium acetate, 5 mM sodium acetate, 2 mM magnesium acetate, and 1 mM ethylene glycol tetraacetic acid (EGTA) at pH 7.3). Cells were then incubated on ice in TB with 34 µg/mL digitonin (Sigma) for 5 min. Cells were then washed twice in cold TB and twice in 37C TB with 1.5% (wt/vol) 360kD polyvinylpyrrolidone (PVP, Sigma). Cells were imaged in 37C TB with 1.5% PVP. In order to confirm that 34 µg/mL digitonin left the nuclear envelope intact but resulted in the permeabilization of the plasma membrane, cells were incubated with 500 ng/mL R-phycoerythrin (ThermoFisher, Waltham, MA) for 10 min and then imaged. R-phycoerythrin is a 240 kD, so it should not readily diffuse through the NPC and can be used as a marker for nuclear integrity.

Protein purification

Request a detailed protocol

His-tagged Ran in the pET28 vector (a gift from Dr. Günter Blobel) was transformed into BL21 (DE3) RIL-competent cells (Stratagene, St. Louis, MO). Expression was induced with 0.5 mM isopropyl β-D-1-thiogalactopyranoside (IPTG, Sigma) and cells were grown for 3 hr at 37C. Cells were spun at 6000 x g for 10 min at 4C (Sorvall SLC-6000, Waltham, MA) and the pellet was frozen overnight. The pellet was resuspended in 50 mM TRIS pH8, 150 mM NaCl with benzonase endonuclease (at 25 U/mL, Millipore, Waltham, MA) and rLysozyme (at 12 U/mL, Millipore) and 1x EDTA-free cOmplete protease inhibitors (Roche, Waltham, MA). The resuspended pellet was passed through a high-pressure homogenizer (Avestin EmuliFlex-C3, ATA Scientific, Taren Point, Australia) for lysis. The lysate was spun at 30,600 x g at 4C for 30 min (Sorvall SS-34 rotor). Imidazole was added to the lysate to a concentration of 10 mM. The supernatant was added to Ni-NTA beads (Qiagen, Germantown, MD) and nutated at 4C for 1.5–2 hr. This supernatant was then loaded on a column (Qiagen) and washed 6x with 50 mM Tris pH8, 150 mM NaCl, 20 mM imidazole. Ran was then eluted with 50 mM TRIS pH8, 150 mM NaCl, 300 mM imidazole in 500 µL fractions. The concentration of Ran was estimated by OD600 and the fractions with the highest concentrations were pooled, buffer exchanged, and concentrated on Amicon Ultra Centrifugal Filter (10KD cutoff, Millipore). Samples were stored in aliquots of 10 mg in 50 mM TRIS pH 8, 150 mM NaCl, and 10% glycerol at −80C. Purification was confirmed by running the protein on a 4–12% Bis-Tris gel (Novex, Waltham, MA) and performing a Coomassie (PageBlue, Thermo Scientific).

His-tagged human Kap1α, Kap1β, and NTF2 in pET28 expression vectors were purified as described above with the following exceptions. These cultures were induced with 0.3 mM IPTG. Kap1α was grown overnight (~16 hr) at 18C following IPTG induction. Kap1α was stored in 200 µM aliquots, Kap1β in 20 µM aliquots, and NTF2 in aliquots of 11.4 mg/mL. The SV40 NLS was cloned into pNCStdTomato (a gift from Erik Rodriguez and Roger Tsien; Addgene plasmid #91767; http://n2t.net/addgene:91767; RRID:Addgene_91767). This protein was purified as above except it was grown overnight and no IPTG was added, because expression is constitutive.

Cargo translocation

Request a detailed protocol

To determine whether purified Kaps were functional, a cargo translocation assay was performed. Cells were permeabilized as described above by treating with digitonin and subsequently removing cytosol by gentle washing. Cells were then incubated for 30 min at 37C with a transport mix. We tested two conditions: +Kaps and -Kaps. Both conditions contained the following base mix: 1.5 µM NLS-tdTomato, 0.1 mM GTP (ThermoFischer Scientific), 2 µM Ran, and 1 µM NTF2 in TB + pvp as described above. Both conditions also contained an ATP regenerating system, which includes 1 mM ATP (VWR), 1 mg/mL creatine phosphate (Sigma), and 15 U/mL creatine phosphokinase (Millipore). Finally, the two conditions either did or did not contain a receptor mix (+/- Kaps), consisting of 1.5 µM Kap1α and 1 µM Kap1β.

After the incubation period, we subsequently washed the cells to remove excess cargo and transport elements from the nuclear periphery. Cells were incubated with live-cell Hoechst (NucBlue Live ReadyProbes, Hoeschst 33342, ThermoFischer Scientific). Cells were then imaged to quantify the nuclear NLS-tdTomato. All excitations were done in a ‘semi’-TIRFM excitation mode, which restricts fluorescence to a few micrometers near to the coverslip to illuminate more of the nucleoplasm. Nuclear regions were determined by constructing a mask in FIJI using the Hoescht staining and finding the average intensity in arbitrary units of the tdTomato signal (Schindelin et al., 2012).

Ran-GTP loading and karyopherin removal

Request a detailed protocol

Ran was loaded with GDP using published methods (Lowe et al., 2015). 1 mM Ran was incubated with 50 mM GDP in 10 mM HEPES pH 7.3, 100 mM NaCl and 10 mM EDTA at RT for 30 min. Then the sample was diluted 2.5x in four steps at 1 min intervals in 10 mM HEPES pH 7.3, 100 mM NaCl, 10 mM EDTA and MgCl2 such at the final concentration of MgCl2 was 25 mM. The solution was then dialyzed in TB overnight.

To remove kaps, cells were treated with Ran mix using published methods (Adam et al., 1992; Kapinos et al., 2017). Cells were incubated with Ran mix in TB+pvp for 1 hr (2 mM GTP, 0.1 mM ATP, 4 mM creatine phosphate, 20 U/mL creatine kinase, 5 M RanGDP, 4 µM NTF2, and 1 mM DTT).

CRISPR cell lines

Request a detailed protocol

Guides and repair templates were constructed by using the Benchling CRISPR design tool (Benchling, San Francisco, CA). Guides were cloned into the pSpCas9(BB)−2A-Puro (PX459) V2.0 plasmid following standard protocols as developed by the Zhang lab (Ran et al., 2013). The repair templates for Nup54494-mEGFP(0) and Nup133-mEGFP(−9) were synthesized by GenScript as dsDNA. This DNA was then A’-tailed and placed in a TOPO-TA Cloning Vector (2.1-TOPO, ThermoFisher Scientific). Repair templates for Nup54494-mEGFP(1) and Nup54494-mEGFP(2) and Nup133-mEGFP(−8) were cloned from the repair template plasmids constructed above via the QuikChange Lightning Site-Directed Mutagenesis Kit (Agilent, Santa Clara, CA). For each CRISPR cell line, cells were transfected with linearized repair templates and the PX459 plasmid containing the appropriate guides using FuGENE HD (Promega) with a ratio of Reagent : DNA of 3 : 1 according to manufacturer’s protocol. Transfected cells were selected via antibiotic selection with puromycin (0.6 µg/mL, InvivoGen, San Diego, CA) for 48 hr. Cells were released from antibiotic selection and allowed to recover for 24 hr. GFP positive cells were collected in the Rockefeller University Flow Cytometry Resource Center using a FACSAria II flow cytometer (BD Biosciences, San Jose, CA). Cells were resuspended in PBS (no calcium/no magnesium, Gibco), 0.5% (vol/vol) bovine serum albumin (BSA, Sigma), 5 mM EDTA (Gibco), and 15 mM HEPES (ThermoFisher). GFP positive cells were sorted and screened via live-cell microscopy for signal at the nuclear rim (~95% of GFP positive cells showed nuclear rim GFP signal). Cell lines were screened for homozygosity via PCR. Two bands were seen for heterozygotes and one band for homozygotes, both fragments were sequenced to confirm amplification of correct region and proper incorporation of the mEGFP. In order to confirm that the mEGFP was not incorporated elsewhere and producing another labeled protein within our cells, western blots were performed. Protein samples were run on a 4–12% Bis-Tris gel (Novex) and Western blots were performed with the following antibodies: α-GFP (Clontech Living Colors 632381 (JL-8); RRID:AB_2313808, mouse monoclonal, 1:1,000) and goat α-mouse–HRP (Sigma–Aldrich; RRID:AB_258476, 1:50,000). Membranes were then striped with Restore Western Blot Stripping Buffer (ThermoFisher) and western blots were performed with the following antibodies: α-actin (Abcam; RRID:AB_476743, 1:1,000) and goat α-mouse–HRP (Sigma–Aldrich; RRID:AB_258476, 1:50,000). All blocking and incubations were done in 5% (wt/vol) nonfat milk powder in Tris-buffered saline with Tween 20.

Quantification and statistical analysis

Request a detailed protocol

Statistical analyses were performed using MATLAB Version 2019b and are described in the figure legends and in the Method Details.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. Source data files have been provided for all data figures. Imaging data has been uploaded to figshare (https://figshare.com/projects/Conformation_of_the_nuclear_pore_in_living_cells_is_modulated_by_transport_state/93755).

The following data sets were generated
    1. Pulupa J
    2. Prior H
    3. Johnson DS
    4. Simon SM
    (2020) figshare
    ID 93755. Conformation of the nuclear pore in living cells is modulated by transport state.

References

Decision letter

  1. Megan C King
    Reviewing Editor; Yale School of Medicine, United States
  2. Vivek Malhotra
    Senior Editor; The Barcelona Institute of Science and Technology, Spain

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Experimental approaches capable of revealing the conformations of protein assemblies in living cells are likely to provide new insights into a host of biological questions. Here, the authors combine optical methods to develop just such a technique. This work leverages this new approach to reveal how the transport state of individual nuclear pore complexes is coupled to changes in its conformation, highlighting the flexibility of this structure.

Decision letter after peer review:

Thank you for submitting your article "Cargo modulates the conformation of the nuclear pore in living cells" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen Vivek Malhotra as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, when editors judge that a submitted work as a whole belongs in eLife but that some conclusions require a modest amount of additional new data, as they do with your paper, we are asking that the manuscript be revised to either limit claims to those supported by data in hand, or to explicitly state that the relevant conclusions require additional supporting data.

Our expectation is that the authors will eventually carry out the additional experiments and report on how they affect the relevant conclusions either in a preprint on bioRxiv or medRxiv, or if appropriate, as a Research Advance in eLife, either of which would be linked to the original paper.

Summary:

In this manuscript Pulupa et al. develop the application of "pol-TIRFM" applied to individual nuclear pore complexes in living cells. Technically, this work builds on their past published papers (Biophys J. 2013, Nat Struct Mol Biol. 2011, Biophys J. 2010 Sep 22;99(6):1706-17), now extended to single NPC resolution. After exploring suitable fluorescent protein fusions of nucleoporins in the Y-complex (Nup133), and two aspects of the inner ring (Nup93 and the FG nups, Nup58 and Nup54) that are sensitive to the orientation of the fluorophore, they then examine how different perturbations to transport affect these orientation sensors. Numerous treatments expected to alter nucleocytoplasmic transport change the orientation of Nup54 and Nup58, including starvation, inhibition of Crm1-mediated nuclear export, and expression of a dominant-negative form of the Ran-GTPase. Another observation is that permeabilizing cells alters the orientation of Nup54 (mimicking the perturbations listed above), but this can be restored by incubation with Kapa1 and Kapb. Consistent with the interpretation that the Kaps alter the conformation of Nup54, the orientation change upon permeabilization can be augmented (and sped up) by addition of Ran-GTP, which was previously shown to strip Kaps from the NPC. Last, the authors use an orthogonal approach (a FRET reporter in Nup62); the Nup62 protomers show increased FRET upon starvation.

Overall there was enthusiasm for the approach, particularly its potential to provide a quantitative analysis of conformational changes in the NPC, as well as an appreciation for the technical feat of detecting anisotropy changes on the single NPC level. In terms of the biology, while there is a rich understanding of the architecture of the NPC from structural biology, a major unanswered question is the dynamic conformations of the nuclear pore complex that are sampled, under what conditions such structural changes occur, and the physiological relevance. In this respect, the reviewers found the evidence that the reporters reflect changes in the inner ring of the NPC in response to starvation and other perturbations to be largely convincing. There were, however, several aspects of the work that the reviewers felt could be improved. A particular concern was how the orientation changes relate to the structural states of the NPC. A second was on the ability to fully interpret the changes in the orientation of Nup54 and Nup58 with regards to large scale changes in the NPC. There were also several areas that the reviewers felt could use further clarification, as outlined below. Lastly, the reviewers expect that the authors will want to comment on their results in the context of the recent work from the Beck lab on starvation and NPC structure.

Essential revisions:

1) There was a consensus that getting beyond a "yes/no" of whether a change occurred to some concept of the kind of orientation change that took place in the context of the NPC would greatly strengthen the work. As presented, it was not clear how much Nup orientation changed nor how this relates to the state of the NPC itself (e.g., dilated vs. constricted) or its engagement with components like transport factors. The reviewers made several suggestions for how this might be achieved. First, the reviewers felt that the authors should address/interpret/discuss the quantitative differences/similarities in the p:s behavior across test conditions, particularly when this could be put into greater context of the NPC structure. Another approach that the reviewers considered is whether the authors can better leverage the extensive prior structural studies on the NPC and nucleoporins, the known orientation of the NPC relative to the evanescent wave and the polarization in this experimental set-up, and the differences in the observed p:s ratio upon stepping the linker by single amino acids, to interpret more detail about how the perturbations are influencing the position of the tagged nups in the NPC. Combining such data with a model-based theory could constrain the possibilities. Last, and related to the prior two points, was the possibility that the new work from the Beck lab might better position the authors to bridge their observations with more specific changes in the NPC (see next point).

2) While this paper has been under review a related paper (albeit in a different model) from Martin Beck's group (Allegretti et al.) was posted to the bioRxiv. The reviewers felt it important that a revision address this work in their interpretation and discussion. Specifically: 1) How do the observations compare about the response to starvation (recognizing that the fission yeast and mammalian NPC have different structure)?; 2) Can the authors draw any parallels with the Allegretti paper, particularly the increase of FRET in Nup62 after starvation? Can the authors suggest if this implies constriction or dilation?; 3) the Beck paper suggests that the observed changes are distinct from those proposed in the "Ring Cycle" – this should be taken into account in the Discussion here.

3) The reviewers felt it important to discriminate between the effects of Kap binding to the FG nucleoporins in the act of transporting cargo versus effects solely of Kap binding (independent of transport). This point could be addressed using Kap separation-of-function mutants such as the N-terminal truncation of Kap-β.

4) There were several questions related to the observation that the specific nucleoporins that showed changes in orientation in response to transport properties of the NPC directly associate with karyopherins through their FG-domains, which are part of the same polypeptide with the structured domains (where the fluorophore is fused). Thus, the major movements could be restricted to within the same polypeptide. This begs the question of whether transport alters the inner ring in a concerted manner beyond the state of the individual FG nucleoporin. One suggestion is to monitor, in the transient transfections, Nup54 truncations lacking the FG-repeat domain still respond in the same manner, which would be strong evidence propagation of the inner ring complex independent of engagement of its FG region. Ideally this would be achieved by titrating in the FG-less Nup54.

5) Further explanation/discussion is needed for the observed effects of adding Ran mutant/leptomycin B. Specifically, when hydrolysis is blocked, RanQ69L-GTP-importin complexes should not dissociate. If so, importins would no longer be available for undertaking another round of import in the cytoplasm. Likewise, NES-cargo-RanQ69L-GTP-exportin triple complexes should not disassemble. In this event, transiting pools of RanQ69L-GTP-importin and NES-cargo-RanQ69L-GTP-exportin ought to remain at NPCs due to binding to the FG Nups. How is it the p:s ratio in Figure 4L shares a similar trend with Figure 4H (i.e., a decrease)? How might this compare to what happens in the NPC after permeabilization (Figure 4H)? Leptomycin B inhibits NES-cargo binding to Crm1, thereby decreasing the amount of NES-cargo being exported through the NPC. Can the authors please attempt an explanation as to how the p:s ratio in Figure 4J shares a similar trend to Figure 4H and L (i.e., a decrease)?

6) Can the authors please comment on the difference in observed behavior reported in Figure 5F/H and Figure 4H? The Nup54 p:s ratio increases upon removing endogenous karyopherins by +Ran mix (pink, Figure 5F). Adding exogenous karyopherins then returns the p:s ratio towards pre-Ran mix values (blue). Moreover, no change to the p:s ratio is seen when Ran mix is absent (Figure 5H). Again, Nup54 p:s ratio decreases "in a buffer containing no transport factors or cargo" (Figure 4H) when these experiments do not seem so different. What might bring about these differences?

7) The reviewers were concerned that some statements in the manuscript were either over-sold or over-interpreted. Specifically, please revise to avoid "first time statements" including: "we have developed the first tools to directly observe the orientational dynamics of Nups within a single NPC in living cells and to track these dynamics over time 1 with different cargo conditions", which is dismissive of the various prior studies in the literature showing that the NPC can change its structure. While the authors employ live-cells (clearly an advance), their "dynamics" are in reality snapshots at steady state, at least several minutes or hours apart. In addition, the reviewers would ask the authors to revise the manuscript to acknowledge that they cannot rule out that a conformational change occurs outside the inner ring because it could not be observed using this approach. Lastly, the reviewers suggest that the title "Cargo modulates the conformation of the nuclear pore in living cells" is overstated. Suggested: "Transport state modulates the conformation of the nuclear pore in living cells"

8) The reviewers would like the authors to report not just orientation (the p:s ratio in the manuscript) but also rigidity – that is, the anisotropy. This was seen as particularly important because it is unclear whether rigidity of inner ring Nups will vary with nuclear transport state.

https://doi.org/10.7554/eLife.60654.sa1

Author response

Essential revisions:

1) There was a consensus that getting beyond a "yes/no" of whether a change occurred to some concept of the kind of orientation change that took place in the context of the NPC would greatly strengthen the work. As presented, it was not clear how much Nup orientation changed nor how this relates to the state of the NPC itself (e.g., dilated vs. constricted) or its engagement with components like transport factors. The reviewers made several suggestions for how this might be achieved. First, the reviewers felt that the authors should address/interpret/discuss the quantitative differences/similarities in the p:s behavior across test conditions, particularly when this could be put into greater context of the NPC structure.

Thank you for this suggestion. We are strong believers in doing quantitative analysis of the results, especially across different test conditions. We have analyzed the quantitative differences across different treatments of the same probe. However, we are also cautious about over-interpreting our results. In the absence of additional structural information (see below), we think it is inappropriate to try to calibrate the physical magnitude of the change of the orientation of the Nup.

Therefore, we have added further interpretation to both the analysis of Figure 4:

“The effects of starvation and permeabilization appear to be more pronounced than that of the drug treatment and the dominant-negative Ran. This may be due to a more severe reduction in cargo flux, and therefore a more complete assumption of the NPC of the state adopted when cargo flux is reduced.”

Another approach that the reviewers considered is whether the authors can better leverage the extensive prior structural studies on the NPC and nucleoporins, the known orientation of the NPC relative to the evanescent wave and the polarization in this experimental set-up, and the differences in the observed p:s ratio upon stepping the linker by single amino acids, to interpret more detail about how the perturbations are influencing the position of the tagged nups in the NPC. Combining such data with a model-based theory could constrain the possibilities.

We appreciate this suggestion! In the past, we have used fluorescence polarization measurements to determine the orientation of Nup133 and the y-shaped complex within the NPC. We did this by comparing results of measurements of anisotropy to computational predictions based on the crystal structure of Nup133 and the cryo-EM structure of the y-shaped complex. These experiments were easier to perform with Nup133 because we were simply testing how the y-shaped complex fit into the NPC, and there was much established structural knowledge of the y-shaped complex.

We have been intrigued by the possibility of combining the orientational changes we are able to measure with structural data of the NPC. We believe that this is a potential next step. Determining the precise angle of the change of orientation of the inner ring nups would require additional structural information about how exactly these alpha helices are incorporated into the NPC, as well as considerable computational work. Since August 2019 we have been speaking with Jan Kosinski about joining forces to use his structural measurements with our fluorescence. Alas, the structural information is still not resolved enough to join these data sets so this kind work will have to be outside of the scope of this project. We look forward to building, in the future, a computational model to calculate the angle changes of the alpha helices to which our probes are conjugated.

Last, and related to the prior two points, was the possibility that the new work from the Beck lab might better position the authors to bridge their observations with more specific changes in the NPC (see next point).

2) While this paper has been under review a related paper (albeit in a different model) from Martin Beck's group (Allegretti et al.) was posted to the bioRxiv. The reviewers felt it important that a revision address this work in their interpretation and discussion.

Thank you. We have added discussion of this paper to our manuscript. This beautiful work with an orthogonal technique is an independent confirmation of our data showing conformational changes in the main scaffold of the NPD that are associated with transport state. We started an active discussion with Kosinski and Beck over a year ago, once we felt we had a robust, reproducible story. We have been trying to coordinate with them both the kinds of perturbations on transport that we use as well as the Nups we focus on. However, we want to be cautious about not overinterpreting our data. We are confident in the measurement of the change of FRET and the change in the relative excitation by p and s light. Consequently, we are confident in changes of orientation that correlate with the change of transport. However, we feel as if it could be a disservice to the reader to overinterpret the results at this point in terms of a specific model.

Specifically: 1) How do the observations compare about the response to starvation (recognizing that the fission yeast and mammalian NPC have different structure)?;

We have added the following section to the Discussion:

“While this manuscript was in review, cryo-EM tomograms revealed in situ NPCs taken from S. cerevisiae cells in exponential growth phase were ~20 nm larger in diameter than isolated NPCs from S. cerevisiae, underscoring the potential flexibility of the NPC (Allegretti et al., 2020).“

And revised our analysis as follows:

“The conformational changes we observe in the NPCs of living cells may be coincident with cargo translocation or may be an indication that the scaffold of the NPC serves as a dynamic gate that can regulate nuclear trafficking. […] Further studies will be needed to determine the exact conformations we are monitoring in this study, and to what extent the conformations we observe align with these models. ”

2) Can the authors draw any parallels with the Allegretti paper, particularly the increase of FRET in Nup62 after starvation? Can the authors suggest if this implies constriction or dilation?;

Yes, we have added the following to the Discussion:

In addition to changes in orientation, we also observe increases in FRET in the FG-regions of Nup62 upon starvation, which is also consistent with a spatial rearrangement and constriction of the NPC diameter.

3) the Beck paper suggests that the observed changes are distinct from those proposed in the "Ring Cycle" – this should be taken into account in the Discussion here.

We have made the above changes to the Discussion to explain the difference.

3) The reviewers felt it important to discriminate between the effects of Kap binding to the FG nucleoporins in the act of transporting cargo versus effects solely of Kap binding (independent of transport). This point could be addressed using Kap separation-of-function mutants such as the N-terminal truncation of Kap-β.

We are very interested in distinguishing between the effect of Kaps binding on their own from Kaps transporting cargo (including specific cargo such as large cargo or inner nuclear membrane proteins).

In order to test the effect of Kaps devoid of cargo on the NPC, we introduced karyopherins alone in Figure 5H. Although this is not the Kap separation-of-function mutant, there was no additional cargo introduced in this experiment. In the absence of cargo, we did observe that the Kaps alone caused the NPC to be in an alternate conformation. In the future, we hope to track individual cargos transiting through the pore while monitoring the orientation of Nups to see the how transiting cargo affects the conformation of the NPC.

4) There were several questions related to the observation that the specific nucleoporins that showed changes in orientation in response to transport properties of the NPC directly associate with karyopherins through their FG-domains, which are part of the same polypeptide with the structured domains (where the fluorophore is fused). Thus, the major movements could be restricted to within the same polypeptide. This begs the question of whether transport alters the inner ring in a concerted manner beyond the state of the individual FG nucleoporin. One suggestion is to monitor, in the transient transfections, Nup54 truncations lacking the FG-repeat domain still respond in the same manner, which would be strong evidence propagation of the inner ring complex independent of engagement of its FG region. Ideally this would be achieved by titrating in the FG-less Nup54.

Thank you for this suggestion. We have performed this experiment, and we show that Nup54 orientational sensors lacking an FG-domain experience the same conformational changes as Nup54 orientational sensors containing a wild-type FG-domain. We appreciate the suggestion and agree that these results provide evidence that the conformational change is propagated throughout the inner ring, independent of the engagement karyopherins with individual Nup whose orientation is being altered.

We have added this figure to our manuscript as Figure 3—figure supplement 2. We have also added the following statement to our Results:

“The orientation shift of Nup54 was also seen in Nup54 orientational sensors where the FG-Nup domain was eliminated. This result suggests that these orientational changes are propagated throughout the inner ring, independent of whether the individual Nup54 polypeptide containing orientational sensor is bound to a kap.”

5) Further explanation/discussion is needed for the observed effects of adding Ran mutant/leptomycin B. Specifically, when hydrolysis is blocked, RanQ69L-GTP-importin complexes should not dissociate. If so, importins would no longer be available for undertaking another round of import in the cytoplasm. Likewise, NES-cargo-RanQ69L-GTP-exportin triple complexes should not disassemble. In this event, transiting pools of RanQ69L-GTP-importin and NES-cargo-RanQ69L-GTP-exportin ought to remain at NPCs due to binding to the FG Nups. How is it the p:s ratio in Figure 4L shares a similar trend with Figure 4H (i.e., a decrease)? How might this compare to what happens in the NPC after permeabilization (Figure 4H)? Leptomycin B inhibits NES-cargo binding to Crm1, thereby decreasing the amount of NES-cargo being exported through the NPC. Can the authors please attempt an explanation as to how the p:s ratio in Figure 4J shares a similar trend to Figure 4H and L (i.e., a decrease)?

All methods of decreasing cargo flux through the NPC resulted in the same orientational change in Nup54. (That is that 4F, 4H, 4J, and 4L) all showed the same trend. One possible explanation that would explain this shift is that in all of these cases, the cargo flux is decreased. It is possible that the conformational plasticity we observe is necessary for the transport of large cargoes or inner nuclear membrane proteins, transport of all of which would be reduced in cells under starvation, permeabilization, leptomycin B, or dominant-negative ran treatment. Thus, the conformational change is permissive for transport, but is neutral as to the direction of transport. Specifically, in the text we state:

“These results suggest that attenuating the transport of NLS-driven cargo shifts the orientation of select alpha-helical domains of inner ring Nups. The direction of the p:s ratio shift of Nup54-mEGFP494 is consistent among all mechanisms of reducing cargo flux.”

6) Can the authors please comment on the difference in observed behavior reported in Figure 5F/H and Figure 4H? The Nup54 p:s ratio increases upon removing endogenous karyopherins by +Ran mix (pink, Figure 5F). Adding exogenous karyopherins then returns the p:s ratio towards pre-Ran mix values (blue). Moreover, no change to the p:s ratio is seen when Ran mix is absent (Figure 5H). Again, Nup54 p:s ratio decreases "in a buffer containing no transport factors or cargo" (Figure 4H) when these experiments do not seem so different. What might bring about these differences?

We apologize for the confusion and we have sought to clarify these points in text. We see a change in the orientation of Nup54 upon permeabilization of the cells. This, we believe is the result of the reduction of karyopherins and cargo. In the case of Figure 4H, the control (CM, left) is an unpermeabilized cell in complete media. The experiment (PERM, right) is a permeabilized cell. Thus, the right column of Figure 4G is equivalent to the t=0 (left most column) of Figure 5F-I.

We have modified text when describing Figure 4H and Figure 4G to help clarify this point:

“When we permeabilize cells and incubate in transport buffer plus 1.5% (wt/vol) 360kD polyvinylpyrrolidone to mimic cytosolic conditions, we observed a distinct shift in the orientation of Nup54494 compared to the orientation of Nup54494 in unpermeabilized cells grown in complete media. We saw no change in the orientation of Nup133 in permeabilized cells compared to Nup133 in unpermeabilized cells grown in complete media (Figure 4G-H).”

7) The reviewers were concerned that some statements in the manuscript were either over-sold or over-interpreted. Specifically, please revise to avoid "first time statements" including: "we have developed the first tools to directly observe the orientational dynamics of Nups within a single NPC in living cells and to track these dynamics over time 1 with different cargo conditions", which is dismissive of the various prior studies in the literature showing that the NPC can change its structure. While the authors employ live-cells (clearly an advance), their "dynamics" are in reality snapshots at steady state, at least several minutes or hours apart. In addition, the reviewers would ask the authors to revise the manuscript to acknowledge that they cannot rule out that a conformational change occurs outside the inner ring because it could not be observed using this approach. Lastly, the reviewers suggest that the title "Cargo modulates the conformation of the nuclear pore in living cells" is overstated. Suggested: "Transport state modulates the conformation of the nuclear pore in living cells"

Thank you for this response. We agree with these comments and have made the suggested changes in text and in the title. In addition to eliminating “first time statements” and replacing the word “dynamics,” we also added the following statement to our Discussion:

“It is possible that those regions are moving translationally and thus escaping our detection, which is sensitive only to orientation changes with respect to the nuclear-cytoplasmic axis.”

8) The reviewers would like the authors to report not just orientation (the p:s ratio in the manuscript) but also rigidity – that is, the anisotropy. This was seen as particularly important because it is unclear whether rigidity of inner ring Nups will vary with nuclear transport state.

We have been struggling to report anisotropy values using pol-TIRF. However, we do not yet feel comfortable reporting absolute values for two reasons. First, anisotropy will always be a convoluted measurement, containing information about both orientation and rigidity. In a system where the Nups are organized with dependence around an optical axis, it is highly challenging to separate the two. Another obstacle to reporting anisotropy is the mixing of light of different polarizations when they are collected using a high-NA TIRF objective [in a nutshell, at the higher angles, a component of the light polarized in z is split to the x and y axis. This extent of this varies as one moves more to the periphery of the lens.]. Thus, as the light is collected, parallel and perpendicular emissions are mixed, and at the high-NA we are using (1.49), the correction factors for that have been developed break down. We have been working during this response to address this issue but we realize that a full reworking with proper calibrations and validations of these correction factors for lenses of high numerical aperture is its own two year project. Although, we are interested in developing methods to measure anisotropy in TIRF, we do not believe we currently are able to report anisotropy in a rigorous manner.

https://doi.org/10.7554/eLife.60654.sa2

Article and author information

Author details

  1. Joan Pulupa

    Laboratory of Cellular Biophysics, Rockefeller University, New York, United States
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3858-1886
  2. Harriet Prior

    Laboratory of Cellular Biophysics, Rockefeller University, New York, United States
    Contribution
    Data curation, Validation, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  3. Daniel S Johnson

    Department of Physics and Astronomy, Hofstra University, Hempstead, United States
    Contribution
    Validation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8906-0509
  4. Sanford M Simon

    Laboratory of Cellular Biophysics, Rockefeller University, New York, United States
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Project administration, Writing - review and editing
    For correspondence
    Sanford.Simon@rockefeller.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8615-4224

Funding

Howard Hughes Medical Institute (Gilliam Fellowship)

  • Joan Pulupa

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Günter Blobel, Elias Coutavas, and Ivo Melčák for Nup58, Kap-Alpha1, and Kap-Beta1 cDNA and for the his-Ran plasmid. pSpCas9(BB)−2A-Puro (PX459) V2.0 was a gift from Feng Zhang (Addgene plasmid # 62988). DN-RanQ69L was a gift from Jay Brenman (Addgene plasmid # 30309) and pTriEx-mCherry::LANS4 was a gift from Brian Kuhlman (Addgene plasmid # 60785). We are grateful for the assistance of the Flow Cytometry Resource Center at The Rockefeller University. We thank Günter Blobel, Philip Coffino and Elias Coutavas for helpful discussions. Funding: The Howard Hughes Medical Institute Gilliam Fellowship (J P).

Senior Editor

  1. Vivek Malhotra, The Barcelona Institute of Science and Technology, Spain

Reviewing Editor

  1. Megan C King, Yale School of Medicine, United States

Publication history

  1. Received: July 2, 2020
  2. Accepted: November 23, 2020
  3. Version of Record published: December 21, 2020 (version 1)

Copyright

© 2020, Pulupa et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 855
    Page views
  • 93
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Developmental Biology
    Sun-Hee Hwang et al.
    Research Article

    The role of compartmentalized signaling in primary cilia during tissue morphogenesis is not well understood. The cilia-localized G-protein-coupled receptor—Gpr161 represses hedgehog pathway via cAMP signaling. We engineered a knock-in at Gpr161 locus in mice to generate a variant (Gpr161mut1), which was ciliary localization defective but cAMP signaling competent. Tissue phenotypes from hedgehog signaling depend on downstream bifunctional Gli transcriptional factors functioning as activators/repressors. Compared to knockout (ko), Gpr161mut1/ko had delayed embryonic lethality, moderately increased hedgehog targets and partially down-regulated Gli3-repressor. Unlike ko, the Gpr161mut1/ko neural tube did not show Gli2-activator-dependent expansion of ventral-most progenitors. Instead, the intermediate neural tube showed progenitor expansion that depends on loss of Gli3-repressor. Increased extraciliary receptor (Gpr161mut1/mut1) prevented ventralization. Morphogenesis in limb buds and midface requires Gli-repressor; these tissues in Gpr161mut1/mut1 manifested hedgehog hyperactivation phenotypes—polydactyly and midfacial widening. Thus, ciliary and extraciliary Gpr161 pools likely establish tissue-specific Gli-repressor thresholds in determining morpho-phenotypic outcomes.

    1. Cell Biology
    2. Developmental Biology
    Evelien Eenjes et al.
    Research Article Updated

    SOX2 expression levels are crucial for the balance between maintenance and differentiation of airway progenitor cells during development and regeneration. Here, we describe patterning of the mouse proximal airway epithelium by SOX21, which coincides with high levels of SOX2 during development. Airway progenitor cells in this SOX2+/SOX21+ zone show differentiation to basal cells, specifying cells for the extrapulmonary airways. Loss of SOX21 showed an increased differentiation of SOX2+ progenitor cells to basal and ciliated cells during mouse lung development. We propose a mechanism where SOX21 inhibits differentiation of airway progenitors by antagonizing SOX2-induced expression of specific genes involved in airway differentiation. Additionally, in the adult tracheal epithelium, SOX21 inhibits basal to ciliated cell differentiation. This suppressing function of SOX21 on differentiation contrasts SOX2, which mainly drives differentiation of epithelial cells during development and regeneration after injury. Furthermore, using human fetal lung organoids and adult bronchial epithelial cells, we show that SOX2+/SOX21+ regionalization is conserved. Lastly, we show that the interplay between SOX2 and SOX21 is context and concentration dependent leading to regulation of differentiation of the airway epithelium.
