The Nesprin-1/-2 ortholog ANC-1 regulates organelle positioning in C. elegans independently from its KASH or actin-binding domains

  1. Hongyan Hao
  2. Shilpi Kalra
  3. Laura E Jameson
  4. Leslie A Guerrero
  5. Natalie E Cain
  6. Jessica Bolivar
  7. Daniel A Starr  Is a corresponding author
  1. Department of Molecular and Cellular Biology, University of California, Davis, United States

Abstract

KASH proteins in the outer nuclear membrane comprise the cytoplasmic half of linker of nucleoskeleton and cytoskeleton (LINC) complexes that connect nuclei to the cytoskeleton. Caenorhabditis elegans ANC-1, an ortholog of Nesprin-1/2, contains actin-binding and KASH domains at opposite ends of a long spectrin-like region. Deletion of either the KASH or calponin homology (CH) domains does not completely disrupt nuclear positioning, suggesting neither KASH nor CH domains are essential. Deletions in the spectrin-like region of ANC-1 led to significant defects, but only recapitulated the null phenotype in combination with mutations in the transmembrane (TM) span. In anc-1 mutants, the endoplasmic reticulum ER, mitochondria, and lipid droplets were unanchored, moving throughout the cytoplasm. The data presented here support a cytoplasmic integrity model where ANC-1 localizes to the ER membrane and extends into the cytoplasm to position nuclei, ER, mitochondria, and other organelles in place.

Introduction

Cellular organization is an essential process. Organelles are interconnected and mostly constrained to specific subcellular locations when they are not actively transported longer distances by cytoskeletal motor proteins (van Bergeijk et al., 2016). For example, nuclear positioning is essential for a wide variety of cellular and developmental processes, including fertilization, cell division, cell polarization, gametogenesis, central-nervous system development, and skeletal muscle function (Bone and Starr, 2016; Gundersen and Worman, 2013). Defects in nuclear positioning are associated with multiple neuromuscular diseases (Calvi and Burke, 2015; Folker and Baylies, 2013; Gundersen and Worman, 2013). Furthermore, the Golgi apparatus and centrosomes are often found next to the nucleus, while the ER and mitochondria are usually spread throughout the cell (van Bergeijk et al., 2016). The cellular tensegrity model posits that organelles are physically coupled to the cytoskeleton, plasma membrane, and extracellular matrix so that the cell acts as a single mechanical unit (Jaalouk and Lammerding, 2009; Wang et al., 2009). The mechanisms that maintain cellular tensegrity and how it relates to organelle positioning are poorly understood, especially in vivo.

Nuclei are connected to the rest of the cell by LINC (linker of nucleoskeleton and cytoskeleton) complexes. SUN (Sad-1/UNC-84) proteins integral to the inner nuclear membrane and KASH (Klarsicht, ANC-1, and SYNE homology) proteins that span the outer nuclear membrane interact with each other in the perinuclear space to form LINC complexes. The cytoplasmic domains of KASH proteins interact with various components of the cytoskeleton (Luxton and Starr, 2014), while the nucleoplasmic domains of SUN proteins interact with lamins. Thus, LINC complexes bridge the nuclear envelope and mechanically couple the nucleoskeleton to the cytoskeleton (Chang et al., 2015; Lee and Burke, 2018; Starr and Fridolfsson, 2010). LINC complex inhibition reduces the stiffness and increases the deformability of the entire cytoplasm in mammalian tissue culture cells, even far from the nuclear envelope and beyond the predicted reach of LINC complexes (Gill et al., 2019; Stewart-Hutchinson et al., 2008). Whether LINC complexes maintain the mechanical properties of the cytoplasm in vivo is relatively unexplored.

Here, we investigate the role of LINC complexes with giant KASH proteins in organelle positioning in Caenorhabditis elegans. Most of the hypodermis of an adult C. elegans consists of a giant syncytium, the hyp7, containing 139 evenly-spaced nuclei that are anchored in place (Altun and Hall, 2009). Furthermore, C. elegans have invariant developmental lineages, are optically clear, and are easily genetically manipulated, making the hyp7 an ideal in vivo model to study organelle positioning. A LINC complex made of the KASH protein ANC-1 and the SUN protein UNC-84 is responsible for nuclear anchorage in C. elegans (Starr, 2019). UNC-84 is a canonical SUN protein that is orthologous to mammalian SUN1 and SUN2 and is the only known SUN protein in postembryonic somatic tissues in C. elegans with a nucleoplasmic domain that interacts directly with the lamin protein LMN-1 (Bone et al., 2014). ANC-1 is an exceptionally large protein of up to 8545 residues with two tandem calponin homology (CH) domains at its N terminus and a KASH domain at its C terminus (Starr and Han, 2002). ANC-1 orthologs Drosophila MSP-300 and mammalian Nesprin-1 Giant (G) and -2G have similar domain arrangements (Starr and Fridolfsson, 2010). Unlike MSP-300, Nesprin-1G, and -2G, which each contains greater than 50 spectrin-like repeats, ANC-1 consists of six tandem repeats (RPs) of 903 residues that are almost 100% conserved with each other at the nucleotide level (Liem, 2016; Rajgor and Shanahan, 2013; Starr and Han, 2002; Zhang et al., 2001). While spectrin-like repeats have not been identified in the ANC-1 RPs, most of ANC-1 is predicted to be highly helical, like spectrin (Starr and Han, 2002). The CH domains of ANC-1 interact with actin filaments in vitro and co-localize with actin structures in vivo, while the KASH domain of ANC-1 requires UNC-84 for its localization to the outer nuclear membrane (Starr and Han, 2002). UNC-84 is thought to interact with lamins to connect LINC to the nucleoskeleton while ANC-1 extends away from the outer nuclear membrane into the cytoplasm to tether nuclei to actin filaments (Starr and Han, 2002).

Evidence from multiple systems suggests that giant KASH orthologs might not solely function as nuclear tethers. We have observed that hyp7 syncytia in anc-1 null animals display a stronger nuclear positioning defect than unc-84 null animals (Cain et al., 2018; Jahed et al., 2019) and mitochondria are unanchored in anc-1, but not in unc-84 mutants (Starr and Han, 2002). These results suggest that ANC-1 has LINC complex-independent roles for anchoring nuclei and mitochondria. Likewise, mitochondria and the ER are mispositioned in Drosophila msp-300 mutant muscles (Elhanany-Tamir et al., 2012). Finally, it remains to be determined if the CH domains of ANC-1 are necessary for nuclear anchorage. Mouse Nesprin-1 and -2 have isoforms lacking CH domains (Duong et al., 2014; Holt et al., 2016) and Nesprin-1 CH domains are dispensable for nuclear positioning during mouse skeletal muscle development (Stroud et al., 2017).

To address these ambiguities, we use ANC-1 to examine how giant KASH proteins position nuclei and other organelles. We find that for nuclear anchorage, the ANC-1 KASH domain plays a relatively minor role, and the CH domains are dispensable. Rather, multiple large cytoplasmic domains and the C-terminal transmembrane (TM) span of ANC-1 are required for nuclear anchorage. Moreover, in anc-1 null mutants, the entire cytoplasm is disorganized, and the ER is unanchored and moves freely throughout the cytoplasm. Together, our results support a model in which ANC-1 associates with ER membranes to regulate the mechanical properties of the cytoplasm, thereby anchoring nuclei, mitochondria, ER, and other organelles.

Results

ANC-1 promotes proper nuclear anchorage through a LINC complex-independent mechanism

Loss-of-function mutations in anc-1 disrupt the even spacing of hyp7 syncytial nuclei (Cain et al., 2018; Starr and Han, 2002). We use the number of nuclei in contact with each other as a metric for hyp7 nuclear anchorage defects (Cain et al., 2018; Fridolfsson et al., 2018). In wild type (WT) animals, very few hyp7 nuclei were touching. In contrast, over 50% of hyp7 nuclei were clustered with at least one other nucleus in anc-1(e1873) null mutants. Significantly fewer hyp7 nuclei were unanchored in unc-84(n369) null mutants (Figure 1C). This trend was also observed in adult syncytial seam cells (Figure 1—figure supplement 1). Throughout this manuscript, we call nuclear anchorage defects that are statistically similar to anc-1 null mutants as severe, defects statistically similar to unc-84 null mutants but still significantly worse than wild type as mild, and defects statistically between anc-1 and unc-84 null mutants as intermediate.

Figure 1 with 1 supplement see all

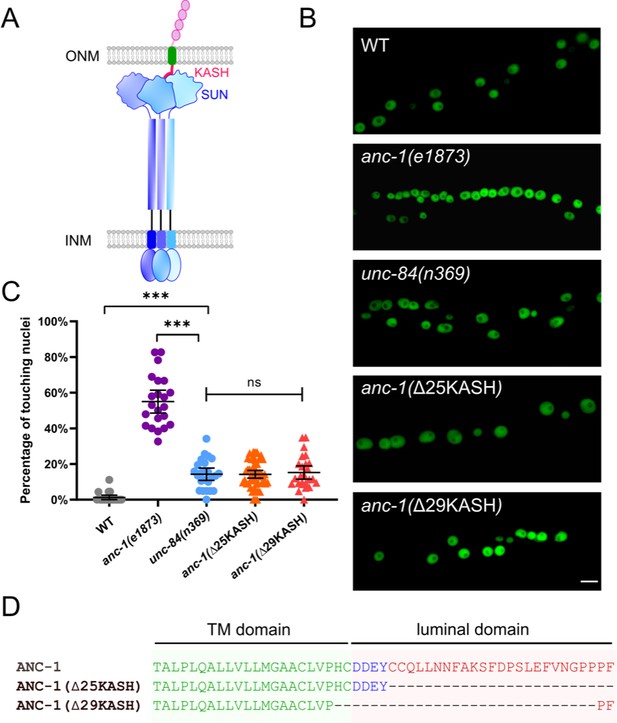

ANC-1 has a linker of nucleoskeleton and cytoskeleton (LINC) complex-independent role in anchoring nuclei.

(A) Model of the LINC complex. Trimers of the SUN protein UNC-84 (purple and blue) and the KASH protein ANC-1 (red, green, and pink, only one of the trimers is shown) form the LINC complex, which spans the outer nuclear membrane (ONM) and inner nuclear membrane (INM). (B) Lateral views of adult C. elegans expressing hypodermal nuclear GFP in wild type (WT) or indicated mutants. Scale bar, 10 µm. (C) Quantification of nuclear anchorage defects. Each point represents the percentage of touching nuclei on one side of a young adult animal. Means with 95% CI error bars are shown. ANOVA and Tukey’s multiple comparisons tests were used for statistical analysis; ns means not significant, p>0.05; ***p≤0.001. n ≥ 20 for each strain. (D) Sequences of the transmembrane (TM) domain and the luminal domain of ANC-1 showing the deletions analyzed.

The greater severity of the nuclear anchorage defect in anc-1 null mutants compared to unc-84 suggests that ANC-1 plays additional roles in nuclear positioning independently of its SUN partner UNC-84. We used CRISPR/Cas9 gene editing to delete the luminal peptides of the ANC-1 KASH domain (Figure 1D). We predicted the anc-1(ΔKASH) mutants would abrogate the interaction between ANC-1 and UNC-84 and phenocopy unc-84(null) animals. Two independent anc-1(ΔKASH) mutants exhibited mild nuclear anchorage defects similar to those observed in unc-84(null) mutants (Figure 1B–C). Together, these results suggest that the SUN/KASH interaction only partially contributes to nuclear anchorage, implicating the large cytoplasmic domain of ANC-1 as the major player in nuclear positioning.

The ANC-1 N-terminal CH domains are not required for hyp7 nuclear positioning

We next deleted the CH domains at the N terminus of the largest isoforms of ANC-1, which are predicted to interact with actin, and replaced them with GFP using CRISPR/Cas9 gene editing. Hyp7 nuclei did not cluster in anc-1(ΔCH) mutants (Figure 2B). Thus, the CH domains of ANC-1 are not required for hyp7 nuclear anchorage.

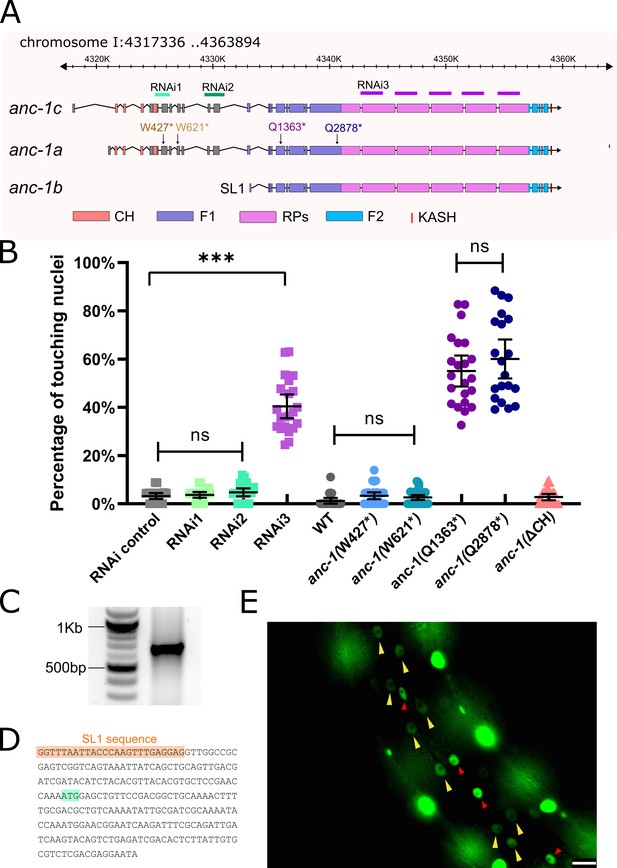

anc-1b is the major isoform in hyp7 nuclear anchorage.

(A) Schematic gene structure of anc-1a, b, and c isoforms (modified from the J-Brower in Wormbase). Domains are color-coded. CH = calponin homology; F1 = fragment one from the ATG of ANC-1b to the beginning of the repeats; RPs = the six exact repeats of about 900 residues each; F2 = fragment two from the end of the repeats to the transmembrane (TM) span; WT = wild type; and KASH = Klarsicht, ANC-1, Syne homology, in this case referring to the residues in the lumen of the nuclear envelope. The target regions of RNAi constructs are labeled. Premature stop mutations are indicated using the numbering the anc-1a isoform. (B) Quantification of nuclear anchorage defects in anc-1 mutant and RNAi animals. Means with 95% CI are shown in the graph. ANOVA and Tukey’s multiple comparisons tests were used for statistical analysis. ns, not significant, p>0.05; ***p≤0.001. n ≥ 20 for each strain. (C) An agarose gel showing the 5’-RACE products on the right lane. (D) Partial sequence of the 5’-RACE product. An SL1 sequence (orange) adjacent to the 5’ end of the anc-1b transcript was identified. The predicted start codon is in light green. (E) Lateral view of a worm showing the expression of nls::GFP driven by anc-1b promoter. Yellow arrows mark hyp7 nuclei; the red arrows mark seam cell nuclei; and the bright, unmarked nuclei are in muscle cells. Scale bar, 10 µm.

Nesprin-1 and -2 have multiple splice isoforms, many of which are missing the CH domains (Rajgor et al., 2012; Stroud et al., 2017). We hypothesized a shorter anc-1 isoform lacking the CH domains would be sufficient for nuclear anchorage. RNAseq and expressed sequence tag data published on WormBase (Harris et al., 2020) suggest that anc-1 has at least three isoforms (Figure 2A). We tested whether a shorter isoform lacking CH domains, anc-1b, is sufficient for hyp7 nuclear anchorage. RNAi constructs targeting the 5’ exons specific to the anc-1a/c long isoforms did not cause nuclear anchorage defects (Figure 2A–B). However, RNAi targeting a repetitive region in all three predicted isoforms caused severe nuclear anchorage defects (Figure 2A–B). We also analyzed four nonsense mutations. Alleles that are predicted to disrupt the longer anc-1a/c isoforms but not the shorter anc-1b isoform, anc-1(W427*), and anc-1(W621*) were normal for nuclear anchorage. In contrast, both anc-1(Q1603*) and anc-1(Q2878*) alleles, which are predicted to add premature stop codons to all three predicted isoforms, led to severe nuclear anchorage defects (Figure 2A–B). These results suggest that the shorter anc-1b isoform lacking the CH domains is sufficient for nuclear anchorage.

We next tested whether anc-1b is expressed in hyp7. First, 5’ RACE (Rapid amplification of cDNA ends) was used to identify the start of the anc-1b predicted transcript (Figure 2C). The RACE product contained an SL1 sequence at its 5’ end, suggesting this represents the end of a bona fide transcript (Figure 2D). To test if the anc-1b isoform is expressed in hyp7, we fused the anc-1b promoter and ATG to an nls::gfp::lacZ reporter and expressed it in transgenic animals. The anc-1b promoter drove GFP expression in hyp7 (Figure 2E, yellow arrows). Taken together, these results suggest the conserved CH domains are not necessary for hyp7 nuclear anchorage and the anc-1b isoform expressed in the hypodermis plays a major role in hyp7 nuclear anchorage.

Spectrin-like domains of ANC-1b are required for nuclear anchorage

We predicted that the six tandem repeats (RPs) of ANC-1 function analogously to the spectrin-like domains of Nesprin-1 and -2. We modeled the structure of pieces of the ANC-1 RPs using the protein-folding prediction software QUARK (Xu and Zhang, 2012; Xu and Zhang, 2013) and found that they are predicted to form helical bundles remarkably similar to the structure of spectrin (Figure 3A,DGrum et al., 1999), suggesting the tandem repeats are analogous to spectrin-like domains.

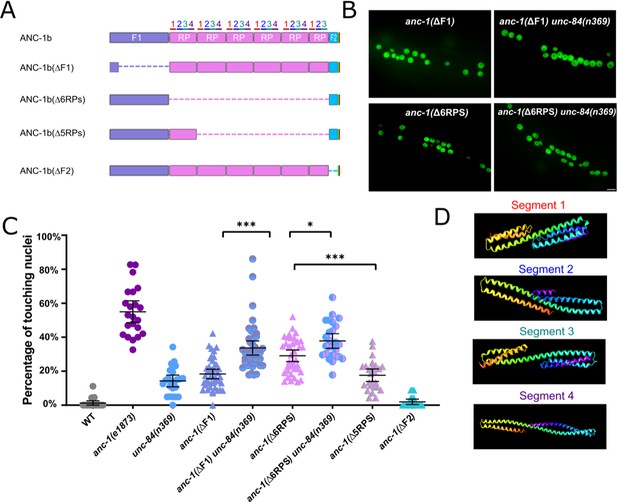

Cytoplasmic domain deletion analysis of ANC-1b.

(A) Schematics of the ANC-1b cytoplasmic domain deletions. (B) Lateral views are shown of young adult C. elegans expressing hypodermal nuclear GFP in the indicated genotypes. Scale bar, 10 µm. (C) Quantification of nuclear anchorage in the wild type (WT) as well as anc-1b domain deletion mutants. Each point represents the percentage of touching nuclei on one side of a young adult animal. Means with 95% CI error bars are shown. ANOVA and Tukey’s multiple comparisons tests were used for statistical analysis. *p≤0.05; **p≤0.01; ***p≤0.001. n ≥ 20 for each strain. The data in the first three columns, WT, anc-1(e1873), and unc-84(n369) are duplicated from Figure 1C and copied here for easy reference. (D) QUARK result for three fragments in the tandem repeats (RPs). The positions of the fragments are indicated in 3A.

We next tested the necessity of the ANC-1 spectrin-like repeats and the neighboring cytoplasmic domains for nuclear anchorage by making in-frame deletions of portions of anc-1 using CRISPR/Cas9-mediated gene editing. The N-terminal fragment 1 (F1) contains 1969 residues of ANC-1b from the start codon to the start of the RPs and fragment 2 (F2) contains the 277 residues between the RPs and the C-terminal transmembrane span (Figure 3A). The deletion of the F1 domain or all six RPs caused intermediate nuclear anchorage defects (Figure 3B–C). ANC-1b with only one of the normal six repeats had an intermediate nuclear anchorage defect that was significantly greater than in wild type but not as severe as the anc-1(Δ6RPS) mutant (Figure 3C). In contrast, the anc-1(ΔF2) mutant had no nuclear anchorage defect (Figure 3C). Since the anc-1(Δ6RPS) and anc-1(ΔF1) defects were less severe than anc-1 null alleles, we made double mutants with unc-84(n369) to see if mutations in the cytoplasmic portions of ANC-1 were synergistic with mutations in the KASH domain. Both anc-1(ΔF1); unc-84(n369) and anc-1(Δ6RPS); unc-84(n369) double mutants significantly enhanced the nuclear anchorage defects of the single mutations (Figure 3C). However, the hyp7 nuclear anchorage defects in anc-1(ΔF1); unc-84(n369) and anc-1(Δ6RPS); unc-84(n369) double mutants were still less severe than anc-1(e1873) null mutants, suggesting that multiple parts of ANC-1b mediate proper hyp7 nuclear positioning (Figure 3C). Together, these results indicate that (1) F1 and the RPs play roles in nuclear anchorage, (2) multiple repeats are necessary for normal function, and (3) the F2 region is dispensable for hyp7 nuclear positioning.

The ER is unanchored in anc-1 mutants

In addition to nuclear positioning, ANC-1 functions in mitochondria distribution and morphology in the hypodermis and muscle cells (Hedgecock and Thomson, 1982; Starr and Han, 2002). We therefore asked if ANC-1 also anchors other organelles. We characterized the ER in live hyp7 syncytia of anc-1 and unc-84 mutants using a single-copy GFP::KDEL marker (pwSi83; gift of Barth Grant). In wild type, the ER formed a network evenly distributed throughout hyp7 (Figure 4A). We used blind scoring to classify single images of each animal’s ER as normal (evenly distributed in what appeared to be sheets), mild defects (lots of sheet-like structures, but occasionally not uniformly spread throughout the syncytium), strong defects (considerable mispositioning and clustering of ER, but still in large units), or severe defects (complete mispositioning and extensive fragmenting of the ER) (Figure 4 and Figure 4—figure supplement 1). About a third of wild type adults had normally distributed ER, while the rest had mild ER positioning defects, perhaps due to the pressure on the worm from the coverslip (Figure 4A–B). However, ER networks in anc-1 null mutants were severely disrupted and often fragmented (Figure 4A–B). We also observed the dynamics of the ER in live animals. In wild type animals, the hypodermal ER was anchored as an interconnected network and exhibited limited motion while the animal crawled (Figure 4C,E–F, Video 1). However, in anc-1 null mutants, ER fragments drifted apart and often formed large aggregates, suggesting that the anchorage of the ER network was disrupted (Figure 4D–F, Video 2). To quantify this phenotype, we measured the change in distance between distinct points over time. In wild type, the average distance change between parts of the ER was less than 1 µm per second, whereas in anc-1 mutants, the average change in distance more than doubled (Figure 4E), suggesting that the ER had lost its overall interconnectivity and that fragments were unanchored from the rest of the ER.

Figure 4 with 1 supplement see all

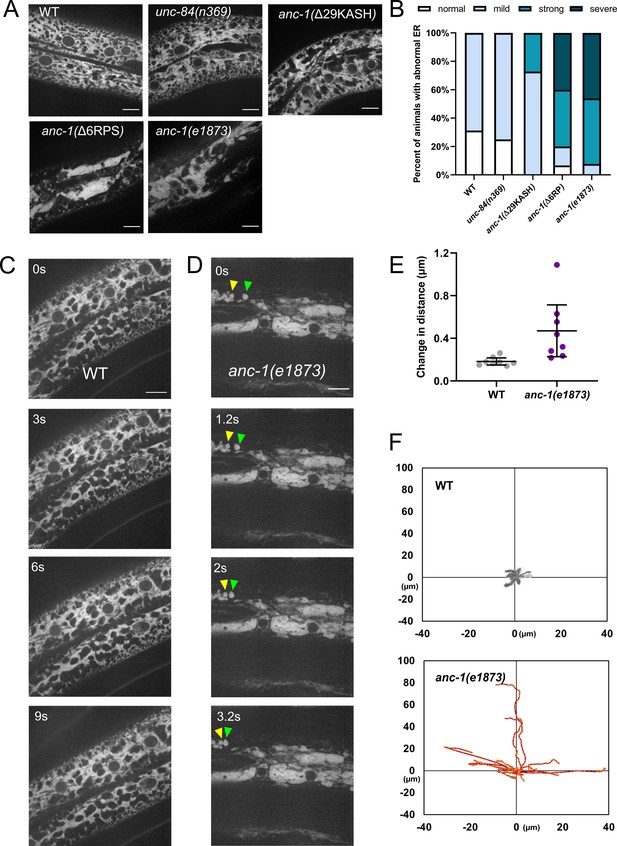

The ER is mispositioned in anc-1 mutants.

(A) Representative images of the hyp7 ER labeled with the GFP::KDEL marker in the young adult animals. (B) Scoring of the ER positioning defects. ER images of the listed strains were mixed and randomized for blind analysis by multiple researchers. n ≥ 11 for each strain. (C–D) Time-lapse images of hyp7 GFP::KDEL marker (C) over 9 s in wild type (WT) or (D) over 3.2 s in anc-1 null. Arrowheads show two fragments of ER that changed their relative distance from one another over a short period of time. (E–F) To quantify ER displacement, three spots on each WT and anc-1(e1873) movie were tracked. The average change in distance between two points in 200 ms intervals is plotted in (E). The trajectories of the relative movements of each spot apart from the others are shown in (F). Eight movies of each strain were analyzed. Scale bar, 10 µm for all the images.

Video 1
The ER is anchored in wild type (WT) hyp7.

An example video of the hyp7 ER in young adult wild type C. elegans expressing pwSi83[phyp7gfp::kdel]. Images were captured at the interval of 0.2 s for 10 s. Scale bar, 10 µm.

Video 2
The ER is unanchored in anc-1(e1873) mutant hyp7.

An example video of the hyp7 ER in the young adult anc-1(e1873) mutant C. elegans expressing pwSi83[phyp7gfp::kdel]. Images were captured at the interval of 0.2 s for 10 s. Scale bar, 10 µm.

We next examined whether UNC-84 is required for ER positioning. Still images of unc-84(n369) null mutants scored blindly were similar to wild type ER (Figure 4A–B). However, in some videos of unc-84(n369) mutants, there were slight changes in the organization of the ER over time (Video 3), suggesting that unc-84 null mutants had a minor ER positioning defect. Most anc-1(Δ29KASH) mutants had mild defects in ER positioning, and only about a quarter had more severe defects, significantly less than anc-1(e1873) null mutants. In contrast, more than 80% of anc-1(Δ6RPS) animals had strong or severe ER positioning defects, similar to anc-1 null mutants (Figure 4A–B). These results indicated that ANC-1 is essential for ER positioning through mostly LINC complex-independent mechanisms.

Video 3
ER positioning in unc-84(null) mutant hyp7.

An example of one of the most severe ER positioning defects observed is shown in a video of the hyp7 ER in the young adult unc-84(n369) mutant C. elegans expressing pwSi83[phyp7gfp::kdel]. Images were captured at the interval of 0.25 s for 4 s. Scale bar, 10 µm.

ANC-1 localizes to ER membranes

Since ANC-1 functions, in part, independently of LINC complexes at the nuclear envelope and because ANC-1 regulates ER positioning, we hypothesized that ANC-1 localizes to multiple membranes, including those away from the nuclear envelope. To study the localization of ANC-1, we tagged endogenous ANC-1 with GFP using CRISPR/Cas9 gene editing. The tag was placed either at the N-terminus of ANC-1b, or between the six tandem RPs and the F2 region to see if the opposite ends of ANC-1 localize to different structures (Figure 5A). Both strains were nearly wild type for hyp7 nuclear positioning (Figure 5B). Both GFP::ANC-1b and ANC-1::GFP::F2 localized in similar patterns throughout the cytoplasm of adult hyp7 syncytia (Figure 5C–D). To examine the localization of the ANC-1b isoform alone, we introduced a premature stop codon mutation to disrupt the longer anc-1a and c isoforms in the GFP::ANC-1b strain, which did not significantly change GFP::ANC-1b localization (Figure 5E). These data are consistent with our model that anc-1b plays the major role in hyp7 nuclear positioning.

Figure 5 with 1 supplement see all

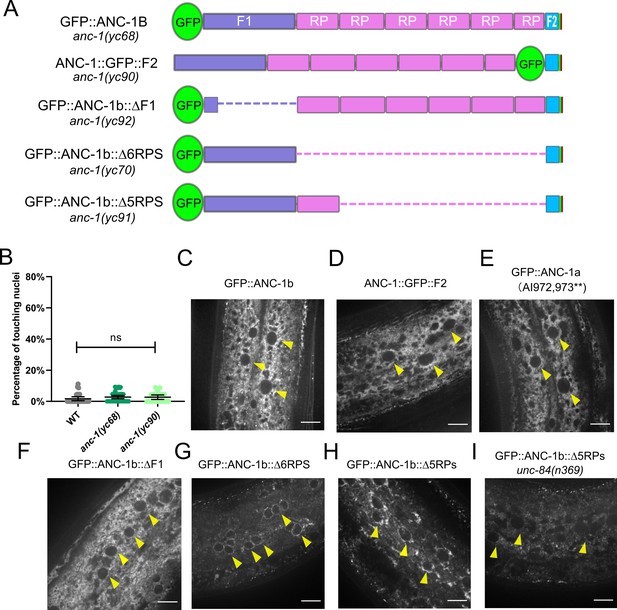

The subcellular localization of ANC-1.

(A) Schematic depicting the ANC-1 GFP knock-in constructs with or without deletion of ANC-1 cytoplasmic domains. (B) Nuclear positioning in GFP::ANC-1b is wild type (WT). Each point represents the percentage of touching nuclei on one side of a young adult animal. Means with 95% CI error bars are shown. ns, not significant (p>0.05). n ≥ 20. (C–I) Confocal images of hyp7 subcellular localization in the indicated strains. Yellow arrowheads point to nuclei. Scale bar, 10 µm.

We next examined whether the cytoplasmic domains of ANC-1b are required for localization. Deletion of the F1 domain did not dramatically change localization of GFP::ANC-1b (Figure 5F). However, deletion of the six tandem repeats enriched GFP::ANC-1b around the nuclear envelope (Figure 5G), as did the deletion of five of the six repeats (Figure 5H). However, the intensity of the six repeat deletion mutant is significantly less than wild type GFP::ANC-1b (Figure 5—figure supplement 1), making it possible that the phenotype is due to less ANC-1 being present. Yet, the deletion mutant is significantly enriched at the nuclear envelope (Figure 5—figure supplement 1B–C), supporting the hypothesis that the defect is due to a loss of ANC-1 repeats at the general ER. The nuclear envelope enrichment of GFP::ANC-1b(∆5RPs) was not observed when unc-84 was mutated (Figure 5I), suggesting the nuclear envelope enrichment of GFP::ANC-1b is UNC-84-dependent.

The ANC-1 localization pattern in Figure 6 is consistent with a model where ANC-1 localizes to ER membranes. In this model, a construct containing the transmembrane span near the C-terminus of ANC-1 but lacking the C-terminal, luminal part of the KASH domain would be sufficient for ER localization. Deletion of both the transmembrane span and the luminal parts of KASH with CRISPR/Cas9 resulted in a significantly worse nuclear anchorage defect than deleting only the luminal KASH domain (Figure 6B). Similarly, ER positioning defects were worse in anc-1(ΔTK) than in anc-1(Δ25KASH) animals (Figure 6C). We next examined the role of the neck region, which is located immediately adjacent to the cytoplasmic side of the transmembrane span. When GFP was knocked-in between the neck region and the transmembrane span to make anc-1(yc36[anc-1::gfp3Xflag::kash]), it caused a significant nuclear anchorage defect (Figure 6A–B). Moreover, extending the deletion in anc-1(ΔF2), which had no hyp7 nuclear anchorage defect (Figure 3C), an additional nine residues to remove the neck, caused a significant nuclear anchorage defect (Figure 6A–B). This suggests that the neck region next to the transmembrane span of ANC-1 plays a role in nuclear positioning, perhaps by targeting the C-terminus of ANC-1 to a membrane.

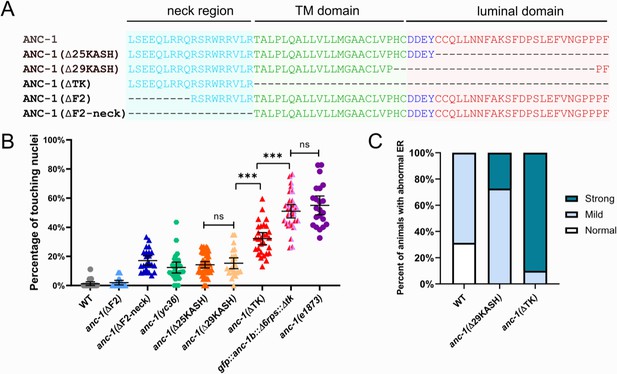

The transmembrane domain of ANC-1 is necessary for nuclear and ER positioning.

(A) Sequence of deletion in the neck region (blue), transmembrane (TM) span (green), or the luminal domain (red). (B) Quantification of nuclear anchorage defects in anc-1 mutants. Each point represents the percentage of touching nuclei on one side of a young adult animal. Means with 95% CI error bars are shown. n ≥ 20. ANOVA and Tukey’s multiple comparisons tests were used in comparisons. ***p≤0.001; ns means p>0.05. The data of wild type (WT), anc-1(ΔF2), anc-1(Δ25KASH), anc-1(Δ29KASH), and anc-1(e1873) are duplicated from Figures 1C and 3C and copied here for easy reference. (C) Qualitative analysis of the ER anchorage defects as in Figure 4. Significantly more anc-1(ΔTK) animals show strong ER anchorage defects than anc-1(Δ29KASH) mutants (p≤0.01 by Fisher’s exact test). Sample sizes were all >10.

As shown above, a double mutant that lacks both the ANC-1 repeat region and LINC complex function in the form of an unc-84(null) had an intermediate defect (Figure 3B). This suggests that a third domain of ANC-1, in addition to the luminal portions of KASH and the RPs, is involved in positioning nuclei. To test this hypothesis, we made an anc-1(gfp::anc-1b::Δ6rps::Δtk) mutant line and found that it had a severe nuclear anchorage defect that was not significantly different from the anc-1(e1873) null mutant (Figure 6B). Together, these data support a model in which the transmembrane span is important for targeting ANC-1 to the ER/nuclear envelope membrane where ANC-1 then positions the ER and nuclei via LINC complex-independent mechanisms.

To further examine the role of the transmembrane span in ER and nuclear positioning, we observed the co-localization of ANC-1 with an ER membrane marker (Figure 7). A single-copy hypodermal-specific mKate2::TRAM-1 ER marker strain (Rolls et al., 2002) was generated and crossed with GFP::ANC-1b. The wild type GFP::ANC-1b fusion protein localized similarly to the ER marked by mKate2::TRAM-1 (Figure 7A). We used the ImageJ plug-in ScatterJ to quantify the co-localization and the Pearson's correlation coefficient averaged from 17 images (Figure 7G). Our second GFP construct, ANC-1::GFP::F2, also co-localized with the ER (Figure 7B,G). Similar results were obtained when co-localizing mKate2::ANC-1b and GFP::KDEL, but since the GFP::KDEL was overexpressed and significantly brighter than the mKate2::ANC-1b, we only present the analyses with GFP ANC-1 fusion proteins co-localizing with mKate2::TRAM-1, which is expressed at lower levels from a single-copy transgene. In contrast, GFP::ANC-1b did not co-localize with lipid droplets or mitochondria (Figure 7—figure supplement 1).

Figure 7 with 1 supplement see all

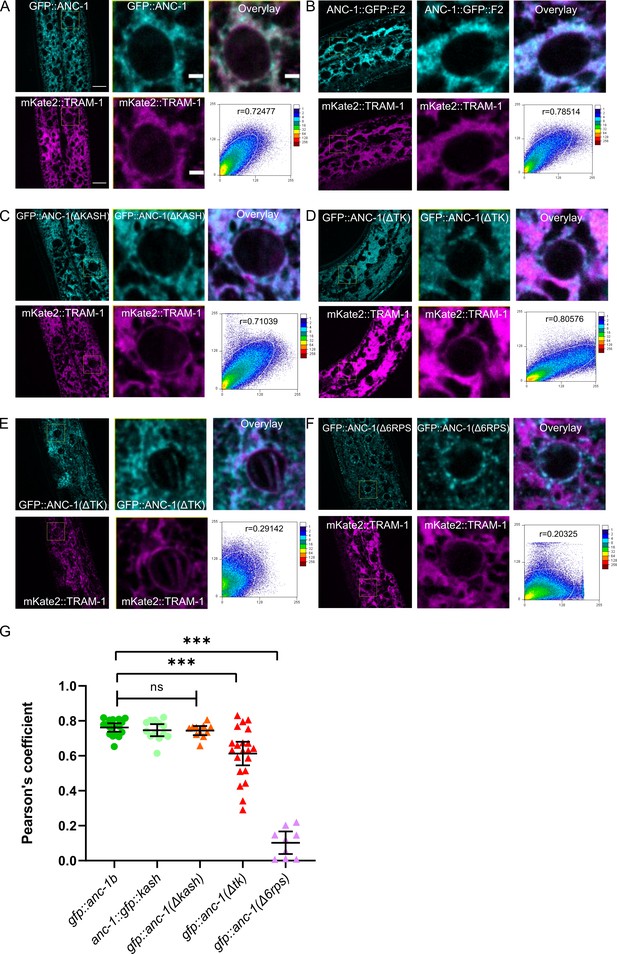

ANC-1 localizes to the ER.

ANC-1-GFP fusion protein (cyan) localization with respect to the ER membrane as marked by a mKate::TRAM-1 (magenta) is shown. (A) Wild type (WT) GFP::ANC-1b. (B) Wild type ANC-1::GFP::F2. (C) GFP::ANC-1b::ΔKASH. (D) An example of GFP::ANC-1b::ΔTK with good overlap with the ER and (E) a GFP::ANC-1b::ΔTK with poor overlap. (F) GFP::ANC-1b::Δ6RPS. (A–F) For each section, the left two panels are low magnification of the young adult hypodermis (scale bar, 10 µm) and the middle two panels are a zoom in of the boxed part of the left panels (scale bar, 2 µm). The top right shows the merge of the two channels. The bottom right uses the used ImageJ plug-in ScatterJ to quantify the co-localization and the Pearson's correlation coefficient for overlap is shown as an r value. (G) A scatter plot of Pearson’s coefficients showing overlap between the indicated GFP and the mKate::TRAM-1 ER membrane marker. Mean ±95% CI are shown. ANOVA and Tukey’s multiple comparisons tests were used in comparisons. ***p≤0.001; ns means not significant.

Deleting the luminal portion of the KASH domain from GFP::ANC-1b (GFP::ANC-1b::ΔKASH) did not significantly change its localization pattern relative to the wild type construct (Figure 7C,G). In contrast, deletion of both the luminal KASH peptide and the transmembrane span (GFP::ANC-1b::ΔTK) resulted in many cases where GFP::ANC-1b::ΔTK almost normally localized to the ER (Figure 7D,G) while in other animals it localized in parts of the cytoplasm that lacked ER (Figure 7E,G). Deletion of the repeat regions in GFP::ANC-1b::Δ6RPS led to a re-localization away from the general ER (Figure 7F–G). Together, these results suggest that (1) ANC-1b has a similar distribution pattern as the ER and (2) that the transmembrane span and repeat regions, but not the luminal KASH domain, plays roles ANC-1 ER localization. The ANC-1 localization pattern is consistent with the above findings that anc-1(Δ6RPS) anc-1(ΔTK) mutants had intermediate nuclear and ER positioning defects, worse than anc-1(Δ25KASH) mutants.

Other organelles are mis-localized in anc-1 mutants

Our imaging showed that both nuclei and the ER are both unanchored and move freely throughout the cytoplasm. Furthermore, our deletion analyses cast significant doubt on the old tethering model. In our new model, without ANC-1, the entire cytoplasm is disconnected and multiple organelles are likely flowing freely throughout the cytoplasm. We therefore used the MDT-28::mCherry (Na et al., 2015) marker to follow lipid droplets (Figure 8, Videos 45) and the mitoLS::GFP marker to follow mitochondria (Figure 9, Videos 67). In anc-1 null mutant animals, both lipid droplets and mitochondria moved in a manner suggesting they were not connected to a network. Furthermore, lipid droplets were often seen in large clusters and mitochondria appeared slightly fragmented. We therefore conclude that ANC-1 is required to interconnect the entire cytoplasm to anchor nuclei, ER, lipid droplets, mitochondria, and likely other organelles to a single network that regulates the integrity of the cytoplasm.

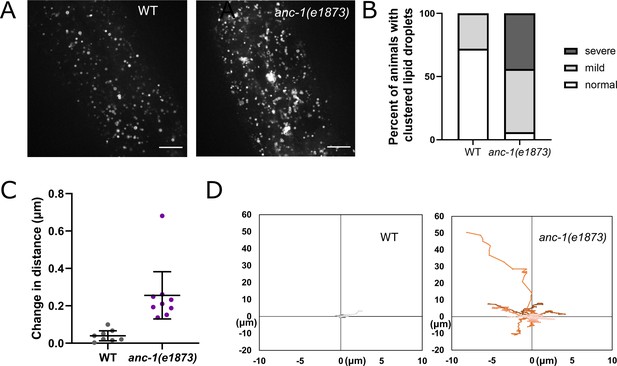

Lipid droplets are mispositioned in anc-1 mutants.

(A) Representative images of hyp7 lipid droplets labeled with the Pmdt-28::mdt-28::mCherry marker in the young adult animals. (B) Scoring of the lipid droplet positioning defects. Images were randomized for blind analysis by multiple researchers. n ≥ 11. (C–D) Time-lapse images of hyp7 lipid droplets. (C–D) The lipid droplet displacement phenotype was quantified as described in Figure 4E–F. The average change in distance between two points in 242 ms intervals is plotted in (C). The trajectories of the relative movements of each spot apart from the others are shown in (D). Eight movies of each strain were analyzed. Scale bar, 10 µm for all the images. Also see Videos 45. WT = wild type.

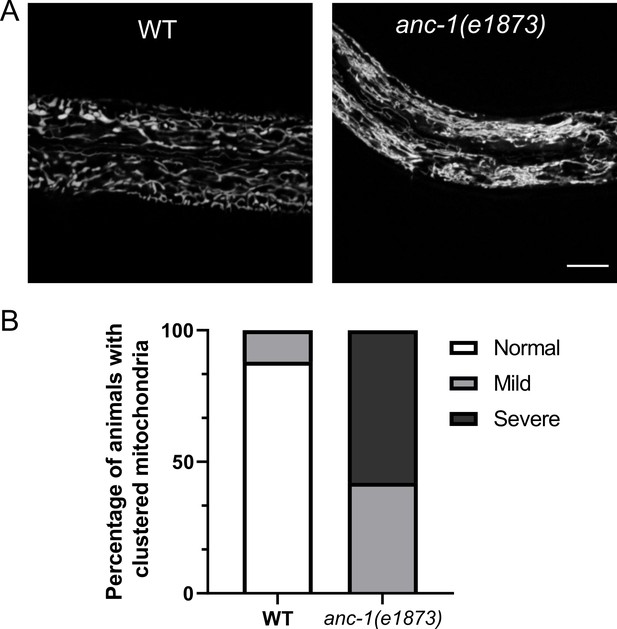

Mitochondria are mispositioned in anc-1 mutants.

(A) The hyp7 mitochondria were labeled with the Pcol-10::mito::GFP marker in the L3 animals. (B) The mitochondria positioning defect was scored. Images were randomized for blind analysis by multiple researchers. n ≥ 18 for each strain. Scale bar, 10 µm for all the images. Also see Videos 67. WT = wild type.

Video 4
Lipid droplets are anchored in wild type (WT) hyp7.

An example video of the hyp7 lipid droplets in young adult wild type C. elegans expressing ldrIs2 [mdt-28p::mdt-28::mCherry +unc-76(+)]. Images were captured at the interval of 0.2 s for 10 s. Scale bar, 10 µm.

Video 5
Lipid droplets are unanchored in anc-1(e1873) mutant hyp7.

An example video of the hyp7 lipid droplets in the young adult anc-1(e1873) mutant C. elegans expressing ldrIs2 [mdt-28p::mdt-28::mCherry +unc-76(+)]. Images were captured at the interval of 0.24 s for 10 s. Scale bar, 10 µm.

Video 6
Mitochondria are anchored in wild type (WT) hyp7.

An example video of hyp7 mitochondria in young adult wild type C. elegans as followed by the Pcol-10::mitoLS::GFP marker. Images were captured at the interval of 0.1 s for 10 s. Scale bar, 10 µm.

Video 7
Mitochondria are unanchored in anc-1(e1873) mutant hyp7.

An example video of hyp7 mitochondria in the young adult anc-1(e1873) mutant C. elegans as followed by the Pcol-10::mitoLS::GFP marker. Images were captured at the interval of 0.1 s for 10 s. Scale bar, 10 µm.

Microtubule networks appear normal in anc-1 mutants

One hypothesis for ANC-1 function is that it regulates cytoskeletal networks. In this model, mutations in anc-1 would disrupt the cytoskeleton, causing organelles to lose their attachment to the cytoskeleton and move around freely as shown in Figures 4, 8 and 9. We therefore examined microtubule organization in the hyp7 syncytia of wild type and anc-1 null mutant animals. We followed microtubules in live animals with an endogenously expressed microtubule binding protein, GFP::MAPH-1.1 (Castiglioni et al., 2020; Waaijers et al., 2016). The density and relative disorganization of the microtubule network in wild type made it difficult to quantify any growth, length, or number parameters of microtubules. Nonetheless, qualitatively, in comparison with the wild type (Video 8), microtubules were mostly normal in in anc-1 null mutant animals (Figure 10 and Videos 910). The exception was where nuclei had moved back and forth along an anterior-posterior axis, they appear to have cleared a microtubule free channel. These results are more in line with a model where in the absence of ANC-1, nuclei move around and disrupt or move microtubules in their way rather than a model where a lack of ANC-1 leads to massive microtubule disruption that then frees nuclei and other organelles to move throughout the syncytia.

Microtubule organization in anc-1 mutants.

Representative images of microtubules (cyan) and nuclear envelope (NE) (magenta) from the same young adult animals are shown. (A–A’’) wild type (WT), (B–B’’) anc-1(e1873) mutant animal where the microtubules are mostly normal. (C–C’’) In other anc-1(e1873) animals, microtubule organization is disrupted in the channels where nuclei move. Microtubules are labeled with GFP::MAPH-1.1 and the nuclear envelope is labeled with EMR-1::mCherry. Scale bar, 10 µm. Also see Videos 810.

Video 8
Microtubules in wild type (WT) hypodermal syncytia.

A representative clip of the hyp7 in a wild type young adult expressing GFP:: MAPH-1.1 to mark microtubules in cyan and EMR-1::mCherry to mark nuclear envelopes in magenta. Images were at the interval of 1 s for 20 s. Scale bar, 10 µm.

Video 9
Microtubules in anc-1(null) hypodermal syncytia.

A representative clip of the hyp7 in a anc-1(e1783) mutant young adult expressing GFP:: MAPH-1.1 to mark microtubules in cyan and EMR-1::mCherry to mark nuclear envelopes in magenta. Images were at the interval of 0.845 s for 40 s. Scale bar, 10 µm.

Video 10
Microtubules in anc-1(null) hypodermal syncytia.

A representative clip of the hyp7 in a anc-1(e1783) mutant young adult expressing GFP::MAPH-1.1 to mark microtubules in cyan and EMR-1::mCherry to mark nuclear envelopes in magenta. Images were at the interval of 0.638 s for 32 s. Scale bar, 10 µm.

Depletion of ANC-1 disrupts nuclear morphology and causes developmental defects

Nuclear shape changes were observed during live imaging in anc-1 mutants consistent with a model where anc-1 mutant nuclei are susceptible to pressures from the cytoplasm, perhaps crashing into other organelles that corresponded with dents in nuclei. We therefore quantified nuclear size and shape in anc-1 mutants to better characterize how nuclear and/or ER movements affect the nuclear structure. Adult syncytial hyp7 nuclei were significantly smaller in anc-1(Δ6RPS) and anc-1(e1873) mutants compared to wild type (Figure 11A). Furthermore, the shape of anc-1(e1873) hyp7 nuclei, as measured by circularity and solidity, was significantly less round than wild type (Figure 11B).

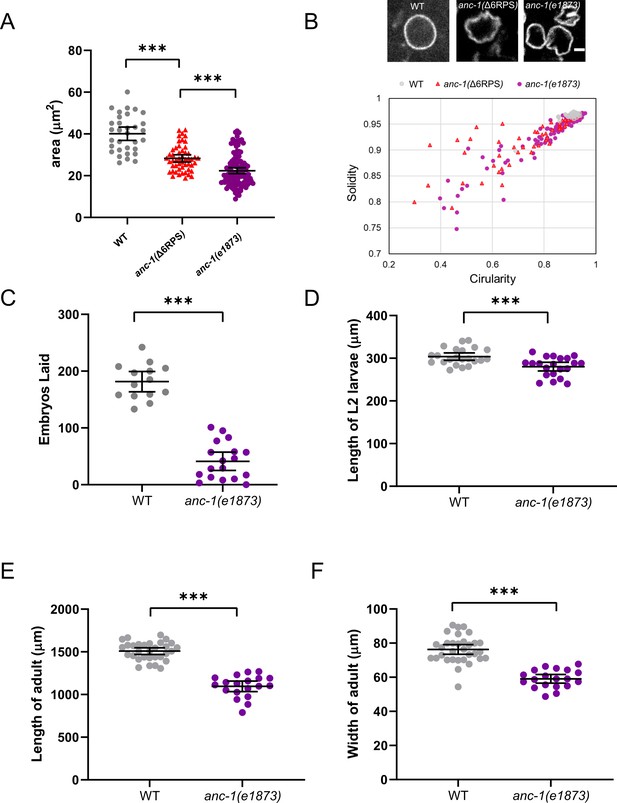

anc-1 mutants have developmental defects.

(A) The area of cross-sections of hyp7 nuclei is shown. Each dot represents the area of a single nucleus. n = 32 for wild type (WT), n = 50 for anc-1(Δ6RPS), n = 111 for anc-1(e1873). (B) Top panel: Representative images of hyp7 nuclei marked by EMR-1::mCherry of WT, anc-1(Δ6RPS), and anc-1(e1873) mutants. Scale bar, 2 µm. Bottom panel: Plot of the solidity and the circularity. (C–F) The brood size (C), length of the L2 larvae (D), adult length (E) and width (F) are significantly reduced in anc-1(e1873) mutants. Each dot represents a single animal. n ≥ 14 for (C) and n ≥ 19 for (D–F). Means with 95% CI error bars are shown. Unpaired student two-tail t-test was used for statistical analysis. **p≤0.01; ***p≤0.001.

Given the nuclear anchorage, ER positioning, and nuclear shape defects observed in anc-1 mutants, we examined whether these animals might have other developmental or growth defects. Despite producing fertile adults, anc-1 null animals had severe developmental defects. The brood size of anc-1(e1873) mutants was less than 25% of wild type (Figure 11C) and anc-1(e1873) mutants had significantly smaller body sizes throughout larval and adult stages (Figure 11D–F). Together these results suggest that there are developmental consequences associated with organelle positioning defects in anc-1 mutants.

Discussion

LINC complexes consisting of giant KASH proteins (C. elegans ANC-1, Drosophila MSP300, and mammalian Nesprin-1 and -2) and canonical SUN proteins (C. elegans UNC-84, Drosophila Koi, and mammalian Sun1 and Sun2) are thought to anchor nuclei by tethering them to the cytoskeleton (Starr and Fridolfsson, 2010). ANC-1 was thought to connect actin filaments to the nuclear envelope using conserved CH and KASH domains at its N- and C-termini, respectively (Starr and Han, 2002). However, results discussed below indicate that this model is not sufficient to explain the role of KASH proteins in the cell. We propose a cytoplasmic integrity model, where giant KASH proteins function, largely independently of LINC complexes at the nuclear envelope and through mechanisms that do not require their CH domains. We find ANC-1 also localizes close to the ER throughout the cell. The large cytoplasmic domains of ANC-1 are required for positioning nuclei, ER, and likely other organelles. In the absence of ANC-1, the contents of the cytoplasm are disconnected from each other, unanchored in place, and sometimes fragmented. The cytoplasm and organelles freely flow throughout the hypodermal syncytia as worms crawl. It appears that ANC-1 is required to organize the entire cytoplasm.

Our finding that ANC-1 works independently of LINC complexes during hyp7 nuclear positioning has significant implications for how the field currently understands the role of LINC complexes in development and disease. A dominant negative approach relies on overexpression of KASH domains to displace endogenous KASH proteins from the nuclear envelope (Grady et al., 2005; Starr and Han, 2002; Tsujikawa et al., 2007). Alternatively, a mini-nesprin-2 construct, consisting of the calponin homology and KASH domains with a few spectrin repeats, is commonly used in rescue experiments (Davidson et al., 2020; Luxton et al., 2010; Ostlund et al., 2009). If ANC-1 and other giant KASH orthologs have major LINC complex-independent functions, these approaches might have more caveats than previously thought.

We found that the CH domain of ANC-1 is dispensable for ER and nuclear positioning. Similar findings suggest the Nesprin-1 or -2 CH domains are also dispensable for the development of mouse skeletal muscles and the epidermis (Lüke et al., 2008; Stroud et al., 2017). Moreover, the CH domains are not required for Nesprin-2 mediated neuronal migration in the developing rat brain (Gonçalves et al., 2020). Thus, the significance of the conserved CH domain is not clear. The CH domain of Nesprin-2 is required to form transmembrane actin-associated lines on the nuclear envelope during rearward nuclear movement in mouse NIH3T3 fibroblasts polarizing for migration and to accumulate Nesprin-2 at the front of nuclei in cultured mouse embryonic fibroblasts migrating through constrictions (Davidson et al., 2020; Luxton et al., 2010).

Most of the other ANC-1 domains, including the C-terminal transmembrane span and the large cytoplasmic repeat regions, are required for nuclear anchorage. Portions of the tandem repeats may be arranged in bundles of three helices, reminiscent of spectrin repeats (Liem, 2016). Thus, we hypothesize that ANC-1, like the other giant KASH orthologs MSP300 and Nesprin-1 and -2, consists largely of spectrin repeats with a C-terminal transmembrane domain that attaches ANC-1 to the contiguous ER and outer nuclear membrane.

In general, giant KASH proteins localize strongly to the nuclear envelope in multiple systems (Starr and Fridolfsson, 2010). Evidence for giant KASH protein localization to other subcellular locations has been largely ignored or attributed to overexpression artifacts (Zhang et al., 2001) or the loss of KASH protein function (Roux et al., 2009). Antibodies against ANC-1 mostly localize away from nuclei and are only clearly enriched at the nuclear periphery in the somatic gonad (Starr and Han, 2002) and Nesprin-1 localizes to ciliary rootlets (Potter et al., 2017). Yet, most models, including the nuclear tethering model, focus primarily on nuclear envelope localization. We found that GFP::ANC-1b was not enriched at the nuclear envelope in most tissues (Figure 5—figure supplement 1). Instead, our findings suggest that ANC-1 functions throughout the cytoplasm with its C-terminus in the ER membrane.

We observed that the ER is severely mispositioned in anc-1 null mutant hypodermal cells. Also, mitochondria are misshaped and mispositioned in the anc-1 null mutants, but not in unc-84 nulls (Hedgecock and Thomson, 1982; Starr and Han, 2002). Two different mechanisms could explain how nuclei, mitochondria, and the ER are all mispositioned in anc-1 mutants. First, abnormal organelle clusters could result from a failure in the active positioning process (Folker and Baylies, 2013; Roman and Gomes, 2018). Alternatively, organelles could lose physical connections to the rest of the cytoplasm, resulting in organelles being passively pushed around in response to external mechanical forces, such as those generated when the worm crawls. Live imaging favors the second model. As anc-1 mutant worms bent their bodies, ER fragments rapidly moved in a bulk flow of cytoplasm along with nuclei. The nuclei became misshapen and the ER often fragmented. Nuclei and the ER appeared to be completely detached from any sort of cytoplasmic structural network in anc-1 mutants. There is precedent that giant KASH proteins could mechanically stabilize the cytoplasm. In cultured mouse NIH3T3 fibroblasts, disrupting KASH proteins leads to the decreased stiffness across the entire cell, as determined by single-particle microrheology experiments (Stewart-Hutchinson et al., 2008). Therefore, we propose that ANC-1 and other giant KASH proteins normally function at the ER periphery as important crosslinkers to maintain the mechanical integrity of the cell.

ANC-1 likely maintains the mechanical integrity of the cytoplasm via cytoskeletal networks. Disruption of MSP300 leads to disruption of both actin and microtubule networks in Drosophila muscles (Wang et al., 2015). Giant KASH proteins can interact with actin independently of their CH domains. ANC-1 binds to AMPH-1/BIN1, which is involved in actin nucleation (D'Alessandro et al., 2015), and Nesprin-2 binds to the actin regulators Fascin and FHOD1 (Jayo et al., 2016; Kutscheidt et al., 2014). Nesprin-1 interacts with Akap450 to form microtubule organizing centers at the nuclear envelope of mouse muscles (Elhanany-Tamir et al., 2012; Gimpel et al., 2017; Zheng et al., 2020). Intermediate filaments and spectraplakins have also been implicated in nuclear positioning (Ralston et al., 2006; Wang et al., 2015; Zheng et al., 2020). However, anc-1 null mutant animals had a reasonably normal microtubule network. Thus, how ANC-1b might directly interact with cytoskeletal components requires further investigations.

In summary, we propose a cytoplasmic integrity model, for how ANC-1 and giant KASH orthologs position nuclei and other organelles. First, ANC-1 is targeted to the ER through its C-terminal transmembrane span. The large cytoplasmic domain of ANC-1 likely consists of divergent spectrin-like repeats that could serve as elastic filaments. ANC-1 filaments could interact with various components of the cytoskeleton, allowing ANC-1 to serve as a cytoskeletal crosslinker to maintain the mechanical integrity of the cytoplasm. However, since at least microtubules are not completely disrupted, ANC-1 likely functions to maintain the mechanical properties of the cytoplasm through other mechanisms. Extracellular mechanical pressure that is generated as the worm bends leads to rapid cytoplasmic fluid flows and positioning defects in nuclei, ER, mitochondria, and likely other organelles. In this model, ANC-1 maintains cellular connectivity across the cytoplasm by anchoring organelles in place.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
Strain, strain background (Escherichia. coli)OP50Caenorhabditis Genetics Center (CGC)OP50https://cgc.umn.edu/strain/OP50
Strain, strain background (E. coli)DH10BNew England Biolabs (NEB)C3019H
Recombinant DNA reagentpLF3FShCNonet, 2020addgene: #153083https://www.addgene.org/153083/
Recombinant DNA reagentpSL845This paperPy37a1b.5::mKate2::tram-1::tram-1 3’UTR plasmid to generate the ycSi2 transgenic C. elegans strain
Recombinant DNA reagentpSL835This paperPanc-1b::nls::gfp::lacZ
Plasmid to generate ycEx260
Recombinant DNA reagentpSL289This paperPcol-10::mitoLS::gfp
Plasmid to generate ycEx217

C. elegans genetics

Request a detailed protocol

C. elegans strains were maintained on nematode growth medium plates seeded with OP50 E. coli at the room temperature (approximately 22°C) (Brenner, 1974). All the strains used in this study are listed in Table 1. Some strains, including N2 (WB Cat# WBStrain00000001, RRID:WB-STRAIN:WBStrain00000001), which was used as wild type, were obtained from the Caenorhabditis Genetics Center, funded by the National Institutes of Health Office of Research Infrastructure Programs (P40 OD010440). Strains VC40007, VC20178, and VC40614 were provided by the C. elegans Reverse Genetics Core Facility at the University of British Columbia (Thompson et al., 2013). Strain RT3739 (pwSi83) was generously provided by Barth Grant (Rutgers University, NJ, USA). UD522 (ycEx249[pcol-19::gfp::lacZ, pmyo-2::mCherry]) was previously described (Cain et al., 2018). Male strains of RT3739, UD522, BOX188, LIU2, UD756, UD3, and BN147 were made to cross into anc-1 or unc-84 mutants. Alternatively, pcol-19::gfp::lacZ was introduced into some mutants by standard germline transformation to make UD736 and UD737 (Cain et al., 2018; Mello et al., 1991).

Table 1
C. elegans strains in this study.
StrainGenotypeReference
N2Wild type
UD522ycEx249[pcol-19::gfp::lacZ, pmyo-2::mCherry]Cain et al., 2018
UD532unc-84(n369) X; ycEx249Cain et al., 2018
UD538anc-1(e1873) I; ycEx249Cain et al., 2018
UD578anc-1(yc52[∆25KASH]) I; ycEx249This study
UD615anc-1(yc69[∆29KASH]) I; ycEx249This study
JR672wIs54[scm::gfp] VTerns et al., 1997
UD457unc-84(n369) X; wIs54 VThis study
UD451anc-1(e1873) I; wIs54 VThis study
VC20178anc-1(gk109010[W427*]) IThompson et al., 2013
UD737anc-1(gk109010[W427*]) I; ycEx265[pcol-19::gfp::lacZ, pmyo-2::mCherry]This study
VC40007anc-1(gk109018[W621*]) IThompson et al., 2013
UD736anc-1(gk109018[W621*]) I; ycEx266[pcol-19::gfp::lacZ, pmyo-2::mCherry]This study
VC40614anc-1(gk722608[Q2878*]) IThompson et al., 2013
UD565anc-1(gk722608[Q2878*]) I; ycEx249This study
UD535anc-1(yc41[anc-1::gfp3Xflag::kash,Δch]) I; ycEx249This study
UD608ycEx260[panc-1b::nls::gfp::lacZ]This study
UD599anc-1(yc62[ΔF1]) I; ycEx249This study
UD591anc-1(yc61[Δ6RPS]) I; ycEx249This study
UD668anc-1(yc80[ΔF2]) I; ycEx249This study
UD669anc-1(yc81[ΔF2-neck]) I; ycEx249This study
UD695anc-1(yc61[Δ6RPS]) I; unc-84(n369) X; ycEx249This study
UD696anc-1(yc62[ΔF1]) I; unc-84(n369) X; ycEx249This study
UD612anc-1(yc68[gfp::anc-1b]) IThis study
UD655anc-1(yc78[Δ5RPS]) I; ycEx249This study
UD619anc-1(yc68[gfp::anc-1b]) I; ycEx249This study
UD694anc-1(yc90[anc-1::gfp::F2]) IThis study
UD697anc-1(yc90[anc-1::gfp::F2]) I; ycEx249This study
UD618anc-1(yc70[gfp::anc-1b::Δ6rps]) IThis study
UD698anc-1(yc91[gfp::anc-1b::Δ5rps]) IThis study
UD701anc-1(yc92[gfp::anc-1b::Δf1]) IThis study
UD702anc-1(yc93[anc-1AI972,973**::gfp]) IThis study
UD625anc-1(yc71[ΔTK]) I; ycEx249This study
UD645anc-1(yc73[gfp::anc-1b::Δ6rps::Δtk]) I; ycEx249This study
RT3739pwSi83[phyp7gfp::kdel]A gift from Barth Grant
UD652anc-1(e1873) I; pwSi83This study
UD679unc-84(n369) X; pwSi83This study
UD707anc-1(yc71[∆TK]) I; pwSi83This study
UD651anc-1(yc61[∆6RPS]) I; pwSi83This study
UD672anc-1(yc69[∆29KASH]) I; pwSi83This study
UD520anc-1(yc36[anc-1::gfp3Xflag::kash]) IThis study
BN147bqSi142 [pemr-1::emr-1::mCherry + unc-119(+)] IIMorales-Martínez et al., 2015
BOX188maph-1.1(mib12[gfp::maph-1.1]) IWaaijers et al., 2016
UD649maph-1.1(mib12[gfp::maph-1.1]) I; bqSi142 IIThis study
UD650anc-1(e1873) I; maph-1.1(mib12[gfp::maph-1.1]) I; bqSi142 IIThis study
UD677anc-1(yc61[∆6RPS]) I; maph-1.1(mib12[gfp::maph-1.1]) I; bqSi142 IIThis study
UD3ycEx217[Pcol-10::mitoLS::GFP, Podr-1::RFP]This study
UD676anc-1(e1873) I; [Pcol-10::mitoLS::GFP, Podr-1::RFP]This study
LIU2ldrIs2 [mdt-28p::mdt-28::mCherry + unc-76(+)].Na et al., 2015
UD681anc-1(e1873) I; ldrIs2This study
UD728anc-1(yc94[gfp::anc-1b::Δtk]) IThis study
UD789anc-1(yc106[gfp::anc-1b::Δkash]) IThis study
UD756ycSi2[pSL845 Py37a1b.5::mKate2::tram-1::tram-1 3’UTR] IVThis study
NM5179jsTi1493[LoxP::mex-5p::FLP:SL2::mNeonGreen::rpl-28p::FRT::GFP::his-58::FRT3] IVNonet, 2020
UD778anc-1(yc68[gfp::anc-1b]) I; ycSi2This study
UD779anc-1(yc90[anc-1::gfp::F2]) I; ycSi2This study
UD780anc-1(yc70[gfp::anc-1b::Δ6rps]) I; ycSi2This study
UD781anc-1(yc106[gfp::anc-1b::Δkash]) I; ycSi2This study
UD782anc-1(yc94[gfp::anc-1b::Δtk]) I; ycSi2This study
UD783anc-1(yc68[gfp::anc-1b]) I; bqSi142This study
UD785anc-1(yc70[gfp::anc-1b::Δ6rps]) I; bqSi142This study
UD790anc-1(yc68[gfp::anc-1b]) I; ldrIs2This study

For anc-1 RNAi feeding experiments, L4 stage animals were transferred onto NGM plates seeded with bacteria expressing dsRNA (Timmons and Fire, 1998). The clones from the Ahringer RNAi library (Source Bioscience) (Kamath and Ahringer, 2003) were confirmed by Sanger sequencing.

Nuclear anchorage assays were performed as described (Cain et al., 2018; Fridolfsson et al., 2018). Briefly, L4 worms with GFP-marked hypodermal nuclei were picked onto fresh plates 20 hr before scoring. Young adults were mounted on 2% agarose pads in ~5 µl of 1 mM tetramisole in M9 buffer (Fridolfsson et al., 2018). Syncytial hyp7 nuclei were scored as touching if a nucleus was in contact with one or more neighboring nuclei. Only one lateral side of each animal was scored.

For the brood size assay, starting at the L4 stage, single animals were transferred onto fresh OP50 E. coli plates every 24 hr for seven days. The number of embryos laid were counted immediately after the removal of the animal each day.

To measure body size, embryos laid within an hour were collected and cultured for 24 hr and 69 hr to reach the L2 stage and the adult stage, respectively. Animals were mounted on 2% agarose pads in ~5 µl of 1 mM tetramisole in M9 buffer for imaging.

5’-Rapid amplification of cDNA ends (5’-RACE)

Request a detailed protocol

Total RNA was extracted from mixed stages of C. elegans using the RNeasy kit (QIAGEN). First-strand cDNAs were generated with the ThermoScript RT-PCR system using an anc-1 antisense oligonucleotide (ods2572: 5’-ATAGATCATTACAAGATG-3’). Purification and TdT tailing of the first-strand cDNA were performed by the 5' RACE System for Rapid Amplification of cDNA Ends, version 2.0 (Invitrogen, Cat. No. 18374058). The target cDNA was amplified PCR using the provided 5’ RACE Abridged Anchor Primer and an anc-1 specific primer: ods2574 (5’-GTCGGCGTCTGAAGGAAAGA-3’). The PCR product was purified using the QIAquick PCR purification kit (QIAGEN) and Sanger sequencing was performed by Genewiz.

Plasmid construction and transformation

Request a detailed protocol

To generate plasmid panc-1b::nls::gfp::lacZ (pSL835), a 2.56 kb fragment of genomic DNA upstream of the start codon of anc-1b was amplified with primers ods2491 (5’- TACCGAGCTCAGAAAAAATGACTGTGAGTATAGTCATTTTCCGCT-3’) and ods2492 (5’-GTACCTTACGCTTCTTCTTTGGAGCCATTTTGGTTCGGAGCAC-3’) to replace the col-19 promoter of pcol-19::gfp::lacZ (pSL779) (Cain et al., 2018). N2 animals were injected with 45 ng/µl of pSL835, 50 ng/µl of pBluescript SK, and 2.5 ng/µl of pCFJ90 (pmyo-2::mCherry) (Frøkjaer-Jensen et al., 2008) by standard C. elegans germline transformation (Evans, 2006) to make strain UD608 (ycEx260[Panc-1b::nls::gfp::lacZ-2]). Plasmid Pcol-10::mitoLS::gfp (pSL289) and the odr-1::rfp co-injection marker were injected into N2 young adults to generate UD3 ycEx217[Pcol-10::mitoLS::GFP, Podr-1::RFP] transgenic strain. Flp Recombinase-Mediated Cassette Exchange (RMCE) method was used to generate strain UD756 ycSi2[pSL845 Py37a1b.5::mKate2::tram-1::tram-13’UTR] (Nonet, 2020). pLF3FShC was a gift from Michael Nonet (Addgene plasmid # 153083; http://n2t.net/addgene:153083; RRID:Addgene_153083). To generate plasmid pSL845, the Py37a1b.5::mKate2 fragment amplified from pSL843 (primers: ods2785 and ods2787) and the tram-1 fragment amplified from the C. elegans genomic DNA (primers: ods2788 and ods2789) were inserted into plasmid pLF3FShC through Sap I Golden Gate Assembly (Nonet, 2020).

Primers sequences are:

  • ods2785: 5’-CCGTAAGCTCTTCGTGGGTTGCAGAAAAATATTTCACTGTTTC-3’;

  • ods2787: 5’-GCAACAGCTCTTCGCTCCGGAACCTCCACGGTGTCCGAGCTTGGA-3’;

  • ods2788 5’-GCAACAGCTCTTCGGAGGTGGATCTGGAGGTGTTAAGCCGCAAGGAGG-3’;

  • ods2789: 5’-GCAACAGCTCTTCGTACATGTAATAAAATATAAGAAAACGCTG-3’.

CRISPR/Cas9 mediated gene editing

Request a detailed protocol

Knock-in strains were generated using a dpy-10 Co-CRISPR strategy (Arribere et al., 2014; Paix et al., 2015; Paix et al., 2017). All crRNA and repair template sequences are in Table 2. An injection mix containing 0.12 µl dpy-10 crRNA (0.6 mM) (Horizon Discovery/Dharmacon), 0.3 µl target gene crRNA (0.6 mM) for one locus editing or 0.21 µl of each crRNA (0.6 mM) for multi-loci editing and 1.46 µl (one locus) or 1.88 µl (two loci) universal tracrRNA (0.17 mM) (Horizon Discovery/Dharmacon) precomplexed with purified 7.6 µl of 40 µM Cas9 protein (UC Berkeley QB3) and 0.29 µl of the dpy-10 single-strand DNA oligonucleotide (ssODN) (500 ng/µl) repair templates and 0.21 µl ssODN repair template (25 µM) for the target gene editing or up to 500 ng double-strand DNA were injected to the germline of the hermaphrodite young adults. For anc-1(yc52[∆25KASH]) I, anc-1(yc69[∆29KASH]) I, anc-1(yc62[ΔF1]) I, anc-1(yc61[∆6RPS]) I, anc-1(yc80[∆F2]) I, anc-1(yc78[∆5RPS]) I, anc-1(yc91[gfp::anc-1b::Δ5rps]) I, anc-1(yc70[gfp::anc-1b::Δ6rps]) I, anc-1(yc92[gfp::anc-1b::Δf1]) I, anc-1(yc93[anc-1AI972,973**::gfp]) I, anc-1(yc106[gfp::anc-1b::Δkash]) I, anc-1(yc94[gfp::anc-1b::Δtk]), I single-strand DNA (SSD) (synthesized by Integrated DNA Technologies, IDT) was used as repair template. For GFP knock-in strains, double-strand DNA repair templates were amplified with PCR from the plasmids pSL779 for gfp using Phusion polymerase and the primers listed in Table 2 (New England Biolabs) (Bone et al., 2016; Cain et al., 2018).

Table 2
crRNA and repair templates used in this study.
New allelesStraincrRNA *DNA repair template * †,§, ‡
anc-1(yc52[∆25KASH]) IN2CAGUACUCGUCGUCGCAAUGGCACTGCTTGTTCTACTTATGGGAGCCGCTTGTTTGGTTCCACAcTGtGAtGAtGAaTAtTAATCTTTAATTTTTTATTTTCATTACTATTCACTATTGTTTCATTCATCATGAACCTG
anc-1(yc69[∆29KASH]) IN2CAGUACUCGUCGUCGCAAUGNHEJ
anc-1(yc41[anc-1::gfp3Xflag::kash,Δch]) IN2UUUCAUCUUGAAGAGGUUCG--AAAATCTATTTTGAAAATTTTCAGATGAGGACGAG<EGFP-3xFLAG > AGATCAGGAGCTAGCGGAGCCATGTTCGGAGAAAGATCACCAATG--
anc-1(yc62[ΔF1]) IN2ACUUGAUCAAUCUAUAAUAAGAAACATGAAAGCAAAGTACATTTTTTTAAAAATCGATTATTTCagATcGAcCAgGTACAGTCTGAGATCGACACTCTTTCAGACTTCGAGGAGATCGAGCGTGAAATAAACGGCTCACTCGAAGCTTTCGAAGCCGAG
anc-1(yc61[Δ6RPS]) IN2GCGUUCAAUUUCUUCAAAAU
UGUUAGUAUUGGCGGCGAGU
GGAGCGUUUUGUAAAAGCAA
AAGGTACAAAACATTGGAAAAACATCGATTGACGACGTGAATGTATCTGACTTCGAGGAGATCGAGCGTGAGATCAATGGCTCCCTTGAGGCTTTCTCTATTTGGGAACGCTTCGTCAAGGCTAAAGATGATTTGTACGATTATTTGGAGAAATTAGAGAACAATGTAAGC
anc-1(yc80[ΔF2]) IN2GGAGCGUUUUGUAAAAGCAA
UCCAACGGGAUCUUUGUCGU
ACTCTTATTCCGGACCTTGAAGAAAGAGCTTCTATTTGGGAGCGTACTGCTTTGCCACTTCAGGTTTGTTTATATTTTTTAATATTAATA
anc-1(yc36[anc-1::gfp3Xflag::kash]) IN2GACAAAGATCCCGTTGGAGATCCGACGACAgAGATCtCGcTGGcGcCGcGTACTCAGAACTTCAGGAGCTAGCGGAGCC < EGFP-3xFLAG > tcaggagctagcggagccGCTTTGCCACTTCAGgtttgtttatatttttt
anc-1([yc68[gfp::anc-1b]]) IN2CCGUCGGAACAGCUCCAUUUTCTTAACCTTTTGTTCCATTCACTAATTATTTTCAATTACAGGAGGTTGGCCGCGAGTCGGTCAGTAAATTATCAGCTGCAGTTGACGATCGATACATCTACACGTTACACGTGCTCCGAACTAAG < EGFP > GGAGGTTCCGGAGGTGGATCTGGAGGTGAaCTcTTtCGtCGtCTGCAAAACTTTTGCGACGCTGTCAAAATATTGCGATCGCAAAATACCAAATGGAACGGAATCAAGATTTCGCAGGTTTGTTTCAAAAGCATCACAAATTAGCGG
anc-1(yc78[Δ5RPS]) IN2GGAGCGUUUUGUAAAAGCAA
UUCCUCUGGCUUCAACGAGU
GATCAGCTCAAGTCGGACGATTTGAAGACGGCAGAAAAGGAAATCACTAAtagccTcAAaCCcGAaTCTATTTGGGAaaGaTTcGTtAAgGCtAAAGATGATTTGTACGATTATTTGGAGAAATTAGAGAACAAT
anc-1(yc90[anc-1::gfp::F2]) IN2GGAGCGUUUUGUAAAAGCAACCGGACCTTGAAGAAAGAGCTTCTATTTGGGAGCGTGGTGGAAGTGGTGGAGGAAGCGGTGGA < EGFP > GCATGGATGAACTATACAAAGGAGGTTCCGGAGGTGGATCTGGAGGTTTcGTcAAgGCtAAAGATGATTTGTACGATTATTTGGAGAAATTAGAGAACA
anc-1(yc70[gfp::anc-1b::Δ6rps]) IUD612GCGUUCAAUUUCUUCAAAAU
UGUUAGUAUUGGCGGCGAGU
GGAGCGUUUUGUAAAAGCAA
AAGGTACAAAACATTGGAAAAACATCGATTGACGACGTGAATGTATCTGACTTCGAGGAGATCGAGCGTGAGATCAATGGCTCCCTTGAGGCTTTCTCTATTTGGGAACGCTTcGTcAAgGCtAAAGATGATTTGTACGATTATTTGGAGAAATTAGAGAACAATGTAAGC
anc-1(yc91[gfp::anc-1b::Δ5rps]) IUD612GGAGCGUUUUGUAAAAGCAA
UUCCUCUGGCUUCAACGAGU
GATCAGCTCAAGTCGGACGATTTGAAGACGGCAGAAAAGGAAATCACTAAtagccTcAAaCCcGAaTCTATTTGGGAaaGaTTcGTtAAgGCtAAAGATGATTTGTACGATTATTTGGAGAAATTAGAGAACAAT
anc-1(yc92[gfp::anc-1b::Δf1]) IUD612ACUUGAUCAAUCUAUAAUAAGAAACATGAAAGCAAAGTACATTTTTTTAAAAATCGATTATTTCagATcGAcCAgGTACAGTCTGAGATCGACACTCTTTCAGACTTCGAGGAGATCGAGCGTGAAATAAACGGCTCACTCGAAGCTTTCGAAGCCGAG
anc-1(yc93[anc-1AI972,973**::gfp]) IUD612ACUCACCUCUAGAAAUUCGACAAAATTTAGAGCTCAGCAATGAGCAGGACTGTCCAGATtaatgaGgtaccCTAGAGGTGAGTATAGTCATTTTCCGCTCATTACACTCTT
anc-1(yc71[∆TK]) IN2CAGAACUGCUUUGCCACUUC
AUUAAAGAUUAAAAUGGUGG
GAACAACTCCGACGACAAAGATCCCGTTGGAGACGGGTACTCAGATAATCTTTAATTTTTTATTTTCATTACTATTCACTATTGTTTCATTCATC
anc-1(yc106[gfp::anc-1b::Δkash]) IUD612CAGUACUCGUCGUCGCAAUGGCACTGCTTGTTCTACTTATGGGAGCCGCTTGTTTGGTTCCACAcTGtGAtGAtGAaTAtTAATCTTTAATTTTTTATTTTCATTACTATTCACTATTGTTTCATTCATCATGAACCTG
anc-1(yc94[gfp::anc-1b::Δtk])UD612CAGAACUGCUUUGCCACUUC
AUUAAAGAUUAAAAUGGUGG
GAACAACTCCGACGACAAAGATCCCGTTGGAGACGGGTACTCAGATAATCTTTAATTTTTTATTTTCATTACTATTCACTATTGTTTCATTCATC
anc-1(yc73[gfp::anc-1b::Δ6rps::Δtk]) IUD618CAGAACUGCUUUGCCACUUC
AUUAAAGAUUAAAAUGGUGG
GAACAACTCCGACGACAAAGATCCCGTTGGAGACGGGTACTCAGATAATCTTTAATTTTTTATTTTCATTACTATTCACTATTGTTTCATTCATC
dpy-10(cn64)Co-CRISPRGCUACCAUAGGCACCACGAG
Arribere et al., 2014
CACTTGAACTTCAATACGGCAAGATGAGAATGACTGGAAACCGTACCGCATGCGGTGCCTATGGTAGCGGAGCTTCACATGGCTTCAGACCAACAGCCTAT (Arribere et al., 2014)
  1. *all nucleotide sequences are displayed as single strand in the 5’ to 3’ orientation.

    †In many cases a ssDNA oligonucleotide was used. For larger inserts, a PCR product was used.

  2. §An imprecise NHEJ event led to an in-frame deletion without using the repair template.

    ¶Underlined sequences introduce silent mutations so the repair template is not cut by Cas9.

  3. ‡Underline indicates the silent mutation in the repair template.

Strains anc-1[yc41(anc-1::gfp3Xflg::kash,Δch)]I and anc-1[yc36(anc-1::gfp3Xflag::kash)]I were generated by Dickinson Self-Excising Drug Selection Cassette (SEC) method (Dickinson et al., 2015). In anc-1[yc41(anc-1::gfp3Xflg::kash,Δch)]I, both CH domains were deleted (starting with 23KAQK26 and ending with 322QFVR325) and replaced with GFP flanked with 9-residue long linkers (GASGASGAS).

Microscopy and imaging analysis

Request a detailed protocol

Images of the nuclear anchorage, worm body size measurements and anc-1b promoter reporter assays were collected with a wide-field epifluorescent Leica DM6000 microscope with a 63 × Plan Apo 1.40 NA objective, a Leica DC350 FX camera, and Leica LAS AF software. ANC-1 subcellular localization, the ER marker, and nuclear shape images were taken with a spinning disc confocal microscope (Intelligent Imaging Innovations) with a CSU-X1 scan head (Yokogawa), a Cascade QuantEM 512SC camera (Photometrics), a 100 × NA 1.46 objective (Zeiss or Nikon), and SlideBook software (Intelligent Imaging Innovations). The contrast and levels of the images were uniformly adjusted using ImageJ (National Institutes of Health). Live GFP::KDEL images were acquired at 200 ms or 250 ms intervals using the above spinning disc confocal system. To quantify ER, lipid droplet, and mitochondria positioning defects, images from at least 10 young adults of each strain were scored blindly by three people. In addition, the ‘Manual Tracking’ plug-in for ImageJ (https://imagej.nih.gov/ij/plugins/track/track.html) was used to track the positions of multiple ER fragments and lipid droplets through a time-lapse series. The relative movements between three different spots per animal were measured over time.

To quantify the fluorescent intensity of GFP::ANC-1B and GFP::ANC-1(Δ6RPs), images were taken under the spinning disc confocal system (100X objective) and the RawIntDen of the was hypodermal area measured by ImageJ. The average fluorescent intensity was calculated by dividing the RawIntDen by the area.

For the ER colocalization analysis, z stack images were taken under the spinning disc confocal system (100X objective) and processed by background subtraction with rolling ball radius of 50.0 pixels. A Region of interest (ROI) of 96 × 96 pixels in the non-nuclear region was cropped to use ScatterJ plugin for co-localization analysis (Zeitvogel et al., 2016).

For some adult animals, Image J ‘Stitching’ Plug-in was used to stitch images with overlap (Preibisch et al., 2009). The length of L2 larvae, width and length of the adult animals, as well as the circularity and solidity of the nuclei were measured with Image J.

Statistical evaluation

Request a detailed protocol

The nuclear anchorage quantifying data were displayed as scatter plots with means and 95% CI as error bars. Sample sizes are indicated in the figures. The statistical tests are indicated in the figure legends. When there were limited comparisons. unpaired student t-tests were performed on the indicated comparisons for the nuclear anchorage assay, and Fisher’s exact test was used. When multiple comparisons were made, ANOVA and Tukey’s multiple comparisons tests were used. Prism nine software was used for the statistical analyses.

Data availability

The list of strains generated is detailed in Table 1. All data points are displayed in the histograms in the figures.

References

  1. Book
    1. Altun Z
    2. Hall D
    (2009)
    Epithelial System, Hypodermis
    WormAtlas.
    1. Brenner S
    (1974)
    The genetics of Caenorhabditis elegans
    Genetics 77:71–94.
    1. Zhang Q
    2. Skepper JN
    3. Yang F
    4. Davies JD
    5. Hegyi L
    6. Roberts RG
    7. Weissberg PL
    8. Ellis JA
    9. Shanahan CM
    (2001)
    Nesprins: a novel family of spectrin-repeat-containing proteins that localize to the nuclear membrane in multiple tissues
    Journal of Cell Science 114:4485–4498.

Decision letter

  1. Maddy Parsons
    Reviewing Editor; King's College London, United Kingdom
  2. Piali Sengupta
    Senior Editor; Brandeis University, United States
  3. Verena Jantsch
    Reviewer; Max Perutz Laboratories; University of Vienna, Austria

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The reviewers all felt your study represents a valuable contribution to enable better understanding of the organization of organelles in the cell and to encourage a re-think of the current models of nuclear anchorage.

Decision letter after peer review:

Thank you for submitting your article "The Nesprin-1/-2 ortholog ANC-1 regulates organelle positioning in C. elegans without its KASH or actin-binding domains" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Piali Sengupta as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Verena Jantsch (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

The current and widely accepted model how nuclei are positioned in the cell proposes that their anchorage is mediated through nuclear membrane spanning SUN and KASH domain containing proteins which connect the cytoskeleton to the nuclear interior. This study presents evidence that this model needs reconsidering. The authors follow up on their previous observation that nuclear positioning differs between mutants in SUN (UNC-84) and KASH proteins (ANC-1), where anc-1 mutants display a more severe phenotype. The study nicely combines structure-function analysis of ANC-1 with the readout of nuclei positioned in the syncytial cell hyp7 in fixed samples and by live imaging, and the mutant analysis correlates well with the fitness of the whole organism. The authors also show that the expected regions (the KASH domain or the actin binding domain) play rather minor roles in nuclear anchorage. Instead, anchorage is mapped to a portion of the transmembrane domain and to spectrin-like repeats in the cytoplasmic localised region of the protein. Mutating those protein domains not only leads to irregularly positioned nuclei but also to disorganisation and fragmentation of the ER, which also appears unanchored as evidenced by in vivo imaging. Consistently, the authors find ANC-1 prominently associated with the ER and that this association is independent of the KASH domain.

This paper will be very interesting to a wide readership as it challenges current models of nuclear positioning and shows that mis-positioning and loss of connectivity can have severe consequences to the development of the organism. However, the reviewers felt that some of the conclusions required additional data to support the statements made, in particular to strengthen the proposed the ER link, as well as some other points that require clarification as detailed below:

Essential revisions:

1. The data shown in Fig6 suggesting ANC-1 targets to the ER was not convincing and was also very hard to contextualise as no other markers for other organelles or the nucleus were present, and no merged images provided. Given that the authors also repeatedly draw conclusions relating to mitochondria, including a mitotracker in the far-red channel would be important. The ANC1 signal appeared rather diffusely localised in all cases (WT and TK/KASH mutants; noting that the KDEL signal is very low in the TK mutant image compared to the others) and it could be argued any potential overlap might be coincidental rather than specific. No other evidence for ER targeting was provided but would be required to support the current conclusions. The authors should also at minimum calculate the co-localization index and provide examples of line scans to show a correlation between signal intensities. Also the sentence "The slight discrepancy between localization of mKate2::ANC-1b and GFP::KDEL could be explained by the distance between the ANC-1 N terminus and the ER membrane" will need to be modified. This is highly unlikely due to the resolution of the microscope used to acquire this image. The discrepancy might be due to differences in the focus plane of the two light channels. Please remove or edit this speculation.

2. A further concern is the lack of any cytoskeletal network analysis in the paper; the authors (somewhat extrapolated) conclusions are focused on the concept that nuclei and the ER are detached from any sort of cytoplasmic structural network in anc-1 mutants, but this is not tested in the study. It would be very helpful to provide this evidence, but we recognise that analysing the cytoskeleton in detail may prove impractical given the current restrictions. However, if experimental data cannot be provided, it would be important to tone down such statements given the lack of formal evidence provided for this model.

3. ANC1b-Δ6RPS and Δ5RPs appear to be expressed at much lower levels than other mutants (or WT protein) eg: Figure 5; is this the case and if so, might the nuclear positioning defect just be due to this (ie: as the animals are more like anc-1 null)? It would be important to understand relative stability of these mutant proteins to interpret this data. Please provide more information on the relative intensity levels of each mutant and if they are similar, provide more representative example images.

4. The authors put forward the claim that ANC-1 anchors other organelles besides the ER. There are a lot of markers available for different organelles, and it would be important for the authors to provide some staining in the most significant mutants (Δ6rps, Δtk), for mitochondria or other organelles. On page 11 the authors also write "Nuclear shape changes were observed during live imaging in anc-1 mutants consistent with a model where anc-1 mutant nuclei are susceptible to pressures from the cytoplasm, perhaps crashing into lipid droplets that corresponded with dents in nuclei.". It is not clear why the authors suggest "crashing into lipid droplets" and not any other organelles in the cell (mitochondria, endosomes, etc). Is there any evidence for this statement that can be provided?

5. p. 14:.…was not enriched at the nuclear envelope…". it would very important to include pictures of the ANC-1 staining together with a marker for the nuclear envelope in Figure 5 to support this statement.

6. Page 6, figure 2A,B. it is not clear in the text that two of the four nonsense mutations that were analysed only disrupt isoform a and c (w427 and w621). If these mutations only affect isoform a and c, and not the shorter isoform b, then the authors could explain this better, so that this result goes together with the RNAi data.

7. Figure 1c and Figure 3C – the dataset of WT and anc-1(e1873) seems to be the same in both these figures. Although duplication of the same data in multiple figures should not typically occur in publications, the duplication should be indicated clearly in the figure legend for transparency. Ideally, the duplicated data should also be shown in a different color/format in the figure so that they are immediately obvious. Other duplications of data in the manuscript should also be indicated. Why was unc-84(n369) data repeated three times on the graph in Figure 3C but with different values?

8. The percentage of touching nuclei in unc84(n369), KASH mutants (Figure 1C), and anc-1(dF1)(Figure 3c), are around 20%. However, the authors classify the KASH mutants as "mild nuclear anchorage", whereas anc-1(dF1) on Figure 3c was classified as "severe nuclear anchorage". The authors also used the term "intermediate nuclear anchorage" for other phenotypes. The authors should use the same classification (clearly described) throughout the manuscript.

9. Figure 4A – the authors described the image of GFP:Kdel of hyp7 syncytia as a "branched network". It is very difficult to observe any branches and a network in these images. We recognise the authors want to use the same terminology that is used to characterize ER in other cells, but it is difficult to understand what the authors mean by a branch. Diffuse staining with dark round objects in it is visible, but branches are not clear. The authors should provide a better example, more similar to unc-84(n369) mutant, where branches and a network are more distinct and annotate these properly to support this statement.

10. Figure 4C and D; Video 1 and 2- In these figures and the authors compare the dynamics of ER in WT and anc-1 mutant. The authors also provide representative videos. The WT animal appears to be crawling significantly less than the anc-1 mutant, making it difficult to directly compare the anchorage of ER in WT during crawling in the representative videos. Moreover, – Supp Video 1 appears to be far shorter (fewer frames) than Supp Video 2 – ideally, equivalent time scales should be provided for WT animals to be comparable with the mutant.

11. Figure 6A- in this scheme and through the manuscript, the authors refer to the c-term region of ANC-1, after the TM domain, as the KASH domain. However, by definition, the KASH domain includes part of the neck region, the TM domain and the c-term region after the TM domain (see e.g. Figure 4 of Wihelmsen et al. JCS 2006, or PFAM definition of KASH – 10541). Therefore, the neck region of the KASH domain plays a role in nuclear positioning. Furthermore, labelling of figure 6A should be changed accordingly to standard definition.

https://doi.org/10.7554/eLife.61069.sa1

Author response

Essential revisions:

1. The data shown in Fig6 suggesting ANC-1 targets to the ER was not convincing and was also very hard to contextualise as no other markers for other organelles or the nucleus were present, and no merged images provided. Given that the authors also repeatedly draw conclusions relating to mitochondria, including a mitotracker in the far-red channel would be important. The ANC1 signal appeared rather diffusely localised in all cases (WT and TK/KASH mutants; noting that the KDEL signal is very low in the TK mutant image compared to the others) and it could be argued any potential overlap might be coincidental rather than specific. No other evidence for ER targeting was provided but would be required to support the current conclusions. The authors should also at minimum calculate the co-localization index and provide examples of line scans to show a correlation between signal intensities. Also the sentence "The slight discrepancy between localization of mKate2::ANC-1b and GFP::KDEL could be explained by the distance between the ANC-1 N terminus and the ER membrane" will need to be modified. This is highly unlikely due to the resolution of the microscope used to acquire this image. The discrepancy might be due to differences in the focus plane of the two light channels. Please remove or edit this speculation.

We have substantially improved our description of the co-localization of ANC-1 with organelles. We removed the old Figure 6D-F and present an entirely new Figure 7 showing the co-localization of ANC-1 is consistent with (but not entirely overlapping) the ER. In the old analysis, the GFP marker of the ER lumen was overexpressed and significantly more bright than the weakly expressing mKate::ANC-1. We therefore generated a new single-copy hypodermal-specific mKate2::TRAM-1 ER membrane marker strain and crossed the marker into our GFP::ANC-1 wild-type and mutant strains. These two markers were expressed at closer to equal levels, making co-localization easier. Thus, using entirely different lines and markers, we obtained similar results, increasing the rigor and reproducibility of our findings. GFP-ANC-1b localized similar to, but not exactly overlapping with, the ER. We used ImageJ plug-in ScatterJ to quantify the co-localization and the Pearson's correlation coefficient is shown. We now also include merged images. These data are now discussed on pages 12.

We also examined the localization of GFP::ANC-1b with relation to mitochondria and lipid droplets (Figure 7—figure supplement 1). ANC-1 clearly localizes in a pattern very different from mitochondria or lipid droplets. See text on page 12.

As suggested, the sentence "The slight discrepancy between localization of mKate2::ANC-1b and GFP::KDEL could be explained by the distance between the ANC-1 N terminus and the ER membrane" has been removed. We agree that it was too speculative.

2. A further concern is the lack of any cytoskeletal network analysis in the paper; the authors (somewhat extrapolated) conclusions are focused on the concept that nuclei and the ER are detached from any sort of cytoplasmic structural network in anc-1 mutants, but this is not tested in the study. It would be very helpful to provide this evidence, but we recognise that analysing the cytoskeleton in detail may prove impractical given the current restrictions. However, if experimental data cannot be provided, it would be important to tone down such statements given the lack of formal evidence provided for this model.

The C. elegans adult hypodermal actin cytoskeleton is hard to visualize using current tools. For example, to see how disorganized the actin cytoskeleton is in wild type adult hypodermis, see Figures 1E and 2C of Higuchi-Sanabria, Ryo, et al. "Spatial regulation of the actin cytoskeleton by HSF-1 during aging." Molecular biology of the cell 29.21 (2018): 2522-2527. We decided that new tools need to be created to study the actin cytoskeleton in the hypodermis that would be beyond the scope of this manuscript.

We obtained a GFP::MAPH-1.1 line from Mike Boxem’s lab that we used to visualize microtubules in the adult hypodermis. As previously described, in wildtype, GFP::MAPH-1.1 localizes to non-centrosomal microtubules in the hypodermis. The density and disorganization of the microtubule network in wildtype makes it very difficult to quantify any parameters. Nonetheless, we can qualitatively state that in anc-1 mutant animals, most of the hyp7 syncytium the microtubules appear normal. The exception is where nuclei have moved back and forth along an anterior-posterior axis, they appear to have cleared a microtubule free channel. We suspect this is a result of untethered nuclei plowing through and is more likely a result of unanchored nuclear movements than the cause of nuclear mislocalization. We now include three new Video (8-10) and a new Figure 10 with still images showing hypodermal microtubule organization in wild type and anc-1 mutants. Text on pages 13-14 describes these data.

We also attempted to tone down the role of the cytoskeleton in our fairly speculative model in the last paragraph of the Discussion. Clearly, this study raises many new questions that will require extensive future studies.

3. ANC1b-Δ6RPS and Δ5RPs appear to be expressed at much lower levels than other mutants (or WT protein) eg: Figure 5; is this the case and if so, might the nuclear positioning defect just be due to this (ie: as the animals are more like anc-1 null)? It would be important to understand relative stability of these mutant proteins to interpret this data. Please provide more information on the relative intensity levels of each mutant and if they are similar, provide more representative example images.

We took new images under the exact same conditions and carefully measured the total fluorescence of the wild-type GFP::ANC-1b and the Δ6RPs. As suggested by our original images, there is significantly less expression of the mutant ANC-1 protein. We show the data in the new Supplemental Figure 3. We add the following sentences on the top of page 10 to discuss the levels: “However, the intensity of the six repeat deletion mutant is significantly less than wild-type GFP::ANC-1b (Figure 5—figure supplement 1), making it possible that the phenotype is due to less ANC-1 being present. Yet, the deletion mutant is significantly enriched at the nuclear envelope (Figure 5—figure supplement 1), supporting the hypothesis the defect is due to a loss of ANC-1 repeats at the general ER.”

4. The authors put forward the claim that ANC-1 anchors other organelles besides the ER. There are a lot of markers available for different organelles, and it would be important for the authors to provide some staining in the most significant mutants (Δ6rps, Δtk), for mitochondria or other organelles. On page 11 the authors also write "Nuclear shape changes were observed during live imaging in anc-1 mutants consistent with a model where anc-1 mutant nuclei are susceptible to pressures from the cytoplasm, perhaps crashing into lipid droplets that corresponded with dents in nuclei.". It is not clear why the authors suggest "crashing into lipid droplets" and not any other organelles in the cell (mitochondria, endosomes, etc). Is there any evidence for this statement that can be provided?

Thank you for this suggestion. We now show in new figures 8 and 9 and in Videos 4-7 that the mitochondria and lipid droplets have similar positioning defects as the ER. These data significantly increase the impact of the manuscript and are discussed on page 13.

We have toned down the speculative parts of the model on page 13 and deleted the mention of the possibility that lipid droplets are the sole cause of nuclear envelope dents.

5. p. 14:.…was not enriched at the nuclear envelope…". it would very important to include pictures of the ANC-1 staining together with a marker for the nuclear envelope in Figure 5 to support this statement.

We have added to data to the Figure 5—figure supplement 1 showing a merge of wild-type or mutant GFP::ANC-1b with a nuclear envelope marker. These data are mentioned in the results on pages 10 and referenced in the discussion on the top of page 17 in the sentence referenced by the reviewers for this point.

6. Page 6, figure 2A,B. it is not clear in the text that two of the four nonsense mutations that were analysed only disrupt isoform a and c (w427 and w621). If these mutations only affect isoform a and c, and not the shorter isoform b, then the authors could explain this better, so that this result goes together with the RNAi data.

We clarified the text pertaining to these two nonsense mutants on page 6.

7. Figure 1c and Figure 3C – the dataset of WT and anc-1(e1873) seems to be the same in both these figures. Although duplication of the same data in multiple figures should not typically occur in publications, the duplication should be indicated clearly in the figure legend for transparency. Ideally, the duplicated data should also be shown in a different color/format in the figure so that they are immediately obvious. Other duplications of data in the manuscript should also be indicated. Why was unc-84(n369) data repeated three times on the graph in Figure 3C but with different values?

Thank you for pointing this out. Some data (the first three columns) in Figure 1C were repeated in Figure 3C for easy reference. We have made this clear in the figure legend for Figure 3C by adding the following sentence: “The data in the first three columns, WT, anc-1(e1873), and unc-84(n369) are duplicated from Figure 1C and copied here for easy reference.” In addition, some of these data are copied in Figure 6B. This is now clearly stated in the Figure 6 legend.

The other two entries in Figure 3C for unc-84(n369) lost the labels for the second mutation that is also in those strains. We have corrected the labeling in 3C. Thanks for catching this mistake that made the figure difficult to comprehend.

8. The percentage of touching nuclei in unc84(n369), KASH mutants (Figure 1C), and anc-1(dF1)(Figure 3c), are around 20%. However, the authors classify the KASH mutants as "mild nuclear anchorage", whereas anc-1(dF1) on Figure 3c was classified as "severe nuclear anchorage". The authors also used the term "intermediate nuclear anchorage" for other phenotypes. The authors should use the same classification (clearly described) throughout the manuscript.

Thank you for this suggestion, which greatly clarifies the manuscript. On page 5 we add the following sentence: “Throughout this manuscript, we call nuclear anchorage defects that are statistically similar to anc-1 null mutants as severe, defects statistically similar to unc-84 null mutants but still significantly worse than wildtype as mild, and defects as statistically between anc-1 and unc-84 null mutants as intermediate.” We are now consistent in our use of severe, mild and intermediate.

9. Figure 4A – the authors described the image of GFP:Kdel of hyp7 syncytia as a "branched network". It is very difficult to observe any branches and a network in these images. We recognise the authors want to use the same terminology that is used to characterize ER in other cells, but it is difficult to understand what the authors mean by a branch. Diffuse staining with dark round objects in it is visible, but branches are not clear. The authors should provide a better example, more similar to unc-84(n369) mutant, where branches and a network are more distinct and annotate these properly to support this statement.

We have changed our description of the morphology of the ER on page 8. We no longer characterize the ER network as branched in wildtype. It’s simply the normal ER network. We are not trying to describe the ER in hypodermal cells. Our main point is that the ER is disrupted in the mutants. We therefore now avoid the term branched.

10. Figure 4C and D; Video 1 and 2- In these figures and the authors compare the dynamics of ER in WT and anc-1 mutant. The authors also provide representative vidoes. The WT animal appears to be crawling significantly less than the anc-1 mutant, making it difficult to directly compare the anchorage of ER in WT during crawling in the representative videos. Moreover, – Supp Video 1 appears to be far shorter (fewer frames) than Supp Video 2 – ideally, equivalent time scales should be provided for WT animals to be comparable with the mutant.

We have changed Video 1 for a wild-type example better matched with the amount of worm crawling is seem in Video 2.

11. Figure 6A- in this scheme and through the manuscript, the authors refer to the c-term region of ANC-1, after the TM domain, as the KASH domain. However, by definition, the KASH domain includes part of the neck region, the TM domain and the c-term region after the TM domain (see e.g. Figure 4 of Wihelmsen et al. JCS 2006, or PFAM definition of KASH – 10541). Therefore, the neck region of the KASH domain plays a role in nuclear positioning. Furthermore, labelling of figure 6A should be changed accordingly to standard definition.

We changed the labeling of Figure 6A to focus on the “luminal domain.” When we are specifically talking about the luminal half of KASH but not the trans-membrane span, we are much clearer now, using the word luminal to describe the deletions throughout the manuscript.

https://doi.org/10.7554/eLife.61069.sa2

Article and author information

Author details

  1. Hongyan Hao

    Department of Molecular and Cellular Biology, University of California, Davis, Davis, United States
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0860-2615
  2. Shilpi Kalra

    Department of Molecular and Cellular Biology, University of California, Davis, Davis, United States
    Contribution
    Conceptualization, Formal analysis, Validation, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  3. Laura E Jameson

    Department of Molecular and Cellular Biology, University of California, Davis, Davis, United States
    Contribution
    Resources, Data curation, Formal analysis, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  4. Leslie A Guerrero

    Department of Molecular and Cellular Biology, University of California, Davis, Davis, United States
    Contribution
    Conceptualization, Resources, Formal analysis, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  5. Natalie E Cain

    Department of Molecular and Cellular Biology, University of California, Davis, Davis, United States
    Contribution
    Conceptualization, Resources, Formal analysis, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1391-404X
  6. Jessica Bolivar

    Department of Molecular and Cellular Biology, University of California, Davis, Davis, United States
    Contribution
    Conceptualization, Resources, Investigation, Methodology
    Competing interests
    No competing interests declared
  7. Daniel A Starr

    Department of Molecular and Cellular Biology, University of California, Davis, Davis, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    dastarr@ucdavis.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7339-6606

Funding

National Institutes of Health (R01GM073874)

  • Daniel A Starr

National Institutes of Health (R35GM134859)

  • Daniel A Starr

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Gant Luxton, Erin Cram, Charlotte Kelley, and members of the Starr lab, for helpful discussions and editing of the paper. We thank Barth Grant for sharing an unpublished strain, Erin Tapley and Yu-Tai Chang for the mitochondrial GFP strain, and Joshua Morgan for suggestions on nuclear shape measurements. We thank Michael Paddy at the MCB Light Microscopy Imaging Facility, which is a UC Davis Campus Core Research Facility, for microscopy assistance. The 3i Marianas spinning disc confocal used in this study was purchased using NIH Shared Instrumentation Grant 1S10RR024543-01. These studies were supported by the National Institutes of Health grants R01GM073874 and R35GM134859 to DAS.

Senior Editor

  1. Piali Sengupta, Brandeis University, United States

Reviewing Editor

  1. Maddy Parsons, King's College London, United Kingdom

Reviewer

  1. Verena Jantsch, Max Perutz Laboratories; University of Vienna, Austria

Version history

  1. Received: July 14, 2020
  2. Accepted: April 11, 2021
  3. Accepted Manuscript published: April 16, 2021 (version 1)
  4. Version of Record published: May 21, 2021 (version 2)

Copyright

© 2021, Hao et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,178
    Page views
  • 257
    Downloads
  • 12
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Hongyan Hao
  2. Shilpi Kalra
  3. Laura E Jameson
  4. Leslie A Guerrero
  5. Natalie E Cain
  6. Jessica Bolivar
  7. Daniel A Starr
(2021)
The Nesprin-1/-2 ortholog ANC-1 regulates organelle positioning in C. elegans independently from its KASH or actin-binding domains
eLife 10:e61069.
https://doi.org/10.7554/eLife.61069

Further reading

    1. Cell Biology
    Shuxian Li, Lingbing Li ... Xietong Wang
    Research Article

    Epidemiological studies have demonstrated that fine particulate matter (PM2.5) is associated with adverse obstetric and postnatal metabolic health outcomes, but the mechanism remains unclear. This study aimed to investigate the toxicological pathways by which PM2.5 damaged placental trophoblasts in vivo and in vitro. We confirmed that PM2.5 induced adverse gestational outcomes such as increased fetal mortality rates, decreased fetal number and weight, damaged placental structure, and increased apoptosis of trophoblasts. Additionally, PM2.5 induced dysfunction of the trophoblast cell line HTR8/SVneo, including in its proliferation, apoptosis, invasion, migration and angiogenesis. Moreover, we comprehensively analyzed the transcriptional landscape of HTR8/SVneo cells exposed to PM2.5 through RNA-Seq and observed that PM2.5 triggered overexpression of pathways involved in oxidative stress and mitochondrial apoptosis to damage HTR8/SVneo cell biological functions through CYP1A1. Mechanistically, PM2.5 stimulated KLF9, a transcription factor identified as binding to CYP1A1 promoter region, which further modulated the CYP1A1-driven downstream phenotypes. Together, this study demonstrated that the KLF9/CYP1A1 axis played a crucial role in the toxic progression of PM2.5 induced adverse pregnancy outcomes, suggesting adverse effects of environmental pollution on pregnant females and putative targeted therapeutic strategies.

    1. Cell Biology
    2. Microbiology and Infectious Disease
    Heledd Davies, Hugo Belda ... Moritz Treeck
    Tools and Resources

    Reverse genetics is key to understanding protein function, but the mechanistic connection between a gene of interest and the observed phenotype is not always clear. Here we describe the use of proximity labeling using TurboID and site-specific quantification of biotinylated peptides to measure changes to the local protein environment of selected targets upon perturbation. We apply this technique, which we call PerTurboID, to understand how the P. falciparum exported kinase, FIKK4.1, regulates the function of the major virulence factor of the malaria causing parasite, PfEMP1. We generated independent TurboID fusions of 2 proteins that are predicted substrates of FIKK4.1 in a FIKK4.1 conditional KO parasite line. Comparing the abundance of site-specific biotinylated peptides between wildtype and kinase deletion lines reveals the differential accessibility of proteins to biotinylation, indicating changes to localization, protein-protein interactions, or protein structure which are mediated by FIKK4.1 activity. We further show that FIKK4.1 is likely the only FIKK kinase that controls surface levels of PfEMP1, but not other surface antigens, on the infected red blood cell under standard culture conditions. We believe PerTurboID is broadly applicable to study the impact of genetic or environmental perturbation on a selected cellular niche.
