3D in situ imaging of the female reproductive tract reveals molecular signatures of fertilizing spermatozoa in mice

  1. Lukas Ded
  2. Jae Yeon Hwang
  3. Kiyoshi Miki
  4. Huanan F Shi
  5. Jean-Ju Chung  Is a corresponding author
  1. Department of Cellular & Molecular Physiology, Yale School of Medicine, United States
  2. Laboratory of Reproductive Biology, Institute of Biotechnology, Czech Academy of Sciences, BIOCEV, Czech Republic
  3. Boston Children’s Hospital, United States
  4. Department of Obstetrics, Gynecology, and Reproductive Sciences, Yale School of Medicine, United States
Research Article
  • Cited 7
  • Views 3,043
  • Annotations
Cite this article as: eLife 2020;9:e62043 doi: 10.7554/eLife.62043

Abstract

Out of millions of ejaculated sperm, a few reach the fertilization site in mammals. Flagellar Ca2+ signaling nanodomains, organized by multi-subunit CatSper calcium channel complexes, are pivotal for sperm migration in the female tract, implicating CatSper-dependent mechanisms in sperm selection. Here using biochemical and pharmacological studies, we demonstrate that CatSper1 is an O-linked glycosylated protein, undergoing capacitation-induced processing dependent on Ca2+ and phosphorylation cascades. CatSper1 processing correlates with protein tyrosine phosphorylation (pY) development in sperm cells capacitated in vitro and in vivo. Using 3D in situ molecular imaging and ANN-based automatic detection of sperm distributed along the cleared female tract, we demonstrate that spermatozoa past the utero-tubal junction possess the intact CatSper1 signals. Together, we reveal that fertilizing mouse spermatozoa in situ are characterized by intact CatSper channel, lack of pY, and reacted acrosomes. These findings provide molecular insight into sperm selection for successful fertilization in the female reproductive tract.

eLife digest

When mammals mate, males ejaculate millions of sperm cells into the females’ reproductive tract. But as the sperm travel up the tract, only a handful of the ‘fittest’ sperm will actually manage to reach the egg. This process of elimination prevents the egg from being fertilized by multiple sperm cells and stops the eggs from being fertilized outside of the womb. A lot of what is known about fertilization in mammals has come from studying how sperm and eggs cells interact in a Petri dish. However, this approach cannot explain how sperm are selected and removed as they journey towards the egg.

Previous work suggests that a calcium channel, which sits in the membrane surrounding the sperm tail, may provide some answers. The core of this channel, known as CatSper, is made up of four proteins arranged into a unique pattern similar to racing stripes. Without this specific arrangement, sperm cells cannot move forward and fertilize the egg in time. To investigate the role of this protein in more depth, Ded et al. established a new way to image the minute structures of sperm cells, such as CatSper, in the reproductive tract of female mice.

Experiments in a Petri dish revealed that sperm cells that have been primed to fertilize the egg are a diverse population: in some cells one of the proteins that make up the calcium channel, known as CatSper1, is cleaved, while in other cells this protein remains intact. Visualizing this protein in the female reproductive tract showed that sperm cells close to the site of fertilization contain non-cleaved CatSper1. Whereas sperm cells further away from the egg – and thus closer to the uterus – are more likely to contain broken down CatSper1.

Taken together, these findings suggest that the state of the CatSper1 protein may be used to select sperm that are most likely to reach and fertilize the egg. Future studies should address what happens to the calcium channel once the CatSper1 protein is cleaved, and how this channel controls the movements and lifespan of sperm. This could help identify new targets for contraception and improve current strategies for assisted reproduction.

Introduction

In most mammals, millions or billions of spermatozoa are deposited into the cervix upon coitus. Yet less than 100 spermatozoa are found at the fertilization site, called the ampulla, and only 10–12 spermatozoa are observed around an oocyte (Kölle, 2015; Suarez, 2002). This implies the presence of mechanisms to select spermatozoa as they travel through the female reproductive tract and to eliminate non-fertilizing, surplus spermatozoa once the egg is fertilized (Sakkas et al., 2015). Recent ex vivo imaging studies combined with mouse genetics have shown that surface molecules on the sperm plasma membranes such as ADAM family proteins are essential for the sperm to pass through the utero-tubal junction (UTJ) (Fujihara et al., 2018). By contrast, whether such selection and elimination within the oviduct requires specific molecular signatures and cellular signaling of spermatozoa is not fully understood.

Mammalian sperm undergo capacitation, a physiological process to obtain the ability to fertilize the egg, naturally inside the oviduct (Austin, 1951; Chang, 1951). The emulation of sperm capacitation in vitro led to the development of in vitro fertilization (IVF) techniques (Steptoe and Edwards, 1976; Wang and Sauer, 2006). Since then, most studies on sperm capacitation and gamete interaction have been carried out under in vitro conditions. However, mounting evidence suggests that in vitro sperm capacitation does not precisely reproduce the time- and space-dependent in vivo events in the oviduct. Protein tyrosine phosphorylation (pY), which has been utilized as a hallmark of sperm capacitation over decades, showed different patterns in boar sperm capacitated in vitro from ex vivo and in vivo (Luño et al., 2013). In mice, pY is not required for sperm hyperactivation or fertility (Alvau et al., 2016; Tateno et al., 2013). Previous in vitro studies that represent the population average at a given time may or may not have observed molecular details of a small number of the most fertilizing sperm cells.

Capacitation involves extensive sperm remodeling that triggers cellular signaling cascades. Cholesterol shedding and protein modifications occur within the plasma membrane (Visconti et al., 1999; Vyklicka and Lishko, 2020). Cleavage and/or degradation of intracellular proteins by individual proteases and the ubiquitin-proteasome system (UPS) also participate in the capacitation process (Honda et al., 2002; Kerns et al., 2016). Various capacitation-associated cellular signaling pathways that include cAMP/PKA activation followed by pY increase and rise in intracellular pH and calcium result in physiological outcomes such as acrosome reaction and motility changes (Balbach et al., 2018; Puga Molina et al., 2018). The sperm-specific CatSper Ca2+ channel forms multi-linear nanodomains on the flagellar membrane, functioning as a signaling hub that links these events and motility regulation during capacitation (Chung et al., 2014). Sperm from mice lacking the CatSper genes are unable to control pY development and fail to migrate past the UTJ (Chung et al., 2014; Ho et al., 2009). The presence and integrity of CatSper nanodomains, probed by CatSper1, correlate with sperm ability to develop hyperactivated motility (Chung et al., 2017; Chung et al., 2014; Hwang et al., 2019). It is not known how these molecular and functional events are coordinated in the individual sperm cells within the physiological context. The central hypothesis of this study is that specific modifications and processing of CatSper1, a pore subunit of CatSper channel, govern the channel biogenesis and Ca2+ signaling state, endowing differential sperm motility and fertility during the fertilization journey in the female reproductive tract.

Here we reveal that most fertilizing mouse spermatozoa in situ are molecularly and functionally characterized by intact CatSper channel, lack of pY, and reacted acrosomes. Using biochemical and pharmacological analyses, we show that CatSper1 undergoes O-linked glycosylation during sperm differentiation and maturation. Capacitation induces CatSper1 cleavage and degradation dependent on Ca2+ influx and protein phosphorylation cascades. We find that CatSper1 processing correlates with pY development in the flagella among heterogenous sperm cells capacitated in vitro and in vivo. We use ex vivo imaging and microdissection to show that the intact CatSper channel is indispensable for sperm to successfully reach the ampulla and for the acrosome to react. Finally, we use newly developed 3D in situ molecular imaging strategies and ANN approach to determine and quantify the molecular characteristics of sperm distributed along the female reproductive tract. We demonstrate that spermatozoa past the UTJ are recognized by intact CatSper1 signals which are graded along the oviduct. These findings provide molecular insight into dynamic regulation of Ca2+ signaling in the selection, maintenance of the fertilizing capacity, and elimination of sperm in the female reproductive tract.

Results

CatSper1 undergoes post-translational modifications during sperm development and maturation

We previously found that the CatSper channel complex is compartmentalized within the flagellar membrane, creating linear Ca2+ signaling nanodomains along the sperm tail (Chung et al., 2017; Chung et al., 2014; Hwang et al., 2019). Caveolin-1, a scaffolding protein in cholesterol-rich microdomains, colocalizes with the CatSper channel complex but does not scaffold the nanodomain (Chung et al., 2014). The molecular weight and amount of intact CatSper1, among all CatSper subunits, specifically declines during sperm capacitation (Chung et al., 2014; Figure 1B,D,H,I,K). To better understand the molecular basis and functional implications of the unique processing of CatSper1, we first examined CatSper1 protein expression in the testis and epididymis. Interestingly, the molecular weight of CatSper1 increases gradually during sperm development and epidydimal maturation (Figure 1A; top), indicating that CatSper1 undergoes post-translational modifications. Next, we examined the nature of the modifications. Blocking tyrosine phosphatases by sodium orthovanadate or adding specific protein phosphatases, such as protein serine/threonine phosphatase 1(PP1) or protein tyrosine phosphatase 1B (PTP1B) to solubilized sperm membrane fraction, does not change the molecular weight of CatSper1 (Figure 1—figure supplement 1A). By contrast, when the sperm membrane was subjected to enzymatic deglycosylation, O-glycosidase, but not PNGase F, shifts the apparent molecular weight of CatSper1 to closest to the CatSper1 band that corresponds to the smallest molecular weight observed in the testis (Figure 1A,B, Figure 1—figure supplement 1B). These data suggest that CatSper1 in sperm is not a phosphoprotein but an O-linked glycosylated protein.

Figure 1 with 1 supplement see all

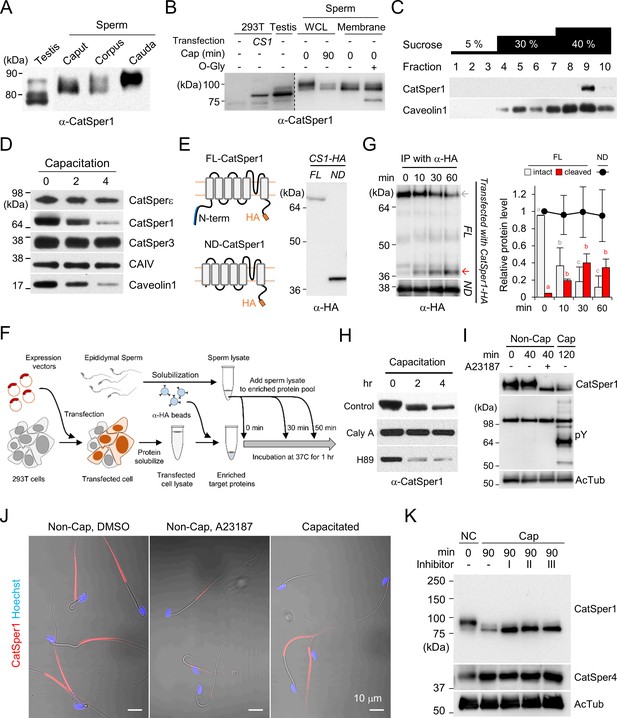

CatSper1 is specifically processed during in vitro capacitation.

(A–B) CatSper1 undergoes post-translational modification during spermiogenesis and epididymal maturation. (A) A gradual decrease in electrophoretic mobility of CatSper1 is observed by western blot analysis. (B) Mouse CatSper1 is an O-glycosylated protein. Apparent molecular weights of CatSper1 proteins were analyzed by immunoblotting recombinant CatSper1 expressed in 293 T cells (CS1) and native CatSper1 from whole cell lysate (WCL) of testis and sperm (non-capacitated, 0 min; capacitated, 90 min) compared with those of CatSper in sperm membrane fraction treated with or without O-glycosidase (O-Gly). The dotted line indicates different exposure time of the same membrane. (C) CatSper resides in lipid rafts subdomains of the plasma membrane in mature sperm. Solubilized sperm proteins were fractionized by discontinuous sucrose density gradient (5, 30, and 40%) centrifugation. (D) CatSper1 is degraded during the late stage of capacitation. Protein expression levels of CatSper1 and caveolin-1, but not CatSper3, CatSperε, or carbonic anhydrase 4 (CAIV) are altered by in vitro capacitation. (E–G) CatSper1 is cleaved within the N-terminal domain (NTD). (E) A cartoon of full-length (FL, top) and N-terminal truncated (ND, bottom) recombinant CatSper1 protein expressed in the study (left). Both proteins are tagged with HA at their respective C-termini (orange). The CatSper1 antibody used in this study is raised against the 1–150 aa region of CatSper1 (blue, Ren et al., 2001). Detection of recombinant FL-CatSper1 and ND-CatSper1 expressed in 293 T cells (right). (F) A cartoon of the experimental scheme to test NTD truncation of CatSper1. FL-CatSper1 and ND-CatSper1 expressed in 293 T cells were solubilized and pulled-down using agarose resin conjugated with HA antibody. The enriched recombinant proteins were incubated with solubilized sperm lysates at 37°C for 0, 10, 30, and 60 min and subjected to immunoblot. (G) FL-CatSper1 is cleaved at NTD by solubilized sperm lysate. FL-CatSper1 (gray arrow) decreases while truncated form (red arrow) increases by incubation with solubilized sperm lysates (top). ND-CatSper1 proteins remain largely unchanged under the same conditions (bottom). The right panel shows quantification of the protein levels by measuring the band intensity of target proteins at each time point, normalized by total FL-CatSper1 at 0 min points (n = 3; intact, gray bars; cleaved, red bars) or ND-CatSper1 (n = 4; black dots). The sum of intact and cleaved FL-CatSper1 levels was used for total FL-CatSper1. Statistical analyses were performed between relative levels at each time point within each protein. Different letters indicate the significant difference. Data is represented as mean ± SEM. See also Figure 1—source data 1. Immunoblotting was performed with the HA antibody (E and G). (H) Capacitation-associated CatSper1 degradation is regulated by phosphorylation. CatSper1 degradation is accelerated by PKA inhibition. A PKA inhibitor, H89 (50 μM), enhances capacitation-associated CatSper1 degradation. A protein phophatase1 inhibitor, calyculin A (Caly A, 0.1 μM), prevents the CatSper1 degradation during sperm capacitation in vitro. (I–J) Ca2+ influx accelerates CatSper1 degradation. (I) CatSper activation during capacitation and Ca2+ ionophore treatment (A23187, 10 μM) facilitates the CatSper1 cleavage. (J) Representative immunofluorescence images of CatSper1 in the spermatozoa incubated under the conditions used in (I). The extent of CatSper1 degradation is heterogeneous in the capacitated sperm cells (bottom) compared with A23187-treated uncapacitated sperm cells (middle). (K) Capacitation-associated CatSper1 degradation is blocked by calpain inhibitors (I, II, and III). 20 μM of each calpain inhibitor was treated with sperm during capacitation. Blots shown here are representative of three independent experiments.

Figure 1—source data 1

Relative amount of recombinant CatSper1 during in vitro proteolysis.

Raw data points for the quantification of protein levels for Figure 1G.

https://cdn.elifesciences.org/articles/62043/elife-62043-fig1-data1-v3.xlsx

CatSper1 resides in the subdomains of lipid rafts in mature sperm and is processed during capacitation

During sperm capacitation, cholesterol depletion destabilizes the plasma membrane and reorganizes the lipid raft (Nixon et al., 2007). One simple hypothesis is that the capacitation-associated changes in raft stability and distribution render CatSper1 accessible to protease activity. To test whether CatSper nanodomains are raft-associated, we performed sucrose density gradient centrifugation, which identified CatSper1 in lipid raft subdomains in mature sperm (Figure 1C). Before inducing capacitation, CatSper1 is not processed in sperm cells, probably because the CatSper1-targeting protease activity is normally not in the immediate vicinity to the CatSper nanodomains in the flagellar membrane (Figure 1—figure supplement 1C,F). Supporting this notion, the protease activity readily cleaves CatSper1 by solubilizing the sperm membrane fraction with Triton X-100 (Figure 1—figure supplement 1C).

The CatSper1 N-terminus undergoes capacitation-associated degradation in vitro

Next, we investigated the location of CatSper1 cleavage and degradation using recombinant CatSper1 proteins and sperm lysates. The CatSper1 antibody used in this study is raised against the first N-terminal 150 amino acids of recombinant CatSper1 (Ren et al., 2001). C-terminal HA-tagged full-length (FL) or N-terminal deleted (ND) recombinant CatSper1 are expressed in HEK 293 T cells for pull-down and detection by western blot (Figure 1E,F). Solubilized sperm lysates degrade FL-CatSper1 and result in increased detection of cleaved CatSper1 by HA antibody (Figure 1G). By contrast, protein levels of recombinant ND-CatSper1 are not affected by incubation with sperm lysate (Figure 1G). These results demonstrate that the cytoplasmic N-terminal domain of CatSper1 is the target region for proteolytic activity in sperm cells. How is the CatSper proteolytic activity regulated?

CatSper1 degradation involves Ca2+ and phosphorylation-dependent protease activity

At the molecular level, capacitation is initiated by HCO3- uptake, which activates soluble adenylyl cyclase (sAC), resulting in increased cAMP levels. HCO3- also stimulates CatSper-mediated Ca2+ entry into sperm cells by raising intracellular pH (Kirichok et al., 2006; Figure 1—figure supplement 1F). We thus examined whether the proteolytic activity requires cAMP/PKA and/or Ca2+ signaling pathways. Adding a PKA inhibitor H89 or the St-Ht31 peptide, which abolishes PKA anchoring to AKAP, accelerated CatSper1 degradation during sperm capacitation (Figure 1H, Figure 1—figure supplement 1D). Consistently, calyculin A, a serine/threonine protein phosphatase inhibitor, suppresses the capacitation-associated CatSper1 degradation (Figure 1H). These data suggest that regulation of the proteolytic activity targeting CatSper1 involves protein phosphorylation cascades. Interestingly, adding Ca2+ ionophore A23187 to the sperm suspension induces CatSper1 processing even under non-capacitating conditions that either do not support PKA activation or outright inhibit PKA activity (Figure 1I,J, Figure 1—figure supplement 1E, top). This effect of Ca2+ influx by A23187 is not simply due to a rise in the intracellular Ca2+ but presumably also requires membrane events because loading sperm with BAPTA-AM cannot prevent the proteolytic activity under capacitating conditions (Figure 1—figure supplement 1E, bottom). Thus, we hypothesize a Ca2+ dependent protease that is indirectly regulated by protein phosphorylation such as calpain (Ono et al., 2016) might process CatSper1. We observed that all three classes of calpain inhibitors prevent CatSper1 from capacitation-associated degradation (Figure 1K). All these results corroborate our hypothesis that the responsible protease(s) is associated with the flagellar membrane but is not localized inside the CatSper nanodomains (Figure 1—figure supplement 1F); capacitation-associated membrane reorganization and the increase in local Ca2+ via the CatSper channel activates the protease(s). We speculate that this pathway can be indirectly modulated by PKA such as via regulation of the protease activity by PKA phosphorylation of PP1/PP2A.

CatSper1 degradation correlates with pY development in sperm cells capacitated in vitro

Inducing sperm capacitation in vitro results in a functionally heterogeneous sperm population in which no more than ~15% of cells are hyperactivated (Neill and Olds-Clarke, 1987). This is because individual sperm cells undergo time-dependent changes. Accordingly, the extent to which CatSper1 degrades varies with individual sperm cells capacitated in vitro (Figure 1J, Figure 2A–C). The presence and integrity of the CatSper nanodomains, probed by the CatSper1 antibody, is an indicator of sperm capability to hyperactivate (Chung et al., 2017; Chung et al., 2014). Next, we examined the functional relevance of pY to sperm that can hyperactivate. Notably, we find that sperm cells that maintain intact CatSper1 develop capacitation-associated pY to a lesser degree in vitro (Figure 2B,C). This finding is consistent with the reported phenotype of Catsper1 knockout sperm that exhibit potentiated pY during capacitation (Chung et al., 2014). Thus far, our results suggest that in vitro capacitation generates a heterogeneous sperm population in which intact CatSper1 and pY development are inversely correlated at the single cell level. These heterogeneous sperm cells in vitro might reflect a collection of the time- and space-dependent changes that sperm undergo in the oviduct (Chang and Suarez, 2012; Demott and Suarez, 1992).

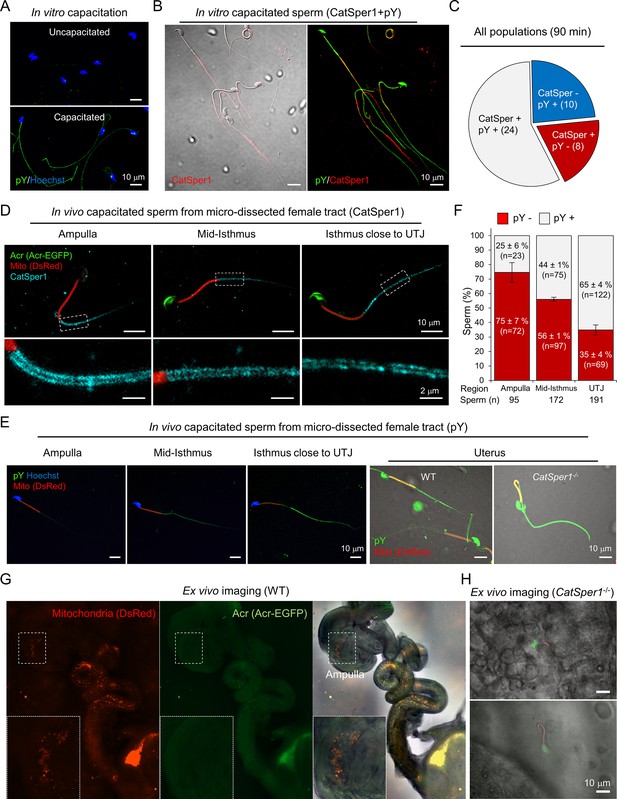

Sperm cells become heterogeneous functionally and molecularly along the female tract.

(A) Immunodetection of pY from in vitro capacitated sperm. (B) Sperm cells that maintain intact CatSper1 during in vitro capacitation exhibit reduced pY development. A representative image of CatSper1 (red) is merged with the corresponding DIC image (left) or pY image (right). Sperm were capacitated in vitro for 90 min (A–B). (C) A representative pie chart showing expression patterns of CatSper1 and pY in individual sperm cells of a single population of in vitro capacitated sperm. Sperm number in each group are indicated in parentheses. (D–F) Sperm cells capacitated in vivo show distinct molecular characteristics along the female tract. The degrees of CatSper1 processing (D) and development of tyrosine phosphorylation (pY) (E–F) during in vivo capacitation were analyzed by immunostaining of the sperm cells at different regions of microdissected female tracts 8 hr post-coitus. The indicated regions are magnified to show distributions of CatSper1 in sperm cells. Sperm cells that arrived at the ampulla are acrosome reacted (Acr-EGFP-negative) and CatSper1 intact (D) and lack pY development (E–F). Gradual increase of pY is observed in the oviductal sperm located closer to UTJ (E–F). Sperm cells that fail to pass UTJ and reside in the uterus show heterogeneous patterns of pY. Catsper1-/- sperm recovered from the uterus of a mated female show robust elevation of pY. Red, DsRed in mitochondria (Mito). (F) Sperm cells from each region of the female tract were counted and classified for pY positive (gray) or pY negative (red) from ampulla (n = 8), mid-isthmus and UTJ, respectively (n = 9) from 5 females at 8 hr post-coitus. Data is represented as mean ± SEM. See also Figure 2—source data 1. (G–H) WT sperm cells, but not Catsper1-/- sperm cells, which arrive at the ampulla are acrosome reacted. Ex vivo imaging of female tracts mated with WT (G) and Catsper1-/- (H) males (8 hr post-coitus). (G) WT sperm cells are acrosome-reacted at the ampulla (EGFP-negative, inset). (H) A few Catsper1-/- sperm cells observed at ampulla have intact acrosome (EGFP-positive). Red, DsRed in mitochondria; green, EGFP tagged to Acr (Acr-EGFP); Merged, fluorescent images merged with the corresponding DIC image. Fluorescence micrographs shown here are representative of at least three independent experiments.Su9-DsRed2/Acr-EGFP WT and Su9-DsRed2/Acr-EGFP Catsper1-/- mice (Chung et al., 2014) were used for mating (D, E, G, and H).

Figure 2—source data 1

Classification and quantification of pY from in vivo capacitated sperm.

Raw data points of quantification of pY signals in the sperm from different regions of the reproductive tracts from five females at 8 hr post-coitus for Figure 2F.

https://cdn.elifesciences.org/articles/62043/elife-62043-fig2-data1-v3.xlsx

Sperm cells capacitated in vivo become heterogeneous along the female tract with distinct molecular characteristics

To assess molecular changes of CatSper1 and pY in the context of sperm capacitation in vivo, we utilized Su9-DsRed2/Acr-EGFP male mice (Hasuwa et al., 2010). Sperm from these transgenic mice have green acrosomes (EGFP) and red mitochondria (DsRed2); loss of GFP indicates a reacted acrosome and RFP allows detection of sperm regardless of the acrosome state. We performed microdissection to obtain the spatially distributed sperm populations along the female reproductive tract mated at 8 hr post-coitus and flushed out sperm cells from different regions. By subsequent immunostaining, we found that CatSper1 in the spermatozoa that passed the utero-tubal junction (UTJ) are arranged normally along the tail, mostly protected from degradation, but in decreasing intensity and continuity more towards UTJ (Figure 2D). In striking contrast, pY is not readily detected in the spermatozoa from the ampulla but appears in the oviductal sperm increasingly towards UTJ (Figure 2E,F). Absence of EGFP reveals that spermatozoa from the ampulla are fully capacitated and acrosome reacted (AR) but those in the isthmus are undergoing AR (Figure 2D,G). Ex vivo imaging of Su9-DsRed2/Acr-EGFP sperm in the reproductive tract removed from mated female mice reveals segment-specific patterns of the acrosome status (Figure 2G). This result is consistent with the previous observations that AR initiates in the mid-isthmus (Hino et al., 2016; Muro et al., 2016) and reacted spermatozoa are able to penetrate the zona in vivo (Jin et al., 2011). Interestingly, we found that a few Catsper1-/- sperm cells that managed to arrive at the ampulla are all not acrosome reacted (Figure 2H), supporting the notion that CatSper-mediated Ca2+ signaling is required for sperm acrosome reaction (Stival et al., 2018). These results suggest that escape of CatSper1 from the cleavage and subsequent degradation suppresses pY development, enabling sperm to maintain hyperactivation capability, prime AR, and achieve the fertilization in vivo.

3D in situ molecular imaging of gametes in the female reproductive tract

The physiological importance of tracing a small number of spermatozoa progressing to the fertilization site prompted us to seek a method that enables direct molecular assessment of single cells inside the intact female tract. We have adapted tissue clearing technologies to establish three-dimensional (3D) in situ molecular imaging systems for fertilization studies (Figure 3, Figure 3—figure supplement 1, Figure 3—videos 16). We found that various tissue clearing methods (Chung et al., 2013; Murray et al., 2015; Yang et al., 2014) are applicable to the reproductive organs from both male and female mice to preserve gross morphology, and fine cellular and subcellular structures. The cleared tissues preserved protein-based fluorescence and were compatible with labeling with dyes and antibodies; growing follicles (WGA) inside the ovary (phalloidin), oviductal folds (WGA) and multi-ciliated (anti-Ac-Tub) epithelium (PNA), different stages of male germs cells (Acr-EGFP) in the seminiferous tubules of the testis and the epididymis are readily detected (Figure 3A–C, Figure 3—figure supplement 1, Figure 3—videos 16). 3D volume imaging of the whole cleared female tract labeled by WGA well illustrates the uterine and isthmic mucus and the labyrinths of passages sperm must navigate (Figure 3A,B, Figure 3—figure supplement 1B,C, Figure 3—videos 3, 5, 6). Moreover, 3D rendering of the images and digital reconstruction of oviductal surface and central lumen depicts continuous and non-disrupted morphology (Figure 3D,E) consistent with reported dimensions and parameters (Stewart and Behringer, 2012), validating the integrity of the processed oviduct.

Figure 3 with 9 supplements see all
Tissue clearing preserves morphology of female reproductive tract and enables molecular imaging and post-processing of gametes in situ.

(A) Refractive index-matched cleared mouse female reproductive tract by CLARITY-based tissue clearing. (B) Optical imaging of the cleared female reproductive tract stained by WGA (red), Ac-Tub antibody (cyan) and DAPI (blue), 100×. Insets show cilia stained by Ac-Tub antibody in 2D (bottom right), a 3D (top left) projection of the ampulla, and a UTJ cross-section (bottom left). (C) Details of the ampullar epithelium stained by PNA (green), Ac-Tub antibody (red) and DAPI (blue), 400×. (D) 3D digital image reconstruction of the oviduct representing different 3D images rendered for oviductal surface (left) and central lumen of oviduct with (middle) or without (right) oviductal volume information. (E) Morphometric and fluorescent signal quantification analysis of the oviduct showing the morphometric meshwork representation of the 3D volumetric data from the oviduct imaging (top), the corresponding side view (bottom left) and the non-numerical visual representations of the basic volumetric (bottom middle) and fluorescent (bottom right) properties. (F) A fluorescent image showing a closer look of the cleared ampulla with oocytes (oocyte magnified in the panel G on the right-most side), 100×. (G) An oocyte with the meiotic spindle; a sperm cell is approaching the zona pellucida directly inside the ampulla, PNA (green), anti-AcTub antibody (red) and DAPI (blue), 630×. (H) A tile-scanned confocal image of the epithelium of the cleared ampulla (8 hr post-coitus) stained by anti-CatSper1 antibody (red), PNA (green), and DAPI (blue), 100×. (I) Details of the sperm stained directly inside the ampulla by anti-CatSper1 antibody (red). Two linear CatSper domains are clearly recognizable by confocal imaging. Cell nuclei are stained with DAPI (blue); acrosomes are stained with PNA (green). Images shown here are representative of at least three independent experiments. See also Figure 3—videos 37.

Next, we combined tissue clearing with an in vivo sperm migration assay (Chung et al., 2014; Yamaguchi et al., 2009) to molecularly analyze different sperm populations during the fertilization process. Among tested clearing methods, we found that passive clearing of CLARITY-processed reproductive tracts from time-mated females retains the location and stability of gametes within the track past UTJ (Figure 3F–I, Figure 3—videos 4, 7 and Figure 4—video 1); whole-animal fixation by trans-cardiac perfusion perturbs minimally and rapidly arrests all cellular function while tissue-hydrogel matrix fills the lumen of the oviduct and provides supportive meshwork to prevent gamete loss during subsequent labeling steps (Figure 3—figure supplement 2). This new in situ imaging platform enables capturing a moment of sperm-egg interaction; a spermatozoon that approaches a fertilized egg protruding the 2nd polar body in the ampulla is detected in a cleared female tract 8 hr post-coitus immunostained by acetylated tubulin antibody (Figure 3, Figure 3—video 7). CatSper1 antibody specifically recognizes sperm cells transfixed inside the ampulla in cleared female tract (Figure 3H,I). Tissue clearing allows 3D volume imaging of the female tract but does not compromise the resolution. Two linear CatSper1 domains typically observed by confocal imaging are easily observed in the sperm cells inside an ampullar region of the whole cleared female tract (Figure 3I). Thus, the integrity of CatSper1 in sperm cells at different locations along the female tract can be subjected to quantitative analysis.

Sperm cell that successfully reach the ampulla are CatSper1-intact and acrosome reacted

With this new imaging strategy to detect sperm cells that remain transfixed in the female reproductive tract (Figure 3), we investigated acrosome state and CatSper1 integrity in sperm populations directly from the cleared tract of females 8 hr after mating, focusing on a few anatomically defined regions (Figure 4). Based on the earlier results from micro-dissection or ex vivo imaging (Figure 2D–H), we anticipated that sperm cells that successfully reach the ampulla would be CatSper1-intact and acrosome reacted. As expected, most sperm cells located in the ampulla exhibit linearly arranged intact CatSper1 and reacted acrosomes (Figure 4A, top, Figure 4—video 1). In the middle isthmus, both CatSper1 and acrosome remain intact in most sperm cells, but mixed patterns are observed in some cells (Figure 4A, middle, Figure 4—video 1). Interestingly, acrosome is largely intact in the sperm clusters in the proximal isthmus close to UTJ whereas CatSper1 is barely detected (Figure 4A, bottom, Figure 4—video 1). This contrasts with the reduced but readily visible CatSper1 in the sperm from the same region by microdissection (Figure 2D). It is possible that the relatively longer tissue processing time and subsequent labeling could have contributed to lower the signal to noise ratio to a certain degree. Notably, 3D volume imaging of this mid isthmus regions reveals sperm cells aligned in one direction towards the ampulla, providing unprecedented insight into sperm taxis in the fertilization process (Figure 4—video 1). Our qualitative but semi-quantitative analyses suggest that CatSper1 is largely protected from degradation once in the oviduct; acrosome reaction initiates in the mid-isthmus and is completed in the ampulla before interacting with the oocytes (Figure 4B). These results are consistent with our initial observations from microdissection and ex vivo imaging studies (Figure 2D,G), validating the information obtained by our in situ molecular imaging platform. Taken together, we conclude that intact CatSper1, lack of pY, and reacted acrosome are molecular and functional signatures of most fertilizing spermatozoa in the physiological context.

Figure 4 with 1 supplement see all

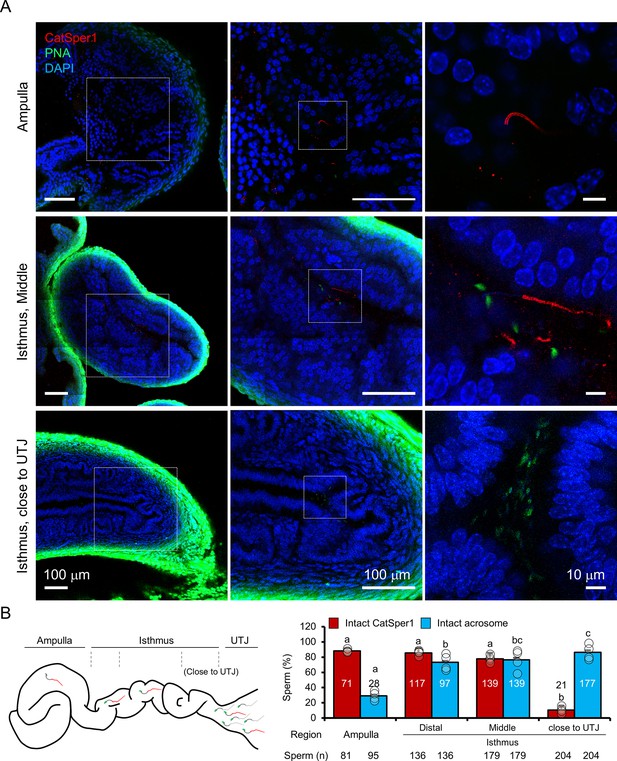

In situ molecular imaging of sperm reveals the changes in acrosomal status and CatSper1 fluorescent patterns during capacitation along the female reproductive tract.

(A) Representative fluorescent confocal microscope images of acrosome and CatSper1 fluorescent patterns from three different regions along the cleared female reproductive tract (Ampulla, top; Middle isthmus, middle; Proximal isthmus, bottom) with different magnifications of the corresponding areas. (B) A cartoon image of the female reproductive tract showing the approximate boundaries between the regions of interest (left) used as grouping variable in the subsequent quantification (right). The total number of CatSper1-intact sperm (red columns) or acrosome-intact sperm (blue columns) counted from four independent experiments (n = 4) is shown (bottom). Circles indicate the proportion of sperm cells in each examined site from an independent experiment. Statistical analyses were carried out with one-way analysis of variance (ANOVA) with Tukey post hoc test. Means with different letters indicate significant difference (p<0.05) in pairwise comparison between the different regions of female tract. Data is represented to mean ± SEM. See also Figure 4—source data 1 and Figure 4—video 1.

Figure 4—source data 1

Sperm counts for intact CatSper1 and acrosome from in situ imaging.

Raw data points of sperm count for quantification of CatSper1 integrity and acrosome state for Figure 4B.

https://cdn.elifesciences.org/articles/62043/elife-62043-fig4-data1-v3.xlsx

Automatic detection of sperm in the voluminous female tract using artificial neural network

Processing 3D volumetric fluorescent data presents a significant challenge; analyses of sperm in the female tract includes object identification in the voluminous specimen, object separation from background noise, and object alignment in three dimensions. To address these logistics problems, we took an advantage of the artificial neural network (ANN) approach for automatic localization and signal isolation. We performed a proof-of-principle investigation utilizing CatSper1 distributions in sperm cells from our 3D in situ molecular imaging (Figure 5). First, we manually annotated 3D fluorescent signatures of sperm, somatic nuclei and background noise from the original images. These signatures were placed in different abundance models in the ANN 3D training environments (Figure 5A, Figure 5—figure supplement 1, Figure 5—video 1) for subsequent ANN training using MatLab ANN module. We performed a supervised iteration process where the sperm locations were predefined in the training environments (Figure 5—figure supplement 2A). We evaluated the performance of individual ANN according to their sensitivity and specificity in detecting sperm cells and somatic nuclei, and the abundance (voxel occupancy) of noise (Figure 5B, Figure 5—figure supplement 2B,C). Detection sensitivity is chosen as a major parameter used to evaluate the ANN performance in the training environment simulated with the values similar to those in real samples. The specificity required for sperm detection is lower than the sensitivity, thus provides mainly empty analytical frames that are easily removed manually. After iteration and performance evaluation, we selected the best performing ANN and analyzed images from our experimental samples for which we manually counted sperm number (Figure 5C). The selected ANN is able to recognize all the sperm detected manually and the ANN sensitivity varies around 90% in individual samples (Figure 5—figure supplement 2C), validating the ANN performance. Furthermore, the false-negative detection of sperm all comes from the sperm with dubious signals in the antecedent human eye evaluation; the 90% of the ANN detected sperm expresses well recognizable CatSper1 fluorescent staining patterns (Figure 5C, Figure 5—figure supplement 3A).

Figure 5 with 4 supplements see all

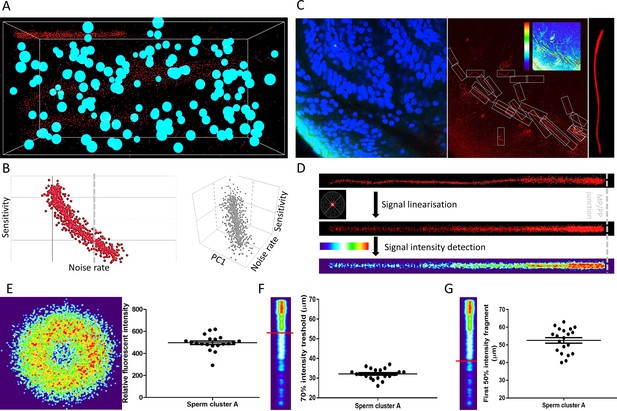

ANN automatically detects fluorescent patterns from 3D volume images of a cleared female reproductive tract, enabling isolation and statistical comparisons of sperm cells.

(A) A 3D training environment for ANN emulating sperm cells, somatic nuclei, and noise. (B) Examples of ANN training statistics showing the trend of correlation between the noise rate in the training environment and the sensitivity of ANN (left), and a three-dimensional correlation trend between noise rate in the training environment, sensitivity and principal component (PC1) consisting of sperm and nuclei abundancies (right). Nsampling environment = 1000, individual data points plotted. (C) A microscopic focal plane image of the sperm cluster inside the cleared female reproductive tract used for evaluating the ANN performance in real sample (left), its superposition in the CatSper1 channel with the individual sperm tails in detection frames with the inset analytical heatmap (middle) and the magnification of one of the analytical frames with a CatSper1-positive sperm tail (right). (D) Representation of the fluorescent signal in the sperm tail after normalizing individual voxels to signal from the corresponding sperm nucleus (top), after applying linearization and overlay algorithms (middle), and heatmap representation of the relative fluorescent intensities among multiple sperm tail (bottom). (E) Analysis of the relative intensities of the fluorescent signals from sperm located inside the mid-isthmus cleared female reproductive oviduct. The left panel represents the intensity of CatSper1 fluorescent signal in the cross-section of one sperm tail from 20 individual sperm under analysis (middle isthmus). The right panel show the distribution of relative fluorescent intensity of 20 sperm. (F) Analysis of the continuity of the fluorescent signal along the individual sperm tails; the first fragment of the 70% signal intensity decreases from the midpiece/principal piece interface. (G) The first fragment of the 50% signal intensity decreases from the midpiece/principal piece interface. Graphs in E-G represent Mean ± SEM. with individual measurements are plotted as dots (N = 20). See also Figure 5—source data 1 and Figure 5—video 1.

Figure 5—source data 1

ANN development source materials.

Custom scripts and 3D objects for developing training environments, ANN input feeding and training, and constructing numerical objects coordinates arrays for supervised learning, and ANN performance evaluation.

https://cdn.elifesciences.org/articles/62043/elife-62043-fig5-data1-v3.zip

In order to pair each CatSper1 signal containing tail with the head from the same cell in the subsequent analysis, we took the reverse approach to the environment production by removing the detected noise and somatic cell nuclei from the analytical frames (Figure 5—figure supplement 3B). The pre-processed CatSper1 fluorescent signal were then subjected to subsequent alignment, pattern linearization, and intensity detection (Figure 5D, Figure 5—figure supplement 3C). These steps make possible calculation and visual representation of the fluorescent intensity parameters along the sperm tail related to their CatSper1 integrity status (Figure 5E–G).

ANN-quantified CatSper1 signal reveals a molecular signature of successful sperm in situ

The quadrilateral and linear organization of the Ca2+ signaling nanodomains discovered by super-resolution imaging of CatSper1 (Figure 6A) is an indicator of a sperm cell’s ability to hyperactivate and fertilize the egg in vitro (Chung et al., 2017; Chung et al., 2014). The present study demonstrates that incubating sperm cell under capacitating conditions in vitro induces CatSper1 cleavage and degradation, leading to a heterogeneous sperm population (Figures 1 and 2). Building on our observations of sperm cells from microdissection, ex vivo imaging, and CLARITY-based in situ molecular imaging (Figures 2, 3 and 4), we hypothesize that CatSper1 is a built-in countdown timer for sperm death and elimination in the female tract; CatSper1 cleavage and degradation, triggered in a time- and space-dependent manner along the female tract, signals to end sperm motility, and ultimately sets sperm lifetime in vivo. With our newly developed automated ANN method to obtain high-quality 3D fluorescent images of CatSper1 in the sperm cells from cleared female tract samples, we further tested this idea by quantitatively analyzing the CatSper1 signals in situ.

Figure 6 with 1 supplement see all

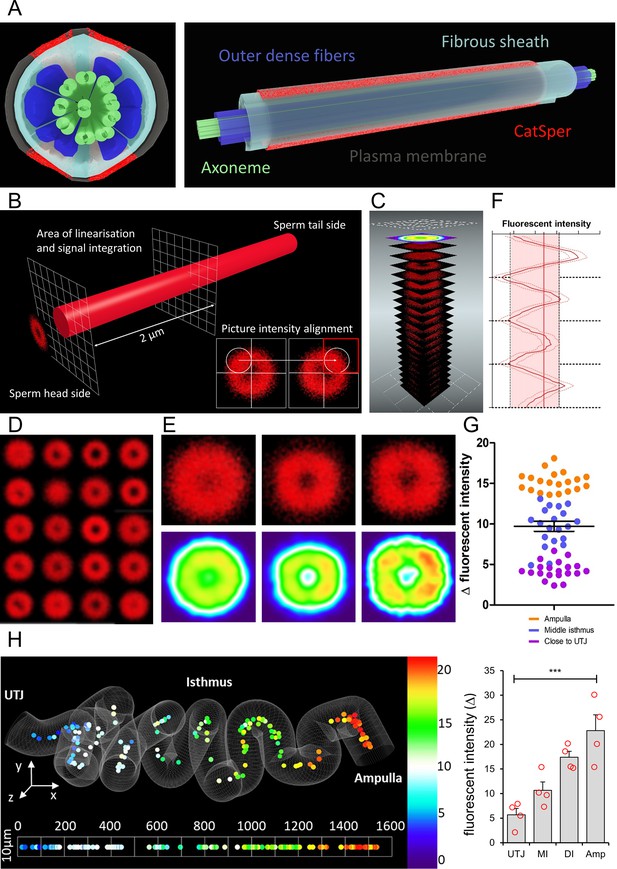

ANN assessment of quadrilateral CatSper nanodomains and Δ fluorescent intensity in sperm population along the cleared female tract immunolabeled for CatSper1 conforms to findings by other approaches used in this study.

(A) 3D perspective schematic views of quadrilateral CatSper nanodomains. A cross-section (left). A side view (right). (B) A schematic diagram describing the image processing procedure. (C) An illustration of generating a heatmap from the pre-processed micrographs. (D) 20 processed micrographs of the CatSper1 signal from the sperm cluster from middle isthmus of the cleared oviduct. (E) Processed micrographs (top) and their corresponding heatmaps (bottom) from 20 spermatozoa from the oviduct close to UTJ (left), middle isthmus (middle), and ampulla (right). (F) An example of fluorescent intensity analysis of processed images showing the four peaks corresponding to four CatSper1 quadrilateral domains and calculated averaged Δ value (transversal red line). (G) Analysis of the fluorescent intensity differences (Δ values; red area in panel F) among three sperm populations from ampulla, middle isthmus, and isthmus close to UTJ. Graph represents Mean ± SEM. with individual measurements are plotted as dots (N = 60). (H) A topological heatmap showing the integrity of the quadrilateral CatSper domain organization represented by Δ values of the fluorescent intensity along the morphometrical space of the cleared oviduct (left, Nsperm = 152) with the corresponding inferential statistical analysis of the differences of the signal intensities (Δ values, right) among four sperm populations (Amp – Ampulla, DI – Distal Isthmus close to ampulla, MI – middle isthmus, UTJ – utero-tubal junction). Bars denote Mean ± SEM. The baseline indicates homogenous angular distribution of the CatSper fluorescent signal with no quadrilateral distributions. Statistical significance was calculated using KW-ANOVA, (***p<0.001), Nanimals = 4. See also Figure 6—source datas 1 and 2.

Figure 6—source data 1

Quantification of Δ values of CatSper1 fluorescent intensity.

Raw data points for quantification of the integrity of the quadrilateral CatSper domain organization represented by Δ values of the fluorescent intensity along the cleared oviduct for Figure 6H.

https://cdn.elifesciences.org/articles/62043/elife-62043-fig6-data1-v3.xlsx
Figure 6—source data 2

3D in situ analytical tools for CatSper quadrilateral structure.

Custom scripts for analyzing CatSper quadrilateral structure.

https://cdn.elifesciences.org/articles/62043/elife-62043-fig6-data2-v3.zip

Our in situ imaging platform offers the typical resolution that a confocal microscopy can provide; two separated CatSper1 arrangement along the sperm tail (Chung et al., 2017) are detected without any computational processing (Figures 3I and 4A). This encouraged us to develop an analytical procedure to assess the status of CatSper1 quadrilateral and linear distributions. We isolated the fluorescent signal from a proximal region of the principal piece close to the annulus where the immunolabeled CatSper1 signal is the most intense (Figure 6B). To superpose the individual cross-sectional images according to the expected four intensity peaks, we aligned randomly oriented transversal-projection images by placing the quadrant with the highest fluorescent intensity to top right corner (Figure 6B, inset). The aligned images were then superposed (Figure 6C) and used for statistical purposes to represent quadrilateral arrangement of CatSper1 in individual sperm cells (Figure 6D). The individually processed images of sperm cells from the oviductal regions close to UTJ, middle isthmus, and ampulla were again superposed to create cumulative diagrams and heat maps corresponding to these regions (Figure 6E). They show quadrilateral distribution of enriched CatSper1 signal more clearly from the sperm population in the ampulla compared to the population in the oviduct close to UTJ (Figure 6E,G,H).

To further quantify and statistically analyze our outputs, we divided the pre-processed images of individual sperm cells on 80 round areas (Figure 6—figure supplement 1A) and calculated fluorescent intensities among them. The quantified intensity from the 80 areas were plotted; the observed four peaks (highest intensity) and valleys (lowest intensity) were used to calculate the delta value among them to represent the quality of CatSper1 quadrilateral structure (Figure 6F). Our quantitative analysis (Figure 6G, Figure 6—figure supplement 1B) shows consistent results with our previous semi-quantitative analysis by manual assignment of the CatSper1 patterns (Figure 4). Together with the whole tissue image processing (Figure 3E), the quantitative analysis clearly visualizes that sperm populations located along the cleared oviduct have statistically different CatSper1 quadrilateral intensity delta values (Figure 6H).

Discussion

CatSper1 as a molecular barcode for sperm maturation and transition in the female tract

Testicular spermatozoa undergo maturation and biochemical alterations in the intraluminal environment of the epididymis (Cornwall, 2009). Glycan-modifying enzymes such as glycosidases and glycosyltransferases are present in the epididymal luminal fluid (Tulsiani, 2003). Here we have shown that CatSper1 in mouse sperm is an O-linked glycosylated protein with gradually increasing molecular weight from the testis to the epididymis during male germ-cell development. The different forms of native CatSper1 may represent different degrees of glycosylation. Heterologously expressed CatSper1 cannot reach the plasma membrane, remaining instead at the ER/Golgi (Chung et al., 2017; Chung et al., 2011; Ren et al., 2001). It is intriguing that the molecular weight of recombinant CatSper1 is similar to one of the testicular forms of CatSper1 but bigger than that of the enzymatically deglycosylated and naked polypeptide. O-linked glycosylation takes place in the cis-Golgi for secreted and transmembrane proteins after the protein is folded (Röttger et al., 1998), suggesting that additional modification is required for native CatSper1 to exit the Golgi. Determining the precise identity and modification site may help to clarify the long-sought functional expression of the CatSper channel in heterologous systems. In rodents, sialyltransferase displays maturation-associated quantitative changes (Ram et al., 1989; Scully and Shur, 1988) and sperm lose sialic acid from the surface during capacitation (Ma et al., 2012). Sperm glycoproteins promote sperm migration and survival in the female reproductive tract (Ma et al., 2016). We speculate that mature CatSper1 in sperm contains terminal sialic acid residues, consistent with the small drop in Catsper1 molecular weight during capacitation. The dynamic sugar modifications on CatSper1 may serve as a binding site for decapacitation factors and/or a recognition site during capacitation. Supporting this idea, it was previously shown that mouse sperm lacking the CatSper channel cannot pass through the UTJ (Chung et al., 2014; Ho et al., 2009).

Capacitation-associated CatSper1 degradation is blocked by incubation with a 26S proteasome inhibitor, MG-132 (Chung et al., 2014). Now we show that solubilized sperm membrane fraction contains additional proteolytic activities that cleave within CatSper1 NTD. The proteolysis involves two distinct pathways: Ca2+ entry and phosphorylation cascades. We hypothesize that a member of calpains, the Ca2+ dependent modulatory protease family, might cleave CatSper1, as their proteolytic activity can be regulated by PKA (Du et al., 2018). Among 15 calpain proteins identified in mammals (Ono et al., 2016), calpain1 and calpain11 were previously detected in our sperm proteome (Hwang et al., 2019). Intriguingly, we observed that CatSper1 processing requires not a simple rise in intracellular Ca2+, but rather Ca2+ influx mediated by the CatSper channel which normally accompanies membrane reorganization during capacitation. Increased Ca2+ level overrides the phosphorylation effect on calpain1 activity (Du et al., 2018). We speculate that calpain11 might be similarly regulated to calpain1, as their domain structures and catalytic residues are conserved (Ono et al., 2016). Since recombinant CatSper1 is cleaved more specifically by sperm lysates, we propose that the testis-specific calpain11 (Ben-Aharon et al., 2006) may target CatSper1.

The effect of CatSper1 truncation on channel activity and sperm motility remains to be determined in future studies. CatSper1 truncation may be coordinated with molecular changes of other CatSper subunits. For example, the protein level of CatSper2, but not CatSper3 or 4, also decreases after capacitation when probed with the antibody recognizing its C-terminal domain (CTD) (Figure 1; Chung et al., 2014). Since the cytoplasmic modulatory subunits, CatSperζ and Efcab9, mainly interact with the channel pore (Hwang et al., 2019), specific processing of the intracellular domains of pore subunits could alter the interactions and subsequent channel activity. Spermatozoa that successfully navigate to the fertilization site in the female reproductive tract and interact with the egg are recognized by intact CatSper1. CatSper1 processing may lead to a loss of control in hyperactivation and eventually end sperm life.

Physiological function of capacitation-associated tyrosine phosphorylation and acrosome reaction

An increase in pY is one of the various capacitation-associated parameters observed from in vitro capacitated sperm cells (Visconti et al., 1995). Subsequently, pY was observed in the flagellum of mouse and human sperm interacting with the oocyte in the medium that supports sperm capacitation and fertilization in vitro (Sakkas et al., 2003; Urner et al., 2001). This correlation of pY and the zona binding previously established pY as an indicator of successful sperm capacitation. More recently, however, different observations have been made with in vivo approaches. In sows inseminated close to ovulation, spermatozoa found in the UTJ exhibited more phosphorylation in the flagella than those bound to oviductal epithelial cells (OEC), where pY was limited to the equatorial region in the sperm head or no pY was observed (Luño et al., 2013). In mice, the testis-specific tyrosine kinase, Fer, is demonstrated as a master kinase for capacitation-associated pY (Alvau et al., 2016). Surprisingly, homozygous Fer-mutant male mice are fertile even though their sperm do not develop pY. All together, these results lead to a new interpretation of the physiological significance of pY: successful sperm capacitation does not require pY development. Determining the precise time and place of pY development in sperm in situ would help to elucidate its function in sperm capacitation and fertilization. Here we have shown that sperm cells, which have capacitated in vivo and successfully migrated to the ampulla, are characterized, not only by intact CatSper1, but also by relative lack of pY development and reacted acrosome. These results coincide with our observations from in vitro capacitated sperm cells and other previous studies; pY development inversely correlates with CatSper1 integrity at the single cell level (Figure 2); genetic and pharmacological ablation of Ca2+ entry potentiates pY (Chung et al., 2014; Navarrete et al., 2015); AR occurs in mid-isthmus before contacting an oocyte ZP( Hino et al., 2016; Jin et al., 2011; Muro et al., 2016).

Sperm remaining in the female reproductive tract need to be eliminated after fertilization. They may undergo apoptosis and phagocytosis in the female reproductive tract (Aitken and Baker, 2013; Chakraborty and Nelson, 1975) and/or become lost in the peritoneal cavity (Mortimer and Templeton, 1982). pY is reported to mediate apoptosis in immune cells (Yousefi et al., 1994) and cancer cells (Liu et al., 1994). We propose that capacitation-associated global pY development represents degenerating sperm which might concomitantly lose motility. It is intriguing that capacitation-associated reactive oxygen species (ROS) generation activates intrinsic apoptotic cascade and compromises sperm motility (Koppers et al., 2011). Consistent with this idea, ROS inactivates protein tyrosine phosphatase (Tonks, 2005) and enhances pY development in sperm (Aitken et al., 1998). Inhibition of PKA anchoring to AKAPs, which induces CatSper1 truncation and degradation, also suppresses acrosome reaction in capacitating sperm cells in vitro (Stival et al., 2018). Thus, CatSper-mediated Ca2+ signaling directly or indirectly contributes to sperm acrosome reaction in the female tract. Future work will determine molecular mechanisms by which CatSper channel activity fine-tunes Ca2+ signaling to regulate hyperactivated motility, as well as how the Ca2+ signaling is linked to coordinate acrosome reaction.

New in situ molecular imaging platform for the study of fertilization and reproduction

The successful development of in vitro capacitation and fertilization systems provided fundamental insights into sperm capacitation, fertilization, and early embryogenesis. On the other hand, it is evident that the in vitro systems have limitations. Sperm numbers required for IVF are much higher than those observed at the fertilization site in vivo (Suarez, 2007). Sperm capacitated in vitro do not encounter the anatomically and spatially distinct environment of the female reproductive tract, for example, missing their interaction with the oviductal epithelial cells. In vitro capacitation also lacks secretory factors from the male and female reproductive tracts that can affect the surface protein dynamics during the capacitation process (Flesch and Gadella, 2000). Mouse models that typically use epidydimal sperm for in vitro studies do not contain secretions from male glands. This is in contrast with ejaculated sperm from human and domestic animals. Recent studies have observed sperm behavior in the physiological context through ex vivo imaging of sperm in the mouse and bovine oviducts under transillumination (Hino and Yanagimachi, 2019; Ishikawa et al., 2016; Kölle et al., 2009; Muro et al., 2016). Yet this technique is limited in providing molecular information at a single cell level, as live imaging is not easily amenable to direct molecular labeling and 3D volume imaging.

Here, we report new systems to molecularly examine individual sperm cells capacitated in vivo. Polymerization of the hydrogel-embedded time-mated female reproductive tract followed by passive clearing provides a stable meshwork to minimally disturb the original location of sperm cells inside the female tract. This approach allowed us to assess the fine organization of CatSper nanodomains in the sperm cells distributed along the female reproductive tract. We showed that both the intensity and the quadrilateral detection of the domains probed by CatSper1 appear as the common pattern of sperm reaching the ampulla and potentially fertilizing the oocyte. The experimental outputs complement the molecular and functional information of sperm released from micro-dissected female tracts and ex vivo imaging, identifying molecular and functional signatures of fertilizing sperm in the physiological context. Furthermore, we demonstrate the efficacy of topological heat-map representations of cumulative results by automatic sperm detection and image post-processing and averaging; this method provides statistically robust presentation and interpretation of the volumetric image data.

The present study opens up new horizons to microscopically visualize and analyze molecular events in single sperm cells that achieve fertilization. This will allow us to better understand physiologically relevant cellular signaling pathways directly involved in fertilization. We also have illustrated that the same approach of tissue-clearing based 3D in situ molecular imaging is applicable to study gametogenesis in situ. Future areas for investigations as natural extensions of the current study are gameto-maternal interaction, development, transport, and implantation of early embryos and maternal-fetal communication. Developing gamete-specific antibodies and/or knockout validated antibodies to probe molecular abundancy and dynamics in situ and post-processing tools for various parameters will be critical to this end.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
Gene
(Mus musculus)
Catsper1GenBankGene ID: 225865
Gene
(Mus musculus)
Catsper1GenBankGene ID: 225865
Strain, strain background (Escherichia coli)10-bNew England BioLabsCat# C3019H
Strain, strain background
Mus musculus
B6.129S4-Catsper1tm1Clph/JLaboratory of
David E. Clapham
(Ren et al., 2001)
RRID:IMSR_JAX:0
18311
Strain, strain background
Mus musculus
B6D2-Tg(CAG/Su9
-DsRed2,Acr3-EGFP)RBGS002Osb/OsbRbrc
Hasuwa et al., 2010RRID:IMSR_RBRC03743
Strain, strain background
Mus musculus
C57BL/6Charles River LaboratoriesCrl:029
Strain, strain background
Mus musculus
B6D2F1Charles River LaboratoriesCrl:099
Strain, strain
background
Mus musculus
CD1Charles River LaboratoriesCrl:CD1(ICR)
RRID:IMSR_CRL:022
Strain, strain background (Escherichia coli)b-10New England BioLabsCMC0016
Cell line
(Homo sapiens)
293TATCCCat# CRL-3216;
RRID:CVCL_0063
Biological sample (Mus musculus)TestesChung lab,
Yale School of Medicine
N/A
Biological sample (Mus musculus)SpermatozoaChung lab,
Yale School of Medicine
N/A
AntibodyRabbit polyclonal anti-mCatSper1Laboratory of
David E. Clapham
(Ren et al., 2001)
RRID:AB_2314097Western blot, (2 μg/mL); Immunocytochemistry, (10 μg/mL); In situ imaging, (7 μg/mL)
AntibodyRabbit polyclonal anti-mCatSper3Laboratory of
David E. Clapham
(Qi et al., 2007)
N/A(2 μg/mL)
AntibodyRabbit polyclonal anti-mCatSperεLaboratory of Jean-Ju Chung
(Chung et al., 2017)
N/A(1.6 μg/mL)
AntibodyRabbit Polyclonal CA-IV antibodySantaCruzCat# sc-25598(1:500)
AntibodyMouse monoclonal anti-caveolin1 (clone 2297)BD BiosciencesCat# 610406
RRID:AB_397788
(1:500)
AntibodyMouse monoclonal anti-phosphotyrosine (clone 4G10)EMD miliporeCat# 05–321;
RRID:AB_309678
Western blot, (1:1,000); Immunocytochemistry, (1:1000)
AntibodyMouse monoclonal anti-acetylated tubulin (clone 6-11b-1)EMD miliporeCat# 7451;
RRID:AB_609894
Western blot, (1:20,000); In situ imaging, (1:100)
AntibodyRabbit monoclonal anti-beta actin (clone 13E5)Cell signaling technologyCat# 4970
RRID:AB_2223172
(1:100)
AntibodyRabbit monoclonal anti-HA (clone C29F4)Cell signaling technologyCat# 3724
RRID:AB_1549585
(1:2,000)
AntibodyGoat polyclonal anti-mouse IgG-HRPJackson
ImmunoResearch
Cat# 115-035-003;
RRID:AB_10015289
(1:10,000)
AntibodyGoat polyclonal anti-rabbit IgG-HRPJackson
ImmunoResearch
Cat# 111-035-144;
RRID:AB_2307391
(1:10,000)
AntibodyGoat polyclonal anti-rabbit IgG-Alexa 568InvitrogenCat# A-11036
RRID:AB_10563566
Immunocytochemistry, (1:1000); In situ imaging, (1:500)
AntibodyGoat polyclonal anti-rabbit IgG-Alexa 647InvitrogenCat# A-21245
RRID:AB_2535813
Immunocytochemistry, (1:1000); In situ imaging, (1:500)
AntibodyGoat polyclonal anti-mouse IgG-Alexa 488InvitrogenCat# A-11029
RRID:AB_138404
Immunocytochemistry, (1:1000); In situ imaging, (1:500)
AntibodyGoat polyclonal anti-mouse IgG-Alexa 647InvitrogenCat# A21236
RRID:AB_2535805
Immunocytochemistry, (1:1000); In situ imaging, (1:500)
AntibodyMouse monoclonal anti-HA agarose (clone HA-7)EMD miliporeCat# A2095
AB_257974
(10 uL)
AntibodyAnti-HA magnetic beads (clone 2–2.2.14)Thermo scietificCat# 88836
RRID:AB_2749815
(5 uL)
Recombinant DNA reagentpcDNA3-mCatsper1Laboratory of
David E. Clapham
N/A
Recombinant DNA reagentpcDNA3.1(-)-Flag-Catsper1-FL-HAThis paperN/AEncoding Mouse CatSper1,
1–686 aa
Recombinant DNA reagentpcDNA3.1(-)-Flag-Catsper1-ND-HAThis paperN/AEncoding Mouse CatSper1,
345–686 aa
Commercial assay or kitO-glycosidaseNew England BioLabsCat# P0733S(80,000 Unit)
Commercial assay or kitPNGase FSigma-AldrichCat# P9120(2 nM Unit)
Peptide, recombinant proteinProtein phosphatase 1 (PP1)New England BioLabsCat# P0754(0.1 Unit)
Peptide, recombinant proteinProtein tyrosine phosphatase 1B (PTP1B)AbcamCat# Ab42574(5 Unit)
Chemical compound, drugSodium orthovanadateNew England BioLabsCat# P0758S(1 mM)
Chemical compound, drugH89CalbiochemCat# 371963(50 μM)
Chemical compound, drugST-Ht31PromegaCat# V8211(10 μM)
Chemical compound, drugCalyculin ACalbiochemCat# 208851(100 nM)
Chemical compound, drugA23187Sigma-AldrichCat# C7522(10 μM)
Chemical compound, drugCalpain inhibitor ICalbiochemCat# 208719(20 μM)
Chemical compound, drugCalpain inhibitor IIEnzo life scienceCat# BML-PI100(20 μM)
Chemical compound, drugCalpain inhibitor IIIEnzo life scienceCat# BML-PI130(20 μM)
Chemical compound, drugPNA-Alexa 568InvitrogenCat# L32458(1:500)
Chemical compound, drugWGA-Alexa 555InvitrogenCat# W32464(1:500)
Chemical compound, drugWGA-Alexa 647InvitrogenCat# W32466(1:500)
Chemical compound, drugAzo-initiatorWakoCat# VA-044
Chemical compound, drug32% ParaformaldehydeElectron Microscopy SciencesCat# 15714 s
Chemical compound, drug50% GlutaraldehydeElectron Microscopy SciencesCat# 16310
Chemical compound, drugElectrophoretic Tissue Clearing SolutionLogos BiosystemsCat# C13001
Chemical compound, drugN-methyl-d-glucamineSigma-AldrichCat# M2004
Chemical compound, drugDiatrizoic acidSigma-AldrichCat# D9268
Chemical compound, drug60% IodixanolSigma-AldrichCat# D1556
Chemical compound, drugDAPIThermo scietificCat# D13061:1000
Chemical compound, drugHoechstThermo scietificCat# 622491 μg/mL
Chemical compound, drugAcrylamidBioRadCat# 1610140
Software, algorithmImageJNational Institue of HealthPublic domain: https://imagej.nih.gov/ij/
Software, algorithmZen softwareCarl Zeiss AGZEISS ZEN lite www.zeiss.com
Software, algorithmImarisBitPlane; Oxford instrumentsImaris 9.6
Software, algorithmMATLABMathWorksMATLAB 9.3 (R2017b)
Software, algorithmBlenderBlender Foundation, communityBlender 2.79
www.blender.org
Software, algorithmGraphPadGraphPad SoftwareGraphPad Prism 5
Software, algorithmANNs development source materialsThis paperSource archive attached to Figure 5Set of ANN development tools
Software, algorithmCatSper quadrilateral structure 3D in situ analytical toolsThis paperSource archive attached to Figure 6Set of 3D CatSper analytical tools

Animals

Catsper1-null (Ren et al., 2001) and Su9-DsRed2/Acr-EGFP (Hasuwa et al., 2010) mice were generated in the previous study and maintained on a C57BL/6 background. Su9-DsRed2/Acr-EGFP mice were crossbred with Catsper1-null mice to generate Su9-DsRed2/Acr-EGFP Catsper1-null mice. WT C57BL/6 and B6D2F1 male and CD1 female mice were purchased from Charles River Laboratories (Wilmington, MA). Mice were cared for in compliance with the guidelines approved by the Yale Animal Care and Use Committees.

Mammalian cell lines

Request a detailed protocol

HEK293T and COS-7 cells were purchased from ATCC and authenticated by positive detection of SV40 DNA and STR-based analysis using the Cell ID System (Promega). They were cultured in DMEM (GIBCO) supplemented with 10% FBS (Thermofisher) and 1× Pen/Strep (GIBCO) at 37°C, 5% CO2 condition. Cultured cells were used to express recombinant proteins (HEK293T cells) or make total cell lysates (COS-7 cells).

Antibodies and reagents

Request a detailed protocol

In-house rabbit polyclonal CatSper1 (Ren et al., 2001), CatSper3 (Qi et al., 2007), CatSperε (Chung et al., 2017) antibodies were described previously. Polyclonal CA-IV antibody (M-50) was purchased from Santacruz. Monoclonal antibodies were purchased from BD Biosciences: anti-caveolin1 (clone 2297); EMD Milipore: anti-phosphotyrosine (clon4G10), anti-acetylated tubulin (clone 6-11B-1), anti-HA agarose (clone HA-7); Thermo Scientific: anti-HA magnetic beads; and Cell Signaling Technology: β-actin (clone 13E5) and HA (clone C29F4). HRP-conjugated goat anti-rabbit IgG and goat anti-mouse IgG were from Jackson Immunoresearch. PNA-Alexa 568, WGA-Alexa 555, WGA-Alexa 647, goat anti-mouse IgG (Alexa 488 or 647), and goat anti-rabbit IgG (Alexa 568 or Alexa 647) were from Invitrogen. H89, calyculin A, and calpain inhibitor I were purchased from Calbiochem. ST-Ht31 was from Promega. Calpain inhibitor II and III were from Enzo life science. All other chemicals were from Sigma-Aldrich unless indicated.

Epididymal sperm collection and in vitro capacitation

Request a detailed protocol

Sperm cells were released from caput, corpus, or cauda regions of the epididymis in M2 medium (EMD Millipore). To induce capacitation, sperm from caudal epididymis were incubated in human tubular fluid (HTF) medium or M16 (EMD Milipore) containing 25 mM sodium bicarbonate at 37°C, 5% CO2 condition at 2 × 106 cells/mL concentration for the indicated time. Sperm cells were incubated under capacitating conditions with or without the following chemicals: H89 (50 μM), ST-Ht31 (10 μM), Calyculin A (100 nM), calpain inhibitor I (20 μM), calpain inhibitor II (20 μM), or calpain inhibitor III (20 μM). Sperm cells suspended in M2 medium (2 × 106 cells/mL) were incubated with A23187 (10 μM) to induce Ca2+ influx under non-capacitating conditions.

Molecular cloning

Request a detailed protocol

NEB10β bacterial strain (NEB) was used for molecular cloning. Genomic regions encoding full-length (FL, 1–686 aa) and N-terminal domain deleted (ND, 345–686 aa) mouse CatSper1 were amplified from mouse CatSper1 expression vector (Hwang et al., 2019). The PCR products were subcloned into pcDNA3.1(-) vector using NEBuilder HiFi DNA Assembly (NEB) to express the recombinant proteins tagged with HA at C-terminus (pcDNA3.1(-)-FL-Catsper1-HA and pcDNA3.1(-)-ND-Catsper1-HA).

Recombinant protein expression

Request a detailed protocol

HEK293T cells were transfected with constructs encoding FL-CatSper1 or ND-CatSper1 to express the recombinant proteins transiently. Polyethyleneimine was used for the transfection following the manufacturer’s instruction as previously.

Protein preparation and western blot

Total protein extraction

Request a detailed protocol

Total proteins were extracted from sperm, testis, and cultured mammalian cells as previously described (Hwang et al., 2019). In short, collected epididymal sperm cells were washed with PBS and lysed in 2× LDS sampling buffer for 10 min at room temperature with agitation (RT). The whole sperm lysates were centrifuged at 14,000 × g for 10 min at 4°C. Testes were homogenized in 0.32M sucrose and centrifuged at 1000 × g for 10 min at 4°C to remove cell debris and nuclei. 1% Triton X-100 in PBS containing protease inhibitor cocktail (cOmplete, EDTA-free, Roche) was added to the cleared homogenates to make total testis lysate. The lysates were centrifuged at 4°C, 14,000 × g for 30 min and the supernatant was used for the downstream experiments. Transfected HEK29T cells and COS-7 cells were washed and lysed with 1% Triton X-100 in PBS with protease inhibitor cocktail (Roche) at 4°C for 1 hr. Cell lysates were centrifuged at 14,000 × g for 30 min. All the solubilized protein lysates from the sources described above were reduced by adding dithiothreitol (DTT) to 50 mM and denature by heating at 75°C for 5 min (testis and cultured cells) or 10 min (sperm).

Discontinuous sucrose density gradient centrifugation

Request a detailed protocol

Discontinuous sucrose density gradient centrifugation was performed as previously described (Kaneto et al., 2008). To isolate and solubilize membrane fraction without using a detergent, cauda epididymal sperm cells washed and suspended in PBS (1.0 × 108 cells/mL) were sonicated 3 times for 1 s each. Sonicated sperm cells were then centrifuged at 5000 × g for 10 min at 4°C and the solubilized membrane fraction in the supernatant was collected. The solubilized membrane fraction was pelleted by ultracentrifugation at 100,000 × g for 1 hr at 4°C and resuspended with PBS. The membrane suspension was mixed with an equal volume of 80% sucrose in PBS. A discontinuous sucrose gradient was layered with the 40%, 30%, and 5% sucrose solution from bottom to top in a tube discontinuously. The gradient was ultracentrifuged at 200,000 × g for 20 hr at 2°C. Proteins collected from each fraction were precipitated with 5% of trichloroacetic acid, ethanol washed, and dissolved in SDS sampling buffer.

Dephosphorylation of sperm membrane proteins

Request a detailed protocol

Sperm membrane fractions from 1 × 106 sperm cells prepared as above were treated with protein phosphatase 1, (PP1, 0.1 unit; NEB), protein tyrosine phosphatase (PTP1B, 5 units; Abcam), or sodium orthovanadate (Na3VO4, 1 mM; NEB) to test dephosphorylation of CatSper1. The membrane fractions were incubated with the phosphatases or Na3VO4 in a reaction buffer containing 20 mM HEPES, 0.1 mM EDTA, and 0.1 mM DTT at 30°C for the indicated times. The isolated sperm membrane was solubilized by adding Triton X-100 to the final 0.1% in PBS (PBS-T) for the indicated times at RT.

Enzymatic deglycosylation

Request a detailed protocol

Glycosylation of CatSper1 from cauda sperm was tested using PNGase F (Sigma-Aldrich) and O-glycosidase (NEB) according to the manufacturer’s instructions. Sperm cells (4 × 106 cells) were washed with 1× reaction buffer for each enzyme by centrifugation at 800 × g for 3 min. Sperm pellets were re-suspended with each 1× reaction buffer (20 mM or 50 mM sodium phosphate, pH 7.5 for PNGase F and O-glycosidase, respectively) and followed by sonication and centrifugation to collect sperm membrane fraction as described above. Collected supernatants were incubated with denaturation buffer at 100°C for 5 min to denature glycoproteins before subject to enzymatic deglycosylation. The denatured sperm membrane fractions were incubated with detergent buffer (0.75% IGEPAL CA for PNGase F; 1% NP-40 for O-glycosidase) and each glycosidase (PNGase F, 2 nM unit; O-glycosidase, 80,000 unit) at 37°C for 1 hr. All the enzyme-treated samples were mixed with LDS sampling buffer and denatured after adding DTT to 50 mM at 75°C for 2 min.

In Vitro proteolysis with sperm lysate

Request a detailed protocol

Proteolysis of the recombinant CatSper1 protein by sperm lysate was performed as previously described (Chung et al., 2014). Solubilized recombinant FL-CatSper1 and ND-CatSper1 were pulled-down with anti-HA agarose (EMD Millipore) for 1 hr at RT. The enriched recombinant proteins were incubated with 30 μL of sperm lysates solubilized from 3.0 × 105 sperm cells at 37°C for the indicated times. Sperm lysates were prepared by sonication and incubation in PBS-T without protease inhibitor at 4°C for 1 hr. After incubation, the mixture of recombinant protein and sperm lysates were mixed to 2× LDS sampling buffer and denatured by adding DTT to 50 mM at 75°C for 10 min.

Western blot

Request a detailed protocol

Denatured protein samples were subjected to SDS-PAGE. Rabbit polyclonal CatSper1 (2 μg/mL), CatSper3 (2 μg/mL), CatSperε (1.6 μg/mL), and CAIV (1:500) antibodies and monoclonal HA (clone C29F4; 1:2,000), caveolin1 (clone 2297, 1:500), acetylated tubulin (clone 6-11B-1; 1:20,000), and phosphotyrosine (clone 4G10; 1:1000) antibodies were used for western blot. Anti-mouse IgG-HRP (1:10,000) and anti-rabbit IgG-HRP (1:10,000) were used for secondary antibodies.

Sperm migration assay

View detailed protocol

Sperm migration assay was performed as previously described (Chung et al., 2014). Briefly, female mice were introduced to single-caged Su9-DsRed2/Acr-EGFP males for 30 min and checked for the vaginal plug. Whole female reproductive tracts were collected 8 hr post-coitus and subjected to ex vivo imaging to examine spermatozoa expressing reporter genes in the tract (Eclipse TE2000-U, Nikon).

Collection of in vivo capacitated sperm

View detailed protocol

Female reproductive tracts from timed-mated females to Su9-DsRed2/Acr-EGFP or Su9-DsRed2/Acr-EGFP Catsper1-null males were collected 8 hr post-coitus. Sperm cells were released by micro-dissection of the female reproductive tract followed by lumen flushing of each tubal segment (cut into ~1–2 mm pieces). Each piece was placed in 50 μL of PBS on glass coverslips and the intraluminal materials were fixed immediately by air-dry followed by 4% PFA in PBS. Ampulla and uterine tissue close to UTJ were placed in 100 μL of PBS and vortexed briefly to release the sperm within the tissues. Fixed sperm cells were subjected to immunostaining.

Sperm immunocytochemistry

Request a detailed protocol

Non-capacitated or in vitro capacitated sperm cells on glass coverslips were washed with PBS and fixed with 4% paraformaldehyde (PFA) in PBS at RT for 10 min. Fixed samples were permeabilization with PBS-T for 10 min and blocked with 10% normal goat serum in PBS for 1 hr at RT. Blocked sperm cells were stained with primary antibodies, anti-CatSper1 (10 μg/mL), and anti-phosphotyrosine (1:1000), at 4°C for overnight, followed by staining with secondary antibodies for 1 hr at RT. Hoechst was used for counterstaining sperm head. Sperm cells were mounted (Vectashield, Vector Laboratories) and imaged with confocal microscopes (Zeiss LSM710 Elyra P1 and Olympus Fluoview 1000).

Tissue clearing and molecular labeling of the cleared tissues

CLARITY method

Request a detailed protocol

All 3D volume images from the main figures (Figures 3 and 4) were taken from female tracts subjected to the CLARITY method (Chung et al., 2013) with slight modification by clearing tissue-hydrogel passively without involving electrophoresis. Timed-mated females (8 hr post-coitus) and males were subjected to transcardiac perfusion using a peristaltic pump. The mice were perfused with each 20 mL of ice-cold PBS followed by freshly prepared hydrogel monomer solution (4% acrylamide, 2% Bis-acrylamide, 0.25% Azo-inhibitor [VA-044, Wako], 4% PFA in PBS). The whole female tract or testis-hydrogel were dissected from animals after perfusion and placed in 10 mL of fresh hydrogel monomer solution for post-fixation. The collected tissues in monomer solution were heated at 37°C with degassing for 15 min, followed by incubation at 37°C for 2–3 hr for tissue gelation. The gelated tissues were washed with a clearing solution containing 200 mM boric acid and 4% sodium dodecyl sulfate (pH 8.5) three times for 24 hr each by gentle rocking at 55°C. Cleared tissues were further washed with PBS-T for 24 hr. The cleared female tracts were subjected to dye- and/or immunolabeling: the cleared tissues were incubated with CatSper1 (7 μg/mL) or AcTub (1:100) antibodies in PBS-T overnight at RT, followed by washing with PBS-T for 24 hr. Washed samples were stained with the secondary antibodies (1:500) overnight. Fluorescence dye conjugated PNA or WGA was used to detect sugar residues (1:1000) and DAPI was used for counterstaining (1:1000) in PBS-T. Stained tissues were washed and refractive index-matched in RIMS solution (Chung et al., 2013) overnight. The index-matched samples were placed on an imaging chamber filled with RIMS solution and imaged. All cleared tissues were imaged with a laser scanning microscope (Zeiss LSM710 Elyra P1). EC plan-Neofluar 10×/0.3, LD LCI Plan-Apochromat 40 × 1.2, and Plan-Apochromat 63×/1.4 objectives were used for imaging. Tile scanning and z-stacking for volume imaging were carried out with functions incorporated in Zen black 2012 SP2 (Carl Zeiss) and Zen blue 2011 SP1 software (Carl Zeiss) was used for 3D rendering.

X-CLARITY

Request a detailed protocol

Ovary, testis, and epididymis images (Figure 3—figure supplement 1A,D–I) were taken using the X-CLARITY method, following manufacturer’s instructions (Logos biosystems). Animals transcardially fixed with 4% PFA were post-fixed in the fresh fixative for 4–6 hr. The post-fixed tissues were then immersed in a modified hydrogel solution (4% acrylamide, 0.25% Azo-inhibitor [VA-044, Wako], 4% PFA in PBS) for 4–6 hr. The samples were degassed and polymerized as described in the CLARITY method. The gelated tissues were washed with PBS and placed in an electrophoretic tissue clearing (ETC) chamber. Tissues in the ETC chamber were cleared by clearing solution described above with active electrophoretic forcing of tissue for 6–8 hr. Cleared tissues were washed and stained with β-actin and WGA.

PACT-PRESTO

Request a detailed protocol

3D volume images of the oviduct and UTJ (Figure 3—figure supplement 1B,C) were obtained from the female tract cleared by modified passive ACT-PRESTO (Lee et al., 2016) without involving electrophoretic clearing. In brief, female tracts were fixed in 4% PFA by transcardiac perfusion, followed by post-fixation in fresh fixative solution for 4–6 hr at 4°C. The post-fixed samples were incubated in the modified hydrogel monomer solution without additional fixative (4% acrylamide, 0.25% Azo-inhibitor in PBS) 4–6 hr at 4°C. The samples were degassed and polymerized at 37°C as described in the CLARITY method. Hydrogel-infused tissues were cleared with the clearing solution. The cleared tissues were washed with PBS overnight at RT and facilitated labeling is achieved by vacuum-applied negative pressure.

SWITCH method

Request a detailed protocol

3D volume images of the testis (Figure 3—figure supplement 1F) were taken from male mice transcardially perfused and cleared by the SWITCH method (Murray et al., 2015). Fixed testes by SWITCH fixative (4% PFA, 1% glutaraldehyde (GA) in PBS) were washed with PBS-T and quenched by 4% glycine and 4% acetamide in PBS at 37°C overnight. The quenched samples were passively cleared with SWITCH solution (200 mM SDS, 20 mM Na2SO3, 10 mM NaOH, pH 9.0) two times at 60°C for 3 hr each. The cleared tissues were washed with PBS-T for 12–24 hr at 37°C and incubated with refraction index-matching solution (RIMS: 29.4% diatrizoic acid, 23.5% n-methyl-d-glucamine, 32.4% iodixanol). The index-matched samples were mounted and imaged.

Artificial neural network (ANN) image processing

Request a detailed protocol

The overall strategy for the artificial neural network (ANN) image processing is described in Figure 5—figure supplement 2A. The individual signal patterns (sperm, somatic cell nuclei, and noise) were isolated from the original volume images using Zen Blue (Carl Zeiss) and IMARIS software (Oxford instruments) and exported as. obj/.fbx files. The isolated signal patterns were used to generate 3D training environments for ANN by importing different abundancies of the individual components (Figure 5—figure supplement 1) to the 3D environment operating system, Blender 2.79 (https://www.blender.org/); the individual 3D training environment (~104) generated together with the exactly defined coordinates of individual components were exported as. obj/.fbx/Notepad++ files. The ANN training environments were used to develop the ANN detecting the sperm in situ. The ANN training was carried out using MATLAB 9.3 (R2017b) software ANN toolbox. The input to the ANN would be virtual z-stacks of the produced training environments. The isolated sperm signal patterns were used as a target signature. The supervised training process was performed by comparing the vector coordinates of the individual sperm signatures in the output with the pre-defined vector coordinates of the signatures in the input. This approach also enabled us to evaluate the ANN performance and to quantify signature detection sensitivity and specificity (Figure 5—figure supplement 2A), panel 6 ‘ANN performance evaluation’. The detection sensitivity and specificity of ANNs were the major performance indicators used to select ANNs. ANNs with the best performance in detecting the sperm signature were subsequently applied to detect the sperm fluorescent signatures and their post-processing in real volumetric data. In the real environments, selected ANNs showed both sensitivity and specificity around 90% (Figure 5—figure supplement 2C). See the related source data.

Statistical analyses

Request a detailed protocol

Statistical analyses were carried out with a one-way analysis of variance (ANOVA) with the Tukey post hoc test. Differences were considered significant at p<0.05. For ANN analysis, both parametric (ANOVA; Tukey post hoc) and non-parametric (KW-ANOVA) tests were carried out to evaluate the presented differences; both tests resulted in the same significance output with differences considered significant at p<0.05.

Data availability

All data generated or analysed during this study are included in the manuscript, supplementary and source data files.

References

    1. Aitken RJ
    2. Harkiss D
    3. Knox W
    4. Paterson M
    5. Irvine DS
    (1998)
    A novel signal transduction cascade in capacitating human spermatozoa characterised by a redox-regulated, cAMP-mediated induction of tyrosine phosphorylation
    Journal of Cell Science 111 ( Pt 5:645–656.
    1. Röttger S
    2. White J
    3. Wandall HH
    4. Olivo JC
    5. Stark A
    6. Bennett EP
    7. Whitehouse C
    8. Berger EG
    9. Clausen H
    10. Nilsson T
    (1998)
    Localization of three human polypeptide GalNAc-transferases in HeLa cells suggests initiation of O-linked glycosylation throughout the golgi apparatus
    Journal of Cell Science 111 ( Pt 1:45–60.
  1. Book
    1. Stewart CA
    2. Behringer RR
    (2012) Mouse oviduct development
    In: Kubiak J, editors. Mouse Development. Springer. pp. 247–262.
    https://doi.org/10.1007/978-3-642-30406-4_14
    1. Visconti PE
    2. Bailey JL
    3. Moore GD
    4. Pan D
    5. Olds-Clarke P
    6. Kopf GS
    (1995)
    Capacitation of mouse spermatozoa. I. correlation between the capacitation state and protein tyrosine phosphorylation
    Development 121:1129–1137.

Decision letter

  1. Merritt Maduke
    Reviewing Editor; Stanford University School of Medicine, United States
  2. Richard W Aldrich
    Senior Editor; The University of Texas at Austin, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This manuscript reports a novel in-situ molecular imaging technique for characterizing sperm physiology along the whole reproductive tract at a very high spatial and temporal resolution. Out of millions of sperm deposited in the reproductive tract upon coitus, very few reach the fertilization site, and only one succeeds in fertilizing the egg. The low success rate guarantees selection of high "quality" sperm and, in part, guards against polyspermy, but the characteristics of the "successful" spermatozoa have not been well defined. The findings reported here provide unprecedented insights into this longstanding question.

Decision letter after peer review:

Thank you for submitting your article "3D in situ imaging of female reproductive tract reveals molecular signatures of fertilizing spermatozoa in mice" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by Merritt Maduke as the Reviewing Editor and Richard Aldrich as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, we are asking editors to accept without delay manuscripts, like yours, that they judge can stand as eLife papers without additional data, even if they feel that they would make the manuscript stronger. Thus the revisions requested below only address clarity and presentation.

Summary:

In this manuscript, Ded et al. report findings using elegant in-situ molecular imaging of spermatozoa along the whole female reproductive tract using micro dissection, cleared tissues and artificial neural network-based automatic detection. Out of millions of sperm deposited in the reproductive tract upon coitus, very few reach the fertilization site, and only one succeeds in fertilizing the egg. The low success rate guarantees selection of the high "quality" of sperm and, in part, guards against polyspermy, but the characteristics of the "successful" spermatozoa have not been well defined. The authors developed a novel technique of in-situ molecular imaging along the whole reproductive tract and provided some of the most convincing answers to the long-standing question.

Ded and colleagues explore how CatSper channels change between the initial formation of the sperm, after spending time in the female reproductive tract, and the sperm near the site of fertilization. CatSper conducts a pH regulated, Ca2+ current through sperm, and is required for a series of processes called capacitation. Ca2+ entry via CatSper is specifically required for a sperm swimming pattern called hyperactivation, and in human sperm, a CatSper-conducted Ca2+ entry is hypothesized to signal the acrosome reaction. The channel is a multimeric complex comprised of four different alpha subunits, and several accessory proteins that are nearly all required for CatSper expression and male fertility. Ded et al. found that most sperm lose the intact sperm Ca2+ channel CatSper in the reproductive tract, but the ones that reach the fertilization sites have intact channels. Surprisingly, the sperm at the site do not have tyrosine phosphorylation, which is acquired during capacitation and traditionally thought to be important for sperm physiology. Also surprising is the finding that sperm successfully reaching the site of fertilization have already undergone the acrosome reaction (AR), a process during which the released acrosomal enzymes have been thought to help digest the egg for the sperm to penetrate and fuse with the egg. Intriguingly, the authors also found that CatSper1 proteins in sperm and in the precursors have different molecular weights. The authors attribute the difference, at least partly, to Ca2+-dependent protease-mediated cleavage/degradation. Despite its fundamental importance in fertilization and clear demonstration to be a Ca2+ channel in its native environment (sperm), CatSper has failed to be successfully reconstituted in heterologous expression system as a functional ion channel. The finding of molecular modification in the CatSper protein in this paper may help future functional reconstitution.

Overall, this manuscript presents new methods and provides molecular characterization of sperm physiology along the whole reproductive tract at a very high spatial and temporal resolution. The novel findings are convincing and important for our understanding of mammalian fertilization and ion channel-mediated calcium signaling. Suggested revisions will improve and clarify the presentation.

Essential revisions:

1) This manuscript reports several findings that will be of interest to the broad scientific community. However, it is written for a sperm-focused audience, rather than the eLife readership. The authors should clarify writing to increase the accessibility of this manuscript by stating motivations for each experiment in the context of biological processes. Also, the manuscript would be easier to read if there was a cohesive, central hypothesis that connect the seemingly separate stories (glycosylation, independence of tyrosine phosphorylation from CatSper, and the geometry of sperm distribution in different parts of the female reproductive tract).

2) "The molecular weight and amount of CatSper1, but not the other CatSper subunits, declines during sperm capacitation (Chung et al., 2014; Figure 1B, D)."

It is not clear from the figure that there is a decline in molecular weight of CatSper1 during capacitation. Similarly, it is not clear there is a decrease in amount, as the amount in the figure is not normalized. If there were a specific decrease in amount of CatSper1, but not that of the other CatSpers, would it suggest that the stoichiometry of the CatSper channel changes during capacitation?

3) Figure 1B, the figure legend for this panel is incomplete. In its current form, it is hard for the readers to understand what are the treatments in the panel.

4) Figure 1B, in the treatment with O-Gly, the cleavage appears quite incomplete. Did the density of the lower band increase with longer treatment?

5) Figure 1G, the legend states that "ND-CatSper1 proteins remain largely unchanged under the same conditions (bottom)", but there seems to be significant change in the figure. Please show statistics from several blots.

6) Figure 1—figure supplement 1A: The figure legend suggests that CatSper1 is not a phosphoprotein, yet only tyrosine phosphorylation was explored. Does PP1 dephosphorylate serine/threonine as well? If not, the text should be updated to indicate that CatSper1 is not tyrosine phosphorylated.

7) Figure 1—figure supplement 1E: Please indicate how you determined that A23178 induced CatSper1 processing occurs via the same pathway as PKA. Perhaps the authors have demonstrated that H89 prevents A23178 induced CatSper1 degradation? Or inhibit PKA signaled degradation by loading sperm with BAPTA-AM? Alternatively, it is possible that these be two pathways are distinct? If this is not definitively known, the authors should clarify the schematic to indicate that these steps are speculated.

8) The motivation for use of the Su9DsRed; Acr EGFP mice is never stated in the manuscript. The authors should state why these sperm were used in both the text, and figure labels should be also be updated (e.g. Figure 2D – to which proteins/structures are these fluorophores anchored?).

9) Figure 2: This figure would be substantially enhanced by inclusion of a pie chart for in vivo capacitated sperm, similar to the chart included for in vitro capacitated sperm. Also, did you look at pY in the cleared organs?

10) When describing the images in Figure 3, the text (subsection “3D in situ molecular imaging of gametes in the female reproductive tract”, first paragraph) should state the protein/tissues labeled by each stain.

11) Have you quantified tyrosine phosphorylation of in vivo sperm? Perhaps the relative fluorescence of immune-stained sperm? The concluding statement to the in vivo imaging paragraph (subsection “Sperm cell that successfully reach the ampulla are CatSper1-intact and acrosome reacted”) suggests that you do. Perhaps the evidence could be explicitly stated and readers directed to a figure panel. Again, including a pie chart with this data would be of great value to the readers (in Figure 2E).

12) The methods describing development of ANN for these experiments is missing information such as the criteria used for choosing ANN? What quantitative evaluations were used in making these decisions? What percentage of the data were set aside for training?

13) Were the sperm in Figure 6 (used for ANN analysis) immunolabeled for CatSper1?

14) Figure 6H. Left panel, what do the delta values refer to? Fluorescence intensity? Right panel: delta fluorescence, what values were used for the basal measurements?

15) A role for calpain proteolysis in CatSper1 degradation with in vitro capacitation is intriguing, however, it is not clear from the writing that this is a hypothesis. If this is not a hypothesis and Calpain is known to mediate CatSper1 proteolysis, a citation should be provided. If not, the writing should be edited to clarify that this is a hypothesis.

https://doi.org/10.7554/eLife.62043.sa1

Author response

Essential revisions:

1) This manuscript reports several findings that will be of interest to the broad scientific community. However, it is written for a sperm-focused audience, rather than the eLife readership. The authors should clarify writing to increase the accessibility of this manuscript by stating motivations for each experiment in the context of biological processes. Also, the manuscript would be easier to read if there was a cohesive, central hypothesis that connect the seemingly separate stories (glycosylation, independence of tyrosine phosphorylation from CatSper, and the geometry of sperm distribution in different parts of the female reproductive tract).

Thank you for this constructive suggestion. We have clarified writing for the broad readership of eLife. We have stated our central hypothesis more clearly in Introduction (third paragraph) and revised the text to explicitly state our motivations for each experiment in the Results (subsections “CatSper1 undergoes post-translational modifications during sperm development and maturation”, “CatSper1 resides in the subdomains of lipid rafts in mature sperm and is processed during capacitation”, “CatSper1 degradation correlates with pY development in sperm cells capacitated in vitro” and “Sperm cells capacitated in vivo become heterogeneous along the female tract with distinct molecular characteristics”). These changes indeed improved the presentation of our findings and will increase the accessibility of the manuscript.

2) "The molecular weight and amount of CatSper1, but not the other CatSper subunits, declines during sperm capacitation (Chung et al., 2014; Figure 1B, D)."

It is not clear from the figure that there is a decline in molecular weight of CatSper1 during capacitation. Similarly, it is not clear there is a decrease in amount, as the amount in the figure is not normalized. If there were a specific decrease in amount of CatSper1, but not that of the other CatSpers, would it suggest that the stoichiometry of the CatSper channel changes during capacitation?

Re: a decline in molecular weight: Sperm CatSper1 proteins are detected as two close bands, which are best resolved only when the samples are separated in a low percentage gel for an extended time. We speculate that the small difference in molecular weight comes from terminal sialylation on O-glycosylated CatSper1. To address the reviewer’s concern, we have re-arranged Figure 1B to show sperm lanes (WCL and Membrane) from a short-exposed image that clearly demonstrates that the upper band specifically declines in WCL from capacitated sperm. This small drop in the molecular weight of sperm CatSper1 is further supported by two other blots (Figure 1I and K) in which AcTub serves as a loading control. We have revised the corresponding figure legend accordingly.

Re: a decrease in amount and specificity: We previously reported normalized protein levels of CatSper subunits after capacitation to show specific decrease of CatSper1 (~60% of non-capacitated, **p<0.01) and CatSper2 to a lesser extent (Chung et al., 2014; Figure 6B and Supplementary Figure 7D). In this study, CA IV in Figure 1D serves as a loading control to show specific decline of CatSper1 and Caveolin1, which is in contrast with no change in CatSper3 and CatSpere. To better represent the results and avoid confusion, we have also replaced CatSper1 blot in Figure 1H from a repeat experiment. Regardless, we have toned down this sentence and directed other panels as well “The molecular weight of CatSper1, among all CatSper subunits, specifically declines during sperm capacitation (Chung et al., 2014; Figure 1B, D, H, I, K)”.

The reviewer suggests an interesting possibility regarding the stoichiometry of the CatSper channel. We speculate that the stoichiometry is not likely to change during capacitation for the following reasons. First, mature sperm lack ER and Golgi and there is no new synthesis or assembly of CatSper channel subunits. Second, CatSper channel complexes (comprised of at least 10 gene products per complex) are linearly arranged in the specialized nanodomains in the flagellar membrane, which would not be favorable for lateral movement of a subunit between complexes. Third, the stoichiometry of the CatSper channel might remain the same if capacitation induced the cleavage only but not degradation of the whole CatSper1. Our CatSper1 antibody used throughout this study detects the N-terminal region of CatSper1 (Figure 1E and G). Currently, there is no antibody recognizing C-terminal CatSper1 available to directly test this idea.

3) Figure 1B, the figure legend for this panel is incomplete. In its current form, it is hard for the readers to understand what are the treatments in the panel.

Thank you for pointing out this oversight. We have revised the legend to include more information.

“Mouse CatSper1 is an O-glycosylated protein. Apparent molecular weights of CatSper1 proteins were analyzed by immunoblotting. […] The dotted line indicates different exposure time of the same membrane.”

4) Figure 1B, in the treatment with O-Gly, the cleavage appears quite incomplete. Did the density of the lower band increase with longer treatment?

We agree that our O-glycosidase treatment did not completely de-glycosylate CatSper1 in Figure 1B. As shown in Figure 1—figure supplement 1C, sperm CatSper1 is prone to be cleaved even at 4C in a time-dependent manner when sperm membrane fraction is isolated. Thus, we performed dose-dependent deglycosylation reaction instead of increasing the reaction time. We found that indeed the density of the lower band increased as shown in Author response image 1; we tested 0.2X and 2X of O-glycosidase considering the ratio of sperm number to O-glycosidase unit applied in Figure 1B (1x106 cells/20,000 unit) is 1X.

Author response image 1

5) Figure 1G, the legend states that "ND-CatSper1 proteins remain largely unchanged under the same conditions (bottom)", but there seems to be significant change in the figure. Please show statistics from several blots.

As the reviewer suggested, we have updated Figure 1G with quantification and statistics from several blots and provide raw data as source data. We have also replaced the blot image of ND-CatSper1 to better represent our observation. We have revised the figure legend accordingly.

6) Figure 1—figure supplement 1A: The figure legend suggests that CatSper1 is not a phosphoprotein, yet only tyrosine phosphorylation was explored. Does PP1 dephosphorylate serine/threonine as well? If not, the text should be updated to indicate that CatSper1 is not tyrosine phosphorylated.

In fact, PP1 (protein phosphatase 1) is a serine/threonine phosphatase. Therefore, we explored both S/T and Y phosphorylation of CatSper1. No changes in either PP1 or PTP treatment support our conclusion that CatSper1 is not a phosphoprotein. We have revised the text to clarify this point (subsection “CatSper1 undergoes post-translational modifications during sperm development and maturation”).

7) Figure 1—figure supplement 1E: Please indicate how you determined that A23178 induced CatSper1 processing occurs via the same pathway as PKA. Perhaps the authors have demonstrated that H89 prevents A23178 induced CatSper1 degradation? Or inhibit PKA signaled degradation by loading sperm with BAPTA-AM? Alternatively, it is possible that these be two pathways are distinct? If this is not definitively known, the authors should clarify the schematic to indicate that these steps are speculated.

Thank you for your comments and great suggestions to further clarify the signaling cascades. In fact, we did not think that A231178 induces CatSper1 processing occurs via the same pathway as PKA. We thought that these two pathways are distinct and only indirectly connected. Our model was based on the following observations:

– Our previous study demonstrated that CatSper1-mediated Ca2+ signaling crosstalk with capacitation-associated PKA phosphorylation cascades. Blocking Ca2+ entry by genetic ablation of CatSper or chelating extracellular Ca2+ by BAPTA potentiated PKA activity and its downstream pY development only under capacitating conditions. Consistently, Ca2+ entry via A23187 or ionomycin partly blocked this enhancement (Chung et al., 2014, see Figure 4, Supplementary Figure 5B and C and Supplementary Figure 6B).

– In this study, we have shown that (1) even in non-capacitating sperm, Ca2+ influx is sufficient to induce CatSper1 processing (Figure 1I); (2) under capacitating conditions, PKA inhibition either by H89 or ST-Ht31 (Figure 1H and Figure 1—figure supplement 1D) accelerates CatSper1 processing.

As noted by the reviewer, the above experimental conditions did not directly test the effect of Ca2+ influx alone (such as in the continuous presence of PKA inhibitor) or PKA inhibition itself (in the presence of intracellular Ca2+ chelator). We thank the reviewer for these excellent questions to further clarify the signaling pathways!

We newly performed these experiments and have revealed that (1) PKA inhibition (H89) itself induces CatSper1 processing to some extent, but A23187 treatment accelerate CatSper1 processing even in the presence of H89 under non-capacitation conditions (new Figure 1—figure supplement 1E, upper); (2) suppressing a rise in cytoplasmic Ca2+ by BAPTA-AM, regardless of PKA activity, did not prevent CatSper1 processing (new Figure 1—figure supplement 1E, bottom). All these results corroborate our hypothesis in our schematic (now Figure 1—figure supplement 1F) that the protease activity is localized close to the inner leaflet of the plasma membrane (but outside of CatSper nanodomains); the local Ca2+ influx via CatSper channel, which normally accompanies other capacitation-associated membrane events (i.e., cholesterol efflux), is essential for the protease activity. This pathway can be indirectly modulated by PKA phosphorylation cascades such as regulation of the protease activity by phosphorylating PP1/PP2A the activity.

We have included these new data as Figure 1—figure supplement 1E and revised the legend accordingly. We have clarified the text (subsections “CatSper1 degradation involves Ca2+ and phosphorylation-dependent protease activity” and “CatSper1 as a molecular barcode for sperm maturation and transition in the female tract”) and modified the schematic to indicate PKA and PP1/PP2A regulation of protease X is our speculation.

8) The motivation for use of the Su9DsRed; Acr EGFP mice is never stated in the manuscript. The authors should state why these sperm were used in both the text, and figure labels should be also be updated (e.g. Figure 2D – to which proteins/structures are these fluorophores anchored?).

Thank you for identifying the areas that need modification to improve our manuscript. Su9DsRed2/Acr-EGFP mice (Hasuwa et al., 2010) generate sperm that have green acrosome (EGFP fused to proacrosin signal sequence under Acrosin3 promoter) and red mitochondria (DsRed2 fused to a mitochondrial import sequence). Therefore, the sperm head is green prior to the acrosome reaction, but GFP is lost after acrosome reaction. RFP (DsRed2) expression is seen in the midpiece of the sperm regardless of the acrosome state. The mouse line has been utilized by us and others to track the location of sperm in the female reproductive tract and probe the acrosome state in the field (Tokuhiro et al., 2012; Fujihara et al., 2013; Chung et al., 2014; Kiyozumi et al., 2020). We have stated the rationale in the main text (subsection “Sperm cells capacitated in vivo become heterogeneous along the female tract with distinct molecular characteristics”) and updated the labels in Figure 2D. There is space constraint in figure label; we added one color component per each panel and revised the legend.

9) Figure 2: This figure would be substantially enhanced by inclusion of a pie chart for in vivo capacitated sperm, similar to the chart included for in vitro capacitated sperm. Also, did you look at pY in the cleared organs?

We were not able to look at pY in the cleared organs because anti-phosphotyrosine antibody (4G10), which is a phosphorylation moiety antibody, cross-reacts with many other proteins and yield low signal-to-noise to detect sperm. Now we have included quantification of pY from in vivo capacitated sperm as Figure 2F (please see also our response to revision point #11). We have now provided raw data and pie charts as source data related to this figure.

We did not quantify in vivo capacitated sperm for CatSper1 from micro-dissection. Our CatSper1 antibody is suitable for direct and specific labeling of sperm by in situ imaging as CatSper1 is a sperm-specific protein. All our quantification from in situ imaging (Figure 4B) and ANN-detection and quantification of sperm for CatSper1 (Figure 6) are statistically significant and strongly support our conclusion. In situ imaging is more desirable when applicable since micro-dissection takes time and cross-contamination to a certain extent during handling is unavoidable.

10) When describing the images in Figure 3, the text (subsection “3D in situ molecular imaging of gametes in the female reproductive tract”, first paragraph) should state the protein/tissues labeled by each stain.

Good suggestion. We have updated the text with the requested information (subsections “3D in situ molecular imaging of gametes in the female reproductive tract” and “ANN-quantified CatSper1 signal reveals a molecular signature of successful sperm in situ”).

11) Have you quantified tyrosine phosphorylation of in vivo sperm? Perhaps the relative fluorescence of immune-stained sperm? The concluding statement to the in vivo imaging paragraph (subsection “Sperm cell that successfully reach the ampulla are CatSper1-intact and acrosome reacted”) suggests that you do. Perhaps the evidence could be explicitly stated and readers directed to a figure panel. Again, including a pie chart with this data would be of great value to the readers (in Figure 2E).

Thank you for your suggestion to improve our presentation of the data. Now we have added a bar graph to Figure 2F with the relative proportion of pY (-) vs. pY (+) sperm in these three regions. As we have done for in vitro capacitated sperm (Figure 2B and C), we have simply classified pY immunofluorescence as pY (-) vs. pY (+). The representative images in Figure 2E show our criteria for this classification. We have also included the raw data points (the number of sperm counted for pY immunofluorescence from each region) and pie charts from 9 micro-dissected tracts from 5 females as Figure 2—source data 1. As suggested, these raw data points providing the information on the individual-to-individual and tract-to-tract variations will be of great value to the scientific community. We have explicitly directed readers to the newly added figures for our conclusion statement (subsection “Sperm cells capacitated in vivo become heterogeneous along the female tract with distinct molecular characteristics”).

12) The methods describing development of ANN for these experiments is missing information such as the criteria used for choosing ANN? What quantitative evaluations were used in making these decisions? What percentage of the data were set aside for training?

In fact, we dedicated one Results subsection “Automatic detection of sperm in the voluminous female tract using artificial neural network” to describe the method of developing ANN and the criteria, along with Figure 5 and Figure 5—figure supplements 1 and 2. Specifically, the developed ANNs were chosen according to their sensitivity and specificity in detecting sperm cells and somatic nuclei, and the abundance (voxel occupancy) of noise (subsection “Artificial neural network (ANN) image processing”). We have now further highlighted these aspects in the Materials and methods section and directed to the corresponding quantitative graphic output (Figure 5—figure supplement 2C). The approach to generate training environments was addressed in Figure 5—figure supplement 1, Generation of training environments for ANN development. In total, 104 environments were generated and utilized (100%) in ANN training. In this revision submission, we have now also provided additional materials related to ANN development such as ANN input feeding, training, construction of numerical objects coordinates arrays for supervised learning and ANN performance evaluation as source data.

13) Were the sperm in Figure 6 (used for ANN analysis) immunolabeled for CatSper1?

Yes, the sperm in Figure 6 were immunolabeled for CatSper1 as described in Figure 6D and F. We have clarified this by stating in the figure title and have also revised the text accordingly.

“Figure 6. ANN assessment of quadrilateral CatSper nanodomains and Δ fluorescent intensity in sperm population along the cleared female tract immunolabeled for CatSper1 conform to findings by other approaches used in this study.”

“We isolated the fluorescent signal from a proximal region of the principal piece close to the annulus where the immunolabeled CatSper1 signal is the most intense (Figure 6B).”

14) Figure 6H. Left panel, what do the delta values refer to? Fluorescence intensity? Right panel: delta fluorescence, what values were used for the basal measurements?

The delta values refer to the delta value of the fluorescent intensity. We have now clarified the figure legends. The baseline (zero) in the right panel of Figure 6H indicates homogenous angular distribution of the CatSper fluorescent signals with no quadrilateral arrangement. We have now added this description in the figure legend. In our revision submission, we have also provided the statistical evaluation presented in the Figure 6H right panel as “Figure 6H right panel statistical outputs summary table” as part of Figure 6—source data 2 “3D in situ analytical tools for CatSper quadrilateral structure”. We have placed custom scripts, digital masks for CatSper1 fluorescent signal quadrilateral delta values quantification together with text, and a snapshot and video description on how to operate them.

15) A role for calpain proteolysis in CatSper1 degradation with in vitro capacitation is intriguing, however, it is not clear from the writing that this is a hypothesis. If this is not a hypothesis and Calpain is known to mediate CatSper1 proteolysis, a citation should be provided. If not, the writing should be edited to clarify that this is a hypothesis.

We have clarified and now explicitly present this concept as a hypothesis (subsections “CatSper1 degradation involves Ca2+ and phosphorylation-dependent protease activity” and “CatSper1 as a molecular barcode for sperm maturation and transition in the female tract”). We previously showed that CatSper1 degradation is blocked by 26S proteasome inhibitor, MG-132 (Chung et al., 2014). In this study, we find that proteolysis is Ca2+ dependent and inhibited by all three classes of Calpain inhibitors. Yet we currently do not know the identity of the responsible protease(s).

https://doi.org/10.7554/eLife.62043.sa2

Article and author information

Author details

  1. Lukas Ded

    1. Department of Cellular & Molecular Physiology, Yale School of Medicine, New Haven, United States
    2. Laboratory of Reproductive Biology, Institute of Biotechnology, Czech Academy of Sciences, BIOCEV, Vestec, Czech Republic
    Contribution
    Data curation, Software, Formal analysis, Validation, Visualization, Methodology, Writing - original draft, Project administration, Performed microdissection, 3D in situ imaging, ANN-based analysis and rendering of in situ images, assembled figures and wrote the manuscript together with J-JC
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1053-4025
  2. Jae Yeon Hwang

    Department of Cellular & Molecular Physiology, Yale School of Medicine, New Haven, United States
    Contribution
    Data curation, Formal analysis, Validation, Visualization, Methodology, Writing - original draft, Performed and analyzed biochemistry experiment, confocal imaging of in vitro experiments, assembled figures and wrote the manuscript together with J-JC
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6493-4182
  3. Kiyoshi Miki

    Boston Children’s Hospital, Boston, United States
    Contribution
    Data curation, Validation, Methodology, Performed and analyzed biochemistry experiments
    Competing interests
    No competing interests declared
  4. Huanan F Shi

    Department of Cellular & Molecular Physiology, Yale School of Medicine, New Haven, United States
    Contribution
    Data curation, Visualization, Methodology, Contributed to 3D in situ imaging
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3710-5917
  5. Jean-Ju Chung

    1. Department of Cellular & Molecular Physiology, Yale School of Medicine, New Haven, United States
    2. Department of Obstetrics, Gynecology, and Reproductive Sciences, Yale School of Medicine, New Haven, United States
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing, Conceived and supervised the project, Designed, performed and analyzed experiments: various tissue clearing applications, confocal imaging of in vitro and ex vivo experiments, Assembled figures and wrote the manuscript with the input from the co-authors
    For correspondence
    jean-ju.chung@yale.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8018-1355

Funding

National Institutes of Health (R01HD096745)

  • Jean-Ju Chung

Yale School of Medicine (Start-up funds)

  • Jean-Ju Chung

Yale University (Yale Goodman-Gilman ScholarAward-2015)

  • Jean-Ju Chung

Male Contraceptive Initiative (Postdoctoral fellowship)

  • Jae Yeon Hwang

Czech Science Foundation (GJ20-17403Y)

  • Lukas Ded

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank David E Clapham and Katerina Komrskova for sharing resources, Kwanghun Chung for discussions on tissue clearing methods, Luke L McGoldrick for critical reading of the draft, Logos Biosystems for use of X-CLARITY system, and MFF computational core facility for assistance in ANN analysis. This work was supported by start-up funds from Yale University School of Medicine, a Yale Goodman-Gilman Scholar Award-2015, and NIH (R01HD096745) to J-JC; by the Czech Science Foundation (GACR No. GJ20-17403Y) to LD; by project BIOCEV (CZ.1.05/1.1.00/02/0109) from the ERDF and the Institute of BiotechnologyRVO:86652036. JYH is a Male Contraceptive Initiative post-doctoral fellow.

Ethics

Animal experimentation: Animal experimentation: This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All the mice were treated in accordance with guidelines approved by Yale (20079) Animal Care and Use Committees (IACUC).

Senior Editor

  1. Richard W Aldrich, The University of Texas at Austin, United States

Reviewing Editor

  1. Merritt Maduke, Stanford University School of Medicine, United States

Publication history

  1. Received: August 12, 2020
  2. Accepted: October 19, 2020
  3. Accepted Manuscript published: October 20, 2020 (version 1)
  4. Accepted Manuscript updated: October 22, 2020 (version 2)
  5. Version of Record published: December 1, 2020 (version 3)

Copyright

© 2020, Ded et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 3,043
    Page views
  • 397
    Downloads
  • 7
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

  1. Further reading

Further reading

    1. Cell Biology
    Dawei Wang et al.
    Research Article Updated

    Actin filaments (F-actin) have been implicated in various steps of endosomal trafficking, and the length of F-actin is controlled by actin capping proteins, such as CapZ, which is a stable heterodimeric protein complex consisting of α and β subunits. However, the role of these capping proteins in endosomal trafficking remains elusive. Here, we found that CapZ docks to endocytic vesicles via its C-terminal actin-binding motif. CapZ knockout significantly increases the F-actin density around immature early endosomes, and this impedes fusion between these vesicles, manifested by the accumulation of small endocytic vesicles in CapZ-knockout cells. CapZ also recruits several RAB5 effectors, such as Rabaptin-5 and Rabex-5, to RAB5-positive early endosomes via its N-terminal domain, and this further activates RAB5. Collectively, our results indicate that CapZ regulates endosomal trafficking by controlling actin density around early endosomes and recruiting RAB5 effectors.

    1. Cell Biology
    2. Structural Biology and Molecular Biophysics
    Carolina Franco Nitta et al.
    Research Article Updated

    Crosstalk between different receptor tyrosine kinases (RTKs) is thought to drive oncogenic signaling and allow therapeutic escape. EGFR and RON are two such RTKs from different subfamilies, which engage in crosstalk through unknown mechanisms. We combined high-resolution imaging with biochemical and mutational studies to ask how EGFR and RON communicate. EGF stimulation promotes EGFR-dependent phosphorylation of RON, but ligand stimulation of RON does not trigger EGFR phosphorylation – arguing that crosstalk is unidirectional. Nanoscale imaging reveals association of EGFR and RON in common plasma membrane microdomains. Two-color single particle tracking captured formation of complexes between RON and EGF-bound EGFR. Our results further show that RON is a substrate for EGFR kinase, and that transactivation of RON requires formation of a signaling competent EGFR dimer. These results support a role for direct EGFR/RON interactions in propagating crosstalk, such that EGF-stimulated EGFR phosphorylates RON to activate RON-directed signaling.
