A dual role for Cav1.4 Ca2+ channels in the molecular and structural organization of the rod photoreceptor synapse

  1. J Wesley Maddox
  2. Kate L Randall
  3. Ravi P Yadav
  4. Brittany Williams
  5. Jussara Hagen
  6. Paul J Derr
  7. Vasily Kerov
  8. Luca Della Santina
  9. Sheila A Baker
  10. Nikolai Artemyev
  11. Mrinalini Hoon
  12. Amy Lee  Is a corresponding author
  1. Department of Molecular Physiology and Biophysics, University of Iowa, United States
  2. Iowa Neuroscience Institute, University of Iowa, United States
  3. Pappajohn Biomedical Institute, University of Iowa, United States
  4. Department of Neuroscience, University of Wisconsin-Madison, United States
  5. Department of Ophthalmology, University of California, San Francisco, United States
  6. Department of Biochemistry, University of Iowa, United States
  7. Department of Ophthalmology, United States
  8. Department of Ophthalmology and Visual Science, University of Wisconsin-Madison, United States
Short Report
  • Cited 0
  • Views 609
  • Annotations
Cite this article as: eLife 2020;9:e62184 doi: 10.7554/eLife.62184

Abstract

Synapses are fundamental information processing units that rely on voltage-gated Ca2+ (Cav) channels to trigger Ca2+-dependent neurotransmitter release. Cav channels also play Ca2+-independent roles in other biological contexts, but whether they do so in axon terminals is unknown. Here, we addressed this unknown with respect to the requirement for Cav1.4 L-type channels for the formation of rod photoreceptor synapses in the retina. Using a mouse strain expressing a non-conducting mutant form of Cav1.4, we report that the Cav1.4 protein, but not its Ca2+ conductance, is required for the molecular assembly of rod synapses; however, Cav1.4 Ca2+ signals are needed for the appropriate recruitment of postsynaptic partners. Our results support a model in which presynaptic Cav channels serve both as organizers of synaptic building blocks and as sources of Ca2+ ions in building the first synapse of the visual pathway and perhaps more broadly in the nervous system.

Introduction

It is well established that the primary function of voltage-gated Cav Ca2+ channels within axon terminals is to serve as a conduit for Ca2+ ions that trigger the fusion of neurotransmitter-laden vesicles with the presynaptic membrane (reviewed in Dolphin and Lee, 2020). Mutations in genes encoding presynaptic Cav channels cause neurological disorders such as epilepsy, migraine, and ataxia (Pietrobon, 2010). When studied in animal models, these mutations lead to aberrant synaptic transmission and alterations in network excitability (Tottene et al., 2009; Eikermann-Haerter et al., 2011). Due to the steep Ca2+-dependence of neurotransmitter release (Dodge and Rahamimoff, 1967), factors that modulate Cav channel function can dramatically alter synaptic output. Thus, efforts to understand the pathophysiological consequences of disease-causing mutations have largely centered on how they affect biophysical parameters of channel opening, closing, or inactivation (Pietrobon, 2010).

However, Cav channels are known to engage in pathways that do not involve their Ca2+ conductance. For example, voltage-dependent changes in the conformation of Cav1.1 channels, rather than the incoming Ca2+ ions, initiate skeletal muscle contraction (Adams et al., 1990). Despite its importance for understanding fundamental cell biological processes in health and disease, the prevalence of non-conducting roles of Cav channels in neurons is poorly understood. Analyses of Cav knockout (KO) mice have helped illuminate the physiological functions of Cav channels (Pietrobon, 2005), however, this approach does not distinguish between the Ca2+-dependent and Ca2+-independent contributions of these channels. Moreover, complex double and triple-KO approaches are needed given that most synapses in the nervous system utilize more than one Cav subtype (Dolphin and Lee, 2020).

To overcome these hurdles, we focused on the Cav1.4 L-type channel, which is the predominant Cav subtype in rod and cone photoreceptors in the retina (Mansergh et al., 2005; Chang et al., 2006; Liu et al., 2013). More than 140 mutations in the human CACNA1F gene encoding Cav1.4 have been identified, many of which cause heterogeneous forms of vision impairment (Waldner et al., 2018). The absence of photoreceptor synaptic responses in Cav1.4 KO mice has been attributed to a requirement for Cav1.4 in the presynaptic release of glutamate (Mansergh et al., 2005; Chang et al., 2006; Liu et al., 2013). However, an additional contributing factor is that photoreceptor synapses do not form in Cav1.4 KO mice (Liu et al., 2013; Zabouri and Haverkamp, 2013; Regus-Leidig et al., 2014). Does this developmental failure reflect a requirement for Cav1.4-mediated Ca2+ signals or an alternative, non-conducting role for the Cav1.4 protein in organizing the photoreceptor synapse? Here, we generated a mouse strain that expresses a non-conducting mutant form of Cav1.4 to answer this question.

Results and discussion

Rod and cone photoreceptors communicate visual information via a triadic ‘ribbon’ synapse containing postsynaptic neurites of a depolarizing (ON) bipolar cell and two horizontal cells (HCs) (Masland, 2012; Figure 1A). The ribbon, an organelle that critically regulates the properties of glutamate release, is a morphological hallmark of this and other sensory synapses (Matthews and Fuchs, 2010). During the first postnatal week in mice, ribbons develop from spherical precursors and are concentrated in the outer plexiform layer (OPL) where mature rod and cone synapses are localized (Blanks et al., 1974; Regus-Leidig et al., 2009). In Cav1.4 KO mice, the development of these synapses appears stunted in that spheres, rather than ribbons, are present at all developmental ages and often found in the outer nuclear layer (ONL) that normally contains only photoreceptor somas. The terminals of rods and cones (i.e., spherules and pedicles, respectively) (Figure 1A) of Cav1.4 KO mice are misshapen, and a number of proteins typical of mature synapses are absent or aberrantly localized (Raven et al., 2008; Liu et al., 2013; Zabouri and Haverkamp, 2013; Regus-Leidig et al., 2014). If Cav1.4 Ca2+ signals are needed for the assembly of photoreceptor synapses, then ribbons and key synaptic proteins should be lacking from photoreceptors of a mouse strain expressing a non-conducting mutant form of Cav1.4, just as in Cav1.4 KO mice.

Figure 1 with 2 supplements see all

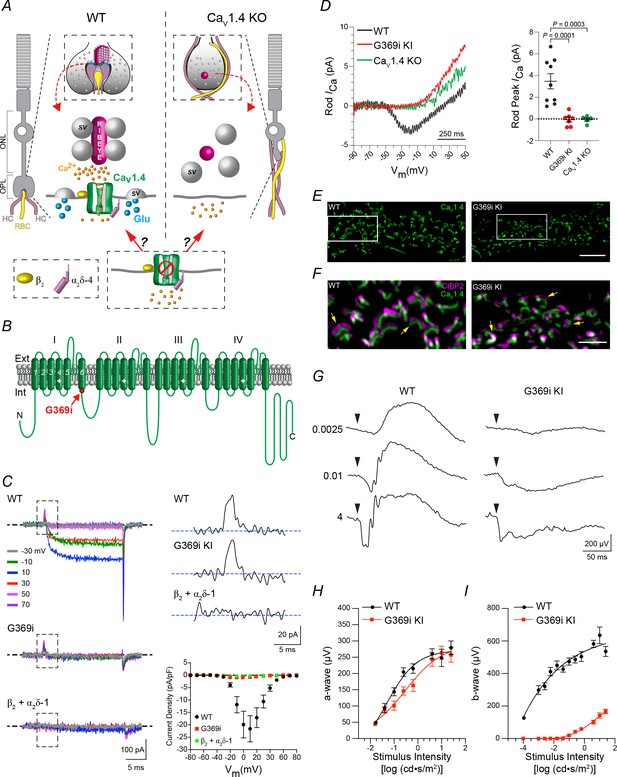

Characterization of G369i KI mouse strain to study the requirement of Cav1.4 Ca2+ signals in rod synaptogenesis.

(A), potential roles of Cav1.4 in the assembly of rod synapses. In the outer plexiform layer (OPL) of WT mice, neurites of two horizontal cells (HCs) and one rod bipolar cell (RBC) invaginate into the rod spherule; Cav1.4 clusters beneath the ribbon that tethers glutamate (Glu)-filled synaptic vesicles (SVs). In Cav1.4 KO retina, ribbons do not form, and HC and RBC neurites sprout into the outer nuclear layer (ONL). The efficacy of a non-conducting Cav1.4 mutant channel to support rod synaptogenesis will depend on whether Ca2+ influx through Cav1.4 is required. (B), schematic of Cav1.4 pore-forming subunit with four homologous repeats (I–IV) each with six transmembrane domains; location of the glycine insertion in domain I (G369i) is indicated. G369i mutation (red). (C), left, representative Ba2+ currents (IBa) evoked by 20 ms voltage steps from −90 mV to the indicated voltages in transfected HEK293T cells. Boxed regions indicate gating currents evident in cells co-transfected with β2 + α2δ−1 and WT or G369i mutant channels but not in cells transfected with β2 and α2δ−1 alone. Upper right, representative gating currents from boxed regions (left) elicited by a voltage step to +70 mV. Lower right, graph shows I–V relationship for cells co-transfected with β2 + α2δ−1 alone (n = 5), or co-transfected with WT (n = 9) or G369i mutant channels (n = 6). Points represent mean ± SEM. (D), representative traces (left) and average amplitudes of peak rod Ca2+ currents (ICa, right) recorded in acute slices from WT, G369i KI, and Cav1.4 KO mouse retinas. Stimulus protocol was a 1 s voltage ramp from −90 to +50 mV. Points represent individual recorded rods with the mean and SEM indicated with bars. P values were determined by one-way ANOVA with Uncorrected Fisher’s Least Significant Difference post-hoc test. (E), confocal micrographs of the OPL of wild-type (WT) and G369i KI retina double-labeled with antibodies against Cav1.4 and CtBP2 (CtBP2 labeling removed here for clarity). (F), expanded view of the boxed regions in E showing both CtBP2 and Cav1.4 labeling. Arrows depict arc-shaped ribbons apposed to Cav1.4 labeling. Scale bars, 5 μm. (G) representative voltage responses from flash ERGs recorded in dark- adapted WT (n = 4) and G369i KI (n = 4) mice. Arrowheads indicate time of flash. Numbers indicate flash intensities (cd•s /m2). (HI), a-wave amplitudes (H) and b-wave amplitudes (I) measured from recordings obtained as in (G). Points represent mean ± SEM.

To test this prediction, we deployed a strategy based on a disease-causing mutation in the Cav1.3 L-type channel. The mutation results in the insertion of a glycine residue into transmembrane segment 6 of domain I (G369i, Figure 1B) and prevents Ca2+ influx through the channel during membrane depolarizations (Baig et al., 2011). We determined if this mutation has a similar effect in Cav1.4 in electrophysiological recordings of transfected human embryonic kidney cells (HEK293T). The wild-type (WT) and G369i mutant channels were co-expressed with β2 and α2δ−4 subunits which are the major Cav auxiliary subunits forming Cav1.4 complexes in photoreceptor synaptic terminals (Lee et al., 2015). G369i mutant channels were associated with the plasma membrane but did not mediate significant inward Ba2+ currents (IBa) like WT channels (Figure 1—figure supplement 1). To functionally verify that G369i mutant channels reached the cell-surface, we analyzed ON gating currents (Igating), which result from the movement of charged voltage-sensing domains prior to channel opening. For this purpose, we utilized the α2δ−1 subunit which we find to produce larger current densities and better resolution of gating currents than with α2δ−4. Compared to robust peak IBa densities mediated by WT channels (−20.70 ± 5.31 pA/pF), those in cells transfected with G369i mutant channels were negligible (−1.14 ± 0.11 pA/pF, p=0.03) and not significantly different from that in cells transfected only with β2 and α2δ−1 as negative controls (−0.56 ± 0.15 pA/pF, p=0.72, by Kruskal-Wallis test and post-hoc Dunn’s test; Figure 1C). Igating was evident for both WT and G369i mutant channels, but not in the negative control cells. To estimate the number of channels with functional voltage-sensors in the membrane, we analyzed the time integral of Igating evoked at the reversal potential (Qmax, [Wei et al., 1994]). When normalized to cell size, Qmax did not differ for WT (4.22 ± 1.34 fC/pF) and G369i mutant channels (3.22 ± 0.48 fC/pF, p=0.57 by unpaired t-test; Figure 1C). Thus, G369i prevents Ca2+ conductance but not cell-surface trafficking or voltage-sensor movements in Cav1.4.

Armed with this knowledge, we incorporated the G369i mutation into Cav1.4 channels in vivo by genome editing in mice (Figure 1—figure supplement 2). In agreement with our findings in the heterologous expression system, inward currents such as those measured in rods of WT mice, were not evident in those of the knock-in mouse strain (G369i KI). The absence of depolarization-evoked currents was similar in G369i KI mice and a mouse strain completely lacking Cav1.4 expression (Cav1.4 KO, Figure 1D). However, Cav1.4 protein was detected in retinal lysates of G369i KI mice by Western blot (Figure 1—figure supplement 2). Moreover, immunofluorescence corresponding to G369i mutant channels was abundant in the OPL, where photoreceptor synapses normally form, and juxtaposed near the ribbon as in WT mouse retina (Figure 1E). Therefore, while it does not mediate voltage-dependent Ca2+ currents, the G369i mutant channel is expressed and targeted appropriately in photoreceptors of G369i KI mice. Electroretinograms (ERGs) of dark-adapted G369i KI mice lacked b-waves at all but the highest light intensities, consistent with a disruption of rod synaptic transmission (Figure 1I). A-waves, which represent light-dependent hyperpolarization of photoreceptors, were not significantly different in WT and G369i KI mice (Figure 1H). Thus, G369i KI mice show defects in photoreceptor function that are largely restricted to synaptic terminals.

To define the contribution of Cav1.4 Ca2+ signals to the organization of the photoreceptor synapse, we compared the molecular composition and structure of photoreceptor synapses in the retinas of WT, G369i KI, and Cav1.4 KO mice. We focused on rod terminals due to their simpler synaptic organization (i.e. one large, arc-shaped ribbon and a single type of postsynaptic bipolar cell) as compared to cones (i.e. multiple short ribbons and types of postsynaptic bipolar cells). Furthermore, rod synapses are more severely disrupted than cone synapses when the presynaptic abundance of Cav1.4 is compromised (Ball et al., 2002; Katiyar et al., 2015; Wang et al., 2017; Kerov et al., 2018). We first compared the prevalence of ribbons and spheres using antibody labeling for CtBP2, a component of the major ribbon protein Ribeye (Schmitz et al., 2000; Figure 2A). We restricted analyses to CtBP2-labeled structures in rod spherules by excluding those in cone arrestin-labeled cone pedicles. The minimum ribbon length was arbitrarily set at 0.95 μm based on the absence of values higher than this in Cav1.4 KO retina. While shorter on average than in WT retina, arc-shaped ribbons were plentiful in the OPL of G369i retina (Figure 2B–D) and co-clustered with proteins characteristic of mature rod synapses (Figure 2E) such as PSD-95 and β-dystroglycan (Koulen et al., 1998; Blank et al., 1997), which were undetectable in the OPL of Cav1.4 KO retina (Figure 2F,G). Bassoon, a protein involved in ribbon morphogenesis (tom Dieck et al., 2005), and RIM2, a protein implicated in regulating Cav1.4 at rod synapses (Grabner et al., 2015), were tightly clustered with ribbons in G369i KI as in WT retina (Figure 2H,I). Thus, although leading to shorter ribbons, the presynaptic assembly of rod synapses can proceed without Cav1.4 Ca2+ signals.

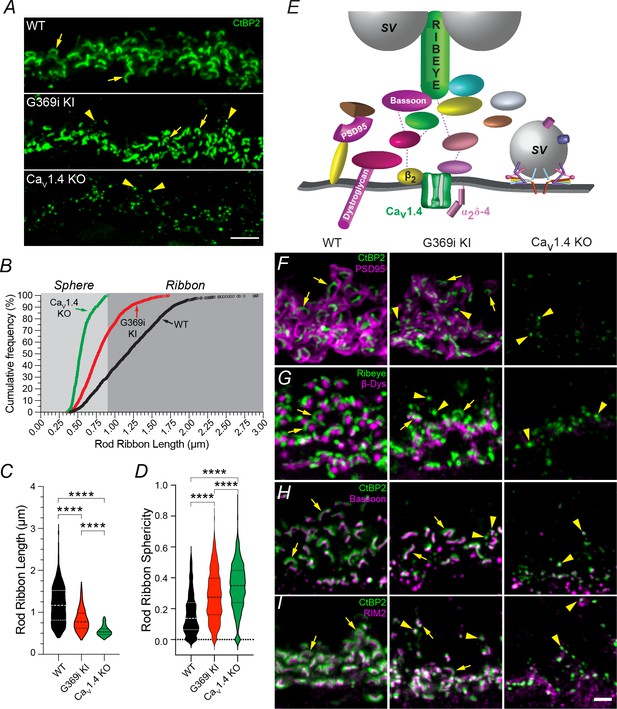

Rod ribbons still form in the absence of Cav1.4 Ca2+ signals.

(A) Confocal micrographs of the OPL of WT, G369i KI and Cav1.4 KO mice labeled with antibodies against CtBP2 to mark ribbons (arrows). Arrowheads depict spheres resembling immature ribbons. (B) Cumulative frequency of rod ribbon lengths in WT, G369i KI, and Cav1.4 KO. Ribbon states less than and greater than 0.95 µm were classified as spheres and ribbons, respectively. (C, D) Violin plots of rod ribbon lengths (C) and sphericity (D) obtained from dataset in B. **** p<0.001 by one-way ANOVA with Tukey’s multiple comparison post-hoc test. WT, n = 1264 ribbons; KO, n = 348 ribbons; G369i KI, n = 1322 ribbons. Data were collected from the retinas of at least six individual mice per genotype. (E) Schematic of a rod active zone and associated proteins. SV, synaptic vesicle. (F–I) Confocal micrographs (maximum z-projections) of the OPL of WT, G369i KI and Cav1.4 KO mice double-labeled with antibodies against CtBP2 and PSD95 (F), Ribeye and β-dystroglycan (β-Dys), (G) CtBP2 and Bassoon (H) and CtBP2 and RIM2 (I). Arrows and arrowheads depict ribbons and spheres, respectively. Scale bars, 5 μm in A, 2 μm in F-I.

We next determined if postsynaptic elements were also intact at G369i KI rod synapses. At the depolarized voltage of photoreceptors in darkness, Cav1.4-dependent glutamate release activates a metabotropic glutamate receptor (mGluR6), which suppresses the activity of TRPM1-dependent channels (Shiells et al., 1981; Shen et al., 2009). Light-dependent hyperpolarization of photoreceptors reduces Cav1.4 Ca2+ signals, which slows the rate of glutamate release, thus disinhibiting the postsynaptic conductance and enabling excitatory postsynaptic currents (EPSCs) that communicate light signals via the ON pathway (Shiells et al., 1981; Figure 3A). In agreement with previous work (Koike et al., 2010), mGluR6 was clustered postsynaptic to rod ribbons, and TRPM1 was situated at the tips of RBC dendrites in WT retina (Figure 3B–D). Although the subcellular distribution of the postsynaptic proteins was partially obscured by the diffuse pattern of TRPM1 labeling, arc-shaped ribbons in apposition to colocalized TRPM1 and mGluR6 could clearly be distinguished in G369i KI retina but not in Cav1.4 KO retina (Figure 3B–D). To test if this signaling pathway was functional in RBCs of G369i KI mice, we used an agonist and antagonist of mGluR6 (L-AP4 and CPPG, respectively) to simulate light responses in RBCs (Shen et al., 2009; Figure 3A). As expected (Morgans et al., 2009; Shen et al., 2009), the CPPG-evoked EPSC was robust and outwardly rectifying in WT RBCs (Figure 3E,F). Although significantly lower in amplitude compared to WT RBCs, this EPSC was measurable in all RBCs that were recorded in G369i KI mice but was never detected in any of the RBC recordings in Cav1.4 KO mice (Figure 3E,F). These results indicate that the molecular components of the postsynaptic signaling complex in RBCs can be assembled in the absence of Cav1.4 Ca2+ signals, albeit less efficiently than in their presence.

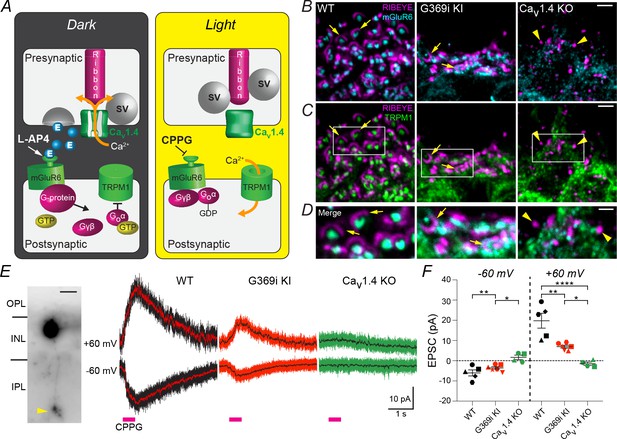

Postsynaptic signaling at rod synapses is partially intact in the absence of Cav1.4 Ca2+ signals.

(A), schematic illustrating synaptic transmission at rod-RBC synapses. In the dark, rods are depolarized, which activates Cav1.4 and Ca2+-triggered glutamate (E) release. Activation of the mGluR6/G-protein pathway by glutamate or L-AP4 inhibits TRPM1-dependent channels. Light signals or the mGluR6 antagonist CPPG activate the ON pathway by disinhibiting the TRPM1-dependent conductance. (B–D), confocal micrographs of the OPL of WT, G369i KI and Cav1.4 KO mice triple-labeled with antibodies against Ribeye, mGluR6, and TRPM1. In B,C, only signals for Ribeye and mGluR6 (B) or TRPM1 (C) are shown for clarity. (C) Higher magnification views of boxed regions are shown in the merged image (D). Arrows and arrowheads depict ribbons and spheres, respectively. (E–F), whole-cell patch clamp electrophysiology of RBCs recorded in WT, G369i KI, and Cav1.4 KO mouse retinal slices. E, left, representative image of Lucifer Yellow-filled RBC showing typical lobular-shaped terminal (arrowhead). Right, representative current responses to CPPG puffs in RBCs held at −60 mV and +60 mV. Lines within each current trace are low-pass FFT filtered data. F, peak amplitudes of CPPG-evoked EPSCs. Each shape represents individual cells recorded at −60 and +60 mV. Bars represent mean ± SEM. ****p<0.0001, **p<0.01, *p<0.05, by one-way ANOVA with Fishers least significant difference post-hoc test. Scale bars, 2 μm in B,C, 1 μm in D, 15 μm in E.

Sprouting of HC and RBC neurites out of the OPL and into the ONL, and the appearance of ectopic ribbons and other presynaptic proteins in the ONL, occurs as a result of presynaptic functional impairments in rods and cones (McCall and Gregg, 2008). Thus, the prevailing view has been that synaptic transmission is needed to maintain the laminar organization of photoreceptor synapses in the OPL. Consistent with this notion, HC and RBC sprouting (Figure 4A) are particularly prominent in Cav1.4 KO mice, which lack evidence of photoreceptor transmission (Chang et al., 2006; Raven et al., 2008; Liu et al., 2013; Zabouri and Haverkamp, 2013). If these defects arise solely from the absence of Cav1.4 Ca2+ signals that trigger glutamate release, the severity of neurite sprouting should be similar in G369i KI mice as in Cav1.4 KO mice. Contrary to this prediction, HC and RBC neurite sprouting was less prominent in G369i KI mice than in Cav1.4 KO mice (Figure 4A,B) with most of the synapses situated normally in the OPL (Figure 4C). These results indicate a supporting, but non-essential, role for Cav1.4 Ca2+ signals and/or glutamatergic transmission for the proper lamination of rod synapses within the OPL.

Figure 4 with 2 supplements see all

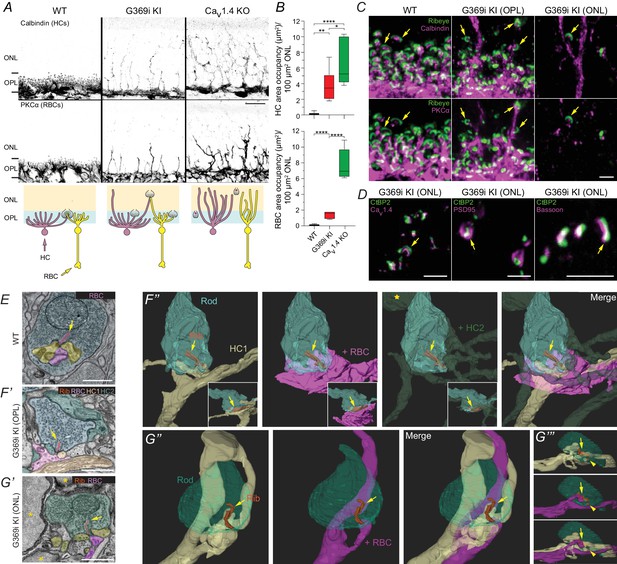

Rod synapses lack invaginating HC and RBC neurites in the absence of Cav1.4 Ca2+ signals.

(A), confocal micrographs of the ONL and OPL of WT, G369i KI and Cav1.4 KO retinas immunolabeled for calbindin and PKCα. The schematic below illustrates neurite sprouting in each genotype. (B), quantification of the area in the ONL occupied by HCs (calbindin) or RBCs (PKCα). One-way ANOVA with Fishers least significant difference post-hoc test. ****p<0.0001, **p<0.01, *p<0.05. n = 6 mice for each genotype. (C), confocal micrographs of the OPL of WT and the ONL and OPL of G369i KI retinas immunolabeled for Ribeye and Calbindin (upper panels) or PKCα (lower panels). (D), confocal micrographs of the ONL of G369i KI retinas that were immunolabeled for CtBP2 and Cav1.4 (left), PSD95 (middle) or Bassoon (right). (E), TEM image of a rod terminal in a WT retina. (F,G), serial block-face scanning electron microscopy images (F’,G’) and 3D reconstructions (F’’–G’’’) of rod terminals in a G369i KI retina. Rod terminals located within the OPL (F) and ONL (G). The yellow star F’’ indicates a neurite from HC2 sprouting into the ONL. Insets in F’’ are a rotated view. G’’’ is a side view of G’’. Arrows depict anchored ribbons. Arrowheads in G’’’ depict additional ribbon. Asterisks in G’ indicate rod somas. Scale bars, 10 μm in A, 2 μm in C-D, 1 μm in E,F’,G’. Rib, ribbon. RBC, rod bipolar cell. HC, horizontal cell.

Compared to the spherical appearance of ribeye-labeled structures in the OPL/ONL of Cav1.4 KO and other mouse strains with presynaptic dysfunction (Chang et al., 2006; McCall and Gregg, 2008; Raven et al., 2008; Liu et al., 2013; Zabouri and Haverkamp, 2013), those in the ONL of G369i KI mice exhibited mature ribbon morphology and were associated with synaptic proteins as in the WT OPL (Figure 4C,D). To further analyze the seemingly normal organization of these synapses in the OPL and ONL, we performed 3-dimensional (3D) reconstructions of spherules in G369i KI retina via serial block-face scanning electron microscopy (Figure 4E–G). Each of the four rod terminals sampled from G369i KI retina had a single ribbon that was anchored at the presynaptic membrane and was apposed to a triad of postsynaptic partners (Figure 4F–G). However, several peculiarities were observed. First, three of the four spherules that were analyzed contained more than one ribbon, rather than the single ribbon characteristic of rod terminals in the WT mouse retina (Blanks et al., 1974Figure 4E–G). Second, some ribbons appeared club-shaped (Figure 4—figure supplement 1). Third, at least one of the extraneous ribbons was ‘floating’ rather than anchored near the presynaptic membrane. These alterations of ribbon architecture in G369i KI rod spherules resemble the types of ribbon plasticity caused by reductions in presynaptic Ca2+ in mouse rods due to light or Ca2+ chelators (Spiwoks-Becker et al., 2004; Dembla et al., 2020). Thus, the lack of Cav1.4 Ca2+ signals in G369i KI rods could have caused fragmentation of the anchored ribbon, leading to the appearance of additional short, floating ribbons.

A particularly prominent anomaly of the reconstructed spherules was an alteration in postsynaptic architecture. Normally, within the invagination of mouse rod spherules are two HC neurites and an intervening RBC neurite (Figure 4E). Compared to HCs, the RBC neurite tip and the resident mGluR6 receptors are maintained relatively distant—hundreds of nanometers—from the release site (Rao-Mirotznik et al., 1995). This complex organization is thought to be critical for controlling glutamate release volume and spillover dynamics, allowing for differential activation of distinct glutamate receptor populations (Petralia et al., 2018). For spherules in the OPL as well as in the ONL of G369i KI retina, branching neurites of HCs and RBCs formed non-invaginating triadic contacts close to the anchored presynaptic ribbon (Figure 4F,G), rather than invading rod spherules as in WT retina (Figure 4E). Nevertheless, immunolabeling for mGluR6 remained clustered near ribbons in G369i KI retina (Figure 3B; Figure 4—figure supplement 2), suggesting that pre and postsynaptic apposition is maintained even in the absence of the normal spacing between RBC tips and the release sites. In agreement with these findings, mGluR6 labeling was significantly closer to that for ribbons in G369i KI than in WT retina as revealed by nearest-neighbor analyses (Figure 4—figure supplement 2). Thus, while dispensable for postsynaptic partner selection at rod synapses, Cav1.4 Ca2+ signals are required for the invaginating arrangement of the corresponding neurites within the rod spherule and their proximity to release sites.

Like other presynaptic Cav channels, Cav1.4 is expected to interact directly or indirectly with a diverse array of proteins (Dolphin and Lee, 2020), some of which are required for ribbon formation in photoreceptors (tom Dieck et al., 2005; Kiyonaka et al., 2012). Thus, the Cav1.4 complex could act as a central scaffold for protein interactions that drive the assembly of the ribbon and associated components of the active zone. Alternatively, but not mutually exclusively, voltage-dependent conformational changes in the Cav1.4 protein, which are intact in G369i mutant channels (Figure 1C), could be involved. For example, Cav1.4 could conformationally couple to intracellular Ca2+ release channels, as Cav1.1 does in skeletal muscle (Adams et al., 1990), which could represent a Ca2+ source that aids presynaptic development.

A limitation of our study is that the mutant G369i channel was expressed in all retinal cell-types that normally express Cav1.4. In addition to photoreceptors, Cav1.4 appears to be expressed in bipolar cells and at much lower levels in other cell-types in mouse retina (Yan et al., 2020). Because we find specific immunoreactivity for Cav1.4 in the outer retina to be limited to photoreceptor terminals (Liu et al., 2013), we favor the interpretation that Cav1.4 protein is not present to any large extent within bipolar cell soma or dendrites and that the postsynaptic structural defects of G369i KI rod synapses result primarily from the absence of presynaptic Cav1.4 Ca2+ signals in rods. In addition to supporting glutamatergic transmission, presynaptic Cav1.4 Ca2+ signals could strengthen trans-synaptic signaling via cell-adhesion molecules such as NGL-2 in HCs (Soto et al., 2013) and ELFN1 and pikachurin in RBCs (Sato et al., 2008; Wang et al., 2017), which collectively enable the invagination of the corresponding neurites into the rod terminal. Considering that rod ribbons are shorter in G369i KI than in WT retina (Figure 2B), Cav1.4 Ca2+ signals may also regulate the activities of Ca2+ sensitive proteins such as GCAP2, which binds to Ribeye and controls ribbon stability in a Ca2+-dependent manner (Schmitz, 2014).

There are notable parallels and distinctions in the rod phenotypes of G369i KI mice and those lacking expression of either of the auxiliary subunits of Cav1.4, β2 or α2δ−4. Cavβ and α2δ subunits are known to facilitate the forward trafficking and maintenance of Cav channels in the plasma membrane (Dolphin and Lee, 2020). Thus, it is not surprising that β2 KO and α2δ−4 KO mice exhibit severely diminished Cav1.4 Ca2+ signals, and similar to G369i KI mice (Figures 1G–I and 4A–C), there is evidence for a loss of rod synaptic transmission in ERGs, and significant sprouting of postsynaptic RBCs and HCs into the ONL in these mouse strains (Ball et al., 2002; Katiyar et al., 2015; Wang et al., 2017; Kerov et al., 2018). However, a striking difference is that ribbons and other aspects of the presynaptic complex are preserved in G369i KI but not in β2 KO or α2δ−4 KO mice (Ball et al., 2002; Katiyar et al., 2015; Wang et al., 2017; Kerov et al., 2018). Because we find significant levels of the mutant Cav1.4 protein within rod terminals of G369i KI mice (Figure 1E,F), which is not the case in β2 KO or α2δ−4 KO mice (Ball et al., 2002; Katiyar et al., 2015; Wang et al., 2017; Kerov et al., 2018), we propose that a minimal complement of Cav1.4 channels is needed to enable ribbon morphogenesis.

How synapses achieve their diverse forms and functions remains a fundamental question in neuroscience. Current evidence indicates that most synapses are assembled by intrinsic programs involving a variety of scaffolding proteins and cell-adhesion molecules (Kurshan and Shen, 2019), with ensuing patterns of neurotransmitter release needed primarily to instruct further refinements in synapse morphology and connectivity (Sando et al., 2017; Sigler et al., 2017). Our study identifies Cav1.4 as a nexus for both activity-dependent and independent mechanisms that drive the maturation of the rod synapse. Elucidating the signaling pathways that underlie the dual functions of Cav1.4 is an important challenge for future studies.

Materials and methods

Mice

All mouse protocols and procedures were approved by the University of Iowa Institutional Animal Care and Use Committee. To generate the G369i KI mouse, a CRISPR RNA (crRNA) was designed to target exon 7 of the mouse Cacna1f gene (5’-CTTGGAGTCCTAAGCGG). The repair template was designed to contain a glycine codon insertion corresponding to amino acid residue 369 with a silent point mutation to include the Fnu4HI restriction site (Figure 1—figure supplement 2). The Cas9 protein, synthetic crRNA, trans-activating crRNA (tracrRNA), and repair template (PAGE-purified donor oligo) were co-injected into pronuclei of mouse zygotes (C57BL6/J [RRID:IMSR_JAX:000664] × C57BL/6SJL[F1] [RRID:IMSR_JAX:100012]) by the University of Iowa Genome Editing Facility. Genotyping of mice was performed by PCR (forward primer 5'-TGCCTTGGGTGTACTTTGTG, reverse primer 5'-CCGAGCTCAGATGGAGTTTATG) followed by digestion of the PCR product with the Fnu4HI restriction enzyme. Mice were backcrossed to the C57BL/6J parental strain for 10 generations. Since the Cacna1f gene encoding Cav1.4 is on the X chromosome, only males of each genotype were used for experiments. WT littermates were used as controls. Cav1.4 KO (RRID:IMSR_JAX:017761) mice were obtained from The Jackson Laboratory.

Immunohistochemistry

Request a detailed protocol

Mice at postnatal day 42 (P42) were euthanized with a lethal dose of isoflurane followed by cervical dislocation. Eyes were enucleated and hemisected. The remaining eye cups were fixed in ice-cold 4% paraformaldehyde for 30 min. Fixed eye cups were washed three times with 0.1 M PB containing 1% glycine. Eye cups were infused with 30% sucrose at 4°C overnight and frozen in a 1:1 (wt/vol) mixture of Optimal Cutting Temperature compound (OCT, Sakura Finetek, Torrence, CA) and 30% sucrose in a dry ice/isopentane bath. Eye cups were cryosectioned at 20 µm on a Leica CM1850 cryostat (Leica Microsystems, Wetzlar, Germany), mounted on Superfrost plus Micro Slides (VWR, Radnor, PA), dried for 5 to 10 min at 42°C, and stored at −20°C. Slides with mounted cryosections were warmed to room temperature, washed with 0.1 M PB for 30 min to remove the OCT/sucrose mixture, and blocked with dilution solution (DS, 0.1 M PB/10% goat serum/0.5% Triton-X100) for 15 min at room temperature. All remaining steps were carried out at room temperature. All primary antibodies and appropriate secondary antibodies were diluted in DS at concentrations specified in Table 1. Sections were incubated with primary antibodies for 1 hr or overnight and then washed five times with 0.1 M PB. Sections were then incubated with secondary antibodies for 30 min and then washed five times with 0.1 M PB. Labeled sections were mounted with #1.5 coverslips (Leica) using Fluoromount-G (Electron Microscopy Sciences, Hatfield, PA).

Table 1
Antibodies used in this study.
AntibodyHost/clonalityManufacturerCat no.RRID
Bassoonms-IgG2AThermo Fisher ScientificMA1-20689AB_2066981
Cone ArrestinrabbitMilliporeAB15282AB_1163387
Calbindin (D-28K)mouse-IgG1SigmaC9848AB_476894
PKCαmouse-IgG2AInvitrogenMA1-157AB_2536865
rabbitUC Santa CruzSC-208AB_2168668
Ctbp2mouse-IgG1BD Biosciences612044AB_399431
RibeyerabbitSynaptic Systems192 103AB_2086775
Psd95mouse-IgG2AUC Davis/NIH NeuroMab75–028AB_2292909
RIM2rabbitSynaptic Systems140–103AB_887776
mGluR6-366mouseDr. Theodore WenselN/AN/A
TRPM1mouse-IgG1Dr. Theodore WenselN/AN/A
Cav1.4rabbitLee Lab Ab167N/AAB_2650487

Image acquisition

Request a detailed protocol

Retinas that had been immunofluorescently labeled were visualized using an upright Olympus FV1000 confocal microscope (Tokyo, Japan) equipped with an UPLFLN 100x oil immersion objective (1.3 NA). Images were captured using the Olympus FluoView software package. Acquisition settings were optimized using a saturation mask to prevent signal saturation prior to collecting 16-bit, confocal z-stacks with voxel size of 0.09 μm×0.09 μm × 0.2 μm(X×Y×Z). All confocal images presented are maximum z-projections.

Molecular biology and transfection

Request a detailed protocol

The cDNAs used were Cav1.4 (GenBank: A930034B14), β2a (GenBank: NM_053851), β2X13 (GenBank: KJ789960), and α2δ−4 (GenBank: NM_172364) in pcDNA3.1 (Lee et al., 2015). To create the Cav1.4 cDNA with the G369i mutation, a codon insertion corresponding to the glycine insertion at residue G369 was generated with the HiFi DNA Assembly Cloning System (New England Biolabs) using Cav1.4 cDNA as the PCR template and the primers a1FbegNotF: 5'-TATATGCGGCCGCCCACCATGGATTAC-3’, Fr1G369insR: 5'-CTTAGGACACCTCCAAGCACAAGGTTGAGG-3’, Fr2G369insF: 5'-TTGGAGGTGTCCTAAGCGGGGAGTTC-3’, a1FBsrGIr: 5'-TTTAGGCAGCGTGTACAGCTAGCCATGGTCC-3’. All constructs were verified by DNA sequencing before use. Human embryonic kidney 293 T (HEK293T) cells (American Type Culture Collection, Manassas, Virginia) were cultured in Dulbecco’s Modified Eagle’s Medium (Thermo Fisher Scientific, Waltham, MA) with 10% FBS (VWR) at 37°C in 5% CO2. At 70–80% confluence, the cells were co-transfected with cDNAs encoding mouse Cav1.4 (1.8 μg) β2X13 (0.6 μg), α2δ−4 (0.6 μg), and enhanced GFP in pEGFP-C1 (0.1 μg) using FuGENE six transfection reagent (Promega, Madison, WI) according to the manufacturer’s protocol. Cells treated with the transfection mixture were incubated at 37°C for 24 hr. Cells were then incubated at 30°C for an additional 24 hr before beginning experiments.

Solutions

All reagents were purchased from Sigma-Aldrich unless otherwise stated. HEK293T external recording solution contained the following (in mM): 140 Tris, 20 BaCl2, 1 MgCl2, pH 7.3. HEK293T internal recording solution contained the following: 140 NMDG, 10 HEPES, 2 MgCl2, 2 Mg-ATP, 5 EGTA, pH 7.3. The retina slicing solution was continuously bubbled with 100% O2 and contained the following: Ames’ Medium with L-glutamine supplemented with (in mM): 15 NaCl, 10 HEPES, 80 U/mL penicillin, 80 µg/mL streptomycin, pH 7.4. The extracellular slice recording solution was continuously bubbled with 95% O2/5% CO2 and contained the following: Ames’ Medium with L-glutamine, 5 NaCl, 23 NaHCO3, 80 U/mL penicillin, 80 µg/mL streptomycin. The intracellular pipette solution for recording rod photoreceptor Ca2+ currents (ICa) contained the following: 120 CsMeSO4, 10 tetraethylammonium (TEA) Cl, 1 CaCl2, 1 MgCl2, 5 Mg-ATP, 0.5 Na-ATP, 5 phosphocreatine, 10 HEPES, 2 ethylene glycol-bis(β-aminoethyl ether)-N,N,N′,N′-tetraacetic acid (EGTA), 2 N-(2,6-Dimethylphenylcarbamoylmethyl)triethylammonium bromide (QX 314 bromide), 0.1 mg/mL Lucifer Yellow, pH 7.35. The intracellular pipette solution for recording rod bipolar cells contained the following: 105 CsMeSO4, 20 TEA-Cl, 4 Mg-ATP, 0.4 Na-ATP, 10 phosphocreatine, 10 HEPES, 2 1,2-bis(o-aminophenoxy)ethane-N,N,N′,N′-tetraacetic acid (BAPTA), 10 glutamic acid, 0.1 mg/mL Lucifer Yellow, pH 7.35.

The mGluR6 agonist L-(+)−2-Amino-4-phosphonobutyric acid (L-AP4, Tocris) and antagonist (RS)-α-Cyclopropyl-4-phosphonophenylglycine (CPPG, Tocris) were dissolved in 4 mM NaOH and 100 mM NaOH, respectively. L-AP4 and CPPG were diluted into extracellular slice recording solution and retina slicing solution, respectively. The pH of each solution was checked after the addition of L-AP4 or CPPG and adjusted if necessary.

Patch clamp electrophysiology

Request a detailed protocol

Transfected HEK293T whole-cell voltage clamp recordings were performed 48 to 72 hr after transfection using an EPC-9 amplifier and Patchmaster software (HEKA Elektronik, Lambrecht, Germany). Patch pipette electrodes with a tip resistance between 2 and 4 MΩ were pulled from thin-walled borosilicate micropipettes (VWR) using a P-97 Flaming/Brown Puller (Sutter Instruments, Novato, CA). A reference Ag/AgCl wire was placed into the culture dish mounted on an inverted Olympus IX70 microscope. Recordings were performed at room temperature (22–24°C). The series resistance was compensated up to 70%, and passive membrane leak subtraction was conducted using a p/−4 protocol. Whole-cell IBa of transfected HEK293T cells were evoked for 50 ms with incremental 10 mV steps from −80 mV to +80 mV from a holding voltage of −90 mV. Data were analyzed using IgorPro 6.0 (WaveMetrics, Portland OR, USA).

Whole-cell voltage clamp recordings of rods and RBCs were performed using and EPC-10 amplifier and Patchmaster software (HEKA). Patch pipette electrodes with a tip resistance between 12 and 15 MΩ for rods and between 7 and 9 MΩ for RBCs were pulled from thick-walled borosilicate glass (1.5 mm outer diameter; 0.84 mm inner diameter; World Precision Instruments, Sarasota, FL, USA) using a P-97 Flaming/Brown Puller (Sutter Instruments, Novato, CA). To prepare retinal slices, adult mice (6–8 weeks old) were euthanized using a lethal dose of isoflurane followed by cervical dislocation. Eyes were enucleated, placed into cold Ames’ media slicing solution, and hemisected. Following removal of the vitreous, the retina was separated from the back of the eye. Central retina was isolated, molded into low-melt agarose (Research Products International, Mount Prospect, IL, USA) and mounted in a Leica VT1200s vibratome (Leica Biosystems). Vertical retinal slices (~250 µM) were anchored in a recording chamber, placed onto a fixed stage (Sutter Instruments), and positioned under an upright Olympus BX51WI microscope with a water-immersion objective 40X (0.8 NA). A custom gravity perfusion system was used to deliver extracellular slice recording solution at a flow rate of 2 ml/min. Cell bodies of rods and RBCs identified based on their morphology and location using IR-DIC optics and a CCD Camera (Hamamatsu Photonics, Shizuoka, Japan) controlled with µManager software (doi:10.14440/jbm.2014.36). Cells were filled with Lucifer Yellow during each recording, and the morphology of each cell recorded was confirmed post hoc using wide-field fluorescence. A reference Ag/AgCl pellet electrode was placed in 3 M KCl and connected to the recording chamber with a 3 M KCl agarose bridge. Recordings were performed at room temperature (22–24°C). Data from whole-cell recordings with a series resistance >20 MΩ were discarded. Passive membrane leak currents present in voltage-ramp recordings were linearly subtracted post-hoc from rod ICa using OriginLab (Northampton, Massachusetts, USA).

Electroretinography

Request a detailed protocol

ERG recordings were obtained using the Espion E3 system (Diagnosys LLC, Lowell, MA) as described previously (Liu et al., 2013). Following overnight dark adaptation, males (5–8 week-old) were anesthetized with a ketamine/xylazine mixture (100 mg/kg, i.p.). The pupils were dilated by applying a drop of 1% tropicamide, followed by a drop of 2.5% phenylephrine hydrochloride. ERGs were recorded simultaneously from the corneal surface of each eye using gold ring electrodes (Diagnosys), with an electrode placed on the back of the head as reference and another electrode placed near the tail as ground. A drop of Hypromellose 2.5% Ophthalmic Demulcent Solution (# 17478-0064-12, Akorn Gonak) was placed on the corneal surface to ensure electrical contact and to prevent eyes from drying and cataract formation. Body temperature of mice was maintained at 37°C using the system's heating pad. Mice were placed in a Ganzfeld stimulator chamber (ColorDome; Diagnosys) for delivery of stimuli, and the mouse head and electrode positioning were monitored on the camera attached to the system. ERG responses were evoked by a series of flashes ranging from 0.0001 to 100 cd∙s/m2. Responses to six sweeps were averaged for dim flashes up to 0.6 cd∙s/m2, two sweeps were averaged for 4 cd∙s/m2, and responses to brighter flashes were recorded without averaging. Intersweep intervals for flashes with increasing strength were increased from 10 s to 60 s to allow full recovery from preceding flashes. To record photopic ERGs, mice were exposed to a background light (30 cd•s /m2) for 3 min before flash stimulation (3, 30 or 100 cd•s/m2); six sweeps were averaged for further analysis.

Serial block-face scanning electron microscopy and 3D reconstructions

Request a detailed protocol

Eye cups were prepared from P42 WT and G369i KI littermates and fixed using 4% glutaraldehyde in 0.1M cacodylate buffer, pH 7.4, for 4 hr at room temperature followed by additional fixation overnight at 4°C. Glutaraldehyde-fixed eye cups were then washed 3 times in 0.1M cacodylate buffer. Retinas were thereafter isolated and embedded in Durcupan resin after staining, dehydration, and embedding as described previously (Della Santina et al., 2016). A Thermo Scientific VolumeScope serial block-face scanning electron microscope was used to image embedded retinas. Retinal regions comprising a 2 × 2 montage of 40.96 μm tiles were imaged at a resolution of 5 nm/pixel and section thickness of 50 nm. Image stacks were aligned, and rod photoreceptor terminals reconstructed using TrakEM2 (NIH). Postsynaptic partners at the rod triad were followed to the INL to determine their identity (HC vs bipolar cell). Amira (Thermo Fisher Scientific) software was used for 3D visualization of reconstructed profiles.

Quantification, statistical analysis, and experimental design

Request a detailed protocol

Immunofluorescent objects were detected within in z-stacks of 30 optical sections and quantified with ObjectFinder software (https://lucadellasantina.github.io/ObjectFinder/) using unbiased iterative threshold search algorithms. To measure rod ribbon length, sections were double-labeled with antibodies against CtBP2 and cone arrestin as described above. 3D binary masks of cone arrestin labeling were generated in order to exclude CtBP2 labeling within cones from analyses. The length of each rod ribbon was measured along the major axis. The sphericity of each detected ribbon was also calculated. Ribbons detected along the edges of the cone arrestin mask and the outer edges of the 3D images were excluded from analyses. To measure nearest-neighbor distances, ObjectFinder was used to detect and measure the distances from ribeye-labeled ‘home’ objects to the nearest mGluR6-labeled ‘neighbor’ objects.

To measure neurite occupancy of the outer nuclear area (ONL) by HCs, rod bipolar cells (RBCs), and cone bipolar cells (CBCs), sections were labeled with antibodies against calbindin (HCs), PKCα (RBCs), and secretagogin (CBCs). Confocal z-stacks were collapsed and labeling was converted to binary masks. Particle analysis (ImageJ) of labeling within the ONL area 12 µm above the OPL/INL border was performed, and occupancy was calculated as a function of the total area analyzed. Images used for analyses were collected from central retina from at least six animals/genotype.

Sample sizes were estimated based on those used previously to identify statistically significant differences in similar datasets and utilizing similar biological replicates (i.e. animals, transfections). All data presented result from at least three independent experiments. Data presented on graphs displayed as symbols and bars represent mean ± SEM. Statistical analyses were performed using GraphPad Prism (v 8.0) and a p value of < 0.05 was considered significant. Outliers were identified using ROUT method (Q = 1%) using GraphPad Prism and were excluded from analyses. The specific n for each experiment as well as the post-hoc test and corrected p values, can be found in the figure legends.

References

  1. 1
  2. 2
  3. 3
    Role of the β2 subunit of voltage-dependent calcium channels in the retinal outer plexiform layer
    1. SL Ball
    2. PA Powers
    3. HS Shin
    4. CW Morgans
    5. NS Peachey
    6. RG Gregg
    (2002)
    Investigative Ophthalmology & Visual Science 43:1595–1603.
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
    CaV2.1 channelopathies
    1. D Pietrobon
    (2010)
    Pflügers Archiv - European Journal of Physiology 460:375–393.
    https://doi.org/10.1007/s00424-010-0802-8
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
    Modification of Ca2+ channel activity by deletions at the carboxyl terminus of the cardiac alpha 1 subunit
    1. X Wei
    2. A Neely
    3. AE Lacerda
    4. R Olcese
    5. E Stefani
    6. E Perez-Reyes
    7. L Birnbaumer
    (1994)
    The Journal of Biological Chemistry 269:1635–1640.
  47. 47
  48. 48

Decision letter

  1. Teresa Giraldez
    Reviewing Editor; Universidad de La Laguna, Spain
  2. Gary L Westbrook
    Senior Editor; Oregon Health and Science University, United States
  3. Wallace B Thoreson
    Reviewer; University of Nebraska Medical Center, United States
  4. Joshua H Singer
    Reviewer; University of Maryland, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This paper provides convincing evidence that presynaptic calcium channel proteins play an organizing role during synapse development, additionally to calcium influx and activity. This work provides insights into the cellular elements involved in synaptic structure and organization of rod ribbon synapses, with relevant implications in the study of development at other synapses.

Decision letter after peer review:

[Editors’ note: the authors submitted for reconsideration following the decision after peer review. What follows is the decision letter after the first round of review.]

Thank you for submitting your work entitled "A dual role for Cav1.4 Ca2+ channels in the molecular and structural organization of the rod photoreceptor synapse" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and a Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Joshua H Singer (Reviewer #2); Wallace B Thoreson (Reviewer #3). Our decision has been reached after consultation between the reviewers. Based on these discussions and the individual reviews below, we regret to inform you that your work cannot be considered for publication in eLife in its current form.

The main reason for our decision is related to issues that critically affect the main conclusions of the manuscript. Reviewer #2 raised a serious concern about the lack of an essential control experiment needed to demonstrate that the KI rods do generate light responses and that there is a deficit in transmission at the rod synapse. This issue was discussed during the consultation process, and reviewer #3, the Senior Editor and myself agreed with reviewer #2 that this experiment is indispensable in order for this work to be considered for publication in eLife. However, we would be willing to consider a new manuscript including this experiment and addressing all the other concerns expressed by the reviewers. Please keep in mind that this would be considered a new submission.

Reviewer #1:

The Cav1.4 calcium channel is the major calcium channel in the OPL of the retina, which drive neurotransmitter release from both rods and cones. CaV1.4 knockout mice have presynaptic and postsynaptic morphological abnormalities in the retina that had previously been described. This manuscript reports the use of a knock in mouse model to disambiguate the effects of the Cav1.4 Ca2+ channel from those of calcium itself on synapse structure in the OPL. To do so, the authors make use of a KI mouse where the WT Cav1.4 channel is replaced by a channel with a point mutation that renders it unable to conduct calcium. Interestingly, the authors find a small change in the size of and relatively moderate disorganization of presynaptic structures in the KI mouse model, more significant disruptions were observed in postsynaptic cells. The authors conclude that the Ca2+ channel protein is needed for proper formation and maintenance of the pre-synaptic structure, but calcium entry through channels are necessary for proper recruitment of post-synaptic partners. Overall, the results are novel and the conclusion is well supported by the data.

Specific comments:

1) The experiments in this paper focused on the synapses in rods. In WT, rod ribbons are easily distinguishable from cone ribbons based on size and shape. In the KI model, rod ribbons become smaller and one cannot assume that they will maintain their normal shape. Indeed, the authors describe multiple ribbons (some misshapen) in some rods in EM. Is the assumption that all spots are rod ribbons in the KO and KI, but only the crescent shaped ones are rod ribbons in the WT? If some are mis-assigned, how might this affect the quantification of the effects on ribbon size. If they can't be convincingly distinguished, then wouldn't it be fairer comparison to analyze all ribbons in the OPL regardless of genotype?

2) If there is a reliable way to distinguish rod ribbons from cone ribbons, there seems to be a missed opportunity here to look at effects on cone ribbons and their post-synaptic partners, at least at the level of IHC.

Reviewer #2:

This manuscript by Maddox et al. presents a study of Cav1.4 in retinal synapse development. The central issue addressed is differentiating the signaling / organizational role(s) of the channel protein from those of Ca2+ influx through the channel during retinal rod photoreceptor synapse development. The authors generated a non-conducting channel (G369i KI) that appears to be trafficked normally to synapses and assessed differences between G369i mutants, Cav1.4 KO, and wild-type animals. They found substantial differences between G369i mutants and Cav1.4 KO retinas, with the G369i mutant more closely resembling the wild-type. The authors suggest, then, that the channel protein serves an organizing role during synapse development.

One critical control experiment has not been performed, and this must be included in any revision of the manuscript: although the authors show that rods themselves lack Ca2+ currents (Figure 1D), the authors do not provide evidence that the G369i KI rods respond to light and that postsynaptic rod bipolar cells do not (indicating a true deficit of synaptic transmission at the rod to rod bipolar cell synapse). As illustrated in Figure 3, the postsynaptic rod bipolar cells do appear to have developed mGluR6-mediated signaling cascades, but the authors' interpretation of the result, that the postsynaptic signaling can develop in the complete absence of presynaptic glutamate release, is not supported by the data presented. As well, the efficiency of Ca2+-exocytosis coupling at the rod presynapse is incredibly high, and it is worth noting that Ca2+ from sources other than voltage-gated Ca2+ channels could give rise to enough glutamate release to modulate synapse development.

With regard to the pre- and postsynaptic organization of the synapse, as illustrated in Figure 4: it seems a bit counterintuitive to me that the absence of an invaginating synapse would result in a closer apposition of ribeye and mGluR6 proteins, given that mGluR6 normally is located at the dendritic tips inserted in the very center of the invagination. The authors should clarify their explanation of this observation. As well, it is worth commenting that the authors addressed the integrity of the presynaptic active zone by visualizing ribeye and bassoon proteins using fluorescence immunohistochemistry, but neither protein-to my knowledge-interacts directly with Cavs. Is there a reason that the authors did not examine Rim / RimBP or CAST/ELKS expression as an assay of active zone organization? These proteins interact more directly with the Ca2+ channels.

Presumably, the G369i KI mutation should not affect the voltage-dependent gating of the channel. Has gating in the mutant been characterized? Is the voltage-sensing role of the channel important in development? These are interesting-to me, at least-questions that might be addressed experimentally or, at a minimum, in a revised discussion.

Reviewer #3:

This well-written, carefully done study shows that structural features, not calcium influx, of CaV1.4 L-type calcium channels are sufficient for proper organization of many key molecules at rod ribbon synapses. However, formation of the synaptic invagination and proper arrangement of post-synaptic partners requires calcium influx. To perform this study, the authors created knockin mice that express a non-conducting form of CaV1.4. The study was technically proficient and clearly described, with helpful illustrations accompanying each figure. Further work will be needed to understand which particular structural elements are important and how calcium influx regulates formation of the invaginating synapse. Testing the ability of rods to respond to light and transmit those signals to rod bipolar cells is important for interpreting their results. One relatively straightforward way to test this would be to record the A- and B-waves of the electroretinogram (ERG) in their mice.

https://doi.org/10.7554/eLife.62184.sa1

Author response

[Editors’ note: the authors resubmitted a revised version of the paper for consideration. What follows is the authors’ response to the first round of review.]

The main reason for our decision is related to issues that critically affect the main conclusions of the manuscript. Reviewer #2 raised a serious concern about the lack of an essential control experiment needed to demonstrate that the KI rods do generate light responses and that there is a deficit in transmission at the rod synapse. This issue was discussed during the consultation process, and reviewer #3, the Senior Editor and myself agreed with reviewer #2 that this experiment is indispensable in order for this work to be considered for publication in eLife. However, we would be willing to consider a new manuscript including this experiment and addressing all the other concerns expressed by the reviewers. Please keep in mind that this would be considered a new submission.

We thank the reviewers for their careful assessment of our manuscript. We have addressed the primary concern that we perform a critical experiment to demonstrate that the KI rods do generate light responses and that there is a deficit in transmission at the rod synapse. We have addressed this concern as suggested by Reviewer 3 via electroretinograms (ERGs). These experiments show that while KI rods exhibit normal responses to light (i.e., normal a-waves), they show no evidence of b-waves that reflect transmission from rods to rod bipolar cells (RBCs). We have addressed these and other concerns raised by the reviewers as described below.

Reviewer #1:

The Cav1.4 calcium channel is the major calcium channel in the OPL of the retina, which drive neurotransmitter release from both rods and cones. CaV1.4 knockout mice have presynaptic and postsynaptic morphological abnormalities in the retina that had previously been described. This manuscript reports the use of a knock in mouse model to disambiguate the effects of the Cav1.4 Ca2+ channel from those of calcium itself on synapse structure in the OPL. To do so, the authors make use of a KI mouse where the WT Cav1.4 channel is replaced by a channel with a point mutation that renders it unable to conduct calcium. Interestingly, the authors find a small change in the size of and relatively moderate disorganization of presynaptic structures in the KI mouse model, more significant disruptions were observed in postsynaptic cells. The authors conclude that the Ca2+ channel protein is needed for proper formation and maintenance of the pre-synaptic structure, but calcium entry through channels are necessary for proper recruitment of post-synaptic partners. Overall, the results are novel and the conclusion is well supported by the data.

Specific comments:

1) The experiments in this paper focused on the synapses in rods. In WT, rod ribbons are easily distinguishable from cone ribbons based on size and shape. In the KI model, rod ribbons become smaller and one cannot assume that they will maintain their normal shape. Indeed, the authors describe multiple ribbons (some misshapen) in some rods in EM. Is the assumption that all spots are rod ribbons in the KO and KI, but only the crescent shaped ones are rod ribbons in the WT? If some are mis-assigned, how might this affect the quantification of the effects on ribbon size. If they can't be convincingly distinguished, then wouldn't it be fairer comparison to analyze all ribbons in the OPL regardless of genotype?

We regret that we did not include sufficient details regarding our quantitative analyses of ribbons in the Materials and methods section. A key detail relevant to the reviewer’s concern is that we restricted our analyses to rod ribbons using double-labeling with cone-arrestin antibodies to generate 3-D binary masks in order to eliminate the confounding influence of the shorter ribbons that characterize cone terminals. We then used a Matlab-based routine (ObjectFinder) to determine the lengths along the major axis all Ctbp2-labeled structures in the portion of the OPL. Because this was done in confocal z-stacks with more than 30 optical sections (voxel size of 0.09 𝜇𝑚 × 0.09 𝜇𝑚 × 0.2 𝜇𝑚 (𝑋 × 𝑌 × 𝑍)), we were able to capture the full-dimensions of each Ctbp2-labeled structure. Thus, we are confident that we are not mistaking cone ribbons for rod ribbons in the KO or KI, and that our approach allowed us to quantitate differences in the distribution of ribbons and spheres specifically in rod terminals of the 3 genotypes. We have added more details regarding ribbon analysis to the Materials and methods section and Results and Discussion.

2) If there is a reliable way to distinguish rod ribbons from cone ribbons, there seems to be a missed opportunity here to look at effects on cone ribbons and their post-synaptic partners, at least at the level of IHC.

We agree that this is an important future direction, but a bit more complicated to address given the diversity of cone bipolar cells and types of synaptic contacts that cones make with them. To fit with the focus of this short report format, we opted to limit our analyses to the rod phenotype of the KI.

Reviewer #2:

This manuscript by Maddox et al. presents a study of Cav1.4 in retinal synapse development. The central issue addressed is differentiating the signaling / organizational role(s) of the channel protein from those of Ca2+ influx through the channel during retinal rod photoreceptor synapse development. The authors generated a non-conducting channel (G369i KI) that appears to be trafficked normally to synapses and assessed differences between G369i mutants, Cav1.4 KO, and wild-type animals. They found substantial differences between G369i mutants and Cav1.4 KO retinas, with the G369i mutant more closely resembling the wild-type. The authors suggest, then, that the channel protein serves an organizing role during synapse development.

One critical control experiment has not been performed, and this must be included in any revision of the manuscript: although the authors show that rods themselves lack Ca2+ currents (Figure 1D), the authors do not provide evidence that the G369i KI rods respond to light and that postsynaptic rod bipolar cells do not (indicating a true deficit of synaptic transmission at the rod to rod bipolar cell synapse). As illustrated in Figure 3, the postsynaptic rod bipolar cells do appear to have developed mGluR6-mediated signaling cascades, but the authors' interpretation of the result, that the postsynaptic signaling can develop in the complete absence of presynaptic glutamate release, is not supported by the data presented.

We agree this is an important control experiment. Thus, we have added ERG analyses in Figure 1GI, which show that while KI rods exhibit normal responses to light (i.e., normal a-waves), they show no evidence of b-waves that reflect transmission from rods to rod bipolar cells (RBCs).

As well, the efficiency of Ca2+-exocytosis coupling at the rod presynapse is incredibly high, and it is worth noting that Ca2+ from sources other than voltage-gated Ca2+ channels could give rise to enough glutamate release to modulate synapse development.

This is an excellent point. We added this text to the Discussion:

“Like other presynaptic Cav channels, Cav1.4 is expected to interact directly or indirectly with a diverse array of proteins (Dolphin and Lee, 2020), some of which are required for ribbon formation in photoreceptors (tom Dieck et al., 2005; Kiyonaka et al., 2012). Thus, the Cav1.4 complex could act as a central scaffold for protein interactions that drive the assembly of the ribbon and associated components of the active zone. Alternatively, but not mutually exclusively, voltagedependent conformational changes in the Cav1.4 protein, which are intact in G369i mutant channels (Figure 1C), could trigger signaling pathways that promote synapse maturation. For example, Cav1.4 could conformationally couple to intracellular Ca2+ release channels, as Cav1.1 does in skeletal muscle (Adams et al., 1990), which could represent a Ca2+ source needed for synapse development.”

With regard to the pre- and postsynaptic organization of the synapse, as illustrated in Figure 4: it seems a bit counterintuitive to me that the absence of an invaginating synapse would result in a closer apposition of ribeye and mGluR6 proteins, given that mGluR6 normally is located at the dendritic tips inserted in the very center of the invagination. The authors should clarify their explanation of this observation.

We have modified the text accordingly:

“A particularly prominent anomaly of the reconstructed spherules was an alteration in postsynaptic architecture. Normally, within the invagination of mouse rod spherules are two HC neurites and an intervening RBC neurite (Figure 4E). Compared to HCs, the RBC neurite tip and the resident mGluR6 receptors are maintained relatively distant—hundreds of nanometers—from the release site (Rao-Mirotznik et al., 1995). This complex organization is thought to be critical for controlling glutamate release volume and spillover dynamics, allowing for differential activation of distinct glutamate receptor populations (Petralia et al., 2018). For spherules in the OPL as well as in the ONL of G369i KI retina, branching neurites of HCs and RBCs formed non-invaginating triadic contacts close to the anchored presynaptic ribbon (Figure 4F,G), rather than invading rod spherules as in WT retina (Figure 4E). Nevertheless, immunolabeling for mGluR6 remained clustered near ribbons in G369i KI retina (Figure 4C), suggesting that pre- and post-synaptic apposition is maintained even in the absence of the normal spacing between RBC tips and the release sites. In agreement with these findings, mGluR6 labeling was significantly closer to that for ribbons in G369i KI than in WT retina as revealed by nearest-neighbor analyses (Figure 4—figure supplement 2). Thus, while dispensable for postsynaptic partner selection at rod synapses, Cav1.4 Ca2+ signals are required for the invaginating arrangement of the corresponding neurites within the rod spherule and their proximity to release sites.”

As well, it is worth commenting that the authors addressed the integrity of the presynaptic active zone by visualizing ribeye and bassoon proteins using fluorescence immunohistochemistry, but neither protein-to my knowledge-interacts directly with Cavs. Is there a reason that the authors did not examine Rim / RimBP or CAST/ELKS expression as an assay of active zone organization? These proteins interact more directly with the Ca2+ channels.

The goal of the experiments shown in Figure 2F-G was to show that some major constituents of the presynaptic active zone are intact in G369i KI terminals, rather than to assess the localization of proteins known to interact with Cav1.4. However, we have added labeling for RIM2 to Figure 2I.

Presumably, the G369i KI mutation should not affect the voltage-dependent gating of the channel. Has gating in the mutant been characterized? Is the voltage-sensing role of the channel important in development? These are interesting-to me, at least-questions that might be addressed experimentally or, at a minimum, in a revised discussion.

The biophysical consequences of the G369i mutation have been characterized in the context of Cav1.3 (Baig et al., 2011). Similar detailed studies of this mutation in Cav1.4 are complicated by the notoriously low current amplitudes produced upon transfection of this channel, relative to other Cav channels, in HEK293T cells. However, we have added experiments showing that gating currents, which represent voltage-sensor movements, are relatively normal in G369i mutant channels (Figure 1C). We have also discussed the potential role of voltage-sensing in the Discussion (see point 2 response, above).

Reviewer #3:

This well-written, carefully done study shows that structural features, not calcium influx, of CaV1.4 L-type calcium channels are sufficient for proper organization of many key molecules at rod ribbon synapses. However, formation of the synaptic invagination and proper arrangement of post-synaptic partners requires calcium influx. To perform this study, the authors created knockin mice that express a non-conducting form of CaV1.4. The study was technically proficient and clearly described, with helpful illustrations accompanying each figure. Further work will be needed to understand which particular structural elements are important and how calcium influx regulates formation of the invaginating synapse. Testing the ability of rods to respond to light and transmit those signals to rod bipolar cells is important for interpreting their results. One relatively straightforward way to test this would be to record the A- and B-waves of the electroretinogram (ERG) in their mice.

Done.

https://doi.org/10.7554/eLife.62184.sa2

Article and author information

Author details

  1. J Wesley Maddox

    1. Department of Molecular Physiology and Biophysics, University of Iowa, Iowa City, United States
    2. Iowa Neuroscience Institute, University of Iowa, Iowa City, United States
    3. Pappajohn Biomedical Institute, University of Iowa, Iowa City, United States
    Present address
    Department of Neuroscience, University of Texas-Austin, Austin, United States
    Contribution
    Conceptualization, Formal analysis, Funding acquisition, Investigation, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1630-2746
  2. Kate L Randall

    1. Department of Molecular Physiology and Biophysics, University of Iowa, Iowa City, United States
    2. Iowa Neuroscience Institute, University of Iowa, Iowa City, United States
    3. Pappajohn Biomedical Institute, University of Iowa, Iowa City, United States
    Present address
    Department of Neuroscience, University of Texas-Austin, Austin, United States
    Contribution
    Formal analysis, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7199-9806
  3. Ravi P Yadav

    Department of Molecular Physiology and Biophysics, University of Iowa, Iowa City, United States
    Contribution
    Formal analysis, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  4. Brittany Williams

    1. Department of Molecular Physiology and Biophysics, University of Iowa, Iowa City, United States
    2. Iowa Neuroscience Institute, University of Iowa, Iowa City, United States
    3. Pappajohn Biomedical Institute, University of Iowa, Iowa City, United States
    Present address
    Department of Cell Biology & Physiology, Carolina Institute for Developmental Disabilities, and Neuroscience Center, University of North Carolina, Chapel Hill, United States
    Contribution
    Formal analysis, Funding acquisition, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  5. Jussara Hagen

    1. Department of Molecular Physiology and Biophysics, University of Iowa, Iowa City, United States
    2. Iowa Neuroscience Institute, University of Iowa, Iowa City, United States
    3. Pappajohn Biomedical Institute, University of Iowa, Iowa City, United States
    Contribution
    Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Paul J Derr

    Department of Neuroscience, University of Wisconsin-Madison, Madison, United States
    Contribution
    Investigation, Gave final approval of the version
    Competing interests
    No competing interests declared
  7. Vasily Kerov

    1. Department of Molecular Physiology and Biophysics, University of Iowa, Iowa City, United States
    2. Iowa Neuroscience Institute, University of Iowa, Iowa City, United States
    Contribution
    Investigation, Gave final approval of the version
    Competing interests
    No competing interests declared
  8. Luca Della Santina

    Department of Ophthalmology, University of California, San Francisco, San Francisco, United States
    Contribution
    Software, Writing - review and editing
    Competing interests
    No competing interests declared
  9. Sheila A Baker

    1. Iowa Neuroscience Institute, University of Iowa, Iowa City, United States
    2. Department of Biochemistry, University of Iowa, Iowa City, United States
    3. Department of Ophthalmology, Iowa City, United States
    Contribution
    Resources, Writing - review and editing
    Competing interests
    No competing interests declared
  10. Nikolai Artemyev

    1. Department of Molecular Physiology and Biophysics, University of Iowa, Iowa City, United States
    2. Iowa Neuroscience Institute, University of Iowa, Iowa City, United States
    3. Department of Ophthalmology, Iowa City, United States
    Contribution
    Formal analysis, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  11. Mrinalini Hoon

    1. Department of Neuroscience, University of Wisconsin-Madison, Madison, United States
    2. Department of Ophthalmology and Visual Science, University of Wisconsin-Madison, Madison, United States
    Contribution
    Formal analysis, Funding acquisition, Visualization, Writing - review and editing
    Competing interests
    No competing interests declared
  12. Amy Lee

    1. Department of Molecular Physiology and Biophysics, University of Iowa, Iowa City, United States
    2. Iowa Neuroscience Institute, University of Iowa, Iowa City, United States
    3. Pappajohn Biomedical Institute, University of Iowa, Iowa City, United States
    Present address
    Department of Neuroscience, University of Texas-Austin, Austin, United States
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Investigation, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    amy.lee1@austin.utexas.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8021-0443

Funding

National Eye Institute (EY 026817)

  • Amy Lee

McPherson Eye Research Institute

  • Mrinalini Hoon

Research to Prevent Blindness

  • Mrinalini Hoon

National Eye Institute (EY 029953)

  • J Wesley Maddox

National Eye Institute (EY 026477)

  • Brittany Williams

National Eye Institute (EY010843)

  • Nikolai Artemyev

National Eye Institute (EY012682)

  • Nikolai Artemyev

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors thank Sharm Knecht and Rachel Wong (U.Washington) for assistance with serial block-face scanning electron microscopy image collection and comments on the manuscript; and Ted Wensel for providing mGluR6 and TRPM1 antibodies.

Ethics

Animal experimentation: This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All of the animals were handled according to approved institutional animal care and use committee (IACUC) protocols (#7121262-025) of the University of Iowa. The protocol was approved by the Office of Institutional Animal Care and Use Committee of the University of Iowa (A3021-01).

Senior Editor

  1. Gary L Westbrook, Oregon Health and Science University, United States

Reviewing Editor

  1. Teresa Giraldez, Universidad de La Laguna, Spain

Reviewers

  1. Wallace B Thoreson, University of Nebraska Medical Center, United States
  2. Joshua H Singer, University of Maryland, United States

Publication history

  1. Received: August 17, 2020
  2. Accepted: September 9, 2020
  3. Accepted Manuscript published: September 17, 2020 (version 1)
  4. Version of Record published: October 15, 2020 (version 2)

Copyright

© 2020, Maddox et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 609
    Page views
  • 133
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Neuroscience
    Bob Bramson et al.
    Short Report

    Control over emotional action tendencies is essential for everyday interactions. This cognitive function fails occasionally during socially challenging situations, and systematically in social psychopathologies. We delivered dual-site phase-coupled brain stimulation to facilitate theta-gamma phase-amplitude coupling between frontal regions known to implement that form of control, while neuropsychologically healthy human male participants were challenged to control their automatic action tendencies in a social–emotional approach/avoidance-task. Participants had increased control over their emotional action tendencies, depending on the relative phase and dose of the intervention. Concurrently measured fMRI effects of task and stimulation indicated that the intervention improved control by increasing the efficacy of anterior prefrontal inhibition over the sensorimotor cortex. This enhancement of emotional action control provides causal evidence for phase-amplitude coupling mechanisms guiding action selection during emotional-action control. Generally, the finding illustrates the potential of physiologically-grounded interventions aimed at reducing neural noise in cerebral circuits where communication relies on phase-amplitude coupling.

    1. Computational and Systems Biology
    2. Neuroscience
    Jonathan Oesterle et al.
    Research Article

    While multicompartment models have long been used to study the biophysics of neurons, it is still challenging to infer the parameters of such models from data including uncertainty estimates. Here, we performed Bayesian inference for the parameters of detailed neuron models of a photoreceptor and an OFF- and an ON-cone bipolar cell from the mouse retina based on two-photon imaging data. We obtained multivariate posterior distributions specifying plausible parameter ranges consistent with the data and allowing to identify parameters poorly constrained by the data. To demonstrate the potential of such mechanistic data-driven neuron models, we created a simulation environment for external electrical stimulation of the retina and optimized stimulus waveforms to target OFF- and ON-cone bipolar cells, a current major problem of retinal neuroprosthetics.
