A novel, ataxic mouse model of ataxia telangiectasia caused by a clinically relevant nonsense mutation

  1. Harvey Perez
  2. May F Abdallah
  3. Jose I Chavira
  4. Angelina S Norris
  5. Martin T Egeland
  6. Karen L Vo
  7. Callan L Buechsenschuetz
  8. Valentina Sanghez
  9. Jeannie L Kim
  10. Molly Pind
  11. Kotoka Nakamura
  12. Geoffrey G Hicks
  13. Richard A Gatti
  14. Joaquin Madrenas
  15. Michelina Iacovino
  16. Peter J McKinnon
  17. Paul J Mathews  Is a corresponding author
  1. The Lundquist Institute for Biomedical Innovation, Harbor-UCLA Medical Center, United States
  2. Department of Biochemistry and Medical Genetics,Max Rady College of Medicine, University of Manitoba, Canada
  3. Department of Pathology & Laboratory Medicine, David Geffen School of Medicine, United States
  4. Department of Medicine, Harbor-UCLA Medical Center, United States
  5. Department of Pediatrics, Harbor-UCLA Medical Center, United States
  6. Center for Pediatric Neurological Disease Research, St. Jude Pediatric Translational Neuroscience Initiative, St. Jude Children’s Research Hospital, United States
  7. Department of Neurology, Harbor-UCLA Medical Center, United States
Research Article
  • Cited 0
  • Views 505
  • Annotations
Cite this article as: eLife 2021;10:e64695 doi: 10.7554/eLife.64695

Abstract

Ataxia Telangiectasia (A-T) and Ataxia with Ocular Apraxia Type 1 (AOA1) are devastating neurological disorders caused by null mutations in the genome stability genes, A-T mutated (ATM) and Aprataxin (APTX), respectively. Our mechanistic understanding and therapeutic repertoire for treating these disorders are severely lacking, in large part due to the failure of prior animal models with similar null mutations to recapitulate the characteristic loss of motor coordination (i.e., ataxia) and associated cerebellar defects. By increasing genotoxic stress through the insertion of null mutations in both the Atm (nonsense) and Aptx (knockout) genes in the same animal, we have generated a novel mouse model that for the first time develops a progressively severe ataxic phenotype associated with atrophy of the cerebellar molecular layer. We find biophysical properties of cerebellar Purkinje neurons (PNs) are significantly perturbed (e.g., reduced membrane capacitance, lower action potential [AP] thresholds, etc.), while properties of synaptic inputs remain largely unchanged. These perturbations significantly alter PN neural activity, including a progressive reduction in spontaneous AP firing frequency that correlates with both cerebellar atrophy and ataxia over the animal’s first year of life. Double mutant mice also exhibit a high predisposition to developing cancer (thymomas) and immune abnormalities (impaired early thymocyte development and T-cell maturation), symptoms characteristic of A-T. Finally, by inserting a clinically relevant nonsense-type null mutation in Atm, we demonstrate that Small Molecule Read-Through (SMRT) compounds can restore ATM production, indicating their potential as a future A-T therapeutic.

Editor's evaluation

The authors have developed a new mouse model for Ataxia Telangiectasia. This mouse is of great value, which exhibits core features of the human disease including cerebellar Purkinje cells defects, cancer, and immune abnormalities. The potential value of the model is demonstrated using small molecular weight compounds to restore molecular function.

https://doi.org/10.7554/eLife.64695.sa0

Introduction

Ataxia Telangiectasia (A-T) is a rare (one in ~100,000) (Swift et al., 1986), autosomal recessive genetic disorder characterized by cancer predisposition, immune deficiency, and a highly penetrant progressive and severe ataxia linked to cerebellar atrophy (Rothblum-Oviatt et al., 2016; Boder and Sedgwick, 1958; Levy and Lang, 2018). A-T patients typically die in their second or third decade of life (Crawford et al., 2006) from lymphatic cancers, respiratory infections, or complications of ataxia—unfortunately, survivability has not dramatically changed since the 1950s (Micol et al., 2011; Rothblum-Oviatt et al., 2016). While disease progression and cause of death vary widely across patients, the highly penetrant progressive decline in motor coordination is reported as having the greatest negative impact on a patient’s quality of life (Jackson et al., 2016). Care is generally palliative, directed at reducing, limiting, or eliminating cancers or infections. No long-term therapies are available for treating the ataxia and associated cerebellar dysfunction and atrophy.

A-T is caused by deficiency or dysfunction of the ATM (A-T mutated) protein (Savitsky et al., 1995). Premature termination codon (PTC) causing nonsense mutations account for up to a half of known cases, with missense and deletion mutations also contributing (Concannon and Gatti, 1997; Sandoval et al., 1999). ATM is a serine/threonine PIKK family kinase that plays a key role in the DNA damage response (DDR), protecting cells from the tens of thousands of DNA lesions incurred each day (Lindahl and Barnes, 2000; Kastan and Bartek, 2004; Shiloh and Ziv, 2013). In the active monomeric form, ATM phosphorylates several key proteins halting the production of new DNA (cell cycle arrest) (Ando et al., 2012), and then, depending on severity of the damage, initiates DNA repair or programmed cell death (i.e., apoptosis) (Ando et al., 2012; Rashi-Elkeles et al., 2006). Several downstream DDR pathway targets of ATM have been identified, including p53, CHK2, BRCA1, SMC1, and NBS1 (Matsuoka et al., 2007). ATM’s role in DNA repair is also implicated in normal immune system development, where it is proposed to contribute to the recombination of natural DNA splicing that occurs during gene rearrangement in T- and B-lymphocyte maturation (Chao et al., 2000; Matei et al., 2006; Vacchio et al., 2007; Schubert et al., 2002). Although its roles are still emerging, ATM has also been implicated in oxidative stress homeostasis (Guo et al., 2010) and mitophagy (Valentin-Vega and Kastan, 2012; Pizzamiglio et al., 2020).

It is unclear why ATM deficiency causes ataxia, but it is far from the only DDR protein linked to ataxia, as Aprataxin (APTX) (Aicardi et al., 1988), Meiotic recombination 11 homolog 1 (MRE11) (Sedghi et al., 2018), Nibrin (NBS1) (van der Burgt et al., 1996), Senataxin (SETX) (Moreira et al., 2004), and Tyrosyl-DNA Phosphodiesterase 1 (TDP1) (Takashima et al., 2002) when absent or dysfunctional can cause cerebellar-related ataxia. This suggests that the neurological features of genome instability syndromes have a common underlying cause, although this has yet to be mechanistically demonstrated (McKinnon, 2009; Rass et al., 2007).

A major factor limiting our ability to define why the loss of DDR proteins, like ATM, selectively impacts the cerebellum and causes progressive ataxia is the lack of an animal model that recapitulates these neurological symptoms (Lavin, 2013). Several A-T rodent models have been created over the past several years by inserting gene mutations that cause protein dysfunction (lack kinase activity) or complete deficiency (Herzog et al., 1998; Xu and Baltimore, 1996; Elson et al., 1996; Spring et al., 2001; Campbell et al., 2015; Quek et al., 2016; Tal et al., 2018; Lavin, 2013); a minipig was also recently reported (Beraldi et al., 2017). However, none develop an overt, progressive ataxia with cerebellar dysfunction and atrophy that recapitulates the human disease, even though other aspects of the disorder like thyroid cancers, infertility, and immune abnormalities do develop. It remains unclear why these prior animal models fail to display the progressive ataxic phenotype (Lavin, 2013). It is possible that species-specific molecular compensations in mice provide redundancies or alternative pathways minimizing the effects of ATM deficiency in the brain (El-Brolosy and Stainier, 2017). It is also possible that the shortened lifespan of prior models (Barlow et al., 1996) is too brief for the stochastic mechanisms driving cerebellar dysfunction and atrophy to accumulate and impact motor behavior. Other challenges include potentially leaky genetic manipulations that result in low levels of ATM protein or active fragments with residual kinase activity, thus limiting neuropathology (Li et al., 2011). The impact of missing such a crucial animal model has been significant, severely limiting experimental studies from identifying the cellular and molecular mechanisms and hampering pre-clinical development and testing of much needed therapeutics.

We test here whether increasing genotoxic stress, by placing null mutations in not just the Atm gene, but also the related Aptx gene, leads to a more representative mouse model that displays cerebellar dysfunction, atrophy, and the development of progressive ataxia. We chose to additionally knockout Aptx because its deficiency causes an A-T like disorder in humans called ataxia with ocular apraxia type 1 (AOA1), which does not feature A-T’s other system defects that could increase the potential for prenatal lethality or early death (e.g., immunodeficiency and cancer predisposition) (Coutinho et al., 2002). Moreover, APTX is a phosphodiesterase involved in DNA reassembly after double- and single-stranded repair, and has a function downstream of—but not directly regulated by or related to—ATM (Gueven et al., 2004; Schellenberg et al., 2015; Ahel et al., 2006). We hypothesized that the functional expression of both proteins would have an additive effect and induce neurological dysfunction. Our results indeed demonstrate that mice deficient in ATM and APTX develop cerebellar dysfunction, atrophy, and a progressive and profound ataxia, while mice deficient in either protein alone do not. Additionally, double mutants displayed other characteristic symptoms of A-T, including defects in immune maturation and a high incidence of cancer (thymomas), making it the most representative model, from a phenotypic standpoint, to date.

Finally, we designed this new mouse model to test our recently developed Small Molecule Read-Through Compounds (SMRT) that enable translation through PTCs (Du et al., 2013). Thus, we inserted a PTC-causing nonsense mutation (103C>T) in the Atm gene common to a large family of North African A-T patients (Gilad et al., 1996a). This mutation results in a PTC at what would normally be amino acid 35 and the loss of ATM translation. Here, we report proof-of-principle experiments demonstrating that clinically relevant genetic mutations incorporated into the A-T mouse model are amenable to read-through compounds and thus appropriate for preclinical testing of SMRT compounds.

Results

Creation of a new A-T mutant mouse model expressing a clinically relevant nonsense mutation

To create a more clinically relevant mouse model of A-T, we used a gateway recombination cloning and site-directed mutagenesis method to recapitulate a c.103C>T (p.R35X) mutation in the ATM gene found in a large population of North African A-T patients (Figure 1A and Materials and methods) (Gilad et al., 1996b). The insertion of thymine in place of cytosine at this site in exon 3 results in a PTC-causing nonsense mutation in the ATM gene. Since the c.103C>T mutation results in different PTCs in the human gene compared to the mouse Atm gene—TGA versus TAG, respectively—we created two different mice by exchanging the mouse Atm exon 3 with either a human or mouse exon 3 variant with the c.103C>T mutation (Figure 1B). In the human variant, a 103C>T mutation of the mouse codon, where the arginine (R) encoding codon (CGA) becomes a TGA stop codon, results in a mouse we denote as AtmR35X (officially AtmTm1.1(103CAG)TGAMfgc). In the mouse variant, the c.103C>T mutation transforms a glutamine (Q)-encoding CAG codon into a TAG stop codon and is denoted AtmQ35X (officially AtmTm1.1(103C)TMfgc). The presence of the PTC results in a loss of ATM expression, either reduced by about half in the heterozygote expressing one normal mouse copy of the Atm gene (AtmR35X/+ or AtmQ35X/+), or completely in the homozygote (AtmR35X/R35X or AtmQ35X/Q35X) (Figure 1C).

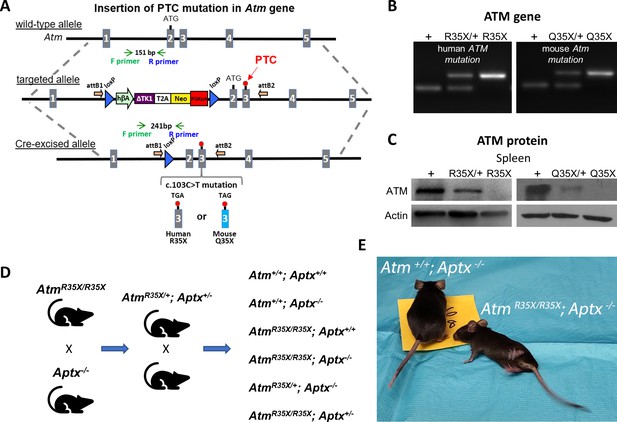

New A-T mouse models expressing clinically related PTCs.

(A) The Atm gene locus was targeted by homologous recombination of a targeting vector containing a modified NorCOMM cassette in intron one and the corresponding A-T PTC mutation in exon 3 to create the targeted AtmR35X and AtmQ35X ES cell lines. Following germline transmission of these alleles in mice, the floxed NorCOMM cassette was removed by Cre-excision in vivo to produce the final AtmR35X and AtmQ35X mouse lines. (B) Genotyping of A-T mouse models. PCR agarose gel of mouse DNA shows 151 bp wild-type (+) allele band and 241 bp Cre-excised targeted allele band. (C) ATM levels were examined using immunoblot analyses of the spleen due to its high expression density in this tissue. Exemplar blots illustrate a gene dose effect of ATM protein expression in samples harvested from wild-type (+), heterozygous (R35X/+, Q35X/+), and homozygous AtmR35X/R35X (R35X) and AtmQ35X/Q35X (Q35X) mice as indicated. (D) Breeding scheme schematic for double mutant and control mice for this study. (E) AtmR35X/R35X; Aptx−/ mice develop an ataxia that at late stages results in a severe loss of motor coordination and ability to ambulate (see Videos 14). Abbreviations for panel 1: hβA-human beta Actin promotor; ∆TK1-delta TK1, inactivated Thymidine Kinase 1; (T2A)-self-cleaving peptide sequence; Neo-Neomycin gene; PGKpA-Phosphoglycerate kinase poly A tail; loxP-recombination elements are shown as a blue triangle; orientation of the Gateway attB recombination elements is shown by an orange arrow; orientation of the genotyping (F) and (R) primers is shown by green and blue arrows, respectively; and engineered PTC sites are shown in exon 3 by a red circle. A-T, Ataxia Telangiectasia; ATM, A-T mutated; PTC, premature termination codon.

AtmR35X/R35X; Aptx−/ (double mutant) mice were created by first crossing single mutant AtmR35X/R35X (congenic on the C57BL/6J background) and Aptx−/ (mixed C57BL/6J and 129 background) mice to generate heterozygote AtmR35X/+; Aptx+/. F1-5 littermate AtmR35X/+; Aptx+/ were then crossed within litters to create sufficient numbers of the desired experimental and control genotypes to determine how the loss of different amounts of ATM and APTX affects the animal’s phenotype (Figure 1D). Like prior ATM-deficient A-T mouse models, ATM or APTX deficiency alone did not result in mice with ataxia (Videos 1 and 2). However, deficiency in both proteins (AtmR35X/R35X; Aptx−/) results in the development of a severe and progressively ataxic phenotype (Figure 1E, Videos 3 and 4).

Video 1
Pole test—Atm+/+ versus AtmR35X/R35X; AtmR35X/R35X do not display an ataxic phenotype at P460.
Video 2
Pole test—Aptx+/+ versus Aptx−/−; Aptx−/ mice do not display an ataxic phenotype at P460.
Video 3
Pole test—Atm+/+; Aptx+/+ versus AtmR35X/R35X; Aptx−/−. AtmR35X/R35X; Aptx−/ display considerable motor disability at P460.
Video 4
Open field—Atm+/+; Aptx+/+ versus AtmR35X/R35X; Aptx−/. AtmR35X/R35X; Aptx−/ display a clear inability to ambulate in the open field at P460.

ATM-deficient mice have lowered survivability and a high incidence of thymomas

We assessed the general health and development of control and experimental mice expressing different levels of ATM and APTX (Figure 2). We found that AtmR35X/R35X; Aptx−/ mice grew ~55% slower and reached estimated plateau weights that were ~35% less than control genotypes (log-rank, n=21–40, p<0.0001; Figure 2A). These differences in weight were a postnatal phenomenon, as no significant weight differences were detected just after birth (P8) across all genotypes (one-way ANOVA, n=5–23, p>0.23). Adolescent double mutant mice at postnatal day 45 (P45) weighed on average 30% less in male mice (double mutant: 14.4±1.0 g [n=13] vs. wild-type: 20.2±0.5 g [n=16], t-test, p<0.0001) and 25% less in females (double mutant: 12.7±0.6 g [n=17] vs. wild-type: 17.0±0.2 g [n=15], t-test, p<0.0001; Figure 1A). Differences across the control genotypes were observed, but they were small and not consistent across time points or sex and therefore judged to not be physiologically relevant (Figure 2A). Survivability of the AtmR35X/R35X; Aptx−/ mice was significantly reduced compared to Atm+/+; Aptx+/+ mice, with 53% of mice still alive at 400 days of age, compared to 97% of Atm+/+; Aptx+/+ mice at the same time point (Figure 2B). ATM deficiency alone was sufficient to reduce survivability; as compared to Atm+/+; Aptx+/+ mice, both AtmR35X/R35X; Aptx+/+ and AtmR35X/R35X; Aptx+/ had significantly reduced survivability (42%, log-rank, χ2(1, 56)=13.49, p=0.0002% and 52%, log-rank, χ2(1, 53)=19.54, p<0.0001, respectively). No significant difference in survivability between ATM-deficient mice with partial or complete APTX deficiency was detected (log-rank, χ2(2, 85)=1.01, p=0.6). Conversely, mice harboring at least one functional copy of the Atm gene had normal survivability, regardless of whether they expressed APTX or not (log-rank, χ2(3, 131)=3.08, p=0.4). No significant difference between male and female mice was observed, and thus data were pooled (log-rank, p>0.4 for all pairwise comparisons; Figure 2—figure supplement 2–1B). Generally, a third of mice with ATM deficiency died from complications related to large thymic cancers (thymoma) found in the thoracic cavity (Figure 2C). The presence or absence of APTX did not impact cancer prevalence, and mice with at least one Atm transcript were cancer-free up until at least P400. Overall, ATM but not APTX deficiency had severe effects on the health and survivability of mice.

Figure 2 with 1 supplement see all

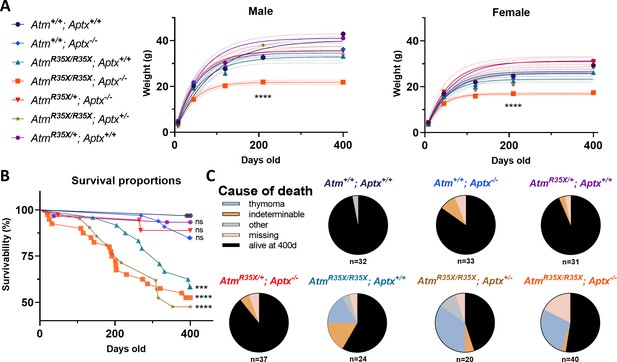

Health and survivability of single and double mutant mice.

(A) Left: The line color and symbol for each genotype are denoted and are consistent across all figures. Right: AtmR35X/R35X; Aptx−/ mice weighed significantly less than all control genotypes as indicated by the growth curves (±95% confidence interval; dotted lines). Growth curve (AtmR35X/R35X; Aptx−/− vs. controls): Male k=0.024 vs 0.011−0.019, Ymax=21.8 vs. 32.9−41.0 g (n=3–18); Female k=0.030 vs. 0.017–0.022, Ymax=16.9 vs 23.3–31.3 (n=2–19). Sum of squares F-test run across all curves: Male F(12, 364)=30.5, p<0.0001, Female F(12, 339)=28.3, p<0.0001. (B) ATM-deficient mice, regardless of APTX expression, displayed significantly lower survivability with ~55% of mice deceased by P400. No statistical differences between ATM-deficient mice were detected. Moreover, a single wild-type copy of the Atm gene was sufficient to prevent premature death (no statistical difference detected between AtmR35X/+; Aptx−/ and Atm+/+; Aptx+/+ mice). Log-rank (Mantel-Cox) tests across all (χ2(6,217)=48.4, p<0.0001), just the ATM-deficient (χ2(2,217)=1.06, p=0.6), and single comparisons to wild-type (see figure) were conducted. Total number of animals indicated in panel (C). (C) Pie charts illustrating that ATM-deficient mice displayed a high prevalence of thymomas based on postmortem necropsies. ‘Other’ probable causes of death included enlarged livers and obstructed kidneys. ‘Missing’ mice were presumed dead and cannibalized by cage mates, cause of death unknown. ATM, Ataxia Telangiectasia mutated.

Figure 2—source data 1

Numerical data of weight, age of death, and probable cause of death.

https://cdn.elifesciences.org/articles/64695/elife-64695-fig2-data1-v2.xlsx

Both ATM and APTX deficiency are necessary to produce progressive motor dysfunction

The progressive development of severe ataxia is a hallmark characteristic of A-T that is recapitulated in the AtmR35X/R35X; Aptx−/ mice but none of the other control genotypes we tested. Overall, we find motor coordination deficits emerge between 210 and 400 days after birth in AtmR35X/R35X; Aptx−/− mice and find no evidence of ataxia in mice with at least one copy of the Atm or Aptx gene (Figure 3A and B). For the vertical pole test, AtmR35X/R35X; Aptx−/ mice took twice as long to descend at P400 compared to Atm+/+; Aptx+/+, Atm+/+; Aptx−/, AtmR35X/R35X; Aptx+/+, or AtmR35X/+; Aptx−/ mice (Male: 29.1 ± 0.9 s [n=3] vs. 7.5 ± 0.4 s [n=12], 12.5±2.5 s [n=9], 9.2±0.9 s [n=10], 8.6±0.9 s [n=11], one-way ANOVA, F(4, 40)=19.9, p<0.0001; Female: 19.0±4.0 s [n=4] vs. 7.5±0.4 s [n=12], 7.8 ± 0.4 s [n=10], 10.5±1.2 s [n=6], 8.2±0.5 s [n = 8], one-way ANOVA, F(4, 35)=13.9, p<0.0001). An examination of gait indicated that AtmR35X/R35X; Aptx−/ mice at P400, but not P210 need additional stabilization during ambulation, as they spend twice as much time with three paws, rather than the normal 2, in contact with the ground as they walk across the gait analysis platform (Male: 56.2% vs. 26.4–32.2%, one-way ANOVA, F(4, 54)=14.3, p<0.0001; Female: 58.4% vs. 18.9–28.8%, one-way ANOVA, F(3, 178)=95.5, p<0.0001; Figure 3B). AtmR35X/R35X; Aptx−/ also display a slower cadence and average speed across the platform compared to all other genotypes at P400 (cadence, Male: 9.5 vs. 13.3–15.9 steps/s, one-way ANOVA, F(3, 204)=36.8, p<0.0001; Female: 9.1 vs. 14.2–15.9 steps/s, one-way ANOVA, F(3, 204)=39.7, p<0.0001; speed, Male: 8.8 vs. 22–26 cm/s, one-way ANOVA, F(4, 50)=28.3, p<0.0001; Female: 58.4 vs. 18.9–28.8 cm/s, one-way ANOVA, F(3, 178)=39.7, p<0.0001; Figure 3B; Figure 3—figure supplement 3–1). This difference in speed and cadence is unlikely to be caused by animal size, as there are no significant differences in these parameters at earlier time points when the difference in size is significant (Figure 2A). These observations across the two behavioral tests were found in both male and female mice at each of their respective time points, consistent with the lack of sex differences observed in A-T patients.

Figure 3 with 1 supplement see all
AtmR35X/R35X; Aptx−/ mice develop a progressive loss in motor coordination.

(A) AtmR35X/R35X; Aptx−/ mice take a similar amount of time to descend a vertical pole at P45, P120, and P210, but significantly longer at P400. These overall results were found to be similar for both male (left, n=2–12) and female (right, n=4–12) mice. (B) Consistent with the vertical pole test, the gait of AtmR35X/R35X; Aptx−/ mice measured during ambulation on a Catwalk gait analysis system was significantly different to controls by P400, but not before P210. This includes the percent of time a mouse spends with 3 versus 1, 2, or 4 paws on the ground and the speed and cadence during each run across the platform. The effects of the two null mutations were generally similar between males (left, n=4–21) and females (right, n=3–18). (C) Behavioral data for male (blue) and female (pink) AtmR35X/R35X; Aptx−/ (dark purple, left) and Atm+/+; Aptx+/+ (orange, right) mice are plotted at P30 (left two columns) and P400 (right two columns). Left-right asymmetries of the horizontal bars indicate a difference in performance between genotypes for the behavioral test listed in a column on the far left. A significant difference in the time to right during the righting reflex at P8 was observed in both male and female mice (bottom). (A) and (B) were examined via two-way ANOVA with age and genotype as factors followed by Tukey’s multiple comparison tests between AtmR35X/R35X; Aptx−/ and each of the control genotypes. Behavioral tests in (C) were examined using a non-parametric Kruskal-Wallis followed by Dunn’s multiple comparisons tests. Symbol/color key: Atm+/+; Aptx+/+ (purple circle), Atm+/+; Aptx−/ (blue diamond), AtmR35X/R35X; Aptx+/+ (green triangle), AtmR35X/R35X; Aptx−/ (orange square), AtmR35X/+; Aptx−/ (red inverted triangle).

Figure 3—source data 1

Numerical data for animal behavioral assessments.

https://cdn.elifesciences.org/articles/64695/elife-64695-fig3-data1-v2.xlsx

We further examined behavioral differences between the AtmR35X/R35X; Aptx−/ and Atm+/+; Aptx+/+ mice using a standardized set of experimental procedures used to phenotype genetically modified mice (i.e., SHIRPA; Figure 3C; Figure 3—figure supplement 3–1; Rogers et al., 1997). We first detected differences in motor function at P8, where AtmR35X/R35X; Aptx−/ mice took 3–4 times longer on average to right themselves compared to Atm+/+; Aptx+/+ mice (Male: 6.4±1.1 s [n=24] vs. 1.5±0.1 s [n=23], t-test, p<0.0002; Female: 11.1±1.9 s [n=21] vs. 2.4±0.3 s [n=17], t-test, p<0.0002; Figure 3C bottom). At 30 days of age, we detected significant differences between AtmR35X/R35X; Aptx−/ and Atm+/+; Aptx+/+ mice in behavioral tests that qualitatively measure body position and spontaneous activity (Figure 3C). Striking differences in AtmR35X/R35X; Aptx−/ compared to Atm+/+; Aptx+/+ mice were observed at P400, especially for behaviors related to movement, including locomotor activity, body position, and gait (Figure 3C). The results from this battery of tests demonstrate that AtmR35X/R35X; Aptx−/ mice develop a severe change in behavior by P400, consistent with purely visual observations of significant motor coordination deficits in the mice up to this time point. Importantly, we do not find any significant differences between the other control genotypes, including AtmR35X/+; Aptx−/ mice that express at least some ATM but no APTX protein (Figure 3—figure supplement 3–1).

Membrane and synaptic properties are perturbed in ATM- and APTX-deficient Purkinje neurons

Purkinje neurons (PNs) are a key neuronal subtype located in the cerebellar cortex. They display considerable intrinsic excitability, firing action potentials (APs) spontaneously at rates significantly higher than most other neurons in the brain (50–100 Hz more in many cases). Their activity shapes cerebellar output via tonic inhibition of neurons of the cerebellar nuclei, which project to motor coordination centers in the forebrain, brainstem, and spinal cord. Cerebellar PN dysfunction is associated with several forms of ataxia and implicated in A-T (Hoxha et al., 2018; Cook et al., 2021; Shiloh, 2020). We therefore examined if the electrophysiological properties of PNs in the AtmR35X/R35X; Aptx−/ cerebellum were abnormal.

Since PN baseline activity and responsivity to input is mediated by a baseline set of passive and active membrane properties (Figure 4), we directly recorded from and compared the membrane properties of PNs in acute cerebellar sections harvested from AtmR35X/R35X; Aptx−/ and Atm+/+; Aptx+/+ mice (P350–P400). PNs recorded from AtmR35X/R35X; Aptx−/ mice had significantly ‘tighter’ membranes, displaying higher membrane input resistances (Rm) than those from Atm+/+; Aptx+/+ mice (47.7±5.6 [n=15] vs. 30.2±1.47 [n=23] MΩ, t-test, p=0.008; Figure 4B) and displayed a faster membrane time constant (τ) (3.6±0.4 [n=15] vs. 5.1±0.3 [n=23] ms, t-test, p=0.009; Figure 4B). These results indicate that the total membrane capacitance (Cm=τ/Rm) of the AtmR35X/R35X; Aptx−/ PNs is significantly reduced (98.25±19.23 [n=15] vs. 175.6±12.67 [n=23] pF, t-test, p=0.0025; Figure 4B). At the cellular level, this suggests that the ATM- and APTX-deficient PNs have less (i.e., decreased area) or thinner membranes than that of wild-type PNs, a result suggestive of a developmental deficit or neurodegenerative process (Dell’Orco et al., 2015). We next assessed the intrinsic excitability of PNs in AtmR35X/R35X; Aptx−/ and Atm+/+; Aptx+/+ mice by examining PN AP generation and dynamics. Significant deficits in the ability of PNs to fire continuously in response to current injection were observed in AtmR35X/R35X; Aptx−/ mice (Figure 4C). These deficits were associated with significant perturbations in the amplitude, threshold, and area of evoked APs (amplitude: 66.2±0.7 [n=14] vs. 72.1±1.4 [n=13] ΔmV, t-test, p=0.003; threshold: –55.2±1.5 to –48.61±1.9 mV, t-test, p=0.0196; area: 17.96±0.6 vs. 20.63±1.0 mV*ms, t-test, p=0.048; Figure 4C). Taken together, these experiments demonstrate significant perturbations of PN physiological properties that likely disrupt their ability to function normally in the cerebellum of AtmR35X/R35X; Aptx−/ mice.

Figure 4 with 5 supplements see all

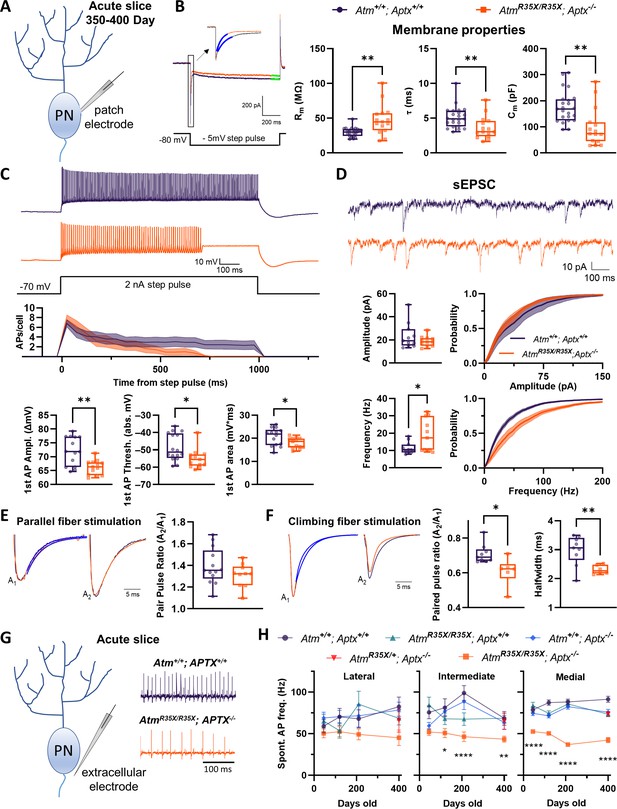

The biophysical properties of PNs are significantly perturbed in AtmR35X/R35X; Aptx−/ mice.

(A) Schematic diagram of intracellular recording from a single Purkinje neuron (PN) in an acute cerebellar tissue slice preparation used to examine their physiological properties. (B) Left: Voltage-clamp measurements of PN membrane properties made from a 1 s, –5 mV step pulse as illustrated. Right: The membrane input resistance (Rm), time constant (τ), and capacitance (Cm) were perturbed in AtmR35X/R35X; Aptx−/ compared to Atm+/+; Aptx+/+ mice. (C) Current-clamp recordings of PN action potentials (APs) after 2 nA step pulses from a –70 mV holding potential. PN APs recorded from AtmR35X/R35X; Aptx−/ fail to maintain constant firing and summary plots show that they have lower 1st AP amplitudes, firing threshold, and area under the curve. (D) Top: Example sEPSC traces taken from a PN under voltage clamp at a –80 mV holding potential. Bottom: Median frequency and amplitude data, along with the overall probability distribution function are plotted for both Atm+/+; Aptx+/+ (n=11) and AtmR35X/R35X; Aptx−/ (n=11) mice. The frequency but not amplitude of PNs recorded in AtmR35X/R35X; Aptx−/ mice was found to be perturbed. (E, F) Left: Example traces of evoked EPSCs recorded from PNs as a result of a two-pulse stimulation (50 ms interval) of either parallel (E) or climbing (F) fiber axons. Traces illustrate the first (A1) and second (A2) amplitude (normalized) and time course of decay (blue fitted line) of each synaptic response. Right: Summary plots of the paired-pulse ratio. While parallel fiber paired-pulse facilitation was normal in AtmR35X/R35X; Aptx−/ mice, climbing fiber paired-pulse depression and halfwidth was significantly perturbed compared to Atm+/+; Aptx+/+ mice. (G) Schematic diagram of extracellular recording from a single PN in an acute cerebellar tissue slice preparation. Example electrophysiological traces for Atm+/+; Aptx+/+ (purple, top) and AtmR35X/R35X; Aptx−/ (orange, bottom) PNs in the medial area (i.e., vermis) of the cerebellum. (H) AtmR35X/R35X; Aptx−/ PN AP firing frequency progressively decreased with age and was significantly slower in comparison to all control genotypes expressing at least one copy of the Atm or Aptx gene [Atm+/+; Aptx+/+ (n=52–59), Atm+/+; Aptx−/ (n=51–64), AtmR35X/R35X; Aptx+/+ (n=39–52), AtmR35X/R35X; Aptx−/ (n=24–71), AtmR35X/+; Aptx−/ (n=69)]. Data in (B) were compared using an ANOVA (Kruskal-Wallis) followed by Dunn’s multiple comparisons test, data in (D–F) were compared via Welch’s t-test, and data in (H) using a two-way ANOVA followed by Holm-Šídák’s multiple comparisons test. Symbol/color key: Atm+/+; Aptx+/+ (purple circle), Atm+/+; Aptx−/ (blue diamond), AtmR35X/R35X; Aptx+/+ (green triangle), AtmR35X/R35X; Aptx−/ (orange square), AtmR35X/+; Aptx−/ (red inverted triangle). sEPSC, spontaneous excitatory postsynaptic current.

Figure 4—source data 1

Numerical data of electrophysiological recordings for each panel.

https://cdn.elifesciences.org/articles/64695/elife-64695-fig4-data1-v2.zip

We next tested whether extrinsic and/or synaptic PN properties were also impacted in AtmR35X/R35X; Aptx−/ mice. We first examined spontaneous excitatory postsynaptic currents (sEPSCs) generated by granule cell-to-PN synapses (i.e., parallel fiber inputs). No difference in sEPSC size was detected, indicating the function of granule cell axon terminals (i.e., parallel fibers) was relatively normal in the AtmR35X/R35X; Aptx−/ cerebellum (18.92±1.3 [n=11] vs. 23.4±3.3 [n=11] pA, t-test, p=0.477; Figure 4D, Yamasaki et al., 2006). sEPSC frequency, however, was found to be significantly increased, a phenomenon that could be attributed to either an increase in the total number of synapses, an increase in the size of the readily releasable pool of synaptic vesicles, or an increase in the probability of neurotransmitter release in PNs of AtmR35X/R35X; Aptx−/ mice (18.75±2.8 Hz [n=11] vs. 11.4±1.0 Hz [n=11], t-test, p=0.047; Figure 4D). We next explored evoked synaptic release and short-term plasticity by simultaneously recording from PNs and electrically stimulating either granule cell (i.e., parallel fibers) or inferior olivary (i.e., climbing fiber) axons with a paired-pulse burst (two-pulses, 50 ms apart). The synaptic properties of parallel fibers were found to be normal, displaying no significant differences in the expected short-term facilitation (Atluri and Regehr, 1996) or halfwidth and decay time constant of the evoked EPSC (PPR: 1.3±0.03 [n=10] vs. 1.4±0.05 [n=13], t-test, p=0.162; halfwidth: 3.9±0.6 vs. 4.9±0.4 ms, t-test, p=0.175; time constant: 3.5±0.5 vs. 4.7±0.4 ms, t-test, p=0.054; Figure 4E). In comparison, we found climbing fiber-to-PN synaptic responses, which normally display pair-pulse depression (Hansel and Linden, 2000), to depress at significantly greater magnitudes in AtmR35X/R35X; Aptx−/ mice (PPR: 0.6±0.03 [n=6] vs. 0.7±0.02 [n=9], t-test, p=0.03; Figure 4F). The overall width and decay time constant of the evoked currents were also smaller (halfwidth: 2.3±0.6 [n=6] vs. 3.0±0.2 [n=9] ms, t-test, p=0.004; time constant (fast): 1.1±0.14 vs. 2.9±0.4 ms, t-test, [p=0.001]). While these results could be caused by a presynaptic deficit, such as reduced vesicle stores in the climbing fiber axon terminal, the unaffected initial magnitude of the EPSC (2.4±0.4 [n=6] vs. 1.9±0.2 nA [n=9], t-test, p=0.3) points to a more intrinsic deficit, such as a reduced Ca2+ influx from the endoplasmic reticulum, which could significantly impact long-term synaptic plasticity critical to cerebellar function (Hoxha et al., 2018; Kano and Watanabe, 2017). Overall, the perturbations to the passive and active PN properties that we observe here likely give rise to the significant cerebellar dysfunction in AtmR35X/R35X; Aptx−/ mice.

ATM and APTX deficiency causes a progressive perturbation of PN neural activity that is associated with dendritic shrinking and overall cerebellar atrophy

Decreased rates of spontaneous PN AP firing, which can be indicative of PN dysfunction, have been observed in several mouse models of ataxia, including spinocerebellar ataxias (SCA) 2, 3, 5, 6, 13, and 27, several models of episodic ataxia (e.g., leaner, ducky, and tottering), and autosomal-recessive spastic ataxia of the Charlevoix-Saguenay (Hourez et al., 2011; Hansen et al., 2013; Dell’Orco et al., 2017; Kasumu and Bezprozvanny, 2012; Liu et al., 2009; Perkins et al., 2010; Shakkottai et al., 2011; Jayabal et al., 2016; Stoyas et al., 2020; Hurlock et al., 2008; Shakkottai et al., 2009; Bosch et al., 2015; Walter et al., 2006; Alviña and Khodakhah, 2010; Ady et al., 2018; Larivière et al., 2019; Cook et al., 2021). We therefore used this biomarker to characterize the progression of PN perturbation in AtmR35X/R35X; Aptx−/ mice and assess whether deficits were restricted to ATM- and APTX-deficient mice, consistent with the behavioral results (Figures 2 and 3). We additionally examined whether decreased PN activity differed across the cerebellum, as anecdotal clinical pathology reports suggest degeneration may occur asymmetrically across the cerebellum, with the anterior and posterior vermis and middle cerebellar hemispheres affected the most, although no systematic analysis has been performed, and the consistency of results across patients is highly variable (Verhagen et al., 2012; De León et al., 1976; Amromin et al., 1979; Monaco et al., 1988; Terplan and Krauss, 1969; Strich, 1966; Solitare, 1968; Solitare and Lopez, 1967; Aguilar et al., 1968; Paula-Barbosa et al., 1983).

Using extracellular recording methods in the acute slice, we recorded spontaneous APs from 3300 PNs (Figure 4G) across 188 animals, encompassing AtmR35X/R35X; Aptx−/ and three other genotypes at four different time points (P45, P120, P210, and P400). We visually selected ‘healthy’ cells (see Materials and methods) located deeper in the slice, that consistently fired during the extent of the 60-s recording period. Qualitatively, tissue and cell quality did not visually differ across genotypes under DIC microscopy. Cells were sampled in a distributed fashion across the lateral, intermediate, and medial (vermis) cerebellum of each mouse to assess whether changes in PN firing activity were ubiquitous or anatomically restricted. Regions were segregated based on gross anatomical domains in the mouse defined by natural anatomical boundaries (e.g., foliation) and their general connectivity with different regions of the nervous system (e.g., forebrain, brainstem, etc.) (Voogd and Glickstein, 1998).

We found that complete deficiency of both ATM and APTX, consistent with the behavioral results, was necessary to produce a significantly reduced spontaneous PN firing frequency (Figure 4G and H). Although the trend of slower PN firing rates was observed across most regions of the cerebellum, some subregions appeared to be less or minimally impacted, including several areas of the lateral cerebellum, including the paraflocculus, paramedian, and crus I and II (Figure 4—figure supplement 4–2). Significant age-dependent changes in firing frequency were also only observed in AtmR35X/R35X; Aptx−/ mice (Figure 4H), with the most significant decline occurring between P120 and P210 (medial: 50.3±2.4 Hz [n=61] vs. 36.9±2.2 Hz [n=31], t-test, p=0.0006). No significant difference in PN firing frequency was detected between male and female mice within each genotype, thus the data were pooled (two-way ANOVA, p>0.3 across all pairwise comparisons; Figure 4—figure supplement 4–3). Previous studies across several mouse models of heritable ataxia, including episodic ataxia and several variants of spinocerebellar ataxia find that physiological disruption in PN firing not only changes its frequency, but also its regularity (Kasumu and Bezprozvanny, 2012; Jayabal et al., 2016; Stoyas et al., 2020; Cook et al., 2021). We compared both the coefficient of variation (CV) and variability in adjacent intervals (CV2) between AtmR35X/R35X; Aptx−/ and control mice (Figure 4—figure supplements 4 and 5). No difference in these parameters across sex, age, or genotype was detected. Consistent with the behavioral results, cerebellar dysfunction was found only in the AtmR35X/R35X; Aptx−/ mice that developed ataxia and not in mice with partial or full expression of ATM or APTX.

ATM-and APTX-deficiency induces cerebellar atrophy

In A-T patients, ataxia is usually detected between 1 and 2 years of age and is associated with little to no cerebellar atrophy (Tavani et al., 2003; Taylor et al., 2015). Significant structural changes and atrophy are usually first detected via neuroimaging between 5 and 10 years of age (Demaerel et al., 1992; Tavani et al., 2003). Postmortem clinical histopathology in A-T patients points to significant changes in PN morphology and density; however, these reports primarily detail patients at late stages of the disorder, and the relationship between the severity of PN pathology and ataxia is not clear (Verhagen et al., 2012; De León et al., 1976; Amromin et al., 1979; Monaco et al., 1988; Terplan and Krauss, 1969; Strich, 1966; Solitare, 1968; Solitare and Lopez, 1967; Aguilar et al., 1968; Paula-Barbosa et al., 1983; Gatti and Vinters, 1985).

In the AtmR35X/R35X; Aptx−/ mice, we found the gross size of the cerebellum to be normal early in life, but significant atrophy developed as the severity of ataxia increased (Figure 5A). At early stages (P45–P210), the size of the cerebellum in AtmR35X/R35X; Aptx−/ mice did not differ from mice with at least one copy of the Atm gene (two-way ANOVA, F(3,52)=1.0, p=0.4). However, by P210, the overall size of the cerebellum in AtmR35X/R35X; Aptx−/ mice was significantly reduced (one-way ANOVA, F(3,37)=1.4, p=0.3), with the degenerative process continuing to at least the last time point investigated (P460). To rule out the possibility that reduced cerebellar size was related to the smaller stature of AtmR35X/R35X; Aptx−/ mice, we examined, animal weight and cerebellar size and found no correlation (Pearson’s correlation, p>0.3 for all four genotypes at P460, n=10–20). Furthermore, we found that cerebellar size did not differ between male and the on average 22% smaller female mice across genotypes at this age (two-way ANOVA, F(2, 153)=1.9, p=0.2). Therefore, cerebellar neurodegeneration in the AtmR35X/R35X; Aptx−/ mice, which begins after P120, is correlated with ATM and APTX deficiency.

Figure 5 with 2 supplements see all

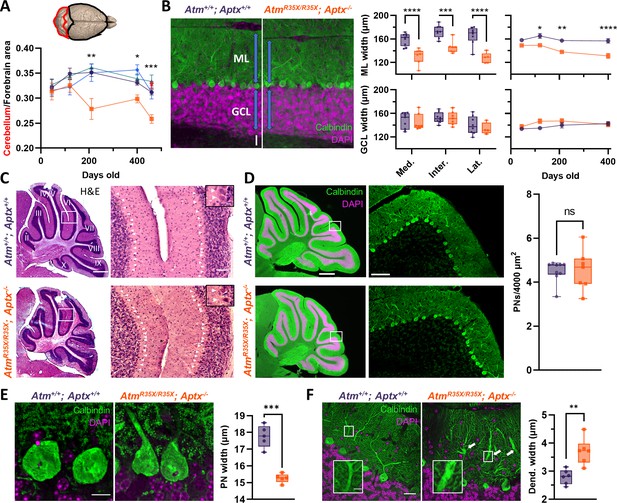

Cerebellar atrophy is associated with a progressive reduction in molecular layer (ML) width and pathological changes in PN morphology but not PN cell death.

(A) Cartoon image of the brain highlighting the dorsal forebrain and cerebellar surface. Area estimates from dorsal images of the brain were used to determine the cerebellum to forebrain ratio allowing us to control for any differences in overall size of the brain. We found the cerebellum decreased in size over age in AtmR35X/R35X; Aptx−/ (n=5–10), but not control mice (Atm+/+; Aptx+/+ [n=4–20], Atm+/+; Aptx−/ [n=4–12], AtmR35X/R35X; Aptx+/+ [n=6–16], AtmR35X/+; Aptx−/ [n=6]). (B) Left: Immunofluorescent images of parasagittal cerebellar sections illustrating the length (blue arrows) of PN dendrites in the ML (green) and width of the granule cell layer (GCL; magenta) in Atm+/+; Aptx+/+ and AtmR35X/R35X; Aptx−/ mice (P400; medial cerebellar lobule VIII). Scale bar=50 μm. Middle: Summary graphs of ML and GCL width measurements averaged across all lobules in sections from the medial, intermediate, and lateral parts of the cerebellum (P400). Right: Average ML and GCL widths at different ages in the medial cerebellum (n=5–7). (C) Left: H&E stained, parasagittal cerebellar sections from P400 Atm+/+; Aptx+/+ (top) and AtmR35X/R35X; Aptx−/ (bottom) mice. Scale bar=500 μm Right: Magnified view (from white box) of PNs (white triangles) in cerebellar lobules 4/5 and 6. Scale bar=50 μm, inset 10 μm Right: The average density of PNs across all lobules in the medial cerebellum of Atm+/+; Aptx+/+ (n=9) and AtmR35X/R35X; Aptx−/ (n=7) P400 mice do not differ. (D) Left: Whole cerebellar, fluorescent images and magnified view of folia VIII (from white box). Scale bar=500 μm left, 75 μm right. Right: Average density of Calbindin positive PNs across the whole cerebellum (n=7–9). (E) Left: Optically sectioned fluorescent images illustrate the smaller size of PNs in AtmR35X/R35X; Aptx−/ mice. Right: Plot of the average width of PN somas randomly sampled from across the cerebellum (n=5). Scale bar=10 μm. (F) Left: Images like in (E). Abnormally large caliber PN dendrites (inset) were observed in AtmR35X/R35X; Aptx−/ mice (P400; medial cerebellar lobule VI). Scale bar=25 μm main, 5 μm inset. Right: Average width of primary and secondary PN dendrites measured at the midline between the PN cell bodies and ML edge in Atm+/+; Aptx+/+ and AtmR35X/R35X; Aptx−/ mice (n=6). Statistical significances were assessed via two-way ANOVA with age and genotype as factors followed by Holm-Šídák (A and B right) or Šídák (B middle) pairwise multiple comparisons test. Welch’s t-test used in (D–F). PN, Purkinje neuron.

We found cerebellar atrophy to be associated with a selective reduction in the width of the molecular layer (ML) where PN dendrites reside (Figure 5B). Consistent with the temporal changes in gross cerebellar size, PN firing frequency, and behavior, ML width in AtmR35X/R35X; Aptx−/ mice was normal in younger mice but progressively decreased in width as the severity of ataxia increased (P400: 120.2±2.1 μm [n=5] vs. 140.2±4.8 μm [n=5], two-way ANOVA, F(1, 42)=45.04, p<0.0001; Figure 5B and Figure 5—figure supplement 1). In contrast, no difference in the width of the granule cell layer (GCL) across age was observed in the AtmR35X/R35X; Aptx−/ mice (P400: 135.5±2.4 μm [n=6] vs. 127.5±4.3 μm [n=5], two-way ANOVA, F(1, 42)=3.3, p=0.08; Figure 5B and Figure 5—figure supplement 1). Cerebellar atrophy, however, was not due to PN cell death, as PN density did not significantly differ between AtmR35X/R35X; Aptx−/ and Atm+/+; Aptx+/+ mice (P400: 4.5±0.3 [n=9] vs. 4.5±0.2 [n=7] PNs/4000 μm2, Welch’s t-test, p=0.9; Figure 5C and D and Figure 5—figure supplement 1). Moreover, we found no evidence from immunohistolological experiments for increased levels of programmed cell death or microglial activation in the AtmR35X/R35X; Aptx−/ mice (Figure 5—figure supplement 2). At the anatomical level, we found pathological changes in PN morphology, as somatic size was reduced (15.3±0.3 [n=5] vs. 17.8±0.1 [n=5] μm, Welch’s t-test, p=0.0004; Figure 5E) and the primary and secondary dendrites were abnormally large in caliber in the AtmR35X/R35X; Aptx−/ mice (3.1±0.2 [n=6] vs. 2.8±0.1 [n=6] μm, Welch’s t-test, p=0.003; Figure 5F and -Figure 5—figure supplement 2). Overall, we found a good correlation between the abnormal structural and electrophysiological properties of the cerebellum and the progression of motor and deficits.

Differential disruption of thymocyte development in ATM-deficient versus APTX-deficient mice

Chronic sinopulmonary infections associated with immunodeficiency are one of the leading causes of death in A-T patients (Morrell et al., 1986; Bhatt and Bush, 2014). Immunodeficiency is linked to deficits in the generation of B- and T-lymphocytes that have been linked to defects in the antigen receptor gene rearrangement processes during the generation of these cells in the bone marrow and thymus, respectively (Staples et al., 2008). The resulting defects in mature lymphocyte numbers include decreases in CD4+ helper T-cells and killer CD8+ T-cells (Schubert et al., 2002). We therefore examined the percentages of T-cells in peripheral blood and of different subpopulations in the thymus of AtmR35X/R35X; Aptx−/− mice using T-cell antigen receptor (TCR) and CD4/CD8 co-receptor expression.

In the peripheral blood, we observed a significant reduction in the total fraction of CD3+ T-cells in mice with reduced or absent ATM expression compared to wild-type mice (Figure 6). This reduction was further compounded by the concomitant deficiency of APTX. ATM and APTX deficiencies reduced T-cells in peripheral blood by over 65% compared to wild-type controls. The effect of APTX deficiency was additive to that of ATM deficiency, suggesting a different mechanism of action for each of these two proteins on T-cell generation. The reduction in the percentage of T-cells in peripheral blood was mostly associated with reduction in the CD4+ helper T-cell population (Figure 6B). Of interest, the proportion of CD8+ T-cells was increased only in AtmR35X/R35X; Aptx−/− mice (Figure 6B). Again, we observed a differential effect of ATM and APTX deficiencies as seen for the effects of these mutations on the total T-cell fraction.

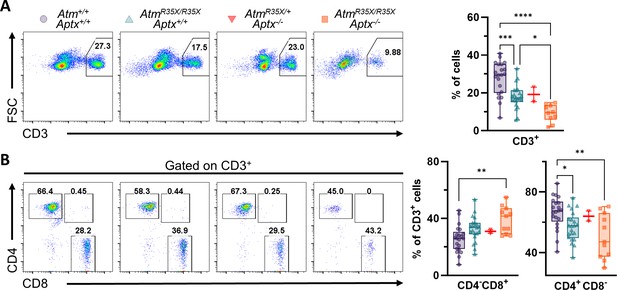

T-cell deficits are found in the blood of AtmR35X/R35X; Aptx−/ mice.

(A) Representative flow cytometric profiles of T-cell glycoprotein marker CD3 and summary plots indicate ATM- and/or APTX-deficient mice have decreased proportions of CD3+ T-cells in the blood. (B) Representative flow cytometric profiles of T-cell glycoprotein markers CD4 and CD8 gated on CD3+ cells and summary plots for CD8 and CD4 single positive cell proportions. ATM-deficient mice had reduced CD4+ proportions compared to mice with at least one copy of the Atm gene. Statistical significances were assessed via one-way ANOVA followed by Tukey’s pairwise multiple comparisons test. Number of animals denoted at bottom of bar. Symbol/color key: Atm+/+; Aptx+/+ (purple circle), AtmR35X/R35X; Aptx+/+ (green triangle), AtmR35X/+; Aptx−/ (red inverted triangle), AtmR35X/R35X; Aptx−/ (orange square). ATM, Ataxia Telangiectasia mutated.

Figure 6—source data 1

Table of numerical FACs data for blood samples.

https://cdn.elifesciences.org/articles/64695/elife-64695-fig6-data1-v2.xlsx

Given the reduction in T-cell populations in the blood, we next assessed T-cell development in the thymus. In this organ, bone marrow-derived T-cell progenitors undergo TCR gene rearrangement followed by positive selection for MHC restriction and negative selection of autoreactive clones. The phases of thymocyte development can be followed by monitoring the expression of CD4 and CD8 expression in thymocytes. The progression of this developmental program goes from double negative (CD4CD8) thymocytes to double positive (CD4+CD8+) thymocytes and then to single positive (CD4+ or CD8+) thymocytes. In addition, within the double negative stage, four different subpopulations can be identified, based on the expression of CD25 and CD44, known as DN1 (CD44+CD25), DN2 (CD44+CD25+), DN3 (CD44CD25+), and DN4 (CD44CD25) (Germain, 2002).

Gene rearrangement during thymocyte development occurs twice—once at the double negative thymocyte stage in the CD25+CD44 stage (Krangel, 2009) and then again in double positive thymocyte stage before progressing into separate CD4+ and CD8+ single positive populations (Livák et al., 1999). ATM deficiency has been linked to defects in both bouts of rearrangement in mice (Vacchio et al., 2007, Hathcock et al., 2013). Therefore, we compared the proportion of cells in the thymus expressing these different developmental cell surface markers in our ATM-deficient and control mice (Figure 7). AtmR35X/R35X; Aptx−/ and AtmR35X/+; Aptx−/ but not AtmR35X/R35X; Aptx+/+ mice had significantly elevated proportions of CD44+CD25, CD44+CD25+, and CD44CD25+ cells compared to wildtype (Figure 7A). These increased proportions appear to be due in part to an impediment of CD44CD25+ cells maturing into CD44CD25 double negative cells, as the fraction of CD44CD25 cells from AtmR35X/R35X; Aptx−/ and AtmR35X/+; Aptx−/ mice is significantly lower than wildtype (Figure 7A). Of interest, APTX deficiency by itself had the greatest effect on the loss of DN4 cells, suggesting that APTX deficiency, rather than ATM deficiency, is responsible for this effect. To our knowledge, this finding implicates for the first time APTX in gene rearrangement during the process of TCRβ recombination.

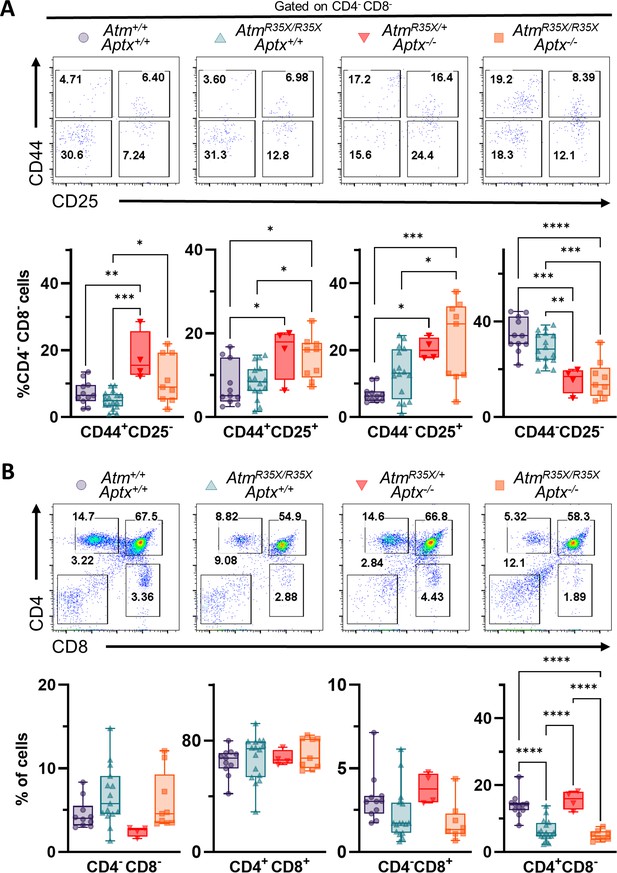

ATM and APTX deficiency confer deficits in T-cell expression, but at different developmental stages.

(A) Representative flow cytometric profiles of T-cell glycoprotein markers CD44 and CD25 gated on CD4CD8 double negative (DN) cells. Summary plots show proportions of thymocytes at DN stages 1–4 (left to right). APTX deficient mice display increased proportions for DN1–3 and decreased proportion at DN4 consistent with a deficit in ontogeny from DN3 to DN4. (B) Representative flow cytometric profiles of T-cell glycoprotein markers CD4 and CD8 gated. ATM-deficient mice display decreased proportions for CD4 and CD8 single positive cells consistent with a deficit in ontogeny from CD4+CD8+ double positive to CD4+ and CD8+ single positive fates. Statistical significances were assessed via one-way ANOVA followed by Tukey’s pairwise multiple comparisons test. Number of animals denoted at bottom of bars. Symbol/color key: Atm+/+; Aptx+/+ (purple circle), AtmR35X/R35X; Aptx+/+ (green triangle), AtmR35X/+; Aptx−/ (red inverted triangle), AtmR35X/R35X; Aptx−/ (orange square).

Figure 7—source data 1

Table of numerical FACs data for thymus samples.

https://cdn.elifesciences.org/articles/64695/elife-64695-fig7-data1-v2.xlsx

Next, we looked at the proportions of CD4+CD8+ thymocytes compared to CD4+CD8 and CD4CD8+ single positive thymocytes in these four different strains. In agreement with our results in the blood and prior studies, we found that ATM-deficient mice but not control mice displayed decreased expression of CD4+CD8 and CD4CD8+ single positive thymocytes (Figure 7B). These results support the role of ATM in TCR α/δgene rearrangement during thymocyte development (Bredemeyer et al., 2006), a role that is independent of the role played by APTX in early thymocyte maturation.

Read-through molecules overcome PTC to restore ATM expression

Our primary rationale for inserting a clinically relevant nonsense mutation in the Atm gene was to generate a mouse amenable to critical pre-clinical testing of a novel set of SMRT compounds. We previously demonstrated SMRT compounds recover production of ATM protein in A-T patient-derived lymphoblastoid cell lines by overcoming PTC producing nonsense mutations (Du et al., 2013). To demonstrate suitability of this new A-T animal model for SMRT compound testing we chose to directly examine their ability to restore ATM expression using an explant approach that circumvents challenges related to in vivo delivery (e.g., bioavailability, route of delivery, etc.). ATM expression was measured in samples from the spleen, where ATM is normally expressed at high levels, and the cerebellum, a key target tissue for the disorder. We exposed these explant tissues, harvested from homozygous AtmR35X and AtmQ35X mice with either a candidate SMRT compound (GJ103), or an aminoglycoside previously known to have read-through properties (G418), and then measured ATM expression by immunoblot to assess restoration. In both types of ATM-deficient mice, ATM expression was consistently restored in the spleen and cerebellum by both G418 and GJ103 (Figure 8). These results demonstrate that our SMRT compounds can enable read-through of at least two of the three possible nonsense mutations causing PTCs and provide the rationale for in vivo efficacy testing in follow-on studies.

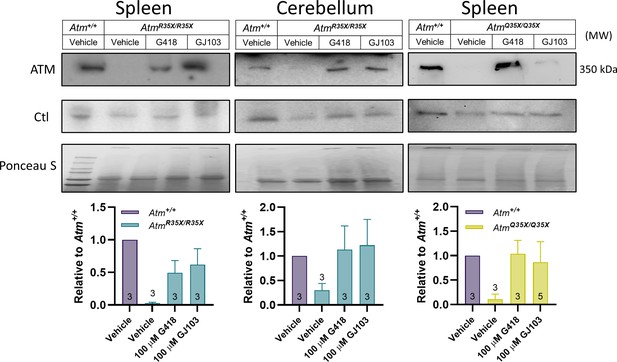

ATM protein expression is restored after read-through compound exposure in explant tissues from AtmR35X/R35X and AtmQ35X/Q35X mice.

Spleen and cerebellar explant tissue from AtmR35X/R35X and AtmQ35X/Q35X mice were treated with vehicle, the read-through compounds G418 (100 µM) or GJ103 (100 µM) for 72 hr. ATM immunoblots show recovery of ATM (MW 350 kDa) production in both the spleen and cerebellum. Equal loading was assessed via housekeeping genes (Actin or GAPDH) and ponceau staining. ATM, Ataxia Telangiectasia mutated.

Discussion

By increasing genotoxic stress through the addition of a secondary hit to the DDR pathway, we generated a novel mouse model that displays the most comprehensive set of A-T symptoms of any model to date. This includes a severe and progressive ataxia associated with cerebellar atrophy and perturbations of PN properties along with a high incidence of cancer and defects in immune cell development. Taken together, these comorbidities encompass the three leading causes of premature death in A-T—each contributing to roughly a third of deaths. Of these, the incapacitating effect of ataxia is the most penetrant and is reported by patients and caregivers as having the greatest impact on their quality of life. For this reason, the presence of ataxia and cerebellar atrophy in this new mouse model is of great significance, as it provides for the very first time a resource to not only elucidate the mechanisms of neurological dysfunction, but also a critically needed in vivo model to test severely needed A-T therapeutics, such as the read-through compounds we describe here.

We found several similarities between the overall progression of ataxia in the AtmR35X/R35X; Aptx−/ mice and A-T patients. In clinical A-T, motor deficits are observable by roughly 2 years of age, when parents and doctors detect a lowered ability to transition from toddling to a smooth, reflexively coordinated gate—unfortunately, little is known about motor defects at earlier stages due to the diseases low prevalence and current lack of early diagnostic testing (Rothblum-Oviatt et al., 2016). Patients usually learn to walk without assistance and neurological symptoms tend to remain stable through the first 4–5 years of life (Rothblum-Oviatt et al., 2016). We found a similar early progression of motor deficits in AtmR35X/R35X; Aptx−/ mice, detecting early mild motor deficits at P8 (righting reflex deficit), followed by a period of relative stability, prior to the onset of a progressive and severe ataxia developing after P210 that included changes in gait, startle reflex, tremor, and locomotor activity. Several important questions arise out of these findings, including whether ATM and/or APTX have a neurodevelopmental role in the cerebellum. Future studies focused on the early phase of the disorder will be critical in understanding if the cerebellum develops normally prior to dysfunction or whether developmental defects are an initial cause. We also found, similar to A-T patients, that the severity of the late-developing ataxia was variable, with some mice ambulating with a clumsy, high-stepping rear gate (Video 3) and others moving almost entirely via contortion of the rear trunk (Figure 1E and Video 4; Rothblum-Oviatt et al., 2016; Levy and Lang, 2018; Boder and Sedgwick, 1958). Overall, we found that AtmR35X/R35X; Aptx−/ mice developed a visually profound and measurable progressive loss in motor coordination similar to that observed in A-T patients, which was rescued by expression of at least one copy of the Atm or Aptx gene.

The loss of motor coordination in A-T has been attributed to cerebellar degeneration due to its relatively selective neuropathology across the brain and its causal role in several different forms of ataxia (Hoche et al., 2012). Consistent with A-T patient neuroimaging studies (Wallis et al., 2007; Sahama et al., 2015; Sahama et al., 2014; Dineen et al., 2020; Tavani et al., 2003; Quarantelli et al., 2013), we find that cerebellar size in AtmR35X/R35X; Aptx−/ mice is initially normal, but progressively atrophies concurrently with changes in neurological function. While loss of cerebellar tissue has been considered a main cause of ataxia in humans, it is unclear from clinical data if ataxia severity is a good predictor of the extent of cerebellar degeneration found postmortem (Aguilar et al., 1968; Crawford et al., 2006; Dineen et al., 2020). In the AtmR35X/R35X; Aptx−/ mice, we find clear atrophy associated with thinning of the PN dendrite layer that precedes the late, severe behavioral deficits. Our histological observations in the AtmR35X/R35X; Aptx−/ mice suggest that changes in cerebellar function itself, rather than profound loss of cerebellar cells, are sufficient to cause the ataxic phenotype, consistent with the observation of behavioral defects prior to significant PN loss in several SCAs (Shakkottai et al., 2011; Lorenzetti et al., 2000; Clark et al., 1997; Jayabal et al., 2016).

The reason why ATM and APTX deficiency is required to generate ataxia in mice, when loss of either is sufficient to cause ataxia in humans, remains unclear. One possibility is that the rodent brain may more flexibly utilize compensatory pathways or redundant proteins while responding to the ~15k DNA lesions that impact cells each day (Lindahl and Barnes, 2000). Several forms of DNA repair exist to potentially meet this challenge, including base excision repair (BER), nucleotide excision repair (NER), as well as homologous and non-homologous end joining (HEJ and NHEJ, respectively), all of which ATM and APTX have been implicated in (Chou et al., 2015; Caglayan et al., 2017; Wakasugi et al., 2014; Tumbale et al., 2018; Chatterjee and Walker, 2017). Alternatively, it may be the case that deficiency in ATM or APTX alone does not adequately impact cell health during the mouse’s comparatively short lifespan, and thus eliminating both proteins is necessary to achieve sufficient accumulation of DNA damage to manifest over this time period. This possibility is strengthened by the fact that ATM and APTX have distinct biochemical properties and functional roles in the DDR, and therefore deficiency in both would be predicted to cause a broader, additive hit to genome stability than either alone (i.e., increased genotoxic stress).

Our finding that two genome stability pathway proteins are required to induce neurological defects in mice strongly suggests that it is the loss of ATM’s role in DNA repair, rather than potential functions in oxidative stress signaling, mitophagy, or mitochondrial function that cause the cerebellar defects (Shiloh, 2020). Alternatives, however, cannot be completely ruled out, as APTX, like ATM, has been observed within the mitochondria of brain cells, where it is thought to support the processing of mitochondrial DNA (Meagher and Lightowlers, 2014; Sykora et al., 2011). This new mouse model provides a new tool to explore these possibilities and mechanistically define how loss of ATM and APTX ultimately causes cerebellar dysfunction.

The biophysical perturbations observed in PNs recorded from the AtmR35X/R35X; Aptx−/ mice are similarly found in several other mouse models of ataxia. This includes changes we observed in PN input resistance, membrane capacitance, and AP threshold and width, which have also been described in mouse models of SCA like 1, 3, and 7 (Stoyas et al., 2020; Shakkottai et al., 2011; Dell’Orco et al., 2015). Moreover, the progressive reduction in PN AP firing frequency we report, which positively correlates with the development of ataxia in the AtmR35X/R35X; Aptx−/ mice, is reported in a large number of ataxic mouse models, including SCAs 1, 2, 3, 5, 6, and 13 as well as a few episodic forms (see review Cook et al., 2021).

Given the significant overlap in PN perturbations observed across many different ataxias caused by distinct cellular defects, restoring PN AP firing frequencies has been considered as a broad-based therapeutic approach. However, it remains unclear whether reduced PN firing is a causal factor of ataxia. Moreover, experimental evidence suggests changes in PN activity may in fact be a generalized response to maintain homeostasis during ongoing disease-related impairment of PN physiology (Dell’Orco et al., 2015). Thus, continued efforts across all cerebellar ataxias are needed to link the genetic, molecular, and cellular disruptions caused by disease to the specific changes in cerebellar neural signaling that ultimately generates the ataxia. Of significant importance in this effort will be determining whether disease-causing cerebellar defects commonly or differentially cause ataxia through a loss of cerebellar function (e.g., loss of coordinating signals during movement), or from a dominant negative effect (e.g., disrupting downstream neural circuits with abnormal neural output patterns). Ultimately, while a common therapeutic strategy to address cerebellar ataxias would have the greatest impact, a directed approach that addresses the distinct genetic and molecular causes of cellular dysfunction may ultimately be necessary to successfully develop an efficacious therapeutic.

The mechanistic link between deficiency in DNA stability proteins like ATM and APTX and PN dysfunction is far from clear. Our results suggest the effect of ATM and APTX loss on PNs is intrinsic, as we do not find changes in the presynaptic properties of granule cells or evidence of their cellular loss (no change in GCL thickness). Moreover, while we observed differences in short term plasticity of inferior olivary inputs in ATM- and APTX-deficient PNs and wildtype, these results likely point to a disruption in Ca2+ homeostasis potentially via reductions in Inositol 1,4,5-triphosphate receptor 1 (Itpr1) expression, similar to those observed in SCAs 1, 2, and 3 mouse models as well as ATM-deficient mice (Kim et al., 2020; Chen et al., 2008; Demirci et al., 2009; Shakkottai et al., 2011). While this provides a promising avenue for future examination and comparison, it is as of yet unclear, even for the SCAs, whether changes in Ca2+ homeostasis, is the causal factor or just another symptom or even compensatory response of diseased or disturbed PNs (Dell’Orco et al., 2015).

In the immune system, ATM is implicated in the repair of DNA breaks that naturally occur during gene rearrangement of antigen receptor genes in B- and T-cell precursors, a phenomenon critical for antigen receptor (Ig and TCR) diversity of these cells. Our finding that T-cell proportions in the blood are significantly reduced is consistent with prior studies in humans and A-T knockout mice (Schubert et al., 2002; Hathcock et al., 2013; Chao et al., 2000; Barlow et al., 1996). This reduction of T-cells in the periphery likely correlates with a defect in both cellular and humoral immunity. Importantly, we found that expression of one copy of the ATM gene is enough to restore CD4+ deficits in the blood indicating that therapies able to restore partial ATM expression would have therapeutic efficacy. Although we have not assessed B-cell development in this paper, it is likely that similar conclusions would apply to that process given their mechanistic similarities (Marshall et al., 2018).

As expected, the reduction of T-cells in peripheral blood is correlated with defective thymocyte development. In the thymus, we found two main defects. One, induced primarily by APTX deficiency, manifests as a defect in the DN3 to DN4 transition coinciding with early rearrangement of TCR β locus. The other defect, primarily caused by ATM deficiency, correlates with decreased progression of double positive CD4+CD8+ to single positive cells, primarily CD4+ thymocytes. While the APTX finding was surprising, as its deficiency (AOA 1) is not associated with immune deficits, APTX is known to interact with TCR β gene rearrangement proteins, including XRCC4 (Clements et al., 2004). Future studies aimed at defining APTX’s role in end-joining mechanisms during TCR gene rearrangement will be important, and the possibility that alternative end-joining mechanisms, like the use of microhomologies account for the lack of an immune deficit in its absence needs further investigation (Bogue et al., 1997).

The survivability of AtmR35X/R35X; Aptx−/ mice is considerably longer than prior A-T mouse models. In comparison, the first A-T KO mouse model reported by Barlow et al., 1996 died from thymomas usually within 2–4 months after birth. The decreased cancer survivability in this and many other knockout A-T mouse models is likely genetic, as the background strain harboring the mutation has been shown to have significant effects on cancer prevalence and survivability, with A/J and C57BL/6 backgrounds having significantly increased survivability over the BALBC and 129S strains (Genik et al., 2014). The fact that our ATM-deficient mice were created on a C57BL/6 background likely underlies their comparatively long lifespan. Given that the AtmR35X/R35X; Aptx+/+ mice do not develop ataxia, it is unlikely that the early death in A-T KO mice prevents observation of an ataxic phenotype that would otherwise develop in these mice. However, it is unknown whether the C57BL/6 background confers a resilience to developing ataxia, as it does for cancer. Defining the genetic or possibly epigenetic factors that influence the severity of the disease could provide avenues for future therapeutic development.

Given the global nature of the ATM and APTX null mutation in our mouse model, we cannot entirely rule out that extra-cerebellar defects may also contribute to the severe ataxic phenotype, and thus future examination outside the cerebellum in the forebrain, brainstem, spinal cord, and even muscle will need to be conducted. Within the cerebellum, while we found some anatomical differences in the PN firing properties within different regions of the cerebellum, we did not detect regional differences in ML width or PN density. However, there are challenges in using regional anatomy as a grouping factor in the cerebellum, as the physical folds of the tissue do not necessarily correlate with the boundaries of functional, molecular expression, or physiological property domains that have been described (Apps and Hawkes, 2009; Tsutsumi et al., 2015; Gao et al., 2012; Zhou et al., 2014). Experiments focused on examining the extent of cerebellar defects within these domains will be important in future studies and compared to the anecdotal reports of anatomical differences in A-T patients (Verhagen et al., 2012; De León et al., 1976; Amromin et al., 1979; Monaco et al., 1988; Terplan and Krauss, 1969; Strich, 1966; Solitare, 1968; Solitare and Lopez, 1967; Aguilar et al., 1968; Paula-Barbosa et al., 1983).

While we detect two potential stages in the progression of ataxia in the AtmR35X/R35X; Aptx−/ mice, the later stage of severe ataxia develops in adulthood in mice, as compared to the childhood onset in humans. This may limit its use in some neurodevelopmental studies. Also, the interpretation of future experiments must carefully factor in the fact that this new model expresses null mutations in two genome stability genes at the same time, a situation that has not been detected in human patients with either A-T or AOA1.

Finally, pinpointing where, when, and how ATM deficiency causes cerebellar pathology and ataxia has been a challenge, as prior ATM-deficient mice generally lack the characteristic features needed to causally link cellular and molecular deficits to the ataxic phenotype. Multiple promising avenues of investigation have been defined, including those focused at the neuronal level, where ATM is implicated in oxidative stress signaling (Chen et al., 2003) and synaptic function (Li et al., 2009; Vail et al., 2016), as well as glial function, where recent evidence suggests glial pathology may be a leading factor in cerebellar pathology (Kaminsky et al., 2016; Campbell et al., 2016; Petersen et al., 2012; Weyemi et al., 2015). This novel animal model provides a new tool to test mechanistic hypotheses regarding how ATM deficiency causes cerebellar pathology and ataxia. Additionally, this model may serve most importantly as a critical preclinical tool for testing previously proposed therapeutic candidates (Browne et al., 2004; Chen et al., 2003) including our own SMRT compounds (Du et al., 2013). It cannot be overstated how severely limiting the lack of a preclinical model is for therapeutic development, especially for rare disorders like A-T and AOA1.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Strain, strain background (Mus musculus)AtmR35X, AtmTm1.1(103CAG)TGAMfgcThis paper103C>T mutation,
human exon replacement
Generated by Hicks laboratory. Has been backcrossed into C57b/6 9 times. Contact pmathews@lundquist.org
Strain, strain background (M. musculus)AtmQ35X, AtmTm1.1(103C)TMfgcThis paper103C>T mutation,
targeted premature termination signal in the mouse codon
Generated by Hicks laboratory. Has been backcrossed into C57b/6 9 times. Contact pmathews@lundquist.org
Strain, strain background (M. musculus)Aptx−/−Ahel et al., 2006MGI Cat# 3687171, RRID:MGI:3687171Contact peter.mckinnon@stjude.org
Gene (M. musculus)AtmMGIMGI:107202; C030026E19Rik; ENSMUSG00000034218
Gene (Homo Sapien)ATMOMIMOMIM: 607585 MGI: 107202 HomoloGene: 30952; ENSG00000149311
Sequence-based reagentAtm geneTransnetyxPCR primersF-5′-CCTTTGAGGCATAAGTTGCAACTTG-3′
Sequence-based reagentAtm geneTransnetyxPCR primersR-5′-GTACAGTGTATCAGGTTAGGCATGC-3′
Chemical compound/ drugsGJ103 saltFormula: C16H14N403STargetMolT3448;CAS No.: 1459687-96-7100 μM in media
AntibodyAnti-mouse CD68 (Rat monoclonal)Bio-RadCat# MCA1957,
RRID: AB_322219
IF (1:400)
AntibodyATM (D2E2) (Rabbit- monoclonal)Cell Signaling TechnologyCell Signaling Technology Cat# 2873, RRID:AB_2062659WB (1:500)WB (1:1000)
AntibodyGAPDH (14C10)(Rabbit-monoclonal)Cell Signaling TechnologyCell Signaling Technology Cat# 2118, RRID:AB_561053WB (1:4000)
Antibodyβ-Actin (D6A8)(Rabbit-monoclonal)Cell Signaling TechnologyCell Signaling Technology Cat# 8457, RRID:AB_10950489WB (1:5000)
AntibodyAnti-Rabbit IgG, HRP-linked(Goat-monoclonal-polyclonal)Cell Signaling TechnologyCell Signaling Technology Cat# 7074, RRID:AB_2099233WB (1:5000)
AntibodyAnti-Calbindin (D-28k)(Rabbit, polyclonal)Swant Inc.Swant Cat# CB 38, RRID:AB_10000340IF (1:1000)
AntibodyAnti-Mouse Alexa Fluor 488 (Goat polyclonal)Thermo Fisher Scientific; InvitrogenCat# A11001,
RRID: AB_2534069
IF (1:500)
AntibodyAnti-mouse Cleaved Caspase-3, Asp-175 (rabbit)Cell Signaling TechnologyCat# 9961,
RRID: AB_2341188
IF (1:200)
AntibodyAnti-Rat Alexa Fluor 555 (Goat polyclonal)Thermo Fisher Scientific; InvitrogenCat# A21244,
RRID: AB_2535812
IF (1:1000)
AntibodyAnti-Rabbit Alexa Fluor 647 (Goat polyclonal)Thermo Fisher Scientific; InvitrogenCat# A-21434,
RRID: AB_141733
IF (1:500)
AntibodyAnti-Calbindin D-28k (mouse-monoclonal)Swant Inc.Cat# CB300IF (1:500)
AntibodyAnti-Rabbit Alexa Fluor 488 (Goat-polyclonal)Thermo Fisher Scientific;InvitrogenThermo
Fisher Scientific Cat# A-11034, RRID:AB_2576217
IF (1:1000)
AntibodyCD4(GK1.5)(Rat-monoclonal)Thermo Fisher Scientific;InvitrogenThermo
Fisher Scientific Cat# 50-0041-82, RRID:AB_10609337
FACS(5 µl per test)
AntibodyCD8(53-6.7)(Rat-monoclonal)Thermo Fisher Scientific;InvitrogenThermo
Fisher Scientific Cat# 53-0081-82, RRID:AB_469897
FACS(5 µl per test)
AntibodyCD3(145-2C11)(Hamster-monoclonal)Thermo Fisher Scientific;InvitrogenThermo
Fisher Scientific Cat# 12-0031-83, RRID:AB_465497
FACS(5 µl per test)
AntibodyCD44(IM7)(Rat-monoclonal)Thermo Fisher Scientific;InvitrogenThermo
Fisher Scientific Cat# 25-0441-82, RRID:AB_469623
FACS(5 µl per test)
AntibodyCD25(PC61.5)(Rat-monoclonal)Thermo Fisher Scientific;InvitrogenThermo
Fisher Scientific Cat# 47-0251-82, RRID:AB_1272179
FACS(5 µl per test)
OtherEosin Y (Certified Biological Stain)Thermo Fisher Scientific (Fisher Chemical)Cat# E511-100
OtherHematoxylin Stain Solution, Modified Harris Formulation, Mercury Free Nuclear StainRICCA Chemical CompanyCat# 3530-16
OtherPermount Mounting MediumThermo Fisher Scientific (Fisher Chemical)Cat# SP15-100
OtherFluoromount-G with DAPISouthern BiotechCat# 0100-20,
RRID: SCR_021261
Commercial assay or kitBCA Protein Assay KitThermo Fisher Scientific;PierceCat# 23225Protein assay
Commercial assay or kitSuperSignal West Pico Chemiluminescent SubstrateThermo Fisher Scientific;PierceCat# 34580Chemiluminescent substrate
Commercial assay or kitRadiance plusAzure BiosystemsCat# AC2103Chemiluminescent substrate
Software, algorithmFlowJohttps://www.flowjo.com/solutions/flowjoRRID:SCR_008520
Software, algorithmImageJ softwareImageJ (http://imagej.nih.gov/ij/)RRID:SCR_003070Version 1.53
Software, algorithmIgorProhttp://www.wavemetrics.com/products/igorpro/igorpro.htmRRID:SCR_000325Version 7; Tarotools procedures
Software, algorithmNeuroexpresshttps://www.researchgate.net/project/NeuroExpress-Analysis-software-for-whole-cell-electrophysiological-datahttps://www.researchgate.net/project/NeuroExpress-Analysis-software-for-whole-cell-electrophysiological-dataVersion 21.1.13; used for sEPSC analyses
Software, algorithmGraphPad, PrismGraphPad Prism (https://graphpad.com)RRID:SCR_015807Versions 8 and 9
Software, algorithmMBF, Stereo investigatorhttps://www.mbfbioscience.com/stereologyRRID:SCR_017667Version 2021
Software, algorithmMicrosoft Excelhttps://www.microsoft.com/en-us/microsoft-365/excelRRID:SCR_016137Version 365
Software, algorithmCatwalk XThttps://www.noldus.com/catwalk-xtRRID: SCR_021262

Mice

All mice were group housed and kept under a 12 hr day/night cycle with food and water available ad libitum. Animals were housed within the general mouse house population, and not in specialized pathogen-free rooms. Older animals were made available wetted food or food gel packs on the ground of the cages as ataxia developed. AtmR35X and AtmQ35X mice were created and provided by Dr. Hicks and colleagues at the University of Manitoba.

These mice were created to contain the c.103C>T mutation found in a large population of North African AT patients using recombineering Gateway technology and site-directed mutagenesis. A C>T mutation at this position in the mouse Atm gene creates a TAG G stop codon. The same mutation in the human ATM gene produces a TGA G stop codon. In consideration of the use of these models for therapeutic interventions, we chose to create a mouse model for each of the two PTC codons (Figure 1A).

A modified Gateway R3-R4-destination vector was used to pull out the desired region of the mouse Atm gene from a Bacterial Artificial Chromosome (BAC) and subsequently mutated to create either a TAG G stop codon at codon 35 (M00001, position 103 [C>T]) or a TGA G stop codon (M00002, position 103 (CAG>TGA), replicating the human AT PTC). The genomic alleles were then cloned into a modified version of the NorCOMM mammalian targeting vector using a three-way Gateway Reaction (Bradley et al., 2012). The resulting targeting vectors were electroporated into C2 ES cells (C57Bl/6N, derived in A. Nagy lab, Toronto, Canada) and successfully targeted clones were identified by selection with G418 (Gertsenstein et al., 2010). Integration of the mutated targeting cassette into the Atm gene locus was confirmed by Southern blot, and by sequencing of PCR products to confirm the presence of the Atm PTC mutation, error-free targeting into the Atm locus, and error-free functional components of the vector (data not shown). Positive ES clones were used for blastocyst injection to obtain the transgenic lines. The transgenic allele contained a floxed human beta actin promoter—delta TK1—Neo cassette in the intron upstream of the region containing the mutated exon. This floxed cassette was subsequently excised by crossing with a Cre driver mouse (B6.C-Tg(CMV-cre)1Cgn/J) to generate AtmR35X/+ and AtmQ35X/+ (MGI nomenclature: AtmTM1(103CAG>TGA)MFGC and AtmTM1(103C>T)MFGC, respectively) mouse lines (Figure 1A). Genotyping of the two Atm lines was performed by using the following primers at Tm 62°C: Atm gene forward (F) primer: 5′-CCTTTGAGGCATAAGTTGCAACTTG-3′; and Atm gene reverse (R) primer: 5′-GTACAGTGTATCAGGTTAGGCATGC-3′, creating a wild-type allele product of 151 bp or targeted allele product of 241 bp (Figure 1A and B).

AtmR35X and AtmQ35X were back-crossed with C57Bl/6J mice for nine generations (99.2% isogenic) prior to cryopreservation and subsequent rederivation using C57Bl/6J surrogate mothers. AtmR35X and AtmQ35X breeders were obtained from F1 sibling AtmR35X/+ and AtmQ35X/+ mice. AtmR35X/R35X and AtmQ35X/Q35X were both found to be fertile. Aptx knockout (Aptx−/−) mice were created and provided to Dr. Mathews as embryos from Dr. McKinnon (Ahel et al., 2006), and subsequently rederived via C57Bl/6J surrogate mothers. Aptx−/ mice are on a C57Bl/6 and 129 mixed background. AtmR35/R35XX; Aptx−/ mice of various wildtype, heterozygous, and homozygous combinations were created from AtmR35X/+; Aptx+/ generated by crossing AtmR35X/R35X and Aptx−/ mice. One cohort of double mutant and corresponding control mice were used in the longitudinal behavioral study for gait analyses and SHIRPA testing (Figures 2 and 3). Multiple additional cohorts of age-matched double mutant and control mice were used for electrophysiological, immunohistological, and Vertical Pole test experiments (Figures 4 and 7). Immunological and protein expression experiments were carried out using mice bred from the original AtmR35X and AtmQ35X rederived mice (Figures 5, 6 and 8).

Genotyping was performed from ear tissue samples of P8-11 mice. Real-time PCR methods conducted by Transnetyx Inc were used to determine each animals’ genotype. Animals were made identifiable via toe tattoos given at the same time as ear biopsy. Unique primers for AtmR35X and AtmQ35X were quantified and used to identify wildtype, heterozygous and homozygous mice (listed above). Aptx−/ and Aptx+/+ primers were used to assess their genotypes.

Animal health

Request a detailed protocol

Animals were weighed via a digital scale at P8, P45, P120, P210, and P400. Animal death was recorded as the day found dead, or on the day of euthanization when the animals reached a humane endpoint (animal unable to right itself within 60 s, significant hair matting indicating lack of self-grooming, or excessive distress as noted by the veterinary staff). Animal carcasses were immediately frozen upon death, and postmortem necropsies were carried out in batch. Probable cause of death was determined to the best of our ability in collaboration with the staff veterinarian (Dr. Catalina Guerra) by visual inspection of the internal organs. Some mice were cannibalized or accidentally disposed of by vivarium staff and were therefore labeled as ‘missing.’ Mice with no discernable visual cause of death were labeled ‘indeterminable.’ Mice that were found with thoracic masses near where the thymus would normally be in young mice were listed as ‘thymic cancer.’ All other identified probable causes of death (e.g., enlarged livers, urinary blockage) were labeled ‘other.’

Behavior

Before performing any behavioral test, mice were acclimated to the behavioral suite for ~20 min. Mice were tested at varying times of the day, in line with their day cycle. A battery of behavioral tests were performed on naïve double mutant mice of the indicated genotypes at various time points depending on the behavior but in the same cohort of mice. The battery of tests included Catwalk Gait assessment (P45, P120, P210, and P400) and a subset of the SmithKline-Beecham Harwell Imperial-College and Royal-London-Hospital Phenotype Assessment (SHIRPA) tests (P30 and P400). These tests were conducted by the UCLA Behavioral Core. Double mutant and control mice were additionally examined on the Vertical Pole test. All behavioral apparatuses were wiped down with ethanol (70%) between each testing each subject.

Gait analysis

Request a detailed protocol

We used a Noldus Catwalk Gait analysis system designed to semi-automatically measure and analyze the gait of mice during normal ambulation. Briefly, the movement of mice across a glass bottom corridor is video recorded from a ventral position. Paw prints are highlighted in the video due to light illumination across the glass walking platform. Each mouse step within a video is subsequently detected using Catwalk XT (Noldus) in a semi-automated fashion. A run for each mouse consists of three trials of consistent ambulation across the monitored platform. Only consistent trials are accepted, and mice may take up to 10 attempts to complete three compliant trials in either direction across the corridor. Compliant trials were defined as those with movement across the platform under 5-s long and with no more than 60% speed variation. Once placed onto the platform, mice generally ran back and forth without any need for experimenter prompting.

Vertical pole

Request a detailed protocol

Mice were placed at the top of an 80-cm-tall bolt with their nose facing down and hind paws as close to the top as possible. Mice were immediately released, and time started immediately upon placement. Time was stopped when the first forepaw touches the surface below the pole. A mouse’s natural predilection is to immediately climb down the pole, and they were given up to 60 s to traverse the pole, otherwise they were helped off the pole. A non-completed trial was automatically given a time of 30 s, as 95% of mice that did not descend within 30 s were still on the pole at the 60 s mark.

SHIRPA

Request a detailed protocol

Behavioral tests were conducted by the University of California, Los Angeles Behavioral Core at P30 and P400. All parameters are scored to provide a quantitative assessment, which enables the comparison of results both over time and between different laboratories. Each mouse was sequentially tested across all behaviors within ~20 min time span before moving onto the next mouse. The experimenter was blinded to animal genotype. The screen was performed as described previously (Rogers et al., 1997).

Behavioral observation

Request a detailed protocol

The primary screen provides a behavioral observation profile and assessment of each animal begins by observing undisturbed behavior in a viewing jar (10 cm diameter) for 5 min. In addition to the scored behaviors of body position, spontaneous activity, respiration rate, and tremor, the observer logs any instances of bizarre or stereotyped behavior and convulsions, compulsive licking, self-destructive biting, retropulsion (walking backwards), and indications of spatial disorientation.

Arena behavior

Request a detailed protocol

Thereafter, the mouse was transferred to the arena (30 × 50 cm2) for testing of transfer arousal and observation of normal behavior. The arena was marked into a grid of 10×10 cm2 squares to measure locomotor activity within a 30-s period. While the mouse was active in the arena, measures of startle response, gait, pelvic elevation, and tail elevation are recorded.

Supine restraint

Request a detailed protocol

The animal was restrained in a supine position to record autonomic behaviors. During this assessment, grip strength, body tone, pinna reflex, corneal reflex, toe pinch, wire maneuver, and heart rate were evaluated.

Balance and orientation

Request a detailed protocol

Finally, several measures of vestibular system function were performed. The righting reflex, contact righting reflex, and negative geotaxis tests were performed. Throughout this procedure vocalization, urination and general fear, irritability, or aggression were recorded.

Equipment used

Request a detailed protocol
  1. Clear Plexiglas arena (approximate internal dimensions 55×33×18 cm3). On the floor of the arena is a Plexiglas sheet marked with 15 squares (11 cm). A rigid horizontal wire (3 mm diameter) is secured across the rear right corner such that the animals cannot touch the sides during the wire maneuver. A grid (40×20 cm2) with 12 mm mesh (approximate) is secured across the width of the box for measuring tail suspension and grip strength behavior.

  2. A clear Plexiglas cylinder (15×11 cm2) was used as a viewing jar.

  3. One grid floor (40×20 cm2) with 12 mm meshes on which viewing jars stand.

  4. Four cylindrical stainless-steel supports (3 cm high × 2.5 cm diameter) to raise grids off the bench.

  5. One square (13 cm) stainless steel plate for transfer of animals to the arena.

  6. Cut lengths of 3/0 Mersilk held in the forceps for corneal and pinna reflex tests.

  7. A plastic dowel rod sharpened to a pencil point to test salivation and biting.

  8. A pair of dissecting equipment forceps, curved with fine points (125 mm forceps, Philip Harris Scientific, Cat. no. D46-174), for the toe pinch.

  9. A stopwatch.

  10. An IHR Click box is used for testing the startle responses. The Click Box generates a brief 20 KHz tone at 90 dB SPL when held 30 cm above the mouse. Contact Prof. K.P. Steel, MRC Institute of Hearing Research, University Park, Nottingham NG7 2RD.

  11. A ruler.

  12. A 30 cm clear Plexiglas tube with an internal diameter of 2.5 cm for the contact righting reflex.

Electrophysiology

Preparation of acute cerebellar slices

Request a detailed protocol

Acute parasagittal slices of 300 μm thickness were prepared from the cerebellum of experimental and control littermate mice by following published methods (Hansen et al., 2013). In brief, cerebella were quickly removed and immersed in an ice-cold extracellular solution with composition of (mM): 119 NaCl, 26 NaHCO3, 11 glucose, 2.5 KCl, 2.5 CaCl2, 1.3 MgCl2, and 1 NaH2PO4, pH 7.4 when gassed with 5% CO2/95% O2. Cerebella were sectioned parasagittally using a vibratome (Leica VT-1000, Leica Biosystems, Nussloch, Germany) and initially incubated at 35°C for ~30 min, and then equilibrated and stored at room temperature until use.

Extracellular electrophysiology

Request a detailed protocol

Extracellular and intracellular recordings were obtained from PNs in slices constantly perfused with carbogen-bubbled extracellular solution and maintained at either 37°C (extracellular) or 32°C (intracellular) ±1°C (see above). Cells were visualized with DIC optics and a water-immersion 40× objective (NA 0.75) using a Zeiss Examiner microscope. Glass pipettes of ~3 MΩ resistance (Model P-1000, Sutter Instruments, Novato, CA) were filled with extracellular solution and positioned near PN axon hillocks in order to measure AP-associated capacitive current transients in voltage clamp mode with the pipette potential held at 0 mV. For whole-cell patch-clamp recordings, pipettes were filled with an intracellular solution (mM): 140 KMeth (CH3KO3S), 10 NaCl, 2 MgCl2, 0.2 CaCl2, 10 HEPES, 14 Phosphocreatine (tris salt), 1 EGTA, 4 Mg-ATP, 0.4 Na-GTP. 100 μM Picrotoxin (Sigma-Aldrich) was added to block inhibitory GABAegeric synaptic inputs. Data was acquired using a MultiClamp 700B amplifier at 20 or 100 kHz in voltage or current clamp mode, Digidata 1440 with pClamp10 (Molecular Devices, Sunnyvale, CA), and filtered at 2–4 kHz. The series resistance was usually between 10 and 15 MΩ. Series resistance was compensated at 80% for short-term plasticity experiments only.

For extracellular recordings, a total of 20–45 PNs were recorded for each animal across all genotypes, sexes, and age groups. Recordings were distributed across both the medial-lateral and rostro-caudal axis of the cerebellum. Only cells with a ‘healthy’ look (low contrast of cellular borders) and regular, uninterrupted firing rate were recorded. During analysis, a few cells were found to have gaps in firing of greater than 2 s, and these cells were eliminated from analysis, as this type of firing is associated with being ‘unhealthy.’ Double mutant tissue did not qualitatively differ in appearance under DIC microscopy prior to recordings, nor was the number of ‘unhealthy’ cells greater than that of other genotypes (7% vs. 4–11% of all cells across control genotypes at P400). Spatial comparison of neural activity was obtained by recording from serial sections in the flocculus, lateral (2nd or 3rd), intermediate (6th or 7th), and medial (11th or 12th) slices. Lower number slices were used in the younger age groups (P45 and P110) to roughly match the relative positioning of recordings across age groups. 0–3 recordings were made from each lobule within each slice dependent on tissue quality and health. Each recording lasted for 1 min. 3–5 mice were used for each age group, and the experimenter was blinded to the genotype, age, and sex.

Intracellular recordings were obtained from PNs in either lobule III or VIII of the medial cerebellum (i.e., vermis); no statistical differences in properties were observed between lobules.

Analyses

Request a detailed protocol

Spontaneous AP interstimulus intervals were detected and analyzed using standard and custom routines in ClampFit (Molecular Device), IgorPro (Wavemetrics), and Excel (Microsoft). Specifically, APs were threshold detected and spiking statistics (i.e., frequency and interval length) were determined using adapted IgorPro routines (Taro Tools; https://sites.google.com/site/tarotoolsregister/). The coefficient of variation of the mean inter-spike interval (CV) and the median inter-spike interval (CV2=2 |ISIn+1−ISIn|/(ISIn+1 +ISIn)) were calculated in Excel using custom macros.

Standard membrane properties were analyzed using IgorPro. RM was determined by averaging three voltage trace responses to a –5 mV step pulse from a –80 mV holding potential and measuring the resulting current deflection between 900 and 1000 ms after onset. The membrane time constant was measured by fitting a single exponential to the initial decay phase from 90% to 10% of the peak. CM was calculated by dividing the membrane time constant by the RM. sEPSC events were recorded over a 1-min epoch and detected and measured using Neuroexpress (v21.1.13). Parallel and climbing fiber axons were stimulated using theta-glass electrodes (W.P.I.) and a TTL-controlled stimulus isolator (ISO-Flex, A.M.P.I.). Evoked EPSC amplitudes and decay time constants (one exp. for parallel and two exp. for climbing fibers) were analyzed using custom routines in IgorPro. APs were examined as part of a set of 1 s current injections between –500 and 2250 pA (250 pA steps) with a holding current adjusted to maintain an ~70 mV potential. AP waveforms were measured using custom routines in IgorPro. AP threshold was defined as the first membrane voltage in which the first derivative exceeded 30 mV/ms (Zhu et al., 2006).

Examination of cerebellar atrophy

Cerebellar size

Request a detailed protocol

Immediately after brain removal from the skull, a dorsal, whole-mount image was obtained. Images were then processed using Fiji (NIH). The forebrain and cerebellar sizes were assessed by outlining their two-dimensional space and then calculating area. We normalized for possible differences in overall brain size by dividing the results of the cerebellum by forebrain size to produce a relative cerebellum-to-forebrain ratio. Experimenters were blind to the genotype of the animal.

Immunohistochemistry

Request a detailed protocol

At the respective study endpoints (P45, P120, P210, and P400), male and female mice of all genotypes represented in this study were anesthetized with isoflurane and underwent transcardial perfusion with phosphate-buffered saline (PBS) followed by 4% (w/v) buffered paraformaldehyde (PFA) and then dissected to extract the brain. Images of the whole brain were taken immediately after removing the brain from the skull and the brains were then submerged in 4% PFA for 24 hr, and then cryoprotected in Tris-buffered saline (TBS) with 0.05% azide and 30% sucrose for 72 hr and stored at 4°C until further use. The cerebellum was separated from the forebrain and parasagittally sectioned using a sliding microtome (Microm HM 430, Thermo Fisher Scientific) set to section at 40 µm thickness. Cerebellum sections were collected in a series of six and stored in TBS-AF (TBS with 30% sucrose, 0.05% sodium azide, and 30% ethylene glycol) at 4°C or –20°C until further use. For immunofluorescent visualization of PNs, cerebellum sections of both Atm+/+; Aptx+/+ and AtmR35X/R35X; Aptx−/ (n=5 per genotype) were washed for 5 min in TBS three times, and then blocked in 15% normal goat serum at room temperature for 30 min followed by free-floating incubation in rabbit or mouse anti-calbindin D-28k (1:1000) for 1 hr at room temperature on an orbital shaker. Sections were then washed for 5 min with TBS three times, followed by free-floating incubation in goat anti-rabbit or mouse Alexa Fluor 488 (1:1000) for 1 hr in the dark at room temperature on an orbital shaker. Following secondary antibody incubation, sections were washed for 5 min in TBS three times, then mounted and cover-slipped with Fluoromount-G with DAPI. For some sections, anti-cleaved Caspase-3 (1:200) and anti-CD68 (1:400) antibodies were additionally probed in parallel with Calbindin using an Alexa Fluor 647 (1:500) secondary antibody. Slides were scanned using Stereo Investigator (MBF Bioscience, ver. 2020) on a Zeiss microscope equipped with an ApoTome 2 (Carl Zeiss Microscopy, Axio Imager.M2) using either a 2.5×, 10×, 20×, 40×, or 63× objective and images were captured with a Hamamatsu CMOS camera (Hamamatsu Photonics, ORCA Flash 4.0 LT+).

To quantify the number of calbindin-reactive cells in each lobule in the resulting images, we used Stereo Investigator to randomly draw two lines between 300 and 500 μm long in each lobule and manually counted the total number of PNs along the length within the 40 μm thickness of the tissue slice under 40× magnification. 2D density (# of PNs/(linear length*40 µm thickness)) of the two samples per lobule were then averaged for further comparison between lobules and animals.

Calbindin positive PN dendrite widths were measured at a predefined location in lobule VI from each animal in 25 or 40 μm thick tissue sections under 20× magnification. Dendritic widths of the primary and secondary branches were measured at the midline between the PN cell bodies and edge of the ML. Between 7 and 13 dendrites were measured per section, one section per animal.

For PN somatic measurements, Stereo Investigator was used to randomly select PNs distributed across the entire medial section under 20× magnification. The average PN width per animal was determined by averaging results across three serial sections (16–37 PNs per section). PN widths were measured perpendicular to the PN layer or to the exiting dendrite if askew by more than a few degrees.

ML and GCL (visualized with Calbindin and DAPI stains, respectively) widths were assessed in Stereo Investigator by averaging two width measurements at predefined locations for each lobule, roughly halfway along the long extent of each lobule under 2.5× magnification.

CD68 positivity in the cerebellar sections was quantified by measuring the total percent area of CD68+ positive staining across the entire medial cerebellar section. 10× stitched images were thresholded to the negative control and quantified using ImageJ, one section per animal.

To quantify the percent of Calbindin-positive PNs that were positive for cleaved Caspase-3 we counted PNs across the entire cerebellum using Stereo Investigator. Three, 20× magnification stitched images per animal were examined and the results averaged. The threshold for Caspase-3 positivity was established from control sections stained with only the secondary antibodies.

For non-fluorescent histological analysis, 25-μm-thick, free-floating tissue sections onto positively charged slides and air-dried overnight. The tissue was washed in PBS twice for 5 min, then stained sequentially with 0.1% Hematoxylin in 95% ethanol for ~25 s and 0.5% Eosin in 95% ethanol for ~3 s and washed in double-distilled water after each stain. The tissue was subsequently dehydrated for 1 min in 95% ethanol, 100% ethanol, and 100% Xylene washes, then cover slipped with Permount. Slides were imaged using a color camera (Q Imaging, MBF Biosciences) on the same Zeiss microscope and MBF acquisition software.

Experimenters were blinded to the mouse genotype in which sections were examined, and the order of examination was interleaved for all histological measurements.

Flow cytometry measurements

Request a detailed protocol

Flow cytometry analysis of blood and thymus cells was performed by staining with specific anti-mouse antibodies: CD4, CD8, CD3, CD44, and CD25. Briefly, whole-blood samples (50 μl) were stained using fluorescent-labeled antibodies, then red blood cells were lysed using BD lysing solution while live white blood cells were stained using a viability stain. Thymi were mechanically dissociated. 1–2 million thymus cells were similarly stained using specific antibodies for CD4, CD8, CD44, and CD25. Analysis of immuno-stained white blood cells or thymus samples was performed using FACS ARIA III and data was analyzed using FlowJo software as reported previously (Sanghez et al., 2017).

Western blots

Request a detailed protocol

Protein extracts (cells/tissues) were homogenized in radioimmunoprecipitation assay (RIPA) lysis buffer (150 mM NaCl, 1% Nonidet P-40 [NP-40], 0.5% deoxycholate, 0.1% SDS, 50 mM Tris, and pH 8.0) with protease inhibitors (10 μg/ml AEBSF, 10 μg/ml leupeptin, 5 μg/ml pepstatin, 5 μg/ml chymotrypsin, and 10 μg/ml aprotinin). The protein extracts were sonicated then pelleted by centrifugation at 13,000 rpm for 15 min at 4°C. BCA protein assay was used to quantify protein concentrations. Samples containing equal amounts of protein 50–100 μg per lane were separated using 4–12% gradient TGX precast gels Bio-Rad then transferred by TransBlot Semi-Dry Bio-Rad system using Nitrocellulose transfer pack. Transferred blots were stained by Ponceau S stain for equal protein loading then washed and blocked with 5% nonfat dry milk in TBST for 60 min at room temperature. Primary antibodies were incubated with shaking overnight at 4°C. Blots were probed for the following antibodies: ATM (D2E2) Rabbit mAb Cell Signaling, at 1:1000 dilution, β-Actin (D6A8) Rabbit mAb Cell Signaling, GAPDH (D16H11) Rabbit mAb Cell Signaling followed by the appropriate horseradish peroxidase-conjugated (HRP) secondary Anti-rabbit, Anti-mouse for 2 hr at room temperature. After multiple washes with TBST, protein expression was detected by Radiance Plus chemiluminescence substrate using the Azure c400 and the Bio-Rad ChemiDoc imaging systems. Densitometric analysis of the ATM was performed using ImageJ. Experiments were performed with 2 technical and 3–5 biological replicates as indicated.

Statistical assessment

Request a detailed protocol

The number of animals chosen for each group was based on a priori power analyses using GPower v3.1 based on an α size of 0.5, power of 0.8, and effect sizes estimated from preliminary data or prior studies. We used both parametric (one- and two-way ANOVA) for normally distributed and nonparametric (Kruskal-Wallis) statistical methods for interval data to test for differences between groups followed by pairwise multiple comparisons tests as indicated in the text. Outliers for immune data in Figures 6 and 7 were excluded via the ROUT method (Q=2%). The specific analyses used for each data set is noted in each figure legend. For all figures: ns=not significant, * p≤0.05, **p<0.01, ***p<0.001, ****p<0.0001. Data are reported as mean ± SEM and box and whisker plots indicate the minimum, first quartile, median, third quartile, and maximum data values. All figures and statistical analyses were completed using Excel (Microsoft 360) or Prism v8 and 9 (Graphpad).

Data availability

All data generated or analyzed during this study are included in the manuscript and supporting source data files.

References

    1. Atluri PP
    2. Regehr WG
    (1996)
    Determinants of the Time Course of Facilitation at the Granule Cell to Purkinje Cell Synapse
    The Journal of Neuroscience 16:5661–5671.
    1. Boder E
    2. Sedgwick RP
    (1958)
    Ataxia-telangiectasia; a familial syndrome of progressive cerebellar ataxia, oculocutaneous telangiectasia and frequent pulmonary infection
    Pediatrics 21:526–554.
    1. Chen P
    2. Peng C
    3. Luff J
    4. Spring K
    5. Watters D
    6. Bottle S
    7. Furuya S
    8. Lavin MF
    (2003)
    Oxidative stress is responsible for deficient survival and dendritogenesis in Purkinje neurons from ataxia-telangiectasia mutated mutant mice
    The Journal of Neuroscience 23:11453–11460.
    1. Clark HB
    2. Burright EN
    3. Yunis WS
    4. Larson S
    5. Wilcox C
    6. Hartman B
    7. Matilla A
    8. Zoghbi HY
    9. Orr HT
    (1997)
    Purkinje cell expression of a mutant allele of SCA1 in transgenic mice leads to disparate effects on motor behaviors, followed by a progressive cerebellar dysfunction and histological alterations
    The Journal of Neuroscience 17:7385–7395.
  1. Book
    1. Coutinho P
    2. Barbot C
    3. Coutinho P
    (2002)
    Ataxia with Oculomotor Apraxia Type 1
    In: Adam MP, Ardinger HH, Pagon RA, editors. GeneReviews. Seattle, WA: University of Washington. pp. 1993–2021.
    1. Gatti RA
    2. Vinters HV
    (1985)
    Cerebellar pathology in ataxia-telangiectasia: the significance of basket cells
    Kroc Foundation Series 19:225–232.
    1. Lindahl T
    2. Barnes DE
    (2000) Repair of endogenous DNA damage
    Cold Spring Harbor Symposia on Quantitative Biology 65:127–133.
    https://doi.org/10.1101/sqb.2000.65.127
    1. Livák F
    2. Tourigny M
    3. Schatz DG
    4. Petrie HT
    (1999)
    Characterization of TCR Gene Rearrangements During Adult Murine T Cell Development
    Journal of Immunology 162:2575–2580.
    1. Monaco S
    2. Nardelli E
    3. Moretto G
    4. Cavallaro T
    5. Rizzuto N
    (1988)
    Cytoskeletal pathology in ataxia-telangiectasia
    Clinical Neuropathology 7:44–46.
    1. Morrell D
    2. Cromartie E
    3. Swift M
    (1986)
    Mortality and cancer incidence in 263 patients with ataxia-telangiectasia
    Journal of the National Cancer Institute 77:89–92.
    1. Spring K
    2. Cross S
    3. Li C
    4. Watters D
    5. Ben-Senior L
    6. Waring P
    7. Ahangari F
    8. Lu SL
    9. Chen P
    10. Misko I
    11. Paterson C
    12. Kay G
    13. Smorodinsky NI
    14. Shiloh Y
    15. Lavin MF
    (2001)
    Atm knock-in mice harboring an in-frame deletion corresponding to the human ATM 7636del9 common mutation exhibit a variant phenotype
    Cancer Research 61:4561–4568.
    1. Swift M
    2. Morrell D
    3. Cromartie E
    4. Chamberlin AR
    5. Skolnick MH
    6. Bishop DT
    (1986)
    The incidence and gene frequency of ataxia-telangiectasia in the United States
    American Journal of Human Genetics 39:573–583.
    1. Wallis LI
    2. Griffiths PD
    3. Ritchie SJ
    4. Romanowski CAJ
    5. Darwent G
    6. Wilkinson ID
    (2007)
    Proton spectroscopy and imaging at 3T in ataxia-telangiectasia
    AJNR. American Journal of Neuroradiology 28:79–83.

Decision letter

  1. Roy V Sillitoe
    Reviewing Editor; Baylor College of Medicine, United States
  2. Gary L Westbrook
    Senior Editor; Oregon Health and Science University, United States
  3. Roy V Sillitoe
    Reviewer; Baylor College of Medicine, United States
  4. Alanna J Watt
    Reviewer; McGill University, Canada

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

Thank you for submitting your article "A novel, ataxic mouse model of Ataxia Telangiectasia caused by a clinically relevant nonsense mutation" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Roy V Sillitoe as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Huda Zoghbi as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Alanna J Watt (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

In this manuscript, the authors have generated a new mouse model for the severe disease, Ataxia Telangiectasia (A-T). They introduce null mutations in Atm onto the background of mice that are somewhat sensitized since they also harbor mutations in the Aptx gene. The outcome is the mice show a set of phenotypes that are strikingly similar to symptoms seen in human patients. These include cerebellar degeneration, cancer, and immune system abnormalities. The also deliver small molecule readthrough (SMRT) compounds into tissue explants and show that such a manipulation can restore the production of ATM protein. The success in producing an Atm model with cerebellar degeneration is a compelling advance as this particular phenotype has been incredibly difficult to reproduce in animal models. The authors perform an interesting set of analyses to confirm that the other important features of the disease are also present in their mice. This paper has broad interest to multiple fields including neuroscience, cancer, and immunology.

Essential revisions:

1) It is not clear how progressive the cerebellar degeneration is. What is the spatiotemporal pattern of degeneration? Please consider the lobule by lobule effects over time.

2) For the electrophysiology, what stage cells have you recorded from? That is, what was the structure of the Purkinje cells that you recorded? If the cells look really "normal" but fire abnormally, then please comment on how they are being affected. If the morphology is abnormal, then please explain what defects you see and how they might impact function. Essentially, the authors need to disentangle cell autonomous effects and non-cell autonomous effects with more clarity. That is, are you studying the "dying" cells or the cells that escaped the genetic defect?

3) Are both the Atm and the Aptx genes expressed in all (or the same) Purkinje cells? What is the experimental evidence?

4) Please provide more context and rationale for Aptx in the abstract. As it stands, its mention comes out of nowhere.

5) In the Introduction, please provide more information as to why previous studies/models might have failed to produce severe Atm-related cerebellar phenotypes.

6) In the Introduction, the rationale for the choice of paring the Atm mutations with defects in the Aptx gene is unclear. Are they in the same pathway? Are the genes located in close proximity to one another? There are many issues that need to be discussed.

Related to above, ATM and APTX, while involved in DDR, are involved in parallel pathways-ATM in DNA double stranded break repair, and APTX in single stranded break repair. Homozygous mutations in APTX causes human ataxia (AOA1), but there is nothing to indicate an intersection mechanistically between AT and AOA1. One could just as well call the AT-APTX double mutation a model of AOA1. As indicated above, please expand on the rationale of the experimental design.

Also, are there more single stranded DNA breaks? Double stranded DNA breaks? Is there a sequestration of SS DNA break repair components including PARP1? How are the changes in PC firing related to DDR (it would be worthwhile for the authors to examine the following papers Hoch et al. Nature. 2017 Jan 5;541(7635):87-91, Stoyas et al. Neuron 2020 Feb 19;105(4):630-644) to give insight into studies that can explore mechanism for DDR and changes in cerebellar morphology/function.

Therefore, the authors need to address whether single vs double stranded break repair is present and the authors could do a better job of linking the change in PC firing to DNA damage.

7) Figure 2B: Apologies if I am missing something, but I do not understand the reason or explanation for what determines the probability of survival for the green, gold, and orange traces (the three severe cases in the graph). That is, why is the gold so strong?

8) How come rotarod was not used as a test? This is a standard motor behavior test that is useful for comparing across animal models and studies.

9) Related to above, why not use in vivo recordings? I can understand using slice recordings to tackle the biophysical and intrinsic mechanisms, although the authors did not do that. It seems to me that extracellular recordings would have been more informative in the in vivo, awake context.

10) The authors picked specific regions of the cerebellum to target their slice recordings, which is perfectly reasonable. But why did you pick these regions? Please provide a full justification and discussion for the importance of these particular lobules in relation to what you are trying to solve.

11) Given the use of slice recordings and that Purkinje cell degeneration is a key aspect of the phenotype, it would be very compelling if the authors showed some filled cells. As it stands, it is very hard to appreciate what the severity of neuropathology actually looks like, especially in relation to what the functional defects are teaching us.

12) The authors state that "The largest differences were detected in the anterior [38.6±3.4 Hz (n=187) vs. 88.1±1.8 Hz (n=222)] and posterior [46.9±1.9 Hz (n=175) vs. 84.1±2.4 Hz (n=219)] medial cerebellum [1-way ANOVA, p<0.0001; Figure 4B]." Okay, but what does this mean? What is your interpretation for why these regions were more heavily impacted (cell sensitivity based on circuit architecture, gene expression and protein make-up, neuronal lineage?) and how might it impact the phenotype?

13) The authors state and reference "Previous studies in mouse models of heritable ataxia indicate that physiological disruption in PN firing not only includes changes in frequency but also affects its regularity (Cook, Fields, and Watt 2020)." I agree with having this reference, but what about other models of ataxia? There are a number of other excellent models that should be discussed.

14) Purkinje cell firing data (figure 4B) should not be averaged across all of the ages, as this is not standard practice, and would be akin to averaging all behavior across ages. I think the data in Figure 4C suffices. If you want to compare across lobules on one graph, simply choose a particular age (perhaps when behavioral changes are first observed?) or at the oldest age.

15) Why examine Purkinje cell firing deficits in different lobules but not make that distinction for Purkinje cell loss? The Purkinje cell loss analysis focussed on the areas with most pronounced firing deficits but this means that we don't know whether the cells that fire abnormally are the only ones that die. Also see point #2 above.

16) Figure 4E and related text: Please provide a much more extensive set of images to show the cerebellar pathology. 1) Please show views of the different lobules to demonstrate the pattern of degeneration. 2) Please show different ages to show the progression of degeneration. 3) Please show higher power images of the Purkinje cells to clearly demonstrate their morphology.

17) The authors need to need provide more data for what is actually happening in relation to cell death. Why not perform Tunel or caspase staining etc.? The authors must show that there are actually acellular gaps where cells have died, or some other indication that cell death has occurred or is occurring.

18) Also in relation to the Purkinje cell degeneration, what do the dendrites look like? What about the axons? Do you see any torpedoes or axonal regression?

19) In regards to the cerebellar degeneration, what happens to the other cell types in the cerebellar cortex? Are they intact? What about the cerebellar nuclei?

20) The authors state "Of interest, APTX deficiency by itself had the greatest effect on the loss of DN4 cells…". Okay, but it is hard to see what this means for A-T as a disease. Interesting as it is, what is the relevance of this gene and these findings to the actual disease?

21) Please provide a more extensive description and rationale for why this explant system was chosen.

22) Figure 7: There have several comments regarding the blots. 1) The blots look like they have clipped too much. Please show the whole thing. 2) It looks as though the bands are slightly higher in the treated condition. Why? 3) What are the molecular weights? Please provide a ladder.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "A novel, ataxic mouse model of Ataxia Telangiectasia caused by a clinically relevant nonsense mutation" for further consideration by eLife. Your revised article has been evaluated by 2 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Gary Westbrook as the Senior Editor.

The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below in the comments of Reviewers 1 and 3. The remaining concerns are related to the pathology of the mouse model. Specifically, the reviewers have noted several issues regarding the clarity of the presentation and quantification of the data demonstrating the impact of the genetic mutations on Purkinje cell structure.

Reviewer #1:

The authors have done an outstanding job of addressing most of the comments that were raised by adding new data and revising the text. Still, a number of issues remain.

The main concern with the current version is that despite an attempt to resolve the localization and extent of neuropathological defects in the mutant, the authors have now presented the data in a manner that raises concerns as to how severe the pathology actually is. Indeed the authors state that it is not severe, although without additional quantification it is challenging to fully understand what this means.

1) On page 13, it is unclear what the authors mean by "we do not qualitatively observe severe pathological changes in the anatomy of their cerebellum…" One way to deal with this issue is to provide quantifications for the data.

2) Related to above, the authors need to quantify whether Purkinje cell loss actually occurs. In its current form, the descriptions of the data are very confusing. If there is no cell death, then this must be described as a key aspect of the model. Similarly, the dendritic defects must be quantified and axonal swellings described and quantified in detail.

3) Is there a possibility that the axonal swelling that are labeled by the authors are just simply cut ends of Purkinje cell axon collaterals? How do you define these strictly as pathological swellings?

4) From the anatomical data provided, it is hard to appreciate the dendritic defects, especially at this low magnification.

5) Figure 5-supplement 5, panel C. The anatomical data needs equivalent images from controls. Also, the higher power images do not have a scale bar.

6) The authors state that "However, since the neuropathology observed in the AtmR35X/R35X; Aptx-/- mice is not severe, our findings suggest that like several SCAs (e.g.,1 and 3), changes in cerebellar function itself, rather than profound loss of cerebellar cells, is likely sufficient to cause the ataxic phenotype (Shakkottai et al. 2011b; Lorenzetti et al. 2000; Clark et al. 1997). I am confused by this statement because the neuropathology in SCA1 is in fact very severe.

Reviewer #3:

The authors should be commended for the revisions, which has substantially improved the manuscript. Overall, the paper has been strengthened, and the development of a mouse model for A-T seems to merit publication in eLife.

However, there are still a few small details that lack clarification.

1. The authors have removed their data on cell death, stating that by using the light microscope, they were able to determine that spaces lacking calbindin still contained cells, but that they are calbindin negative. This is surprising to me, because there is no obvious decrease in calbindin intensity evident in their images (e.g. Figure 5D, and Supplemental Figure 5.5). This result is important because counting calbindin-positive cells is a standard approach for assessing whether Purkinje cell death exists, and is often used in the study of mouse models of ataxia. Characterizing the Purkinje cell number – whether it is decreased or it is not – is important, and should be included in the manuscript. The authors state that they looked using light microscopic images, and are able to see cells that are calbindin-negative, but this is not a standard way of assessing whether Purkinje cells are intact or not. I would suggest that they count using another cellular marker, or a cell death marker. The authors need to show clearly how they are counting cells, and how they are sure that cells in the light microscope image reflect live, and not dead, cells.

2. The authors show evidence of swellings on Purkinje cell axons but do not show what the axons look like in their control mice in Supplemental Figure 5.5. Please add that.

3. The authors do not report any statistics for Supplemental Figure 5.1. Please add that.

4. While some improvement has been made in the justification for the data in Figure 8 to be included in the manuscript, it is still a poor fit. For example, these data are in a different mouse model that is not the focus of the rest of the paper, and has very low N's (n = 2 for one condition). The data does not flow well with the rest of the paper, and seems to really come out of the blue from the rest of the paper. The authors should either motivate this better, or, ideally, remove this data and include it in a subsequent paper.

5. Please edit lines 496-7. The statement that Cav2.1 is shown to contribute to baseline excitability is not shown in the cited paper.

https://doi.org/10.7554/eLife.64695.sa1

Author response

Essential revisions:

1) It is not clear how progressive the cerebellar degeneration is. What is the spatiotemporal pattern of degeneration? Please consider the lobule by lobule effects over time.

We now report measurements of the cerebellar molecular and granule cell layer over time and for each lobule. This is reported in Figure 5 and supplemental figures. Briefly, we find a progressive shrinking of the Purkinje neuron dendritic layer (i.e., molecular layer), but no change in the width of the granule cell layer. Atrophy appears to be a global phenomenon and not distinct to any specific lobule or medial to later subdivision. Given that anatomical subdivisions do not suitably correlate with differential molecular expression patterns of Purkinje neurons (e.g., aldolase C) and potentially not function either, we have made the decision to report, but not highlight or potentially over interpret these findings, as there is a good chance that anatomical subdivisions are an inadequate, although logistically straightforward way to group the data.

2) For the electrophysiology, what stage cells have you recorded from? That is, what was the structure of the Purkinje cells that you recorded? If the cells look really "normal" but fire abnormally, then please comment on how they are being affected. If the morphology is abnormal, then please explain what defects you see and how they might impact function. Essentially, the authors need to disentangle cell autonomous effects and non-cell autonomous effects with more clarity. That is, are you studying the "dying" cells or the cells that escaped the genetic defect?

As requested, we now provide a broader description of cell selection in both the results and methods section. However, since we didn’t find gross degeneration of the cerebellum our intra and extracellular recordings are likely to be representative of those contributing to the phenotype.

Briefly, only cells with a “healthy” look (low contrast of cellular borders), and regular, uninterrupted firing rate were examined. During analysis, a small fraction of cells that appeared to fire regularly prior to proceeding with recording were subsequently found to have large gaps (>2s) in their firing rate over the 60s recording. These cells were eliminated from analysis. Double mutant tissue did not qualitatively differ in appearance under DIC microscopy prior to recordings, nor was the number of “non regular” firing cells in the double mutant mice greater than that of other genotypes (7% vs 4-11% of all cells across control genotypes at P400).

3) Are both the Atm and the Aptx genes expressed in all (or the same) Purkinje cells? What is the experimental evidence?

This is an excellent question, as several proteins have been demonstrated to be expressed in Purkinje neurons in parasagittal bands across the cerebellum. It is generally thought that ATM and APTX genes are ubiquitous throughout the nervous system and peripheral tissues. Informal discussions with other experts on these proteins indicate that they have not observed differential expression patterns across the cerebellum. However, selective antibodies for ATM and APTX have historically been a problem in the field, and the relatively low abundance of ATM and APTX makes them a challenge for histological examination. Unfortunately, we tested several antibodies for immunofluorescence but were unable to validate any suitable for a quantitative or even qualitative analysis of expression levels across the cerebellum.

4) Please provide more context and rationale for Aptx in the abstract. As it stands, its mention comes out of nowhere.

We have rewritten the abstract so APTX is less of a surprise.

5) In the Introduction, please provide more information as to why previous studies/models might have failed to produce severe Atm-related cerebellar phenotypes.

We have significantly expanded the introduction to better detail potential reasons for why prior models failed to produce ataxia.

“Unfortunately, none develop an overt, progressive ataxia with cerebellar dysfunction and atrophy that recapitulates the human disease. […] Other challenges include potentially leaky genetic manipulations that result in low levels of ATM protein or active fragments with residual kinase activity, thus limiting neuropathology (Li et al. 2011).”

6) In the Introduction, the rationale for the choice of paring the Atm mutations with defects in the Aptx gene is unclear. Are they in the same pathway? Are the genes located in close proximity to one another? There are many issues that need to be discussed.

To make this clearer we now provide a more thorough rationale detailing why we chose to pair APTX loss, with that of ATM. The following paragraph has been added to the introduction:

“We test here whether increasing genotoxic stress, by placing null mutations in not just the Atm gene, but also the related Aptx gene, leads to a more representative mouse model that displays cerebellar dysfunction, atrophy, and the development of progressive ataxia. […] We therefore reasoned that deficiency of both proteins would have an additive effect on genotoxic stress capable of inducing a detectable neurological dysfunction.”

Related to above, ATM and APTX, while involved in DDR, are involved in parallel pathways-ATM in DNA double stranded break repair, and APTX in single stranded break repair. Homozygous mutations in APTX causes human ataxia (AOA1), but there is nothing to indicate an intersection mechanistically between AT and AOA1. One could just as well call the AT-APTX double mutation a model of AOA1. As indicated above, please expand on the rationale of the experimental design.

Also, are there more single stranded DNA breaks? Double stranded DNA breaks? Is there a sequestration of SS DNA break repair components including PARP1? How are the changes in PC firing related to DDR (it would be worthwhile for the authors to examine the following papers Hoch et al. Nature. 2017 Jan 5;541(7635):87-91, Stoyas et al. Neuron 2020 Feb 19;105(4):630-644) to give insight into studies that can explore mechanism for DDR and changes in cerebellar morphology/function.

Therefore, the authors need to address whether single vs double stranded break repair is present and the authors could do a better job of linking the change in PC firing to DNA damage.

While APTX was initially linked to single stranded DNA repair, recent evidence suggests a role in both single and double stranded repair. This is now better described in the introduction. Given that there isn’t a clear-cut separation of ATM and APTX in double and single stranded DNA repair we do not believe that direct comparison of these processes in the cerebellum would be as illuminating as if this were the case.

While we generally agree that from a neurological standpoint the mouse we have generated might interchangeably be described as an A-T or AOA1 mouse model, the other symptomology displayed by the mouse, including the increased cancer prevalence and perturbations to the immune system are characteristic of A-T and not AOA1. Therefore, in total, we believe this mouse to be a more representative model of A-T and not AOA1.

The goal of linking PC or even cerebellar dysfunction to DNA damage is of great importance, and of extremely high impact. We believe that this model will provide a tool to address this question, but it will require significant directed efforts outside our initial, comprehensive description of the new mouse model in this manuscript.

7) Figure 2B: Apologies if I am missing something, but I do not understand the reason or explanation for what determines the probability of survival for the green, gold, and orange traces (the three severe cases in the graph). That is, why is the gold so strong?

As requested, we now provide additional details to significantly improve clarity. The simple answer here is that ATM deficiency, regardless of the amount of APTX present, results in premature death. While qualitatively the R35X/R35X;+/- (gold) animals appear to have a more severe phenotype than the R35X/R35X;+/+ (green) there is no significant difference between the three genotypes fully deficient in ATM (gold, orange, and green). This last point has now been explicitly stated in the figure legend to clarify this point. Due to the number of groups plotted, error bars were deliberately left off as they made it extremely difficult to make out each group. The following text was added to Figure 3B:

(B) ATM deficient mice, regardless of APTX expression displayed significantly lower survivability with ~55% of mice deceased by P400. […] Total number of animals indicated in panel C.”

8) How come rotarod was not used as a test? This is a standard motor behavior test that is useful for comparing across animal models and studies.

We chose to use the Catwalk because it provides a more quantitative measure of animal locomotion.

9) Related to above, why not use in vivo recordings? I can understand using slice recordings to tackle the biophysical and intrinsic mechanisms, although the authors did not do that. It seems to me that extracellular recordings would have been more informative in the in vivo, awake context.

Our goal to characterize several control genotypes, anatomical regions, and time points made in vivo, awake recordings impractical. We agree that future in vivo studies will be informative now that we have confirmed that at least one copy of the wildtype ATM or APTX gene is sufficient to rescue the phenotype! Moreover, we have now added an extensive biophysical examination of cerebellar neurons at P400, shedding light on the mechanisms of cerebellar dysfunction caused by ATM and APTX deficiency. We focus on Purkinje neurons here but include experiments that suggest inputs from both parallel fibers and climbing fibers remain relatively normal, suggesting Purkinje neurons as a potential focal point of the disease within the cerebellum. We have added an entire figure (Figure 4) and section that defines how loss of ATM and APTX changes the intrinsic properties of Purkinje neurons.

10) The authors picked specific regions of the cerebellum to target their slice recordings, which is perfectly reasonable. But why did you pick these regions? Please provide a full justification and discussion for the importance of these particular lobules in relation to what you are trying to solve.

We fully appreciate the reviewers desire for a more comprehensive justification and interpretation of the differential findings of Purkinje neuron action potential rates we report across anatomical regions of the cerebellum. However, as discussed in critique 1, we have taken a deliberately cautious approach in interpreting these data due to the fields incomplete understanding of cerebellar functional anatomy and methods for discriminating between domains. However, we have taken efforts to better rationalize why we examined the regions we did in the Results section and point out some of the limitations of using anatomy as a grouping method in the Discussion section.

11) Given the use of slice recordings and that Purkinje cell degeneration is a key aspect of the phenotype, it would be very compelling if the authors showed some filled cells. As it stands, it is very hard to appreciate what the severity of neuropathology actually looks like, especially in relation to what the functional defects are teaching us.

We now provide several high power (63X) images in Figure 5—figure supplement 5 of the Purkinje neurons. While these images do not contain single cell fills, they do fully illustrate the morphology of Purkinje neurons in the double mutant mice. These images highlight a common finding of thicker Purkinje neuron dendrites in the double mutant mice and some evidence of axonal swellings.

12) The authors state that "The largest differences were detected in the anterior [38.6±3.4 Hz (n=187) vs. 88.1±1.8 Hz (n=222)] and posterior [46.9±1.9 Hz (n=175) vs. 84.1±2.4 Hz (n=219)] medial cerebellum [1-way ANOVA, p<0.0001; Figure 4B]." Okay, but what does this mean? What is your interpretation for why these regions were more heavily impacted (cell sensitivity based on circuit architecture, gene expression and protein make-up, neuronal lineage?) and how might it impact the phenotype?

The reviewer raises several important and interesting questions that we look to explore in future studies as the experiments to appropriately address them are out of the scope of this study. As indicated in comment 10, we have expanded our discussion on these findings and the limitations of using anatomical groupings.

13) The authors state and reference "Previous studies in mouse models of heritable ataxia indicate that physiological disruption in PN firing not only includes changes in frequency but also affects its regularity (Cook, Fields, and Watt 2020)." I agree with having this reference, but what about other models of ataxia? There are a number of other excellent models that should be discussed.

The review article we cite, published in 2020, provides a comprehensive description of prior research that directly relates intrinsic PN firing differences across a broad array of over 15 models of ataxia, this includes several SCA variants, EA2, ASACS, as well as other disorders like Huntington’s and ASD. We now directly cite those research articles at the location of the noted quote. We have also improved the language within the sentence to make it clearer that this effect on regularity has been observed across several different ataxia models. However, we didn’t find that the regularity of firing in the “healthy” cells of our new A-T model to be significantly impacted and therefore do not address this phenomenon further in the article.

14) Purkinje cell firing data (figure 4B) should not be averaged across all of the ages, as this is not standard practice, and would be akin to averaging all behavior across ages. I think the data in Figure 4C suffices. If you want to compare across lobules on one graph, simply choose a particular age (perhaps when behavioral changes are first observed?) or at the oldest age.

As noted by the reviewer, we have removed this panel entirely.

15) Why examine Purkinje cell firing deficits in different lobules but not make that distinction for Purkinje cell loss? The Purkinje cell loss analysis focussed on the areas with most pronounced firing deficits but this means that we don't know whether the cells that fire abnormally are the only ones that die. Also see point #2 above.

Please see responses to 1, 2, and 10.

16) Figure 4E and related text: Please provide a much more extensive set of images to show the cerebellar pathology. 1) Please show views of the different lobules to demonstrate the pattern of degeneration. 2) Please show different ages to show the progression of degeneration. 3) Please show higher power images of the Purkinje cells to clearly demonstrate their morphology.

We have added several new images to Figure 5 and Figure 5—figure supplement 5. We now report a developmental shrinking of the width of the molecular layer, but not the granule cell layer (Figure 5D).

17) The authors need to need provide more data for what is actually happening in relation to cell death. Why not perform Tunel or caspase staining etc.? The authors must show that there are actually acellular gaps where cells have died, or some other indication that cell death has occurred or is occurring.

The reviewers desire to confirm cell death is an important one. After further inspection of the tissue, including inspection under brightfield rather than just fluorescent microscopy, it does not appear that the acellular gaps we initially observed under fluorescence resulted from cellular loss, but insufficient Calbindin staining. We performed a more intensive 3 dimension counting of Purkinje neurons across all medial folia and did not find a significant loss of PNs in the double mutant mice. Thus, we do not report or believe there is significant cell loss or death.

18) Also in relation to the Purkinje cell degeneration, what do the dendrites look like? What about the axons? Do you see any torpedoes or axonal regression?

We find the primary dendrites in the double mutant mice to qualitatively have a larger gauge than those found in wildtype animals. Although not found extensively throughout the tissue, we do find axonal swellings in the double mutant mice. These findings are illustrated in Figure 5—figure supplement 5.

19) In regards to the cerebellar degeneration, what happens to the other cell types in the cerebellar cortex? Are they intact? What about the cerebellar nuclei?

Overall, we find anatomical effects restricted to a progressive reduction in the width of the molecular layer (see Figure 5). We do not find a similar shrinking of the granule cell layer. These results are in line with our finding that synaptic inputs from the granule cells onto Purkinje neurons appear normal based on the electrophysiological data presented in Figure 4. The cerebellar nuclei were not examined extensively, but we observed no obvious gross changes in anatomy.

20) The authors state "Of interest, APTX deficiency by itself had the greatest effect on the loss of DN4 cells…". Okay, but it is hard to see what this means for A-T as a disease. Interesting as it is, what is the relevance of this gene and these findings to the actual disease?

The reviewers are correct, this result does not directly relate to A-T. However, our intent in pointing out this finding is twofold. First, we want to alert the more immunologically astute reader to the fact that this effect did not go unnoticed by our group, a finding that, to our knowledge, illustrates for the first time a selective defect in double negative thymocyte development. Second, we are “planting a flag” on this original finding to facilitate our current efforts defining how APTX involved in gene rearrangement during thymocyte development.

21) Please provide a more extensive description and rationale for why this explant system was chosen.

As requested, we now provide a more comprehensive discussion on why we chose to use the explant system. In short, our goal was to demonstrate, in proof-of-principle experiments that the nonsense mutation inserted into these mice can be overcome using pharmacological readthrough agents. We used explants, rather than in vivo delivery to mitigate any challenges that can arise with drug delivery (e.g., inability to cross the blood brain barrier). We have modified section 2.7:

“Our primary rationale for inserting a clinically relevant nonsense mutation in the Atm gene was to generate a mouse amenable to critical pre-clinical testing of a novel set of small molecule readthrough (SMRT) compounds. […] ATM expression was measured in samples from the spleen, where ATM is normally expressed at high levels, and the cerebellum, a key target tissue for the disorder.”

22) Figure 7: There have several comments regarding the blots. 1) The blots look like they have clipped too much. Please show the whole thing. 2) It looks as though the bands are slightly higher in the treated condition. Why? 3) What are the molecular weights? Please provide a ladder.

We do not find evidence that the treated protein is higher on the gel. We now provide a ladder and full ponceaus image to provide further information. ATMs molecular weight of 350 kDa is now shown to the right of the images.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below in the comments of Reviewers 1 and 3. The remaining concerns are related to the pathology of the mouse model. Specifically, the reviewers have noted several issues regarding the clarity of the presentation and quantification of the data demonstrating the impact of the genetic mutations on Purkinje cell structure.

We thank the reviewers for the opportunity to further clarify the results of our manuscript. In this revision we provide additional quantification and new data on the histopathology of the A-T mouse model that bolsters our findings as requested by the reviewers. To strengthen our prior results indicating that cell death is not a feature of the mouse model, we roughly doubled the number of cerebella in which we quantified Purkinje neuron density. In total, these data indicate that there is no significant difference in the density of calbindin positive Purkinje neurons in either the whole vermis (wildtype: 4.5 ± 0.2 (n=9) vs. A-T mouse: 4.5 ± 0.3 (n=7), Welch’s t-test, p=0.9) or in any single lobule of the A-T mouse model (see Figure 5—figure supplement 5; p>0.6 for each lobule II through X). Supporting this finding are additional data that demonstrate the lack of increased expression of either Caspase-3 (cell death marker) or CD68 (microglial activation marker) as compared to wildtype and a positive control (mouse model of MPS III). These data are provided in Figure 5—figure supplement 2. As requested by reviewer 1, the lack of PN cell death is now better highlighted. We have added a panel to Figure 5 that includes cerebellar images at both 2.5x and 20x as well as a summary plot of PN density. We have also added images of cerebellar sections stained with Hematoxylin and Eosin (H & E) to provide an additional view of cerebellar histology, as suggested by reviewer #3. We also now report in Figure 5 data demonstrating changes in PN morphology in the A-T mouse as compared to control (i.e., smaller PN somatic width and increased dendritic caliber). Additional modifications to the manuscript have been made to address each of the reviewer’s specific comments.

Reviewer #1:

The authors have done an outstanding job of addressing most of the comments that were raised by adding new data and revising the text. Still, a number of issues remain.

The main concern with the current version is that despite an attempt to resolve the localization and extent of neuropathological defects in the mutant, the authors have now presented the data in a manner that raises concerns as to how severe the pathology actually is. Indeed the authors state that it is not severe, although without additional quantification it is challenging to fully understand what this means.

1) On page 13, it is unclear what the authors mean by "we do not qualitatively observe severe pathological changes in the anatomy of their cerebellum…" One way to deal with this issue is to provide quantifications for the data.

2) Related to above, the authors need to quantify whether Purkinje cell loss actually occurs. In its current form, the descriptions of the data are very confusing. If there is no cell death, then this must be described as a key aspect of the model. Similarly, the dendritic defects must be quantified and axonal swellings described and quantified in detail.

As requested, we have now quantified these data, demonstrating that Purkinje neuron cell death is not a key aspect of this model, but morphological changes are (see opening paragraph and Figure 5 for details).

3) Is there a possibility that the axonal swelling that are labeled by the authors are just simply cut ends of Purkinje cell axon collaterals? How do you define these strictly as pathological swellings?

The reviewers are correct and reference to these swellings has been removed.

4) From the anatomical data provided, it is hard to appreciate the dendritic defects, especially at this low magnification.

Quantification of the large-caliber dendrites has been added. Images have been added to Figure 5E, including insets of the dendrites at an increased magnification.

5) Figure 5-supplement 5, panel C. The anatomical data needs equivalent images from controls. Also, the higher power images do not have a scale bar.

We believe that our labeling of the controls in this panel was potentially unclear. This result has now been quantified and moved to the main Figure 5. All images contain the appropriate scale bars.

6) The authors state that "However, since the neuropathology observed in the AtmR35X/R35X; Aptx-/- mice is not severe, our findings suggest that like several SCAs (e.g.,1 and 3), changes in cerebellar function itself, rather than profound loss of cerebellar cells, is likely sufficient to cause the ataxic phenotype (Shakkottai et al. 2011b; Lorenzetti et al. 2000; Clark et al. 1997). I am confused by this statement because the neuropathology in SCA1 is in fact very severe.

We thank the reviewer for pointing out how this sentence might be confusing. Our intent was to support the idea that ataxia can arise from changes in PN physiology alone, either before, or even without cell death. While there is PN loss in both SCA1 and 3, as pointed out by the reviewer, behavioral defects are observed in both prior to detected neuronal loss. This is important, as it suggests that there may be an opportunity for therapeutic intervention in disorders of ataxia even after behavioral defects are detected. To strengthen this point further, we also add the reference Jayabal et al. 2016, which demonstrates behavioral defects in a mouse model of SCA6 prior to PN cell loss. The sentence has been changed to:

“Our histological observations in the AtmR35X/R35X; Aptx-/- mice suggest that changes in cerebellar function itself, rather than profound loss of cerebellar cells, are sufficient to cause the ataxic phenotype, consistent with the observation of behavioral defects prior to significant PN loss in several SCAs (Shakkottai et al. 2011b; Lorenzetti et al. 2000; Clark et al. 1997).”

Reviewer #3:

The authors should be commended for the revisions, which has substantially improved the manuscript. Overall, the paper has been strengthened, and the development of a mouse model for A-T seems to merit publication in eLife.

However, there are still a few small details that lack clarification.

1. The authors have removed their data on cell death, stating that by using the light microscope, they were able to determine that spaces lacking calbindin still contained cells, but that they are calbindin negative. This is surprising to me, because there is no obvious decrease in calbindin intensity evident in their images (e.g. Figure 5D, and Supplemental Figure 5.5). This result is important because counting calbindin-positive cells is a standard approach for assessing whether Purkinje cell death exists, and is often used in the study of mouse models of ataxia. Characterizing the Purkinje cell number – whether it is decreased or it is not – is important, and should be included in the manuscript. The authors state that they looked using light microscopic images, and are able to see cells that are calbindin-negative, but this is not a standard way of assessing whether Purkinje cells are intact or not. I would suggest that they count using another cellular marker, or a cell death marker. The authors need to show clearly how they are counting cells, and how they are sure that cells in the light microscope image reflect live, and not dead, cells.

We understand the reviewer’s surprise. In fact, we initially hypothesized that ataxia would be associated with a significant loss of PNs. However, we did not observe the significant acellular gaps or thinning of PNs in the cerebellum as observed with other mouse models of ataxia. To affirm our initial findings, we doubled the number of animals examined. Moreover, PN density was established using the standard method of dividing the number of calbindin positive PNs by the area examined. We did not find a significant difference in density either within the medial section as a whole or when we examined each lobule individually. We would also like to note that a report currently online as a preprint that examined PN density in a small set of A-T patients (n=9) found significant reductions in PN density only in late-stage, older patients (>25 years of age), with little to no change in patients between 16-25 years of age medRxiv: doi.org/10.1101/2021.01.22.20245217. The lack of quantitative studies, especially in younger patients, which is limited due to the rarity of the disorder and availability of postmortem tissues, has potentially resulted in an inaccurate impression based on the late-stage clinical reports that PN cell death is a driving factor of ataxia in A-T. We acknowledge that had we been able to look at mice out as far as 2 years of age, we may have found prominent cell death; however, it appears clear, that ataxia in this mouse model is not related to PN cell death. We further support this finding with additional data that demonstrates a lack of significant Caspase-3 or CD68 expression in the P400 AtmR35X/R35X; Aptx-/- mice.

2. The authors show evidence of swellings on Purkinje cell axons but do not show what the axons look like in their control mice in Supplemental Figure 5.5. Please add that.

See response to Reviewer 1, Comment 3.

3. The authors do not report any statistics for Supplemental Figure 5.1. Please add that.

Demarcation of statistical significance has been added to the figure.

4. While some improvement has been made in the justification for the data in Figure 8 to be included in the manuscript, it is still a poor fit. For example, these data are in a different mouse model that is not the focus of the rest of the paper, and has very low N's (n = 2 for one condition). The data does not flow well with the rest of the paper, and seems to really come out of the blue from the rest of the paper. The authors should either motivate this better, or, ideally, remove this data and include it in a subsequent paper.

These mice were specifically designed to test our small molecule readthrough compounds. We have modified the introduction to make this rationale clearer.

“Finally, we designed this new mouse model to test our recently developed Small Molecule Read-Through Compounds (SMRT) that enable translation through premature termination codons (Du et al. 2013). Thus, we inserted a premature termination-causing nonsense mutation (103C>T) in the Atm gene common to a large family of North African A-T patients (Gilad, Bar-Shira, et al. 1996). This mutation results in a premature termination codon (PTC) at what would normally be amino acid 35 and the loss of ATM translation. Here, we report proof-of-principle experiments demonstrating that genetic mutations incorporated into the A-T mouse model are amenable to read-through compounds and thus appropriate for preclinical testing of the SMRT compounds.”

Additionally, we have added another biological replicate to the experiment in Figure 8; thus, all experiments are confirmed in at least triplicate.

5. Please edit lines 496-7. The statement that Cav2.1 is shown to contribute to baseline excitability is not shown in the cited paper.

Upon further reflection, we believe that this sentence suggests that for a majority of SCAs the link between the disease-causing protein defect and ataxia is straightforward. Since this is not the case, we have simplified this sentence to:

“The mechanistic link between deficiency in DNA stability proteins like ATM and APTX and PN dysfunction is far from clear.”

https://doi.org/10.7554/eLife.64695.sa2

Article and author information

Author details

  1. Harvey Perez

    The Lundquist Institute for Biomedical Innovation, Harbor-UCLA Medical Center, Torrance, United States
    Contribution
    Investigation, Methodology, Supervision, Writing – review and editing
    Contributed equally with
    May F Abdallah and Jose I Chavira
    Competing interests
    No competing interests declared
  2. May F Abdallah

    The Lundquist Institute for Biomedical Innovation, Harbor-UCLA Medical Center, Torrance, United States
    Contribution
    Investigation, Methodology, Supervision, Writing – review and editing
    Contributed equally with
    Harvey Perez and Jose I Chavira
    Competing interests
    No competing interests declared
  3. Jose I Chavira

    The Lundquist Institute for Biomedical Innovation, Harbor-UCLA Medical Center, Torrance, United States
    Contribution
    Investigation, Methodology, Writing – review and editing
    Contributed equally with
    Harvey Perez and May F Abdallah
    Competing interests
    No competing interests declared
  4. Angelina S Norris

    The Lundquist Institute for Biomedical Innovation, Harbor-UCLA Medical Center, Torrance, United States
    Contribution
    Data curation, Formal analysis, Methodology, Writing – review and editing
    Competing interests
    No competing interests declared
  5. Martin T Egeland

    The Lundquist Institute for Biomedical Innovation, Harbor-UCLA Medical Center, Torrance, United States
    Contribution
    Investigation, Methodology, Supervision, Writing – review and editing
    Competing interests
    No competing interests declared
  6. Karen L Vo

    The Lundquist Institute for Biomedical Innovation, Harbor-UCLA Medical Center, Torrance, United States
    Contribution
    Formal analysis, Investigation, Methodology, Writing – review and editing
    Competing interests
    No competing interests declared
  7. Callan L Buechsenschuetz

    The Lundquist Institute for Biomedical Innovation, Harbor-UCLA Medical Center, Torrance, United States
    Contribution
    Formal analysis, Writing – review and editing
    Competing interests
    No competing interests declared
  8. Valentina Sanghez

    The Lundquist Institute for Biomedical Innovation, Harbor-UCLA Medical Center, Torrance, United States
    Contribution
    Investigation, Methodology, Writing – review and editing
    Competing interests
    No competing interests declared
  9. Jeannie L Kim

    The Lundquist Institute for Biomedical Innovation, Harbor-UCLA Medical Center, Torrance, United States
    Contribution
    Formal analysis, Writing – review and editing
    Competing interests
    No competing interests declared
  10. Molly Pind

    Department of Biochemistry and Medical Genetics,Max Rady College of Medicine, University of Manitoba, Manitoba, Canada
    Contribution
    Developed and generated mice with 103C>T mutation, Methodology
    Competing interests
    No competing interests declared
  11. Kotoka Nakamura

    Department of Pathology & Laboratory Medicine, David Geffen School of Medicine, Los Angeles, United States
    Contribution
    Methodology
    Competing interests
    No competing interests declared
  12. Geoffrey G Hicks

    Department of Biochemistry and Medical Genetics,Max Rady College of Medicine, University of Manitoba, Manitoba, Canada
    Contribution
    Methodology, Resources, Writing – review and editing
    Competing interests
    No competing interests declared
  13. Richard A Gatti

    Department of Pathology & Laboratory Medicine, David Geffen School of Medicine, Los Angeles, United States
    Contribution
    Conceptualization, Inventor of SMRT compounds, Methodology, Resources
    Competing interests
    No competing interests declared
  14. Joaquin Madrenas

    1. The Lundquist Institute for Biomedical Innovation, Harbor-UCLA Medical Center, Torrance, United States
    2. Department of Medicine, Harbor-UCLA Medical Center, Torrance, United States
    Contribution
    Conceptualization, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6191-3733
  15. Michelina Iacovino

    1. The Lundquist Institute for Biomedical Innovation, Harbor-UCLA Medical Center, Torrance, United States
    2. Department of Pediatrics, Harbor-UCLA Medical Center, Torrance, United States
    Contribution
    Conceptualization, Formal analysis, Visualization, Writing – review and editing
    Competing interests
    No competing interests declared
  16. Peter J McKinnon

    Center for Pediatric Neurological Disease Research, St. Jude Pediatric Translational Neuroscience Initiative, St. Jude Children’s Research Hospital, Memphis, United States
    Contribution
    Conceptualization, Resources, Writing – review and editing
    Competing interests
    No competing interests declared
  17. Paul J Mathews

    1. The Lundquist Institute for Biomedical Innovation, Harbor-UCLA Medical Center, Torrance, United States
    2. Department of Neurology, Harbor-UCLA Medical Center, Torrance, United States
    Contribution
    Conceptualization, Formal analysis, Funding acquisition, Investigation, Methodology, Project administration, Resources, Supervision, Visualization, Writing – original draft, Writing – review and editing
    For correspondence
    pmathews@ucla.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1991-0798

Funding

National Institute of Neurological Disorders and Stroke (R21NS108117)

  • Paul J Mathews

National Institute of Neurological Disorders and Stroke (R21NS108117-01S1)

  • Paul J Mathews

National Institute of Neurological Disorders and Stroke (R03NS103066)

  • Paul J Mathews

American Lebanese and Syrian Associated Charities of St. Jude Children's Hospital

  • Peter McKinnon

National Institute of Neurological Disorders and Stroke (R01NS037956)

  • Peter McKinnon

National Cancer Institute (P01CA096832)

  • Peter McKinnon

National Center for Advancing Translational Sciences (UL1TR001881)

  • Paul J Mathews

Manitoba Mental Health Research Foundation (312864)

  • Geoffrey G Hicks

Manitoba Health Research Council (761023032)

  • Geoffrey G Hicks

Sparks (13CAL01)

  • Richard A Gatti

National Institute of Neurological Disorders and Stroke (R33NS096044)

  • Michelina Iacovino

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors would like to thank the UCLA Behavioral Core, especially Irina Zhuravka for her efforts assaying behavioral deficits in the mice. The authors would also like to thank Dr. Jennifer Fogel for her comments and edits to the manuscript.

Ethics

This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All the animals were handled according to approved Institutional Animal Care and Use Committee (IACUC) protocols at The Lundquist Institute (31374–03, 31773–02) and UCLA (ARC-2007–082, ARC-2013–068). The protocol was approved by the Committee on the Ethics of Animal Experiments of the Lundquist Institute (Assurance Number: D16-00213). Every effort was made to minimize pain and suffering by providing support when necessary and choosing ethical endpoints.

Senior Editor

  1. Gary L Westbrook, Oregon Health and Science University, United States

Reviewing Editor

  1. Roy V Sillitoe, Baylor College of Medicine, United States

Reviewers

  1. Roy V Sillitoe, Baylor College of Medicine, United States
  2. Alanna J Watt, McGill University, Canada

Publication history

  1. Received: November 7, 2020
  2. Preprint posted: November 23, 2020 (view preprint)
  3. Accepted: October 29, 2021
  4. Accepted Manuscript published: November 1, 2021 (version 1)
  5. Version of Record published: November 18, 2021 (version 2)

Copyright

© 2021, Perez et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 505
    Page views
  • 91
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Neuroscience
    Rawan AlSubaie et al.
    Research Article Updated

    Projections from the basal amygdala (BA) to the ventral hippocampus (vH) are proposed to provide information about the rewarding or threatening nature of learned associations to support appropriate goal-directed and anxiety-like behaviour. Such behaviour occurs via the differential activity of multiple, parallel populations of pyramidal neurons in vH that project to distinct downstream targets, but the nature of BA input and how it connects with these populations is unclear. Using channelrhodopsin-2-assisted circuit mapping in mice, we show that BA input to vH consists of both excitatory and inhibitory projections. Excitatory input specifically targets BA- and nucleus accumbens-projecting vH neurons and avoids prefrontal cortex-projecting vH neurons, while inhibitory input preferentially targets BA-projecting neurons. Through this specific connectivity, BA inhibitory projections gate place-value associations by controlling the activity of nucleus accumbens-projecting vH neurons. Our results define a parallel excitatory and inhibitory projection from BA to vH that can support goal-directed behaviour.

    1. Cell Biology
    2. Neuroscience
    Angela Kim et al.
    Research Article Updated

    Insulin-induced hypoglycemia is a major treatment barrier in type-1 diabetes (T1D). Accordingly, it is important that we understand the mechanisms regulating the circulating levels of glucagon. Varying glucose over the range of concentrations that occur physiologically between the fed and fuel-deprived states (8 to 4 mM) has no significant effect on glucagon secretion in the perfused mouse pancreas or in isolated mouse islets (in vitro), and yet associates with dramatic increases in plasma glucagon. The identity of the systemic factor(s) that elevates circulating glucagon remains unknown. Here, we show that arginine-vasopressin (AVP), secreted from the posterior pituitary, stimulates glucagon secretion. Alpha-cells express high levels of the vasopressin 1b receptor (V1bR) gene (Avpr1b). Activation of AVP neurons in vivo increased circulating copeptin (the C-terminal segment of the AVP precursor peptide) and increased blood glucose; effects blocked by pharmacological antagonism of either the glucagon receptor or V1bR. AVP also mediates the stimulatory effects of hypoglycemia produced by exogenous insulin and 2-deoxy-D-glucose on glucagon secretion. We show that the A1/C1 neurons of the medulla oblongata drive AVP neuron activation in response to insulin-induced hypoglycemia. AVP injection increased cytoplasmic Ca2+ in alpha-cells (implanted into the anterior chamber of the eye) and glucagon release. Hypoglycemia also increases circulating levels of AVP/copeptin in humans and this hormone stimulates glucagon secretion from human islets. In patients with T1D, hypoglycemia failed to increase both copeptin and glucagon. These findings suggest that AVP is a physiological systemic regulator of glucagon secretion and that this mechanism becomes impaired in T1D.
