Intronic enhancer region governs transcript-specific Bdnf expression in rodent neurons

  1. Jürgen Tuvikene  Is a corresponding author
  2. Eli-Eelika Esvald
  3. Annika Rähni
  4. Kaie Uustalu
  5. Anna Zhuravskaya
  6. Annela Avarlaid
  7. Eugene V Makeyev
  8. Tõnis Timmusk  Is a corresponding author
  1. Department of Chemistry and Biotechnology, Tallinn University of Technology, Estonia
  2. Protobios LLC, Estonia
  3. Centre for Developmental Neurobiology, King’s College London, United Kingdom
Research Article
  • Cited 0
  • Views 963
  • Annotations
Cite this article as: eLife 2021;10:e65161 doi: 10.7554/eLife.65161

Abstract

Brain-derived neurotrophic factor (BDNF) controls the survival, growth, and function of neurons both during the development and in the adult nervous system. Bdnf is transcribed from several distinct promoters generating transcripts with alternative 5' exons. Bdnf transcripts initiated at the first cluster of exons have been associated with the regulation of body weight and various aspects of social behavior, but the mechanisms driving the expression of these transcripts have remained poorly understood. Here, we identify an evolutionarily conserved intronic enhancer region inside the Bdnf gene that regulates both basal and stimulus-dependent expression of the Bdnf transcripts starting from the first cluster of 5' exons in mouse and rat neurons. We further uncover a functional E-box element in the enhancer region, linking the expression of Bdnf and various pro-neural basic helix–loop–helix transcription factors. Collectively, our results shed new light on the cell-type- and stimulus-specific regulation of the important neurotrophic factor BDNF.

Introduction

Brain-derived neurotrophic factor (BDNF) is a secreted protein of the neurotrophin family (Park and Poo, 2013). During the development, BDNF promotes the survival of various sensory neuron populations (Ernfors et al., 1994; Jones et al., 1994). In the adult organism, BDNF is also required for the proper maturation of synaptic connections and regulation of synaptic plasticity (Korte et al., 1995; Park and Poo, 2013). Defects in BDNF expression and signaling have been implicated in various neuropsychiatric and neurodegenerative diseases, including major depression, schizophrenia, Alzheimer’s disease, and Huntington’s disease (Autry and Monteggia, 2012; Burbach et al., 2004; Jiang and Salton, 2013; Murray et al., 1994; Ray et al., 2014; Wong et al., 2010; Zuccato et al., 2001; Zuccato and Cattaneo, 2009).

Rodent Bdnf gene contains eight independently regulated non-coding 5' exons (exons I–VIII) followed by a single protein-coding 3' exon (exon IX). Splicing of one of the alternative exons I–VIII with the constitutive exon IX gives rise to different Bdnf transcripts (Aid et al., 2007). Additionally, transcription can start from an intronic position upstream of the coding exon producing an unspliced 5' extended variant of the coding exon (exon IXa-containing transcript) (Aid et al., 2007). The usage of multiple promoters enables complex cell-type- and stimulus-specific Bdnf expression (reviewed in West et al., 2014). For instance, Bdnf exon I-, II-, and III-containing transcripts show mainly nervous system-specific expression patterns, whereas Bdnf exon IV- and VI-containing transcripts are expressed in both neural and non-neural tissues (Aid et al., 2007; Timmusk et al., 1993). Similar expression patterns for different BDNF transcripts are also observed in humans (Pruunsild et al., 2007). Notably, different Bdnf transcripts have distinct contribution to various aspects of neural circuit functions and behavior (Hallock et al., 2019; Hill et al., 2016; Maynard et al., 2016; Maynard et al., 2018; McAllan et al., 2018; Sakata et al., 2009).

In addition to proximal promoter regions, the complex regulation of gene expression is often controlled by distal regulatory elements called enhancers (reviewed in Buecker and Wysocka, 2012). Enhancers are usually active in a tissue- and cell-type-specific manner (reviewed in Heinz et al., 2015; Wu et al., 2014), and can be located inside or outside, upstream or downstream of the target gene, within another gene or even on a different chromosome (Banerji et al., 1981; Lettice et al., 2003; reviewed in Ong and Corces, 2011). Many enhancers are activated only after specific stimuli, which cause enrichment of active enhancer-associated histone modifications and increased chromatin accessibility (Su et al., 2017). Genome-wide analysis has proposed approximately 12,000 neuronal activity-regulated enhancers in cortical neurons (Kim et al., 2010). Importantly, dysregulation of enhancers or mutations in proteins that participate in the formation of enhancer-promoter complexes is associated with a variety of disorders, including neurodegenerative diseases (reviewed in Carullo and Day, 2019).

Previous studies from our laboratory have suggested that the expression of the Bdnf gene is also regulated via distal regulatory regions. Notably, the induction of Bdnf mRNA after BDNF-TrkB signaling in neurons seems to depend on unknown distal regulatory regions (Esvald et al., 2020). Furthermore, dopamine-induced expression of Bdnf in astrocytes is controlled by an unknown regulatory region within the Bdnf gene locus (Koppel et al., 2018). Here, we identify a novel enhancer region in the Bdnf gene located downstream of the Bdnf exon III and show that this regulatory element selectively activates basal and stimulus-dependent expression of the exon I-, II-, and III-containing Bdnf transcripts in neurons.

Results

The Bdnf +3 kb region shows enhancer-associated characteristics in mouse and human brain tissue

To uncover novel enhancer regions regulating Bdnf expression in the central nervous system, we started with bioinformatic analysis of the enhancer-associated characteristics. Active enhancers are characterized by nucleosome-free DNA that is accessible to transcription factors and other DNA binding proteins. Chromatin at active enhancer regions typically has distinct histone modifications – H3K4me1, a hallmark of enhancer regions, and H3K27ac, usually associated with active regulatory regions. Active enhancers also bind RNA polymerase II and are bidirectionally transcribed from the regions marked by enhancer-associated histone modifications giving rise to non-coding enhancer RNAs (eRNAs) (Nord and West, 2020). Based on the mouse brain tissue chromatin immunoprecipitation sequencing (ChIP-seq) data from the ENCODE project and transcription start site (TSS) data from the FANTOM5 project, a region ~3 kb downstream of Bdnf exon I TSS has prominent enhancer-associated features (Figure 1A). First, the +3 kb region is hypersensitive to DNaseI, indicative of an open chromatin structure. Second, ChIP-seq data shows that this region is enriched for H3K4me1, H3K4me3, and H3K27ac modifications. Third, the +3 kb region interacts with RNA polymerase II, with a strong evidence for bidirectional transcription according to the FANTOM5 CAGE database. Finally, the region is conserved between mammals, pointing at its possible functional importance.

Figure 1 with 2 supplements see all

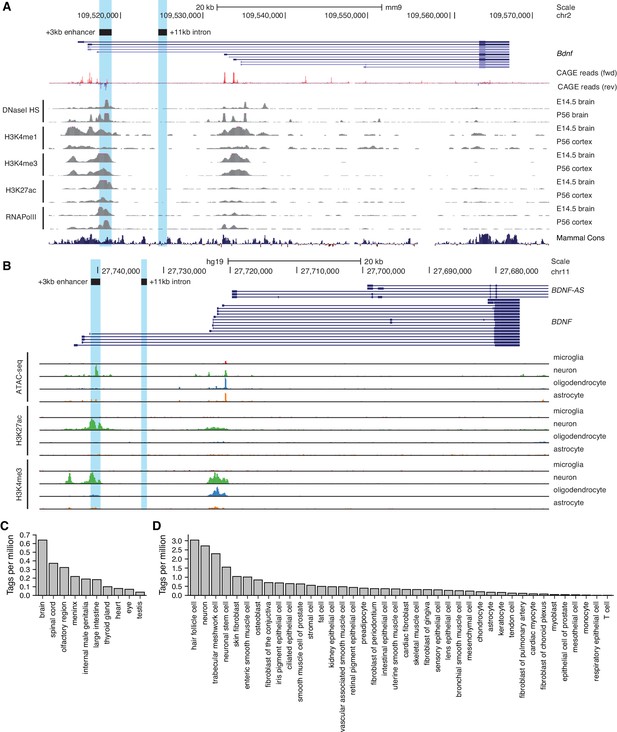

Region downstream of Bdnf exon III shows enhancer-associated characteristics in mouse and human neural tissues.

UCSC Genome browser was used to visualize (A) DNaseI hypersensitivity sites and ChIP-seq data from the ENCODE project in mouse brain tissue, CAGE data of transcription start sites from the FANTOM5 project (all tissues and cell types), and (B) open chromatin (ATAC-seq) and ChIP-seq in different human brain cell types by Nott et al., 2019. E indicates embryonic day, P postnatal day. Signal clipping outside the visualization range is indicated with purple color. The +3 kb region, a potential enhancer of the Bdnf gene, and +11 kb intronic region, a negative control region used in the present study, were converted from rat genome to mouse or human genome using UCSC Liftover tool and are shown as light blue. The names of the regions represent the distance of the respective region from rat Bdnf exon I transcription start site. (C, D) +3 kb enhancer region (chr11:27693843–27694020, hg19 genome build) enhancer RNA (eRNA) expression levels based on CAGE sequencing data from the FANTOM5 project obtained from the Slidebase tool (Ienasescu et al., 2016, http://slidebase.binf.ku.dk). eRNA expression levels were grouped by different tissue types (C) or cell types (D). Only tissue and cell types with non-zero eRNA expression are shown.

We next used H3K27ac ChIP-seq data from Nord et al., 2013 to determine the activity of the potential enhancer region in different tissues throughout the mouse development. We found that the +3 kb region shows H3K27ac mark in the mouse forebrain, with the highest signal from embryonic day 14 to postnatal day 7, but not in the heart or liver (Figure 1—figure supplement 1). This suggests that the +3 kb enhancer region might be active mainly in neural tissues in late prenatal and early postnatal life.

To investigate whether the +3 kb region might also function as an enhancer in rat, we analyzed published ATAC-seq and RNA-seq data for rat cortical and hippocampal neurons (Carullo et al., 2020). The ATAC-seq analysis was consistent with open chromatin structure of the +3 kb region, and the RNA-seq revealed possible eRNA transcription from the antisense strand (Figure 1—figure supplement 2). Unfortunately, the expression of the sense-strand eRNA could not be assessed since the Bdnf pre-mRNA is transcribed in the same direction, masking the sense-strand eRNA signal. Together, open chromatin and possible eRNA expression suggest that the +3 kb region could be an enhancer in rat neurons.

To further investigate which cell types the +3 kb region could be active in human in vivo, we used data from a recently published human brain cell-type-specific ATAC-seq and ChIP-seq experiments (Nott et al., 2019) (Figure 1B). We found that the +3 kb region shows remarkable neuron specificity, as evident from open chromatin identified using ATAC-seq, and H3K27ac histone mark, which are missing in microglia, oligodendrocytes, and astrocytes. To further elucidate which human tissues and cell types the +3 kb region could be active in, we used the Slidebase tool (Ienasescu et al., 2016) that gathers data of TSSs from FANTOM5 project and summarizes eRNA transcription levels based on various tissue and cell types. We found that in humans the +3 kb region shows the strongest eRNA expression in the brain, spinal cord, and olfactory region (Figure 1C). When grouped by cell type, the strongest expression of +3 kb eRNAs is in hair follicle cells, neurons, and trabecular meshwork cells (Figure 1D).

Collectively, this data suggests that the +3 kb region is an evolutionarily conserved nervous system-specific enhancer that is active mostly in neural tissues and predominantly in neurons but not in other major brain cell types.

The +3 kb enhancer region shows bidirectional transcription in luciferase reporter assay in rat cultured cortical neurons and astrocytes

Based on the enhancer-associated characteristics of the +3 kb enhancer region, we hypothesized that the region could function as an enhancer region for Bdnf gene in neural cells. It is well known that enhancer regions can initiate RNA polymerase II-dependent bidirectional transcription of eRNAs (Kim and Shiekhattar, 2015; Nord and West, 2020; Sartorelli and Lauberth, 2020) and that the expression of these eRNAs is correlated with the expression of nearby genes, indicating that the transcription from an enhancer region is a proxy to enhancer’s activity (Kim et al., 2010). Therefore, we first investigated whether the +3 kb enhancer region shows bidirectional transcription in rat cultured cortical neurons and astrocytes, the two major cell types in the brain, in a heterologous context using reporter assays. We cloned an ~1.4 kb fragment of the +3 kb enhancer and a similarly sized control (+11 kb) intronic sequence lacking enhancer-associated characteristics in either forward or reverse orientation upstream of the firefly luciferase gene (Figure 2A) and performed luciferase reporter assays.

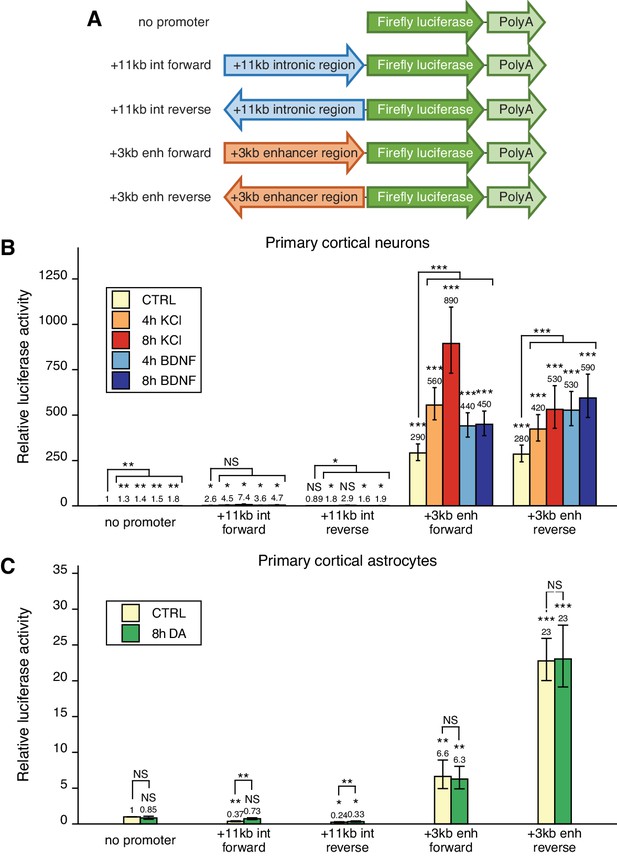

The +3 kb enhancer region shows bidirectional transcription in luciferase reporter assay in rat cultured cortical neurons and astrocytes.

(A) Reporter constructs used in the luciferase reporter assay where the +3 kb enhancer region and the +11 kb control region were cloned in either forward or reverse orientation (respective to the rat Bdnf gene) in front of the luciferase expression cassette. (B, C) Rat cortical neurons (B) or astrocytes (C) were transfected with the indicated reporter constructs at 6 and 13 DIV, respectively. Two days post-transfection, neurons were left untreated (CTRL) or treated with 25 mM KCl (with 5 µM D-APV) or 50 ng/ml brain-derived neurotrophic factor (BDNF) for the indicated time (B); astrocytes were treated with 150 µM dopamine (DA) or respective volume of vehicle (CTRL) for the indicated time (C), after which luciferase activity was measured. Luciferase activity in cells transfected with a vector containing no promoter and treated with vehicle or left untreated was set as 1. The average luciferase activity of independent experiments is depicted above the columns. Error bars indicate SEM (n = 7 [B, +3 kb enhancer constructs and no promoter construct], n = 3 [B, intron constructs], and n = 4 [C] independent experiments). Asterisks above the columns indicate statistical significance relative to luciferase activity in untreated cells transfected with the reporter vector containing no promoter, or between indicated groups. NS: not significant. *p<0.05, **p<0.01, ***p<0.001 (paired two-tailed t-test).

In rat cortical neurons, the +3 kb enhancer region showed very strong transcriptional activity (~300-fold higher compared to the promoterless luciferase reporter vector) that was independent of the orientation of the +3 kb region (Figure 2B). As expected, the +11 kb negative control reporter showed very low luciferase activity in cortical neurons. To determine whether the enhancer region is responsive to different stimuli in neurons and could be involved in stimulus-dependent regulation of the Bdnf gene, we used two treatments shown to induce Bdnf gene expression – KCl treatment to chronically depolarize the cells and mimic neuronal activity (Ghosh et al., 1994; Pruunsild et al., 2011), and BDNF treatment to activate TrkB signaling and mimic BDNF autoregulation (Esvald et al., 2020; Tuvikene et al., 2016; Yasuda et al., 2007). Our results indicate that the activity of the +3 kb region is upregulated ~2–3-fold in response to both stimuli, suggesting that the region could be a stimulus-dependent enhancer in neurons.

In rat cultured cortical astrocytes, the +3 kb enhancer construct showed modest transcriptional activity (depending on the orientation ~6–23-fold higher compared to the promoterless vector control, Figure 2C). We have previously shown that in cultured cortical astrocytes Bdnf is induced in response to dopamine treatment, and the induction is regulated by an unknown enhancer region within Bdnf gene locus (Koppel et al., 2018). However, dopamine treatment had no significant effect on the activity of the +3 kb construct in cultured cortical astrocytes, suggesting that this region is not a dopamine-activated enhancer in astrocytes.

The +3 kb enhancer region potentiates the activity of Bdnf promoters I and IV in luciferase reporter assay in rat cultured cortical neurons

To find out whether the newly identified +3 kb enhancer could control the activity of Bdnf promoters in a heterologous context, we cloned the +3 kb region or the +11 kb negative control sequence in forward or reverse orientation (respective to the rat Bdnf gene) downstream of Bdnf promoter-driven luciferase expression cassette (Figure 3A).

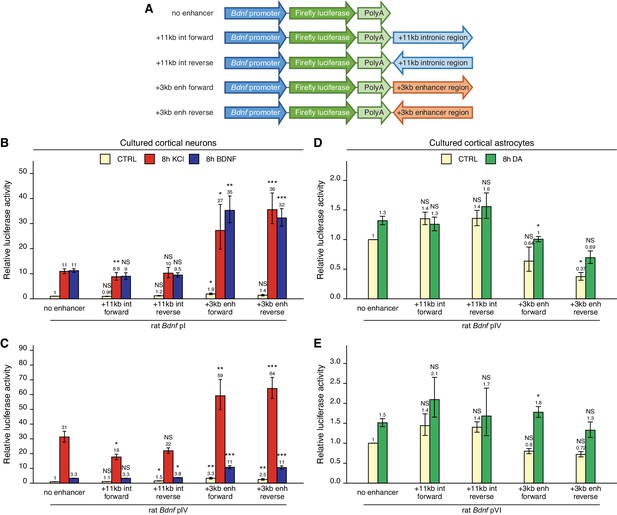

The +3 kb enhancer region potentiates the activity of Bdnf promoters in luciferase reporter assay in rat cortical neurons but not in astrocytes.

(A) A diagram of the luciferase reporter constructs used in this experiment, with a Bdnf promoter in front of the firefly luciferase coding sequence and the +3 kb enhancer or +11 kb intronic region in either forward or reverse orientation (respective to the rat Bdnf gene) downstream of the luciferase expression cassette. Rat cortical neurons (B, C) or astrocytes (D, E) were transfected with the indicated reporter constructs at 6 and 13 DIV, respectively. Two days post transfection, neurons were left untreated (CTRL) or treated with 25 mM KCl (with 5 µM D-APV) or 50 ng/ml brain-derived neurotrophic factor (BDNF) for 8 hr (B, C); astrocytes were treated with 150 µM dopamine (DA) or respective volume of vehicle (CTRL) for 8 hr (D, E), followed by luciferase activity assay. Luciferase activity is depicted relative to the luciferase activity in untreated or vehicle-treated (CTRL) cells transfected with respective Bdnf promoter construct without an enhancer region. The average luciferase activity of independent experiments is shown above the columns. Error bars represent SEM (n = 6 [B, +3 kb enhancer-containing constructs and no enhancer construct], n = 3 [B, + 11 kb intron constructs], n = 4 [C], and n = 3 [D–E] independent experiments). Statistical significance was calculated compared to the activity of the respective Bdnf promoter regions without the enhancer region after the respective treatment. NS: not significant. *p<0.05, **p<0.01, ***p<0.001 (paired two-tailed t-test).

First, we transfected rat cultured cortical neurons with constructs containing Bdnf promoter I or IV as these promoters are the most widely studied in neurons (West et al., 2014). We treated neurons with either KCl or BDNF and used luciferase reporter assay to measure the activity of the Bdnf promoter region. For Bdnf promoter I (Figure 3B), the addition of the +3 kb enhancer region slightly increased the basal activity of the promoter region (~1.5–2-fold). The +3 kb enhancer region also potentiated the KCl- and BDNF-induced activity of this promoter approximately threefold in an orientation-independent manner. Similar effects were observed for Bdnf promoter IV (Figure 3C), where the addition of the +3 kb enhancer region potentiated the basal activity of the promoter approximately threefold and KCl- and BDNF-induced activity levels approximately twofold. The +11 kb intronic region failed to potentiate the activity of Bdnf promoters I and IV.

Cortical astrocytes preferentially express Bdnf transcripts containing 5' exons IV and VI (Koppel et al., 2018). Notably, the +3 kb enhancer failed to increase the activity of Bdnf promoters IV and VI in unstimulated astrocytes and had little effect on the response of these promoters to dopamine (Figure 3D, E).

Overall, we found that in the heterologous context the +3 kb enhancer region could potentiate transcription from Bdnf promoters in cultured cortical neurons but not in cortical astrocytes. These results imply that the +3 kb enhancer could be important for Bdnf gene expression in neurons but not in astrocytes.

The +3 kb enhancer region is a positive regulator of the first cluster of Bdnf transcripts in rat cortical neurons but is in an inactive state in rat cortical astrocytes

To investigate the functionality of the +3 kb region in its endogenous context, we used CRISPR interference (CRISPRi) and activator (CRISPRa) systems. Our system comprised catalytically inactive Cas9 (dCas9) fused with Krüppel-associated box domain (dCas9-KRAB, CRISPRi), or 8 copies of VP16 activator domain (VP64-dCas9-VP64, CRISPRa) to repress or activate the target region, respectively. dCas9 without effector domains was used to control for potential steric effects (Qi et al., 2013) on Bdnf transcription when targeting CRISPR complex inside the Bdnf gene. To direct the dCas9 and its variants to the desired location, we used four different gRNAs per region targeting either the +3 kb enhancer region or the +11 kb intronic control region, with all gRNAs targeting the template strand to minimize the potential inhibitory effect of dCas9 binding on transcription elongation (as suggested by Qi et al., 2013). The +11 kb intronic control was used to rule out the possibility of CRISPRi- and CRISPRa-induced passive spreading of chromatin modifications within the Bdnf gene locus. As a negative control, we used a gRNA not corresponding to any sequence in the rat genome.

We first examined the functionality of the +3 kb enhancer region in cultured cortical neurons. Targeting the +3 kb enhancer or +11 kb intronic region with dCas9 without an effector domain had no major effect on the expression of any of the Bdnf transcripts, indicating that targeting CRISPR complex to an intragenic region in Bdnf gene does not itself notably affect Bdnf gene expression (Figure 4, left panel). Repressing the +3 kb enhancer region using CRISPRi decreased the basal expression levels of Bdnf exon I-, IIc-, and III-containing transcripts by 2.2-, 11-, and 2.4-fold, respectively, although these effects were not statistically significant (Figure 4A–C, middle panel). In contrast, no notable effect was seen for basal levels of Bdnf exon IV-, VI-, and IXa-containing transcripts (Figure 4D–F, middle panel). Repressing the +3 kb enhancer region also decreased the KCl and BDNF-induced levels of transcripts starting from the first three 5' exons ~4–7-fold, but not of other Bdnf transcripts (Figure 4A–F, middle panel). These effects correlated with subtle changes in total Bdnf expression levels (Figure 4G, middle panel). Targeting CRISPRi to the +11 kb intronic region had no notable effect on any of the Bdnf transcripts (Figure 4A–F, middle panel).

Figure 4 with 2 supplements see all

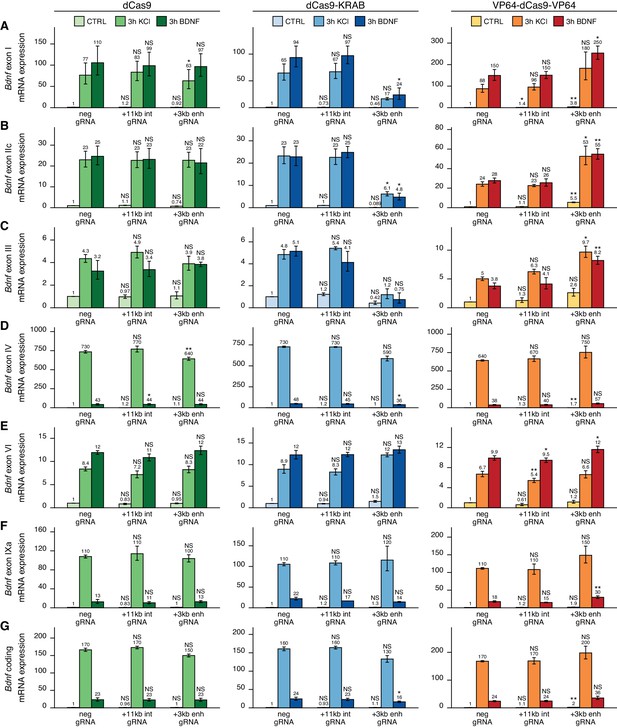

The +3 kb enhancer is a positive regulator of Bdnf exon I-, IIc-, and III-containing transcripts in rat cortical neurons.

Rat cultured cortical neurons were transduced at 0 DIV with lentiviral particles encoding either catalytically inactive Cas9 (dCas9, left panel, green), dCas9 fused with Krüppel-associated box domain (dCas9-KRAB, middle panel, blue), or 8 copies of VP16 activator domain (VP64-dCas9-VP64, right panel, orange), together with lentiviruses encoding either guide RNA that has no corresponding target sequence in the rat genome (neg gRNA), a mixture of four gRNAs directed to the putative +3 kb Bdnf enhancer (+3 kb enh gRNA), or a mixture of four gRNAs directed to +11 kb intronic region (+11 kb int gRNA). Transduced neurons were left untreated (CTRL) or treated with 50 ng/ml brain-derived neurotrophic factor (BDNF) or 25 mM KCl (with 5 µM D-APV) for 3 hr at 8 DIV. Expression levels of different Bdnf transcripts (A-F) or total Bdnf (G) were measured with RT-qPCR. mRNA expression levels are depicted relative to the expression of the respective transcript in untreated (CTRL) neurons transduced with negative guide RNA within each set (dCas9, dCas9-KRAB, or VP64-dCas9-VP64). The average mRNA expression of independent experiments is depicted above the columns. Error bars represent SEM (n = 3 independent experiments). Statistical significance was calculated between the respective mRNA expression levels in respectively treated neurons transduced with neg gRNA within each set (dCas9, Cas9-KRAB, or VP64-dCas9-VP64). NS: not significant. *p<0.05, **p<0.01, ***p<0.001 (paired two-tailed t-test).

Activating the +3 kb enhancer region with CRISPRa in cultured cortical neurons increased the expression levels of Bdnf transcripts of the first cluster (Figure 4A–C, right panel) both in unstimulated neurons (~3–5-fold) and after KCl or BDNF treatment (~2-fold). Slight effect of the activation was also seen for Bdnf exon IV- and IXa-containing transcripts (Figure 4D, F, right panel). Total Bdnf basal levels also increased ~2-fold with CRISPR activation of the +3 kb enhancer region, whereas a slightly weaker effect was seen in stimulated neurons. As with CRISPRi, targeting CRISPRa to the +11 kb intronic region had no dramatic effect on the expression of any of the Bdnf transcripts, despite some minor changes reaching statistical significance (Figure 4A–F, right panel).

Next, we carried out CRISPRi and CRISPRa experiments in cultured cortical astrocytes. Targeting dCas9 to the Bdnf locus did not affect the expression of most Bdnf transcripts (Figure 5A and C–F, left panel), although a slight decrease could be seen for exon IIc-containing transcripts in cells treated with dopamine (Figure 5B). Targeting CRISPRi to the +3 kb enhancer region in astrocytes did not decrease the basal expression levels of any Bdnf transcript (Figure 5, middle panel). In cells treated with dopamine, repressing +3 kb enhancer region completely abolished the induction of exon IIc-containing transcripts (Figure 5B, middle panel), but did not affect the expression of any other transcripts. In contrast, activating the +3 kb region with CRISPRa greatly increased both basal and dopamine-induced levels of all measured Bdnf transcripts (Figure 5A–F, right panel). Targeting CRISPRi or CRISPRa to the +11 kb intronic control region did not have a noteworthy effect on any of the measured Bdnf transcripts.

Figure 5 with 1 supplement see all

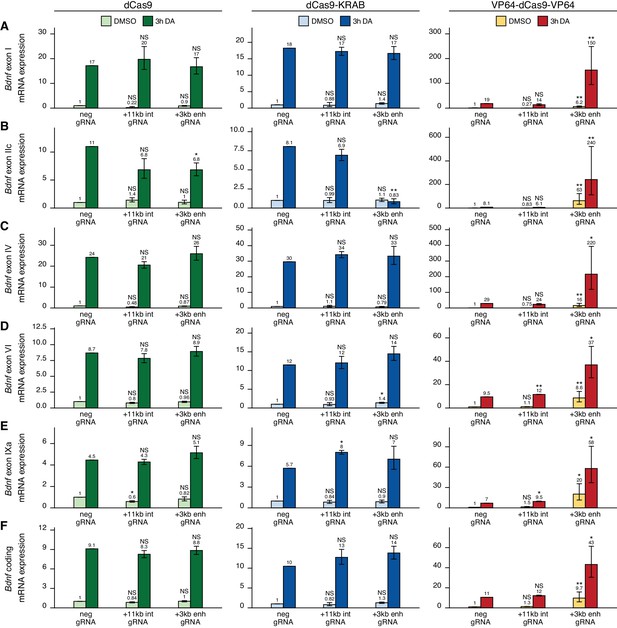

The +3 kb enhancer region is mainly inactive in rat cortical astrocytes.

Rat cultured cortical astrocytes were transduced at 7 DIV with lentiviral particles encoding either catalytically inactive Cas9 (dCas9, left panel, green), dCas9 fused with Krüppel-associated box domain (dCas9-KRAB, middle panel, blue), or 8 copies of VP16 activator domain (VP64-dCas9-VP64, right panel, orange), together with lentiviruses encoding either guide RNA that has no corresponding target sequence in the rat genome (neg gRNA), a mixture of four gRNAs directed to the putative +3 kb Bdnf enhancer (+3 kb enh gRNA), or a mixture of four guide RNAs directed to the + 11 kb intronic region (+11 kb int gRNA). Transduced astrocytes were treated with vehicle (CTRL) or with 150 µM dopamine (DA) for 3 hr at 15 DIV. Expression levels of different Bdnf transcripts (A-E) or total Bdnf (F) were measured with RT-qPCR. The levels of Bdnf exon III-containing transcripts were too low to measure reliably. mRNA expression levels are depicted relative to the expression of the respective transcript in astrocytes treated with vehicle (CTRL) transduced with negative guide RNA within each set (dCas9, dCas9-KRAB, or VP64-dCas9-VP64). The average mRNA expression of independent experiments is depicted above the columns. Error bars represent SEM (n = 3 independent experiments). Statistical significance was calculated between respective mRNA expression levels in respectively treated astrocytes transduced with neg gRNA within each set (dCas9, Cas9-KRAB, or VP64-dCas9-VP64). NS: not significant. *p<0.05, **p<0.01, ***p<0.001 (paired two-tailed t-test).

As bioinformatic analysis showed bidirectional transcription from the +3 kb enhancer (Figure 1) and our luciferase reporter assays also indicated this (Figure 2), we next decided to directly measure eRNAs from the +3 kb enhancer region in our cultured cortical neurons and astrocytes. Since the sense eRNA is transcribed in the same direction as Bdnf pre-mRNA, we could only reliably measure eRNAs from the antisense orientation from the +3 kb enhancer region using antisense eRNA-specific cDNA priming followed by qPCR (Figure 4—figure supplement 1). We found that the +3 kb enhancer antisense eRNA was expressed in cultured neurons and the expression level of the eRNA was induced ~3.5- and ~6-fold upon BDNF and KCl treatment, respectively. Furthermore, repressing the +3 kb enhancer region using CRISPRi decreased the expression of the eRNA ~3-fold. However, activating the +3 kb enhancer region using CRISPRa did not change the expression level of the eRNA. We also analyzed RNA-seq data from Carullo et al., 2020 and confirmed the membrane depolarization-dependent induction of +3 kb antisense eRNA expression in rat cultured cortical and hippocampal neurons (Figure 1—figure supplement 2, Figure 4—figure supplement 2). When comparing +3 kb enhancer eRNA expression levels in neurons and astrocytes, the astrocytes showed ~6-fold lower eRNA transcription from the +3 kb enhancer region than neurons (Figure 5—figure supplement 1), also indicating that the +3 kb region is in a more active state in our cultured neurons than in astrocytes.

The main findings of the CRISPRi and CRISPRa experiments are summarized in Figure 6. Taken together, our results suggest that the +3 kb enhancer region is an active enhancer of the Bdnf gene in rat cultured cortical neurons and regulates the basal and stimulus-induced expression of Bdnf transcripts of the first cluster of exons (exons I, II, and III). In contrast, the +3 kb region is mostly inactive in rat cultured cortical astrocytes.

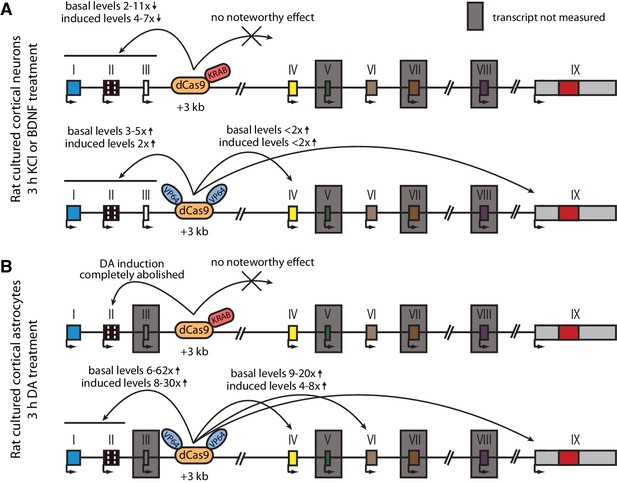

Summary of the CRISPRi and CRISPRa experiments with Bdnf +3 kb enhancer region in rat cultured cortical neurons and astrocytes.

Graphical representation of the main results shown in Figures 4 (A) and 5 (B). Different Bdnf exons are shown with boxes, and red box in exon IX indicates Bdnf coding region. Bdnf transcripts that were not measured or that had too low levels to measure reliably are indicated with a gray box around the respective 5' exon.

Deletion of the +3 kb enhancer region in mouse embryonic stem cell-derived neurons decreases the expression of Bdnf transcripts starting from the first cluster of exons

To test the regulatory function of the +3 kb enhancer directly and address biological significance of its interspecies conservation, we used CRISPR/Cas9 system to delete the conserved core sequence of the enhancer region in mouse embryonic stem cells (mESC) engineered to express the pro-neural transcription factor Neurogenin2 from a doxycycline-inducible promoter. We selected single-cell clones containing the desired deletion (Figure 7—figure supplement 1), differentiated them into neurons (Figure 7—figure supplement 2, Ho et al., 2016; Thoma et al., 2012; Zhang et al., 2013) by the addition of doxycycline, treated the stem cell-derived neurons with BDNF or KCl, and measured the expression of different Bdnf transcripts using RT-qPCR (Figure 7).

Figure 7 with 2 supplements see all

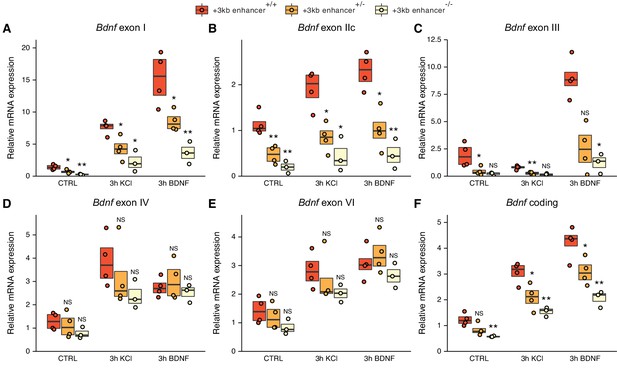

The deletion of the +3 kb enhancer region decreases the expression of Bdnf exon I-, IIc-, and III-containing transcripts in mouse embryonic stem cell (mESC)-derived neurons.

CRISPR/Cas9 system was used to generate mESC cell lines with ~300–500 bp deletions of the conserved core region of the +3 kb Bdnf enhancer. The obtained clonal cell lines containing intact +3 kb enhancer region (+/+), heterozygous deletion (+/–), or homozygous deletion (–/–) of the +3 kb enhancer region were differentiated into neurons using overexpression of Neurogenin2. After 12 days of differentiation, the cells were treated with vehicle (CTRL), 50 ng/ml brain-derived neurotrophic factor (BDNF) or 25 mM KCl together with 25 µM D-APV for 3 hr. The expression levels of different Bdnf transcripts (A-E) or total Bdnf (F) were measured using RT-qPCR. The levels of respective Bdnf transcripts measured in the parental cell line (also included as a data point in the +/+ group) were set as 1. All data points (obtained from independent cell clones and parental cell line) are depicted with circles. Box plot shows 25% and 75% quartiles, and the horizontal line shows the median value. N = 3–4 independent cell clones for each group. Statistical significance was calculated compared to the expression level of the respective transcript in the +/+ genotype group at respective treatment. NS: not significant. *p<0.05, **p<0.01, ***p<0.001 (equal variance unpaired t-test).

The deletion of the +3 kb enhancer region strongly decreased both the basal and stimulus-dependent expression levels of Bdnf exon I-, IIc-, and III-containing transcripts (Figure 7A–C). Notably, the effect was more prominent in clones containing homozygous deletion compared to heterozygous clones. We also noted a slight, albeit not statistically significant decrease in the expression of Bdnf exon IV- and VI-containing transcripts in cells, where the +3 kb enhancer region was deleted (Figure 7D–E). This could be attributed to impaired BDNF autoregulatory loop caused by the deficiency of transcripts from the first cluster of exons. It is also possible that the +3 kb enhancer participates in the regulation of the transcripts from the second cluster of exons, but the effect is only very subtle, which could explain why it was not detected in our CRISPRi and CRISPRa experiments in cultured neurons. The levels of Bdnf exon IXa-containing transcripts were too low to measure reliably (data not shown). The deletion of the +3 kb enhancer region decreased the total levels of Bdnf similarly to the first cluster of Bdnf transcripts (Figure 7F). These results confirm the essential role of the +3 kb enhancer region in regulating the expression of Bdnf exon I-, IIc-, and III-containing transcripts in rodent neurons.

The activity of the +3 kb enhancer region is regulated by CREB, AP-1 family and E-box-binding transcription factors

To investigate the molecular mechanisms that control the activity of the +3 kb enhancer region, we used in vitro DNA pulldown assay with 8-day-old rat cortical nuclear lysates coupled with mass spectrometric analysis to determine the transcription factors that bind to the +3 kb enhancer region (Figure 8A). Collectively, we determined 21 transcription factors that showed specific in vitro binding to the +3 kb enhancer region compared to the +11 kb intronic region in two independent experiments (Figure 8B). Of note, we found numerous E-box-binding proteins, including USFs, TCF4 and the pro-neural transcription factors NeuroD2 and NeuroD6, possibly providing the neuron-specific activity of the +3 kb enhancer region. We also detected binding of JunD, a member of the AP-1 transcription factor family.

Figure 8 with 1 supplement see all

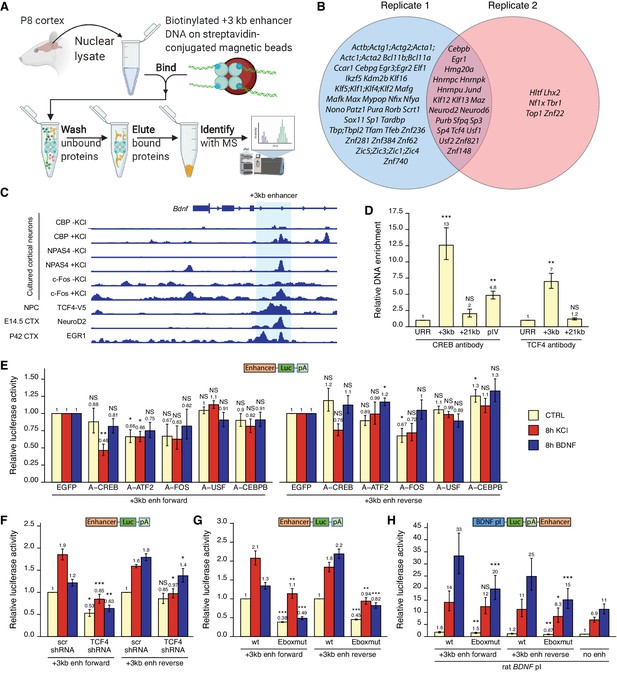

Various transcription factors, including CREB, AP-1 proteins, and E-box-binding transcription factors, regulate the activity of the +3 kb enhancer region.

(A) Schematic overview of the in vitro DNA pulldown assay to determine transcription factors binding to the +3 kb enhancer region. The illustration was created with BioRender.com. (B) Gene names of the transcription factors identified in the in vitro DNA pulldown assay in two biological replicates of postnatal day 8 (P8) rat cortices. Semicolon between gene names indicates uncertainty in the peptide to protein assignment between the genes separated by the semicolons. (C) Previously published ChIP-seq experiments showing binding of different transcription factors to the +3 kb enhancer region. (D) ChIP-qPCR assay in cultured cortical neurons at 8 DIV with anti-CREB or anti-TCF4 antibody. Enrichment is shown relative to the enrichment of unrelated region (URR) with the respective antibody. The +21 kb region (downstream of the Bdnf exon VII) was used as a negative control. pIV indicates Bdnf promoter IV region. (E–H) Rat cortical neurons were transfected at 5 DIV (F) or 6 DIV (E–H) with reporter constructs where the +3 kb enhancer region was cloned in front of the luciferase coding sequence (E–G, see also Figure 2A), or with reporter constructs where the +3 kb enhancer region was cloned downstream of the Bdnf promoter I-controlled firefly luciferase expression cassette (H, see Figure 3A). Schematic representations of the used reporter constructs are shown above the graphs, with Luc designating luciferase coding sequence and pA polyadenylation sequence. At 8 DIV, neurons were left untreated (CTRL) or treated with 25 mM KCl (with 5 µM D-APV) or 50 ng/ml brain-derived neurotrophic factor (BDNF) for the indicated time, after which luciferase activity was measured. Luciferase activity is depicted relative to the luciferase activity in respectively treated cells transfected with enhanced green fluorescent protein (EGFP)-encoding plasmid and the respective +3 kb enhancer construct (E), relative to the luciferase activity in untreated cells co-transfected with control shRNA (scr) and the respective +3 kb enhancer construct (F), relative to the luciferase activity in untreated cells transfected with the respective wild-type (wt) +3 kb enhancer construct (G), or relative to the luciferase activity in untreated cells transfected with rat Bdnf promoter I construct containing no enhancer region (H). Eboxmut indicates mutation of a putative E-box element in the +3 kb enhancer region. Numbers above the columns indicate average, error bars represent SEM (n = 4 [D, CREB antibody], n = 3 [D, TCF4 antibody], n = 5–6 [E], n = 4–5 [F], n = 4 [G], and n = 7 [H] independent experiments). Statistical significance was calculated compared to the ChIP enrichment of DNA at the URR region using respective antibody (D), compared to the luciferase activity in respectively treated cells transfected with the respective +3 kb enhancer construct and EGFP (E), scr shRNA (F), or the respective wt +3 kb enhancer construct (G, H). NS: not significant. *p<0.05, **p<0.01, ***p<0.001 (paired two-tailed t-test).

Next, we used various ChIP-seq experiments in different human cell lines from the ENCODE project and determined numerous transcription factors that bind to the +3 kb enhancer region, including CREB, CEBPB, EGR1, and JunD (Figure 8—figure supplement 1). We further used publicly available ChIP-seq data (see 'Materials and methods' section for references) to visualize the binding of different transcription factors to the +3 kb enhancer region in mouse neural cells and tissues (Figure 8C). This data shows neuronal activity-dependent binding of NPAS4, c-Fos, and coactivator CBP to the enhancer region. In agreement with our in vitro pulldown results, ChIP-seq analysis also revealed binding of EGR1, NeuroD2, and TCF4 to the +3 kb enhancer region in the endogenous chromatin context.

Considering the CREB binding in ENCODE data (Figure 8—figure supplement 1) and CBP binding in cultured cortical neurons (Figure 8C), we first investigated whether CREB binds Bdnf +3 kb enhancer region in our rat cortical neurons. We performed ChIP-qPCR and determined that in cultured cortical neurons CREB binds to the +3 kb enhancer region, whereas we found no significant CREB binding to the +21 kb negative control region, located directly downstream of Bdnf exon VII (Figure 8D). Of note, the binding of CREB to the +3 kb enhancer region was ~2.6 times stronger than binding to Bdnf promoter IV, which contains the well-described CRE element (Hong et al., 2008; Tao et al., 1998). Next, we focused on the various E-box-binding proteins as many E-box-binding proteins are pro-neural and could therefore confer the neural specificity of the +3 kb enhancer region. As transcription factors from the NeuroD family need dimerization partner from the class I helix–loop–helix proteins, for example, TCF4, to bind DNA (Massari and Murre, 2000; Ravanpay and Olson, 2008), we verified the binding of TCF4 to the +3 kb region in our cultured neurons using TCF4 ChIP-qPCR (Figure 8D).

To determine functionally important transcription factors that regulate Bdnf +3 kb enhancer region, we first screened a panel of dominant-negative transcription factors in luciferase reporter assay where the expression of luciferase was under control of the +3 kb enhancer region (Figure 8E). In agreement with the in vitro pulldown assay, ChIP-seq and ChIP-qPCR results, we found the strongest inhibitory effect using dominant negative versions of CREB (named A-CREB), ATF2 (named A-ATF2), and AP-1 family (named A-FOS). The effect of different dominant negative proteins was slightly lower when the +3 kb enhancer region was in the reverse orientation. Our data suggests the role of CREB, AP-1 family proteins, and ATF2 in regulating the neuronal activity-dependent activation of the +3 kb enhancer region, whereas we found no notable evidence of USF family transcription factors and CEBPB regulating the activity of the +3 kb enhancer region.

Finally, we elucidated the role of E-box-binding proteins in the regulation of the +3 kb enhancer region. Using luciferase reporter assays, we found that silencing TCF4 expression with TCF4 shRNA-expressing plasmid decreased the activity of the +3 kb enhancer region in both unstimulated and KCl- and BDNF-stimulated neurons. However, the effects were slightly smaller when the enhancer region was in the reverse orientation (Figure 8F). Based on the TCF4 and NeuroD2 ChIP-seq data (Figure 8C), we identified a putative E-box binding sequence in the +3 kb enhancer region (CAGATG). To determine the relevance of this E-box element, we generated +3 kb enhancer-containing reporter constructs where this E-box motif was mutated (CAGAAC). We determined that this motif participates in regulating both the basal activity and BDNF- and KCl-induced activity of the enhancer region (Figure 8G). Importantly, mutating the E-box decreased the ability of the +3 kb enhancer region to potentiate transcription from Bdnf promoter I in reporter assays (Figure 8H).

Collectively, we have identified numerous transcription factors that potentially regulate the activity of the +3 kb enhancer region and further discovered a functional E-box element in the enhancer, possibly conferring neuron-specific activity of the +3 kb enhancer region.

Discussion

Bdnf promoters I, II, and III are located within a relatively compact (~2 kb) region in the genome, making it possible that their activity is controlled by a common mechanism. Spatial clustering of Bdnf exons seems to be conserved in vertebrates (Keifer, 2021), with a similar genomic organization observed in frog (Kidane et al., 2009), chicken (Yu et al., 2009), zebrafish (Heinrich and Pagtakhan, 2004), rodents (Aid et al., 2007), and human (Pruunsild et al., 2007). It has previously been suggested that Bdnf promoters I and II could be co-regulated as one functional unit (Hara et al., 2009; Timmusk et al., 1999; West et al., 2014). Here, we show that the promoters of Bdnf exons I, II, and III are co-regulated as a neuron-specific unit through a conserved enhancer region located downstream of exon III.

We have previously reported that exon I-containing Bdnf transcripts contain in-frame alternative translation start codon that is used more efficiently for translation initiation than the canonical start codon in exon IX (Koppel et al., 2015). As the Bdnf exon I-containing transcripts are highly inducible in response to different stimuli, they could make a substantial contribution to the overall production of BDNF protein in neurons, despite the low basal expression levels of this transcript. Remarkably, the Bdnf transcripts from the first cluster of exons have been shown to regulate important aspects of behavior. In female mice, Bdnf exon I-containing transcripts are important for proper sexual and maternal behavior (Maynard et al., 2018), whereas in male mice the Bdnf exon I- and exon II-containing transcripts regulate serotonin signaling and control aggressive behavior (Maynard et al., 2016). Furthermore, it has been shown that Bdnf exon I-containing transcripts in the hypothalamus participate in energy metabolism and thermoregulation (You et al., 2020). The +3 kb enhancer identified in our work might therefore be an important regulator of Bdnf gene expression in the formation of the neural circuits regulating both social behavior and energy metabolism. Further work will address this possibility experimentally.

The data from Nord et al., 2013 indicates that the highest H3K27ac modification, a hallmark of active regulatory region, at the +3 kb enhancer region in development occurs a week before and a week after birth in mice – coinciding with the period of late neurogenesis, neuronal migration, synaptogenesis, and maturation of neurons (Reemst et al., 2016). It appears that the +3 kb enhancer region is mostly active in early life and participates in the development of the central nervous system via regulating Bdnf expression. However, it is also possible that the decline in H3K27ac mark in rodent brain tissue during postnatal development is due to the increased amount of non-neuronal cells in the brain compared to neurons. Although the activity of the +3 kb enhancer seems to decrease with age, it is plausible that it remains active also in later postnatal life and upregulates Bdnf expression, thereby regulating synaptic plasticity in the adult organism.

Based on the induction of eRNA expression from the +3 kb enhancer region upon depolarization and BDNF-TrkB signaling in both luciferase reporter assays and in the endogenous context, and binding of various activity-dependent transcription factors to the +3 kb region, our data indicates that, in addition to conferring neuron specificity, the +3 kb enhancer region also participates in BDNF-TrkB signaling- and neuronal activity-induced expression of the first cluster of Bdnf transcripts. Furthermore, repressing or activating the +3 kb enhancer region with CRISPRi or CRISPRa, respectively, also affected the stimulus-induced levels of these transcripts. Notably, the part of the Bdnf gene containing the +3 kb enhancer has previously been implicated in the Reelin-mediated induction of Bdnf expression (Telese et al., 2015), indicating that the +3 kb enhancer could respond to other stimuli in addition to membrane depolarization and TrkB signaling.

Recently, it has been shown that other distal enhancer regions form chromatin loops with the Bdnf first cluster of exons and the +3 kb enhancer region (Beagan et al., 2020). Similarly, long-distance interactions with the +3 kb enhancer region have been reported in neurons isolated from the human brain (Nott et al., 2019). Furthermore, CTCF and RAD21, both important regulators of the chromatin 3D structure (Rowley and Corces, 2018), seem to bind near the +3 kb enhancer region (Figure 8—figure supplement 1). Therefore, it is possible that the +3 kb enhancer could partially mediate its effect on Bdnf gene expression by regulating the higher-order chromatin structure in the Bdnf gene locus by bringing together distal enhancer regions and Bdnf promoters from the first cluster of exons. Further work is necessary to determine the role of the +3 kb enhancer region in the regulation of higher order chromatin structure.

We also investigated the possibility that the +3 kb enhancer contributes to the catecholamine-induced expression of Bdnf transcripts in rat cultured cortical astrocytes (Koppel et al., 2018) and noted that even though the activation of the +3 kb enhancer increased the basal and stimulus-induced expression of all Bdnf transcripts, repression of the +3 kb enhancer had almost no effect on Bdnf expression. Furthermore, the transcriptional activity of the +3 kb enhancer was not induced by dopamine treatment in luciferase reporter assay, further indicating that the +3 kb region is not the enhancer responsible for catecholamine-dependent induction of Bdnf expression. Interestingly, the dopamine-dependent induction of Bdnf exon IIc-containing transcripts was abolished when the +3 kb enhancer was repressed using CRISPRi, suggesting that the +3 kb enhancer region might control the activity of stimulus-specific expression of Bdnf promoter II in astrocytes. Since the activity of Bdnf promoter II is regulated by neuron-restrictive silencer factor (NRSF) (Timmusk et al., 1999), it is possible that the drastic decrease in the dopamine-dependent induction of Bdnf exon IIc-containing transcripts was due to the cooperative effect between NRSF and the +3 kb enhancer region. Further investigation is needed to determine whether this hypothesis is true and whether such cooperation between the +3 kb enhancer region and NRSF binding to Bdnf exon II also happens in neurons. Although we have not tested it directly, our data does not support the notion that the +3 kb region is an active repressor in non-neuronal cells, for example, astrocytes. Instead, it seems that the +3 kb enhancer is a positive regulator of Bdnf gene operating specifically in neurons. We conclude that the +3 kb enhancer region is largely inactive in rat cultured cortical astrocytes and it is distinct from the distal cis-regulatory region controlling the catecholamine-induced activities of Bdnf promoters IV and VI.

Our results indicate that the +3 kb enhancer can receive regulatory inputs from various basic helix–loop–helix transcription factors, including TCF4 and its pro-neural heterodimerization partners NeuroD2 and NeuroD6. Single-cell RNA-seq analysis in the mouse cortex and hippocampus has indicated that mRNAs of NeuroD transcription factors are expressed mainly in excitatory neurons, similar to Bdnf (Tasic et al., 2016). It has been reported that NeuroD2 preferentially binds to E-boxes CAGCTG or CAGATG (Fong et al., 2012), which is in agreement with the functional E-box CAGATG sequence found in the +3 kb enhancer. Furthermore, it has been previously shown that NeuroD2 knock-out animals exhibit decreased Bdnf mRNA and protein levels in the cerebellum (Olson et al., 2001). However, Olson et al. found no change in Bdnf levels in the cerebral cortex of these knock-out animals. It is possible that different NeuroD family transcription factors regulate Bdnf expression in different brain areas and developmental stages, or that a compensatory mechanism between NeuroD2 and NeuroD6, both binding the +3 kb enhancer region in our in vitro DNA pulldown assay, exists in cortical neurons of NeuroD2 knock-out animals. It has been well described that NeuroD transcription factors regulate neuronal differentiation (Massari and Murre, 2000), axonogenesis (Bormuth et al., 2013), neuronal migration (Guzelsoy et al., 2019), and proper synapse formation (Ince-Dunn et al., 2006; Wilke et al., 2012). As BDNF also has a role in the aforementioned processes (Park and Poo, 2013), it is plausible that at least some of the effects carried out by NeuroD family result from increasing Bdnf expression. Further work is needed to clarify the exact role of TCF4 and NeuroD transcription factors in Bdnf expression.

In conclusion, we have identified a novel intronic enhancer region governing the expression of neuron-specific Bdnf transcripts starting from the first cluster of exons – exons I, II, and III – in mammals. Exciting questions for further work are whether the +3 kb enhancer region is active in all neurons or in specific neuronal subtypes, and whether the activity of this enhancer element underlies in vivo contributions of BDNF to brain development and function.

Materials and methods

Cultures of rat primary cortical neurons

Request a detailed protocol

All animal procedures were performed in compliance with the local ethics committee. Cultures of cortical neurons from embryonic day (E) 21 Sprague Dawley rat embryos of both sexes were prepared as described previously (Esvald et al., 2020). The cells were grown in Neurobasal A (NBA) medium (Gibco, Waltham, MA) containing 1× B27 supplement (Gibco, Waltham, MA), 1 mM L-glutamine (Gibco, Waltham, MA), 100 U/ml penicillin, and 0.1 mg/ml streptomycin (Gibco, Waltham, MA) or 100 µg/ml Primocin (Invivogen, San Diego, CA) instead of penicillin/streptomycin at 37°C in 5% CO2 environment. At 2 days in vitro (DIV), half of the medium was replaced with fresh supplemented NBA or the whole medium was replaced for cells transduced with lentiviruses. To inhibit the proliferation of non-neuronal cells, a mitotic inhibitor 5-fluoro-2'-deoxyuridine (final concentration 10 µM, Sigma-Aldrich, Saint Louis, MO) was added with the change of the medium.

Cultures of rat primary cortical astrocytes

Request a detailed protocol

Cultures of cortical astrocytes were prepared from E21 Sprague Dawley rat embryos of both sexes as described previously (Koppel et al., 2018). The cells were grown in 75 cm2 tissue culture flasks in Dulbecco’s Modified Eagle Medium (DMEM with high glucose, PAN Biotech, Aidenbach, Germany) supplemented with 10% fetal bovine serum (PAN Biotech, Aidenbach, Germany) and 100 U/ml penicillin and 0.1 mg/ml streptomycin (Gibco, Waltham, MA) at 37°C in 5% CO2 environment. At 1 DIV, the medium was replaced with fresh growth medium to remove loose tissue clumps. At 6 DIV, the flasks were placed into a temperature-controlled shaker Certomat BS-1 (Sartorius Group, Goettingen, Germany) for 17–20 hr and shaken at 180 rpm at 37°C to detach non-astroglial cells from the flask. After overnight shaking, the medium was removed along with unattached non-astrocytic cells, and astrocytes were washed three times with 1× phosphate-buffered saline (PBS). Astrocytes were detached from the flask with trypsin-EDTA solution (0.25% Trypsin-EDTA [1×], Gibco, Waltham, MA) diluted four times with 1× PBS at 37°C for 3–5 min. Trypsinized astrocytes were collected in supplemented DMEM and centrifuged at 200 × g for 6 min. The supernatant was removed, astrocytes were resuspended in supplemented DMEM and seeded on cell culture plates previously coated with 0.2 mg/ml poly-L-lysine (Sigma-Aldrich, Saint Louis, MO) in Milli-Q. At 9 DIV, the whole medium was replaced with fresh supplemented DMEM.

Drug treatments

Request a detailed protocol

At 7 DIV, cultured neurons were pre-treated with 1 µM tetrodotoxin (Tocris, Bristol, UK) until the end of the experiment to inhibit spontaneous neuronal activity. At 8 DIV, neurons were treated with 50 ng/ml human recombinant BDNF (Peprotech, London, UK) or with a mixture of 25 mM KCl and 5 µM N-Methyl-D-aspartate receptor antagonist D-2-amino-5-phosphopentanoic acid (D-APV, Cayman Chemical Company, Ann Arbor, MI) to study BDNF autoregulation or neuronal activity-dependent expression of the Bdnf gene, respectively.

Cultured cortical astrocytes were treated at 15 DIV with 150 µM dopamine (Tocris, Bristol, UK) to study the regulation of the Bdnf gene by catecholamines or 0.15% dimethyl sulfoxide (Sigma-Aldrich, Saint Louis, MO) as a vehicle control in fresh serum-free and antibiotics-free DMEM (DMEM with high glucose, PAN Biotech, Aidenbach, Germany).

Transfection of cultured cells and luciferase reporter assay

Request a detailed protocol

Rat +3 kb enhancer (chr3:100771267–100772697, rn6 genome assembly) or +11 kb intron (chr3:100778398–100779836, rn6 genome assembly) regions were amplified from rat Bdnf BAC construct (Koppel et al., 2018) using Phusion Hot Start II DNA Polymerase (Thermo Fisher Scientific, Waltham, MA) and cloned into pGL4.15 vector (Promega, Madison, WI) in front of the Firefly luciferase coding sequence. To generate reporter constructs containing both Bdnf promoter and enhancer region, the hygromycin expression cassette downstream of firefly luciferase expression cassette in pGL4.15 vector was replaced with a new multiple cloning site, into which the +3 kb enhancer or +11 kb intron regions were cloned in either forward or reverse orientation (respective to the rat Bdnf gene). The Bdnf promoter regions were obtained from rat Bdnf promoter constructs (Esvald et al., 2020) and cloned in front of the firefly luciferase coding sequence. Plasmids encoding control and TCF4 shRNA have been published previously (Sepp et al., 2017). Coding regions of different dominant negative transcription factors were subcloned from AAV plasmids (Esvald et al., 2020) into pRRL vector backbone under the control of human PGK promoter.

For transfection and luciferase reporter assays, rat cortical neurons or astrocytes were grown on 48-well cell culture plates. Transfections were carried out in duplicate wells.

Cultured cortical neurons were transfected as described previously (Jaanson et al., 2019) with minor modifications. Transfection was carried out in unsupplemented NBA using 500 ng of the luciferase reporter construct and 20 ng of a normalizer plasmid pGL4.83-mPGK-hRLuc at 5–6 DIV using Lipofectamine 2000 (Thermo Scientific) with DNA to Lipofectamine ratio of 1:2. Transfection was terminated by replacing the medium with conditioned medium, which was collected from the cells before transfection.

Cultured cortical astrocytes were transfected as described previously (Koppel et al., 2018) using 190 ng of luciferase reporter construct and 10 ng of normalizer plasmid pGL4.83-SRα-hRLuc at 13 DIV using Lipofectamine 2000 (Thermo Scientific) with DNA to Lipofectamine ratio of 1:3.

The cells were lysed with Passive Lysis Buffer (Promega, Madison, WI) and luciferase signals were measured with Dual-Glo Luciferase assay kit (Promega, Madison, WI) using GENios pro plate reader (Tecan). Background-corrected firefly luciferase signals were normalized to background-corrected Renilla luciferase signals, and the averages of duplicate wells were calculated. Data were log-transformed for statistical analysis, mean and standard error of the mean (SEM) were calculated, and data were back-transformed for graphical representation.

CRISPR interference and activator systems, RT-qPCR

Request a detailed protocol

pLV-hUbC-dCas9-KRAB-T2A-GFP plasmid used for CRISPR interference has been described previously (Esvald et al., 2020), and pLV-hUbC-VP64-dCas9-VP64-T2A-GFP plasmid used for CRISPR activation was obtained from Addgene (plasmid #59791). Lentiviral particles were produced as described previously (Koppel et al., 2018). Relative viral titers were estimated from provirus incorporation rate measured by qPCR, and equal amounts of functional viral particles were used for transduction in the following experiments. The efficiency of viral transduction was at least 90–95% based on EGFP expression in transduced cells.

Rat cortical neurons were transduced at 0 DIV, whereas cortical astrocytes were transduced after sub-culturing at 7 DIV. After treatments at 8 DIV for neurons or at 14 DIV for astrocytes, the cells were lysed and RNA was extracted with RNeasy Mini Kit (Qiagen, Hilden, Germany) using on-column DNA removal with RNase-Free DNase Set (Qiagen, Hilden, Germany). RNA concentration was measured with BioSpec-nano spectrophotometer (Shimadzu Biotech, Kyoto, Japan). cDNA was synthesized from equal amounts of RNA with Superscript III or Superscript IV reverse transcriptase (Invitrogen, Waltham, MA, USA) using oligo(dT)20 or a mixture of oligo(dT)20 and random hexamer primer (ratio 1:1, Microsynth, Balgach, Switzerland). To measure +3 kb enhancer eRNAs, cDNA was synthesized using a mixture of antisense eRNA-specific primer and Hprt1 primer (1:1 ratio). The primers used for cDNA synthesis are listed in Supplementary file 1.

All qPCR reactions were performed in 10 µl volume in triplicates with 1× HOT FIREpol EvaGreen qPCR Mix Plus (Solis Biodyne, Tartu, Estonia) and primers listed in Supplementary file 1 on LightCycler 480 PCR instrument II (Roche, Basel, Switzerland). Gene expression levels were normalized to Hprt1 mRNA levels in neurons and cyclophilin B mRNA levels in astrocytes. Data were log-transformed and autoscaled (as described in Vandesompele et al., 2002) for statistical analysis, mean and SEM were calculated, and data were back-transformed for graphical representation.

Bioinformatic analysis

Request a detailed protocol

RNA-seq and ATAC-seq data from Carullo et al., 2020 was obtained from Sequence Read Archive (accession numbers SRP261474 and SRP261642) and processed as described in Sirp et al., 2020 with minor modifications. Trimming was performed with BBDuk using the following parameters: ktrim=r k=23 mink=11 hdist=1 tbo qtrim=lr trimq=10 minlen=50.

For RNA-seq data, STAR aligner (version 2.7.3a, Dobin et al., 2013) was used to map the reads to the Rn6 genome. Featurecounts (version 2.0.0, Liao et al., 2014) was used to assign reads to genes (annotation from Ensembl, release 101), and a custom-made SAF file was used to count reads mapping to +3 kb antisense eRNA (coordinates chr3:100771209–100772077). Counts were normalized using DESeq2 R package (version 1.28.1, Love et al., 2014) and visualized using ggplot2 R package (version 3.3.2, Wickham, 2016).

For ATAC-seq data, reads were mapped to the Rn6 genome with Bowtie2 (version 2.3.5.1, Langmead and Salzberg, 2012) using the following parameters: --local --very-sensitive-local -X 3000. The resultant SAM files were converted to BAM, sorted and indexed using Samtools (version 1.9, Li et al., 2009).

For both RNA-seq and ATAC-seq, aligned reads of biological replicates were merged using Samtools, converted to bigWig format using bamCoverage (version 3.3.0, Ramírez et al., 2016) with CPM normalization, and visualized using Integrative Genomics Viewer (Robinson et al., 2011).

Mouse embryonic stem cells

Request a detailed protocol

A2Lox mESCs were a kind gift from Michael Kyba. The cells were authenticated based on their ability to form stable G418-resistant colonies after transfecting doxycycline-treated cultures with the p2Lox plasmid (Addgene plasmid #34635, Iacovino et al., 2011). The cells were tested negative for mycoplasma using PCR Mycoplasma Test Kit I/C (PromoCell, Heidelberg, Germany). A2Lox mESC line containing doxycycline-inducible Neurogenin2 transgene (Zhuravskaya et al., in preparation) was generated using recombination-mediated cassette exchange procedure (Iacovino et al., 2011). mESCs were grown in 2i media as described in Iacovino et al., 2011 and Kainov and Makeyev, 2020. To delete the +3 kb enhancer region, 3 + 3 gRNAs targeting either side of the +3 kb enhancer core region (targeting sequences listed in Supplementary file 2) were cloned into pX330 vector (Addgene plasmid #42230). A2Lox-Neurogenin2 mESCs were co-transfected with a mixture of all 6 CRISPR plasmids and a plasmid containing a blasticidin expression cassette for selection. One day post transfection, 8 µg/ml blasticidin (Sigma-Aldrich, Saint Louis, MO) was added to the media for 3 days after which selection was ended, and cells were grown for an additional 11 days. Finally, single colonies were picked and passaged. The deletion of the +3 kb enhancer region was assessed from genomic DNA with PCR using primers flanking the desired deletion area. To rule out larger genomic deletions, qPCR-based copy number analysis was carried out with primers targeting the desired deletion area, and either side of the +3 kb region outside of the desired deletion area. qPCR results were normalized to the levels of the Sox2 genomic locus, and the copy number of each region in wild-type cells was set as 2. Normalized copy numbers in recombinant clones were rounded to the nearest integer. All primers used for genotyping are listed in Supplementary file 1. Cell clones containing no deletion, heterozygous or homozygous deletion of the core conserved enhancer region, together with intact distal flanking regions, were used for subsequent analysis.

Selected mESC clones were differentiated into neurons as follows. Cells were plated on 12-well plates coated with Matrigel (Gibco, Waltham, MA) at a density of ~25,000 cells per well in N2B27 media (1:1 DMEM F12-HAM and Neurobasal mixture, 1× N2, 1× B27 with retinoic acid, 1× penicillin-streptomycin, 1 µg/ml laminin, 20 µg/ml insulin, 50 µM L-glutamine) supplemented with 0.1 M β-mercaptoethanol (Sigma-Aldrich, Saint Louis, MO) and 2 μg/ml doxycycline (Sigma-Aldrich, Saint Louis, MO). After 2 days, the whole media was changed to N2B27 media containing 200 μM ascorbic acid (Sigma-Aldrich, Saint Louis, MO) and 1 μg/ml doxycycline. Next, half of the media was replaced every 2 days with new N2B27 media containing 200 μM ascorbic acid but no doxycycline. On the 12th day of differentiation, cells were treated with Milli-Q, BDNF (Peprotech, London, UK), or KCl for 3 hr. All treatments were added together with 25 μM D-APV (Alfa Aesar, Kandel, Germany). After treatment, the cells were lysed and RNA was extracted using EZ-10 DNAaway RNA Mini-Prep Kit (Bio Basic inc, Markham, Canada). cDNA was synthesized using Superscript IV (Thermo Fischer, Waltham, MA), and qPCR was performed with HOT FIREPol EvaGreen qPCR Mix Plus (Solis Biodyne, Tartu, Estonia) or qPCRBIO SyGreen Mix Lo-ROX (PCR Biosystems Ltd, London, UK) on LightCycler 96 (Roche, Basel, Switzerland). The levels of Cnot4 mRNA expression were used for normalization. RT-qPCR was also used to characterize differentiation of A2Lox-Neurogenin2 parental cells into neurons (Figure 7—figure supplement 2). All primers used in the RT-qPCR are listed in Supplementary file 1.

In vitro DNA pulldown mass spectrometry

Request a detailed protocol

The 855 bp region of the +3 kb enhancer and +11 kb intronic region were amplified with PCR using HotFirePol polymerase (Solis Biodyne, Tartu, Estonia) and primers listed in Supplementary file 1, with the reverse primers having a 5' biotin modification (Microsynth, Balgach, Switzerland). PCR products were purified using DNA Clean and Concentrator−100 kit (Zymo Research, Irvine, CA) using a 1:5 ratio of PCR solution and DNA binding buffer. The concentration of the DNA was determined with Nanodrop 2000 spectrophotometer (Thermo Scientific).

The preparation of nuclear lysates was performed as follows. Cortices from 8-day-old Sprague Dawley rat pups of both sexes were dissected and snap-frozen in liquid nitrogen. Nuclear lysates were prepared with high salt extraction as in Wu, 2006 and Lahiri and Ge, 2000 with minor modifications. Briefly, cortices were weighed and transferred to pre-cooled Dounce tissue grinder (Wheaton). Also, 2 ml of ice-cold cytoplasmic lysis buffer (10 mM HEPES, pH 7.9 [adjusted with NaOH], 10 mM KCl, 1.5 mM MgCl2, 0.5% NP-40, 300 mM sucrose, 1x cOmplete Protease Inhibitor Cocktail [Roche, Basel, Switzerland], and phosphatase inhibitors as follows: 5 mM NaF [Fisher Chemical, Pittsburgh, PA], 1 mM beta-glycerophosphate [Acros Organics, Pittsburgh, PA], 1 mM Na3VO4 [ChemCruz, Dallas,TX], and 1 mM Na4P2O7 [Fisher Chemical, Pittsburgh, PA]) was added, and tissue was homogenized 10 times with tight pestle. Next, the lysate was transferred to a 15 ml tube and cytoplasmic lysis buffer was added to a total volume of 1 ml per 0.1 g of tissue. The lysate was incubated on ice for 10 min with occasional inverting. Next, the lysate was transferred to a 100 µm nylon cell strainer (VWR) to remove tissue debris and the flow-through was centrifuged at 2600 × g at 4°C for 1 min to pellet nuclei. The supernatant (cytoplasmic fraction) was discarded and the nuclear pellet was resuspended in 1 ml per 1 g of tissue ice-cold nuclear lysis buffer (20 mM HEPES, pH 7.9, 420 mM NaCl, 1.5 mM MgCl2, 0.1 mM EDTA, 2.5% glycerol, 1x cOmplete Protease Inhibitor Cocktail [Roche, Basel, Switzerland], and phosphatase inhibitors) and transferred to a new Eppendorf tube. To extract nuclear proteins, the pellet was rotated at 4°C for 30 min and finally centrifuged at 11,000 × g at 4°C for 10 min. The supernatant was collected as nuclear fraction, and protein concentration was measured with BCA Protein Assay Kit (Pierce).

In vitro DNA pulldown was performed as follows. Two biological replicates were performed using nuclear lysates of cortices from pups of different litters. Pierce Streptavidin Magnetic Beads (50 µl per pulldown reaction) were washed 2 times with 1× binding buffer (BB, 5 mM Tris-HCl, pH 7.5, 0.5 mM EDTA, 1 M NaCl, 0.05% Tween-20), resuspended in 2× BB, and an equal volume of 50 pmol biotinylated DNA (in 10 mM Tris-HCl, pH 8.5, 0.1 mM EDTA) was added and incubated at room temperature for 30 min with rotation. To remove the unbound probe, the beads were washed three times with 1× BB. Finally, 400 µg of nuclear proteins (adjusted to a concentration of 1.6 mg/ml with nuclear lysis buffer) and an equal volume of buffer D (20 mM HEPES, pH 7.9, 100 mM KCl, 0.2 mM EDTA, 8% glycerol, 1x cOmplete Protease Inhibitor Cocktail [Roche, Basel, Switzerland], and phosphatase inhibitors) were added and incubated with rotation at 4°C overnight. The next day the beads were washed three times with 1× PBS, once with 100 mM NaCl and once with 200 mM NaCl. Bound DNA and proteins were eluted with 16 mM biotin (Sigma-Aldrich, Saint Louis, MO) in water (at pH 7.0) at 80°C for 5 min, and the eluate was transferred to a new tube and snap-frozen in liquid nitrogen.

Mass-spectrometric analysis of the eluates was performed with nano-LC-MS/MS using Q Exactive Plus (Thermo Scientific) at Proteomics core facility at the University of Tartu, Estonia, as described previously (Mutso et al., 2018) using label-free quantification instead of SILAC and Rattus norvegicus reference proteome for analysis. The full lists of proteins obtained from mass-spectrometric analysis are shown in Supplementary file 3. Custom R script (available at Tuvikene, 2021) was used to keep only transcription factors based on gene symbols of mammalian genes from gene ontology categories ‘RNA polymerase II cis-regulatory region sequence-specific DNA binding’ and ‘DNA-binding transcription factor activity’ from http://geneontology.org/ (obtained March 16, 2020). At least 1.45-fold enrichment to the +3 kb enhancer probe compared to the +11 kb intronic probe was used as a cutoff for specific binding. The obtained lists were manually curated to generate Venn diagram illustration of the experiment.

Chromatin immunoprecipitation

Request a detailed protocol

ChIP assay was performed as described previously (Esvald et al., 2020) using 10 min fixation with 1% formaldehyde. 5 µg of CREB antibody (catalog #06–863, lot 2446851, Merck Millipore, Burlington, MA) or TCF4 antibody (CeMines, Golden, CO) was used per immunoprecipitation (IP). DNA enrichment was measured using qPCR. All qPCR reactions were performed in 10 µl volume in triplicates with 1× LightCycler 480 SYBR Green I Master kit (Roche, Basel, Switzerland) and primers listed in Supplementary file 1 on LightCycler 480 PCR instrument II (Roche, Basel, Switzerland). Primer efficiencies were determined by serial dilutions of input samples and were used for analyzing the results. Percentage of input enrichments was calculated for each region and IP, and data were log-transformed before statistical analysis.

ENCODE data of different ChIP-seq experiments were visualized using UCSC Genome Browser track ‘Transcription Factor ChIP-seq Peaks (340 factors in 129 cell types) from ENCODE 3 Data version: ENCODE 3 Nov 2018’. Data of previously published ChIP-seq experiments were obtained from Gene Expression Omnibus with accession numbers GSM530173, GSM530174, GSM530182, GSM530183 (Kim et al., 2010), GSM1467429, GSM1467434 (Malik et al., 2014), GSM1820990 (Moen et al., 2017), GSM1647867 (Sun et al., 2019), GSM1649148 (Bayam et al., 2015), and visualized using Integrative Genomics Viewer version 2.8.0 (Robinson et al., 2011).

Statistical analysis

Request a detailed protocol

Sample size estimation was not performed, and randomization and blinding were not used. Statistical analysis was performed on data obtained from independent biological replicates – cultured primary cells obtained from pups of different litters, or different clones of mESCs. All statistical tests and tested hypotheses were decided before performing the experiments. As ANOVA's requirement of homoscedasticity was not met, two-tailed paired or unpaired equal variance t-test, as reported at each figure, was used for statistical analysis using Excel 365 (Microsoft). To preserve statistical power, p-values were not corrected for multiple comparisons as recommended by Feise, 2002, Rothman, 1990, and Streiner and Norman, 2011.

Data availability

Mass-spectrometry results of the in vitro DNA pulldown experiment are provided in Supplementary file 3.

The following previously published data sets were used
    1. Kim T
    2. Hemberg M
    3. Gray JM
    4. Kreiman G
    5. Greenberg ME
    (2010) NCBI Gene Expression Omnibus
    ID GSE21161. Widespread transcription at neuronal activity-regulated enhancers.
    1. Nord AS
    2. Visel A
    3. Pennacchio LA
    (2013) NCBI Gene Expression Omnibus
    ID GSE52386. Rapid and Pervasive Changes in Genome-Wide Enhancer Usage During Mammalian Development.
    1. Malik AN
    (2014) NCBI Gene Expression Omnibus
    ID GSE60192. Genome-wide identification and characterization of functional neuronal activity-dependent enhancers.
    1. Dunn GI
    (2015) NCBI Gene Expression Omnibus
    ID GSE67539. NeuroD2 ChIP-SEQ from embryonic cortex.
    1. Brandsma JH
    2. Moen MJ
    3. Poot RA
    (2016) NCBI Gene Expression Omnibus
    ID GSE70872. A protein interaction network of mental disorder factors in neural stem cells.
    1. Sun Z
    2. Sun M
    3. He J
    4. Xie H
    (2019) NCBI Gene Expression Omnibus
    ID GSE67482. Genome-wide maps of EGR1 binding in mouse frontal cortex.
    1. Carullo NVN
    2. Phillips RA
    3. Ianov L
    4. Day JJ
    (2020) NCBI Gene Expression Omnibus
    ID GSE150589. ATAC-seq datasets for chromatin accessibility quantification in "Enhancer RNAs predict enhancer-gene regulatory links and are critical for enhancer function in neuronal systems".
    1. Carullo NVN
    2. Phillips RA
    3. Ianov L
    4. Day JJ
    (2020) NCBI Gene Expression Omnibus
    ID GSE150499. RNA-seq datasets for enhancer RNA quantification in "Enhancer RNAs predict enhancer-gene regulatory links and are critical for enhancer function in neuronal systems".

References

  1. Book
    1. Jaanson K
    2. Pärn A
    3. Timmusk T
    (2019) Usage of Bacterial Artificial Chromosomes for Studying BDNF Gene Regulation in Primary Cultures of Cortical Neurons and Astrocytes
    In: Duarte C. B, Tongiorgi E, editors. Brain-Derived Neurotrophic Factor (BDNF), Neuromethods. New York: Springer. pp. 13–25.
    https://doi.org/10.1007/7657_2018_10
  2. Book
    1. West AE
    2. Pruunsild P
    3. Timmusk T
    (2014) Neurotrophins: Transcription and Translation
    In: Lewin G. R, Carter B. D, editors. Neurotrophic Factors, Handbook of Experimental Pharmacology. Berlin: Springer. pp. 67–100.
    https://doi.org/10.1007/978-3-642-45106-5_4
  3. Book
    1. Wu KK
    (2006) Analysis of Protein-DNA Binding by Streptavidin-Agarose Pulldown
    In: Bina M, editors. Gene Mapping, Discovery, and Expression: Methods and Protocols, Methods in Molecular Biology. Totowa: Humana Press. pp. 281–290.
    https://doi.org/10.1385/1-59745-097-9:281

Decision letter

  1. Anne E West
    Reviewing Editor; Duke University School of Medicine, United States
  2. Gary L Westbrook
    Senior Editor; Oregon Health and Science University, United States
  3. Svitlana Bach
    Reviewer; Lieber Institute for Brain Research, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This paper presents a comprehensive evaluation of an intragenic transcriptional enhancer element that promotes transcription of the gene encoding Brain-Derived Neurotrophic Factor (BDNF). This is the first enhancer to be validated for this important activity-regulated neuronal plasticity and development gene. In addition to demonstrating the function of the enhancer in the specificity of BDNF promoter activation in both neurons and astrocytes, the authors also identify transcriptional regulators of enhancer activity.

Decision letter after peer review:

Thank you for submitting your article "Intronic enhancer region governs transcript-specific BDNF expression in neurons" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Gary Westbrook as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Svitlana Bach (Reviewer #3). The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our policy on revisions we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, when editors judge that a submitted work as a whole belongs in eLife but that some conclusions require a modest amount of additional new data, as they do with your paper, we are asking that the manuscript be revised to either limit claims to those supported by data in hand, or to explicitly state that the relevant conclusions require additional supporting data.

Our expectation is that the authors will eventually carry out the additional experiments and report on how they affect the relevant conclusions either in a preprint on bioRxiv or medRxiv, or if appropriate, as a Research Advance in eLife, either of which would be linked to the original paper.

Summary:

In this manuscript, the authors set out to find distal enhancers that regulate BDNF, a biologically important gene whose dynamic expression is primarily controlled at the transcriptional level. Enhancers are well known to play key roles in the fine tuning of gene regulation as well as in the control of cell-type specificity. However, it is surprising that to date, the majority of data regarding mechanisms of BDNF transcription have focused on promoters rather than enhancers. Here the authors bioinformatically identify a putative BDNF enhancer and then validate its function and regulation using luciferase assays, dCas9-mediated functional genomics, and CRISPR knockout, followed by the identification of transcriptional regulators of this element. This is a comprehensive and important validation of a new regulatory element that contributes to regulation of the BDNF gene. The characterization of the element defined here will allow others in the field to determine the importance of this regulatory mechanism for the control of Bdnf expression in the wide range of biological processes in which it is implicated.

Essential revisions:

The reviewers thought the conclusions were strongly supported by the data and have only three areas they think need to be strengthened with the addition of some details in the text.

1) With respect to experimental details the reviewers asked that the following information be added/clarified:

a) The stem cell lines need to be more fully described and the characterization shown or directly referenced. The authors stated there is a manuscript in preparation describing the Ngn2 line, but for the tools used here there must be sufficient information provided to evaluate them. This includes sequence confirmation of the targeting and validation of the differentiation at a minimum.

b) What is the efficacy of the viral vectors used to deliver the dCas9 fusions and gRNAs? This information is required for interpreting the efficacy of Bdnf gene induction. A 50% reduction could reflect full blockade in 50% of the cells or a partial block in all of the cells.

c) Could the authors clarify how the luciferase vectors used here work? Most studies clone the enhancer region of interest into vectors that have a weak core promoter (like the SV40 promoter in the pGL3 vector system, or the Hsp68 promoter used by the VISTA enhancer project) rather than into a vector with no promoter. Is this enhancer acting as a core promoter?

2) With respect to the text matching the statistics the reviewers ask the authors to double check the following:

a) "…had virtually no effect on the response of these promoters to dopamine treatment." However, Figure 3D and E depicts significance asterisks above the +3kb enh forward 8h DA bar graph.

b) "… +11 kb intronic region with dCas9 without an effector domain had no major effect…" There appears to be at least some dampening of Bdnf transcript upregulation after stimulation, perhaps as a result of CRISPR interference (Figure 4, left panel). For example, there is a significance asterisk above the +3kb enh gRNA after 3h KCl stimulation for Bdnf exon I mRNA expression.

c) "…CRISPRi decreased the basal expression levels of BDNF exon I, IIc, and III- containing transcripts by 2.2, 11, and 2.4-fold, respectively (Figure 4A, B, C, middle panel). In contrast, no significant effect was seen…" As shown in Figure 4, middle panel, expression levels of BDNF exon I, IIc, and III are not significantly downregulated.

d) "…targeting CRISPRa to the +11 kb intronic region had no significant effect on the expression of any of the BDNF transcripts…" This statement does not match the significance asterisks indicated in Figure 4A and E, right panel.

e) "Targeting dCas9 to the BDNF locus did not affect the expression of any of the BDNF transcripts." This does not match the significance asterisks in Figure 5B and E, left panel, which represent some CRISPRi effects.

f) "…targeting CRISPRi to the +3 kb enhancer region in astrocytes did not affect the basal expression levels of any BDNF transcript." This statement does not match the significance asterisk indicated in Figure 5D, middle panel.

g) The "no significant effect" statement in Figure 6 seems at odds with the corresponding data presented in Figures 4 and 5. Maybe the phrase can be changed to "no noteworthy effect."

3) Finally with respect to the Discussion the authors note that in addition to the papers cited (Kim et al., 2010, Malik et al., 2014) the enhancer of interest in this paper could also be seen bioinformatically in another recent publication that sought putative distal enhancers of BDNF using 5C (PMID# 32451484). This reference should be added and the authors might wish to discuss.

https://doi.org/10.7554/eLife.65161.sa1

Author response

Essential revisions:

The reviewers thought the conclusions were strongly supported by the data and have only three areas they think need to be strengthened with the addition of some details in the text.

1) With respect to experimental details the reviewers asked that the following information be added/clarified:

a) The stem cell lines need to be more fully described and the characterization shown or directly referenced. The authors stated there is a manuscript in preparation describing the Ngn2 line, but for the tools used here there must be sufficient information provided to evaluate them. This includes sequence confirmation of the targeting and validation of the differentiation at a minimum.

The parental A2Lox-Neurogenin2 mouse ESC line was generated using recombination-mediated cassette exchange procedure referenced in our manuscript (Iacovino et al., 2011). This is a routine procedure where correct recombinants are simply selected based on their G418 resistance. As requested, we have now analyzed the time course of doxycycline-induced differentiation of these G418-resistant cells using an RT-qPCR assay for classical stem cell, neural progenitor and neuronal markers (Pou5F1/OCT4, Sox2, Nes/nestin, Map2, Tubb3, and the AMPA receptor subunit Gria1; new Figure 7—figure supplement 2).

The clonal cell lines generated with CRISPR/Cas9 from A2Lox-Neurogenin2 contain different deletions of the +3 kb region. Although we have not sequenced the exact deletion boundaries, we estimated the approximate deletion size for all clones using PCR and agarose gel electrophoresis (data not shown) and performed qPCR-based locus copy number assays with primer pairs specific to the +3kb core region and its flanking sequences. We now show this copy number genotyping data in the new Figure 7—figure supplement 1.

b) What is the efficacy of the viral vectors used to deliver the dCas9 fusions and gRNAs? This information is required for interpreting the efficacy of Bdnf gene induction. A 50% reduction could reflect full blockade in 50% of the cells or a partial block in all of the cells.

The efficiency of viral transduction was at least 90-95%, as evident from EGFP expression in transduced cells. Therefore, the CRISPR/dCas9 system was present in most cells. This in turn means that our CRISPRi results should be interpreted as partial inhibition of the Bdnf gene expression in almost all cells.

c) Could the authors clarify how the luciferase vectors used here work? Most studies clone the enhancer region of interest into vectors that have a weak core promoter (like the SV40 promoter in the pGL3 vector system, or the Hsp68 promoter used by the VISTA enhancer project) rather than into a vector with no promoter. Is this enhancer acting as a core promoter?

We have used two types of luciferase reporter vectors in our study – ones where the enhancer region was cloned directly in front of the firefly coding sequence without an additional promoter region (enhancer-luciferase configuration), and others containing Bdnf promoter region in front of the luciferase coding sequence and enhancer region downstream of the luciferase expression cassette (promoter-luciferase-enhancer configuration).

It is well known that enhancer regions can initiate RNA polymerase II-dependent bidirectional transcription of enhancer RNAs. While endogenous eRNA transcripts are usually unstable, it seems that in heterologous context in the luciferase vectors using the enhancer-luciferase configuration the resulting RNAs are more stable, possibly due to polyadenylation and differences in chromatin structure of the region, and can therefore be translated to detectable amount of luciferase protein. Furthermore, considering that the +3 kb enhancer region itself shows very strong transcription (e.g. much stronger than Bdnf promoter I) when used as a promoter in reporter assay, cloning it upstream of a minimal promoter or Bdnf promoter I would generate both enhancer- and promoter-initiated transcripts with slightly different 5' UTRs. Therefore, the results obtained with luciferase vectors using the enhancer–promoter–luciferase configuration would be difficult to interpret. For this reason, to study the synergy between promoter and enhancer region, we have used luciferase vectors with the promoter-luciferase-enhancer configuration.

2) With respect to the text matching the statistics the reviewers ask the authors to double check the following:

a) "…had virtually no effect on the response of these promoters to dopamine treatment." However, Figure 3D and E depicts significance asterisks above the +3kb enh forward 8h DA bar graph.

b) "… +11 kb intronic region with dCas9 without an effector domain had no major effect…" There appears to be at least some dampening of Bdnf transcript upregulation after stimulation, perhaps as a result of CRISPR interference (Figure 4, left panel). For example, there is a significance asterisk above the +3kb enh gRNA after 3h KCl stimulation for Bdnf exon I mRNA expression.

c) "…CRISPRi decreased the basal expression levels of BDNF exon I, IIc, and III- containing transcripts by 2.2, 11, and 2.4-fold, respectively (Figure 4A, B, C, middle panel). In contrast, no significant effect was seen…" As shown in Figure 4, middle panel, expression levels of BDNF exon I, IIc, and III are not significantly downregulated.

d) "…targeting CRISPRa to the +11 kb intronic region had no significant effect on the expression of any of the BDNF transcripts…" This statement does not match the significance asterisks indicated in Figure 4A and E, right panel.

e) "Targeting dCas9 to the BDNF locus did not affect the expression of any of the BDNF transcripts." This does not match the significance asterisks in Figure 5B and E, left panel, which represent some CRISPRi effects.

f) "…targeting CRISPRi to the +3 kb enhancer region in astrocytes did not affect the basal expression levels of any BDNF transcript." This statement does not match the significance asterisk indicated in Figure 5D, middle panel.

g) The "no significant effect" statement in Figure 6 seems at odds with the corresponding data presented in Figures 4 and 5. Maybe the phrase can be changed to "no noteworthy effect."

We thank the reviewers for this comment. We have double-checked the statistical analyses and found no errors in our calculations or depiction of the test results in the figures. While the results pointed out are statistically significant, the effect size and the context of the experiment need to be considered when interpreting the results. We find that these solitary statistically significant data points do not change the main conclusions of our study. However, we agree that using the word “significant” as a synonym of “major” or “marked” may be confusing. The revised text has been changed accordingly to avoid this problem.

3) Finally with respect to the Discussion the authors note that in addition to the papers cited (Kim et al., 2010, Malik et al., 2014) the enhancer of interest in this paper could also be seen bioinformatically in another recent publication that sought putative distal enhancers of BDNF using 5C (PMID# 32451484). This reference should be added and the authors might wish to discuss.

We thank the reviewers for the reference. However, to the best of our knowledge, this paper does not directly show that the +3 kb region is an enhancer region. Instead, it appears that other distal enhancer regions of the Bdnf gene use the +3 kb region (or the whole first cluster of Bdnf exons, it is difficult to say considering the resolution of the 5C) as a contact point for chromatin looping. Similar observation has been made by Nott et al., 2019, in neurons isolated from the human brain (PMID# 31727856). This notion raises the possibility that the +3 kb enhancer could partially mediate its effect on Bdnf expression by participating in regulating the higher-order chromatin structure at the Bdnf gene locus. We now mention this possibility in the revised Discussion section.

https://doi.org/10.7554/eLife.65161.sa2

Article and author information

Author details

  1. Jürgen Tuvikene

    1. Department of Chemistry and Biotechnology, Tallinn University of Technology, Tallinn, Estonia
    2. Protobios LLC, Tallinn, Estonia
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    For correspondence
    jurgen.tuvikene@taltech.ee
    Competing interests
    is an employee of Protobios LLC.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9665-760X
  2. Eli-Eelika Esvald

    1. Department of Chemistry and Biotechnology, Tallinn University of Technology, Tallinn, Estonia
    2. Protobios LLC, Tallinn, Estonia
    Contribution
    Conceptualization, Formal analysis, Investigation, Methodology, Writing - review and editing
    Contributed equally with
    Annika Rähni and Kaie Uustalu
    Competing interests
    is an employee of Protobios LLC.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5730-8207
  3. Annika Rähni

    Department of Chemistry and Biotechnology, Tallinn University of Technology, Tallinn, Estonia
    Present address
    Protobios LLC, Tallinn, Estonia
    Contribution
    Formal analysis, Investigation, Methodology, Writing - review and editing
    Contributed equally with
    Eli-Eelika Esvald and Kaie Uustalu
    Competing interests
    is an employee of Protobios LLC.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2826-4636
  4. Kaie Uustalu

    Department of Chemistry and Biotechnology, Tallinn University of Technology, Tallinn, Estonia
    Contribution
    Formal analysis, Investigation, Methodology
    Contributed equally with
    Eli-Eelika Esvald and Annika Rähni
    Competing interests
    No competing interests declared
  5. Anna Zhuravskaya

    Centre for Developmental Neurobiology, King’s College London, London, United Kingdom
    Contribution
    Supervision, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9312-1212
  6. Annela Avarlaid

    Department of Chemistry and Biotechnology, Tallinn University of Technology, Tallinn, Estonia
    Contribution
    Formal analysis, Supervision, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5941-8271
  7. Eugene V Makeyev

    Centre for Developmental Neurobiology, King’s College London, London, United Kingdom
    Contribution
    Conceptualization, Supervision, Funding acquisition, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6034-6896
  8. Tõnis Timmusk

    1. Department of Chemistry and Biotechnology, Tallinn University of Technology, Tallinn, Estonia
    2. Protobios LLC, Tallinn, Estonia
    Contribution
    Conceptualization, Supervision, Funding acquisition, Project administration, Writing - review and editing
    For correspondence
    tonis.timmusk@taltech.ee
    Competing interests
    is an employee of Protobios LLC.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1015-3348

Funding

Estonian Research Council (IUT19-18)

  • Jürgen Tuvikene
  • Eli-Eelika Esvald
  • Annika Rähni
  • Kaie Uustalu
  • Annela Avarlaid
  • Tõnis Timmusk

Estonian Research Council (PRG805)

  • Jürgen Tuvikene
  • Eli-Eelika Esvald
  • Annela Avarlaid
  • Tõnis Timmusk

Norwegian Financial Mechanism (EMP128)

  • Jürgen Tuvikene
  • Eli-Eelika Esvald
  • Annika Rähni
  • Kaie Uustalu
  • Tõnis Timmusk

European Regional Development Fund (2014-2020.4.01.15-0012)

  • Jürgen Tuvikene
  • Eli-Eelika Esvald
  • Annika Rähni
  • Kaie Uustalu
  • Annela Avarlaid
  • Tõnis Timmusk

H2020 Marie Skłodowska-Curie Actions (EU734791)

  • Jürgen Tuvikene
  • Eli-Eelika Esvald
  • Anna Zhuravskaya
  • Annela Avarlaid
  • Eugene V Makeyev
  • Tõnis Timmusk

Biotechnology and Biological Sciences Research Council (BB/M001199/1)

  • Anna Zhuravskaya
  • Eugene V Makeyev

Biotechnology and Biological Sciences Research Council (BB/M007103/1)

  • Anna Zhuravskaya
  • Eugene V Makeyev

Biotechnology and Biological Sciences Research Council (BB/R001049/1)

  • Anna Zhuravskaya
  • Eugene V Makeyev

European Regional Development Fund (ASTRA 2014-2020.4.01.16-0032)

  • Jürgen Tuvikene
  • Eli-Eelika Esvald
  • Annela Avarlaid
  • Tõnis Timmusk

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by Estonian Research Council (institutional research funding IUT19-18 and grant PRG805), Norwegian Financial Mechanism (Grant EMP128), European Union through the European Regional Development Fund (Project No. 2014–2020.4.01.15-0012), H2020-MSCA-RISE-2016 (Grant EU734791), and the Biotechnology and Biological Sciences Research Council (BB/M001199/1, BB/M007103/1, and BB/R001049/1). This work has also been partially supported by ‘TUT Institutional Development Program for 2016–2022’ Graduate School in Clinical medicine receiving funding from the European Regional Development Fund under program ASTRA 2014–2020.4.01.16-0032 in Estonia. We thank Epp Väli and Andra Moistus for technical assistance, and Indrek Koppel and Priit Pruunsild for critical reading of the manuscript.

Senior Editor

  1. Gary L Westbrook, Oregon Health and Science University, United States

Reviewing Editor

  1. Anne E West, Duke University School of Medicine, United States

Reviewer

  1. Svitlana Bach, Lieber Institute for Brain Research, United States

Publication history

  1. Received: November 25, 2020
  2. Accepted: February 8, 2021
  3. Accepted Manuscript published: February 9, 2021 (version 1)
  4. Version of Record published: February 18, 2021 (version 2)

Copyright

© 2021, Tuvikene et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 963
    Page views
  • 143
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Chromosomes and Gene Expression
    2. Genetics and Genomics
    Asli Azizoglu et al.
    Tools and Resources

    Conditional expression of genes and observation of phenotype remain central to biological discovery. Current methods enable either on/off or imprecisely controlled graded gene expression. We developed a 'well-tempered' controller, WTC846, for precisely adjustable, graded, growth condition independent expression of genes in Saccharomyces cerevisiae. Controlled genes are expressed from a strong semisynthetic promoter repressed by the prokaryotic TetR, which also represses its own synthesis; with basal expression abolished by a second, 'zeroing' repressor. The autorepression loop lowers cell-to-cell variation while enabling precise adjustment of protein expression by a chemical inducer. WTC846 allelic strains in which the controller replaced the native promoters recapitulated known null phenotypes (CDC42, TPI1), exhibited novel overexpression phenotypes (IPL1), showed protein dosage-dependent growth rates and morphological phenotypes (CDC28, TOR2, PMA1 and the hitherto uncharacterized PBR1), and enabled cell cycle synchronization (CDC20). WTC846 defines an 'expression clamp' allowing protein dosage to be adjusted by the experimenter across the range of cellular protein abundances, with limited variation around the setpoint.

    1. Biochemistry and Chemical Biology
    2. Chromosomes and Gene Expression
    Fiona Haward et al.
    Research Article

    Shuttling RNA-binding proteins coordinate nuclear and cytoplasmic steps of gene expression. The SR family proteins regulate RNA splicing in the nucleus and a subset of them, including SRSF1, shuttles between the nucleus and cytoplasm affecting post-splicing processes. However, the physiological significance of this remains unclear. Here, we used genome editing to knock-in a nuclear retention signal (NRS) in Srsf1 to create a mouse model harboring an SRSF1 protein that is retained exclusively in the nucleus. Srsf1NRS/NRS mutants displayed small body size, hydrocephalus and immotile sperm, all traits associated with ciliary defects. We observed reduced translation of a subset of mRNAs and decreased abundance of proteins involved in multiciliogenesis, with disruption of ciliary ultrastructure and motility in cells and tissues derived from this mouse model. These results demonstrate that SRSF1 shuttling is used to reprogram gene expression networks in the context of high cellular demands, as observed here, during motile ciliogenesis.
