An optimized CRISPR/Cas9 approach for precise genome editing in neurons

  1. Huaqiang Fang
  2. Alexei M Bygrave
  3. Richard H Roth
  4. Richard C Johnson
  5. Richard L Huganir  Is a corresponding author
  1. Department of Neuroscience, Johns Hopkins University School of Medicine, United States
  2. Kavli Neuroscience Discovery Institute, Johns Hopkins University, United States
  3. PKU-Nanjing Institute of Translational Medicine, China
  4. Research Unit of Mitochondria in Brain Diseases, Chinese Academy of Medical Sciences, China
Research Article
  • Cited 0
  • Views 3,107
  • Annotations
Cite this article as: eLife 2021;10:e65202 doi: 10.7554/eLife.65202

Abstract

The efficient knock-in of large DNA fragments to label endogenous proteins remains especially challenging in non-dividing cells such as neurons. We developed Targeted Knock-In with Two (TKIT) guides as a novel CRISPR/Cas9 based approach for efficient, and precise, genomic knock-in. Through targeting non-coding regions TKIT is resistant to INDEL mutations. We demonstrate TKIT labeling of endogenous synaptic proteins with various tags, with efficiencies up to 42% in mouse primary cultured neurons. Utilizing in utero electroporation or viral injections in mice TKIT can label AMPAR subunits with Super Ecliptic pHluorin, enabling visualization of endogenous AMPARs in vivo using two-photon microscopy. We further use TKIT to assess the mobility of endogenous AMPARs using fluorescence recovery after photobleaching. Finally, we show that TKIT can be used to tag AMPARs in rat neurons, demonstrating precise genome editing in another model organism and highlighting the broad potential of TKIT as a method to visualize endogenous proteins.

Introduction

To learn about protein function in complex systems biologists need tools to visualize endogenous proteins. A powerful approach to achieve this is the introduction of genetic tags to proteins of interest, fluorescent or otherwise. Endogenous protein labeling is highly advantageous compared to other approaches. First, it removes the dependence on specific antibodies which require extensive validation. Second, introducing fluorescent tags circumvents difficulties of antibodies physically accessing their targets, such as core components of the postsynaptic density (PSD), in which the antibody epitopes can be sterically occluded by other proteins. Third, genetic tagging with fluorescent proteins is compatible with longitudinal imaging in live tissue in vitro and in vivo. Finally, tagging endogenous proteins prevents potential confounds of protein mis-localization following overexpression and preserves the natural transcriptional and posttranscriptional regulation of the gene. The discovery of CRISPR/Cas9 changed the gene editing field (Cho et al., 2013; Cong et al., 2013; Doudna and Charpentier, 2014; Hsu et al., 2014; Jinek et al., 2012; Mali et al., 2013; Sander and Joung, 2014), making genome editing much easier, faster, and cheaper. Transgenic knock-in organisms can be generated to tag specific proteins in every cell. CRISPR/Cas9 technology has facilitated this approach; however, it is still relatively time-consuming and considered low throughput, especially in rodents. In addition, having knock-in (KI) in all cells in an organism can be problematic in dense tissues. Therefore, methods to enable genome editing in single or a relatively sparse population of cells are highly desirable. Such CRISPR/Cas9-based genome editing strategies traditionally rely on homology-dependent recombination (HDR) (Lombardo et al., 2011; Wang et al., 2013; Yang et al., 2013); however, HDR does not work efficiently in post-mitotic cells, such as neurons (Mao et al., 2008; Nishiyama et al., 2017; Orthwein et al., 2015; Saleh-Gohari and Helleday, 2004). Consequently, in post-mitotic cells researchers have adopted methods based on non-homologous end joining (NHEJ) (Bétermier et al., 2014; Cox et al., 2015; Gao et al., 2019; Lieber, 2010; Suzuki et al., 2016; Willems et al., 2020). Such approaches have achieved higher KI efficiency in neurons compared to HDR-based methods. However, these approaches directly edit the coding sequence of the target gene, possibly causing (insertion or deletion) INDEL mutations, which commonly occur at CRISPR/Cas9 mediated editing sites (Suzuki et al., 2016). This is especially a concern if the tag is not introduced at the C-terminal portion of the protein. Furthermore, even when the KI proceeds as planned, the deletion or addition of some amino acids flanking the tag is unavoidable, and the exact site of KI is still dependent on a (protospacer-adjacent motif) PAM and reliable guide to be present at the right place.

To address these problems, we designed a new strategy – Targeted Knock-In with Two (TKIT) guides – to enable precise genome editing by utilizing two guide RNAs located in non-coding regions upstream and downstream of the coding sequence to be edited. This strategy protects from INDEL mutations within the coding region and enables absolute control over the sequence surrounding the KI site. In addition, since the coding region is not being targeted directly, we have fewer limitations during the selection of potential guide RNAs, increasing the availability of high-score guides and lowering the likelihood of off-target editing.

In this study, we have used TKIT to KI Super Ecliptic pHluorin (SEP), a pH dependent GFP variant (Lin and Huganir, 2007; Miesenböck et al., 1998), and other protein tags to the N-terminus of α-amino-3-hydroxy-5-methyl-4-isoxazolepropionic acid (AMPA) and N-methyl D-aspartic acid (NMDA) receptor subunits, which form glutamate receptors responsible for the majority of excitatory transmission in the brain. We show that TKIT enables efficient KI in primary cultured neurons from mouse and rat and that TKIT can be used for genome editing in vivo with in utero electroporation or through injection of adeno-associated viral (AAV) vectors in adult mice. Thus, TKIT provides an efficient, easy to use, and readily scalable approach for the tagging of endogenous proteins to facilitate their study in intact biological systems.

Results

Homology Independent Target Integration (HITI) based KI strategies have been used to tag endogenous proteins in postmitotic cells such as neurons (Gao et al., 2019; Suzuki et al., 2016; Willems et al., 2020); however, these approaches are sensitive to INDEL mutations as the coding sequence is directly edited. This is particularly problematic when labeling the N-terminal region of proteins, where the introduction of INDELs will be most damaging. Additionally, in the vast majority of cases, a Cas9 cutting site is not present at exactly the desired site of insertion. Therefore, the tag cannot always be precisely targeted, and deletion or addition of extra base pairs is unavoidable even when editing occurs as planned and without generation of INDELs. Further, the choice of guides with high cutting efficiency and good off-target scores near the desired insertion site is often very limited. In an attempt to overcome these issues – which are common to all currently used NHEJ-based CRISPR KI methods – we designed a modified CRISPR/Cas9-based KI strategy. Our approach utilizes two guide RNAs that cut the genomic DNA flanking the coding region of interest and includes a replacement donor DNA fragment encoding the excised coding sequence with the addition of a fluorescent or small (i.e., Myc) protein tag. We named this new CRISPR/Cas9 based knock-in strategy TKIT guides.

Genome editing of coding sequence by targeting non-coding regions

As a proof of principle, we sought to KI SEP, a pH sensitive GFP variant that is used to visualize cell surface proteins, to the N-terminus of the AMPA receptor subunit GluA2, encoded by the Gria2 gene. We designed guides to cut within the 5’-UTR (untranslated region) and intron 1–2 of Gria2, choosing guides located ~100 bp away from splice junctions so as not to affect mRNA processing (Figure 1A). We constructed a donor DNA fragment containing the endogenous Gria2 sequence, with the addition of a SEP-tag behind the signal peptide, and the same two guides and PAM sequences at the ends. The two guides within the donor have opposite locations and flipped sequences compared to the genomic DNA (Figure 1A, Figure 1—figure supplement 1). We added this switch-and-flip design to promote forward insertion of the donor DNA, which occurs randomly through the process of NHEJ. If the donor inserts into the genome in the reverse orientation (and without INDELs) the guides and PAMs remain intact so they will be cut again by Cas9, enabling another chance at insertion in the correct orientation. The cycle will continue until the donor is inserted in the correct orientation, or until INDELs destroy the guides and PAM sequence (Figure 1B, Figure 1—figure supplement 1).

Figure 1 with 1 supplement see all

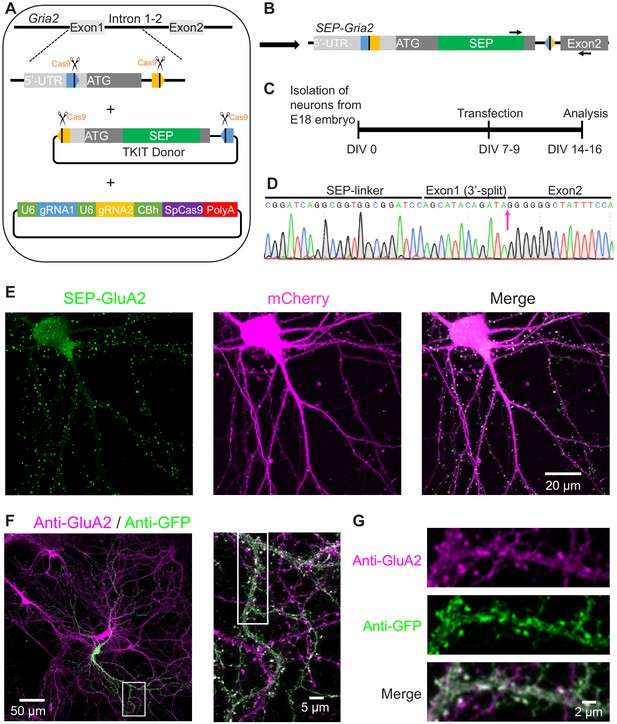

TKIT-mediated genome editing in neuron culture.

(A) Graphical representation of the mouse genomic loci of Gria2 and schematic of TKIT gene targeting. The blue and orange pentagons indicate gRNA target sequences. The black vertical line within pentagon indicates the Cas9 cleavage site. (B) Schematic of genomic DNA following SEP KI to Gria2 with TKIT. Arrows indicate primers for RT-PCR and cDNA sequencing. (C) Experimental scheme for SEP KI in primary cultured neurons. (D) Sequence analysis of the cDNA from mRNA extracted from electroplated neuronal culture of SEP-GluA2. (E) Representative images showing the endogenous SEP signal in live neurons following TKIT-mediated SEP-GluA2 knock-in. Scale bar, 20 μm. (F) Representative images of immunofluorescence showing that SEP-GluA2 (green) colocalized with GluA2 (magenta). Scale bars display 50 or 5 μm. (G) Enlarged dendrite and spine (white boxes in right panel of F). Scale bars display 2 μm.

To test TKIT we transfected primary mouse cortical cultures at DIV7-9 with plasmids containing: (1) both guide RNAs along with SpCas9, (2) SEP-GluA2 donor DNA fragment, and (3) mCherry as a cell morphology marker (Figure 1A,C). At DIV14-16 we live-imaged transfected neurons and found neurons with punctate SEP signal concentrated in dendritic spines, consistent with the labeling of AMPARs (Figure 1E). We used immunofluorescence with antibodies against GFP and the C-terminus of GluA2 to show that the GFP signal was co-localized with GluA2 (Figure 1F–G).

To confirm that SEP KI to the Gria2 gene still results in normal RNA splicing, we extracted bulk mRNA from DIV19 neurons electroporated with TKIT components, conducted reverse transcription to generate cDNA, and performed PCR and Sanger sequencing. Sequencing results showed that the splice junctions between exon1 and exon2 were intact, indicating that SEP KI did not affect Gria2 mRNA splicing (Figure 1D, Figure 2—figure supplement 1). Immunostaining of GluA2 in primary cultured neurons with TKIT mediated SEP-GluA2 KI showed that the expression level of SEP-GluA2 is comparable with GluA2 in non-transfected surrounding neurons (Figure 2—figure supplement 1). KI was dependent on co-transfection of the TKIT donor and the Cas9 with two guides constructs, as transfection of the TKIT donor alone did not lead to any detectable KI (Figure 2—figure supplement 1). These data indicate that TKIT enables accurate genomic editing in neurons, with broad potential for future applications in neurons and other post-mitotic cells.

Efficient targeting of synaptic proteins with TKIT

NMDA and AMPA receptors mediate the majority of excitatory synaptic transmission in the mammalian CNS and are critical for the tuning of synaptic strength. In particular, the trafficking of AMPA receptors is known to underlie synaptic plasticity, supporting learning, and memory (Diering and Huganir, 2018). To date, the vast majority of AMPA receptor imaging studies have relied on the overexpression of (often SEP) tagged receptors (Ashby et al., 2006; Kopec et al., 2006; Lin and Huganir, 2007; Thomas et al., 2008). While these studies have helped us learn about the regulation of AMPA receptors in vitro, and more recently, in vivo (Roth et al., 2020; Tan et al., 2020; Zhang et al., 2015), there is always the concern that overexpression could result in aberrant and non-physiological receptor regulation. Therefore, tools to tag endogenous AMPARs will be highly useful.

We sought to tag a variety of synaptic proteins, including AMPA and NMDA receptor subunits, extending our proof of principle experiments showing SEP KI to GluA2. We designed TKIT constructs for SEP KI to the N-terminus of AMPAR subunits GluA1, GluA2, and GluA3, as well as the most abundant NMDAR subunits (NR1, NR2A, and NR2B) and the beta2 subunit of the gamma-aminobutyric acid (GABA) receptor. In addition, we wanted to demonstrate that TKIT also works for cytosolic proteins. To do this we targeted gephyrin, a postsynaptic scaffold protein that is localized to inhibitory synapses, as a candidate for GFP KI. Since previous reports tagged the N-terminus of gephyrin (Lardi-Studler et al., 2007; Tyagarajan et al., 2011), we also targeted GFP KI to the N-terminus of gephyrin. To target this set of synaptic proteins, guide cutting sites were located either in introns flanking the target exon, or in the 5’UTR of the targeted exon and the downstream intron (Figure 2—figure supplement 2).

As before, primary mouse cultured neurons were transfected with TKIT constructs at DIV7-9, and confocal images were captured between DIV14 and 16 following immunofluorescence staining. The SEP-GluA1-3 signal in neurons, visualized with GFP immunostaining, showed clear puncta at dendritic spines (Figure 2A–C). As expected, GFP-gephyrin (Figure 2D) and SEP-Beta2 (Figure 2—figure supplement 3) showed punctate signals along dendrites.

Figure 2 with 6 supplements see all
Efficient KI of SEP-GluA1-3 and GFP-gephyrin using TKIT.

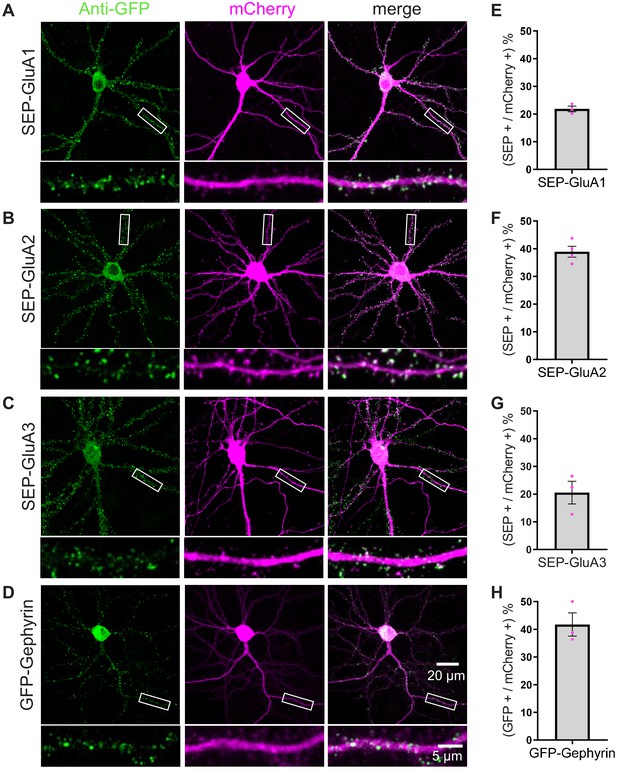

(A) SEP-GluA1, (B) SEP-GluA2, (C) SEP-GluA3, and (D) GFP-gephyrin visualized with confocal microscopy after neurons were co-transfected with TKIT constructs and a mCherry cell fill. Segments of dendrite in the white boxed region are enlarged below. Scale bar, 20 μm or 5 μm. Average efficiency of KI for (E) SEP-GluA1, (F) SEP-GluA2, (G) SEP-GluA3, and (H) GFP-gephyrin. Error bars display SEM.

Figure 2—source data 1

Efficiency counts to assess TKIT knockin of SEP-GluA1, SEP-GluA2, SEP-GluA3, and GFP-Gephyrin in mouse neurons.

https://cdn.elifesciences.org/articles/65202/elife-65202-fig2-data1-v1.xlsx

To calculate the efficiency of TKIT KI we counted the number of KI cells as a percentage of all transfected neurons based on the mCherry cell fill. The efficiency for SEP KI to AMPA receptor subunits GluA1, GluA2, and GluA3 was 21.9%, 38.9%, and 20.5%, respectively (Figure 2E–G). The efficiency for Beta2 KI was 27.2% (Figure 2—figure supplement 3) and 41.7% for GFP-gephyrin KI (Figure 2H). Targeting NMDA receptors resulted in similar spine enrichment for SEP-NR1, SEP-NR2A, and SEP-NR2B (Figure 3A–C) with efficiencies of 15.2%, 16.7%, and 27.5%, respectively (Figure 3D–F).

Figure 3 with 1 supplement see all
TKIT of SEP NMDA receptor subunits.

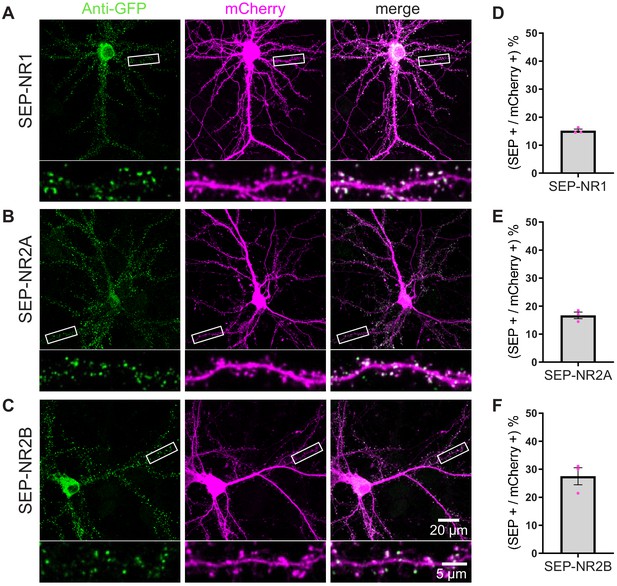

(A) SEP-NR1, (B) SEP-NR2A, and (C) SEP-NR2B KI were visualized with confocal microscopy after neurons were co-transfected with TKIT constructs and a mCherry cell fill. Segments of dendrite in the white boxed region are enlarged below. Scale bar, 20 μm or 5 μm. Average efficiency of KI for (D) SEP-NR1, (E) SEP-NR2A, and (F) SEP-NR2B. Error bars display SEM.

Figure 3—source data 1

Efficiency counts to assess TKIT knockin of SEP-NR1, SEP-NR2A, and SEP-NR2B in mouse neurons.

https://cdn.elifesciences.org/articles/65202/elife-65202-fig3-data1-v1.xlsx

In addition to SEP, we used TKIT to KI the larger fluorescent protein tdTomato to Gephyrin (Figure 2—figure supplement 4) and GluA2 (Figure 2—figure supplement 5) as well as the smaller tag Myc to GluA1 and GluA2 (Figure 2—figure supplement 5). We validated the fidelity of KI by showing colocalization of GFP and the endogenous proteins for SEP-GluA1, SEP-GluA2, and SEP-GluA3 (Figure 2—figure supplement 6), and SEP-NR1, SEP-NR2A, and SEP-NR2B (Figure 3—figure supplement 1) with immunofluorescence. Correlation analysis showed strong correlation between the intensities of anti-GFP signal and anti-GluA1-3 signal in TKIT-mediated SEP KI neurons (Figure 2—figure supplement 6). We further validated the correct subcellular localization of proteins tagged with TKIT. We verified the synaptic localization of SEP-GluA1-3 with immunofluorescence using antibodies against GFP and PSD95 (Figure 4A–C).

Figure 4 with 3 supplements see all
Validation of synaptic localization following SEP KI to AMPARs.

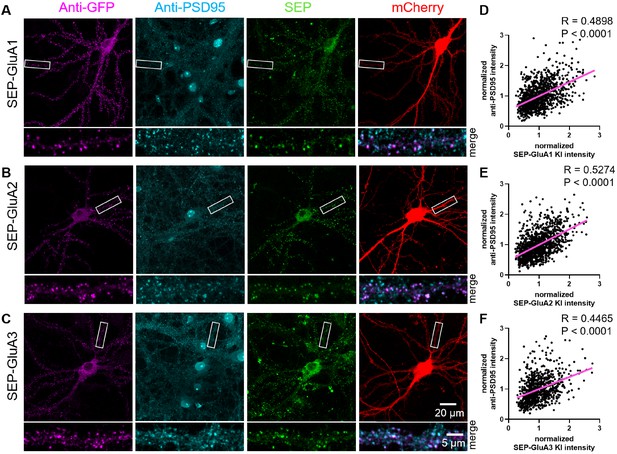

TKIT of (A) SEP-GluA1, (B) SEP-GluA2, and (C) SEP-GluA3 with endogenous SEP signal (green), PSD95 staining (cyan), GFP staining (magenta), and mCherry cell fill (red). Segments of dendrite in the white boxed region are enlarged below. Note: the endogenous SEP signal and cell-fill channel (mCherry) were removed from the enlarged overlay images for clarity. Scale bars display 20 or 5 μm. (D–F) Scatter plots showing the correlation between SEP-GluA1-3 signal and PSD95 immunofluorescence signal. Correlation (slope) between SEP and anti-PSD95 fluorescent intensity was calculated by Simple Linear Regression (GraphPad Prism 7 or 8). (D) SEP-GluA1 correlations with data from 22 neurons and 1114 synapses, (E) SEP-GluA2 correlations with data from 23 neurons and 1191 synapses, and (F) SEP-GluA3 correlations with data from 16 neurons and 810 synapses.

Figure 4—source data 1

Immunofluorescence data for correlation of PSD95 signal with SEP-GluA1, SEP-GluA2, and SEP-GluA3.

https://cdn.elifesciences.org/articles/65202/elife-65202-fig4-data1-v1.xlsx

We observed a strong correlation between the anti-GFP signal and anti-PSD95 signal in SEP KI neurons (Figure 4D–F). We found that GFP- or tdTomato-gephyrin signal colocalized with gephyrin and the GABA receptor Beta2 subunit, used as a marker for inhibitory synapses (Figure 2—figure supplement 4). Sequence analysis of reverse-transcribed cDNA from mRNA extracted from neuronal cultures electroporated with each TKIT construct showed intact splicing of all tagged proteins in this study (Figure 4—figure supplement 1). TKIT-mediated KI of various tags to endogenous proteins will aid the characterization and functional study of proteins avoiding potential artifacts of protein overexpression.

Because guides flank a critical portion of the gene being edited, it is possible that a portion of exon 1 is excised and repaired without the addition of the donor DNA fragment. This would lead to the generation of a knock-out (KO) allele for the target gene. To assess the KI/wild-type (WT)/KO possibility in the Gria2 KI experiments in neuronal cultures described in Figure 1, we designed primer-pairs flanking the two guides KI site and performed genomic PCR. Genomic DNA samples were extracted from neuron culture electroporated with TKIT constructs. The primer-pair can pick up three fragments (KI/WT/KO bands). DNA electrophoresis of the PCR products showed clear KI and WT bands, but no detectable KO band (Figure 4—figure supplement 2). In addition, we transfected primary neuron cultures with SpCas9 and two guides, SEP-GluA2 donor DNA and mCherry as a morphology marker at DIV 7–9 and then used immunofluorescence to detect GFP and GluA2 at DIV 14–16. GluA2 was not detectable in 12.4% of the mCherry-positive cells, indicating knock-out of GluA2 in a small subset of cells that failed to knock-in the donor DNA (Figure 4—figure supplement 2). To test the possibility that a subset of neurons naturally lacked GluA2 expression, independent of manipulation, we assessed the levels of GluA2 in mouse cortical neurons. We found that 1.2% of cells had undetectable GluA2 (Figure 4—figure supplement 3). Therefore, we think that undetectable GluA2 observed in some cells transfected with TKIT plasmids is an unfortunate, but not completely unexpected, result of gene knock-out through double strand break generation without donor insertion.

Endogenous KI of SEP-GluA2 in vivo

After demonstrating efficient KI in primary cultured neurons, we sought to test the utility of TKIT to introduce a SEP-tag to the N-terminus of GluA2 in vivo. Plasmids containing SEP-GluA2 donor DNA and complementary two guides with spCas9 were transfected into layer 2/3 pyramidal neurons of somatosensory cortex using in utero electroporation of mouse embryos at embryonic day 15 (E15; Figure 5A). Cranial windows were then implanted over the barrel cortex of adult animals. After 2–3 weeks of recovery in vivo two-photon images were acquired (Figure 5B). Punctate SEP-GluA2 could be clearly observed along the dendrites of layer 2/3 pyramidal neurons (Figure 5C and D, Figure 5—video 1), similar to previously studies showing the over-expressed SEP-GluA1 and SEP-GluA2 (Suresh and Dunaevsky, 2017; Zhang et al., 2015). We were even able to observe SEP signal in mice that were more than 1-year old, indicating the long-term stability of the knock-in tag. Therefore, using TKIT we have been able to tag, and subsequently visualize, endogenous AMPAR subunits in vivo. This approach will allow the longitudinal tracking of endogenous AMPAR plasticity in behaving animals.

Figure 5 with 1 supplement see all
TKIT mediated KI in vivo.

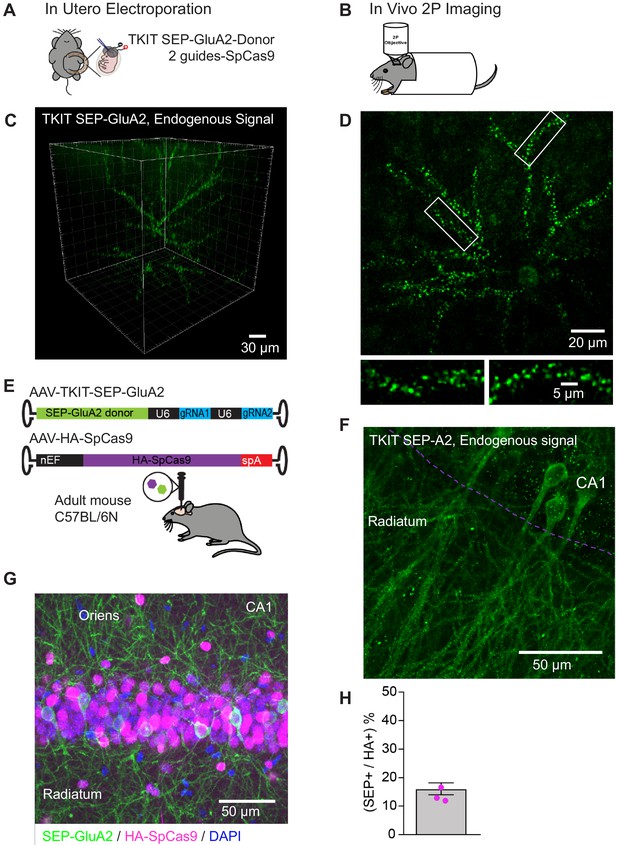

(A) Schematic of in utero electroporation and (B) subsequent in vivo two-photon microscopy setup. (C) Two-photon 3D reconstruction of a layer 2/3 pyramidal neuron with TKIT-mediated SEP-GluA2 KI. (D) Maximum intensity projection of the same example cell in (C) with magnified dendritic segments (white boxes). Scale bars are shown in the bottom right corner of each image. (E) Dual AAV-HA-SpCas9 and AAV-TKIT-SEP-GluA2 injections were made into the dorsal hippocampus of adult C57BL/6N mice. (F) Confocal image of native SEP-GluA2 fluorescence signal. The CA1 cell layer is illustrated with a magenta dotted line with dendrites in Stratum radiatum. The image is a maximum intensity projection. (G) A composite confocal image showing the expression of SEP-GluA2 (GFP antibody, green), Cas9 (HA antibody, magenta), and nuclei (DAPI, blue). The image is a maximum intensity projection and is centered on the CA1 pyramidal cell layer. (H) Quantification of the 16.1% of HA-SpCas9 expressing cells that are also GFP positive. Scale bars are indicated in the bottom right corner of images.

Figure 5—source data 1

Immunohistochemistry data for SEP-GluA2 knockin efficiency calculation with dual virus approach.

https://cdn.elifesciences.org/articles/65202/elife-65202-fig5-data1-v1.xlsx

Virus-mediated TKIT in vivo

To increase the ease and flexibility in which TKIT can be applied for KI studies in vivo, we designed AAV vectors for TKIT KI. We developed a two-virus system to enable genomic editing of wild-type mice. We packaged HA-spCas9 into AAV and designed and produced AAVs to deliver two guides and donor DNA fragments within the same construct for SEP KI of GluA1 or GluA2 (TKIT-SEP-GluA1, TKIT-SEP-GluA2) (Figure 5E). We injected a mix of high titer AAV-spCas9 and AAV-TKIT-SEP-GluA2 into the dorsal hippocampus of adult C57BL/6 mice and allowed 3 weeks for AAV transduction, guide expression, genome editing/KI, and turnover/replacement of endogenous protein. Native SEP fluorescence signal could be clearly detected in the injected hemisphere of the hippocampus (Figure 5F). To calculate the efficiency of KI we used immunohistochemistry against HA to detect Cas9, and GFP to detect KI cells (Figure 5G). Of the HA-positive cells we found that 16.1% were also KI positive (Figure 5H), indicating high efficiency of genome editing in vivo.

Cell-type specific TKIT in vivo

To gain cell-type specificity of TKIT KI we bred heterozygous Camk2aCre or homozygous PvalbCre mice with homozygous lox-stop-lox conditional Cas9 animals to generate offspring with Cas9 expression in forebrain CamK2a positive neurons or Pvalb (PV) positive interneurons (Camk2aCre/wt:Cas9fl/wt or PvalbCre/wt:Cas9fl/wt). We injected high titer AAV-TKIT-SEP-GluA1 into the dorsal hippocampus of adult Camk2aCre/wt:Cas9fl/wt and PvalbCre/wt:Cas9fl/wt animals (Figure 6A,C). After 2–3 weeks we observed robust KI of SEP-GluA1 in the dorsal hippocampus of the injected hemisphere. Super-resolution confocal (Airyscan, see Materials and methods) images were acquired of CA1 hippocampal neurons (Figure 6B,D). Here, endogenous SEP signal could be seen concentrated in putative dendritic spines of excitatory neurons (Camk2aCre/wt:Cas9fl/wt animals) and along the smooth dendrites of PV neurons (PvalbCre/wt:Cas9fl/wt animals).

Cell-type specific KI with TKIT.

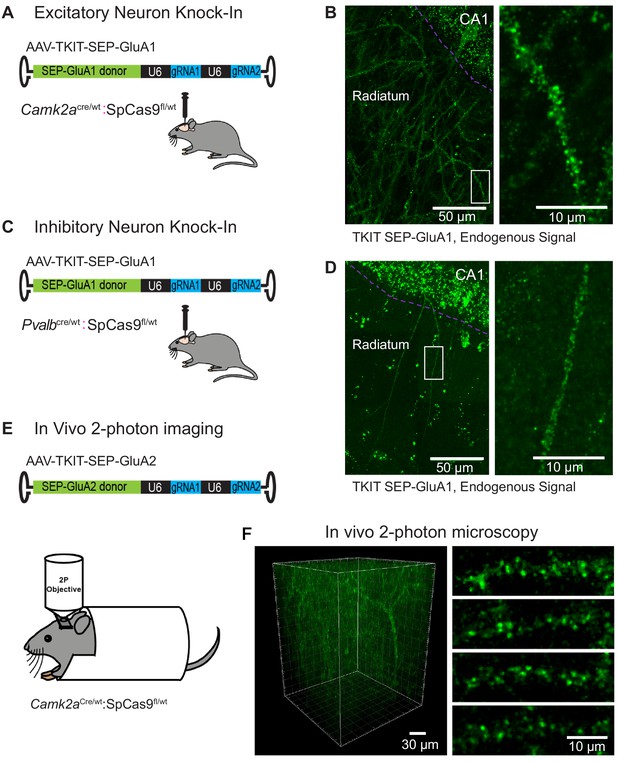

(A) Schematic of experimental design for targeting excitatory neurons using Camk2aCre:Cas9fl/wt animals (B) Super-resolution Airyscan confocal image of a CA1 pyramidal neuron with TKIT-mediated SEP-GluA1 KI illustrated as a maximum intensity projection. The CA1 cell layer is illustrated with a magenta dotted line with dendrites in Stratum radiatum. A zoomed in region (right) shows the dendritic segment indicated with a white box. (C) Schematic of experimental design for targeting PV positive interneurons using PvalbCre/wt:Cas9fl/wt animals. (D) Super-resolution Airyscan confocal image of a CA1 PV neuron with TKIT-mediated SEP-GluA1 KI illustrated as a maximum intensity projection. The CA1 cell layer is illustrated with a magenta dotted line with dendrites in Stratum radiatum. A zoomed in region (right) shows the dendritic segment indicated with a white box. (E) Schematic of experimental setup for two-photon image of virus-mediated TKIT GluA2 KI. (F) In vivo two-photon 3D reconstruction of a layer 2/3 pyramidal neuron in barrel cortex with TKIT-mediated SEP-GluA2 KI. High-magnification images of dendritic segments (right) from a maximum intensity projection of the same cell. Scale bars are indicated in the bottom right corner of images.

Next, we tested if the TKIT-SEP-GluA2 virus could be coupled with two-photon imaging in vivo, as we demonstrated previously with in utero electroporation. To test this, the somatosensory cortex of Camk2aCre/wt:Cas9fl/wt mice was injected with high titer TKIT-SEP-GluA2 AAV. Immediately after virus injection a cranial window was placed above the injection site (Figure 6E). After 2 weeks, animals were imaged with two-photon microscopy. As with in utero electroporation, we could clearly observe cells with SEP-GluA2 KI in vivo (Figure 6F). Given the higher infection rate of TKIT-SEP-GluA2 AAV compared to in utero electroporation, we were able to visualize a higher density of SEP-GluA2 expressing neurons which will allow the longitudinal study of synaptic surface GluA2 on multiple neurons within one field of view, with KI sparse enough to distinguish individual synaptic puncta and neuronal processes. These data demonstrate the utility of TKIT to KI fluorescent tags to endogenous proteins in a cell-type specific manner in adult mice following injection of a single AAV, enabling their subsequent visualization in vivo. Recent reports show that fragments of AAVs can integrate into double stranded DNA breaks induced by CRISPR/Cas9 (Hanlon et al., 2019; Wolter et al., 2020). Presently, we do not have data to confirm if this is occurring in our experiments with TKIT-mediated KI of SEP-GluA1 and SEP-GluA2 with AAVs. Integration of AAV fragments into the 5’UTR of GluA1 or GluA2 could disrupt function, potentially contributing to the decreased efficiency observed in vivo (Figure 5H) compared to in vitro (Figure 2F).

TKIT of SEP AMPA receptor subunits in rat neurons

After successfully using TKIT in mouse neurons in vitro and in vivo, we wanted to confirm that this approach will generalize to other species. Rats are commonly used in biomedical research, yet there are far fewer transgenic rat models compared to mice. We re-designed TKIT guides and donors to be complementary to the rat genome, to enable tagging of rat GluA1 and GluA2 with SEP. We transfected these TKIT constructs into rat hippocampal neuron culture at DIV7-8 and used GFP immunohistochemistry to detect KI cells at DIV14-15 (Figure 7A,B, Figure 7—figure supplement 1). As expected, we observed green puncta at dendritic spines, which co-localized with the synaptic marker PSD95 (Figure 7—figure supplement 1). This demonstrates that TKIT can also mediate editing of the rat genome, with efficiencies roughly equivalent to those observed in mouse neurons (Figure 7C,D).

Figure 7 with 1 supplement see all
TKIT KI and FRAP in rat neurons.

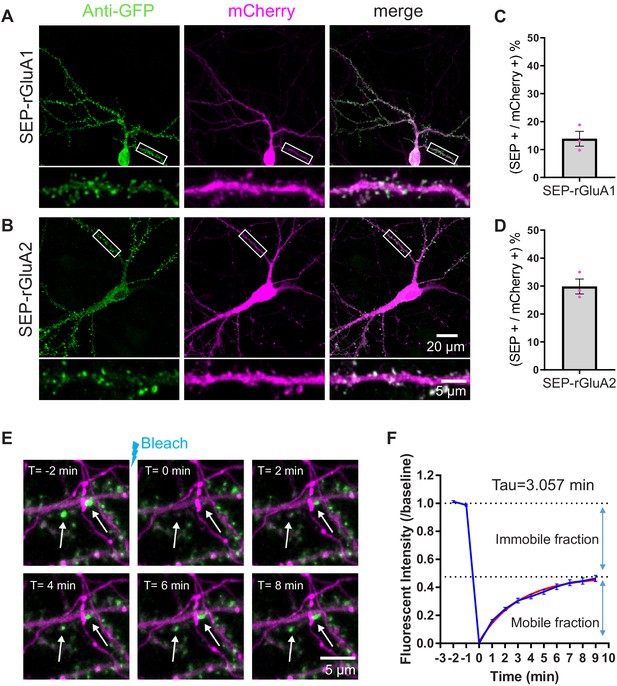

TKIT-mediated KI of SEP-GluA1 (A) and SEP-GluA2 (B) in primary cultured rat neurons. Efficiency of KI for SEP-GluA1 (C) and SEP-GluA2 (D). (E) Representative example of a SEP-GluA1 containing spine undergoing bleaching and fluorescence recovery. The white arrow indicates the spine that will be bleached. Images are separated by 2 min intervals. Scale bar indicates 5 μm. (F) Summary of SEP-GluA1 FRAP data with estimated recovery time and immobile fraction of receptors. Red trace is from exponential (one-phase decay) fitting, GraphPad Prism 7.

Figure 7—source data 1

Efficiency counts to assess TKIT knockin of SEP-GluA1 and SEP-GluA2 in rat neurons.

https://cdn.elifesciences.org/articles/65202/elife-65202-fig7-data1-v1.xlsx
Figure 7—source data 2

Fluorescence recovery after photobleaching data to assess SEP-GluA1 mobility in rat neurons.

Source Data for figure supplements.

https://cdn.elifesciences.org/articles/65202/elife-65202-fig7-data2-v1.xlsx

Monitoring trafficking of endogenous GluA1-containing AMPARs

Fluorescence recovery after photobleaching (FRAP) is a frequently used technique to assess the trafficking and mobility of proteins (Ashby et al., 2006; Roth et al., 2017). Using TKIT to KI a SEP-tag to GluA1, we tested the mobility of endogenously tagged GluA1 in primary cultured neurons. We live-imaged SEP-GluA1 KI cells with confocal microscopy, and, after acquiring baseline data, photobleached the SEP signal at a subset of dendritic spines. As expected for receptors that are constantly undergoing recycling to and from the synapse (Arendt et al., 2010; Frischknecht et al., 2009; Heine et al., 2008; Kerr and Blanpied, 2012; Makino and Malinow, 2009), we observed a recovery of the SEP-GluA1 signal over time (Figure 7E). Pooling the FRAP data from many spines (46 spines from three cells and three coverslips) enabled us to estimate the time constant for fluorescence recovery to be τ = 3.057 min, and the immobile fraction of receptors to be 52.44% under baseline conditions (Figure 7F). These findings are comparable to some (Heine et al., 2008; Kerr and Blanpied, 2012), but not all (Makino and Malinow, 2009), previous reports utilizing overexpression of SEP-GluA1. We speculate that this is critically dependent on the degree of overexpression, with very high levels of overexpression increasing the mobile pool of AMPARs beyond what is observed under more physiological conditions. These data highlight the utility of TKIT to probe the endogenous regulation of proteins in intact biological systems.

Discussion

Strategies to efficiently, and reliably, edit genomic DNA in post mitotic cells, such as neurons, are lacking behind methods based on HDR that are routinely applied to dividing cells (Wang et al., 2013; Yang et al., 2013). Existing methods, based on NHEJ, have shown promise for enabling KI of tags (fluorescent proteins/small epitopes) to endogenous proteins in neurons (Gao et al., 2019; Suzuki et al., 2016); however, such methods are sensitive to INDEL mutations during the KI process. This culminates in reduced KI efficiency and generally restricts the locations where tags can be inserted within the target protein, typically limited to the C-terminal region. Although recent studies have shown that residual HDR activity or introducing exogenous recombinase in neurons is capable of inducing KI (Cai et al., 2019; Nishiyama et al., 2017), the efficiency of such methods remains reasonably low, prompting us to develop alternative strategies for KI to neurons.

Here, we introduce a CRISPR/Cas9 based method termed TKIT guides to improve the efficiency and reliability of KI to post-mitotic cells and dramatically increasing the flexibility of where tags can be inserted to target proteins. Using TKIT, a tag can be inserted into any user-defined location without undesired amino acid loss or addition. By using a pair of guide RNAs instead of a single guide RNA, TKIT utilizes the use of Cas9 cutting sites that lie in non-coding regions of the gene of interest (such as 5’-UTR and introns). This approach is significantly less sensitive to INDEL mutations since no coding regions of the gene are cut. Even if INDELs are introduced around the cut sites, it is highly likely that the mRNA and subsequent protein are left intact. In addition, because non-coding DNA regions are targeted, and guides do not have to be close to the desired insertion site, there is a greatly increased pool of potential guide RNAs to choose from, enabling high-ranked guides with high on-target score and low off-target probability to be picked. Finally, the switch-and-flip design built into the donor DNA sequence helps to bias the insertion of donor DNA into the correct orientation, further increasing KI efficiency.

We demonstrate that TKIT can be used to tag different AMPA and NMDA receptor subunits, as well as the cytosolic protein gephyrin, with efficiencies of up to 41.7% (GFP-gephyrin). The KI efficiency of SEP-GluA2 reached 16.1% in vivo with a two-virus system. This is greater than the efficiency achieved with the original demonstration of HITI (Suzuki et al., 2016; Nishiyama et al., 2017). Furthermore, because of the increased protection from INDEL mutations TKIT is particularly useful for tagging proteins at the N-terminus. Exploiting this, we were able to successfully KI SEP to the N-terminus of AMPA and NMDA receptor subunits, positioning the SEP-tag on the extracellular portion of the receptor so the pH sensitivity of SEP (Miesenböck et al., 1998) can be utilized to visualize the surface pool of receptors.

While TKIT is resistant to INDELs in the coding region of the gene being edited, the method is not immune to other caveats. For example, if the donor DNA (with the tag/label) is not present to replace the excised genomic DNA then a KO allele could be generated. For GluA2 tagging with SEP we observed KO of GluA2 in 12.4% of transfected cells. Therefore, it will be important to consider that KI neurons are likely surrounded by a small fraction of neurons that are heterozygous or homozygous KO’s for the gene of interest.

We have demonstrated that TKIT works in vivo following in utero electroporation, as well as in adult mice following AAV injection. We show that AMPAR subunits can be tagged in wild-type mice with a dual-AAV system, as well as in a cell-type specific manner using transgenic mice. In proof of principle experiments, we showed that TKIT KI of SEP to GluA2 is compatible with two-photon imaging in vivo, enabling us to visualize the surface expression of endogenous GluA2-containing AMPARs in live animals for the first time. This opens up possibilities for tagging and studying endogenous proteins (such as AMPARs) in wild-type or disease model mice (dual virus approach), or in a cell-type-specific manner in Cre-driver mouse lines. While we observed a lower efficiency of KI in vivo (16.1%) compared to in vitro (38.9%) with SEP-GluA2, it is likely that we are under-representing the in vivo efficiency, as a proportion of the cells that were transduced with SpCas9 might have failed to receive the TKIT donor DNA.

Tagging endogenous proteins to study their function and subcellular localization is preferential to exogenous protein overexpression. Therefore, the adoption of endogenous KI strategies such as TKIT will dramatically aid the study of proteins expressed at physiological levels. A potential application of TKIT is its combination with modern proximity labeling techniques such as APEX, BioID, and TurboID (Branon et al., 2018; Rhee et al., 2013; Roux et al., 2012). Those techniques crucially rely on proper subcellular targeting of fusion proteins. Tagging endogenous proteins with proximity labeling enzymes will reduce the confound of nonspecific subcellular protein localization associated with protein overexpression and increase the signal to noise ratio of ‘hits’ as there will be lower background from mis-localized proteins. However, the feasibility of coupling TKIT with proximity labeling remains to be tested and will likely depend upon the transfection or transduction efficiency, the KI efficiency for the target protein, as well as the absolute abundance of the target protein being tagged. In addition, the flexibility with where tags can be introduced will be of great value as it will allow known protein interaction motifs (i.e., C-terminal PDZ ligands) to be avoided when tagging target proteins, further preventing mis-localization of the protein being studied.

While we detect faithful mRNA splicing of GluA2 following TKIT SEP KI, it remains a potential concern that targeting non-coding regions could have unforeseen effects on mRNA processing. A greater understanding of the biology underlying mRNA processing will facilitate the design of guides to avoid such effects. Given the high flexibility in guide RNA choice, this concern will be easily overcome, as long as genomic DNA cutting sites can be identified that leave mRNA processing unaffected.

In summary, we demonstrate that TKIT is an efficient, reliable, and easy to implement method for tagging endogenous proteins in vitro and in vivo. TKIT can edit mouse and rat genomic DNA, with promised utility in all model organisms. Although, to date, we have only used TKIT to KI tags to proteins, a potential application to clinical therapy to correct causative mutations in genetic disorders could be possible.

Materials and methods

Key resources table
Reagent type (species)
or resource
DesignationSource or referenceIdentifiersAdditional information
Gene (Mus musculus)GluA1GenBank; EnsemblID: 14799; ENSMUSG00000020524
Gene (Mus musculus)GluA2GenBank; EnsemblID: 14800; ENSMUSG00000033981
Gene (Mus musculus)GluA3GenBank; EnsemblID: 53623; ENSMUSG00000001986
Gene (Mus musculus)GluN1GenBank; EnsemblID: 14810; ENSMUSG00000026959
Gene (Mus musculus)GluN2AGenBank; EnsemblID: 14811; ENSMUSG00000059003
Gene (Mus musculus)GluN2BGenBank; EnsemblID: 14812; ENSMUSG00000030209
Gene (Mus musculus)GephyrinGenBank; EnsemblID: 268566; ENSMUSG00000047454
Gene (Mus musculus)beta2GenBank; EnsemblID: 14401; ENSMUSG00000007653
Gene (Rattus norvegicus)rGluA1GenBankID: 50592
Gene (Rattus norvegicus)rGluA2GenBankID: 29627
Strain, strain background (Mus musculus, male and female)Camk2a-Cre mouseJackson Laboratory strain 005359IMSR Cat# JAX:005359, RRID:IMSR_JAX:005359
Strain, strain background (Mus musculus, male and female)Pvalb-Cre mouseJackson Laboratory strain 008069IMSR Cat# JAX:008069, RRID:IMSR_JAX:008069
Strain, strain background (Mus musculus, male and female)Cas9fl/fl mouseJackson Laboratory strain 027632IMSR Cat# JAX:027632, RRID:IMSR_JAX:027632
Genetic reagent (Streptococcus pyogenes)px330RRID:Addgene_42230RRID:Addgene_42230
Genetic reagent (Streptococcus pyogenes)pAAV-nEF-SpCas9RRID:addgene_87115RRID:Addgene_87115
Genetic reagent (Escherichia coli)pMiniT VectorNEBE1202NEB replaced this vector with pMiniT 2.0 Vector
Genetic reagent (Mus musculus)AAV2/9-TKIT-SEP-GluA1Viral Core at the Janelia Research CampusAAV for in vivo delivery TKITdonor and two guides
Genetic reagent (Mus musculus)AAV2/9-TKIT-SEP-GluA2Viral Core at the Janelia Research CampusAAV for in vivo delivery TKITdonor and two guides
Genetic reagent (Streptococcus pyogenes)AAV2/9-nEF-HA-spCas9Viral Core at the Janelia Research CampusAAV for in vivo delivery TKITdonor and two guides
Genetic reagent (Aequorea victoria)AAV2/9.CMV.PI.EGFP.WPRE.bGHRRID:addgene_105530RRID:Addgene_105530
Biological sample (M. musculus)Primary neuron cultureisolated from E18 mouse embryo and cultured
Biological sample (R. norvegicus)Primary neuron cultureisolated from E18 rat embryo and cultured
AntibodyAnti-GluA1 (Rabbit polyclonal)HomemadeJH4294IF (1:200)
AntibodyAnti-GluA2/3 (Rabbit polyclonal)HomemadeJH4854IF (1:250)
AntibodyAnti-GluA2 (mouse monoclonal)Eric Gouaux Labclone 15F1IF (1:5000)
AntibodyAnti-GluN1 (mouse monoclonal)NeuroMab, clone N308/48UC Davis/NIH NeuroMab Facility Cat# N308/48, RRID:AB_2877408IF (1:200)
AntibodyAnti-GluN2a (Rabbit polyclonal)HomemadeJH6097IF (1:200)
AntibodyAnti-GluN2b (Rabbit polyclonal)Millipore, AB1548Millipore Cat# AB1548, RRID:AB_90759IF (1:100)
AntibodyAnti-beta2 (mouse monoclonal)Millipore, MAB341Millipore Cat# MAB341, RRID:AB_2109419IF (1:200)
AntibodyAnti-PSD95 (mouse monoclonal)NeuroMab, clone K28/43UC Davis/NIH NeuroMab Facility Cat# K28/43, RRID:AB_2877189IF (1:2500)
AntibodyAnti-Gephyrin (mouse monoclonal)Synaptic systems, cat# 147011Synaptic Systems Cat# 147 011, RRID:AB_887717IF (1:2500)
AntibodyAnti-GFP (chicken polyclonal)Abcam, cat # ab13970(Abcam Cat# ab13970, RRID:AB_300798)IHC (1:5000)
AntibodyAnti-GFP (chicken polyclonal)AVES, cat# GFP-1020Aves Labs Cat# GFP-1020, RRID:AB_10000240IF (1:5000)
AntibodyAnti-myc (mouse monoclonal)HomemadeClone 9E10IF (1:1000)
AntibodyAnti-HA (Rabbit monoclonal)Cell Signaling, clone C29F4Cell Signaling Technology Cat# 3724, RRID:AB_1549585IF (1:500)
Recombinant DNA reagent
(Escherichia coli)
pSGThis paperFor the guide2 cloning
Recombinant DNA reagent
(Streptococcus pyogenes)
GluA1 (px330:2-guide-Cas9)This paperTwoguides for GluA1 (mouse) in px330
Recombinant DNA reagent
(Mus musculus)
pMiniT:SEP-GluA1 TKIT donorThis paperTKIT donor for SEP-GluA1 (mouse) in pMiniT
Recombinant DNA reagent
(Mus musculus)
pMiniT:myc-GluA1 TKIT donorThis paperTKIT donor for myc-GluA1 (mouse) in pMiniT
Recombinant DNA reagent
(Streptococcus pyogenes)
GluA2 (px330:2-guide-Cas9)This paperTwo guides for GluA2 (mouse) in px330
Recombinant DNA reagent
(Mus musculus)
pMiniT:SEP-GluA2 TKIT donorThis paperTKIT donor for SEP-GluA2 (mouse) in pMiniT
Recombinant DNA reagent
(Mus musculus)
pMiniT:tdTomato-GluA2 TKIT donorThis paperTKIT donor for tdTomato-GluA2 (mouse) in pMiniT
Recombinant DNA reagent
(Mus musculus)
pMiniT:myc-GluA2 TKIT donorThis paperTKIT donor for myc-GluA2 (mouse) in pMiniT
Recombinant DNA reagent
(Streptococcus pyogenes)
GluA3 (px330:2-guide-Cas9)This paperTwo guides for GluA3 (mouse) in px330
Recombinant DNA reagent
(Mus musculus)
pMiniT:SEP-GluA3 TKIT donorThis paperTKIT donor for SEP-GluA3 (mouse) in pMiniT
Recombinant DNA reagent
(Streptococcus pyogenes)
GluN1 (px330:2-guide-Cas9)This paperTwo guides for GluN1 (mouse) in px330
Recombinant DNA reagent
(Mus musculus)
pMiniT:SEP-GluN1 TKIT donorThis paperTKIT donor for SEP-GluN1 (mouse) in pMiniT
Recombinant DNA reagent
(Streptococcus pyogenes)
GluN2A (px330:2-guide-Cas9)This paperTwo guides for GluN2A (mouse) in px330
Recombinant DNA reagent
(Mus musculus)
pMiniT:SEP-GluN2A TKIT donorThis paperTKIT donor for SEP-GluN2A (mouse) in pMiniT
Recombinant DNA reagent
(Streptococcus pyogenes)
GluN2B (px330:2-guide-Cas9)This paperTwo guides for GluN2B (mouse) in px330
Recombinant DNA reagent
(Mus musculus)
pMiniT:SEP-GluN2B TKIT donorThis paperTKIT donor for SEP-GluN2B (mouse) in pMiniT
Recombinant DNA reagent
(Streptococcus pyogenes)
Gephyrin (px330:2-guide-Cas9)This paperTwo guides for Gephyrin (mouse) in px330
Recombinant DNA reagent
(Mus musculus)
pMiniT:GFP-Gephyrin TKIT donorThis paperTKIT donor for GFP-Gephyrin (mouse) in pMiniT
Recombinant DNA reagent
(Mus musculus)
pMiniT:tdTomato-Gephyrin TKIT donorThis paperTKIT donor for tdTomato-Gephyrin (mouse) in pMiniT
Recombinant DNA reagent
(Streptococcus pyogenes)
beta2 (px330:2-guide-Cas9)This paperTwo guides for beta2 (mouse) in px330
Recombinant DNA reagent
(Mus musculus)
pMiniT:SEP-beta2 TKIT donorThis paperTKIT donor for SEP-beta2 (mouse) in pMiniT
Recombinant DNA reagent
(Streptococcus pyogenes)
rGluA1 (px330:2-guide-Cas9)This paperTwo guides for rGluA1 (mouse) in px330
Recombinant DNA reagent
(Rattus norvegicus)
pMiniT:SEP-rGluA1 TKIT donorThis paperTKIT donor for SEP-rGluA1 (mouse) in pMiniT
Recombinant DNA reagent
(Streptococcus pyogenes)
rGluA2 (px330:2-guide-Cas9)This paperTwo guides for rGluA2 (mouse) in px330
Recombinant DNA reagent
(Rattus norvegicus)
pMiniT:SEP-rGluA2 TKIT donorThis paperTKIT donor for SEP-rGluA2 (mouse) in pMiniT
Recombinant DNA reagent
(Mus musculus)
pAAV-SEP-GluA1 TKITThis paperTKIT donor and two guides for SEP-GluA1 (mouse) in one pAAV vector
Recombinant DNA reagent
(Mus musculus)
pAAV-SEP-GluA2 TKITThis paperTKIT donor and two guides for SEP-GluA2 (mouse) in one pAAV vector
Commercial assay or kitNEBuilder HiFi DNA Assembly Cloning KitNEBcat#: E5520
Software, algorithmFiji/ImageJFijiFiji, RRID:SCR_002285
Software, algorithmGraphPad Prism 7.0GraphPad SoftwareGraphPad Prism, RRID:SCR_002798
Software, algorithmBenchling CRISPR toolhttp://www.benchling.comBenchling, RRID:SCR_013955
Software, algorithmIMARIS 9.6.0 (Bitplane)BitPlaneImaris, RRID:SCR_007370
OtherProlong Glass Antifade mounting mediaThermo ScientificP36984

Animals

All animals were treated in accordance with the Johns Hopkins University Animal Care and Use Committee guidelines. For all experiments, animals were kept on a 12 hr:12 hr light/dark cycle. In utero electroporation and viral injection experiments were performed using male and female C57BL/6N mice (Charles River). For cell-type-specific viral injection experiments we crossed transgenic Camk2aCre (T29-1, Jackson Laboratory, strain 005359) or PvalbCre (Jackson Laboratory, strain 008069) mice with Cas9fl/fl animals (Jackson Laboratory, strain 027632). Sprague Dawley rats were purchased from Envigo.

Culture of mouse/rat primary neurons

Request a detailed protocol

Primary neurons were obtained from the cortex of E18 C57BL/6 mouse or Sprague Dawley rat brains. All dissection procedures were performed in ice cold dissection medium. Cortical tissue was dissociated with papain digestion and gentle trituration, and 300 k cells/well (12-well plates) were plated on poly-L-lysine pre-coated coverslips (18 mm) with Neurobasal plus media (Gibco) supplemented with 2% B27 (Gibco), 1% Glutamax (Gibco), 1% penicillin/streptomycin, and 5% horse serum. The cultures were incubated at standard conditions (37°C in humidified 5% CO2/95% air atmosphere). The cultures were fed twice per week with Neurobasal media (Gibco) with 2% B27, 1% Glutamax (Gibco), and 1% penicillin/streptomycin.

DNA constructs/plasmids

Request a detailed protocol

All guides were designed using the Benchling CRISPR tool (http://www.benchling.com). To construct dual-promotor guide RNA expression vectors, a pair of complementary 20 bp oligos for each guide RNA sequence was annealed and cloned into pX330 (Addgene 42230; for guide 1) or pSG (a shuttle vector; for guide 2) separately. Both constructs were confirmed by sequencing. To generate one vector with the two guides, the pSG-guide2 vector was digested with NheI/KpnI and the ~430 bp fragment (U6 promotor and single guide RNA expression cassette for guide 2) was gel purified and ligated to pX330-guide1 at XbaI/KpnI sites. All CRISPR/Cas9 guide RNA sequences and PAM sequences used in this study are shown in Supplementary file 1.

To construct each TKIT-donor plasmid, three DNA fragments were generated with PCR from genomic DNA or plasmids using Q5 High-Fidelity DNA Polymerase (NEB Cat# M0491). Fragment 1 included the genomic DNA between guide 1 and the KI site plus flipped guide 2 (with PAM) at its 5’-end; fragment 2 included the fluorescent protein/myc tag with linkers on both sides; and fragment 3 included the genomic DNA between the KI site and guide 2 plus flipped guide 1 (with PAM) at its 3’-end. These three DNA fragments were assembled into a vector backbone (NEB pMiniT vector, EcoRI linearized) with the NEBuilder HiFi DNA Assembly Cloning Kit (NEB Cat# E5520). All TKIT donors’ sequence were confirmed with pMiniT forward or reverse sequencing primers. All PCR primers used for constructing TKIT donors were shown in Supplementary file 2.

While we used the above approach to generate all plasmids used in this study, we have since developed an expedited method for Cas9-2-guide cloning. In this method, we use a four-fragment HiFi assembly. Fragment 1 (vector) is made by digesting pX330 with PciI and Acc65I. Fragment 2, made by PCR, is generated using the common forward primer 5'-tggccttttgctggccttttgctcacatgtGAGGGCCTATTTCCCATG-3' and the custom reverse primer 5'-tagctctaaaacNNNNNNNNNNNNNNNNNNNNCGGTGTTTCGTCCTTTCCAC-3'. The red region indicates the guide 1 antisense strand ending with ‘C ‘(total # of N's should be 19 if guide 1 starts with ‘G’ or 20 if guide 1 does not start with G). This product is made using pX20 as a template. Fragment 3, made by PCR, using a design-specific forward primer.

5'-aggacgaaacaccGNNNNNNNNNNNNNNNNNNNGTTTTAGAGCTAGAAATAGCAAGTTaaaataag-3' where the red region is the guide 1 sense strand beginning with ‘G’ (total # of N's should be 19 if guide 1 starts with G or 20 if guide 1 does not start with G) and the design-specific reverse primer.

5'-tagctctaaaacNNNNNNNNNNNNNNNNNNNNCGGTGTTTCGTCCTTTCCAC-3' where the red region is guide 2 antisense strand ending with ‘C ‘(total # of N's should be 19 if guide 1 starts with ‘G’ or 20 if guide 1 does not start with G). This product is made using pX52 (modified from pX330) as a template. Fragment 4, made by PCR, using the design-specific forward primer.

5'-aggacgaaacaccGNNNNNNNNNNNNNNNNNNNGTTTTAGAGCTAGAAATAGCAAG-3' where red is the Guide 2 sense strand beginning with ‘G’ (total # of N's should be 19 if guide 1 starts with G or 20 if guide 1 does not start with G) and the common reverse primer 5'-ccatttaccgtaagttatgtaacgggtaccgatatctagaaaaaagcaccg-3'. This product is made using pX20 (modified from pX330) as a template. These four fragments can then be assembled, and bacteria transformed with the resulting product.

Furthermore, as an additional alternative, it would also be possible to instead utilize pX333 (Addgene plasmid #64073), which enables the cloning of two guides with two unique restriction sites.

All constructs described in this manuscript will be available to academic researchers through Addgene.

Reverse transcription from primary neuron culture

Request a detailed protocol

To analyze knock-in cDNA, neurons from a single well (6-well plate) of electroporated neuronal culture were lysed at DIV19 and RNA was isolated using the RNAqueous-Mico Total RNA Isolation kit (Invitrogen Cat # AM1931). This RNA was then converted to cDNA using the Superscript III First Strand Synthesis System (Invitrogen Cat #18080051). PCR followed by Sanger sequencing analysis was then performed to confirm expression of correctly inserted SEP into GluA1 and GluA2 mRNA. For SEP-GluA1 the upstream junction between GluA1 and pHluorin was amplified using a sense primer in the GluA1 5’ UTR (5-TTTCTGCACCGGTTTTCTAGGT-3’) and an antisense primer located within SEP (5’-AGTAGTGACAAGTGTTGGCCAAG-3’). The downstream junction was amplified using a sense primer in SEP (5’-GGCGTTCAACTAGCAGACCATTA-3’) and an antisense primer (5’-ATGTGTCAACGGGAAAACTTGGA-3’) located in exon 2 of GluA1. Sequence analysis of these fragments demonstrated that SEP-GluA1 mRNA is being expressed and there is proper splicing of RNA between exon 1, containing the SEP insertion, and exon 2 of GluA1. For SEP-GluA2 the upstream junction between GluA2 and SEP was amplified using a sense primer in the GluA2 5’ UTR (5’- ACGAGGGGATATTTTGTGGATGC-3’) and the antisense SEP primer described above. The downstream junction was amplified using the sense primer in SEP described above and an antisense primer (5’-CTGAACCATCCCTACCCGAAATG-3’) located in exon 2 of GluA2. Sequence analysis of these fragments also confirmed that SEP-GluA2 is being expressed and the RNA is spliced correctly.

Transfection of in vitro cultured cells

Request a detailed protocol

Lipofectamine 2000 (Invitrogen) was used for transfection of mouse and rat primary neurons. Transfection complexes were prepared following the manufacturer’s instructions.

Immunocytochemistry of primary neurons

Request a detailed protocol

Cells were fixed in 4% paraformaldehyde (PFA) with 4% sucrose at room temperature for 15 min. Then cells were permeabilized with 0.25% Triton X-100 in PBS for 10 min and blocked with 5% bovine serum albumin (BSA) in PBS for 60 min with slow shaking at room temperature. Primary antibodies were diluted in 2.5% BSA/PBS and cells were incubated overnight at 4°C in a humidified chamber with primary antibodies anti-GFP (Abcam or Aves, 1:5000), anti-GluA1 (homemade, 1:200), anti-GluA2/3 (homemade, 1:250), anti-NR1 (homemade, 1:200), anti-NR2A (homemade, 1:200), anti-NR2B (Millipore, 1:100), anti-PSD95 (Neuromab, 1:2500), anti-Gephyrin (Synaptic Systems, 1:2500), anti-myc (homemade, 1:1000), and anti-beta2 (Millipore, 1:200). The next day, cells were washed with PBS three times, and incubated for 1 hr at room temperature with corresponding secondary antibodies Alexa Fluor 405, 488, 568, and 647 (Thermo Fisher, dilutions 1:500–1000). After a second round of washing with PBS, the cells were mounted using mounting media (PermaFluor, Thermo Scientific) and allowed to dry overnight at room temperature. Coverslips were imaging immediately or stored at 4°C for subsequent imaging.

Image capture and measurement of knock-in efficiency

Request a detailed protocol

Live-cell imaging was performed with mouse neuronal culture at DIV16 with a LSM 880 confocal microscope (Carl Zeiss). Coverslips containing neurons were assembled in a custom-made chamber filled with artificial cerebrospinal fluid (ACSF; 25 mM HEPES, 120 mM NaCl, 5 mM KCl, 2 mM CaCl2, 2 mM MgCl2, pH 7.4). The SEP fluorescence was imaged at 488 nm excitation and collected through 493–553 nm, while the mCherry signal was imaged at 561 nm excitation and collected through 559–654 nm emission. Neurons were imaged through a 63× oil objective (N.A. = 1.40). Images were analyzed using Fiji/ImageJ (Schindelin et al., 2012).

After immunostaining with GFP antibody (Abcam cat # ab13970, 1:5000) for SEP/GFP KI, coverslips were imaged with a Zeiss LSM 880 microscope using Zen Black software and identical exposure parameters within each knock-in group. At least three coverslips were used per experimental group. Z-stacks of mCherry positive cells were acquired (1024 × 1024 pixels, with at least nine optical slices per z-stack with interval of 0.5 μm). Images were analyzed later in Fiji/ImageJ. To calculate the efficiency of TKIT-mediated targeted gene KI, number of GFP positive cells was divided by number of mCherry positive cells. To calculate the KI/WT/KO fraction, we analyzed mCherry positive cells in TKIT SEP-GluA2 transfected neurons in Fiji. For GFP and mCherry both positive cells, we considered those as successful KI cells. For the rest of mCherry positive cells, ROIs were drawn on the soma of cells based on mCherry signal, maxiROIs (cover the whole image) were also drawn on the same images. Fluorescent intensity of anti-GluA2 antibody was quantified in Fiji after subtracting background. The fluorescent intensity of maxiROI was set as a threshold to divide WT and KO cells based on their anti-GluA2 signal. To detect GluA2 expression in mouse cortical neurons, without TKIT manipulation, we fixed DIV 15 neurons grown on glass coverslips (as described above). These cells had been transduced with AAV2/9.CMV.PI.EGFP.WPRE.bGH (Addgene ID 105530) at DIV2 to serve as a morphology marker for neuron identification. Using IMARIS 9.6.0 (Bitplane), a surface was rendered at the cell body of GFP cells. Surfaces were excluded if the morphology of the cell was not consistent with a neuron. The surface volume was then used as a mask to calculate the average signal of GluA2, identified with immunofluorescence (as described above but with an N-terminal GluA2 antibody, clone 15F1).

Quantification of colocalization

Request a detailed protocol

To quantify the degree of colocalization between SEP-GluAs and anti-GluAs (GluA1, GluA2, and GluA3) fluorescent signal, all dendritic spines on a 50–100 µm dendrite from each knock-In neuron were analyzed in Fiji. To avoid bias, ROIs were draw based on mCherry signal, without seeing SEP-GluAs and anti-GluAs signal intensity. Fluorescent intensity was quantified in Fiji after subtracting background. Correlation (slope) between SEP and anti-GluAs fluorescent intensity was calculated by linear fitting (GraphPad Prism 7). To access the degree of colocalization between SEP-GluAs and anti-PSD95, the same correlation analysis with above was done between SEP and anti-PSD95 fluorescent intensity.

AAV design and production

Request a detailed protocol

To construct AAV vectors, both dual-U6 promoter expression cassette and donor were amplified from pX330-TKIT plasmid and corresponding TKIT donor plasmid, separately by PCR primers (Supplementary file 2). Then these two fragments were assembled into pAAV backbones with the NEBuilder HiFi DNA Assembly Cloning Kit. Resulting clones were confirmed by sequencing. Plasmid pAAV-nEF-SpCas9 is from Addgene (#87115) (Suzuki et al., 2016). All AAVs were packaged with serotypes 2/9 and were generated by the Viral Core at the Janelia Research Campus.

In utero electroporation

Request a detailed protocol

Cortical layer 2/3 neurons in the mouse barrel cortex were transfected with TKIT-SEP-GluA2-donor and GluA2-guides-SpCas9 in a 2:1 ratio by targeted in utero electroporation in E15 embryos as previously described (Saito and Nakatsuji, 2001; Zhang et al., 2015). Following anesthesia with Avertin and laparotomy, the DNA plasmid mixture (0.5–1 µl) was injected into the lateral ventricle of embryos using a pulled-glass pipette. Electroporation was performed using bipolar tweezer electrodes (CUY650P5, Nepagene, Japan) and a square pulse generator (CUY21, BEX Co, LTD., Japan). Previously established electrode positioning was used to target the barrel cortex.

Virus injection surgery

Request a detailed protocol

Animals were anaesthetized with Isoflurane (Kent Instruments), secured in a stereotaxic frame (Kopf), and their body temperature monitored and maintained at 37°C with a closed-loop temperature control system (Kent Instruments). The skin above the skull was cleaned with ethanol wipes and the hair removed. Animals were injected with sterile saline (VetOne; 0.5 ml), buprenorphine (ZooPharm; 1 mg/kg), and lidocaine (VetOne; 2%) all subcutaneous, with lidocaine injected under the skin over the skull. An incision was made to expose the skull, and a craniotomy performed to expose the brain surface. Glass pipettes (Drummond Science Company; Wiretrol II) were pulled (Sutter Instruments) and sharpened to a 30o angle (Medical Systems Corp) and used for controlled virus injection. A pneumatic injector (Narishige) was used to inject viruses at a rate of 100 nl/min. After each injection the pipette was kept in place for 5 min before being raised to the next injection depth, or being removed slowly from the brain. To target the dorsal hippocampus the following stereotaxic coordinates and injection volumes were followed, relative to bregma and pia. AP: −2, ML: −1.5, Z: 1.5 (200 nl), −1.3 (200 nl) and −1 (300 nl) and AP: −2.1, ML: 2.5, Z: 2.2 (300), −2 (300),–1.75 (200). Viruses, both packaged by the Janelia Research Campus Viral Core, were not diluted before injection and had the following titers: AAV2/9-TKIT-SEP-GluA1 (1.21E14 GC/ml) and AAV2/9-TKIT-SEP-GluA2 (9E13 GC/ml).

For the dual virus experiments AAV2/9-TKIT-SEP-GluA2 was mixed 1:1 with AAV2/9-nEF-HA-spCas9 (1.121E13 GC/ml) and injected into the right hemisphere of C57BL/6N mice aged 6 weeks. The injection coordinates were the same as above but the injection volume was increased to 400 nl per site. After injection the skin was sutured (Ethicon) and sealed with glue (VetBond). Animals were placed in a heated cage to recover with access to softened food.

Window surgery

Request a detailed protocol

In adult mice, a custom cut square 3 × 3 mm cranial window (#1 coverslip glass) was placed over the cortex of previously electroporated or virally injected mice as described previously (Roth et al., 2020). Mice were anesthetized using Avertin and the anti-inflammatory drugs Carprofen and Dexamethasone were administered. A craniotomy matching the size of the coverslip was cut using #11 scalpel blades (Fine Science Tools) and the coverslip was carefully placed on top of the dura within the craniotomy without excessive compression of the brain. The window was centered using stereotactic coordinates 3 mm lateral and 1.5 mm posterior from bregma for barrel cortex. The window and skull were sealed using dental cement (C and B Metabond, Parkell). A custom-made metal head bar was attached to the skull during surgery to fixate the mouse for imaging. Mice were allowed to recover for 2–3 weeks after surgery before two-photon imaging.

Histology and immunohistochemistry

Request a detailed protocol

Mice were deeply anaesthetized and transcardially perfused with PBS followed by 4% PFA (Electron Microscopy Sciences), each ice cold. Brains were post fixed in 4% PFA for exactly 2 hr at 4°C. After washing with PBS, brains were sliced into 60 mm sections on a vibratome (VT-1000, Leica). Sections were either mounted immediately for super-resolution (Airyscan, Zeiss) confocal microscopy (see below), or processed for immunohistochemistry. To amplify the GFP signal in TKIT-SEP-GluA1 KI mice, sections were washed three times in PBS, permeabilized for 20 min in PBST (0.3% Triton-X), and blocked for 1 hr in 5% normal goat serum (NGS) in PBST (0.15% Triton-X) all at room temperature. A chicken anti-GFP antibody (Abcam, Chicken, 1:5000) in 5% NGS and PBST (0.15% Triton-X) was added to the slices and incubated, rocking overnight at 4°C. The following day, slices were washed four times with PBS at room temperature, and then incubated with an anti-chicken Alexa-488 secondary antibody (1:500 titer, Molecular Probes) overnight at 4°C. Finally, sections were washed with PBS four times at room temperature. All slices were mounted Prolong Glass Antifade mounting media (Thermo Scientific). For detection of AAV-mediated spCas9 expression the same immunohistochemistry protocol was followed but with the addition of an antibody against HA (Cell Signaling, Rabbit C29F4, 1:500).

Confocal imaging in brain slices

Request a detailed protocol

All confocal images were taken on a Zeiss LSM 880 microscope using Zen Black software. For Airyscan imaging of endogenous SEP-GluA1 we used the super-resolution (SR) mode and optimal pixel resolution in X, Y, and Z. For estimation of KI efficiency using the dual-virus approach, SEP positive and HA-Cas9 positive cells were counted using the cell counter plugin in Fiji. Counts were made from maximum intensity projections images taken from the CA1 cell layer of the dorsal hippocampus.

In vivo two-photon imaging

Request a detailed protocol

In vivo images were acquired of mice under Isoflurane anesthesia with ZEISS LSM880 two-photon laser-scanning microscope. Layer 2/3 pyramidal neurons were imaged using a 20×/1.0 NA water-immersion objective lens (Zeiss). SEP-GluA2 was excited at 910 nm with a Ti:sapphire laser (Coherent) with ~100 mW of power delivered to the back-aperture of the objective. Image stacks were acquired at 1024 × 1024 pixels with a voxel size of 0.21 μm in x and y and a z-step of 1 μm at a pixel dwell time of ~2 ns. We simultaneously acquired images in the green (495–550 nm emission) and red (575–610 nm emission) channel under 910 nm excitation. The red channel, which shows no signal from SEP fluorophores, was acquired to reduce nonspecific fluorescence signal from in vivo brain tissue. Subtracting red images from green images resulted in images corrected for nonspecific auto-fluorescence used for representative images. Images shown in figures were median filtered and contrast enhanced. 3D rendered images were created using Imaris (Bitplane).

Fluorescence recovery after photobleaching

Request a detailed protocol

Rat primary cultured hippocampal neurons were transfected at DIV7-8 with TKIT-SEP-GluA1 constructs with mCherry or Azurite as a cell fill. At DIV 21–23 cells were live imaged in ACSF (as above) using a Zeiss LSM 880 microscope using Zen Black software. A time course experiment was conducted with images acquired as z-stacks every 60 s. After two baseline images were acquired a subset of SEP puncta were photobleached (40 iteration at 100% laser power) before a further 10 images were acquired, each 60 s apart. FRAP data was analyzed in Fiji (Schindelin et al., 2012). Initially maximum intensity projections were generated from the z-stacks, and the data was median filtered (1 pixel) and registered (rigid body) using the Multi-Stack Reg plugin. From each image two background regions were selected, averaged, and then subtracted from each data point. Data were normalized and plotted in GraphPad Prism for calculation of the recovery kinetics and for estimation of the immobile fraction.

Data availability

Source data files have been provided for all figures. Due to the size of the raw image data these will be made available upon request.

References

Decision letter

  1. Jeremy J Day
    Reviewing Editor; University of Alabama at Birmingham, United States
  2. Lu Chen
    Senior Editor; Stanford University, United States
  3. Daniel Choquet
    Reviewer; Université de Bordeaux, France

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This manuscript describes a novel CRISPR-based gene editing strategy that enables molecular tagging and tracking of synaptic proteins in neurons. The results are compelling and demonstrate the ability to tag several different proteins of interest in rat and mouse neurons, as well as in vivo efficacy in the adult rodent brain. This methodology will help to unravel molecular mechanisms critical for synaptic plasticity, organization, and structure, but could easily be modified for imaging of other cellular proteins important for neuronal function.

Decision letter after peer review:

Thank you for submitting your article "An Optimized CRISPR/Cas9 Approach for Precise Genome Editing in Neurons" for consideration by eLife. Your article has been reviewed by two peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Lu Chen as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Daniel Choquet (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our policy on revisions we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, when editors judge that a submitted work as a whole belongs in eLife but that some conclusions require a modest amount of additional new data, as they do with your paper, we are asking that the manuscript be revised to either limit claims to those supported by data in hand, or to explicitly state that the relevant conclusions require additional supporting data.

Our expectation is that the authors will eventually carry out the additional experiments and report on how they affect the relevant conclusions either in a preprint on bioRxiv or medRxiv, or if appropriate, as a Research Advance in eLife, either of which would be linked to the original paper.

Summary:

This manuscript describes a novel CRISPR/Cas9 approach for endogenous knock-in, which the authors term "Target Knock In with Two guides", or TKIT. The advances of this approach are twofold: (1) the purposeful targeting of non-coding regions for CRISPR sgRNA placement, and (2) a clever CRISPR donor template design which biases towards forward insertion of the donor sequence. As a result, this approach circumvents the notorious inefficiency of non-homologous end joining pathway for desired DNA insertion. The results are compelling and demonstrate the ability to tag several different proteins in vitro in both rat and mouse neurons, as well as in vivo efficacy in proof-of-principle experiments. This methodology will be of interest to researchers interested in synaptic proteins, but could easily be modified for imaging of other cellular proteins that are important for neuronal function.

Essential revisions:

1) The finding that a small fraction of neurons undergo GluA2 KO is puzzling, since no KO alleles were detected in genomic PCR (Figure 4—figure supplement 2). Is it more likely that the same fraction of neurons would lack GluA2 expression in non-transfected controls? Or controls that only receive mCherry plasmid transfections? Complete KO would require successful CRISPR targeting at both alleles, without donor insertion at either one. Either way, if complete KO in some cells is a possibility, this could be investigated more systematically (or at least discussed more thoroughly) since it may influence potential results.

2) Recent reports suggest that AAV vector genomes can integrate at DSBs created by Cas9 (PMIDs: 33087932, 31570731), and Cas9 can often create an opportunity for unintended insertions. Although PCR of genomic DNA (shown in Figure 4—figure supplement 2) detected both WT and KI alleles, it is not clear how often insertion of other sequences (with variable length) occurs, and no data at the level of DNA sequence is provided following AAV delivery methods. The fidelity of clean donor insertion could be examined by Sanger sequencing of genomic DNA clones to more completely define the results of insertion and genomic sequence changes around cut sites. This would also help to identify potential issues that may affect non-coding sequences (which, at the locations targeted here, are likely to be important regulatory elements).

3) I agree with the authors that tagging endogenous proteins is likely to preserve the normal physiological processes of transcription, mRNA processing, and protein localization, all of which will be specific to the target in question. Thus, the ability to use this system with proximity labeling proteomics approaches is a promising future direction. However, the author's claims about the superiority of this combination in the Discussion section should likely be tempered given that the tags used by these approaches were not incorporated or tested here.

4) Was the sequential sgRNA cloning and ligation process used for all genes targeted here? While it clearly works, this is somewhat laborious and may discourage others from adopting this technology. Since all TKIT targets will require two sgRNAs, the authors might consider using pX333 (PMID: 25337876; Addgene plasmid 64073) instead of pX330. This would enable more rapid sgRNA insertion (due to two unique restriction digest sites) instead of sequential amplification, gel purification, and ligation.

5) Regarding the FRAP experiments, could the authors expand their discussion on the difference between their measurements obtained on endogenous levels of receptors and those previously obtained on overexpressed receptors.

6) In the cell specific approach, could the author provide feedback on Cas9 cell expression versus viral Cas9 expression.

https://doi.org/10.7554/eLife.65202.sa1

Author response

Essential revisions:

1) The finding that a small fraction of neurons undergo GluA2 KO is puzzling, since no KO alleles were detected in genomic PCR (Figure 4—figure supplement 2). Is it more likely that the same fraction of neurons would lack GluA2 expression in non-transfected controls? Or controls that only receive mCherry plasmid transfections? Complete KO would require successful CRISPR targeting at both alleles, without donor insertion at either one. Either way, if complete KO in some cells is a possibility, this could be investigated more systematically (or at least discussed more thoroughly) since it may influence potential results.

To address the possibility of there being GluA2-lacking cells in non-transfected neurons, we have performed immunofluorescence on cultured mouse cortical neurons.

We found that 1.2% of neurons analyzed had no detectable levels of GluA2. Therefore, we can confirm the reviewers suspicious that a small fraction of neurons is, indeed, naturally GluA2-lacking. In comparison, we identified around 12.4% of cell with undetectable GluA2 (i.e., KO) with transfection of TKIT constructs for SEP-GluA2 KI (Figure 4—figure supplement 2D). Therefore, we think that undetectable GluA2 observed in some cells transfected with TKIT plasmids is an unfortunate, but not completely unexpected, result of gene knockout through double strand break generation without donor insertion. A possible explanation for the creation of these GluA2-KO neurons could also be incomplete co-transfection of all three plasmids (gRNAs/spCas9, donor DNA, mCherry). Cells lacking the donor DNA plasmid will be biased towards gene knockout. We further speculate that the discrepancy between the genomic PCR and immunofluorescence could result from a more complete co-transfection using electroporation and a bias towards easier detection of larger PCR products (i.e., the KI and WT fragments) using ethidium bromide integration for detection.

We have now included these data in the manuscript as Figure 4—figure supplement 3 and discussed this in the context of the GluA2 KO seen with TKIT (Results). Also see the Discussion. We also added a description of this methodology to the Materials and methods section of the manuscript.

2) Recent reports suggest that AAV vector genomes can integrate at DSBs created by Cas9 (PMIDs: 33087932, 31570731), and Cas9 can often create an opportunity for unintended insertions. Although PCR of genomic DNA (shown in Figure 4—figure supplement 2) detected both WT and KI alleles, it is not clear how often insertion of other sequences (with variable length) occurs, and no data at the level of DNA sequence is provided following AAV delivery methods. The fidelity of clean donor insertion could be examined by Sanger sequencing of genomic DNA clones to more completely define the results of insertion and genomic sequence changes around cut sites. This would also help to identify potential issues that may affect non-coding sequences (which, at the locations targeted here, are likely to be important regulatory elements).

We are grateful to the reviewers for raising this important point. We agree that this is a necessary consideration when coupling AAVs with CRISPR/Cas9 methods for genome editing (which is being widely adopted in the field). In fact, we now also speculate that 5’UTR integration of fragments of AAV could explain the lower efficiency in vivo with AAVs compared to in vitro with transfections. We have updated the text in the Results section to account for this possibility and include the recommended citations:

“Recent reports show that fragments of AAVs can integrate into double stranded DNA breaks induced by CRISPR/Cas9 (Hanlon et al., 2019; Wolter et al., 2020). […] Integration of AAV fragments into the 5’UTR of GluA1 or GluA2 could disrupt function, potentially contributing to the decreased efficiency observed in vivo (Figure 5H) compared to in vitro (Figure 2F).”

As the AAV approach is most useful for in vivo application, in future experiments (as part of a post publication Research Advance update following eLife’s new policy) we propose to inject the hippocampus of WT mice with a dual virus cocktail of AAV-spCas9 and AAV-TKIT-SEP-GluA2. The hippocampus will then be dissected, and genomic DNA amplify using a high-fidelity polymerase and a very long extension time (to account for variable sized insertions) flanking the KI sites. The PCR products will be sent for deep sequencing (as in Hanlon et al., 2019). This will enable us to calculate the percentage of reads that have AAV insertions.

3) I agree with the authors that tagging endogenous proteins is likely to preserve the normal physiological processes of transcription, mRNA processing, and protein localization, all of which will be specific to the target in question. Thus, the ability to use this system with proximity labeling proteomics approaches is a promising future direction. However, the author's claims about the superiority of this combination in the Discussion section should likely be tempered given that the tags used by these approaches were not incorporated or tested here.

We agree with the reviewers and have tempered this claim for future utility accordingly in our Discussion by adding the following sentence:

“However, the feasibility of coupling TKIT with proximity labelling remains to be tested and will likely depend upon the transfection or transduction efficiency, the KI efficiency for the target protein, as well as the absolute abundance of the target protein being tagged.”

4) Was the sequential sgRNA cloning and ligation process used for all genes targeted here? While it clearly works, this is somewhat laborious and may discourage others from adopting this technology. Since all TKIT targets will require two sgRNAs, the authors might consider using pX333 (PMID: 25337876; Addgene plasmid 64073) instead of pX330. This would enable more rapid sgRNA insertion (due to two unique restriction digest sites) instead of sequential amplification, gel purification, and ligation.

We agree with the reviewers and want to make this method as accessible to the community as possible. In fact, to simplify cloning of plasmids containing Two U6 + guides + cas9 we have designed a strategy using HiFi assembly to make these plasmids in a single cloning step. We have added this methodology to the Materials and methods section of the manuscript, which we hope will make it easier for investigators to use TKIT for their own projects. We also include the reviewer’s suggestion of using PX333.

However, for transparency, we will leave the details of how we originally made these constructs.

5) Regarding the FRAP experiments, could the authors expand their discussion on the difference between their measurements obtained on endogenous levels of receptors and those previously obtained on overexpressed receptors.

We thank the reviewers for this useful suggestion, which is at the core of why we think such CRISPR knock-in approaches are of such value to the field. Comparisons and citations of how our FRAP data fits within the literature of SEP-GluA1 overexpression is now summarized in the Results section of the manuscript:

“These findings are comparable to some (Heine et al., 2008; Kerr and Blanpied, 2012), but not all (Makino and Malinow, 2009), previous reports utilizing overexpression of SEP-GluA1. We speculate that this is critically dependent on the degree of overexpression, with very high levels of overexpression increasing the mobile pool of AMPARs beyond what is observed under more physiological conditions.”

6) In the cell specific approach, could the author provide feedback on Cas9 cell expression versus viral Cas9 expression.

In terms of the cell type-specificity, we expect the AAV-Cas9 approach to target all cells as Cas9 is expressed under the ubiquitous nEF promoter (hybrid EF1α /HTLV). In the transgenic approach, we expect much greater cell type-specificity for PV or CaMKII neurons, respectively. However, we have not validated this specificity explicitly, and it is not uncommon for Cre diver lines to have some leaky expression. Therefore, we cannot rule out the possibility of some off-target Cas9 expression as a result of the Cre driver line. We expect the levels of Cas9 will be more variable in the AAV-Cas9 approach than in the Cas9 knock-in mouse line, as some cells will take up more viral copies than others. We can foresee cell type-specificity being achieved with viral deliver of Cre-dependent Cas9 in different Cre-driver lines, which would save time and costly mouse breeding.

In addition, we speculate (but do not have the data to show) that the efficiency of TKIT could be higher using transgenic delivery of Cre, negating the need for dual virus uptake into the same cell, which can sometimes be problematic in neurons. We suggest leaving this speculation on efficiency out of the manuscript until we have solid data to support this claim. We propose adding these experiments as a post-publication Research Advance update, as per eLife’s policy.

https://doi.org/10.7554/eLife.65202.sa2
