DDK regulates replication initiation by controlling the multiplicity of Cdc45-GINS binding to Mcm2-7

  1. Lorraine De Jesús-Kim
  2. Larry J Friedman
  3. Marko Lõoke
  4. Christian K Ramsoomair
  5. Jeff Gelles  Is a corresponding author
  6. Stephen P Bell  Is a corresponding author
  1. Howard Hughes Medical Institute, Department of Biology, Massachusetts Institute of Technology, United States
  2. Department of Biochemistry, Brandeis University, United States
Research Article
  • Cited 0
  • Views 943
  • Annotations
Cite this article as: eLife 2021;10:e65471 doi: 10.7554/eLife.65471

Abstract

The committed step of eukaryotic DNA replication occurs when the pairs of Mcm2-7 replicative helicases that license each replication origin are activated. Helicase activation requires the recruitment of Cdc45 and GINS to Mcm2-7, forming Cdc45-Mcm2-7-GINS complexes (CMGs). Using single-molecule biochemical assays to monitor CMG formation, we found that Cdc45 and GINS are recruited to loaded Mcm2-7 in two stages. Initially, Cdc45, GINS, and likely additional proteins are recruited to unstructured Mcm2-7 N-terminal tails in a Dbf4-dependent kinase (DDK)-dependent manner, forming Cdc45-tail-GINS intermediates (CtGs). DDK phosphorylation of multiple phosphorylation sites on the Mcm2-7 tails modulates the number of CtGs formed per Mcm2-7. In a second, inefficient event, a subset of CtGs transfer their Cdc45 and GINS components to form CMGs. Importantly, higher CtG multiplicity increases the frequency of CMG formation. Our findings reveal the molecular mechanisms sensitizing helicase activation to DDK levels with implications for control of replication origin efficiency and timing.

Introduction

Eukaryotic DNA replication coordinates the assembly of multi-protein replisomes at origins of replication to ensure complete genome duplication. Replisome assembly begins during G1 phase when two copies of the Mcm2-7 helicase are loaded around origin DNA as a head-to-head double hexamer (Yardimci and Walter, 2014). In S phase, the association of helicase-activating factors selects a subset of these helicase double hexamers to initiate DNA unwinding and form the core of a bidirectional pair of replisomes (Mantiero et al., 2011; Tanaka et al., 2011). Correct temporal control of helicase activation both ensures that the genome is replicated exactly once per cell cycle (Remus and Diffley, 2009) and reserves a subset of origins to complete replication even if replisomes derived from adjacent origins stall (Blow et al., 2011; Mantiero et al., 2011).

Helicase activation is the committed step of replication initiation and is controlled during the cell cycle by two kinases: S-CDK and Dbf4-dependent kinase (DDK) (Figure 1—figure supplement 1; Labib, 2010). DDK phosphorylates the long unstructured N-terminal tails of Mcm4 and Mcm6 driving the recruitment of Sld3/7 and Cdc45 to Mcm2-7 double hexamers (Kamimura et al., 2001; Kanemaki and Labib, 2006; Sheu and Stillman, 2010; Heller et al., 2011; Randell et al., 2010; Deegan et al., 2016). S-CDK phosphorylates Sld2 and Sld3/7, leading them to bind to two distinct pairs of BRCT repeats in Dpb11 (Tanaka et al., 2007; Zegerman and Diffley, 2007; Muramatsu et al., 2010). These S-CDK-dependent interactions recruit GINS to Sld3/7 associated with loaded Mcm2-7 complexes. Although both Cdc45 and GINS recruitment involve Sld3/7, whether these proteins are recruited by the same or different Sld3/7 molecules is unknown. Cdc45 and GINS are direct activators of the Mcm2-7 complex, and association of these factors with the core structured region of Mcm2-7 is required to form a pair of Cdc45-Mcm2-7-GINS complexes (CMGs), the active eukaryotic replicative helicase (Ilves et al., 2010; Moyer et al., 2006; Pacek et al., 2006; Yuan et al., 2016; Goswami et al., 2018). Finally, Mcm10 activates CMG complexes to unwind origin DNA (van Deursen et al., 2012; Kanke et al., 2012; Lõoke et al., 2017; Douglas et al., 2018). The result of this process is the formation of two oppositely directed, active CMG complexes that generate the ssDNA necessary to recruit the rest of the replisome (Bell and Labib, 2016).

Although clear in broad strokes, multiple elements of CMG formation and helicase activation remain poorly understood. For example, current studies suggest that there are many Sld3-binding sites on the N-terminal tails of Mcm4 and Mcm6, although a specific binding motif has not been defined (Deegan et al., 2016). However, whether one or multiple sites are used during a given helicase-activation event is unknown. It is also unclear whether Cdc45 recruitment to the two Mcm2-7 complexes in the double hexamer is concerted. The possibility of coordinated Cdc45 recruitment is raised by evidence suggesting that Sld3 and Sld7 form a heterotetramer that could facilitate simultaneous recruitment of two Cdc45s (Itou et al., 2015). Lastly, the levels of DDK and a subset of helicase-activation proteins are known to modulate the timing and efficiency of helicase activation (Mantiero et al., 2011; Tanaka et al., 2011). However, the attributes of helicase activation that sensitizes this process to the levels of these proteins are not understood. To answer these questions and investigate the kinetics of the events leading to helicase activation, we developed a single-molecule (SM) method to directly observe this process in real time at a defined origin of replication in vitro.

SM biochemical techniques are well equipped to address questions of kinetics and stoichiometry during multi-protein complex assembly events like formation of the eukaryotic replisome (Stratmann and van Oijen, 2014). Previous SM studies have complemented both structural and biochemical studies on helicase loading (Ticau et al., 2015; Ticau et al., 2017; Champasa et al., 2019). Like most complex multi-protein assembly processes, ensemble helicase-activation reactions occur asynchronously due to the large number of protein–DNA and protein–protein interactions required. In addition, these bulk assays are typically performed as end-point assays with limited kinetic information (Yeeles et al., 2015), preventing detection of transient events. In contrast, SM biochemical studies allow post-hoc synchronization of asynchronous events permitting detailed kinetic analysis. In addition, by allowing real-time visualization, SM approaches can detect short-lived protein–protein or protein–DNA interactions and determine precise relative stoichiometries.

Here, we describe SM biochemical assays for CMG formation and helicase activation that recapitulate previously demonstrated dependence on Sld3/7 and DDK. Initial recruitment of Cdc45 to the Mcm2-7 double hexamer occurs in a stepwise fashion. We observe multiple Cdc45 and GINS proteins binding to individual Mcm2-7 double hexamers. Importantly, DDK levels modulate the number of these binding events and the frequency of final CMG formation. Consistent with these initial binding events being intermediates formed on the DDK-phosphorylated Mcm2-7 N-terminal tails, reducing the number of phosphorylation sites on the Mcm4 and Mcm6 N-terminal tail decreases the number of these intermediates and the efficiency of CMG formation. Importantly, the same phospho-site mutations in the Mcm4 or Mcm6 N-terminal tails reduce replication initiation frequency in vivo. Our findings support a model in which helicase activation is controlled by a combination of DDK-dependent regulation of the multiplicity of initial complexes between Cdc45, GINS, and the Mcm2-7 tails (the CtG complex) and the inefficient conversion of these CtGs to CMG complexes.

Results

An SM assay for CMG formation and DNA unwinding

We used colocalization single-molecule spectroscopy (CoSMoS, Friedman et al., 2006; Hoskins et al., 2011) to observe the process of eukaryotic CMG formation. This SM approach monitors the colocalization of fluorescently labeled proteins with individual surface-tethered fluorescently labeled DNA molecules to measure protein–DNA binding events. Fluorescent labeling of Mcm2-7, Cdc45, and GINS was accomplished using a SNAP-tag (Mcm2-7, Gendreizig et al., 2003; Ticau et al., 2015) or sortase-mediated coupling of fluorescent peptides (GINS, Cdc45, and Mcm2-7; Popp et al., 2007; Ticau et al., 2015, see Materials and methods). These fluorescent tags did not interfere with protein function, as assessed by ensemble CMG-formation assays (Figure 1—figure supplement 2). To prevent loaded Mcm2-7 complexes from sliding off the template prior to CMG formation (Evrin et al., 2009; Remus and Diffley, 2009), we used a 1.2-kb circular DNA containing a single origin of replication. Comparison of the circular template with a 1.3-kb linear template (Ticau et al., 2015) showed that the circular template exhibited a twofold higher occupancy by Mcm2-74SNAP549 at the end of a 20-min SM helicase-loading assay (Figure 1—figure supplement 3).

To perform the CMG-formation reaction in an SM format, we executed a series of sequential incubations and monitored protein fluorescence (Figure 1A). After determining the locations of surface-coupled DNA molecules, we sequentially loaded the Mcm2-74SNAP549 helicase, phosphorylated the loaded helicases with DDK, and then added the remaining proteins necessary to form the CMG (Figure 1—figure supplement 1, S-CDK, Sld3/7, Cdc45, Dpb11, Sld2, GINS, Pol ε; Yeeles et al., 2015; Heller et al., 2011; Kanemaki and Labib, 2006; Kamimura et al., 2001).

Figure 1 with 5 supplements see all
Single-molecule reaction for Cdc45-Mcm2-7-GINS (CMG) formation and DNA unwinding.

(A) Schematic for the single-molecule CMG formation reaction. Alexa-Fluor-488-labeled (blue circle) circular origin DNA molecules were tethered to the slide surface. Purified Mcm2-74SNAP549 (green circle), Cdc45SORT649 (red circle), and other indicated proteins necessary to form the CMG were incubated with slide-coupled DNA in the steps shown. Members of the group of proteins referred to as SDPGC are in the dashed box. A high-salt wash (HSW1) was performed after Mcm2-7 phosphorylation to remove helicase-loading intermediates. Colocalization of fluorescently labeled proteins with fluorescently labeled DNA was monitored (indicated by camera icon) during CMG formation and after a second high-salt wash (HSW2). Example images show a small subregion of the microscope field of view taken at a single time point after the CMG formation reaction recorded in the color channels for DNA488, Mcm2-74SNAP549, and Cdc45SORT649. Red squares are centered on DNA locations. Spots within the red square indicate stable binding of Mcm2-74SNAP549 or Cdc45SORT649 after HSW2. (B) Cdc45 binding depends on Sld3/7 and DDK phosphorylation. The fraction (± SE) of n DNA molecules with bound Mcm2-74SNAP549 that exhibited high-salt-resistant Cdc45SORT649 at the first time point after the HSW2 is plotted for each of the conditions. DNAs are counted if they contain Mcm2-74SNAP549 at the beginning of the CMG formation reaction. Where indicated, lambda phosphatase (λPP) was used to dephosphorylate Mcm2-74SNAP549 prior to the Mcm2-7 loading reaction. The first bar represents the results of three replicates, the second and third bars represent the results of two replicates, and the remaining bars are the result of a single experiment. (C) Schematic of the single-molecule DNA-unwinding reaction. Cy5- and BHQ-2-labeled (red and black circles) linear origin-DNA molecules were coupled to microscope slides. The same stepwise incubations as with the single-molecule CMG-formation assay were used, except Mcm10 and replication protein A (RPA) were added to the 'CMG formation and DNA unwinding step'. The plot displays a representative background-corrected fluorescence-intensity record (see Materials and methods) for DNACy5 (increase in fluorescence indicated by arrow). An objective image-analysis algorithm (Friedman and Gelles, 2015) detected a spot of DNA fluorescence at time points shown in red. (D) DNA unwinding is dependent on activating factors. Helicase-activating factors eliminated were S-CDK, Sld2, Dpb11, Pol ε, GINS, Sld3/7, Cdc45, Mcm10, and RPA. The fraction (± SE) of n DNA molecules that were unwound is plotted for both conditions.

To ensure that only loaded Mcm2-7 molecules were present during CMG formation, we included a high-salt wash (HSW1) after DDK phosphorylation to remove helicase-loading intermediates. We initially focused on the association of the Cdc45 component of CMG by labeling this protein with a distinct fluorophore (Cdc45SORT649). To focus our observations on the events of CMG formation after helicase loading, we only monitored protein fluorescence after DDK phosphorylation of loaded Mcm2-74SNAP549 double hexamers (Figure 1A). During this period, each DNA molecule was continuously monitored for fluorescent-protein colocalization for ~30 min. After the CMG-formation reaction, we performed a second high-salt wash (HSW2) to distinguish fully formed, salt-resistant CMG complexes from intermediates that are readily removed by this treatment (Yeeles et al., 2015).

Analysis of the DNA-associated proteins after the experiment showed multiple hallmarks of CMG formation. Consistent with efficient CMG formation, more than half (0.53 ± 0.04) of the DNAs with loaded Mcm2-74SNAP549 complexes were bound to Cdc45SORT649 when observed immediately after the HSW2 high-salt wash (Figure 1B). These binding events were eliminated in the absence of Sld3/7, consistent with Cdc45SORT649 recruitment to Mcm2-7 relying on Sld3/7 (Figure 1B). Similarly, when Cdc6 was eliminated from the first step of the reaction to prevent helicase loading, subsequent CMG formation was dramatically reduced (fraction of DNAs bound by Cdc45 was 0.12 ± 0.01 with Cdc6 vs. 0.006 ± 0.006 without, Figure 1—figure supplement 4). Thus, CMG formation was dependent on prior helicase loading. In the absence of DDK, high-salt-resistant bound Cdc45 was reduced but not eliminated (Figure 1B). We hypothesized that these ‘DDK-independent’ binding events were due to residual DDK phosphorylation present on Mcm2-7 complexes purified from G1-arrested cells (Heller et al., 2011; Tanaka et al., 2011). Consistent with this idea, phosphatase treatment of Mcm2-74SNAP549 prior to helicase loading eliminated CMG formation in the absence of DDK (Figure 1B). We confirmed that phosphatase-treated Mcm2-74SNAP549 remained functional by sequential treatments with phosphatase and DDK. This sequence of treatments rescued CMG formation both in the SM (Figure 1B) and ensemble (Figure 1—figure supplement 5) settings, demonstrating that the observed CMG formation was fully DDK-dependent.

To assess the functionality of the CMGs assembled in the SM setting, we asked whether they were able to unwind DNA. To this end, we generated a linear 1.1-kb origin-containing DNA template with a fluorescent dye and a non-fluorescent quencher (BHQ-2) attached to opposing DNA strands at the surface-distal end of the DNA (Kose et al., 2019; Figure 1C). DNA unwinding will promote separation of the fluorescent dye-attached strand from the quencher-attached strand, leading to increased dye emission. We simultaneously monitored labeled Mcm2-74SNAP549 and unquenching of the DNA-associated fluorophore in the presence of the proteins required for CMG formation and two additional proteins (Mcm10 and replication protein A [RPA]) required for extensive DNA unwinding (Douglas et al., 2018). Consistent with previous in vitro assays that showed only a subset of loaded Mcm2-7 are activated (Douglas et al., 2018), we observed increased fluorescence for a fraction of DNAs with bound Mcm2-74SNAP549 (0.24 ± 0.04, Figure 1D). Importantly, elimination of helicase-activating factors (S-CDK, Cdc45, GINS, Dpb11, Pol ε, Sld3/7, RPA, and Mcm10) from the reaction prevented all unquenching events (Figure 1D). Together, these studies demonstrate that our SM assays for CMG formation and helicase activation exhibit the outcomes and protein dependencies expected based on previous in vivo and ensemble in vitro studies (Kanemaki and Labib, 2006; Ilves et al., 2010; Heller et al., 2011; Tanaka et al., 2011; Yeeles et al., 2015).

Cdc45 binding events to loaded Mcm2-7 are sequential

We next investigated the protein requirements for recruitment of Cdc45SORT649 to the Mcm2-74SNAP549-DNA complex. Initially, we tested a minimal set of proteins predicted to recruit Cdc45 to loaded Mcm2-7 (Kanemaki and Labib, 2006; Heller et al., 2011; Tanaka et al., 2011). In these experiments, after phosphorylation of loaded Mcm2-74SNAP549 with 1.3 nM DDK, we added only Sld3/7 and Cdc45SORT649 (Figure 2A). Under these conditions, we detected dynamic binding of one or two Cdc45SORT649 with the majority of Mcm2-74SNAP549-bound DNA molecules (136/198, Figure 2A, Figure 2—figure supplement 1). A subset (62/198) of DNAs with loaded Mcm2-74SNAP549 never showed bound Cdc45. Consistent with the dynamic nature of the observed Cdc45 interactions and the requirement for additional proteins for CMG formation, in a separate experiment we did not detect high-salt-resistant Cdc45 binding to Mcm2-7 (0/70).

Figure 2 with 2 supplements see all
Sld2, Dpb11, Pol ε, GINS, and S-CDK (SDPGC) increases the frequency of Cdc45 binding events to the Mcm2-7 double hexamer.

(A) Experiment protocol and representative fluorescence-intensity record for Mcm2-74SNAP549 and Cdc45SORT649 at an origin-DNA location with minimal set of proteins required to recruit Cdc45. An objective image-analysis algorithm (Friedman and Gelles, 2015) detected a spot of protein fluorescence at time points shown in red or green. Photobleaching of Mcm2-74SNAP549 is marked by a gray arrow, and a set of likely dissociations of Cdc45SORT649 molecules are marked by black arrows. (B) Experiment protocol and representative fluorescence-intensity record for Mcm2-74SNAP549 and Cdc45SORT649 at an origin-DNA location with all the factors required for Cdc45-Mcm2-7-GINS (CMG) formation (+ SDPGC = Sld2, Dpb11, Pol ε, GINS, and S-CDK). Photobleaching of Mcm2-74SNAP549 is marked by a gray arrow, and a potential dissociation of Cdc45SORT649 molecules is marked by a black arrow. (C) Multiple Cdc45SORT649 molecules bind to Mcm2–74SNAP549-bound DNA. Cdc45SORT649 fluorescence-intensity histograms (blue) are shown for two conditions: – SDPGC (i) and + SDPGC (ii). The histogram data were fit to a sum-of-Gaussians model (red; see Materials and methods). Fit parameters and calculated area fractions of individual Gaussian components (green) corresponding to the presence of the indicated numbers of Cdc45SORT649 molecules are given in Supplementary file 1a. The mean (±SE) numbers of Cdc45 molecules per DNA are calculated from the fit parameters and the fraction Cdc45 labeled. In all three panels, intensity values were background corrected and normalized as described in Materials and methods.

To assess the number of Cdc45 molecules bound to loaded Mcm2-7 more accurately, we constructed histograms that compiled Cdc45SORT649 intensities measured at all Mcm2-74SNAP549-bound DNAs in every frame of the recorded images. We modeled these histogram data as the sum of equally spaced Gaussian peaks representing molecules with zero, one, two, or more bound Cdc45SORT649. The model assumed independent binding of Cdc45 to multiple identical sites on Mcm2-7 (see Materials and methods). Based on this modeling, we determined the fraction of time a specific number of Cdc45SORT649 proteins were bound to DNAs with loaded Mcm2-74SNAP549 (Figure 2A, Ci). This analysis showed that one Cdc45SORT649 was bound to a DNA with an Mcm2-74SNAP549 double hexamer 0.222 ± 0.002 of the time and two Cdc45SORT649 were bound only 0.079 ± 0.001 of the time (Supplementary file 1a). We also used this analysis to determine the average number of Cdc45 proteins bound to Mcm2-74SNAP549. Taking into consideration our finding that 0.73 ± 0.07 of the Cdc45 protein was labeled (see Materials and methods), we found that, on average, less than one Cdc45 molecule (labeled plus unlabeled) was associated with a loaded Mcm2-7 double hexamer (0.60 ± 0.06, Figure 2Ci).

We considered the possibility that the stepwise increases in Cdc45SORT649 fluorescence intensity (e.g., Figure 2A) represented transitions between states with two and four Cdc45 molecules instead of states with one and two molecules. If this were the case, however, we would expect to see a large subset of the bound Cdc45 to show half the fluorescent intensity relative to other events on the same DNA molecule. The reason for this expectation is that only a 0.73 ± 0.07 fraction of the Cdc45 protein is fluorescently labeled. Given this percentage of protein labeling, if the changes in fluorescence intensity were consistently due to simultaneous binding of two Cdc45 molecules, we would expect one of those molecules to be unlabeled 2P (1–P) = 0.40 of the time, where P is the fraction labeled. Given the multiplicity of Cdc45 binding events observed on most DNAs, such a situation would result in two levels of increases in fluorescent intensity in any given trace. Instead, we observed Cdc45SORT649 fluorescence-intensity changes that were consistently similar across a given trace (Figure 2A, bottom panel, Figure 2—figure supplement 1). There are some events that might represent dimers of Cdc45 binding (e.g., Figure 2A, bottom, ~900 s), but these are rare and likely to be caused by two individual Cdc45SORT649 molecules binding in rapid succession. Thus, we conclude that the multiple Cdc45s binding to Mcm2-7-bound DNA are recruited as monomers in a sequential fashion.

We then assessed how Cdc45SORT649 binding events changed with the addition of the Sld2, Dpb11, Pol ε, GINS, and S-CDK (SDPGC) proteins, all of which are required for CMG formation (Figure 2B, Figure 2—figure supplement 2). We added these proteins to an otherwise unchanged reaction using 1.3 nM DDK. Fluorescent analysis showed that the addition of the SDPGC proteins lowered the fraction of time that DNA molecules bound by Mcm2-74SNAP549 were not associated with Cdc45SORT649 (− SDPGC 0.682 ± 0.001; + SDPGC, 0.560 ± 0.001, Supplementary file 1a, rows 1 and 2). Consistent with this change, the average number of Cdc45 proteins (labeled plus unlabeled) on a Mcm2-74SNAP549-bound DNA increased in these conditions (− SDPGC 0.60 ± 0.06; + SDPGC, 0.85 ± 0.08, Figure 2Ci, ii). The addition of the SDPGC proteins did not alter the uniformity of Cdc45SORT649 fluorescence-intensity increases, consistent with Cdc45 still being recruited as a monomer in a sequential fashion (Figure 2B, Figure 2—figure supplement 2). In contrast to SM experiments lacking the SDPGC proteins that showed no high-salt-resistant Cdc45 binding (0/70), the presence of the SDPGC proteins results in a fraction of loaded Mcm2-7 complexes forming the high-salt-resistant Cdc45 complexes characteristic of CMG formation (0.15 ± 0.05, Figure 3A). Together, these results show that the complete set of proteins required for CMG formation leads to additional Cdc45 binding to loaded Mcm2-7, a subset of which go on to form CMG complexes.

Figure 3 with 2 supplements see all
Dbf4-dependent kinase (DDK) modulates the number of Cdc45 binding events and Cdc45-Mcm2-7-GINS (CMG) formation efficiency.

(A) Increasing DDK concentration results in more efficient CMG formation. The fraction (± SE) of n DNA molecules with loaded Mcm2-74SNAP549 that were bound by high-salt-stable Cdc45SORT649 are reported for reactions using 1.3 nM, 6.5 nM, or 32.5 nM DDK. Experimental protocol was as in Figure 1A. The data from 6.5 nM DDK condition is the same as Figure 1B, left bar. (B) Representative fluorescence-intensity records for Cdc45SORT649 under 1.3 nM and 6.5 nM DDK concentrations. Left panel is during CMG formation and right panel is after high-salt wash (HSW2). Points colored as in Figure 2B. Photobleaching of Cdc45SORT649 after the HSW2 is marked by gray arrows. Fluorescence intensities after HSW2 were adjusted to account for the higher excitation laser intensity used during photobleaching. (C) Multiple Cdc45SORT649 molecules bind toMcm2-74SNAP549. Cdc45SORT649 fluorescence-intensity histograms (blue) are shown for three conditions: (i) 1.3 nM DDK; (ii) 6.5 nM DDK; and (iii) 6.5nM DDK in the absence of Sld3/7. The histogram data were fit to a sum-of-Gaussians model (red; see Materials and methods). Fit parameters and calculated area fractions of individual Gaussian components (green) corresponding to the presence of the indicated numbers of Cdc45SORT649 molecules are given in Supplementary file 1a. The mean (± SE) numbers of Cdc45 molecules per DNA are calculated from the fit parameters and the fraction Cdc45 labeled.

DDK levels modulate the frequency of CMG formation

Our early experiments with all of the proteins required for CMG formation yielded a relatively low fraction of loaded Mcm2-7 complexes being converted to CMGs. These results led us to consider approaches to increase the efficiency of CMG formation. Because higher DDK levels improve origin initiation efficiency (Mantiero et al., 2011; Tanaka et al., 2011), we explored the impact of increasing DDK concentration. At the higher DDK concentration used in Figure 1 (fivefold increase from 1.3 nM to 6.5 nM), the fraction of Mcm2-74SNAP549-bound DNAs that became bound by high-salt-resistant Cdc45SORT649 increased from 0.15 ± 0.05 to 0.53 ± 0.04 (Figure 3A). Elevating DDK concentration fivefold further (to 32.5 nM) increased the fraction of loaded Mcm2-7 complexes forming CMGs from 0.53 ± 0.04 to 0.69 ± 0.06 (Figure 3A). Because the relative increase in CMG formation was more dramatic between 1.3 nM and 6.5 nM (suggesting we were approaching saturation at 32.5 nM), we focused our subsequent studies on these two DDK concentrations.

Increased DDK levels led to each Mcm2-74SNAP549-bound DNA interacting with more Cdc45SORT649 proteins during the CMG formation reaction (Figure 3B, left panels). Fluorescence-intensity analysis revealed that elevating DDK levels to 6.5 nM increased the average number of Cdc45 molecules (labeled plus unlabeled) bound to Mcm2-7 by more than twofold (1.0 ± 0.1 vs. 2.5 ± 0.2; Figure 3C, compare panels i and ii). This analysis also revealed sometimes four or more Cdc45SORT649 molecules bound to an individual Mcm2-74SNAP549 double hexamer at 6.5 nM DDK. Importantly, all of the Cdc45SORT649 binding events remain Sld3/7-dependent, suggesting that the Cdc45SORT649 binding detected requires indirect binding with the Mcm2-7 tails via Sld3/7 (Figure 3Ciii). The fraction of DNAs with Mcm2-74SNAP549 bound at least once by Cdc45 is similar between the 1.3 nM (40 out of 48 molecules, 0.83 ± 0.05) and 6.5 nM (71/87, 0.82 ± 0.06) DDK conditions, indicating that increasing DDK is primarily impacting the number of Cdc45 molecules bound per double hexamer rather than the fraction of double hexamers that are capable of interacting with Cdc45. Finally, we note that although these data give a sense of the multiplicity of Cdc45 proteins bound to Mcm2-7 at a specific time, these binding events are dynamic. Thus, the number of Cdc45 binding events to an Mcm2-7 double hexamer over the course of the reaction is higher.

The multiplicity of the bound Cdc45 suggests that binding occurs on the Mcm4 and Mcm6 tails rather than the core of the Mcm2-7 complex. The core of each Mcm2-7 molecule is thought to have only one site that directly binds Cdc45 (the site of Cdc45 association in the CMG, Yuan et al., 2016, Goswami et al., 2018). In contrast, there are many Sld3-binding sites on both the Mcm4 and Mcm6 N-terminal tails (Deegan et al., 2016), each of which could recruit Cdc45. Thus, the appearance of more than two bound Cdc45 molecules indicates that at least a subset (and perhaps most, see below) of the Cdc45 binding events observed under high DDK conditions reflect Cdc45 binding (via Sld3) to the phosphorylated N-terminal tails.

Only a subset of the multiple Mcm2-7-bound Cdc45 proteins form CMGs

To determine the number of Cdc45SORT649 proteins retained after the second high-salt wash (HSW2, Figure 1A), we increased the laser intensity and monitored protein fluorescence until all the protein-bound dyes were photobleached. Because photobleaching is stochastic, each photobleaching event indicates the presence of one fluorescently labeled protein. Although our intensity model suggests that a given Mcm2-7 is capable of simultaneously binding four or more Cdc45 molecules during the CMG formation reaction (Figure 3Cii), we never (0 of 202 examined) observed that more than two Cdc45SORT649 proteins remained bound to a Mcm2-7-bound DNA after the HSW2 high-salt wash (e.g., Figure 3B, right panel). In principle, it was possible that we undercounted photobleaching events that were not temporally resolved; however, comparison of the rate of photobleaching under these conditions to the time resolution of the experiment indicated that this would be rare (Figure 3—figure supplement 1). The maximum of two high-salt-resistant Cdc45s is consistent with the interpretation that high-salt resistance indicates that the Cdc45s are incorporated into CMGs (Yeeles et al., 2015). Thus, although increased DDK leads to more Cdc45 proteins binding simultaneously to each Mcm2-7-bound DNA, at most two are incorporated into the final CMG complexes.

We frequently observed only one high-salt-stable Cdc45SORT649 associated with Mcm2-7-bound DNA, leading us to ask whether CMG formation occurred independently or was coordinated for the two Mcm2-7 complexes present in a loaded double hexamer. If CMG formation was coordinated for the two Mcm2-7 complexes, we would expect most of the high-salt-resistant Cdc45 to occur in pairs. Using the measured fraction labeled of Cdc45SORT649 (p=0.73 ± 0.07), we calculated that if CMG formation was coordinated, 0.57 ± 0.09 (P2/{P2 + 2P(1-P)}) of the bound high-salt-resistant Cdc45SORT649 should include two labeled Cdc45s (Figure 3—figure supplement 2). In contrast, we observed that only 42/102 (0.41 ± 0.05) of the Mcm2-7-bound DNAs with salt-resistant Cdc45 included two labeled Cdc45s when CMG formation was performed with 6.5 nM DDK (Figure 3—figure supplement 2). When the same measurement is performed with 1.3 nM DDK, this fraction drops to 1/7 (0.14 ± 0.13), consistent with lower numbers of bound Cdc45 leading to more frequent formation of a single CMG within the Mcm2-7 double hexamer. These findings suggest that CMG formation on the two Mcm2-7 complexes in each double hexamer can occur independently.

Cdc45 dwell times are similar at low and high DDK levels

We next asked whether the complex pattern of Cdc45 binding events observed at high DDK levels represented a fundamentally different type of Cdc45 association or an increased frequency of the same type of Cdc45 association observed at lower DDK levels. To distinguish between these two possibilities, we repeated the SM CMG-formation assay with Cdc45 having a reduced labeling fraction (0.036 ± 0.004, see Materials and methods). These conditions allowed us to observe binding of individual labeled Cdc45 molecules even in the high DDK context when many additional (unlabeled) Cdc45 were simultaneously bound to the same Mcm2-7-bound DNA (Figure 4A, Figure 4—figure supplement 1). Using these conditions, we determined the distributions of bound Cdc45 dwell times (Figure 4B). We did not see a significant difference in the dwell time distributions of Cdc45SORT649 at 1.3 nM and 6.5 nM DDK, consistent with the hypothesis that high DDK levels increase the number of Cdc45 associations to Mcm2-7-bound DNA without changing their properties.

Figure 4 with 2 supplements see all
The lifetimes of individual bound Cdc45 molecules are not significantly changed by Dbf4-dependent kinase (DDK) levels.

(A) Representative fluorescence-intensity records for Cdc45SORT649 under conditions in which only a small fraction (0.036 ± 0.004) of Cdc45 molecules were fluorescently labeled at 1.3 nM (top) and 6.5 nM (bottom) DDK. Points colored as in Figure 2B. Black lines indicates single Cdc45SORT649 binding. (B) Survival function for Cdc45SORT649 dwell times on Mcm2-7-bound DNA. The vertical axis represents the fraction of Cdc45SORT649 molecules that remain bound after the dwell interval indicated on the horizontal axis. Shaded areas represent the 95% confidence intervals for each curve. Inset: magnified view.

DDK levels modulate the number of Mcm2-7 tail phosphorylation events

Elevating DDK levels could change Mcm2-7 phosphorylation in multiple ways. More DDK could increase the number of phosphates per Mcm2-7 complex as well as the fraction of Mcm2-7 complexes that have any phosphates. DDK is known to exhibit stable binding to Mcm2-7 (Sheu and Stillman, 2006; Ramer et al., 2013; Abd Wahab and Remus, 2020), and an extreme model predicts that when DDK binds to Mcm2-7 this interaction leads to complete Mcm4- and Mcm6-tail phosphorylation. If this was the case, then DDK concentration would only modulate the fraction of Mcm2-7 complexes being completely phosphorylated, not the number of phosphates per Mcm2-7 tail. To investigate these possibilities, we exposed loaded Mcm2-7 complexes to increasing concentrations of DDK and monitored the extent of phosphorylation of Mcm6 using Phos-tag gels (Figure 4—figure supplement 2A). Changes in the mobility of Mcm6 indicated a distribution of numbers of phosphates, arguing against the latter model in which only complete tail phosphorylation occurs. Instead, as DDK concentration increases we see evidence for both increasing numbers of phosphates on the Mcm6 protein and a higher fraction of the molecules being modified. A similar experiment with the Mcm4 tail alone also showed elevated numbers of phosphorylation events when DDK concentration was increased (Figure 4—figure supplement 2B). These findings are consistent with DDK concentration regulating the number of Cdc45 binding through modulation of the number of Mcm4- and Mcm6-tail phosphorylation events.

Cdc45-dependent binding of multiple GINS to Mcm2-7

To investigate the incorporation of GINS into CMGs, we performed an SM assay for CMG formation in which GINS was fluorescently labeled (Figure 5A). Several observations indicated that labeled GINS was being incorporated into CMGs. First, we observed Mcm2-7-bound DNAs interacting with high-salt-resistant GINSSORT649 (Figure 5A). As we saw with Cdc45, the fraction of Mcm2-7-DNAs that bound to GINSSORT649 increased when the concentration of DDK was raised from 1.3 to 6.5 nM (0.19 ± 0.04 vs. 0.72 ± 0.04; Figure 5A). Second, we never observed more than two high-salt-stable GINSSORT649 after HSW2 (Figure 5B), and it is unlikely that we missed additional binding events due to simultaneous photobleaching of two GINSSORT649 molecules (Figure 5—figure supplement 1). Third, elimination of proteins implicated in CMG formation interfered with high-salt-resistant GINSSORT649 binding. Current models of CMG formation indicate that GINS recruitment requires S-CDK-phosphorylation-mediated interactions between Sld3, Dpb11, and Sld2. Consistent with this model, we observed a complete loss of high-salt-resistant GINS associations in the absence of Dpb11 (Figure 5A). Similarly, elimination of Cdc45 (0.09 ± 0.03) or Sld3/7 (0.07 ± 0.02) from the assay resulted in an eightfold to tenfold reduction in high-salt-resistant GINSSORT649 bound to Mcm2-72SORT549-bound DNA (Figure 5A). Thus, we conclude that the high-salt-resistant GINS binding events detected are the result of CMG formation.

Figure 5 with 3 supplements see all
Multiple GINS bind to Mcm2-7.

(A) Increasing Dbf4-dependent kinase (DDK) concentration results in more efficient Cdc45-Mcm2-7-GINS (CMG) formation that is dependent on the presence of Cdc45, Sld3/7, and Dpb11. Left: schematic representation of the experiment. Right: graph showing the fraction of n Mcm2-72SORT549-bound DNA molecules that were bound by high-salt-stable GINSSORT649 under the indicated conditions. (B) Representative GINSSORT649 fluorescence-intensity records at two DNA molecules in the presence of 1.3 nM or 6.5 nM DDK. Left panel is during CMG formation and right panel is the same molecule after the second high-salt wash (HSW2). Points colored as in Figure 2B. Photobleaching of GINSSORT649 after HSW2 is marked by gray arrows. (C) GINSSORT649 fluorescence-intensity histograms (blue) are shown for four conditions: (i) 1.3 nM DDK; (ii) 6.5 nM DDK; (iii) 6.5 nM DDK in the absence of Sld3/7; and (iv) 6.5 nM DDK in the absence of Cdc45. The histogram data were fit to a sum-of-Gaussians model (red; see Materials and methods). Fit parameters and calculated area fractions of individual Gaussian components (green) corresponding to the presence of the indicated numbers of GINSSORT649 molecules are given in Supplementary file 1b. The mean (± SE) numbers of GINS molecules per DNA are calculated from the fit parameters and the fraction GINS labeled.

Investigation of the patterns of GINS binding during CMG formation supports the hypothesis that GINS is initially recruited to DDK-phosphorylated Mcm4 and Mcm6 tails. Because GINS is thought to be recruited to Mcm2-7 by indirect interactions (via Dpb11 and Sld2) with S-CDK-phosphorylated Sld3 (Tanaka et al., 2007; Zegerman and Diffley, 2007; Muramatsu et al., 2010), it was possible that we would observe the same DDK-phosphorylation-controlled multiplicity of GINS complexes binding to loaded Mcm2-7 that we observed for Cdc45. Alternatively, GINS recruitment could require interactions with the structured regions of Mcm2-7 involved in CMG formation. In that case, we would not observe more than two GINS bound. Consistent with the first model, increasing DDK levels led to the detection of elevated numbers of GINSSORT649 binding to Mcm2-72SORT549-bound DNA molecules (Figure 5B). At 1.3 nM DDK, fluorescence-intensity analysis revealed primarily two or fewer GINSSORT649 molecules binding to a loaded Mcm2-72SORT549 double hexamer (Figure 5B, Ci). Taking into account the fraction labeled of GINS (0.71 ± 0.07), this analysis indicated an average of 1.8 ± 0.2 total GINS molecules (labeled plus unlabeled) bound per Mcm2-7-bound DNA. In contrast, at 6.5 nM DDK, five or more GINSSORT649 complexes could bind to an Mcm2-72SORT549-DNA complex with an average of 4.3 ± 0.4 GINS (labeled plus unlabeled) per Mcm2-7-bound DNA (Figure 5Cii). This average number of bound GINSSORT649 is inconsistent with a model where all GINS interactions take place at the two GINS binding sites involved in CMG formation present in a double hexamer. As with Cdc45, the fraction of DNAs with Mcm2-72SORT549 that bound GINSSORT649 at least once was similar for 1.3 nM (76/84, 0.90 ± 0.04) and 6.5 nM (54/57, 0.95 ± 0.03). Because almost all complexes bound GINS under both conditions, the impact of DDK on CMG formation is due to increased numbers of GINS bound per Mcm2-7 double hexamer.

The ability of the SM CMG formation assay to detect association of GINSSORT649 with Mcm2-7-bound DNA in real time allowed us to test the role of different proteins in initial recruitment of GINS. As expected, if these interactions occur only on Mcm2-7-bound DNA, we observed a dramatic reduction in GINSSORT649 binding events for DNAs that were not associated with a labeled Mcm2-7 (Figure 5—figure supplement 2). Consistent with models indicating a protein interaction network between Sld3, Dpb11, Sld2 recruits GINS to Mcm2-7, we found that elimination of Dpb11 dramatically reduces the frequency and multiplicity of GINSSORT649 binding to Mcm2-72SORT549 (Figure 5—figure supplement 3). We also asked if Cdc45 functioned during initial GINS association. It was possible that distinct Mcm2-7-bound Sld3 molecules recruit GINS and Cdc45, and they only come together later in CMG formation. Alternatively, GINS recruitment could require Sld3/7 to be bound to Cdc45. To distinguish between these models, we assessed GINSSORT649 binding events during CMG formation in the absence of Cdc45 or Sld3/7. Elimination of either protein resulted in similar reductions in the numbers of Mcm2-7-bound GINS during CMG formation (Figure 5C, compare panels iii and iv). Elimination of either Cdc45 (1.1 ± 0.1) or Sld3/7 (0.7 ± 0.07) resulted in a fourfold reduction in the average number of GINS (labeled plus unlabeled) per Mcm2-7-bound DNA (Figure 5Ciii, iv). Thus, we conclude that the initial binding of GINS requires both Sld3/7 and Cdc45 and that the recruitment of GINS and Cdc45 occurs via the same Sld3/7 molecules. Importantly, we also see a consistent correlation between the multiplicity of GINSSORT649 binding events (Figure 5C) and the frequency that these events are converted into CMGs (Figure 5A).

Reducing DDK-dependent phosphorylation sites decreases CMG formation

Together, our data support a model in which complexes including both Cdc45 and GINS (and likely other proteins, see Discussion) form at multiple sites on the DDK-phosphorylated Mcm2-7 N-terminal tails. We refer to these complexes as Cdc45-tail-GINS (CtG) complexes. Our data also suggests that elevating the multiplicity of CtGs formation increases the probability of CMG formation. Based on these observations, we propose that the conversion of CtGs into CMG complexes is inefficient with multiple CtGs releasing prior to successful CMG formation.

To test the model that the multiple associations of Cdc45 involve interactions with DDK-phosphorylated Mcm4 and Mcm6, we purified and fluorescently labeled Mcm2-7 complexes with fewer DDK phosphorylation sites on either the Mcm6 (Mcm2-74SNAP549-6AD/E+ASP/Q) or Mcm4 (Mcm2-72SORT549-4AD/E+ASP/Q) N-terminal tails. These mutations ablated both direct DDK target sequences (S/T-D/E) and CDK- or Mec1-phosphorylation-dependent DDK target sequences (SS/T-P/Q) (Masai et al., 2000; Cho et al., 2006; Mok et al., 2010; Randell et al., 2010). The Mcm4 AD/E+ASP/Q mutant eliminated 14 sites and Mcm6 AD/E+ASP/Q eliminated 11 sites, and simultaneous elimination of both sets of sites results in cell death (Randell et al., 2010). We also purified and fluorescently labeled a Mcm2-7 complex that lacked the Mcm6 N-terminal tail (Mcm2-74SNAP549-6ΔN). Using each of these fluorescently labeled Mcm2-7 mutants and Cdc45SORT649, we monitored the pattern of Cdc45SORT649 binding and the extent of CMG formation using 6.5 nM DDK in the SM CMG formation assay.

Each of the Mcm2-7 mutants showed a significantly lower fraction of loaded Mcm2-7 molecules that were converted to CMGs when compared to WT Mcm2-7 (Figure 6A). In experiments with 6.5 nM DDK, Mcm4 (0.21 ± 0.07) and Mcm6 (0.30 ± 0.07) mutants reduced this fraction by approximately half relative to WT Mcm2-7, consistent with the elimination of DDK sites on one of the two tails. Interestingly, the impact of the Mcm6 tail deletion (0.04 ± 0.02) was substantially larger than that of the Mcm6 phosphorylation mutant. This observation suggests that either the deletion eliminates additional phosphorylation sites that impact CMG formation or that there are other functions beyond CtG formation performed by the Mcm6 N-terminal tail during helicase activation (see Discussion). Together, these data are consistent with the multiple DDK phosphorylation sites on the Mcm4 and Mcm6 N-terminal tails being an important element in the response of the helicase activation to DDK levels.

Figure 6 with 1 supplement see all
Loss of the Mcm6 N-terminal tail reduces Cdc45 binding events and Cdc45-Mcm2-7-GINS (CMG) formation.

(A) Reduction of Dbf4-dependent kinase (DDK)-dependent phosphorylation sites on either Mcm6 or Mcm4 and deletion of the Mcm6 N-terminal tail reduced high-salt-stable Cdc45 binding to Mcm2-7-bound DNAs, indicative of CMG formation. The data from 1.3 nM and 6.5 nM DDK (first and second bars) are the same as Figure 3A. (B) Representative fluorescence-intensity records for Cdc45SORT649 binding to Mcm2–74SNAP549–6AD/E+ASP/Q- and Mcm2-72SORT549–4AD/E+ASP/Q-bound DNA during CMG formation at 6.5 nM DDK. Points colored as in Figure 2B. (C) Binding of Cdc45SORT649 to Mcm2–74SNAP549–6AD/E+ASP/Q- and Mcm2-72SORT549–4AD/E+ASP/Q-bound DNA. Cdc45SORT649 fluorescence-intensity histograms (blue) are shown for four conditions: (i) 1.3 nM DDK with wild-type (WT) Mcm2-74SNAP549, (ii) 6.5 nM DDK with WT Mcm2-74SNAP549, (iii) 6.5 nM DDK with Mcm2-74SNAP549–6AD/E+ASP/Q, and (iv) 6.5 nM DDK with Mcm2-72SORT549–4AD/E+ASP/Q. The data from 1.3 nM (i) and 6.5 nM (ii) DDK are the same as Figure 3C. Fit parameters and calculated area fractions of individual Gaussian components (green) corresponding to the presence of the indicated numbers of Cdc45SORT649 molecules are given in Supplementary file 1a. The mean (± SE) number of Cdc45 molecules per DNA are calculated from the fit parameters and the fraction Cdc45 labeled.

To ask if the reduced CMG formation observed for the Mcm2-7 mutants was due to lowering the multiplicity of CtG formation events, we monitored Cdc45SORT649 association during CMG formation at 6.5 nM DDK. We observed fewer Cdc45SORT649 binding events, relative to wild-type Mcm2-7 at 6.5 nM DDK, for each of the Mcm6 or Mcm4 N-terminal mutations (compare Figure 6B and Figure 6—figure supplement 1A with Figure 3B, bottom panel). Fluorescence-intensity analysis revealed that the average number of Cdc45 (labeled plus unlabeled) bound to Mcm2-74SNAP549-6AD/E+ASP/Q, Mcm2-72SORT549-4AD/E+ASP/Q, or Mcm2-74SNAP549-6ΔN during CMG formation at 6.5 nM DDK was also lowered when compared to WT Mcm2-7 (1.7 ± 0.2, 1.5 ± 0.1, and 0.10 ± 0.01, respectively; Figure 6C, Figure 6—figure supplement 1B). Thus, as with the protein elimination experiments (e.g., –Sld3/7, –Dpb11, and –Cdc45; Figure 3 and Figure 5), we observe a correlation between the impact of the mutants on the multiplicity of CtG events with the efficiency of CMG formation (compare Figure 6A and C).

Loss of Mcm4 or Mcm6 DDK-phosphorylation sites reduces origin firing

To test the hypothesis that the number of phosphorylation sites modulates CMG formation and helicase activation in vivo, we analyzed replication origin usage in WT cells and cells containing either the Mcm4 or Mcm6 phosphorylation-site-deficient mutant. To this end, G1 phase-synchronized cells were released into S phase with hydroxyurea (HU) and the nucleotide analog 5-bromo-2-deoxyuridine (BrdU). Because HU is an inhibitor of dNTP biosynthesis, only sequences including and adjacent to early activating origins of replication will incorporate BrdU (Yabuki et al., 2002). The reduced dNTP levels result in stalled forks that activate the intra-S-phase checkpoint to prevent initiation from late-firing origins of replication (Iyer and Rhind, 2017). The resulting DNA samples were immunoprecipitated with anti-BrdU and subjected to deep sequencing (MacAlpine et al., 2004).

The sequencing results show that the Mcm4 and Mcm6 DDK-phosphorylation-site mutants reduce but do not eliminate replication initiation. As expected, peaks of BrdU sequence reads coincide with locations of known early-initiating replication origins (Figure 7A). In this experiment, the normalized sequence read counts reflect the efficiency of early origin usage (Yabuki et al., 2002; MacAlpine et al., 2004). Importantly, we observe lower normalized read counts for the Mcm4 and Mcm6 mutant cells relative to wild-type, indicating that both mutants reduce early origin efficiency. We also measured the average read count for 5000 bp on either side of every yeast origin. As we saw for the individual origins, there is a strong reduction in initiation for both mutants in these data (Figure 7B). Together, these data indicate that the same mutations that alter CtG and CMG formation in vitro impact replication initiation in vivo, supporting a model in which modulating the ability of Mcm2-7 to form multiple CtG complexes in response to DDK levels alters origin initiation frequency in cells.

Dbf4-dependent kinase (DDK)-dependent phosphorylation sites on the N-terminal tails of Mcm4 and Mcm6 promote origin initiation.

(A) Impact of Mcm4 and Mcm6 N-terminal DDK phosphosite mutations at specific origins of replication. Normalized sequence read numbers are reported for 5-bromo-2-deoxyuridine (BrdU)-labeled DNAs across the length of Saccharomyces cerevisiae chromosome X for strains expressing wild-type Mcm2–7 (yML514), Mcm2-74AD/E+ASP/Q (yML512), or Mcm2-76AD/E+ASP/Q (yML513). Known origins of replication are represented by vertical lines at the bottom of the plot. Early origins are represented with purple vertical lines (origins with time of replication <20 min; Yabuki et al., 2002; Siow et al., 2012), whereas non-early origins are represented by yellow vertical lines. (B) Impact of Mcm4 and Mcm6 N-terminal DDK phosphorylation site mutations across all origins. The average BrdU sequence read depth (s-cpm) for strains expressing wild-type Mcm2–7, Mcm2-74AD/E+ASP/Q, or Mcm2-76AD/E+ASP/Q is reported for DNA sequences flanking all origins of replication. Origins were aligned with respect to the midpoint of each origin.

Discussion

Cdc45 and GINS are recruited by the Mcm2-7 N-terminal tails

The studies presented here provide evidence for a new intermediate in the helicase-activation process, the CtG, which can form at multiple sites on the Mcm2-7 N-terminal tails. We found that DDK levels modulate the number of these intermediates formed per loaded Mcm2-7 complex and that only a subset of CtGs transition to a CMG (Figure 8). We propose that the combination of these properties creates a mechanism that controls replication initiation efficiency by sensitizing helicase activation to DDK activity.

Proposed model for Cdc45-Mcm2-7-GINS (CMG) formation.

Dbf4-dependent kinase (DDK) levels control the amount of Mcm4 and Mcm6 N-terminal tail phosphorylation. These modifications indirectly (via Sld3/7) recruit Cdc45 and GINS, forming the Cdc45-tail-GINS (CtG) intermediate. The CtG intermediate can then follow one of two paths: (i) dissociation or (ii) deposition onto the structured core of the Mcm2-7 helicase to form the CMG. We hypothesize that the rate of this conversion is the same for any CtG, but it is infrequent. Thus, having more CtGs (e.g., at higher DDK levels) increases the probability of CMG formation, which we assume is irreversible. Relevant proteins are labeled in the illustration; red lollipops represent phosphorylations. C/G: Cdc45-GINS.

Previous studies found that Sld3 contains a phosphopeptide-binding domain that recognizes both DDK-dependent and DDK-independent phosphorylation sites on Mcm4 and Mcm6 N-terminal tails (Deegan et al., 2016). Binding of Sld3 to the DDK-dependent phosphorylation sites is required for the recruitment of Cdc45 to the Mcm2-7 double hexamer (Deegan et al., 2016). It was not clear, however, whether Sld3/7 recruited Cdc45 and GINS independently or as part of a single complex, how these interactions led to subsequent CMG formation, or how the many potential binding sites for Sld3/7 on Mcm4 and Mcm6 tails contributed.

Here, we present evidence that the initial recruitment of GINS and Cdc45 involves formation of a multi-protein complex with the Mcm2-7 N-terminal tails. First, there are only two non-tail binding sites on each Mcm2-7 double hexamer for Cdc45 or GINS (Yuan et al., 2016; Goswami et al., 2018), and yet we see more than two of these proteins bound during CMG formation (Figure 3, Figure 5). Second, binding of Cdc45 and GINS is strongly dependent on both DDK and Sld3/7 (Figure 1B, Figure 3C, Figure 5C). Because the Mcm4 and Mcm6 N-terminal tails are the targets of DDK and Sld3 binding (Sheu and Stillman, 2006; Randell et al., 2010; Deegan et al., 2016), this dependence is consistent with initial binding of Cdc45 and GINS at these sites. Third, the dwell time distributions of Cdc45 associations at high or low DDK levels are similar (Figure 4), arguing that the increased multiplicity of Cdc45 binding is not due to a distinct mechanism of Cdc45 binding at high DDK levels. Fourth, eliminating DDK-phosphorylation sites on either the Mcm4 or Mcm6 N-terminal tail greatly reduces CtG formation (Figure 6). Finally, the strong dependence of GINS recruitment on the presence of Cdc45 (Figure 5C) and the increased frequency of Cdc45 binding events in the presence of GINS and its associated factors (Figure 2) is consistent with a simple mechanism in which these proteins are recruited sequentially to the tails to form a single complex rather than binding to the tails at independent positions.

Our evidence also supports the CtG being an intermediate on the way to CMG formation. Consistent with this hypothesis, elimination of factors that promote CtG formation (e.g., DDK and Sld3/7) also inhibits CMG formation (Figure 1B, Figure 5A). Similarly, elimination of a subset of CtG binding sites by eliminating Mcm4 or Mcm6 DDK-phosphorylation or deleting the Mcm6 N-terminal tail results in a strong reduction in CMG formation that correlates with the effects on CtG formation (Figure 6). Indeed, throughout our studies we observe a consistent correlation between the multiplicity of CtG formation on a Mcm2-7 double hexamer and the efficiency of subsequent CMG formation.

We note that the impact of deleting the Mcm6 N-terminus on both CtG and CMG formation is larger than that observed for a mutation that merely eliminates DDK phosphorylation sites on Mcm6 (Figure 6, Figure 6—figure supplement 1). It is possible that there are additional non-DDK-dependent phosphorylation sites in Mcm6 that are contributing to CtG and CMG formation, and their elimination by the deletion further reduces the formation of these complexes (Figure 6, Figure 6—figure supplement 1). This model is consistent with the previous observation that not all Sld3 phosphopeptide-binding sites are canonical DDK-phosphorylation sites (Deegan et al., 2016). It is possible that such sites explain how cells survive without DDK in the context of certain Mcm2-7 mutations (Sclafani et al., 2002; Sheu and Stillman, 2010). It is also possible that forming CtGs on both the Mcm4 and Mcm6 N-terminal tails, rather than only on the Mcm4 tail, is advantageous for CMG formation. A second possibility is that there is an additional function of the Mcm6 tail that contributes to CMG formation. For example, the Mcm6 N-terminal tail could facilitate the CtG to CMG transition. We note, however, that such functions cannot be essential since the Mcm6 N-terminal deletion is not lethal in vivo (Champasa et al., 2019).

What are the components of the CtG?

Although our findings indicate that the CtG minimally includes Cdc45 and GINS bound to Mcm6 and Mcm4 N-terminal tails, this complex is likely to contain other proteins involved in CMG formation. The robust Sld3/7 dependence of Cdc45 and GINS binding to Mcm2-7 (Figure 3, Figure 5) suggests that the CtG includes this protein. A network of interactions between Sld3, Dpb11, Sld2, and GINS is required to form the CMG (Tanaka et al., 2007; Zegerman and Diffley, 2007; Muramatsu et al., 2010). Given Sld3’s known binding to phosphorylated N-terminal tails (Deegan et al., 2016), the simplest model is that these interacting proteins are required to form CtGs, and subsequently CMGs. Consistent with this model, we observe nearly a complete loss of CtG formation in the absence of Dpb11 (Figure 5C). Finally, it is possible that Pol ε is simultaneously recruited with GINS to the CtG as part of a preformed pre-LC complex (Muramatsu et al., 2010).

The full set of roles performed by Sld3, Dpb11, Sld2, and Pol ε in CtG and CMG formation remains to be determined. These proteins could be involved only in CtG assembly or their release could facilitate the transition of Cdc45 and GINS binding with the Mcm2-7 tails to form the final interactions characteristic of the CMG. We note that in our experiments eliminating Sld3/7, Cdc45, or Dpb11, we see stronger effects of Dpb11 elimination than the other two proteins on GINS associations before and after a high-salt wash (Figure 5). One interesting explanation for this distinction is that Dpb11 (and perhaps Sld2 and Pol ε) allows GINS to interact with loaded Mcm2-7 at a low level independently of Cdc45 and Sld3/7. Given that Sld3/7 is the only protein involved in CMG formation known to interact with the Mcm4 and Mcm6 phosphorylated tails, this GINS interaction is more likely to be with the Mcm2-7 site involved in CMG formation. Consistent with this idea, we never observed more than two GINS binding events in the absence of Dpb11. Such a function would suggest a role for Dpb11 in establishing interactions with the core of the Mcm2-7 complex during the CtG to CMG transition. Finally, the requirement of Cdc45 to recruit GINS (Figure 5Ciii) strongly suggests that the CtG involves direct interactions between these proteins, suggesting the interesting possibility that key interactions between these proteins involved in the CMG are already present in the CtG.

DDK effects are mediated by inefficient CtG to CMG conversion

Our studies indicate that the conversion from CtG to CMG is inefficient. With low DDK levels, we often observed two Cdc45 proteins that associated with Mcm2-7 double hexamers over long periods of time (>100 s; 33 long-lived binding events/48 double hexamers). However, only 7 of these 33 converted to CMGs (Figure 3A), indicating that most of the CtGs either dissociate or fail to become part of the CMG before the end of the experiment (Figure 8, top). We hypothesize that this inefficient conversion is true at all DDK concentrations. When DDK concentration was raised, we observed increased multiplicity of CtG formation (Figure 3A, Figure 5A). In contrast, increased DDK is not associated with a significant change in dwell times of individual Cdc45 molecules (Figure 4) or the fraction of Mcm2-7 double hexamers bound by Cdc45 or GINS. Based on these findings, we propose that, due to the inefficient conversion of CtGs to CMGs, the increased multiplicity of CtGs on a given double hexamer at higher DDK levels leads to increased opportunities for CtG conversion to CMG (Figure 8, bottom) and, therefore, increased rates of origin activation.

Implications for the control of cellular origin activation

Our model is consistent with studies addressing the control of origin initiation efficiency and replication timing (Mantiero et al., 2011; Tanaka et al., 2011). These studies showed that increasing the expression of a subset of limiting helicase-activation proteins, including the Dbf4 regulatory subunit of DDK, increased origin initiation efficiency and advanced the time of replication initiation for late initiating origins. Our findings suggest that these changes would increase the number of CtGs formed per double hexamer and consequently the efficiency of CMG formation. We propose that the combination of multiple potential phosphorylation sites on the Mcm4 and Mcm6 tails, and the inefficient conversion of the CtGs formed on the tails to the CMG, tunes the helicase-activation process to respond to levels of DDK and other helicase-activation factors. Consistent with this model, reducing the number of phosphorylation sites on Mcm4 and Mcm6 or deleting the Mcm6 tail reduced CtG and CMG formation at the same DDK levels (Figure 6). Importantly, we see that the same mutations independently reduce origin initiation efficiency in vivo (Figure 7). These observations strongly suggest that reducing the ability to form CtGs recalibrates the response of origins of replication to DDK levels. In the future, it will be of interest to investigate how the levels of DDK and other helicase-activating factors can impact replication origin efficiency in vivo when the Mcm4 and Mcm6 tails are altered.

Our proposed mechanism (Figure 8) is analogous to the regulation of Sic1 proteolysis by CDK (Nash et al., 2001). Multiple CDK phosphorylation sites on Sic1 are each weakly recognized by the Cdc4 F-box protein, leading to ubiquitinylation and degradation of Sic1. Although weakly bound, the accumulation of multiple phosphorylation sites on Sic1 promotes a switch-like response to CDK levels. We propose that the similar mechanisms are operating during helicase activation, with the Mcm4 and Mcm6 tails providing the multiple phosphorylation-dependent binding sites and the inefficient conversion of the CtG to the CMG performing the role analogous to the suboptimal Cdc4 interaction.

Processes beyond those shown in Figure 8 are likely to play important roles in origin activation. For example, our experiments did not include phosphatases that could counteract the action of DDK and CDK. Such phosphatases might be recruited by Rif1, a protein that interacts with protein phosphatase 1 and has been implicated in the regulation of replication initiation (Hafner et al., 2018; Hiraga et al., 2014; Hiraga et al., 2018; Mattarocci et al., 2014). The presence of phosphatases could regulate Mcm2-7 N-terminal tail phosphorylation levels, further sensitizing origin activation to changes in DDK level. In addition, phosphatases may be essential to remove Mcm2-7-tail phosphorylation after helicase activation to ensure that the tails of active helicases do not continue to compete for limiting helicase-activation factors.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional information
Strain, strain background
(Saccharomyces cerevisiae)
yCKR006This studyMATa ade2-1 can1-100 pep4Δ(unmarked) bar1Δ(unmarked) HIS3::pSKM004 (GAL1,10-MCM2,Flag-MCM3), URA3::pALS1 (GAL1,10-CDT1, GAL4), LYS2::pST022 (GAL1,10-MCM4-SNAP, MCM5), TRP1::pCKR006 (GAL1,10-MCM6-N-termΔ, MCM7)Mcm2-74SNAP-6ΔN expression strain. Additional information in Materials and methods. Available upon requestfrom Bell Lab.
Strain, strain background
(Saccharomyces cerevisiae)
yCKR009This studyMATa ade2-1 can1-100 pep4Δ(unmarked) bar1Δ(unmarked)HIS3::pSKM004 (GAL1,10-MCM2, Flag-MCM3), URA3::pALS1 (GAL1,10-CDT1, GAL4), LYS2::pST022 (GAL1,10-MCM4-SNAP, MCM5),TRP1::pCKR009 (GAL1,10-MCM6-AD/E+ASP/Q, MCM7)Mcm2-74SNAP-6AD/E+ASP/Q expression strain. Additional information in Materials and methods. Available upon request from Bell Lab.
Strain, strain background
(Saccharomyces cerevisiae)
yCKR047This studyMATa ade2-1 can1-100 pep4Δ(unmarked) bar1Δ(unmarked) TRP1::pSKM003 (GAL1,10-MCM6,MCM7), URA3::pALS1 (GAL1,10-DT1,GAL4),HIS3::pST048 (GAL1,10-MCM2-LPETGG, Flag-MCM3), LYS2::pCKR022 (GAL1,10-MCM4-AD/E+ASP/Q, MCM5)Mcm2-72SORT-4AD/E+ASP/Q expression strain. Additional information in Materials and methods.
Available upon request from Bell Lab.
Strain, strain background
(Saccharomyces cerevisiae)
yMM034This studyMATa ade2-1, trp1-1, leu2-3,112, his3-11,15 ura3-1, can1-100, bar1Δ (unmarked), LYS2:: HisG, pep4Δ (unmarked), LEU2:: (CDC45-3xFlag-LPETGG)Cdc45SORT expression strain. Additional information in Materials and methods.
Available upon request from Bell Lab.
Strain, strain background
(Saccharomyces cerevisiae)
yST179Ticau et al., 2017MATa ade2-1 can1-100 pep4Δ(unmarked) bar1Δ(unmarked)TRP1::pSKM003 (GAL1,10-MCM6,MCM7),URA3::pALS1 (GAL1,10-Cdt1,GAL4), HIS3::pST036 (GAL1,10-SORT-MCM2,Flag-MCM3), LYS2::pSKM002 (GAL1,10-MCM4, MCM5)Mcm2-72SORT expression strain.
Strain, strain background
(Saccharomyces cerevisiae)
yST147Ticau et al., 2017MATa ade2-1 can1-100 pep4Δ(unmarked) bar1Δ(unmarked) TRP1::pSKM003 (GAL1,10-MCM6,MCM7), HIS3::pSKM004 (GAL1,10-MCM2,Flag-MCM3), LYS2::pST022 (GAL1,10-fSNAP-MCM4, MCM5), URA3::pALS1 (GAL1,10-CDT1, GAL4)Mcm2-74SNAP expression strain.
Strain, strain background
(Saccharomyces cerevisiae)
yML512This study, Randell et al., 2010MatA, ade2-1, ura3-11, his3-11,15, can-100, mcm4Δ::hisG TRP1::pJR140 (MCM4-HA/HIS-AD/E ASP/Q) LEU2::p405-BrdU-IncAdditional information in Materials and methods.
Available upon request from Bell Lab.
Strain, strain background
(Saccharomyces cerevisiae)
yML513This study, Randell et al., 2010MatA, ade2-1, ura3-11, his3-11,15, can-100, mcm4Δ::hisG TRP1::pJR149 (MCM6-HA/HIS-AD/E ASP/Q) LEU2::p405-BrdU-IncAdditional information in Materials and methods.
Available upon requestfrom Bell Lab.
Strain, strain background
(Saccharomyces cerevisiae)
yML514This study, Randell et al., 2010MatA, ade2-1, ura3-11, his3-11,15, can-100, mcm4Δ::hisG TRP1::pJR121 (MCM4-HA/HIS-AD/E ASP/Q)LEU2::p405-BrdU-IncAdditional information in Materials and methods.
Available upon request from Bell Lab.
Recombinant DNA reagentpSNAP-tag (T7)-2NEBN9181S, RRID:Addgene_90314Vector that can be used for expression of SNAP-protein alone (20 kDa).
Recombinant DNA reagentpUC19-ARS1Heller et al., 2011pUC19 (ARS1)Used in ensemble CMG formation assay and to construct the SM templates.
Recombinant DNA reagentpCKR006This studypSK003 (GAL1,10-MCM6-N-termΔ, MCM7)Additional information in Materials and methods.
Available upon request from Bell Lab.
Recombinant DNA reagentpCKR009This studypSKM003 (GAL1,10-MCM6-AD/E+ASP/Q, MCM7)Additional information in Materials and methods.
Available upon request from Bell Lab.
Recombinant DNA reagentpCKR022This studypSKM002 (GAL1,10-MCM4-AD/E+ASP/Q, MCM5)Additional information in Materials and methods.
Available upon requestfrom Bell Lab.
Recombinant DNA reagentpCKR032This studypMM033 (CDC45-3xFlag-LPETGG)Additional information in Materials and methods.
Available upon request from Bell Lab.
Recombinant DNA reagentpLDK03This studypFJD5 (6XHIS-PreScission Protease site-Psf3-LPETGG)Used to express GINSSORT649 in bacteria. Additional information in Materials and methods.
Available upon requestfrom Bell Lab.
Recombinant DNA reagentpLDK04This studypSNAP-tag (T7)−2 (8xARG-Mcm4 N-terminal tail-SNAP)Used to express the Mcm4 N-terminal tail fused to the SNAP tag in bacteria. Additional information in Materials and methods.
Available upon requestfrom Bell Lab.
Recombinant DNA reagentp405-BrdU-IncViggiani and Aparicio, 2006p405-BrdU-Inc (LEU2, BrdU Incorporation), RRID:Addgene_71791Plasmid that allows yeast cells to incorporate BrdU.
Sequence-based reagentOligo for 1.2 kb circular templateIDT5′-AATTAGCGGCCGCAAGGC/iBiodT/GATTAAGTT-3′NotI site in bold.
Sequence-based reagentOligo for 1.2 kb circular templateIDT5′-ATTAAGCGGCCGCAGCGGA/iAlexa488N/TAACAATTT-3′NotI site in bold.
Sequence-based reagentOligo for 1.1 kb unwinding templateIDT5′-
/5Cy5/TACGCCAAGCTTGCATGCGGATGTTGC
−3′
Part of NotI sticky end in bold.
Sequence-based reagentOligo for 1.1 kb unwinding templateIDT5′-
/5Phos/GGCCGCAACATCCGCATGCAAGCTTGGCGTA/3BHQ2/
−3′
Part of NotI sticky end in bold.
Peptide, recombinant proteinPeptide for coupling to dyes for
Sortase labeling
Ticau et al., 2017NH2-GGGHHHHHHHHHHC-COOH
Chemical compound, drugDY549-P1DyomicsDyomics: 549P1-03Maleimide-coupled fluorescent dye
Chemical compound, drugDY649-P1DyomicsDyomics: 649P1-03Maleimide-coupled fluorescent dye
Chemical compound, drugSNAP-Surface 549NEBFluorescent substrate used to label SNAP-tag fusion proteins (Mcm2-)
AntibodyAnti-Mcm2-7, rabbit polyclonalBell LabUM174(1:10,000)
AntibodyAnti-Cdc45, rabbit polyclonalLõoke et al., 2017HM7135(1:2000)
AntibodyAnti-GINS, rabbit polyclonalLõoke et al., 2017HM7128(1:2000)
Gene (Saccharomyces cerevisiae)MCM2Saccharomyces
Genome Database
SGD:
S000000119
Gene (Saccharomyces cerevisiae)MCM3Saccharomyces
Genome Database
SGD:
S000000758
Gene (Saccharomyces cerevisiae)MCM4Saccharomyces
Genome Database
SGD:
S000006223
Gene (Saccharomyces cerevisiae)MCM5Saccharomyces
Genome Database
SGD:
S000004264
Gene (Saccharomyces cerevisiae)MCM6Saccharomyces
Genome Database
SGD:
S000003169
Gene (Saccharomyces cerevisiae)MCM7Saccharomyces
Genome Database
SGD:
S000000406
Gene (Saccharomyces cerevisiae)CDC45Saccharomyces
Genome Database
SGD:
S000004093
Gene (Saccharomyces cerevisiae)SLD5Saccharomyces
Genome Database
SGD:
S000002897
Gene (Saccharomyces cerevisiae)PSF1Saccharomyces
Genome Database
SGD:
S000002420
Gene (Saccharomyces cerevisiae)PSF2Saccharomyces
Genome Database
SGD:
S000003608
Gene (Saccharomyces cerevisiae)PSF3Saccharomyces
Genome Database
SGD:
S000005506
Software, algorithmMatlabMathworksThe 'intervals' files are readable by the imscroll program:
(https://github.com/gelles-brandeis/CoSMoS_Analysis; Gelles and Friedman, 2021; copy archived at swh:1:rev:3eec2cbfa54018389fc1905b54c4b062723a5a7f)

Preparation of unlabeled proteins

Request a detailed protocol

Wild-type unlabeled Mcm2-7/Cdt1 and ORC complexes were purified as described previously Kang et al., 2014. Wild-type Cdc6 was purified as described in Frigola et al., 2013. Wild-type DDK, S-CDK, Sld3/7, Sld2, unlabeled Cdc45, Dpb11, unlabeled GINS, Mcm10, Pol ε, and RPA were purified as described in Lõoke et al., 2017.

Preparation of GINSSORT649

Request a detailed protocol

Plasmid pFJD5 (gift from K. Labib) was modified with a His-Tag followed by a PreScission Protease tag at the N-terminus of Psf3 and a LPTEGG at the C-terminus of Psf3 (pLDK03, Key Resources Table) to facilitate peptide addition by Sortase. The plasmid was expressed in BL21 (D3) competent Escherichia coli (NEB) and purified as described in Yeeles et al., 2015 with the following modifications. After eluting from HisPur Ni-NTA resin (ThermoFisher Scientific), the eluates were incubated with excess PreScission Protease at 4°C overnight, then incubated with HisPur Ni-NTA resin to remove any uncleaved GINS. The unbound protein was collected and applied to MonoQ column as described in Yeeles et al., 2015. The peak GINS fractions were collected and Sortase was used to attach the peptide NH2-GGGHHHHHHHHHHC-COOH coupled to maleimide-Dy649P1 (Dyomics) to the C-terminus of Psf3 to form GINSSORT649. Sortase coupling of the fluorescent peptide was performed as described in Ticau et al., 2017. After fluorescent labeling, GINS SORT649 was applied to a Superdex S200 column as described in Yeeles et al., 2015. Peak fractions were pooled and applied to Ni-NTA resin pre-equilibrated with buffer H (25 mM HEPES-KOH [pH 7.6], 5 mM MgOAc, 10% glycerol, and 0.02% NP-40), supplemented with 200 mM potassium acetate (KOAc), 0.02% Nonidet P-40 (NP-40), and 10 mM imidazole, for 30 min with rotation at 4°C to separate peptide-coupled GINS from uncoupled GINS. The resin was washed with buffer H, supplemented with 200 mM KOAc, 0.02% NP-40, and 30 mM imidazole. Fluorescently labeled GINSSORT649 was eluted using buffer H, supplemented with 200 mM KOAc, 0.02% NP-40, and 250 mM imidazole. Peak fractions were pooled, aliquoted, and stored at −80°C.

Preparation of Cdc45SORT649

Request a detailed protocol

A CDC45-expressing plasmid was modified by appending sequences encoding a Flag-epitope followed by LPETGG at the 5′ end of the gene of plasmid pMM032 (Key Resources Table). This plasmid was integrated into genome of yMH109 to create yMM034 (Key Resources Table). This strain was used to purify Cdc45 as described in Lõoke et al., 2017 with the following modifications. After elution from anti-Flag M2 affinity gel (Sigma), the eluate was attached with Sortase to the peptide NH2-GGGHHHHHHHHHHC-COOH coupled to maleimide-Dy649P1 (Dyomics) as described in Ticau et al., 2017. The modified protein was applied to a Superdex S75 column equilibrated with buffer H, supplemented with 0.3 M KGlut and 5% glycerol. The peak fractions were applied to a HisPur Ni-NTA resin (ThermoFisher Scientific) equilibrated with buffer H, supplemented with 300 mM KGlut and 5 mM imidazole, for 30 min with rotation at 4°C to separate peptide-coupled from uncoupled Cdc45. The flow-through was discarded and the resin was washed with buffer H, supplemented with 300 mM KGlut and 20 mM imidazole. Fluorescently labeled Cdc45SORT649 was eluted using buffer H, supplemented with 300 mM KGlut and 250 mM imidazole. Peak fractions were pooled, aliquoted, and stored at −80°C.

Preparation of Mcm2-74SNAP549, Mcm2-72SORT549 Mcm2-74SNAP5496ΔN, Mcm2-74SNAP549-6AD/E+ASP/Q, and Mcm2-72SORT549-4AD/E+ASP/Q

Request a detailed protocol

The Mcm6-Mcm7 overexpression plasmid was modified by deleting the sequences encoding Mcm6 amino acids 2–105 to create the plasmid pCKR006 (Key Resources Table). This plasmid was integrated into the genome of a strain that contained expression constructs for Mcm2, Mcm3, Mcm4, Mcm5, and Cdt1 to create the yeast strain yCKR006 (Key Resources Table). The Mcm6-Mcm7 overexpression plasmid was modified by substituting serine and threonine in SS/T-P/Q and S/T-D/E sequences to alanine to create the plasmid pCKR009 (Key Resources Table). This plasmid was integrated into the genome of a strain that contained expression constructs for Mcm2, Mcm3, Mcm4, Mcm5, and Cdt1 to create the yeast strain yCKR009 (Key Resources Table). The Mcm4-Mcm5 overexpression plasmid was modified by substituting serine and threonine in SS/T-P/Q and S/T-D/E sequences to alanine to create the plasmid pCKR022 (Key Resources Table). This plasmid was integrated into the genome of a strain that contained expression constructs for Mcm2, Mcm3, Mcm6, Mcm7, and Cdt1 to create the yeast strain yCKR047 (Key Resources Table). Mcm2-7/Cdt1 SNAP-tag ΔN6 (yCKR006), Mcm2-7/Cdt1 SNAP-tag 6AD/E+ASP/Q (yCKR009), Mcm2-7/Cdt1 SORT-tag 4AD/E+ASP/Q (LPETGG at the C-terminus of Mcm2 for fluorescent labeling, yCKR047), Mcm2-7/Cdt1 SORT-tag (LPETGG at the C-terminus of Mcm2 for fluorescent labeling, yST179, Key Resources Table), and Mcm2-7/Cdt1 SNAP-tag (SNAP-tagged at Mcm4 for fluorescent labeling, yST147, Key Resources Table) were purified from the indicated yeast strains as described previously in Kang et al., 2014 with the following modifications. After ultracentrifugation, the whole cell extract was applied to 1 mL of anti-Flag M2 affinity gel (Sigma) pre-equilibrated with buffer H, 200 mM KGlut, 0.01% NP-40, and 1 mM ATP and incubated with rotation for 2 hr at 4°C. The flow-through was discarded and the resin was washed with 30 mL of buffer H, supplemented with 300 mM KGlut, 0.01% NP-40, and 1 mM ATP. Mcm2-7/Cdt1 was eluted with buffer H, supplemented with 300 mM KGlut, 0.01% NP-40, 1 mM ATP, and 0.1 mg/mL 3xFLAG peptide for the first elution and with 0.3 mg/mL 3xFLAG peptide for the consecutive elutions. After elution from anti-Flag M2 affinity gel, the eluate was fluorescently labeled as follows. For Mcm2-74SNAP549, Mcm2-74SNAP549-6AD/E + ASP/Q, and Mcm2-74SNAP5496ΔN (SNAP at the N-terminus of Mcm4), the FLAG eluate was labeled with SNAP-Surface549 (NEB) by incubating 3x molar excess of dye at 4°C overnight. After coupling the protein to the fluorophore, the reaction was applied to a Superdex S200 column equilibrated with buffer H, supplemented with 300 mM KGlut, 0.01% NP-40, and 1 mM ATP. Peak fractions containing Mcm2-74SNAP549,, Mcm2-74SNAP5496ΔN, or Mcm2-74SNAP549-6AD/E+ASP/Q/Cdt1 were pooled, aliquoted, and stored at −80°C. Mcm2-74SNAP549/Cdt1 was used in all experiments with Cdc45SORT649, with exception of experiments with N-terminal mutants of Mcm2-7.

For Mcm2-72SORT549 or 2SORT549-4AD/E+ASP/Q/Cdt1 (LPETGG at the C-terminus of Mcm2), the FLAG eluate was attached with Sortase to the peptide NH2-GGGHHHHHHHHHHC-COOH coupled to maleimide-Dy649P1 (Dyomics) as described in Ticau et al., 2017. Mcm2-72SORT549/Cdt1 was applied to a Superdex S200 column equilibrated with buffer H, supplemented with 300 mM KGlut, 0.01% NP-40, and 1 mM ATP. Peak fractions containing fluorescently labeled Mcm2-72SORT549 or 2SORT549-4AD/E + ASP/Q/Cdt1 were pooled, aliquoted, and stored at −80°C. Mcm2-72SORT549/Cdt1 was used in all experiments with GINSSORT649.

Determining Mcm2-7, Cdc45, and GINS labeling fraction

Request a detailed protocol

To determine what fraction of Mcm2-74SNAP549 were fluorescently labeled, SNAP-Surface549 labeled Mcm2-7 was mixed with maleimide-DY-649P1 dissolved in anhydrous dimethyl sulfoxide (DMSO) in a 1:1 ratio, and the reaction and analysis were carried out as described in Ticau et al., 2015. The labeled fraction for Mcm2-74SNAP549 was determined to be 0.74 ± 0.05. To determine the labeling fraction of Cdc45SORT649 (and GINSSORT649), the labeled proteinwas mixed with maleimide-DY549P1 dissolved in anhydrous DMSO in a 1:1 molar ratio at 4°C for 10 min. The maleimide-DY549P1 will label free cysteines in the protein. The reaction was terminated with 2 mM DTT. We added 5 nM of maleimide-DY549P1-labeled Cdc45SORT649 (or 8 nM maleimide-DY549P1-labeled GINSSORT649) to the SM CMG-formation assay with 1.3 nM DDK to obtain single Cdc45SORT649 (or GINSSORT649) traces. The fraction of maleimide-DY549P1-labeled Cdc45SORT649 (or GINSSORT649) that also contained DY-649P1 was determined and reported as the percent labeling by the DY-649P1 (we assume that coupling of maleimide-DY-549P1 or DY-649P1 to Cdc45, Mcm2-7, and GINS is not influenced by the presence or absence of the 649 or 549 label). The labeled fractions for Cdc45SORT649 and GINSSORT649 were determined to be 0.73 ± 0.07 and 0.71 ± 0.07, respectively. To lower the labeling fraction of Cdc45SORT649 to 0.036, the Cdc45SORT649 preparation was mixed at a 1:19 ratio with unlabeled Cdc45.

Generation of circular template

Request a detailed protocol

To create biotin- and fluorescently labeled circular origin DNA, a 1.3 kb ARS1-containing interval of the DNA plasmid template pUC19-ARS1 was amplified with NotI-site-containing primers, one of which contained a biotin and the other an Alexa-Fluor-488 dye (Key Resources Table). After PCR cleanup with QIAquick PCR Purification Kit (Qiagen), the PCR product was digested with NotI (NEB) at 37°C for 4 hr and repurified with a QIAquick PCR Purification Kit. We next performed a ligation with 0.2 ng/µL of digested DNA and 0.04 U/µL of T4 DNA ligase (NEB) at 18°C overnight to favor intramolecular ligation. The ligation products were purified by phenol–chloroform extraction and concentrated by ethanol precipitation. The concentrated DNA was then run on a 1.5% TBE-agarose gel, and the circular DNA band was extracted and purified with QIAquick Gel Extraction Kit (Qiagen).

SM assay for CMG formation

Request a detailed protocol

Biotinylated Alexa-Fluor-488-labeled, 1.2-kb-long circular-DNA molecules containing an origin were coupled to the surface of a reaction chamber through streptavidin. We identified DNA molecule locations by acquiring 4–7 images with 488 nm excitation at the beginning of the experiment. Helicase loading reaction was performed as described in Ticau et al., 2015. Reaction buffers for helicase loading were as described in Ticau et al., 2015. All subsequent steps (i.e., Mcm2-7 phosphorylation and CMG formation) used the same helicase-loading buffer. After helicase loading, either 1.3 or 6.5 nM DDK was added. Chambers were then washed with two chamber volumes of buffer A (25 mM HEPES-KOH [pH 7.6], 5 mM magnesium acetate [MgOAc], 0.02% NP-40), supplemented with 0.5 M NaCl (HSW1), followed by one chamber volume of buffer A supplemented with 300 mM KGlut. Next, CMG-formation reaction was added containing 7.5 nM CDK, 15.5 nM Sld2, 10 nM Dpb11, 7.5 nM Pol ε, 50 nM GINS, 12.5 nM Sld3/7, and 12.5 nM Cdc45. DNA was imaged immediately after adding the CMG-formation reaction to the slide but not throughout the experiment. When using Cdc45SORT649 or GINSSORT649, they were added at 5 nM and 7 nM, respectively. After ~30 min, chambers were washed with four chamber volumes of buffer A supplemented with 0.5 M NaCl (HSW2), followed by one chamber volume of buffer A supplemented with 300 mM KGlut.

SM assay for DNA unwinding

Request a detailed protocol

To obtain the 1.1 kb linear-DNA molecules used for the DNA unwinding assay, the same origin-containing interval of pUC19-ARS1 was amplified with a NotI-site-containing primer and a biotin-containing primer (Key Resources Table). The PCR-amplified DNA was digested with NotI (NEB), purified with a QIAquick PCR Purification Kit (Qiagen), and ligated with oligos each containing a Cy5- or BHQ-2 label and NotI sticky ends complimentary to the amplified DNA template. After ligation, the DNA product was purified with a QIAquick PCR Purification Kit (Qiagen). The DNA was coupled to the surface of a reaction chamber in a streptavidin-mediated reaction to slide-attached PEG-biotin as described previously in Ticau et al., 2015.

Helicase-loading, DDK, CMG-formation, and DNA-unwinding reactions were performed as described above with the following modifications: for DNA unwinding, 12.5 nM RPA and 0.625 nM Mcm10 were added. No high-salt wash was performed after DNA-unwinding reaction.

SM microscopy

Request a detailed protocol

The micro-mirror total internal reflection microscope used for multiwavelength SM imaging using excitation wavelengths 488, 532, and 633 nm is described in Friedman et al., 2006. Briefly, the chamber surface was cleaned and derivatized using a 200:1 ratio of silane-NHS-PEG and silane-NHS-PEG-biotin as described in Ticau et al., 2015. Biotinylated Alexa-Fluor-488-labeled 1.2 kb circular DNA molecules containing an origin were coupled to the surface of a reaction chamber through streptavidin. Subsequently, Mcm2-7 loading, Mcm2-7 phosphorylation, and CMG-formation reactions (or DNA unwinding) were added to a chamber of the microscope slide. DNA was imaged immediately after adding the CMG-formation reaction to the slide but not throughout the experiment. After addition of CMG-formation proteins to Mcm2-7-bound DNA, images were acquired according to one of two different protocols. For Figure 3 through 6, we alternated acquisition of 1 s duration frames with 532 nm excitation (0.4 mW power incident to the final focusing lens) with 1 s duration frames with 633 nm excitation (0.25 mW incident power). For Figure 2, frames of 1 s duration were acquired continuously with both 532 nm (0.4 mW incident power) and 633 nm (0.30 mW incident power) excitation. In both protocols, a computer-controlled focus adjustment utilizing a 785 nm laser was performed approximately once every second (Crawford et al., 2008). For all experiments, we used the following filters: Semrock NF03-532E-25 (notch filter at 532 nm to remove scatter during 532 nm laser excitation), Semrock NF03-633E-25 (notch filter at 633 nm to remove scatter during 633 nm laser excitation), and Semrock FF01-525/50 (bandpass filter for removing scatter during 488 nm laser excitation). This cycle was repeated over the course of an ~30 min experiment. After ~30 min of incubation, chambers were washed with four chamber volumes of buffer H supplemented with 500 mM NaCl and one chamber volume of buffer H supplemented with 300 mM of KGlut. Recording of protein photobleaching was then performed as described in Ticau et al., 2015.

SM data analysis

Request a detailed protocol

Analysis of the CoSMoS data sets was as described in Ticau et al., 2015. Records of protein SM fluorescence were corrected for background fluorescence as follows: one set of intensity time records summed intensities of 5 × 5 pixel areas centered on the DNA molecule locations (Dj(m) records for integrated intensity from the mth frame for the jth DNA molecule area). Additional time records similarly recorded time-smoothed background intensity levels from areas adjacent to each DNA molecule location (Bj(m) background records for the jth DNA molecule) and the time-smoothed background offset record for the camera with no light incident (C(m) record). Background-corrected fluorescence-intensity records were calculated as Dj(m) – Bj(m).

Background fluorescence (solution dye + slide autofluorescence) results in a (Bj(m) – C(m)) value that is proportional to the local laser excitation at the jth DNA site. One DNA site record was chosen as having a reference level of laser excitation (BR(m) – C(m)), and the time record for all other DNA sites was background-corrected and normalized to correspond to the laser excitation at that reference j = R site. Accordingly, this background-corrected normalized time record Nj(m) for each DNA site is

Njm=Djm - Bjm (BRm - Cm)(Bjm - Cm)

Source data for the SM experiments is provided as intervals files in Zenodo under the accession code 4309997. The ‘intervals’ files can be read and manipulated by the Matlab program imscroll, which is publicly available: https://github.com/gelles-brandeis/CoSMoS_Analysis

Intensity histogram fitting

Request a detailed protocol

Using a noise (variance) vs. (signal mean) measurement, we determined the calibration factor k, the number of photons corresponding to one digitized intensity unit (analog-to-digital unit [ADU]) (k = 0.0118 photons/ADU) (Friedman et al., 2006). From the recording of each experiment, we defined g = <(BR(m)– C(m))> k, the mean value (in photons) of the reference DNA site background intensity averaged over all frames for that experiment.

The intensity data Nj(m) from j = 200 to 400 DNA locations over m = 600 time points (1500 s recording duration) were pooled for intensity distribution analysis of N. Outlier measurements with N values > 50,000 ADU (in all experiments less than 5% of measurements) were excluded from histograms and fits.

The distributions of corrected intensities N from each experiment were fit to a modified binomial-distributed Gaussian mixture model probability density function

pN=i=0nPi'σi2πexp-12N-isσi2

with the normalized amplitudes

Pi'=Pi/i=0nPi

derived from the modified Binomial distribution

Pi={q+(ni)λi(1λ)nii=0(ni)λi(1λ)nii>0

and the component widths

σi= g+iskk2+xi2

with fit parameters q, s, λ, and x. The number of components was held fixed at n = 8, although component numbers for i > 6 did not contribute significantly to the probability density function (Pi' < 0.01) in any of the data sets analyzed (Supplementary file 1a and Supplementary file 1b). In this model, q is an additional amplitude in the zeroth peak to account for target molecules incapable of binding labeled protein, s is the corrected intensity (expressed in ADU) corresponding to a single dye molecule, nλ is the mean number of dye molecules per binding-competent Mcm2-7-bound DNA, and x is an additional variation in fluorescent spot intensity (expressed in ADU) presumed to arise from DNA Brownian motion. In some experiments with minimal labeled protein binding (marked in Supplementary file 1a, b), the data were not sufficient to constrain the confidence interval lower limit for one or both variables λ and x. Fit parameters were determined by maximizing the likelihood using customized Matlab software (in https://github.com/gelles-brandeis/jganalyze; Friedman and Gelles, 2015).

Bulk CMG-formation assay

Request a detailed protocol

Ensemble CMG-formation assays were performed as described in Champasa et al., 2019.

Phosphorylation assays on SuperSep Phos-tag gels

Request a detailed protocol

Each incubation step was performed in a thermomixer (Eppendorf) with shaking at 1250 rpm at 25°C. The DNA template was the same used in CMG-formation assays as described in Champasa et al., 2019. Helicase loading reactions contained 100 nM Mcm2-7, 45 nM ORC, and 45 nM Cdc6. After loading, DDK was added at varying concentrations (0 nM, 20 nM, 80 nM, 120 nM, 260 nM, and 500 nM) for 20 min. The supernatant was removed by applying the reaction to a DynaMag-2 magnet (ThermoFisher Scientific). Reactions were washed with buffer H, 300 mM KCl, and 0.01% NP-40 three times. Proteins were released from the DNA by incubation with 5 U of DNA I (Worthington) in 10 mL of 25 mM HEPES-KOH (pH 7.6), 5 mM MgOAc, 200 mM NaCl, 5% glycerol, 0.02% NP-40, and 2 mM CaCl2 for 20 min at 25°C before running on a pre-cast 10% SuperSep Phos-tag gel at 25 mA for > 2 hr. The gels were then stained using Krypton Protein Stain (ThermoFisher Scientific).

When Mcm4 N-terminal tail fused to SNAP-tag protein was used, then 500 nM of protein was phosphorylated with varying concentrations of DDK (0 nM, 20 nM, 80 nM, 120 nM, 260 nM, and 500 nM) for 20 min. Reactions were run on a pre-cast 10% SuperSep Phos-tag gel at 25 mA for >2 hr. The gels were then stained using Krypton Protein Stain (ThermoFisher Scientific).

BrdU ChIP-seq

Request a detailed protocol

Fifty milliliters of OD 0.5 cell culture in YPD was used for each sample. Initially, cells were arrested in G1 phase by supplementing the media with 5 nM α-factor for 2.5 hr. The α-factor-arrested cells were washed once with MilliQ water and resuspended in YPD release media supplemented with 50 mM HU, 1.3 mM BrdU (Millipore Sigma), and 300 μg/mL of pronase (Millipore Sigma). After 1 hr, cell growth and replication were terminated by adding sodium azide (0.1% final concentration) to the samples. For DNA extraction, cells were washed once with MilliQ water (supplemented with 0.1% sodium azide), followed by degradation of cell walls by zymolyase 20T (Sunrise Science Products) (100 μg/mL final concentration) in 10 mM Tris-HCl pH 8, 10 mM CaCl2, 1 M Sorbitol, 0.1% 2-mecaptoethanol, and 0.1% sodium azide 1 hr at 30°C. Following cell wall degradation, spheroplasts were collected by centrifugation at 200 × g for 5 min and lysed in 50 mM Tris-HCl pH 8, 10 mM EDTA, and 1.2% SDS. Cell lysates were brought to 150 mM NaCl and 100 µg/mL RNase A (Amresco) and incubated for 2 hr at 37°C. Following RNA degradation, Proteinase K (Amresco) was added to the lysate at 50 μg/mL final concentration and incubated for an additional hour at 65°C. Finally, samples were extracted with phenol/chloroform and residual phenol was removed by an additional chloroform extraction. To precipitate the resulting purified DNA, sodium acetate was added to a final concentration of 300 mM, followed by the addition of three volumes of 100% ethanol. After centrifugation at 15,000 × g for 15 min at room temperature, the resulting pellet was resuspended in 400 μL of water. The purified DNA was fragmented to ~250 bp average length by sonication and heat denatured (5 min at 95°C), followed by snap-cooling in ice water. For BrdU immunoprecipitation (IP), 400 μL of IP buffer (50 mM HEPES, pH 7.5, 140 mM NaCl, 1 mM EDTA, 1% Triton X-100, 0.1% sodium deoxycholate) and 3 μL of anti-BrdU antibody (BD; catalog: 555627) were added to the DNA and incubated for 2 hr at room temperature. Antibody-DNA complexes were collected by the addition of 20 μL of Sepharose G beads and incubated for 1 hr at room temperature. DNA-bound beads were washed three times with IP buffer, followed by two sequential rounds of elution with elution buffer (100 mM Tris-HCl pH 7.5, 1 mM EDTA, 1% SDS, 400 mM NaCl) at 65°C for 15 min. The eluted DNA was ethanol precipitated as described, and the DNA pellet was resuspended in 100 μL of water. Sequencing libraries were prepared using NEBNext Ultra II DNA Library Prep Kit for Illumina, according to the manufacturer’s instructions, and sequenced using the Illumina HiSeq2000 platform. Sequencing data associated with the in vivo replication data has been deposited in Zenodo under the accession code 4507881.

Analysis of genome sequencing data

Request a detailed protocol

Raw sequencing reads were mapped to the Saccharomyces cerevisiae genome (S288C reference) using Bowtie2, sorted and indexed with Samtools. Only uniquely mapping reads were used for analysis. To normalize the data, count per kilobase million (cpm) value was calculated for each base as (read count for base/all reads) × 103 (kilobase) × 106 (million). This value was next scaled by dividing it with the lower 10% quantile (non-replicating areas of the genome) for each barcode to obtain the scaled cpm (s-cpm) value. The s-cpm value was smoothed using one-dimensional Gaussian filter with a sigma value of 1000 and plotted for every bp on chromosome X. To plot the averaged s-cpm values for all annotated replication origins, replication origin positions were downloaded from https://yeastmine.yeastgenome.org/ using InterMine (Smith et al., 2012). Next, replication origins were aligned based on their midpoints, and the average of all s-cpm values was calculated from −5000 bp to +5000 bp from origin midpoints. Early origins were defined as origins with a time of replication less than 20 min (Siow et al., 2012; Yabuki et al., 2002).

Data availability

Source data for the single-molecule experiments is provided as "intervals" files that can be read and manipulated by the Matlab program imscroll, which is publicly available: https://github.com/gelles-brandeis/CoSMoS_Analysis (copy archived at https://archive.softwareheritage.org/swh:1:rev:3eec2cbfa54018389fc1905b54c4b062723a5a7f/). The source data are archived as doi: https://doi.org/10.5281/zenodo.4309997. The sequencing data from the in vivo replication assay is archived as DOI: https://doi.org/10.5281/zenodo.4507881.

The following data sets were generated
    1. Looke M
    2. Bell SP
    (2021) Zenodo
    Origins of replication in vivo source data.
    https://doi.org/10.5281/zenodo.4507881

References

    1. Sclafani RA
    2. Tecklenburg M
    3. Pierce A
    (2002)
    The mcm5-bob1 bypass of Cdc7p/Dbf4p in DNA replication depends on both Cdk1-independent and Cdk1-dependent steps in Saccharomyces cerevisiae
    Genetics 161:47–57.

Decision letter

  1. Michael R Botchan
    Reviewing Editor; University of California, Berkeley, United States
  2. Kevin Struhl
    Senior Editor; Harvard Medical School, United States
  3. Michael R Botchan
    Reviewer; University of California, Berkeley, United States
  4. Dirk Remus
    Reviewer; Memorial Sloan Kettering Cancer Center, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The manuscript provides new and convincing evidence that a heretofore unknown intermediate state for replication start contains multiple copies of the GINS and Cdc45 proteins prior to initiation at each origin with one double hexamer of the MCM2-7 complex. The number of GINS and Cdc45 is determined by DDK phosphorylation of the MCM's and the probability to create an active helicase (CMG) is increased with multiple numbers of the bound ancillary factors. Furthermore the key issues raised by the reviewers have been adequately dealt with in this revision. The single molecule studies and biochemistry are beautifully executed providing the evidence for such intermediates. We agree that the addition of in vivo studies demonstrates that modulating the multiplicity of DDK phosphorylation (and proposed, CtG formation) has an impact on origin usage in cells.

Decision letter after peer review:

Thank you for submitting your article "DDK regulates replication initiation by controlling the multiplicity of Cdc45-GINS binding to Mcm2-7" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Michael R Botchan as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Kevin Struhl as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Dirk Remus (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our policy on revisions we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, when editors judge that a submitted work as a whole belongs in eLife but that some conclusions require a modest amount of additional new data, as they do with your paper, we are asking that the manuscript be revised to either limit claims to those supported by data in hand, or to explicitly state that the relevant conclusions require additional supporting data.

Our expectation is that the authors will eventually carry out the additional experiments and report on how they affect the relevant conclusions either in a preprint on bioRxiv or medRxiv, or if appropriate, as a Research Advance in eLife, either of which would be linked to the original paper.

All of the reviewers concurred that the manuscript provides important new data and hope that the comments below will help in improving the paper before publication.

Summary:

De Jesus-Kim and colleagues use co-localization single-molecule spectroscopy to study the formation of the CMG replicative holo-helicase at replication origins using purified proteins. They identify a new intermediate (CtG, Cdc45-tail-GINS). This intermediate is en route to CMG formation and includes Cdc45 and GINS, which are recruited by the N-terminal tails of Mcm4 and Mcm6, in a process that depends on phosphorylation by DDK. It is established that multiple phospho-sites exist both in N-Mcm4 and N-Mcm6. The authors find that the degree of phosphorylation controls the number of Cdc45 and GINS molecules that can be recruited onto a loaded MCM at any one time. Furthermore, the authors find that the transition from CtG to CMG is inefficient, however, CtGs that contain a higher number of Cdc45 and GINS particles convert to CMG more frequently. This is an elegant, technically sound study that informs the mechanism of eukaryotic origin activation and will be of interest to a broad readership.

The three reviewers all have suggestions for your consideration in the revisions. However, we feel that the following are the issues that must be addressed either by further text revisions or experiments:

1) The Abstract is difficult to understand and perhaps misleading, especially for those outside the field. The actual protein composition of the CtGs is not known from the data and the authors are of course clear about this in the manuscript. The Abstract should clarify this.

2) Understood that the deletion of the Mcm 4 "tail" is lethal but is that also true in their system? Would that deletion with a wt Mcm6 lead to a more dramatic loss in the measures used?

3) Figure 1B. Can the authors explain why the number of molecules observed in DDK/Sld3/lambda PP is >13 fold lower than n in DDK/Sld3?

4) Figure 2. In panel A the intensities fluctuation is high, suggesting that up to four Cdc45 molecules bind at a time. Conversely, when SDPGC is present variation is greatly reduced and only up to 1 or 2 molecules of Cdc45 bind. Do SDPGC prevent non-specific interactions? This could be discussed.

5) Do the authors only analyse loaded MCM molecules that are double-hexameric? See the representative photobleaching curve in Figure 2A. Can the authors explain whether or not only particles that contain 2 fluorescently labelled MCM complexes are included in the analysis?

6) Have the authors attempted to omit Mcm10 from the CMG formation assay? And could they observe any change in dye emission?

7) In the subsection “Only a subset of the multiple Mcm2-7-bound Cdc45 proteins form CMGs”, the authors conclude that the two CMGs can assemble independently at each MCM DH. The statistical data for this conclusion are not convincing. Can the authors exclude that the 41% observed vs. 57% expected MCM DHs with two salt-resistant labeled Cdc45 molecules is not due to an error in the estimation of the Cdc45 labeling efficiency? Also, in the case of 1.3 nM DDK only 7 molecules were analyzed, which seems too low a number to support any statistically significant conclusion. As the question of coordination between CMG assembly at the MCM DH is mechanistically very important, the authors may want to consider to tone down the conclusion that CMGs can assembly independently or provide additional data in support of their conclusion.

8) The authors demonstrate that GINS binding to MCMs is dependent on Sld3/7 and Cdc45. Is GINS binding dependent on Sld2, Dpb11, Pol-epsilon, and CDK as well? Does elimination of any one of these factors differentially affect GINS recruitment and CMG formation? This could point to the mechanism of CtG to CMG transformation. The authors are well-positioned to address this question and may have done so already.

9) Figure 4—figure supplement 2B: How was this experiment performed. The text states that protein was stained with Krypton protein stain. Where are the other MCM subunits then? Or was this experiment performed with isolated Mcm4 tail? Please clarify.

https://doi.org/10.7554/eLife.65471.sa1

Author response

[…] The three reviewers all have suggestions for your consideration in the revisions. However, we feel that the following are the issues that must be addressed either by further text revisions or experiments:

1) The Abstract is difficult to understand and perhaps misleading, especially for those outside the field. The actual protein composition of the CtGs is not known from the data and the authors are of course clear about this in the manuscript. The Abstract should clarify this.

We have modified the Abstract to include the following clarification: “Initially, Cdc45, GINS, and likely additional proteins are recruited to unstructured Mcm2-7 N-terminal tails in a Dbf4-dependent kinase (DDK)-dependent manner, forming Cdc45-tail-GINS intermediates (CtGs).”

2) Understood that the deletion of the Mcm 4 "tail" is lethal but is that also true in their system? Would that deletion with a wt Mcm6 lead to a more dramatic loss in the measures used?

We have not tested an Mcm4-tail deletion although the reviewer is correct, it could function in the biochemical context of our assays. Instead, we have provided a new set of experiments that we believe are a better test of our model that reducing the multiplicity of CtG formation reduces CMG formation. We have produced labeled Mcm2-‑7 complexes with mutations eliminating DDK phosphorylation sites on the N-terminal tails of either Mcm4 or Mcm6. We have tested these mutant proteins in the single-molecule assay for Cdc45 association and CMG formation (modified Figure 6). Importantly, for both mutants we observe a corresponding reduction in both CMG formation and the multiplicity of Cdc45 association.

Although the Mcm4 and Mcm6 phosphorylation mutations we tested are known to impact cell viability from previous studies (Randell et al., 2010), they had not been tested for their impact on replication origin function. To address this possibility, we measured initiation efficiency in vivo from early initiating origins of replication using strains containing these Mcm2-7 variants (new Figure 7). Importantly, we find that these mutations reduce origin replication efficiency in a manner that reflects their impact on CMG formation.

3) Figure 1B. Can the authors explain why the number of molecules observed in DDK/Sld3/lambda PP is >13 fold lower than n in DDK/Sld3?

Two aspects of the experiments contribute to this difference. First, the experiments that did not involve lambda PP report the results of several experiments that were combined, increasing n values. The experiments with DDK are the results of a single experimental repetition (we now indicate the number of contributing experiments in the legend for Figure 1B). Second, the manipulations required to dephosphorylate and phosphorylate the Mcm2-7 complexes led to less efficient Mcm2-7 loading in the lambda phosphatase experiments. Although we initially thought that dephosphorylation of Mcm2-7 might reduce its ability to be loaded onto origin DNA, subsequent experiments using ensemble assays showed no difference in loading of dephosphorylated Mcm2-7 (see Author response image 1). Importantly, although the n values are lower in these experiments, the differences that we emphasize are clearly statistically significant.

Author response image 1
Lambda phosphatase (λPP) does not affect Mcm2-7 loading.

Ensemble Mcm2-7 loading assays were conducted in the presence and absence of λPP. A loading control in the absence of Cdc6 is included as well as inputs for Mcm2-7. Note that the Mcm2 protein migrates more slowly after dephosphorylation.

4) Figure 2. In panel A the intensities fluctuation is high, suggesting that up to four Cdc45 molecules bind at a time. Conversely, when SDPGC is present variation is greatly reduced and only up to 1 or 2 molecules of Cdc45 bind. Do SDPGC prevent non-specific interactions? This could be discussed.

Figure 2C shows that when the complete sets of experimental records are analyzed, essentially all Mcm2-7-bound DNAs have either zero, one, or two dye-labeled Cdc45 molecules bound at any given point in time. This is the case whether or not the SDPGC proteins are present; including those proteins caused only a minor increase in the fraction of ones and two and a corresponding minor decrease in the faction of zeros. The two Cdc45 fluorescence records chosen as examples (in Figure 2A and B) are both good illustrations of these features of the complete set of DNA records.

The reviewer correctly perceives that the Cdc45 intensity in Figure 2A reaches higher values than those in 2B, but the difference in peak intensity is not caused by a difference in the number of dye-labeled Cdc45 molecules bound -- that number is zero, one, or two at nearly all time points in both records. Instead, inspection of the records reveals that the difference is in the sizes of the stepwise increases/decreases in fluorescence intensity corresponding to binding/dissociation of a single dye molecule (examples of these steps are marked by arrows in the figures.) This unitary step size is ~20,000 in Figure 2A but only ~10,000 in Figure 2B. In these experiments, such random variation in step size from one DNA to the next is often observed, even between different DNA molecules in the same experimental sample (for example, compare the first and third plots in Figure 2—figure supplement 1), and on average the step size is not appreciably larger in the –SDPGC sample than in the + SDPGC sample (~13,000 vs. ~11,000; see the s parameter in rows 1 and 2 of Supplementary file 1A). Thus, the difference noted by the reviewer is a property of the two example records chosen but not of the dataset as a whole, the properties of which are displayed in Figure 2C.

5) Do the authors only analyse loaded MCM molecules that are double-hexameric? See the representative photobleaching curve in Figure 2A. Can the authors explain whether or not only particles that contain 2 fluorescently labelled MCM complexes are included in the analysis?

All of the experiments include a high-salt wash after the DDK phosphorylation step to ensure that only loaded Mcm2-7 molecules are involved in the helicase activation reaction (the presence of CDK during the activation step also ensures that no new loading is occurring at this stage). This results in the majority of the Mcm2-7 complexes that are present during the helicase activation portion of the reaction being double hexamers (Ticau et al., 2015). We note that the traces in 2A and 2B (for Mcm2-7) show evidence for two fluorescent molecules (one that photobleaches during the observations and the second that does not) and these records were chosen because this pattern of photobleaching of Mcm2-7 was the most common. Because of incomplete labeling of Mcm2-7 (we measured labeling of Mcm2-7 to be 74 ± 5% for Mcm2-74SNAP549), we expect to see a subset of loaded Mcm2-7 complexes to have only one of the two Mcm2-7 double hexamers to be labeled. For that reason, we chose to analyze all the molecules that contain a detectable Mcm2-7. In rare cases neither Mcm2-7 will be labeled and this situation likely explains GINS associations that occur in the absence of a labeled Mcm2‑7 (e.g. Figure 5—figure supplement 1).

Because it was possible that loaded single Mcm2-7 molecules contribute to our findings, we have analyzed a set of molecules from the high DDK Cdc45 loading that we can definitively say are double-hexamers based on fluorescent intensity records and compared them to the analysis shown in the paper (Author response image 2). This represents 51% of the total DNA molecules with associated Mcm2-7. We find that we observe the same distribution of Cdc45 binding under these conditions consistent with the inclusion of all the Mcm2-7 associated molecules in our analysis throughout the paper.

Author response image 2

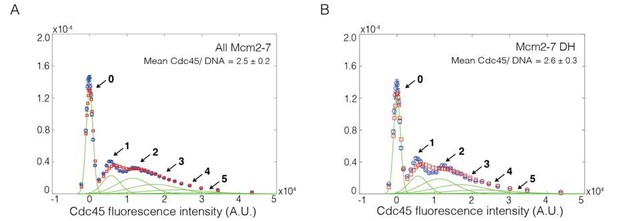

Cdc45 binding distribution is unchanged when using an Mcm2-7 double-hexamer (DH) selection.

(A) Cdc45SORT649 fluorescence-intensity histograms for all detectable Mcm2-74SNAP549. (B) Cdc45SORT649 fluorescence-intensity histograms for only Mcm2-74SNAP549 DHs.

6) Have the authors attempted to omit Mcm10 from the CMG formation assay? And could they observe any change in dye emission?

The only experiments in the paper that include Mcm10 are the helicase activity experiments shown in Figure 1C and D. As indicated by the illustrations of the order of protein addition provided with each new reaction we present, all of the CMG formation assays were performed in the absence of Mcm10 and RPA to focus on the CMG formation rather than the actively unwinding CMG. Although it will be interesting to develop assays to monitor the changes to Mcm2-7, GINS, or Cdc45 in the future, such experiments are beyond the scope of this study.

7) In the subsection “Only a subset of the multiple Mcm2-7-bound Cdc45 proteins form CMGs”, the authors conclude that the two CMGs can assemble independently at each MCM DH. The statistical data for this conclusion are not convincing. Can the authors exclude that the 41% observed vs. 57% expected MCM DHs with two salt-resistant labeled Cdc45 molecules is not due to an error in the estimation of the Cdc45 labeling efficiency? Also, in the case of 1.3 nM DDK only 7 molecules were analyzed, which seems too low a number to support any statistically significant conclusion. As the question of coordination between CMG assembly at the MCM DH is mechanistically very important, the authors may want to consider to tone down the conclusion that CMGs can assembly independently or provide additional data in support of their conclusion.

We agree with the reviewers that this is an important mechanistic point. The Cdc45 fraction labeled is measured in a single-molecule experiment (see Materials and methods) in which we believe the dominant source of uncertainty to be the counting statistics, rather than any systematic error in the measurement. The statistical error in the measurement of the labeling efficiency is included in the standard errors reported for the fraction of labeled complexes (0.57 ± 0.09) predicted if all complexes have two salt-stable Cdc45 molecules. This differs significantly from the observed fraction of labeled complexes (0.41 ± 0.05) in the 6.5 nM DDK experiment. In the 1.3 nM DDK experiment the uncertainty due to the small number of observations is quantified by the large relative standard error in the measurement (0.14 ± 0.13). Despite this, it is unambiguous that this number is significantly different from the 0.57 ± 0.09 predicted for the coordinated mechanism.

While we agree that these data are not definitive evidence for an uncoordinated model, we do think they are strong enough to merit description and discussion. We believe our current wording reflects the lack of definitive evidence: “These findings suggest that CMG formation on the two Mcm2-7 complexes in each double hexamer can occur independently.” If the reviewers feel strongly, we could consider an alternate wording such as: “These data are consistent with a model in which CMG formation on the two Mcm2-7 complexes in each double hexamer can occur independently.”

8) The authors demonstrate that GINS binding to MCMs is dependent on Sld3/7 and Cdc45. Is GINS binding dependent on Sld2, Dpb11, Pol-epsilon, and CDK as well? Does elimination of any one of these factors differentially affect GINS recruitment and CMG formation? This could point to the mechanism of CtG to CMG transformation. The authors are well-positioned to address this question and may have done so already.

We have added an additional experiment along these lines. We have assessed the impact of eliminating Dpb11 (Figure 5A and Figure 5—figure supplement 2) on GINS binding events. Consistent with a role of Dpb11 in GINS initial Mcm2-7 recruitment, we observe nearly a complete loss of GINS binding in the absence of this protein. Interestingly, we observe a much stronger effect of Dpb11 elimination on GINS binding events than we observe for elimination of Cdc45 or Sld3/7. We have added a brief discussion as to why this might be the case (Discussion).

9) Figure 4—figure supplement 2B: How was this experiment performed. The text states that protein was stained with Krypton protein stain. Where are the other MCM subunits then? Or was this experiment performed with isolated Mcm4 tail? Please clarify.

We apologize for the lack of clarity regarding this experiment. Although the experiment looking at Mcm6 was done with the complete Mcm2-7 complex, the experiment with Mcm4 was performed with the tail of Mcm4 expressed in the absence of the rest of the Mcm2-7 complex. We have clarified this distinction in the text, in the legend of Figure 4—figure supplement 2, and in the Materials and methods.

https://doi.org/10.7554/eLife.65471.sa2

Article and author information

Author details

  1. Lorraine De Jesús-Kim

    Howard Hughes Medical Institute, Department of Biology, Massachusetts Institute of Technology, Cambridge, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  2. Larry J Friedman

    Department of Biochemistry, Brandeis University, Waltham, United States
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Supervision, Validation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4946-8731
  3. Marko Lõoke

    Howard Hughes Medical Institute, Department of Biology, Massachusetts Institute of Technology, Cambridge, United States
    Present address
    Institute of Technology, University of Tartu, Tartu, Estonia
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Writing - review and editing, Performed in vivo DNA replication analysis
    Competing interests
    No competing interests declared
  4. Christian K Ramsoomair

    Howard Hughes Medical Institute, Department of Biology, Massachusetts Institute of Technology, Cambridge, United States
    Contribution
    Resources, Validation
    Competing interests
    No competing interests declared
  5. Jeff Gelles

    Department of Biochemistry, Brandeis University, Waltham, United States
    Contribution
    Conceptualization, Software, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology, Project administration, Writing - review and editing
    For correspondence
    gelles@brandeis.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7910-3421
  6. Stephen P Bell

    Howard Hughes Medical Institute, Department of Biology, Massachusetts Institute of Technology, Cambridge, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    spbell@mit.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2876-610X

Funding

Howard Hughes Medical Institute (Investigator)

  • Stephen P Bell

National Institutes of Health (R01 GM52339)

  • Stephen P Bell

National Institutes of Health (R01 GM81648)

  • Jeff Gelles

National Institutes of Health (T32 GM007287)

  • Lorraine De Jesus Kim

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We are grateful to Alexandra Pike and Shalini Gupta for comments on the manuscript, Karim Labib for providing the plasmid pFJD5, and Michael Maloney for making the Cdc45 labeling construct.

Senior Editor

  1. Kevin Struhl, Harvard Medical School, United States

Reviewing Editor

  1. Michael R Botchan, University of California, Berkeley, United States

Reviewers

  1. Michael R Botchan, University of California, Berkeley, United States
  2. Dirk Remus, Memorial Sloan Kettering Cancer Center, United States

Publication history

  1. Received: December 4, 2020
  2. Accepted: February 21, 2021
  3. Accepted Manuscript published: February 22, 2021 (version 1)
  4. Version of Record published: March 12, 2021 (version 2)

Copyright

© 2021, De Jesús-Kim et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 943
    Page views
  • 200
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    Joël Lemière et al.
    Research Article

    During clathrin-mediated endocytosis in eukaryotes, actin assembly is required to overcome large membrane tension and turgor pressure. However, the molecular mechanisms by which the actin machinery adapts to varying membrane tension remain unknown. In addition, how cells reduce their membrane tension when they are challenged by hypotonic shocks remains unclear. We used quantitative microscopy to demonstrate that cells rapidly reduce their membrane tension using three parallel mechanisms. In addition to using their cell wall for mechanical protection, yeast cells disassemble eisosomes to buffer moderate changes in membrane tension on a minute time scale. Meanwhile, a temporary reduction of the rate of endocytosis for 2 to 6 minutes, and an increase in the rate of exocytosis for at least 5 minutes allow cells to add large pools of membrane to the plasma membrane. We built on these results to submit the cells to abrupt increases in membrane tension and determine that the endocytic actin machinery of fission yeast cells rapidly adapts to perform clathrin-mediated endocytosis. Our study sheds light on the tight connection between membrane tension regulation, endocytosis and exocytosis.

    1. Cancer Biology
    2. Cell Biology
    Alvaro Gonzalez Rajal et al.
    Research Advance

    We previously used a pulse-based in vitro assay to unveil targetable signalling pathways associated with innate cisplatin resistance in lung adenocarcinoma (Hastings et al., 2020). Here we advanced this model system and identified a non-genetic mechanism of resistance that drives recovery and regrowth in a subset of cells. Using RNAseq and a suite of biosensors to track single cell fates both in vitro and in vivo, we identified that early S phase cells have a greater ability to maintain proliferative capacity, which correlated with reduced DNA damage over multiple generations. In contrast, cells in G1, late S or those treated with PARP/RAD51 inhibitors, maintained higher levels of DNA damage and underwent prolonged S/G2 phase arrest and senescence. Combined with our previous work, these data indicate that there is a non-genetic mechanism of resistance in human lung adenocarcinoma that is dependent on the cell cycle stage at the time of cisplatin exposure.
