Capping protein regulates endosomal trafficking by controlling F-actin density around endocytic vesicles and recruiting RAB5 effectors

  1. Dawei Wang
  2. Zuodong Ye
  3. Wenjie Wei
  4. Jingting Yu
  5. Lihong Huang
  6. Hongmin Zhang
  7. Jianbo Yue  Is a corresponding author
  1. City University of Hong Kong Shenzhen Research Institute, China
  2. Department of Biomedical Sciences, City University of Hong Kong, China
  3. Core Research Facilities, Southern University of Science and Technology, China
  4. Department of Biology, Guangdong Provincial Key Laboratory of Cell Microenvironment and Disease Research and Shenzhen Key Laboratory of Cell Microenvironment, Southern University of Science and Technology, China
  5. City University of Hong Kong Chengdu Research Institute, China

Abstract

Actin filaments (F-actin) have been implicated in various steps of endosomal trafficking, and the length of F-actin is controlled by actin capping proteins, such as CapZ, which is a stable heterodimeric protein complex consisting of α and β subunits. However, the role of these capping proteins in endosomal trafficking remains elusive. Here, we found that CapZ docks to endocytic vesicles via its C-terminal actin-binding motif. CapZ knockout significantly increases the F-actin density around immature early endosomes, and this impedes fusion between these vesicles, manifested by the accumulation of small endocytic vesicles in CapZ-knockout cells. CapZ also recruits several RAB5 effectors, such as Rabaptin-5 and Rabex-5, to RAB5-positive early endosomes via its N-terminal domain, and this further activates RAB5. Collectively, our results indicate that CapZ regulates endosomal trafficking by controlling actin density around early endosomes and recruiting RAB5 effectors.

Editor's evaluation

In this article, Yue and colleagues have uncovered role of the actin binding and capping protein CapZ in fusion and maturation of early endosomes. They show that the actin capping factor localizes to early endosomes and regulates F-actin density on early endosomes. The authors also find another role of CapZ in facilitating recruitment of Rabaptin-5 and Rabex-5 on early endosomes and promote Rab5 activation. The work provides an unexplored and somewhat unexpected perspective on how endosomal localized actin polymerization impact on endosome maturation and fusion.

https://doi.org/10.7554/eLife.65910.sa0

Introduction

Endosomal trafficking plays a vital role in various physiological functions, including proliferation, differentiation, immunity, and neurotransmission. Dysregulation of endosomal trafficking has been implicated in multiple human diseases, including autoimmune diseases, neurodegeneration, diabetes, and cancer (Mendoza et al., 2014; Parachoniak and Park, 2012; Fletcher and Rappoport, 2010). The trafficking, fusion, and sorting of the endosomes are tightly controlled by a complicated network of signaling molecules and cytoskeleton structures (Epp et al., 2011; Elkin et al., 2016). Among the signaling molecules, recruitment, activation, and inactivation of different RABs play an essential role in controlling the identity and maturation of endosomes (Barr and Lambright, 2010; Bhuin and Roy, 2014; Novick, 2016). Likewise, the actin network has been implicated in almost every step of endosomal trafficking from internalization, trafficking, to maturation (Simonetti and Cullen, 2019; Pol et al., 1997; Nakagawa and Miyamoto, 1998; Taunton et al., 2000; Huckaba et al., 2004; Gauthier et al., 2007; Morel et al., 2009; Muriel et al., 2016; Derivery et al., 2009; Mooren et al., 2012; Kaksonen et al., 2005).

The RAB family contains more than 70 members, which are key regulators for intracellular trafficking, including endocytosis (Barr and Lambright, 2010; Bhuin and Roy, 2014; Novick, 2016). Like other small GTPases, RAB-GTP is active whereas RAB-GDP is inactive, and the switch from RAB-GDP to RAB-GTP and vice versa is catalyzed by guanine-nucleotide-exchange factors (GEFs) and GTPase-activating proteins (GAPs), respectively. GDP dissociation inhibitor (GDI) extracts inactive RAB-GDP from the membrane and escorts it to the cytosol, whereas GDP dissociation factor (GDF) can release RAB-GDP from GDI (Bhuin and Roy, 2014). Different RABs have their own specific GEFs and GAPs, and some RABs (e.g., RAB5) also contain intrinsic GTPase activity (Müller and Goody, 2018). RAB-GTP targets various effectors (e.g., tethering proteins, sorting molecules, and both protein and lipid kinases) to regulate vesicle trafficking. Among them, RAB5 is responsible for early endosome maturation; RAB4 and RAB11 are required for recycling endocytosis; RAB6 is involved in retrograde trafficking between early endosomes and the Golgi complex; and RAB7 is essential for the maturation of late endosomes and their subsequent fusion with lysosomes (Müller and Goody, 2018). All of these RABs are under strict temporal and spatial regulation, and in this way, they control endosomal trafficking. For example, the recruitment of RAB5 from the cytosol into endosomes and its subsequent activation promotes the maturation of early endosomes. However, the inactivation of RAB5 is followed by the recruitment and activation of RAB7, which is essential for the transition from early endosomes to late endosomes (Rink et al., 2005). The recruitment of RAB5 to endosomes is promoted by its GEF, Rabex-5 (also called RABEX5 or RABGEF1). The active form of RAB5 subsequently recruits more effectors, including Rabex-5, Rabaptin-5 (also called RABEP1), EEA1, and VPS34, to the endosomes. Here, they are activated and thus a positive feedback loop is established to induce early endosome maturation (Langemeyer et al., 2018). On the contrary, Mon1-Ccz1 replaces Rabex-5 on endosomes and inactivates RAB5; it simultaneously interacts with the HOPS complex to recruit and activate RAB7, and thereby promotes the early to late endosome transition (Kinchen and Ravichandran, 2010; Poteryaev et al., 2010). Although much progress has been made on the regulation of RABs during endocytosis, the detailed mechanisms on their temporal and spatial regulation still remain elusive.

When endocytosis is initiated, the clathrin-dependent or independent effectors are recruited to the invaginated plasma membrane. For clathrin-dependent endocytosis, as the membrane curvature increases to form a deeply invaginated pit, endocytosis assembly factors recruit actin nucleation factors (NPFs), for example, WASP, and this activates Arp2/3 to assemble actin filaments around the invaginated pit (Merrifield et al., 2002; Robertson et al., 2009). The scission between the invaginated pit and plasma membrane is executed by dynamin, and actin filament might provide additional forces to promote this process. Short-lived actin comet tails around the endocytic vesicle might propel the movement of the free vesicle away from the plasma membrane (Taunton et al., 2000; Galletta and Cooper, 2009). In addition to regulating this very early stage of endocytosis, actin polymerization driven by Arp2/3 complex and another NPF, WASH, on the surface of early endosomes regulate the endosome shape and tubulation (Derivery et al., 2009), and the length of the branches is controlled by actin capping proteins, for example, CapZ (Mooren et al., 2012; Girao et al., 2008).

CapZ is a stable heterodimeric protein complex (consisting of α and β subunits), which binds to the barbed ends of actin filaments to prevent further filament elongation (Wear and Cooper, 2004; Casella et al., 1989). In vertebrates, three CapZβ isoforms (β1, β2, and β3) are generated by the alternative splicing of one single gene, whereas CapZα is encoded by three distinct genes (α1, α2, and α3), with α3 being a germ cell-specific gene (Hart and Cooper, 1999). CapZβ and CapZα structurally resemble each other, although their primary sequences are quite distinct (Cooper and Sept, 2008; Yamashita et al., 2003). Some proteins (e.g., formins and Ena/VASP) compete with CapZ to interact with the barbed ends of actin. Other proteins interact with CapZ directly, and they inhibit the capping activity by either steric blocking (e.g., V-1/myotrophin), or allosteric inhibition (e.g., CARMIL proteins) (Edwards et al., 2014; Shekhar et al., 2016). CapZ has been shown to participate in various cellular processes, such as forming filopodia and lamellipodia, and regulating the mechanical properties of cells and tissues, via fine-tuning dynamics of actin assembly (Edwards et al., 2014; Sinnar et al., 2014; Pocaterra et al., 2019). Interestingly, CapZ has also been reported to regulate spindle assembly during mitosis independent of actin assembly (di Pietro et al., 2017). Although extensive works have documented the contribution of the actin filaments in the endocytosis pathway, the precise role of CapZ in endosomal trafficking, especially early endosome maturation, remains elusive. Here, we found that CapZ is a dual-functional factor during endosomal trafficking: it controls the actin density around premature early endosomes, and recruits RAB5 effectors to early endosomes.

Results

CapZ is required for early endosome maturation

To investigate the role of CapZ in endocytosis, we examined the subcellular localization of CapZ by confocal imaging. We showed that in CapZβ-GFP-expressing cells, CapZ was localized both diffusely and in puncta, and the majority of the CapZ puncta was colocalized with F-actin puncta, which were labeled with phalloidin (top panel in Figure 1—figure supplement 1A). Interestingly, in cells treated with vacuolin-1, which can induce homotypic fusion of endosomes to form large vacuoles (Cerny et al., 2004; Ye et al., 2021), some of the CapZ puncta appeared to be organized into large vesicular structures (bottom panel in Figure 1—figure supplement 1A). To determine the identity of these CapZ-positive vesicular structures, we examined if the CapZ puncta might be localized at any known cellular organelle. Our data showed that the CapZ puncta exhibited weak colocalization with Calnexin (an ER protein), GM130 (a cis-Golgi protein), and TGN46 (a trans-Golgi protein) (Figure 1—figure supplement 1B). However, these CapZ puncta were strongly associated with the early endosome markers, EEA1 or RAB5 (Figure 1A). Interestingly, treatment of cells with YM-201636 (a PIKfyve inhibitor which blocks the conversion of PI(3)P to PI(3,5)P2) (Osborne et al., 2008), not only enlarged early endosome but also strikingly induced the accumulation of CapZ at the surface of the enlarged endosomes (Figure 1B). Of note, CapZ has previously been shown to preferably bind with PI(3)P rather than with other phosphoinositides in vitro (Schafer et al., 1996; Mi et al., 2015). We also performed N-SIM S super-resolution imaging of the HeLa cells co-transfected with CapZβ-mCherry and RAB5A-GFP, and confirmed the colocalization of CapZ with RAB5A at the endosome (Figure 1C). To further validate the possible association of CapZ with early endosomes, we performed coimmunoprecipitation (co-IP) experiments to assess whether CapZ interacts with RAB5. We found that in twinstrep-CapZβ-expressing cells, streptavidin beads not only pulled down CapZ, but also brought down RAB5A (Figure 1D). Likewise, CapZ was found in the RAB5 immunocomplex (Figure 1E). In addition, recombinant GST-RAB5 protein was able to pull down CapZ from HEK293 cell extracts (Figure 1F). Interestingly, CapZ exhibited no direct interaction with RAB5A as shown by an isothermal titration calorimetry (ITC) assay (Figure 1—figure supplement 1C). We also assessed the colocalization of CapZ with other endosome markers, for example, RAB7 (a late endosome protein), RAB11/RAB4 (two recycling endosome proteins), and LAMP1 (a late endosome/lysosome protein). We showed that CapZ showed strong colocalization with RAB5, and weak colocalization with RAB7, RAB11, RAB4, and LAMP1 (Figure 1—figure supplement 1D and E). Similarly, by co-IP assay, we detected the association of CapZ with RAB5, RAB7, and RAB11, but not LAMP1 and RAB4 (Figure 1—figure supplement 1F–1I). Taken together, these results suggest that CapZ might preferentially associate with early endosomes.

Figure 1 with 1 supplement see all

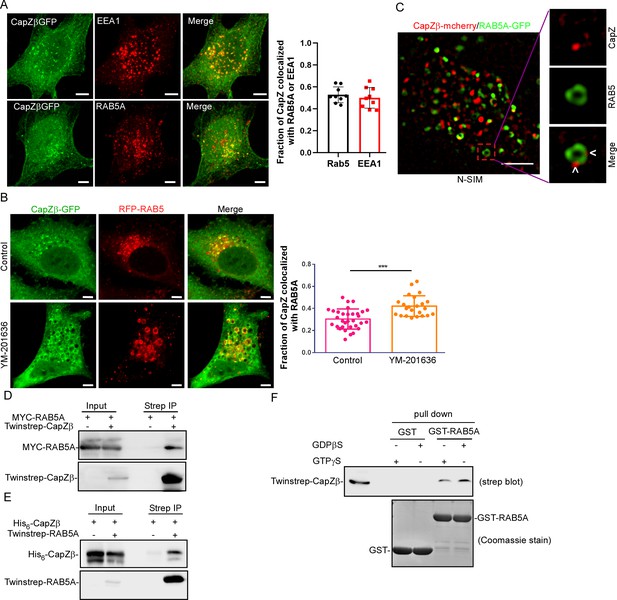

CapZ is associated with early endosomes.

(A) CapZβ-GFP-expressing HeLa cells were immunostained with antibodies against EEA1 (top panel) or RAB5A (lower panel). Confocal images taken along the z-axis were projected (Maximum Intensity Projection). The colocalization coefficients (MCC) of CapZβ-GFP and EEA1 or CapZβ-GFP and RAB5A were quantified. (B) CapZβ-GFP/RFP-RAB5A-expressing HeLa cells were treated with or without YM-201636 (5 μM) for 8 hr, followed by confocal imaging. The colocalization coefficients (MCC) of mRFP-RAB5A and CapZβ-GFP were quantified. (C) The N-SIM S Super-resolution imaging of CapZβ-mCherry/RAB5A-GFP-expressing HeLa cells. (D) HEK293 cells were transiently transfected with MYC-RAB5A, and/or Twinstrep-CapZβ, and the cell lysates were incubated with Strep-Tactin Sepharose. The pulldowns were subjected to immunoblotting analysis against CapZβ and RAB5A. (E) HEK293 cells were transiently transfected with His6-CapZβ and/or Twinstrep-RAB5A, and the cell lysates were then incubated with Strep-Tactin Sepharose. The pulldowns were subjected to immunoblot analysis against CapZβ and RAB5A. (F) The lysates of Twinstrep-CapZβ-expressing HEK293 cells were incubated with GST or GST-RAB5A recombinant proteins in the presence of GDPβS or GTPγS, followed by GST pulldown and strep immunoblotting. The blots, images, and graphs represent data from at least three independent experiments. The data are expressed as mean ± SD. The difference between the two groups was analyzed using two-tailed Student’s t-test, p<0.05 was considered statistically significant. *** p<0.001. Scale bar, 5 μm. MCC, Manders colocalization coefficient.

We knocked out the expression of CapZβ in HeLa cells by CRISPR/Cas9, and also reconstituted the expression of CapZβ by infecting these cells with a lentivirus encoding CapZβ (Figure 2A). Similar to the previous study by Sinnar et al., 2014, CapZβ knockout in HeLa cells changed cell morphology and inhibited cell migration (Figure 2—figure supplement 1A and B). CapZβ knockout also increased cell size (Figure 2—figure supplement 1A). We then performed an epidermal growth factor receptor (EGFR) degradation assay to examine CapZ’s role in the endosomal trafficking pathway. As shown in Figure 2B, Figure 2—figure supplement 1C and D, after EGF binds to its receptors (EGFR), the receptor complex was internalized normally in control, CapZβ-knockout, and CapZβ-reconstituted cells, but its degradation was significantly inhibited in CapZβ-knockout cells when compared to the control cells and CapZβ-reconstituted cells. Similarly, we examined the EGFR levels after EGF pulse in control or CapZβ-knockout HeLa cells by EGFR immunoblotting. We showed that EGF treatment triggered EGFR degradation in control cells, yet its degradation in CapZβ-knockout cells was inhibited (Figure 2—figure supplement 1E). Of note, the basal level of EGFR protein or mRNA in CapZβ-knockout cells was lower than in control cells, and reconstituting CapZβ restored the expression of EGFR (Figure 2—figure supplement 1F–1G). This result suggests that CapZ or F-actin dynamics positively regulate the transcription of EGFR. Along this line, actin dynamics have been shown to modulate gene transcription (Olson and Nordheim, 2010; Knöll, 2010). In addition, we measured transferrin recycling in control or CapZβ-knockout HeLa cells. In transferrin recycling assay, iron-bound transferrin interacts with its receptor (TfR) to trigger the internalization of the iron-transferrin-TfR complex via clathrin-mediated endocytosis. Irons are subsequently dissociated from their ligands in the acidic endosomes and released into the cytoplasm. Thereafter, the transferrin-TfR complex is recycled back to the plasma membrane, and transferrin is finally released from its receptor into the extracellular space. Thus, the fluorescence intensity of fluorescent transferrin conjugates-labeled cells could reflect the recycling endocytic trafficking process. We showed that CapZβ knockout significantly inhibited transferrin recycling (Figure 2—figure supplement 1H), suggesting that CapZ might be involved in the fast recycling from the early endosome or RAB11-positive recycling endosomes. Of note, fluorescent transferrin labeling was reduced in CapZβ-knockout cells, which might be due to the decreased expression levels of TfR in CapZβ-knockout cells. In summary, these results indicate that CapZ participates in endocytosis after the internalization of endocytic vesicles.

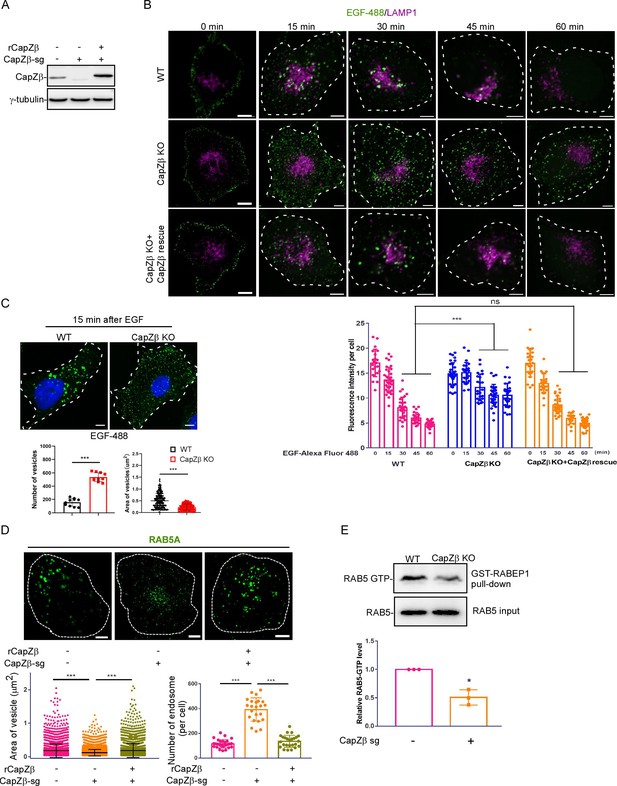

Figure 2 with 1 supplement see all
CapZ is required for early endosome maturation.

(A) The expression of CapZβ in control, CapZβ-knockout, or CapZβ-reconstituted HeLa cells. (B) Control, CapZβ-knockout, or CapZβ-reconstituted HeLa cells were treated with EGF-488 for the indicated times, and then processed for immunofluorescence analysis. (C) Control or CapZβ-knockout HeLa cells were treated with EGF-488 for 15 min, and the number and size of EGF-positive vesicles in these cells were quantified. (D) Control, CapZβ-knockout, or CapZβ-reconstituted HeLa cells were immunostained with an anti-RAB5A antibody. The number and size of the early endosomes in these cells were quantified. (E) Active RAB5 in control or CapZβ knockout cells was examined with a GST-R5BD pulldown assay. The images and graphs represent data from three independent experiments. The data are expressed as mean ± SD. The difference between the two groups was analyzed using two-tailed Student’s t-test, p<0.05 was considered statistically significant. *** p<0.001. Scale bar, 5 μm.

Since EGFR-containing endocytic vesicles in CapZβ-knockout cells appear to be smaller and more abundant when compared to the control cells (Figure 2B and C), we next examined whether the association of CapZ with endosomes is required for the maturation of early endosomes by comparing the size and the number of endosomes in CapZβ-knockout cells with the same parameters in control cells. We showed that the size of the RAB5-positive early endosomes was much smaller, whereas the number of endosomes was significantly higher in the CapZβ-knockout cells than in the control cells (Figure 2D and Figure 2—figure supplement 1I). Addback of CapZβ to CapZβ-knockout HeLa cells restored the size and number of early endosomes to those in control cells (Figure 2D). This suggests that the fusion of small endocytic vesicles in the CapZβ-knockout cells is blocked or inhibited. Since CapZβ knockout exhibited a similar endosomal phenotype to that of RAB5-S34N overexpression (a GDP-bound dominant-negative mutant, RAB5 inactive form) (Galperin and Sorkin, 2003), we examined whether CapZβ knockout might impair the RAB5 activity by a GST-R5BD pulldown assay, in which the RAB5-binding domain (R5BD) of the RAB effector Rabaptin-5 specifically binds to GTP-bound RAB5. We showed that the level of RAB5-GTP was significantly lower in the CapZβ-knockout cells than that in the control cells (Figure 2E), indicating that RAB5 is less active in the knockout cells. In summary, these results indicate that CapZ participates in early endosome maturation.

CapZ controls the F-actin density around endocytic vesicles to regulate early endosome maturation

CapZ caps the barbed end of actin filaments and thereby stops further actin polymerization (Wear and Cooper, 2004). As expected, in CapZβ-knockout cells, the amount of F-actin was significantly increased, and CapZβ-addack brought it down to the basal levels (Figure 3—figure supplement 1A). We also knocked out the expression of CapZα1 and CapZα2 by CRISPR/Cas9 in HeLa cells (Figure 3—figure supplement 1B). Similar to CapZβ knockout, CapZα1/2 knockout significantly increased the amount of F-actin (Figure 3—figure supplement 1C), and induced the accumulation of small early endosomes (Figure 3—figure supplement 1D). On the other hand, overexpression of both CapZα1-EGFP and CapZβ-mCherry in HeLa cells significantly decreased F-actin levels when compared to EGFP-mCherry-expressing cells (Figure 3A). Consistently, the size of RAB5-positive early endosomes was larger, whereas the number of endosomes was lower in the CapZ-overexpressing cells than in the EGFP-mCherry-expressing cells (Figure 3B). In addition, we investigated whether reducing the F-actin levels in CapZβ-knockout cells by latrunculin A (Coué et al., 1987) (an actin polymerization inhibitor) rescued the defects in early endosome maturation. Latrunculin A markedly decreased the F-actin levels in control HeLa cells and was also able to revert the F-actin to basal levels in CapZβ-knockout HeLa cells (Figure 3—figure supplement 1E). Likewise, latrunculin A not only increased the size and decreased the number of early endosomes in control cells, but also partially rescued the defects of early endosomes in CapZβ-knockout cells (Figure 3—figure supplement 1F). Therefore, these results suggest that CapZ knockout might increase F-actin density by promoting elongation of pre-existing actin branches to entangle around these immature RAB5-positive endocytic vesicles, and this might impede their fusion and result in the accumulation of small endosomes.

Figure 3 with 5 supplements see all

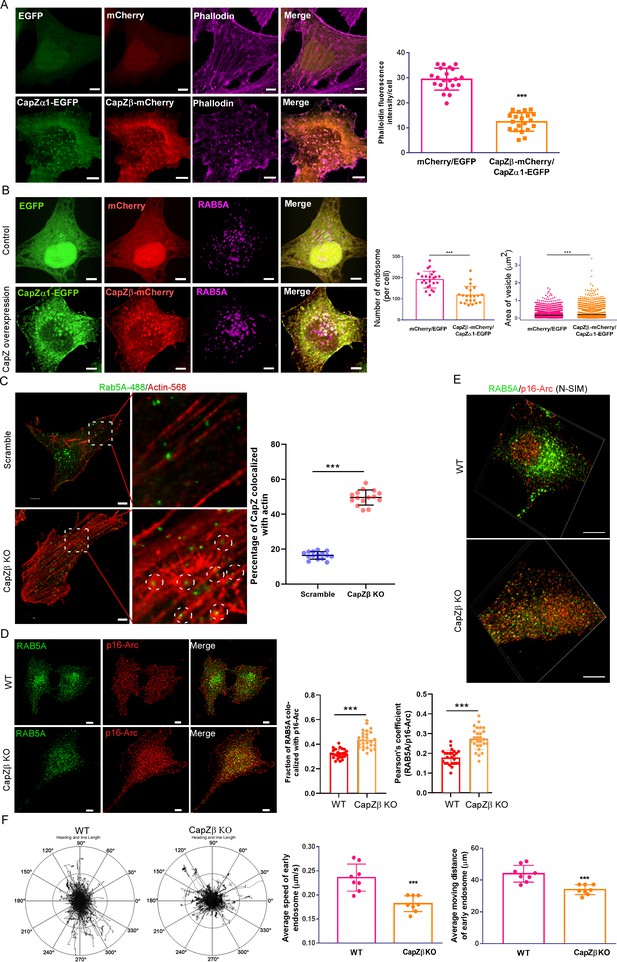

CapZ controls the actin density around early endosomes.

(A, B) HeLa cells were stably transfected with EGFP/mCherry or CapZα1-EGFP/CapZβ-mCherry constructs. These cells were either immunostained with phalloidin (A), or with an anti-RAB5A antibody (B). The number and size of the early endosomes in these cells were quantified (B). (C) Control or CapZβ-knockout HeLa cells were immunostained with antibodies against actin and RAB5A. The single plane whole-cell confocal images were then captured with a resolution of 2048×2048 pixels (left panels). The selected area in the cells was further scanned with a resolution of 4096×4096 pixels (right panels). The percentage of RAB5 puncta that are actin positive against total RAB5 puncta (MCC) in control or CapZβ-knockout cells was quantified. (D, E) The control or CapZβ-knockout HeLa cells were stained with antibodies against RAB5 and p16-Arc, followed by confocal imaging and colocalization coefficients (MCC or PCC) analysis of RAB5/p16-Arc (D) or N-SIM S Super-resolution imaging (E). (F) Control or CapZβ-knockout HeLa cells were transiently transfected with RFP-RAB5A, and cells were then imaged without delay for 3 min by time-lapse Nikon high-speed confocal microscopy. 2D track analysis was performed using NIS-Elements AR software. The images and graphs represent data from at least three independent experiments. The data are presented as mean ± SD. The difference between the two groups was analyzed using two-tailed Student’s t-test. Differences were considered statistically significant when p<0.05. * p<0.05, ** p<0.01, and *** p<0. 001. Scale bar, 5 μm. MCC, Manders colocalization coefficient; PCC, Pearson’s correlation coefficient.

To test this possibility, we performed double immunostaining with antibodies against RAB5 and actin in control or CapZβ-knockout cells. The single plane whole-cell confocal images were captured with a resolution of 2048×2048 pixels (left panels of Figure 3C). To demonstrate the detail of the F-actin, we further scanned the selected area in the cells with a resolution of 4096 × 4096 pixels (right panels of Figure 3C). We showed that there were more RAB5-positive endosomes in actin-rich regions of the CapZβ-knockout cells than the control cells. We quantified the percentage of RAB5 puncta that are actin positive against total RAB5 puncta in control or CapZβ-knockout cells. We showed that more endosomes were actin-positive in CapZβ-knockout cells when compared to the control cells (Figure 3C). Similarly, we performed RAB5 and phalloidin immunostaining in control or CapZβ-knockout cells, followed by confocal images (Figure 3—figure supplement 1G) or N-SIM S Super-resolution imaging (Figure 3—figure supplement 1H). It appeared that more endosomes sit along the long F-actin in CapZβ-knockout cells than in the control cells.

We then performed RAB5A and p16-Arc (a subunit of the Arp2/3 complex, to label actin branches) immunostaining in control or CapZβ-knockout cells, followed by confocal images. We showed that CapZβ knockout significantly increased the colocalization of RAB5 with Arp2/3 (Figure 3D). We also performed N-SIM S Super-resolution imaging to assess the colocalization between RAB5 and Arp2/3, and showed that more RAB5 puncta were associated with Arp2/3 puncta in CapZβ-knockout cells than in the control cells (Figure 3E, and Figure 3—video 1 and Figure 3—video 2). Likewise, CapZβ knockout markedly increased the colocalization of N-WASP with RAB5 (Figure 3—figure supplement 1I). In summary, these results suggest that more F-actins are entangled with early endosomes in CapZβ-knockout cells when compared to the control cells.

We also transfected control or CapZβ-knockout HeLa cells with RAB5A-GFP, and analyzed the trafficking of RAB5-positive endosomes in these cells by high-speed confocal microscopy. In control cells, RAB5-positive vesicles rapidly moved away from the plasma membrane toward the perinuclear area and fused with each other (left panel in Figure 3F and Figure 3—video 3). Whereas, in CapZβ-knockout cells, RAB5-positive vesicles exhibited relative random and slow movements underneath the plasma membrane (right panel in Figure 3F and Figure 3—video 4). Moreover, the moving distance of RAB5-positive vesicles was shorter in CapZβ-knockout cells than in the control cells (Figure 3F). Therefore, these results suggest that the increased F-actin density around the immature early endosome in CapZβ-knockout cells might act as the physical barrier to impede endosomal trafficking.

To further investigate whether the increased F-actin density in CapZβ-knockout cells is responsible for the defects in early endosome maturation, we treated control and CapZβ-knockout cells with CK-636 (an inhibitor of the Arp2/3 complex) (Nolen et al., 2009). The Arp2/3 complex has been shown to play an important role during endosomal trafficking, from cargo sorting, fission to fusion (Mooren et al., 2012). We showed that CK-636 significantly decreased the colocalization between RFP-RAB5 and GFP-ARPC1B (a subunit of the Arp2/3 complex, to label actin branches) in both control and CapZβ-knockout cells (Figure 4—figure supplement 1A), suggesting that CK-636 treatment could lower the F-actins entangled with early endosomes. We also measured the size and numbers of RAB5-positive vesicles in control and CapZβ-knockout cells treated with or without CK-636. CK-636 not only significantly increased the size and decreased the number of early endosomes in control cells but also partially rescued the defects of early endosomes in CapZβ-knockout cells (Figure 4A).

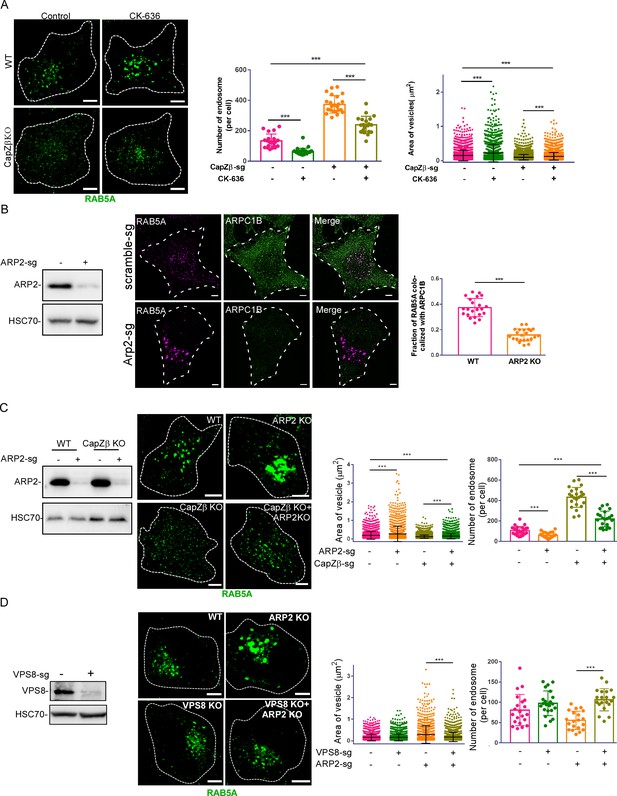

Figure 4 with 1 supplement see all
The actin density around early endosomes regulates its maturation.

(A) Control or CapZβ-knockout HeLa cells were treated with or without CK-636 (100 μM) overnight and were then immunostained with an anti-RAB5A antibody. The number and size of the early endosomes in these cells were quantified. (B) Control or ARP2-knockout HeLa cells were immunostained with antibodies against RAB5A and ARPC1B, followed by confocal imaging. The colocalization coefficients (MCC) of RAB5A and ARPC1B were quantified. The expression of ARP2 in these cells was analyzed by immunoblot analysis. (C) Control, CapZβ-knockout, ARP2-knockout, or CapZβ/ARP2-double knockout HeLa cells were immunostained with an anti-RAB5A antibody, and the number and size of the early endosomes in these cells were then quantified. The expression of ARP2 in these cells was analyzed by immunoblot analysis. (D) Control, VPS8-knockout, ARP2-knockout, or VPS8/ARP2-double knockout HeLa cells were immunostained with an anti-RAB5A antibody, and the number and size of the early endosomes in these cells were then quantified. The expression of VPS8 in control or VPS8-knockout cells was analyzed by immunoblot analysis. The images and graphs represent data from at least three independent experiments. The data are presented as mean ± SD. The difference between the two groups was analyzed using two-tailed Student’s t-test. Differences were considered statistically significant when p<0.05. * p<0.05, ** <0.01, and *** <0. 001. Scale bar, 5 μm. MCC, Manders colocalization coefficient.

In addition to CK-636 treatment, we knocked down the expression of ARP2 in control and CapZβ-knockout HeLa cells to inhibit actin branching. We first performed RAB5 and actin immunostaining in control or ARP2-knockout cells, and showed that colocalization between RAB5 and actin in ARP2-knockout cells was markedly weaker than in control cells (Figure 4—figure supplement 1B). We also performed RAB5 and ARPC1B immunostaining in control or ARP2-knockout cells, and found that colocalization between endogenous RAB5 and endogenous ARPC1B in ARP2-knockout cells was markedly weaker than in control cells (Figure 4B). These results confirmed that ARP2 knockout decreases the F-actin density around early endosomes. We then measured the size and numbers of early endosomes in control, CapZβ-knockout, ARP2-knockout, or CapZβ/ARP2-double knockout cells. As expected, ARP2 knockout significantly increased the size and decreased the number of RAB5-positive endosomes in control cells and partially rescued the defects of endosomes in CapZβ-knockout cells (Figure 4C). To confirm that the accumulation of large endocytic vesicles in ARP2-knockout cells is due to the increased fusion between them, we knocked out the expression of VPS8 (Chen and Stevens, 1996; Horazdovsky et al., 1996), (a subunit of CORVET complex which controls the homotypic fusion of early endosomes), in control or ARP2-knockout HeLa cells. As expected, VPS8 knockout significantly decreased the size but increased the number of RAB5-positive endosomes in ARP2-knockout cells (Figure 4D). Finally, we examined the colocalization of RAB5 with RAB7 in control, ARP2-knockout, or CapZβ-knockout cells. We showed that the colocalization of RAB5 with RAB7 was significantly decreased in CapZβ-knockout cells compared to the control cells, suggesting that most of the accumulated RAB5-positive vesicles are immature early endosomes. Whereas most of the enlarged endosomes in ARP2-knockout cells were RAB7 positive. Intriguingly, some of these RAB7-positive enlarged vehicles were also RAB5 positive, manifested by the increased colocalization between RAB5 and RAB7 in ARP2-knockout cells when compared to the control cells (Figure 4—figure supplement 1C). The enlarged RAB5-RAB7 double-positive vesicles might be the transition vesicles between early endosomes and late endosomes (Poteryaev et al., 2010), and the RAB7-only positive enlarged vesicles might be late endosomes. Taken together, these results indicate that CapZ knockout increases F-actin density by promoting elongation of pre-existing branches to entangle endocytic vesicles, thereby impeding their trafficking and fusion and resulting in the accumulation of small early endosomes.

CapZ recruits RAB5 effectors to early endosomes

CK-636, ARP2 knockout, or latrunculin A only partially rescued the defects of early endosomes in CapZβ-knockout HeLa cells when compared to control cells (Figure 4A and C, and Figure 3—figure supplement 1F), although latrunculin A appeared to completely reverse the F-actin filaments to basal levels (Figure 3—figure supplement 1E) and CK-636 even decreased the actin branches around early endosomes below the basal levels (Figure 4—figure supplement 1A). These results suggest that CapZ might contribute to the maturation of early endosomes by other means in addition to regulating F-actin density. Interestingly, we found that in twinstrep-CapZβ-expressing cells, streptavidin beads not only pulled down CapZβ, but also brought down RAB5 effectors, for example, Rabex-5, Rabaptin-5, and VPS34 (Figure 5A–C). Likewise, CapZ was found in the Rabaptin-5 or VPS34 immunocomplex (Figure 5—figure supplement 1A and B). We then purified recombinant CapZ (CapZα1-CapZβ heterodimer) and Rabaptin-5 protein (Figure 5—figure supplement 1C), and performed biolayer interferometry (BLI) assay to assess the interaction between Rabaptin-5 and CapZ. We showed that Rabaptin-5 bound to immobilized CapZ in a dose-dependent manner (Figure 5D). ITC further confirmed the direct interaction between recombinant CapZ and Rabaptin-5 proteins (Figure 5—figure supplement 1D). Notably, RAB5A also directly interacted with Rabaptin-5 (Figure 5—figure supplement 1E).

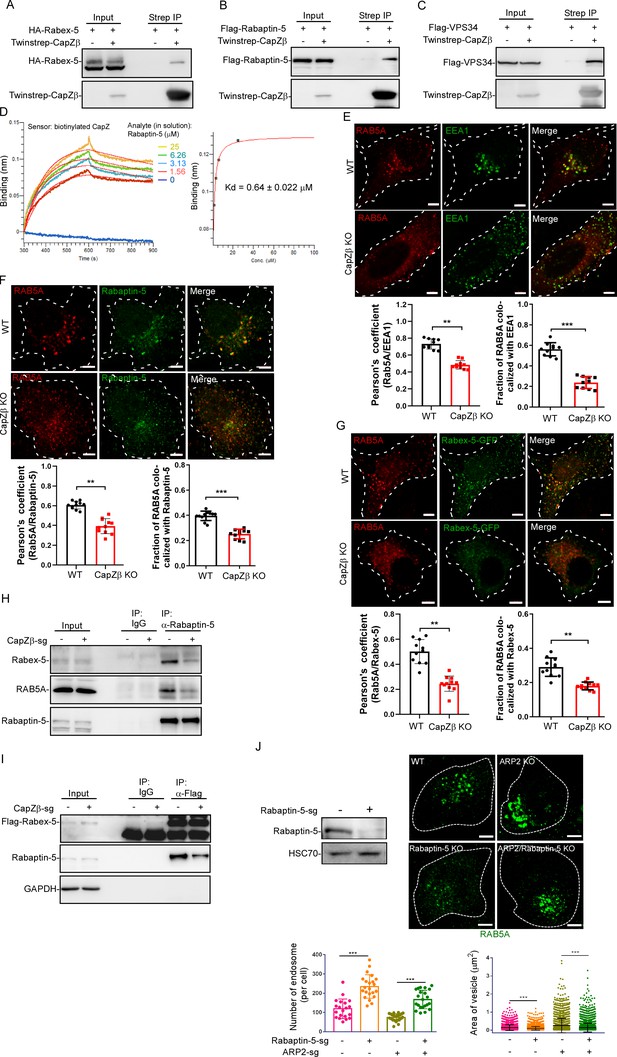

Figure 5 with 1 supplement see all
CapZ facilitates the recruitment of RAB5 effectors to early endosomes.

(A) HEK293 cells were transiently transfected with HA-Rabex-5, and/or Twinstrep-CapZβ, and the cell lysates were then incubated with Strep-Tactin Sepharose. The pulldowns were subjected to immunoblotting analysis against CapZβ and Rabex-5. (B, C) HEK293 cells were transiently transfected with Flag-Rabaptin-5 (B), Flag-VPS34 (C), and/or Twinstrep-CapZβ, and the cell lysates were then incubated with Strep-Tactin Sepharose. The pulldowns were subjected to immunoblot analysis against CapZβ, Rabaptin-5, and/or VPS34. (D) Wavelength shift (nm) generated by the addition of Rapaptin-5 at indicated concentrations to biotinylated CapZ (200 μg/ml) immobilized on a streptavidin biosensor. Association was monitored for 5 min, followed by a 5 min dissociation step in assay buffer. Binding affinity constant was generated by fitting both the association and dissociation curves to a 1:1 binding model. (E) Control or CapZβ-knockout HeLa cells were immunostained with an anti-RAB5A or anti-EEA1 antibody, after which the colocalization coefficients (PCC or MCC) of EEA1 and RAB5A were quantified. (F) Control or CapZβ-knockout HeLa cells were immunostained with an anti-RAB5A or anti-Rabaptin-5 antibody. The colocalization coefficients (PCC or MCC) of Rabaptin-5 and RAB5A were quantified. (G) Control or CapZβ-knockout HeLa cells were transiently transfected with Rabex-5-GFP, and subjected to immunostaining with RAB5A antibody. The colocalization coefficients (PCC or MCC) of Rabex-5 and RAB5A were quantified. (H) The lysates of control or CapZβ-knockout cells were immunoprecipitated with an anti-Rabaptin-5 antibody, and the immunoprecipitates were then subjected to immunoblot analysis against Rabex-5, Rabaptin-5, and RAB5A. (I) Control or CapZβ-knockout HeLa cells were stably transfected with Flag-Rabex-5, and the cell lysates were then immunoprecipitated with an anti-Flag antibody. The immunoprecipitates were subjected to immunoblot analysis against Rabex-5 and Rabaptin-5. (J) Control, ARP2-knockout, Rabaptin-5-knockout, or ARP2/Rabaptin-5-double knockout HeLa cells were immunostained with an anti-RAB5A antibody, and the number and size of the early endosomes in these cells were then quantified. The expression of Rapaptin-5 in control or Rapaptin-5-knockout HeLa cells was analyzed by immunoblot analysis. The BLI data (D) represent two independent experiments, and the rest of the blots, images, and graphs represent data from at least three independent experiments. The data are presented as mean ± SD. The difference between the two groups was assessed using two-tailed Student’s t-test. Differences were considered statistically significant when p<0.05. ** p<0.01, and *** p<0.001. Scale bar, 5 μm. BLI, biolayer interferometry; MCC, Manders colocalization coefficient; PCC, Pearson’s correlation coefficient.

It has been reported that the activation of RAB5 on early endosomes recruits and activates more effectors to endosomes, establishing a positive feedback loop to induce early endosome maturation (Langemeyer et al., 2018). We speculated that CapZ might facilitate the recruitment of these RAB5 effectors to early endosomes, thus activate RAB5 and induce early endosome maturation. We, therefore, examined the effects of CapZβ knockout on the association of RAB5 with its effectors during endocytosis by immunofluorescence staining. As expected, CapZβ knockout significantly decreased the colocalization of RAB5 with EEA1 (Figure 5E), Rabaptin-5 (Figure 5F), or Rabex-5 (Figure 5G). Co-IP experiment confirmed that the interaction between Rabaptin-5 and RAB5 was markedly decreased in CapZβ-knockout cells when compared to the control cells (Figure 5H). CapZβ knockout also markedly reduced the interaction between Rabex-5 and Rabaptin-5 (Figure 5H and I). Whereas knockdown of either Rabex-5 or Rabaptin-5 did not affect the ability of CapZ to interact with Rabex-5 or Rabaptin-5, respectively (Figure 5—figure supplement 1F and G). Since the recruitment of the Rabaptin-5 and Rabex-5 (a RAB5 GEF) complex to early endosomes is required to maintain the RAB5-GTP level for early endosome maturation, we assessed Rabaptin-5 knockout on the size and number of endosomes in control or ARP2-knockout cells. As expected, Rabaptin-5 knockout increased the number, and decreased the size of early endosomes in both control and ARP2-knockout cells (Figure 5J). In summary, these results suggest that CapZ facilitates the recruitment of Rabex-5 and Rabaptin-5 to endosomes, to activate RAB5 during early endosome maturation.

Recruitment of RAB5 effectors to the early endosome by CapZ depends on its actin capping activity

Although RAB5 did not directly interact with CapZ in vitro (Figure 1—figure supplement 1C), in Twinstrep-actin-expressing cells, streptavidin beads pulled down both actin and RAB5A (Figure 6—figure supplement 1A). Early endosomes are known to be associated with F-actin (Taunton et al., 2000; Kaksonen et al., 2005), and several proteins are required for their association, such as Annexin A2 and RN-tre (a GAP for Rab5) (Morel et al., 2009; Lanzetti et al., 2004). We, thus, speculated that CapZ might carry Rabaptin-5 and/or Rabex-5 to RAB5-positive early endosomes by capping the barbed end of F-actin. It has been shown that the C-terminal 29–34 amino acids of CapZβ or CapZα bind to the barbed ends of actin filaments with high affinity (Figure 6A; Yamashita et al., 2003; Narita et al., 2006), and that the capping activity of a CapZβ mutant where the C-terminal tail is deleted, is at least 300-fold lower than the wild-type protein (Wear et al., 2003). To investigate the capping activity of CapZ in the maturation of early endosomes, we constructed a CapZβ deletion mutant by removing the last 34 amino acids at its C-terminal (CapZβ-ΔC34). We subsequently transfected it back to CapZβ-knockout HeLa cells and selected the clones that mimic the endogenous CapZβ expression levels (Figure 6B). We showed that CapZβ-ΔC34 addback not only failed to revert the high level of F-actin induced by CapZβ knockout to that in control cells, but also further increased the F-actin levels, suggesting that this mutant might act as a dominant-negative mutant to prevent other actin capping proteins from binding to the barbed ends of actin (Figure 6—figure supplement 1B). As expected, CapZβ-ΔC34 addback did not restore the size and number of early endosomes in CapZβ-knockout cells to those in control cells, and it further induced the accumulation of small endosomes when compared to the CapZβ-knockout cells (Figure 6C). Likewise, the depletion of EGF-488 signals was significantly inhibited in CapZβ-ΔC34-reconstituted cells (Figure 6D and Figure 6—figure supplement 1C). Moreover, CapZβ-ΔC34-GFP exhibited diffused expression pattern whereas CapZβ-GFP showed both diffused and puncta expression pattern; and the colocalization between CapZβ-ΔC34-GFP and RFP-RAB5 was significantly weaker than that for CapZβ-GFP and RFP-RAB5 (Figure 6E). Thus, these results indicate that the actin capping activity of CapZis essential for its role in endosomal trafficking. To further understand the role of actin capping activity of CapZ in the regulation of endosome maturation, we assessed the interaction of CapZβΔC34 with actin, RAB5, and RAB5 effectors by Co-IP experiments. We showed that not only the binding of β-actin with CapZβΔC34 was abolished, but also the interaction between CapZβΔC34 and RAB5 was markedly diminished (Figure 6F). However, this C34 deletion had little effect on the interaction between CapZβ and the RAB5 effectors such as Rabex-5 (Figure 6F), Rabaptin-5, and VPS34 (Figure 6G). Similarly, the deletion of the C terminal 148–277 amino acids of CapZβ did not affect its interaction with Rabaptin-5 (Figure 6H), whereas the deletion of the N-terminal 1–147 amino acids of CapZβ abolished its interaction with Rabaptin-5 (Figure 6I). Interestingly, CK-636 (an inhibitor of the Arp2/3 complex) had no effects on CapZ’s interaction with actin, RAB5, Rabex-5, Rabaptin-5, or VPS34 (Figure 6—figure supplement 1D and E). Taken together, these results suggest that CapZ recruits the RAB5 effectors via its N-terminal domain, and docks to the early endosomes by capping the barbed ends of F-actin via its C-terminal actin-binding motif.

Figure 6 with 1 supplement see all

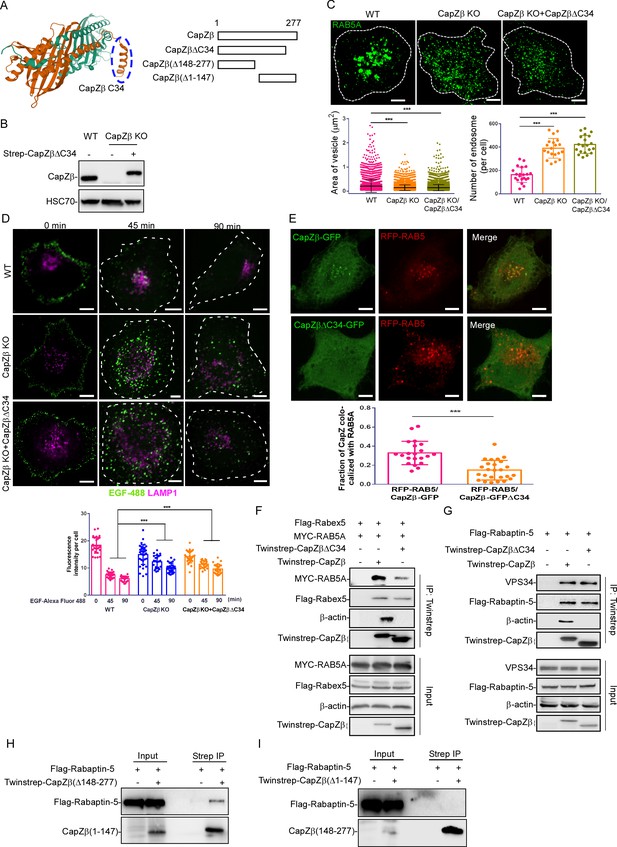

Recruitment of RAB5 effectors to the early endosomes by CapZ depends on its actin capping activity.

(A) The left panel shows the actin-binding motif in the CapZ structure generated from the protein data bank (PDB ID: 1IZN). Cyan color indicated CapZα structure, and brown color indicated CapZβ structure. The right panel shows various CapZβ deletion constructs. (B) The expression of CapZβ in control, CapZβ-knockout, or Twinstrep-CapZβ-ΔC34-reconstituted HeLa cells was determined by CapZβ immunoblotting. (C) Control, CapZβ-knockout, or Twinstrep-CapZβ-ΔC34-reconstituted HeLa cells were stained with an anti-RAB5A antibody. The number and size of the early endosomes in these cells were quantified. (D) Control, CapZβ-knockout, or Twinstrep-CapZβ-ΔC34-reconstituted HeLa cells were treated with EGF-488 for the indicated times, and processed for immunofluorescence analysis. (E) HeLa cells were transfected with RFP-RAB5A, and CapZβ-GFP or CapZβ-ΔC34-GFP, and subjected to confocal imaging 24 hr later. The colocalization coefficients (MCC) of RFP-RAB5A and CapZβ-GFP or RFP-RAB5A and CapZβΔC34-GFP were quantified. (F) HEK293 cells were transfected with Twinstrep-CapZβ or Twinstrep-CapZβ-ΔC34, MYC-RAB5A, and Flag-Rabex-5, and the cell lysates were then incubated with Strep-Tactin Sepharose. The pulldowns were subjected to immunoblotting analysis against the indicated antibodies. (G) HEK293 cells were transfected with Twinstrep-CapZβ or Twinstrep-CapZβ-ΔC34, and Flag-Rabaptin-5, and the cell lysates were then incubated with Strep-Tactin Sepharose. The pulldowns were subjected to immunoblotting analysis against the indicated antibodies. (H, I) HEK293 cells were transfected with Twinstrep-CapZβ(Δ148–277) (H) or Twinstrep-CapZβ(Δ1–147) (I), and Flag-Rabaptin-5, and the cell lysates were then incubated with Strep-Tactin Sepharose. The pulldowns were subjected to an immunoblotting analysis against the indicated antibodies. The blots, images, and graphs represent data from at least three independent experiments. The data are presented as mean ± SD. The difference between the two groups was calculated using two-tailed Student’s t-test. Differences were considered statistically significant when p<0.05. *** p<0.001. Scale bar, 5 μm. MCC, Manders colocalization coefficient.

Discussion

During the early step of endocytosis, actin filaments facilitate the budding of RAB5-positive vesicles by acting as scaffolds for the plasma membrane invagination and providing force for scission of the vesicle against turgor pressure (Girao et al., 2008; Bucci et al., 1992; McLauchlan et al., 1998). The actin filaments might also help these internalized vesicles move away from the invaginated fusion site (Taunton et al., 2000; Merrifield et al., 2002). Unexpectedly, here we found that the increased F-actin density around endocytic vesicles caused by CapZ knockout inhibited the maturation of early endosomes, manifested by the accumulation of small endocytic vesicles in CapZ-knockout cells (Figure 2C and D, Figure 2—figure supplement 1I, and Figure 3—figure supplement 1D). Whereas the decreased F-actin density, caused by CapZ overexpression (Figure 3A and B), latrunculin A treatment (Figure 3—figure supplement 1F), CK-636 treatment (Figure 4A), or ARP2 knockout (Figure 4C), increased the size and/or maturation of early endosomes. Therefore, these results suggest that the actin filaments around the endocytic vesicles might act as the physical barrier to inhibit homotypic fusion of these vesicles. CapZ impedes actin filaments growth, which in turn can facilitate actin filaments to be depolymerized by other factors (e.g., cofilin), to facilitate the fusion. This possibility is further supported by the inability of CapZβ-ΔC34 (a mutant lacking actin capping activity) to rescue the defects of endolysosomal trafficking in CapZβ-knockout cells (Figure 6C and D, and Figure 6—figure supplement 1C).

Besides binding to actin (Figure 6F and G), CapZ complex was associated with RAB5 (Figure 1D and E), and GST-RAB5 was able to pull down CapZ from cell extracts (Figure 1F). Interestingly, RAB5-GDP pulled down more CapZ from cell extracts than RAB5-GTP (Figure 1F), and RAB5 was less active in the CapZ-knockout cells when compared with the control cells (Figure 2E). These results suggest that CapZ might interact with RAB5-GDP to promote the production of RAB5-GTP. However, CapZ contains no known GEF domain, such as VPS9 or DENN (Barr and Lambright, 2010), and it did not directly interact with RAB5 in vitro (Figure 1—figure supplement 1C). Therefore, it is likely that CapZ activates RAB5 via other known RAB5 GEFs. Rabex-5, perhaps the best known of the RAB5 GEFs, normally functions with Rabaptin-5, to activate RAB5 and promote the maturation of early endosomes (Barr and Lambright, 2010; Langemeyer et al., 2018). Indeed, we demonstrated the presence of both Rabex-5 and Rabaptin-5 in the CapZ complex (Figure 5A and B, and Figure 5—figure supplement 1A), and CapZ directly interacted with Rabaptin-5 in vitro (Figure 5D and Figure 5—figure supplement 1D). CapZβ-ΔC34 also retained its binding capabilities toward Rabex-5 and Rabaptin-5, not actin and RAB5 (Figure 6F and G), whereas CapZβ(Δ1–147) lost its binding affinity with Rabaptin-5 (Figure 6I). In addition, when CapZβ was knocked out, the interaction or association between Rabex-5 or Rabaptin-5 and RAB5 was reduced (Figure 5F-I). In contrast, knockdown of either Rabex-5 and Rabaptin-5 did not affect the ability of CapZ to interact with Rabaptin-5 or Rabex-5, respectively (Figure 5—figure supplement 1F and G). These results suggest that when CapZ caps the F-actin filaments (via its C-terminal tail), it might function as a scaffold protein to carry Rabaptin-5 and Rabex-5 (via its N-terminal domain) to RAB5-GDP-positive early endosomes, which are associated with F-actin filaments. This could induce the production of RAB5-GTP, and the active RAB5 then recruits more Rabaptin-5, Rabex-5, and other effectors to initiate a positive feedback loop to further increase its activity.

In the CapZ-knockout cells, the number of early endosomes was significantly increased but their size was markedly smaller, when compared with the control cells (Figure 2C and D, Figure 2—figure supplement 1I, and Figure 3—figure supplement 1D). In addition, RAB5 activity was significantly decreased in CapZ-knockout cells than in the control cells (Figure 2E). These results suggest that CapZ is required for the fusion or maturation of early endosomes. Another explanation of the increased small endocytic vesicles in CapZ-knockout cells is that CapZ deficiency might also promote the fission of early endosomes. Interestingly, CapZ was found in the WASH complex. WASH was shown to facilitate the nucleation of actin onto endosomes to control the fission of early endosomes for endosomal receptor recycling. WASH knockdown markedly induced tabulation of the endosomes and inhibited transferrin recycling (Derivery et al., 2009). Of note, CapZ knockout inhibited transferrin recycling as well (Figure 2—figure supplement 1G).

In mammalian cells, both actin filament and microtubule serve as tracks for the movement of endocytic vesicles. Myosin-VI drives early endosomes along actin filaments for short-range movements near cell cortex; and the long-range endosome motility is associated with microtubules, which mediates the movement of endosomes toward the perinuclear region (Girao et al., 2008; Soldati and Schliwa, 2006). However, a switch from microfilament- to microtubule-based movements during endosome translocating from cell surface to cell center remains unknown. Interestingly, CapZ knockout did not disrupt the move of the immature early endosomes away from the cell cortex, but it significantly slowed down the motility, shortened the moving distance, and disrupted the moving direction of these immature vesicles (Figure 3F). Therefore, CapZ might decrease the density of actin filaments around endocytic vesicles to facilitate the attachment of these vesicles to microtubules to render their fast movement toward the perinuclear region. Interestingly, deletion of CapZ in yeast cells reduced the moving rate of endocytic vesicles from the membrane invagination sites, suggesting that actin meshwork around the membrane invagination facilitates the subsequent vesicle scission and its rapid movement away from the plasma membrane (Kaksonen et al., 2005).

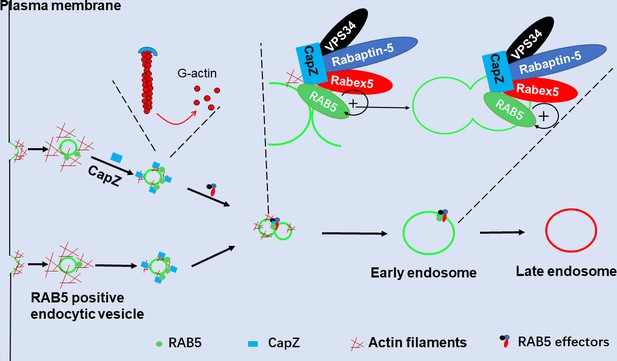

Taken together, our results illustrate a dual-functional role of CapZ in endosomal trafficking: it controls actin filament density around immature early endosomes via its C-terminal domain to facilitate the homotypic fusion of the endocytic vesicles; and it functions as a scaffold protein via its N-terminal domain to recruit RAB5 effectors, for example, Rabex-5 and Rabaptin-5, to early endosomes, thereby establishing a positive feedback loop to induce early endosome maturation.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
AntibodyAPRC1B (Rabbit polyclonal)Sigma-AldrichHPA004832IF (1:100)
AntibodyARP2 (Rabbit polyclonal)ProteinTech10922-1-APWB (1:2000)
AntibodyPan Actin (Mouse monoclonal)CytoskeletonAAN02-sIF (1:500)
AntibodyCapZα (Mouse monoclonal)DSHBmAb 5B12.3WB (1:100)
AntibodyCapZβ (Rabbit polyclonal)ProteinTech25043-1-APWB (1:2000)
AntibodyEGFR (Mouse monoclonal)Santa Cruzsc-373746WB (1:100)
AntibodyEEA1 (Rabbit monoclonal)CST3,288IF (1:100)
AntibodyFlag-tag (Mouse monoclonal)Sigma-AldrichF3165WB (1:1000)
AntibodyHA-tag (Rat monoclonal)Sigma-Aldrich11867423001WB (1:3000)
AntibodyHis-tag (Mouse monoclonal)ProteinTech66005-1-IgWB (1:3000)
AntibodyHSC70 (Mouse monoclonal)Santa Cruzsc-7298WB (1:10,000)
AntibodyLAMP1 (Rabbit monoclonal)CST9,091IF (1:200)
AntibodyMYC-tag (Mouse monoclonal)ProteinTech67447-1-IgWB (1:3000)
AntibodyN-WASP (Rabbit polyclonal)Novus BiologicalsNBP1-82512IF (0.25–2 µg/ml)
Antibodyp16-Arc (Rabbit monoclonal)Abcamab51243IF (1:100)
AntibodyRabaptin-5 (Rabbit polyclonal)ProteinTech14350-1-APWB (1:1000)
AntibodyRabex-5 (Mouse monoclonal)Santa Cruzsc-166049WB (1:500)
AntibodyStrepMAB-Classic HRP conjugate (Mouse monoclonal)IBA2-1509-001WB (1:3000)
AntibodyVPS8 (Rabbit polyclonal)ProteinTech15079-1-APWB (1:1000)
AntibodyRAB5A (Rabbit polyclonal)ProteinTech11947-1-APWB (1:1000)
AntibodyRAB5A (Rabbit monoclonal)CST3547IF (1:200)
AntibodyRAB5A (Mouse monoclonal)CST46449IF (1:200)WB (1:1000)
Chemical compound, drugCK-636SelleckS7497
Chemical compound, drugLatrunculin ASanta Cruzsc-202691
Chemical compound, drugEGFBio-RadPHP030A
Chemical compound, drugGDP-β-SSigma-AldrichG7637
Chemical compound, drugGTP-γ-SJena BioscienceNU-412-2
OtherTransferrin-Alexa Fluor 594InvitrogenT13343(25 μg/mL)
OtherEGF-Alexa Fluor 488InvitrogenE13345(1 μg/ml)
OtherPhalloidin-iFluor 647Abcamab176759(1:1000) in 30 μl stock solution
OtherTexas Red-X PhalloidinInvitrogenT7471(1:40) in 1.5 ml stock solution
Cell line (Homo sapiens)HeLa cellsATCCCRL-CCL-2
Cell line (H. sapiens)HEK293 cellsATCCCRL-1573

Cell culture and virus propagation

Request a detailed protocol

HeLa (CRL-CCL-2) and HEK293 (CRL-1573) cells were obtained from ATCC. The identity of these cells has been authenticated by STR, and they are negative for mycoplasma contamination. Where not otherwise specified, all cells were maintained in Dulbecco’s modified Eagle’s medium (DMEM; Invitrogen, 12800-017) containing 10% fetal bovine serum (Invitrogen, 10270-106) and 100 units/ml of penicillin/streptomycin (Invitrogen, 15140-122) at 5% CO2 and 37°C.

Antibodies

The primary antibodies were used as follows: GAPDH (Proteintech, 60004-1-Ig), CapZβ (Proteintech, 25043-1-AP), ARPC1B (Sigma-Aldrich, HPA004832), p16-Arc (Abcam, ab51243), N-WASP (Novus Biologicals, NBP1-82512), His-tag (ProteinTech, 66005-1-Ig), β-actin (ProteinTech, 60008-1-Ig), α-tublin (ProteinTech, 66031-1-Ig), VPS8 (ProteinTech, 15079-1-AP), λ-tublin (Sigma-Aldrich, T6557), HSC70 (Santa Cruz, sc-24), VPS34 (CST, 4263), CapZa1/a2 (Developmental Studies Hybridoma Bank, mAb 5B12.3), anti-pan actin (Cytoskeleton, AAN02-s), RAB5A (CST, 3547 or 46449), Calnexin (ProteinTech, 10427-2-AP), LAMP1 (CST, 9091), TGN46 (Bio-Rad, AHP500GT), EEA1 (CST, 3288), MYC-tag (ProteinTech, 67447-1-Ig), Flag-tag (Sigma-Aldrich, F3165), HA-tag (Sigma-Aldrich,11867423001), StrepMAB-Classic HRP conjugate (IBA, 2-1509-001), Rabex-5 (Santa Cruz, sc-166049), Rabaptin-5 (ProteinTech, 14350-1-AP), EGFR (Santa Cruz, sc-373746), goat anti-mouse IgG (H+L) secondary antibody (Invitrogen, 31430), goat anti-rabbit IgG (H+L) secondary antibody (Invitrogen, 31460), and goat anti-rat IgG (H+L) secondary antibody (Invitrogen, 31470).

Reagents and chemicals

Request a detailed protocol

Transferrin-Alexa Fluor 594 (Invitrogen, T13343), EGF-Alexa Fluor 488 (Invitrogen, E13345), CK-636 (Selleck, S7497), Latrunculin A (Santa Cruz, sc-202691), Texas Red-X Phalloidin (Invitrogen, T7471), Phalloidin-iFluor 647 (Abcam, ab176759), EGF (Bio-Rad, PHP030A), GDP-β-S (Sigma-Aldrich, G7637), GTP-γ-S (Jena Bioscience, NU-412-2), ProLong Diamond Antifade (Thermo Fisher Scientific, P36970), RIPA lysis buffer (Beyotime, P0013), Bradford (Bio-Rad, 5000006), Fatty-free bovine serum albumin (BSA; Sangon Biotech, A602448-0050), anti-flag magnetic beads (Bimake, B26101), Strep-Tactin Sepharose (IBA Lifesciences, 12846436), Western Chemiluminescent HRP Substrate (Millipore, WBKLS0500), Ni-NTA Agarose (Qiagen, 30210), and Glutathione Sepharose High Performance (GE, 17527901).

Immunoblotting

Request a detailed protocol

Total protein lysates were prepared in RIPA buffer and quantified using the Bradford Protein Assay. Proteins were separated by SDS-PAGE gels, transferred onto PVDF membranes, and blocked with 3% BSA in TBST (20 mM Tris base, 137 mM NaCl, 0.1% Tween-20, pH 7.6) for 1 hr. The membranes were probed with primary antibodies at 4°C overnight, and then washed with TBST followed by incubation with HRP secondary antibodies for 1 hr at room temperature. Immunoreactivity was visualized by chemiluminescent HRP substrate.

Co-Immunoprecipitation

Request a detailed protocol

For co-IP performed in transfected cells, cells were lysed in NP-40 buffer before being incubated with anti-Flag magnetic beads (Bimake, B26101) or Strep-Tactin Sepharose (IBA, 2-1201-010) at 4°C overnight. The beads were then washed at least three times with lysis buffer before immunoblotting analysis. For endogenous co-IP, Hela cells were lysed in NP-40 buffer followed by incubation with the indicated antibody or normal IgG at 4°C overnight, followed by incubation with Protein A/G magnetic beads (Bimake, B23201) for another 2 hr. The beads were then washed at least three times with lysis buffer before immunoblotting analysis.

CRISPR/Cas9 knockout

Request a detailed protocol

sgRNA sequences were designed by CHOPCHOP (Montague et al., 2014). To generate the CapZβ-KO cell lines, CapZβsgRNA (5′-CCAGGTCGATCAGGTCGCTG-3′) was firstly cloned into pSpCas9(BB)-2A-GFP vector (Ran et al., 2013), and then sgRNA constructs were transfected into HeLa cells for 24 hr. GFP-positive cells were individually sorted and expanded. The knockout efficiency was determined by immunoblot analysis. Lentivirus Cas9 mediated gene knockout was achieved by lentiCRISPRv2 plasmids, which were inserted with VPS8 sgRNA (5′-CACCGCTTCGCTCGTCTTGGCACAG-3′), ARP2 sgRNA (5′-CACCGGGTGTGCGACAACGGCACCG-3′), or Rabaptin-5 sgRNA (5′-CACCGGTATAGAGAATCCGCAGAGA-3′). After lentivirus infection and antibiotics selection, the knockout efficiency was determined by immunoblot analysis.

Plasmid constructions

Request a detailed protocol

Plasmids were constructed by conventional restriction enzyme-based cloning or by the Gateway recombination system (Invitrogen). All the constructs were verified by sequencing. The plasmids used in this study are listed in Table 1.

Table 1
Plasmids used in this study.
pCDNA3.1-Flag-Rabaptin-5pRK5-mRFP-FYVEpCDNA3.1-HA-Rabex-5
pCDNA3.1-MYC-RAB5Aplenti-CapZβ-GFPpCDNA3.1-CapZβ-His6
pRP-CapZβ-TwinStreppGEX-4-R5BDpCDNA3.1-Flag-VPS34
pCDNA3.1-Twinstrep-RAB5AiRFP-FRB-RAB5ACFP-FKBP-CapZβ
mRFP-RAB5ApAGW-GFP-RAB5Aplenti-CapZβ-mcherry
pGEX4T-1-RAB5ApGEX4T-1plenti-Flag-Rabex-5
Plenti-GFP-ML1N2*plenti-CapZβpRSFDuet-1-CapZβ/CapZα1
plenti-CapZβ-TwinstreppsPAX2pMD2.G
pGEX4T-1-Rabaptin-5pCDNA3.1-β-actin-Twinstrepplenti-CapZβ(1-147)-Twinstrep
plenti-CapZβ(148-277)-TwinstrepmCherry-ARPC1B

GST pulldown assays

Request a detailed protocol

The recombinant GST-Rab5A protein was incubated with either GTPγS (1 mM) or GDPβS (1 mM) in binding buffer (150 mM NaCl, 5 mM EDTA, and 25 mM Tris-HCl, pH 7.4) at 37°C for 30 min, as described previously (Shinde and Maddika, 2016). Then preloaded GST-RAB5A was incubated with HEK 293 cell lysates containing 10 mM MgCl2, for 2–4 hr at 4°C. Thereafter, the beads were washed with wash buffer (150 mM NaCl, 2.5 mM MgCl2, and 25 mM Tris-HCl, pH 7.4) and subjected to immunoblot analysis with respective antibodies.

Recombinant protein purification

Request a detailed protocol

Escherichia coli BL21(DE3) pLysS cells (TransGen Biotech) transformed with expression vectors containing GST-tagged RAB5A, GST-tagged Rabaptin-5, or His6-tagged CapZβ/ CapZα1 were grown at 37°C to an OD600 of 0.6–0.8 and then induced with 0.5 mM IPTG at 16°C overnight. Induced cells were harvested by centrifugation at 4000 rpm and resuspended in lysis buffer A (50 mM Tris-HCl pH 7.5 and 150 mM NaCl) for GST-tagged proteins or lysis buffer B (50 mM Tris-HCl pH 7.5, 1 mM DTT, 1 mM EDTA, 1% Triton-x100 and 1 mM phenylmethylsulphonyl fluoride) for His6-tagged proteins. Resuspended cells were lysed by the French press method and centrifuged at 18,000 rpm for 1 hr to remove cell debris. For GST-tagged proteins, supernatants were incubated with Glutathione Sepharose (GE Healthcare) for 2 hr at 4°C, and nonspecific proteins were washed out with buffer C (50 mM Tris-HCl pH 7.5 and 500 mM NaCl) before elution with buffer D (50 mM Tris-HCl pH 8.0, 50 mM NaCl, and 15 mM reduced glutathione). For His6-tagged proteins, supernatants were loaded onto a HisTrap excel column before washing with buffer E (50 mM Tris-HCl pH 7.5, 50 mM NaCl, and 20 mM imidazole). To elute the His6-tagged proteins, buffer F (50 mM Tris-HCl pH 7.5, 100 mM imidazole, and 50 mM NaCl) was used. GST-tagged proteins and His6-tagged proteins were dialyzed with 3C protease-containing buffer (50 mM Tris-HCl pH 7.5, 50 mM NaCl, and 5 mM EDTA) to cleave off GST-tag and His6-tag. The digestion mixtures were applied to Glutathione Sepharose or loaded to a HisTrap excel column to remove released GTS-tag or His6-tag, and the flow-through fractions containing the target proteins were collected. The flow-through fractions were further purified by a HiTrap Q HP column and gel filtration chromatography using Superdex 75 or 200 pg 16/60 column (GE Healthcare). The purified proteins were analyzed by SDS-PAGE and concentrated to about 20 mg/ml using 10 or 30 kDa Amicon Ultra centrifugal filters (Millipore).

Live-cell image

Request a detailed protocol

Cells were plated on 35 mm glass-bottom dishes (Ibidi, 181212/5) and transfected with RFP-RAB5 plasmids. After 24 hr, images were obtained with a Nikon A1HD25 high-speed and large Field of view confocal microscope using a 100× oil objective lens. RFP fluorescence was captured using 558 nm excitation filters. Images were captured for 3 min using the ‘no delay’ mode (the ‘Real’ interval between each frame is around 0.5 s), and after data acquisition, the raw images were processed with the Nikon NIS software. Briefly, the endosomes in each frame were detected by the bright different sizes method in the NIS-Elements AR software; the typical diameter and contrast parameters were set appropriately to ensure most objects were selected. The objects were then tracked with a constant speed motion model. The ‘linking’ modules were selected, which allowed three maximum gap sizes in tracks, to facilitate the same endosomes to be tracked between frames. The average speed is the average speed of each endosome in each frame. The average moving distance is the average moving distance of each endosome in each frame X (multiply) total frames.

Immunofluorescence staining

Request a detailed protocol

Cells were fixed by 4% paraformaldehyde and permeabilized with 0.1% Triton X-100 in phosphate-buffered saline (PBS) for 15 min. Nonspecific antigens were then blocked by 1% BSA for 30 min at room temperature followed by incubation with the indicated primary antibodies at 4°C overnight. The next day, the cells were incubated with the appropriate fluorescence-conjugated secondary antibody for 1 hr at room temperature and washed with PBS before mounting coverslip with ProLong Diamond Antifade. Images were acquired with the Zeiss LSM 880 or Nikon A1HD25 confocal microscope and then analyzed with the ZEISS ZEN or ImageJ software. All the confocal images were taken and analyzed in a single plane if not otherwise specially stated.

ZEISS ZEN software was used to examine RAB5-positive endocytic vesicles, and the min/max size of endosomes were set to the same value in the same set of experiments (e.g., 30,000 nm2(min)/10,000,000 nm2(max)). The intensity cutoffs were set automatically through Otsu threshold methods with manual checks to ensure most endosomes to be appropriately circulated. The overlapping endosomes were separated by the watersheds method.

Super-resolution microscopy was performed with a Nikon N-SIM system in 3D structured illumination mode on an Eclipse Ti-E microscope equipped with a 100×/1.49 NA oil immersion objective, 488 and 561 nm solid-state lasers (coherent), and an EM-CCD camera (DU-897, Andor Technology). To generate a SIM image, 15 raw images acquired at different orientation of the structured illumination were collected and then reconstructed into a final super-resolved image using the N-SIM module in NIS-Elements software. To generate a 3D SIM image, z-series imaging of cells were taken with a 0.12-µm step size. The Z stack was then reconstructed into a 3D image using the N-SIM module in NIS-Elements software.

EGF endocytosis and EGFR degradation assay

Request a detailed protocol

For EGFR degradation, cells maintained in six-well plates were washed with PBS before incubating in serum-free DMEM medium overnight at 37°C. EGFR endocytosis was stimulated by the addition of EGF (100 ng/ml) in DMEM. At indicated time points after EGF stimulation, the cells were lysed in SDS–PAGE sample buffer, and subjected to immunoblot analysis with an anti-EGFR antibody.

GST-R5BD pulldown assay- The preparation of GST-R5BD linked to glutathione-agarose beads was performed as described previously (Qi et al., 2015). Cells were lysed in lysis buffer (25 mM HEPES-KOH (pH 7.4), 100 mM NaCl, 5 mM MgCl2, 0.1% NP40, 10% Glycerol, and 1 mM DTT). Equal amounts of protein were then added to the GST-R5BD beads and incubated at 4°C for 2 hr. The beads were washed with lysis buffer without detergent and then boiled in sample loading buffer, followed by immunoblot analysis with the anti-RAB5A antibody.

Biolayer interferometry

Request a detailed protocol

The binding affinity between CapZ and Rabaptin5 was measured by BLI on an OctetRED96 instrument (ForteBio). The assays were performed on black 96-well plates (Greiner Bio-One) with a shaking speed of 1000 rpm at 25°C. CapZ was biotinylated by EZ-Link Sulfo-NHS-LC-Biotinylation Kit (Thermo Fisher Scientific) in binding buffer (1× PBS). The streptavidin (SA) biosensors (ForteBio) were blocked for 10 min with 5% skimmed milk powder in 1× PBS, and washed with PBS for three times (10 min per time) to reduce nonspecific interactions. SA biosensors with immobilized biotinylated CapZ (200 μg/ml) were then exposed to various concentrations of Rabaptin-5 protein, and one well without Rabaptin5 protein was used as a negative control. The biotinylated Rab5A-loaded SA sensor exposed to Rabaptin5 protein (50 µM) was used as a positive control, and was run for each experiment. Data were analyzed by Octet Data Analysis HT 10.0.3.7 software (Pall ForteBio LLC). The binding affinity constant was generated by fitting both the association and dissociation curves to a 1:1 binding model.

Isothermal titration calorimetry

Request a detailed protocol

ITC experiments were performed on a MicroCal PEAQ-ITC system (Malvern Panalytical) at 25°C. All proteins were separately exchanged into ITC buffer (50 mM Tris-HCl pH 7.5, 150 mM NaCl, and 5 mM EDTA) by extensive dialysis at 4°C for 16 hr. Rabaptin-5 (400 μM) and GST-RAB5A (500 μM) were respectively injected into 300 μl ITC buffer containing 40 μM CapZ complex via a 40-μl syringe with 19 injections of 2 μl each. The same experiment was performed with injections of 2 μl GST-RAB5A (300 μM) into 300 μl Rabaptin-5 (30 μM) as a positive control. A background titration was carried out by respectively titrating Rabaptin-5 (400 μM) or GST- RAB5A (500 μM) to the sample cell containing 300 μl ITC buffer. Titration curves were fitted by MicroCal PEAQ-ITC analysis software (Malvern Panalytical) using a one-site binding model.

Image colocalization analysis

Request a detailed protocol

Manders colocalization coefficient (MCC) or Pearson’s correlation coefficient (PCC) are two major metrics of colocalization analysis of two probes. In general, MCC or PCC methods based on the workflow described by Dunn et al., 2011 were performed on single plane images (Dunn et al., 2011). Briefly, to analyze the colocalization between RAB5 and its effectors (e.g., EEA1, Rabex-5, or Rabaptin-5), PCC was used because RAB5 and its effectors mostly co-occur on the same cellular structures (early endosomes), and their fluorescent signals fit a single linear relationship, which satisfies the requirements of PCC. On the other hand, if images were required to set a threshold to distinguish an object from a background (e.g., CapZ), or only a small proportion of two objects (such as p16-Arc vs. RAB5, CapZ vs. RAB5, or RAB5 vs. Actin) were codistributed in the same compartment, MCC was used.

Statistical analysis

Request a detailed protocol

All statistical analysis was performed by Graphpad software. The difference between the two groups was assessed using an unpaired and parametric Student’s t-test. The endosome size data in control, CapZ-knockout, or ARP2-knockout cells could also be transformed with log10 before t-test. Differences were considered statistically significant when p<0.05.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files.

References

    1. Chen YJ
    2. Stevens TH
    (1996)
    The VPS8 gene is required for localization and trafficking of the CPY sorting receptor in Saccharomyces cerevisiae
    European Journal of Cell Biology 70:289–297.
    1. Mendoza P
    2. Díaz J
    3. Silva P
    4. Torres VA
    (2014)
    Rab5 activation as a tumor cell migration switch
    Small GTPases 5:e1381.

Decision letter

  1. Mahak Sharma
    Reviewing Editor; Indian Institute of Science Education and Research Mohali, India
  2. Anna Akhmanova
    Senior Editor; Utrecht University, Netherlands
  3. Giorgio Scita
    Reviewer; IFOM Foundation, Institute FIRC of Molecular Oncology, Italy

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Thank you for submitting your article "Capping protein regulates endosomal trafficking by capping F-actin on endocytic vesicles and recruiting RAB5 effectors" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Anna Akhmanova as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Giorgio Scita (Reviewer #2).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted "essential revisions" section incorporating comments from all the three reviewers to help you prepare a revised submission. The individual recommendations from the three reviewers are also listed below.

Essential revisions:

The manuscript by Wang et al., describes the role of actin capping protein CapZ in early endosome maturation and cargo trafficking. CapZβ knock out HeLa cells show defect in endosome maturation and a delay in EGFR degradation. The early endosome maturation defects in CapZβ-knockout cells are partially rescued by inhibiting actin polymerization. CAPZ is also shown to mediate a direct interaction with basic components of the RAB5-endosomal fusion machinery and to control through them RAB5A activation and endosome fusion, with an impact on Zika virus infection. Overall, the experiments are well conducted and documented and support the mode of action of CapZ proposed on endosome maturation. However, there are several concerns that must be adequately addressed by additional experimentation to support the major conclusions of this study:

Please find the points covering the essential revision requirements below:

1) CapZ is an essential protein in almost all actin dependent mechanisms, and as a consequence the KO of CapZ will undoubtedly affects a number of different actin-dependent processes that influence several conclusions of the paper. For example, The KO of CapZ is known to influence cell morphology (Sinnar et al., MBOC 2014). Thus, authors should investigate parameters such as cell spreading and/or cell size in CapZ KO Hela cells. Several endosomes metrics should also be weighted by cell size, such as the number of endosomes. This could markedly change the significance of several findings. Further the rate of constitutive endocytosis should be measured in CapZβ-knockout cells.

2) A central assertion of the paper is that CapZ knockout might increase the formation of new actin branches to entangle around these immature RAB5-positive endocytic vesicles, and this might impede their fusion and result in the accumulation of small endosomes" (lines 113-115). However, there is surprisingly no imaging experiments performed with actin markers.

a) High resolution imaging of actin and Rab5 endosomes should provide better estimation of excessive actin polymerization on these endosomes. Subcellular fractionation experiments can also be performed to test actin levels in the endosomal fractions under these conditions.

b) Are the enlarged endosomes seen in the ArpC1B KO completely devoid of actin?

c) Can the impaired motility of Rab5 positive vesicles be rescued by Arp2/3 complex inhibition and or actin depolymerization?

3) It is unclear whether there is any preference for CAPZ binding to early (RAB5 positive) versus Late Rab7- or RAB4/RAB11-recycling endosomes. The Golgi-like localization of GFP-CapZ suggests it localizes to lysosomes or late endosomes. To that end, please quantify the degree of colocalization of CapZ with Lamp1 (images are in the supplementary Figure 1B but not quantified), Rab7 and Rab11/Rab4. Rab4 is particularly important since it can directly interaction with Rabaptin-5 (Vitale et al., EMBO J. 1998).

4) Similarly, while the co-immunoprecipitation between CAPZ and RAB5 is documented, it is unclear whether this interaction is specific (do other RABs, and specifically RAB7 or RAB11, interact with CAPZ?) and whether there is any preferential binding to the GTP or GDP bound form of RAB5. One key tenet, here, is that CapZ interaction with RAB5 and endosome should be mediated by the branched actin network around these structures. Does inhibiting actin polymerization either with Latrunculin or CK-639 impair the interaction between CapZ and RAB5 but not some of the component of endosomal fusion machineries reported in Figure 3 (as later shown using CapZ mutants)? Further interaction between Rab5 GEF and Rab5 also seems to be dependent on CapZ actin capping activity. The potential reason/ basis of these observations can be added to the Discussion section of the manuscript.

5) In Figure 1F, the trafficking dynamics of fluorescently labeled EGF is examined in CAPZ null versus reconstituted cells. CAPZ removal results in a persistent accumulation of EGF in intracellular vesicles, leading the author to conclude that EGFR degradation is severely delayed by CAPZ Knocked down. However, to support this contention, EGFR receptor levels (also through western blotting) should be monitored over time following a pulse of EGF. Indeed, the accumulation of EGF/EGFR could be also caused by inhibition of recycling begging the question as to whether CapZ is also involved EGF/EGFR recycling? Additionally, one might expect EGFR signalling to be perturbed given the tight relationship between endosomal fluxes, number and size and signalling (as shown by recent work by Zerial group that proposed the notion of endosomes act as quanta signalling platforms thereby influencing ERK1/2 activity).

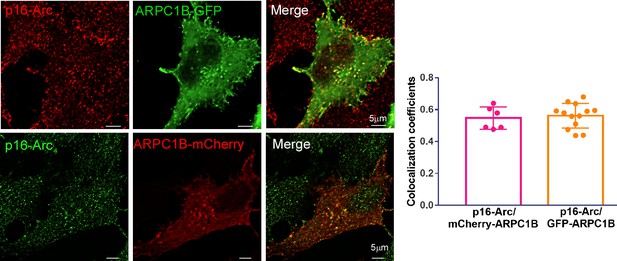

6) ArpC1B-mCherry does not appear localize to the lamella in Figure 2B and suggests that ectopic expression of ArpC1B-mCherry does not faithfully recapitulate the localization of the endogenous Arp2/3 complex. a. As a positive control, the authors should show that ArpC1B-mCherry colocalizes with endogenous Arp2/3 complex.

b. Figure 2C shows N-Sim of ArpC1B-mCherry with endogenous Rab5. This analysis would be best served by comparing this colocalization with the colocalization of endogenous Arp2/3 complex and endogenous Rab5.

c. The representative images in 2B and 2C do not show the same focal plane for WT and KO cells and raises questions about the fairness of the colocalization analysis. Please show representative images of WT and CapZbKO cells at the same focal plane and indicate how the colocalization analysis was performed.

d. Also, how well does the overexpressed ArpC1B-mCherry colocalize with GFP-CapZ, and does CapZ KO disrupt ArpC1B-mCherry localization?

e. An alternative to the conclusion that inhibition of Arp2/3 complex leads to larger endosomes is that inhibition of Arp2/3 complex leads to impaired emergence of nascent endosomes from the plasma membrane. This would reduce the population of small vesicles and as a consequence would inherently overly inflate the contribution of larger vesicles to the overall mean vesicle area. Again, showing the distribution of endosome sizes would be helpful in distinguishing these possibilities.

f. Localization of the Arp2/3 complex to these vesicular populations does not imply that it is active. Please determine, if this CapZ KO-driven localization is accompanied by enrichment of endogenous N-WASP on these enlarged vesicles.

7) The in vitro binding of Rabaptin-5 to CapZ is unconvincing, mainly because of the low heat of interaction coupled to the high concentrations of proteins used in ITC experiment. To that end, the authors should be extra critical of the ITC results and provide a secondary measure of interaction (like a pulldown with purified proteins). Based on the evidence presented in Figure 2E and 2F, it would seem that CapZ KO-driven loss of Rabaptin-5 is the main driving force behind the small Rab5-positive vesicles in CapZ KO cells since this effect could not be rescued with either CK-636 nor ArpC1B KO. However, endosome number/size should be quantified for CK-636/latrunculin-treated cells where Rabaptin-5 has been ablated.

8) The authors examine the potential pathophysiological consequences of the loss of CAPZ using Zika Virus infection. However, this part of the manuscript is not thoroughly investigated. For instance, CapZ has also been implicated in autophagy, where ablation of CapZ leads to impaired autophagosome formation (Mi et al., 2015). Additionally, autophagy is well-established to promote ZIKV infection (as reviewed in Gratton et al., Int. J. Mol Sci 2019 and Chiramel & Best, Viruses 2018). Justifying the author's conclusion would requires distinguishing the contributions of CapZ in endosomal maturation and autophagy. Thus, these results are best served for another publication where this conclusion can be thoroughly justified. Instead, examining the physiological signalling and trafficking biology of an endocytic cargo such as EGFR receptor might provide more insights onto the impact of CapZ on endosome maturation.

Reviewer #1:

Wang et al., investigated the role of actin Capping factor, CapZ, particularly, CapZβ in regulating endosomal trafficking. The authors show that CapZβ localizes to Rab5 -positive endosomes and also interacts with Rab5. CapZβ KO HeLa cells show defects in endosome maturation and a delay in EGFR degradation. The early endosome maturation defects CapZβ-knockout cells are partially rescued by inhibiting actin polymerization. Notably the authors also observe that active Rab5 was lower in the CapZβ-knockout cells. Recruitment of Rabex-5 and Rabaptin5 to Rab5 endosomes is reduced in CapZβ-knockout cells, explaining the lower activation of Rab5 in these cells. Finally, the authors show that endosome maturation role of CapZβ is crucial for ZIKA virus infection, as CapZβ-knockout delays the release of viral genome from the endosomes.

The experiments in this manuscript are rigorous, well controlled and well-analyzed. However, it is unclear whether the effect on Rab5 activation and endosome maturation is a direct role of CapZ pool localized at the early endosomes. To address this question, it would be important to determine the rate of endocytosis in CapZβ knockout cells to conclude that CapZβ acts downstream of cargo endocytosis. Also, it would be important to determine how actin-capping activity of CapZβ is mediating the endosomal localization of Rab5 GEF, Rabex-5 and Rabaptin-5.

The endosomal localization of actin capping factor, as reported here is an interesting observation. This study suggests that localized polymerization and depolymerization of actin has important consequences for endosomal maturation and transport.

The manuscript by Wang et al., describes the role of actin capping protein CapZ in early endosome maturation and cargo trafficking. The authors show that CapZβ localizes to Rab5 -positive endosomes and also interacts with Rab5. CapZβ KO HeLa cells show defect in endosome maturation and a delay in EGFR degradation. Colocalization of ARPC1B (a subunit of the Arp2/3 complex) with Rab5 is increased in CapZβ-knockout cells and motility of Rab5 vesicles is reduced. The early endosome maturation defects CapZβ-knockout cells are partially rescued by inhibiting actin polymerization. Notably the authors also observe active Rab5 was lower in the CapZβ-knockout cells. Recruitment of Rabex-5 and Rabaptin5 to Rab5 endosomes is reduced in CapZβ-knockout cells, explaining the lower activation of Rab5 in these cells. Finally, the authors show that endosome maturation role of CapZβ is crucial for ZIKA virus infection, as CapZβ-knockout delays the release of viral genome from the endosomes.

The manuscript is interesting but there are few major concerns (as described below) that pertain to how a general actin regulatory factor such as CapZ (that alters the status of actin cytoskeleton at the whole cell level) has a specific role in early endosome maturation.

– Figure 1A and Supplementary Figure 2A- It appears that a small pool of CapZβ localizes to early endosomes while most of the protein shows an actin-like localization. Further actin cytoskeleton is strikingly altered in CapZβ-knockout cells. The authors need to alleviate the concern that effects shown on endosome maturation are not an indirect effect of altering the actin cytoskeleton at the whole-cell level. What is the rate of constitutive endocytosis in CapZβ-knockout cells? From the EGF data (Figure 1F) it appears that even endocytosis of the receptor is reduced in CapZβ-knockout cells.

– Line # 269, the authors state "We, thus, speculated that CapZ might carry Rabaptin-5 and/or Rabex-5 to RAB5-positive early endosomes by capping the barbed end of

F-actin." It is confusing and not clear how CapZ actin capping activity regulates recruitment of Rab5 GEF and therefore Rab5 activation. The CapZΔC34 mutant continues to interact with Rabex-5 and Rabaptin-5 but is unable to recruit Rab5 and actin in this complex (Figure 4F). The underlying basis of these observations is not clear. How does excessive actin accumulation prevent Rab5 GEF interaction with Rab5? Does Rabex/ Rabaptin-5 have any particular domains that respond to actin levels?

– It would be relevant to test whether actin polymerization and Rab5 activation are directly linked, for instance, what is the status of Rab5 activation in ARPC1B knockout cells or cells treated with latrunculin A or CK-636? Similarly, what is the localization of Rabex-5 and Rabaptin-5 in ARPC1B knockout cells or cells treated with latrunculin A or CK-636? Does Rabex-5 and Rabaptin-5 association with Rab5 and recruitment to endosomes depends on actin polymerization? Does constitutively active Rab5 rescue the endosome maturation defects in CapZβ-knockout cells and what is status of actin in these cells?

– I also find the evidence that excessive actin accumulation leads to block/delay in endosome maturation far less convincing. Probably live-cell imaging of actin and Rab5 endosomes should provide a better estimation of their continued association in control and CapZβ-knockout cells. Further, by using inhibitors such as latrunculin A in live-cell imaging, authors can measure Rab5 endosome size/motility before and after treatment. Subcellular fractionation experiments can also be performed to test actin levels in the endosomal fractions under these conditions.

– It is important to show the endogenous distribution of CapZβ as only overexpression approach is used. Is CapZβ selectively localized to early endosomes or to other organelles?

Reviewer #2:

In this manuscript, a role of the actin binding and capping protein CapZ is investigated. Using CRISPR and cellular biochemistry approaches, it is cogently shown that CAPZ accumulates on early endosome, in conjunction with F-actin. There, through loss of function experiments CapZ is shown to regulate the amount of F-actin around the early endosome. Its removal causes a hyper-polymerization of actin that impedes endosome motility, fusion and possibly maturation. CapZ is shown to bind directly to the Rab5 effector Rabex-5, possibly through region that are independent from its ability to cap actin filaments. Functionally, removal of Capz reduces the efficiency of Zika Virus infection possibly by trapping the viral particle in immature endosomes.

Overall, the experiments are well conducted and documented and support the mode of action of CapZ proposed on endosome maturation, albeit the mechanistic aspects and specifically those related to the interaction between CapZ and Rabex-5 are not developed or exploited to their potential. Similarly, there are very few experiments testing the impact of CapZ perturbations on endosomal trafficking and signalling in physiological conditions. In this latter respect, exploiting the plethora of information on EGFR trafficking and signalling would seem an easy road to take to complete and expand this study.

In figure 1 and SI1, the association between CAPZbeta and early endosomes is convincingly documented. It is however unclear whether there is any preference for CAPZ binding to early (RAB5 positive) versus Late Rab7- or RAB4/RAB11-recycling endosomes. Similarly, while the co-immunoprecipitation between CAPz and RAB5 is documented, it is unclear whether this interaction is specific (do other RABs, and specifically RAB7 or RAB11, interact with CAPZ?) and whether there is any preferential binding to the GTP or GDP bound form of RAB5. One key tenet, here, is that CapZ interaction with RAB5 and endosome should be mediated by the branched actin network around these structures. If so, one would expect that inhibiting actin polymerization either with Latrunculin or CK-639 impair the interaction between CapZ and RAB5 but not some of the component of endosomal fusion machineries reported in Figure 3 (as later shown using CapZ mutants).

– In Figure 1F, the trafficking dynamics of fluorescently labeled EGF is examined in CAPZ null versus reconstituted cells. CAPZ removal results in a persistent accumulation of EGF in intracellular vesicles, leading the author to conclude that EGFR degradation is severely delayed by CAPZ Knocked down. However, to support this contention, EGFR receptor levels (also through western blotting) should be monitored over time following a pulse of EGF. Indeed, the accumulation of EGF/EGFR could be also caused by inhibition of recycling begging the question as to whether CapZ is also involved EGF/EGFR recycling?

– In Figure 2A, there a number of interesting and convincing experiments. One aspect that might deserve some attention is the impact of CapZ ablation on early endosome motility, which is severely compromised. Is this a specific effect on early endosome or the large increase in actin network documented in supplementary figure 2 F is the culprit here? In other words, some caution in interpreting this finding should be used as it remains unclear whether the purported increase F-actin around endosome is the cause of their reduced motility.

– In Figure 3, a direct interaction between CAPz and Rabex-5 one of the effectors of RAB5 in early endosome is shown. These findings are somewhat surprising, but interesting and well documented. They also beg the question as to the nature of this molecular interactions and of the relative contribution of CAPz to endosome biology through actin branched polymerization or binding and assembly of the fusion machinery. The author made progress in this direction by showing that a CAPz mutant no longer able to bind to barbed ends fails to restore CAPz KO phenotype, is no longer able to bind to RAB5 but retain the ability to associate with Rabex-5. Conversely a n-terminal N-terminal 1-147 deletion abolishes the association with Rabex-5. What remains unclear is whether the latter mutant is still capable of binding to barbed ends and whether its expression can restore the phenotypes due to loss of CapZ. Thus, the interaction between Capz and Rabex-5 potentially uncover interesting and unexpected mechanistic scenario, which are however not investigated in sufficient details.

– Finally, the authors examine the potential pathophysiological consequences of the loss of CAPz using Zika Virus infection. This is fine; however, it would seem that examining the physiological signalling and trafficking biology of the EGFR receptor might provide significant more insights onto some of the missing aspects of the model proposed. For example, is EGFR degradation, recycling affected? Additionally, if the model is correct one might expect EGFR signalling to be perturbed given the tight relationship between endosomal fluxes, number and size and signalling (as shown by recent work by Zerial group that proposed the notion of endosomes act as quanta signalling platforms thereby influencing ERK1/2 activity). Exploiting and investigating these aspects would go a long way in establishing the consequences of the purported impact of CapZ on endosome maturation

Reviewer #3:

The proposed manuscript, titled "Capping protein regulates endosomal trafficking by capping F-actin on endocytic vesicles and recruiting RAB5 effectors," attempts to uncover a potential role for the barbed-end actin capping protein, CapZ, in the fusion and maturation of early endosomes. To that end the authors show that ablation of CapZ leads to the accumulation of small Rab5-positive vesicle that are believed to represent unfused early endosomes. In an attempt to establish the underling mechanism, the authors find that loss of CapZ leads to enhanced recruitment of Arp2/3 complex to Rab5 positive vesicles, which is assumed to be driving unregulated actin assembly on these endosome, that ultimately impairs their fusion. The authors also find that CapZ may directly interact with the Rab5 effector, Rabaptin-5, which in itself could potentiate the recruitment of Rab5. Finally, they also demonstrate that impairing endosome maturation through CapZ ablation can impair infection of ZIKV RNA.

The authors use a wide array of experimental approaches to put forward a number of interesting observations that could have considerable impact on understanding how the actin dynamics is coupled to endosomal maturation. However, based on the current data, it is unclear if the loss of CapZ leads to impaired fusion of nascent endosomes with the early endosomes because of excessive actin assembly on the early endosomes or it it is due to a loss of Rab5 activity and/or Rab5 dependent vesicle fusion factors, like Rabaptin-5. Also, it's unclear if the dependence of Rab5 localization to early endosomes is entirely influenced by a local populations of CapZ on endosomes emerging from the plasma membrane, or if it's a result of global changes in the actin dynamics and membrane trafficking in response to knocking-out a crucial element of the actin cytoskeleton. This is particularly important when considering viral infectivity, which relies on the convergence of multiple actin cytoskeleton dependent processes.

1. Data presentation though-out the figures need to be improved and better explained. As it stands, it is not evident that anyone could reproduce the data presented in the paper.

a. Error bars need description. I'm assuming they are presented as SEM, however this could be entirely inappropriate if the data is not normally distributed.

b. Please report the individual measurements in addition to the bar graphs so the reader can accurately assess and confirm the appropriateness of the statistical treatments. Also, presenting the endosome number and size distributions would be considerably more informative than the current mean and SEM presentation.

c. For imaging analysis:

i. Please indicate, for all experiments, whether conventional or SIM-mode was used.

ii. Please describe and justify the nature of the images analyzed (single-plane, all-planes, max projection, etc.) and indicate if only selected regions were analyzed within in those images.

iii. There are several instances where Mander's overlap coefficient is reported, but not Pearson's, and it's not clear why. This is particularly worrisome, because Mander's is heavily weighted by pixel intensity and small endosomes will have considerably less Rab5 intensity compared to large endosomes. In almost all cases, Pearson's correlation coefficient should be used. Importantly, please indicate on the Y-axis of each correlation bar graph the type of correlation.

iv. Please describe the criteria (min/max size, intensity cut-offs, circularity, etc..) used to automatically identify endosomes for the image analysis and how overlapping endosomes were resolved.

v. Please indicate how single endosomes were tracked in Figure 2D. There is no method listed for this. It's not enough to say, "performed using NIS-Elements AR software". What steps were taken to ensure the same endosome was being tracked between frames? This is particularly important when considering there is an abundance of small endosomes in CapZ KO cells, which will be less bright compared to those in WT cells.

vi. Was the Live-cell imaging performed in super-resolution mode? What was the 'real' acquisition speed of the experiment (this is missing in the caption and in the figure legend). Again, this is important for faithfully tracking endosomes.

vii. Please explain how "Average speed" and "Average moving distance" was calculated.

viii. What was the average time a single endosome could be tracked?

ix. It's stated that endosomes from 14 cells were tracked in the figure caption, but it's not stated how many endosomes were tracked per cell.

d. For ITC analysis:

i. Please report binding model used for the fit, and ALL fit parameters, along with fit errors. Indicate which fit parameters were fixed.

ii. Indicate if the experiment was performed only once or multiple times, If the latter, report the experimental average and associated error.

2. The paper assumes all Rab5-positive vesicles but does not explore the possibility that it may influence other endosomal populations. The authors argue that Rab5 is recruited indirectly by CapZ to early endosomes through Rab5 effectors and would therefore suggest the small Rab5-postivie vesicles observed in the CapZ KO cells would not be early endosomes. Indeed, the authors show in Figure 5E that Rab5A poorly colocalizes with EEA1 in CapZ KO cells. Furthermore, EGF trafficking assays show EGF-positive endosomes swelling as they accumulate in the CapZKO cells, suggesting that it's not early endosome formation that is impaired, rather the Rab5-to-Rab7 switch or lysosomal fusion is impaired. Therefore, the authors should present additional evidence to support their conclusion about the role of CapZ on early endosome maturation.

a. Given the diffuse localization of CapZ, It's unclear if the colocalization of CapZ with EEA1 or Rab5 is significant without a basis of comparison. An excellent positive control would be to show the colocalization of EEA1 with Rab5 (as done in Figure 3E).

b. With that in mind, how do these sizes of these Rab5 positive vesicles compare with EEA1 positive vesicles in WT and CapZ KO Cells.

c. The Golgi-like localization of GFP-CapZ suggests it localizes to lysosomes or late endosomes. To that end, please quantify the degree of colocalization of CapZ with Lamp1 (images are in the supplementary Figure 1B but not quantified), Rab7 and Rab11/Rab4. Rab4 is particularly important since it can directly interaction with Rabaptin-5 (Vitale et al., EMBO J. 1998). Also, do any of these markers pulldown IP with CapZ?

d. Despite CapZ appearing to have strong colocalization with Lamp1, the authors consider this to be "weak" colocalization? What is the basis for considering this to be weak colocalization? It should be noted that there is a precedent for a role of CapZ with autophagosomes (Mi et al., 2015), which frequently positioned next to lysosomes.

3. CapZ is an essential protein in almost all actin dependent mechanisms, and as a consequence the KO of CapZ will undoubtedly affects a number of different actin-dependent processes that influence several conclusions of the paper. For example, The KO of CapZ is known to influence cell morphology (Sinnar et al., MBOC 2014). This important, because endosome number and dynamics depend directly on cell morphology.

a. Please provide determine if cell spreading and/or cell size was affected by CapZ KO in Hela cells.

b. Several endosomes metrics should also be weighted by cell size, such as the number of endosomes. This could markedly change the significance of several findings.

c. An increase in stress fibers in supplementary Figure S1A does not necessarily imply an increase in F-actin. Please quantify the G-actin to F-actin ratio in WT and CapZ-KO cells.

4. ArpC1B-mCherry does not appear localize to the lamella in Figure 2B and suggests that ectopic expression of ArpC1B-mCherry does not faithfully recapitulate the localization of the endogenous Arp2/3 complex. This is not surprising, given that the Arp2/3 complex is a 7-subunit complex, and only 1 subunit is being overexpressed, however, this does shed some doubt as to the relevance of these experiments. Thus, several control experiments are needed to bolster the significance of these findings.

a. As a positive control, the authors should show that ArpC1B-mCherry colocalizes with endogenous Arp2/3 complex.

b. Figure 2C shows N-Sim of ArpC1B-mCherry with endogenous Rab5. This analysis would be best served by comparing this colocalization with the colocalization of endogenous Arp2/3 complex and endogenous Rab5.

c. The representative images in 2B and 2C do not show the same focal plane for WT and KO cells and raises questions about the fairness of the colocalization analysis. Please show representative images of WT and CapZbKO cells at the same focal plane and indicate how the colocalization analysis was performed.

d. Also, how well does the overexpressed ArpC1B-mCherry colocalize with GFP-CapZ, and does CapZ KO disrupt AprC1B-mCherry localization?

e. Can the impaired motility of Rab5 positive vesicles be rescued by Arp2/3 complex inhibition and or actin depolymerization?

f. An alternative to the conclusion that inhibition of Arp2/3 complex leads to larger endosomes is that inhibition of Arp2/3 complex leads to impaired emergence of nascent endosomes from the plasma membrane. This would reduce the population of small vesicles and as a consequence would inherently overly inflate the contribution of larger vesicles to the overall mean vesicle area. Again, showing the distribution of endosome sizes would be helpful in distinguishing these possibilities.

g. localization of the Arp2/3 complex to these vesicular populations does not imply that it is active. Please determine, if this CapZ KO-driven localization is accompanied by enrichment of endogenous N-WASP on these enlarged vesicles.

5. A central assertion of the paper is that CapZ knockout might increase the formation of new actin branches to entangle around these immature RAB5-positive endocytic vesicles, and this might impede their fusion and result in the accumulation of small endosomes" (lines 113-115). However, there is surprisingly no imaging experiments of any kind performed with actin markers.

a. Please show that KO of CapZ does in fact lead to excessive actin polymerization on these endosomes.

b. Also, are the enlarged endosomes seen in the ArpC1B KO completely devoid of actin?

6. Rabaptin-5 interaction with Rab5 has been shown to be important for docking and fusion of early endosomes (Stenmark et al., Cell 1995). This raises the question whether impaired vesicle fusion observed in CapZ KO cells, is due to a loss of Rabaptin-5, from excessive branched actin nucleation, or a combination of the two? Based on the evidence presented in Figure 2E and 2F, it would seem that CapZ KO-driven loss of Rabaptin-5 is the main driving force behind the small Rab5-positive vesicles in CapZ KO cells since this effect could not be rescued with either CK-636 nor ArpC1B KO. However, endosome number/size should be quantified for CK-636/latrunculin-treated cells where Rabaptin-5 has been ablated.

7. The invitro binding of Rabaptin-5 to CapZ is unconvincing, mainly because of the low heat of interaction coupled to the high concentrations of proteins used in ITC experiment. To that end, the authors should be extra critical of the ITC results and provide a secondary measure of interaction (like a pulldown with purified proteins).

a. Given the high concentrations used in all the ITC experiments (400-500 mM!), please show the titration of the titrand into a cell containing buffer in the ITC figures as suggested to have been done in the methods. Frequently, the titration of highly concentrated proteins will give or take in heat due to dissociation of weak interactions, therefore the experimentally determined background should be used in the analysis, not just the end point.

b. The integrated heats of injection should be shown in the right panel. It's not clear if the "Heat changer per injection" (should be written as "Heat change per injection") represents the integrated heats of injection.

c. I'm concerned about the analysis that leads to the supposed integrated heats on the right. I'm assuming the first injection is omitted since the right panel shows the integration of 18 injections instead of all 19 shown in the left panel. If that is the case, the first two injection should not have the same integrated heats if they were integrated over the same time window. If the integrated heats follow the trend in the left figure, then the Kd would be considerably weaker than suggested. This would be consistent with the incredibly low heat of interaction (Assuming the reaction truly reaches saturation, then the DH of the reaction would be ~-0.6 kcal/mol, which is not even the energy found in a single isolated hydrogen bond!)

d. What is the rationale behind the high Kd but low DH? That would imply the reaction is entropically driven?

e. Please indicate and justify the binding model was assumed for the fit, and what is the experimental error for the Kd? If it was only performed 1 time, please report that is the case and report the fitting error.

8. The conclusion that inhibition of endosomal maturation leads to impaired ZIKV infection is not completely justified by the presented data. CapZ has also been implicated in autophagy, where ablation of CapZ leads to impaired autophagosome formation (Mi et al., 2015). Autophagy is also known to be accompanied by Cathepsin B cleavage and is impaired by Vacuolin-1 (as per the corresponding authors previous work), Chloroquine and Bafilomycin. Additionally, autophagy is well-established to promote ZIKV infection (as reviewed in Gratton et al., Int. J. Mol Sci 2019 and Chiramel & Best, Viruses 2018). Justifying the author's conclusion would requires distinguishing the contributions of CapZ in endosomal maturation and autophagy. For this person, I believe these results are best served for another publication where this conclusion can be thoroughly justified.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Capping protein regulates endosomal trafficking by capping F-actin on endocytic vesicles and recruiting RAB5 effectors" for further consideration by eLife. Your revised article has been evaluated by the original reviewers and Anna Akhmanova (Senior Editor) and Mahak Sharma (Reviewing Editor). The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

The manuscript has been improved but there are few substantial issues that remain to be addressed, as outlined below:

1. On the F-actin around endosome after CAPZBeta KO: Both reviewers find that the new data does not provide clear evidence of actin association with endosomes as the global actin polymerization is altered in CAPZBeta KO, such as increased stress fibers. It is unclear whether individual endosome do display more branched actin around when CAPZbeta is KO or silenced. Direct imaging of actin on endosomes and further quantification could address these concerns.

2. One main point in the revision was the measurements of the rate of constitutive endocytosis in CapZβ-knock out cells. The authors provided some measurements of transferring recycling but not of the rate of endocytosis. The authors should quantify the amount of TfR or EGFR at the surface of cells shortly after the chase. CapZ knockdown was previously shown to impair the initial steps of endocytosis, however the authors explicitly say that CapZ affects steps after the formation of endocytosis.

3. The conclusions are based on the assumption that all the Rab5 positive structures are "endosomes". This is problematic, as not all Rab5 positive structures are endosomes and it's not evident (by methodology nor the presented experiments) that the authors have taken the appropriate steps to distinguish endosomes from other organelles. It is important to compare the size distributions of EGF or Transferrin endosomes in scramble and CapZ KO cells. The authors only measure the size of Rab5 positive structures and show that Rab5 colocalization with an early endosome marker is reduced in CapZ KO cells, suggesting that the smaller endosomes may not be early endosomes.

4. On EGFR: The total amount of EGFR is severely reduced after CAPZbeta KO, despite a significant reduction in its degradation. While studying the reason for this is probably beyond the scope of the present study, it would be easy and relevant to assess the total amount of mRNA of EGFR and whether reconstituting the expression of CAPZB restores the levels of EGFR. Also, in the EGFR degradation assay, it is surprising not to see the band corresponding to EGFR shifted as after stimulation with EGF, the receptors became heavily phosphorylated at multiple sites. Some clarification is needed here.

5. One explanation for the loss of localization Rab5 to EEA1 positive early endosomes in CapZ-KO cells is that there is increase in the rate of maturation of these endosomes. The authors should check if the colocalization of Rab5 with Rab7 affected by CapZ KO? Similarly, are the larger endosomes seen in the Arp2 KO cells, more positive for Rab7? This seems to be particularly true for the CK-636 treated cells in Supplemental Figure 4A, which have a dramatic Golgi-like localization.

6. The novel interaction between CapZ and the Rabaptin/Rabex GEF complex is the real strength of the paper. The authors have done an excellent job in validating these interactions, however the mechanism proposed of how CapZ regulates Rabaptin/Rabex GEF complex is confusing.

a) The authors propose that CapZ regulates Rab5 indirectly by regulating the localization of Rabaptin-5/Rabex-5, but it's unclear if CapZ solely effects localization and/or complex formation. For example, does CapZ facilitate the formation of a functional Rabaptin-Rabex complex? Does CapZ modulate binding of the Rabaptin-Rabex complex to Rab5?

b) Does Rabaptin-5 and Rabex-5 colocalizes with CapZDC34 in cells? Presumably, If the interaction between CapZ with said Rab5 GEFs is independent of F-actin, then CapZDC34 should localize equally well to the Rab5 GEF complex as full-length CapZ.

c) The increase in Rab5 colocalization with the Arp2/3 complex in CapZ KO cells is quite unexpected for two reasons. (1) it contradicts the assumption that CapZ recruits Rab5 (indirectly through Rabaptin-5/Rabex-5) to these endosomal actin patches. (2) it's indicated that Rabaptin-5 (Figure 5J) is delivered by CapZ (Figure 5H) and needed to facilitate the growth of these endosomes (presumably through fusion). However, without Rab5 GEFs it's impossible to promote the positive feedback loop needed to drive endosomal fusion and/or maturation. Can the authors provide some insight into why this is the case?

d) The impact of CapZ on early endosomes could also be explained by changes in protein expression of Rab5, Rabaptin-5, Rabex-5, VPS34, etc. Please provide evidence that the expression levels of these proteins have not changed with CapZ KO.

7. The authors need to include a discussion with how their observations fit into the wealth of data on what is known about CapZ in endocytosis and trafficking. The potential role of CapZ in endosome fusion versus fission should be discussed.

In addition to the points mentioned above, please address the comment #4 (a-f) and #5 of reviewer 3 on the colocalization analysis and methodology and provide the complete information in the manuscript text. Please also address the minor concerns listed by reviewer #3.

Reviewer #2:

The authors have performed a number of additional experiments to address each of the main and minor point raised. Overall, the revision of this manuscript is satisfactory. Few points merit further attention or discussion.

1. One main point requested was the measurements of the rate of constitutive endocytosis in CapZβ-knock out cells.

The authors provided some measurements of transferring recycling not of the rate of endocytosis. This should be clarified.

2. On the F-actin around endosome after CAPZBeta KO: The authors provided confocal images or N-SIM S Super-resolution imaging to show that more endosomes sit along the long F-actin in CapZ KO cells than the control cells. However, in the silenced cells there is an apparent increase in stress fibers that might confound the interpretation. In addition, while they documented the increase colocalization of endosomes with branched actin using ARC1B, it is unclear whether individual endosome do display more branched actin around when CAPZbeta is KO or silenced.

3. On EGFR: The total amount of EGFR is severely reduced after CAPZbeta KO, despite a significant reduction in its degradation. While studying the reason for this is probably beyond the scope of the present study, it would be easy and relevant to assess the total amount of mRNA of EGFR and whether reconstituting the expression of CAPZB restores the levels of EGFR. Also, in the EGFR degradation assay, it is surprising not to see the band corresponding to EGFR shifted as after stimulation with EGF, the receptors became heavily phosphorylated at multiple sites. Some clarification is needed here

Reviewer #3:

The revised manuscript, titled "Capping protein regulates endosomal trafficking by capping F-actin on endocytic vesicles and recruiting RAB5 effectors," attempts to establish a role for Capping protein (CapZ) and branched actin assembly in the fusion and maturation of early endosomes. In this revision, the authors have streamlined the paper by omitting the less-developed role of CapZ in ZIKV infection, and primarily focused on the role of CapZ in endosomal trafficking/maturation. To that end the authors have provided some additional experiments to show that CapZ influences trafficking of plasma membrane receptors and to show that interfering with branched actin assembly by the Arp2/3 complex leads to morphological changes in endosomes. Overall, these experiments help to build a case for the role of CapZ influencing the activity and/or localization of Rab5 to endosomes, however the conclusions drawn from these experiments are not well supported by the evidence and often contradict well documented roles of CapZ and actin in endocytosis. For example, while the receptor trafficking experiments are performed well they do not however provide additional support the authors conclusion that CapZ regulates endosomal fusion. In fact, the results of these experiments can be attributed to well-established functions of capping protein in the formation of endosomes. Similarly, the authors provided some additional experiments to interrogate the role of branched actin assembly in endosomal maturation, however these experiments are ultimately indirect, and the results can be interpreted that actin plays a role in endosomal fission. Surprising the authors do not capitalize on the most exciting aspect of the paper involving the interaction of CapZ with the Rabaptin-5/Rabex-5 GEF complex. This interaction could have been exploited in order to build a direct role of CapZ in regulating Rab5 function on endosomes. Ultimate, the manuscript needs a few more additional experiments to distinguish the role of CapZ and actin in endosome formation, fusion and maturation, reanalysis of their current data, and a critical assessment of their results with respect to the literature.

1. One of the major conclusions of this paper is "CapZ-KO increases the formation of new actin branches to entangle around these immature Rab5-positive endocytic vesicles." However, there are 2 major problems with this conclusion.

a. First, this is at odds with what is known about how CapZ regulates branched actin assembly. It's generally accepted that capping protein promotes actin branching by antagonizing formin-dependent actin elongation (Akin & Mullins, Cell 2008; Hu & Papoian, Biophys. J. 2010; Bombardier et al., Sinnar et al., MBoC 2014; Nat. Commun 2015; Shekhar et al., Nat Commun. 2015, Billault-Chaumartin & Martin Curr. Biol 2019). Furthermore, the authors present evidence that support the accepted role of capping protein, such as an increase cellular stress fibers (known to be assembled by Formins) with CapZ KO that are conversely impaired when CapZ is overexpressed. Similarly, the reduced motility of Rab5-positive vesicles beneath the plasma membrane is consistent with reduced branched actin nucleation (again please refer to Akin & Mullins, Cell 2008). Ultimately, the authors do not present any clear evidence that overturns what has been established about the role of CapZ in branched actin nucleation, and therefore these concluding statements should be modified to reflect what is known in the literature.

b. The proposed mechanism that CapZ directly regulates branched actin caging of endosomes is largely based on indirect evidence. The authors primarily show that CapZ KO has a global effect on cellular actin polymerization, including impaired cell spreading (rebuttal), impaired cell motility (rebuttal), increased stress fibers (Figure 3A), and loss of endosome motility (Figure 3E), and the connection between CapZ and branched actin assembly is built out of the coincidence that Arp2/3 complex inhibition leads to swollen Rab5 structures (Supplemental fig). However, this interpretation is problematic (see below). Instead, the authors should make some attempt to directly visualize actin on endosomes, such as using live cell imaging approaches or electron microscopy.

c. With regards to the above point, why have the authors ruled out the possibility that CapZ regulates endosome fusion by controlling Rab5 localization with EEA1? The authors demonstrate that there is less colocalization of Rab5 with EEA1 in CapZ KO cells (Figure 5E). EEA1 is a known be important for the docking and fusion of early endosomes (Christoforidis et al., Nature 1999; Mishra et al., PNAS 2010). Importantly, the tethering activity of EEA1 is regulated by nucleotide state of Rab5.

d. An alternative or additional explanation for the enlarged Rab5 structures resulting from inhibition of Arp2/3 complex (either through KO or CK-636 treatment), is that endosomal fission has been impaired (please refer to the review by Gautreau and colleagues, CSH Perspectives 2014). How do the authors distinguish between these two possibilities? This latter mechanism could also explain why CapZ-KO and VPS8 only partially rescues the Arp2-KO (Figure 4 C & D) and why CK-636 treatment had no effect on the interaction of CapZ with Rab5 and the Rab5 GEF complex (Supplemental Figure 6D&E).

e. With regards to the above point, It's difficult to make strong conclusions from the actin drug experiments. It's stated that cells were treated overnight with 1 and 100 μm latrunculin and CK-636, respectively. This is far longer than what is recommended for these inhibitors (Nolen et al., Nature 2009), and such extreme treatments can wreak havoc on a number of critical cellular processes like cell division (see discussion in Ilatovskaya et al., Cell Tissue Res 2013). What was the rational for extreme treatments? It would be more appropriate to apply these drugs in a more acute matter, like during the Tfn/EGF pulse chase experiment.

f. The double guide experiments with Arp2 and CapZ are perplexing. How does CapZ-KO promote branched actin cagin when Arp2 is knocked out or in the presence of CK-636?

g. In general, the authors need to include a discussion with how their observations fit into the wealth of data on what is known about CapZ in endocytosis and trafficking.

2. It is still not clear if CapZ regulates the formation of early endosomes, impairs endosomal fusion and/or promotes endosomal maturation. This is particularly important, because CapZ is well known to be important for the early steps of clathrin mediated endocytosis in yeast, where it aids in the formation and excision of the nascent endosome from the PM. (Kaksonen et al., Cell 2005; Kim et al., MBoC 2006; Berro & Pollard, MBoC 2014). It has also been shown to localize to the PM at the sites of CME in mammalian cells (Collins et al., Curr. Biol 2011). As such, additional experiments to clarify the situation.

a. Are all Rab5 positive vesicles in the CapZ-KO endosomes? Most cell images presented in the paper show strong localization to larger organelles, like Golgi and/or late endosomes, which can erroneously lead to inflated Mander's coefficient. How do the authors distinguish between "immature endosomes", fused early endosomes, mature endosomes or other organelles in their colocalization analysis? Given that this is a central aspect of the paper, the authors should restrict their analysis to early endosomes. One such approach would be assessing the colocalization analysis of both CapZ and Rab5 with an endosomal cargo, like wheat germ agglutinin (WGA) or EGF, as well as the colocalization of CapZ with Rab5 only on the WGA/EGF positive endosomes. Alternatively, the authors should restrict the colocalization analysis to regions expected to be occupied by early endosomes and not include the larger centrally located accumulations that cannot be reliably segmented.

b. To help support the above point, the authors should also compare the size distributions (numbers & area) of a bonafide early endosome marker, like EEA1.

c. Similarly, are these small Rab5 positive vesicles observed in cells where endocytosis has been inhibited such as by impairing dynamin function with Dynasore, in scramble and CapZ-KO cells? This would indicate that loss of CapZ promotes non-CME-dependent processes.

d. From the trafficking experiments presented in Figure 2 and Supplemental Figure 2, the authors conclude that "CapZ participates in endocytosis after the internalization of endocytic vesicles" (166-167). However, due to the long delay between time-points in these experiments, they can also be interpreted as a defect in internalization, which has been previously documented. To distinguish between these two possibilities, it would be necessary to capture the first 5 min of Tfn or EGF pulse chase experiment and quantify the loss of labelled Tfn/EGF from the plasma membrane (please refer to Daro et al., PNAS 1996).

e. Does CapZ regulate early endosomal fusion and/or endosomal maturation? One explanation for the loss of localization Rab5 to EEA1 positive early endosomes in CapZ-KO cells, is that there is increase in the rate of maturation of these endosomes. The authors should check if the colocalization of Rab5 with Rab7 affected by CapZ KO? Similarly, are the larger endosomes seen in the Arp2 KO cells, more positive for Rab7? This seems to be particularly true for the CK-636 treated cells in Supplemental Figure 4A, which have a dramatic Golgi-like localization.

f. I'm surprised that VPS8 KO had no effect on the basel size of endosomes

3. The novel interaction between CapZ and the Rabaptin/Rabex GEF complex is the real strength of the paper. The authors have done an excellent job in validating these interactions, but I'm surprised that the authors did not exploing this interaction to interrogate how CapZ regulates Rab5 on GEFs. As it stands, the presented mechanism is confusing.

a. Does CapZ regulate more than the localization of Rabaptin-Rabex complex? For example, does CapZ facilitate the formation of a functional Rabaptin-Rabex complex? Does CapZ modulate the activity Rabaptin-Rabex complex or binding of the complex to Rab5?

b. In support of the above point, does Rabaptin-5 and Rabex-5 colocalizes with CapZDC34 in cells? Presumably, If the interaction between CapZ with said Rab5 GEFs is independent of F-actin, then CapZDC34 should localize equally well to the Rab5 GEF complex as full-length CapZ.

c. The dependence of Rab5 localization to endosomes on the actin capping activity of CapZ is not clear. It's shown that removing the C-terminal 34 residues of CapZ impairs the amount of Rab5 that pulls down but does not affect it's ability to interact with Rabex-5, Rabaptin-5 and VPS34 (Figure 6F & G). However, it's also stated that Rab5 indirectly interacts with CapZ through the aforementioned Rab5 GEFs (lines 314 to 316). If this assertion was true, then the amount of Rab5 that pulled down with CapZ truncation should be similar to that of the full length CapZ. Please reconcile this discrepancy.

d. The increase in Rab5 colocalization with the Arp2/3 complex in CapZ KO cells is quite unexpected for two reasons. (1) it contradicts the assumption that CapZ recruits Rab5 (indirectly through Rabaptin-5/Rabex-5) to these endosomal actin patches. (2) it's indicated that Rabaptin-5 (Figure 5J) is delivered by CapZ (Figure 5H) and needed to facilitate the growth of these endosomes (presumably through fusion). However, without Rab5 GEFs it's impossible to promote the positive feedback loop needed to drive endosomal fusion and/or maturation. Can the authors provide some insight into why this is the case?

e. The impact of CapZ on early endosomes could also be explained by changes in protein expression of Rab5, Rabaptin-5, Rabex-5, VPS34, etc… Please provide evidence that the expression levels of these proteins has not changed with CapZ KO.

4. Much of the conclusions of the MS rely on colocalization analysis, which is surprisingly not at all described. This is particularly relevant to the above points. Please provide a detailed description as to how colocalization analysis was performed.

a. Indicate which software package was employed (presumably Image J).

b. Indicate whether the analysis was performed on single confocal plane, on Z-stack projection or in 3D? It's indicated in the rebuttal that "only single confocal plane was taken and analyzed unless otherwise stated." If this is true, indicate the criteria that was used to select this plane for analysis. Also, the methods indicate that the SIM images were reconstructed in 3D – were these image sets also analyzed in the same way as the confocal images. It's not stated how these data sets were analyzed.

c. How were the ROIs determined? Was the entire image plane or individual cells analyzed? If on the entire image plane, how many cells were in the field of view. If performed in 3D was the ROI the same in all image planes of the stack, or was segmentation performed on each pane to identify the true boundary of the cell?

d. Did the ROI exclude centrally located organelles, such as the nucleus, perinuclear region, and the Golgi? The use of Mander's to examine co-occurrence of endosomal markers is appropriate so long as it is restricted to peripheral organelles (please refer to Pike et al., Methods 2017).

e. Was the background subtracted? Which approach was used?

f. Was signal isolation performed in an automated and unbiased way, such as employing the Costes joint histogram approach?

5. The endosome size data was not statistically analyzed correctly. The data is not normally distributed and showing the mean +/- SD is not appropriate for these figures. Instead, please show a box and whisker plot on top of the data points. Also note, because the data is skewed, the appropriate statistical test is the Mann-Whitney U Test. It may be more beneficial to show this data as a frequency histogram distribution.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Capping protein regulates endosomal trafficking by capping F-actin on endocytic vesicles and recruiting RAB5 effectors" for further consideration by eLife. Your revised article has been evaluated by Anna Akhmanova (Senior Editor) and a Reviewing Editor.

The manuscript has been improved but there are some remaining issues that primarily require text changes, data quantification and figure modifications. These changes are outlined below in the reviewers comments:

Reviewer #2:

The authors have done an additional set of experiments to address the concerns expressed. Overall, the manuscript is certainly improved and at this stage, only few points to clarify might be needed.

1. On the actin around the endosome. The new set of images in figure 3C is certainly a progress in this direction. Yet, it remains conceivable that the apparent increased chance of seeing an endosome adjacent to filamentous actin is simply a reflection of more cellular F-actin actin. Maybe one way to visualized actin, keeping in mind the effect exerted by CAPZ KO (which reduced the size and increase the number of endosomes) could have been treating cells with the Pik5 inhibitor. This said, at this stage, it would seem acceptable to use cautionary words on the increased F-Actin around the endosome following CAPZ genetic silencing w/o performing new experiments.

2. On the possible impact of CAPZ on early internalization steps. The attempts made were clearly inconclusive on the images in response to this point, it is stated that no permeabilization was done to ensure that the detected EGF would be localized at the cell surface. Specifically: "we found that staining fixed cells without permeabilization with phalloidin-647 could demonstrate plasma membrane" yet at 5 minutes there is apparently plenty of EGF signal inside the cells, which should not be detectable in the absence of permeabilization. The experiments on this issue seem inconclusive. There are more precise ways to measure the rate of endocytosis through the use of Iodinated EGF. The manuscript, however, is not focused on early steps on endocytosis, and it would seem not appropriate, at this point, to ask for these experiments. The authors were careful in commenting on the possible role of CAPZ in the early step of internalization and this might be all that is needed.

Reviewer #3:

The additional data provided in the rebuttal when fully included, markedly helps with interpreting the roll of CapZ in regulating early endosome fusion and/or maturation. There is a clear effect of CapZ on trafficking and it seems to be driven by the assembly on Rab-5 GEF complex, Rabex-5/Rabaptin-5. The data on this point is excellent and of general interests. However, my main concern is with this insistence to say that CapZ regulates branched actin assembly on endosomes, when it's unnecessary to do so. It also calls attention to the weak point of the paper, and this conclusion is formulated by an over-interpretation, and concerning implementation and colocalization analyses, not to mention the incorrect assumption that CapZ blocks Arp2/3 complex. Indeed, recent data provided in this recent revision suggests that Arp2/3 complex regulates maturation of early endosomes, since Arp2/3 KO leads to accumulation of Rab7 positive endosomes, that were previously misinterpreted as enlarged Rab5 endosomes. This calls into question the fairness of comparing the effects of CapZ KO with Arp2/3 complex KO on endosome number and endosome size in all of Figure 4 and Figure 5J. The correct thing to do would have been restrict the endosome size distribution analysis to early endosomes (as suggested by previously by the reviewers), which would necessarily exclude any Rab5 puncta overlapping with Rab7. Alternatively, the data can be kept as is, but the authors have to strongly state that these Rab5 positive structures also includes both early and late endosomes. Furthermore, it is quite likely, and correctly mentioned by the authors, that the Arp2/3 complex plays a role in a myriad of endosome functions that affects everything from cargo sorting, fission and fusion. As such, this data cannot be used to solely conclude that CapZ KO leads to an increase in branched actin density on early endosomes that impairs their fusion.

With regards to point 8.b. of the rebuttal letter, the authors state that they performed colocalization analysis on a single plane for the entire field of view, and each field of view consists of 5-10 cells. Is that correct? This would suggest extra-cellular debris and labeling would have been included in the analysis. Surely the authors did something to correct for this.

https://doi.org/10.7554/eLife.65910.sa1

Author response

Essential revisions:

The manuscript by Wang et al., describes the role of actin capping protein CapZ in early endosome maturation and cargo trafficking. CapZβ knock out HeLa cells show defect in endosome maturation and a delay in EGFR degradation. The early endosome maturation defects in CapZβ-knockout cells are partially rescued by inhibiting actin polymerization. CAPZ is also shown to mediate a direct interaction with basic components of the RAB5-endosomal fusion machinery and to control through them RAB5A activation and endosome fusion, with an impact on Zika virus infection. Overall, the experiments are well conducted and documented and support the mode of action of CapZ proposed on endosome maturation. However, there are several concerns that must be adequately addressed by additional experimentation to support the major conclusions of this study:

Please find the points covering the essential revision requirements below:

1) CapZ is an essential protein in almost all actin dependent mechanisms, and as a consequence the KO of CapZ will undoubtedly affects a number of different actin-dependent processes that influence several conclusions of the paper. For example, The KO of CapZ is known to influence cell morphology (Sinnar et al., MBOC 2014). Thus, authors should investigate parameters such as cell spreading and/or cell size in CapZ KO Hela cells. Several endosomes metrics should also be weighted by cell size, such as the number of endosomes. This could markedly change the significance of several findings. Further the rate of constitutive endocytosis should be measured in CapZβ-knockout cells.

Similar to the previous study by Sinnar et al., CapZ KO in HeLa cells changed cell morphology and inhibited cell migration, as shown in Figure 2—figure supplement 1A,B. CapZ KO also increased cell size as analyzed by measuring the size of the cells in Figure A via image J (Figure 2—figure supplement 1A), which is likely due to the increased actin polymerization. When the endosome parameters (size and number) are weighed by cell size, the differences of size and number of endosomes between control and KO cells are increased and decreased, respectively, yet still significant (Author response image 1) . Of note, it might be more appropriate to weigh these endosome parameters, especially number, by cell surface area, not cell size. Although CapZ KO cells appeared to be larger than the control cells, CapZ KO also decreased filopodial length (see the white lines in Author response image 1B, and Figures 3F and 3G shown in Sinnar et al., 2014) (Sinnar et al., 2014). The reduced filopodial length in CapZ KO cells could mitigate, if not counteract, the changes of cell surface area induced by the increased cell size when compared to the control cells. Moreover, the causal relationship between cell size and endocytosis has not been established, although intuitively, large cells might have more endosomes than small cells. Thus, it might be more appropriate to compare endosome parameters per cell without weighing the cell size to simplify the interpretation of the results.

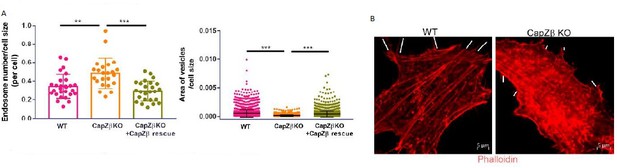

Author response image 1
(A) Control or CapZβ-knockout HeLa cells were immunostained with an anti-RAB5A antibody.

The number and size of the early endosomes in these cells were quantified and weighted by the cell size. (B) Control or CapZβ-knockout HeLa cells were immunostained with Red-X Phalloidin; the white dashed lines indicate filopodia.

As suggested, we measured transferrin recycling (one type of constitutive endocytosis), in control and CapZ KO cells. In transferrin recycling assay, iron-bound transferrin interacts with its receptor (TfR) to trigger the internalization of the iron-transferrin-TfR complex via clathrin-mediated endocytosis. Irons are subsequently dissociated from their ligands in the acidic endosomes and released into the cytoplasm. Thereafter, the transferrin-TfR complex is recycled back to the plasm membrane, and transferrin is finally released from its receptor into the extracellular space. Thus, the fluorescence intensity of fluorescent transferrin conjugates labeled cells could reflect the recycling endocytic trafficking process. As shown in Figure 2—figure supplement 1H, CapZ KO significantly inhibited transferrin recycling.

2) A central assertion of the paper is that CapZ knockout might increase the formation of new actin branches to entangle around these immature RAB5-positive endocytic vesicles, and this might impede their fusion and result in the accumulation of small endosomes" (lines 113-115). However, there is surprisingly no imaging experiments performed with actin markers.

a) High resolution imaging of actin and Rab5 endosomes should provide better estimation of excessive actin polymerization on these endosomes. Subcellular fractionation experiments can also be performed to test actin levels in the endosomal fractions under these conditions.

b) Are the enlarged endosomes seen in the ArpC1B KO completely devoid of actin?

c) Can the impaired motility of Rab5 positive vesicles be rescued by Arp2/3 complex inhibition and or actin depolymerization?

a. As suggested, control or CapZ KO cells were stained with Phalloidin and RAB5, and then subjected to confocal images or N-SIM S Super-resolution imaging. As shown in Figure 3—figure supplement 1G,H, it is clear that more endosomes sit along the long F-actin in CapZ KO cells than the control cells. Of note, the intensity of short actin branches is much dimmer than long microfilaments (e.g., stress fibers) in Phalloidin-staining cells. Therefore, we transfected cells with GFP-RAB5A and mCherry-ARPC1B (a subunit of the Arp2/3 complex) to label early endosome and actin branches, respectively. We found that more GFPRAB5 puncta were colocalized with RFP-ARPC1B puncta in CapZβ-knockout cells when compared to the control cells (old Figure 2B in the original manuscript). We also performed RAB5A immunostaining in mCherry-ARPC1B-expressing HeLa cells followed by N-SIM S super-resolution imaging. We showed that more RAB5 puncta were associated with mCherry-ARPC1B puncta in CapZβ-knockout cells when compared to the control cells (old Figure 2C in the original manuscript). In addition, as suggested by the reviewer (point 6b, below), we assessed the colocalization of endogenous RAB5 with endogenous ARP2/3 by performing the anti-p16-Arc and anti-RAB5 immunostaining, and similar results were found (see Figures shown in point 6). These results are now presented as new Figures 3C and 3D in the revised manuscript.

We have also tried the subcellular fractionation experiment as suggested. We found that this experiment is technically challenging as we failed to separate the early endosomes from late endosomes, and actin is very abundant and spread all across all the fractions (Author response image 2) .

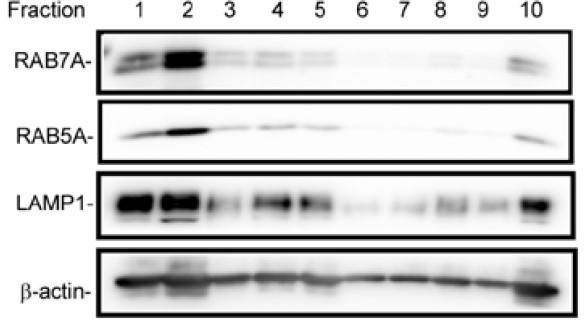

Author response image 2
The lysates of control or CapZβ-knockout HeLa cells were subjected to sucrose gradient fractions, followed by respective immunoblot analysis.

b. As suggested, we performed RAB5 and actin immunostaining in control or ARP2 KO cells. We showed that colocalization between RAB5 and actin in ARP2 KO cells is markedly weaker than in control cells (Figure 4—figure supplement 1B). In addition, we performed RAB5 and ARPC1B (a subunit of the Arp2/3 complex, to label actin branches) immunostaining in control or ARP2 KO cells. We showed that colocalization between endogenous RAB5 and endogenous ARPC1B in ARP2 KO cells is markedly weaker than in control cells (Figure 4B).

c. As suggested, we assessed the effects of ARP2 KO on the motility of Rab5 positive vesicles in both control and CAPZ KO cells. We showed that ARP2 KO in control cells inhibited the motility of early endosomes, but failed to further inhibit the motility of early endosomes in CAPZ KO cells (Author response image 3) . Of note, a classic study by Taunton et al. has reported that once the endocytic vesicles invaginate and pinch off from the membrane, a burst (fast and short-lived) of F-actin tail catalyzed by the Arp2/3 complex drives these vesicles away from the plasma membrane and into the cytoplasm (Taunton et al., 2000). Thus, it is not surprising that ARP2 KO inhibits early endosome motility. We speculate that F-actin around early endosomes fine-tunes the motility of these vesicles, and too much or too little F-actin compromises its motility. The videos for these experiments are uploaded for reference as well (Author response videos 1-4). Also, the study by Taunton et al. is cited in the revised manuscript.

Author response image 3
Control, CapZβ-knockout, ARP2-knockout, or CapZβ/ARP2 double-knockout HeLa cells were transiently transfected with RFP-RAB5A, and cells were then imaged without delay for 3 min by time-lapse Nikon high-speed confocal microscopy.

2D track analysis was performed using NIS-Elements AR software.

Author response video 1
RAB5-positive endosomes movements in wild-type HeLa cells.
Author response video 2
RAB5-positive endosomes movements in CapZb-knockout HeLa cells.
Author response video 3
RAB5-positive endosomes movements in ARP2-knockout HeLa cells.
Author response video 4
RAB5-positive endosomes movements in CapZb-ARP2 double knockout HeLa cells.

3) It is unclear whether there is any preference for CAPZ binding to early (RAB5 positive) versus Late Rab7- or RAB4/RAB11-recycling endosomes. The Golgi-like localization of GFP-CapZ suggests it localizes to lysosomes or late endosomes. To that end, please quantify the degree of colocalization of CapZ with Lamp1 (images are in the supplementary Figure 1B but not quantified), Rab7 and Rab11/Rab4. Rab4 is particularly important since it can directly interaction with Rabaptin-5 (Vitale et al., EMBO J. 1998).

As suggested, we assessed the colocalization of CapZ (CapZβ-GFP) with RAB7 (RAB7mcherry), RAB11 (anti-RAB11 immunostaining), LAMP1 (anti-LAMP1 immunostaining), RAB4-Flag (anti-Flag staining), or RAB5 (anti-RAB5 staining). As shown in Figure 1—figure supplement 1D and 1E , CapZ showed strong colocalization with RAB5, and weak colocalization with RAB7, RAB11, RAB4, and LAMP1. Similarly, by co-immunoprecipitation (coIP) assay suggested by the reviewer (point 4 below), we detected the association of CapZ with RAB5, RAB7, and RAB11, but not LAMP1 and RAB4. In summary, these results suggest that CapZ might preferentially associate with early endosomes. Of note, whether CapZ is involved in RAB11/4-mediated recycling endosomes and/or RAB7-mediated late endosomes is currently under investigation in the lab. If successful, these results will be submitted for future publication.

4) Similarly, while the co-immunoprecipitation between CAPZ and RAB5 is documented, it is unclear whether this interaction is specific (do other RABs, and specifically RAB7 or RAB11, interact with CAPZ?) and whether there is any preferential binding to the GTP or GDP bound form of RAB5. One key tenet, here, is that CapZ interaction with RAB5 and endosome should be mediated by the branched actin network around these structures. Does inhibiting actin polymerization either with Latrunculin or CK-639 impair the interaction between CapZ and RAB5 but not some of the component of endosomal fusion machineries reported in Figure 3 (as later shown using CapZ mutants)? Further interaction between Rab5 GEF and Rab5 also seems to be dependent on CapZ actin capping activity. The potential reason/ basis of these observations can be added to the Discussion section of the manuscript.

As mentioned above, by co-IP assay, we detected the association of CapZ with RAB5, RAB7, and RAB11, but not LAMP1 and RAB4 (Figure 1—figure supplement 1F-1I). Again, as mentioned above, more efforts are currently going on in the lab to assess whether CapZ is involved in RAB11/4-mediated recycling endosomes and/or RAB7-mediated late endosomes.

To determine whether there is any preferential binding of CapZ to the GTP or GDP bound form of RAB5, we incubated the GST or GST-RAB5A recombinant proteins in the presence of GDPβS or GTPγS with lysates of Twinstrep-CapZβ-expressing HEK293 cells, followed by GST pulldown and strep immunoblotting. It appears that recombinant GDP-bound GSTRAB5 protein was able to pull down more CapZ from HeLa cell extracts than the GTP-bound RAB5 (Figure 1F). This result is discussed in the second paragraph on page 19 of the revised manuscript.

As suggested, we assessed whether CK-636 (an inhibitor of the Arp2/3 complex) impairs the interaction between CapZ and RAB5 or its effectors by co-IP experiment. We showed that CK-636 had no effects on CapZ’s interaction with actin, RAB5, and RAB5 effectors (Figure 6–—figure supplement 1D,E). These results suggest that as long as CapZ is capable of capping the Factin, its interaction with RAB5 or its effectors is independent of the actin branch around the endosome. Consistently, CK-636 or ARP2 knockout resulted in enlarged early endosomes (new Figures 4A and 4C in the revised manuscript), confirming that inhibiting the branch actin formation does not affect the machinery for early endosome maturation (e.g., the recruitment of RAB5 and its effectors to early endosomes). On the other hand, we showed in the manuscript that CapZβ-C34 (which lacks the actin capping activity) lost its interaction with actin, and its association with RAB5 was significantly diminished. However, CapZβ-C34 retained its binding capabilities towards Rabex-5 and Rabaptin-5 (Figure 6F and 6G in the revised manuscript). In addition, when CapZβ was knocked out, the interaction or association between Rabex-5 or Rabaptin-5 and RAB5 was reduced (Figure 5F-5I in the revised manuscript). In contrast, knockdown of either Rabex-5 and Rabaptin-5 did not affect the ability of CapZ to interact with Rabex-5 or Rabaptin-5, respectively (Figure 5—figure supplement 1F and 1G in the revised manuscript). These results suggest that when CapZ caps the F-actin (via its C-terminal tail), it might function as a scaffold protein to carry Rabaptin-5 and Rabex-5 (via its N-terminal domain) to RAB5-GDP-positive early endosomes, which are associated with F-actin. This could induce the production of RAB5GTP, and the active RAB5 then recruits more Rabaptin-5, Rabex-5, and other effectors to initiate a positive feedback loop to further increase its activity. We have presented the results of CK-636 on the interaction between CapZ and RAB5 or its effectors as new Figure 6—figure supplement 1D and 1E, and have discussed the role of actin capping activity of CapZ in its interaction with RAB5 and its effectors in the first paragraph on page 20 of the revised manuscript.

5) In Figure 1F, the trafficking dynamics of fluorescently labeled EGF is examined in CAPZ null versus reconstituted cells. CAPZ removal results in a persistent accumulation of EGF in intracellular vesicles, leading the author to conclude that EGFR degradation is severely delayed by CAPZ Knocked down. However, to support this contention, EGFR receptor levels (also through western blotting) should be monitored over time following a pulse of EGF. Indeed, the accumulation of EGF/EGFR could be also caused by inhibition of recycling begging the question as to whether CapZ is also involved EGF/EGFR recycling? Additionally, one might expect EGFR signalling to be perturbed given the tight relationship between endosomal fluxes, number and size and signalling (as shown by recent work by Zerial group that proposed the notion of endosomes act as quanta signalling platforms thereby influencing ERK1/2 activity).

As suggested, we examined the EGFR levels after EGF pulse in control or CapZ KO HeLa cells by EGFR immunoblotting. We showed that EGF treatment triggered EGFR degradation in control cells, yet its degradation in CapZ KO cells was inhibited. Of note, the basal EGFR level in CapZ KO cells was lower than in control cells (Figure 2—figure supplement 1E). Therefore, we repeated the EGFR degradation experiments in cells pretreated with cycloheximide (a protein synthesis inhibitor). Similar results were observed, and the basal EGFR level in CapZ KO cells was still lower than the control cells (Author response image 4A). Why CapZ KO affects EGFR levels remains to be determined. Yet, the expression of RAB5, Rebex-5, or Rabectin-5, was not affected by CapZ KO (see Figures 2E, 5H, and 5I in the revised manuscript). CapZ KO also did not affect the expression of RAB7 and VPS34 (Author response image 4C).

As suggested, we also examined the pERK activation in control or CapZ KO cells after EGF treatment. The pattern of EGF-induced ERK activation in control and CapZ KO cells is similar (Figure 2—figure supplement 1E and Author response image 4A). Since the basal pERK level was lower in CapZ KO cells than in control cells (likely due to the decreased EGFR levels in KO cells), we also normalized the p-ERKs in EGF-treated control or CapZ KO cells over respective non-treated cells. It appears that the extent of pERK activation by EGF in CapZ KO cells is greater than in control cells (Author response image 4B). However, the reduced EGFR level in CapZ KO cells might complicate the interpretation of the downstream ERK activation (because we treated both types of cells with the same concentration of EGF). Moreover, EGF/EGFRinduced ERK activation is wired by multiple positive feedback and negative feedback loops and is cell type-dependent, and the EGF-induced EGFR lysosomal degradation is just one of the negative feedback loops (Avraham and Yarden, 2011). Therefore, more efforts are needed to address whether ERK activation is affected by EGFR endosomal trafficking.

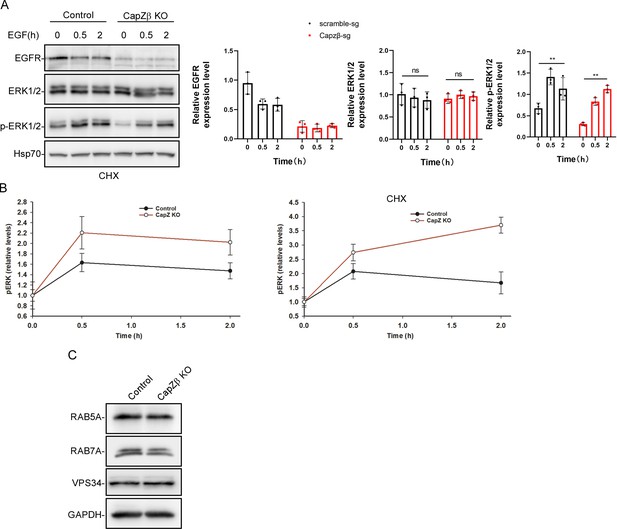

Author response image 4
Control or CapZβ-knockout HeLa cells were treated with EGF (100 ng/ml) in the presence of cycloheximide (10 μg/ml) (A).

They were then collected at the indicated time points and subjected to western blot analysis against EGFR, ERK, pERK, and Hsp70. The p-ERKs in EGF-treated control or CapZβ-knockout cells were also normalized over non-treated cells, respectively (B). (C) The expression levels of RAB5A, RAB7A, and VPS34 in control or CapZβ-knockout HeLa cells were determined by western blot analysis.

We agree that the accumulation of EGF/EGFR in early endosomes could also be caused by inhibition of recycling since CapZ KO also inhibited recycling endosomal trafficking of transferrin (as shown in Figure 2—figure supplement 1H). In our assay to monitor the endosomal trafficking of EGFR, we applied EGF-488 to label the cell surface EGFR. In this assay, we only observed the delivery of the EGFR-EGF-488 complex to lysosomes, but not its recycling back to the plasma membrane (top panel in Figure 2B in the revised manuscript). It is possible that EGFR might disassociate from EGF-488 in endosomes before some EGFR is routed to recycling endosomes, thus escaping our observation. However, we could not find a suitable anti-EGFR antibody to label the cell surface EGFR to monitor its recycling after EGF treatment. Also, as mentioned above, our lab currently investigates the role and mechanism of CapZ in recycling endocytosis.

6) ArpC1B-mCherry does not appear localize to the lamella in Figure 2B and suggests that ectopic expression of ArpC1B-mCherry does not faithfully recapitulate the localization of the endogenous Arp2/3 complex. a. As a positive control, the authors should show that ArpC1B-mCherry colocalizes with endogenous Arp2/3 complex.

a. As suggested, we stained ARPC1B-mCherry- or ARPC1B-GFP-expressing HeLa cells with anti-p16-Arc antibody. It is clear that most ARPC1B puncta colocalize with endogenous Arp2/3 complex (Author response image 5). Also, as suggested by the reviewer in point b, we have used the endogenous Arp2/3 localization to replace the ARPC1B-mCherry images in the revised manuscript.

Author response image 5
The ARPC1B-mCherry- or ARPC1B-GFP-expressing HeLa cells were stained with anti-p16-Arc antibody, followed by confocal imaging.

b. Figure 2C shows N-Sim of ArpC1B-mCherry with endogenous Rab5. This analysis would be best served by comparing this colocalization with the colocalization of endogenous Arp2/3 complex and endogenous Rab5.

b. As suggested, we performed N-Sim imaging of endogenous Arp2/3 complex (p16-Arc staining) and endogenous RAB5, and reconstituted the 3-D images. We showed that more RAB5 puncta were associated with Arp2/3 puncta in CapZβ-knockout cells when compared to the control cells (Figure 3E). These results are presented in the revised manuscript in Figure 3-Video 1 and 2.

c. The representative images in 2B and 2C do not show the same focal plane for WT and KO cells and raises questions about the fairness of the colocalization analysis. Please show representative images of WT and CapZbKO cells at the same focal plane and indicate how the colocalization analysis was performed.

c. As suggested, we repeated the similar confocal imaging analysis (Manders’ colocalization coefficient) of colocalization between endogenous RAB5 and endogenous Arp2/3 in control and CapZ KO cells. Similarly, more RAB5 puncta were colocalized with Arp2/3 puncta in CapZβ-knockout cells when compared to the control cells (Figure 3D). When responding to reviewer 3’s comments below, we have addressed the rationale for using Pearson’s correlation coefficient or Manders’ colocalization coefficient (point iii).

d. Also, how well does the overexpressed ArpC1B-mCherry colocalize with GFP-CapZ, and does CapZ KO disrupt ArpC1B-mCherry localization?

d. We also assessed the colocalization between ARPC1B-mCherry and CapZ-GFP. As shown in Author response image 6, overexpressed ARPC1B strongly associated with CapZ. Compared to control cells, CapZ KO seemed to markedly increase the ARPC1B-mCherry puncta.

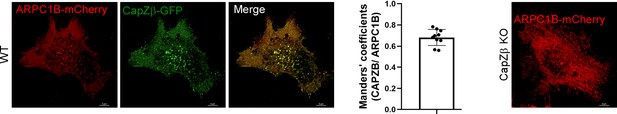

Author response image 6
The control or CapZβ-knockout HeLa cells were transiently transfected with ARPC1B-mCherry or CapZβ-GFP, followed by confocal imaging.

e. An alternative to the conclusion that inhibition of Arp2/3 complex leads to larger endosomes is that inhibition of Arp2/3 complex leads to impaired emergence of nascent endosomes from the plasma membrane. This would reduce the population of small vesicles and as a consequence would inherently overly inflate the contribution of larger vesicles to the overall mean vesicle area. Again, showing the distribution of endosome sizes would be helpful in distinguishing these possibilities.

e. We have repeated the experiments and analyzed the sizes and number of endosomes in control, CapZ KO, ARP2 KO, and CapZ/ARP2 double KO cells. The distribution of endosome sizes and numbers are presented as suggested by the reviewer (Figure 4C). It is clear that ARP2 KO did significantly increase the number of large vesicles when compared to the control cells, although it might also decrease the number of small vesicles.

f. Localization of the Arp2/3 complex to these vesicular populations does not imply that it is active. Please determine, if this CapZ KO-driven localization is accompanied by enrichment of endogenous N-WASP on these enlarged vesicles.

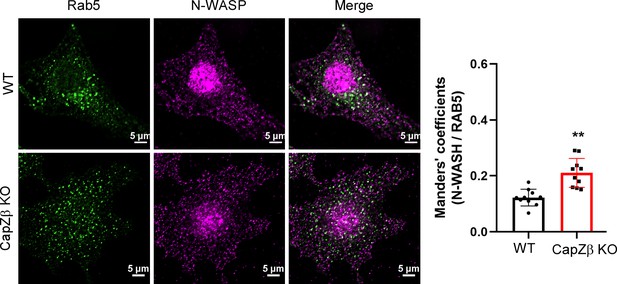

f. As suggested, we assessed the colocalization of RAB5 with N-WASP in control or CapZ KO cells. We showed that CapZ KO markedly increased the Colocalization of N-WASP with RAB5 Author response image 7. Of note, CapZ KO induced the smaller, not larger, vesicles when compared to the control cells.

Author response image 7
The control or CapZβ-knockout HeLa cells were immunostained with antibodies against RAB5 and N-WASP, followed by confocal imaging.

7) The in vitro binding of Rabaptin-5 to CapZ is unconvincing, mainly because of the low heat of interaction coupled to the high concentrations of proteins used in ITC experiment. To that end, the authors should be extra critical of the ITC results and provide a secondary measure of interaction (like a pulldown with purified proteins). Based on the evidence presented in Figure 2E and 2F, it would seem that CapZ KO-driven loss of Rabaptin-5 is the main driving force behind the small Rab5-positive vesicles in CapZ KO cells since this effect could not be rescued with either CK-636 nor ArpC1B KO. However, endosome number/size should be quantified for CK-636/latrunculin-treated cells where Rabaptin-5 has been ablated.

Since GST alone was able to pulldown CapZ in vitro, we have removed the GST-tag from Rabaptin-5, and performed the Biolayer interferometry (BLI) assay to assess the interaction between Rabaptin-5 and CapZ. As shown in Figure 5D, Rabaptin-5 binds to immobilized CapZ (200 µg/ml) in a dose-dependent manner. This BLI result is presented as the new Figure 5D, and the ITC data is presented as Figure 5—figure supplement 1D in the revised manuscript.

As suggested, we assessed Rabaptin-5 KO on the size and number of endosomes in control or ARP2 KO cells. As expected, Rabaptin-5 KO increased the number, and decreased the size of early endosomes in both control and ARP2 KO cells (Figure 5J).

8) The authors examine the potential pathophysiological consequences of the loss of CAPZ using Zika Virus infection. However, this part of the manuscript is not thoroughly investigated. For instance, CapZ has also been implicated in autophagy, where ablation of CapZ leads to impaired autophagosome formation (Mi et al., 2015). Additionally, autophagy is well-established to promote ZIKV infection (as reviewed in Gratton et al., Int. J. Mol Sci 2019 and Chiramel & Best, Viruses 2018). Justifying the author's conclusion would requires distinguishing the contributions of CapZ in endosomal maturation and autophagy. Thus, these results are best served for another publication where this conclusion can be thoroughly justified. Instead, examining the physiological signalling and trafficking biology of an endocytic cargo such as EGFR receptor might provide more insights onto the impact of CapZ on endosome maturation.

One of the research focuses in our lab is to systematically dissect the role of canonical autophagy machinery in flavivirus infection, including ZIKV. The pro- or/and anti-viral role of autophagy is rather complicated and is highly context-dependent. Yet, we agree with the reviewer that a more thorough study is needed to investigate the role of CapZ in ZIKV infection. Thus, we removed Figures 5 and S5 from the manuscript. The effects of CapZ KO on endosomal trafficking of EGFR and transferrin receptor are presented as Figures 2B and Figure 2—figure supplement 1A-1C in the revised manuscript.

Reviewer #3:

The proposed manuscript, titled "Capping protein regulates endosomal trafficking by capping F-actin on endocytic vesicles and recruiting RAB5 effectors," attempts to uncover a potential role for the barbed-end actin capping protein, CapZ, in the fusion and maturation of early endosomes. To that end the authors show that ablation of CapZ leads to the accumulation of small Rab5-positive vesicle that are believed to represent unfused early endosomes. In an attempt to establish the underling mechanism, the authors find that loss of CapZ leads to enhanced recruitment of Arp2/3 complex to Rab5 positive vesicles, which is assumed to be driving unregulated actin assembly on these endosome, that ultimately impairs their fusion. The authors also find that CapZ may directly interact with the Rab5 effector, Rabaptin-5, which in itself could potentiate the recruitment of Rab5. Finally, they also demonstrate that impairing endosome maturation through CapZ ablation can impair infection of ZIKV RNA.

The authors use a wide array of experimental approaches to put forward a number of interesting observations that could have considerable impact on understanding how the actin dynamics is coupled to endosomal maturation. However, based on the current data, it is unclear if the loss of CapZ leads to impaired fusion of nascent endosomes with the early endosomes because of excessive actin assembly on the early endosomes or it it is due to a loss of Rab5 activity and/or Rab5 dependent vesicle fusion factors, like Rabaptin-5. Also, it's unclear if the dependence of Rab5 localization to early endosomes is entirely influenced by a local populations of CapZ on endosomes emerging from the plasma membrane, or if it's a result of global changes in the actin dynamics and membrane trafficking in response to knocking-out a crucial element of the actin cytoskeleton. This is particularly important when considering viral infectivity, which relies on the convergence of multiple actin cytoskeleton dependent processes.

1. Data presentation though-out the figures need to be improved and better explained. As it stands, it is not evident that anyone could reproduce the data presented in the paper.

As suggested, we have reorganized the figures (original Figure 1 is split into Figures 1 and 2; Figure 2 into Figures 3 and 4; Figure 3 into Figure 5; Figure 4 into Figure 6; Figure S1 into Figure 1—figure supplement 1 and Figure 2—figure supplement 1; Figure S2 into Figure 3figure supplement 3 and Figure 4—figure supplement 1; Figure S3 into Figure 5—figure supplement 1; and Figure S4 into Figure 6—figure supplement 1); expanded the figure legends, and added more details in the material and method sections.

a. Error bars need description. I'm assuming they are presented as SEM, however this could be entirely inappropriate if the data is not normally distributed.

As suggested, the error bars have all changed to SD in the revised manuscript.

b. Please report the individual measurements in addition to the bar graphs so the reader can accurately assess and confirm the appropriateness of the statistical treatments. Also, presenting the endosome number and size distributions would be considerably more informative than the current mean and SEM presentation.

As suggested, all bar graphs are replaced with dot blots to reflect the individual measurements, and presented as mean ± SD.

c. For imaging analysis:

i. Please indicate, for all experiments, whether conventional or SIM-mode was used.

All fluorescent images were captured by conventional confocal microscope if not otherwise specially stated (the N-SIM images are clearly indicated in the respective images).

ii. Please describe and justify the nature of the images analyzed (single-plane, all-planes, max projection, etc..) and indicate if only selected regions were analyzed within in those images.

All the confocal images were taken and analyzed in a single plane if not otherwise specially stated.

iii. There are several instances where Mander's overlap coefficient is reported, but not Pearson's, and it's not clear why. This is particularly worrisome, because Mander's is heavily weighted by pixel intensity and small endosomes will have considerably less Rab5 intensity compared to large endosomes. In almost all cases, Pearson's correlation coefficient should be used. Importantly, please indicate on the Y-axis of each correlation bar graph the type of correlation.

Manders colocalization coefficient (MCC) or Pearson's correlation coefficient (PCC) are two major metrics of colocalization analysis of two probes. Both have pros and cons, and neither is superior to the other. We followed MCC or PCC methods based on the workflow described by Dunn et al. (Dunn et al., 2011). Briefly, to analyze the colocalization between RAB5 and its effectors (e.g., EEA1, Rabex-5, or Rabaptin-5), PCC was used because RAB5 and its effectors mostly co-occur on the same cellular structures (early endosomes), and their fluorescent signals fit a single linear relationship, which satisfies the requirements of PCC. On the other hand, if images were required to set a threshold to distinguish an object from a background (e.g., CapZ), or only a small proportion of two objects (such as p16-Arc vs. RAB5, CapZ vs. RAB5, or RAB5 vs. Actin) were codistributed in the same compartment, MCC was used. We have clearly labeled the MCC or PCC metrics in respective blots.

iv. Please describe the criteria (min/max size, intensity cut-offs, circularity, etc..) used to automatically identify endosomes for the image analysis and how overlapping endosomes were resolved.

It has been estimated that the early endosomes range from 200-600 nm (in diameter) by confocal and electron microscopy (Shearer and Petersen, 2019; Vermeulen et al., 2018). To maximally count all RAB5-positive endocytic vesicles, we actually set the min/max size of endosomes to the same value in the same set of experiments (e.g., 30000 nm2(min)/10000000 nm2(max)). The intensity cutoffs were set automatically through otsu threshold methods with manual checks to ensure that most endosomes were appropriately circulated. The overlapping endosomes were separated by the watersheds method. This information is also added to the “Materials and Method’ section (the third paragraph) on page 30 of the revised manuscript.

v. Please indicate how single endosomes were tracked in Figure 2D. There is no method listed for this. It's not enough to say, "performed using NIS-Elements AR software". What steps were taken to ensure the same endosome was being tracked between frames? This is particularly important when considering there is an abundance of small endosomes in CapZ KO cells, which will be less bright compared to those in WT cells.

The endosomes in each frame were detected by the bright different sizes method in the NISElements AR software; the typical diameter and contrast parameters were set appropriately to ensure most objects were selected. The objects were then tracked with a constant speed motion model. The "linking" modules were selected, which allowed three maximum gap sizes in tracks, to help the same endosomes were tracked between frames.

vi. Was the Live-cell imaging performed in super-resolution mode? What was the 'real' acquisition speed of the experiment (this is missing in the caption and in the figure legend). Again, this is important for faithfully tracking endosomes.

The live-cell imaging was performed in a high-speed confocal microscope with a 100X objective lens. The interval between each frame is around 0.5 seconds.

vii. Please explain how "Average speed" and "Average moving distance" was calculated.

The average speed is the average speed of each endosome in each frame. The average moving distance is calculated as followed: the average moving distance of each endosome in each frame X (multiply) total frames (360 frames).

viii. What was the average time a single endosome could be tracked?

The average tracking time of a single endosome was around eight seconds.

ix. It's stated that endosomes from 14 cells were tracked in the figure caption, but it's not stated how many endosomes were tracked per cell.

For WT cells, more than 3000 endosomes were tracked in each cell in a 3 minutes tracking time; for CapZ knockout cells, more than 9000 endosomes were tracked in each cell in the same period. The information for points v-ix is also added to the revised manuscript on page 29 (second paragraph).

d. For ITC analysis:

i. Please report binding model used for the fit, and ALL fit parameters, along with fit errors. Indicate which fit parameters were fixed.

ii. Indicate if the experiment was performed only once or multiple times, If the latter, report the experimental average and associated error.

Titration curves were fitted by MicroCal PEAQ-ITC analysis software (Malvern Panalytical) using a one-site binding model. The fitting parameters are N = 0.372 ±4.7e-3, KD = 378e-9 ±62.1e-9 M, ΔH = 0.581 ±1.2e-2 kcal/mol, ΔG = -8.76 kcal/mol, and -TΔS = -8.18 kcal/mol, respectively. All fit parameters are included in new Figure 5—figure supplement 1D in the revised manuscript.

The ITC experiments for binding between CapZ and Rabaptin-5 were performed twice with similar results: one with 400 µM Rabaptin-5 to 40 µM CapZ complex, and another one with 200 µM CapZ complex to 20 µM GST-Rabaptin-5 (Figure 5—figure supplement 1D ). As suggested by the reviewer, we have confirmed the interaction between CapZ and Rabaptin-5 by Biolayer interferometry (BLI) assay, which is presented as new Figure 5—figure supplement 1D in the revised manuscript.

References

Avraham, R., and Yarden, Y. (2011). Feedback regulation of EGFR signalling: decision making by early and delayed loops. Nat Rev Mol Cell Biol 12, 104-117.

Dunn, K. W., Kamocka, M. M., and McDonald, J. H. (2011). A practical guide to evaluating colocalization in biological microscopy. American Journal of Physiology-Cell Physiology 300, C723-C742.

Kaksonen, M., Toret, C. P., and Drubin, D. G. (2005). A modular design for the clathrin- and actinmediated endocytosis machinery. Cell 123, 305-320.

Shearer, L. J., and Petersen, N. O. (2019). Distribution and colocalization of endosome markers in cells. Heliyon 5, e02375.

Sinnar, S. A., Antoku, S., Saffin, J. M., Cooper, J. A., and Halpain, S. (2014). Capping protein is essential for cell migration in vivo and for filopodial morphology and dynamics. Mol Biol Cell 25, 2152-2160. Taunton, J., Rowning, B. A., Coughlin, M. L., Wu, M., Moon, R. T., Mitchison, T. J., and Larabell, C. A. (2000). Actin-dependent propulsion of endosomes and lysosomes by recruitment of N-WASP. J Cell Biol 148, 519-530.

Vermeulen, L. M. P., Brans, T., Samal, S. K., Dubruel, P., Demeester, J., De Smedt, S. C., Remaut, K., and Braeckmans, K. (2018). Endosomal Size and Membrane Leakiness Influence Proton Sponge-Based Rupture of Endosomal Vesicles. ACS Nano 12, 2332-2345.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

The manuscript has been improved but there are few substantial issues that remain to be addressed, as outlined below:

1. On the F-actin around endosome after CAPZBeta KO: Both reviewers find that the new data does not provide clear evidence of actin association with endosomes as the global actin polymerization is altered in CAPZBeta KO, such as increased stress fibers. It is unclear whether individual endosome do display more branched actin around when CAPZbeta is KO or silenced. Direct imaging of actin on endosomes and further quantification could address these concerns.

As suggested, we performed double immunostaining with antibodies against Rab5 (green) and Actin (red) in control or CapZβ KO cells. The single plane whole-cell images were then captured by Leica SP8 confocal microscope with a 63x oil lens (NA 1.45) and a resolution of 2048x2048 pixels (left panels of Figure 3C). To demonstrate the detail of the actin branches, we further scanned the selected area in the cells with a resolution of 4096x4096 pixels (right panels of Figure 3C). We showed that more Rab5-positive endosomes are buried inside the actin branches in CapZβ KO cells than the control cells. We also quantified the percentage of Rab5 puncta that are actin positive against total Rab5 puncta in control or CapZβ KO cells. We showed that more endosomes are actin-positive in CapZβ KO cells when compared to the control cells. These figures are presented as new Figure 3C in the revised manuscript.

From the literature, various groups have also performed immunostaining with antibodies against the subunit of the Arp2/3 complex or expressed the GFP or RFP fusion proteins of these subunits to demonstrate short actin branches [1-5]. Therefore, we performed immunostaining with an antibody against either p16-Arc or ARPC1B (both are subunits of Arp2/3 complex) to demonstrate the actin branch around endosomes. As shown in Figures 3D, 3E, and Figure 3-Video 1 and 2 in the revised manuscript, the colocalization coefficient of RAB5 puncta (RAB5 immunostaining) with Arp2/3 puncta (p16-Arc immunostaining) in CapZβ-knockout cells was significantly higher than the control cells. In addition, in the original manuscript, we transfected cells with mCherry-ARPC1B to label actin branches. We showed that more GFP-RAB5 puncta were colocalized with RFP-ARPC1B puncta in CapZβ-knockout cells when compared to the control cells (old Figure 2B in the original manuscript). We also performed RAB5A immunostaining in mCherry-ARPC1B-expressing HeLa cells followed by N-SIM S super-resolution imaging. We showed that more RAB5 puncta were associated with mCherry-ARPC1B puncta in CapZβ-knockout cells when compared to the control cells (old Figure 2C in the original manuscript). Take together, these results suggest that more actin branches are associated with early endosomes in CapZβ KO cells when compared to the control cells.

2. One main point in the revision was the measurements of the rate of constitutive endocytosis in CapZβ-knock out cells. The authors provided some measurements of transferring recycling but not of the rate of endocytosis. The authors should quantify the amount of TfR or EGFR at the surface of cells shortly after the chase. CapZ knockdown was previously shown to impair the initial steps of endocytosis, however the authors explicitly say that CapZ affects steps after the formation of endocytosis.

As suggested, we measured the cell surface EGFR levels 1 or 5 minutes after EGF chase. Briefly, live control or CapZβ-knockout HeLa cells were incubated with EGF-488 on ice for 30 min. After washed, cells were incubated with the warm medium at 37 °C incubator for 1 or 5 minutes before fixation and staining with phalloidin-647 and DAPI (we found that staining fixed cells without permeabilization with phalloidin-647 could demonstrate plasma membrane). As shown in Author response image 8, the cell surface EGFR or intracellular EGFR levels at 1 min or 5 min after EGF chase in CapZβ-knockout cells exhibited no significant differences when compared to control cells. Due to the technical limitation of our chase assay, we could not be able to monitor EGFR seconds after EGF chase. Therefore, TIRF microscopy might be more appropriate to examine the effects of CapZβ KO on the rate of constitutive endocytosis. However, we do not have this microscope in our institute. We are also not able to use it at another institute in Shenzhen (a neighboring city in mainland China), where we could find help from colleagues with expertise, because the border between Hong Kong and Shenzhen has been closed for the past 20 months in response to the current pandemic. It is worth pointing out that Kaksonen et al. has shown that deletion of CapZ in yeast cells reduced the moving rate of endocytic vesicles from the membrane invagination sites. Their results indicate that actin meshwork around the membrane invagination facilitates the subsequent vesicle scission and its rapid movement away from the plasma membrane [6]. We have commented on the role of CapZ in this early stages of endocytosis in the Discussion section (page 23) of the revised manuscript. As suggested, we also rephrased our statement in the manuscript to stress that our study has focused on the role of CapZ in the maturation of early endosomes.

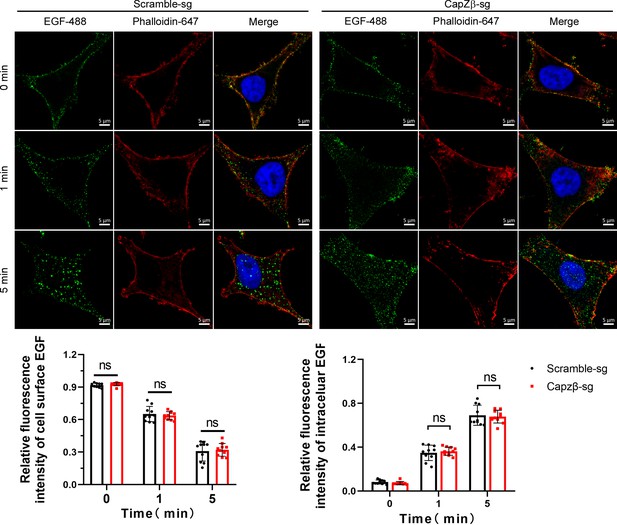

Author response image 8
Control or CapZβ-knockout HeLa cells were treated with EGF-488 for the indicated times before fixation and staining with phalloidin-647 and DAPI (without permeabilization), and then processed for immunofluorescence analysis.

3. The conclusions are based on the assumption that all the Rab5 positive structures are "endosomes". This is problematic, as not all Rab5 positive structures are endosomes and it's not evident (by methodology nor the presented experiments) that the authors have taken the appropriate steps to distinguish endosomes from other organelles. It is important to compare the size distributions of EGF or Transferrin endosomes in scramble and CapZ KO cells. The authors only measure the size of Rab5 positive structures and show that Rab5 colocalization with an early endosome marker is reduced in CapZ KO cells, suggesting that the smaller endosomes may not be early endosomes.

As suggested, we measured the size distributions of EGF-positive vesicles after EGF chase in control or CapZβ KO cells. Consistently, we showed that 15 min after EGF treatment, the size and number of EGF-positive vesicles in CapZβ KO cells were significantly decreased and increased, respectively, when compared to the control cells (Figure 2C).

4. On EGFR: The total amount of EGFR is severely reduced after CAPZbeta KO, despite a significant reduction in its degradation. While studying the reason for this is probably beyond the scope of the present study, it would be easy and relevant to assess the total amount of mRNA of EGFR and whether reconstituting the expression of CAPZB restores the levels of EGFR. Also, in the EGFR degradation assay, it is surprising not to see the band corresponding to EGFR shifted as after stimulation with EGF, the receptors became heavily phosphorylated at multiple sites. Some clarification is needed here.

As suggested, we examined EGFR mRNA levels in control and CapZβ KO HeLa cells, and showed that mRNA level of EGFR was significantly decreased in CapZβ KO cells when compared to the control cells (Figure 2—figure supplement 1G). This result suggests that CapZ or F-actin dynamics positively regulate the transcription of EGFR. Along this line, actin dynamics have been shown to modulate gene transcription [7, 8]. It is of interest to further dissect the role and mechanisms of CapZ in transcription regulation in the future.

As suggested, we examined the level of EGFR in CapZβ-reconstituted cells, and showed that reconstituting CapZβ in CapZβ KO cells restores the expression of EGFR (Figure 2—figure supplement 1F).

Regarding the mobility of EGFR in SDS-PAGE after EGF treatment, we searched the literature and found that the mobility of EGFR after EGF treatment could be manifested in gradient or low bis-acrylamide gels (See Figure 2A in reference [9]). Since we run our samples in regular SDS-PAGE, we suspect this could lead to no observed mobility shift of EGFR. Similarly, no mobility shift of EGFR after EGF treatment was observed when the samples were run in regular SDS-PAGE by others (See Figure 1 in reference [10], Figure 2 in [11], etc.).

5. One explanation for the loss of localization Rab5 to EEA1 positive early endosomes in CapZ-KO cells is that there is increase in the rate of maturation of these endosomes. The authors should check if the colocalization of Rab5 with Rab7 affected by CapZ KO? Similarly, are the larger endosomes seen in the Arp2 KO cells, more positive for Rab7? This seems to be particularly true for the CK-636 treated cells in Supplemental Figure 4A, which have a dramatic Golgi-like localization.

As suggested, we examined the colocalization of Rab5 with Rab7 in control, CapZβ KO, or ARP2 KO cells. Since we could not find a suitable Rab7 antibody for immunostaining, we transfected cells with Rab7-mCherry to label Rab7-positive endosomes. As shown in Figure 4—figure supplement 1C, the colocalization of Rab5 with Rab7 was significantly decreased in CapZβ KO cells when compared to the control cells, suggesting that most of the accumulated Rab5-positive vesicles are immature early endosomes. As predicted by the reviewer, most of the enlarged endosomes in ARP2 KO cells are Rab7 positive. Intriguingly, some of these RAB7-positive enlarged vehicles are also RAB5 positive, manifested by the increased colocalization between Rab5 and Rab7 in ARP2 KO cells when compared to the control cells. These results suggest that the enlarged RAB5/RAB7 double-positive vesicles might be the transition vesicles between early endosomes and late endosomes, and the RAB7-only positive enlarged vesicles are late endosomes. Of note, Poteryaev et al. has shown the existence of the Rab5/Rab7 double-positive endosomes during endocytic Rab conversion in C. elegans Coelomocytes (see Figure 1 in ref. [12]).

6. The novel interaction between CapZ and the Rabaptin/Rabex GEF complex is the real strength of the paper. The authors have done an excellent job in validating these interactions, however the mechanism proposed of how CapZ regulates Rabaptin/Rabex GEF complex is confusing.

a) The authors propose that CapZ regulates Rab5 indirectly by regulating the localization of Rabaptin-5/Rabex-5, but it's unclear if CapZ solely effects localization and/or complex formation. For example, does CapZ facilitate the formation of a functional Rabaptin-Rabex complex? Does CapZ modulate binding of the Rabaptin-Rabex complex to Rab5?

a. In Figures 5H and 5I of the revised manuscript, we showed that the interaction between Rabaptin-5 and Rabex5 was decreased in CapZ KO cells when compared to the control cells by co-IP experiments. Also, the interaction between Rabaptin-5 and Rab5 was decreased in CapZ KO cells when compared to the control cells (Figure 5H). On the other hand, knockdown of either Rabex5 (Figure 5—figure supplement 1G) or Rabaptin-5 (Figure 5—figure supplement 1H) failed to affect the interaction of CapZ with Rabaptin-5 or Rabex5, respectively. These results suggest that CapZ facilitates the formation of the Rabaptin-5/Rabex5 complex, and participates in the binding of Rabaptin-5 or Rabex5 to Rab5.

We agree with the reviewer that it is of great interest to dissect how CapZ modulates Rabex5/Rabaptin-5 GEF activity. We are currently figuring out the way to obtain recombinant Rabex5 protein from insect or mammalian cell systems since our efforts to purify the recombinant Rabex5 protein from the bacterial culture failed. We plan to test whether CapZ interacts with Rabex5 directly, to assess whether CapZ modulates the GEF activity of Rabex5/Rabaptin, and to obtain the crystal structure of CapZ/Rabex5/Rabaptin-5 complex. If successful, these results will be submitted for publication.

b) Does Rabaptin-5 and Rabex-5 colocalizes with CapZDC34 in cells? Presumably, If the interaction between CapZ with said Rab5 GEFs is independent of F-actin, then CapZDC34 should localize equally well to the Rab5 GEF complex as full-length CapZ.

b. In Figures 6F and 6G, we showed that the deletion of C34 from CapZβ did not affect its interaction with Rabex5 and Rabaptin-5, but abolished its interaction with actin and markedly diminished its interaction with Rab5. Of note, CapZ-C34 exhibited a diffuse expression pattern when it was reconstituted back to CapZ KO cells (the bottom panel in Figure 6E).

c) The increase in Rab5 colocalization with the Arp2/3 complex in CapZ KO cells is quite unexpected for two reasons. (1) it contradicts the assumption that CapZ recruits Rab5 (indirectly through Rabaptin-5/Rabex-5) to these endosomal actin patches. (2) it's indicated that Rabaptin-5 (Figure 5J) is delivered by CapZ (Figure 5H) and needed to facilitate the growth of these endosomes (presumably through fusion). However, without Rab5 GEFs it's impossible to promote the positive feedback loop needed to drive endosomal fusion and/or maturation. Can the authors provide some insight into why this is the case?

c. The increased colocalization of Rab5 with Arp2/3 in CapZ KO cells compared to the control cells suggests the increased actin branches around early endosomes in CapZ KO cells (Figures 3D and 3E).

1. It has been previously shown that early endosomes are associated with F-actin [6, 13], and several proteins are required for their association, such as Annexin A2 and RNtre (a GAP for RAB5) [14, 15]. We, thus, speculate that CapZ could recruit Rabex5 and Rabaptin-5 to F-actin-associated early endosomes when it caps the barbed ends of Factin. This could bring Rabex5 and Rapaptin-5 to close proximity to RAB5 to establish a positive feedback loop to further activate Rab5 for the fusion of early endosome (see Author response image 9). Along this line, we showed that CapZ did not directly interact with RAB5 (Figure 1—figure supplement 1C in the revised manuscript). In Figures 6F and 6G, we showed that CapZ-C34 lost its ability to bind with F-actin, and only weakly interacted with Rab5. However, CapZ-C34 kept its interaction with Rabex5 and Rabaptin-5. Thus, our results do not suggest that CapZ recruits Rab5 (indirectly via Rabex5 and Rabaptin-5) to the actin branches around early endosomes.

Author response image 9
CapZ helps recruit Rabex5 and Rapaptin-5 to RAB5-positive early endosomes, thus establishing a positive feedback loop to further activate RAB5 for the early endosome fusion.

2. In Figure 5J (the experiment suggested by the reviewer for the previous revision), we showed that Rabaptin-5 KO decreased the size and increased the number of early endosomes caused by the ARP2 KO. These results suggest that Rabaptin-5 KO inhibited the fusion of early endosomes induced by ARP2 KO. In Figure 5H, we showed that CapZ KO decreased the interaction of Rabaptin-5 with Rabex-5 and RAB5. These results suggest that the reduced interaction of Rabex-5/Rabaptin-5 with Rab5 also contributes to the inhibited early endosome maturation (manifested by the accumulation of small early endosomes) in CapZ KO cells. Thus, the role of Rabatpin5 suggested by these two figures is consistent.

d) The impact of CapZ on early endosomes could also be explained by changes in protein expression of Rab5, Rabaptin-5, Rabex-5, VPS34, etc. Please provide evidence that the expression levels of these proteins have not changed with CapZ KO.

d. In the previous rebuttal letter (Author response image 4C in point 6), we have provided evidence that CapZ KO did not affect the expression of Rab5, Rab7, VPS34, Rabex-5, and Rabaptin 5 (Author response image 10). Figures 2E, 5H, and 5I in the revised manuscript also showed that the expression of RAB5, Rebex-5, or Rabectin-5, was not affected by CapZ KO.

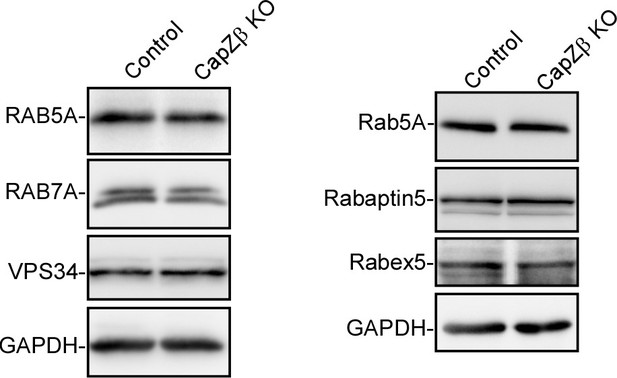

Author response image 10
The expression levels of RAB5A, RAB7A, Rabex5, Rabaptin5, and VPS34 in control or CapZβ-knockout HeLa cells were determined by western blot analysis.

7. The authors need to include a discussion with how their observations fit into the wealth of data on what is known about CapZ in endocytosis and trafficking. The potential role of CapZ in endosome fusion versus fission should be discussed.

We add more information on pages 5-6 of the revised manuscript regarding the role of CapZ in various cellular processes. We also include a discussion to link our observation with the previous knowledge on CapZ in endocytosis and trafficking on page 23 of the revised manuscript.

We discussed the potential role of CapZ in endosome fusion versus fission on page 22 of the revised manuscript as following:

In the CapZ knockout cells, the number of early endosomes was significantly increased but their size was markedly smaller, when compared with the control cells (Figures 2C, 2D, Figure 2—figure supplement 1H, and Figure 3—figure supplement 1D). In addition, Rab5 activity was significantly decreased in CapZ KO cells than the contrl cells (Figure 2E). These results suggest that CapZ is required for the fusion or maturation of early endosomes. Yet, it is possible that CapZ KO might promote the fission of early endosomes, and this could also lead to the increase of small endosomes in CapZ KO cells. This possibility remains to be determined. Interestingly, Derivery et al. identified CapZ in the WASH complex [1]. They demonstrated that WASH helps to nucleate actin onto endosomes to control the fission of early endosomes for endosomal receptor recycling. They showed that WASH knockdown markedly induced tabulation of the endosomes (See Figure 5 in ref. [1]) and inhibited transferrin recycling. Although we found that CapZ knockout inhibited transferrin recycling (Figure S2F), we did not detect the long membrane tubules originating from the endosomes in the CapZ knockout cells (Figures 2D, 3C, Figure 3—figure supplement 1G and 1H). This suggests that CapZ might not participate in the endosome fission for endosomal receptor recycling.

In addition to the points mentioned above, please address the comment #4 (a-f) and #5 of reviewer 3 on the colocalization analysis and methodology and provide the complete information in the manuscript text. Please also address the minor concerns listed by reviewer #3.

Reviewer #3:

4. Much of the conclusions of the MS rely on colocalization analysis, which is surprisingly not at all described. This is particularly relevant to the above points. Please provide a detailed description as to how colocalization analysis was performed.

a. Indicate which software package was employed (presumably Image J).

Image J software was used to perform the colocalization analysis.

b. Indicate whether the analysis was performed on single confocal plane, on Z-stack projection or in 3D? It's indicated in the rebuttal that "only single confocal plane was taken and analyzed unless otherwise stated." If this is true, indicate the criteria that was used to select this plane for analysis. Also, the methods indicate that the SIM images were reconstructed in 3D – were these image sets also analyzed in the same way as the confocal images. It's not stated how these data sets were analyzed.

All imagings were taken and analyzed on a single confocal plane unless otherwise stated in the figure legend. We chose a plane where most signals are detected, and cell morphology looks normal. Although we reconstructed SIM images in 3D, we did not perform quantification and statistical analysis on these images.

c. How were the ROIs determined? Was the entire image plane or individual cells analyzed? If on the entire image plane, how many cells were in the field of view. If performed in 3D was the ROI the same in all image planes of the stack, or was segmentation performed on each pane to identify the true boundary of the cell?

d. Did the ROI exclude centrally located organelles, such as the nucleus, perinuclear region, and the Golgi? The use of Mander's to examine co-occurrence of endosomal markers is appropriate so long as it is restricted to peripheral organelles (please refer to Pike et al., Methods 2017).

We captured the single-plane image of the individual cells and analyzed the whole image. Thus no ROIs were selected in the images. There were at least 5~10 cells in the field of view (63x oil lens). Also, we did not quantify the 3D images.

Pike et al. described the workflow to analyze 3D time-lapse images. We agree that it is appropriate to exclude the nucleus region when performing the Manders colocalization coefficient analysis of endosomes markers in these 3D images.

e. Was the background subtracted? Which approach was used?

We did not perform additional background subtractions before distinguishing objects from the background using the JACoP plugin of Image J.

f. Was signal isolation performed in an automated and unbiased way, such as employing the Costes joint histogram approach?

We started with the default threshold for each image in the JACoP plugin of Image J; then we did the manual inspection to ensure that it distinguished most target objects from the background [16]. We also tried the Costes' method to set up a threshold for the image; however, in most cases, the set threshold is too low to distinguish objects from the background.

5. The endosome size data was not statistically analyzed correctly. The data is not normally distributed and showing the mean +/- SD is not appropriate for these figures. Instead, please show a box and whisker plot on top of the data points. Also note, because the data is skewed, the appropriate statistical test is the Mann-Whitney U Test. It may be more beneficial to show this data as a frequency histogram distribution.

All statistical analysis was performed by Graphpad software. We tried a box and whisker plot or a frequency histogram distribution for the endosome size data, but found that dot plots more precisely present the distribution of the endosome size data than other two methods (Author response image 11). Therefore, we selected the dot plots with the mean value present the endosome size distribution.

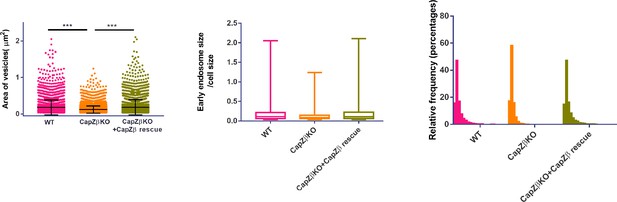

Author response image 11
The dot plot, a box and whisker plot, and a frequency histogram distribution of the endosome size data in control, CapZβ-knockout, or CapZβ-reconstituted HeLa cells.

The Mann-Whitney U test is applied to compare the mean rank of data, but it does not compare means and distributions. Thus it is not always suitable for median comparison [see reference 1 below]. Although the Mann-Whitney U test could be adopted when data does not follow a Gaussian distribution, the choice of parametric vs. nonparametric is difficult, and normality tests could not simply justify it [see reference 2 below]. Since our endosome size data is large (>1000 in sample size), it matters less for choosing a parametric or nonparametric test [see reference 3 below]. In addition, a T-test is recommended for studies with large sample sizes and skewed data [see reference 4 below]. When the data might not follow a Gaussian distribution, it is also advised first to transform the data with logarithms, and then analyze the transformed values with a conventional test [see reference 5 below]. Therefore, we transformed our endosome size data with log10 before the T-test. We found that it did not change the statistical significance (p<0.05) of our results.

References for statistical analysis:

1. H. J. Motulsky, "The Mann-Whitney test doesn't really compare medians ", GraphPad Statistics Guide. Accessed 18 August 2021. https://www.graphpad.com/guides/prism/latest/statistics/stat_nonparametric_tests_dont_compa.htm

2. H. J. Motulsky, " Advice: Don't automate the decision to use a nonparametric test ", GraphPad Statistics Guide. Accessed 18 August 2021. https://www.graphpad.com/guides/prism/latest/statistics/using_a_normality_test_t o_choo.htm

3. H. J. Motulsky, " Nonparametric tests with small and large samples ", GraphPad Statistics Guide. Accessed 18 August 2021. https://www.graphpad.com/guides/prism/latest/statistics/choosing_parametric_vs_nonpar.htm

4. Fagerland, M.W., t-tests, nonparametric tests, and large studies—a paradox of statistical practice? BMC medical research methodology, 2012. 12(1): p. 1-7.

5. H. J. Motulsky, " Advice: When to choose a nonparametric test ", GraphPad Statistics Guide. Accessed 18 August 2021. https://www.graphpad.com/guides/prism/7/statistics/when_to_choose_a_nonpara metric.htm

RERERENCES

  • Derivery, E., Sousa, C., Gautier, J.J., Lombard, B., Loew, D., and Gautreau, A. (2009). The Arp2/3 activator WASH controls the fission of endosomes through a large multiprotein complex. Dev Cell 17, 712-723.

  • Goley, E.D., and Welch, M.D. (2006). The ARP2/3 complex: an actin nucleator comes of age. Nat Rev Mol Cell Biol 7, 713-726.

  • Smith, B.A., Daugherty-Clarke, K., Goode, B.L., and Gelles, J. (2013). Pathway of actin filament branch formation by Arp2/3 complex revealed by single-molecule imaging. Proc Natl Acad Sci U S A 110, 1285-1290.

  • Almeida, C.G., Yamada, A., Tenza, D., Louvard, D., Raposo, G., and Coudrier, E. (2011). Myosin 1b promotes the formation of post-Golgi carriers by regulating actin assembly and membrane remodelling at the trans-Golgi network. Nat Cell Biol 13, 779-789.

  • Mi, N., Chen, Y., Wang, S., Chen, M., Zhao, M., Yang, G., Ma, M., Su, Q., Luo, S., Shi, J., et al. (2015). CapZ regulates autophagosomal membrane shaping by promoting actin assembly inside the isolation membrane. Nat Cell Biol 17, 1112-1123.

  • Kaksonen, M., Toret, C.P., and Drubin, D.G. (2005). A modular design for the clathrin- and actinmediated endocytosis machinery. Cell 123, 305-320.

  • Olson, E.N., and Nordheim, A. (2010). Linking actin dynamics and gene transcription to drive cellular motile functions. Nat Rev Mol Cell Biol 11, 353-365.

  • Knoll, B. (2010). Actin-mediated gene expression in neurons: the MRTF-SRF connection. Biol Chem 391, 591-597.

  • Carter, R.E., and Sorkin, A. (1998). Endocytosis of functional epidermal growth factor receptorgreen fluorescent protein chimera. J Biol Chem 273, 35000-35007.

  • Wang, W., Zhang, H., Liu, S., Kim, C.K., Xu, Y., Hurley, L.A., Nishikawa, R., Nagane, M., Hu, B., Stegh, A.H., et al. (2017). Internalized CD44s splice isoform attenuates EGFR degradation by targeting Rab7A. Proc Natl Acad Sci U S A 114, 8366-8371.

  • Kortum, F., Harms, F.L., Hennighausen, N., and Rosenberger, G. (2015). alphaPIX Is a Trafficking Regulator that Balances Recycling and Degradation of the Epidermal Growth Factor Receptor. PLoS One 10, e0132737.

  • Poteryaev, D., Datta, S., Ackema, K., Zerial, M., and Spang, A. (2010). Identification of the switch in early-to-late endosome transition. Cell 141, 497-508.

  • Taunton, J., Rowning, B.A., Coughlin, M.L., Wu, M., Moon, R.T., Mitchison, T.J., and Larabell, C.A. (2000). Actin-dependent propulsion of endosomes and lysosomes by recruitment of N-WASP. J Cell Biol 148, 519-530.

  • Morel, E., Parton, R.G., and Gruenberg, J. (2009). Annexin A2-dependent polymerization of actin mediates endosome biogenesis. Dev Cell 16, 445-457.

  • Lanzetti, L., Palamidessi, A., Areces, L., Scita, G., and Di Fiore, P.P. (2004). Rab5 is a signalling GTPase involved in actin remodelling by receptor tyrosine kinases. Nature 429, 309-314.

  • Dunn, K.W., Kamocka, M.M., and McDonald, J.H. (2011). A practical guide to evaluating colocalization in biological microscopy. Am J Physiol Cell Physiol 300, C723-742.

  • Shinde, S.R., and Maddika, S. (2016). PTEN modulates EGFR late endocytic trafficking and degradation by dephosphorylating Rab7. Nat Commun 7, 10689.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

The manuscript has been improved but there are some remaining issues that primarily require text changes, data quantification and figure modifications. These changes are outlined below in the reviewers comments:

Reviewer #2:

The authors have done an additional set of experiments to address the concerns expressed. Overall, the manuscript is certainly improved and at this stage, only few points to clarify might be needed.

1. On the actin around the endosome. The new set of images in figure 3C is certainly a progress in this direction. Yet, it remains conceivable that the apparent increased chance of seeing an endosome adjacent to filamentous actin is simply a reflection of more cellular F-actin actin. Maybe one way to visualized actin, keeping in mind the effect exerted by CAPZ KO (which reduced the size and increase the number of endosomes) could have been treating cells with the Pik5 inhibitor. This said, at this stage, it would seem acceptable to use cautionary words on the increased F-Actin around the endosome following CAPZ genetic silencing w/o performing new experiments.

As suggested, we have rephrased the statement to “CapZ knockout increased F-actin density around RAB5-positive endosomes”, in the revised manuscript.

2. On the possible impact of CAPZ on early internalization steps. The attempts made were clearly inconclusive on the images in response to this point, it is stated that no permeabilization was done to ensure that the detected EGF would be localized at the cell surface. Specifically: "we found that staining fixed cells without permeabilization with phalloidin-647 could demonstrate plasma membrane" yet at 5 minutes there is apparently plenty of EGF signal inside the cells, which should not be detectable in the absence of permeabilization. The experiments on this issue seem inconclusive. There are more precise ways to measure the rate of endocytosis through the use of Iodinated EGF. The manuscript, however, is not focused on early steps on endocytosis, and it would seem not appropriate, at this point, to ask for these experiments. The authors were careful in commenting on the possible role of CAPZ in the early step of internalization and this might be all that is needed.

For EGF chasing experiment, the live cells were first incubated with Alexa Fluor 488–EGF on ice for 30 min, followed by PBS wash to remove the unbound ligand. The cells were then incubated with the warm medium for indicated times to trigger the endocytosis of the EGFEGFR complex before fixation. Thus, at 5 minutes, the EGF signal inside the cells was due to the internalized EGF-EGFR complex after EGF chase, not because of the staining of fixed cells. These results are presented as new Figure 2—figure supplement 1D in the revised manuscript as suggested by reviewer 3.

Reviewer #3:

The additional data provided in the rebuttal when fully included, markedly helps with interpreting the roll of CapZ in regulating early endosome fusion and/or maturation. There is a clear effect of CapZ on trafficking and it seems to be driven by the assembly on Rab-5 GEF complex, Rabex-5/Rabaptin-5. The data on this point is excellent and of general interests. However, my main concern is with this insistence to say that CapZ regulates branched actin assembly on endosomes, when it's unnecessary to do so. It also calls attention to the weak point of the paper, and this conclusion is formulated by an over-interpretation, and concerning implementation and colocalization analyses, not to mention the incorrect assumption that CapZ blocks Arp2/3 complex. Indeed, recent data provided in this recent revision suggests that Arp2/3 complex regulates maturation of early endosomes, since Arp2/3 KO leads to accumulation of Rab7 positive endosomes, that were previously misinterpreted as enlarged Rab5 endosomes. This calls into question the fairness of comparing the effects of CapZ KO with Arp2/3 complex KO on endosome number and endosome size in all of Figure 4 and Figure 5J. The correct thing to do would have been restrict the endosome size distribution analysis to early endosomes (as suggested by previously by the reviewers), which would necessarily exclude any Rab5 puncta overlapping with Rab7. Alternatively, the data can be kept as is, but the authors have to strongly state that these Rab5 positive structures also includes both early and late endosomes. Furthermore, it is quite likely, and correctly mentioned by the authors, that the Arp2/3 complex plays a role in a myriad of endosome functions that affects everything from cargo sorting, fission and fusion. As such, this data cannot be used to solely conclude that CapZ KO leads to an increase in branched actin density on early endosomes that impairs their fusion.

In ARP2-knockout cells, there are both RAB7-only positive endosomes (likely the late endosomes) and RAB7-RAB5 double-positive endosomes (Figure 4—figure supplement 1C). These RAB7-RAB5 double-positive endosomes likely represent the transition vesicles between early endosomes and late endosomes [12]. These results suggest that ARP2 KO facilitates the maturation of early endosomes and/or the transition of the early-to-late endosome. Whereas in CapZ-knockout cells, most of the RAB5-positive vesicles are RAB7negative, suggesting that these RAB5-positive vesicles likely represent early endosomes. Therefore, as suggested, we clearly stated what these RAB5-only vesicles, RAB7-only vesicles, and RAB5-RAB7 double-positive vesicles represent on page 15 of the revised manuscript.

We also agree with the reviewer that Arp2/3 complex plays an important role during endosomal trafficking, from cargo sorting, fission to fusion. We have inserted a statement regarding the role of ARP2/3 in endocytosis on page 13 of the revised manuscript.

With regards to point 8.b. of the rebuttal letter, the authors state that they performed colocalization analysis on a single plane for the entire field of view, and each field of view consists of 5-10 cells. Is that correct? This would suggest extra-cellular debris and labeling would have been included in the analysis. Surely the authors did something to correct for this.

During immunostaining, all slides were washed extensively by PBS with care after primary and secondary antibodies incubation, and thus extracellular debris and signals were rare in these slides. Also, during quantification, all images were manually inspected to ensure that only intracellular signals were quantified.

https://doi.org/10.7554/eLife.65910.sa2

Article and author information

Author details

  1. Dawei Wang

    1. City University of Hong Kong Shenzhen Research Institute, Shenzhen, China
    2. Department of Biomedical Sciences, City University of Hong Kong, Hong Kong, China
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Writing – original draft
    Contributed equally with
    Zuodong Ye, Wenjie Wei and Jingting Yu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7868-775X
  2. Zuodong Ye

    1. City University of Hong Kong Shenzhen Research Institute, Shenzhen, China
    2. Department of Biomedical Sciences, City University of Hong Kong, Hong Kong, China
    Contribution
    Data curation, Investigation, Methodology
    Contributed equally with
    Dawei Wang, Wenjie Wei and Jingting Yu
    Competing interests
    No competing interests declared
  3. Wenjie Wei

    Core Research Facilities, Southern University of Science and Technology, Shenzhen, China
    Contribution
    Investigation
    Contributed equally with
    Dawei Wang, Zuodong Ye and Jingting Yu
    Competing interests
    No competing interests declared
  4. Jingting Yu

    City University of Hong Kong Shenzhen Research Institute, Shenzhen, China
    Contribution
    Data curation, Investigation, Methodology
    Contributed equally with
    Dawei Wang, Zuodong Ye and Wenjie Wei
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2631-8434
  5. Lihong Huang

    1. City University of Hong Kong Shenzhen Research Institute, Shenzhen, China
    2. Department of Biomedical Sciences, City University of Hong Kong, Hong Kong, China
    Contribution
    Data curation, Investigation, Methodology
    Competing interests
    No competing interests declared
  6. Hongmin Zhang

    Department of Biology, Guangdong Provincial Key Laboratory of Cell Microenvironment and Disease Research and Shenzhen Key Laboratory of Cell Microenvironment, Southern University of Science and Technology, Shenzhen, China
    Contribution
    Supervision
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4356-3615
  7. Jianbo Yue

    1. City University of Hong Kong Shenzhen Research Institute, Shenzhen, China
    2. Department of Biomedical Sciences, City University of Hong Kong, Hong Kong, China
    3. City University of Hong Kong Chengdu Research Institute, Chengdu, China
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Resources, Supervision, Writing – original draft, Writing – review and editing
    For correspondence
    jianbyue@cityu.edu.hk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6384-5447

Funding

Research Grants Council, University Grants Committee (11101717)

  • Jianbo Yue

Research Grants Council, University Grants Committee (11103620)

  • Jianbo Yue

National Natural Science Foundation of China (21778045)

  • Jianbo Yue

National Natural Science Foundation of China (2070702)

  • Jianbo Yue

Science, Technology and Innovation Commission of Shenzhen Municipality (JCYJ20160229165235739)

  • Jianbo Yue

Science, Technology and Innovation Commission of Shenzhen Municipality (JCYJ20170413141331470)

  • Jianbo Yue

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors thank members of Yue lab for their advice on the preparation of this manuscript. This work was supported by Hong Kong Research Grant Council (RGC) grants (11101717 and 11103620), NSFC (21778045, 32070702, and 82161128014), ITF (MRP/064/21 and GHP/097/20GD), research grants from Shenzhen Science and Technology Innovation Committee (SGDX20201103093201010, JSGG20200225150702770, and JCYJ20210324134007020).

Senior Editor

  1. Anna Akhmanova, Utrecht University, Netherlands

Reviewing Editor

  1. Mahak Sharma, Indian Institute of Science Education and Research Mohali, India

Reviewer

  1. Giorgio Scita, IFOM Foundation, Institute FIRC of Molecular Oncology, Italy

Publication history

  1. Received: December 18, 2020
  2. Accepted: November 18, 2021
  3. Accepted Manuscript published: November 19, 2021 (version 1)
  4. Version of Record published: December 8, 2021 (version 2)

Copyright

© 2021, Wang et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,324
    Page views
  • 319
    Downloads
  • 3
    Citations

Article citation count generated by polling the highest count across the following sources: PubMed Central, Crossref, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Dawei Wang
  2. Zuodong Ye
  3. Wenjie Wei
  4. Jingting Yu
  5. Lihong Huang
  6. Hongmin Zhang
  7. Jianbo Yue
(2021)
Capping protein regulates endosomal trafficking by controlling F-actin density around endocytic vesicles and recruiting RAB5 effectors
eLife 10:e65910.
https://doi.org/10.7554/eLife.65910

Further reading

    1. Cell Biology
    2. Neuroscience
    Meghan E Wynne, Oluwaseun Ogunbona ... Victor Faundez
    Research Article Updated

    Mitochondria influence cellular function through both cell-autonomous and non-cell autonomous mechanisms, such as production of paracrine and endocrine factors. Here, we demonstrate that mitochondrial regulation of the secretome is more extensive than previously appreciated, as both genetic and pharmacological disruption of the electron transport chain caused upregulation of the Alzheimer’s disease risk factor apolipoprotein E (APOE) and other secretome components. Indirect disruption of the electron transport chain by gene editing of SLC25A mitochondrial membrane transporters as well as direct genetic and pharmacological disruption of either complexes I, III, or the copper-containing complex IV of the electron transport chain elicited upregulation of APOE transcript, protein, and secretion, up to 49-fold. These APOE phenotypes were robustly expressed in diverse cell types and iPSC-derived human astrocytes as part of an inflammatory gene expression program. Moreover, age- and genotype-dependent decline in brain levels of respiratory complex I preceded an increase in APOE in the 5xFAD mouse model. We propose that mitochondria act as novel upstream regulators of APOE-dependent cellular processes in health and disease.

    1. Cell Biology
    Ignacio Bravo-Plaza, Victor G Tagua ... Miguel A Peñalva
    Research Article

    Uso1/p115 and RAB1 tether ER-derived vesicles to the Golgi. Uso1/p115 contains a globular-head-domain (GHD), a coiled-coil (CC) mediating dimerization/tethering and a C-terminal region (CTR) interacting with golgins. Uso1/p115 is recruited to vesicles by RAB1. Genetic studies placed Uso1 paradoxically acting upstream of, or in conjunction with RAB1 (Sapperstein et al., 1996). We selected two missense mutations in uso1 resulting in E6K and G540S in the GHD that rescued lethality of rab1-deficient Aspergillus nidulans. The mutations are phenotypically additive, their combination suppressing the complete absence of RAB1, which emphasizes the key physiological role of the GHD. In living hyphae Uso1 recurs on puncta (60 sec half-life) colocalizing partially with the Golgi markers RAB1, Sed5 and GeaA/Gea1/Gea2, and totally with the retrograde cargo receptor Rer1, consistent with Uso1 dwelling in a very early Golgi compartment from which ER residents reaching the Golgi recycled back to the ER. Localization of Uso1, but not of Uso1E6K/G540S, to puncta is abolished by compromising RAB1 function, indicating that E6K/G540S creates interactions bypassing RAB1. That Uso1 delocalization correlates with a decrease in the number of Gea1 cisternae supports that Uso1-and-Rer1-containing puncta are where the protein exerts its physiological role. In S-tag-coprecipitation experiments Uso1 is an associate of the Sed5/Bos1/Bet1/Sec22 SNARE complex zippering vesicles with the Golgi, with Uso1E6K/G540S showing stronger association. Using purified proteins, we show that Bos1 and Bet1 bind the Uso1 GHD directly. However, Bet1 is a strong E6K/G540S-independent binder, whereas Bos1 is weaker but becomes as strong as Bet1 when the GHD carries E6K/G540S. G540S alone markedly increases GHD binding to Bos1, whereas E6K causes a weaker effect, correlating with their phenotypic contributions. AlphaFold2 predicts that G540S increases binding of the GHD to the Bos1 Habc domain. In contrast, E6K lies in an N-terminal, potentially alpha-helical, region that sensitive genetic tests indicate as required for full Uso1 function. Remarkably, this region is at the end of the GHD basket opposite to the end predicted to interact with Bos1. We show that unlike dimeric full-length and CTR∆ Uso1 proteins, the GHD lacking the CC/CTR dimerization domain, whether originating from bacteria or Aspergillus extracts and irrespective of whether it carries or not E6K/G540S, would appear to be monomeric. With the finding that overexpression of E6K/G540S and wild-type GHD complement uso1∆, our data indicate that the GHD monomer is capable of providing, at least partially, the essential Uso1 functions, and that long-range tethering activity is dispensable. Rather, these findings strongly suggest that the essential role of Uso1 involves the regulation of SNAREs.
