Decoding locomotion from population neural activity in moving C. elegans

  1. Kelsey M Hallinen
  2. Ross Dempsey
  3. Monika Scholz
  4. Xinwei Yu
  5. Ashley Linder
  6. Francesco Randi
  7. Anuj K Sharma
  8. Joshua W Shaevitz
  9. Andrew M Leifer  Is a corresponding author
  1. Department of Physics, Princeton University, United States
  2. Princeton Neuroscience Institute, Princeton University, United States
  3. Lewis-Sigler Institute of Integrative Genomics, Princeton University, United States
Research Article
  • Cited 2
  • Views 1,077
  • Annotations
Cite this article as: eLife 2021;10:e66135 doi: 10.7554/eLife.66135

Abstract

We investigated the neural representation of locomotion in the nematode C. elegans by recording population calcium activity during movement. We report that population activity more accurately decodes locomotion than any single neuron. Relevant signals are distributed across neurons with diverse tunings to locomotion. Two largely distinct subpopulations are informative for decoding velocity and curvature, and different neurons’ activities contribute features relevant for different aspects of a behavior or different instances of a behavioral motif. To validate our measurements, we labeled neurons AVAL and AVAR and found that their activity exhibited expected transients during backward locomotion. Finally, we compared population activity during movement and immobilization. Immobilization alters the correlation structure of neural activity and its dynamics. Some neurons positively correlated with AVA during movement become negatively correlated during immobilization and vice versa. This work provides needed experimental measurements that inform and constrain ongoing efforts to understand population dynamics underlying locomotion in C. elegans.

Introduction

Patterns of activity in an animal’s brain should contain information about that animal's actions and movements. Systems neuroscience has long sought to understand how the brain represents behavior. Many of these investigations have necessarily focused on single-unit recordings of individual neurons. Such efforts have successfully revealed place cells (O'Keefe and Dostrovsky, 1971) and head direction cells (Taube et al., 1990; Hafting et al., 2005), for example. But there has also been a long history of seeking to understand how neural populations represent motion (Georgopoulos et al., 1986; Churchland et al., 2012; Chen et al., 2018). For example, population recordings from the central complex in Drosophila reveal that the animal’s heading is represented in the population by a bump of neural activity in a ring attractor network (Kim et al., 2017; Green et al., 2017). As population and whole-brain recording methods become accessible, it has become clear that locomotory signals are more prevalent and pervasive throughout the brain than previously appreciated. For example, neural signals that correlate with rodent facial expression and body motion were recently reported in sensory areas such as visual cortex (Stringer et al., 2019) and in executive decision making areas of dorsal cortex (Musall et al., 2019).

The known locomotory circuitry in C. elegans focuses on a collection of pre-motor neurons and interneurons, including AVA, AVE, AVB, AIB, AIZ, RIM, RIA, RIV, RIB, and PVC that have many connections amongst themselves and send signals to downstream motor neurons involved in locomotion such as the A- or B-type or SMD motor neurons (White et al., 1976; Chalfie et al., 1985; Zheng et al., 1999; Gray et al., 2005; Gordus et al., 2015; Wang et al., 2020). These neurons can be grouped into categories that are related to forward locomotion, backward locomotion or turns. For example, AVA, AIB, and RIM are part of a backward locomotory circuit (Zheng et al., 1999; Pirri et al., 2009; Gordus et al., 2015). AVB and PVC are part of a forward locomotion circuit (Gray et al., 2005; Chalfie et al., 1985; Zheng et al., 1999; Li et al., 2011Roberts et al., 2016Xu et al., 2018); and RIV, RIB, and RIA are related to turns (Gray et al., 2005; Li et al., 2011; Wang et al., 2020; Hendricks et al., 2012). Much of what we know about these neurons comes from recordings or manipulations of either single neurons at a time, or a selection of neurons simultaneously using sparse promoters (Gray et al., 2005; Guo et al., 2009; Ben Arous et al., 2010; Kawano et al., 2011; Piggott et al., 2011; Gao et al., 2018; Wang et al., 2020). Only recently has it been possible to record from large populations of neurons first in immobile (Schrödel et al., 2013; Prevedel et al., 2014; Kato et al., 2015) and then moving animals (Nguyen et al., 2016; Venkatachalam et al., 2016).

There has not yet been a systematic exploration of the types and distribution of locomotor related signals present in the neural population during movement and their tunings. So for example, it is not known whether all forward related neurons exhibit duplicate neural signals or whether a variety of distinct signals are combined. Interestingly, results from recordings in immobile animals suggest that population neural state space trajectories in a low dimensional space may encode global motor commands (Kato et al., 2015), but this has yet to be explored in moving animals. Despite growing interest in the role of population dynamics in the worm, their dimensionality, and their relation to behavior (Costa et al., 2019; Linderman et al., 2019; Brennan and Proekt, 2019; Fieseler et al., 2020) it is not known how locomotory related information contained at the population level compares to that contained at the level of single neurons. And importantly, current findings of population dynamics related to locomotion in C. elegans are from immobilized animals. While there are clear benefits in studying fictive locomotion (Ahrens et al., 2012; Briggman et al., 2005; Kato et al., 2015), it is not known for C. elegans how neural population dynamics during immobile fictive locomotion compare to population dynamics during actual movement.

In this work, we investigate neural representations of locomotion at the population level by recording whole-brain neural activity as the animal crawls on agar. We further construct a decoder to predict the animal’s current locomotion from a linear combination of neural activity alone. The performance of the decoder gives us confidence in our ability to find locomotory signals, and allows us to study how those signals are distributed and represented in the brain.

We show that distinct subpopulations of neurons encode velocity and body curvature, and that these populations include neurons with varied tuning. We also find that the decoder relies on different neurons to contribute crucial information at different times. Finally, we compared brain-wide neural activity during movement and immobilization and observe that immobilization alters the correlation structure of neural dynamics.

Results

To investigate locomotory-related signals in the brain, we simultaneously recorded calcium activity from the majority of the 188 neurons in the head of C. elegans as the animal moved, Figure 1a–c, (Nguyen et al., 2016). The animal expressed the calcium indicator GCaMP6s and a fluorescent protein RFP in the nuclei of all neurons (strain AML310).

Figure 1 with 3 supplements see all

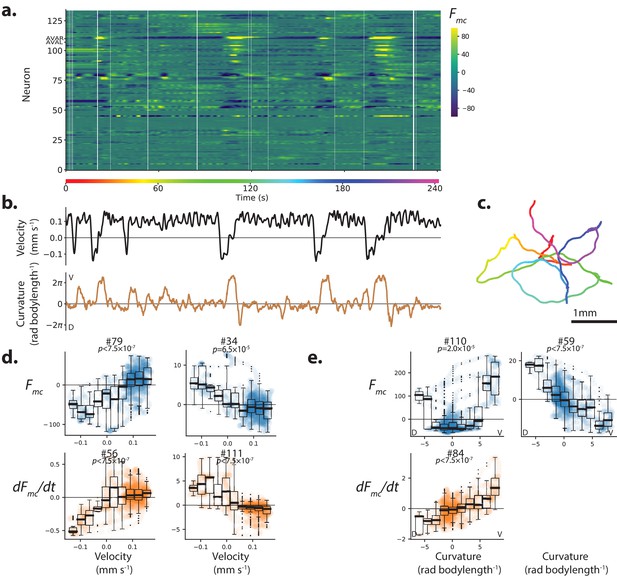

Population calcium activity and tuning of select neurons during spontaneous animal movement.

Recording AML310_A. (a) Calcium activity of 134 neurons is simultaneously recorded during locomotion. Activity is displayed as motion-corrected fluorescent intensity Fmc. Neurons are numbered according to agglomerative hierarchical clustering. White space indicates time-points where neural tracking failed. (b) Body bend velocity and body curvature derived from an eigenvalue decomposition, and (c) position on the plate during recording are shown. (d) Example neurons significantly tuned to velocity. Examples are those with the highest Pearson’s correlation coefficient in each category: activity (or its derivative) with positive (or negative) correlation to velocity. P-values are derived from a shuffling procedure that preserves per-neuron correlation structure. All tuning curves shown are significant at 0.05% after Bonferroni correction for multiple hypothesis testing (p<1.9×10-4). Boxplot shows median and interquartile range. Blue or orange shaded circles show neural activity at each time point during behavior. (e) Example neurons highly tuned to curvature were selected similarly. No neurons with negative dF/dt tuning to curvature passed our significance threshold.

We report calcium activity as a motion-corrected fluorescence intensity Fmc, described in methods. We measured two features of locomotion: velocity and body curvature. Velocity is computed from the movement of a point on the head of the worm as described in the methods. Body curvature is calculated as the mean curvature along the animal’s centerline and has large deviations from zero during turning or coiling.

We found multiple neurons with calcium activity significantly tuned to either velocity or curvature (Figure 1). Some neurons were more active during forward locomotion while others were more active during backward locomotion (Figure 1d and Figure 1—figure supplement 1). Similarly some neurons were active during dorsal bends and others during ventral bends (Figure 1e and Figure 1—figure supplement 2). In some cases, the derivative of the activity was also significantly correlated with features of locomotion. We recorded from additional animals for a total of 11 animals expressing GCaMP6s (strain AML310 or AML32) and 11 control animals expressing GFP (strain AML18) and tabulated the number of significantly tuned neurons in each recording, Figure 1—figure supplement 3. To be classified as ‘significantly tuned’ the neuron’s Pearson's correlation coefficient had to both pass a multiple-hypothesis corrected statistical test based on a recording-specific shuffle (described in the Materials and methods), and exceed a minimum absolute value of 0.4. The existence of neural signals correlated with these behaviors is broadly consistent with single-unit or sparse recordings during forward and backward locomotion (Ben Arous et al., 2010; Kawano et al., 2011; Gordus et al., 2015; Shipley et al., 2014; Kato et al., 2015; Wang et al., 2020) and turning (Kocabas et al., 2012; Donnelly et al., 2013; Shen et al., 2016; Wang et al., 2020).

Figure 2 with 1 supplement see all

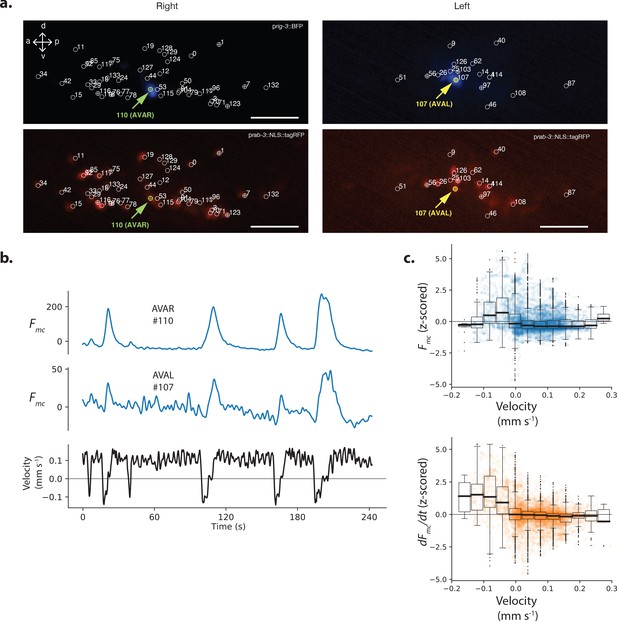

Neuron pair AVA is active during backward locomotion and exhibits expected tuning during moving population recordings.

(a) AVAR and AVAL are labeled by BFP under a rig-3 promoter in strain AML310. Two optical planes are shown from a single volume recorded during movement. Planes are near the top and bottom of the optical stack, corresponding to the animals’ extreme right and left. The recording is the same as in Figure 1. Top row shows BFP. Bottom row shows RFP in the nuclei of all neurons. Segmented neurons centered in the optical plane are labeled with ⊕, while neurons from nearby optical planes are labeled with ○. Arrow indicates AVAR or AVAL. Numbering corresponds to Figure 1a. (b) Calcium activity of AVAR and AVAL during locomotion in recording AML310_A, same as in Figure 1. (c) Aggregate tuning of AVA across four individuals (seven neurons). Boxplot shows median and interquartile range. Lightly shaded blue or orange circles show activity at each time point during behavior.

To validate our population recordings, we investigated the well-characterized neuron pair AVAL and AVAR. We labeled those neurons using blue fluorescent protein (BFP) which is spectrally separated from the other two colors we use for neuron localization and activity (strain AML310), see Figure 2a. These two neurons, called AVA, are a bilaterally symmetric pair with gap junctions between them that have been shown to exhibit large calcium transients that begin with the onset of backward locomotion, peak around the end of backward locomotion during the onset of forward locomotion, and then slowly decay (Ben Arous et al., 2010; Kawano et al., 2011; Faumont et al., 2011; Shipley et al., 2014; Gordus et al., 2015; Kato et al., 2015). Our measure of AVA’s activity, recorded simultaneously with 131 other neurons during movement, is consistent with prior recordings where AVA was recorded alone. We note that single-unit recordings of AVA used in previous studies lacked the optical sectioning needed to resolve these neurons separately. Here we resolve both AVAL and AVAR and find that their activities are similar to one another, and they both exhibit the expected transients timed to backward locomotion, Figure 2b. Signal-to-noise in AVAR is higher than AVAL because in this recording AVAR lies closer to the imaging objective lens, while AVAL is on the opposite side of the head and therefore must be imaged through the rest of the brain. We also report the sum of the individual traces in Figure 2—figure supplement 1. The similarity we observe between activities of AVAL and AVAR, and the similarities between our recordings of AVA and those previously reported in the literature serves to validate our ability to simultaneously record neural activity accurately from across the brain. It also suggests that the noise in this recording is modest compared to the features of interest in AVA’s calcium transients.

We recorded from three additional animals and identified AVA neurons in each. The temporal derivative of AVA’s activity has previously been shown to correlate with velocity over the range of negative (but not positive) velocities (Kato et al., 2015). Consistent with these reports, the derivative of AVA’s activity, dFmc/dt, aggregated across the four population recordings has a negative correlation to velocity over the range of negative velocities, Figure 2c.

In our exemplar recording, AVA’s activity (not its temporal derivative) also correlates with body curvature (Figure 1e, neuron #110). Correlation to curvature likely arises because our exemplar recording includes many long reversals culminating in deep ventral bends called ‘omega turns,’ that coincide in time with AVA’s peak activity. Taken together, AVA’s activity simultaneously recorded from the population is in agreement with prior reports where AVA activity was recorded alone.

Population decoder outperforms best single neuron

AVA’s activity is related to the animal’s velocity, but its activity alone is insufficient to robustly decode velocity. For example, AVA is informative during backward locomotion, but contains little information about velocity during forward locomotion, Figure 2c. To gain reliable information about velocity, the nervous system will need more than the information contained in the activity of AVA. In primate motor cortex, for example, linear combinations of activity from the neural population provides more information about the direction of a monkey’s arm motion during a reach task than a single neuron (Georgopoulos et al., 1986). In C. elegans, recordings from single or sparse sets of neurons show that multiple neurons have activity related to the animal’s velocity or curvature (Ben Arous et al., 2010; Kocabas et al., 2012; Kawano et al., 2011; Piggott et al., 2011; Gordus et al., 2015; Kato et al., 2015; Wang et al., 2020). Recordings from immobilized animals further suggest that population neural dynamics in a simple low dimensional space may represent locomotion (Kato et al., 2015), but this has yet to be explored in moving animals.

We sought to explicitly compare the information about velocity and curvature contained in the population to that contained in a single neuron. To access information in the population, we constructed a decoder that uses linear regression with regularization to relate the weighted sum of neurons’ activity to either velocity or curvature. Ridge regression (Hoerl and Kennard, 1970) was performed on 60% of the recording (training set) and the decoder was evaluated on a held-out test-set made up of the remaining 40% of the recording (shaded green in Figure 3a,c). Evaluating performance on held-out data mitigates potential concerns that performance gains merely reflect over-fitting. In the context of held-out data, models with more parameters, even those that are over-fit, will not inherently perform better. Cross-validation was used to set hyper-parameters. Two regression coefficients are assigned to each neuron, one weight for activity and one for its temporal derivative. We compared performance of the population decoder on the held-out test set to that of the most correlated single neuron or its derivative on the same held-out test set. Performance is reported as a coefficient of determination on the mean-subtracted held out test set Rms,test2.

Figure 3 with 5 supplements see all

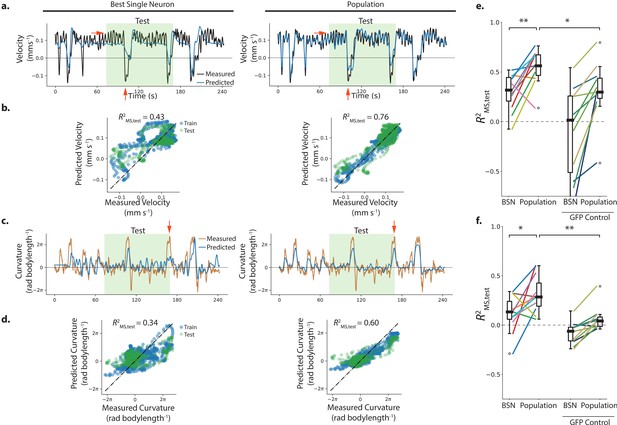

Population neural activity decodes locomotion.

(a–d) Performance of the best single neuron (BSN) is compared to a linear population model in decoding velocity and body curvature for the exemplar recording AML310_A shown in Figure 1. (a) Predictions on the held-out test set are compared to measured velocity. Light green shaded region indicates held-out test set. Red arrows indicate examples of features that the population captures better than the BSN. (b) Performance is reported as a coefficient of determination RMS2 evaluated on the mean-subtracted held-out test data (green points). (c,d) Model predictions are compared to measured curvature. (e) Performance of velocity decoding is shown for recordings of n=11 individuals (strain AML310 and AML32) and for recordings of n=11 GFP control animals lacking a calcium indicator (strain AML18). Two-sided Wilcoxon rank test is used to test significance of population performance compared to BSN, p=3.9×103. Welch’s unequal variance t-test is used to test significance of population performance compared to GFP control, p=3.2×10-2. (f) Performance of curvature decoding is shown for all recordings. Each recording is colored the same as in e. p=3.2×10-2 and p=1.8×10-3 for comparisons of population performance to that of BSN, and GFP control, respectively.

For the exemplar recording shown in Figure 1 and Figure 2a–b, the population performed better on the held-out-test set than the most correlated single neuron (or its temporal derivative) for both velocity and body curvature, see Figure 3. For velocity, population performance was Rms,test2=0.76 compared to Rms,test2=0.43 for the best single neuron; and for curvature population performance was Rms,test2=0.60 compared to Rms,test2=0.34 for the best single neuron. Red arrows in Figure 3 highlight striking behavior features that the best single neuron misses but that the population decoder captures. We also explored alternative population models, including both linear and non-linear models with different features, cost penalties, and differing number of parameters Figure 3—figure supplement 4 (parameters described in Materials and methods and Table 5) Of the populations models we tried, the model used here was one of the simplest and also had one of the best mean performances at decoding velocity across all recordings, Figure 3—figure supplement 4.

Activity was recorded from a total of 11 moving animals (Figure 3—figure supplement 2) and the linear population model was used to decode each recording (n=7 recordings of strain AML32; n=4 recordings of strain AML310, also shown in Figure 2c). The population model was compared to the best single neuron in each recording. Because the correspondence between neurons across animals is not known in these recordings, the identities of neurons used by the population decoder and that of the specific best single neuron may vary from recording to recording. The population significantly outperformed the best single neuron at decoding the held-out portions of the recordings for both velocity and curvature (p < 0.05 two-sided Wilcoxon rank test).

There was large worm-to-worm variability in the performance of the decoders. Performance across recordings correlated with one metric of the signal in our recordings, the maximal Fano factor across neurons of the raw time-varying GCaMP fluorescence intensity,

(1) FanoGCaMP=maxi(σ2[Fi,GCaMP]μ[Fi,GCaMP]),

where maxi indicates the maximum over all neurons in the recording, and σ2 and μ are the variance and mean respectively of the raw GCaMP activity of the neuron, see Figure 3—figure supplement 1. Here, the variance term is related to the signal in the recording. The recording with the highest FanoGCaMP performed best at decoding velocity and curvature. This suggests that variability in performance may be due in part to variability in the amount of neural signal in our recordings.

In some recordings, where the population outperforms the best single neuron, it does so in part because the population decodes a fuller range of the animal’s behavior compared to the best single neuron. Recording AML32_A shows a striking example: the best single neuron captures velocity dynamics for negative velocities, but saturates at positive velocities. The population decoder, by contrast, captures velocity dynamics during both forward and backward locomotion during the held-out test set, and covers a larger fraction of the held-out velocity range, see Figure 4.

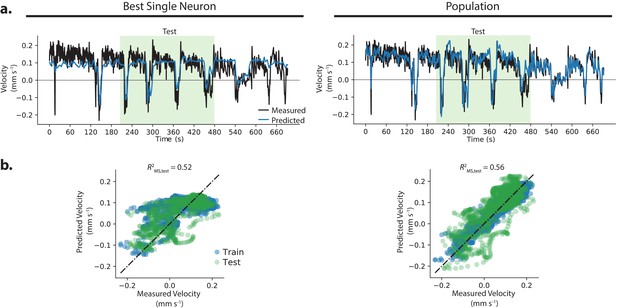

Example where population decoded a fuller range of animal behavior.

(a) The decoding from the best single neuron and the population model are compared to the measured velocity for example recording AML32_A. (b) Predictions from the best single neuron saturate at a velocity of approximately 0.1 mm s−1.

Motion artifact is of potential concern because it may resemble neural signals correlated to behavior (Nguyen et al., 2016; Chen et al., 2013). For example, if a neuron is compressed during a head bend, it may increase local fluorophore density causing a calcium-independent increase in fluorescence that would erroneously appear correlated with head bends. We address this concern in all our recordings by extracting a motion corrected calcium signal derived from a comparison of GCaMP and RFP dynamics in the same neuron. All strains in this work express a calcium-insensitive RFP in every neuron in addition to GCaMP. Motion artifacts should affect both fluorophores similarly. Therefore, the motion correction algorithm subtracts off those dynamics that are common to both GCaMP and RFP timeseries (details in Materials and methods).

To validate our motion correction, and to rule out the possibility that our decoder primarily relies on non-neural signals such as those from motion artifact, we recorded from control animals lacking calcium indicators. These animals expressed GFP in place of GCaMP (11 individuals, strain AML18, RFP was also expressed in all neurons). GFP emits a similar range of wavelengths to GCaMP but is insensitive to calcium. Recordings from these control animals were subject to similar motion artifact but contained no neural activity because they lack calcium sensors (Figure 3—figure supplement 3). Recordings from GFP control animals were subject to the same motion correction as GCaMP animals. For both velocity and curvature, the average population model performance was significantly worse at decoding calcium-insensitive GFP control recordings than the calcium-sensitive GCaMP recordings (Figure 3e–f, median performance Rms, test2=0.56 for GCaMP compared to 0.30 for GFP control at decoding velocity, and median performance Rms, test2=0.29 for GCaMP compared to 0.04 for GFP control for curvature (p < 0.05 Welch’s unequal variance test), suggesting that the decoder’s performance relies on neural signals. Taken together, we find that a simple linear combination of neurons performs better at decoding velocity or curvature than the best single neuron, and that the population decoder is not primarily relying on motion artifact.

Types of signals used to decode from the population

We further sought to understand how information across the population was utilized by the decoder. We were interested in this for two reasons, first because it should provide insights into how the population model is able to decode effectively. And second, because an effective strategy adopted by the decoder may also be available to the brain, therefore understanding how the decoder works also illustrates plausible strategies that the brain could employ to represent locomotion.

To investigate how the decoder utilizes information from the population, we inspect the neural weights assigned by the decoder. The decoder assigns one weight for each neuron’s activity, WF, and another for the temporal derivative of its activity, WdFdt. It uses ridge regularization to penalize weights with large amplitudes, which is equivalent to a Bayesian estimation of the weights assuming a zero-mean Gaussian prior. In the exemplar recording from Figure 1, the distribution of weights for both velocity and curvature are indeed both well-approximated by a Gaussian distribution centered at zero. This suggests that the decoder does not need to deviate significantly from the prior in order to perform well. In particular, although changing the sign of any weight would not incur a regularization penalty, the decoder relies roughly equally on neurons that are positively and negatively tuned to velocity, and similarly for curvature.

At the population level, the decoder assigns weights that are roughly distributed evenly between activity signals F and temporal derivative of activity signals dF/dt (Figure 5a,b). But at the level of individual neurons, the weight assigned to a neuron’s activity WF was not correlated with the weight assigned to the temporal derivative of its activity WdFdt (Figure 5—figure supplement 1). Again, this is consistent with the model’s prior distribution of the weights. However, given that the model could have relied more heavily on either activity signals F or on temporal derivative signals dF/dt without penalty, we find it interesting that the decoder did not need to deviate from weighting them roughly equally in order to perform well.

Figure 5 with 3 supplements see all

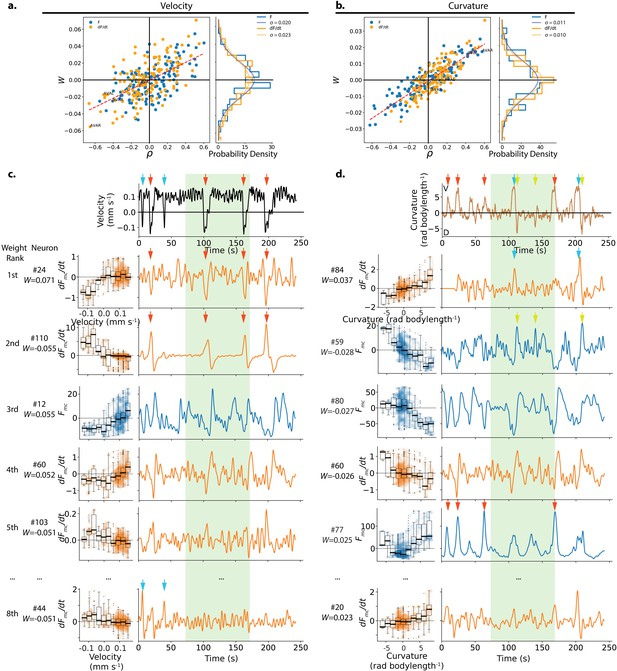

Weights assigned to neurons by the population model in the exemplar recording, and their respective tuning.

(a) The weight W assigned to each neuron’s activity (Fmc) or its temporal derivative (dFmc/dt) by the velocity population decoder is plotted against its Pearson’s Correlation coefficient ρ which characterizes its tuning to velocity. Recording AML310_A is shown, same as in Figure 1. Dashed red line shows line of best fit. Right panel shows the observed distribution of weights. A zero-mean Gaussian with standard deviation set to the empirically observed standard deviation is also shown. (b) Same as in a, but for curvature. (c) Tuning and activity of the top highest amplitude weighted neurons for velocity is shown. Activity of each neuron is time aligned to the observed behavior (top row). Neurons are labeled corresponding to their number in the heatmap in Figure 1. Their rank and weight W in the decoder is listed. Red arrows highlight peaks in the temporal derivative of activity of neuron #24 and #110, while cyan arrows highlight peaks of neuron #44. Y- and X-axes labels and scales are preserved within individual rows and columns, respectively. Light green shading indicates the held-out portion of the recording. (d) Same as c but for curvature. Red and cyan arrows show two sets of deep ventral bends that are captured by different neurons. Green arrows show dorsal bends.

We wondered what types of signals are combined by the decoder. For example, it is conceptually useful to consider a simple null hypothesis in which multiple neurons exhibit exact copies of the same behavior-related signal with varying levels of noise. In that case, the population decoder would outperform the best single neuron merely by summing over duplicate noisy signals. We inspected the activity traces of the top weighted neurons in our exemplar recording (Figure 5c,d). Some highly weighted neurons had activity traces that appeared visually similar to the animal’s locomotory trace for the duration of the recording (e.g.#80 for curvature) and other neurons had activity that might plausibly be noisy copies of each other (e.g. #12 and #60 for velocity). But other highly weighted neurons had activity traces that were distinct or only matched specific features of the locomotory behavior. For example, negatively weighted neuron #59 exhibited distinct positive peaks during dorsal turns (green arrows), but did not consistently exhibit corresponding negative peaks during ventral turns. This is consistent with prior reports of neurons such as SMDD that are known to exhibit peaks during dorsal but not ventral head bends (Hendricks et al., 2012; Shen et al., 2016; Kaplan et al., 2020).

In the recording shown, we also find some neurons that have activity matched to only specific instances of a behavior motif. For example, the temporal derivative of the activity of neuron #84 contributes distinct peaks to ventral bends at approximately 105 s and 210 s, but not during similar ventral turns at other time points (Figure 5d, blue arrows). Conversely, highly weighted neuron #77 contributes sharp peaks corresponding to four other ventral bends (Figure 5d, red arrows) that are absent from neuron #84. Similarly (although perhaps less striking) for velocity, neurons #24 and #110 contribute peaks for one set of reversals (Figure 5c, red arrows), while neuron #44 contributes peaks to a complimentary set of two reversals (Figure 5c, blue arrows). Similarly in recording AML32_A, different neurons contribute peaks of activity corresponding to different sets of ventral or dorsal turns, Figure 5—figure supplement 3. While we observed this effect in some recordings, it was not obviously present in every recording.

From this inspection of highly weighted neurons, we conclude that in at least some recordings the decoder is not primarily averaging over duplicate signals. Instead the decoder sums together different types of neural signals, including those that capture only a certain feature of a behavior (e.g. dorsal turns or ventral turns, but not both) or that seemingly capture only certain instance of the same behavior motif (some reversals but not others).

Majority of decoder’s performance is provided by a subset of neurons

We wondered how many neurons the model relies upon to achieve most of its performance. The magnitude of a neuron’s assigned weight reflects its relative usefulness in decoding locomotion. Therefore we investigated performance of a restricted population model that had access to only those N neurons that were most highly weighted by the full model. We sequentially increased the number of neurons N and evaluated the partial model performance (Figure 6—video 1). In this way, we estimated the number of neurons needed to first achieve a given performance (Figure 6a). Because we were interested in probing the particular successful set of weights that the model had found, we constrained the relative weights of neurons in the partial model to match those of the full model. We note that adding a neuron gave the model access to both that neuron’s activity and its temporal derivative. We define the number of neurons needed to first achieve 90% full model performance as the N90 and use this value as an estimate of the number of important neurons for decoding. For the exemplar recording AML310_A, 90% of the model’s performance was achieved when including only 13 neurons for velocity, and only four neurons for curvature.

Figure 6 with 1 supplement see all

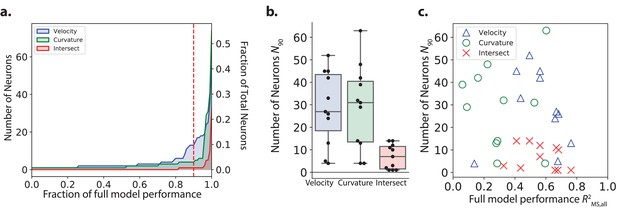

Number of neurons needed by the model to decode velocity and curvature.

(a) The minimum number of neurons needed for a restricted model to first achieve a given performance is plotted from recording AML310_A in Figure 1. Performance, RMS,all2 is reported separately for velocity (blue) and curvature (green) and is calculated on the entire recording (test and train). Intersect refers to the intersection of the set of neurons included in both partial models (velocity and curvature) for a given performance. Red dashed line, N90, indicates number of neurons needed to achieve 90% of full model performance. (b) N90 is computed for velocity and curvature for all recordings. The number of neurons present in both populations at 90% performance level (intersection) is shown. Box shows median and interquartile range. (c) N90 for all recordings is shown plotted versus the performance of the full population velocity or curvature decoder, respectively. Number of intersection neurons (red ’x’) is plotted at the higher of either the velocitys or curvature’s performance.

Across all recordings, we saw large variability in the number of important neurons N90 (Figure 6b,c and Table 1) with a median of 27 neurons for velocity and 31 for curvature. By comparison, our recordings contained a median total of 121 neurons. On average, the decoder relies on roughly a quarter of the neurons in a recording to achieve the majority of its decoding performance.

Table 1
Number of neurons needed to achieve 90% of full model performance, N90, reported as (median ± standard deviation), across all 11 recordings.
Velocity N90Curvature N90Intersection N90Total recorded
27 ± 1631 ± 187 ± 5121 ± 12

Largely distinct sub-populations contain information for velocity and curvature

We wondered how a neuron’s role in decoding velocity relates to its role in decoding curvature. Most neurons that have been well characterized in the literature, such as AVE and SMD, have been ascribed roles to either velocity or curvature but not both. RIB may be exception, and has recently been proposed to be involved in both reversals and turns (Wang et al., 2020). In the exemplar recording AML310_A, there was no obvious population-wide trend between the magnitude of a neuron’s weight at decoding velocity and the magnitude of its weight at decoding curvature for either F, dF/dt or both, see Figure 5—figure supplement 2. Furthermore, only one neuron had overlap between the N90=13 neurons needed to achieve 90% of full model performance at decoding velocity and the N90=4 neurons needed for curvature in this recording, see Figure 6a. Across all recordings, only 7±5 (median ± std) neurons were included in both N90 for the velocity and curvature sub-populations, labeled ‘intersect’ neurons in Figure 6b,c and Table 1. Taken together, this suggests that largely distinct sub-populations of neurons in the brain contain the majority of information important for decoding velocity and curvature.

Immobilization alters the correlation structure of neural dynamics

Recordings of brain-wide calcium activity of immobilized C. elegans provided evidence to suggest that the population may be involved in representing locomotion or motor commands (Kato et al., 2015). Specifically these motor commands may be represented as neural trajectories through a low-dimensional state space defined by principal components determined by the correlation structure of population neural activity in the recording. Those experiments also noted some differences between the activity of neurons in immobilized population recordings and the same neuron recorded alone in a moving animal. For example, neuron RIM exhibited seemingly slower dynamics in immobilized population recordings than in sparse recordings during movement. We wondered what changes may exist at the population level between moving and immobilized animals.

We recorded population activity from a moving animal crawling in a microfluidic chip and then immobilized that animal partway through the recording by delivering the paralytic levamisole, as has been used previously (Gordus et al., 2015; Kato et al., 2015). Neural dynamics from the same population of neurons in the same animal were therefore directly compared during movement and immobilization, Figure 7.

Figure 7 with 2 supplements see all

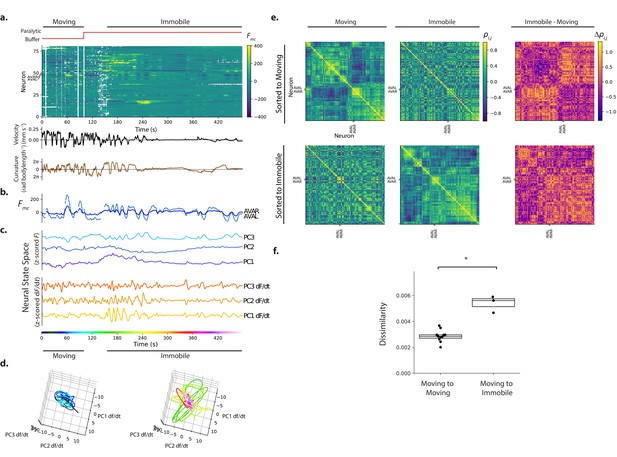

Immobilization alters the correlation structure of neural activity.

(a) Calcium activity is recorded from an animal as it moves and then is immobilized with a paralytic drug, recording AML310_E. (b) Activity of AVAL and AVAR from (a). (c) Population activity (or its temporal derivative) from (a) is shown projected onto its first three PCs, as determined by only the immobilized portion of the recording. (d) Neural state space trajectories from (c) are shown split into moving and immobile portions, color coded by time. Scale, axes and PCs are the same in both plots. (e) Pairwise correlations of neural activity ρi,j are shown as heatmaps for all neurons during movement and immobilization, sorted via a clustering algorithm. Top row is sorted to movement, bottom row is sorted to immobilization. (f) Dissimilarity between correlation matrices for moving and immobile portions of a recording are shown compared to the dissimilarity observed between correlation matrices taken at similar time windows within moving-only recordings. Dissimilarity is (ρi,j-ρi,j)2. Dissimilarity was measured in three moving-immobile recordings with paralytic and 11 moving-only recordings. p=1.2×102, Welch’s unequal variance t-test. Boxes show median and interquartile range.

Immobilization changed the correlation structure of neural activity. Clusters of neurons that had been correlated with one another during movement were no longer correlated during immobilization (see Figure 7e, top row, blocks of contiguous yellow on the diagonal during movement that are absent or disrupted during immobilization ). Notably, many neurons that had been only weakly positively correlated or had negative correlations during movement became strongly positively correlated with one another during immobilization forming a large block (Figure 7e, bottom, large contiguous yellow square that appears on the lower right along the diagonal during immobilization).

To further quantify the change in correlation structure, we defined a dissimilarity metric, the root mean squared change in pairwise correlations (ρi,j-ρi,j)2, and applied it to the correlation matrices during movement and immobilization within this recording, and also to two additional recordings with paralytic. As a control, we also measured the change in correlation structure across two similar time windows in the 11 moving recordings. The change in correlations from movement to immobilization was significantly larger than changes observed in correlations in the moving-only recordings (p=1.2×102, Welch’s unequal variance t-test), Figure 7f. This suggests that immobilization alters the correlation structure more than would occur by chance in a moving worm.

We next inspected the neural dynamics themselves (Figure 7a,c). Low-dimensional stereotyped trajectories, called manifolds, have been suggested to represent C. elegans locomotion in a neural state-space defined by the first three principal components of the temporal derivative of neural activity (Kato et al., 2015). We therefore performed Principal Components Analysis (PCA) on the neural activity (or its temporal derivative) of our recording during the immobilization period, so as to generate a series of principal components or PC’s that capture the major orthogonal components of the variance during immobilization. Population activity during the entire recording was then projected into these first three PCs defined during immobilization, Figure 7c. Neural state space trajectories during immobilization were more structured and stereotyped than during movement and exhibited similarities to previous reports, see Figure 7c,d.

Recordings from a second animal was similar and showed pronounced cyclic activity in the first PC of the temporal derivative of neural activity, see Figure 7—figure supplement 1b,c. Neural state space trajectories were even more striking and periodic in recordings where the animal had been immobilized for many minutes prior to recording (see Figure 7—figure supplement 2, especially PC1). The emergence of structured neural state-space dynamics during immobilization is consistent with the significant change to the correlation structure observed in neural activity. Taken together, these measurements suggest that immobilization alters the correlation structure and dynamics of neural activity and may have implications for the interpretation of immobile neural dynamics.

We further investigated the activity of neuron pair AVA and its correlation to other neurons during movement and immobilization in the recording shown in Figure 7. AVA’s activity was roughly consistent with prior reports. During movement AVA exhibited a sharp rise in response to most instances of the animal’s backward locomotion, as expected (Figure 7b). During immobilization, AVA exhibited slow cycles of activity captured in one of the first three PCs.

And during both movement and immobilization AVAL and AVAR were consistently highly correlated with one another (ρ>0.89) and participated in a small cluster of positively correlated neurons (most clearly visible in Figure 7e bottom row, small block around AVA).

Interestingly, immobilization induced many neurons to change the sign of their correlations with AVA. For example, some neurons, such as #43 and #44, that had negative correlation coefficients with respect to AVA during movement but had positive correlation coefficients during immobilization (Fig Figure 8a,b,d). Similarly, some neurons, such as #23 and #33 that had positive correlation coefficients with respect to AVA during movement, had negative correlation coefficients with respect to AVA during immobilization. On average, neurons in this recording become significantly more positively correlated to AVA upon immobilization than during movement (p = 0.019 Wilcoxon ranked test), Figure 8c.

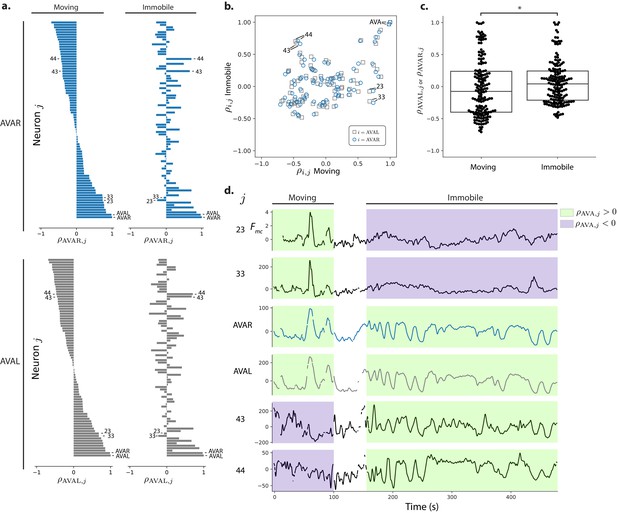

Correlations with respect to AVAL and AVAR during movement and immobilization.

(a) The Pearson’s correlation of each neuron’s activity to AVAR and AVAL is shown during movement and immobilization. Selected neurons are numbered as in Figure 7 (same recording, AML310_E). Neurons are sorted according to their correlation during movement. (b) Scatter plot shows relation between a neuron’s correlation to AVA during movement and its correlation during immobilization. Gray squares and blue circles indicate correlation to AVAL and AVAR, respectively. (c) On average, neurons become more positively correlated to AVA upon immobilization, p = 0.019 Wilcoxon ranked test. Box shows median and interquartile range. (d) Activity traces of selected neurons are shown time aligned to AVA. Green and purple shading indicate positive or negative correlation to AVA, respectively.

Taken together, our measurements show that immobilization significantly alters the correlation structure of neural activity. Immobilization also causes neurons to change their correlation with known well-characterized neurons, like AVA, from negatively correlated to positively correlated, or vice versa.

Discussion

Our measurements show that a linear decoder can predict the animal’s current velocity and body curvature from neural signals in the population. This suggests that a linear combination of activity from different neurons is one plausible mechanism that the brain may employ to represent behavior. However, our results do not preclude the brain from using other methods for representing behavior. And in all cases, the measurements here do not distinguish between neural signals that drive locomotion, such as motor commands; and neural signals that monitor locomotion generated elsewhere, such as proprioceptive feedback (Wen et al., 2012). The decoder likely uses a mix of both. Future perturbation studies are needed to distinguish population-level signals that drive locomotion from those that monitor locomotion.

How should we interpret the finding that the decoder is linear? It has been observed that even very non-linear neural systems can encode information linearly. For example, the vertebrate retina has many highly non-linear connections but a linear decoder performs indistinguishably from an (nonlinear) artificial neural network at decoding visual signals from populations of retinal ganglion cells (Warland et al., 1997). C. elegans may be another example, like the retina, of a non-linear system that represents information linearly. The C. elegans nervous system, however, also contains known instances of connections that appear linear over a physiologically relevant range of activities (Liu et al., 2009; Lindsay et al., 2011; Narayan et al., 2011). So, it is also possible that the linear representation of behavior in C. elegans reflects linear circuitry in the brain.

We note that our exploration of non-linear models was not exhaustive. Although we tested a selection of non-linear models at the single neuron Figure 3—figure supplement 5 and population level Figure 3—figure supplement 4, it is possible that a different non-linear model would perform better. And it is also possible that one of the non-linear models we did test would perform better with more training data. Complex models, including non-linear models, tend to have more parameters and are therefore prone to overfitting when trained on limited data. If a non-linear model performed poorly on our held-out data due to overfitting, it may perform better when trained with longer recordings. Poor performance here therefore does not inherently preclude a non-linear model from being useful for describing behavior signals in the C. elegans nervous system. Future work with longer recordings or the ability to aggregate training across multiple recordings is needed to better evaluate whether more complex models would outperform the simple linear decoder.

The types of signals used by the decoder are informative. The decoder uses a mix of neural activity signals and their temporal derivatives. This is consistent with prior reports that for some neurons, like AVA, it is the temporal derivative of activity that correlates with aspects of locomotion (Kato et al., 2015) while for other neurons, such as AIY, it is the activity itself (Luo et al., 2014). Temporal derivatives are one way for a model to incorporate temporal information. That the temporal derivative is informative, suggests that the nervous system cares not only about activity at this instant in time, but also about preceding moments. Future models could explicitly assign weights to the same neural activity at more time points, although this would likely require more training data to avoid overfitting.

Some of the signals used by the decoder were consistently correlated with locomotion throughout the duration of the recording. But other signals used by the decoder had pronounced peaks of activity that were relevant only for particular aspects. For example, some neurons had peaks that corresponded only to ventral but not dorsal turns, or vice versa. This is consistent with neurons such as RIVL/R that are active during ventral turns (Wang et al., 2020) or the SMDDs or SMDVs that have activity peaks during either dorsal or ventral head bends, respectively (Hendricks et al., 2012; Shen et al., 2016; Kaplan et al., 2020). Intriguingly, the decoder sometimes used signals that had peaks of activity only for particular instances of what appeared to be the same behavior motif, for example one reversal event but not another. By summing up contributions from multiple neurons, the population model was able to capture relevant activity from different neurons at different times to decode all instances of the behavioral motif.

One possible explanation is that superficially similar behavioral features like turns may actually consist of different underlying behaviors. For example, seemingly similar turns, on closer inspection, can be further subdivided into distinct groups (Broekmans et al., 2016). The neural representation associated with a motif may also depend on its behavioral context, including the behaviors that follow or proceed it. For example, the temporal derivative of activity of AIB has been shown to be elevated during those reversals that are followed by turns compared to those followed by forward locomotion (Wang et al., 2020). The population may contain a variety of such neurons, each tuned to only a specific context of a given behavior, which would give rise to the neurons used by the decoder that are seemingly tuned to some instances of a motif and not others. The granularity with which to classify behaviors and how to take into account context and behavioral hierarchies remains an active area of research in C. elegans (Liu et al., 2018; Kaplan et al., 2020) and in other model systems (Berman et al., 2016; Datta et al., 2019). Ultimately, finding distinct neural signals may help inform our understanding of distinct behavior states and vice versa.

A related possibility is that the same behavior motifs are initiated in the head through different neural pathways. Previous work has suggested that activity in either of two different sets of head interneurons, AVA/AVE/AVD or AIB/RIM, are capable of inducing reversal behavior independently (Piggott et al., 2011). If these or other neurons were active only for a subset of reversals, it could explain why some neurons seem to have activity relevant for some behavioral instances but not others. The specific neurons listed in Piggott et al., 2011 do not fit the pattern observed in our measurements in part because we observe that AVA shows expected activity transients for nearly all large reversals. But it is possible that other neurons in the two subsets, or indeed other subsets of neurons, provide relevant activity for only some instances of a behavior.

Similarly, different sensory modalities such as mechanosensation (Chalfie et al., 1985), thermosensation (Croll, 1975) and chemosensation (Ward, 1973) are known to evoke common behavioral outputs via sensory pathways that have both common and distinct elements. For example, both polymodal nociceptive stimuli detected from ASH (Mellem et al., 2002) and anterior mechanosensory stimuli detected from soft touch neurons ALM and AVM (Wicks and Rankin, 1995) activate reversals through shared circuitry containing AVA, among other common neurons. It is possible that the neural activities we observe for different behavioral motifs reflect sensory signals that arrive through different sensory pathways to evoke a common downstream motor response.

By inspecting the neural weights assigned by our model, we found that only a fraction of neurons are necessary for the model to achieve 90% of its performance. Sub-populations of neurons with modest overlap contribute the majority of information for decoding velocity and curvature, respectively. This is consistent with other reports, including recent work suggesting that turning and reverse circuits are largely distinct modules except for a select few neurons, such as RIB, which may be involved in both (Wang et al., 2020). Future studies using newly developed methods for identifying neurons (Yemini et al., 2021) are needed to reveal the identities of those neurons weighted by the decoder for decoding velocity, curvature, or both.

That C. elegans neural dynamics exhibit different correlation structure during movement than during immobilization has implications for neural representations of locomotion. For example, it is now common to use dimensionality reduction techniques like PCA to search for low-dimensional trajectories or manifolds that relate to behavior or decision making in animals undergoing movement (Churchland et al., 2012; Harvey et al., 2012; Shenoy et al., 2013) or in immobilized animals undergoing fictive locomotion (Briggman et al., 2005; Kato et al., 2015). PCA critically depends on the correlation structure to define its principal components. In C. elegans, the low-dimensional neural trajectories observed in immobilized animals undergoing fictive locomotion, and the underlying correlation structure that defines those trajectories, are being used to draw conclusions about neural dynamics of actual locomotion. Our measurements suggest that to obtain a more complete picture of C. elegans neural dynamics related to locomotion, it will be helpful to probe neural state space trajectories recorded during actual locomotion: both because the neural dynamics themselves may differ during immobilization, but also because the correlation structure observed in the network, and consequently the relevant principal components, change upon immobilization. These changes may be due to proprioception (Wen et al., 2012), or due to different internal states associated with fictive versus actual locomotion.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Strain, strain background (C. elegans)AML310this workDetails in Table 2
Strain, strain background (C. elegans)AML32Nguyen et al., 2017RRID:WBI-STRAIN:WBStrain00000192
Strain, strain background (C. elegans)AML18Nguyen et al., 2016RRID:WBI-STRAIN:WBStrain00000191

Strains

Three strains were used in this study, see Table 2. AML32 (Nguyen et al., 2017) and AML310 were used for calcium imaging. AML18 (Nguyen et al., 2016) served as a calcium insensitive control. Strain AML310 is similar to AML32 but includes additional labels to identify AVA neurons. AML310 was generated by injecting 30 ng/ul of Prig-3::tagBFP plasmid into AML32 strains (wtfIs5[Prab-3::NLS ::GCaMP6s; Prab-3::NLS::tagRFP]). AML310 worms were selected and maintained by picking individuals expressing BFP fluorescence in the head. Animals were cultivated in the dark on NGM plates with a bacterial lawn of OP50.

Table 2
Strains used.

Associated Research Resource Identifiers are listed in Key Resources.

StrainGenotypeExpressionRoleReference
AML310wtfIs5[Prab-3::NLS::GCaMP6s; Prab-3::NLS::tagRFP]; wtfEx258 [Prig-3::tagBFP::unc-54]tag-RFP and GCaMP6s in neuronal nuclei; BFP in cytoplasm of AVA and some pharyngeal neurons (likely I1, I4, M4 and NSM)Calcium imaging with AVA labelThis Study
AML32wtfIs5[Prab-3::NLS::GCaMP6s; Prab-3::NLS::tagRFP]tag-RFP and GCaMP6s in neuronal nucleiCalcium imagingNguyen et al., 2017
AML18wtfIs3[Prab-3::NLS::GFP, Prab-3::NLS::tagRFP]tag-RFP and GFP in neuronal nucleiControlNguyen et al., 2016

Whole brain imaging

Whole brain imaging in moving animals

Request a detailed protocol

Whole brain imaging of moving animals was performed as described previously (Nguyen et al., 2016). Table 3 lists all recording used in the study, and Table 4 cross-lists the recordings according to figure. Briefly, adult animals were placed on an imaging plate (a modified NGM media lacking cholesterol and with agarose in place of agar) and covered with mineral oil to provide optical index matching to improve contrast for behavior imaging (Leifer et al., 2011). A coverslip was placed on top of the plate with 100 m plastic spacers between the coverglass and plate surface. The coverslip was fixed to the agarose plate with valap. Animals were recorded on a custom whole brain imaging system, which simultaneously records four video streams to image the calcium activity of the brain while simultaneously capturing the animal’s behavior as the animal crawls on agar in two-dimensions. We record ×10 magnification darkfield images of the body posture, ×10x magnification fluorescence images of the head for real-time tracking, and two ×40 magnification image streams of the neurons in the head, one showing tagRFP and one showing either GCaMP6s, GFP, or BFP. The ×10 images are recorded at 50 frames/s, and the 40x fluorescence images are recorded at a rate of 200 optical slices/s, with a resulting acquisition rate of 6 head volumes/s. Recordings were stopped when the animal ran to the edge of the plate, when they left the field of view, or when photobleaching decreased the contrast between tag-RFP and background below a minimum level. Intensity of excitation light for fluorescent imaging was adjusted from recording to recording to achieve different tradeoffs between fluorescence intensity and recording duration.

Moving recordings had to meet the following criteria. The animal had to be active and the recording had to be at least 200 s. The tag-RFP neurons also had to be successfully segmented and tracked via our analysis pipeline.

Table 3
Recordings used in this study.
Unique IDStrainDuration (mins)Notes
AML310_AAML3104Ca2+ imaging w/ AVA label, moving
AML310_B4
AML310_C4
AML310_D4
AML310_EAML3108Ca2+ imaging w/ AVA label, moving-to-immobile
AML310_F8
AML310_GAML31015Ca2+ imaging w/ AVA label, immobile
AML32_AAML3211Ca2+ imaging, moving
AML32_B11
AML32_C10
AML32_D11
AML32_E4
AML32_F5
AML32_G4
AML32_HAML3213Ca2+ imaging, moving-to-immobile
AML18_AAML1810GFP control, moving
AML18_B10
AML18_C7
AML18_D5
AML18_E5
AML18_F6
AML18_G9
AML18_H6
AML18_I7
AML18_J6
AML18_K6

Moving to immobile transition experiments

Request a detailed protocol

Adult animals were placed in a PDMS microfluidic artificial dirt style chip (Lockery et al., 2008) filled with M9 medium where the animal could crawl. The chip was imaged on the whole brain imaging system. A computer controlled microfluidic pump system delivered either M9 buffer or M9 buffer with the paralytic levamisole or tetramisole to the microfluidic chip. Calcium activity was recorded from the worm as M9 buffer flowed through the chip with a flow rate of order a milliliter a minute. Partway through the recording, the drug buffer mixture was delivered at the same flow rate. At the conclusion of the experiment for AML310 worms, BFP was imaged.

Different drug concentrations were tried for different recordings to find a good balance between rapidly immobilizing the animal without also inducing the animal to contract and deform. Paralytic concentrations used were: 400 μM for AML310_E, 100 μM for AML310_F, and 5 μM for AML32_H.

Recordings were performed until a recording achieved the following criteria for inclusion: (1) the animal showed robust locomotion during the moving portion of the recording, including multiple reversals. (2) The animal quickly immobilized upon application of the drug. (3) The animal remained immobilized for the remainder of the recording except for occasional twitches, (4) the immobilization portion of the recording was of sufficient duration to allow us to see multiple cycles of the stereotyped neural state space trajectories if present and (5) for strain AML310, neurons AVAL and AVAR were required to be visible and tracked throughout the entirety of the recording. For the statistics of correlation structure in Figure 7f, recording AML310_F was also included even though it did not meet all criteria (it lacked obvious reversals).

Whole brain imaging in immobile animals

Request a detailed protocol

We performed whole brain imaging in adult animals immobilized with 100 nm polystyrene beads (Kim et al., 2013). The worms were then covered with a glass slide, sealed with valap, and imaged using the Whole Brain Imager.

Neuron segmentation, tracking, and fluorescence extraction

Request a detailed protocol

Neurons were segmented and tracked using the Neuron Registration Vector Encoding (NeRVE) and clustering approach described previously (Nguyen et al., 2017) with minor modifications which are highlighted below. As before, video streams were spatially aligned with beads and then synchronized using light flashes. The animals' posture was extracted using an active contour fit to the ×10 magnification darkfield images. But in a departure from the method in Nguyen et al., 2017, the high magnification fluorescent images are now straightened using a different centerline extracted directly from the fluorescent images. As in Nguyen et al., 2017, the neural dynamics were then extracted by segmenting the neuronal nuclei in the red channel and straightening the image according to the body posture. Using repeated clustering, neurons are assigned identities over time. The GCaMP signal was extracted using the neural positions found from tracking. The pipeline returns datasets containing RFP and GCaMP6s fluorescence values for each successfully tracked neuron over time, and the centerline coordinates describing the posture of the animal over time. These are subsequently processed to extract neural activity or behavior features.

The paralytic used in moving-to-immobile recordings (Figure 7) caused the animal’s head to contract, which would occasionally confuse our tracking algorithm. In those instances the automated NeRVE tracking and clustering was run separately on the moving and immobile portions of the recording (before and after contraction), and then a human manually tracked neurons during the transition period (1–2 min) so as to stitch the moving and immobile tracks together.

Photobleaching correction, outlier detection, and pre-processing

Request a detailed protocol

The raw extracted RFP or GCaMP fluorescent intensity timeseries were preprocessed to correct for photobleaching. Each time-series was fit to a decaying exponential. Those that were well fit by the exponential were normalized by the exponential and then rescaled to preserve the timeseries’ original mean and variance as in Chen et al., 2019. Timeseries that were poorly fit by an exponential were left as is. If the majority of neurons in a recording were poorly fit by an exponential, this indicated that the animal may have photobleached prior to the recording and the recording was discarded.

Outlier detection was performed to remove transient artifacts from the fluorescent time series. Fluorescent time points were flagged as outliers and omitted if they met any of the following conditions: the fluorescence deviated from the mean by a certain number of standard deviations (F<-2σ or F>5σ for RFP; |F|>5σ for GCaMP); the RFP fluorescence dropped below a threshold; the ratio of GCaMP to RFP fluorescence dropped below a threshold; a fluorescence timepoint was both preceded by and succeeded by missing timepoints or values deemed to be outliers; or if the majority of other neurons measured during the same volume were also deemed to be outliers.

Fluorescent time series were smoothed by convolution with a Gaussian (σ=0.83 s) after interpolation. Omitted time points, or gaps where the neuron was not tracked, were excluded from single-neuron analyses, such as the calculation of each neuron’s tuning curve. It was not practical to exclude missing time points from the population-level analyses such as linear decoding. In these population-level analyses, interpolated values were used. Time points in which the majority of neurons had missing fluoresecent values were excluded, even in population level analyses. Those instances are shown as white vertical stripes in the fluorescent activity heatmaps, for example, as visible in Figure 1.

Motion-correction

Request a detailed protocol

We used the GCaMP fluorescence together with the RFP fluorescence to calculate a motion corrected fluorescence, Fmc used through the paper. Note sometimes the subscript mc is omitted for brevity. Motion and deformation in the animal’s head introduce artifacts into the fluorescent time-series. We assume that these artifacts are common to both GCaMP and RFP fluorescence, up to a scale factor, because both experience the same motion. For example, if a neuron is compressed during a head bend, the density of both GCaMP and RFP should increase, causing an increase in the fluorescence in both time-series. We expect that the RFP time series is entirely dominated by artifacts because, in the absence of motion, the RFP fluorescent intensity would be constant. If we further assume that motion artifacts are additive, then a simple correction follows naturally. To correct for motion in the GCaMP fluorescence G, we subtract off a scaled RFP fluorescence, R,

(2) Fmc=(G-αR)-G-αR,

where α is a scaling factor that is fit for each neuron so as to minimize (G(t)-αR(t))2. This approach has similarities to Tai et al., 2004. The final motion corrected signal Fmc is mean-subtracted.

When presenting heatmaps of calcium activity, we use the colormap to convey information about the relative presence of calcium activity compared to motion artifact in the underlying recording. The limits on the colormap are determined by the uncorrected green fluorescent timeseries, specifically the 99th percentile of ±|G-G| of all neurons at all time points in the recording. With this colormap, recordings in which the neurons contain little signal compared to motion artifact will appear dim, while recordings in which neurons contain signal with large dynamics compared to the motion artifact will appear bright.

Temporal derivative

Request a detailed protocol

The temporal derivatives of motion corrected neuron signals are estimated using a Gaussian derivative kernel of width 2.3 s. For brevity we denote this kernel-based estimate as dFdt.

Identifying AVA

Request a detailed protocol

AVAL and AVAR were identified in recordings of AML310 by their known location and the presence of a BFP fluorescent label expressed under the control of the rig-3 promoter. BFP was imaged immediately after calcium imaging was completed, usually while the worm was still moving. To image BFP, a 488 nm laser was blocked and the worm was then illuminated with 405 nm laser light. In one of the recordings, only one of the two AVA neurons was clearly identifiable throughout the duration of the recording. For that recording, only one of the AVA neurons was included in analysis.

Measuring and representing locomotion

Request a detailed protocol

To measure the animal’s velocity v, we first find the velocity vector that describes the motion of a point on the animal’s centerline 15% of its body length back from the tip of its head. We then project this velocity vector onto a head direction vector of unit length. The head direction is taken to be the direction between two points along the animal’s centerline, 10% and 20% posterior of the tip of the head.

To calculate this velocity, the centerline and stage position measurements were first Hampel filtered and then interpolated onto a common time axis of 200 Hz (the rate at which we query stage position). Velocity was then obtained by convolving the position with the derivative of a Gaussian with σ=0.5 s.

To measure the animal’s average curvature κ at each time point, we calculated the curvature dθ/ds at each of 100 segments along the worm’s centerline, where s refers to the arc length of the centerline. We then took the mean of the curvatures of the middle segments that span an anterior-posterior region from 15% to 80% along the animal’s centerline. This region was chosen to exclude curvature from small nose deflections (sometimes referred to as foraging) and to exclude the curvature of the tip of the tail.

Relating neural activity to behavior

Tuning curves

Request a detailed protocol

The Pearson’s correlation coefficient ρ is reported for each neurons’ tuning, as in Figure 1d,e. To reject the null hypothesis that a neuron is correlated with behavior by chance we took a shuffling approach and applied a Bonferroni correction for multiple hypothesis testing. We shuffled our data in such a way as to preserve the correlation structure in our recording. To calculate the shuffle, each neuron’s activity was time-reversed and circularly shifted relative to behavior by a random time lag and then the Pearson’s correlation coefficient was computed. Shuffling was repeated for each neuron in a recording M times to build up a distribution of M×N values of ρ, where N is the number of neurons in the recording. For AML310_A, we shuffled each neuron in the recording M=5000 times. For other datasets we shuffled each neuron M=500 times. To reject the null hypothesis at 0.05% confidence, we apply a Bonferonni correction such that a correlation coefficient greater than ρ (or less than, depending on the sign) must have been observed in the shuffled distribution with a probability less than 0.05/(2N). The factor of 2N arises from accounting for multiple hypothesis testing for tuning of both F and dF/dt for each neuron.

Population model

Request a detailed protocol

We use a ridge regression (Hoerl and Kennard, 1970) model to decode behavior signals y(t) (the velocity and the body curvature). The model prediction is given by a linear combination of neural activities and their time derivatives,

(3) y^(t)=i(WF,iFi(t)+WdFdt,idFidt(t))+β.

Note here we are omitting the mc subscript for convenience, but these still refer to the motion corrected fluorescence signal.

We scale all these features to have zero mean and unit variance, so that the magnitudes of weights can be compared to each other. To determine the parameters {WF,i,WdFdt,i,β}, we hold out a test set comprising the middle 40% of the recording, and use the remainder of the data for training. We minimize the cost function

(4) C=tTrain(y(t)-y^(t))2+λi(WF,i2+WdFdt,i2).

The hyperparameter λ sets the strength of the ridge penalty in the second term. We choose λ by splitting the training set further into a second training set and a cross-validation set, and training on the second training set with various values of λ. We choose the value which gives the best performance on the cross-validation set.

To evaluate the performance of our model, we use a mean-subtracted coefficient of determination metric, RMS2, on the test set. This is defined by

(5) RMS2(y,y^)=R2(y-y,y^-y^),

where we use the conventional definition of R2, defined here for an arbitrary true signal z and corresponding model prediction z^:

(6) R2(z,z^)=1-tTest(z(t)-z^(t))2tTest(z(t)-z(t))2.

Note that RMS2 can take any value on (-,1].

Restricted models

Request a detailed protocol

To assess the distribution of locomotive information throughout the animal’s brain, we compare with two types of restricted models. First, we use a Best Single Neuron model in which all but one of the coefficients {WF,i,WdFdt,i} in Equation (3) are constrained to vanish. We thus attempt to represent behavior as a linear function of a single neural activity, or its time derivative These models are shown in Figure 3. Second, after training the population model, we sort the neurons in descending order of max(|WF,i|,|WdFdt,i|). We then construct models using a subset of the most highly weighted neurons, with the relative weights on their activities and time derivatives fixed by those used in the population model. The performance of these truncated models can be tabulated as a function of the number of neurons included to first achieve a given performance, as shown in Figure 6. Note that when reporting fraction of total model performance for this partial model, we evaluate performance on the entire dataset (held-out and training, denoted RMS,all2) because all relative weights for the model have already been frozen in place and there is no risk of overfitting.

Alternative models

Request a detailed protocol

The population model used throughout this work refers to a linear model with derivatives using ridge regression. In Figure 3—figure supplement 4, we show the performance of seven alternative population models at decoding velocity for our exemplar recording. The models are summarized in Table 5. Many of these models perform similarly to the linear population model used throughout the paper. Our chosen model was selected both for its relative simplicity and because it showed one of the highest mean performances at decoding velocity across recordings.

Table 5
Alternative models explored.

Most are linear models, using either the Ridge or ElasticNet regularization. In some cases, we add an additional term to the cost function which penalizes errors in the temporal derivative of model output (which, for velocity models, corresponds to the error in the predicted acceleration). For features, we use either the neural activities alone, or the neural activities together with their temporal derivatives. We also explore two nonlinear models: MARS Friedman, 1991, and a shallow decision tree which chooses between two linear models.

ModelPenaltyFeaturesNumber of parameters
LinearRidgeF and dF/dt2Nn+1
LinearRidgeFNn+1
LinearRidge + Acceleration PenaltyF and dF/dt2Nn+1
LinearRidge + Acceleration PenaltyFNn+1
LinearElasticNetF and dF/dt2Nn+1
LinearElasticNetFNn+1
MARS (nonlinear)MARSF and dF/dtvariable
Linear with Decision Tree (nonlinear)RidgeF and dF/dt4Nn+9

Figure 3—figure supplement 4a–b show the model we use throughout the paper, and the same model but with only fluorescence signals (and not their time derivatives) as features. The latter model attains a slightly lower score of RMS2=0.60. Note that while adding features is guaranteed to improve performance on the training set, performance on the held-out test set did not necessarily have to improve. Nonetheless, we generally found that including the time derivatives led to better predictions on the test set.

Figure 3—figure supplement 4c–d show a variant of the linear model where we add an acceleration penalty to the model error. Our cost function becomes (Equation 4).

(7) C=tTrain((y(t)-y^(t))2+μ(dydt(t)-dy^dt(t))2)+λi(WF,i2+WdFdt,i2),

where the derivatives dydt and dy^dt are estimated using a Gaussian derivative filter. The parameter μ is set to 10. For our exemplar recording, adding the acceleration penalty hurts the model when derivatives are not included as features, but has little effect when they are.

Figure 3—figure supplement 4e–f show a variant where we use an ElasticNet penalty instead of a ridge penalty (Zou and Hastie, 2005). If we write the ridge penalty as the L2 norm of the weight vector, so that

(8) λi(WF,i2+WdFdt,i2)λW22,

the ElasticNet penalty is defined by

(9) λ(rW1+(1-r)W22),

where

(10) W1=i(|WF,i|+|WdFdt,i|)

is the L1 norm of the weight vector. The quantity r is known as the L1 ratio, and in Figure 3—figure supplement 4 it is set to 10−2. We have also tried setting r via cross-validation, and found similar results.

Figure 3—figure supplement 4g uses the multivariate adaptive regression splines (MARS) model (Friedman, 1991). The MARS model incorporates nonlinearity by using rectified linear functions of the features, or products of such functions. Generally, they have the advantage of being more flexible than linear models while remaining more interpretable than a neural network or other more complicated nonlinear model. However, we find that MARS somewhat underperforms a linear model on our data.

Figure 3—figure supplement 4h uses a decision tree classifier trained to separate the data into forward-moving and backward-moving components, and then trains separate linear models on each component. For our exemplar recording, this model performs slightly better than the model we use throughout the paper. This is likely a result of the clear AVAR signal in Figure 2, which can be used by the classifier to find the backward-moving portions of the data. Across all our recordings, this model underperforms the simple linear model.

Correlation structure analysis

Request a detailed protocol

The correlation structure of neural activity was visualised as the correlation matrix, ρi,j. To observe changes in correlation structure, a correlation matrix for the moving portion of the recording was calculated separately from the immobile portion. The time immediately following delivery of the paralytic when the animal was not yet paralzed was excluded (usually one to two minutes). To quantify the magnitude of the change in correlation structure, a dissimilarity metric was defined as the root mean-squared change in each neuron’s pairwise correlations, (ρi,j-ρi,j)2. As a control, changes to correlation structure were measured in moving animals. In this case the correlation structure of the first 30% of the recording was compared to the correlation structure of latter 60% of the recording, so as to mimic the relative timing in the moving-to-immobile recordings.

Software

Analysis scripts are available at https://github.com/leiferlab/PredictionCode (Leifer, 2021, copy archived at swh:1:rev:ca59416112a9c10a8d6a3179092a7d3c888bcd4e).

Data

Data from all experiments including calcium activity traces and animal pose and position are publicly available at https://doi.org/10.17605/OSF.IO/DPR3H.

Data availability

Data associated with this manuscript has been deposited in a publicly accessible repository hosted by the Open Science Framework at https://doi.org/10.17605/OSF.IO/DPR3H.

The following data sets were generated
    1. Hallinen KM
    2. Dempsey R
    3. Scholz M
    4. Yu X
    5. Linder A
    6. Randi F
    7. Sharma A
    8. Shaevitz JW
    9. Leifer AM
    (2020) Open Science Framework
    Decoding locomotion from population neural activity in moving C. elegans.
    https://doi.org/10.17605/OSF.IO/R5TB3

References

    1. White JG
    2. Southgate E
    3. Thomson JN
    4. Brenner S
    (1976) The structure of the ventral nerve cord of Caenorhabditis elegans
    Philosophical Transactions of the Royal Society of London. Series B, Biological Sciences 275:327–348.
    https://doi.org/10.1098/rstb.1976.0086

Decision letter

  1. Ronald L Calabrese
    Senior and Reviewing Editor; Emory University, United States

Our editorial process produces two outputs: (i) public reviews designed to be posted alongside the preprint for the benefit of readers; (ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Acceptance summary:

This paper will be of interest to a wide range of systems neuroscientists seeking to understanding the relationship between neuronal activity and behavior. Building on previous technical advances in brain-wide imaging of neuronal activity (Ca signals) in freely moving animals (Caenorhabditis elegans), it demonstrates that a linear regression model is sufficient reconstruct key parameters of locomotion – velocity and body curvature – from the imaging data and documents differences in activity between freely moving and immobilized worms.

Decision letter after peer review:

Thank you for submitting your article "Decoding locomotion from population neural activity in moving C. elegans" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Ronald Calabrese as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential Revisions:

1) Please address concerns by Reviewers #1 and #2 about identifying eigenworms with velocity and curvature (detailed in Recommendations for the authors).

2) Please address the questions with respect to tuning and noise that are raised by Reviewer #2 (detailed in Recommendations for the authors).

3) Both Reviewer #1 and #3 (detailed in Recommendations for the authors) require that you address your conclusion that the population decoder outperforms the best single neuron. Is this a meaningful comparison, and how should such coding be interpreted?

4) The concerns of Reviewers #2 and #3 about the significance of the distribution of weights assigned by the decoder for how behavior is represented in the brain should be addressed (detailed in Recommendations for the authors).

5) All Reviewers (detailed in Recommendations for the authors) have strong suggestions for reorganizing the text and amplifying and deepening Introduction and Discussion. Reviewer #3's concerns about the functional implications of the decoding should be addressed. Limitations of the analysis should be clearly addressed in Discussion.

Reviewer #1 (Recommendations for the authors):

I hope that the authors focus on improving results and discussions sections of their strength (see above), including additional analyses, precise terminology, simplified statements, clarified discussions, and perhaps structural reorganization. I have a few concerns that I ask them to address or respond to, so that this work can be appreciated by and benefit the field. They are raised below, and should be viewed as suggestions for this purpose.

(1) Line 71-85: This first Results section (which lacks a title) is a brief definition of the locomotion features for velocity and curvature as used throughout the paper.

I am uncomfortable with the brevity of the introduction and justification of using eigenworms to represent velocity and curvature. These are two widely used biological terms, and the introduction would confuse many readers and even misled them (in the case of 'curvature').

I share the authors' opinion on the deficiency of defining velocity by the animal's centroid displacement. However, they should be equally clear that their presentation for 'velocity' did not directly address this deficit: their analysis did not calculate and present the wave velocity – the speed of bending wave propagation – which would have the units of mm/sec or body lengths/sec as opposed to radians/sec.

Moreover, in Figure 1-Figure S1, the authors demonstrated that their eigenvalue-derived velocity was well correlated with that of centroid-derived velocity values. This, to me, was a good validation to justify their choice of parameters as a proxy for velocity in later analyses. However, the authors did not cite this validation figure as its purpose, but instead in the context of a statement for the weakness of the centroid-based velocity measure. This is a misleading manipulation of citation of the authors' results.

I have a bigger concern for referencing the third eigenworm as the 'curvature', specifically Lines 82-84 ("Here we report body curvature as a dimensionless quantity that captures bending in the dorsoventral plane, calculated by projecting the animal's body posture onto the third principal component of the eigenvalue decomposition."). To my understanding, this component best represents the body postures during turning. Their relationship with 'curvature' – which most would interpret not as a dimensionless quantity but as a precise measure of the degree of body bending per unit length – should be demonstrated similar to how the authors did so for velocity in Figure 1, Supplementary Figure 1. I personally consider it inappropriate to use 'curvature' when referring to the projections of the third eigenworm.

2) I found their motion correction important, interesting, and potentially useful to the community. The authors should definitely highlight it and elaborate in the text as a separate section instead of putting it away in Methods and at the end of the following Results section (Line 125: Population decoder outperforms best single neuron – this long result section can definitely benefit from 'de-mixing'.)

To me, it would be very helpful to show the example data for the authors' methods for motion correction, including the raw traces of GCaMP and RFP before and after they performed correction by their ICA analyses (e.g. I think that it did not work as well for AVAL in Figure 2b; knowing what the trace was like before the correction would help me to examine why). I also would be curious to know why these authors limited their ICA to give two components instead of collecting all components and subtracting the ones correlated with RFP. It would be good if authors treated the number of ICA components as a parameter and explored the choice of this parameter on the performance of motion correction. A discussion on systematic ways to estimate this parameter would also be very welcome.

3) Section 'Population decoder outperforms best single neuron' and Figure 3a.

Here I have trouble appreciating the significance of this comparison. Previous studies have shown that forward, backward, and turning are three separate motor motifs of C. elegans locomotion. It is possible that multiple neurons may participate in multiple motor behaviors, but it would be truly astonishing (to me at least) if a single neuron plays a dominating role of all motifs of locomotion. Given the state of the field, scientifically it would be much more meaningful to compare the performance of a population decoder to the combination of the four best single neurons e.g. the best for positive velocity, the best for negative velocity, the best for dorsal turning, and the best for ventral turning, instead of one single best neuron.

The authors could also make it clear to readers that due to the lack of knowledge of neuronal identity, as well as the fact that each recording was capturing ~2/3 of the total neuronal population, the best single neuron decoder in each recording was only 'relative' to the captured neuronal population, and likely differed per recording.

4) The organization of multiple Results sections appear lengthy and redundant. They should be combined, compressed, and reorganized. For example, the last section on correlations with AVA seems to contain the same information as "immobilization alters the correlation structure of neural activity". The sections / subsections "Population code for locomotion" (line 193) and "Largely distinct sub-populations contain information for velocity and curvature" (line 256) can be better organized.

I also view AVAL and AVAR coupling more as a benchmarking tool to give the readers confidence that their method works in the non-immobilized setting instead of an interesting new finding as it seems to be portraited in the abstract. Combining these results with an expanded sections to describe their imaging processing pipeline may be a better organization solution.

5) I personally found that among all results from the model, the notion that the simplest linear model works the best is the most interesting. It would be interesting to hear the authors' thoughts on its implication of the C. elegans brain network on motor states and their transitions.

Reviewer #2 (Recommendations for the authors):

My enthusiasm is diminished by a series of major concerns that I believe should be possible to address:

1) An important and interesting claim in the paper is that different neurons have different "tunings" for behavior – for example, some neurons are associated with forward velocity fluctuations, while others are associated with forward/reverse transitions. However, this is not very well explored in the paper. Some example data are shown, but that's about it. I'd suggest characterizing the full range of possible tunings that neurons can display and showing how many neurons in each of their datasets display such tunings. This could be a major strength of the paper if it is clearly characterized and communicated.

2) If the tunings are indeed diverse/complex (i.e. not just linear relationships), I'd suggest trying to predict behavior from single neurons using non-linear decoders. What is the best performance that can be obtained from single neurons using these more complex decoders? (and how does it compare to population-level decoders).

3) While it is readily apparent that the regression models perform better when trained from the full set of neurons (compared to the "best single neurons"), the authors' interpretation that this is because different neurons have different tunings does not yet seem fully supported. My main concern is that there is substantial levels of noise in their GCaMP measurements and that training models from more neurons may simply overcome this noise (the authors actually show that SNR impacts their predictive power in Figure 3-S1). For example, suppose that there were 2 neurons with perfectly correlated ground-truth activity and that they were both perfectly correlated with a behavior. If the activity measurements from these neurons had uncorrelated noise (noise in one neuron was not correlated with noise in the second), then a classifier trained to predict behavior would perform better if both neurons were used. In this case, this would not be due to any difference in the underlying tunings of the neurons. Are such effects occurring here? It is possible that one way to estimate the impact of these types of effects would be to compare models trained on similar amounts of data (e.g. 10min of data from one neuron vs. 5min of data from two simultaneously correlated neurons) or something like that. Another possibility would be to record single neurons (not in a whole brain context) in order to obtain higher SNR recordings and compare classifiers trained on these single neurons to those trained on the full population. (This would require knowing some of the "best single neurons")

4) Related to the above point, models with more parameters almost always perform better. To determine whether the increased model performance justified the use of additional parameters, I'd suggest using AIC (Akaike Information Criterion) or BIC (Bayesian Information Criterion) formulations.

5) The Introduction does not properly introduce what is known about the neural circuitry that gives rise to locomotion in C. elegans. The roles of many neurons have been carefully characterized – it would be useful to introduce what is known about their "tunings" from previous work and whether the field already thinks that a population code for locomotion may exist (or not).

6) In Figure 1 -S1 the authors compare velocity in their datasets, as measured by eigenworm analysis vs. center of mass movement. While they are correlated, I was surprised by how frequently they disagree. Why do they disagree at times? Are there errors in one or both of these methods?

7) In Figure 5, I believe it would be important to only present exemplary data from timepoints in the testing datasets, not the training datasets (i.e. only present correlation coefficients for datapoints in testing data; and only show examples of neural activity and behavior from testing data). For example, it is hard to know whether the relationships in Figure 5C are meaningful or just represent overfitting of the model if they are from the training data. (If these are test data already, please just make this clear in figure legend)

8) It is not clear that analyzing the weights in Figure 5A is really all that informative with regards to the underlying roles of the neurons. The fact that the model can predict behavior in withheld data is highly informative, but the specific weights recovered are influenced by the regularization method used, whether a neuron's activity contains information redundant with some other neuron's activity, etc.

9) There are no across-animal summary data of the effects that the authors show in Figure 5. This is just exemplary data. Are these observations consistent across animals?

Reviewer #3 (Recommendations for the authors):

1) Abstract would benefit from a statement of the main conclusion and its significance.

2) It would be helpful to motivate the immobilization experiment by first describing the state of knowledge concerning neuronal dynamics in worms (rather than waiting until the discussion).

3) What is the meaning of the shading in Figure 1d,e and similar places in the paper?

4) For readers unfamiliar with the C. elegans nervous system, it would be useful to make clear what fraction of all head neurons is being recorded, and also what fraction of all neurons is being recorded.

5) It might be more appropriate to move the section on correcting for motion artifacts (pg. 7 [171-182ff]) earlier in the paper, where this correction is first used. Or, move it to Methods.

6) Subscript (i) in Equation 1 is misplaced on pg. 7.

7) For those unfamiliar with the Fano factor, it might be worth pointing out that in Equation 1, the variance (numerator) refers to the signal, not the noise.

8) pg. 15 [379…]. "Our measurements suggest that neural dynamics from immobilized animals may not entirely reflect the neural dynamics of locomotion." Consider rephrasing. This sentence is almost a tautology as it says "…neural dynamics in the absence of locomotion may not entirely reflect the dynamics in the presence of locomotion."

9) Line 104-5: please add Faumont et al., 2011.

10) Line 198: Do you mean "Figure 5a,b"?

11) Line 206-7: Is neuron #29 actually in Figure 5x?

12) Line 344-5: Can you unpack this statement?

13) Line 359-361: Give particular examples of some circuit in which this statement is true.

https://doi.org/10.7554/eLife.66135.sa1

Author response

Essential Revisions:

1) Please address concerns by Reviewers #1 and #2 about identifying eigenworms with velocity and curvature (detailed in Recommendations for the authors).

In response to reviewer feedback, we have replaced the eigenworm analysis with more familiar definitions of velocity and curvature. Velocity is now the velocity of a point on the worm’s head in mm/s. Curvature is now the mean curvature of the centerline in κ = 𝑑θ radians/bodylength. We have revised all figures, and recalculated all models using these definitions. The conclusions remain the same. We thank the reviewers for this feedback and hope that these metrics of behavior will be more straightforward and perhaps more relevant to readers.

2) Please address the questions with respect to tuning and noise that are raised by Reviewer #2 (detailed in Recommendations for the authors).

Based on feedback from Reviewer #1 and #2, we have performed a new analysis and generated three new supplementary figures to characterize the full range of tunings and the number of tuned neurons in each dataset.

1. Figure 1 —figure supplement 1 shows the full range of F and dF/dT tunings with respect to velocity, including additional example tuning curves.

2. Figure 1 —figure supplement 2 shows the same for curvature.

3. Figure 1 —figure supplement 3 shows the number of significantly tuned neurons in each recording by type.

We respond to specific questions about noise in the more detailed response to Reviewer #2 further down. Briefly, AVA recordings shown in Figure 2 suggest that noise is not interfering with key features in our recordings. We thank the reviewer for posing an alternative hypothesis that multiple neurons may share the same ground truth signal and that population performance may merely reflect averaging over noisy copies of identical signals. In the new rewritten results section we now consider this explicitly and explain why our findings in Figure 5 suggest that it is unlikely the case. We have excerpted the relevant text in the detailed response to Reviewer #2.

3) Both Reviewer #1 and #3 (detailed in Recommendations for the authors) require that you address your conclusion that the population decoder outperforms the best single neuron. Is this a meaningful comparison, and how should such coding be interpreted?

We reorganized and revised the introduction, results and discussion to make three of our main points more clear:

1. The role of the population at representing locomotion has never before been explicitly tested in moving C. elegans.

2. Tuning of neurons across the population has not been systematically characterized in moving animals.

3. The combined result that the population performs better by leveraging diversity of tuning across the population constitutes a new and meaningful conclusion.

Reviewers #1 and #3 ask whether these conclusions are obvious or predictable. We argue they are not. We point to Reviewer #2 who wonders whether our findings might “not be due to any difference in the underlying tunings of the neurons” as further evidence that these findings are far from being a foregone conclusion. More details are in the individual responses to Reviewers #1 and #3.

4) The concerns of Reviewers #2 and #3 about the significance of the distribution of weights assigned by the decoder for how behavior is represented in the brain should be addressed (detailed in Recommendations for the authors).

We have rewritten that portion of the Results section to better motivate our analysis of neural weights and to clarify their significance. In particular, we now explicitly distinguish between aspects of the weights that are likely dictated by the choice of model and those aspects that are not penalized by the model. For example, the model could choose a different balance between positive and negative weights, or between weights assigned to neural activity and its temporal derivative, each without penalty. That these are roughly balanced, is more likely to reflect properties of behavior-related neural signals in the brain.

“To investigate how the decoder utilizes information from the population, we inspect the neural weights assigned by the decoder. The decoder assigns one weight for each neuron’s activity, WF, and another for the temporal derivative of its activity, 𝑊 𝑑𝑓/𝑑𝑡. It uses ridge regularization to penalize weights with large amplitudes, which is equivalent to a Bayesian estimation of the weights assuming a zero-mean Gaussian prior. In the exemplar recording from Figure 1, the distribution of weights for both velocity and curvature are indeed both well-approximated by a Gaussian distribution centered at zero. This suggests that the decoder does not need to deviate significantly from the prior in order to perform well. In particular, although changing the sign of any weight would not incur a regularization penalty, the decoder relies roughly equally on neurons that are positively and negatively tuned to velocity, and similarly for curvature. At the population level, the decoder assigns weights that are roughly distributed evenly between activity signals F and temporal derivative of activity signals dF /dt (Figure 5a,b). But at the level of individual neurons, the weight assigned to a neuron’s activity 𝑊𝐹 was not correlated with the weight assigned to the temporal derivative of its activity 𝑊 𝑑𝑓/𝑑𝑡 (Figure 5—figure supplement 1). Again, this is consistent with the model’s prior distribution of the weights. However, given that the model could have relied more heavily on either activity signals F or on temporal derivative signals dF /dt without penalty, we find it interesting that the decoder did not need to deviate from an even distribution of weights between them in order to perform well.”

5) All Reviewers (detailed in Recommendations for the authors) have strong suggestions for reorganizing the text and amplifying and deepening Introduction and Discussion. Reviewer #3's concerns about the functional implications of the decoding should be addressed. Limitations of the analysis should be clearly addressed in Discussion.

In response to this and other comments, we have rewritten the introduction and discussion We also explicitly include limitations of the analysis, for example:

“However, our results do not preclude the brain from using other methods for representing behavior. And in all cases, the measurements here do not distinguish between neural signals that drive locomotion, such as motor commands; and neural signals that monitor locomotion generated elsewhere, such as proprioceptive feedback (Wen et al., 2012). The decoder likely uses a mix of both. Future perturbation studies are needed to distinguish population-level signals that drive locomotion from those that monitor locomotion”

“And it is also possible that one of the non-linear models we did test would perform better with more training data. Complex models, including non-linear models, tend to have more parameters and are therefore prone to overfitting when trained on limited data. If a non-linear model performed poorly on our held-out data due to overfitting, it may perform better when trained with longer recordings. Poor performance here therefore does not inherently preclude a non-linear model from being useful for describing behavior signals in the C. elegans nervous system. Future work with longer recordings or the ability to aggregate training across multiple recordings is needed to better evaluate whether more complex models would outperform the simple linear decoder.”

“Future studies using newly developed methods for identifying neurons (Yemeni et al., 2020) are needed to reveal the identities of those neurons weighted by the decoder for decoding velocity, curvature, or both.”

We discuss these and other changes in more detail below.

Reviewer #1 (Recommendations for the authors):I hope that the authors focus on improving results and discussions sections of their strength (see above), including additional analyses, precise terminology, simplified statements, clarified discussions, and perhaps structural reorganization. I have a few concerns that I ask them to address or respond to, so that this work can be appreciated by and benefit the field. They are raised below, and should be viewed as suggestions for this purpose. (1) Line 71-85: This first Results section (which lacks a title) is a brief definition of the locomotion features for velocity and curvature as used throughout the paper.

I am uncomfortable with the brevity of the introduction and justification of using eigenworms to represent velocity and curvature. These are two widely used biological terms, and the introduction would confuse many readers and even misled them (in the case of 'curvature').

I share the authors' opinion on the deficiency of defining velocity by the animal's centroid displacement. However, they should be equally clear that their presentation for 'velocity' did not directly address this deficit: their analysis did not calculate and present the wave velocity – the speed of bending wave propagation – which would have the units of mm/sec or body lengths/sec as opposed to radians/sec.

Moreover, in Figure 1-Figure S1, the authors demonstrated that their eigenvalue-derived velocity was well correlated with that of centroid-derived velocity values. This, to me, was a good validation to justify their choice of parameters as a proxy for velocity in later analyses. However, the authors did not cite this validation figure as its purpose, but instead in the context of a statement for the weakness of the centroid-based velocity measure. This is a misleading manipulation of citation of the authors' results.

I have a bigger concern for referencing the third eigenworm as the 'curvature', specifically Lines 82-84 ("Here we report body curvature as a dimensionless quantity that captures bending in the dorsoventral plane, calculated by projecting the animal's body posture onto the third principal component of the eigenvalue decomposition."). To my understanding, this component best represents the body postures during turning. Their relationship with 'curvature' – which most would interpret not as a dimensionless quantity but as a precise measure of the degree of body bending per unit length – should be demonstrated similar to how the authors did so for velocity in Figure 1, Supplementary Figure 1. I personally consider it inappropriate to use 'curvature' when referring to the projections of the third eigenworm.

Based on this feedback, and on feedback from the other reviewers, we now use more familiar definitions of velocity and curvature. We now report velocity based on the movement of a point on the worm’s head in mm/s, and we report curvature as kappa or dtheta/dt in units of radians/bodylength. We updated all figures, recalculated all models, and rewrote the relevant methods sections. Many of the specific numerical values have changed, but the conclusions remain the same.

“To measure the animal's velocity we first find the velocity vector 𝑣 that describes the motion of a point on the animal's centerline 15% of its body length back from the tip of its head. We then project this velocity vector onto a head direction vector of unit length.

The head direction is taken to be the direction between two points along the animal's centerline, 10% and 20% posterior of the tip of the head. To calculate this velocity, the centerline and stage position measurements were first Hampel filtered and then interpolated onto a common time axis of 200 Hz (the rate at which we query stage position). Velocity was then obtained by convolving the position with the derivative of a Gaussian with σ = 0. 5s.

To measure the animal's average curvature < κ > at each time point, we calculated the curvature 𝑑θ/𝑑𝑠at each of 100 segments along the worm's centerline, where 𝑠 refers to the arc length of the centerline. We then took the mean of the curvatures of the middle segments that span an anterior-posterior region from 15% to 80% along the animal's centerline. This region was chosen to exclude curvature from small nose deflections (sometimes referred to as foraging) and to exclude the curvature of the tip of the tail.”

2) I found their motion correction important, interesting, and potentially useful to the community. The authors should definitely highlight it and elaborate in the text as a separate section instead of putting it away in Methods and at the end of the following Results section (Line 125: Population decoder outperforms best single neuron – this long result section can definitely benefit from 'de-mixing'.)

To me, it would be very helpful to show the example data for the authors' methods for motion correction, including the raw traces of GCaMP and RFP before and after they performed correction by their ICA analyses (e.g. I think that it did not work as well for AVAL in Figure 2b; knowing what the trace was like before the correction would help me to examine why). I also would be curious to know why these authors limited their ICA to give two components instead of collecting all components and subtracting the ones correlated with RFP. It would be good if authors treated the number of ICA components as a parameter and explored the choice of this parameter on the performance of motion correction. A discussion on systematic ways to estimate this parameter would also be very welcome.

We appreciate the reviewer’s interest. ICA is one of many approaches we have tried as we continue to search for an optimal motion correction algorithm. Because motion correction is not the focus of this paper, we hesitated to dive into a deeper exploration of ICA. Ultimately, we decided to remove the ICA approach and replace it with a simpler regression approach that is better motivated and is easier to justify. The new simpler approach is described in the methods and excerpted below. It is well motivated under the assumption of linear additive noise; is computationally efficient; has only one free parameter; and is entirely deterministic, unlike common implementations of ICA. We have updated all figures and models using the new motion correction algorithm and revised the methods section. While numeric values throughout the paper changed, none of our conclusions changed upon switching motion correction algorithms.

“We used the GCaMP fluorescence together with the RFP fluorescence to calculate a motion corrected fluorescence, 𝐹𝑚𝑐 used through the paper. Note sometimes the subscript 𝑚𝑐 is omitted for brevity. Motion and deformation in the animal's head

introduce artifacts into the fluorescent time-series. We assume that these artifacts are common to both GCaMP and RFP fluorescence, up to a scale factor, because both experience the same motion. For example, if a neuron is compressed during a head bend, the density of both GCaMP and RFP should increase, causing an increase in the fluorescence in both time-series. We expect that the RFP time series is entirely dominated by artifacts because, in the absence of motion, the RFP fluorescent intensity

would be constant. If we further assume that motion artifacts are additive, then a simple correction follows naturally. To correct for motion in the GCaMP fluorescence 𝐺, we subtract off a scaled RFP fluorescence, 𝑅, Fmc=(GαR)<GαR> where α is a scaling factor that is fit for each neuron so as to minimize (G(t)αR(t))2

The final motion corrected signal 𝐹𝑚𝑐 is mean-subtracted.”

We note we have also revised how we set color bars for visualizing heatmaps of neural activity, as described in the methods:

“When presenting heatmaps of calcium activity, we set the colormap to visualize the motion-corrected data with the original, uncorrected dynamic range. Recordings in which neurons contain little signal compared to motion artifact will appear dimmer, while recordings in which neurons contain signal with large dynamics compared to the motion artifact will appear brighter. The limits on the colormap are determined by the uncorrected green fluorescent timeseries, specifically the 99th percentile of of all neurons at all time points ±|G <G>| in the recording.”

Here are requested, smoothed, AVA traces before and after motion correction with the revised motion correction algorithm (mean-subtracted). We attribute the lower quality of the AVAL trace to AVAL’s spatial location at the far end of the animal relative to the microscope objective, as mentioned in the text. The difference between the original (F) and motion corrected (Fmc) signals are subtle, as we expect. Note that previous recordings of AVA in moving worms report the sum of AVAR and AVAL because they cannot resolve the two independently. We now also report the sum in new Figure 2 —figure supplement 1 to facilitate comparison to the literature.

3) Section 'Population decoder outperforms best single neuron' and Figure 3a

Here I have trouble appreciating the significance of this comparison. Previous studies have shown that forward, backward, and turning are three separate motor motifs of C. elegans locomotion. It is possible that multiple neurons may participate in multiple motor behaviors, but it would be truly astonishing (to me at least) if a single neuron plays a dominating role of all motifs of locomotion. Given the state of the field, scientifically it would be much more meaningful to compare the performance of a population decoder to the combination of the four best single neurons e.g. the best for positive velocity, the best for negative velocity, the best for dorsal turning, and the best for ventral turning, instead of one single best neuron.

This comparison has never been done before, and it is important to establish. We have revised our framing and added text clarifying the significance of the comparison. From the introduction:

“Despite growing interest in the role of population dynamics in the worm, their dimensionality, and their relation to behavior (Costa et al., 2019; Linderman et al., 2019; Brennan et al., 2019; Fieseler et al., 2020) it is not known how locomotory related information contained at the population level compares to that contained at the level of single neurons.”

In particular, we are also interested in how those signals combine:

“There has not yet been a systematic exploration of the types and distribution of locomotor related signals present in the neural population during movement and their tunings. So for example, it is not known whether all forward related neurons exhibit duplicate neural signals or whether a variety of distinct signals are combined.”

While it would be interesting to explore the four best single neurons, we worried that this would add confusion and disrupt the flow. We hope with the new framing the reviewers and editors see value in comparing against a single neuron.

The authors could also make it clear to readers that due to the lack of knowledge of neuronal identity, as well as the fact that each recording was capturing ~2/3 of the total neuronal population, the best single neuron decoder in each recording was only 'relative' to the captured neuronal population, and likely differed per recording.

We now clarify in the text:

“Because the correspondence between neurons across animals is not known in these recordings, the identities of neurons used by the population decoder and that of the specific best single neuron may vary from recording to recording.”

4) The organization of multiple Results sections appear lengthy and redundant. They should be combined, compressed, and reorganized. For example, the last section on correlations with AVA seems to contain the same information as "immobilization alters the correlation structure of neural activity". The sections / subsections "Population code for locomotion" (line 193) and "Largely distinct sub-populations contain information for velocity and curvature" (line 256) can be better organized.

Based on this feedback we have removed many of the subsection headings, combined others, and streamlined the text in places.

I also view AVAL and AVAR coupling more as a benchmarking tool to give the readers confidence that their method works in the non-immobilized setting instead of an interesting new finding as it seems to be portraited in the abstract. Combining these results with an expanded sections to describe their imaging processing pipeline may be a better organization solution.

We agree that the AVA recordings serve a benchmarking role. We have revised the abstract Accordingly:

“To validate our measurements, we labeled neurons AVAL and AVAR and found that their activity exhibited expected transients during backward locomotion.”

and updated the text in the Results section:

“To validate our population recordings, we investigated the well-characterized neuron pair AVAL and AVAR.”

We have left Figure 2 in the main text because the AVA recordings are an important and useful validation of our measurements.

5) I personally found that among all results from the model, the notion that the simplest linear model works the best is the most interesting. It would be interesting to hear the authors' thoughts on its implication of the C. elegans brain network on motor states and their transitions.

We have now added two paragraphs to the discussion:

“How should we interpret the finding that the decoder is linear? It has been observed that even very non-linear neural systems can encode information linearly. For example, the vertebrate retina has many highly non-linear connections but a linear decoder

performs indistinguishably from an artificial neural network at decoding visual signals from populations of retinal ganglian cells (Warland et al., 1997). C. elegans may be another example, like the retina, of a non-linear system that represents information

linearly. The C. elegans nervous system, however, also contains known instances of connections that appear linear over a physiologically relevant range of activities (Liu eet al., 2009; Lindsay et al., 2011, Narayan et al., 2011). So, it is also possible that the linear representation of behavior in C. elegans reflects linear circuitry in the brain.

We note that our exploration of non-linear models was not exhaustive. Although we tested a selection of non-linear models at the single neuron Figure 3 – Figure Supplement 5 and population level Figure 3 —figure supplement 4, it is possible that a different non-linear model would perform better. And it is also possible that one of the non-linear models we did test would perform better with more training data. Complex models, including non-linear models, tend to have more parameters and are therefore prone to overfitting when trained on limited data. If a non-linear model performed poorly on our held-out data due to overfitting, it may perform better when trained with longer recordings. Poor performance here therefore does not inherently preclude a non-linear model from being useful for describing behavior signals in the C. elegans nervous system. Future work with longer recordings or the ability to aggregate training across multiple recordings is needed to better evaluate whether more complex models would outperform the simple linear decoder.”

Reviewer #2 (Recommendations for the authors):

My enthusiasm is diminished by a series of major concerns that I believe should be possible to address:

1) An important and interesting claim in the paper is that different neurons have different "tunings" for behavior – for example, some neurons are associated with forward velocity fluctuations, while others are associated with forward/reverse transitions. However, this is not very well explored in the paper. Some example data are shown, but that's about it. I'd suggest characterizing the full range of possible tunings that neurons can display and showing how many neurons in each of their datasets display such tunings. This could be a major strength of the paper if it is clearly characterized and communicated.

Based on this feedback, and feedback from Reviewer #1, we added three new supplementary figures to characterize the full range of tunings and the number of tuned neurons in each dataset.

1. Figure 1 —figure supplement 1 shows the full range of F and dF/dT tunings with respect to velocity, including example tuning curves selected from neurons with a range of Pearson’s correlation coefficients.

2. Figure 1 —figure supplement 2 shows the full range of tunings with respect to curvature.

3. Figure 1 —figure supplement 3 shows the number of significantly tuned neurons by category in each recording.

2) If the tunings are indeed diverse/complex (i.e. not just linear relationships), I'd suggest trying to predict behavior from single neurons using non-linear decoders. What is the best performance that can be obtained from single neurons using these more complex decoders? (and how does it compare to population-level decoders).

Thank you for this suggestion. We now added Figure 3 —figure supplement 5 to show how various non-linear single neuron models compare to the linear population model.

3) While it is readily apparent that the regression models perform better when trained from the full set of neurons (compared to the "best single neurons"), the authors' interpretation that this is because different neurons have different tunings does not yet seem fully supported. My main concern is that there is substantial levels of noise in their GCaMP measurements and that training models from more neurons may simply overcome this noise (the authors actually show that SNR impacts their predictive power in Figure 3-S1). For example, suppose that there were 2 neurons with perfectly correlated ground-truth activity and that they were both perfectly correlated with a behavior. If the activity measurements from these neurons had uncorrelated noise (noise in one neuron was not correlated with noise in the second), then a classifier trained to predict behavior would perform better if both neurons were used. In this case, this would not be due to any difference in the underlying tunings of the neurons. Are such effects occurring here? It is possible that one way to estimate the impact of these types of effects would be to compare models trained on similar amounts of data (e.g. 10min of data from one neuron vs. 5min of data from two simultaneously correlated neurons) or something like that. Another possibility would be to record single neurons (not in a whole brain context) in order to obtain higher SNR recordings and compare classifiers trained on these single neurons to those trained on the full population. (This would require knowing some of the "best single neurons")

Quality varies across recordings, and we mention this in the text. But the evidence in Figure 2 does not suggest substantial levels of noise. Prior recordings (Ben Arous et al., 2010; Shipley et al., 2014) report the sum of AVAL and AVAR together because they cannot resolve the individual neurons. We now also report the sum of AVAL and AVAR’s activity in Figure 2 - Supplementary Figure 1 to make it easier to compare noise levels to previous reports. By comparing this trace with previous reports we conclude that the noise in this recording is not dramatically larger than in prior reports and, crucially, the noise is small compared to the relevant features of interest.

"We also report the sum of the individual traces in Figure 2—figure supplement 1. The similarity we observe between activities of AVAL and AVAR, and the similarities between our recordings of AVA and those previously reported in the literature serves to validate our ability to simultaneously record neural activity accurately from across the brain. It also suggests that the noise in this recording is modest compared to the features of interest in AVA’s calcium transients."

The evidence in Figure 5 suggests that the population decoder does not derive its performance simply by averaging over noisy neurons with the same ground-truth signals. In Figure 5d highly weighted neuron #77 has activity peaks at certain ventral turns while highly weighted neuron #84 has activity peaks at a complimentary set. It is unlikely that these neurons have the same ground truth signals, especially because we know from Figure 2 that the noise in this recording is small compared to features of interest (and these are from the same recording). The simplest explanation is that the decoder uses a variety of different types of neural signals from the population to decode. We thank the reviewer for raising this hypothesis because it is interesting and important to explore, and we now use it to frame this portion of our rewritten Results section:

“We wondered what types of signals are combined by the decoder. For example, it is conceptually useful to consider a simple null hypothesis in which multiple neurons exhibit exact copies of the same behavior-related signal with varying levels of noise. In that case, the population decoder would outperform the best single neuron merely by summing over duplicate noisy signals. We inspected the activity traces of the top weighted neurons in our exemplar recording (Figure 5c,d). Some highly weighted neurons had activity traces that appeared visually similar to the animal’s locomotory trace for the duration of the recording (e.g.#80 for curvature) and other neurons had activity that might plausibly be noisy copies of each other (e.g. #12 and #60 for velocity). But other highly weighted neurons had activity traces that were distinct or only matched specific features of the locomotory behavior. For example negatively weighted neuron #59 exhibited distinct positive peaks during dorsal turns (green arrows), but did not consistently exhibit corresponding negative peaks during ventral turns. This is consistent with prior reports of neurons such as SMDD that are known to exhibit peaks during dorsal but not ventral head bends (Hendricks et al., 2012; Shen et al., 2016; Kaplan et al., 2020).

In the recording shown, we also find some neurons that have activity matched to only specific instances of a behavior motif. For example, the temporal derivative of the activity of neuron #84 contributes distinct peaks to ventral bends at approximately 105 s and 210 s, but not during similar ventral turns at other time points (Figure 5d, blue arrows). Conversely, highly weighted neuron #77 contributes sharp peaks corresponding to four other ventral bends (Figure 5d, red arrows) that are absent from neuron #84. Similarly (although perhaps less striking) for velocity, neurons #24 and #110 contribute peaks for one set of reversals (Figure 5c, red arrows), while neuron #44 contributes peaks to a complimentary set of two reversals (Figure 5c, blue arrows). Similarly in recording AML32_A, different neurons contribute peaks of activity corresponding to different sets of ventral or dorsal turns, Figure 5 —figure supplement 3. While we observed this effect in some recordings, it was not obviously present in every recording. From this inspection of highly weighted neurons, we conclude that in at least some recordings the decoder is not primarily averaging over duplicate signals. Instead the decoder sums together different types of neural signals, including those that capture only a certain feature of a behavior (e.g. dorsal turns or ventral turns, but not both) or that seemingly capture only certain instance of the same behavior motif (some reversals but not others)."

4) Related to the above point, models with more parameters almost always perform better. To determine whether the increased model performance justified the use of additional parameters, I'd suggest using AIC (Akaike Information Criterion) or BIC (Bayesian Information Criterion) formulations.

We address concerns about overfitting by evaluating the model on held-out data. On held-out data, increasing the number of parameters does not always cause a performance increase. For example, Figure 3 —figure supplement 4h shows that a decision tree actually performs the worst of all models tested even though it has the most parameters (more than twice as many as any other model, as detailed in Table 5). We now explain this more clearly in the text:

“Evaluating performance on held-out data mitigates potential concerns that performance gains merely reflect over-fitting. In the context of held-out data, models with more parameters, even those that are over-fit, will not inherently perform better.”

And also in another section:

“Note that while adding features is guaranteed to improve performance on the training set, performance on the held-out test set did not necessarily have to improve.”

And we discuss implications of the over-fitting problem in the rewritten Discussion section:

“Complex models, including non-linear models, tend to have more parameters and are therefore prone to overfitting when trained on limited data. If a non-linear model performed poorly on our held-out data due to overfitting, it may perform better when trained with longer recordings. Poor performance here therefore does not inherently preclude a non-linear model from being useful for describing behavior signals in the C. elegans nervous system. Future work with longer recordings or the ability to aggregate training across multiple recordings is needed to better evaluate whether more complex models would outperform the simple linear decoder.”

5) The Introduction does not properly introduce what is known about the neural circuitry that gives rise to locomotion in C. elegans. The roles of many neurons have been carefully characterized – it would be useful to introduce what is known about their "tunings" from previous work and whether the field already thinks that a population code for locomotion may exist (or not).

Based on this, and other feedback, we have expanded the introduction to discuss more about what is known:

“The known locomotory circuitry in C. elegans focuses on a collection of pre-motor neurons and interneurons, including AVA, AVE, AVB, AIB, AIZ, RIM, RIA, RIV, RIB and PVC that have many connec-tions amongst themselves and send signals to downstream motor neurons involved in locomotion such as the A- or B-type or SMD motor neurons (White et al., 1976; Chalfie et al., 1985; Zheng et al., 1999; Gray et al., 2005; Gordus et al., 2015; Wang et al., 2020). These neurons can be grouped into categories that are related to forward locomotion, backward locomotion or turns. For example, AVA, AIB, RIM are part of a backward locomotory circuit (Zheng et al., 1999; Pirri et al., 2009; Gordus et al., 2015). AVB and PVC are part of a forward locomotion circuit (Gray et al., 2005; Chalfie et al., 1985; Zheng et al., 1999; Li et al., 2011; Xu et al., 2018) and RIV, RIB and RIA are related to turns (Gray et al., 2005; Li et al., 2011; Wang et al., 2020; Hendricks et al., 2012). Much of what we know about these neurons comes from recordings or manipulations of either single neurons at a time, or a selection of neurons simultaneously using sparse promoters (Gray et al., 2005; Guo et al., 2009; Arous et al., 2010; Kawano et al., 2011; Piggott et al., 2011; Gao et al., 2018; Wang et al., 2020). Only recently has it been possible to record from large populations of neurons first in immobile (Schrödel et al., 2013; Prevedel et al., 2014; Kato et al., 2015) and then moving animals (Nguyen et al., 2016; Venkatachalam et al., 2016).”

In the results and Discussion section we also try to provide more context and background. Selected examples:

“This is consistent with neurons such as RIVL/R that are active during ventral turns (Wang et al., 2020) or the SMDDs or SMDVs that have activity peaks during either dorsal or ventral head bends respectively (Hendricks et al., 2012; Shen et al., 2016; Kaplan et al., 2020).”

“This is consistent with other reports, including recent work suggesting that turning and reverse circuits are largely distinct modules except for a select few neurons, such as RIB, which may be involved in both (Wang et al., 2020)”

“…the temporal derivative of activity of AIB has been shown to be elevated during those reversals that are followed by turns compared to those followed by forward locomotion (Wang et al., 2020).”

“This is consistent with prior reports that for some neurons, like AVA, it is the temporal derivative of activity that correlates with aspects of locomotion (Kato et al., 2015) while for other neurons, such as AIY, it is the activity itself (Luo et al., 2014).”

6) In Figure 1 -S1 the authors compare velocity in their datasets, as measured by eigenworm analysis vs. center of mass movement. While they are correlated, I was surprised by how frequently they disagree. Why do they disagree at times? Are there errors in one or both of these methods?

For simplicity we now report velocity based on a point on the animal’s head, as described in the methods. All figures have been regenerated to reflect this change. We discuss this change in more detail in response to similar concerns raised by Reviewer #1.

“To measure the animal's velocity we first find the velocity vector 𝑣 that describes the motion of a point on the animal's centerline 15% of its body length back from the tip of its head. We then project this velocity vector onto a head direction vector of unit length. The head direction is taken to be the direction between two points along the animal's centerline, 10% and 20% posterior of the tip of the head. To calculate this velocity, the centerline and stage position measurements were first Hampel filtered and then interpolated onto a common time axis of 200 Hz (the rate at which we query stage position). Velocity was then obtained by convolving the position with the derivative of a Gaussian with σ = 0. 5s.”

(7) In Figure 5, I believe it would be important to only present exemplary data from timepoints in the testing datasets, not the training datasets (i.e. only present correlation coefficients for datapoints in testing data; and only show examples of neural activity and behavior from testing data). For example, it is hard to know whether the relationships in Figure 5C are meaningful or just represent overfitting of the model if they are from the training data. (if these are test data already, please just make this clear in figure legend)

Thank you for the suggestion. We now show which portion of the recording is held-out by adding light green shading to the traces in Figure 5c,d (same as Figure 3a,c) and we clarify in the caption.

8) It is not clear that analyzing the weights in Figure 5A is really all that informative with regards to the underlying roles of the neurons. The fact that the model can predict behavior in withheld data is highly informative, but the specific weights recovered are influenced by the regularization method used, whether a neuron's activity contains information redundant with some other neuron's activity, etc.

We agree that some properties of the neural weights are predetermined by choice of regularization. But many properties are not. We now clarify explicitly which features of the neural weights are expected from model choice, and which are not penalized by the model and therefore may more likely reflect properties of the brain:

“To investigate how the decoder utilizes information from the population, we inspect the neural weights assigned by the decoder. The decoder assigns one weight for each neuron’s activity, 𝑊𝐹 , and another for the temporal derivative of its activity, 𝑊𝑑𝑓/𝑑𝑡. It uses ridge regularization to penalize weights with large amplitudes, which is equivalent to a Bayesian estimation of the weights assuming a zero-mean Gaussian prior. In the exemplar recording from Figure 1, the distribution of weights for both velocity and curvature are indeed both well-approximated by a Gaussian distribution centered at zero. This suggests that the decoder does not need to deviate significantly from the prior in order to perform well. In particular, although changing the sign of any weight would not incur a regularization penalty, the decoder relies roughly equally on neurons that are positively and negatively tuned to velocity, and similarly for curvature.

At the population level, the decoder assigns weights that are roughly distributed evenly between activity signals F and temporal derivative of activity signals dF /dt (Figure 5a,b). But at the level of individual neurons, the weight assigned to a neuron’s activity 𝑊𝐹 was not correlated with the weight assigned to the temporal derivative of its activity 𝑊𝑑𝑓/𝑑𝑡 (Figure 5—figure supplement 1). Again, this is consistent with the model’s prior distribution of the weights. However, given that the model could have relied more heavily on either activity signals F or on temporal derivative signals dF /dt without penalty, we find it interesting that the decoder did not need to deviate from an even distribution of weights between them in order to perform well.”

9) There are no across-animal summary data of the effects that the authors show in Figure 5. This is just exemplary data. Are these observations consistent across animals?

We do not know of a satisfactory quantitative method for summarizing the effect in Figure 5 across recordings. Instead we now added a new example from a different recording in figure 5 —figure supplement 3. And we now clarify explicitly in the text:

“While we observed this effect in some recordings, it was not obviously present in every recording.”

Reviewer #3 (Recommendations for the authors):

1) Abstract would benefit from a statement of the main conclusion and its significance.

A major significance of this work is that it provides needed experimental measurements to inform and constrain the interpretation of population dynamics. There is a growing body of literature interpreting population dynamics of locomotion (Kato et al., 2015, Costa et al., 2019, Linderman et al., 2019, Fieseler et al., 2020), yet until now fundamental measurements have been missing, such as the information in the population vs the single neuron or the relevance of immobile dynamics to study locomotion. We have revised the abstract to allude to this.

“We investigated the neural representation of locomotion in the nematode C. elegans by recording population calcium activity during movement. We report that population activity more accurately decodes locomotion than any single neuron. Relevant signals are distributed across neurons with diverse tunings to locomotion. Two largely distinct

subpopulations are informative for decoding velocity and curvature, and different neurons' activities contribute features relevant for different aspects of a behavior or different instances of a behavioral motif. To validate our measurements, we labeled neurons AVAL and AVAR and found that their activity exhibited expected transients during backward locomotion. Finally, we compared population activity during movement and immobilization. Immobilization alters the correlation structure of neural activity and its dynamics. Some neurons positively correlated with AVA during movement become negatively correlated during immobilization and vice versa. This work provides needed experimental measurements that inform and constrain ongoing efforts to understand population dynamics underlying locomotion in C. elegans.”

And we have better introduced these points in the introduction, excerpt is included in response to next item, below.

2) It would be helpful to motivate the immobilization experiment by first describing the state of knowledge concerning neuronal dynamics in worms (rather than waiting until the discussion).

We now do this, as suggested:

"Interestingly, results from recordings in immobile animals suggest that population neural state space trajectories in a low dimensional space may encode global motor commands (Kato et al., 2015), but this has yet to be explored in moving animals. Despite growing interest in the role of population dynamics in the worm, their dimensionality, and their relation to behavior (Costa et al., 2019; Linderman et al., 2019; Brennan and Proekt, 2019; Fieseler et al., 2020) it is not known how locomotory related information contained at the population level compares to that contained at the level of single neurons. And importantly, current findings of population dynamics related to locomotion in C. elegans are from immobilized animals. While there are clear benefits in studying fictive locomotion (Ahrens et al., 2012; Briggman et al., 2005; Kato et al., 2015), it is not known for C. elegans how neural population dynamics during immobile fictive locomotion compare to population dynamics during actual movement."

3) What is the meaning of the shading in Figure 1d,e and similar places in the paper?

Shaded circles show individual fluorescent time points. We now clarify:

“Blue or orange shaded circles show neural activity at each time point during behavior.”

4) For readers unfamiliar with the C. elegans nervous system, it would be useful to make clear what fraction of all head neurons is being recorded, and also what fraction of all neurons is being recorded.

Changed:

“To investigate locomotory-related signals in the brain, we simultaneously recorded calcium activity from the majority of the 188 neurons in the head…”

5) It might be more appropriate to move the section on correcting for motion artifacts (pg. 7 [171-182ff]) earlier in the paper, where this correction is first used. Or, move it to Methods.

We ultimately decided to keep that discussion of motion correction in its current location because it is pertinent when thinking about issues of noise, for example as raised by Reviewer #2. We also cover the key points in the section of the methods entitled “Motion-correction.”

6) Subscript (i) in Equation 1 is misplaced on pg. 7.

Thanks. Fixed.

7) For those unfamiliar with the Fano factor, it might be worth pointing out that in Equation 1, the variance (numerator) refers to the signal, not the noise.

Thank you for the suggestion:

“Here the variance term is related to the signal in the recording.”

8) pg. 15 [379…]. "Our measurements suggest that neural dynamics from immobilized animals may not entirely reflect the neural dynamics of locomotion." Consider rephrasing. This sentence is almost a tautology as it says "…neural dynamics in the absence of locomotion may not entirely reflect the dynamics in the presence of locomotion."

We have rewritten that section, reworded that statement and added context:

“That C. elegans neural dynamics exhibit different correlation structure during movement than during immobilization has implications for neural representations of locomotion. For example, it is now common to use dimensionality reduction techniques like PCA to search for low-dimensional trajectories or manifolds that relate to behavior or decision making in animals undergoing movement (Churchland et al., 2012; Harvey et al., 2012; Shenoy et al., 2013) or in immobilized animals undergoing fictive locomotion (Briggman et al., 2005; Kato et al., 2015). PCA critically depends on the correlation structure to define its principal components. In C. elegans, the low-dimensional neural trajectories observed in immobilized animals undergoing fictive locomotion, and the underlying correlation structure that defines those trajectories, are being used to draw conclusions about neural dynamics of actual locomotion. Our measurements suggest that to obtain a more complete picture of C. elegans neural dynamics related to locomotion, it will be helpful to probe neural state space trajectories recorded during actual locomotion: both because the neural dynamics themselves may differ during immobilization, but also because the correlation structure observed in the network, and consequently the relevant principal components, change upon immobilization. These changes may be due to proprioception (Wen et al., 2012), or due to different internal states associated with fictive versus actual locomotion."

9) Line 104-5: please add Faumont et al., 2011.

Added.

10) Line 198: Do you mean "Figure 5a,b"?

Yes. Thank you. Fixed.

11) Line 206-7: Is neuron #29 actually in Figure 5x?

This should be Figure 5c. Fixed. Thanks.

12) Line 344-5: Can you unpack this statement?

We have clarified with an example:

“One possible explanation is that superficially similar behavioral features like turns may actually consist of different underlying behaviors. For example, seemingly similar turns, on closer inspection, can be further subdivided into distinct groups (Broekmans et al., 2016).”

And we have added a related example:

“The neural representation associated with a motif may also depend on its behavioral context, including the behaviors that follow or proceed it. For example, the temporal derivative of activity of AIB has been shown to be elevated during those reversals that

are followed by turns compared to those followed by for- ward locomotion (Wang et al., 2020). The population may contain a variety of such neurons, each tuned to only a specific context of a given behavior, which would give rise to the neurons used by the decoder that are seemingly tuned to some instances of a motif and not others. The granularity with which to classify behaviors and how to take into account context and behavioral hierarchies remains an active area of research in C. elegans (Liu et al., 2018; Kaplan et al., 2020) and in other model systems (Berman et al., 2016; Datta et al., 2019). Ultimately, finding distinct neural signals may help inform our understanding of distinct behavior states and vice versa."

13) Line 359-361: Give particular examples of some circuit in which this statement is true.

We now provide an example:

"For example, both polymodal nociceptive stimuli detected from ASH (Mellem et al., 2002) and anterior mechanosensory stimuli detected from soft touch neurons ALM and AVM (Wicks and Rankin, 1995) activate reversals through shared circuitry containing AVA, among other common neurons. It is possible that the neural activities we observe for different behavioral motifs reflect sensory signals that arrive through different sensory pathways to evoke a common downstream motor response."

https://doi.org/10.7554/eLife.66135.sa2

Article and author information

Author details

  1. Kelsey M Hallinen

    Department of Physics, Princeton University, Princeton, United States
    Contribution
    Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Ross Dempsey and Monika Scholz
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4081-6699
  2. Ross Dempsey

    Department of Physics, Princeton University, Princeton, United States
    Contribution
    Software, Formal analysis, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Kelsey M Hallinen and Monika Scholz
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0881-8814
  3. Monika Scholz

    Department of Physics, Princeton University, Princeton, United States
    Present address
    Max Planck Research Group Neural Information Flow, Center of Advanced European Studies and Research (caesar), Bonn, Germany
    Contribution
    Software, Formal analysis, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Kelsey M Hallinen and Ross Dempsey
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2186-410X
  4. Xinwei Yu

    Department of Physics, Princeton University, Princeton, United States
    Contribution
    Resources, Software, Formal analysis, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8699-3546
  5. Ashley Linder

    Princeton Neuroscience Institute, Princeton University, Princeton, United States
    Contribution
    Resources, Software, Formal analysis, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Francesco Randi

    Department of Physics, Princeton University, Princeton, United States
    Contribution
    Resources, Methodology, Writing - review and editing, Developed instrumentation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6200-7254
  7. Anuj K Sharma

    Department of Physics, Princeton University, Princeton, United States
    Contribution
    Resources, Methodology, Writing - review and editing, Generated all transgenics
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5061-9731
  8. Joshua W Shaevitz

    1. Department of Physics, Princeton University, Princeton, United States
    2. Lewis-Sigler Institute of Integrative Genomics, Princeton University, Princeton, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8809-4723
  9. Andrew M Leifer

    1. Department of Physics, Princeton University, Princeton, United States
    2. Princeton Neuroscience Institute, Princeton University, Princeton, United States
    Contribution
    Conceptualization, Software, Formal analysis, Supervision, Funding acquisition, Visualization, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    leifer@princeton.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5362-5093

Funding

National Science Foundation (IOS-1845137)

  • Andrew M Leifer

National Science Foundation (PHY-1734030)

  • Kelsey M Hallinen
  • Joshua W Shaevitz
  • Andrew M Leifer

National Institutes of Health (MH065214)

  • Ashley Linder

Simons Foundation (324285)

  • Andrew M Leifer

Swartz Foundation

  • Francesco Randi

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

Thanks to Sandeep Kumar and Kevin Chen for critical comments on the manuscript. This work was supported in part by the National Science Foundation, through the Center for the Physics of Biological Function (PHY-1734030 to JWS, AML, KMH) and an NSF CAREER Award (IOS-1845137 to AML) and by the Simons Foundation (SCGB #324285, and SCGB #543003, AML). ANL is supported by a National Institutes of Health institutional training grant NIH T32 MH065214 through the Princeton Neuroscience Institute. FR was supported by the Swartz Foundation via the Swartz Fellowship for Theoretical Neuroscience. Strains are distributed by the CGC, which is funded by the NIH Office of Research Infrastructure Programs (P40 OD010440).

Senior and Reviewing Editor

  1. Ronald L Calabrese, Emory University, United States

Publication history

  1. Preprint posted: October 17, 2018 (view preprint)
  2. Received: December 29, 2020
  3. Accepted: July 26, 2021
  4. Accepted Manuscript published: July 29, 2021 (version 1)
  5. Version of Record published: September 14, 2021 (version 2)

Copyright

© 2021, Hallinen et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,077
    Page views
  • 170
    Downloads
  • 2
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Neuroscience
    P Christiaan Klink et al.
    Research Article Updated

    Population receptive field (pRF) modeling is a popular fMRI method to map the retinotopic organization of the human brain. While fMRI-based pRF maps are qualitatively similar to invasively recorded single-cell receptive fields in animals, it remains unclear what neuronal signal they represent. We addressed this question in awake nonhuman primates comparing whole-brain fMRI and large-scale neurophysiological recordings in areas V1 and V4 of the visual cortex. We examined the fits of several pRF models based on the fMRI blood-oxygen-level-dependent (BOLD) signal, multi-unit spiking activity (MUA), and local field potential (LFP) power in different frequency bands. We found that pRFs derived from BOLD-fMRI were most similar to MUA-pRFs in V1 and V4, while pRFs based on LFP gamma power also gave a good approximation. fMRI-based pRFs thus reliably reflect neuronal receptive field properties in the primate brain. In addition to our results in V1 and V4, the whole-brain fMRI measurements revealed retinotopic tuning in many other cortical and subcortical areas with a consistent increase in pRF size with increasing eccentricity, as well as a retinotopically specific deactivation of default mode network nodes similar to previous observations in humans.

    1. Developmental Biology
    2. Neuroscience
    Eduardo Loureiro-Campos et al.
    Research Article

    The transcription factor activating protein two gamma (AP2γ) is an important regulator of neurogenesis both during embryonic development as well as in the postnatal brain, but its role for neurophysiology and behavior at distinct postnatal periods is still unclear. In this work, we explored the neurogenic, behavioral, and functional impact of a constitutive and heterozygous AP2γ deletion in mice from early postnatal development until adulthood. AP2γ deficiency promotes downregulation of hippocampal glutamatergic neurogenesis, altering the ontogeny of emotional and memory behaviors associated with hippocampus formation. The impairments induced by AP2γ constitutive deletion since early development leads to an anxious-like phenotype and memory impairments as early as the juvenile phase. These behavioral impairments either persist from the juvenile phase to adulthood or emerge in adult mice with deficits in behavioral flexibility and object location recognition. Collectively, we observed a progressive and cumulative impact of constitutive AP2γ deficiency on the hippocampal glutamatergic neurogenic process, as well as alterations on limbic-cortical connectivity, together with functional behavioral impairments. The results herein presented demonstrate the modulatory role exerted by the AP2γ transcription factor and the relevance of hippocampal neurogenesis in the development of emotional states and memory processes.
