Human airway cells prevent SARS-CoV-2 multibasic cleavage site cell culture adaptation
Abstract
Virus propagation methods generally use transformed cell lines to grow viruses from clinical specimens, which may force viruses to rapidly adapt to cell culture conditions, a process facilitated by high viral mutation rates. Upon propagation in VeroE6 cells, SARS-CoV-2 may mutate or delete the multibasic cleavage site (MBCS) in the spike protein. Previously, we showed that the MBCS facilitates serine protease-mediated entry into human airway cells (Mykytyn et al., 2021). Here, we report that propagating SARS-CoV-2 on the human airway cell line Calu-3 – that expresses serine proteases – prevents cell culture adaptations in the MBCS and directly adjacent to the MBCS (S686G). Similar results were obtained using a human airway organoid-based culture system for SARS-CoV-2 propagation. Thus, in-depth knowledge on the biology of a virus can be used to establish methods to prevent cell culture adaptation.
Introduction
Severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) is the causative agent of the ongoing coronavirus disease (COVID-19) pandemic. SARS-CoV-2 emerged late 2019 in China and had spread globally within a few months (Zhu et al., 2020). An unprecedented rapid vaccine development response has led to approval of the first COVID-19 vaccines at the end of 2020. Conversely, the quest for efficacious specific antiviral therapies against SARS-CoV-2 was not successful. The lack of antivirals, the high adaptive capacity of the virus, and the emergence of new strains, indicate that further research on SARS-CoV-2 biology is necessary.
The first step in most SARS-CoV-2 laboratory studies is in vitro virus propagation to obtain highly concentrated virus stocks. Despite recent advances in physiologically relevant in vitro cell culture systems, methods to propagate clinical isolates have not changed since the first cell lines were established. Traditionally, virus propagation relies on transformed cell lines to produce progeny viruses after inoculation of these cells with a clinical specimen containing the virus. The most widely used cell line in virology is the Vero cell line, which is derived from the kidney of an African green monkey. This cell line and its derivatives (e.g. VeroE6, Vero118, etc) contain genomic deletions of genes involved in the antiviral interferon response (Osada et al., 2014). Such mutations are common in transformed cell lines and allow unbridled virus replication, facilitating the production of high titer virus stocks and allowing research on a wide range of viruses. These isolated viruses are often adapted to their cell culture systems due to their high mutation rates. The development of first and next generation sequencing methods revealed that these adapted viruses were heavily mutated and had drifted significantly from their natural counterparts (Alfson et al., 2018; Lau et al., 2020; Sutter and Moss, 1992; Tamura et al., 2013; Wei et al., 2017). Cell culture adaptive mutations often affect viruses phenotypically, both in vitro and in vivo.
Coronavirus replication is initiated when the viral spike protein binds to the entry receptor on the cell and fuses viral and cellular membranes, allowing the viral RNA to enter the cytoplasm (Hulswit et al., 2016). The spike protein is composed of two domains, the S1 receptor binding domain and the S2 fusion domain, which are separated by the S1/S2 cleavage site. Proteolytic cleavage at the S1/S2 site and the more C-terminal S2’ site is required for coronavirus infectivity as this turns on the fusogenic activity of the S2 domain (Millet and Whittaker, 2015). A distinctive feature of SARS-CoV-2 is the presence of a specific S1/S2 cleavage site in the viral spike protein (Coutard et al., 2020). The SARS-CoV-2 S1/S2 cleavage site contains three basic arginines interrupted by a non-polar alanine (RRAR) and is therefore referred to as a multibasic cleavage site (MBCS). This feature is remarkable as all other viruses within the clade of SARS-related viruses, including SARS-CoV, lack a PRRA insertion that creates this multibasic cleavage site, leading to speculations on whether this site is essential for efficient replication in the human respiratory tract (Hoffmann et al., 2020). Importantly, SARS-CoV-2 isolates that are cultured in the lab rapidly obtain mutations or deletions in the MBCS (Davidson et al., 2020; Klimstra et al., 2020; Lau et al., 2020; Liu et al., 2020; Ogando et al., 2020). On VeroE6 cells, these mutated viruses have a large plaque phenotype, grow to higher titers and outcompete the wild-type virus within 1–4 passages. These mutations have rarely been observed in human clinical specimens (Liu et al., 2020; Wong et al., 2020) and purified MBCS mutants do not efficiently replicate in hamsters (Johnson et al., 2020; Lau et al., 2020). We have recently shown that the MBCS is not required for entry into VeroE6 cells, but is essential for entry into human airway organoids (Mykytyn et al., 2021). We also reported that the MBCS facilitated plasma membrane serine protease-mediated entry, whereas it decreased the dependency on endosomal cathepsins for entry. The serine protease inhibitor camostat mesylate, but not a cathepsin inhibitor, effectively inhibited SARS-CoV-2 entry in human airway organoids, whereas the opposite was observed in VeroE6 cells. These findings demonstrate that SARS-CoV-2 enters relevant airway cells using serine proteases but not cathepsins, and suggest that the multibasic cleavage site is an adaptation to this viral entry strategy. The loss of the MBCS may be an adaptation to the cathepsin-mediated entry pathway present in VeroE6 cells.
In this study, we investigated whether mutations in the SARS-CoV-2 spike MBCS could be prevented in a human airway cell line (Calu-3) and 2D air-liquid interface (ALI) airway organoids in which SARS-CoV-2 enters using serine proteases.
Results

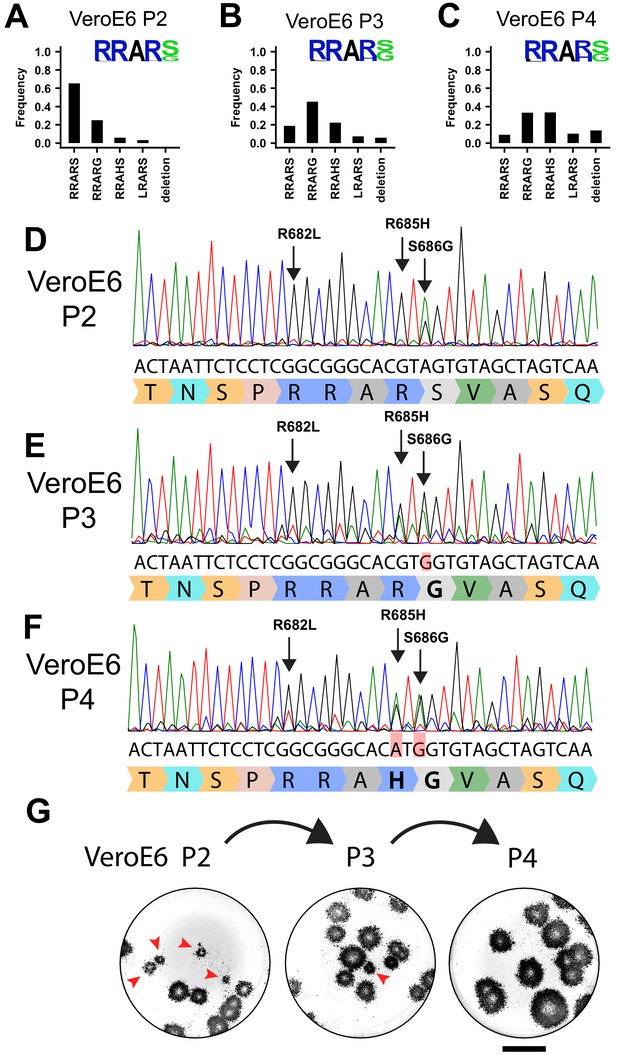

SARS-CoV-2 isolates that are cultured in the lab rapidly lose their spike MBCS (Davidson et al., 2020; Klimstra et al., 2020; Lau et al., 2020; Liu et al., 2020; Ogando et al., 2020). To investigate the extent of cell culture adaptation in our SARS-CoV-2 stocks, we deep-sequenced passage 2, 3, and 4 stocks (P2, P3, and P4) of the BavPat-1 or Munich-1 strain propagated on VeroE6 cells. These stocks were produced from a P1 virus stock grown on VeroE6 cells (Figure 1—figure supplement 1A). In the P2 stock, the majority of reads (65.3%) in the MBCS were identical to the WT sequence (Figure 1A). In the multibasic RxxR motif both the first (R682L) and the last (R685H) arginine were mutated in 3.5% and 6.1% of reads, respectively. An additional mutation (S686G) directly C-terminal to the MBCS was detected at 25.1%. As this variant increased during passaging and therefore could be an adaptation to cell culture, we included it in our analyses. The P3 stock contained 18.8% wild-type (WT) viruses and the S686G was the major MBCS variant at 45.4% while mutations R685H and R682L were present at 22.4% and 7.3%, respectively. A deletion (Del679-688) of the entire MBCS was found as well at 6.1% (Figure 1B). In the P4 virus, the dominant variant contained the R685H mutation at 33.4%, while the Del679-688 and R682L increased to 13.9% and 10.4%, respectively. In the P4 virus, only 9% of reads were WT. Despite the strikingly low level of WT viruses in the VeroE6 stocks, the predominant cleavage motif for the P2 and P3 was still RRARS since mutations never co-occurred (Figure 1A–C). Our results show that a thorough analysis of deep-sequencing data is required to critically assess culture adaptation. The observations from deep-sequencing data were consistent with Sanger sequencing analysis (Figure 1D–F). In agreement with the mixed population of wildtype (WT) and mutant viruses, we observed small (non-adapted) and large (cell culture-adapted) plaque phenotypes in a plaque assay for the P2 virus, but plaques increased in size during passaging (Figure 1G).

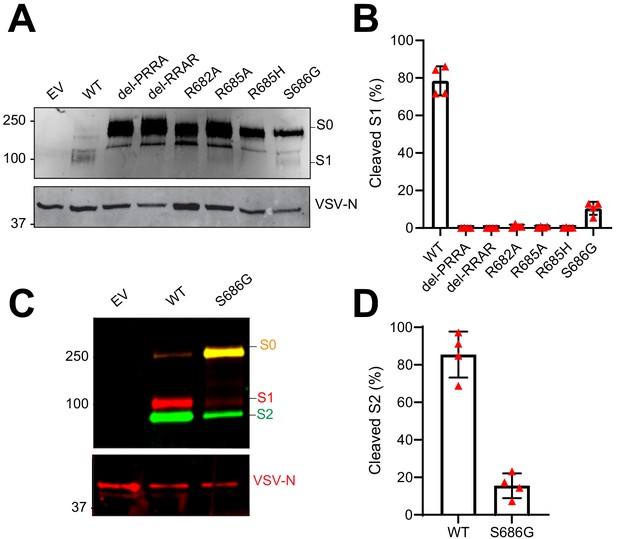

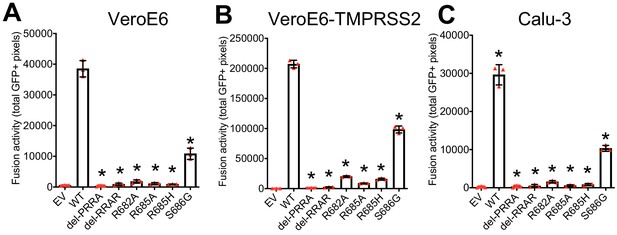

Whereas the MBCS mutations directly removed arginines (R682L, R685H and the deletion) from the minimal RxxR furin motif, the most common stock mutation was the S686G. This site lies directly C-terminal from the MBCS at positions 682–685, indicating that it may also affect the MBCS functionally. To test this, we assessed the infectivity of the 686 mutation using vesicular stomatitis virus (VSV)-based pseudoviruses expressing a green fluorescent protein (GFP) as described before (Mykytyn et al., 2021). Western blot analysis of cleaved and uncleaved S1 revealed that proteolytic cleavage was observed for the WT SARS-CoV-2 pseudovirus and abrogated by all MBCS mutations tested (del-PRRA, del-RRAR, R682A, R685A, and R685H) (Figure 2A,B). For the S686G mutation ~10% cleaved S1 was observed, whereas this was ~80% for WT S (Figure 2A,B). The same difference in cleavage between WT and S686G pseudoviruses was observed for S2 (Figure 2C,D). As expected based on earlier work (Mykytyn et al., 2021), SARS-CoV-2 pseudoviruses with MBCS mutations were more infectious on VeroE6 cells and less infectious on Calu-3 cells (Figure 3A–C). A similar trend was observed for the S686G mutant spike. The infectivity on VeroE6-TMPRSS2 cells was similar for all spikes tested but the WT spike benefited more from TMPRSS2 expression (Figure 3D–E). Protease inhibitors camostat and E64D were then used to block serine proteases and cathepsins, respectively, to assess how spike mutations affect the route of entry. The stable expression of TMPRSS2 in VeroE6 cells leads to entry of WT pseudoviruses via this protease instead of cathepsin-mediated entry, but SARS-CoV-2 MBCS mutants and to a lesser extent the S686G mutant retained partial cathepsin mediated entry (Figure 3F–I). In addition, a GFP-complementation fusion assay, in which cell-cell fusion occurs at the plasma membrane, showed that MBCS mutations and to a lesser extent the S686G mutation abrogated fusion in VeroE6, VeroE6-TMPRSS2, and Calu-3 cells (Figure 4A–C). These data explain why VeroE6-propagated SARS-CoV-2 stocks rapidly accumulate mutations in the MBCS and at spike position 686. Despite being outside of the MBCS, the S686G mutation impairs spike cleavage, cell-cell fusion and serine protease usage, but not as dramatically as the MBCS mutations or deletions. The low infectivity of MBCS mutants and the S686G mutant on Calu-3 cells indicates that WT viruses could have a selective advantage in these cells.

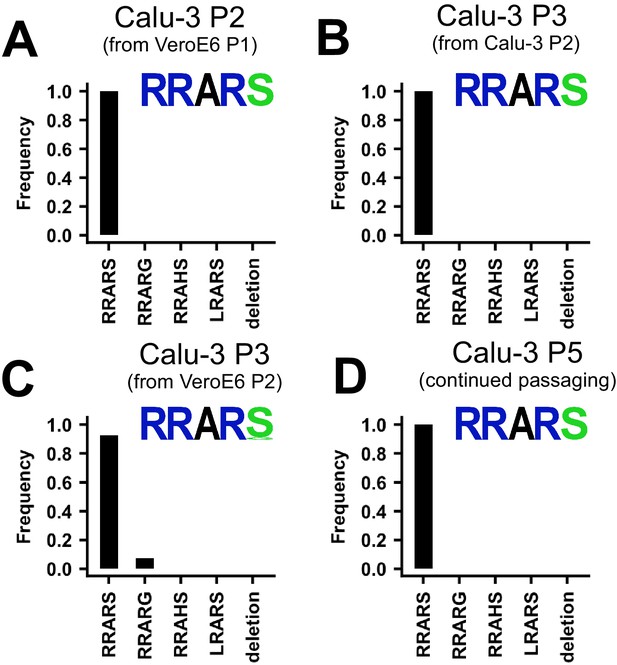

In order to establish culture conditions in which SARS-CoV-2 is genetically stable, we tested whether WT viruses would have a selective advantage on Calu-3 cells that possess serine protease mediated entry and little cathepsin-mediated entry (Mykytyn et al., 2021). For these experiments, we first produced a Calu-3 P2 virus from the VeroE6 P1 stock (Figure 5A). This stock was 100% WT in the MBCS and no major variants (>50%) were detected in the rest of the genome (Figure 5—figure supplement 1C). An additional round of passaging on Calu-3 cells did not lead to any MBCS mutations, or mutations elsewhere (Figure 5B, Figure 5—figure supplement 1C). A Calu-3 P3 from a VeroE6 P2 virus did still contain the S686G at low frequency (7.4%) (Figure 5C), but continued passaging to P5 completely removed the S686G (Figure 5D). Again, we did not observe any other major variant mutations in the rest of the genome (Figure 5—figure supplement 1C). We also produced Calu-3 P4 virus from a VeroE6 P3 stock and we show that while this Calu-3 P4 virus had lost all MBCS mutations, the S686G mutation remained at a frequency of 65.7% (Figure 5—figure supplement 1A). The addition of E64D to block any cathepsin-mediated entry decreased the frequency of S686G by ~11%, to 54.3%, but did not remove S686G entirely (Figure 5—figure supplement 1B). These results support our earlier findings (Figure 2; Figure 3; Figure 4) that the S686G is a less severe cell culture adaptation compared with MBCS mutations, and more importantly show that Calu-3 cells can be used to grow genetically stable stocks without MBCS mutations or S686G. Additionally, stocks grown on Calu-3 cells reached titers of 1.47 × 106–2.1 × 107 TCID50/ml, indicating that Calu-3 cells support the production of high titer stocks.

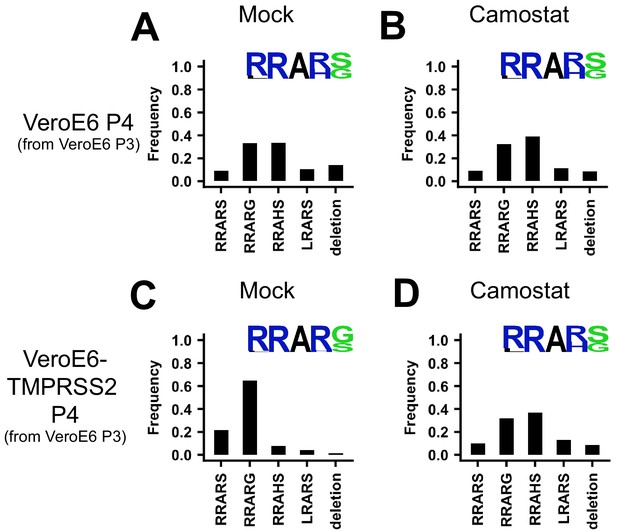

To confirm that serine proteases are responsible for the reversal of cell culture adaptation observed in Calu-3 cells, we passaged the adapted VeroE6 P3 stock (Figure 1B) on regular VeroE6 cells or VeroE6-TMPRSS2 cells. P4 viruses grown on VeroE6 cells were only 9% WT and R685H was the dominant variant at 33.4% (Figure 6A; redisplay of Figure 1C). R682L and Del679-688 were present at 10.4% and 13.9%, respectively. Propagation of SARS-CoV-2 in VeroE6-TMPRSS2 cells resulted in an increase in the frequency of WT viruses at 21.7% and a decrease in the frequency of MBCS mutations (7.9% R685H; 4.2% R682L; 1.5% Del679-688), but the S686G remained at 64.6% (Figure 6C). The addition of the serine protease inhibitor camostat (10 μM) to the VeroE6-TMPRSS2 culture, but not the VeroE6 culture (Figure 6B), increased the frequency of MBCS mutations (36.6% R685H; 13% R682L; 8.8% Del679-688), confirming that serine proteases prevent cell culture adaptation (Figure 6D). As TMPRSS2 expression prevented MBCS mutations, we tested whether the addition of trypsin (0.7 μg/ml TPCK-Trypsin) would have a similar effect. Surprisingly, the addition of trypsin to VeroE6 cells, but not VeroE6-TMPRSS2 cells, led to deletion of the entire MBCS (Figure 6—figure supplement 1A,C). This deletion may arise due to the complete cleavage (S1/S2 and S2’) of virus particles that are not bound to the cellular membranes, which would inactivate them. Cell surface expressed TMPRSS2 could accelerate TMPRSS2-mediated entry and cell-cell spread, reducing the chance of trypsin cleavage in the supernatant. Additionally, we tested whether the addition of fetal bovine serum (FBS, heat-inactivated, 10% final concentration) affected culture adaptation as this is commonly added when producing viral stocks. FBS had a similar effect to trypsin in the VeroE6, but not the VeroE6-TMPRSS2 culture, indicating that proteases capable of cleaving spike may be present in serum and that FBS should be avoided when propagating SARS-CoV-2 (Figure 6—figure supplement 1B,D).

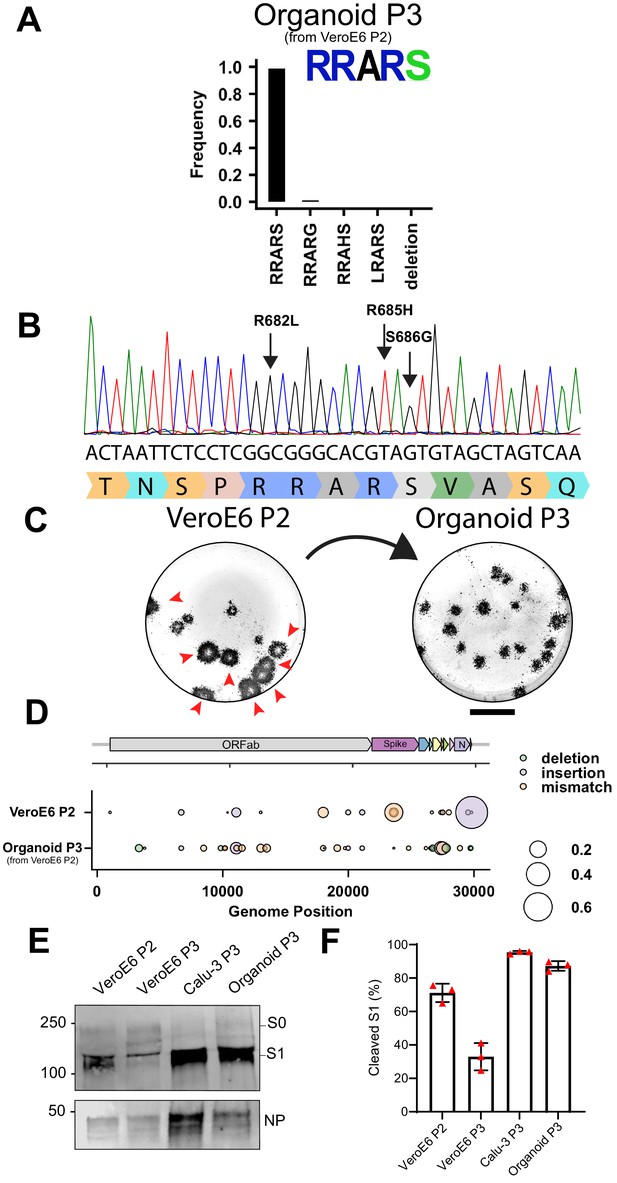

Next, we hypothesized that the best way to prevent cell culture adaptation would be to propagate the virus in non-transformed human airway cells. Recent advances in stem cell biology have enabled the establishment of human organoid culture systems (Katsura et al., 2020; Nikolić et al., 2017; Sachs et al., 2019; Salahudeen et al., 2020; Sato et al., 2009; Youk et al., 2020). These organoid cultures consist of stem cells that self-renew, allowing prolonged passaging and expansion, but can also differentiate to mature cell types, such as ciliated cells, goblet cells, and club cells. Organoids of the airways, the alveoli, and the intestine have recently been used by us to study SARS-CoV-2 entry and pathogenesis (Katsura et al., 2020; Lamers et al., 2020a; Lamers et al., 2020b; Mykytyn et al., 2021; Salahudeen et al., 2020; Youk et al., 2020; Zhou et al., 2020). Pseudoviruses containing MBCS mutations infected human airway organoids poorly (Mykytyn et al., 2021), indicating that these mutations could be prevented by virus propagation in these cells. To produce stocks in human airway organoids, we differentiated the organoids at 2D in transwell inserts at air-liquid interface for 12 weeks as described before (Figure 7A; Mykytyn et al., 2021). Apical cells, including ciliated cells, in these cultures expressed TMPRSS2 as shown by immunohistochemistry (Figure 7B). To produce viral stocks, 2D airway organoids were inoculated at the apical side at a MOI of 0.05 using the VeroE6 P2 stock (Figure 1A). After a 2-hr incubation, cells were washed three times to remove unbound particles. On day 2–5 post-infection, apical washes were collected and stored at 4°C. During virus collections, bound virus particles were released from cells by pipetting directly on the cell layer. Virus collections from day 2 and day 3 (d2+3), and day 4 and day 5 (d4+5) were pooled, centrifuged, and filtered to remove debris, dead cells and mucus. In these cultures, ciliated cells were infected, as shown by confocal imaging at day 3 post infection (Figure 7C). At day 5, cultures exhibited widespread infection (Figure 7D) and significant cytopathic effects including loss of ciliated cells (Figure 7D–E) and syncytium formation (Figure 7E). To remove cytokines that could interfere in downstream experiments (such as interferons), we exchanged the medium in the filtered virus collections three times using an Amicon Ultra-15 column (100 kDa cutoff). The resulting titers from the d2+3 and d4+5 stocks were 5.64 × 105 and 1.00 × 107 TCID50/ml, respectively, indicating that high titer virus stocks can be made in human airway organoids. Sequencing demonstrated that the high titer organoid stock (d4+5) had a 98.9% WT spike sequence, without multibasic cleavage site mutations and the S686G mutation at only 1.1% (Figure 8A–B). In accordance, the Organoid P3 virus produced small plaques (Figure 8C). No major variants were detected in the rest of the genome (Figure 8D). Next, we investigated S1/S2 cleavage of the VeroE6 P2, P3, Calu-3 P3, and Organoid P3 virus stocks by immunoblot (Figure 8E). The non-adapted Calu-3 and organoid stocks were >85% cleaved, while the VeroE6 P2 and P3 stocks were 71.2% and 33% cleaved, respectively (Figure 8F). The findings support that the Calu-3 and organoid stocks are non-adapted and indicate that in vivo the S1/S2 cleavage takes place in the producing cell.
Discussion
The rapid loss of the SARS-CoV-2 MBCS in cell culture has underlined that some in vitro propagation systems may fail to model key aspects of the viral life cycle. As these mutations directly affect the relevance and translatability of all laboratory SARS-CoV-2 experiments, it is pivotal to sort out exactly why these occur in order to prevent them. We and others have previously reported that the SARS-CoV-2 MBCS enhances serine protease-mediated entry, the dominant entry pathway in human airway cells (Hoffmann et al., 2020; Mykytyn et al., 2021). VeroE6 cells, commonly used in the lab to grow virus stocks, lack this entry pathway, forcing the virus to use endosomal cathepsins for entry. Cell culture adaptations promoting cathepsin-mediated entry were also observed for the human coronavirus 229E and adapted viruses showed a reduced ability to replicate in differentiated airway epithelial cells (Bertram et al., 2013; Shirato et al., 2017). These observations led us to hypothesize that mutations in the MBCS could be prevented in cells with an active serine protease-mediated entry pathway. In this study, we show that the ectopic expression of the serine protease TMPRSS2 in VeroE6 cells prevented MBCS mutations. Virus propagation in Calu-3 cells, which naturally express serine proteases, also prevented cell culture adaptation. Similar results were obtained using a human airway organoid-based culture system for SARS-CoV-2 propagation.
Our study shows that SARS-CoV-2 rapidly adapts to VeroE6 cell culture. Therefore, deep-sequencing of viral stocks, which offers a thorough analysis beyond the consensus sequence, is essential. As none of the MBCS mutations co-occurred, consensus sequence logos of culture adapted stocks were often WT, while actually only 10–20% of viral reads contained the WT sequence. Therefore, besides reporting the consensus sequence SARS-CoV-2 studies should preferably also report the percentage of WT reads in the MBCS. The first adaptation to occur in our stocks was the S686G mutation, which lies directly adjacent to the MBCS and decreased Calu-3 infectivity, fusogenicity and S1/S2 cleavage, but not as severely as MBCS mutations. Interestingly, this mutation is rapidly positively selected in ferrets (Richard et al., 2020), and also transmitted, suggesting that there are key differences in transmission between humans and ferrets. Alternatively, it is possible that S686G optimizes cleavage by a specific ferret protease.
SARS-CoV-2 is generally grown on VeroE6 cells in the presence of 1–10% FBS, as this allows the production of highly concentrated virus stocks. Here, we show that SARS-CoV-2 rapidly acquired mutations in the MBCS upon passaging in VeroE6 cells and that the addition of FBS increases the frequency of MBCS mutations. Currently, we do not know which components of FBS lead to the increased rate of cell culture adaptation, but we hypothesize that (serine) proteases, naturally present in serum (Shimomura et al., 1992) may be responsible as the addition of trypsin dramatically increased the frequency of MBCS mutations and even led to the deletion of the entire MBCS. The observation that the MBCS is a disadvantage in the presence of trypsin indicates that S2’ proteolytic cleavage (performed by trypsin Hoffmann et al., 2020) should not occur in the supernatant where it would cause all spikes to shed their S1 and adopt their post fusion conformation prior to encountering the plasma membrane. Alternatively, protease inhibitors in serum (Gstraunthaler, 2003) may block transmembrane serine proteases. For these reasons, the use of serum should be avoided when producing virus stocks. The use of defined serum-free media avoids the uncertainty that factors in serum affect the genetic stability of a virus and increase experimental reproducibility due to variations in serum sources.
We show that the expression of the serine protease TMPRSS2 decreases the replicative fitness of MBCS mutant SARS-CoV-2 viruses, which can then be outcompeted by WT viruses. This indicates that the MBCS is an adaptation to serine proteases and that the serine protease-mediated entry pathway is used for entry in vivo. This is in agreement with our earlier observations that SARS-CoV-2 enters using serine proteases on airway organoids (Mykytyn et al., 2021) and that MBCS mutant pseudoviruses could not efficiently infect these cells. Low infectivity of MBCS mutants on the airway cell line Calu-3 was also noted by Hoffmann et al., 2020. In contrast, two CRISPR-based survival screens recently identified several endosomal proteins, including cathepsin L, as essential SARS-CoV-2 genes (Daniloski et al., 2021; Wei et al., 2020). As noted recently by Bailey and Diamond, 2021, the identification of endosomal host factors as proviral in cell-line-based CRISPR screens requires validation in primary cells. Our observation that WT viruses have a selective advantage in 2D airway organoids confirms that the endosomal entry pathway is of little significance in relevant cells.
As new SARS-CoV-2 strains are emerging now and will continue to emerge for as long as SARS-CoV-2 circulates in humans, there is a need to develop propagation systems that will preserve genetic stability for any given SARS-CoV-2 mutant originating from a human respiratory sample. The human airway organoid model for SARS-CoV-2 propagation established in this study (Figure 8) allows high titer SARS-CoV-2 production and was most successful in removing MBCS mutations. We have not observed any major variants associated with virus propagation in this system, but we cannot exclude that some minor variants could be culture adaptations. The self-renewing capacity of organoids allows labs to share organoid lines, allowing a level of reproducibility similar to that of transformed cell lines. In addition, organoids can be grown from a wide range of organs and species to best model the in vivo environment of a particular virus. As an accurate modeling of viral target cells is likely to prevent most forms of cell culture adaptation, we expect that in the future organoid-based systems are likely to replace transformed cell lines for viral stock production.
In conclusion, this study shows that SARS-CoV-2 rapidly adapts to VeroE6 cell culture propagation and that this can be prevented by using cell lines with an active serine protease-mediated entry pathway (VeroE6-TMPRSS2 or Calu-3). Alternatively, a 2D airway organoid-based cell culture model can be used for SARS-CoV-2 propagation if in the future new variants emerge that are not genetically stable on Calu-3 cells. Our study also shows that deep-sequencing rather than consensus sequencing of viral stocks is critical for obtaining relevant and reproducible results in SARS-CoV-2 studies.
Materials and methods
Cell lines
Request a detailed protocolVeroE6 wildtype and retrovirally transduced cell lines were maintained in Dulbecco’s modified Eagle’s medium (DMEM, Lonza) supplemented with 10% fetal bovine serum (FBS, Sigma, F7524, heat inactivated for 30 min at 56°C), HEPES, sodium bicabonate, penicillin (100 IU/mL), and streptomycin (100 IU/mL). VeroE6-TMPRSS2, VeroE6-GFP1-10, VeroE6-TMPRSS2-GFP1-10, and Calu-3-GFP1-10 cells were generated as described before (Mykytyn et al., 2021). Calu-3 and Calu-3-GFP1-10 cells were maintained in Eagle’s modified Eagle’s medium (EMEM) supplemented with 10% FBS, penicillin (100 IU/mL) and streptomycin (100 IU/mL). All cell lines were grown at 37°C in a humidified CO2 incubator, and transduced cell lines were cultured in the presence of selection antibiotics. VeroE6 and Calu-3 cells were derived from ATCC. They were tested negative for mycoplasma.
SARS-CoV-2 propagation in cell lines
Request a detailed protocolSARS-CoV-2 (isolate BetaCoV/Munich/BavPat1/2020; European Virus Archive Global #026 V-03883; kindly provided by Dr. C. Drosten) was propagated to the indicated passage on VeroE6, VeroE6-TMPRSS2 or Calu-3 cells, as indicated, in Advanced DMEM/F12 (Gibco), supplemented with HEPES, Glutamax, penicillin (100 IU/mL) and streptomycin (100 IU/mL) (AdDF+++) at 37°C in a humidified CO2 incubator. Infections were performed at a multiplicity of infection (MOI) of 0.01 and virus was harvested after 72 hr. The culture supernatant was cleared by centrifugation and stored at −80°C. Calu-3 stocks were additionally cleared using a 0.45 μM low protein binding filter (Millipore) to remove mucus debris produced by these cells and the medium was exchanged three times for Opti-MEM I (1X) + GlutaMAX (Gibco) using an Amicon Ultra-15 column (100 kDa cutoff). At the end of each centrifugation step, approximately 2 ml was left in the top compartment. After three exchanges, the purified virus was transferred to a new 50 ml tube and the Amicon Ultra-15 column was washed ten times by adding 1 ml Opti-MEM I (1X) + GlutaMAX (Gibco) to the top compartment, pipetting up and down several times on the filter and adding each wash to the tube containing the purified virus preparation. This step was repeated until the volume in the purified virus stock was equal to the original volume of culture supernatant. Purified virus was stored at −80°C in aliquots. Stock titers were determined by preparing 10-fold serial dilutions in Opti-MEM I (1X) + GlutaMAX (Gibco). One-hundred µl of each dilution was added to monolayers of 2 × 104 VeroE6 cells in the same medium in a 96-well plate. Plates were incubated at 37°C for 5 days and then examined for cytopathic effect. The TCID50 was calculated according to the method of Spearman and Kärber. All work with infectious SARS-CoV-2 was performed in a Class II Biosafety Cabinet under BSL-3 conditions at Erasmus Medical Center.
Cloning
Request a detailed protocolCloning of SARS-CoV-2 S WT, del-PRRA, R685A, and R685H constructs for pseudovirus production and GFP-complementation fusion assay was performed as described before (Mykytyn et al., 2021). Del-RRAR, R682A, and S686G plasmids were generated by mutagenesis PCR.
Organoid culture and differentiation
Request a detailed protocolHuman airway stem cells were isolated and grown into organoids, and passaged as described before (Lamers et al., 2020a) using a protocol adapted from Sachs et al., 2019. Adult lung tissue was obtained from residual, tumor-free, material obtained at lung resection surgery for lung cancer. The Medical Ethical Committee of the Erasmus MC Rotterdam granted permission for this study (METC 2012–512). Study procedures were performed according to the Declaration of Helsinki, and in compliance with relevant Dutch laws and institutional guidelines. The tissues obtained were anonymized and non-traceable to the donor. In this study we used organoids from one donor, from which bronchial and bronchiolar organoids were grown. Differentiation of human airway organoids at air-liquid interface was performed as described before (Lamers et al., 2020a). Cultures were differentiated for 8–12 weeks at air-liquid interface.
SARS-CoV-2 stock production on 2D air-liquid interface human airway organoids
Request a detailed protocolTo produce stocks in human airway organoids, we differentiated the bronchial organoids in transwell inserts at air-liquid interface for twelve weeks. A total of 12 12 mm transwell inserts were washed three times in AdDF+++ before inoculation at the apical side at a MOI of 0.05. After a 2-hr incubation, cells were washed three times with AdDF+++ to remove unbound particles. Twenty-four hours post-infection, cells were washed by adding 500 ul AdDF+++ to the apical side of the cells and incubating at 37°C 5% CO2 for 30 min to disperse the newly produced virus particles, facilitating the next round of infection. Next, the medium was removed and discarded, as generally little virus is produced in the first 24 hr (Lamers et al., 2020a). At days 2–5 post-infection, washes were collected and stored at 4°C. During collections, bound virus particles were removed from the cells by pipetting three times directly on the cell layer after the 30 min incubation step at 37°C 5% CO2. Virus collections from day 2 and day 3 (d2+3) and day 4 and day 5 (d4+5) were pooled, mixed by pipetting, centrifuged at 4000 x g for 4 min, and filtered through a 0.45 um low protein binding filter (Millipore) to remove debris, dead cells, and mucus. To remove cytokines that could interfere in downstream experiments (such as interferons), we exchanged the medium in the filtered virus collections three times with Opti-MEM I (1X) + GlutaMAX (Gibco) using an Amicon Ultra-15 column (100 kDa cutoff). At the end of each centrifugation step, approximately 2 ml was left in the top compartment. After three exchanges, the purified virus was transferred to a new 50 ml tube and the Amicon Ultra-15 column was washed ten times by adding 1 ml Opti-MEM I (1X) + GlutaMAX (Gibco) to the top compartment, pipetting up and down several times on the filter and adding each wash to the tube containing the purified virus preparation, resulting in a total volume of ~12 ml. Next, virus preparations were aliquoted in 500 μl aliquots, stored at −80°C and thawed for titrations on VeroE6 cells.
Pseudovirus assay
Request a detailed protocolPseudovirus production, infectivity, and entry assays were performed as described before (Mykytyn et al., 2021). Briefly, pseudoviruses expressing WT, MBCS mutant, and S686G S were titrated by preparing 10-fold serial dilutions in Opti-MEM I (1X) + GlutaMAX (Gibco). Thirty µl of each dilution was added to monolayers of 2 × 104 VeroE6, VeroE6-TMPRSS2 or 8 × 104 Calu-3 cells in the same medium in a 96-well plate. Titrations were performed in triplicate. Plates were incubated at 37°C overnight and then scanned on the Amersham Typhoon Biomolecular Imager (channel Cy2; resolution 10 µm; GE Healthcare). Entry routes were determined by pre-treating monolayers of VeroE6 or VeroE6-TMPRSS2 cells with a concentration range of camostat mesylate (Sigma) or E64D (MedChemExpress) diluted in Opti-MEM I (1X) + GlutaMAX (Gibco) for 2 hr prior to infection with 1 × 103 pseudovirus. Plates were incubated at 37°C overnight and then scanned on the Amersham Typhoon Biomolecular Imager (channel Cy2; resolution 10 mm; GE Healthcare). All pseudovirus experiments were quantified using ImageQuant TL 8.2 image analysis software (GE Healthcare).
Pseudovirus concentration
Request a detailed protocolPseudoviruses were concentrated as described before (Mykytyn et al., 2021) on a 10% sucrose cushion (10% sucrose, 15 mM Tris–HCl, 100 mM NaCl, 0.5 mM EDTA) for 1.5 hr at 20,000 x g at 4°C. Supernatant was decanted and pseudoviruses resuspended in Opti-MEM I (1X) + GlutaMAX (Gibco) to achieve 100-fold concentration.
Immunoblotting
Request a detailed protocolConcentrated pseudovirus stocks were diluted to a final concentration of 1x Laemmli loading buffer (Bio-Rad) containing 5% 2-mercaptoethanol. Authentic viruses were diluted to a final concentration of 2x Laemmli loading buffer containing 5% 2-mercaptoethanol. All samples were boiled for 30 min at 95°C. Samples were used for SDS-PAGE analysis using precast 10% TGX gels (Bio-Rad). Gels were run in tris-glycine SDS (TGS) buffer at 50V for 30 min and subsequently at 120V for 90 min. Transfer was performed at 300mA for 55 min onto 0.45 µm Immobilon-FL PVDF membranes in TGS containing 20% methanol. Spike was stained using polyclonal rabbit-anti-SARS-CoV S1 (1:1000, Sino Biological), mouse-anti-SARS-CoV-2 S2 (1:1000, Genetex), SARS-CoV-2 nucleoprotein was stained using rabbit-anti-SARS-CoV NP (1:1000, Sino Biological) and VSV nucleoprotein was stained using mouse-anti-VSV-N (1:1000, Absolute Antibody) followed by infrared-labelled secondary antibodies (1:20,000; Licor). Western blots were scanned on an Odyssey CLx and analyzed using Image Studio Lite Ver 5.2 software.
GFP-complementation fusion assay
Request a detailed protocolFusion assays were performed as described before (Mykytyn et al., 2021). Briefly, HEK-293T cells were transfected with 1.5 μg pGAGGS-spike (all coronavirus S variants described above) DNA and pGAGGS-β-Actin-P2A-7xGFP11-BFP DNA or empty vector DNA with PEI in a ratio of 1:3 (DNA: PEI). Transfected HEK-293T cells were incubated overnight at 37°C 5% CO2, resuspended in PBS and added to GFP1-10 expressing VeroE6, VeroE6-TMPRSS2 and Calu-3 cells in Opti-MEM I (1X) + GlutaMAX at a ratio of 1:80 (HEK-293T cells: GFP1-10 expressing cells). Fusion events were quantified by detecting GFP+ pixels after 18 hr incubation at 37°C 5% CO2 using Amersham Typhoon Biomolecular Imager (channel Cy2; resolution 10 µm; GE Healthcare). Data was analyzed using the ImageQuant TL 8.2 image analysis software (GE Healthcare) by calculating the sum of all GFP+ pixels per well.
Plaque assay
Request a detailed protocolVirus stock were diluted in 10-fold serial dilutions in 2 ml Opti-MEM I (1X) + GlutaMAX (Gibco). One ml of each dilution was added to monolayers of 2 × 106 VeroE6 cells in the same medium in a six-well plate. Cells were incubated at 37°C for 1 hr and then overlaid with 1.2% Avicel (FMC biopolymers) in Opti-MEM I (1X) + GlutaMAX (Gibco) for 72 hr. Next, they were washed once in PBS, fixed in formalin, permeabilized in 70% ethanol and washed in PBS again. Cells were blocked in 3% BSA (bovine serum albumin; Sigma) in PBS, stained with mouse anti-nucleocapsid (Sino biological; 1:1000) in PBS containing 0.1% BSA, washed three times in PBS, then stained with goat anti-mouse Alexa Fluor 488 (Invitrogen; 1:2000) in PBS containing 0.1% BSA and then washed three times in PBS. All staining steps were performed at room temperature for one hour. Plates were scanned on the Amersham Typhoon Biomolecular Imager (channel Cy2; resolution 10 µm; GE Healthcare).
Sanger sequencing
Request a detailed protocolTo sequence spike gene fragments, RNA was extracted as described above and used for cDNA synthesis using Superscript IV (Invitrogen), according to the manufacturer’s instructions. PCR was performed using PfuUltra II Fusion HS DNA Polymerase (Agilent Technologies) and primers 5′-TGACACTACTGATGCTGTCCGTG-3′ and 5′-GATGGATCTGGTAATATTTGTG-3′ under the following conditions: initial denaturation at 95°C for 3 min, followed by 25 cycles of (95°C for 20 s, 52°C for 20 s, and 72°C for 60 s), and a final extension at 72°C for 10 min. The amplicons were purified (Qiagen PCR purification kit, according to manufacturer) and sequenced with the forward primer using the BigDye Terminator v3.1 Cycle Sequencing Kit and an ABI PRISM 3100 genetic analyzer (Applied Biosystems). The obtained sequences were assembled and aligned using Benchling (MAFFT algorithm).
Fixed immunofluorescence microscopy and immunohistochemistry
Request a detailed protocolTranswell inserts were fixed in formalin, permeabilized in 0.1% Triton X-100, and blocked for 60 min in 10% normal goat serum in PBS (blocking buffer). Cells were incubated with primary antibodies overnight at 4°C in blocking buffer, washed twice with PBS, incubated with corresponding secondary antibodies Alexa488-, 594-conjugated secondary antibodies (1:400; Invitrogen) in blocking buffer for 2 hr at room temperature, washed two times with PBS, incubated for 10 min with Hoechst, washed twice with PBS, and mounted in Prolong Antifade (Invitrogen) mounting medium. SARS-CoV-2 was stained with rabbit-anti-SARS-CoV nucleoprotein (40143-T62, 1:1000, Sino biological). Ciliated cells were stained with mouse-anti-AcTub (sc-23950 AF488, 1:100, Santa Cruz Biotechnology). For TMPRSS2 stainings, formalin-fixed inserts were paraffin-embedded, sectioned, and deparaffinized as described before prior to staining (Rockx et al., 2020). Samples were imaged on a LSM700 confocal microscope using ZEN software (Zeiss). Immunohistochemistry was performed as described previously (Rockx et al., 2020) on formalin fixed, paraffin-embedded Transwell inserts. TMPRSS2 was stained using mouse-anti-TMPRSS2 (sc-515727, 1:200, Santa Cruz Biotechnology), and visualized with goat-anti-mouse (PO260, 1:100, Dako) horseradish peroxidase labeled secondary antibody, respectively. Samples were counterstained using haematoxylin.
Illumina sequencing
Request a detailed protocolFor deep- sequencing, RNA was extracted as described above and subsequently cDNA was generated using ProtoscriptII reverse transcriptase enzyme (New England BiotechnologieBioLabs) according to the manufacturer’s protocol. A SARS-CoV-2 specific multiplex PCR was performed as recently described (Oude Munnink et al., 2020). In short, primers for 86 overlapping amplicons spanning the entire genome were designed using primal scheme (http://primal.zibraproject.org/). The amplicon length was set to 500 bp with 75 bp overlap between the different amplicons. Amplicons were purified with 0.8x AMPure XP beads (Beckman Coulter) and 100 ng of DNA was converted into paired-end Illumina sequencing libraries using KAPA HyperPlus library preparation kit (Roche) with the KAPA unique dual-indexed adapters (Roche), following the manufacturer’s recommendations. The barcode-labeled samples were pooled and analyzed on an Illumina sequencer V3 MiSeq flowcell (2 × 300 cycles).
Sequencing data analysis
Request a detailed protocolAdapters from the paired-end sequencing reads were trimmed using cutadapt (https://doi.org/10.14806/ej.17.1.200) via: cutadapt -B AGATCGGAAGAGCGTCGTGTAGGGAAAGAGTG -b AGATCGGAAGAGCACACGTCTGAACTCCAGTCAC --interleaved --minimum-length 50. The trimmed reads were aligned to the genome of Bavpat-1 with Bowtie2 (Langmead and Salzberg, 2012) using parameters: --no-discordant --dovetail --no-mixed --maxins 2000. Primer sequences were trimmed off from the alignments by soft-clipping the leftmost 33 bases from each sequencing reads using BamUtil (Jun, Wing, Jun et al., 2015) via: trimbam {bam_file} - -L 30 R 0 --clip. Variants calling was done using VarScan2 (Koboldt et al., 2012) and SAMtools (Li et al., 2009) via: samtools mpileup --excl-flags 2048 --excl-flags 256 --fasta-ref {REFERENCE_FAASTA} --max-depth 50000 --min-MQ 30 --min-BQ 30 {BAM_FILE} | varscan pileup2cns --min-coverage 10 --min-reads2 2 --min-var-freq 0.01 --min-freq-for-hom 0.75 --p-value 0.05 --variants 1 > {snp_file}. Sequence logo were generated with logomaker (Tareen and Kinney, 2020) using a custom python script. Plotting of mutation frequencies was done using R and ggplot2 (Hadley, 2016). All scripts used for data processing are deposited in GitHub: https://github.com/nicwulab/SARS-CoV-2_in_vitro_adaptation (Wu et al., 2021). Raw sequencing data has been submitted to the NIH Short Read Archive under accession number: BioProject PRJNA694097.
Statistics
Statistical analysis was performed with the GraphPad Prism 8 and 9 software using an ANOVA or two-way ANOVA followed by a Bonferroni multiple-comparison test.
Data availability
All scripts used for data processing are deposited in GitHub: https://github.com/wchnicholas/SARS_CoV2_mutation (copy archived at https://archive.softwareheritage.org/swh:1:rev:0e62dbb51f3a470936981d205320ac4ac863e3c3). Raw sequencing data are available at the NIH Short Read Archive under accession number: BioProject PRJNA694097.
-
NCBI BioProjectID PRJNA694097. Human airway cells prevent SARS-CoV-2 multibasic cleavage site cell culture adaptation.
References
-
Alternatives to the use of fetal bovine serum: serum-free cell cultureAltex-Alternativen Zu Tierexperimenten 20:275–281.
-
Coronavirus spike protein and tropism changesAdvances in Virus Research 96:29–57.https://doi.org/10.1016/bs.aivir.2016.08.004
-
Fast gapped-read alignment with bowtie 2Nature Methods 9:357–359.https://doi.org/10.1038/nmeth.1923
-
Attenuated SARS-CoV-2 variants with deletions at the S1/S2 junctionEmerging Microbes & Infections 9:837–842.https://doi.org/10.1080/22221751.2020.1756700
-
The sequence alignment/Map format and SAMtoolsBioinformatics 25:2078–2079.https://doi.org/10.1093/bioinformatics/btp352
-
SARS-coronavirus-2 replication in vero E6 cells: replication kinetics, rapid adaptation and cytopathologyJournal of General Virology 101:925–940.https://doi.org/10.1099/jgv.0.001453
-
SARS-CoV-2 is transmitted via contact and via the air between ferretsNature Communications 11:3496.https://doi.org/10.1038/s41467-020-17367-2
-
Long‐term expanding human airway organoids for disease modelingThe EMBO Journal 38:e00300.https://doi.org/10.15252/embj.2018100300
-
Clinical isolates of human coronavirus 229E bypass the endosome for cell entryJournal of Virology 91:e01387-16.https://doi.org/10.1128/JVI.01387-16
-
Cell Culture-Selected substitutions in influenza A(H3N2) Neuraminidase affect drug susceptibility assessmentAntimicrobial Agents and Chemotherapy 57:6141–6146.https://doi.org/10.1128/AAC.01364-13
-
Logomaker: beautiful sequence logos in PythonBioinformatics 36:2272–2274.https://doi.org/10.1093/bioinformatics/btz921
-
Natural transmission of bat-like SARS-CoV-2PRRA variants in COVID-19 patientsClinical Infectious Diseases : An Official Publication of the Infectious Diseases Society of America 10:ciaa953.https://doi.org/10.1093/cid/ciaa953
-
Infection of bat and human intestinal organoids by SARS-CoV-2Nature Medicine 26:1077–1083.https://doi.org/10.1038/s41591-020-0912-6
-
A novel coronavirus from patients with pneumonia in China, 2019New England Journal of Medicine 382:727–733.https://doi.org/10.1056/NEJMoa2001017
