Latent gammaherpesvirus exacerbates arthritis through modification of age-associated B cells

  1. Isobel C Mouat
  2. Zachary J Morse
  3. Iryna Shanina
  4. Kelly L Brown
  5. Marc S Horwitz  Is a corresponding author
  1. Department of Microbiology and Immunology, The University of British Columbia, Canada
  2. Department of Pediatrics, Division of Rheumatology, and British Columbia Children's Hospital Research Institute, The University of British Columbia, Canada
Research Article
  • Cited 1
  • Views 605
  • Annotations
Cite this article as: eLife 2021;10:e67024 doi: 10.7554/eLife.67024

Abstract

Epstein-Barr virus (EBV) infection is associated with rheumatoid arthritis (RA) in adults, though the nature of the relationship remains unknown. Herein, we have examined the contribution of viral infection to the severity of arthritis in mice. We have provided the first evidence that latent gammaherpesvirus infection enhances clinical arthritis, modeling EBV’s role in RA. Mice latently infected with a murine analog of EBV, gammaherpesvirus 68 (γHV68), develop more severe collagen-induced arthritis and a Th1-skewed immune profile reminiscent of human disease. We demonstrate that disease enhancement requires viral latency and is not due to active virus stimulation of the immune response. Age-associated B cells (ABCs) are associated with several human autoimmune diseases, including arthritis, though their contribution to disease is not well understood. Using ABC knockout mice, we have provided the first evidence that ABCs are mechanistically required for viral enhancement of disease, thereby establishing that ABCs are impacted by latent gammaherpesvirus infection and provoke arthritis.

eLife digest

Rheumatoid arthritis is one of the most common autoimmune diseases, leaving patients in pain as their immune system mistakenly attacks the lining of their joints. The precise cause is unknown, but research suggests a link to the Epstein-Barr virus, the agent responsible for mononucleosis (also known as glandular fever). After infection and recovery, the virus remains in the body, lying dormant inside immune ‘B cells’ which are often responsible for autoimmune diseases. Of particular interest are a sub-group known as ‘age-associated B-cells’, which are mostly cells left over from fighting past infections such as mononucleosis. Yet, the link between Epstein-Barr virus and rheumatoid arthritis remains hard to investigate because of the long gap between the two diseases: the virus mostly affects children and young people, while rheumatoid arthritis tends to develop in middle age.

To investigate how exactly the two conditions are connected, Mouat et al. created a new animal model: they infected young mice with the murine equivalent of the Epstein-Barr virus, and then used a collagen injection to trigger rheumatoid arthritis-like disease once the animals were older.

Next, Mouat et al. monitored the paws of the mice, revealing that viral infection early in life worsened arthritis later on. These animals also had more age-associated B cells than normal, and the cells showed signs of participating in inflammation. On the other hand, early viral infection did not make arthritis worse in mice unable to produce age-associated B cells. Taken together, these results suggest that the immune cells are required to enhance the effect of the viral infection on rheumatoid arthritis. This new insight may help to refine current treatments that work by reducing the overall number of B cells. Ultimately, the animal model developed by Mouat et al. could be useful to identify better ways to diagnose, monitor and treat this debilitating disease.

Introduction

Rheumatoid arthritis (RA) is one of the most common autoimmune diseases in adults, though the etiology and pathophysiology are not fully understood (Humphreys et al., 2013; Firestein and McInnes, 2017). RA, as well as other autoimmune diseases including multiple sclerosis (MS) and systemic lupus erythematosus (SLE), is associated with Epstein-Barr virus (EBV) infection (Balandraud et al., 2003; Ascherio and Munger, 2007; Gross et al., 2005). EBV infection typically takes place during childhood or adolescence, while RA generally becomes symptomatic during middle age, indicating that the latent EBV infection likely modulates the immune system over time in a manner that contributes to the development of RA (Humphreys et al., 2013; Dowd et al., 2013; Fourcade et al., 2017; Alamanos et al., 2006). The circulating EBV load is higher in individuals with RA than in otherwise healthy adults (Balandraud et al., 2003), and RA patients have increased levels of antibodies specific to multiple EBV-encoded proteins (Blaschke et al., 2000; Ferrell et al., 1981; Catalano et al., 1979; Alspaugh et al., 1981; Hazelton et al., 1987). Further, RA patients have increased EBV-specific CD8+ T cells (Lünemann et al., 2008), yet these cells have a reduced ability to kill EBV-infected B cells when compared to the same subset of EBV-specific CD8+ T cells from healthy controls (Takei et al., 2001). However, the precise role of EBV in RA pathogenesis remains unknown.

Evidence from in vivo models is scarce and previous studies have focused primarily on the direct relationship between EBV infection and damage to the joint capsule, with little attention given to systemic effects of EBV infection on immune modulation preceding and continuing throughout disease (Kuwana et al., 2011; LeBel et al., 2018). Mice with humanized immune systems, namely NOD/Shi-scid/IL-2Rγnull mice reconstituted with CD34+ hematopoietic stem cells, that were infected with EBV went on to spontaneously develop erosive arthritis, suggesting a causative role of EBV in arthritis development (Kuwana et al., 2011). Related, a serum transfer‐induced arthritis model was used to demonstrate that Ly6Chigh monocytes play a role in transporting murine gammaherpesvirus 68 (γHV68), an EBV homolog, to the synovium (LeBel et al., 2018). Our group has previously shown that latent γHV68 infection exacerbates experimental autoimmune encephalomyelitis (EAE) and leads to a disease that more closely resembles MS, with increased demyelination and infiltration of CD8 to cells of the central nervous system in γHV68-infected mice (Casiraghi et al., 2012). Critically, this enhancement was specific to γHV68; other viruses, including lymphocytic choriomeningitis virus (LCMV) and murine cytomegalovirus (MCMV), did not lead to enhancement of EAE. Additionally, enhancement took place without changes to autoantibody levels. An in vivo model that recapitulates the temporal and systemic immunological aspects of the relationship between EBV and RA is critical.

To examine the relationship between EBV and RA, we have adapted in vivo models of both. γHV68 is a natural pathogen that is a well-established and widely-used murine model of EBV infection that shares an array of characteristics with human EBV infection, including latent persistence in B cells, viral reactivation from latency, a potent CD8 T cell response, and immune evasion tactics (Olivadoti et al., 2007; Wirtz et al., 2016). Type II collagen-induced arthritis (CIA) is a commonly used model of RA wherein mice are injected with type II collagen emulsified in an adjuvant. Here, we chose to use C57BL/6J mice due to the extensive past characterization of γHV68 infection in C57BL/6 mice and the numerous knockout (KO) strains available on this background. Multiple strains of mice are susceptible to CIA, including C57BL/6 mice that, despite displaying a less severe disease course than other strains, generate a robust T cell response (Inglis et al., 2007; Campbell et al., 2000). In C57BL/6 mice, CIA follows a chronic disease course with a sustained T cell response, presence of anti-collagen IgG, and infiltration of inflammatory lymphocytes into the joint capsule (Inglis et al., 2007). EBV primary infection generally takes place in childhood or adolescence (Dowd et al., 2013; Fourcade et al., 2017), and RA can occur at any age, though the mean incidence is in the sixth decade of life (Myasoedova et al., 2010). Accordingly, we have infected immunologically and sexually mature 6- to 8-week-old C57BL/6J mice with γHV68 and have induced CIA when the mice were adults at 11–13 weeks old. Here we have shown that C57BL/6J mice infected with latent γHV68 and induced for CIA develop a more severe clinical course and an altered immunological profile compared to uninfected CIA controls, with expanded CD8+ T cells and Th1 skewing. We have utilized γHV68 infection and CIA induction to investigate mechanism(s) by which EBV contributes to RA, in particular through the modulation of age-associated B cells (ABCs).

The role of B cells in the relationship between EBV and RA is intriguing because B cells contribute pathogenically to RA, and EBV infects B cells and alters the B cell profile (Marston et al., 2010; Hatton et al., 2014). ABCs are a subset of B cells that are of particular interest as they have been implicated in both autoimmunity and viral infection. When compared to healthy adults, the relative proportion and/or absolute circulating counts of ABCs are elevated in RA patients, a subset of individuals with MS, individuals with SLE, and a subset of people with common variable immune deficiency that displays autoimmune complications (Adlowitz et al., 2015; Rubtsov et al., 2011; Thorarinsdottir et al., 2019; Wang et al., 2019; Claes et al., 2016; Wang et al., 2018; Zhang et al., 2019; Rakhmanov et al., 2009). ABCs are required for disease development in mouse models of SLE (Rubtsova et al., 2017). Also, ABCs are increased during viral infections in mice and/or humans including LCMV, γHV68, vaccinia, hepatitis C virus, HIV, and influenza (Rubtsova et al., 2013; Chang et al., 2017; Knox et al., 2017; Johnson et al., 2020). ABCs display an array of functional capacities, including the secretion of anti-viral or autoantibodies, initiation of germinal centers, antigen presentation to T cells, and secretion of cytokines (Rubtsova et al., 2013; Chang et al., 2017; Knox et al., 2017; Johnson et al., 2020). It is yet to be examined whether ABCs play a role in viral contribution to autoimmunity. We found that ABC KO mice are unable to develop the γHV68-exacerbation of CIA and therefore act as a mediator between viral infection and autoimmunity.

Results

Latent γHV68 infection exacerbates the clinical course of CIA

The development of RA often occurs years after initial infection with EBV when the virus is latent. To mimic this temporal relationship, we infected mice with γHV68, waited 5 weeks for the lytic infection to clear and the virus to establish latency, and induced CIA. Clearance of the acute virus and establishment of latency have previously been shown by plaque assay on spleens collected 35 days post-infection (Casiraghi et al., 2012; Barton et al., 2014). Following CIA induction, mice were assessed three times per week for redness and swelling in the two hind paws (Figure 1—figure supplement 1A), which informed a clinical score for each mouse. We observed that CIA in latent γHV68-infected mice (herein referred to as γHV68-CIA mice) had a more severe clinical course than uninfected mice (herein referred to as CIA mice), as evidenced by consistently higher clinical scores and changes in paw heights throughout the clinical course (Figure 1A–B, Figure 1—figure supplement 1B). γHV68-CIA mice also developed onset of disease symptoms an average of 7 days earlier than CIA mice, reached a higher score at endpoint, and displayed a higher cumulative score (Figure 1C, Figure 1—figure supplement 1C-D). In agreement with other research groups (Campbell et al., 2000), male and female mice displayed similar clinical scores during CIA, and we also did not observe a sex difference in γHV68-CIA mice (Figure 1—figure supplement 1E). As expected, latent γHV68-infected mice (without CIA) did not display any signs of disease (Figure 1A–B). Titers of anti-type II collagen autoantibodies (total IgG, IgG1, and IgG2c) were elevated in sera from mice with CIA compared to naive mice without CIA, yet were similar in mice with CIA regardless of infection (Figure 1—figure supplement 1F–H). Additionally, we found that inducing CIA in γHV68-infected mice did not impact viral load (Figure 1—figure supplement 1I), indicating that γHV68 is not reactivating. These findings are in line with our previous work showing that latent γHV68 infection enhances EAE without influencing autoantibody levels or reactivating γHV68 (Casiraghi et al., 2012). These data demonstrate that latent γHV68 infection leads to earlier onset and more severe CIA, though the exacerbation is not due to higher titers of autoantibodies against type II collagen or changes in abundance of particular immunoglobulin isotypes.

Figure 1 with 1 supplement see all

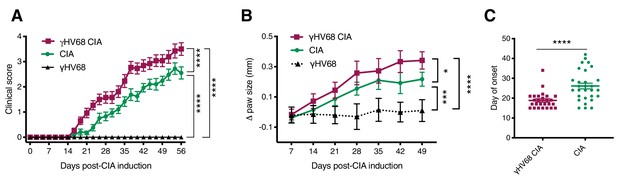

Progression of CIA in latent γHV68-infected and control uninfected mice.

(A) Clinical score (y-axis) of collagen-induced arthritis (CIA) measured three times weekly for 8 weeks (x-axis; days) post-CIA induction in mice without (CIA, filled circles) and with latent γHV68 infection (γHV68-CIA, open squares), and starting at day 35 post-infection in mice infected with latent γHV68 infection but not induced for CIA (γHV68, filled triangles). (B) Change (Δ, y-axis) in thickness of hind paws measured with calipers once per week and averaged for each mouse, γHV68-CIA and CIA being measured on the day of CIA induction and γHV68 at day 35 post-infection. (C) Day (y-axis) of CIA onset (considered 2 consecutive scoring days of a score of at least 1) in mice (x-axis) without (CIA) and with latent γHV68 infection (γHV68-CIA). Each data point represents an individual mouse. (A–C) Data presented as mean ± SEM. Statistical significance determined by (A, B) two-way ANOVA with multiple comparisons with F-values 329.22 (A) and 17.95 (B), (C) Mann-Whitney test. ****p<0.0001, ***p<0.001, **p<0.01, *p<0.05. (A) n = 10–29 mice per group, four experiments; (B) n = 8–20 mice per group, three experiments; (C) n = 26–29 mice per group, four experiments.

Figure 1—source data 1

Progression of CIA in latentγHV68 infected and control uninfected mice source data.

https://cdn.elifesciences.org/articles/67024/elife-67024-fig1-data1-v2.xlsx

The profile of immune cells infiltrating the synovium is altered in γHV68-CIA

To assess the types and relative proportions of immune cells infiltrating the joint synovium, synovial fluid cells were collected on day 56 post-CIA induction. Synovial cells were collected from the knee and ankle joints by flushing each joint with phosphate-buffered saline (PBS) and subsequently analyzing isolated cells by flow cytometry. Synovial cells were not collected from naive or γHV68-infected mice without CIA because we would not expect there to be sufficient infiltration of immune cells for analysis. The number of CD8+ T cells infiltrating the synovium during γHV68-CIA was increased compared to CIA (3.6-fold change), while there was no significant difference in the number of CD4+ T cells (Figure 2A). Additionally, the CD8+ and CD4+ T cells in γHV68-CIA synovium displayed a significant increase in Tbet expression compared to those in CIA (Figure 2B), indicating Th1 skewing.

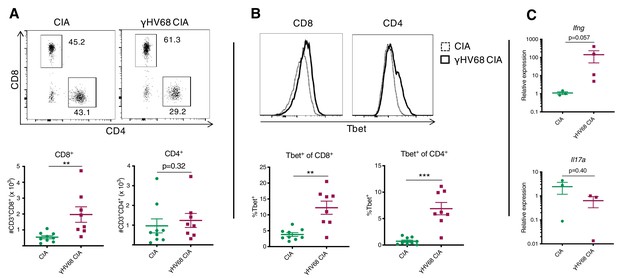

Analysis of immune infiltration to synovium between γHV68-CIA and control CIA mice at day 56 post-CIA induction.

(A) Representative flow cytometry plots of synovial fluid (SF) CD8+ and CD4+ T cells, previously gated on lymphocytes, singlets, live cells, and CD45+CD3+ cells. Flow cytometry plots (concatenated samples) and graphs of total numbers (y-axis) of CD45+CD3+CD8+ and CD45+CD3+CD4+ T cells in uninfected mice with collagen-induced arthritis (CIA) (filled circles) and γHV68-CIA mice (filled squares). (B) Representative flow cytometry plots of Tbet expression (x-axis) by CD8+ or CD4+ T cells in CIA mice (dotted line) and γHV68-CIA mice (solid line). Samples were previously gated on lymphocytes, singlets, live cells, and CD45+CD3+ cells. Percent of CD8+ and CD4+ T cells positive for Tbet (y-axis, gated on a full-minus-one control) in uninfected mice with CIA (filled circles) and γHV68-CIA mice (filled squares). (C) RNA extracted from synovial fluid cells, reverse transcriptase quantitative PCR (RT-qPCR) performed for Ifng and Il17a, and relative expression plotted for uninfected mice with CIA (filled circles) and γHV68-CIA mice (filled squares). (A–B) Flow plots are concatenated samples from all CIA or γHV68-CIA samples from an individual experiment, n = 8–9 mice per group; (C) n = 3–4 mice per group; (A–C) one experiment, data presented as mean ± SEM, analyzed by Mann-Whitney test; ****p<0.0001, ***p<0.001, **p<0.01, *p<0.05.

Figure 2—source data 1

Analysis of immune infiltration to synovium betweenγHV68-CIA and control CIA mice at day 56 post-CIA induction.

https://cdn.elifesciences.org/articles/67024/elife-67024-fig2-data1-v2.xlsx

As further evidence that infiltrated T cells are immunologically active, we used real-time quantitative PCR (RT-qPCR) to evaluate the expression of key T cell-derived cytokines Ifng and Il17. The relative expression of Ifng in synovium cells of γHV68-CIA mice compared to CIA mice was increased (129-fold change), while the relative expression of Il17a was trending down in infected mice (Figure 2C; 3.8-fold change), though the sample size was low due to the difficulty of obtaining these samples. Together, these results indicate that IFNγ-producing T cells were preferentially infiltrating the synovium in our model of γHV68-CIA, which is consistent with what was observed in the synovium of RA patients (Yamada et al., 2008). Our data also demonstrate a skewing toward cytotoxic CD8+ T cells in mice latently infected with γHV68 prior to CIA.

Latent γHV68 infection skews the T cell response toward a pathogenic profile during CIA

To examine how latent γHV68 might contribute to CIA, we specifically examined the systemic T cell profile. It is known that latent γHV68 infection expands cytotoxic T cells and reduces Tregs (Casiraghi et al., 2015). Both cell types play a role in CIA with cytotoxic T cells being crucial mediators of CIA while Tregs play a protective role (Tada et al., 1996; Morgan et al., 2003). We examined T cells in the spleen and inguinal lymph nodes (ILNs), a draining lymph node in which we observed a significant increase in overall abundance of immune cells during CIA (Figure 3—figure supplement 1A). γHV68-CIA mice displayed a decrease in relative proportion of FoxP3+ Tregs and an increase in relative proportion of CD8+ T cells in the spleen compared to control CIA mice (Figure 3A–B, Figure 3—figure supplement 1A, B-C). This is similar to what was observed in people with RA, as activated CD8+ T cells were increased and Tregs were decreased in the circulation of RA patients compared to otherwise healthy people (Morita et al., 2016; Ramwadhdoebe et al., 2016). In the ILNs of γHV68-CIA mice, we observed a nonsignificant trend of decreased CD8+ and CD4+ T cell relative proportions, indicating potential T cell egress from the ILNs during disease, and found that the proportion of regulatory T cells was unchanged between CIA and γHV68-CIA mice (Figure 3A–B, Figure 3—figure supplement 1E–G). We also observed a significant increase in relative proportion of CD11c+CD8+dendritic cells (DCs) in γHV68-CIA mice compared to CIA (Figure 3—figure supplement 1H–J). These data show that the T cell profile of γHV68-CIA mice is skewed pathogenically, with decreased Tregs and increased cytotoxic T cells.

Figure 3 with 1 supplement see all

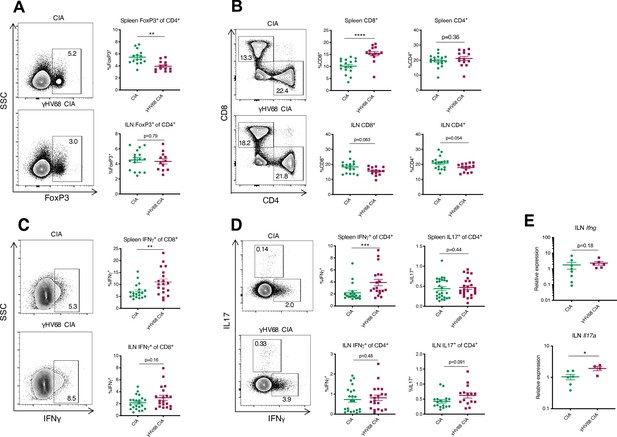

Flow cytometry analysis of spleen and ILN T cells at day 56 post-induction of γHV68-CIA and control CIA mice.

(A–D) Representative flow cytometry plots of spleen samples previously gated on lymphocytes, live cells, singlets, CD45+CD3+ cells, and (A, D) CD4+ cells, (C) CD8+ cells, of uninfected mice with collagen-induced arthritis (CIA) (upper plot) and γHV68-CIA mice (lower plot). (A, C) Side-scatter (SSC) plotted on the y-axis. (A–D) Percent of immune subsets (y-axis) in the spleens of uninfected mice with CIA (filled circles) and γHV68-CIA mice (filled squares). (A) %FoxP3+ of CD4+; (B) %CD3+CD8+ and %CD3+CD4+ of CD45+; (C) %IFNγ+ of CD8+; (D) IFNγ+ or IL17A+ of CD4+; (E) RNA extracted from inguinal lymph node (ILN) cells, real-time quantitative PCR (RT-qPCR) performed for Ifng and Il17a, and relative expression plotted for uninfected mice with CIA (filled circles) and γHV68-CIA mice (filled squares). (A) n = 12–17 mice per group, three experiments; (B) n = 14–17 mice per group, three experiments; (C, D) n = 19–22 mice per group, three experiments; (E) n = 4–8 mice per group, one experiment. (A–E) Each data point represents an individual mouse. Data presented as mean ± SEM, analyzed by Mann-Whitney test; ****p<0.0001, ***p<0.001, **p<0.01, *p<0.05.

Figure 3—source data 1

Flow cytometry analysis of spleen and ILN T cells at day 56 post-induction ofγHV68-CIA and control CIA mice.

https://cdn.elifesciences.org/articles/67024/elife-67024-fig3-data1-v2.xlsx

T cell polarization is modulated in γHV68-CIA mice

Although IL17 has been highly studied due to its predominance in animal models of arthritis, both IL17 and IFNγ are involved in RA (Yamada et al., 2008; Ramwadhdoebe et al., 2016; Shen et al., 2009; Nistala et al., 2010). As expected from our previous work with γHV68-EAE, we found that in γHV68-CIA, greater numbers of splenic CD8+ and CD4+ T cells express IFNγ compared to CIA alone (Figure 3C–D). There is a maintenance of Th17 cells in the spleen, with a similar proportion of CD4+ T cells expressing IL17A in CIA and γHV68-CIA (Figure 3D). In the ILNs, we observed a significant increase in Il17a by RT-qPCR (Figure 3E) and a corresponding trend toward more IL17A-expressing CD4+ T cells. We propose that the combined Th1 and Th17 profile observed in γHV68-CIA is more reminiscent of what is observed in people with RA than in CIA without γHV68 infection.

Latency is required for the clinical and immunological γHV68-exacerbation of CIA

To examine the requirement of γHV68 latency, as opposed to residual effects from acute infection, for exacerbating CIA, we used a recombinant γHV68 strain that does not develop latency, ACRTA-γHV68. In ACRTA-γHV68, the genes responsible for latency were deleted and a lytic gene, RTA, was constitutively expressed, resulting in clearance of the acute virus by day 14 post-infection (Rickabaugh et al., 2004). We infected mice with ACRTA-γHV68, waited 35 days for clearance of the acute infection, and induced CIA. We found that ACRTA-γHV68-infected mice did not develop the CIA clinical enhancement that we observed in latently γHV68-infected mice, with the clinical course and day of onset resembling that of uninfected CIA mice (Figure 4A–B).

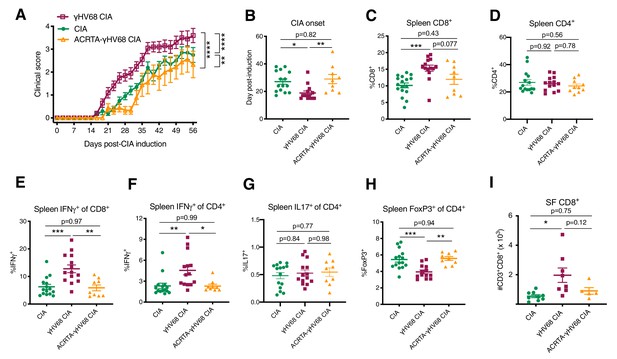

Disease progression and immune profile of latency-free ACRTA-γHV68 CIA mice compared to γHV68-CIA and CIA mice.

Collagen-induced arthritis (CIA) was induced in C57BL/6J mice after 5 weeks of mock, γHV68, or ACRTA-γHV68 infection, and mice scored for clinical disease until 56 days post-CIA induction. At 56 days post-CIA induction, spleens and synovial fluid were collected and processed for flow cytometry. A proportion of the CIA and γHV68-CIA data is repeated from Figure 2. (A) Clinical scores (y-axis) of uninfected mice with CIA (filled circles), γHV68-CIA mice (open squares), and ACRTA-γHV68 CIA mice (open triangles); (B–I) comparison of uninfected mice with CIA (filled circles), γHV68-CIA mice (filled squares), and ACRTA-γHV68 CIA mice (filled triangles). (B) Day (y-axis) of CIA onset, considered two consecutive scoring days of a score of at least 1, in mice (x-axis) without (CIA) and with latent γHV68 infection (γHV68-CIA) or ACRTA-γHV68 infection (ACRTA-γHV68 CIA). (C–I) Immune cell subsets determined by flow cytometry, previously gated on lymphocytes, singlets, live cells, and CD45+ cells; (C) %CD3+CD8+ of CD45+ cells in the spleen; (D) %CD3+CD4+ of CD45+ cells in the spleen; (E) %IFNγ+ of CD8+ cells in the spleen; (F) %IFNγ+ of CD4+ cells in the spleen; (G) IL17A+ of CD4+ cells in the spleen; (H) %FoxP3+ of CD4+ cells in the spleen; (I) number of CD3+CD8+ cells in synovial fluid (SF) determined by flow cytometry. (A–H) n = 9–15 mice per group, two experiments, (I) n = 5–9 mice per group, one experiment. (A–G) Each data point represents an individual mouse. Data presented as mean ± SEM, analyzed by (A) two-way ANOVA with multiple comparisons, F-value = 78.46, (B–I) one-way ANOVA with F-values 6.57 (B), 8.44 (C), 0.053 (D), 11.4 (E), 6.80 (F), 0.29 (G), 10.89 (H), and 5.64 (I); ****p<0.0001, ***p<0.001, **p<0.01, *p<0.05.

Figure 4—source data 1

Disease progression and immune profile of latency-free ACRTA-γHV68 CIA mice compared toγHV68-CIA and CIA mice.

https://cdn.elifesciences.org/articles/67024/elife-67024-fig4-data1-v2.xlsx

Furthermore, the immunological changes observed in γHV68-CIA mice, when compared to CIA mice, were absent in ACRTA-γHV68 CIA mice. The increase in relative proportion of CD8+ T cells in the spleen was less pronounced in ACRTA-γHV68 CIA compared to γHV68-CIA, while there was no change in relative proportion of CD4+ T cells (Figure 4C–D). In ACRTA-γHV68 CIA mice, there was abolishment of the γHV68-induced upregulation of IFNγ in CD8+ and CD4+ T cells, reflecting altered functional capacity and possibly specificity, and no change in IL17A expression by CD4+ T cells (Figure 4E–G). The decrease in relative proportion of splenic Tregs and CD8+ infiltration into the synovial fluid observed in γHV68 CIA mice was not present in ACRTA-γHV68 CIA mice (Figure 4H–I). Together, these data show that ACRTA-γHV68 CIA mice displayed a similar clinical and immunological profile to uninfected CIA mice. This demonstrates that the enhancement is not due to innate immune stimulation during the acute infection, but, rather, the latency phase of γHV68 infection is critical for the clinical and immunological exacerbation of CIA. The requirement of γHV68 latency mirrors the RA patient clinical course, wherein patients are infected with EBV years before the onset of disease.

Age-associated B cells are increased and display an inflammatory phenotype in γHV68-CIA

As the number of ABCs was expanded in the contexts of both viral infection and autoimmunity, including RA (Rubtsov et al., 2011; Claes et al., 2016; Wang et al., 2018; Rubtsova et al., 2013; Knox et al., 2017), we investigated the role of ABCs in facilitating γHV68-exacerbation of CIA. We began by examining the proportion and phenotype of ABCs in uninfected CIA mice and CIA mice previously infected with latent γHV68 (γHV68-CIA) by flow cytometry (Figure 5—figure supplement 1A). We found that CIA induction increased the proportion and total number of ABCs (CD19+CD11c+Tbet+) in the spleen, and γHV68-CIA mice had further increased proportions of ABCs in the spleen compared to CIA (Figure 5A–B). The proportion of ABCs in the ILNs was not significantly different between γHV68-CIA and CIA mice (Figure 5—figure supplement 1C). The number of ABCs was substantially lower in the ILNs than in the spleen, concurring with other studies that found that ABCs primarily reside in the spleen (Johnson et al., 2020). During CIA and γHV68-CIA, we did not observe differences in the proportions of ABCs between male and female mice (Figure 5—figure supplement 1B).

Figure 5 with 1 supplement see all

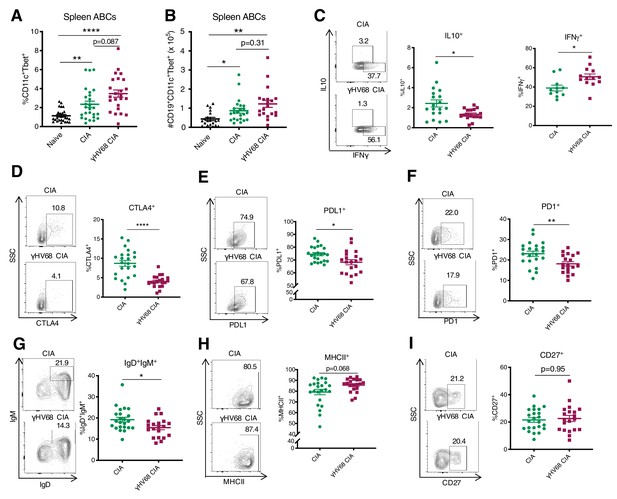

Analysis of ABC amount and phenotype by flow cytometry at 56 days post-CIA induction.

(A) Percentage of age-associated B cells (ABCs) (CD11c+Tbet+) of mature B cells (CD19+IgD-) in the spleen and (B) total numbers of ABCs in the spleen of naive mice (filled triangle), uninfected mice with collagen-induced arthritis (CIA) (filled circles), and γHV68-CIA mice (filled squares). (C–I) Phenotype of ABCs analyzed by flow cytometry. Samples were previously gated on splenic CD19+CD11c+Tbet+ ABCs. Flow plots are representative samples, SSC = side scatter. Proportion of ABCs positive for (C) IL10 and IFNγ, (D) CTLA4, (E) PDL1, (F) PD1, (G) IgD+IgM+, (H) MHCII, and (I) CD27. (A) n = 24–26 mice per group, three experiments, (B) n = 20–23 mice per group, three experiments, (C) n = 16–19 mice per group, two experiments, and (D–I) n = 20–23 mice per group, two experiments. (A–I) Each data point represents an individual mouse. Data presented as mean ± SEM, (A–B) analyzed by Brown-Forsythe and Welch ANOVA tests and (C–I) Mann-Whitney test; ****p<0.0001, ***p<0.001, **p<0.01, *p<0.05.

Figure 5—source data 1

Analysis of ABC amount and phenotype by flow cytometry at 56 days post-CIA induction.

https://cdn.elifesciences.org/articles/67024/elife-67024-fig5-data1-v2.xlsx

We next examined the phenotypic characteristics and found that ABCs in the spleen were phenotypically distinct in γHV68-CIA compared to CIA. We examined a series of markers previously shown to be expressed by ABCs, including cytokines IL10, IFNγ, and TNFα (Rubtsov et al., 2011; Hao et al., 2011; Russell Knode et al., 2017; Ratliff et al., 2013), an array of inhibitory receptors (Rubtsov et al., 2011; Wang et al., 2018; Knox et al., 2017), maturity and memory markers IgD, IgM, and CD27 (Rubtsov et al., 2011; Hao et al., 2011), and MHCII (Rubtsov et al., 2011; Knox et al., 2017; Aranburu et al., 2018). We found that fewer ABCs in the spleens of γHV68-CIA mice expressed IL10, while an increased proportion expressed IFNγ (Figure 5C), indicating that they are skewed toward a pathogenic Th1 phenotype. Further, fewer splenic ABCs in γHV68-CIA mice expressed inhibitory receptors CTLA4, PDL1, and PD1 (Figure 5D–F), and thus ABCs in CIA displayed a more regulatory phenotype than those in γHV68-CIA mice. Additionally, the ABCs in γHV68-CIA mice displayed a more mature phenotype, with fewer IgD+IgM+ naive B cells and increased MHCII expression, though the expression of memory marker CD27 was unchanged (Figure 5G–I). These results indicate that ABCs in γHV68-CIA mice are more mature and may have increased antigen presentation capacities but are not primarily a memory subset. There were no differences in the expression of CD20, TNFα, CD95 (Fas), nor IDO expression (Figure 5—figure supplement 1D–G). Collectively, these results indicate that ABCs in γHV68-CIA mice display a more pathogenic phenotype than those in CIA, with decreased expression of regulatory cytokine IL10 and inhibitory markers, and increased expression of IFNγ.

Age-associated B cells are required for γHV68-exacerbation of CIA

To determine whether ABCs are a subset mediating the viral enhancement of CIA, we utilized ABC KO mice that harbor a B cell-specific Tbet deletion. The clinical course and immune profile of CIA and γHV68-CIA mice were compared in littermate controls of Tbx21fl/flCd19cre/+ (KO) and Tbx21fl/flCd19+/+ (Ctrl) mice (Figure 6A). We observed that the clinical course was unchanged in CIA between Ctrl and KO mice, indicating that ABCs are not contributing to the disease course in CIA (Figure 6B). Alternatively, when induced with CIA, γHV68-infected KO mice did not display the γHV68-exacerbated clinical course compared to γHV68-CIA Ctrl mice (Figure 6C), indicating that ABCs are a pathogenic subset in γHV68-CIA. Without ABCs, γHV68-CIA mice did not display clinical exacerbation, but rather appeared similar to uninfected CIA mice in terms of disease severity and day of onset (Figure 6B–D). We observed that the ablation of ABCs does not significantly alter the proportion of CD8, CD4, or Treg populations in the spleen during CIA or γHV68-CIA, nor the expression of IFNγ or IL17A (Figure 6—figure supplement 1). These results indicate that ABCs are a critical pathogenic population in γHV68-CIA though more work is needed to fully elucidate the mechanism by which ABCs are contributing to disease.

Figure 6 with 1 supplement see all

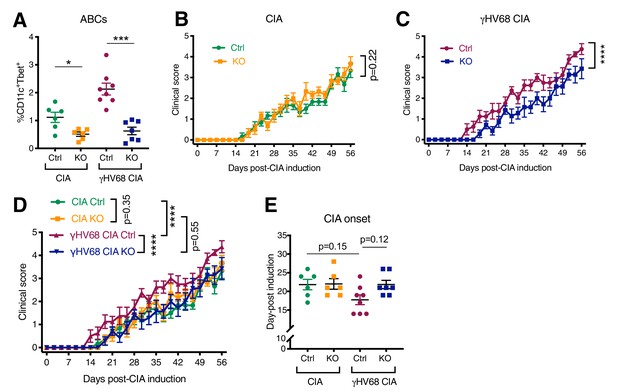

Disease progression and flow cytometric analysis of Tbx21fl/flCd19cre/+ (KO) and Tbx21fl/flCd19+/+ (Ctrl) mice that have been infected with γHV68 or mock-infected and induced for CIA.

(A) Proportion of age-associated B cells (ABCs) (CD11c+Tbet+) of mature B cells (CD19+IgD-) in the spleen as determined by flow cytometry of CIA flox-only control (Ctrl, green circles), CIA KO (KO, orange squares), γHV68-CIA flox-only control (Ctrl, purple circles), and γHV68-CIA KO (KO, blue squares) mice. (B) Clinical score (y-axis) of collagen-induced arthritis (CIA) measured three times weekly for 8 weeks (x-axis; days) post-CIA induction in Ctrl (green circles) and knockout (KO) (orange circles) mice that are uninfected with CIA. (C) Clinical score (y-axis) of CIA measured three times weekly for 8 weeks (x-axis; days) post-CIA induction in Ctrl (purple circles) and KO (blue circles) γHV68-infected CIA mice. (D) Clinical scores, same data as in panels (B, C). (E) Day (y-axis) of CIA onset, considered two consecutive scoring days of a score of at least 1, in Ctrl and KO CIA and γHV68-CIA mice (x-axis). (A–E) n = 6–8 mice per group, two experiments. Data presented as mean ± SEM, analyzed by (A) Mann-Whitney test, (B, C) two-way ANOVA with F-values 1.71 (B) and 62.37 (C), (D) two-way ANOVA with multiple comparisons, with an F-value of 38.14, and (E) one-way ANOVA with an F-value of 2.78; ****p<0.0001, ***p<0.001, **p<0.01, *p<0.05.

Figure 6—source data 1

Disease progression and flow cytometric analysis of Tbx21fl/flCd19cre/+(KO) and Tbx21fl/flCd19+/+(Ctrl) mice that have been infected with γHV68 or mock-infected and induced for CIA.

https://cdn.elifesciences.org/articles/67024/elife-67024-fig6-data1-v2.xlsx

Discussion

In this report, we demonstrate that latent γHV68 exacerbates CIA clinically and immunologically, and Tbet+ B cells, known as ABCs, are critical for this exacerbation. Investigation of the mechanism by which EBV contributes to RA has previously been challenging due to the lack of a murine model to examine the systemic immune modulation caused by latent gammaherpesvirus infection and resulting influence on arthritis. Here, we show that infecting mice with latent γHV68 prior to CIA induction results in an immune course more similar to that of RA patients than CIA alone and is a suitable model for examining the contribution of EBV to RA. Elucidating how EBV infection contributes to the development of RA is critical to understanding the underlying pathophysiology of the disease.

As EBV is associated with several autoimmune diseases, it is important to examine whether there are conserved mechanisms of contribution. The overlap in etiology and pathophysiology between these autoimmune diseases may help to explain the cross-efficacy of immunotherapies between MS and RA, including B cell-depletion therapies. Our lab has previously demonstrated that latent γHV68 infection enhances EAE, a common model of MS, clinically and immunologically (Casiraghi et al., 2012). In both the γHV68-CIA and γHV68-EAE models, we observed an increase in CD8+ T cells at the site of disease and increased expression of IFNγ by cytotoxic and helper T cells. Latent gammaherpesvirus infection of mice clearly alters autoimmune disease onset and severity reminiscent of the strong association of latent EBV infection in RA patients. As such, these investigative models will serve to identify common mechanisms in which EBV contributes to multiple autoimmune diseases.

Due to EBV infection often taking place years before the onset of arthritis, we posit that latent EBV infection modulates the peripheral immune response in a manner that contributes to the development of RA. We suggest that latently EBV-infected B cells alter, either directly or indirectly, lymphocytes that go on to contribute to disease onset, likely through expanding and activating CD8+ T cells and skewing toward a Th1 response. CD11c+CD8+ DCs may play a role in priming the pathogenic CD8+ T cell response, as they have been shown to cross-present antigen (den Haan et al., 2000; Schulz and Reis e Sousa, 2002). By acting as a mediator between infected cells and pathogenic T cells, ABCs are likely critical moderators in driving the heightened Th1 immune response to latent viral infection.

Accumulating evidence shows that ABCs are expanded in multiple autoimmune diseases and function pathogenically in mouse models of lupus (Rubtsov et al., 2011; Thorarinsdottir et al., 2019; Wang et al., 2019; Claes et al., 2016; Wang et al., 2018; Zhang et al., 2019; Rakhmanov et al., 2009; Rubtsova et al., 2017). Precisely how ABCs are contributing to pathogenicity is unclear, and ABCs are known to display multiple functional capacities that could contribute to disease. In models of SLE, ABCs have been shown to secrete autoantibodies and compromise germinal center responses (Zhang et al., 2019). Additionally, ABCs function as excellent antigen-presenting cells (Rubtsov et al., 2015). In a model of SLE, the ablation of ABCs decreases activated CD4+ T cells and IFNγ-CD8+ T cells (Rubtsova et al., 2017). How precisely ABCs alter the CD8+ T cell population, whether they are cross-presenting antigen or impacting the CD8+ T cells indirectly, warrants further investigation. Alternatively, ABCs have been shown to secrete regulatory IL10 (Rubtsov et al., 2011; Hao et al., 2011), suggesting that a portion of the ABC population, in some individuals or contexts, could function in a protective manner. Further characterization of the phenotype and functional capacities of ABCs in autoimmune patients may help to elucidate their functional role. RA patients who experience a relapse following B cell-depletion therapy are more likely to display a reconstitution profile with increased numbers of memory B cells (Leandro et al., 2006). Whether existing therapeutics, such as B cell-depletion therapies or other approved drugs for RA, such as Abatacept (CTLA4 Ig), impact the ABC repertoire remains unknown.

Further evaluation of the influence of viral infection on ABC pathogenicity is needed. It is intriguing that ABCs are pathogenic in a genetic model of SLE without the presence of a virus (Rubtsova et al., 2017), though we observe that latent γHV68 is necessary for the pathogenicity of ABCs in CIA. This discrepancy indicates that ABCs may be contributing to disease through various mechanisms or that different contexts can prime ABCs for pathogenicity. The role of ABCs in controlling viral infections is an ongoing topic of study, with multiple papers recently providing compelling evidence that ABCs are critical for an effective anti-influenza response (Johnson et al., 2020) and are required to control LCMV infection (Barnett et al., 2016), in part through their secretion of antiviral IgG2a. Additionally, the influence of aging on ABC population and on autoimmunity development and progression warrants further study.

In summary, we have developed an in vivo model of EBV’s contribution to RA that recapitulates aspects of human disease. Further, we have examined the role of ABCs and found that they are critical mediators of the viral enhancement of arthritis.

Materials and methods

Mice

Tbx21fl/flCd19cre/+ mice were generated by crossing Tbx21fl/flCd19cre/+ and Tbx21fl/flCd19+/+ mice. Tbx21fl/fl and Cd19cre/+ mice were provided by Dr. Pippa Marrack (Rubtsova et al., 2017). C57BL/6J mice were originally purchased from The Jackson Laboratory. All animals were bred and maintained in the animal facility at the University of British Columbia. All animal work was performed per regulations of the Canadian Council for Animal Care (Protocols A17- 0105, A17-0184).

γHV68 and ACRTA-γHV68 infection

Request a detailed protocol

γHV68 (WUMS strain, purchased from ATCC) and ACRTA-γHV68 (originally developed by Dr. Ting-Ting Wu, the generous gift of Dr. Marcia A Blackman) (Jia et al., 2010) were propagated in Baby Hamster Kidney (BHK, ATCC) cells. Prior to infection, viruses were diluted in Minimum Essential Media (MEM, Gibco) and maintained on ice. Mice (6- to 8-week-old) were infected intraperitoneally (i.p.) with 104 plaque-forming unit (PFU) of γHV68 or ACRTA-γHV68 or mock-infected with MEM. No clinical symptoms were observed from viral infections.

Induction of CIA

Request a detailed protocol

On day 35 post-γHV68 or -ACRTA-γHV68 infection, CIA was induced by injection of immunization-grade, chick type II collagen emulsified in complete Freund’s adjuvant (CFA; Chondrex, Inc) intradermally at the base of the tail, followed by a booster injection of the same emulsion on day 14, as adapted from Inglis et al., 2008. Each mouse received 0.1 mg chick type II collagen and 0.25 mg CFA at days 0 and 14.

Evaluation of CIA severity

Request a detailed protocol

Clinical signs of CIA were assessed and scored three times per week beginning at the day of CIA induction: 0 = no symptoms; 1 = slight swelling and/or erythema; 2 = pronounced swelling and erythema; and 3 = severe swelling, erythema, and ankylosis, as adapted from Brand et al., 2007. Hind paws were scored individually by a blinded scorer and added for a single score. Day of onset considered two consecutive scoring days of a score of at least 1. The thickness of each hind paw was measured using a digital caliper and the size was expressed as the average thickness of the two paws.

Tissue harvesting and processing

Request a detailed protocol

Mice were anesthetized with isoflurane and euthanized by cardiac puncture. Blood was collected by cardiac puncture into empty sterile tubes and placed on ice until processing, and mice were perfused with 20 ml sterile PBS to allow for synovial fluid harvesting without blood contamination. ILNs and spleen were extracted and placed into 2 ml sterile PBS and stored temporarily on ice until processing. Synovial fluid was collected by exposing the knee and ankle joints, removing the patellar ligament, and flushing each flexed ankle and knee joint with sterile RNase/DNase-free PBS (Invitrogen) using an 18-gauge needle, adapted from Barton et al., 2007; Futami et al., 2012. Using a 70-μm cell strainer and a 3-ml syringe insert, spleens and ILNs were each mashed through the cell strainer mesh and a single-cell suspension was prepared for each sample. Splenocytes were incubated in ACK lysing buffer for 10 min on ice to lyse red blood cells, and remaining cells were kept on ice until further use.

Flow cytometry analysis of cell-type-specific surface antigens and intracellular cytokines

Request a detailed protocol

To evaluate cytokine production by various cell types, 4 million isolated splenocytes or ILNs were stimulated ex vivo for 3 hr in 5% COat 37°C in Minimum Essential Media (Gibco) containing 10% fetal bovine serum (FBS; Sigma-Aldrich), 1 μl/ml GolgiPlug (BD Biosciences), 10 ng/ml phorbol 12-myristate 13-acetate (PMA, Sigma-Aldrich), and 500 ng/ml ionomycin (Thermo Fisher). Stimulated cells were then washed prior to staining. For each spleen and ILN sample, 4 million cells were stained in two wells, with 2 million cells per well. All collected synovial fluid cells were resuspended in flow cytometry staining buffer (FACS, PBS with 2% newborn calf serum, Sigma-Aldrich) and stained in a single well. Before staining, samples were incubated at 4°C covered from light for 30 min with 2 ul/ml Fixable Viability Dye eFluor506 (Thermo Fisher) while in FACS buffer (PBS with 2% newborn calf serum; Sigma-Aldrich). Cells were then incubated with a rat anti-mouse CD16/32 (Fc block) (BD Biosciences) antibody for 10 min. Fluorochrome-labeled antibodies against cell surface antigens were then added to the cells for 30 min covered from light at 4°C. After washing, cells were suspended in Fix/Perm buffer (Thermo Fisher) for 30 min to 12 hours covered from light at 4°C, washed twice with Perm buffer, and incubated 40 min with antibodies for intracellular antigens in Perm buffer. Cells were then washed and resuspended in FACS buffer with 2 mM ethylenediaminetetraacetic acid. Cells were stained with anti-mouse CD45 (Clone 30-F11; Thermo Fisher Scientific), CD3 (Clone eBio500A2; Thermo Fisher Scientific), CD19 (Clone eBio1D3; Thermo Fisher Scientific), CD4 (Clone RM4-5; Thermo Fisher Scientific), CD8 (Clone 53–6.7; Thermo Fisher Scientific), FoxP3 (Clone FJK-16S; Thermo Fisher Scientific), IFNγ (Clone XMG1.2; Thermo Fisher Scientific), IL17A (Clone TC11-18H10.1; Thermo Fisher Scientific), IL10 (Clone JES5-16E3; Thermo Fisher Scientific), CD11c (Clone 418; Thermo Fisher Scientific), Tbet (Clone eBio4B10; Thermo Fisher Scientific), CD11b (Clone M1/70; Thermo Fisher Scientific), IgD (Clone 11–26 c; Thermo Fisher Scientific), CTLA4 (Clone UC10-4B9; Thermo Fisher Scientific), PDL1 (Clone MIH5; Thermo Fisher Scientific), PD1 (Clone J43; Thermo Fisher Scientific), IgM (Clone RMM-1; BioLegend), MHCII (Clone M5/114.15.2; BioLegend), CD27 (Clone LG.3A10; BioLegend), CD20 (Clone SA275A11; BioLegend), TNFα (Clone MP6-XT22; BioLegend), CD95 (Clone SA367H8; BioLegend), and IDO (Clone mIDO-48; Thermo Fisher Scientific). The entirety of each sample was collected on an Attune NxT Flow Cytometer (Thermo Fisher) and analyzed with FlowJo software v10 (FlowJo LLC). Full-minus-one (FMO) controls were used for gating.

Il17a and Ifng qPCR

Request a detailed protocol

RNA was extracted from synovial fluid and ILNs with a Qiagen AllPrep DNA/RNA Micro kit. cDNA was synthesized using Applied Biosystems High-Capacity cDNA Reverse Transcription Kit (Thermo Fisher). qPCR was performed using iQTM SYBR Green supermix (Bio-Rad) on the Bio-Rad CFX96 Touch Real Time PCR Detection system. Primer sets from Integrated DNA Technologies were Il17a 5’-GCT CCA GAA GGC CCT CAG-3’ (forward) and 5’-AGC TTT CCC TCC GCA TTG-3’ (reverse) and Ifng 5’-ACT GGC AAA AGG ATG GTG AC-3’ (forward) and 5’-TGA GCT CAT TGA ATG CTT GG-3’ (reverse). Normalized to the ribosomal housekeeping gene 18 s 5’-GTAACCCGTTGAACCCCATT-3’ (forward) and 5’- CCATCCAATCGGTAGTAGCG-3’ (reverse) and expression determined relative to control group.

Anti-type II collagen antibody ELISA

Request a detailed protocol

The sera were isolated by centrifugation 2000 × g for 10 min, aliquoted, and stored for up to 14 months at −80°C prior to running the enzyme-linked immunosorbent assay (ELISA). Anti-type II collagen antibodies were quantified by standard indirect ELISA. Briefly, ELISA plates (NUNC; Thermo Fisher) were coated with 5 μg/ml ELISA-grade type II collagen (Chondrex, Inc) overnight at 4°C, washed 4x with wash buffer (PBS, 0.05% Tween-20), blocked with 5% newborn calf serum (NBCS; Sigma-Aldrich) for 1 hr at 37°C, incubated with serial dilutions (1:100 to 1:12800) of test sera diluted in blocking buffer for 2 hr at 37°C, and washed 4x with wash buffer. Bound (anti-collagen II) antibody was incubated with HRP-conjugated goat anti-mouse IgG (Thermo Fisher), rat anti-mouse IgG1 (BD Biosciences), or goat anti-mouse IgG2c (Thermo Fisher), all diluted 1:500 in blocking buffer, for 1 hr at 37°C, washed 4x with wash buffer, and detected by TMB substrate (BD Biosciences). Absorbance was read at 450 nm on a VarioSkan Plate Reader (Thermo Fisher).

γHV68 quantitation

Request a detailed protocol

Quantification of γHV68 load was done as previously described (Márquez et al., 2020). Genomic DNA (gDNA) was extracted from 4 × 106 splenocytes with PureLink Genomic DNA mini kit (Thermo Fisher), according to the manufacturer’s instructions, and stored at −20°C. For qPCR, 150 ng DNA per reaction was amplified in duplicate using primers and probes specific to γHV68 ORF50 and mouse PTGER2 with QuantiNova Probe Mastermix (Qiagen). Primers and probes used from Integrated DNA Technologies were PTGER2: forward primer: 5′-TACCTTCAGCTGTACGCCAC-3′; reverse primer: 5′-GCCAGGAGAATGAGGTGGTC-3′; probe: 5′-/56-FAM/CCTGCTGCT/ZEN/TATCGTGGCTG/3IABkFQ/-3′; ORF50: forward primer: 5′-TGGACTTTGACAGCCCAGTA-3′; reverse primer: 5′-TCCCTTGAGGCAAATGATTC-3′; probe: 5′-/56-FAM/TGACAGTGC/ZEN/CTATGGCCAAGTCTTG/3IABkFQ/-3′. Standard curves were obtained by serial dilutions of ORF50 and PTGER2 gBlocks (ORF50: 2 × 106 – 2 × 101; PTGER2: 5 × 107–5×102). Reactions were run on the Bio-Rad CFX96 Touch Real Time PCR Detection system.

Statistics

Data and statistical analyses were performed using GraphPad Prism software 8.4.2 (GraphPad Software Inc). Results are presented as mean ± SEM. Statistical tests, significance (p-value), sample size (n, number of mice per group), and number of experimental replicates are stated in figure legends. Statistical analyses included two-way ANOVA with Geisser-Greenhouse's correction, Mann-Whitney test, or one-way ANOVA. P-values are indicated by asterisks as follows: ****p<0.0001, ***p<0.001, **p<0.01, *p<0.05.

Study approval

Request a detailed protocol

All work was approved by the Animal Care Committee (ACC) of the University of British Columbia (Protocols A17- 0105, A17-0184).

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files.

References

    1. Blaschke S
    2. Schwarz G
    3. Moneke D
    4. Binder L
    5. Müller G
    6. Reuss-Borst M
    (2000)
    Epstein-Barr virus infection in peripheral blood mononuclear cells, synovial fluid cells, and synovial membranes of patients with rheumatoid arthritis
    The Journal of Rheumatology 27:866–873.
    1. Olivadoti M
    2. Toth LA
    3. Weinberg J
    4. Opp MR
    (2007)
    Murine gammaherpesvirus 68: a model for the study of Epstein-Barr virus infections and related diseases
    Comparative Medicine 57:44–50.
    1. Tada Y
    2. Ho A
    3. Koh DR
    4. Mak TW
    (1996)
    Collagen-induced arthritis in CD4- or CD8-deficient mice: CD8+ T cells play a role in initiation and regulate recovery phase of collagen-induced arthritis
    Journal of Immunology 156:4520–4526.

Decision letter

  1. Dario Riccardo Valenzano
    Reviewing Editor; Max Planck Institute for Biology of Ageing, Germany
  2. Betty Diamond
    Senior Editor; The Feinstein Institute for Medical Research, United States
  3. Lena Pernas
    Reviewer; Max Planck Institute for Biology of Ageing, Germany

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Acceptance summary:

This is a very interesting study and could help shed light on mechanistic connections between latent infection by EBV with an age-dependent autoimmune condition, such as rheumatoid arthritis (RA).The authors use two models: a murine model of rheumatoid arthritis (Collagen-Induced Arthritis, CIA), and a murine analog of human EBV: γHV68. The use of these two models allows the investigation of how latent viral infection exacerbates the autoimmune condition via the action of a special class of B cells: Age-associated B cells.

Decision letter after peer review:

Thank you for submitting your article "Latent gammaherpesvirus exacerbates arthritis and requires age-associated B cells" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Betty Diamond as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Lena Pernas (Reviewer #2).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

This is a very interesting study could help shed light on mechanistic connections between latent infection by EBV with an age-dependent autoimmune condition, such as rheumatoid arthritis. The authors use two models: a murine model of rheumatoid arthritis (CIA), and a murine analog of human EBV: γHV68. The use of these two models allows the investigation of how latent viral infection exacerbates the autoimmune condition via the action of a special class of B cells: Age-associated B cells.

While all three reviewers recognise the potential of this work, an essential revision is needed before this work can be considered acceptable for publication in eLife. I would like to list the essential reviews needed, and I'd like to invite the authors to address all the comments from the reviewers.

1. Statistics: please address all questions regarding statistical analyses raised by reviewer #1.

2. The authors need to explain upfront why they chose to use young mice for their study, instead of aged subjects.

3. Is the acute collagen injection reactivating γHV68? The authors assume that the immune responses are largely due to latent viral infection. However, can they rule out a virus reactivation due to the experimental model of CIA?

4. The title needs to be revised to more faithfully reflect the results presented – in particular, the role of ABC is not clear from the current title.

5. Most of the comparisons made (as presented in figure 4) compare the ACRTA-γHV68 CIA mice to γHV68 CIA mice – my question is – does the infection with the mutated γHV68 affect these parameters in comparison to CIA mice?

Reviewer #1 (Recommendations for the authors):

Following are a few comments that concern clarity and rigor of the data analysis and manuscript.

1. There are a number of concerns regarding the completeness and appropriateness of a number of statistical analyses.

a. Authors tend to use t-tests throughout the manuscript. T-tests are not appropriate if the data is not normally distributed. In general, a test for normality should be performed (e.g. Shapiro) and mentioned in legends and methods if t-test must be used. Alternatively, it is usually better to choose non-parametric tests (e.g. Wilcoxon or Mann-Whitney) which do not have such prerequisites for usage. Thus, the statistics should be reviewed carefully in any future submission.

b. Two-way ANOVA analysis does not seem to be appropriate for longitudinal data, such as in Figure 1A. Data analysis methods more suitable for time-lapse datasets, such as area under curve, should be used. In general, a more detailed description of statistical analyses and results used in the manuscript should be added – eg. F-values for ANOVA, etc.

c. In addition to a "time-course" analysis, end-point statistical test results should be provided for clinical score data – eg. Figure 1A.

d. Significance test results between CIA and ACRTA-γHV68 CIA mice should also be included in Figures 4B-I.

e. Significance of difference in clinical scores between CIA and γHV68-CIA in Figure 4A is significantly lower compared to that from Figure 1A. Can the authors comment on this?

2. The authors use very young mice (6-8 weeks) to study an age-related condition, RA. At that age, mice are barely sexually mature. This a a potential caveat/confound of the study and should be extensively discussed in the manuscript (for instance, discussing how studying the impact of latency in >15 months old mice may alter conclusions).

3. Data from Figure 4A and Figure 4C do not seem to correlate: ACRTA-γHV68 CIA mice present with lower clinical scores compared to γHV68 CIA mice in Figure 4A, but spleen CD8+ levels are elevated in ACRTA-γHV68 CIA mice relative to γHV68 CIA mice. Additionally, spleen CD8+ proportions show greater variance in ACRTA-γHV68 CIA mice. Authors should discuss these points more extensively in the manuscript.

4. When comparing clinical score data from ABC Ctrl and KO mice, datasets from CIA and γHV68-CIA mice (e.g. Figure 6B and C) should be plotted together instead (or at least in an additional panel if needed). When needed, please note statistical tests should be corrected for multiple comparisons.

5. In the manuscript, authors state that no difference was observed between males and females in terms of effects of γHV68 on CIA progression. However, since it is well-known that women are significantly more likely to develop RA compared to men, authors should discuss how the findings from this study should be applied to future clinical studies. Additionally, in clinical score data from Supplementary Figure 1B, male mice seem to present with greater difference in clinical scores between CIA and 𝜸HV68-CIA mice compared to females. Comments on these observations should be added to the manuscript.

Reviewer #2 (Recommendations for the authors):

Regarding the role of 'latent' gammaherpesvirus:

1) The authors conclude that latent rather than acute EBV is responsible for exacerbating the symptoms of CIA and systematically modulating immune traits. However, the authors never assess whether the stress of collagen injection reactivates γHV68 (i.e. is there a spike in anti- γHV68 IgG?). The authors should check this or restate the conclusions regarding 'latent gammaherpesvirus' infection.

2) Along the previous comment, it is further not entirely clear how the authors executed their experiments with the acute strain ACRTA. The current methods are not detailed enough and should precisely state when the acute infection was performed/when infection is cleared. To demonstrate that acute infection is truly not modulating immune parameters or exacerbating disease symptoms, acute infection should have been performed at day 35 (depending on how long it takes to clear the pathogen) – is this the case?

Further clarification of immunological experimentation:

3) The authors should clarify why they analyzed certain cytokines, as an analysis of a broader set of cytokines would have been clearly valuable given our limited understanding of the role of chronic infections in shaping immune parameters.

4) The authors are overstating some of their findings given several non-significant reports (see comments below).

Title: needs be rephrased as it currently reads as if EBV benefits from the presence of ABCs.

Abstract:

Line 31/32: it remains unknown whether ABCs are directly stimulated by the virus infection or whether the presence of e.g. certain cytokines/immune cells due to infection are stimulating the appearance of ABCs. Thus "infection stimulates ABCs" should be rephrased as the authors do not provide evidence for a direct causation in their work.

Introduction:

Line 42-44: previous work stated in this line reports that RA patients have higher loads of EBV, indicating acute EBV in RA patients. Is anything known how often EBV shifts between lytic and latent stage in these patients? And how does it relate to what the authors conclude in their current work?

Line 47-50: for a better reading flow this should be moved after the sentence in line 42.

Line 52-55: references should be added

Line 55: was this examined during an active or chronic EBV infection?

Line 64/65: this sentence is vague – perhaps 'enhancement' could be clarified

Line 69: does this strain reactive regularly? If yes, how did authors ensure in their experiments that the used EBV strain was not lytic during the onset of symptoms or tissue collection 56 days post-latency?

Line 80: typo in C57BI/6 mice.

Line 83: given that the author's experiments do not truly uncover a mechanism by which EBV modulates RA disease, this sentence should be rephrased.

Line 86: typo – to the contribution of EBV

Line 93-95: references should be provided

Results:

Line 110: point scale is later on reported to range from 0-3.

Line 115/116: reference(s) should be added.

Line 155: more detailed explanation why specifically IFNγ and IL-17 two cytokines were chosen. See e.g. line 211.

Line 156: typo in fold-change 129

Line 157: authors report a trend towards a reduced relative expression of IL-17, while the p-value is clearly non-significant (p=0.24). Same for line 189 with a p-value of p=0.19. Accordingly, findings should be rephrased.

Line 242: how does this relate to findings from reference 3 that RA patients have higher EBV loads, indicating that it is in a lytic stage?

Line 267: not clear what is meant with viral enhancement?

Line 270: giving the non-significant p-values shown in Figure 5 B (p=0.077 and p=0.16), the total number of ABCs is not increased. Accordingly, findings and conclusions should be carefully rewritten.

Line 283/284: this sentence is vague.

Line 285-287: authors need to give more insights why certain parameters were examined.

Line 317: related Figures should be C and D, not D and E.

Line 317/318: results are overstated given the weak statistical support (p=0.07).

Line 320/321: can this be added to the supplements?

Figures:

All p-values should be reported consistently (e.g. Figure 2A "ns", Figure 2B and C "p=0.24" and "p=0.22"). See also Figure 4.

Stats are missing in Figure 3 D "ILN IFNγ of CD4" and Figure 3E, 6F

Figure 6H (line 320) is missing completely

Only figure 6 is in color, while the rest is black/white

Material and Methods:

Line 416: the authors should provide further details on the used strains, e.g. can/does yHV68 reactivate? When is the lytic strain ACRTA cleared?

Reviewer #3 (Recommendations for the authors):

The manuscript entitled: "Latent gammaherpesvirus exacerbates arthritis and requires age-associated B cells" by Mouat et al. addresses the question of whether gammaherpesvirus in its latent form, contributes to the severity of clinical RA and if latent gammaherpesvirus infection enhances clinical arthritis. To address this question, they used a mouse model where they monitored the severity of collagen-induced arthritis (CIA). They demonstrate that disease enhancement requires viral latency and that this enhancement is not due to active virus stimulation of the immune response. They investigated the association between age-associated B cells and the progression of arthritis. Using ABC knockout mice, they provided the first evidence that ABCs are mechanistically required for viral enhancement of disease, thereby establishing that latent gammaherpesvirus infection stimulates ABCs to provoke arthritis.

They used the C57Bl/6 mice model and infected them with EBV homolog, gHV68, waited 5 weeks for the lytic infection to clear thus, modeling the latent form of the infection. The induction of latency was used in three different scenarios: i) gHV68 only (latent); ii) collagen-induced arthritis (CIA) and; iii) the combination of gHV68 latent infection with CIA. They monitored the severity of the disease by redness and swelling in the hind two paws to inform a clinical score (scale of 0-4) and the δ of paw size. They observe that CIA in latent gHV68-infected mice has a more severe clinical course than uninfected mice and developed the onset of disease symptoms an average of seven days earlier than CIA-only mice. They also found that latent gHV68 infection did not affect autoantibody levels thus, latent gHV68 infection leads to the earlier onset and more severe CIA.

Next, the authors assessed the frequency of immune cells that infiltrates to the synovium (fluid in a specialized connective tissue) by flushing each joint with a buffer (PBS) and analyzing the composition using flow cytometry. The focus was on CD8+ and CD4+ T cell. They found that gHV68-CIA comprises 3.6-fold more CD8+ T cell in gHV68-CIA mice compared to CIA only. They did not find any change in the proportion of CD4+ T cells. Moreover, they found a significant increase of Tbet (Th1 cell-specific transcription factor) in both CD4+ and CD8+ that is indicative to Th1 skewing and further tested the levels of IFNγ and IL-17.

They state that the results indicate that IFNγ-producing T cells are preferentially infiltrating the synovium of gHV68-CIA mice, and a skewing towards cytotoxic CD8+ T cells in mice latently infected with gHV68 prior to CIA.

To assess if latent gHV68 infection skews the T cell response towards a pathogenic profile during CIA, the authors examined T cells in the spleen, inguinal/draining lymph nodes and found that gHV68-CIA mice display a decrease in the relative proportion of FoxP3+ Tregs and an increase in the relative proportion of CD8+ T cells in the spleen compared to control CIA mice. They show overall that the T cell profile of gHV68-CIA mice is skewed pathogenically, with decreased Tregs and increased cytotoxic T cells.

To demonstrates that infection with latent gHV68 is responsible for the enhancement of CIA and this is not due to innate immune stimulation during the acute infection the authors describe the response following the infection with a recombinant gHV68 strain that does not develop latency, namely, ACRTA-gHV68. They found that the immunological changes observed in gHV68-CIA mice, when compared to CIA mice, are absent in ACRTA-gHV68 CIA mice.

To investigate the role of age-associated B cells (ABCs) to facilitate the viral enhancement of CIA they studied the proportion and phenotype of ABCs in uninfected CIA mice and CIA mice previously infected with latent gHV68 (gHV68-CIA) by flow cytometry. These experiments indicate that ABCs in gHV68-CIA mice display a more pathogenic phenotype than those in CIA, with decreased expression of regulatory cytokine IL10 and inhibitory markers, and increased expression of IFNγ.

Moreover, they utilized ABC knock-out mice that harbor a B cell-specific Tbet deletion. Without ABCs, gHV68-CIA mice do not display clinical exacerbation, but rather appear similar to uninfected CIA mice in terms of disease severity and day of onset.

Overall, the authors show that:

– Infecting mice with latent gHV68 prior to CIA induction results in an immune course more similar to that of RA patients than CIA alone, and is a suitable model for examining the contribution of EBV to RA.

– Tbet+ B cells, known as age-associated B cells, are critical for this CIA exacerbation

The author suggests that:

– Latently EBV-infected B cells alter, either directly or indirectly, lymphocytes that go on to contribute to disease onset, likely through expanding and activating CD8+ T cells and skewing towards a Th1 response.

The manuscript is written well and the read flows. The experiments and results support the conclusions and this report is publishable.

I have several comments/revisions/corrections and questions regarding the data:

– Line 70: missing space between the letter "a" and the abbreviation "gHV68"

– Line 80: typo is the mouse strain – written "C7Bl/6" and should be "C57Bl/6"

– Line 86:- "The role of B cells the contribution of EBV to RA is intriguing…", correct the grammar

– Line 94: In line 63 the abbreviation "lymphocytic choriomeningitis virus (LCMV)" was defined so when mentioning it the second time it should state the abbreviation and not the full name.

– Line 146: The authors state that "Synovial cells were not collected from naïve or gHV68-infected mice without CIA because we would not expect there to be sufficient infiltration of immune cells for analysis". On what basis do the author state this? Was it established that immune cells do not infiltrate the synovium w/o CIA?

– The author state (line 238) "… that ACRTA-gHV68 CIA mice display a similar clinical and immunological profile to uninfected CIA mice". However, in figure 4 they compare the ACRTA-gHV68 CIA group to gHV68 CIA and not to CIA only group. It would be important to see that there is no significant difference between the CIA and ACRTA-gHV68 CIA group to support their statement.

– Line 156 – fold chage -> fold change

– Line 157: The author describes an increase in IFNγ and decrease in IL-17 however, there is no statistical significance using the Mann-Whitney t-test. Although they describe a fold increase, they do not comment on the high p values.

– Line 164: Figure 2A – it is not clear how the numbers in the figure were calculated – % out of CD45+CD3+ cells? Moreover, not clear to what does the description "…filled circles) and γHV68-CIA mice (filled squares)" relates to in the figure legend?

– Line 188: The increase of CD8+ and decrease of FoXP3+ in the spleen of gHV68-CIA mice vs CIA mice is compared to a similar observation in the circulation of humans. Does this mean that the education process of T cells in the spleen is mirrored to the circulation? it would be interesting to check the same in the mouse circulation? (it is possible to recover PBMCs from mice )

– Line 189: " In the ILNs of gHV68-CIA mice, we observe a trend of the deceased relative proportion of regulatory T cells and…" – from figure 3A it does not seem that there is a decrease in Treg in the ILN of gHV68-CIA mice. Could the authors clarify this point?

– Line 228: When the authors write resembling uninfected CIA mice – did they check the significance of CIA onset (figure 4B) between CIA and ACRTA-γHV68 CIA ?

– Most of the comparisons made (as presented in figure 4) compare the ACRTA-γHV68 CIA mice to γHV68 CIA mice – my question is – does the infection with the mutated γHV68 affect these parameters in comparison to CIA mice?

https://doi.org/10.7554/eLife.67024.sa1

Author response

Essential revisions:

This is a very interesting study could help shed light on mechanistic connections between latent infection by EBV with an age-dependent autoimmune condition, such as rheumatoid arthritis. The authors use two models: a murine model of rheumatoid arthritis (CIA), and a murine analog of human EBV: γHV68. The use of these two models allows the investigation of how latent viral infection exacerbates the autoimmune condition via the action of a special class of B cells: Age-associated B cells.

While all three reviewers recognise the potential of this work, an essential revision is needed before this work can be considered acceptable for publication in eLife. I would like to list the essential reviews needed, and I'd like to invite the authors to address all the comments from the reviewers.

1. Statistics: please address all questions regarding statistical analyses raised by reviewer #1.

We appreciate the comments from reviewer #1 regarding statistical analyses. We have updated all of the statistical analyses in the manuscript as per their comments.

2. The authors need to explain upfront why they chose to use young mice for their study, instead of aged subjects.

It is always difficult to make precise age comparisons between different species, especially mice and humans, but in this study, we have attempted to recapitulate the timing of infection and disease. We have infected mice with γHV68 when they are young but still sexually and immunologically mature (6-8 weeks-old) and then have induced CIA 5 weeks later, when mice are 11-13 weeks old and virus has well established latency. This mirrors the human condition as EBV infection typically occurs in childhood or late adolescence and RA is observed later during adulthood.

3. Is the acute collagen injection reactivating γHV68? The authors assume that the immune responses are largely due to latent viral infection. However, can they rule out a virus reactivation due to the experimental model of CIA?

Our previous work shows that adjuvant (CFA), that is used in both EAE and CIA induction, does not result in γHV68 reactivation (Casiraghi, 2012). We now provide qPCR data that demonstrates that the viral load is not elevated in γHV68-CIA mice (Figure 1—figure supplement 1I).

4. The title needs to be revised to more faithfully reflect the results presented – in particular, the role of ABC is not clear from the current title.

The title now reads as “Latent gammaherpesvirus exacerbates arthritis through modification of age-associated B cells”

5. Most of the comparisons made (as presented in figure 4) compare the ACRTA-γHV68 CIA mice to γHV68 CIA mice – my question is – does the infection with the mutated γHV68 affect these parameters in comparison to CIA mice?

We have added comparisons between CIA and ACRTA-γHV68 CIA and find no difference between these groups, showing that only γHV68 that develops latency drives the exacerbation of disease.

Reviewer #1 (Recommendations for the authors):

Following are a few comments that concern clarity and rigor of the data analysis and manuscript.

1. There are a number of concerns regarding the completeness and appropriateness of a number of statistical analyses.

a. Authors tend to use t-tests throughout the manuscript. T-tests are not appropriate if the data is not normally distributed. In general, a test for normality should be performed (e.g. Shapiro) and mentioned in legends and methods if t-test must be used. Alternatively, it is usually better to choose non-parametric tests (e.g. Wilcoxon or Mann-Whitney) which do not have such prerequisites for usage. Thus, the statistics should be reviewed carefully in any future submission.

Thank you for pointing this out. We have changed t-tests to Mann-Whitney tests throughout the manuscript.

b. Two-way ANOVA analysis does not seem to be appropriate for longitudinal data, such as in Figure 1A. Data analysis methods more suitable for time-lapse datasets, such as area under curve, should be used. In general, a more detailed description of statistical analyses and results used in the manuscript should be added – eg. F-values for ANOVA, etc.

Thank you for these helpful suggestions. We have added area under the curve values for each individual mouse to supplementary figure 1. We have also re-run ANOVAs to account for multiple comparisons and have added F-values to the figure descriptions for all ANOVA tests throughout the manuscript.

c. In addition to a "time-course" analysis, end-point statistical test results should be provided for clinical score data – eg. Figure 1A.

Thank you for this suggestion, we have added both endpoint and cumulative clinical scores to the supplement.

d. Significance test results between CIA and ACRTA-γHV68 CIA mice should also be included in Figures 4B-I.

Thank you for pointing this out, we have added this comparison.

e. Significance of difference in clinical scores between CIA and γHV68-CIA in Figure 4A is significantly lower compared to that from Figure 1A. Can the authors comment on this?

Thank you for pointing this out. We have revised the statistical tests to account for multiple comparisons and now find that the differences to be the same between Figure 4A and Figure 1A.

2. The authors use very young mice (6-8 weeks) to study an age-related condition, RA. At that age, mice are barely sexually mature. This a a potential caveat/confound of the study and should be extensively discussed in the manuscript (for instance, discussing how studying the impact of latency in >15 months old mice may alter conclusions).

Thank you for your concern. The role of age and time between infection and disease onset is something we discuss extensively in our group. In modeling disease associated with EBV, we need to take into consideration that over 95% of EBV infections take place in childhood, adolescence, and early adulthood (before 20 years of age). Prevalence of RA increases with age, typically occurs after the age of EBV infection during middle-age, roughly between 30-60. It is always difficult to make precise age comparisons between different species, especially mice and humans, but general age comparisons can be made. For mice, adolescence and early adulthood is modelled in immunologically and sexually mature mice between 6-8 weeks of age. We make it a practice to only use the fully developed mice. CIA induction takes place 5 weeks post-infection when the mice are well into adulthood. So these are not “very young mice.” We have added this sentence to the introduction to further clarify: “EBV primary infection generally takes place in childhood or adolescence(6,7) and RA can occur at any age, though the mean incidence occurs during middle-age(23). Accordingly, we have infected immunologically and sexually mature 6-8-week-old C57BL/6J mice with γHV68 and have induced CIA when the mice are adults at 11-13 weeks old.”

3. Data from Figure 4A and Figure 4C do not seem to correlate: ACRTA-γHV68 CIA mice present with lower clinical scores compared to γHV68 CIA mice in Figure 4A, but spleen CD8+ levels are elevated in ACRTA-γHV68 CIA mice relative to γHV68 CIA mice. Additionally, spleen CD8+ proportions show greater variance in ACRTA-γHV68 CIA mice. Authors should discuss these points more extensively in the manuscript.

We appreciate this observation. While there may be higher proportions of CD8 T cells in ACRTA-γHV68, they express significantly less IFNγ (Figure 4E), reflecting altered functional capacity and possibly specificity. We have added this to the text (line 298).

4. When comparing clinical score data from ABC Ctrl and KO mice, datasets from CIA and γHV68-CIA mice (e.g. Figure 6B and C) should be plotted together instead (or at least in an additional panel if needed). When needed, please note statistical tests should be corrected for multiple comparisons.

Thank you for pointing this out, we have added an additional panel that displays all datasets together (Figure 6D).

5. In the manuscript, authors state that no difference was observed between males and females in terms of effects of γHV68 on CIA progression. However, since it is well-known that women are significantly more likely to develop RA compared to men, authors should discuss how the findings from this study should be applied to future clinical studies. Additionally, in clinical score data from Supplementary Figure 1B, male mice seem to present with greater difference in clinical scores between CIA and 𝜸HV68-CIA mice compared to females. Comments on these observations should be added to the manuscript.

While prevalence of RA occurs to a greater extent in women, in CIA induction in mice there is no sex prevalence. As an induced model, it likely breaks through some of the sex related susceptibility/resistance. Similarly, CIA has little association to age. We highlight in the text that this is in line with previous findings: “In agreement with other research groups(22), male and female mice displayed similar clinical scores during CIA and we also do not observe a sex difference in γHV68-CIA mice (Figure 1—figure supplement 1E)” (line 146).

Reviewer #2 (Recommendations for the authors):

Regarding the role of 'latent' gammaherpesvirus:

1) The authors conclude that latent rather than acute EBV is responsible for exacerbating the symptoms of CIA and systematically modulating immune traits. However, the authors never assess whether the stress of collagen injection reactivates γHV68 (i.e. is there a spike in anti- γHV68 IgG?). The authors should check this or restate the conclusions regarding 'latent gammaherpesvirus' infection.

Thank you for this suggestion. We now provide qPCR data that demonstrates that the viral load is not elevated in γHV68-CIA mice (Figure 1 —figure supplement 1I). These results and methods have been added to the supplementary materials and we have added these sentences to the text: “Additionally, we find that inducing CIA in γHV68-infected mice does not impact viral load (Figure 1—figure supplement 1I), indicating that γHV68 is not reactivating. These findings are in line with our previous work showing that latent γHV68 infection enhances EAE without influencing autoantibody levels or reactivating γHV68(18)” (line 159).

2) Along the previous comment, it is further not entirely clear how the authors executed their experiments with the acute strain ACRTA. The current methods are not detailed enough and should precisely state when the acute infection was performed/when infection is cleared. To demonstrate that acute infection is truly not modulating immune parameters or exacerbating disease symptoms, acute infection should have been performed at day 35 (depending on how long it takes to clear the pathogen) – is this the case?

Thank you, we apologize for this oversight. We have added further details to the Results section to clarify, which now reads: “In ACRTA-γHV68 the genes responsible for latency are deleted and a lytic gene, RTA, is constitutively expressed, resulting in clearance of the acute virus by day 14 post-infection(48). We infected mice with ACRTA-γHV68, waited 35 days for clearance of the acute infection, and induced CIA” (line 287).

To the methods we have added: “On day 35 post-γHV68 or ACRTA-γHV68 infection, CIA was induced by injection of immunization-grade, chick type II collagen emulsified in complete Freund’s adjuvant (CFA, Chondrex, Inc) intradermally at the base of the tail, followed by a booster injection of the same emulsion on day 14, as adapted from(59)” (line 538)

Further clarification of immunological experimentation:

3) The authors should clarify why they analyzed certain cytokines, as an analysis of a broader set of cytokines would have been clearly valuable given our limited understanding of the role of chronic infections in shaping immune parameters.

We agree that examining a wider array of cytokines would be valuable. Our initial approach was to focus our examination on immediately relevant cytokines from our previous work where we show altered chronic disease during latent γHV68 infection. We are currently following up on these findings with a broader examination of the cytokine expression profile.

4) The authors are overstating some of their findings given several non-significant reports (see comments below).

Title: needs be rephrased as it currently reads as if EBV benefits from the presence of ABCs

Thank you for pointing this out. The title now reads as “Latent gammaherpesvirus exacerbates arthritis through modification of age-associated B cells”.

Abstract:

Line 31/32: it remains unknown whether ABCs are directly stimulated by the virus infection or whether the presence of e.g. certain cytokines/immune cells due to infection are stimulating the appearance of ABCs. Thus "infection stimulates ABCs" should be rephrased as the authors do not provide evidence for a direct causation in their work.

Thank you for pointing this out, this sentence has been rephrased (line 33).

Introduction:

Line 42-44: previous work stated in this line reports that RA patients have higher loads of EBV, indicating acute EBV in RA patients. Is anything known how often EBV shifts between lytic and latent stage in these patients? And how does it relate to what the authors conclude in their current work?

In Balandraud et al., the researchers measured EBV DNA and this does not indicate replicating or lytic virus, just overall more virus. The reactivation dynamics and reasons for increased viral load in RA patients are not well understood. It most likely reflects that more cells retain latent virus either through the initial infection or subsequent reactivations with return to latency. The measured increase in virus likely reflects a latent state as patients retain a strong T cell and antibody response to the virus. Lytic infection from reactivation would be quickly controlled. In our work, we observe no reactivation of γHV68 during induction or maintenance of CIA here and in our previous EAE work. The act of maintaining latency is sufficient to induce heightened disease. Likewise, in our EAE work, we have observed that acute infection protects/delays from disease induction.

Line 47-50: for a better reading flow this should be moved after the sentence in line 42.

Thank you for this helpful suggestion, we have made the suggested change (line 45).

Line 52-55: references should be added.

Added (line 55).

Line 55: was this examined during an active or chronic EBV infection?

Unfortunately, the referenced manuscript does not examine EBV infection at this level. We agree that this would be helpful to know.

Line 64/65: this sentence is vague – perhaps 'enhancement' could be clarified.

Thank you for pointing this out – we have reworded and added additional information (line 71).

Line 69: does this strain reactive regularly? If yes, how did authors ensure in their experiments that the used EBV strain was not lytic during the onset of symptoms or tissue collection 56 days post-latency?

As described above, our group has previously shown that γHV68 does not reactivate following adjuvant. We have added these sentences to the text to further clarify: “Additionally, we find that inducing CIA in γHV68-infected mice does not impact viral load (Figure 1—figure supplement 1I), indicating that γHV68 is not reactivating. These findings are in line with our previous work showing that latent γHV68 infection enhances EAE without influencing autoantibody levels or reactivating γHV68(18)” (line 159).

Line 80: typo in C57BI/6 mice.

Corrected, thank you (line 102).

Line 83: given that the author's experiments do not truly uncover a mechanism by which EBV modulates RA disease, this sentence should be rephrased.

Thank you, we have rephrased this sentence, which now reads “We have utilized γHV68 infection and CIA induction to investigate mechanism(s) by which EBV contributes to RA, in particular through the modulation of age-associated B cells” (line 104)

Line 86: typo – to the contribution of EBV.

Corrected, thank you (line 108).

Line 93-95: references should be provided.

Added references, thank you (line 116).

Results:

Line 110: point scale is later on reported to range from 0-3.

Thank you for pointing this out. We have revised to increase clarity (line 138).

Line 115/116: reference(s) should be added.

Added reference, thank you (line 146).

Line 155: more detailed explanation why specifically IFNγ and IL-17 two cytokines were chosen. See e.g. line 211.

Addressed above.

Line 156: typo in fold-change 129

Corrected, thank you (line 202).

Line 157: authors report a trend towards a reduced relative expression of IL-17, while the p-value is clearly non-significant (p=0.24). Same for line 189 with a p-value of p=0.19. Accordingly, findings should be rephrased.

Thank you for pointing this out. We have added a caveat that “the sample size is low due to the difficulty of obtaining these samples” (line 206) and have clarified that the decreased trend is non-significant.

Line 242: how does this relate to findings from reference 3 that RA patients have higher EBV loads, indicating that it is in a lytic stage?

In Balandraud et al., the researchers measured EBV DNA and this does not indicate replicating or lytic virus, just overall more virus. Initial EBV infections occur in childhood to early adulthood, where EBV latency is established and this is well before the onset of RA.

Line 267: not clear what is meant with viral enhancement?

We have reworded to increase clarity. Now reads: “...we investigated the role of ABCs in facilitating γHV68-exacerbation of CIA” (line 337).

Line 270: giving the non-significant p-values shown in Figure 5 B (p=0.077 and p=0.16), the total number of ABCs is not increased. Accordingly, findings and conclusions should be carefully rewritten.

Thank you for pointing this out. After changing our statistical tests to account for significantly different SDs, we find that there is a significant increase in total number of ABCs (Figure 5B).

Line 283/284: this sentence is vague.

Thank you for identifying this. We have reworded this sentence as “Further, fewer splenic ABCs in γHV68-CIA mice express inhibitory receptors CTLA4, PDL1, and PD1 (Figure 5D-F), and thus ABCs in CIA display a more regulatory phenotype than those in γHV68-CIA mice” (line 362).

Line 285-287: authors need to give more insights why certain parameters were examined.

Thank you for this observation. We have added this sentence: “We examined a series of markers previously shown to be expressed by ABCs, including cytokines IL10, IFNγ, and TNFα(26,48–50), an array of inhibitory receptors(26,30,36), maturity and memory markers IgD, IgM, and CD27(26,48), and MHCII(26,36,51)” (line 357).

Line 317: related Figures should be C and D, not D and E.

Corrected, thank you.

Line 317/318: results are overstated given the weak statistical support (p=0.07).

We have reworded this section and moved the immunological data to the supplements as per the following comment. Now reads: “We observe that the ablation of ABCs does not significantly alter the proportion of CD8, CD4, or Treg populations in the spleen during CIA or γHV68-CIA, nor the expression of IFNγ or IL17 (Figure 6—figure supplement 1). These results indicate that ABCs are a critical pathogenic population in γHV68-CIA though more work is needed to fully elucidate the mechanism by which ABCs are contributing to disease” (line 404).

Line 320/321: can this be added to the supplements?

Thank you for this suggestion, we have added an additional supplementary figure with the splenic T cell response in Ctrl and KO mice.

Figures:

All p-values should be reported consistently (e.g. Figure 2A "ns", Figure 2B and C "p=0.24" and "p=0.22"). See also Figure 4.

Stats are missing in Figure 3 D "ILN IFNγ of CD4" and Figure 3E, 6F

Figure 6H (line 320) is missing completely

Corrected, thank you.

Only figure 6 is in color, while the rest is black/white

We have updated all figures to add color.

Material and Methods:

Line 416: the authors should provide further details on the used strains, e.g. can/does yHV68 reactivate? When is the lytic strain ACRTA cleared?

Like EBV and other herpesvirus, γHV68 does reactivate from latency. We have added this to the list of attributes that γHV68 shares with EBV in the intro, which now reads: “γHV68 is a natural pathogen that is a well-established and widely-used murine model of EBV infection that shares an array of characteristics with human EBV infection, including latent persistence in B cells, viral reactivation from latency, a potent CD8 T cell response, and immune evasion tactics(19,20)” (line 82). As per ACRTA-γHV68, we have added the sentence: “In ACRTA-γHV68 the genes responsible for latency are deleted and a lytic gene, RTA, is constitutively expressed, resulting in clearance of the acute virus by day 14(48)” (line 287).

Reviewer #3 (Recommendations for the authors):

[…] I have several comments/revisions/corrections and questions regarding the data:

– Line 70: missing space between the letter "a" and the abbreviation "gHV68"

Thank you, corrected (line 102).

– Line 80: typo is the mouse strain – written "C7Bl/6" and should be "C57Bl/6"

Thank you, corrected (line 122).

– Line 86:- "The role of B cells the contribution of EBV to RA is intriguing…", correct the grammar.

Corrected, thank you (line 128).

– Line 94: In line 63 the abbreviation "lymphocytic choriomeningitis virus (LCMV)" was defined so when mentioning it the second time it should state the abbreviation and not the full name.

Thank you, corrected (line 116).

– Line 146: The authors state that "Synovial cells were not collected from naïve or gHV68-infected mice without CIA because we would not expect there to be sufficient infiltration of immune cells for analysis". On what basis do the author state this? Was it established that immune cells do not infiltrate the synovium w/o CIA?

We have attempted to collect synovium-infiltrating cells from non-inflamed joints (naïve and γHV68-infected mice) and were unable to secure enough sample for analysis.

– The author state (line 238) "… that ACRTA-gHV68 CIA mice display a similar clinical and immunological profile to uninfected CIA mice". However, in figure 4 they compare the ACRTA-gHV68 CIA group to gHV68 CIA and not to CIA only group. It would be important to see that there is no significant difference between the CIA and ACRTA-gHV68 CIA group to support their statement.

Thank you for this suggestion, we have added comparison of CIA and ACRTA-γHV68 CIA to Figure 4.

– Line 156 – fold chage -> fold change

Thank you, typo corrected (line 202).

– Line 157: The author describes an increase in IFNγ and decrease in IL-17 however, there is no statistical significance using the Mann-Whitney t-test. Although they describe a fold increase, they do not comment on the high p values.

Thank you for pointing this out. We have updated the p-values by using the Mann-Whitney test and have added that “the sample size is low due to the difficulty of obtaining these samples” (line 201).

– Line 164: Figure 2A – it is not clear how the numbers in the figure were calculated – % out of CD45+CD3+ cells? Moreover, not clear to what does the description "…filled circles) and γHV68-CIA mice (filled squares)" relates to in the figure legend?

Thank you for your comment and we apologize for the confusion. To clarify this, we have updated the figure description, which now reads: “(A) Representative flow cytometry plots of synovial fluid (SF) CD8+ and CD4+ T cells. Previously gated on lymphocytes, singlets, live cells, and CD45+CD3+ cells. Flow cytometry plots (concatenated samples) and graphs of total numbers (y-axis) of CD45+CD3+CD8+ and CD45+CD3+CD4+ T cells in uninfected mice with CIA (filled circles) and γHV68-CIA mice (filled squares)” (line 214).

– Line 188: The increase of CD8+ and decrease of FoXP3+ in the spleen of gHV68-CIA mice vs CIA mice is compared to a similar observation in the circulation of humans. Does this mean that the education process of T cells in the spleen is mirrored to the circulation? It would be interesting to check the same in the mouse circulation? (it is possible to recover PBMCs from mice ).

We agree that this is interesting and we have begun to address this in mice and examine their PBMCs.

– Line 189: " In the ILNs of gHV68-CIA mice, we observe a trend of the deceased relative proportion of regulatory T cells and…" – from figure 3A it does not seem that there is a decrease in Treg in the ILN of gHV68-CIA mice. Could the authors clarify this point?

Thank you for pointing this out. We have clarified this sentence, which now reads: “In the ILNs of γHV68-CIA mice, we observe a nonsignificant trend of decreased CD8+ and CD4+ T cells relative proportions, indicating potential T cell egress from the ILNs during disease, and find that the proportion of regulatory T cells is unchanged between CIA and γHV68-CIA mice (Figure 3A-B, Figure 3—figure supplement 1E-G)” (line 241).

– Line 228: When the authors write resembling uninfected CIA mice – did they check the significance of CIA onset (figure 4B) between CIA and ACRTA-γHV68 CIA ?

Yes, we have added that comparison, and find that there is not a difference in day of onset between CIA and ACRTA-γHV68 CIA (Figure 4B).

– Most of the comparisons made (as presented in figure 4) compare the ACRTA-γHV68 CIA mice to γHV68 CIA mice – my question is – does the infection with the mutated γHV68 affect these parameters in comparison to CIA mice?

We have added this comparison to Figure 4C-I and find no differences between ACRTA-MHV68 and CIA.

Reference:

Casiraghi C, Shanina I, Cho S, Freeman ML, Blackman MA, Horwitz MS (2012) Gammaherpesvirus Latency Accentuates EAE Pathogenesis: Relevance to Epstein-Barr Virus and Multiple Sclerosis. PLoS Pathog 8(5): e1002715. https://doi.org/10.1371/journal.ppat.1002715

https://doi.org/10.7554/eLife.67024.sa2

Article and author information

Author details

  1. Isobel C Mouat

    Department of Microbiology and Immunology, The University of British Columbia, Vancouver, Canada
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4319-9067
  2. Zachary J Morse

    Department of Microbiology and Immunology, The University of British Columbia, Vancouver, Canada
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  3. Iryna Shanina

    Department of Microbiology and Immunology, The University of British Columbia, Vancouver, Canada
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  4. Kelly L Brown

    Department of Pediatrics, Division of Rheumatology, and British Columbia Children's Hospital Research Institute, The University of British Columbia, Vancouver, Canada
    Contribution
    Writing - review and editing
    Competing interests
    No competing interests declared
  5. Marc S Horwitz

    Department of Microbiology and Immunology, The University of British Columbia, Vancouver, Canada
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    mhorwitz@mail.ubc.ca
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5922-2199

Funding

Multiple Sclerosis Society of Canada (# 3070)

  • Marc S Horwitz

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We are grateful to Dr. Philippa Marrack for providing Tbx21fl/fl and Cd19cre/+ mice and to Jessica R Allanach for advice and help in preparing the manuscript. This research was supported in part by the MSSC, CIHR, UBC, and JDRF.

Ethics

Animal experimentation: All work was approved by the Animal Care Committee (ACC) of the University of British 504 Columbia (Protocols A17- 0105, A17-0184).

Senior Editor

  1. Betty Diamond, The Feinstein Institute for Medical Research, United States

Reviewing Editor

  1. Dario Riccardo Valenzano, Max Planck Institute for Biology of Ageing, Germany

Reviewer

  1. Lena Pernas, Max Planck Institute for Biology of Ageing, Germany

Publication history

  1. Received: January 29, 2021
  2. Accepted: May 31, 2021
  3. Accepted Manuscript published: June 3, 2021 (version 1)
  4. Version of Record published: August 4, 2021 (version 2)

Copyright

© 2021, Mouat et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 605
    Page views
  • 87
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

  1. Further reading

Further reading

    1. Immunology and Inflammation
    Alejandro J Brenes et al.
    Research Article Updated

    Tissue-resident intestinal intraepithelial T lymphocytes (T-IEL) patrol the gut and have important roles in regulating intestinal homeostasis. T-IEL include both induced T-IEL, derived from systemic antigen-experienced lymphocytes, and natural T-IEL, which are developmentally targeted to the intestine. While the processes driving T-IEL development have been elucidated, the precise roles of the different subsets and the processes driving activation and regulation of these cells remain unclear. To gain functional insights into these enigmatic cells, we used high-resolution, quantitative mass spectrometry to compare the proteomes of induced T-IEL and natural T-IEL subsets, with naive CD8+ T cells from lymph nodes. This data exposes the dominant effect of the gut environment over ontogeny on T-IEL phenotypes. Analyses of protein copy numbers of >7000 proteins in T-IEL reveal skewing of the cell surface repertoire towards epithelial interactions and checkpoint receptors; strong suppression of the metabolic machinery indicating a high energy barrier to functional activation; upregulated cholesterol and lipid metabolic pathways, leading to high cholesterol levels in T-IEL; suppression of T cell antigen receptor signalling and expression of the transcription factor TOX, reminiscent of chronically activated T cells. These novel findings illustrate how T-IEL integrate multiple tissue-specific signals to maintain their homeostasis and potentially function.

    1. Evolutionary Biology
    2. Immunology and Inflammation
    Srijan Seal et al.
    Review Article

    Researchers worldwide are repeatedly warning us against future zoonotic diseases resulting from humankind’s insurgence into natural ecosystems. The same zoonotic pathogens that cause severe infections in a human host frequently fail to produce any disease outcome in their natural hosts. What precise features of the immune system enable natural reservoirs to carry these pathogens so efficiently? To understand these effects, we highlight the importance of tracing the evolutionary basis of pathogen tolerance in reservoir hosts, while drawing implications from their diverse physiological and life-history traits, and ecological contexts of host-pathogen interactions. Long-term co-evolution might allow reservoir hosts to modulate immunity and evolve tolerance to zoonotic pathogens, increasing their circulation and infectious period. Such processes can also create a genetically diverse pathogen pool by allowing more mutations and genetic exchanges between circulating strains, thereby harboring rare alive-on-arrival variants with extended infectivity to new hosts (i.e., spillover). Finally, we end by underscoring the indispensability of a large multidisciplinary empirical framework to explore the proposed link between evolved tolerance, pathogen prevalence, and spillover in the wild.
