Precise optical control of gene expression in C elegans using improved genetic code expansion and Cre recombinase

  1. Lloyd Davis
  2. Inja Radman
  3. Angeliki Goutou
  4. Ailish Tynan
  5. Kieran Baxter
  6. Zhiyan Xi
  7. Jack M O'Shea
  8. Jason W Chin  Is a corresponding author
  9. Sebastian Greiss  Is a corresponding author
  1. Centre for Discovery Brain Sciences, University of Edinburgh, United Kingdom
  2. Medical Research Council Laboratory of Molecular Biology, United Kingdom
https://doi.org/10.7554/eLife.67075
Share this article
Cite this article
  1. Lloyd Davis
  2. Inja Radman
  3. Angeliki Goutou
  4. Ailish Tynan
  5. Kieran Baxter
  6. Zhiyan Xi
  7. Jack M O'Shea
  8. Jason W Chin
  9. Sebastian Greiss
(2021)
Precise optical control of gene expression in C elegans using improved genetic code expansion and Cre recombinase
eLife 10:e67075.
https://doi.org/10.7554/eLife.67075
  2. Download BibTeX
  3. Download .RIS

Abstract

Synthetic strategies for optically controlling gene expression may enable the precise spatiotemporal control of genes in any combination of cells that cannot be targeted with specific promoters. We develop an improved genetic code expansion system in Caenorhabditis elegans and use it to create a photoactivatable Cre recombinase. We laser-activate Cre in single neurons within a bilaterally symmetric pair to selectively switch on expression of a loxP-controlled optogenetic channel in the targeted neuron. We use the system to dissect, in freely moving animals, the individual contributions of the mechanosensory neurons PLML/PLMR to the C. elegans touch response circuit, revealing distinct and synergistic roles for these neurons. We thus demonstrate how genetic code expansion and optical targeting can be combined to break the symmetry of neuron pairs and dissect behavioural outputs of individual neurons that cannot be genetically targeted.

eLife digest

Animal behaviour and movement emerges from the stimulation of nerve cells that are connected together like a circuit. Researchers use various tools to investigate these neural networks in model organisms such as roundworms, fruit flies and zebrafish. The trick is to activate some nerve cells, but not others, so as to isolate their specific role within the neural circuit.

One way to do this is to switch genes on or off in individual cells as a way to control their neuronal activity. This can be achieved by building a photocaged version of the enzyme Cre recombinase which is designed to target specific genes. The modified Cre recombinase contains an amino acid (the building blocks of proteins) that inactivates the enzyme. When the cell is illuminated with UV light, a part of the amino acid gets removed allowing Cre recombinase to turn on its target gene.

However, cells do not naturally produce these photocaged amino acids. To overcome this, researchers can use a technology called genetic code expansion which provides cells with the tools they need to build proteins containing these synthetic amino acids. Although this technique has been used in live animals, its application has been limited due to the small amount of proteins it produces. Davis et al. therefore set out to improve the efficiency of genetic code expansion so that it can be used to study single nerve cells in freely moving roundworms.

In the new system, named LaserTAC, individual cells are targeted with UV light that ‘uncages’ the Cre recombinase enzyme so it can switch on a gene for a protein that controls neuronal activity. Davis et al. used this approach to stimulate a pair of neurons sensitive to touch to see how this impacted the roundworm’s behaviour. This revealed that individual neurons within this pair contribute to the touch response in different ways. However, input from both neurons is required to produce a robust reaction.

These findings show that the LaserTAC system can be used to manipulate gene activity in single cells, such as neurons, using light. It allows researchers to precisely control in which cells and when a given gene is switched on or off. Also, with the improved efficiency of the genetic code expansion, this technology could be used to modify proteins other than Cre recombinase and be applied to other artificial amino acids that have been developed in recent years.

Introduction

Genetic code expansion offers the ability to introduce, during translation, functionalities into proteins beyond those offered by the set of canonical, naturally occurring amino acids. This is achieved by providing orthogonal translation components: an orthogonal aminoacyl-tRNA synthetase (aaRS) paired with a cognate orthogonal tRNA, and assignment of a codon to determine the site of incorporation of a non-canonical amino acid (ncAA) (Chin, 2017). The genetic code of several single and multicellular systems has been expanded to date (Brown et al., 2018a). Caenorhabditis elegans was the first multicellular organism in which genetic code expansion was established, and the incorporation of ncAA has been demonstrated in multiple C. elegans tissues (Greiss and Chin, 2011; Parrish et al., 2012). Currently available orthogonal systems, however, often lack the efficiency required to fully harness the possibilities offered by genetic code expansion, especially in multicellular systems. A large variety of non-canonical amino acids are available for in vivo use, among them photocaged amino acids, which can be used to confer light-activated control over the function of proteins in a host organism (Courtney and Deiters, 2018).

Sequence-specific DNA recombinases, such as Cre and FLP, have become transformative for controlling gene expression in many systems, including worms, flies, and vertebrates, by irreversibly activating or deactivating target gene expression. Indeed, the photo-induced reconstitution of split recombinases (Schindler et al., 2015; Kawano et al., 2016) might be used to optically target recombinase activity to a single cell. However, the sensitivity of this technique can be hampered by high background levels of light-independent recombinase activity. Moreover, these systems are induced using blue light, rendering their use incompatible with most optogenetic and imaging applications, and requiring cells to be kept in the dark, complicating their use in transparent model systems. Recently, genetic code expansion methods were used to create photocaged versions of Cre in cultured mammalian cells and zebrafish embryos (Luo et al., 2016; Brown et al., 2018b). In photocaged Cre, an orthogonal aaRS/tRNACUA pair is used to replace a catalytically critical tyrosine or lysine residue in the active site of Cre with a photocaged tyrosine or lysine residue, resulting in a catalytically inactive enzyme (Luo et al., 2016; Brown et al., 2018b). The photocaging group can then be removed through a short exposure to 365 nm UV light, activating Cre recombinase, which in turn activates expression of its target genes. We set out to create an optimised photocaged Cre system that enables the optical activation of gene expression in single cells in an animal. The precise spatiotemporal control of gene expression offered by photocaged Cre would have a wide range of applications by allowing the expression of genes of interest in single cells or combinations of cells. Applied to control, for example, optogenetic channels or other neuromodulatory proteins, it could be a transformative tool in neurobiology.

Defining the molecular and cellular basis of behaviour is a fundamental challenge in neuroscience. C. elegans contains 302 neurons, for which the physical connectivity has been determined (White et al., 1986). This physical map provides a conceptual framework within which to design experiments to understand the signal processing properties of neural circuits that define behaviour. Central to this endeavour are methods for the spatiotemporal control of gene expression that enable precise perturbations to be effected in individual cells or combinations of cells and thereby advance our understanding of cellular contributions to circuit function. Two thirds of the neurons in C. elegans exist in bilaterally symmetric (left and right) pairs, and similar gross morphological symmetries are seen in the nervous systems of many other animals. A central question is whether and how this morphological symmetry is broken to produce functional asymmetry (Troemel et al., 1999; Wes and Bargmann, 2001; Suzuki et al., 2008; Hobert et al., 2002).

Tissue-specific promoters (alone or in combination) can be used to target groups of cells. However, this approach offers only limited precision, and in many cases appropriate promoters are unavailable; especially in scenarios when investigators aim to limit expression to a single cell or a defined subset of cells. This is particularly limiting in neuroscience studies where the goal is to couple neuronal activity of single neurons or a defined subset of neurons with functional output. Where specific promoters for targeting individual neurons are unavailable, laser ablation can be used to remove specific neurons, but this technology is not compatible with studying intact circuits. Optogenetic approaches using targeted illumination have been applied to stimulate groups or pairs of cells, and track resulting behavioural outputs in freely moving C. elegans (Leifer et al., 2011; Stirman et al., 2011; Kocabas et al., 2012). However, without a means of precisely defining expression of optogenetic tools, this approach is technically very challenging as it requires specialised software and hardware tools for real-time tracking and targeting and does not lend itself to isolating single cells in neuronal pairs. Similar obstacles are encountered in other systems, where the solution often also requires technically challenging approaches utilising targeted illumination (Chen et al., 2018).

Here we describe the optimisation of genetic code expansion for ncAA incorporation and the optimisation of a photocaged Cre recombinase variant (optPC-Cre) in C. elegans. The combination of these advances allows us to optically control gene expression with unprecedented precision and over 95% efficiency in a population of animals (compared to less than 1% efficiency before optimisation). By using a microscope-mounted 365 nm laser, we photo-activate Cre and thereby control gene expression in single cells (Figure 1). We name this approach Laser Targeted Activation of Cre-Lox recombination (LaserTAC). LaserTAC is fast and within the technical capabilities of any lab currently able to perform laser ablation, allowing easy generation, in a single session, of dozens of animals with defined expression patterns for use in downstream experiments. We demonstrate the utility of LaserTAC by using it to target the expression of optogenetic channels to individual C. elegans touch sensory neurons within a left/right pair (PLML and PLMR). These individual neurons cannot be targeted by other methods, and our approach allows us to study their contribution to behaviour for the first time. Our results reveal that the PLM neurons act in synergy to produce a robust touch response requiring input from both neurons. Furthermore, the individual neurons within this pair make asymmetric contributions to the touch response, suggesting distinct roles for PLMR and PLML in the habituation to repeated stimulation.

Figure 1
Download asset Open asset

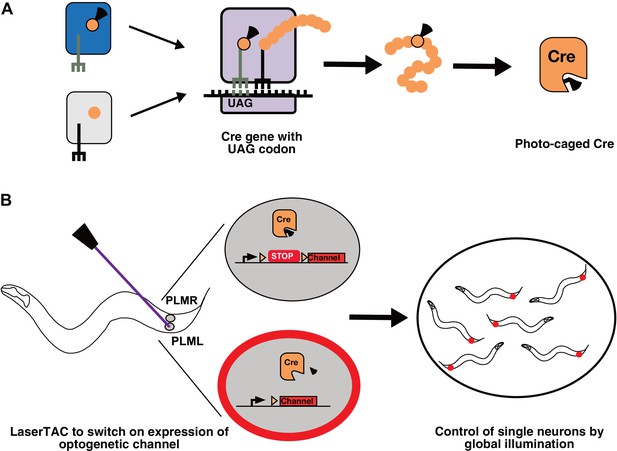

Genetic code expansion and LaserTAC.

(A) A non-canonical amino acid, e.g. photocaged lysine (PCK), is charged onto the orthogonal tRNACUA by the orthogonal aminoacyl-tRNAsynthetase (top left). The orthogonal components do not interact with the native cellular amino acids, tRNAs, or aminoacyl-tRNA-synthetases (bottom left). After charging, PCK is incorporated into the expanding polypeptide chain in response to an amber stop codon (UAG) during ribosomal translation. The resultant polypeptide is released following translation resulting in full-length photocaged Cre containing the PCK residue. (B) Photocaged Cre recombinase is activated cell-specifically in single C. elegans neurons by uncaging the PCK in its active site using a 365 nm laser. Activated Cre switches on expression of an optogenetic channel. Global illumination of freely moving animals can then be used to control cells expressing the optogenetic channel.

Results

Improved ncAA incorporation

Efficient genetic code expansion depends on the ability of the orthogonal aminoacyl-tRNA synthetase to aminoacylate its cognate tRNACUA, which in turn delivers the ncAA to the ribosome for incorporation in response to the UAG amber stop codon (Figure 1A). The charging of the ncAA onto the tRNACUA occurs mainly in the cytoplasm, and efficient charging is therefore dependent on cytoplasmic aminoacyl-tRNA synthetase availability.

The orthogonal pyrrolysyl-tRNA synthetase (PylRS)/tRNA(Pyl) pair from archeal Methanosarcina species is the most versatile and widely used pair for genetic code expansion (Wan et al., 2014; Brown et al., 2018a). The PylRS/tRNA(Pyl) pair is functional in C. elegans, and variants exist that recognise photocaged amino acids (Greiss and Chin, 2011; Gautier et al., 2010).

When expressed in eukaryotic cells, PylRS is localised predominantly to the nucleus due to a stretch of positively charged amino acids in the N-terminal domain, which is interpreted as a nuclear localisation sequence by the eukaryotic nuclear import machinery. Accordingly, addition of a rationally designed strong nuclear export sequence (S-NES) to the PylRS N-terminus was reported to significantly increase the efficiency of ncAA incorporation in mammalian cells by increasing the amount of cytoplasmic PylRS (Nikić et al., 2016).

To test this approach in C. elegans, we added the reported S-NES to the N-terminus of PCKRS, a PylRS variant optimised for incorporating photocaged lysine (PCK) (Gautier et al., 2010; Figure 2A). We used the ubiquitous C. elegans promoter sur-5p (Yochem et al., 1998) to drive S-NES::PCKRS expression and rpr-1p (Parrish et al., 2012) to drive tRNA(Pyl)CUA expression. To assay PCK incorporation efficiency, we used a dual-colour incorporation sensor; a ubiquitously expressed GFP::mCherry fusion, with the two fluorophore coding sequences separated by an amber stop codon (Greiss and Chin, 2011; Figure 2B). For this reporter, translation in the absence of PCK leads to termination at the amber stop codon, resulting in production of only GFP. Conversely, in the presence of PCK, tRNA(Pyl)CUA is charged with the ncAA and acts as a nonsense suppressor, resulting in production of the full-length GFP::mCherry fusion protein, which includes a nuclear localisation sequence and an HA tag at its C-terminus. However, we did not detect any significant difference in incorporation between worms expressing unmodified PCKRS and S-NES::PCKRS. In fact, incorporation levels when using the S-NES::PCKRS construct appeared to be lower than with unmodified PCKRS (constructs ‘no NES’ and ‘S-NES’; Figure 2C, Figure 2—figure supplement 1A).

Figure 2 with 1 supplement see all
Download asset Open asset

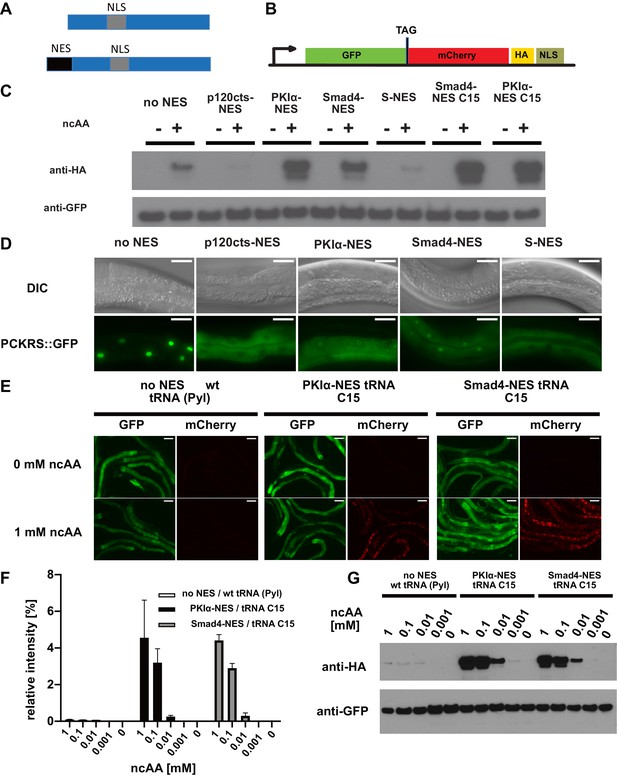

Efficiency of genetic code expansion is enhanced in C. elegans by use of NES::PCKRS variants and tRNA(C15).

(A) Wildtype PylRS/PCKRS (top) contains an internal nuclear localisation sequence (NLS) which targets it to the nucleus. A strong nuclear export sequence (NES) can be added to PylRS/PCKRS to shift it to the cytoplasm (bottom). (B) The GFP::mCherry reporter has an intersubunit linker containing an amber stop codon (TAG) to direct incorporation of ncAA. The C-terminal NLS moves full-length product to the nucleus, providing a second visual readout, whilst the C-terminal HA tag provides a target for western blotting of full-length protein. (C) Western blot (anti-HA) for full-length reporter produced using PCKRS with different NES attached to the N-terminus. For comparison, the wildtype PCKRS without NES and the two best NES variants together with optimised tRNA(C15) are also shown. + or – indicates the respective presence or absence of 1 mM ncAA. Samples were normalised using anti-GFP. Quantitative western blots of the lines used are shown in Figure 2—figure supplement 1A. (D) Nuclear localisation of NES variants fused to PCKRS. Localisation visualised by imaging of a GFP protein directly fused to each NES::PCKRS variant. Scale bars 30 µm. Nuclear to cytoplasmic ratios for the wild-type PCKRS::GFP fusion and two independent lines for each NES variant are shown in Figure 2—figure supplement 1B. (E) Fluorescent images of randomly selected worms grown in the presence or absence of 1 mM non-canonical amino acid (ncAA). GFP indicates expression of reporter construct, mCherry indicates the presence of full-length reporter protein. Scale bars 80 µm. Enlarged versions of the images for PKIa-NES and Smad4-NES are shown in Figure 2—figure supplement 1C. (F) Quantification of western blots of wild-type PCKRS (‘no NES’)/tRNA(Pyl) vs. both PKIα-NES::PCKRS/tRNA(C15) and Smad4-NES::PCKRS/tRNA(C15) at different ncAA concentrations; anti-GFP was used to detect both the full-length GFP;;mCherry protein as well as the GFP truncated at the amber stop. The graphs show the relative intensities of the full-length GFP signal vs. the signal of the GFP truncated at the amber stop codon. Graphs represent the average of two lines and three independent experiments per condition, each experiment was blotted twice. (G) Conditions shown in (F) probed with anti-HA and anti-GFP. In (G), only one line was blotted for each condition.

Figure 2—source data 1

Band intensities for the quantitative western blots shown in Figure 2F.

https://cdn.elifesciences.org/articles/67075/elife-67075-fig2-data1-v3.xlsx

To test whether S-NES::PCKRS and unmodified PCKRS localise as predicted, we expressed S-NES::PCKRS::GFP and PCKRS::GFP fusion proteins. As expected, the S-NES::PCKRS::GFP fusion localised to the cytoplasm, while unmodified PCKRS::GFP was almost entirely nuclear, reflecting that the S-NES was able to efficiently shift PCKRS localisation from the nucleus to the cytoplasm (constructs ‘no NES’ and ‘S-NES’ Figure 2D, Figure 2—figure supplement 1B). Therefore, we hypothesised that the S-NES tag itself might impinge on PCK incorporation efficiency. We next performed a mini-screen of three nuclear export sequences from human proteins: p120cts-NES, PKIα-NES, and Smad4-NES, which are demonstrated to act as NESs in C. elegans (Yumerefendi et al., 2015). All tested NESs achieved nuclear export of the synthetase PCKRS (Figure 2D, Figure 2—figure supplement 1B).

However, the NES variants differentially affected incorporation efficiencies: when we co-expressed NES::PCKRS variants with tRNA(Pyl) and the GFP::mCherry incorporation reporter, we found that the p120cts-NES variant reduced incorporation efficiency below the level of unmodified PCKRS, whereas the PKIα-NES and the Smad4-NES robustly increased PCK incorporation efficiency (Figure 2C, Figure 2—figure supplement 1A). We selected the two most efficient PCKRS variants for subsequent optimisation experiments.

We then turned to the optimisation of tRNA(Pyl). tRNA(Pyl) contains secondary structure elements not present in canonical mammalian tRNAs. These features reduce compatibility with the endogenous translational machinery, which limits ncAA incorporation in mammalian cells. However, ncAA incorporation efficiency in cultured mammalian cells can be improved by introducing mammalian tRNA elements into the archaeal tRNA(Pyl) or by using engineered mitochondrial tRNAs (Serfling et al., 2018). To investigate whether the same approach might improve ncAA incorporation efficiency in other eukaryotes, we tested an improved tRNA variant in the C. elegans system. Specifically, we co-expressed the mitochondrial tRNA based variant C15, previously validated in mammalian cells (Serfling et al., 2018) together with the GFP::mCherry incorporation reporter, and the two most efficient synthetase variants described above (namely Smad4-NES::PCKRS or PKIα-NES::PCKRS). We found that the presence of the C15 variant significantly increased incorporation efficiency (Figure 2C, E, F and G, Figure 2—figure supplement 1A,C). Compared to the unmodified PCKRS/tRNA(Pyl) pair, the Smad4-NES::PCKRS/tRNA(C15) and PKIα-NES::PCKRS/tRNA(C15) pairs improved incorporation efficiency by more than 50-fold; from <0.1% to 4.6% and 4.4%, respectively (Figure 2F). We performed all further experiments using the Smad4-NES::PCKRS/tRNA(C15) pair.

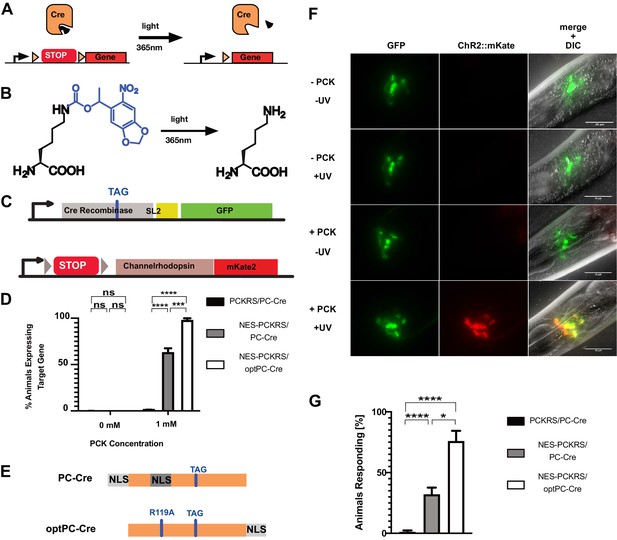

Expression of photocaged Cre recombinase

We next applied our improved incorporation system to express photocaged Cre recombinase (PC-Cre) in the N2 wildtype C. elegans laboratory strain. Cre recombinase can be photocaged by replacing K201, a lysine residue in the Cre active site, critical for enzyme activity, with PCK (Gibb et al., 2010; Luo et al., 2016; Figure 3A and B). PC-Cre has previously been expressed in both mammalian cell culture and zebrafish embryos using transient transfection and direct mRNA/tRNA injections (Luo et al., 2016; Brown et al., 2018b). To direct incorporation of PCK, we generated a PC-Cre construct where we replaced the lysine codon at position 201 in the Cre sequence with an amber stop codon (TAG). The PC-Cre construct was expressed in an artificial operon with GFP, allowing us to visualise its expression. We used as a Cre recombinase target gene a fluorescently tagged channelrhodopsin ChR2::mKate2, separated from its promoter by a transcriptional terminator flanked by loxP sites (Figure 3C).

Figure 3 with 1 supplement see all
Download asset Open asset
Optimisation of PC-Cre recombinase for genetic code expansion in C. elegans.

(A) Cre recombinase can be photocaged by incorporating a photocaged non-canonical amino acid (ncAA) into the active site (black wedge). Transcription of a target gene is blocked by placing a transcription terminator sequence (‘STOP’) between the gene and its promoter. The terminator sequence is flanked by loxP sites (orange triangles). Upon illumination at 365 nm, the photocaging group is removed and the uncaged, active Cre removes the transcriptional terminator. (B) 6-nitropiperonyl-L-Lysine, ‘photocaged lysine’ (PCK), is a lysine residue with a photocaging group on the side chain. The photocaging group is removed at 365 nm. (C) Genetic constructs for PC-Cre controlled expression of channelrhodopsin. See also Figure 3—figure supplement 1, . (D) Cre activation efficiency in animals with optimised vs. original constructs. Comparison of original PCKRS and tRNA(Pyl)CUA (‘PCKRS’), Smad4-NES::PCKRS and tRNA(C15) (‘NES-PCKRS’), original photocaged Cre recombinase (‘PC-Cre’), and optimised photocaged Cre (‘optPC-Cre’). Three experiments were performed using two independent lines for each condition. In each experiment, 30 animals were visually scored for ChR2::mKate2 expression for each condition. Significance determined by Welch’s t test. The error is the SEM (n = 6). (E) Schematic showing PC-Cre and optPC-Cre. Substitution mutations shown as blue bars. The TAG mutation denotes the site of PCK incorporation. PC-Cre contains both an N-terminal and internal nuclear localisation sequence (NLS). OptPC-Cre contains only a C-terminal NLS, the R119A mutation disables the internal NLS. (F) Imaging of worms expressing Smad4-NES::PCKRS, tRNA(C15), and optPC-Cre. Expression of ChR2::mKate2 is dependent on supplementation of PCK and uncaging by exposure to UV light. Scale bars 30 µm. (G) Percentage of animals reversing in response to a blue light pulse. ‘PCKRS’: original PCKRS and tRNA(Pyl)CUA; ‘NES-PCKRS’: Smad4-NES::PCKRS and tRNA(C15); ‘PC-Cre’: original photocaged Cre recombinase; ‘optPC-Cre’: optimised photocaged Cre. Assays were carried out using two independent lines and >10 animals for each genotype; the mean of three stimulations was determined. The graph shows the mean of two experiments. Significance obtained by Mann–Whitney U test. The error is the SEM (n = 4). *p<0.05, ***p<0.001, ****p<0.0001.

Figure 3—source data 1

Source data for Figure 3F,G.

https://cdn.elifesciences.org/articles/67075/elife-67075-fig3-data1-v3.xlsx

We generated transgenic animals containing all genetic components: the optimised orthogonal synthetase/tRNA pair Smad4-NES::PCKRS/tRNA(C15), the PC-Cre construct, and the floxed Cre target ChR2::mKate2. All protein coding components were driven by a glr-1p promoter, an orthologue of human GRIA1 (glutamate ionotropic receptor AMPA type subunit 1). This promoter is active in glutamatergic neurons, including command interneurons (Maricq et al., 1995; Figure 3—figure supplement 1A). We grew animals on PCK from the L1 larval stage and activated PC-Cre by UV illumination when they had reached the L4 larval stage (after 2 days). 24 hr after activation, we saw strong expression of ChR2::mKate2 in neurons expressing PC-Cre. In contrast, we saw no expression of ChR2::mKate2 in animals which had undergone UV illumination without prior feeding on PCK, and in animals fed on PCK but which had not undergone UV illumination (Figure 3—figure supplement 1B). Furthermore, as expected for a membrane channel, the red fluorescence of ChR2::mKate2 was localised at the cellular membrane. We observed red fluorescence only in cells expressing the glr-1p promoter, as evidenced by overlap with glr-1p-driven expression of GFP.

Using the optimised Smad4-NES::PCKRS/tRNA(C15) expression system, we observed expression of the target locus, indicative of PC-Cre photoactivation, in 63% of animals 24 hr after uncaging. We saw no red fluorescence without UV treatment. The 63% activation rate was a vast improvement relative to the 1% we observed with unmodified PCKRS and tRNA(Pyl) (Figure 3D).

Improving photocaged Cre recombinase

To further improve the photoactivation method, we next turned to PC-Cre optimisation. When using amber stop codons for ncAA incorporation, the tRNACUA competes with endogenous release factors. This competition results in a mixture of full-length polypeptides, with ncAA incorporated, as well as truncated polypeptides due to translational termination at the amber stop codon. As assessed with the GFP::mCherry incorporation reporter, we show that the percentage of full-length protein is between 4% and 5% when using the improved Smad4-NES::PCKRS/tRNA(C15) incorporation system (Figure 2F). It is likely that, similar to the fluorescent reporter, the majority of translation events of the PC-Cre mRNA will also terminate at the internal amber stop codon, even in the presence of PCK. A Cre protein truncated at the amber stop codon in position 201 is missing the majority of its active site, but the parts of Cre responsible for the protein-protein interaction required for active Cre tetramer formation are still present, as are large parts of the DNA binding interface (Guo et al., 1997). We initially based PC-Cre on previously reported Cre constructs, which contain an N-terminal SV40 NLS in addition to the internal NLS native to Cre (Luo et al., 2016; Brown et al., 2018b; Le et al., 1999; Macosko et al., 2009), thus ensuring localisation of the enzyme to the nucleus. We cannot exclude the possibility that truncated Cre, which locates to the nucleus due to the NLSs upstream of position 201, may interfere with tetramer formation or DNA binding.

We aimed to utilise the C. elegans nuclear import machinery to enrich for full-length product in the nucleus. Since Cre acts on nuclear DNA, we reasoned that we could boost PC-Cre activity by lowering the fraction of truncated PC-Cre while increasing the fraction of full-length PC-Cre present in the nucleus. To this end, we removed both NLSs upstream of position 201 by introducing a R119A mutation disabling the internal NLS sequence (Le et al., 1999) and by removing the N-terminal SV40 NLS. To restore nuclear import for full-length PC-Cre only, we attached the strong C. elegans EGL-13 NLS (Lyssenko et al., 2007) to the Cre C-terminus to create optimised PC-Cre (optPC-Cre) (Figure 3E). When we compared optPC-Cre to PC-Cre, we indeed found that target gene activation was significantly improved: from 63% for PC-Cre to 97% for optPC-Cre (Figure 3D). We saw no expression of the ChR2::mKate2 target gene without PCK or UV activation (Figure 3D and F).

We next performed behavioural assays to assess whether our system allowed optical control of neurons. After activation of optPC-Cre, we waited 24 hr to achieve sufficient expression of ChR2::mKate2, which we confirmed by visual inspection under a dissecting fluorescence microscope. When we exposed worms to 470 nm blue light to activate ChR2, we observed clear reversals in worms expressing ChR2::mKate2 in the presence of the ChR2 cofactor all-trans-retinal (ATR). In animals expressing ChR2::mKate2 in the absence of ATR, we did not observe such reactions (Figure 3G, Figure 3—figure supplement 1C, Video 1 and Video 2). The induced behaviour concurs with previous studies showing that optogenetic activation of neurons expressing ChR2 from the glr-1p promoter induces backward movement (Schultheis et al., 2011). When we compared strains expressing PC-Cre and optPC-Cre, respectively, we saw the strongest and most robust responses in the strains where optPC-Cre was used to control expression of ChR2::mKate2, followed by strains using non-optimised PC-Cre, but using the efficient Smad4-NES::PCKRS/tRNA(C15) incorporation system. Animals expressing unmodified PCKRS and non-optimised Cre showed almost no response to optogenetic activation (Figure 3G, Figure 3—figure supplement 1C). Taken together, we conclude that optPC-Cre is an effective tool with which to control optogenetic channel expression for the purpose of optical control of neuronal activity.

Video 1
Download asset
Response to 470 nm light stimulation of animals expressing glr-1p::optPC-Cre, grown on photocaged lysine (PCK), uncaged, and then shifted to plates containing all-trans-retinal (ATR).

Quantifications of the response of this line and a further, independent, line are shown in Figure 3G and Figure 3—figure supplement 1C.

Video 2
Download asset
Response to 470 nm light stimulation of animals expressing glr-1p::optPC-Cre, grown on photocaged lysine (PCK), uncaged, and then shifted to plates without all-trans-retinal (ATR).

Quantifications of the response of this line and a further, independent, line are shown in Figure 3G and Figure 3—figure supplement 1C.

Cell-specific gene activation using LaserTAC

The use of light to control activity of Cre recombinase should allow precise spatial control of Cre-dependent DNA recombination. We tested the precision of uncaging by using a microscope mounted 365 nm laser to target individual cells in the touch response circuitry. C. elegans has six mechanosensory neurons for the perception of soft touch: AVM, ALML, and ALMR, which are located in the anterior of the worm, and PVM, PLML, and PLMR, which are located in the posterior (Figure 4A). Activation of the touch receptor neurons results in avoidance behaviour. Worms respond with backward movement to an anterior touch, and with forward movement to a posterior touch (Chalfie et al., 1985). Previous studies using targeted ChR2 illumination in individual animals likewise showed that optogenetic activation of the anterior neurons AVM and ALM results in reversals, while activation of the posterior neurons PVM and PLM results in forward movement. Concurrent activation of all six neurons results in reversals in the majority of cases. Repeated activation leads to a reduced response due to habituation (Leifer et al., 2011; Stirman et al., 2011; Schild and Glauser, 2015).

Figure 4 with 1 supplement see all
Download asset Open asset

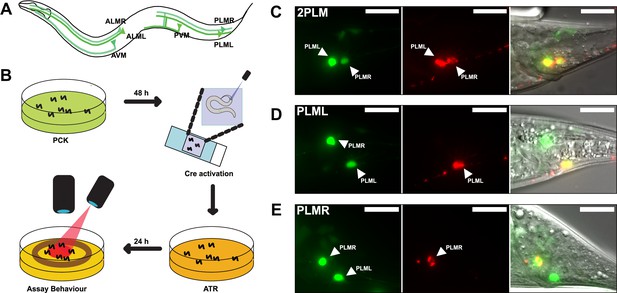

LaserTAC using optimised photocaged Cre-recombinase facilitates cell-specific expression of optogenetic channels in C.elegans.

(A) Map of the six C. elegans touch receptor neurons showing the posterior location of the PLM neuron pair. (B) Diagram of experimental procedure for activating expression of target genes in single cells using LaserTAC, followed by optogenetic behavioural assay. (C–E) Fluorescent images showing targeted expression of Chrimson::mKate2 24 hr after laser induced activation of optPC-Cre (middle panels) in both PLM neurons (C), only in PLML (D), only in PLMR (E). Scale bars 20 µm. GFP signal in the left panels indicates cells expressing optPC-Cre.

We aimed to investigate the posterior PLM neurons by using LaserTAC to selectively express the optogenetic channel Chrimson (Schild and Glauser, 2015) in both PLM neurons, or in PLML and PLMR individually. To this end, we generated strains with Smad-4-NES::PCKRS and optPC-Cre expression driven by the mec-7p promoter, which is active in all six mechanosensory neurons (Mitani et al., 1993). To express Chrimson, we used a Chrimson::mKate2 fusion gene separated from the pan-neuronal maco-1p promoter by a transcriptional terminator flanked by loxP sites (Figure 4—figure supplement 1A). We chose the panneuronal maco-1p promoter, an orthologue of human MACO1 (macoilin 1) (Arellano-Carbajal et al., 2011), because in contrast to mec-7p, it shows increasing expression from the L4 larval to the adult stage, the age when we aimed to induce Chrimson::mKate2 expression (Figure 4—figure supplement 1B).

To activate expression of the Chrimson channel in the PLM neurons, we mounted age-synchronised L4 stage animals, grown on PCK from L1, on a microscope slide and used a Micropoint Galvo system to deliver a short 2–4 s 365 nm pulse to individual cells, targeting the nucleus. After uncaging, we transferred the worms to an NGM agar plate without PCK for recovery and to allow for induced Chrimson::mKate2 expression (Figure 4B). After 12–24 hr, we observed Chrimson::mKate2 expression that was only present in laser-targeted cells. We were able to selectively activate optPC-Cre in both PLM neurons, as well as in PLML or PLMR alone (Figure 4C–E).

We confirmed that the presence of the PCK incorporation machinery and optPC-Cre did not affect the function of the touch sensory neurons by assaying the animals response to soft touch (Chalfie et al., 2014; Figure 4—figure supplement 1C,D).

Optogenetic manipulation of PLM touch sensory neurons reveals distinct and synergistic roles for PLML and PLMR in the soft touch response

To determine the behavioural response to PLM stimulation, we prepared animals expressing Chrimson::mKate2 in either both PLM neurons, or in PLML or PLMR alone. After optPC-Cre activation, we grew the worms on plates supplemented with ATR for 24 hr to allow expression of the optogenetic channel and confirmed the desired expression pattern under a fluorescence dissecting microscope.

We then activated Chrimson::mKate2 expressing neurons by illumination for 1 s every 30 s with 617 nm at the maximum power setting of 74 mW/cm2. During the assay, the animals were moving freely on the plate and we illuminated the entire plate. We found that illumination of animals expressing Chrimson::mKate2 in both PLM neurons (‘2PLM’) triggered a robust response with the worms initiating forward movement (Figure 5A,B, Figure 5—figure supplement 1, Video 3). Conversely, mock-treated animals (‘0PLM’) grown on PCK and ATR but without activation of optPC-Cre showed no response (Figure 5—figure supplement 1, Video 4). Animals expressing Chrimson::mKate2 only in the PLML or the PLMR neurons respectively also showed a clear reaction to stimulation (Figure 5A,B, Figure 5—figure supplement 1, Video 5 and Video 6). For all three expression patterns (2PLM, PLML, PLMR), we observed a gradual reduction in the response with increasing number of stimulations, both in the fraction of animals responding and in the speed upon stimulation, consistent with habituation to the stimulus (Stirman et al., 2011). We found that the 2PLM animals responded stronger to stimulation than animals expressing Chrimson::mKate2 in either PLML or PLMR alone, both in regard to the fraction of animals responding, and by velocity (Figure 5A,B).

Figure 5 with 3 supplements see all
Download asset Open asset

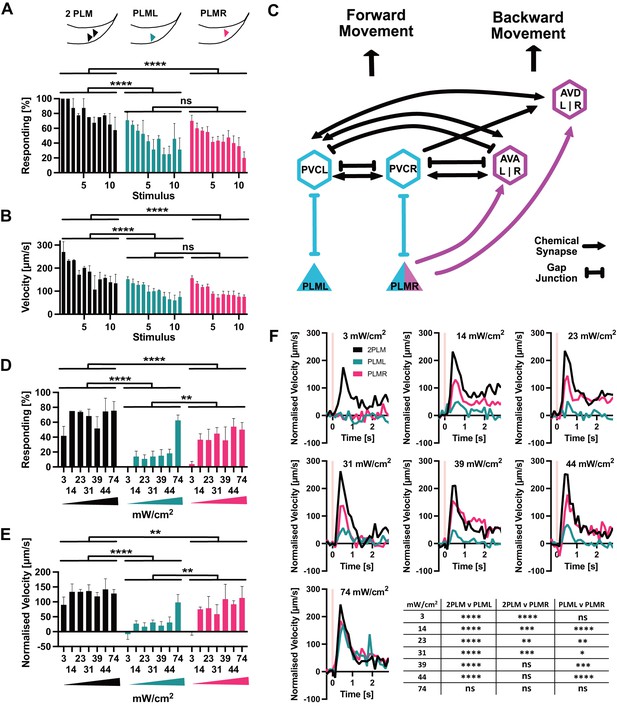

PLM neurons show distinct responses to optogenetic stimulation.

(A) Percentage of animals responding to repeated stimulations with light pulses of 1 s, 74 mW/cm2, 617 nm, delivered every 30 s. Worms expressed Chrimson in either both PLM neurons (‘2PLM’, black), only in PLML (blue-green), or only in PLMR (red). Responding worms are defined as those having mean forward speeds > 100 μm s–1 over the 2 s following stimulation. Assays were performed with cohorts of 4–6 worms stimulated simultaneously, one cohort constitutes a replicate. Replicates were assayed on different days. Significances derived from two-way ANOVA (2PLM n = 2; PLML and PLMR n = 4). (B) Mean velocity for the experiments analysed in (A). Mean velocity was determined for each cohort. Significances derived from two-way ANOVA (2PLM n = 2; PLML and PLMR n = 4). (C) Simplified schematic of the asymmetric neuronal connectivity of PLML and PLMR within the touch circuit. Symmetric PLM connections are shown in light blue, whereas asymmetric connections shown in magenta. (D) Percentages of animals which respond to stimulation (0.1 s, 617 nm) at the power levels indicated. Chrimson expressed in either both PLM neurons (‘2PLM’, black), only in PLML (blue-green) or only in PLMR (red). For each individual worm, the velocity was measured in the 1 s window from 0.4 s to 1.2 s after stimulation, which corresponds to the peak response. Velocities were then normalised by subtracting the average speed of the individual over the 0.5 s immediately prior to stimulation. Responding worms are defined as those having mean normalised forward speeds >100 μm/s in the window from 0.4 s to 1.2 s after stimulation. Cohorts of 4–8 animals were stimulated together, and the mean velocity of one cohort constitutes a replicate. Replicates were assayed on different days. Significances derived from two-way ANOVA, n = 3 for all conditions. (E) Mean normalised velocity for the experiments analysed in (D). The mean normalised velocity across all animals within a cohort was determined for the 1 s window 0.2–1.2 s after stimulation. Significances derived from two-way ANOVA. n = 3 for all conditions. (F) Normalised mean velocity traces of the experiments analysed for (D,E) across all three replicates for each condition at the power levels indicated. 2PLM (black), PLML (blue-green), and PLMR (red). Pink vertical lines indicate the light pulse. Statistical significances are provided in the table in (F). Significance was determined by two-way ANOVA using the mean of the three replicates for each of the seven speed measurements between 0.4 s and 1.2 s after stimulation, which corresponds to the peak response. *p<0.05, **p<0.01, ***p<0.001, ****p<0.0001. Traces before normalisation are shown in Figure 5—figure supplement 2.

Figure 5—source data 1

Velocities for all individuals and experiments depicted in Figure 5A,B and Figure 5—figure supplement 1.

https://cdn.elifesciences.org/articles/67075/elife-67075-fig5-data1-v3.zip
Figure 5—source data 2

Velocities for all individuals in experiments depicted in Figure 5C–E and Figure 5—figure supplement 2.

The light pulse is delivered at the 10 s mark, which corresponds to the ‘0’ mark in the graphs in Figure 5C–E and Figure 5—figure supplement 2.

https://cdn.elifesciences.org/articles/67075/elife-67075-fig5-data2-v3.zip
Video 3
Download asset
Response to 617 nm light stimulation of animals expressing Chrimson::mKate2 in both PLM neurons and grown in the presence of all-trans-retinal (ATR).
Video 4
Download asset
Response to 617 nm light stimulation of mock treated animals, grown on photocaged lysine (PCK) and in the presence of all-trans-retinal (ATR), but without uncaging.
Video 5
Download asset
Response to 617 nm light stimulation of animals expressing Chrimson::mKate2 only in PLML and grown in the presence of all-trans-retinal (ATR).
Video 6
Download asset
Response to 617 nm light stimulation of animals expressing Chrimson::mKate2 only in PLMR and grown in the presence of all-trans-retinal (ATR).

We then proceeded to more closely investigate the responses to activation of PLML and PLMR individually. The members of the PLM neuron pair, PLML and PLMR, show a striking asymmetry in their connections within the worm connectome (Figure 5C; Chalfie et al., 1985). PLMR forms chemical synapses connecting it to 10 downstream neurons including the AVA and AVD interneuron pairs, which are involved in driving backward locomotion. In addition to chemical synapses, PLMR also forms gap junctions to PVCR, PHCR, and LUAR. PLML, on the other hand, is connected to the touch response circuit exclusively through gap junctions, formed with the interneurons PVCL, PHCL, and LUAL. In fact, PLML does not form any chemical synapses, with the exception of a single connection to HSNL, a neuron involved in the control of egg laying. Asymmetric wiring of PLML and PLMR has been proposed to influence the C. elegans tap response, a withdrawal reflex that integrates information from the anterior and posterior mechanosensory neurons. In worms with ablation of both PLM neurons and the single PLMR neuron, a tap stimulus increased backward movement. In contrast, ablating PLML had no effect (Wicks and Rankin, 1995).

As we saw no difference between PLML and PLMR in the response to strong stimulation (Figure 5A,B), we decided to test the animals' responses to weaker stimulation of the PLM neurons. For this, we reduced the duration of the 617 nm light pulse from 1 s to 0.1 s and delivered varying low intensities, starting at 3 mW/cm2, the lowest setting that was possible with our setup. While the 0.1 s, 3 mW/cm2 stimulus was sufficient to elicit a response in animals expressing Chrimson in both PLMs, neither PLML nor PLMR animals reacted, indicating a synergistic effect of PLML and PLMR and the requirement for activation of both neurons to elicit a reaction in response to weak stimuli (Figure 5D–F, Figure 5—figure supplement 2).

When we increased illumination intensity, we saw a striking difference appear between the responses to PLML and PLMR stimulation, respectively. Animals expressing Chrimson in PLMR showed a robust reaction to stimulation at 14 mW/cm2 and higher. In contrast, the response of PLML animals was consistently below that of PLMR or 2PLM animals (Figure 5D–F, Figure 5—figure supplement 2). Only at the highest intensity setting of 74 mW/cm2 did we observe animals of all three expression patterns responding robustly to the stimulus. The observed differences in response for PLML and PLMR are not due to differential expression of Chrimson::mKate2 (Figure 5—figure supplement 3), therefore they are likely due to the asymmetric connectivity of the two neurons within the C. elegans nervous system.

Discussion

We demonstrate a robust, improved method for highly efficient ncAA incorporation in C. elegans. Our optimised ncAA incorporation system will provide the means to introduce a wide range of new chemical functionalities into proteins, such as crosslinkers, bioorthogonal groups, and post-translational modifications, and serve as a catalyst for new approaches to manipulate and understand cellular biology in C. elegans (Chin, 2017; Davis and Chin, 2012; Nguyen et al., 2018; Lang and Chin, 2014; Young and Schultz, 2018; Zhang et al., 2015; Baker and Deiters, 2014). Furthermore, since our optimisation approach is based on components that are not specific to C. elegans, we expect that it will be easily exportable to other organisms.

The genetic code expansion approach relies on the use of an amber stop codon to direct incorporation of ncAA, which means that endogenous TAG codons may be inadvertently suppressed by the orthogonal system, albeit likely at low levels. Interestingly, C. elegans and other organisms have evolved natural surveillance mechanisms to mitigate against the read-through of stop codons (Arribere et al., 2016), which will also mitigate against any potential effects caused by our system. Indeed, we find that the function of the mechanosensory neurons we assay is unaffected by the presence of the orthogonal ncAA incorporation machinery.

We demonstrate the utility of our system by creating LaserTAC, which is based on an optimised photoactivatable Cre recombinase and offers several unique advantages for optical control of gene expression. First, the recombinase activity is tightly controlled; the presence of the photocaging group completely blocks activity and upon photoactivation, highly efficient wildtype Cre is generated. Second, following photoactivation, the photocaged amino acid required for amber stop codon suppression can be removed. Thus translation of full-length Cre ceases, leaving worms devoid of photocaged Cre for subsequent biological studies (Maywood et al., 2018). Third, due to the stability of the photocaging group at longer wavelengths, our photoactivatable Cre is fully compatible with imaging and optogenetic methods that use visible light.

We used LaserTAC to switch on optogenetic channel expression in individual neurons within a bilaterally symmetric pair that cannot be targeted by genetic means. Switching on gene expression using LaserTAC is fast and easily enables the preparation of dozens of animals for downstream experiments. Light activation requires only a microscope-mounted laser, generally used for ablation in most C. elegans laboratories, modified to emit light at 365 nm. Generating the required transgenic strains is straightforward and at present involves the introduction of the genetic constructs, followed by genomic integration. The power of the method we present here lies in the versatility it offers, not only in respect to the ability to investigate single neurons. Once a transgenic strain is made, any combination of neurons targeted by the promoter that was used can in principle be investigated. This removes the requirement for the creation of a potentially large numbers of lines by allowing multiple conditions to be investigated using a single strain. A further advantage offered by our approach is the ability of precise temporal control, which is generally not available using promoter-based systems.

We demonstrate the capabilities of LaserTAC by targeting expression of the optogenetic channel Chrimson to the mechanosensory PLM neurons. This enables us to analyse the individual contributions of the neurons PLML and PLMR to the C. elegans tail touch circuit response. Since we target expression of the optogenetic channel, we can perform behavioural assays by globally illuminating a plate of freely moving animals.

We found that PLML and PLMR show some redundancy in triggering the tail touch response after strong stimulation. However, using weaker stimuli, we found that only stimulation of both neurons elicits a response, indicative of a synergistic rather than a simply redundant role for PLML and PLMR. Interestingly, our results demonstrate asymmetric contributions of PLML and PLMR to the touch response. Considering the electrical and chemical connectome of this circuit (Figure 5C), our results are consistent with a model where the touch response is controlled by two parallel pathways that rely on gap junctions or chemical synapses, respectively. The first pathway involves direct connections of both PLM neurons to the PVC interneurons via gap junctions. Activation of the PVCs through these gap junctions triggers forward motion. The PVCs form connections with forward command interneuron AVB as well as inhibitory connections with backward command interneurons AVA/AVD. The second pathway involves chemical synaptic transmission from PLMR onto AVA and AVD, inhibiting backward locomotion. Thus, when only PLMR is stimulated, both pathways are activated, resulting in a stronger response, whereas when PLML alone is stimulated only the gap junction pathway is activated, resulting in a weaker response. Unlike the PLMs, the PVCs are connected to each other by gap junctions and may thus act as electrical sinks for signals from the PLMs. This could help to explain the requirement for stronger stimulation of the single neurons, especially for PLML, to trigger a response as compared to the stimulation of both PLMs simultaneously. Stimulation of both PLM neurons together results in full activation of the gap junction pathway by activating both PVC neurons, which, together with the direct inhibition of AVA/AVD by PLMR, results in full activation of the tail touch motor response. The strong synergistic effect we observe with the simultaneous stimulation of PLML and PLMR indicates a requirement for the stimulation of both PVC neurons.

While we focused here on expression of optogenetic channels in C. elegans neurons, simple extensions of our method will enable the cell-specific expression of other desired transgenes of interest. By inserting loxP sites into genomic loci using CRISPR/Cas9, it should be possible to control, at single-cell resolution, the expression of any endogenous protein, such as neuropeptides, receptors, innexins, proteins involved in synaptic transmission, etc. Since the components we employ are functional in other C. elegans tissues (Greiss and Chin, 2011) and indeed in other model systems such as zebrafish, fruit fly, mouse, cultured cells, and ex vivo tissues, we anticipate that our method will have broad applicability beyond the nervous system and beyond C. elegans.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Genetic reagent (Caenorhabditis elegans)SGR30This papern/agreEx17[sur-5p::FLAG::PCKRS::GFP]Figure 2D, Figure 2—figure supplement 1B
Genetic reagent (C. elegans)SGR31This papern/agreEx18[sur-5p::p120cts::PCKRS::GFP]Figure 2D, Figure 2—figure supplement 1B
Genetic reagent (C. elegans)SGR32This papern/agreEx19[sur-5p::PKIα::PCKRS::GFP]Figure 2D, Figure 2—figure supplement 1B
Genetic reagent (C. elegans)SGR33This papern/agreEx20[sur-5p::smad-4::PCKRS::GFP]Figure 2D, Figure 2—figure supplement 1B
Genetic reagent (C. elegans)SGR34This papern/agreEx21[sur-5p::S-NES::PCKRS::GFP]Figure 2D, Figure 2—figure supplement 1B
Genetic reagent (C. elegans)SGR35This papern/agreEx22[sur-5p::PCKRS; rpr-1p::tRNA(Pyl); rps-0p::GFP(am)::mCherry::HA]; smg-2(e2008)Figure 2C, E, F and G, Figure 2—figure supplement 1A
Genetic reagent (C. elegans)SGR36This papern/agreEx23[sur-5p::p120cts::PCKRS; rpr-1p::tRNA(Pyl); rps-0p::GFP(am)::mCherry::HA];smg-2(e2008)Figure 2C, Figure 2—figure supplement 1A
Genetic reagent (C. elegans)SGR37This papern/agreEx24[sur-5p::PKIα::PCKRS; rpr-1p::tRNA(Pyl); rps-0p::GFP(am)::mCherry::HA]; smg-2(e2008)Figure 2C, Figure 2—figure supplement 1A
Genetic reagent (C. elegans)SGR38This papern/agreEx25[sur-5p::smad-4::PCKRS; rpr-1p::tRNA(Pyl); rps-0p::GFP(am)::mCherry::HA]; smg-2(e2008)Figure 2C, Figure 2—figure supplement 1A
Genetic reagent (C. elegans)SGR39This papern/agreEx26[sur-5p::SNES::PCKRS; rpr-1p::tRNA(Pyl); rps-0p::GFP(am)::mCherry::HA]; smg-2(e2008)Figure 2C, Figure 2—figure supplement 1A
Genetic reagent (C. elegans)SGR40This papern/agreEx27[sur-5p::PCKRS; rpr-1p::tRNA(Pyl); rps-0p::GFP(am)::mCherry::HA]; smg-2(e2008)Figure 2F,G
Genetic reagent (C. elegans)SGR45This papern/agreEx32[sur-5p::PKIα::PCKRS; rpr-1p::tRNA(C15); rps-0p::GFP(am)::mCherry::HA]; smg-2(e2008)Figure 2C, E, F and G, Figure 2—figure supplement 1A,CA
Genetic reagent (C. elegans)SGR46This papern/agreEx33[sur-5p::smad-4::PCKRS; rpr-1p::tRNA(C15); rps-0p::GFP(am)::mCherry::HA]; smg-2(e2008)Figure 2C, E, F and G, Figure 2—figure supplement 1A,CA
Genetic reagent (C. elegans)SGR47This papern/agreEx34[sur-5p:: PKIα::PCKRS; rpr-1p::tRNA(C15); rps-0p::GFP(am)::mCherry::HA];smg-2(e2008)Figure 2F,G
Genetic reagent (C. elegans)SGR48This papern/agreEx35[sur-5p::smad-4::PCKRS; rpr-1p::tRNA(C15); rps-0p::GFP(am)::mCherry::HA];smg-2(e2008)Figure 2F,G
Genetic reagent (C. elegans)SGR49This papern/agreEx36[glr-1p::PCKRS rpr-1p::tRNA(Pyl); glr-1p::PC-Cre; glr-1p::B-gal terminator+ loxP::ChR2::mKate2]Figure 3D,G, Figure 3—figure supplement 1C
Genetic reagent (C. elegans)SGR50This papern/agreEx37[glr-1p::PCKRS; rpr-1p::tRNA(Pyl); glr-1p::PC-Cre; glr-1p::B-gal terminator+ loxP::ChR2::mKate2]Figure 3D,G, Figure 3—figure supplement 1C
Genetic reagent (C. elegans)SGR51This papern/agreEx38[glr-1p::smad-4::PCKRS; rpr-1p::tRNA(C15); glr-1p::PC-Cre; glr-1p::B-gal terminator+ loxP::ChR2::mKate2]Figure 3D,G, Figure 3—figure supplement 1B,C
Genetic reagent (C. elegans)SGR52This papern/agreEx39[glr-1p::smad-4::PCKRS; rpr-1p::tRNA(C15); glr-1p::PC-Cre; glr-1p::B-gal terminator+ loxP::ChR2::mKate2]Figure 3D,G, Figure 3—figure supplement 1C
Genetic reagent (C. elegans)SGR53This papern/agreEx40[glr-1p::smad-4::PCKRS; rpr-1p::tRNA(C15); glr-1p::optPC-Cre; glr-1p::B-gal terminator+ loxP::ChR2::mKate2]Figure 3D, F and G, Figure 3—figure supplement 1C, Video 1, Video 2
Genetic reagent (C. elegans)SGR54This papern/agreEx41[glr-1p::smad-4::PCKRS; rpr-1p::tRNA(C15); glr-1p::optPC-Cre; glr-1p::B-gal terminator+ loxP::ChR2::mKate2]Figure 3D,G, Figure 3—figure supplement 1C
Genetic reagent (C. elegans)SGR55This papern/agreEx42[mec-7p::smad-4::PCKRS; rpr-1p::tRNA(C15); mec-7p::optPC-Cre; Pmaco-1::B-gal terminator+ loxP::ChR2::mKate2]
Genetic reagent (C. elegans)SGR56This papern/agreIs1[mec-7p::smad-4::PCKRS; rpr-1p::tRNA(C15); mec-7p::optPC-Cre; Pmaco-1::terminator+ loxP::ChR2::mKate2]Figure 4C–E generated by gamma integration from SGR55, backcrossed 2×
Genetic reagent (C. elegans)SGR96This papern/agreIs1[mec-7p::smad-4::PCKRS; rpr-1p::tRNA(C15); mec-7p::optPC-Cre; Pmaco-1::terminator+ loxP::ChR2::mKate2]Figure 4—figure supplement 1C,D, Figure 5, Figure 5—figure supplements 1–3 SGR56 backcrossed 2x
Genetic reagent (C. elegans)SGR98This papern/agreEx18[sur-5p::p120cts::PCKRS::GFP]Figure 2—figure supplement 1B
Genetic reagent (C. elegans)SGR99This papern/agreEx19[sur-5p::PKIα::PCKRS::GFP]Figure 2—figure supplement 1B
Genetic reagent (C. elegans)SGR100This papern/agreEx20[sur-5p::smad-4::PCKRS::GFP]Figure 2—figure supplement 1B
Genetic reagent (C. elegans)SGR101This papern/agreEx21[sur-5p::S-NES::PCKRS::GFP]Figure 2—figure supplement 1B
Strain, strain background (C. elegans)N2CGCWBStrain00000001Wild type Figure 4—figure supplement 1C
Genetic reagent (C. elegans)CZ10175CGCWBStrain00005421zdIs5[mec-4p::GFP+ lin-15(+)]Figure 4—figure supplement 1C ("mec-4p::gfp")
Genetic reagent (C. elegans)Chalfie and Au 1989(10.1126/science.2646709)WBVar00266589mec-4(u231)Figure 4—figure supplement 1C ("mec-4(d)")
AntibodyMouse anti-GFP, monoclonal (clones 7.1 and 13.1)RocheCat# 11814460001RRID:AB_390913Figure 2C, F and G, Figure 2—figure supplement 1A(1:4000)
AntibodyRat anti-HA, monoclonal (clone 3F10)RocheCat# 11867423001RRID:AB_390918Figure 2C,G (1:2000)
AntibodyHorse anti-mouse IgG HRPCell Signaling TechnologyCat# 7076SRRID:AB_330924Figure 2C, F and G, Figure 2—figure supplement 1A(1:5000)
AntibodyGoat anti-Rat IgG (H + L) HRPThermo Fisher ScientificCat# 31470RRID:AB_228356Figure 2C,G (1:5000)
Chemical compoundPhotocaged lysine (6-nitropiperonyl-L-Lysine)ChiroBlock GmbH;Gautier et al., 2010CAS number:1221189-11-2Custom synthesised by ChiroBlock GmbH, Germany.Synthesis described in Gautier et al. (10.1021/ja910688s)

Plasmids

All expression plasmids were generated from pENTR plasmids using the Gateway system (Thermo Fisher Scientific). All plasmids are described in Supplementary file 1.

C. elegans strains

Request a detailed protocol

Strains were maintained under standard conditions unless otherwise indicated (Brenner, 1974; Stiernagle, 2006).

Transgenic worms were generated by biolistic bombardment using hygromycin B as a selection marker (Greiss and Chin, 2011; Radman et al., 2013; Davis and Greiss, 2018) in either N2 or smg-2(e2008) genetic background. The smg-2(e2008) background lacks a functional nonsense-mediated decay machinery and was used to increase levels of reporter mRNA (Greiss and Chin, 2011). Gamma-irradiation to generate the integrated line SGR56 from SGR55 was carried out by Michael Fasseas (Invermis/Magnitude Biosciences). After integration, the line was backcrossed into N2 and subsequently maintained on standard NGM without added hygromycinB. SGR56 was backcrossed twice, SGR96 was backcrossed four times. All non-integrated lines were maintained on NGM supplemented with hygromycin B (0.3 mg/ml; Formedium). Strains used in this paper are listed in the key resources table.

Imaging and image analysis

Request a detailed protocol

All imaging was carried out on a Zeiss M2 imager. Worms were mounted on glass slides for imaging and immobilised in a drop of M9 supplemented with 25 mM NaN3.

Fluorescent images were analysed using ImageJ software. To determine nuclear to cytoplasmic ratios of NES::PCKRS::GFP variants, mean fluorescence intensity was measured for a region of interest within the nucleus and divided by the mean intensity of a region in the cytoplasm proximal to the nucleus. To compare Chrimson::mKate2 levels in the PLML and PLMR neurons, the threshold function was used to create regions of interest encompassing the neurons and the mean intensity of those regions was taken.

ncAA feeding

Request a detailed protocol

PCK (Gautier et al., 2010) was custom synthesised by ChiroBlock GmbH, Germany. PCK-NGM plates were prepared by dissolving PCK powder in a small volume of 0.02 M HCl and adding the solution to molten NGM. The HCl in the NGM was neutralised by addition of equimolar amounts of NaOH as previously described (Davis and Greiss, 2018).

Animals were age synchronised by bleaching (Stiernagle, 2006) and added to PCK-NGM plates as L1 larvae. Food was then added to the PCK-NGM plates in the form of solubilised freeze-dried OP50 (LabTIE) reconstituted according to the manufacturer’s instructions.

Worm lysis and western blotting

Request a detailed protocol

Synchronised populations were grown on PCK-NGM plates until the young adult stage and washed off plates using M9 buffer supplemented with 0.001% Triton-X100. Worms were settled, supernatant was removed, and worms were resuspended in undiluted 4× LDS loading buffer (Thermo Fisher Scientific) supplemented with NuPAGE Sample Reducing Agent (Thermo Fisher Scientific). Lysis was performed by a freeze/thaw cycle followed by 10 min incubation at 95°C.

Samples were run on precast Bolt 4–12% gels (Thermo Fisher Scientific) for 19 min at 200 V. Proteins were transferred from the gel onto a nitrocellulose membrane using an iBlot2 device (Thermo Fisher Scientific).

After transfer, the membrane was blocked using 5% milk powder in PBST (PBS + 0.1% Tween-20) for 1 hr at room temperature. Incubation with primary antibodies was carried out in PBST + 5% milk powder at 4°C overnight. Blots were washed 6 × 5 min with PBST + 5% milk powder before incubating with secondary antibody for 1 hr at room temperature.

Antibodies used are listed in the key resources table. Pierce ECL Western Blotting Substrate (Thermo Fisher Scientific) or SuperSignal West Femto chemiluminescent Substrate (Thermo Fisher Scientific) were used as detection agent. For quantitative blots, a C-DiGit Blot Scanner (LI-COR) was used, and intensities were analysed using ImageStudio software.

Global uncaging of PCK for Cre activation

Request a detailed protocol

Worms were age synchronised and grown on PCK-NGM plates for 48 hr, washed onto unseeded 6 cm NGM plates, and illuminated for 5 min, 5 mW/cm2 in a 365 nm CL-1000L crosslinker (UVP) as previously described (Davis and Greiss, 2018). After uncaging, worms were transferred to seeded NGM plates and scored for expression of the target gene 24 hr later by counting the animals showing expression of the red fluorescent marker. 400 μM FUDR was added to plates after uncaging to prevent hatching of F1 progeny and thus aid scoring of animals expressing the target gene. All plates were scored twice, independently by two people. Scoring was performed blind. Experiments were performed three times, each with two independent transgenic lines. Significance tests were carried out using Welch’s t test as a pairwise comparison between each condition at each concentration using GraphPad Prism 8 software.

Uncaging for Cre activation in single neurons

Request a detailed protocol

Worms were grown on 4 mM PCK from the L1 stage. For uncaging, worms were mounted on a 3% agar and immobilised with 25 mM NaN3 in M9 buffer. Targeting was performed on a Zeiss M2 Imager using a Micropoint Galvo module (Andor Technology/Oxford Instruments), fitted with a 365 nm dye cell. Neurons were identified using GFP as a guide, which was co-expressed with photocaged Cre, and the nucleus targeted with the laser. Each region was swept thrice using 10 repeat firing. The manual attenuator was set to full power and the Andor software attenuator to a power of 34 (we chose the power setting so that partial bleaching of GFP could be observed during Micropoint firing). After uncaging, the coverslip was removed and worms were washed off the pad onto seeded 6 cm plates using M9 + 0.001% Triton-X. Mock laser treatment control worms were mounted and recovered similar to experimental worms but without exposure to the Micropoint laser.

Behavioural assays

Request a detailed protocol

Immediately after uncaging, worms were transferred to NGM plates supplemented with ATR (30 μl 5 mM ATR dissolved in ethanol were added to the lawn of a seeded 6 cm NGM plate) or control NGM-only plates. Worms were left to recover on plates for 24 hr after uncaging.

Plates for behavioural assays were made approximately 1 hr before use. Fresh 6 cm NGM plates were seeded with a 20 μl drop of dilute OP50, prepared from freeze-dried OP50 (LabTIE). For this, the freeze-dried bacteria were reconstituted according to the manufacturer’s instructions and a 40× dilution of the reconstituted bacteria was used to spot the plates. The lawn was then surrounded by a copper ring (inner diameter 17 mm) to prevent worms from leaving the camera field of view. For experiments on PLM, expression of the target gene after optPC-Cre laser activation was visually confirmed using a Leica M165FC fluorescence microscope fitted with a 2.0× objective and animals showing the correct pattern (either both neurons or individual neurons, depending on the uncaging experiment) were picked onto the behaviour plates. For experiments using the glr-1p promoter, animals were randomly picked. After transfer, worms were left to acclimatise on behaviour plates for at least 10 min. Behavioural assays were carried out using a WormLab system (MBF Bioscience). Chrimson or Channelrhodopsin2 were activated using either the integrated 617 nm LED or 470 nm LED of the WormLab platform at full power (74 mW/cm2 or 150 mW/cm2, respectively), unless otherwise stated.

Tracking of worm behaviour was carried out using WormLab software (MBF Bioscience). For each worm, tracks detected by the WormLab software were consolidated into a single track. Data points where individual animals were not clearly identified by the software were discarded.

For all behavioural experiments, worms were grouped into cohorts. A cohort consisted of 4–10 animals undergoing the same treatment simultaneously on the same plate.

Behavioural experiments on worms expressing ChR2 from the glr-1p promoter were carried out by exposing worms to 1 s of 470 nm illumination at 150 mW/cm2. Reversals were counted manually. The reversal percentages were determined for each replicate. Significance between conditions was tested using a Mann–Whitney U test.

Experiments using repeated stimulation of animals expressing Chrimson::mKate2 in the PLM neurons were carried out by exposing worms to repeated 1 s long stimulations with 617 nm light (74 mW/cm2) at 30 s intervals. Raw speed data was binned and averaged at 1 s intervals for each animal. Worms were grouped by cohort. To determine the fraction of animals responding to a stimulus, worms with an average speed ≥100 μm s–1 in the 2 s following stimulation were scored as responders. The 100 μm s–1 threshold was selected as it constitutes the standard deviation of the mean speed of unstimulated worms. For each timepoint, the percentage of worms responding was determined for each cohort, constituting one replicate. Comparison between conditions was carried out by two-way ANOVA across all stimuli.

Experiments comparing conditions across different power levels for animals expressing Chrimson::mKate2 in the PLM neurons were carried out by subjecting each cohort of worms to 0.1 s stimulation with 617 nm at the indicated power levels. The percentage of worms responding for each cohort was calculated after first normalising the data by subtracting the mean speed for each individual worm in the 0.5 s immediately prior to stimulation. Then the mean velocity for each individual worm was determined for the response peak between 0.2 s and 1.2 s after stimulation. Worms were scored as responders if the mean normalised velocity was ≥ 100 μm s–1.

When calculating the mean normalised velocity across experiments, the mean velocity among all animals within a cohort was determined first, followed by calculating the average of the mean velocities across cohorts. Significance for both analyses (fraction responding/intensity and mean velocity/intensity) was determined by two-way ANOVA.

Analysis and statistics

Request a detailed protocol

All statistical analysis of data was carried out in GraphPad Prism 8. Statistical tests are stated in the figure legends.

All values of n in this article, unless otherwise stated, refer to biological replicates. For behavioural experiments, we define as biological replicates cohorts of worms that were assayed on different days. A cohort of worms consisted of animals undergoing treatment and assayed together on the same plate.

Data availability

All data are included in the manuscript and supporting files. Sequences used for generating transgenic constructs are listed in the supporting files.

References

    1. Chalfie M
    2. Hart AC
    3. Rankin CH
    4. Goodman MB
    5. The C. elegans Research Community
    (2014)
    WormBook: The Online Review of C. Elegans Biology
    1–13, Assaying mechanosensation, WormBook: The Online Review of C. Elegans Biology, Oxford Academic, 10.1895/wormbook.1.172.1, 25093996.
    1. Stiernagle T
    (2006)
    WormBook: The Online Review of C. Elegans Biology
    1–11, Maintenance of C. elegans, WormBook: The Online Review of C. Elegans Biology, Oxford Academic, 10.1895/wormbook.1.101.1.
    1. White JG
    2. Southgate E
    3. Thomson JN
    4. Brenner S
    (1986) The Structure of the Nervous System of the Nematode Caenorhabditis elegans
    Philosophical Transactions of the Royal Society of London. Series B, Biological Sciences 314:1–340.
    https://doi.org/10.1098/rstb.1986.0056

Decision letter

  1. Oliver Hobert
    Reviewing Editor; Howard Hughes Medical Institute, Columbia University, United States
  2. Piali Sengupta
    Senior Editor; Brandeis University, United States
  3. Henrik Bringmann
    Reviewer; Max Planck Institute for Biophysical Chemistry, Germany

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This paper describes a new method for precise spatiotemporal control of gene expression in C. elegans. The authors express a photocaged Cre recombinase via incorporation of a photoactivatable amino acid through genetic code expansion, followed by uncaging in defined cells via optical targeting. They use this method to demonstrate distinct contributions of the left/right members of a bilateral neuron pair to mechanosensory behavior. With suitable validation in multiple tissue types, and confirmation that the endogenous physiology of the expressing cells remains unaffected as a consequence of the genetic code manipulation, this method could be broadly applicable.

Decision letter after peer review:

Thank you for submitting your article "Precise optical control of gene expression in C. elegans using genetic code expansion and Cre recombinase" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Piali Sengupta as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Henrik Bringmann (Reviewer #2).

As you can see in the detailed reviews below, both reviewers are very appreciative of your findings, but also identified a number of shortcomings that will need to be addressed. Apart from some easily addressable editorial issues, there is a lack of quantification of the some of the results that we ask you to address. These suggestions are doable within the scope of a revision at eLife but the reviewers agree to give you some degree of freedom as to how you would like to incorporate these quantifications into your manuscript.

Reviewer #1 (Recommendations for the authors):

Even though some cells are genetically indistinguishable, many of them are visually distinguishable; thus, optical labeling and/or modulation of these cells are effective methods to distinguish individual cells. The authors have used two light-dependent techniques for the precise spatio-temporal regulation of single-cell activity: the light-dependent activation of the Cre transcription factor in a single neuron (spatial regulation) to express the light-dependent cation channel Chrimson and the light-dependent activation of Chrimson in the neurons of behaving worms at specific times (temporal regulation). Moreover, to achieve the clear activation of Cre, which had been difficult to achieve in the past, they have used the genetic code expansion technique in transgenic strains of an animal species for the first time (if I have understood correctly).

In my opinion, this method would be ideal for the precise spatio-temporal regulation of protein activity (and as a result, cell activity) if it works as designed. The biggest potential barrier would be the equal and effective incorporation of non-conventional amino acids (ncAAs) into all the cells in the animal as well as into the targeted protein. The authors have made a number of efforts and have reasonably evaluated the incorporation of ncAAs into the protein, although the evaluation of the incorporation of ncAAs into different types of cells is, unfortunately, far from satisfactory.

In addition, the data presentation is, in many cases, not quantitative; for example, sample numbers are not properly described, and only one picture per condition is provided for gene expression analysis. These need to be addresses to ensure reproducibility and general application of the results.

1) For the system to work, PCKRS, mt tRNA (C15), and Cre (TAG amber) need to be properly expressed in the cells. In addition, ncAAs should also be incorporated into the cells. I would like to see if this was actually observed in most, if not all, of the cells. Examples have been shown in Figure 2d and 2e, but these photos depict only a single worm per condition. Please analyze many more worms (I would recommend {greater than or equal to}10 worms per condition in total, including those from multiple transgenic lines grown on different days) and show the results in the form of a bar graph or a table. Additionally, it will be greatly appreciated if the authors are able to show whether the system works equally in different tissues, such as neurons, intestines, muscles, and hypodermis.

2) Related to above: Does the expression of these genes, in addition to ncAA incorporation, affect worm behavior? I think that addressing this question is important because truncated Cre is likely to be expressed in an amount {greater than or equal to}20 times higher than that of full-length PC-Cre (lines 250-256, Figure 2f). I would appreciate it if the authors could compare some basic aspects of worm locomotion, such as velocity and turning frequency, between the wild-type and the transgenic strains.

3) In this study, the clear-cut regulation of the activity of the gene product is critical. Nevertheless, the results have not been provided in a quantitative form. For example, the western blot shown in Figure 2c is, again, just one representative result. It should be repeated several times and the band intensities should be quantified and expressed as mean {plus minus} SEM, as shown in Figure 2f and 2g. (For Figure 2f, please describe the number of replicates).

4) Similarly, some data are shown only in the video. As mentioned previously, they should be reported using graphs showing the results for a certain number of samples (e.g., lines 277-279, Sup. video 1, 2).

5) lines 383-385 "We saw strong, easily visible expression": It was not clear which data support this statement. Further, describe how many worms were analyzed and how many worms were fluorescence-positive.

6) "more than 50 fold" and "close to 100%" (line 442): Again, these statements were not supported by evidence. At least, the link with specific data was not clear at all. These non-quantitative statements should be reworded to be more quantitative.

7) As mentioned above, in the figure legends, please describe how many worms were studied and how many were fluorescence-positive, instead of the number of replicates. The description provided in lines 637-640 is insufficient.

8) Sup. Table 2 (strains): Please specify the figure panels in which each strain was used.

Reviewer #2 (Recommendations for the authors):

The Greiss and Chin labs developed a system for optically activating Cre recombinase specifically in neurons that are exposed to UV-laser light, providing a tool to control gene expression in individual neurons for which there is currently no specific genetic targeting possible. They use a clever combination of incorporation of a photoactivatable artificial amino acid through genetic code expansion with photoactivation of Cre recombinase through precise optical targeting. They demonstrate the feasibility of their approach by targeting command interneurons and individually each neuron of a left-right pair of mechanosensory neurons for optogenetic activation. They demonstrate that the two mechanosensory PLM neurons have synergistic roles in the response to mechanical sensation but that each neuron plays a distinct role in the processing of the mechanical stimulus.

The method apparently is more complicated to carry out than just using a transgenic strain directly off the plate, with the expression of several components, feeding an unnatural amino acid, and the need to optically target each individual cell manually to achieve expression. Despite this extra effort that is required to perform a genetic targeting experiment, however, this method will be useful when each of a pair of two individual neurons needs to be investigated. Future developments of the method might help simplify the procedure. The effects of the complex manipulations on the neurons and their physiology should be investigated by control experiments.

Overall, the method of targeting individual neurons in a model organism is of substantial use for the C. elegans community. Likely there will be much to be learned from targeting individual neurons. Also, the method should be transferable to other genetically accessible and transparent systems such as zebrafish, and could thus become of broader use.

In summary, this is a very elaborate and smart approach to address an important technical problem in neuroscience and I support publication. I have the following comments:

1. To help other labs getting started with this method there should be a supplementary detailed step-by-step protocol for how to carry out the procedure.

2. It is not quite clear why the PLM neurons show different responses to stimulation. Is this caused by gene expression or connectivity? This could be discussed more deeply. It might help to draw a circuit diagram for the PLM and motor circuit that shows the differences of the two neurons.

3. The authors should discuss the effects that potential read-through of endogenous termination signals might have. How would this affect the physiology of the cell, especially during development? Would it theoretically be necessary and if yes feasible that some or all of the amber codons are replaced by TAA codons in future studies? This could be discussed.

4. The expression of the orthogonal translation system and the potential read-through of amber stop codons in endogenous genes poses a concern as to the effects on the physiology of the neurons. To mitigate such concerns regarding a new method it would be important to test whether after the complex manipulations the neurons have retained most of their physiological characteristics. Both the glr-1 command interneurons and mechanosensitive neurons are well characterized in terms of behavior and calcium activity. Thus, control experiments should be performed that test for the functionality of these cells. For example, do the worms still respond normally to anterior and posterior touch based on behavioral and calcium activity readout?

5. At present, the text is quite complicated to read, in particular for readers that want to only use the method and might not be interested in how the many technical challenges were overcome. Thus, some of the description of the optimization in the results part could go into the methods section and in the main text only a short summary of what was optimized could be described. This would help make this piece more accessible to a broad readership.

6. The authors establish the photoactivatable Cre system for glr-1-expressing neurons. They do not test, however, whether this strain allows cell-type specific activation. The glr-1 promoter expresses in both forward (such as PVC) and reverse command interneurons (Such as AVA) (Brockie et al. 2001). But a specific promoter for PVC that expresses only in this neuron is still not reported in the literature. It should be easy for the authors to activate only PVC and demonstrate a forward escape response when illuminating the entire animal. This would provide a proof of principle that their method can allow expression in a type of neurons that has been previously refractory to specific genetic control and would underscore the importance of the method.

https://doi.org/10.7554/eLife.67075.sa1

Author response

Reviewer #1 (Recommendations for the authors):

1) For the system to work, PCKRS, mt tRNA (C15), and Cre (TAG amber) need to be properly expressed in the cells. In addition, ncAAs should also be incorporated into the cells. I would like to see if this was actually observed in most, if not all, of the cells. Examples have been shown in Figure 2d and 2e, but these photos depict only a single worm per condition. Please analyze many more worms (I would recommend {greater than or equal to}10 worms per condition in total, including those from multiple transgenic lines grown on different days) and show the results in the form of a bar graph or a table. Additionally, it will be greatly appreciated if the authors are able to show whether the system works equally in different tissues, such as neurons, intestines, muscles, and hypodermis.

In Figure 2D we show the subcellular localisation of a PCKRS::GFP fusion (not incorporation). The purpose of this figure is to show the effect of the 4 different nuclear export sequences (NES) on subcellular localisation. We have now included quantification of nuclear localisation by measuring the nuclear to cytoplasmic ratio for the wild type and the 4 NES constructs. Measurements were taken from 2 independent lines for each construct (Figure 2 —figure supplement 1B).

The images in Figure 2E are representative images, showing > 5 randomly selected animals for each condition, we now state in the legend that the animals were randomly selected. Furthermore, all western blots were done using lysates from randomly selected animals. The quantitative western blots in Figure 2F were done using the lines shown in 2E, as well as a further independent line for each genotype. The western blot shown in Figure 2G was also done using the same lines shown in 2E. The incorporation experiments in 2F were performed in triplicate (performed on different days) and each sample was blotted and measured twice. This information is now included in the figure legend. We have added as a supplement to Figure 2 an enlarged version of the "PKIa-NES/tRNA(C15)" and "Smad4-NES/tRNA(C15)" panels in figure 2E to make it more apparent that we show multiple animals in the image.

We and others have previously published papers describing genetic code expansion in C. elegans (Greiss and Chin, JACS 2011; Parrish et al., ACS Chemical Biology 2012), showing that ncAA incorporation works in different tissues. We now refer to this in the discussion and reference the previous work. In the enlarged panels from Figure 2E, which we have added as a supplement (Figure 2 —figure supplement 1C), it is clearly visible that incorporation occurs globally, in multiple cell types. Furthermore, genetic code expansion has, since we first demonstrated it in C. elegans, been established for several multicellular organisms including fruit fly, zebrafish, mouse, Arabidopsis, where incorporation of ncAA has also been demonstrated in different tissues for these organisms. Our manuscript presents modifications to the pyrrolysyl-tRNA-synthetase / tRNA pair, which is central to the genetic code expansion method, and we show that we thereby improve efficiency of the pair within the context of the C. elegans translational machinery. We expect this basic machinery to be the same in all C. elegans cells, albeit factors such as ncAA availability and expression levels of the genetic components may vary between cell types. We quantify the improvements to the system directly, using a fluorescent GFP::mCherry reporter that is expressed using a ubiquitous promoter, and by assessing its efficacy as a biological tool in different neuronal cell types.

2) Related to above: Does the expression of these genes, in addition to ncAA incorporation, affect worm behavior? I think that addressing this question is important because truncated Cre is likely to be expressed in an amount {greater than or equal to}20 times higher than that of full-length PC-Cre (lines 250-256, Figure 2f). I would appreciate it if the authors could compare some basic aspects of worm locomotion, such as velocity and turning frequency, between the wild-type and the transgenic strains.

We have included a soft touch assay performed on the lines used for the behavioural assays shown in Figure 5, which express the genetic code expansion machinery and photocaged Cre in the touch receptor neurons. The touch assays were performed in the presence and in the absence of PCK, showing that neuronal function is not affected by the expression of truncated Cre, nor by any effect of PCK incorporation. We also performed touch assays 24h after uncaging of animals grown on PCK. We include these data in Figure 4 —figure supplement 1. With our assays we show that it is clearly possible to express the genetic code expansion machinery and photocaged Cre recombinase at sufficient levels for the system to work efficiently without inhibiting cellular function.

3) In this study, the clear-cut regulation of the activity of the gene product is critical. Nevertheless, the results have not been provided in a quantitative form. For example, the western blot shown in Figure 2c is, again, just one representative result. It should be repeated several times and the band intensities should be quantified and expressed as mean {plus minus} SEM, as shown in Figure 2f and 2g. (For Figure 2f, please describe the number of replicates).

We have now included quantification of incorporation efficiency for the genotypes in Figure 2C, which we present in Figure 2 —figure supplement 1A.

Our rationale for originally not quantifying incorporation of all genotypes shown in 2C is as follows:

The first 5 genotypes in Figure 2C show the first step of our optimisation, namely finding the optimal NES sequence. Since two of the four nuclear export sequences tested appeared to reduce efficiency based on the western blot, we focused on the two best candidates for the quantification and further combined them with the optimised tRNAs.

We now also include the numbers of replicates for Figure 2C (each line was quantified in two independent experiments on different days) and Figure 2F (each line was quantified in three independent experiments on different days, and each lysate was measured twice on different blots). For Figure 2F we assayed two independent lines for each condition shown.

4) Similarly, some data are shown only in the video. As mentioned previously, they should be reported using graphs showing the results for a certain number of samples (e.g., lines 277-279, Sup. video 1, 2).

We have included a quantification of the behavioural response shown in Videos 1 and 2 in Figure 3G and in Figure 3 —figure supplement 1C. In addition to the line shown in the videos we have included lines expressing the non-optimised incorporation system and non-optimised PC-Cre. We assayed two independent lines for each condition in two independent experiments each. We have added a reference to the figures when we reference the videos.

5) lines 383-385 "We saw strong, easily visible expression": It was not clear which data support this statement. Further, describe how many worms were analyzed and how many worms were fluorescence-positive.

We have rephrased the sentence to make clear that the fluorescence from Chrimson::mKate2 appeared after 12-24h and that it appeared in the targeted neurons, as shown in Figure 4 C,D,E. It now reads:

" After 12-24h, we observed Chrimson::mKate2 expression that was only present in laser-targeted cells."

We have removed the sentence stating that the fluorescence was also visible under a Leica dissecting fluorescence microscope. We have moved this sentence to the methods section. where we describe the preparation of animals for behavioural experiments (feeding on PCK -> uncaging -> verification of Chrimson::mKate2 expression using a Leica fluorescence dissecting microscope).

6) "more than 50 fold" and "close to 100%" (line 442): Again, these statements were not supported by evidence. At least, the link with specific data was not clear at all. These non-quantitative statements should be reworded to be more quantitative.

We have removed these numbers from the discussion. They can be found in the Results section closer to the relevant figures (2F and 3D) (page 6 and page 8).

7) As mentioned above, in the figure legends, please describe how many worms were studied and how many were fluorescence-positive, instead of the number of replicates. The description provided in lines 637-640 is insufficient.

We have now included descriptions in the figure legends.

8) Sup. Table 2 (strains): Please specify the figure panels in which each strain was used.

We have added a key resources table with the information. It can be found at the beginning of the methods section.

Reviewer #2 (Recommendations for the authors):

In summary, this is a very elaborate and smart approach to address an important technical problem in neuroscience and I support publication. I have the following comments:

1. To help other labs getting started with this method there should be a supplementary detailed step-by-step protocol for how to carry out the procedure.

We have previously published a detailed protocol in a volume of Methods in Molecular Biology: Davis, L. and Greiss, S. (2018) ‘Genetic encoding of unnatural amino acids in C. elegans’, Methods in Molecular Biology, 1728, pp. 389–408. doi: 10.1007/978-1-4939-7574-7_24. We have now included references to this book chapter in the sections of the methods where we describe generating transgenic strains, ncAA incorporation, and uncaging.

2. It is not quite clear why the PLM neurons show different responses to stimulation. Is this caused by gene expression or connectivity? This could be discussed more deeply. It might help to draw a circuit diagram for the PLM and motor circuit that shows the differences of the two neurons.

We have included a circuit diagram in Figure 5C. While the diagram does not include all synaptic connections between the neurons depicted, we focused on the main connections and the differences between PLML and PLMR. We believe that including all connections would make the diagram very difficult to interpret. We include a paragraph in the discussion (page 14) about the different responses we observe for PLML and PMR, which we indeed believe to be due to differences in connectivity.

To exclude the possibility that the responses may be due to differences in expression levels, we have added Figure 5 —figure supplement 3 showing quantification of expression in PLML and PLMR, determined by quantifying the mKate2 fluorescence of the Chrimson::mKate2 fusion protein. We see no differential expression of the optogenetic channel.

3. The authors should discuss the effects that potential read-through of endogenous termination signals might have. How would this affect the physiology of the cell, especially during development? Would it theoretically be necessary and if yes feasible that some or all of the amber codons are replaced by TAA codons in future studies? This could be discussed.

We have included the possibility of read-through of endogenous stop codons in the discussion (2nd paragraph in the discussion, page 13) and we have added a reference to a paper by the Fire lab, describing a natural mechanism employed by C. elegans to mitigate against stop codon read-through: Arribere, J. A. et al., (2016) ‘Translation readthrough mitigation’, Nature. Nature Publishing Group, pp. 1–17. Available at:

http://dx.doi.org/10.1038/nature18308.

We would expect that this mechanism also mitigates against any read-through effects caused by the orthogonal system.

4. The expression of the orthogonal translation system and the potential read-through of amber stop codons in endogenous genes poses a concern as to the effects on the physiology of the neurons. To mitigate such concerns regarding a new method it would be important to test whether after the complex manipulations the neurons have retained most of their physiological characteristics. Both the glr-1 command interneurons and mechanosensitive neurons are well characterized in terms of behavior and calcium activity. Thus, control experiments should be performed that test for the functionality of these cells. For example, do the worms still respond normally to anterior and posterior touch based on behavioral and calcium activity readout?

We opted to address this point by quantifying behavioral readouts: we have performed soft touch assays to test for the functionality of the cells and we find that the touch receptor neurons still function normally, both in the absence and in the presence of PCK. We have also included animals grown on PCK and assayed 24h after uncaging, i.e. the exact treatment and timepoint we use to conduct the behavioural assays. The data are included in Figure 4 —figure supplement 1C.

In both neuronal classes, the TRN and glr-1, we can elicit the behaviour expected from the literature when optogenetically stimulating them. Calcium imaging would not be feasible in the strains we describe as we have the optPC-Cre in an operon with GFP and we express the optogenetic channel as an mKate2 fusion.

5. At present, the text is quite complicated to read, in particular for readers that want to only use the method and might not be interested in how the many technical challenges were overcome. Thus, some of the description of the optimization in the results part could go into the methods section and in the main text only a short summary of what was optimized could be described. This would help make this piece more accessible to a broad readership.

We appreciate that the manuscript is quite technical at times, and in the resubmitted version we have tried to edit it for clarity.

The readership of the paper will consist of researchers looking to use photocaged Cre as a tool in C. elegans, but also researchers working in the genetic code expansion field or looking to use genetic code expansion in other applications. While we agree that for C. elegans groups wishing to use photocaged Cre, the first part of the paper may be of less interest, for those working in the genetic code expansion field, the first part may be more interesting than the second part. We would therefore prefer to keep a more detailed description of our optimisation approach in the main paper as it constitutes a major advance in the field.

6. The authors establish the photoactivatable Cre system for glr-1-expressing neurons. They do not test, however, whether this strain allows cell-type specific activation. The glr-1 promoter expresses in both forward (such as PVC) and reverse command interneurons (Such as AVA) (Brockie et al. 2001). But a specific promoter for PVC that expresses only in this neuron is still not reported in the literature. It should be easy for the authors to activate only PVC and demonstrate a forward escape response when illuminating the entire animal. This would provide a proof of principle that their method can allow expression in a type of neurons that has been previously refractory to specific genetic control and would underscore the importance of the method.

We chose the PLM neurons as our proof-of-principle since they also cannot be targeted using a specific promoter. Using the PLMs, we have clearly demonstrated that we are able to target a neuronal pair, as well as the individual members of the pair.

Furthermore, we believe that due to the asymmetric downstream connectivity of PLML and PLMR, they represent an attractive first target for single cell optogenetics. We fully agree however, that the PVCs will indeed be interesting targets in the future.

https://doi.org/10.7554/eLife.67075.sa2

Article and author information

Author details

  1. Lloyd Davis

    Centre for Discovery Brain Sciences, University of Edinburgh, Edinburgh, United Kingdom
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Visualization, Writing – original draft, Writing – review and editing
    Competing interests
    No competing interests declared

  2. Inja Radman

    Medical Research Council Laboratory of Molecular Biology, Cambridge, United Kingdom
    Contribution
    Investigation, Writing – review and editing
    Contributed equally with
    Angeliki Goutou
    Competing interests
    No competing interests declared

  3. Angeliki Goutou

    Centre for Discovery Brain Sciences, University of Edinburgh, Edinburgh, United Kingdom
    Contribution
    Investigation, Writing – review and editing
    Contributed equally with
    Inja Radman
    Competing interests
    No competing interests declared

  4. Ailish Tynan

    Centre for Discovery Brain Sciences, University of Edinburgh, Edinburgh, United Kingdom
    Contribution
    Investigation, Writing – review and editing, performed fluorescence microscopy
    Competing interests
    No competing interests declared

  5. Kieran Baxter

    Centre for Discovery Brain Sciences, University of Edinburgh, Edinburgh, United Kingdom
    Contribution
    Data curation, Investigation, Writing – review and editing, assisted with behavioural analysis
    Competing interests
    No competing interests declared

  6. Zhiyan Xi

    Centre for Discovery Brain Sciences, University of Edinburgh, Edinburgh, United Kingdom
    Contribution
    Investigation, Writing – review and editing, generated expression constructs and contributed to optimising ncAA incorporation
    Competing interests
    No competing interests declared

  7. Jack M O'Shea

    Centre for Discovery Brain Sciences, University of Edinburgh, Edinburgh, United Kingdom
    Contribution
    Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9694-7340

  8. Jason W Chin

    Medical Research Council Laboratory of Molecular Biology, Cambridge, United Kingdom
    Contribution
    Conceptualization, Funding acquisition, Supervision, Writing – original draft, Writing – review and editing
    For correspondence
    chin@mrc-lmb.cam.ac.uk
    Competing interests
    No competing interests declared

  9. Sebastian Greiss

    Centre for Discovery Brain Sciences, University of Edinburgh, Edinburgh, United Kingdom
    Contribution
    Conceptualization, Funding acquisition, Investigation, Methodology, Project administration, Supervision, Writing – original draft, Writing – review and editing
    For correspondence
    s.greiss@ed.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9130-0831

Funding

H2020 European Research Council (ERC-StG-679990)

  • Sebastian Greiss

Medical Research Council (MC_U105181009)

  • Jason W Chin

Medical Research Council (MC_UP_A024_1008)

  • Jason W Chin

Wellcome Trust (Wellcome-Trust University of Edinburgh Institutional Strategic Support Fund ISS2)

  • Sebastian Greiss

Royal Society

  • Sebastian Greiss

Muir Maxwell Epilepsy Centre

  • Sebastian Greiss

Louis Jeantet Foundation

  • Jason W Chin

University of Cambridge (Herchel Smith Fund)

  • Inja Radman

University of Edinburgh (Edinburgh Global Award and Principal's Career Development PhD studentship)

  • Zhiyan Xi

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Maria Doitsidou, Netta Cohen, Kathrin Lang, Emanuel Busch, and Bill Schafer for helpful suggestions and input on the manuscript, and Zoltan Soltesz for help with initial experiments. Some strains were provided by the Caenorhabditis Genetics Centre for strains, funded by the NIH Office of Research Infrastructure Programs (P40OD010440).

Senior Editor

  1. Piali Sengupta, Brandeis University, United States

Reviewing Editor

  1. Oliver Hobert, Howard Hughes Medical Institute, Columbia University, United States

Reviewer

  1. Henrik Bringmann, Max Planck Institute for Biophysical Chemistry, Germany

Version history

  1. Preprint posted: May 3, 2020 (view preprint)
  2. Received: January 30, 2021
  3. Accepted: August 4, 2021
  4. Accepted Manuscript published: August 5, 2021 (version 1)
  5. Version of Record published: September 17, 2021 (version 2)
  6. Version of Record updated: April 26, 2022 (version 3)

Copyright

© 2021, Davis et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,847
    Page views
  • 397
    Downloads
  • 7
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Lloyd Davis
  2. Inja Radman
  3. Angeliki Goutou
  4. Ailish Tynan
  5. Kieran Baxter
  6. Zhiyan Xi
  7. Jack M O'Shea
  8. Jason W Chin
  9. Sebastian Greiss
(2021)
Precise optical control of gene expression in C elegans using improved genetic code expansion and Cre recombinase
eLife 10:e67075.
https://doi.org/10.7554/eLife.67075

Categories and tags

Research organism

Further reading

    1. Biochemistry and Chemical Biology
    2. Cancer Biology

    FOXP2 confers oncogenic effects in prostate cancer

    Xiaoquan Zhu, Chao Chen ... Yanyang Zhao
    Research Article Updated

    Identification oncogenes is fundamental to revealing the molecular basis of cancer. Here, we found that FOXP2 is overexpressed in human prostate cancer cells and prostate tumors, but its expression is absent in normal prostate epithelial cells and low in benign prostatic hyperplasia. FOXP2 is a FOX transcription factor family member and tightly associated with vocal development. To date, little is known regarding the link of FOXP2 to prostate cancer. We observed that high FOXP2 expression and frequent amplification are significantly associated with high Gleason score. Ectopic expression of FOXP2 induces malignant transformation of mouse NIH3T3 fibroblasts and human prostate epithelial cell RWPE-1. Conversely, FOXP2 knockdown suppresses the proliferation of prostate cancer cells. Transgenic overexpression of FOXP2 in the mouse prostate causes prostatic intraepithelial neoplasia. Overexpression of FOXP2 aberrantly activates oncogenic MET signaling and inhibition of MET signaling effectively reverts the FOXP2-induced oncogenic phenotype. CUT&Tag assay identified FOXP2-binding sites located in MET and its associated gene HGF. Additionally, the novel recurrent FOXP2-CPED1 fusion identified in prostate tumors results in high expression of truncated FOXP2, which exhibit a similar capacity for malignant transformation. Together, our data indicate that FOXP2 is involved in tumorigenicity of prostate.

    1. Biochemistry and Chemical Biology
    2. Cell Biology

    Fluorescein-based sensors to purify human a-cells for functional and transcriptomic analyses

    Sevim Kahraman, Kimitaka Shibue ... Rohit N Kulkarni
    Tools and Resources

    Pancreatic a-cells secrete glucagon, an insulin counter-regulatory peptide hormone critical for the maintenance of glucose homeostasis. Investigation of the function of human a-cells remains a challenge due to the lack of cost-effective purification methods to isolate high-quality a-cells from islets. Here, we use the reaction-based probe diacetylated Zinpyr1 (DA-ZP1) to introduce a novel and simple method for enriching live a-cells from dissociated human islet cells with ~ 95% purity. The a-cells, confirmed by sorting and immunostaining for glucagon, were cultured up to 10 days to form a-pseudoislets. The a-pseudoislets could be maintained in culture without significant loss of viability, and responded to glucose challenge by secreting appropriate levels of glucagon. RNA-sequencing analyses (RNA-seq) revealed that expression levels of key a-cell identity genes were sustained in culture while some of the genes such as DLK1, GSN, SMIM24 were altered in a-pseudoislets in a time-dependent manner. In conclusion, we report a method to sort human primary a-cells with high purity that can be used for downstream analyses such as functional and transcriptional studies.

    1. Biochemistry and Chemical Biology
    2. Cell Biology

    Inositol pyrophosphate dynamics reveals control of the yeast phosphate starvation program through 1,5-IP8 and the SPX domain of Pho81

    Valentin Chabert, Geun-Don Kim ... Andreas Mayer
    Research Article

    Eukaryotic cells control inorganic phosphate to balance its role as essential macronutrient with its negative bioenergetic impact on reactions liberating phosphate. Phosphate homeostasis depends on the conserved INPHORS signaling pathway that utilizes inositol pyrophosphates and SPX receptor domains. Since cells synthesize various inositol pyrophosphates and SPX domains bind them promiscuously, it is unclear whether a specific inositol pyrophosphate regulates SPX domains in vivo, or whether multiple inositol pyrophosphates act as a pool. In contrast to previous models, which postulated that phosphate starvation is signaled by increased production of the inositol pyrophosphate 1-IP7, we now show that the levels of all detectable inositol pyrophosphates of yeast, 1-IP7, 5-IP7, and 1,5-IP8, strongly decline upon phosphate starvation. Among these, specifically the decline of 1,5-IP8 triggers the transcriptional phosphate starvation response, the PHO pathway. 1,5-IP8 inactivates the cyclin-dependent kinase inhibitor Pho81 through its SPX domain. This stimulates the cyclin-dependent kinase Pho85-Pho80 to phosphorylate the transcription factor Pho4 and repress the PHO pathway. Combining our results with observations from other systems, we propose a unified model where 1,5-IP8 signals cytosolic phosphate abundance to SPX proteins in fungi, plants, and mammals. Its absence triggers starvation responses.
