β2-subunit alternative splicing stabilizes Cav2.3 Ca2+ channel activity during continuous midbrain dopamine neuron-like activity

  1. Anita Siller
  2. Nadja T Hofer
  3. Giulia Tomagra
  4. Nicole Burkert
  5. Simon Hess
  6. Julia Benkert
  7. Aisylu Gaifullina
  8. Desiree Spaich
  9. Johanna Duda
  10. Christina Poetschke
  11. Kristina Vilusic
  12. Eva Maria Fritz
  13. Toni Schneider
  14. Peter Kloppenburg
  15. Birgit Liss
  16. Valentina Carabelli
  17. Emilio Carbone
  18. Nadine Jasmin Ortner  Is a corresponding author
  19. Jörg Striessnig  Is a corresponding author
  1. Department of Pharmacology and Toxicology, Institute of Pharmacy, Center for Molecular Biosciences Innsbruck, University of Innsbruck, Austria
  2. Department of Drug Science, NIS Centre, University of Torino, Italy
  3. Institute of Applied Physiology, University of Ulm, Ulm, Germany, Germany
  4. Institute for Zoology, Biocenter, University of Cologne, Germany
  5. Institute of Neurophysiology, University of Cologne, Germany
  6. Linacre College & New College, University of Oxford, United Kingdom

Abstract

In dopaminergic (DA) Substantia nigra (SN) neurons Cav2.3 R-type Ca2+-currents contribute to somatodendritic Ca2+-oscillations. This activity may contribute to the selective degeneration of these neurons in Parkinson’s disease (PD) since Cav2.3-knockout is neuroprotective in a PD mouse model. Here, we show that in tsA-201-cells the membrane-anchored β2-splice variants β2a and β2e are required to stabilize Cav2.3 gating properties allowing sustained Cav2.3 availability during simulated pacemaking and enhanced Ca2+-currents during bursts. We confirmed the expression of β2a- and β2e-subunit transcripts in the mouse SN and in identified SN DA neurons. Patch-clamp recordings of mouse DA midbrain neurons in culture and SN DA neurons in brain slices revealed SNX-482-sensitive R-type Ca2+-currents with voltage-dependent gating properties that suggest modulation by β2a- and/or β2e-subunits. Thus, β-subunit alternative splicing may prevent a fraction of Cav2.3 channels from inactivation in continuously active, highly vulnerable SN DA neurons, thereby also supporting Ca2+ signals contributing to the (patho)physiological role of Cav2.3 channels in PD.

Editor's evaluation

This study finds that voltage-gated calcium channel auxiliary β2a and β2e splice variants confer gating properties on Cav2.3 channels that enable them to contribute sustained Ca2+ influx during pacemaking in substantia nigra dopaminergic neurons. This sustained Ca2+ influx may contribute to the selective vulnerability of substantia nigra dopaminergic neurons to neurodegeneration in Parkinson's disease. The work will be of great interest to ion channel biophysicists and neuroscientists interested in mechanisms of neurodegeneration.

https://doi.org/10.7554/eLife.67464.sa0

Introduction

Parkinson’s disease (PD) is one of the most common neurodegenerative disorders. Its motor symptoms are characterized by progressive degeneration of dopamine (DA)-releasing neurons in the Substantia nigra (SN), while neighboring DA neurons in the ventral tegmental area (VTA) remain largely unaffected (Damier et al., 1999; Giguère et al., 2018; Surmeier et al., 2017). Current PD therapy is only symptomatic and primarily based on the substitution of striatal DA by administration of L-DOPA or dopamine D2 receptor agonists. Unfortunately, none of the existing therapeutic approaches for PD patients is disease-modifying and can prevent disease progression (for review see Liss and Striessnig, 2019; Surmeier et al., 2011; Surmeier et al., 2017).

The development of novel neuroprotective strategies for the treatment of early PD requires the understanding of the cellular mechanisms responsible for the high vulnerability of SN DA neurons. Among these mechanisms, elevated metabolic stress appears to play a central role (for review see Liss and Striessnig, 2019), eventually triggering lysosomal, proteasomal and mitochondrial dysfunction (Burbulla et al., 2017; Surmeier et al., 2017). Intrinsic physiological properties of SN DA neurons, in particular increased cytosolic DA levels and high energy demand due to large axonal arborization favor metabolic stress (Bolam and Pissadaki, 2012; Liss and Striessnig, 2019). In addition, these neurons must handle a constant intracellular Ca2+-load resulting from dendritic and somatic Ca2+-oscillations triggered during their continuous electrical activity (Ortner et al., 2017; Surmeier et al., 2011). Dendritic Ca2+-transients largely depend on the activity of voltage-gated Ca2+ channels, in particular Cav1.3 L-type (LTCCs) and T-type channels (Guzman et al., 2018). Cav1.3 channels can activate at subthreshold membrane potentials (Koschak et al., 2001; Lieb et al., 2014; Xu and Lipscombe, 2001) and do not completely inactivate during continuous pacemaking activity (Guzman et al., 2018; Guzman et al., 2009; Ortner et al., 2017). Some, but not all, in vivo studies (Liss and Striessnig, 2019) showed neuroprotection by the systemic administration of dihydropyridine (DHP) LTCC blockers in 6-OHDA and MPTP animal models of PD thus further supporting a role of LTCCs as potential neuroprotective drug target. Based on these preclinical data and supporting observational clinical evidence (Liss and Striessnig, 2019), the neuroprotective potential of the DHP isradipine (ISR) was tested in a double-blind, placebo-controlled, parallel-group phase 3 clinical trial (“STEADY-PD III”, NCT02168842; Biglan et al., 2017). This trial reported no evidence for neuroprotection by ISR. Several explanations have been offered for this negative outcome (Investigators, 2020). One likely explanation is that voltage-gated Ca2+-channels (Cavs) other than LTCCs also contribute to Ca2+-transients in SN DA neurons. This is supported by the observation that only about 50% of the Ca2+-transients are blocked by ISR in the dendrites of SN DA neurons (Guzman et al., 2018) and that action potential-associated Ca2+-transients in the soma appear to be even resistant to ISR (Ortner et al., 2017). Therefore, in addition to L-type, other types of Cavs expressed in SN DA neurons (Branch et al., 2014; Evans et al., 2017; Philippart et al., 2016) may also contribute to Ca2+-induced metabolic stress in SN DA neurons. Cav2.3 (R-type) Ca2+-channels are very promising candidates. We have recently shown that SN DA neurons in mice lacking Cav2.3 channels were fully protected from neurodegeneration in the chronic MPTP-model of PD. Moreover, we found that Cav2.3 is the most abundant Cav expressed in SN DA neurons, and substantially contributes to activity-related somatic Ca2+-oscillations (Benkert et al., 2019). These findings make Cav2.3 R-type Ca2+ channels a promising target for neuroprotection in PD.

SN DA neurons are spontaneously active, pacemaking neurons, either firing in a low-frequency single-spike mode or transiently in a high-frequency burst mode (Grace and Bunney, 1984; Paladini and Roeper, 2014). During regular pacemaking their membrane potential is, on average, rather depolarized ranging from about –70 mV after an action potential (AP) to about –40 mV at firing threshold (Gantz et al., 2018; Guzman et al., 2018; Ortner et al., 2017). The contribution of a particular Cav channel to Ca2+-entry is largely determined by its steady-state inactivation properties, which determines its availability at these depolarized voltages. Therefore, in SN DA neurons steady-state inactivation of Cav2.3 channels must occur within a voltage-range preventing inactivation of a substantial fraction of channels during the positive operating range of these continuously firing neurons. However, Cav2.3 α1-subunits have originally been cloned as a low-voltage-gated channel with a negative steady-state inactivation voltage-range (V0.5,inact –78 mV; Soong et al., 1993) with almost complete inactivation at voltages positive to –50 mV. Interestingly, SNX-482-sensitive R-type currents mediated by Cav2.3 α1 subunits (Newcomb et al., 1998) recorded from different neuronal cell types reveal a wide voltage-range of steady-state inactivation despite similar recording conditions (5–10 mM Ba2+ as charge carrier): half-maximal voltages for steady-state inactivation (V0.5,inact) range from –90 to –70 mV in cerebellar, cortical and myenteric neurons (Bian et al., 2004; Sochivko et al., 2002; Tottene et al., 2000) to –58 mV in neurohypophyseal terminals (Wang et al., 1999) and to even as positive as –40 mV in GnRH-releasing neurons or GT1-7 cells (Kato et al., 2003; Watanabe et al., 2004). This raises the important question about potential molecular mechanisms accounting for this heterogeneity and its role for stabilization of R-type currents in SN DA neurons.

While alternative splicing of Cav2.3 α1 subunits is unlikely to account for such large shifts in steady-state inactivation (Pereverzev et al., 2002), accessory β-subunits appear as obvious candidates for several reasons. First, like for other high-voltage-activated Ca2+ channels (including Cav2.1 and Cav2.2, Liu et al., 1996; Scott et al., 1996) they form part of the Cav2.3 channel complex and thus affect its membrane targeting and gating properties (Zamponi et al., 2015). Second, previous work has shown that β-subunits tightly control V0.5,inact of Cav2 channels, including Cav2.3. While all cytosolic β-subunit isoforms (β1 – β4 and cytosolic splice variants of β2) induce steady-state inactivation at negative potentials, being almost complete at voltages positive to –50 mV, the membrane-anchored β2 subunit splice variants β2a and β2e induce strong positive shifts of V0.5,inact of Cav2.3 channels and slow the time course of voltage-dependent inactivation (Jones et al., 1998; Pereverzev et al., 2002; Soong et al., 1993; Williams et al., 1994; Yasuda et al., 2004). However, a specific physiological role for this modulatory effect has so far not been reported and the relative abundance of β2a and β2e subunits in neurons, including SN DA neurons, is unknown.

Here, we directly addressed the question if association of Cav2.3 channels with β2a or β2e but not with cytosolic β-subunits can prevent channel inactivation during SN DA activity patterns and could therefore serve as a mechanism allowing these channels to contribute to SN DA function. When co-expressed together with auxiliary α2δ1-subunits in tsA-201 cells we indeed found that during simulated SN DA neuron-like continuous tonic pacemaking or brief burst activity (Ortner et al., 2017) Cav2.3 channels remained active only when associated with β2a or β2e, but not the cytosolic β3 and β4 subunits. In contrast, steady-state inactivation of Cav1.3 channels was largely unaffected by β2a, suggesting that Cav1.3 availability is much less dependent on the presence of β2a subunits. Using RNAscope we confirmed the presence of both β2a and β2e transcripts in identified mouse SN and VTA DA neurons and quantitative PCR analysis showed that β2-subunits represent about 25% of all β-subunit transcripts in the mouse SN and VTA with about 50% comprising β2a and β2e variants. In patch-clamp recordings of SN DA neurons in mouse brain slices, we detected SNX-482-sensitive R-type Ca2+-currents with voltage-dependent inactivation properties suggesting a contribution of β2a- or β2e-stabilized Cav2.3-currents. Recordings in cultured DA midbrain neurons confirmed R-type current activity during the pacemaking cycle. Taken together, our data further support a role of Cav2.3 in SN DA neuron Ca2+-signaling and imply a potential (patho)physiological role of β-subunit alternative splicing.

Results

To explore how Cav2.3 channels can contribute to DA neuron Ca2+-entry during sustained neuronal activity we expressed Cav2.3 α1-subunits together with its accessory α2δ1 and different β-subunits in tsA-201 cells under near-physiological conditions (Figure 1). For this purpose, we employed physiological extracellular Ca2+ (2 mM), weak intracellular Ca2+-buffering (0.5 mM EGTA, see methods), and, in addition to square pulse protocols, used typical AP waveforms previously recorded from SN DA neurons in mouse midbrain slices (2.5 Hz) or simulated bursts as command voltages as described (Ortner et al., 2017; see methods). Moreover, we specifically employed the Cav2.3e α1-subunit splice variant for our recordings, which among the six major Cav2.3 α1-subunit splice variants, was the only one detected in UV laser-microdissected mouse SN DA neurons in experiments using a qualitative single-cell RT-qPCR approach (Figure 1—figure supplement 1A, B).

Figure 1 with 2 supplements see all

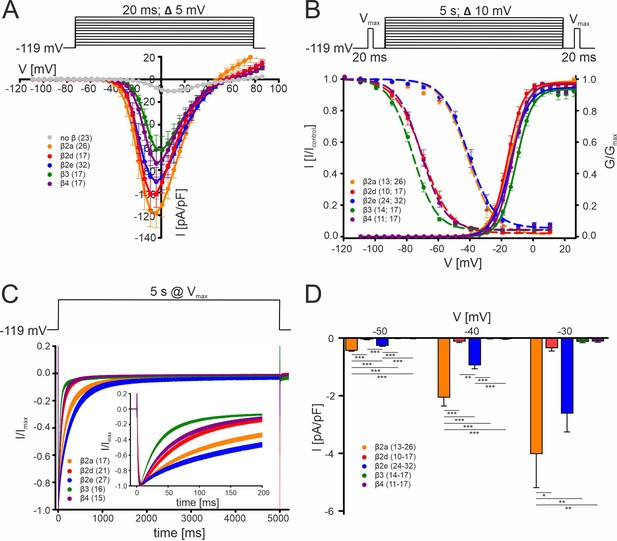

Biophysical properties of Cav2.3 channels co-transfected with different β-subunits (and α2δ1) in tsA-201 cells.

(A) Current densities (pA/pF) with or without (gray) co-transfection of indicated β-subunits. Color code and n-numbers are given in the graphs. (B) Voltage-dependence of steady-state activation (normalized conductance G, right axis, solid lines) and inactivation (normalized ICa of test pulses, left axis, dashed lines, left n-numbers in parentheses). (C) Inactivation time course during 5 s depolarizing pulses to Vmax starting from a holding potential of –119 mV. Inset shows the first 200 ms of the 5 s pulse. Respective stimulation protocols are shown above each graph. The curves represent the means ± SEM for the indicated number of experiments (N = β2a: 5; β2d, β2e: 2; β3, β4, no β: 3). For statistics see Table 1. Vmax, voltage of maximal inward current. (D) Window currents measured in the presence of the indicated β-subunits were calculated by multiplying mean current densities (pA/pF) of I-V-relationships by the fractional current inactivation from steady-state inactivation curves at the indicated voltages. Data represent the means ± SEM for the indicated number of experiments (N = β2a: 5; β2d, β2e: 2; β3, β4: 3). Statistical significance was determined using one-way ANOVA with Bonferroni post-hoc test and is indicated: *** p<0.001; ** p<0.01; * p<0.05. Source data provided in Figure 1—source data 1.

β-subunit isoform-dependent regulation of Cav2.3 channel gating

We first used standard square pulse protocols to quantify the effect of different β-subunits on the voltage-dependence of channel gating under our experimental conditions. In addition to β3, β4, and β2a analyzed in previous studies (Jones et al., 1998; Yasuda et al., 2004), we also included membrane-anchored β2e and β2d, a cytosolic β2 splice variant, in our head-to-head comparison (Figure 1). In agreement with earlier studies (Jones et al., 1998; Yasuda et al., 2004), we found that recombinant Cav2.3 channels when associated with cytosolic β3 or β4 subunits inactivate at negative voltages (V0.5,inact < –70 mV) and with a rapid inactivation time course (≥50% within 50 ms, Figure 1B–C, Table 1). The cytosolic β2d splice variant also showed a gating behavior very similar to β4. In contrast, β2a, which is anchored to the plasma membrane through N-terminal palmitoylation, slowed the inactivation time course and shifted Cav2.3 voltage-dependent inactivation by ~30 mV to more positive potentials compared to β4 (and β3). Likewise, with co-expressed β2e, which is membrane anchored through N-terminal phospholipid interaction (Buraei and Yang, 2010; Miranda-Laferte et al., 2014), gating properties were similar to β2a-containing Cav2.3 channel complexes (Figure 1A–C, Table 1). In the case of β2a, the shift in the voltage-dependence of inactivation, but not the slowing of the inactivation time course, was largely dependent on N-terminal palmitoylation as shown with the palmitoylation-deficient mutant C3S/C4Sβ2a (Figure 1—figure supplement 2). The voltage-dependence of activation was similar for all tested β-subunits (Figure 1A, Table 1). Due to the voltage-dependent inactivation at more depolarized potentials and the resulting overlap of the steady-state activation and inactivation curves (Figure 1B), β2a and β2e subunits induce window currents, i.e. steady-state Ca2+ influx, at negative potentials (Figure 1D). Our findings confirm and extend previous observations that membrane-anchored β2 subunits give rise to slowly inactivating Cav2.3 currents available at more positive voltages that could participate in the formation of such SNX-482-sensitive current components in neurons.

Table 1
Voltage-dependence of activation and inactivation, and time course of inactivation of Cav2.3 co-transfected with α2δ1 and different β subunits in tsA-201 cells.
β-subunitCav2.3 - Activation 2 mM Ca2+Cav2.3 - Inactivation 2 mM Ca2+
V0.5[mV]k[mV]Vrev[mV]act thresh[mV]current density[pA/pF]nV0.5, inact[mV]kinact[mV]plateau[%]n
no β–10.7±1.123
β2a–14.8±1.24.8±0.237.1±0.9–32.0±0.9–130.0+++±15.226–40.6±1.67.3±0.50.4±1.113
C3S/C4Sβ2a–13.9±1.74.7±0.338.2±1.1–30.9±0.7–105.7+++±21.412–62.6***/###/§§§±1.68.3##±0.43.8±1.69
β2d–15.9§±1.14.6±0.237.2±1.1–32.1§±0.7–107.7+++±13.417–69.9***/###±2.08.2##±0.22.0±0.710
β2e–14.1±0.94.8±0.240.3*±0.6–31.5±0.7–96.8+++±14.332–39.9±1.96.5±0.33.8±1.224
β3–10.5±0.75.2±0.239.8±0.9–29.2±0.7–64.6++±12.817–76.2***/###±1.07.0±0.14.1±0.714
β4–13.1±0.75.0±0.238.5±0.5–31.0±0.5–74.8+++±11.917–70.3***/###±1.27.5±0.12.4±0.411
Cav2.3–5 s Inactivation time course 2 mM Ca2+
β-subunitr50 [%]r100 [%]r250 [%]r500 [%]r1000 [%]r5000 [%]n
β2a71.3±2.152.4±2.827.8±2.914.3±2.36.5±1.21.3±0.317
C3S/C4Sβ2a67.4§§§/%±5.247.3#/§§§/%%±6.423.4§±5.311.6±3.36.2±1.73.4±1.111
β2d57.4*/###/§§§±2.832.6***/###/§§±2.411.3*/###±1.74.4**/###±0.92.4**/###±0.61.7±0.521
β2e77.5±2.964.2±3.341.1±3.222.3±2.810.1±2.03.3±0.827
β332.9***/###±2.914.2***/###±1.56.1***/###±1.04.4**/###±0.72.9#±0.51.6±0.316
β450.3***/###/§§±2.727.1***/###±2.58.6**/###±1.43.7**/###±0.82.0**/###±0.51.0±0.215

Since Cav2.3 α1-subunits have also been reported to mediate ICa even when expressed in the absence of β-subunits (Jones et al., 1998; Yasuda et al., 2004), we also tested to which extent β-subunit modulated channels are expected to contribute to Cav2.3 currents. In our experiments, all five tested β-subunits (β2a, β2d, β2e, β3, β4) caused a robust and highly significant (6–12-fold; Figure 1A, Table 1) increase in current densities. This implies that β-associated Cav2.3 channels contribute more to overall Cav2.3-mediated currents than channel complexes devoid of β-subunits and thus can be subject to differential modulation by β-subunits.

Taken together, these data suggest that through their effect on inactivation gating β2a- and β2e-subunits could contribute to sustained Cav2.3 activity and AP-associated Ca2+ transients previously recorded in SN DA neurons (Benkert et al., 2019).

β-subunit transcripts in mouse SN and VTA

This prompted us to investigate if β2a and β2e splice variants are indeed expressed in SN tissue. First, we investigated β1 - β4 subunit expression patterns in the SN (and VTA for comparison, Figure 2A) dissected from brain slices of 12- to 14-week-old male C57Bl/6 N mice (Figure 2C) using a standard-curve-based absolute RT-qPCR assay (Schlick et al., 2010; Figure 2—figure supplement 1, Supplementary file 1, Supplementary file 2, Supplementary file 3). In both SN and VTA tissue, β4 (SN:~64%; VTA:~57%) and β2 (SN:~27%; VTA:~29%) represented the most abundant β-subunit transcripts, followed by β1 and β3 (~4–7%) (Figure 2A). Our findings are in excellent agreement (β2: 31–35%, β4: 41–45%) with cell-type-specific RNA sequencing data from identified mouse midbrain DA neurons (Brichta et al., 2015; Shin, 2015).

Figure 2 with 2 supplements see all

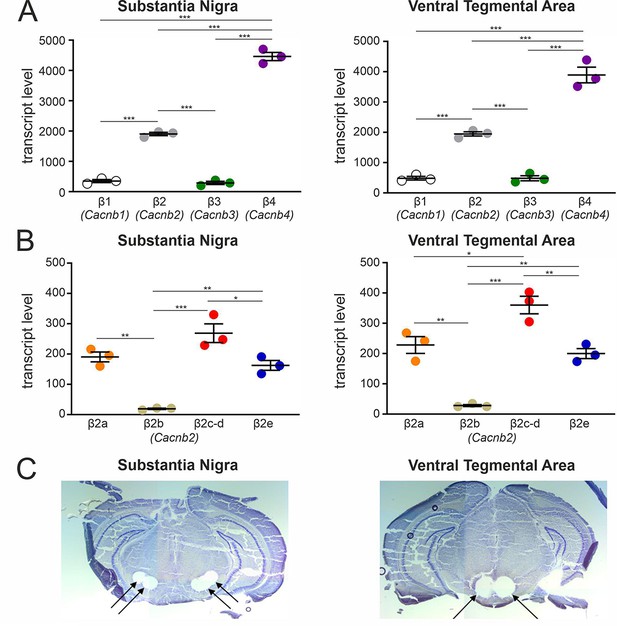

Transcript expression of various β-subunits and β2-subunit splice variants in mouse SN and VTA tissue.

(A) Expression of β1-β4 subunit transcripts in SN (n=3, N=3) (left) and VTA (n=3, N=3) (right) determined by RT-qPCR as described in Methods. (B) Expression of β2a-β2e subunit transcripts in SN (n=3, N=3) (left) and VTA (n=3, N=3) (right). Data are shown as the mean ± SEM. Statistical significance was determined using one-way ANOVA followed by Bonferroni post-hoc test: *** p<0.001; *p P<0.01; * p<0.05. Data was normalized to Gapdh and Tfrc determined by geNorm. (C) Example for four SN (left) and two VTA (right) tissue punches obtained for cDNA preparation with diameters of 0.5 mm each (left) or 0.8 mm each (right) from 7 to 8 successive 100-μm-sections between Bregma –3.00 mm and –3.80 mm, stained with Cresyl violet. Source data provided in Figure 2—source data 1.

Since the relative abundance of β2-subunit splice variants in the brain is unknown, we used our standard curve-based RT-qPCR assay to specifically quantify their expression in the SN and VTA (Figure 2B; for alignment of N-terminal β2 splice variants see Figure 2—figure supplement 1A). Assays were designed to specifically discriminate between β2a, β2b, and β2e. β2c and β2d N-termini were detected together (the β2d N-terminus is also present in β2c but with different alternative splicing in the HOOK region; Buraei and Yang, 2010; see methods). In SN and VTA, β2a (~30%) and β2e (~26%) transcripts together comprised about half of all tested β2-subunit splice variants, cytosolic β2c and β2d-species about 42% and β2b only about 3% (Figure 2B). Therefore, β2a and β2e together should be able to form a substantial fraction of Cav2.3 channel complexes in these neurons.

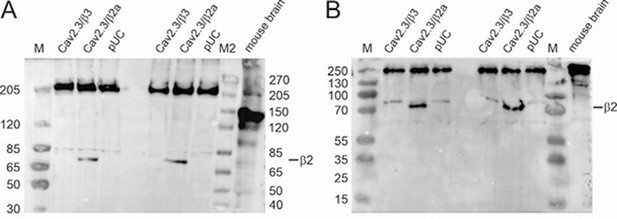

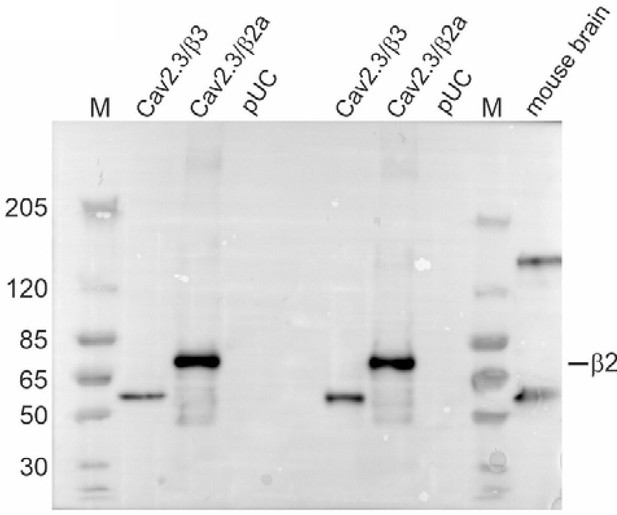

We further confirmed the presence of the various N-terminal β2 splice variants in individual UV-laser microdissected mouse SN DA neurons at the mRNA level using a qualitative PCR approach (Figure 2—figure supplement 2, Supplementary file 4, Supplementary file 5). Moreover, quantitative RNAscope analysis confirmed the expression of β2e and β2a in identified mouse SN and VTA DA neurons with β2e more abundantly expressed compared to β2a (Figure 2—figure supplement 2).

β2 splice variant-dependent regulation of Cav2.3 activity during SN DA neuron-like regular pacemaking activity

To test a possible role of β-subunits for Cav2.3 channel availability in SN DA neurons, we mimicked their electrical activity in tsA-201 cells because individual Ca2+-current components arising from Cav2.3 channel complexes associated with different β-subunits or even different splice variants cannot be isolated during continuous pacemaking in patch-clamp recordings of identified SN DA neurons. With co-expressed β3 and β4 isoforms simulated SN DA neuron regular pacemaker activity (initiated from a holding potential of –89 mV) induced large inward currents in response to single AP waveforms (Figure 3A and B). Cav2.3 channels conducted ICa during the repolarization phase of the AP (IAP) without evidence for inward current during the interspike interval (ISI, Figure 3A and B bottom inset). However, IAP decreased rapidly during continuous activity and almost completely disappeared after 1 (co-transfected β3)–2 min (co-transfected β4; Figure 3A, B, E and F). The time course of IAP decrease was best fitted by a bi-exponential function (see legend to Figure 3). Our data, therefore, suggest that Cav2.3e α1-subunits, in complex with α2δ1 and β3 or β4, cannot support substantial inward currents during continuous SN DA neuron pacemaking activity. This is in contrast to our previously published finding of stable Cav1.3 Ca2+-channel activity persisting under near identical experimental conditions (Cav1.3 α1/α2δ1/β3 previously published data; Ortner et al., 2017; illustrated for comparison in Figure 3E and F, in gray).

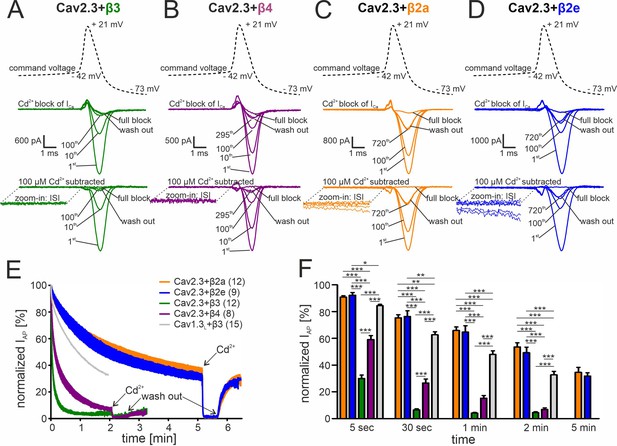

Activity-dependent inactivation of Cav2.3 channels co-transfected with different β subunits (and α2δ1) during simulated SN DA neuron regular pacemaking activity in tsA-201 cells.

(A–D) Top panel: The SN DA neuron-derived command voltage was applied with a frequency of 2.5 Hz (only a time interval around the AP-spike is shown). Middle panel: Corresponding representative Ca2+ current traces (2 mM charge carrier) for Cav2.3 channels co-expressed with α2δ1 and β3 (A, green), β4 (B, purple), β2a (C, orange), or β2e (D, blue) are shown for the indicated sweep number (1st, 10th, 100th, 295th, 720th). Cav2.3 currents were completely blocked by 100 μM Cadmium (Cd2+), and remaining Cd2+-insensitive current components were subtracted off-line (bottom panel). ISI, interspike interval. (E) Current decay during simulated 2.5 Hz SN DA neuron pacemaking. Normalized peak inward current during APs (IAP) is plotted against time as mean ± SEM for the indicated number of experiments. IAP amplitudes were normalized to the IAP amplitude of the first AP after holding the cell at –89 mV. Cav1.3L co-expressed with α2δ1 and β3 (gray, mean only) is shown for comparison (data taken from Ortner et al., 2017). The IAP decay was fitted to a bi-exponential function (Cav2.3 β3: Aslow = 39.4% ± 0.65 %, τslow = 22.2 ± 0.15 min, Afast = 54.2 ± 0.76 %, τfast = 2.86 ± 0.07 min, non-inactivating=4.47% ± 0.13%; β4: Aslow = 48.5 ± 0.26 %, τslow = 90.3 ± 1.07 min, Afast = 41.8 ± 0.40 %, τfast = 8.39 ± 0.16 min, non-inactivating=5.12% ± 0.12%; β2a: Aslow = 52.6 ± 0.47 %, τslow = 299.3 ± 10.2 min, Afast = 13.4 ± 0.53 %, τfast = 18.2 ± 1.47 min, non-inactivating=32.3% ± 0.77%; β2e: Aslow = 67.7 ± 0.11 %, τslow = 294.1 ± 1.77 min, Afast = 7.10.0±0.27 %, τfast = 16.6 ± 1.24 min, non-inactivating=25.0% ± 0.12%). Curves represent the means ± SEM for the indicated number of experiments (independent transfections, N=Cav2.3/β3: 4; Cav2.3/β4: 2; Cav2.3/β2a: 4; Cav2.3/β2e: 2; Cav1.3L/β3: 6). (F) Normalized IAP decay after predefined time points for Cav2.3 with β3, β4, β2a or β2e, and Cav1.3L (with β3). Color-code and n-numbers as in panel E. Statistical significance was determined using one-way ANOVA followed by Bonferroni post-hoc test: *** p<0.001; ** p<0.01; * p<0.05. Source data provided in Figure 3—source data 1.

In contrast, the depolarizing shifts in steady-state inactivation and the slowing of inactivation kinetics by β2a and β2e subunits are sufficient to stabilize Cav2.3e currents during simulated regular pacemaking activity. When analyzed in parallel under identical experimental conditions IAP decreased with a much slower time course with about 40% of the maximal initial IAP still remaining even after 5 min of continuous activity (Figure 3C–F). The time course of IAP decrease could be fitted by a bi-exponential function predicting a steady-state reached at 32.3% ± 0.77% (n=12) of the initial IAP for β2a and 25.0% ± 0.12% (n=9) for β2e (see legend to Figure 3). Similar to co-transfected β3 or β4 subunits, β2a or β2e supported Cav2.3 ICa predominantly during the repolarization phase after the AP spike. However, in accordance with enhanced window currents at negative voltages (Figure 1D) these subunits also supported an inward current during the interspike interval (ISI) as evident from the first few sweeps (with the largest current amplitudes) (Figure 3C and D, bottom insets). IAP persisting after 2 min (β3, β4) or 5 min (β2a, β2e) of pacemaking was completely blocked by 100 µM Cd2+ with almost complete recovery upon washout (Figure 3A–E).

Irreversible loss of ICa, a phenomenon also known as current "run-down" widely described for both native and recombinant Cavs (Kepplinger et al., 2000; Ortner et al., 2017; Schneider et al., 2018) during patch-clamp recordings, may also contribute to the current decay observed during simulated pacemaking. We, therefore, quantified the contribution of current run-down for Cav2.3 co-expressed with α2δ1 and β2a or β3 subunits first by applying short (20 ms) square pulses to Vmax (holding potential –89 mV) with a frequency of 0.1 Hz (Figure 4A). With this protocol (short pulse, long inter-sweep interval, hyperpolarized holding potential) activity- and voltage-dependent inactivation of Cav2.3 channels should be minimized. While β3 co-transfected Cav2.3 channels showed a time-dependent current run-down to about 60% of the peak ICa after 5 min, β2a prevented the current decline during this period (Figure 4A). To further quantify the current run-down during simulated pacemaking, we interrupted the pacemaking protocol after different time periods by 20 s long pauses at –89 mV to allow channel recovery from inactivation (Figure 4B). Thus, the percent run-down can be estimated from the non-recovering current component (Figure 4B, horizontal dashed lines). After 30 s of pacemaking the current amplitude during the first AP after the pause was similar to IAP during the initial AP with both β-subunits (β3: 96.9% ± 3.63%, 95% CI: 86.8–107.0, n=5, N=2; β2a: 107.3% ± 3.66%, 95% CI: 99.3–115.4, n=12, N=2, of the initial IAP). After the pause that followed another 1 min of pacemaking, 83.6% ± 7.33% (95% CI: 63.2–103.9) of the initial current was still recovered with co-transfected β3 but after 2 more minutes of pacemaking recovery decreased to 54.7% ± 6.27% (95% CI: 34.7–74.7, Figure 4B;~45% run-down after 4.5 min in total, n=5). This time course is in good agreement with values obtained using the square-pulse protocol (Figure 4A). Again, run-down was largely prevented by co-expressed β2a-subunits (Figure 4B;~16% run-down after 4.5 min in total, n=12).

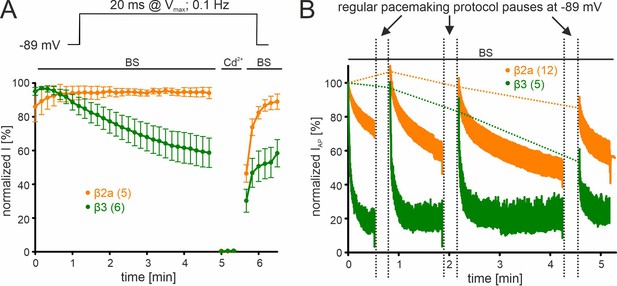

β-subunit-dependent run-down of Cav2.3 channel Ca2+ current in tsA-201 cells.

Data for Cav2.3 co-expressed with α2δ1 and β2a (orange) or β3 (green) are shown. (A). Run-down during a 0.1 Hz square pulse protocol (20 ms to Vmax, holding potential –89 mV). Currents were normalized to the ICa of the sweep with the maximal peak inward current observed during the recording. After a full block with 100 µM Cd2+ currents recovered to the amplitude preceding the Cd2+ application. (B) Cells were held at –89 mV and then stimulated using the regular SN DA neuron pacemaking protocol for 30 s, 1 min, and 2 min each followed by 20 s long pauses (vertical dashed lines) at hyperpolarized potentials (–89 mV) to allow channel recovery from inactivation. IAP of individual APs was normalized to the inward current of the first AP. The current run-down component can be estimated from the non-recovering current component (horizontal dashed lines). Traces represent means ± SEM from the indicated number of experiments (N=2). BS, bath solution.

These data clearly demonstrate that the IAP decrease in response to simulated SN DA neuron pacemaking (2.5 Hz) is almost completely due to the reversible accumulation of Cav2.3 channels in inactivated states, an effect partially prevented by β2a and β2e.

Cav2.3 Ca2+ currents during simulated SN DA burst firing activity

In addition to regular pacemaking activity (in vitro) or irregular single spike mode (in vivo), burst firing with transient increases in intracellular Ca2+-load has been associated with neurodegeneration and selective neuronal vulnerability in Parkinson’s disease (Dragicevic et al., 2015; Schiemann et al., 2012). Thus, we investigated to which extent Cav2.3 Ca2+-channels can contribute to Ca2+-entry during bursts and after post-burst hyperpolarizing pauses of SN DA neurons. After reaching steady-state IAP during simulated SN DA neuron pacemaking (β4: 1–2 min, β2a/β2e: 5–6 min, see also Figure 3E and F) we applied a computer modeled typical three-spike burst, followed by a 1.5 s long afterhyperpolarization-induced pause at more negative potentials as a command voltage as previously described (Ortner et al., 2017; Figure 5A). First, we quantified to which extent total burst Ca2+-charge, that is ICa integrated over the duration of the burst, changes as compared to total Ca2+-charge during the same duration of a single AP in steady-state (calculated as the mean of 3 APs preceding the burst). Integrated ICa during the burst was four- to sixfold higher than the mean integrated ICa during a steady-state AP with all co-expressed β-subunits (β2a, β2e, β4) (Figure 5B, left panel). However, it has to be considered that with co-expressed β4 only ~6% of the initial IAP remained in steady-state during regular pacemaking (Figure 3E and F). Therefore, this relative increase will cause a much smaller rise in absolute Ca2+ charge compared to β2a/β2e-associated Cav2.3 where ~ 40% of IAP persisted in steady-state (Figure 5B, Figure 3E and F).

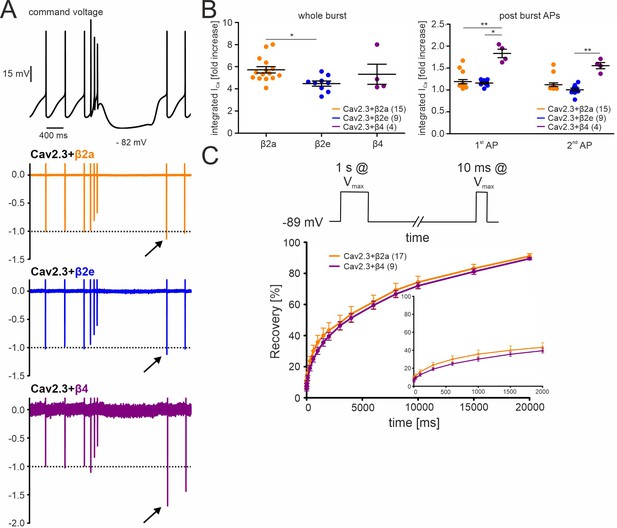

Effects of different β-subunits on Cav2.3 currents during a simulated SN DA neuron three-spike burst and post-burst APs in tsA-201 cells.

The burst command voltage was elicited after ~5–6 min (β2a, β2e) or ~1–2 min (β4) of regular pacemaking to reach steady-state IAP (β2a and β2e:~30% of the initial IAP, β4:~6% of the initial IAP, see Figure 3). (A) Normalized current responses of Cav2.3 channels co-expressed with β2a, β2e or β4 subunits (and α2δ1) induced by a command voltage (top panel) simulating a typical three-spike burst followed by a hyperpolarization phase at hyperpolarized potentials (lowest voltage: –82 mV) for 1.5 seconds. Remaining Cd2+-insensitive current components (100 µM Cd2+) were subtracted off-line to extract pure Cav2.3 mediated ICa. One of at least four experiments with similar results is shown. (B) The integrated ICa during a single AP before the burst (obtained as the mean of the three preceding APs) was set to 100% and compared with ICa during the three-spike burst integrated over the time period equivalent to one AP (left) or the first APs after the pause (right). All investigated β-subunits resulted in increased integrated ICa during the burst. Data represent the means ± SEM for the indicated number of experiments (N = β2a: 4; β2e: 2; β4: 2). Statistical significance was determined using one-way ANOVA followed by Bonferroni post-test (whole burst) or Kruskal-Wallis followed by Dunn’s multiple comparison test (post-burst APs): *** p<0.001; ** p<0.01; * p<0.05. (C) Square-pulse protocol (top) used to determine recovery from inactivation after the indicated time intervals for β2a and β4-associated Cav2.3 channels (see Materials and methods for details). Data represent the means ± SEM for the indicated number of experiments (N=3). For statistics see Table 2. Source data provided in Figure 5—source data 1.

We also investigated if post-burst afterhyperpolarizations would allow Cav2.3 channels to recover from inactivation and thus mediate increased Ca2+-entry during the first APs after the burst. We first determined the recovery from inactivation of Cav2.3 channels co-expressed with α2δ1 and β4 or β2a using a square-pulse protocol (Figure 5C, Table 2; 1 s conditioning prepulse to Vmax to inactivate Cav2.3 channels followed by a 10 ms step to Vmax after different time periods at –89 mV). About 30% of currents recovered under these experimental conditions after 1.5 s at –89 mV with both co-expressed β4 and β2a (~sixfold increase of the remaining ICa after 1 s at Vmax). In contrast, recovery during the hyperpolarizing pause after the burst of the AP protocol was much less pronounced (β4) or absent (β2a, β2e; Figure 5B, right panel). This may be due to the different pulse protocols inducing channel inactivation over different time periods and may stabilize inactivated states with different recovery times.

Table 2
Recovery from inactivation of Cav2.3 channels co-transfected with either β2a or β4 in combination with α2δ1 in tsA-201 cells.
Cav2.3 - recovery from inactivation 2 mM Ca2+
β-subunitr100 [%]r1500 [%]r4000 [%]r10000 [%]n
β2a15.7±2.439.3±4.653.4
±4.5
74.2±3.617
β412.7±1.735.6±2.451.3
±2.8
72.0±1.99

Taken together, these data predict that β2a- and β2e-associated Cav2.3 channels can contribute to enhanced Ca2+-entry during brief burst activity but not during post-burst APs.

Steady-state activation and inactivation of R-type currents in mouse DA neurons

We have recently shown in whole-cell patch-clamp recordings that 100 nM SNX-482 inhibit ~30% of total Cav currents in mouse SN DA neurons (Benkert et al., 2019) when stimulated from a negative holding potential of –70 mV. If V0.5,inact of Cav2.3 channels in SN DA neurons is indeed stabilized at more positive potentials, then the voltage-dependent inactivation of the R-type currents should allow a fraction of channels to be available even at voltages positive to –40 mV.

Using whole-cell patch-clamp recordings (Figure 6), we therefore measured the steady-state inactivation of R-type ICa in identified SN DA neurons in mouse midbrain slices. First, R-type current (i.e. current reminaing after blocking other Cav channels) was isolated as reported in previous publications by preincubation of slices with selective inhibitors of Cav1 (1 µM ISR), Cav2 (Cav2.1, Cav2.2; 1 µM ω-conotoxin MVIIC) and Cav3 (10 µM Z941) (Figure 6A, blue traces/symbols, see also methods section). R-type current evoked from –100 mV activated at ~8 mV more positive voltages than total ICa (Figure 6A, Table 3 for statistics). This observation is in accordance with the positive activation voltage-range of Cav2.3e channels measured in tsA-201 cells. The R-type current V0.5,inact was ~5 mV more positive compared to total ICa (–47.5 mV vs. –52.7 mV; Figure 6A, Table 3) and therefore ~7 mV more negative than recombinant Cav2.3 currents expressed with β2a or β2e subunits (~ –40 mV, Table 1) and ~23–29 mV more positive than recombinant Cav2.3 currents expressed with β4 or β3. Since R-type currents may include current components not mediated by Cav2.3 (Newcomb et al., 1998; Sochivko et al., 2002; Tottene et al., 2000; Wilson et al., 2000), we also isolated SNX-482-sensitive currents, which must be mediated by Cav2.3 (Zamponi et al., 2015) by subtracting current remaining in the presence of SNX-482 from control current (Figure 6B). Although the slope of the voltage-dependence of activation was different for the SNX-482-sensitive current as compared to R-type current, steady-state inactivation was again observed at significantly more positive voltages as compared to control current (–44.6 mV vs. –52.9 mV, Figure 6B, Table 3), and ~5 mV more negative than recombinant Cav2.3 currents associated with β4 or β3 (Table 3). Although these experiments do not directly prove the contribution of β2a and/or β2e to R-type current in SN DA neurons, the strong requirement of β-subunits for Cav2.3 channel activity and the inability of other cytosolic β-subunit variants to account for the observed voltage-dependence of R-type current (Figure 1A and B) strongly suggests a contribution of these membrane-associated β-subunits for preventing complete inactivation of Cav2.3-mediated currents during typical activity patterns in these cells.

Figure 6 with 1 supplement see all

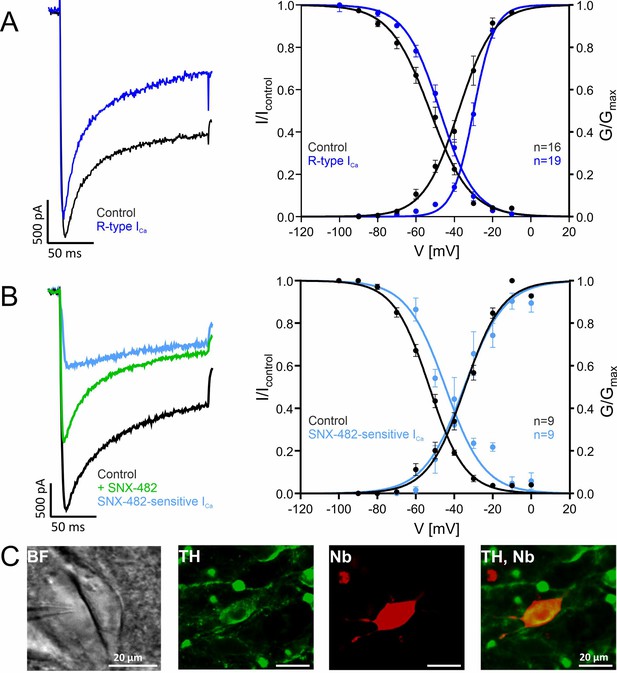

Voltage-dependence of gating of R-type currents in mouse SN DA neurons recorded in brain slices.

(A) ICa recorded in SN DA neurons without (Control, black, n=16) or after preincubation ("R-type", blue, n=19) of slices with a Cav channel blocker cocktail to inhibit Cav3 (10 µM Z941), Cav1 (1 µM I), Cav2.1 and Cav2.2 (1 µM ω-conotoxin-MVIIC) (see Methods). Left panel: representative current traces of recordings at –20 mV test potentials (holding potential –100 mV); notice that similar amplitudes of control and R-type current were chosen to facilitate comparison of current kinetics. Right panel: voltage-dependence of steady-state activation and inactivation, curve fits to a Boltzman equation of all individual data points are shown. Data are means ± SEM. For parameters and statistics see Table 3. (B). SNX-482-sensitive currents (light blue) were obtained by subtracting current measured in the presence of SNX-482 (green) from the respective control ICa before addition of SNX-482 (black) (n=9). Left panel: Representative recording of a SNX-482 sensitive current component compared to the respective control (holding potential –100 mV, –10 mV test potential). Steady-state activation and inactivation of control and SNX-482-sensitive current. Test protocols: holding potential –100 mV; voltage-dependence of activation: 150 ms test potentials to indicated voltages; voltage-dependence of inactivation: 5 s conditioning pulses to indicated voltages preceded (Icontrol) and followed by 20 ms test pulses to Vmax. (C) Exemplary neuron as seen under the patch-clamp microscope with patch pipette next to it (left; BF, brightfield) and a neuron after histochemical staining for tyrosine hydroxylase (TH, green) and neurobiotin (Nb, red). Detailed parameters and statistics are given in Table 3. Source data provided in Figure 6—source data 1.

Table 3
Voltage-dependence of activation and inactivation of Ca2+-currents in SN DA neurons.
ActivationInactivation
V0.5,act (95% CI) [mV]kact (95% CI) [mV]n/NV0.5, inact (95% CI) [mV]kinact (95% CI) [mV]n/N
Control A
(without Cav-blocker cocktail)
–37.8 (−39.3,–36.3)9.17 (7.90, 10.6)16/8–52.7 (−53.9,–51.5)10.5 (−11.6,–9.48)16/8
+Cav blocker cocktail
("R-type")
–29.9 (−30.8,–29.1)***5.49 (4.73, 6.30)***19/5–47.5 (−48.7,–46.4)***9.15 (−10.2,–8.16)19/5
Control B
(before SNX-482)
–34.4 (−35.7,–33.2)9.68 (8.59, 10.8)9/6–52.9 (−53.7,–52.1)9.30 (−10.9,–8.61)9/6
SNX-482 - sensitive current–34.9 (−37.7,–32.0)10.6 (8.26, 13.3)9/6–44.6 (−46.9,–42.2)+++10.1 (−12.1,–8.24)9/6

We independently also tested the availability of SNX-482-sensitive R-type currents at more depolarized voltages using perforated patch recordings (Figure 6—figure supplement 1), which allow very stable recordings in identified SN DA neurons (Figure 6—figure supplement 1I, J). We held cells at a more positive holding potential of –60 mV, a voltage within the spontaneous depolarization phase of the ISI, where a substantial fraction of Cav2.3 channels must already be inactivated (Figure 6). Indeed, under these conditions still about 13% of the total ICa was inhibited by acute bath application of SNX-482 and inhibition was partially reversible upon washout (Figure 6—figure supplement 1A-D, Supplementary file 7). Under these conditions, about 10% of current were blocked reversibly by the L-type channel blocker nifedipine (10 µM, Figure 6—figure supplement 1E-H).

To further confirm the presence of inactivation-resistant R-type currents, we also recorded SNX-482-sensitive Ca2+ currents elicited from a holding potential of –70 mV in primary cultures of mouse DA midbrain neurons after 8–9 days in vitro. When added after the complete block of LTCC currents by 3 µM isradipine (comprising 24.7% ± 4.2% of total Ca2+-current, n=15), 100 nM SNX-482 significantly reduced non-LTCC currents by 41% ± 4% (95% CI: 33–49, n=20, N=4, paired Student’s t-test; P<0.001) (Figure 7A–D). All residual ICa components were blocked by adding 2 μM Cd2+ to the bath solution (Figure 7A and B).

Figure 7 with 1 supplement see all

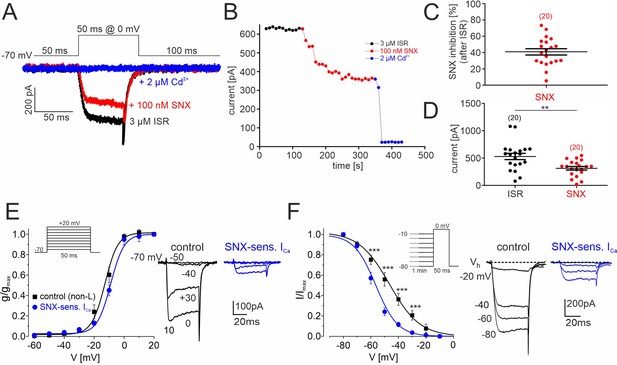

SNX-482–sensitive R-type currents in cultured mouse midbrain DA neurons.

(A) Representative traces illustrating the inhibition of non-L-type ICa by 100 nM SNX-482 (red). Cells were initially perfused with a bath solution containing 3 μM isradipine (black). Full block was obtained using 2 μM Cd2+ (blue). Square pulses (50 ms) were applied to 0 mV from a holding potential of –70 mV (top) (B) Current amplitude values plotted as a function of time. After stabilization of ICa with ISR (black circles), 100 nM SNX-482 was applied. The remaining currents was blocked by 2 μM Cd2+. Current run-down in the absence of drugs during 150 s was less than 1% (0.48 ± 0.18%; n=4 cells). (C) SNX-482 inhibition expressed as % of control ICa after LTCC block using 3 μM ISR. (D) Mean current amplitude at the end of ISR application and at the end of SNX-482 application. Absolute current amplitude decreased from 529±57 pA (95% CI: 409–649) to 313±33 pA (95% CI: 245–381, n=20, p<0.01, paired Students t-test). Data represent the means ± SEM for the indicated number of experiments (N=4). Statistical significance was determined using paired Student’s t-test: *** p<0.001; **p<0.01; *p<0.05. (E) Left: Depolarizations of 50 ms were repeated every 10 s to the indicated potentials from a holding potential of –70 mV (inset). The voltage dependence of the conductance, g(V), was calculated with the equation g(V)=ICa/(V− ECa) with ECa=+65 mV for the currents recorded in the presence of 3 µM ISR (control; black squares; n=9–14 per voltage) and after subtraction of the currents insensitive to 100 nM SNX-482 (n=4–7) to yield (SNX-sensitive R-type; blue circles). Data were fitted to a Boltzman function. At each test potential (V) ICa was estimated at the peak of the current trace. Right: representative current traces recorded during pulses to −50, –40, –30 and 0 mV. (F). Left: To determine the voltage-dependence of steady-state inactivation, test pulses of 50 ms to 0 mV were preceded by 1 min prepulses to voltages from –80 to –10 mV. This stimulation protocol (inset) was better tolerated by cultured DA midbrain neurons than the classical protocol used previously with other cells (Calorio et al., 2019; Pinggera et al., 2015). SNX-sensitive R-type currents (blue) were obtained after subtraction of the currents insensitive to 100 nM SNX-482 (n=3–8 per voltage) from non-L control current (black, n=8–15). Right: representative traces recorded at 0 mV from a holding potential of −20,–40, –60, and –80 mV. Inactivation curves could be best fit to Boltzman functions with the following parameters: R-type: V0.5,inact = -58.1±0.6 mV, k=–7.1 ± 1.2 mV; control: V0.5,inact = -48.0±0.9 mV, k=-11.1 ± 1.2 mV. The R-type currents (E, F) appear smaller than expected from the data in panels B and C (30–40% of non-L-type currents). This is due to a run-down of SNX-sensitive current during the repeated depolarizations used to determine the voltage-dependence of gating. This has only minimal effects on gating parameters. When accounting for a linear run-down of 40%, the V0.5,act would shift only from –58 to –56 mV. Source data provided in Figure 7—source data 1.

We also determined the voltage-dependence of steady-state activation (Figure 7E) and inactivation (Figure 7F) before (non-L, control) and during application of 100 nM SNX-482 and calculated parameters for the SNX-482-sensitive R-type current by subtracting the current resistant to 100 nM SNX-482 from the control current (legend to Figure 7 for details). SNX-482-sensitive currents (blue) activated with a half maximal activation voltage (V0.5,act –9.2±0.6 mV) slightly more positive than non-LTCC current (V0.5,inact = -12.5 ± 0.6 mV). To determine the steady-state inactivation, test pulses of 50 ms to 0 mV were preceded by 1 min prepulses to voltages from –80 to –10 mV (Figure 7F). SNX-482-sensitive current inactivation was best fit with a V0.5,inact of –58.1±0.6 mV, which was 12–18 mV more positive than recombinant Cav2.3 currents expressed with β4 or β3 (Table 1). Despite an ~13 mV more negative inactivation range compared to SN DA neurons (Figure 6, Table 3), this still allowed substantial channel availability at voltages positive to –50 mV (Figure 7F, in contrast to currents with co-expressed cytosolic β-subunits Figure 1D).

Finally, we tested if SNX-482 also affects the spontaneous AP firing of these cultured midbrain neurons. In current-clamp recordings 100 nM SNX-482 significantly reduced the spontaneous firing frequency from 4.1±0.8 Hz (control, n=10, N=3; 95% CI: 2.1–6.1) to 1.1±0.2 Hz (SNX-482, n=10, 95% CI: 0.2–2.1, p=0.0036, paired Student’s t-test; Figure 7—figure supplement 1A, B), decreased the regularity of pacemaking and also caused changes in AP shape (Figure 7—figure supplement 1A-C). Cav2.3-mediated currents may therefore also contribute to the pacemaking cycle in cultured DA neurons.

Discussion

Although the modulation of Cavs by β-subunits and the characteristic gating changes induced by N-terminally membrane-anchored β2-subunit splice variants have been well described in the literature, the physiological significance of these findings remained underexplored. Here, we provide strong evidence for an important role of β-subunit alternative splicing for Cav2.3 Ca2+-channel signaling during continuous SN DA neuron-like regular pacemaking activity. We show that only membrane-bound β2a and β2e stabilize Cav2.3 channel complexes with voltage-dependent inactivation properties preventing complete inactivation during the on-average depolarized membrane potentials encountered during the pacemaking cycle. This cannot only explain our previous finding of a substantial contribution of SNX-482-sensitive R-type currents to activity-dependent somatic Ca2+-oscillations in SN DA neurons in brain slices (Benkert et al., 2019) but also to pacemaking in cultured DA neurons. We also provide evidence for the expression of β2a and β2e subunit splice variants in highly vulnerable mouse SN DA and in more resistant VTA DA neurons. Together with our finding that R-type currents in SN DA neurons are available within a voltage-range more positive than expected for association with β4-, β3- or other cytosolic β2-subunits, our data strongly suggest that β2a and β2e contribute to non-inactivating Cav2.3 R-type currents required for normal DA neuron function. This may therefore also be of pathophysiological relevance given the previously reported pathogenic potential of Cav2.3 Ca2+-channels in PD pathophysiology (Benkert et al., 2019).

The large shift of V0.5,inact of Cav2.3 R-type current by membrane-anchored β2a and β2e subunits would predict that Cav2.3 channel availability can be adjusted along a wide range of potentials (about 30 mV; V0.5,inact –40 to –70 mV, Table 1) just by varying the abundance and local availability of these subunits relative to cytosolic β-subunits within a cell or nanodomain. This range is also reflected by an ~11–14 mV difference in V0.5,inact of R-type currents in our recordings from mouse midbrain DA neurons in culture and ex vivo slice recordings from SN DA neurons. However, the voltage-range of steady-state inactivation in both preparations is clearly more positive than predicted from heterologous expression with β4- or β3-subunits. This could be due to a different contribution of β2a and/or β2e to Cav2.3 channel complexes in these preparations. Our data predict that this contribution is higher in SN DA neurons than in cultured cells.

Our quantitative PCR analysis of β-subunit expression demonstrate that, although β4 (60%) is the predominant one in the SN and VTA, β2-subunit transcripts are also abundant and comprise about 27% of all β-subunits. These data are in excellent agreement with RNAseq data from mouse midbrain DA neurons with expression levels of about 33% for β2% and 43% for β4 (Brichta et al., 2015; Shin, 2015) and transcriptomic analysis of laser-captured SN DA neurons from 18 human postmortem brains (30% β2, 45% β4; 15% β3, 8% β1; Aguila et al., 2021). While these transcriptomic data do not provide quantitative information about the expression of β2-splice variants, we clearly demonstrated the presence of both membrane-bound isoforms in identified SN DA neurons using PCR and RNAscope analysis.

Our transcript data (and confirmatory RNAseq data) show that β2a and β2e are present in SN DA neurons but still represent only a small fraction of all β-subunits present. However, our experimental data find a positive inactivation voltage-range suggesting that a majority of SNX-482-sensitive channels is associated with these β-subunits. At present biochemical data regarding preferential targeting of β-subunits to specific subcellular neuronal compartments and/or Cav-subtypes is absent but cannot be excluded. For example, β4-subunits may extensively target to channels at axonal presynaptic locations (as reported in cultured hippocampal neurons) or even to the nucleus (where they regulate gene transcription) and thus contribute less to Cav2.3 channel complexes at somatodendritic sites (Etemad et al., 2014). Moreover, differences in the affinity of β-subunits for their α1-subunit interaction domain in the I-II-linker may also support preferential association with β2 (De Waard et al., 1995).

Based on the finding that β-subunit association is required for expression of robust Cav2.3 channel currents (Figure 1A, Table 1), they must also play a key role in determining the gating properties of individual channel complexes. However, this does not exclude a modulatory role of other posttranslational modifications of Cav2.3 channels or protein interaction partners expressed at somatodendritic locations of SN DA neurons that could enhance Cav2.3 availability at more positive membrane potentials (such as Rab3-interacting proteins at axonal sites, Kiyonaka et al., 2007; Robinson et al., 2019).

A limitation of our work is that we cannot provide direct proof for a role of β2-subunit splice variants for R-type current modulation in DA neurons. Direct proof for the existence of such complexes would require biochemical studies requiring immunoprecipitation of Cav2.3 complexes from laser-dissected SN DA neurons. However, such studies, as well as other approaches, such as proximity ligation assays are hampered by the fact, that suitable β2-splice variant-specific antibodies are not available. We also found no suitable combination of antibodies raised in different species for such studies. Two mouse anti-β2 (not even splice variant-specific) antibodies that could be combined with our previously used rabbit anti-Cav2.3 α1 subunit antibody turned out to bind to other nonspecific bands or cross-reacted with β3 (not shown, data available upon request). Alternatively, direct proof for a role of β2-subunit splice variants could be obtained by a splice variant-specific gene knockout or siRNA-mediated knock-down of both β2a and β2e subunits in SN DA neurons, followed by isolation of Cav2.3 current components or Ca2+ transients of which only a fraction would be mediated by β2a/β2e-associated channels. This would be methodologically extremely challenging in these neurons.

We have previously shown that Cav2.3-knockout mice are protected from the selective loss of SN DA neurons in the chronic MPTP/probenecid PD model (Benkert et al., 2019). At least in this rodent model of PD, the observed protection provides strong evidence for a role of these channels in PD pathology. Pharmacological inhibition of Cav2.3 alone or together with other Cavs may therefore confer beneficial disease-modifying effects and a novel approach for neuroprotection in PD. The recent failure of the LTCC blocker ISR in the STEADY-PD III trial (Investigators, 2020) to prevent disease progression in early PD patients indicates that inhibition of LTCCs alone may not be sufficient for neuroprotection. Our previous preclinical findings identified also Cav2.3 channels as novel drug targets for neuroprotective PD-therapy. Therefore, the inhibition of Cav2.3 in addition to Cav1.3 may be required for clinically meaningful neuroprotection. However, Cav2.3-mediated R-type currents are notoriously drug-resistant (Schneider et al., 2013), and so far no selective potent small-molecule Cav2.3/R-type blocker has been reported.

Our findings reported here provide the rationale for exploring novel neuroprotective strategies based on Cav2.3 channel inhibition. These could take advantage of the predicted strong dependence of continuous Cav2.3 channel activity on gating properties such as those stabilized by β2a and/or β2e. Rather than inhibiting Ca2+-entry through the pore-forming α1-subunit, such a strategy could aim at reducing its contribution to the R-type current component persisting during continuous activity in SN DA neurons by interfering with the association of β2a and β2e subunits. Even if other β-subunits would replace them in the channel complex and ensure its stable expression, our data suggest that they would not be able to shift the steady-state inactivation voltage into the operating voltage-range of SN DA neurons like β2a and β2e. Such an approach appears realistic due to the availability of novel genetically encoded Ca2+-channel inhibitors for a cell-type-specific gene therapeutic intervention. One such approach (CaVablator) has elegantly been used to specifically target Ca2+-channel β-subunits for degradation by fusing β-specific nanobodies with the catalytic HECT domain of Nedd4L, an E3 ubiquitin ligase (Morgenstern et al., 2019). This strongly reduces Cav1- and Cav2-mediated Ca2+-currents in different cell types. At present, it is unclear to which extent other high-voltage-activated Cav2 channels (Cav2.1, Cav2.2) also contribute to the high vulnerability of SN DA neurons. However, our recent quantitative RNAscope analyses in mature SN DA neurons (Benkert et al., 2019) clearly demonstrate that Cav2.3 α1-subunit (Cacna1e) transcripts are the most abundant α1-subunit expressed in these cells, in excellent agreement with cell-type-specific RNAseq data of identified midbrain DA neurons (Brichta et al., 2015; Shin, 2015).

We also show that in cultured mouse DA neurons, 100 nM SNX-482 slows pacemaking. While SNX-482 is highly suitable to isolate Cav2.3-mediated Ca2+ current components, effects on pacemaking also must take into account that this toxin is also a potent blocker of Kv4.3 channels (Kimm and Bean, 2014) underlying A-type K+-currents (IA). 60 nM nearly fully block reconstituted Kv4.3 currents in HEK cells (IC50 ~3 nM). Therefore, one can argue that in current-clamp recordings, 50–300 nM SNX-482 could alter pacemaking or the AP shape by effectively blocking Kv4.3 channels. However, the observed SNX-482-induced shortening of APs and the reduction of spontaneous firing are difficult to reconcile with a block of IA channels, which typically induces a broadening of APs in several neuronal preparations (Kim et al., 2005) and an increased frequency in DA neurons (Liss et al., 2001).

Therefore, the observed SNX-482 effects in cultured neurons provided no final answer to the question about a potential role of Cav2.3 on pacemaking. In brain slices of Cav2.3 knockout mice, small changes in AP spike waveforms were observed, without major changes in pacemaking activity (Benkert et al., 2019). Similarly, inconsistent findings for the contribution of LTCC currents for pacemaking in slice recordings (Dragicevic et al., 2014; Guzman et al., 2009; Mercuri et al., 1994; Ortner et al., 2017) and cultured neurons (Puopolo et al., 2007) have been reported but the reasons for this remain unclear.

Despite providing no direct biochemical evidence, we here show the first example for a potential physiological and perhaps even pathophysiological role of β2-subunit alternative splicing emphasizing a need for further investigation in other types of neurons.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Mouse strain:C57Bl/6N, C57Bl/6JC57Bl/6N, C57Bl/6JCharles RiverC57Bl/6N, C57Bl/6J
Mouse strain:C57Bl/6-TH-GFP miceC57Bl/6-TH-GFPMatsushita et al., 2002; Sawamoto et al., 2001GFP-expression under TH-promotor
Transfected constructHuman Cav1.3L α1-subunit (C-terminally long Cav1.3 splice variant)Koschak et al., 2001GenBank accession number EU363339Cloned into proprietary vector lacking GFP ("GFPminus"), described in Grabner et al., 1998
Transfected constructHuman Cav2.3 α1-subunitPereverzev et al., 2002Cloned into pcDNA3 vector
Transfected constructRat β3-subunitKoschak et al., 2001GenBank: NM_012828,Cloned into pCMV6 vector
Transfected constructRat β2a-subunitKoschak et al., 2001GenBank: M80545Cloned into pCMV6 vector
Transfected constructMouse β2d-subunitβ2aN1, Link et al., 2009GenBank: FM872408.1Cloned into pCAGGS vector
Transfected constructMouse β2e-subunitβ2aN5, Link et al., 2009GenBank: FM872407Cloned into pCAGGS vector
Transfected constructC3S/C4Sβ2aCysteine residues in position 3 and 4 of β2a replaced by serines, Gebhart et al., 2010Cloned into pCMV6 vector
Transfected constructRat β4-subunit (splice variant β4e)Etemad et al., 2014Cloned into pβA vector
Cell line (Homo sapiens)TsA-201 cellsEuropean Collection of Authenticated Cell CulturesECACC, catalogue # 96121229, lot # 13D034Tested Mycoplasma negative
AntibodyAnti-tyrosine hydroxylase (TH; rabbit polyclonal)Merck MilliporeCat#: 657012,1:1000
Commercial assay or kitRNeasy Lipid Tissue Mini KitQiagen GmbH, Germanycatalog # 1023539
Commercial assay or kitPhenol/guanidine-based Qiazol lysis reagentQiagen GmbH, Germany,catalog # 79,306
Commercial assay or kitMaxima H Minus First Strand cDNA synthesis kitThermo Fisher Scientific, Waltham, MA, USAcatalog # K1682
Commercial assay or kitQuant-IT PicoGreen dsDNA Assay KitThermo Fisher Scientific, Waltham, MA, USAcatalog # P7589
Commercial assay or kitMycoplasma Detection KitATCCUniversal Mycoplasma Detection Kit 30–1012 K
Commercial assay or kitTaqMan Universal PCR Master MixThermo Fisher Scientific, Waltham, MA, USA
Commercial assay or kitRNAscope technologyAdvanced Cell Diagnostics (ACD)RNAscope Fluorescent Multiplex Detection Kit (ACD, Cat# 320851)
Chemical compoundNeurobiotin-labeling reagent: Streptavidin Alexa Fluor conjugate 647Thermo Fisher Scientific, Waltham, MA, USAcatalog # S213741:1000
Chemical compoundSNX-482Alomone Labs, Jerusalem, Israelcatalog # RTS-500
Software, algorithmClampfitClampfitVersion 10.0 or 10.7, RRID:SCR_011323
Software, algorithmQuantStudioTMThermo Fisher Scientific, Waltham, MA, USAQuantstudio 3 Software
Software, algorithmFijihttps://imagej.net/Fiji, Schindelin et al., 2012
Software, algorithmGraphPad PrismGraphPadGraphPad Prism Ver 5, 7.04 and 8 (RRID:SCR_002798)
Software, algorithmSigmaPlotSystat Software, GermanySigmaPlot Ver 14, RRID:SCR_003210

Animals

For quantitative real-time PCR (RT-qPCR) experiments, male C57Bl/6 N mice were bred in the animal facility of the Centre for Chemistry and Biomedicine (CCB) of the University of Innsbruck (approved by the Austrian Animal Experimentation Ethics Board). For electrophysiological experiments of cultured midbrain DA neurons, C57Bl/6 TH-GFP mice (Matsushita et al., 2002; Sawamoto et al., 2001) were kept heterozygous via breeding them with C57Bl/6 mice (in accordance with the European Community’s Council Directive 2010/63/UE and approved by the Italian Ministry of Health and the Local Organism responsible for animal welfare at the University of Torino; authorization DGSAF 0011710 P-26/07/2017). All animals were housed under a 12 hr light/dark cycle with food and water ad libitum. For whole cell voltage-clamp recordings of SN DA neurons in acute brain slices, as well as single-cell RT-qPCR, juvenile male C57Bl/6J mice (PN11-13) were bred at the animal facility of Ulm University. For RNAscope analysis, adult male C57Bl/6J mice and Cav2.3 WT mice were bred at the animal facility of Ulm University. Animal procedures at the Universities of Ulm (Regierungspräsidium Tübingen, Ref: 35/9185.81–3; Reg. Nr. o.147) and Cologne (LANUV NRW, Recklinghausen, Germany (84–02.05.20.12.254) were approved by the local authorities).

RNA isolation and cDNA synthesis for tissue RT-qPCR

Request a detailed protocol

Tissue was dissected after mice had been sacrificed by cervical dislocation under isoflurane (Vetflurane, Vibac UK, 1000 mg/g) anesthesia. The freshly extracted mouse brains from 12 to 14 weeks old male mice were snap-frozen in isopentane (Carl Roth, catalog #3926.2) that was pre-cooled with dry ice (–40 °C). To dissect VTA and SN tissue, 100-µm-thick sections were cut on a cryostat (CM1950, Leica, Germany) and collected on glass coverslips. After cooling the coverslips on dry ice, regions of interest were punched under a dissection microscope using a pre-cooled sample corer (Fine Science Tools, Germany) (VTA: inner diameter 0.8 mm, 1 punch per hemisphere; SN: inner diameter 0.5 mm, 2 punches per hemisphere). For each brain region, tissue punches from both hemispheres of 7–8 successive 100 µm sections between Bregma –3.00 mm and –3.80 mm (according to Paxinos and Franklin, 2004) were collected in the sample corer. The tissue punches were transferred into an Eppendorf tube and again snap-frozen in liquid nitrogen. The punched brain sections were stained with cresyl violet (Nissl’s staining) for histological verification. Briefly, the slides with the punched sections were incubated in 4% PFA overnight. On the next day, the sections were rinsed in H2O and the following staining steps were performed: H2O 1 min, 70% ethanol 5 min, 100% EtOH 5 min, 0.5% cresyl violet solution pH 3.9 (2.5 g cresyl violet acetate, 30 ml 1 M Na-acetate*3 H2O and 170 ml 1 M acetic acid) 10 min, 70% ethanol 2 min, 100% ethanol 2 min, Xylol 1 min. The sections were coverslipped immediately with Eukitt (Sigma-Aldrich, catalog #03989), left to harden overnight and imaged on a bright-field microscope at 2 x.

RNeasy Lipid Tissue Mini Kit (Qiagen GmbH, Germany, catalog #1023539) was used to isolate total RNA from brain tissues. Briefly, the tissue was disrupted and homogenized by vortexing samples for 5–10 min in 500 μl (SN, VTA) of phenol/guanidine-based Qiazol lysis reagent (Qiagen GmbH, Germany, catalog #79306) and passing the lysate ten times through a 21-gauge needle. All further steps, including purification of RNA with QIAGEN silica gel membrane technology (Qiagen GmbH, Germany), were performed according to the manufacturer’s protocol. For the final elution 15 μl of RNase-free water were used twice. An optional on-column DNase digestion (Qiagen GmbH, Germany, catalog #79254) was performed to reduce genomic DNA contamination. The RNA concentration was determined photometrically yielding approximately 20 ng/µl for VTA and SN or 1–2 µg/µl for whole brain.

RNA was reverse transcribed using Maxima H Minus First Strand cDNA synthesis kit with random hexamer primers following the manufacturer’s instructions (Thermo Fisher Scientific, Waltham, MA, USA). One µg or 13 μl of total RNA were used as template for reverse transcription. One µl cDNA corresponds to 0.65 x the amount of RNA equivalent.

Standard curve method-based RT-qPCR for quantification of β-subunit expression in SN and VTA

Request a detailed protocol

In order to generate DNA templates of known concentrations for RT-qPCR standard curves, the concentration of the digested fragments was determined using the Quant-IT PicoGreen dsDNA Assay Kit (Invitrogen, Carlsbad, CA, USA). Subsequently, standard curves were generated using a serial dilution ranging from 107 to 101 DNA molecules in water containing 1 μg/ml of poly-dC DNA (Midland Certified Reagent Company Inc, Midland, TX, USA). RT-qPCRs of standard curves and samples were performed as described previously (Ortner et al., 2020; Schlick et al., 2010). Samples for RT-qPCR quantification (50 cycles) contained 5 ng of total RNA equivalent of cDNA, the respective TaqMan gene expression assay, and TaqMan Universal PCR Master Mix (Thermo Fisher Scientific). Specificity of all assays was confirmed using different DNA ratios of corresponding and mismatched DNA fragments for the β1–4 and for the β2a-2e assays, respectively. Importantly, all assays specifically recognized the corresponding fragment even in the presence of a 10-fold higher concentration of other splice variants (Figure 2—figure supplement 1). RT-qPCR was performed in duplicates from three independent RNA preparations from three biological replicates. Samples without template served as negative controls. No RT RNA controls could not be included since all obtained RNA was transcribed into cDNA due to low yields. The expression of seven different endogenous control genes was routinely measured and used for data normalization as previously described (Vandesompele et al., 2002; Figure 2—figure supplement 1, Supplementary file 1): Actb (β-actin), B2m (β2-microglobulin), Gapdh (Glyceraldehyde 3-phosphate dehydrogenase), Hprt1 (Hypoxanthine phosphoribosyltransferase 1), Tbp (TATA box-binding protein), Tfrc (Transferrin receptor), and Sdha (Succinate dehydrogenase subunit A) (Ortner et al., 2020; Schlick et al., 2010). Briefly, data were normalized to the most stably expressed endogenous control genes (Gapdh and Tfrc) determined by geNorm (Figure 2—figure supplement 1, Supplementary file 1). Normalized molecule numbers were calculated for each assay based on their respective standard curve. Standard curve parameters are given in (Supplementary file 3). qPCR analyses were performed using the 7,500 Fast System (Applied Biosystems, Foster Systems, CA, USA).

Quantitative RT-qPCR of mouse brain tissue samples

Request a detailed protocol

Fragments of β-subunits and β2 splice variants were amplified from mouse whole brain cDNA utilizing specific primers (Supplementary file 2) and subcloned into the Cav1.3 8 a 42 pGFPminus vector after restriction enzyme digestion using SalI and HindIII. Primer sequences for β1-β4 have been described previously (Schlick et al., 2010), but additional SalI and HindIII restriction enzyme sites (underlined in Supplementary file 2) were inserted to allow subsequent ligation of fragments into the digested vector. TaqMan gene expression assays (Thermo Fisher Scientific, Waltham, MA, USA) and custom-made TaqMan gene expression assays were designed to span exon-exon boundaries (Supplementary file 2) as already described (Ortner et al., 2020).

The expression of β1, β2, β3, β4, β2a, β2b, β2c-d, and β2e was assessed using a standard curve method-based on PCR fragments of known concentration (Ortner et al., 2020; Schlick et al., 2010). β2c and β2d were detected by a common assay as selective primer design failed due to high sequence similarity. This assay binds at the exon-exon boundary of exons 2 A and 3 of β2c and β2d and also recognizes a number of splice variants comprising the β2d N-terminus but with different alternative splicing in the HOOK region of the subunit (Buraei and Yang, 2010). Details about assay specificity are given in Figure 2—figure supplement 1 and Supplementary file 3.

cDNA constructs

Request a detailed protocol

For transient transfections hCav2.3e (cloned into pcDNA3, Pereverzev et al., 2002) or hCav1.3L (human C-terminally long Cav1.3 splice variant; GenBank accession number EU363339) α1 subunits were transfected together with the previously described accessory subunit constructs: β3 (rat, NM_012828, Koschak et al., 2001), β2a (rat, M80545, Koschak et al., 2001), β2d (mouse, β2aN1, FM872408.1; Link et al., 2009), β2e (mouse, β2aN5, FM872407; Link et al., 2009, where β2d and β2e were kindly provided by V. Flockerzi, Saarland University, Homburg), C3S/C4Sβ2a (cysteine residues in position 3 and 4 of β2a replaced by serines, Gebhart et al., 2010) or β4 (rat, splice variant β4e, kindly provided by Dr. Bernhard Flucher, Medical University Innsbruck; Etemad et al., 2014) and α2δ1 (rabbit, NM_001082276, Koschak et al., 2001).

Cell culture and transfection

Request a detailed protocol

TsA-201 cells were obtained from the European Collection of Authenticated Cell Cultures (ECACC, catalogue number 96121229, lot number 13D034) at passage 6. Cell stocks of passage 8 were frozen and cultures were re-expanded from stocks for not more than 20 passages. Cell cultures were tested negative (Universal Mycoplasma Detection Kit 30–1012 K, American Type Culture Collection) for mycoplasma infection. TsA-201 cells were cultured as described (Ortner et al., 2020) in Dulbecco’s modified Eagle’s medium (DMEM; Sigma-Aldrich, catalog #D6546) that was supplemented with 10% fetal bovine serum (FBS, Gibco, catalog #10270–106), 2 mM L-glutamine (Gibco, catalog #25030–032), penicillin (10 units/ml, Sigma, P-3032) and streptomycin (10 μg/ml, Sigma, S-6501). Cells were maintained at 37 °C and 5% CO2 in a humidified incubator and were subjected to a splitting procedure after reaching ~80% confluency. For splitting, cells were dissociated using 0.05% trypsin after implementing a washing step using 1 x phosphate buffered saline (PBS). TsA-201 cells were replaced and freshly thawed when they exceeded passage no. 21. For electrophysiology, cells were plated on 10 cm culture dishes and subjected to transient transfections on the following day. Cells were transiently transfected using Ca2+-phosphate as previously described (Ortner et al., 2014) with 3 μg of α1 subunits, 2 μg of β subunits, 2.5 μg of α2δ1 subunits and 1.5 µg of eGFP to visualize transfected cells. On the next day, cells were plated onto 35 mm culture dishes that were coated with poly-L-lysine, kept at 30 °C and 5% CO2 and were then subjected to whole-cell patch-clamp experiments after 24–72 hr.

Primary cell culture of midbrain DA neurons

Request a detailed protocol

As described in Tomagra et al., 2019, the methods for the primary culture of mesencephalic dopamine neurons from Substantia nigra (SN) were adapted from Pruszak et al., 2009. Briefly, the ventral mesencephalon area was dissected from embryonic (E15) C57Bl/6 TH-GFP mice (Matsushita et al., 2002; Sawamoto et al., 2001) that were kept heterozygous via breeding them with C57Bl/6 J mice. HBSS (Hank’s balanced salt solution, without CaCl2 and MgCl2), enriched with 0.18% glucose, 1% BSA, 60% papain (Worthington, Lakewood, NJ, United States), 20% DNase (Sigma-Aldrich) was stored at 4 °C and used as digestion buffer. Neurons were plated at final densities of 600 cells per mm2 on Petri dishes. Cultured neurons were used at 8–9 days in vitro (DIV) for current-clamp and voltage-clamp experiments. Petri dishes were coated with poly-L-Lysine (0.1 mg/ml) as substrate adhesion. Cells were incubated at 37 °C in a 5% CO2 atmosphere, with Neurobasal Medium containing 1% pen-strep, 1% ultra-glutamine, 2% B-27, and 2.5% FBS dialyzed (pH 7.4) (as previously described in Tomagra et al., 2019).

Whole-cell patch-clamp recordings in tsA-201 cells

Request a detailed protocol

For whole-cell patch-clamp recordings, patch pipettes with a resistance of 1.5–3.5 MΩ were pulled from glass capillaries (Borosilicate glass, catalog #64–0792, Harvard Apparatus, USA) using a micropipette puller (Sutter Instruments) and fire-polished with a MF-830 microforge (Narishige, Japan). Recordings were obtained in the whole-cell configuration using an Axopatch 200B amplifier (Axon Instruments, Foster City, CA), digitized (Digidata 1,322 A digitizer, Axon Instruments) at 50 kHz, low-pass filtered at 5 kHz and subsequently analyzed using Clampfit 10.7 Software (Molecular Devices). Linear leak and capacitive currents were subtracted online using the P/4 protocol (20 ms I-V protocol) or offline using a 50 ms hyperpolarizing voltage step from –89 to –99 mV or –119 to –129 mV. All voltages were corrected for a liquid junction potential (JP) of –9 mV (Lieb et al., 2014). Compensation was applied for 70–90% of the series resistance.

The pipette internal solution for recordings of Cav2.3 contained (in mM): 144.5 CsCl, 10 HEPES, 0.5 Cs-EGTA, 1 MgCl2, 4 Na2ATP adjusted to pH 7.4 with CsOH (299 mOsm/kg). The pipette internal solution for recordings of Cav1.3 contained (in mM): 135 CsCl, 10 HEPES, 10 Cs-EGTA, 1 MgCl2, 4 Na2ATP adjusted to pH 7.4 with CsOH (275 mOsm/kg). The bath solution for recordings of Cav2.3 contained (in mM): 2 CaCl2, 10 HEPES, 170 Choline-Cl and 1 MgCl2 adjusted to pH 7.4 with CsOH. The bath solution for recordings of Cav1.3 contained (in mM): 15 CaCl2, 10 HEPES, 150 Choline-Cl and 1 MgCl2 adjusted to pH 7.4 with CsOH.

Current-voltage (I-V) relationships were obtained by applying a 20 ms long square pulse protocol to various test potentials (5 mV voltage steps) starting from a holding potential of –119 mV or –89 mV (recovery of inactivation). The resulting I-V curves were fitted to the following equation:

I=Gmax(V-Vrev)/(1+exp-V-V0.5k)

where I is the peak current amplitude, Gmax is the maximum conductance, V is the test potential, Vrev is the extrapolated reversal potential, V0.5 is the half-maximal activation voltage, and k is the slope factor. The voltage dependence of Ca2+-conductance was fitted using the following Boltzmann relationship:

G=Gmax/(1+exp-V-V0.5k)

The voltage dependence of inactivation was assessed by application of 20 ms test pulses to the voltage of maximal activation (Vmax) before and after holding the cell at various conditioning test potentials for 5 s (30 s inter-sweep interval; 10 mV voltage steps; holding potential –119 mV). Inactivation was calculated as the ratio between the current amplitudes of the 20 ms test pulses. Steady-state inactivation parameters were obtained by fitting the data to a modified Boltzmann equation:

I=(1-Ini)/(1+expV-V0.5, inactkinact+Ini)

where V0.5, inact is the half-maximal inactivation voltage, kinact is the inactivation slope factor and Ini is the fraction of non-inactivating current in steady-state.

The amount of inactivation during a 5 s depolarizing pulse from a holding potential of –119 mV to the Vmax was quantified by calculating the remaining current fraction after 50, 100, 250, 500, 1000, and 5000 ms. Recovery from inactivation was determined by 10 ms test pulses to Vmax at different time-points (in s: 0.001, 0.003, 0.01, 0.03, 0.1, 0.3, 0.6, 1, 1.5, 2, 3, 4, 6, 8, 10, 15, 20) after a 1 s conditioning pulse to Vmax (holding potential –89 mV). Window current was determined by multiplying mean current densities by fractional currents form steady-state inactivation curves to obtain the fraction of available channels at a given potential as described previously (Hofer et al., 2020). The SN DA regular pacemaking command voltage protocol obtained from an identified TH+ SN DA neuron in a mouse brain slice (male, P12) and the SN DA burst firing protocol were generated as previously described (Ortner et al., 2017). Cells were perfused by an air pressure-driven perfusion system (BPS-8 Valve Control System, ALA Scientific Instruments) with bath solution and a flow rate of 0.6 ml/min. For Cd2+-block, cells were perfused with 100 µM Cd2+ to achieve full block, followed by wash-out with bath solution. A complete exchange of the solution around the cell was achieved within <50 ms. All experiments were performed at room temperature (~22 °C).

Voltage- and current-clamp recordings in cultured midbrain DA neurons

Request a detailed protocol

Macroscopic whole-cell currents and APs were recorded using an EPC 10 USB HEKA amplifier and Patchmaster software (HEKA Elektronik GmbH) following the procedures described previously (Baldelli et al., 2005; Gavello et al., 2018). Traces were sampled at 10 kHz and filtered using a low-pass Bessel filter set at 2 kHz. Borosilicate glass pipettes (Kimble Chase life science, Vineland, NJ, USA) with a resistance of 7–8 MΩ were used. Uncompensated capacitive currents were reduced by subtracting the averaged currents in response to P/4 hyperpolarizing pulses. Off-line data analysis was performed with pClamp 10.0 software for current clamp recordings. Ca2+ currents were evoked by applying a single depolarization step (50 ms duration), from a holding of –70 mV to 0 mV. Fast capacitive transients due to the depolarizing pulse were minimized online by the patch-clamp analog compensation. Series resistance was compensated by 80% and monitored during the experiment.

For current-clamp experiments the pipette internal solution contained in mM: 135 gluconic acid (potassium salt: K-gluconate), 10 HEPES, 0.5 EGTA, 2 MgCl2, 5 NaCl, 2 ATP-Tris and 0.4 Tris-GTP (Tomagra et al., 2019). For voltage-clamp recordings the pipette internal solution contained in mM: 90 CsCl, 20 TEA-Cl, 10 EGTA, 10 glucose, 1 MgCl2, 4 ATP, 0.5 GTP and 15 phosphocreatine adjusted to pH 7.4. The extracellular solution for current/voltage-clamp recordings (Tyrode’s solution) contained in mM: 2 CaCl2, 10 HEPES, 130 NaCl, 4 KCl, 2 MgCl2, 10 glucose adjusted to pH 7.4. Patch-clamp experiments were performed using pClamp software (Molecular Devices, Silicon Valley, CA, United States). All experiments were performed at a temperature of 22–24°C. Data analysis was performed using Clampfit software. To study the contribution of Cav2.3 channels to the total Ca2+ current, cells were perfused with recording solution (containing in mM: 135 TEA, 2 CaCl2, 2 MgCl2, 10 HEPES, 10 glucose adjusted to pH 7.4) complemented with 300 nM TTX and 3 µM ISR to block voltage-dependent Na+ and L-type Ca2+ channels. SNX-482 (100 nM) was used in current- and voltage-clamp experiments. Furthermore, kynurenic acid (1 mM), 6,7-dinitroquinoxaline-2,3-dione (DNQX) (20 µM) and picrotoxin (100 µM) were present in the extracellular solution for current- and voltage-clamp experiments.

Whole cell voltage-clamp recordings of SN DA neurons in ex vivo brain slices

Request a detailed protocol

Whole-cell patch-clamp recordings were performed essentially as previously described (Benkert et al., 2019). In brief, murine (PN11-13) coronal midbrain slices were prepared in ice-cold ACSF using a VibrosliceTM (Campden Instruments). Chemicals were obtained from Sigma Aldrich unless stated otherwise. ACSF contained in mM: 125 NaCl, 25 NaHCO3, 2.5 KCl, 1.25 NaH2PO4, 2 CaCl2, 2 MgCl2 and 25 glucose, and was gassed with Carbogen (95% O2, 5% CO2, pH 7.4, osmolarity was 300–310 mOsm/kg). Slices were allowed to recover for 30 min at room temperature (22°C–25°C) before use for electrophysiology. Recordings were carried out in a modified ACSF solution containing in mM: 125 NaCl, 25 NaHCO3, 2.5 KCl, 1.25 NaH2PO4, 2.058 MgCl2, 1.8 CaCl2, 2.5 glucose, 5 CsCl, 15 tetraethylammonium, 2.5 4-aminopyridine, 600 nM TTX (Tocris), 20 µM CNQX (Tocris), 4 µM SR 95531 (Tocris) and 10 µM DL-AP5 (Tocris), pH adjusted to 7.4, osmolarity was 300–315 mOsm/kg. Data were digitalized with 2 kHz, and filtered with Bessel Filter 1: 10 kHz; Bessel Filter 2: 5 kHz. All recordings were performed at a bath temperature of 33 °C±1. Patch pipettes (2.5–3.5 MΩ) were filled with internal solution containing in mM: 180 N-Methyl-D-glucamine, 40 HEPES, 0.1 EGTA, 4 MgCl2, 5 Na-ATP, 1 Lithium-GTP, 0.1% neurobiotin tracer (Vector Laboratories); pH was adjusted to 7.35 with H2SO4, osmolarity was 285–295 mOsm/kg. Neurons were filled with neurobiotin during the recording, fixed with a 4% PFA solution and stained for tyrosine hydroxylase (TH; rabbit anti-TH, 1:1000, Cat#: 657012, Merck Millipore) and neurobiotin (Streptavidin Alexa Fluor conjugate 647, 1:1000, Cat# S21374, Thermo Fisher Scientific). Only TH and neurobiotin-positive cells were used for the statistical analysis.

Steady-state activation was measured by applying 150 ms depolarizing square pulses to various test potentials (10  mV increments) starting from –90 mV with a 10 s interpulse interval. Holding potential between the pulses was −100 mV. Voltage at maximal Ca2+ current amplitude (Vmax) was determined during the steady-state activation recordings. Voltage-dependence of the steady-state inactivation was measured by applying a 20 ms control test pulse (from holding potential –100 mV to Vmax) followed by 5 s conditioning steps to various potentials (10  mV increments) and a subsequent 20 ms test pulse to Vmax with a 10 s interpulse interval. Inactivation was calculated as the ratio between the current amplitudes of the test versus control pulse. Currents were leak subtracted on-line using the P/5 subtraction. The series resistance was compensated by 60–90%. Data were not corrected for liquid junction potential (–5 mV, measured according to Neher, 1992). Midbrain slices were preincubated (bath-perfusion) at least 30 min in selective T-type (10 µM Z941; Tringham et al., 2012), L-type (1 µM isradipine, ISR; https://www.guidetopharmacology.org/), N- and P/Q-type (1 µM ω-conotoxin-MVIIC; https://www.guidetopharmacology.org/) or R-type (100 nM SNX-482; https://www.guidetopharmacology.org/, Newcomb et al., 1998) Ca2+ channel blockers; except Z941, which was kindly obtained from T. Snutch (University of British Columbia, Canada), all Cav blocker were from Tocris.

Steady-state activation and inactivation curves were fitted as described above.

Perforated patch recordings in SN DA neurons in ex vivo brain slices

Request a detailed protocol

Animals were anesthetized with isoflurane (B506; AbbVie Deutschland GmbH and Co KG, Ludwigshafen, Germany) and subsequently decapitated. The brain was rapidly removed and a block of tissue containing the mesencephalon was immediately dissected. Coronal slices (250–300 μm) containing the SN were cut with a vibration microtome (HM-650 V; Thermo Scientific, Walldorf, Germany) under cold (4 °C), carbogenated (95% O2 and 5% CO2), glycerol-based modified artificial cerebrospinal fluid (GACSF; Ye et al., 2006) containing (in mM): 250 glycerol, 2.5 KCl, 2 MgCl2, 2 CaCl2, 1.2 NaH2PO4, 10 HEPES, 21 NaHCO3, 5 glucose adjusted to pH 7.2 (with NaOH) resulting in an osmolarity of ~310 mOsm. Brain slices were transferred into carbogenated artificial cerebrospinal fluid (ACSF). First, they were kept for 20 min in a 35 °C 'recovery bath' and then stored at room temperature (24 °C) for at least 30 min prior to recording. ACSF contained (in mM): 125 NaCl, 2.5 KCl, 2 MgCl2, 2 CaCl2, 1.2 NaH2PO4, 21 NaHCO3, 10 HEPES, and 5 Glucose adjusted to pH 7.2 (with NaOH) resulting in an osmolarity of ~310 mOsm.

SN dopaminergic neurons were identified according to their sag component / slow Ih-current (hyperpolarization-activated cyclic nucleotide-gated cation current), broad action potentials or post hoc by TH/DAT-immunohistochemistry (Lacey et al., 1989; Neuhoff et al., 2002; Richards et al., 1997; Figure 6—figure supplement 1I, J). Biocytin-streptavidin labeling was combined with TH-immuno-histochemistry (Hess et al., 2013).

After preparation, brain slices were transferred to a recording chamber (~1.5 ml volume) and initially superfused with carbogenated ACSF at a flow rate of ~2 ml/min. During the perforation process, the electrophysiological identification of the neuron was performed in current clamp mode. Afterwards, the ACSF was exchanged for the Ca2+ current recording solution which contained in mM: 66.5 NaCl, 2 MgCl2, 3 CaCl2, 21 NaHCO3, 10 HEPES, 5 Glucose adjusted to pH 7.2 (with HCl). Sodium currents were blocked by 1 µM tetrodotoxin (TTX). Potassium currents and the Ih current were blocked by: 40 mM TEA-Cl, 0.4 mM 4-AP, 1 µM M phrixotoxin-2 (Alomone, Cat # STP-710; Subramaniam et al., 2014) and 20 mM CsCl. Experiments were carried out at ~28 °C. Recordings were performed with an EPC10 amplifier (HEKA, Lambrecht, Germany) controlled by the software PatchMaster (version 2.32; HEKA). In parallel, data were sampled at 10 kHz with a CED 1401 using Spike2 (version 7) (both Cambridge Electronic Design, UK) and low-pass filtered at 2 kHz with a four-pole Bessel filter. The liquid junction potential between intracellular and extracellular solution was compensated (12 mV; calculated with Patcher’s Power Tools plug-in for Igor Pro 6 (Wavemetrics, Portland, OR, USA)).

Perforated patch recordings were performed using protocols modified from Horn and Marty, 1988 and (Akaike and Harata, 1994). Electrodes with tip resistances between 2 and 4 MΩ were fashioned from borosilicate glass (0.86 mm inner diameter; 1.5 mm outer diameter; GB150- 8 P; Science Products) with a vertical pipette puller (PP-830; Narishige, London, UK). Patch recordings were performed with ATP and GTP-free pipette solution containing (in mM): 138 Cs-methanesulfonate, 10 CsCl2, 2 MgCl2, 10 HEPES and adjusted to pH 7.2 (with CsOH). ATP and GTP were omitted from the intracellular solution to prevent uncontrolled permeabilization of the cell membrane (Lindau and Fernandez, 1986). The patch pipette was tip filled with internal solution and back filled with 0.02% tetraethylrhodamine-dextran (D3308, Invitrogen, Eugene, OR, USA) and amphotericin-containing internal solution (~400 μg/ml; G4888; Sigma-Aldrich, Taufkirchen, Germany) to achieve perforated patch recordings. Amphotericin was dissolved in dimethyl sulfoxide (final concentration: 0.2%–0.4%; DMSO; D8418, Sigma-Aldrich) (Rae et al., 1991), and was added to the modified pipette solution shortly before use. The used DMSO concentration had no obvious effect on the investigated neurons. During the recordings access resistance (Ra) was constantly monitored and experiments were started after Ra was <20 MΩ. In the analyzed recordings Ra was comparable, did not change significantly over recording time, and was not significantly different between the distinct experimental groups. A change to the whole-cell configuration was indicated by a sudden change in Ra and diffusion of tetraethylrhodamine-dextran into the neuron. Such experiments were rejected. GABAergic and glutamatergic synaptic input was reduced by addition of 0.4 mM picrotoxin (P1675; Sigma-Aldrich), 50 µM D-AP5 (A5282; Sigma-Aldrich), and 10 µM CNQX (C127; Sigma-Aldrich) to the ACSF. For inhibition experiments, 100 nM SNX-482 (Alomone, Cat # RTS-500 dissolved in ACSF) or 10 µM nifedipine (Alomone, Cat # N-120 diluted into ACSF from a freshly prepared 10 mM stock solution in DMSO) was bath applied (in ACSF).

Identification of β-subunit transcripts in identified SN DA and VTA DA neurons

RNAscope in situ hybridization

Request a detailed protocol

In situ hybridization experiments were performed on fresh frozen mouse brain tissue using the RNAscope technology (Advanced Cell Diagnostics, ACD), according to the manufacturer’s protocol under RNase-free conditions and essentially as described (Benkert et al., 2019). Briefly, 12 µm coronal cryosections were prepared (Duda et al., 2018), mounted on SuperFrost Plus glass slides, dried for 1 hr at –20 °C and stored at -80°C. Directly before starting the RNAscope procedure, sections were fixed with 4% PFA for 15 min at 4 °C and dehydrated using an increasing ethanol series (50%, 75%, 100%), for 5 min each. After treatment with protease IV (ACD, Cat# 322336) for 30 min at room temperature, sections were hybridized with the respective target probes for 2 hr at 40 °C in a HybEZ II hybridization oven (ACD). Target probe signals were amplified using the RNAscope Fluorescent Multiplex Detection Kit (ACD, Cat# 320851). All amplifier solutions were dropped on respective sections, incubated at 40 °C in the HybEZ hybridization oven, and washed twice with wash buffer (ACD) between each amplification step for 2 min each. Nuclei were counterstained with DAPI ready-to-use solution (ACD, included in Kit) and slides were coverslipped with HardSet mounting medium (VectaShield, Cat# H-1400) and dried overnight. Target probes were either obtained from the library of validated probes provided by Advanced Cell Diagnostics (ACD) or self-designed in cooperation with ACD to specifically discriminate between two splice variants of β2, namely β2a and β2e. Target probes (RNAscope assays) used for analysis were as follows: Tyrosine hydroxylase (TH) (Th), Cat No. (ACD) 317621, Assay target region: 483–1,603 of NM_009377.1; β2a (Cacnb2), Cat No. (ACD) 590951-C2, Assay target region: 2–296 of XM_011238946.2; β2e (Cacnb2), Cat No. (ACD) 823221-C2, Assay target region: 2–285 of NM_001309519.1.

Target genes, visualized with Atto550 fluorophore, were co-stained with Tyrosine hydroxylase (TH), visualized with AlexaFluor488, as a marker for dopaminergic neurons. The gene peptidyl-prolyl isomerase B (PPIB) was used as positive control.

Fluorescent images of midbrain sections were acquired by a Leica CTR6 LED microscope using a Leica DFC365FX camera as z-stacks, covering the full depth of cells at ×63 magnification. Z-stacks were reduced to maximum intensity Z-projections using Fiji (http://imagej.net/Fiji) and images were analyzed by utilizing a custom-designed algorithm (Wolution, Munich, Germany). The algorithm delineates cell shapes according to the TH marker gene signal and quantifies the number and the area of target-mRNA-derived fluorescence dots. Target probe hybridization results in one fluorescent dot for each mRNA molecule, allowing determination of target-mRNA molecule numbers, independent from fluorescence-intensities.

Multiplex-nested PCR, qualitative and quantitative PCR analysis in individual laser-microdissected DA neurons

Request a detailed protocol

Cryosectioning, laser-microdissection, reverse transcription: Cryosectioning, UV-laser microdissection (UV-LMD) and reverse transcription were carried out similarly as previously described in detail (Benkert et al., 2019; Duda et al., 2018; Gründemann et al., 2011; Liss, 2002). Briefly, coronal 12 µm mouse midbrain cryosections were cut with a cryomicrotome CM3050 S (Leica), mounted on PEN-membrane slides (Mirodissect), stained with a cresyl-violet (CV) ethanol solution and fixed with an ascending ethanol series. UV-LMD of SN dopaminergic neurons from cresyl-violet-stained midbrain sections from juvenile mice was carried out using an LMD7000 system (Leica Microsystems). Reverse transcription was carried out directly without a separate RNA isolation step in a one-tube procedure.

All cDNA samples were precipitated as described (Liss, 2002). Qualitative multiplex-nested PCR and quantitative qPCRs were carried out essentially as described (Benkert et al., 2019; Duda et al., 2018; Gründemann et al., 2011). Briefly, qualitative multiplex-nested PCR was performed with the GeneAmp PCR System 9700 (Thermo Fisher Scientific) using 1/3 of each individual cDNA sample, corresponding to ~3 SN DA neurons, for marker gene expression analysis: tyrosine hydroxylase (Th) as a marker for dopaminergic midbrain neurons, the glutamic acid decarboxylase isoforms Gad65 and Gad67 as markers for GABAergic neurons, the glial fibrillary acidic protein (Gfap) as a marker for astroglia cells and calbindin (Calb1) d28k (CBd28k), that is strongly expressed only in less vulnerable dopaminergic midbrain neurons. Only cDNA pools expressing the correct marker gene profile (i.e., Th-positive, Gad-, Gfap-, CBd28k-negative) were further analyzed via qualitative and quantitative PCR. Quantitative PCR for β2 (Cacnb2) splice variant expression analysis was performed with the QuantStudio 3 System (Thermo Fisher Scientific) using ~3 SN DA neurons. Qualitative PCR products were analyzed in a QIAxcel Advanced System (Qiagen).

Details of multiplex PCR (outer) and nested PCR (inner) primers for qualitative PCR are shown in Supplementary file 5.

For Cav2.3 (Cacna1e) splice variant analysis via qualitative RT-PCR, two cDNA fragments (mCav2.3 II-III loop and mCav2.3 C-terminus) covering the three respective splice sites were amplified in a duplex PCR, followed by two individual nested PCR reactions. PCR conditions: 15 min 95 °C; 35 cycles: 30 s 94 °C; 1 min 61 °C; 3 min 72 °C; 7 min 72 °C for duplex PCR; and 3 min 94 °C; 35 cycles: 30 s 94 °C; 1 min 61 °C; 1 min 72 °C; 7 min 72 °C for nested PCRs. Primer sequences are given in Supplementary file 2. Outer duplex primer pairs were chosen using Oligo7.60 software (possible PCR amplicon sizes for mCav2.3 II-III loop: 816 bp, 795 bp and 759 bp; for mCav2.3 C-terminus: 770 bp and 641 bp). For the nested PCRs, primer sequences from Weiergräber et al., 2005 were used (possible PCR amplicon sizes for mCav2.3 II-III 980 loop: 420 bp, 399 bp and 363 bp; for mCav2.3 C-terminus: 498 bp and 369 bp). Nested PCR products were separated in a 4% agarose gel (MetaPhor agarose, Biozym), and expressed splice variants in individual SN DA neurons were identified according to the amplicon sizes of the nested PCR products (cDNA from mouse whole-brain tissue was used as positive control) as follows (II-III-loop+C-terminus): Cav2.3a: 363+369 bp; Cav2.3b: 399+369 bp; Cav2.3c: 420+369 bp; Cav2.3d. 420+498; Cav2.3e: 363+498 bp; Cav2.3f: 399+498 bp.

Quantitative real time PCR (qPCR) was performed with the QuantStudio 3 System (Thermo Fisher Scientific). qPCR assays (TaqMan), were marked with a 3’ BHQ (black hole quencher) and 5’ FAM (Carboxyfluorescein). TaqMan assays were carefully established and performance was evaluated by generating standard curves, using defined amounts of cDNA (derived from midbrain tissue mRNA), over four magnitudes of 10-fold dilutions as templates, in at least three independent experiments, as described (Duda et al., 2018; Liss, 2002).

Details of all qPCR assays (TaqMan), and standard curve parameters used for analysis are provided in Supplementary file 4.

Relative qPCR quantification data are given as cDNA amount [pg/cell] with respect to midbrain-tissue cDNA standard curves, calculated according to the following formula, and were normalized to the respective cell size by dividing respective expression values to the corresponding area of the individual microdissected neurons.

DNA amount per cell [pgcell]=S[(Ct-Yintercept)/slope]NocellscDNA fraction

With S=serial dilution factor of the standard curve (i.e. 10), Nocells = number of SN DA neurons per sample (i.e. 10 here), cDNA fraction = fraction of the cDNA reaction used as template in the qPCR reaction (i.e. 5/17) and the Y-intercept and slope of the relative standards (see Supplementary file 4).

β2 (Cacnb2) TaqMan qPCR assay and standard curve information, used for relative qPCR-based transcript quantification: Note that the amplicon is very small (70 bp). The probe is 5’-FAM (6-carboxyfluorescein) and 3’-NFQ (non-fluorescent quencher) labelled. The assay Mm01333550_m1 (assay-ID) was used (assay location 583) spanning exon-boundary 4–5 of the mouse β2 gene (Cacnb2). Assay parameters were as follows: threshold for analysis: 0.05, Y-intercept of standard curve: 43.5±0.2, slope: –3.43±0.04, R2: 1.0±0.0: means ± SEM, n=5.

Statistics

Data were analyzed using Clampfit 10.7 (Axon Instruments), Microsoft Excel, SigmaPlot 14.0 (Systat Software, Inc), and GraphPad Prism 5, 7.04 or 8 software (GraphPad software, Inc). Data were analyzed by appropriate statistical testing as indicated in detail for all experiments in the text, figure and table legends. Statistical significance was set at <0.05. Brain slice patch-clamp data were also analyzed with FitMaster (v2 × 90.5, HEKA Elektronik). RNAscope and single-cell RT-qPCR data data were analyzed by Fiji (https://imagej.net/Fiji), QuantStudio Design and Analysis Software (Applied Biosystems) and GraphPad Prism 7.04. All values are presented as mean ± SEM (95% confidence interval) for the indicated number of experiments (n) from N independent experiments (biological replications) in the text and Figures unless stated otherwise.

Data availability

All data generated or analyzed during this study are included in the manuscript and supporting files. Raw data have been provided for mean population data shown in figures and tables.

The following previously published data sets were used
    1. Shin W
    (2015) figshare
    RNASeq of DA neurons from SNpc and VTA. Dataset posted on 04.03.2015, 16:01 by William Shin.
    https://doi.org/10.6084/m9.figshare.926519.v1
    1. Aguila et al.
    (2021) NCBI Gene Expression Omnibus
    ID GSE114918. RNA Sequencing Identifies Robust Markers of Vulnerable and Resistant Human Midbrain Dopamine Neurons and Their Expression in Parkinson's Disease.

References

    1. Lacey MG
    2. Mercuri NB
    3. North RA
    (1989)
    Two cell types in rat substantia nigra zona compacta distinguished by membrane properties and the actions of dopamine and opioids
    The Journal of Neuroscience 9:1233–1241.
    1. Liu H
    2. De Waard M
    3. Scott VE
    4. Gurnett CA
    5. Lennon VA
    6. Campbell KP
    (1996)
    Identification of three subunits of the high affinity omega-conotoxin MVIIC-sensitive Ca2+ channel
    The Journal of Biological Chemistry 271:13804–13810.
    1. Neuhoff H
    2. Neu A
    3. Liss B
    4. Roeper J
    (2002)
    I(h) channels contribute to the different functional properties of identified dopaminergic subpopulations in the midbrain
    The Journal of Neuroscience 22:1290–1302.
  1. Book
    1. Paxinos G
    2. Franklin KBJ
    (2004)
    The Mouse Brain in Stereotaxic Coordinates, Compact
    Elsevier.

Decision letter

  1. Henry M Colecraft
    Reviewing Editor; Columbia University, United States
  2. Richard W Aldrich
    Senior Editor; The University of Texas at Austin, United States

Our editorial process produces two outputs: (i) public reviews designed to be posted alongside the preprint for the benefit of readers; (ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Decision letter after peer review:

Thank you for submitting your article "Alternative splicing of auxiliary β2-subunits stabilizes Cav2.3 ca2+ channel activity in midbrain dopamine neurons" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Richard Aldrich as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1) More direct evidence of the putative role of b2a and b2e in supporting Cav2.3 channels in substantia nigra dopaminergic (SN DA) neurons should be provided. Ideally, this would be provided by knockdown experiments showing reduced pacemaking and CaV2.3 currents in response to inhibiting b2a and b2e expression in SN DA neurons. As an alternative, a proximity ligation assay could be done to at least show assembly of b2 and CaV2.3 in SN DA neurons.

2) As suggested by Reviewer 2 the narrative and organization of the manuscript could be improved for more effective communication. The reviewer makes some good suggestions for reorganizing the manuscript that should be considered.

3) Reviewer 1 raised concerns about the adequacy of pharmacological isolation of CaV2.3 currents in the slice recordings that should be addressed. If possible, the isolated CaV2.3 steady-state activation and inactivation curves should be obtained in the cultured neuron preparation where there seems to be better control of pharmacological block of the different Cav channel isoforms.

Reviewer #2 (Recommendations for the authors):

Additional comments and suggestions are:

1) The two paragraphs starting on page 7, lines 165-189 should be moved under the header starting on the current page 7, line 191, as it introduces that section.

2) Order of figures and supplemental figures could be improved to follow a revised narrative and clarity. Note that Supp Figure 1 is referenced in the paper after citing Supp Figure 2 and 3.

3) Figure 1: In Figure 1A, it is unclear that the expanded action potentials are representative of the area highlighted. Please revised. The action potential traces in Figure 1C do not seem to be a good representation of the maximum time-derivative of voltage. Please revise.

4) Figure 2: To appreciate the results better, it will help to include control (no drugs) traces and their comparison with the different components.

5) Consider rearranging the order of Figures 3, 4, 5 and 6. The reviewer's suggestion is to make current Figure 5 the new Figure 3. Figure 4 should remain as such. Current Figure 3 and Figure 6 should be merged into new Figure 5. Alternative, current Figure 3 should become a supplemental figure of new Figure 5 (current Figure 6).

6) Current Supp Figure 3 should be included as part of the main figures, specifically as new panel D in current Figure 4.

7) Current Figure 5: Please replace bar plots with scatter plots to visualize the spread of the data. Panel C of this figure is not mentioned in the main text. Please correct. In fact, this panel could go into a supplemental figure.

8) Figure 7: Labels are very small and difficult to read. Please correct.

9) The Supplemental Methods section should be merged with the regular methods section for a comprehensive overview of the methods in a single section.

10) Data in current Supp Figure 1B do not seem to have sufficient statistical power to support conclusions. Please verify.

Reviewer #3 (Recommendations for the authors):

#1 Since the crux of this manuscript is the effect of β subunit variants on contribution of CaV2.3 channel in Parkinson's disease, references about the relative expression of β subunit variants in human brain would be extremely relevant and valuable in putting this paper into the context of human disease.

#2 The author's reference to past exploration of the role of β subunits on CaV2.3 should be further expanded. In particular, the assertion that β2a and β2e subunits likely exhibit incomplete inactivation at voltages positive to threshold is not entirely novel and the authors' description (lines 165-179) is slightly misleading. While the authors appropriately cite Jones et al., and Yasuda et al., as having described β subunit effects on the channels, they seem to imply that these papers did not uncover the incomplete inactivation described in the current manuscript. As currently written, the authors imply that these two papers validate the statement in line 173 that R-type currents fully inactivate at voltages positive to -50mV. In fact, after accounting for the different experimental solutions, both papers demonstrate that these β subunits would likely result in available channels at voltages positive to threshold. Reviewer recommends that this point be further clarified in the text.

#3 Currently, the authors make no distinction between the two forms of inactivation in CaV2.3 channels. The experiments are performed in ca2+, such that both voltage- and ca2+- dependent inactivation will be present. However, past literature indicates that the β subunit effect is primarily on the voltage inactivation of the channel. This should be clearly described.

#4 In Figure 7, the authors have shown the effect of the β2a subunit on the run-down of CaV2.3 channel. How about the β2e subunit? Does it demonstrate similar properties?

https://doi.org/10.7554/eLife.67464.sa1

Author response

Essential revisions:

1) More direct evidence of the putative role of b2a and b2e in supporting Cav2.3 channels in substantia nigra dopaminergic (SN DA) neurons should be provided. Ideally, this would be provided by knockdown experiments showing reduced pacemaking and CaV2.3 currents in response to inhibiting b2a and b2e expression in SN DA neurons. As an alternative, a proximity ligation assay could be done to at least show assembly of b2 and CaV2.3 in SN DA neurons.

We fully agree with the reviewers that it is a relevant point but we do not see how this would be technically feasible. We ask the reviewers to consider the following:

a. Knockdown experiments in SN DA neurons: We do not see how reduced pacemaking would be a suitable readout for more direct evidence of the role of β2a and β2e in supporting Cav2.3 channels in SN DA neurons. We have already shown that, while SNX-482 reduces pacemaking in cultured embryonic dopamine neurons (this paper), neither Cav2.3 KO nor acute pharmacological Cav2.3 channel inhibition (by SNX-482) in SN DA neurons from adult mouse brain slices reduces pacemaker activity (Benkert et al., Nature Commun 2019; 1). However, what is reduced by genetic or pharmacological Cav2.3 inhibition in SN DA neurons is the action potential-triggered ca2+ influx (1), i.e. the potentially harmful ca2+-load in these neurons. Hence, the readout of such an experiment would have to be the activity-dependent somatic ca2+ influx. To allow unperturbed activity and intracellular signaling, these experiments need to be carried out in perforated-patch configuration. Even without a knockdown approach, these are already challenging experiments in these highly vulnerable SN DA neurons (but feasible, see 1). Please consider that we would not expect a reduced bulk Cav- or SNX-482-sensitive Cav current in SN DA neurons due to β2a- and β2e-knockdown, but a rather small shift to more negative potentials of the steady-state Cav current inactivation. To address this, a neuron-selective, in vivo AAV viral based Crispr/CAS9 or siRNA approach would be necessary. At the same time, we do not see how it could be possible to demonstrate the cell-specific knockdown of the β2a-and β2e-subunits in the cells recorded from. In order to identify transfected cells and still be able to carry out electrophysiology, one would need to co-transfect a marker like GFP. But, as we have previously shown, GFP itself affects the activity pattern of SN DA neurons (Schiemann et al., Nature Neurosci 2011; 2). Again, it would be hardly possible to detect successful recombination, in successfully transfected neurons, and still be able to record from them. With the help of Larry Zweifel (Hunker et al., Cell Reports 2020; 3) we have indeed established such an approach for tyrosine hydroxylase (TH), where, however, successful recombination is visible by loss of TH staining. But unlike for TH, we are not aware of a β2-specific antibody expected to work in immunohistochemistry (see new experiments below). These would be required for β2 knockdown verification using juxtacellular labelling, followed by post-PFA fixation and antibody staining (as we did for other targets e.g. in Lammel et al., Neuron 2008; 4). Alternatively, one could carry out e.g. a deep sequencing approach but it is difficult to see how this should be possible in combination with prior brain slice electrophysiology/ca2+ imaging.

Independent of the arguments above, we also would like the reviewers to consider that a cell-specific β2a+β2e knockdown would also affect other high-voltage-activated Cav channel currents (e.g. P/Q-, N- and L-type), which must also associate with these β-subunits in SN DA neurons. These effects are likely to interfere with the effects on Cav2.3 currents.

Given all these considerations, we unfortunately feel the suggested more direct electrophysiological proof the reviewer asked for is, at present, not feasible.

b. Proximity ligation assay: Another alternative suggested was "… a proximity ligation assay could be done to at least show assembly of β2 and CaV2.3 in SN DA neurons". This is indeed an option, which we thought we could pursue. Since this requires two antibodies from different species, we were searching for and tested suitable anti-Cav2.3 and anti-β2 antibodies. The only anti-Cav2.3 antibody we identified is the one used by us already in the paper Benkert et al., 2019 (1) (Cat# 27225-1-AP, Proteintech). It is raised in rabbits and works very nicely in Western-blots (Author response image 1). We were unable to locate a commercial or non-commercial source for an anti-Cav2.3 antibody from another species. We identified two monoclonal mouse anti-β2 antibodies (antibodies specific for β2a- or β2e-splice variants do not exist) which we tested for specificity.

Author response image 1
Western blot using membrane preparations from tsA201 cells transiently transfected with Cav2.3e α1, β3/β2a and α2δ1 or an empty vector (pUC) and mouse whole brain protein preparations were used as described by us previously (14, 15).

Tris‐acetate gel: Primary antibodies: rabbit anti‐Cav2.3 (1:15,000; Proteintech, Cat# 27225‐1‐AP) and mouse anti‐tubulin (1:30,000; Sigma‐Aldrich, Cat# CP06). Secondary antibodies: goat anti‐rabbit IgG (1:40,000; Sigma, Cat# A6545) and goat anti‐mouse IgG (1:8,000; Invitrogen, Cat# 31430). M: Marker PageRuler Plus Prestained Protein Ladder (ThermoScientific, Cat# 26619); M2: Marker Spectra Multicolor High Range Protein Ladder (Thermo Scientific, Cat# 26625).

As shown in Author response image 2, the anti-β2 antibody from Antibodies Inc (Cat# 75-065) weakly recognized β2 (but not β3). However, it also strongly cross-reacted with a ~210 kDa band in HEK-cells as well as a ~140 kDa band (Author response image 2A, Tris-acetate gel) in mouse brain membranes (calculated molecular mass of the recombinant β2a subunit construct is 68.2 kDa). We also tested different experimental conditions (e.g. Tris-acetate vs. Tris-glycine gels, blotting with or without SDS in transfer buffer) which, however, still revealed this strong non-specific staining (Author response image 2B, Tris-glycine gel).

Author response image 2
Western blot (A: Tris‐acetate gel; B: Tris‐glycine gel) using membrane preparations from tsA201 cells transiently transfected with Cav2.3e α1, β3/β2a and α2δ1 or an empty vector (pUC) and mouse whole brain protein preparationsas described by us previously (1, 2).

Primary antibody: mouse anti‐β2 (A: 1:1,000; B: 1:800; Antibodies Inc, Cat# 75‐065), secondary antibody: goat anti‐mouse IgG (A: 1:5,000; B: 1:3,000; Invitrogen, Cat# 31430). M: Marker PageRuler Plus Prestained Protein Ladder (Thermo Scientific, Cat# 26619); M2: Marker Spectra Multicolor High Range Protein Ladder (Thermo Scientific, Cat# 26625).

Author response image 3 shows the results with the anti-β2 antibody from Santa Cruz (Cat# sc-81890). This antibody stained β2 but cross-reacted with β3 as shown with recombinant β-subunits. This was a problem in mouse brain where β3 is much more abundant and therefore it was the only β-subunit stained by this β2-antibody (Author response image 3).

We are not aware of any other suitable anti-β2 or anti-Cav2.3 antibodies. Anti-β2 antibodies from other colleagues were raised in rabbits.

Author response image 3
Western blot using membrane preparations from tsA201 cells transiently transfected with Cav2.3e α1, β3/β2a and α2δ1 or an empty vector (pUC) and mouse whole brain protein preparations as described by us previously (1, 2).

Tris‐acetate gel: Primary antibody: mouse anti‐β2 (1:800; Santa Cruz, Cat# sc‐81890), secondary antibody: goat anti‐mouse IgG (1:8,000; Invitrogen, Cat# 31430). M: Marker PageRuler Plus Prestained Protein Ladder (Thermo Scientific, Cat# 26619).

2) As suggested by Reviewer 2 the narrative and organization of the manuscript could be improved for more effective communication. The reviewer makes some good suggestions for reorganizing the manuscript that should be considered.

As mentioned above we considered this important criticism, when re-writing major parts of the manuscript, which was necessary because of additional data from novel experiments, some of them suggested by essential revisions 3 (see below). Our data now show different inactivation properties of SNX-482-sensitive Cav2.3 channels in SN DA cells and cultured midbrain neurons within a voltage-range that can be explained by the different contribution of membrane-bound and cytosolic β-subunits. Therefore, the data in cultured neurons are now presented together with those of SN DA neurons (Figures 6 and 7) recorded in brain slices. This is outlined in more detail below.

3) Reviewer 1 raised concerns about the adequacy of pharmacological isolation of CaV2.3 currents in the slice recordings that should be addressed. If possible, the isolated CaV2.3 steady-state activation and inactivation curves should be obtained in the cultured neuron preparation where there seems to be better control of pharmacological block of the different Cav channel isoforms.

The reviewer raised concerns about the isolation of R-type current components. His criticism hits an important point: R-type current is defined as current remaining after pharmacological block of all other Cavs. However, several studies found that R-type current components are still present in some cells even after complete knockout of Cav2.3 α1-subunits (e.g. 5, 6) indicating the contribution of other Cavs to Rtype current. In contrast, SNX-482 at 100 nM concentrations is considered a selective inhibitor of Cav2.3 and therefore isolates only Cav2.3-mediated currents, which we are particularly interested in based on their potential pathophysiological role (1) and for which we provide detailed data for β2-splice variant modulation.

Therefore, we not only studied steady-state activation and inactivation of SNX-482-sensitive currents in cultured neurons (as suggested by the reviewer) but also performed such experiments in SN DA neurons in vital brain slices. These findings now reveal:

i. SNX-482-sensitive currents in SN DA neurons inactivate at positive potentials (Figure 6, Table 3) very similar to the R-type currents reported in our original manuscript. These data are in agreement with a substantial fraction Cav2.3 channels being stabilized by β2a and/or β2e subunits and therefore resistant to inactivation during pacemaking. ii. The inactivation voltage-range in cultured DA neurons is more negative than in SN DA neurons (but more positive than expected for β3-association) suggesting that inactivation is indeed fine-tuned in neurons along a range of inactivation voltages. For better comparison, data from cultured DA neurons (Figure 7) are now presented together with those of SN DA neurons from brain slices (Figure 6) at the end of the result section.

Reviewer #2 (Recommendations for the authors):

Additional comments and suggestions are:

1) The two paragraphs starting on page 7, lines 165-189 should be moved under the header starting on the current page 7, line 191, as it introduces that section.

In the restructured manuscript, information of the first of these paragraphs is now included in the introduction. The second paragraph is now moved to the beginning of the result section to define our experimental approach. We believe that restructuring the manuscript in this way now makes it much easier to follow.

2) Order of figures and supplemental figures could be improved to follow a revised narrative and clarity. Note that Supp Figure 1 is referenced in the paper after citing Supp Figure 2 and 3.

Suppl. Figure 1 ( = Figure 1—figure supplement 1) is now referenced first. The order of figures in the revised manuscript was changed based on additional data previous Figure 1 is now presented as Figure 7 together with parts moved into new Figure 7—figure supplement 1.

3) Figure 1: In Figure 1A, it is unclear that the expanded action potentials are representative of the area highlighted. Please revised. The action potential traces in Figure 1C do not seem to be a good representation of the maximum time-derivative of voltage. Please revise.

These data have been changed as requested (see revised Figure 7—figure supplement 1). In the original version the expanded action potentials were inserted twice, which we believe is redundant. We therefore selected two action potentials from the upper trace Figure 7—figure supplement 1 (indicated by the asterisks) and show the corresponding expanded trace and phase-plane plots in panel C.

4) Figure 2: To appreciate the results better, it will help to include control (no drugs) traces and their comparison with the different components.

We thank the reviewer for this comment. We did not include such a trace because recordings over this time period were stable and run-down in the absence of drugs was less than 1% under these experimental conditions. This is now mentioned in the figure legend (now Figure 7) as follows: "Current rundown in the absence of drugs during 150 s was less than 1% (0.48±0.18%; n=4 cells)."

5) Consider rearranging the order of Figures 3, 4, 5 and 6. The reviewer's suggestion is to make current Figure 5 the new Figure 3. Figure 4 should remain as such. Current Figure 3 and Figure 6 should be merged into new Figure 5. Alternative, current Figure 3 should become a supplemental figure of new Figure 5 (current Figure 6).

We merged old Figures 3 and 6 as suggested into new Figure 3. We now start with discussing the biophysical properties of co-expressing different β-subunits (old Figure 4 is now Figure 1).

6) Current Supp Figure 3 should be included as part of the main figures, specifically as new panel D in current Figure 4.

These data were moved as suggested (now in Figure 1 as panel D).

7) Current Figure 5: Please replace bar plots with scatter plots to visualize the spread of the data. Panel C of this figure is not mentioned in the main text. Please correct. In fact, this panel could go into a supplemental figure.

We changed to scatter plot as suggested. Panel C was actually mentioned in the text (4th line below the heading “β-subunit transcripts in mouse SN and VTA" in the old manuscript). It is also mentioned in the text of the revised version.

8) Figure 7: Labels are very small and difficult to read. Please correct.

We increased the labels and, based on this valuable feedback, also increased small labels in Figure 8 (now Figure 5).

9) The Supplemental Methods section should be merged with the regular methods section for a comprehensive overview of the methods in a single section.

The sections have been merged as suggested.

10) Data in current Supp Figure 1B do not seem to have sufficient statistical power to support conclusions. Please verify.

These are qualitative control experiments (now shown as Figure 2—figure supplement 1) that could have been omitted. Yet, we felt to include them in the manuscript. We now mention (and show in Supplementary file 2) that the number of experiments was actually higher because we additionally performed experiments with a mixture of the specific with mismatching β-subunit DNA at ratios of 1:1, 1:2, and 1:5, and only the 1:10 mix is shown (similar CT values for all combinations).

Reviewer #3 (Recommendations for the authors):

#1 Since the crux of this manuscript is the effect of β subunit variants on contribution of CaV2.3 channel in Parkinson's disease, references about the relative expression of β subunit variants in human brain would be extremely relevant and valuable in putting this paper into the context of human disease.

To address this important point, we now include a reference for a recent transcriptomic analysis of laser-captured SN DA neurons form 18 human post mortem brains (Aguila et al.; 13) in the Discussion (page 13, bottom/page 14, top paragraph). The results obtained in this study (45% β4, 30% β2, 15% β3, 8% β1) compare nicely with the data obtained by our RT-qPCR assay in mouse substantia nigra: β4 (~65%) and β2 (~27%) represented the most abundant β-subunit transcripts, followed by β1 and β3 (~5 – 7%).

#2 The author's reference to past exploration of the role of β subunits on CaV2.3 should be further expanded. In particular, the assertion that β2a and β2e subunits likely exhibit incomplete inactivation at voltages positive to threshold is not entirely novel and the authors' description (lines 165-179) is slightly misleading. While the authors appropriately cite Jones et al., and Yasuda et al., as having described β subunit effects on the channels, they seem to imply that these papers did not uncover the incomplete inactivation described in the current manuscript. As currently written, the authors imply that these two papers validate the statement in line 173 that R-type currents fully inactivate at voltages positive to -50mV. In fact, after accounting for the different experimental solutions, both papers demonstrate that these β subunits would likely result in available channels at voltages positive to threshold. Reviewer recommends that this point be further clarified in the text.

We thank the reviewer for pointing out this weakness in citing the literature of our colleagues. We now have completely rewritten this paragraph not only to point out the wide range of SNX-482-sensitive Rtype currents reported in neurons but also clearly state that previous work has already shown that βsubunits tightly control V0.5,inact of Cav2.3 channels and that membrane-anchored β2 subunit splice variants β2a and β2e induce strong positive shifts of V0.5,inact of Cav2.3 channels and slow inactivation

(Introduction: page 4, bottom paragraph; page 5, top paragraph; Results: page 6, bottom paragraph).

#3 Currently, the authors make no distinction between the two forms of inactivation in CaV2.3 channels. The experiments are performed in ca2+, such that both voltage- and ca2+- dependent inactivation will be present. However, past literature indicates that the β subunit effect is primarily on the voltage inactivation of the channel. This should be clearly described.

We believe that this is a more mechanistic aspect not relevant in the context of a study that tries to reproduce physiological conditions in which both inactivation processes must happen together. However, we now also include this information as follows (page 5, top paragraph): ….the membrane anchored β2 subunit splice variants β2a and β2e induce strong positive shifts of V0.5,inact of Cav2.3 channels and slow the time course of voltage-dependent inactivation (Jones et al., 1998; Pereverzev et al., 2002; Soong et al., 1993; Williams et al., 1994; Yasuda et al., 2004).

#4 In Figure 7, the authors have shown the effect of the β2a subunit on the run-down of CaV2.3 channel. How about the β2e subunit? Does it demonstrate similar properties?

We did not measure run-down of Cav2.3 currents in association with β2e and can therefore not state if the effect would be the same. However, based on the current modulation by both “slow” β-subunits, we would assume a similar effect.

References:

  1. Benkert, J., et al., Cav2.3 channels contribute to dopaminergic neuron loss in a model of Parkinson's disease. Nat Commun, 2019. 10(1): p. 5094.

  2. Schiemann, J., et al., K-ATP channels in dopamine substantia nigra neurons control bursting and novelty-induced exploration. Nat Neurosci, 2012. 15(9): p. 1272–80.

  3. Hunker, A.C., et al., Conditional Single Vector CRISPR/SaCas9 Viruses for Efficient Mutagenesis in the Adult Mouse Nervous System. Cell Rep, 2020. 30(12): p. 4303–4316.e6.

  4. Lammel, S., et al., Unique properties of mesoprefrontal neurons within a dual mesocorticolimbic dopamine system. Neuron, 2008. 57(5): p. 760–73.

  5. Sochivko, D., et al., The Ca(V)2.3 Ca(2+) channel subunit contributes to R-type Ca(2+) currents in murine hippocampal and neocortical neurones. J Physiol, 2002. 542(Pt 3): p. 699–710.

  6. Wilson, S.M., et al., The status of voltage-dependent calcium channels in α 1E knock-out mice. J Neurosci, 2000. 20(23): p. 8566–71.

  7. Chan, C.S., et al., 'Rejuvenation' protects neurons in mouse models of Parkinson's disease. Nature, 2007. 447(7148): p. 1081–6.

  8. Dragicevic, E., J. Schiemann, and B. Liss, Dopamine midbrain neurons in health and Parkinson’s disease: Emerging roles of voltage-gated calcium channels and ATP-sensitive potassium channels. Neuroscience, 2015. 284: p. 798–814.

  9. Ortner, N.J., et al., Lower Affinity of Isradipine for L-Type ca2+ Channels during Substantia Nigra Dopamine Neuron-Like Activity: Implications for Neuroprotection in Parkinson's Disease. J Neurosci, 2017. 37(28): p. 6761–6777.

  10. Puopolo, M., E. Raviola, and B.P. Bean, Roles of subthreshold calcium current and sodium current in spontaneous firing of mouse midbrain dopamine neurons. J Neurosci, 2007. 27(3): p. 645–56.

  11. Mercuri, N.B., et al., Effects of dihydropyridine calcium antagonists on rat midbrain dopaminergic neurones. Br J Pharmacol, 1994. 113(3): p. 831–8.

  12. Guzman, J.N., et al., Robust pacemaking in substantia nigra dopaminergic neurons. J Neurosci, 2009. 29(35): p. 11011–9.

  13. Aguila, J., et al., Spatial RNA Sequencing Identifies Robust Markers of Vulnerable and Resistant Human Midbrain Dopamine Neurons and Their Expression in Parkinson’s Disease. Frontiers in Molecular Neuroscience, 2021. 14.

  14. Scharinger, A., et al., Cell-type-specific tuning of Cav1.3 Ca(2+)-channels by a C-terminal automodulatory domain. Frontiers in Cellular Neuroscience, 2015. 9: p. 309.

  15. Pinggera, A., et al., CACNA1D de novo mutations in autism spectrum disorders activate Cav1.3 Ltype calcium channels. Biol Psychiatry, 2015. 77(9): p. 816–22.

https://doi.org/10.7554/eLife.67464.sa2

Article and author information

Author details

  1. Anita Siller

    Department of Pharmacology and Toxicology, Institute of Pharmacy, Center for Molecular Biosciences Innsbruck, University of Innsbruck, Innsbruck, Austria
    Contribution
    Conceptualization, Data curation, Formal analysis, Visualization, Writing – original draft, Writing – review and editing
    Competing interests
    The authors declare that they have no financial and non-financial competing interests
  2. Nadja T Hofer

    Department of Pharmacology and Toxicology, Institute of Pharmacy, Center for Molecular Biosciences Innsbruck, University of Innsbruck, Innsbruck, Austria
    Contribution
    Data curation, Formal analysis, Writing – review and editing
    Competing interests
    No competing interests declared
  3. Giulia Tomagra

    Department of Drug Science, NIS Centre, University of Torino, Torino, Italy
    Contribution
    Data curation, Formal analysis, Writing – review and editing
    Competing interests
    No competing interests declared
  4. Nicole Burkert

    Institute of Applied Physiology, University of Ulm, Ulm, Germany, Ulm, Germany
    Contribution
    Data curation, Writing – review and editing, Formal analysis
    Competing interests
    No competing interests declared
  5. Simon Hess

    Institute for Zoology, Biocenter, University of Cologne, Cologne, Germany
    Contribution
    Data curation, Formal analysis, Writing – review and editing
    Competing interests
    No competing interests declared
  6. Julia Benkert

    Institute of Applied Physiology, University of Ulm, Ulm, Germany, Ulm, Germany
    Contribution
    Data curation, Formal analysis, Writing – review and editing
    Competing interests
    No competing interests declared
  7. Aisylu Gaifullina

    Institute of Applied Physiology, University of Ulm, Ulm, Germany, Ulm, Germany
    Contribution
    Data curation, Formal analysis, Writing – review and editing
    Competing interests
    No competing interests declared
  8. Desiree Spaich

    Institute of Applied Physiology, University of Ulm, Ulm, Germany, Ulm, Germany
    Contribution
    Data curation, Formal analysis, Writing – review and editing
    Competing interests
    The authors declare that they have no financial and non-financial competing interests
  9. Johanna Duda

    Institute of Applied Physiology, University of Ulm, Ulm, Germany, Ulm, Germany
    Contribution
    Data curation, Formal analysis, Writing – review and editing
    Competing interests
    The authors declare that they have no financial and non-financial competing interests
  10. Christina Poetschke

    Institute of Applied Physiology, University of Ulm, Ulm, Germany, Ulm, Germany
    Contribution
    Data curation, Formal analysis, Writing – review and editing
    Competing interests
    The authors declare that they have no financial and non-financial competing interests
  11. Kristina Vilusic

    Department of Pharmacology and Toxicology, Institute of Pharmacy, Center for Molecular Biosciences Innsbruck, University of Innsbruck, Innsbruck, Austria
    Contribution
    Data curation, Writing – review and editing
    Competing interests
    The authors declare that they have no financial and non-financial competing interests
  12. Eva Maria Fritz

    Department of Pharmacology and Toxicology, Institute of Pharmacy, Center for Molecular Biosciences Innsbruck, University of Innsbruck, Innsbruck, Austria
    Contribution
    Methodology, Writing – review and editing
    Competing interests
    The authors declare that they have no financial and non-financial competing interests
  13. Toni Schneider

    Institute of Neurophysiology, University of Cologne, Cologne, Germany
    Contribution
    Resources, Writing – review and editing
    Competing interests
    The authors declare that they have no financial and non-financial competing interests
  14. Peter Kloppenburg

    Institute for Zoology, Biocenter, University of Cologne, Cologne, Germany
    Contribution
    Data curation, Formal analysis, Writing – review and editing
    Competing interests
    The authors declare that they have no financial and non-financial competing interests
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4554-404X
  15. Birgit Liss

    1. Institute of Applied Physiology, University of Ulm, Ulm, Germany, Ulm, Germany
    2. Linacre College & New College, University of Oxford, Oxford, United Kingdom
    Contribution
    Supervision, Writing – review and editing, Formal analysis, Funding acquisition
    Competing interests
    No competing interests declared
  16. Valentina Carabelli

    Department of Drug Science, NIS Centre, University of Torino, Torino, Italy
    Contribution
    Formal analysis, Supervision, Writing – review and editing
    Competing interests
    The authors declare that they have no financial and non-financial competing interests
  17. Emilio Carbone

    Department of Drug Science, NIS Centre, University of Torino, Torino, Italy
    Contribution
    Formal analysis, Supervision, Funding acquisition, Writing – review and editing
    Competing interests
    The authors declare that they have no financial and non-financial competing interests
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2239-6280
  18. Nadine Jasmin Ortner

    Department of Pharmacology and Toxicology, Institute of Pharmacy, Center for Molecular Biosciences Innsbruck, University of Innsbruck, Innsbruck, Austria
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Methodology, Writing – original draft, Writing – review and editing
    For correspondence
    nadine.ortner@uibk.ac.at
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3882-3283
  19. Jörg Striessnig

    Department of Pharmacology and Toxicology, Institute of Pharmacy, Center for Molecular Biosciences Innsbruck, University of Innsbruck, Innsbruck, Austria
    Contribution
    Conceptualization, Supervision, Funding acquisition, Writing – original draft, Project administration, Writing – review and editing
    For correspondence
    joerg.striessnig@uibk.ac.at
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9406-7120

Funding

Austrian Science Fund (P27809)

  • Jörg Striessnig

Tyrolean Science Fund (UNI-0404/2345)

  • Nadine Jasmin Ortner

Italian Miur (2015FNWP34)

  • Emilio Carbone

Compagnia di San Paolo (CSTO165284)

  • Emilio Carbone

Austrian Science Fund (P35087)

  • Nadine Jasmin Ortner

Hamburg Institute for Advanced Study (Research Fellowship)

  • Birgit Liss

Austrian Science Fund (CavX-DOC 30 doc.fund)

  • Jörg Striessnig

Austrian Science Fund (P35722)

  • Jörg Striessnig

German Research Foundation (LI-1745/1, GRK1789)

  • Birgit Liss

Alfried Krupp von Bohlen und Halbach Foundation

  • Birgit Liss

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Dr. Veit Flockerzi for cDNA of β2 splice variants, and Jennifer Müller and Gospava Stojanovic for expert technical assistance.

Ethics

All animal experiments and procedures were performed in strict accordance with the European Community's Council Directive 2010/63/UE and approved by the Italian Ministry of Health and the Local Organism responsible for animal welfare at the University of Torino (authorization DGSAF 0011710-P-26/07/2017) and the local authorities at the University of Ulm (Regierungsprä;sidium Tübingen, Ref: 35/9185.81-3; Reg. Nr. o.147) and University of Cologne (LANUV NRW, Recklinghausen, Germany (84-02.05.20.12.254)).

Senior Editor

  1. Richard W Aldrich, The University of Texas at Austin, United States

Reviewing Editor

  1. Henry M Colecraft, Columbia University, United States

Publication history

  1. Preprint posted: February 10, 2021 (view preprint)
  2. Received: February 11, 2021
  3. Accepted: July 4, 2022
  4. Accepted Manuscript published: July 6, 2022 (version 1)
  5. Accepted Manuscript updated: July 8, 2022 (version 2)
  6. Version of Record published: July 22, 2022 (version 3)
  7. Version of Record updated: July 27, 2022 (version 4)

Copyright

© 2022, Siller et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 642
    Page views
  • 257
    Downloads
  • 2
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Anita Siller
  2. Nadja T Hofer
  3. Giulia Tomagra
  4. Nicole Burkert
  5. Simon Hess
  6. Julia Benkert
  7. Aisylu Gaifullina
  8. Desiree Spaich
  9. Johanna Duda
  10. Christina Poetschke
  11. Kristina Vilusic
  12. Eva Maria Fritz
  13. Toni Schneider
  14. Peter Kloppenburg
  15. Birgit Liss
  16. Valentina Carabelli
  17. Emilio Carbone
  18. Nadine Jasmin Ortner
  19. Jörg Striessnig
(2022)
β2-subunit alternative splicing stabilizes Cav2.3 Ca2+ channel activity during continuous midbrain dopamine neuron-like activity
eLife 11:e67464.
https://doi.org/10.7554/eLife.67464

Further reading

    1. Developmental Biology
    2. Neuroscience
    Emily L Heckman, Chris Q Doe
    Research Advance

    The organization of neural circuits determines nervous system function. Variability can arise during neural circuit development (e.g. neurite morphology, axon/dendrite position). To ensure robust nervous system function, mechanisms must exist to accommodate variation in neurite positioning during circuit formation. Previously we developed a model system in the Drosophila ventral nerve cord to conditionally induce positional variability of a proprioceptive sensory axon terminal, and used this model to show that when we altered the presynaptic position of the sensory neuron, its major postsynaptic interneuron partner modified its dendritic arbor to match the presynaptic contact, resulting in functional synaptic input (Sales et al., 2019). Here we investigate the cellular mechanisms by which the interneuron dendrites detect and match variation in presynaptic partner location and input strength. We manipulate the presynaptic sensory neuron by (a) ablation; (b) silencing or activation; or (c) altering its location in the neuropil. From these experiments we conclude that there are two opposing mechanisms used to establish functional connectivity in the face of presynaptic variability: presynaptic contact stimulates dendrite outgrowth locally, whereas presynaptic activity inhibits postsynaptic dendrite outgrowth globally. These mechanisms are only active during an early larval critical period for structural plasticity. Collectively, our data provide new insights into dendrite development, identifying mechanisms that allow dendrites to flexibly respond to developmental variability in presynaptic location and input strength.

    1. Epidemiology and Global Health
    2. Neuroscience
    Lorenza Dall'Aglio, Hannah H Kim ... Henning Tiemeier
    Research Article Updated

    Background:

    Associations between attention-deficit/hyperactivity disorder (ADHD) and brain morphology have been reported, although with several inconsistencies. These may partly stem from confounding bias, which could distort associations and limit generalizability. We examined how associations between brain morphology and ADHD symptoms change with adjustments for potential confounders typically overlooked in the literature (aim 1), and for the intelligence quotient (IQ) and head motion, which are generally corrected for but play ambiguous roles (aim 2).

    Methods:

    Participants were 10-year-old children from the Adolescent Brain Cognitive Development (N = 7722) and Generation R (N = 2531) Studies. Cortical area, volume, and thickness were measured with MRI and ADHD symptoms with the Child Behavior Checklist. Surface-based cross-sectional analyses were run.

    Results:

    ADHD symptoms related to widespread cortical regions when solely adjusting for demographic factors. Additional adjustments for socioeconomic and maternal behavioral confounders (aim 1) generally attenuated associations, as cluster sizes halved and effect sizes substantially reduced. Cluster sizes further changed when including IQ and head motion (aim 2), however, we argue that adjustments might have introduced bias.

    Conclusions:

    Careful confounder selection and control can help identify more robust and specific regions of associations for ADHD symptoms, across two cohorts. We provided guidance to minimizing confounding bias in psychiatric neuroimaging.

    Funding:

    Authors are supported by an NWO-VICI grant (NWO-ZonMW: 016.VICI.170.200 to HT) for HT, LDA, SL, and the Sophia Foundation S18-20, and Erasmus University and Erasmus MC Fellowship for RLM.
