A causal role for the right frontal eye fields in value comparison

  1. Ian Krajbich  Is a corresponding author
  2. Andres Mitsumasu
  3. Rafael Polania
  4. Christian C Ruff
  5. Ernst Fehr
  1. Departments of Psychology, Economics, The Ohio State University, United States
  2. Zurich Center for Neuroeconomics, Department of Economics, University of Zurich, Switzerland
  3. Decision Neuroscience Lab, Depterment of Heatlh Sciences and Technology, ETH Zurich, Switzerland
Research Article
  • Cited 0
  • Views 225
  • Annotations
Cite this article as: eLife 2021;10:e67477 doi: 10.7554/eLife.67477

Abstract

Recent studies have suggested close functional links between overt visual attention and decision making. This suggests that the corresponding mechanisms may interface in brain regions known to be crucial for guiding visual attention – such as the frontal eye field (FEF). Here, we combined brain stimulation, eye tracking, and computational approaches to explore this possibility. We show that inhibitory transcranial magnetic stimulation (TMS) over the right FEF has a causal impact on decision making, reducing the effect of gaze dwell time on choice while also increasing reaction times. We computationally characterize this putative mechanism by using the attentional drift diffusion model (aDDM), which reveals that FEF inhibition reduces the relative discounting of the non-fixated option in the comparison process. Our findings establish an important causal role of the right FEF in choice, elucidate the underlying mechanism, and provide support for one of the key causal hypotheses associated with the aDDM.

Editor's evaluation

Previous studies have suggested that the fixation of an object enhances the gain of its value signals that are temporally integrated during deliberation. The authors of the present study demonstrated that inhibition of the right frontal eye field (FEF) with transcranial magnetic stimulation reduces this multiplicative effect of fixation, suggesting that the FEF might be involved in the gaze-dependent modulation of value signals during decision making.

https://doi.org/10.7554/eLife.67477.sa0

Introduction

Despite the fact that decision making and visual attention are both central features of cognition, we still know relatively little about how they interact. A prominent view in decision neuroscience is that the decision process consists of sequential sampling of information, with the choice implemented once the decision maker accumulates enough net evidence in favor of one of the options (Ratcliff et al., 2016; Shadlen and Shohamy, 2016). Furthermore, experimental and theoretical accounts support the idea that such evidence accumulation is a domain-general mechanism underlying judgments about both the objective state of the physical world (perceptual decisions) (Bogacz et al., 2010; Forstmann et al., 2016; Gold and Heekeren, 2014; Hanks and Summerfield, 2017; O’Connell et al., 2018) and the subjective reward value of different choice options (Basten et al., 2010; Bhatia, 2013; Clithero, 2018; De Martino et al., 2013; Diederich, 2003; Fudenberg et al., 2018; Gluth et al., 2012; Hare et al., 2011; Hayden et al., 2011; Hunt et al., 2012; Hutcherson et al., 2015; Krajbich et al., 2015; Mormann et al., 2010; Philiastides and Ratcliff, 2013; Polanía et al., 2014; Rodriguez et al., 2014; Roe et al., 2001; Tajima et al., 2016; Trueblood et al., 2014; Webb, 2019; Woodford, 2014; Zhao et al., 2020).

Visual attention allows us to selectively process the information in our environment, allocating greater computational resources to elements of interest in the visual scene, at the cost of diminishing the processing of unattended components (Carrasco, 2011; Chelazzi et al., 2011; Failing and Theeuwes, 2018; Itti and Koch, 2001). Thus, the sequential orienting of attention toward different stimuli is crucial for understanding the whole visual scene and guiding our gaze through it (Eimer, 2014). Attention can either be directed overtly (i.e., by eye fixation) or covertly (during constant fixation), but the effects on neural processing and the underlying causal mechanisms are thought to be strongly related (Moore and Zirnsak, 2017).

Investigations into the link between overt attention and decision making have shown that, during decision making, subjects shift their gaze between the options until one of them is selected. These findings have led to proposals that overt attention may influence the evidence comparison process that guides choice behavior (Amasino et al., 2019; Ashby et al., 2016; Cavanagh et al., 2014; Folke et al., 2016; Hunt et al., 2018; Krajbich et al., 2010; Shimojo et al., 2003; Towal et al., 2013; Glickman et al., 2019). This proposed mechanism has been formalized by the attentional drift diffusion model (aDDM; Fisher, 2017; Konovalov and Krajbich, 2016; Krajbich and Rangel, 2011; Krajbich et al., 2010; Krajbich, 2019; Smith and Krajbich, 2019; Tavares et al., 2017) and is supported by several reports of reliable correlations between gaze patterns and choice (Kovach et al., 2014; Sepulveda et al., 2020; Smith and Krajbich, 2018; Stewart et al., 2015; Vaidya and Fellows, 2015) as well as experimental manipulations of attention that affect choice (Armel et al., 2008; Colas and Lu, 2017; Gwinn et al., 2019; Lim et al., 2011; Milosavljevic et al., 2012; Pärnamets et al., 2015), but see Ghaffari and Fiedler, 2018; Newell and Le Pelley, 2018. However, most of the existing studies have manipulated attention by means of salient stimulus changes or direct experimental instruction, which may possibly induce experimenter demand effects on choice.

In the present study, we investigated the possible neural interface between overt attention and value-based choice using non-invasive brain stimulation, which offers a unique opportunity to test the functional contributions of brain areas reported to guide overt attention without altering the experimental setup. We employed transcranial magnetic stimulation (TMS) and targeted the right human frontal eye field (FEF) – a brain region often reported to be activated during the control of both eye movements and selective visual attention (Corbetta and Shulman, 2002; Hung et al., 2011; Juan and Muggleton, 2012; Marshall et al., 2015; Moore and Zirnsak, 2017; Schall, 2015) (Materials and methods). We combined TMS with a value-based choice task, eye tracking, and the aDDM, to investigate how neural excitability modulations in the FEF affect both overt attention and the variables underlying the value-based choice process. Our choice task capitalizes on an important feature of the aDDM, namely that gaze has an amplifying effect on subjective values and so has a stronger effect on decisions between high-value items than low-value items (Shevlin and Krajbich, 2021; Smith and Krajbich, 2019; Westbrook et al., 2020). Thus, to characterize how TMS affects this process with high sensitivity, we employed a task with two overall-value conditions (low-value and high-value). This allowed us to test whether the FEF plays a causal role in the value-comparison process, and whether this effect is indeed stronger for higher-valued items, thereby indicating value amplification rather than just a gaze bias.

Results

Forty-five subjects participated in the experiment. First, subjects rated 148 different food items on a scale from 0 to 10 based on how much they would like to eat the food, or pressed the space bar for foods they did not want to eat (Figure 1A). After the rating task, subjects received inhibitory TMS over the right FEF (n = 23) or control TMS over the vertex (n = 22) (Figure 1D). In the second task, immediately after the TMS procedure, subjects made 180 decisions between pairs of positively rated food items (Figure 1B). The task had two conditions, differing with respect to overall value (OV = left item value+ right item value). In the high OV condition, subjects had to choose between two very appetitive (highly rated) foods, while decisions in the low OV condition only involved slightly appetitive (low rated) options (Figure 1C). This allowed us to test specifically whether any contributions of FEF to value processing during choice were additive (i.e., similar for both OV levels) or multiplicative (i.e., enhanced for high OVs) in nature. During the binary choice task, we recorded subjects’ gaze at 250 Hz with an EyeLink-1000 (http://www.sr-research.com/).

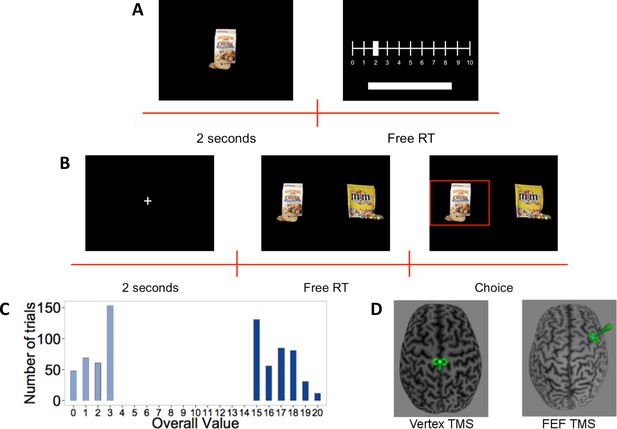

Experiment setup. (A) Rating-task timeline: Subjects saw each food item for 2 s and then rated how much they would like to eat it on a scale from 0 to 10, or excluded the item by pressing the space bar (no time limit).

(B) Choice-task timeline: Subjects first had to fixate a central cross for 2 s. They then had to choose between the two presented food items using the keyboard. The chosen food was then highlighted for 1 s. (C) Histogram of overall value (OV) in the choice task: Trials were constructed to have either very high or low OV. (D) Stimulation: After the rating task, subjects received continuous theta-burst transcranial magnetic stimulation (TMS) over the vertex (left panel) or right frontal eye field (FEF) (right panel), depicted here schematically by the small green TMS coil symbol over one subject’s brain reconstruction.

Computational modeling

Our theoretical framework is the aDDM (Krajbich et al., 2010, but note that we also demonstrate that our results are robust to the modeling framework). In the standard DDM, decision makers accumulate noisy evidence for the options until the net evidence reaches a predefined boundary. In a value-based DDM, the rate of evidence accumulation (‘drift rate’) thus reflects the difference in subjective values of the options. The aDDM extends this model by allowing the drift rate to change within a trial, based on which option is fixated. In particular, the model assumes that gaze amplifies the value of the fixated (relative to non-fixated) option, shifting the drift rate toward that choice option and increasing the likelihood that it is chosen. Because of this amplifying (multiplicative) mechanism in the model, gaze has a stronger effect on the drift rate for high-value options, leading to shorter reaction times (RTs) and a larger effect of dwell time on choice probability (Shevlin and Krajbich, 2021; Smith and Krajbich, 2019; Westbrook et al., 2020; Figure 2).

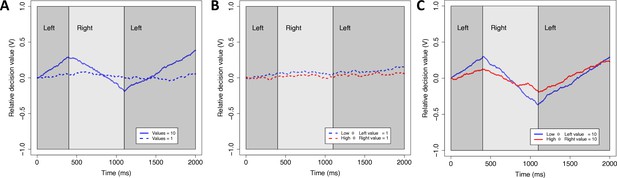

Simulations of the attentional drift diffusion model (aDDM).

To provide an intuition for why the aDDM makes different predictions for low and high overall value (OV), we simulated the aDDM, once with low values (dashed lines) and once with high values (solid lines). The simulations were run for a subject with a typical gaze discount factor (low θ-value, blue line) (θ = 0.3) and a subject with less of a discount (red line) (θ = 0.5). Dark (light) gray areas indicate periods where the subject is looking at the left (right) item. The relative decision value (V) evolves over time with a slope that is biased toward the item that is being fixated. The left item is selected when V reaches an upper boundary and the right item is selected when V reaches a lower boundary. (A) For a given θ, higher OV results in bigger changes in the slope (drift rate) when gaze shifts between left and right. (B) For low OV, shifts in gaze lead to little change in drift rate regardless of θ. (C) For high OV, shifts in gaze lead to large changes in drift rate, particularly for lower θ. Taken together, this means that the behavioral difference between low and high θ is much more pronounced for high vs. low OV. In particular, larger changes in drift rate lead to faster decisions and a stronger propensity to choose the longest fixated option.

Formally, the aDDM captures the evidence accumulation process with a relative decision value (RDV) that evolves stochastically as follows. Let Vt be the value of the RDV at time t while d is a constant that controls the speed of change (in units of ms−1), and let rleft and rright denote the values of the two options. Let θ (between 0 and 1) be a weight that discounts the value of the unattended alternative and, therefore, biases the RDV in favor of the attended one. ξ is white Gaussian noise with variance σ2, randomly sampled once every millisecond. Then, when a subject fixates on the left option, the RDV progresses according to Vt = Vt−1+ d (rleftθ rright) + ξ, and when the subject fixates on the right option, the RDV changes according to Vt = Vt-1+ d (θ rleftrright) + ξ.

If the RDV reaches the positive boundary the left reward is chosen and if it reaches the negative boundary the right reward is chosen.

The parameter θ captures the degree to which the value of the fixated option is amplified by attention. A lower value of θ (closer to 0) indicates a stronger attentional influence, meaning that the decision maker is more likely to choose the longer-attended option and to respond faster (Figure 2).

Does TMS affect the orienting of overt visual attention?

Before turning to the behavioral results, we first investigate whether FEF TMS had any effect on the gaze patterns, that is, the deployment of overt attention. Any such effects would need to be accounted for in our subsequent analyses. Our subjects had a strong tendency to look first at the left food item (69.3%, 95% CI = [62.4%, 76.1%], p = 10–6) (Figure 3). A logistic regression revealed that this tendency was reduced for high compared to low OV trials (OV: β = –0.194, CI = [–0.297,–0.091], p = 0.0002) in the vertex group, but that this difference between OV conditions was significantly reduced in the FEF group (FEF × OV: β = 0.222, CI = [0.058, 0.385], p = 0.008) (see Materials and methods).

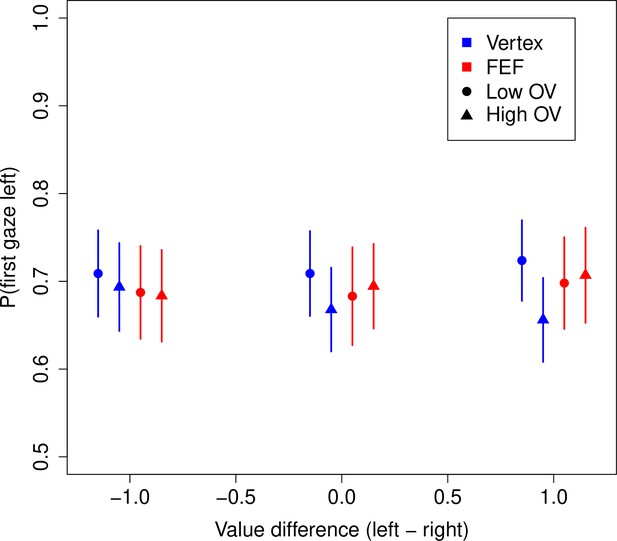

Frontal eye field (FEF) effects on gaze patterns.

Probability of looking first at the left food item during a trial. Subjects had a strong tendency to look left first. This tendency was slightly reduced in high vs. low overall value (OV) trials for the vertex group but not the FEF group. Bars are s.e.m., and the x-coordinates of the points are jittered around the true values of –1, 0, and 1.

A potential explanation for this effect is that for high OV trials, subjects are less likely to look left first because they are more likely to first look at the better item. We tested this idea with another logistic (mixed-effects) regression, looking at the probability of fixating the higher-rated item first. Consistent with prior work (Krajbich et al., 2010), a subject’s first gaze was no more likely than chance to go to the higher-rated item (50.2%, CI = [49.0%, 51.3%], p = 0.78). Moreover, we found no evidence for any OV or TMS effects. While the probability of fixating the better item was numerically lower for high OV trials in the vertex group (OV: β = –0.100, CI = [–0.253, 0.053], p = 0.2) and numerically higher under FEF TMS (FEF × OV: β = 0.126, CI = [–0.089, 0.340], p = 0.25), none of these effects reached statistical significance (see Materials and methods).

In sum, the only qualitative effect observed for FEF TMS on first fixation location seems to be that subjects look left first at the same rate in high (69.5%) and low (69.0%) OV trials, compared to vertex TMS for which the rate of looking left first is slightly reduced in high (67.2%) vs. low (71.4%) OV trials. We account for these effects in our later modeling to ensure that what we observe in the model parameters is not due to these differences in initial gaze allocation.

We also examined whether FEF TMS affected the gaze dwell times. In keeping with prior work (Krajbich et al., 2010; Krajbich et al., 2012), we separately analyzed first, middle, and last dwells. The basic reasoning is that first dwells tend to be shorter than the rest. The last dwell of the trial is also different from the rest in that it is cut short by the crossing of the decision threshold.

In the regression analyses, we found no hint of any main TMS effects or interaction effects (all p > 0.2) (see Materials and methods). Therefore, we conclude that FEF TMS did not induce any observable changes in dwell times relative to vertex TMS.

How does TMS affect choices and RTs?

To test the aDDM predictions about how the right FEF should contribute to value-based choices, we compared trials with high or low OV, since the aDDM predicts stronger attentional effects (and therefore TMS modulation) for trials with high OV. Based on our theoretical framework, we tested several specific hypotheses with regard to choices and RTs.

First, the aDDM predicts that subjects should select the longest-fixated alternative, and this effect should be stronger for high-OV trials. If the right FEF play a role in bringing about this multiplicative effect, then the FEF (compared to vertex) group should show a weaker effect of gaze on choice, particularly for the high-OV trials. We tested this hypothesis with a trial-level logistic mixed-effects regression in which the choice of the left item was the dependent variable, as a function of value difference (VD), TMS condition, OV, dwell-time advantage, and the interactions between the last three variables. The results confirmed all the predictions. During low-OV trials, subjects in the vertex group were more inclined to choose the left food item as its dwell-time advantage increased (dwell-time advantage: β = 0.966, CI = [0.477, 1.455], p = 0.0001). This effect increased strongly for high-OV trials, consistent with a multiplicative effect (OV × dwell-time advantage: β = 0.622, CI = [0.375, 0.869], p = 10–6; Figure 4A). The FEF group showed no difference with the vertex group for the dwell-time effect in low-OV trials (FEF × dwell-time advantage: β = 0.310, CI = [–0.373, 0.993], p = 0.37) but showed a substantial decrease relative to the vertex group in high-OV trials (FEF × OV × dwell-time advantage: β = –0.709, CI = [–1.018,–0.401], p = 10–5), In fact, the difference in dwell-time effects between low and high OV was eliminated in the FEF-TMS subjects, suggestive of a disruption of the multiplicative effect of gaze on value processing of the fixated option (Figure 4A, see Materials and methods).

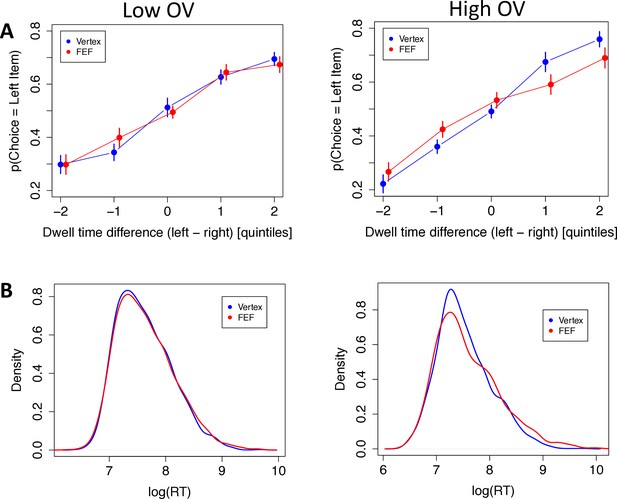

Behavioral results.

The left panels are for low overall value (OV) trials, the right panels are for high OV trials, and vertex subjects are displayed in blue, frontal eye field (FEF) subjects in red. (A) Choice data: The probability of choosing the left item as a function of the total dwell time difference between the left and right items. Quintiles were determined at the subject level. Quintile 0 represents decisions where both items had similar total dwell times. Negative quintiles indicate more dwell time for the right item and positive quintiles indicate more dwell time for the left item. Bars are s.e.m. (B) Density plots of log reaction time (RT) for low and high OV, respectively.

We investigated the robustness of this effect in a few ways. First, we additionally included an interaction between VD, TMS condition, and dwell-time advantage to check whether TMS had an effect on the interaction between VD and gaze. VD showed no significant interaction with dwell-time advantage (β = –0.051, CI = [–0.199, 0.096], p = 0.50), with TMS condition (β = –0.124, CI = [–0.309, 0.061], p = 0.19), or with their combination (β = –0.0001, CI = [–0.188, 0.188], p = 1). Meanwhile, the triple interaction between OV, dwell-time advantage, and TMS condition remained highly significant (β = –0.710, CI = [–1.019,–0.401], p = 10–5). Second, we sought to account for whether subjects exhibited spatial gaze biases, measured by where they tended to look first. We split the subjects into two groups based on whether they more likely to look at the left or right item first. Thirty-five subjects showed a leftward bias, while 10 showed a rightward bias, with a comparable distribution across the two experimental groups (four in the vertex group and six in the FEF group). We ran the mixed-effects logistic regression from the previous paragraph on each group separately. Reassuringly, the key triple interaction between dwell-time advantage, OV, and TMS condition was very similar in magnitude and significant in both groups (leftwards biased subjects: β = –0.700, CI = [–1.042,–0.359], p = 10–4; rightwards biased subjects: β = –0.779, CI = [–1.518,–0.040], p = 0.04). Third, we investigated the stability of the effect over the course of the experiment. We again ran the same logistic mixed-effects regression from the previous paragraph, but with an additional interaction between trial number and all the other regressors (and their interactions) except VD. This regression yielded no significant effects involving trial numbers (all p > 0.24), suggesting that TMS effects on behavior did not change systematically across the duration of the experiment.

The aDDM also predicts that subjects should have shorter RTs for high-OV trials compared to low-OV trials. Again, this effect should be reduced for the FEF (relative to vertex) group if FEF TMS reduces the multiplicative value-discounting effect of overt attention on the choice process. We tested this with a trial-level mixed-effects regression in which log(RT) was the dependent variable, as a function of |VD|, TMS condition, OV, and the interaction between the last two variables. We included |VD| as a measure of decision difficulty, as is standard; here, the effect was only marginal (|VD|: β = –0.02, CI = [–0.046, 0.007], p = 0.15), presumably because of the very narrow range of |VD| in our task, chosen to enhance sensitivity for our main question of interest. As expected, subjects in the vertex group were faster in high-OV compared to low-OV trials (OV: β = –0.1, CI = [–0.149,–0.052], p = 0.0006), and this was not changed by TMS for low-OV trials (TMS: β = 0.021, CI = [–0.136, 0.178], p = 0.79). The expected interaction between TMS and high OV was not significant, but pointed in the correct direction and numerically cut the effect of OV on RT by about half (TMS × OV: β = 0.06, CI = [–0.019, 0.139], p = 0.15).

For a more sensitive analysis of the RTs, we utilized the Kolmogorov-Smirnov (K-S) method to test for differences between the RT distributions. K-S tests revealed no difference between stimulation groups for low-OV trials (D = 0.022, p = 0.71) but a significant difference for high-OV trials (D = 0.064, p = 0.005) (Figure 4B). They also revealed significant differences between high- and low-OV trials in both groups, though the difference was numerically larger for the vertex group (D = 0.097, p = 10–8) than for the FEF group (D = 0.091, p = 10–7). Admittedly, however, these tests do not account for repeated measures per subject, so they should be treated with caution.

Model fitting

According to our hypothesis, inhibitory TMS on the right FEF should decrease the multiplicative gaze discount (i.e., increase θ) on the non-fixated option during the evidence accumulation process. The behavioral analyses reported above are consistent with this hypothesis. Next, we made simultaneous use of choice and RT data, using diffusion modeling, to provide more direct evidence for this hypothesis, by showing that the estimated θ parameters were indeed higher for subjects in the FEF-TMS group compared to the vertex-TMS group.

To do so, we used the software package HDDM to fit a hierarchical diffusion model that accounts for the effects of gaze on choice. In addition to the standard threshold separation (a), starting-point (z), and non-decision time (Ter) parameters, we also estimated drift rate as a function of the food ratings and dwell-time proportion (see Materials and methods).

Looking first at threshold separation, we found no difference between the groups, either in the group-level parameter distributions (aFEF = 2.67, [2.42, 2.85]; avertex = 2.63, [2.42, 2.94]; mean difference = 0.042, [–0.337, 0.434], p(avertex< aFEF) = 0.60) or in the subject-level parameter estimates (t(40.3) = 0.29, p = 0.78). This clearly indicates that there was no change in response caution between the two groups. Looking next at the non-decision-time parameter, we again found no difference between the groups, either in the group-level parameter distributions (TerFEF = 694 ms, [633, 762]; Tervertex = 666 ms, [609, 728]; mean difference = 0.029, [–0.073, 0.126], p(Tervertex< TerFEF) = 0.74) or in the subject-level parameter estimates (t(42.8) = 0.72, p = 0.47). This indicates that there was also no change in general RT components that are separate from the decision process.

In the model, we also accounted for potential additive effects of gaze on choice (i.e., changes that do not reflect modulation of value evidence but that are constant and independent of item values). We did observe significant additive effects of gaze direction, but importantly, these effects did not differ between the groups, either in the group-level parameter distributions (β3FEF = 0.707, [0.416, 1.010]; β3vertex = 0.589, [0.337, 0.861]; mean difference = 0.119, [–0.325, 0.579], P(β3vertex< β3FEF) = 0.73) or in the subject-level parameter estimates (t(40.1) = 0.86, p = 0.40).

Having established that FEF TMS does not affect general, value-independent response processes, we turn to our key test. Comparing the two groups on the θ estimates, we found that the estimated θ was lower for the vertex group (θ = 0.744) than for the FEF group (θ = 0.902), marginally at the group level (mean difference = 0.160 [–0.141, 0.468], p(θvertex< θFEF) = 0.89) and significantly at the subject level (t(42.9) = 2.85, p = 0.007). This suggests that the effects on choice behavior induced by TMS on the right FEF were specifically due to the multiplicative aDDM effects, and not due to changes in response caution, non-decision-time, or additive gaze effects.

We also observed some counteracting spatial biases in the modeling results. In the FEF group, we found evidence for a starting-point bias to the left but for a drift-rate bias to the right, relative to the vertex group. The starting point in the FEF group (z = 0.506, [0.493, 0.519]) was greater than in the vertex group (z = 0.491, [0.477, 0.506]) at the group level (mean difference = 0.014 [–0.007, 0.037], p(θvertex< θFEF) = 0.93) and at the subject level (t(29.3) = 3.64, p = 0.001). However, the drift-rate intercept in the FEF group (β0 = –0.018 [–0.056, 0.019]) was lower than in the vertex group (β0 = 0.017 [–0.029, 0.061]) at the group level (mean difference = –0.035 [–0.100, 0.034], p(θvertex< θFEF) = 0.12) and at the subject level (t(36.3) = –3.44, p = 0.001). Please note that because these effects are of opposite direction, they do not have a net biasing effect on behavior.

In sum, the results that we have presented demonstrate that FEF TMS reduces the effect of gaze on choice even when the observed gaze patterns and possible complex spatial biases are accounted for. Thus, FEF TMS has effects on value discounting during choice that are independent of any effects the stimulation may have on gaze patterns or spatial biases themselves.

Discussion

Based on our computational modeling framework, we developed a paradigm that allowed us to causally manipulate value-based choice by inhibiting the right FEF with TMS. Formal computational modeling using HDDM confirmed that the FEF inhibition reduced gaze effects on choice in high-value trials, that is, it increased the gaze discount factor θ. Importantly, this change was measured after accounting for the limited effects of the FEF stimulation on the gaze patterns themselves, as well as on value-independent decision processes.

Our results provide a neural validation for a central assumption in the aDDM, namely that overt attention amplifies the subjective values of the items, leading to larger effects on choice for higher-valued items (Smith and Krajbich, 2019). In designing our experiment, we capitalized on this feature of the model by contrasting low- and high-value trials. We also constrained VD to be as small as possible, because that is when the effects of gaze are most apparent (Krajbich, 2019). By showing that FEF stimulation affected choices and RTs in high-value but not low-value trials, we confirmed a role for right FEF in attention-based value modulation during choice, and further validated the multiplicative nature of the aDDM (Westbrook et al., 2020).

More generally, our results build on a literature documenting the DDM-like neural mechanisms underlying value-based choice. These papers have used EEG (Polanía et al., 2014), fMRI (Basten et al., 2010; Gluth et al., 2012; Hare et al., 2011; Lim et al., 2011; Rodriguez et al., 2015), and their combination (Pisauro et al., 2017), to identify neural signatures of evidence accumulation in structures such as the dorsal/posterior medial prefrontal cortex, dorsolateral prefrontal cortex, and intraparietal sulci. Our results suggest that the right FEF may play a critical role in contributing to the resulting integration activity in this set of regions, through implementing a multiplicative value-discounting effect linked to the focus of overt attention.

Our results also suggest some interesting parallels in how overt attention may influence, by means of FEF and its feedback projections, both perceptual and value systems in the human brain. As for perception – where mainly covert rather than overt attention has been studied – previous psychophysical studies have shown that, relative to unattended visual stimuli, perceptual sensitivity is enhanced for attended elements of the visual scene (Barbot et al., 2011; Herrmann et al., 2010; Montagna et al., 2009; Pestilli et al., 2007; Pestilli and Carrasco, 2005). These investigations suggest that attended visual stimuli may have stronger neural representations than unattended ones, and this view has been supported by neurophysiological reports in humans (Kastner et al., 1998; Liu et al., 2005; O’Craven et al., 1997) and non-human primates (Connor et al., 1997; Martínez-Trujillo and Treue, 2002; Reynolds et al., 2000; Reynolds and Desimone, 2003). More precisely, these investigations have shown that neuronal populations that code for covertly attended locations of the visual scene display enhanced activity, relative to neurons representing unattended locations. Importantly, the FEF is a possible source of these attention-dependent modulations: Investigations combining brain stimulation with neuroimaging techniques have shown that modulations of neuronal activity in the FEF induce top-down modulatory effects on both behavior and neuronal activity in early visual areas that resemble effects of attention (Moore and Armstrong, 2003; Moore and Fallah, 2004; Ruff et al., 2006; Silvanto et al., 2006; Taylor et al., 2007). Additionally, it has been suggested that attention-dependent behavioral effects are due to a boost in synchronization between FEF and V4 at the gamma-band frequency (Gregoriou et al., 2009).

In light of this information, it is interesting that TMS of the FEF also leads to decreasing modulatory effects of attention on the value of non-attended items, even though these effects were observed for overt rather than covert attention as in the perceptual studies. Could these behavioral effects reflect that the FEF may exert similar top-down modulatory effects on value representations? Extensive research indicates that such value representations are found in a large network of brain areas including the ventromedial prefrontal cortex, orbitofrontal cortex, ventral striatum, and the posterior parietal cortex (Bartra et al., 2013; Boorman et al., 2009; Clithero and Rangel, 2014; Cromwell and Schultz, 2003; Kahnt et al., 2014; Knutson et al., 2001; Padoa-Schioppa and Assad, 2006; Plassmann et al., 2007; Platt and Glimcher, 1999). Moreover, these value-related BOLD signals are increased when attention is directed to the value (rather than other aspects) of objects (Grueschow et al., 2015; Grabenhorst and Rolls, 2008), or when participants attend to specific value-relevant aspects of a given stimulus (Lim et al., 2011). Interestingly, in another analogy to the perceptual domain, attending to the value of items leads to increases in fronto-posterior synchronization in the gamma frequency (Polanía et al., 2014), and decreasing the degree of this coherence by brain stimulation leads to inaccurate value-based choices (Polanía et al., 2015). None of these studies have explicitly examined to what degree these attentional effects on value-based choices may involve the FEF, but our current results suggest that this should be a fruitful area for future studies. Moreover, given that many of the attentional effects of the FEF in the human brain appear to be lateralized to the right FEF (Ruff et al., 2009; Vernet et al., 2014), our results also raise the interesting question whether stimulation of the left FEF may have similar or different effects on the value modulations occurring as a consequence of overt attention.

One set of findings that is difficult to fully explain is why the FEF group displayed a relative starting-point bias to the left but a drift-rate bias to the right. The starting point of the DDM is meant to capture pre-decisional information that subjects might incorporate into their choices, while the drift rate is meant to capture information that is gathered while evaluating the options. Both positive starting-point and drift-rate biases increase the probability of choosing left, but they have different effects on the RT distributions. The two groups did not differ in their propensity to choose the left option, consistent with the starting-point and drift-rate biases pointing in opposite directions. Because these two mechanisms have similar effects on behavior, they can often be negatively correlated when there is no true effect. This is likely what happened here, but these results may warrant further investigation.

Taken together, our findings demonstrate the relevance of the FEF for gaze-dependent modulations of value-based decision processes, and they suggest directions for future investigations on the interaction between visual-attention brain networks and areas coding value signals.

Materials and methods

Participants

Forty-five right-handed subjects (20 females, mean age ± SD = 23.14 ± 2.39) without a history of implanted metal objects, seizures, or any other neurological or psychiatric disease participated in the experiment. No power analysis was used but the sample size was based on comparable TMS and eye-tracking studies at the time of data collection. Only subjects who reported not being on a diet were allowed to participate. Subjects were informed about all aspects of the experiment and gave written informed consent. Subjects received monetary compensation for their participation, in addition to receiving – at the end of the experiment – the chosen food item from a randomly selected choice trial. The experiments conformed to the Declaration of Helsinki and the Ethics Committee of the Canton of Zurich approved the experimental protocol.

Experimental design

Request a detailed protocol

In a first task, subjects rated 148 food items (average duration of 10 min and 16 s, SD = 1 min and 5 s). Every food item was presented individually on a computer screen for 2 s, followed by a rating screen (free response time). Subjects were instructed to press the space bar for those food items that they did not like at all, and to rate the remaining items on a scale from 0 to 10 based on how much they would like to eat that food at the end of the experiment. This rating task gave us a measure of the subjective value for each food item and allowed us to exclude disliked items.

After the rating task, subjects received inhibitory TMS (see below) on the right FEF or control stimulation on the vertex. We chose the right FEF because this structure is one part of the well-established ‘dorsal attention network’ (Corbetta and Shulman, 2002) and is known to contain neurons involved in various functions relevant for attention and visual cognition, such as target discrimination, overt attention, saccadic eye movements, visual search, and covert attention toward specific visual field locations (Moore and Zirnsak, 2017; Schall, 2015). Moreover, FEF neurons have been shown to encode the reward value of objects in the current visual scene (Ding and Hikosaka, 2006; Glaser et al., 2016; Roesch and Olson, 2007; Serences, 2008) and are modulated in their attention-guiding function by dopaminergic neuromodulation (Noudoost and Moore, 2011). This suggests close functional interactions of the FEF with value-coding and dopaminergic reward systems, making this region an ideal candidate to house brain mechanisms responsible for top-down influences linked to overt attention on value computations during goal-directed choice. Due to the well-established right-hemispheric dominance in humans for the orienting of spatial attention and other visual-cognition functions (Gitelman et al., 1999; Heilman and Van Den Abell, 1980; Mesulam, 1981; Ruff et al., 2009; Vernet et al., 2014), we chose the right FEF as our target.

Subjects were randomly assigned either to the control stimulation group or to the experimental stimulation group (FEF-TMS) before showing up to the experiment. Subjects were blind to their stimulation site, but the experimenters were not (at any part of the experiment or analysis). In the second task, immediately after the stimulation procedure, participants made 180 decisions between pairs of positively rated food items (average duration of 20 min and 36 s, SD = 5 min and 18 s). The food items we presented were selected such that – for each participant – the difference in ratings between the left and right items (VD = left item value − right item value) was constrained to be –1, 0 or +1. This allowed us to focus on difficult choice problems where overt attention is most likely to affect the choice outcomes and where modulatory effects due to the TMS should thus be most sensitively observed.

Choice trials with no gaze time on any food item were excluded from the analysis (0.008% of the pooled data from the 45 subjects). The mean (s.e.m.) number of trials dropped per subject was 1.44 ± 0.67. Both tasks were programmed in Matlab 2013b (Matworks), using the Psychophysics Toolbox extension (Brainard, 1997). We used R for statistical analysis as well as the HDDM analysis package for diffusion modeling (Wiecki et al., 2013).

Transcranial magnetic stimulation

Request a detailed protocol

Subjects performed the binary choice task after receiving continuous theta burst TMS on the FEF (experimental group, n = 23) or the vertex (control group, n = 22). In this TMS protocol – known to reduce neural excitability in the targeted area for more than 30 min – 600 magnetic pulses are administered over 40 s in bursts of three pulses at 50 Hz (20 ms) repeated at intervals of 5 Hz (200 ms) (Huang et al., 2005). Prior to the experimental tasks, a structural T1-weighted anatomical MRI scan was acquired for every subject and reconstructed in 3D for online neuro-navigation and precise placement of the TMS coil, with the Brainsight system (Rogue Research, Montreal, Canada). TMS pulses were delivered using a biphasic repetitive stimulator (Superapid2, Magstim, Withland, UK) with a 70 mm diameter eight-figure coil, and stimulation intensity was calibrated, for each subject, at 80% of active motor threshold. Passive motor threshold was defined as the single-pulse intensity required to elicit motor evoked potentials (>200 mV in amplitude) in at least five of ten pulses as indexed by electromyography in the Brainsight system (Rogue Research, Montreal, Canada). Active motor threshold was obtained by having the subject exert constant pressure, at 20% of maximum force, between the index finger and the thumb during the thresholding procedure described above. To stimulate the right FEF, the center of the coil was located over the right hemisphere, just anterior to the junction between the pre-central sulcus and superior frontal sulcus (MNI coordinates: xyz = 35.6 (±2.5), 3.9 (±2.7), 64 (±2.3)). During the stimulation procedure, the coil was positioned tangential to the targeted site and kept steady with a mechanical holding device (Manfrotto, Cassola, Italy), with its handle oriented ~45° in a rostral-to-caudal and lateral-to-medial orientation (i.e., parallel to the central sulcus). For stimulation on the vertex, the procedure was as above except that the center of the coil was located over the central fissure, at the intersection of the left and right central sulci, with the handle pointing backward.

Behavioral analysis and model fitting

Request a detailed protocol

We first investigated whether TMS had any effect on the gaze patterns in the data. We conducted a logistic regression with clustered standard errors (mixed-effects models would not converge) in which first spatial fixation location (left = 1, right = 0) was the dependent variable, regressed on OV interacted with a dummy variable for FEF-TMS group. We then conducted a mixed-effects logistic regression where first fixation location (coded as higher-rated item = 1, lower-rated item = 0) was regressed on OV interacted with a dummy variable for FEF-TMS group. Finally, we also conducted three regressions with clustered standard errors (mixed-effects models would not converge) to analyze the length of first, middle (all but first and last), and last dwell times. In each regression, log dwell time was regressed on TMS condition, position (left or right), OV, and VD (left – right), all interacted together.

We next tested specific hypotheses about choices and RTs based on our theoretical framework. First, we conducted standard generalized linear model analyses. Specifically, we conducted a trial-level logistic mixed-effects regression in which the chosen item (left = 1, right = 0) was the dependent variable, regressed on VD (left – right), a dummy variable for FEF-TMS group, a dummy variable for the OV condition, dwell-time advantage (total gaze dwell time spent on left – right item), and the interactions between the last three variables. The dwell-time advantage is our variable of interest as it captures the effect of increased attention on choice; VD is included as a control variable to account for the difficulty of the decision. The model with full random effects would not converge, so we report the model with a random intercept and random slopes for VD and dwell-time advantage; we obtain nearly identical results if we instead simply omit the random intercept from the full model. Additionally, we ran the same logistic regression model but with clustered standard errors, which is an alternative way to account for repeated observations within subjects. We additionally ran versions of this same model with interactions between VD and the other variables (except OV), with interactions between trial number and the other variables (except VD), and with two groups of subjects based on whether they were more likely to look left or right first.

To examine differences in RTs, we first computed median RTs in high and low OV trials for each subject and then compared them using paired t-tests. For a more sensitive analysis, we additionally performed non-parametric K-S tests between the pooled RT distributions.

All behavioral analyses were conducted using R and mixed-effects regressions used the R package lme4.

Second, to test for differential effects in how TMS affected attention-based choice mechanisms, we utilized the HDDM package (Wiecki et al., 2013). This package uses Bayesian methods to estimate both group-level and subject-level DDM parameters. The package has a very useful regression feature, allowing the user to regress DDM parameters on trial-level features. A recent paper noted that one can use this feature to estimate gaze effects on drift rate (Cavanagh et al., 2014). A simple trick allows us to actually recover the gaze-discounting parameter θ directly using this technique. In particular, we run the following regression:

v=β0+β1(rleftgleftrrightgright)+β2(rleftgrightrrightgleft)+β3(gleftgright)+ε

where v is the drift rate, r are the values of the options, g is the fraction of the trial spent looking at the option, and the subscripts left and right indicate the left and right options, respectively. β1=β2 is the special case where gaze has no multiplicative effect on drift rate and β3 = 0 is the special case where gaze has no additive effect on drift rate; in that case the model reduces to simply v=β0+β1rleft-rright+ε, which is the standard DDM. When β1§amp;gt;β2 , gaze has an amplifying effect on drift rate, as predicted by the aDDM, and β2/β1=θ. We include the third term β3) to account for any possible additive effects of gaze on choice (Cavanagh et al., 2014; Westbrook et al., 2020).

For these models, we used the default priors in HDDM. As recommended in the HDDM documentation, we allowed for 5% of trials to be ‘outliers’, that is, generated by a non-DDM process. We used three chains of 10,000 samples each, with the first 5000 samples discarded as burn in. To ensure model convergence, Gelman-Rubin r-hat values were inspected and all were less than 1.1.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. Source data files have been provided for Figures 3 and 4.

The following data sets were generated
    1. Mitsumasu A
    2. Krajbich I
    3. Polania R
    4. Ruff C
    5. Fehr E
    (2021) Open Science Framework
    ID osf.io/xmkzs/. A causal role for the right frontal eye fields in value comparison.

References

    1. Armel KC
    2. Beaumel A
    3. Rangel A
    (2008)
    Biasing simple choices by manipulating relative visual attention
    Judgment and Decision Making 3:396–403.
    1. Knutson B
    2. Adams CM
    3. Fong GW
    4. Hommer D
    (2001)
    Anticipation of increasing monetary reward selectively recruits nucleus accumbens
    The Journal of Neuroscience 21:RC159.
    1. Smith SM
    2. Krajbich I
    (2018) Attention and choice across domains
    Journal of Experimental Psychology. General 147:1810–1826.
    https://doi.org/10.1037/xge0000482

Decision letter

  1. Daeyeol Lee
    Reviewing Editor; Johns Hopkins University, United States
  2. Tirin Moore
    Senior Editor; Stanford University, United States
  3. Daeyeol Lee
    Reviewer; Johns Hopkins University, United States
  4. Laurence Tudor Hunt
    Reviewer; University of Oxford, United Kingdom
  5. Woo-Young Ahn
    Reviewer; Seoul National University, Korea (South), Republic of

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

Thank you for submitting your article "A causal role for the right frontal eye fields in value comparison" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Daeyeol Lee as Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Tirin Moore as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Laurence Tudor Hunt (Reviewer #2); Woo-Young Ahn (Reviewer #3).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

Mitsumasu et al., tested the predictions from the attentional drift-diffusion model (aDDF) in humans by applying "inhibitory" transcranial magnetic stimulation over the right frontal eye field during a value-based binary choice task. The main prediction tested in this study is that the multiplicative effect of gaze on fixated item (quantified by the parameter theta that discounts the effect of value of non-fixated item) would be reduced especially for the high-value items by the inhibition of the FEF via its role on attention. The authors have controlled for any potential direct effect of FEF modulation on eye movements, and still demonstrated the predicted effect of TMS on theta. The experiments and analyses are also carefully conducted.

1) The use of the term attention in this paper (as well as in the previous work) causes some confusion because contrary to the vast behavioral and neurophysiological literature on attention, attention in this study refers to the fixation (hence referred to as "overt" attention by the authors). It might be helpful to clarify this in the introduction and abstract by explicitly stating that the authors are only referring to 'overt attention' (i.e. fixation) thoughout the paper, and are not considering the role of covert attention.

2) The main finding in this study is that the inhibitory effect of TMS reduces the discounting of the non-fixated item. Although this is consistent with the predictions of the aDDM model, it is not obvious how this can be reconciled with the type of attentional modulation observed physiologically, because most FEF neurons are lateralized and there is evidence for TMS to FEF producing lateralised effects in spatial orienting (e.g. https://academic.oup.com/cercor/article/17/2/391/317872). How do the authors account for the fact that the effect of TMS observed in this study in relation to the attentional modulation is not lateralized? It is unfortunate that the study does not include the condition in which the left FEF was stimulated, because this would have served as a very useful control condition.

3) As can also be seen from main figure 4a, the effect size (i.e. the actual degree to which FEF TMS reduces the effect of dwell time difference on choice) is comparatively small. The effect on reaction times is similarly a modest one. This is certainly not unusual in TMS studies, but it does affect the degree to which one can draw strong conclusions about the role of FEF in affecting the multiplicative term of the aDDM (as opposed to, say, a more general role in attention). The authors attempt to rule out other non-specific effects on attention, but this is done slightly informally (as opposed to via model comparison with a competing alternative model to the aDDM) and its limitation should be discussed/acknowledged explicitly.

4) The authors did not study the interaction between value difference and attention, and the impact of FEF TMS on this. This might be another major area where predictions of the aDDM could be tested, but the authors instead focussed on a limited range of value difference trials (those close in value, where gaze time effects might be strongest). It would be good, at least, if the authors could unpick this further.

Reviewer #1 (Recommendations for the authors):

Mitsumasu et al., tested the predictions from the attentional drift-diffusion model (aDDF) in humans by applying "inhibitory" transcranial magnetic stimulation over the right frontal eye field during a value-based binary choice task. The main prediction tested in this study is that the multiplicative effect of gaze on fixated item (quantified by the parameter theta that discounts the effect of value of non-fixated item) would be reduced especially for the high-value items by the inhibition of the FEF via its role on attention. The authors have controlled for any potential direct effect of FEF modulation on eye movements, and still demonstrated the predicted effect of TMS on theta. The experiments and analyses are also carefully conducted.

The use of the term attention in this paper (as well as in the previous work) causes some confusion because contrary to the vast behavioral and neurophysiological literature on attention, attention in this study refers to the fixation (hence referred to as "overt" attention by the authors). Confusion caused by this terminology becomes a bit more serious in this study, as the authors begin to study the neuronal mechanisms of the attentional modulation in the FEF. For example, the main finding in this study is that the inhibitory effect of TMS reduces the discounting of the non-fixated item. Although this is consistent with the predictions of the aDDM model, it is not obvious how this can be reconciled with the type of attentional modulation observed physiologically, because most FEF neurons are lateralized. How do the authors account for the fact that the effect of TMS observed in this study in relation to the attentional modulation is not lateralized? Similarly, it is unfortunate that the study does not include the condition in which the left FEF was stimulated, because this would have served as a very useful control condition.

1. Was the left-ward bias with the first gaze consistent across all subjects? If not, did the results from the subjects with the right-ward bias show anything different?

2. Given that the duration of experiment is close to the expected duration of the TMS effect, does the attentional effect of TMS also diminish during the experiment?

Reviewer #2 (Recommendations for the authors):

This work aims to test the role of the frontal eye fields in the contribution of attention to value-based decision making. The authors apply offline transcranial magnetic stimulation (TMS) to the frontal eye fields (compared to a control condition where the vertex is stimulated), and perform a classic experiment in which subjects choose between different snack foods while freely gazing between them. The authors find that there is a (previously documented) effect of the overall value of the effects of attention on choice; when the overall value is higher, then dwell time has a greater influence on which item will be chosen. When the FEF is stimulated with TMS beforehand, however, this effect of dwell time on the chosen item is reduced, and there is also an effect on reaction time distributions for this condition. This suggests that FEF contributes to the influence of attention on value-based choice, and can be described by a reduction in the 'discounting' of the attended item in an attentional drift diffusion model.

Strengths:

This work benefits from having clearly described hypotheses and a rich body of related work from which it can directly make clear predictions of how TMS delivered to FEF may affect the interaction of attention and choice. The main effect of interest (main figure 4a) is clearly statistically significant, and is certainly of interest to the field. It is well described by the aDDM model, and the findings are clearly explained and elegantly fit with the central predictions of the experiment.

Weaknesses:

On the other hand, it can also be seen from main figure 4a that the effect size (i.e. the actual degree to which FEF TMS reduces the effect of dwell time difference on choice) is comparatively small. The effect on reaction times is similarly a modest one. This is certainly not unusual in TMS studies, but it does affect the degree to which one can draw strong conclusions about the role of FEF in affecting the multiplicative term of the aDDM (as opposed to, say, a more general role in attention). The authors attempt to rule out other non-specific effects on attention, but this is done slightly informally (as opposed to via model comparison with a competing alternative model to the aDDM).

I was also surprised that the authors did not study the interaction between value difference and attention, and the impact of FEF TMS on this. It seemed like this might be another major area where predictions of the aDDM could be tested, but the authors instead focussed on a limited range of value difference trials (those close in value, where gaze time effects might be strongest). It would be good, at least, if the authors could unpick this further.

It is somewhat a matter of taste, but I think figure 2 would be clearer if the panels held theta constant and varied overall value (that is, the two red lines from a and b were plotted on the same plot, and the two blue lines plotted on another plot). This is because the main point made in the text is that gaze has a stronger effect on the drift-rate for high value options – and so it would help if figure 2 made this point as clearly as possible. However, I can also see why the authors plotted this figure the way they did, so I leave it up to them to decide whether this plot should be rearranged.

I also wondered if it might help to directly illustrate this figure with theta of 0.776 (vertex theta) and 0.937 (FEF theta) rather than just an arbitrary low or high theta. The authors could then refer back to this figure when they fit the model to the data, explaining that these were the values that they used to generate this figure.

I also couldn't quite understand why the authors were only predicting an effect of TMS on the interaction between overall value and dwell-time, but not an effect of TMS on the interaction between value difference and dwell-time. The authors deliberately choose items that have a small value difference precisely because this is where dwell-time effects are strongest, and yet there is still a massive effect of value difference on choice behaviour (Z-statistic of 13.12, from table S1). So shouldn't the authors test the VD*dwelltime*TMS interaction also here?

p.13 "If anything, the probability of fixating the better item was numerically lower for high OV trials in the Vertex group…" – this sentence should be reworded to clarify that neither of the effects described are statistically meaningful.

p.16 I am unclear on how/why the t-tests in the Results section appear to have non-integer degrees of freedom? (e.g. "(t(40.2) = 0.30, p = 0.77)")

p.16 Vertex group are missing confidence intervals ((a = 2.63, CI = []))

Reviewer #3 (Recommendations for the authors):

Mitsumasu et al. investigated the role of frontal eye field (FEF) by using TMS, a value-based choice task, eye-tracking, and computational modeling. Authors recruited 45 participants (23 in the TMS experimental group, 22 in the Vertex control group) and have them complete a food choice task where they had to choose between the two presented food items. Authors used logistic regression for behavioral analysis and attentional drift diffusion modeling (aDDM) to estimate the attentional effect (theta parameter). With logistic regression analysis, authors showed that the probability of choosing an item is affected by overt attention (dwell time) in the high overall value (OV) condition as expected (Figure 4) and the theta parameter was significantly higher for the TMS group, which suggests that inhibitory TMS on the right FEF affects the comparison process.

1. Pdf page 11 and 12 – I'm not sure how the equations in page 11 (RDV) and page 12 (drift rate) are combined together for model fitting. Consider sharing the HDDM code as well for replication.

2. pdf page 11 – please indicate which package authors used for behavioral analysis. Also, the models authors used seem confusing and it will be great if exact commands or codes will be provided for replication.

3. Pdf page 12 – Please provide details on hierarchical Bayesian modeling including priors, the number of chains, MCMC samples, convergence check, etc.

4. Authors should not use a t-test and p-values on individual model parameters (I assume posterior means?) for comparing conditions or groups because they are estimated with hierarchical Bayesian modeling. Just use a Bayesian way and compare group parameters (e.g., Kruschke (2014)).

https://doi.org/10.7554/eLife.67477.sa1

Author response

1) The use of the term attention in this paper (as well as in the previous work) causes some confusion because contrary to the vast behavioral and neurophysiological literature on attention, attention in this study refers to the fixation (hence referred to as "overt" attention by the authors). It might be helpful to clarify this in the introduction and abstract by explicitly stating that the authors are only referring to 'overt attention' (i.e. fixation) thoughout the paper, and are not considering the role of covert attention.

We thank the reviewers for raising this important point. We fully agree that the concept of “attention” is multi-faceted and that we should narrow down the focus of our paper to “overt attention”. We now emphasize in the abstract, introduction, and discussion that we only investigate overt attention (i.e., gaze) and do not consider the role of covert attention.

2) The main finding in this study is that the inhibitory effect of TMS reduces the discounting of the non-fixated item. Although this is consistent with the predictions of the aDDM model, it is not obvious how this can be reconciled with the type of attentional modulation observed physiologically, because most FEF neurons are lateralized and there is evidence for TMS to FEF producing lateralised effects in spatial orienting (e.g. https://academic.oup.com/cercor/article/17/2/391/317872). How do the authors account for the fact that the effect of TMS observed in this study in relation to the attentional modulation is not lateralized? It is unfortunate that the study does not include the condition in which the left FEF was stimulated, because this would have served as a very useful control condition.

We also thank the reviewers for this point. We agree that in the monkey brain, FEF neurons are clearly lateralized, so that one could expect symmetrical effects on performance in the TMS-contralateral hemifield. However, we would like to note that in the human brain, this lateralization is much less clear-cut, probably not symmetric, and may depend strongly on the specific cognitive context (Ruff et al. 2009; Gitelman et al. 1999; Vernet et al. 2014). Even in the study that the reviewers helpfully mention, the lateralization is not obvious, since that study only examined neural activity and performance for TMS-contralateral visual stimulation; it is thus unclear how TMS may affect processing of ipsilateral stimuli. Most crucially, however, it should be noted that FEF neurons have multi-faceted functions that are likely to depend strongly on cognitive context (Vernet et al. 2014). This makes it unlikely that any effects observed for covert attention in the peripheral hemifield would equally apply to a setting requiring overt attention as studied here (see also the previous point raised by the reviewers). We now explicitly discuss this issue in the revised manuscript (p. 5)

The reviewer mentions that left-FEF TMS may have served as a good control condition. While we agree that running such an experiment may be interesting in the future, it is unclear what exactly one may be able to predict for its outcome. On the one hand, several studies have suggested that in the human brain, the left FEF does not have similar visuo-spatial functions as the right FEF and that corresponding stimulation may have weaker effects on performance in visual (but not motor) tasks (Ruff et al. 2009; Vernet et al. 2014). However, since it is well possible that the function we report in our manuscript is distinct from those investigated in the previous FEF TMS studies, it is in fact an open question whether left FEF TMS would have been a good control condition or would reveal similar effects as those reported in the manuscript. We thus highlight this interesting question for future studies in the revised manuscript (see p. 18).

References

Ruff, C. C., Blankenburg, F., Bjoertomt, O., Bestmann, S., Weiskopf, N., and Driver, J. (2009). Journal of Cognitive Neuroscience, 21(6), 1146.

Gitelman, D. R., Nobre, A. C., Parrish, T. B., LaBar, K. S., Kim, Y. H., Meyer, J. R., et al. (1999). Brain 122, 1093.

Vernet M, Quentin R, Chanes L, Mitsumasu A, Valero-Cabré A. (2014). Frontiers in Integrative Neuroscience. 8, 66.

3) As can also be seen from main figure 4a, the effect size (i.e. the actual degree to which FEF TMS reduces the effect of dwell time difference on choice) is comparatively small. The effect on reaction times is similarly a modest one. This is certainly not unusual in TMS studies, but it does affect the degree to which one can draw strong conclusions about the role of FEF in affecting the multiplicative term of the aDDM (as opposed to, say, a more general role in attention). The authors attempt to rule out other non-specific effects on attention, but this is done slightly informally (as opposed to via model comparison with a competing alternative model to the aDDM) and its limitation should be discussed/acknowledged explicitly.

We respectfully disagree with the reviewers’ estimation that the difference in the effect of dwell-time on choice between conditions is “small” compared to other effects reported for comparable tasks. The differences shown in Figure 4a (High OV) are on the order of 5-10%, which is substantial for a binary-choice study. Moreover, the low p-value of the effect (p=0.002 with clustered errors, p=10-5 with mixed effects) also suggests that the effect is not small relative to the noise in the data.

With regards to the specificity of the mechanism, we would like to emphasize that our experiment was explicitly designed to distinguish between the multiplicative aDDM effects and other more general (“attentional”) biases induced by gaze. The finding that TMS conditions differ for High but not Low OV provides clear evidence for the multiplicative mechanism, and this finding is established with a formal test based on the interaction between the TMS condition, OV, and dwell time advantage. That is, the difference in the effect of dwell time on choice between High and Low OV is significantly different between the two TMS conditions (p=10-5).

To make this specificity even clearer, we have performed another formal modeling exercise using the DDM and found that the multiplicative (and not additive) mechanism is what differs most between the TMS conditions. It is important to note that the purely additive model is nested within this more general model that we have estimated, so we have in fact provided a formal model comparison. However, with the benefit of hindsight, we appreciate that this may not have been obvious from the way we presented the modelling procedures and the results. To address this point (as well as some of the reviewers’ specific comments) we have now gone into more detail on the HDDM fitting and the resulting distributions of the parameters, the quality of the fits, etc. We hope this now clarifies that FEF-TMS primarily affects the multiplicative term.

4) The authors did not study the interaction between value difference and attention, and the impact of FEF TMS on this. This might be another major area where predictions of the aDDM could be tested, but the authors instead focussed on a limited range of value difference trials (those close in value, where gaze time effects might be strongest). It would be good, at least, if the authors could unpick this further.

As correctly noted by the reviewer, we indeed focused our design on those close-value trials that allowed us to test our hypotheses about TMS effects with the greatest sensitivity. Nevertheless, we agree that it may be interesting to consider possible interactions of value difference and gaze. To address this point within our design, we have now added VD interactions as a regressor to our critical choice regression analysis (with the additional regressors dwell-time advantage, OV, and TMS condition). We find no significant interactions between VD and either of these variables (or their combination), and we now report this in the manuscript on p.13. Second, we have now included a note in the methods and the discussion explaining why we designed our experiment to only include the smallest value differences (to maximize sensitivity for our main effect of interest).

Reviewer #1 (Recommendations for the authors):

1. Was the left-ward bias with the first gaze consistent across all subjects? If not, did the results from the subjects with the right-ward bias show anything different?

Overall the probability of fixating the left item first was 69.3%. 10 out of 45 subjects did not show this leftward bias, with a comparable distribution across the two experimental groups (4 in the Vertex group and 6 in the FEF group).

Ten subjects is too small a group to implement formal statistical comparisons, but we nevertheless ran our critical logistic regression of choice on value difference and the interaction between TMS condition, dwell time difference, and OV, separately for this group and the remaining 35 subjects. Reassuringly, the results of the two regressions were very similar. In the left-bias subjects, the dwell-time coefficient was β = 1.091, p = 0.0005, the dwell-time x OV coefficient was β = 0.538, p = 0.0001, and the dwell-time x OV x TMS coefficient was β = –0.700, p = 10-4. In the right-bias subjects, the dwell-time coefficient was β = 0.533, p = 0.07, the dwell-time x OV coefficient was β = 1.00, p = 0.001, and the dwell-time x OV x TMS coefficient was β = –0.779, p = 0.04.

We now describe these results in the main text on p. 13.

2. Given that the duration of experiment is close to the expected duration of the TMS effect, does the attentional effect of TMS also diminish during the experiment?

We have checked this in two ways using our critical logistic regression of choice on value difference and the interaction between TMS condition, dwell time difference, and OV. First, we added trial as an additional interaction factor. This regression yielded no significant effects for the main effect and interaction terms of trial number (all p>0.24). Second, we split the data in half (first 90 trials vs. last 90 trials) and ran the original regression (without trial number included) in each of the two halves of the data. The results of the two regressions were very similar. In the first half, the dwell-time coefficient was β = 0.965, p = 0.0002, the dwell-time x OV coefficient was β = 0.735, p = 10-5, and the dwell-time x OV x TMS coefficient was β = –0.708, p = 0.001. In the second half, the dwell-time coefficient was β = 1.14, p = 10-5, the dwell-time x OV coefficient was β = 0.442, p = 0.02, and the dwell-time x OV x TMS coefficient was β = –0.656, p = 0.006.

We now briefly mention these results in the paper (p. 13). For the sake of conciseness, in the revision we only briefly report and discuss the lack of time effects suggested by the trial-number regression, without reporting the separate split-half analyses. However, we would be happy to include everything if the review team deems this necessary.

Reviewer #2 (Recommendations for the authors):

It is somewhat a matter of taste, but I think figure 2 would be clearer if the panels held theta constant and varied overall value (that is, the two red lines from a and b were plotted on the same plot, and the two blue lines plotted on another plot). This is because the main point made in the text is that gaze has a stronger effect on the drift-rate for high value options – and so it would help if figure 2 made this point as clearly as possible. However, I can also see why the authors plotted this figure the way they did, so I leave it up to them to decide whether this plot should be rearranged.

We thank the reviewer for this excellent suggestion. Because the key point of the paper is that Vertex and FEF subjects have different theta values, we do feel it is important to contrast different theta values within the figure. However, we do agree that it is also useful to contrast the predictions with different OV levels. Thus, we have now included an additional panel to display that comparison.

I also wondered if it might help to directly illustrate this figure with theta of 0.776 (vertex theta) and 0.937 (FEF theta) rather than just an arbitrary low or high theta. The authors could then refer back to this figure when they fit the model to the data, explaining that these were the values that they used to generate this figure.

We thank the reviewer for this suggestion but we would prefer to stick with the existing simulation parameters, for a few reasons:

(1) This figure is meant to illustrate the intuition behind the predictions, not the actually observed data. The simulations use a much smaller noise term compared to the best-fitting model, in order to clearly visualize the change in slopes that correspond to shifts in gaze. So, in any case, the plots do not reflect the “true” parameters but are meant to help the reader understand the experimental logic.

(2) The figure was created based on our expectations going into the study. In past research using similar food-choice paradigms, the best estimate of baseline behavior has been θ = 0.3 (Krajbich et al. 2010; Krajbich and Rangel 2011). From that baseline we estimated a modest increase in θ to 0.5. Therefore, this figure accurately represents our prior hypotheses going into the study, which we should not change upon observing the results of our study.

(3) Simulations using the model parameters from the best-fitting model do not appreciably differ from those already in the figure. Author response image 1 is an example of a simulation with θ = 0.78 and 0.94, an additive effect of 0.62 (the average pooled effect), and otherwise the same parameters as the aDDM simulations in Figure 2. We thus do not think the manuscript would gain much from changes to this figure.

Author response image 1

I also couldn't quite understand why the authors were only predicting an effect of TMS on the interaction between overall value and dwell-time, but not an effect of TMS on the interaction between value difference and dwell-time. The authors deliberately choose items that have a small value difference precisely because this is where dwell-time effects are strongest, and yet there is still a massive effect of value difference on choice behaviour (Z-statistic of 13.12, from table S1). So shouldn't the authors test the VD*dwelltime*TMS interaction also here?

This is an interesting point. However, since we deliberately limited our design to the smallest value differences (0 or 1) where we expected to see the largest gaze effects, we are not well positioned to address this question. Nevertheless, we ran an expanded version of the logistic regression of left-choice on VD, TMS condition, OV, dwell-time advantage. This time we also included an interaction between VD, TMS condition and dwell-time advantage. While VD continued to be a very significant predictor of choice (p<10-16), it showed no significant interaction with dwell-time advantage (p = 0.50), with TMS condition (p = 0.19), or with their combination (p = 1). Meanwhile, the triple interaction between OV, dwell-time advantage, and TMS condition remained highly significant (p = 10-5). The results of this analysis are now included in the text (p. 13) and we also discuss more explicitly why we designed our study to focus on trials with small VDs (to increase our sensitivity for the main effects of interest, p. 5).

p.13 "If anything, the probability of fixating the better item was numerically lower for high OV trials in the Vertex group…" – this sentence should be reworded to clarify that neither of the effects described are statistically meaningful.

We have clarified that neither of these effects was significant.

p.16 I am unclear on how/why the t-tests in the Results section appear to have non-integer degrees of freedom? (e.g. "(t(40.2) = 0.30, p = 0.77)")

This is due to Welch’s correction factor for two-sample t-tests with unequal sample sizes and variances.

p.16 Vertex group are missing confidence intervals ((a = 2.63, CI = []))

Thanks. We have added in the missing confidence interval.

Reviewer #3 (Recommendations for the authors):

1. Pdf page 11 and 12 – I'm not sure how the equations in page 11 (RDV) and page 12 (drift rate) are combined together for model fitting. Consider sharing the HDDM code as well for replication.

Thanks for pointing out this potential source of confusion. The first set of equations describe the data-generating process, while the second equation is what we actually used to estimate the model. As described immediately above that equation, HDDM has a feature where you can specify the drift rate as a function of trial-level parameters. We input trial-level values and gaze proportions and HDDM estimates β1 and β2, which we then use to calculate θ.

As suggested, we have now included our HDDM code with the other data and code, with our revision, to help clarify these analyses and to allow others to easily replicate them.

2. pdf page 11 – please indicate which package authors used for behavioral analysis. Also, the models authors used seem confusing and it will be great if exact commands or codes will be provided for replication.

We have now clarified that we used R for all behavioral analyses and the package lme4 for mixed-effects models. We have included the R code for all figures and regressions along with the other data and code, with our revision.

3. Pdf page 12 – Please provide details on hierarchical Bayesian modeling including priors, the number of chains, MCMC samples, convergence check, etc.

We have now provided information on the priors, number of chains, and convergence checks in the Methods (p. 10) and in the HDDM notebook.

4. Authors should not use a t-test and p-values on individual model parameters (I assume posterior means?) for comparing conditions or groups because they are estimated with hierarchical Bayesian modeling. Just use a Bayesian way and compare group parameters (e.g., Kruschke (2014))

We thank the reviewer for this comment. We used tests of individual parameters to align with the non-Bayesian behavioral analyses presented earlier in the text. However, we agree that it is also informative to use the Bayesian approach and compare the posterior distributions of the group parameters. Those results are described below and are also now included in the Results (pp. 15-16). In the process, we also improved the model so that responses were coded as left vs. right rather than correct vs. error. This allows us to capture any spatial biases towards the left or right items. The results are qualitatively the same as before, though as seen below, there is a credible difference in starting-point bias and drift-rate intercept between the two groups, where FEF subjects were more likely to be biased towards the left items in starting point but towards the right items in drift rate. Given that these effects point in opposite directions, and that there are thus no overall differences in choice biases towards the left or right items, we don’t dwell on these results in the paper.

In terms of the difference in group θ parameters, the mean difference is 0.160 with a 95% HDI of [–0.141, 0.468] and P(θVertex< θFEF) = 0.89.

In terms of the additive gaze effect, the mean difference is 0.119 with a 95% HDI of [–0.325, 0.579] and P(β3Vertex< β3FEF) = 0.73.

In terms of the boundary separation, the mean difference is 0.042 with a 95% HDI of [–0.337, 0.434] and P(aVertex< aFEF) = 0.60.

In terms of the non-decision time, the mean difference is 0.029 with a 95% HDI of [–0.073, 0.126] and P(TerVertex< TerFEF) = 0.74.

In terms of the starting-point bias, the mean difference is 0.014 with a 95% HDI of [–0.007, 0.037] and P(zVertex< zFEF) = 0.93.

In terms of the drift-rate intercept, the mean difference is –0.035 with a 95% HDI of [–0.100, 0.034] and P(β0Vertex< β0FEF) = 0.12.

https://doi.org/10.7554/eLife.67477.sa2

Article and author information

Author details

  1. Ian Krajbich

    Departments of Psychology, Economics, The Ohio State University, Columbus, United States
    Contribution
    Conceptualization, Formal analysis, Investigation, Methodology, Supervision, Visualization, Writing – original draft, Writing – review and editing
    Contributed equally with
    Andres Mitsumasu
    For correspondence
    krajbich@gmail.com
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6618-5675
  2. Andres Mitsumasu

    Zurich Center for Neuroeconomics, Department of Economics, University of Zurich, Zurich, Switzerland
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Visualization
    Contributed equally with
    Ian Krajbich
    Competing interests
    No competing interests declared
  3. Rafael Polania

    1. Zurich Center for Neuroeconomics, Department of Economics, University of Zurich, Zurich, Switzerland
    2. Decision Neuroscience Lab, Depterment of Heatlh Sciences and Technology, ETH Zurich, Zurich, Switzerland
    Contribution
    Data curation, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6176-6806
  4. Christian C Ruff

    Zurich Center for Neuroeconomics, Department of Economics, University of Zurich, Zurich, Switzerland
    Contribution
    Conceptualization, Funding acquisition, Project administration, Supervision, Writing – original draft, Writing – review and editing
    Contributed equally with
    Ernst Fehr
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3964-2364
  5. Ernst Fehr

    Zurich Center for Neuroeconomics, Department of Economics, University of Zurich, Zurich, Switzerland
    Contribution
    Conceptualization, Funding acquisition, Project administration, Supervision, Writing – review and editing
    Contributed equally with
    Christian C Ruff
    Competing interests
    No competing interests declared

Funding

H2020 European Research Council (295642-FEP)

  • Ernst Fehr

Swiss National Science Foundation (105314_152891)

  • Christian Ruff

H2020 European Research Council (COG-2016-725355)

  • Christian C Ruff

National Science Foundation (1554837)

  • Ian Krajbich

Cattell Sabbatical Fund

  • Ian Krajbich

Swiss National Science Foundation (100019L_173248)

  • Christian C Ruff

H2020 European Research Council (research and innovation program (grant agreement No. 758604))

  • Rafael Polania

ETH Zürich (ETH-25 18-2)

  • Rafael Polania

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

Christian Ruff and Ernst Fehr jointly supervised this work as shared senior authors. Ernst Fehr acknowledges support from the European Research Council (Advanced Grant 295642-FEP). Christian Ruff acknowledges support from the Swiss National Science Foundation (SNF grants 105314_152891 and 100019L_173248) and the European Research Council (Consolidator Grant COG-2016–725355). Ian Krajbich acknowledges support from the National Science Foundation (NSF Career Award 1554837) and the Cattel Sabbatical Fund. We thank the staff at the SNS lab and the Neuroscience Center Zurich ZNZ for practical support. We also thank Blair Shevlin and Nitisha Desai for assistance with the modeling.

Ethics

Human subjects: The experiments conformed to the Declaration of Helsinki and the Ethics Committee of the Canton of Zurich approved the experimental protocol.

Senior Editor

  1. Tirin Moore, Stanford University, United States

Reviewing Editor

  1. Daeyeol Lee, Johns Hopkins University, United States

Reviewers

  1. Daeyeol Lee, Johns Hopkins University, United States
  2. Laurence Tudor Hunt, University of Oxford, United Kingdom
  3. Woo-Young Ahn, Seoul National University, Korea (South), Republic of

Publication history

  1. Received: February 12, 2021
  2. Preprint posted: March 4, 2021 (view preprint)
  3. Accepted: October 14, 2021
  4. Version of Record published: November 15, 2021 (version 1)

Copyright

© 2021, Krajbich et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 225
    Page views
  • 35
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Chromosomes and Gene Expression
    2. Computational and Systems Biology
    Lucy Ham et al.
    Research Article Updated

    Single-cell expression profiling opens up new vistas on cellular processes. Extensive cell-to-cell variability at the transcriptomic and proteomic level has been one of the stand-out observations. Because most experimental analyses are destructive we only have access to snapshot data of cellular states. This loss of temporal information presents significant challenges for inferring dynamics, as well as causes of cell-to-cell variability. In particular, we typically cannot separate dynamic variability from within cells (‘intrinsic noise’) from variability across the population (‘extrinsic noise’). Here, we make this non-identifiability mathematically precise, allowing us to identify new experimental set-ups that can assist in resolving this non-identifiability. We show that multiple generic reporters from the same biochemical pathways (e.g. mRNA and protein) can infer magnitudes of intrinsic and extrinsic transcriptional noise, identifying sources of heterogeneity. Stochastic simulations support our theory, and demonstrate that ‘pathway-reporters’ compare favourably to the well-known, but often difficult to implement, dual-reporter method.

    1. Computational and Systems Biology
    2. Neuroscience
    Cathy S Chen et al.
    Research Article

    Sex-based modulation of cognitive processes could set the stage for individual differences in vulnerability to neuropsychiatric disorders. While value-based decision making processes in particular have been proposed to be influenced by sex differences, the overall correct performance in decision making tasks often show variable or minimal differences across sexes. Computational tools allow us to uncover latent variables that define different decision making approaches, even in animals with similar correct performance. Here, we quantify sex differences in mice in the latent variables underlying behavior in a classic value-based decision making task: a restless 2-armed bandit. While male and female mice had similar accuracy, they achieved this performance via different patterns of exploration. Male mice tended to make more exploratory choices overall, largely because they appeared to get 'stuck' in exploration once they had started. Female mice tended to explore less but learned more quickly during exploration. Together, these results suggest that sex exerts stronger influences on decision making during periods of learning and exploration than during stable choices. Exploration during decision making is altered in people diagnosed with addictions, depression, and neurodevelopmental disabilities, pinpointing the neural mechanisms of exploration as a highly translational avenue for conferring sex-modulated vulnerability to neuropsychiatric diagnoses.
