PHAROH lncRNA regulates Myc translation in hepatocellular carcinoma via sequestering TIAR

  1. Allen T Yu
  2. Carmen Berasain
  3. Sonam Bhatia
  4. Keith Rivera
  5. Bodu Liu
  6. Frank Rigo
  7. Darryl J Pappin
  8. David L Spector  Is a corresponding author
  1. Cold Spring Harbor Laboratory, United States
  2. Genetics Program, Stony Brook University, United States
  3. Hepatology Program, Cima, University of Navarra, Spain
  4. Instituto de Investigaciones Sanitarias de Navarra-IdiSNA, Spain
  5. CIBERehd, Instituto de Salud Carlos III, Spain
  6. Ionis Pharmaceuticals, United States
Research Article
  • Cited 0
  • Views 549
  • Annotations
Cite this article as: eLife 2021;10:e68263 doi: 10.7554/eLife.68263

Abstract

Hepatocellular carcinoma, the most common type of liver malignancy, is one of the most lethal forms of cancer. We identified a long non-coding RNA, Gm19705, that is overexpressed in hepatocellular carcinoma and mouse embryonic stem cells. We named this RNA Pluripotency and Hepatocyte Associated RNA Overexpressed in HCC, or PHAROH. Depletion of PHAROH impacts cell proliferation and migration, which can be rescued by ectopic expression of PHAROH. RNA-seq analysis of PHAROH knockouts revealed that a large number of genes with decreased expression contain a Myc motif in their promoter. MYC is decreased in knockout cells at the protein level, but not the mRNA level. RNA-antisense pulldown identified nucleolysin TIAR, a translational repressor, to bind to a 71-nt hairpin within PHAROH, sequestration of which increases MYC translation. In summary, our data suggest that PHAROH regulates MYC translation by sequestering TIAR and as such represents a potentially exciting diagnostic or therapeutic target in hepatocellular carcinoma.

Introduction

Hepatocellular carcinoma (HCC), the most common type of liver malignancy, is one of the most lethal forms of cancer (Asrani et al., 2019). HCC is the fifth most frequently diagnosed cancer and the third leading cause of cancer-related deaths worldwide (Villanueva, 2019). The molecular landscape of HCC is very complex and includes multiple genetic and epigenetic modifications that could represent new diagnosis and therapeutic targets. In this sense, multiple studies have established molecular classifications of HCC subtypes that could be related to clinical management and outcomes (Dhanasekaran et al., 2019; Llovet et al., 2018). For instance, Hoshida et al. classified HCC into S1, S2, and S3 subtypes by means of their histological, pathological, and molecular signatures (Hoshida et al., 2009). S1 tumors exhibit high TGF-β and Wnt signaling activity but do not harbor mutations or genomic changes. The tumors are relatively large, poorly differentiated, and associated with poor survival. S2 tumors have increased levels of Myc and phospho-Akt and overexpress α-fetoprotein, an HCC serum biomarker. S3 tumors harbor mutations in CTNNB1 (β-catenin) but tend to be well-differentiated and are associated with good overall survival.

The standard of care for advanced HCC is treatment with sorafenib, a multi-kinase inhibitor that targets Raf, receptor tyrosine kinases (RTKs), and the platelet-derived growth factor receptor (PDGFR). Sorafenib extends the median survival time from 7.9 months to 10.7 months, and lenvatinib, a multiple VEGFR kinase inhibitor, has been reported to extend survival to 13.6 months (Llovet et al., 2018; Philip et al., 2005; Rimassa and Santoro, 2009). Combination therapies of VEGF antagonists together with sorafenib or erlontinib are currently being tested (Dhanasekaran et al., 2019; Greten et al., 2019; Quintela-Fandino et al., 2010). However, even with the most advanced forms of treatment, the global death toll per year reaches 700,000, creating a mortality ratio of 1.07 with a 5-year survival rate of 18% (Ferlay et al., 2010; Siegel et al., 2014; Villanueva, 2019). Not only is it difficult to diagnose HCC in the early stages, but there is also a poor response to the currently available treatments. Thus, novel therapeutic targets and treatments for HCC are urgently needed.

The ENCODE consortium revealed that as much as 80% of the human genome can be transcribed, while only 2% of the genome encodes for proteins (Djebali et al., 2012). Thousands of transcripts from 200 nucleotides (nt) to over 100 kilobases (kb) in length, called long non-coding RNAs (lncRNAs), are the largest and most diverse class of non-protein-coding transcripts. They commonly originate from intergenic regions or introns and can be transcribed in the sense or antisense direction. Most are produced by RNA polymerase II and can be capped, spliced, and poly-adenylated (reviewed in Rinn and Chang, 2012). Strikingly, many are expressed in a cell- or tissue-specific manner and undergo changes in expression level during cellular differentiation and in cancers (Costa, 2005; Dinger et al., 2008). These lncRNAs present as an exciting class of regulatory molecules to pursue as some are dysregulated in HCC and have the potential to be specific to a subtype of HCC (Li et al., 2015).

One of the few examples of a lncRNA that has been studied in the context of HCC is the homeobox (HOX) antisense intergenic RNA (HOTAIR). This transcript acts in trans by recruiting the Polycomb repressive complex 2 (PRC2), the lysine-specific histone demethylase (LSD1), and the CoREST/REST H3K4 demethylase complex to their target genes (Ezponda and Licht, 2014). HOTAIR promotes HCC cell migration and invasion by repressing RNA binding motif protein 38 (RBM38), which is otherwise targeted by p53 to induce cell cycle arrest in G1 (Shu et al., 2006; Yu et al., 2015). Another mechanism through which lncRNAs function involves inhibitory sequestration of miRNAs and transcription factors (Cesana et al., 2011). In HCC, the lncRNA HULC (highly upregulated in liver cancer) sequesters miR-372, which represses the protein kinase PRKACB, and downregulates the tumor suppressor gene CDKN2C (p18) (Wang et al., 2010). Similarly, the highly conserved MALAT1 lncRNA controls expression of a set of genes associated with cell proliferation and migration and is upregulated in many solid carcinomas (Amodio et al., 2018; Lin et al., 2007); siRNA knockdown of MALAT1 in HCC cell lines decreases cell proliferation, migration, and invasion (Lai et al., 2012).

Only a small number of the thousands of lncRNAs have been characterized in regard to HCC. Therefore, whether and how additional lncRNAs contribute to HCC remains unknown, and it is not fully understood how lncRNAs acquire specificity in their mode of action at individual gene loci. A lack of targetable molecules limits the effectiveness of treatments for HCC, and this class of regulatory RNAs has great potential to provide novel therapeutic targets.

Here, we reanalyzed naïve and differentiated transcriptomes of mouse embryonic stem cells (ESCs) in the context of the GENCODE M20 annotation. We aimed to identify lncRNAs that are required for the pluripotency gene expression program, and dysregulated in cancer, with a specific focus on HCC. Since normal development and differentiation are tightly regulated, dysfunction of potential regulatory RNAs may lead to various disease phenotypes including cancer. One lncRNA that is highly upregulated in HCC is of special interest, and we show that it interacts with and sequesters the translation repressor nucleolysin TIAR, resulting in an increase of Myc translation. Together, our findings identified a mechanism by which a lncRNA regulates translation of MYC in HCC by sequestering a translation inhibitor and as such has potential as a therapeutic target in HCC.

Results

Deep sequencing identifies 40 lncRNAs dysregulated in ESCs and cancer

Since normal development and differentiation are tightly regulated processes, we reasoned that lncRNAs whose expressions are ESC specific and can be found to also exhibit altered expression in cancer may have important potential roles in regulating critical cellular processes.

We reanalyzed the raw data from our published differential RNA-seq screen comparing lncRNA expression in mouse ESCs vs. neural progenitor cells (NPCs) (Bergmann et al., 2015), using updated bioinformatic tools and the recently released GENCODE M20 annotation (January 2019), which has nearly 2.5 times more annotated lncRNAs than the previously used GENCODE M3. Principal component analysis (PCA) of the processed data showed that ESCs and NPCs independently cluster, and the difference between ESC cell lines (AB2.2) and mouse-derived ESCs only accounted for 4% of the variance (Figure 1A). Additionally, we prioritized transcripts with an FPKM value >1, and those that were more than twofold upregulated in ESCs compared to NPCs. This left us with 147 ESC-specific transcripts. Since our goal is to discover novel transcripts that may play a role in the progression of human cancer, we first needed to identify the human homologues of the 147 mouse ESC transcripts. In addition to sequence conservation, we also evaluated syntenic conservation of the mouse lncRNAs to the human genome due to the fact that many lncRNAs are not conserved on the sequence level. Finally, we queried TCGA databases via cBioportal to find lncRNAs that were altered in cancer (Figure 1B). A final candidate list of 40 lncRNAs that are enriched in ESCs, and dysregulated in cancer, was identified (Table 1). Our candidate list contains lncRNAs that have a wide range of expression and also contains several previously identified lncRNAs that have been found to be dysregulated in cancer (NEAT1, FIRRE, XIST, DANCR, and GAS5), verifying the validity of the approach (Figure 1—figure supplement 1A; Ji et al., 2019; Soudyab et al., 2016; Yuan et al., 2016).

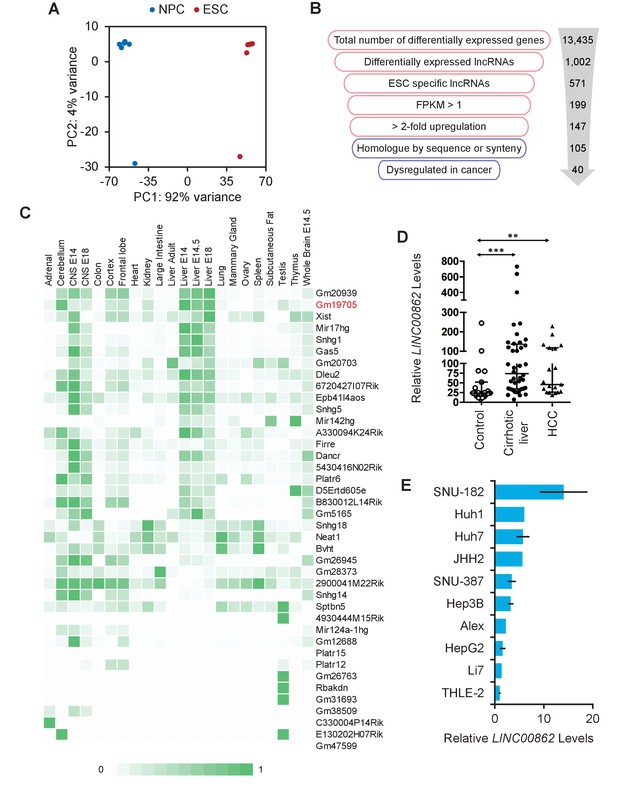

Figure 1 with 1 supplement see all
Long non-coding RNA (lncRNA) screen to identify transcripts enriched in embryonic stem cells (ESCs) and dysregulated in cancer.

(A) Principal component analysis (PCA) plot of 10 RNA-seq libraries from mouse-derived ESCs, and two from cell lines. Differentiation from ESCs to neural progenitor cells (NPCs) created the largest difference in variance, while there was minimal difference between isolated clones vs. cell lines. (B) Workflow of the filtering process performed to obtain ESC-enriched lncRNAs that are also dysregulated in cancer. Red indicates analysis performed in mouse and blue indicates human. (C) lncRNA candidate expression across ENCODE tissue datasets show that lncRNAs are mostly not pan-expressed, but are rather tissue specific. Counts are scaled per row. (D) LINC00862 is upregulated in both human cirrhotic liver and hepatocellular carcinoma (HCC) tumor samples when compared to control patient liver tissue samples. **p<0.01; ***p<0.005; Student’s t-test. (E) LINC00862 is upregulated in various human HCC cell lines.

Table 1
40 LncRNAs that are enriched in ESCs and dysregulated in cancer.
Gene nameSequence homologySyntenyHuman homologue
Platr15-+LOC284798
4930444M15Rik64.4% of bases, 99.9% of span+In TUSC8 region
5430416N02Rik16.6% of bases, 100.0% of span+Thap9-AS1
Platr645.2% of bases, 85.5% of span+LINC01010
6720427I07Rik94.3% of bases, 100.0% of span+LINC02603
B830012L14Rik57.4% of bases, 83.8% of span+Meg8 (GM26945)
C330004P14Rik-+LINC01625
Gm3850922.9% of bases, 84.4% of span+LINC01206
A330094K24Rik54.7% of bases, 100.0% of span+C18orf25 (PCG)
Bvht53.2% of bases, 100.0% of span+Carmn
Dancr48.2% of bases, 49.0% of span+Dancr
2900041M22Rik50.2% of bases, 60.5% of span+LINC01973
Dleu272.8% of bases, 100.0% of span+Dleu2
E130202H07Rik61.7% of bases, 65.2% of spanTusc8
Epb41l4aos69.0% of bases, 100.0% of span+Epb41l4a-AS1
Firre7.0% of bases, 14.5% of span+Firre
Gm20939-+LINC00470
Gas571.3% of bases, 97.7% of span+Gas5
Gm1268892.6% of bases, 100.0% of span+FOXD3-AS1
Gm4759921.6% of bases, 85.0% of span+Socs2-AS1
Gm1970527.6% of bases, 47.8% of span+LINC00862
Gm2070379.2% of bases, 100.0% of span+GAPLINC
Gm267633.6% of bases, 3.8% of span+Smarca5-AS1
Gm2694565.4% of bases, 67.8% of span+Meg8
AC129328.1-+LINC01340,
Gm2837344.6% of bases, 83.5% of span+Itpk1-AS1
Gm3169312.7% of bases, 24.9% of span+LINC00578
Mir124a-1hg91.7% of bases, 100.0% of span+LINC00599
Mir142hg74.5% of bases, 100.0% of span+TSPOAP1-AS1
Mir17hg74.7% of bases, 100.0% of span+Mir17Hg
Neat137.5% of bases, 100.0% of span+NEAT1
Platr1216.2% of bases, 33.7% of span+GPR1-AS
Rbakdn96.4% of bases, 99.1% of span+Rbakdn
Snhg173.3% of bases, 89.2% of span+Snhg1
Snhg144.5% of bases, 5.4% of span+Snhg14
D5Ertd605e-+Pan3-AS1
Snhg1883.3% of bases, 100.0% of span+Snhg18
Snhg567.8% of bases, 81.6% of span+Snhg5
Sptbn578.8% of bases, 100.0% of span+Sptbn5
Xist70.1% of bases, 100.0% of span+Xist

We analyzed the ENCODE expression datasets of adult mouse tissue to compare the expression levels of the candidates across tissues (Figure 1C). lncRNAs are known to have distinct expression patterns across different tissues, and our results support the notion that lncRNAs are generally not pan-expressed. Interestingly, many of the identified lncRNAs are enriched in embryonic liver, which is the organ with the most regenerative capacity, yet never grows past its original size.

From here, we decided to focus on liver-enriched candidate mouse lncRNAs, especially those that were primarily dysregulated in liver cancers. Because HCC is one of the deadliest cancers and has inadequate treatment options, we focused on lncRNAs that were dysregulated in HCC, LINC00862, TSPOAP-AS1, MIR17HG, and SNHG5, with their mouse counterparts being Gm19705, Mir142hg, Mir17hg, and Snhg5, respectively. Out of these four lncRNAs that were detected to be amplified in HCC, LINC00862 was the highest at 13% of all liver cancer cases (Figure 1—figure supplement 1B). We assayed LINC00862 expression in human samples obtained from healthy and cirrhotic livers and HCC nodules. Indeed, we found that levels of LINC00862 were elevated in HCC tumor nodules, but also in cirrhotic liver, suggesting that it may play a role in HCC progression (Figure 1D). In addition, we also assayed LINC00862 expression in human HCC cell lines and found it to be upregulated in numerous HCC cell lines compared to the normal human liver cell line, THLE-2 (Figure 1E).

In order to use a more tractable model system, we assessed the conservation of LINC00862 and its potential mouse counterpart, GM19705, which was internally designated as lnc05 in previous analyses (Bergmann et al., 2015). While much shorter, GM19705 has 51% sequence identity and the gene order is syntenically conserved, although a reversal event most likely occurred within the locus (Figure 1—figure supplement 1C). Weighted gene correlation network analysis of GM19705 identified that its expression is highly correlated with those of cell cycle genes, such as BRCA1 and BRCA2 (Figure 1—figure supplement 1D). GO term analysis of the cluster identified cell cycle processes as highly enriched, indicating that GM19705 may play a role in the regulation of the cell cycle (Figure 1—figure supplement 1E). Reanalysis of previously published single-cell analysis of normal adult mouse liver (Tabula Muris Consortium et al., 2018) identified GM19705 expression to be low overall, as expected, but highly expressed exclusively in a subset of hepatocytes (Figure 1—figure supplement 1F).

Our analysis identified GM19705/LINC00862 as a lncRNA that is expressed in ESCs and dysregulated in HCC. We found that GM19705 is also highly expressed in developing liver and exclusively in adult hepatocytes, and it may have a potential function to regulate the cell cycle. Therefore, we named this mouse lncRNA – Pluripotency and Hepatocyte Associated RNA Overexpressed in HCC, or PHAROH.

PHAROH is a novel lncRNA that is highly expressed in embryonic liver and mouse HCC

PHAROH is an intergenic lncRNA located on mouse chr1:1qE4. 5′ and 3′ rapid extension of cDNA ends (RACE) revealed the presence of two isoforms that share two common exons and are both ~450 nt (Figure 2A). In silico analysis of the coding potential by three independent algorithms, which use codon bias (CPAT/CPC) and comparative genomics (PhyloCSF), all point towards the low coding potential score of PHAROH, compared to the Gapdh control (Figure 2—figure supplement 1A, B). From here on, only qPCR primers that amplify common exons were used. We confirmed expression levels of PHAROH in developing liver by assaying the liver bud from E14 and E18 embryos and found that they were seven- to ninefold enriched compared to adult liver (Figure 2B). Because the liver is one of the main sites of hematopoiesis in the embryo, we measured PHAROH levels in embryonic blood and found that expression was exclusive to the liver, and not to hematopoietic cells (Figure 2—figure supplement 1C). PHAROH was also found to be upregulated in a partial hepatectomy (PH) model of liver regeneration (Figure 2—figure supplement 1D), where the expression was correlated with time points of concerted DNA synthesis, but did not fluctuate across the cell cycle (Figure 2—figure supplement 1E). To confirm PHAROH’s involvement in HCC, we used a diethylnitrosamine (DEN)-induced carcinogenic model of liver injury. By 11 months post DEN treatment, we were able to visualize HCC tumor nodules, which had elevated levels of PHAROH (Figure 2C). In order to facilitate the molecular and biochemical study of PHAROH, we chose two mouse HCC cell lines, Hepa1-6 and Hepa1c1c7, and indeed found that PHAROH was 3- to 4-fold more enriched than in ESCs, and 8- to 10-fold increased over the AML12 mouse normal hepatocyte cell line (Figure 2D).

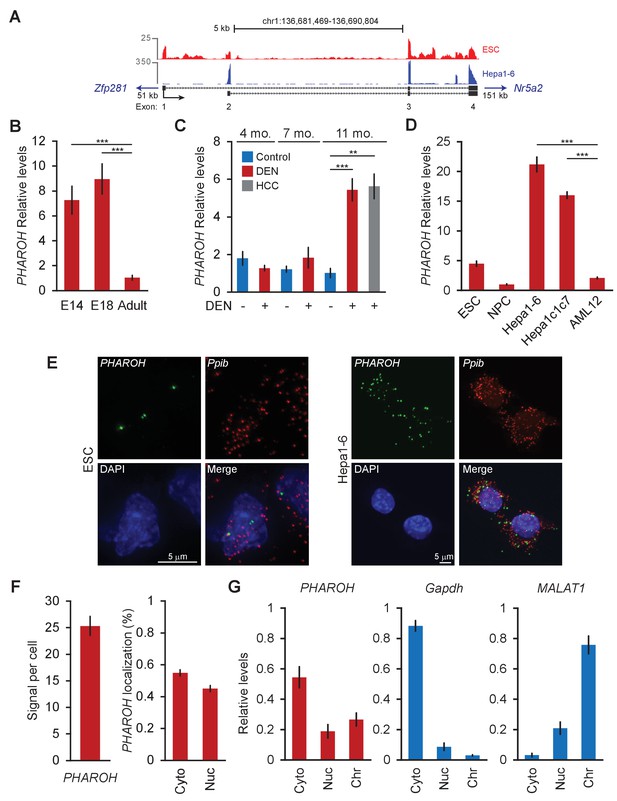

Figure 2 with 1 supplement see all
PHAROH long non-coding RNA (lncRNA) is highly expressed in embryonic stem cells (ESCs), embryonic liver, models of hepatocarcinogenesis, and hepatocellular carcinoma (HCC) cell lines.

(A) 5′ 3′ rapid extension of cDNA ends (RACE) reveals two isoforms for PHAROH, which have exons 3 and 4 in common. PHAROH is an intergenic lncRNA where the nearest upstream gene is Zfp218 (51 kb away), and downstream is Nr5a2 (151 kb away). RNA-seq tracks of ESC (red) and Hepa1-6 (blue) cells show cell-type-specific isoform expression of PHAROH. (B) PHAROH is highly expressed in embryonic liver in E14 and E18 mice, but not adult liver (**p<0.01; ***p<0.005; Student’s t-test). (C) A diethylnitrosamine (DEN) model of hepatocarcinogenesis shows high upregulation of PHAROH in the liver and HCC tumor nodules (gray bar) in DEN-treated mice (**p<0.01; ***p<0.005; Student’s t-test). (D) PHAROH is upregulated in HCC cell lines (Hepa1-6 and Hepa1c1c7) compared to normal mouse hepatocytes (AML12) (***p<0.005; Student’s t-test). (E) Single-molecule RNA-FISH of PHAROH in ESCs shows nuclear localization and an average of 3–5 foci per cell. In Hepa1-6 cells, PHAROH shows 25 foci per cell, distributed evenly between the nucleus and cytoplasm (n = 75 cells for each sample). Ppib is used as a housekeeping protein coding gene control. (F) Quantitation of panel PHAROH foci in panel (E) in HepA1-6 cells. (G) Cellular fractionation of Hepa1-6 cells shows equal distribution of PHAROH in the cytoplasm and nucleus, where it also binds to chromatin. Gapdh is predominantly cytoplasmic, and MALAT1 is bound to chromatin.

Single-molecule RNA-FISH revealed that PHAROH is entirely nuclear in ESCs, with an average of 3–5 foci per cell, whereas it is evenly distributed between the nucleus and cytoplasm in Hepa1-6 cells, with an average of 25 foci per cell (Figure 2E, F). Isoform 1 is expressed mostly in ESCs while isoform 2 of PHAROH dominates HCC cell lines (Figure 2A, Figure 2—figure supplement 1F). Cellular fractionation of Hepa1-6 cells corroborates the RNA-FISH-determined localization of PHAROH as well, which GAPDH and MALAT1 localized correctly to previously determined cellular fractions (Figure 2G). Additional lncRNAs tested, such as XIST, FIRRE, and NEAT1, also localized to their expected cellular fractions (Figure 2—figure supplement 1G). It was also determined that PHAROH has a relatively longer half-life in the Hepa1-6 cell line (10.8 hr) compared to MALAT1 (8.0 hr) and XIST (4.2 hr) (Figure 2—figure supplement 1H; Tani et al., 2012; Yamada et al., 2015). Taken together, PHAROH is an ESC and fetal liver-specific lncRNA that is upregulated in the context of HCC.

Targeted knockout of PHAROH

To evaluate the functional role of PHAROH, we generated targeted knockouts using CRISPR/Cas9 technology. Two sgRNA guides were designed to delete a region ~700 bp upstream of the TSS, and ~100 bp downstream of the TSS. We chose to transiently express enhanced specificity Cas9 (eSpCas9-1.1) in order to increase specificity, decrease off-target double-stranded breaks, and also to avoid stable integration of Cas9 endonuclease due to its transformative potential (Slaymaker et al., 2016). In addition to using two guides targeting PHAROH, we used an sgRNA targeting Renilla luciferase as a non-targeting control. Each guide was cloned into a separate fluorescent protein vector (GFP or mCherry) to allow for subsequent selection. Cells were single-cell sorted 48 hr after nucleofection to account for heterogeneity of deletions among a pooled cell population, which may give certain cells a growth advantage. 85% of the cells were GFP+/mCherry+, and we selected four clones for subsequent analysis (Figure 3—figure supplement 1A). All selected clones had the correct homozygous deletion when assayed by genomic PCR (Figure 3A). qRT-PCR indicated that PHAROH was knocked down 80–95% (Figure 3B).

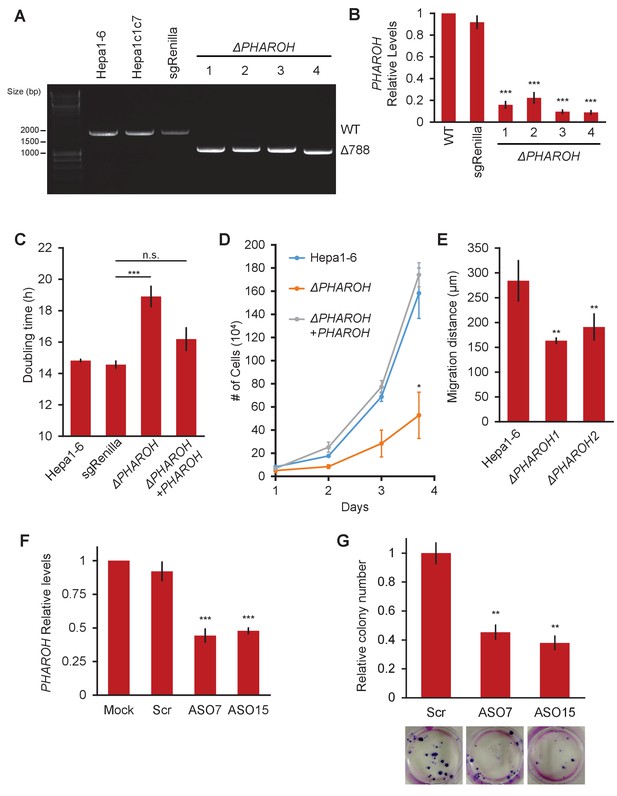

Figure 3 with 1 supplement see all
Depletion of PHAROH results in a proliferation defect.

(A) Four isolated clones all have a comparable deletion of 788 bp. The wildtype band is ~1.8 kb. (B) qRT-PCR of PHAROH knockout clones show a >80% reduction in PHAROH levels (***p<0.005; Student’s t-test). (C) Aggregated doubling time of clones shows knockout of PHAROH increases doubling time from 14.8 hr to 18.6 hr. Addition of PHAROH back into knockouts rescues this defect (***p<0.005; Student’s t-test). (D) Manual cell counting shows proliferation defect in PHAROH knockout cells that is rescued by ectopic expression of PHAROH (*p<0.05; Student’s t-test). (E) Migration distance for PHAROH knockout clones is decreased by 50% (**p<0.01; Student’s t-test). (F) 50% knockdown of PHAROH can be achieved using both antisense oligonucleotide (ASO)7 and ASO15 at 24 hr (***p<0.005; Student’s t-test). (G) Colony formation assay of Hepa1-6 cells that are treated with scrambled or PHAROH targeting ASOs. After seeding 200 cells and 2 weeks of growth, a 50% reduction in relative colony number is observed (**p<0.01; Student’s t-test).

We assayed the proliferative state of the PHAROH knockout clones and found a decrease in proliferation. The doubling time of the knockout clones increased to 18.2 hr compared to the wildtype doubling time of 14.8 hr, and ectopic expression of PHAROH reduced the doubling time to nearly wildtype levels (Figure 3C). Ectopic expression of PHAROH also successfully rescued the proliferation phenotype in the knockout clones, suggesting that PHAROH functions in trans (Figure 3D). Migration distance was also decreased by 50% in the knockout clones (Figure 3E).

In addition to assessing the role of PHAROH in knockout clones, we also employed the use of antisense oligonucleotides (ASO) to knockdown PHAROH. We treated cells independently with a control scrambled cEt ASO or two independent cEt ASOs complementary to the last exon of PHAROH. ASOs were nucleofected at a concentration of 2 µM, and we are able to achieve a >90% knockdown at 24 hr, and an ~50% knockdown was still achieved after 96 hr (Figure 3—figure supplement 1B). Proliferation assays using manual cell counts and MTS assay show a 50% reduction in proliferation at 4 days (96 hr), similar to that achieved in our knockout clones, further supporting a role of PHAROH in cell proliferation (Figure 3—figure supplement 1C). Addition of the ASO into the medium allowed for the knockdown to persist for longer duration to study the impact on clonogenic ability (Figure 3F). Colony formation assays demonstrated that knockdown of PHAROH significantly inhibits clonogenic growth of HCC cells in a dose-dependent manner (Figure 3G, Figure 3—figure supplement 1D).

To investigate the global effect of PHAROH depletion, we performed poly(A)+RNA seq on control and knockout clones (Figure 4—figure supplement 1A, B). We identified 810 differentially expressed genes, and GO term analysis revealed regulation of cell proliferation, locomotion, and cell motility as the highest enriched terms (Figure 4A). To determine if these differentially expressed genes were predominantly controlled by common transcription factors, we performed de novo and known motif analysis. Interestingly, promoter motif analysis of differentially expressed genes revealed enrichment of the Myc motif in our dataset, suggesting a subset of the genes were under the transcriptional control of Myc (Figure 4—figure supplement 1C). This was intriguing because Myc is known to regulate cell proliferation and is highly amplified in nearly half of HCCs (Zheng et al., 2017). However, Myc expression changes were not detected in our RNA-seq analysis, nor was there any statistically significant change compared to sgRenilla controls when assayed by qRT-PCR (Figure 4B). Strikingly, MYC protein levels were substantially decreased in all of the PHAROH knockout clones, as detected by western blot and immunofluorescence, suggesting that PHAROH regulates Myc post-transcriptionally (Figure 4C, Figure 4—figure supplement 1D, E). qRT-PCR of genes downstream of Myc that were identified through our analysis were also significantly downregulated in PHAROH knockout clones (Figure 4D). Thus, we suggest that depletion of PHAROH decreases MYC protein levels and ultimately cell proliferation.

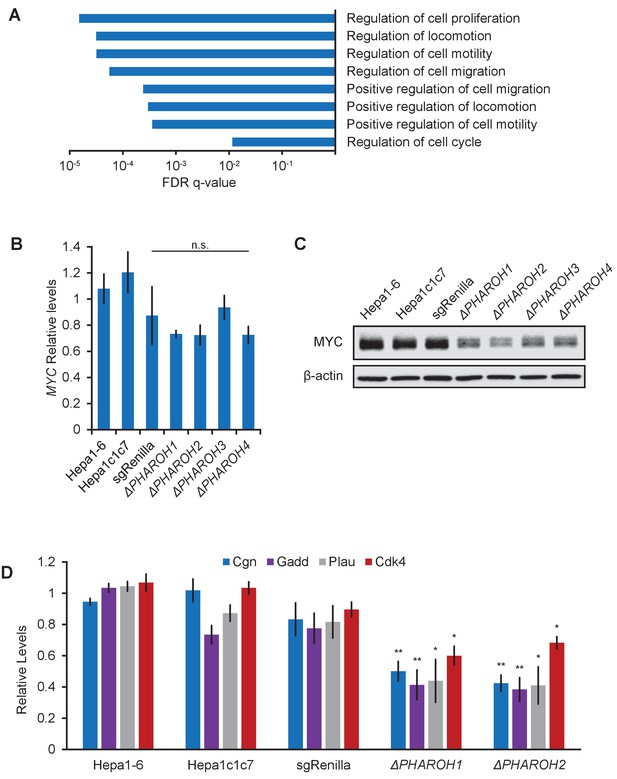

Figure 4 with 1 supplement see all
Gene expression analysis of PHAROH knockout cells reveals a link to MYC.

(A) GO term analysis of differentially expressed genes shows enrichment of cell proliferation and migration genes. (B) qRT-PCR of Myc mRNA levels indicates that Myc transcript does not appreciably change when PHAROH is knocked out. (C) Western blot analysis of MYC protein shows downregulation of protein levels in PHAROH knockout cells. β-Actin is used as a loading control. (D) qRT-PCR of genes downstream of Myc shows a statistically significant decrease in expression (*p<0.05; **p<0.01; Student’s t-test).

RAP-MS identifies TIAR as the major interactor of PHAROH

lncRNAs can act as structural scaffolds to promote interaction between protein complexes or to sequester a specific protein (Lee et al., 2016; Tsai et al., 2010). Because modulation of PHAROH levels change Myc protein levels, but not mRNA levels to a significant degree, we hypothesized that PHAROH may be regulating the translation of MYC through a protein mediator. In order to search for PHAROH interacting proteins, we used a pulldown method adapted from the previously published RNA antisense purification-mass spectrometry (RAP-MS) (McHugh et al., 2015). In lieu of pooling all available antisense capture biotinylated oligonucleotides (oligos), we reasoned that individual oligos may be similarly effective and can be used as powerful biological replicates. In addition, we would minimize oligo-specific off targets by verifying our results with multiple oligos. To this end, we screened through five 20-mer 3′ biotinylated DNA oligos that tiled the length of PHAROH and found that four out of the five oligos pulled down >80% of endogenous PHAROH, while the pulldown of a control RNA, PPIB, remained low (Figure 5A, Figure 5—figure supplement 1A).

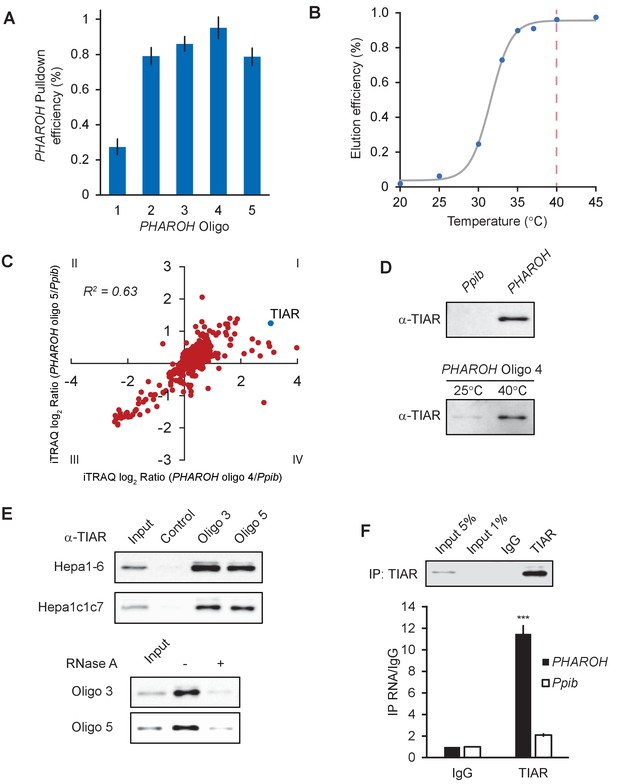

Figure 5 with 1 supplement see all
RNA antisense purification-mass spectrometry (RAP-MS) identifies TIAR as a major interactor of PHAROH.

(A) Five different biotinylated oligos antisense to PHAROH were screened for pulldown efficiency. Oligos 2–5 can pull down PHAROH at ~80% efficiency or greater. (B) PHAROH can be eluted at a specific temperature. Maximum elution is reached at 40°C. (C) iTRAQ results using two different oligos targeting PHAROH compared to PPIB reveal nucleolysin TIAR as the top hit. (D) TIAR is pulled down by PHAROH oligos and is specifically eluted at 40°C, but not by PPIB oligos. (E) TIAR can be pulled down using additional oligos and in two different cell lines. RNase A treatment of the protein lysate diminishes TIAR binding to PHAROH, indicating that the interaction is RNA-dependent. (F) Immunoprecipitation of TIAR enriches for PHAROH transcript when compared to IgG and PPIB control (***p<0.005; Student’s t-test).

For elution of PHAROH, we tested a range of temperatures and found that the elution efficiency reaches the maximum at 40°C, and thus we used this temperature for further experiments (Figure 5B). The remaining level of PHAROH RNA on the beads was the direct inverse of the eluate (Figure 5—figure supplement 1B). We chose PPIB as a negative control because it is a housekeeping mRNA that is expressed on the same order of magnitude as PHAROH and is not expected to interact with the same proteins. We screened through 10 oligos against PPIB and found only one that pulled PPIB down at ~60% efficiency, and eluted at the same temperature as PHAROH (Figure 5—figure supplement 1C, D). Off-target RNA pulldown, such as PHAROH and 18S rRNA, remained minimal when using the oligo antisense to PPIB (Figure 5—figure supplement 1C).

To identify proteins that bind to PHAROH, we analyzed two independent oligos that target PHAROH and two replicates of PPIB on a single 4-plex iTRAQ (isobaric tag for relative and absolute quantitation) mass spectrometry cassette and identified a total of 690 proteins. By plotting the log2 enrichment ratio of PHAROH hits divided by PPIB hits, quadrant I will contain proteins that both oligos against PHAROH recognize, and quadrant III will be enriched for proteins that bind specifically to PPIB. Quadrant III was enriched for keratins, elongation factors, and ribosomal proteins. Interestingly, the top hit in quadrant I is nucleolysin TIAR (TIAL-1), an RNA-binding protein that controls mRNA translation by binding to AU-rich elements in the 3′ UTR of mRNA (Figure 5C, Table 2; Mazan-Mamczarz et al., 2006). TIAR is present in <10% of all experiments queried on Crapome.org (31/411). Immunoblots for TIAR confirm the mass spectrometry data in that TIAR is specific to PHAROH pulldown oligos and also is eluted at 40°C (Figure 5D). Additional controls that are not complementary to the mouse genome and oligos targeting PHAROH also confirm the TIAR hit, and it is reproducible in two independent HCC cell lines (Figure 5E). RNase A treatment of the lysate largely abolished the interaction, which indicates that the interaction is RNA mediated, and not the result of direct binding to the oligo (Figure 5E). Immunoprecipitation of TIAR and subsequent extraction of interacting RNA shows enrichment for PHAROH when compared to PPIB and IgG control (Figure 5F). Thus, together these data indicate that TIAR is a bona fide interactor of PHAROH.

Table 2
Top protein candidates that interact with PHAROH.
Protein hitRatio
Tial12.15559
Hnrnpab1.80692
Rbm31.77037
Hnrnpd1.62883
Hnrnpa11.6283
Ptbp21.57804
Hnrnpa31.53035
Caprin11.50299
Lmna1.37542
Fubp31.34941
Banf11.34137
Hnrnpa2b11.33969
H2afj1.3213
Lima11.20909
Nolc11.20733
Abcb51.19592
Nup621.18297
Elavl11.09477
Ssbp11.08439
Hist1h2bc1.07366
Itgax1.00222
Rbm8a0.98396
Dhx90.95827
Smu10.94938
Cnbp0.9225
Nup930.82199
Lsm30.79027
Xrcc50.78242
Med250.76892
Actc10.76507
Khsrp0.75921
Actb0.75109
Nipsnap10.75014
Pnn0.74713
Hba-a10.74299
Snrpe0.74052
Nol110.73772
Erh0.73354
Psmb10.72391
Efhd20.71468

A 71-nt sequence in PHAROH has four TIAR binding sites

A previous study on TIAR has mapped its RNA recognition motif (RRM) across the transcriptome (Meyer et al., 2018). Analysis of PHAROH’s sequence reveals that TIAR binding sites are enriched in the 5′ end of the transcript of both isoforms (Figure 6A). To determine if there is any conserved structure within PHAROH that mediates this interaction, RNA folding prediction algorithms, mFold and RNAfold, were used. The two strongest TIAR binding sequences (TTTT and ATTT/TTTA) were mapped onto 10 outputted predicted structures (Figure 6—figure supplement 1A). Strikingly, four out of the seven binding sites consistently mapped to a hairpin that was conserved throughout all predicted structures. Three of the strongest binding motifs localize to the stem of the hairpin, while one secondary motif resides in a bulge (Figure 6B). These data indicate that the sequence is a highly concentrated site for TIAR binding and is designed to potentially sequester multiple copies of TIAR.

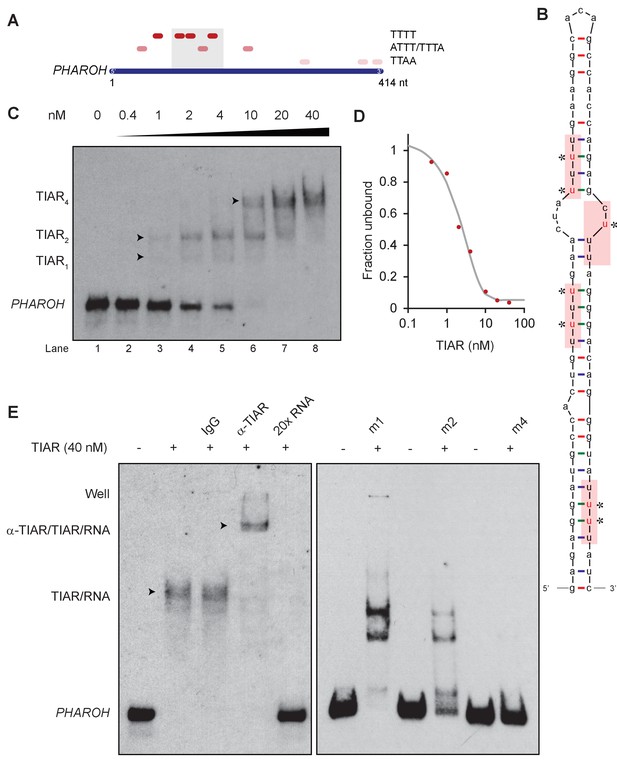

Figure 6 with 1 supplement see all
TIAR binds to the 5′ end of PHAROH.

(A) Sequence analysis of PHAROH with published TIAR binding motifs shows a preference for the 5′ end of PHAROH. (B) Schematic of the conserved hairpin of PHAROH that contains four potential TIAR binding sites indicated in the red boxes. Mutations created within the PHAROH hairpin are indicated in red asterisks. (C) RNA electromobility shift assay (EMSA) of the 71-nt PHAROH hairpin with human recombinant TIAR shows three sequential shifts as TIAR concentration increases. (D) Densitometry analysis of the free unbound probe estimates the dissociation constant of TIAR as ~2 nM. (E) TIAR/PHAROH binding is specific as a supershift is created when adding antibody against TIAR, and the interaction can be competed out using 20× unlabeled RNA. RNA EMSA of the mutant hairpins reveals decreasing affinity for TIAR. Mutants were made in a cumulative 5′ to 3′ fashion. M1 shows high signal of single and double occupancy forms, and m2 has reduced signal overall. When all four sites are mutated, binding is nearly abolished.

RNA electromobility shift assay (EMSA) of the hairpin and recombinant human TIAR showed that as TIAR concentration increases it binds to the PHAROH hairpin multiple times (Figure 6C). TIAR has a preference to bind two and four times, rather than once or three times. Densitometry quantification of the remaining free probe shows that TIAR has an approximate dissociation constant of 2 nM, consistent with the literature (Kim et al., 2011; Figure 6—figure supplement 1B). Addition of an antibody against TIAR creates a supershift, showing that the interaction is specific, while addition of IgG does not. The interaction can be abolished with addition of 20× unlabeled probe as well (Figure 6E, left panel).

To determine if binding of TIAR is specific to the sequence and mapped motifs, we created sequential mutations of the hairpin by changing the non-canonical Watson–Crick base pairs (starred and in red) to canonical ones (Figure 6B). Mutation of the first binding site (m1) slightly reduced specificity of TIAR to the hairpin, but changes the preference of TIAR binding to one and two units (Figure 6E, right panel). Mutation of m2 greatly reduced TIAR association, and only two bands are highly visible (Figure 6E, right panel). However, mutation of three binding sites (m3) did not appreciably change the pattern, as compared to m2, perhaps suggesting that the weaker binding site is only used cooperatively (Figure 6—figure supplement 1C). Mutation of all four binding sites (m4) showed minimal TIAR binding (Figure 6E). Taken together, these data indicate that TIAR binds directly to the 71-nt sequence on PHAROH, which can fold into a hairpin, and preferentially binds two or four times.

PHAROH modulates Myc translation by sequestering TIAR

TIAR has been shown to bind to the 3′ UTR of mRNAs containing AU-rich elements in order to inhibit their translation (Mazan-Mamczarz et al., 2006). It has also been shown that TIAR binds to the 3′ UTR of Myc mRNA (Liao et al., 2007). Our data suggests that PHAROH serves to competitively sequester TIAR in order to allow for increased MYC translation. Thus, knockout or knockdown of PHAROH will free additional TIAR molecules to bind to the 3′ UTR of Myc and inhibit its translation.

We began by determining where TIAR binds to Myc mRNA. Mapping PAR-CLIP reads from Meyer et al., 2018 shows two distinct binding sequences on the human MYC mRNA, but only one sequence maps to the mouse genome. The stretch of 53-nt sequence has three distinct regions that are enriched in poly-uridines, but structural prediction largely places the sequences in a loop formation (Figure 7—figure supplement 1A, B). RNA EMSA of the 53-nt 3′ UTR and recombinant TIAR showed preference for a singular binding event, and three events are only seen when the binding reaction is saturated by TIAR (Figure 7A). ASO-mediated knockdown of PHAROH shows reduction of MYC protein similar to the knockouts, but no change in mRNA levels, or TIAR protein levels (Figure 7B, Figure 7—figure supplement 1C). While mRNAs are generally much more highly expressed than lncRNAs, Myc is only threefold more expressed than PHAROH in HCC cell lines (Figure 7B). In addition, there are multiple TIAR binding sites on PHAROH, which increases the feasibility of a competition model (Figure 7B).

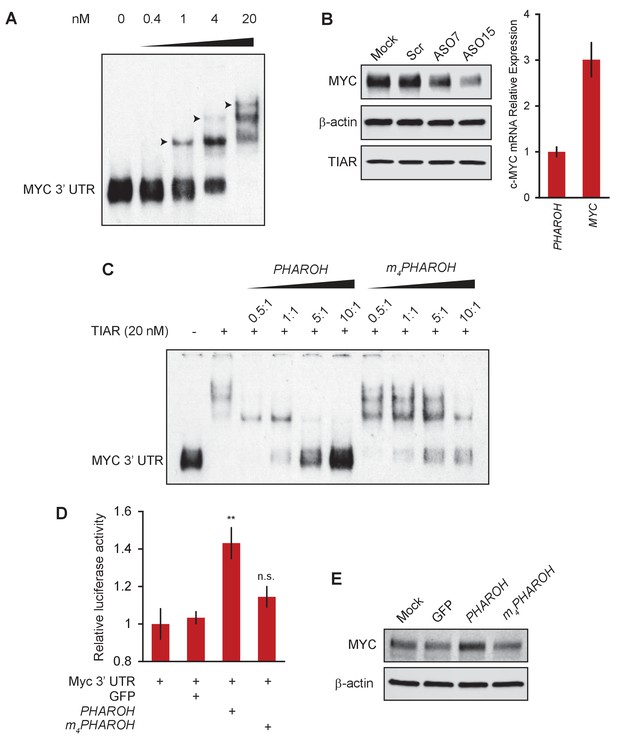

Figure 7 with 1 supplement see all
Loss of PHAROH releases TIAR, which inhibits Myc translation.

(A) RNA electromobility shift assay of the 53-nt Myc 3′ UTR fragment shows that TIAR has three potential binding sites, but prefers a single binding event (note arrows). (B) Knockdown of PHAROH reduces MYC protein levels, but not TIAR levels, even though MYC is expressed threefold higher than PHAROH. (C) Wildtype PHAROH hairpin is able to compete out the MYC-TIAR interaction, but the mutated hairpin is not as effective in competing with the Myc-TIAR interaction. (D) Luciferase activity is increased with the addition of PHAROH but not with m4PHAROH (**p<0.01; Student’s t-test). (E) Overexpression of PHAROH increases MYC protein expression, but overexpression of m4PHAROH does not change MYC levels appreciably.

Next, we tested this hypothesis in vitro by allowing TIAR to bind to the 53-nt Myc 3′ UTR and titrating increasing amounts of PHAROH or the mutant PHAROH transcript. The wildtype PHAROH hairpin can be seen to compete with Myc very effectively at nearly all tested ratios, with near complete competition at 10:1 ratio (Figure 7C). However, the fully mutant PHAROH was not able to compete with Myc nearly as effectively and was only seen to be slightly effective at the 10:1 ratio (Figure 7C). This data suggests that the PHAROH has the capability to successfully compete with the Myc 3′ UTR binding site in a sequence-dependent manner.

In addition, we cloned the full-length Myc 3′ UTR into a dual luciferase reporter construct in order to test our hypothesis in cells. We found that addition of PHAROH does indeed increase the luciferase signal by ~50% in a dose-dependent manner while the mutant PHAROH did not (Figure 7D, Figure 7—figure supplement 1D).

Given that the knockdown or knockout of PHAROH reduces MYC levels due to the release of TIAR, we asked whether MYC protein levels would change in the context of PHAROH overexpression. Compared to GFP transfection, overexpression of PHAROH increases MYC protein levels; however, overexpression of mutant PHAROH did not change the protein levels of MYC (Figure 7E). Modulation of PHAROH or TIAR levels did not have an effect on Myc mRNA levels (Figure 7—figure supplement 1E).

Discussion

Studies of the transcriptome have shed important insights into the potential role of the non-coding RNA portion of the genome in basic biology as well as disease. As such, lncRNAs can serve as biomarkers, tumor suppressors, or oncogenes, and have great potential as therapeutic targets (reviewed in Arun et al., 2018). Here, we identified a lncRNA, PHAROH, that is upregulated in mouse ESCs, embryonic and regenerating adult liver, and in HCC. It also has a conserved human ortholog, which is upregulated in human patient samples from cirrhotic liver and HCC. Genetic knockout or ASO knockdown of PHAROH results in a reduction of cell proliferation, migration, and colony formation.

To elucidate the molecular mechanism through which PHAROH acts in proliferation, we used RNA-seq and mass spectrometry to provide evidence that PHAROH regulates MYC translation via sequestering the translational repressor TIAR in trans. Modulation of PHAROH levels reveals that it is positively correlated with MYC protein level, which is well known to be associated with HCC and is amplified in nearly 50% of HCC tumors (Peng et al., 1993). In addition, MYC has been characterized as a critical player in liver regeneration (Zheng et al., 2017). We identified TIAR as an intermediate player in the PHAROH-MYC axis, which has been reported to bind to the 3′ UTR of MYC mRNA and suppress its translation (Mazan-Mamczarz et al., 2006). While TIAR is an RNA-binding protein that is known for its role in stress granules (Kedersha et al., 1999), we do not detect stress granule formation in our HCC cell lines as assayed by immunofluorescence for TIAR (Figure 7—figure supplement 1F). As such, the role of PHAROH-TIAR lies outside the context of stress granule function. Interestingly, overexpression of TIAR is a negative prognostic marker for HCC survival (Figure 7—figure supplement 1G; Uhlen et al., 2017). As the primary mutation of HCC is commonly amplification of MYC, it is possible that TIAR is upregulated in an attempt to curb MYC expression.

Our analysis maps the PHAROH-TIAR interaction to predominantly occur at a 71-nt hairpin at the 5′ end of PHAROH. While PHAROH has two main isoforms that are selectively expressed in ESCs and HCC, the hairpin is commonly expressed in both isoforms. TIAR has been classified as an ARE-binding protein that recognizes U-rich and AU-rich sequences. Kinetic and affinity studies have found that TIAR has a dissociation constant of ~1 nM for U-rich sequences and ~14 µM for AU-rich sequences (Kim et al., 2011). One question that is apparent in the RNA-binding protein field is how RBPs acquire their specificity. While there have been studies that analyze target RNA structure or RRM structure, why RBPs bind one transcript over another with a similar sequence is still an open question. For example, the 3′ UTR of Myc contains multiple U-rich stretches, ranging from 3 to 9 resides. It has been reported that TIAR binds efficiently to uridylate residues of 3–11 length, yet PAR-CLIP data only reveals two binding events in the human MYC transcript (Kim et al., 2011). In addition, the 53-nt fragment that was assayed in this study contained potentially six TIAR binding sites, yet RNA EMSA analysis revealed a preference for a single binding event (Figure 7A). One explanation is that PHAROH’s hairpin has uniquely spaced TIAR binding sites. Because the absolute affinity of TIAR to U-rich sequences is relatively high, one molecule may sterically block additional binding events. However, if the binding sites are properly spaced, binding events will be ordered and perhaps even cooperative. The average gap between binding sites in the Myc fragment is 2 nt, while it is 10 nt in the PHAROH hairpin, which allows more flexibility in spacing between each bound protein.

In addition, one aspect that was not explored was the requirement for the formation of the hairpin for TIAR binding. Previous studies used synthesized linear oligos as substrates to test the kinetics of these RBPs, and we also mutated the hairpin in a way such that structure is preserved. TIAR contains three RRMs, which typically recognizes single-stranded RNA. Therefore, binding of TIAR to the 71-nt sequence of PHAROH would require unwinding of the potential hairpin, which is energetically unfavorable. It is also known that TIAR’s RRM2 mainly mediates ssRNA polyU-binding, but its dsRNA binding capabilities have not been explored (Kim et al., 2013). There are examples where multiple RRMs in tandem can allow for higher RNA binding affinity and possibly sandwiching dsRNA, and thus it would be possible that TIAR binding to the multiple sites on the PHAROH hairpin is cooperative (Allain et al., 2000).

While TIAR may be PHAROH’s top interacting protein, it is unknown whether PHAROH is TIAR’s highest interacting RNA. This would depend on the relative abundances of each RNA species that has the potential to bind TIAR, and TIAR’s expression level. This seems to be cell type specific as TIAR was initially studied in immune cells and was shown to predominantly translationally repress Tnf-α through binding of the AU-rich sequence in the 3′ UTR (Piecyk et al., 2000). In our cell lines, Tnf-α is not expressed. Conversely, a screen for proteins that bind to the Tnf-α 3′ UTR may not necessarily indicate TIAR as a binder, as evidenced by a recent study (Ma and Mayr, 2018). Another recent study had shown that lncRNA MT1JP functions as a tumor suppressor and had the capability to bind to TIAR, which suppresses the translation of p53 (Liu et al., 2016). However, MT1JP is largely cytoplasmic, while TIAR in our context is mainly nuclear. Thus, while TIAR may bind additional mRNAs or lncRNAs, it seems that one of the main targets in HCC cell lines is Myc, as supported by statistically significant promoter enrichment of the downstream targets.

In summary, we have identified a lncRNA, PHAROH, that is enriched in ESCs and dysregulated in HCC, and found that it acts to sequester TIAR through a hairpin structure in order to regulate MYC translation. Additionally, based on synteny and upregulation in human HCC samples, we identified LINC00862 as the possible human ortholog of PHAROH (Figure 1D). Future studies will reveal the therapeutic potential of targeting PHAROH to impact liver development/regeneration and HCC.

Materials and methods

Cell culture and genomic PCR

Request a detailed protocol

All cell culture reagents were obtained from Gibco (Life Technologies), unless stated otherwise. Hepa1-6, Hepa1c1c7, AML12, SNU-182, and THLE-2 cells were obtained from ATCC. Huh7, SNU-387, Hep3B, and HepG2 were generous gifts from Scott Lowe (MSKCC). Hepa1-6, Hepa1c1c7, Huh7, Hep3B, and HepG2 were maintained in DMEM supplemented with 10% FBS and 1% penicillin/streptomycin. SNU-182 and SNU-387 were maintained in RPMI supplemented with 10% FBS and 1% penicillin/streptomycin. AML12 was maintained in DMEM:F12 medium supplemented with 10% fetal bovine serum, 10 µg/ml insulin, 5.5 µg/ml transferrin, 5 ng/ml selenium, and 40 ng/ml dexamethasone. THLE-2 cells were maintained in BEGM (BEGM Bullet Kit; CC3170) where gentamycin/amphotericin and epinephrine were discarded, and extra 5 ng/ml EGF, 70 ng/ml phosphoethanolamine, and 10% fetal bovine serum were added in addition to the supplied additives. ESCs and NPCs were cultured as in Bergmann et al., 2015. All cells were cultured in a humidified incubator at 37°C and 5% CO2. Half-life of RNA was determined by adding α-amanitin to a final concentration of 5 µg/ml. Genomic DNA was isolated using DNeasy Blood and Tissue (Qiagen). All cell lines were tested for mycoplasma regularly.

Cellular fractionation

Request a detailed protocol

Cellular fractionation was performed according to https://link.springer.com/protocol/10.1007%2F978-1-4939-4035-6_1. In brief, cells were collected and resuspended in NP-40 lysis buffer. The cell suspension is overlaid on top of a sucrose buffer and centrifuged at 3500 × g for 10 min to pellet the nuclei. The supernatant (cytoplasm) is collected and the nuclei are resuspended in glycerol buffer and urea buffer is added to separate the nucleoplasm and chromatin. The cells are centrifuged at 14,000 × g for 2 min and the supernatant (nucleoplasm) is collected, while the chromatin-RNA is pelleted.

DEN administration

Request a detailed protocol

Mice were injected intraperitoneally with DEN at 14 days of age as described (García-Irigoyen et al., 2015). DEN-treated mice, and the corresponding controls injected with saline, were sacrificed at 5, 8, and 11 months post injection.

Partial hepatectomy

Request a detailed protocol

Two-thirds PH and control sham operations (SH) were performed as reported (Berasain et al., 2005). Two SH and four PH mice were sacrificed at 3, 6, 24, 48, and 72 hr after surgery. Animal experimental protocols were approved (CEEA 062-16) and performed according to the guidelines of the Ethics Committee for Animal Testing of the University of Navarra.

Human samples

Request a detailed protocol

Samples from patients included in the study were provided by the Biobank of the University of Navarra (CEI 47/2015) and were processed following standard operating procedures approved by the Ethical and Scientific Committees. Liver samples from healthy patients were collected from individuals with normal or minimal changes in the liver at surgery of digestive tumors or from percutaneous liver biopsy performed because of mild alterations of liver function. Samples for cirrhotic liver and HCC were obtained from patients undergoing PH and/or liver transplantation.

The biobank obtained an informed consent and consent to publish from each patient, and codified samples were provided to the researchers. The study protocol conformed to the ethical guidelines of the 1975 Declaration of Helsinki. Samples were processed following standard operating procedures approved by the Ethical and Scientific Committees. Liver samples from healthy patients were collected from individuals with normal or minimal changes in the liver at surgery of digestive tumors or from percutaneous liver biopsy performed because of mild alterations of liver function. Samples for cirrhotic liver and HCC were obtained from patients undergoing PH and/or liver transplantation.

Immunoblotting

Request a detailed protocol

To determine protein levels in our system, we used 10% SDS-PAGE gels. Gels were loaded with 1 μg protein per well (Bradford assay). The following antibodies were used: β-actin (1:15,000; Sigma), c-Myc (1:1000; CST), and TIAR (1:1000; Cell Signaling). IRDye-800CW was used as a fluor for secondary anti-rabbit antibodies, and IRDye-680RD was used for mouse secondary antibodies. Blots were scanned using the Li-Cor Odyssey Classic.

Immunoprecipitation

Request a detailed protocol

For TIAR immunoprecipitation, one 10 cm plate of Hepa1c1c7 cells at 80% confluence was lysed in 1 ml Pierce IP Lysis Buffer (supplemented with 100 U/ml SUPERase-IN and 1X Roche protease inhibitor cocktail) and incubated on ice for 10 min. Lysates centrifuged at 13,000 × g for 10 min. 3 µg of TIAR antibody or rabbit IgG were incubated with the lysate at 4°C for 1 hr. 16 µl of Protein A magnetic beads were washed and added to the lysate and incubated for an additional 30 min at 4°C. 50% of beads were resuspended in Laemmli buffer for western blotting and RNA was isolated from the remaining beads using TRIzol.

Immunofluorescence staining

Request a detailed protocol

#1.5 round glass coverslips were prepared by acid-cleaning prior to seeding cells. Staining was performed as published previously (Spector, D.L. and H.C. Smith. 1986. Exp. Cell Res. 163, 87–94). In brief, cells were fixed in 2% PFA for 15 min, washed with PBS, and permeabilized in 0.2% Triton X-100 plus 1% normal goat serum (NGS). Cells were washed again in PBS + 1% NGS and incubated with TIAR antibody (1:2000; CST) for 1 hr at room temperature in a humidified chamber. Cells were washed again PBS + 1% NGS and incubated with Goat anti-Rabbit IgG (H + L) Cross-Adsorbed Secondary Antibody, Alexa Fluor 488 (1:1000; Thermo Fisher) secondary antibody for 1 hr at room temperature. Cover slips were washed with PBS before mounting with ProLong Diamond antifade (Thermo Fisher).

Cell viability assays

Request a detailed protocol

Cells were seeded at a density of 10,000 cells/well (100 µl per well) into 24-well plates and treated with 2.5 µM of either a PHAROH-specific ASO or scASO. Cells were grown for 96 hr at 37°C. 20 µl of solution (CellTiter 96 AQueous One Solution Reagent, Promega) was added to the wells and incubated for 4 hr at 37°C. Measurements of absorbance at 490 nm were performed using a SpectraMax i3 Multi-Mode Detection Platform (Molecular Devices). Background absorbance at 690 nm was subtracted. Cells were also trypsinized, pelleted, and manually counting using a hemocytometer.

RNA antisense pulldown and mass spectrometry

RNA antisense pulldown

Request a detailed protocol

Cells were lysed on a 10 cm plate in 1 ml IP lysis buffer (IPLB, 25 mM Tris-HCl pH 7.4, 150 mM NaCl, 1% NP-40, 1 mM EDTA, 5% glycerol, supplemented with 100 U/ml SUPERase-IN and 1X Roche protease inhibitor cocktail) for 10 min, and lysate was centrifuged at 13,000 × g for 10 min. Cell lysate was adjusted to 0.3 mg/ml (Bradford assay). 100 pmol of biotinylated oligo was added to 500 μl of lysate and incubated at room temperature for 1 hr with rotation. 100 μl streptavidin Dynabeads were washed in IPLB, added to the lysate, and incubated for 30 min at room temperature with rotation. Beads were washed three times with 1 ml lysis buffer. For determining temperature for optimal elution, beads were then resuspended in 240 μl of 100 mM TEAB and aliquoted into eight PCR tubes. Temperature was set on a veriflex PCR block and incubated for 10 min. Beads were captured and TRIzol was added to the eluate and beads. Once optimal temperature is established, the beads were resuspended in 90 μl of 100 mM TEAB and incubated at 40°C for 10 min. TRIzol was added to 30 μl of the eluate, another 30 μl was kept for western blots, and the last 30 μl aliquot was sent directly for mass spectrometry.

Tryptic digestion and iTRAQ labeling

Request a detailed protocol

Eluted samples were reduced and alkylated with 5 mM DTT and 10 mM iodoacetamide for 30 min at 55°C, then digested overnight at 37°C with 1 μg Lys-C (Promega, VA1170) and dried in vacuo. Peptides were then reconstituted in 50 μl of 0.5 M TEAB/70% ethanol and labeled with 4-plex iTRAQ reagent for 1 hr at room temperature essentially as previously described (Ross et al., 2004). Labeled samples were then acidified to <pH 4 using formic acid, combined and concentrated in vacuo until ~10 μl remained.

Two-dimensional fractionation

Request a detailed protocol

Peptides were fractionated using a Pierce High pH Reversed-Phase Peptide Fractionation Kit (Thermo Scientific, 84868) according to the manufacturer’s instructions with slight modifications. Briefly, peptides were reconstituted in 150 μl of 0.1% TFA, loaded onto the spin column, and centrifuged at 3000 × g for 2 min. Column was washed with water, and then peptides were eluted with the following percentages of acetonitrile (ACN) in 0.1% triethylamine (TEA): 5, 7.5, 10, 12.5, 15, 20, 30, and 50%. Each of the eight fractions was then separately injected into the mass spectrometer using capillary reverse-phase LC at low pH.

Mass spectrometry

Request a detailed protocol

An Orbitrap Fusion Lumos mass spectrometer (Thermo Scientific) equipped with a nano-ion spray source was coupled to an EASY-nLC 1200 system (Thermo Scientific). The LC system was configured with a self-pack PicoFrit 75 μm analytical column with an 8 μm emitter (New Objective, Woburn, MA) packed to 25 cm with ReproSil-Pur C18-AQ, 1.9 μM material (Dr. Maish GmbH). Mobile phase A consisted of 2% ACN; 0.1% formic acid, and mobile phase B consisted of 90% ACN; 0.1% formic acid. Peptides were then separated using the following steps: at a flow rate of 200 nl/min: 2% B to 6% B over 1 min, 6% B to 30% B over 84 min, 30% B to 60% B over 9 min, 60% B to 90% B over 1 min, held at 90% B for 5 min, 90% B to 50% B over 1 min, and then flow rate was increased to 500 μl/min as 50% B was held for 9 min. Eluted peptides were directly electrosprayed into the MS with the application of a distal 2.3 kV spray voltage and a capillary temperature of 300°C. Full-scan mass spectra (Res = 60,000; 400–1600 m/z) were followed by MS/MS using the ‘Top Speed’ method for selection. High-energy collisional dissociation (HCD) was used with the normalized collision energy set to 35 for fragmentation, the isolation width set to 1.2, and a duration of 15 s was set for the dynamic exclusion with an exclusion mass width of 10 ppm. We used monoisotopic precursor selection for charge states 2+ and greater, and all data were acquired in profile mode.

Database searching

Request a detailed protocol

Peaklist files were generated by Proteome Discoverer version 2.2.0.388 (Thermo Scientific). Protein identification was carried out using both Sequest HT (Eng et al., 1994) and Mascot 2.5 (Perkins et al., 1999) against the UniProt mouse reference proteome (57,220 sequences; 26,386,881 residues). Carbamidomethylation of cysteine, iTRAQ4plex (K), and iTRAQ4plex (N-term) was set as fixed modifications, methionine oxidation and deamidation (NQ) were set as variable modifications. Lys-C was used as a cleavage enzyme with one missed cleavage allowed. Mass tolerance was set at 20 ppm for intact peptide mass and 0.3 Da for fragment ions. Search results were rescored to give a final 1% FDR using a randomized version of the same Uniprot mouse database, with two peptide sequence matches (PSMs) required. iTRAQ ratio calculations were performed using Unique and Razor peptide categories in Proteome Discoverer.

RNA EMSA

Request a detailed protocol

DNA template used for in vitro synthesis of RNA probes were from annealed oligos. A T7 RNA polymerase promoter sequence was added to allow for in vitro transcription using the MEGAscript T7 transcription kit (Thermo Fisher). RNA was end labeled at the 3′ end with biotin using the Pierce RNA 3′ End Biotinylation Kit (Thermo Fisher). RNA quantity was assayed by running an RNA 6000 Nano chip on a 2100 Bioanalyzer. 6% acrylamide gels (39:1 acrylamide:bis) (Bio-Rad) containing 0.5 × TBE were used for all EMSA experiments. Recombinant human TIAR (Proteintech) was added at indicated concentrations to the probe (~2 fmol) in 20 μl binding buffer, consisting of 10 mM HEPES (pH 7.3), 20 mM KCL, 1 mM Mg2Cl2, 1 mM DTT, 30 ng/μl BSA, 0.01% NP-40, and 5% glycerol. After incubation at room temperature for 30 min, 10 μl of the samples were loaded and run for 1 hr at 100 V. The nucleic acids were then transferred onto a positively charged nylon membrane (Amersham Hybond-N+) in 0.5 × TBE for 30 min at 40 mAh. Membranes were crosslinked using a 254 nM bulb at 120 mJ/cm2 in a Stratalinker 1800. Detection of the biotinylated probe was done using the Chemiluminescent Nucleic Acid Detection Module Kit (Thermo Fisher 89880).

3′ UTR luciferase assay

Request a detailed protocol

The full-length 3′ UTR of c-Myc was cloned into the pmirGLO Dual-Luciferase miRNA target expression vector (Promega). Luciferase activity was assayed in transfected cells using the Dual-Luciferase Reporter Assay (Promega). To evaluate the interaction between PHAROH, 3′ UTR of c-Myc, and TIAR, cells were transfected with the respective constructs using Lipofectamine 3000. 24 hr later, firefly and Renilla luciferase activity was measured, and Renilla activity was used to normalize firefly activity.

Single-molecule RNA FISH

Request a detailed protocol

#1.5 round glass coverslips were prepared by acid-cleaning and layered with gelatin for 20 min, prior to seeding MEF feeder cells and ESCs. Cells were fixed for 30 min in freshly prepared 4% PFA (Electron Microscopy Sciences), diluted in D-PBS without CaCl2 and MgCl2 (Gibco, Life Technologies), and passed through a 0.45 µm sterile filter. Fixed cells were dehydrated and rehydrated through an ethanol gradient (50–75% – 100–75% – 50% – PBS) prior to permeabilization for 5 min in 0.5% Triton X-100. Protease QS treatment was performed at a 1:8000 dilution. QuantiGene ViewRNA (Affymetrix) probe hybridizations were performed at 40°C in a gravity convection incubator (Precision Scientific), and incubation time of the pre-amplifier was extended to 2 hr. Nuclei were counter-stained with DAPI and coverslips mounted in Prolong Gold anti-face medium (http://www.spectorlab.labsites.cshl.edu/protocols).

Coverslips were imaged on a DeltaVision Core system (Applied Precision), based on an inverted IX-71 microscope stand (Olympus) equipped with a 60× U-PlanApo 1.40 NA oil immersion lens (Olympus). Images were captured at 1 × 1 binning using a CoolSNAP HQ CCD camera (Photometric) as z-stacks with a 0.2 µm spacing. Stage, shutter, and exposure were controlled through SoftWorx (Applied Precision). Image deconvolution was performed in SoftWorx.

A spinning-disc confocal system (UltraVIEW Vox; PerkinElmer) using a scanning unit (CSU-X1; Yokogawa Corporation of America) and a charge-coupled device camera (ORCA-R2; Hamamatsu Photonics) were fitted to an inverted microscope (Nikon) equipped with a motorized piezoelectric stage (Applied Scientific Instrumentation). Image acquisition was performed using Volocity versions 5 and 6 (PerkinElmer). Routine imaging was performed using Plan Apochromat 60 or 100× oil immersion objectives, NA 1.4.

RNA sequencing and analysis

Request a detailed protocol

Total RNA was isolated either directly from cryosections of the tumor tissue or from organotypic epithelial cultures using TRIzol according to the manufacturer’s instructions. RNA quality was assayed by running an RNA 6000 Nano chip on a 2100 Bioanalyzer. For high-throughput sequencing, RNA samples were required to have an RNA integrity number (RIN) 9 or above. TruSeq (Illumina) libraries for poly(A)+RNA seq were prepared from 0.5 to 1 mg RNA per sample. To ensure efficient cluster generation, an additional gel purification step of the libraries was applied. The libraries were multiplexed (12 libraries per lane) and sequenced single-end 75 bp on the NextSeq500 platform (Illumina), resulting in an average 40 million reads per library. Analysis was performed in GalaxyProject. In brief, reads were first checked for quality using FastQC (http://www.bioinformatics.babraham.ac.uk/projects/fastqc/), and a minimum Phred score of 30 was required. Reads were then mapped to the mouse mm10 genome using STAR (Dobin et al., 2013), and counts were generating using htseq-counts with the appropriate GENCODE M20 annotation. Deseq2 was then used to generate the list of differentially expressed genes (Love et al., 2014). Motif analysis was performed using HOMER (Heinz et al., 2010).

Coding analysis cDNA sequences of PHAROH and GAPDH were inputted into CPAT (http://lilab.research.bcm.edu/cpat/) or CPC (http://cpc.cbi.pku.edu.cn/programs/run_cpc.jsp) for analysis (Kong et al., 2007; Wang et al., 2013). PhyloCSF analysis was performed using the UCSC Genome Browser track hub (https://data.broadinstitute.org/compbio1/PhyloCSFtracks/trackHub/hub.DOC.html) (Lin et al., 2011).

Plasmid construction eSpCas9(1.1) was purchased from Addgene (#71814). eSpCas9-2A-GFP was constructed by subcloning 2A-GFP from pSpCas9(BB)−2A-GFP (PX458) (Addgene #48138) into eSpCas9 using EcoRI sites. To construct eSpCas9-2A-mCherry, 2A-mCherry was amplified from mCherry-Pol II (Zhao et al., 2011), and an internal BbsI site was silently mutated. The PCR product was then cloned into eSpCas9 using EcoRI sites. The PHAROH construct was amplified using Hepa1-6 cDNA as a template and cloned into pCMV6 using BamHI and FseI. Mutant PHAROH was constructed by amplifying tiled oligos and cloned into pCMV6 using BamHI and FseI.

CRISPR/Cas9 genetic knockout

Request a detailed protocol

To generate a genetic knockout of PHAROH, two sgRNAs targeting the promoter region were combined, creating a deletion including the TSS. Guide design was performed on Benchling (https://benchling.com) taking into account both off-target scores and on-target scores. The sgRNA targeting the gene body of PHAROH was cloned into a pSpCas9(BB)−2A-GFP vector (PX458, Addgene plasmid #48138), and the sgRNA targeting the upstream promoter region was cloned into a pSpCas9(BB)- 2A-mCherry vector. Hepa1-6 were transfected with both plasmids using the 4D-Nucleofector System (Lonza) using the EH-100 program in SF buffer. To select for cells expressing both gRNAs, GFP and mCherry double-positive cells were sorted 48 hr post transfection as single-cell deposition into 96-well plates using a FACS Aria (SORP) Cell Sorter (BD). Each single-cell clone was propagated and analyzed by genomic PCR and qRT-PCR to select for homozygous knockout clones. Cells transfected with a sgRNA targeting Renilla luciferase were used as a negative control.

Cell cycle analysis

Request a detailed protocol

Hoechst 33342 (Sigma) was added to cells at a final concentration of 5 μg/ml and incubated at 37°C for 1 hr. Cells were trypsinized and collected into a flow cytometry compatible tube. Profiles were analyzed using a FACS Aria (SORP) Cell Sorter (BD), gated according to DNA content and cell cycle phase, and sorted into Eppendorf tubes for subsequent RNA extraction and qRT-PCR analysis.

Nucleofection

Request a detailed protocol

For transfection of ASOs using nucleofection technology (Lonza), ESCs were harvested following soaking off of feeder cells for 1 hr, washed in D-PBS (Gibco, Life Technologies), and passed through a 70 µm nylon cell strainer (Corning). Cell count and viability was determined by trypan blue staining on a Countess automated cell counter (Life Technologies). For each reaction, 1 × 106 viable cells were resuspended in SF Cell Line Solution (Lonza), mixed with 2 µM control or 2 µM target-specific ASO, and transferred to nucleocuvettes for nucleofection on a 4D-Nucleofector System (Lonza) using program code ‘EH-100’. For plasmid nucleofections, 10 µg of plasmid was used and nucleofected using program code ‘EH-100’. Cells were subsequently transferred onto gelatinized cell culture plates containing pre-warmed and supplemented growth medium. Growth medium was changed once after 16 hr.

Colony formation assay

Request a detailed protocol

200 Hepa1-6 cells were seeded in a 6-well plate. ASOs were added at the time of seeding at the indicated concentrations. Two weeks later, cells were fixed, stained with Giemsa, counted, and photographed.

2′-O-Methoxyethyl (MOE) ASOs and knockdown analysis

Request a detailed protocol

Synthesis and purification of all 2′-MOE modified oligonucleotides was performed as previously described (Meng et al., 2015) by Ionis Pharmaceuticals. These ASOs are 20-mer oligonucleotides containing a phosphorothioate backbone, 2′-MOE modifications on the first and last five nucleotides and a stretch of 10 DNA bases in the center. Constrained ethyl oligos are 16-mer oligonucleotides that contain modifications on the first and last three nucleotides and a stretch of 10 DNA bases in the center.

qRT-PCR

Request a detailed protocol

To assess knockdown efficiency, TRIzol-extracted RNA was treated with RNAse-free DNAseI (Life Technologies) and subsequently reverse-transcribed into cDNA using TaqMan Reverse Transcription reagents and random hexamer oligonucleotides (Life Technologies). Real-time PCR reactions were prepared using Power SYBR Green Master Mix (Life Technologies) and performed on an ABI StepOnePlus Real-Time PCR system (Life Technologies) for 40 cycles of denaturation at 95°C for 15 s followed by annealing and extension at 60°C for 60 s. Primers were designed to anneal within an exon to detect both primary and processed transcripts. Primer specificity was monitored by melting curve analysis. For each sample, relative abundance was normalized to the housekeeping gene PPIB mRNA levels.

Appendix 1

Appendix 1—key resources table
Reagent type
(species)
or resource
DesignationSource or
reference
IdentifiersAdditional information
Strain, strain
background
(C57BL/6J)
(Mus musculus)
Female
C57BL/6JThe Jackson
Laboratory
Stock No: 000664
RRID:IMSR_JAX:000664
Gene
(Homo sapiens)
Tial1 (NM_009383)
Mouse Tagged
ORF Clone
OrigeneCat# MG226372
Gene
(Mus musculus)
MycGenBankNC_000081.7
Recombinant
Protein
(Homo sapiens)
Recombinant
Human
TIAL1 Protein
Novus BiologicalsCat# NBP2-51914-0.1mg
Cell line
(Mus musculus)
AB2.2 (ESCs)Bergmann et al., 2015Cell line maintained in D. L. Spector Lab
Cell line
(Mus musculus)
NPCBergmann et al., 2015Cell line maintained in D. L. Spector Lab
Cell line
(Mus musculus)
Hepa1-6ATCCCat# CRL-1830Cell line maintained in D. L. Spector Lab
Cell line
(Mus musculus)
Hepa1c1c7ATCCCat# CRL-2026Cell line maintained in D. L. Spector Lab
Cell line
(Mus musculus)
AML12ATCCCat# CRL-2254Cell line maintained in D. L. Spector Lab
Cell line
(Mus musculus)
MEFMTI-Global StemCat# GSC-6601GIrradiated feeder MEFs
Cell line
(Homo sapiens)
SNU-182ATCCCat# CRL-2235Cell line maintained in D. L. Spector Lab
Cell line
(Homo sapiens)
Huh1N/AGenerous gift from Scott Lowe (MSKCC)
Cell line
(Homo sapiens)
Huh7N/AGenerous gift from Scott Lowe (MSKCC)
Cell line
(Homo sapiens)
JHH2N/ARNA gifted from Scott Lowe (MSKCC)
Cell line
(Homo sapiens)
SNU-387ATCCCat# CRL-2237Generous gift from Scott Lowe (MSKCC)
Cell line
(Homo sapiens)
Hep3BATCCCat# HB-8064Generous gift from Scott Lowe (MSKCC)
Cell line
(Homo sapiens)
AlexATCCCat# CRL-8024RNA gifted from Scott Lowe (MSKCC)
Cell line
(Homo sapiens)
HepG2ATCCCat# HB-8065Generous gift from Scott Lowe (MSKCC)
Cell line
(Homo sapiens)
Li7N/ARNA gifted from Scott Lowe (MSKCC)
Cell line
(Homo sapiens)
THLE-2ATCCCat# CRL-2706Cell line maintained in D. L. Spector Lab
Antibodyc-Myc
(rabbit
monoclonal)
Cell SignalingCat# 5605
RRID:AB_1903938
(IB: 1:1000)
AntibodyTIAR
(rabbit
monoclonal)
Cell SignalingCat# 8509
RRID:AB_10839263
(IB: 1:1000)
(IF: 1:2000)
(IP: 1:100)
Antibodyβ-Actin
(mouse
monoclonal)
Cell SignalingCat# 3700
RRID:AB_2242334
(IB: 1:10,000)
AntibodyIRDye 800CW
(Goat
anti-Rabbit IgG)
LI-COR BiosciencesCat# 925-32211
RRID:AB_2651127
(IB: 1:10,000)
AntibodyIRDye 680RD
(Goat
anti-Mouse IgG)
LI-COR BiosciencesCat# 925-68070
RRID:AB_2651128
(IB: 1:10,000)
AntibodyGoat anti-Rabbit
IgG (H + L)
Cross-Adsorbed
Secondary Antibody
Alexa Fluor 488
Thermo FisherCat# A-11008
RRID:AB_143165
(IF: 1:1000)
AntibodyRabbit IgG
Isotype Control
Thermo FisherCat# 10500C
RRID:AB_2532981
Recombinant
DNA reagent
eSpCas9-1.1AddgeneRRID:Addgene_71814Backbone for constructing
GFP and mCherry variants
Recombinant
DNA reagent
eSpCas9-1.1-GFP
(plasmid)
This studyN/A
Recombinant
DNA reagent
eSpCas9-1.1-mCherry
(plasmid)
This studyN/A
Recombinant
DNA reagent
pmirGLOPromegaCat# E1330Dual-Luciferase
miRNA Target
Expression Vector
Recombinant
DNA reagent
pCMV6-A-PuroOrigeneCat# PS100025pCMV6 backbone
Transfected
construct
(Mus musculus)
sgPHAROH_F-
eSpCas9-1.1-GFP
(plasmid)
This studyN/AUpstream
PHAROH sgRNA
Transfected
construct
(Mus musculus)
sgPHAROH_
R-eSpCas9-
1.1-mCherry
(plasmid)
This studyN/ADownstream
PHAROH sgRNA
Transfected
construct
(Mus musculus)
sgRenilla-
eSpCas9-1.1-GFP
(plasmid)
Chang et al., 2020N/ANegative
control sgRNA
Transfected
construct
(Mus musculus)
pmirGLO-MYC
(plasmid)
This studyN/AConstruct for
luciferase
assay readout
Transfected
construct
(Mus musculus)
pCMV6-pharoh
(plasmid)
This studyN/AConstruct for
rescue and
luciferase assay
readout
Transfected
construct
(Mus musculus)
pCMV6-m4pharoh
(plasmid)
This studyN/AConstruct for
luciferase assay
readout
Transfected
construct
(Mus musculus)
pCMV6-GFP
(plasmid)
Chang et al., 2020N/AConstruct for
luciferase
assay readout
Sequence-based
reagent
ASO 7This studyPHAROH Gapmer ASOCGTGTCATCTTCTTGGCCCC
Sequence-based
reagent
ASO 15This studyPHAROH Gapmer ASOTCGTGTCATCTTCTTGGCCC
Sequence-based
reagent
ASO 14This studyPHAROH cEt ASOGTTACAGGACGCATGT
Sequence-based
reagent
ASO 18This studyPHAROH cEt ASOCACATAGTTATTCCCG
Sequence-based
reagent
ForwardThis studyPHAROH genomic PCRTGCTTAGCACGT
CCTCAGTGC
Sequence-based
reagent
ReverseThis studyPHAROH genomic PCRAGTTCCCCAGC
AACCCTGTT
Sequence-based
reagent
UpstreamThis studyPHAROH sgRNAGCAGGTAGTGT
GGTAACTCC
Sequence-based
reagent
DownstreamThis studyPHAROH sgRNACGGGTCCTCCC
AGCGCACAC
Sequence-based
reagent
Exon 4 FwdThis studyPHAROH qRT-PCRGGGGCCAAGAA
GATGACACG
Sequence-based
reagent
Exon 4 RefThis studyPHAROH qRT-PCRGGACGCATGT
GGAGGTCAGA
Sequence-based
reagent
Exon A FwdThis studyPHAROH qRT-PCRTGCCTCACAA
GGGACAACACTC
Sequence-based
reagent
Exon A RevThis studyPHAROH qRT-PCRGAATTTGCTCA
GGGGCTCCA
Sequence-based
reagent
Exon B FwdThis studyPHAROH qRT-PCRGGACTTGAACT
GGCACTGTTGC
Sequence-based
reagent
Exon B RevThis studyPHAROH qRT-PCRCAGAAGGACC
ATCATCACGA
Sequence-based
reagent
Exon C FwdThis studyPHAROH qRT-PCRTGAACCCGAGC
TTTGCCATT
Sequence-based
reagent
Exon C RevThis studyPHAROH qRT-PCRCGGTGCTCTG
CAGGACGTTT
Sequence-based
reagent
Exon D FwdThis studyPHAROH qRT-PCRAGGCTGCCGC
CACACTTAAA
Sequence-based
reagent
Exon D RevThis studyPHAROH qRT-PCRTTCAGCTGCTGG
CATTCTTCC
Sequence-based
reagent
Exon E FwdThis studyPHAROH qRT-PCRGGAGAGAACAA
GGGCCTTCC
Sequence-based
reagent
Exon E RevThis studyPHAROH qRT-PCRGCCCTGCTGCA
TTCTGGGTA
Sequence-based
reagent
Exon 1 FwdThis studyPHAROH qRT-PCRGGTGTGAACCAA
GTGCACGTCT
Sequence-based
reagent
Exon 1 RevThis studyPHAROH qRT-PCRGGGATCTGACA
CCGCCTTCTT
Sequence-based
reagent
Exon 2 FwdThis studyPHAROH qRT-PCRCTTCTGAGTCTG
ACGGGCTGGT
Sequence-based
reagent
Exon 2 RevThis studyPHAROH qRT-PCRTCAGTCCTACCC
AAGAAATTTAGGA
Sequence-based
reagent
Exon 3 FwdThis studyPHAROH qRT-PCRTGTGGAAACTCA
GAGAGGATGC
Sequence-based
reagent
Exon 3 RevThis studyPHAROH qRT-PCRCTCTGGTGGCTG
TGCCTTCAAA
Sequence-based
reagent
MycFThis studyMyc qRT-PCRCAACGTCTTGG
AACGTCAGA
Sequence-based
reagent
MycRThis studyMyc qRT-PCRTCGTCTGCTT
GAATGGACAG
Sequence-based
reagent
Outer 1This study5' RACETTCCTGCGTG
AAAGTGTCTG
Sequence-based
reagent
Outer 2This study5' RACETGACCTTCTCA
GGAAGTGGAA
Sequence-based
reagent
Inner 1This study5' RACECCTGAGAGGAC
GAGGTGACT
Sequence-based
reagent
Inner 2This study5' RACETTTGCAGGTTA
GGATCAGAGC
Sequence-based
reagent
OuterThis study3' RACECACTTCCATT
CCTCCCCATA
Sequence-based
reagent
InnerThis study3' RACEGGGGACTCAGA
CACTCACCA
Sequence-based
reagent
PHAROH
hairpin
This studyT7 Transcription PrimerTAATACGAC
TCACTATA
gagaggatgccactgttttg
aactattttgaaggcacag
ccaccagagctttaggg
acagggtattttatc
Sequence-based
reagent
Myc 3' UTRThis studyT7 Transcription PrimerTAATACGACTCACTATAG
cttcccatcttttttctttttcc
ttttaacagatttg
tatttaattgttttt
Sequence-based
reagent
m1This studyT7 Transcription PrimerTAATACGACTCACTATA
gagaggatgccactgtCt
Cgaactattttgaaggca
cagccaccagagcttta
gggacagggtattttatc
Sequence-based
reagent
m2This studyT7 Transcription PrimerTAATACGACTCACTATA
gagaggatgccactgtCtC
gaactaCtCtgaaggcac
agccaccagagctttaggg
acagggtattttatc
Sequence-based
reagent
m3This studyT7 Transcription PrimerTAATACGACTCACTATA
gagaggatgccactgtCtC
gaactaCtCtgaaggcac
agccaccagagcCtta
gggacagggtattttatc
Sequence-based
reagent
m4This studyT7 Transcription PrimerTAATACGACTCACTATA
gagaggatgccactgtCtC
gaactaCtCtgaaggcaca
gccaccagagcCttaggg
acagggtatCCtatc
Sequence-based
reagent
PHAROH 1This studyBiotin antisense pulldown oligoAGAAATTTAGGAG
CCACGCT
Sequence-based
reagent
PHAROH 2This studyBiotin antisense pulldown oligoGCTGTGCCTTC
AAAATAGTT
Sequence-based
reagent
PHAROH 3This studyBiotin antisense pulldown oligoGCCCCAAGAAA
CTCAAGAAT
Sequence-based
reagent
PHAROH 4This studyBiotin antisense pulldown oligoTTAATTTTCT
CCTTTATGCA
Sequence-based
reagent
PHAROH 5This studyBiotin antisense pulldown oligoACAACGTGTGG
ATGTGTGTT
Sequence-based
reagent
PPIB 1This studyBiotin antisense pulldown oligoCCTACAGATT
CATCTCCAAT
Sequence-based
reagent
PPIB 2This studyBiotin antisense pulldown oligoGTTATGAAGAA
CTGTGAGCC
Commercial
assay or kit
DNase I,
Amplification
Grade
Life TechnologiesCat# 18068
Commercial
assay or kit
TaqMan
Reverse
Transcription
Reagents
Thermo FisherCat# 4304134
Commercial
assay or kit
SF Cell Line
4D-Nucleofector
X Kit L
LonzaCat# V4XC-2024
Commercial
assay or kit
View ISH Cell
Assay Kit
AffymetrixCat# QVC0001
Commercial
assay or kit
MEGAscript T7
Transcription Kit
Thermo FisherAM1333
Commercial
assay or kit
Pierce RNA 3'
End
Biotinylation Kit
Thermo FisherCat# 20160
Commercial
assay or kit
LightShift
Chemiluminescent
RNA EMSA Kit
Thermo FisherCat# 20158
Commercial
assay or kit
Pierce BCA
Protein Assay Kit
Life TechnologiesCat# 23227
Commercial
assay or kit
CellTiter 96
AQueous
One Solution
Cell
Proliferation
Assay
PromegaCat# G3582
Commercial
assay or kit
SMARTer
RACE 5′/3′ Kit
TakaraCat# 634858
Commercial
assay or kit
Promega
Dual-Luciferase
Reporter
Assay System
PromegaCat# E1960
Commercial
assay or kit
DNeasy Blood
and Tissue kit
QiagenCat# 69504
Software,
algorithm
Benchlinghttps://www.benchling.com/Used for sgRNA design and cloning
Software,
algorithm
CPATdoi: 10.1093/nar/gkt006
Software,
algorithm
CPCdoi: 10.1093/nar/gkm391
Software,
algorithm
PhyloCSFdoi: 10.1093/bioinformatics/btr209
Software,
algorithm
FastQChttps://www.bioinformatics.babraham.ac.uk/projects/fastqc/RRID:SCR_014583
Software,
algorithm
STARdoi: 10.1002/0471250953.bi1114s51RRID:SCR_004463
Software,
algorithm
DESeq2doi: 10.1186/s13059-014-0550-8RRID:SCR_015687
Software,
algorithm
Volocity 3D
Image Analysis
Software
Perkin ElmerRRID:SCR_002668
Software,
algorithm
SoftWoRxSoftWoRx SoftwareRRID:SCR_019157
Software,
algorithm
Sequest HTdoi: 10.1016/1044-0305(94)80016-2
Software,
algorithm
Mascot 2.5doi: 10.1002/(SICI)1522-2683(19991201)20:18<3551::AID-ELPS3551>3.0.CO;2–2RRID:SCR_014322
Software,
algorithm
HOMER Suitedoi: 10.1016/j.molcel.2010.05.004RRID:SCR_010881
Software,
algorithm
Image Studio
Software
LI-CORRRID:SCR_015795
Software,
algorithm
RNAfolddoi: 10.1093/nar/gkg599RRID:SCR_008550
Software,
algorithm
mFolddoi: 10.1093/nar/gkg595RRID:SCR_008543
Software,
algorithm
ImageJNIH, Bethesda, MDRRID:SCR_003070
Chemical
compound,
drug
Hoechst dyeThermo FisherCat# 622491 μg/ml
Chemical
compound,
drug
DAPILife TechnologiesCat# D13061 μg/ml
Chemical
compound,
drug
α-AmanitinSigma-AldrichCat# A22635 μg/ml
Chemical
compound,
drug
DiethylnitrosamineSigma-AldrichCat# 7386125 mg/kg

Data availability

RNA-seq data has been uploaded to GEO: GSE167316.

The following data sets were generated
    1. Yu AT
    2. Spector DL
    (2021) NCBI Gene Expression Omnibus
    ID GSE167316. PHAROH lncRNA regulates c-Myc translation in hepatocellular carcinoma via sequestering TIAR.

References

    1. Peng SY
    2. Lai PL
    3. Hsu HC
    (1993)
    Amplification of the c-myc gene in human hepatocellular carcinoma: biologic significance
    Journal of the Formosan Medical Association = Taiwan Yi Zhi 92:866–870.
    1. Soudyab M
    2. Iranpour M
    3. Ghafouri-Fard S
    (2016)
    The role of long non-coding RNAs in breast cancer
    Archives of Iranian Medicine 19:508–517.
    1. Villanueva A
    (2019) Hepatocellular carcinoma
    New England Journal of Medicine 380:1450–1462.
    https://doi.org/10.1056/NEJMra1713263

Decision letter

  1. Robert H Singer
    Reviewing Editor; Albert Einstein College of Medicine, United States
  2. James L Manley
    Senior Editor; Columbia University, United States
  3. Carolina Eliscovich
    Reviewer; Albert Einstein College of Medicine, United States
  4. Shinichi Nakagawa
    Reviewer

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This manuscript identifies a novel long non coding RNA, PHAROH, which is expressed in embryonic stem cells as well as hepatocellular carcinoma. Depletion of PHAROH reduced cell proliferation, which was rescued by exogenous expression of PHAROH. Genes that exhibited altered expression in PHAROH depleted cells harbored consensus upstream sequences, which matches the MYC-binding motifs. The protein expression of MYC was downregulated in PHAROH depleted cells without changes in its mRNA expression, suggesting that PHAROH regulates MYC translation. TIAR, a translation inhibitor was identified as a binding partner of PHAROH which indicates PHAROH may sequester TIAR to keep the expression of MYC at a high levels during proliferation.

Decision letter after peer review:

Congratulations, we are pleased to inform you that your article, "PHAROH lncRNA regulates c-Myc translation in hepatocellular carcinoma via sequestering TIAR", has been accepted for publication in eLife pending minor changes to the manuscript as suggested by reviewers that do not require rereview. Your article has been reviewed by 3 reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by a Senior Editor.

Reviewer #1:

In this work, the authors attempt to determine how LNC RNAs may be involved in oncogenic progression, in this particular case, hepatocellular carcinoma (HCC).

They find, using several databases, that several LNC RNAs are dysregulated and choose the highest one, in 13% of the cases to investigate in detail for mechanistic correlation with the pathology. In a straightforward analysis, they determine that this particular LNC, which they term PHAROH plays a role in cell proliferation, as its knockout and knockdown leads to a decrease in cell proliferation in culture, which is restored by transfection into the cells. Comparing transcriptomics of control and knockout cells, a large number of mRNAs are affected, but they determine that c-Myc promoter elements are enriched in the genes identified, although c-Myc is not among them. RNA pull-down followed by mass spec identifies a protein, TIAR, a known translational repressor that binds to several short sequences in the LNC RNA. The authors postulate that the role of PHAROH is to efficiently compete for binding of the translational repressor with Myc so that c-Myc translation is enhanced without affecting the mRNA levels. Mutation of these binding sites results in decreased proliferation, and importantly oncogenesis. The data supports this model as far as it goes in the cultured cells but whether it plays a role in HCC is yet to be determined. The correlations with cirrhotic human liver seems more compelling in Figure 1D. The focus on PHAROH and TIAR, while revealing may represent only a small part of the total picture and c-Myc one of many possible targets that influence cell proliferation. Nonetheless, this work provides convincing evidence for the model where a LNC RNA can serve as a competitor for a translation regulator and a starting point for disease relevance.

The work is convincing within the context of the experimental design involving these particular players selected from a large number of possibilities. While it would not have been possible to investigate many of the other LNCs, proteins, targets, promoter elements etc., the manuscript needs to have the usual caveats in the text concerning the limitations on interpreting its relevance for a complex process such as cancer progression into HCC. The authors have not overextended their claims but they do suggest that PHAROH might be a therapeutic target. Hopefully they're right, but many of these approaches have not played out as expected, due to the large heterogeneity of tumor cells, herein supported by the fact that PHAROH is not overexpressed in the majority of the samples. Whether it is a small pathway in a random subset of cells, or an important one remains to be determined.

Reviewer #2:

In this study, Yu et al. use a combination of complementary methodologies including transcriptomics, biochemistry and imaging to identify and characterize the role of the long non-coding RNA (lncRNA), named PHAROH, in hepatocellular carcinoma. The authors show that PHAROH lncRNA is upregulated in hepatocellular carcinoma, and that by binding and sequestering the translational inhibitor TIAR -via a hairpin structure- enhances c-MYC mRNA translation. This regulation mechanism has an impact in cell proliferation and, thus, it has potential high clinical relevance. Overall, the biological insights into the molecular mechanism by this study are significant and potentially interesting to liver researchers and others in the scientific community.

The conclusions of this work are mostly well supported by data. The data is clear and well presented.

– Statistical analysis and P-values. The authors should add p-values to Figures: 2C, 2G, 4B and 5A.

– It is confusing how the p-values are indicated in Figure Legends for all the panels at once. Would the authors consider to add the p-values to each individual panel?

– Figure 2B. Would the authors explain how the qPCR are normalized?

– Fig2E. FISH image: What is the isoform detected by the probes?

The Scale bar in Hepa1-6 panel is missing, please, add this info accordingly. Also, Ppib housekeeping gene should be mentioned in the figure legend.

– Gels/Western Blots: the authors should consider adding molecular-weight size marker to PCR gels and Western Blots panels in Figure 3A, 4C, 5D, 5E, 5F, 7B and 7E. Also, adding numbers to the lanes will help the reader

– Page 9. Would the authors consider to change "…where the expression was correlated with time points of concerted cell division, but did not fluctuate across the cell cycle" to "…where the expression was correlated with time points of concerted DNA synthesis, but did not fluctuate across the cell cycle".

– The authors claim to visualize single molecule RNA by FISH and quantitate foci per cell. Could the authors explain how they confirm single molecule detection resolution?

– Figure 2E and 2G. How the authors reconcile the differences in PHAROH intracellular distribution by using FISH (2E right panel) and cellular fractionation (2G PHAROH panel)?

– Figure 3. To evaluate the functional role of PHAROH the authors generate targeted knockouts using CRISPR/Cas9 technology, however, they get clones where the expression level is reduced up to 80-90%. Can the authors speculate on why they were not able to get a complete KO? Would the authors consider changing the word "knockout" to "knockdown" in the text, accordingly?

– The authors express PHAROH ectopically in order to rescue cell proliferation and migration defects in PHAROH knockdown cells. How are the levels of this expression controlled? Is this an overexpression of PHAROH in comparison to endogenous levels? Could the authors elaborate more in the interpretation of this data and in the possibility of having other secondary effects due to overexpression. What is the phenotype if the mutant m4 PHAROH is used instead of the wildtype form of PHAROH?

– Figure 4C. Would the authors consider to include a quantification of the western blot lanes?

– Figure 5B and 5E. It would be nice if the authors could indicate in Figure 5B what are the TIAR binding sites used in the EMSA (Figure 5E).

– Figure 7D and 7E. The authors overexpress PHAROH and m4 PHAROH to study translation using c-MYC 3'UTR reporter RNA. Could the authors comment what is the interpretation of the results given the presence of endogenous levels of PHAROH in the cells? It would be more appropriated if the authors could use PHAROH knockdown cells (or antisense) for this study. They should consider studying the effect of PHAROH on c-MYC translation without the contribution of endogenous levels that would compete for TIAR binding.

– Due to the clinical relevance of this study, would the authors consider visualizing LINC00862 lncRNA in resection samples from HCC patients by FISH?

Reviewer #3:

In this manuscript, the authors identified a novel lncRNA, named PHAROH, which is expressed in ESC as well as HCCs. Depletion of PHAROH either by genome editing or ASO reduced cell proliferation, which was rescued by exogenous expression of PHAROH. Genes that exhibited altered expression in PHAROH depleted cells harbored consensus upstream sequences, which matches the MYC-binding motifs. The protein expression of MYC was downregulated in PHAROH depleted cells without changes of the mRNA expression of MYX, suggesting that PHAROH regulates MYC expression at the post-transcriptional levels. The authors performed RAP-MS and identified TIAR as a binding partner of PHAROH, and confirmed the interaction by a series of in vitro binding assays. Considering TIAR has been shown to inhibit translation of target mRNAs, the authors proposed that PHAROH normally sequester TIAR to keep the expression of MYC at a high levels in ESC or HCC.

Overall the experiments are well designed and results are clear and convincing. I only have a few minor comments regarding the identities of PHAROH and insights into the molecular mechanisms.

1. While the authors described that there are two isoforms of PHAROH, the statement is not well supported by experimental data. Considering that this is the first paper that characterized the function of PHAROH, more detailed descriptions how they determined the two transcriptional units are required. Northern blot analyses will be the best, but it will be also be helpful to show the mapping patterns of deep sequencing reads together with RACE clones they identified. The annotations shown in Figure S2F is somewhat confusing, which is inconsistent with the annotation shown in Figure 2A. In addition, there are no explanation for the label A, B, C… in Figure S2F.

2. Given that TIAR is a general translational regulators, it is interesting to know how PHAROH specifically regulate the expression of MYC (may not be specific, but the enrichment of MYC binding sequences in the upstream regions of affected genes are extraordinary). I think the clarification of this mechanism may be beyond the scope of this study, but short discussion by these authors will be helpful.

3. Similarly, there is no discussion from the viewpoint of stoichiometry. Because the authors performed PHAROH FISH (Fig2E) and immunostaining of TIAR (FigS7F), I am curious to know if these signals overlap either in the cytoplasm of nucleus. Additional discussion based on the subcellular localization of PHAROH and TIAR will be required.

https://doi.org/10.7554/eLife.68263.sa1

Author response

Reviewer #1:

In this work, the authors attempt to determine how LNC RNAs may be involved in oncogenic progression, in this particular case, hepatocellular carcinoma (HCC).

They find, using several databases, that several LNC RNAs are dysregulated and choose the highest one, in 13% of the cases to investigate in detail for mechanistic correlation with the pathology. In a straightforward analysis, they determine that this particular LNC, which they term PHAROH plays a role in cell proliferation, as its knockout and knockdown leads to a decrease in cell proliferation in culture, which is restored by transfection into the cells. Comparing transcriptomics of control and knockout cells, a large number of mRNAs are affected, but they determine that c-Myc promoter elements are enriched in the genes identified, although c-Myc is not among them. RNA pull-down followed by mass spec identifies a protein, TIAR, a known translational repressor that binds to several short sequences in the LNC RNA. The authors postulate that the role of PHAROH is to efficiently compete for binding of the translational repressor with Myc so that c-Myc translation is enhanced without affecting the mRNA levels. Mutation of these binding sites results in decreased proliferation, and importantly oncogenesis. The data supports this model as far as it goes in the cultured cells but whether it plays a role in HCC is yet to be determined. The correlations with cirrhotic human liver seems more compelling in Figure 1D. The focus on PHAROH and TIAR, while revealing may represent only a small part of the total picture and c-Myc one of many possible targets that influence cell proliferation. Nonetheless, this work provides convincing evidence for the model where a LNC RNA can serve as a competitor for a translation regulator and a starting point for disease relevance.

The work is convincing within the context of the experimental design involving these particular players selected from a large number of possibilities. While it would not have been possible to investigate many of the other LNCs, proteins, targets, promoter elements etc., the manuscript needs to have the usual caveats in the text concerning the limitations on interpreting its relevance for a complex process such as cancer progression into HCC. The authors have not overextended their claims but they do suggest that PHAROH might be a therapeutic target. Hopefully they're right, but many of these approaches have not played out as expected, due to the large heterogeneity of tumor cells, herein supported by the fact that PHAROH is not overexpressed in the majority of the samples. Whether it is a small pathway in a random subset of cells, or an important one remains to be determined.

As this reviewer points out, we have not overextended our claims, and we have provided caveats where appropriate within the manuscript.

Reviewer #2:

– Statistical analysis and P-values. The authors should add p-values to Figures: 2C, 2G, 4B and 5A.

– It is confusing how the p-values are indicated in Figure Legends for all the panels at once. Would the authors consider to add the p-values to each individual panel?

We have added the p-values to Figures2C and 4B. In panel 2G, we are only presenting the distribution of the RNA after fractionation, and in panel 5A, we are not comparing the differences between the pulldown efficiency of each oligo. Hence, no p-values are provided.

– Figure 2B. Would the authors explain how the qPCR are normalized?

The qRT-PCR is normalized using PPIB mRNA levels, which did not vary greatly among the samples. Normalization is outlined in the methods.

– Fig2E. FISH image: What is the isoform detected by the probes?

The Scale bar in Hepa1-6 panel is missing, please, add this info accordingly. Also, Ppib housekeeping gene should be mentioned in the figure legend.

The majority of probes are complementary to the last exon of PHAROH, and thus detects both PHAROH isoforms. The scale bar in the Hepa1-6 panel has been added, and the Ppib housekeeping gene is added to the Figure legend.

– Gels/Western Blots: the authors should consider adding molecular-weight size marker to PCR gels and Western Blots panels in Figure 3A, 4C, 5D, 5E, 5F, 7B and 7E. Also, adding numbers to the lanes will help the reader

Molecular-weight size markers to PCR gels were added. We did not provide molecular-weight size markers in the western blot panels as we only blot for one protein using a well characterized antibody.

– Page 9. Would the authors consider to change "…where the expression was correlated with time points of concerted cell division, but did not fluctuate across the cell cycle" to "…where the expression was correlated with time points of concerted DNA synthesis, but did not fluctuate across the cell cycle".

We have changed this in the text.

– The authors claim to visualize single molecule RNA by FISH and quantitate foci per cell. Could the authors explain how they confirm single molecule detection resolution?

We used the ViewRNA ISH kit which is a method based off of Battich et al.’s work (Nat Methods 10, 1127–1133 (2013). https://doi.org/10.1038/nmeth.2657) and has been validated in numerous studies. In addition, our FPKM values from RNA-seq as well as qRT-PCR estimates correlate well with our imaging data.

– Figure 2E and 2G. How the authors reconcile the differences in PHAROH intracellular distribution by using FISH (2E right panel) and cellular fractionation (2G PHAROH panel)?

By FISH and cellular fractionation, PHAROH is 50% cytoplasmic and 50% nuclear (nucleoplasm + chromatin bound). We realize that the normalization may have been confusing to readers and we have updated it accordingly.

– Figure 3. To evaluate the functional role of PHAROH the authors generate targeted knockouts using CRISPR/Cas9 technology, however, they get clones where the expression level is reduced up to 80-90%. Can the authors speculate on why they were not able to get a complete KO? Would the authors consider changing the word "knockout" to "knockdown" in the text, accordingly?

The strategy of our CRISPR/Cas9 knockout involves the deletion of 788 nucleotides around the transcription start site of the gene. Our qRT-PCR primers are located at the 3’ end of the transcript, and thus it is possible that an aberrant transcription state site is activated in some cells. This seems to be a rather general feature of many different lncRNA knockouts.

– The authors express PHAROH ectopically in order to rescue cell proliferation and migration defects in PHAROH knockdown cells. How are the levels of this expression controlled? Is this an overexpression of PHAROH in comparison to endogenous levels? Could the authors elaborate more in the interpretation of this data and in the possibility of having other secondary effects due to overexpression. What is the phenotype if the mutant m4 PHAROH is used instead of the wildtype form of PHAROH?

The rescue is via transient transfection and as such the rescue expression level is higher than the endogenous level of the RNA. We used the m4 mutant in a luciferase assay and Myc blot (Figure 7D, E), however, we did not use it in the rescue assay.

– Figure 4C. Would the authors consider to include a quantification of the western blot lanes?

We’ve added the quantification of the western blot as Figure 4-supplement 4E.

– Figure 5B and 5E. It would be nice if the authors could indicate in Figure 5B what are the TIAR binding sites used in the EMSA (Figure 5E).

The TIAR binding sites are boxed in red in Figure 5B. We assume that PHAROH is completely occupied by TIAR in Figure 5E (left). The PHAROH mutants (m1-m4) were cumulatively made in a 5’ to 3’ manner. This has also been clarified in the figure legend. Sequences for the mutants are available in the key resources table.

– Figure 7D and 7E. The authors overexpress PHAROH and m4 PHAROH to study translation using c-MYC 3'UTR reporter RNA. Could the authors comment what is the interpretation of the results given the presence of endogenous levels of PHAROH in the cells? It would be more appropriated if the authors could use PHAROH knockdown cells (or antisense) for this study. They should consider studying the effect of PHAROH on c-MYC translation without the contribution of endogenous levels that would compete for TIAR binding.

As compared to the transiently expressed level of PHAROH, the endogenous level is low and as such, we expect minimal impact on the assay.

– Due to the clinical relevance of this study, would the authors consider visualizing LINC00862 lncRNA in resection samples from HCC patients by FISH?

This is an interesting point but is currently beyond the scope of this study. However, we have assayed a number of human HCC cell lines for LINC00862 and have included it in Figure 1E.

Reviewer #3:

[…] Overall the experiments are well designed and results are clear and convincing. I only have a few minor comments regarding the identities of PHAROH and insights into the molecular mechanisms.

1. While the authors described that there are two isoforms of PHAROH, the statement is not well supported by experimental data. Considering that this is the first paper that characterized the function of PHAROH, more detailed descriptions how they determined the two transcriptional units are required. Northern blot analyses will be the best, but it will be also be helpful to show the mapping patterns of deep sequencing reads together with RACE clones they identified. The annotations shown in Figure S2F is somewhat confusing, which is inconsistent with the annotation shown in Figure 2A. In addition, there are no explanation for the label A, B, C… in Figure S2F.

RNA-seq mapping patterns have been overlaid onto Figure 2A. Explanation for label A, B, C has been added in the Figure legends.

2. Given that TIAR is a general translational regulators, it is interesting to know how PHAROH specifically regulate the expression of MYC (may not be specific, but the enrichment of MYC binding sequences in the upstream regions of affected genes are extraordinary). I think the clarification of this mechanism may be beyond the scope of this study, but short discussion by these authors will be helpful.

There was a short discussion of how PHAROH can regulate the expression of MYC in the second to last paragraph of the discussion.

3. Similarly, there is no discussion from the viewpoint of stoichiometry. Because the authors performed PHAROH FISH (Fig2E) and immunostaining of TIAR (FigS7F), I am curious to know if these signals overlap either in the cytoplasm of nucleus. Additional discussion based on the subcellular localization of PHAROH and TIAR will be required.

There is a brief discussion in the Results section regarding the relative abundances of PHAROH and c-MYC mRNA and the feasibility of a competition model.

https://doi.org/10.7554/eLife.68263.sa2

Article and author information

Author details

  1. Allen T Yu

    1. Cold Spring Harbor Laboratory, Cold Spring Harbor, United States
    2. Genetics Program, Stony Brook University, Stony Brook, United States
    Contribution
    Formal analysis, Funding acquisition, Investigation, Methodology, Writing - original draft
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1842-857X
  2. Carmen Berasain

    1. Hepatology Program, Cima, University of Navarra, Pamplona, Spain
    2. Instituto de Investigaciones Sanitarias de Navarra-IdiSNA, Pamplona, Spain
    3. CIBERehd, Instituto de Salud Carlos III, Madrid, Spain
    Contribution
    Formal analysis, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  3. Sonam Bhatia

    Cold Spring Harbor Laboratory, Cold Spring Harbor, United States
    Contribution
    Formal analysis, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0124-2621
  4. Keith Rivera

    Cold Spring Harbor Laboratory, Cold Spring Harbor, United States
    Contribution
    Formal analysis, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  5. Bodu Liu

    Cold Spring Harbor Laboratory, Cold Spring Harbor, United States
    Contribution
    Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Frank Rigo

    Ionis Pharmaceuticals, Carlsbad, United States
    Contribution
    Writing - review and editing, Provided antisense reagents
    Competing interests
    Employee of Ionis Pharmaceuticals
  7. Darryl J Pappin

    Cold Spring Harbor Laboratory, Cold Spring Harbor, United States
    Contribution
    Formal analysis, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  8. David L Spector

    1. Cold Spring Harbor Laboratory, Cold Spring Harbor, United States
    2. Genetics Program, Stony Brook University, Stony Brook, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Project administration, Writing - review and editing
    For correspondence
    spector@cshl.edu
    Competing interests
    DLS is a consultant to and receives research reagents from Ionis Pharmaceuticals.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3614-4965

Funding

National Cancer Institute (5PO1CA013106-Project 3)

  • David L Spector

National Cancer Institute (5F31CA220997)

  • Allen T Yu

National Cancer Institute (2P3OCA45508)

  • David L Spector

National Institute of General Medical Sciences (5R35GM131833)

  • David L Spector

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank members of the Spector lab for critical discussions and advice throughout the course of this study. We would also like to thank the CSHL Cancer Center Shared Resources (Microscopy, Mass Spectrometry, Flow Cytometry, and Next-Gen Sequencing) for services and technical expertise (NCI 2P3OCA45508). This research was supported by NCI 5P01CA013106-Project 3 and NIGMS 5R35GM131833 (DLS) and NCI 5F31CA220997-02 (ATY).

Ethics

Human subjects: The Human Research Review Committee of the University of Navarra (CEI 47/2015) approved the study and human samples were provided by the Biobank of the University of Navarra. The biobank obtained an informed consent and consent to publish from each patient and codified samples were provided to the researchers. The study protocol conformed to the ethical guidelines of the 1975 Declaration of Helsinki. Samples were processed following standard operating procedures approved by the Ethical and Scientific Committees. Liver samples from healthy patients were collected from individuals with normal or minimal changes in the liver at surgery of digestive tumors or from percutaneous liver biopsy performed because of mild alterations of liver function. Samples for cirrhotic liver and HCC were obtained from patients undergoing partial hepatectomy and/or liver transplantation.

Animal experimentation: Animal experimental protocols were approved (CEEA 062-16) and performed according to the guidelines of the Ethics Committee for Animal Testing of the University of Navarra.

Senior Editor

  1. James L Manley, Columbia University, United States

Reviewing Editor

  1. Robert H Singer, Albert Einstein College of Medicine, United States

Reviewers

  1. Carolina Eliscovich, Albert Einstein College of Medicine, United States
  2. Shinichi Nakagawa

Publication history

  1. Received: March 10, 2021
  2. Accepted: May 2, 2021
  3. Accepted Manuscript published: May 18, 2021 (version 1)
  4. Accepted Manuscript updated: May 20, 2021 (version 2)
  5. Version of Record published: May 28, 2021 (version 3)

Copyright

© 2021, Yu et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 549
    Page views
  • 97
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cancer Biology
    2. Cell Biology
    Kerrie-Ann McMahon et al.
    Research Article

    Caveolae-associated protein 3 (cavin3) is inactivated in most cancers. We characterized how cavin3 affects the cellular proteome using genome-edited cells together with label-free quantitative proteomics. These studies revealed a prominent role for cavin3 in DNA repair, with BRCA1 and BRCA1 A-complex components being downregulated on cavin3 deletion. Cellular and cell-free expression assays revealed a direct interaction between BRCA1 and cavin3 that occurs when cavin3 is released from caveolae that are disassembled in response to UV and mechanical stress. Overexpression and RNAi-depletion revealed that cavin3 sensitized various cancer cells to UV-induced apoptosis. Supporting a role in DNA repair, cavin3-deficient cells were sensitive to PARP inhibition, where concomitant depletion of 53BP1 restored BRCA1-dependent sensitivity to PARP inhibition. We conclude that cavin3 functions together with BRCA1 in multiple cancer-related pathways. The loss of cavin3 function may provide tumor cell survival by attenuating apoptotic sensitivity and hindering DNA repair under chronic stress conditions.

    1. Biochemistry and Chemical Biology
    2. Cancer Biology
    Margaret A M Nelson et al.
    Research Article

    Typified by oxidative phosphorylation (OXPHOS), mitochondria catalyze a wide variety of cellular processes seemingly critical for malignant growth. As such, there is considerable interest in targeting mitochondrial metabolism in cancer. However, notwithstanding the few drugs targeting mutant dehydrogenase activity, nearly all hopeful 'mito-therapeutics' cannot discriminate cancerous from non-cancerous OXPHOS and thus suffer from a limited therapeutic index. The present project was based on the premise that the development of efficacious mitochondrial-targeted anti-cancer compounds requires answering two fundamental questions: 1) is mitochondrial bioenergetics in fact different between cancer and non-cancer cells? and 2) If so, what are the underlying mechanisms? Such information is particularly critical for the subset of human cancers, including acute myeloid leukemia (AML), in which alterations in mitochondrial metabolism are implicated in various aspects of cancer biology (e.g., clonal expansion and chemoresistance). Herein, we leveraged an in-house diagnostic biochemical workflow to comprehensively evaluate mitochondrial bioenergetic efficiency and capacity in various hematological cell types, with a specific focus on OXPHOS dynamics in AML. Consistent with prior reports, clonal cell expansion, characteristic of leukemia, was universally associated with a hyper-metabolic phenotype which included increases in basal and maximal glycolytic and respiratory flux. However, despite having nearly 2-fold more mitochondria per cell, clonally expanding hematopoietic stem cells, leukemic blasts, as well as chemoresistant AML were all consistently hallmarked by intrinsic limitations in oxidative ATP synthesis (i.e., OXPHOS). Remarkably, by performing experiments across a physiological span of ATP free energy (i.e, ΔGATP), we provide direct evidence that, rather than contributing to cellular ΔGATP, leukemic mitochondria are particularly poised to consume ATP. Relevant to AML biology, acute restoration of OXPHOS kinetics proved highly cytotoxic to leukemic blasts, suggesting that active OXPHOS repression supports aggressive disease dissemination in AML. Taken together, these findings argue against ATP being the primary output of mitochondria in leukemia and provide proof-of-principle that restoring, rather than disrupting, OXPHOS and/or cellular ΔGATP in cancer may represent an untapped therapeutic avenue for combatting hematological malignancy and chemoresistance.
