Live-cell single-molecule tracking highlights requirements for stable Smc5/6 chromatin association in vivo

  1. Thomas J Etheridge  Is a corresponding author
  2. Desiree Villahermosa
  3. Eduard Campillo-Funollet
  4. Alex David Herbert
  5. Anja Irmisch
  6. Adam T Watson
  7. Hung Q Dang
  8. Mark A Osborne
  9. Antony W Oliver
  10. Antony M Carr
  11. Johanne M Murray  Is a corresponding author
  1. Genome Damage and Stability Centre, School of Life Sciences, University of Sussex, United Kingdom
  2. Chemistry Department, School of Life Sciences, University of Sussex, United Kingdom
https://doi.org/10.7554/eLife.68579
Share this article
Cite this article
  1. Thomas J Etheridge
  2. Desiree Villahermosa
  3. Eduard Campillo-Funollet
  4. Alex David Herbert
  5. Anja Irmisch
  6. Adam T Watson
  7. Hung Q Dang
  8. Mark A Osborne
  9. Antony W Oliver
  10. Antony M Carr
  11. Johanne M Murray
(2021)
Live-cell single-molecule tracking highlights requirements for stable Smc5/6 chromatin association in vivo
eLife 10:e68579.
https://doi.org/10.7554/eLife.68579
  2. Download BibTeX
  3. Download .RIS

Abstract

The essential Smc5/6 complex is required in response to replication stress and is best known for ensuring the fidelity of homologous recombination. Using single-molecule tracking in live fission yeast to investigate Smc5/6 chromatin association, we show that Smc5/6 is chromatin associated in unchallenged cells and this depends on the non-SMC protein Nse6. We define a minimum of two Nse6-dependent sub-pathways, one of which requires the BRCT-domain protein Brc1. Using defined mutants in genes encoding the core Smc5/6 complex subunits, we show that the Nse3 double-stranded DNA binding activity and the arginine fingers of the two Smc5/6 ATPase binding sites are critical for chromatin association. Interestingly, disrupting the single-stranded DNA (ssDNA) binding activity at the hinge region does not prevent chromatin association but leads to elevated levels of gross chromosomal rearrangements during replication restart. This is consistent with a downstream function for ssDNA binding in regulating homologous recombination.

Introduction

The structural maintenance of chromosome (SMC) complexes – cohesin, condensin, and Smc5/6 – are critical for the correct organisation of chromosome architecture (Uhlmann, 2016). Whereas the functions of cohesin and condensin are increasingly well understood, the exact function of Smc5/6 complex remains relatively ambiguous. Smc5/6 is conserved across all eukaryotes and is best known for its role in the cellular response to DNA damage by ensuring the fidelity of homologous recombination repair (HRR) (Murray and Carr, 2008), (Aragón, 2018). Smc5/6 has been reported to promote replication fork stability (Irmisch et al., 2009; Ampatzidou et al., 2006) and facilitate DNA replication through natural pausing sites (Menolfi et al., 2015). Biochemically, the complex can regulate pro-recombinogenic helicases (Xue et al., 2014), (Bonner et al., 2016). It has also been proposed to monitor DNA topology (Jeppsson et al., 2014) and recently been shown to restrict viral transcription (Bentley et al., 2018; Niu et al., 2017). Hypomorphic mutants show significant defects in sister-chromatid HRR, display replication fork instability, are sensitive to a wide range of genotoxins, and accumulate unresolved recombination intermediates (Irmisch et al., 2009), (De Piccoli et al., 2006), (Bermúdez-López et al., 2010). Intriguingly, complete inactivation of the Smc5/6 complex in a variety of organisms leads to cell death, and this essential nature suggests that it possesses additional functions beyond HR (homologous recombination) as deletions of core HR factors are viable.

Like all SMC complexes, the core of Smc5/6 is composed of two folded proteins, Smc5 and Smc6, which form a heterodimer (Figure 1A). Each subunit comprises a long coiled-coil arm with a hinge region at one end and a globular ATPase head at the other end (Uhlmann, 2016). All three SMC heterodimers interact at the hinge and ATP binding/hydrolysis occurs in two pockets formed between the heads of the two subunits. For all SMC complexes, ATP turnover is essential for cell viability and has been proposed to bring about conformational changes in the arms (Hirano and Hirano, 2006), (Diebold-Durand et al., 2017; Muir et al., 2020). The ATPase activity is also key to the interaction of SMC’s with DNA: cohesin’s ATPase is required for both loading and dissociation from DNA (Elbatsh et al., 2016), whilst condensin is dependent on its ATPase activity for translocating along DNA and forming loop structures (Terakawa et al., 2017), (Elbatsh et al., 2019). The role of the Smc5/6 ATPase in DNA association has not been studied in detail.

Figure 1 with 4 supplements see all
Download asset Open asset

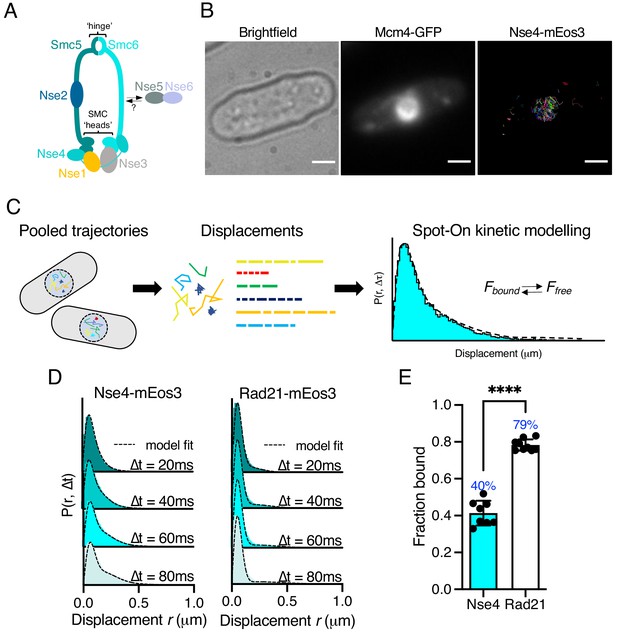

Single-particle tracking of Smc5/6 to monitor chromatin association in live cells.

(A) Schematic representation of the Smc5/6 complex in fission yeast. (B) Nse4–mEos3 tracking shows nuclear localisation of trajectories. SPT trajectories demonstrated confinement within nuclear region (right) that colocalised with the nuclear replication protein Mcm4 fused to GFP. Scale bar = 2 μm. (C) Overview of approach to quantifying chromatin association using SPT data and Spot-On kinetic modelling. (D) Probability density function (PDF) histograms and Spot-On model fitting (dashed line) for Nse4–mEos3 (Smc5/6) and Rad21–mEos3 (cohesin) single-molecule displacements at different time intervals. Displacements are from three pooled independent experiments, each with three technical repeats. (E) Fraction-bound values derived from Spot-On model fitting. Mean (±S.D). Black dots indicate Spot-On Fbound values derived from each technical repeat from three independent experiments. Percentages in blue denote fraction-bound value from fitting pooled data in (D). ****p<0.0001.

The Smc5/6 hinge contains specialised interfaces that are important for interacting with single-stranded DNA (ssDNA) (Alt et al., 2017). Disruption of these regions by mutation results in sensitivity to DNA damaging agents. The Smc5/6 ATPase heads are bridged by a sub-complex of three non-SMC elements (Nse), Nse4 (kleisin), and two kleisin-interacting tandem winged-helix element (KITE) proteins, Nse1 and Nse3. Nse1 has a RING finger and, in association with Nse3, has been shown to have ubiquitin ligase activity (Doyle et al., 2010). The winged-helix domain of Nse3 possesses double-stranded DNA (dsDNA) binding activity, which is essential for viability (Zabrady et al., 2016). The dsDNA binding has been predicted to provide the basis for initial chromatin association and loading of the complex (Zabrady et al., 2016). In addition to the Nse1/3/4 subcomplex, Nse2, a SUMO ligase, is associated with the Smc5 coiled-coil arm. DNA association of the Smc5/6 complex is required to activate the Nse2 SUMO ligase, which SUMOylates a range of targets within and outside of the complex (Varejão et al., 2018). Two further proteins, Nse5 and Nse6, also associate with the Smc5/6 complex in yeasts (both Saccharomyces cerevisiae and Schizosaccharomyces pombe). However, unlike the other Nse proteins, Nse5 and Nse6 have not been identified as part of a Smc5/6 holo-complex in human cells (Pebernard et al., 2006), (Taylor et al., 2008).

Chromatin loading of the structurally related cohesin complex requires accessory proteins, the cohesin-loader complex Scc2–Scc4 (spMis4–Ssl3) (Ocampo-Hafalla and Uhlmann, 2011). A loading complex for Smc5/6 has not yet been defined, but recent work in fission yeast has shown that its recruitment to sites of replication fork collapse occurs via a multi-BRCT domain protein, Brc1 (Oravcová et al., 2018). Brc1 binds to γ-H2A and interacts with the Nse5–Nse6 subcomplex (which associates with Smc5/6 but is not part of the core complex), providing a potential mechanism by which Smc5/6 is recruited and loaded. In S. cerevisiae, the N-terminal four BRCT domains of the Brc1 homologue, Rtt107, have also been shown to bind Nse6 amongst a number of other proteins in the DNA damage response (Wan et al., 2019). In human cells, recruitment of Smc5/6 to inter-strand cross-links was shown to depend on interactions between SLF1 – another multi-BRCT domain protein – and SLF2 – a distant homologue of Nse6 (Räschle et al., 2015). These observations suggest that recruitment of Smc5/6 through Nse6 and a BRCT-domain mediator protein has been conserved through evolution.

Understanding how Smc5/6 is recruited to, and associates with, the chromatin is an important step in defining how it regulates recombination processes and other potential DNA transactions. To date, the study of Smc5/6 chromatin association has been mostly limited to chromatin immunoprecipitation (ChIP)-based methodologies. Recent studies have shown single-particle tracking (SPT) microscopy can provide robust measurements of chromatin interacting proteins in vivo and offer complementary data to genome-wide approaches.

Here, we perform SPT using photoactivated localisation microscopy (PALM) in live fission yeast cells to monitor chromatin association of Smc5/6. Using a range of smc and nse mutants, we investigated the role of its ATPase activity, DNA interaction sites, and protein binding partners in promoting chromatin association. This highlighted that ATPase activity and dsDNA binding are both crucial for chromatin association. In contrast, interaction with ssDNA at the hinge is not required for stable chromatin loading, but we show that it is important to prevent gross chromosomal rearrangements at collapsed replication forks. We also establish that the Nse5–Nse6 sub-complex is required for almost all chromatin association, whereas Brc1 is required for only a proportion of the association. These data define the Brc1–Nse6-dependent sub-pathway of chromatin interaction and identify parallel Nse6-dependent but Brc1-independent sub-pathway(s).

Results

Smc5/6 is chromatin associated in unchallenged cells

To monitor Smc5/6 chromatin association in living yeast cells we used photoactivated localisation microscopy combined with SPT (Manley et al., 2008). We created a fission yeast strain that endogenously expressed the kleisin subunit Nse4 fused to the photoconvertible fluorophore mEos3 and verified this allele had no measurable impact on cellular proliferation (Figure 1—figure supplement 1). We imaged photoconverted subsets of Nse4–mEos3 in live yeast cells at high temporal resolution (20 ms exposure) and created trajectories by localising and tracking individual fluorophores (Figure 1—figure supplement 2). Nse4–mEos3 localisations and trajectories showed nuclear confinement consistent with previous studies (Pebernard et al., 2008; Figure 1B).

To evaluate the chromatin association of Smc5/6 from our data, we used the recently described ‘Spot-On’ software (Hansen et al., 2018) (see Materials and methods). Spot-On implements a bias-aware kinetic modelling framework and robustly extracts diffusion constants and sub-populations from histograms of the molecular displacements that make up each trajectory (Figure 1C). We tracked Nse4–mEos3 in asynchronous live cells and created displacement histograms over four time intervals (Figure 1D). The profiles show a clear peak of short displacements (<100 nm) indicative of a chromatin-bound fraction of Nse4–mEos3 in unchallenged cells. Spot-On kinetic modelling revealed a fraction bound of about 40% (Figure 1E). The displacement distributions were best described with a three-state fit which, in addition to bound and freely diffusing species, included an intermediate slow-diffusing population. This may describe transient interactions with chromatin or anomalous diffusion as a result of a crowded molecular environment (Woringer et al., 2020; Figure 1—figure supplement 3, Materials and methods). Tracking of other core Smc5/6 (Nse2 and Smc6) subunits revealed similar displacement profiles and bound fractions, suggesting the dynamics of the kleisin subunit is indicative of the whole complex (Figure 1—figure supplement 4).

We next compared Smc5/6 chromatin association with the structurally related cohesin complex. As fission yeast cells reside in G2 for the majority of the cell cycle, we hypothesised that cohesin would be stably associated with the chromatin (Bernard et al., 2008) and should thus demonstrate a higher fraction bound. As predicted, tracking of Rad21 (kleisin) and Smc1 (arm) fused to mEos3 revealed displacement profiles with greater proportions of short displacements compared to Smc5/6 subunits and subsequently resulted in greater bound fractions extracted from Spot-On model fitting (Figure 1D,E, Figure 1—figure supplement 4). These observations show that interaction of cohesin and Smc5/6 with chromatin is distinct and different and suggests that their association occurs with different dynamics.

dsDNA binding is required for efficient chromatin association

Smc5/6 has been shown to bind both ds- and ssDNA. The KITE protein Nse3 has a dsDNA binding domain in both humans and fission yeast and is situated at the head end of the complex (Figure 2A). This activity is essential and was predicted to be the initial point of interaction between Smc5/6 and the chromatin required before loading (Zabrady et al., 2016). To assess whether Nse3 dsDNA interaction plays a role in global chromatin association, we tracked Nse4–mEos3 in a nse3-R254E genetic background. This hypomorphic mutation has been shown to disrupt but not fully abolish dsDNA binding by Nse3 (Zabrady et al., 2016). When compared to nse3+, Nse4–mEos3 displacement histograms from asynchronous nse4-mEos3 nse3-R254E cells showed a broader profile suggesting the complex had become more dynamic (Figure 2B,C). This resulted in a reduction in the fraction-bound value in Spot-On analysis (Figure 2D). This confirms in vivo that dsDNA binding by Nse3 underpins the chromatin association of Smc5/6.

Figure 2
Download asset Open asset

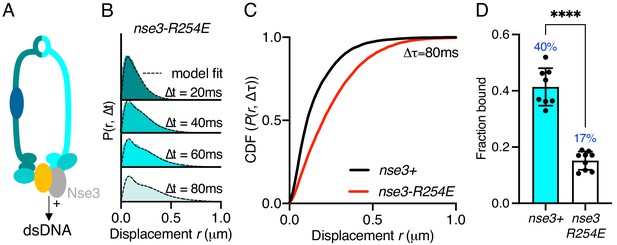

Stable Smc5/6 chromatin association requires dsDNA binding activity.

(A) Schematic representation of the region of known dsDNA interaction in S. pombe Smc5/6. (B) Probability density function histogram of pooled Nse4–mEos3 single-molecule in nse3-R254E background and Spot-On model fitting (dashed line). The resulting fraction of bound molecules compared to wild-type data in Figure 1D. Bar chart shows mean ± S.E.M. Black dots denote independent repeats. ***p=0.0003. (C) Cumulative distribution function (CDF) of pooled Δt = 80 ms data from (B). (D) Fbound values derived from Spot-On model fitting of Nse4–mEos3 in nse3-R254E background. Black dots denote each technical repeat from three independent experiments. Percentages in blue denote fraction-bound value from fitting pooled data in (B). Mean (±S.D). ****p<0.0001.

Smc5/6 ATPase activity is required for efficient chromatin association

Each of the SMC complexes possess ATPase activity, with two separate and distinct active sites within juxtaposed ‘head’ domains, which are generated by bringing together the required signature motifs in trans (Figure 3A). Like all SMC complexes the ATPase activity of Smc5/6 is essential and inactivating mutations in either of the two Walker motifs are non-viable (Verkade et al., 1999; Fousteri and Lehmann, 2000). Therefore, to investigate the influence of ATPase activity on chromatin association of the Smc5/6 complex, we first mutated the ‘arginine finger’ of Smc5 (smc5-R77A) or Smc6 (smc6-R150A). Mutation of the equivalent residues in other SMC complexes does not typically affect the basal level of ATP turnover, but instead acts to abolish stimulation of activity by DNA interaction (Lammens et al., 2004). Both the smc5-R77A and the smc6-R150A mutation resulted in sensitivity to replication stress (Figure 3—figure supplement 1). Tracking of Nse4–mEos3 in these genetic backgrounds revealed increased single-molecule displacements and subsequent decreases in chromatin association of the Smc5/6 complex (Figure 3B,C and Figure 3—figure supplement 1). smc6-R150A led to a dramatic decrease in chromatin association, whereas mutation of the Smc5 arginine was noticeably less detrimental. Interestingly, the reduction in the levels of chromatin association correlated with sensitivity to exogenous genotoxic agents, strongly suggesting that DNA-dependent ATP hydrolysis by the two binding pockets is not equivalent.

Figure 3 with 2 supplements see all
Download asset Open asset

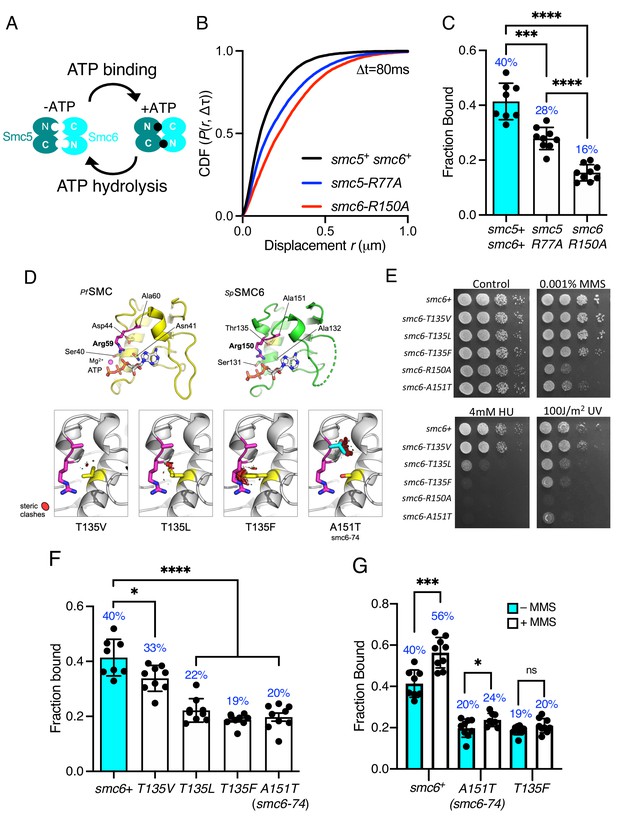

Smc5/6 ATPase activity regulates chromatin association.

(A) Schematic representation of SMC head engagement upon ATP binding. (B) CDF of pooled Δt = 80 ms single-molecule displacements of Nse4–mEos3 in smc5+ smc6+, smc6-R150A, and smc5-R77A genetic backgrounds. (C) Comparison of the fraction of bound molecules from Nse4–mEos3 sptPALM experiments in asynchronous smc6-R150A and smc5-R77A genetic backgrounds to wild=type data from Figure 1D. Black dots denote each technical repeat from three independent experiments. Percentages in blue denote fraction-bound value from fitting pooled data. Mean (±S.D). ***p=0.0001, ****p<0.0001. (D) Secondary structure molecular cartoons of homology models for the head domains of S. pombe Smc6, highlighting the arginine finger and its interaction with ATP. The X-ray crystal structure for the head domain of Pyrococcus furiosus SMC in complex with ATP served as a reference, providing the expected position of bound ATP the homology model. Key amino acids are shown in ‘stick representation’. The lower panel shows the predicted increase in severity of steric clashes made with the arginine finger through introduction of each of the indicated mutations. (E) Yeast spot assay of S. pombe strains harbouring different smc6 ATPase mutations grown at 30°C for 3 days. (F) Fraction-bound values in each of the smc6-T135 mutant backgrounds compared to wild-type data from Figure 1D and smc6-74 (A151T). Black dots denote each technical repeat from three independent experiments. Percentages in blue denote fraction-bound value from fitting pooled data. Mean (±S.D). *p=0.0158, ****p<0.0001. (G) Fraction-bound values derived from SPT analysis of MMS-treated (0.03%, 5 hr) cells compared to asynchronous untreated data in (F). *p=0.0495, ***p=0.0005.

The Smc6 arginine finger mutant was of particular interest to us as the well characterised smc6-74 allele maps to the next residue, A151T (Irmisch et al., 2009), (Verkade et al., 1999), (Verkade et al., 1999), (Outwin et al., 2009). Single-particle tracking showed this mutant to have a similar decrease in chromatin association to smc6-R150A. Sequence-threaded homology models for the head domain of S. pombe Smc6 and comparison to the X-ray crystal structure of the head domain from Pyrococcus furiosus SMC in complex with ATP (PfSMC, PDB: 1XEX) allowed us to create specific mutations designed to display a graduated effect on the Smc6 arginine finger: Thr135 in Smc6 was mutated to a series of hydrophobic amino acids with increasing size, each predicted to produce increasingly severe steric clashes with the arginine finger when engaged in interaction with bound ATP (Figure 3D).

Phenotypic analysis of each smc6 mutant confirmed that the predicted severity of steric clash (Phe > Leu > Val) closely correlated with an increase in sensitivity to a range of genotoxic agents (Figure 3E), culminating with the most severe mutation, T135F, producing a phenotype similar to the well characterised smc6-74 (A151T) mutant. SPT data revealed that increasing the severity of the substitution corresponded with a decrease in the fraction of bound Smc5/6 (Figure 3F, Figure 3—figure supplement 1). The smc6-T135F strain showed similar levels of bound complex as the smc6-74 mutation.

Since mutations in the ATPase domains render cells sensitive to replication stress (Figure 3E), we monitored whether these mutants could recruit the complex to chromatin after treatment with methyl methanesulfonate (MMS). Acute exposure to 0.03% MMS for 5 hr resulted in a modest increase in the fraction of Nse4–mEos3 bound to the chromatin in cells with a wild-type background (Figure 3G, Figure 3—figure supplement 2). However, in contrast both the smc6-74 and smc6-T135F alleles significantly reduced or prevented Smc5/6 from being recruited to chromatin in response to MMS.

Together these data demonstrate that the ability to stimulate Smc5/6 ATPase activity through the arginine finger is crucial for its stable association with the chromatin. The disparity in phenotype between smc6 and smc5 ATPase mutants suggests that there could be an underlying asymmetry in the use for the two ATP binding sites, a phenomenon that has been recently described for both condensin and cohesin (Elbatsh et al., 2016; Hassler et al., 2019).

ssDNA binding is dispensable for Smc5/6 chromatin association

We recently determined the structure of the S. pombe Smc5/6 hinge and demonstrated its preferential binding to ssDNA (Alt et al., 2017). Specialised features known as the ‘latch’ and ‘hub’ are required for efficient association with ssDNA (Figure 4A). The kinetics of this interaction are biphasic and appear to involve two distinct interaction points. Like mutants compromised for dsDNA binding, mutations in these key regions that weaken the interaction with ssDNA render cells viable but sensitive to replication stress and DNA damaging agents (Alt et al., 2017). We tested whether the ability to interact with ssDNA affected the ability of Smc5/6 to associate with chromatin.

Figure 4 with 2 supplements see all
Download asset Open asset

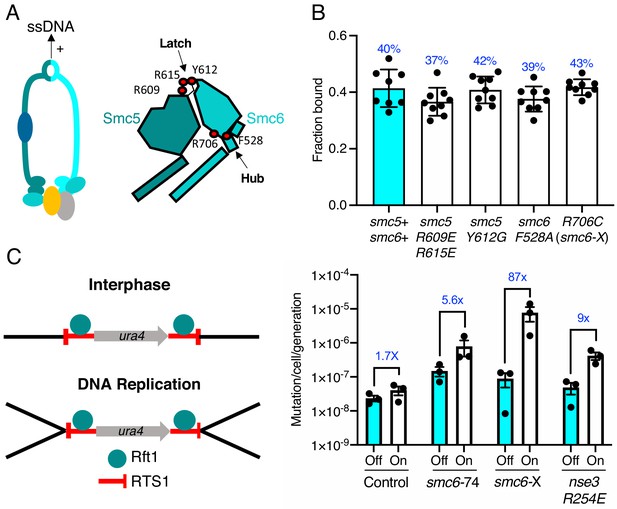

ssDNA interactions are required to prevent gross chromosomal re-arrangements but dispensable for stable Smc5/6 chromatin association.

(A) Left: Schematic representation of the hinge region known to interact with ssDNA interaction in Smc5/6. Right: Schematic diagram of the S. pombe hinge region adapted from Alt et al., 2017. Residues implicated in ssDNA interaction are highlighted with red filled circles. (B) Fraction-bound values of Nse4–mEos3 derived from SPT experiments in Smc5/6 hinge mutant backgrounds compared to wild-type data from Figure 1D. Mean ±S.D. Black dots denote independent repeats and percentages in blue denote fraction-bound value from fitting pooled data from all repeats. (C) Diagram of the site-specific replication stall system RTS1-ura4-RTS1 (Lambert et al., 2005), which consists of two inverted RTS1 sequences integrated on either sides of the ura4 gene. Rtf1 binds the RTS1 sequence and stalls incoming replication forks coming from both centromeric and telomeric sides. Rtf1 is expressed under the control of the nmt41 promoter which is ‘off’ in the presence of thiamine and ‘on’ upon thiamine removal. (D) Induction of rtf1 in cells harbouring RuraR construct induces ura4 marker loss as assayed by 5-fluoroorotic acid (5-FOA) resistance. Cells growing in the presence (Off, arrest repressed) or absence (On, arrest induced) of thiamine were analysed by fluctuation analysis. Mean ± S.E.M. Black dots denote independent repeats.

Previously characterised mutations were introduced into the Nse4–mEos3 strain that affect either initial ssDNA interaction (smc5-R609E R615E), stable hinge heterodimerisation (smc5-Y612G), or secondary ssDNA interactions at the Smc6 hub (smc6-F528A, smc6-R706C) (Alt et al., 2017; Figure 4A, right). Spot-On model fitting to sptPALM data showed that, unlike the dsDNA binding and ATPase mutants, disruption of ssDNA interactions did not alter the bound fraction of Smc5/6 in unchallenged cells (Figure 4B).

Since these mutations render cells sensitive to replication stress, we monitored recruitment of Smc5/6 complex to chromatin after treatment with MMS. Disruption of ssDNA interactions either reduced, or prevented, further Smc5/6 from being recruited to chromatin in response to MMS (Figure 4—figure supplement 1). Together, these data show that, while dsDNA binding is required for stable association of the Smc5/6 complex with chromatin, its interactions with ssDNA are not. This is consistent with ssDNA interactions, playing a role in processes downstream of loading and we speculate that it may be important for Smc5/6 retention on the DNA during DNA repair-associated processes.

ssDNA interaction is required to prevent gross chromosomal rearrangements

We hypothesised that the loss of Smc5/6 chromatin association would produce distinct outcomes during HR-dependent processes compared to the loss of ssDNA interaction. To investigate this, we compared the effect of Smc5/6 mutations in the response to replication fork stalling in the previously characterised ‘RuraR’ replication fork barrier system (Lambert et al., 2005).

In fission yeast, binding of Rtf1 to the replication termination sequence, RTS1, arrests replication forks in a polar manner (Dalgaard and Klar, 2001). In the RuraR system, two copies of RTS1 are placed in an inverted orientation on either side of the ura4 marker on chromosome III (Figure 4C). The RTS1 barrier activity is regulated by placing rtf1 under the control of the nmt41 promoter and induction of rtf1 expression leads to arrest of replication forks converging on both RTS1 sequences. Replication of the intervening ura4 requires homologous recombination-dependent replication restart, which can result in genome instability via non-allelic homologous recombination (NAHR) (Mizuno et al., 2013) or small-scale errors by the error prone restarted fork (Iraqui et al., 2012). The loss of ura4 in the RuraR system provides a readout that is particularly useful to characterise NAHR events. In the absence of key HR factors, such as Rad51, induction of arrest leads to viability loss, whereas mis-regulation of HR generates aberrant outcomes (Lambert et al., 2005).

We introduced the smc6-R706C (smc6-X) and smc6-A151T (smc6-74) mutations into the RuraR system. There was no loss of viability when stalling was induced at RTS1 in these backgrounds compared to rad51Δ (Figure 4—figure supplement 2). This is consistent with Smc5/6 regulating recombination, rather than being core to the recombination process (Murray and Carr, 2008). Induction of replication arrest led to an increase in the loss of ura4 activity in smc6+, smc6-74, and smc6-X backgrounds. There was only a modest change in the ATPase mutant (smc6-74) (5.6-fold) compared to smc6+ (1.7-fold), suggesting that reduced chromatin association only moderately effects HR fork restart. To confirm this further, we introduced the nse3-R254E mutation into the RuraR strain and found similar results (ninefold) (Figure 4C).

Introduction of the hinge mutant (smc6-X) resulted in a highly elevated induction of ura4 loss, an 87-fold increase over the uninduced (Figure 4C and Supplementary file 1). Analysis of ura4− colonies isolated after replication stalling from smc6-X and smc6-74 mutants showed that most were full deletions of the intervening sequence between the two RTS1 loci (Figure 4—figure supplement 2). Thus, these results highlight the ssDNA-binding region of the Smc5/6 hinge as particularly important for the suppression of NAHR and gross chromosomal rearrangements, and that stable recruitment of a defective complex (smc6-X) is more detrimental at collapsed replication forks than reduced Smc5/6 chromatin association (smc6-74 and nse3-R254E).

Different requirements for Nse6 and Brc1 for recruitment of Smc5/6

Recent work in fission yeast has shown that the Nse6 subunit and the BRCT-containing protein Brc1 are required for the recruitment of Smc5/6 to distinct nuclear foci in response to DNA damage (Oravcová et al., 2018; Figure 5A). To investigate whether these factors influence recruitment of the Smc5/6 complex to chromatin in unchallenged cells, the genes encoding Brc1 and Nse6 were deleted in the Nse4–mEos3 strain and Smc5/6 chromatin association monitored by SPT.

Figure 5 with 1 supplement see all
Download asset Open asset

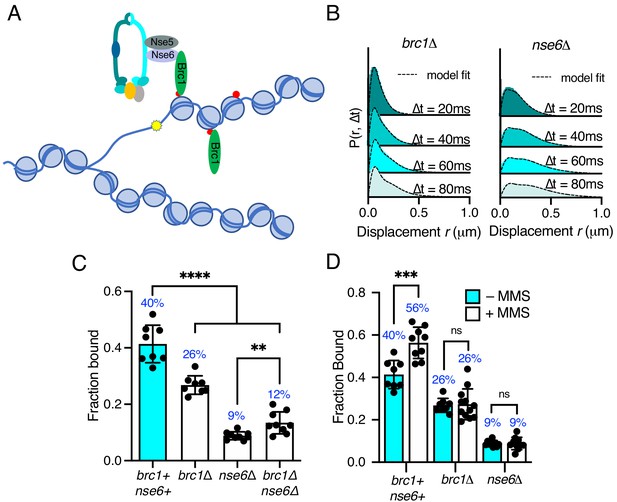

Differential requirements of Nse6 and Brc1 for Smc5/6 chromatin association.

(A) Schematic diagram of Smc5/6 recruitment to γ-H2A (red dots: H2A phosphorylation) at stalled replication forks. Brc1 binds to γ-H2A and recruits Smc5/6 via an interaction with Nse6. Yellow star indicates a DNA lesion. (B) Displacement PDF histograms from asynchronous cells expressing Nse4–mEos3 in brc1Δ and nse6Δ genetic backgrounds. Data are from three pooled independent experiments, each with three technical repeats. Spot-On model fit is denoted by dashed line. (C) Comparison of Nse4–mEos3 Fbound values derived from Spot-On fitting of SPT displacement histograms in wild type, brc1Δ, nse6Δ, and brc1Δ nse6Δ genetic backgrounds. Mean ± S.D. Black dot values derived from independent technical repeats; percentages in blue denote fraction-bound value from fitting pooled data from all repeats. ****p<0.0001, **p=0.0043. (D) FBound fraction values from brc1Δ and nse6Δ cells in (C) compared to parallel experiments where cells were treated with 0.03% MMS for 5 hr. ***p<0.005, ns = not significant.

Deletion of either brc1 or nse6 resulted in an altered displacement profile and a concurrent decrease in the fraction of bound molecules (Figure 5B,C). In brc1Δ, the amount of chromatin-associated Smc5/6 decreased by approximately 35%, showing that only a proportion of Smc5/6 chromatin association is dependent on Brc1. Recruitment of Brc1 to chromatin is reported to be via a specific interaction with γ-H2A (Williams et al., 2010). We therefore investigated Smc5/6 complex recruitment in the absence of H2A phosphorylation. Introduction of nse4-mEos3 into hta1-SA hta2-SA mutant cells revealed a statistically significant reduction in the fraction bound, similar to that seen in brc1Δ cells (Figure 5—figure supplement 1). These data are consistent with Brc1-dependant loading of Smc5/6 being largely confined to regions of γ-H2A.

In contrast, deletion of nse6 showed significant deviation from the wild-type data, resulting in an almost complete loss of chromatin-associated Nse4 (Figure 5C), strongly supporting a Brc1-independent role for Nse6 in the stable recruitment of Smc5/6 to the chromatin. It should be emphasised that nse6 deleted S. pombe cells are slow growing and very sensitive to genotoxins, whereas deletion of genes encoding proteins in the core complex is inviable. Deletion of brc1 in an nse6Δ background is viable and results in additive sensitivity to DNA damage and replication stress (Oravcová et al., 2018). This suggests that Smc5/6 can still associate with chromatin in the absence of Nse6, albeit at a severely reduced level. We hypothesise that the dsDNA binding activity of Nse3 is sufficient for this residual association with the chromatin. In support of this prediction, we were unable to generate the nse6Δ nse3-R254E double mutant, suggesting that it is synthetically lethal. Furthermore, SPT analysis of Nse4–mEos3 in nse6Δ brc1Δ cells did not lead to further reduction in the fraction of bound complexes (Figure 5D).

Previous ChIP experiments have shown that Smc5/6 is enriched at repetitive genomic loci following MMS treatment and that this is dependent on Brc1 and Nse6 (Oravcová et al., 2018). We tested whether we could detect increased Nse4 chromatin association in response to MMS treatment in brc1Δ and nse6Δ cells. Both brc1Δ and nse6Δ cells failed to show any increase above levels detected in untreated cells upon acute exposure to MMS (Figure 5C), supporting the hypothesis that both Brc1 and Nse6 are required for Smc5/6 recruitment to sites of DNA damage (Oravcová et al., 2018).

The Nse5–Nse6 subcomplex displays different kinetics than the Smc5/6 core complex

Intrigued by the significant role of Nse6 even in the absence of DNA damage, we investigated the dynamics of the Nse5–Nse6 complex. We tagged both Nse5 and Nse6 with mEos3 (Figure 6—figure supplement 1) and compared their behaviour to Nse4. In contrast to Nse2 and Smc6, which show similar chromatin association to Nse4 (Figure 1—figure supplement 4), both Nse5 and Nse6 displayed a broader range of displacements and were subsequently less chromatin associated (Figure 6A,B). This suggests Nse6 is more dynamic than other subunits and may indicate its association with the core Smc5/6 complex is transient. To determine whether chromatin association of Nse5–Nse6 is affected by that of the core complex, we introduced the nse6-mEos3 allele into a smc6-74 or smc6-X genetic background. We predicted that if Nse5–Nse6 was tightly associated with the core complex, then it would display reduced association in a smc6-74 strain as seen with Nse4, but not in smc6-X (Figures 3E and 4B). Tracking of Nse6–mEos3 in both mutants revealed no significant change in the fraction bound (Figure 6D), suggesting Nse5–Nse6 has different chromatin association dynamics to the core Smc5/6 complex. This would be indicative of Nse5–Nse6 acting to transiently stabilise or load Smc5/6 complexes on the chromatin.

Figure 6 with 1 supplement see all
Download asset Open asset
Nse5–Nse6 chromatin association is distinct from other Smc5/6 subunits.

(A) CDF histogram of pooled single-molecule displacements at Δt = 80 ms time interval of Nse4–mEos3, Nse5–mEos3, and Nse6–mEos3. (B) Fraction of bound molecules extracted from Spot-On model fits from experiment in (A). Mean ± S.D. Black dots denote independent technical repeats, percentages denote fraction-bound value from fitting pooled data from all repeats. ***p=0.0003, ****p<0.0001. (C) Fraction of bound molecules extracted from Spot-On model fits from SPT Nse6–mEos3 in smc6-74 or smc6-X genetic backgrounds compared to wild-type data in (B). (D) Schematic diagram of Smc5/6 DNA interactions and their roles (left) and proposed model of Smc5/6 chromatin association (right). Loading requires dsDNA binding by Nse3 and Smc5 and Smc6 ATPase activity. ssDNA binding at the hinge is not required for loading but is required for subsequent functions to regulate homologous recombination, suppress non-allelic recombination and gross chromosomal rearrangements (GCRs). Smc5/6 association with chromatin is dependent on Nse5 and Nse6 and either directed (e.g. Brc1-dependent recruitment to γ-H2A) (top) or non-directed via dsDNA binding and subsequent loading (bottom). Nse5/6 is required in both instances and may act either to directly load Smc5/6 or may stabilise its association after initial loading by dsDNA interaction.

Discussion

The Smc5/6 complex is best known as a component of the DNA repair machinery that ensures the fidelity of homologous recombination (HR). However, the complex is essential in yeast, which suggests that it possesses additional functions beyond HR as deletions of core HR factors are viable (Aragón, 2018). The recruitment of Smc5/6 to DNA and ATP binding/hydrolysis at both the ATP sites are thought to be essential for each of its cellular roles. Understanding the molecular details of how Smc5/6 associates with DNA and/or chromatin is therefore an important step in elucidating how Smc5/6 regulates recombination and other potential DNA transactions. Here, we have established SPT as a method to probe Smc5/6 dynamics in live cells, and coupled with yeast genetics and structural studies, we uncover the key requirements for its association with chromatin.

Smc5/6 complex features required for stable chromatin association

The Smc5/6 complex contains two separate ATP binding and hydrolysis sites. Both are formed when the Smc5 and Smc6 head domains interact. In common with all SMC complexes, the ATP binding pockets have an arginine finger, which is proposed to regulate DNA-dependent ATP hydrolysis. We show that mutating either of the Smc5 or Smc6 arginine fingers resulted in an increase in sensitivity to DNA damage and replication stress. This correlated with decreases in the fraction of bound Smc5/6 detected in SPT experiments. Interestingly, Smc5 and Smc6 arginine fingers were not equivalent as we uncovered an underlying asymmetry in the requirement of the two ATP binding sites for stable chromatin association. This asymmetry is in line with observations made for cohesin and condensin (Elbatsh et al., 2019; Hassler et al., 2019).

One of the original smc6 mutants, smc6-74 (A151T), maps to the residue adjacent to the arginine residue in the arginine finger domain, suggesting it is compromised in ATP hydrolysis. Using a structural model based on the Pyrococcus furiosus SMC head domain, we engineered a series of structurally informed mutations designed to compromise the arginine finger to various degrees. This allowed us to dial in sensitivity to DNA damaging agents that robustly correlated with a reduced ability of Smc5/6 to associate with chromatin. Taken together, these observations strongly suggest that ATPase activity stimulated by DNA binding is pre-requisite for Smc5/6 complex DNA/chromatin association and function.

Recent structural and biophysical data for the ssDNA-binding activity of the Smc5/6 hinge domain (Alt et al., 2017) and the dsDNA-binding Nse1/3/4 module (Zabrady et al., 2016) allowed an investigation of the role for each of these two functions in promoting Smc5/6 chromatin association. The introduction of defined mutations into fission yeast demonstrated that dsDNA binding by Nse3 is required for DNA/chromatin association of the Smc5/6 complex, whereas the ability to bind ssDNA at the hinge is dispensable. Since ssDNA-binding mutants are sensitive to a range of genotoxic agents (Alt et al., 2017), we therefore predicted that ssDNA binding most likely plays a role in downstream processes once the complex has initially bound to dsDNA/chromatin. This would be an analogous situation to cohesin, whereby after initial DNA binding to dsDNA, capture of a second DNA moiety is only achievable for ssDNA (Murayama et al., 2018). This prediction is supported by results from our site-specific replication stall experiments, which indicate that increased levels of ectopic recombination occur in Smc5/6 mutants that lack the ability to interact with ssDNA correctly. This is much higher than in mutants that fail to stimulate ATPase activity and do not correctly associate with chromatin.

Interacting factors influencing Smc5/6 chromatin association

Both Brc1 and Nse6 have been implicated in recruiting Smc5/6 to regions of γ-H2A at stalled/collapsed replication forks in fission yeast (Oravcová et al., 2018). We demonstrate here that deletion of either one of these factors reduces the in vivo levels of chromatin-associated Smc5/6, in both unchallenged cells and cells after exposure to MMS. Interestingly, deletion of brc1 or preventing histone H2A phosphorylation did not generate as severe a defect in chromatin association as deletion of nse6. This is in agreement with recent ChIP experiments performed at discreet genomic loci (Oravcová et al., 2018) and demonstrates that there is at least one alternative Brc1-independent pathway for recruitment of Smc5/6 to chromatin.

To explain the data, we consider two possible modes of chromatin association: directed and non-directed association (Figure 6C). Directed association occurs when the complex is recruited to discrete genomic loci via interaction between the Nse5/6 subcomplex and chromatin-associated factors. This occurs via Brc1 at sites of γ-H2A, but alternative Nse5/6-interacting partners may exist to bring the complex to specific DNA structures, including stalled replication forks, HR intermediates, and double-strand breaks.

Association with the chromatin may also occur in a non-directed manner via Smc5/6’s intrinsic ability to associate with DNA through the dsDNA binding site of Nse3. In this scenario, Smc5/6 initially binds DNA structures directly via Nse3 and the Nse5/Nse6 subcomplex acts transiently to stabilise this interaction. This would help explain some important observations. Firstly, while Smc5, Smc6, and Nse1-4 are all essential proteins, fission yeast cells can survive without Nse5/Nse6. In the absence of Nse5/Nse6, the complex still possesses dsDNA binding activity, but the association with the chromatin is unstable. Secondly, deletion of nse6 is synthetically lethal with the hypomorphic dsDNA binding mutant nse3-R254E, suggesting the dsDNA binding activity is sufficient to retain viability in the absence of exogenous DNA damage or replicative stress. If Nse5/6 is required to stabilise DNA/chromatin association after an initial recruitment by dsDNA binding, it would explain both the essential nature of the dsDNA binding activity of Nse3 and the observations that dsDNA binding site is tightly linked to chromatin association.

These two modes are not mutually exclusive, and, in both cases, the Nse5/6 heterodimer may be acting transiently to regulate structural configurations of the complex that promote stable association with the chromatin (‘loading’), much like the model for Mis4-Ssl3 being the loader for cohesin (Ocampo-Hafalla and Uhlmann, 2011; Furuya et al., 1998). Our SPT experiments show that Nse5 and Nse6 are more mobile than components of the core Smc5/6 complex suggesting alternative kinetics. This would be analogous to the cohesin-loader Scc2, which displays different dynamics to the cohesin complex and ‘hops’ between chromatin-bound cohesin molecules (Rhodes et al., 2017). Intriguingly, two recent studies have demonstrated that Nse5/6 negatively regulates the ATPase activity of Smc5/6 in vitro, and binding to the core complex causes conformational alterations (Hallett, 2021; Steigenberger et al., 2021). Taken together with our observations that DNA-stimulated ATPase activity is required for stable loading to the chromatin, this provides an Nse5/6-dependent mechanism by which ATPase activity is repressed until a DNA substrate is encountered. We predict that once Nse5/6 inhibition of Smc5/6 ATPase is relieved, it is then released from the core complex.

In summary, by conducting a detailed characterisation of Smc5/6 chromatin association in live cells, we demonstrate that SPT is a powerful approach for studying this enigmatic complex. This methodology, when coupled with structure-led mutational analysis and yeast genetics, has provided new insights into Smc5/6 behaviour as well as clarifying previous observations from past genetic and molecular genetic experiments.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Chemical compound, drugMethylmethane sulfonateSigma–Aldrich129925–25G
Chemical compound, drugHydroxyureaSigma–AldrichH8627-100G
Chemical compound, drug5-Fluoroorotic acidFormedium5FOA10
OtherAgarose, Type I-A, low EEOSigma–AldrichA0169-25G
OtherCircular coverslips: #1.5H, ∅25 mmThorlabsCG15XH
OtherUV-Ozone cleaning systemNovascanPSD-UV
Software, algorithmGDSC SMLMFiji plugin update siteGDSC SMLM2Underlying source-code is freely avaliable at https://github.com/aherbert/gdsc-smlm
Software, algorithmPrism 9Graphpad software

S. pombe strain construction

Request a detailed protocol

S. pombe strains were constructed using Cre-lox-mediated cassette exchange (RMCE) as previously described (Watson et al., 2008). Strains were created with either essential gene replacement base strains or C-terminal tagging base strains (Supplementary file 2). C-terminal base strains were transformed with plasmid pAW8-mEos3.2-KanMX6 to introduce the mEos3.2 tag at the C-terminal end of the gene.

Microscopy sample preparation

Request a detailed protocol

S. pombe cultures were grown to mid-log phase at 30°C in Edinburgh minimal media (EMM) supplemented with leucine, uracil, and adenine. Cells were harvested and washed once in phosphate-buffered saline (PBS). Cells were then resuspended in PBS, and 10 μl was deposited on an EMM-agarose pad before being mounted on ozone-cleaned circular coverslips (Thorlabs, #1.5H, ∅25 mm) and placed in a metal cell chamber for imaging (Attofluor, ThermoFisher). For replicative stress experiments, MMS was added to cultures at a final concentration of 0.03% and incubated for 5 hr before being processed for imaging.

PALM microscopy

Request a detailed protocol

Live S. pombe cells were imaged with a custom-built microscope similar to that previously described (Etheridge et al., 2014). The microscope is built around an inverted Olympus IX73 body fitted with a motorised stage (Prior H117E1I4) and a heated incubation chamber (Digital Pixel Ltd). Cells were illuminated using a 561 nm imaging laser (Cobolt, Jive) and a 405 nm activation laser (LaserBoxx, Oxxius). Both laser beams were expanded and collimated and were focused to the back focal plane of an apochromatic 1.45 NA, 60 × TIRF objective (Olympus, UIS2 APON 60 × OTIRF). Both beams were angled in a highly inclined near-TIRF manner to achieve high signal-to-background. Illumination of the sample was controlled via mechanical shutters, and all components were computer-controlled using the Micro-Manager software. The emission fluorescence from the sample was filtered with a band-pass filter (Semrock 593/40) before being expanded to create an optimised image pixel size of 101 nm after projection onto the EMCCD camera (Photometrics Evolve 512 Delta).

Samples were mounted on microscope stage and incubated at 30°C. Cells were illuminated with continuous 561 nm excitation (8.3 mW at rear aperture of objective lens) and pulsed with 100 ms 405 nm laser illumination every 10 s in order to photoconvert mEos3.2 molecules (maximum 0.23 mW at rear aperture of objective lens). We established the number of nuclei that needed to be assayed for reproducibility empirically. To ensure that single-molecule traces were recorded from a sufficient number of nuclei (>50), each biological repeat consisted of data collection from at least two separate fields of view imaged one after the other (technical repeats). Each acquisition consisted of 20,000 frames with a camera exposure time of 20 ms.

SPT data analysis

Request a detailed protocol

Raw PALM data was analysed using the ‘PeakFit’ plugin of the GDSC single-molecule localisation microscopy plugin for Fiji 'GDSC SMLM2' (Schindelin et al., 2012). Single molecules were identified and localised using a 2D gaussian fitting routine (configuration file available on request). Nuclear localisations consisting of a minimum of 20 photons and localised to a precision of 40 nm or better were retained for further analysis. Single molecules were then tracked through time using the ‘Trace Diffusion’ GDSC SMLM plugin. Localisations appearing in consecutive frames within a threshold distance of 800 nm were joined together into a trajectory (Etheridge et al., 2014). Single-molecule trajectories were then exported into .csv Spot-On format using the ‘Trace Exporter’ plugin.

Track data was uploaded into the Spot-On web interface and was analysed using the following jump length distribution parameters: bin width (μm) = 0.01, number of timepoints = 5, jumps to consider = 4, maximum jump (μm) = 3. For all Smc5/6 components, data sets were fit with a three-state Spot-On model using the default parameters, except for Dslowmin = 0.08, localisation error fit from data = yes, dZ (μm) = 0.9. The decision on which Spot-On model to fit was based on the Akaike information criterion (AIC) reported by Spot-On (see Figure 1—figure supplement 3). It is not clear whether this third state describes transient interactions with chromatin or arises from anomalous diffusion as a result of a crowded molecular environment (Woringer et al., 2020). For cohesin data sets, we fit a two-state model with the same parameters, excluding Dslow. In all cases, the model was fit to the cumulative distribution function (CDF).

Probability density function histograms and model fit were created using data combined from all three repeats of an experiment and exported from Spot-On before being graphed in Prism (GraphPad). Bar charts were produced by fitting data collected in each repeat (three fields of view) and extracting the fraction of bound molecules. Black circles represent the value derived for each repeat, bars represent the mean, and error bars denote standard error of the mean. Two-tailed t-test was performed in Prism software of the Spot-On Fbound values from three repeats. Nuclear single-molecule traces used for analysis in Spot-On are available via the Open Science Framework (osf.io/myxtr).

Structural modelling

Request a detailed protocol

Sequence-threaded homology models for the head domains of both S. pombe Smc5 and Smc6 were generated using the PHYRE2 web portal (Kelley et al., 2015). The potential effects of introducing single-point mutations were assessed using PyMOL (v2.32, The PyMOL Molecular Graphics System, Schrödinger, LLC).

Yeast spot test assay

Request a detailed protocol

Yeast strains were cultured in yeast extract (YE) overnight to mid-log phase. Cells were harvested and resuspended to a concentration of 107 cells/ml. Serial dilutions were then spotted onto YE agar plates containing the indicated genotoxic agent.

Yeast gross chromosomal rearrangement assay

Request a detailed protocol

The rate of ura4+ in the RuraR system was measured using a previously described fluctuation test (Lambert et al., 2005). Colonies growing on YNBA plates lacking uracil (and containing thiamine) were re-streaked onto YNBA plates containing uracil, either in the presence or in the absence of thiamine. After 5 days, five colonies were picked from either condition, and each was grown to saturation (~48 hr) in 10 ml liquid EMM culture containing uracil, with or without thiamine.

Each culture was counted, and about 1 × 107 cells were plated in triplicate on YEA plates containing 5′-fluoroorotic acid (5′-FOA; Formedium). One hundred microliters of a 1:20,000 dilution of each saturated culture (about 200 cells) was plated in duplicate on YEA as titre plates. After 5–7 days of growth, 5-FOA-resistant colonies and colonies on YEA were counted. A proportion of 5-FOA-resistant colonies were streaked on YNBA lacking uracil to verify ura4 gene function loss. These ura4− colonies were used in the translocation PCR assay as described previously (Lambert et al., 2005). The rate of ura4 loss per cell per generation was calculated using the maximum likelihood estimate of the Luria-Delbruck with a correction for inefficient plating (Zheng, 2008). We performed all computations using the R package rSalvador (Zheng, 2017).

Data availability

Single molecule traces exported from GDSC SMLM plugin and used for analysis in SpotOn software are available via the Open Science Framework (http://osf.io/myxtr).

The following data sets were generated
    1. Etheridge TJ
    (2020) Open Science Framework
    ID myxtr. Single-molecule live cell imaging of the Smc5/6 DNA repair complex.
    https://osf.io/myxtr/

References

Decision letter

  1. Wolf-Dietrich Heyer
    Reviewing Editor; University of California, Davis, United States
  2. Kevin Struhl
    Senior Editor; Harvard Medical School, United States
  3. Wolf-Dietrich Heyer
    Reviewer; University of California, Davis, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The authors use the photoconvertible fluorophore mEos3 fused to Sm5/6 complex components to study the dynamics of these complexes in live fission yeast cells at single molecule resolution by single-particle tracking photo-activated localization microscopy (sptPALM). Specific point mutations affecting the dsDNA binding, ssDNA binding or ATPase activity of the SMC5/6 complex or the interacting factors Brc1 and Nse6 were analyzed by sptPALM and genetic assays to measure DNA damage survival, mutation rates, and genomic rearrangements at stalled replication forks. The authors propose a model of two modes of chromatin association of the Smc5/6 complex by direct binding to dsDNA and indirect recruitment through Brc1 bound to γ H2A. Moreover, the authors conclude that ssDNA binding is not required for Smc5/6 chromatin association but for a more downstream action in maintaining genomic stability by homologous recombination.

Decision letter after peer review:

[Editors’ note: the authors submitted for reconsideration following the decision after peer review. What follows is the decision letter after the first round of review.]

Thank you for submitting your work entitled "Single-molecule live cell imaging of the Smc5/6 DNA repair complex" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Wolf-Dietrich Heyer as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by a Senior Editor.

Our decision has been reached after consultation between the reviewers. Based on these discussions and the individual reviews below, we regret to inform you that your work will not be considered further for publication in eLife.

In its current form, the manuscript might be better suited for a more specialized methods paper, but the impact of the work could be significantly raised by addressing the points #1-3 discussed below. As the requested additions are too extensive for a revision, we would invite a new submission of a revised manuscript with substantial new experiments to address these points, if you elect this course of action. We would make every effort to have the same review team evaluate the new manuscript.

Summary:

The authors use the photoconvertible fluorophore mEos3 fused to cohesin, condensin, and Sm5/6 complex components to study the dynamics of these complexes in live fission yeast cells at single molecule resolution by single-particle tracking photo-activated localization microscopy (sptPALM). Specifically, the authors find that Brc1 and Nse6 both promote chromatin loading of Smc5/6 but with brc1∆ having a less dramatic defect than nse6∆. The role of Brc1 is consistent with a recent report by (Oravcova et al., 2019). Consistent with Brc1 being recruited to chromatin by binding γ-H2A (Williams et al., 2010), brc1∆ and hta-SA mutants exhibit comparable defects in chromatin association of Smc5/6. Next, the authors show that mutation of each of the two ATP binding sites cause DNA damage sensitivity and defective chromatin association. Importantly, the authors find that dsDNA but not ssDNA binding is required for loading Smc5/6 on chromatin but not for prevention of gross chromosomal rearrangements.

Overall, the manuscript is well written and the data of high quality, but it does not advance the field much in terms of our understanding of the role of Smc5/6 in DNA repair. Moreover, the sptPALM method is not compared sufficiently with existing methods (ChIP and cytological analysis of foci), which appear to have a better dynamic range that sptPALM, to allow readers to choose between these methods for their experiments. Moreover, there are a number of technical issues that need clarification and resolution.

The key points to be addressed in case the authors elect to re-submit the manuscript:

1. This manuscript represents the first time sptPAML is used to derive the dynamic behavior of the Smc5/6 complex in live cells. There are a number of technical concerns that should be addressed.

• Lines 119/120: The authors state that DNA-bound proteins have constrained diffusion, which is clearly correct. The question is whether all constrained diffusion is caused by DNA binding, or whether binding to other stationary nuclear structures, such as the nuclear pore complex, or confinement in phase-separated compartments, could also lead to constraints?

• Line 162 ff: The authors document significant differences between cohesin and Smc5/6 mobility and mention ChIP experiments that suggest co-localization. This discrepancy should be examined and discussed more than is done on lines 374/5?

• What does it mean to be 50% chromatin bound be the sptPALM method? Does FRAP (or chromatin/soluble fractionation) also show a similar immobile fraction?

• The higher displacement value observed for Nse6-mEos3 compared with Nse4 could be due to the tag differentially affecting different subunits, particularly given that Figure S1 showed that cells containing Nse6-mEos3, but not Nse4-mEos3, are sensitive to MMS.

• Could the different displacement values of Nse4-mEos3 between brc1∆ vs nse6∆ cells be due to the mutant cells accumulating at different cell cycle phases given the slow growth of the mutants?

• Could the different mutants tested affect Nse4-mEos3 protein levels thus may affect data?

• Could the nse3-R254E or hinge mutants tested affect the Smc5/6 complex stability, thus affecting the signals?

• Figure 1B, the result raised the question whether the Rad21-mEos3 expression level is greatly reduced compared to the endogenous Rad21. Does mEos3 fusion affect the protein levels of the examined Smc5/6 subunits? Clarification of protein levels of the fusion proteins is important for this work, as the sptPAML data can be affected by protein levels.

• Figure 1C, it is unclear how cells in mitosis vs. interphase were assigned. Also, what are criteria for determining nucleus vs cytoplasm in these images?

• Judging from Figure 2C and S1B, Nse4 and Rad21 appear to be present mostly in large bright clusters, though significant amounts of weaker signals are also visible, particularly for Nse4. This could suggest that two populations of proteins (within and outside the clusters) exist. Do data in Figure 2A and B represent only the signals within the cluster or exhibiting weaker signals, or both (averaged).

2. What is the functional significance of the observed asymmetry in use of the two ATP binding sites? Moreover, the conclusion that "DNA-dependent ATP hydrolysis by the two binding pockets is not equivalent" could be strengthened by a direct assessment of the ATPase activity of the Smc5 (smc5-R77A) or Smc6 (smc6-R150A).

3. Why does suppression of gross chromosomal rearrangements require ssDNA binding but apparently not chromatin binding? The authors propose a model for HRR by Smc5/6 where dsDNA binding happens first and independent of DNA damage and ssDNA binding happens during DNA repair. It would strengthen the impact of the manuscript to test this model. For example: can DNA damage sensitivity and the chromatin association defect of dsDNA binding nse3-R254E mutant be rescue by fusion of Nse4 or Nse6 to Brc1? What distinguishes resistance to replication stress and suppression of gross chromosomal rearrangements?

Additional points for the authors to consider:

4. Figure 3 C, D: The results beg the question of the phenotype of the brc1 nse6 double mutant. This could be very informative to start addressing the models developed in the discussion.

5. Figure 3E: The treatment with MMS is rather long (5 hours). How was this time chosen? Likely DNA lesions would have been processed and perhaps even repaired and some cells dead at 5 hours. I therefore suggest to do a time course for Smc5/6 chromatin association. The kinetics of chromatin association might simply be different in the brc1∆ and nse6∆ mutants.

6. Figure 3F: The model in A predicts epistasis between the brc1 and the γ H2AX mutants, which should be tested here or has this been tested before?

7. Figure 5, the Alt 2017 paper suggests that while smc5-R609, 615E abolishes ssDNA binding, smc5-Y612G or smc6-x, and to a large extent Smc6-F528A, exhibit close to wild-type level of ssDNA binding. Here, these mutants showed similar Nse4 sptPALM behavior. Thus, these observations would argue that features other than ssDNA binding affect Nse4-chromatin association.

8. Figure 6B: The fluctuation tests lack error bars. Since Figure S6 is labeled as a repeat of Figure 6B left, I assume these are single determinations. The data should be reported as mean of n=3. The rate difference between Figure 6B left and Figure S6 are unusually large for a rate determination, which is usually quite robust. All the more a reason to bolster these data with n=3.

Text changes or clarifications:

9. Column graphs should be converted to scatter "superplots" as recently proposed (Lord et al., 2020) to show individual cell data and variability between experiments.

10. Line 35: insert 'function of the' in front of Smc5/6.

11. Line 42: It might help the reader to include the statement here, which is found in the beginning of the discussion (lines 355 ff), to indicate that SMC must have functions beyond HR.

12. Line 129: What is the evidence that the single particle of condensin contains a single condensin complex?

13. Page 10: Please provide a reference for the epistatic relationship between smc6-X (R706C) and smc6-74 (A151T) and rad51-d in response to MMS.

14. Figure 3A: The evidence that Brc1 is binding to gammaH2AX should be discussed.

15. Figure 5A: Please indicate the gene/mutations used in the scheme.

References:

Alt, A, Dang HQ, Wells OS, Polo LM, Smith MA, McGregor GA, Welte T, Lehmann AR, Pearl LH, Murray JM, Oliver AW. (2017) Specialized interfaces of Smc5/6 control hinge stability and DNA association. Nature Comm 8, 14011

Lord, S.J., Velle, K.B., Mullins, R.D., and Fritz-Laylin, L.K. (2020). SuperPlots: Communicating reproducibility and variability in cell biology. J Cell Biol 219.

Oravcova, M., Gadaleta, M.C., Nie, M., Reubens, M.C., Limbo, O., Russell, P., and Boddy, M.N. (2019). Brc1 Promotes the Focal Accumulation and SUMO Ligase Activity of Smc5-Smc6 during Replication Stress. Mol Cell Biol 39.

Williams, J.S., Williams, R.S., Dovey, C.L., Guenther, G., Tainer, J.A., and Russell, P. (2010). gammaH2A binds Brc1 to maintain genome integrity during S-phase. EMBO J 29, 1136-1148.

Reviewer #1:

The authors use the photoconvertible fluorophore mEos3 fussed to cohesin, condensin, and Sm5/6 complex components to study the dynamics of these complexes in live fission yeast cells at single molecule resolution by single-particle tracking photo-activated localization microscopy (PALM). Using the 'spot-on' program to analyze single particle tracts, the authors define differences between the three complexes in their nuclear dynamics, determine the effect of DNA binding and ATPase mutants in the Smc5/6 complex on constrained diffusion, which is interpreted a reporting on chromatin association. In addition, they define two distinguishable recruitment pathways for Smc5/6 complex. Overall, this is a novel and fruitful approach to study the enigmatic Smc5/6 complex, which generated significant novel insights not previously accessible. The authors should consider the following points in a revision.

1. Lines 119/120: The authors state that DNA-bound proteins have constrained diffusion, which is clearly correct. The question is whether all constrained diffusion is caused by DNA binding, or whether binding to other stationary nuclear structures, such as the nuclear pore complex, or confinement in phase-separated compartments, could also lead to constraints?

2. Line 162 ff: The authors document significant differences between cohesin and Smc5/6 mobility and mention ChIP experiments that suggest co-localization. Maybe this discrepancy could be discussed more than is done on lines 374/5?

3. Figure 3 C, D: The results beg the question of the phenotype of the brc1 nse6 double mutant. I think this could be very informative to start addressing the models developed in the discussion.

4. Figure 3F: The model in A predicts epistasis between the brc1 and the γ H2AX mutants, which should be tested here.

5. Figure 6B: The fluctuation tests lack error bars. Since Figure S6 is labeled as a repeat of Figure 6B left, I assume these are single determinations. The data should be reported as mean of n=3. The rate difference between Figure 6B left and Figure S6 are unusually large for a rate determination, which is usually quite robust. All the more a reason to bolster these data with n=3.

Additional points:

6. Line 35: insert 'function of the' in front of Smc5/6.

7. Line 42: It might help the reader to include the statement here, which is found in the beginning of the discussion (lines 355 ff), to indicate that SMC must have functions beyond HR.

8. Line 129: What is the evidence that the single particle of condensin contains a single condensin complex?

9. Figure 3A: The evidence that Brc1 is binding to gammaH2AX should be discussed.

10. Figure 5A: Please indicate gene/mutations used in the scheme.

Reviewer #2:

The manuscript entitled "Single-molecule live cell imaging of the Smc5/6 DNA repair complex" by Etheridge and colleagues introduces single-particle tracking PALM (sptPALM) microscopy to study chromatin association of the Smc5/6 complex. The authors use this technique in combination with genetics to dissect the chromatin recruitment of the Smc5/6 in unchallenged cells and after genotoxic stress. Specifically, the authors find that Brc1 and Nse6 both promote chromatin loading of Smc5/6 but with brc1∆ having a less dramatic defect than nse6∆. The role of Brc1 is consistent with a recent report by (Oravcova et al., 2019). Consistent with Brc1 being recruited to chromatin by binding γ-H2A (Williams et al., 2010), brc1∆ and hta-SA mutants exhibit comparable defects in chromatin association of Smc5/6. Next, the authors show that mutation of each of the two ATP binding sites cause DNA damage sensitivity and defective chromatin association. Importantly, the authors find that dsDNA but not ssDNA binding is required for loading Smc5/6 on chromatin but not for prevention of gross chromosomal rearrangements. The manuscript is well written and the data of high quality, but it does not advance the field much in terms of our understanding of the role of Smc5/6 in DNA repair. Moreover, the sptPALM method is not compared sufficiently with existing methods (ChIP and cytological analysis of foci), which appear to have a better dynamic range that sptPALM, to allow readers to choose between these methods for their experiments. In its current form, the manuscript might be better suited for a more specialized methods paper, but the impact of the work could be significantly raised by addressing some of the key questions raised by the study such as:

What is the functional significance of the observed asymmetry in use of the two ATP binding sites?

Why does suppression of gross chromosomal rearrangements require ssDNA binding but apparently not chromatin binding?

Additional major issues to address:

1. Page 8: The conclusion that "DNA-dependent ATP hydrolysis by the two binding pockets is not equivalent" would be strengthen by a direct assessment of the ATPase activity of the Smc5 (smc5-R77A) or Smc6 (smc6-R150A).

2. The authors propose a model for HRR by Smc5/6 where dsDNA binding happens first and independent of DNA damage and ssDNA binding happens during DNA repair. It would strengthen the impact of the manuscript to test this model. For example: can DNA damage sensitivity and the chromatin association defect of dsDNA binding nse3-R254E mutant be rescue by fusion of Nse4 or Nse6 to Brc1? What distinguishes resistance to replication stress and suppression of gross chromosomal rearrangements?

3. What does it mean to be 50% chromatin bound be the sptPALM method? Does FRAP (or chromatin/soluble fractionation) also show a similar immobile fraction?

4. Figure 3E: The treatment with MMS is rather long (5 hours). How was this time chosen? Likely DNA lesions would have been processed and perhaps even repaired and some cells dead at 5 hours. I therefore suggest to do a time course for Smc5/6 chromatin association. The kinetics of chromatin association might simply be different in the brc1∆ and nse6∆ mutants.

References:

Lord, S.J., Velle, K.B., Mullins, R.D., and Fritz-Laylin, L.K. (2020). SuperPlots: Communicating reproducibility and variability in cell biology. J Cell Biol 219.

Oravcova, M., Gadaleta, M.C., Nie, M., Reubens, M.C., Limbo, O., Russell, P., and Boddy, M.N. (2019). Brc1 Promotes the Focal Accumulation and SUMO Ligase Activity of Smc5-Smc6 during Replication Stress. Mol Cell Biol 39.

Williams, J.S., Williams, R.S., Dovey, C.L., Guenther, G., Tainer, J.A., and Russell, P. (2010). gammaH2A binds Brc1 to maintain genome integrity during S-phase. EMBO J 29, 1136-1148.

Reviewer #3:

The authors used sptPAML to examine the Smc5/6 subunits for their chromatin association in live fission yeast cells. They found that Smc5/6 appears to be in the nucleus throughout the cell cycle but exhibited more dynamic association with chromatin compared with cohesin. In addition, Nse6 appears to be more dynamic than Nse2, Nse4, and Smc5 or 6. The authors further examined several mutants in this assay. They found several mutants show defects of Nse4 chromatin associated and these include: 1) brc1∆ (or H2A-SA) and nse6∆ with only nse6∆ exhibit a complete defect, regardless of MMS treatment. 2) Smc5 or 6 ATP hydrolysis mutants, with Smc6 mutant exhibiting stronger effects. 3) a Nse3 mutant reduce in vitro dsDNA binding, and 4) hinge mutant defective afffecting ssDNA binding exhibiting defect only after MMS treatmen. Lastly, the authors show that the smc6-x and -74 increased rates of DNA deletion due to fork stalling (HR based events). Overall, this is an interestingly work that for the first time uses sptPAML to derive the dynamic behavior the Smc5/6 complex in live cells and using this assay to assess how different mutants of the complex can influence such behavior. While several conclusions are expected from previous reports, a few potentially significant conclusions are drawn. The work could benefit from technique clarifications and adjustment in interpretations as detailed below.

Given data are mostly acquired using sptPALM, an expert of this technique and analyses (spot-on, model fitting, PDF graphs) should be asked to assess data quality and interpretations. For example, can displacement values be strictly interpreted as reflecting chromatin-bound protein fraction; could they reflect other aggregation behavior of the proteins, such as phase separation? In addition, this reviewer felt that the interpretation of sptPALM data can be somewhat biased and the authors should consider other possibilities. For example, whether the higher displacement value observed for Nse6-mEos3 compared with Nse4 could be due to the tag differentially affecting different subunit, particularly given that Figure S1 showed that cells containing Nse6-mEos3, but not Nse4-mEos3, are sensitive to MMS. Also, could different displacement values of Nse4-mEos3 between brc1∆ vs nse6∆ cells be due to mutant cells are accumulated at different cell cycle phases given the slow growth of the mutants. Could the different mutants tested affect Nse4-mEos3 protein levels thus may affect data? Could the nse3-R254E or hinge mutants tested affect the Smc5/6 complex stability, thus affecting the signals?

Figure 1B, the result raised the question whether the Rad21-mEos3 expression level is greatly reduced than the endogenous Rad21. Along the same line, does the mEos3 fusion affect the protein levels of the examined Smc5/6 subunits? Clarification of protein levels of the fusion proteins is important for this work, as sptPAML data can be affected by protein levels.

Figure 1C, it is unclear how cells in mitosis vs. interphase were assigned. Also, what are criteria for determining nucleus vs cytosplam in these images?

Judging from Figure 2C and S1B, Nse4 and Rad21 appear to be present mostly in large bright clusters, though significantly amounts of weaker signals are also visiable, particularly for Nse4. This could suggest that two populations of proteins (within and outside the clusters). Do data in Figure 2A and B represent only the signals within the cluster or exhibiting weaker signals, or both (averaged).

Figure 5, the Alt 2017 paper suggests that while smc5-R609, 615E abolishes ssDNA binding, smc5-Y612G or smc6-x, and to a large extent Smc6-F528A, exhibit close to wild-type level of ssDNA binding. Here these mutants showed similar Nse4 sptPALM behavior. Thus, these observations would argue that features other than ssDNA binding affect Nse4-chromatin association.

[Editors’ note: further revisions were suggested prior to acceptance, as described below.]

Thank you for submitting your article "Live-cell single-molecule tracking highlights requirements for stable Smc5/6 chromatin association in vivo" for consideration by eLife. Your article has been reviewed by the same 3 peer reviewers as the initial submission, including Wolf-Dietrich Heyer as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by a Kevin Struhl as the Senior Editor. The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Summary:

This is the resubmission of a previously rejected manuscript that was reviewed by the same reviewers as the original submission. The authors focused the manuscript on the Smc5/6 complex and the manuscript benefitted from the streamlining. The revision and the response clarified many of the technical concerns.

New experimentation with the Nse5-mEos3 fusion corroborates the data with the NSe6 fusion. Additional controls using FACS analysis exclude cell cycle differences as the cause for the observed effects in brc1 and nse6 deficient cells. Previous published work provides controls for protein levels as well as the analysis of the brc1 nse6 double mutant. New experimentation conducting a time course and additional clarification confirms that the 5 hr time point for the MMS treatment is adequate. New experimentation solidified the mutation rate data.

Essential revisions:

The authors report in their rebuttal that they have performed SPT at hourly intervals in wild type cells and found that the fraction bound was highest at 4-5 hours. These data should be included in the manuscript, maybe as a supplemental figure.

https://doi.org/10.7554/eLife.68579.sa1

Author response

[Editors’ note: the authors resubmitted a revised version of the paper for consideration. What follows is the authors’ response to the first round of review.]

In its current form, the manuscript might be better suited for a more specialized methods paper, but the impact of the work could be significantly raised by addressing the points #1-3 discussed below. As the requested additions are too extensive for a revision, we would invite a new submission of a revised manuscript with substantial new experiments to address these points, if you elect this course of action. We would make every effort to have the same review team evaluate the new manuscript.

We agree that the previous manuscript focussed too much on ‘proving’ the application of the singe-molecule technique, which may not have been necessary as it is now becoming more of a standard technique. Whilst we have found that the demonstration of the single-molecule tracking approach using the SMC complex condensin is visually beneficial for conference talks, we recognised that it detracted the manuscript somewhat from its central focus, thus we have removed this data. We have re-written the text to briefly introduce the type of SPT analysis that we do in the first figure.

We believe that this study will be of interest to the wide readership of eLife as a significant number of single-molecule microscopy papers exploring a wide range of topics have recently been published in the journal.

Recently, the same kinetic modelling approach (‘Spot-On’ – also published in eLife3) has been used to address H2A.Z eviction by RNA Pol II4.

The key points to be addressed in case the authors elect to re-submit the manuscript:

1. This manuscript represents the first time sptPAML is used to derive the dynamic behavior of the Smc5/6 complex in live cells. There are a number of technical concerns that should be addressed.

• Lines 119/120: The authors state that DNA-bound proteins have constrained diffusion, which is clearly correct. The question is whether all constrained diffusion is caused by DNA binding, or whether binding to other stationary nuclear structures, such as the nuclear pore complex, or confinement in phase-separated compartments, could also lead to constraints?

This is an interesting question and one which is rather general to this methodology. In our study we generated a hypomorphic mutation nse3R254E which has been shown in vitro to significantly reduce binding to double stranded DNA. In our SPT experiments this mutant displayed >2fold reduction in the bound fraction to a value similar to the most severe ATPase mutant. Complete abrogation of dsDNA binding is lethal and thus SPT cannot be performed in such a mutant. In response to this question, we attempted to deplete the wild type copy of nse3 whilst inducing expression of lethal nse3 dsDNA binding mutant, however fusion of the auxin-inducible degron (AID) tag to Nse3 was itself lethal.

Whilst we believe that there could indeed be confinement in compartments of the nucleus, this attenuated diffusion would still be higher than the apparent diffusion coefficient of the ‘bound’ Nse4 fraction (D = 0.005m 2 s-1 ). Indeed, this may explain the slow diffusing population that was extracted from Spot-On kinetic modelling and will be investigated in a future study.

• What does it mean to be 50% chromatin bound be the sptPALM method? Does FRAP (or chromatin/soluble fractionation) also show a similar immobile fraction?

The ‘fraction bound’ value refers to the fraction of molecules that were

DNA/chromatin bound at the time of the experiment. This value is extracted using the Spot-On software which fits a kinetic model to singlemolecule displacement distributions. From this distribution it extracts different mobility states characterized by a diffusion coefficient (Free/Bound) and a fraction of the total population residing in this state (See new Figure 1C).

DNA bound molecules will have significantly attenuated diffusion and thus present trajectories that are essentially stationary and comprised of displacements roughly equal to the localisation precision of the experiment. These can be seen as the peaks in the displacement distributions such as Figure 1D.

With respect to other approaches – firstly, we and others have found that biochemical analysis of Smc5/6 chromatin association using chromatin immunoprecipitation (ChIP) or fractionation have always been limiting due to poor enrichment of the complex. This approach hides the dynamics of a process as they usually require chemical fixation – this was the main reason for initiating this study.

Secondly, SPT and FRAP are complementary approaches that allow the study of the mobility of molecules. Whilst FRAP provides ensemble information of a population of molecules, SPT is capable of visualising the movement of individual fluorescently labelled molecules. Inevitably, FRAP is somewhat limited by ensemble averaging and cannot reliably describe complex diffusion scenarios, such as mixed populations, different modes of diffusion and molecules that show sub-diffusive behaviour. Thus, SPT is a favourable methodology. We would predict that FRAP would provide similar data for wild type cells and mutants that have significant chromatin association defects – but it may not be sensitive enough to detect smaller changes such as that detected in Figures 3 and 5.

• The higher displacement value observed for Nse6-mEos3 compared with Nse4 could be due to the tag differentially affecting different subunits, particularly given that Figure S1 showed that cells containing Nse6-mEos3, but not Nse4-mEos3, are sensitive to MMS.

This is true, the Nse6-mEos3, although it shows wildtype growth in the absence of DNA damage, the strain is slightly sensitive to MMS at higher concentrations. Thus, to address this question we created Nse5-mEos3. This strain which demonstrates wild type levels of sensitivity at high MMS concentrations (Supplementary Figure 1B), and showed similar fraction bound values for the Nse6-mEos3 strain (Figure 6B). This confirms our observation that the Nse5/6 subcomplex behaves differently to the rest of the Smc5/6 complex.

• Could the different displacement values of Nse4-mEos3 between brc1∆ vs nse6∆ cells be due to the mutant cells accumulating at different cell cycle phases given the slow growth of the mutants?

Flow cytometry analysis of the DNA content of wildtype, brc1 and nse6 cells pre- and post-treatment with MMS showed similar profiles suggesting that reduction in chromatin association was not due to different cell cycle kinetics.

• Could the different mutants tested affect Nse4-mEos3 protein levels thus may affect data?

We know from previous work that destabilising one Smc5/6 component causes concomitant loss of expression of other subunits5. The mutants used in this study have all previously been published and assessed for expression – Alt et al. 2017 in supplementary figure 3 and Zabrady et al. 2016 in supplementary figure 46,7. In these studies, they found no evidence that the mutations lead to decreased protein expression level. Thus, we are confident that there is no effect on Nse4-mEos3 protein levels in our study.

• Figure 1B, the result raised the question whether the Rad21-mEos3 expression level is greatly reduced compared to the endogenous Rad21. Does mEos3 fusion affect the protein levels of the examined Smc5/6 subunits? Clarification of protein levels of the fusion proteins is important for this work, as the sptPAML data can be affected by protein levels.

The protein expression level of the cohesin kleisin subunit has been predicted to be less than that of other SMC components by quantitative mass spectrometry in fission yeast (rad21 = 173 molecules/cell, Cnd2 = 3502 molecules/cell, Nse1 = 1900 molecules/cell, Smc5 = 2329 molecules/cell)8. This suggests that the expression of cohesin kleisin is 10-20-fold lower than other kleisins or SMC subunits, which would support our western blot data. Furthermore, we have performed SPT analysis on an alternative cohesin subunit (Smc1 – Supplementary figure 3) and found complementary results. Our interpretation of this data, that cohesin has higher levels of chromatin association than Smc5/6 in our samples is therefore supported by this.

2. What is the functional significance of the observed asymmetry in use of the two ATP binding sites? Moreover, the conclusion that "DNA-dependent ATP hydrolysis by the two binding pockets is not equivalent" could be strengthened by a direct assessment of the ATPase activity of the Smc5 (smc5-R77A) or Smc6 (smc6-R150A).

It is currently unclear as to why there is an asymmetry in the use of the two ATP binding sites of Smc5 and Smc6. A mechanism for such asymmetry has been described for cohesin DNA release9 and condensin kleisin restructuring10. However, these studies have relied heavily on structural and biochemical data which is currently outside of the scope of this study but will be the focus of future experiments.

3. Why does suppression of gross chromosomal rearrangements require ssDNA binding but apparently not chromatin binding?

Our site-specific fork restart experiments (Figure 4C) show increased gross chromosomal rearrangements (GCR) in the smc6-X hinge mutant but not ATPase/dsDNA binding mutants. Restart at the RTS1 barrier requires homologous recombination, thus our data suggests that ssDNA interactions at the hinge are required to regulate these HR events.

As the ATPase and dsDNA binding mutants are hypomorphic, we predict that chromatin association of Smc5/6 is still achievable in these mutants but is significantly less efficient. Thus, it may be the case that eventually the complex is able to load at the RTS1 barrier, and efficiently direct HR repair. This is consistent with the detection of a fraction of DNA bound complex detected in SPT experiment in these mutants. In the hinge mutant, initial recruitment is not compromised (as evidenced by SPT), but defective interaction with ssDNA at HR events causes increase in GCR. These data suggest in some cases it is worse to recruit a dysfunctional Smc5/6 compared to reducing its ability to associate with the DNA.

The authors propose a model for HRR by Smc5/6 where dsDNA binding happens first and independent of DNA damage and ssDNA binding happens during DNA repair. It would strengthen the impact of the manuscript to test this model. For example: can DNA damage sensitivity and the chromatin association defect of dsDNA binding nse3-R254E mutant be rescue by fusion of Nse4 or Nse6 to Brc1?

Our model predicts that initial dsDNA binding and ATPase activity is required for stable association with the chromatin prior to its downstream functions at DNA repair events. We do not predict that this occurs independently of DNA damage. The chromatin association we detect in unchallenged cells may well be due to endogenous damage/replication fork arrest. This would be consistent with the essential nature of Smc5/6 and the observation that a proportion of this association is to regions of

γ-H2A.

We do not believe that a fusion experiment such as the one suggested would be beneficial to test this model. Firstly, stable association of the complex would still require efficient DNA binding in order to stimulate ATPase activity, increasing local concentration would not promote this. In support of this hypothesis is the fact that overexpression of Brc1 partially rescues DNA damage sensitivity of smc6-74 (ATPase) mutants but not smc6-X (hinge/ssDNA interaction)11. This has been shown genetically to require Rad18 which channels repair into the post-replication repair pathway rather than increasing Smc5/6 loading12.

What distinguishes resistance to replication stress and suppression of gross chromosomal rearrangements?

This is an interesting question and one that the field cannot fully answer yet. Our prediction is that this would depend on the type of blockage that a replication fork encounters. Restart of replication forks at the RTS1 barrier used in our RuraRsystem (Figure 4C) is entirely dependent on homologous recombination. HR is also required for replication at the rDNA repeats, a process which Smc5/6 has also been linked with regulating. In such cases, we predict Smc5/6 is required to suppress gross chromosomal rearrangements caused by non-allelic HR. In other instances of replication stress, such as UV/MMS lesions, a variety of structures not seen at RTS1 may be generated. Distinguishing the role of Smc5/6 at different DNA structures is the focus of current and future research.

Additional points for the authors to consider:

4. Figure 3 C, D: The results beg the question of the phenotype of the brc1 nse6 double mutant. This could be very informative to start addressing the models developed in the discussion.

This epistasis was tested in Oravcova, et al.13. The authors found that the double brc1Δ nse6Δ mutant was more sensitive to genotoxic agents which suggests that each protein has independent functions. This is consistent with our model that places Nse5/6 as a regulator of stable chromatin association as well interacting with recruiting partners such as Brc1. In budding yeast, the Brc1 homologue Rtt107 has been shown to interact with a variety of factors other than Smc5/6, including Mms22 and Slx4, suggesting it too has independent functions14.

5. Figure 3E: The treatment with MMS is rather long (5 hours). How was this time chosen? Likely DNA lesions would have been processed and perhaps even repaired and some cells dead at 5 hours. I therefore suggest to do a time course for Smc5/6 chromatin association. The kinetics of chromatin association might simply be different in the brc1∆ and nse6∆ mutants.

All previous work investigating the dynamics of Smc5/6 chromatin association has relied on chromatin immunoprecipitation (ChIP) approaches. We wanted to make sure that our experiments using MMS treatment were comparable to previous studies. As we were investigating previous predictions from Oravcova, et al. 2019 we decided to use the concentration and timings from this study13. In response to the question, we performed SPT at hourly intervals in wild type cells and found that the fraction bound was highest at 4-5 hours.

6. Figure 3F: The model in A predicts epistasis between the brc1 and the γ H2AX mutants, which should be tested here or has this been tested before?

The hta1-SA hta2-SA genotype (also known as “htaAQ”) has previously been shown to increase both CPT and MMS sensitivity in brc1Δ cells15. This is consistent with Brc1 having known γ-H2A independent interactions at stalled forks. Previous genetic analysis has shown that Brc1 can bind to post-replication repair factor Rad18, which itself is recruited to stalled replication forks via an interaction with RPA coated ssDNA16. It has been suggested that this may aid stabilisation of RPA on its ssDNA substrate to inhibit HR-mediated fork resolution.

It has been shown that Brc1 can be prevented from binding to γ-H2A by the point mutation brc1-T672A and that this mutation prevents the formation of Nse4-GFP foci in response to MMS13, 17. We have since introduced the brc1-T672A allele into our Nse4-mEos3 strain and show a similar reduction in Nse4-mEos3 bound fraction compared to both (Supplementary Figure 7) brc1Δ and hta1-SA hta2-SA cells. This further strengthens our model that Brc1-dependent recruitment of Smc5/6 is limited to regions of γ-H2A, but this is not the only role of Brc1 at stalled forks.

7. Figure 5, the Alt 2017 paper suggests that while smc5-R609, 615E abolishes ssDNA binding, smc5-Y612G or smc6-x, and to a large extent Smc6-F528A, exhibit close to wild-type level of ssDNA binding. Here, these mutants showed similar Nse4 sptPALM behavior. Thus, these observations would argue that features other than ssDNA binding affect Nse4-chromatin association.

This reviewer is correct when stating that Alt et al. (2017) show that smc5R609E R615E severely abrogates initial ssDNA binding in vitro. Whilst the hinge destabilisation (smc5-Y612G) and secondary ssDNA interaction (smc6-F528A) mutants have more mild effects on ssDNA binding, they affect the kinetics of association and dissociation with ssDNA.

Importantly, they are also display significant sensitivity to DNA damaging agents and replication stress. However, unlike the dsDNA binding and ATPase mutants our SPT analysis demonstrates that this does not alter the bound fraction of Smc5/6 in unchallenged cells. This is one of the central points of our manuscript.

We have taken steps to highlight the different in vitro binding characteristics of these mutants in the manuscript to make it clearer for the reader. Furthermore, we have performed SPT analysis on the smc5R609E R615E mutant in the presence of MMS (Supplementary Figure 5). Interestingly, we found that the modest increase in bound fraction seen in response to MMS in wild type cells is either reduced or prevented in these hinge mutants.

8. Figure 6B: The fluctuation tests lack error bars. Since Figure S6 is labeled as a repeat of Figure 6B left, I assume these are single determinations. The data should be reported as mean of n=3. The rate difference between Figure 6B left and Figure S6 are unusually large for a rate determination, which is usually quite robust. All the more a reason to bolster these data with n=3.

We have repeated these experiments so that there are now three repeats for each strain. We have also performed this analysis on a further mutant (nse3-R254E) to strengthen our observation that mutants that are defective in chromatin association produce distinct outcomes at HR-dependent processes than ssDNA interaction mutants.

Text changes or clarifications:

9. Column graphs should be converted to scatter "superplots" as recently proposed (Lord et al., 2020) to show individual cell data and variability between experiments.

In our study, we performed 3 technical repeats (fields of view of the same sample) for each biological repeat. In each technical repeat the single particle trajectories recorded are pooled together to populate the Spot-On displacement histograms. It is a standard process in the field to combine trajectories from individual nuclei from smaller eukaryotic cells as it would not possible to perform “superplots” of each nucleus as there would not be enough data to create a histogram and robustly perform the kinetic modelling. This exact approach has been recently applied to transcription factors in budding yeast cells and published in eLife4. However, we agree that it is important to highlight the variability between technical repeats and have thus altered our column graphs to display the fraction bound value extracted from each.

10. Line 35: insert 'function of the' in front of Smc5/6.

This has been altered.

11. Line 42: It might help the reader to include the statement here, which is found in the beginning of the discussion (lines 355 ff), to indicate that SMC must have functions beyond HR.

This is a good suggestion and we have included a statement in the new text.

12. Figure 3A: The evidence that Brc1 is binding to gammaH2AX should be discussed.

This has now been highlighted and is now figure 5A.

[Editors’ note: what follows is the authors’ response to the second round of review.]

Essential revisions:

The authors report in their rebuttal that they have performed SPT at hourly intervals in wild type cells and found that the fraction bound was highest at 4-5 hours. These data should be included in the manuscript, maybe as a supplemental figure.

We have incorporated the data for our 5-hour MMS treatment as a supplementary figure (S9) and have included the relevant figure legend in the text.
