GIV/Girdin, a non-receptor modulator for Gαi/s, regulates spatiotemporal signaling during sperm capacitation and is required for male fertility

  1. Sequoyah Reynoso
  2. Vanessa Castillo
  3. Gajanan Dattatray Katkar
  4. Inmaculada Lopez-Sanchez
  5. Sahar Taheri
  6. Celia Espinoza
  7. Cristina Rohena
  8. Debashis Sahoo
  9. Pascal Gagneux  Is a corresponding author
  10. Pradipta Ghosh  Is a corresponding author
  1. Department of Pathology, School of Medicine, University of California San Diego, United States
  2. Department of Cellular and Molecular Medicine, School of Medicine, University of California San Diego, United States
  3. Department of Medicine, School of Medicine, University of California San Diego, United States
  4. Department of Computer Science and Engineering, Jacob’s School of Engineering, University of California San Diego, United States
  5. Moore’s Comprehensive Cancer Center, University of California San Diego, United States
  6. Department of Pediatrics, School of Medicine, University of California San Diego, United States
  7. Veterans Affairs Medical Center, United States
Research Article
  • Cited 0
  • Views 370
  • Annotations
Cite this article as: eLife 2021;10:e69160 doi: 10.7554/eLife.69160

Abstract

For a sperm to successfully fertilize an egg, it must first undergo capacitation in the female reproductive tract and later undergo acrosomal reaction (AR) upon encountering an egg surrounded by its vestment. How premature AR is avoided despite rapid surges in signaling cascades during capacitation remains unknown. Using a combination of conditional knockout (cKO) mice and cell-penetrating peptides, we show that GIV (CCDC88A), a guanine nucleotide-exchange modulator (GEM) for trimeric GTPases, is highly expressed in spermatocytes and is required for male fertility. GIV is rapidly phosphoregulated on key tyrosine and serine residues in human and murine spermatozoa. These phosphomodifications enable GIV-GEM to orchestrate two distinct compartmentalized signaling programs in the sperm tail and head; in the tail, GIV enhances PI3K→Akt signals, sperm motility and survival, whereas in the head it inhibits cAMP surge and premature AR. Furthermore, GIV transcripts are downregulated in the testis and semen of infertile men. These findings exemplify the spatiotemporally segregated signaling programs that support sperm capacitation and shed light on a hitherto unforeseen cause of infertility in men.

Introduction

Mammalian sperm acquire their fertilizing potential after insemination, during the passage through the female reproductive tract. Two key consecutive processes are prerequisites for successful fertilization: (i) sperm must first undergo capacitation, a process that is characterized by progressive acquisition of hypermotility, change in membrane, and phosphorylation status, and (ii) they must later undergo acrosome reaction (AR), a process that is characterized by an exocytotic release of acrosomal enzymes to penetrate the zona pellucida of the egg (Mayorga et al., 2007; Hirohashi and Yanagimachi, 2018). Although capacitation is an important physiological prerequisite before spermatozoa can fertilize the oocyte in every mammalian species studied, the molecular mechanisms and signal transduction pathways involved in this process are poorly understood. AR, on the other hand, is a time-dependent phenomenon that cannot take place prematurely or too late (Cummins et al., 1986). Premature spontaneous AR that occurs in the absence of proper stimuli (AR insufficiency) has been associated with idiopathic male infertility (Tesarik and Mendoza, 1995).

Being transcriptionally and translationally silent, mature spermatozoa support capacitation and AR relying exclusively on post-translational events, for example, increase in membrane fluidity, cholesterol efflux, ion fluxes resulting in alteration of sperm membrane potential, and an increased protein phosphorylation; the latter represents a very important aspect of capacitation (Naz and Rajesh, 2004) (summarized in Figure 1—figure supplement 1A,B). Despite these mechanistic insights into sperm capacitation, key gaps in knowledge persist. For example, although it is known that phosphotyrosine intermediates in the sperm tail culminate in the activation of the PI3K→Akt signaling axis, and that such activation is vital for sperm hypermotility, how tyrosine phosphorylation leads to the activation of PI3K remains unknown (Tan and Thomas, 2014; Breitbart et al., 2005). Similarly, although it is known that Akt-dependent actin polymerization in the sperm tail requires both protein kinase A (PKA) and protein tyrosine phosphorylation, the linker(s) between signaling and actin dynamics remains unidentified (Breitbart et al., 2005; Etkovitz et al., 2007; Roa-Espitia et al., 2016). Finally, how cAMP surge during capacitation is restricted to the sperm tail, such that its levels remain low in the sperm head, and premature AR is avoided, remains a mystery.

Here we show that GIV (a.k.a., GIRDers of actIN filament, Girdin; gene: CCDC88A), a multimodular signal transducer that straddles both tyrosine-based and G protein→cAMP signaling cascades (Midde et al., 2015; Kalogriopoulos et al., 2020), is a key player during sperm capacitation. GIV is an ideal candidate to fill some of the knowledge gaps identified above because many of its functional modules that take part in either tyrosine-based or G protein signaling cascades are reversibly modulated by phosphorylation cascades. First, GIV is a substrate of multiple tyrosine kinases (TKs), both receptor (RTKs) and non-receptor TKs (non-RTKs) alike (Lin et al., 2011; Midde et al., 2018). Both RTKs and non-RTKs phosphorylate two substrate sites within GIV’s C-terminus that, upon phosphorylation, directly bind and activate class 1 PI3Ks (Lin et al., 2011; Midde et al., 2018). The major consequence of such phosphorylation is that GIV serves as a point of convergence for multi-TK-dependent PI3K signaling. Second, as a bonafide enhancer and a substrate of Akt (Enomoto et al., 2005), GIV binds and depolymerizes actin, and in doing so, serves as the only known substrate of Akt that links the PI3K→Akt cascade to cytoskeletal remodeling (Enomoto et al., 2005). Third, as a guanine nucleotide-exchange modulator (GEM) for trimeric GTPases, GIV serves as a guanine nucleotide exchange factor (GEF) for Gi (Garcia-Marcos et al., 2009) and a guanine nucleotide dissociation inhibitor (GDI) for Gs (Gupta et al., 2016) via the same evolutionarily conserved C-terminal motif. The major consequence of such versatility of modular function is that by activating the inhibitory Gi and inhibiting the stimulatory Gs proteins GIV overall inhibits membrane adenylyl cyclase (mACs) and suppresses cellular cAMP (Getz et al., 2019). ‘Free’ Gβγ that is released from both classes of Gi/s trimers further enhances the PI3K→Akt signals (Garcia-Marcos et al., 2009). We show here how GIV orchestrates distinct spatiotemporally segregated signaling programs in sperm to support capacitation and concomitantly inhibit premature AR, thereby playing an essential role in male fertility.

Results and discussion

GIV is highly expressed in spermatocytes

At the time of its discovery in 2005, full-length GIV protein was found to be most highly expressed in two organs: testis and brain (Figure 1A). Immunohistochemical studies curated by the Human Protein Atlas further confirm that GIV is most highly expressed in the testis (Figure 1—figure supplement 2A). Single-cell sequencing (Figure 1B; Figure 1—figure supplement 2B–E) and immunohistochemistry (IHC; Figure 1C) studies on human testis pinpoint sperm as the major cell type in the testis that expresses GIV mRNA and protein. We confirmed by confocal immunofluorescence on mouse testis that GIV is indeed expressed in the spermatozoa and localizes predominantly to the acrosomal cap, as determined by colocalization with the mouse acrosomal matrix protein, sp56 (Kim et al., 2001) (tGIV; Figure 1D). As expected, a tyrosine phosphorylated pool of GIV (pYGIV), however, localized mostly to the plasma membrane (PM) (Figure 1E). Both antibodies detected the endogenous GIV protein in testicular lysates at the expected size of ~220 kDa (Figure 1F). We also noted that GIV consistently and predominantly localizes to the acrosome as it matures from a rudimentary vesicle into a vesicular cap during sperm maturation (Figure 1G). GIV’s localization to the acrosome, which is derived from the Golgi apparatus (Khawar et al., 2019), is in keeping with GIV’s predominant localization to the Golgi and Golgi-associated transport vesicles in diverse cell types (Le-Niculescu et al., 2005; Lo et al., 2015). Taken together, we conclude that GIV is highly expressed in sperm and may be important for sperm functions.

Figure 1 with 2 supplements see all

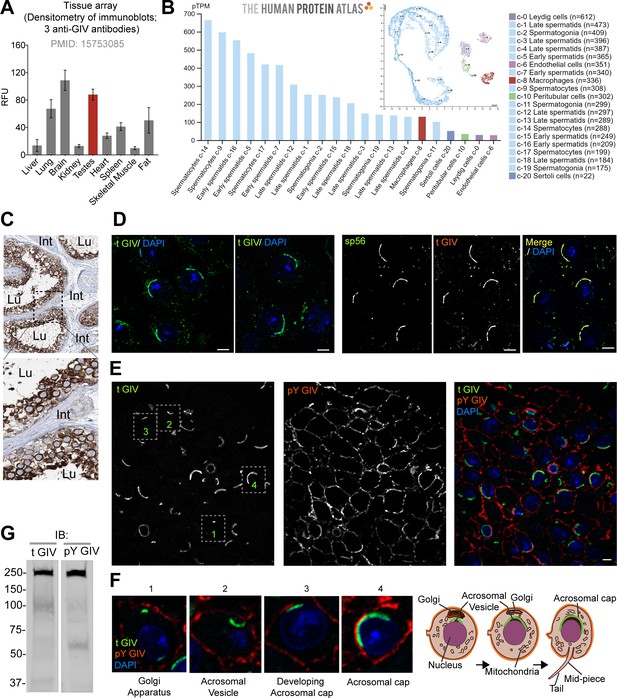

GIV (CCDC88A) is highly expressed in spermatocytes in testis and localizes to the acrosomal cap.

(A) Bar graph displays the relative fluorescence unit (RFU) of endogenous full-length GIV protein in immunoblots of organ lysates published previously using three independent anti-GIV antibodies raised against different epitopes of GIV (Anai et al., 2005). (Figure 1—source data 1)(B) RNA expression in the single-cell-type clusters identified in the human testis visualized by a UMAP plot (inset) and a bar plot. The bar plot shows RNA expression (pTPM) in each cell-type cluster. UMAP plot visualizes the cells in each cluster, where each dot corresponds to a cell. (C) Representative images from human testis immunistochemistry studies curated in the Human Protein Atlas. Int: interstitium; Lu: lumen of seminiferous tubules. (D) Cryosections of mouse testis (8 weeks old, C57BL/6) were stained for either total GIV (tGIV; green) and DAPI (blue, nucleus) alone, or co-stained with tGIV and the sperm acrosomal matrix protein zona pellucida 3 receptor (ZP3R, formerly called sp56; red) and analyzed by confocal immunofluorescence. Representative images from two independent analyses are displayed. Scale bar = 10 µm. (E, F) Cryosections of mouse testis tissue analyzed for total (t) GIV (green), pY GIV (red), and DAPI (blue, nucleus). Representative images from two independent analyses are shown in panel (E); scale bar = 10 µm. Insets in panel (E) are magnified and displayed in panel (F, left). Schematics in panel (F, right) display various localization of GIV observed during the process of maturation of the Golgi into acrosomal cap. (G) Immunoblots on mouse testis lysates with the same tGIV and pY GIV antibodies. (Figure 1—source data 2).

Figure 1—source data 1

Quantitative immunoblotting of GIV in tissues.

Excel sheet with band densitometry values of immunoblots for endogenous GIV in various tissue lysates using three different anti-GIV/Girdin antibodies, as determined by ImageJ (corresponds to Figure 1A).

https://cdn.elifesciences.org/articles/69160/elife-69160-fig1-data1-v1.xlsx
Figure 1—source data 2

Full-length, uncropped immunoblots on mouse testis lysates with tGIV and pY GIV antibodies (corresponds to Figure 1G).

https://cdn.elifesciences.org/articles/69160/elife-69160-fig1-data2-v1.pptx

Transcripts of GIV are reduced in infertile men

Previously, in a publicly available patent (WO2017024311A1), the GIV gene (CCDC88A) was identified as one among a panel of genes whose altered expression due to DNA methylation may help diagnose male fertility status and/or the quality of the embryo (Carrell, 2016). We asked if the abundance of GIV transcripts in testis or sperm may be altered in infertile men. To this end, we curated all publicly available transcriptomic datasets from the NCBI GEO portal and analyzed them for differences in the abundance of CCDC88A transcripts across the annotated (in)fertility phenotypes (Figure 2A). CCDC88A transcripts were significantly and consistently downregulated in infertile men across all independent datasets analyzed (Figure 2B–E), regardless of whether the samples used for transcriptomic studies were testis or sperm. In Klinefelter’s syndrome (KS), the most common sex chromosomal disorder in humans that causes primary infertility, reduced CCDC88A expression was seen only after puberty and not in pre-pubertal boys (Figure 2E). This finding is in keeping with our observation that GIV is most prominently expressed in spermatocytes (Figure 1) and that spermatocytes are depleted in KS patients only at the onset of puberty (Wikström et al., 2004). Finally, in a study that segregated subfertile from fertile men using commonly used clinical parameters for semen quality, we found that sperm motility, but not concentration or morphology, was the key parameter (Figure 2F); when reduced sperm motility was used as a metric of infertility, semen from those subfertile men displayed reduced levels of GIV transcript. These results indicate that reduced GIV expression in testis and sperm is associated with clinically determined male infertility. Given the heterogeneous nature of the datasets (i.e., diagnosed cause of infertility, ranging from genetic syndromes with developmental or hormonal defects to post-chemotherapy to idiopathic), reduced GIV expression could be considered as a shared common molecular phenotype among infertile men.

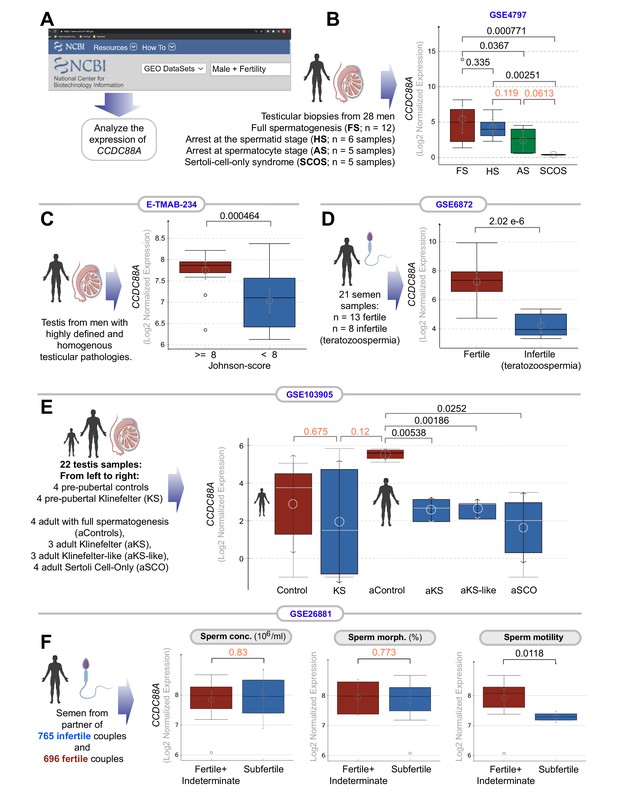

Transcripts of CCDC88A (GIV) are downregulated in infertile male testis and semen.

(A) Schematic displays the approach used to search NCBI GEO database for testis and sperm transcriptomic datasets suitable to study correlations between the abundance of CCDC88A transcripts and male fertility. (B–E) Whisker plots show the relative abundance of CCDC88A (expressed as Log2 normalized expression; see Materials and methods for different normalization approaches used for microarray and RNA-seq datasets) in sperm or testis samples (as annotated using schematics) in samples annotated with fertility status, or syndromes associated with infertility. (F) Whisker plots show the relative abundance of CCDC88A transcripts in sperms classified as subfertile or not based on three properties of sperm assessed using a modified WHO criterion published by Guzick et al., 2001 (see Materials and methods). Distribution of gene expression values is illustrated using boxplots and mean as circle with 95% confidence intervals (CIs) as arrows. Numbers on top indicate the p values, which were derived from Welch’s t-test. A significance level of <0.05, corresponding to 95% CIs are indicated in black font. Insignificant p values are indicated in red font.

GIV is rapidly tyrosine phosphorylated during capacitation

Mature sperm, by virtue of being transcriptionally and translationally inactive, rely entirely upon rapid post-translational modifications to regulate all pre-zygotic processes. Because GIV is a multimodular signal transducer that straddles both tyrosine-based and G protein signaling pathways (Ghosh, 2016; Ghosh, 2015), we sought to investigate how GIV’s functions are altered during sperm capacitation. Because PI3K-Akt signals downstream of TKs is a critical pathway for actin remodeling in the sperm flagellum and for hypermotility (Tan and Thomas, 2014; Breitbart et al., 2005; Etkovitz et al., 2007; Roa-Espitia et al., 2016), and GIV serves as a point of convergence for multi-TK-dependent PI3K signaling (Lin et al., 2011; Midde et al., 2018), we first asked if GIV is indeed tyrosine phosphorylated in human and mouse sperm during capacitation. Using the sperm swim-up assay, we first confirmed that in human ejaculates low-motile sperm have just as much total GIV as their highly motile counterparts, but by contrast, tyrosine phosphorylated GIV was significantly elevated in the latter (compare tGIV and pYGIV, lanes 1–2 in immunoblots; Figure 3A). As a positive control, we simultaneously analyzed the same samples by dual-color immunoblotting with an antibody that detects pan-tyrosine phosphoproteins. As expected (Ecroyd et al., 2003; Ficarro et al., 2003; Arcelay et al., 2008; Yunes et al., 2003), the highly motile sperms have higher tyrosine phosphorylation (pan-pY; Figure 3A). pYGIV and pan-pY signals co-migrated in the SDS page gel, indicating that GIV is one of the tyrosine phosphorylated proteins in high-motile sperms. The pan-pY and pYGIV signals were found to further increase in capacitated sperms, maximally by 4 hr, without any change in total GIV (lanes 3–4; Figure 3A). Such phosphorylation was dependent on the activity of PKA because pretreatment of sperm with the PKA inhibitor H89 virtually abolished both pan pY and pYGIV (Figure 3B); these findings are in keeping with the fact that PKA activity is essential for tyrosine phosphorylation cascades during capacitation (Luconi et al., 2005; Lamirande and Gagnon, 2004). Immunofluorescence studies on human sperm confirmed that pan-pY and pYGIV signals colocalized in the mid-piece and tails of high-motile sperm (Figure 3C) where they were significantly induced upon capacitation (Figure 3D). Findings in human sperm were mirrored in murine sperm (Figure 3E,F), with some notable differences in temporal-spatial dynamics. For example, pY/pYGIV of murine sperms are induced more rapidly and transient. During murine sperm capacitation, pYGIV is induced in 30 min and then reduced in 120 min (Figure 3F) and was not as restricted to the sperm tail and mid-piece as in humans (compare sperm head regions in Figure 3D and F). Although full-length GIV (~250 kDa expected size) could be detected in murine sperm (Figure 3F), we often detected numerous breakdown products, presumably proteolytic in nature, in both murine and human sperm lysates (Figure 3A–B and F). Regardless of the size of the breakdown products, total tGIV, pYGIV, and pan-pY co-migrated in the gels at the same size, suggesting that GIV may be one of the major phosphotyrosine proteins in capacitating sperm. We conclude that GIV is a major phosphotyrosine substrate in sperm tail during capacitation and that its phosphoactivation requires upstream activation of PKA. Our findings suggest that this PKA→TK→pYGIV axis may enhance PI3K-Akt signals and sperm motility. Because the sperm Ca2+ channel, Catsper, exerts both spatial and temporal control over tyrosine phosphorylation as sperm acquire the capacity to fertilize Chung et al., 2014, and there is some evidence that H89 may directly inhibit Catsper (Wang et al., 2020), the contributions of a possible alternative Ca2+→TK→pYGIV pathway towards sperm motility cannot be ruled out.

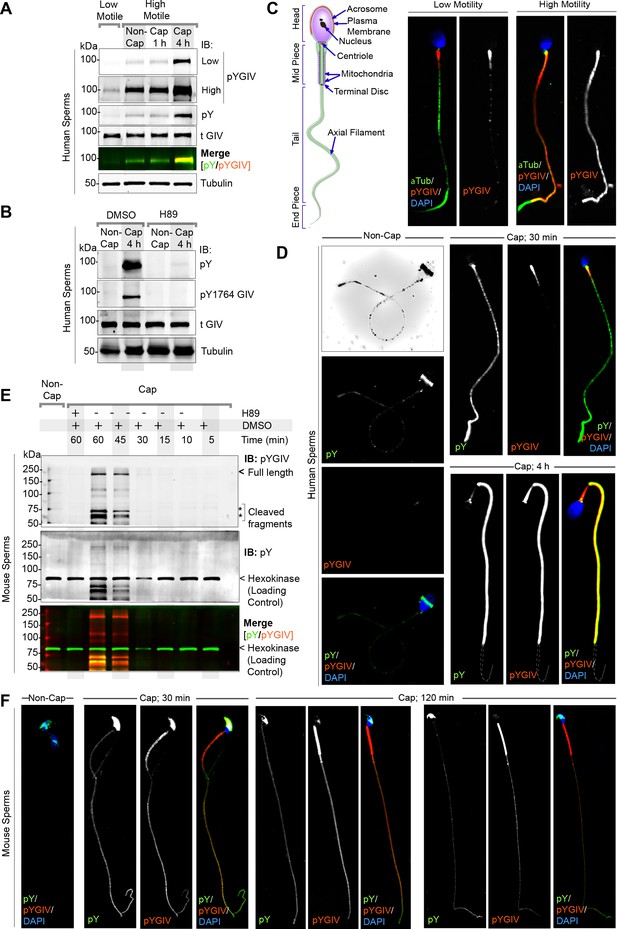

GIV localizes to the head and tail of human and murine sperms and is rapidly tyrosine phosphorylated during capacitation.

(A) Freshly ejaculated human sperm were segregated into low-motile and high-motile populations using ‘swim-up’ technique (see Materials and methods) and subsequently capacitated in vitro for 1 or 4 hr prior to whole cell lysis. Equal aliquots of lysates were analyzed by immunoblotting for total (t) GIV, pan pY, pY1764 GIV (pYGIV), and β-tubulin (loading control) using LI-COR Odyssey (Figure 3—source data 1). (B) Whole-cell lysates of human sperms capacitated with or without preincubation with H89 (protein kinase A [PKA] inhibitor) or DMSO control were analyzed as in (A) (Figure 3—source data 2). (C, D) Human sperm with low vs. high motility (C), were capacitated or not (D), fixed and co-stained for total and pY GIV (tGIV; pY GIV), tubulin and DAPI. Representative images that capture the most frequently observed staining patterns (at >80% frequency) among ~100–150 sperms/sample, in three independent samples, derived from three unique subjects are shown. Scale bar = 10 µm. (E) Immunoblots of equal aliquots of whole-cell lysates of mouse sperm capacitated with (+) or without (-) pretreatment with PKA inhibitor (H89) or vehicle (DMSO) control. Hexokinase is used as a loading control (Figure 3—source data 3). (F) Non-capacitated (non-cap) or capacitated mouse sperm were fixed and stained as in (D) and analyzed by confocal microscopy. Representative images that capture the most frequently observed staining patterns (at >80% frequency) among ~50–100 sperms/sample, in three independent samples, derived from three mice are shown. Scale bar = 10 µm.

Figure 3—source data 1

Full-length, uncropped immunoblots on human sperm lysates with tGIV and pY GIV antibodies (corresponds to Figure 3A).

https://cdn.elifesciences.org/articles/69160/elife-69160-fig3-data1-v1.pptx
Figure 3—source data 2

Uncropped immunoblots on human sperm lysates with tGIV and pY GIV antibodies (corresponds to Figure 3B).

https://cdn.elifesciences.org/articles/69160/elife-69160-fig3-data2-v1.pptx
Figure 3—source data 3

Full-length, uncropped immunoblots on sperm lysates with pan-pY and pY GIV antibodies (corresponds to Figure 3E).

https://cdn.elifesciences.org/articles/69160/elife-69160-fig3-data3-v1.pptx

The G protein modulatory function of GIV is dynamically phosphoregulated during capacitation

Next, we asked how the G protein modulatory function of GIV is regulated during capacitation. The evolutionarily conserved C-terminal GEM motif in GIV that enables it to both activate Gi (Garcia-Marcos et al., 2009) and inhibit Gs (Gupta et al., 2016) is phosphoregulated by two Ser/Thr kinases, cyclin-dependent-like kinase 5 (CDK5) (López-Sánchez et al., 2013) and protein kinase C Ɵ (PKCƟ) (López-Sánchez et al., 2013) (summarized in Figure 4A). Phosphorylation at Ser(S)1,674 induces GIV’s ability to activate Gi by ~2.5- to 3.0-fold, whereas phosphorylation at S1689 inhibits GIV’s ability to activate Gi; neither phosphoevent impacts GIV’s ability to bind and inhibit Gs. By activating the inhibitory Gi and inhibiting the stimulatory Gs proteins, GIV overall inhibits mACs and suppresses production of cellular cAMP (Getz et al., 2019). Because post-translational protein modification is the predominant way mature sperm rapidly respond to environmental cues, we used two previously validated phosphosite-specific antibodies (López-Sánchez et al., 2013; Bhandari et al., 2015) that detect pS1674-GIV and pS1689-GIV. We found that in mouse (Figure 4B, left) and human (Figure 4C, left) sperm, HCO3--induced capacitation induced the levels of phosphorylation at the activation site pS1674 in the sperm tails of both species, with two notable inter-species differences: (i) in murine sperm, the acrosomal cap showed phosphorylation at baseline with no further increase upon capacitation; and (ii) in human sperm, the mid-piece region showed phosphorylation at baseline with no further increase upon capacitation. Unlike the activating pS1674 site, distribution/intensity of phosphorylation at the inhibitory pS1689 site was observed at baseline in the head, mid-piece, and tail of the murine sperm (Figure 4B, right), and the mid-piece and tail in human sperm (Figure 4C, right) and did not change during capacitation.

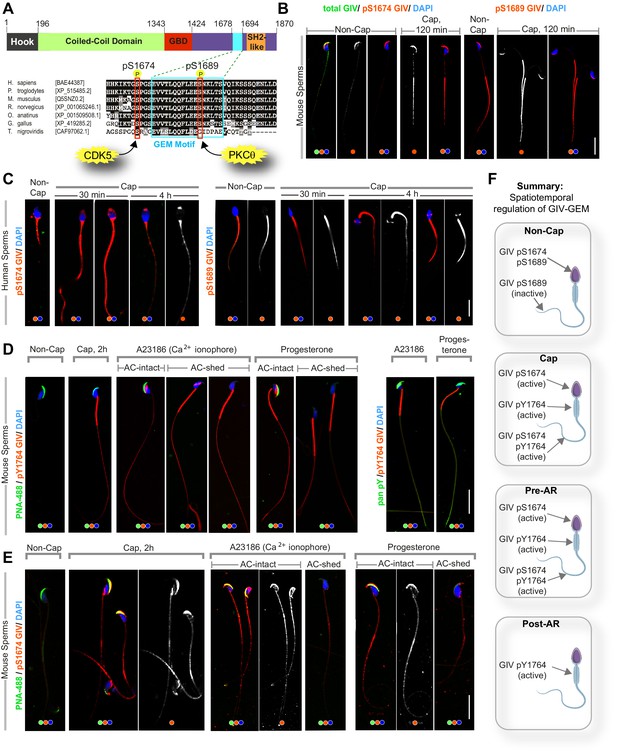

GIV’s guanine nucleotide-exchange modulator (GEM) function is dynamically phosphoregulated during capacitation and acrosomal reaction (AR) in a spatiotemporally segregated manner.

(A) Schematic shows the domain map of GIV (top) and the evolutionarily conserved GEM motif within its C terminus. A functional GEM motif is required for GIV to bind and activate Gαi as well as bind and inhibit Gαs (Gupta et al., 2016). Important phosphoserine modifications that regulate GIV’s GEM motif and the corresponding target kinases are highlighted. (B, C) Non-capacitated and capacitated mouse (B) and human (C) sperm were fixed and analyzed for the phosphoserine modifications highlighted in (A). (D, E) Mouse sperm with/without capacitation followed by treatment with either Ca2+ ionophore or progesterone to trigger AR were fixed and co-stained for peanut agglutinin (PNA-488; green, an acrosomal marker) and either pYGIV (D) or pSerGIV (E) and DAPI. Representative images are shown. Scale bar = 10 µm. (F) Schematic summarizes the spatially segregated phosphomodifications on GIV before and after capacitation and AR in various parts of the sperm. (i) Inhibitory phosphorylation at pS1689 on GIV is seen in both head and tail prior to capacitation (F, top); (ii) activating phosphorylation at S1674 on GIV is seen in the sperm head and tail, whereas pYGIV is predominantly seen in the mid-piece and the tail regions upon capacitation (post-cap; F) as well as during AR before the acrosome is shed (pre-AR; F); and (iii) after the acrosome is shed, pYGIV is the only phospho-GIV that is detected, and predominantly in the mid-piece (post-AR; F). Representative images that capture the most frequently observed staining pattern(s) (at >80% frequency), among ~50–150 sperms/sample, three independent samples, derived either from human subjects (n = 3) or mice (n = 3) are shown.

We next repeated the studies with the sequential addition of HCO3- (for 2 hr) followed by two other stimuli that are commonly used to trigger the AR, the calcium ionophore, A23186 (Tateno et al., 2013), and the reproductive hormone, progesterone (López-Torres and Chirinos, 2017). To monitor the phosphomodifications in GIV and their temporal relationship with acrosome exocytosis, we co-stained the sperm with peanut agglutinin (PNA) and Ser/Tyr-GIV. PNA binds specifically to galactose residues on the outer acrosomal membrane, and its disappearance is a widely accepted method of monitoring acrosome exocytosis (Mortimer et al., 1987; Kallajoki et al., 1986). pYGIV was induced predominantly in the mid-piece and tail during capacitation (cap 2 hr; Figure 4D) as seen before (Figure 3F) but also in the sperm head in the presence of A23187 and progesterone (Figure 4D). The localization of pYGIV in sperm head was seen only when the acrosomes were intact and lost in those where the acrosome was shed (compare AC-intact vs. -shed; Figure 4D). Similarly, phosphorylation at the activation site pS1674 was detected in sperm heads in the presence of A23187 and progesterone, but exclusively when the acrosomes remained intact (compare AC-intact vs. -shed; Figure 4E).

Taken together, the predominant findings can be summarized as follows (see legend of Figure 4F): GIV-GEM is inactive at baseline and activated upon capacitation. It remains active in both head and tail regions of capacitated sperm until the moment the acrosome is shed. Capacitation is also associated with robust tyrosine phosphorylation of GIV in the sperm tail and mid-piece throughout the process of acrosomal reaction (AR).

GIV is required for male fertility

To determine if GIV is required for male fertility, we next co-housed female mice with conditional GIV knockout male mice (henceforth referred to as GIV-cKO; generated using tamoxifen in Ccdc88afl/fl-UbcCre-Ert2 mice) or control littermates (WT; Ccdc88afl/fl mice) (see Materials and methods; see legend of Figure 5A) and analyzed diverse readouts. GIV knockdown was confirmed by genotyping tail tips (Figure 5B) and assessing GIV mRNA (Figure 5C) and protein (Figure 5D) in the testis. We noted a significant reduction of cumulative probability of pregnancy (100% vs. 55% rate for WT and KO groups, respectively, within 40 days after co-housing; Figure 5E) and average litter size (Figure 5F) in GIV-cKO mice. Surprisingly, both WT and GIV-cKO mice had similar sperm counts (Figure 5G), testes sizes, and weights (Figure 5—figure supplement 1). We confirmed by IHC that GIV was predominantly expressed in sperm in the testis of WT mice and that it was effectively depleted in GIV-cKO mice (Figure 5H). RNA-seq of the testis followed by unsupervised clustering showed that GIV-cKO testis differentially expressed only a handful of transcripts compared to WT testis (Figure 5I). The predominantly upregulated genes mapped to the ‘aberrant activation of PI3K/Akt signaling’ pathway (Figure 5J). This was largely attributable to Esr1 (highlighted in red; Figure 5I); polymorphisms of this gene are known to predispose to male fertility (Ge et al., 2014; Galan et al., 2005), and its induction represents a negative feedback event, resulting in the setting of inhibition of PI3K signaling (Bosch et al., 2015). The predominantly downregulated genes mapped to the IL12 pathway (Figure 5K), which is consistent with prior studies in men showing that IL12 may be important for male fertility and that its dysregulation may reflect infertility (Naz and Evans, 1998; Naz et al., 1998). Notably, both pathways reflect changes that are largely contributed by non-sperm cells in the testis; Esr1 is expressed exclusively in the Leydig cells in mouse testis (Zhou et al., 2002; Kotula-Balak et al., 2005) and IL12 is largely expressed by endothelial cells, peritubular cells, and macrophages (Terayama et al., 2014).

Figure 5 with 1 supplement see all

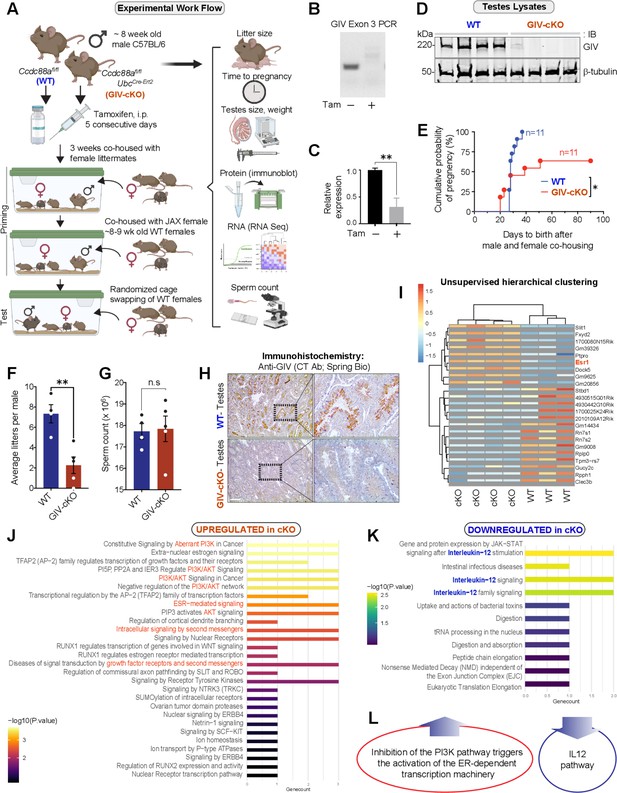

GIV is required for fertility in male mice.

(A) Schematic showing the workflow for fertility studies in conditional GIV-cKO mice. After intraperitoneal injection of tamoxifen, male mice were first primed in two phases—first by co-housing with female littermates × 3 weeks, and subsequently by co-housing with female mice from Jackson laboratory (JAX) while the females acclimatized to the animal facility. The final ‘test’ group consisted of tamoxifen-injected WT and GIV-cKO male mice randomly assigned to and co-housed with three female mice from JAX, each with proven ability to get pregnant. (B–D) Confirmation of GIV-cKO in the mice after tamoxifen injection by genotyping (B), qPCR of testis tissues (C), and immunoblotting of testis lysates (D) (Figure 5—source data 1). (E) Kaplan–Meier plot showing the cumulative probability of pregnancy (expressed as %) in the females co-housed with either WT or GIV-cKO males. Statistical significance was assessed using log-rank analysis. *p<0.05 (Figure 5—source data 2). (F, G) Bar graphs showing the average litter size (F; Figure 5—source data 3) and sperm count (G; Figure 5—source data 4) in WT and GIV-cKO males. See also Figure 5—figure supplement 1 for quantifications of tested weight and length. (H) Immunohistochemistry staining on mouse testis. Scale bar = 200 µm. (I) Unsupervised clustering of WT and KO testis samples based on gene expression. Differentially expressed genes (DEGs) that were up- or downregulated in KO are annotated on the right side (Figure 5—source data 5). (J, K) Reactome pathway analyses showing the pathways that are up or downregulated in KO testis. (L) Summary of the most prominent conclusions from RNA-seq dataset.

Figure 5—source data 1

Full-length, uncropped immunoblots on testes lysates with GIV and tubulin antibodies (corresponds to Figure 5D).

https://cdn.elifesciences.org/articles/69160/elife-69160-fig5-data1-v1.pptx
Figure 5—source data 2

Excel sheet with time to live birth values observed in females co-housed with WT and GIV-cKO mice (corresponds to graphs in Figure 5E).

https://cdn.elifesciences.org/articles/69160/elife-69160-fig5-data2-v1.xlsx
Figure 5—source data 3

Excel sheet with litter size values from WT and GIV-cKO mice (corresponds to graphs in Figure 5F).

https://cdn.elifesciences.org/articles/69160/elife-69160-fig5-data3-v1.xlsx
Figure 5—source data 4

Excel sheet with sperm count values from WT and GIV-cKO mice (corresponds to graphs in Figure 5G).

https://cdn.elifesciences.org/articles/69160/elife-69160-fig5-data4-v1.xlsx
Figure 5—source data 5

Excel sheet with differential expression analysis-derived reactome pathway analyses of the most significantly up- and downregulated genes in GIV-cKO mice (corresponds to graphs in Figure 5I).

https://cdn.elifesciences.org/articles/69160/elife-69160-fig5-data5-v1.xlsx

These findings demonstrate that GIV is required for male fertility and suggest that the role of GIV and its various phosphomodifications we observe in sperm is largely post-transcriptional and post-translational in nature.

GIV’s GEM function facilitates hypermotility and survival during sperm capacitation

Next, we assessed the role of GIV during sperm capacitation using a previously validated approach, that is, exogenous addition of cell-permeable His-tagged GIV-derived ~210 aa long peptides (Ma et al., 2015); these peptides either have an intact functional GEM motif (WT peptides) or, as negative control, a well-characterized F1685A (FA) mutant of the same motif ,which lacks such activity (Garcia-Marcos et al., 2009; Kalogriopoulos et al., 2019; Figure 6A; top). By anti-His staining followed by flow cytometry, we confirmed that TAT-His-GIV peptides were indeed taken up as we could detect uptake only when staining was conducted under permeabilized conditions (Figure 6A, bottom). Peptide uptake was efficient, varying within the range of ~80–90% (Figure 6A, bottom). Immunofluorescence studies confirmed that uptake was seen in all segments of the sperm (Figure 6B). The peptides were detected and functional (i.e., retained their ability to bind Gαi) at 1 and 6 hr post-uptake, as determined using lysates of peptide-transduced sperm as source of GIV in pulldown assays with recombinant GDP-loaded GST-tagged G protein, Gαi3 (Figure 6C).

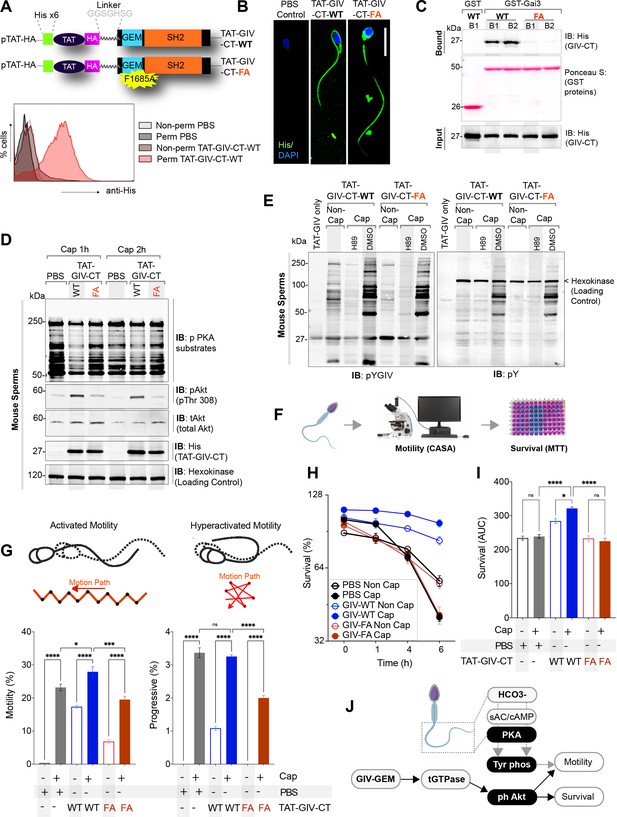

GIV’s GEM function is required for sperm motility and survival during capacitation.

(A, B) Schematic (A, top) of cell-permeant His-TAT-GIV-CT wildtype (WT) and GEM-deficient mutant (F1685A; FA) peptides used in this work. Immunofluorescence images (B) representative of sperms after treatment with cell-permeant TAT-GIV-CT peptides and stained with anti-His antibody and DAPI. Scale bar = 15 µm. Histograms (A, bottom) from flow cytometry studies conducted with or without permeabilization confirm the uptake of His-TAT peptides in sperm. (C) Immunoblots of GST pulldown assays testing the ability of GDP-loaded GST-Gαi3 to bind TAT-GIVCT peptides from lysates of sperms at 1 hr (B1) and 6 hr (B2) after transduction (Figure 6—source data 1). (D, E) Immunoblots of lysates of TAT-GIVCT-transduced sperms at the indicated time points after capacitation analyzed for phospho-PKA substrates (D), phospho(p) and total (t) Akt (D; Figure 6—source data 2), pYGIV (E, left), pan-pY (E, right) (Figure 6—source data 3), and hexokinase (loading control, D). (F–I) Schematic in (F) summarizes workflow in assessing motility and survival of sperms during capacitation. Bar graphs in (G; Figure 6—source data 4) display the relative % of motile and progressively motile population of sperms. Line graphs in (H) show survival of sperms as determined by methy thiazolyl tetrazolium (MTT) assay; bar graphs in (I) show the area under the curve (AUC) of the line graphs in (H) (Figure 6—source data 5). All results are presented as average ± SEM of three independent studies conducted on sperm isolated from three mice. Statistical significance was assessed using one-way analysis of variance (ANOVA) followed by Tukey’s test for multiple comparisons. *p<0.05, ***p<0.001, ****p<0.0001, ns p>0.05. (J) Schematic summarizes the conclusions of how GIV’s GEM function impacts sperm phenotypes during capacitation.

Figure 6—source data 1

Full-length, uncropped immunoblots on GST pulldown assays (corresponds to Figure 6C).

https://cdn.elifesciences.org/articles/69160/elife-69160-fig6-data1-v1.pptx
Figure 6—source data 2

Full-length, uncropped immunoblots on TAT-peptide-transduced sperm lysates with His, hexokinase, phospho-PKA substrate, phospho-Akt, and total Akt antibodies (corresponds to Figure 6D).

https://cdn.elifesciences.org/articles/69160/elife-69160-fig6-data2-v1.pptx
Figure 6—source data 3

Full-length, uncropped immunoblots on TAT-peptide-transduced sperm lysates with pan-pY and pYGIV antibodies (corresponds to Figure 6E).

https://cdn.elifesciences.org/articles/69160/elife-69160-fig6-data3-v1.pptx
Figure 6—source data 4

Excel sheet with sperm motility values (corresponds to graph in Figure 6G).

https://cdn.elifesciences.org/articles/69160/elife-69160-fig6-data4-v1.xlsx
Figure 6—source data 5

Excel sheet with sperm viability values (corresponds to graph in Figure 6H,I).

https://cdn.elifesciences.org/articles/69160/elife-69160-fig6-data5-v1.xlsx

Next, we analyzed phosphoproteins in TAT-GIV-transduced sperm undergoing in vitro capacitation by immunoblotting. Although PKA activation (Figure 6D) and pan-Y or pYGIV phosphorylation (Figure 6E) were relatively similar between WT and FA-transduced sperm, phosphorylation of Akt differed; TAT-GIV-WT induced phosphorylation of Akt much more robustly than TAT-GIV-FA (Figure 6D). This finding is consistent with the established role of GIV-GEM in the activation of the PI3K→Akt pathway via the activation of Gi and the release of ‘free’ Gβγ15. Because Akt phosphorylation has been implicated in sperm hypermotility and survival during capacitation (Quan and Liu, 2016; Pujianto et al., 2010), we performed computer-assisted sperm analysis (CASA) and MTT assays, respectively (Figure 6F). Consistent with the patterns of Akt phosphorylation, WT, but not FA peptide-transduced sperm showed greater overall motility as well as hypermotility (Figure 6G) and greater viability (Figure 6H,I).

These findings indicate that GIV’s GEM function may be dispensable for the PKA→TK→tyrosine phosphorylation pathway, but is required for Akt activation, sperm motility, and survival during capacitation (Figure 6J).

GIV’s GEM function suppresses cAMP and AR

Prior studies have underscored the importance of mACs and their role in the regulation of cAMP and acrosome exocytosis in sperm (summarized in Figure 1—figure supplement 1A). mACs are localized most abundantly in the head (Figure 1—figure supplement 1A), and their activation by Gs or inhibition by Gi is known to finetune cAMP surge in that location, a function that is conserved in numerous species (Spehr et al., 2004). Thus, mACs and sACs regulate cAMP surges in the sperm head and tail, respectively, in a spatiotemporally segregated and independent manner (Figure 1—figure supplement 1B). Upon approaching the zona pellucida of an egg, a timely surge in cAMP in sperm head is required for the downstream activation of effectors PKA (Romarowski et al., 2015) and the exchange proteins directly activated by cAMP (EPAC) (Sosa et al., 2016; Mata-Martínez et al., 2021), which in turn coordinate the activation of several small GTPases (Branham et al., 2009; Pelletán et al., 2015; Bustos et al., 2015; Bustos et al., 2012) of the Ras superfamily. These GTPases enable rapid cytoskeletal remodeling and membrane trafficking events that culminate in acrosome exocytosis. As an activator of Gi and an inhibitor of Gs (Gupta et al., 2016) using the same conserved GEM motif (Figure 7A), GIV is known to tonically and robustly suppresses cAMP (Getz et al., 2019; Getz et al., 2020), and by that token, it is expected to inhibit the cAMP surge. Because GIV-GEM was activated upon capacitation and remained active until the acrosome was shed (Figure 4F), we hypothesized that GIV’s GEM function may be required for the prevention of a premature cAMP surge in the sperm head, and hence, premature acrosome exocytosis. We first confirmed that cAMP is modulated by a variety of stimuli targeting Gi- (adenosine) and Gs-coupled (progesterone) GPCRs (Figure 7—figure supplement 1A), consistent with what has been observed before (Wang et al., 2020; Parinaud and Milhet, 1996). When the same studies were carried out on TAT-GIV peptide-transduced sperm, the expected degree of cAMP induction were observed once again (Figure 7B), but TAT-GIV-WT, but not the GEM-deficient FA mutant peptides could significantly suppress the degree of cAMP surge across all stimuli tested (Figure 7C, Figure 7—figure supplement 1B).

Figure 7 with 1 supplement see all

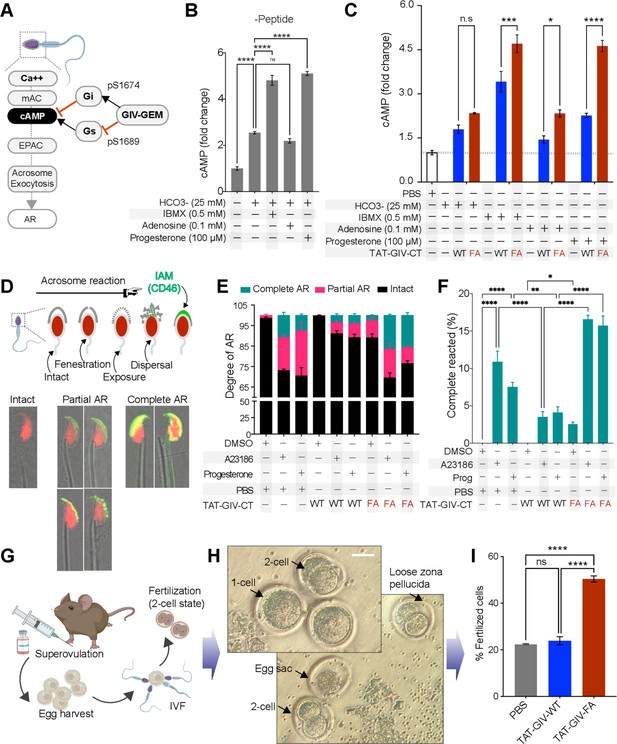

GIV’s GEM function inhibits acrosomal reaction (AR).

(A) Schematic summarizes the current knowledge of how Ca2+ and cAMP signaling regulates acrosome exocytosis during AR and how GIV’s ability to modulate cAMP via both Gαi/s is hypothesized to impact AR. (B) Bar graphs display the fold change in cAMP in mouse sperms treated with various stimuli in the presence of DMSO. All results are presented as average ± SEM of three independent studies conducted on sperm isolated from three mice. Statistical significance was assessed using one-way analysis of variance (ANOVA) followed by Tukey’s test for multiple comparisons. nsp>0.05, ****p<0.0001. (C) Bar graphs display the fold change in cAMP in TAT-GIVCT-transduced mouse sperms exposed to various stimuli. Dotted horizontal line represents cAMP concentration in PBS-treated samples, to which all other values were normalized. See also Figure 7—figure supplement 1 for comparison of PBS vs. all other treatments and conditions with (+) or without (-) peptides. All results are presented as average ± SEM of three independent studies conducted on sperm isolated from three mice. Statistical significance was assessed using two-way ANOVA followed by Sidak’s test for multiple comparisons. *p<0.05, ***p<0.001, ****p<0.0001, nsp>0.05 (Figure 7—source data 1). (D) Schematic on top summarizes the assay used to quantify progressive changes in acrosome membrane during AR that was induced in vitro by exposing capacitated sperms to 10 µM A23186 or 100 µM progesterone. Images in the bottom panel are representative of acrosome-intact, partial AR and complete AR stages. (E, F) Stacked bar graphs in (E) display the proportion of sperms in each indicated condition that are either in partial or complete AR or with intact acrosomes. Bar graphs in (F) display just the relative proportion of sperms in (E) that have complete AR. All results are presented as average ± SEM of three independent studies conducted on sperm isolated from three mice. Statistical significance was assessed using one-way ANOVA followed by Tukey’s test for multiple comparisons. *p<0.05, **p<0.01, ****p<0.0001 (Figure 7—source data 2). (G–I) Schematic in (G) displays the workflow used for in vitro fertilization (IVF) assays in (H, I). Representative images in (H) display the two-cell stage, which is quantified as % of total eggs in the assay and displayed as bar graphs in (I) as an indication of successful fertilization. Results are presented as average ± SEM of three independent studies conducted on sperm isolated from three mice. Statistical significance was assessed using one-way ANOVA including a Tukey’s test for multiple comparisons. ****p<0.0001, nsp>0.05 (Figure 7—source data 3).

Figure 7—source data 1

Excel sheet with cAMP concentrations (corresponds to graph in Figure 7B,C).

https://cdn.elifesciences.org/articles/69160/elife-69160-fig7-data1-v1.xlsx
Figure 7—source data 2

Excel sheet with % cells with various stages of acrosomal reaction (AR) (corresponds to graph in Figure 7D–F).

https://cdn.elifesciences.org/articles/69160/elife-69160-fig7-data2-v1.xlsx
Figure 7—source data 3

Excel sheet with % fertilized cells (corresponds to graph in Figure 7G–I).

https://cdn.elifesciences.org/articles/69160/elife-69160-fig7-data3-v1.xlsx

Next we assessed the effect of GIV-GEM on acrosome exocytosis under the same conditions, that is, capacitation followed by AR, as we did in (Figure 4D,E), using a highly sensitive immunofluorescence-based assay that monitors the progressive exposure during AR of the inner acrosomal membrane protein, CD46 (Carver-Ward et al., 1997; Frolikova et al., 2016) (a.k.a. membrane cofactor protein [MCP]; Figure 7D). At 15 min after exposure to 10 µM A23186 or 100 µM progesterone, the TAT-GIV-WT, but not TAT-GIV-FA-transduced sperm had more intact acrosomes (Figure 7E) and fewer completely reacted acrosomes (Figure 7F). These results indicate that AR in response to both A23186 and progesterone was suppressed by TAT-GIV-WT, but not the GEM-deficient FA mutant. Instead, the FA mutant peptide had a higher proportion of sperm that completed AR.

These findings demonstrate that GIV is sufficient to inhibit cAMP surge and AR, and that these functions require a functional GEM module. Taken together with the temporal nature of the GIV-GEM activity (see Figure 4F), our findings also suggest that GIV-GEM may inhibit premature cAMP surge and acrosome shedding. Because these premature events may compromise fertilization only in the in vivo setting where sperm is required to remain in capacitated state while maintaining intact acrosomes for prolonged periods of time within the female reproductive tract before encountering the egg, we hypothesized that GIV’s function may be bypassed in the setting of in vitro fertilization (IVF; Figure 7G). We found this indeed to be the case because TAT-GIV-WT peptide-transduced sperm successfully fertilized the eggs in vitro to a similar extent as PBS control (Figure 7H,I). The GEM-deficient FA mutant-transduced sperm, which had higher surges in cAMP (Figure 7C) and a higher proportion of completely reacted acrosomes (Figure 7F), showed an approximately twofold increase in fertility.

Taken together, these findings indicate that GIV-GEM inhibits cAMP surge and AR to primarily prevent both events from occurring prematurely in vivo until in the presence of an egg for successful fertilization.

Conclusions

The major discovery we report here is a role of GPCR-independent (hence, non-canonical) G protein signaling in the sperm that is mediated by GIV/Girdin. Expressed most abundantly in the testis, and primarily in sperm, GIV is required for male fertility, and low GIV transcripts in men were invariably associated with infertility. We show that GIV is rapidly phosphomodulated on key tyrosine and serine residues in a manner segregated in space and time in various segments of the sperm (head, mid-piece, and tail) during capacitation and acrosomal reaction. These specific phosphomodifications, which are known to regulate GIV’s interactions with other key proteins (PI3K, Gαi/s proteins, etc.) and its functions as an effector of multiple TKs, as a cytoskeletal remodeler, and as a signal transducer, regulate key sperm phenotypes in at least two sperm compartments (summarized in Figure 8). First, in the sperm head, GIV’s GEM activity is induced upon capacitation. Once activated, GIV modulates both Gαi/s via the same GEM motif to suppress premature cAMP surges downstream of ligand-activated Gi/Gs-coupled GPCRs. Consequently, GIV-GEM inhibits premature acrosome shedding. Because both premature AR or failure to do so are important causes of male infertility (Liu et al., 2006), deciphering the signaling events that precisely regulate the timing of acrosome exocytosis has remained one of the most challenging and unresolved questions concerning mammalian reproductive biology (Buffone et al., 2014). Despite emerging evidence in the last decade that has challenged the long-held paradigms in the field, and mechanistic insights into sperm-extrinsic factors responsible for premature AR (Sánchez-Cárdenas et al., 2021; Balestrini et al., 2021; Harper et al., 2004), the identity of sperm-intrinsic pathways/processes/proteins that inhibit premature acrosome exocytosis was unknown. Our conclusion that GIV-GEM serves as a ‘brake’ for cAMP surge and prevents AR is consistent with the fact that the PDE-inhibitor sildenafil citrate (Viagra) increases cAMP to cause premature acrosomal reaction (Glenn et al., 2007). It is noteworthy that although canonical G protein signaling that is triggered by ligand-activated GPCRs has been implicated in the activation/inhibition of mACs and cAMP signaling in the sperm head (Adeoya-Osiguwa et al., 2006; Schaefer et al., 1998; Flegel et al., 2016), the role of non-canonical G protein we report here was never recognized previously. Because GIV is most highly expressed in sperm, the cAMP-regulatory role of GIV-GEM we define here implies that it may fulfill a major role in the regulation of cAMP in the sperm head. pYGIV was also detected in the sperm head, but its role in AR was not studied here. Because pYGIV activates class 1 PI3K, it is possible that the pYGIV→PI3K axis at that location could also influence rapid lipid phosphorylations that are also known to regulate AR (Cohen et al., 2016).

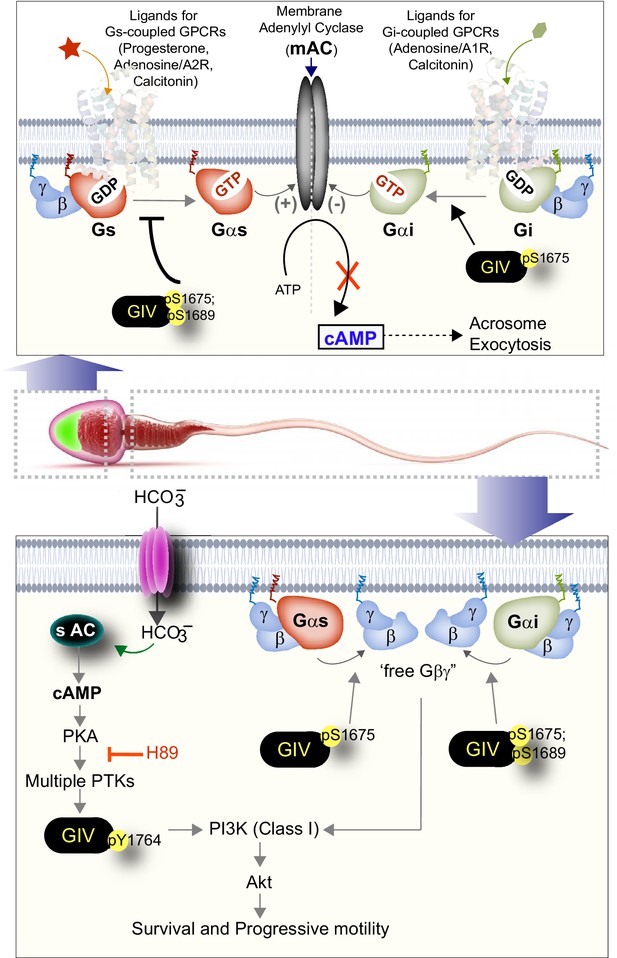

Summary and working model: spatiotemporally segregated roles of GIV/Girdin during sperm capacitation.

Schematic summarizes the key findings in this work and places them in the context of existing literature. GIV is likely to primarily function during capacitation of sperm, during which it fulfills two key roles as a signal transducer in a spatiotemporally segregated manner. The first role (right, top) is in the head of the sperm, where GIV’s GEM motif inhibits the AC→cAMP pathway and prevents acrosomal reaction. The second role (right, bottom) is in the mid-piece and tail region of the sperm, which involves tyrosine phosphorylation of GIV, which happens downstream of PKA activation. Such phosphorylation is rapidly induced during capacitation. In addition, GIV’s GEM motif is activated and is required for the enhancement of PI3K/Akt signals, enhanced motility, and survival of sperms during capacitation.

Second, in the sperm tail, GIV is an effector within the sAC→cAMP→PKA→multi-TK axis that gets robustly phosphorylated on Y1764; this site is known to directly bind and activate class 1 PI3Ks, which ultimately enhance Akt signals. GIV’s GEM activity is also activated in the tails of capacitated sperms and enhances Akt signals, presumably via the previously defined GIV→Gi→‘free’ Gβγ→class 1 PI3K axis. These two mechanisms of Akt signaling have previously been shown to act as an ‘AND’ gate to maximally enhance Akt signaling in diverse cell types to increase cell survival and motility (Lin et al., 2011; Lopez-Sanchez et al., 2015) Furthermore, both GIV transcripts and its phosphoactivation by TKs (pYGIV) were reduced in sperms with lower motility. Because the global trend of progressive reduction in the number of motile and viable sperm in the ejaculate has been associated with a concomitant increase in the rates of infertility (Dcunha et al., 2020), our findings in the case of GIV add to the growing number of proteins that enrich the signal-ome of healthy sperm. For example, as an intrinsically disordered protein (IDP) and a multi-modular scaffold that generates crosstalk between diverse signaling pathways, GIV appears to be in a prominent position to orchestrate rapid cooperativity between these pathways and processes in the otherwise transcriptionally and translationally silent sperm cell.

In conclusion, our results provide evidence that GIV may perform different roles in the distinct spatial compartments of capacitating sperms. This study not only sheds light on defective GIV-signaling as potential ‘marker’ of male infertility, but also reveals that inhibitors of GIV-dependent signaling will inhibit fertility by reducing sperm motility and viability and by promoting premature AR. The latter is a promising strategy for the development of a male contraceptive ‘pill’ specifically targeting sperm.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional information
AntibodyRabbit polyclonal anti-GIV (Girdin) (T-13)Santa Cruz Biotechnologysc-133371
AntibodyRabbit monoclonal diagnostic grade anti-Girdin/GIV antibodyCustom; Sprint BioscienceSP173Validated in prior publication Ghosh et al., 2016
AntibodyRabbit polyclonal anti-GIV (Girdin) (CC-Ab)Millipore SigmaABT80
AntibodyRabbit polyclonal anti-GIV pS1675 AbCustom, from 21t Century Biosciencesn/aValidated in prior publication Bhandari et al., 2015
AntibodyRabbit polyclonal anti-GIV pS1689 AbCustom, from 21st Century Biosciencesn/aValidated in prior publication López-Sánchez et al., 2013
AntibodyRabbit monoclonal anti-GIV pY1764 AbCustom, Spring Biosciences Incn/aValidated in prior publications Midde et al., 2015; Lin et al., 2011; Midde et al., 2018; Dunkel et al., 2016
AntibodyRabbit monoclonal anti-pT308 AKTCell Signaling TechnologyD9E
AntibodyMouse monoclonal anti-total AKTCell Signaling Technology40D4
AntibodyMouse anti-sp56Thermo Fisher Scientific (Waltham, MA)MA1-10866
AntibodyMouse anti- human hexokinase 1/2 monoclonal antibodyR&D Systems, (Minneapolis, MN)MAB8179
AntibodyRabbit anti-phospho-PKA substrate (RRXS*/T*)100G7ECell Signaling Technology9624
AntibodyGoat anti-rabbit IgG, Alexa Fluor 594 conjugatedThermoFisher ScientificA11072For immunofluorescence (IF)
AntibodyGoat anti-mouse IgG, Alexa Fluor 488 conjugatedThermoFisher ScientificA11017For immunofluorescence (IF)
AntibodyIRDye 800CW goat anti-mouse IgG secondary (1:10,000)LI-COR Biosciences926-32210For immunoblotting
AntibodyIRDye 680RD goat anti-rabbit IgG secondary (1:10,000)LI-COR Biosciences926-68071For immunoblotting
Strain, strain background (Mus musculus)UbcCre-Ert2/+ xCcdc88afl/fl andCcdc88afl/fl miceMasahide Takahashi (Nagoya University Graduate School of Medicine, Nagoya, Japan)n/a
Strain, strain background (Mus musculus)WT and GIV-cKO (conditional KO) miceThis workUbcCre-Ert2/+ xCcdc88afl/fl (experimental group), and UbcCre-Ert2/ Cre-Ert2 x Ccdc88afl/fl (control group)This work; male
Strain, strain background (Mus musculus)C57BL/6J mice (male and female)The Jackson LaboratoryStock number: 000664; Bar Harbor, MEMale: source of sperm for biochemical, immunohistochemical, peptide transduction, and functional assaysFemale: for co-housing studies; source for eggs for IVF assays
Chemical compoundParaformaldehyde 16%Electron Microscopy Biosciences15710
Chemical compoundMTTMillipore Sigma475989-1GM
OtherDAPI (4',6-Diamidino-2-Phenylindole, Dilactate)Thermo Fisher ScientificD3571Used in IF studies for staining DNA/nucleus
Kit/reagentHisPurä Cobalt ResinThermo Scientific89964
Kit/reagentGlutathione Sepharoseâ 4BSigma-AldrichGE17-0756-04
Chemical compoundProtease inhibitor cocktailRoche11873580001
Chemical compoundTyr phosphatase inhibitor cocktailSigma-AldrichP5726
Chemical compoundSer/Thr phosphatase inhibitor cocktailSigma-AldrichP0044
OtherPVDF Transfer Membrane, 0.45 mMThermo Scientific88518Used for transfer in immunoblots
Commercial assay or kitCountess II Automated Cell CounterThermo Fisher ScientificAMQAX1000
Commercial assay or kitLeica TCS SPE ConfocalLeica MicrosystemsTCS SPE
Commercial assay or kitLight Microscope (brightfield images)Carl Zeiss LLCAxio Observer, Inverted; 491917-0001-000
SoftwareImageJNational Institute of Healthhttps://imagej.net/Welcome
SoftwarePrismGraphPadhttps://www.graphpad.com/scientific-software/prism/
SoftwareLAS-XLeicahttps://www.leica-microsystems.com/products/microscope-software/p/leica-las-x-ls
SoftwareIllustratorAdobehttps://www.adobe.com/products/illustrator.html
SoftwareImageStudio LiteLI-CORhttps://www.licor.com/bio/image-studio-lite/

Contact for reagent and resource sharing: Pradipta Ghosh (prghosh@ucsd.edu).

Human subjects

Request a detailed protocol

Human sperm were collected from volunteers via masturbation, liquefied at room temperature for 30 min, and subsequently washed with TYH media before being exposed to non-capacitating (NC) TYH media or capacitating conditions (C) TYH plus 5 mg/ml of BSA and 15 mm NaHCO3 for 4 hr at 37°C and 5% CO2, as described previously (Munné and Estop, 1993). The study proposal was approved by Institutional Review Board of University of California, San Diego (UCSD human subjects IRB protocol #16027, Gagneux). All samples were deidentified before use in studies. A written informed consent was obtained before participating in study. Consent to publish aggregate data with subject’s anonymity was obtained. The study design and the use of human study participants were conducted in accordance to the criteria set by the Declaration of Helsinki.

Mice

UbcCre-Ert2/+ + Ccdc88afl/fl and Ccdc88afl/fl mice were generously provided by Dr. Masahide Takahashi (Nagoya University Graduate School of Medicine, Nagoya, Japan). Males UbcCre-Ert2/+ × Ccdc88afl/fl were bred to females Ccdc88afl/fl to generate UbcCre-Ert2/+ × Ccdc88afl/fl (experimental group), and UbcCre-Ert2/Cre-Ert2 × Ccdc88afl/fl (control group) mice. Genotyping was performed by PCR, and only male mice were used in this study. Wildtype female C57BL/6 mice were purchased from The Jackson Laboratory (stock number: 000664; Bar Harbor, ME). All mice were housed in standard cages in an Association for Accreditation and Assessment of Laboratory Animal Care-approved animal facility at the University of California San Diego School of Medicine. This study was approved by the UCSD Institutional Animal Care and Use Committee (protocol #S17223; Ghosh), which serves to ensure that all federal guidelines concerning animal experimentation are met.

For all biochemical, immunofluorescence, peptide transduction, and functional studies, the source of sperms was C57BL/6J mice, which were bred and housed under another protocol, which was also approved by the UCSD Institutional Animal Care and Use Committee (protocol #S16223; Gagneux).

Reagents and antibodies

Request a detailed protocol

All reagents were of analytical grade and obtained from Sigma-Aldrich (St. Louis, MO) unless otherwise stated.

The affinity-purified anti-pS1689-GIV and pS1674-GIV were generated commercially in collaboration with 21st Century Biochemicals (Marlboro, MA) and validated previously (López-Sánchez et al., 2013; Bhandari et al., 2015.) Rabbit anti-GIV CT (T-13) was obtained from Santa Cruz Biotechnology; and a previously validated custom-raised anti-p-GIV (pY1764) was from Spring Bioscience (Pleasanton, CA, USA) (Midde et al., 2015; Lin et al., 2011; Midde et al., 2018; Dunkel et al., 2016). Mouse mAbs against pTyr was from BD Biosciences; mouse anti-His, anti-a tubulin and anti-actin were obtained from Sigma; rabbit monoclonal anti-phospho-(p)Akt (Thr308) and anti-total (t)Akt were from Cell Signaling Technology (Beverly, MA). Rabbit anti-GIV-coiled-coil (CC) was obtained from EMD Millipore (Carlsbad, CA). Other commercially obtained antibodies used in this work were mouse anti-sp56 (MA1-10866) was purchased from Thermo Fisher Scientific (Waltham, MA), mouse anti-human hexokinase 1/2 monoclonal antibody (catalog # MAB8179; R&D Systems, Minneapolis, MN), and rabbit anti-phospho-PKA substrate (RRXS*/T*) (100G7E) mAb #9624 from Cell Signaling Technology.

Goat anti-rabbit and goat anti-mouse Alexa Fluor 680 or IRDye 800F (ab0)2 used for immunoblotting were from LI-COR Biosciences (Lincoln, NE). Goat anti-rabbit Alexa Fluor 488 and goat anti-mouse Alexa Fluor 594 for immunofluorescence were purchased from Life Technologies.

IHC of mouse testes

Request a detailed protocol

Mouse testes were fixed in zinc paraformaldehyde to prepare FFPE tissue blocks. Tissue sections of 4 μm thickness were cut and placed on glass slides coated with poly-L-lysine, followed by deparaffinization and hydration. Heat-induced epitope retrieval was performed using sodium citrate buffer (pH 6) in a pressure cooker. Tissue sections were incubated with 3% hydrogen peroxidase for 10 min to block endogenous peroxidase activity, followed by incubation with primary antibody overnight in a humidified chamber at 4°C. Antibodies used for immunostaining were SP173 rabbit monoclonal, anti-GIV antibody. Immunostaining was visualized with a labeled streptavidin–biotin using 3,3′-diaminobenzidine as a chromogen and counterstained with hematoxylin.

Source of live mouse and human sperms

Request a detailed protocol

Mouse sperm suspension were obtained from cauda epididymis of mature male (9 weeks old) placed in 1 ml NC buffer prewarmed at 38.1°C for 25 min in siliconized/low-adhesion microfuge tubes. The caudae epididymis was cut to let the spermatozoa swim out. The microfuge tube was agitated on an orbital shaker for 10 min to facilitate the swim out of the sperm. The tubes were then placed upright on a bench top, and the epididymal tissues were allowed to settle for 10 min. The sperm suspension was then removed from the top, and an aliquot was taken to ensure purity and for counting (∼99%).

Human ejaculates were collected from volunteers via masturbation after 1 week of abstinence under UCSD human subject protocol (UCSD human subjects IRB protocol #16027, Gagneux). After liquefaction at room temperature, 1 ml ejaculate was transferred into the bottom of 1 ml prewarmed NC buffer and incubated for additional 1 hr to swim up procedure. Highly motile sperm mobilized to the upper layer was collected for the experiment.

In vitro capacitation and induction of the AR

Request a detailed protocol

Freshly obtained human and mouse sperms were segregated into low-motile and high-motile populations using ‘swim-up’ technique. Subsequently highly motile sperms were capacitated in TYH buffer containing 5 mg/ml BSA and 15 mM NaHCO3 at 37°C under 5% CO2 for the indicated time mentioned in figure legends. Sperms were both lysed in reducing sample buffer for immunoblotting and fixed in 3% paraformaldehyde for immunofluorescence staining. Acrosomal reaction in sperm was triggered by incubating capacitated sperm either with Ca2+ ionophore or progesterone for the indicated time at 37°C in 5% CO2. Sperm were then fixed and co-stained for peanut agglutinin (PNA-488; green, an acrosomal marker) and either pYGIV, or pSerGIV and DAPI.

Confocal immunofluorescence

Request a detailed protocol

Sperms were fixed with 3% paraformaldehyde in PBS for 25 min at room temperature, treated with 0.1 M glycine for 10 min, and subsequently blocked/permeabilized with PBS containing 1% BSA and 0.1% Triton X-100 for 20 min at room temperature. Primary and secondary antibodies were incubated for 1 hr at room temperature in PBS containing 1% BSA and 0.1% Triton X-100. Dilutions of antibodies used were as follows: GIV (1:500); phospho-GIV (Tyr1764; 1:500); phospho-pan-Tyr (1:500); α-tubulin (1:500); phosphor-GIV (Ser1674; 1:500); phosphor-GIV (Ser1689; 1:500); Peanut agglutinin (PNA) (1:500); His (1:500) and DAPI (1:2000). Secondary Alexa conjugated antibodies were used at 1:500 dilutions.

In the case of frozen sections of mouse testes, the protocol used was as follows: cryosections were washed three times with PBS, followed by 0.15% glycine for 10 min at room temperature and incubated for 20 min in blocking buffer (1% BSA in PBS), then 2 hr in primary antibodies and 45 min in secondary antibodies. Dilutions of antibodies used were as follows: GIV (1:500); phospho-GIV (Tyr1764; 1:250); ZP3R (1:500); DAPI (1:1000). Secondary Alexa conjugated antibodies were used at 1:250 dilutions. Sperms and sections were imaged on a Leica SPE confocal microscope using a 63× oil objective using 488, 561, 633, and 405 laser lines for excitation. The settings were optimized, and the final images scanned with line-averaging of 3. All images were processed using ImageJ software (NIH) and assembled for presentation using Photoshop and Illustrator software (Adobe).

Dual-color quantitative immunoblotting

Request a detailed protocol

Protein samples were separated by SDS/PAGE and transferred to PVDF membranes (Millipore). Membranes were blocked with PBS supplemented with 5% nonfat milk (or with 5% BSA when probing for phosphorylated proteins) before incubation with primary antibodies. Infrared imaging with two-color detection and quantification were performed using a LI-COR Odyssey imaging system. Primary antibodies were diluted as follows: anti-His 1:1000; anti-GIV (tGIV) 1:500; anti-phospho-Tyr-1764-GIV (pYGIV) 1:500; anti-phospho-Tyr (pan pY) 1: 500; anti-phospho-PKA 1: 500; anti-hexokinase 1:1000; anti-phospho-Akt (Thr308) 1:500; anti-Akt 1:500; anti-β-tubulin 1:1000. All Odyssey images were processed using ImageJ software (NIH) and assembled for presentation using Photoshop and Illustrator software (Adobe).

His-TAT purification and transduction in sperms

Request a detailed protocol

Cloning of TAT-GIV-CT-WT and TAT-GIV-CT-FA mutant has been described (Ma et al., 2015). TAT-constructs were expressed using BL21(DE3)-pLysS (Invitrogen) and Terrific Broth (BioPioneer) supplemented with additives as per auto-induction protocols outlined by Studier, 2005. Briefly, cultures of bacteria were grown at 300 rpm at 37°C for 5 hr, then at 25°C overnight. Cells were lysed in 10 ml of lysis buffer containing 20 mM Tris, 10 mM imidazole, 400 mM NaCl, 1% (vol:vol) sarkosyl, 1% (vol:vol) Triton X-100, 2 mM DTT, 2 mM Na3oV4 and protease inhibitor mixture (Roche Diagnostics), pH 7.4, sonicated (3 × 30 s), cleared at 12,000× g for 20 min at 4°C and affinity-purified on Ni-NTA agarose resin (Qiagen) (4 hr at 4°C). Proteins were eluted in elution buffer containing 20 mM Tris, 300 mM imidazole, 400 mM NaCl, pH 7.4, dialyzed overnight against TBS containing 400 mM NaCl and stored at −80°C.

TAT transduction in sperms was performed by incubating them with 400–800 nM TAT-GIV-CT peptides for 30 min. Efficiency uptake was measured by flow cytometry. Different batches of TAT-GIV-CT protein preparations were used for optimization of equal uptake of recombinant TAT-GIV-CT WT and FA peptides. Optimization steps included timing of transduction, wash step, and concentrations of each peptide used to ensure that WT and FA peptides are equal in sperm. The recombinant protein that showed the most efficient uptake was subsequently used in four different mouse sperm samples to document consistent uptake test by western blotting, by FACS and immunofluorescence, and finally, to confirm that GIV peptides retain functionality (G protein binding) upon uptake.

CASA system

Request a detailed protocol

Freshly obtained sperms were segregated into low-motile and high-motile populations using ‘swim-up’ technique and highly motile sperms were subsequently capacitated in TYH buffer containing 5 mg/ml BSA and 15 mM NaHCO3 along with TAT-GIV-CT peptides at 37°C under 5% CO2 for 3 hr. The sperm motility and progressive motility were measured on CASA on a Hamilton Thorne IVSO-CASA (Berns Laboratory, UC San Diego).

Measurement of sperm cAMP level

Request a detailed protocol

Mouse sperms at a density of 2 × 107 cells/ml (6 × 106 cells in total) were first peptide transduced with TAT-GIV-CT for 30 min, washed gently with PBS three times to remove excess peptides before their use in cAMP assays. Peptide-transduced sperms were pre-incubated with 0.5 mM isobutyl methyl xanthine (IBMX) prior to exposure to various chemicals at the following final concentrations: 25 mM NaHCO3, 0.1 mM adenosine, or 100 µM. After mixing with the respective stimulus, the samples were incubated for 30 min at 37°C, followed by the addition of 0.25 M HCl (final concentration) to quench the biochemical reactions. After incubation for 30 min at room temperature, cell debris was sedimented by centrifugation at 3000 g for 5 min at room temperature. The cAMP concentration in the supernatant was determined by a competitive enzyme immunoassay according to the product manual (catalog # ADI-900-066, Enzo Life Sciences).

Tamoxifen treatment and natural mating

Request a detailed protocol

4–5-week-old mice experimental or control mice received an intraperitoneal (i.p.) tamoxifen injection 1 mg/100 µl/mouse/day (Millipore Sigma, St. Louis, MO) solubilized in 100% corn oil for five consecutive days. Ccdc88a gene knockout (GIV-knockout) was confirmed using DNA qPCR as described in our previous study (Swanson et al., 2020). Mice were then housed for 3 weeks with random females to promote mating with the intent to discharge sperms in which tamoxifen has not yet induced Cre expression.

After 3 weeks, each male mouse was housed with three 7–8-week-old C57BL/6 fertile females for 3 months. The frequency of successful live births and the litter size was recorded. After 3 months, experimental and control males were sacrificed, and testicles and epididymis were collected for IHC, immunoblotting, and mRNA analysis.

Transcriptomic datasets from infertile patients

Request a detailed protocol

Publicly available microarray (GSE4797 Feig et al., 2007, E-TABM-234 Feig, 2008, GSE6872 Platts et al., 2007, GSE26881 Pacheco et al., 2011) and RNASeq dataset (GSE103905 Winge et al., 2018) were downloaded from the National Center for Biotechnology Information (NCBI) Gene Expression Omnibus website (GEO) and ArrayExpress. The data was processed using the Hegemon data analysis framework repositories for male infertility (Sahoo, 2012; Sahoo et al., 2008; Sahoo et al., 2010). Microarray datasets (GSE4797; GSE6872; GSE26881; E-TMAB-234) were normalized using robust multi-array average (RMA). RNA-sequencing dataset (GSE103905) was normalized using transcripts per millions (TPM) normalization method; for downstream analyses, log2(TPM) if TPM >1 and (TPM – 1) if TPM <1 is used. Distribution of gene expression values is illustrated using boxplots and mean as circle with 95% confidence intervals as arrows. Numbers on top indicate the p values, which were derived from Welch’s t-test. All semen samples mentioned in the above datasets were classified based on WHO (2010) guidelines for semen parameters (Cooper et al., 2010).

WHO (2010) guidelinesCooper et al., 2010(Semen parameters)Motility (%)Morphology (%)Concentration (106/ml)
Fertile individual≥40≥4≥15

Total RNA isolation

Request a detailed protocol

Total RNA from mouse testicles were isolated using the Direct-zol RNA Miniprep Kit (Zymo Research, Irvine, CA) following the manufacturer’s instructions. RNA concentration was measured using the NanoDrop One (ThermoScientific, Waltham, MA). The RNA Integrity Number (RIN) was assessed using the 4200 TapeStation system and the TapeStation RNA ScreenTape & Reagents (Agilent Technologies, Santa Clara, CA).

RNA-seq and data analysis

Request a detailed protocol

Total RNA samples were submitted to the IGM Genomics Center (University of California San Diego) for library preparation and sequencing. mRNA stranded sequencing libraries were generated with the TruSeq Stranded mRNA Sample Prep Kit with TruSeq Unique Dual Indexes (Illumina, San Diego, CA). Resulting libraries were multiplexed and sequenced with 100 bp paired-end reads (PE100) to a depth of approximately 30 million reads per sample on an Illumina NovaSeq 6000. Samples were demultiplexed using bcl2fastq v2.20 Conversion Software (Illumina).

To determine which genes were differentially expressed in WT and GIV-knockout mice testes, transcript-level abundance of paired-end RNA-seq data was estimated by Salmon (1.1.0) using the mouse transcriptome from Genecode (vM24). Tximport (1.14.2) was used to aggregate transcript-level quantification to the gene level. The resulting gene counts were used as an input to DESeq2 Bioconductor package. Differentially expressed genes below a Benjamini-Hochberg (BH)-adjusted p-value of 0.05 were considered significant. Also, all genes differentially expressed were included in REACTOME pathway enrichment analysis. Statistically significant pathways of upregulated and downregulated DEGs are listed in the table and bar plots of upregulated and downregulated enriched pathways. In Gene Set Enrichment Analysis (GSEA) analysis, some fertility-related gene sets from Molecular Signatures Database (MSigDB) were tested. Genes from these gene sets were used to rank order the samples and test for GIV-knockout versus WT phenotype classification using the area under the curve (AUC) receiver operating characteristics (ROC) curve and displayed such classification using violin plots.

Statistical analysis

Request a detailed protocol

Statistical significance between datasets with three or more experimental groups was determined using one-way analysis of variance (ANOVA) followed by Tukey’s test for multiple comparisons. Unpaired t-test is used to test the statistical difference between two experimental groups. For all tests, a p-value>0.05 is considered as significant. All experiments were repeated at least three times. All statistical analyses were performed using GraphPad Prism 9.

Data availability

Sequencing data have been deposited in GEO under accession codes GSE171704.

The following data sets were generated
    1. Sequoyah R
    (2021) NCBI Gene Expression Omnibus
    ID GSE171704. GIV/Girdin Regulates Spatiotemporal Signaling during Sperm Capacitation and is Required for Male Fertility.
The following previously published data sets were used
    1. Feig C
    (2007) NCBI Gene Expression Omnibus
    ID GSE4797. Microarray analysis of human spermatogenic dysfunction.
    1. Feig C
    (2008) ArrayExpress
    ID E-TABM-234. Transcription profiling of human testis samples from men with highly defined and homogenous testicular pathologies reveals patterns that correlate with distinct stages of spermatogenesis.
    1. Platts AE
    (2007) NCBI Gene Expression Omnibus
    ID GSE6872. Spermatozoal RNA Profiles (U133 Plus 2.0 Array).
    1. Winge SB
    (2018) NCBI Gene Expression Omnibus
    ID GSE103905. Transcriptome analysis of adult Klinefelter testis tissue samples compared to controls.

References

  1. Book
    1. Carrell DT
    (2016)
    Methods of Identifying Male Fertility Status and Embryo Quality
    WO2017024311A1.

Decision letter

  1. Jonathan A Cooper
    Senior and Reviewing Editor; Fred Hutchinson Cancer Research Center, United States

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Acceptance summary:

This work is of interest to the field of reproduction. Prior to fertilization, spermatozoa undergo a series of morphological and biochemical changes to become fertilization competent, driven by a rapid and poorly understood signaling cascade, culminating in the acrosome reaction. This latter reaction releases to the outside components from a vesicle, the acrosome, in the spermatozoan head and transforms the head plasma membrane so that sperm can fuse with the egg. The work shows that a G protein modulator GIV/Girdin, influences sperm motility and the acrosome reaction. In so doing it is important for fertilization and is one more strategy to control untimely acrosome reaction. The proposed mechanism is well supported by a variety of different experimental approaches.

Decision letter after peer review:

Thank you for submitting your article "GIV/Girdin, a Non-receptor Modulator for Gαi/s, Regulates Spatiotemporal Signaling during Sperm Capacitation and is Required for Male Fertility" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, and the evaluation has been overseen by Jonathan Cooper as the Senior and Reviewing Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

As you will see from the full reviews below, the comments should not require new experiments. However, you should fully address the concerns with addition of quantification and rewriting. Please pay particular attention to the comments in the "Recommendations for Authors" from all reviewers regarding quantification and statistics, and be sure to include relevant literature citations where noted.

Reviewer #1 (Recommendations for the authors):

The authors indicate the regulatory role of GIV is the first mechanism reported to control untimely acrosome reaction which is incorrect. On the other hand, there are several aspects of the presented results, many of which are related to quantitation, that require improvement before the paper can be published. They are listed in what follows:

1) It has been reported that H89 is not very specific and it can even inhibit CatSper. How do the authors discard the possibility that it is this channel or intracellular Ca2+ that are being modulated by GIV?

2) In line 190 there is a point missing.

3) It is impossible to evaluate quantitative immunolocalization assertions from looking at one or two sperm. In this regard the work needs better quantitation. In the legend, the authors indicate their images are representative and do not even bother to indicate of how many independent mice or human samples were used and how many cells were examined. The results should include box plots with the summary of results from all sperm examined.

4) There are really no quantitative results regarding acrosome reaction as only one or two cells are shown.

5) Line 233; it seems it should be suggest, not suggests.

6) Line 244. Again the quantitation is superficial, how many experiments, where are the numbers?

7) Are the Y axis wrongly labeled in Figure 6G. Where is the percentage of hyperactivated motility? Why are the values so low? Normally hyperactivation after capacitation is 15 or 20 %.

8) Line 262. This statement is quite incomplete and partial. Where are the references that have indicated the participation of mAC in several systems, from sea urchin, mouse and human sperm? For example:

Spehr M, Schwane K, Riffell JA, Barbour J, Zimmer RK, Neuhaus EM, Hatt H.

Particulate adenylate cyclase plays a key role in human sperm olfactory

receptor-mediated chemotaxis. J Biol Chem. 2004 Sep 17;279(38):40194-203. doi:10.1074/jbc.M403913200. Epub 2004 Jul 22. PMID: 15271985.

Baxendale RW, Fraser LR. Evidence for multiple distinctly localized adenylyl cyclase isoforms in mammalian spermatozoa. Mol Reprod Dev. 2003 Oct;66(2):181-9. doi: 10.1002/mrd.10344. PMID: 12950106.

Beltrán C, Vacquier VD, Moy G, Chen Y, Buck J, Levin LR, Darszon A.

Particulate and soluble adenylyl cyclases participate in the sperm acrosomereaction. Biochem Biophys Res Commun. 2007 Jul 13;358(4):1128-35. doi:10.1016/j.

9) Figure 7. The authors never indicate the number of independent experiments performed and they should. I guess all experiments in Figure 7 are done with capacitated sperm which should be indicated. Progesterone does not trigger AR in non-capacitated sperm.

10) In Figure 7C. Why does bicarbonate not stimulate but actually decreases cAMP when it stimulates sAC without peptide, as shown in B? Why does WT peptide stimulate above PBS, it should decrease cAMP?

11) In line 277 there is a space between comas that should be deleted.

12) In Figure 7 why does A23187 induce such a low % of full AR.

13) The authors are ignoring work that has indicated mechanisms that control premature acrosome reaction such as:

Harper, C. V., Barratt, C.L.R.R., Publicover, S.J., 2004. Stimulation of human spermatozoa with progesterone gradients to simulate approach to the oocyte. Induction of [Ca2+]i oscillations and cyclical transitions in flagellar beating. J. Biol. Chem. 279, 46315-46325. https://doi.org/10.1074/jbc.M401194200

Balestrini PA, Sanchez-Cardenas C, Luque GM, Baro Graf C, Sierra JM,

Hernández-Cruz A, Visconti PE, Krapf D, Darszon A, Buffone MG. Membrane hyperpolarization abolishes calcium oscillations that prevent induced acrosomal exocytosis in human sperm. FASEB J. 2021 Jun;35(6):e21478. doi:10.1096/fj.202002333RR. PMID: 33991146.

Sánchez-Cárdenas C, Romarowski A, Orta G, De la Vega-Beltrán JL, Martín-Hidalgo D, Hernández-Cruz A, Visconti PE, Darszon A. Starvation induces an increase in intracellular calcium and potentiates the progesterone-induced mouse sperm acrosome reaction. FASEB J. 2021 Apr;35(4):e21528. doi:10.1096/fj.202100122R

14) It is unfair not to indicate that the group of Mayorga in Argentina has described since some years the fundamental role of small G proteins like Rab in the acrosome reaction.

15) Were mouse epidydimal sperm collected by swim out or swim up, please indicate?

16) Please indicate the progesterone and A23187 concentrations used.

17) Line 414 should be were not where.

18) In human sperm capacitation for 3 hours is barely enough.

Reviewer #3 (Recommendations for the authors):

It is not clear how to interpret the absence of GIV transcripts from "Sertoli Cell Only" testes. These testes lack all germ cells. Absence of GIV confirms that GIV is expressed in male germ cells but says little about the role of GIV in fertility or sperm function. It may make sense to recalculate the significance in Figure 2E, excluding the Sertoli cell only samples to focus on samples from men who make defective sperm.

The word "sperm" appears in the Impact Statement and should be replaced with "spermatozoa".

https://doi.org/10.7554/eLife.69160.sa1

Author response

Essential revisions:

As you will see from the full reviews below, the comments should not require new experiments. However, you should fully address the concerns with addition of quantification and rewriting. Please pay particular attention to the comments in the "Recommendations for Authors" from all reviewers regarding quantification and statistics, and be sure to include relevant literature citations where noted.

We thank the Editor for this overview of what we must address to improve the manuscript. We have outlined below exactly how each quantification/re-analyses changed (or did not change) the data and how the text was modified to address/mitigate the concerns raised.

Reviewer #1 (Recommendations for the authors):

The authors indicate the regulatory role of GIV is the first mechanism reported to control untimely acrosome reaction which is incorrect. On the other hand, there are several aspects of the presented results, many of which are related to quantitation, that require improvement before the paper can be published.

We apologize for this unfortunate impression; this was never our intension. We have meticulously inserted citations recommended by this reviewer to ensure that due credit is given to prior work. As for the numerous issues pointed out in the results and display items (concerning missing information regarding quantification), we have thoroughly edited the legends, methods and Results sections in each instance to include the necessary information. We hope that the edits effectively mitigate this reviewer’s concerns. We are also grateful to this reviewer for his/her time and effort that went into providing an in-depth review that picked up unintended error and typos.

They are listed in what follows:

1) It has been reported that H89 is not very specific and it can even inhibit CatSper. How do the authors discard the posibility that it is this channel or intracellular Ca2+ that are being modulated by GIV?

The reviewer is right in that, we cannot rule out that in the studies where we used H89 to inhibit PKA, that we did not inadvertently also inhibit Ca channels such as Catsper.

Action(s) taken: We have inserted two relevant citations and discussed this possibility in “results and discussion” right after we draw conclusions from the H89 studies in Figure 3. For the convenience of the Editor/Reviewers, we have copied and pasted the sentence below:

“Because the sperm Ca2+ channel, Catsper exerts both spatial and temporal control over tyrosine phosphorylation as sperm acquire the capacity to fertilize32, and there is some evidence that H89 may directly inhibit Catsper33, the contributions of a possible alternative Ca2+→TK→pYGIV pathway towards sperm motility cannot be ruled out.”.

2) In line 190 there is a point missing.

We have corrected this error.

3) It is impossible to evaluate quantitative immunolocalization assertions from looking at one or two sperm. In this regard the work needs better quantitation. In the legend, the authors indicate their images are representative and do not even bother to indicate of how many independent mice or human samples were used and how many cells were examined. The results should include box plots with the summary of results from all sperm examined.

We agree that a montage of sperm images with spatially segregated phosphoevents, in the absence of some form of quantitative analyses is impossible to assess for rigor and reproducibility.

Action(s) taken: Because spatial patterns of staining is what we saw changing and hence, we wanted to claim, we have now provided specifics of how many times each study was carried out and in how many mice, and how many sperms were evaluated before drawing a conclusion. In doing so, we hope that we have now adequately defined the term ‘representative’ and conveyed rigor. These details are expanded in each figure legend where IF images are displayed.

4) There are really no quantitative results regarding acrosome reaction as only one or two cells are shown.

In the revised version of the manuscript, we have now provided specifics of how many times each study was carried out and in how many mice, and how many sperms were evaluated before drawing a conclusion. In doing so, we hope that we have now adequately defined the term ‘representative’ and conveyed rigor. These details are expanded in each figure legend where IF images are displayed. Because no quantitative claims were made, staining was never quantified.

5) Line 233; it seems it should be suggest, not suggests.

We have replaced ‘suggests’ with ‘suggest’.

6) Line 244. Again the quantitation is superficial, how many experiments, where are the numbers?

This statement refers to Figure 6 (TAT-GIV transduction studies). We have now included details in figure legends for how many repeats were performed. For the convenience of the Editor/Reviewer, here are the details, which we have now included in Methods and Figure 6 legend:

1. 3-4 different batches of protein preps were used for optimization of balanced uptake of TAT-GIV-CT WT and FA peptides. Optimization steps included timing of transduction, wash step, and concentrations of each peptide used.

2. The recombinant protein that showed the most efficient uptake was subsequently used in four different mouse sperm samples to document consistent uptake test by western blotting, by FACS and immunofluorescence, and finally, to confirm that GIV peptides retain functionality (G protein binding) upon uptake.

3. For panels 6D-I, the graphed findings were reproducibly observed in sperm samples from 3 different mice, conducted on 3 different days.

7) Are the Y axis wrongly labeled in Figure 6G. Where is the percentage of hyperactivated motility? Why are the values so low? Normally hyperactivation after capacitation is 15 or 20 %.

There is no error in the Y axis labeling. The lower than expected % hypermotlity (progressive) that we observe in this assay is consistent with the fact that CASA was not done immediately after sperm isolation. Instead, there was a delay due to TAT-peptide transduction related steps (or control incubation in PBS). As stated in methods, our analyses could only be done at 3h. It is entirely possible that the reduce % hypermotility is due to this delay, as has been shown by others1.

8) Line 262. This statement is quite incomplete and partial. Where are the references that have indicated the participation of mAC in several systems, from sea urchin, mouse and human sperm? For example:

Spehr M, Schwane K, Riffell JA, Barbour J, Zimmer RK, Neuhaus EM, Hatt H.

Particulate adenylate cyclase plays a key role in human sperm olfactory

receptor-mediated chemotaxis. J Biol Chem. 2004 Sep 17;279(38):40194-203. doi:10.1074/jbc.M403913200. Epub 2004 Jul 22. PMID: 15271985.

Baxendale RW, Fraser LR. Evidence for multiple distinctly localized adenylyl cyclase isoforms in mammalian spermatozoa. Mol Reprod Dev. 2003 Oct;66(2):181-9. doi: 10.1002/mrd.10344. PMID: 12950106.

Beltrán C, Vacquier VD, Moy G, Chen Y, Buck J, Levin LR, Darszon A.

Particulate and soluble adenylyl cyclases participate in the sperm acrosomereaction. Biochem Biophys Res Commun. 2007 Jul 13;358(4):1128-35. doi:10.1016/j.

On Page 12 of this revised submission, we have added these references and expanded on the conserved role of mACs across species.

9) Figure 7. The authors never indicate the number of independent experiments performed and they should. I guess all experiments in Figure 7 are done with capacitated sperm which should be indicated. Progesterone does not trigger AR in non-capacitated sperm.

We have explicitly stated that AR assays were conducted on capacitated sperms in both Results and Discussion (on Page 12) and in Figure 7 legend (Page 26). The number of independent experiments is now mentioned in Figure 7 legend.

10) In Figure 7C. Why does bicarbonate not stimulate but actually decreases cAMP when it stimulates sAC without peptide, as shown in B? Why does WT peptide stimulate above PBS, it should decrease cAMP?

11) In line 277 there is a space between comas that should be deleted.

We have corrected this typo.

12) In Figure 7 why does A23187 induce such a low % of full AR.

It is possible that we see a lower % of complete AR because the concentration of A23187 is 10 µM in our studies for 15 min. Others have used 10 µM for 30 min2 or 20 µM for 10 min3. We had purposefully chosen this dose and time so that we would be able to test our hypothesis if GIV can exert an inhibitory effect (‘brake’) on stimuli-induced AR. Stimuli that is either too high or too prolonged were therefore avoided.

13) The authors are ignoring work that has indicated mechanisms that control premature acrosome reaction such as:

Harper, C. V., Barratt, C.L.R.R., Publicover, S.J., 2004. Stimulation of human spermatozoa with progesterone gradients to simulate approach to the oocyte. Induction of [Ca2+]i oscillations and cyclical transitions in flagellar beating. J. Biol. Chem. 279, 46315-46325. https://doi.org/10.1074/jbc.M401194200

Balestrini PA, Sanchez-Cardenas C, Luque GM, Baro Graf C, Sierra JM,

Hernández-Cruz A, Visconti PE, Krapf D, Darszon A, Buffone MG. Membrane hyperpolarization abolishes calcium oscillations that prevent induced acrosomal exocytosis in human sperm. FASEB J. 2021 Jun;35(6):e21478. doi:10.1096/fj.202002333RR. PMID: 33991146.

Sánchez-Cárdenas C, Romarowski A, Orta G, De la Vega-Beltrán JL, Martín-Hidalgo D, Hernández-Cruz A, Visconti PE, Darszon A. Starvation induces an increase in intracellular calcium and potentiates the progesterone-induced mouse sperm acrosome reaction. FASEB J. 2021 Apr;35(4):e21528. doi:10.1096/fj.202100122R

All 3 references have now been added on Page 14, and the reader is informed of these mechanistic insights into sperm-extrinsic factors that regulate premature AR.

14) It is unfair not to indicate that the group of Mayorga in Argentina has described since some years the fundamental role of small G proteins like Rab in the acrosome reaction.

In Figure 1—figure supplement 1 we had cited 4 manuscripts to highlight the role of small GTPases in AR. Mayorga’s work happens to be 2 of the 4 citations.

– Branham MT, Bustos MA, De Blas GA, Rehmann H, Zarelli VE, Treviño CL, Darszon A, Mayorga LS, Tomes CN. Epac activates the small G proteins Rap1 and Rab3A to achieve exocytosis. J Biol Chem. 2009 Sep 11;284(37):24825-39. doi: 10.1074/jbc.M109.015362. Epub 2009 Jun 22. PMID: 19546222; PMCID: PMC2757186.

– Branham MT, Mayorga LS, Tomes CN. Calcium-induced acrosomal exocytosis requires cAMP acting through a protein kinase A-independent, Epac-mediated pathway. J Biol Chem. 2006 Mar 31;281(13):8656-66. doi: 10.1074/jbc.M508854200. Epub 2006 Jan 10. PMID: 16407249.

– Ruete MC, Lucchesi O, Bustos MA, Tomes CN. Epac, Rap and Rab3 act in concert to mobilize calcium from sperm's acrosome during exocytosis. Cell Commun Signal. 2014 Aug 27;12:43. doi: 10.1186/s12964-014-0043-0. PMID: 25159528; PMCID: PMC4156617.

– Lucchesi O, Ruete MC, Bustos MA, Quevedo MF, Tomes CN. The signaling module cAMP/Epac/Rap1/PLCε/IP3 mobilizes acrosomal calcium during sperm exocytosis. Biochim Biophys Acta. 2016 Apr;1863(4):544-61. doi: 10.1016/j.bbamcr.2015.12.007. Epub 2015 Dec 17. PMID: 26704387.

During this revised submission, we have now added 3 more references (on Page 12) to highlight the role of small G proteins in AR.

Rab27 and Rab3 sequentially regulate human sperm dense-core granule exocytosis.

Bustos MA, Lucchesi O, Ruete MC, Mayorga LS, Tomes CN.Proc Natl Acad Sci U S A. 2012 Jul 24;109(30):E2057-66. doi: 10.1073/pnas.1121173109. Epub 2012 Jul 2.PMID: 22753498

Small GTPases in acrosomal exocytosis.

Bustos MA, Lucchesi O, Ruete MC, Mayorga LS, Tomes CN.Methods Mol Biol. 2015;1298:141-60. doi: 10.1007/978-1-4939-2569-8_12.PMID: 25800839

ADP ribosylation factor 6 (ARF6) promotes acrosomal exocytosis by modulating lipid turnover and Rab3A activation.

Pelletán LE, Suhaiman L, Vaquer CC, Bustos MA, De Blas GA, Vitale N, Mayorga LS, Belmonte SA.J Biol Chem. 2015 Apr 10;290(15):9823-41. doi: 10.1074/jbc.M114.629006. Epub 2015 Feb 20.PMID: 25713146

15) Were mouse epidydimal sperm collected by swim out or swim up, please indicate?

Mouse epidydimal sperm was collected by swim out. In this revised submission, this point has been explicitly states, and details surrounding the steps during sperm collection have clarified by expanding the methods sub-section entitled “Source of live mouse and human sperms”.

16) Please indicate the progesterone and A23187 concentrations used.

We have now corrected this error of omission by adding the information in both text and legend.

17) Line 414 should be were not where.

We have now corrected this error.

18) In human sperm capacitation for 3 hours is barely enough.

We collected ejaculated sperm from human subject volunteers. For all human sperm studies, we used 30 min and 4 h (not 3 h). These time points were chosen because the incubation time for capacitation of human sperm in vitro is believed to range from ~3-24 h4.

Reviewer #3 (Recommendations for the authors):

It is not clear how to interpret the absence of GIV transcripts from "Sertoli Cell Only" testes. These testes lack all germ cells. Absence of GIV confirms that GIV is expressed in male germ cells but says little about the role of GIV in fertility or sperm function. It may make sense to recalculate the significance in Figure 2E, excluding the Sertoli cell only samples to focus on samples from men who make defective sperm.

We agree with the reviewer that Sertoli cells only (SCO), a condition that lacks germ cells, is not the best sample to study the impact of low GIV levels in sperm on male fertility.

Actions taken: We have now replaced the original panels in Figure 2E with a new analysis that represents pre-pubertal Klinefelter’s and adult Klinefelter’s syndrome (KS), after excluding Sertoli cell only (SCO) subjects. But to avoid picking and choosing subjects from the cohort, we included the SCO subjects as a positive control, as was intended in the study. These new analyses show that levels of GIV (CCDC88A) transcripts drop in Klinefelter’s and Klinefelter-like syndromes after puberty, but not in pre-pubertal subjects. This finding is in keeping with the clinical observation that germ cells are depleted in patients with this condition at the onset of puberty [J Clin Endocrinol Metab. 2004 May;89(5):2263-70. doi: 10.1210/jc.2003-031725. PMID: 15126551. Link: https://pubmed.ncbi.nlm.nih.gov/15126551/].

As predicted by this reviewer, we confirmed that the positive controls used in this study to recapitulate gamete depletion (i.e., SCO patients) have significantly low GIV in the absence of gametes. (see Figure 2E; 4 subjects in each group). The figure legend has been edited accordingly.

The word "sperm" appears in the Impact Statement and should be replaced with "spermatozoa".

Done, as recommended.

https://doi.org/10.7554/eLife.69160.sa2

Article and author information

Author details

  1. Sequoyah Reynoso

    Department of Pathology, School of Medicine, University of California San Diego, San Diego, United States
    Contribution
    Data curation, Formal analysis
    Contributed equally with
    Vanessa Castillo and Gajanan Dattatray Katkar
    Competing interests
    none
  2. Vanessa Castillo

    Department of Cellular and Molecular Medicine, School of Medicine, University of California San Diego, San Diego, United States
    Contribution
    Data curation, Methodology
    Contributed equally with
    Sequoyah Reynoso and Gajanan Dattatray Katkar
    Competing interests
    None
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4182-8846
  3. Gajanan Dattatray Katkar

    Department of Cellular and Molecular Medicine, School of Medicine, University of California San Diego, San Diego, United States
    Contribution
    Data curation, Formal analysis, Methodology, Visualization, Writing – review and editing
    Contributed equally with
    Sequoyah Reynoso and Vanessa Castillo
    Competing interests
    None
  4. Inmaculada Lopez-Sanchez

    Department of Medicine, School of Medicine, University of California San Diego, San Diego, United States
    Contribution
    Data curation, Formal analysis, Methodology
    Competing interests
    None
  5. Sahar Taheri

    Department of Computer Science and Engineering, Jacob’s School of Engineering, University of California San Diego, San Diego, United States
    Contribution
    Data curation, Formal analysis
    Competing interests
    None
  6. Celia Espinoza

    Department of Cellular and Molecular Medicine, School of Medicine, University of California San Diego, San Diego, United States
    Contribution
    Data curation, Formal analysis, Methodology
    Competing interests
    None
  7. Cristina Rohena

    Department of Cellular and Molecular Medicine, School of Medicine, University of California San Diego, San Diego, United States
    Contribution
    Data curation, Formal analysis, Methodology
    Competing interests
    None
  8. Debashis Sahoo

    1. Department of Computer Science and Engineering, Jacob’s School of Engineering, University of California San Diego, San Diego, United States
    2. Moore’s Comprehensive Cancer Center, University of California San Diego, San Diego, United States
    3. Department of Pediatrics, School of Medicine, University of California San Diego, San Diego, United States
    Contribution
    Data curation, Formal analysis, Funding acquisition, Methodology
    Competing interests
    None
  9. Pascal Gagneux

    Department of Pathology, School of Medicine, University of California San Diego, San Diego, United States
    Contribution
    Data curation, Formal analysis, Funding acquisition, Methodology, Resources, Validation, Visualization, Writing – review and editing
    For correspondence
    pgagneux@health.ucsd.edu
    Competing interests
    None
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9599-9838
  10. Pradipta Ghosh

    1. Department of Cellular and Molecular Medicine, School of Medicine, University of California San Diego, San Diego, United States
    2. Department of Medicine, School of Medicine, University of California San Diego, San Diego, United States
    3. Moore’s Comprehensive Cancer Center, University of California San Diego, San Diego, United States
    4. Veterans Affairs Medical Center, Washington DC, United States
    Contribution
    Conceptualization, Formal analysis, Funding acquisition, Investigation, Project administration, Resources, Supervision, Validation, Visualization, Writing – original draft, Writing – review and editing
    For correspondence
    prghosh@ucsd.edu
    Competing interests
    None
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8917-3201

Funding

National Cancer Institute (CA100768)

  • Pradipta Ghosh

National Cancer Institute (CA238042)

  • Pradipta Ghosh

National Institute of Allergy and Infectious Diseases (AI141630)

  • Pradipta Ghosh

National Institute of Allergy and Infectious Diseases (AI129894)

  • Pascal Gagneux

National Institute of General Medical Sciences (GM095882)

  • Pascal Gagneux

National Cancer Institute (CA160911)

  • Pradipta Ghosh

American Association of Immunologists (Intersect fellowship)

  • Gajanan Dattatray Katkar

National Institute of Diabetes and Digestive and Kidney Diseases (T32 DK007202)

  • Cristina Rohena

National Cancer Institute (T32 CA121938)

  • Cristina Rohena

National Institute of General Medical Sciences (GM138385)

  • Debashis Sahoo

American Heart Association (14POST20050025)

  • Inmaculada Lopez-Sanchez

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Masahide Takahashi, Ph.D (Nagoya University, Japan) for sharing Ccdc88afl/fl-UbcCre-Ert2/+ mice and Lee Swanson for assisting with the initial breeding of the colonies. We thank members in the laboratory of Pamela L Mellon, Ph.D. (UCSD) for helpful technical suggestions along the way. We thank members of the Michael Berns laboratory for help with the CASA machine. This work was supported by the National Institute of Health Grants: CA238042, CA100768, AI141630 and CA160911 (to Pr.Gh.), GM095882 (to Pa.Ga) and GM138385 (to DS). GDK was supported through The American Association of Immunologists Intersect Fellowship Program for Computational Scientists and Immunologists. IL-S by the American Heart Association (AHA #14POST20050025) C.R was supported, in part, by an NIH-funded Training Grant Programs (T32 DK007202, T32 CA121938). This publication includes data generated at the UC San Diego IGM Genomics Center Utilizing an Illumina NOVASeq 6000 that was purchased with funding from a National Institutes of Health SIG grant (#S10 OD026929).

Ethics

Human sperm were collected from volunteers via masturbation. The study proposal was approved by Institutional Review Board of University of California, San Diego (UCSD human subjects IRB protocol #16027). All samples were deidentified before use in studies. A written informed consent was obtained before participating in study. Consent to publish aggregate data with subject's anonymity was obtained. The study design and the use of human study participants was conducted in accordance to the criteria set by the Declaration of Helsinki.

All mice were housed in standard cages in an Association for Accreditation and Assessment of Laboratory Animal Care-approved animal facility at the University of California San Diego School of Medicine. This study was approved by the UCSD Institutional Animal Care and Use Committee (Protocol #S17223; Ghosh), which serves to ensure that all federal guidelines concerning animal experimentation are met. For all biochemical, immunofluorescence, peptide transduction and functional studies, the source of sperms was C57BL/6J mice, which were bred and housed under another protocol, which was also approved by the UCSD Institutional Animal Care and Use Committee (Protocol #S16223; Pascal).

Senior and Reviewing Editor

  1. Jonathan A Cooper, Fred Hutchinson Cancer Research Center, United States

Publication history

  1. Received: April 6, 2021
  2. Preprint posted: May 6, 2021 (view preprint)
  3. Accepted: August 5, 2021
  4. Version of Record published: August 19, 2021 (version 1)

Copyright

© 2021, Reynoso et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 370
    Page views
  • 48
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    Lisa M Strong et al.
    Research Article Updated

    Autophagy is a cellular process that degrades cytoplasmic cargo by engulfing it in a double-membrane vesicle, known as the autophagosome, and delivering it to the lysosome. The ATG12–5–16L1 complex is responsible for conjugating members of the ubiquitin-like ATG8 protein family to phosphatidylethanolamine in the growing autophagosomal membrane, known as the phagophore. ATG12–5–16L1 is recruited to the phagophore by a subset of the phosphatidylinositol 3-phosphate-binding seven-bladedß -propeller WIPI proteins. We determined the crystal structure of WIPI2d in complex with the WIPI2 interacting region (W2IR) of ATG16L1 comprising residues 207–230 at 1.85 Å resolution. The structure shows that the ATG16L1 W2IR adopts an alpha helical conformation and binds in an electropositive and hydrophobic groove between WIPI2 ß-propeller blades 2 and 3. Mutation of residues at the interface reduces or blocks the recruitment of ATG12–5–16 L1 and the conjugation of the ATG8 protein LC3B to synthetic membranes. Interface mutants show a decrease in starvation-induced autophagy. Comparisons across the four human WIPIs suggest that WIPI1 and 2 belong to a W2IR-binding subclass responsible for localizing ATG12–5–16 L1 and driving ATG8 lipidation, whilst WIPI3 and 4 belong to a second W34IR-binding subclass responsible for localizing ATG2, and so directing lipid supply to the nascent phagophore. The structure provides a framework for understanding the regulatory node connecting two central events in autophagy initiation, the action of the autophagic PI 3-kinase complex on the one hand and ATG8 lipidation on the other.

    1. Cell Biology
    Laura Le Pelletier et al.
    Research Article

    Aging is associated with central fat redistribution and insulin resistance. To identify age-related adipose features, we evaluated the senescence and adipogenic potential of adipose-derived-stromal cells (ASCs) from abdominal subcutaneous fat obtained from healthy normal-weight young (<25y) or older women (>60y). Increased cell passages of young-donor ASCs (in vitro aging), resulted in senescence but not oxidative stress. ASC-derived adipocytes presented impaired adipogenesis but no early mitochondrial dysfunction. Conversely, aged-donor ASCs at early passages displayed oxidative stress and mild senescence. ASC-derived adipocytes exhibited oxidative stress, and early mitochondrial dysfunction but adipogenesis was preserved. In vitro aging of aged-donor ASCs resulted in further increased senescence, mitochondrial dysfunction, oxidative stress and severe adipocyte dysfunction. When in vitro aged young-donor ASCs were treated with metformin, no alteration was alleviated. Conversely, metformin treatment of aged-donor ASCs decreased oxidative stress and mitochondrial dysfunction resulting in decreased senescence. Metformin's prevention of oxidative stress and of the resulting senescence improved the cells' adipogenic capacity and insulin sensitivity. This effect was mediated by the activation of AMP-activated-protein-kinase as revealed by its specific inhibition and activation. Overall, aging ASC-derived adipocytes presented impaired adipogenesis and insulin sensitivity. Targeting stress-induced senescence of ASCs with metformin may improve age-related adipose tissue dysfunction.
