Abstract

The facial surface ectoderm is essential for normal development of the underlying cranial neural crest cell populations, providing signals that direct appropriate growth, patterning, and morphogenesis. Despite the importance of the ectoderm as a signaling center, the molecular cues and genetic programs implemented within this tissue are understudied. Here, we show that removal of two members of the AP-2 transcription factor family, AP-2α and AP-2ß, within the early embryonic ectoderm of the mouse leads to major alterations in the craniofacial complex. Significantly, there are clefts in both the upper face and mandible, accompanied by fusion of the upper and lower jaws in the hinge region. Comparison of ATAC-seq and RNA-seq analyses between controls and mutants revealed significant changes in chromatin accessibility and gene expression centered on multiple AP-2 binding motifs associated with enhancer elements within these ectodermal lineages. In particular, loss of these AP-2 proteins affects both skin differentiation as well as multiple signaling pathways, most notably the WNT pathway. We also determined that the mutant clefting phenotypes that correlated with reduced WNT signaling could be rescued by Wnt1 ligand overexpression in the ectoderm. Collectively, these findings highlight a conserved ancestral function for AP-2 transcription factors in ectodermal development and signaling, and provide a framework from which to understand the gene regulatory network operating within this tissue that directs vertebrate craniofacial development.

Editor's evaluation

The TFAP2 transcription factor family is a well known regulator of craniofacial development and evolution. In this study the authors have undertaken a comprehensive analysis of TFAP2a and TFAP2b function in the facial ectoderm. Through genomic analyses, the authors identified key TFAP2 dependent genomic elements in the facial ectoderm, their predicted transcription factor binding profiles. WNT signaling is downregulated in TFAP2mutants and can be rescued by overexpressing Wnt1 in the facial ectoderm. Overall, this study provides new insights into the role of AP2 genes in facial ectoderm signaling and development during craniofacial morphogenesis.

https://doi.org/10.7554/eLife.70511.sa0

Introduction

The development of the vertebrate face during embryogenesis requires the integration of gene regulatory programs and signaling interactions across different tissue layers to regulate normal growth and morphogenesis (Chai and Maxson, 2006; Dixon et al., 2011). The bulk of the face is derived from neural crest cells (NCCs), which migrate into the nascent mandibular, maxillary, and frontonasal facial prominences. Recent studies have indicated the cranial NCCs (CNCCs), residing within distinct facial prominences, are molecularly similar, genetically poised, and awaiting additional signaling information for their continued development (Minoux et al., 2017; Minoux and Rijli, 2010). These critical signals are provided by surrounding and adjacent tissues, especially the forebrain, endoderm, and ectoderm (Le Douarin et al., 2004). With respect to the ectoderm, studies in chick have indicated the presence of a frontonasal ectodermal zone, defined by the juxtaposition of Fgf8 and Shh expressing domains, that can direct facial outgrowth and patterning (Hu and Marcucio, 2009; Hu et al., 2003). The ectoderm is also a critical source of Wnt signaling that is required for continued facial outgrowth and patterning, exemplified by the lack of almost all craniofacial structures arising when Wls (Gpr177) is removed from the facial ectoderm (Goodnough et al., 2014; Reynolds et al., 2019). Further evidence for an essential role of the ectoderm in craniofacial development comes from genetic analysis of pathology associated with human syndromic orofacial clefting. Specifically, mutations in IRF6 (Kondo et al., 2002) and GRHL3 (Peyrard-Janvid et al., 2014) are associated with van der Woude Syndrome, while TRP63 mutations result in ectodermal dysplasias with associated facial clefting (Celli et al., 1999). Notably, all three of these human genes encode transcription factors which exhibit much stronger expression in the facial ectoderm than in the underlying neural crest (Hooper et al., 2020; Leach et al., 2017). Studies of mouse facial dysmorphology have also shown the importance of additional genes with biased expression in the ectoderm—including Sfn, Jag2, Wnt9b, and Esrp1—that regulate differentiation, signaling, and splicing (Bebee et al., 2015; Jiang et al., 1998; Jin et al., 2012; Lee et al., 2013; Lee et al., 2020; Richardson et al., 2006). Indeed, the interplay between surface ectoderm and underlying NCCs provides a molecular platform for the craniofacial diversity apparent within the vertebrate clade, but also serves as a system which is frequently disrupted to cause human craniofacial birth defects. Therefore, identifying the regulatory mechanisms and factors involved in coordinating NCC:ectoderm interactions is a prerequisite for uncovering the molecular nodes susceptible to perturbation.

The AP-2 transcription factor family represents an intriguing group of regulatory molecules with strong links to ectodermal development (Eckert et al., 2005). Indeed, previous analyses have indicated that AP-2 genes may be an ancestral transcriptional regulator of ectoderm development in chordates predating the development of the neural crest in the cephalochordate Amphioxus and the ascidian Ciona (Imai et al., 2017; Meulemans and Bronner-Fraser, 2002; Meulemans and Bronner-Fraser, 2004). Subsequently, it has been postulated that this gene family has been co-opted into the regulatory network required for neural crest development in the vertebrates, where it may serve as one of the master regulators of this lineage (Meulemans and Bronner-Fraser, 2002; Meulemans and Bronner-Fraser, 2004; Van Otterloo et al., 2012). Therefore, in vertebrates, AP-2 family expression is often observed in both the non-neural ectoderm as well as the neural crest. Amphioxus possesses a single AP-2 gene, but in mammals such as mouse and human there are five family members, Tfap2a-e encoding the proteins AP-2α-ε, respectively (Eckert et al., 2005; Meulemans and Bronner-Fraser, 2002). All mammalian AP-2 proteins have very similar DNA sequence preferences and bind as dimers to a consensus motif GCCNNNGGC, except for AP-2δ which is the least conserved family member (Badis et al., 2009; Williams and Tjian, 1991; Zhao et al., 2001). Amongst these five genes, Tfap2a and Tfap2b show the highest levels of expression in the developing mouse embryonic facial tissues with lower levels of Tfap2c and essentially undetectable transcripts from Tfap2d and Tfap2e (Hooper et al., 2020; Van Otterloo et al., 2018). Importantly, mutations in human TFAP2A and TFAP2B, are also linked to the human conditions Branchio-Oculo-Facial Syndrome (Milunsky et al., 2008) and Char Syndrome (Satoda et al., 2000) respectively, conditions which both have a craniofacial component. TFAP2A has also been linked to non-syndromic orofacial clefting (MIM 119530) (Davies et al., 1995; Davies et al., 2004).

Previous single mouse knockout studies have indicated that the loss of Tfap2a has the most significant effect on craniofacial development with most of the upper face absent as well as split mandible and tongue (Schorle et al., 1996; Zhang et al., 1996). Tfap2b knockouts do not have gross morphological defects associated with craniofacial development (Hong et al., 2008; Moser et al., 1997; Zhao et al., 2011), nor do pertinent knockouts of any of the three other AP-2 genes (Feng et al., 2009; Guttormsen et al., 2008; Hesse et al., 2011). We have further investigated the tissue specific requirements for Tfap2a in face formation and determined that its loss in the neural crest resulted in cleft palate, but otherwise only minor defects in the development of the facial skeleton (Brewer et al., 2004). Next, we investigated whether the co-expression of Tfap2b might compensate for the loss of Tfap2a alone by deriving mice lacking both genes in NCCs. Although these NCC double knockout mice had more severe craniofacial defects, including a split upper face and mandible, the phenotype was still less severe than that observed with the complete loss of Tfap2a alone (Van Otterloo et al., 2018; Zhang et al., 1996). In contrast, targeting Tfap2a in the surface ectoderm in the region of the face associated with the lens placode causes a mild form of orofacial clefting (Pontoriero et al., 2008). These findings suggested that the ectoderm may be an additional major site of Tfap2a action during mouse facial development, and by analogy with the NCC studies, that the phenotype could be exacerbated by the additional loss of Tfap2b.

Therefore, here we have assessed how craniofacial development is affected upon simultaneous removal of Tfap2a and Tfap2b in the embryonic ectoderm using the Cre transgene, Crect, which is expressed from E8.5 onwards throughout this tissue layer. Our results show that the expression of these two AP-2 proteins in the ectoderm has a profound effect on the underlying NCC-derived craniofacial skeleton and strengthens the association between the AP-2 family and ectodermal development and function. Furthermore, we examined how the loss of these two AP-2 transcription factors impacted the ectodermal craniofacial gene regulatory network by studying changes in chromatin accessibility and gene expression between control and mutant mice. These studies reveal critical targets of AP-2 within the facial ectoderm, especially WNT pathway genes, and further indicate the necessity of appropriate ectodermal:mesenchymal communication for growth, morphogenesis, and patterning of the vertebrate face.

Results

Combined loss of Tfap2a and Tfap2b in the embryonic surface ectoderm causes major craniofacial defects

Previous studies have shown that Tfap2a and Tfap2b have overlapping functions within the neural crest in regulating facial development (Van Otterloo et al., 2018) raising the possibility that these transcription factors might also act together in the overlying surface ectoderm to regulate this aspect of embryogenesis. Therefore, we documented expression of the five family members in the ectoderm of the facial prominences based on analysis of previous RNAseq datasets spanning E10.5 and E12.5 (Hooper et al., 2020). Tfap2a and Tfap2b were the most highly expressed in the ectoderm, with lower levels of Tfap2c, and undetectable levels of Tfap2d and Tfap2e (Figure 1A). Further mining of single-cell RNA-seq data derived from facial prominences indicated that Tfap2a and Tfap2b expression also displayed significant overlap within cells of the surface ectoderm and periderm (Figure 1B). Since these two genes were the most highly expressed family members and were frequently expressed in the same cells, we next tested whether these two genes performed similar joint functions in the surface ectoderm in controlling growth and patterning as they do within the neural crest (Van Otterloo et al., 2018). Here the ectoderm expressed Cre recombinase transgene Crect (Schock et al., 2017) was used in concert with floxed versions of Tfap2a (Brewer et al., 2004) and Tfap2b (Van Otterloo et al., 2018) to remove these two transcription factors (TFs) from the early ectoderm. Using scanning electron microscopy, we found that at E11.5 both control and mutant embryos—hereafter designated ectoderm double knockout (EDKO)—had a similar overall facial organization, with distinct paired mandibular, maxillary, lateral and medial nasal processes (Figure 1C–F). However, there were also clear changes in the size and shape of these processes in the EDKO. The mandible was smaller with a more noticeable notch at the midline while in the upper face the maxilla and nasal processes had not come together to form a three-way lambdoid junction, and the nasal pit was more pronounced. By E13.5 these earlier morphological changes in the EDKOs were greatly exacerbated typified by a fully cleft mandible and a failure of the maxillary prominence (MxP), lateral nasal prominence (LNP), and medial nasal prominence (MNP) to undergo any productive fusion (Figure 1G–J). These observations indicate that the AP-2 TFs, particularly AP-2α and AP-2β, are critical components of a craniofacial ectodermal gene regulatory network (GRN). In the next section, we analyze this GRN in more detail, prior to describing additional analysis of the EDKO mouse model at later time points.

Figure 1 with 2 supplements see all

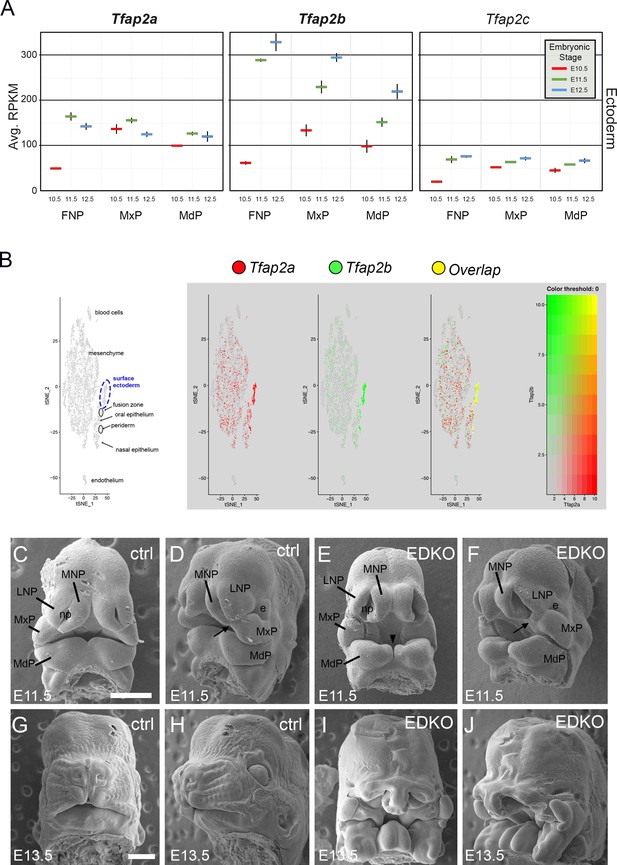

Expression and function of Tfap2a and Tfap2b in embryonic mouse facial ectoderm.

(A) Chart depicting Tfap2a, Tfap2b, and Tfap2c expression in the three regions of the mouse ectoderm between E10.5 and E12.5 (data adapted from Hooper et al., 2020). The lines represent the standard deviation between three biological replicates. (B) Left panel shows tSNE plot of E11.5 single cell RNAseq data from the region surrounding the lambdoid junction with various cell populations labeled adapted from Li et al., 2019a. Feature plots for Tfap2a, Tfap2b, and the cells in which their expression overlaps are shown in the adjacent panels. (C–J) Scanning electron microscope images of E11.5 (C–F) or E13.5 (G–J) control (C, D, G, H) or EDKO (E, F, I, J) heads shown in frontal (C, E, G, I) and angled (D, F, H, J) view. Abbreviations: e, eye; FNP, combined nasal prominences; LNP, lateral nasal process; MdP, mandibular prominence; MNP, medial nasal process; MxP, maxillary prominence; np, nasal pit. Arrow shows position of lambdoid junction; arrowhead shows medial cleft between mandibular prominences in EDKO mutant. Ctrl embryos are Tfap2aflox/+; Tfap2bflox/+ and EDKO embryos are Crect; Tfap2aflox/flox; Tfap2bflox/flox. N = 3 for each genotype. Scale bar = 500 µm.

ATAC-Seq of control and AP-2 mutant mouse craniofacial ectoderm identifies a core subset of unique nucleosome-free regions, many of which are AP-2 dependent

To investigate this GRN—and AP-2’s potential role within it—we implemented ATAC-seq (Buenrostro et al., 2013; Buenrostro et al., 2015; Corces et al., 2017) on surface ectoderm pooled from the facial prominences of E11.5 control or EDKO embryos, processing two biological replicates of each (Figure 2A). We choose E11.5 for analysis since at this timepoint differences in craniofacial morphology between controls and mutants were becoming evident but were not yet severe (Figure 1C–F). To assess open chromatin associated with the craniofacial ectoderm GRN, we first focused our analysis on the control ectoderm datasets. From the combined control replicates, ~ 65 K (65,467) ‘peaks’ were identified above background (Figure 2B) representing open chromatin associated with diverse genomic cis-acting elements including promoters and enhancers. These elements were further parsed using ChIP-Seq data from E10.5 and E11.5 craniofacial surface ectoderm obtained using an antibody detecting the active promoter histone mark, H3K4me3. Specifically, the ATAC-seq peaks were classified into two distinct clusters, either high (N = 10,363) or little to no (N = 54,935) H3K4me3 enrichment (Figure 2B). Assessing the location of these peak classes relative to the transcriptional start site of genes clearly delineated them into either proximal promoter or more distal elements, respectively (Figure 2C). Motif enrichment analysis for the proximal promoter elements (Andersson and Sandelin, 2020) identified binding sites for Ronin, SP1, and ETS-domain TFs (Figure 2D, top panel, Figure 2—source data 1). Conversely, the top four significantly enriched motif families in distal elements were CTCF/BORIS, p53/63/73, TEAD, and AP-2 TFs (Figure 2D, bottom panel, Figure 2—source data 2). The most significant motif, CTCF/BORIS, is known to be found at insulator elements and is important in establishing topologically associated domains (Dixon et al., 2012; Ong and Corces, 2014). Notably, p53/63/73, TEAD, and AP-2 family members are highly enriched in open chromatin regions associated with early embryonic skin (Fan et al., 2018) and are known to be involved in skin development and often craniofacial morphogenesis (Wang et al., 2006; Wang et al., 2008; Yuan et al., 2020). Finally, pathway analysis of genes associated with either H3K4me3+ (Figure 2—source data 3) or H3K4me3- (Figure 2—source data 4) elements identified clear biological differences between these two subsets, with craniofacial and epithelial categories being prominent only in the latter.

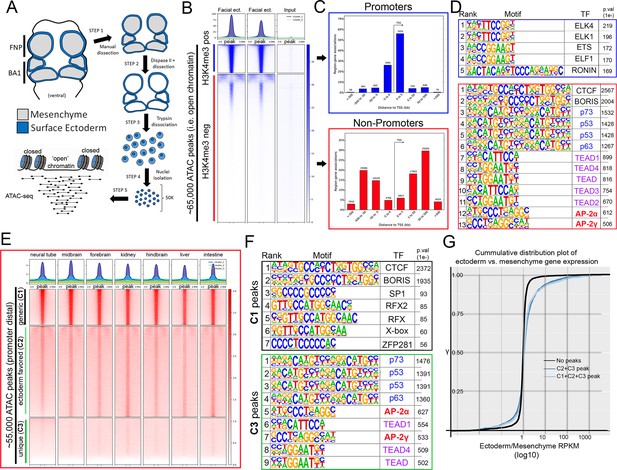

ATAC-seq of control E11.5 craniofacial surface ectoderm reveals nucleosome free regions.

(A) A schematic outlining the general workflow of craniofacial surface ectoderm isolation and subsequent ATAC-seq to identify open chromatin regions. (B) Density plot of ~65,000 open chromatin regions identified in the control surface ectoderm (Y-axis), +/- 3 Kb (X-axis), overlaid with the H3K4me3 promoter mark from similar tissue at E10.5 (column 1), E11.5 (column 2), or non-enriched input control (column 3). (C) Distribution, relative to the transcriptional start site (TSS, arrow) of the elements subset in (B). (D) Transcription factor motif enrichment analysis of the 2 subset clusters identified in (B). (E) Density plot of ~55,000 non-promoter, open chromatin regions [bottom cluster in (B) replotted on Y-axis], +/- 3 Kb (X-axis) overlaid with ENCODE ATAC-seq datasets from various mouse embryonic tissues/organs. (F) Transcription factor motif enrichment analysis of 2 (C1 and C3) of the three subset clusters identified in (E) (C2 not shown). (G) A cumulative distribution plot of gene expression in craniofacial surface ectoderm versus mesenchyme. The groups of genes include those with no peaks (black line), those with C1, C2, and C3 peaks (light blue line), and those with C2 and C3 peaks only (dark blue line)—with ‘peaks’ being those defined by subclusters in (E).

Figure 2—source data 1

Summary of motif enrichment found within H3K4me3 + ATAC seq elements (i.e., Figure 2D, top).

https://cdn.elifesciences.org/articles/70511/elife-70511-fig2-data1-v2.pdf
Figure 2—source data 2

Summary of motif enrichment found within H3K4me3- ATAC-seq elements (i.e., Figure 2D, bottom).

https://cdn.elifesciences.org/articles/70511/elife-70511-fig2-data2-v2.pdf
Figure 2—source data 3

Summary of GREAT analysis of H3K4me3 + ATAC seq elements.

https://cdn.elifesciences.org/articles/70511/elife-70511-fig2-data3-v2.pdf
Figure 2—source data 4

Summary of GREAT analysis of H3K4me3- ATAC-seq elements.

https://cdn.elifesciences.org/articles/70511/elife-70511-fig2-data4-v2.pdf
Figure 2—source data 5

Summary of motif enrichment found within C1 ATAC-seq elements (i.e., Figure 2E, top).

https://cdn.elifesciences.org/articles/70511/elife-70511-fig2-data5-v2.pdf
Figure 2—source data 6

Summary of GREAT analysis of C1 ATAC-seq elements (i.e., Figure 2E, top).

https://cdn.elifesciences.org/articles/70511/elife-70511-fig2-data6-v2.pdf
Figure 2—source data 7

Summary of motif enrichment found within C3 ATAC-seq elements (i.e., Figure 2E, bottom).

https://cdn.elifesciences.org/articles/70511/elife-70511-fig2-data7-v2.pdf
Figure 2—source data 8

Summary of GREAT analysis of C3 ATAC-seq elements (i.e., Figure 2E, bottom).

https://cdn.elifesciences.org/articles/70511/elife-70511-fig2-data8-v2.pdf
Figure 2—source data 9

Summary of motif enrichment found within C2 ATAC-seq elements (i.e., Figure 2E, middle).

https://cdn.elifesciences.org/articles/70511/elife-70511-fig2-data9-v2.pdf
Figure 2—source data 10

Summary of GREAT analysis of C2 ATAC-seq elements (i.e., Figure 2E, middle).

https://cdn.elifesciences.org/articles/70511/elife-70511-fig2-data10-v2.pdf
Figure 2—source data 11

A cumulative distribution plot graphing E11.5 craniofacial gene expression enrichment (ectoderm/mesenchyme, X-axis) relative to the total number of C2 and C3 ATAC-seq elements associated with that gene.

https://cdn.elifesciences.org/articles/70511/elife-70511-fig2-data11-v2.pdf

We next reasoned that the H3K4me3- distal peaks likely represented regions of open chromatin that were found in multiple tissue-types as well as some that were ectoderm specific. Therefore, we utilized publicly available ATAC-seq datasets (ENCODE Project Consortium, 2012; Davis et al., 2018) from additional mouse embryonic tissues (liver, kidney, intestine, brain, etc.) and plotted relative peak intensities on top of our ~ 55 K distal peaks in the craniofacial surface ectoderm. K-means clustering of this overlap identified three distinct groups: ‘tissue generic’ (termed C1, N = 9244); ‘ectoderm favored’ (chromatin open in surface ectoderm, but also at low levels in other tissues, termed C2, N = 24,805); and ‘ectoderm unique’ (termed C3, N = 20,886) (Figure 2E). Motif analyses of these three subgroups showed that C1 was most highly enriched for the CTCF/BORIS motif (Figure 2F, Figure 2—source data 5) and genes nearby these elements had less relevant ectodermal/craniofacial associations (Figure 2—source data 6). Conversely, C3 elements contained the p53/p63/p73, AP-2, and TEAD motifs (Figure 2—source data 7), and nearby genes were highly enriched for networks associated with ectodermal and craniofacial development (Figure 2F, Figure 2—source data 8). In addition, the GRHL and PBX motifs—both key TF families in surface ectoderm gene networks (Ferretti et al., 2011; Ting et al., 2005)—were the next identified within the C3 element list at high significance. The C2 list contained a mix of both C3 and C1 motifs (Figure 2—source data 9) and gene network associations (Figure 2—source data 10).

Next, we employed the corresponding E11.5 gene expression profiles of the mouse craniofacial ectoderm and mesenchyme (Hooper et al., 2020) and correlated the relative expression between these two tissue layers with the list of E11.5 genomic elements and associated genes identified using ATAC-seq. Genes from the expression analysis were first binned into groups (Supplementary file 1) based upon whether they had: no associated peaks; peaks associated only with C1 (tissue generic), C2 (ectoderm favored), or C3 (ectoderm unique); or peaks in multiple categories (e.g. C1 + C2). We then used a cumulative distribution plot to assess the difference in distribution of ‘ectoderm expression enrichment’ between each group. This analysis identified that genes associated with both a C2 and C3 element showed a shift in distribution favoring ectoderm enrichment relative to genes with no associated element (p < 2.2e-16) (Figure 2G). In addition, if genes were also binned based on the sum of associated C2 and C3 elements, genes with 4 or greater elements, compared to those with less than 4, showed the most significant shift in distribution relative to genes with no elements (Figure 2—source data 11). Collectively, these analyses identified the position of key genomic elements in the mammalian craniofacial surface ectoderm, their predicted TF binding profiles, and correlation with ectoderm specific gene expression patterns and pathways. Moreover, these data suggested that AP-2 binding sites within promoter distal elements of ectodermally expressed genes may play an important role in the associated GRN required for facial development.

Simultaneous loss of Tfap2a and Tfap2b within the surface ectoderm results in reduced chromatin accessibility at a subset of elements, including those associated with WNT ligands

To examine how loss of Tfap2a and Tfap2b impacted chromatin accessibility in the craniofacial ectoderm, we next analyzed the ATAC-seq data from the EDKO samples and compared the results to those obtained from controls. Combined analysis of the two EDKO samples yielded ~63,000 ‘peaks’ with CTCF, P53/P63/P73, and TEAD again the top motifs identified (Figure 3—source data 1). In stark contrast to controls though, AP-2 consensus motifs were not detected, consistent with the loss of elements directly bound by AP-2 in EDKO mutants. Further, these data suggest that the limited expression of AP-2γ/Tfap2c in the ectoderm is not sufficient to compensate for the loss of AP-2α and AP-2β. Next, using the mutant dataset as ‘background’ to remove regions with similar chromatin accessibility from the control dataset, we identified genomic loci where accessibility was significantly higher in controls relative to in EDKO mutants. This differential analysis identified ~3.1 K genomic regions (N = 3103, ~ 5% of control elements) that were significantly decreased in accessibility upon loss of AP-2α/AP-2β (Figure 3A). AP-2 elements were the top two binding motifs in these 3.1 K peaks, consistent with AP-2 directly binding many of these elements (Figure 3B, Figure 3—source data 2). A more limited enrichment for p53/63/73, TEAD, and PBX motifs was also observed in these 3.1 K peaks, potentially indicating that AP-2 either facilitates access of these other TFs at certain sites or simply reflecting the prevalence of these additional motifs in ectodermal control elements (Figure 3B, Figure 3—source data 2).

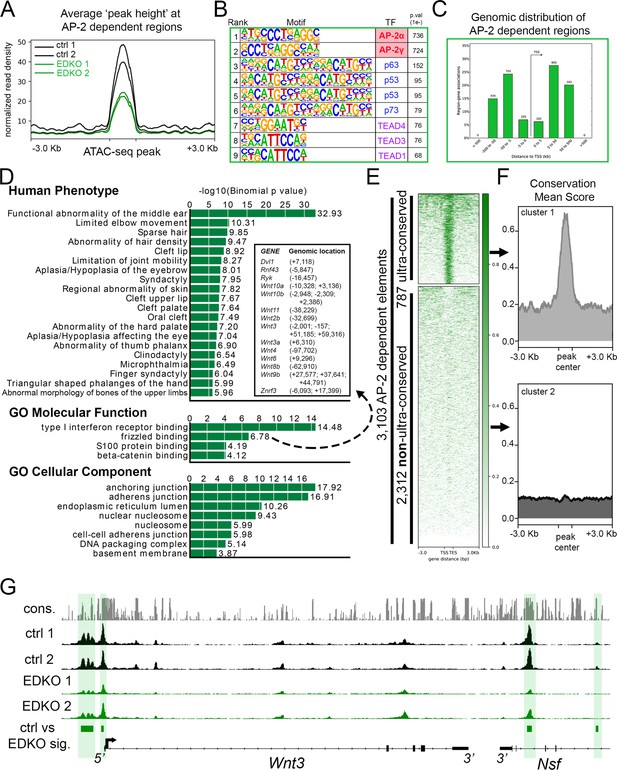

ATAC-seq analysis of EDKO mutants reveals AP-2 craniofacial surface ectoderm dependent nucleosome free regions.

(A) Average normalized read density for control (black lines) and Tfap2a/Tfap2b ectoderm mutant (green lines) ATAC-seq datasets at AP-2-dependent nucleosome-free regions ( +/- 3.0 Kb). (B) Transcription factor motif enrichment analysis of AP-2-dependent nucleosome-free regions. (C) Distribution, relative to the transcriptional start site (TSS, arrow) of AP-2 dependent nucleosome-free regions. (D) GO/pathway enrichment analysis, using GREAT, of genes located near AP-2 dependent nucleosome-free regions. Note, the inset highlights the genes associated with the GO Molecular Function annotation ‘frizzled binding’ and the genomic location (relative to the TSS) of the associated AP-2-dependent nucleosome-free region. (E) Density plot of ~3100 AP-2-dependent elements (Y-axis), +/- 3 Kb (X-axis) overlaid with conservation score (e.g. darker green = more conserved) identifies ‘ultra-conserved’ and ‘non-ultra-conserved’ subclusters. (F) Mean conservation score of elements identified in each subcluster in (E). (G) IGV browser view of tracks at the Wnt3 locus. Tracks for conservation (grey, labeled cons.), control ATAC-seq replicates (black, labeled ctrl 1 and ctrl 2), AP-2 mutant ATAC-seq replicates (green, labeled EDKO1 and EDKO2), and coordinates of significantly altered elements between control and AP-2 mutant datasets (green bars, labeled ctrl vs EDKO sig.). The Wnt3 transcription unit is schematized at the bottom, along with the 3’ exons of the flanking Nsf gene, representing ~60 kb of genomic DNA.

Figure 3—source data 1

Summary of motif enrichment found within ATAC-seq elements remaining in EDKO mutant surface ectoderm.

https://cdn.elifesciences.org/articles/70511/elife-70511-fig3-data1-v2.pdf
Figure 3—source data 2

Summary of motif enrichment found within ATAC-seq elements that are AP-2 -dependent (i.e., present in control, but gone in EDKO) in the craniofacial surface ectoderm.

https://cdn.elifesciences.org/articles/70511/elife-70511-fig3-data2-v2.pdf
Figure 3—source data 3

Summary of GREAT analysis using ATAC-seq elements that are AP-2 dependent (i.e., present in control, but gone in EDKO) in the craniofacial surface ectoderm.

https://cdn.elifesciences.org/articles/70511/elife-70511-fig3-data3-v2.pdf
Figure 3—source data 4

Summary of GREAT analysis using ATAC-seq elements that are AP-2 dependent (i.e., present in control, but gone in EDKO) in the craniofacial surface ectoderm and are ‘ultra-conserved’ (i.e., Figure 3E, Top).

https://cdn.elifesciences.org/articles/70511/elife-70511-fig3-data4-v2.pdf
Figure 3—source data 5

Summary of GREAT analysis using ATAC-seq elements that are AP-2 dependent (i.e., present in control, but gone in EDKO) in the craniofacial surface ectoderm and are ‘non-ultra-conserved’ (i.e., Figure 3E, Bottom).

https://cdn.elifesciences.org/articles/70511/elife-70511-fig3-data5-v2.pdf
Figure 3—source data 6

Summary of motif enrichment found within ATAC-seq elements that are gained upon loss of AP-2 in the craniofacial surface ectoderm (i.e., element not found in control, but present in EDKO).

https://cdn.elifesciences.org/articles/70511/elife-70511-fig3-data6-v2.pdf

Examination of this core subset of AP-2-dependent nucleosome free regions in the craniofacial ectoderm revealed that they are mostly promoter distal (~87%), consistent with enhancers (Figure 3C). Most genes (2,432) had only one assigned peak (Supplementary file 2), but many had two (654), three (232), four (108), or five (32) peaks. Notably, 45 genes had 6 or more assigned peaks, and ~120 peaks were assigned to only four gene pairs: Rhou/Gas8, Ezh2/Pdia4, Atg7/Hrh1, and Asmt/Mid1. However, these highly clustered assignments of 20–56 peaks per gene pair represent binding to direct repeat sequences, which skews functional annotations assigned by GREAT (Figure 3D and Figure 3—source data 3). Nevertheless, multiple genes and annotations associated with development of the skin and its appendages are still present (Supplementary file 2 and Figure 3—source data 3). Thus, AP-2-dependent peaks had annotations including anchoring junction and adherens junction and were associated with genes encoding keratins, cadherins, and gap junction components (Figure 3D). Similarly, GO ‘Molecular Function’ annotations included both frizzled binding and beta-catenin binding, and multiple WNT pathway genes were also assigned to peaks (Figure 3D: Wnt2b, Wnt3, Wnt3a, Wnt4, Wnt6, Wnt8b, Wnt9b, Wnt10a, and Wnt10b)—some of which are known to be essential for proper craniofacial development (Chiquet et al., 2008; Menezes et al., 2010; Reynolds et al., 2019; Watanabe et al., 2006).

Next, we further subdivided the AP-2-dependent elements based on their overall degree of conservation across vertebrate lineages (60-way phast-con score), creating two distinct clusters, ‘ultra-conserved’ (N = 787 elements) and less conserved (N = 2312 elements) (Figure 3E and F). Pathway analysis of genes associated with the ultra-conserved elements now revealed frizzled binding as the top ‘Molecular Function’—in part, because of ultra-conserved elements near Wnt3, Wnt9b, Wnt10a, and Wnt10b (Figure 3G and Figure 3—source data 4). Interestingly, the only ‘Human Phenotype’ listed in the non-ultra-conserved group was ‘cleft lip’, in part because of elements near the Irf6 and Grhl3 loci, but no WNT-related categories were identified in this list (Figure 3—source data 5). These findings suggest that distinct ‘ancient’ and ‘derived’ AP-2 networks exist in the craniofacial surface ectoderm. Finally, we utilized the control dataset as ‘background’ to look for enrichment in the EDKO dataset. This approach identified ~1.5 K regions that became more accessible upon loss of Tfap2a and Tfap2b, but motif analysis of these elements did not identify an enrichment of the AP-2-binding site, suggesting that direct AP-2 DNA binding is not responsible for blocking these sites in control ectoderm (Figure 3—source data 6).

In summary, our analysis of chromatin accessibility in AP-2 mutant craniofacial surface ectoderm suggests that: (1) a subset of distal nucleosome-free regions—presumed enhancers—is AP-2 dependent; (2) these elements are significantly enriched near genes regulating craniofacial and ectodermal development; (3) elements near WNT-related loci are disproportionally impacted upon loss of AP-2; and, (4) AP-2 regulation of chromatin dynamics near WNT-loci is likely a highly conserved function.

Reduced chromatin accessibility at WNT-related genes correlates with reduced gene expression at E11.5 in EDKO surface ectoderm

Analysis of chromatin accessibility in EDKO mutants and controls indicated that loss of AP-2 in the ectoderm may impact expression of several genes in the WNT pathway. Therefore, at this juncture, we surveyed the distribution of multiple WNT pathway components in both the facial ectoderm and mesenchyme to ascertain how they correlated with expression of Tfap2a and Tfap2b using previously published bulk RNAseq (Hooper et al., 2020) or scRNAseq (Li et al., 2019a) datasets. This data mining confirmed that genes encoding Wnt ligands Wnt3, Wnt4, Wnt9b as well as the antagonist Dkk4 showed biased expression in the surface ectoderm that overlapped on a cellular level with the two Tfap2 genes (Supplementary file 3 and Figure 4—figure supplement 1). Several other Wnt pathway genes, such as Axin2 and Sostdc1 showed notable overlap with the Tfap2 genes in the surface ectoderm but were also present at significant levels in the underlying mesenchyme. The connection between AP-2 transcription factors and these Wnt pathway genes was further investigated using both real-time RT-PCR and RNA in situ hybridization to compare expression in E11.5 embryos between control and EDKO mutants. To extend the analysis, gene expression was also analyzed in embryos with additional Tfap2a/Tfap2bCrect allelic combinations, specifically those lacking both copies of Tfap2a, but still containing one functional allele of Tfap2b (EAKO), and those with one functional allele of Tfap2a, but no Tfap2b (EBKO). In situ hybridization for Wnt3 and Wnt9b in control embryos demonstrated strong expression in the facial ectoderm, typified by the signal observed at the margins of the MxP (Figure 4A and E). This staining was absent in the EDKO mutants (Figure 4C and G), and the EAKO mutants showed an intermediate level of staining (Figure 4B and F). RT-PCR analysis of E11.5 whole facial tissue confirmed these in situ findings for the ectodermally expressed ligands Wnt3 and Wnt9b, as well as Wnt10b (Figure 4D, H, I). RT-PCR also revealed a graded reduction in expression from control, to EAKO, and finally EDKO mutants, for these three genes but no significant loss of expression in EBKO mutants, where an intact allele of Tfap2a was still present. Several WNT-signaling repressors—for example, Axin2, Dkk4, and Sostdc1—were also associated with elements showing reduced chromatin accessibility in facial ectoderm of EDKO mutants (Figure 4M and Figure 4—figure supplements 2 and 3). RT-PCR analysis of these 3 genes also showed reduced expression, especially between control and EDKO mutants (Figure 4J–L). Since Axin2 has similar expression in ectoderm and mesenchyme (Leach et al., 2017), we next used RT-PCR to examine Axin2 expression in the separated tissue layers of control and EDKO samples, in comparison to Wnt3, which exhibits mainly ectodermal expression (Figure 4—figure supplement 4). These studies showed that Wnt3 down-regulation was confined to the ectoderm, whereas Axin2 expression was reduced in both tissues, suggesting that AP-2 loss in the ectoderm may also be indirectly affecting the mesenchyme gene expression program. We further examined the impact of changes in epithelial:mesenchymal interactions caused by loss of Tfap2a/Tfap2b in the ectoderm by studying cell proliferation in the facial prominences of E11.5 control and EDKO embryos. As shown in Figure 4—figure supplement 5, α-phospho-Histone H3 (αPHH3) immuno-fluorescence analysis revealed significant reduction in global αPHH3 + cells in mutant versus control embryos. Collectively, these analyses identify a dramatic impact of ectodermal loss of AP-2α and AP-2β on chromatin accessibility and gene expression of major WNT-signaling components. These changes in the ectoderm correlate with reduced proliferation of the underlying mesenchyme. In addition, these findings highlight a graded response caused by loss of three or more Tfap2 alleles within the ectoderm with the presence of one functional allele of Tfap2a enabling some expression of critical regulatory genes, but loss of all four Tfap2a/b alleles resulting in more drastic reductions.

Figure 4 with 5 supplements see all
WNT-pathway related gene expression changes at E11.5 correlate with Tfap2 gene dosage.

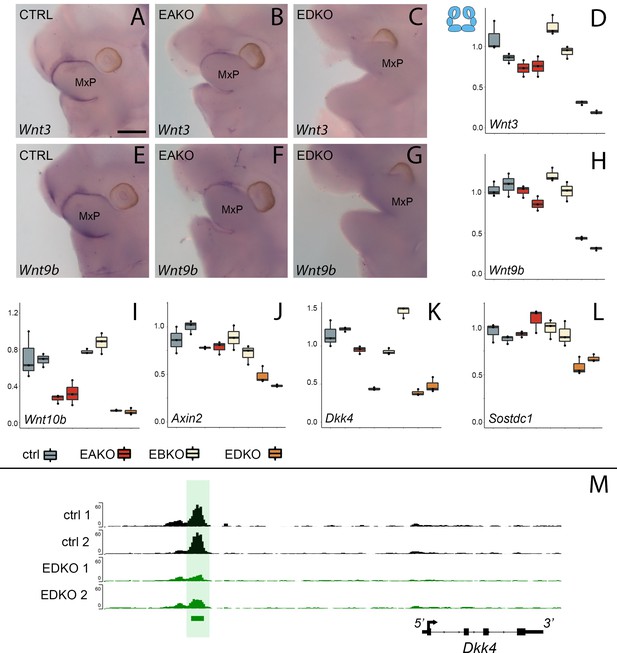

(A–D). Analysis of Wnt3 expression. (A–C) Lateral facial views of whole mount in situ hybridization analyses of E11.5 control (A), EAKO (B), and EDKO (C) embryos stained for Wnt3. (D) Quantitative RT-PCR analysis of Wnt3 expression for biological duplicates of control (grey), EAKO (red), or EBKO (yellow) and EDKO (orange) samples. The boxplots represent technical triplicates, including upper, lower, and median values. Note, RNA was derived from whole facial prominences that is, ectoderm and mesenchyme, as shown in schematic at top left of (D). The Y-axis represents relative gene expression normalized to ß-actin. (E–H) Panels show equivalent whole mount and qRT-PCR analyses to (A–D) for Wnt9b expression. (I–L) Quantitative RT-PCR analysis for Wnt10b (I), Axin2 (J), Dkk4 (K) and Sostdc1 (L) as in panel (D). (M) IGV screenshot showing tracks for ATAC-seq analysis in control (top two tracks, black, ctrl 1 and ctrl 2) or EDKO (bottom two tracks, green, EDKO 1 and EDKO 2), and regions of significant difference between the two genotypes (green bar). An ‘AP-2-dependent’ nucleosome-free region is highlighted in green ~6 kb upstream of the 4 kb mouse Dkk4 transcription unit. MxP, maxillary prominence. Ctrl embryos are Tfap2aflox/+; Tfap2bflox/+, EAKO embryos are Crect; Tfap2aflox/flox; Tfap2bflox/+, EBKO embryos are Crect; Tfap2aflox/+; Tfap2bflox/flox, and EDKO embryos are Crect; Tfap2aflox/flox; Tfap2bflox/flox. A minimum of three embryos per genotype were used for in situ analysis, while real-time PCR was conducted with two biological replicates (each with technical triplicates). Scale bar = 500 µM.

A graded response in gross craniofacial development results from different Tfap2a and Tfap2b allelic combinations in the surface ectoderm

The graded changes in WNT pathway gene expression observed at E11.5 EBKO, EAKO, and EDKO embryos suggested that the loss of different allelic combinations of Tfap2a and Tfap2b in the facial ectoderm might also have functional consequences for facial development. After determining that certain allelic combinations did not survive postnatally, we found that at E18.5, EBKO embryos (Figure 5C and C’) were indistinguishable from controls (Figure 5A and A’), whereas EAKO (Figure 5B and B’) and EDKO (Figure 5D and D’) embryos displayed substantial defects. EAKO embryos exhibited bilateral facial clefting, a cleft palate, a cleft hypoplastic mandible, bifid tongue, hypoplastic and low-set pinna, and a partial ventral body-wall closure defect (Figure 5B and B’). These phenotypes were exacerbated in EDKO embryos, with most craniofacial structures severely malformed (Figure 5D and D’), displaying a complete failure of the facial prominences to grow towards the midline, with the maxilla and mandible growing out laterally from the oral cavity, resulting in a mandibular and palatal cleft, consistent with the morphological defects observed at earlier time points (Figure 1). Similarly, structures derived from the MNP and LNP failed to fuse with each other or the maxilla, instead growing dorsally, resulting in exposure of the developing nasal cavity (Figure 5D and D’). External pinnae were notably absent and there was also microphthalmia (Figure 5D and D’). Compared to the EAKO mutants, EDKO embryos also had a more severe ventral body wall closure defect, with an open thorax (Figure 5D’). A small percentage of EDKO mutants also had a failure of dorsal neural tube closure, resulting in exencephaly (data not shown). Finally, EDKO mutants also displayed an apparent thinning of the epidermal layer, resulting in tissue transparency, most obvious around the lateral portions of the neck (Figure 5D). Collectively, these findings reveal that functional redundancy exists between AP-2α and AP-2β within the ectoderm lineage—most notably in the context of facial morphogenesis. Furthermore, these results indicate that AP-2α has the most potent TF activity since mice lacking Tfap2b, but containing one functional copy of Tfap2a, can still undergo normal facial development, whereas the reverse results in orofacial clefting.

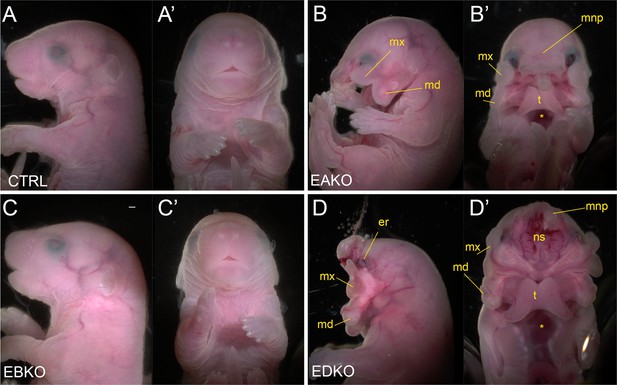

Gross morphological phenotypes of E18.5 control, EAKO, EBKO, and EDKO mutants.

Lateral (A–D) or ventral (A’-D’) views of an E18.5 control (A, A’), EAKO (B, B’), EBKO (C, C’), or EDKO (D, D’) embryo. Abbreviations: md, mandible; mnp, medial nasal prominence; mx, maxillary prominence; er, eye remnant; ns, nasal septum; t, tongue. Asterisks in B’ and D’ indicates ventral body wall closure defect. Ctrl embryos are Tfap2aflox/+; Tfap2bflox/+, EAKO embryos are Crect; Tfap2aflox/null; Tfap2bflox/+, EBKO embryos are Crect; Tfap2aflox/+; Tfap2bflox/null, and EDKO embryos are Crect; Tfap2aflox/null; Tfap2bflox/null. A minimum of at least three embryos per genotype were examined. Mandibular clefting and failure of facial fusion was fully penetrant in EDKO embryos. Scale bar = 500 µM.

Disruption of neural crest derived craniofacial bone and cartilage elements in EDKO mutants

To further assess the effect of loss of Tfap2a and Tfap2b within the facial ectoderm, E18.5 embryos were processed by alizarin red and alcian blue staining, revealing bone and cartilage elements, respectively (Figure 6). The craniofacial skeleton can be grouped into three structural units: the viscerocranium (comprising solely NCC derived facial elements); neurocranium (calvaria/skull vault); and chondrocranium—the latter two units having both a NCC and mesoderm origin reviewed in Minoux and Rijli, 2010. Control and EBKO embryos displayed the typical NC-derived craniofacial elements (Figure 6A, D, G and J, and not shown) whereas both EAKO and EDKO embryos demonstrated major disruption to several of these skeletal structures. First, in EAKO skeletons (Figure 6B, E, H and K), the most substantially affected structures included a shortened, cleft mandible, hypoplastic development of the maxillary, nasal, lamina obturans, and palatine bones (consistent with the bilateral facial clefts and clefting of the secondary palate), a slightly hypoplastic frontal bone, and missing tympanic bones. The premaxillary bone developed anteriorly into a long bony element protruding at the front of the face, presumably due to the absence of constraints imposed by fusion to the maxilla (Figure 6B)—a feature commonly observed in humans with orofacial clefting (Nyberg et al., 1993). In addition, isolation of the mandible revealed disruption to the patterning of the proximal end, including the normally well-defined condyles seen in control embryos (Figure 6J and K). These skeletal defects were even more pronounced in EDKO mutants, with some additional features observed that were not seen in EAKO preparations as discussed further below. Thus, several NC derived bones that were hypoplastic in EAKO mutants were virtually absent in the EDKO mutants, including the squamosal, jugal, palatine, and lamina obturans (Figure 6C, F, I). Like EAKO mutants, the tympanic bones were absent, the frontal bone hypoplastic, and the premaxillary bone protruding in EDKO mutants, although this latter process grew mediodorsally reflecting the more extreme outward growth of the facial prominences in the latter genotype. Both the mandible and maxillary bones, comprising the lower and upper-jaw, respectively, were more severely impacted in EDKO mutants, including a loss of the primary and secondary jaw joints, resulting in syngnathia (Figure 6C). Like EAKO mutants, isolation of the mandible in EDKO mutants revealed a major loss of proximal condylar identity that was exacerbated by fusion with upper-jaw components (Figure 6L). Also, in contrast to EAKO embryos, the oral/aboral axis of the mandible was disrupted, resulting in a less pronounced tapering at the distal end (Figure 6L). To further investigate these unique features, we subsequently stained the chondrocranium of control, EAKO, and EDKO embryos at E15.5 with alcian blue (Figure 6M–O). Notably, this analysis revealed that EDKO mutants displayed a duplicated Meckel’s cartilage along the length of the proximal-distal axis of the mandible, a feature not observed in other genotypes, and consistent with a duplication of the mandible along the oral/aboral axis (Figure 6M–O).

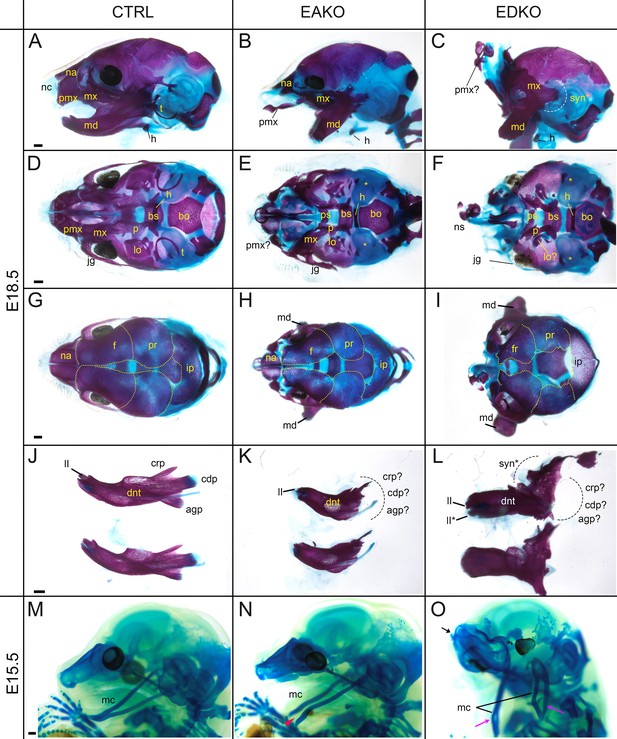

Craniofacial skeleton and chondrocranium defects vary with Tfap2 gene dosage.

(A–L) E18.5 alizarin red and alcian blue stained craniofacial elements. Lateral (A–C), ventral (D–F), dorsal (G–I) views of the craniofacial skeleton, and lateral views of the left and right hemi-mandibles in isolation (J–L) in control (A, D, G, J), EAKO (B, E, H, K), and EDKO (C, F, I, L) embryos. Note that the mandibles have been removed in (D–F) for clearer visualization of the cranial base, and the calvaria are outlined with yellow dashed lines in (G–I). The white dashed line in (C) highlights fusion of the upper and lower jaw (syngnathia), also indicated by the black dashed lines in (L). (M–O) E15.5 alcian blue stained chondrocraniums from a control (M), EAKO (N), or EDKO (O) embryo. A cleft Meckel’s cartilage is highlighted by the red arrowhead in (N) or by black lines in (O). Note, Meckel’s cartilage is also duplicated (pink arrows) along the proximodistal axis of the lower jaw in (O) and upturned nasal cartilages are highlighted by the black arrow. Abbreviations: agp, angular process; bs, basisphenoid; bo, basioccipital; cdp, condylar process; crp, coronoid process; dnt, dentary; f, frontal; h, hyoid; ii, inferior incisor; ii*, duplicated incisor; ip, interparietal; jg, jugal; lo, lamina obturans; mc, Meckel’s cartilage; md, mandible; mx, maxillary; na, nasal; nc, nasal cartilage; ns, nasal septum; p, palatine; pmx, premaxillary; pr, parietal; ps, presphenoid; syn*, syngnathia; t, tympanic ring;? indicates possible identity of dysmorphic structure; * in (E, F) indicates missing tympanic ring. Ctrl embryos are Tfap2aflox/+; Tfap2bflox/+, EAKO embryos are Crect; Tfap2aflox/null; Tfap2bflox/+, and EDKO embryos are Crect; Tfap2aflox/null; Tfap2bflox/null. A minimum of at least three cranial skeletons per genotype were examined. Scale bar = 500 µM.

In summary, skeletal analysis indicated that the NC derived elements in the craniofacial skeleton were most exquisitely sensitive to loss of AP-2α and AP-2β from the surface ectoderm. In contrast, mesoderm derived components, such as the basioccipital of the cranial base, appeared less affected in EAKO and EDKO mutants (Figure 6D–F). These findings are consistent with AP-2 expression in the ectoderm affecting short range signaling to the adjacent NCC mesenchyme to control growth and morphogenesis.

RNA-Seq analysis of E10.5 EDKO mutants reveals early disruption of WNT signaling components along with reciprocal mesenchymal perturbations

To obtain a more global assessment of the gene expression changes in the ectoderm and how they impact the underlying mesenchyme, we performed RNAseq analysis of the whole face at E10.5 for both control and EDKO mice (Figure 7A). This timepoint was chosen to detect primary changes in gene expression before major morphological differences were apparent in the mutants. Three biological replicates of each genotype were processed and the read data for each gene are summarized in Supplementary file 3. An initial assessment of the data was made by examination of a list of ~240 genes that satisfied a 1.5 fold cut-off in gene expression difference between controls and mutants, and which had consistent and measurable expression changes when viewed on the IGV browser (Supplementary file 3). This manually curated list revealed that multiple genes down-regulated in the mutant were associated with development and function of the ectoderm (Table 1). Notably, there was reduction in Krt5, Krt14, and Krt15 expression, as well as for several genes associated with the periderm, balanced by a rise in Krt8 and Krt18 transcripts, indicating a delay or inhibition of normal stratification. Further, mRNAs for TFs associated with epidermal development, particularly Trp63, Grhl3, and Foxi2, were also reduced in the mutant (Supplementary file 3). Other notable changes occured in signaling molecules associated with the WNT pathway, with CXCL factors and to a lesser extent with genes involved in NOTCH, EDN, and FGF.

Figure 7 with 3 supplements see all

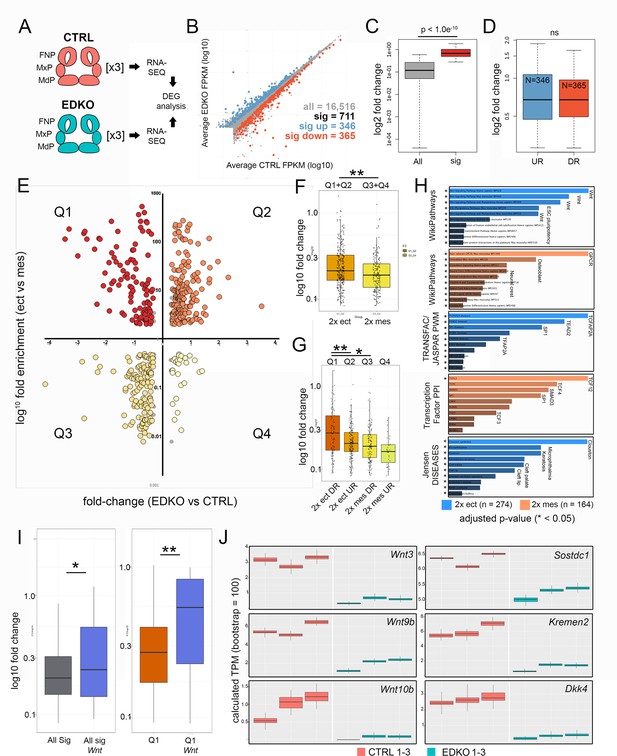

RNA-seq analysis of E10.5 control and EDKO mutant craniofacial prominences.

(A) Schematic depicting regions isolated and general workflow for RNA-seq analysis. (B) Scatterplot of gene mean expression values (FPKM) for control (X-axis) and EDKO mutant (Y-axis) samples, blue or orange dots representing genes significantly upregulated or down-regulated in mutants versus controls, respectively. (C) Boxplot of mean fold-change values (mutant versus control) for all expressed genes (grey) or those that were significantly altered (red). (D) Boxplot of mean gene expression fold-change values (mutant versus control) for down-regulated (orange) or up-regulated (blue) genes. (E) Scatterplot of mean gene expression fold-change between mutant and control samples (X-axis) and mean gene expression fold-change between craniofacial ectoderm and mesenchyme (Y-axis). (F) Boxplot of mean gene expression fold-change values (mutant versus control) for ‘ectoderm enriched’ (orange) or ‘mesenchyme enriched’ (yellow) genes. (G) As in (F) but further subset into each quadrant. (H) Gene-set enrichment analysis (using ENRICHR) for ‘AP-2-dependent’ ectoderm (blue) or mesenchyme (orange) enriched genes. (I) Boxplots of mean gene expression fold-change values (mutant versus control) for all significantly altered genes (grey) versus those found specifically in the WNT-pathway (blue) or all significantly down-regulated ectoderm genes (Q1 genes, red) versus WNT-pathway associated genes down-regulated in the ectoderm (Q1 Wnt, blue). (J) RNA-seq based, computed gene expression values (TPM) for a subset of WNT-related genes, shown as biological triplicates in control (salmon) or EDKO mutant (teal). For all boxplots, the median is indicated by the horizontal line, 75th and 25th percentiles by the limits of the box, and the largest or smallest value within 1.5 times the interquartile range by the lines. A standard two-tailed t-test was conducted to calculate significance in C, D, F, G, and I (* = p-value < 0.05; ** = p-value < 0.005). Abbreviations: DEG, differentially expressed genes; DR, down-regulated; FNP, nasal processes; MdP, mandibular prominence; MxP, maxillary prominence; ns, not significant; TPM, transcripts per million; UR, up-regulated. Samples used for RNA-seq analysis included, 2 Tfap2aflox/+; Tfap2bflox/+ and 1 Tfap2aflox/+; Tfap2bflox/null control embryos and 3 Crect; Tfap2aflox/null; Tfap2bflox/null EDKO embryos.

Table 1
Curated list of differentially expressed genes identified in E10.5 EDKO facial prominences vs control facial prominences, with the presence or absence of associated ATAC-seq peaks based on GREAT.
Gene categoryGeneAverage expression in controlAverage expression in mutantFold changeMutant vs ControlAP-2 dependentATAC-seq peak
Epithelial Development and FunctionKrt53.250.520.16Yes
Bnc12.460.500.20No
Krt153.740.810.22Yes
Tgm10.820.230.28No
Hr0.630.270.43No
Nectin42.731.400.51No
Krt1411.406.360.56Yes
Perp16.499.720.59Yes
Grhl34.452.610.59Yes
Trp6311.097.120.64Yes
Krt826.2039.971.53Yes
Krt1833.0553.981.63No
Epithelial Junction ComplexesGjb61.480.400.27Yes
Gjb22.650.860.32Yes
Gjb31.860.630.34No
Col17a10.740.260.35Yes
Tns41.050.480.48No
PeridermGabrp1.230.030.02No
Zfp7500.850.180.21Yes
Rhov0.730.170.23No
Krt196.9312.961.87Yes
SignalingDkk41.960.200.10Yes
Wnt10b0.840.110.13Yes
Kremen23.980.580.15No
Wnt32.090.310.15Yes
Cxcl1418.023.450.19Yes
Wnt10a0.480.120.25Yes
Wif11.940.490.25Yes
Wnt9b3.861.120.29Yes
Sostdc18.952.760.31Yes
Cxcl136.552.650.40No
Ednra15.939.440.59No
Dll18.9613.881.55Yes
Fgfr35.1010.101.98Yes
Transcription factorsFoxi21.380.020.01Yes
Irx41.670.150.09Yes
Gbx24.060.600.15Yes
Osr23.340.830.25No
Irx24.021.170.29Yes
Lmx1b2.751.050.38Yes
Twist229.6413.730.46No
Vgll32.151.010.47Yes
Hand111.265.360.48Yes
Irx58.404.030.48Yes
Twist1135.7479.380.58No
Msx1102.0461.270.60Yes
Sox214.567.941.74No
Pax69.3629.273.13Yes
OtherAss12.261.300.58No
Hapln18.595.070.59Yes
Smoc26.722.220.33Yes
Cdkn1a8.4615.221.80No
Tagln6.8513.351.95No
Lin28a9.2920.202.17No

signaling (Supplementary file 3). Prominent up-regulated genes included Lin28a and Cdkn1a, which correlate with the reduced expression of genes for ectodermal differentiation and the inhibition of growth noted by more limited α-PHH3 + stained cells in the mutants (Figure 4—figure supplement 5).

Many of the genes we had identified had an ectodermal connection even though such genes are underrepresented in the analysis of whole prominence tissue. We therefore adopted a second approach to help distinguish the relevant tissue specific expression differences. Here, we focused on a group of 711 genes that satisfied a 1.2 fold-change and Q < 0.05 cut off between control and EDKO samples (Figure 7B and C, and Supplementary file 3). Of these, 365 were down-regulated and 346 upregulated, with no statistically significant difference between fold-change of up and down-regulated genes (Figure 7B and D). We next employed published gene expression levels for both the ectoderm and mesenchyme of control E10.5 wild-type embryos (Supplementary file 3) to distinguish the relevant tissue specific expression differences (Hooper et al., 2020). Of the 711 genes that were differentially expressed, 438 showed >2 fold enrichment between control tissue layers (i.e. either higher in ectoderm or higher in mesenchyme). We then used this information (Figure 7E Y-axis), alongside the relative change in expression between controls and mutants (Figure 7E X-axis), to stratify the differentially expressed genes into four major groups (Q1-4, Supplementary file 3). Specifically, we identified genes with preferential expression in the control ectoderm that were ‘down-regulated’ (Figure 7E and Q1, N = 103) or ‘up-regulated’ in mutants (Figure 7E and Q2, N = 171) and likewise for the mesenchyme ‘down-regulated mesenchyme’ (Figure 7E and Q3, N = 133) and ‘up-regulated mesenchyme’ (Figure 7E and Q4, N = 31). Statistical analysis of the fold-change between quadrants identified a significantly greater magnitude of fold-change in ectoderm vs. mesenchyme (Figure 7F) most likely due to down-regulated ectodermal genes (i.e. Q1) vs. all other quadrants (Figure 7G). These data suggest that, although representing a smaller fraction of the entire tissue sampled, larger changes in gene expression were within the ectoderm lineage of E10.5 mutants.

To address further how the individual genes affected in mutant vs. control embryos fit within larger biological processes and developmental systems, we utilized Enrichr (Chen et al., 2013; Kuleshov et al., 2016) along with our stratified gene lists (Figure 7H, Supplementary file 3). First, using genes differentially expressed within the ectoderm (Q1 and Q2, N = 274) we identified the most over-represented pathway was ‘WNT-signaling’, which occurred in four of the top five categories (Figure 7H)—strongly supporting our ATAC-seq and targeted gene expression analysis at E11.5. In contrast, analysis of pathways over-represented in the mesenchyme differentially expressed gene list (Q3 and Q4, N = 164), identified the top pathways to include ‘GPCR’, ‘Osteoblast’, and ‘Neural crest’ (Figure 7H). Examination of over-represented TF binding sequences within the promoters of genes mis-regulated in the ectoderm identified TFAP2A as the most significant (Figure 7H). Further, we assessed how the expression data correlated with the ~3.1 K AP-2-dependent promoter and enhancer peaks from the ectoderm ATAC-seq results. The Q1 genes, representing ‘down-regulated ectoderm’ had the greatest overlap with 56/103 (~54%) genes having AP-2 dependent peaks while in contrast, Q2 had 57/171 (33%), Q3 had 30/133 (23%), and Q4 had 10/31 (32%). The higher proportion of AP-2 dependent peaks associated with Q1 strongly suggests that AP-2 directly regulates many of these genes within the facial ectoderm, including members of the WNT pathway, IRX family, and keratins (also see Table 1). Conversely, genes mis-regulated in the mesenchyme were shown to be significantly enriched for TCF12/4/3-interactors based on protein-protein interaction databases (Figure 7H) supporting a model in which genes affected within the ectoderm are more likely direct targets of AP-2, whereas those impacted in the mesenchyme are more likely to be indirect. The ectoderm Q1/Q2 gene list also highlighted annotations for orofacial clefting (Figure 7H)—fitting with the clefting phenotype observed in mutant embryos. Importantly, included within this list were TRP63 and GRHL3, which have both been associated with human clefting (Celli et al., 1999; Leslie et al., 2016; Peyrard-Janvid et al., 2014). Both of these genes are highly enriched in the ectoderm and down-regulated >1.5 fold within EDKO mutants, relative to controls (Supplementary file 3). Further, our studies show both genes possess AP-2-dependent ATAC-seq peaks, while TRP63 is also a proposed AP-2 transcriptional target in humans (Li et al., 2019b).

Finally, 32 out of the total 711 differentially expressed genes were related to the WNT signaling pathway, (Figure 7B, Figure 7—figure supplement 1), and their average fold-change was significantly more than the average fold-change of the remaining 679 genes (p < 0.05) (Figure 7I). This comparison was even more significant when examining genes solely within Q1 (p < 0.005) (Figure 7I). That is, WNT-pathway genes down-regulated in the ectoderm of EDKO mutants, relative to controls, were more significantly impacted than all other genes represented in Q1. Numerous WNT components—many of which were previously identified from our ATAC-seq data—including ligands (Wnt3, Wnt4, Wnt6, Wnt9b, Wnt10a, Wnt10b), WNT inhibitors (Dkk4, Kremen2, Sostdc1), and a WNT receptor (Fzd10), were represented within this list (Supplementary file 3). Again, examination of available scRNAseq data (Li et al., 2019a) shows considerable overlap between the expression of these genes and Tfap2a in the surface ectoderm (Figure 4—figure supplement 1). Consistent with these genes being expressed in the ectoderm, their read-based calculated expression levels were often low relative to mesenchymal genes but showed striking congruence between triplicates (Figure 7J). We note that the reduced expression observed for several of these genes at E10.5 in the RNAseq data was also observed at E11.5 by in situ and RT-PCR analysis (Figure 4). Furthermore, we also validated the changes seen at E10.5 for Wnt3, Wnt9b, Kremen2, and Sostdc1 using a combination of RT-PCR and in situ analysis (Figure 7—figure supplement 2).

Although Q1 genes, assigned as ectodermal down-regulated, had the most significant changes in expression (Figure 7G), several other WNT-related genes were also impacted in EDKO mutants. Specifically, additional WNT modulators (mostly repressors), Rspo2, Nkd2, Nkd1, Axin2, Dkk2, and Kremen1 were also significantly down-regulated in mutant embryos (Supplementary file 3). Several of these genes including Axin2, Kremen1, Dvl2, and Fzd10 showed notable overlap with the Tfap2 genes in the surface ectoderm but were also present at significant levels in the underlying mesenchyme while a further set including Wif1, Dkk2, Rspo2, and Nkd1 display more prominent expression in the mesenchyme than in the ectoderm (Figure 4—figure supplement 1). We had previously shown that Axin2 expression was reduced in both the ectoderm and mesenchyme (Figure 4), and we next extended these studies to a number of these other mesenchymally expressed WNT pathway genes. RT-PCR analysis of isolated mesenchymal RNA from control and EDKO facial prominences demonstrated that Wif1, Dkk2, Kremen1, and Nkd1 were also significantly reduced in expression in the mutant tissue (Figure 7—figure supplement 3). We speculate their down-regulation in the mesenchyme probably results from a regulatory feedback loop caused by reduced expression of Wnt ligands from the ectoderm. Concurrently, several Wnt receptors (Fzd5, Fzd8, and Fzd9) and related molecules (Sfrp1, Sfrp2, and Sfrp4) were up-regulated (Supplementary file 3), potentially as a response to reduced Wnt ligand levels. In summary, bioinformatic and molecular analyses of control and EDKO mutants identified AP-2α and AP-2β as essential, cooperative regulators of multiple signaling pathways and processes originating from the ectoderm during craniofacial development, most notably the WNT pathway.

WNT1 over-expression partially rescues craniofacial defects in AP-2 ectoderm mutants

Axin2 is a direct target of WNT signaling, and the Axin2-LacZ allele (Lustig et al., 2002) was incorporated into the EAKO and EDKO mutant backgrounds as a means to determine if the loss of AP-2 alleles in the ectoderm had a direct impact on WNT pathway output. In E10.5 control embryos in which Tfap2a/Tfap2b had not been targeted, β-gal activity was robust within all facial prominences and the second branchial arch (Figure 8A). In contrast, EAKO mutants displayed a reproducible drop in β-gal staining intensity throughout these regions, with the most striking disruption around the ‘hinge’ (intermediate) domain of BA1 (Figure 8B). Finally, consistent with a more exacerbated phenotype and WNT pathway perturbation, EDKO mutants showed an even more prominent drop in β-gal staining (Figure 8C). Notably, β-gal activity was clearly reduced in mesenchymal populations, supporting a model in which ectodermal AP-2 influences ectodermal to mesenchymal WNT signaling.

Figure 8 with 1 supplement see all

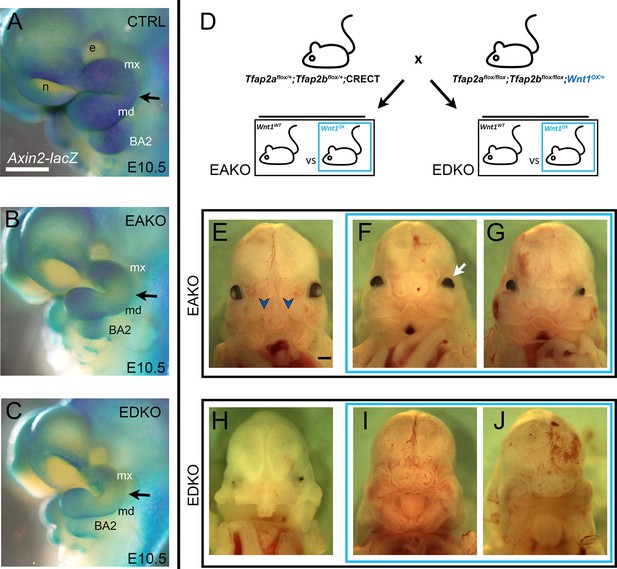

Genetic interaction between Tfap2 and the Wnt pathway.

(A–C) Lateral views of E10.5 β-galactosidase stained control (A), EAKO (B) and EDKO (C) embryos harboring the Axin2-lacZ reporter allele. The black arrow marks the position of the hinge region. (D) Schematic of genetic cross used to elevate Wnt1 expression levels in control, EAKO, or EDKO mutant embryos. (E–G) Ventral craniofacial view of E13.5 EAKO mutants that lack (E) or contain (F, G) the Wnt1 over-expression allele. The blue chevrons indicate the bilateral cleft present in (E). The white arrow indicates the lack of lens development previously noted from an excess of WNT signaling (Smith et al., 2005). (H–J) Ventral craniofacial view of E13.5 EDKO mutants that lack (H) or contain (I, J) the Wnt1 over-expression allele. Abbreviations: BA2, branchial arch 2; e, eye; md, mandibular prominence; mx, maxillary prominence; n, nasal pit. In A-C, in addition to being Axin2-lacZ+, Ctrl embryos are Tfap2aflox/+; Tfap2bflox/+, EAKO embryos are Crect; Tfap2aflox/null; Tfap2bflox/+, and EDKO embryos are Crect; Tfap2aflox/null; Tfap2bflox/null (n = 3/genotype).

We next assessed whether elevating WNT-signaling could mitigate the craniofacial defects observed in EAKO and EDKO embryos by incorporating an allele that expresses Wnt1 upon Cre-mediated recombination (Carroll et al., 2005) into our Tfap2 allelic series. First, though, we examined how Crect-mediated Wnt1 overexpression in the ectoderm might impact face development to assess its suitability as a rescue model (Figure 8—figure supplement 1). In common with controls, E12.5 Crect Wnt1ox embryos had completed fusion of the face to form an intact upper lip. However, there were developmental changes in that mutant animals had a more pronounced angle between the forebrain and snout than controls and there were also defects in eye formation, consistent with activation of the WNT pathway in this process (Smith et al., 2005). Nevertheless, based on the overall facial phenotype, we reasoned that this approach was feasible to supplement Wnt ligand expression in the facial ectoderm of the EAKO and EDKO mice. In this approach, the Crect transgene both inactivates any floxed Tfap2 alleles as well as concurrently activates Wnt1 expression in the ectoderm (Figure 8D). Comparison of E13.5 EAKO to EAKO/Wnt1ox embryos indicated that while the former (Figure 8E) had bilateral cleft lip and primary palate with a protruding central premaxilla (9 of 9), most of the latter (11/13) had achieved upper facial fusion, so that there was a slight midfacial notch in place of the aberrant premaxilla as well as the formation of nares (Figure 8F and G). Similarly, all EDKO mice (Figure 8H) had facial fusion defects leading to the prominent central premaxilla (9 of 9), but in EDKO/Wnt1ox embryos (Figure 8I and J) the severity of the clefting was diminished and the central premaxilla replaced with nares (7 of 7). Note that the face was still dysmorphic in the rescued embryos, possibly reflecting insufficient WNT pathway activity, novel defects resulting from ectopic Wnt1 expression, or additional functions regulated by AP-2 beyond the WNT pathway. Nevertheless, these data indicate that supplementing the loss of ectodermal WNT ligands in EAKO and EDKO mice can rescue major aspects of upper facial clefting fitting with our model that one of the main functions of these TFs is to regulate the WNT pathway.

Discussion

Development of the vertebrate head requires critical regulatory interactions between various tissue layers, particularly the ectoderm and underlying neural crest derived mesenchyme. Here, we show that AP-2 transcription factors are an essential component of a mouse early embryonic ectoderm GRN directing growth and morphogenesis of the underlying facial prominence tissues. Specifically, combined conditional loss of the two most highly expressed members of the family within the ectoderm, Tfap2a and Tfap2b, results in a failure of the facial prominences to meet and fuse productively. Thus, the mandibular processes fail to meet at the midline, resulting in a wide separation between the two halves of the lower jaw and a bifid tongue. In the upper face, the maxillary, and lateral and medial nasal prominences fail to align at the lambdoid junction, resulting in an extensive bilateral cleft and significant midfacial dysmorphology. In addition to the orofacial clefting phenotypes, there was also loss of the normal hinge region between the mandible and maxilla resulting in syngnathia, and a duplication of Meckel’s cartilage. Overall, the data indicate that appropriate growth, morphogenesis, and patterning of the facial prominences are all severely disrupted. The finding that AP-2α and AP-2ß work redundantly in the facial ectoderm complements studies showing that they can also work together within the cranial neural crest to control facial development (Van Otterloo et al., 2018). In these previous studies, the neural crest specific deletion of these factors resulted in a different type of orofacial cleft—an upper midfacial cleft—but in common with the EDKO mutants also caused syngnathia. The observations that AP-2α and AP-2ß have distinct as well as overlapping functions with both the neural crest and ectoderm for mouse facial development also inform both human facial clefting genetics and evolutionary biology. With respect to humans, TFAP2A mutations are associated with Branchio-Oculo-Facial Syndrome (MIM, 113620), while TFAP2B is mutated in Char Syndrome (MIM, 169100) (Satoda et al., 2000). Although both syndromes have craniofacial components to their pathology, including changes to the nasal bridge and the position of the external ears, only mutations in TFAP2A are associated with orofacial clefting, usually lateral. These findings support a more significant role for TFAP2A in influencing orofacial clefting in both mouse and human and suggest that it is the reduction of AP-2α function in the ectoderm—rather than the NCC —that is associated with this human birth defect.

In the context of chordate evolution, the prevailing hypothesis is that AP-2 has an ‘ancestral’ role within the non-neural ectoderm followed by an ‘evolved’ role within the neural crest cell lineage of vertebrates (Meulemans and Bronner-Fraser, 2002; Van Otterloo et al., 2012). The current studies further support that AP-2 proteins have critical roles within the embryonic ectoderm that have been conserved from cephalochordates and tunicates through to mammals. Alongside established roles for AP-2 transcription factors in NCCs (Brewer et al., 2004; Martino et al., 2016; Prescott et al., 2015; Van Otterloo et al., 2018), these observations raise the possibility that there may be a coordinated and complex interplay between AP-2 activity in the two tissue layers that has been conserved during evolution. The combined function of the two AP-2 factors in craniofacial development also reflects the more severe pathology resulting from the loss of more than one AP-2 gene that has been documented in other mouse developmental systems including the eye, nervous system, and skin (Hicks et al., 2018; Schmidt et al., 2011; Wang et al., 2008; Zainolabidin et al., 2017). The propensity of the AP-2 proteins to act in concert has also been observed in additional vertebrate species, particularly in the chick and zebrafish, where loss of more than one gene uncovers joint functions in neural crest, face, and melanocyte development (Hoffman et al., 2007; Knight et al., 2005; Li and Cornell, 2007; Rothstein and Simoes-Costa, 2020; Van Otterloo et al., 2010). Notably, in the zebrafish, previous studies have documented an interaction between AP-2α and AP-2ß during cranial NCC development (Knight et al., 2005). Unlike in the mouse, AP-2ß’s role was confined to the surface ectoderm, based on gene expression and transplant experiments. However, more recent single-cell transcriptome profiling has identified tfap2b expression in the zebrafish cranial neural crest (Mitchell et al., 2021), suggesting features between these models (i.e. zebrafish and mouse) may be more conserved than previously thought.

The joint function of these AP-2 proteins in controlling specific aspects of gene expression presumably reflects the similar consensus sequence recognized by all family members (Badis et al., 2009; Bosher et al., 1996; Williams and Tjian, 1991). Thus, the absence of AP-2ß alone may not cause major developmental issues in mouse facial development due to the ability of the remaining AP-2α protein to bind and regulate shared critical genes. However, loss of both proteins would lower the amount of functional AP-2 protein available for normal gene regulation. The hypothesis that particular levels of AP-2 are required for achieving critical thresholds of gene activity is also supported by the different phenotypes uncovered by the loss of particular Tfap2a and Tfap2b allelic combinations. Thus, while the loss of one allele of Tfap2a—or both alleles of Tfap2b—in the ectoderm is tolerated in the context of facial development, the combined loss of all three of these four alleles is not, and the phenotypes become more severe when all four alleles are defective. We note that this phenomenon was also observed when these genes were targeted in the neural crest (Van Otterloo et al., 2018). In both the NCCs and ectoderm the role of AP-2α seemed to be more significant than AP-2ß based on the phenotypes observed—since the presence of one functional allele of Tfap2a resulted in less severe pathology than the converse where only a single productive Tfap2b allele was expressed. The reasons behind the more prominent function of AP-2α in these systems remains unclear, especially since the two proteins are over 70% identical and bind to the same DNA recognition sequences. Nevertheless, it is possible that some alterations in the mRNA and/or amino acid sequence could differentially affect stability, localization, or interaction with cofactors. Alternatively, there might be subtle differences in the timing, distribution, or levels of functional AP-2α and AP-2ß protein in these tissues that account for the changes in susceptibility to pathology. Further studies will be needed to determine how the consequence of Tfap2a loss is greater than Tfap2b.

One notable observation, though, is that no unique and irreplaceable function exists for any AP-2α/ß heterodimers in the mouse ectoderm or neural crest. This conclusion is based on the finding that loss of Tfap2b—a situation that would impact both AP-2ß homodimers and AP-2α/ß heterodimers—does not impact facial development in these experiments. Finally, the sensitivity of facial development to changes in the allelic dosage of the AP-2 proteins makes this gene family a potential contributor to the evolution of facial shape. Indeed, this conjecture is supported by studies comparing genetic and morphological changes in different threespine stickleback (Erickson et al., 2018) and Arctic charr (Ahi et al., 2015) populations adapted to diverse environmental conditions, as well as by comparative studies of IPS-derived cranial neural crest cells from human and chimp, which suggest that changes in AP-2 expression and/or gene targets correlate with facial shape changes (Prescott et al., 2015).

The severe EDKO phenotypes also indicated that the presence or absence of these AP-2 transcription factors in the ectoderm must have a profound influence on chromatin dynamics and gene expression. To probe this in depth, ATAC-seq, H3K4me3 ChIP-seq, and RNAseq were performed on control samples derived from the embryonic mouse face, to correlate respectively chromatin accessibility, active promoter marks, and gene expression. These datasets revealed chromatin signatures that were tissue generic as well as a subset that were specific for the E11.5 facial ectoderm with the latter enriched for P53/P63/P73, AP-2, TEAD, GRHL, and PBX binding motifs. In this respect binding motifs for P53, AP-2, and TEAD family members have previously been found associated with ectodermal-specific gene regulatory pathways in embryonic skin (Fan et al., 2018; Wang et al., 2006; Wang et al., 2008; Yuan et al., 2020). Notably, our studies extend and refine the previous genome-wide analysis of embryonic skin conducted by Fan et al., 2018 by focusing on the E11.5 facial ectoderm, enabling the detection of additional binding motifs for GRHL and PBX TF family members that are critical craniofacial patterning genes. We complemented the analysis of control samples by performing equivalent ATAC-seq and RNAseq studies on EDKO facial ectoderm or whole facial prominences, respectively. Deletion of these two transcription factors led to a significant (5%) genome-wide loss of chromatin accessibility that was centered on AP-2 consensus motifs, particularly in potential distal enhancer elements. Despite changes in the accessibility of AP-2 binding sites, motifs for P53 and TEAD family members were still highly enriched in the EDKO mutant samples. These observations provide support for previous ATAC-seq analysis of deltaNp63 mutants which hypothesized that the AP-2 and p63 programs may function independently at the protein level to regulate chromatin accessibility in embryonic ectoderm (Fan et al., 2018). Many of the genes linked to AP-2 binding motifs were associated with annotations aligned to skin development, such as keratins, cadherins, and gap junction proteins. However, further analysis of the gene list also revealed an evolutionary conserved group of AP-2-binding motifs connected with WNT-related genes, many associated with craniofacial development.

A strong link between AP-2 function, skin development, and WNT pathway expression was also detected in the RNAseq datasets. Changes between control and EDKO mutants in the expression of various keratin genes as well Gjb6, Trp63, Grhl3, and Lin28a suggest a failure or delay in appropriate skin differentiation in the latter embryos. Further, loss of AP-2α/ß caused a significant reduction in expression of many Wnt ligands within the facial ectoderm including Wnt3, Wnt6, Wnt9b, and Wnt10a. Importantly, these four Wnt genes have been associated with human orofacial clefting (Reynolds et al., 2019), and alterations of Wnt9b also cause mouse CL/P (Juriloff et al., 2005; Juriloff et al., 2006). The reduced output of WNT signaling from the ectoderm was matched by a reduction of Axin2-LacZ reporter expression in the underlying mesenchyme, and there were also multiple changes in additional WNT components in the mesenchyme suggesting that loss of ectodermal AP-2 expression has significantly disrupted the function of this pathway throughout the developing face. Note that, although Wnt ligand expression is reduced in the ectoderm of EDKO mutants, it is not completely lost. Therefore, the facial pathology is not as severe as that observed with the ectodermal loss of Wls, a gene required for WNT ligand modification and secretion, in which the majority of the face is absent (Goodnough et al., 2014). The presence of teeth in the EDKO mutants (Woodruff et al., 2021)—although abnormal in position and number—also argues against a catastrophic loss of WNT signaling within the oral ectoderm. Further studies will be required to assess how the loss of Tfap2a and Tfap2b in the ectoderm affects other structures that require ectodermal WNT function, such as hair, whiskers, and mammary buds. With respect to facial development, additional evidence for a contribution of the WNT signaling pathway to the AP-2 mutant phenotype was obtained by overexpressing Wnt1 in the EDKO mutant background, which resulted in a significant rescue of the facial dysmorphology and clefting. A previous study also indicated that ectopic Wnt1 expression could rescue CL/P caused by loss of PBX expression (Ferretti et al., 2011), suggesting either that reduced WNT signaling is a common pathogenic mechanism for clefting or that facial growth stimulated by excess WNT signaling can mitigate the defects in juxtaposition and fusion of the facial prominences. Note that normal facial morphology was not fully recapitulated in the EDKO rescue experiments, possibly reflecting that the timing and level of Wnt1 expression was not optimal. We also note that Wnt1 overexpression did not affect clefting of the lower jaw in EAKO and EDKO mice, nor is the expression of genes previously linked with syngnathia and jaw-joint defects, such as Foxc1, Six1, Bmp4, Fgf8, or Dlx (Jeong et al., 2008; Inman et al., 2013; He et al., 2014; Achilleos and Trainor, 2015; Liu et al., 2019; Abe et al., 2021) family members significantly changed in the EDKO model. Therefore, further analysis will be required to uncover the role of ectodermal Tfap2 expression in development of the syngnathia and other mandible defects. Indeed, our data shows that AP-2 directs additional ectodermal programs that also contribute to face formation—including IRX and IRF TF expression—as well as CXCL, EDN, FGF, and NOTCH signaling that presumably contribute to the overall pathology of the EAKO and EDKO mice. Importantly, IRF6—a gene involved in orofacial clefting (Kondo et al., 2002; Zucchero et al., 2004)—has previously been identified as a critical AP-2 target. Studies in human have shown that a polymorphism in an upstream enhancer element either generates or disrupts a binding site for AP-2 proteins, with the latter variant increasing the risk for orofacial clefting (Rahimov et al., 2008). This enhancer is conserved in the mouse, and its accessibility is altered in the EDKO mutant. Further, the expression of Irf6 is also reduced in the EDKO mutants (Supplementary file 3), correlating with the loss of AP-2 binding, and providing a further pathway that might contribute to the overall phenotype. In summary, the combination of ATAC-seq, ChIP-Seq, and expression analyses highlight critical genes that are impacted by loss of AP-2 transcription factors. These data greatly expand our understanding of the gene regulatory circuits occurring in the ectoderm that regulate facial development and underscore a critical role for AP-2α and AP-2ß in controlling appropriate genome access as well as gene expression.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Genetic reagent (Mus musculus)Tfap2atm1WillZhang et al., 1996Tfap2a null alleleIn-house
Genetic reagent (Mus musculus)Tfap2atm2Will/JBrewer et al., 2004Tfap2a conditional alleleIn-house
Genetic reagent (Mus musculus)Tfap2btm1WillMartino et al., 2016; Van Otterloo et al., 2018Tfap2b null alleleIn-house
Genetic reagent (Mus musculus)Tfap2btm2WillMartino et al., 2016; Van Otterloo et al., 2018Tfap2b conditional alleleIn-house
Genetic reagent (Mus musculus)CrectSchock et al., 2017Crect transgene alleleIn-house; Cre-driver line with Cre driven by a Tfap2a intronic enhancer
Genetic reagent (Mus musculus)B6.129P2-Axin2tm1Wbm/JLustig et al., 2002Axin2lacZObtained from Jackson Laboratory
Genetic reagent (Mus musculus)Gt(ROSA)26Sortm2(Wnt1/Gfp)Amc/JCarroll et al., 2005Wnt1OxObtained from Jackson Laboratory
Genetic reagent (Mus musculus)Gt(ROSA)26Sortm1SorSoriano, 1999r26rObtained from Jackson Laboratory
Genetic reagent (Mus musculus)Gt(ROSA)26Sortm4(ACTB-tdTomato,-EGFP)Luo/JMuzumdar et al., 2007mT/mGObtained from Jackson Laboratory
Antibodyanti-H3K4Me3 (Rabbit, monoclonal)Millipore, cat. #04–7452.5 µL/ChIP
Antibodyanti-p-Histone H3 (Rabbit, polyclonal)sc-8656-R, Santa Cruz Biotechnology1:250 dilution
Software, algorithmNGmergeGaspar, 2018Read trimming
Software, algorithmBowtie2Langmead et al., 2009Mapping
Software, algorithmSamtoolsLi et al., 2009Format conversion
Software, algorithmGenrich (v0.5)https://github.com/jsh58/Genrich, Gaspar, 2022RRID:SCR_002630ATAC-seq peak calling
Software, algorithmPicard (v2.19)http://broadinstitute.github.io/picardRRID:SCR_006525Duplicate removal
Software, algorithmdeepToolsRamírez et al., 2016Read normalization/ visualization
Software, algorithmGREAT algorithm (v4)McLean et al., 2010Pathway enrichment
Software, algorithmHOMERHeinz et al., 2010Motif enrichment
Software, algorithmTrim Galore!Babraham Bioinformatics, Babraham Institute, Cambridge, UKRead trimming
Software, algorithmHISAT2Pertea et al., 2016Read mapping
Software, algorithmStringTiePertea et al., 2016RNA expression quantification
Software, algorithmCuffDiff2Trapnell et al., 2012Differential gene expression
Software, algorithmkallistoBray et al., 2016RNA expression quantification
Software, algorithmsleuthPimentel et al., 2017Differential gene expression and visualization

Animal procedures

Request a detailed protocol

All experiments were conducted in accordance with all applicable guidelines and regulations, following the ‘Guide for the Care and Use of Laboratory Animals of the National Institutes of Health’. The animal protocol utilized was approved by the Institutional Animal Care and Use Committee of the University of Colorado – Anschutz Medical Campus (animal protocol #14) and the University of Iowa (animal protocol #9012197). Noon on the day a copulatory plug was present was denoted as embryonic day 0.5 (E0.5). For the majority of experiments, littermate embryos were used when comparing between genotypes. Yolk sacs or tail clips were used for genotyping. DNA for PCR was extracted using DirectPCR Lysis Reagent (Viagen Biotech) plus 10 µg/ml proteinase K (Roche), incubated overnight at 65 °C, followed by heat inactivation at 85 °C for 45 min. Samples were then used directly for PCR-based genotyping with primers (Supplementary file 4) at a final concentration of 200 nM using the Qiagen DNA polymerase kit, including the optional Q Buffer solution (Qiagen).

Mouse alleles and breeding schemes

Request a detailed protocol

The Tfap2a null (Tfap2atm1Will Zhang et al., 1996) and conditional alleles (Tfap2atm2Will/J [Brewer et al., 2004]), the Tfap2b null (Tfap2btm1Will) and conditional alleles (Tfap2btm2Will [Martino et al., 2016; Van Otterloo et al., 2018]), as well as Crect transgenic mice (Schock et al., 2017), have been described previously. Crect is a Cre-driver line with Cre driven by a Tfap2a intronic enhancer. Axin2lacZ (B6.129P2-Axin2tm1Wbm/J) and Wnt1Ox (Gt(ROSA)26Sortm2(Wnt1/Gfp)Amc/J) mice (Carroll et al., 2005; Lustig et al., 2002) were obtained from Jackson Laboratory (Bar Harbor, ME). Note that the Wnt1ox allele was always introduced into the experimental embryos via the dam, to avoid premature activation of this allele in the sire as this genetic interaction was lethal. EDKO experiments were performed using mice that were either Crect; Tfap2aflox/flox; Tfap2bflox/flox or Crect; Tfap2anull/flox; Tfap2bnull/flox as indicated in the text. Similarly, EBKO mice were either Crect; Tfap2aflox/+; Tfap2bflox/flox or Crect; Tfap2aflox/+; Tfap2bnull/flox and EAKO mice either Crect; Tfap2aflox/flox; Tfap2bflox/+ or Crect; Tfap2anull/flox; Tfap2bflox/+. We did not detect any gross morphological differences between the two types of EDKO, EAKO, or EBKO mice which differ in respect to the number of functional Tfap2a or Tfap2b alleles in tissues that do not express Crect. Although the Crect transgene is used here to target the early embryonic ectoderm, a previous report has indicated that it frequently produces a broader pattern of recombination (Schock et al., 2017). We used several approaches to avoid this broader expression pattern. First, the Crect transgene was always introduced into the experimental embryos via the sire to reduce global recombination sometimes seen with transmission from the female. Second, all sires were tested using reporter lines such as (Gt(ROSA)26Sortm1Sor) (Soriano, 1999) or mT/mG, Gt(ROSA)26Sortm4(ACTB-tdTomato,-EGFP)Luo/J (Muzumdar et al., 2007) to ensure that they consistently produced the desired pattern of recombination before they were used to generate EAKO, EBKO, or EDKO animals (Figure 1—figure supplement 1). We also confirmed the overlap between the expression of Cre, Tfap2a, and Tfap2b in the ectoderm by mining a previously published single cell RNAseq dataset (Li et al., 2019a; Figure 1—figure supplement 1). Lastly, we determined that the Crect transgene was highly efficient at targeting the Tfap2a and Tfap2b loci based upon RNA expression and genomic recombination associated with these genes in Cre expressing cells (Figure 1—figure supplement 2).

Tissue preparation for ATAC-Seq

Request a detailed protocol

For ATAC-seq analysis, E11.5 embryos were dissected into ice-cold PBS and associated yolk sacs used for rapid genotyping using the Extract-N-Amp Tissue PCR kit as recommended by the manufacturer (Sigma). During genotyping, the facial prominences were carefully removed from individual embryos using a pair of insulin syringes and placed in a 24-well plate with 1 mL of 1 mg/ml Dispase II (in PBS). The samples were incubated with rocking at 37 °C for 30–40 min and then the facial ectoderm carefully dissected away from the mesenchyme into ice-cold PBS, as described (Li and Williams, 2013). Facial ectoderm was then centrifuged at 4 °C, 500 g, for 3 min in a 1.5 mL Eppendorf tube, washed 1 x with ice-cold PBS, and then centrifuged again. Following resuspension in 750 µL of 0.25% trypsin-EDTA, samples were incubated at 37 °C for 15 min with gentle agitation. Following addition of 750 µL of DMEM with 10% FBS to inhibit further digestion, cells were dissociated by pipetting up and down multiple times with wide orifice pipette tips. Cells were subsequently spun at 300 g for 5 min and washed with PBS containing 0.4% BSA, and this step was repeated twice. Finally, the cell pellet was resuspended with 50 µL of PBS and the density of the single-cell suspension quantified on a hematocytometer.

ATAC-Seq transposition, library preparation, and sequencing

Request a detailed protocol

Following genotype analysis of embryos used for facial ectoderm isolation, EDKO (Crect; Tfap2aflox/flox; Tfap2bflox/flox) and control littermate samples lacking Crect (Tfap2aflox/+; Tfap2bflox/+) were used for the ATAC-seq protocol, largely following procedures previously described (Buenrostro et al., 2013; Buenrostro et al., 2015; Corces et al., 2017). Briefly, 50,000 cells from each sample were pelleted at 500 g for 5 minutes at 4 °C. The pellet was then resuspended in 50 µL of cold lysis buffer (10 mM Tris-HCl, pH 7.5; 10 mM NaCl; 3 mM MgCl2; 0.1% NP-40, 0.1% Tween-20; 0.01% Digitonin) by gently pipetting ~4 times to release the nuclei which were then incubated on ice for 3 min. The sample was next spun at 500 g for 20 min at 4 °C and the pelleted nuclei resuspended in Tagmentation mix (e.g. 25 µL 2 x Nextera TD Buffer, 2.5 µL Nextera TD Enzyme, 0.1% Tween-20, 0.01% Digitonin, up to 50 µL with nuclease-free water) and placed at 37 °C for 30 min in a thermocycler. Following transposition, samples were purified using the QIAGEN minElute PCR Purification Kit (Qiagen) and eluted with 11 µL of supplied Elution Buffer. Transposed DNA was next indexed with a unique barcoded sequence and amplified prior to sequencing. Briefly, 10 µL of transposed DNA was mixed with the Nextera Ad1 PCR primer as well as a unique Nextera PCR primer (e.g. Ad2.x) and NEBNext HighFidelity 2 x PCR Master Mix. Samples were then amplified using the following cycling parameters: [72 °C, 5 min], [98 °C, 30 sec], [98 °C, 10 sec; 63 °C, 30 sec; 72 °C, 1 min (repeat 10–12 cycles)]. Following cycle 5, an aliquot of sample was removed for Sybr-green based quantification to determine the number of remaining cycles required to reach adequate amounts for sequencing without introducing over-amplification artifacts due to library saturation. Following indexing and amplification, samples were purified using two rounds of AmpureXP bead-based size selection. Library purity, integrity, and size were then confirmed using High Sensitivity D1000 ScreenTape and subsequently sequenced using the Illumina NovaSEQ6000 platform and 150 bp paired-end reads to a depth of ~75 × 106 reads per sample, carried out by the University of Colorado, Anschutz Medical Campus, Genomics and Microarray Core.

H3K4me3 histone ChIP

Request a detailed protocol

For H3K4me3 based histone ChIP-seq analysis, craniofacial ectoderm was first isolated from E10.5 and E11.5 wild-type mouse embryos, as previously described (Li and Williams, 2013). Once isolated and pooled, tissue/chromatin was crosslinked with 1% formaldehyde at RT for 10 min. Following crosslinking, reactions were quenched using 0.125 M glycine, followed by multiple PBS washes. Samples were subsequently frozen in liquid nitrogen and stored at –80 °C. Once ~5 mg of tissue was collected per stage (e.g. E10.5, N = ~ 50 embryos; or E11.5, N = ~ 15 embryos), samples from multiple dissections, but similar stages, were pooled and combined with 300 µl of ‘ChIP Nuclei Lysis buffer’ (50 mM Tris-HCl, pH 8.0, 10 mM EDTA, 1% SDS), with 1 mM PMSF and 1 X proteinase inhibitor cocktail (PICT, 100 X from Thermo Scientific, Prod # 1862209). Pooled tissue was resuspended completely and subsequently incubated at RT for 10 mins. Following incubation, chromatin was fragmented using a Bioruptor (Diagenode, Cat. No. UCD-200) with the following settings: High energy, 30 s on, 30 s off, with sonication for 45 min. Following shearing, chromatin was assessed as ~100–500 bp in size. Next, a small portion of fragmented chromatin was saved as input, while the rest was diluted 1 in 5 in RIPA buffer (150 mM NaCl, 1% NP-40, 0.5% deoxycholate, 0.1% SDS, 50 mM Tris pH 8.0, 5 mM EDTA, plus PMSF and PICT) followed by the addition of 20 µl protein A/G agarose beads (Pierce, Thermo Scientific, Prod # 20423) prewashed with RIPA buffer to eliminate non-specific binding. The pre-cleaned chromatin was then incubated with 2.5 µL of monoclonal H3K4Me3 primary antibody (Millipore, cat. #04–745), while rotating at 4 °C, overnight. The following day, 20 µl protein A/G beads pre-saturated with 5 mg/ml BSA in PBS (Sigma, A-3311) were washed in RIPA buffer and subsequently added to the chromatin/antibody mix at 4 °C, rotating, for 2 hr. Samples were then washed twice in RIPA, four times in Szak Wash (100 mM Tris HCl pH 8.5, 500 mM LiCl, 1% NP-40, 1% deoxycholate), twice more in RIPA followed by two TE washes (10 mM Tris HCl pH 8.0, 1 mM EDTA pH 8.0). Finally, the bead slurry was resuspended in 100 µl TE and the remaining bound chromatin was eluted off the beads using 200 µl 1.5 X ‘Elution Buffer’ (70 mM Tris HCl pH 8.0, 1 mM EDTA, 1.5% SDS) at 65 °C for 5 min. Once eluted, crosslinks were reversed by incubating ChIP’d samples and input samples at 65 °C overnight in 200 mM NaCl. Samples were then subjected to 20 µg of Proteinase K digestion at 45 °C for 1 hr and DNA subsequently extracted using a standard Phenol:Chloroform, EtOH-precipitation based approach. Purified, pelleted, DNA was then resuspended in 20 µl water.

H3K4me3 histone ChIP-Seq library preparation and sequencing

Request a detailed protocol

Once purified fragments were obtained and quality and size confirmed, libraries were constructed using the Nugen ChIP Seq Library Construction Kit. Library purity, integrity, and size were then confirmed using High Sensitivity D1000 ScreenTape and subsequently sequenced using an Illumina MiSEQ platform and 50 bp single-end reads to a depth of ~25–30 × 106 reads per experimental sample and ~10 × 106 reads for input, carried out by the University of Colorado, Anschutz Medical Campus, Genomics and Microarray Core.

Bioinformatic processing of ATAC-Seq and histone ChIP-Seq data

ATAC-seq trimming, mapping, peak calling:

Request a detailed protocol

Following sequencing and demultiplexing, paired-end reads from each sample were first trimmed using NGmerge (with the adapter-removal flag specified) (Gaspar, 2018). Following trimming, samples were individually mapped to the Mm10 genome using Bowtie2 (Langmead et al., 2009) with the following settings (--very-sensitive -k 10) and converted to bam format and sorted using Samtools (Li et al., 2009). To find sites of ‘enrichment’ (i.e. peak calling) we used Genrich (https://github.com/jsh58/Genrich, Gaspar, 2022) with the following flags set (-j, -y, -r, -e chrM). First to identify control peaks, we used the two control replicate ATAC-seq alignment files—produced from Bowtie2/Samtools—as ‘experimental input’, with the above Genrich settings (in this approach, ‘background’ is based on the size of the analyzed genome, i.e., Mm10, minus mitochondrial DNA). We did a similar analysis using the two mutant replicate alignment files as ‘experimental input’ (rather than control)—identifying significantly enriched regions in the mutant dataset. Additionally, to compare the two datasets directly, we supplied the two control alignment files as ‘experimental’ while simultaneously supplying the two mutant alignment files as ‘background’, thus, identifying regions that were significantly enriched in controls relative to mutants. These analyses resulted in genomic coordinates of ‘peaks’ for each of the supplied datasets.

H3K4me3 histone ChIP-seq trimming, mapping, and overlapping

Request a detailed protocol

Following sequencing, samples were demultiplexed and mapped to the Mm10 genome build using NovoAlign (Novocraft). Mapped reads were then processed for duplicate removal using the Picard suite of tools (http://broadinstitute.github.io/picard). The resulting deduplicated mapped reads were subsequently indexed using Samtools (Li et al., 2009) and the resulting indexed Bam files were normalized using the bamCoverage function in deepTools (Ramírez et al., 2016). The resulting normalized bigWig files were then used with the control ATAC-seq bed file (genomic coordinates of peaks), along with the computeMatrix function in deepTools, to generate a matrix file. This matrix was then visualized using the plotHeatmap function in deepTools with a K-means cluster setting of 2, identifying ATAC-seq coordinates that had high or little to no H3K4me3 enrichment.

Multi-organ ATAC-seq dataset overlapping

Request a detailed protocol

First, publicly available ATAC-seq datasets were downloaded from the ENCODE consortium in bigWig file format (E11.5 heart: ENCSR820ACB; E11.5 liver: ENCSR785NEL; E11.5 hindbrain: ENCSR012YAB; E11.5 midbrain: ENCSR382RUC; E11.5 forebrain: ENCSR273UFV; E11.5 neural tube: ENCSR282YTE; E15.5 kidney: ENCSR023QZX; E15.5 intestine: ENCSR983JWA). A matrix file was then generated using all bigWig files along with the genomic coordinates obtained from the H3K4me3 clustering above (specifically the coordinates from the H3K4me3 negative cluster) using the computeMatrix function in deepTools. Once generated, the matrix file was then visualized using the plotHeatmap function, with a K-means cluster setting of 3, in deepTools.

GREAT analysis:
Request a detailed protocol

To determine and plot the general distribution of sub-clusters and their genomic coordinates relative to transcriptional start site of genes, the GREAT algorithm (v4) (McLean et al., 2010) was used with default settings. GREAT was also utilized for identifying enriched biological pathways and gene sets within discrete sub-clusters, with the ‘Association rule settings’ limited to 100 kb distal in the ‘Basal plus extension’ setting.

Motif enrichment analysis

Request a detailed protocol

For motif enrichment analysis, genomic coordinates were supplied in BED file format to the HOMER software package (Heinz et al., 2010), using the “findMotifsGenome.pl” program and default settings.

Association of gene expression and ATAC-seq peaks

Request a detailed protocol

First, gene expression for the craniofacial ectoderm and mesenchyme, at E11.5, was calculated using our publicly available datasets profiling the facial ectoderm and mesenchyme from E10.5 through E12.5 (Hooper et al., 2020) (available through the Facebase Consortium website, https://www.facebase.org/, under the accession number FB00000867). Expression values for all 3 craniofacial prominences (e.g. mandibular, maxillary, frontonasal) were averaged independently for the ectoderm and mesenchyme, establishing an ‘expression value’ for each tissue compartment of the entire face at E11.5. Next, an ‘ectoderm enrichment’ value was calculated for each gene by taking the quotient of the ectoderm value divided by the mesenchyme value. Concurrently, ATAC-seq peaks from various sub-clusters were associated with a corresponding gene(s) using the GREAT algorithm and these associations were downloaded using the ‘Gene - > genomic regions association table’ function in GREAT. A ‘peak-associated profile’ was then ascribed for each gene (i.e. the type and number of sub-cluster peaks associated with each gene), allowing the binning of genes based on this profile. Bins of genes, and their associated ‘ectoderm enrichment’ value were then plotted in R using the empirical cumulative distribution function (stat_ecdf) in ggplot2 and significance calculated using a Kolmogorov-Smirnov test (ks.test).

Conservation analysis

Request a detailed protocol

To determine the level of conversation for AP-2-dependent genomic elements (Figure 3E) the phastCons60way (scores for multiple alignments of 59 vertebrate genomes to the mouse genome) dataset was downloaded from the University of California, Santa Cruz (UCSC) genome browser in bigWig format (http://hgdownload.cse.ucsc.edu/goldenpath/mm10/phastCons60way/). A matrix file was then generated using the bigWig file along with the ‘AP-2 dependent’ genomic coordinates using the computeMatrix function in deepTools. Once generated, the matrix file was then visualized using the plotHeatmap function, with a K-means cluster setting of 2, in deepTools.

RNA-sequencing

Request a detailed protocol

For RNA-sequencing E10.5 facial prominences encompassing ectoderm and mesenchyme of the mandibular, maxillary, and nasal prominences were micro-dissected in ice cold PBS using insulin syringes and stored in RNA-later at –20 °C. Once sufficient EDKO (Crect; Tfap2aflox/null; Tfap2bflox/null) and control littermate samples lacking Crect (e.g. Tfap2aflox/+; Tfap2bflox/+) were identified for three biological replicates of each, tissue was removed from RNA-later and RNA harvested as previously described using the microRNA Purification Kit (Norgen Biotek) and following manufacturer’s protocol (Van Otterloo et al., 2018). Following elution, mRNA was further purified using the Qiagen RNAeasy Kit according to the manufacturer’s protocol. The quality of extracted mRNA was assessed using DNA Analysis ScreenTape (Agilent Technologies) prior to library production. Following validation of extracted mRNA, cDNA libraries were generated using the Illumina TruSeq Stranded mRNA Sample Prep Kit. All libraries passed quality control guidelines and were then sequenced using the Illumina HiSeq2500 platform and single-end reads (1 × 150) to a depth of ~15–25 × 106 reads per sample. To identify differentially expressed genes between control and mutant groups, we next utilized a standard bioinformatic pipeline for read filtering, mapping, gene expression quantification, and differential expression between groups (see below). Library construction and sequencing was carried out by the University of Colorado, Anschutz Medical Campus, Genomics and Microarray Core.

Bioinformatic processing of RNA-Seq data

Request a detailed protocol

Raw sequencing reads were demultiplexed and fastq files subsequently processed, as previously described (Van Otterloo et al., 2018). Briefly, reads were trimmed using the Java software package Trim Galore! (Babraham Bioinformatics, Babraham Institute, Cambridge, UK) and subsequently mapped to the Mm10 genome using the HISAT2 software package (Pertea et al., 2016) (both with default settings). Following mapping, RNA expression levels were generated using StringTie (Pertea et al., 2016) and differential expression computed between genotypes using CuffDiff2 (Trapnell et al., 2012), with a significance cut-off value of Q < 0.05 (FDR-corrected p-value). As a secondary approach, particularly for plotting differential gene expression differences for specific transcripts (e.g. Figure 7J), quantification of transcript abundance was calculated using kallisto (Bray et al., 2016) and then compared and visualized using sleuth (Pimentel et al., 2017).

Skeletal staining

Request a detailed protocol

Concurrent staining of bone and cartilage in E18.5 embryos occurred as previously described (Van Otterloo et al., 2016). Briefly, following euthanasia and removal of skin and viscera, embryos were first dehydrated in 95% EtOH and then for ~2 days in 100% Acetone. Embryos were then incubated in a mixture of alcian blue, alizarin red, acetic acid (5%) and 70% EtOH, at 37 °C, for ~2–3 days. Samples were then placed in 2% KOH (~1–2 days) and then 1% KOH (~1–2 days) to allow for clearing of remaining soft tissue. Final skeletal preparations were stored at 4 °C in 20% glycerol. Staining of only cartilage in E15.5 embryos occurred as previously reported (Van Otterloo et al., 2016). Briefly, following fixation in Bouin’s at 4 °C overnight, embryos were washed with repeated changes of 70% EtOH and 0.1% NH4OH until all traces of Bouin’s coloration was removed. Tissue was permeabilized by two 1 hr washes in 5% acetic acid, followed by overnight incubation in a solution of methylene blue (0.05%) and acetic acid (5%). Next, embryos were washed twice with 5% acetic acid (~1 hr each wash) and then twice with 100% MeOH (~1 hr each wash). Finally, embryos were cleared with a solution consisting of one-part benzyl alcohol and two parts benzyl benzoate (BABB). A minimum of three embryos were analyzed per genotype.

In situ hybridization

Request a detailed protocol

Embryos were fixed overnight in 4% PFA at 4 °C and then dehydrated through a graded series of MeOH:PBST washes and stored in 100% MeOH at –20 °C. Prior to hybridization they were rehydrated from MeOH into PBST as previously described (Simmons et al., 2014; Van Otterloo et al., 2016). Note, for some experiments, embryonic heads were bisected in a mid-sagittal plane, with either half being used with a unique anti-sense RNA probe. At a minimum, each in situ probe examined was run on three control and three EDKO mutant embryos. Antisense RNA probes were generated using a unique fragment that was cloned into a TOPO vector (Life Technologies, Grand Island, NY), using cDNA synthesized from mouse embryonic mRNA as a template. cDNA was generated using the SuperScript III First-Strand Synthesis System (Life Technologies, Grand Island, NY), as per manufacturer’s instructions. The Wnt3 probe is equivalent to nucleotides 674–1727 of NM_009521.2; Wnt9b to nucleotides 1158–2,195 of NM_011719; Kremen2 probe is equivalent to nucleotides 206–832 of NM_028416. Sequence verified plasmids were linearized and antisense probes synthesized using an appropriate DNA-dependent RNA polymerase (T7/T3/SP6) and DIG RNA labeling mix (Roche, Basel, Switzerland).

Cell proliferation analysis

Request a detailed protocol

To analyze cell proliferation in sectioned mouse embryos, E11.5 embryos were harvested and fixed overnight in 4% PFA at 4 °C. The following day, embryos were moved through a series of PBS and sucrose washes, followed by a mixture of sucrose and OCT. Embryos were then transferred to a plastic mold containing 100% OCT. After orientating the tissue samples in the plastic molds, the OCT ‘block’ was frozen on dry ice and stored at –80 °C. OCT blocks, containing control and mutant embryos, were then sectioned at 12 µM on a cryostat. Sectioned materials were stored at –80 °C. For immunolabeling, slides which contained the frontonasal, maxillary, or mandibular prominence were brought to room temperature, washed 4 × 15 min in PBST, blocked for 1 hr in PBST plus 3% milk. Sections were then incubated overnight in primary antibody (anti-p-Histone H3, sc-8656-R, Santa Cruz Biotechnology, rabbit polyclonal) diluted 1:250 in PBST at 4 °C in a humidified chamber. Following primary antibody incubation, samples were washed twice for 10  min in PBST at room temperature, followed by a 30  min wash in PBST/3% milk. Samples were then incubated for 1  hr with a secondary antibody (goat anti-rabbit IgG, Alexa Flour 488 conjugate, ThermoFisher Scientific/Invitrogen, R37116) and DRAQ5 (Abcam, ab108410) nuclear stain, diluted 1:250 and 1:5000, respectively, in PBST. Processed samples were imaged on a Leica TCS SP5 II confocal microscope and individual images taken for visualization. After acquiring an image of each prominence, the area of interest was outlined in Image-J and immuno-positive cells within that area were counted by an independent observer—who was blinded to the sample genotype—using the threshold and particle counter function. The number of positive cells/area of the ‘area of interest’ (e.g. the prominence) was then calculated for sections originating from three control and three EDKO embryos. An unpaired student T-test was used to assess statistical significance between groups.

ß-Galactosidase staining

Request a detailed protocol

Whole-mount ß-galactosidase staining was conducted as previously described (Seberg et al., 2017). Briefly, embryos were fixed for ~30 min to 1 hr at RT in PBS containing 0.25% glutaraldehyde, washed 3 × 30 min in a ‘lacZ rinse buffer’ followed by enzymatic detection using a chromogenic substrate (1 mg/ml X-gal) diluted in a ‘lacZ staining solution’. Staining in embryos was developed at 37 °C until an optimal intensity was observed, embryos were then rinsed briefly in PBS, and then post-fixed in 4% PFA overnight. A minimum of three embryos were analyzed per genotype.

Real-time PCR

Request a detailed protocol

Real-time reverse transcriptase PCR (RT-PCR) was carried out essentially as previously described (Van Otterloo et al., 2018). Briefly, embryos were harvested at the indicated stage and facial prominences dissected off for RNA isolation. Tissue was stored in RNAlater at −20 °C until genotyping was completed on samples. Following positive identification of genotypes, tissue was equilibrated at 4 °C for 1 day, RNAlater removed, and RNA extracted from tissue samples using the Rneasy Plus Mini Kit (Qiagen) along with the optional genomic DNA eliminator columns. A similar approach was used for tissue specific RT-PCR analysis. However, once facial prominences were isolated, samples were placed in a 24-well plate with 1 mL of 1 mg/ml Dispase II (in PBS). The samples were incubated with rocking at 37 °C for 30–40 min and then the facial ectoderm carefully dissected away from the mesenchyme into ice-cold PBS, as described (Li and Williams, 2013) and RNA extracted from tissue samples using the Rneasy Plus Mini Kit (Qiagen). Following RNA isolation and quantification, cDNA was generated using a set amount of RNA and the SuperScript III First-Strand Synthesis Kit (Invitrogen/ThermoFisher Scientific). Once cDNA was generated, quantitative real-time PCR analysis was conducted using a Bio-Rad CFX Connect instrument, Sybr Select Master Mix (Applied Biosystems, ThermoFisher Scientific) and 20 µl reactions (all reactions performed in triplicate). All primers were designed to target exons flanking (when available) large intronic sequences. Relative mRNA expression levels were quantified using the ΔΔCt method (Dussault and Pouliot, 2006) and an internal relative control (e.g. β-actin).

Scanning electron microscopy

Request a detailed protocol

Specimens were processed for electron microscopy according to standardized procedures. Briefly, the samples were fixed in glutaraldehyde, rinsed in sodium cacodylate buffer, and secondarily fixed in osmium tetroxide before dehydrating in a graduated ethanol series. Following dehydration, the samples were mounted on a SEM stub and sputter coated for 30 s using a gold/palladium target in a Lecia (Buffalo Grove, IL) EM ACE 200 Vacuum Coater. Scanning electron micrographs were acquired using a JEOL (Peabody, MA) JSM-6010LA electron microscope operated in high-vacuum mode at 20kV. A minimum of three embryos were analyzed per genotype.

Data availability

Sequencing data has been deposited in the Gene Expression Omnibus under accession code GSE199342.

The following data sets were generated
    1. Van Otterloo E
    (2022) NCBI Gene Expression Omnibus
    ID GSE199342. ATAC-seq, histone-seq, and RNA-seq of mouse craniofacial tissues.
The following previously published data sets were used
    1. Li H
    2. Jones KL
    3. Hooper JE
    4. Williams T
    (2019) Facebase
    ID FB00001039. Single cell RNA-sequencing of E11.5 Crect; ROSA26-lacZ mouse fusing upper lip and primary palate.

References

    1. Bosher JM
    2. Totty NF
    3. Hsuan JJ
    4. Williams T
    5. Hurst HC
    (1996)
    A family of AP-2 proteins regulates c-erbB-2 expression in mammary carcinoma
    Oncogene 13:1701–1707.

Decision letter

  1. Paul Trainor
    Reviewing Editor; Stowers Institute for Medical Research, United States
  2. Kathryn Song Eng Cheah
    Senior Editor; University of Hong Kong, Hong Kong

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

Thank you for submitting your article "AP-2α and AP-2β cooperatively function in the craniofacial surface ectoderm to regulate chromatin and gene expression dynamics during facial development." for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by a Reviewing Editor and Kathryn Cheah as the Senior Editor.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1) Validation of the genetic mouse models employed is needed. The activity of the ectodermal Cre used in this study (Crect) was shown by Schock et al., 2017 to be variable. It is not clear how variable Crect activity was controlled for in this study and the extent to which this may impact variability. Include images of the Crect recombination pattern, and AP-2a and AP-2b expression at the critical stages analysed in the mutants, as this would facilitate a better understanding of the phenotypes produced and also show whether AP-2a and AP-2b are co-expressed at all times in the facial ectoderm and if Crect encompasses their full expression domains.

2) Can the authors provide an explanation for why the phenotype of the Tfap2b mutant (EBKO) mice is milder than that of the Tfap2a mutant (EAKO) mice or the double knockout (EDKO) mice.

3) Further validate the bioinformatic analysis with in vivo expression analysis of these genes during development. For example, do Tfap2a and Tfap2b expression patterns overlap in the same cells? Are Tfap2a and Tfap2b expressed extensively in the facial prominence epithelium or are they more specifically associated with the most affected regions (e.g. lambdoid junction, mandible fusion site, etc.) in the knockout mice?

4) The authors need to analyze the compensatory mechanism of Tfap2a and Tfap2b during craniofacial development. Is it possible that Tfap2a can compensate for the loss of Tfap2b, while Tfap2b cannot do the same for Tfap2a? The authors need to provide further analysis, such as testing the expression of Tfap2a and Tfap2b in EBKO and EAKO mice, respectively, and compare the data to the control.

5) Co-localize the expression of Tfap2a and Tfap2b with Wnt-related molecules to confirm whether Tfap2 genes in the epithelium regulate Wnt signaling molecules in a cell-autonomous manner or through cell-cell interaction?

6) Axin2-lacZ reporter mice showed decreased expression of Axin2 in both facial ectoderm and mesenchyme in EAKO and EDKO mice. The conclusion that loss of AP-2 proteins in the ectoderm leads to reduced Wnt signaling in both the ectoderm and underlying mesenchyme should be better supported. Confirm reduced Wnt signaling activity in the EDKO using immunofluorescent staining for active β-catenin. To explain whether this decrease is directly caused by decreasing expression of Wnt related molecules in facial ectoderm, the authors should include more data on those genes in the mesenchyme.

7) It's unclear whether Wnt1 overexpressing mice have an endogenous phenotype, and this should have been presented as a control. It's also important to show that overexpressing Wnt1 in the surface ectoderm is sufficient to elicit a Wnt signaling response in the ectoderm and underlying mesenchyme for these mice possibly via Axin2-lacZ, but other downstream markers would be required. Alternatively, conditionally overexpress B-catenin in the facial ectoderm or treat the faces of E11.5 conditional AP-2a and AP-2b mutants in explant culture with exogenous Wnt3a or Wnt9b.

8) The paper would benefit from demonstrating that exogenous Wnt signaling can restore proliferation and patterning, and from additional analyses of potential changes in expression of other signaling pathways in the ectoderm and neural crest cells, known to be associated with syngnathia, maxillo-mandibular patterning and facial clefts.

9) Consider an in vitro cell culture model to test whether Wnt3 and Wnt9b have any role in perturbing the mesenchymal gene expression program. Furthermore, there is a possibility that Wnt1 may not function exactly the same as Wnt3 and Wnt9b. Could the authors confirm that this ectopic Wnt1 can restore the reduced Wnt activity associated with the reduced Wnt3 and Wnt9b in EAKO and EDKO mice?

Reviewer #1:

The AP2 transcription factor family is a well known regulator of craniofacial development and evolution. Previous studies revealed the prominent role for AP-2a, and functional redundancy between AP-2a and AP-2b, in neural crest cell and craniofacial development. However questions about the importance of AP-2a and AP-2b signaling and function in the facial ectoderm and their impact on the underlying neural crest cells during craniofacial development. The authors performed a comprehensive analysis of AP-2a and AP-2b in facial ectoderm. By combining wild-type and mutant genomic and transcriptomic assays the authors identified Wnt signaling as a key regulator of AP-2 function. Decreased Wnt signaling was validated via Axin2-lacZ signaling and partial rescue of the phenotype was achieved by overexpressing Wnt1 in the facial ectoderm.

Images of the Crect recombination pattern, and AP-2a and AP-2b expression at the critical stages analysed in the mutants, are needed for context and to facilitate a better understanding of the phenotypes and also show whether AP-2a and AP-2b are co-expressed at all times in the facial ectoderm and if Crect encompasses their full expression domains. Additional phenotypic analyses are required as the mechanism can be explained simply by decreased cell division in the ectoderm or neural crest cells, or via loss of Wnt signaling. It's unclear whether Wnt1 overexpressing mice have an endogenous phenotype, and this should have been presented as a control. It's also important to show that overexpressing Wnt1 in the surface ectoderm is sufficient to elicit a Wnt signaling response in the ectoderm and underlying mesenchyme for these mice possibly via Axin2-lacZ, but other downstream markers would be required. This is because Wnt1 is not endogenously expressed in the facial ectoderm, nor is it equivalent to Wnt3a or Wnt9b. An alternative would be to conditionally overexpress B-catenin in the facial ectoderm or treat the faces of E11.5 conditional AP-2a and AP-2b mutants in explant culture with exogenous Wnt3a or Wnt9b.

There is a mechanistic disconnect between the ectoderm deletion of AP-2a and AP-2b and the molecular changes observed and their cellular effects on the underlying neural crest cell derived mesenchyme. The phenotype cannot be explained simply by decreased cell division (pHH3+) in the ectoderm or neural crest cells, or via loss of Wnt signaling. It's not actually clear those two things are related.

Unfortunately, in the absence of lineage tracing of neural crest cells, it's not clear what happens to those cells, although one might predict based on morphology that neural crest cell formation and migration is normal, but that differentiation is primarily affected. The authors noted the subsequent presence of syngnathia which has been observed in association with altered Foxc1 (Inman et al., 2013), Fgf8 (Inman et al., 2013) signaling in the facial ectoderm and altered Bmp signaling (He et al., 2014) in the underlying neural crest cells. Interestingly the authors have previously shown that modulating Fgf8 gene dosage can ameliorate some of the facial anomalies in AP-2a mice (Green et al., 2015). The authors also observed duplications of Meckel's cartilage which in association with the authors' noted changes in Endothelin signaling may be indicative of maxillary-mandibular patterning defects.

Although it is understandable that the authors took advantage of a Wnt1 overexpressing conditional line to try and restore Wnt signaling, it's unclear whether these mice have an endogenous phenotype, and this should have been presented as a control. It's also important to show that overexpressing Wnt1 in the surface ectoderm is sufficient to elicit a Wnt signaling response in the ectoderm and underlying mesenchyme for these mice via Axin2-lacZ. This is because Wnt1 is not endogenously expressed in the facial ectoderm, nor is it equivalent to Wnt3a or Wnt9b. An alternative would be to conditionally overexpress B-catenin in the facial ectoderm or treat the faces of E11.5 conditional AP-2a and AP-2b mutants in explant culture with exogenous Wnt3a or Wnt9b.

The paper would benefit from demonstrating that exogenous Wnt signaling can restore proliferation and patterning, and from additional analyses of potential changes in expression of other signaling pathways in the ectoderm and neural crest cells, known to be associated with syngathia, maxillo-mandibular patterning and facial clefts.

Reviewer #2:

This manuscript, "AP-2α and AP-2β cooperatively function in the craniofacial surface ectoderm to regulate chromatin and gene expression dynamics during facial development," investigated the function of Tfap2a and Tfap2b in facial development, especially focusing on the function of Tfap2a and Tfap2b in ectoderm and how they affect the interplay between surface ectoderm and underlying NCCs. The comprehensive analysis using ATAC-seq and RNAseq in this study provides novel and useful insights for the field; however, more details need to be included for the in vivo analysis. In addition, although Wnt signaling is significantly affected in Tfap2a mutant (EAKO) and Tfab2a/b double knockout (EDKO) mice, those with increasing Wnt1 still have severe craniofacial defects, suggesting that Wnt signaling might not be the sole player in this model.

Specific comments:

1. The phenotype of the Tfap2b mutant (EBKO) mice is milder than that of the Tfap2a mutant (EAKO) mice or the double knockout (EDKO) mice. Can the authors provide an explanation for this result? In addition to showing expression of Tfap2 transcripts it would be very useful to further validate the bioinformatic analysis with in vivo expression analysis of these genes during development. The authors also would need to provide further analysis, such as testing the expression of Tfap2a and Tfap2b in EBKO and EAKO mice, respectively, and compare the data to the control. The authors need to analyze the compensatory mechanism of Tfap2a and Tfap2b during craniofacial development. Since EAKO mice show much more severe defects than EBKO mice, is it possible that Tfap2a can compensate for the loss of Tfap2b, while Tfap2b cannot do the same for Tfap2a?

2. Comprehensive ATAC-seq analysis revealed reduced accessibility of Wnt signaling-related genes. Can the authors co-localize the expression of Tfap2a and Tfap2b with Wnt-related molecules to confirm whether Tfap2 genes in the epithelium regulate Wnt signaling molecules in a cell-autonomous manner or through cell-cell interaction? Does Tfap2b has a different role than Tfap2a, and that only Tfap2a is a key regulator of Wnt signaling?

3. The authors used Wnt1 overexpression mice to rescue the defects in EAKO and EDKO mice, in which Wnt3 and Wnt9b are affected but this does not provide direct evidence for the functional requirement of epithelial-derived Wnt3 and Wnt9b in facial development. there is a possibility that Wnt1 may not function exactly the same as Wnt3 and Wnt9b. Could the authors confirm that this ectopic Wnt1 can restore the reduced Wnt activity associated with the reduced Wnt3 and Wnt9b in EAKO and EDKO mice?

4. Among the expression levels of Tfap2a, Tfap2b, and Tfap2c from E10.5 to E12.5 in previously published data, Tfap2b increased the most from E10.5-12.5. However, the phenotype of the Tfap2b mutant (EBKO) mice is milder than that of the Tfap2a mutant (EAKO) mice or the double knockout (EDKO) mice. Can the authors provide an explanation for this result? In addition to showing expression of Tfap2 transcripts using the previous E10.5-E12.5 RNAseq data of the facial prominence, it would be very useful to further validate the bioinformatic analysis with in vivo expression analysis of these genes during development. For example, do Tfap2a and Tfap2b expression patterns overlap in the same cells? Are Tfap2a and Tfap2b expressed extensively in the facial prominence epithelium or are they more specifically associated with the most affected regions (e.g. lambdoid junction, mandible fusion site, etc.) in the knockout mice?

5. The authors need to analyze the compensatory mechanism of Tfap2a and Tfap2b during craniofacial development. Since EAKO mice show much more severe defects than EBKO mice, is it possible that Tfap2a can compensate for the loss of Tfap2b, while Tfap2b cannot do the same for Tfap2a? The authors need to provide further analysis, such as testing the expression of Tfap2a and Tfap2b in EBKO and EAKO mice, respectively, and compare the data to the control.

6. Comprehensive ATAC-seq analysis was performed in this study, which is useful information for the field. In the ATAC-seq analysis, Wnt signaling-related genes showed reduced accessibility in mutant models. Can the authors co-localize the expression of Tfap2a and Tfap2b with Wnt-related molecules to confirm whether Tfap2 genes in the epithelium regulate Wnt signaling molecules in a cell-autonomous manner or through cell-cell interaction? Furthermore, whole mount in situ hybridization of Wnt3 and Wnt9b nicely showed reduction of those two genes in the facial ectoderm of EAKO and EDKO mice. However, those genes didn't show much reduction in EBKO mutants. Does this suggest Tfap2b has a different role than Tfap2a, and that only Tfap2a is a key regulator of Wnt signaling? Furthermore, EDKO mice showed dramatic changes in genes involved in Wnt signaling. How these two genes synergistically regulate Wnt signaling during craniofacial development deserves more investigation.

7. Axin2-lacZ reporter mice showed decreased expression of Axin2 in both facial ectoderm and mesenchyme in EAKO and EDKO mice. To explain whether this decrease is directly caused by decreasing expression of Wnt related molecules in facial ectoderm, the authors should include more data on those genes in the mesenchyme. Furthermore, the rescue model still shows quite severe defects in the mandibular area. Since the expression levels of Tfap2a and Tfap2b are comparable among the nasal prominences, maxillary prominence and mandibular prominence, and again the expression levels of Axin2 are also similar between the maxillary and mandibular prominences, why are defects in the mandibular area not rescued?

8. The authors used Wnt1 overexpression mice to rescue the defects in EAKO and EDKO mice, in which Wnt3 and Wnt9b are affected. This does not provide direct evidence for the functional requirement of epithelial-derived Wnt3 and Wnt9b in facial development. Could the authors use an in vitro cell culture model to test whether Wnt3 and Wnt9b have any role in perturbing the mesenchymal gene expression program? Furthermore, there is a possibility that Wnt1 may not function exactly the same as Wnt3 and Wnt9b. Could the authors confirm that this ectopic Wnt1 can restore the reduced Wnt activity associated with the reduced Wnt3 and Wnt9b in EAKO and EDKO mice?

Reviewer #3:

This study by Van Otterloo et al., investigates the role of AP-2 transcription factors in regulating an ectodermal gene regulatory network that directs formation and patterning of the face. Through genetic knockouts and by identifying genome-wide differences in chromatin accessibility (ATAC-seq) and gene expression (RNA-seq) in EDKO embryos, the authors identify AP-2 proteins as key transcriptional regulators of ectodermal-derived signals, particularly Wnt ligands. They then provide evidence that the facial phenotype in EDKO embryos is in part linked to reduced Wnt signaling by showing that ectoderm-specific expression of Wnt1 partially rescues facial prominence fusion. Overall, the data presented support their conclusion that AP-2-mediated regulation of Wnt ligands in the ectoderm is critical for ectoderm-mesenchyme interactions in facial development. This study will inform how facial ectoderm is mechanistically involved in orofacial clefts and how human mutations TFAP2A and TFAP2B cause syndromes with craniofacial differences. The integration of mouse genetics and genomics in this study is comprehensive; however, there are some aspects of the data analysis that need to be extended and clarified:

1. The conclusion that loss of AP-2 proteins in the ectoderm leads to reduced Wnt signaling in both the ectoderm and underlying mesenchyme should be better supported. The authors state that reduced output of Wnt signaling in the ectoderm was matched by a significant reduction of Axin2-LacZ reporter expression in the underlying mesenchyme. Yet, the whole mount LacZ stains that are used to make this conclusion make it difficult to distinguish ectoderm versus mesenchymal expression. Additionally, Axin2-LacZ is the only means by which Wnt signaling activity is assessed. Since they show Axin2 is itself a target of AP-2 transcription factors, a readout of its expression may be confounding.

This study provides a very comprehensive analysis and I only have a few suggestions to enhance the experimental rigor:

2. Validation of the genetic mouse models employed is needed. The activity of the ectodermal Cre used in this study (Crect) was shown by Schock et al., 2017 to be variable. Using R26R lineage reporter, Schock et al., found that Crect activity is less defined and produces a greatly reduced recombination pattern in 47% of embryos. It is not clear how variable Crect activity was controlled for in this study and the extent to which this may impact variability in (1) Cre recombination efficiency of 4 AP2 alleles (Tfap2a and Tfap2b), and (2) phenotype, chromatin accessibility, gene expression, and Wnt1-mediated rescue. While variability in Cre recombination efficiency is unlikely to change the conclusion that ectodermal AP-2 proteins are necessary for facial development given the severity of the EDKO phenotype, it could certainly impact the interpretation of ATAC-seq (with two biological replicates) and RNA-seq datasets.

3. Confirm reduced Wnt signaling activity in the EDKO using immunofluorescent staining for active β-catenin. Since Axin2 is itself a target of AP-2 transcription factors, using Axin2-LacZ as the only readout of Wnt activity could be problematic.

4. Analyze Axin2-LacZ expression in section. Lines 565-568 state that EDKO embryos show a "more prominent drop in β-gal staining" than EAKO embryos. Lines 569-570 state that β-gal activity from Axin2-LacZ is clearly reduced in mesenchymal population. Both of these points are difficult to appreciate in whole mount.

5. Validate Cre recombination efficiency. Based on Schock et al., 2017, there is a strong concern that Crect-mediated recombination is variable. In addition, Cre-mediated recombination of 4-5 alleles may not be very efficient. This concern could be addressed by (1) comparing the expression of Tfap2a and Tfap2b in control versus EDKO using the RNA-seq datasets already generated and/or immunofluorescent staining, (2) examining expression of the Wnt1-GFP transgene to show its activation in the ectoderm in control and EDKO embryos.

https://doi.org/10.7554/eLife.70511.sa1

Author response

Essential revisions:

1) Validation of the genetic mouse models employed is needed. The activity of the ectodermal Cre used in this study (Crect) was shown by Schock et al., 2017 to be variable. It is not clear how variable Crect activity was controlled for in this study and the extent to which this may impact variability. Include images of the Crect recombination pattern, and AP-2a and AP-2b expression at the critical stages analysed in the mutants, as this would facilitate a better understanding of the phenotypes produced and also show whether AP-2a and AP-2b are co-expressed at all times in the facial ectoderm and if Crect encompasses their full expression domains.

3) Further validate the bioinformatic analysis with in vivo expression analysis of these genes during development. For example, do Tfap2a and Tfap2b expression patterns overlap in the same cells? Are Tfap2a and Tfap2b expressed extensively in the facial prominence epithelium or are they more specifically associated with the most affected regions (e.g. lambdoid junction, mandible fusion site, etc.) in the knockout mice?

We have provided additional information in Figure 1, including a new Figure (Figure 1—figure supplement 1) and incorporated pertinent information in the Materials and methods section to address these two issues.

First, regarding the Crect transgene, we generated this line and have maintained it in our colony for many years. We quickly noticed that, like many transgenes, variable expression can be evident between generations. Therefore, we choose males that have continued to provide a relatively stable expression pattern in the ectoderm over many generations. Further, we test every new batch of Crect males against a Rosa26 reporter line expressing LacZ or GFP to ensure that we only keep males that produce the required expression pattern in numerous embryos. The desired recombination pattern is shown in whole mount in Figure 1—figure supplement 1A, and in sectioned material in Figure 1—figure supplement 1B-D, with reporter expression largely confined to the surface and oral ectoderm, with additional expression noted in otic and optic epithelium. Any animals that produce the mesenchymal pattern reported in Schock et al., (2017) are discarded. Following these procedures, we have observed a consistent set of mutant phenotypes in the EAKO, EBKO and EDKO embryos used in electron microscopy, skeletal staining, and WMISH analysis, as well as in embryos used for DNA and RNA preparation.

We agree with the reviewers that the efficacy and specificity of Cre recombination, as well as the overlap between expression of Crect/Tfap2a/Tfap2b in the ectoderm, are critical issues that require further documentation, and we are now providing additional figures to validate our findings. Data pertinent to the overlap between the expression of Tfap2a, Tfap2b, and the Cre transgene in the ectoderm are shown in both Figure 1 panel B and Figure 1—figure supplement 1, panel E. These panels show feature plots based on the tSNE data from Figure S2 of the paper Li et al., 2019 which used Crect to mark the ectoderm with the R26R LacZ reporter. In Figure 1B, we have outlined the various cell types present in the single cell clustering analysis and shown feature plots for Tfap2a and Tfap2b. The most concentrated expression of the two Tfap2 genes maps to the surface ectoderm and periderm, but expression is also apparent in mesenchyme as previously reported in Van Otterloo et al., 2018. Blending of these plots illustrates the considerable overlap between expression of these two AP-2 genes in the surface ectoderm and periderm at cellular resolution. Similarly, Figure 1—figure supplement 1 shows how Cre is specifically expressed in the ectoderm, and how it significantly overlaps in that tissue layer with Tfap2a and Tfap2b.

With respect to the efficacy of Crect in targeting Tfap2a and Tfap2b in the ectoderm we have now included Figure 1—figure supplement 2. The figure shows the results of RNAseq analysis performed on two separate isolated ectoderm samples from control and EDKO mutant embryos examining expression associated with the Tfap2a and Tfap2b loci. Targeting of the floxed Tfap2a allele removes exons 5 and 6, while exon 6 is lost from the floxed Tfap2b locus. These data show a >95% reduction in transcripts containing these floxed exons.

We have now amended the manuscript to provide further information concerning Crect and the Tfap2a and Tfap2b genes. Specifically, we have rewritten the first paragraph of the Results section to include a sentence referring to overlap between Tfap2a and Tfap2b expression in the surface ectoderm “Further mining of single cell RNA-seq data derived from facial prominences indicated that Tfap2a and Tfap2b expression also displayed significant overlap within cells of the surface ectoderm and periderm” and changed Figure 1 to show these data.

We have also added a new section in the Materials and methods section concerning the mouse strains:

“Although the Crect transgene is used here to target the early embryonic ectoderm, a previous report has indicated that it frequently produces a broader pattern of recombination (Schock et al., 2017). We used several approaches to avoid this broader expression pattern. First, the Crect transgene was always introduced into the experimental embryos via the sire to reduce global recombination sometimes seen with transmission from the female. Second, all sires were tested using reporter lines such as (Gt(ROSA)26Sortm1Sor) or mT/mG, Gt(ROSA)26Sortm4(ACTB-tdTomato,-EGFP)Luo/J to ensure that they consistently produced the desired pattern of recombination before they were used to generate EAKO, EBKO, or EDKO animals (Figure 1—figure supplement 1). We also confirmed the overlap between the expression of Cre, Tfap2a, and Tfap2b in the ectoderm by mining a previously published single cell RNAseq dataset (Li et al., 2019). Lastly, we determined that the Crect transgene was highly efficient at targeting the Tfap2a and Tfap2b loci based upon RNA expression associated with these genes in Cre expressing cells (Figure 1—figure supplement 2).”

2) Can the authors provide an explanation for why the phenotype of the Tfap2b mutant (EBKO) mice is milder than that of the Tfap2a mutant (EAKO) mice or the double knockout (EDKO) mice.

4) The authors need to analyze the compensatory mechanism of Tfap2a and Tfap2b during craniofacial development. Is it possible that Tfap2a can compensate for the loss of Tfap2b, while Tfap2b cannot do the same for Tfap2a? The authors need to provide further analysis, such as testing the expression of Tfap2a and Tfap2b in EBKO and EAKO mice, respectively, and compare the data to the control.

We have considered several scenarios that could account for these observations, but a thorough experimental understanding of this phenomenon is beyond the scope of the current manuscript. One possibility is that there might be subtle differences in the temporal or spatial expression profiles of these factors. An alternative possibility is that there are differences in the mRNA and/or amino acid sequence that might differentially affect stability or localization of the transcripts or the proteins. Third, even though the proteins are quite similar in overall sequence and binding specificity, they may nevertheless interact with suites of unique and/or overlapping co-factors with AP-2α having more critical interactions than AP-2ß. A further possibility is that there may be cross-regulation between Tfap2a and Tfap2b at some level. To examine this last possibility, as requested, we have performed preliminary studies to examine the expression of Tfap2a and Tfap2b in the ectoderm of both EAKO and EBKO mice. However, these studies have not produced a definitive answer concerning compensation caused by loss of one or other transcription factor. Therefore, the mechanism(s) by which AP-2α has the more critical function remains unclear. We believe it will require considerable time and effort to perform studies that will definitively test any of these hypothesis—for example by substituting Tfap2a into the Tfap2b locus and vice versa—and that this is beyond the scope of the current analysis. At the same time, we also note that there are multiple examples throughout the literature where TFAP2 paralogs function redundantly/cooperatively, yet loss of Tfap2a alone provides a more dramatic phenotype than deletion of an alternative paralog. For example, we found that, while AP-2α and AP-2ß function cooperatively in the neural crest, loss of AP-2α alone in the neural crest results in a more severe phenotype than loss of AP-2ß alone with respect to both craniofacial development and melanocyte biology (Van Otterloo et al., 2018 and Seberg et al., 2017). This phenomenon has also been noted in the zebrafish model system (e.g., tfap2a/tfap2c, Li and Cornell, 2007; tfap2a/tfap2e, Van Otterloo et al., 2010).

However, we have now added the following short statement in the discussion to provide possible explanations for why the phenotype of the Tfap2b mutant (EBKO) mice is milder than the Tfap2a mutant (EAKO) mice.

“The reasons behind the more prominent function of AP-2a in these systems remains unclear, especially since the two proteins are over 70% identical and bind to the same DNA recognition sequences. Nevertheless, it is possible that some alterations in the mRNA and/or amino acid sequence could differentially affect stability, localization, or interaction with cofactors. Alternatively, there might be subtle differences in the timing, distribution, or levels of functional AP-2α and AP-2ß protein in these tissues that account for the changes in susceptibility to pathology. Further studies will be needed to determine how the consequence of Tfap2a loss is greater than Tfap2b.”

5) Co-localize the expression of Tfap2a and Tfap2b with Wnt-related molecules to confirm whether Tfap2 genes in the epithelium regulate Wnt signaling molecules in a cell-autonomous manner or through cell-cell interaction?

6) Axin2-lacZ reporter mice showed decreased expression of Axin2 in both facial ectoderm and mesenchyme in EAKO and EDKO mice. The conclusion that loss of AP-2 proteins in the ectoderm leads to reduced Wnt signaling in both the ectoderm and underlying mesenchyme should be better supported. Confirm reduced Wnt signaling activity in the EDKO using immunofluorescent staining for active β-catenin. To explain whether this decrease is directly caused by decreasing expression of Wnt related molecules in facial ectoderm, the authors should include more data on those genes in the mesenchyme.

We have added two new Supplementary figures to address (1) the issue of the overlap between the AP-2 transcription factors and WNT signaling pathway genes in the ectoderm and (2) how loss of AP-2 in the ectoderm affects the expression of WNT pathway genes in the mesenchyme.

The first figure (Figure 4—figure supplement 1) shows feature plots derived from the E11.5 single cell sequencing data (Li et al., 2019) for multiple Wnt ligands and associated genes involved in WNT pathway regulation. In addition, we show the overlap with Tfap2a expression for each of these 18 genes in the whole dataset and the surface ectoderm. (Tfap2b expression is not included due to the considerable overlap between Tfap2a and Tfap2b shown in new Figure 1B). Overall, the data show that the ligands Wnt3, Wnt4, Wnt6, Wnt9b and Wnt10a, as well as other WNT pathway modulators including Kremen2 and to a lesser extent Dkk4 are almost exclusively expressed in the ectoderm and that the majority of cells expressing these ligands also co-express the Tfap2 genes in the surface ectoderm. The data on ectodermal bias in expression for these genes are in agreement with the analyses of Hooper et al., 2020 which used RNAseq analysis to examine expression in the facial ectoderm and mesenchyme compartments. We used the analysis of Hooper et al., as shown in Supplementary File 3 to stratify genes according to ectodermal/mesenchymal ratios of expression in Figure 7E and Figure 7—figure supplement 1.

To summarize, our WMISH, RT-PCR and RNAseq findings demonstrate that there is a significant reduction in the ectodermal expression of Wnt related molecules in the EDKO mutants compared to controls (Figures 4, 7, Figure 4—figure supplement 4 and Figure 7—figure supplement 2). Further, there is significant overlap for many of these genes with Tfap2 expression in the ectoderm and we also we show that several of them are associated with AP-2 dependent ATAC-seq peaks (Figures 3 and 4). Together, these findings would support a hypothesis that regulation of these genes is direct and cell autonomous in nature. However, definitive proof that regulation is exclusively cell autonomous will require considerable further experimentation.

The second figure (Figure 7—figure supplement 3) provides further information regarding how Wnt pathway gene expression is affected in the mesenchyme when Tfap2a and Tfap2b are lost from the ectoderm. In addition to the information concerning the reduction of Axin2 expression which we reported in Figure 4 and Figure 4—figure supplement 4, we now show results from RT-PCR analysis of 5 other Wnt pathway genes that show significant expression in the mesenchyme. Samples of facial prominence mesenchyme were collected from E11.5 control and mutant embryos, RNA extracted, cDNA synthesized, and real-time PCR conducted on these 5 transcripts. We identified an ~ 2 to 5 fold reduction in expression of all 5 transcripts within the mesenchyme of EDKO’s versus controls. These findings are consistent with loss of ectodermal Tfap2 having a non-cell autonomous impact on these Wnt-associated genes in the mesenchyme.

We have amended the text of the results in several places to incorporate the data included in these two new Supplemental figures.

7) It's unclear whether Wnt1 overexpressing mice have an endogenous phenotype, and this should have been presented as a control. It's also important to show that overexpressing Wnt1 in the surface ectoderm is sufficient to elicit a Wnt signaling response in the ectoderm and underlying mesenchyme for these mice possibly via Axin2-lacZ, but other downstream markers would be required. Alternatively, conditionally overexpress B-catenin in the facial ectoderm or treat the faces of E11.5 conditional AP-2a and AP-2b mutants in explant culture with exogenous Wnt3a or Wnt9b.

We have added a new Supplementary figure (Figure 8—figure supplement 1) to address the issue of the endogenous Crect Wnt1 overexpression (OX) phenotype. These images show the phenotype of E12.5 control and Wnt1 overexpression mice, a time point when facial fusion has occurred in both genotypes. Although we have not analyzed the Wnt1 overexpression phenotype in detail, there are certain noticeable differences from controls. First, the angle between the forebrain and snout is more pronounced in the overexpressing animals. Second, the eye is abnormal in overexpressing mice, with an apparent suppression of lens formation. Note that at later time points the Crect Wnt1 OX animals develop severe overall edema and do not survive until term. We have not explored these phenotypes further as it is not the focus of the manuscript.

With respect to the other suggestions, we have also examined the Crect Wnt1 OX phenotype in combination with Axin2-LacZ, but do not see major quantitative or qualitative differences in staining. We also note that there were no appreciative changes in b-catenin protein distribution between mutants and controls. These observations fit with our current working hypothesis for many types of cleft lip and primary palate—that just subtle changes in signaling can prevent normal attachment of the prominences at the lambdoid junction. As a result, subsequent continued growth of the prominences—unrestrained by the absence of fusion—causes major morphological defects. Lastly, in respect to this model, the eye phenotype resembles that observed in the study by Smith et al., 2005 (Dev Biol, vol 285, pp 477-489, “The duality of β-catenin function: a requirement in lens morphogenesis and signaling suppression of lens fate in periocular ectoderm”). In this study, a form of ß-catenin that is unable to be degraded is expressed in the presumptive lens placode and this gain of function in WNT signaling also suppresses lens formation.

We also considered using expression of stabilized ß-catenin under the control of the Crect transgene to rescue the phenotype. In this respect, we have previously conditionally overexpressed the stabilized form of ß-catenin in the surface ectoderm using Crect (Dev Biol (2011), vol 349 pp 261-269). However, facial and vascular defects are more severe in this ß-catenin model, with the mice failing to survive beyond mid embryogenesis and so they are not as useful for the current analysis. We also note that stabilization of ß-catenin in the ectoderm is not equivalent to overexpression of the Wnt1 ligand; the former will have its primary effect on the ectoderm, whereas the latter will act both on the ectoderm in a paracrine fashion, but also on the underlying mesenchyme. Finally, we appreciate the suggestion of using explant culture to study the interaction between the AP-2 transcription factors and the WNT pathway, and we hope to explore this in the future, but we believe that this is outside the scope of the current manuscript, especially since we postulate that changes in the overall morphogenesis of the head are involved in the AP-2 dependent pathology.

In addition to the new Supplemental Figure, we have added the following statement in the Results section:

“First, though, we examined how Crect mediated Wnt1 overexpression in the ectoderm might impact face development to assess its suitability as a rescue model (Figure 8—figure supplement 1). In common with controls, E12.5 Crect Wnt1ox embryos had completed fusion of the face to form an intact upper lip. However, there were developmental changes in that mutant animals had a more pronounced angle between the forebrain and snout than controls and there were also defects in eye formation, consistent with activation of the Wnt pathway in this process (Smith et al., (2005)). Nevertheless, based on the overall facial phenotype, we reasoned that this approach was feasible to supplement Wnt ligand expression in the facial ectoderm of the EAKO and EDKO mice.”

8) The paper would benefit from demonstrating that exogenous Wnt signaling can restore proliferation and patterning, and from additional analyses of potential changes in expression of other signaling pathways in the ectoderm and neural crest cells, known to be associated with syngathia, maxillo-mandibular patterning and facial clefts.

The analyses we have performed to date point to the WNT pathway as being the most severely affected signaling system that is both heavily altered in our model, associated with craniofacial clefting defects, and able to rescue aspects of the mutant phenotype. Therefore, we have highlighted this pathway in our studies. Nevertheless, we cannot exclude other mechanisms contributing to the phenotype—either alone, or in association with the WNT pathway.

At the level of RNA transcript analysis, we report in Table 1 changes in components of CXCL, EDN, and FGF signaling, but these do not appear to occur at levels that would account for the observed phenotypes (this is mentioned within the Results section). With respect to jaw patterning and syngnathia, we do not find any major differences at E10.5 in the expression levels of genes previously associated with causing similar defects in these tissues such as Foxc1, Six1, Bmp4, Fgf8 or Dlx family members. As noted, there was some slight change in Ednra expression, and a major change in the level of Gbx2 (which has previously been reported to be a target of DLX5/6), but at this point nothing that would account for the observed jaw phenotypes. The analysis of the roles of AP-2 in jaw patterning and syngnathia are the subject of ongoing studies in our laboratories and our current data indicate that this likely utilizes a mechanism parallel to the DLX, EDN, SIX, and FOXC1 pathways.

9) Consider an in vitro cell culture model to test whether Wnt3 and Wnt9b have any role in perturbing the mesenchymal gene expression program. Furthermore, there is a possibility that Wnt1 may not function exactly the same as Wnt3 and Wnt9b. Could the authors confirm that this ectopic Wnt1 can restore the reduced Wnt activity associated with the reduced Wnt3 and Wnt9b in EAKO and EDKO mice?

We appreciate the reviewers’ suggestion to consider an in vitro model in examining WNT3 and WNT9B in more detail and agree that these specific WNTs are good candidates given their previously reported involvement in craniofacial development (Carroll et al., 2005; Juriloff et al., 2006; Niemann et al., 2004; Chiquet BT et al., 2008; Yao T et al., 2011; Fontoura C et al., 2015). However, we note that the expression of a wide range of Wnt ligands are impacted in our model, suggesting the likelihood of a combinatorial influence of multiple WNTs on the phenotype observed. Further, given WNT3/WNT9B’s activation of the canonical WNT pathway (Carroll et al., 2005) and WNT1’s primary ability to activate this pathway, including previous evidence of WNT1’s ability to substitute for WNT9B signaling (Carroll et al., 2005), the utilization of over-expressed WNT1 we feel is well justified. We further note that the Wnt1 OX model has also been used by Ferretti et al., (Dev Cell, vol 621, pp 627-641 (2011) A Conserved Pbx-Wnt-p63-Irf6 Regulatory Module Controls Face Morphogenesis by Promoting Epithelial Apoptosis) as a Wnt rescue experiment for a Pbx-based CL/P model.

https://doi.org/10.7554/eLife.70511.sa2

Article and author information

Author details

  1. Eric Van Otterloo

    1. Iowa Institute for Oral Health Research, College of Dentistry & Dental Clinics, University of Iowa, Iowa City, United States
    2. Department of Periodontics, College of Dentistry & Dental Clinics, University of Iowa, Iowa City, United States
    3. Department of Anatomy and Cell Biology, Carver College of Medicine, University of Iowa, Iowa City, United States
    4. Department of Craniofacial Biology, University of Colorado Anschutz Medical Campus, Aurora, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Supervision, Validation, Visualization, Writing – original draft, Writing – review and editing
    For correspondence
    eric-vanotterloo@uiowa.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5958-5742
  2. Isaac Milanda

    Department of Craniofacial Biology, University of Colorado Anschutz Medical Campus, Aurora, United States
    Contribution
    Data curation, Formal analysis, Investigation
    Competing interests
    No competing interests declared
  3. Hamish Pike

    Department of Craniofacial Biology, University of Colorado Anschutz Medical Campus, Aurora, United States
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared
  4. Jamie A Thompson

    1. Iowa Institute for Oral Health Research, College of Dentistry & Dental Clinics, University of Iowa, Iowa City, United States
    2. Department of Anatomy and Cell Biology, Carver College of Medicine, University of Iowa, Iowa City, United States
    Contribution
    Data curation, Formal analysis, Investigation, Writing – review and editing
    Competing interests
    No competing interests declared
  5. Hong Li

    Department of Craniofacial Biology, University of Colorado Anschutz Medical Campus, Aurora, United States
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared
  6. Kenneth L Jones

    Department of Pediatrics, Section of Hematology, Oncology, and Bone Marrow Transplant, University of Colorado School of Medicine, University of Colorado Anschutz Medical Campus, Aurora, United States
    Present address
    Department of Cell Biology, University of Oklahoma Health Sciences Center, Oklahoma City, United States
    Contribution
    Formal analysis, Resources, Software
    Competing interests
    No competing interests declared
  7. Trevor Williams

    1. Department of Craniofacial Biology, University of Colorado Anschutz Medical Campus, Aurora, United States
    2. Department of Cell and Developmental Biology, University of Colorado Anschutz Medical Campus, Aurora, United States
    3. Department of Pediatrics, University of Colorado Anschutz Medical Campus, Children's Hospital Colorado, Aurora, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Supervision, Writing – original draft, Writing – review and editing
    For correspondence
    trevor.williams@cuanschutz.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2416-4603

Funding

National Institute of Dental and Craniofacial Research (2R01 DE12728)

  • Trevor Williams

National Institute of Dental and Craniofacial Research

  • Eric Van Otterloo

University of Iowa

  • Eric Van Otterloo

College of Dentistry and Dental Clinics

  • Eric Van Otterloo

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors acknowledge Irene Choi, for her care and maintenance of the animal colonies utilized in this study, and Eric Wartchow for assistance with electron microscopy. We are grateful to our colleagues at the University of Colorado, Anschutz Medical Campus, Department of Craniofacial Biology and the University of Iowa, Iowa Institute for Oral Health Research and the Department of Anatomy and Cell Biology for their valuable critiques and feedback. We thank the Genomics Shared Resource at the University of Colorado Cancer Center for assistance with next-generation sequencing. And finally, our funding sources, including the National Institute of Dental and Craniofacial Research (TW, EVO) and the University of Iowa, College of Dentistry and Dental Clinics (EVO).

Ethics

All experiments were conducted in accordance with all applicable guidelines and regulations, following the 'Guide for the Care and Use of Laboratory Animals of the National Institutes of Health'. The animal protocol utilized was approved by the Institutional Animal Care and Use Committee of the University of Colorado - Anschutz Medical Campus (#14) and the Institutional Animal Care and Use Committee of the University of Iowa (#9012197).

Senior Editor

  1. Kathryn Song Eng Cheah, University of Hong Kong, Hong Kong

Reviewing Editor

  1. Paul Trainor, Stowers Institute for Medical Research, United States

Publication history

  1. Received: May 19, 2021
  2. Preprint posted: June 10, 2021 (view preprint)
  3. Accepted: March 22, 2022
  4. Accepted Manuscript published: March 25, 2022 (version 1)
  5. Version of Record published: April 25, 2022 (version 2)

Copyright

© 2022, Van Otterloo et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 407
    Page views
  • 91
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Eric Van Otterloo
  2. Isaac Milanda
  3. Hamish Pike
  4. Jamie A Thompson
  5. Hong Li
  6. Kenneth L Jones
  7. Trevor Williams
(2022)
AP-2α and AP-2β cooperatively function in the craniofacial surface ectoderm to regulate chromatin and gene expression dynamics during facial development
eLife 11:e70511.
https://doi.org/10.7554/eLife.70511

Further reading

    1. Chromosomes and Gene Expression
    2. Genetics and Genomics
    Feng He et al.
    Research Article

    A single Dcp1-Dcp2 decapping enzyme targets diverse classes of yeast mRNAs for decapping-dependent 5' to 3' decay, but the molecular mechanisms controlling mRNA selectivity by the enzyme remain elusive. Through extensive genetic analyses we reveal that Dcp2 C-terminal domain cis-regulatory elements control decapping enzyme target specificity by orchestrating formation of distinct decapping complexes. Two Upf1-binding motifs direct the decapping enzyme to NMD substrates, a single Edc3-binding motif targets both Edc3 and Dhh1 substrates, and Pat1-binding leucine-rich motifs target Edc3 and Dhh1 substrates under selective conditions. Although it functions as a unique targeting component of specific complexes, Edc3 is a common component of multiple complexes. Scd6 and Xrn1 also have specific binding sites on Dcp2, allowing them to be directly recruited to decapping complexes. Collectively, our results demonstrate that Upf1, Edc3, Scd6, and Pat1 function as regulatory subunits of the holo-decapping enzyme, controlling both its substrate specificity and enzymatic activation.

    1. Chromosomes and Gene Expression
    Faith C Fowler et al.
    Research Article Updated

    DNA double-strand break (DSB) repair by homologous recombination is confined to the S and G2 phases of the cell cycle partly due to 53BP1 antagonizing DNA end resection in G1 phase and non-cycling quiescent (G0) cells where DSBs are predominately repaired by non-homologous end joining (NHEJ). Unexpectedly, we uncovered extensive MRE11- and CtIP-dependent DNA end resection at DSBs in G0 murine and human cells. A whole genome CRISPR/Cas9 screen revealed the DNA-dependent kinase (DNA-PK) complex as a key factor in promoting DNA end resection in G0 cells. In agreement, depletion of FBXL12, which promotes ubiquitylation and removal of the KU70/KU80 subunits of DNA-PK from DSBs, promotes even more extensive resection in G0 cells. In contrast, a requirement for DNA-PK in promoting DNA end resection in proliferating cells at the G1 or G2 phase of the cell cycle was not observed. Our findings establish that DNA-PK uniquely promotes DNA end resection in G0, but not in G1 or G2 phase cells, which has important implications for DNA DSB repair in quiescent cells.
