Plant Trans-Golgi Network/Early Endosome pH regulation requires Cation Chloride Cotransporter (CCC1)

  1. Daniel W McKay
  2. Heather E McFarlane
  3. Yue Qu
  4. Apriadi Situmorang
  5. Matthew Gilliham
  6. Stefanie Wege  Is a corresponding author
  1. School of Agriculture, Food and Wine, Waite Research Institute, ARC Centre of Excellence in Plant Energy Biology, University of Adelaide, Waite Campus, Australia
  2. School of Biosciences, University of Melbourne, Australia
  3. Department of Cell and Systems Biology, University of Toronto, Canada

Abstract

Plant cells maintain a low luminal pH in the trans-Golgi-network/early endosome (TGN/EE), the organelle in which the secretory and endocytic pathways intersect. Impaired TGN/EE pH regulation translates into severe plant growth defects. The identity of the proton pump and proton/ion antiporters that regulate TGN/EE pH have been determined, but an essential component required to complete the TGN/EE membrane transport circuit remains unidentified − a pathway for cation and anion efflux. Here, we have used complementation, genetically encoded fluorescent sensors, and pharmacological treatments to demonstrate that Arabidopsis cation chloride cotransporter (CCC1) is this missing component necessary for regulating TGN/EE pH and function. Loss of CCC1 function leads to alterations in TGN/EE-mediated processes including endocytic trafficking, exocytosis, and response to abiotic stress, consistent with the multitude of phenotypic defects observed in ccc1 knockout plants. This discovery places CCC1 as a central component of plant cellular function.

Editor's evaluation

This paper reports compelling evidence that the single isoform of cation chloride cotransporter (CCC1) encoded in Arabidopsis thaliana provides a cation and anion efflux mechanism to regulate pH in the trans-Golgi/Early Endosome Network.

https://doi.org/10.7554/eLife.70701.sa0

Introduction

The transport of ions across biological membranes is fundamental to diverse cellular functions such as energy production, nutrient uptake and distribution, growth, signalling, and osmoregulation. Ion influx and efflux must be coordinated to regulate osmotic potential, and to maintain charge balance within and across cellular compartments. Ion efflux out of cells contributes towards processes as varied as neuronal function in animals, heavy metal tolerance in bacteria, and salinity tolerance in plants. Ion efflux out of subcellular compartments is also critical for core cellular functions such as chloroplastic photosynthetic efficiency in plants (Correa Galvis et al., 2020).

Cation chloride cotransporters (CCCs) are cation and anion symporters that are present in all domains of life, whether archaea, animal, yeast, or plant. Chloride (Cl-) is transported by CCCs electroneutrally across membranes with the cations of sodium (Na+) and/or potassium (K+). A single CCC exists in the archeaon, Methanosarcina acetivorans, which does not share a high degree of similarity to eukaryotic CCCs (Hartmann and Nothwang, 2015). In animals, CCCs have been separated into two subfamilies: the Cl- and K+ efflux symporters (KCCs), and a second subfamily with two clades of CCC, the Cl- and Na+/K+ influx symporters (NKCCs), and the Cl- and Na+ influx symporters (NCCs). Vertebrates typically harbour several CCC isoforms from each subfamily. For example, humans (Homo sapiens) have seven CCC isoforms (4 KCC, 3 NKCC/NCCs) and zebrafish (Danio rerio) have 12 CCCs in total (Hartmann et al., 2014). In non-vascular plants there are two clades of CCC, CCC1 and CCC2, with some bryophytes, such as the moss Physcomitrium patens (formerly Physcomitrella patens) with up to seven isoforms (Henderson et al., 2018). In contrast, in flowering plants (angiosperms), CCCs are represented by only the CCC1 clade, with very few isoforms per plant. For instance, rice (Oryza sativa), contains two CCC1s, and Arabidopsis (Arabidopsis thaliana) has only one CCC1.

In vertebrates, CCCs are involved in diverse but specific cellular processes including osmoregulation in kidneys and neurons (regulation of cell volume), potassium secretion in muscles and regulation of Cl concentrations in neural tissue (Blaesse et al., 2009; Hartmann and Nothwang, 2015). NKCCs and NCCs drive influx of ions across the cell membrane, often by utilising large extracellular Na+ concentrations to drive transport of Cl- and K+, or just Cl- in the case of NCC, whereas KCCs utilise K+ gradients to mediate Cl- efflux out of the cytosol (Blaesse et al., 2009; Arroyo et al., 2013). The importance of Cl- management and osmoregulation for cell and organ function is highlighted by the large number of human diseases and conditions associated with CCC malfunction including schizophrenia, deafness, muscle spasticity, epilepsy, Andermans syndrome (neuropathy), and, Bartter and Gitelman syndrome (both characterised by kidney disfunction) (Simon et al., 1996; Kunchaparty et al., 1999; Howard et al., 2002; Boettger et al., 2002; Rivera et al., 2002; Boulenguez et al., 2010; Kim et al., 2012).

The single CCC1 protein in the model plant Arabidopsis also appears to have a crucial, but unexplained, role in plant function. When Arabidopsis CCC1 is genetically ablated, ccc1 plants exhibit complex and severe phenotypic defects which include a large reduction in overall plant size, a bushy appearance characterised by increased axillary shoot outgrowth, frequent stem necrosis, very low fertility, alterations in pathogen response, changes in cell wall composition, and changes in seed ion concentrations (Johnson et al., 2004; Colmenero-Flores et al., 2007; McDowell et al., 2013; Henderson et al., 2018; Han et al., 2020). Arabidopsis ccc1 also displays changes in ion distribution. Hydroponically grown ccc1 plants accumulate more Cl- in shoots under both control and 50 mM NaCl conditions while soil-grown ccc1 plants accumulate more Cl- in shoots when exposed to 50 mM Cl- salts (Colmenero-Flores et al., 2007; Henderson et al., 2015). Similarly, roots of rice Osccc1.1 plants also had altered ion accumulation profiles under both control and saline conditions (Chen et al., 2016). While rice harbours two CCC1 proteins, Arabidopsis is the ideal system for investigating the role of CCCs in higher plants due to the presence of only a single CCC homologue, eliminating the possibility for functional redundancy (Henderson et al., 2018).

Plant, fungi, and animal CCC subcellular localisations are different. While many of the animals’ CCCs have been found on the cell membrane (plasma membrane [PM]), the yeast (Saccharomyces cerevisiae) CCC homologue, VHC1, is localised not on the exterior membrane of the cell, but on the yeast vacuolar membrane (Petrezselyova et al., 2013). Independent proteomic studies in Arabidopsis have revealed that the Arabidopsis CCC1 is highly abundant in the trans-Golgi network/early endosome (TGN/EE) (Sadowski et al., 2008; Drakakaki et al., 2012; Groen et al., 2014; Nikolovski et al., 2014), with the latest study defining CCC1 as a TGN/EE marker protein (Parsons et al., 2019). Heterologous expression studies in tobacco (Nicotiana benthamiana) epidermal cells also suggested an endomembrane localisation of the Arabidopsis CCC1 using a translational fluorescent protein fusion (Henderson et al., 2015). This raises the question of the role of CCC1 in this organelle. Several transport proteins in the TGN/EE have been identified, with mutants of the transport proteins involved in TGN/EE pH regulation exhibiting similar phenotypic aspects to ccc1 knockouts. CCC1 is therefore a candidate ion transporter that might contribute to TGN/EE pH regulation.

The plant TGN/EE is an organelle with a complex cellular role. One of its key roles is sorting and delivering proteins to the apoplast, PM, and vacuole (Dettmer et al., 2006; Viotti et al., 2010; Sze and Chanroj, 2018). Four TGN/EE Cl- and K+ transporters have previously been identified: the H+/K+ antiporters NHX5 and NHX6, and the H+/Cl- antiporters CLCd and CLCf. These antiporters import K+ and Cl- into the TGN/EE in exchange for luminal protons and work in conjunction with the TGN/EE V-ATPase complex to regulate luminal pH (Bassil et al., 2011; Reguera et al., 2015; Scholl et al., 2021). Finely tuned luminal pH is required for the cellular function of the TGN/EE (Martinière et al., 2013; Luo et al., 2015; Reguera et al., 2015). Plants with reduced V-H+-ATPase activity (e.g. det3 mutants) have an elevated TGN/EE pH and exhibit severe developmental growth defects, which is accompanied by alterations in exocytosis of PM proteins, such as BRI1, defects in cell division and expansion and hypersensitivity to salt (Schumacher et al., 1999; Dettmer et al., 2006; Brüx et al., 2008; Krebs et al., 2010; Luo et al., 2015). Double nhx5/nhx6 mutants have similar, but not identical, growth defects to det3, with reduced cell length, a large decrease in overall plant size, and increased salt sensitivity of root growth and seed germination (Bassil et al., 2011; Reguera et al., 2015). As in det3, trafficking of BRI1 is altered in nhx5/nhx6; however, only recycling is affected while secretion to the PM is not (Dragwidge et al., 2019). In addition, the PM abundance of the membrane integrated proteins, PIN1 and PIN2, are reduced in nhx5/nhx6 (Dragwidge et al., 2018). However, in contrast to det3, the nhx5/nhx6 TGN/EE lumen is hyperacidic, consistent with the proposed role of NHX in exporting protons out of the TGN/EE (Luo et al., 2015; Reguera et al., 2015). The hyperacidity of nhx5/nhx6 TGN/EE lumen results in mis-sorting of vacuolar proteins due to altered binding of targets by the vacuolar sorting receptor VSR1;1 (Reguera et al., 2015). A clcld single knockout has a mild increase in pathogen sensitivity. The less severe phenotype of this knockout might be a result of the two TGN/EE resident CLC proteins, which are likely to exhibit functional redundancy similar to the two TGN/EE NHXs. Collectively, these observations demonstrate that a typical consequence of alterations in TGN/EE lumen pH regulation are defects in protein trafficking, particularly in protein exocytosis, changes in salt tolerance, and defects in cell elongation and division, resulting in severe impacts on plant growth.

The current model of TGN/EE pH regulation, as outlined above, is incomplete; it currently includes a proton pump (V-H+-ATPase) and anion- and cation-proton exchangers (CLC, NHX) (Sze and Chanroj, 2018), but a transport protein that mediates either cation or anion efflux has not yet been identified. Both import and export of ions are crucial components of dynamic cellular and organellar ion regulation. If both do not occur, cation and anion import into the TGN/EE would cease once the gradient becomes too high, which would inhibit the function of the antiporters. Plant CCC1s, with their cation and anion symport function and their residency in the TGN/EE, are ideal candidates to fill this missing role and complete the circuit through export of Cl- and K+ from the TGN/EE.

Here, we characterised the role of Arabidopsis CCC1 in the TGN/EE. We demonstrate that TGN/EE-localised CCC1 rescues cellular defects of ccc1 knockouts in Arabidopsis, and that CCC1 impacts TGN/EE luminal pH and osmotic regulation. Genetic ablation of CCC1 function leads to defects in TGN/EE-dependent processes, specifically, ccc1 plants exhibit reduced rates of exocytosis and endocytic trafficking, typical of altered TGN/EE pH regulation. As such, we propose that CCC1 is a missing core component of the ion- and pH-regulating machinery of the TGN/EE.

Results

CCC1 is ubiquitously expressed

Previous reports on CCC1 expression are contradictory. Promoter-GUS studies indicated that CCC1 expression was restricted to specific tissues, such as root stele or hydathodes and pollen, while RNA transcriptomic studies, including single-cell RNAseq, suggest expression occurs in a broader range of cell types (Colmenero-Flores et al., 2007; Wendrich et al., 2020). To clarify the tissue expression pattern of CCC1, we transformed wildtype Arabidopsis plants with a 2 kb genomic DNA sequence upstream of the CCC1 coding region driving the expression of nuclear-localised triple Venus (a bright variant of the yellow fluorescent protein) or β-glucuronidase (GUS), named CCC1prom::Venus and CCC1prom::GUS, respectively. Combined analysis of fluorescence and GUS staining revealed that CCC1 is expressed in all cell types, including all root cells, hypocotyl, leaf and stem epidermis, guard cells and trichomes, as well as mesophyll cells and all flower parts (Figure 1). CCC1 promoter activity reported by Venus fluorescence, or by GUS-activity, was slightly different despite use of the identical promoter sequence. For instance, fluorescence was detectable in root cortex and epidermis cells, including root hairs, and in the gynoecium, while GUS staining did not indicate expression in these cells. This is likely due to the greater sensitivity of the Venus fluorescence method.

CCC1 is expressed ubiquitously.

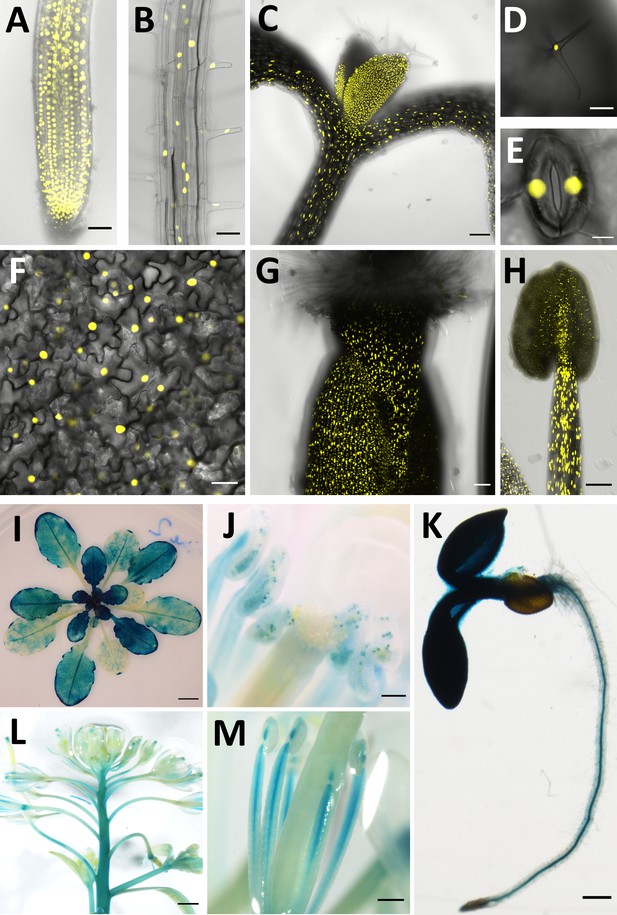

CCC1 promoter-driven expression of either NLS-Venus (yellow, bright YFP variant with a nuclear localisation signal) or ẞ-glucuronidase (blue GUS staining). (AH) NLS-Venus expression indicating CCC1 promoter activity in all root cells, including (A) the root tip, (B) root epidermal cells; (C) hypocotyl; all leaf cells including (D) trichomes, (E) guard cells, and (F) leaf epidermal and mesophyll cells; and reproductive organs (G) gynoecium, and (H) stamen tissues. (IM) GUS staining indicating promoter activity predominantly in (I) younger leaves, (J) pollen, (K) root stele, (L) floral stem, and (M) stamen. Scale bars are 50 µm (images A, B, G), 100 µm (images C, D, H, J), 5 µm (image E), 20 µm (image F), 5 mm (image I), 200 µm (images K, M) and 1000 µm (image L).

Loss of CCC1 results in growth defects in root cells

ccc1 knockout plants are severely affected in their growth, including a reduced shoot size and shorter primary roots (Figure 2A, and previously quantified by Colmenero-Flores et al., 2007; Henderson et al., 2015). We investigated the origin of the root phenotype of ccc1 at a cellular level and found that CCC1 function is required for cell elongation, contributing to the reduced root length in knockout mutants. ccc1 develop both shorter root epidermal cells, and shorter root hairs (Figure 2B–E) and a complete lack of collet hairs (Figure 2F). Collet hairs are epidermal root hairs formed in some plant species in the transition zone between the root and the hypocotyl (Sliwinska et al., 2015). In addition, ccc1 root hairs displayed branching and bulging (Figure 2—figure supplement 1), although at an extremely low frequency; while ruptured root hairs were never observed.

Figure 2 with 1 supplement see all
ccc1 plants show defects in cell elongation.

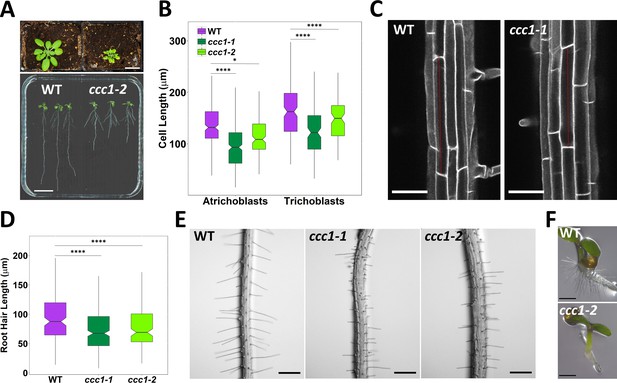

(A) Top image, ccc1 (right) have smaller shoots and deformed leaves compared to wildtype (left) plants. Plants grown 26 days in short day, scale bar is 2 cm. Bottom image, ccc1 (right) have shorter primary roots compared to wildtype (left) plants. Plants grown 14 days in long day, scale bar is 2 cm. (B–C) Root epidermal cells are shorter in ccc1. n > 13 plants. Images are maximum intensity projections of cell wall autofluorescence. Scale bars are 50 µm. (D–E) ccc1 plants have shorter root hairs. n > 900 root hairs of >30 plants. Scale bars are 200 µm. (F) ccc1 plants do not develop collet hairs. Scale bars are 500 µm. Boxplots show range; median, first and third quartile are indicated. One-way ANOVA used to determine p. * indicates p < 0.05, **** indicates p < 0.0001.

Independent of the defect of root hair elongation, ccc1 plants frequently developed root hairs in cell files that usually exclusively contain atrichoblasts (non-root hair cells) in the wildtype. These ectopic root hairs are formed in cells that have trichoblast identity, as they express the trichoblast marker PRP3::H2B-2× mCherry (Marquès-Bueno et al., 2016). Fluorescence of this nuclear-localised marker occurred in multiple adjacent cells in ccc1, which did not occur in wildtype plants (Figure 2—figure supplement 1).

Functional GFP-CCC1 localises to the endomembrane system

We had previously localised Arabidopsis CCC1-GFP to the Golgi and TGN/EE in transient expression assays in N. benthamiana (Henderson et al., 2015). In addition, several proteomic studies corroborate that CCC1 is present in this organelle (Sadowski et al., 2008; Drakakaki et al., 2012; Groen et al., 2014; Nikolovski et al., 2014), with one study identifying CCC1 as a high-confidence TGN/EE resident protein (Parsons et al., 2019). Therefore, we sought to investigate the role of CCC1 in this organelle. We generated an N-terminally tagged GFP-CCC1 construct, which, when stably expressed in ccc1 plants, was able to complement the root hair phenotype. To express this construct, we used the EXP7 (Expansin7) trichoblast-specific promoter, which drives expression within root epidermal cells. This approach was adopted after many attempts to generate plants that express the CCC1 protein with different tags and different fusion orientations using the native promoter (Supplementary file 1a). Approaches included the use of different protein linkers between CCC1 and the different tags, green and red fluorescent proteins, the smaller FLAG tag, and multiple tag locations, including both termini and internal placements. No transformants were recovered with a terminally tagged protein expressed using the native promoter. This difficulty in obtaining transformed plants might suggest that terminal tagging interferes with CCC1 function in embryonic or meristematic tissue where CCC1 is active. Generation of an antibody was also not successful. Internal tagging might have disrupted protein folding, despite the selection of tagging sites according to a protein model made using Swissport since transformants were recovered, but no fluorescence could be detected and the ccc1 knockout phenotype was not complemented in those plants. We therefore decided to express GFP-CCC1 in a mature cell type, in which we had identified a clear phenotypic defect in ccc1 − trichoblasts. GFP-CCC1 expression in these epidermal cells was successful and complemented the short root hair phenotype of ccc1 knockout plants (Figure 3). GFP-CCC1 expression driven by the EXP7 promoter did not rescue the altered trichoblast patterning of ccc1 roots (Figure 3—figure supplement 1). This is consistent with the EXP7 promoter driving expression after cell fate determination, but before final cell length is achieved. Interestingly, expression of GFP-CCC1 on the EXP7 promoter did not rescue collet hair formation, which highlights the difference between root hair and collet hair development and indicates that different gene networks are important for collet hair formation compared to that of root hairs.

Figure 3 with 1 supplement see all
Stably expressed GFP-CCC1 is functional and localised to the trans-Golgi-network/early endosome (TGN/EE).

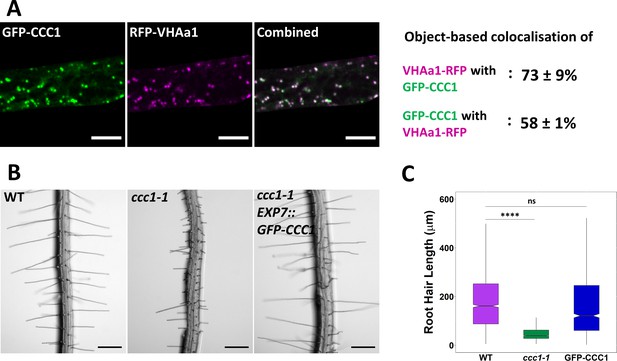

(A) GFP-CCC1 (green) and VHAa1-RFP (magenta) colocalise. Colocalisation was calculated using DiAna object-based colocalisation plugin in ImageJ; Pearson’s coefficient was also calculated as 0.86 ± 0.055. Error is standard deviation. n = 15 cells of five plants. Scale bars are 10 µm. Images are single representative optical sections from a stack. (B–C) Expression of GFP-CCC1 rescues ccc1 root hair length defects. n > 1300 root hairs. Scale bars are 200 µm. Boxplot shows range; median, first and third quartile are indicated. One-way ANOVA used to determine p. **** indicates p < 0.0001.

The stable expression of GFP-CCC1 in Arabidopsis revealed a similar subcellular localisation pattern to what we previously observed in N. benthamiana (Henderson et al., 2015), showing that CCC1 is localised to internal organelles in a native cell type. Time-lapse imaging of GFP-CCC1 movement was consistent with what could be expected for the Golgi or TGN/EE, however, GFP-CCC1 labelled organelles did not resemble the Golgi (Videos 1 and 2). To identify the GFP-CCC1 labelled compartments, we crossed the stably expressed marker, VHAa1-RFP, into plants expressing GFP-CCC1 (Figure 3A). Colocalisation of GFP-CCC1 and VHAa1-RFP was measured using object-based colocalisation analysis, with the ImageJ plugin DiAna, which revealed that 73% ± 9% of VHAa1-RFP colocalised with GFP-CCC1, while 58% ± 11% of GFP-CCC1 colocalised with VHAa1-RFP. The asymmetrical colocalisation indicates that, in addition to the TGN/EE, CCC1 might localise to additional organelles of the endomembrane system (Figure 3A), which is similar to NHX5 and NHX6 (Reguera et al., 2015). In addition, the Pearson’s correlation coefficient of pixel signal intensity for RFP and GFP channels was calculated, which gave a correlation value of 0.86 ± 0.055. Pharmacological treatment further confirmed the endosomal localisation. Treatment with the trafficking inhibitor, brefeldin A (BFA), caused the GFP signal to accumulate in the centre of BFA bodies, consistent with a TGN/EE localisation (Figure 3—figure supplement 1).

Video 1
Time-lapse showing movement of GFP-CCC1 labelled subcellular compartments in a root hair.

GFP-CCC1 localises to motile intracellular organelles, expression driven with EXP7 promoter. Time series of the root hair was taken through the centre plane of the root hair. 20 s shown per second at 10 frames per second.

Video 2
Time-lapse showing movement of GFP-CCC1 labelled subcellular compartments in a root epidermal cell.

GFP-CCC1 localises to motile intracellular organelles, expression driven with EXP7 promoter. Time series was imaged below the radial plasma membrane (PM). 20 s shown per second at 10 frames per second.

We then investigated if CCC1 might cycle between the TGN/EE and PM. Cases like this have been observed for other ion transporters that localise mainly in endosomes but function at the PM, such as the iron transporter, IRT1. PM localisation of IRT1 can be visualised using pharmacological treatment with tyrphostin A23 (TyrA23), which acidifies the cytosol resulting in, among other effects, an inhibition in endocytosis and subsequent accumulation of cycling proteins at the PM (Barberon et al., 2011; Dejonghe et al., 2016). For CCC1, no change in the subcellular localisation was observed after treatment with TyrA23 (Figure 3—figure supplement 1). Similarly, an osmotic shock treatment, which can sometimes induce a change in protein localisation (Boursiac et al., 2008; Hachez et al., 2014), did not lead to any observable changes in GFP-CCC1 localisation (Figure 3—figure supplement 1).

Loss or knockdown of other TGN/EE-localised proteins, such as the H+-V-ATPase, can affect the TGN/EE morphology (Dettmer et al., 2006). Transmission electron microscopy (TEM) of high-pressure-frozen, freeze-substituted samples revealed that the lack of CCC1 did not lead to obvious morphological changes in the TGN/EE ultrastructure, with the appearance of all organelles being similar between ccc1 mutant and wildtype cells (Figure 3—figure supplement 1). This suggests that the defects observed in ccc1 knockouts do not manifest through gross morphological changes in organelle structure, and so may instead be connected to other properties of the TGN/EE such as their luminal conditions.

Hyperosmotic stress rescues root hair elongation and improves seed germination of ccc1

Knockouts of the TGN/EE-localised ion transporters, NHX5 and NHX6, as well as the proton pump V-H+-ATPase are salt-sensitive, with salt-associated germination and root growth phenotypes (Krebs et al., 2010; Bassil et al., 2011). We therefore further investigated the response of ccc1 plants to salt stress. As rice OsCCC1.1 is implicated in maintaining cell sap osmolality (Chen et al., 2016), we also investigated the response to osmotic stress.

Plants were grown on media with added salt (NaCl), or an isosmotic concentration of mannitol or sorbitol, to determine if any changes in tolerance were the result of ionic or osmotic stress (Figure 4A–B and Figure 4—figure supplement 1). Wildtype and ccc1 seeds were germinated on media containing 0–300 mM NaCl or 0–600 mM of mannitol or sorbitol. ccc1 seeds typically germinated slightly earlier than wildtype seeds, so germination of seeds was assessed 8 days after imbibition (=6 days after transfer to the growth chamber). Under control conditions, over 90% of wildtype, ccc1-1 and ccc1-2 seeds germinated. The germination rate of all genotypes decreased with higher salt, mannitol and sorbitol concentrations, yet, this decrease was smaller in the ccc1 knockouts than wildtype. On 450 mM mannitol, 30% ± 7% (SEM) of wildtype seeds germinated, while 79% ± 6% of ccc1-1 and 64% ± 7% of ccc1-2 seeds germinated. On 600 mM mannitol, 4% ± 2% of the wildtype seeds germinated, while 27% ± 6% of ccc1-1 and 20% ± 6% of ccc1-2 seeds were able to germinate in this condition. Similar results were obtained on sorbitol (Figure 4—figure supplement 1). A similar trend was also observable when plants were grown on media containing NaCl. Growth and germination of both wildtype and ccc1 plants on NaCl was lower than observed on isosmotic concentrations of mannitol and sorbitol. In addition, the increased tolerance of ccc1 seed germination to NaCl was less pronounced than on mannitol and sorbitol. At 150 mM NaCl, 67% ± 7% of wildtype seeds germinated compared with 85% ± 5% of ccc1-1 and 95% ± 2% of ccc1-2 seeds.

Figure 4 with 1 supplement see all
Increased external osmolarity rescues cell elongation defects in ccc1.

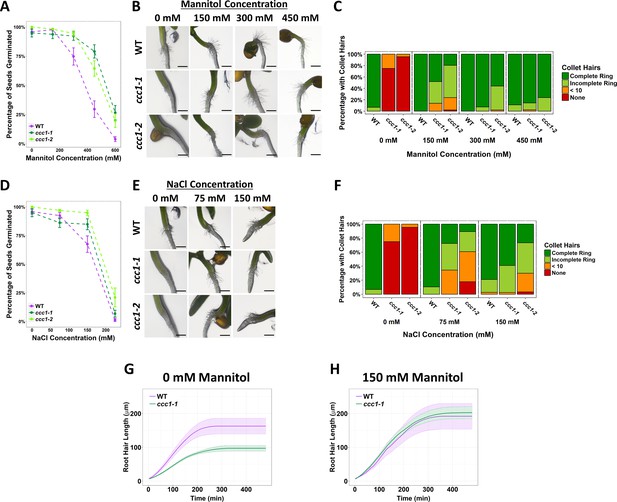

(A, D) A higher percentage of ccc1 seeds germinate on media with a higher osmolarity, adjusted with increasing (A) mannitol or (D) NaCl concentrations. Number of germinated seeds assessed 6 days after imbibition. n > 90 seeds. (B–C, E–F) Collet hair formation in ccc1 is rescued on media with a higher osmolarity. n > 9 plants for 450 mM treatments, >30 plants for all other treatments. Scale bars are 300 µm. Germination and collet hair assays with mannitol, sorbitol, and NaCl were performed together and therefore share the same control (0 mM). (G–H) The slower rate of root hair elongation in ccc1 is rescued when grown in media with 150 mM mannitol (see Videos 36). Under control conditions, between 50 and 100 min after initiation, wildtype roots hairs elongated at a rate of 0.88 ± 0.27 µm min–1 compared with a rate of 0.47 ± 0.08 µm min–1 in ccc1.

In addition to the higher germination rate of ccc1 seeds on media with a high osmolarity, we observed that a striking phenotype of ccc1 – the absence of collet hair formation (Figure 2) – was rescued when ccc1 was grown on media with a high osmolarity. Under control conditions, over 90% of wildtype seedlings had a complete ring of collet hairs, while they were present in 0% of ccc1 seedlings of either knockout allele (Figure 4C–F and Figure 4—figure supplement 1). When grown on 150 mM mannitol, 86% of ccc1-1 seedlings and 75% of ccc1-2 seedlings had collet hairs present as either a partial or complete ring around the hypocotyl. This improved to 100% of ccc1-1% and 98% of ccc1-2 on media with 300 mM mannitol. As occurred for germination, little difference was seen between mannitol and sorbitol treatments (Figure 4—figure supplement 1). NaCl treatment also resulted in the presence of collet hairs in ccc1 knockouts, however, not to the same magnitude as observed in mannitol and sorbitol treatments. When treated with 150 mM NaCl, 98% of ccc1-1% and 63% of ccc1-2 had collet hairs. Inspection of the root-hypocotyl base region where collet hairs form under control conditions shows that collet hairs do initiate in ccc1 plants but fail to elongate (Figure 4—figure supplement 1). This suggests that the absence of collet hairs in ccc1 is due to cell elongation defects, with no obvious defects in cell identify (Figure 4—figure supplement 1). This further suggests that osmotic stress rescues cell elongation defects in ccc1 roots.

To further investigate if raising external osmolarity leads to increased cell elongation in ccc1 roots, we investigated if the reduced speed of root hair growth of ccc1 plants is also rescued by increasing external osmolarity. To determine root hair elongation speed, root hairs below a final length of 50 µm were not measured, this consists of all root hairs that initiated, but did not elongate. We did this, as it was not possible to acquire an accurate measurement of elongation rate from such root hairs. Time-lapse microscopy revealed that ccc1 root hairs grew for the same duration as wildtype hairs, but at a reduced speed leading to a reduced final root hair length (Figure 4G, Videos 36). Between 50 and 100 min after elongation initiated, wildtype root hairs had an average elongation rate of 0.88 ± 0.27 µm min–1, while ccc1 root hairs elongated at half that speed, at 0.47 ± 0.08 µm min–1 (Figure 4G). Strikingly, when grown in media with 150 mM mannitol, the elongation rate of ccc1 root hairs was increased to be the same rate as wildtype (Figure 4H). Final length of ccc1 root hairs was also rescued in solutions with high external osmolarity.

Video 3
Wildtype control.Time-lapse of root hair elongation.

48 min shown per second at 24 frames per second. See also Figure 4G.

Video 4
ccc1 control Time-lapse of root hair elongation.

ccc1 root hairs elongate slower than wildtype under control conditions. 48 min shown per second at 24 frames per second. See also Figure 4G.

Video 5
Wildtype 150 mM mannitol.Time-lapse of root hair elongation.

48 min shown per second at 24 frames per second. See also Figure 4H.

Video 6
ccc1 150 mM mannitol.Time-lapse of root hair elongation.

While ccc1 root hairs elongate slower than wildtype under control conditions they elongate at the same speed as wildtype when grown on media containing 150 mM mannitol. 48 min shown per second at 24 frames per second. See also Figure 4.

ccc1 cells do not have higher cell sap osmolality but are more resistant to plasmolysis

We next investigated the origin of rescue of ccc1 root hair elongation when grown on media with an elevated osmolarity. Conceivably, this could be connected to an increased osmolarity in ccc1 cells. However, we found that cell sap osmolality was not higher in ccc1 compared to wildtype (Figure 5A).

ccc1 root cells do not have a higher osmolality but are more tolerant to plasmolysis.

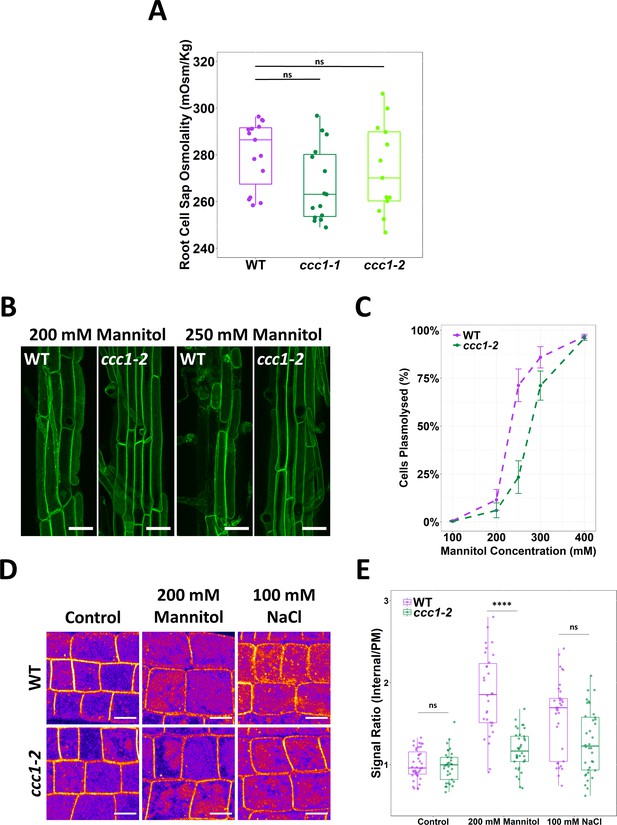

(A) The cell sap osmolality of whole root fluid was measured using a freeze point osmometer; no difference between wildtype and ccc1 cell sap osmolality was found. n = 13–15. (B–C) ccc1 root epidermal cells require a higher external mannitol concentration to induce incipient plasmolysis. Plasmolysed and non-plasmolysed cells were counted 1 hr after treatment. The plasma membrane (PM) of cells was visualised with the PM marker, GFP-LIT6b (green). Forty cells were assessed per plant, 12 plants were counted for each genotype/treatment. Scale bars are 40 µM. (D–E) The internalisation of PIP2;1-GFP in response to osmotic (200 mM mannitol) and salt (100 mM NaCl) shock treatment was assayed in root epidermal cells of the elongation zone. ccc1 has a reduced PIP2;1-GFP internalisation after osmotic shock as compared to wildtype. Plants were imaged 30 min after treatment. A signal ratio of internal and PM signal was used to measure internalisation. Data presented relative to wildtype control. n > 45. Scale bars are 10 µM. Boxplot shows range; median, first and third quartile are indicated. One-way ANOVA used to determine p. **** indicates p < 0.0001.

Other factors that could contribute to the improved growth of ccc1 plants on media with high osmotic strength include altered osmoregulatory capacity. To explore if the osmoregulatory capacity of ccc1 cells may be altered, the point of incipient plasmolysis was determined for wildtype and ccc1 epidermal root cells. This determines the external osmotic strength required to induce plasmolysis in 50% of the cells. Plasmolysis of mature epidermal root cells was induced by submerging roots in liquid media containing high concentrations of mannitol for 30 min after which plamolysed cells were observed using plants that stably express a PM marker. A lower proportion of plasmolysed cells were counted in ccc1 at all but the highest mannitol concentration (Figure 5B–C). The greatest difference was observed at 250 mM mannitol, where 71% ± 9% (SEM) of wildtype cells were plasmolysed compared to only 23% ± 9% of ccc1 cells at the same concentration. The estimated mannitol concentration for incipient plasmolysis was determined using a fitted curve. For wildtype, 50% of cells were estimated to plasmolyse at 232 mM mannitol, while plasmolysis of 50% of ccc1 root cells was estimated to require a mannitol concentration of 277 mM, 45 mM higher than that of the wildtype. As a higher cell sap osmolality is excluded as a reason for higher resistance to plasmolysis in ccc1, other factors are the cause for the observed differences between the wildtype and ccc1.

Trafficking of PIP2;1 in response to osmotic shock is reduced

In response to osmotic stress, aquaporins are removed from the PM (Boursiac et al., 2008; Hachez et al., 2014). The aquaporin PIP2;1 cycles between the PM and TGN/EE and is internalised in response to osmotic stress (Luu et al., 2012). We investigated osmotically induced internalisation of stably expressed PIP2;1-GFP in ccc1 and wildtype plants. Wildtype and ccc1 roots were treated with 100 mM NaCl or 200 mM mannitol for 30 min before internalisation of PIP2;1-GFP was measured by obtaining the ratio of the fluorescent signal on the PM compared to the signal inside the cell. In both wildtype and ccc1 roots, PIP2;1-GFP remained localised to the PM when treated with only 1/2 MS (Figure 5D–E). When treated with NaCl or mannitol, both genotypes internalised PIP2;1-GFP, but the relative portion of PIP2;1-GFP internalisation was lower in ccc1 than wildtype (Figure 5D–E). This excludes a more efficient removal of PIP2;1 from the PM as the reason for the reduced plasmolysis in ccc1 knockouts. Additional factors, such as the previously observed alterations in cell wall composition in ccc1 (Han et al., 2020), or changes in cellular signalling connected to ion transport at the TGN/EE might therefore contribute to observed improvement of the ccc1 knockout when grown in media with higher external osmolarity.

Loss of CCC1 results in defects of endomembrane trafficking

The reduced internalisation of PIP2;1-GFP in ccc1 cells in response to osmotic stress may be the result of a reduced rate of endomembrane trafficking in ccc1 cells. We therefore investigated if ccc1 is important for maintaining normal rates of endomembrane trafficking.

The rate of protein exocytosis, which is a combination of trafficking from secretion and recycling, was assayed using wildtype and ccc1 lines stably expressing PIN2-GFP. BFA treatment resulted in the accumulation of PIN2-GFP in the endomembrane system, measured as a strong increase in cytoplasm:PM signal ratio. This increase was more pronounced in ccc1 than in wildtype cells (Figure 6A–B). BFA treatment in Arabidopsis root cells leads to the formation of BFA bodies, which are an amalgamation of Golgi and TGN/EE (Geldner et al., 2001). Interestingly, while BFA bodies were compact and bright in wildtype plants, BFA bodies in ccc1 were less dense with a more diffuse GFP signal pattern. Upon BFA washout, wildtype plants exhibited an almost complete recovery of the PIN2-GFP cytoplasm:PM signal ratio, suggesting that protein secretion and recycling had resumed. In contrast, ccc1 showed minimal recovery in the cytoplasm:PM signal ratio indicating a considerable decrease in PIN2-GFP exocytosis (Figure 6A–B). PM fluorescence of PIN2 is lower in other mutants with loss of TGN/EE ion transporters, such as nhx5/nhx6 plants (Dragwidge et al., 2019). Quantification of PM fluorescence of PIN2 in the ccc1 plants revealed that PIN2 signal intensity at the PM was lower in ccc1 (Figure 6—figure supplement 1A), suggesting that the loss of this TGN/EE-localised ion symporter may be important for PM accumulation of proteins like PIN2. As there is a difference in fluorescence of PIN2 between wildtype and ccc1 lines, we checked that a difference in overall fluorescence did not influence the fluorescence ratio being used to measure internalisation. No correlation was found between total fluorescence and ratio within a single treatment and genotype suggesting that total fluorescence does not affect the ratio (Figure 6—figure supplement 1B).

Figure 6 with 1 supplement see all
Loss of CCC1 leads to defects in exocytosis and endocytic trafficking.

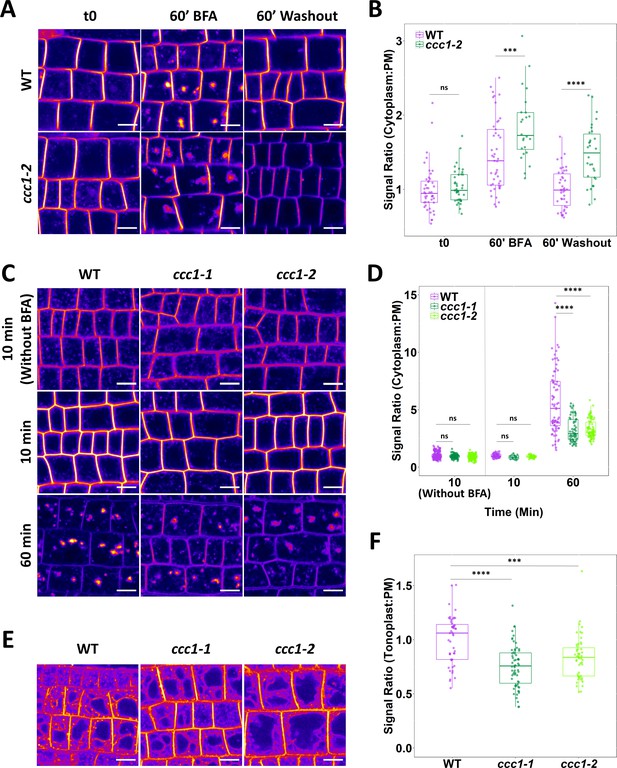

(A–B) ccc1 root epidermal cells show a reduced recovery of PIN2-GFP cytoplasm:PM signal ratio after a 60 min treatment with 25 µM brefeldin A (BFA). n > 24 cells, 3 cells measured per plant. (C–D) Endocytic trafficking of the membrane dye FM4-64 (red), measured as an increase in the cytoplasm:PM ratio, is reduced in ccc1 lines while endocytosis, measured with a separate set of experiments without the use of BFA, was unchanged in ccc1. Plants were kept in 25 µM BFA for the duration of the experiment. n > 56 cells of >9 plants. (E–F) Trafficking of FM4-64 to the vacuole in the absence of BFA, measured as an increase of the tonoplast:PM signal ratio, is reduced in ccc1 lines. n > 51 cells of >18 plants. Boxplots show range; median, first and third quartile are indicated. Points represent individual measurements. All images are single representative optical sections. All data presented relative to wildtype under control conditions. One-way ANOVA used to determine p. *** indicates p < 0.001, **** indicates p < 0.0001. All scale bars are 10 µm.

As the rate of PIP2;1-GFP internalisation was reduced in ccc1, we also measured the rate of endocytic trafficking. Endocytic trafficking was quantified by internalisation of the endocytic tracer FM4-64, measured by an increase in the cytoplasm:PM signal ratio with BFA treatment. After 60 min of treatment (10 min with FM4-64 and BFA, 50 min with BFA only), the fluorescence ratio was much lower in ccc1 than wildtype cells, consistent with a significant reduction in the rate of endocytic trafficking (Figure 6C–D). We additionally investigated if endocytosis was disrupted in ccc1 mutants through a pulse-chase experiment without BFA treatment. No difference in internalisation of the FM4-64 was observed after 10 min (Figure 6C–D), indicating that endocytic trafficking, but not endocytosis itself, is affected in ccc1. In a third FM4-64 pulse-chase experiment, trafficking of FM4-64 to the vacuole was measured without the use of BFA, and the ratio of FM4-64 fluorescence at the tonoplast and the PM was compared. Labelling of the tonoplast with FM4-64 became visible in both wildtype and mutant cells after 3 hr, with a reduced ratio of tonoplast:PM signal in ccc1 compared with wildtype cells. This indicates a reduction in endocytic trafficking of FM4-64 to the vacuole when CCC1 is absent (Figure 6E–F).

In both experiments using BFA, BFA bodies in ccc1 appeared to have a more diffuse morphology with a duller signal compared to the more compact and therefore brighter appearing BFA bodies in the wildtype (Figure 6A and C). This possible difference in BFA body formation had, however, no impact on the cytoplasm:PM signal ratio measurements, as for the experiment using PIN2 we found a higher ratio in ccc1, and for the experiment using FM4-64 we found a lower ratio. Our combined results therefore indicate general defects in exocytosis and endocytic trafficking when CCC1 function is lost.

CCC1 contributes to TGN/EE luminal pH regulation

Here, we show that GFP-CCC1 is localised in the TGN/EE and identified that CCC1 is important for endomembrane trafficking (Figures 3 and 6). We hypothesised that the symporter might impact endomembrane trafficking through its role in regulating ion movement across the TGN/EE membrane, which may contribute to an altered luminal pH by affecting the activities of the cation- and anion-proton exchangers, and therefore ultimately the proton pump. To investigate this possible role of CCC1 in the pH regulatory network, we used both pharmacological treatments and a stably expressed TGN/EE fluorescent pH sensor.

The ionophore monensin was utilised to assess if the loss of CCC1 results in changes to the ability of the TGN/EE to maintain a stable luminal environment. Monensin is a monovalent cation ionophore, acting as a membrane permeable ion exchanger, exchanging luminal protons for cations (Zhang et al., 1993). The rapid increase in osmotically active cations within the TGN/EE lumen caused by monensin leads to observable TGN/EE swelling. The cation concentration gradient is an important factor for determining the severity of monensin-induced TGN/EE swelling. This is exemplified by nhx5/nhx6 mutants, which are less sensitive to monensin despite a more acidic luminal pH and greater proton gradient for driving swelling (Dragwidge et al., 2019). We hypothesised that if CCC1 is important for ion efflux out of the TGN/EE, ccc1 TGN/EE might be hypersensitive to monensin-induced TGN/EE swelling. We assessed the susceptibility of ccc1 to monensin using live-cell imaging of VHAa1-RFP-labelled TGN/EE in wildtype and ccc1 root epidermal cells in the elongation zone, treated with 2.5 µM of monensin for 15 min. The average wildtype TGN/EE size increased by 28% ± 13% after treatment, while ccc1 TGN/EE size increased by 52% ± 16% (Figure 7A), revealing a highly increased susceptibility of ccc1 TGN/EE to osmotically induced swelling caused by cation accumulation. This suggests that CCC1 mitigates the effect of monensin in wildtype cells, by allowing efflux of K+ and Cl-, as anion and cation transport are stochiometrically linked in CCC1. We further suspected that TGN/EE pH could be altered as a consequence of altered cation and anion transport processes.

Figure 7 with 3 supplements see all
CCC1 is required for regulation of trans-Golgi-network/early endosome (TGN/EE) luminal conditions and luminal pH change in response to osmotic shock.

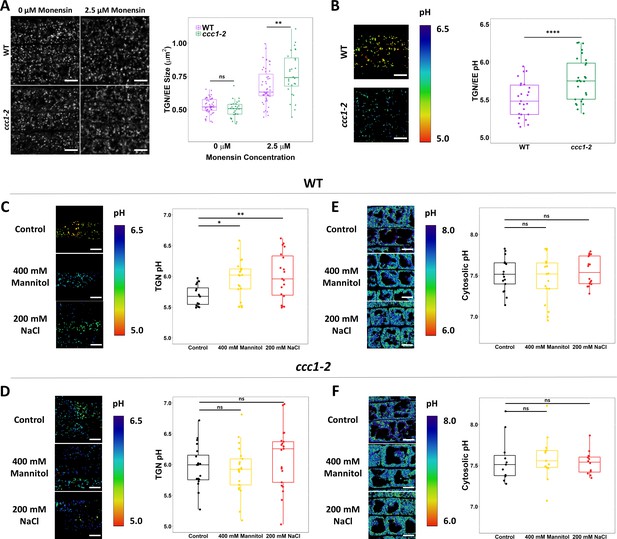

(A) Osmotically induced TGN/EE swelling due to cation influx is more severe in ccc1 epidermal root cells after 15 min of treatment with 2.5 µM monensin. TGN/EE are visualised through stable expression of VHAa1-RFP (white) in wildtype and ccc1 backgrounds. n > 28 plants. Scale bars are 10 µm. Images are single representative optical sections. (B–D) Stable expression of the TGN/EE lumen pH sensor pHusion in wildtype and ccc1 backgrounds. (C) The pH of ccc1 TGN/EE is 0.3 pH units higher compared to wildtype in root epidermal cells. n > 26. (D) The pH of wildtype TGN/EE increased by 0.3 in response to 15 min treatments with 400 mM mannitol and 200 mM NaCl. n > 16. (E) The same treatments resulted in no change to the pH of ccc1 TGN/EE. n > 16. (E–F) Stable expression of the cytosolic pH sensor pHGFP in wildtype and ccc1 backgrounds. There is no significant pH difference between the two genotypes in root epidermal cells. The cytosolic pH of both (E) wildtype and (F) ccc1 was unchanged in response to osmotic and salt shock. n > 13. pH with both sensors was calculated using calibration curves performed with each set of experiments. Images show the ratio of GFP/RFP of the pH sensor SYP61-pHusion in the TGN/EE lumen and emission ratio for the pHGFP cytosolic sensor as a colour range, using the inverted ‘physics’ look-up table in ImageJ. Scale bars are 10 µm. Calibration curves for pH sensors displayed in Figure 7—figure supplement 2. Boxplots show range; median, first and third quartile are indicated. Points represent individual measurements. One-way ANOVA used to determine p. * indicates p < 0.05, ** indicates p < 0.01, **** indicates p < 0.0001.

To investigate this hypothesis, we introduced the stably expressed TGN/EE-localised pH sensor, SYP61-pHusion (Luo et al., 2015), into ccc1 and investigated if defects in cation anion symport can impact pH regulation in the TGN/EE. Confocal imaging of epidermal cells in the root elongation zone revealed that luminal pH was more alkaline in ccc1, with a pH of 5.8 ± 0.05, compared to wildtype pH of 5.5 ± 0.05, confirming our initial hypothesis that a non-proton transporting ion symporter can impact luminal pH (Figure 7B). We investigated whether loss of CCC1 led to a more general defect of intracellular pH by measuring cytosolic pH using the genetically encoded and stably expressed pHGFP (Moseyko and Feldman, 2001) and vacuolar pH using the pH-sensitive dye, BCECF (Krebs et al., 2010). No difference was found between the ccc1 and wildtype, demonstrating that lack of CCC1 leads to spatially defined pH changes instead of a general effect (Figure 7E–F, Figure 7—figure supplement 1). To further assay the role of CCC1 in the TGN/EE and how it may interact with other TGN/EE transporters and the proton pump, crosses were made of ccc1 × det3 and ccc1 × nhx5 × nhx6. However, crosses either resulted in plants which were not viable or no combined mutant could be obtained (Supplementary file 1b, Figure 7—figure supplement 3). This might further support that CCC1 is required for the regulation of the TGN/EE luminal conditions in concert with other ion and proton transporters, and that removal of more regulatory components leads to such severe defects that the plants are unable to survive.

The luminal pH of the TGN/EE increases in response to salt and osmotic stress

Plants with altered TGN/EE lumen pH, including ccc1 plants, show altered growth responses to salt and osmotic treatments. Therefore, we investigated in wildtype if there are changes to TGN/EE luminal pH in response to salt and osmotic treatment and then compared our findings to ccc1.

The TGN/EE luminal pH of epidermal root cells of the elongation zone was quantified after 15 min exposure to 200 mM NaCl or 400 mM mannitol and compared to that of roots exposed to 1/2 MS control solution. In wildtype, in response to both NaCl and mannitol, the pH of the TGN/EE increased from 5.7 ± 0.04 (SEM) under control conditions to 6.0 ± 0.09 and 6.0 ± 0.07, respectively (Figure 7C). Mannitol and NaCl both elicited the same pH response from plants demonstrating that the pH change is not exclusively connected to an increase in external ion concentrations but rather occurs under an elevated external osmolarity. Osmotic stress triggers an array of responses at the PM that can result in membrane depolarisation and depletion of cellular ATP (Che-Othman et al., 2017). Such events may impact proton transport across multiple membranes and as such, pH changes under osmotic stress may not be exclusive to the TGN/EE lumen. To assess this, the pH of the cytosol was measured in response to stress. We excluding the signal from nuclei for measurements. This was done because the pH of the nucleus differs from that of the cytosol and its response to stress may also differ (Shen et al., 2013). We found that neither 15 min NaCl nor mannitol treatment induced significant changes in cytosolic pH (Figure 7E). Under control conditions, the pH of the wildtype cytosol was 7.5 ± 0.05, almost identical pH values of 7.5 ± 0.07 under NaCl treatment and 7.6 ± 0.04 under mannitol treatment were obtained. This suggests that immediate cellular signalling in response to salt and osmotic shock does not involve changes in cytosolic pH but changes in luminal TGN/EE pH.

In the same set of experiments, the TGN/EE and cytosolic pH of ccc1 mutants in response to salt and osmotic shock treatments was measured. As in wildtype, no changes were observed for ccc1 in cytosolic pH response; ccc1 cytosolic pH under control conditions was 7.5 ± 0.12, in NaCl it was 7.6 ± 0.08, and was 7.5 ± 0.04 when treated with mannitol (Figure 7F). In addition, cytosolic pH in wildtype and ccc1 under control conditions are almost identical, further supporting the idea that the pH change in ccc1 is compartment specific and not a generalised effect. In agreement with our experimental data set presented in Figure 7B, the TGN/EE luminal pH of ccc1 TGN/EE was higher than wildtype, with a pH of 6.0 ± 0.08 in control conditions. Different from wildtype, no significant change in luminal pH was detected in ccc1 knockouts with a mean TGN/EE pH of 6.1 ± 0.11 (SEM) and 5.9 ± 0.08 in response to NaCl and mannitol, respectively (Figure 7D).

Collectively, these results show that there is a TGN/EE-specific pH response to osmotic stress in wildtype plants. This cellular response was not found in ccc1, which might indicate that the TGN/EE luminal pH is set to 6.0 in response to stress or that pH 6 may be an upper limit for the TGN/EE pH. The unresponsiveness of TGN/EE luminal pH to osmotic shock in ccc1 might be connected to its improved growth under high external osmolarity.

Discussion

In the TGN/EE, both an increase or a decrease of luminal pH leads to changes in endomembrane trafficking, cell expansion, and cell wall formation, which implies that the pH of the TGN/EE is finely regulated (Luo et al., 2015; Dragwidge et al., 2019). Here, we show that a functional CCC1 is localised in the TGN/EE in Arabidopsis, and that loss of this cation anion symporter leads to defects in establishing the typical, low pH in TGN/EE lumen. This makes CCC1 the first TGN/EE-localised transporter important for pH regulation that has not been shown to directly transport protons. Our results show that CCC1 is important for counteracting the cation-induced osmotic swelling of TGN/EE by monensin (Figure 7), consistent with this symporter being important for regulating luminal ion concentrations. pH measurements confirmed that ccc1 cells have a more alkaline pH in the TGN/EE lumen compared to wildtype. We therefore propose to update the current model of pH regulation, containing the V-H+-ATPase, NHX5 and NHX6, and CLCd (Sze and Chanroj, 2018), adding CCC1 (Figure 8).

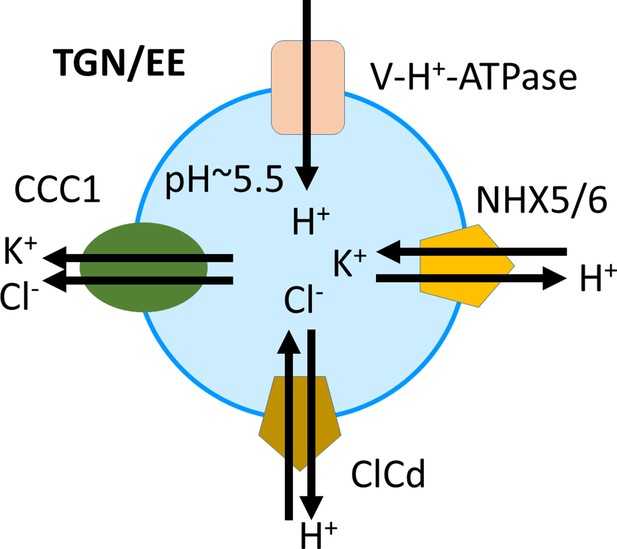

Proposed model of ion and pH regulation in the trans-Golgi-network/early endosome (TGN/EE).

The V-H+-ATPase proton pump, the cation-proton exchangers NHX5 and NHX6, and the anion-proton exchanger CLCd are important for acidification and fine-tuning of the pH regulation in the TGN/EE lumen. CCC1 provides a cation and anion efflux mechanism, completing the regulatory transport circuit.

The function of CCC1 in the TGN/EE is consistent with CCC1 localisation to this organelle, as detected here and shown in earlier studies (Sadowski et al., 2008; Drakakaki et al., 2012; Groen et al., 2014; Nikolovski et al., 2014; Henderson et al., 2015; Parsons et al., 2019). We find no evidence that CCC1 was functional on any other membrane. The construction of a functional CCC1 with a tag was not trivial. Multiple attempts at tagging CCC1 failed and the construct used here, GFP-CCC1, did not give transformants if ubiquitously expressed under the control of its native promoter (Supplementary file 1a). We demonstrate cellular functionality through the ability of GFP-CCC1 to improve root hair and trichoblast elongation (Figure 3 and Figure 3—figure supplement 1), yet, the inability to express tagged CCC1 ubiquitously suggests that tagging does affect CCC1, potentially through modifying regulation or activity of the protein to create an overactive, embryo lethal variant. In another study, a CCC1-GFP construct expressed in pollen was predominantly localised to endomembranes, but was also suggested to localise to the PM (Domingos et al., 2019). This might indicate that in pollen, CCC1 might have other cellular localisation in addition to TGN/EE. However, the functionality of this construct was not shown through complementation of the pollen tube growth defect, and the PM signal might have been a result of overexpression of the construct through the tomato-derived Lat52 promoter or the C-terminal GFP-tag may have perturbed retention of the CCC1-GFP construct in the TGN/EE. Our results in root cells demonstrate that functional GFP-CCC1 localises to the TGN/EE and that loss of function of the symporter impacts TGN/EE luminal conditions, and results in phenotypes in line with disruption in TGN/EE luminal pH.

Interestingly, endomembrane localisation of CCCs is not restricted to Arabidopsis CCC1. Yeast CCC, called VHC1, is the only functionally characterised CCC outside of plants and animals. Similar to Arabidopsis CCC1, VHC1 is found on an intracellular membrane; and like many animal CCCs, and CCC1 from plants, VHC1 is involved in osmoregulation (Petrezselyova et al., 2013). Intracellular organelles such as the TGN/EE (or the yeast vacuole) are kept in osmotic equilibrium with the cytosol, which is akin to the adjustment animal cells conduct with their extracellular fluid. Unlike animal cells, plants maintain steep osmotic gradients across their plasma membranes, enabled by the presence of a cell wall and the establishment of turgor pressure. Therefore, proteins involved in osmoregulation localised on the PM of animal or plant cells are likely to require different characteristics and this may explain the difference in localisation of CCC proteins in animals as compared to organisms with a cell wall. Interestingly, also for CLC proteins, many animal CLCs are localised to the plasma membrane, but all investigated plant CLCs are localised to internal membranes, with no PM localisation detected (De Angeli et al., 2009).

CCC1 is an electroneutral anion cation symporter, which, like other CCCs, fixes the stoichiometry of exported anions and cations at 1:1 (Colmenero-Flores et al., 2007). In animals, this stoichiometry either consists of the electroneutral transport of 2Cl-:1Na+:1K+ in NKCCs, or 1Cl-:1K+ and 1Cl-:1Na+ in KCCs and NCCs, respectively. As Arabidopsis plants can be grown in the near absence of Na+ (50 nM) without showing a ccc1 knockout phenotype, it is likely that CCC1 is functional in the absence of Na+. This supports the hypothesis that CCC1 can function as a 1Cl-:1K+ symporter, which could be validated through further experimentation in heterologous systems (e.g. Colmenero-Flores et al., 2007; Henderson et al., 2015; van Delden et al., 2020).

In the TGN/EE, a 1:1 K+:Cl- ion export ratio of plant CCCs would tightly connect the activities of the colocalised ion exchangers NHX5 and NHX6 with CLCd, which contribute to the strict but dynamic regulation of pH. In addition, other transporters such as the potassium efflux antiporters KEA4, KEA5, and KEA6 might also contribute to luminal pH regulation in planta; yet their roles are currently less understood since triple kea4/kea5/kea5 knockouts show a much less severe phenotype compared to nhx5/nhx6, det3, or ccc1 (Dettmer et al., 2006; Colmenero-Flores et al., 2007; Bassil et al., 2011; Zhu et al., 2019).

Functional pH regulation and endomembrane transport has a vital role in many cellular processes, including cell wall formation, nutrient acquisition, and the establishment of hormone gradients (Guo et al., 2014; Adamowski and Friml, 2015; Sinclair et al., 2018). In agreement with this, ccc1 mutant plants display very severe phenotypic alterations compared to wildtype. We found that CCC1 is ubiquitously expressed, and its function is required for cell elongation, which might be a contributing cause of the reduced overall growth of the mutants (Figures 1 and 2). Cell elongation is also reduced in nhx5/nhx6 and clcd/amiR-clcf mutants; with reduced root hair elongation speed in both and reduced root epidermal cell and root hair length in clcd/amiR-clcf (Bassil et al., 2011; Scholl et al., 2021). Reduced root hair elongation could be the result of reduced rates of endomembrane trafficking, which have been observed in nhx5/nhx6 causing reduced delivery of cargo important for cell expansion such as cell wall components. Phenotypic defects in ccc1 are not restricted to cell elongation, we found that trichoblast patterning was also altered in ccc1 roots (Figure 2—figure supplement 1), which hints at a role of TGN/EE ion and pH regulation in early cell development. ccc1 plants further exhibit highly increased shoot branching, which gives the knockout plants a bushy appearance (Henderson et al., 2018). One cause for this might be defects in auxin transport regulation in shoots. We found alterations in PIN2 exocytosis in ccc1 roots, suggesting that similar defects could exist in shoot cells (Figure 5).

Previous work has revealed a link between endomembrane trafficking, the TGN/EE and salt tolerance in plants. Knockouts of the Arabidopsis Rab GTPase ARA6, involved in TGN/EE to PM trafficking, result in salt-sensitive plants. Likewise, knockouts of VACUOLAR PROTEIN SORTING 4 (VPS4), involved in sorting of proteins for vacuolar degradation, result in salt-sensitive plants. Similarly, both det3 plants and RNAi knockdowns of the TGN/EE V-H+-ATPase display a stronger reduction in primary root growth in response to 50 mM NaCl compared with wildtype plants (Batelli et al., 2007; Krebs et al., 2010). nhx5/nhx6 plants exhibit severe reductions in growth when transferred to media containing 100 mM NaCl and germination of nhx5/nhx6 seeds, with a reduced TGN/EE luminal pH is almost completely abolished on media containing 100 mM NaCl (Bassil et al., 2011). CCC1 appears to play a contrasting role to NHX5/NHX6, as here, we found that the germination of ccc1 seeds was more tolerant to salt and osmotic stress than wildtype (Figure 4). The contrasting roles in osmotic tolerance may be explained by the contrasting roles of the proteins in the TGN/EE. nhx5/nhx6 knockouts have a lower TGN/EE pH and are more resistant to monensin, while ccc1 knockouts have a higher TGN/EE pH and are hypersensitive to monensin. NHX5 and NHX6 import K+ from the cytosol and therefore knockouts are likely to have a reduced accumulation of K+ in the TGN/EE whereas we find here that CCC1 is likely to export K+ and therefore knockouts likely have an increased accumulation of K+. The elevated TGN/EE luminal pH in ccc1 under control condition might further prime them for osmotic shock treatments that induce plasmolysis, as luminal pH is as high in ccc1 under control conditions as it is in wildtype in response to osmotic shock.

CCC1 is important for root hair growth under standard conditions, but ccc1 knockout root hair growth occurred at the same rate as wildtype at an elevated osmolarity. The greater germination rate of ccc1 seeds on media with a higher osmolarity may be the result of a combination of factors, including changes in TGN/EE luminal pH and multiple downstream factors. Changes in the cell wall composition of ccc1 knockouts have been observed (Han et al., 2020), so ccc1 plants might have a weaker cell wall and potentially a weaker seed coat, which might require a smaller water uptake for the necessary seed swelling and seed coat rupture to occur.

Knockouts of ccc1 require higher concentrations to induce plasmolysis of root epidermal cells. This increased tolerance to plasmolysis could occur if ccc1 knockouts were able to regulate their internal osmolarity faster than wildtype. It is possible that ccc1 root epidermal cells could influx external osmolytes faster, due to altered PM localisation of osmolyte transporters, to more rapidly match the external osmolarity. Supporting this, nutrient uptake and ion translocation have been shown to be affected in ccc1 plants, with altered total shoot K+, Na+, and Cl- accumulation compared to the wildtype (Colmenero-Flores et al., 2007; Henderson et al., 2015). Interestingly, Osccc1.1 roots have a lower cell sap osmolality, but an increase in biomass was reported when plants grown in saline conditions compared to control conditions (Chen et al., 2016). The model we propose for Arabidopsis CCC1 might therefore be similar in rice, suggesting a conserved function.

Here, we show the TGN/EE pH of epidermal root cells increases in response to both salt and osmotic shock, which has not been reported previously. Modulation of the TGN/EE pH in response to abiotic stress may enable wildtype plants to rapidly regulate protein trafficking and abundance. det3, nhx5/nhx6, and ccc1 plants all exhibit TGN/EE pH differences compared to the wildtype of around 0.3 units (Luo et al., 2015; Reguera et al., 2015; Dragwidge et al., 2018; Dragwidge et al., 2019), very similar to what we consistently found for ccc1. All three genotypes exhibit altered responses to salt and osmotic treatments, suggesting that a dynamic but tight regulation of TGN/EE luminal pH is an important factor for plant response to these abiotic stresses.

In conclusion, our research here demonstrates that CCC1 has a central function in plant cells and fills a gap in our understanding of how endomembrane luminal pH is regulated through the identification of a novel ion efflux component of the TGN/EE ion transport network.

Materials and methods

Plant material and growth conditions

Request a detailed protocol

A. thaliana plants were all in the Columbia-0 (Col-0) background. Previously described T-DNA insertion lines in AT1G30450, ccc1-1 (SALK-048175), and ccc1-2 (SALK-145300) were used in this study (Colmenero-Flores et al., 2007). PIN2::PIN2-GFP, 35 S::VHAa1-RFP, UBQ10::PIP2;1-GFP, 35 S::GFP-LTIB6, and 35 s::SYP61-pHusion constructs and plant lines were previously described (Cutler et al., 2000; Xu and Scheres, 2005; Dettmer et al., 2006; Luo et al., 2015).

Arabidopsis plants were grown on half strength Murashige and Skoog (1/2 MS) media containing 0.1% sucrose, 0.6% phytagel, pH 5.6 with KOH. Plants were sown on plates, incubated at 4°C for at least 2 days and subsequently grown vertically at 21°C and 19°C in 16 hr light and 8 hr dark, respectively; or 8 hr light and 16 hr dark when short day is indicated. Plants were grown for different periods of time, as indicated below and in figure legends. Plants in pots (Figure 2) were grown in Irish Peat soil.

Promoter activity analysis by GUS and Venus fluorescence

Request a detailed protocol

GUS staining was done according to Jefferson et al., 1987. In summary, plants were submerged in GUS staining solution and stained (plant age and staining times indicated in figure legend). Image of the entire rosette was captured with a Nikon digital camera, flower and inflorescence images with a Nikon SMZ25 stereo microscope. Fluorescence of the nuclear-localised NLS-Venus was imaged in plants ranging from 5 to 8 days to 8 weeks as indicated in figure legend. Excitation light wavelength was 514 nm, emission was detected at 520–560 nm, using either a Nikon A1R or an Olympus FV3000 Confocal Laser-Scanning Microscope; with the following objectives: 20× Plan Apo Lambda and 40× Apo LWD WI Lambda S (Nikon), and 10× UPSLAPO objective (Olympus).

Root hair length, root hair elongation rate

Request a detailed protocol

Light microscopy imaging of root hair length was performed using a Nikon SMZ25 stereo microscope with a 2× objective. For quantification of root hair length, images of roots were taken from above the maturation zone of 6-day plants. Each measurement was of a single root hair. Multiple root hairs were measured per plant. Root hair length was measured using FIJI (Schindelin et al., 2012). For time-lapse light microscopy of root hair elongation rate, plants were germinated in 2 ml of media placed in one-well microscopy slides (Thermo Fisher) and grown vertically. Images of root hairs in the maturation zone were taken every 30 s for 6 hr using a Nikon Diaphot 300. Measurements were taken from the beginning of root hair elongation, of root hairs that elongated beyond the initiation phase, until root hair growth ceased. For consistency, elongation rates of root hairs were only measured for root hairs where both initiation and cessation of growth could be observed in the time-lapse. A single root hair was measured per plant. Analysis and creation of videos was performed using FIJI.

Root morphology imaging

Request a detailed protocol

Root morphology images for epidermal cell length and ectopic root hairs were taken at the same Nikon confocal, using 6-day seedlings and root cell wall autofluorescence (excitation 404 nm, emission 425–475 nm). Each measurement for epidermal cell length was of a single cell. Multiple cells were measured per plant. Adjacent trichoblasts were also imaged in root epidermal cells of the maturation zone of ccc1 plants expressing the trichoblast marker PRP3::H2B-2xmCherry (excitation = 561 nm, emission = 570–620 nm; Marquès-Bueno et al., 2016).

GFP-CCC1 cloning and expression

Request a detailed protocol

For stable expression of CCC1 in root hairs, 1402 bp of the trichoblast-specific promoter EXP7 (Marquès-Bueno et al., 2016) was first amplified from Col-0 genomic DNA, using the primers EXP7pro-HindIII_F (tatacAAGCTTATTACAAAGGGGAAATTTAGGT) and EXP7pro-KpnI_R (cttatGGTACCTCTAGCCTCTTTTTCTTTATTC), following a Phusion PCR protocol (NEB). The PCR product and the binary plasmid pMDC43 were subsequently cut with the restriction enzymes HindIII-HF and KpnI-HF to remove the 2 × 35S promoter, and the digestion reactions were purified using illustra GFX PCR DNA and Gel Band Purification kits. Fragment ligation was performed using T4 DNA Ligase protocol (NEB) at 16°C overnight; two µl of the ligation reaction was transformed into Escherichia coli DB3.1 cells and after a sequencing verification, a plasmid was subsequently selected that showed the correct replacement of the 2 × 35S promoter with the EXP7 promoter. CCC1 CDS (with stop codon) was then shuttled into the pMDC43EXP7 using LR clonase II enzyme, which creates N-terminally GFP-tagged CCC1. Correct plasmids were transformed into Agrobacterium tumefaciens, and heterozygous Arabidopsis plants (ccc1+/-) were floral dipped as the homozygous ccc1 knockout does not support floral dipping well. Floral dipping was performed according to Clough and Bent, 1998, and transformants were selected on 1/2 MS plates with no sucrose, containing hygromycin for selection. Homozygous ccc1 knockouts expressing GFP-CCC1 were selected, and phenotyped in the next generation.

Colocalisation

Request a detailed protocol

For colocalisation, 6-day plants expressing both GFP-CCC1 (excitation 488 nm, emission 500–550 nm) and the TGN/EE marker VHAa1-RFP (excitation 561 nm, emission 570–620 nm) were imaged using Nikon A1R Confocal Laser-Scanning microscope, using a 60× Plan Apo VC WI objective with a numerical aperture of 1.2; pinhole set to of 1.2 AU. Five roots were imaged, with three images of three separate mature epidermal root cells being imaged per plant. Analysis was performed on image stacks with a step size of 0.45 µm. Colocalisation was assessed using the FIJI plugin DiAna (Gilles et al., 2017). In brief, segmentation was performed using the iterative segmentation function before the number of objects that overlap is counted. The percentage of overlapping objects is reported as the percentage of colocalisation. Colocalisation with DiAna was supported by obtaining the Pearson’s coefficient on the same stacks using JACoP (Bolte and Cordelières, 2006).

GFP-CCC1 imaging

Request a detailed protocol

Six-day old plants expressing GFP-CCC1 (excitation = 488 nm, emission = 500–550 nm) driven by the EXP7 promoter were imaged on a Nikon A1R Confocal Laser-Scanning microscope. For observation of GFP-CCC1 within BFA bodies, roots were first incubated in 1/2 MS with 4 μM FM4-64 (excitation = 561 nm, emission = 570–620 nm) for 5 min before being washed and incubated in 1/2 MS with 25 μM BFA for 1 hr. Stacks were taken of elongating root hairs. For observing if GFP-CCC1 cycles to the PM, plants were incubated for 30 min in 1/2 MS with or without 50 μM tyrphostinA23. Stacks were taken of mature root epidermal cells. For observing if osmotic shock can induce a change of localisation of GFP-CCC1, plants were incubated in 1/2 MS solution for 1 hr before being transferred to milliQ water, 1/2 MS solution or 1/2 MS solution containing 300 mM sorbitol for 5 min before imaging. Stacks were taken of elongating root hairs.

High-pressure freezing and TEM

Request a detailed protocol

Wildtype and ccc1 mutant seeds were grown on 1/2 MS plates with 1% sucrose in long-day conditions for 5 days. Roots tips were excised using a sharp razor then cryofixed according to McFarlane et al., 2008, with modifications. Cryofixation was performed using a Leica EM-ICE high-pressure freezer, type A carriers (Leica), and 1-hexadecene (Sigma) as a cryoprotectant. Roots were freeze-substituted in a Leica AFS2 at –85°C over 5 days in a mixture of 2% osmium tetroxide (Electron Microscopy Sciences) and 8% 2,2-dimethoxypropane (Sigma) in anhydrous acetone. Samples were warmed to room temperature over 2 days, then slowly infiltrated with Spurr’s resin over 5 days (Spurr, 1969). Samples were polymerized for 36 hr at 70°C, then sectioned to ~70 nm (silver) on a Leica UC7 microtome using a DiATOME knife. Sections were placed onto copper fine-bar grids (Gilder) coated with 0.3% formvar, then post-stained with 1% aqueous uranyl acetate (Polysciences) for 10 min and triple lead (sodium citrate, lead acetate, lead citrate from BDH, lead nitrate from Fisher; Sato, 1968) for 4 min. Samples were viewed using a Phillips CM120 BioTWIN transmission electron microscope with tungsten filament at an accelerating voltage of 120 kV and a Gatan MultiScan 791 CCD camera.

Germination and collet hairs

Request a detailed protocol

Both seed germination and collet hair formation was assayed on the same set of seeds. Seeds were germinated on 1/2 MS media containing the indicated concentration of mannitol, sorbitol, or NaCl. The control seeds, germinated on media with no added mannitol, sorbitol or NaCl, were shared between all three treatments. Plants were stratified at 4°C for 2 days, and then transferred to a growth chamber. Six days after transfer, the percentage of seeds that had germinated were counted with radicle emergence being used as the indicator for germination. On the same day, for all plants that had developed to the point where collet hairs should be visible, the percentage with properly developed collet hairs was determined. Development of collet hairs was scored based on four categories, plants with no visible collet hairs, plants with one or two collet hairs present, plants with a cluster of collet hairs but lacking a complete ring of collet hairs and plants with a complete ring of collet hairs. Plants were grown in batches such that the seeds from each genotype used were harvested from the same batch (i.e. harvested within 6 weeks of each other as ccc1 plants always take significantly longer to flower), three different batches were used in six different experimental repetitions.

Root cell sap osmolality

Request a detailed protocol

For each sample, seeds (approx. 50 per plate) were placed in a row at the top of a 1/2 MS media plate. After 12 days, roots were cut from the shoots and all roots from the same plate placed together in tubes with 100 µl of water. The sealed tubes were heated to 85°C for 20 min. Tubes were cooled before osmolality was measured with a Friske 210 micro-sample osmometer. Final displayed osmolality was adjusted for the fresh weight of the input material.

Plasmolysis

Request a detailed protocol

Mannitol was used to induce plasmolysis of plants grown for 6 days on 1/2 MS without mannitol. The mannitol concentration at which root cells plasmolysed was determined using epidermal cell without root hairs, in plants expressing the PM marker GFP-LTI6b. Plants were transferred from the growth media to a liquid 1/2 MS solution containing different concentrations of mannitol, as indicated in Figure 3, 1 hr before counting. Plasmolysed and non-plasmolysed cells were counted under a Nikon Ni-E widefield microscope. From each root, the plasmolysis state of 40 cells was assessed. Cells which had root hairs were not included. A cell was considered as plasmolysed if the corners of the cell had detached/curved. Only cells past the maturation zone of the plant were included. The estimated concentration at which 50% of cells would plasmolyse for each genotype was determined by fitting a Boltzmann sigmoid curve in GraphPad Prism 9 to obtain the ‘V50’.

Trafficking of PIP2;1-GFP

Request a detailed protocol

Internalisation of PIP2;1-GFP in response to osmotic stress was measured in epidermal root cells of the elongation zone of 6-day-old plants. Plants were transferred from 1/2 MS media to liquid 1/2 MS containing 100 mM NaCl or 200 mM mannitol 30 min before imaging, or control 1/2 MS. Imaging was performed using a Nikon A1R confocal laser scanning microscope with a 60× Plan Apo VC WI objective. A ratio of PIN2;1-GFP (excitation = 488 nm, emission = 500–550 nm) at the PM and inside the cell was determined by measuring the signal intensity at the PM and inside the cell after background subtraction with FIJI. All results were normalised to wildtype median signal ratio under control conditions.

Endocytic trafficking and exocytosis

Request a detailed protocol

Endocytic trafficking was assayed in the root tips of 6-day plants using the fluorescent membrane stain FM4-64 (excitation 561 nm, emission 570–620 nm) and the endomembrane trafficking inhibitor BFA. Plants were either incubated in 1/2 MS containing 4 µM FM4-64 and 25 µM BFA in the dark for 10 min before imaging or for 10 min in 1/2 MS with 4 µM FM4-64 and 25 µM BFA in the dark before washing and incubating in 1/2 MS with 25 µM BFA for 50 min before imaging. Images were single representative optical sections, taken of epidermal cells in the root elongation zone. A ratio of cytoplasm:PM signal was measured after background subtraction (using the ‘Subtract Background’ function) in ImageJ by using the polygon selection tool to measure the mean grey value of the entire interior of the cell and divide this by the PM mean grey value, acquired using the segmented line tool (width 1).

Trafficking of FM4-64 to the tonoplast was measured by incubating plants in 1/2 MS containing 4 µM FM4-64 for 10 min before washing and incubating in 1/2 MS for 3 hr. Images were single representative optical sections taken of epidermal cells in the root elongation zone. A ratio of tonoplast:PM signal was acquired after background subtraction (using the ‘Subtract Background’ function) using the segmented line tool for both PM and tonoplast measurement.

Exocytosis was assayed in the root tips of 6-day-old plants using PIN2-GFP or LTI6b-GFP in the epidermis. For the ‘t0’ image point, plants were taken directly off growth media and immediately imaged. Otherwise, plants were treated with 25 µM BFA for 60 min, at which point some plants were imaged to obtain the ‘60’ BFA’ images. The rest were washed in liquid 1/2 MS and left to recover for 60 min in liquid 1/2 MS media before imaging for the ‘60’ washout’ images. Signal internalisation was measured as described for endocytic trafficking. Imaging was done with the 60× objective and Nikon A1R Confocal Laser-Scanning microscope described above.

TGN/EE swelling with monensin

Request a detailed protocol

TGN/EE swelling was induced using the ionophore, monensin (Sigma). Six-day-old plant roots expressing VHAa1-RFP (excitation 561 nm, emission 570–620 nm) were submerged in 1/2 MS solution with or without 2.5 µM monensin for 15 min before imaging. Imaging was performed on the Nikon A1R Confocal Laser-Scanning microscope and 60× objective described above. Images are single representative optical sections, taken of epidermal cells in the root elongation zone. A single measurement was taken per plant, which included multiple cells. Measuring was done using FIJI. TGN/EE were identified using VHAa1-RFP signal and segmented using the automatic threshold algorithm, ‘RenyiEntropy’. The average size of the segmented TGN/EE was measured using ‘Analyse Particles’.

TGN/EE and cytosolic pH measurements

Request a detailed protocol

The pH of the TGN/EE was measured as described in Luo et al., 2015. In brief, SYP61-pHusion (excitation 488 and 561 nm, emission 500–550 and 570–620 nm) was imaged in epidermal cells of the root elongation zone of 6-day-old plants on the Nikon A1R Confocal Laser-Scanning microscope and 60× objective described above, obtaining a single optical section. GFP/RFP intensity ratios were obtained from cells incubated in solutions of known pH to create a calibration curve. TGN/EE pH was measured by obtaining ratios from control plants. The calibration curve was created by measuring cells treated for 15 min with 50 mM MES-BTP (bis-tris-propane) or 50 mM HEPES-BTP with 50 mM ammonium acetate. Seven points between pH 5.0 and 8.0 were measured for the calibration curve. Six measurements were taken per point for calibration and a calibration was performed before every experiment. The curve was fit using a Boltzmann sigmoidal in GraphPad Prism 8.0. A single measurement was taken per plant, which included multiple cells. The GFP/RFP ratio was obtained in FIJI by firstly segmenting for TGN/EE using the automatic ‘RenyiEntropy’ threshold on the RFP signal before measuring fluorescent intensity.

The cytosol was measured as described above for the measurement of the TGN/EE with some adjustments. The cytosolic pH sensor pHGFP (excitation 405 and 488 nm, emission 500–550 nm; Moseyko and Feldman, 2001) was used. Sections of images used for measurement were manually cropped to remove any nuclei. pH measurements were obtained by acquiring a ratio of 488/405 nm signal intensity. Automatic thresholding in FIJI was performed using the ‘default’ algorithm on the 488 nm channel.

For TGN/EE and cytosolic pH measurements after treatment with osmotic or salt shock, plants were submerged in 1/2 MS containing 400 mM mannitol or 200 mM NaCl for 15 min before imaging.

Vacuole pH measurements

Request a detailed protocol

The pH of the vacuole was measured using BCECF-AM (Invitrogen) as described by Luo et al., 2015. In brief, 6-day-old plants were incubated in the dark for 1 hr in a 1/2 MS solution containing 10 μM BCECF and 0.02% pluronic F-127 (Invitrogen). Plants were washed before being imaged at the excitations 404 and 488 nm, both emissions were collected at 500–550 nm. The ratio between 404 and 488 is used to measure pH. A calibration curve was created by measuring cells treated for 15 min with 50 mM MES-BTP or 50 mM HEPES-BTP with 50 mM ammonium acetate. Seven points between pH 5.0 and 8.0 were measured for the calibration curve. Six measurements were taken per point for calibration and a calibration was performed before every experiment. The curve was fit using a Boltzmann sigmoidal in GraphPad Prism 8.0. A single measurement was taken per plant which included multiple cells. The 404/488 ratio was obtained in ImageJ by firstly segmenting using the automatic ‘default’ threshold on the 488 nm channel before measuring fluorescent intensity.

Cell types

Request a detailed protocol

Imaging for pH and monensin measurements, as well as for endo- and exocytosis, was carried out in epidermal cells in the root elongation zone; imaging of GFP-CCC1 for colocalisation was carried out in mature epidermis cells, specifically in trichoblasts.

Data availability

Data generated or analysed during this study are included in the manuscript and supporting file; Source Data files have been provided for Figures 2-7. Original images files can be accessed on figshare.

The following data sets were generated
    1. McKay D
    2. Wege S
    3. Gilliham M
    (2021) figshare
    Tissue specific expression CCC1 promoter.
    https://doi.org/10.25909/17256545.v1

References

    1. Sato T
    (1968)
    A modified method for lead staining of thin sections
    Journal of Electron Microscopy 17:158–159.
    1. Zhang GF
    2. Driouich A
    3. Staehelin LA
    (1993)
    Effect of monensin on plant Golgi: re-examination of the monensin-induced changes in cisternal architecture and functional activities of the Golgi apparatus of sycamore suspension-cultured cells
    Journal of Cell Science 104 ( Pt 3):819–831.

Decision letter

  1. Jacqueline Monaghan
    Reviewing Editor; Queen's University, Canada
  2. Jürgen Kleine-Vehn
    Senior Editor; University of Freiburg, Germany

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

[Editors’ note: the authors submitted for reconsideration following the decision after peer review. What follows is the decision letter after the first round of review.]

Thank you for submitting the paper "Plant Trans-Golgi Network/Early Endosome pH regulation requires Cation Chloride Cotransporter (CCC1)" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and a Senior Editor. The reviewers have opted to remain anonymous.

We are sorry to say that, after consultation with the reviewers, we have decided that this work will not be considered further for publication by eLife.

Thank-you for submitting your work to eLife, which has now been evaluated and discussed by two peer reviewers and myself. We all enjoyed reading your work and especially liked the pH sensor experiments. While all of us agree that your work is well done overall and will be of interest to a wide audience, we have some important reservations about the major conclusions of the study. We have provided some ideas for how to address these concerns below, but as they will require careful experimentation I'm afraid we cannot accept the manuscript at this time. If you are able to sufficiently address the concerns raised, I would be happy to re-evaluate this work again at a future date.

The major concerns have to do with:

1) The functionality of the GFP-CCC1 construct used, and

2) The data supporting a role for CCC1 in endocytosis.

Regarding the GFP-CCC1 construct:

A major part of your model is that CCC1 resides in the TGN/EE, and it is clear that you tried multiple constructs in order to assess this. However, beyond anecdote, none of these data are provided in the manuscript. As you transformed ccc1 -/+ plants it should be possible to then have assessed dose-dependency, or calculated chi-squared values that show that expression of the various constructs you attempted are lethal. The construct you did use in the paper is expressed under the control of a tissue-specific promoter (pExp7), a clever approach. This construct is able to complement ccc1 defects in root hair growth, although it is not clear if the trichoblast identity defect is complemented. We suggest a more thorough cataloging of complemented and non-complemented ccc1 phenotypes in various tissues. Furthermore, because you were unable to assess complementation of native promoter-driven GFP-CCC1 fusion in ccc1 mutants, it is possible that the expression of an N-terminal construct is dominant-negative. We appreciate that this is difficult to assess, and that you have tried many constructs already, but the localization of CCC1 in the TGN/EE underscores all of your conclusions. One of the reviewers suggests some other tools available to test localization in vegetative tissues. We are also concerned that the N-terminal tag may alter the localization (and/or visualization) of CCC1. Furthermore, as the co-localization between CCC1 and VHA-a1 suggests that CCC1 additionally localizes outside of the TGN/EE, it seems essential to conduct co-localization studies with additional markers.

Regarding endocytosis:

Several concerns were raised regarding endomembrane trafficking experiments. In particular, how defects were quantified and interpreted, and the potential need for more markers. Both reviewers provide ideas for how to address these concerns.

In addition, we also suggest that you add important information regarding the material you used:

1) You write that the higher-order mutants you generated ccc1 det3 and ccc1 nhx5 nxh6 are lethal. Please provide the chi-squared values from analysis of F2 segregants that support this claim, and also provide information about how the crosses were conducted (specific alleles, homozygous/heterozygous lines crossed, etc).

2) It is not clear if the trafficking marker lines you analyzed express similarly in all backgrounds, nor if they are homozygous. Even though crossing should mitigate any positional effects on gene expression, this should be confirmed by westerns or RT-PCR. This is an important control when evaluating differences in marker intensities.

Reviewer #1:

In their manuscript "Plant Trans-Golgi Network/Early Endosome pH regulation requires Cation Chloride Cotransporter (CCC1)" the authors sought out to understand the importance of the cation chloride co-transporter CCC1 on plant function and intracellular ion homeostasis. The authors provide new data showing that CCC1 functions at the TGN/EE where it regulates ion homeostasis. Plants lacking CCC1 show a disruption to normal endomembrane trafficking, leading to defects in root hair cell elongation and patterning. Interestingly the authors show that the cell elongation defects can be rescued by supplementing the plants with an external osmolyte such as mannitol. Through the characterisation of CCC1 in A. thaliana, this paper shows that cation/anion transporters are essential in maintaining fine control over endosomal pH, in addition to previously characterised endosomal proton/cation transporters such as NHX5, NHX6, and CLCd.

The paper is well written, and the experimental design is generally well thought out. The data mostly supports the authors conclusions, however there are some areas where changes are necessary to improve the clarity and completeness of the experimental work.

1) The co-localisation experiment of CCC1 with VHA-a1 (TGN/EE marker) shows that they highly overlap, however, there are clear regions where the CCC1 and VHA-a1 marker do not co-localise, suggesting CCC1 has a broader localisation pattern which is also alluded to in the text.

It is important to clearly determine which endomembrane compartments CCC1 localises to as this has large implications in interpretation of data regarding where the endomembrane trafficking defects originate from (eg: TGN/EE dysfunction, or other organelles, such as the Golgi and MVB/LE), and for comparisons with other intracellular transporters such as NHX5 and NHX6 (which have broader localisation at the Golgi, TGN/EE, and MVB/LE). A more detailed localisation approach by also assessing the co-localisation of CCC1 with Golgi and MVB/LE markers is necessary.

2) The authors identify defects in cell elongation in ccc1-1 root epidermal cells, as well as defects in the formation of collet hairs. It is not clear whether the defects in collet hair formation is due to defects in cell elongation, or in root hair cell identity as root hair cell identity is disrupted in ccc mutants. Since under control conditions some ccc mutants do not form collet hair cells at all this would suggest that the hair cell identity is also disrupted, rather than just elongation. However, the root hair length quantification experiment does show very clear cell elongation defects in ccc1 mutants. The two phenotypes should be differentiated more clearly in the text.

3) Figure 6 describes experiments designed to assess whether ccc1 mutants have defects in endo- and/or exocytosis. The authors assess endocytosis using an FM4-64 uptake experiment where they conclude that ccc1 mutants have defects in endocytosis. However, the data from the 10-minute time point (which is usually used to measure endocytosis) shows no difference between wild-type and mutant lines. There are clear differences in FM4-64 uptake to the BFA bodies after 60 minutes (Golgi+TGN) which instead suggests ccc1 mutants primarily have defects in post-Golgi trafficking, rather than endocytosis.

The authors should also assess whether secretion/recycling of PIP2;1 and PIN2-GFP is altered by quantifying the signal at the plasma membrane, and potentially by performing FRAP assays of PIP2;1 or PIN2-GFP at the plasma membrane. The authors could also assess whether ccc1 mutants have general defects in secretion by visualisation of sec-RFP in ccc1 mutants. These experiments (in addition to the co-localisation experiments suggested above) would provide much stronger evidence to determine the exact source of trafficking defects.

4) The calibration curves from Figure 7 are missing.

5) The control image of PRP3::H2B in wild type seedlings is missing.

Suggestions for improved or additional experiments, data or analyses,

The authors state that "an essential component required to complete the TGN/EE membrane transport circuit remains unidentified − a pathway for cation and anion efflux", however it is not clear why the cation flux via CCCs is an essential component. Are similar proteins found and necessary in other biological systems (eg: animal or yeast system), and do all plant species contain CCC genes?

Figure 6A. The signal in the ccc mutant after BFA washout seems reduced. Can the authors assess whether PIN2 fluorescence intensity at the plasma membrane is normal, since nhx5 nhx6 mutants have reduced PIN2 plasma membrane localisation. The authors state in the discussion that altered PIN2 trafficking may cause the bushy phenotype in the ccc1 mutants so this should be investigated in more detail.

The monensin experiment with the TGN/EE size quantification is not convincing and needs validation. It is not conclusive whether the TGN/EE size can be accurately quantified with a standard confocal setup, since TGN/EE spots are diffraction limited and the signal is likely very weak after monensin induced swelling. Can the authors provide higher resolution images from these panels and show how the quantification was performed?

The authors exclude outliers in some of their analysis, but it is not justified in the text why this was done. This is likely not appropriate, and outliers should be included in the box plots and used for the analysis.

In Figure 6A It is stated that there are defects in PIN2 exocytosis, however it is not very clear from the images. From the image it seems that the PIN2 may have lower intensity at the PM after washout. The authors should also re-analyse the data to show whether PIN2-GFP plasma membrane levels are similar between WT and ccc1 mutants, or if there is reduced PM intensity as in nhx5 nhx6 mutants. How was the calculation of signal ratio performed? Was the background subtracted from analysis? Assessing the intensity by including only the top 10% of pixels for analysis may provide more reproducible and accurate results.

Figure S1 – please quantify the proportion of the ccc1 roots which have branching/forking. Was this seen in both ccc1 T-DNA lines?

Figure 2C – the order of treatments does not correspond to the order in the figure. Determining whether the localisation changes would be better shown by performing this experiment in the GFP-CCC1 and VHA-a1-mRFP double reporter line.

Recommendations for improving the writing and presentation.

There are many figures where the image quality is too low to determine whether the data supports the conclusions. For example, Figure 5D, 7A. This makes it very difficult to determine whether there are real differences and/or whether the authors have appropriately quantified the data. It is sometimes not possible to visualise differences in between samples because the image is too zoomed out (eg: Figure 7A), or too small (eg: 7B-F). In some cases using a different lookup table (like in Figure 7B-F) would greatly help visualising differences in signal intensity. A large improvement in presentation of the images is necessary.

The discussion/conclusions of this paper are not very clear. From reading the discussion the authors have identified defects in trafficking of PIN2, PIP2;1, and delayed vacuolar trafficking. Comparing these results to nhx5 nhx6 and clc mutants suggests that general TGN/EE pH ion dysfunction causes broad defects in protein trafficking. It is not clear in the discussion why external osmolality rescues the cell elongation defects and the significance of this.

The authors sometimes make statements regarding that one sample /tissue is brighter than another, however I do not think these types of qualitative statements are appropriate, and should be supported by quantitative data or removed.

Figures

Scale bar sizes should not be shown in the image, but rather described in the figure legend, as otherwise it is too small to see.

Figure 4.

The quantification of panel C is in B. The order should be switched of these two panels. (Same as E and F).

The manuscript would flow better by starting with the clear cell elongation defects and rescue in panel G and H. The panel legend may also need to be changed to root cell elongation and cell identity defects.

Figure 5. (D) Cannot see any differences between the WT and mutant. A heatmap LUT may better show differences in image intensity.

Figure 7. (A) This image is way too small to see any differences between the two genotypes. A zoomed in image would be better.

Reviewer #2:

In the submitted paper, the authors first show that activity of the CCC1 promoter is ubiquitous. They further analyze the phenotype of the mutant in the root and show a root cell elongation defect in epidermal cells as well as in root hairs. The ccc1 mutants also lack the collet root hairs and show trichoblast-atrichoblast cell fate identity defects in the primary root. The authors perform a set of elegant experiments where they show that, surprisingly, the ccc1 plants are resistant to hyperosmotic environment. The ccc1 cells show delayed plasmolysis, ccc1 seeds show better germination, and ccc1 root hair elongation is recovered in hyper-osmotic media. Interestingly, the absence of collet root hairs was also recovered in hyper-osmotic environment, even though it is not clear whether this was caused by 'reparation' of collet hair elongation or collet hair cell fate specification. The phenotypic analysis is carefully performed and the results are unexpected and intriguing.

The authors further show that in root trichoblasts, GFP-CCC1 localizes to the TGN/EE compartment, and that in this tissue, the fusion protein recovers the root hair elongation of the mutant. Further, the authors focus on the subcellular phenotypes of the endomembrane system performance in the ccc1 mutant background. It is shown that PIP2 aquaporin internalized less in the ccc1 than in control, which hints to that endocytosis is reduced in the ccc1 cells. An alternative explanation however could be that the mutant is more osmotically tolerant also on the subcellular level. To test the endomembrane trafficking rate, PIN2 aggregation and recovery from BFA bodies is performed, as well as quantifications of FM4-64 uptake, and the authors conclude that the mutant has generic endomembrane trafficking defects.

The authors hypothesize that the endomembrane defects might stem from a disturbance in TGN/EE luminal pH caused by an ion imbalance in the ccc1 cells. Therefore, they measured the luminal pH of TGN/EE using a genetically encoded phluorin and demonstrate a more alkaline pH values in the ccc1 mutants. Finally, the authors show that during hyperosmotic stress, the TGN/EE pH rises in the control plants, suggesting that this pH rise is functionally connected to the stress response. The second part of the manuscript that focuses on subcellular phenotypes uses advanced live-cell imaging tool and successfully measures pH in minute volumes of TGN/EE compartments. In addition, the specificity of the phenotype is demonstrated by careful analysis of vacuolar and cytoplasmic pH. These well performed experiments indeed point to the function of CCC1 in ion control in TGN/EE.

Weaknesses of the manuscript:

The functionality of the GFP-CCC1 fusion is questionable as it was impossible to obtain transgenic lines that would express GFP-CCC1 under the control of the native promoter, not allowing full complementation of the ccc1 phenotype. This hints to a possible dominant-negative effect of this particular protein fusion. The authors therefore express GFP-CCC1 using a trichoblast-specific promoter and show that the root hair elongation phenotype is complemented, demonstrating some functionality of this construct. Moreover, the root hair length data in the ccc1-1 mutants shown in figure 2D and 3C differ, which to some extent weakens the important conclusion that the GFP-CCC1 is functional at least in this cell type. Functionality of this construct is a crucial aspect for the manuscript. The possible dominant-negative effect of the construct weakens the conclusion about the subcellular protein localization, which in turn weakens the main conclusion of the paper – that CCC1 by regulating ion fluxes in the TGN/EE allows proper endomembrane functionality. The subcellular localization of CCC1 should be demonstrated without any doubts, as it was previously localized to the PM and endomembranes in pollen tubes (Domingos 2019). If CCC1 localized at the PM, alternative explanations of the phenotypes of the nature of the mutant phenotype that would include regulation ion fluxes across the PM would appear more probable than the TGN/EE hypothesis.

Quantification of endomembrane trafficking represents another important argument in the proposed hypothesis. The section that demonstrates the reduction in exo- and endocytosis is however not utterly convincing. It has been shown that a major contribution to the BFA body PIN2 pool originates from de-novo synthesis of the protein (Jasik et al., PMID:27506239). In the figure 6A, it is apparent that the BFA washout leads to disappearance of BFA bodies in the ccc1 mutant, but the level of PM fluorescence was decreased, leading to an apparent 'minimal recovery' of the cytoplasm:PM ratio. In case of endocytosis, the experiment combining FM4-64 uptake with BFA is hard to interpret as endocytosis visualization, because TGN/EE aggregation might be disturbed in the ccc1, as the authors suggest. A more detailed endomembrane trafficking then simple cytoplasm/PM ratios of signal could be performed to address what is happening with trafficking in this interesting mutant.

Suggestions:

It might be helpful to analyze the subcellular localization of CCC1-GFP in the vegetative tissues in the Lat52-driven constructs (Domingos 2019). Lat52 can be leaky in the vegetative tissues and has been used to drive mild expression of proteins such as T-PLATE (PMID: 24529374). This could help strengthen the claim that CCC1 is localized to TGN. The Lat52 driven construct in the Domingos paper was constructed from genomic sequence, contains introns, which is another difference from the CDS construct used in the submitted manuscript.

What is the topology of the CCC1 in the membrane – where are the GFP fusions localized? Could the problem of the non-shining internal GFP fusions be the low luminal (or apoplastic in the case of PM localization of the protein) pH of the compartment that would quench the GFP fluorescence? This could be tested by rising the pH of the endomembranes of the transgenic lines, or by using a pH-insensitive fluorescent protein.

Comments:

Student t-test for comparing multiple samples is repeatedly used. Appropriate statistical tests for comparing multiple samples should be used instead, and also the data distribution should be tested for normality in cases when parametric tests are used.

The authors explain the short root phenotype by a reduction of cell length. However, from the data provided, the cell length seems to be far less reduced than the overall root growth.

Trichoblast identities: Is the trichoblast identity problem complemented in the trichoblast-CCC1-expressing lines?

Quantification of endocytosis and endomembrane trafficking is not very clear to me: how can the cytoplasm/PM ratio of fluorescence give the value of 1, when there is almost no fluorescence in the cytoplasm in the 10 min of FM4-64 uptake or in the T0 in case of the PIN2 GFP fluorescence? Also, not always same areas of roots are shown for treatments and mutants (authors state that data was quantified in elongation zone, but images show rather meristem/transition zone). Were the quantifications of the fluorescence signals done blindly? Do not take this as an offense, but from my experience, in case of data, where regions of interest are drawn by hand, experiments should be done so that the researcher imaging the samples at the microscope does not know which genotype they are imaging, as the FM signal in different root zones and z sections is very variable. I would suggest a simple pulse-chase FM4-64 uptake experiment without including BFA to reveal the dynamics of FM uptake in the mutant to provide more convincing data showing the endocytotic defect.

[Editors’ note: further revisions were suggested prior to acceptance, as described below.]

Thank you for choosing to send your work entitled "Plant Trans-Golgi Network/Early Endosome pH regulation requires Cation Chloride Cotransporter (CCC1)" for consideration at eLife. We appreciate your constructive and thorough letter of appeal, which has been discussed between both reviewers and the Reviewing Editor. We are prepared to consider a revised submission, however please note that there are no guarantees of acceptance.

We remain enthusiastic about your work and welcome you to submit a revised manuscript along the lines of what you outlined in your rebuttal. Our original decision was based on the expected time needed to perform more conclusive experiments, but you have convinced us that many of our concerns can be addressed with thorough discussion, more precise language, and a few experiments that will only take 1-2 months.

Regarding our main concerns:

Functionality: As you could not obtain transformants in most cases, we still think this unfortunately means that tagged CCC1 is not fully functional. However, we also agree that your focus on the complementation of a cellular phenotype is sound and justified. We would ask that you do provide a more thorough cataloging of complemented and non-complemented phenotypes (you mentioned in your letter that these data are available, at least with respect to trichoblast identity), and further discussion on this construct in particular, and in comparison to others, as outlined in your rebuttal. In addition, a more detailed discussion of the issue and a more detailed overview (in a Supplemental table, as you suggest) of what has been tried to obtain the functional transformants would demonstrate that everything possible was tried. In addition, a more pointed discussion about the localization of CCC1 as found in proteomics studies should be included.

Endocytic trafficking: We agree that a more careful wording will help clarify distractions and focus on the function of CCC1 in the TGN/EE and its role in ion regulation. However, the data presented to determine defects in endocytic trafficking may still need some re-analysis: for example, quantification of PM and BFA signals. To help clarify the defect in trafficking, it would be useful to do a FM pulse chase experiment to complement the approach you show in Figure 6E-F. One reviewer suggests that the simplest way to improve this section would be to remove Figure 6C 10 min time point (BFA + FM) and replace this with an FM pulse-chase experiment (FM treatment for 10-15 min without BFA) to test for defects in endocytosis/trafficking more clearly. Quantification of the plasma membrane signal in Figure 6A alone would also help with the interpretations of the BFA washout experiment (i.e., if the PIN2-GFP signal is significantly reduced in the mutant this may be an interesting result as well).

Outliers: Thank-you for bringing this to our attention. We apologize for misinterpreting the wording in the legend.

https://doi.org/10.7554/eLife.70701.sa1

Author response

[Editors’ note: The authors appealed the original decision. What follows is the authors’ response to the first round of review.]

The major concerns have to do with:

1) The functionality of the GFP-CCC1 construct used, and

2) The data supporting a role for CCC1 in endocytosis.

Regarding the GFP-CCC1 construct:

A major part of your model is that CCC1 resides in the TGN/EE, and it is clear that you tried multiple constructs in order to assess this. However, beyond anecdote, none of these data are provided in the manuscript. As you transformed ccc1 -/+ plants it should be possible to then have assessed dose-dependency, or calculated chi-squared values that show that expression of the various constructs you attempted are lethal.

The model we present relies on CCC1 being localised in the TGN/EE. We show complementation of a cellular phenotype (root hair elongation) and consequences of loss of CCC1 (disturbed pH and osmolyte regulation in the TGN/EE) that further reinforces that the protein has a functional role in the TGN/EE. The observed defects in TGN/EE function of ccc1 plants requires the fewest assumptions, if CCC1 is present upon and functions in the TGN/EE; this includes a role in regulation of luminal pH and osmolyte control, as well as the trafficking defects. Not only is the model supported by our own data but also multiple proteomic studies that show that CCC1 is highly abundant in TGN/EE. Proteomics from Sadowski et al. (2008), Drakakaki et al. (2012), Groen et al. (2014), Nikolovski et al. (2014) and Parsons et al. (2019) demonstrate that CCC1 is localised in the TGN/EE, and was not found on other membranes.

In regard to assessing dose-dependency and lethality via chi-squared, this would ordinarily be an elegant way to characterise a sub-lethal construct. However, it is not possible here, as no transformants could be obtained. This includes in WT, ccc1 +/- and ccc1 knockout backgrounds. In contrast, the non-tagged CCC1 could be expressed in both wildtype and ccc1 knockout plants using the CCC1 CDS with either the native or 35S promoter; such expression in the ccc1 background results in phenotypic complementation. To better explain the multiple attempts we took and their outcomes, we will include a supplementary table with details of all constructs. This will include N- and C-terminal tagging, internal tagging, GFP, mCherry and FLAG tags, different linkers, and a rabbit derived antibody against native CCC1. We think this will better support our statement in the manuscript text.

Finally, we feel it is important to distinguish between the cellular function of CCC1 and its role at the plant level. In this manuscript, we have focused on its cellular function, in particular on the role of the ion transporter in the regulating luminal conditions in the subcellular organelle in which it was found to be most abundant. Therefore, we have documented subcellular localisation using a construct that complements cellular elongation defects caused by CCC1 loss. We agree that a construct that rescues all plant phenotypes of ccc1 mutants would be important to support claims linking these other plant phenotypic alterations to loss of CCC1, but the focus of our work is on the cellular role of CCC1.

The construct you did use in the paper is expressed under the control of a tissue-specific promoter (pExp7), a clever approach. This construct is able to complement ccc1 defects in root hair growth, although it is not clear if the trichoblast identity defect is complemented.

Thank you for bringing this to our attention. Expression of GFP-CCC1 by the EXP7 promoter does not rescue the trichoblast patterning defects in ccc1 knockouts. The trichoblast result is expected as cell fate is decided earlier than the activation of EXP7. We had stated this in a previous draft version of the manuscript; however, this was accidentally lost from the submitted version. We will add this statement back and additionally provide supporting images in the supplementary file, in which the altered trichoblast patterning can be seen in ccc1 plants expressing GFP-CCC1 under the EXP7 promoter.

We suggest a more thorough cataloging of complemented and non-complemented ccc1 phenotypes in various tissues.

Thank you for this suggestion. EXP7 drives expression in a selection of root epidermal cells (trichoblasts, post-elongation zone). As such, many phenotypic aspects, such as shoot appearance and biomass, root length and trichoblast patterning are not altered by EXP7 driven GFP-CCC1 expression. The plants expressing this construct, when grown in pots, resemble ccc1 KO plants. We are happy to include root length measurements, cell length measurements and shoot biomass measurements in the manuscript to clarify this. These experiments should be relatively easy to include within the scope of revisions.

Furthermore, because you were unable to assess complementation of native promoter-driven GFP-CCC1 fusion in ccc1 mutants, it is possible that the expression of an N-terminal construct is dominant-negative. We appreciate that this is difficult to assess, and that you have tried many constructs already, but the localization of CCC1 in the TGN/EE underscores all of your conclusions. One of the reviewers suggests some other tools available to test localization in vegetative tissues. We are also concerned that the N-terminal tag may alter the localization (and/or visualization) of CCC1.

The constitutive or native promoter driven expression of all tagged constructs is dominant negative. The tools suggested by the reviewer have either already been tried and were unsuccessful, or these avenues have been entirely exhausted, please see detailed comment further below. With reference to the use of LAT52 promoter, we have contacted the Feijo lab, who regularly uses the construct for pollen studies and they have never observed expression in vegetative tissue. Further, the seeds are no longer available following his lab move to the US (we can share the email exchange if the editor requests). Regardless, we kindly suggest that the use of a tomato derived pollen specific promoter to drive weak but uncontrolled expression of the construct in unspecified and putatively varying vegetative tissues and cell types of Arabidopsis is rather convoluted and would not result in an interpretable result fit for publication, particularly regarding the functionality of this CCC1 construct.

In contrast, the construct we use and for which we can provide data, can restore the cellular function of CCC1 when localised in TGN/EE, in a defined cell type in which CCC1 is ordinarily expressed, and loss of the ion transporter leads to documented defects. No functionality or complementation has been shown for the LAT52 driven CCC1 construct in pollen.

Furthermore, as the co-localization between CCC1 and VHA-a1 suggests that CCC1 additionally localizes outside of the TGN/EE, it seems essential to conduct co-localization studies with additional markers.

We agree that the observation that proteins CCC1 and VHA-a1 show excellent but not 100% overlap in localisation is an interesting observation; this is consistent with what has been observed for the other ion transporters proposed to be within the TGN/EE. Studies by other groups have explored TGN/EE heterogeneity and proteins considered TGN/EE resident often do not exhibit complete overlap (See Groen et al. 2014 Journal of Proteome Research, Uemura et al. 2014 Plant Cell Phys., Uemura et al. 2019 Plant Phys., and Heinze et al. 2020 PNAS). Of note, VHA-a1 and SYP61 are both considered markers of the TGN/EE but exhibit a rather moderate degree of co-localisation yet, pHusion-SYP61 is the standard for use in measuring the impacts of VHA-a1 on TGN/EE pH (Groen et al. 2014 Journal of Proteome Research, Luo et al. 2015 Nature Plants). The co-localisation of VHA-a1-RFP and GFP-CCC1 we show is actually extraordinarily high for this organelle (compare SYP43/VHAa1 from Shimizu et al. 2021 Nature Plants, which has only a correlation coefficient of ~0.7 compared to 0.86 for CCC1/VHAa1 in our work). The co-localisation data we show of VHA-a1-RFP with GFP-CCC1 therefore strongly supports our conclusions that CCC1 functions in the TGN/EE.

Regarding endocytosis:

Several concerns were raised regarding endomembrane trafficking experiments. In particular, how defects were quantified and interpreted, and the potential need for more markers. Both reviewers provide ideas for how to address these concerns.

We have addressed these in detail below. We noticed that a change in wording will greatly help clarify what we are investigating; we measured how lack of CCC1 impacts endocytotic trafficking, and not specifically the initial endocytosis events at the PM. Similar to what was shown for the proton and other ion transport proteins in the model, we show that lack of ion export in the TGN/EE impacts endocytotic trafficking to the TGN and from the TGN to the vacuole as a result of a disturbed TGN/EE function. Wording will be corrected in the new manuscript version, thank you for bringing this to our attention.

In addition, we also suggest that you add important information regarding the material you used:

1) You write that the higher-order mutants you generated ccc1 det3 and ccc1 nhx5 nxh6 are lethal. Please provide the chi-squared values from analysis of F2 segregants that support this claim, and also provide information about how the crosses were conducted (specific alleles, homozygous/heterozygous lines crossed, etc).

We can include a supplementary table detailing the specific alleles and crossing strategies. In brief:

Genetic material used: Homozygous ccc1-2 allele (Colmenero-Flores et al. 2007, Plant Physiology), homozygous det3 (Schumacher et al. 1999, Genes and Development), homozygous double mutants nhx5-2 nhx6-3 (Ashnest et al. 2015, Plant and Cell Physiology). There was no problem obtaining F1 seeds, which were wildtype looking. All three genetic backgrounds are clearly distinct from WT, but WT looking heterozygous plants were expected in F1 as all mutations are recessive. Seeds from F1 plants (=F2 generation) were sown and genotyped, all alleles could be detected in the F2 generation, confirming that all mutant alleles had been successfully passed to the next generation through crossing. However, no double or triple mutants were found in the progeny. We then followed two different strategies, which were dependent on the chromosomal placement of the genes in Arabidopsis.

For det3 x ccc1-2, we isolated F2 plants that were homozygous for one gene and heterozygous for the other, for example, det3 mutants and ccc1-/+ and vice versa. This was done because we assumed that any double mutants might be very sick plants and expected a low frequency of these plants. Seeds in which only one of the two mutant alleles was segregating seemed like a more promising approach. We genotyped the progeny of those plants (F3). Yet again, we were not able to recover a double knockout from these plants. Therefore, in the case of det3 x ccc1, a chi squared analysis does not enrich the manuscript as the number of double knockouts is zero. We can provide data about the det3 ccc1 +/+ and det3 ccc1 +/- plants obtained from det3 ccc1 +/- mother plants, and about the ccc1 det3 +/+ and ccc1 det3 +/- plants obtained from a ccc1 det3 +/- mother plant, if this is still required after our clarification here.

For nhx5 and nhx6, we kindly received the double knockout from Tony Gendall (La Trobe University, Melbourne). These two genes are close to each other on chromosome 1 (AT1G54370 and AT1G79610) and rarely segregate during crosses. In addition, CCC1 (AT1G30450) is also on the same chromosome arm. Segregation of the ccc1-2 allele and the nhx5 nhx6 is therefore not normal and assessment with chi-squared values would be inappropriate, due to genetic linkage. We genotyped many F2 plants and were only able to obtain one triple mutant. This plant did not produce any seed. The genetic linkage of the genes also prevented us from working with seeds from heterozygous plants, as the frequency of triple mutant progeny is too low. As such, as we explained in our letter to the editor prior to submission, analysis and experimentation on ccc1/nhx5/nhx6 triple mutants is not feasible. However, we do have images of the one nonviable triple mutant plant, including images of the empty siliques from that one plant, which we can provide, supporting the statements made in the manuscript.

We think that these explanations are sufficient to support our statement that double and triple knockouts are not viable, and that it is not possible provide the data suggested. We are happy to provide a version of this text in supplementary information if the editors think that this would be instructive.

2) It is not clear if the trafficking marker lines you analyzed express similarly in all backgrounds, nor if they are homozygous. Even though crossing should mitigate any positional effects on gene expression, this should be confirmed by westerns or RT-PCR. This is an important control when evaluating differences in marker intensities.

We agree here that it would be useful to perform qPCR if we were measuring marker intensities, to determine if changes in intensity were coming from changes in protein stability or altered expression. However, in our manuscript we do not present any results where we compare marker intensities, instead we use ratiometric measures, comparing the relative differences in signal distribution. The trafficking assays we perform rely on the use of ratios (Internal/PM) instead of absolute signal intensity, as this controls for changes in signal intensity. Such assays have previously been used in the literature when measuring trafficking of markers with different signal intensities across genotypes, including the constructs and markers we use in our work (Luo et al. 2015, Nature Plants; Dragwidge et al. 2019, Journal of Cell Science). To help clarify this, we can further provide evidence in a supplementary figure, which demonstrates that changes in absolute signal intensity does not impact the ratio. We calculated the correlation coefficient of absolute signal intensity vs ratio and no correlation was found demonstrating that there was no connection between the quantity of the total signal in cells and the distribution within.

The misunderstanding of marker intensities rather than marker distribution may be derived from a sentence referring to the difference in brightness of BFA bodies. This sentence was provided to highlight a possible observed different BFA body “anatomy” (compact and therefore brighter BFA bodies in WT as opposed to more diffuse BFA bodies in ccc1). This was not intended as a comparison of marker intensities between WT and ccc1 but was provided to describe the putative observed difference in BFA body formation that can be seen in the images. We can remove the sentence or move it into the discussion, particularly as we are not aiming to measure differences in BFA body formation. Rather, we used the drug BFA to investigate trafficking defects and hence, mention of BFA body shape and brightness was intended to aid readers in understanding the example images.

Reviewer #1:

In their manuscript "Plant Trans-Golgi Network/Early Endosome pH regulation requires Cation Chloride Cotransporter (CCC1)" the authors sought out to understand the importance of the cation chloride co-transporter CCC1 on plant function and intracellular ion homeostasis. The authors provide new data showing that CCC1 functions at the TGN/EE where it regulates ion homeostasis. Plants lacking CCC1 show a disruption to normal endomembrane trafficking, leading to defects in root hair cell elongation and patterning. Interestingly the authors show that the cell elongation defects can be rescued by supplementing the plants with an external osmolyte such as mannitol. Through the characterisation of CCC1 in A. thaliana, this paper shows that cation/anion transporters are essential in maintaining fine control over endosomal pH, in addition to previously characterised endosomal proton/cation transporters such as NHX5, NHX6, and CLCd.

The paper is well written, and the experimental design is generally well thought out. The data mostly supports the authors conclusions, however there are some areas where changes are necessary to improve the clarity and completeness of the experimental work.

1) The co-localisation experiment of CCC1 with VHA-a1 (TGN/EE marker) shows that they highly overlap, however, there are clear regions where the CCC1 and VHA-a1 marker do not co-localise, suggesting CCC1 has a broader localisation pattern which is also alluded to in the text.

It is important to clearly determine which endomembrane compartments CCC1 localises to as this has large implications in interpretation of data regarding where the endomembrane trafficking defects originate from (eg: TGN/EE dysfunction, or other organelles, such as the Golgi and MVB/LE), and for comparisons with other intracellular transporters such as NHX5 and NHX6 (which have broader localisation at the Golgi, TGN/EE, and MVB/LE). A more detailed localisation approach by also assessing the co-localisation of CCC1 with Golgi and MVB/LE markers is necessary.

Our data shows that the co-localisation of VHA-a1-RFP and GFP-CCC1 is extraordinarily high at 0.86 for CCC1/VHAa1, compared, for instance, with SYP43/VHAa1 from Shimizu et al. 2021 Nature Plants, which has a correlation coefficient of ~0.7.

Proteomic studies (e.g. Groen et al. 2014 J Proteomic Research), have shown that CCC1 is a high-confidence TGN/EE resident protein, co-localised with VHA-a1 and SYP61. We have included this information in the introduction and results (L86-90 and L182-186). We agree that further co-localisation studies will be useful in the future; at this time point, we focused on the role of CCC1 in the TGN/EE.

2) The authors identify defects in cell elongation in ccc1-1 root epidermal cells, as well as defects in the formation of collet hairs. It is not clear whether the defects in collet hair formation is due to defects in cell elongation, or in root hair cell identity as root hair cell identity is disrupted in ccc mutants. Since under control conditions some ccc mutants do not form collet hair cells at all this would suggest that the hair cell identity is also disrupted, rather than just elongation. However, the root hair length quantification experiment does show very clear cell elongation defects in ccc1 mutants. The two phenotypes should be differentiated more clearly in the text.

Thank you, we have amended the manuscript and now better differentiate between the collet hair phenotype and the root hair phenotype.

We have now included evidence that collet hair elongation, and not cell identity, is disrupted in ccc1 collet hairs (Figure 4 – supplementary figure 1D). In ccc1 plants, collet hairs are initiated to some degree but do not elongate, while under increased external osmolarity, collet hairs elongate similar to what was observed in the wildtype.

3) Figure 6 describes experiments designed to assess whether ccc1 mutants have defects in endo- and/or exocytosis. The authors assess endocytosis using an FM4-64 uptake experiment where they conclude that ccc1 mutants have defects in endocytosis. However, the data from the 10-minute time point (which is usually used to measure endocytosis) shows no difference between wild-type and mutant lines. There are clear differences in FM4-64 uptake to the BFA bodies after 60 minutes (Golgi+TGN) which instead suggests ccc1 mutants primarily have defects in post-Golgi trafficking, rather than endocytosis.

We agree with the reviewer’s comment here and we think there was a misunderstanding due to the wording we used. Yes, a 10 minute time point would measure immediate endocytosis and what we quantify at the 60 min time point is endocytic trafficking. We had used the terminology “endocytosis” throughout the manuscript, however, in the wake of these comments we realise that this terminology was not sufficiently precise. As the reviewer correctly points out, what we measured and what we are interested in is “endocytic trafficking”, a process previously shown to be disrupted in mutants with altered TGN/EE pH. We have improved the wording of the manuscript to better reflect this and more strictly adhered to the exact use of endocytic trafficking and endocytosis

The authors should also assess whether secretion/recycling of PIP2;1 and PIN2-GFP is altered by quantifying the signal at the plasma membrane, and potentially by performing FRAP assays of PIP2;1 or PIN2-GFP at the plasma membrane.

We appreciate the reviewers’ interest in this subject; however, the trafficking results are included to support the assertion that CCC1 has a role in TGN/EE pH and ion regulation. Detailed trafficking assays are therefore not a key or central theme in the manuscript and as such, we think that further focusing on the trafficking aspect would distract readers from the primary take home message of the work. Nevertheless, quantification of PIN2-GFP signal at the PM is now included in Figure 6 – supplementary figure 1A, as requested.

The authors could also assess whether ccc1 mutants have general defects in secretion by visualisation of sec-RFP in ccc1 mutants. These experiments (in addition to the co-localisation experiments suggested above) would provide much stronger evidence to determine the exact source of trafficking defects.

We agree that sec-RFP would be another means to assess general secretion defects on-top of what we have already provided. However, we believe that further characterisation of trafficking defects in ccc1 with sec-RFP will not aid in further determining the exact source of trafficking defects beyond what is already provided in the manuscript. We suggest that the trafficking defects are caused by changes to TGN/EE pH regulation and the mechanism by which pH impacts trafficking is not yet fully understood. To that end, we used FM4-64 and PIN2 to assay trafficking as these are markers used previously to assay trafficking of det3 and nhx5/nhx6 mutants. The assessment of CCC1’s role in TGN/EE pH and ion regulation is the central goal of this work.

4) The calibration curves from Figure 7 are missing.

Calibration curves have now been included (Figure 7 – supplementary figure 2).

5) The control image of PRP3::H2B in wild type seedlings is missing.

Calibration curves have now been included (Figure 7 – supplementary figure 2).

Suggestions for improved or additional experiments, data or analyses,

The authors state that "an essential component required to complete the TGN/EE membrane transport circuit remains unidentified − a pathway for cation and anion efflux", however it is not clear why the cation flux via CCCs is an essential component. Are similar proteins found and necessary in other biological systems (eg: animal or yeast system), and do all plant species contain CCC genes?

We have re-written the manuscript introduction and discussion to better highlight the importance of CCC proteins in plants and other organisms, such as humans and yeast, and the differences in function between organisms, as well as further highlighting the need of both ion influx and efflux pathways in the endomembrane system.

The monensin experiment with the TGN/EE size quantification is not convincing and needs validation. It is not conclusive whether the TGN/EE size can be accurately quantified with a standard confocal setup, since TGN/EE spots are diffraction limited and the signal is likely very weak after monensin induced swelling. Can the authors provide higher resolution images from these panels and show how the quantification was performed?

We appreciate the concerns raised by the reviewer. Due to concerns of bias, quantification was automated as much as was feasible including the use of auto-thresholding and object identification (Material and Methods L767). The original images (.nd2 files) are publicly available and deposited at https://doi.org/10.25909/17256467 to allow for independent analysis to further alleviate concerns. The consequence of monensin treatment is quite clearly captured in the images, including the difference in response of the genotypes. We have also provided the images with a higher resolution in Figure 7A.

The authors exclude outliers in some of their analysis, but it is not justified in the text why this was done. This is likely not appropriate, and outliers should be included in the box plots and used for the analysis.

We did not remove outliers from any of our analysis. The reviewer’s assumption of outlier exclusion was likely a result of a misunderstanding of the figure legends. We have amended the figure legends to avoid that other readers might misunderstand the representation of our data, too. No data points were excluded from any of our analyses, and if practical (i.e. under 100 data points), individual data points are indicated.

Figure 6A. The signal in the ccc mutant after BFA washout seems reduced. Can the authors assess whether PIN2 fluorescence intensity at the plasma membrane is normal, since nhx5 nhx6 mutants have reduced PIN2 plasma membrane localisation. The authors state in the discussion that altered PIN2 trafficking may cause the bushy phenotype in the ccc1 mutants so this should be investigated in more detail.

In Figure 6A It is stated that there are defects in PIN2 exocytosis, however it is not very clear from the images. From the image it seems that the PIN2 may have lower intensity at the PM after washout. The authors should also re-analyse the data to show whether PIN2-GFP plasma membrane levels are similar between WT and ccc1 mutants, or if there is reduced PM intensity as in nhx5 nhx6 mutants. How was the calculation of signal ratio performed? Was the background subtracted from analysis? Assessing the intensity by including only the top 10% of pixels for analysis may provide more reproducible and accurate results.

We have performed quantification of PIN2-GFP signal at the plasma membrane and found that there is a difference between the wildtype and ccc1 (Figure 6 – supplementary figure 1A); additionally, we have added a graph showing that there is no correlation between overall signal intensity and the signal ratio (Figure 4 – supplementary figure 1B). This means that the use of this assay, through use of the ratio, remains valid.

Yes, background subtraction was used for analysis. This is now mentioned in the Material and Methods (L731, L742 and L748). In regards to using only 10% of pixels for analysis, this can be useful in many cases, however, this would distort the data due to the noted difference in BFA body formation between genotypes and so should not be used in this circumstance.

Figure S1 – please quantify the proportion of the ccc1 roots which have branching/forking. Was this seen in both ccc1 T-DNA lines?

Yes, this was seen in both T-DNA lines. We understand the interest of the reviewer in the root hair branching. These occurrences are so rare that they are extremely difficult to quantify though. The observation was provided due to repeated questioning and interest about root hair branching in ccc1 mutants we received during seminars and conference talks. This is the reason why we provided the images in the supplementary and not as a main finding in the manuscript.

We have now included a sentence to highlight that malformed root hairs were an extremely low occurrence (L171).

Figure 2C – the order of treatments does not correspond to the order in the figure. Determining whether the localisation changes would be better shown by performing this experiment in the GFP-CCC1 and VHA-a1-mRFP double reporter line.

We are unsure what the reviewer refers to here. The figure referred to has no treatments and rather the mentioned figure contains just Wt/ccc1. Figure S2 (now Figure 3 —figure supplement 1) does show some localisation data with treatments. It shows that various treatments do not result in GFP-CCC1 signal at the PM. We request to leave the order of these panels as they are, as we feel they are appropriate.

Recommendations for improving the writing and presentation.

There are many figures where the image quality is too low to determine whether the data supports the conclusions. For example, Figure 5D, 7A. This makes it very difficult to determine whether there are real differences and/or whether the authors have appropriately quantified the data. It is sometimes not possible to visualise differences in between samples because the image is too zoomed out (eg: Figure 7A), or too small (eg: 7B-F). In some cases using a different lookup table (like in Figure 7B-F) would greatly help visualising differences in signal intensity. A large improvement in presentation of the images is necessary.

We have changed the images in Figure 5D, Figure 6A, Figure 6C and Figure 6E, fluorescent signals are now shown using the multicolour LUT “fire” to aid in distinguishing features and differences between genotypes/treatments.

Images in Figure 7B-F are highly processed images. We provided them to allow readers to visualise differences in signal ratios (viewed as changes in colour) between genotypes/treatments. As such, the visualisation of structures and features are not vital for these images, the data presented in the accompanying graphs is the key result here.

We have further improved the resolution of the images we uploaded and are happy to supply all our original image data files in an online folder to overcome issues with reduced resolution.

The discussion/conclusions of this paper are not very clear. From reading the discussion the authors have identified defects in trafficking of PIN2, PIP2;1, and delayed vacuolar trafficking. Comparing these results to nhx5 nhx6 and clc mutants suggests that general TGN/EE pH ion dysfunction causes broad defects in protein trafficking. It is not clear in the discussion why external osmolality rescues the cell elongation defects and the significance of this.

We compare the trafficking defects seen in ccc1 to those in det3 and nhx5/nhx6 to support our primary result: CCC1 is important for TGN/EE ion and pH regulation. The main conclusion of work is not that general TGN/EE ion dysfunction causes broad defects; we rather use this known consequence of TGN/EE dysfunction to give further evidence that CCC1 functions in the TGN/EE.

In addition, we show that osmotic stress impacts TGN/EE pH and that ccc1 mutants have an altered response to osmotic and salt stress like det3 and nhx5/nhx6 plants, further supporting this proposed role of CCC1.

The reviewer is right that very little is currently known about the connection between the TGN/EE and osmotic stress. This is why we believe our findings are novel and highly interesting. Here we aimed to present the connection between salt and osmotic stress, TGN/EE ion and pH regulation and CCC1. It will be exciting to build on these findings to detail the connection between osmotic stress and pH changes in the TGN/EE lumen in the coming years in future studies.

We have re-written the discussion to make our take home messages more prominent.

The authors sometimes make statements regarding that one sample /tissue is brighter than another, however I do not think these types of qualitative statements are appropriate, and should be supported by quantitative data or removed.

In our manuscript we make comments that BFA bodies are often more compact and due to this, appear brighter in wildtype compared to ccc1; this is visible in the images provided. We make these comments to be transparent about the samples and that the images are accurate in depicting ccc1 plants with differently formed BFA bodies. We had not commented on the brightness of other images, however, as requested above, we have now included a quantification of PIN2-GFP at the PM.

Figures

Scale bar sizes should not be shown in the image, but rather described in the figure legend, as otherwise it is too small to see.

We have amended the figures.

Figure 4.

The quantification of panel C is in B. The order should be switched of these two panels. (Same as E and F).

The quantification of the collet hair phenotypes now is placed after the images.

The manuscript would flow better by starting with the clear cell elongation defects and rescue in panel G and H. The panel legend may also need to be changed to root cell elongation and cell identity defects.

We appreciate this suggestion by the reviewer and the authors have discussed the potential to switch the results as suggested by the reviewer but the majority preferred the current flow. We have concentrated on the macro-phenotypes first and then shown the basis for this by examination elongation.

Figure 5. (D) Cannot see any differences between the WT and mutant. A heatmap LUT may better show differences in image intensity.

The images are now presented with a ‘fire’ LUT.

Figure 7. (A) This image is way too small to see any differences between the two genotypes. A zoomed in image would be better.

Zoomed-in images are now provided in Figure 7A. For the other images, the colour differences are the most important feature where structures are not distinguishable, even when the images are enlarged due to resolution constraints in these highly processed images.

Reviewer #2:

In the submitted paper, the authors first show that activity of the CCC1 promoter is ubiquitous. They further analyze the phenotype of the mutant in the root and show a root cell elongation defect in epidermal cells as well as in root hairs. The ccc1 mutants also lack the collet root hairs and show trichoblast-atrichoblast cell fate identity defects in the primary root. The authors perform a set of elegant experiments where they show that, surprisingly, the ccc1 plants are resistant to hyperosmotic environment. The ccc1 cells show delayed plasmolysis, ccc1 seeds show better germination, and ccc1 root hair elongation is recovered in hyper-osmotic media. Interestingly, the absence of collet root hairs was also recovered in hyper-osmotic environment, even though it is not clear whether this was caused by 'reparation' of collet hair elongation or collet hair cell fate specification. The phenotypic analysis is carefully performed and the results are unexpected and intriguing.

The authors further show that in root trichoblasts, GFP-CCC1 localizes to the TGN/EE compartment, and that in this tissue, the fusion protein recovers the root hair elongation of the mutant. Further, the authors focus on the subcellular phenotypes of the endomembrane system performance in the ccc1 mutant background. It is shown that PIP2 aquaporin internalized less in the ccc1 than in control, which hints to that endocytosis is reduced in the ccc1 cells. An alternative explanation however could be that the mutant is more osmotically tolerant also on the subcellular level. To test the endomembrane trafficking rate, PIN2 aggregation and recovery from BFA bodies is performed, as well as quantifications of FM4-64 uptake, and the authors conclude that the mutant has generic endomembrane trafficking defects.

The authors hypothesize that the endomembrane defects might stem from a disturbance in TGN/EE luminal pH caused by an ion imbalance in the ccc1 cells. Therefore, they measured the luminal pH of TGN/EE using a genetically encoded phluorin and demonstrate a more alkaline pH values in the ccc1 mutants. Finally, the authors show that during hyperosmotic stress, the TGN/EE pH rises in the control plants, suggesting that this pH rise is functionally connected to the stress response. The second part of the manuscript that focuses on subcellular phenotypes uses advanced live-cell imaging tool and successfully measures pH in minute volumes of TGN/EE compartments. In addition, the specificity of the phenotype is demonstrated by careful analysis of vacuolar and cytoplasmic pH. These well performed experiments indeed point to the function of CCC1 in ion control in TGN/EE.

Many thanks for your positive comments on our work. We are glad it is appreciated.

Weaknesses of the manuscript:

The functionality of the GFP-CCC1 fusion is questionable as it was impossible to obtain transgenic lines that would express GFP-CCC1 under the control of the native promoter, not allowing full complementation of the ccc1 phenotype. This hints to a possible dominant-negative effect of this particular protein fusion. The authors therefore express GFP-CCC1 using a trichoblast-specific promoter and show that the root hair elongation phenotype is complemented, demonstrating some functionality of this construct. Moreover, the root hair length data in the ccc1-1 mutants shown in figure 2D and 3C differ, which to some extent weakens the important conclusion that the GFP-CCC1 is functional at least in this cell type. Functionality of this construct is a crucial aspect for the manuscript. The possible dominant-negative effect of the construct weakens the conclusion about the subcellular protein localization, which in turn weakens the main conclusion of the paper – that CCC1 by regulating ion fluxes in the TGN/EE allows proper endomembrane functionality.

The reviewer notes the observed difference in wildtype root hair length between experimental data shown in Figures 2D and 3C. Yes, this is correct. The experiments were done several months apart (different to the biological replicate experiments pooled for one graph, which were always conducted around the same time). Root hairs are highly reactive to environmental conditions and as such, plants grown at different times of the year commonly have differences in root hair length. As such, comparisons can only be made to a control, grown at the same time, when looking for differences in treatments or genotypes. Therefore, the data from 2D and 3C cannot be compared to each other quantitatively but rather, qualitatively.

In regards to the localisation and constructs used, neither N- nor C- terminally tagging produces transformants. Our experimental approaches suggest that all terminal tagging of CCC1 is dominant negative if the construct is expressed from the embryo stage (native promoter or ubiquitous promoters such as 35S). Expression of untagged CCC1 by either the native or 35S promoter rescues the phenotype of ccc1 KO plants. We have now provided a table (Supplementary File 1a) that summarises all attempts to localise CCC1 and the outcome, including the generation of an antibody.

We have additionally added details on previous proteomics studies, which identified CCC1 as a high-confidence TGN/EE resident protein (L186 and discussion)

The subcellular localization of CCC1 should be demonstrated without any doubts, as it was previously localized to the PM and endomembranes in pollen tubes (Domingos 2019). If CCC1 localized at the PM, alternative explanations of the phenotypes of the nature of the mutant phenotype that would include regulation ion fluxes across the PM would appear more probable than the TGN/EE hypothesis.

The reviewer highlights that CCC1 has been proposed to localise to the PM in pollen tubes in Domingos et al. (2019). Localisation of CCC1 shown in Domingos et al. (2019), lacks colocalisation with a marker and importantly, no complementation of the knockout phenotype is shown with the tagged protein. We have added a paragraph in the discussion on this topic (L488-507).

Quantification of endomembrane trafficking represents another important argument in the proposed hypothesis. The section that demonstrates the reduction in exo- and endocytosis is however not utterly convincing. It has been shown that a major contribution to the BFA body PIN2 pool originates from de-novo synthesis of the protein (Jasik et al., PMID:27506239). In the figure 6A, it is apparent that the BFA washout leads to disappearance of BFA bodies in the ccc1 mutant, but the level of PM fluorescence was decreased, leading to an apparent 'minimal recovery' of the cytoplasm:PM ratio. In case of endocytosis, the experiment combining FM4-64 uptake with BFA is hard to interpret as endocytosis visualization, because TGN/EE aggregation might be disturbed in the ccc1, as the authors suggest. A more detailed endomembrane trafficking then simple cytoplasm/PM ratios of signal could be performed to address what is happening with trafficking in this interesting mutant.

In the FM4-64 experiment, there is a poor formation of BFA bodies and a lower ratio in ccc1, however, despite having the same poor formation of BFA bodies in the PIN2-GFP experiment, the ratio is higher, indicating that the visibility of BFA bodies is not crucial to the accumulation or measurement of fluorescence (discussed in L381). The reviewer does rightly state that de-novo protein synthesis is a major contributor to intracellular protein accumulation in these assays and that is why the assay focuses on the rate of recovery. That is, we measured PIN2-GFP recovery to the PM regardless of the origin of the PIN2-GFP protein in BFA bodies (de novo or from endocytosis).

Further characterisation of the impacts TGN/EE luminal pH changes have on endomembrane trafficking is undoubtedly an interesting topic of study, as highlighted by the reviewer’s comments. The work detailed in this manuscript is focused on assessing the role of CCC1 in TGN/EE pH and ion regulation. As such, the results presented will enhance the potential to investigate the impact of TGN/EE pH on endomembrane trafficking by providing details of another tool, ccc1, which can be used to investigate this link and by further detailing the impact of environmental conditions on TGN/EE pH. It is not the aim of this study here to investigate the link between TGN/EE pH and endomembrane trafficking and as such, we believe that further results detailing endomembrane trafficking will detract from the central results of this work. However, this aspect highlights the general interest and importance of our work for other fields of plant science, and to other fields as CCC proteins are present in all organisms.

Suggestions:

It might be helpful to analyze the subcellular localization of CCC1-GFP in the vegetative tissues in the Lat52-driven constructs (Domingos 2019). Lat52 can be leaky in the vegetative tissues and has been used to drive mild expression of proteins such as T-PLATE (PMID: 24529374). This could help strengthen the claim that CCC1 is localized to TGN. The Lat52 driven construct in the Domingos paper was constructed from genomic sequence, contains introns, which is another difference from the CDS construct used in the submitted manuscript.

The reviewer suggests that the use genomic CCC1 sequence rather than the CDS sequence may aid in the difficulties expressing tagged CCC1 in plants. While we appreciate the thoughtful suggestion, expression and complementation of ccc1 phenotypes with an untagged, CDS-derived, CCC1 using the native promoter suggests that introns are not the cause of the lack of transformants but rather, that it is the tagging. The localisation presented in Domingos et al. (2019) lacks an investigation into functionality or complementation of the construct used and a quantitative colocalization with a marker is not performed. In addition, it is unclear how putative LAT52 driven expression in vegetative tissue would provide further insight compared to EXP7 driven expression in vegetative cells which complements a documented phenotype. As described in the response to reviewer 1, we have now included a table (Supplementary File 1a) summarising CCC1 constructs, and have added a paragraph in the discussion on CCC1 localisation in pollen tubes.

We have contacted the Feijo lab (corresponding author on the Domingos paper) and no seed for LAT52pro:CCC1-GFP is available. Further, they have not observed expression of protein in vegetative tissue driven by LAT52. And while it might be sometimes of some use, we think using a pollen specific promoter to drive putative leaky vegetative tissue expression would be a contrived and difficult to interpret experiment, which does not allow any control over the cell or tissue type. We respectfully suggest, that such an experiment is likely to attract more criticism than the approach we chose.

What is the topology of the CCC1 in the membrane – where are the GFP fusions localized? Could the problem of the non-shining internal GFP fusions be the low luminal (or apoplastic in the case of PM localization of the protein) pH of the compartment that would quench the GFP fluorescence? This could be tested by rising the pH of the endomembranes of the transgenic lines, or by using a pH-insensitive fluorescent protein.

The structure of an animal CCC protein has been experimentally determined, the zebrafish NKCC1. NKCC1 has a complex membrane topology, and forms very compact homodimers, with intertwined C-terminal domains. It is likely that CCC1 shares the complex topology found in the zebra fish NKCCC1.

We have added clarification on how the internal tagging sites were selected (L200 and Supplementary File 1a).

Comments:

Student t-test for comparing multiple samples is repeatedly used. Appropriate statistical tests for comparing multiple samples should be used instead, and also the data distribution should be tested for normality in cases when parametric tests are used.

We have replaced the student t-test in all graphs with multiple sample tests e.g. ANOVAs.

The authors explain the short root phenotype by a reduction of cell length. However, from the data provided, the cell length seems to be far less reduced than the overall root growth.

We agree and have amended the text (L167).

Trichoblast identities: Is the trichoblast identity problem complemented in the trichoblast-CCC1-expressing lines?

Thank you for picking up on this. It is not, and cannot expected to be, as trichoblast identity is set prior to EXP7 expression. We have now provided data of the trichoblast marker PRP3::H2B-2xmCherry, expressed in wildtype and ccc1 (Figure 2 – supplementary figure 1C).

Quantification of endocytosis and endomembrane trafficking is not very clear to me: how can the cytoplasm/PM ratio of fluorescence give the value of 1, when there is almost no fluorescence in the cytoplasm in the 10 min of FM4-64 uptake or in the T0 in case of the PIN2 GFP fluorescence?

The reviewer is correct that a ratio of 1 would be highly unusual. The value of 1 is not absolute but rather, relative to wildtype under untreated conditions. The legend text is now revised to clarify this further.

Also, not always same areas of roots are shown for treatments and mutants (authors state that data was quantified in elongation zone, but images show rather meristem/transition zone). Were the quantifications of the fluorescence signals done blindly? Do not take this as an offense, but from my experience, in case of data, where regions of interest are drawn by hand, experiments should be done so that the researcher imaging the samples at the microscope does not know which genotype they are imaging, as the FM signal in different root zones and z sections is very variable.

Measurements were taken in the late-transition/early elongation zone of roots and from a broader range than displayed in the figures where images are cropped and zoomed to enable better clarity. Cells can have a slightly different morphology in ccc1 plants where they tend to be wider than in wildtype.

Measurements were not done blind. This is because it is not possible to do so due to the obvious defects in ccc1 plants which make them very easy to identify (on the plant level, and on the image level). We are aware of the challenge of unconscious bias when measuring, which is why we decided to measure a large number of cells from each root from a broad range of zones from late-transition through to the elongation zone in both wildtype and ccc1 to reduce the chance of unconscious bias towards a specific cell type and stage in this area of the root.

I would suggest a simple pulse-chase FM4-64 uptake experiment without including BFA to reveal the dynamics of FM uptake in the mutant to provide more convincing data showing the endocytotic defect.

We have added this experiment (Figure 6C and D).

[Editors’ note: what follows is the authors’ response to the second round of review.]

We remain enthusiastic about your work and welcome you to submit a revised manuscript along the lines of what you outlined in your rebuttal. Our original decision was based on the expected time needed to perform more conclusive experiments, but you have convinced us that many of our concerns can be addressed with thorough discussion, more precise language, and a few experiments that will only take 1-2 months.

Regarding our main concerns:

Functionality: As you could not obtain transformants in most cases, we still think this unfortunately means that tagged CCC1 is not fully functional. However, we also agree that your focus on the complementation of a cellular phenotype is sound and justified. We would ask that you do provide a more thorough cataloging of complemented and non-complemented phenotypes (you mentioned in your letter that these data are available, at least with respect to trichoblast identity), and further discussion on this construct in particular, and in comparison to others, as outlined in your rebuttal. In addition, a more detailed discussion of the issue and a more detailed overview (in a Supplemental table, as you suggest) of what has been tried to obtain the functional transformants would demonstrate that everything possible was tried. In addition, a more pointed discussion about the localization of CCC1 as found in proteomics studies should be included.

As suggested, to highlight and explain why we used the construct we did, we have now added a supplementary table (Supplementary File 1a) summarising all approaches tried to obtain a functional CCC1 construct for localisation, and describe these approaches in the Results section (L189-201). Further, we now also mention the results of previous proteomic studies, that identified CCC1 as a high-confidence TGN/EE resident protein in the introduction and results (L86-90 and L182-186). Additionally, we added a paragraph highlighting the advantages of the construct we use to show functional complementation of localised CCC1 in comparison to other approaches previously used for CCC1 localisation; and discuss the limitations of all the approaches, including the construct used in our study (L491-504). The new data combined with the originally submitted data consistent with the EXP7 promoter driving expression of functional CCC1 in trichoblast cells after cellular identity was established.

As requested, we have now included additional phenotyping of ccc1 plants expressing GFP-CCC1. Phenotypes now documented include trichoblast patterning (not complemented, Figure 3 – supplementary figure 1B), trichoblast length (complemented, Figure 3 – supplementary figure 1C) and formation of collet hairs (not complemented, Figure 2 —figure supplement 1A), in addition to the existing root hair length results (complemented, Figure 3B and C). We now also include new data obtained using a trichoblast marker in WT and ccc1. This shows that the ectopic root hairs in ccc1 express this marker (Figure 2 —figure supplement 1C) suggesting that cell identity is similar to root hair cells in the correct cell files. The results on collet hairs highlights that these hairs have a different identity and are not complemented through use of the EXP7 promoter.

We thank you for this guidance. The inclusion of all this requested information provides further evidence supporting our conclusions and has improved our manuscript.

Endocytic trafficking: We agree that a more careful wording will help clarify distractions and focus on the function of CCC1 in the TGN/EE and its role in ion regulation. However, the data presented to determine defects in endocytic trafficking may still need some re-analysis: for example, quantification of PM and BFA signals. To help clarify the defect in trafficking, it would be useful to do a FM pulse chase experiment to complement the approach you show in Figure 6E-F. One reviewer suggests that the simplest way to improve this section would be to remove Figure 6C 10 min time point (BFA + FM) and replace this with an FM pulse-chase experiment (FM treatment for 10-15 min without BFA) to test for defects in endocytosis/trafficking more clearly. Quantification of the plasma membrane signal in Figure 6A alone would also help with the interpretations of the BFA washout experiment (i.e., if the PIN2-GFP signal is significantly reduced in the mutant this may be an interesting result as well).

Thank you for this constructive feedback. We have added the pulse chase experiment in Figure 6. We found no difference between the WT and ccc1 after a 10 min treatment with FM4-64 without BFA, which supports our hypothesis that CCC1 affects endocytic trafficking but not endocytosis. We have kept the 10 min FM4-64 with BFA treatment in the Figure, as we thought it serves as a good control for the 60 min time point of the same experiment. The data now nicely demonstrates that there is likely no difference in endocytosis (10 min without BFA) but there is a difference in endocytic trafficking (60 min + BFA).

Furthermore, as suggested, we have included quantification of PM PIN2-GFP signal and found that there is a reduction of the signal in the mutant (Figure 6 – supplementary figure 1A). This further supports the hypothesis that CCC1 is part of the ion and pH regulating network in the TGN/EE, since similar results have been found for the other proteins involved. Importantly, we have also included an additional graph (Figure 6 – supplementary figure 1B) to highlight that the PM:cytosol signal ratios are not impacted by the lower abundance of PIN2 in the mutant, which validates our approach to investigate endocytic trafficking.

In addition, we noticed that the request on data summarising the outcome of ccc1 crosses with other mutants affected in TGN/EE pH was not part of the public reviewer comments, which we address below, but was part of the previous editorial reply. We have added a supplementary table (Supplementary File 1b) detailing the outcome of the crosses, including information on which mutant lines were used, and a new supplementary Figure (Figure 7 – supplementary figure 3) showing the one, infertile triple mutant obtained.

https://doi.org/10.7554/eLife.70701.sa2

Article and author information

Author details

  1. Daniel W McKay

    School of Agriculture, Food and Wine, Waite Research Institute, ARC Centre of Excellence in Plant Energy Biology, University of Adelaide, Waite Campus, Adelaide, Australia
    Contribution
    Formal analysis, Investigation, Methodology, Visualization, Writing – original draft, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9743-4961
  2. Heather E McFarlane

    1. School of Biosciences, University of Melbourne, Melbourne, Australia
    2. Department of Cell and Systems Biology, University of Toronto, Toronto, Canada
    Contribution
    Investigation, Methodology, Visualization, Writing – review and editing
    Competing interests
    Reviewing editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5569-5151
  3. Yue Qu

    School of Agriculture, Food and Wine, Waite Research Institute, ARC Centre of Excellence in Plant Energy Biology, University of Adelaide, Waite Campus, Adelaide, Australia
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0101-1097
  4. Apriadi Situmorang

    School of Agriculture, Food and Wine, Waite Research Institute, ARC Centre of Excellence in Plant Energy Biology, University of Adelaide, Waite Campus, Adelaide, Australia
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1879-3355
  5. Matthew Gilliham

    School of Agriculture, Food and Wine, Waite Research Institute, ARC Centre of Excellence in Plant Energy Biology, University of Adelaide, Waite Campus, Adelaide, Australia
    Contribution
    Conceptualization, Funding acquisition, Methodology, Resources, Supervision, Validation, Writing – original draft, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0666-3078
  6. Stefanie Wege

    School of Agriculture, Food and Wine, Waite Research Institute, ARC Centre of Excellence in Plant Energy Biology, University of Adelaide, Waite Campus, Adelaide, Australia
    Contribution
    Conceptualization, Funding acquisition, Investigation, Methodology, Project administration, Resources, Supervision, Validation, Writing – original draft, Writing – review and editing
    For correspondence
    stefanie.wege@adelaide.edu.au
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7232-5889

Funding

Australian Research Council (DE160100804)

  • Stefanie Wege

Australian Research Council (FT130100709)

  • Matthew Gilliham

Australian Research Council (CE140100008)

  • Matthew Gilliham

Australian Research Council (DE170100054)

  • Heather E McFarlane

Canada Research Chairs Program

  • Heather E McFarlane

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Melanie Krebs and Karin Schumacher for helpful discussions and for providing seeds expressing the TGN/EE and cytosolic pH sensors, and Chuang Wang for the construction of PIP2;1-GFP seeds, and Anthony Gendall for providing nhx5 × nhx6 seeds. Matthew Tucker for the 3× VenusNLS plasmid, Steve Tyerman for helpful discussions, Philip Brewer for PIN2::PIN2-GFP seeds, and Christian Luschnig for advice on genotyping. We thank Renée Phillips and Marie Beillevert for assistance with lab and plant work. We thank Adelaide Microscopy, especially Gwen Mayo and Jane Sibbons, for support with microscopy; and we thank the University of Melbourne Advanced Microscopy Facility where electron microscopy was conducted. We thank the Australian Research Council for funding this work through DE160100804 to SW, FT130100709 and CE140100008 to MG, and DE170100054 to HEM; HEM is also supported in part by funding from the CRC program as the Canada Research Chair in Plant Cell Biology.

Senior Editor

  1. Jürgen Kleine-Vehn, University of Freiburg, Germany

Reviewing Editor

  1. Jacqueline Monaghan, Queen's University, Canada

Publication history

  1. Preprint posted: January 2, 2020 (view preprint)
  2. Received: May 26, 2021
  3. Accepted: January 5, 2022
  4. Accepted Manuscript published: January 6, 2022 (version 1)
  5. Version of Record published: January 26, 2022 (version 2)
  6. Version of Record updated: February 8, 2022 (version 3)

Copyright

© 2022, McKay et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,212
    Page views
  • 255
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Daniel W McKay
  2. Heather E McFarlane
  3. Yue Qu
  4. Apriadi Situmorang
  5. Matthew Gilliham
  6. Stefanie Wege
(2022)
Plant Trans-Golgi Network/Early Endosome pH regulation requires Cation Chloride Cotransporter (CCC1)
eLife 11:e70701.
https://doi.org/10.7554/eLife.70701
  1. Further reading

Further reading

    1. Genetics and Genomics
    2. Plant Biology
    Simon Snoeck, Bradley W Abramson ... Adam Steinbrenner
    Research Article

    As a first step in innate immunity, pattern recognition receptors (PRRs) recognize distinct pathogen and herbivore-associated molecular patterns and mediate activation of immune responses, but specific steps in the evolution of new PRR sensing functions are not well understood. We employed comparative genomic and functional analyses to define evolutionary events leading to the sensing of the herbivore-associated peptide inceptin (In11) by the PRR Inceptin Receptor (INR) in legume plant species. Existing and de novo genome assemblies revealed that the presence of a functional INR gene corresponded with ability to respond to In11 across ~53 million years (my) of evolution. In11 recognition is unique to the clade of Phaseoloid legumes, and only a single clade of INR homologues from Phaseoloids was functional in a heterologous model. The syntenic loci of several non-Phaseoloid outgroup species nonetheless contain non-functional INR-like homologues, suggesting that an ancestral gene insertion event and diversification preceded the evolution of a specific INR receptor function ~28 mya. Chimeric and ancestrally reconstructed receptors indicated that 16 amino acid differences in the C1 leucine-rich repeat domain and C2 intervening motif mediate gain of In11 recognition. Thus, high PRR diversity was likely followed by a small number of mutations to expand innate immune recognition to a novel peptide elicitor. Analysis of INR evolution provides a model for functional diversification of other germline-encoded PRRs.

    1. Plant Biology
    Jennette M Codjoe, Ryan A Richardson ... Elizabeth S Haswell
    Research Article Updated

    Mechanosensitive (MS) ion channels are an evolutionarily conserved way for cells to sense mechanical forces and transduce them into ionic signals. The channel properties of Arabidopsis thaliana MscS-Like (MSL)10 have been well studied, but how MSL10 signals remains largely unknown. To uncover signaling partners of MSL10, we employed a proteomic screen and a forward genetic screen; both unexpectedly implicated endoplasmic reticulum–plasma membrane contact sites (EPCSs) in MSL10 function. The proteomic screen revealed that MSL10 associates with multiple proteins associated with EPCSs. Of these, only VAMP-associated proteins (VAP)27-1 and VAP27-3 interacted directly with MSL10. The forward genetic screen, for suppressors of a gain-of-function MSL10 allele (msl10-3G, MSL10S640L), identified mutations in the synaptotagmin (SYT)5 and SYT7 genes. We also found that EPCSs were expanded in leaves of msl10-3G plants compared to the wild type. Taken together, these results indicate that MSL10 associates and functions with EPCS proteins, providing a new cell-level framework for understanding MSL10 signaling. In addition, placing a mechanosensory protein at EPCSs provides new insight into the function and regulation of this type of subcellular compartment.
