Monitoring single-cell dynamics of entry into quiescence during an unperturbed life cycle

  1. Basile Jacquel
  2. Théo Aspert
  3. Damien Laporte
  4. Isabelle Sagot
  5. Gilles Charvin  Is a corresponding author
  1. Department of Developmental Biology and Stem Cells, Institut de Génétique et de Biologie Moléculaire et Cellulaire, France
  2. Centre National de la Recherche Scientifique, France
  3. Institut National de la Santé et de la Recherche Médicale, France
  4. Université de Strasbourg, France
  5. Institut de Biochimie et Génétique Cellulaires, UMR 5095 CNRS - Université de Bordeaux, Bordeaux, France, France
Tools and Resources
  • Cited 0
  • Views 673
  • Annotations
Cite this article as: eLife 2021;10:e73186 doi: 10.7554/eLife.73186

Abstract

The life cycle of microorganisms is associated with dynamic metabolic transitions and complex cellular responses. In yeast, how metabolic signals control the progressive choreography of structural reorganizations observed in quiescent cells during a natural life cycle remains unclear. We have developed an integrated microfluidic device to address this question, enabling continuous single-cell tracking in a batch culture experiencing unperturbed nutrient exhaustion to unravel the coordination between metabolic and structural transitions within cells. Our technique reveals an abrupt fate divergence in the population, whereby a fraction of cells is unable to transition to respiratory metabolism and undergoes a reversible entry into a quiescence-like state leading to premature cell death. Further observations reveal that nonmonotonous internal pH fluctuations in respiration-competent cells orchestrate the successive waves of protein superassemblies formation that accompany the entry into a bona fide quiescent state. This ultimately leads to an abrupt cytosolic glass transition that occurs stochastically long after proliferation cessation. This new experimental framework provides a unique way to track single-cell fate dynamics over a long timescale in a population of cells that continuously modify their ecological niche.

Editor's evaluation

The cell fate program that is set in motion as yeast cells transition from fermentation to respiration is still not well understood. The development of the microfluidic platform described in this manuscript could make a significant contribution to understanding the succession of metabolic and structural changes occurring during this transition. The application of single cell tracking to monitor the temporal program of these changes represents a major technical advance that will be of general interest to researchers interested in defining the developmental programs that contribute to cellular quiescence and longevity.

https://doi.org/10.7554/eLife.73186.sa0

Introduction

Microorganisms have evolved plastic growth control mechanisms that ensure adaptation to dynamical environmental changes, including those that arise from their proliferation (such as nutrients limitations and cellular secretion in the medium). During its natural life cycle, budding yeast may undergo several metabolic transitions from fermentation to respiration, followed by entry into a reversible state of proliferation arrest known as quiescence (De Virgilio, 2012; Gray et al., 2004; Sun and Gresham, 2021; Miles et al., 2021). Despite quiescence being an essential part of the microorganism life cycle that ensures cell survival over prolonged periods (Fontana et al., 2010), it has received little attention compared to the analysis of biological processes in proliferative contexts.

Quiescent cells strongly differ from proliferating cells in terms of metabolic activity and gene expression (Gray et al., 2004; Miles et al., 2013). They also display a large body of structural rearrangements in the cytoskeleton, mitochondria, nuclear organization, and the appearance of protein superassemblies, clusters, and aggregates (Sagot and Laporte, 2019; Sun and Gresham, 2021). So far, the complex and entangled regulatory processes controlling this particular state’s establishment remain poorly understood. In particular, the detailed sequence of events describing how the dynamics of metabolic cues during the natural life cycle drive the entry into quiescence is still missing.

Also, an essential feature of microbial ecosystems in the stationary phase (SP) is the existence of phenotypic variability (Campbell et al., 2016; Avery, 2006; Holland et al., 2014; Labhsetwar et al., 2013; Ackermann, 2015; Bagamery et al., 2020; Solopova et al., 2014) and history-dependent behaviors that lead to fate divergences (Balaban et al., 2004; Cerulus et al., 2018). In quiescence, the coexistence of heterogeneous cell populations has been previously reported (Allen et al., 2006; Laporte et al., 2018a). Nevertheless, how phenotypic diversity emerges in a clonal population during a natural life cycle remains elusive (Figure 1—figure supplement 1A). Bridging this gap requires performing longitudinal tracking of individual cells over time. However, an important technical obstacle is that it must be done in population-scale growth experiments to allow cell proliferation to have a collective impact on the environment.

Previous work has used an abrupt transition to glucose starvation to study how cells reorganize upon entry into the SP in various biological contexts (Munder et al., 2016; Bagamery et al., 2020). While this experimental framework may be helpful for studying standard properties of cells undergoing proliferation arrest, the results cannot be transposed to the context of entering quiescence during an undisturbed life cycle, in which cells undergo a sequence of metabolic transitions and feedback continuously into the composition of their environment. Indeed, an essential condition to reach a bona fide quiescence state (i.e., the ability to recover proliferation after prolonged arrest) is that cells must experience a respiration phase (RP) to accumulate carbohydrates, which does not occur upon abrupt glucose starvation (Ocampo et al., 2012; Li et al., 2013). In addition, different nutrient limitations lead to distinct quiescent states (Klosinska et al., 2011). Therefore, it is essential to develop novel methods that capture the true dynamics of cell transitions as they may occur in their ecological niche (Miles et al., 2021).

Here, we report the development of a microfluidic platform for single-cell ecology, allowing continuous tracking of individual cells’ fate during an unperturbed full life cycle (up to 10 days). Using a fluorescent reporter of internal pH (Mouton et al., 2020; Miesenböck et al., 1998; Dechant et al., 2010; Munder et al., 2016), we observe that the diauxic shift (DS) witnesses a cell fate divergence, where a minority of cells experience a metabolic crash similar to that observed upon an abrupt starvation (Bagamery et al., 2020). Interestingly, our long-term tracking capabilities further reveal that these cells experience a premature yet reversible induction of cellular reorganizations that coincide with limited survival. In contrast, respiration-competent cells experience fluctuations in internal pH in sync with metabolic transitions that drive successive waves of cellular reorganizations and a stochastic switch to a glass transition of the cytoplasm long after proliferation cessation. Altogether, our analysis reveals how metabolic changes encountered by yeast cells during an unperturbed life cycle coordinate the temporal control of complex cellular reorganizations.

Results

To track individual cell behavior during an unperturbed life cycle, we set up a device composed of a 25 ml liquid yeast culture (YPD medium) connected to a microfluidic device for single-cell observation (Figure 1A, Figure 1—figure supplement 1B and C, 1F). Thanks to a closed recirculation loop, individual cells trapped in the microfluidic device could be imaged over time while experiencing the same environmental changes as the population liquid culture. To prevent clogging in the microfluidic device due to the high cell density in the culture (up to 109 cells/ml), we designed a filtration device based on inertial differential migration (Kuntaegowdanahalli and Papautsky, 2008). Using this technique, cells were rerouted back to the liquid culture before entering the microfluidic device (Figure 1A). Optical density (OD) and fluorescence measurements revealed a filtration efficiency superior to 99%, reducing the concentration of cells entering the device by two orders of magnitude (Figure 1—figure supplement 1– S1E), and allowing us to image the cells over up to 10 days. We also checked that the same filtration device could sort S. pombe cells with 92% efficiency, thus highlighting the versatility of the methodology.

Figure 1 with 5 supplements see all

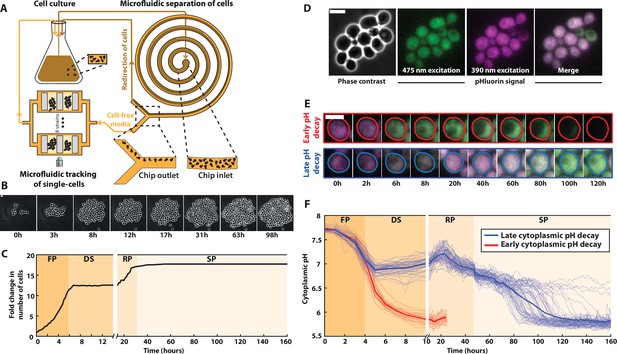

A microfluidic platform for single-cell tracking during the yeast proliferation cycle.

(A) Schematics of the experimental setup, representing the liquid culture flask, the observation microfluidic device with trapped cells, and the microfluidic filtering device designed to redirect the cells back to the liquid culture while recirculating the medium of the liquid culture to the observation microfluidic chamber. (B) Sequence of phase-contrast images of cells growing in the microfluidic device. Scale bar = 5 μm. (C) Fold increase in cell number over an entire life cycle for the microcolony displayed in B; each shaded area represents a distinct proliferation phase, which was determined using piecewise linear fitting to cell proliferation data (see Materials and methods and Figure 1—figure supplement 1G for details): fermentation phase (FP), diauxic shift (DS), respiration phase (RP), and stationary phase (SP). (D) Cluster of cells showing typical phase-contrast, fluorescence, and overlay images using the cytoplasmic pH sensor pHluorin. (E) Typical sequences of overlaid fluorescence images obtained with the pHluorin sensor at indicated time points. Colored lines indicate cell contours. (F) Quantification of the absolute cytoplasmic pH as a function of time; each line represents an individual cell, while the bold line indicates the average among cells with either an early (red lines, N = 32 cells displayed) or late (blue line, N = 64 cells displayed) decaying pH.

Figure 1—source data 1

Spreadsheet containing the numerical values used to plot panels 1C and D.

https://cdn.elifesciences.org/articles/73186/elife-73186-fig1-data1-v2.xlsx

Using this methodology, we successfully recapitulated the successive proliferation phases occurring at the population level upon carbon source exhaustion with single-cell resolution (Richards, 1928), namely: a rapid exponential growth (doubling time = 84 ± 12 min) corresponding to glucose fermentation (referred to as the fermentation phase or FP in the following, from t = 0 to t = 5.5 hr), followed by a sharp growth arrest, or DS (from t = 5.5 to t = 13.9 hr); then, the resumption of a slow proliferative regime (doubling time = 307 ± 52 min) which is associated with the use of ethanol as a carbon source for a respiratory metabolism (RP, from t = 13.9 to t = 31.6 hr) and a final cell proliferation cessation occurring upon carbon source exhaustion, leading to SP, see Figure 1B, C and Figure 1—video 1.Figure 1—source data 1 . To make sure that this growth pattern was not specific to the BY strain used for this experiment, we also made population growth measurements in various prototrophic and auxotrophic strains, and obtained similar results (Figure 1—figure supplement 2). To quantify the data further, the transition times between each metabolic phase were determined using piecewise exponential fits (Figure 1—figure supplement 1 S1G). By refeeding the cells with fresh YPD medium after 10 days, we observed that up to ~80 % of them reentered the cell cycle within 5 hr (Figure 1—figure supplement 1 -S1H). This result confirmed the reversibility of cell proliferation arrest and testified that cells establish bona fide quiescence in our growth conditions (Laporte et al., 2018b).

A drop in medium pH has long been reported to coincide with the resources’ exhaustion during microbial growth (Burtner et al., 2009). Yet, how internal pH evolves over an entire life cycle has never been investigated. To address this, we used the ratiometric fluorescent probe of cytoplasmic pH, pHluorin (Figure 1D, Miesenböck et al., 1998; Mouton et al., 2020), which was calibrated to display the actual internal pH (Figure 1D–F and Figure 1—figure supplement 1– S1I). Using this readout, we observed that the pH, which was initially around 7.7, started to decline synchronously in all cells during the F phase (Figure 1E, F and Figure 1—video 2). At the onset of the DS, most cells (88%, N = 466) abruptly reached a plateau (pH ~6.9, blue lines on Figure 1F) followed by a slight pH increase (up to pH ~7.2) that coincided with entry into a respiratory metabolism. In contrast, a minority (12%, N = 466) of cells (Figure 1E and red lines on Figure 1F) experienced a further drop in pH down to about 5.8 during the DS. In this subpopulation, the fluorescence signal progressively disappeared, precluding monitoring the internal pH for more than 20 hr in a reliable manner.

In cells with high internal pH during the DS, the pH gradually declined after reaching a local maximum during the R phase. These cells then experienced a sharp pH drop down to about 5.8, which occurred at very heterogeneous times during the SP, unlike the cells with an early pH drop. Altogether, these observations revealed unprecedented dynamics of internal pH during the yeast life cycle: pH variations appeared to be in sync with the sequence of proliferation phases, suggesting that internal pH is a crucial marker of the cells’ metabolic status during their life cycle.

These continuous pH measurements also unraveled a divergence in cell fate at the DS, leading to the early emergence of heterogeneity within the population, in line with previous observations made upon abrupt starvation (Bagamery et al., 2020). This phenomenon was also observed in a W303 strain (Figure 1—figure supplement 3). Recent studies have shown that the activation of respiration was a crucial metabolic response to survive glucose deprivation (Weber et al., 2020), enabling carbohydrate storage (Ocampo et al., 2012) and long-term viability (Laporte et al., 2018a). Interestingly, it was shown that a respiration defect was naturally observed in about 10 % of cells upon proliferation cessation following glucose exhaustion (Laporte et al., 2018a). Hence to further characterize whether differences in metabolic status drove the emergence of divergent cell fates at the DS, first, we quantified cellular proliferation over time using single-cell area measurements. We found that cells with a late pH drop resumed growth and roughly doubled their biomass during the R phase (blue lines on Figure 2A and Figure 2—source data 1) in agreement with Figure 1C.

Figure 2 with 2 supplements see all

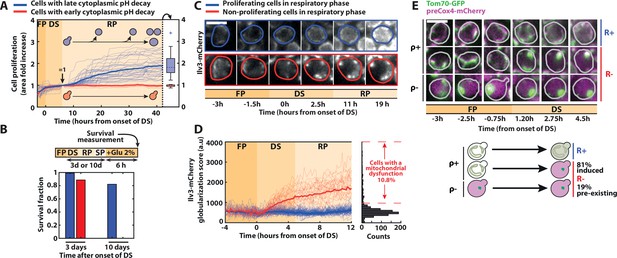

Divergent cell fates induced by a metabolic challenge at the diauxic shift (DS).

(A) Quantification of single-cell growth during F, DS, and R phases, as defined in Figure 1. Each line represents the fold area increase (including buds) of single cells over time, normalized by cell area at the end of the DS (N = 50). The bold lines represent the averages over all the cells that experience fast (red) and slow (blue) pH decay, respectively. Right: box plot indicating the fold increase in cellular area in each subpopulation during the R phase (N = 40 for the slow pH decay population, N = 10 for the fast pH decay population). (B) Fraction of surviving cells among adapting (blue bars) and nonadapting (red bars) cells, measured by quantifying the cells’ ability to resume growth 6 hr after reintroduction of fresh medium (2 % glucose) at 3 (N = 53 for red bars, N = 221 for blue bars) or 10 days (N = 114 for red bars, N = 403 for blue bars) after the DS. Scale bar = 5 µm. (C) Representative sequence of fluorescence images obtained with the Ilv3-mCherry mitochondrial marker at the indicated time points for the different classes of cells, as indicated by the colored contour. (D) Single-cell quantification of a globularization score (see Materials and methods) from fluorescence images over time for both adapting (blue line; N = 81) and nonadapting cells (red line; N = 28). The bold lines represent averages within each subpopulation. Right: histogram of globularization score for each cell (N = 720). (E) Preexisting versus newly occurring respiratory defects in cells experiencing the DS Sequence of fluorescent images (overlay of preCox4-mCherry and Tom70-GFP) at indicated times. Scale bar = 5 µm. Each line represents a different type of cell fates (top: ρ+ R+ ; middle: ρ+ R−; bottom: ρ− R−). Schematics: representation of the different cell fates based on the fluorescence patterns of preCox4-mCherry and Tom70-GFP, with the quantification of the fraction of each subpopulation (N = 701).

Figure 2—source data 1

Spreadsheet containing the numerical values used to plot panels 2A and D.

https://cdn.elifesciences.org/articles/73186/elife-73186-fig2-data1-v2.xlsx

In contrast, cells that experienced an early pH drop (red lines on Figure 2A) did not recover during the R phase, suggesting that they could not transition to respiratory metabolism. Indeed, these cells did not resume growth when adding lactate (i.e., a nonfermentable carbon source) to the medium neither (Figure 2—figure supplement 1A). However, most of them were still viable after 3 days in SP, even though their survival declined faster than adapting cells (Figure 2B).

Second, to assess cellular respiratory function, we used the mitochondrial Ilv3-mCherry marker (Laporte et al., 2018a). Whereas the mitochondrial network architecture appeared similar (i.e., tubular) in all cells before the DS, proliferating cells in the R phase displayed a fragmented mitochondria phenotype typical of respiring cells (blue cell, Figure 2C). In contrast, nonproliferating cells underwent a globularization of their mitochondrial network (red cell, Figure 2C and Figure 2—video 1). We further quantified the mitochondrial network’s reorganization dynamics by computing a custom aggregation index that discriminates globularized versus tubular and fragmented mitochondria (Figure 2D and Figure 2—source data 1, see Materials and methods for details). Based on the clear distinction in the aggregation index between adapting and nonadapting cells, we measured that about ~10 % of the cells could not transition to a respiratory metabolism (at t = 12 hr post-DS, Figure 2D), in agreement with previous findings (Laporte et al., 2018a). Importantly, this quantification revealed that the mitochondrial globularization in nonadapting cells was temporally closely associated with the DS since it started as early as 1h20 (p < 0.05) after its onset (Figure 2C,D). Altogether, these results demonstrate that proliferating and nonproliferating cells experienced divergent cell fates at the DS based on their ability to switch to respiration; hence, they were referred to as respiration positive (R+) and negative (R−), respectively. Also, these results suggest that the inability of R− cells to activate a respiratory metabolism was either triggered by this metabolic challenge or, alternatively, preexisted the DS, knowing that respiratory deficient cells (i.e., ρ− cells) are common in the BY background (yet less so in W303 strains) due to the genetic instability of mitochondrial DNA (Dimitrov et al., 2009).

To discriminate between these two hypotheses, we used the mitochondrial localization marker Tom70-GFP (Tom70 is a protein of the outer mitochondrial membrane) and a preCox4-mCherry fusion (preCox4 is a nuclear-encoded mitochondrial protein that is imported only in functional mitochondria Veatch et al., 2009), to assess the cells’ ability to respire (Fehrmann et al., 2013). Using these markers, we first checked that all R+ cells maintained a functional preCox4-mCherry import from fermentation to respiration (i.e., they were ρ+ cells, Figure 2E). Then, we observed that among the R− cells, only a minority (i.e., 19%) had a dysfunctional mitochondrial import before the DS, indicating that they had a preexisting respiratory deficiency (see ρ− cells in Figure 2E). In contrast, the vast majority of R− cells (81%) transitioned from ρ+ to ρ− during the DS. This result demonstrates that the respiration defect observed in R− cells occurred concomitantly with the environmental switch and was therefore not due to a preexisting condition. Also, we showed that the progeny quite faithfully inherited it (inheritance index = 0.52, i.e., is smaller than 1, see Figure 2—figure supplement 1B and Material and methods for details). Altogether, these observations supported a scenario in which a fate divergence occurred early at the onset of the DS, where R+ cells quickly switched to a respiratory metabolism, while R− cells failed to do so.

As numerous cellular reorganizations occur during entry into quiescence (Sagot and Laporte, 2019), we sought to quantitatively determine how they are coordinated with metabolic transitions during the life cycle. Indeed, the metabolism controls internal cellular pH, which in turn can induce significant physicochemical changes in the proteome, such as protein aggregation and phase transition (Munder et al., 2016; Dechant et al., 2010). To do this, we monitored the dynamics of formation of supramolecular bodies associated with quiescence or the response to starvation: P-bodies formation (using the Dhh1-GFP fusion Beckham et al., 2008; Balagopal and Parker, 2009; Mugler et al., 2016), metabolic or regulatory enzymes prone to aggregation (Gln1-GFP and Cdc28-GFP) (Narayanaswamy et al., 2009; Petrovska et al., 2014; Shah et al., 2014), actin bodies formation (Abp1-GFP) (Sagot et al., 2006), and proteasome storage granules (PSGs, using the Scl1-GFP fusion) (Laporte et al., 2008; Peters et al., 2013).

We found that the cellular reorganizations were highly coordinated with the sequence of metabolic phases and the cellular proliferation status (Figure 3A and Figure 3—source data 1): in R+ cells, Dhh1-GFP and Gln1-GFP (Figure 3—video 1) foci appeared at the onset of the DS, then were partially dissolved during the R phase, and reappeared upon entry into SP. Other hallmarks of proliferation cessation, such as actin bodies, PSGs, and other protein foci (Cdc28-GFP), showed up only at the end of the R phase. Importantly, we observed that R− cells also experienced a consistent formation of fluorescent foci for the markers that we monitored, yet, unlike R+ cells, they all appeared during the DS. In addition, all these foci ultimately disappeared, presumably as a consequence of the premature cell death observed in this subpopulation.

Figure 3 with 2 supplements see all

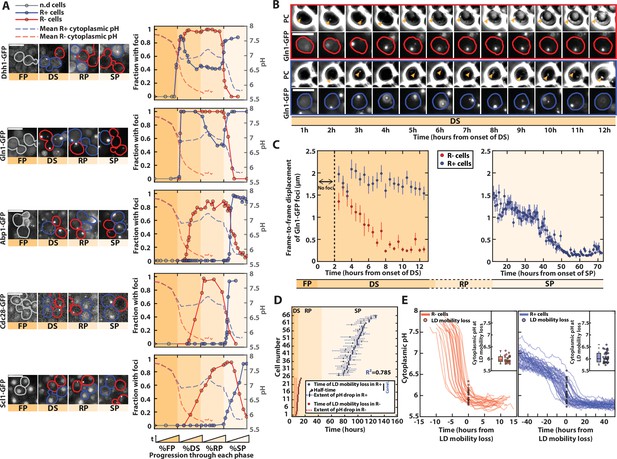

pH-driven phase transition to a gel-like state upon proliferation cessation.

(A) Observation and quantification of fluorescent foci formation for the indicated fusion proteins (Dhh1-GFP, Gln1-GFP, Abp1-GFP, Cdc28-GFP, and Scl1-GFP). Left: each strip of fluorescence images displays unrelated cells at different phases during entry into stationary phase (SP). Colored contours indicate cells of interest (red for R− cells, blue for R+ cells, gray before the diauxic shift [DS]). Right: quantification of the fraction of cells with foci for each indicated fluorescent marker, as a function of the normalized time spent in each phase. Each solid colored line represents an indicated subpopulation of cells. The dashed colored lines represent the evolution of pH over time, based on data obtained in Figure 1; N > 25 cells for each marker. Scale bar = 5 µm. (B) Mobility of Gln1-GFP fluorescent foci and observation of lipid droplets (LDs). Sequence of phase-contrast and Gln1-GFP fluorescence images at indicated time points. The colored contours indicate the cells of interest (red and blue for R− and R+ cells, respectively). The orange arrowheads on the phase-contrast images indicate the LD. Scale bar = 5 µm. (C) Mobility of Gln1-GFP fluorescent foci. Quantification of average frame-by-frame displacement of Gln1-GFP foci for R+ and R− cells (blue and red points, respectively) starting after the appearance of foci (t > 2 hr after the onset of DS). Error bars represent the standard error on mean (N = 51 for R− and N = 110 for R+). The right plot only features R+ cells, since Gln1-GFP foci are no longer present in the SP phase in R− cells (N = 28). (D) Temporal link between the drop in internal pH and the time of mobility loss of LD (N = 25 for R− and N = 43 for R+). Each line corresponds to a single cell and represents the extent of pH drop (see Material and methods for details). Half-times of these drops are represented by a small vertical bar. The time of LD mobility loss is displayed as a dot. Of note, two cells did not display a pH drop, nor an LD mobility loss, hence they are not displayed on the plot. (E) Measurement of internal pH at the time of LD mobility loss. Overlay of internal pH in single cells obtained after synchronizing all traces with respect to the time of LD mobility loss, for R− (left) and R+ cells (right). Each dot represents the pH at the time of mobility loss in each cell (N = 25 for R− and N = 43 for R+). Inset: box plot showing the distribution of pH values of every single cell at the time of LD mobility loss.

Figure 3—source data 1

Spreadsheet containing the numerical values used to plot panel 3A.

https://cdn.elifesciences.org/articles/73186/elife-73186-fig3-data1-v2.xlsx
Figure 3—source data 2

Spreadsheet containing the numerical values used to plot panels 3D and E for R+ cells.

https://cdn.elifesciences.org/articles/73186/elife-73186-fig3-data2-v2.xlsx
Figure 3—source data 3

Spreadsheet containing the numerical values used to plot panels 3D and E for R− cells.

https://cdn.elifesciences.org/articles/73186/elife-73186-fig3-data3-v2.xlsx

By overlapping the dynamics of fluorescence foci formation with that of internal pH (from Figure 1F), we noticed that the formation of bodies overall coincided with variation in absolute pH level in both R+ and R− cells, even though it appeared at different timescales. This finding is compatible with the hypothesis that the drop in internal pH – which reflects a decrease in metabolic activity – actually drives successive waves of body formation and the appearance of quiescence hallmarks. Indeed, upon the DS, a pH decrease down to ~7 would trigger the formation of Gln1 and Dhh1 foci in both R+ and R− cells. In R+ cells, the rerise of the pH associated with proliferation resumption in the R phase would induce the disassembly of these structures until the pH reaches 7 again, after carbon source exhaustion in SP. In both R+ and R−, actin bodies, PSG, and Cdc28 foci would form only when the intracellular pH reaches 6.

To further check this hypothesis, since energy depletion was shown to induce a global modification of the cytoplasm to a glassy state (Munder et al., 2016), we sought to observe these transitions by monitoring the frame-to-frame displacement of Gln1-GFP foci over time (Figure 3B, Munder et al., 2016). This marker was chosen because foci are already present at the DS. We found that the mobility of Gln1-GFP foci decreased sharply in R− cells during the DS (Figure 3—video 1) and much later in R+ cells, consistently with the differences observed regarding the times of pH drops in both populations (Figure 3C). To better establish the links between pH and mobility, we exploited the fact that lipid droplets (LDs) could be conveniently observed using phase-contrast images (Heimlicher et al., 2019). Similarly, the time of loss of LDs mobility correlated very well with that of Gln1-GFP foci (Figure 3—figure supplement 1A). By quantifying both the time of loss of LD mobility and the dynamics of pH drop in single cells, we observed that both events were tightly correlated in all cells, despite the large cell-to-cell heterogeneity in the time of pH drop in R+ cells (Figure 3D , Figure 3—figure supplement 1B, Figure 3—source data 2 and Figure 3—source data 3). Also, after synchronizing all single-cell trajectories from the time of loss of LD mobility, we showed that the mobility loss of the cytoplasm occurred at a similar pH ~6 in both R+ and R− cells (Figure 3E, Figure 3—source data 2 and Figure 3—source data 3). Therefore, these observations suggest that the internal pH, which displays a very dynamic behavior during the yeast life cycle, induces waves of cellular structural remodeling that ultimately triggers a global transition of the cytoplasm to a gel-like state. This model is further supported by the concomitance between the premature pH drop and the phase transition in respiratory deficient (R−) cells. Altogether, it suggests that, upon nutrient exhaustion, cells undergo stereotypical pH-dependent structural reorganizations, no matter their respiratory status. R− cells’ inability to switch to respiration, which ultimately compromises the long-term viability in this subpopulation (Ocampo et al., 2012; Weber et al., 2020), makes this transition precocious, and explains the divergent cell fates in the population at the DS.

Discussion

In this study, we have developed a new microfluidic platform that allows us to monitor a full cell proliferation cycle in liquid culture with single-cell resolution. Individual cell tracking and quantitative fluorescence measurements provide a unique dynamic assessment of the successive metabolic transitions from fermentation to the SP observed in a liquid culture submitted to nutrients exhaustion. In contrast to most previous studies that used abrupt environmental switches to investigate the metabolic response to starvation, our methodology recapitulates the unperturbed dynamics of nutrients experienced by cells during a life cycle in laboratory conditions. We envision that this methodology could be further applied to other contexts in which collective cell behavior impacts the environment, which in turn shapes individual cellular responses – for example, metabolic oscillations (Tu et al., 2005) and cooperative behaviors (Dal Co et al., 2020; Campbell et al., 2015).

Continuous monitoring of cell growth and mitochondrial markers revealed a clear divergence in cell fate, where a minority of them failed to establish a respiratory metabolism, in line with recent observations obtained using an abrupt medium change (Bagamery et al., 2020). The dramatic drop in internal pH upon proliferation cessation in R− cells at the DS suggests that the failure to transition to respiration induces a major loss of energy homeostasis in this subpopulation, that may, in turn, compromise long-term viability (Ocampo et al., 2012; Weber et al., 2020). By and large, this phenomenon could not be explained by preexisting phenotypic differences in the population during the FP (Bagamery et al., 2020) but rather appeared to be triggered by the metabolic challenge associated with the exhaustion of glucose.

Previous studies have unraveled how changes in cytosolic pH – including upon nutrient exhaustion – control protein supramolecular assemblies (Peters et al., 2013; Petrovska et al., 2014). Our analysis shows that nonmonotonous fluctuations in pH level occur in sync with metabolic transitions during an unperturbed life cycle. Further, it reveals that successive pH drops are closely temporally related to the formation of many protein bodies and granules, despite the large cell-to-cell temporal variability associated with the onset of these events. Interestingly, since the structural reorganization of many protein complexes is one of the well-described hallmarks of quiescence (Sagot and Laporte, 2019), our observations thus suggest that internal pH acts as a key controller that drives waves of structural changes at well-defined pH levels during entry into quiescence. That R– cells display foci formation similarly as the R+ cells provide further support to a model of stereotypical structural reorganizations driven by energy depletion and transduced by internal pH level.

In addition to monitoring the superassembly of specific markers, we showed that the transition to SP is accompanied by a transition of the cytoplasm to a glassy-like phase, hence transposing previous observations (Parry et al., 2014; Joyner et al., 2016; Munder et al., 2016) to the context of an unperturbed life cycle in budding yeast (Heimlicher et al., 2019). Importantly, the appearance of the glassy-like state occurs right at the DS in the R– cells and is significantly delayed and variable in time in R+ cells. We propose that the start of respiration upon glucose exhaustion prevents a precocious glass transition, which might be detrimental to cell viability if it occurs in an uncoordinated manner with other cellular reorganizations processes (e.g., energy storage)(Ocampo et al., 2012; Weber et al., 2020).

The abrupt and concomitant transition of all cells during the DS shows how the rapid evolution of the environment at this precise moment drives cell behavior in a deterministic manner, in the same way as during abrupt starvation (Bagamery et al., 2020; Munder et al., 2016). Conversely, the remarkable cell-to-cell temporal heterogeneity during the transition to a glassy state in R+ cells suggests that the cells have a developmental program whose progression is partly stochastic, that is, not entirely determined by the external environment. This last observation further supports that it is impossible to follow the process of entry into quiescence faithfully by imposing the dynamics of environmental changes (Miles et al., 2021) or based on population measurements only. Further studies using our methodology may allow us to discover how the succession of the different key steps of this developmental process contributes to establishing the specific physiological properties of quiescent cells (e.g., long-term survival and stress tolerance).

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Strain, strain background(S. cerevisiae, BY, mat a)WTEuroscarf; PMID:9483801
Strain, strain background(S. cerevisiae, BY, mat a)BJQ-3Thermo Fisher; PMID:14562095
Strain, strain background(S. cerevisiae, BY, mat a)BJQ-7Thermo Fisher; PMID:14562095
Strain, strain background(S. cerevisiae, BY, mat a)BJQ-28Thermo Fisher; PMID:14562095
Strain, strain background(S. cerevisiae, BY, mat a)BJQ-23Thermo Fisher; PMID:14562095
Strain, strain background(S. cerevisiae, BY, mat a)BJQ3-3Thermo Fisher; PMID:14562095
Strain, strain background(S. cerevisiae, BY, mat a)Y10794Sagot Lab; PMID:18504300
Strain, strain background(S. cerevisiae, BY, mat a)YSF120-9DCharvin Lab; PMID:24332850
Strain, strain background(S. cerevisiae, BY, mat a)BJ2-44Thermo Fisher; PMID:14562095
Strain, strain background(S. cerevisiae, BY, mat alpha)Y11453This paper Results from a cross between Y11314 (Daignan-Fornier lab) and Y11453
Strain, strain background(S. cerevisiae, S288C, mat alpha)Y2658Daignan-Fornier Lab; PMID:19795422
Strain, strain background(S. cerevisiae, FY, mat a)Y2438Daignan-Fornier Lab; PMID:7762301
Strain, strain background(S. cerevisiae, FY, mat a)Y2439Daignan-Fornier Lab; PMID:7762301
Strain, strain background(S. cerevisiae, FY, mat a/alpha)Y12322This paper Results from a cross between Y2438 and Y2439
Strain, strain background(S. cerevisiae, FY, mat a)Y5738Sagot Lab; PMID:30299253
Strain, strain background(S. cerevisiae, W303, mat a)Y8037Sagot Lab; PMID:24338369
Strain, strain background(S. cerevisiae, BY, mat a)Y6735Sagot Lab; PMID:24338369
Strain, strain background(S. cerevisiae, W303, mat alpha)BJQ-11Alberti Lab; PMID: PMID:27003292

Strains

All strains used in this study are congenic to BY4741 (see Supplementary file 1 for details), unless specified otherwise (Figure 1—figure supplement 2 and Figure 1—figure supplement 3).

Cell culture

Request a detailed protocol

Freshly thawed cells were grown overnight. In the morning, 2 ml of the culture was inoculated into a 25 ml flask containing fresh YPD medium. After 5 hr, 2 ml of culture was used to load the cells into the microfluidic device, and the rest was used as circulating media for the experiment. This 5 hr delay was chosen so that cells only spend two to three divisions in a FP to limit the number of cells in the microfluidic device at the DS.

Microfluidics and microfabrication

Microfabrication

Request a detailed protocol

Microfluidic chips were generated using custom-made microfluidic master molds. The master molds were made using standard soft-photolithography processes using SU-8 2025 photoresist (Microchem, USA). The designs (which are available for download on github: https://github.com/TAspert/Continuous_filtration (Aspert, 2021) copy archived at swh:1:rev:8476f782bf6ff8fff2a9c78172cc8f072cc73916) were made on AutoCAD (Autoddesk, USA) to produce chrome photomasks (jd-photodata, UK). The observation device was taken from a previous study (Goulev et al., 2017).

The mold of the dust filter chip (see below for details) was made by spin coating a 25 µm layer of SU-8 2025 photoresist on a 3″ wafer (Neyco, FRANCE) at 2700 rpm for 30 s. Then, we used a soft bake of 7 min at 95 °C on heating plates (VWR) followed by exposure to 365 nm UVs at 160 mJ/cm² with a mask aligner (UV-KUB3 Kloé, FRANCE). Finally, a postexposure bake identical to the soft bake was performed before development using SU-8 developer (Microchem, USA).

The mold for the spiral-shaped cell filter device (see below for details) was obtained by spinning SU-8 2025 at 1750 rpm to achieve a 50 µm deposit. Bakes were 6 min long at 95 °C and UV exposure was done at 180 mJ/cm². A hard bake at 150 °C for 15 min was then performed to anneal potential cracks and to stabilize the resist.

Finally, the master molds were treated with chlorotrimethylsilane to passivate the surface.

Microfluidic chip fabrication

Request a detailed protocol

The microfluidic devices were fabricated by pouring polydimethylsiloxane (PDMS, Sylgard 184, Dow Chemical, USA) with its curing agent (10:1 mixing ratio) on the different molds. The chips were punched with a 1 mm biopsy tool (Kai medical, Japan) and covalently bound to a 24 × 50 mm coverslip using plasma surface activation (Diener, Germany). The assembled chips were then baked for 1 hr at 60 °C to consolidate covalent bonds between glass and PDMS. Then, the dust filter chip was connected to the spiral cell filter which was in turn connected to the observation chip. All the connections used 1 mm (outside diameter) Polytetrafluoroethylene (PTFE)tubing (Adtech Polymer Engineering, UK).

All medium flows were driven using a peristaltic pump (Ismatec, Switzerland) at a 100 µl/min rate. The system was connected to the tank of media and cells described in the previous section. The observation chip was loaded with the cells of interest using a 5 ml syringe and a 23 G needle. Last, we plugged the cell outlet of the spiral and the observation chip outlet into the tank so the system is closed and without loss of media or cells.

Microfluidic cell filter and dust filter

Request a detailed protocol

The spiral-shaped microfluidic device (Kuntaegowdanahalli and Papautsky, 2008) was designed to filter out cells coming from the liquid culture to prevent clogging in the observation device (Figure 1—figure supplement 1C). The dimensions of the cell filter (i.e., a channel of 100 µm width and 50 µm height, defining a spiral of five loops separated by 900 µm) were set to maximize the separation of haploid yeast cells, that is, ~5 μm particles, according to the following principle: particles in a spiral microfluidic channel with a rectangular section are submitted to several inertial forces that depend on their size and are either directed towards the center of the channel or the walls. Therefore, particles of similar diameters reach an equilibrium position and tend to focus on a single line, allowing their separation from the rest of the fluid by splitting the output channel in two different outlets. A similar filter could be used with other microorganisms by adapting the dimensions.

We also added a particle filter before the spiral to avoid any clogging of the spiral because of dust particles or debris (Figure 1—figure supplement 1B).

To measure the filtration efficiency of the cell filter, the cell concentration of the inlet and the two outlets was measured at four different time points (0 , 24 , 48 , and 120 hr) using a turbidity measurement (OD 660 nm, Fisherbrand). Another independent measurement was done using Green Fluorescent Protein (GFP) fluorescent yeast cells and measuring the fluorescence along the section of the device (See Figure 1—figure supplement 1). The filtration efficiency was equal to 99 % in both measurements, independently of the inlet cell concentration.

Microscopy

Request a detailed protocol

For all experiments except pH measurements, cells in the observation device were imaged using an inverted widefield microscope (Zeiss Axio Observer Z1). Fluorescence illumination was achieved using LED lights (precisExcite, CoolLed) and the light was collected using a ×63 (N.A. 1.4) objective and an EM-CCD Luca-R camera (Andor). Standard GFP and mCherry filters were used.

For experiments using the pHluorin cytosolic pH probe, a Nikon Ti-E microscope was used along with a LED light (Lumencor) fluorescence illumination system. The fluorescence was measured using two excitation wavelengths using a standard roGFP2 filter set (AHF, peak excitation wavelengths 390 /18 and 475/28 nm, beamsplitter 495 nm, and emission filter 525/50 nm). Emitted light was collected using a ×60 N.A. 1.4 objective and a CMOS camera (Hamamatsu Orca Flash 4.0).

We used motorized stages to follow up to 64 positions in parallel throughout the experiment. Single plane images were acquired every 15 , 30 , 60 , or 240 min depending on the phase of the culture (high sampling rate during FP versus lower acquisition frequency in SP) to limit photodamage.

Image processing and data quantification

Calibration of the cytosolic pH probe

Request a detailed protocol

To calibrate the probe, 2 ml of exponentially growing culture (0.5 OD600) were centrifuged and resuspended in 200 μl calibration buffer (50 mM 2-(N-morpholino)ethanesulfonic acid (MES), 50 mM 4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid (HEPES), 50 mM KCl, 50 mM NaCl, and 200 mM NH4CH3CO2) at various pH from 5 to 8, and supplemented with 75 μM monensin, 10 μM nigericin, 10 mM 2-deoxyglucose, and 10 mM NaN3, as described previously (Mouton et al., 2020). The cells were incubated in this buffer for 30 min and then imaged in the microfluidic device to perform a ratiometric fluorescence measurement (Figure 1—figure supplement 1I).

Image processing

Request a detailed protocol

The raw images were processed using Matlab-based software (PhyloCell) and custom additional routines (Fehrmann et al., 2013; Paoletti et al., 2016). This software has a complete graphical interface for cell segmentation (based on a watershed algorithm), tracking (assignment cost minimization), and fluorescence signal quantification. The software can be downloaded online (https://github.com/gcharvin/phyloCellCharvin, 2021). Raw data related to Figure 1 can be found online: https://doi.org/105281/zenodo5592983.

Data replicates

Request a detailed protocol

All measurements reported in this study are based on at least two replicates.

Quantification of growth rate

Request a detailed protocol

The growth rate of the cells was computed using the evolution of the area of segmented cells (and buds) over time.

Identification of growth phases

Request a detailed protocol

To determine the limit between successive growth phases, we used a piecewise linear fit to the evolution of the total number of cells with time (D’Errico, 2017). The time point of the intersection between two pieces of the piecewise linear fit was defined as the time of transition between the two corresponding phases (Figure 1—figure supplement 1G).

Globularization score

Request a detailed protocol

The Ilv3-mCherry globularization score was measured in each cell by calculating the mean intensity of the five brightest pixels of the cell minus that of the other pixels, as previously described (Cai et al., 2008).

Inheritance of the respiration defect

Request a detailed protocol

To quantify the inheritance of the respiration defect, we measured the average standard deviation of the respiration status (after assigning a value of 0 if the cells are unable to respire and one if they are respiration competent) within individual microcolonies of cells (microcolony size from 10 to 20 cells). We then obtained an ‘inheritance index’ by normalizing this value to the standard deviation obtained after taking all cells into account (i.e., with no distinction about their belonging to a given microcolony). Hence this index equals 1 when the respiration defect appears at random in lineages and 0 if the transmission of the phenotype is fully inheritable.

Quantification of fluorescence foci

Request a detailed protocol

The fraction of cells displaying foci of GFP was manually scored at different time points using the ImageJ Cell Counter plugin.

Mobility of fluorescent foci

Request a detailed protocol

The fluorescent foci in each cell were detected using the centroid position of the five brightest pixels. The frame-to-frame displacement of the foci was computed by iterating this procedure over all the frames and then averaged over a population of cells.

Time of foci mobility loss and LDs

Request a detailed protocol

The time of mobility loss was determined by visual inspection of successive images due to the low signal-to-noise ratio in the image.

Extend of pH drop

Request a detailed protocol

The start and end of the pH drops were determined using a piecewise linear adjustment, similar to what was used to determine the transition between metabolic phases.

Data availability

The CAD file used to generate the microfluidic device is available on a github repository (https://github.com/TAspert/Continuous_filtration copy archived at https://archive.softwareheritage.org/swh:1:rev:8476f782bf6ff8fff2a9c78172cc8f072cc73916). The source data used to make the panels (excluding raw image files) are included for each figure. Due to size constraints representative raw image data for Figure 1 is available at Zenodo (https://doi.org/10.5281/zenodo.5592983) and the remaining raw image data, including files for Figures 2 and 3, are available on request from the corresponding author.

The following data sets were generated
    1. Aspert T
    2. Jacquel B
    3. Charvin G
    (2021) Zenodo
    Dataset pHluorin cells experiencing entry into quiescence.
    https://doi.org/10.5281/zenodo.5592983

References

Decision letter

  1. Bavesh D Kana
    Senior and Reviewing Editor; University of the Witwatersrand, South Africa

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

[Editors' note: this paper was reviewed by Review Commons.]

Decision letter after peer review:

Thank you for submitting your article "Monitoring single-cell dynamics of entry into quiescence during an unperturbed lifecycle" for consideration by eLife. Your article has been reviewed by 2 peer reviewers at Review Commons, and the evaluation at eLife has been overseen by Bavesh Kana as the Senior and Reviewing Editor.

Based on your manuscript, the reviews and your responses, we invite you to submit a revised version incorporating the revisions. When preparing your revisions, please also address the following points:

The reviewers concur that your work represents an important breakthrough and remain enthusiastic about the study. However, reservations about BY4741 remain. It is true that these strains are very commonly used, but it is also true that their growth defects post-diauxie were recognized and published over a decade ago (pmid 21120607, 22780918). Importantly, these defects are specific to BY4741/4742 and not shared by S288c. Reviewers request that you conduct a growth curve comparison with the BY strains and W303 prototrophs. If these strains display comparable growth beyond the diauxic shift, this observation should resolve the matter.

https://doi.org/10.7554/eLife.73186.sa1

Author response

The reviewers concur that your work represents an important breakthrough and remain enthusiastic about the study. However, reservations about BY4741 remain. It is true that these strains are very commonly used, but it is also true that their growth defects post-diauxie were recognized and published over a decade ago (pmid 21120607, 22780918). Importantly, these defects are specific to BY4741/4742 and not shared by S288c. Reviewers request that you conduct a growth curve comparison with the BY strains and W303 prototrophs. If these strains display comparable growth beyond the diauxic shift, this observation should resolve the matter.

To address potential issues associated with the use of the BY4741 strain, we have run complementary experiments as follows.

1. We have performed population growth curves with a variety of strains to test their ability to switch to respiration after the diauxic shift. For this, we have used both auxotroph (BY and W303) strains, and prototrophs from several related origins (FY, S288C, and BY). Our results indicate that both auxotrophs and prototrophs are able to undergo a bona fide switch to respiration. Even though the BY auxotroph may experience a more pronounced delay in switching to respiration compared to the W303 strains, the final density of cells is identical (new Figure 1—figure supplement 2).

Importantly, we have checked that all the auxotrophies of the strains used in this assay were correct. In addition, we have used a FY Rho0 strain (i.e., a strain unable to respire) as a negative control to assess the ability of the other strains to switch to respiration. Last, we have looked for a W303 prototroph in the literature as well as in our own stock but we failed to find one. We have asked Joseph Schacherer (Université of Strasbourg), a renowned expert in S.cerevisae phylogenetics, who confirmed that this lab strain was derived from an auxotrophic ancestor.

Altogether, this new dataset indicates that the single cell analyses performed in our study with a BY prototroph are likely to apply to other backgrounds, whether auxotroph or prototroph. We have included a description of these experiments in the main text, and we have justified these experiments by mentioning the potential concern with the BY strain.

2. We have performed additional single-cell experiments with a W303 strain that carries the internal pH-marker pHluorin2 to compare the results to those obtained in the BY background. Our results indicate that the W303 cells display the same dynamics as observed in the BY background (new Figure 1—figure supplement 3). In addition, similarly as in BY cells, a small fraction of the W303 cells fail to switch to respiration. We believe that these results further confirm the generality of our observations.

Reviewer #1:

Evidence, reproducibility and clarity (Required)

These investigators have teamed up to solve a technical problem that has thwarted efforts to get a clear picture of the chronology of events in yeast cultures as they naturally exhaust their nutrient supply. This is a challenge because the time course is long and the density of the culture makes single cell analysis problematic. Previous studies involving abrupt starvation have shown that there is a pH drop when nutrients are eliminated, but abrupt starvation also leads to rapid loss of viability compared to what is observed with cells as they respond and adapt to changes in their environment. This microfluidic devise and an intracellular pH detector allowed them to follow pH change as cells transition from fermentation to respiration and stationary phase. About 15% of the population responds completely differently than the other 85%, making this single cell analysis crucial. It also provides a negative control of sorts, to further substantiate the correlations they draw. This 15% fails to enter the respiratory phase and dies rapidly. The pH also drops rapidly and is correlated with loss of mitochondrial function and aggregation of proteins. The 85% of cells that succeed in shifting to respiration suffer the same pH drop, but it is much slower and is correlated with slower protein aggregation, P Body, actin body, and proteosome storage Granule assembly. They also followed the cytoplasmic transition to a glassy state, based on the mobility of protein foci and lipid droplets. This transition occurs at the same pH in both populations but with completely different timing. This recapitulates the transition observed after abrupt starvation. It shows that the same transition occurs in viable, quiescent cells and provide further evidence that it is correlated with pH changes.

The only concern I have is that they used only one strain, which reduces the universality of their findings. Moreover, it is ambiguous which strain was used. The strain table says they used S288c which is known to carry a hap1 mutation that compromises respiration and isn't the best choice for studying respiring cells. The text mentions that they are working in the BY background, where most of their GFP studies have been carried out. The BY strains have the same hap1 mutation and several other unknown polymorphisms that prevent

ethanol utilization and biomass increase after the diauxic shift.

To address the point raised by reviewer #1, we used a BY strain (from an S288C background), which is one of the most widely used lab strains in yeast genetics. Although a mutation in the HAP1 gene was identified in this strain, it does not compromise the ability of the cells to respire, as shown in our experiments performed in a non-fermentative medium in this manuscript (Figure 2). Similarly, we have already published growth curves, drop tests, and proliferation rates of this strain in glycerol/ethanol or lactate-containing medium (please see Jimenez et al., JCS, 2014). More importantly, detailed respiration parameters have been measured for our BY background by the Daignan-Fornier lab, a long-standing Sagot lab collaborator (please see Gauthier et al., Mol Mic, 2008). Last, we have previously shown that upon quiescence establishment, there is no difference in mitochondrial network reorganization between BY/S288C and W303 or CEN PK background (Laporte et al., eLife, 2018, Figure 2 SupFig1 F-G). Altogether, these results indicate that using this particular lab strain background does not detract from the generality of the observations reported in our manuscript. We will include a short discussion on this specific topic in the main text in a full revision.

Significance (Required)

This kind of single cell analysis is clearly the way forward and will have many further applications to understanding how cells adapt to their environment. The paper is well written and the figures are well laid out and easy to understand. It is a significant advance for the field and will set the bar for future experiments. However, this work was done with a single strain that is known to be defective in respiration. It would be extremely valuable to know if their results with this strain are generalizable to other lab and wild strains.

Reviewer #2:

Evidence, reproducibility and clarity (Required)

In this manuscript, the authors interrogated single cells of yeast as they developed into quiescence after the natural depletion of glucose from the culture medium. To do so, they constructed a microfluidic platform to track individual cells in a batch culture of cells transitioning from a growing phase into stationary phase. They then used a number of assays to monitor the metabolic changes that accompany this transition. They observed that internal pH dropped during development of quiescence, with some cells showing a rapid drop and others showing a delayed and heterogeneous drop. At diauxie, cells transition from fermentation to respiration, and the minority of cells that showed a rapid drop in pH were respiration-deficient (R-) and unable to resume growth, while cells with a delayed pH drop were respiration proficient (R+) and able to resume growth. Using established markers to follow the previously described structural changes that accompany the development of quiescence, they found that the pH changes were temporally related to these structural changes. They suggest that the dynamic changes in intracellular pH promote waves of structural remodeling that eventually leads to a transition of cells to a gel-like state. The early drop in pH in R- cells was proposed to lead to a precocious transition of the cytoplasm, contributing to the inability of these cells to resume growth.

This study is well done, well-written, and the results are clearly presented and generally convincing. Data accumulation and analysis were well documented and appropriate statistics were used. While the authors provided details of the materials used to construct the microfluidic device, it would be appropriate for them to provide a detailed blueprint (and a video, for example) to other investigators who would like to employ this device in their studies of quiescence once this manuscript has been published.

Regarding reviewer #2’s comments, we are committed to providing all necessary details to fully replicate the microfluidic devices upon a final revision of our manuscript to make it widely accessible to the research community.

Significance (Required)

The cell fate program that is set in motion as yeast cells transition from fermentation to respiration is still not well understood. The development of the microfluidic platform described in this manuscript could make a significant contribution to our understanding of the succession of metabolic and structural changes occurring during this transition. The Sagot lab has made a series of important contributions in this area, and the application of single cell tracking to monitor the temporal program of these changes represents a major technical advance that will be of general interest to researchers interested in defining the developmental programs that contribute to cellular quiescence and longevity.

https://doi.org/10.7554/eLife.73186.sa2

Article and author information

Author details

  1. Basile Jacquel

    1. Department of Developmental Biology and Stem Cells, Institut de Génétique et de Biologie Moléculaire et Cellulaire, Illkirch, France
    2. Centre National de la Recherche Scientifique, Illkirch, France
    3. Institut National de la Santé et de la Recherche Médicale, Illkirch, France
    4. Université de Strasbourg, Illkirch, France
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Software, Validation, Writing – original draft, Supervision
    Contributed equally with
    Théo Aspert
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5670-4635
  2. Théo Aspert

    1. Department of Developmental Biology and Stem Cells, Institut de Génétique et de Biologie Moléculaire et Cellulaire, Illkirch, France
    2. Centre National de la Recherche Scientifique, Illkirch, France
    3. Institut National de la Santé et de la Recherche Médicale, Illkirch, France
    4. Université de Strasbourg, Illkirch, France
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Project administration, Software, Validation, Writing – original draft, Supervision
    Contributed equally with
    Basile Jacquel
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2957-0683
  3. Damien Laporte

    Institut de Biochimie et Génétique Cellulaires, UMR 5095 CNRS - Université de Bordeaux, Bordeaux, France, Bordeaux, France
    Contribution
    Conceptualization, Investigation, Methodology, Project administration, Supervision
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1556-5253
  4. Isabelle Sagot

    Institut de Biochimie et Génétique Cellulaires, UMR 5095 CNRS - Université de Bordeaux, Bordeaux, France, Bordeaux, France
    Contribution
    Conceptualization, Methodology, Writing – review and editing, Supervision
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2158-1783
  5. Gilles Charvin

    1. Department of Developmental Biology and Stem Cells, Institut de Génétique et de Biologie Moléculaire et Cellulaire, Illkirch, France
    2. Centre National de la Recherche Scientifique, Illkirch, France
    3. Institut National de la Santé et de la Recherche Médicale, Illkirch, France
    4. Université de Strasbourg, Illkirch, France
    Contribution
    Conceptualization, Formal analysis, Resources, Software, Writing – original draft, Supervision
    For correspondence
    charvin@igbmc.fr
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6852-6952

Funding

Fondation pour la Recherche Médicale

  • Basile Jacquel
  • Gilles Charvin

Agence Nationale de la Recherche

  • Théo Aspert
  • Gilles Charvin

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Sara Mouton and Liesbeth Veenhoff for discussions and for sharing the pHluorin strain ahead of their publication, Audrey Matifas for constant technical support throughout this work, Titus Franzmann for fruitful discussions, Sophie Quintin and Sandrine Morlot for careful reading of the manuscript. We thank Denis Fumagalli at the Mediaprep facility. This work was supported by the Fondation pour la Recherche Médicale (FRM, BJ, and GC), the Agence Nationale pour la Recherche (TA and GC), the grant ANR-10-LABX-0030-INRT, a French State fund managed by the Agence Nationale de la Recherche under the frame program Investissements d'Avenir ANR-10-IDEX-0002-02.

Senior and Reviewing Editor

  1. Bavesh D Kana, University of the Witwatersrand, South Africa

Publication history

  1. Received: August 19, 2021
  2. Accepted: October 15, 2021
  3. Accepted Manuscript published: November 1, 2021 (version 1)
  4. Version of Record published: November 16, 2021 (version 2)

Copyright

© 2021, Jacquel et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 673
    Page views
  • 109
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    Natalya Pashkova et al.
    Research Article

    Attachment of ubiquitin (Ub) to cell surface proteins serves as a signal for internalization via clathrin-mediated endocytosis (CME). How ubiquitinated membrane proteins engage the internalization apparatus remains unclear. The internalization apparatus contains proteins such as Epsin and Eps15, which bind Ub, potentially acting as adaptors for Ub-based internalization signals. Here we show that additional components of the endocytic machinery including CALM, HIP1R, and Sla2 bind Ub via their N-terminal ANTH domain, a domain belonging to the superfamily of ENTH and VHS domains. Structural studies revealed that Ub binds with µM affinity to a unique C-terminal region within the ANTH domain not found in ENTH domains. Functional studies showed that combined loss of Ub-binding by ANTH-domain proteins and other Ub-binding domains within the yeast internalization apparatus caused defects in the Ub-dependent internalization of the GPCR Ste2 that was engineered to rely exclusively on Ub as an internalization signal. In contrast, these mutations had no effect on the internalization of Ste2 engineered to use an alternate Ub-independent internalization signal. These studies define new components of the internalization machinery that work collectively with Epsin and Eps15 to specify recognition of Ub as an internalization signal.

    1. Cell Biology
    Richa Sardana et al.
    Short Report

    Protein glycosylation in the Golgi is a sequential process that requires proper distribution of transmembrane glycosyltransferase enzymes in the appropriate Golgi compartments. Some of the cytosolic machinery required for the steady-state localization of some Golgi enzymes are known but existing models do not explain how many of these enzymes are localized. Here, we uncover the role of an integral membrane protein in yeast, Erd1, as a key facilitator of Golgi glycosyltransferase recycling by directly interacting with both the Golgi enzymes and the cytosolic receptor, Vps74. Loss of Erd1 function results in mislocalization of Golgi enzymes to the vacuole/lysosome. We present evidence that Erd1 forms an integral part of the recycling machinery and ensures productive recycling of several early Golgi enzymes. Our work provides new insights on how the localization of Golgi glycosyltransferases is spatially and temporally regulated, and is finely tuned to the cues of Golgi maturation.
