Thermosynechococcus switches the direction of phototaxis by a c-di-GMP-dependent process with high spatial resolution

  1. Daisuke Nakane  Is a corresponding author
  2. Gen Enomoto  Is a corresponding author
  3. Heike Bähre
  4. Yuu Hirose
  5. Annegret Wilde  Is a corresponding author
  6. Takayuki Nishizaka
  1. Department of Engineering Science, Graduate School of Informatics and Engineering, The University of Electro-Communications, Japan
  2. Institute of Biology III, University of Freiburg, Germany
  3. Research Core Unit Metabolomics, Hannover Medical School, Germany
  4. Department of Applied Chemistry and Life Science, Toyohashi University of Technology, Japan
  5. BIOSS Centre for Biological Signaling Studies, University of Freiburg, Germany
  6. Department of Physics, Gakushuin University, Japan
https://doi.org/10.7554/eLife.73405
Share this article
Cite this article
  1. Daisuke Nakane
  2. Gen Enomoto
  3. Heike Bähre
  4. Yuu Hirose
  5. Annegret Wilde
  6. Takayuki Nishizaka
(2022)
Thermosynechococcus switches the direction of phototaxis by a c-di-GMP-dependent process with high spatial resolution
eLife 11:e73405.
https://doi.org/10.7554/eLife.73405
  2. Download BibTeX
  3. Download .RIS

Abstract

Many cyanobacteria, which use light as an energy source via photosynthesis, show directional movement towards or away from a light source. However, the molecular and cell biological mechanisms for switching the direction of movement remain unclear. Here, we visualized type IV pilus-dependent cell movement in the rod-shaped thermophilic cyanobacterium Thermosynechococcus vulcanus using optical microscopy at physiological temperature and light conditions. Positive and negative phototaxis were controlled on a short time scale of 1 min. The cells smoothly moved over solid surfaces towards green light, but the direction was switched to backward movement when we applied additional blue light illumination. The switching was mediated by three photoreceptors, SesA, SesB, and SesC, which have cyanobacteriochrome photosensory domains and synthesis/degradation activity of the bacterial second messenger cyclic dimeric GMP (c-di-GMP). Our results suggest that the decision-making process for directional switching in phototaxis involves light-dependent changes in the cellular concentration of c-di-GMP. Direct visualization of type IV pilus filaments revealed that rod-shaped cells can move perpendicular to the light vector, indicating that the polarity can be controlled not only by pole-to-pole regulation but also within-a-pole regulation. This study provides insights into previously undescribed rapid bacterial polarity regulation via second messenger signalling with high spatial resolution.

Editor's evaluation

In this fascinating study, the authors explore the cellular and molecular bases of phototaxis in Cynaobacteria. It is shown that phototaxis is a highly efficient Spatio-temporal response involving "within a pole regulation" of retractile Type-IV pili. This unique regulation involves the interplay of three possible photoreceptors that regulate the intracellular concentration of c-di-GMP in response to green to blue light transitions.

https://doi.org/10.7554/eLife.73405.sa0

eLife digest

Cyanobacteria, like plants, grow by capturing energy from sunlight. But they have an advantage over their leafy counterparts: they can explore their environment to find the type of light that best suits their needs. These movements rely on hook-like structures, called type IV pili, which allow the cells to pull themselves forward. The pili are usually located at the opposite poles of a rod-shaped cell, allowing the bacteria to move along their longer axis. Yet, the molecular mechanisms that allow cyanobacteria to react to the light are poorly understood.

To explore these processes in more detail, Nakane, Enomoto et al. started by shining coloured lights on the rod-shaped cyanobacteria Thermosynechococcus vulcanus. This revealed that the cells moved towards green light but reversed rapidly when blue light was added. The behaviour was disrupted when the genes for three light-sensing proteins were artificially switched off. These molecular players act by changing the levels of cyclic di-GMP, a signalling molecule that may interact with type IV pili.

The experiments also showed that T. vulcanus cells were not only moving along their longer axis, but also at a right-angle. This observation contrasts with how other rod-shaped bacteria can explore their environment. A closer look revealed that the cyanobacteria could perform these movements by making asymmetrical adjustment to the way that pili at each pole were working. Further research is now needed to more finely dissect the molecular mechanisms which control this remarkable type of motion.

Introduction

Cyanobacteria are phototrophic microorganisms, and optimal light conditions are crucial for efficient photosynthesis. Therefore, several cyanobacterial strains are able to move either into their preferred light habitat or away from a harmful or stressful environment (Wilde and Mullineaux, 2017). This decision-making process is based on sensing the light direction and light intensity and quality on a short time scale. Moderate red light is used as the preferred energy source for oxygenic photosynthesis, while strong light or UV light causes cell damage (Latifi et al., 2009). However, how cyanobacterial cells rapidly switch the direction of movement remains unclear.

Cyanobacterial movement is usually driven by type IV pili (T4P) (Wilde and Mullineaux, 2017), a general bacterial molecular machine. This machine enables cellular movement by repeated cycles of extension and retraction of the pili (Chang et al., 2016; Craig et al., 2019). T4P are often localized at the cell poles in rod-shaped bacteria, and their localization at a certain pole is dynamically controlled to achieve directional movement (Talà et al., 2019). Bacteria, such as Pseudomonas, exhibit chemotactic behaviour to activate T4P at the leading pole on a time scale of hours. Consequently, the longer axis of cells is roughly aligned in parallel along the chemical gradient (Oliveira et al., 2016). Cyanobacterial cells make a decision of directional movement in a few minutes upon light sensing by dedicated photoreceptors (Nakane and Nishizaka, 2017). Once the lateral light stimulus is applied to the cells, they detect the orientation of a light source using their own cell body as an optical lens. In the coccoid Synechocystis sp. PCC 6803 (Synechocystis), the light is focused at the cell envelope, thereby generating a light spot opposite to the light source. Such micro-optic effects have been described in cyanobacteria of different shapes (Nakane and Nishizaka, 2017; Schuergers et al., 2016). Yang et al. suggested that the rod-shaped cyanobacterium Synechococcus elongatus UTEX 3055 also utilizes the micro-optics effect to sense directional light by the polarly localized photoreceptor PixJ (Yang et al., 2018). However, T4P-dependent cell behaviour has not been clarified at the single-cell level in rod-shaped cyanobacteria (Yang et al., 2018). Furthermore, since most of the knowledge of phototaxis is derived from coccoid-shaped Synechocystis, how the polarity of the cell structure is involved in phototaxis regulation is not clear.

The nucleotide second messenger molecule cyclic dimeric GMP (c-di-GMP) is the critical molecule governing bacterial motility as the master regulator of bacterial lifestyle transitions (Hengge, 2020; Jenal et al., 2017). The high intracellular concentration of c-di-GMP is universally implicated in the repression of motility and induction of sessile multicellular community development. A decrease in c-di-GMP levels is often required for optimum motile behaviour involving T4P or flagella (Jenal et al., 2017). The diguanylate cyclase activity mediated by GGDEF domains is necessary to produce c-di-GMP, whereas EAL and HD-GYP domains harbour phosphodiesterase activities to degrade c-di-GMP. These domains are often combined to signal sensory domains (Agostoni et al., 2013), enabling bacterial cells to integrate multiple environmental information into cellular c-di-GMP levels to orchestrate various cellular responses to accomplish complex lifestyle transitions.

In this study, we establish a microscopy setup to analyse the phototaxis of the rod-shaped thermophilic cyanobacterium Thermosynechococcus vulcanus using live cells at the single-cell level. We dissect the contributions of different light colours and evaluate the functions of each putative photoreceptor gene. We show that both positive and negative phototaxis in T. vulcanus were controlled by a specific green-to-blue light ratio. Furthermore, we provide evidence that the reversion of phototaxis is mediated by photoreceptors and their activity in the synthesis or degradation of c-di-GMP. The asymmetric distribution of T4P at both cell poles achieves directional movement with a random orientation of the cells along their optical axis. We suggest a within-a-pole regulation of polarity that governs the directional movement of T. vulcanus and requires signalling at high spatiotemporal resolution. The light dependency of the phototactic response is consistent with a proposed model of T. vulcanus behaviour in a mat, which is their natural habitat.

Results

Control of positive and negative phototaxis

T. vulcanus used in this study was originally derived from the strain at the culture collection of NIES-2134 (http://mcc.nies.go.jp/). Since the original strain exhibited a heterogeneous phenotype of phototaxis under optimal growth conditions, a clone showing clear positive phototaxis in moderate light was isolated (Enomoto et al., 2018), and its complete genome was sequenced (AP018202). This clone was used as wild type (WT) in the following experiments. The strain also showed negative phototaxis when we applied a strong light stimulus. This bidirectional phototaxis was visualized as colony migration on a BG11 agar p late in a long-term observation for 8 hr (Figure 1A), consistent with previous data based on a closely related strain (Kondou et al., 2001).

Figure 1
Download asset Open asset

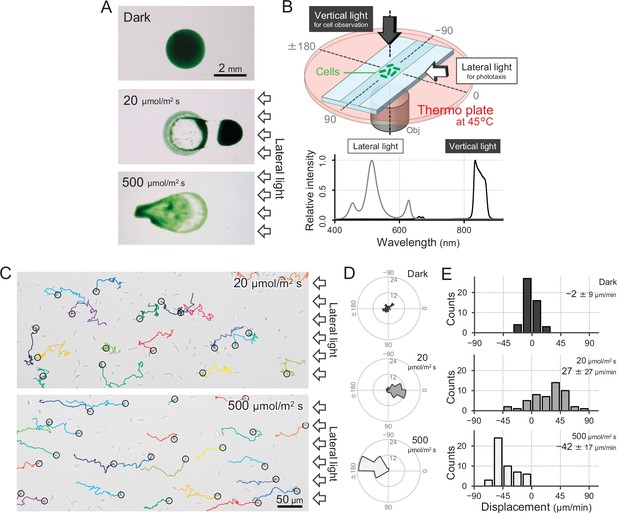

Positive and negative phototaxis of T.

vulcanus. (A) Phototaxis on agar plates. Images were taken 8 hr after spotting the cell suspension. (B) Diagram of the experimental setup to visualize single cellular behaviour under optical microscopy. The glass chamber was heated at 45°C with a thermoplate on a microscope stage. Vertical and lateral light sources were used for cell observation and stimulation of phototaxis, respectively. Light spectra are presented at the bottom. (C) Bright-field cell image and their moving trajectories for 120 s (colour lines) on a glass surface. The cell at the start position of a trajectory is marked by the black circle. The white arrows on the right side of the image represent the direction of the light axis. (D) Rose plots under dark, weak light, and strong light illumination. The moving direction of a cell that translocated more than 6 μm min−1 was counted. Angle 0 was the direction towards the lateral light source (N = 50 cells). (E) Histograms of the cell displacement along the lateral light axis. The cell displacement for a duration of 1 min was measured at 4 min after lateral illumination was turned on (N = 50 cells). Cell movements towards the light source are shown as a positive value.

Figure 1—source data 1

Rose plots.

https://cdn.elifesciences.org/articles/73405/elife-73405-fig1-data1-v1.xlsx
Figure 1—source data 2

Cell displacement.

https://cdn.elifesciences.org/articles/73405/elife-73405-fig1-data2-v1.xlsx

To observe a single-cell trajectory during phototaxis on a short time scale, we constructed an optical setup that allowed us to stimulate the cell with lateral light on a microscope stage, which was heated at a temperature of 45°C to observe the physiological cell behaviour (Figure 1B,C). The position of the rod-shaped cell was visualized by near-infrared light through a bandpass filter with a centre wavelength of 850 nm and a full width at half maximum of 40 nm from a halogen lamp with a fluence rate of 1 μmol m−2 s−1, which was confirmed to have no effect on motility (Figure 1D,E; Kondou et al., 2001; Nakane and Nishizaka, 2017). When we applied a lateral white illumination of 20 μmol m−2 s−1, the cells started to exhibit directional movement towards the light source in a few minutes (Figure 1C, top). On the other hand, the cells showed directional movement away from the light source upon strong white light illumination of 500 μmol m−2 s−1 (Figure 1C, bottom). The rose plot, a round histogram that simultaneously presents the number of occurrences and direction, indicates that lateral light illumination induced both positive and negative phototaxis (Figure 1D). The displacement of cell movement along the optical axis on a glass surface was calculated to be 20–50 μm min−1 (Figure 1E), which is 5–10 times faster than that of Synechocystis or S. elongatus strain UTEX 3055 (Nakane and Nishizaka, 2017; Yang et al., 2018). These data clearly show that the positive and negative phototaxis is controllable on this microscopic setup. Therefore, we started with a more detailed quantitative analysis of the cell movement of T. vulcanus.

Wavelength dependence of phototaxis

We set up five light emitting diodes (LEDs) with various wavelengths as lateral light sources to stimulate the phototaxis of cells under the microscope (Figure 2A). We used LEDs for blue, teal, green, red, and far-red light with peak wavelengths at 450, 490, 530, 625, and 730 nm, respectively, and spectral bandwidths in a range of 15–40 nm (Figure 2B). When we applied monochromatic illumination with green or teal light at a rate of 70 μmol m−2 s−1, the cells showed directional movement within a few minutes (Figure 2C and Video 1). The cell displacement along the optical axis was 30 μm min−1 in the green and 20 μm min−1 in the teal (Figure 2—figure supplement 1). Monochromatic illumination with blue or red light induced the fast formation of small aggregates that moved randomly (Figure 2C− Figure 2—figure supplement 1, and Video 2). The previously described macroscopic floc formation of T. vulcanus, which involves the induction of cellulose synthesis (Kawano et al., 2011), is a long-term response that is referred to as cell aggregation. For clarity, in the current study, we call the small aggregates observed under the microscope, which are formed very quickly, microcolonies.

Figure 2 with 6 supplements see all
Download asset Open asset

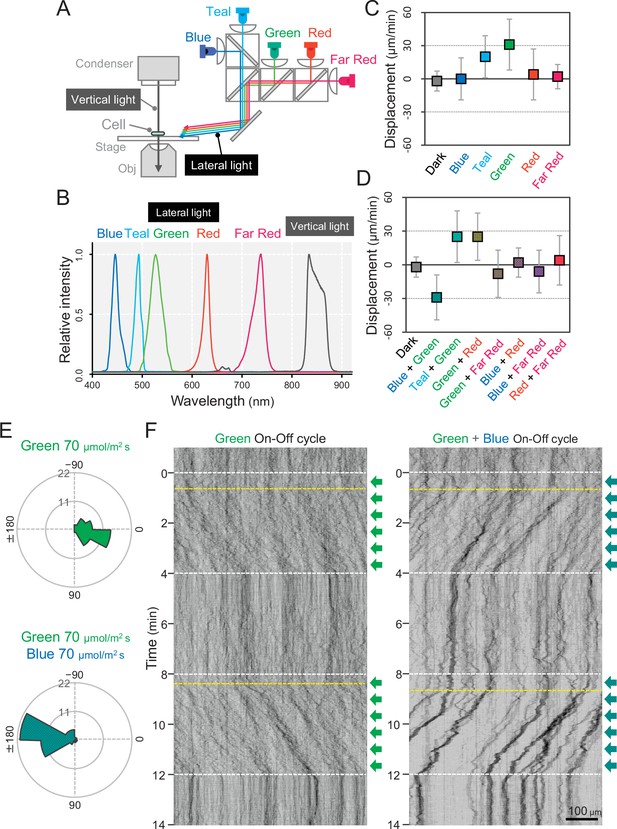

Wavelength dependency of phototaxis via optical microscopy.

(A) Schematics of the lateral illumination for phototaxis. Five LEDs were simultaneously applied through dichroic mirrors from the right side. (B) Spectra of lateral and vertical light for phototaxis. (C) Effects of the monochromatic light source on the phototactic behaviour of cells on a glass surface. (D) Effects of dichromatic light source on the phototactic behaviour of cells over the glass surface. Each lateral light was used at a fluence rate of 70 μmol m−2 s−1. The average and standard deviation (SD) of the cell displacement along the light axis are presented (N = 50). (E) Rose plots under green light at 70 μmol m−2 s−1 (upper) and green and blue light at 70 μmol m−2 s−1 (lower). The moving direction of a cell that translocated more than 6 μm min−1 was counted. Angle 0 was the direction towards the lateral light source (N = 50 cells). (F) On–off control of phototaxis. A kymogram of cell movements along the optical axis of lateral illumination is presented. Directional movements of cells are shown by the tilted lines over time. The tilted lines from the left-upper to the right-lower side and from the right-upper to the left-lower side presented positive and negative phototaxis, respectively. Lateral illumination was applied with a time interval of 4 min and indicated by the dashed white lines (see also Videos 5 and 6). The delay of the cell response after the illumination was turned on is indicated by the dashed yellow lines.

Figure 2—source data 1

Effects of the light source on the phototactic behaviour of cells on a glass surface.

https://cdn.elifesciences.org/articles/73405/elife-73405-fig2-data1-v1.xlsx
Figure 2—source data 2

Rose plots.

https://cdn.elifesciences.org/articles/73405/elife-73405-fig2-data2-v1.xlsx
Video 1
Download asset
Positive phototaxis.

Lateral illumination of green light was turned on at time 0 from the right side of the movie. Wild type (WT) cells at 45°C. Area 750 × 563 μm.

Video 2
Download asset
Microcolony formation.

Lateral illumination of blue light was turned on at time 0 from the right side of the movie. Wild type (WT) cells at 45°C. Area 750 × 563 μm.

In summary, our data suggest that phototaxis in T. vulcanus has a wavelength dependence on green light for positive phototaxis. The cell displacement was increased from 20 to 70 μmol m−2 s−1 of green light and remained positive even at 700 μmol m−2 s−1, which is roughly one-third of the intensity of direct sunshine (Figure 2—figure supplement 2). Note that under nonphysiological conditions at room temperature (25°C), the cells showed negative phototaxis under lateral green light due to a so far unknown mechanism (Figure 2—figure supplement 3 and Video 3). Therefore, we performed all further experiments at the normal growth temperature of T. vulcanus at 45°C using the special microscopy setup developed here (see Materials and methods).

Video 3
Download asset
Phototaxis at low temperature.

Lateral illumination of green light was turned on at time 0 from the right side of the movie. Wild type (WT) cells at 25°C. Area 750 × 563 μm.

Next, we observed cell movement with a combination of two LEDs of different wavelengths simultaneously. We found that the direction of the phototactic response was reversed after a combination of green and blue light (Figure 2D and Video 4), whereas the cells retained positive movement when green was combined with teal or red light. No directional movement was observed without green light (Figure 2—figure supplement 4). These data suggest that blue light is responsible for the directional switch of phototaxis. To study these effects in more detail, we applied constant green-light intensity at 70 μmol m−2 s−1 and combined it with different blue light intensities (Figure 2—figure supplement 5). Illumination with 20 μmol m−2 s−1 blue light in addition to green light led only to a decrease in cell displacement, whereas 200 μmol m−2 s−1 blue light induced negative phototaxis in all cells. At more than 700 μmol m−2 s−1 blue light, however, the directionality of negative phototaxis became decreased (Figure 2—figure supplement 5E). In contrast, microcolony formation was enhanced under these conditions (Figure 2—figure supplement 5A). Notably, negative phototaxis was induced even when we applied blue light from the opposite side of the lateral green-light source, suggesting that the reversal of the phototaxis from positive to negative does not depend on the direction of blue light illumination (Figure 2—figure supplement 6). In the following experiments, we used green light at 70 μmol m−2 s−1 for positive phototaxis and the combination of green light at 70 μmol m−2 s−1 and blue light at 200 μmol m−2 s−1 for negative phototaxis (Figure 2E). Under these conditions, the kymographs representing the spatial position of the cells along the lateral light axis over time depict examples of both positive and negative phototaxis as tilted lines (Figure 2F). Directed movement was barely observed for the first 30 s after the light was turned on in most cells under repeated on–off cycles of lateral illumination (Videos 5 and 6). This delay has also been reported in phototaxis of Synechocystis (Nakane and Nishizaka, 2017).

Video 4
Download asset
Negative phototaxis.

Lateral illumination of green and blue light was turned on at time 0 from the right side of the movie. Wild type (WT) cells at 45°C. Area 750 × 563 μm.

Video 5
Download asset
On–off control of positive phototaxis.

Lateral illumination of green light was applied with 4-min intervals from the right side of the movie. Wild type (WT) cells at 45°C. Area 750 × 563 μm.

Video 6
Download asset
On–off control of negative phototaxis.

Lateral illumination of green and blue light was applied with 4-min intervals from the right side of the movie. Wild type (WT) cells at 45°C. Area 750 × 563 μm.

Photoreceptors for phototaxis

To identify the photoreceptors involved in the phototaxis of T. vulcanus, we constructed mutants lacking the genes for the cyanobacteriochromes SesA (Enomoto et al., 2014), SesB, and SesC (Enomoto et al., 2015), the putative circadian input protein CikA (Narikawa et al., 2008), the BLUF-domain protein PixD (Okajima et al., 2005), the putative photoreceptor LOV (Mandalari et al., 2013), and the orange-carotenoid protein OCP (Muzzopappa et al., 2017), all of which are predicted to sense within the blue-to-green light region (Figure 3A). Note that no red/far-red absorbing phytochrome photoreceptor gene has been identified in the complete genome of T. vulcanus. All mutants showed positive phototaxis towards green light (Figure 3B, upper), suggesting that none of these photoreceptors is involved in the control of positive phototaxis. Next, we applied green and blue light to check negative phototaxis and measured the displacement of cell displacement along the light axis (Figure 3B, lower). Whereas WT cells showed negative phototaxis upon lateral illumination with green and blue light, the ΔsesA mutant maintained positive phototaxis. SesA harbours a GGDEF domain and synthesizes the second messenger c-di-GMP in response to blue light (Enomoto et al., 2015). This suggests that the directional switch from positive to negative phototaxis may be triggered by SesA-dependent c-di-GMP synthesis. This assumption is supported by measurements of the intracellular c-di-GMP concentration (Figure 3C). The WT showed a more than three times higher c-di-GMP content under blue light than under the other tested light conditions, such as green, red, and white light. In contrast, ΔsesA lost the blue light-dependent increase in intracellular c-di-GMP levels.

Figure 3 with 1 supplement see all
Download asset Open asset

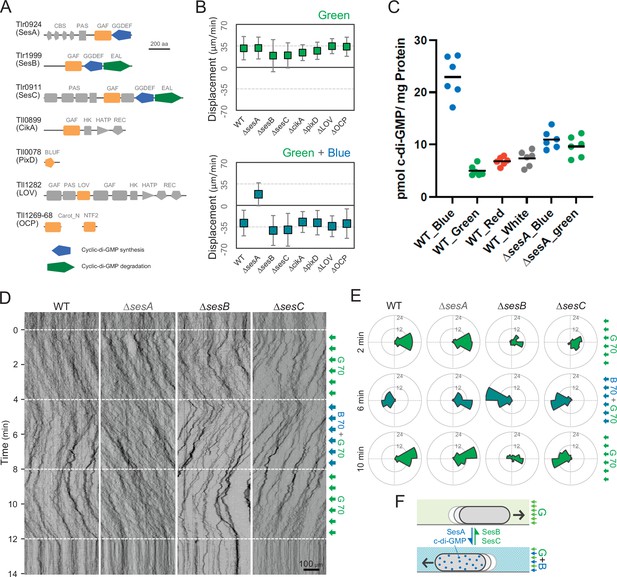

Photoreceptors for phototaxis.

(A) Domain composition of candidate photoreceptor-containing proteins in T. vulcanus. (B) Mutant cell behaviour after lateral light illumination. Upper: lateral green light at a fluence rate of 70 μmol m−2 s−1. Lower: lateral green and blue light at a fluence rate of 70 μmol m−2 s−1. The cell displacement for a duration of 1 min was measured at 3 min after lateral illumination was turned on (N = 50 cells). Cell movements towards the light source are shown as a positive value. (C) Intracellular cyclic dimeric GMP (c-di-GMP) concentrations in wild type (WT) and ∆sesA. The cells were cultivated under blue, green, red, or white light illumination for 30 min, and c-di-GMP was extracted and quantified. The shown data are biological triplicates with technical duplicates, and the mean values are given with the bars. (D) Kymograph of cell movements in the WT, ΔsesA, ΔsesB, and ΔsesC mutants along the optical axis of lateral illumination. The cell position was visualized by near-infrared light. Phototaxis was stimulated by the lateral illumination of green and green/blue light. Green light was applied from time 0 to 4 and from 8 to 12 min, and green/blue light was applied from time 4 to 8 min (see also Videos 7–10). (E) Rose plot. The moving direction of a cell that translocated more than 6 μm min−1 was counted. Lateral light was applied from the right side. The cell displacement was measured at each time point, as presented on the left (N = 50 cells). The data come from Panel D. (F) Schematic model of the reversal in phototaxis induced by the intracellular concentration of c-di-GMP.

Figure 3—source data 1

Mutant cell behaviour after lateral light illumination.

https://cdn.elifesciences.org/articles/73405/elife-73405-fig3-data1-v1.xlsx
Figure 3—source data 2

Rose plots.

https://cdn.elifesciences.org/articles/73405/elife-73405-fig3-data2-v1.xlsx
Figure 3—source data 3

Intracellular cyclic dimeric GMP (c-di-GMP) concentrations in wild type (WT) and ∆sesA.

https://cdn.elifesciences.org/articles/73405/elife-73405-fig3-data3-v1.xlsx

To get further insights into the mechanism of directional switching, we have isolated a spontaneous mutant (named WT_N) that shows constitutive negative phototaxis under lateral illumination with white light. Comparative genomic analysis revealed a frameshift mutation in the gene tll1859, which encodes a GGDEF/EAL domain-containing protein. The frameshift mutation was found in the sequence encoding the C-terminal region of the EAL domain resulting in removal of a large part of this domain. Therefore, we expect that the mutation abolishes the c-di-GMP degradation activity of the tll1859 gene product even in case the N-terminal part of the protein was still expressed (Figure 4A,B). We introduced the same frameshift mutation in the original WT background which shows positive phototaxis. The resulting mutant cells (tll1859toN) showed negative phototaxis on agar plates under lateral illumination with white light, similar to the spontaneous mutant WT_N (Figure 4C). Single-cell trajectories of tll1859toN cells demonstrated that they move away from green light (Figure 4D–G), in contrast to the WT background strain which shows positive phototaxis under these conditions (Figure 2). Further, we determined the intracellular c-di-GMP concentration of WT_N and tll1859toN cells under white light. In both strains, the c-di-GMP concentration was more than two times higher than in the original WT (Figure 4H). Taken together, this analysis provides independent evidence that an increase in the intracellular c-di-GMP level can control the directional switch in phototaxis.

Figure 4
Download asset Open asset

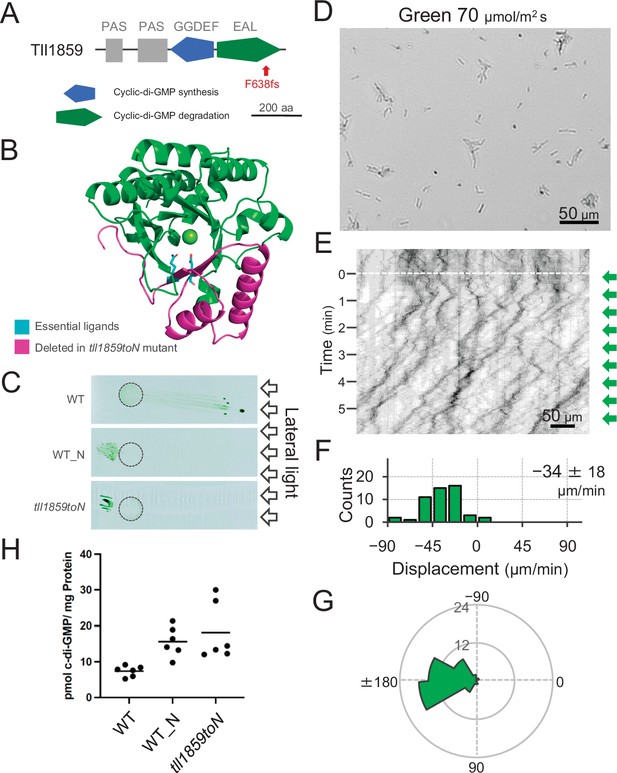

Effect of the tll1859 mutation on phototaxis and intracellular cyclic dimeric GMP (c-di-GMP) concentrations.

(A) Domain composition of Tll1859 protein. The WT_N strain has a frameshift mutation in the gene sequence of the EAL domain. (B) Predicted structure of the Tll1859-EAL domain by SWISS-MODEL. The deleted region in WT_N strain is coloured by magenta. The putative ligand residues essential for metal ion binding (Glu669 and Gln689) which are absent in WT_N, are highlighted in cyan. (C) Phototaxis on agar plates under lateral illumination of white light at a fluence rate of 150 μmol m−2 s−1. (D) Intracellular c-di-GMP concentrations in WT, WT_N, and the independently created tll1859toN mutant. The shown data are biological triplicates with technical duplicates, and the mean values are given with the bars. (E) Cell images at 4 min after the lateral green light was turned on. (F) Kymograph of cell movements along the optical axis of lateral illumination. Directional movements of cells are presented by the tilted lines over time. Lateral green-light illumination was turned on at time 0, presented as a dashed white line. (G) Histograms of the cell displacement along the lateral light axis. Cell movements towards the light source are shown as a positive value. The average and standard deviation (SD) of the cell displacement along the light axis are presented (N = 50). (H) Rose plots. The moving direction of a cell that translocated more than 6 μm min−1 was counted. Angle 0 was the direction towards the lateral light source of the green light. The cell displacement for a duration of 1 min was measured at 4 min after lateral illumination was turned on (N = 50 cells).

Figure 4—source data 1

Intracellular cyclic dimeric GMP (c-di-GMP) concentrations in WT_N and tll1859toN mutant.

https://cdn.elifesciences.org/articles/73405/elife-73405-fig4-data1-v1.xlsx
Figure 4—source data 2

List of nucleotide differences found in ‘WT_N’ compared with ‘WT’ of T.

vulcanus.

https://cdn.elifesciences.org/articles/73405/elife-73405-fig4-data2-v1.xlsx

Previous reports have shown that the three photoreceptor proteins SesA, SesB, and SesC work together for c-di-GMP-dependent control of cell aggregation via the regulation of cellulose synthesis (Enomoto et al., 2015; Enomoto et al., 2014). SesB degrades c-di-GMP, and its activity is upregulated under teal light irradiation. SesC is a bifunctional protein with enhanced c-di-GMP-producing activity under blue light and enhanced c-di-GMP-degrading activity under green light. To examine the directional switch of phototaxis in detail, we applied lateral illumination in three phases in the order of green, green/blue, and green with a time interval of 4 min (Figure 3D,E and Video 7). WT cells clearly showed directional movement and switched from positive to negative and back to positive phototaxis in response to the applied light regime. However, ΔsesA mutant cells maintained positive phototaxis under all conditions, even after green/blue illumination (Figure 3D,E and Video 8). In contrast, the ∆sesC mutant switched to negative phototaxis but did not move again towards the light source upon illumination with only green light (Figure 3D,E and Video 9). The ∆sesB mutant switched movement from positive to negative and from negative to positive phototaxis, similar to the WT. However, the ∆sesB cells continued to aggregate after the light stimulus had stopped (Figure 3D,E and Video 10), while the WT dispersed in a few minutes. We hypothesize that negative phototaxis is induced by SesA-dependent c-di-GMP synthesis under blue light, whereas SesC and SesB degrade c-di-GMP under green light, thereby inducing positive phototaxis and controlling the dispersion of microcolonies or cell aggregation (Enomoto and Ikeuchi, 2020; Figure 3F).

Video 7
Download asset
Directional switch of phototaxis in wild type (WT).

Lateral illumination was turned on at time 0 from the right side of the movie. The illumination was applied with three phases in the order of green, green/blue, and green with a time interval of 4 min. WT cells at 45°C. Area 750 × 563 μm.

Video 8
Download asset
Cell behaviour in ΔsesA mutant.

Lateral illumination was turned on at time 0 from the right side of the movie. The illumination was applied with three phases in the order of green, green/blue, and green with a time interval of 4 min. ΔsesA cells. Area 750 × 563 μm.

Video 9
Download asset
Cell behaviour in ΔsesC mutant.

Lateral illumination was turned on at time 0 from the right side of the movie. The illumination was applied with three phases in the order of green, green/blue, and green with a time interval of 4 min. ΔsesC cells. Area 750 × 563 μm.

Video 10
Download asset
Cell behaviour in ΔsesB mutant.

Lateral illumination was turned on at time 0 from the right side of the movie. The illumination was applied with three phases in the order of green, green/blue, and green with a time interval of 4 min. ΔsesB cells. Area 750 × 563 μm.

Components of T4P machinery for phototaxis

T4P are known to be essential for phototactic motility in other cyanobacteria (Bhaya et al., 2000; Schuergers et al., 2014; Yoshihara et al., 2001). To evaluate the contribution of T4P to T. vulcanus phototaxis, we tested the phenotype of ΔpilA1, ΔpilB, ΔpilT1, and Δhfq mutants (Figure 5A). Electron microscopy revealed that the ΔpilB and Δhfq mutant cells lacked pilus filaments, whereas WT cells had dozens of filaments localized at each cell pole (Figure 5B,C). As expected, the mutants did not show phototaxis upon green-light illumination under the current microscope setup (Figure 5D and Video 11). These data showed that T4P filaments are polarly localized in T. vulcanus, which is necessary to generate directional movement in response to light illumination.

Figure 5
Download asset Open asset

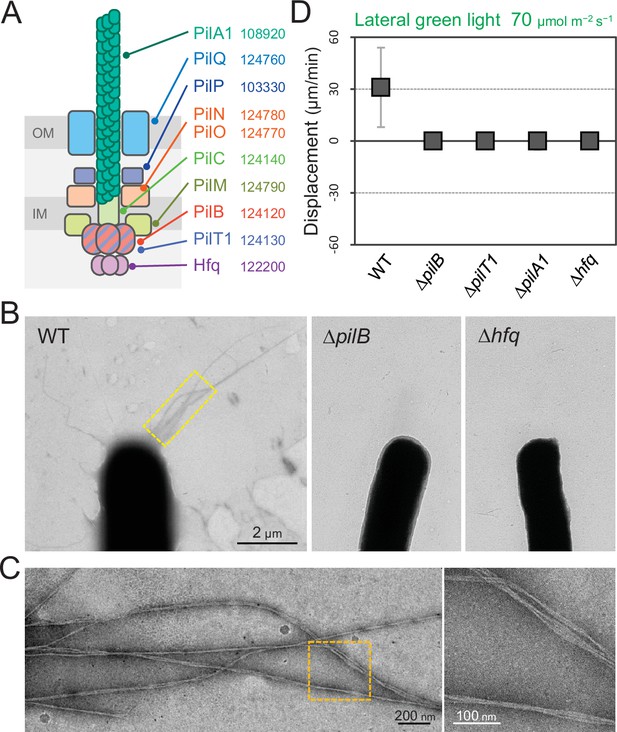

Type IV pili (T4P) machinery and phototaxis.

(A) Schematic of the T4P machinery. Protein components and their gene IDs from the genome of T. vulcanus are indicated. The location of the components is presented in reference to other species (Chang et al., 2016). (B) Electron microscopy (EM) image of a cell. (C) Magnified images of the yellow and orange boxed areas are presented. (D) Effect of lateral light illumination on mutant cells. Lateral green light was applied at a fluence rate of 70 μmol m−2 s−1. The average and standard deviation (SD) of the cell displacement on the glass surface along the light axis are presented (N = 50). Hfq was previously suggested to be involved in the formation of T4P machinery in other cyanobacteria (Schuergers et al., 2014).

Figure 5—source data 1

Effect of lateral light illumination on mutant cells.

https://cdn.elifesciences.org/articles/73405/elife-73405-fig5-data1-v1.xlsx
Video 11
Download asset
Cell behaviour of a ΔpilB mutant.

Lateral illumination of green light was turned on at time 0 from the right side of the movie. ΔpilB cells at 45°C. Area 750 × 563 μm.

Random orientation of cells during negative phototaxis

We observed that cells formed more microcolonies during negative phototaxis than during positive phototaxis (Videos 1 and 4). The cells started to aggregate 1 min after the green and blue light stimulus (Video 4) but nevertheless kept the directed movement away from the light source (Figure 6A, upper and Video 12). Thus, microcolony formation of cells did not hinder directed movements. Under these conditions, approximately 70% of all cells formed such microcolonies and moved directionally, while 30% of cells stayed as single cells (Figure 6B). These cells were able to adopt a random orientation along the light vector, meaning that they aligned their axis at different angles in relation to the light direction and exhibited directed movements as single cells. As an example, we show one cell aligned perpendicular to the optical axis of lateral light and attached at both poles to the surface (Figure 6A, left bottom and Video 13). Another example is a cell positioned in an upright position at one pole (Figure 6A, right bottom and Video 14), reminiscent of walking observed previously in Pseudomonas (Gibiansky, 2010). Not all single cells aligned in parallel along the light axis (Figure 6C), suggesting that the force for cell movement is not generated exclusively along the longer axis of the cell.

Figure 6
Download asset Open asset

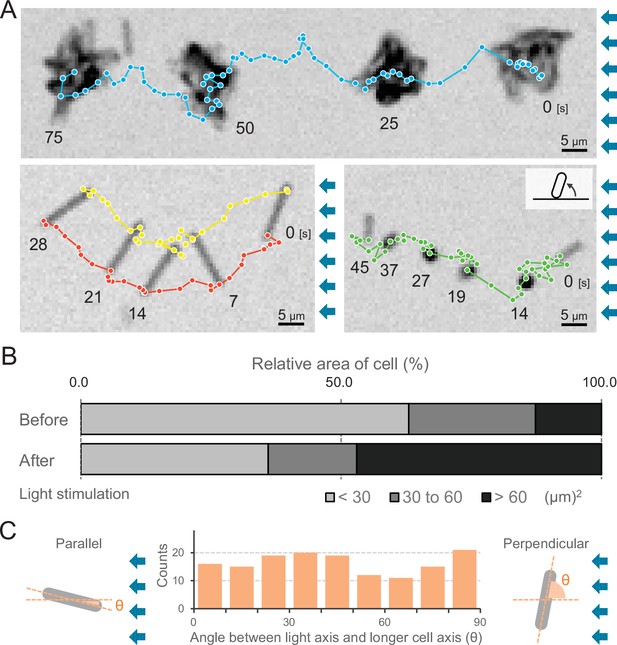

Moving trajectories of cells during negative phototaxis.

(A) Cell images and moving trajectories. Images were integrated with a single image at each time duration presented (see also Videos 12–14). Upper: movement of microcolonies. Left bottom: cell perpendicular to lateral light axis. Right bottom: cell that stood up and kept binding at a cell pole. (B) Cell–cell interaction. The area of a cell moving as a single unit was measured before and after the induction of negative phototaxis and presented as the ratio by the area (N = 353). (C) Moving direction of a cell in relation to the light source. The orientation of single cells during negative phototaxis was measured, and the distribution is presented (N = 148). The absolute angle of the longer axis of a cell was measured in relation to the lateral light axis. The parallel cellular orientation to the light axis (shown on the left) was taken as 0°, whereas the perpendicular orientation (shown on the right) was ideally 90°.

Figure 6—source data 1

Moving trajectories.

https://cdn.elifesciences.org/articles/73405/elife-73405-fig6-data1-v1.xlsx
Figure 6—source data 2

Area of a cell.

https://cdn.elifesciences.org/articles/73405/elife-73405-fig6-data2-v1.xlsx
Figure 6—source data 3

Moving direction of a cell in relation to the light source.

https://cdn.elifesciences.org/articles/73405/elife-73405-fig6-data3-v1.xlsx
Video 12
Download asset
Phototaxis of microcolony.

Lateral illumination of green and blue light was applied from the right side of the movie. Wild type (WT) cells at 45°C. Area 117 × 88 μm.

Video 13
Download asset
Phototaxis of cell perpendicular to the lateral light axis.

Lateral illumination of green and blue light was applied from the right side of the movie. Wild type (WT) cell at 45°C. Area 171 × 44 μm.

Video 14
Download asset
Phototaxis of cell that stood up and kept binding at a cell pole.

Lateral illumination of green and blue light was applied from the right side of the movie. Wild type (WT) cell at 45°C. Area 171 × 44 μm.

Direct visualization of T4P dynamics using fluorescent beads

We visualized the T4P dynamics of T. vulcanus through beads attached to the pilus fibre (Figure 7A and Video 15), as previously described in a coccoid-shaped unicellular cyanobacterium (Nakane and Nishizaka, 2017). In the presence of 200-nm diameter polystyrene sulfate beads, the beads around the cell pole showed directional movements (Figure 7B,C). The distance between beads and the cell pole increased or decreased with time (Figure 7D). The bead movement was biased to the cell poles, resulting in the accumulation of beads at the poles after a few minutes of observation (Figure 7—figure supplement 1A). This accumulation was not observed in the ΔpilB mutant (Figure 7—figure supplement 1A), suggesting that directed bead movement is driven by dynamic T4P activity. The average velocity of beads towards and away from cell poles was measured to be 1.59 ± 0.34 and 2.68 ± 0.33 μm s−1 (Figure 7E), corresponding to the retraction and extension of T4P, respectively (Nakane and Nishizaka, 2017). The distribution of the velocity was not changed during illumination with green and green/blue light (Figure 7—figure supplement 2). Note that the sulfate beads were effectively captured by T4P, whereas neither carboxylate- nor amine-modified beads accumulated (Figure 7—figure supplement 1B), suggesting that the surface modification is crucial for specific binding to the T4P filament. As we did not detect filaments that were covered by the beads, we suggest that they only bind to a specific part of the filament, which is most likely the tip of the pilus.

Figure 7 with 3 supplements see all
Download asset Open asset

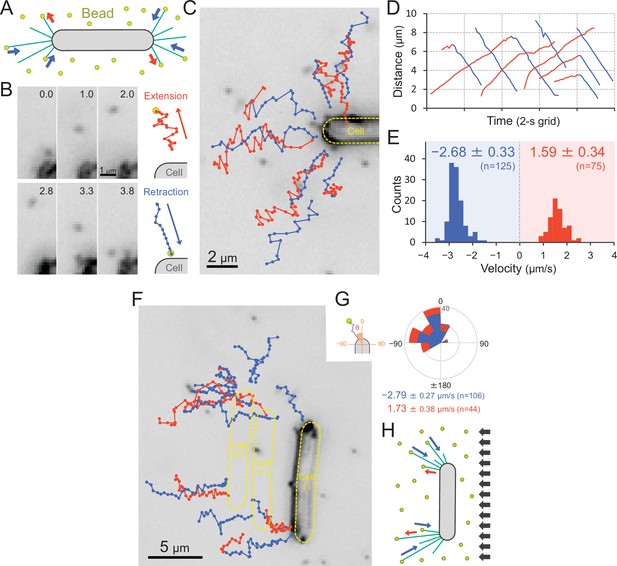

Visualization of type IV pili (T4P) dynamics through nano-beads.

(A) Schematic of the beads’ assay. Sulfate beads (200 nm in diameter) were added to the cells on a glass surface. (B) Typical trajectories of beads. Left: a series of images. Time was presented at the right upper corner of the image. Right: trajectories of the bead moving away from and towards the cell. (C) Trajectories of beads. Red and blue indicate bead movement away from and towards the cell, respectively. The bead trajectories with a time interval of 0.1 s were overlaid onto the cell image. (D) Time course of the distance between the bead and a cell pole. The data came from Panel C. (E) Distribution of the bead velocity. The velocity was measured by the time course of bead displacement. The movement towards the cell was measured as a negative value. The average and standard deviation (SD) of the plus and minus regions are presented (N = 200 in 12 cells). (F) Trajectories of beads during negative phototaxis. Lateral light illumination was applied from the right side of the image. The cell perpendicular to the lateral light axis is presented. The cell showed directional movement towards the left side of the image, and the cell position is presented by the dashed yellow lines every 10 s. The trajectories of beads with a time interval of 0.1 s were overlaid onto the cell image. (G) Distribution of the bead angle. Left: schematic of the angle definition. The cells perpendicular to the lateral light axis were used for analysis. Right: the angle formed by the longer cell axis and the bead trajectories around the cell pole at the upper side were measured (N = 150 in 10 cells). (H) Schematic of T4P dynamics during negative phototaxis of the cell perpendicular to the lateral light axis. T4P was asymmetrically activated on the other side of the light source.

Figure 7—source data 1

Moving trajectories of beads in Figure 7BF.

https://cdn.elifesciences.org/articles/73405/elife-73405-fig7-data1-v1.xlsx
Figure 7—source data 2

Time course of the distance between the bead and a cell pole.

https://cdn.elifesciences.org/articles/73405/elife-73405-fig7-data2-v1.xlsx
Figure 7—source data 3

Distribution of the bead velocity in Figure 7E, Figure 7—figure supplement 2 −.

https://cdn.elifesciences.org/articles/73405/elife-73405-fig7-data3-v1.xlsx
Figure 7—source data 4

Rose plot.

https://cdn.elifesciences.org/articles/73405/elife-73405-fig7-data4-v1.xlsx
Video 15
Download asset
Type IV pili (T4P) dynamics through beads.

Extension and retraction of the T4P filament were visualized by sulfate beads with a size of 200 nm. Wild type (WT) cells at 45°C. Area 42.0 × 31.5 μm.

We also visualized the T4P dynamics through beads during negative phototaxis (Figure 7F and Video 16). Here, only cells that were aligned perpendicular to the optical axis of lateral light were used for data analyses. The beads were retracted only at the cell pole facing the opposite side of the light source, which is the front side of the cell in negative phototaxis (Figure 7G). This suggests that the T4P are asymmetrically activated within a single-cell pole (Figure 7H).

Video 16
Download asset
Type IV pili (T4P) dynamics through beads during negative phototaxis.

Lateral illumination was applied from the right side of the movie. Extension and retraction of the T4P filament were visualized by beads with a size of 200 nm. Dark-field microscopy. Wild type (WT) cell at 45°C. Area 42.0 × 31.5 μm.

Direct visualization of T4P dynamics by fluorescent labelling of PilA1

To observe T4P filaments specifically in live cells, we introduced a cysteine residue into the PilA1 subunit to allow for labelling with maleimide-conjugated fluorophore (Ellison et al., 2017). For site-directed mutagenesis, we selected the codon for serine at position 114 in pilA1 and introduced the respective mutation in Thermosynechococcus. This residue was chosen because the homologous position (T126) of the MshA subunit was successfully used in V. cholerae (Ellison et al., 2019). After labelling, we directly observed extension and retraction of pilus filaments of the PilA1S114C mutant on a glass surface by epi-fluorescence microscopy (Figure 8A). The T4P filaments were localized at both cell poles and dynamic movement of pili towards and away from the cell poles was observed (Video 17). No pili were detected in the middle of the cells, supporting our previous measurements which showed T4P localization only at both poles. The average velocity of T4P filaments was measured to be 1.6 ± 0.4 and 2.3 ± 0.6 μm s−1 for extension and retraction, respectively (Figure 8B). Although the light intensity for the excitation of the fluorescence dye was much higher than in the experiments of Figures 2 and 3, the T4P dynamics by the fluorescent labelling of PilA1 had a similar rate as measured in the beads assay (Figure 7E). When the cell showed directional movement perpendicular to its longer axis, bipolar T4P dynamics were asymmetric and observed at the front side of the rod in the direction of movement (Figure 8C and Video 18). This was also confirmed by the observations using total internal reflection fluorescence (TIRF) microscopy, which enable to excite the fluorescence dye near the glass surface (Figure 8D and Video 19). Pilus filaments appeared asymmetrically at a few micrometres distance from both cell poles in the direction of cell movement. Most probably, TIRF microscopy revealed those pili which adhered to the glass surface for cellular movement (Figure 8E,F and Video 20). These data evidently indicate that the asymmetric activation of T4P within a cell pole guides the cellular movement via extension–attachment–retraction cycles in a certain direction.

Figure 8
Download asset Open asset

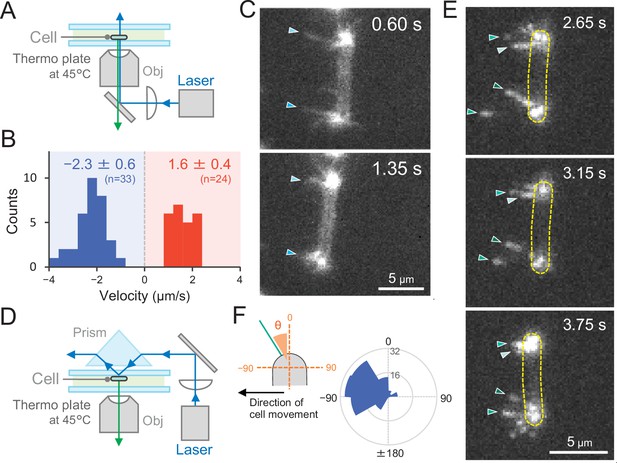

Direct visualization of type IV pili (T4P) dynamics by PilA labelling in living cells.

(A) Schematic of the epi-fluorescent microscopy setup. (B) Distribution of the velocity of T4P dynamics. The velocity of pilus dynamics was measured as the time course of the displacement of the identified tip part of a T4P filament towards or away from a cell pole. The retraction of T4P was measured as a negative value. The average and standard deviation (SD) of the plus and minus values are presented (N = 57 in 10 cells). The non-moving cells under epi-fluorescence microscopy were used for the data analysis. (C) Consecutive time-lapse images of a cell moving towards the left side under epi-fluorescence microscopy. The time is shown at the right upper corner of the image. (D) Schematic of the total internal reflection fluorescence (TIRF) microscopy setup. (E) Image sequence of a cell moving towards the left side under TIRF microscopy. The time frame is presented at the right upper corner of the image. (F) Distribution of the T4P filaments. Left: schematic of the angle definition. The cells moving towards the left side aligned perpendicular to the x axis of the image under TIRF microscopy were used for the data analysis. The angle relative to the cell axis in the direction of movement was measured as a negative value. The angle formed by the longer cell axis and the tip of T4P filaments around the cell pole were measured (N = 119 in 20 cell poles).

Figure 8—source data 1

Distribution of the velocity of type IV pili (T4P) dynamics in Figure 8B.

https://cdn.elifesciences.org/articles/73405/elife-73405-fig8-data1-v1.xlsx
Figure 8—source data 2

Rose plot of the type IV pili (T4P) filaments in Figure 8F.

https://cdn.elifesciences.org/articles/73405/elife-73405-fig8-data2-v1.xlsx
Video 17
Download asset
Type IV pili (T4P) dynamics under epi-fluorescence microscopy.

Extension and retraction of the T4P filaments were visualized by fluorescence labelling of PilA1 at 45°C. Area 39.0 × 29.3 μm.

Video 18
Download asset
Type IV pili (T4P) dynamics during directional movement under epi-fluorescence microscopy.

Extension and retraction of the T4P filaments were visualized by fluorescence labelling of PilA1. The cell showed directional movement towards the left side at 45°C. Area 26.0 × 19.5 μm.

Video 19
Download asset
Type IV pili (T4P) dynamics under total internal reflection fluorescence (TIRF) microscopy.

Surface attachment of the T4P filaments was visualized by fluorescence labelling of PilA1 under TIRF illumination at 45°C. Area 39.0 × 29.3 μm.

Video 20
Download asset
Type IV pili (T4P) dynamics during directional movement under total internal reflection fluorescence (TIRF) microscopy.

Surface attachment of the T4P filaments was visualized by fluorescence labelling of PilA1 under TIRF illumination. The cell showed directional movement towards the left side at 45°C. Area 26.0 × 19.5 μm.

Discussion

Here, we demonstrated that directional movement in phototaxis can be reversed by illumination with lateral light of another wavelength on a short time scale (Figures 2 and 3). In bacterial twitching motility, cellular movement is driven by repeated cycles of extension and retraction of T4P (Figures 5, 7 and 8 ). In rod-shaped bacteria, such as Myxococcus, the T4P machinery is localized at cell poles and generates a directional bias presumably by the force generated at the leading pole along the longer axis of the cell (Mercier et al., 2020; Potapova et al., 2020; Sabass et al., 2017). Here, we show that rod-shaped T. vulcanus cells showed directional movement even if the cell orientation was perpendicular to the lateral light axis (Figure 6). This behaviour can be explained by asymmetric activation of T4P for the long cell axis at the pole on one side of the rod (Figures 7 and 8). Such localization of pili was supported by our bead assay (Figure 7F–H), which showed localized retraction of beads on the cell side that did not face the light source in negative phototaxis, and by the direct visualization of PilA1 filaments (Figure 8). Local activation of T4P along the shorter axis of the cell would require a specific signalling system with high spatial resolution compared to the well-known pole-to-pole regulation by Myxococcus and Pseudomonas (Kühn et al., 2021; Mercier et al., 2020; Potapova et al., 2020; Sabass et al., 2017). In these bacteria, a dynamic change in the localization of the motor protein PilB between both poles leads to a directional switch in motility (Kühn et al., 2021; Mercier et al., 2020). The localization of PilB also seems to govern the direction of movement in Synechocystis phototaxis (Schuergers et al., 2015). Cell polarity for the short axis of the T. vulcanus cells might result in localization of the PilB protein to the leading side of the cell, driving directional movement even if the cell is oriented lengthwise with respect to the light source.

It remains an open question what the photoreceptor for positive phototaxis is. We showed that the gene disruption mutants of all photoreceptors identified to date for blue-to-green light still exhibited positive phototaxis (Figure 3), suggesting that another unrecognized photoreceptor for positive phototaxis might remain to be identified in this species. In a wild isolate of S. elongatus, the cyanobacteriochrome PixJ was reported to be responsible for directional light sensing in phototaxis (Yang et al., 2018). A homologue of the PixJ protein was also shown to localize at cell poles in a closely related Thermosynechococcus species (Kondou et al., 2002). However, the pixJ orthologue is deleted from the genome of our WT strain (Cheng et al., 2020). Recent work reported that the GAF domain-containing photoreceptor PixJ is not responsible for the phototactic motility of the filament-forming cyanobacterium Nostoc punctiforme (Harwood et al., 2021). The authors hypothesized that the localized proton motive force is the first input for directional light sensing (Harwood et al., 2021). Considering the micro-optic effects in rod-shaped cyanobacteria (Figure 7—figure supplement 3; Yang et al., 2018), the spatial difference in light intensity between cell poles or different sides of the cell may be a universal key feature of T4P-dependent phototaxis. The focused green light would excite yet unknown photosensory molecules to induce spatially localized signalling, whereas the position of the focused blue light is not crucial for directional switching. As we showed, the direction of blue light illumination did not influence directionality of movement, because cells do not move in random orientation (Figure 2—figure supplement 6). Thus, blue light does not control the directional light-sensing capability, instead it provides the signal for the switch between positive and negative phototaxis. This is very similar to the situation in Synechocystis where the blue light receptor PixD controls the switch between negative and positive phototaxis independently of the position of the blue-light source (Sugimoto et al., 2017).

How could c-di-GMP regulate the motility direction of T. vulcanus phototaxis? The 30–60 s delay of the cellular response upon on/off illumination with blue light under background green light might result from the modulation of intracellular c-di-GMP levels or the activation of other downstream events. Considering the fast response of the directional switching of T. vulcanus motility in one minute, we assume that toggle regulation does not involve transcriptional regulation (Song et al., 2011). As additional blue illumination has the same effect on phototaxis irrespective of the position of the blue light source (Figure 2—figure supplement 6), we also assume that the increased global cellular pool of c-di-GMP under these conditions regulates the switch in movement.

In Synechocystis, multiple signalling networks seem to be integrated via PATAN-REC proteins, which interact with PilB1 (Han et al., 2022; Jakob et al., 2020). We have not yet assessed the localization of the PilB protein, but we observed that the active pilus filaments face the direction of cell movement (Figures 7 and 8). Notably, the MshEN domain in cyanobacterial PilB proteins is a potential c-di-GMP binding domain despite the lack of experimental evidence (Wang et al., 2016). The switching between negative and positive phototaxis could be mediated by the binding and unbinding of c-di-GMP to PilB, respectively. Since we did not observe a change in pilus dynamics under green and green/blue light illumination (Figure 7—figure supplement 2), the T4P regulation in T. vulcanus may not be explained simply by a specific activation of PilB (Floyd et al., 2020; Hendrick et al., 2017). Therefore, we hypothesize that c-di-GMP binding to PilB could modify the affinity of its binding to other interaction partner(s), leading to the different localization of PilB regarding the incident light vector. Blue light increases the intracellular c-di-GMP content and represses motility in Synechocystis on phototaxis plates (Savakis et al., 2012), although short-term effects have not yet been explored. Whether c-di-GMP could induce a similar directional switching in other cyanobacterial species remains to be clarified. Notably, Synechocystis also switches from positive to negative phototaxis on a relatively short time scale by a different mechanism (Jakob et al., 2020). High-intensity blue light is sensed by the BLUF-domain PixD photoreceptor. Upon excitation, the binding of PixD to the specific PATAN-domain CheY-like response regulator (PixE) is inhibited, and free PixE binds to PilB1, inducing a switch from red light-dependent positive to negative phototaxis (Jakob et al., 2020). In T. vulcanus, the lack of PixD did not lead to directional switching (Figure 3B). Thus, we suppose that different cyanobacteria have evolved specific photoreceptors and response mechanisms to control the switch between negative and positive phototaxis, presumably depending on their natural habitat and the ecophysiological context.

T. vulcanus was initially isolated from a mat in a hot spring in Japan (Katoh et al., 2001). We previously reported that in multicellular cyanobacterial communities, the ratio between blue- and green-light changes from surface (blue rich) to green rich within a culture due to pigment absorption. Thus, through the concerted action of the SesABC photoreceptor system, c-di-GMP production would be activated at the surface, whereas within a cyanobacterial community, low cellular c-di-GMP levels would predominate (Enomoto and Ikeuchi, 2020). The current study suggests that in a biofilm or a mat, cells move away from the blue light-rich surface area, whereas they move upwards under green-rich conditions within the community (Figure 3—figure supplement 1). Such behaviour would lead to a dynamic circulation of Thermosynechococcus species inside a microbial mat under solar irradiance (Conradi et al., 2020). The high light/short wavelength-induced downward migration and green-light-induced upward migration of cyanobacteria in microbial mats are well documented (Bebout and Garcia-Pichel, 1995; Kruschel and Castenholz, 1998; Lichtenberg et al., 2020; Nadeau et al., 1999). Future work on spatiotemporal processes in phototrophic mats can provide insights into the yet unknown molecular mechanisms of photomovements in ecophysiologically relevant niches.

Materials and methods

Strains and culture conditions

Request a detailed protocol

The motile strains (WT) of T. vulcanus and its mutants were grown in BG-11 medium (Stanier et al., 1971) containing 20 mM Tris(hydroxymethyl)methyl-2aminoethanesulfonic acid(TES) (pH 7.5) as a buffer in moderate light (20 μmol m−2 s−1) at 45°C with shaking to an optical density of approximately 0.5–1.0 at 750 nm. The WT showing clear positive phototaxis on agar plates of BG11 was reisolated from the original strain NIES-2134 in the Microbial Culture Collection at the National Institute for Environmental Studies (NIES, https://mcc.nies.go.jp/) and used here as the standard strain. Likewise, a substrain of T. vulcanus showing negative phototaxis on agar plates of BG11 (WT_N) was spontaneously found and isolated from the original culture of the NIES-2134 strain.

Strain construction

Request a detailed protocol

All primers, plasmids, and strains used in this study are listed in Table 1, Table 2, Table 3 respectively. The plasmid for the disruption of the sesC gene was already reported in Enomoto et al., 2015. For the construction of the other gene disruption mutant strains, an antibiotic resistance cassette was introduced to cause a partial deletion within each ORF. The PCR fragments of a vector backbone, an antibiotic resistance cassette, and the upstream and downstream sequences of 2–3 kbp were assembled using assembly cloning (AQUA cloning) (Beyer et al., 2015). For introduction of the frameshift mutation in the tll1859 gene, the upstream and downstream homologous sequences were amplified from the genomic DNA of WT_N. A kanamycin resistance cassette was inserted downstream of the tll1859 gene without any deletion. For construction of the PilA1-Cys knockin strain (PilA1S114C), a chloramphenicol resistance cassette was inserted downstream of the pilA1 gene without any deletion. The overlapping primers containing the point mutation for S114C, were utilized for site-directed mutagenesis according to the protocol of the PrimeSTAR Max Basal Mutagenesis kit (TaKaRa). The sequence integrity was verified by Sanger sequencing. Transformations of T. vulcanus were performed according to Iwai et al., 2004. For preparation and cultivation of the mutant strains, antibiotics were added to the medium at the following concentrations: chloramphenicol, 5 μg ml−1; kanamycin 80 µg ml−1; and spectinomycin plus streptomycin, 10 plus 5 μg ml−1. Complete segregation of the mutant alleles in the multiple copies of the chromosomal DNA was verified by colony PCR. For the tll1859toN and PilA1S114C mutants, the correct mutations were confirmed by Sanger sequencing of the PCR fragments amplified by colony PCR.

Table 1
Oligonucleotides used in this study.
NameSequence (5′–3′)Purpose
pUC19-5R_tvsesAATGATACGCGGGTGATTACCGAGCTCGAATTCAC∆sesA
pUC19-6F_tvsesAGTGGCAAAACCACCTTTGCAAGCTTGGCGTAATC 
tvsesA-1F_pUC19GAATTCGAGCTCGGTAATCACCCGCGTATCATTG 
tvsesA-2R_CmTTCTATCAGCTGTCCCATCAATCCCCGAAACTGC 
Cm-3F_tvsesAAGTTTCGGGGATTGATGGGACAGCTGATAGAAAC 
Cm-4R_tvsesAATGGGTGATATTGGCTTTTATCAGGCTCTGGGAG 
tvsesA-3F_CmCCCAGAGCCTGATAAAAGCCAATATCACCCATGC 
tvsesA-4R_pUC19TTACGCCAAGCTTGCAAAGGTGGTTTTGCCACAG 
pUC19-7R_tvsesBTCAGGGGAGTCCAAAATACCGAGCTCGAATTCAC∆sesB
pUC19-8F_tvsesBACGGATTGCCATTGGTTGCAAGCTTGGCGTAATC 
tvsesB-1F_pUC19GAATTCGAGCTCGGTATTTTGGACTCCCCTGATG 
tvsesB-2R_KmAGCAGGGGAATTGTTACACAGACTCTTCTGTGAC 
Km-5F_tvsesBCACAGAAGAGTCTGTGTAACAATTCCCCTGCTCG 
Km-6R_tvsesBGTTCAAGGTCCTCTTGCCAACCTTTCATAGAAGGC 
tvsesB-3F_KmTTCTATGAAAGGTTGGCAAGAGGACCTTGAACTG 
tvsesB-4R_pUC19TTACGCCAAGCTTGCAACCAATGGCAATCCGTAG 
pUC19-21R_tvcikAAGATGCGATTGTCCATTACCGAGCTCGAATTCAC∆cikA
pUC19-22F_tvcikATTCATTGGGCTTACAGTGCAAGCTTGGCGTAATC 
tvcikA-1F_pUC19GAATTCGAGCTCGGTAATGGACAATCGCATCTGC 
tvcikA-2R_CmTTCTATCAGCTGTCCCGCTGATAGCTACTGCTAG 
Cm-18F_tvcikAAGCAGTAGCTATCAGCGGGACAGCTGATAGAAAC 
Cm-19R_tvcikAAGATATTCCCGCTGTTTTTATCAGGCTCTGGGAG 
tvcikA-3F_CmCCCAGAGCCTGATAAAAACAGCGGGAATATCTGG 
tvcikA-4R_pUC19TTACGCCAAGCTTGCACTGTAAGCCCAATGAACC 
pUC19-19R_tvpixDGTTACCATTCGCAAGTTACCGAGCTCGAATTCAC∆pixD
pUC19-20F_tvpixDGCTAGTCCTGAACCAATGCAAGCTTGGCGTAATC 
tvpixD-1F_pUC19GAATTCGAGCTCGGTAACTTGCGAATGGTAACCG 
tvpixD-2R_CmTTCTATCAGCTGTCCCAATCAGGCGATGTAGTCC 
Cm-15F_tvpixDACTACATCGCCTGATTGGGACAGCTGATAGAAAC 
Cm-16R_tvpixDCAGCATTCCCGTAATGTTTATCAGGCTCTGGGAG 
tvpixD-3F_CmCCCAGAGCCTGATAAACATTACGGGAATGCTGTG 
tvpixD-4R_pUC19TTACGCCAAGCTTGCATTGGTTCAGGACTAGCTG 
pUC19-23R_tvtll1282TTTGGCATCTTCAAGGTACCGAGCTCGAATTCAC∆LOV
pUC19-24F_tvtll1282TGAGCAAAGGGATCATTGCAAGCTTGGCGTAATC 
tvtll1282-1F_pUC19GAATTCGAGCTCGGTACCTTGAAGATGCCAAAGC 
tvtll1282-2R_CmTTCTATCAGCTGTCCCAGCATAGCGTTCCATCTC 
Cm-20F_tvtll1282GATGGAACGCTATGCTGGGACAGCTGATAGAAAC 
Cm-21R_tvtll1282AATAGGCTCAGGACATTTTATCAGGCTCTGGGAG 
tvtll1282-3F_CmCCCAGAGCCTGATAAAATGTCCTGAGCCTATTGG 
tvtll1282-4R_pUC19TTACGCCAAGCTTGCAATGATCCCTTTGCTCAGC 
pUC19-25R_tvHCPTGAACTTTGCCCTTGTTACCGAGCTCGAATTCAC∆OCP
pUC19-26F_tvCTDHGATAGGGAGATTGCATTGCAAGCTTGGCGTAATC 
tvHCP-1F_pUC19GAATTCGAGCTCGGTAACAAGGGCAAAGTTCAGC 
tvHCP-2R_CmTTCTATCAGCTGTCCCGCTCATCAAAACTGAGGG 
Cm-22F_tvHCPCTCAGTTTTGATGAGCGGGACAGCTGATAGAAAC 
Cm-23R_tvCTDHTCTTCAAAGGGTGGATTTTATCAGGCTCTGGGAG 
tvCTDH-1F_CmCCCAGAGCCTGATAAAATCCACCCTTTGAAGAGC 
tvCTDH-2R_pUC19TTACGCCAAGCTTGCAATGCAATCTCCCTATCCG 
pUC19-15R_tvpilBCAGTTGAATCTGGGTTTACCGAGCTCGAATTCAC∆pilB
pUC19-16F_tvpilBACAGGTTTTGGAGGTCTGCAAGCTTGGCGTAATC 
tvpilB-1F_pUC19GAATTCGAGCTCGGTAAACCCAGATTCAACTGGG 
tvpilB-2R_CmTTCTATCAGCTGTCCCTTGTGGTACTGGCGTAAC 
Cm-11F_tvpilBTACGCCAGTACCACAAGGGACAGCTGATAGAAAC 
Cm-12R_tvpilBAGATCTTGAAGCGGGATTTATCAGGCTCTGGGAG 
tvpilB-3F_CmCCCAGAGCCTGATAAATCCCGCTTCAAGATCTTG 
tvpilB-4R_pUC19TTACGCCAAGCTTGCAGACCTCCAAAACCTGTAC 
pUC19-17R_tvpilT1TTTTTGCCAGCACCTTTACCGAGCTCGAATTCAC∆pilT1
pUC19-18F_tvpilT1TCTTGGCTGGCTTGATTGCAAGCTTGGCGTAATC 
tvpilT1-1F_pUC19GAATTCGAGCTCGGTAAAGGTGCTGGCAAAAAGC 
tvpilT1-2R_CmTTCTATCAGCTGTCCCAAGTCTGAACCACCGTTG 
Cm-13F_tvpilT1ACGGTGGTTCAGACTTGGGACAGCTGATAGAAAC 
Cm-14R_tvpilT1TGGCAAGCTGAATCGTTTTATCAGGCTCTGGGAG 
tvpilT1-3F_CmCCCAGAGCCTGATAAAACGATTCAGCTTGCCATC 
tvpilT1-4R_pUC19TTACGCCAAGCTTGCAATCAAGCCAGCCAAGAAG 
pUC19-11R_tvpilA1CTATTCTCTTTGCAGGTACCGAGCTCGAATTCAC∆pilA1
pUC19-12F_tvpilA1TGGTTTGGTGCCAGTATGCAAGCTTGGCGTAATC 
tvpilA1-1F_pUC19GAATTCGAGCTCGGTACCTGCAAAGAGAATAGCG 
tvpilA1-7R_CmTTCTATCAGCTGTCCCAGTTGCCGTCTGCTACAG 
Cm-32F_tvpilA1GTAGCAGACGGCAACTGGGACAGCTGATAGAAAC 
Cm-6R_tvpilA1GCAGTTGCACTATTGCTTTATCAGGCTCTGGGAG 
tvpilA1-3F_CmCCCAGAGCCTGATAAAGCAATAGTGCAACTGCTC 
tvpilA1-4R_pUC19TTACGCCAAGCTTGCATACTGGCACCAAACCATG 
pUC19-13R_tvHfqCAGCGGGATGTGAATATACCGAGCTCGAATTCAC∆hfq
pUC19-14F_tvHfqAAATGCGGCTTTCCTATGCAAGCTTGGCGTAATC 
tvHfq-1F_pUC19GAATTCGAGCTCGGTATATTCACATCCCGCTGTG 
tvHfq-2R_CmTTCTATCAGCTGTCCCTACTTGGCGAATGCTAGG 
Cm-9F_tvHfqTAGCATTCGCCAAGTAGGGACAGCTGATAGAAAC 
Cm-10R_tvHfqACCTCGGTGCTATCTTTTTATCAGGCTCTGGGAG 
tvHfq-3F_CmCCCAGAGCCTGATAAAAAGATAGCACCGAGGTTG 
tvHfq-4R_pUC19TTACGCCAAGCTTGCATAGGAAAGCCGCATTTGC 
pUC19-43R_tvtll1859ATCCATCGAACAAGCCTACCGAGCTCGAATTCACtll1859toN
pUC19-44F_tvtll1859GTCCCGTTCATTGATGTGCAAGCTTGGCGTAATC 
tvtll1859-1F_pUC19GAATTCGAGCTCGGTAGGCTTGTTCGATGGATTG 
tvtll1859-2R_Kmv2cctgagtgcttgcggcTTTCTAGGGGGTGTGAATC 
Km-21F_tvtll1859TCACACCCCCTAGAAAgccgcaagcactcagg 
Km-22R_tvtll1859TTGCAACACAGTTGTCcctttcatagaaggcggc 
tvtll1859-3F_Kmv2cgccttctatgaaaggGACAACTGTGTTGCAAACC 
tvtll1859-4R_pUC19TTACGCCAAGCTTGCACATCAATGAACGGGACTG 
pUC19-67F_tvpilA1gattggtttcaggcaaTGCAAGCTTGGCGTAATCPilA1S114C
pUC19-68R_tvPilA1aacgatagggagacatTACCGAGCTCGAATTCAC 
tvPilA1-8F_pUC19GAATTCGAGCTCGGTAatgtctccctatcgttctag 
TvPilA1-9R_CmRTTCTATCAGCTGTCCCttaagaacagttaggagcag 
Cm-44F_TvPilA1tcctaactgttcttaaGGGACAGCTGATAGAAAC 
Cm-45R_TvPilA1gttaattcctaaggtcTTTATCAGGCTCTGGGAG 
TvPilA1-10F_CmCCCAGAGCCTGATAAAgaccttaggaattaacagag 
TvPilA1-11R_pUC19TTACGCCAAGCTTGCAttgcctgaaaccaatcgg 
tvPilA1(S114C)–1FcaaacaTGCgctaatgatccccaaggg 
tvPilA1(S114C)–2RattagcGCAtgtttgaacataagcatcattc 
Table 2
Plasmids used in this study.
NameDescriptionReference/source
pUC19-∆tvsesA_CmpUC19-based construct for knockout of sesA gene (NIES2134_109940) containing a chloramphenicol resistance cassette flanked by ~2500 bp regions upstream and downstream of sesA, resulting in ~2000 bp deletion within ORF; CmR, AmpRThis study
pUC19-∆tvsesB_KmpUC19-based construct for knockout of sesB gene (NIES2134_119260) containing a kanamycin resistance cassette flanked by ~2500 bp regions upstream and downstream of sesB, resulting in ~2000 bp deletion within ORF; KmR, AmpRThis study
pS-∆tlr0911_Sp(F)pCR-Script-based construct for knockout of sesC gene (NIES2134_110090) containing a spectinomycin/streptomycin resistance cassette flanked by ~1500 bp regions upstream and downstream of sesC, resulting in ~3400 bp deletion within ORF; SpR/SmR, AmpREnomoto et al., 2015
pUC19-∆tvcikA_CmpUC19-based construct for knockout of cikA gene (NIES2134_110210) containing a chloramphenicol resistance cassette flanked by ~2500 bp regions upstream and downstream of cikA, resulting in ~500 bp deletion within ORF; CmR, AmpRThis study
pUC19-∆tvpixD_CmpUC19-based construct for knockout of pixD gene (NIES2134_124540) containing a chloramphenicol resistance cassette flanked by ~2500 bp regions upstream and downstream of pixD, resulting in ~100 bp deletion within ORF; CmR, AmpRThis study
pUC19-∆tvtll1282_CmpUC19-based construct for knockout of LOV gene (tll1282; NIES2134_112750) containing a chloramphenicol resistance cassette flanked by ~2500 bp regions upstream and downstream of cikA, resulting in ~2000 bp deletion within ORF; CmR, AmpRThis study
pUC19-∆tvHCPCTDH_CmpUC19-based construct for knockout of OCP genes (HCP; NIES2134_112880 and CTDH; NIES2134_112890) containing a chloramphenicol resistance cassette flanked by ~2500 bp regions upstream and downstream of OCP, resulting in the deletion of the latter half of HCP ORF, the intergenic region, and the first half of CTDH ORF; CmR, AmpRThis study
pUC19-∆tvpilB_CmpUC19-based construct for knockout of pilB gene (NIES2134_124120) containing a chloramphenicol resistance cassette flanked by ~2500 bp regions upstream and downstream of pilB, resulting in ~600 bp deletion within ORF; CmR, AmpRThis study
pUC19-∆tvpilT1_CmpUC19-based construct for knockout of pilT1 gene (NIES2134_124130) containing a chloramphenicol resistance cassette flanked by ~2500 bp regions upstream and downstream of pilT1, resulting in ~600 bp deletion within ORF; CmR, AmpRThis study
pUC19-∆tvpilA1_CmpUC19-based construct for knockout of pilA1 gene (NIES2134_108920) containing a chloramphenicol resistance cassette flanked by ~2500 bp regions upstream and downstream of pilA1, resulting in ~550 bp deletion within ORF and the promoter region; CmR, AmpRThis study
pUC19-∆tvHfq_CmpUC19-based construct for knockout of hfq gene (NIES2134_124130) containing a chloramphenicol resistance cassette flanked by ~2500 bp regions upstream and downstream of hfq, resulting in ~10 bp deletion within ORF; CmR, AmpRThis study
pUC19-tvtll1859toN_Kmv2pUC19-based construct for introduction of the frameshift mutation present in WT_N within tll1859 gene (NIES2134_117830) containing a kanamycin resistance cassette inserted after tll1859 ORF, flanked by ~2500 bp regions upstream and downstream of tll1859 gene without any nucleotide deletion; KmR, AmpRThis study
pUC19-tvpilA1(S114C)_CmpUC19-based construct for Cys knockin in pilA1 gene (NIES2134_108920) containing a chloramphenicol resistance cassette inserted after pilA1 ORF, flanked by ~2500 bp regions upstream and downstream of pilA1 without any nucleotide deletion; CmR, AmpRThis study
Table 3
Strains used in this study.
NameDescriptionReference/source
Thermosynechococcus vulcanus WTIsolated as wild type showing positive phototaxis towards moderate white light from NIES-2134Whole genome: AP018202
Thermosynechococcus vulcanus WT_NIsolated showing negative phototaxis towards moderate white light from NIES-2134Seq reads in DDBJ: DRA013349
∆sesAsesA knockout mutant (CmR)This study
∆sesBsesB knockout mutant (KmR)This study
∆sesCsesC knockout mutant (SpR/SmR)Enomoto et al., 2015
∆cikAcikA knockout mutant (CmR)This study
∆pixDpixD knockout mutant (CmR)This study
∆LOVLOV knockout mutant (CmR)This study
∆OCPOCP knockout mutant (CmR)This study
∆pilBpilB knockout mutant (CmR)This study
∆pilT1pilT1 knockout mutant (CmR)This study
∆pilA1pilA1 knockout mutant (CmR)This study
∆hfqhfq knockout mutant (CmR)This study
tll1859toNtll1859 frameshift mutant (KmR)This study
PilA1S114CpilA1 Cys knockin mutant (CmR)This study

Optical microscopy and data analyses

Request a detailed protocol

Cell behaviour on the glass surface was visualized under an inverted microscope (IX83; Olympus) equipped with ×10 objective lenses (UPLFLN10 × 2 PH, NA0.3; Olympus), a CMOS camera (Zyla 4.2; Andor, or DMK33U174; Imaging Source), and an optical table (ASD-1510T; JVI, Japan). The position of the cell was visualized by infrared light from a halogen lamp with a bandpass filter (FBH850/40; Thorlabs) at a fluence rate of 1 μmol m−2 s−1. The heat-absorbing filter was removed from the optical axis of the halogen lamp to obtain a higher wavelength of light. The signal from lateral light illumination was removed by a bandpass filter (FBH850/40; Thorlabs) in a filter block turret. The microscope stage was heated at 45°C with a thermoplate (TP-110R-100; Tokai Hit, Japan). Projections of the images were captured as greyscale images with the camera under 1-s resolution and converted into a sequential TIF file without any compression. All data were analysed by ImageJ 1.48v (rsb.info.nih.gov/ij/) and its plugins, TrackMate, particle tracker and multitracker.

For the bead assay, the cells and microbeads were visualized under an inverted microscope (IX83; Olympus) equipped with ×40 objective lenses (LUCPLFLN40 × PH, NA0.6; Olympus), a CMOS camera (Zyla 4.2; Andor, or DMK33U174; Imaging Source), and an optical table (ASD-1510T; JVI, Japan). The position of the cell and microbeads was visualized by a collimated blue-light LED (M450LP1; Thorlabs) through a dark-field condenser (U-DCD, NA0.8–0.92; Olympus) at a fluence rate of 200 μmol m−2 s−1. The microscope stage was heated at 45°C with a thermoplate (TP-110R-100; Tokai Hit). Projection of the image was captured as greyscale images with the camera under 0.1-s resolution and converted into a sequential TIF file without any compression.

For the direct visualization of fluorescent-labelled T4P filaments, the sample was examined under an inverted microscope (IX83; Olympus) equipped with a ×40 objective lens (LUCPLFLN40 × PH, NA0.6; Olympus), a filter set (GFP-4050B, Semrock), a CMOS camera (Zyla 4.2; Andor), and an optical table (ASD-1510T; JVI, Japan). A blue laser beam (wavelength of 488 nm; OBIS488LS, Coherent) was introduced into the inverted microscope through a lens for epi-fluorescence microscopy. The blue laser beam was also introduced from the lateral side of the microscope stage through a prism for TIRF, and the cells were observed on the upper side of the chamber. The microscope stage was heated at 45°C with a thermoplate (TP-110R-100; Tokai Hit). Projection of the image was captured with the camera as a greyscale image with 0.1-s resolution and converted into a sequential TIF file without any compression.

Phototaxis on glass with lateral light from LEDs

Request a detailed protocol

All procedures were performed at 45°C on a microscope stage heated with a thermoplate (TP-110R-100; Tokai Hit, Japan). The cell culture was poured into a tunnel chamber assembled by taping a coverslip (Nakane and Nishizaka, 2017), and both ends of the chamber were sealed with nail polish to keep from drying the sample. The position of the cell was visualized by infrared light from a halogen lamp with a bandpass filter (FBH850/40; Thorlabs) at a fluence rate of 1 μmol m−2 s−1. The cells were subjected to lateral light stimulus by an LED from the right side of the microscope stage at an angle of 5°. White LEDs at 20 and 500 μmol m−2 s−1 were used as moderate and strong light stimuli for phototaxis, respectively. Blue, teal, green, orange, red, and far-red light were applied by a monochromatic LED, M450LP1, M490L4, M530L3, M625L3, and M730L4 (Thorlabs), respectively. The LED light was collimated by the condenser lens and combined by dichroic mirrors (FF470-Di01, FF509-FDi01, FF560-FDi01, FF685-Di02; Semrock) to apply multicoloured light simultaneously. The wavelength of the resultant light was measured by a spectrometer (BIM-6002A, BroLight, China). Light intensity was measured with a power metre (Q82017A; Advantest, Japan).

Measurement of intracellular c-di-GMP concentration

Request a detailed protocol

Liquid cultures (1.5 ml each) of WT and ∆sesA strain of T. vulcanus were transferred to three prewarmed 2-ml tubes. Two tubes were used for the total nucleotide extraction, and the third tube was used for the determination of the protein concentration. The tubes were incubated under 70 μmol m−2 s−1 blue, green, red (λmax=451, 528, and 625 nm), or white LED light (Philips LED tube 16W830) illumination at 45°C for 30 min. The cells were pelleted at 10,000 × g at 4°C for 30 s. For nucleotide extraction, cell pellets were immediately resuspended in 200 µl extraction solution (acetonitrile/methanol/water 2:2:1 [vol/vol/vol]), vortexed for 5 s, and heated at 95°C for 10 min. Samples were snap-cooled on ice and incubated for 15 min. The samples were centrifuged at 21,000 × g at 4°C for 10 min, and the supernatant was collected. The above extraction was repeated twice with 200 µl extraction solution each, without heat treatment. The combined supernatants (~600 µl) were incubated at −20°C overnight to precipitate proteins in the samples. The samples were centrifuged at 21,000 × g at 4°C for 10 min, and the supernatant was vacuum dried using SpeedVac at 42°C. Quantification of c-di-GMP was performed by HPLC/MS/MS analysis, as previously described (Burhenne and Kaever, 2013). For quantification of the total protein content, the pelleted cells were stored at −20°C. The de-frozen cells were suspended in 50 µl phosphate-buffered saline. A glass bead mix (0.1–0.11 and 0.25–0.5 mm) of ~0.7 volume was added. The tubes were vortexed vigorously for 60 s, snap-cooled at −80°C, and heated to 40°C for 10 min. The disruption was repeated once and incubated at RT until the beads were sedimented. Two microlitres of the supernatant was used for protein quantification using the Direct Detect system (Merck Millipore). The acquired concentrations of intracellular c-di-GMP were normalized to the total protein content.

Genome resequencing of the phototactic negative T. vulcanus substrain

Request a detailed protocol

Genomic DNA of WT_N strain was prepared from a 40-ml culture with an optical density of ~2.0 with a Genomic-tip 20/G kit (Qiagen). Preparation of the paired-end DNA libraries and sequencing on the Illumina MiSeq platform were performed as described previously (Hirose et al., 2021). Raw sequence reads were deposited in the DDBJ Sequence Read Archive under accession number DRA013349. The low-quality region of the sequences was trimmed using fastq_quality_trimmer command with -t 20 and -l 36 options using FASTX-Toolkit (http://hannonlab.cshl.edu/fastx_toolkit/). Mapping of the trimmed reads on the WT T. vulcanus genome (GenBank accession AP018202.2) was performed using bwa ver. 0.7.15 (Li and Durbin, 2009) and samtools ver. 1.3.1 (Li et al., 2009). Visualization of the mapped sequence reads was performed using Integrative Genomics Viewer ver. 2.8.10 (Robinson et al., 2011). Detection and annotation of the genomic variant were performed using Genome Analysis Toolkit ver. 3.8 (Auwera GAVd, 2020).

Bead’s assay for visualizing T4P dynamics

Request a detailed protocol

Fluorescent polystyrene beads 0.2 μm in size (FluoSpheres sulfate microspheres F8848, carboxylate-modified microspheres F8811, amine-modified microsphere F8764; Thermo Fisher) were diluted 300 times to 0.02% (wt/vol) in BG11 and used for the bead assay, as previously described (Nakane and Nishizaka, 2017). A coverslip was coated with 0.2% (vol/vol) collodion in isoamyl acetate and air-dried before use. The cell culture was poured into a tunnel chamber assembled by taping a coverslip. After incubation at 45°C for 2 min on the microscope stage, the cells were subjected to vertical illumination from blue-light LED through a dark-field condenser at a fluence rate of 200 μmol m−2 s−1. After illumination for 2 min, fluorescent beads were added to the sample chamber, and their movement was visualized by blue light illumination at 0.1-s intervals. Lateral illumination from green-light LEDs was applied for 2 min before adding the beads if needed.

PilA labelling for fluorescence microscopy

Request a detailed protocol

Pilus filaments of the PilA1S114C mutant were labelled using maleimide-conjugated fluorophores (DyLight488 maleimide 46602, Thermo Fisher). Cell culture with a volume of 0.5 ml in BG11 medium at an OD750 of ~0.5 was mixed with 0.5 ml of 50 mM potassium phosphate buffer (pH 7.0), to which 1 μl Dylight488 maleimide dye (10 μg/μl in DMSO) was added. The cell suspensions were incubated at 45°C for 30 min, and then washed three times in BG11. The cell suspensions in BG11 were poured into a tunnel chamber assembled by taping a coverslip, and observed under fluorescence microscopy.

Electron microscopy

Request a detailed protocol

Samples bound to the grids were stained with 2% (wt/vol) ammonium molybdate and observed by transmission electron microscopy, as previously described (Nakane and Nishizaka, 2017). Carbon-coated EM grids were prepared by a vacuum evaporator (VE-2012; Vacuum Device, Japan). Cells were placed on an EM grid and kept at 45°C in moderate light (20 μmol m−2 s−1) for 3 min. The cells were chemically fixed with 1% (vol/vol) glutaraldehyde in BG-11 for 10 min at RT. After washing three times with BG-11, the cells were stained with 2% ammonium molybdate and air-dried. Samples were observed under a transmission electron microscope (JEM-1400, JEOL) at 100 kV. The EM images were captured by a charge-coupled device camera.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting file.

References

  2. Book
    1. Auwera GAVd OB
    (2020)
    Genomics in the Cloud: Using Docker, GATK, and WDL in Terra / Geraldine A
    Sebastopol: Van der Auwera and Brian D. O’Connor. O’Reilly.

Article and author information

Author details

  1. Daisuke Nakane

    Department of Engineering Science, Graduate School of Informatics and Engineering, The University of Electro-Communications, Tokyo, Japan
    Contribution
    Conceptualization, Formal analysis, Funding acquisition, Investigation, Methodology, Writing – original draft, Writing – review and editing
    Contributed equally with
    Gen Enomoto
    For correspondence
    dice-k@uec.ac.jp
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8201-2608

  2. Gen Enomoto

    Institute of Biology III, University of Freiburg, Freiburg, Germany
    Contribution
    Conceptualization, Funding acquisition, Investigation, Methodology, Resources, Writing – original draft, Writing – review and editing
    Contributed equally with
    Daisuke Nakane
    For correspondence
    gen.enomoto@biologie.uni-freiburg.de
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9492-7557

  3. Heike Bähre

    Research Core Unit Metabolomics, Hannover Medical School, Hannover, Germany
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared

  4. Yuu Hirose

    Department of Applied Chemistry and Life Science, Toyohashi University of Technology, Toyohashi, Japan
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared

  5. Annegret Wilde

    1. Institute of Biology III, University of Freiburg, Freiburg, Germany
    2. BIOSS Centre for Biological Signaling Studies, University of Freiburg, Freiburg, Germany
    Contribution
    Conceptualization, Funding acquisition, Writing – original draft, Writing – review and editing
    For correspondence
    annegret.wilde@biologie.uni-freiburg.de
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0935-8415

  6. Takayuki Nishizaka

    Department of Physics, Gakushuin University, Tokyo, Japan
    Contribution
    Conceptualization
    Competing interests
    No competing interests declared

Funding

Japan Society for the Promotion of Science (20H05543)

  • Daisuke Nakane

Japan Society for the Promotion of Science (21K07020)

  • Daisuke Nakane

Japan Society for the Promotion of Science (16H06230)

  • Daisuke Nakane

Nakajima Foundation

  • Daisuke Nakane

Noguchi Institute

  • Daisuke Nakane

Japan Society for the Promotion of Science (17K15244)

  • Gen Enomoto

Deutsche Forschungsgemeinschaft (WI2014/7-1)

  • Annegret Wilde

Deutsche Forschungsgemeinschaft (WI2014/8-1)

  • Annegret Wilde

EMBO postdoctoral fellowship (ALTF 274-2017)

  • Gen Enomoto

Japan Society for the Promotion of Science (Overseas Research Fellowships)

  • Gen Enomoto

Deutsche Forschungsgemeinschaft (403222702-SFB 1381 (A2))

  • Annegret Wilde

The funders had no role in study design, data collection, and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors thank Dr. Masahiko Ikeuchi (The University of Tokyo) for supplying the T. vulcanus wild-type strains. This study was supported in part by KAKENHI (16H06230, 20H05543, 21K07020) to DN, by funds from the Nakajima Foundation, the Noguchi Institute to DN, by KAKENHI (17K15244) to GE, by the German Science Foundation (WI2014/7-1, WI2014/8-1 and in frame of the SFB1381 – 403222702-SFB 1381 (A2)) to AW. GE is supported by the EMBO postdoctoral fellowship (ALTF 274-2017) and JSPS Overseas Research Fellowships.

Version history

  1. Preprint posted: August 27, 2021 (view preprint)
  2. Received: August 27, 2021
  3. Accepted: March 21, 2022
  4. Version of Record published: May 10, 2022 (version 1)

Copyright

© 2022, Nakane et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,575
    Page views
  • 196
    Downloads
  • 11
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Daisuke Nakane
  2. Gen Enomoto
  3. Heike Bähre
  4. Yuu Hirose
  5. Annegret Wilde
  6. Takayuki Nishizaka
(2022)
Thermosynechococcus switches the direction of phototaxis by a c-di-GMP-dependent process with high spatial resolution
eLife 11:e73405.
https://doi.org/10.7554/eLife.73405

Share this article

https://doi.org/10.7554/eLife.73405

Categories and tags

Further reading

    1. Microbiology and Infectious Disease

    Tools and methods for high-throughput single-cell imaging with the mother machine

    Ryan Thiermann, Michael Sandler ... Suckjoon Jun
    Tools and Resources

    Despite much progress, image processing remains a significant bottleneck for high-throughput analysis of microscopy data. One popular platform for single-cell time-lapse imaging is the mother machine, which enables long-term tracking of microbial cells under precisely controlled growth conditions. While several mother machine image analysis pipelines have been developed in the past several years, adoption by a non-expert audience remains a challenge. To fill this gap, we implemented our own software, MM3, as a plugin for the multidimensional image viewer napari. napari-MM3 is a complete and modular image analysis pipeline for mother machine data, which takes advantage of the high-level interactivity of napari. Here, we give an overview of napari-MM3 and test it against several well-designed and widely used image analysis pipelines, including BACMMAN and DeLTA. Researchers often analyze mother machine data with custom scripts using varied image analysis methods, but a quantitative comparison of the output of different pipelines has been lacking. To this end, we show that key single-cell physiological parameter correlations and distributions are robust to the choice of analysis method. However, we also find that small changes in thresholding parameters can systematically alter parameters extracted from single-cell imaging experiments. Moreover, we explicitly show that in deep learning-based segmentation, ‘what you put is what you get’ (WYPIWYG) – that is, pixel-level variation in training data for cell segmentation can propagate to the model output and bias spatial and temporal measurements. Finally, while the primary purpose of this work is to introduce the image analysis software that we have developed over the last decade in our lab, we also provide information for those who want to implement mother machine-based high-throughput imaging and analysis methods in their research.

    1. Microbiology and Infectious Disease

    High-risk Escherichia coli clones that cause neonatal meningitis and association with recrudescent infection

    Nguyen Thi Khanh Nhu, Minh-Duy Phan ... Mark A Schembri
    Research Article

    Neonatal meningitis is a devastating disease associated with high mortality and neurological sequelae. Escherichia coli is the second most common cause of neonatal meningitis in full-term infants (herein NMEC) and the most common cause of meningitis in preterm neonates. Here, we investigated the genomic relatedness of a collection of 58 NMEC isolates spanning 1974–2020 and isolated from seven different geographic regions. We show NMEC are comprised of diverse sequence types (STs), with ST95 (34.5%) and ST1193 (15.5%) the most common. No single virulence gene profile was conserved in all isolates; however, genes encoding fimbrial adhesins, iron acquisition systems, the K1 capsule, and O antigen types O18, O75, and O2 were most prevalent. Antibiotic resistance genes occurred infrequently in our collection. We also monitored the infection dynamics in three patients that suffered recrudescent invasive infection caused by the original infecting isolate despite appropriate antibiotic treatment based on antibiogram profile and resistance genotype. These patients exhibited severe gut dysbiosis. In one patient, the causative NMEC isolate was also detected in the fecal flora at the time of the second infection episode and after treatment. Thus, although antibiotics are the standard of care for NMEC treatment, our data suggest that failure to eliminate the causative NMEC that resides intestinally can lead to the existence of a refractory reservoir that may seed recrudescent infection.

    1. Microbiology and Infectious Disease

    A remarkable genetic shift in a transmitted/founder virus broadens antibody responses against HIV-1

    Swati Jain, Gherman Uritskiy ... Venigalla B Rao
    Research Article

    A productive HIV-1 infection in humans is often established by transmission and propagation of a single transmitted/founder (T/F) virus, which then evolves into a complex mixture of variants during the lifetime of infection. An effective HIV-1 vaccine should elicit broad immune responses in order to block the entry of diverse T/F viruses. Currently, no such vaccine exists. An in-depth study of escape variants emerging under host immune pressure during very early stages of infection might provide insights into such a HIV-1 vaccine design. Here, in a rare longitudinal study involving HIV-1 infected individuals just days after infection in the absence of antiretroviral therapy, we discovered a remarkable genetic shift that resulted in near complete disappearance of the original T/F virus and appearance of a variant with H173Y mutation in the variable V2 domain of the HIV-1 envelope protein. This coincided with the disappearance of the first wave of strictly H173-specific antibodies and emergence of a second wave of Y173-specific antibodies with increased breadth. Structural analyses indicated conformational dynamism of the envelope protein which likely allowed selection of escape variants with a conformational switch in the V2 domain from an α-helix (H173) to a β-strand (Y173) and induction of broadly reactive antibody responses. This differential breadth due to a single mutational change was also recapitulated in a mouse model. Rationally designed combinatorial libraries containing 54 conformational variants of V2 domain around position 173 further demonstrated increased breadth of antibody responses elicited to diverse HIV-1 envelope proteins. These results offer new insights into designing broadly effective HIV-1 vaccines.
