Cortical microtubule pulling forces contribute to the union of the parental genomes in the Caenorhabditis elegans zygote

  1. Griselda Velez-Aguilera
  2. Batool Ossareh-Nazari
  3. Lucie Van Hove
  4. Nicolas Joly
  5. Lionel Pintard  Is a corresponding author
  1. Université Paris cité, CNRS, Institut Jacques Monod, F-75013, France

Abstract

Previously, we reported that the Polo-like kinase PLK-1 phosphorylates the single Caenorhabditis elegans lamin (LMN-1) to trigger lamina depolymerization during mitosis. We showed that this event is required to form a pronuclear envelope scission event that removes membranes on the juxtaposed oocyte and sperm pronuclear envelopes in the zygote, allowing the parental chromosomes to merge in a single nucleus after segregation (Velez-Aguilera et al., 2020). Here, we show that cortical microtubule pulling forces contribute to pronuclear envelopes scission by promoting mitotic spindle elongation, and conversely, nuclear envelopes remodeling facilitates spindle elongation. We also demonstrate that weakening the pronuclear envelopes via PLK-1-mediated lamina depolymerization, is a prerequisite for the astral microtubule pulling forces to trigger pronuclear membranes scission. Finally, we provide evidence that PLK-1 mainly acts via lamina depolymerization in this process. These observations thus indicate that temporal coordination between lamina depolymerization and mitotic spindle elongation facilitates pronuclear envelopes scission and parental genomes unification.

Editor's evaluation

This manuscript shows how the mitotic spindle helps to break apart the nuclear envelopes surrounding the maternal and paternal genomes so that they can be mixed together after fertilisation. This study will be interesting for cell biologists and biophysicists studying nuclear organization and mechanics. The work provides new insights into how pulling forces from the cell cortex influence the dynamics of nuclear rupture during mitosis.

https://doi.org/10.7554/eLife.75382.sa0

Introduction

The life of sexually reproducing organisms starts with joining two haploid genomes. Parental chromosomes are first replicated in distinct pronuclei, each surrounded by a nuclear envelope, and meet for the first time during the first mitosis. Coordinated disassembly of the pronuclear envelopes is required to promote the reunification of the parental chromosomes in the fertilized zygote, but the underlying mechanisms are incompletely understood.

The Caenorhabditis elegans zygote provides an attractive model system to investigate the mechanisms by which the maternal and paternal genomes unify at the beginning of life (Oegema and Hyman, 2006; Cohen-Fix and Askjaer, 2017; Pintard and Bowerman, 2019). After fertilization, the oocyte and sperm chromosomes surrounded by a nuclear envelope localize to opposite sides of the zygote. The female pronucleus is located in the anterior, whereas the male pronucleus—and associated centrosomes—is in the posterior. When the two pronuclei meet, they change their shape, flattening out along their juxtaposed sides, eventually aligning along the AP axis of the one-cell embryo (Oegema and Hyman, 2006). The two pronuclei undergo spatially regulated nuclear envelope breakdown (NEBD) to permit chromosome attachment to microtubules and their alignment on the metaphase plate. The mechanisms promoting NEBD and remodeling for the subsequent unification of two parental genomes in the first mitosis of the zygote remain poorly understood and are the focus of this study.

The nuclear envelope consists of two lipid bilayers: the inner nuclear membrane (INM) and outer nuclear membrane (ONM), separated by the perinuclear space (PNS) (Cohen-Fix and Askjaer, 2017). The ONM is continuous with the endoplasmic reticulum membrane, while the PNS is continuous with the ER lumen. Transport across the two nuclear membranes occurs through the nuclear pore complexes (NPCs), anchored to the membrane via several transmembrane nucleoporins. Underlying the INM, the nuclear lamina provides mechanical integrity to the nucleus. C. elegans encodes a single lamin (LMN-1), closer to vertebrate B-type than A-type lamins (Liu et al., 2000).

In the C. elegans zygote, mitosis is semi-open, and the nuclear envelope only partially breaks down during spindle assembly (Cohen-Fix and Askjaer, 2017). NPC disassembly and lamina depolymerization starts in the vicinity of the centrosomes and then later on the juxtaposed envelopes located between the parental chromosomes (Lee et al., 2000; Hachet et al., 2012; Velez-Aguilera et al., 2020). Complete removal of the NPCs and the lamina only occurs in early anaphase (Lee et al., 2000; Hachet et al., 2012; Velez-Aguilera et al., 2020). While NPCs disassemble and the lamina depolymerizes, remnant nuclear membranes, which contain INM and ONM proteins, persist between the parental chromosomes during mitosis. Removal of the membranes between the parental chromosomes begins with the formation of a membrane scission event (also called a membrane gap), visible by fluorescent microscopy by labeling INM proteins (e.g., LEM-2) (Audhya et al., 2007). This event occurs concomitantly with the parental chromosomes congressing on the metaphase plate, 10–40 s before anaphase onset (Audhya et al., 2007; Rahman et al., 2020), allowing the chromosomes from the two pronuclei to mingle on the metaphase plate and join in a single nucleus after chromosome segregation. How this membrane scission event forms remains poorly understood. Intriguingly, it always appears at an equal distance from the two centrosomes and depends on the proper alignment of the chromosomes on the metaphase plate (Rahman et al., 2015). Consistently, membrane scission is totally prevented in hcp-3CENPA(RNAi) embryos (Rahman et al., 2015) that fail to assemble kinetochores and are defective in chromosome alignment (Oegema et al., 2001).

Formation of this membrane gap also requires depolymerization of the lamina by the mitotic Polo-like kinase PLK-1 (Rahman et al., 2015; Martino et al., 2017; Velez-Aguilera et al., 2020). Accordingly, expression of an LMN-1 version, carrying eight non-phosphorylable alanines replacing serines (hereafter LMN-1 8A), is sufficient to prevent the formation of pronuclear envelopes scission. A failure to form this membranes scission can result in the appearance of embryos with a paired nuclei phenotype (Rahman et al., 2015; Martino et al., 2017; Velez-Aguilera et al., 2020). In these embryos, the two sets of parental chromosomes remain physically separated during mitosis and segregate into two separate DNA masses at each pole of the spindle. In turn, this leads to the formation of two nuclei in each cell of the two-cell embryo (paired nuclei) (Audhya et al., 2007; Bahmanyar et al., 2014; Galy et al., 2008; Rahman et al., 2015; Martino et al., 2017; Velez-Aguilera et al., 2020).

Besides PLK-1-mediated lamina depolymerization, mechanical forces provided by astral microtubules could also contribute to pronuclear envelopes scission by facilitating the removal of the lamina, similar to the situation in human cells (Salina et al., 2002; Beaudouin et al., 2002), but possibly also by promoting mitotic spindle elongation.

Here, we follow-up on our previous work showing that pronuclear envelopes scission is regulated via PLK-1-mediated lamina depolymerization (Velez-Aguilera et al., 2020) by testing whether cortical microtubule pulling forces also contribute to this process. We show that astral microtubule pulling forces contribute to pronuclear membranes scission by facilitating lamina disassembly and promoting mitotic spindle elongation. Our observations thus suggest that temporal coordination between chromosome alignment, lamina depolymerization, and spindle elongation induces pronuclear envelopes scission and the unification of the parental chromosomes after segregation.

Results and discussion

Microtubules dynamics during NEBD in the one-cell C. elegans embryo

Previous work established that NEBD is spatially regulated in the fertilized one-cell C. elegans zygote (Lee et al., 2000; Hachet et al., 2012; Velez-Aguilera et al., 2020), but the exact timing of each event and the contribution of microtubules to this process had not yet been investigated. To address this point, we simultaneously visualized microtubules and nuclear envelope dynamics with a high temporal resolution during NEBD. We used spinning disk confocal microscopy to film one-cell embryos (one image/2 s), expressing fluorescently labeled tubulin (GFP::TBB-2) with either the lamina (mCherry::LMN-1) (Figure 1A, Figure 1—video 1), or the transmembrane nucleoporin NPP-22NDC1 (mCherry::NPP-22NDC1) to visualize nuclear membranes (Figure 1B, Figure 1—video 2). We also filmed embryos expressing GFP::TBB-2 and mCherry-tagged histone (mCherry::Histone) to monitor the configuration of the chromosomes during the different steps of NEBD (Figure 1C, Figure 1—video 3).

Figure 1 with 6 supplements see all
Monitoring microtubule and pronuclear envelopes dynamics in the one-cell Caenorhabditis elegans embryo.

(A–C) Spinning disk confocal micrographs of embryos expressing wild-type GFP::TBB-2 (shown alone, and in green in the merged images) and (A) mCherry::LMN-1 (shown alone and in magenta in the merged image), or (B) mCherry::NPP-22 (magenta, in the merged image), or (C) mCherry::Histone (magenta, in the merged image). Timings in seconds are relative to anaphase onset (0 s). All panels are at the same magnification. Scale bar, 10 μm. (D) Steps of pronuclear envelopes breakdown: pronuclei permeabilization, lamina disassembly (at the poles, between pronuclei), and pronuclear envelopes scission event (membrane gap) relative to anaphase onset were scored in multiple embryos (n). The timing of pronuclear envelopes scission was scored in embryos expressing mCherry::NPP-22 (blue dots, n=7) while the timing of lamina disassembly was scored in embryos expressing mCherry::LMN-1 (orange dots, n=8). (E) Graph presenting the surface area occupied by the pronuclei starting 200 s before anaphase onset (0 s) in embryos expressing GFP::TBB-2 and mCherry::LMN-1. ( F) Graph presenting the intercentrosomal distance normalized to embryo length starting 80 s before anaphase onset (0 s) in embryos expressing GFP::TBB-2 and mCherry::LMN-1 or mCherry::NPP-22.

Figure 1—source data 1

Quantification of: (D) The steps of pronuclear envelopes breakdown: pronuclei permeabilization, lamina disassembly (at the poles, between pronuclei), chromosomes alignment, and pronuclear envelopes scission event (membrane gap); (E) The surface area occupied by the pronuclei starting 200 s before anaphase onset (0 s). (F) The intercentrosomal distance normalized to embryo length starting 80 s before anaphase onset (0 s).

https://cdn.elifesciences.org/articles/75382/elife-75382-fig1-data1-v2.xlsx

Before NEBD, 200 s prior to anaphase onset, microtubules were excluded from the pronuclei space, and the pronuclear envelopes appeared flattened along their juxtaposed sides but presented elsewhere a rounded shape, except around centrosomes where the nuclear envelopes were highly curved (90° angle) (Figure 1A and B). Later, 160 s before anaphase onset, signs of nuclear envelope deformation were apparent in the vicinity of the centrosomes (Figure 1A, red arrow). At these sites, the pronuclear envelopes appeared deformed toward the centrosomes, with the appearance of protrusions, suggesting that microtubules, emanating from the centrosomes were pulling on the pronuclear envelopes. Pronuclear envelopes permeabilization, measured by the appearance of soluble tubulin in the pronuclei space, was detected around 160 s before anaphase onset, concomitantly with pronuclear membranes deformation near the centrosomes (Figure 1A–D, Figure 1—source data 1). Nuclear envelope permeabilization was systematically detected first in the male pronucleus (Figure 1—figure supplement 1). Soon after membrane permeabilization, the first microtubules started to invade the pronuclei space. As more microtubules invaded the pronuclei space to capture paternal chromosomes, the overall surface of the pronuclei decreased (Figure 1E, Figure 1—source data 1), and the pronuclei adopted a more triangular shape, possibly dictated by microtubules assembling the mitotic spindle in the space confined by the remnants of the pronuclear envelopes (Figure 1B; Hayashi et al., 2012).

Signs of lamina disappearance from the pronuclear envelopes systematically started in the vicinity of centrosomes, 70 s before anaphase onset (Figure 1A and D, Figure 1—figure supplement 2), possibly as a consequence of microtubule pulling at this site, together with the action of the lamin kinase PLK-1, which is enriched at centrosomes (Chase et al., 2000; Budirahardja and Gönczy, 2008; Nishi et al., 2008; Martino et al., 2017). The lamina progressively disappeared in the vicinity of the centrosomes but persisted between the parental chromosomes. Lamina disassembly between the pronuclei started only 50 s before anaphase onset (Figure 1A and D). At this time point, the lamina network was still detected on the nuclear envelope remnants surrounding the chromosomes (Figure 1A). The membrane scission event between the juxtaposed pronuclei was detected later, around 30 s before anaphase onset (Figure 1B and D, Figure 1—figure supplement 3), consistent with previous observations (Audhya et al., 2007). The membrane scission event appeared immediately after chromosome alignment on the metaphase plate (Figure 1B, red arrowhead, Figure 1—figure supplement 3, Figure 1—source data 1).

Starting 80 s before anaphase onset, the distance between the centrosomes steadily increased as a result of spindle elongation (Figure 1F, Figure 1—source data 1). The beginning of spindle elongation was concomitant with lamina depolymerization but preceded membrane gap formation. Based on these observations, we hypothesized that by pulling on nuclear envelopes and membranes, and by tearing apart the lamina and by elongating the mitotic spindle, astral microtubule pulling forces might contribute to pronuclear envelopes breakdown, and thus to the unification of the parental chromosomes in the early C. elegans embryo.

Paired nuclei phenotype upon reduction of cortical microtubule pulling forces and partial lamina stabilization

The paired nuclei phenotype is a visual readout of the failure to properly remove the nuclear envelope between the pronuclei (Audhya et al., 2007; Bahmanyar et al., 2014; Galy et al., 2008; Rahman et al., 2015; Martino et al., 2017; Velez-Aguilera et al., 2020).

To test whether microtubule pulling forces contribute to pronuclear envelopes breakdown, we examined whether experimental reduction of microtubule-dependent cortical pulling forces could modify the penetrance of the paired nuclei phenotype of embryos expressing the gfp::lmn-1 8A allele (Link et al., 2018; Velez-Aguilera et al., 2020). Because this allele partially stabilizes the lamina, 8% of the embryos expressing GFP::LMN-1 8A present double-paired nuclei at the two-cell stage, and another 9% present a single-paired nuclei cell (Figure 2A, Figure 2—source data 1). To reduce the cortical pulling forces, we used RNAi to partially deplete GPR-1/2, which are part of an evolutionarily conserved complex anchoring the dynein motor to the embryo cortex (Colombo et al., 2003; Gotta et al., 2003; Srinivasan et al., 2003; Figure 2B). Mild depletion of GPR-1/2 in gfp::lmn-1 8A embryos greatly enhanced the percentage of embryos presenting a paired nuclei phenotype, with nearly 54% showing double-paired nuclei and 24% a single-paired nuclei (Figure 2A, Figure 2—source data 1). More severe RNAi-mediated gpr-1/2 inactivation (Materials and methods) further increased the percentage of gfp::lmn-1 8A mutant embryos presenting a double-paired nuclei phenotype to 83% (Figure 2A, Figure 2—source data 1). Similar treatments of the embryos expressing a wild-type (WT) GFP::LMN-1 allele had only little effect with 5% of embryos presenting a double-paired nuclei phenotype and 4% presenting a single-paired nuclei phenotype (Figure 2A, Figure 2—source data 1). Thus, reduction of cortical microtubule pulling forces enhances the paired nuclei phenotype of embryos with a partially stabilized lamina network. These observations indicate that microtubule pulling forces facilitate the union of the parental chromosomes in the one-cell embryo.

Figure 2 with 1 supplement see all

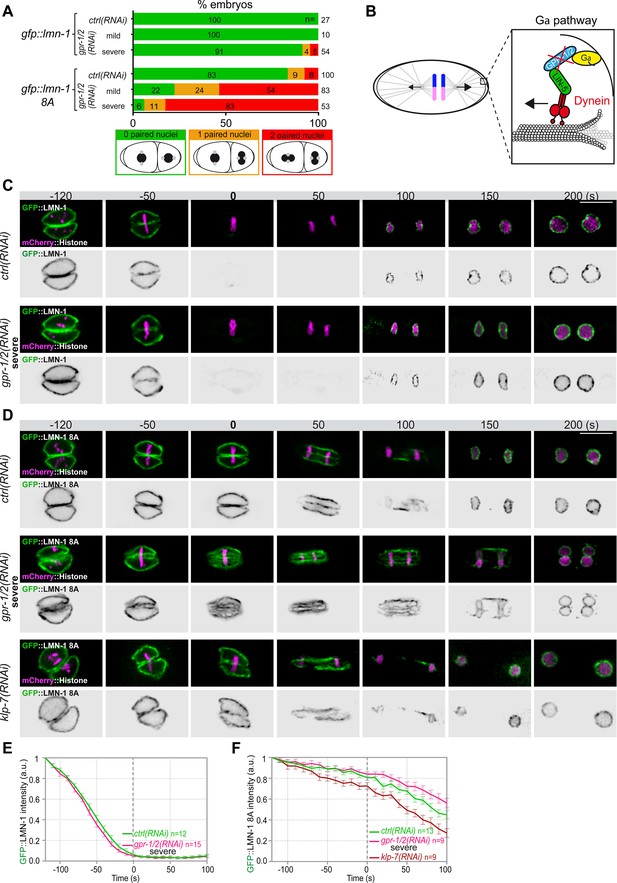

Astral microtubule pulling forces contribute to the union of the parental chromosomes during mitosis.

(A) Percentage of lmn-1∆; gfp::lmn-1 and lmn-1∆; gfp::lmn-1 8A embryos presenting 0 (green bars), 1 (orange bars), or 2 (red bars) paired nuclei at the two-cell stage upon exposure to mock RNAi (ctrl) or gpr-1/2(RNAi) at 20°C. The number of embryos of the indicated phenotype (n) is shown in the graph and was collected from more than three independent experiments. (B) Schematics of a one-cell Caenorhabditis elegans embryo in anaphase. The astral pulling forces mediated by the Gα pathway are schematized in the inset. This pathway, which comprises a complex of Gα (yellow), GPR-1/2 (blue), and LIN-5 (green), anchors dynein (red) to the cell cortex to generate pulling forces when dynein walks toward microtubule minus ends anchored at the spindle poles. Inactivation of GPR-1/2 (red cross) suppresses the astral pulling forces. (C, D) Spinning disk confocal micrographs of early lmn-1∆ mutant embryos expressing (C) wild-type GFP::LMN-1 or (D) GFP::LMN-1 8A (shown alone, and in green in the merged images) and mCherry::Histone (magenta, in the merged image) exposed to mock RNAi (ctrl) in the upper panels or gpr-1/2 and klp-7 RNAi in the lower panels. Times are in seconds relative to anaphase onset (0 s). All panels are at the same magnification Scale bar, 10 μm. (E, F) Quantification of (E) GFP::LMN-1 or (F) GFP::LMN-1 8A fluorescence signal intensity over time from central single focal planes above background at the nuclear envelope in embryos of the indicated genotype during mitosis. Times are in seconds relative to anaphase onset (0 s). The average signal intensity of GFP::LMN-1 and GFP::LMN-1 8A at 120 s before anaphase was defined as 1. The data points on the graphs are the normalized average signal intensity per pixel results ± SEM for n embryos of the indicated genotypes. Data were collected from three independent experiments.

Figure 2—source data 1

Quantification of: (A) Percentage of lmn-1∆; gfp::lmn-1 and lmn-1∆; gfp::lmn-1 8A embryos presenting zero-, one-, or two-paired nuclei at the two-cell stage upon exposure to mock RNAi (ctrl) or gpr-1/2(RNAi); (E) GFP::LMN-1 or GFP::LMN-1 8A (F, G) signal intensity during mitosis upon exposure to mock RNAi (ctrl), gpr-1/2(RNAi), or klp-7(RNAi).

https://cdn.elifesciences.org/articles/75382/elife-75382-fig2-data1-v2.xlsx

To test if microtubule pulling forces were directly facilitating lamina disassembly, we monitored GFP::LMN-1 WT and 8A levels throughout mitosis in control versus gpr-1/2 (RNAi) embryos, upon partial or severe gpr-1/2 inactivation. gpr-1/2 inactivation had no discernable effect on GFP::LMN-1 WT disassembly (Figure 2C and E, Figure 2—source data 1). Likewise, partial gpr-1/2 inactivation did not significantly stabilize GFP::LMN-1 8A during mitosis (Figure 2—figure supplement 1 and Figure 2—figure supplement 1—source data 1). However, more severe reduction of cortical microtubule pulling forces, using strong RNAi-mediated gpr-1/2 inactivation, did stabilize GFP::LMN-1 8A (Figure 2D and F, Figure 2—source data 1), indicating that microtubule pulling forces contribute to lamina disassembly during mitosis.

To corroborate these observations, we tested whether excessive microtubule pulling forces would facilitate the removal of GFP::LMN-1 8A. To do so, we inactivated the kinesin-13 family member KLP-7, which results in the assembly of an abnormally high number of astral microtubules and thus increases astral cortical pulling forces (Srayko et al., 2005; Gigant et al., 2017). Loss of klp-7 caused a premature disassembly of GFP::LMN-1 8A during mitosis (Figure 2D and F, Figure 2—source data 1), again arguing that astral microtubule pulling forces contribute to the union of the parental chromosomes, at least in part by pulling at the lamina during mitosis. However, our observation that partial inactivation of gpr-1/2 enhanced the percentage of GFP::LMN-1 8A embryos presenting a paired nuclei phenotype (Figure 2A, Figure 2—source data 1) without further stabilizing the lamina (Figure 2—figure supplement 1, Figure 2—source data 1) suggested that cortical microtubule pulling forces might prevent the formation of the paired nuclei phenotype by additional mechanism(s).

Reducing or increasing cortical microtubule pulling forces affects the timing of membrane scission between the parental pronuclei

Removal of the membranes between the parental chromosomes begins with a membrane scission event right before anaphase onset and after the beginning of mitotic spindle elongation (Figure 1D and F). We thus reasoned that by pulling on centrosomes and membranes, and by elongating the mitotic spindle, microtubule pulling forces might mechanically facilitate membrane scission between the parental pronuclei. To investigate this possibility, we used spinning disk confocal microscopy to monitor pronuclear membranes scission upon strong gpr-1/2 inactivation in embryos expressing the INM protein GFP::LEM-2 and mCherry::Histone, allowing simultaneous visualization of pronuclear envelopes and chromosomes (Figure 3A). In control embryos, the membrane scission event between the pronuclei was systematically observed around 30 s before anaphase onset, after chromosomes alignment on the metaphase plate (n=32) (Figure 3B, red arrowhead). However, in a vast majority of gpr-1/2(RNAi) embryos, the membrane scission between the pronuclei was never detected. Of the 30 embryos analyzed, only 4 presented a membrane scission event (13%) (Figure 3B and C, Figure 3—source data 1) and these 4 embryos were also the least affected in spindle elongation (Figure 3D, Figure 3—source data 1), suggesting that spindle elongation contributes to pronuclei membrane scission. Notably, all reforming nuclei were severely misshapen in gpr-1/2(RNAi) embryos, but only a fraction of them presented a double-paired nuclei phenotype at the two-cell stage (Figure 3E, Figure 3—source data 1).

Reduction of astral pulling forces prevents pronuclear membranes scission.

(A) Schematics of the approach used to test the effect of a reduction of astral microtubule pulling forces on pronuclear envelopes scission (membrane gap) during mitosis. (B) Spinning disk confocal micrographs of one-cell stage embryos expressing the inner nuclear membrane protein GFP::LEM-2 (shown alone, and in green in the merged images) and mCherry::Histone (magenta, in the merged image) exposed to mock RNAi (ctrl) in the upper panels or gpr-1/2(RNAi) in the lower panels. Times are in seconds relative to anaphase onset (0 s). The fraction of embryos that showed the presented phenotype is indicated at the bottom right of each image. All panels are at the same magnification Scale bar, 10 μm. The orange arrowheads point to the pronuclear envelopes scission event. (C) Percentage of embryos presenting a pronuclear envelopes scission event upon exposure to mock RNAi (ctrl) or gpr-1/2(RNAi). (D) Graphs showing the intercentrosomal distance normalized to embryo length in percentage during mitosis upon exposure to mock RNAi (ctrl) or gpr-1/2(RNAi). Times are in seconds relative to anaphase onset (0 s). (E) Percentage of embryos presenting zero- (green bars), one- (orange bars), or two- (red bars) paired nuclei at the two-cell stage upon exposure to mock RNAi (ctrl) or gpr-1/2(RNAi). The number of embryos analyzed (n) is indicated on the graph and was collected from three independent experiments.

Figure 3—source data 1

Quantification of: (C) Percentage of embryos presenting a pronuclear envelopes scission event; (D) The intercentrosomal distance normalized to embryo length starting 80 s before anaphase onset (0 s); (E) Percentage of gfp-lem-2 embryos presenting zero-, one-, or two-paired nuclei at the two-cell stage upon exposure to mock RNAi (ctrl) or gpr-1/2(RNAi).

https://cdn.elifesciences.org/articles/75382/elife-75382-fig3-data1-v2.xlsx

If cortical microtubule pulling forces contribute to the formation of the pronuclei membrane scission event by elongating the mitotic spindle, excessive pulling forces might induce a premature membrane scission relative to anaphase onset. To test this hypothesis, we used two complementary approaches to increase astral microtubule pulling forces. We inactivated klp-7 as before, or efa-6 (exchange factor for Arf), which encodes a cortically localized protein that limits the growth of microtubules near the cell cortex of early embryonic cells. Loss of EFA-6 causes excess centrosome separation and displacement toward the cell cortex early in mitosis and subsequently increased rates of spindle elongation (O’Rourke et al., 2010). We inactivated klp-7 or efa-6 in embryos expressing GFP::LEM-2 and mCherry::Histone to monitor pronuclear membranes scission relative to anaphase onset and mitotic spindle length (Figure 4A). While the control embryos underwent membrane scission between the juxtaposed pronuclei 0–30 s before anaphase onset, this event occurred systematically earlier in efa-6 and klp-7(RNAi) embryos. In 50% of these embryos, pronuclear membranes scission occurred between 40 and 120 s before anaphase onset (Figure 4B and C, Figure 4—source data 1). Membrane scission occurred earlier in these embryos as a consequence of premature mitotic spindle elongation (Figure 4D, Figure 4—source data 1). By measuring mitotic spindle length at the time of membrane gap formation, we noticed that membranes scission systematically occurred at a similar mitotic spindle length (Figure 4E, Figure 4—source data 1). Taken together, these observations indicate that microtubule pulling forces, by promoting mitotic spindle elongation, contribute to pronuclear membranes scission, possibly by tearing apart the pronuclear membranes.

Figure 4 with 1 supplement see all

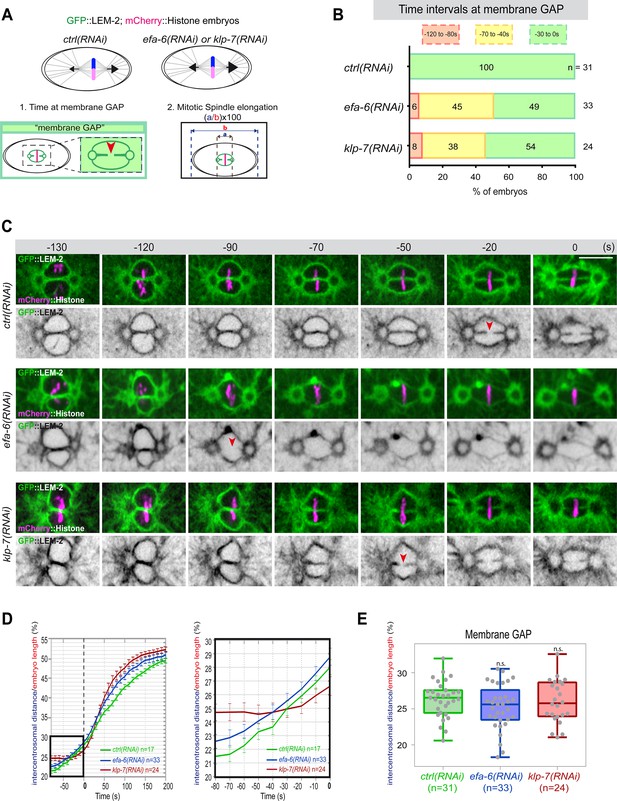

Premature pronuclear membranes scission event upon excessive astral microtubule pulling forces.

(A ) Schematics of the approach to test the effect of excessive astral microtubule pulling forces on pronuclear membranes scission (membrane gap) (1) and mitotic spindle elongation (2). (B) Percentage of embryos presenting the pronuclear membranes scission event at different time intervals relative to anaphase onset (0 s). The number of embryos (n) analyzed is indicated on the graph and was collected from three independent experiments. (C–) Spinning disk confocal micrographs of early embryos expressing mCherry::Histone, GFP::LEM-2 exposed to mock RNAi (ctrl), efa-6(RNAi), or klp-7(RNAi). Times are in seconds relative to anaphase onset (0 s). The red arrowheads indicate pronuclear membranes scission. All panels are at the same magnification Scale bar, 10 μm. (D) Intercentrosomal distance normalized to embryo length in percentage during mitosis upon exposure to mock RNAi (ctrl), efa-6, or klp-7(RNAi). Times are in seconds relative to anaphase onset (0 s). The graph on the right is a zoom of the first graph focused on the 80 s before anaphase onset (0 s). (E) Box and Whisker plots presenting the intercentrosomal distance normalized to embryo length in percentage at the time of pronuclear membranes gap formation in embryos of the indicated genotypes. n=number of embryos analyzed.

Figure 4—source data 1

Quantification of: (B) Percentage of embryos presenting a pronuclear membranes scission event at different time intervals relative to anaphase onset (0s); (D) The intercentrosomal distance normalized to embryo length starting 80s before anaphase onset (0s); (E) The intercentrosomal distance normalized to embryo length in percentage at the time of pronuclear membranes gap formation in embryos upon exposure to mock RNAi (ctrl), efa-6(RNAi), or klp-7(RNAi).

https://cdn.elifesciences.org/articles/75382/elife-75382-fig4-data1-v2.xlsx

Lamina depolymerization and chromosome alignment are prerequisites for membrane gap formation even in the presence of excessive pulling forces

Embryos with a stabilized lamina, expressing the non-phosphorylable LMN-1 8A, are systematically defective in pronuclear envelopes scission (Velez-Aguilera et al., 2020). We reasoned that the lamina when stabilized, in addition to constituting a physical barrier between chromosomes, could oppose the pulling forces exerted by astral microtubules and could thus prevent elongation of the mitotic spindle during anaphase. To test this model, we measured mitotic spindle elongation in WT versus lmn-1 8A mutant embryos by measuring the intercentrosomal distance during mitosis. In contrast to WT, the spindle did not elongate to the same extent in lmn-1 8A mutant embryos (Figure 5A, Figure 5—source data 1), indicating that stabilization of the lamina interferes with mitotic spindle elongation and thus that lamina depolymerization facilitates spindle elongation.

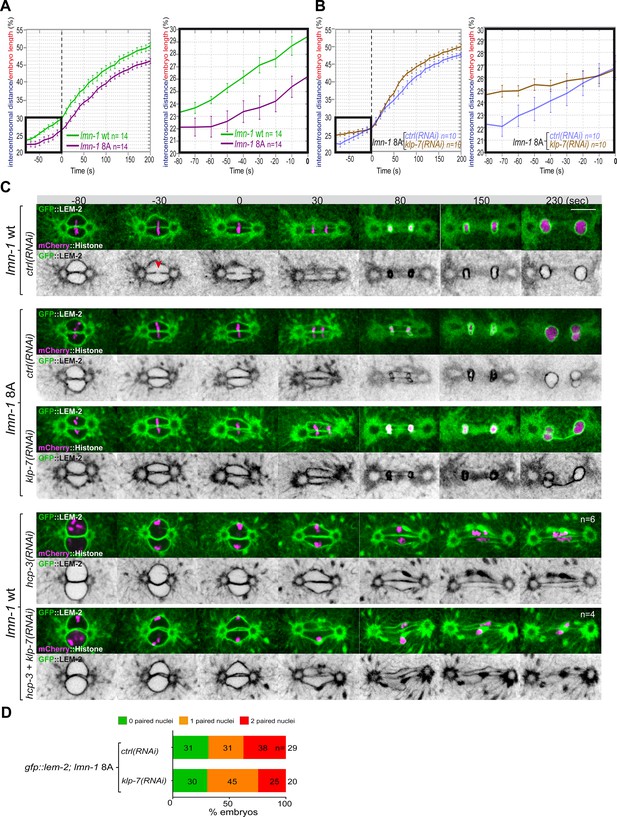

Chromosome alignment and lamina depolymerization are prerequisites for pronuclear membranes scission.

(A) Graphs showing the intercentrosomal distance normalized to embryo length in percentage in wild-type and lmn-1 8A embryos during mitosis. Times are in seconds relative to anaphase onset (0 s). The graph on the right is a zoom of the first graph focused on the 80 s before anaphase onset (0 s). (B) Graphs showing the intercentrosomal distance normalized to embryo length in percentage in lmn-1 8A embryos exposed to mock RNAi (ctrl) or klp-7(RNAi) during mitosis. Times are in seconds relative to anaphase onset (0 s). The graph on the right is a zoom of the first graph focused on the 80 s before anaphase onset (0 s). (C) Spinning disk confocal micrographs of one-cell stage embryos of the indicated genotype expressing the inner nuclear membrane protein GFP::LEM-2 (shown alone, and in green in the merged images) and mCherry::Histone (magenta, in the merged image). Times are in seconds relative to anaphase onset (0 s). The fraction of embryos that showed the presented phenotype is indicated at the bottom right of each image. All panels are at the same magnification Scale bar, 10 μm. The orange arrowheads point to the pronuclear envelopes scission event. (D) Percentage of embryos presenting zero- (green bars), one- (orange bars), or two- (red bars) paired nuclei at the two-cell stage upon exposure to mock RNAi (ctrl) or klp-7(RNAi). The number of embryos analyzed (n) is indicated on the graph and was collected from three independent experiments.

Figure 5—source data 1

Quantification of: (A) The intercentrosomal distance normalized to embryo length starting 80 s before anaphase onset (0 s) in lmn-1 wt and lmn-1 8A embryos; (B) The intercentrosomal distance normalized to embryo length starting 80s before anaphase onset (0s) in lmn-1 8A embryos upon exposure to mock (control, ctrl) or klp-7(RNAi); (E) Percentage of gfp-lem-2; lmn-1 8A embryos presenting zero-, one-, or two-paired nuclei at the two-cell stage upon exposure to mock RNAi (ctrl) or gpr-1/2(RNAi).

https://cdn.elifesciences.org/articles/75382/elife-75382-fig5-data1-v2.xlsx

We then asked whether excessive microtubule pulling forces might rescue pronuclear envelopes scission in embryos defective in lamina depolymerization. To test this hypothesis, we inactivated klp-7 in lmn-1 8A embryos expressing GFP::LEM-2 and mCherry::Histone and monitored the nuclear envelope dynamics and mitotic spindle elongation by spinning disk confocal microscopy. While these treatments rescued mitotic spindle elongation defects of lmn-1 8A embryos (Figure 5B, Figure 5—source data 1), they failed to restore the formation of pronuclear membranes scission and single nucleus embryos at the two-cell stage (Figure 5C and D).

These observations indicate that even premature and excessive spindle elongation is not sufficient to induce membrane scission when the lamina is stabilized during mitosis.

Collectively, these observations indicate that lamina depolymerization is a prerequisite for pronuclear envelopes scission.

Previous work has shown that a defect in chromosome alignment on the metaphase plate prevents pronuclear membranes scission (Rahman et al., 2015). In the efa-6 or klp-7(RNAi) embryos with enhanced astral pulling forces, pronuclear membranes scission often occurred before chromosomes were fully aligned on the metaphase plate (Figure 4—figure supplement 1) suggesting that membrane scission between the pronuclei may not require full and complete chromosome alignment on the metaphase plate.

To further investigate this possibility, we examined whether excessive pulling forces can trigger pronuclear envelopes scission between the pronuclei in the total absence of chromosome alignment. To this end, we inactivated klp-7 and the essential kinetochore protein HCP-3CENPA to prevent chromosome congression on the metaphase plate (Oegema et al., 2001). In these embryos, no membrane scission was detected despite the extensive mitotic spindle elongation (Figure 5C). These observations indicate that chromosome localization in the vicinity of the pronuclear membranes is necessary for pronuclear membranes scission and might dictate the site of membranes scission.

The essential role of PLK-1 in pronuclear envelopes scission is to promote lamina depolymerization

PLK-1 is critically required for pronuclear envelopes scission (Rahman et al., 2015; Martino et al., 2017). Accordingly, membranes scission is prevented in plk-1ts embryos. We thus investigated the exact role of PLK-1 in pronuclear envelopes scission. We previously showed that LMN-1 is a key PLK-1 target in this process as the sole expression of the non-phosphorylable lmn-1 8A allele is sufficient to prevent pronuclear envelopes scission (Velez-Aguilera et al., 2020). Whether PLK-1 regulates pronuclear envelopes scission by targeting other substrates is currently unclear. For instance, PLK-1 could regulate membrane scission by activating a factor essential for pronuclear envelopes scission. Recent Focused Ion Beam-Scanning Electron Microscopy (FIB-SEM) analysis has revealed that the four membranes of the pronuclei fuse and become two via a novel membrane structure, the three-way sheet junctions (Rahman et al., 2020). These junctions are absent in plk-1ts embryos (Rahman et al., 2020) raising the possibility that PLK-1 could directly regulate their formation.

To discriminate between these hypotheses, we asked whether partial lmn-1 inactivation by RNAi is sufficient to restore pronuclear envelopes scission in plk-1ts embryos (Figure 6A). If lmn-1 inactivation in plk-1ts does not restore pronuclear envelopes scission, this would argue that PLK-1 has, beyond lamina depolymerization, other roles to promote membrane gap formation. However, if lmn-1 inactivation is sufficient to restore membrane gap formation in plk-1ts, this would suggest that LMN-1 is possibly the only key PLK-1 target in this process, unless partial lmn-1 inactivation indirectly affects an inhibitor of pronuclear envelopes scission.

PLK-1 triggers pronuclear membranes scission mainly via lamina depolymerization.

(A) The schematics present the approach used to test whether partial lmn-1 inactivation in plk-1ts embryos expressing GFP::LEM-2 and mCherry::EMR-1 is sufficient to restore membrane gap formation. (B) Spinning disk confocal micrographs of wild-type or plk-1ts early embryos expressing mCherry::EMR-1 and GFP::LEM-2 exposed mock RNAi (ctrl) or lmn-1(RNAi). All panels are at the same magnification. Scale bar, 10 μm. (C) Percentage of embryos presenting zero- (green bars), one- (orange bars), or two- (red bars) paired nuclei at the two-cell stage upon exposure to mock RNAi (ctrl) or lmn-1(RNAi). The number of embryos analyzed (n) is indicated on the graph and was collected from three independent experiments. (D) Working model: temporal coordination between lamina depolymerization, chromosome alignment, and mitotic spindle elongation is required for pronuclear envelopes scission and parental genomes unification in the early Caenorhabditis elegans embryo.

Figure 6—source data 1

Quantification of: (C) Percentage of plk-1(or683ts) embryos, expressing GFP::LEM-2, and mCherry::EMR-1 presenting zero-, one-, or two-paired nuclei at the two-cell stage upon exposure to mock RNAi (ctrl) or lmn-1(RNAi).

https://cdn.elifesciences.org/articles/75382/elife-75382-fig6-data1-v2.xlsx

To monitor pronuclear envelopes scission in plk-1ts mutant embryos, we constructed a plk-1ts strain co-expressing GFP::LEM-2 and mCherry::EMR-1 (EMERIN), which both localize to the inner nuclear envelope and directly interact with the lamina (Figure 6A). We then used spinning disk confocal microscopy to monitor pronuclear membranes configuration in one-cell embryos. As reported previously, pronuclear envelopes scission between the pronuclei was totally prevented in plk-1ts embryos at restrictive temperature (Rahman et al., 2020; Rahman et al., 2015). However, partial RNAi-mediated lmn-1 inactivation was sufficient to restore pronuclear envelopes scission (Figure 6B). lmn-1 inactivation also suppressed the paired nuclei phenotype of plk-1ts embryos in these conditions (Figure 6C, Figure 6—source data 1), as reported previously (Rahman et al., 2015; Martino et al., 2017). lmn-1 inactivation not only restored membrane scission and the shape of the pronuclei, but also the normal localization of LEM-2 and EMR-1.

In plk-1ts embryos, pronuclei appeared rounded, likely due to the persisting lamina that provides rigidity to the nuclear membrane. GFP::LEM-2 and mCherry::EMR-1 readily accumulated on the nuclear envelope. lmn-1 inactivation restored the triangular shape of the mitotic spindle and the correct localization of LEM-2 and EMR-1 to the endoplasmic reticulum surrounding the centrosomes (Figure 6A, B and C). We speculate that by fluidifying the pronuclear membranes, lamina depolymerization might facilitate the release of INM proteins back into the peripheral ER surrounding the centrosomes.

Collectively, these observations suggest that LMN-1 might be the only PLK-1 direct target involved in regulating pronuclear membranes scission.

In conclusion, our study indicates that cortical microtubule pulling forces are required for pronuclear membranes scission but are not sufficient when chromosomes are not aligned on the metaphase plate, or when the lamina persists between the parental chromosomes. Coordination between chromosome alignment, lamina depolymerization, and mitotic spindle elongation is thus required for pronuclear envelopes scission in the early C. elegans embryo (Figure 6D). In addition, our results indicate that a lack of membrane scission does not systematically result in a paired nuclei phenotype. While gpr-1/2 inactivation prevents membrane scission, most reforming nuclei were misshapen but not double paired at the two-cell stage. One possible explanation for this observation is that the lamina disassembles in gpr-1/2(RNAi) embryos, which results in membrane flexibility, and allows integral membrane proteins to redistribute into the peripheral ER. Then, during nuclear envelopes reformation and expansion, the membrane separating the parental chromosomes is weak and eventually dismantles, which may explain why single pronuclei manage to form at the two-cell stage in gpr-1/2(RNAi) embryos. It is noteworthy that in all reported conditions where a correlation between a lack of membrane scission and the paired nuclei phenotype was observed, depolymerization of the lamina was systematically delayed or inhibited (Audhya et al., 2007; Galy et al., 2008; Golden et al., 2009; Bahmanyar et al., 2014; Rahman et al., 2015; Martino et al., 2017; Velez-Aguilera et al., 2020). Persistence of the lamina rigidifies the nuclear membrane, prevents the redistribution of integral membrane proteins into the ER, and counteracts the mitotic spindle elongation, which typically results in a penetrant paired nuclei phenotype.

Finally, our observations that a defective lamina depolymerization interferes with mitotic spindle elongation highlights the role of nuclear envelope remodeling in influencing mitotic spindle length.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Strain, strain background (Caenorhabditis elegans)C. elegans N2 BristolCaenorhabditis Genetics Center(CGC)http://www.cgc.cbs.umn.edu/strain.php?id=10570
Strain, strain background (C. elegans)mCherry::NPP-22npp-22(syb1474)VSunyBiotechPHX1774
Strain, strain background (C. elegans)mCherry::LMN-1; GFP::TBB-2:[mCherry::lmn-1] MosSCI: jfSi68[lmn-1(4 kb 5’UTR)::mCherry::lmn-1gDNA exon four recoded::3’UTR lmn-1 cb-unc-119(+)]II; ojIs1[Ppie-1_gfp::tbb-2]; unc-119(ed3)IIIPintard labThis studyWLP996
Strain, strain background (C. elegans)mCherry::NPP-22; GFP::TBB-2:ojIs1[Ppie-1_gfp::tbb-2, cb-unc-119(+)]; unc-119(ed3)III; mCherry::npp-22(syb1474)VPintard labThis studyWLP993
Strain, strain background (Caenorhabditis elegans)mCherry::HIS-58; GFP::TBB-2:ojIs1[Ppie-1_gfp::tbb-2]; unc-119(ed3)III; ltIs37[pAA64; Ppie1_mCherry::his-58; unc-119 (+)]IVCGCJCC483
Strain, strain background (C. elegans)GFP::LMN-1; mCherry::Histone:lmn-1(tm1502)I; jfSi68[Plmn-1::gfp cb-unc-119(+)]II; mCherry::his-58 IVLink et al., 2018UV142
Strain, strain background (C. elegans)GFP::LMN-1 8A; mCherry::Histone:lmn-1(tm1502)I;jfSi89[Plmn-1S(21,22,24,32,397,398,403,405)A::gfp cb-unc-119(+)]II; mCherry::his-58 IVLink et al., 2018UV144
Strain, strain background (C. elegans)GFP::LEM-2; mCherry::HIS-58:Itls37 [(pAA64) pie-1p::mCherry::his-58 + unc-119(+)]IV qals3507 [pie-1::GFP::LEM-2 + unc-119(+)]CGCOD83
Strain, strain background (C. elegans)lmn-1 8A; GFP::LEM-2; mCherry::HIS-58:lmn-1S8A S(21,22,24,32,397,398,403, 405)A Itls37 [(pAA64) pie-1p::mCherry::his-58 + unc-119(+)]IV qals3507 [pie-1::GFP::LEM-2 + unc-119(+)]Velez-Aguilera et al., 2020WLP833
Strain, strain background (C. elegans)GFP::LEM-2; mCherry::EMR-1:bqSi210 [lem-2p::lem-2::GFP + unc-119(+)] II; bqSi226 [emr-1p::emr-1::mCherry + unc-119(+)]IVMorales-Martínez et al., 2015BN228
Strain, strain background (C. elegans)plk-1(or683ts); GFP::LEM-2; mCherry::EMR-1:bqSi210 [lem-2p::lem-2::GFP+unc-119(+)] II; plk-1(or683ts)III; bqSi226 [emr-1p::emr-1::mCherry + unc-119(+)] IVPintard lab This studyWLP1041
Strain, strain background (Escherichia coli)OP50CGChttp://www.cgc.cbs.umn.edu/strain.php?id=11078
Strain, strain background (E. coli)HT115(DE3)CGChttp://www.cgc.cbs.umn.edu/strain.php?id=11078
Chemical compound, drugIPTGEuromedexCat#EU0008-B
Chemical compound, drugPfuPromegaCat#M7741
Chemical compound, drugDpnIBiolabsCat#R0176S
Commercial assay or kitBP Clonase II Enzyme Mix (Gateway cloning)InvitrogenCat#11789-020
Commercial assay or kitLR Clonase II Enzyme Mix (Gateway cloning)InvitrogenCat#11791-020
Recombinant DNA reagentL4440 (RNAi Feeding vector)Kamath et al., 2001N/A
Recombinant DNA reagentgpr-1/2 cloned into L4440Kamath et al., 2003Arhinger Library
Recombinant DNA reagentklp-7 cloned into L4440Kamath et al., 2003Arhinger Library
Recombinant DNA reagentefa-6 cloned into L4440Kamath et al., 2003Arhinger Library
Recombinant DNA reagenthcp-3 cloned into L4440Kamath et al., 2003Arhinger Library
Recombinant DNA reagentlmn-1 cloned into L4440Kamath et al., 2003Arhinger Library
Recombinant DNA reagentpDESTttTi5605[R4-R3] for MOS insertion on Chromosome IIFrøkjaer-Jensen et al., 2008pCFJ150Addgene plasmid # 19329
Recombinant DNA reagentMOS transposase Pglh-2::MosTase::glh-2utrFrøkjaer-Jensen et al., 2008pJL43.1Addgene plasmid # 19332
Recombinant DNA reagentPrab-3::mCherryFrøkjaer-Jensen et al., 2008pGH8
Recombinant DNA reagentPmyo-2::mCherry::unc-54Frøkjaer-Jensen et al., 2008pCFJ90
Recombinant DNA reagentPlmn-1_gfp::lmn-1_lmn-1 3’UTR in pCFJ150Link et al., 2018N/A
Recombinant DNA reagentPlmn-1_gfp::lmn-1(S8A) lmn-1 3’UTR in pCFJ150Link et al., 2018N/A
Recombinant DNA reagentmCherry::lmn-1 in pCFJ150This studypLP2437
Sequence-based reagentForward to amplify 5′ of mCherryThis studyOLP2570PCR primersCTCTTCAGAAAGCAGCGAGAAAAATGGGA
GGTAGGGCCGGCTCTG
Sequence-based reagentReverse to amplify 5′ of mCherryThis studyOLP2571PCR primersCAGAGCCGGCCCTACCTCCCATTTTTCT
CGCTGCTTTCTGAAGAG
Sequence-based reagentForward to amplify 3′ of mCherry with linker before LMN-1This studyOLP2572PCR primersGGTGGCATGGATGAATTGTATAAGGCAAGT
TTGTACAAAAAAGCAGGCTCC
Sequence-based reagentoJD580 Amp_For to amplify fragment of PCFJ150This studyOLP870PCR primersATCGTGGTGTCACGCTCGTCGTTTGGTATGG
Sequence-based reagentoJD581 Amp_Rev to amplify fragment of PCFJ151This studyOLP871PCR primersATACCAAACGACGAGCGTGACACCACGATGC
Sequence-based reagentGibson Forward oligo for MosII LMN-1 construction.This studyOLP2267CCTTGTCCGAATCCACCACCCATTCCTCCTG
Sequence-based reagentGibson Reverse oligo for MosII LMN-1 construction.This studyOLP2266GGAGGAATGGGTGGTGGATTCGGACAAGGAC
Software, algorithmAdobe Illustrator CS6Adobehttps://www.adobe.com/products/illustrator.html
Software, algorithmAdobe Photoshop CS4Adobehttps://www.adobe.com/products/photoshop.html
Software, algorithmImageJNIH Schneider et al., 2012https://imagej.nih.gov/ij/
Software, algorithmZENZeisshttps://www.zeiss.com/microscopy/int/products/microscope-software/zen.html
Software, algorithmPRISMGraphpadhttps://www.graphpad.com/
Software, algorithmMetamorphMolecular Deviceshttps://www.metamorph.com/
Software, algorithmImarisBitplaneMicroscopy Image Analysis Software - Imaris - Oxford Instruments (oxinst.com)

Contact for reagent and resource sharing

Request a detailed protocol

Further information and requests for reagents may be directed to and will be fulfilled by the lead contact author L Pintard: lionel.pintard@ijm.fr.

Experimental model and subject details

Request a detailed protocol

C. elegans and bacterial strains used in this study are listed in the Key resources table.

Method details

Molecular biology

Request a detailed protocol

The plasmids and oligonucleotides used in this study are listed in the Key resources table. Gateway cloning was performed according to the manufacturer’s instructions (Invitrogen). All the constructs were verified by DNA sequencing (GATC-Biotech).

Nematode strains and RNAi

Request a detailed protocol

C. elegans strains were cultured and maintained using standard procedures (Brenner, 1974). NPP-22 N-terminally tagged with mCherry using CRIPR/Cas9 was generated by SunyBiotech (https://www.sunybiotech.com/). The strain expressing LMN-1 N-terminally tagged with mCherry was constructed by mos1-mediated single-copy insertion (mosSCI) (Frøkjaer-Jensen et al., 2008). The engineered lmn-1 gene contains a reencoded region in exon 4 essentially as described (Penfield et al., 2018).

RNAi was performed by the feeding method using HT115 bacteria essentially as described (Kamath et al., 2001), except that 2 mM of IPTG was added to the NGM plates and in the bacterial culture just prior seeding the bacteria. As a control, animals were exposed to HT115 bacteria harboring the empty feeding vector L4440 (mock RNAi). RNAi clones were obtained from the Arhinger library (Open Source BioScience) or were constructed.

Feeding RNAi was performed as follows

Request a detailed protocol

Mild gpr-1/2(RNAi) was obtained by feeding L4 animals 14–16 hr at 20°C, whereas strong gpr-1/2(RNAi) was obtained by feeding L1 animals for 72 hr at 20°C before filming embryos.

For efa-6 and klp-7 inactivation, L4 animals were fed with bacteria at 15°C and embryos were filmed at 23°C.

For single hcp-3 and klp-7 inactivation or double hcp-3/klp-7 inactivation, L4 larvae were fed for 14–16 hr at 15°C with bacteria producing hcp-3 or klp-7 dsRNA mixed volume to volume with control bacteria, or with bacteria producing hcp-3 and klp-7 dsRNA mixed volume to volume, respectively. The embryos were filmed at 23°C.

plk-1ts animals were fed with bacteria producing lmn-1 dsRNA at 15°C from the L1 stage and briefly shifted at 25°C for 30 min before filming the embryos.

Microscopy

Request a detailed protocol

For the analysis of the paired nuclei phenotype in live specimens by differential interference contrast (DIC) microscopy, embryos were obtained by cutting open young adult hermaphrodites using two 21-gauge needles. Embryos were handled individually and mounted on a coverslip in 3 μl of M9 buffer. The coverslip was placed on a 3% agarose pad. DIC images were acquired by an Axiocam Hamamatsu ICc 1 camera (Hamamatsu Photonics, Bridgewater, NJ) mounted on a Zeiss AxioImager A1 microscope equipped with a Plan Neofluar 100×/1.3 NA objective (Carl Zeiss AG, Jena, Germany), and the acquisition system was controlled by Axiovision software (Carl Zeiss AG, Jena, Germany). Images were acquired at 10 s intervals.

Live imaging was performed at 23°C using a spinning disk confocal head (CSU-X1; Yokogawa Corporation of America) mounted on an Axio Observer.Z1 inverted microscope (Zeiss) equipped with 491 and 561 nm lasers (OXXIUS 488 nm 150 mW, OXXIUS Laser 561 nm 150 mW) and sCMOS PRIME 95 camera (Photometrics). Acquisition parameters were controlled by MetaMorph software (Molecular Devices). In all cases ,a 63× Plan-Apochromat 63×/1.4 Oil (Zeiss) lens was used. Images were acquired at 2 s or 10 s intervals. Captured images were processed using ImageJ and Photoshop.

Quantification and statistical analysis

Request a detailed protocol

The fluorescence intensity of GFP::LMN-1 and GFP::LMN-1 8A over time was measured from a single central focal plane with the ImageJ software in control and RNAi conditions. The same rectangle was used around the area of interest in each time-lapse acquisition, after background subtraction, the ‘multi-measure’ plugin was used to display the average signal intensity per pixel in each frame (10 s interval). Anaphase onset was defined as time 0. To allow direct comparison between control and RNAi conditions, the average signal intensity of GFP::LMN-1 or GFP::LMN-1 8A at the NE 120 s before anaphase was arbitrarily defined as 1. The data points on the graphs are the mean of the normalized GFP intensity measurements in control and RNAi conditions for the same defined region of interest (ROI).

The pronuclei area was measured using ImageJ software by thresholding the ROI defined by mCherry::LMN-1 and measuring the total area at each time point.

The intercentrosomal distances and embryos lengths were measured using the IMARIS software by manual tracking of the position of the centrosomes and the poles of the embryos, over time. Then, we used the following equation to obtain the corresponding intercentrosomal distance and embryo length at each time point:

d(x,y)=(x2x1)2+(y2y1)2

where the first point (first centrosome or embryo pole) is represented by (x1,y1), and the second point (second centrosome or embryo pole) is represented by (x2,y2). The data obtained were used to graph the ratio between intercentrosomal distance and embryo length (%) to monitor mitotic spindle elongation.

The results are presented as means ± SEM. The data presented on the graph Figure 4E were compared by the Mann-Whitney test. All calculations were performed using GraphPad Prism version 6.00 for Mac OS X, GraphPad Software, La Jolla, CA, https://www.graphpad.com/.

Data availability

All the raw data are provided in the manuscript.

References

    1. Oegema K
    2. Hyman AA
    (2006) Cell division
    WormBook : The Online Review of C. Elegans Biology pp. 1–40.
    https://doi.org/10.1895/wormbook.1.72.1

Decision letter

  1. Jon Pines
    Reviewing Editor; Institute of Cancer Research, United Kingdom
  2. Anna Akhmanova
    Senior Editor; Utrecht University, Netherlands

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Decision letter after peer review:

Thank you for submitting your article "Cortical microtubule pulling forces contribute to the union of the parental genomes in the C. elegans zygote" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Anna Akhmanova as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1. In the Introduction, the authors need to explain their focus on scission near the chromosomes. As written, the introduction describes lamina breakdown at the poles (presumably promoted by high levels of PLK-1) and at the site of scission and never explains why the authors focus their analysis on the scission site.

2. In the Introduction, the authors state on page 3, lines 64-65 that "The breakdown of the juxtaposed pronuclear envelopes of the oocyte and sperm begins with the formation of a membrane scission event". But the authors earlier point out that the breakdown near centrosomes is the initial event. This was somewhat confusing, although it became clear that the authors are focusing on the second event, which they call scission. The authors should clearly indicate that scission refers only to this second type of dis-assembly and not the first.

3. In reference to Figure 1, the authors refers to microtubules "pushing or pulling" on the matrix to promote breakdown, but the image shows a protrusion of the matrix that does not seem consistent with pushing. Do the authors typically protrusions, or a variety of deformations? More detail here would be helpful.

4. In Figure 1, the authors introduce the dis-assembly in control zygotes. The authors should explain if the dis-assembly seen near centrosomes is only visible using the LMN-1 marker and not the NPP-22 marker, and why the scission event is scene only with the NPP-22 marker and not the LMN-1 marker. Indeed, LMN-1 signal remains strong in a bright focus in the middle before the boundary disappears entirely. More information about why different markers are needed to score the two events would be helpful (and again the authors can better explain why they focus on scission and not the earlier step near centrosomes).

5. On page 7, lines 136-137, the authors state the spindle microtubules "dictate" the late triangular shape of the pronuclei, but this is an assumption and the authors do not provide any evidence that microtubules in fact are required for this shape.

6. In Figure 3, the authors need to provide more detail on how they quantified the fluorescence intensity. Did they use single focal planes, or maximum projects, or what? This information is not provided in the figure legend or methods. This information should be provided for all quantifications.

7. The authors should make it clear when introducing scission and discussing their results that the exact site of scission is dictated by the chromosomes. This is not mentioned when scission is first described, and it is not clear why scission would occur at such a specific site if stretching by elongation were the only other factor besides PLK-1 activity. The authors should also make it clear if their analysis provides the first evidence that the site of scission appears to be dictated by the organization of chromosomes to the metaphase plate.

8. On page 15, lines 339-340, the authors state that lmn-1 knockdown restored scission without affecting the levels and localization of LEM-2 or EMR-1. But in fact the distributions of both do appear very different in the control and lmn-1(RNAi) images. ERM-1 looks more like LEM-2 after lmn-1 knockdown, with much more ovlap, and both are much more rounded in the controls, with lmn-1 knockdown leading to a more triangular appearance. While this may not change their interpretation, the authors should acknowledge and try to explain these differences.

9. It is unclear whether nuclear membrane scission is a phenomenon controlled by mechanical forces, cell cycle, or both. Some of the experiments in the manuscript suggest mechanical forces control it, but some are not very supportive of this. For example, gpr-1/2 (RNAi) in lmn-1 8A supports the hypothesis that mechanical forces are important for nuclear scission. However, the lack of scission in hcp-3 (RNAi) in lmn-1 WT, where chromosome alignment is prevented, suggests a cell-cycle dependence mechanism. Can the authors elaborate more on this issue?

10. The relation between membrane scission and paired nuclei phenotype is unclear. It seems that paired nuclei phenotype in daughter cells is a direct consequence of lack of membrane scission earlier during first mitosis. The authors showed that in gpr-1/2 (RNAi) in lmn-1 WT, 83% of embryos have no nuclear membrane scission. However, only 5% of gpr-1/2 (RNAi) in lmn-1 WT embryos showed paired nuclei phenotype (Figure 2A). Is this an inconsistency? If not, could the authors explain this in more detail?

11. Similarly, why in klp-7 (RNAi) lmn-1 8A there is paired nuclei phenotype while the membrane scission happens (figure 5D), and in hcp-3 (RNAi) in lmn-1 WT, there is no paired nuclei phenotype, while membrane scission is completely prevented? It seems that one needs more knowledge/explanation about nuclear membrane scission and paired nuclei phenotype to understand these results. The short speculation at the top of page 11 does not seem enough.

12. The authors suggested an interesting mechanism for spindle length regulation in a one-cell stage embryo as a force balance between cortical pulling forces and membrane tension. To my knowledge, the role of the nuclear membrane had not been discussed for spindle length regulation. This could be interesting to highlight in conclusions.

13. The connection between plk-1ts experiments and the cortical pulling forces is not clear. The authors start with the proposal of testing the effect of pulling forces on membrane scission, but by this point in the manuscript, it seems that pulling forces have a secondary effect on scission. By the end, the authors argue that lamina depolymerization, chromosome alignment, and cortical pulling forces are all important for nuclear membrane scission. If so, which one is the primary factor? How are the others comparable to the primary factor?

https://doi.org/10.7554/eLife.75382.sa1

Author response

Essential revisions:

1. In the Introduction, the authors need to explain their focus on scission near the chromosomes. As written, the introduction describes lamina breakdown at the poles (presumably promoted by high levels of PLK-1) and at the site of scission and never explains why the authors focus their analysis on the scission site.

We thank the reviewers for the suggestion, and we apologize for the confusion. We did not provide enough details on the composition of the nuclear envelope and the different steps of its disassembly in the C. elegans zygote. We have extensively revised the introduction to clarify this point. In particular, we now better introduce the different steps of NEBD in the zygotes. We also now explain why we are focusing on the mechanisms regulating the site of membrane scission.

2. In the Introduction, the authors state on page 3, lines 64-65 that "The breakdown of the juxtaposed pronuclear envelopes of the oocyte and sperm begins with the formation of a membrane scission event". But the authors earlier point out that the breakdown near centrosomes is the initial event. This was somewhat confusing, although it became clear that the authors are focusing on the second event, which they call scission. The authors should clearly indicate that scission refers only to this second type of dis-assembly and not the first.

We have corrected the text to make it clear that pronuclear envelope breakdown, in particular, NPC disassembly and lamina depolymerization, starts in the vicinity of the centrosomes and then later occurs between parental chromosomes. Formation of membrane scission is another event of NEBD in the C. elegans zygote that occurs when the parental chromosomes mingle on the metaphase plate.

3. In reference to Figure 1, the authors refers to microtubules "pushing or pulling" on the matrix to promote breakdown, but the image shows a protrusion of the matrix that does not seem consistent with pushing. Do the authors typically protrusions, or a variety of deformations? More detail here would be helpful.

We typically observe protrusions of the nuclear envelope close to the centrosomes. The observation of protrusions is indeed more consistent with pulling than pushing. We have corrected the text accordingly.

4. In Figure 1, the authors introduce the dis-assembly in control zygotes. The authors should explain if the dis-assembly seen near centrosomes is only visible using the LMN-1 marker and not the NPP-22 marker, and why the scission event is scene only with the NPP-22 marker and not the LMN-1 marker. Indeed, LMN-1 signal remains strong in a bright focus in the middle before the boundary disappears entirely. More information about why different markers are needed to score the two events would be helpful (and again the authors can better explain why they focus on scission and not the earlier step near centrosomes).

We have now addressed this issue by mentioning more clearly in the introduction that lamina depolymerization and membrane scission are two separate events. For these reasons, we used different markers to visualize these two events. NPP-22 is a transmembrane nucleoporin that decorates the membranes during mitosis and behaves essentially as inner nuclear membrane proteins (e.g LEM-2).

5. On page 7, lines 136-137, the authors state the spindle microtubules "dictate" the late triangular shape of the pronuclei, but this is an assumption and the authors do not provide any evidence that microtubules in fact are required for this shape.

The reviewers are correct, we indeed do not prove that microtubules are required for this shape and we have corrected the text as follows:

“As more microtubules invaded the pronuclei space to capture paternal chromosomes, the overall surface of the pronuclei decreased (Figure 1E, Table 1 Source Data 1), and the pronuclei adopted a more triangular shape, possibly dictated by microtubules assembling the mitotic spindle in the space confined by the remnants of the pronuclear envelopes (Figure 1B) (Hayashi et al., 2012).”

6. In Figure 3, the authors need to provide more detail on how they quantified the fluorescence intensity. Did they use single focal planes, or maximum projects, or what? This information is not provided in the figure legend or methods. This information should be provided for all quantifications.

We thank the reviewers for bringing this important point. We have now included more details on the quantifications in the figure legends and in the methods.

“The fluorescence intensity of GFP::LMN-1 and GFP::LMN-1 8A over time was measured from a single central focal plane with the Image J software in control and RNAi conditions. The same rectangle was used around the area of interest in each time-lapse acquisition, after background subtraction, the “multi-measure” plugin was used to display the average signal intensity per pixel in each frame (10 s interval). Anaphase onset was defined as time 0. To allow direct comparison between control and RNAi conditions, the average signal intensity of GFP::LMN-1 or GFP::LMN-1 8A at the NE 120 s before anaphase was arbitrarily defined as 1.”

7. The authors should make it clear when introducing scission and discussing their results that the exact site of scission is dictated by the chromosomes. This is not mentioned when scission is first described, and it is not clear why scission would occur at such a specific site if stretching by elongation were the only other factor besides PLK-1 activity. The authors should also make it clear if their analysis provides the first evidence that the site of scission appears to be dictated by the organization of chromosomes to the metaphase plate.

Our analysis is not exactly the first evidence that the site of scission is dictated by the organization chromosomes. The Cohen-Fix lab previously showed that membrane scission is abrogated when chromosomes are not aligned as in hcp-3(RNAi) embryos (Rahman, et al., 2015). We have modified the introduction to make this point clear.

8. On page 15, lines 339-340, the authors state that lmn-1 knockdown restored scission without affecting the levels and localization of LEM-2 or EMR-1. But in fact the distributions of both do appear very different in the control and lmn-1(RNAi) images. ERM-1 looks more like LEM-2 after lmn-1 knockdown, with much more ovlap, and both are much more rounded in the controls, with lmn-1 knockdown leading to a more triangular appearance. While this may not change their interpretation, the authors should acknowledge and try to explain these differences.

The reviewers are correct; thanks for the suggestion. Here we only meant to say that lmn-1 knockdown does not affect the recruitment of LEM-2 and EMR-1 to the nuclear envelope. However, it is clear that the localization/distribution of LEM-2 and EMR-1 is affected in plk-1ts embryos and restored upon partial lmn-1 inactivation. We have modified the text to acknowledge and try to explain these differences. We have also included pics showing the distribution of GFP::LEM-2 and mCherry::EMR-1 in wild-type embryos in order to compare and discuss the difference in the distributions of these INM proteins in wild-type versus mutant conditions (see new Figure 6).

9. It is unclear whether nuclear membrane scission is a phenomenon controlled by mechanical forces, cell cycle, or both. Some of the experiments in the manuscript suggest mechanical forces control it, but some are not very supportive of this. For example, gpr-1/2 (RNAi) in lmn-1 8A supports the hypothesis that mechanical forces are important for nuclear scission. However, the lack of scission in hcp-3 (RNAi) in lmn-1 WT, where chromosome alignment is prevented, suggests a cell-cycle dependence mechanism. Can the authors elaborate more on this issue?

Pronuclear membrane scission is controlled both by mechanical forces and cell cycle mechanisms. This is supported by the fact that reduction of cortical microtubule traction forces [gpr-1/2(RNAi)] is sufficient to abrogate membrane scission (Figures 3B and 3C), even when the lamina is depolymerized and chromosomes perfectly align on the metaphase plate. Likewise, pronuclear membrane scission is prevented in absence of chromosome alignment [hcp-3(RNAi)].

10. The relation between membrane scission and paired nuclei phenotype is unclear. It seems that paired nuclei phenotype in daughter cells is a direct consequence of lack of membrane scission earlier during first mitosis. The authors showed that in gpr-1/2 (RNAi) in lmn-1 WT, 83% of embryos have no nuclear membrane scission. However, only 5% of gpr-1/2 (RNAi) in lmn-1 WT embryos showed paired nuclei phenotype (Figure 2A). Is this an inconsistency? If not, could the authors explain this in more detail?

While it was reported that a lack of membrane scission generally accompanies the paired nuclei phenotype, our data indicate this is not systematically the case. As the reviewers pointed out, most gpr-1/2(RNAi) embryos have no pronuclear membrane scission but still do not systematically present paired nuclei phenotypes, although the shape of the reforming nuclei is often abnormal in these embryos. How the membranes are remodeled during nuclear reformation to resolve this physical barrier is currently unclear. It should be noted that in most conditions reported in the literature resulting in the formation of embryos with a paired nuclei phenotype, lamina disassembly is either delayed or prevented. The persisting lamina by rigidifying the membrane constitutes a strong physical barrier that is not resolved during nuclei reformation and membrane expansion, resulting in paired nuclei phenotype.

11. Similarly, why in klp-7 (RNAi) lmn-1 8A there is paired nuclei phenotype while the membrane scission happens (figure 5D), and in hcp-3 (RNAi) in lmn-1 WT, there is no paired nuclei phenotype, while membrane scission is completely prevented? It seems that one needs more knowledge/explanation about nuclear membrane scission and paired nuclei phenotype to understand these results. The short speculation at the top of page 11 does not seem enough.

Given that cortical microtubules pulling forces are necessary for pronuclear membranes scission, and that increasing pulling forces induce a premature membranes scission event; we asked whether increased pulling forces [klp-7(RNAi)] could restore membrane gap in embryos, defective in lamina depolymerization (lmn-1 8A) or chromosome alignment [(hcp-3(RNAi))].

We observed that increasing pulling forces did not restore membrane scission in these conditions. Membranes scission did not occur in klp-7(RNAi); lmn-1 8A embryos or in double klp-7(RNAi), hcp-3(RNAi) embryos.

These observations suggest that coordination between lamina depolymerization, chromosome alignment and cortical microtubules pulling forces is required to promote pronuclear membranes scission.

Please note that hcp-3(RNAi) embryos are impossible to score regarding the paired nuclei phenotype because chromosomes do not congress on the metaphase plates and fail to segregate in these embryos.

12. The authors suggested an interesting mechanism for spindle length regulation in a one-cell stage embryo as a force balance between cortical pulling forces and membrane tension. To my knowledge, the role of the nuclear membrane had not been discussed for spindle length regulation. This could be interesting to highlight in conclusions.

We thank the reviewers for the suggestion. We now highlight this connection between nuclear membrane remodeling and mitotic spindle elongation both in the abstract and in the conclusion section.

13. The connection between plk-1ts experiments and the cortical pulling forces is not clear. The authors start with the proposal of testing the effect of pulling forces on membrane scission, but by this point in the manuscript, it seems that pulling forces have a secondary effect on scission. By the end, the authors argue that lamina depolymerization, chromosome alignment, and cortical pulling forces are all important for nuclear membrane scission. If so, which one is the primary factor? How are the others comparable to the primary factor?

We do not think there is such a primary factor but rather a coordination between chromosome alignment, lamina depolymerization and mitotic spindle elongation. We have modified the concluding paragraph to clarify this.

https://doi.org/10.7554/eLife.75382.sa2

Article and author information

Author details

  1. Griselda Velez-Aguilera

    Université Paris cité, CNRS, Institut Jacques Monod, F-75013, Paris, France
    Contribution
    Conceptualization, Formal analysis, Funding acquisition, Investigation, Methodology, Validation, Writing - original draft, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9662-8833
  2. Batool Ossareh-Nazari

    Université Paris cité, CNRS, Institut Jacques Monod, F-75013, Paris, France
    Contribution
    Conceptualization, Investigation, Methodology, Writing – review and editing
    Competing interests
    No competing interests declared
  3. Lucie Van Hove

    Université Paris cité, CNRS, Institut Jacques Monod, F-75013, Paris, France
    Contribution
    Conceptualization, Methodology, Resources
    Competing interests
    No competing interests declared
  4. Nicolas Joly

    Université Paris cité, CNRS, Institut Jacques Monod, F-75013, Paris, France
    Contribution
    Investigation, Methodology, Resources
    Competing interests
    No competing interests declared
  5. Lionel Pintard

    Université Paris cité, CNRS, Institut Jacques Monod, F-75013, Paris, France
    Contribution
    Conceptualization, Formal analysis, Funding acquisition, Investigation, Methodology, Project administration, Resources, Supervision, Validation, Visualization, Writing - original draft, Writing – review and editing
    For correspondence
    Lionel.PINTARD@ijm.fr
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0286-4630

Funding

Labex (ANR-11-LABX-0071)

  • Griselda Velez-Aguilera

Agence Nationale de la Recherche (ANR-11-IDEX-0005-01)

  • Griselda Velez-Aguilera

Consejo Nacional de Ciencia y Tecnología (CVU 364106)

  • Griselda Velez-Aguilera

Secretaría de Educación Superior, Ciencia, Tecnología e Innovación (SECTEI/162/2021 fellowship)

  • Griselda Velez-Aguilera

Agence Nationale de la Recherche (ANR-18-IDEX-0001)

  • Nicolas Joly

Université de Paris (IdEx)

  • Nicolas Joly

Agence Nationale de la Recherche (ANR-17-CE13-0011)

  • Lionel Pintard

Ligue Contre le Cancer (Programme équipe labellisée)

  • Lionel Pintard

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors thank P Moussounda for her help with media preparation. The authors thank X Baudin and J Dumont for microscopy data acquisition and V Contremoulins for image analysis. The authors thank Orna Cohen-fix for stimulating discussions. The authors thank R Karess for critical reading of the manuscript and the anonymous reviewers for constructive comments. The authors acknowledge the ImagoSeine core facility of the Institut Jacques Monod, member of IBiSA and France-BioImaging (ANR-10-INBS-04) infrastructures and the Institut Jacques Monod ‘Structural and Functional proteomic platform.’ GVA was supported by the Labex ‘Who am I?’ Laboratory of Excellence no. ANR-11-LABX-0071, the French Government through its Investments for the Future program operated by the French National Research Agency (ANR) under Grant no. ANR-11-IDEX-0005-01 and by the CONACYT Grant CVU 364106 and the SECTEI/162/2021 fellowship. NJ is supported by a funding ‘Dynamic Research’ from ANR-18-IDEX-0001, IdEx Université de Paris. Work in the laboratory of LP is supported by grants from ‘Agence Nationale pour la Recherche’ (ANR, France - ANR-17-CE13-0011) and by the ‘Ligue Nationale Contre le Cancer’ (Equipe labéllisée, France).

Senior Editor

  1. Anna Akhmanova, Utrecht University, Netherlands

Reviewing Editor

  1. Jon Pines, Institute of Cancer Research, United Kingdom

Publication history

  1. Preprint posted: November 19, 2021 (view preprint)
  2. Received: November 19, 2021
  3. Accepted: March 4, 2022
  4. Accepted Manuscript published: March 8, 2022 (version 1)
  5. Version of Record published: March 25, 2022 (version 2)

Copyright

© 2022, Velez-Aguilera et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 472
    Page views
  • 109
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Griselda Velez-Aguilera
  2. Batool Ossareh-Nazari
  3. Lucie Van Hove
  4. Nicolas Joly
  5. Lionel Pintard
(2022)
Cortical microtubule pulling forces contribute to the union of the parental genomes in the Caenorhabditis elegans zygote
eLife 11:e75382.
https://doi.org/10.7554/eLife.75382
