Zinc finger protein Zfp335 controls early T-cell development and survival through β-selection-dependent and -independent mechanisms

  1. Xin Wang
  2. Anjun Jiao
  3. Lina Sun
  4. Wenhua Li
  5. Biao Yang
  6. Yanhong Su
  7. Renyi Ding
  8. Cangang Zhang
  9. Haiyan Liu
  10. Xiaofeng Yang
  11. Chenming Sun
  12. Baojun Zhang  Is a corresponding author
  1. Department of Pathogenic Microbiology and Immunology, School of Basic Medical Sciences, Xi'an Jiaotong University, China
  2. Institute of Infection and Immunity, Translational Medicine Institute, Xi’an Jiaotong University Health Science Center, China
  3. Key Laboratory of Environment and Genes Related to Diseases (Xi'an Jiaotong University), Ministry of Education, China
  4. Xi’an Key Laboratory of Immune Related Diseases, China
https://doi.org/10.7554/eLife.75508
Share this article
Cite this article
  1. Xin Wang
  2. Anjun Jiao
  3. Lina Sun
  4. Wenhua Li
  5. Biao Yang
  6. Yanhong Su
  7. Renyi Ding
  8. Cangang Zhang
  9. Haiyan Liu
  10. Xiaofeng Yang
  11. Chenming Sun
  12. Baojun Zhang
(2022)
Zinc finger protein Zfp335 controls early T-cell development and survival through β-selection-dependent and -independent mechanisms
eLife 11:e75508.
https://doi.org/10.7554/eLife.75508
  2. Download BibTeX
  3. Download .RIS

Abstract

T-cell development in the thymus undergoes the process of differentiation, selective proliferation, and survival from CD4−CD8− double negative (DN) stage to CD4+CD8+ double positive (DP) stage prior to the formation of CD4+ helper and CD8+ cytolytic T cells ready for circulation. Each developmental stage is tightly regulated by sequentially operating molecular networks, of which only limited numbers of transcription regulators have been deciphered. Here, we identified Zfp335 transcription factor as a new player in the regulatory network controlling thymocyte development in mice. We demonstrate that Zfp335 intrinsically controls DN to DP transition, as T-cell-specific deficiency in Zfp335 leads to a substantial accumulation of DN3 along with reduction of DP, CD4+, and CD8+ thymocytes. This developmental blockade at DN stage results from the impaired intracellular TCRβ (iTCRβ) expression as well as increased susceptibility to apoptosis in thymocytes. Transcriptomic and ChIP-seq analyses revealed a direct regulation of transcription factors Bcl6 and Rorc by Zfp335. Importantly, enhanced expression of TCRβ and Bcl6/Rorc restores the developmental defect during DN3 to DN4 transition and improves thymocytes survival, respectively. These findings identify a critical role of Zfp335 in controlling T-cell development by maintaining iTCRβ expression-mediated β-selection and independently activating cell survival signaling.

Editor's evaluation

The authors have discovered that the transcription factor Zfp335 is an important regulator of early T cell development in the thymus. This paper will be of interest to scientists within the field of T cell development. The authors show that Bcl6 and Rorc are direct gene targets of Zfp335 and dysregulation of these are at least partly responsible for the impaired T cell development in Zfp335 mice.

https://doi.org/10.7554/eLife.75508.sa0

Introduction

T-cell development proceeds in a series of developmental stages, which is precisely orchestrated by multiple signaling and molecular networks (Hosokawa and Rothenberg, 2021; López-Rodríguez et al., 2015; Rothenberg, 2014). Prethymic progenitor cells originated from bone marrow migrate into the thymus and sequentially differentiate into CD4−CD8− (DN), CD4+CD8+ (DP), and the CD4+ or CD8+ (SP) stage. Based on the expression of CD44 and CD25, DN thymocytes are divided into several phenotypically distinct stages, including DN1 to DN4 (Rothenberg et al., 2008; Yang et al., 2010; Yui and Rothenberg, 2014; Kurd and Robey, 2016). In the presence of Notch signaling, early thymic progenitor (ETP)-DN1 cells transit into DN2a stage, initiating the T-cell lineage commitment, which is immediately accompanied by TCRβ gene arrangement. The majority of DN2 cells enter the DN3 stage with αβ lineage potential (Godfrey et al., 1993). Only DN3 cells with a complete pre-TCR complex, which consists of the functional TCRβ protein, pre-Tα (pTα) chain, and CD3 molecule, can successfully trigger the subsequent maturation into DN4 and DP thymocytes. Further differentiation into mature CD4+ or CD8+ T cells requires positive and negative selection at DP stage before they migrate to peripheral lymphoid organs (Dudley et al., 1994; Hoffman et al., 1996; von Boehmer and Fehling, 1997; Malissen et al., 1999).

Pre-TCR signals regulate thymocyte differentiation by mediating protection from apoptosis, stimulating proliferation, and inducing allelic exclusion at the TCRβ locus in post-β-selection DN3b cells and promoting DN to DP transition (Hoffman et al., 1996; Aifantis et al., 1997; Kruisbeek et al., 2000). Inactivation of pre-TCR components dampens T-lymphocyte development by arresting thymocytes at the DN3 stage and inducing apoptosis (Fehling et al., 1995; Malissen et al., 1995; Mombaerts et al., 1992a; Mombaerts et al., 1992b). Multiple transcription factors downstream of pre-TCR signaling are involved in T-cell differentiation and survival. The major pre-TCR signaling is conducted through the dose-dependent expression of Notch controlled by the Id3–E2A axis (Liu et al., 2021). Abrogation of either Notch or E2A expression may lead to the developmental block of thymocytes at multiple stages (Ikawa et al., 2006; Shah and Zúñiga-Pflücker, 2014; Belle and Zhuang, 2014). In addition, activation of NF-κB (Voll et al., 2000), Ets1 (Eyquem et al., 2004), and NFAT5 (Berga-Bolaños et al., 2013) by pre-TCR signals also contributes to the developmental block. The transcription factor T-cell factor 1 (TCF1), together with its downstream Bcl-11b, not only increases the potential to differentiate into T cells (Li et al., 2010; Ikawa et al., 2010), but also positively regulates thymocyte development via promoting TCRβ recombination and expression, as well as DP cell survival (Albu et al., 2007; Li et al., 2013). Apart from the essential role in the T follicular helper cell lineage commitment (Yu et al., 2009), Bcl6 induced by pre-TCR signals is also involved in the DN to DP transition and protection of DN4 cells from apoptosis (Solanki et al., 2020). Additionally, abrogation of Rorc expression in thymocytes leads to a decreased DP proportion and impaired DP survival in a Bcl-xl-dependent manner (Villey et al., 1999; Sun et al., 2000; Xi et al., 2006).

Although pre-TCR signaling is crucial for the β-selection checkpoint, it is not sufficient for progression to the DN3 stage. Other pathways or transcription factors coupled with or independent of conventional pre-TCR signaling are found to play important roles in the process (Ciofani et al., 2004). The developmental blockade in Smarca5- or Nkap-deficient thymocytes is confirmed by intact pre-TCR signals in these mice (Pajerowski et al., 2009; Zikmund et al., 2019). Overall, it remains largely unknown which factors are crucial for T-cell development through mechanisms independent of pre-TCR signaling.

Zfp335, also known as the nuclear hormone receptor coregulator (NRC) – interacting factor 1 (NIF-1), is a zinc finger protein with a 13 C2H2 zinc finger repeating structure consisting of 1337 amino acids (Han et al., 2016). The C2H2-ZF family encodes more than 700 proteins in the human genome, some of which play important roles in ontogenesis, immune cell differentiation, and disease occurrence (Li et al., 2010; Heizmann et al., 2018), yet the biological characteristics and functions of most members are unclear (Stubbs et al., 2011; Emerson and Thomas, 2009). Zfp335 regulates gene transcription by recruiting H3K4 methyltransferase complexes, interacting with coactivators, or directly binding to certain gene promoters (Han et al., 2016; Yang et al., 2012; Mahajan et al., 2002; Wolfe et al., 2000). Zfp335 plays important regulatory roles in early embryonic development and neurogenesis (Yang et al., 2012). Germline knockout of Zfp335 is embryonic lethal, while deletion of Zfp335 gene in nerve cells impairs the proliferation and differentiation of nerve progenitor cells in mice, eventually leading to severe microcephaly (Yang et al., 2012). Function of Zfp335 in T-cell development has been observed in the study of the Zfp335bloto allele, a missense mutation derived from ENU mutagenesis. While thymocyte development is not significantly affected by this hypomorph mutation, there is a significant reduction in the number of peripheral T cells due to defects in the maturation and migration of thymocytes (Han et al., 2014). Without loss of function studies, it remains to be determined whether Zfp335 is required for intrathymic T-cell development.

In this study, we investigated Zfp335 expression during different thymocyte stages, as well as its function at the β-selection checkpoint and during DN to DP transition. We found that in the thymus, Zfp335 has the highest expression in DN3 thymocytes. Zfp335 is indispensable for thymocyte β-selection and supports the transition from DN to DP stage by maintaining intracellular TCRβ (iTCRβ) expression, as well as by promoting DN and DP thymocyte survival via directly regulating Bcl6 and Rorc expression.

Results

Impaired thymic αβ T-cell development in Zfp335-deficient mice

To study the role of Zfp335 in T-cell development, we first assessed the expression of Zfp335 among different thymocyte subsets, including DN3, DN4, DP, CD4, CD8, NKT, and γδ T cells. We found that DN3 cells displayed a relatively high level of Zfp335 mRNA expression (Figure 1A). Flow cytometry analysis also revealed that Zfp335 protein had the highest expression in DN3 thymocytes (Figure 1—figure supplement 1A, B). Consistently, microarray data from ImmGen showed higher expression of Zfp335 specifically at the DN3a stage during T-cell development from ETP to CD4/CD8 SP (Figure 1—figure supplement 2A). Although RNA-seq data from ImmGen exhibited the highest expression of Zfp335 in DP thymocytes, a gradually increased expression was observed from ETP to DN3 (Figure 1—figure supplement 2B). Given the importance of DN3 stage during β-selection checkpoint, we obtained T-cell-specific Zfp335 mice by crossing Zfp335fl/fl strain with Lck-Cre strain (Figure 1—figure supplement 3A). Zfp335 deletion was confirmed by real-time PCR (qPCR) analysis in DN4 cells (Figure 1—figure supplement 3B). Strikingly, LckCre+Zfp335fl/fl (KO) mice exhibited significantly smaller thymi and drastically decreased thymocyte numbers than WT control (Figure 1B). Further analysis showed that both percentages and numbers of DP cells, as well as CD4 SP and CD8 SP cells, were considerably reduced in KO mice (Figure 1C–E). Conversely, the percentage of DN cells was increased by nearly 10–15-folds, although the total number was decreased (Figure 1C–E). In secondary lymphoid organs, we also observed reduced CD4+ and CD8+ cells in the spleen and lymph nodes (Figure 1F–J). Thus, Zfp335 is essential for the development of αβT cells in the thymus.

Figure 1 with 3 supplements see all
Download asset Open asset

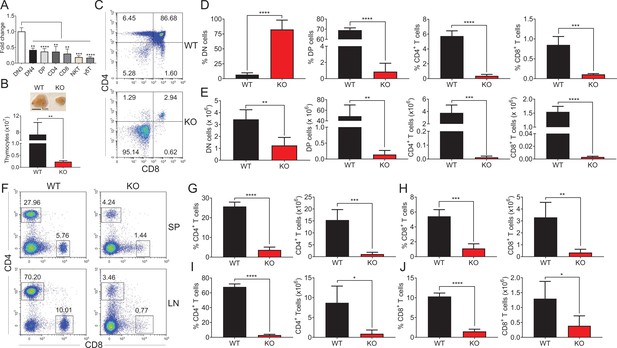

Impaired thymocyte development in Zfp335-deficient mice.

(A) DN3, DN4, DP, CD4, CD8, NKT, and γδT cells were sorted from C57BL/6 thymocytes by flow cytometry. The mRNA levels of Zfp335 were measured by qPCR. (B) Thymi from LckCre+Zfp335+/+ (WT) and LckCre+Zfp335fl/fl (KO) mice. Representative thymi and total cell number of thymocytes. Scale bar, 1 cm. (C–E) The different stages of thymocyte development in WT and KO mice were measured by flow cytometry. (C) Representative flow cytometry (FACS) plots of DN, DP, CD4, and CD8 thymocytes. (D) The percentages of DN, DP, CD4, and CD8 thymocytes. (E) The numbers of DN, DP, CD4, and CD8 thymocytes. (F–J) CD4+ and CD8+ cells in spleen and lymph nodes from WT and KO mice were measured by flow cytometry. (F) Representative FACS plots of CD4+ and CD8+ cells in spleen and lymph nodes. The percentage and number of CD4+ T cells (G) and CD8+ T cells (H) in the spleen from WT and KO mice. The percentage and number of CD4+ T cells (I) and CD8+ T cells (J) in the lymph nodes from WT and KO mice. Results represent three independent experiments. n = 4 mice per group. *p < 0.05, **p < 0.01, ***p < 0.001, and ****p < 0.0001.

Figure 1—source data 1

Figure 1D The percentages of DN, DP, CD4, and CD8 thymocytes from WT and KO mice.

Figure 1E. The numbers of DN, DP, CD4, and CD8 thymocytes from WT and KO mice. Figure 1G, H. The percentages and numbers of CD4+ and CD8+ T cells in spleen from WT and KO mice. Figure 1I, J. The percentages and numbers of CD4+ and CD8+ T cells in lymph nodes from WT and KO mice.

https://cdn.elifesciences.org/articles/75508/elife-75508-fig1-data1-v2.xlsx

Zfp335 intrinsically regulates T-cell development in the thymus

To address whether Zfp335 deletion intrinsically affects T-cell development, Lin−CD25+CD44− DN3 cells from WT or KO mice were harvested and plated with OP9-DL1 cells in the presence of Flt3L and IL-7, an in vitro model for T-cell development (Figure 2A; Kondo et al., 2017). On both days 2 and 4, KO group produced fewer DP cells than WT control (Figure 2B–D, Figure 2—figure supplement 1A). When DN3 cells from WT (CD45.1+) and KO (CD45.2+) mice were mixed and cocultured at a 1:4 ratio (KO cells were rapidly competed out when used at a 1:1 ratio), significantly lower percentage and cell proportion of DP cells were also observed in KO group (Figure 2E–G, Figure 2—figure supplement 1B). Furthermore, in vivo T-cell development was investigated by adoptively transferring T- and B-cell-depleted bone marrow cells from WT (CD45.1+) and KO (CD45.2+) mice with a 1:4 ratio into WT (CD45.1+CD45.2+) recipients (Figure 2H). When thymocytes were analyzed 6 weeks post transfer, both the percentages and cell numbers of DP, CD4, and CD8 cells were significantly reduced while DN percentage was increased in the mice that received KO cells (Figure 2I, J, Figure 2—figure supplement 1C). Consistently, when WT and KO bone marrow cells were mixed at a 1:4 ratio for cotransfer experiments, fewer DP cell proportion detected in KO compared to WT group (Figure 2K, L; Figure 2—figure supplement 1D). In addition, DN3 cells from KO mice also generated fewer γδ T cells, despite a higher percentage, in comparison to WT controls after culturing for 4 days (Figure 2—figure supplement 2A–C). Together, we demonstrate that Zfp335 intrinsically regulates thymocyte development from DN to DP stage.

Figure 2 with 2 supplements see all
Download asset Open asset
An intrinsic block from DN to DP stage in Zfp335-deficient mice.

(A) Schematic overview of the in vitro OP9-DL1 stromal coculture assay for T-cell differentiation from WT (CD45.1+) and KO (CD45.2+) DN3 thymocytes to DP and SP thymocytes. (B–D) WT and KO DN3 thymocytes were cultured with OP9-DL1 feeder cells in vitro in the presence of IL-7 (1 ng/ml) and Flt3L (5 ng/ml) for 2 and 4 days. The DN and DP thymocytes were measured by flow cytometry (n = 3). (B) Representative FACS plots of DN, DP, CD4+, and CD8+ thymocytes. (C) The percentages of DN, DP, CD4+, and CD8+ thymocytes 2 days post culture in vitro. (D) The percentage of DN, DP, CD4+, and CD8+ thymocytes 4 days post culture in vitro. (E–G) A mixed population of WT and KO DN3 thymocytes at a 1:4 ratio was cocultured with OP9-DL1 feeder cells in vitro in the presence of IL-7 (1 ng/ml) and Flt3L (5 ng/ml) for 2 and 4 days. The DN and DP thymocytes were phenotyped by flow cytometry (n = 3). (E) Representative FACS plots of DN, DP, CD4+, and CD8+ thymocytes. (F) Percentages of DN, DP, CD4+, and CD8+ thymocytes 2 days post culture in vitro. (G) Percentages of DN, DP, CD4+, and CD8+ thymocytes 4 days postculture in vitro. (H) Schematic overview of the in vivo bone marrow chimeric mice model for T-cell differentiation from WT (CD45.1+) and KO (CD45.2+) progenitors cells to DP and SP thymocytes. (I, J) Full chimeric mice were generated by transplanting WT (CD45.1+) or KO (CD45.2+) bone marrow progenitor cells into lethally irradiated (8.5 Gy) WT recipient mice (CD45.1+CD45.2+). Six weeks after transplantation, thymi from recipient mice were harvested. (I) Representative FACS plots of DN, DP, CD4+, and CD8+ thymocytes. (J) The percentages of DN, DP, CD4+, and CD8+ thymocytes. (K, L) Full chimeric mice were generated by transplanting a mixed population of WT (CD45.1+) and KO (CD45.2+) bone marrow progenitor cells at a 1:4 ratio into lethally irradiated WT recipients (CD45.1+CD45.2+) with 8.5 Gy. Six weeks after transplantation, thymi from recipient mice were harvested. (K) Representative FACS plots of DN, DP, CD4+, and CD8+ thymocytes. (L) Percentages of DN, DP, CD4+, and CD8+ thymocytes. Results represent three independent experiments. n = 4 mice per group. *p < 0.05, **p < 0.01, ***p < 0.001, and ****p < 0.0001.

Figure 2—source data 1

Figure 2C, D. The percentages of DN, DP, CD4+, and CD8+ thymocytes 2 and 4 days post separate culture in vitro.

Figure 2F, G. The percentages of DN, DP, CD4+, and CD8+ thymocytes 2 and 4 days post coculture in vitro . Figure 2J. The percentages of DN, DP, CD4+, and CD8+ thymocytes in chimeric mice separately transferred with WT and KO bone marrow cells. Figure 2L. The percentages of DN, DP, CD4+, and CD8+ 7 thymocytes in chimeric mice cotransferred with WT and KO bone marrow cells.

https://cdn.elifesciences.org/articles/75508/elife-75508-fig2-data1-v2.xlsx

Loss of Zfp335 blocks the transition from DN3 to DN4 stage

We further examined the impact of Zfp335 deletion on DN thymocyte development. Staining of CD44 and CD25 on pregated lineage (CD4/CD8/TCRβ/TCRδ/NK1.1/CD19/CD11b/CD11c)-negative thymocytes was performed in WT and KO mice. The results showed that a higher percentage of CD44−CD25+ DN3 cells but a lower percentage of CD44−CD25− DN4 cells were found in KO group compared to WT group (Figure 3A, B), in which the numbers of both DN3 and DN4 thymocytes were decreased (Figure 3C). The developmental blockade from DN3 to DN4 in Zfp335-deficient cells was verified by in vitro coculture assays on day 2 using OP9-DL1 cultured with WT and KO DN3 cells, respectively (Figure 3D, E) or mixed at a 1:4 ratio (Figure 3F, G) as described above. The in vivo bone marrow chimera models further confirmed the development block at the DN3 stage (Figure 3H–K), indicating that Zfp335 is indispensable for DN3 to DN4 transition during early-stage differentiation.

Figure 3
Download asset Open asset

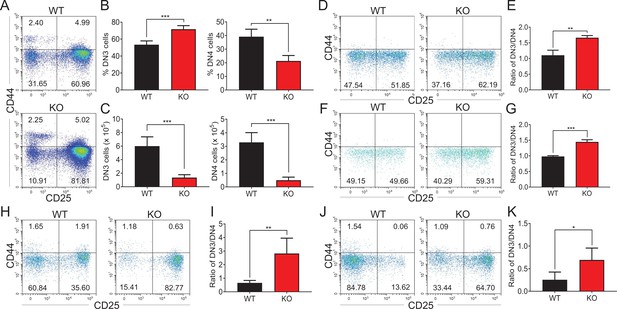

Zfp335-deficient thymocytes undergo a developmental block during DN3 to DN4 transition.

(A–C) Thymi were harvested from 6- to 8-week-old WT and KO mice. The different stages of DN thymocytes in WT and KO mice were measured by flow cytometry (n = 4). (A) Representative FACS plots of DN1 (CD25−CD44+), DN2 (CD25+CD44+), DN3 (CD25+CD44−), and DN4 (CD25−CD44−) thymocytes. (B) The percentages of DN3 and DN4 thymocytes. (C) The numbers of DN3 and DN4 thymocytes. (D–E) WT and KO DN3 thymocytes were cultured with OP9-DL1 feeder cells in vitro in the presence of IL-7 (1 ng/ml) and Flt3L (5 ng/ml) for 2 days. The expression of CD44 versus CD25 was measured by flow cytometry (n = 3). (D) Representative FACS plots of DN3 and DN4 thymocytes. (E) The ratio of DN3 to DN4 thymocytes 2 days post culture in vitro. (F–G) A mixed population of WT and KO DN3 thymocytes at a 1:4 ratio was cocultured with OP9-DL1 feeder cells in vitro in the presence of IL-7 (1 ng/ml) and Flt3L (5 ng/ml) for 2 days. The expression of CD44 versus CD25 was measured by flow cytometry (n = 3). (F) Representative FACS plots of DN3 and DN4 thymocytes. (G) The ratio of DN3 to DN4 thymocytes 2 days post culture in vitro. (H, I) Full chimeric mice were generated by transplanting WT (CD45.1+) or KO (CD45.2+) bone marrow progenitor cells into lethally irradiated (8.5 Gy) WT recipients (CD45.1+CD45.2+). Six weeks after transplantation, thymi from recipient mice were harvested. The expression of CD44 versus CD25 was measured by flow cytometry (n = 4). (H) Representative FACS plots of DN3 and DN4 cells. (I) The ratio of DN3 to DN4 thymocytes. (J, K) Full chimeric mice were generated by transplanting a mixed population of WT (CD45.1+) and KO (CD45.2+) bone marrow progenitor cells at a 1:4 ratio into lethally irradiated (8.5 Gy) WT recipient mice (CD45.1+CD45.2+). Six weeks after transplantation, thymi from recipient mice were harvested. The expression of CD44 versus CD25 was measured by flow cytometry (n = 4). (J) Representative FACS plots of DN3 and DN4 thymocytes. (K) The ratio of DN3 to DN4 thymocytes. Results represent three independent experiments. *p < 0.05, **p < 0.01, and ***p < 0.001.

Figure 3—source data 1

Figure 3B, C. The percentages and numbers of DN3 and DN4 thymocytes from WT and KO mice.

Figure 3E–G. The ratio of DN3 to DN4 thymocytes 2 days post culture in vitro. Figure 3I–K. The ratio of DN3 to DN4 thymocytes in chimeric mice transferred with WT and KO bone marrow cells.

https://cdn.elifesciences.org/articles/75508/elife-75508-fig3-data1-v2.xlsx

Ablation of Zfp335 promotes apoptosis in thymocytes

During the β-selection, efficient proliferation of pre-T cells is necessary for DN to DP progression (Kreslavsky et al., 2012), during which the pre-TCR signal functions as a positive regulator of thymocyte survival, allowing for differentiation from pre-T cells into DP thymocytes. We sought to examine whether the defect in Zfp335 KO thymocyte development is due to impaired proliferation or survival. The in vivo BrdU incorporation assay showed comparable or even higher percentages of BrdU+ DN3 and DN4 cells (Figure 4A, B) as well as Ki67+ DN3 and DN4 cells (Figure 4—figure supplement 1). Nevertheless, when we examined thymocyte apoptosis, KO mice showed a remarkably higher percentages of Annexin V+ DN3 and DN4 cells compared to WT cells (Figure 4C, D). After coculture with OP9-DL1 for 4 days, both Zfp335-deficient DN3 and DN4 cells showed an increased percentage of Annexin V+ cells (Figure 4E, F). Further examination of the transition between the DN3a and DN3b stages found that the frequencies of both DN3a and DN3b were comparable between WT and Zfp335-deficient groups (Figure 4—figure supplement 2A–C). However, both cell populations showed enhanced cell apoptosis in Zfp335-deficient cells (Figure 4—figure supplement 2D–F), indicating that Zfp335 regulates thymocyte apoptosis in a TCR-independent manner. Moreover, in mixed bone marrow chimeras, Zfp335-deficient DN3 and DN4 cells also displayed significantly higher Annexin V+ cells (Figure 4G, H), indicating an intrinsic role of Zfp355 in regulating thymocyte survival.

Figure 4 with 2 supplements see all
Download asset Open asset

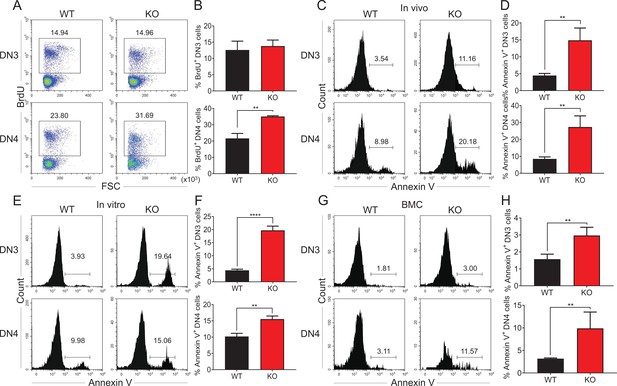

Zfp335 deficiency promotes thymocyte apoptosis in vivo and in vitro.

(A, B) Thymi were harvested from 6- to 8-week-old WT and KO mice. The expression of BrdU in DN3 and DN4 thymocytes from WT and KO thymi was measured by flow cytometry (n = 3). (A) Representative FACS plots of BrdU expression in DN3 and DN4 thymocytes. (B) The percentages of BrdU+ thymocytes in DN3 and DN4 cells. (C, D) The binding of Annexin V in DN3 and DN4 thymocytes from WT and KO thymi was measured by flow cytometry (n = 3). (C) Representative FACS plots of Annexin V binding in DN3 and DN4 thymocytes. (D) The percentages of Annexin V+ DN3 and DN4 cells. (E, F) A mixed population of WT and KO DN3 thymocytes at a 1:4 ratio was cocultured with OP9-DL1 feeder cells in vitro in the presence of IL-7 (1 ng/ml) and Flt3L (5 ng/ml) for 4 days. The binding of Annexin V was measured by flow cytometry (n = 3). (E) Representative FACS plots of Annexin V+ DN3 and DN4 cells. (F) The percentage of Annexin V+ DN3 and DN4 cells. (G, H) Full chimeric mice were generated by transplanting a mixed population of WT (CD45.1+) and KO (CD45.2+) bone marrow progenitor cells at a 1:4 ratio into lethally irradiated WT recipient mice (CD45.1+CD45.2+) with 8.5 Gy. Five weeks after transplantation, thymi from recipient mice were harvested. The binding of Annexin V was measured by flow cytometry (n = 4). (G) Representative FACS plots of Annexin V+ DN3 and DN4 cells. (H) The percentage of Annexin V binding in DN3 and DN4 thymocytes. Results represent three independent experiments. **p < 0.01 and ****p < 0.0001.

Figure 4—source data 1

Figure 4B. The percentages of BrdU+ thymocytes in DN3 and DN4 cells from WT and KO mice.

Figure 4D. The percentages of Annexin V+ DN3 and DN4 cells from WT and KO mice. Figure 4F. The percentage of Annexin V+ DN3 and DN4 cells 4 days post coculture in vitro. Figure 4H. The percentage of Annexin V+ DN3 and DN4 cells in chimeric mice cotransferred with WT and KO bone marrow cells.

https://cdn.elifesciences.org/articles/75508/elife-75508-fig4-data1-v2.xlsx

Ectopic expression of TCRαβ overcomes DN3 stage block in Zfp335-deficient mice

The pre-TCR signal-controlled β-selection is essential for thymocyte differentiation from DN3 to DN4 stage (Zhao et al., 2019). We then examined the expression of genes involved in the pre-TCR complex in DN3 and DN4 cell populations. The expression of Ptcra (encoding pTα) was slightly increased while Trbc1, Trbc2, and Cd3e in DN3 and DN4 cells were comparable in WT and KO group (Figure 5—figure supplement 1A, B). Additionally, the expression of intracellular CD3 (iCD3) was also unaffected in both Zfp335-deficient DN3 and DN4 cells (Figure 5—figure supplement 2A, B). Interestingly, flow cytometry analysis showed no substantial difference in iTCRβ expression between WT and KO DN3 cells, whereas Zfp335-deficient mice displayed a significant decrease in the percentage of iTCRβ+ DN4 cells (Figure 5A, B). To further address whether Zfp335 deficiency affects TCRβ expression, we compared differential usage of TCRβ in DN4 cells between WT and KO mice, in which the expression of TCR Vβ5, Vβ6, Vβ8, and Vβ12 were decreased concomitantly (Figure 5C–F). However, genomic DNA analysis for V-DJβ5 and V-DJβ8 rearrangements showed no difference between WT and KO DN3 cells (Figure 5—figure supplement 3). Thus, the reduced iTCRβ expression may be a consequence of protein degradation.

Figure 5 with 5 supplements see all
Download asset Open asset

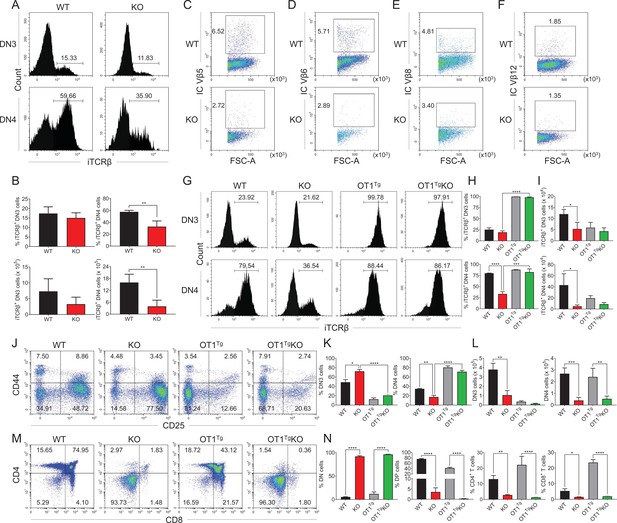

OT1 transgenic TCR overexpression rescued Zfp335 deficiency-induced defect during DN3 to DN4 transition.

(A, B) Thymi were harvested from 6- to 8-week-old WT and KO mice. The expression of iTCRβ in DN3 and DN4 thymocytes was measured by flow cytometry (WT n = 3; KO n = 4). (A) Representative FACS plots of iTCRβ expression in DN3 and DN4 thymocytes. (B) Percentages and numbers of iTCRβ+ thymocytes in DN3 and DN4 cells. Representative FACS plots of intercellular TCR Vβ5 (C), Vβ6 (D), Vβ8 (E), and Vβ12 (F) expression in DN4 cells from WT and KO mice. (G–I) Thymi from WT, KO, OT1+ (OT1Tg), and OT1+LckCre+Zfp335fl/fl (OT1Tg KO) mice were harvested. The expressions of iTCRβ in DN3 (up) and DN4 (down) thymocytes were measured by flow cytometry (WT n = 3; KO n = 5; OT1Tg n = 3; OT1Tg KO n = 5). (G) Representative FACS plots of iTCRβ expression in DN3 and DN4 thymocytes. (H) The percentage of iTCRβ+ DN3 and DN4 cells in WT, KO, OT1Tg, and OT1Tg KO mice. (I) The numbers of iTCRβ+ DN3 and DN4 cells in WT, KO, OT1Tg, and OT1Tg KO mice. (J–L) The different stages of DN thymocytes in WT, KO, OT1Tg, and OT1Tg KO mice were measured by flow cytometry (WT n = 3; KO n = 5; OT1Tg n = 3; OT1Tg KO n = 5). (J) Representative FACS plots of DN3 and DN4 thymocytes. (K) The percentages of DN3 and DN4 thymocytes. (L) The numbers of DN3 and DN4 thymocytes. (M, N) The different stages of thymocyte development in WT, KO, OT1Tg, and OT1Tg KO mice were measured by flow cytometry (WT n = 3; KO n = 5; OT1Tg n = 3; OT1Tg KO n = 5). (M) Representative FACS plots of thymocytes. (N) The percentages of DN, DP, CD4+CD8−, and CD4−CD8+ thymocytes. Results represent three independent experiments. n = 3 per group. *p < 0.05, **p < 0.01, ***p < 0.001, and ****p < 0.0001.

Figure 5—source data 1

Figure 5B. The percentages and numbers of iTCRβ+ thymocytes in DN3 and DN4 cells from WT and KO mice.

Figure 5H, I. The percentages of iTCRβ+ DN3 and DN4 cells in WT, KO, OT1Tg, and OT1Tg KO mice. Figure 5K, L. The percentages and numbers of DN3 and DN4 thymocytes in WT, KO, OT1Tg, and OT1Tg KO mice. Figure 5N. The percentages of DN, DP, CD4+, and CD8+ thymocytes in WT, KO, OT1Tg, and OT1Tg KO mice.

https://cdn.elifesciences.org/articles/75508/elife-75508-fig5-data1-v2.xlsx

Given that Zfp355 deficiency led to diminished iTCRβ expression in DN4 cells, we next investigated the effect of TCR overexpression on aberrant thymocyte development caused by Zfp335 deficiency. Offspring (LckCre+Zfp335fl/flOT1+) of LckCre+Zfp335fl/fl mice crossed to OT1 transgenic (Tg) mice was generated to constitutively express Tcra-V2 and Tcrb-V5 Tg gene (OT1Tg KO). Notably, forced expression of αβTCR successfully restored the decreased percentage of iTCRβ+ DN4 cells in the KO mice, despite with little impact on the number of iTCRβ+ DN4 cells (Figure 5G–I). Importantly, developmental arrest at the DN3 stage in Zfp335-deficient mice was fully rescued by OT1 transgene (Figure 5J–L). Unfortunately, DN3 and DN4 cells from OT1Tg KO mice still exhibited a similar degree of apoptosis with Zfp335-deficient cells (Figure 5—figure supplement 4), suggesting Zfp335 affects thymocyte apoptosis in a TCR-independent manner. Consistently, the proportions of DN, DP, CD4, and CD8 were still comparable in KO and OT1Tg KO mice (Figure 5M, N; Figure 5—figure supplement 5), demonstrating that the aberrant DP development has not yet been restored by αβTCR overexpression.

Zfp335 directly targets Bcl6 and Rorc in DN thymocytes

To address the underlying molecular mechanisms of Zfp335-mediated thymocyte development, we performed comprehensive RNA-seq analysis comparing DN4 cells from WT and KO mice. Volcano plot showed that Zfp335-deficient DN4 cells had a total 566 downregulated and 899 upregulated genes (fold change >1.25, p < 0.05) (Figure 6A, Supplementary file 1). Gene ontology (GO) analysis highlighted a large fraction of genes downregulated in KO group belonging to lymphocyte differentiation and apoptotic pathways (Figure 6B). Prominently downregulated genes associated with lymphocyte differentiation and apoptosis were summarized in the heatmap (Figure 6C). To further determine genes directly regulated by Zfp335, we analyzed Zfp335 by chromatin immunoprecipitation followed by deep sequencing (ChIP-seq). We screened a total of 2797 Zfp335-binding sites (Supplementary file 2) and the prevalence of binding peaks across genomic regions was displayed as a pie chart (Figure 6—figure supplement 1). To identify the Zfp335-targeting candidates, 119 profoundly downregulated genes were further selected out by a cutoff of twofold change, and 22 genes were overlapped with Zfp335-targeting genes from ChIP-seq data (Figure 6—figure supplement 2A, Supplementary file 3). Among these genes, top 10 genes were listed based upon their expression level from RNA-seq result (Figure 6—figure supplement 2B). qPCR analysis was performed to confirm their downregulation in KO DN4 cells (Figure 6—figure supplement 2C). Next, we focused on genes related to lymphocyte differentiation and apoptosis. In line with RNA-seq results (Figure 6C), qPCR analysis verified that Bcl6 and Rorc were significantly downregulated in KO DN4 cells (Figure 6D). Importantly, Zfp335 directly targeted the promoter regions of Bcl6 and Rorc in ChIP-seq analysis (Figure 6E), which were further verified by luciferase assay (Figure 6F). Taken together, in depth genomic analysis of DN thymocytes supports that Zfp335 directly regulates the transcription of Bcl6 and Rorc.

Figure 6 with 2 supplements see all
Download asset Open asset

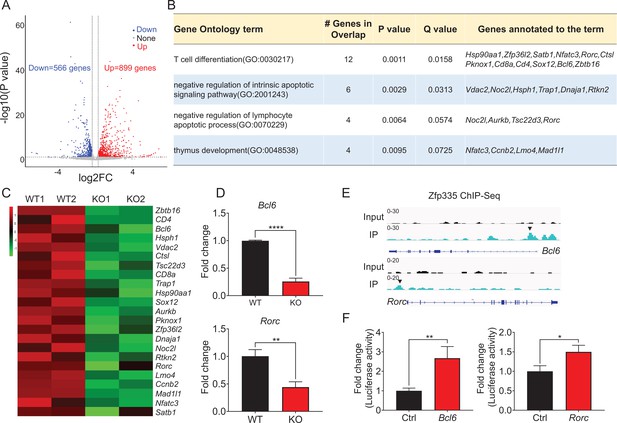

Zfp335 downstream target analysis in DN4 thymocytes.

(A) Volcano plot depicting log2 (fold change) (x-axis) and −log10 (p value) (y-axis) for differentially expressed genes (FC >1.25, p < 0.05) in DN4 thymocytes sorted from WT and KO mice; upregulated (red) and downregulated (blue). n = 2 per group. (B) Gene ontology (GO) analysis of genes that downregulated in Zfp335-deficient DN4 thymocytes, showing the GO terms related to lymphocyte differentiation and apoptosis (left), the number of genes overlapped with database from the indicated terms (middle left column), p values (middle column) and Q values (middle right column) and genes annotated to the indicated term (right). (C) Heatmap of representative genes related to lymphocyte differentiation and apoptosis. The scale ranges from minimum (green boxes) to medium (black boxes) to maximum (red boxes) relative expression. (D) The mRNA level of Bcl6 (top) and Rorc (bottom) in DN4 thymocytes from WT and KO mice (n = 3). (E) ChIP-seq analysis for binding of Zfp335 to the Bcl6 and Rorc loci in wild-type DN4 cells. (F) Luciferase assay for the binding of different domains of Zfp335 to the promoter regions of Bcl6 and Rorc. The pGL4.16 plasmid was transfected into 293T cells together with MSCV vector carrying different domains (n = 3). Data represent three independent experiments. *p < 0.05, **p < 0.01, and ****p < 0.0001.

Defects in thymocyte development caused by Zfp335 deficiency can be rescued by Bcl6 and Rorc

To determine whether Bcl6 and Rorc participate in the regulation of thymocyte development downstream of Zfp335, overexpression of Bcl6 and Rorc was conducted in vitro in the thymocyte development model (Figure 7A). DN3 cells from KO mice were cocultured with OP9-DL1 cells and transduced with retrovirus encoding Mock-GFP, Zfp335-GFP, Bcl6-GFP, or Rorc-GFP. After 3.5 days, overexpression of Bcl6 and Rorc resulted in a substantial DP generation, particularly in the Bcl6 group, resulting in a similar DP proportion to that in Zfp335-overexpressing cells (Figure 7B, C). Of note, overexpression of Psmg2, Dctn1, Ankle2, Cep76, Fgf13, and Ddx31 identified in the qPCR results (Figure 6—figure supplement 2B, C) in KO DN3 cells did not restore DP generation in vitro (Figure 7—figure supplement 1). Importantly, enhanced expression of Bcl6 in DN3 cells rescued DN thymocyte apoptosis (Figure 7D, E), while overexpression of both Bcl6 and Rorc rescued DP thymocytes from enhanced apoptosis (Figure 7F, G). p53, negatively regulated by Bcl6, is involved in lymphocyte apoptosis (Haks et al., 1999; Guidos et al., 1996; Mombaerts et al., 1995). Thus, we crossed Zfp335 KO strain with Trp53 KO strain to obtain double knockout mice, in which Trp53 deletion resulted in a partial recovery of DP percentage, but not cell number (Figure 7—figure supplement 2), further supporting the role of Bcl6 in Zfp335-controlled thymocyte survival. Together, these data demonstrate that Zfp335 controls DN thymocyte survival through direct regulation of Bcl6 and Rorc expression.

Figure 7 with 3 supplements see all
Download asset Open asset

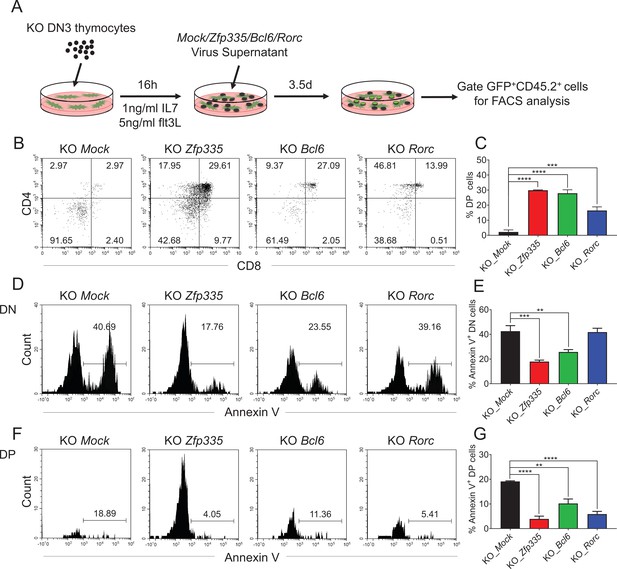

Identification of Bcl6 and Rorc as functional targets of Zfp335 for regulating thymocyte development.

(A) Schematic overview of the in vitro gene overexpression in KO DN3 thymocytes and following T-cell differentiation in OP9-DL1 coculture system. (B, C) Zfp335-deficient DN3 thymocytes (KO) were cultured with OP9-DL1 feeder cells in vitro, then transduced with either Mock, Zfp335-, Bcl6-, or Rorc-overexpressing vector for 3.5 days. The different stages of thymocyte development from GFP-positive cells were measured by flow cytometry (n = 3). (B) Representative FACS plots of DN and DP thymocytes from the indicated groups. (C) The percentage of DP thymocytes from GFP-positive cells. (D–G) KO DN3 thymocytes were cultured with OP9-DL1 feeder cells in vitro, then transduced with either Mock, Zfp335-, Bcl6-, or Rorc-overexpressing vector for 3.5 days. The expressions of Annexin V in DN and DP thymocytes were measured by flow cytometry (n = 3). (D) Representative FACS plots of Annexin V+ DN thymocytes from the indicated groups. (E) The percentage of Annexin V+ DN thymocytes from GFP-positive cells. (F) Representative FACS plots of Annexin V+ DP thymocytes from the indicated groups. (G) The percentage of Annexin V+ DP thymocytes from GFP-positive cells. Results shown represent three independent experiments. **p < 0.01, ***p < 0.001, and ****p < 0.0001.

Figure 7—source data 1

Figure 7C. The percentages of DP cells differentiated from KO DN3 thymocytes transduced with Mock, or Zfp335, Bcl6, and Rorc genes.

Figure 7E. The percentages of Annexin V+ DN cells differentiated from KO DN3 thymocytes transduced with Mock, or Zfp335, Bcl6, and Rorc genes. Figure 7G. The percentages of Annexin V+ DP cells differentiated from KO DN3 thymocytes transduced with Mock, or Zfp335, Bcl6, and Rorc genes.

https://cdn.elifesciences.org/articles/75508/elife-75508-fig7-data1-v2.xlsx

Discussion

In this study, we reveal that Zfp335 is essential for thymocyte development, particularly during DN to DP transition. Zfp335 deficiency in T cells led to a significant loss of DP, CD4 SP, and CD8 SP cells while an accumulation of DN3 cells. Mechanistically, the developmental blockade is attributed to both impaired pre-TCR signal and increased susceptibility to apoptosis. Serving as a transcription factor, Zfp335 directly promotes Bcl6 and Rorc expression in DN thymocytes to ensure their survival during early development.

Zfp335 was previously demonstrated to be crucial for early embryonic development as homozygous deletion of this gene resulted in neonatal death (Garapaty et al., 2009). Conditional knockout of Zfp335 in neural system led to severely reduced cortical size and impaired neurogenesis. Mechanistically, Zfp335 was required for neural progenitor cell self-renewal and proliferation, and neuronal differentiation (Yang et al., 2012) and neuronal morphogenesis (Zhao et al., 2015). Besides, deficiency of naive T cells in mice carrying a hypomorph allele of Zfp335 (Zfp335bloto) uncovered its role in immune system (Han et al., 2014). So far, there is still very limited information about the functions of Zfp335 in other aspects of immune system. Here, we found that Zfp335 is absolutely required for multiple steps of early T-cell development. Of note, it will be worth investigating whether and how Zfp335 is involved in the regulation of mature T-cell differentiation and functions under static and immunized conditions in future.

We have shown that Zfp335 expression was upregulated specifically in DN3 thymocytes and significantly decreased in the subsequent stages, suggesting a critical role at the DN3 stage. Of note, loss of Zfp335 led to a dramatic reduction in both thymus size and thymocyte number. The accumulation of DN3 cells results from an intrinsic mechanism that hinders the transition from DN3 to DN4 stage, leading to the reduction of DP thymocytes and mature T cells in the periphery. These data are in line with another recent study reporting that Zfp335 mutation led to a reduction in peripheral T cells as a result of defective naive T cells and SP thymocytes (Han et al., 2014). However, given the intact thymic selection with Zfp335 mutation, the report was inconsistent with our observation of decreased β-selection with Zfp335 deficiency. The discrepancy is likely due to the different approaches used to disrupt Zfp335 function since a single-nucleotide missense mutation of Zfp335 may affect its function differently. Nevertheless, by knocking out the entire Zfp335 protein, we provide evidence that Zfp335 is indispensable for early thymocyte development.

Thymocyte β-selection is a critical developmental checkpoint allowing for the progression from DN3 to DN4 stage and the maintenance of DP cell numbers, which is primarily dependent on TCRβ and pre-TCR signals constituted with a functional iTCRβ paired with a pTα chain (Yamasaki and Saito, 2007). Pre-TCR signaling regulates thymocytes differentiation, proliferation, and survival in the full developmental process (Koch and Radtke, 2011). In addition, there are reports that other pathways or transcription factors coupled with or independent of conventional pre-TCR signaling are found to play important roles in the process (Ciofani et al., 2004; Pajerowski et al., 2009; Zikmund et al., 2019). While Zfp335-deficient DN4 cells exhibited no defects in the rearrangement of TCRβ chain genes and pTα gene expression, our results clearly demonstrated that Zfp335 deficiency markedly impaired iTCRβ expression and led to an unbiased reduction of the majority of Vβ genes in DN4 populations. Future studies will investigate the mechanisms how Zfp335 regulates iTCRβ expression. Importantly, forced iTCRβ expression in DN3 and DN4 cells by transduction of OT1-TCR completely rescued the developmental impairment during the DN3-DN4 transition in Zfp335-deficient mice despite the failure to rescue the DN3, DN4, and DP population size. This suggests that Zfp335 controls the DN3–DN4 transition dependent on pre-TCR signals, but other mechanisms may also regulate the DP population size.

The large population of DP thymocytes is maintained by both cell proliferation and survival mechanisms. Zfp335-deficient DN3 and DN4 cells showed slightly higher or unchanged incorporation of BrdU, suggesting that cell proliferation was not affected. However, our data revealed a significant increase in apoptosis in Zfp335-deficient DN3 and DN4 thymocytes. Transcriptomic analysis (RNA-seq and qPCR) unveiled the downregulation of Bcl6 and Rorc signaling which are critically involved in thymocyte apoptosis (Solanki et al., 2020; Xi et al., 2006). Indeed, we have demonstrated that Zfp335, a transcription factor, direct bound to the promoter regions of Bcl6 and Rorc genes. More importantly, enhanced expression of Bcl6 and Rorc could improve thymocyte survival and substantially restore the DP thymocyte population. Trp53 deletion resulted in a partial recovery of DP cells, further supporting the role of Bcl6 in Zfp335-controlled thymocyte survival. Of note, Zfp335 may also control thymocyte survival through directly regulating other targets.

In our study, Zfp335 is indispensable for thymocyte β-selection given that T-cell-specific deficiency in Zfp335 leads to impaired iTCRβ expression, blockade of thymocytes at DN stage as well as a substantial DN cell apoptosis. Though enhanced expression of TCRβ restores the developmental defect during DN3 to DN4 transition, it had little impact on the population size of DN3, DN4, and DP cells, suggesting the regulation of Zfp335 on DN cell apoptosis through mechanisms more than β-selection. Indeed, we provided the evidence that Zfp335-controlled DN cell survival through regulating Bcl6 and Rorc expression. Moreover, Zfp335 regulates TCRβ expression independent on Bcl6 and Rorc since overexpression of neither Bcl6 or Rorc in Zfp335-deficient DN3 thymocytes could restore the decreased iTCRβ expression (Figure 7—figure supplement 3).

Several key factors have been shown to involve in the regulation of T-cell developmental process from DN3 to DP stages. Notch signaling is required for early T-cell commitment and β-selection (Radtke et al., 2010; Ciofani and Zúñiga-Pflücker, 2005; Hosokawa and Rothenberg, 2018), which is subsequently weaken by Bcl6 repression for the differentiation from DN to DP stage development (Solanki et al., 2020). Consistently, our results found that Zfp335 could directly target Bcl6, and Zfp335 deficiency led to decreased expression of Bcl6 and upregulation of Notch target genes such as Dtx1 and Notch1 (data not shown), which collectively contributing to the developmental block from DN to DP stage. In addition, Tcf1 plays a vital role in T-cell lineage commitment since Tcf1−/− DN3 thymocytes failed to progress to DN4 and subsequent DP stage through regulating Bcl11b and Gata3 expression (Garcia-Perez et al., 2020). Bcl11b and Gata3 also differentially regulate the differentiation and survival of thymocytes at DN3, DN4, and subsequent ISP stages via TCR or/and survival signals (Inoue et al., 2006; Pai et al., 2003). However, we did not detect reduced expression of Tcf1, Bcl11b, or Gata3 in Zfp335-deficient DN4 cells, suggesting that Zfp335 regulates DN3 to DP thymocyte development independent on these molecules.

In conclusion, our study reveals that the C2H2 zinc finger protein Zfp335 plays a novel and crucial role during thymocyte development, specifically during the transition from DN to DP stage. Mechanistically, Zfp335 promotes Bcl6 and Rorc signaling to prevent thymocytes apoptosis and ensure the survival and differentiation of thymocytes. Collectively, we provide evidence that Zfp335 is essential for thymocyte development through both pre-TCR-dependent and -independent mechanisms.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Genetic reagent (M. musculus)C57BL/6J backgroundJackson LaboratoryStock No. 000664
Genetic reagent (M. musculus)C57BL/6-Zfp335tm1CawJackson LaboratoryStock No. 022413
Genetic reagent (M. musculus)C57BL/6-Tg(TcraTcrb)1,100Mjb/JJackson LaboratoryStock No. 003831Common Name: OT-1
Genetic reagent (M. musculus)B6.Cg-Tg(Lck-cre)548Jxm/JJackson LaboratoryStock No. 003802
Genetic reagent (M. musculus)C3Ou.129S2(B6)-Trp53tm1Tyj/JJackson LaboratoryStock No. 002547
Antibodyanti-mouse CD4 APC/Cyanine7 (Rat monoclonal)BiolegendCat# 100414; RRID:AB_312699cell surface staining 1:400
Antibodyanti-mouse CD8a PE (Rat monoclonal)BiolegendCat# 100708; RRID:AB_312747cell surface staining 1:400
Antibodyanti-mouse CD8a Pacific Blue (Rat monoclonal)BiolegendCat# 100725; RRID:AB_493425cell surface staining 1:400
Antibodyanti-mouse CD8a PE/Cyanine7 (Rat monoclonal)BiolegendCat# 100722; RRID:AB_312761cell surface staining 1:400
Antibodyanti-mouse TCR Vβ5.1, 5.2 PE (Mouse monoclonal)BiolegendCat# 139504, RRID:AB_10613279cell surface staining 1:400
Antibodyanti-mouse TCR Vβ6 PE (Rat monoclonal)BiolegendCat# 140004; RRID:AB_10643583cell surface staining 1:400
Antibodyanti-mouse TCR Vβ8.1, 8.2 PE (Mouse monoclonal)BiolegendCat# 140104; RRID:AB_10639942cell surface staining 1:400
Antibodyanti-mouse TCR Vβ12 PE (Mouse monoclonal)BiolegendCat# 139704; RRID:AB_10639729cell surface staining 1:400
Antibodyanti-mouse TCR β chain APC/Cyanine7 (Armenian Hamster monoclonal)BiolegendCat# 109220; RRID:AB_893624cell surface staining 1:400
Antibodyanti-mouse TCR β chain PE/Cyanine5 (Armenian Hamster monoclonal)BiolegendCat# 109210; RRID:AB_313433cell surface staining 1:400
Antibodyanti-mouse TCR β chain PE/Cyanine7 (Armenian Hamster monoclonal)BiolegendCat# 109222; RRID:AB_893625cell surface staining 1:400
Antibodyanti-mouse TCR γ/δ FITC (Armenian Hamster monoclonal)BiolegendCat# 118106; RRID:AB_313830cell surface staining 1:400
Antibodyanti-mouse TCR γ/δ PerCP/Cyaninne5.5 (Armenian Hamster monoclonal)BiolegendCat# 118118; RRID:AB_10612756cell surface staining 1:400
Antibodyanti-mouse TCR γ/δ APC (Armenian Hamster monoclonal)BiolegendCat# 118116; RRID:AB_1731813cell surface staining 1:400
Antibodyanti-mouse/human CD44 PE/Cyanine7 (Rat monoclonal)BiolegendCat# 103030; RRID:AB_830787cell surface staining 1:400
Antibodyanti-mouse CD25 PE (Rat monoclonal)BiolegendCat# 102008; RRID:AB_312857cell surface staining 1:400
Antibodyanti-mouse CD25 PE/Cyanine5 (Rat monoclonal)BiolegendCat# 102010; RRID:AB_312859cell surface staining 1:400
Antibodyanti-mouse CD4 FITC (Rat monoclonal)BiolegendCat# 100510; RRID:AB_312713cell surface staining 1:400
Antibodyanti-mouse CD8a FITC (Rat monoclonal)BiolegendCat# 100706; RRID:AB_312745cell surface staining 1:400
Antibodyanti-mouse TCR β chain FITC (Armenian Hamster monoclonal)BiolegendCat# 109206; RRID:AB_313429cell surface staining 1:400
Antibodyanti-mouse NK-1.1 FITC (Mouse monoclonal)BiolegendCat# 108706; RRID:AB_313393cell surface staining 1:400
Antibodyanti-mouse CD19 FITC (Rat monoclonal)BiolegendCat# 115506; RRID:AB_313641cell surface staining 1:400
Antibodyanti-mouse CD11b FITC (Rat monoclonal)BiolegendCat# 101206; RRID:AB_312789cell surface staining 1:400
Antibodyanti-mouse CD11c FITC (Armenian Hamster monoclonal)BiolegendCat# 117306; RRID:AB_313775cell surface staining 1:400
Antibodyanti-mouse TER-119/Erythroid Cells FITC (Rat monoclonal)BiolegendCat# 116206; RRID:AB_313707
Antibodyanti-mouse TCR β chain Pacific Blue (Armenian Hamster monoclonal)BiolegendCat# 109226; RRID:AB_1027649
Antibodyanti-mouse CD45.1 APC/Cy7 (Mouse monoclonal)BiolegendCat# 110716; RRID:AB_313505cell surface staining 1:400
Antibodyanti-mouse CD45.2 PE (Mouse monoclonal)BiolegendCat# 109808; RRID:AB_313445
Antibodyanti-mouse CD45.2 APC (Mouse monoclonal)BiolegendCat# 109814; RRID:AB_389211
Antibodyanti-mouse CD3 Pacific Blue (Armenian Hamster monoclonal)BiolegendCat# 640918; RRID:AB_493645
Antibodyanti-mouse CD27 FITC (Armenian Hamster monoclonal)BiolegendCat# 124208; RRID:AB_1236466
Antibodyanti-BrdU FITC (Mouse monoclonal)BiolegendCat# 364104; RRID:AB_2564481
Antibodyanti-BrdU FITC (3D4)BiolegendCat# 364104; RRID:AB_2564481
Antibodyanti-mouse Ki-67 PE (16A8)BiolegendCat# 652404; RRID:AB_2561525
AntibodyAnti-Zfp335 antibodyNovusCat# NB100-2579
Peptide, recombinant proteinAnnexin V Pacific BlueBiolegendCat# 640918; RRID:AB_1279044
Peptide, recombinant proteinDNaseISolarbioCat# D8071
Commercial assay or kitFixation BufferBiolegendCat# 420,801
Commercial assay or kitIntracellular Staining Permeabilization Wash Buffer (10×)BiolegendCat# 421,002
Commercial assay or kitMojoSort Streptavidin NanobeadsBiolegendCat# 480,016
Commercial assay or kitFixation/Permeabilization Solution Kit with BD GolgiPlugBD biosciencesCat# 555,028
Commercial assay or kitOne-Day Chromatin Immunoprecipitation KitsMILLIPORECat# 17-10085
Commercial assay or kitQuick-RNA MicroPrep KitQIAGENCat# R1051
Commercial assay or kitFixation BufferBiolegendCat# 420,801
Software, algorithmFlowJo software v10.7FlowJo LLChttps://www.flowjo.com/; RRID:SCR_008520
Software, algorithmGSEABroad Institutehttps://www.broadinstitute.org/gsea; RRID:SCR_003199
Software, algorithmPrism8 (v8.1.0)GraphPad Softwarehttps://www.graphpad.com/
Software, algorithmRStudioRStudiohttps://rstudio.com/; RRID: SCR_000432

Mice

Zfp335f/f, LckCre, Trp53DKO, and OT-1 strains were purchased from The Jackson Laboratory (Bar Harbor, ME, USA). LckCre mice were crossed with Zfp335f/f mice to generate LckCre+Zfp335f/f (KO) mice and LckCre+Zfp335+/+ (WT) mice. Mice aged 6–8 weeks were used for analyses in the study. All mice were housed in specific-pathogen-free conditions by the Xi’an Jiaotong University Division of Laboratory Animal Research. All animal procedures were approved by the Institutional Animal Care and Use Committee of Xi’an Jiaotong University.

Antibodies and reagents

Request a detailed protocol

The following antibodies and kits were purchased from Biolegend (San Diego, CA, USA): APC/Cy7 anti-CD4 (clone GK1.5), PE anti-CD8α (clone 53–6.7), Pacific Blue anti-CD8α (clone 53–6.7), PE/Cyanine7 anti-CD8α (clone 53–6.7), PE anti-TCRVβ5.1, 5.2 (clone MR9-4), PE anti-TCRVβ6 (clone RR4-7), PE anti-TCRVβ8.1, 8.2 (clone MR5-2), PE anti-TCRVβ12 (clone MR11-1), APC/Cyanine7 anti-TCRβ (clone H57-597), PE/Cyanine5 anti-TCRβ (clone H57-597), PE/Cy7 anti-TCRβ (clone H57-597), FITC anti-TCRγδ (clone GL3), PE/Cyanine5 anti-TCRγδ (clone GL3), APC anti-TCRγδ (clone GL3), PE/Cy7 anti-CD44 (clone IM7), PE anti-CD25 (clone PC61), PE/Cyanine5 anti-CD25 (clone PC61), FITC anti-CD4 (clone GK1.5), FITC anti-CD8 (clone 53-6.7), FITC anti-TCRβ (clone H57-597), FITC anti-NK1.1 (clone PK136), FITC anti-CD19 (clone 6D5), FITC anti-CD11b (clone M1/70), FITC anti-CD11c (clone N418), FITC anti-TER-119/Erythroid Cells (TER-119), Pacific Blue anti-TCRβ (clone H57-597), APC/Cy7 anti-CD45.1 (clone A20), PE anti-CD45.2 (clone 104), APC anti-CD45.2 (clone 104), Pacific Blue anti-Annexin V (Cat # 640918), Pacific Blue anti-CD3 (clone 17A2), FITC anti-CD27 (clone LG.3A10), FITC anti-BrdU (clone Bu20a), and the Fixation/Permeabilization Solution Kit (Cat # 554722). PE anti-Ki67 monoclonal antibody (clone SolA15) was purchased from eBioscience (San Diego, CA, USA). Quick-RNA Microprep Kit (Cat # R1051) was obtained from Zymo Research (Irvine, CA, USA).

FACS analysis and Sorting

Request a detailed protocol

Lymphocytes from LckCre+Zfp335+/+ and LckCre+Zfp335fl/fl mice were isolated. For surface staining, single cell suspension was prepared. A total of 1 × 106 cells were stained in the dark at 4℃ for 30 min with indicated antibodies. The analysis was performed on a CytoFLEX flow cytometer (Beckman Coulter; Brea, CA, USA). DN3 (Lin−CD25+CD44−) and DN4 (Lin−CD25−CD44−) cells were collected by BD FACSAria Ⅱ cell sorter (BD Biosciences, San Jose, CA, USA). FACS data were recorded and analysed using CytExpert software (Version 2.3.0.84; Beckman Coulter; Indianapolis, IN, USA).

Intracellular staining

Request a detailed protocol

DN and DP thymocytes were phenotyped using a combination of surface antibodies against lineage markers (CD4, CD8α, TCRβ, TCRγδ, NK1.1, CD19, CD11b, CD11c, and Ter119), together with CD44 and CD25 antibodies. For intracellular cytokine staining, the thymocytes were fixed and permeabilized using a Fixation/Permeabilization Solution Kit (Biolegend), followed by staining using indicated antibodies. The cells were analyzed on a CytoFLEX flow cytometer (Beckman Coulter).

Quantitative RT-PCR

Request a detailed protocol

Cell lysis was performed with RNA extraction and cDNA synthesis using Quick-RNA Microprep Kit (Zymo Research) and ReverTra Ace qPCR RT Master Mix Kit (TOYOBO), respectively. The qRT-PCR reactions were carried out using StepOnePlus Real-Time PCR Systems (ABI) with SYBR mixture (Genstar) to determine relative gene expression. The sequences for the primers are list in Supplementary file 4.

Bone marrow transplantation

Request a detailed protocol

Lineage-negative BM cells from CD45.1+ mice and LckCre+Zfp335fl/fl mice (CD45.2+) were sorted, and mixed at a 1:4 ratio and cotransferred into lethally irradiated (8.5 Gy) recipient mice (CD45.1+CD45.2+). Six weeks after bone marrow transplantation, thymocytes from recipient mice were harvested for FACS analysis.

In vitro OP9-DL1 cell coculture

Request a detailed protocol

Both Lin−CD25+CD44− DN3 cells and Lin−CD25−CD44− DN4 cells were sorted from the thymi of LckCre+Zfp335+/+ and LckCre+Zfp335fl/fl mice and cocultured with OP9-DL1 feeder cells in α-MEM medium in the presence of IL-7 (1 ng/ml, PeproTech) and Flt3-L (5 ng/ml, PeproTech). On days 2 and 4, total cells were collected and stained with indicated antibodies for FACS analysis.

Retroviral transduction of DN3 thymocytes

Request a detailed protocol

Retroviruses were produced from BOSC cells transfected with Mock-GFP, Zfp335-GFP, Bcl6-GFP, and Rorc-GFP retroviral plasmids. For retroviral transduction, Lin−CD25+CD44− DN3 thymocytes were sorted by FACSAria flow cytometry (BD) and cocultured with OP9-DL1 feeder cells overnight in the presence of 1 ng/ml IL-7 and 5 ng/ml Flt3L. Retroviral infection was performed 16 hr later by centrifugation (2500 rpm for 90 min at 37°C) in the presence of retroviral supernatants and 8 µg/ml polybrene. After spinning, supernatants were replaced by α-MEM medium with 10% FCS supplemented with 1 ng/ml IL-7 and 5 ng/ml Flt3L. 3.5 days later, GFP+ cells were examined using flow cytometry analysis.

Luciferase assay

Request a detailed protocol

To assess whether Zfp335 regulates Bcl6 and Rorc by directly binding to their promoter regions, the DNA fragments were cloned into the pGL4.16 (luc2CP/Hgro) vector (Promega) which contains the luciferase reporter gene luc2CP. The pGL4.16 plasmid, control vector pGL4.74 (hRluc/TK) encoding the luciferase reporter gene hRluc (Renilla reniformis), along with plasmids expressing candidate genes were transfected separately into 293T cell line (ATCC). Forty-eight hours post-transfection, the luciferase activity of both Firefly and Renilla luciferase was measured using a Dual-Luciferase Reporter kit (Promega) on SYNERGY Neo2 multimode reader (BioTek).

RNA-seq library preparation and sequencing

Request a detailed protocol

Lin−CD25−CD44− DN4 cells were sorted from the thymi of LckCre+Zfp335+/+ and LckCre+Zfp335fl/fl mice. The DN4 cell numbers in each group were as followed: WT1, 8 × 105 cells pulled from 4 mice; WT2, 9 × 105 cells from 5 mice; KO1, 6.7 × 105 cells from 13 mice; KO2, 7 × 105 cells from 15 mice. RNA isolation was performed using the RNeasy Mini Kit (Qiagen) according to the manufacturer’s protocol. RNA quality and quantity were detected by the Qubit RNA broad range assay in the Qubit Fluorometer (Invitrogen). After quality control using RNase-free agarose gel and Agilent 2100 (Agilent Technologies, Palo Alto, CA, USA), RNA-seq libraries were prepared by using 200 ng total RNA with TruSeq RNA sample prep kit (Illumina). Oligo(dT)-enriched mRNAs were fragmented randomly with fragmentation buffer, followed by first- and second-strand cDNA synthesis. After a series of terminal repair, the double-stranded cDNA library was obtained through PCR enrichment and size selection. cDNA libraries were sequenced with the Illumina Hiseq 2000 sequencer (Illumina HiSeq 2000 v4 Single-Read 50 bp) after pooling according to its expected data volume and effective concentration.

Two biological replicates were performed in the RNA-seq analysis. Raw reads were then aligned to the mouse genome (GRCm38) using Tophat2 RNA-seq alignment software, and unique reads were retained to quantify gene expression counts from Tophat2 alignment files. Data were analyzed and preprocessed in the R environment. Differential expression analysis was performed using R package DESeq2 (adjusted p value < 0.05 and fold change >1.25). Heat maps and volcano plots were visualized using the R package.

ChIP-seq library preparation and sequencing

Request a detailed protocol

Both Lin−CD25+CD44− DN3 cells and Lin−CD25−CD44− DN4 cells were sorted from the thymi of 100 WT mice by FACSAria flow cytometry (BD). Anti-Zfp335 antibody (Novus) and Millipore 17-10,085 ChIP kit were used in the ChIP assay. Immunoprecipitated DNA was used for Illumina ChIP-seq sample preparation. In brief, 5 × 107 cells were crosslinked to chromatin with 1% formaldehyde. Reaction was stopped with 0.125 M glycine. Cells were then resuspended in cold nuclear lysis buffer and sonicated to obtain DNA with ~300–500 bp size, followed by precipitation by incubation with immunoprecipitation-grade anti-Zfp335 antibody and Magnetic Protein A/G Beads overnight. The following day, beads were sequentially washed by low-salt, high-salt, LiCl, and TE buffers. Bound complexes were eluted in 150 μl of elution buffer at 62°C for 2 hr with shaking, followed by reversal of formaldehyde crosslinking at 95°C for 10 min. DNA was eventually purified with spin columns.

The concentration of immunoprecipitated DNA was detected by the Qubit DNA broad range assay in the Qubit Fluorometer (Invitrogen). 10 ng immunoprecipitated DNA was prepared for sequencing using the Illumina ChIP-seq sample preparation protocol. Blunt-end DNA fragments were ligated to Illumina adaptors, amplified, and sequenced using the SE150 model. Raw reads were filtered firstly to remove low-quality or adaptor sequences by SOAPnuke (version 1.5.6). Clean reads were mapped to the reference genome of GRCm39 with SOAPaligner/soap2 (version 2.21t) using default settings. The MACS2 software (Version 2.1.1) was used to process peak calling. MACS (Model-based Analysis of ChIP-Seq) is a commonly used computational method which is designed to identify peaks from ChIP-seq data. MACS assigns every candidate region an enrichment p value, and targeted genes are identified as final peaks passing the threshold p value < 1e−5 (Feng et al., 2012; Feng et al., 2011). The different enrichment peaks from different samples were plotted by MAnorm (version 1.1). Genomic graphs were generated and viewed with the IGV (Integrative Genomics Viewer).

Statistical analysis

Request a detailed protocol

Data were presented as mean ± standard error of the mean. Statistical analyses were applied to biologically independent mice or technical replicates for each experiment which was independently repeated at least three times. Two-tailed Student’s t-test was used for all statistical calculations using GraphPad Prism seven software. All bar graphs include means with error bars to show the distribution of the data. The level of significance is indicated as follows: *p < 0.05, **p < 0.01, ***p < 0.001, and ****p < 0.0001.

Data availability

The sequencing data presented in this paper are available for download on GEO data repository with accession numbers GSE184532 and GSE184705. Source data files have been provided for relevant figures.

The following data sets were generated
    1. Wang X
    2. Jiao AJ
    3. Sun LN
    4. Wh LI
    5. Yang B
    6. Yh SU
    7. Ding RY
    8. Zhang CG
    9. Liu HY
    10. Yang XF
    11. Sun CM
    12. Zhang BJ
    (2021) NCBI Gene Expression Omnibus
    ID GSE184532. Zinc finger protein Zfp335 controls thymocyte differentiation and survival through b-selection-dependent and -independent mechanisms.
    https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE184532
    1. Wang X
    2. Jiao AJ
    3. Sun LN
    4. Wh LI
    5. Yang B
    6. Yh SU
    7. Ding RY
    8. Zhang CG
    9. Liu HY
    10. Yang XF
    11. Sun CM
    12. Zhang BJ
    (2021) NCBI Gene Expression Omnibus
    ID GSE184705. Zinc finger protein Zfp335 controls thymocyte differentiation and survival through b-selection-dependent and -independent mechanisms.
    https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE184705

References

    1. Godfrey DI
    2. Kennedy J
    3. Suda T
    4. Zlotnik A
    (1993)
    A developmental pathway involving four phenotypically and functionally distinct subsets of CD3-CD4-CD8- triple-negative adult mouse thymocytes defined by CD44 and CD25 expression
    Journal of Immunology (Baltimore, Md 150:4244–4252.

Decision letter

  1. Sarah Russell
    Reviewing Editor; Peter MacCallum Cancer Centre, Australia
  2. Tadatsugu Taniguchi
    Senior Editor; Institute of Industrial Science, The University of Tokyo, Japan

Our editorial process produces two outputs: (i) public reviews designed to be posted alongside the preprint for the benefit of readers; (ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Decision letter after peer review:

Thank you for submitting your article "Zinc finger protein Zfp335 controls early T cell development and survival through β-selection-dependent and -independent mechanisms" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Tadatsugu Taniguchi as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1. Better characterise the functional relationship between Zfp335 and β selection.

2. Control for the possibility that overexpression of Zfp335, Bcl6 or Rorc caused the effects in a Zfp335-independent manner by expressing the genes in a similar manner in WT cells.

3. Confirm stage-specific expression of Zfp335 with antibody staining.

4. Include information on cell counts.

5. Show the effects on pTα gene expression.

6. Explain how the downstream target genes were validated and triaged, including whether Bcl6 and RORc stood out from a bioinformatics perspective, or were selected based upon their known biology.

7. Justify the rationale for a 1:4 ratio of WT:KO

Reviewer #1 (Recommendations for the authors):

a) Overall the figures were clear and well laid out. However, it was sometimes quite complicated to decipher why there was a difference in the trends between % cells and cell counts (e.g. DN cells Figure 1 D versus E). I presume that this is because Zfp335 deficiency caused a drop in overall cell number but it might be helpful to show the overall cell counts data to help the reader interpret the data. The cell counts data should also be included in figure 2.

b) In the paper you identified a number of processes that were impacted by this transcription factor but did not look at the interaction between them. For instance, you demonstrated that intracellular TCRβ is reduced and apoptosis is increased by Zfp335 deficiency, and that forced expression of intracellular TCRβ partially elevated the effect on development but did not examine the effect on apoptosis. This would of be particularly interesting to examine given the recent work showing that pre-TCR increases the expression of Bcl6, which in turn protects DN4 cells from apoptosis (Development 2020 Oct 7;147(19):dev192203. doi: 10.1242/dev.192203).

c) The discussion would benefit from more discussion of the literature. I appreciate that there is only a limited amount of literature on the role of Zfp335, apart from the paper that you already mentioned, however you could discuss what is known about the role of this transcription factor in other developmental systems. Furthermore, it would be interesting to discuss how Zfp335 regulatory pathways compares to other regulatory pathways already known to control T cell development and how it might interplay.

d) In the discussion you state "While Zfp335-deficient DN4 cells exhibited no defects in the rearrangement of TCRβ chain genes and pTα gene expression". My apologies if I missed it but I could find the pTα data

Reviewer #2 (Recommendations for the authors):

Overall this manuscript starts with an interesting developmental phenotype however there are several problems with the approaches and experimental details that I indicated above. These include: (a) disregarding experimental issues like assessing DN3a versus DN3b, which would have located the initiation of the defect, (b) failing to explain approaches like the 1 to 4 ratio of WT to KO in the mixed cultures and chimeras, (c) specifically focusing on downregulated genes, (d) failing to explain how they narrow down to 97+22 genes from the original 566 downregulated and 899 upregulated genes when they compare with the genes associated with ChIP-seq peaks, (e) failing to explain how they identify the genes associated with each peak (f) failing to control how the overexpression of Rorc and Bcl6 affects the development of WT cells. In view of all these widespread issues, this reviewer has serious problems with the interpretations and mechanistic conclusions of the manuscript

Reviewer #3 (Recommendations for the authors):

This is an interesting study from Wang et al. The data presented is strong, thorough, well-controlled and largely support the conclusions made. However, I do have some suggestions that the authors should attempt to address.

1. While the qPCR analysis for Zfp335 expression validates the microarray data from ImmGen, this of course is still only RNA analysis. If would be good to validate the expression of Zfp335 protein, either by intracellular staining + FACS or by Western blotting of DN, DP and SP sorted cells. Commercial antibodies are available.

2. The authors showed that there is increased apoptosis of DN3 cells. Is this occurring pre-β-selection (DN3a) or post-β-select (DN3b)? Co-staining for additional markers, e.g. intracellular TCRbeta would address this. This is relevant given that authors suggest that the block is due to impaired i.c.TCRbeta expression.

3. Initially, the authors suggest that the block in Zfp335 knockout mice is due to impaired TCRbeta expression and that this can be rescued by the OT-1 transgene. However, they then suggest that Zfp335 functions by regulating Bcl6 and Rorc. How do the authors connect these two observations? Is the TCRb impairment a result of dysregulated Bcl6 and/or Rorc expression?

4. Bcl6 is normally expressed in DN3 thymocytes and regulates survival at that stage, while Rorc is normally expressed in DP thymocytes and regulates survival at that stage. The timing of Zfp335 expression aligns with Bcl6 but not with Rorc. How do the authors reconcile this discordance given that Zfp335 is downregulated in DP thymocytes?

https://doi.org/10.7554/eLife.75508.sa1

Author response

Essential revisions:

1. Better characterise the functional relationship between Zfp335 and β selection.

Please refer to the answers for Question b from Reviewer #1 and Question 2-3 from Reviewer #3.

2. Control for the possibility that overexpression of Zfp335, Bcl6 or Rorc caused the effects in a Zfp335-independent manner by expressing the genes in a similar manner in WT cells.

Please refer to the answer for Question f from Reviewer #2.

3. Confirm stage-specific expression of Zfp335 with antibody staining.

Please refer to the answer for Question 1 from Reviewer #3.

4. Include information on cell counts.

Please refer to the answer for Question a from Reviewer #1.

5. Show the effects on pTα gene expression.

Please refer to the answer for Question d from Reviewer #1.

6. Explain how the downstream target genes were validated and triaged, including whether Bcl6 and RORc stood out from a bioinformatics perspective, or were selected based upon their known biology.

We have performed overlay analysis between Zfp335 ChIP-seq (DN3/4 cells) and 119 profoundly downregulated genes (Zfp335 deficient DN4 cells vs WT DN4 cells). Ten out of 22 candidate genes were pursued to functional test. Meanwhile, we used pathway analysis to screen out 23 genes related to T cell development and/or survival. Based on known biology in thymocyte development, we decided to focus on Bcl6 and Rorc. Please see the description in the result part. Please also refer to the answer for Question c-d from Reviewer #2.

7. Justify the rationale for a 1:4 ratio of WT:KO

Please refer to the answer for Question b from Reviewer #2.

Reviewer #1 (Recommendations for the authors):

a) Overall the figures were clear and well laid out. However, it was sometimes quite complicated to decipher why there was a difference in the trends between % cells and cell counts (e.g. DN cells Figure 1 D versus E). I presume that this is because Zfp335 deficiency caused a drop in overall cell number but it might be helpful to show the overall cell counts data to help the reader interpret the data. The cell counts data should also be included in figure 2.

We thank the reviewer for this advice. Indeed, the difference in the trends between % cells and cell counts in Figure 1D and 1E was a result of a dramatic reduction of overall cell number in the thymus caused by Zfp335 deficiency (Figure 1B). Following the suggestion, we have added the cell counts data for separate culture and separate transfer experiments, as well as ratio analysis for co-culture and co-transfer experiment in Figure2—figure supplement 1 of the revised version.

b) In the paper you identified a number of processes that were impacted by this transcription factor but did not look at the interaction between them. For instance, you demonstrated that intracellular TCRβ is reduced and apoptosis is increased by Zfp335 deficiency, and that forced expression of intracellular TCRβ partially elevated the effect on development but did not examine the effect on apoptosis. This would of be particularly interesting to examine given the recent work showing that pre-TCR increases the expression of Bcl6, which in turn protects DN4 cells from apoptosis (Development 2020 Oct 7;147(19):dev192203. doi: 10.1242/dev.192203).

Thank the reviewer for this interesting point. Following the suggestion, we examined the effect of forced expression of TCRβ on thymocyte apoptosis and the results revealed that DN3 and DN4 cells from OT1TgKO mice exhibited similarly increased apoptosis with Zfp335 deletion (Figure5—figure supplement 4), suggesting Zfp335 affects thymocyte apoptosis in a TCR-independent manner.

In T cell development, β-selection promotes the transition from DN to DP cell, a process depending on the expression of pre-TCR signalling, which further provides signals for thymocyte proliferation and differentiation. In the Development 2020 paper (Solanki et al., 2020), it was reported that pre-TCR signaling induces Bcl6 expression which in turn inhibits DN4 apoptosis and promotes DN to DP transition. Whereas, increasing evidence have shown that TCR-independent signals also contribute to the survival and proliferation of thymocytes, such as IL7, Hedgehog and Wnt signalling (Staal et al., 2001; Outram et al., 2009; Rowbotham et al., 2009; Boudil et al., 2015).

In our study, Zfp335 is indispensable for thymocyte β-selection given that T cell-specific deficiency in Zfp335 leads to impaired intracellular TCRβ expression, blockade of thymocytes at DN stage as well as a substantial DN cell apoptosis. Though enhanced expression of TCRβ restores the developmental defect during DN3 to DN4 transition, it had little impact on the population size of DN3, DN4 and DP cells, suggesting the regulation of Zfp335 on DN cell apoptosis through mechanisms more than β-selection. Indeed, we provided the evidence that Zfp335 controlled DN cell survival through regulating Bcl6 and Rorc expression.

We have added these data in Figure5—figure supplement 4A-C and corresponding discussion in the revised manuscript.

c) The discussion would benefit from more discussion of the literature. I appreciate that there is only a limited amount of literature on the role of Zfp335, apart from the paper that you already mentioned, however you could discuss what is known about the role of this transcription factor in other developmental systems. Furthermore, it would be interesting to discuss how Zfp335 regulatory pathways compares to other regulatory pathways already known to control T cell development and how it might interplay.

Thanks for the good suggestions. We have added comprehensive discussion about the role of Zfp335 in other developmental systems and how it interplays with other regulatory pathways in T cell development. The new discussion is attached as below.

“Zfp335 was previously demonstrated to be crucial for early embryonic development as homozygous deletion of this gene results in neonatal death (Garapaty et al., 2009). Conditional knockout of Zfp335 in neural system led to severely reduced cortical size and impaired neurogenesis. Mechanistically, ZNF335 is required for neural progenitor cell self-renewal and proliferation, and neuronal differentiation (Yang et al., 2012) and neuronal morphogenesis (Zhao et al., 2015). Besides, deficiency of naïve T cells in mice carrying a hypomorph allele of Zfp335 (Zfp335bloto) uncovered its role in immune system (Han et al., 2014). So far, there is still very limited information about the functions of Zfp335 in other aspects of immune system. Here we found that Zfp335 is absolutely required for multiple steps of early T cell development. Of note, it will be worth investigating whether and how Zfp335 is involved in the regulation of mature T cell differentiation and functions under static and immunized conditions in future.”

“Several key factors have been shown to involve in the regulation of T cell developmental process from DN3 to DP stages. Notch signaling is required for early T cell commitment and β-selection (Radtke et al., 2010; Ciofani and Zuniga-Pflucker, 2005; Hosokawa and Rothenberg, 2018), which is subsequently weaken by Bcl6 repression for the differentiation from DN to DP stage development (Solanki et al., 2020). Consistently, our results found that Zfp335 could directly target Bcl6, and Zfp335 deficiency led to decreased expression of Bcl6 and upregulation of Notch target genes such as Dtx1 and Notch1 (data not shown), which collectively contributing to the developmental block from DN to DP stage. In addition, Tcf1 plays a vital role in T cell lineage commitment since Tcf1-/- DN3 thymocytes failed to be progressed to DN4 and subsequent DP stage through regulating Bcl11b and GATA3 expression (Garcia-Perez et al., 2020). Bcl11b and GATA3 also differentially regulate the differentiation and survival of thymocytes at DN3, DN4 and subsequent ISP stages via TCR or/and survival signals (Inoue et al., 2006; Pai et al., 2003). However, we did not detect reduced expression of Tcf1, Bcl11b or GATA3 in Zfp335-deficient DN4 cells, suggesting that Zfp335 regulates DN to DP thymocyte development independent on these molecules”.

d) In the discussion you state "While Zfp335-deficient DN4 cells exhibited no defects in the rearrangement of TCRβ chain genes and pTα gene expression". My apologies if I missed it but I could find the pTα data.

The pTα expression was detected by qPCR in the Figure5—figure supplement 1 as its gene name ptcra. We have marked it in the revised manuscript to make it clear.

Reviewer #2 (Recommendations for the authors):

Overall this manuscript starts with an interesting developmental phenotype however there are several problems with the approaches and experimental details that I indicated above. These include:

a) Disregarding experimental issues like assessing DN3a versus DN3b, which would have located the initiation of the defect,

We thank the reviewer for pointing it out. To address this question, we examined the effect of Zfp335 deficiency on cell development of DN3a and DN3b. The results showed that the frequencies of both DN3a and DN3b were comparable between WT and Zfp335 deficient groups. However, both cell populations showed enhanced cell apoptosis in Zfp335 deficient cells, indicating that Zfp335 regulates thymocyte apoptosis in TCR-independent manners. Those data have been added in Figure4—figure supplement 2 in the revised manuscript.

b) Failing to explain approaches like the 1 to 4 ratio of WT to KO in the mixed cultures and chimeras,

Thank the reviewer for pointing out this detailed question. In the initial experiment, we tried co-culture of WT and KO DN3 cells at 1:1 ratio, however KO cells were rapidly competed out and was not ideally to perform further analysis. In this regard, we switched the ratio to 1:4 in the mixed culture and chimeras, and significantly lower percentage of DP cells was still observed in KO group.

c) Specifically focusing on downregulated genes,

Thanks for the suggestions. Given that zinc finger protein Zfp335 functions as a transcription factor to positively regulate gene expression, we primarily focused on genes downregulated after Zfp335 deficiency to explore Zfp335 target genes. As pointed out by the reviewer, we also analyzed the upregulated genes (Author response image 1) .

Author response image 1
Download asset Open asset

Gene ontology (GO) analysis of upregulated genes revealed pathways related to lymphocyte apoptosis and differentiation were highly enriched (Author response image 1) , and pro-apoptotic genes Bax, caspase8 and Fas were increased in Zfp335 deficient cells (Author response image 1). In agreement with the observation of Bcl6 downregulation in Zfp335 deficient cells, Dtx1, inhibited by Bcl6, was increased in Zfp335 deficient cells (Author response image 1). Since we aim to screen direct targets by Zfp335, we did not include these data in our manuscript.

d) Failing to explain how they narrow down to 97+22 genes from the original 566 downregulated and 899 upregulated genes when they compare with the genes associated with ChIP-seq peaks,

We apologize for the confusion about the gene number. In the RNA-seq data, 566 genes were downregulated using fold change>1.25 as a cutoff. We expected more genes were included for pathway enrichment analysis. To narrow down the Zfp335 targeting candidates, 119 (97+22) profoundly downregulated genes were further selected out by a cutoff of 2-fold change, and 22 genes were overlapped with Zfp335-targeting genes from ChIP-seq data. We have clarified it in the manuscript and figure legend in the revised manuscript.

e) Failing to explain how they identify the genes associated with each peak

In the ChIP-seq data analysis, the MACS2 software (Version 2.1.1) was used to process peak calling. MACS (Model-based Analysis of ChIP-seq) is a commonly used computational method which was designed to identify peaks from ChIP-seq data. MACS assigns every candidate region an enrichment p-value, and targeted genes were identified as final peaks passing the threshold p-value<1e-5 (Feng et al., 2012, Nat Protoc, Feng et al., 2011, Curr Protoc Bioinformatics). We have clarified it in the Method section and cited related literatures in the revised manuscript.

f) Failing to control how the overexpression of Rorc and Bcl6 affects the development of WT cells. In view of all these widespread issues, this reviewer has serious problems with the interpretations and mechanistic conclusions of the manuscript

As suggested, we have performed overexpression of Bcl6 and Rorc in WT DN3 cells and the results showed that overexpression of both Bcl6 and Rorc could increase DP thymocyte population, and overexpression of Rorc particularly increased CD4+ SP cells (Author response image 2) , which is in line with previous finding of essential role of Rorc in T lymphocyte maturation (He et al., 2000, J Immunol).

Author response image 2
Download asset Open asset

Reviewer #3 (Recommendations for the authors):

This is an interesting study from Wang et al. The data presented is strong, thorough, well-controlled and largely support the conclusions made. However, I do have some suggestions that the authors should attempt to address.

1. While the qPCR analysis for Zfp335 expression validates the microarray data from ImmGen, this of course is still only RNA analysis. If would be good to validate the expression of Zfp335 protein, either by intracellular staining + FACS or by Western blotting of DN, DP and SP sorted cells. Commercial antibodies are available.

We thank reviewer for the good suggestion. We have measured the Zfp335 protein expression among DN (DN3 and DN4), DP and SP by FACS. The results showed that consistent with mRNA data, Zfp335 has the highest expression in DN3 thymocytes. This data has been added in Figure1—figure supplement 1.

2. The authors showed that there is increased apoptosis of DN3 cells. Is this occurring pre-β-selection (DN3a) or post-β-select (DN3b)? Co-staining for additional markers, e.g. intracellular TCRbeta would address this. This is relevant given that authors suggest that the block is due to impaired i.c.TCRbeta expression.

Following the suggestions, we have performed experiments investigating how Zfp335 deficiency affects DN3a and DN3b cell population and their apoptosis. The results showed that the frequencies of both DN3a and DN3b were comparable between WT and Zfp335 deficient groups. However, both cell populations showed enhanced cell apoptosis in Zfp335 deficient cells, indicating that Zfp335 regulates thymocyte apoptosis in TCR-independent manners. Those data have been added in Figure4—figure supplement 2 in the revised manuscript.

3. Initially, the authors suggest that the block in Zfp335 knockout mice is due to impaired TCRbeta expression and that this can be rescued by the OT-1 transgene. However, they then suggest that Zfp335 functions by regulating Bcl6 and Rorc. How do the authors connect these two observations? Is the TCRb impairment a result of dysregulated Bcl6 and/or Rorc expression?

Thanks for the important question. We have performed overexpression of Bcl6 and Rorc in Zfp335 deficient DN3 thymocytes and the results showed that neither Bcl6 or Rorc overexpression could restore the decreased intracellular TCRβ expression in OP9-DL1 culture, suggesting Zfp335 regulates TCRβ expression independent on Bcl6 and Rorc. We have added these data in Figure 7—figure supplement 3 in the revised manuscript.

As our response to Reviewer 1, Zfp335 is indispensable for thymocyte β-selection given that T cell-specific deficiency in Zfp335 leads to impaired intracellular TCRβ expression and blockade of thymocytes at DN stage. Enhanced expression of TCRβ restored the developmental defect during DN3 to DN4 transition, but had little impact on the population size of DN3, DN4 and DP cells. These data clearly support the regulation of Zfp335 on DN cell apoptosis through mechanisms more than β-selection. Zfp335 improves DN thymocyte survival by directly regulating Bcl6 and Rorc expression. We also added discussion to elucidate the relations on Zfp335, TCRβ, Bcl6 and Rorc.

4. Bcl6 is normally expressed in DN3 thymocytes and regulates survival at that stage, while Rorc is normally expressed in DP thymocytes and regulates survival at that stage. The timing of Zfp335 expression aligns with Bcl6 but not with Rorc. How do the authors reconcile this discordance given that Zfp335 is downregulated in DP thymocytes?

Indeed, Zfp335 has the highest expression in DN3 thymocytes both in mRNA and protein level, suggesting its potent role in DN cell development. Indeed, Rorc expression was significantly downregulated in Zfp335 KO DN4 cells, and Rorc overexpression promoted the DN to DP transition.

However, downregulated Zfp335 in DP thymocytes is still important for DP cell survival as overexpression of Zfp335 rescued DP thymocytes from enhanced apoptosis (Figure 7F). In addition, Zfp335 regulates DP thymocyte development through Rorc as Rorc overexpression could rescue DP cell apoptosis and DP cell population in Zfp335 deficient cells. Therefore, compared to DN cells, DP cells express relative low level of Zfp335, which still indispensably participate the regulation of Rorc expression.

https://doi.org/10.7554/eLife.75508.sa2

Article and author information

Author details

  1. Xin Wang

    1. Department of Pathogenic Microbiology and Immunology, School of Basic Medical Sciences, Xi'an Jiaotong University, Xi'an, China
    2. Institute of Infection and Immunity, Translational Medicine Institute, Xi’an Jiaotong University Health Science Center, Xi’an, China
    Contribution
    Formal analysis, Investigation, Validation, Visualization, Writing – original draft, Writing – review and editing
    Contributed equally with
    Anjun Jiao, Lina Sun and Wenhua Li
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1624-8241

  2. Anjun Jiao

    1. Department of Pathogenic Microbiology and Immunology, School of Basic Medical Sciences, Xi'an Jiaotong University, Xi'an, China
    2. Institute of Infection and Immunity, Translational Medicine Institute, Xi’an Jiaotong University Health Science Center, Xi’an, China
    Contribution
    Investigation, Writing – original draft
    Contributed equally with
    Xin Wang, Lina Sun and Wenhua Li
    Competing interests
    No competing interests declared

  3. Lina Sun

    1. Department of Pathogenic Microbiology and Immunology, School of Basic Medical Sciences, Xi'an Jiaotong University, Xi'an, China
    2. Institute of Infection and Immunity, Translational Medicine Institute, Xi’an Jiaotong University Health Science Center, Xi’an, China
    Contribution
    Investigation, Validation, Writing – original draft, Writing – review and editing
    Contributed equally with
    Xin Wang, Anjun Jiao and Wenhua Li
    Competing interests
    No competing interests declared

  4. Wenhua Li

    1. Department of Pathogenic Microbiology and Immunology, School of Basic Medical Sciences, Xi'an Jiaotong University, Xi'an, China
    2. Institute of Infection and Immunity, Translational Medicine Institute, Xi’an Jiaotong University Health Science Center, Xi’an, China
    Contribution
    Investigation, Validation, Writing – original draft
    Contributed equally with
    Xin Wang, Anjun Jiao and Lina Sun
    Competing interests
    No competing interests declared

  5. Biao Yang

    1. Department of Pathogenic Microbiology and Immunology, School of Basic Medical Sciences, Xi'an Jiaotong University, Xi'an, China
    2. Institute of Infection and Immunity, Translational Medicine Institute, Xi’an Jiaotong University Health Science Center, Xi’an, China
    Contribution
    Investigation
    Competing interests
    No competing interests declared

  6. Yanhong Su

    1. Department of Pathogenic Microbiology and Immunology, School of Basic Medical Sciences, Xi'an Jiaotong University, Xi'an, China
    2. Institute of Infection and Immunity, Translational Medicine Institute, Xi’an Jiaotong University Health Science Center, Xi’an, China
    Contribution
    Investigation
    Competing interests
    No competing interests declared

  7. Renyi Ding

    1. Department of Pathogenic Microbiology and Immunology, School of Basic Medical Sciences, Xi'an Jiaotong University, Xi'an, China
    2. Institute of Infection and Immunity, Translational Medicine Institute, Xi’an Jiaotong University Health Science Center, Xi’an, China
    Contribution
    Investigation
    Competing interests
    No competing interests declared

  8. Cangang Zhang

    1. Department of Pathogenic Microbiology and Immunology, School of Basic Medical Sciences, Xi'an Jiaotong University, Xi'an, China
    2. Institute of Infection and Immunity, Translational Medicine Institute, Xi’an Jiaotong University Health Science Center, Xi’an, China
    Contribution
    Formal analysis, Software
    Competing interests
    No competing interests declared

  9. Haiyan Liu

    1. Department of Pathogenic Microbiology and Immunology, School of Basic Medical Sciences, Xi'an Jiaotong University, Xi'an, China
    2. Institute of Infection and Immunity, Translational Medicine Institute, Xi’an Jiaotong University Health Science Center, Xi’an, China
    Contribution
    Investigation
    Competing interests
    No competing interests declared

  10. Xiaofeng Yang

    1. Department of Pathogenic Microbiology and Immunology, School of Basic Medical Sciences, Xi'an Jiaotong University, Xi'an, China
    2. Institute of Infection and Immunity, Translational Medicine Institute, Xi’an Jiaotong University Health Science Center, Xi’an, China
    3. Key Laboratory of Environment and Genes Related to Diseases (Xi'an Jiaotong University), Ministry of Education, Shaanxi, China
    4. Xi’an Key Laboratory of Immune Related Diseases, Shaanxi, China
    Contribution
    Investigation
    Competing interests
    No competing interests declared

  11. Chenming Sun

    1. Department of Pathogenic Microbiology and Immunology, School of Basic Medical Sciences, Xi'an Jiaotong University, Xi'an, China
    2. Institute of Infection and Immunity, Translational Medicine Institute, Xi’an Jiaotong University Health Science Center, Xi’an, China
    3. Xi’an Key Laboratory of Immune Related Diseases, Shaanxi, China
    Contribution
    Investigation
    Competing interests
    No competing interests declared

  12. Baojun Zhang

    1. Department of Pathogenic Microbiology and Immunology, School of Basic Medical Sciences, Xi'an Jiaotong University, Xi'an, China
    2. Institute of Infection and Immunity, Translational Medicine Institute, Xi’an Jiaotong University Health Science Center, Xi’an, China
    3. Key Laboratory of Environment and Genes Related to Diseases (Xi'an Jiaotong University), Ministry of Education, Shaanxi, China
    4. Xi’an Key Laboratory of Immune Related Diseases, Shaanxi, China
    Contribution
    Conceptualization, Funding acquisition, Project administration, Supervision, Visualization, Writing – original draft, Writing – review and editing
    For correspondence
    bj.zhang@mail.xjtu.edu.cn
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5972-1011

Funding

National Natural Science Foundation of China (3217080356)

  • Baojun Zhang

National Natural Science Foundation of China (81771673)

  • Baojun Zhang

Major International Joint Research Programme (81820108017)

  • Baojun Zhang

The funders had no role in study design, data collection, and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Drs. Xiaofei Wang and Guohua Zhang for Flow cytometry analysis and cell sorting. We also thank the Mouse Facility of Xi’an Jiaotong University.

Ethics

All mice were housed in specific-pathogen-free conditions by the Xi'an Jiaotong University Division of Laboratory Animal Research. All animal procedures were approved by the Institutional Animal Care and Use Committee of Xi'an Jiaotong University (2017-1012).

Senior Editor

  1. Tadatsugu Taniguchi, Institute of Industrial Science, The University of Tokyo, Japan

Reviewing Editor

  1. Sarah Russell, Peter MacCallum Cancer Centre, Australia

Version history

  1. Received: November 12, 2021
  2. Preprint posted: November 21, 2021 (view preprint)
  3. Accepted: February 3, 2022
  4. Accepted Manuscript published: February 3, 2022 (version 1)
  5. Version of Record published: February 24, 2022 (version 2)

Copyright

© 2022, Wang et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 760
    Page views
  • 160
    Downloads
  • 3
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Xin Wang
  2. Anjun Jiao
  3. Lina Sun
  4. Wenhua Li
  5. Biao Yang
  6. Yanhong Su
  7. Renyi Ding
  8. Cangang Zhang
  9. Haiyan Liu
  10. Xiaofeng Yang
  11. Chenming Sun
  12. Baojun Zhang
(2022)
Zinc finger protein Zfp335 controls early T-cell development and survival through β-selection-dependent and -independent mechanisms
eLife 11:e75508.
https://doi.org/10.7554/eLife.75508

Categories and tags

Research organism

Further reading

    1. Cell Biology
    2. Developmental Biology

    Cylicins are a structural component of the sperm calyx being indispensable for male fertility in mice and human

    Simon Schneider, Andjela Kovacevic ... Hubert Schorle
    Research Article

    Cylicins are testis-specific proteins, which are exclusively expressed during spermiogenesis. In mice and humans, two Cylicins, the gonosomal X-linked Cylicin 1 (Cylc1/CYLC1) and the autosomal Cylicin 2 (Cylc2/CYLC2) genes, have been identified. Cylicins are cytoskeletal proteins with an overall positive charge due to lysine-rich repeats. While Cylicins have been localized in the acrosomal region of round spermatids, they resemble a major component of the calyx within the perinuclear theca at the posterior part of mature sperm nuclei. However, the role of Cylicins during spermiogenesis has not yet been investigated. Here, we applied CRISPR/Cas9-mediated gene editing in zygotes to establish Cylc1- and Cylc2-deficient mouse lines as a model to study the function of these proteins. Cylc1 deficiency resulted in male subfertility, whereas Cylc2-/-, Cylc1-/yCylc2+/-, and Cylc1-/yCylc2-/- males were infertile. Phenotypical characterization revealed that loss of Cylicins prevents proper calyx assembly during spermiogenesis. This results in decreased epididymal sperm counts, impaired shedding of excess cytoplasm, and severe structural malformations, ultimately resulting in impaired sperm motility. Furthermore, exome sequencing identified an infertile man with a hemizygous variant in CYLC1 and a heterozygous variant in CYLC2, displaying morphological abnormalities of the sperm including the absence of the acrosome. Thus, our study highlights the relevance and importance of Cylicins for spermiogenic remodeling and male fertility in human and mouse, and provides the basis for further studies on unraveling the complex molecular interactions between perinuclear theca proteins required during spermiogenesis.

    1. Cell Biology
    2. Structural Biology and Molecular Biophysics

    Baited reconstruction with 2D template matching for high-resolution structure determination in vitro and in vivo without template bias

    Bronwyn A Lucas, Benjamin A Himes, Nikolaus Grigorieff
    Research Advance

    Previously we showed that 2D template matching (2DTM) can be used to localize macromolecular complexes in images recorded by cryogenic electron microscopy (cryo-EM) with high precision, even in the presence of noise and cellular background (Lucas et al., 2021; Lucas et al., 2022). Here, we show that once localized, these particles may be averaged together to generate high-resolution 3D reconstructions. However, regions included in the template may suffer from template bias, leading to inflated resolution estimates and making the interpretation of high-resolution features unreliable. We evaluate conditions that minimize template bias while retaining the benefits of high-precision localization, and we show that molecular features not present in the template can be reconstructed at high resolution from targets found by 2DTM, extending prior work at low-resolution. Moreover, we present a quantitative metric for template bias to aid the interpretation of 3D reconstructions calculated with particles localized using high-resolution templates and fine angular sampling.

    1. Cell Biology
    2. Immunology and Inflammation

    Regulation of pDC Fate Determination by Histone Deacetylase 3

    Yijun Zhang, Tao Wu ... Li Wu
    Research Article

    Dendritic cells (DCs), the key antigen-presenting cells, are primary regulators of immune responses. Transcriptional regulation of DC development had been one of the major research interests in DC biology, however, the epigenetic regulatory mechanisms during DC development remains unclear. Here, we report that Histone deacetylase 3 (Hdac3), an important epigenetic regulator, is highly expressed in pDCs, and its deficiency profoundly impaired the development of pDCs. Significant disturbance of homeostasis of hematopoietic progenitors was also observed in HDAC3-deficient mice, manifested by altered cell numbers of these progenitors and defective differentiation potentials for pDCs. Using the in vitro Flt3L supplemented DC culture system, we further demonstrated that HDAC3 was required for the differentiation of pDCs from progenitors at all developmental stages. Mechanistically, HDAC3 deficiency resulted in enhanced expression of cDC1-associated genes, owing to markedly elevated H3K27 acetylation (H3K27ac) at these gene sites in BM pDCs. In contrast, the expression of pDC-associated genes was significantly downregulated, leading to defective pDC differentiation.
