A novel mechanism of bulk cytoplasmic transport by cortical dynein in Drosophila ovary

  1. Wen Lu
  2. Margot Lakonishok
  3. Anna S Serpinskaya
  4. Vladimir I Gelfand  Is a corresponding author
  1. Department of Cell and Developmental Biology, Feinberg School of Medicine, Northwestern University, United States

Abstract

Cytoplasmic dynein, a major minus-end directed microtubule motor, plays essential roles in eukaryotic cells. Drosophila oocyte growth is mainly dependent on the contribution of cytoplasmic contents from the interconnected sister cells, nurse cells. We have previously shown that cytoplasmic dynein is required for Drosophila oocyte growth and assumed that it simply transports cargoes along microtubule tracks from nurse cells to the oocyte. Here, we report that instead of transporting individual cargoes along stationary microtubules into the oocyte, cortical dynein actively moves microtubules within nurse cells and from nurse cells to the oocyte via the cytoplasmic bridges, the ring canals. This robust microtubule movement is sufficient to drag even inert cytoplasmic particles through the ring canals to the oocyte. Furthermore, replacing dynein with a minus-end directed plant kinesin linked to the actin cortex is sufficient for transporting organelles and cytoplasm to the oocyte and driving its growth. These experiments show that cortical dynein performs bulk cytoplasmic transport by gliding microtubules along the cell cortex and through the ring canals to the oocyte. We propose that the dynein-driven microtubule flow could serve as a novel mode of fast cytoplasmic transport.

Editor's evaluation

In their manuscript, Lu et al., use a combination of experimental approaches to determine how cellular components are transported from nurse cells into the growing oocyte during Drosophila egg development. The authors demonstrate that the minus-end directed microtubule motor, dynein, generates cortical flow by gliding microtubules along the cell cortex. This action is distinct from dynein's cargo transport functions, as the authors replace dynein with a minus-end directed kinesin linked to the cortex and observe the same phenomenon. This flow is capable of propelling cargoes through the ring canals into the growing oocyte via a bulk cytoplasmic transport mechanism, highlighting a novel mode of fast cytoplasmic transport. Overall, this work had broad significance to cell biologists and developmental biologists.

https://doi.org/10.7554/eLife.75538.sa0

Introduction

Microtubules perform many key cellular functions, such as cell division, migration, polarization/compartmentation, and intracellular long-range cargo transport. Cytoplasmic dynein (referred simply as dynein hereafter) is the major minus-end directed microtubule motor, and involved in numerous microtubule-based functions (Roberts et al., 2013). In interphase cells, dynein is the main motor responsible for transporting various cargoes towards the microtubule minus-ends (Reck-Peterson et al., 2018). In dividing cells, dynein functions at kinetochores, spindle poles, and at the cell cortex. Particularly, cortical dynein pulls astral microtubules and is therefore required for positioning the mitotic spindles (Vaughan, 2012; Karki and Holzbaur, 1999).

The core dynein complex contains two copies of heavy chain (DHC), intermediate chain (DIC), intermediate light chain (DLIC) and three different dynein light chains (Roadblock, LC8/Cut up and Tctex/Dlc90F) (Reck-Peterson et al., 2018; Canty and Yildiz, 2020; Figure 1A). Dynein heavy chain contains a ring of six AAA+ domains, and ATP hydrolysis-induced conformational change results in dynein walking towards the minus-ends of microtubules (Cianfrocco et al., 2015). The activity of dynein is regulated by the dynactin complex including the largest subunit p150Glued/DCTN1 (Urnavicius et al., 2015), and the Lis1-NudE complex (McKenney et al., 2010), as well as several activating adaptors, such as BICD2/BICDL1, Spindly, and HOOK1/3 (Reck-Peterson et al., 2018; Canty and Yildiz, 2020; Olenick and Holzbaur, 2019; Figure 1A).

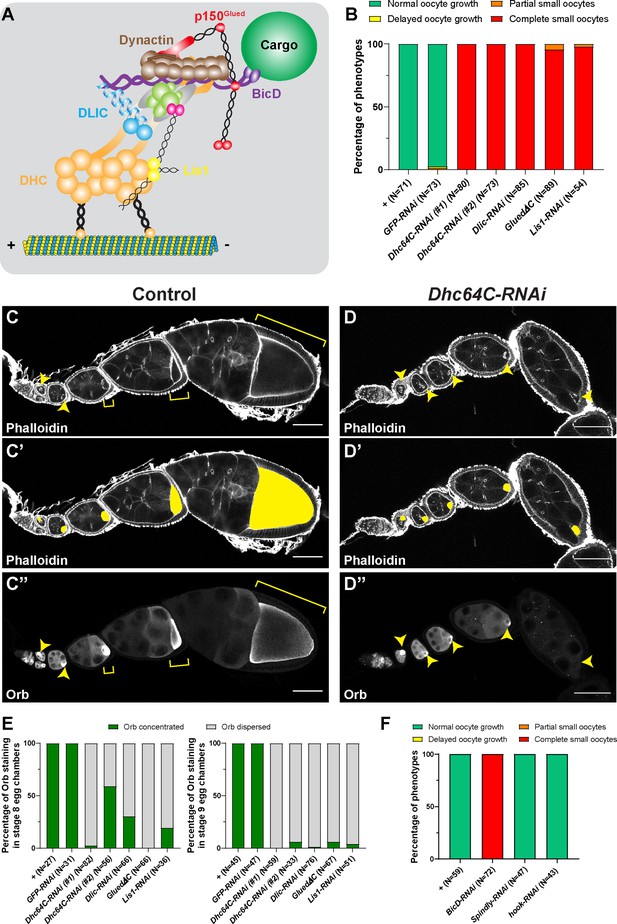

Figure 1 with 1 supplement see all
Dynein activity is required for Drosophila oocyte growth.

(A) A cartoon illustration of cytoplasmic dynein and its regulators. The dynein core complex is composed of dimers of dynein heavy chain (orange), dynein intermediate chain (gray), dynein light intermediate chain (blue), and three types of dynein light chains (green). Dynein activity is regulated by the dynactin complex (brown, with p150Glued highlighted in red) and the Lis1-NudE complex (Lis1, yellow; NudE, magenta). A dynein activating adaptor, BicD (purple), is also shown to illustrate the linkage of the dynein complex with a cargo. To note: other cargo adaptors instead of BicD, such as Spindly, HOOK1/3, ninein/ninein- like(NINL), and RAB11 family-interacting protein 3, can be used for dynein activation and cargo recruitment (not shown) (Reck-Peterson et al., 2018). BICDR1 and HOOK3 could recruit two dyneins for increased force and speed (not shown) (Reck-Peterson et al., 2018). (B) Summary of oocyte growth phenotypes in listed genetic background (all with one copy of maternal αtub-Gal4[V37]). Classifications of oocyte growth phenotypes are included in Figure 1—figure supplement 1A. Dhc64C-RNAi (#1) is the RNAi line used for all Dhc64C-RNAi experiments in this study. (C-D’’) Phalloidin and Orb staining in control (C-C’’) and Dhc64C-RNAi (D-D’’) ovarioles. Oocytes and Orb staining are highlighted with either yellow arrowheads and brackets (C-D and C’’-D’’), or with yellow painting (C’-D’). Scale bars, 50 µm. (E) Summary of the Orb staining phenotypes in stage 8 (left) and stage 9 (right) egg chambers in listed genotypes (all with one copy of maternal αtub-Gal4[V37]). Descriptions of Orb concentration and Orb dispersion are included in Figure 1—figure supplement 1B. (F) Summary of oocyte growth phenotypes in RNAi lines against three listed dynein activating adaptors, BicD, Spindly and Hook (all with one copy of maternal αtub-Gal4[V37]).

Dynein has many essential functions during Drosophila oogenesis. First, it is required for germline cell division and oocyte specification (McGrail and Hays, 1997; Liu et al., 1999). During mid-oogenesis, dynein is required for transport of mRNA ribonucleoproteins (RNPs) and organelles from nurse cells to the oocyte (Mische et al., 2007; Clark et al., 2007; Nicolas et al., 2009; Lu et al., 2021). Within the oocyte, dynein transports and anchors the anterior and dorsal determinants that are critical for axis determination for future embryos (Januschke et al., 2002; Duncan and Warrior, 2002; Trovisco, 2016). During vitellogenesis, dynein in the oocyte regulates endocytic uptake and maturation of yolk proteins from the neighboring somatic follicle cells (Liu et al., 2015).

The Drosophila oocyte undergoes dramatic cell growth and polarization during oogenesis (Bastock and St Johnston, 2008). Remarkably, the oocyte remains transcriptionally quiescent during most of the oogenesis. For its dramatic growth, the oocyte relies on its interconnected sister cells, nurse cells, for providing mRNAs, proteins, and organelles through intercellular cytoplasmic bridges called ring canals (Bastock and St Johnston, 2008; Mahajan-Miklos and Cooley, 1994). Previously, we showed that dynein heavy chain drives oocyte growth by supplying components to the growing oocyte (Lu et al., 2021). Here, we study the mechanism of dynein-driven transport of cargoes from nurse cells to the oocyte. We find that microtubules, which had previously been considered as static tracks for dynein (Mische et al., 2007; Clark et al., 2007; Nicolas et al., 2009; Lu et al., 2021), are robustly moved by dynein within the nurse cell cytoplasm, and more remarkably, from the nurse cell to the oocyte. We further demonstrate that this dynein-powered microtubule gliding creates cytoplasmic advection carrying cargoes in bulk to the oocyte, including neutral particles that do not interact with motors. Furthermore, we show that a chimeric gliding-only minus-end motor anchored to the cortex is sufficient to support transport of cargoes to the oocyte, and therefore to drive the oocyte growth. Finally, we describe here a novel mechanism for dynein-driven cytoplasmic transport: cortically anchored dynein drives microtubule gliding, and microtubules in turn move cytoplasmic contents in nurse cells and through the ring canals, driving oocyte growth. This provides a fast and efficient mode of bulk transport of a wide variety of components supplied by nurse cells to the oocyte.

Results

Dynein is required for oocyte growth

The growing Drosophila oocyte is transcriptionally silent and mostly relies on its interconnected sister nurse cells for mRNAs, proteins, and organelles (Bastock and St Johnston, 2008; Mahajan-Miklos and Cooley, 1994). Dynein, the main minus-end directed microtubule motor in Drosophila, has been implicated in nurse cell-to-oocyte transport (Mische et al., 2007; Clark et al., 2007; Nicolas et al., 2009; Lu et al., 2021).

Here, we investigated the roles of the dynein complex and its regulators in oocyte growth by taking advantage of a germline-specific Gal4, maternal α tubulin-Gal4[V37], that is expressed in germline cells after the completion of cell division and oocyte specification (Lu et al., 2021; Sanghavi et al., 2016). This approach bypasses the requirement for dynein in the germarium. Knockdown of dynein by expressing either RNAi against dynein components (DHC, DLIC, Lis1) or a dominant negative construct of p150Glued/DCTN1 (p150Glued∆C) (Mische et al., 2007) driven by this Gal4 line allowed for normal cell division and oocyte specification but caused complete arrest of oocyte growth (hereafter referred as the ‘small oocyte’ phenotype) (Figure 1B–D’’; Figure 1—figure supplement 1A). In spite of the growth inhibition caused by dynein knockdown, we found that the oocyte marker, Orb (oo18 RNA-binding protein) (Lantz et al., 1994) is properly concentrated in the early oocytes, emphasizing that our approach does not interfere with germline cell division or oocyte specification. However, Orb is clearly dispersed from the small oocytes at later stages (stages 8–9) (Figure 1C", D", E; Figure 1—figure supplement 1B), implying defects of nurse cell-to-oocyte transport. These data demonstrate that dynein core components and regulators are indeed essential for oocyte growth, likely via transporting cargoes into the oocyte.

As dynein activity relies on various cargo activating adaptors, we knocked down the Drosophila homologs of three main dynein cargo-specific adaptors, BicD, Spindly, and Hook (Olenick and Holzbaur, 2019; Lee et al., 2018) by RNAi in the germ line. Among the three adaptors, knockdown of BicD inhibits the oocyte growth, while Spindly-RNAi and hook-RNAi do not cause obvious oocyte growth defects (Figure 1F).

This lack of oocyte growth phenotype in Spindly-RNAi and hook-RNAi animals is not due to low efficiency of the RNAi lines themselves, as knockdown of Spindly and Hook using these RNAi lines display typical loss-of-function mutant phenotypes of these adaptors. Maternal knockdown of Spindly (mat αtub[V37]> Spindly-RNAi) caused all embryos to fail to hatch (N > 200) and zygotic knockdown using a strong ubiquitous Gal4 (Actin5C-Gal4) led to 0% eclosion rate from Spindly-RNAi pupae (Figure 1—figure supplement 1C; Clemente et al., 2018). Hook is not required for fly viability or fertility but is required for proper bristle formation (Krämer and Phistry, 1999), and hook-RNAi animals phenocopied the classic hooked-bristle phenotype observed in hook null allele (hook11) (Figure 1—figure supplement 1D–F'; Krämer and Phistry, 1999).

This set of data leads us to conclude that BicD is the most important dynein activating adaptor for Drosophila oocyte growth.

Dynein drives microtubule gliding in nurse cells

Having established that dynein and its associated proteins are required for the oocyte growth, we next examined dynein tracks, cytoplasmic microtubules. Microtubules are localized inside the intercellular cytoplasmic bridges, the ring canals (Figure 2—figure supplement 1A-A""), consistent with previous reports (Mische et al., 2007; Clark et al., 2007; Nicolas et al., 2009; Lu et al., 2021). However, when we examined the dynamics of microtubules in live samples using photoconversion (Lu et al., 2013b; Lu et al., 2015; Lu et al., 2016), we discovered that microtubules in the nurse cells are not stationary; they vigorously move and snake around in the nurse cells (Figure 2A–A’; Figure 2—video 1). Robust microtubule movement in nurse cells can also be seen with fluorescently labeled microtubule-associated proteins (MAPs), Ensconsin/MAP7 (EMTB) (Lu et al., 2020; Faire et al., 1999), Patronin/CAMSAP (Lu et al., 2021; Lu et al., 2020), and Jupiter (Lu et al., 2013b; Lu et al., 2015; Lu et al., 2020; Karpova et al., 2006; Figure 2—videos 2–4) as early as in stage 6 egg chambers. Even more remarkably, microtubules are seen moving from the nurse cell to the oocyte through the ring canal. This movement is most robust in stage 9 egg chambers and has an average velocity of ~140 nm/s (Figure 2C-E, H; Figure 2—videos 1–4). Thus, microtubules are not just static tracks for dynein; instead, they actively move within the nurse cells and from the nurse cells to the oocyte.

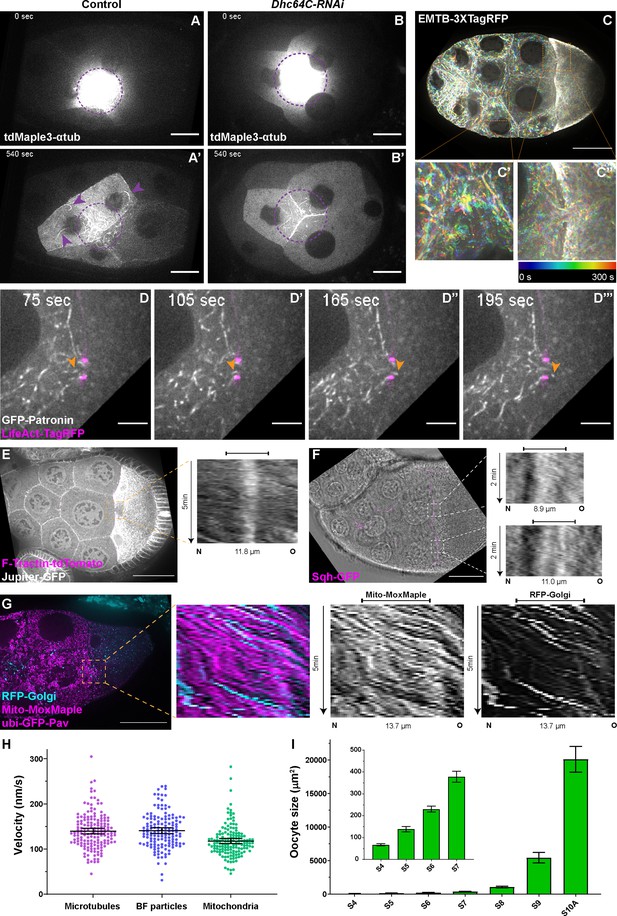

Figure 2 with 11 supplements see all
Microtubule movement within nurse cells and from nurse cells to the oocyte.

(A-B’) Microtubule movement labeled with photoconverted tdMaple3-αtub in control and Dhc64C-RNAi nurse cells. Photoconversion area is highlighted with a dotted purple circle and microtubules outside of the photoconversion zone are highlighted with purple arrowheads. Scale bars, 20 µm. See also Figure 2—video 1 and Figure 2—video 5. (C-C’’) Microtubule movement is visualized by a 3XTagRFP-tagged microtubule binding domain of human Ensconsin/MAP7 (EMTB-3XTagRFP). Temporal color-coded hyperstacks are used to show the microtubule movement in a whole egg chamber (C) and zoom-in areas (the dashed orange boxes) within a nurse cell (C’) and in a nurse cell-oocyte ring canal (C’’). Scale bar, 50 µm. See also Figure 2—video 2. (D-D’’’) microtubule movement labeled with a GFP-tagged microtubule minus-end binding protein Patronin. The ring canal is labeled with LifeAct-TagRFP. One microtubule moving through the ring canal is highlighted with orange arrowheads. Scale bars, 10 µm. See also Figure 2—video 3. (E) Microtubule movement is visualized by a GFP protein trap line of an endogenous microtubule binding protein, Jupiter (Jupiter-GFP). The ring canal is labeled with F-Tractin-tdTomato. A kymograph of Jupiter-GFP in the nurse cell-oocyte ring canal (the dashed orange box) is used to show the microtubule movement from the nurse cell to the oocyte. See also Figure 2—video 4. (F) Cytoplasmic advection is visualized by bright-field imaging. The ring canals are labeled with a GFP-tagged myosin-II light chain, Sqh-GFP. Kymographs of the two nurse cell-oocyte ring canals (the dashed white boxes) are used to show the cytoplasmic advection from the nurse cells to the oocyte. See also Figure 2—video 7. (G) Bulk movement of two types of cargoes, mitochondria (Mito-MoxMaple3, without photoconversion, magenta) and Golgi units (RFP-Golgi, cyan), through the nurse cell-oocyte ring canal, labeled with GFP-Pav (magenta). Kymographs of mitochondria and Golgi units in the nurse cell-oocyte ring canal (the dashed orange box) is used to show that both cargoes move at a similar speed through the ring canal to the oocyte. See also Figure 2—video 8. (E–G) The capped line on top of the kymograph indicates the ring canal region. Scale bars, 50 µm. (H) Quantification of the velocities of microtubules, small particles in bright-field images (BF particles) and mitochondria in nurse cell-oocyte ring canals of stage 9 egg chambers. The black bars on top of scattered plots stand for mean ± 95% confidence intervals: microtubules (Jupiter-GFP) 139.7 ± 6.2 nm/s (N = 159); BF particles, 140.8 ± 6.4 nm/s (N = 143); mitochondria (Mito-MoxMaple3), 117.6 ± 5.7 nm/s (N = 147). Unpaired t tests with Welch’s correction were performed in following groups: microtubules and BF particles, p = 0.8080 (n.s.); microtubules and mitochondria, p < 0.0001 (****); BF particles and mitochondria, p < 0.0001 (****). (I) Measurement of oocyte sizes in egg chambers of different stages (mean ± 95% confidence intervals): stage 4, 67.2 ± 4.9 µm2 (N = 57); stage 5, 139.0 ± 12.6 µm2 (N = 58); stage 6, 230.5 ± 13.4 µm2 (N = 62); stage 7, 378.4 ± 25.1 µm2 (N = 38); stage 8, 1067.3 ± 120.0 µm2 (N = 41); stage 9, 5432.8 ± 771.8 µm2 (N = 69); stage 10 A, 20105.0 ± 1930.0 µm2 (N = 31).

When the Drosophila egg chambers reach stages 10B-11, nurse cells transfer all their cytoplasmic contents to the oocytes, the process called nurse cell dumping (Mahajan-Miklos and Cooley, 1994; Buszczak and Cooley, 2000). We examined whether the microtubule movement in the ring canals and associated oocyte growth during mid-oogenesis is a result of an early slow form of nurse cell dumping. We first measured the nurse cell size between stage 8 to stage 10 and found that nurse cells still undergo dramatic growth during this phase (Figure 2—figure supplement 2A). This nurse cell growth from stage 8 to stage 10 is quite distinct from the dumping phase, when nurse cells squeeze their cytoplasm to the oocyte and thus quickly shrink (Gutzeit, 1986).

Second, nurse cell dumping requires the activity of non-muscle myosin-II (Wheatley et al., 1995; Jordan and Karess, 1997). We tested whether myosin-II is required for stage 9 microtubule movement and overall oocyte growth. We used a RNAi line against the myosin-II heavy chain Zipper (zip-RNAi) to knockdown myosin-II activity, and an antibody recognizing phosphorylated myosin-II light chain (p-MLC, Ser19) as a readout of myosin-II activity (Jordan and Karess, 1997; Sun et al., 2011). We found that that myosin-II activity is dramatically diminished in zip-RNAi egg chambers (Figure 2—figure supplement 2B–2C’), suggesting that the zip-RNAi does inhibit myosin-II efficiently. However, zip-RNAi shows no defects in oocyte growth or Orb concentration from early to mid-oogenesis (Figure 2—figure supplement 2D–2G). Additionally, we induced germline clones of a loss-of-function allele of zip (zip2) (Halsell et al., 2000), and found that the majority of zip2 mutant egg chambers with proper oocyte specification can develop to mid-oogenesis without obvious delay in oocyte growth (25 out of 28 egg chambers; Figure 2—figure supplement 2H–2K). This is consistent with previous reports showing that the myosin-II light chain spaghetti squash (sqh) mutants (Wheatley et al., 1995; Jordan and Karess, 1997; Doerflinger et al., 2022) and the ‘dumpless’ mutants, such as chickadee, E2F, and RAP150B, develop normally to stages 9~10 without major oocyte growth defects (Cooley et al., 1992; Myster et al., 2000; Imran Alsous et al., 2021).

Dynein is known to glide microtubules in vitro and in vivo (Lu and Gelfand, 2017). Therefore, we asked whether dynein is the motor that moves microtubules in nurse cells. Knockdown of dynein using the Dhc64C-RNAi line results in a complete inhibition of microtubule movement within the nurse cells (Figure 2B, B'; Figure 2—video 5). The microtubules in dynein-RNAi nurse cells are noticeably less curved than the control ones, implying no motors applying forces to them. More importantly, the motility of microtubules in the nurse cell-oocyte ring canals are dramatically reduced in dynein-RNAi (Figure 2—video 6). In contrast, we found that the microtubule movement through the ring canal is not affected by myosin-II inhibition (Figure 2—video 6). Thus, we conclude that the microtubule movement through the nurse cell-oocyte ring canals is not a part of myosin-II-driven nurse cell dumping; instead, it represents a novel mode of dynein gliding microtubules in nurse cells and through ring canals to the oocyte.

Microtubule flow carries cargoes to the oocyte

In addition to microtubule motility, we also observed synchronized movement of cargoes through nurse cell-oocyte ring canals in stage 9 egg chambers, at a rate similar to microtubule movement (Figure 2F–H; Figure 2—videos 7; 8), indicating that microtubule-driven cytoplasmic advection occurs in the ring canals. Furthermore, like microtubule movement, bulk cargo movement through ring canals is dynein-dependent and myosin-II-independent (Figure 2—video 9). This bulk cargo movement occurs at stage 9 when the oocyte undergoes the most dramatic growth (Figure 2I; Figure 2—figure supplement 1B, C). This raises the possibility that, unlike the previously proposed canonical cargo transport (Figure 3A), dynein-powered microtubule gliding itself could create cytoplasmic advection carrying all types of cargoes from nurse cells to the oocyte to support the rapid oocyte growth (Figure 3B).

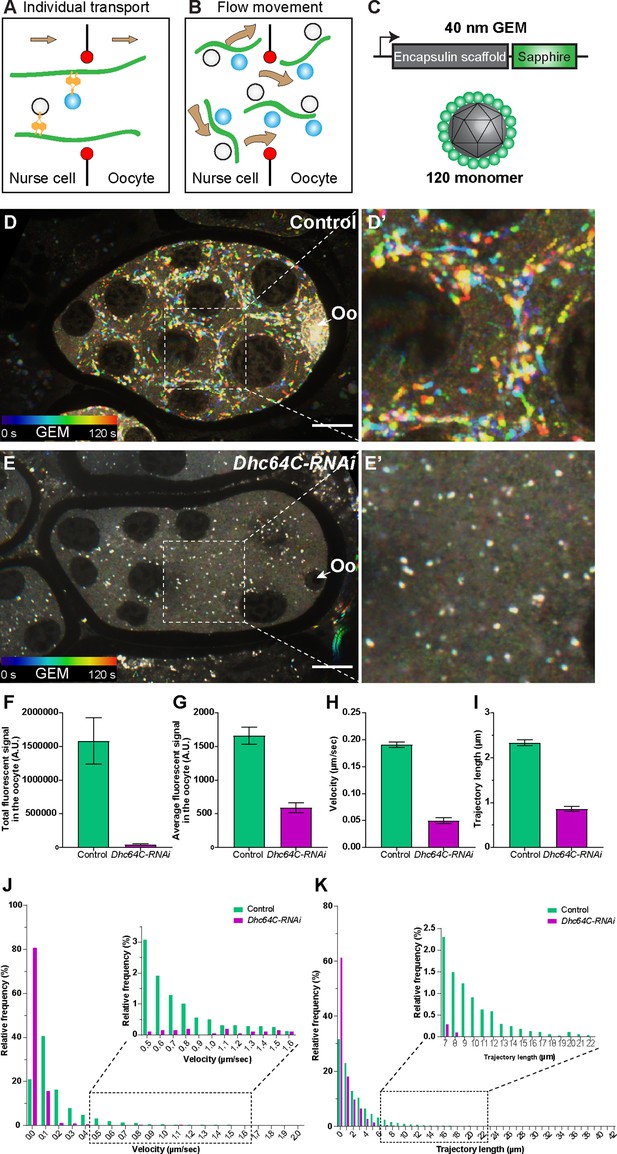

Figure 3 with 5 supplements see all
Dynein-dependent GEM particle movement in the egg chambers.

(A–B) Cartoon illustrations of two possible mechanisms of dynein-dependent cargo transfer from the nurse cell to the oocyte. (C) A schematic illustration of the GEM construct. 120 copies of a sapphire-tagged Pyrococcus furiosus Encapsulin scaffold protein self-assemble into a 40 nm particle. (D-E’) Temporal color-coded hyperstacks of GEM particles in control (D-D’) and Dhc64C-RNAi (E-E’). Oo, the oocyte. Scale bars, 20 µm. See also Figure 3—video 3. (F–G) Quantifications of total (F) and average (G) fluorescent intensities of GEM particles in control and Dhc64C-RNAi. The values shown in the graphs are mean ± 95% confidence intervals. (F) Control, N = 22; Dhc64C-RNAi, N = 27. Unpaired t test with Welch’s correction between control and Dhc64C-RNAi: p < 0.0001 (****). (G) Control, N = 22; Dhc64C-RNAi, N = 27. Unpaired t test with Welch’s correction between control and Dhc64C-RNAi: p < 0.0001 (****). (H–K) Quantifications of velocities (H, J) and trajectories (I, K) of GEM movement in control and Dhc64C-RNAi. The number of particles tracked: control, N = 7656; Dhc64C-RNAi, N = 2083. (H–I) The values shown in the graphs are mean ± 95% confidence intervals. (H) Unpaired t test with Welch’s correction between control and Dhc64C-RNAi: p < 0.0001 (****). (I) Unpaired t test with Welch’s correction between control and Dhc64C-RNAi: p < 0.0001 (****). (J–K) Histograms of velocities (J) and trajectories (K) of GEM movement in control and Dhc64C-RNAi (the same set of data used in H-I).

Therefore, to test this possibility, we simultaneously imaged microtubules and organelles (mitochondria or Golgi units) in the nurse cell-oocyte ring canals, and found that they move together with microtubules through the ring canal to the oocyte (Figure 3—videos 1; 2). This further suggests that mitochondria, Golgi units and probably other classes of cargoes could be carried through ring canals in bulk by microtubules gliding towards the oocyte (Figure 3B).

However, we cannot completely exclude the possibility that the motors attached to the cargoes walk on these moving microtubules and thus co-transport cargoes with microtubules through the ring canal. Thus, we decided to examine whether neutral particles that normally are not transported by motors along microtubules can be carried to the oocyte. We used Genetically Encoded Multimeric nanoparticles (GEMs) (Figure 3C), which self-assemble into ~40 nm fluorescent spheres (Delarue et al., 2018). In Drosophila S2R + cells, GEMs form bright compact particles and display mostly Brownian motion, which is very distinct from typical movements of endogenous motor-driven organelles, such as lysosomes (Figure 3—figure supplement 1). However, when we expressed GEMs in Drosophila egg chambers, we found that they move within nurse cells in a fast linear manner (Figure 3D–D’; Figure 3—video 3). More importantly, GEMs move through the nurse cell-oocyte ring canals (Figure 3—video 4) and concentrate in the oocytes (Figure 3F–G). Knockdown of dynein dramatically diminishes GEM linear movements and eliminates GEM accumulation in the oocyte (Figure 3E–K; Figure 3—video 3). Altogether, we demonstrate that the direct dynein-cargo interaction is not necessary for nurse cell-to-oocyte transport, and neutral particles can be efficiently carried through the ring canals by dynein-driven microtubule movement.

Microtubule gliding delivers cargoes to oocytes

Next, we investigated whether cortical dynein glides microtubules in nurse cells and transports cargoes to the oocyte. We first examined dynein localization using a GFP-tagged Dlic transgenic line as well as antibodies against Drosophila dynein heavy chain and BicD. We found clear cortical localization of dynein in the nurse cells after the soluble pool of dynein is extracted by detergent (Figure 4—figure supplement 1A–1F).

Then we tested whether a cortically anchored minus-end-directed motor is sufficient to drive oocyte growth. To constrain dynein activity to cell cortex, we replaced the endogenous dynein activating adaptor BicD with an ectopically expressed BicD that is recruited to the actin cortex by an actin-targeting motif, F-Tractin (Spracklen et al., 2014; Figure 4—figure supplement 1G–1H’). Compared to BicD-RNAi in which no egg chambers developed passing stage 7, this cortically recruited BicD construct allows >70% ovarioles to have egg chambers reaching mid-oogenesis (Figure 4A–D). In contrast, expression of a tdTomato-tagged F-Tractin alone (Spracklen et al., 2014) did not rescue the oocyte growth defects in BicD-RNAi (Figure 4D), indicating that the rescue we observed with F-Tractin-BicD is not due to Gal4 activity dilution or F-Tractin overexpression.

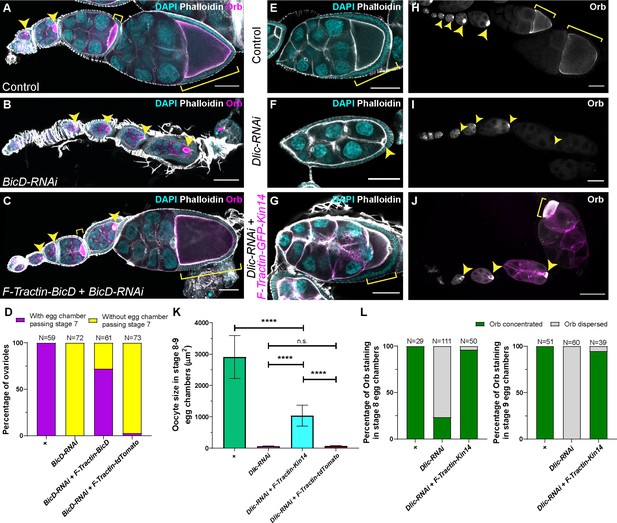

Figure 4 with 2 supplements see all
A cortically anchored minus-end motor is sufficient to drive oocyte growth.

(A–C) Oocyte growth defect in BicD-RNAi is rescued by a cortically restricted BicD construct. (D) Summary of percentages of ovarioles with and without egg chamber(s) passing stage 7. Staging of BicD-RNAi egg chambers is determined by the nurse cell size. (E–J) The defects of oocyte growth and Orb concentration in Dlic-RNAi are rescued by a cortically recruited plant Kin14 (Kin14VIb) construct. Phalloidin and DAPI staining (E–G) or Orb staining (H–J) in control (E, H), Dlic-RNAi (F, I) and Dlic-RNAi rescued by F-tractin-GFP-Kin14 (G, J). (K) Quantification of oocyte size in stage 8~9 egg chambers in listed genotypes. The values shown in the graph are mean ± 95% confidence intervals. Control, N = 40; Dlic-RNAi, N = 49; Dlic-RNAi+ F-Tractin-Kin14, N = 33; Dlic-RNAi+ F-Tractin-tdTomato, N = 42. Unpaired t test with Welch’s correction were performed in following groups: between control and Dlic-RNAi, p < 0.0001 (****); between control and Dlic-RNAi+ F-Tractin-Kin14, p < 0.0001 (****); between control and Dlic-RNAi+ F-Tractin-tdTomato, p < 0.0001 (****); between Dlic-RNAi and Dlic-RNAi+ F-Tractin-Kin14, p < 0.0001 (****); between Dlic-RNAi and Dlic-RNAi+ F-Tractin-tdTomato, p = 0.2107 (n.s.); between Dlic-RNAi+ F-Tractin-Kin14 and Dlic-RNAi+ F-Tractin-tdTomato, p < 0.0001 (****). (L) Summary of Orb staining phenotypes in stage 8 (left) and stage 9 (right) egg chambers in listed genotypes. Oocytes are highlighted with either yellow arrowheads or yellow brackets. All listed genotypes carried one copy of maternal αtub-Gal4[V37]. Scale bars, 50 µm.

To further test the idea that gliding microtubules drive nurse cell-to-oocyte transport, we created an artificial minus-end gliding-only motor. It contains a dimer motor region of a fast minus-end-directed plant kinesin-14, Kin14VIb (Jonsson et al., 2015; Nijenhuis et al., 2020; Yamada et al., 2017) targeted to cell cortex with the F-Tractin probe (Figure 4—figure supplement 1G). This chimeric kinesin-14 motor, unlike dynein, cannot carry endogenous Drosophila cargoes, allowing us to test whether microtubule gliding alone is sufficient for transporting cargoes to the oocyte and support the oocyte growth. With this chimeric gliding-only kinesin-14 motor, we found that oocyte growth is partially rescued (Figure 4E–G and K). In addition to the oocyte size rescue, we also found that in more than 95% of the samples, the kinesin-14 motor is able to maintain Orb concentration in the oocyte of stage 8~9 egg chambers (Figure 4H–J and L). The rescue of both oocyte growth and oocyte Orb concentration implies that the gliding-only motor restores the nurse cell-to-oocyte transport.

We directly examined mitochondria movement in the kinesin-14 rescued samples. We observed highly motile mitochondria in nurse cells, and synchronized mitochondria movement from the nurse cells to the oocyte, highly resembling mitochondrial flow in control ring canals (Figure 4—video 1).

In summary, we use a minus-end gliding-only motor that cannot directly transport cargoes to distinguish the microtubule gliding function from the conventional cargo transport, and show that microtubule gliding by a motor attached to the nurse cell cortex is able to drive organelle movement and thus oocyte growth.

C-terminus of dynein light intermediate chain is sufficient for nurse cell cortical localization

Having established that cortically anchored dynein is the key to glide microtubules and deliver cargoes to the growing oocyte, we decided to investigate how the dynein complex is anchored to the nurse cell cortex. As we observed the cortical localization of Dlic-GFP in nurse cells (Figure 4—figure supplement 1B), we decided to make N-terminal and C-terminal truncations of Dlic (DlicNT and DlicCT; Figure 5A) and examine their localizations in the germ line. The Dlic N-terminus carries a GTPase-like domain and is known to interact with dynein heavy chain via a patch of conserved aromatic residues (Schroeder et al., 2014). The C-terminal Dlic contains the effector-binding domain that interact with BICD, Spindly and Hook-family activating adaptors to form a stable processive dynein-dynactin complex (Lee et al., 2018). We tagged the DlicNT and DlicCT with an optogenetic system LOVTRAP (Wang et al., 2016), and in dark LOVTRAP probes bring the two Dlic truncations together (Figure 5A–B). We found that, while DlicNT or DlicCT truncation alone does not rescue the oocyte defects caused by Dlic-RNAi, the DlicNT-DlicCT complex in dark is sufficient to resume the oocyte growth in Dlic-RNAi (Figure 5C). It indicates that both Dlic truncations are functional, and both are necessary for restoring the Dlic function in oocyte growth. We next examined the localizations of DlicNT and DlicCT truncations in the germ line: DlicNT appears diffused in germline cytoplasm, whereas DlicCT shows a strong cortical localization in the nurse cells (Figure 5D–E; Figure 5—figure supplement 1A).

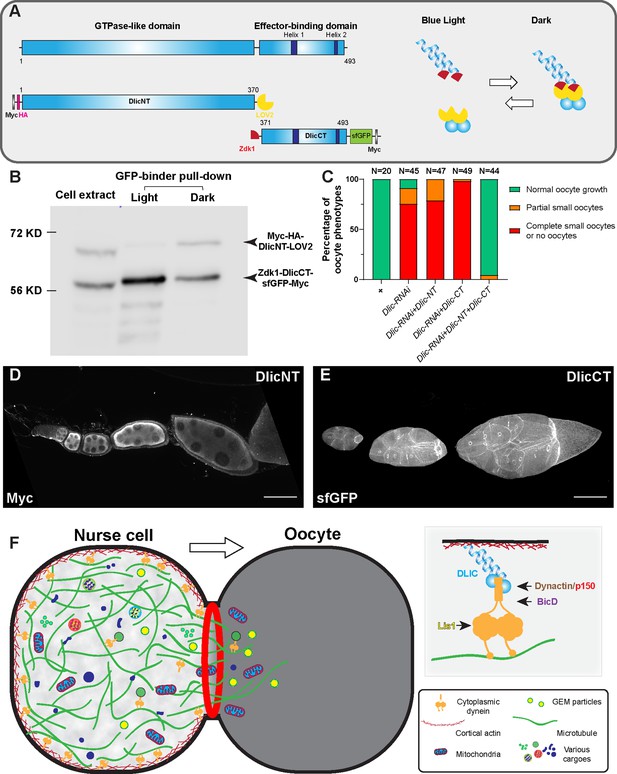

Figure 5 with 2 supplements see all
The dynein complex is tethered to the nurse cell cortex via Dlic and glides microtubules to create cytoplasmic advection to the growing oocyte.

(A) A schematic illustration of Drosophila Dlic and Dlic truncations (DlicNT and DlicCT). C-terminus of DlicNT and N-terminus of DlicCT are tagged with the LOVTRAP probes, LOV2 and Zdk1, respectively. LOV2 interacts with Zdk1 in dark, and dissociates from Zdk1 in the presence of blue light. (B) Zdk1-DlicCT interacts with DlicNT-LOV2 in dark. GFP-binder was used to pull down Zdk1-DlicCT in cell extracts from HEK293T cells expressing both DlicNT and DlicCT constructs, and anti-Myc antibody was used to probe for Dlic truncations. Lane 1: cell extract; Lane 2: GFP-binder pulldown sample in light; lane 3; GFP-binder pulldown sample in dark. The raw unedited blots can be found in Figure 5—source data 1: (1) the raw pulldown blot; (2) the labeled pulldown blot. (C) Coexpression of DlicNT and DlicCT truncations reuses the oogenesis defects caused by Dlic-RNAi, while DlicNT truncation or DlicCT truncation alone fails to rescue. The expression is driven by one copy of nos-Gal4-VP16. (D–E) DlicNT and DlicCT localizations in the germ line. The expression is driven by one copy of maternal αtub-Gal4[V37]. A small Z-projection (~5 µm) is used to show the DlicNT localization, while a whole ovariole z-projection ( ~ 40 µm) is used to show the DlicCT cortical localization. To note: overexpression of DlicNT driven by maternal αtub-Gal4[V37] results in delayed oocyte growth. Scale bars, 50 µm. (F) The model of cortically anchored dynein transferring cytoplasmic contents to the growing oocyte via gliding microtubules. Dynein light intermediate chain (Dlic) recruits dynein heavy chain to the cell cortex, while the Dynactin/p150 complex, BicD and Lis1 are required for dynein activation. See also Figure 5—video 1.

Figure 5—source data 1

Zdk1-DlicCT interacts with DlicNT-LOV2 in dark.

https://cdn.elifesciences.org/articles/75538/elife-75538-fig5-data1-v2.zip

Since the DlicCT is known to interact with dynein activating adaptors (Lee et al., 2018) and BicD is the most important activating adaptor for oocyte growth (Figure 1F), we then tested whether BicD is required for the localization of DlicCT to the nurse cell cortex. In BicD-RNAi background, DlicCT still localizes to the cortex and mostly evidently at the ring canal regions (Figure 5—figure supplement 1B), indicating that BicD is not essential for recruiting Dlic to the nurse cell cortex.

The dynactin complex includes a short actin-like filament composed of actin-related proteins (Arp1 and Arp11) and β-actin that can potentially link dynein to the cell cortex. Previous studies in mitosis revealed that the dynactin complex facilitates dynein localization at the cell cortex for spindle pulling and positioning (Moore et al., 2008; Okumura et al., 2018). Therefore, we examined the DlicCT localization in the dominant negative p150Glued/DCTN1 mutant (p150Glued∆C) and found that the DlicCT localization is still predominantly cortical with the inhibition of the dynactin complex (Figure 5—figure supplement 1C). On the other hand, Lis1 has been shown to localize at the oocyte cortex and it is required to recruit dynein to the oocyte cortex (Swan et al., 1999). However, we found that the cortical localization of DlicCT in nurse cells is not affected by Lis1-RNAi (Figure 5—figure supplement 1D).

Another potential linker could anchor dynein to the cell cortex is the actin-microtubule crosslinker, Short stop (Shot). Previously, we have shown that Shot is localized to the nurse cell cortex and knockdown of shot causes oocyte growth defects (Lu et al., 2021). Therefore, we examined the DlicCT localization in the strongest shot loss-of-function mutant (shot-RNAi in shot heterozygote background), and found that DlicCT still remains cortically associated (Figure 5—figure supplement 1E).

In conclusion, Dlic C-terminus could facilitate the dynein complex to localize to the nurse cell cortex, independent of the dynein activating components (BicD, dynactin and Lis1) and the actin-microtubule crosslinker Shot.

Finally, we propose that Dlic links the dynein heavy chain to the cell cortex and thus essential for microtubule gliding in nurse cells. Gliding microtubules create cytoplasmic advection within nurse cells and through the ring canals, bringing cytoplasmic contents from nurse cells to the growing oocyte (Figure 5F; Figure 5—video 1). It remains to be determined which component(s) of the cortical network in nurse cells interact with Dlic and recruit the dynein complex to the cell cortex.

Discussion

As the main microtubule minus-end directed motor in animal cells, cytoplasmic dynein is responsible for a wide variety of cellular functions, ranging from cell division to intracellular transport. In Drosophila ovary, dynein plays an essential role in nurse cell-to-oocyte transport of mRNAs and organelles (Mische et al., 2007; Clark et al., 2007; Nicolas et al., 2009; Lu et al., 2021). This was logically attributed to the conventional mode of dynein-driven transport: the motor attached to the cargo moves on microtubule tracks located inside ring canals and carries cargoes to the oocyte (Figure 3A).

In this study, we reveal a novel mechanism of bulk cargo transport by cytoplasmic dynein. First, we show that dynein core components and its regulatory cofactors are required for Drosophila oocyte growth (Figure 1). By imaging microtubules in live ovaries, we demonstrate that microtubules are actively moved by dynein from nurse cells to the growing oocytes (Figure 2). Furthermore, we use an artificial cargo that does not bind motors and show that direct dynein-cargo interaction is not necessary for the cargo movement in nurse cells or its transporting to the oocyte (Figure 3), supporting a ‘go-with-the-flow’ mechanism driving cytoplasm transfer from nurse cells to the oocyte. To distinguish cytoplasmic advection from conventional cargo transport, we build a chimeric gliding-only motor by anchoring a minus-end-directed plant kinesin, Kin14VIb, to the cortex, and find that this chimeric cortically localized motor is sufficient to drive organelle transport and oocyte growth (Figure 4). Lastly, we identify that the C-terminus of Dlic is sufficient to target the dynein complex to the nurse cell cortex (Figure 5). Therefore, we propose a novel mechanism of dynein for bulk cargo transport: cortically anchored dynein glides microtubules in the nurse cells; in turn these gliding microtubules move cytoplasmic contents within the nurse cells and from the nurse cells to the oocyte through the ring canals to the growing oocyte (Figure 5F; Figure 5—video 1).

A novel phase of nurse cell-to-oocyte transport

Previously, nurse cell-to-oocyte transport has been divided into two phases: the early slow selective phase and the late fast non-selective phase (Mahajan-Miklos and Cooley, 1994; Buszczak and Cooley, 2000). The early phase is characterized by dynein-driven cargo transport along microtubules to the oocyte (Mische et al., 2007; Clark et al., 2007; Nicolas et al., 2009; Lu et al., 2021). The late massive nurse cell-to-oocyte transport phase is known as nurse cell dumping, which occurs at late stage 10B to stage 11 (Mahajan-Miklos and Cooley, 1994; Buszczak and Cooley, 2000).

Here, we report a new phase of cytoplasmic advection from nurse cells to the oocyte driven by microtubules that are transported by cortical dynein. This occurs between the two previously described phases, slow selective transport, and fast nurse dumping. As microtubules can drag adjacent contents in the viscous cytoplasm (Lu et al., 2016; Lu et al., 2018), we believe that this transport is non-selective. This conclusion is supported by the fact that the neutral particles (GEMs) are moved in the nurse cells and concentrated in the oocyte by dynein. Furthermore, we have found that a chimeric gliding-only motor unrelated to dynein that cannot directly transport cargoes along microtubules, plant kinesin-14, is able to rescue mitochondria transport from the nurse cells to the oocyte (Figure 4—video 1). As we use the motor domain of a moss kinesin-14 that has no known homology with the motor proteins that interact the mitochondrial adaptor protein Milton (e.g. KHC and Myosin 10 A) (Glater et al., 2006; Liu et al., 2008), we conclude that the advection created by microtubule movement in the ring canals is not cargo-specific, and it is different from the early selective transport phase.

During the dumping phase, nurse cells ‘squeeze’ all the cytoplasmic contents to the oocyte, which is caused by non-muscle myosin-II contraction (Gutzeit, 1986; Jordan and Karess, 1997), and associated with fast cytoplasmic streaming occurring in the oocyte mixing the dumped contents with the ooplasm (Mahajan-Miklos and Cooley, 1994; Lu et al., 2018; Gutzeit and Koppa, 1982). We reason that the dynein-driven microtubule flow we observed is distinct from nurse cell dumping: (1) it occurs prior to nurse cell dumping and ooplasmic streaming (stages 8~9 versus stages 10B-11); (2) the nurse cell size grows drastically during microtubule flow stages (Figure 2—figure supplement 2A), instead of fast shrinking associated with nurse cell dumping; (3) it requires cytoplasmic dynein, instead of myosin-II activity (Figure 2—figure supplement 2; Figure 2—videos 6; 9); (4) the ‘dumpless’ mutants develop normally without major oocyte growth defects to stages 9~10 (Wheatley et al., 1995; Jordan and Karess, 1997; Doerflinger et al., 2022; Cooley et al., 1992; Myster et al., 2000; Imran Alsous et al., 2021), which is noticeably different from the small oocyte phenotype we observed in dynein knockdown (Figure 1).

The dynein-driven microtubule flow occurs concurrently with the most rapid oocyte growth at stage 9 (Figure 2I). During stage 9, the oocyte size can increase up to 10 X within 6 hr (Figure 2—figure supplement 1B–1C). To achieve such a rapid growth, each of the four nurse cell-oocyte ring canals with a diameter of ~6.5 µm is estimated to have a flow of ~150 nm/s throughout the whole time. This is consistent with our experimental measurements of the velocities of both microtubules and small spherical particles in bright-filed images (Figure 2H). Noticeably, mitochondria move at a slightly lower velocity compared to microtubules and small spherical particles, which is expected for organelles and large particles that are moved by viscous drag created by microtubule gliding (Figure 2H).

Microtubule movement in the nurse cells can be detected as early as in stage 6 egg chambers; however, the fast microtubule movement through the nurse cell-oocyte ring canals only starts in late stage 8 egg chambers, and becomes robust in stage 9 egg chambers. The stage-specific microtubule passage through the ring canals could be controlled by microtubule organization within the ring canals. In early oogenesis (stages 1–6), microtubules are nucleated from the oocyte and grow into the nurse cells with their plus-ends (Theurkauf, 1994; Nashchekin et al., 2021). Even at stages 7–8, the microtubules within the ring canals still contain more plus-ends in the nurse cells and more minus-ends in the oocyte (Lu et al., 2021). This particular microtubule orientation allows efficient dynein-dependent conventional cargo transport to the oocyte (Figure 3A), but restricts dynein-dependent microtubule movement from nurse cells to the oocyte. Hence, these microtubules in the ring canals could basically function as a plug, and as a result microtubule flow through the ring canals is not often seen at these stages (Figure 2—video 2). Massive microtubule reorganization occurs during mid-oogenesis (stages 7–8) and creates an anterior-posterior microtubule gradient in the oocyte with more microtubules minus-ends anchored at the anterior and lateral cortex at stages 8-9 (Lu et al., 2020; Theurkauf, 1994; Nashchekin et al., 2016). This microtubule reorganization in the oocyte could potentially disassemble the original ‘wrong’ orientated microtubules in the nurse cell-oocyte ring canals, which facilitates the dynein-driven microtubule flow to the oocyte (Figure 2—video 2; Figure 3B).

To summarize, the dynein-microtubule driven bulk cargo flow from nurse cells to the oocyte presents a novel phase between early selective transport and late non-selective dumping, which is essential for Drosophila oocyte growth. The stage-specific microtubule flow through the ring canals suggests that the complete small oocyte phenotype we observed in the dynein mutants are probably caused by the combination of lack of directed transport along microtubules at early stages and absence of microtubule-driven cytoplasmic advection to the oocyte at stage 9.

Dynein anchorage at the cell cortex

In this study, we found that cortical dynein glides microtubules to create local cytoplasmic advection and move cargoes to the growing oocyte. Furthermore, we found that the C-terminus of dynein light intermediate chain (DlicCT) targets the dynein complex to the nurse cell cortex. DlicCT contains the effector-binding domain that interacts with multiple dynein activating adaptors (Lee et al., 2018). Recently, our lab reported that Spindly, a dynein activating adaptor that interacts with DlicCT (Lee et al., 2018) and recruits dynein to the kinetochore in mitosis (Clemente et al., 2018), anchors dynein to cortical actin in axons, thus pushing microtubules of the wrong polarity out of the axons in Drosophila neurons (Del Castillo et al., 2020). However, knockdown of Spindly does not disrupt dynein-dependent oocyte growth (Figure 1F). Thus, it indicates that the ovary uses a different specific mechanism for dynein cortical targeting. We showed that cortically recruited BicD is able to rescue the oocyte growth arrest caused by BicD-RNAi (Figure 4A–D), implying that BicD could contribute to the linkage between dynein and the cortex. Other studies also have suggested that the dynactin complex and Lis1 are involved in dynein cortical anchorage (Moore et al., 2008; Okumura et al., 2018; Swan et al., 1999). Nevertheless, DlicCT cortical localization is unaffected after inhibition of BicD, dynactin/p150, and Lis1 (Figure 5—figure supplement 1), indicating Dlic uses a novel mechanism of anchoring dynein to the cortex in nurse cells. Intriguingly, Dlic interacts with the Drosophila Par-3 homolog, Bazooka (Baz), and PIP5Kinase Skittles (SKTL) in the ovary (Jouette et al., 2019), while Baz and SKTL are known to localize at the nurse cell cortex (Jouette et al., 2019; Doerflinger et al., 2010). In vertebrates, dynein light intermediate chain 2 interacts with Par-3, 14-3-3 ε and ζ to anchor the dynein complex at the cortex for regulating mitotic spindle orientation (Mahale et al., 2016). Furthermore, NuMA and its Drosophila homology Mud link the dynein complex to the cortex via the interaction with membrane localized Gαi, for pulling mitotic spindle poles in dividing cells (Kotak and Gönczy, 2013). Recently, it has been shown that NuMA has a Hook domain and a CC1-Box-like motif, both of which interact with the effector-binding domain of DLIC (Renna et al., 2020). Therefore, Baz/Par-3, SKTL, 14-3-3 ε and ζ, and NuMA/Mud are all potential linkers of Dlic to the cell cortex. However, loss of SKTL and Mud, mutants of 14-3-3 ε and ζ, or displacement of Baz from the cortex does not result in apparent oocyte growth defects, distinct from the dynein mutants (Jouette et al., 2019; Doerflinger et al., 2010; Benton et al., 2002; Yu et al., 2006). It is possible that these linkers are genetically redundant with each other to ensure the correct cortical localization of the dynein complex. Thus, disruption of one of the linkers does not cause the dynein complex to fall off from the cortex. Alternatively, Dlic is localized to the cortex independently of Par-3/Baz, SKTL, 14-3-3, and NuMA/Mud, by a new mechanism that awaits further studies.

Furthermore, we consistently observe cytoplasmic advection from the nurse cells to the oocyte in stage 9 egg chambers, suggesting a direction-controlling mechanism underlying the persistent oocyte growth. We speculate that the flow directionality could be attributed to different levels of dynein gliding activity. The dynein complex is strongly localized to the nurse cell cortex, but to a much lesser extent to the oocyte cortex (Figure 4—figure supplement 1). Consistent with the dynein localization, microtubules are more cortically localized in the nurse cells than in the oocyte (Figure 2E). This differences in dynein localization and microtubule organization may result in a higher dynein-driven microtubule gliding activity in the nurse cells, and therefore creates the directional flow through the ring canals to the growing oocyte.

In addition, this directionality could be controlled by the gatekeeper protein Short stop (Shot). Recently, we demonstrated that Shot is asymmetrically localized at actin fibers of ring canals on the nurse cell side and controls the cargo transport direction between nurse cells and the oocyte (Lu et al., 2021). Given the nature of Shot’s actin-microtubule crosslinking activity, it could serve as an organizer of microtubules along the actin filaments of the ring canals on the nurse cell side and facilitate their transport toward the oocyte.

The ‘go-with-the-flow’ mechanism of cytoplasmic transport

Here we report that the minus-end directed motor, cytoplasmic dynein, glides microtubules, and microtubules in turn drag the surrounding highly viscous cytoplasm and transfer cytoplasmic contents from nurse cells to the oocyte. To our knowledge, this is the first report of microtubule gliding by cortical dynein driving cargo movement in interphase cells (the ‘go-with-the-flow’ mechanism).

Previously, we have demonstrated a similar mechanism for another major microtubule motor, conventional kinesin (kinesin-1). We have shown that kinesin-1 can slide microtubules against each other (Lu et al., 2013b; Lu et al., 2015; Jolly et al., 2010; Barlan et al., 2013; Del Castillo et al., 2015), and this microtubule sliding drives ooplasmic streaming, bulk circulation of the entire cytoplasm in late-stage oocytes that is essential for localization of the posterior determinant, osk/Staufen RNPs (Lu et al., 2016; Lu et al., 2018). Thus, both major microtubule motors, plus-end directed kinesin-1 and minus-end directed dynein, in addition to the canonical mode of cargo transport along microtubules, can drive bulk transport of viscous cytoplasm. Yet kinesin-1 and dynein drive bulk movement in different manners: kinesin-1 drives microtubule sliding against each other, while dynein glides microtubules along the cortex; and for different purposes: kinesin-1 powers intracellular circulation, whereas dynein propels intercellular transport.

This ‘go-with-the-flow’ mechanism is highly efficient for bulk cargo delivery, especially in large cells (Goldstein and van de Meent, 2015), such as the oocyte. The dynein-driven cytoplasmic advection allows the oocyte to acquire cytoplasmic materials for its rapid growth. Interestingly, the ring canals have been observed in female germline cells of vertebrate organisms (e.g. human, rabbit, rat, hamster, mouse, chicken, and frog) (Haglund et al., 2011). Particularly, it has been shown that cytoplasmic contents such as mitochondria and Golgi material are transferred to the mouse oocyte from interconnected cyst cells in a microtubule-dependent fashion (Lei and Spradling, 2016; Niu and Spradling, 2021) . As dynein is highly conserved across species, it is important to have further studies to examine whether it plays a similar role in germline cytoplasmic transfer in higher organisms.

Materials and methods

Drosophila strains

Request a detailed protocol

Fly stocks and crosses were maintained on standard cornmeal food (Nutri-Fly Bloomington Formulation, Genesee, Cat #: 66–121) supplemented with dry active yeast at room temperature (~24–25°C). The following fly stocks were used in this study: mat αtub-Gal4[V37] (III, Bloomington Drosophila Stock Center #7063); Act5C-Gal4 (III, Bloomington Drosophila Stock Center #3954); nos-Gal4-VP16 (III, from Dr. Edwin Ferguson, the University of Chicago Van Doren et al., 1998; Lu et al., 2012); UAS-Dhc64C-RNAi (line #1: TRiP.GL00543, attP40, II, Bloomington Drosophila Stock Center #36583, targeting DHC64C CDS 10044–10,064 nt, 5’-TCGAGAGAAGATGAAGTCCAA-3’; line #2: TRiP.HMS01587, attP2, III, Bloomington Drosophila Stock Center #36698, targeting DHC64C CDS 1302–1,322 nt, 5’-CCGAGACATTGTGAAGAAGAA-3’) (Lu et al., 2015; del Castillo et al., 2015); UASp-Gl∆C (1–826 residues of p150Glued/DCTN1, based on the Glued1 domintant mutation) (II, 16.1, from Dr. Thomas Hays, University of Minnesota) (Mische et al., 2007); UAS-Lis1-RNAi (II, from Dr. Graydon Gonsalvez, Augusta University, targeting Lis1 CDS 1197–1217 nt, 5’-TAGCGTAGATCAAACAGTAAA-3’) (Liu et al., 2015); UAS-BicD-RNAi (TRiP.GL00325, attP2, III, Bloomington Drosophila Stock Center #35405, targeting BicD 3’UTR 639–659 nt, 5’-ACGATTCAGATAGATGATGAA-3’); UAS-Spindly-RNAi (TRiP.HMS01283, attP2, III, Bloomington Drosophila Stock Center #34933, targeting Spindly CDS 1615–1,635 nt, 5’-CAGGACGCGGTTGATATCAAA-3’) (Del Castillo et al., 2020); UAS-hook-RNAi (TRiP.HMC05698, attP40, II, Bloomington Drosophila Stock Center #64663, targeting HOOK CDS 241–261 nt, 5’-TACGACTACTACAGCGACGTA-3’); UAS-GFP-RNAi (attP2, III, Bloomington Drosophila Stock Center #41551); UASp-tdMaple3-αtub84B (II) (Lu et al., 2016); UASp-EMTB-3XTagRFP (III) (Lu et al., 2020); mat αtub67C-EMTB-3XGFP-sqh 3'UTR (attP40, an unpublished gift from Yu-Chiun Wang lab, RIKEN Center for Biosystems Dynamics Research); UASp-GFP-Patronin (II) (from Dr. Uri Abdu, Ben-Gurion University of the Negev) (Lu et al., 2020; Lu et al., 2018; Baskar et al., 2019); Jupiter-GFP (protein trap line ZCL2183, III) (Lu et al., 2013b; Lu et al., 2015; Karpova et al., 2006); UASp-LifeAct-TagRFP (III, 68E, Bloomington Drosophila Stock Center # 58714); UASp-F-Tractin-tdTomato (II, Bloomington Drosophila stock center #58989) (Spracklen et al., 2014); UAS-zip-RNAi (TRiP.GL00623, attP40, II, Bloomington Drosophila Stock Center #37480, targeting Zip 3’UTR 36–56 nt, 5’-CAGGAAGAAGGTGATGATGAA-3’); hs-Flp12 (X, Bloomington Drosophila Stock Center #1929); FRTG13 ubi-GFP.nls (II, Bloomington Drosophila Stock Center # 5826); FRTG13 zip2 /CyO (II, Bloomington Drosophila stock center # 8739); Sqh-GFP (III, Bloomington Drosophila stock center #57145); UASp-Mito-MoxMaple3 (II, and III) (Lu et al., 2021); ubi-GFP-Pav (II, from Dr. David Glover, Caltech) (Minestrini et al., 2002); UASp-RFP-Golgi (II, Bloomington Drosophila Stock Center # 30908, aka UASp-GalT-RFP) (Chowdhary et al., 2017); pDlic-Dlic-GFP (II, under the control of its native promoter, from Dr. Thomas Hays, University of Minnesota) (Neisch et al., 2021); shot∆EGC (from Dr. Ferenc Jankovics, Institute of Genetics, Biological Research Centre of the Hungarian Academy of Sciences) (Takács et al., 2017); UAS-shotEGC-RNAi (in pWalium22 vector, inserted at attP2, III) (Lu et al., 2021). The following fly stocks were generated in this study using either PhiC31-mediated integration or P-element-mediated transformation: UASp-Dlic-RNAi (targeting Dlic 3’UTR 401–421 nt, 5’-AGAAATTTAACAAAAAAAAAA –3’, in pWalium22 vector, inserted at attP-9A (VK00005) 75A10 site, III, M5); UASp-GEM (III, M1); UASp-F-Tractin-Myc-BicD (II, M4); UASp-F-Tractin-GFP-Kin14VIb (II, M1); UASp-Myc-HA-DlicNT-LOV2 at attP14 (36A10, II, M2); UASp-Zdk1-DlicCT-sfGFP-Myc at attP33 (50B6, II, M2).

Plasmid constructs

pWalium22-Dlic3’UTR-shRNA

Request a detailed protocol

The oligos of Dlic3’UTR-shRNA (agtAGAAATTTAACAAAAAAAAAAtagttatattcaagcataTTTTTTTTTTGTTAAATTTCTgc) were synthesized and inserted into the pWalium22 vector (Drosophila Genomics Resource Center, Stock Number #1473, 10XUAS) (Ni et al., 2011) by NheI(5’)/EcoRI(3’).

pUASp-GEM

Request a detailed protocol

GEM (PfV-GS-Sapphire) was cut from pCDNA3.1-pCMV-PfV-GS-Sapphire (Addgene plasmid # 116933; RRID:Addgene_116933) (Delarue et al., 2018), and inserted into the pUASp vector by NheI(5’)/XbaI(3’).

pUASp-F-Tractin-Myc-BicD

Request a detailed protocol

F-Tractin (the actin binding domain of rat Inositol trisphosphate 3-kinase A (lTPKA), residues 9–40, atgGGCATGGCGCGACCACGGGGCGCGGGGCCCTGCAGCCCCGGGTTGGAGCGGGCTCCGCGCCGGAGCGTCGGGGAGCTGCGCCTGCTCTTCGAA) (Spracklen et al., 2014; Johnson and Schell, 2009) was synthesized and inserted into pUASp by KpnI (5')/SpeI (3'). Myc-BicD was amplified from pAC-FRB-GFP-BicD (del Castillo et al., 2015) and inserted into pUASp vector by SpeI (5’)/XbaI (3’).

pUASp-F-Tractin-GFP-Kin14VIb

Request a detailed protocol

F-Tractin (the actin binding domain of rat Inositol trisphosphate 3-kinase A (lTPKA), residues 9–40, atgGGCATGGCGCGACCACGGGGCGCGGGGCCCTGCAGCCCCGGGTTGGAGCGGGCTCCGCGCCGGAGCGTCGGGGAGCTGCGCCTGCTCTTCGAA) (Spracklen et al., 2014; Johnson and Schell, 2009) was synthesized and inserted into pUASp by KpnI (5')/SpeI (3'). EGFP and Kin14VIb were amplified from the vector of pET15b-EGFP-GCN4-kinesin14VIb (a gift from Dr. Gohta Goshima, Nagoya University, Japan) (Jonsson et al., 2015) by PCR and inserted into pUASp by SpeI(5’)/NotI(3’) and NotI(5’)/XbaI (3’), respectively.

pUASp-Myc-HA-DlicNT-LOV2-attB

Request a detailed protocol

DlicNT (1–370 residues) and LOV2[WT] were amplified by PCR from pAC-Dlic-EGFP (a gift from Dr. Thomas Hays, University of Minnesota) (Mische et al., 2008) and pTriEx-NTOM20-mVenus-LOV2[WT] (a gift from Dr. Klaus Hahn, University of North Carolina at Chapel Hill) (Wang et al., 2016) and inserted into pMT.A vector by EcoRV(5’)/XhoI(3’) and XhoI(5’)/XbaI(3’), respectively. Myc-HA with linkers (GGSG) was synthesized and inserted into the pMT-A-DlicNT-LOV2[WT] by EcoRI(5’)/EcoRV(3’). Myc-HA-DlicNT-LOV2[WT] was subcloned from the pMT.A-Myc-HA-DlicNT-LOV2[WT] into the pUASp vector by KpnI(5’)/XbaI(3’), and attB site was subcloned from the pUASp-attB vector (Drosophila Genomics Resource Center/DGRC vector #1358) by AatII(5’)/AatII(3’) to create pUASp-Myc-HA-DlicNT-LOV2-attB.

pUASp-Zdk1-DlicCT-sfGFP-Myc-attB

Request a detailed protocol

Zdk1 and C-terminus of Dlic (371–493 residues) were amplified by PCR from pTriEx-mCherry-Zdk1 (a gift from Dr. Klaus Hahn, University of North Carolina at Chapel Hill) (Wang et al., 2016) and pAC-Dlic-EGFP (a gift from Dr. Thomas Hays, University of Minnesota) (Mische et al., 2008), and inserted into pMT.A by SpeI(5’)/EcoRI(3’) and EcoRI(5’)/EcoRV(3’), respectively. Superfolder GFP (sfGFP) with a Myc tag was inserted into the pMT.A-Zdk1-DlicCT by EcoRV(5’)/XbaI(3’). Zdk1-DlicCT-sfGFP-myc was then subcloned into the pUASp-attB vector (Drosophila Genomics Resource Center/DGRC vector #1358) by SpeI(5’)/XbaI(3’) to create pUASp-Zdk1-DlicCT-sfGFP-Myc-attB.

pcDNA3.1(+)-Myc-HA-DlicNT-LOV2

Request a detailed protocol

Myc-HA-DlicNT-LOV2 was subcloned from pMT.A-Myc-HA-DlicNT-LOV2[WT] into pcDNA3.1(+) by KpnI(5’)/XbaI(3’).

pcDNA3.1(+)-Zdk1-DLicCT-sfGFP-Myc

Request a detailed protocol

Zdk1-DlicCT-sfGFP-Myc was amplified by PCR from pMT.A-Zdk1-DlicCT-sfGFP-Myc and inserted into pcDNA3.1(+) by HindIII(5’)/XbaI(3’).

Immunostaining of Drosophila egg chambers

Request a detailed protocol

A standard fixation and staining protocol was previously described (Lu et al., 2021; Lu et al., 2016; Lu et al., 2020; Lu et al., 2018; Lu et al., 2012). Samples were stained with primary antibody at 4 °C overnight and with fluorophore-conjugated secondary antibody at room temperature (24~25 °C) for 4 hr. Primary antibody used in this study: mouse monoclonal anti-Orb antibody (Orb 4H8, Developmental Studies Hybridoma Bank, supernatant, 1:5); rabbit phospho-MLC (pMLC 2/Ser19, 1:100, Cell Signaling, Cat# 3671); mouse monoclonal anti-DHC antibody (2C11-2, Developmental Studies Hybridoma Bank, concentrate, 1:50); mouse monoclonal anti-BicD antibody (anti-Bicaudal-D 4C2, Developmental Studies Hybridoma Bank, supernatant, 1:5); mouse monoclonal anti-Myc antibody (1-9E10.2, 1:100) (Karcher et al., 2001). Secondary antibody used in this study: FITC-conjugated or TRITC-conjugated anti-mouse secondary antibody (Jackson ImmunoResearch Laboratories, Inc; Cat# 115-095-062 and Cat# 115-025-003) at 10 µg/ml; FITC-conjugated anti-rabbit secondary antibody (Jackson ImmunoResearch Laboratories, Inc; Cat#111-095-003) at 10 µg/ml.

Some samples were stained with rhodamine-conjugated phalloidin (0.2 µg/ml) and DAPI (1 µg/mL) for 1 ~ 2 hr before mounting. Samples were imaged on a Nikon A1plus scanning confocal microscope with a GaAsP detector and a 20 × 0.75 N.A. lens using Galvano scanning, a Nikon W1 spinning disk confocal microscope (Yokogawa CSU with pinhole size 50 µm) with a Photometrics Prime 95B sCMOS Camera or a Hamamatsu ORCA-Fusion Digital CMOS Camera and a 40 × 1.30 N.A. oil lens or a 40 × 1.25 N.A. silicone oil lens, or a Nikon Eclipse U2000 inverted stand with a Yokogawa CSU10 spinning disk confocal head, a Photometrics Evolve EMCCD camera and a 40 × 1.30 N.A. oil lens, all controlled by Nikon Elements software. Z-stack images were acquired every 1 µm/step for whole ovariole imaging or 0.3~0.5 µm/step for individual egg chambers.

Microtubule staining in Drosophila egg chambers

Request a detailed protocol

Ovaries were dissected in 1 X Brinkley Renaturing Buffer 80 (BRB80, 80 mM piperazine-N,N’-bis(2-ethanesulfonic acid) [PIPES], 1 mM MgCl2, 1 mM EGTA, pH 6.8) and fixed in 8% EM-grade formaldehyde +1 X BRB80 +0.1% Triton X-100 for 20 min on the rotator; briefly washed with 1 X PBTB (1 X PBS + 0.1% Triton X-100 +0.2% BSA) five times and stained with FITC-conjugated β-tubulin antibody (ProteinTech, Cat# CL488-66240) 1:100 at 4 °C overnight; then samples were stained rhodamine-conjugated phalloidin and DAPI for 1 hr before mounting. Samples were imaged using a Nikon W1 spinning disk confocal microscope (Yokogawa CSU with pinhole size 50 µm) with a Photometrics Prime 95B sCMOS Camera, and a 40 × 1.25 N.A. silicone oil lens, controlled by Nikon Elements software. Images were acquired every 0.3 µm/step in z stacks and 3D deconvolved using Richardson-Lucy iterative algorithm provided by Nikon Elements.

Live imaging of Drosophila egg chamber

Request a detailed protocol

Young mated female adults were fed with dry active yeast for 16~18 hr and then dissected in Halocarbon oil 700 (Sigma-Aldrich, Cat# H8898) as previously described (Lu et al., 2021; Lu et al., 2016; Lu et al., 2020; Lu et al., 2018). Fluorescent samples were imaged using a Nikon W1 spinning disk confocal microscope (Yokogawa CSU with pinhole size 50 µm) with a Photometrics Prime 95B sCMOS Camera or a Hamamatsu ORCA-Fusion Digital CMOS Camera, and a 40 × 1.30 N.A. oil lens or a 40 × 1.25 N.A. silicone oil lens, controlled by Nikon Elements software.

Photoconversion of tdMaple3-tubulin and Mito-MoxMaple3 in ovary

Request a detailed protocol

Photoconversions of tdMaple3-tubulin and Mito-MoxMaple3 were performed using illumination from a Heliophor 89 North light in the epifluorescence pathway by a 405 nm filter, either locally (for tdMaple3-tubulin) or globally (for Mito-MoxMaple3) through an adjustable pinhole in the field diaphragm position for 10~20 s. Samples were imaged either on a Nikon Eclipse U2000 inverted stand with a Yokogawa CSU10 spinning disk confocal head with a Photometrics Evolve EMCCD camera and a 40 × 1.30 N.A. oil lens, or a Nikon W1 spinning disk confocal microscope (Yokogawa CSU with pinhole size 50 µm) with a Hamamatsu ORCA-Fusion Digital CMOS Camera and a 40 × 1.25 N.A. silicone oil lens, all controlled by Nikon Elements software.

Induction of zip2 germline clones

Request a detailed protocol

FRTG13 zip2 /CyO virgin female flies were crossed with males carrying hs-Flp12/y; FRTG13 ubi-GFP.nls/CyO. From the cross, young pupae at day 7 and day 8 AEL (after egg laying) were subjected to heat shock at 37 °C for 2 hr each day. Non CyO F1 females were collected 3–4 days after heat shock and fattened with dry active yeast overnight before dissection for fixation and Orb staining.

Extraction and fixation of ovary samples

Request a detailed protocol

Ovaries were dissected and gently teased apart in 1 X BRB80. The dissected samples were extracted in 1 X BRB80 +1% Triton X-100 for 20 min without agitation. After the extraction, the samples were fixed with 8% EM-grade formaldehyde in 1 X BRB80 +0.1% Triton X-100 for 20 min on rotator, washed with 1 X PBTB (1 X PBS + 0.1% Triton X-100 +0.2% BSA) five times before immunostaining.

Measurement of velocity in the nurse cell-oocyte ring canals

Request a detailed protocol

Velocities of microtubules, small particles and mitochondria were measured based on kymographs generated along lines within the nurse cell-oocyte ring canals (10~15 µm line length, and ~5 µm line width) using the MultipleKymograph plugin in FIJI (Schindelin et al., 2012). Velocities were calculated on these kymographs using Kymograph (time space plot) Plugin for ImageJ, written by J. Rietdorf (FMI Basel) and A. Seitz (EMBL Heidelberg) (https://www.embl.de/eamnet/html/body_kymograph.html).

Measurement of nurse cell and oocyte size

Request a detailed protocol

Z stacks of triple color images of the ovarioles from yw; ubi-GFP-Pav stained with rhodamine conjugated-phalloidin and DAPI were acquired, and nurse cell area and oocyte area were specified (at the largest cross-section) and measured by manual polygon selection (area size) in FIJI (Schindelin et al., 2012).

S2R+ cell transfection and imaging acquisition

Request a detailed protocol

Drosophila S2R + cells (DGRC Stock Number: 150) were transfected with 0.5 µg DNA (pAC-Gal4 + pUASp GEM, or pAC-LAMP1-GFP, Minin et al., 2006) in 12-well plate using Effectene transfection kit (Qiagen, Cat. # / ID: 301425) and then were plated 48 hr after transfection on concanavalin A-coated glass coverslips (Lu et al., 2013a). Cells were imaged using a Nikon W1 spinning disk confocal microscope (Yokogawa CSU with pinhole size 50 µm) with a Photometrics Prime 95B sCMOS Camera, and a 100 × 1.45 N.A. oil lens, controlled by Nikon Elements software.

Measurement of GEM particle movement in control and Dynein-RNAi

Request a detailed protocol

Samples expressing GEM particles (yw; ; mat atub-Gal4[V37]/UASp-GEM and yw; UAS-Dhc64C-RNAi/+; mat atub-Gal4[V37]/UASp-GEM) were imaged on a Nikon W1 spinning disk confocal microscope (Yokogawa CSU with pinhole size 50 µm) with a Photometrics Prime 95B sCMOS Camera and a 40 × 1.25 N.A. silicone oil lens for 2 min at the frame rate of every 2 s, controlled by Nikon Elements software. Images were processed in Fiji and analyzed DiaTrack 3.04 Pro (Vallotton and Olivier, 2013), with a maximum particle jump distance of 3.2 μm/s.

HEK293T cell transfection and GFP-binder pulldown assay

Request a detailed protocol

HEK293T cells (American Type Culture Collection/ATCC, CRL-3216) were co-transfected with pcDNA3.1(+)-myc-HA-DlicNT-LOV2 and pcDNA3.1(+)-Zdk1-DlicCT-sfGFP-Myc by Calcium Phosphate transfection as previously described (Kingston et al., 2003). 40~48 hr later, cell extracts from transfected cells were made with red-only light on (no blue light, considered as ‘dark’): cells were rinsed twice with 1 X PBS and scraped into 350 µl extraction buffer (10 mM Tris-buffer, pH 7.4; 50 mM NaCl; 0.5 mM MgCl2); cracked in cell cracker and collected in 1.5 ml microtube. Triton X-100 was added to the extract to final concentration of 1%. The extract was centrifuged at 14 k rpm for 15 min at 4 °C (Eppendorf, 5804 R). Supernatant was collected and divided equally in two parts. Both samples were mixed with 25 µl pre-washed GFP-binder agarose beads (Chromotek) (Robert et al., 2019). One sample was kept in aluminum foil for 2 hr at 4°C (dark); another sample was illuminated first with blue light for 1 min and then full natural light for 2 hours at 4 °C. Beads were washed twice and eluted with 40–50 µl 5 x Sample Buffer. Initial cell extract and both eluted samples were separated by electrophoresis in 8% SDS-PAGE gel, and transferred to nitrocellulose membrane (Odyssey Nitrocellulose Membrane, LI-COR). Membrane was blotted with mouse monoclonal anti-Myc antibody (1-9E10.2, 1:1000), followed by HRP-conjugated goat-anti-mouse secondary antibody (Jackson ImmunoResearch Laboratories, Cat# 115-035-003, 1:10,000). The blot was developed on Odyssey phosphorimager (LI-COR).

Statistical analysis

Request a detailed protocol

The plots in figures show either percentage of phenotypes, or average values, as indicated in figure legends. Error bars represent 95% confidence intervals. N stands for number of samples examined in each assay, unless it is specified elsewhere in figure legends. Unpaired t tests with Welch’s correction were performed in GraphPad Prism 8.0.2. p values and levels of significance are listed in figure legends.

Appendix 1

Appendix 1—key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
gene
(Drosophila
melanogaster
)
BicDdoi: 10.7554/
eLife.10140
(Del Castillo et al., 2015)
CG6605
gene
(Drosophila
melanogaster
)
DlicThomas Hays lab
(University of Minnesota);
doi:10.1091/mbc.
E08-05-0483
(Mische et al., 2008)
CG1938
gene
(Rattus
norvegicus
)
Inositol trisphosphate
3-kinase A (lTPKA)
doi:10.1091/mbc.
E09-01-0083
(Johnson and Schell, 2009);
doi:10.1016 /j.
ydbio.2014.06.022
(Spracklen et al., 2014)
Gene ID: 81677
gene
(Pyrococcus
furiosus
)
PfVAddgene plasmid # 116933;
doi:10.1016 /j.cell.
2018.05.042
(Delarue et al., 2018)
GenBank: AB214633.1;
RRID:Addgene_116933
gene
(Physcomitrella
patens
)
Kin14VIbGohta Goshima lab;
doi:10.1038/NPLANTS.2015.87
(Jonsson et al., 2015)
genetic reagent
(Drosophila
melanogaster
)
mat αtub-Gal4[V37]Bloomington
Drosophila

Stock Center
BDSC: 7063;
FlyBase ID: FBti0016914
genetic reagent
(Drosophila
melanogaster
)
Act5C-Gal4Bloomington
Drosophila

Stock Center
BDSC: 3954;
FlyBase ID: FBti0012292
genetic reagent
(Drosophila
melanogaster
)
nos-Gal4-VP16Edwin Ferguson
lab (University of Chicago);
doi: 10.1016 /
s0960-9822(98)70091-0
(Van Doren et al., 1998)
genetic reagent
(Drosophila
melanogaster
)
UAS-Dhc64C-RNAiBloomington
Drosophila

Stock Center
BDSC: 36583; FlyBase ID:
FBti0146459; TRiP.GL00543
genetic reagent
(Drosophila
melanogaster
)
UAS-Dhc64C-RNAiBloomington
Drosophila
Stock Center
BDSC: 36698; FlyBase ID:
FBti0146710; TRiP.HMS01587
genetic reagent
(Drosophila
melanogaster
)
UASp-Gl∆CThomas Hays lab
(University of
Minnesota);
doi:10.1091/mbc.
E06-10-0959
(Mische et al., 2007)
Line # 16.1
genetic reagent
(Drosophila
melanogaster
)
UAS-Lis1-RNAiGraydon Gonsalvez lab
(Augusta University);
doi:10.1534/genetics.
115.180018
(Liu et al., 2015)
genetic reagent
(Drosophila
melanogaster
)
UAS-BicD-RNAiBloomington
Drosophila

Stock Center
BDSC: 35405;
FlyBase ID: FBti0144407;
TRiP.GL00325
genetic reagent
(Drosophila
melanogaster
)
UAS-Spindly-RNAiBloomington
Drosophila
Stock Center
BDSC: 34933;
FlyBase ID: FBti0144908;
TRiP.HMS01283
genetic reagent
(Drosophila
melanogaster
)
UAS-hook-RNAiBloomington
Drosophila
Stock Center
BDSC: 64663;
FlyBase ID: FBti0183911;
TRiP.HMC05698
genetic reagent
(Drosophila
melanogaster
)
UAS-GFP-RNAiBloomington
Drosophila

Stock Center
BDSC: 41551;
FlyBase ID: FBti0148872
genetic reagent
(Drosophila
melanogaster
)
UASp-tdMaple3-
αtub84B
Our lab;
doi:10.1073/pnas.
1522424113
(Lu et al., 2016)
genetic reagent
(Drosophila
melanogaster
)
UASp-EMTB-
3XTagRFP
Our lab;
doi:10.7554/eLife.
54216 (Lu et al., 2020)
genetic reagent
(Drosophila
melanogaster
)
mat αtub67C-
EMTB-3XGFP-
sqh 3'UTR
Yu-Chiun Wang lab
(RIKEN Center for
Biosystems
Dynamics Research)
(an unpublished gift)
genetic reagent
(Drosophila
melanogaster
)
UASp-GFP-
Patronin
Uri Abdu lab (Ben
Gurion University);
doi:10.7554/eLife.54216
(Lu et al., 2020);
doi:10.1083/jcb.201709174
(Lu et al., 2018);
doi:10.1242/bio.039552
(Baskar et al., 2019);
doi:10.1016 /j.cub.
2021.05.010
(Lu et al., 2021)
genetic reagent
(Drosophila
melanogaster
)
Jupiter-GFPYale GFP Protein
Trap Database
doi: 10.1073/pnas.
261408198
(Morin et al., 2001);
doi:10.1016 /j.cub.
2013.04.050
(Lu et al., 2013b);
doi:10.1091/mbc.
E14-10-1423
(Lu et al., 2015);
doi:10.1002 /cm.
20124
(Karpova et al., 2006)
ZCL2183;
FlyBase ID: FBal0286259
genetic reagent
(Drosophila
melanogaster
)
UASp-LifeAct-
TagRFP
Bloomington
Drosophila
Stock Center
BDSC: 58714;
FlyBase ID: FBti0164964
genetic reagent
(Drosophila
melanogaster
)
UASp-F-Tractin-
tdTomato
Bloomington
Drosophila
stock center;
doi:10.1016 /j.
ydbio.2014.06.022
(Spracklen et al., 2014)
BDSC: 58989;
FlyBase ID: FBti0164816
genetic reagent
(Drosophila
melanogaster
)
UAS-zip-RNAiBloomington
Drosophila
Stock Center
BDSC: 37480;
FlyBase ID: FBti0146538;
TRiP.GL00623
genetic reagent
(Drosophila
melanogaster
)
hs-Flp12; Sco/CyOBloomington
Drosophila
stock center
BDSC: 1929;
FlyBase ID: FBti0000784
genetic reagent
(Drosophila
melanogaster
)
FRTG13 zip2/CyOBloomington
Drosophila
stock center
BDSC: 8739;
FlyBase ID: FBti0001247
and FBal0018863
genetic reagent
(Drosophila
melanogaster
)
FRTG13 Ubi-GFP.nlsBloomington
Drosophila stock
center
BDSC: 5826;
FlyBase ID: FBti0001247,
FBti0016099 and FBti0016100
genetic reagent
(Drosophila
melanogaster
)
Sqh-GFPBloomington
Drosophila
stock center
BDSC: 57145;
FlyBase ID: FBti0150058
genetic reagent
(Drosophila
melanogaster
)
UASp-Mito-
MoxMaple3
Our lab;
doi:10.1016 /
j.cub.2021.05.010
(Lu et al., 2021)
genetic reagent
(Drosophila
melanogaster
)
ubi-GFP-PavDavid Glover lab (Caltech);
doi: 10.1242/jcs.
115.4.725
(Minestrini et al., 2002)
genetic reagent
(Drosophila
melanogaster
)
UASp-RFP-GolgiBllomington stock center;
doi:10.1038 /s41598-
017-05679-1
(Chowdhary et al., 2017);
doi:10.1016 /j.cub.
2021.05.010
(Lu et al., 2021)
BDSC: 30908;
FlyBase ID: FBti0129915
genetic reagent
(Drosophila
melanogaster
)
pDlic-Dlic-GFPThomas Hays
(University of Minnesota)
(Neisch et al., 2021)doi: https://doi.org/10.1101/2021.09.27.462070
genetic reagent
(Drosophila
melanogaster
)
shot∆EGCFerenc Jankovics,
Institute of Genetics,
Biological Research
Centre of the Hungarian
Academy of Sciences;
doi:10.1242/jcs.193003
(Takács et al., 2017)
genetic reagent
(Drosophila
melanogaster
)
UASp-shot-RNAiOur lab; doi:10.1016 /
j.cub.2021.05.010
(Lu et al., 2021)
genetic reagent
(Drosophila
melanogaster
)
UASp-Dlic-RNAiGenerated in this study
(available upon
request, contact
vgelfand@northwestern.edu)
genetic reagent
(Drosophila
melanogaster
)
UASp-GEMGenerated in this study
(available upon
request, contact
vgelfand@northwestern.edu)
genetic reagent
(Drosophila
melanogaster
)
UASp-F-Tractin-
Myc-BicD
Generated in this study
(available upon request,
contact
vgelfand@northwestern.edu)
genetic reagent
(Drosophila
melanogaster
)
UASp-F-Tractin-
GFP-Kin14VIb
Generated in this study
(available upon request,
contact
vgelfand@northwestern.edu)
genetic reagent
(Drosophila
melanogaster
)
UASp-Myc-HA-
DlicNT-LOV2
Generated in this study
(available upon request,
contact
vgelfand@northwestern.edu)
genetic reagent
(Drosophila
melanogaster
)
UASp-Zdk1-DlicCT-
sfGFP-Myc
Generated in this study
(available upon request,
contact
vgelfand@northwestern.edu)
cell line
(Drosophila
melanogaster
)
S2R + cellsDrosophila Genomics
Resource Center (DGRC)
Stock Number: 150;
RRID:CVCL_Z831
Tested negative for mycoplasma; authenticated by the vendor
cell line
(Homo sapiens)
HEK293T cellsATCC; doi: 10.1096/
fj.201800604R
(Robert et al., 2019)
CRL-3216Tested negative for mycoplasma; authenticated by the vendor
transfected construct
(Drosophila
melanogaster
)
pcDNA3.1(+)-Myc-
HA-DlicNT-LOV2
Generated in this study
(available upon
request, contact vgelfand@northwestern.edu)
Contains Drosophila
Dlic residues 1–370
and LOVTRAP
probe LOV2[WT]
For transfection of HEK293T cells
transfected construct
(Drosophila
melanogaster
)
pcDNA3.1(+)-Zdk1-
DlicCT-sfGFP-Myc
Generated in this study
(available upon
request, contact vgelfand@northwestern.edu)
Contains LOVTRAP
probe Zdk1 and
Drosophila Dlic
residues 371–493
For transfection of HEK293T cells
antibodyanti-Orb antibody
(Mouse monoclonal)
Developmental Studies
Hybridoma Bank (DSHB)
orb 4H8;
RRID: AB_528418
(1:5) dilution
antibodyFITC-conjugated anti-β
tubulin antibody (Mouse monoclonal)
ProteinTechCat#: CL488-66240;
RRID: AB_2883292
(1:100) dilution
antibodyanti-Drosophila dynein
heavy chain antibody
(Mouse monoclonal)
Developmental Studies
Hybridoma Bank (DSHB)
2C11-2; RRID: AB_2091523(1:50) dilution
antibodyanti-Myc antibody
(Mouse monoclonal)
doi: 10.1126/science.1061086 (Karcher et al., 2001)Purified from Hybridoma
cell line MYC 1-9E10.2
(RRID:CVCL_G671)
(1:100) dilution
antibodyanti-BicD antibody
(Mouse monoclonal)
Developmental
Studies
Hybridoma Bank
(DSHB)
anti-Bicaudal-D 4C2;
RRID: AB_528103
(1:5) dilution
antibodyanti-phospho-myosin
light chain 2
(Ser19) (Rabbit
polyclonal)
Cell SignalingCat# 3671; RRID: AB_330248(1:100) dilution
antibodyFluorescein (FITC)
affiniPure anti-
Mouse IgG (H + L)
(Goat polyclonal)
Jackson
ImmunoResearch
Cat# 115-095-062; RRID: AB_233859410 µg/ml
antibodyRhodamine (TRITC) affiniPure anti-
Mouse IgG (H + L)
(Goat polyclonal)
Jackson
ImmunoResearch
Cat# 115-025-003; RRID: AB_233847810 µg/ml
antibodyFluorescein (FITC)
affiniPure anti-
Rabbit IgG (H + L)
(Goat polyclonal)
Jackson
ImmunoResearch
Cat#111-095-003; RRID: AB_233797210 µg/ml
antibodyHRP affiniPureanti-mouse IgG
(H + L) (Goat polyclonal)
Jackson
ImmunoResearch
Cat# 115-035-003; RRID: AB_1001528910 µg/ml
recombinant
DNA reagent
(Drosophila
melanogaster
)
pWalium22-
Dlic3’UTR-shRNA
Generated in this study
(available upon request,
contact
vgelfand@northwestern.edu)
Targeting Dlic 3’UTR
401–421 nt,
5’-AGAAATTTAAC
AAAAAAAAAA –3’
DNA plasmid for generating transgenic flies
recombinant
DNA reagent
(Pyrococcus furiosus)
pUASp-GEMGenerated in this study
(available upon request,
contact
vgelfand@northwestern.edu)
Subcloned from pCDNA3.1-pCMV-PfV-GS-Sapphire (Addgene plasmid # 116933; RRID:Addgene_116933)DNA plasmid for generating transgenic flies
recombinant
DNA reagent
(Drosophila
melanogaster
)
pUASp-F-Tractin-Myc-BicDGenerated in this study
(available upon request,
contact
vgelfand@northwestern.edu)
Includes the actin binding domain of rat Inositol trisphosphate 3-kinase A (lTPKA residues 9–40), Myc and Drosophila BicDDNA plasmid for generating transgenic flies
recombinant
DNA reagent
(Physcomitrella patens)
pUASp-F-Tractin-GFP-Kin14VIbGenerated in this study
(available upon request,
contact
vgelfand@northwestern.edu)
Includes the actin binding domain of rat Inositol trisphosphate 3-kinase A (lTPKA residues 9–40), GFP and Physcomitrella patens kinesin14VIbDNA plasmid for generating transgenic flies
recombinant
DNA reagent
(Drosophila
melanogaster
)
pUASp-Myc-HA-DlicNT-LOV2-attBGenerated in this study
(available upon request,
contact
vgelfand@northwestern.edu)
Contains Drosophila Dlic residues 1–370 and LOVTRAP probe LOV2[WT]DNA plasmid for generating transgenic flies
recombinant
DNA reagent
(Drosophila
melanogaster
)
pUASp-Zdk1-DlicCT-sfGFP-Myc-attBGenerated in this study
(available upon
request, contact
vgelfand@northwestern.edu)
Contains LOVTRAP probe Zdk1 and Drosophila Dlic residues 371–493DNA plasmid for generating transgenic flies
chemical
compound,
drug
Rhodamine-labeled phalloidinThermo Fisher ScientificCat# R4150.2 µg/ml
chemical
compound,
drug
DAPISigma-Aldrich
(MilliporeSigma)
D9542-1MG1 µg/ml
chemical
compound,
drug
16% Paraformaldehyde Aqueous Solution, EM GradeFisher Scientific
(Electron
Microscopy Science)
Cat# 50-980-487 (EMS 15710)4% or 8% for fixation

Data availability

All data generated or analyzed during this study are included in the manuscript and supporting file; Source Data files have been provided for Figure 5.

References

Decision letter

  1. Kassandra M Ori-McKenney
    Reviewing Editor; University of California, Davis, United States
  2. Anna Akhmanova
    Senior Editor; Utrecht University, Netherlands

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Decision letter after peer review:

Thank you for submitting your article "A novel mechanism of bulk cytoplasmic transport by cortical dynein in Drosophila ovary" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Anna Akhmanova as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

The authors all agreed that this is a robust, innovative and thorough study that warrants publication in eLife once it has been revised with additional analyses and textual changes. While these are the major revisions required for publication, please address the comments on textual edits (e.g. introducing and using the terms advection or streaming for consistency within the field), as well as the comments on additional citations and discussion points raised by each reviewer.

Essential revisions:

1) Can the authors determine at which stage dynein-driven microtubule flow begins (stage 9 or earlier?) and whether this correlates with an increase in oocyte growth rate? Please see Reviewer 1's comments for additional details.

2) Can the authors analyze their current data sets to provide velocities for the movement of mitochondria (or Golgi since they appear to move at similar rates), GEMs, and microtubules? Please see Reviewer 1 and 3's comments for additional details.

3) All three reviewers noted that the last section about how Dlic is anchored to the cell cortex isn't well incorporated into the paper. The authors may want to consider how to best wrap up this section, perhaps by expanding upon this section with additional discussion about the possible linkers by citing different papers and listing the most likely candidates. Although additional experiments are not necessary for publication, we wanted to highlight this concern for the authors.

Reviewer #1 (Recommendations for the authors):

While one can always think of new experiments that might strengthen the paper (like acute pharmacological depolymerization of microtubules), my focus is on the rigor of some of the analysis and claims.

Throughout the paper the claim is made that this movement of microtubules and associated cytoplasm is robust in stage 9 and maybe 8 but no data are presented regarding this timing. How early does it start? It seems important to establish whether or not there really is a slow selective stage first. If so, one would expect to see a correlation with oocyte growth rates that is consistent with these the two phases. Does that exist? (Could be roughly calculated from classical data.)

Transport of objects by cytoplasmic flow is called advection. Likewise, cytoplasmic streaming is a common term for this process. It's very odd that these terms are not introduced and/or used. It's not a new concept, just new and important in this context.

Movement of mitochondria, cytoplasm, GEMs, and microtubules is variously describe as synchronized, moving together, etc. These terms seem unclear and potentially misleading. Of course, they are during the same stage and most almost certainly causally linked. Can you report movement rates? It looks like you should be able to measure them in your kymographs. One would expect that transported objects would move somewhat slower than the source of work – not necessarily measurably slower but definitely not faster.

The last section about Dlic isn't well incorporated into the paper. It's a low note to end on after a really nice paper. Maybe it could be combined with the observation that BicD is the only dynein adaptor that has (any) phenotype, which is important and gets a bit lost? Along these lines, are BicD, Spindly, and Hook all equally well expressed in oocytes? And where is BicD localized in detergent extracted egg chambers?

In the discussion about flow direction, orientation of microtubules isn't discussed, which seems crucial. Please include thoughts on this.

Reviewer #2 (Recommendations for the authors):

As shown by the authors, the chimeric Kinesin motor is able to restore oocyte growth and Orb localization in Dlic depleted egg chambers. Given this result, it would be interesting to determine to what extent specific cargoes can be correctly localized in this background. For cargoes such as bicoid, nanos and oskar mRNA, their localization is thought to involve both specific motor-based transport and diffusion/entrapment mechanisms. In this chimeric Kinesin background, only diffusion/entrapment mechanisms would be active. Thus, this tool might be able to provide some answers to long-standing questions in the field.

The last part of the paper that attempts to identify how Dlic is anchored at the cell cortex appears somewhat disconnected from the rest. I appreciate the effort that the authors have made to show that the anchor is not BicD or Lis1. However, as a consequence, the paper has a rather abrupt ending. In addition, related to this point, the authors suggest that a potential anchor might be Bazooka. However, Doerflinger et al., 2010 (Development) characterized a mutant in Baz that no longer localizes to the cortex. This mutant is not associated with an oocyte growth defect, suggesting that Bazooka might not be the linker.

Related to this point, I wondered why the authors did not consider the possibility that Shot might be the possible linker. In their previous manuscript, they show that depletion of Shot is also associated with a similar oocyte growth defect. Given the known cortical localization of Shot and its role as an actin-microtubule crosslinker, it might make sense to consider Shot as the potential linker.

https://doi.org/10.7554/eLife.75538.sa1

Author response

Essential revisions:

1) Can the authors determine at which stage dynein-driven microtubule flow begins (stage 9 or earlier?) and whether this correlates with an increase in oocyte growth rate? Please see Reviewer 1's comments for additional details.

In the revised manuscript, we specifically stated the stages of dynein-driven microtubule flows in the nurse cells (starting stage 6) and in nurse cell-to-oocyte ring canals (mostly at stage 9) (see Results p.7, lines 124-128 and Discussion p.18, lines 368-371). We also provided further discussion on the initiation of microtubule flow from the nurse cells to the oocyte (see Discussion p.18, lines 371-386) as well as updating Figure 2 -Video 2 (comparing microtubules in the ring canals at stage 7 versus stage 9) to support our Discussion section. Furthermore, we quantified the oocyte sizes from stage 4 to stage 10A and we plotted these results either as average oocyte size for each stage (Figure 2I) and the range of oocyte sizes for each stage (Figure 2—figure supplement 1B-1C). These data clearly show that the stage 9 oocyte has the highest growth rate, which is in an agreement of timing of the microtubule-driven flow to the oocyte (See Results p.9, lines 177-179).

2) Can the authors analyze their current data sets to provide velocities for the movement of mitochondria (or Golgi since they appear to move at similar rates), GEMs, and microtubules? Please see Reviewer 1 and 3's comments for additional details.

As Reviewers suggested, we analyzed the velocities of microtubules, small particles seen with bright-field microscopy, and mitochondria moving through the nurse cell-oocyte ring canals at stage 9. These new measurements are now included in Figure 2H and results (see Results p.7, lines 125-128 and p.9, lines 173-174; see Materials and methods, p.30, lines 632-638) (see Response to Reviewer #1 Point #3, pp.5-6). We also have added the velocity calculation based on oocyte size measurement in stage 9, which is consistent with our experimental data (see Discussion pp.17-18, lines 358-367) (please see more details in Response to Reviewer #1 Point #1, p.4).

3) All three reviewers noted that the last section about how Dlic is anchored to the cell cortex isn't well incorporated into the paper. The authors may want to consider how to best wrap up this section, perhaps by expanding upon this section with additional discussion about the possible linkers by citing different papers and listing the most likely candidates. Although additional experiments are not necessary for publication, we wanted to highlight this concern for the authors.

We completely agree with this comment. To better wrap up the whole story, we made following changes on the Dlic section:

1) We have now included the Dlic NT and CT data into the main figure 5 (as Reviewer #3 suggested) and included more data showing that DlicNT or DlicCT truncations alone do not rescue Dlic-RNAi (Figure 5C; Results p.13, lines 259-263).

2) We tested the role of the actin-microtubule crosslinker Shot in DlicCT localization as suggested by Reviewer #2, and we found that DlicCT cortical localization is independent of Shot (see Results p.14, lines 283-288; Figure 5—figure supplement 1E).

3) In the results part, we modified the Dlic conclusion to better end this part of the results and leave an open question on how Dlic gets recruited to the cortex (see Results p.14, lines 289-297).

4) In the discussion, we added several other potential linkers, including PIP5Kinase Skittles, 14-3-3 epsilon and zeta, and NuMA/Mud, in addition to Baz/Par-3. We also addressed the lack of oocyte defects in single mutants (as Reviewer #2 pointed out) and discussed the possibility of genetic redundancy of these proteins to anchor dynein to the cortex (see Discussion p.20, lines 412-428).

Reviewer #1 (Recommendations for the authors):

While one can always think of new experiments that might strengthen the paper (like acute pharmacological depolymerization of microtubules), my focus is on the rigor of some of the analysis and claims.

Throughout the paper the claim is made that this movement of microtubules and associated cytoplasm is robust in stage 9 and maybe 8 but no data are presented regarding this timing. How early does it start? It seems important to establish whether or not there really is a slow selective stage first. If so, one would expect to see a correlation with oocyte growth rates that is consistent with these the two phases. Does that exist? (Could be roughly calculated from classical data.)

We have included the information on the onset of microtubule movement within nurse cells (starting stage 6) and microtubule movement through nurse cell-oocyte ring canals (late stage 8-stage 9) (see Results p.7, lines 124-128 and Discussion p.18, lines 368-371). The initiation of the microtubule flow through the ring canal may be triggered by microtubule reorganization occurred in stage 7-8 oocytes as we see very different microtubule patterns in the ring canals connecting the nurse cells and the oocyte in stage 7 and in stage 9 (now we added the new data to Figure 2 -Video 2) (see Discussion p.18, lines 371-386) (more details in Response to Reviewer #1 Point #5, p.8).

We also quantified the oocyte sizes from stage 4 to stage 10A, and these data are included in Figure 2I (average size ± 95% confidence intervals for each stage) and Figure 2—figure supplement 1B-1C (individual data points for stage 9, and the ratio of max/min and 95 percentile/5% percentile for each stage). Stage 9 clearly has the highest growth rate, consistent with the timing of onset of microtubule-driven cytoplasmic advection to the oocyte.

As the Reviewer suggested, we roughly calculated the flow velocity at stage 9. During stage 9, the oocyte grows up to 10X in size within 6 hours1 (Figure 2-—figure supplement 1B-1C)1. We took the smallest oocyte size of stage 9 as the beginning size (~1400 µm2) and the largest oocyte size of stage 9 as the ending size (~14000 µm2). To achieve such a rapid growth, each of the four ring canals connecting nurse cells to the oocyte with a diameter of ~ 6.5 µm is estimated to have a consistent flow of ~150 nm/sec throughout the whole time. This is consistent with our experimental results of the velocity of both microtubules and small spherical particles in bright-filed images (Figure 2H).

We did a similar calculation for stage 7 egg chamber and found out that to achieve the stage 7 oocyte growth (6 hours1 with 4 ring canals of ~5.5 µm diameter), the flow is estimated to be around 1 nm/sec. Again, this is consistent with the results that we don’t have seen apparent flow at stage 7.

Regarding the slow selective transport phase, we do believe that it does exist for following reasons:

(1) At early stages, microtubules are nucleating from the oocyte (-) to the nurse cells (+) and forms an almost “static” microtubule plug in the nurse cell-oocyte ring canals (see the last part of the newly updated Figure 2 -Video 2). It is very unlikely that such microtubule organization can support the massive flow of cytoplasm through the ring canals.

(2) AT early stages, microtubules in the nurse cell-oocyte ring canals have ~90% plus-ends towards the nurse cells, which is consistent with the cargo transport directionality driven by dynein (~90% towards the oocyte; ~10% towards the nurse cells), but is inconsistent with the direction of microtubule gliding driven by cortically-attached dynein. This 10% cargoes going towards the nurse cells indeed argues against the possibility of flow at these stages.

(3) Our gliding-only motor chimeric motor (F-Tractin-Kin14) does not fully rescue the oocyte growth; instead, the oocyte size is ~30% of the wildtype. This leads us to believe that the slow selective transport indeed contributes to the oocyte growth (see Discussion p.19, lines 389-393).

(4) Starting stage 7 to early stage 8, the microtubule system in the oocyte undergoes dramatic reorganization in order to build an anterior-posterior microtubule gradient and thus to achieve proper body axis determination. We think that it is not the best option to use fast cytoplasmic advection non-selectively carrying all cytoplasmic contents to the oocyte during the microtubule reorganization phase. This is supported by the fact that in the stage 9 oocyte partially rescued by gliding-only F-Tractin-Kin14VIb, the axis determination is disrupted (see more details in the Response to Reviewer #2 point #1, pp.12-13).

Transport of objects by cytoplasmic flow is called advection. Likewise, cytoplasmic streaming is a common term for this process. It's very odd that these terms are not introduced and/or used. It's not a new concept, just new and important in this context.

The reviewer is absolutely correct. Cytoplasmic movement is not new concept and has been studied for decades. We have replaced the term of “cytoplasmic flow” with “cytoplasmic advection” throughout the manuscript. We did not use the term of “cytoplasmic streaming”, because this is commonly referring to the bulk cytoplasmic rotation in the oocyte in stage 10B-11 (AKA ooplasmic streaming). We decided to keep the word “microtubule flow” because it describes microtubule synchronized movement, which is the cause of the cytoplasmic advection.

Movement of mitochondria, cytoplasm, GEMs, and microtubules is variously describe as synchronized, moving together, etc. These terms seem unclear and potentially misleading. Of course, they are during the same stage and most almost certainly causally linked. Can you report movement rates? It looks like you should be able to measure them in your kymographs. One would expect that transported objects would move somewhat slower than the source of work – not necessarily measurably slower but definitely not faster.

Now we have quantified the velocities of microtubules, small particles, and mitochondria in nurse cell-oocyte ring canals of stage 9 egg chambers, and the data have been included as Figure 2H, and in Results (see Results p.7, lines 125-128 and p.9, lines 173-174). As Reviewer #1 predicted, the large elongated mitochondria display a slightly slower velocity compared to microtubules, while the small particles seem to have a similar speed as microtubules (see Discussion pp.17-18, lines 362-367).

The last section about Dlic isn't well incorporated into the paper. It's a low note to end on after a really nice paper. Maybe it could be combined with the observation that BicD is the only dynein adaptor that has (any) phenotype, which is important and gets a bit lost? Along these lines, are BicD, Spindly, and Hook all equally well expressed in oocytes? And where is BicD localized in detergent extracted egg chambers?

As the reviewer suggested, we have added more results in the section of Dlic results (see Results p.13, lines 259-263 and p.14, lines 283-288) as well as expanded Dlic discussion by citing more papers on potential linkers (see Discussion p.20, lines 412-428). See more details in Essential revisions #3, pp.2-3.

BicD, Spindly and Hook are all expressed in the ovary, according to the FlyAtlas Anatomical Expression Data on Flybase (see Author response image 1). The mRNA abundance in the ovary appears to be BicD (436.6)>Hook (204.6)>Spindly (75.5). It is in an agreement with the result that BicD is the major activator for Dynein during oogenesis.

Author response image 1

We examined BicD antibody staining in non-extracted and extracted samples, and the BicD staining is consistent with DHC antibody and Dlic-GFP: in extracted samples, BicD is localized to the nurse cell cortex (see Results p.11, lines 210-211, and Figure 4-—figure supplement 1E-1F).

In the discussion about flow direction, orientation of microtubules isn't discussed, which seems crucial. Please include thoughts on this.

We have now included a Discussion section about the microtubule orientation (see Discussion p.18, lines 371-386). Briefly, as shown in Author response image 2, the microtubules in the ring canals at early stages (stage 6-7) form a microtubule “plug” with the directionality that does not favor microtubule flow from the nurse cells to the oocyte. During the major microtubule reorganization at stage 7~8, the microtubule plug is “dissolved”, which allows moving microtubules in nurse cells to go through the ring canals to the oocyte at stage 9.

Author response image 2

Reviewer #2 (Recommendations for the authors):

As shown by the authors, the chimeric Kinesin motor is able to restore oocyte growth and Orb localization in Dlic depleted egg chambers. Given this result, it would be interesting to determine to what extent specific cargoes can be correctly localized in this background. For cargoes such as bicoid, nanos and oskar mRNA, their localization is thought to involve both specific motor-based transport and diffusion/entrapment mechanisms. In this chimeric Kinesin background, only diffusion/entrapment mechanisms would be active. Thus, this tool might be able to provide some answers to long-standing questions in the field.

The oocyte rescue by the chimeric kin14VIb is partial, which means the oocyte size is smaller than the control and there are various associated defects can be detected. In Figure 4 -Video 1 and in Author response image 3 of a stage 9 egg chamber (based on follicle cells and migrating border cells), oocyte nucleus is clearly mispositioned. This could be either because that individual motor-driven cargo transport is not rescued, or the anterior-posterior microtubule gradient is not properly established. As Reviewer #2 suggested, we stained the samples with Staufen, as a proxy of the posterior determinant osk mRNA, whose localization is known to be dependent on kinesin-1 in the oocyte. We found that Staufen was concentrated in the oocyte, which is probably carried via the cytoplasmic advection from the nurse cells to the oocyte. However, Staufen fails to localize to the posterior pole in the oocyte with the presence of endogenous kinesin-1. This lack of posterior accumulation of Staufen made us speculate that the partially rescued oocytes do not form the correct anterior-posterior microtubule gradient. The defect in microtubule reorganization could be due to the odd oocyte shape in early oogenesis (see Figure 4J, compared to Figure 4H). In Kin14 rescued samples, we very consistently observed the elongated oocyte shape, compared to more spherical-shaped oocyte in control. This abnormal shape would interfere proper signaling between oocyte and the follicle cells (for example, the posterior polar cells), and therefore disrupt the polarization events during mid-oogenesis.

Author response image 3

The last part of the paper that attempts to identify how Dlic is anchored at the cell cortex appears somewhat disconnected from the rest. I appreciate the effort that the authors have made to show that the anchor is not BicD or Lis1. However, as a consequence, the paper has a rather abrupt ending. In addition, related to this point, the authors suggest that a potential anchor might be Bazooka. However, Doerflinger et al., 2010 (Development) characterized a mutant in Baz that no longer localizes to the cortex. This mutant is not associated with an oocyte growth defect, suggesting that Bazooka might not be the linker.

We have modified the Dlic section (see details in Essential Revisions #3, pp.2-3). Particularly, we have added more potential linkers for Dlic cortical anchorage and acknowledged that the displacement of Baz from the cortex does not phenocopy the dynein mutants or cause apparent oocyte growth defects. This could be explained by genetic redundancy with other linkers or a total novel mechanism independent of Baz (see Discussion p.20, lines 412-428).

Related to this point, I wondered why the authors did not consider the possibility that Shot might be the possible linker. In their previous manuscript, they show that depletion of Shot is also associated with a similar oocyte growth defect. Given the known cortical localization of Shot and its role as an actin-microtubule crosslinker, it might make sense to consider Shot as the potential linker.

Following the reviewer’s suggestion, we tested the possibility of Shot as the potential linker of Dlic. We used the strongest Shot loss-of-function mutant (shot-RNAi in shot∆EGC heterozygote background), which gave rise to ~100% small oocyte phenotype in our previous Current Biology paper14, and found that DlicCT is still localized to the nurse cell cortex. It indicates that Shot is dispensable for the cortical localization of DlicCT. We have included this set of data in Figure 5-—figure supplement 1E and in Results (p.14, lines 283-288).

References:

1 Jia, D., Xu, Q., Xie, Q., Mio, W. and Deng, W. M. Automatic stage identification of Drosophila egg chamber based on DAPI images. Scientific reports 6, 18850, doi:10.1038/srep18850 (2016).

2 Saxton, W. M. Microtubules, motors, and mRNA localization mechanisms: watching fluorescent messages move. Cell 107, 707-710, doi:10.1016/s0092-8674(01)00602-x (2001).

3 Bastock, R. and St Johnston, D. Drosophila oogenesis. Current biology : CB 18, R1082-1087, doi:10.1016/j.cub.2008.09.011 (2008).

4 Becalska, A. N. and Gavis, E. R. Lighting up mRNA localization in Drosophila oogenesis. Development 136, 2493-2503, doi:10.1242/dev.032391 (2009).

5 Hinnant, T. D., Merkle, J. A. and Ables, E. T. Coordinating Proliferation, Polarity, and Cell Fate in the Drosophila Female Germline. Front Cell Dev Biol 8, 19, doi:10.3389/fcell.2020.00019 (2020).

6 Lu, W., Winding, M., Lakonishok, M., Wildonger, J. and Gelfand, V. I. Microtubule-microtubule sliding by kinesin-1 is essential for normal cytoplasmic streaming in Drosophila oocytes. Proceedings of the National Academy of Sciences of the United States of America 113, E4995-5004, doi:10.1073/pnas.1522424113 (2016).

7 Lu, W. et al. Ooplasmic flow cooperates with transport and anchorage in Drosophila oocyte posterior determination. The Journal of cell biology 217, 3497-3511, doi:10.1083/jcb.201709174 (2018).

8 Jolly, A. L. et al. Kinesin-1 heavy chain mediates microtubule sliding to drive changes in cell shape. Proceedings of the National Academy of Sciences of the United States of America 107, 12151-12156, doi:10.1073/pnas.1004736107 (2010).

9 Lu, W., Fox, P., Lakonishok, M., Davidson, M. W. and Gelfand, V. I. Initial Neurite Outgrowth in Drosophila Neurons Is Driven by Kinesin-Powered Microtubule Sliding. Current biology : CB 23, 1018-1023, doi:10.1016/j.cub.2013.04.050 (2013).

10 Lu, W., Lakonishok, M. and Gelfand, V. I. Kinesin-1-powered microtubule sliding initiates axonal regeneration in Drosophila cultured neurons. Molecular biology of the cell 26, 1296-1307, doi:10.1091/mbc.E14-10-1423 (2015).

11 Winding, M., Kelliher, M. T., Lu, W., Wildonger, J. and Gelfand, V. I. Role of kinesin-1-based microtubule sliding in Drosophila nervous system development. Proceedings of the National Academy of Sciences of the United States of America 113, E4985-4994, doi:10.1073/pnas.1522416113 (2016).

12 Goldstein, R. E. and van de Meent, J. W. A physical perspective on cytoplasmic streaming. Interface Focus 5, 20150030, doi:10.1098/rsfs.2015.0030 (2015).

13 Doerflinger, H. et al. Bazooka is required for polarisation of the Drosophila anterior-posterior axis. Development 137, 1765-1773, doi:10.1242/dev.045807 (2010).

14 Lu, W., Lakonishok, M. and Gelfand, V. I. Gatekeeper function for Short stop at the ring canals of the Drosophila ovary. Current biology : CB, doi:10.1016/j.cub.2021.05.010 (2021).

https://doi.org/10.7554/eLife.75538.sa2

Article and author information

Author details

  1. Wen Lu

    Department of Cell and Developmental Biology, Feinberg School of Medicine, Northwestern University, Chicago, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Resources, Writing – original draft
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8849-8100
  2. Margot Lakonishok

    Department of Cell and Developmental Biology, Feinberg School of Medicine, Northwestern University, Chicago, United States
    Contribution
    Data curation, Investigation
    Competing interests
    No competing interests declared
  3. Anna S Serpinskaya

    Department of Cell and Developmental Biology, Feinberg School of Medicine, Northwestern University, Chicago, United States
    Contribution
    Data curation, Investigation
    Competing interests
    No competing interests declared
  4. Vladimir I Gelfand

    Department of Cell and Developmental Biology, Feinberg School of Medicine, Northwestern University, Chicago, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Project administration, Resources, Supervision, Writing – original draft, Writing – review and editing
    For correspondence
    vgelfand@northwestern.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6361-2798

Funding

National Institute of General Medical Sciences (R35 GM131752)

  • Vladimir I Gelfand

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank many colleagues who generously contributed reagents for this work: Dr. Thomas Hays (University of Minnesota); Dr. Graydon Gonsalvez (Augusta University); Dr. Uri Abdu (Ben-Gurion University of the Negev, Israel); Dr. David Glover (Caltech); Dr. Gohta Goshima (Nagoya University, Japan); Dr. Klaus Hahn (University of North Carolina Chapel Hill); Dr. Andrew Carter (MRC Laboratory of Molecular Biology, Cambridge); Dr. Edwin Ferguson (the University of Chicago); Dr. Yu-Chiun Wang (RIKEN Center for Biosystems Dynamics Research, Japan); Bloomington Drosophila Stock Center (supported by National Institutes of Health grant P40OD018537) and Drosophila Genomics Resource Center (supported by NIH grant 2P40OD010949). The anti-Orb 4H8 monoclonal antibody developed by Dr. Paul D Schedl’s group at Princeton University, anti-DHC 2C11-2 antibody developed by Dr. Jonathan M Scholey’s group at University of California, Davis, and anti-BicD 4C2 antibody developed by Dr. Ruth Steward group at Waksman Institute Rutgers University, were obtained from the Developmental Studies Hybridoma Bank, created by the NICHD of the NIH and maintained at The University of Iowa, Department of Biology, Iowa City, IA 52242. We also thank all the Gelfand laboratory members for support, discussions, and suggestions. Research reported in this study was supported by the National Institute of General Medical Sciences grant R35GM131752 to VI Gelfand.

Senior Editor

  1. Anna Akhmanova, Utrecht University, Netherlands

Reviewing Editor

  1. Kassandra M Ori-McKenney, University of California, Davis, United States

Publication history

  1. Preprint posted: November 13, 2021 (view preprint)
  2. Received: November 13, 2021
  3. Accepted: February 16, 2022
  4. Accepted Manuscript published: February 16, 2022 (version 1)
  5. Version of Record published: March 4, 2022 (version 2)

Copyright

© 2022, Lu et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,547
    Page views
  • 213
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Wen Lu
  2. Margot Lakonishok
  3. Anna S Serpinskaya
  4. Vladimir I Gelfand
(2022)
A novel mechanism of bulk cytoplasmic transport by cortical dynein in Drosophila ovary
eLife 11:e75538.
https://doi.org/10.7554/eLife.75538

Further reading

    1. Biochemistry and Chemical Biology
    2. Cell Biology
    Haikel Dridi et al.
    Research Article Updated

    Age-dependent loss of body wall muscle function and impaired locomotion occur within 2 weeks in Caenorhabditis elegans (C. elegans); however, the underlying mechanism has not been fully elucidated. In humans, age-dependent loss of muscle function occurs at about 80 years of age and has been linked to dysfunction of ryanodine receptor (RyR)/intracellular calcium (Ca2+) release channels on the sarcoplasmic reticulum (SR). Mammalian skeletal muscle RyR1 channels undergo age-related remodeling due to oxidative overload, leading to loss of the stabilizing subunit calstabin1 (FKBP12) from the channel macromolecular complex. This destabilizes the closed state of the channel resulting in intracellular Ca2+ leak, reduced muscle function, and impaired exercise capacity. We now show that the C. elegans RyR homolog, UNC-68, exhibits a remarkable degree of evolutionary conservation with mammalian RyR channels and similar age-dependent dysfunction. Like RyR1 in mammals, UNC-68 encodes a protein that comprises a macromolecular complex which includes the calstabin1 homolog FKB-2 and is immunoreactive with antibodies raised against the RyR1 complex. Furthermore, as in aged mammals, UNC-68 is oxidized and depleted of FKB-2 in an age-dependent manner, resulting in ‘leaky’ channels, depleted SR Ca2+ stores, reduced body wall muscle Ca2+ transients, and age-dependent muscle weakness. FKB-2 (ok3007)-deficient worms exhibit reduced exercise capacity. Pharmacologically induced oxidization of UNC-68 and depletion of FKB-2 from the channel independently caused reduced body wall muscle Ca2+ transients. Preventing FKB-2 depletion from the UNC-68 macromolecular complex using the Rycal drug S107 improved muscle Ca2+ transients and function. Taken together, these data suggest that UNC-68 oxidation plays a role in age-dependent loss of muscle function. Remarkably, this age-dependent loss of muscle function induced by oxidative overload, which takes ~2 years in mice and ~80 years in humans, occurs in less than 2–3 weeks in C. elegans, suggesting that reduced antioxidant capacity may contribute to the differences in lifespan among species.

    1. Cell Biology
    Desiree Schatton et al.
    Research Article

    Proliferating cells undergo metabolic changes in synchrony with cell cycle progression and cell division. Mitochondria provide fuel, metabolites, and ATP during different phases of the cell cycle, however it is not completely understood how mitochondrial function and the cell cycle are coordinated. CLUH is a post-transcriptional regulator of mRNAs encoding mitochondrial proteins involved in oxidative phosphorylation and several metabolic pathways. Here, we show a role of CLUH in regulating the expression of astrin, which is involved in metaphase to anaphase progression, centrosome integrity, and mTORC1 inhibition. We find that CLUH binds both the SPAG5 mRNA and its product astrin, and controls the synthesis and the stability of the full-length astrin-1 isoform. We show that CLUH interacts with astrin-1 specifically during interphase. Astrin-depleted cells show mTORC1 hyperactivation and enhanced anabolism. On the other hand, cells lacking CLUH show decreased astrin levels and increased mTORC1 signaling, but cannot sustain anaplerotic and anabolic pathways. In absence of CLUH, cells fail to grow during G1, and progress faster through the cell cycle, indicating dysregulated matching of growth, metabolism and cell cycling. Our data reveal a role of CLUH in coupling growth signaling pathways and mitochondrial metabolism with cell cycle progression.
