Tadr is an axonal histidine transporter required for visual neurotransmission in Drosophila

  1. Yongchao Han
  2. Lei Peng
  3. Tao Wang  Is a corresponding author
  1. National Institute of Biological Sciences, China
  2. Tsinghua Institute of Multidisciplinary Biomedical Research, Tsinghua University, China
  3. College of Biological Sciences, China Agricultural University, China

Abstract

Neurotransmitters are generated by de novo synthesis and are essential for sustained, high-frequency synaptic transmission. Histamine, a monoamine neurotransmitter, is synthesized through decarboxylation of histidine by histidine decarboxylase (Hdc). However, little is known about how histidine is presented to Hdc as a precursor. Here, we identified a specific histidine transporter, TADR (torn and diminished rhabdomeres), which is required for visual transmission in Drosophila. Both TADR and Hdc localized to neuronal terminals, and mutations in tadr reduced levels of histamine, thus disrupting visual synaptic transmission and phototaxis behavior. These results demonstrate that a specific amino acid transporter provides precursors for monoamine neurotransmitters, providing the first genetic evidence that a histidine amino acid transporter plays a critical role in synaptic transmission. These results suggest that TADR-dependent local de novo synthesis of histamine is required for synaptic transmission.

Editor's evaluation

Han et al., report the discovery of an amino acid transporter that is required locally at axon terminals of fly photoreceptors neurons for the uptake of histidine, the precursor of the neurotransmitter histamine. This function is required for transmitter synthesis locally and neurotransmission. The work exemplifies a specialized model for local monoamine transmitter synthesis at synapses in the nervous system that may set the stage for tests of generality for other monoamine systems.

https://doi.org/10.7554/eLife.75821.sa0

Introduction

Monoamine neurotransmitters including dopamine, serotonin, and histamine are formed primarily by the decarboxylation of amino acids (McKinney et al., 2001; Watanabe et al., 1984). Deficiencies in the biosynthesis of monoamine neurotransmitter such as dopamine contribute to a range of neurological disorders, such as dystonic and parkinsonian syndromes (Kurian et al., 2011). It has been proposed that precursor amino acids are taken up into synaptic terminals by specific transporters, followed by the synthesis and packaging of neurotransmitters within the nerve endings (Bellipanni et al., 2002; Hansson et al., 1999; Lebrand et al., 1996). However, to date, amino acid transporters specific for the synthesis of monoamine neurotransmitters have not been identified. Moreover, biosynthetic enzymes involved in the synthesis of neurotransmitters localize to both the soma and axonal terminals. Thus, it is possible that neurotransmitters are made in the cell body of presynaptic cells and then packed into synaptic vesicles and transported to axonal terminals via fast axonal transport (Broix et al., 2021; Roy, 2020).

Histamine was first identified as a neurotransmitter that localized to the tuberomamillary nucleus where it was synthesized from the amino acid histidine through a reaction catalyzed by the enzyme histidine decarboxylase (Hdc), which removes a carboxyl group from histidine (Taguchi et al., 1984; Watanabe et al., 1984). As a neurotransmitter, histamine plays important roles in regulating multiple physiological processes, including cognition, sleep, synaptic plasticity, and feeding behaviors (Bekkers, 1993; Haas et al., 2008; Huang et al., 2001; Parmentier et al., 2002; Vorobjev et al., 1993). Disruption of histaminergic neurotransmission is associated with a range of neurological disorders, including schizophrenia and multiple neurodegenerative diseases (Haas and Panula, 2003; Klaips et al., 2018; Lim and Yue, 2015; Olivero et al., 2018; Panula and Nuutinen, 2013; Wang et al., 2017). Moreover, loss-of-function mutations in the HDC gene lead to Tourette syndrome, a neurological disorder characterized by sudden, repetitive, rapid, and unwanted movements in both human patients and mouse models (Baldan et al., 2014; Ercan-Sencicek et al., 2010). However, a specific histidine transporter that maintains the histidine pool and delivers histidine to synaptic Hdc for histamine synthesis has not been identified.

Drosophila photoreceptor cells use histamine as the dominant neurotransmitter to convey visual signals. Thus, generation of high levels of histamine in photoreceptor neuronal terminals is important for rapid and high-frequency visual signaling (Borycz et al., 2002; Hardie, 1989; Stuart, 1999; Wang and Montell, 2007). Similar mechanisms of histamine synthesis, storage, and release between mammals and flies make the fly a powerful molecular-genetic system for studying the metabolism of neuronal histamine (Burg et al., 1993; Chaturvedi et al., 2014; Deshpande et al., 2020; Gengs et al., 2002; Gisselmann et al., 2002; Hardie, 1989; Martin and Krantz, 2014; Wyant et al., 2017; Xu and Wang, 2019). Histamine signals are enriched in photoreceptor terminals, and disrupting histamine synthesis by Hdc mutation results in reduced levels of axonal histamine and loss of visual transduction. This indicates that histamine is synthesized directly within photoreceptor terminals (Chaturvedi et al., 2014; Melzig et al., 1996). In support of this notion, LOVIT, a new vesicular transporter required for the concentration of histamine in photoreceptor terminals, is exclusively found in synaptic vesicles at photoreceptor terminals (Xu and Wang, 2019).

Given the high demand for histamine to maintain visual transmission at high frequencies, we hypothesized that a histidine-specific transporter must localize to neuronal terminals, and that this transporter would be required for de novo synthesis of histamine through Hdc. In support of this hypothesis, we found that Hdc localized exclusively to photoreceptor terminals. We performed a targeted RNAi screen for transporters involved in visual transmission and identified TADR (torn and diminished rhabdomeres), a plasma membrane transporter capable of transporting histidine into cells. TADR localized predominantly to photoreceptor terminals and specifically transported the amino acid histidine. Mutations in the tadr gene disrupted photoreceptor synaptic transmission, phototaxis behaviors, and levels of axonal histamine in photoreceptors. We therefore propose that a specific amino acid transporter provides precursors for the synthesis of monoamine neurotransmitters. We further provide evidence that neurotransmitters can be synthesized de novo in a specific location.

Results

Hdc localizes to neuronal terminals

Histamine acts as major neurotransmitter at photoreceptor synaptic terminals, transmitting visual information to interneurons (Hardie, 1989). Further, histamine de novo synthesis in photoreceptor cells is essential for maintaining visual transmission (Burg et al., 1993). Interestingly, we have identified a vesicle transporter specific for histamine, LOVIT, which is concentrated exclusively in photoreceptor terminals and helps to maintain levels of histamine at synapses (Xu and Wang, 2019). Together with the fact that visual neurotransmission requires rapid and high-frequency firing, we hypothesize that the fast neurotransmitter histamine is synthesized directly in axon terminals. In Drosophila photoreceptor cells, histamine is initially synthesized from histidine by the eye-specific enzyme, Hdc. To determine the subcellular localization of Hdc in photoreceptor cells, we raised an antibody against an Hdc-specific peptide. Endogenous Hdc was detected predominantly in the lamina layer, which contains terminals of the R1–R6 photoreceptors, and in the medulla, which contains terminals of R7–R8. In these regions, Hdc co-localized with LOVIT and the presynaptic marker, CSP (cysteine string protein) (Figure 1A–B, and Figure 1—figure supplement 1). Moreover, Hdc was largely absent from the retina (Figure 1A and B). Cross sections of the lamina neuropil that contained R1–R6 terminals revealed that Hdc was surrounded by the glial marker Ebony and co-localized with synaptic vesicle protein CSP (Figure 1C). To confirm the subcellular pattern of Hdc, we expressed mCherry-tagged Hdc in photoreceptor cells using the trp promoter (transient receptor potential) (Montell and Rubin, 1989). The chimeric Hdc was functional, as the trp-Hdc-mCherry transgene completely restored visual transmission in Hdc mutant flies. Consistent with what we observed for endogenous Hdc, Hdc-mCherry was also highly enriched in the lamina and medulla. In contrast, GFP signals were detected in the retina, lamina, and medulla in trp-GFP flies (Figure 1D). The finding that Hdc protein was enriched in photoreceptor terminals is consistent with the assumption that the neurotransmitter histamine is synthesized directly in axon terminals.

Figure 1 with 1 supplement see all
Histidine decarboxylase (Hdc) localizes to neuronal terminals.

(A–B) Cryosections of w1118 and Hdc mutant heads were labeled with antibodies against Hdc (red), 24B10 (A) (green, photoreceptor cell marker), CSP (cysteine string protein) (B) (green, localized to synaptic vesicles), and LOVIT (blue, labeling photoreceptor terminals). Scale bars, 50 μm. (C) Cross sections of the lamina layer showing overlapping patterns of Hdc (red) and CSP (green) localization, and a complementary pattern of Hdc (red) and Ebony (blue, expressed in lamina epithelial glia). Scale bars, 5 μm. (D) Cryosections of heads from trp-Hdc-mCherry/trp-GFP flies were labeled with antibodies against mCherry (red) and GFP (green). Scale bar, 50 μm. La, lamina; Me, medulla; Re, retina.

TADR is required for visual synaptic transmission

Given that the enzyme responsible for catalyzing the biosynthesis of histamine localized to presynaptic regions, we next sought to determine how histidine, an Hdc substrate, is transported to neuronal terminals. We hypothesized that an amino acid transporter resided on the plasma membrane of photoreceptor synaptic terminals, and that this transporter would be responsible for histidine uptake and required for rapid histamine synthesis and visual transmission. Among ~600 putative transmembrane transporters encoded by the Drosophila genome (Ren et al., 2007), we identified 42 genes encoding SLC1, SLC6, SLC7, SLC17, SLC25, SLC32, SLC36, SLC38, and SLC66 families of proteins that were predicted to import amino acids across the plasma membrane (Bröer and Bröer, 2017). These we tested as candidate histidine transporters (Table 1).

Table 1
Description of 42 putative amino acid transporters.
CG numberOn/OFFDescription
CG4991YesAmino acid transmembrane transporter activity/SLC36A1 or A2
CG7888YesAmino acid transmembrane transporter activity/SLC36A1 or A2
CG1139YesAmino acid transmembrane transporter activity/SLC36A1 or A2
CG8785YesAmino acid transmembrane transporter activity/SLC36A1 or A2
CG32079YesAmino acid transmembrane transporter activity/SLC36A1 or A2
CG32081YesAmino acid transmembrane transporter activity/SLC36A1 or A2
CG16700YesAmino acid transmembrane transporter activity/SLC36A1 or A4
CG13384YesAmino acid transmembrane transporter activity/SLC36A1 or A4
CG43693YesAmino acid transmembrane transporter activity/SLC36A1 or A4
polyphYesAmino acid transmembrane transporter activity/SLC36A1 or A2
pathYesAmino acid transmembrane transporter activity/SLC36A1 or A2
mahYesAmino acid transmembrane transporter activity/SLC36A1 or A2
CG30394YesAmino acid transmembrane transporter activity/SLC38A10
CG13743YesAmino acid transmembrane transporter activity/SLC38A11
CG13248YesAmino acid transmembrane transporter activity/SLC7A4
slifYesAmino acid transmembrane transporter activity/SLC7A1 or A2
CG12773YesAmino acid transmembrane transporter activity/SLC12A8
NKCCYesAmino acid transmembrane transporter activity/SLC12A3
ChTYesAmino acid transmembrane transporter activity/SLC5A7
NAAT1YesAmino acid transmembrane transporter activity/SLC6A7 or A9
CG15279YesL-amino acid transmembrane transporter activity/SLC6A7 or A9
CG4476YesL-amino acid transmembrane transporter activity/SLC6A7 or A9
CG1698YesL-amino acid transmembrane transporter activity/SLC6A7 or A9
ListYesL-amino acid transmembrane transporter activity/SLC6A7
JhI-21YesL-amino acid transmembrane transporter activity/SLC6A5
mndYesL-amino acid transmembrane transporter activity/SLC7A6 or A7
gbYesL-amino acid transmembrane transporter activity/SLC7A6 or A7
CG1607YesL-amino acid transmembrane transporter activity/SLC7A8
sbmYesL-amino acid transmembrane transporter activity/SLC7A9
Eaat1YesL-amino acid transmembrane transporter activity/SLC7A3
Eaat2YesL-amino acid transmembrane transporter activity/SLC7A2
GC1YesL-glutamate transmembrane transport/SLC25A18
tadrNoCationic amino acid transporter/SLC7A4 or SLC7A1
VGlutYesVesicular glutamate transporter/SLC17A7
GatYesGABA transporter activity/SLC6A1
kccYesPotassium:chloride symporter activity/SLC12A4
Sfxn1-3YesSerine transmembrane transporter activity/SFXN1
VGATYesVesicular GABA transporter activity/SLC32A1
Ncc69YesSodium:potassium:chloride symporter activity/SLC12A1 or A2
CG1265YesLysosomal amino acid transporter/SLC66A3
CG3792YesLysosomal amino acid transporter/SLC66
CG13784YesLysosomal amino acid transporter/SLC66A2

To examine whether these putative transporters were involved in visual neurotransmission, each candidate gene was knocked down individually via the eye-specific expression of RNAi using the GMR (glass multiple response element)-Gal4 driver. Loss-of-function alleles were also used if available. We performed electroretinogram (ERG) recordings to determine which putative amino acid transporters functioned in visual transmission. ERG recordings are extracellular recordings that measure the summed responses of all retinal cells in response to light. An ERG recording from a wild-type fly contains a sustained corneal negative response resulting from photoreceptor depolarization, as well as ON and OFF transients originating from synaptic transmission to laminal LMCs (large monopolar cells) at the onset and cessation of light stimulation (Wang and Montell, 2007; Figure 2A). Flies deficient for histamine exhibited clear reductions in their ON and OFF transients, as shown for HdcP217 mutant flies (Burg et al., 1993; Melzig et al., 1996). We found that knockdown of the putative cationic amino acid transporter (CAT) gene, tadr, resulted in the loss of synaptic transmission (Ni et al., 2008; Figure 2A–B and Figure 2—figure supplement 1). We then generated a different tadrRNAi line, which we called tadrRNAi-2. Consistent with the results of the screen, driving tadrRNAi-2 with GMR-gal4 also affected ON and OFF transients (Figure 2A and B). Importantly, ERG transients were not affected by specific knockdown of tadr in glia using repo-Gal4, confirming the specific role of TADR in photoreceptor neurons (Figure 2C and D).

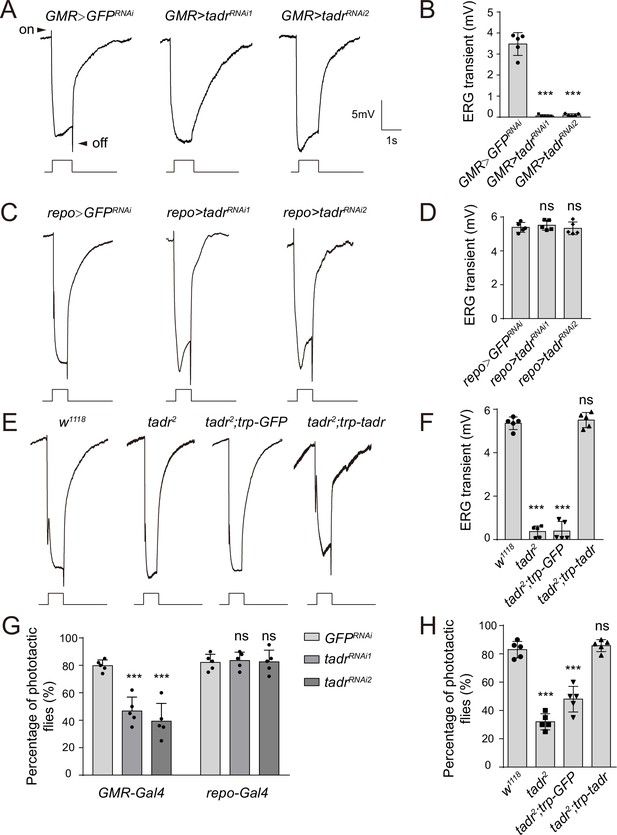

Figure 2 with 3 supplements see all
TADR (torn and diminished rhabdomeres) is required in photoreceptors for normal visual transmission.

(A–D) Electroretinograms (ERGs) recorded from flies expressing various UAS-tadr RNAi transgenes (tadrRNAi1 and tadrRNAi2) under the control of (A) GMR-Gal4, a driver specific for compound eyes (GMR-Gal4/ UAS-tadrRNAi1 or GMR-Gal4/+;UAS-tadrRNAi2/+) and (C) the glial-specific driver repo-Gal4 (repo-Gal4/ UAS-tadrRNAi1 or repo-Gal4/+;UAS-tadrRNAi2/+). (B) Quantitative analysis of the amplitudes of ERG OFF transients shown in A compared with control flies (GMR> GFPRNAi, GMR-Gal4/+;UAS-GFPRNAi/+) (one-way ANOVA; n = 5; ***p < 0.001). (D) Quantitative analysis of the amplitudes of ERG OFF transients shown in C compared with control flies (repo> GFPRNAi, repo-Gal4/UAS-GFPRNAi) (one-way ANOVA; n = 10; ns, not significant). Arrowheads indicate ON and OFF transients. One-day-old flies were dark adapted for 1 min and subsequently exposed to a 5 s pulse of orange light. (E–F) ERG recordings (E) and quantitative analysis of the amplitudes of ERG OFF transients (F) from wild-type (w1118), tadr2, tadr2;trp-GFP, and tadr2;trp-tadr flies. Displayed are comparisons to wild-type (w1118) flies (one-way ANOVA; n = 10; ***p < 0.001; ns, not significant). (G) Phototactic behavior of flies corresponding to those in (A) and (C) compared with control flies (GMR> GFPRNAi or repo-> GFPRNAi flies). (H) Phototactic behavior of flies corresponding to those in (E). Each group is comprised of at least twenty 3-day-old flies. Five repeats were quantified for each group (one-way ANOVA, ***p < 0.001; ns, not significant).

Figure 2—source data 1

Source data for quantitative of electroretinogram (ERG) transients and phototaxis behaviors.

https://cdn.elifesciences.org/articles/75821/elife-75821-fig2-data1-v2.xlsx

To further confirm that tadr was the causal gene, we generated a null mutation in the tadr gene by deleting a 665 bp genomic fragment using the CRISPR-associated single-guide RNA system (Cas9) (Figure 2—figure supplement 2A). PCR amplification and sequencing of the tadr locus from genomic DNA isolated from wild-type and tadr2 flies revealed a truncated tadr locus in mutant animals, resulting in an out-of-frame fusion of exons 3 and 5 (Figure 2—figure supplement 2B and C). It has been reported that tadr mutation leads to photoreceptor degeneration. However, homozygous tadr2 null mutants exhibited normal morphology of both the soma and axon terminal of photoreceptors when examined via transmission electron microscopy (TEM) (Figure 2—figure supplement 3). Furthermore, no retinal degeneration was observed in aged tadr2 mutant flies. As a control, aged culd1 mutants exhibited extensive rhobdomere loss, which resulted from disruption of rhodopsin endocytic trafficking (Xu and Wang, 2016; Figure 2—figure supplement 3A and B). Consistent with the RNAi results, tadr2 mutant flies displayed a complete loss of ON and OFF transients (Figure 2E). Further, expressing tadr in photoreceptors using the trp promoter restored ON and OFF transients in tadr2 mutant flies, whereas expression of GFP failed to rescue the loss of ERG transients (Figure 2E and F). Disrupting visual transmission results in blindness, which reflected in the loss of phototactic behavior (Behnia and Desplan, 2015). We next used this behavioral assay to assess the vision of tadr mutant flies. Consistent with the ERG results, knockdown of tadr in the retina disrupted phototactic behavior, whereas wild-type levels of phototaxis were observed in flies in which tadr was knocked down in glia (Figure 2G). tadr2 mutant flies also exhibited defective phototaxis, which was fully restored by the trp-tadr transgene (Figure 2H). Together, these findings reveal that TADR functions within photoreceptor cells to maintain synaptic transmission but not the integrity of neurons.

TADR is a bona fide histidine transporter

Given that TADR belongs to a subfamily of CATs within the solute carrier 7 (SLC7) family (Verrey et al., 2004), we performed a histidine uptake assay in Drosophila S2 cells to determine whether TADR could transport histidine in vitro (Han et al., 2017; Karl et al., 1989). When Flag-tagged TADR was expressed in S2 cells the Flag-TADR signal localized exclusively to the plasma membrane (Figure 3A). We then transiently expressed TADR in S2 cells and assessed their ability to uptake [3H]-histidine. The histidine content of TADR-transfected cells was approximately 180 Bq/mg, which was 3.6-fold greater than measured for RFP-transfected controls (50 Bq/mg) (Figure 3B). Human SLC38A3, which is known to efficiently take up histidine, exhibited levels of histidine transport comparable to TADR, suggesting that TADR is a bona fide plasma membrane histidine transporter (Bröer, 2014; Figure 3B).

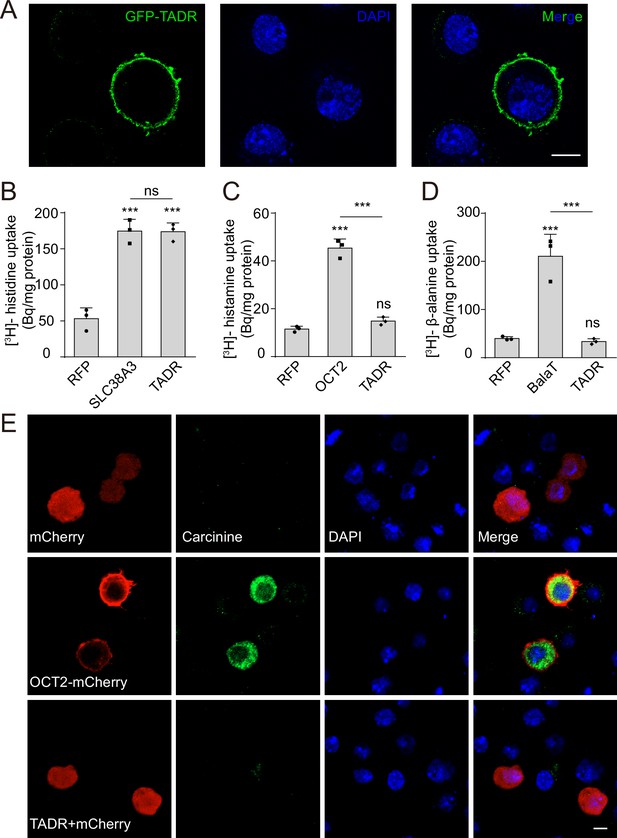

Figure 3 with 1 supplement see all
TADR (torn and diminished rhabdomeres) is a plasma membrane histidine transporter.

(A) TADR localized to the plasma membrane when transiently transfected into S2 cells. GFP-tagged TADR was labeled with GFP antibody (green) and DAPI (blue), which stained the nucleus. Scale bar, 2 μm. (B) TADR transported histidine into S2 cells. Human SLC38A3 and RFP were used as positive and negative controls, respectively. [3H]-histidine was added to the DMEM solution (final concentration 2.5 μM). (C–D) TADR did not transport histamine (C) or β-alanine (D) into S2 cells. [3H]-histamine or [3H]-β-alanine was added to the ECF buffer (final concentration 3.7 × 104 Bq), and organic cation transporter (OCT2) and BalaT served as positive transporter controls for histamine and β-alanine, respectively. Results are the mean ± SD of three experiments (one-way ANOVA, ***p < 0.001; ns, not significant). (E) TADR did not transport carcinine. S2 cells transiently expressing mCherry, OCT2-mCherry, or TADR/mCherry. Carcinine was added to the culture medium at a final concentration of 20 μM. Cells were labeled with rabbit anti-carcinine (green) antibody and DAPI (blue). The mCherry (red) signal was observed directly. Scale bar, 5 μm.

Figure 3—source data 1

Source data for histidine, histamine, and β-alanine uptake assay.

https://cdn.elifesciences.org/articles/75821/elife-75821-fig3-data1-v2.xlsx

Considering that transporters related to histamine recycling are necessary for synaptic transmission, we next sought to determine whether TADR specifically transports histidine in Drosophila. Because a histamine transporter has not yet been identified, we first asked whether TADR can transport histamine. Histamine uptake assays revealed that TADR does not exhibit histamine uptake activity. As a control, the human organic cation transporter (OCT2), which is known to take up histamine, exhibited high levels of histamine transport when expressed in S2 cells (Busch et al., 1998; Figure 3C). Next, we found that TADR did not exhibit β-alanine transporting activity when expressed in S2 cells, whereas BalaT, which served as a positive control, efficiently transported β-alanine (Han et al., 2017; Figure 3D). Similarly, TADR did not transport carcinine in S2 cells compared with the positive control, OCT2 (Xu et al., 2015; Figure 3E). To further determine if the amino acid transporter TADR is specific to histidine, we performed competition assays using [3H]-histidine in combination with high concentrations of different L-amino acids or carcinine (0.5 mM for each L-amino acid or carcinine vs. 2.5 μM [3H]-histidine). Histidine efficiently blocked [3H]-histidine uptake, whereas the other amino acids and carcinine did not affect TADR-mediated histidine uptake. The only exception was lysine, which slightly reduced [3H]-histidine uptake (Figure 3—figure supplement 1). These data support the conclusion that TADR is a specific histidine transporter involved in visual synaptic transmission.

TADR predominantly localizes to photoreceptor terminals

Hdc and LOVIT mediate two steps critical for histamine synthesis and we found that both localize to axonal terminals. Thus, if TADR functions as a histidine transporter epistatic to Hdc, we should also detect TADR in photoreceptor axonal terminals. As we failed to generate a high affinity antibody against TADR, we used CRISPR/Cas9-based genome editing to introduce a GFP tag into the tadr locus (tagging the N-terminal), downstream of the native tadr promoter (GFP-tadr) (Figure 4—figure supplement 1A and Materials and methods). The reason for generating an N-terminal-tagged version of TADR is that expression of N-terminal-tagged but not C-terminal-tagged TADR fully restored synaptic transmission in tadrRNAi-2 flies. We identified GFP-tadr knock-in flies though PCR (Figure 4—figure supplement 1B). Importantly, homozygous GFP-tadr flies displayed intact ON and OFF transients, as expected, confirming that GFP-TADR retained in vivo function (Figure 4—figure supplement 1C). We found that TADR protein was enriched in photoreceptor cells including the retina, lamina, and medulla. Importantly, the GFP-TADR signal was concentrated in the lamina and medulla (marked with CSP), to which the R1–R6 and R7/R8 photoreceptors project their axons (Figure 4A). Moreover, both TADR and Hdc localized to terminals of photoreceptor neurons in the lamina and medulla (Figure 4B). These results demonstrated that TADR is expressed specifically in photoreceptor neurons and localized primarily to photoreceptor terminals. Further, the pattern of Hdc localization suggests that the de novo synthesis of a neurotransmitter occurs specifically at the relevant synapse.

Figure 4 with 1 supplement see all
TADR (torn and diminished rhabdomeres) predominantly localizes to photoreceptor terminals.

(A–B) Cryosections from GFP-tadr knock-in flies. Expression of an N-terminal GFP-tagged version of TADR was driven by the native tadr promoter. Sections were labeled for GFP-TADR with CSP (cysteine string protein) (red) (A) or Hdc (red) (B) and DAPI (blue). Scale bars, 50 μm. La, lamina; Me, medulla; Re, retina.

tadr mutants exhibit reduced levels of histamine at photoreceptor terminals

Given our evidence consistent with TADR-mediated transport of histidine directly into photoreceptor synaptic terminals, where histidine would be converted to histamine by Hdc, loss of TADR should reduce histamine levels, as has been seen for hdc mutants (Borycz et al., 2000). We generated head longitudinal sections from tadr2 mutants and wild-type controls and labeled them with an antibody reported to label histamine (Chaturvedi et al., 2014). In control flies, the histamine signal was enriched exclusively in photoreceptor terminals of both the lamina and medulla, co-localizing with CSP (Figure 5A and C). tadr2 mutants showed a dramatic reduction in histamine labeling at photoreceptor terminals in both the lamina and medulla (Figure 5B and C). Moreover, the apparent loss of histamine in tadr2 mutant photoreceptor terminals did not result from the loss of synaptic structures, as the density of synaptic vesicles and the number of capitate projections were comparable in the lamina of tadr2 mutant and control flies (Figure 2—figure supplement 3). We next used liquid chromatography-mass spectrometry (LC-MS) to examine in vivo levels of histamine in compound eyes of tadr2 mutant flies. As expected, eyes from HdcP217 mutant flies exhibited reduced levels of histamine, as these flies could not decarboxylate histidine into histamine (Figure 5D). Similarly, tadr2 mutants produced less histamine due to impairment of histidine uptake into photoreceptor terminals (Figure 5D). Moreover, histamine levels in tadr2 mutant flies were higher than in HdcP217 mutant flies, suggesting that a small fraction of histidine could be supplied by other transporter systems. Consistent with previous reports, examining the heads of HdcP217 mutant flies revealed less carcinine and β-alanine due to loss of histamine (Melzig et al., 1998; Figure 5E and F). Importantly, tadr2 mutants exhibited less carcinine and β-alanine as well, indicating that both TADR and Hdc are essential for the de novo synthesis of histamine. Moreover, reductions in histamine, carcinine, and β-alanine in tadr2 mutants were fully restored by expressing TADR in photoreceptor cells (Figure 5E and F). Reduction of histamine in tadr2 mutant flies indicates defective histamine synthesis and explains why photoreceptor synaptic transmission is disrupted in tadr2 mutants. These results therefore support the hypothesis that TADR transports histidine into photoreceptor terminals for the production of histamine to sustain tonic visual transmission.

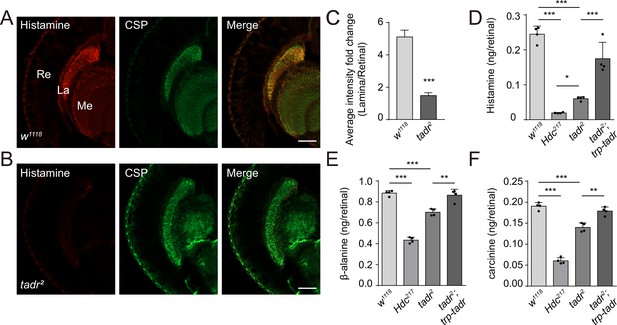

Loss of TADR (torn and diminished rhabdomeres) reduces histamine levels in vivo.

(A–C) Histamine signaling in photoreceptor terminals was disrupted. Head cryosections were stained for histamine together with CSP (cysteine string protein) (synaptic vesicle marker) in control (w1118) (A) and tadr2 (B) flies. Sections are parallel to photoreceptor axons. Scale bars, 50 μm. (C) Average red fluorescence intensity ratio between the entire lamina and the retina immunolabeled layers. (D–F) Histamine (D), β-alanine (E), and carcinine (F) levels in compound eyes of 3-day-old control (w1118), HdcP217, tadr2, and tadr2;trp-tadr flies. Each sample included dissected compound eyes from 40 flies (one-way ANOVA; n = 4; ***p < 0.001; **p < 0.01; *p < 0.05). La, lamina; Me, medulla; Re, retina.

Figure 5—source data 1

Source data for the levels of histamine, β-alanine, and carcinine in w1118, HdcP217, tadr2, and tadr2;trp-tadr mutant fly compound eyes.

https://cdn.elifesciences.org/articles/75821/elife-75821-fig5-data1-v2.xlsx

Ectopic expression of histidine transporters in photoreceptor cells rescues visual synaptic transmission in tadr2 flies

If tadr mutants exhibit defective visual transmission because of deficient histidine transport, then replacing tadr with another transporter capable of transporting histidine should rescue photoreceptor synaptic transmission in tadr mutants. We first asked whether other members of the fly CAT family of transporters could efficiently transport histidine into S2 cell. We found that histidine was taken up by CG13248-transfected cells, but not by Slif (Slimfast)-positive cells (Figure 6A). Next, we overexpressed CG13248 or Slif in tadr2 mutant photoreceptor cells. The expression of CG13248 in tadr2 mutant photoreceptor cells fully restored both ERG transients and phototaxis, whereas Slif did not. These results are consistent with their abilities to transport histidine (Figure 6B–D). Further, expression of the human histidine transporter, SLC38A3, fully restored ERG transients and phototactic behavior in tadr2 mutant flies (Figure 6A–D). These data support an essential role for the histidine transporting activity of TADR in maintaining visual synaptic transmission. Taken together, we have identified a previously uncharacterized histidine transporter, TADR, and shown that TADR resides (together with the downstream enzyme, Hdc) in the axonal terminals of photoreceptor neurons, where it is responsible for the local biosynthesis of histamine.

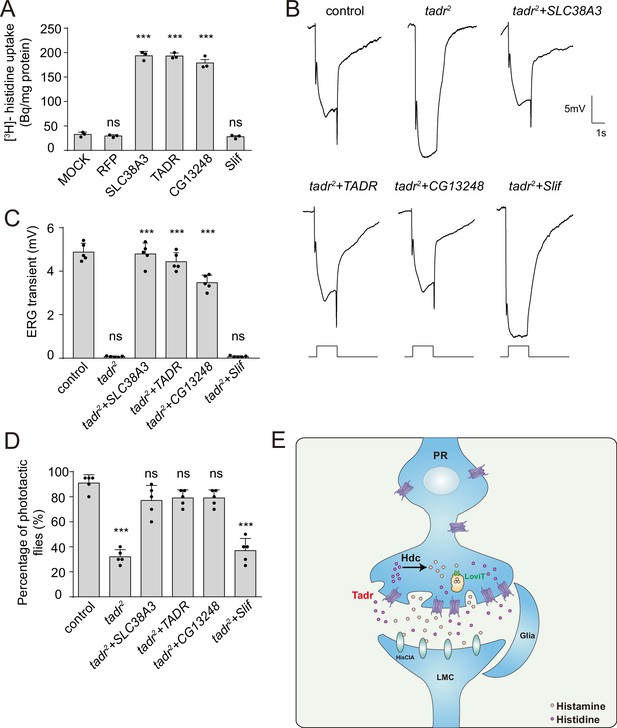

Figure 6 with 1 supplement see all
Rescue of defective visual transmission in tadr2 mutants by expressing other histidine transporters.

(A) SLC38A3 and CG13248 transported histidine into S2 cells, whereas the previously identified amino acid transporter, Slif, did not transport histidine. [3H]-histidine was added to the DMEM solution to a final concentration 2.5 μM. (B) Electroretinogram (ERG) recordings from control (w1118), tadr2, tadr2+ tadr (tadr2;longGMR-Gal4/UAS-tadr), tadr2+ CG13248 (tadr2;longGMR-Gal4/UAS-CG13248), tadr2+ Slif (tadr2;longGMR-Gal4/UAS-Slif), and tadr2+ SLC38 A3 (tadr2;longGMR-Gal4/UAS-SLC38A3) are shown. Young flies (<3 days after eclosion) were dark adapted for 1 min and subsequently exposed to a 5 s pulse of orange light. (C) Quantitative analysis of the amplitude of ERG OFF transients shown in B. Displayed are comparisons to control (w1118) flies (one-way ANOVA; n = 10; ***p < 0.001; ns, not significant). (D) Phototactic behaviors of 3-day-old control, tadr2, tadr2+ tadr, tadr2+ CG13248, tadr2+ Slif, and tadr2+ SLC38 A3 flies. Five repeats were made for each group, and each group had at least 20 flies (one-way ANOVA, ***p < 0.001; ns, not significant). (E) Model of the pathway for local histamine biosynthesis. Histidine is directly transported into photoreceptor cells at neuronal terminals by TADR, where it is used as a substrate to synthesize histamine by the decarboxylase, Hdc. Newly generated histamine is then loaded into synaptic vesicles by a LOVIT-dependent mechanism. Histamine, serving as a neurotransmitter, is released by photoreceptor cells (PR) to activate histamine-gated chloride channels (HisClA) on postsynaptic neurons (large monopolar cell [LMC]) to start visual transmission.

Figure 6—source data 1

Source data for histidine uptake assay and source data for quantitative of electroretinogram (ERG) transients and phototaxis behaviors.

https://cdn.elifesciences.org/articles/75821/elife-75821-fig6-data1-v2.xlsx

Discussion

Neurotransmitters are concentrated within presynaptic terminals and their release transmits signals to postsynaptic neurons. In most cases, the enzymes necessary for neurotransmitter synthesis are translated in the soma and then transported down the axon, where they then generate neurotransmitters. However, tyrosine hydroxylase and tryptophan hydroxylase, the rate-limited enzymes for dopamine and serotonin synthesis, respectively, are cytosolic and reside both in the neuronal cell body and axon, suggesting that the de novo synthesis of these neurotransmitters occurs in both the soma and axon (Cartier et al., 2010; Walther et al., 2003). If neurotransmitters are generated in the cytosol of the cell body, the slow rate of diffusion for these small molecules could potentially limit the pool of axonal neurotransmitters and affect synaptic transmission. One possibility is that neurotransmitters are loaded into storage vesicles and that these vesicles are then taken to the nerve endings through fast axonal transport (Broix et al., 2021; Roy, 2020; Vallee and Bloom, 1991). However, the recently identified vesicular transporter, LOVIT, which is responsible for packaging histamine, is absolutely restricted to synaptic vesicles within the photoreceptor axon. Histamine is exclusively detected in wild-type photoreceptor terminals, but absent from lovit mutants (Xu and Wang, 2019). Consistent with this, we found that Hdc and its product histamine are enriched in photoreceptor terminals, suggesting that the de novo synthesis of histamine occurs exclusively in axons. If histidine, the substrate of Hdc, is transported to axonal terminals from the cell body, the rate of histamine biosynthesis would be limited. Therefore, it is possible that neurotransmitter precursors are taken up into terminals by specific transporters, and that neurotransmitter synthesis and packaging take place primarily within the axon. In support of this, we have characterized a new histidine transporter, TADR, which localized predominantly to photoreceptor terminals and was required for the de novo synthesis of histamine in photoreceptor terminals. Furthermore, TADR specifically transported histidine in vitro, and tadr2 null mutant flies exhibited normal neuronal growth and survival, but disrupted visual transmission. Therefore, TADR and Hdc function synergistically within axonal terminals to provide a local pool of neurotransmitters (Figure 6E).

Although de novo synthesis provides a starting pool of neurotransmitters, recycling neurotransmitters after release is a critical pathway for maintaining neurotransmitter content within axon terminals. Ebony, the histamine recycling pathway involved in a previously identified N-β-alanyl-dopamine synthase, is expressed in epithelial glia and converts histamine to carcinine. The inactive histamine conjugate, carcinine, is transported back into photoreceptors where it is hydrolyzed back into histamine by Tan, an N-β-alanyl-dopamine hydrolase, to restore the neurotransmitter pool (Borycz et al., 2002; Richardt et al., 2003; Richardt et al., 2002; Wagner et al., 2007). Unlike Hdc, Tan localizes non-selectively to both the soma and axon, suggesting that the regeneration of histamine may take place in the soma as well (Aust et al., 2010). However, a recently identified transporter specific for carcinine, CarT, predominantly localizes to the terminals of photoreceptor neurons, rather than to the cell bodies, suggesting the regeneration of histamine from carcinine through axonal Tan (Chaturvedi et al., 2016; Stenesen et al., 2015; Xu et al., 2015). Taken together, both de novo synthesis and regeneration of the neurotransmitter histamine is restricted to neuronal terminals by a similar mechanism – the transportation of substrates.

TADR belongs to the CAT subfamily within the SLC7 family, and is homologous to the human membrane proteins, SLC7A4 and SLC7A1, which are predicted to be involved in importing basic amino acids across the plasma membrane (Verrey et al., 2004). It has been reported that flies carrying a missense mutation in tadr, namely tadr1 (generated from an EMS mutagenesis screen), exhibit retinal degeneration. This may indicate that TADR functions to provide amino acids to support photoreceptor cells (Ni et al., 2008). However, our tadr2 null mutant flies fail to exhibit photoreceptor degeneration or growth defects. In addition, the morphologies of tadr2 somas and axons are comparable to those of wild-type flies. In support of this, we found that TADR specifically transported histidine, with only a low affinity for lysine, suggesting that TADR is not involved in the general metabolism of amino acids. The neurodegeneration phenotype observed in tadr1 mutants may be due to other mutations generated by EMS mutagenesis or the neomorphic tadr1 point mutation, which may disrupt Gq signaling (Ni et al., 2008). The CG13248 transporter, a member of the CAT subfamily, is able to rescue the vision defects of tadr2 mutant flies, but another member of the CAT subfamily, the transporter Slif, failed to do so. This is consistent with their ability to transport histidine (Colombani et al., 2003). Moreover, SLC38A3, which belongs to the SLC38 subfamily, is known to mediate sodium-dependent transport of multiple amino acids, including histidine, and the expression of SLC38A3 fully restores visual transduction and phototactic behavior in tadr2 mutant flies (Bröer, 2014). The lack of sequence homology between SLC38A3 and TADR strongly suggests that TADR primarily acts as a histidine transporter to maintain visual transduction. Although TADR is a specific histidine transporter, its expression patterns suggests that it is not the only histidine transporter. Supporting this, null tadr mutants are viable and exhibit no growth or cell death phenotypes. If photoreceptor cells uptake histidine via other histidine transporters, they could have a small histidine pool and Hdc would be able to synthesize some histamine. In agreement with this, histamine levels in tadr2 mutant are higher than in Hdc mutant, although histamine levels in both mutants are greatly reduced. Consistent with these relative histamine levels, tadr2 mutation exhibit more phototactic behavior than Hdc mutants.

Amino acid transporters play fundamental roles in multiple metabolic processes, including mTOR activation, energy metabolism, nutritional stress, and tumor progression (Chen et al., 2014; Colombani et al., 2003; Nicklin et al., 2009; Rebsamen et al., 2015; Wyant et al., 2017). Consistent with these functions, the amino acid transporters SLC7A5 and SLC6A14 are upregulated in tumors, making then potential targets for the pharmacological treatment of cancer (Kanai, 2022; Nałęcz, 2020). Our experiments suggest that amino acid transporters provide amino acids that are critical for the de novo synthesis of monoamine neurotransmitters. Since inhibitors of monoamine transporters have been widely used as antidepressants, amino acid transporters specific for monoamine neurotransmitter synthesis (such as TADR) may provide new treatment options for neurological diseases associated with the dysregulation of monoamine neurotransmitters (Andersen et al., 2009).

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Gene (Drosophila melanogaste)tadr (cDNA)Drosophila Genomics Resource CenterFLYB:FBcl0168145FlyBase symbol: LD25644
Gene (Drosophila melanogaste)slif (cDNA)Drosophila Genomics Resource CenterFLYB:FBcl0167622FlyBase symbol: LD37241
Gene (Drosophila melanogaste)CG13248 (cDNA)Drosophila Genomics Resource CenterFLYB:FBcl0718746FlyBase symbol: FI04531
Gene (Homo sapiens)SLC38A3NCBI databaseGene ID: 10,991Synthesized from GENEWIZ, China.
Genetic reagent (Drosophila melanogaster)tadrRNAi1Vienna Drosophila Resource CenterBDSC:v330472RRID:FlyBase_FBst0492187P{VSH330472}attP40
Cell line (Drosophila melanogaste)S2This paperFLYB:FBtc0000181; RRID:CVCL_Z992Cell line maintained in N. Perrimon lab; FlyBase symbol: S2-DRSC.
AntibodyAnti-24B10(Mouse monoclonal)DHSBRRID:AB_528161IF(1:100)
AntibodyAnti-CSP(Mouse monoclonal)DHSBRRID:AB_528183IF(1:100)
AntibodyAnti-RFP(Ratmonoclonal)ChromotekRRID:AB_2336064IF(1:200)
AntibodyAnti-GFP(Rabbit polyclonal)InvitrogenRRID:AB_221569IF(1:200)
AntibodyAnti-LOVIT(Rat polyclonal)Xu and Wang, 2019IF(1:100)
AntibodyAnti-Hdc(Rabbit polyclonal)This paperIF(1:50)
AntibodyAnti-Ebony(Rabbit polyclonal)University of WisconsinIF(1:200)
AntibodyAnti-Histamine(Rabbit polyclonal)ImmunoStarRRID:AB_572245IF(1:100)
Recombinant DNA reagentpTrp-GFPThis paperUsed for generation of transgenic flies (maintained in T. Wang lab)
Recombinant DNA reagentpTrp-GFP-tadrThis paperUsed for generation of transgenic flies (maintained in T. Wang lab)
Recombinant DNA reagentpTrp-tadr-GFPThis paperUsed for generation of transgenic flies (maintained in T. Wang lab)
Recombinant DNA reagentpTrp-tadrThis paperUsed for generation of transgenic flies (maintained in T. Wang lab)
Sequence-based reagentsgRNA1 (for tadr2 mutant)This papersgRNAsGTGCCTGCGCTGCCCTGGCG
Sequence-based reagentsgRNA2 (for tadr2 mutant)This papersgRNAsTTTTAAGCGCCGTCGGCTGG
Sequence-based reagentforward primer (for tadr2 mutant)This paperPCR primersCAATGGCAGGTGGGAGTTAGG
Sequence-based reagentreverse primer (for tadr2 mutant)This paperPCR primersTTAGAGTCGCCGTGAATCGTC
Sequence-based reagentsgRNA (for GFP-tadr knock-in)This papersgRNAsACAACAACGACAATGTCGAG
Peptide, recombinant proteinHdc peptide (D. melanogaste)This paperSynthesized by ChinaPeptides (Soochow, China)CDFKEYRQRGKEMVDY
Chemical compound, drug[3H]-HistidineAmerican radiolabeled chemicalsART 023430–60 Ci/mM
Chemical compound, drug[3H]-HistamineAmerican radiolabeled chemicalsART 143210–40 Ci/mM
Chemical compound, drug[3H]-β-alanineAmerican radiolabeled chemicalsART 020530–60 Ci/mM
Software, algorithmGraphPad Prism softwareGraphPad Prism (https://graphpad.com)RRID:SCR_015807Version 7.0.0
Software, algorithmImageJ softwareImageJ (http://imagej.nih.gov/ij/)RRID:SCR_003070

Fly stocks and cultivation

Request a detailed protocol

The TI{TI}HdcattP, HdcP217, and M(vas-int.Dm) ZH-2A;M(3xP3-RFP.attP) ZH-86Fb flies were provided by the Bloomington Drosophila Stock Center (https://bdsc.indiana.edu). The tdarRNAi1 line (P{VSH330472}attP40) was obtained from the Vienna Drosophila Resource Center (https://stockcenter.vdrc.at). The transgenic RNAi lines for the in vivo transporter screen were obtained from the TsingHua Fly Center (http://fly.redbux.cn), the Bloomington Drosophila Stock Center, and the Vienna Drosophila Resource Center. The w1118, nos-Cas9, GMR-gal4, and Repo-Gal4 flies were maintained in the lab of Dr T. Wang at the National Institute of Biological Sciences, Beijing, China. Flies were maintained in 12-hr-light–12-hr-dark cycles with ~2000 lux illumination at 25°C, except when mentioned differently in the text.

Generation of tadr mutant and knock-in flies

Request a detailed protocol

The tadr2 mutation was generated using the Cas9/sgRNA system (Xu et al., 2015). Briefly, two pairs of guide RNAs targeting the tadr locus were designed (sgRNA1: GTGCCTGCGCTGCCCTGGCG, sgRNA2: TTTTAAGCGCCGTCGGCTGG) and cloned into the U6b-sgRNA-short vector. The plasmids were injected into the embryos of nos-Cas9 flies, and deletions were identified by PCR using the following primers: forward primer 5’-CAATGGCAGGTGGGAGTTAGG-3’ and reverse primer 5’-TTAGAGTCGCCGTGAATCGTC-3’. The GFP-tadr knock-in flies were generated as shown in Figure 4—figure supplement 1. Briefly, an sgDNA sequence (ACAACAACGACAATGTCGAG) was designed and cloned into the U6b-sgRNA-short vector. tadr genomic DNA (from 747 base pairs (bp) upstream of the transcription starting site to 893 bp downstream of the transcription termination site) was subcloned into a donor vector. GFP-tag sequence was then inserted at the end of the upstream fragment sequence. The two plasmids were co-injected into the embryos of nos-Cas9 flies. The GFP-tadr flies were finally confirmed by PCR of genomic DNA using the following primers: forward primer 5’- ATGGTGAGCAAGGGCGAGG –3’ and reverse primer 5’- GAATACCCACACACATGCCAATCA –3’. Both tadr2 and GFP-tadr flies were backcrossed to wild-type flies (w1118) for two generations before preforming experiments.

Generation of plasmid constructs and transgenic flies

Request a detailed protocol

Amino acid transporters including tadr, slif, and CG13248 cDNA sequences were amplified from LD25644, LD37241, and FI04531 cDNA clones obtained from DGRC (Drosophila Genomics Resource Center, Bloomington, IN). The human SLC38A3 cDNA sequences were synthesized from GENEWIZ, China. Their entire CDS sequences were subcloned into the pCDNA3 vector (Invitrogen, Carlsbad, CA) for expression in HEK293T cells or PIB vector (Invitrogen, Carlsbad, CA) for expression in S2 cells. To expressing cDNAs in the photoreceptor cells, a 1.7 kb genomic DNA fragment (−1656 to +176 bp 5′to the transcription start site) of trp locus substituted the UAS sequence of pUAST-attB vector to generate the pTrp-attB vector (Bischof et al., 2007; Li and Montell, 2000). To construct pTrp-tadr, pTrp-GFP-tadr, and pTrp-tadr-GFP, the entire coding region of tadr was subcloned into the pTrp-attB vector with N-GFP or C-GFP-tags. To construct pTrp-Hdc-mCherry, the entire CDS sequence of Hdc with a C-terminal mCherry tag was cloned into the pTrp-attB vector. To construct UAS-tadr, UAS-CG13248, UAS-Slif, and UAS-SLC38A3 plasmids, cDNAs of tadr, CG13248, Slif, and SLC38A3 were amplified, and subcloned to UAST-attB vector. We produced a tadrRNA2i line as described (Ni et al., 2011) by designing a 21-nucleotide short hairpin RNA sequences (GCCACAAGATGAGCAGCAAAT), and cloning them into a VALIUM20 vector. These constructs were injected into M(vas-int.Dm) ZH-2A;M(3xP3-RFP.attP) ZH-86Fb embryos, and transformants were identified on the basis of eye color. The 3xP3-RFP and w+ markers were removed by crossing with P(Cre) flies.

Generation of anti-Hdc antibody

Request a detailed protocol

An Hdc peptide CDFKEYRQRGKEMVDY was synthesized by ChinaPeptides (Soochow, China), linked with BSA, and injected into rats by the Antibody Center at NIBS to generate anti-Hdc antibodies. The animal work for generating the antisera was conducted following the National Guidelines for Housing and Care of Laboratory Animals in China, and performed in accordance with institutional regulations after approval by the IACUC at NIBS (reference# NIBS2016R0001).

ERG recordings

Request a detailed protocol

ERGs were recorded as described (Xu et al., 2015). Briefly, two glass microelectrodes were filled with Ringer’s solution, and placed on the surfaces of the compound eye and thorax (one each surface). The light intensity was ~0.3 mW/cm2, and the wavelength was ~550 nm (source light was filtered using an FSR-OG550 filter). The electoral signals were amplified with a Warner electrometer IE-210, and were recorded with a MacLab/4 s A/D converter and Clampex 10.2 program (Warner Instruments, Hamden, CT). All recordings were carried out at 25°C.

Histidine, β-alanine, histamine, and carcinine uptake assay

Request a detailed protocol

[3H]-histidine (30–60 Ci/mM, American Radiolabeled Chemicals, St Louis, MO), β-alanine, [3-3H (N)] (30–60 Ci/mM, American Radiolabeled Chemicals, St Louis, MO), and histamine [ring, methylenes-3H(N)] dihydrochloride, (10–40 Ci/mM, American Radiolabeled Chemicals, St Louis, MO) uptake were measured as described (Han et al., 2017). Briefly, S2 cells were cultured in Schneider’s Drosophila medium with 10% fetal bovine serum (Gibco, Carlsbad, CA) in 12-well plates, and transfected with vigofect reagent (Vigorous Biotechnology, Beijing, China). The transfected cells were washed with 1 mL extracellular fluid (ECF) buffer consisting of 120 mM NaCl, 25 mM NaHCO3, 3 mM KCl,1.4 mM CaCl2,1.2 mM MgSO4, 0.4 mM K2HPO4, 10 mM D-glucose, and 10 mM Hepes (pH 7.4) at 37°C. Uptake assays were initiated by applying 200 μL DMEM (for histidine uptake) or ECF buffer (for histamine and β-alanine uptake) at 37°C. After 10 or 30 min, the reaction was terminated by removing the solution, and cells were washed with 1 mL ice-cold ECF buffer. The cells were then solubilized in 1 N NaOH and subsequently neutralized. An aliquot was taken to measure radioactivity and protein content using a liquid scintillation counter and a DC protein assay kit (Bio-Rad, Berkeley, CA), respectively. To perform histidine competition assays, [3H]-histidine (30–60 Ci/mM, 2.5 μM) in combination with L-amino acid including serine, alanine, cysteine, glutamine, asparagine, arginine, and lysine, at higher concentration (0.5 mM) were added into DMEM buffer. Carcinine was added to the medium to yield a final concentration of 20 μM. After incubation for 3 hr, S2 cells were transferred to poly-L-lysinecoated slices, fixed with 4% paraformaldehyde, and incubated with rabbit anti-carcinine/histamine antibodies (1:100, ImmunoStar, Hudson, WI). Goat anti-rabbit lgG conjugated to Alexa 488 (1:500, Invitrogen, Carlsbad, CA) was used as secondary antibodies, and images were recorded with a Nikon A1-R confocal microscope.

Immunohistochemistry

Request a detailed protocol

Fly head sections (10 μm thick) were prepared from adults that were frozen in OCT medium (Tissue-Tek, Torrance, CA). Immunolabeling was performed on cryosections sections with mouse anti-24B10 (1:100, DSHB), rat anti-LOVIT (1:100) (Xu and Wang, 2019), or anti-CSP (1:100, DSHB), rat anti-RFP (1:200, Chromotek, Germany), rabbit anti-Hdc (1:50), rabbit anti-GFP (1:200, Invitrogen, Carlsbad, CA), and rabbit anti-Ebony (1:200, lab of Dr S Carroll, University of Wisconsin, Madison, WI) as primary antibodies. For histamine immunolabeling, the rabbit anti-histamine (1:100, ImmunoStar, Hudson, WI) antibody was pre-adsorbed with carcinine, as previously reported (Xu et al., 2015). Goat anti-rabbit lgG conjugated to Alexa 488 (1:500, Invitrogen, Carlsbad, CA), goat anti-mouse lgG conjugated to Alexa 488 (1:500, Invitrogen, Carlsbad, CA), goat anti- rabbit lgG conjugated to Alexa 568 (1:500, Invitrogen, Carlsbad, CA), and goat anti-rat lgG conjugated to Alexa 647 (1:500, Invitrogen, Carlsbad, CA) were used as secondary antibodies. The images were recorded with a Zeiss 800 confocal microscope.

The phototaxis assay

Request a detailed protocol

Flies were dark adapted for 15 min before phototaxis assay, as described (Xu et al., 2015). A white light source (with an intensity of ~6000 lux) was used, and phototaxis index was calculated by dividing the total number of flies by the number of flies that walked above the mark. Five groups of flies were collected for each genotype, and three repeats were made for each group. Each group contained at least 20 flies. Results were expressed as the mean of the mean values for the four groups.

Transmission electron microscopy

Request a detailed protocol

To visualize Drosophila retina ultrastructure, adult fly heads were dissected, fixed, dehydrated, and embedded in LR White resin (Electron Microscopy Sciences, Hatfield, PA) as described (Xu et al., 2015). Thin sections (80 nm) at a depth of 30–40 μm were prepared, and examined using a JEM-1400 transmission electron microscope (JEOL, Tokyo, Japan) equipped with a Gatan CCD (4k × 3.7k pixels, Palatine, IL). TEM of photoreceptor terminals was performed as described (Xu and Wang, 2019). Adult fly heads were dissected and fixed in 4% PFA. The laminas were further dissected by removing retinas, followed by fine fixation in 1% osmium tetroxide for 1.5 hr at 4°C. Thin sections (80 nm) were stained with uranyl acetate and lead citrate (Ted Pella) and examined using a JEM-1400 transmission electron microscope (JEOL, Tokyo, Japan) equipped with a Gatan CCD (4k × 3.7k pixels, Palatine, IL).

Liquid chromatography-mass spectrometry

Request a detailed protocol

LC-MS was performed as previous reported (Han et al., 2017). The Dionex Ultimate 3000 UPLC system was coupled to a TSQ Quantiva Ultra triple-quadrupole mass spectrometer (Thermo Fisher, Waltham, MA), equipped with a heated electrospray ionization probe in negative ion mode. Extracts were separated by a Fusion-RP C18 column (2 × 100 mm, 2.5 μm, phenomenex). Data acquired in selected reaction monitoring for histamine, carcinine, and β-alanine with transitions of 112/95.2, 183/95, and 90/72, respectively. Both precursor and fragment ions were collected with resolution of 0.7 FWHM. The source parameters are as follows: spray voltage: 3000 V; ion transfer tube temperature: 350°C; vaporizer temperature: 300°C; sheath gas flow rate: 40 Arb; auxiliary gas flow rate: 20 Arb; CID gas: 2.0 mTorr. Data analysis and quantification were performed using the software Xcalibur 3.0.63 (Thermo Fisher, CA). Each sample contained 50 Drosophila heads, and the mean values from five samples were calculated.

Quantification and statistical analysis

Request a detailed protocol

All experiments were repeated as indicated in each figure legend. All statistical analyses were performed using GraphPad Prism 7. The variations of data were evaluated as mean ± SD. The statistical significance of the differences between two groups was measured by the unpaired two-tailed Student’s t test, and one-way ANOVA or two-way ANOVA with Tukey’s method, two-sided were performed for multi-group comparisons. A value of p < 0.05 was considered statistically significant (ns, not significant; *p < 0.05; **p < 0.01; ***p < 0.001). p-Value, standard error of the mean (SD), and number are as indicated in each figure and legend.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting file.

References

    1. Burg MG
    2. Sarthy PV
    3. Koliantz G
    4. Pak WL
    (1993)
    Genetic and molecular identification of a Drosophila histidine decarboxylase gene required in photoreceptor transmitter synthesis
    The EMBO Journal 12:911–919.
    1. Melzig J
    2. Burg M
    3. Gruhn M
    4. Pak WL
    5. Buchner E
    (1998)
    Selective histamine uptake rescues photo- and mechanoreceptor function of histidine decarboxylase-deficient Drosophila mutant
    The Journal of Neuroscience 18:7160–7166.

Decision letter

  1. P Robin Hiesinger
    Reviewing Editor; Institute for Biology Free University Berlin, Germany
  2. Claude Desplan
    Senior Editor; New York University, United States
  3. Helmut Krämer
    Reviewer; The University of Texas Southwestern Medical Center, United States

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Decision letter after peer review:

Thank you for submitting your article "Tadr Is an Axonal Histidine Transporter Required for Visual Neurotransmission in Drosophila" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen Claude Desplan as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Helmut Krämer (Reviewer #2).

The reviewers have discussed their reviews with one another and all agreed on an invitation to resubmit based on the strengths of the manuscript. The Reviewing Editor has drafted this letter to help you prepare a revised submission.

Essential revisions:

1) Please provide a more detailed analysis of the difference between the previous allele that was shown to cause degeneration with the new one. Experimental additions would be welcome, but a new detailed analysis of the old allele should not be necessary.

2) Please see reviews 2 and 3 for some important experimental suggestions to substantiate conclusions, in particular:

– Despite the strong ERG phenotype, some 50% of the TADR mutant flies still show behavioral responses in the phototaxis axis, strongly arguing for a pathway acting in parallel to TADR. Comparison to a known blind mutant, such as HDC could clarify this issue.

– it is surprising that you did not test whether carcinine inhibits tadr and this would be useful to include in the manuscript.

Reviewer #1 (Recommendations for the authors):

I have only one specific question: The TADR-GFP knock-in shows widespread expression, yet the phenotypes seem to be very specific to the visual system, the only known system that uses histamine as a neurotransmitter in flies. The other components (hdc, lovit) are not expressed as widespread. Does this indicate another role for histidine uptake independent of histamine synthesis elsewhere in the nervous system?

Reviewer #2 (Recommendations for the authors):

Issues that need to be addressed:

1. The Figure legend for 1D indicates staining for Lovit, but it is not present in the image shown.

2. In the abstract and lines 107, 111, 211 the authors refer to HDC colocalizing with TADR, Lovit or CSP. None of the experiments referred to are up to modern standards to support co-localization. Instead, the authors should refer to these proteins both localizing to photoreceptor axons.

3. line 127: the authors should explain their criteria for identifying potential amino acid transporters.

4. line 138: The authors state: "Flies deficient for histamine exhibited clear reductions in their ON and OFF transients, as shown for Hdc[P217] mutant flies." This statement should be supported by data shown or reference(s) to papers that previously did show that.

Reviewer #3 (Recommendations for the authors):

The authors first use antibodies to Hdc and LOVIT to show enrichment in nerve terminals in both the lamina and medulla. They then perform an RNAi screen using the on/off transients of ERGS to detect changes in signaling from photoreceptors to laminar neurons and identify tadr. A supplemental yes/no table is provided for the other transporters. Given the online format of eLife it might be reasonable to include the raw data as a Supplementary file.

A brief explanation about how they chose specific transporters to test may also be useful since they tested 42 but state that there may be up to 600 candidates. It is helpful that they tested a second RNAi to confirm their results and used repo-Gal4 as a negative control. It is also impressive that they followed up the RNAi screen with a CRISPR mutant and further confirmed their results using both the mutant and rescue with a wt tadr transgene.

A brief statement about the previously published tadr1 mutant and whether it is or is not available would be useful.

They use in vitro assays in S2 cells to show uptake of histidine and show substrate specificity with a series of potential competitive substrates. It is surprising that they did not test carcinine (see below). Additional in vitro uptake assays show that tadr does not recognize β-alanine or histamine.

They tagged the tadr locus with GFP and demonstrate enrichment at nerve terminals as predicted. They show a reduction in histamine content in photoreceptor cell terminals in the mutant.

This was an excellent way to pull together in vitro and in vivo work.

Finally, they show rescue with another transporter that recognizes histamine will rescue the tadr mutant while a second transporter that does recognize histamine does not rescue ERGs. This is a clever experiment although it is not completely convincing without knowing what else CG13248 and Slif can transport, and whether there are other differences besides histidine.

The authors present a well-executed series of experiments and a convincing set of data supporting the idea that tadr is a histidine transporter essential for the function of photoreceptor cells. The manuscript nicely complements other papers from this group and others on transporters required for histaminergic signaling at photoreceptor cells. Indeed, this is an important paper for understanding synaptic signaling in the fly visual system and as such may be appropriate for eLife.

However, the first order synapse in the insect visual system is relatively unusual. To determine if tadr serves a more general role in histaminergic signaling, it would be useful to assess its localization in the CNS and PNS and possibly test other histamine dependent-behaviors such as grooming. It is possible that tadr is not expressed in other hdc(+) neurons in the fly and has nothing to do with grooming. This would not negate the importance of the paper. However, this information would seem to be an important component of characterizing tadr and whether it serves a more general role in histaminergic neurons. Labeling in the CNS would also help to establish whether tadr is specific for histidine. If so, it might not be expressed in non-histaminergic neurons.

It has been previously suggested that the histamine cycle involves conversion to carcinine via conjugation to β-alanine in glia prior to transport back to photoreceptors. The authors played an important role in this work. Tadr may have nothing to do with carcinine and the authors point out interesting differences in the localization of tan and tadr. Nonetheless, it is surprising that they did not test whether carcinine inhibited tadr and this would be useful to include in the manuscript. This is especially true since one of the key points of the paper is the unusual specificity of tadr As the authors note, most if not all amino acid transporters are less specific.

It is confusing that tadr1 but not tadr2 mutation caused rhabdomere degeneration. The authors should comment on this and provide possible reasons for this difference even if they are not able to obtain the tadr1 mutant. Is tadr2 simply a less severe allele because it has some residual activity? Were other genes disrupted in tadr1?

https://doi.org/10.7554/eLife.75821.sa1

Author response

Essential revisions:

1) Please provide a more detailed analysis of the difference between the previous allele that was shown to cause degeneration with the new one. Experimental additions would be welcome, but a new detailed analysis of the old allele should not be necessary.

We further examined retinal degeneration of tadr2 mutants at different time point (1D, 5D, and 10D after eclosion). As shown in revised Figure 2—figure supplement 3, tadr2 mutants did not exhibit any retinal degeneration phenotype, regardless of age. As a positive control, culd1 flies exhibited obvious age-dependent retinal degeneration. We incorporated these data into the Results section (highlighted on Page 5).

2) Please see reviews 2 and 3 for some important experimental suggestions to substantiate conclusions, in particular:

– Despite the strong ERG phenotype, some 50% of the TADR mutant flies still show behavioral responses in the phototaxis axis, strongly arguing for a pathway acting in parallel to TADR. Comparison to a known blind mutant, such as HDC could clarify this issue.

As an essential amino acid, each cell can only use extracellular histidine. Although TADR is a specific histidine transporter, its expression pattern suggests that it is not the only histidine transporter. Supporting this, null tadr mutants are viable and have no growth phenotype. As photoreceptor cells may uptake histidine from other histidine transporters, they have a small histidine pool and synthesize some histamine via Hdc. Supporting this, histamine levels in tadr mutants are higher than in Hdc mutants, although histamine levels are greatly reduced in both mutants (Figure 5D). Consistent with reduced histamine levels, tadr2 mutants exhibit weak phototactic behavior, indicating the presence of another histidine transporter in Drosophila photoreceptor cells. However, given that tadr2 mutants displayed a complete loss of ON and OFF transients, greatly reduced histamine levels, and much less phototactic behavior, we speculate that TADR is the major histidine transporter, responsible for maintaining the histidine pool and keeping visual transmission at high frequencies. We added this part to the Discussion section (Page 10 highlighted)

– it is surprising that you did not test whether carcinine inhibits tadr and this would be useful to include in the manuscript.

We thank the reviewer for this suggestion. In the previous version of the manuscript we showed that TADR failed to transport carcinine (Figure 3E of the previous version). In addition, we performed competition assays using [3H]-histidine in combination with carcinine at high concentration (0.5 mM for carcinine vs. 2.5 µM [3H]-histidine), and further confirmed that carcinine does not inhibit TADR activities. Please see the revised Figure 3—figure supplement 1B, and corresponding text on Page 6 for details (highlighted).

Reviewer #1 (Recommendations for the authors):

I have only one specific question: The TADR-GFP knock-in shows widespread expression, yet the phenotypes seem to be very specific to the visual system, the only known system that uses histamine as a neurotransmitter in flies. The other components (hdc, lovit) are not expressed as widespread. Does this indicate another role for histidine uptake independent of histamine synthesis elsewhere in the nervous system?

We thank the reviewer for this concern. Hdc and LOVIT are exclusively involved in photoreceptor synaptic transmission and predominantly localize to neuronal terminals. By contrast, TADR is widely expression. As an essential amino acid, histidine is used for a variety of functions, including protein synthesis, proton buffering, metal ion chelation, scavenging of reactive oxygen, and erythropoiesis, in addition to the generation of histamine. Therefore, it is not surprising that the histidine transporter, TADR, is expressed more widely than Hdc and LOVIT. However, although TADR shows widespread expression, we found that TADR localizes predominantly to photoreceptor terminals, and the only phenotype we characterized is its functions in maintaining visual transmission at high frequencies.

Reviewer #2 (Recommendations for the authors):

Issues that need to be addressed:

1. The Figure legend for 1D indicates staining for Lovit, but it is not present in the image shown.

We apologize for this mistake and have deleted LOVIT from the figure legend. Moreover, we have made sure that all figure legends precisely match the relevant Figure.

2. In the abstract and lines 107, 111, 211 the authors refer to HDC colocalizing with TADR, Lovit or CSP. None of the experiments referred to are up to modern standards to support co-localization. Instead, the authors should refer to these proteins both localizing to photoreceptor axons.

We appreciate the reviewer for this suggestion and have changed the statement as suggested (highlighted on Pages 2 and 6)

3. line 127: the authors should explain their criteria for identifying potential amino acid transporters.

We chose the putative amino acid transporters based on the known solute carrier family of proteins in mammals that are involved in amino acid transport, including the SLC1, SLC6, SLC7, SLC17, SLC25, SLC32, SLC36, SLC38, and SLC66 families of proteins. We now explain in the manuscript that:

“we identified 42 genes encoding SLC1, SLC6, SLC7, SLC17, SLC25, SLC32, SLC36, SLC38, and SLC66 families of proteins that were predicted to import amino acids across the plasma membrane.”

We also added a review reference (Stefan Bröer and Angelika Bröer, PMID: 28546457) (highlighted on Page 4).

4. line 138: The authors state: "Flies deficient for histamine exhibited clear reductions in their ON and OFF transients, as shown for Hdc[P217] mutant flies." This statement should be supported by data shown or reference(s) to papers that previously did show that.

We added references after the statement as suggested. (highlighted on Page 5)

Reviewer #3 (Recommendations for the authors):

The authors first use antibodies to Hdc and LOVIT to show enrichment in nerve terminals in both the lamina and medulla. They then perform an RNAi screen using the on/off transients of ERGS to detect changes in signaling from photoreceptors to laminar neurons and identify tadr. A supplemental yes/no table is provided for the other transporters. Given the online format of eLife it might be reasonable to include the raw data as a Supplementary file.

We thank the reviewer for this suggestion and have added these ERG results in the revised Figure 2—figure supplement 1.

A brief explanation about how they chose specific transporters to test may also be useful since they tested 42 but state that there may be up to 600 candidates. It is helpful that they tested a second RNAi to confirm their results and used repo-Gal4 as a negative control. It is also impressive that they followed up the RNAi screen with a CRISPR mutant and further confirmed their results using both the mutant and rescue with a wt tadr transgene.

We appreciate the reviewer for this suggestion. Previously, Ren et al., reported that ~600 putative transmembrane transporters were encoded by the Drosophila genome. We chose the putative amino acid transporters based on the known solute carrier family of proteins in mammals that are involved in amino acid transport, including the SLC1, SLC6, SLC7, SLC17, SLC25, SLC32, SLC36, SLC38, and SLC66 families of proteins. We now explain in the manuscript that:

“we identified 42 genes encoding SLC1, SLC6, SLC7, SLC17, SLC25, SLC32, SLC36, SLC38, and SLC66 families of proteins that were predicted to import amino acids across the plasma membrane.”

We also added a review reference (Stefan Bröer and Angelika Bröer, PMID: 28546457) (highlighted on Page 4).

A brief statement about the previously published tadr1 mutant and whether it is or is not available would be useful.

We thank the reviewer for this concern. A brief statement about the previously published tadr1 mutant is now included in the manuscript. Please see our discussion for details (highlighted on Page 10).

They use in vitro assays in S2 cells to show uptake of histidine and show substrate specificity with a series of potential competitive substrates. It is surprising that they did not test carcinine (see below). Additional in vitro uptake assays show that tadr does not recognize β-alanine or histamine.

Thank you for this suggestion. In the previous version of the manuscript we show that TADR did not transport β-alanine and carcinine (Figure 3D and Figure 3E, respectively). In addition, we performed competition assays using [3H]-histidine in combination with carcinine at high concentration (0.5 mM for carcinine vs. 2.5 µM [3H]-histidine), and further confirmed that carcinine inhibits TADR activities. Please see the revised Figure 3—figure supplement 1B, and corresponding text on Pages 6 for details (highlighted). Because commercial radiolabeled carcinine is not available, we have tested carcinine uptake activity via immunostaining assays. These results shown that TADR did not transport carcinine in S2 cells compared with the positive control, OCT2. Please see Figure 3E, and corresponding text on Pages 6, 11, and 12 for details (highlighted).

They tagged the tadr locus with GFP and demonstrate enrichment at nerve terminals as predicted. They show a reduction in histamine content in photoreceptor cell terminals in

the mutant.

This was an excellent way to pull together in vitro and in vivo work.

Finally, they show rescue with another transporter that recognizes histamine will rescue the tadr mutant while a second transporter that does recognize histamine does not rescue ERGs. This is a clever experiment although it is not completely convincing without knowing what else CG13248 and Slif can transport, and whether there are other differences besides histidine.

TADR belongs to the cationic amino acid transporter (CAT) subfamily within the SLC7 family. We wondered whether other members of the fly CAT family of transporters could efficiently transport histidine into S2 cell. We found that histidine was taken up by CG13248, but not by Slif (Figure 6A). The expression of CG13248 in tadr2 mutant photoreceptor cells fully restored both ERG transients and phototaxis, whereas Slif did not. To confirm the specific histidine uptake activity of CG13248, we performed additional histamine uptake assays. Neither CG13248 nor Slif showed histamine uptake activity. Please see the revised Figure 6—figure supplement 1, and corresponding text on Pages 13 and 14 for details (highlighted).

The authors present a well-executed series of experiments and a convincing set of data supporting the idea that tadr is a histidine transporter essential for the function of photoreceptor cells. The manuscript nicely complements other papers from this group and others on transporters required for histaminergic signaling at photoreceptor cells. Indeed, this is an important paper for understanding synaptic signaling in the fly visual system and as such may be appropriate for eLife.

We appreciate the reviewer for this statement.

However, the first order synapse in the insect visual system is relatively unusual. To determine if tadr serves a more general role in histaminergic signaling, it would be useful to assess its localization in the CNS and PNS and possibly test other histamine dependent-behaviors such as grooming. It is possible that tadr is not expressed in other hdc(+) neurons in the fly and has nothing to do with grooming. This would not negate the importance of the paper. However, this information would seem to be an important component of characterizing tadr and whether it serves a more general role in histaminergic neurons. Labeling in the CNS would also help to establish whether tadr is specific for histidine. If so, it might not be expressed in non-histaminergic neurons.

We thank the reviewer for this suggestion. It would be interesting to test other histamine dependent-behaviors such as grooming. Given that here we show that TADR-dependent local de novo synthesis of histamine is required for synaptic transmission in the Drosophila visual system, this additional analysis is out of the scope of this work. In the future, we plan to perform more widespread investigations to address more general roles for TADR in other histaminergic neurons.

It has been previously suggested that the histamine cycle involves conversion to carcinine via conjugation to β-alanine in glia prior to transport back to photoreceptors. The authors played an important role in this work. Tadr may have nothing to do with carcinine and the authors point out interesting differences in the localization of tan and tadr. Nonetheless, it is surprising that they did not test whether carcinine inhibited tadr and this would be useful to include in the manuscript. This is especially true since one of the key points of the paper is the unusual specificity of tadr As the authors note, most if not all amino acid transporters are less specific.

Thank you for this suggestion. We have performed competition assays using [3H]-histidine in combination with carcinine at high concentration (0.5 mM for carcinine vs. 2.5 µM [3H]-histidine). These data showed that carcinine did not affect TADR-mediated histidine uptake. Please see the revised Figure 3—figure supplement 1B, and corresponding text on Pages 6 and 13 for details (highlighted).

It is confusing that tadr1 but not tadr2 mutation caused rhabdomere degeneration. The authors should comment on this and provide possible reasons for this difference even if they are not able to obtain the tadr1 mutant. Is tadr2 simply a less severe allele because it has some residual activity? Were other genes disrupted in tadr1?

We thank the reviewer for this concern. We generated the tadr2 mutation by deleting a 665-bp genomic fragment using the CRISPR-cas9 system, resulting in an out-of-frame fusion of exons 3 and 5 (deletion of 244 nt from the tadr2 mRNA). Therefore, the tadr2 mutant is a null allele. We added the molecular details of the mutant to the manuscript:

“PCR amplification and sequencing of the tadr locus from genomic DNA isolated from wild-type and tadr2 flies revealed a truncated tadr locus in mutant animals, resulting in an out-of-frame fusion of exons 3 and 5 (Figure 2—figure supplement 2B and 2C).” (Page 5, highlighted).

We also further examined retinal degeneration of tadr2 mutants at different time points (1, 5, and 10 days after eclosion). As shown in the revised Figure 2—figure supplement 2, tadr2 mutants did not exhibit any retinal degeneration, regardless of age. As a positive control, culd1 flies exhibited obvious age-dependent retinal degeneration. We incorporated these data into the Results section (highlighted on Page 5). Since the tadr2 mutation is a null tadr allele, TADR is not required to maintain photoreceptor integrity. In contrast to tadr2, tadr1 is a point mutation generated via EMS mutagenesis. As EMS creates random mutations throughout the genome, mutations in other loci may cause the retinal degeneration phenotype. It is also be possible the tadr1 mutant is a neomorphic allele. We explain this point in the manuscript as:

“The neurodegeneration phenotype observed in tadr1 mutants may be due to other mutations generated by EMS mutagenesis or the neomorphic tadr1 point mutation, which may disrupt Gq signaling.”

Please see our discussion for details. (highlighted on Page 10).

https://doi.org/10.7554/eLife.75821.sa2

Article and author information

Author details

  1. Yongchao Han

    1. National Institute of Biological Sciences, Beijing, China
    2. Tsinghua Institute of Multidisciplinary Biomedical Research, Tsinghua University, Beijing, China
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Validation, Visualization, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1965-0161
  2. Lei Peng

    1. National Institute of Biological Sciences, Beijing, China
    2. College of Biological Sciences, China Agricultural University, Beijing, China
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  3. Tao Wang

    1. National Institute of Biological Sciences, Beijing, China
    2. Tsinghua Institute of Multidisciplinary Biomedical Research, Tsinghua University, Beijing, China
    Contribution
    Conceptualization, Funding acquisition, Project administration, Supervision, Validation, Writing - review and editing
    For correspondence
    wangtao1006@nibs.ac.cn
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2395-3483

Funding

National Natural Science Foundation of China (81870693)

  • Tao Wang

National Natural Science Foundation of China (81670891)

  • Tao Wang

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank the Bloomington Stock Center, Drosophila Genomic Resource Center, the Developmental Studies Hybridoma Bank, Vienna Drosophila Resource Center, TsingHua Fly Center and Dr S Carroll for stocks and reagents. We thank Y Wang and X Liu for assistance with fly injections. We are tremendously thankful for support provided by the Metabolomics Facility and Image Facility at NIBS. We thank State Key Laboratory of Membrane Biology, Institute of Zoology, Chinese Academy of Science for our Electron Microscopy and we would be grateful to Pengyan Xia for his help of taking EM images. We thank Dr D O’Keefe for comments on the manuscript. This work was supported by grants from the National Natural Science Foundation of China (81870693 and 81670891) awarded to T Wang.

Ethics

The animal work for generating the antisera was conducted following the National Guidelines for Housing and Care of Laboratory Animals in China, and performed in accordance with institutional regulations after approval by the IACUC at NIBS (Reference# NIBS2016R0001).

Senior Editor

  1. Claude Desplan, New York University, United States

Reviewing Editor

  1. P Robin Hiesinger, Institute for Biology Free University Berlin, Germany

Reviewer

  1. Helmut Krämer, The University of Texas Southwestern Medical Center, United States

Publication history

  1. Received: November 24, 2021
  2. Preprint posted: December 3, 2021 (view preprint)
  3. Accepted: February 28, 2022
  4. Accepted Manuscript published: March 1, 2022 (version 1)
  5. Version of Record published: March 11, 2022 (version 2)

Copyright

© 2022, Han et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 470
    Page views
  • 97
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Yongchao Han
  2. Lei Peng
  3. Tao Wang
(2022)
Tadr is an axonal histidine transporter required for visual neurotransmission in Drosophila
eLife 11:e75821.
https://doi.org/10.7554/eLife.75821

Further reading

    1. Cell Biology
    2. Genetics and Genomics
    Peter S Johnstone, Maite Ogueta ... Deniz Top
    Tools and Resources

    Circadian clocks are highly conserved transcriptional regulators that control ~24-hour oscillations in gene expression, physiological function, and behavior. Circadian clocks exist in almost every tissue and are thought to control tissue-specific gene expression and function, synchronized by the brain clock. Many disease states are associated with loss of circadian regulation. How and when circadian clocks fail during pathogenesis remains largely unknown because it is currently difficult to monitor tissue-specific clock function in intact organisms. Here, we developed a method to directly measure the transcriptional oscillation of distinct neuronal and peripheral clocks in live, intact Drosophila, which we term Locally Activatable BioLuminescence, or LABL. Using this method, we observed that specific neuronal and peripheral clocks exhibit distinct transcriptional properties. Loss of the receptor for PDF, a circadian neurotransmitter critical for the function of the brain clock, disrupts circadian locomotor activity but not all tissue-specific circadian clocks. We found that, while peripheral clocks in non-neuronal tissues were less stable after the loss of PDF signaling, they continued to oscillate. We also demonstrate that distinct clocks exhibit differences in their loss of oscillatory amplitude or their change in period, depending on their anatomical location, mutation, or fly age. Our results demonstrate that LABL is an effective tool that allows rapid, affordable, and direct real-time monitoring of individual clocks in vivo.

    1. Biochemistry and Chemical Biology
    2. Cell Biology
    Dirk H Siepe, Lukas T Henneberg ... K Christopher Garcia
    Tools and Resources

    Secreted proteins, which include cytokines, hormones and growth factors, are extracellular ligands that control key signaling pathways mediating cell-cell communication within and between tissues and organs. Many drugs target secreted ligands and their cell-surface receptors. Still, there are hundreds of secreted human proteins that either have no identified receptors ('orphans') and are likely to act through cell surface receptors that have not yet been characterized. Discovery of secreted ligand-receptor interactions by high-throughput screening has been problematic, because the most commonly used high-throughput methods for protein-protein interaction (PPI) screening do not work well for extracellular interactions. Cell-based screening is a promising technology for definition of new ligand-receptor interactions, because multimerized ligands can enrich for cells expressing low affinity cell-surface receptors, and such methods do not require purification of receptor extracellular domains. Here, we present a proteo-genomic cell-based CRISPR activation (CRISPRa) enrichment screening platform employing customized pooled cell surface receptor sgRNA libraries in combination with a magnetic bead selection-based enrichment workflow for rapid, parallel ligand-receptor deorphanization. We curated 80 potentially high value orphan secreted proteins and ultimately screened 20 secreted ligands against two cell sgRNA libraries with targeted expression of all single-pass (TM1) or multi-pass (TM2+) receptors by CRISPRa. We identified previously unknown interactions in 12 of these screens, and validated several of them using surface plasmon resonance and/or cell binding. The newly deorphanized ligands include three receptor tyrosine phosphatase (RPTP) ligands and a chemokine like protein that binds to killer cell inhibitory receptors (KIR's). These new interactions provide a resource for future investigations of interactions between the human secreted and membrane proteomes.
