Brain-wide analysis of the supraspinal connectome reveals anatomical correlates to functional recovery after spinal injury

  1. Zimei Wang
  2. Adam Romanski
  3. Vatsal Mehra
  4. Yunfang Wang
  5. Matthew Brannigan
  6. Benjamin C Campbell
  7. Gregory A Petsko
  8. Pantelis Tsoulfas  Is a corresponding author
  9. Murray G Blackmore  Is a corresponding author
  1. Department of Biomedical Sciences, Marquette University, United States
  2. Department of Neurological Surgery, University of Miami, United States
  3. Helen and Robert Appel Alzheimer's Disease Research Institute, Cornell University, United States

Abstract

The supraspinal connectome is essential for normal behavior and homeostasis and consists of numerous sensory, motor, and autonomic projections from brain to spinal cord. Study of supraspinal control and its restoration after damage has focused mostly on a handful of major populations that carry motor commands, with only limited consideration of dozens more that provide autonomic or crucial motor modulation. Here, we assemble an experimental workflow to rapidly profile the entire supraspinal mesoconnectome in adult mice and disseminate the output in a web-based resource. Optimized viral labeling, 3D imaging, and registration to a mouse digital neuroanatomical atlas assigned tens of thousands of supraspinal neurons to 69 identified regions. We demonstrate the ability of this approach to clarify essential points of topographic mapping between spinal levels, measure population-specific sensitivity to spinal injury, and test the relationships between region-specific neuronal sparing and variability in functional recovery. This work will spur progress by broadening understanding of essential but understudied supraspinal populations.

Editor's evaluation

This work is of interest to neuroscientists interested in tissue clearing, viral labeling, and its applications to spinal cord injury in particular, but not exclusively. It provides a significant methodological advance applied for investigating descending pathways from a fundamental perspective and then in the context of potential recovery after a spinal cord injury. This study represents an important new direction and set of tools for the field of motor control.

https://doi.org/10.7554/eLife.76254.sa0

Introduction

The brain’s control of the body below the head is achieved largely by axonal inputs to spinal circuits, which then interpret and process descending signals to generate appropriate commands to the periphery through motor and autonomic output neurons. The supraspinal connectome is highly conserved in mammals, with multiple cell types distributed through the brainstem, midbrain, and motor cortex, each projecting axons to a subset of spinal levels and to selected cell types (Nudo and Masterton, 1988; Kuypers and Martin, 1982). A comprehensive and accessible approach to understanding supraspinal input is crucial to interpret motor and autonomic behavior, and treat conditions that disrupt descending signals such as stroke, disease, or injury to the spinal cord.

Extensive work spanning more than a century has employed orthograde degeneration, electrical stimulation, and axonal transport-tracing methods to characterize the location and function of specific supraspinal neurons in various animals, providing a base of knowledge to understand supraspinal control (Nudo and Masterton, 1988; Kuypers and Martin, 1982; Hoff, 1932; Glees, 1946; ten Donkelaar, 2000). Several efforts in rodents have provided more global information by performing retrograde tracing from selected spinal levels, followed by tissue sectioning and manual assignment of labeled cell bodies to regions within the brain (Lakke, 1997; Leong et al., 1984; Liang et al., 1997 ). Significant challenges, however, impede the distribution of this foundational knowledge and its application to the study of disease and injury-based disruptions. First, information about the location and types of supraspinal neurons is fragmented and not standardized across numerous studies (Tuszynski and Steward, 2012 ). Second, a high level of expertise is required to precisely identify brain regions from two-dimensional (2D) tissue series and build a three-dimensional (3D) view of the connections (Gong et al., 2013; Oh et al., 2014; Economo et al., 2016 ). Third, tissue sectioning and imaging are laborious and time consuming, making experiments to track dynamic changes after injury or disease impractical. Consequently, attention has remained focused on a relatively narrow set of supraspinal populations. For example, in the field of spinal cord injury (SCI), the vast majority of studies concern only a handful of descending populations, notably the corticospinal, rubrospinal, raphespinal, and broadly defined reticulospinal (Fink and Cafferty, 2016; Anderson, 2004; Kwon et al., 2002; Lu et al., 2012; Blackmore et al., 2021; Takakusaki et al., 2016). This attention is justified as these regions serve important motor functions and comprise a majority of descending input (Lemon, 2008). On the other hand, dozens of additional brain regions also project to the spinal cord, many of which carry essential motor and autonomic commands (Liang et al., 1997). Without tools to easily monitor the totality of the supraspinal connectome, researchers lack even basic information regarding their sensitivity to injury, innate plasticity, or potentially disparate responses to potential pro-regenerative therapies.

Here, we present a comprehensive and accessible approach to obtain detailed information about the number and location of descending projection neurons throughout the mouse brain. By combining retrograde viral labeling (Tervo et al., 2016), 3D imaging of optically cleared brains (Wang et al., 2018), and registration to standard neuroanatomical space (Niedworok et al., 2016; Tyson et al., 2021), we rapidly identify the specific location of tens of thousands of supraspinal neurons. We present a web-based resource that compares the locations and quantity of supraspinal neurons that project to cervical versus lumbar levels. We further extend this approach to questions related to SCI by quantifying the region-specific sparing of distinct supraspinal populations in mice that received injuries of graded severity. These data provide an accessible resource to disseminate detailed understanding of the supraspinal connectome and provide an example of combined methods that achieve brain-wide profiling of brain–spinal cord connectivity after injury.

Results

Optimization of retrograde cell detection in cleared brain tissue

Although tissue-clearing techniques offer unprecedented visualization of intact neural structures, overall degradation of fluorescent signal during the process, compounded by optical interference from nearby axon tracts, can significantly limit detection of cell bodies (Steward et al., 2021; Asboth et al., 2021; Frezel et al., 2020). This detection problem is evident in prior experiments from our lab and others that used spinal injection of AAV2-retro to retrogradely express fluorescent proteins (FPs) in supraspinal neurons (Wang et al., 2018; Steward et al., 2021). Fluorescent intensity in these experiments was variable between different populations, and in dimmer regions only a small fraction of total supraspinal neurons were detected in 3D images. Detection of supraspinal neurons was especially low in the brainstem, a phenomenon also noted in a recent study (Steward et al., 2021 ). We therefore tested a strategy of nuclear localization to improve detection (Sathyamurthy et al., 2020). Indeed, 2 weeks after delivery of retrograde vectors to the lumbar spinal cord, detection of supraspinal neurons in cleared brain tissue was significantly enhanced when mScarlet (mSc) fluorophore (Bindels et al., 2017) was localized to the nucleus by an H2B tag (Figure 1—figure supplement 1). Spot detection confirmed an approximately 2-fold increase in the number of detected cells in the cortex and more than 10-fold increase in the brainstem (249.6 ± 56.3 SEM vs. 3334.3 ± 82.8 SEM, Figure 1—figure supplement 1I–L). Close examination of spot detection of nuclear-localized label showed that even in areas of relatively densely packed supraspinal neurons the cell nuclei were well spaced, enabling effective segregation and detection (Figure 1—figure supplement 1I–K).

Next, to further optimize cell detection we tested mGreenLantern (mGL), a recently described green FP with enhanced brightness (Campbell et al., 2020). To directly compare mGL to mSc, adult mice received lumbar (L1-L2) injection of mixed AAV2-retro-H2B-mGL and -mSc, followed 2 weeks later by brain clearing, 3D imaging, and nuclei detection using Imaris software. Based on location ,we classified retrogradely labeled nuclei into six groups: corticospinal, hypothalamic, red nucleus (RN), dorsal pons, medullary reticular formation, and caudal dorsal medulla (Figure 1—figure supplement 2A–N). Note that additional nuclei existed outside these easily recognizable areas and are considered below. Quantification of labeled objects revealed that H2B-mGL significantly increased detection of neurons in cortex, dorsal pons, and reticular formation (p<0.01, two-way ANOVA with post-hoc Sidak’s) (Figure 1—figure supplement 2L–O). Counts were similar in right and left hemispheres, confirming that spinal injections reached both sides equally (Figure 1—figure supplement 3A), and did not increase between 2 and 4 weeks post-injection (Figure 1—figure supplement 3B). Moreover, signal was readily detectable without the need for antibody amplification, thus avoiding lengthy incubation periods. A video further illustrates the improved detection of supraspinal neurons with nuclear-localized mGL (Figure 1—video 1). Combined, these data establish an initial categorization and quantification of supraspinal brain regions in 3D space, reveal H2B-mGL to be the most sensitive of the FPs tested, and create consistent experimental parameters for the detection of supraspinal neurons.

A pipeline for the detection and spatial registration of supraspinal projection neurons

The procedures outlined above improve detection of supraspinal nuclei yet remain reliant on user-generated judgments regarding cell location. This is likely only practical and accurate for large and isolated populations, and new approaches are needed for closely adjacent or intermingled brain regions (Tyson and Margrie, 2021). We therefore established an analysis pipeline to standardize brain registration and cell detection using tools and concepts derived from the Brainglobe initiative (Figure 1A–D). After tissue clearing and imaging, image stacks were imported to Imaris software for visual quality control such as detection of autofluorescent artifacts or tissue damage. Image stacks were then exported and preprocessed to create cell and background sets in standard orientation (Figure 1A and B), followed by registration and segmentation using automated mouse atlas propagation (aMAP/brainreg), a well-validated tool to align 2D datasets with the 25 µm version of Allen Mouse Brain Atlas (Niedworok et al., 2016; Tyson et al., 2021; Kim et al., 2015; Figure 1C). We next used cellfinder, a deep learning model-based tool, for the identification of labeled cells in whole-brain images (Tyson et al., 2021; Figure 1C). In conjunction with aMAP/brainreg, cellfinder assigns objects to 645 individual brain regions and quantifies the number in each. In addition, cellfinder produces detailed visualization of each optical slice, with defined brain regions outlined and labeled cells represented as overlaid spots (Figure 1C, Figure 1—figure supplement 4). For final visualization, we used brainrender (Claudi et al., 2021), which displays cellfinder output in an interactive 3D format registered to the Allen Mouse Reference Atlas (Figure 1D). To disseminate the insights from this pipeline, both 2D and 3D visualizations of the brains described below are available on an interactive web interface (3Dmousebrain.com).

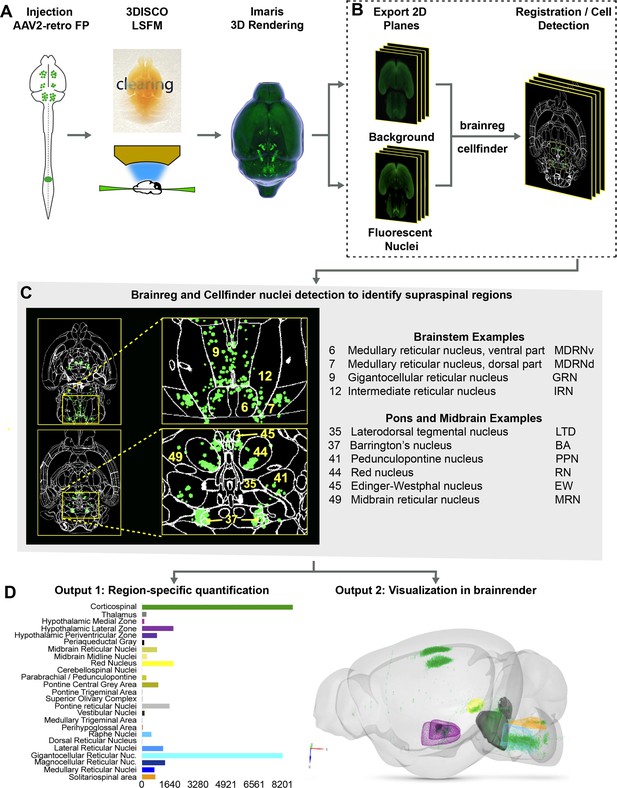

Figure 1 with 6 supplements see all
A pipeline and web resource for the detection and spatial registration of supraspinal projection neurons.

(A) Tissue preparation and initial imaging. AAV2-retro-H2B-mGL is injected to the spinal cord, followed by perfusion, tissue clearing, light sheet imaging, and 3D processing using Imaris software. (B) Image registration. A complete series of background and fluorescent nuclei images are exported for registration to standard 3D space by brainreg and cell nuclei detection by cellfinder. (C) An example of cellfinder output, showing horizontal brain sections with brain regions outlined and detected cell nuclei indicated in green. (D) Example output available at https://3Dmousebrain.com/. On the left are quantitative nuclei counts for identified brain regions, and on the right is 3D visualization of supraspinal locations generated by brainrender, an interactive Python-based tool.

Brain clearing and registration quantify supraspinal connectivity to the lower spinal cord

We first applied the registration pipeline to examine connectivity from the brain to the lower spinal cord. Ten animals received injection of AAV2-retro-H2B-mGL to L1 spinal cord, followed 2 weeks later by perfusion, imaging, and analysis. On average, 31,219 nuclei were detected per brain (range 20,688–40,171). Supraspinal nuclei were detected in 69 of the 645 total brain regions. To simplify reporting, we reduced this to 25 summary categories, for example, spinal, medial, and lateral vestibular nuclei were collapsed into a single vestibular category (Figure 1—figure supplement 4D). We use the 25-region summary counts to report findings throughout this article, while counts in both the original 69-region and 25-region summary format are supplied for all animals in Source data 1. Next we highlight the variety of supraspinal populations identified by 3D registration, with reference to prior descriptions in rodent that help validate the automated findings. Note that we adopt nomenclature from the Allen Mouse Reference Atlas, which the cellfinder pipeline employs.

In the medulla, the largest group of supraspinal neurons registered to the gigantocellular nucleus (GRN), an evolutionarily conserved source of both pre-autonomic and pre-motor axons (Figure 1—figure supplement 4B8; Aicher et al., 1995; Brownstone and Chopek, 2018; Liang et al., 2016; Hermann et al., 2003 ). More ventrally, labeled nuclei were present in the magnocellular reticular nucleus (MARN), which also project to the ventral horn and IML of the lower spinal cord (Figure 1—figure supplement 4B10). Notably, labeled nuclei also mapped to regions lateral to the GRN, including the paragigantocellular reticular nucleus, lateral part (PGRNl) (Figure 1—figure supplement 4B10). This region contains spinally projecting neurons that may initiate locomotion, as well as the ventral rostral medullary group that regulates blood pressure (Capelli et al., 2017; Van Bockstaele et al., 1989; Opris et al., 2019). A cluster of labeled nuclei was also located dorsally in the caudal medulla, within and near the solitary nucleus, as supraspinal region implicated in visceral input to respiration and cardiovascular tone (Leong et al., 1984; Liang et al., 1997; Mtui et al., 1995 ; Figure 1—figure supplement 4B3).

More rostrally in the brainstem, labeled nuclei were present in the spinal and medial vestibular nuclei, which project to spinal targets to mediate postural control (Figure 1—figure supplement 4B3). Labeled nuclei were also abundant in the pontine reticular nuclei (Leong et al., 1984; Liang et al., 1997; Figure 1—figure supplement 4B6). Although perhaps less well understood than medullary reticular populations, pontine reticular neurons have been linked to muscle atonia during sleep, startle responses, and to multisegment postural adjustments during limb extension (Perreault and Giorgi, 2019; Takakusaki et al., 2016 ). More dorsally in the pons, labeled nuclei mapped to known supraspinal regions in and around the pontine central gray, including the locus coeruleus (LC), laterodorsal and sublaterodorsal tegmental nucleus (Leong et al., 1984; Liang et al., 1997 Cornwall et al., 1990; Peever and Fuller, 2016; Sluka and Westlund, 1992; Figure 1—figure supplement 4B3). Labeled nuclei also registered to Barrington’s nucleus (BAR), which plays a central role in the control of micturition and bowel control (Barrington, 1921 Verstegen et al., 2017; Figure 1—figure supplement 4B2). Another prominent nucleus was the parabrachial nucleus (PBN), a sensory relay for inputs related to itch, pain, touch, and a range of autonomic controls including blood pressure and thermoregulation (Figure 1—figure supplement 4B3; Chiang et al., 2019; Choi et al., 2020 ). Notably, although deep cerebellar nuclei (DCN) project to lumbar spinal cord and were recently shown to retrogradely express lumbar-injected AAV2-retro (Sathyamurthy et al., 2020), detection of cell nuclei in this region was low and highly variable between animals. Although visual inspection confirmed label in this region, albeit dim, the extreme dorsal position of the nuclei likely acted to lower detection by the ventrally positioned camera, such that the deep learning algorithm was not successful in distinguishing the residual signal from background. Accordingly, we considered the DCN values unreliable and do not include them in results from the automated pipeline.

In the midbrain, supraspinal nuclei were prominently detected in the RN, as expected, and in midline regions including Edinger–Westphal (EW) and the interstitial nucleus of Cajal (INC), whose supraspinal projections are known to affect postural adjustments and energy homeostasis (Figure 1—figure supplement 4B; Leong et al., 1984 Yu and Wang, 2020; Kozicz et al., 2011). Interestingly, nuclei also mapped to the midbrain reticular nucleus and pedunculopontine nucleus (PPN) (Figure 1—figure supplement 4B2), which lie within the mesencephalic locomotor region (MLR), a well-studied region in which stimulation triggers locomotion in a range of species including mice (Caggiano et al., 2018; Roseberry et al., 2016). Although much MLR activity acts through reticular relays, the presence of direct supraspinal input from the PPN and mesencephalic reticular nucleus (MRN), noted here and elsewhere, indicates some role in direct spinal activation (Caggiano et al., 2018; Gatto and Goulding, 2018; Dautan et al., 2021; Ferreira-Pinto et al., 2021).

Finally, in the forebrain, large clusters of nuclei were detected in the corticospinal tract region, as expected. These are considered in more detail below. Supraspinal neurons were also detected in the hypothalamus, where they separated into two prominent clusters, medial and lateral (Figure 1—figure supplement 4B7). The medial cluster mapped mostly to the paraventricular hypothalamic nucleus (PVH) and the adjacent descending paraventricular nucleus (PVHd). These are known to innervate autonomic circuitry in the lower spinal cord and modulate functions including bladder control, sexual function, and blood pressure (de Groat et al., 2015; Holstege, 2005; Zhou et al., 2019). The lateral cluster spanned the dorsomedial nucleus (DMH) and the lateral hypothalamic area (LHA). Although less well characterized than the PVH, prior work in the LHA has identified orexin-expressing neurons that project to all spinal levels with functions that include pain modulation (Swanson and Kuypers, 1980; van den Pol, 1999).

Overall, 3D imaging and registration located tens of thousands of neurons across the neuraxis. Importantly, supraspinal neurons were mapped to distributed regions with broad correspondence to existing understanding of supraspinal connectivity. We also tested for variation in supraspinal numbers when injection sites were adjusted slightly to either lower lumbar (L4) or lower thoracic (T10). Interestingly, compared to L1 these cohorts showed no significant differences beyond a modest increase in CST and a modest decrease in GRN in T10-injected animals, highlighting the consistency of the approach (Figure 1—figure supplement 5). We conclude that 3D imaging and neuroanatomical registration provides a quantitative and global profile of neurons with spinal projections.

Use case 1: Brain-wide comparison of supralumbar versus supracervical connectomes

Supraspinal populations can display topographic mapping with respect to spinal levels. For example, motor cortex is divided loosely into forelimb and hindlimb regions and in the RN lumbar-projecting neurons reside ventral/medial to cervical-projecting (Flumerfelt and Gwyn, 1974; Tennant et al., 2011; Sahni et al., 2021). More recently, retrograde labeling from lumbar and cervical spinal cord has also revealed segment-specific targeting in cerebellospinal and V2a-expressing brainstem spinal populations (Sathyamurthy et al., 2020; Usseglio et al., 2020). For many other supraspinal inputs, however, it is less clear whether projections predominantly target cervical levels, lumbar levels, or both. We therefore performed 3D imaging and registration in animals that received cervical injection of AAV2-retro-H2B-mSc and lumbar injection AAV-retro-H2B-mGL, enabling within-animal comparison (Figure 2A–M). Spatial registration in whole-brain data was not precise enough for definitive co-localization, and dual expression within single cells is considered in a separate analysis below. Here, we focused on overall differences in cell counts between mSc signal (cervical) and mGL signal (lumbar) in various brain regions. For each region, we calculated an index of lumbar projection by dividing the number of cells that were labeled by lumbar injection by the total number of supraspinal neurons in that region (lumbar plus cervical). Supraspinal regions that terminate mostly in cervical spinal cord would display a low lumbar projection index, whereas regions that predominantly target lumbar would display higher values, although with the caveat that fibers of passage could take up cervically injected AAV, which is considered below.

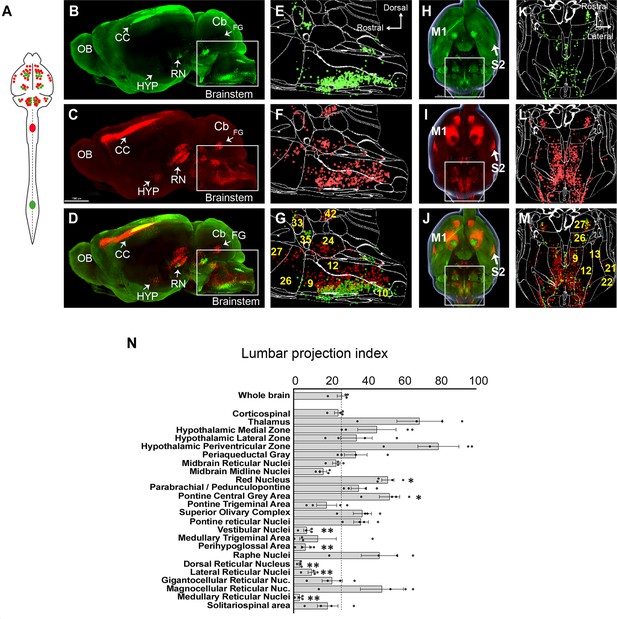

Figure 2 with 1 supplement see all
A brain-wide quantitative comparison of cervical and lumbar-projecting supraspinal neurons.

(A) Experimental approach. AAV2-retro-H2B-mSc and mGL were delivered to C4 and L1 SC, respectively, followed 4 weeks later by brain clearing, light sheet microscopy, registration, and quantification. (B–G) Lateral view of brain and cellfinder output from brainstem regions. (B, E) show H2B-mGL (lumbar), (C, F) show H2B-mSc (cervical), and (D, G) show the overlay. Note the greater abundance of cervical signal in dorsal brainstem. (H–M) Horizontal brain views and cellfinder output of the same animals as (BG). (H, K) show H2B-mGL (lumbar), (I, L) show H2B-mSc (cervical), and (J, M) show the overlay. Note the relative abundance of cervical label in more lateral brainstem. (N) Quantification of the lumbar projections with the number of lumbar-projecting neurons in each brain region normalized to the total number of supraspinal nuclei detected in that region. Some regions differ significantly from the overall average of the brain. **p<0.01, one-way ANOVA with post-hoc Sidak’s. N = 4 animals. Scale bar (B–D) 1500 μm; (H–J) 1000 μm; (O) left pictures 1000 μm, middle 500 μm, right 30 μm. n = 4 biological replicates per group. OB, olfactory bulb; CC, cerebral cortex; M1, motor area 1; HYP, hypothalamus; RN, red nucleus; Cb, cerebellum; FG, fastigial nucleus; P, pons; M. medulla. Scale bars are 1 mm, except 100 µm in 0 panel 2.

The brain as a whole had an average lumbar projection index of just 26.5% (±2.6% SEM), indicating a brain-wide tendency for many axons to terminate in cervical regions without continuing caudally to lumbar segments. Numerous brain regions deviated from this average, however. The medullary reticular formations (MDRNd and MDRNv, located caudally to the gigantocellular reticular nuclei) and the laterally positioned parvocellular nucleus both showed very low indexes of lumbar projection, indicating largely cervical termination. Interestingly, these regions have been recently implicated in forelimb-reaching behavior, a function that would be consistent with predominantly cervical projections (Esposito et al., 2021; Ruder et al., 2021). The 3D registration approach also revealed an overall topographic pattern in the brainstem in which ventrally located populations projected to both lumbar and cervical regions, whereas more dorsally located populations rarely took up lumbar-injected label and were thus predominantly cervical (Figure 2B–G). The nucleus prepositus and Roller nucleus, dorsally located in the medulla, showed mostly cervical projections, possibly related to their known role in gaze tracking (Figure 2N; Chiang et al., 2019). In contrast, the pontine reticular formations showed a more balanced distribution. The RN was also relatively balanced but showed a topographic pattern in which ventral-medial neurons projected to lumbar cord (Figure 2B–D; Wang et al., 2018; Flumerfelt and Gwyn, 1974; Liang et al., 2021). Neurons near the pontine central gray, including Barrington’s nucleus, showed relative enrichment for lumbar labeling, consistent with known innervation of lumbar circuitry (Figure 2E–G; Verstegen et al., 2017). Similarly, the paraventricular region of the hypothalamus was enriched for lumbar label, consistent with its known innervation of the IML cell column. In summary, these data are broadly supported by current understanding of supraspinal topography while providing region-by-region indexes of lumbar targeting for diverse supraspinal areas.

The analyses above reveal regional patterns of projection but lack the spatial resolution to co-localize signal in individual cells. In brain regions that project axons to both cervical and lumbar spinal cord, a key question is the extent to which individual cells innervate each level separately as opposed to dually innervating both. We therefore adopted an alternative confocal-based approach to achieve the needed cellular resolution. As previously, supraspinal neurons were retrogradely labeled by lumbar AAV2-Retro-H2B-mGL and cervical AAV2-Retro-H2B-mSc (Figure 3A). Control animals received injection of both fluorophores to lumbar spinal cord. Three weeks later, mice were perfused and the brain was sectioned into 1.5 mm slices in the transverse plane, which allowed each section to be imaged in its entirety by confocal microscopy at high resolution and without chromatic aberrations, thus allowing precise cell-by-cell assessment of retrograde label (Figure 3B and C). Because the slice-based imaging was incompatible with the whole-brain registration pipeline, supraspinal populations that included lumbar-projecting neurons were identified manually, as illustrated in Figure 3—figure supplement 1. For each of the 11 supraspinal brain regions, the number of single- and dual-labeled nuclei was quantified (see Figure 3—figure supplement 2 illustrating region selection and quantification).

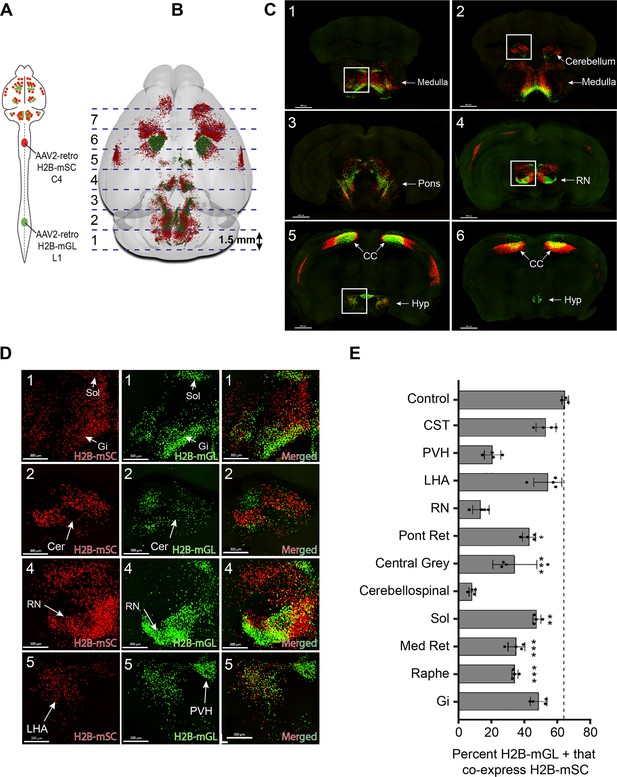

Figure 3 with 5 supplements see all
3D confocal microscopy reveals rates of dual cervical/lumbar targeting in various supraspinal regions.

(A, B) Experimental approach. AAV2-retro-H2B-mSc and mGL were delivered to C4 and L1 SC, respectively, followed 3 weeks later by preparation of 1.5 mm sections, tissue clearing, imaging by spinning disk confocal microscopy, spot detection, and quantification. Dotted lines show the approximate locations of slice preparation. (C) Coronal views of the corresponding sections imaged by confocal microscopy. Insets indicate higher magnifications in (D). (D) Higher magnification of specific regions from sections 1, 2, 4, and 5. Left panels show H2B-mSC-positive nuclei, middle panels show H2B-mGL nuclei, and the right panel shows merged images. (E) Quantification of the percent of lumbar projecting (H2B-mGL+) nuclei that co-express H2B-mSc in selected brain regions compared to control animals that receive co-injection of H2B-mSc and H2B-mGL to lumbar spinal cord. OB, olfactory bulb; CC, cerebral cortex; M1, motor area 1; HYP, hypothalamus; RN, red nucleus; Cb, cerebellum; Sol, solitary nucleus; Pons, pons; LHA, lateral hypothalamus; PVH, paraventricular hypothalamus. **** p<0.0001, one-way ANOVA with post-hoc Sidak’s. N = 4 biological replicates per group. Scale bars (C) 800 μm; (D) 300 μm.

We focused our analysis on the degree to which neurons that innervated lumbar spinal cord, identified by mGL signal, also took up cervically injected mSc, indicating dual innervation. Three control animals received lumbar injection of titer-matched AAVs expressing H2B-mGL and H2B-mSc. In these, 65.8% (±0.9% SEM) of mGL-labeled neurons co-expressed mSc, establishing a baseline expectation for co-detection (Figure 3—figure supplement 2A–G). The finding that not all mGL-labeled nuclei co-expressed mSc even when injected to the same location likely reflects the more effective labeling by mGL noted previously (Figure 1—figure supplement 2). In experimental animals, we detected an average of 25,748 (±1599 SEM) lumbar-projecting neurons across all eleven brain regions, and of these an average of 41.7% (±1.3% SEM) co-expressed mSc. There was substantial variability between different brain regions, however. For example, consistent with a recent report (Sathyamurthy et al., 2020), in the DCN only 8.5% (±1.0% SEM) of lumbar-projecting cells co-expressed cervical mScarlet. Similarly, only 14.4% (±2.5% SEM) of lumbar-projecting rubrospinal neurons expressed mSc, consistent with established patterns of mostly segregated topography (Figure 3D and E). Importantly, the overall separation of mSc and mGL signal in these regions indicates that fibers of passage in cervical spinal cord mostly failed to take up Retro-AAV2, supporting prior conclusions by our lab and others that AAV2-retro is primarily taken up by collaterals or synaptic terminals (Wang et al., 2018; Steward et al., 2021; Sathyamurthy et al., 2020). In striking contrast, other brain regions displayed rates of mSc signal in lumbar-labeled neurons that approached the levels we measured with direct co-injection, for example, the LHA (54.8% [±4.3% SEM]) and gigantocellular reticular formation (48.5% [±2.5% SEM]) (Figure 3D and E). Most brain regions showed intermediate rates of co-labeling that differed significantly from dual-injected control. In summary, this approach reveals a diversity of innervation patterns by lumbar-projecting neurons, ranging from nearly exclusive lumbar innervation to predominantly dual lumbar/cervical innervation.

In the cortex, as expected, lumbar-projecting neurons were absent from the lateral S2 and the more rostral forelimb area (RFA) and instead were concentrated in a subregion of M1, centered medial and caudal to the main mass of cervically labeled neurons (Steward et al., 2021; Sahni et al., 2021). Interestingly, a rim of cervically labeled cells completely surrounded the lumbar region (Figure 2O, Figure 2—figure supplement 1). Thus, lumbar-projecting CST neurons can be described most accurately not as a separate caudal or medial population, but rather as nested within a broader region of cervical-projecting neurons (Steward et al., 2021; Sahni et al., 2021 ). Importantly, this region also contained mSc-labeled neurons, and of the neurons that projected to lumbar cord 53.0% (±3.0% SEM) were also labeled from cervical, indicating dual projection (Figure 3E). This degree of co-labeling in CST neurons was initially surprising and at odds with visual impressions from light sheet images produced by our lab and others, which suggested that lumbar-projecting neurons mostly did not take up cervically-injected AAV2-retro (Wang et al., 2018; Steward et al., 2021 ). We noticed, however, that the cervically derived label was often very dim in dual-labeled cells. Indeed, quantification confirmed that compared to neurons that project exclusively to cervical cord, neurons detected as dual-projecting showed significantly lower intensity of cervical mSc (Figure 3—figure supplement 3A–E). It is likely that this dim signal is detected by the current confocal-based methods but was missed in prior light sheet fluorescence microscopy (LSFM). A video illustrates this phenomenon by adjusting the brightness of mSc signal, resulting in shifting impressions of co-localization (Figure 3—video 2). We considered whether the dimness of cervically derived mSc in lumbar-projecting neurons could result from viral cross-interference. Unlike the mSc signal, however, the mGL signal averaged higher in dual-labeled neurons than in mGL-only cells (Figure 3—figure supplement 3E and F). Moreover, dual-labeled neurons from co-injected control animals showed higher average intensity than single-labeled neurons and a positive correlation in the brightness of the two fluorophores (Figure 3—figure supplement 2H and I). Thus, cross-suppression of expression is not a general feature of co-delivered AAV2-retro. As discussed more fully later (see ‘Discussion’), one possible explanation is that viral uptake is proportional to synapse density, and the dim cervical label in lumbar-projecting neurons reflects collateralization in cervical cord that is present but sparse. On balance, the present data identify a nested population of CST neurons that projects to the lower spinal cord, many of which display a pattern of targeting that strongly favors lumbar over cervical but that is not necessarily completely exclusive (Steward et al., 2021, Sahni et al., 2021).

Use case 2: Application to spinal injury

We next applied whole-brain imaging and quantification to questions related to SCI. First, given the large existing patient population and the practical difficulties in delivering therapeutics immediately after injuries, a critical question for the eventual clinical use of gene therapy vectors is their capacity for effective transduction when applied in conditions of chronic injury. Supraspinal neurons can atrophy after injury (Kwon et al., 2002; Chen et al., 2017), which conceivably could interfere with the uptake or transport of virus. Conversely, injury can trigger spontaneous axonal sprouting above the site of injury (Filli et al., 2021; Bareyre et al., 2004 ), which could potentiate viral uptake. Our prior work showed AAV2-retro’s efficacy in some cell types immediately after injury (Wang et al., 2018), but this conclusion was only qualitative, applied to limited supraspinal populations, and did not examine more extended and clinically relevant time points. Prior work has shown that AAV2-retro can transduce selected brainstem populations when injected to the chronically injured spinal cord (Asboth et al., 2021; Engmann et al., 2020). To extend these prior findings across the supraspinal connectome after chronic injury, we injected AAV2-retro-H2B-mGL 6 weeks after a complete crush of thoracic spinal cord to a location 1 mm rostral to the injury (Figure 4A). After sacrifice, examination of the crush site in sections of spinal cord confirmed injury completeness, as evidenced by a lack of astrocytic bridges and lack of retrograde label distal to the injury (Figure 4B). In cleared brains, examination of retrograde mGL showed a broad distribution of signal (Figure 4C–G), and in all regions the nuclei counts did not differ significantly from those found previously in uninjured animals with similar thoracic injections (Figure 4H). These data quantitatively verify AAV2-retro’s ability to effectively deliver transgenes to a wide diversity of cell types in the chronic phase of injury, meeting an important perquisite for eventual translation.

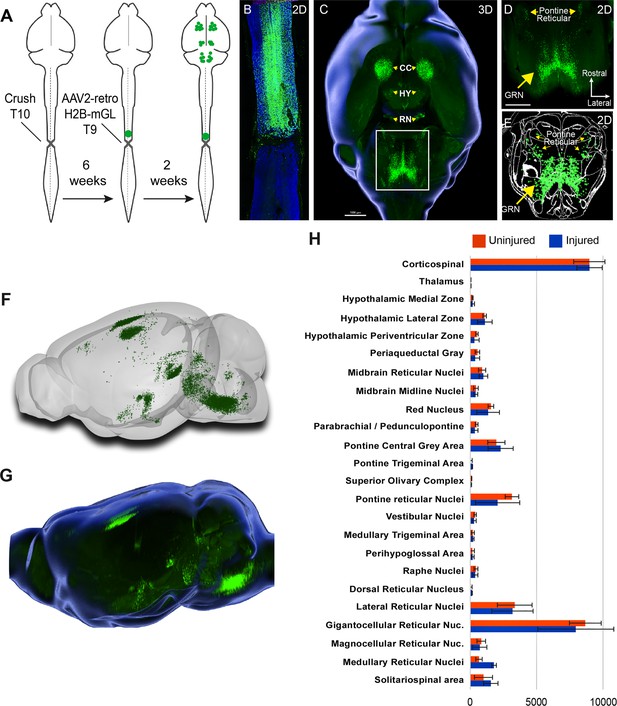

Retro-AAV2 effectively transduces neurons when delivered to the chronically injured spinal cord.

(A) Experimental design. A complete crush injury was delivered to lower thoracic spinal cord, followed 6 weeks later by injection of AAV2-retro-H2B-mGL rostral to the injury. Two weeks post-injection, animals were euthanized, brains were cleared and imaged with light sheet microscopy, and images were processed for registration and quantification by cellfinder and brainreg. (B) Horizontal spinal section stained for GFAP (blue), confirming the complete crush and verifying transduction (green) rostral but not caudal to the injury. (C–E) Horizontal views of the brain from the same animal of section in (B). (C) shows a 3D overview, (D) shows a higher magnification view of the brainstem, and (E) shows cellfinder output with retrograde mGL detection in green. (F) Brainrender output showing lateral views of the same brain in (C). (G) Imaris 3D-generated equivalent lateral view of the brain in (F). (H) Quantification of retrograde nuclei detected in 25 brain regions, comparing uninjured animals (orange) to chronically injured animals (green). No regions displayed statistical differences (p>0.05, two-way ANOVA with post-hoc Sidak’s). N = 4 animals per group. Scale bars are 1 mm.

We next applied whole-brain quantification to a central challenge in SCI research, the issue of injury variability. In both the clinic and the laboratory, spinal injuries are often incomplete and leave inconsistent numbers of spared connections in each individual (Fouad et al., 2021 ). To generate a range of injury severities, adult mice received crush injury to T10 spinal cord using forceps fitted with stoppers of defined thickness. The crush model was selected based on resource availability, prior use in assessing axon regeneration in mouse models (Inman and Steward, 2003; Liu et al., 2010; Leibinger et al., 2021; Brommer et al., 2021; Du et al., 2015), and its demonstrated ability to produce graded injuries by varying the stopper width (Plemel et al., 2008). The animal received severe injuries (0.15 mm stoppers), moderate injury (0.4 mm stoppers), and mild injury (spinal cord displaced by the forceps width but not squeezed) (Cho et al., 2010 ). AAV2-retro-H2B-mGL was injected to L4 spinal cord 7 weeks post-injury and tissue was analyzed 2 weeks post-injection (Figure 5A). In selecting the L4 location, we considered that short-distance sprouting, but not long-distance axon extension, occurs spontaneously after injury (Filli et al., 2021; Bareyre et al., 2004 ). Accordingly, the L4 injection site was chosen to target spared axons, while minimizing the potential for injected virus to spread above the injury location.

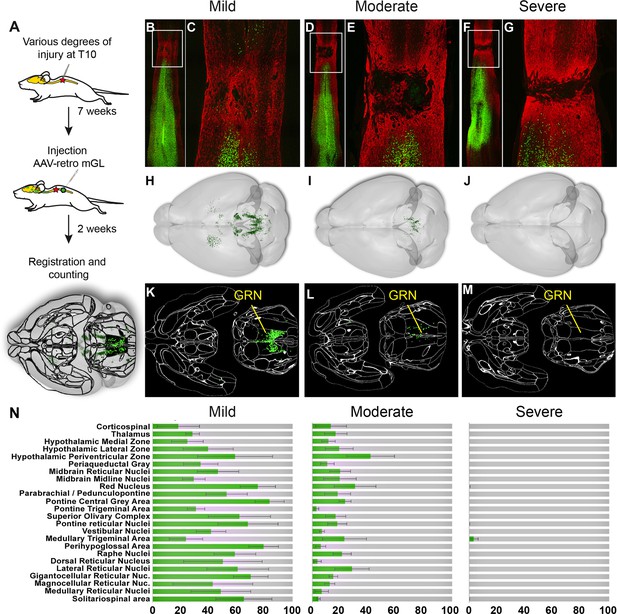

Figure 5 with 2 supplements see all
Brain clearing and registration quantifies region-specific sparing across a range of spinal injury severities.

(A–G) Animals received thoracic crush injuries of controlled widths, followed 8 weeks later by injection of AAV2-retro-H2B-mGL to L4 spinal cord. Horizontal spinal cord sections show mild (B, C), moderate (D, E), or severe (F, G) injury, with GFAP in red and viral transduction in green. (H–M) Horizontal views of the brains from the same animals of the spinal cord sections above, showing progressive reduction in the number of retrogradely labeled neurons as injury severity increases. (H–J) show brainrender depictions of whole brain, (K–M) show one 2D cellfinder plane output with brain regions outlined and detected mGL in green on the right panels. (N) Quantification of percent sparing in identified brain regions, with the average value from uninjured animals set as 100. N = 3 mild, 6 moderate, and 3 severely injured animals. GRN, gigantocellular reticular nucleus. Scale bars are 1 mm.

First, viral targeting and injury severity were assessed in spinal tissue sections (Figure 5B–G); images of all spinal cords are provided in Figure 5—figure supplement 1. Crush injuries in mice produce fibrotic scars that can be recognized by high GFAP signal surrounding a GFAP-negative core, indicating interruption of the initial astrocytic continuity (Liu et al., 2010; Soderblom et al., 2013 ). We assessed the relative injury severity by quantifying the width of GFAP bridges that spanned the injury, normalized to total width of the spinal cord. As expected, mild injuries displayed elevated GFAP at the crush site but overall astrocytic continuity (92.5% ± 2.0 SEM) (Figure 5B and C, Figure 5—figure supplement 2). Severe injuries completely abolished astrocytic continuity in two animals and reduced the third to 0.73% of initial. Moderate injury produced a significant reduction in astrocytic bridging compared to mild injury (32.2%±7.0 SEM, p=0.005 ANOVA with post-hoc Sidak’s) but with considerable variability (range 8.4–75.4%). Overall, as intended, the injuries displayed a wide range of severity.

To assess residual brain–spinal cord connectivity, supraspinal neurons were registered and quantified by the pipeline described above (Figure 5H–N). Note that although we detected some inter-animal variability in the injection location (e.g., more caudal in animals 179 and 187), our prior findings indicate this will have minimal impact on retrograde cell counts in the brain (Figure 1—figure supplement 5). Raw values for all brain regions are provided in Source data 1, and Figure 5N shows values normalized to region counts in uninjured mice, thus creating an index of sparing for each region. Mice that received severe injuries showed a maximum of 29 labeled cells brain-wide, confirming disruption of descending axon tracts (Figure 5J, M and N). In contrast, mild injuries averaged only a 43% reduction in retrograde label, with high variability between different supraspinal populations (Figure 5H, K and N). For example, the CST was strongly affected, averaging less than 20% sparing, while neurons near the pontine central gray and the RN averaged 83.3 and 75.1% sparing, respectively (Figure 5N). The moderate injury group showed a brain-wide average of 24.2% sparing, also with high variability between animals (range 3.4–36.3%) (Figure 5I, L and N). As in the mildly injured animals, CST neurons were affected more strongly than other populations such as the PGC and RN, although the animal with the highest overall sparing showed an unusual pattern of nearly 70% persistence of the corticospinal tract (Figure 5N). In summary, these data confirm the ability of brain-wide analysis to detect overall sparing differences in groups of animals that received injuries of different severity, and more importantly to detail differences in the injuries’ effects on individual animals and on individual cell populations.

We next asked how indexes of sparing correlate with functional recovery from spinal injury as assessed by the Basso Mouse Scale (BMS) motor score, a well-established measurement of hindlimb function and interlimb coordination (Basso et al., 2006). The BMS is a nonlinear, progressive scale between 0 (no hindlimb movements) and 9 (normal locomotion). Importantly, scores <4 indicate an absence of weight-bearing steps from a paw placed in the normal plantar orientation, while scores of ≥4 indicate locomotion with gains in frequency, paw placement, and limb coordination. As expected, BMS scores averaged lower in animals that received severe injury versus moderate or mild (Figure 6—figure supplement 1). Notably, however, variation in BMS scores was evident within severity groups.

We hypothesized that variability in motor recovery may reflect in part inter-animal differences in the amount of sparing of supraspinal neurons. Of the 12 animals, 4 recovered to a level of consistent plantar stepping (BMS ≥ 5), whereas 8 animals displayed no or infrequent stepping (BMS ≤ 3.5). We reasoned that comparing spared neurons between the two groups could provide a first-pass indication of the involvement of different brain regions. Specifically, instances of high sparing in impaired animals would indicate that a region is insufficient to confer recovery of stepping, while instances of near-ablation in animals with high performance would indicate that the region is dispensable. Thus, one signature of a stepping-relevant region would be nonoverlapping values of sparing between impaired and high-performing animals. We therefore visualized the range of values in each brain region by plotting the number of spared neurons against the final BMS score, followed by testing for significant differences in sparing between impaired and high-performing groups using thresholds adjusted for multiple comparisons (Figure 6A–C).

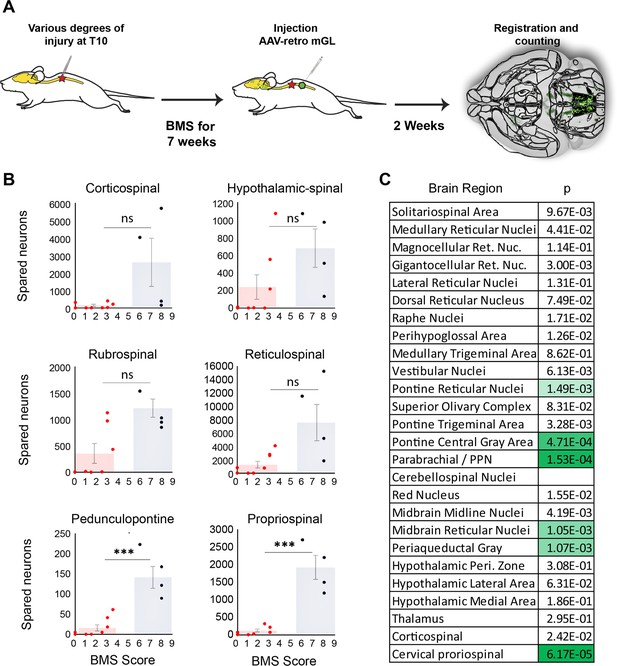

Figure 6 with 2 supplements see all
Mice that recover frequent plantar placement after injury differ significantly in neuronal sparing in selected brain regions.

(A) Experimental design. Adult mice received graded spinal cord injuries followed by weekly Basso Mouse Scale (BMS) testing. Then, 7 weeks post-injury animals received lumbar (L4) injection of retro-AAV2-H2B-mGL, followed 2 weeks later by perfusion, 3D imaging of brains, registration, and region-specific quantification of spared neurons. (B) Mice were divided into two groups according to whether they regained frequent plantar stepping motions (blue, BMS > 5) versus no or infrequent plantar steps (red, BMS < 4) and then tested for significant differences in spared neurons in each of the 26 brain and spinal regions. Example scatterplots with overlaid averages show overlap in spared counts in most brain regions, but group separation and significant differences in selected regions including the pedunculopontine nucleus (PPN) and cervical spinal cord. (C) The significance level of sparing differences between the two groups across all brain regions. N = 4 skilled steppers, 8 impaired. p determined by paired t-tests with significance threshold set by Bonferroni’s correction for multiple comparisons.

In most brain regions, the number of spared neurons did not differ significantly between impaired and high-performing groups, accompanied by examples of overlap discussed above. For example, sparing in hypothalamic-spinal neurons did not differ between groups and multiple instances existed of both high-sparing/low-performance and low-sparing/high-performance (Figure 6B). Thus, as expected from its predominantly autonomic role, the amount of sparing in hypothalamic-spinal regions likely did not contribute to differences in motor recovery. Similarly, two animals that achieved high walking scores showed near-total ablation of the CST, indicating a dispensable contribution to flat-ground locomotion. Conversely, two animals showed high levels of rubrospinal sparing but almost no plantar steps (BMS 3), indicating that substantial rubrospinal sparing was insufficient to mediate recovery of stepping motions. In contrast, sparing in supraspinal neurons located in the dorsal pontine region, most notably the pedunculopontine region, differed significantly between the two groups, with the most damaged animal in the high-performing group exceeding the maximum value in the impaired group (Figure 6B). Interestingly, the number of spared neurons in the cervical spinal cord also differed significantly and showed the widest gap between the maximum impaired value and the minimum high-performing value, thus highlighting the potential importance of cervical neurons as a supralumbar control center (Zholudeva et al., 2021). Images of spared propriospinal neurons in cervical spinal cord are provided in Figure 6—figure supplement 2. Overall, these data highlight brain regions with a cross-animal pattern of sparing that is consistent with a role in functional recovery, providing a preliminary indication of the potential utility of whole-brain imaging and quantification to partially explain variability in functional outcomes after spinal injury.

Discussion

We have assembled an experimental pipeline and associated web-based resource that provides comprehensive quantification and visualization of neurons that project from the murine brain to specific levels of the spinal cord. Supraspinal-projecting populations are numerous and diverse, yet prior publications, particularly in the SCI field, have focused disproportionately on specific sets of nuclei and a handful of major pathways (Blackmore et al., 2021). The approach presented here is needed to spur progress by clarifying the complex arrangement of supraspinal neurons and providing a roadmap for a practical means to assess post-injury connectomes across the entire brain in numerous animals within an experimental study. This approach opens the door to more comprehensive analyses of changes in supraspinal connectivity in response to disease and injury, and conversely to profile without bias the brain-wide efficacy of pro-regenerative therapeutics.

Improved cell detection in optically cleared tissue

An essential element of this approach is the deployment of newer-generation FPs, mScarlet, and mGreenLantern, with nuclear targeting (Bindels et al., 2017; Campbell et al., 2020 ). Compared to prior vectors, we showed strongly enhanced detection of retrogradely transduced neurons, most notably in the brainstem, an important source of supraspinal control. This likely reflects the relative concentration of fluorescence in the nucleus, augmented by slower protein turnover and reduced interference from intervening axon tracts. It is likely that prior work, including our own and a recent description of CST neurons in cleared brains, underestimated the number of retrogradely transduced neurons (Wang et al., 2018; Steward et al., 2021 ). Thus, nuclear-localized mSc and mGL expand the tool kit for neuronal labeling in cleared tissue and allow flexibility in dual-labeling experiments.

Toward a more accessible supraspinal connectome

We designed our workflow to meet two central objectives: quickly assign supraspinal neurons to precise locations and disseminate this information in a cohesive, practical fashion (Tyson and Margrie, 2021). Prior work has employed retrograde tracing and manual scoring of brain sections to meticulously catalog supraspinal populations, and in most cases this foundational work should be considered definitive (Leong et al., 1984, Liang et al., 1997). Indeed, the broad concordance of these prior human-curated efforts with our automated registration approach, highlighted in ‘Results,’ provides essential validation (Nudo and Masterton, 1988; Kuypers and Martin, 1982; Leong et al., 1984; Liang et al., 1997; Flumerfelt and Gwyn, 1974; Ruder et al., 2021; McCrea and Horn, 2006 ). As one standout example, the detection of cervically projecting neurons in the amygdala was initially surprising, but a literature search revealed a decades-old description of this pathway in monkeys and more recently in mice (Liang et al., 1997; Mizuno et al., 1985). Indeed, prior description can be found for nearly all populations detected in our workflow. The disparate and often nonquantitative nature of prior work, however, presents significant challenges to effective utilization. These challenges are compounded by the anatomical complexity and the difficulty of synthesizing anatomical data presented in 2D or described in reference to anatomical landmarks. The pipeline presented here marks an important step in overcoming these challenges by offering standardized detection, registration, and quantification of supraspinal populations across the brain. In addition, the ability to visualize populations in 3D lowers conceptual barriers by generating intuitive insights between the data and brain regions. By focusing on connectivity between the brain and spinal cord, this novel resource fills a gap in existing web-based neuroanatomical atlases, which focus mostly on intra-brain circuitry. Illustrating the utility, next we highlight several key insights of high significance to both basic neuroanatomy and to preclinical research that were enabled by the new approach.

Global assessment of cervical/lumbar topographic mapping from supraspinal neurons

As noted previously by us and others, the present data indicate that AAV2-retro is taken up by axon terminals but minimally or not at all by fibers of passage (Wang et al., 2018; Steward et al., 2021; Sathyamurthy et al., 2020). For example, injection of AAV2-retro to cervical spinal largely fails to label cerebellospinal and rubrospinal neurons that innervate lumbar regions. Although this may partly reflect the gray matter injection coordinates, it should be noted that virus readily diffused to contralateral spinal cord, as evidenced by symmetrical retrograde label in the brain, and therefore likely also spread to ipsilateral fibers of passage. Thus, limited uptake by axons of passage likely reflects a property of AAV-retro, which we speculate may be a synaptic mechanism of uptake.

Whatever the mechanism, this property of AAV2-retro affords an opportunity to classify supraspinal neurons based on innervation of cervical gray matter, lumbar gray matter, or both. This distinction is an important parameter of neural function that sets a baseline prediction for the capacity to coordinately regulate spinal multiple levels or conversely to achieve level-specific communication. Classical anatomical studies have shown extensive collateralization in several descending tracks with some interspecies differences (Honsay, 1952 Hayes and Rustioni, 1981; Martin et al., 1981; Huisman et al., 1982; Huisman et al., 1981). Consistent with prior work, we find that several supraspinal neuronal populations project to both the cervical and lumbar cord and the distribution of double-labeled neurons varies across nuclei (Sathyamurthy et al., 2020; Usseglio et al., 2020; Huisman et al., 1982; Huisman et al., 1981 ). Some of these populations, such as the CST, show a higher innervation density in cervical compared to lumbar cord (Sahni et al., 2021; Fiederling et al., 2021). Among those neurons that extend axons to lumbar spinal cord, we detected cervically derived label in about 42%. When adjusted for the imbalance in labeling efficacy between fluorophores (mSc co-labeled only about 65% of the mGL-labeled cells even when co-injected), this finding indicates that across the whole brain a slight majority of lumbar-projecting supraspinal axons likely also collateralize to some extent in cervical spinal cord. This overall conclusion, however, must be qualified in two important ways, however. First, the degree of dual labeling varied widely between populations. For example, we detected cervical label in less than 15% of supralumbar neurons in the deep cerebellar and red nuclei compared to more than 50% in the lateral hypothalamus and gigantocellular reticular. By using a consistent methodology, our approach has revealed large differences in the relative tendency of different supralumbar populations to collateralize in cervical gray matter.

The second qualifier regards the wide range of cervically derived signal intensity within lumbar-projecting neurons. In the CST, lumbar-projecting neurons often took up cervical AAV2-retro injected to cervical spinal cord, indicating some dual innervation, yet the resulting fluorescence was generally quite dim. An explanation may be that viral uptake is proportional to the degree of collateralization, such that neurons with very few collateral branches near the injection site receive a lower copy number. We favor this model over alternatives, such as cross-interference between viruses, because (1) when two viruses are co-injected the fluorescence intensity of each correlates positively, not negatively, with the other and (2) the lumbar-derived signal, unlike the cervical, is no dimmer in dual-labeled CST neurons than lumbar-only neurons. The model that retrograde labeling is proportional to the amount of innervation would predict that lumbar-projecting CST axons may send collaterals to cervical targets but at a density that is lower than in the lumbar cord, and also lower than CST neurons that project only to cervical cord. Indeed, this is the pattern reported for CST neurons by anterograde tracing in two recent studies (Steward et al., 2021; Sahni et al., 2021). More broadly, this model would emphasize that dual innervation of spinal regions is not a binary distinction but rather should be understood as a continuum, a graded tendency of lumbar-bound axons to collateralize by varying amounts in cervical tissue. This model also points toward an important technical implication: conclusions about rates of dual innervation will necessarily depend on the threshold of detection. Indeed, based on the observed range of intensities in CST neurons, we can estimate that in a hypothetical scenario in which only the brightest 20% of neurons labeled from cervical cord were detected, the estimated rate of dual innervation would decrease by nearly 80% as dual-labeled neurons with dim cervical label disproportionally ‘drop out.’ We speculate that this phenomenon may help explain why our current estimates of dual innervation by lumbar-projecting neurons trend higher than prior reports: we found 8% in the cerebellospinal versus complete segregation previously (Sathyamurthy et al., 2020), over 50% in the CST compared to almost none previously (Steward et al., 2021), and more than 40% in the gigantocellular compared to about 20% previously (Usseglio et al., 2020). One explanation may be that with bright, nuclear-localized fluorophores and 3D confocal microscopy we detect a larger proportion of lumbar-projecting neurons with only dim labeling from cervical targets. Indeed, our own prior assessment of dual innervation by CST neurons based on less sensitive light sheet microscopy likely missed these dimmer cells. In summary, our data suggest a working model in which some supraspinal neurons that innervate the lumbar spinal cord also strongly innervate cervical targets while many others show strong preferential innervation of lumbar targets, but with nonzero levels of cervical collateralization and residual uptake of AAV2-retro.

Retrograde gene delivery to chronically injured supraspinal neurons

Our findings have important implications for research that aims to address the needs of individuals that suffer from supraspinal disruptions such as SCI. Besides the well-studied locomotor and fine motor deficits, SCI also affects sensation, bladder and bowel control, sexual function, basic postural control, cardiovascular tone, thermoregulation, and even metabolism (Anderson, 2004 ). Supraspinal populations that serve these functions are known, yet their response to injury and to attempted pro-regenerative strategies is largely uncharacterized (but see Adler et al., 2017 for an example of CNS-wide profiling). Treatments can advance even to clinical trials with limited information on how or if they influence axon growth in tracts beyond the major motor pathways. Thus, although much progress in this direction has been made, there arguably remains a mismatch between the varied concerns of individuals suffering from SCI and the narrower anatomical focus of SCI research. In this context, the brain-wide workflow presented here offers an example of a practical means to expand the study of nonmotor systems, and to populations that likely modulate the major motor pathways. Specifically, as pro-regenerative treatments are tested in preclinical mouse models, the whole-brain pipeline presented allows the response of diverse cell types to be monitored with the throughput needed for SCI studies. As a first illustration of this strategy, we used the pipeline to determine how the chronic injury state impacts transduction by retrograde vectors. This is an important consideration for the translational prospects of gene therapy approaches to treat CNS damage. We showed quantitatively that gene delivery remained highly effective and widespread in chronic spinal injury, information that is needed to proceed with gene therapy-based treatments of the broad concerns discussed above. In summary, adoption of this connectome-level approach has the potential to sharpen the predictive power of preclinical work and help to better align it with the concerns of individuals with SCI.

Implications for the neuroanatomical–functional paradox in spinal injury research

Another central challenge in the SCI field is the neuroanatomical–functional paradox, which refers to the fact that the size of lesions in the spinal cord is poorly predictive of functional outcomes (Fouad et al., 2021 ). This unpredictability of SCI outcomes is a major stumbling block that has likely contributed to challenges of reproducibility in the field (Steward et al., 2012). The recovery of various functions after spinal injury is almost certainly impacted by the amount of residual supraspinal connectivity from specific brain regions, yet the field has lacked a practical means to quantify this key variable from most supraspinal populations. We now demonstrate comprehensive quantification of the variability of residual brain–spinal connectivity across injury types and between animals. Prior work has shown that detailed analysis of the spinal injury site, for example, the amount of spared white matter, can partially explain variation in functional recovery (Fouad et al., 2021 Loy et al., 2002; Schucht et al., 2002 ). We speculate that complementing these existing approaches with complete quantification of residual supraspinal connectivity could significantly boost the ability to predict and explain differential outcomes. It is important to note that even a consistent correspondence between a population’s sparing index and the degree of functional recovery does not necessarily imply functional involvement; it could, for example, be caused by axon trajectories in proximity to more functionally relevant tracts. In cases where the absolute number of supraspinal axons is low, or where prior findings contradict functional involvement, the correlations are likely by-products. The value of associating functional recovery with residual connectivity across the brain is to rapidly generate and prioritize functional hypotheses, which must be synthesized with existing information. Ultimately the functional contribution of discrete populations must be tested directly, for example, with targeted chemogenetic or optogenetic inhibition. The value of the current approach is to prioritize those efforts by directing attention toward neural populations whose pattern of sparing is most consistent with a functional role.

As one example, our data detect a direct projection from the PPN and the lumbar spinal cord and a high correlation between maintenance of this pathway with locomotor function after SCI. Interestingly, the PPN lies within the MLR, an area that has been recognized for more than 50 years as an important area for locomotion (Gatto and Goulding, 2018; Shik et al., 1969 ) but which has received limited attention in SCI research. Thus, the correlational analysis presented here raises the hypothesis that in addition to rubrospinal and reticulospinal projection, the maintenance and regeneration of PPN-spinal projections may impact locomotor recovery from spinal injury. By directing attention toward lesser-studied but potentially significant regions, the integrated approach presented here can point toward the key functional experiments needed to help resolve the variability in outcomes that currently challenge the field.

Important caveats to the approach should be considered. First, although the crush model has been used to assess axon regeneration in the mouse (Liu et al., 2010; Leibinger et al., 2021; Brommer et al., 2021 Du et al., 2015), it must be acknowledged that it does not mimic the acute impact involved in most human injuries. For example, it was noted previously that spinal contusion can leave an outer rim of spared tissue, which may favor residual brainstem–spinal connectivity (Asboth et al., 2021 ). Thus, the results presented here should be understood as a proof of concept that whole-brain analyses can detect region-specific differences in sparing across injury severities, but an important future direction will be to evaluate sparing in contusion models that better mimic human injury (Cheriyan et al., 2014). Second, automated detection of nuclei likely remains imperfect and is impacted by the image quality of LSFM, notably stretching in the Z plane. Continued improvements with more isotropic acquisition in light sheet microscopy and in trained detection of nuclei will likely resolve these lingering issues (Chakraborty et al., 2019; Strack, 2021 ). A third caveat regards viral tropism, for example, AAV2-retro appears less effective at transducing serotonergic cell types, thereby limiting the assessment of raphe-spinal projections (Wang et al., 2018). This limitation will likely be addressed as additional retrograde variants are made (Davidsson et al., 2019 ). Fourth, it is important to note that brain injury and disease can potentially alter the size of individual brain regions, but that the process of image registration smooths and obscures these differences (Niedworok et al., 2016 ). Thus, the workflow here is not suited to detect region-specific volumetric changes, and care should be taken in interpreting the results of registration in areas where large changes may have occurred. Finally, we have applied this approach only to descending inputs to the spinal cord, and not to ascending tracts. In principle, a similar retrograde strategy could quantify neurons that give rise to ascending input, and a promising future direction would be to incorporate this information into predictive models for function after partial spinal injury. However, while these and other future developments are likely to further improve the approach, the present iteration provides information on an unprecedented scale and has yielded new insights into the complexity of supraspinal populations and their variable response to spinal injury.

Materials and methods

Animal information

Request a detailed protocol

All animal procedures were approved by the Marquette University Institutional Animal Care and Use Committee and complied with the National Institutes of Health Guide for the Care and Use of Laboratory Animals. Adult female C57BL/6 mice (6–8 weeks old, 20–22 g) were used for these experiments. Age at the day of surgery was 8 weeks and mean weight was 20 g. Groups for initial fluorophore optimization were mScarlet cytoplasmic, L1 injected, 4 weeks: 4 animals; H2B-mScarlet, L1 injected, 4 weeks: 4 animals; H2B-mScarlet, L1 injected, 2 weeks: 8 animals; H2B-mGreenLantern, L1 injected, 2 weeks: 8 animals. Group sizes for cleared and registered brains were L1 injected: 10 animals; L3/4 injected: 5 animals; T10 injected: 4 animals; cervical/lumbar co-injected: 4 animals; chronically injured: 3 animals; moderately injured: 6 animals; mildly injured: 3 animals; severely injured: 3 animals. In the L1-injected group with 2 weeks survival, one H2B-mGL-injected animal showed likely blockage of the injection needle as evidenced by lack of local transduction at the injection site, and one H2B-mSc-injected animal suffered tissue damage during the brain dissection. These animals were excluded, leaving seven per group. The room temperature was set at 22°C (±2°C) and room humidity was set at 55% (±10%). Mice were kept in a 12 h light/dark cycle with access to food and water ad libitum. Mice were checked daily by animal caretakers.

Plasmid construction and cloning

Request a detailed protocol

We used two monomeric bright FPs of similar size that encode for mGreenLantern (Campbell et al., 2020) and mScarlet (Bindels et al., 2017) and fused in frame with the core histone H2B in the amino terminus for nuclear localization of the FPs. Both fusions were synthetically constructed (GenScript, USA). The AAV mGreenLantern was constructed first by generating a synthetic cDNA optimized to the Human codon usage. The rat gene H2B/histone H2B type 1C/E/G (accession #NP_001100822) was fused in frame to mGreenLantern with a linker of eight amino acids (PPAGSPPA) between H2B and mGreenLantern. The fusion protein was cloned into pAAV-CAG-GFP (Addgene #37825) by substituting the GFP with H2B-mGreenLantern using restriction enzymes BamHI and XhoI. For the mScarlet, the human H2B-clustered histone 11 (H2BC11) (accession #NM_021058) was fused in frame without a linker and cloned into the pAAV-CAG-tdTomato (Addgene #59462) using the sites KpnI and EcoRI at the 5′ and 3′ end, respectively. Cytoplasmic mScarlet was cloned identically but with the H2B sequence omitted. rAAV2-retro-H2B-mGreenLantern was produced at the University of Miami viral core facility at the Miami Project to Cure Paralysis, titer = 1.4 × 1013 particles/ml. Virus was concentrated and resuspended in sterile HBSS and used without further dilution. The rAAV2-retro-mScarlet and rAAV2-retro-H2B-mScarlet was made by the University of North Carolina Viral Vector Core, titer = 4.3 × 1012 and 8.7 × 1012 particles/ml, respectively.

Spinal cord surgery

Request a detailed protocol

rAAV-retro particles (1 µl) were injected into the spinal cord with a Hamilton syringe driven by a Stoelting QSI pump (Cat# 53311) and guided by a micromanipulator (pumping rate: 0.04 μl/min). AAV viral particles were injected at C4-C5, T10, L1, L4 vertebrae, 0.35 mm lateral to the midline, and to depths of 0.6 and 0.8 mm. For the spinal cord crush injuries, adult female C57BL/6 mice (6–8 weeks old, 18–22 g) were anesthetized by ketamine/xylazine. After laminectomy of vertebra, T10-12 forceps with stoppers of 0.15 mm (narrow gap, severe injury) or 0.4 mm (moderate injury) were used to laterally compress the spinal cord for 15 s, then flipped in orientation and reapplied at the same site for an additional 15 s. To produce mild injuries, forceps were placed laterally to the cord and within the vertebral column, resulting in some tissue displacement, but not squeezed.

BMS scoring

Request a detailed protocol

Starting 1 week post-injury, mice were digitally recorded while engaging in open-field locomotion. Two blinded observers evaluated each mouse using the 10-point BMS (Basso et al., 2006). The BMS is a nonlinear, progressive scoring system that assesses aspects of locomotion including joint movement, plantar versus dorsal paw placement, stepping, paw placement, limb coordination, and trunk support. Differences in scores between observers triggered discussion followed by consensus scoring. When scores differed between right and left hindlimb, the BMS score is reported as the average of the two. Testing was performed weekly for 7 weeks.

Tissue clearing and imaging

Request a detailed protocol

After 2–4 weeks of viral expression, the animals underwent transcardial perfusion with 0.9% saline and 4% paraformaldehyde (PFA) solutions in 1× phosphate-buffered saline (PBS) (15710, Electron Microscopy Sciences, Hatfield, PA). Whole brains and spinal cords were dissected and fixed overnight in 4% PFA at 4°C and washed three times in PBS pH 7.4, followed by storage in PBS. The dura was carefully removed and brains and spinal cords were cleared using a modified version of the 3DISCO (Wang et al., 2018; Soderblom et al., 2015 ). To prepare tissue sections, brains were embedded in gelatin, fixed overnight in 4% PFA, then sliced in the transverse plane at 1.5 mm intervals, proceeding rostrally from a first cut positioned at the pyramidal decussation (Leica VT1200), then stored in PBS with.02% w/v NaAzide. Whole mouse brains were incubated on a shaker at room temperature in 50%, 80%, and twice with 100% peroxide-free tetrahydrofuran (THF; Sigma-Aldrich, 401757) for 12 hr each for a total of 2 days. Tissue sections were treated similarly but with shortened incubation times, 2 hr for the 50%, 80%, and first 100%, then overnight for the second 100%. Peroxides were removed from THF by using a chromatography column filled with basic activated aluminum oxide (Sigma- Aldrich, 199443) as previously described (Becker et al., 2012). Samples were transferred to BABB solution (1:2 ratio of benzyl alcohol, Sigma-Aldrich, 305197; and benzyl benzoate, Sigma-Aldrich, B6630) for at least 3 hr (whole brains) or 1 hour (sections). After clearing, whole brains were imaged the same day using light sheet microscopy (Ultramicroscope, LaVision BioTec). The ultramicroscope uses a fluorescence macro zoom microscope (Olympus MVX10) with a 2× Plan Apochromat zoom objective (NA 0.5). Image analysis and 3D reconstructions were performed using Imaris v9.5 software (Bitplane, Oxford Instruments) after removing autofluorescence using the Imaris Background Subtraction function with the default filter width so that only broad intensity variations were eliminated. The 1.5 mm sections were imaged using a high-speed confocal, Andor Dragonfly 202-2540 (Oxford Instruments), based on a Leica microscope. We used a 10× Plan Apo, NA 0.45 and W.D 2.8. The lasers were a solid-state 488 nm diode laser at 150 mW and OBIS LS 561 smart OPSS laser at 100 mW. Laser power was set at 15% and exposure time for each plane was between 30 ms for mGL and 40–50 ms for mSC. The camera used was a Sona sCMOS 4.2B-6 set at ROI size (W × H) at 1024 × 1024. All images were stitched using Imaris Stitcher Vx64 9.7.2 (Oxford Instruments). After stitching, the 3D rendering was done on Imaris 9.8.2 and the individual nuclei were counted using the spot function at 4 µm diameter in XY and 8 µm in Z. The segmentation was set based on the histogram values and manually adjusted to cover all spots in the red and green channels. Background spots were manually deleted and the double-labeled nuclei automatically detected based on distance from H2B-mGL to H2B-mSC set to 4 µm.

Imaris reconstructions

Request a detailed protocol

Image analysis and 3D reconstructions were performed using Imaris v9.5 software (Bitplane, Oxford Instruments) after removing autofluoresence using the Imaris Background Subtraction function with the default filter width so that only broad intensity variations were eliminated. Additionally, the entire brain was defined as an ROI in order to mask all background fluorescence outside the spinal cord surface. Artifact and nonspecific fluorescence surrounding the brain were segmented and removed using the automatic isosurface creation wizard based upon absolute intensity. Voxels contained within the created surface were set to zero, and the remaining mask was used for all further analysis. Automatic segmentation of nuclei within specified ROIs was applied using the spots detection function and later superimposed on a maximum intensity projection volume rendering of the tissue. For some of the figures, surfaces were created around the brains and spinal cords to make them more evident in the 3D reconstructions. Quality thresholds were set based upon visual inspection of the mixed model rendering for both spots and surfaces.

Immunohistochemistry

Request a detailed protocol

Adult animals were perfused with 4% PFA in 1× PBS (15710, Electron Microscopy Sciences), brains, and spinal cords removed, and post-fixed overnight in 4% PFA. Transverse sections of the spinal cord or cortex were embedded in 12% gelatin in 1× PBS (G2500, Sigma-Aldrich, St. Louis, MO) and cut via Vibratome to yield 100 μm sections. Sections were incubated overnight with primary antibodies GFAP (DAKO, Z0334 1:500, RRID:AB_10013482), rinsed, and then incubated for 2 hr with appropriate Alexa Fluor-conjugated secondary antibodies (R37117, Thermo Fisher, Waltham, MA, 1:500). Fluorescent images were acquired using Olympus IX81 or Zeiss 880LSM microscopes.

Analysis using computational neuroanatomy

Request a detailed protocol

We used the BrainGlobe’s Initiative software (https://brainglobe.info) of interoperable Python-based tools for the analysis and visualization of the data. For each brain, we captured approximately 500 images. Image planes were captured in a sequence and orientation to maximize compatibility with Brainglobe workflows, specifically in ventral-to-dorsal sequence and with the caudal end of the brain oriented to the left (https://github.com/brainglobe). The 2D images first were assembled in Imaris v9.3.5 and 9.5 (Bitplane, Oxford Instruments). Two channels were created: one to subtract the positive cell signal and generate another set with only background fluorescence. Images were exported to ImageJ to create a new set of TIFF files. The TIFF files of the sample images were further analyzed with a set of neuroanatomical computational tools developed for analysis of brain serial section imaging using light sheet microscopy. First, we fed both sets of images, background and positive signal images, into the cellfinder, a deep-learning network (residual neural network), to detect the positive cells (https://github.com/brainglobe/cellfinder; Tyson and Margrie, 2021) followed by registration and segmentation into a template brain with anatomical annotations based of the Allen Reference Mouse Brain Atlas (https://github.com/brainglobe/brainreg; Tyson et al., 2022) and finally visualized with the brainrender (https://github.com/brainglobe/brainrender; Claudi et al., 2022).

Quantification and statistics

Request a detailed protocol

Throughout the article, means are used as summary values and standard error of the mean (SEM) as the indicator of variability. Data were tested for assumptions of parametric tests using Kolmogorov–Smirnov and Levene’s tests. Values for N, the specific tests and post-hoc analyses, and p-values are provided in the figure legends and in the test of the ‘Results’ section. All manual quantifications, including behavioral assessment and measurements of lesion size, were performed by blinded observers. Statistical analyses were performed using Prism (GraphPad).

Data availability

All data generated or analysed during this study are included in the manuscript and supporting file or on the associated website 3Dmousebrain.com. Source Data 1 contains complete numerical data from all animals and Source Data 2 contains the numerical data used to generate all figures.

References

    1. Flumerfelt BA
    2. Gwyn DG
    (1974)
    Proceedings: The red nucleus of the rat: its organization and interconnexions
    Journal of Anatomy 118:374–376.
    1. Hoff EC
    (1932) The distribution of the spinal terminals (boutons) of the pyramidal tract, determined by experimental degeneration
    Proceedings of the Royal Society of London. Series B, Containing Papers of a Biological Character 111:226–237.
    https://doi.org/10.1098/rspb.1932.0053
    1. Honsay RC
    (1952)
    Foundation of the institute of experimental biologyFoundation of the Institute of Experimental Biology
    Medicina y Cirugia 16:315–324.
  1. Book
    1. Kuypers H
    2. Martin G
    (1982)
    Descending pathways to the spinal cord
    In: Wiener N, editors. Progress in Brain Research. Elsevier. pp. 178–202.
    1. Loy DN
    2. Magnuson DSK
    3. Zhang YP
    4. Onifer SM
    5. Mills MD
    6. Cao Q
    7. Darnall JB
    8. Fajardo LC
    9. Burke DA
    10. Whittemore SR
    (2002)
    Functional redundancy of ventral spinal locomotor pathways
    The Journal of Neuroscience 22:315–323.
    1. Shik ML
    2. Severin FV
    3. Orlovsky GN
    (1969)
    Control of walking and running by means of electrical stimulation of the mesencephalon
    Electroencephalography and Clinical Neurophysiology 26:549.
  2. Book
    1. Yu M
    2. Wang SM
    (2020)
    Neuroanatomy, Interstitial Nucleus of Cajal
    StatPearls Publishing.

Decision letter

  1. Muriel Thoby-Brisson
    Reviewing Editor; CNRS Université de Bordeaux, France
  2. Ronald L Calabrese
    Senior Editor; Emory University, United States
  3. Julien Bouvier
    Reviewer; Université Paris-Saclay, CNRS, France
  4. David SK Magnuson
    Reviewer; University of Louisville, United States

Our editorial process produces two outputs: (i) public reviews designed to be posted alongside the preprint for the benefit of readers; (ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Decision letter after peer review:

Thank you for submitting your article "Brain-wide analysis of the supraspinal connectome reveals anatomical correlates to functional recovery after spinal injury" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Ronald Calabrese as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Julien Bouvier (Reviewer #2); David SK Magnuson (Reviewer #3).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

Your paper has been examined by three reviewers and myself. Below are their detailed reviews, but please find here a quick summary of their main comments that must be addressed in a revised version in order for us to judge the potential suitability of your study for publication in eLife.

(1) Significantly reorganizing the text and improving the figures would help the readers to focus on the most conceptually important parts of the study. Also reviewers found lack of precisions and clarity throughout the manuscript. Please improve.

(2) Dampen the claims that you are the first to use some methods (such as the use of the AAVretro co-injection for example), or that you are providing an experimental platform enabling you to easily perform the same type of analysis.

(3) Quantify the number and localization of the double-labeled cells in the nervous system. Indeed the difference between cervical and lumbar projections might be one of the more interesting aspects of the paper, but quantification and statistics are required here.

(4) Lesions/injuries must be much more precisely described, detailed, explained, justified, quantified (severity assessment) together with their variability and their rationale to be compared to clinical situations.

(5) Improve the way to assess injury/recovery relationships and make sure that the linear regression analysis is the most appropriate and properly performed. We have concerns about statistics and the use of regression analysis, which is quite weak (flawed?) despite being an "accepted" practice.

Reviewer #1 (Recommendations for the authors):

I am overall very enthusiastic about the potential that there is in this study, but there are important caveats at this stage. I will therefore support its publication only after strictly all the caveats listed below are thoroughly addressed, including by substantial improvements of the analysis and the illustrations.

1. The manuscript is globally very well written and reads smoothly but it is often hard to "see the forest for the trees" and get a clear take-home message. There are 3 parts, and I consider parts 2 (cervical/lumbar) and 3 (SCI) to be the most informative, conceptually. While acknowledging that the methodology (part 1) is novel and elegant, it uses a substantial number of figures, sometimes for little information. Figure 1 for instance is totally dispensable (at least in the main figures, text paragraphs are also long) since the cell-filling fluorophores aren't used. Btw, the difference in cortical labeling in panels C and D is far from obvious. Figure 3 is also, to me, noise in the story. What is the rationale of injections at the 3 adjacent segments? The reliability of the approach is already convincingly documented by the consistency of findings across animals when injecting the same segment. Plus, this is not the first time AAVs are used to inject the spinal cord with consistent results (see more comments below on this). One could think this figure asks whether the segregation of projection neurons by targeted segment described for cervical and lumbar (part 2) also applies to smaller spatially resolved segments. Do we have to understand that it is not the case? But if that's the aim, co-labeling with the two colors is needed. Overall, I felt distracted by this "unnecessary" data before reaching the hot topic, which starts at Figure 4 (and of course includes Figure 2 for the method). I strongly encourage simplifying and streamlining by reducing the number of dispensable figures and paragraphs. It will help to highlight the real impact of the work which is the labeling and detection method, the differential connectome, and its relevance post-SCI.

2. Coming to the second part. I feel that the topic covered is whether different supra-spinal brain areas control distinct spinal segments through abundant collaterals, or by specific subsets that differ by their projection targets. This matter is becoming the center of attention in many studies on descending tracts. Yet, the present work fails to draw a clear message regarding this, although all the tools and data seem to be there.

(a) My first major concern is the lack of quantification of double-labeled cells from lumbar and cervical injections elsewhere than in the cortex. In the absence of such quantification, Figure 4N is toxic: (i) it conveys the dangerous message that strictly ALL labeled neurons are either green, or red, and thus project to only cervical or only lumbar segments. Is that so? If so, it is a strong message that will deserve substantial discussion; (ii) it may be interpreted that the imaging or detection fails at detecting double-labeled cells – or small cellular contingents -, which would considerably diminish the impact of the whole work. Therefore, the expression and quantification of double-labeled cells in all brain regions MUST be documented in detail, using the SAME imaging pipeline, as it is done for the CST in panel 4P. On panel 4D, yellow labeling is evident in the medulla, but it could just be a visual artifact on the max projection.

(b) Related to this, other labs have shown various degrees of specialization or collateralization in descending tracts using similar strategies, but these works are not cited. Sathyamurthy, et al., (Levine's lab: Cerebellospinal Neurons Regulate Motor Performance and Motor Learning. Cell Rep, 2020) showed exclusive labeling in the cerebellum from combined cervical and lumbar retrograde injections. Usseglio et al., (Bouvier's lab: Control of Orienting Movements and Locomotion by Projection-Defined Subsets of Brainstem V2a Neurons. Curr Biol, 2020) showed specialization in cervical and lumbar projecting neurons in the gigantocellular reticular nucleus. This latter study also identified about 10% of co-labeling. Have the authors here found similar co-labeling in the reticular formation? In general, authors must acknowledge that they are not the firsts to use AAVretro co-injections on descending tracts and must better confront their findings, at the whole-brain scale, to other findings focused on discrete regions when applicable. Likewise, the conclusion that AAVretro is well-suited for terminal-entry and labeling of projection-defined subtypes was already reached by these other publications. Authors could use it to strengthen the validity of their approach (e.g. lines 268, 404, 408/409). Likewise, a recent work by V. Sahni (Corticospinal neuron subpopulation-specific developmental genes prospectively indicate mature segmentally specific axon projection targeting, Cell Reports, 2021) examined differential projections in the CST, which is also relevant here.

(c) At line 266, the co-injection of the two colored viruses in the same segment is claimed to lead to 80% co-labelling, ruling out a preferential expression of one or the other transgene. This is an essential demonstration but neither the quantification nor the data itself are shown. Authors refer to figure 1B/C – they probably mean supplement 1 – but that figure does not show the co-labelling itself at the cellular level nor the quantification. Again, line 411 states "our quantification". This control is made even more important since mGL is way brighter than mSc (btw, this methodological description is also long). This is potentially problematic, and in fact, in Figure 1 supplement 1, more cells are detected in the cortex, pons and medulla with the mGL. This bias must be taken into account: (i) it must be controlled for by co-injecting both viruses in the same segment and quantifying double-labeled cells, (ii) if applicable, it should be highlighted as a potential confounding factor when detecting more cells reaching one segment than the other in the dual tracing experiments of Figure 4. On that note, can it simply be explained by the higher titer of the mGL virus? Ideally, (but I will bear without it if the controls are thoroughly done and show no bias) the same experiments of Figure 4 could be repeated after inverting viruses and/or using the same titers.

(d) On that note also, the choice of the region for inset 2 on Figure 4O is strange: by eye, we see more co-labeling on the periphery of the lumbar-labeled nuclei, but inset 2 magnifies an area with only sparse cervical-projecting cells. Is the co-labeling more massive on the periphery? Where were the counts made to obtain the 1.25 % of co-labeling?

Altogether, it is likely that the second part on the projection patterns to the cervical and lumbar cord will deserve to be unpacked a bit, and making room from the methodology section will help.

3. The spinal cord injury part is very elegant and relevant, but I think it could be brought up sooner in the manuscript. Streamlining some figures before will help. This aspect is in the title but it comes late and is diluted in more "anecdotal" information, so that we are not so receptive anymore to these findings that ARE of great interest. Few things in addition:

(a) I do not understand the rationale of Figure 5 – I follow the authors' arguments, but who doubts that an injured cord would not allow viral entry above the lesion where sensori-motor functions are preserved? Other labs have injected AAVs following SCI (e.g. The Gigantocellular Reticular Nucleus Plays a Significant Role in Locomotor Recovery After Incomplete Spinal Cord Injury. Engmann et al., J Neurosci 2020. PMID: 32978289. See also the work by G. Courtine including ref 23 cited here). These works should also be acknowledged; again, authors aren't the firsts to use AAVs in the spinal cord including after injury. It is also not indicated in the text (line 284) where the injection is done, so one spontaneously thinks it is below the lesion, but we realize when looking at the figure that it is above. To me, this whole section was again noise and I recommend removing it (or moving it to supplemental material) to help highlight the main findings.

(b) It is mentioned that the residual connectivity is the spared connections. But I can't it also relate to regrowth? Isn't there some form of spontaneous regrowth or compensatory branching of severed axons, especially following incomplete contusions? Some work by M. Schwab has suggested this. This should be discussed.

4. In general, there is room for improvements on figures and notably:

(a) Some scale bars are missing. Please check all panels (lesioned cords notably, Figure 6).

(b) Orientation along all axes must be given on all views. Authors alternate sagittal and horizontal views, so it will be helpful to have the orientation into all figure panels.

(c) There is some inconsistency in the orientation: legend of Figure 4 (H-M) refers to a dorsal view, while the same view in Figure 3 is referred to as ventral. Maybe use the term "horizontal" view?

(d) Please include a schematic of the injection timeline and injury when applicable on each figure. Sometimes the schematic is there, but could be more informative (eg., Figure 6 is missing schematic, Figure 5 is missing the timeline, other figures are missing the exact segment targeted).

(e) Figure 6 J to L: we don't see much in these panels. One could make them bigger. In general, the reconstruction panels after the pipeline are barely readable, and I'm sure authors can find a way to improve this.

(f) Names of regions in Figure 2D are not readable, including when zooming on the PDF. Please enlarge/edit.

5. We need more details as to how the moderate injuries were obtained. The methods only speak about mild and presumably severe injuries. Furthermore, how were lesions quantified/classified quantitatively?

6. Please explain how regression slopes were obtained for Figure 7. Likewise, what are the different shades of green in the correlation matrix? This is a highly informative figure, but it is not sufficiently clear how the correlation was made. Maybe also specific that multiple severities of injuries were pooled (if that's the case, I think).

7. For this last one, I will bear without it for acceptance, but it would be icing on the cake. It is very frustrating that authors do not use the 3D imaging to reconstruct and quantify the extent of the spinal lesion, which is instead shown in sections. Other labs have reconstructed contusive injuries in 3D, so it is possible. Including this would strengthen the methodology part and it will substantially help secure the quantification of lesion extent, which as argued before is currently borderline.

Reviewer #2 (Recommendations for the authors):

Significant concerns/issues that should be addressed:

There is a lack of precision and clarity as regards a number of important components of the paper that require attention in order to ensure that the reader is not misled. These include clarifying how the data is presented and what the numbers mean. Please see below under clarifications.

The strategy utilized to assess injury/recovery relationships is not the best one, nor even a good one. Following thoracic injuries the recovery should correlate best with spared white matter. Length of injury or extent of astrogliosis, or loss of gray matter volume in thoracic segments are not really relevant to locomotor recovery. If spared white matter (or even better, spared axons at 7 weeks) could be used then a much better correlation could be expected. However, this doesn't detract from the otherwise very interesting set of correlations shown in figure 7B. These are powerful and important results. Please determine if a spared white matter measurement could be made and include correlations with those data. This is particularly important with respect to cervical propriospinal neurons (see comments below on Figure 7 and supplements) and truly getting at "unexplained variability in functional recovery".

Related to this, but an issue that requires separate attention is the highly variable appearance of the injury and injection sites, the variability in the spatial relationship with labeled neurons (lumbar) and how these differences could influence labeling, sprouting of axons of passage and interpretation of the data. Please see comments on Figure 6 and related data below.

Issues/concerns/questions.

Introduction:

You suggest that the spinal cord "relays commands to the periphery through motor and autonomic neurons." but this neglects and underplays the spinal circuitry itself. Processing of the commands is critical for all but a few actions. Please edit to make this clear.

Results:

Figure 1 illustrates an interesting phenomenon in that both labeling strategies resulted in greater variability in CST neurons than in RN and "brainstem". The variability in CST appears to exceed 12% even as the variability in the other populations is very low. Is there an explanation for this or does this represent real biological differences? Does the additional information in figure 1—figure supplement 1 help with this issue?

Did you quantify changes in shape/volume of the brains/subregions of the injured animals? Was registration a problem for the injured animals? This, I think, is part of determining "unexplained variability in functional recovery".

Lines 235-237. In the text for the results shown in Figure 4 you state that cervical label was more abundant, comprising an average of 73% of nuclei throughout the brain, and this is very confusing, suggesting that 73% of the total number of nuclei were labeled by cervical injections. Please re-state this to ensure clarity.

Figure 4O, and Figure 4—figure supplement 1 are way-cool.

In general, the data shown in Figure 4 is important, but again is quite confusing in particular since it does not represent in any way neurons in these regions that were not labeled by injections at either site. Thus, the 100% is again somewhat misleading/confusing. I'm not sure if there is a better way to display the data, but please make these points clear to save the reader some trouble.

Lines 253-255. The data doesn't "use comprehensive, brain-wide approach". Please restate for clarity. You might say that the "data represents a comprehensive, brain-wide approach to both quantify…". Or, "we used a comprehensive, brain-wide approach".

Lines 293. Is the question addressed one of "injury variability" or "recovery variability"? It is unfortunate that the injury model chosen is somewhat less popular than the IH or clip-compression. Presumably the forceps-induced crush injury will have a different pattern of supraspinal survival than a dorsal contusion or clip-compression injury. Please include some discussion of this issue.

Also in this section you chose L4 as your injection site…why? Please provide some rationale and if you would expect that an L2 injection might or might not better reflect supraspinal input that is most important for recovery.

Figure 6 suggests that there is gray matter damage that extends caudal to the injury site with apparent cavitation well apart from T10. Why is the labeling close to the injury in animal 179 so sparse? Overall, these images raise a number of questions and concerns (see below).

Figure 6—figure supplement 1. This figure raises a number of concerns. First of all, the variability between the apparent injection sites and the sites of injury appears to be substantial. An explanation would be helpful. Secondly, the viral injection sites appear to have significant damage. Was this assessed? Could the damage have influenced function, which was not assessed after 7 weeks apparently? Finally, could the damage have influenced sprouting/synaptogenesis in axons of passage that then would have been labeled but would not have been labeled in an uninjured cord? This behooves explanation/exploration.

Also in this figure, the numbers in brackets alongside the animal number do not have an explanation. What do they represent?

Figure 7 and its supplements. This is incredibly important and interesting data. Would it be possible to provide cross-sectional views from caudal, mid and rostral cervical segments to provide a deeper understanding of the laminar locations of these spared propriospinal neurons? Please, sirs?

Discussion:

Line 381. Perhaps it should be information rather than insight, since insight requires some processing and interpretation of information. Insight is used to great effect later in the discussion.

Lines 427-429. SCI definitely influences all sensation, not just pain sensation. Please edit to make this clear.

Line 448. I'm not sure why you say "so-called" neuroanatomical-functional paradox. This is now a well-accepted and important issue that your data speaks to beautifully.

The discussion of lesion size vs spared descending axons is critical, but misses the point referred to above that spared white matter (cross-sectional area) or spared axon counts (individually counted) has been shown to correlate strongly with function after incomplete thoracic SCI. Using "lesion size" is of questionable value as a comparison to the cell counts. The rest of this discussion (lines 458-465) is outstanding. You might state that synaptic silencing and optogenetics are two strategies that could be used to test the true relationship between spared descending pathways/axons and recovery.

Figures:

Figure 1 legend is confusing due to the inconsistent use of capitalized or lowercase and bold. The post-hoc test used is Sidak's.

Figure 7—figure supplement 1 is really confusing. I suspect the circled data points are incorrectly labeled? The numbers of animals with each severity is also incorrectly described.

Methods:

Line 576-577. This sentence does not make sense as written, at least not to me.

https://doi.org/10.7554/eLife.76254.sa1

Author response

Essential revisions:

Your paper has been examined by three reviewers and myself. Below are their detailed reviews, but please find here a quick summary of their main comments that must be addressed in a revised version in order for us to judge the potential suitability of your study for publication in eLife.

(1) Significantly reorganizing the text and improving the figures would help the readers to focus on the most conceptually important parts of the study. Also reviewers found lack of precisions and clarity throughout the manuscript. Please improve.

As suggested, we have streamlined the early portions of the manuscript and moved the more technically oriented figures from the main text to the supplementary section. As detailed below we have attempted point-by-point to improve the manuscript in response to each comment on precision and clarity.

(2) Dampen the claims that you are the first to use some methods (such as the use of the AAVretro co-injection for example), or that you are providing an experimental platform enabling you to easily perform the same type of analysis.

We have incorporated existing findings and the use of AAV2-retro throughout the manuscript and have followed suggestions to place our current results in the context of any prior work. We have also modified the text throughout to avoid the implication that we are providing a ready-made platform and instead emphasize that we are providing a framework and example for how such analyses can be performed.

(3) Quantify the number and localization of the double-labeled cells in the nervous system. Indeed the difference between cervical and lumbar projections might be one of the more interesting aspects of the paper, but quantification and statistics are required here.

This represents a major and technically challenging addition to the original manuscript. We agree with the importance of quantification and statistical comparison of double-labeling at the brain-wide scale and emphasize that we would have performed analyses in this fashion had they been possible with the original techniques. Two things prevent this. First, the cellfinder pipeline for identifying and counting cells can be done with one color at the time and does not give the option for colocalized objects. Second, for several reasons the current light sheet system, a first-generation device, is incapable of cellular co-localization at the whole-brain scale. For example, it did not have adjustable light sheet across the entire field of view, resulting in peripheral distortion and preventing precise co-axial placement of two different colors in 10-20 micrometer space. Similarly, the objectives are not corrected for the “longitudinal chromatic aberrations” generated from the refractive index of the immersion media, which vary by wavelength, further complicating two-color colocalization (Schadwinkel H, Selchow O, Weisshart K, Haarstrich J, Birkenbeil J. ZEISS Lightsheet 7: How to Get Best Images with Various Types of Immersion Media and Clearing Agents. 2020). Although we expect these issues to improve with newer devices, the present light sheet images are not compatible with colocalization at cellular resolution.

Nevertheless, given the importance of this topic and the strong interest of the reviewers we developed an alternative approach and performed new experiments. This involved high-resolution confocal microscopy applied to 1.5mm brain sections, optically cleared, which was allowed by a recent acquisition of a high speed spinning disk confocal microscope. We emphasize the scale of this effort: approximately 200 hours of imaging, over a million TIFFs and about 10 terabytes of new data collected, and more than 200,000 individual cells detected as expressing one or both fluorophores. Although precise brain-wide registration was not possible, as in the original pipeline, in eleven manually selected regions these data provide comprehensive quantification of retrograde co-labeling from lumbar and cervical levels in four animals, with reference to three control animals that received co-injection to establish expected baseline levels of dual expression. These new data and associated statistics are provided in a new Figure 3 and associated supplements, including a new video to illustrate the technique and main findings.

(4) Lesions/injuries must be much more precisely described, detailed, explained, justified, quantified (severity assessment) together with their variability and their rationale to be compared to clinical situations.

As requested, we have significantly expanded information about the injury method, expanded the rationale for its selection, and have improved our quantification of the lesion severity.

(5) Improve the way to assess injury/recovery relationships and make sure that the linear regression analysis is the most appropriate and properly performed. We have concerns about statistics and the use of regression analysis, which is quite weak (flawed?) despite being an "accepted" practice.

Based on reviewer input and consultation with statisticians we have replaced linear regression with a simplified group-based analysis. Briefly, animals were divided into two groups according to their degree of functional recovery, “high performing” animals with weight-bearing steps and “low-performing” animals without. The number of residual neurons in each brain region was compared between the two with appropriate correction for multiple comparisons. This reworked analysis is presented in a new Figure 6.

Reviewer #1 (Recommendations for the authors):

I am overall very enthusiastic about the potential that there is in this study, but there are important caveats at this stage. I will therefore support its publication only after strictly all the caveats listed below are thoroughly addressed, including by substantial improvements of the analysis and the illustrations.

1. The manuscript is globally very well written and reads smoothly but it is often hard to "see the forest for the trees" and get a clear take-home message. There are 3 parts, and I consider parts 2 (cervical/lumbar) and 3 (SCI) to be the most informative, conceptually. While acknowledging that the methodology (part 1) is novel and elegant, it uses a substantial number of figures, sometimes for little information. Figure 1 for instance is totally dispensable (at least in the main figures, text paragraphs are also long) since the cell-filling fluorophores aren't used.

We appreciate the input and agree that this figure is more suited to supplementary data. We also shortened the associated description in the main text.

Btw, the difference in cortical labeling in panels C and D is far from obvious.

We agree that the difference in the cortex is not obvious at lower resolution; the overall fluorescence is similar, but in the cytoplasmic case is coming from a fewer number of objects, each one of which is larger. Manual counts do indeed confirm the difference between the two images. We have added higher magnification insets to panels C and D in what is now Figure 1 —figure supplement 1 in C and D, to help illustrate this distinction.

Figure 3 is also, to me, noise in the story. What is the rationale of injections at the 3 adjacent segments? The reliability of the approach is already convincingly documented by the consistency of findings across animals when injecting the same segment. Plus, this is not the first time AAVs are used to inject the spinal cord with consistent results (see more comments below on this). One could think this figure asks whether the segregation of projection neurons by targeted segment described for cervical and lumbar (part 2) also applies to smaller spatially resolved segments. Do we have to understand that it is not the case? But if that's the aim, co-labeling with the two colors is needed. Overall, I felt distracted by this "unnecessary" data before reaching the hot topic, which starts at Figure 4 (and of course includes Figure 2 for the method). I strongly encourage simplifying and streamlining by reducing the number of dispensable figures and paragraphs. It will help to highlight the real impact of the work which is the labeling and detection method, the differential connectome, and its relevance post-SCI.

We now move Figure 3 to Figure 1—figure supplement 5. We do believe the information is important given the interest in the field in performing various injuries across this region of the cord, and the surgical reality that injections don’t always reach their intended spinal level. Indeed, another reviewer raised concerns about apparent variability in our injection locations in later experiments, and the data in this figure offer important reassurance that brain labeling is relatively stable in the face of that variability. Still, we agree that although the data are important for potential users of the approach, the manuscript as a whole benefits from streamlining, and we appreciate the suggestion to move the data to supplementary.

2. Coming to the second part. I feel that the topic covered is whether different supra-spinal brain areas control distinct spinal segments through abundant collaterals, or by specific subsets that differ by their projection targets. This matter is becoming the center of attention in many studies on descending tracts. Yet, the present work fails to draw a clear message regarding this, although all the tools and data seem to be there.

(a) My first major concern is the lack of quantification of double-labeled cells from lumbar and cervical injections elsewhere than in the cortex. In the absence of such quantification, Figure 4N is toxic: (i) it conveys the dangerous message that strictly ALL labeled neurons are either green, or red, and thus project to only cervical or only lumbar segments. Is that so? If so, it is a strong message that will deserve substantial discussion;

We apologize for the confusion; this figure was not intended to convey a message of complete segregation of all neurons into distinctly cervical or lumbar-projecting categories. The limitation here is technical. For the reasons described in the introductory remarks above, neither the original registration pipeline nor the imaging system were able to co-localize two colors in individual nuclei on a brain-wide scale. Our previous analysis of the cortex was performed in separate imaging that targeted just that region of the brain at higher resolution, which was facilitated by the ease of identification and relatively shallow position of CST neurons.

In the Prior 4N, we intended to provide an overall index of lumbar versus cervical targeting across various brain regions, a tendency at the level of the population, not colocalization at the individual cell level. To mitigate the confusion, we have removed the two-color scheme in what is now Figure 2N and now simply present bars: the higher the bar, the larger the contribution of lumbar signal to the overall detection in that region. From this it is not possible to extract the precise percent of nuclei that project to cervical, lumbar, or both, but we believe it remains useful to provide an indication, across the whole brain, of the relative targeting. As discussed below we performed an additional experiment to resolve cellular targeting; the distinction between this figure and the next one will further help the reader from over-interpreting the light-sheet based results.

(ii) it may be interpreted that the imaging or detection fails at detecting double-labeled cells – or small cellular contingents -, which would considerably diminish the impact of the whole work. Therefore, the expression and quantification of double-labeled cells in all brain regions MUST be documented in detail, using the SAME imaging pipeline, as it is done for the CST in panel 4P. On panel 4D, yellow labeling is evident in the medulla, but it could just be a visual artifact on the max projection.

We agree with the importance of this question, but as discussed above needed to overcome limitations of the cell detection algorithm and first generation LSFM. The CST, by virtue of its position near the dorsal brain surface, was a special case that allowed higher-resolution LSFM imaging of just that one region. Unfortunately, we can use the main pipeline to count only one wavelength, not automatically count double-labeled nuclei.

As described in detail above we therefore initiated a new set of experiments and an alternative imaging approach based on fast confocal microscopy to provide as much information as possible. This approach allows precise colocalization of nuclei but is not compatible with whole-brain image registration. Still, the new data provide a consistent methodology and high cellular resolution that allowed a quantitative comparison of colocalization in eleven manually identified brain regions, which is arguably the largest-scale effort so far to address cervical/lumbar targeting in multiple supraspinal systems. We appreciate the push to extend our methods in this important new direction.

(b) Related to this, other labs have shown various degrees of specialization or collateralization in descending tracts using similar strategies, but these works are not cited. Sathyamurthy, et al., (Levine's lab: Cerebellospinal Neurons Regulate Motor Performance and Motor Learning. Cell Rep, 2020) showed exclusive labeling in the cerebellum from combined cervical and lumbar retrograde injections. Usseglio et al., (Bouvier's lab: Control of Orienting Movements and Locomotion by Projection-Defined Subsets of Brainstem V2a Neurons. Curr Biol, 2020) showed specialization in cervical and lumbar projecting neurons in the gigantocellular reticular nucleus. This latter study also identified about 10% of co-labeling. Have the authors here found similar co-labeling in the reticular formation? In general, authors must acknowledge that they are not the firsts to use AAVretro co-injections on descending tracts and must better confront their findings, at the whole-brain scale, to other findings focused on discrete regions when applicable. Likewise, the conclusion that AAVretro is well-suited for terminal-entry and labeling of projection-defined subtypes was already reached by these other publications. Authors could use it to strengthen the validity of their approach (e.g. lines 268, 404, 408/409). Likewise, a recent work by V. Sahni (Corticospinal neuron subpopulation-specific developmental genes prospectively indicate mature segmentally specific axon projection targeting, Cell Reports, 2021) examined differential projections in the CST, which is also relevant here.

Thank you for this suggestion and the highly relevant references. We have incorporated them throughout the manuscript in both Results and Discussion. Our results are mostly consistent with this prior work, although we detect somewhat more co-localization, which we discuss. To avoid confusion about rates of co-localization, we let us emphasize here that we focus our analysis specifically on the percent of lumbar-projecting neurons that also take up cervical label. When the Gi data referenced above are reanalyzed in this way, about 20% of lumbar-projecting V2A Gi neurons were found to also take up cervical label, and this is the value we use for comparison in the discussion (i.e. in the prior work colocalized cells are 10% of all Gi neurons but 20% of lumbar-projecting Gi neurons). Overall, we appreciate the strengthening of the manuscript by contextualizing our findings.

(c) At line 266, the co-injection of the two colored viruses in the same segment is claimed to lead to 80% co-labelling, ruling out a preferential expression of one or the other transgene. This is an essential demonstration but neither the quantification nor the data itself are shown. Authors refer to figure 1B/C – they probably mean supplement 1 – but that figure does not show the co-labelling itself at the cellular level nor the quantification. Again, line 411 states "our quantification". This control is made even more important since mGL is way brighter than mSc (btw, this methodological description is also long). This is potentially problematic, and in fact, in Figure 1 supplement 1, more cells are detected in the cortex, pons and medulla with the mGL. This bias must be taken into account: (i) it must be controlled for by co-injecting both viruses in the same segment and quantifying double-labeled cells, (ii) if applicable, it should be highlighted as a potential confounding factor when detecting more cells reaching one segment than the other in the dual tracing experiments of Figure 4. On that note, can it simply be explained by the higher titer of the mGL virus? Ideally, (but I will bear without it if the controls are thoroughly done and show no bias) the same experiments of Figure 4 could be repeated after inverting viruses and/or using the same titers.

Establishing baseline levels of co-expression of the two viruses is indeed essential. We have done so using the same confocal-based approach as the lumbar-cervical experiment, enabling direct comparison. These baseline data are provided in Figure 3 —figure supplement 3. We also attempted the color-swap design suggested above, but many animals in this cohort of animals were lost due to an unfortunate surgical error that led to some leaking of virus directly into brainstem regions, which was discovered only after extensive imaging.

(d) On that note also, the choice of the region for inset 2 on Figure 4O is strange: by eye, we see more co-labeling on the periphery of the lumbar-labeled nuclei, but inset 2 magnifies an area with only sparse cervical-projecting cells. Is the co-labeling more massive on the periphery? Where were the counts made to obtain the 1.25 % of co-labeling?

This question is perceptive but rendered somewhat moot by the replacement of the original quantification with the new confocal-based approach. Cortical co-localization is the focus of new Figure 3 —figure supplement 4 and a video (Figure 3 —figure supplement 5). As we now emphasize in the results and discussion, the original estimate of only 1.25% co-labeling, based on light sheet microscopy, needs to be revised upwards with the new confocal-based data in hand. There is also some nuance, as we show that conclusions about co-localization are highly sensitive to where one sets thresholds of detection. It is important to confirm, however, that both the original and current quantification in the cortex was performed across all of M1 and not only from selected regions.

Altogether, it is likely that the second part on the projection patterns to the cervical and lumbar cord will deserve to be unpacked a bit, and making room from the methodology section will help.

We agree, and appreciate the suggestion to rebalance the manuscript. We view the expanded treatment of cervical/lumbar projection patterns and the addition of the new confocal-based data as a significant improvement to the manuscript – a strong example of how careful peer review can catch inconsistencies and lead to scientific advance.

3. The spinal cord injury part is very elegant and relevant, but I think it could be brought up sooner in the manuscript. Streamlining some figures before will help. This aspect is in the title but it comes late and is diluted in more "anecdotal" information, so that we are not so receptive anymore to these findings that ARE of great interest. Few things in addition:

(a) I do not understand the rationale of Figure 5 – I follow the authors' arguments, but who doubts that an injured cord would not allow viral entry above the lesion where sensori-motor functions are preserved? Other labs have injected AAVs following SCI (e.g. The Gigantocellular Reticular Nucleus Plays a Significant Role in Locomotor Recovery After Incomplete Spinal Cord Injury. Engmann et al., J Neurosci 2020. PMID: 32978289. See also the work by G. Courtine including ref 23 cited here). These works should also be acknowledged; again, authors aren't the firsts to use AAVs in the spinal cord including after injury. It is also not indicated in the text (line 284) where the injection is done, so one spontaneously thinks it is below the lesion, but we realize when looking at the figure that it is above. To me, this whole section was again noise and I recommend removing it (or moving it to supplemental material) to help highlight the main findings.

We appreciate the question but would argue that viral uptake by chronically injured neurons is a more open question than the reviewer suggests. A past literature has emphasized neuronal atrophy after injury, raising the possibility that some populations of injured neurons could transport or express the virus less effectively after injury. Conversely, we also considered that because injury triggers a sprouting response we might expect the opposite effect, an increase the efficiency of viral uptake. It is true that virus has been previously used in the chronically injured spinal cord – these references have been added, thank you – but this prior work examined only selected populations and did not attempt to quantify any gains or losses in efficiency after injury. In this context we think a brain-wide, quantitative experiment is something that needed to be done. Our finding that transduction efficiency is unaltered in the chronically injured state is somewhat surprising, and we believe it will be of interest and may serve as a needed touchpoint for preclinical development of this approach. We appreciate the suggestion to clarify the basis for the question and have added text to the Results section better establish the rationale for this experiment.

(b) It is mentioned that the residual connectivity is the spared connections. But I can't it also relate to regrowth? Isn't there some form of spontaneous regrowth or compensatory branching of severed axons, especially following incomplete contusions? Some work by M. Schwab has suggested this. This should be discussed.

This is an important and we appreciate the suggestion to clarify. We have added the following text in the Results section as the experiment is introduced:

“In selecting the L4 location we considered that short-distance sprouting, but not long-distance axon extension, occurs spontaneously after injury 70,71. Accordingly, the L4 injection site was chosen to target spared axons while minimizing to the potential for virus to spread rostrally and reach directly injured axons”

4. In general, there is room for improvements on figures and notably:

(a) Some scale bars are missing. Please check all panels (lesioned cords notably, Figure 6).

Scale bars have been added, thank you.

(b) Orientation along all axes must be given on all views. Authors alternate sagittal and horizontal views, so it will be helpful to have the orientation into all figure panels.

This was a great suggestion, thank you. Orientation labels have been added to figures or figure legends.

(c) There is some inconsistency in the orientation: legend of Figure 4 (H-M) refers to a dorsal view, while the same view in Figure 3 is referred to as ventral. Maybe use the term "horizontal" view?

We have changed the terminology to “horizontal” throughout.

(d) Please include a schematic of the injection timeline and injury when applicable on each figure. Sometimes the schematic is there, but could be more informative (eg., Figure 6 is missing schematic, Figure 5 is missing the timeline, other figures are missing the exact segment targeted).

Timelines and schematics have been added to the figures that involve spinal injuries.

(e) Figure 6 J to L: we don't see much in these panels. One could make them bigger. In general, the reconstruction panels after the pipeline are barely readable, and I'm sure authors can find a way to improve this.

This is now figure 5. We have simplified, reoriented, and expanded the panels to give readers a better view.

(f) Names of regions in Figure 2D are not readable, including when zooming on the PDF. Please enlarge/edit.

This now figure 1. We replaced the original “69-region” graph with a simplified “25-region” summary graph, which allowed us to increase the size of each name.

5. We need more details as to how the moderate injuries were obtained. The methods only speak about mild and presumably severe injuries. Furthermore, how were lesions quantified/classified quantitatively?

Descriptions of how mild, moderate, and severe injuries were created have been clarified in the Results and in the Methods sections. The method relies on forceps fitted with stoppers that create consistent gaps as they squeeze the spinal cord; the smaller the stopper the narrower the gap and the more severe the injury. Injuries are initially grouped according to this width-defined starting point, but as with all injury models there is residual variability, and a major goal of the manuscript is to employ histological, behavioral, and neuron-counting methods to classify severity. Images of all spinal cords are provided in Figure 5 —figure supplement 1.

6. Please explain how regression slopes were obtained for Figure 7. Likewise, what are the different shades of green in the correlation matrix? This is a highly informative figure, but it is not sufficiently clear how the correlation was made. Maybe also specific that multiple severities of injuries were pooled (if that's the case, I think).

As discussed elsewhere we have reworked this aspect of the manuscript by first grouping animals into two groups based on behavior (low performers, BMS 0-3.5 and high performers, BMS 6-8). We then test for differences in the average number of spared neurons in each region, correcting for multiple comparisons. For reasons also noted by other reviewers, this grouped analysis is more appropriate than linear regression.

7. For this last one, I will bear without it for acceptance, but it would be icing on the cake. It is very frustrating that authors do not use the 3D imaging to reconstruct and quantify the extent of the spinal lesion, which is instead shown in sections. Other labs have reconstructed contusive injuries in 3D, so it is possible. Including this would strengthen the methodology part and it will substantially help secure the quantification of lesion extent, which as argued before is currently borderline.

Regarding 3D imaging of the injury site, we appreciate the suggestion and in hindsight we share the frustration. At the time of the experiment, we were unsure that spinal clearing would be effective (the concern was autofluorescence at the injury site). We felt we couldn’t risk losing the spinal cords – without successful visualization of the injury and injection the experiment is uninterpretable – and so we adopted a conservative approach of conventional tissue processing. Our future work will certainly analyze spinal cords in 3D.

Perhaps the larger point is that we agree with the assessment, shared by reviewer two, that there are limits to the information that can be extracted from the spinal sections in hand, which are not enough to reconstruct the entire injury or – more importantly – to reconstruct spared white matter. Accordingly in the revision we back away from comparing the predictive power of lesion analysis versus our new connectome approach. We offer an update to the spinal cord analyses by measuring as best we can the relative amount of spared tissue (Figure 5 —figure supplement 1) but do so only to provide indexes of severity, not to predict functional outcomes. Overall, in the revised manuscript we try to make clear our position that our new analysis of the residual supraspinal connectome offers an important complement, not a substitute, for careful analysis of the spinal injury.

Reviewer #2 (Recommendations for the authors):

Significant concerns/issues that should be addressed:

There is a lack of precision and clarity as regards a number of important components of the paper that require attention in order to ensure that the reader is not misled. These include clarifying how the data is presented and what the numbers mean. Please see below under clarifications.

The strategy utilized to assess injury/recovery relationships is not the best one, nor even a good one. Following thoracic injuries the recovery should correlate best with spared white matter. Length of injury or extent of astrogliosis, or loss of gray matter volume in thoracic segments are not really relevant to locomotor recovery. If spared white matter (or even better, spared axons at 7 weeks) could be used then a much better correlation could be expected. However, this doesn't detract from the otherwise very interesting set of correlations shown in figure 7B. These are powerful and important results. Please determine if a spared white matter measurement could be made and include correlations with those data. This is particularly important with respect to cervical propriospinal neurons (see comments below on Figure 7 and supplements) and truly getting at "unexplained variability in functional recovery".

To address the technical point first: unfortunately, the four imaged sections from each animal are all that remain (it has been a long road to publication and the experiment ended almost two years ago, during the Covid shutdown) leaving us unable to reconstruct spared white matter. As a partial surrogate we have measured the average width of residual astrocytic bridging and provide those data in Figure 5 —figure supplement 1. Although not as ideal as a whole-spinal cord assessment of residual white matter, we do think this approach captures some information about the relative amount of tissue bridging across injuries and is an improvement over the original analysis of lesion area.

Perhaps the more important point is to back away from the suggestion that we can compare lesion analyses to brain clearing and conclude that brain clearing is more predictive of function. Our assessment of the spinal lesions is not state of the art, which invalidates a head-to-head comparison. It is better to emphasize the prospects of the whole-brain quantification of spared neurons and to position it as a complement, not a substitute, for existing methods that focus on the lesion.

We have revised the manuscript to include the index of astrocytic bridging but have removed any claims of the relative predictive power of the two approaches and have added language to the discussion to emphasize the potentially complementary nature of lesion and whole-brain sparing analyses.

Related to this, but an issue that requires separate attention is the highly variable appearance of the injury and injection sites, the variability in the spatial relationship with labeled neurons (lumbar) and how these differences could influence labeling, sprouting of axons of passage and interpretation of the data. Please see comments on Figure 6 and related data below.

Please see our response under the Figure 6 comments below.

Issues/concerns/questions.

Introduction:

You suggest that the spinal cord "relays commands to the periphery through motor and autonomic neurons." but this neglects and underplays the spinal circuitry itself. Processing of the commands is critical for all but a few actions. Please edit to make this clear.

Yes, the original version missed the critical role of spinal circuits. We have edited as follows:

“The brain’s control of the body below the head is achieved largely by axonal inputs to spinal circuits, which then interpret and process this information to generate appropriate commands to the periphery through motor and autonomic output neurons.”

Results:

Figure 1 illustrates an interesting phenomenon in that both labeling strategies resulted in greater variability in CST neurons than in RN and "brainstem". The variability in CST appears to exceed 12% even as the variability in the other populations is very low. Is there an explanation for this or does this represent real biological differences? Does the additional information in figure 1—figure supplement 1 help with this issue?

We believe the low variability in non-CST neurons in this figure reflects random chance in these four animals, not biological difference. Our reasoning is that in subsequent experiments we observed higher variability across all populations. This can be calculated from the supplemental data (Table 1) and also visually observed in subsequent figures, for example in Figure 1 —figure supplement 2 in panel O in which brainstem populations show similar variability to the CST.

Did you quantify changes in shape/volume of the brains/subregions of the injured animals? Was registration a problem for the injured animals? This, I think, is part of determining "unexplained variability in functional recovery".

This is an interesting question. The premise of registration – the problem it intends to solve – is that individual brains differ in shape due to both inter-animal variation and to potential artifacts during clearing or imaging. During the registration process this variation is eliminated as images are resized allowing for a local, non-linear alignment of the image data to make them conform to a standard size and shape (Niedworok et al., Nature Communications 7, 1-9 2016). Your point is well taken, however: what is gained in standard comparison between animals is lost in the ability to detect changes in the shape of the brain itself. This important point has been added to the “caveat” paragraph of the discussion.

Lines 235-237. In the text for the results shown in Figure 4 you state that cervical label was more abundant, comprising an average of 73% of nuclei throughout the brain, and this is very confusing, suggesting that 73% of the total number of nuclei were labeled by cervical injections. Please re-state this to ensure clarity.

This was confusing as written. This sentence was removed and replaced as part of a larger reorganization based on the addition of new colocalization data. An improved description of how we quantified cervical/lumbar targeting can be found in lines 236-245.

Figure 4O, and Figure 4—figure supplement 1 are way-cool.

We agree, thank you! These are now in Figure 2 —figure supplement 1 and the phenomenon in question can be well appreciated in a new video, Figure 3 —figure supplement 2.

In general, the data shown in Figure 4 is important, but again is quite confusing in particular since it does not represent in any way neurons in these regions that were not labeled by injections at either site. Thus, the 100% is again somewhat misleading/confusing. I'm not sure if there is a better way to display the data, but please make these points clear to save the reader some trouble.

Thank you for this suggestion to improve the display. A very similar concern was raised by reviewer 1 and we provide the common response below:

We apologize for the confusion; this figure was not intended to convey a message of complete segregation of all neurons into distinctly cervical or lumbar-projecting categories. The limitation here is technical. For the reasons described in the introductory remarks above, neither the original registration pipeline nor the imaging system are able to co-localize two colors in individual nuclei on a brain-wide scale. Our previous analysis of the cortex was performed in separate imaging that targeted just that region of the brain at higher resolution, which was facilitated by the ease of identification and relatively shallow position of CST neurons.

In the Prior 4N, we intended to provide an overall index of lumbar versus cervical targeting across various brain regions, a tendency at the level of the population, not colocalization at the individual cell level. To mitigate the confusion, we have removed the two-color scheme in what is now Figure 2N and now simply present bars: the higher the bar, the larger the contribution of lumbar signal to the overall detection in that region. From this it is not possible to extract the precise percent of nuclei that project to cervical, lumbar, or both, but we believe it remains useful to provide an indication, across the whole brain, of the relative targeting. As discussed elsewhere we also performed an additional experiment to resolve cellular targeting; the distinction between this figure and the next one will further help the reader from over-interpreting the light sheet based results.

Lines 253-255. The data doesn't "use comprehensive, brain-wide approach". Please restate for clarity. You might say that the "data represents a comprehensive, brain-wide approach to both quantify…". Or, "we used a comprehensive, brain-wide approach".

Reviewer 1 also objected to this sentence, but for reasons more conceptual. The conclusion has been changed to:

“In summary, these data are broadly supported by current understanding of supraspinal topography while providing region-by-region indexes of lumbar targeting for diverse supraspinal areas.”

Lines 293. Is the question addressed one of "injury variability" or "recovery variability"? It is unfortunate that the injury model chosen is somewhat less popular than the IH or clip-compression. Presumably the forceps-induced crush injury will have a different pattern of supraspinal survival than a dorsal contusion or clip-compression injury. Please include some discussion of this issue.

This is an important point. We have added language to the results explaining our selection of the crush model and have added to the discussion a section on potential differences from a dorsal contusion (for example, we suspect that brainstem tracts in ventral-lateral white matter might fare better after contusion). We agree that applying this method to more clinically relevant contusion models is a critical future direction and are currently seeking funding to obtain an impactor device at Marquette.

Also in this section you chose L4 as your injection site…why? Please provide some rationale and if you would expect that an L2 injection might or might not better reflect supraspinal input that is most important for recovery.

The goal of the experiment is to quantify neurons whose axons survived the injury, which meant it was essential to keep all virus below the injury. Our assumption was that there would be some variability due to both surgical considerations (segmental precision can be harder when returning to a previously injured spinal cord) or to spread of virus from the point of injection. We chose L4 to minimize the chance of virus reaching cut axons above the injury site, which would invalidate the entire approach. We would emphasize the data presented in Figure 1 —figure supplement 5, panel C, where we asked how shifting the location of injection affected cell counts in the brain. We found that L1 and L4 injections yielded very similar numbers. Based on this consistent outcome across lumbar injection site we predicted that labeling would be fairly consistent across lumbar injection sites and therefore selected L4, prioritizing the need for injury/injection separation.

We have added language to the Results to explain this rationale.

Figure 6 suggests that there is gray matter damage that extends caudal to the injury site with apparent cavitation well apart from T10. Why is the labeling close to the injury in animal 179 so sparse? Overall, these images raise a number of questions and concerns (see below).

Figure 6—figure supplement 1. This figure raises a number of concerns. First of all, the variability between the apparent injection sites and the sites of injury appears to be substantial. An explanation would be helpful. Secondly, the viral injection sites appear to have significant damage. Was this assessed? Could the damage have influenced function, which was not assessed after 7 weeks apparently? Finally, could the damage have influenced sprouting/synaptogenesis in axons of passage that then would have been labeled but would not have been labeled in an uninjured cord? This behooves explanation/exploration.

The injury/injection distance was indeed variable in some animals. We emphasize, however, the data from Figure 1 —figure supplement 5 which shows that retrograde labeling in the brain is fairly constant even as injection sites are shifted across lumbar regions. As shown above, we also offer an analysis that plots estimated injury/injection distance against the total number of labeled neurons in the brain, which detected no correlation. Overall, we concede that there was some surgical variability in the injections but based on our quantitative analyses we do not detect resulting bias in the measurement of residual supraspinal connectivity.

Regarding tissue damage, in many animals this likely occurred during tissue processing on the vibratome. One way to assess whether tearing occurred in vivo or post-mortem is to examine GFAP signal at the edge of the tear, which shows a distinctive elevation only if the damage occurred in vivo. On the other hand, by this same criterium, you are correct that there is genuine damage at injection sites in several animals, but we emphasize that any effects of this damage would be “after the fact” in our experimental design. Injections were done seven weeks after the original injury and all behavioral data were gathered prior to these injections. Importantly, even on the day of injection viral uptake almost certainly outpaces the effects of any damage. The virus spreads a least half a millimeter from the point of injection, likely contacts axon terminals in this zone within minutes, and has a half-life of hours at most. Therefore sprouting or other injury-triggered events near the needle are both too focal and too slow to impact most viral uptake. In summary, the brain labeling we measure is a “snapshot” of axon connectivity as the virus is infused and is unlikely to be impacted by slower-developing damage responses.

Also in this figure, the numbers in brackets alongside the animal number do not have an explanation. What do they represent?

These numbers were BMS scores, reflecting an internal (unsuccessful) effort to search for visual patterns in function/injury relationships. They found their way into the manuscript version by error, and have been removed.

Figure 7 and its supplements. This is incredibly important and interesting data. Would it be possible to provide cross-sectional views from caudal, mid and rostral cervical segments to provide a deeper understanding of the laminar locations of these spared propriospinal neurons? Please, sirs?

This was an outstanding suggestion, and we found that it was indeed possible to extract cross-sectional views from the data. We have now added, for all available animals, cross sections from ~C2, C4-5, and C7 to Figure 6 —figure supplement 2. There is some stretching of nuclei in the Z-plane, but the reader now has access to information regarding the laminar locations of spared propriospinal neurons in all animals.

Discussion:

Line 381. Perhaps it should be information rather than insight, since insight requires some processing and interpretation of information. Insight is used to great effect later in the discussion.

Agreed, information is the better term, thank you.

Lines 427-429. SCI definitely influences all sensation, not just pain sensation. Please edit to make this clear.

Thank you for catching this, now fixed by deleting “pain”.

Line 448. I'm not sure why you say "so-called" neuroanatomical-functional paradox. This is now a well-accepted and important issue that your data speaks to beautifully.

Agreed, “so-called” is now deleted. At the risk of triggering philosophical debate, one could take the position that paradoxes don’t truly exist in science, and that what is called a paradox is inevitably the consequence of a flawed premise or incomplete information. We suspect that is the case here, hence “so-called” in the sense that it is now termed a paradox but will be understood eventually. But – we certainly have not proven that point and inserting “so-called” is hardly an effective way to convey that position to the reader. It is distracting here, and we appreciate the suggestion for improvement.

The discussion of lesion size vs spared descending axons is critical, but misses the point referred to above that spared white matter (cross-sectional area) or spared axon counts (individually counted) has been shown to correlate strongly with function after incomplete thoracic SCI. Using "lesion size" is of questionable value as a comparison to the cell counts. The rest of this discussion (lines 458-465) is outstanding. You might state that synaptic silencing and optogenetics are two strategies that could be used to test the true relationship between spared descending pathways/axons and recovery.

This section of the discussion has been substantially rewritten with this comment in mind and now emphasizes the potential synergy between lesion analyses and our current quantification of residual connectivity in the supraspinal connectome. We also incorporated the excellent suggestion to specifically mention chemo- and optogenetics as a needed future direction.

Figures:

Figure 1 legend is confusing due to the inconsistent use of capitalized or lowercase and bold. The post-hoc test used is Sidak's.

This is now Figure 1 —figure supplement 1. Capitalization is now standardized and the typo fixed, thank you.

Figure 7—figure supplement 1 is really confusing. I suspect the circled data points are incorrectly labeled? The numbers of animals with each severity is also incorrectly described.

Yes, the labels were incorrect. This figure has been removed and replaced by new Figure 6

Methods:

Line 576-577. This sentence does not make sense as written, at least not to me.

This was confusing as written, thank you for catching this. We share the re-write below. Had we known it sooner this one detail would have saved us more than a month of troubleshooting, so we appreciate the suggestion to make it as clear as possible.

“Image planes were captured in a sequence and orientation to maximize compatibility with Brainglobe workflows, specifically in ventral-to-dorsal sequence and with the caudal end of the brain oriented to the left (https://github.com/brainglobe).”

https://doi.org/10.7554/eLife.76254.sa2

Article and author information

Author details

  1. Zimei Wang

    Department of Biomedical Sciences, Marquette University, Milwaukee, United States
    Contribution
    Formal analysis, Investigation, Writing - original draft
    Competing interests
    No competing interests declared
  2. Adam Romanski

    Department of Biomedical Sciences, Marquette University, Milwaukee, United States
    Contribution
    Formal analysis, Investigation, Writing - original draft
    Competing interests
    No competing interests declared
  3. Vatsal Mehra

    Department of Biomedical Sciences, Marquette University, Milwaukee, United States
    Contribution
    Software, Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  4. Yunfang Wang

    Department of Neurological Surgery, University of Miami, Miami, United States
    Contribution
    Software, Investigation, Methodology
    Competing interests
    No competing interests declared
  5. Matthew Brannigan

    Department of Biomedical Sciences, Marquette University, Milwaukee, United States
    Contribution
    performed and analyzed experiments
    Competing interests
    No competing interests declared
  6. Benjamin C Campbell

    Helen and Robert Appel Alzheimer's Disease Research Institute, Cornell University, New York, United States
    Contribution
    Resources, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8041-5561
  7. Gregory A Petsko

    Helen and Robert Appel Alzheimer's Disease Research Institute, Cornell University, New York, United States
    Contribution
    Resources, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3668-3694
  8. Pantelis Tsoulfas

    Department of Neurological Surgery, University of Miami, Miami, United States
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Investigation, Visualization, Methodology, Project administration, Writing - review and editing
    For correspondence
    ptsoulfa@Med.miami.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1974-6366
  9. Murray G Blackmore

    Department of Biomedical Sciences, Marquette University, Milwaukee, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Funding acquisition, Investigation, Visualization, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    murray.blackmore@marquette.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9345-6688

Funding

National Institutes of Health (R01NS083983)

  • Murray G Blackmore

The Bryon Riesch Paralysis Foundation

  • Murray G Blackmore

The Miami Project to Cure Paralysis

  • Pantelis Tsoulfas

The Buoniconti fund

  • Pantelis Tsoulfas

State of Florida Red Light Camera Fund

  • Pantelis Tsoulfas

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by NIH/NINDS R01NS083983 (MB and PT), the Bryon Riesch Paralysis Foundation (MB), The Miami Project to Cure Paralysis (PT), and the Buoniconti fund (PT). We thank Troy Margrie, Adam Tyson, Luigi Petrucco, and others at the Brainglobe initiative, Yania Ondaro-Martinez and Yan Shi at the Miami Project, James Choi for the design of the website, and Vance Lemmon for helpful discussion.

Ethics

This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All of the animals were handled according to approved institutional animal care and use committee (IACUC) protocols (#4013) of Marquette University. All surgery was performed under ketamine / xylazine anesthesia, and every effort was made to minimize suffering.

Senior Editor

  1. Ronald L Calabrese, Emory University, United States

Reviewing Editor

  1. Muriel Thoby-Brisson, CNRS Université de Bordeaux, France

Reviewers

  1. Julien Bouvier, Université Paris-Saclay, CNRS, France
  2. David SK Magnuson, University of Louisville, United States

Publication history

  1. Preprint posted: June 11, 2021 (view preprint)
  2. Received: December 9, 2021
  3. Accepted: July 12, 2022
  4. Accepted Manuscript published: July 15, 2022 (version 1)
  5. Version of Record published: August 2, 2022 (version 2)

Copyright

© 2022, Wang et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 552
    Page views
  • 235
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Zimei Wang
  2. Adam Romanski
  3. Vatsal Mehra
  4. Yunfang Wang
  5. Matthew Brannigan
  6. Benjamin C Campbell
  7. Gregory A Petsko
  8. Pantelis Tsoulfas
  9. Murray G Blackmore
(2022)
Brain-wide analysis of the supraspinal connectome reveals anatomical correlates to functional recovery after spinal injury
eLife 11:e76254.
https://doi.org/10.7554/eLife.76254

Further reading

    1. Neuroscience
    Kevin J Miller et al.
    Research Article

    Humans and animals make predictions about the rewards they expect to receive in different situations. In formal models of behavior, these predictions are known as value representations, and they play two very different roles. Firstly, they drive choice: the expected values of available options are compared to one another, and the best option is selected. Secondly, they support learning: expected values are compared to rewards actually received, and future expectations are updated accordingly. Whether these different functions are mediated by different neural representations remains an open question. Here we employ a recently-developed multi-step task for rats that computationally separates learning from choosing. We investigate the role of value representations in the rodent orbitofrontal cortex, a key structure for value-based cognition. Electrophysiological recordings and optogenetic perturbations indicate that these representations do not directly drive choice. Instead, they signal expected reward information to a learning process elsewhere in the brain that updates choice mechanisms.

    1. Neuroscience
    Bin Wan et al.
    Research Article Updated

    The human cerebral cortex is symmetrically organized along large-scale axes but also presents inter-hemispheric differences in structure and function. The quantified contralateral homologous difference, that is asymmetry, is a key feature of the human brain left-right axis supporting functional processes, such as language. Here, we assessed whether the asymmetry of cortical functional organization is heritable and phylogenetically conserved between humans and macaques. Our findings indicate asymmetric organization along an axis describing a functional trajectory from perceptual/action to abstract cognition. Whereas language network showed leftward asymmetric organization, frontoparietal network showed rightward asymmetric organization in humans. These asymmetries were heritable in humans and showed a similar spatial distribution with macaques, in the case of intra-hemispheric asymmetry of functional hierarchy. This suggests (phylo)genetic conservation. However, both language and frontoparietal networks showed a qualitatively larger asymmetry in humans relative to macaques. Overall, our findings suggest a genetic basis for asymmetry in intrinsic functional organization, linked to higher order cognitive functions uniquely developed in humans.
