Natural killer (NK) cell-derived extracellular-vesicle shuttled microRNAs control T cell responses

  1. Sara G Dosil
  2. Sheila Lopez-Cobo
  3. Ana Rodriguez-Galan
  4. Irene Fernandez-Delgado
  5. Marta Ramirez-Huesca
  6. Paula Milan-Rois
  7. Milagros Castellanos
  8. Alvaro Somoza
  9. Manuel José Gómez
  10. Hugh T Reyburn
  11. Mar Vales-Gomez
  12. Francisco Sánchez Madrid  Is a corresponding author
  13. Lola Fernandez-Messina  Is a corresponding author
  1. Immunology Service, Hospital de la Princesa, Universidad Autónoma de Madrid, Instituto Investigación Sanitaria Princesa, Spain
  2. Intercellular Communication in the Inflammatory Response. Vascular Pathophysiology Area, National Center for Cardiovascular Research (CNIC), Spain
  3. Universidad Autónoma de Madrid, Spain
  4. Department of Immunology and Oncology, National Centre for Biotechnology, Spanish National Research Council, Spain
  5. Instituto Madrileño de Estudios Avanzados en Nanociencia (IMDEA Nanociencia) & Nanobiotecnología (IMDEA-Nanociencia), Unidad Asociada al Centro Nacional de Biotecnología (CSIC), Spain
  6. CIBER de Enfermedades Cardiovasculares (CIBERCV), Spain

Abstract

Natural killer (NK) cells recognize and kill target cells undergoing different types of stress. NK cells are also capable of modulating immune responses. In particular, they regulate T cell functions. Small RNA next-generation sequencing of resting and activated human NK cells and their secreted extracellular vesicles (EVs) led to the identification of a specific repertoire of NK-EV-associated microRNAs and their post-transcriptional modifications signature. Several microRNAs of NK-EVs, namely miR-10b-5p, miR-92a-3p, and miR-155-5p, specifically target molecules involved in Th1 responses. NK-EVs promote the downregulation of GATA3 mRNA in CD4+ T cells and subsequent TBX21 de-repression that leads to Th1 polarization and IFN-γ and IL-2 production. NK-EVs also have an effect on monocyte and moDCs (monocyte-derived dendritic cells) function, driving their activation and increased presentation and costimulatory functions. Nanoparticle-delivered NK-EV microRNAs partially recapitulate NK-EV effects in mice. Our results provide new insights on the immunomodulatory roles of NK-EVs that may help to improve their use as immunotherapeutic tools.

Editor's evaluation

This report identified NK-extracellular-vesicle (NK-EV)-associated microRNAs and characterized them by small RNA next-generation sequencing. They found that NK-EVs promote Th1 polarization and activation of monocyte and moDCs. The findings are potentially important for understanding NK cell function.

https://doi.org/10.7554/eLife.76319.sa0

Introduction

Extracellular vesicles (EVs) are key mediators of cell-to-cell communication and play a crucial role in the regulation of immune responses (Fernández-Messina et al., 2015). EVs, for example exosomes, microvesicles, and apoptotic bodies, carry not only bioactive molecules such as proteins, carbohydrates, lipids, but also genetic information, including microRNAs (miRNAs) (Colombo et al., 2014). These miRNAs can be transferred among cells and modulate gene expression in the recipient cell.

Natural killer (NK) cells recognize and kill cells undergoing different types of stress, including aging, malignant transformation, and pathogenic infection. NK cells also modulate immune responses, particularly T cell function. NK cells promote T cell differentiation, proliferation, and cytokine production (Crouse et al., 2015). These effects are mediated by direct interactions between NK and T lymphocytes; but also indirectly through their effect on antigen-presenting cells and the secretion of soluble factors.

Every immune cell releases EVs, including NK cells. Recent evidence shows that NK-derived EVs (NK-EVs) can exert antitumoural functions. NK cell-derived exosomes mediate cytolytic effects on melanoma (Zhu et al., 2017) and neuroblastoma cells (Shoae-Hassani et al., 2017). In addition, NK cell-derived exosomes contain cytotoxic molecules (Wu et al., 2019), such as Fas-L and perforin, which induce tumour cell apoptosis (Lugini et al., 2012); or DNAM1 (Di Pace et al., 2020), which is also involved in exosome-mediated antitumoural responses, as revealed by experiments using blocking antibodies. Proteomic analyses of NK-EVs have identified additional effector candidates that may induce tumour cell death, including TRAIL, NKG2D, or fibrinogen (Choi et al., 2020) . Thus, increasing evidence supports the potential use of cytotoxic cell-derived EVs, including NK cells and also cytotoxic T lymphocytes (CTLs) as therapeutic agents (Del Vecchio et al., 2021). Although most studies to date have highlighted the potential role of NK-EVs in cancer, they can be potentially used to modulate other biological processes and pathologies. In particular, NK-EVs have a beneficial effect in lung injury recovery after Pseudomonas aeruginosa infection (Jia et al., 2020). NK-EVs curb CCL4-induced liver fibrosis in mice by inhibiting TGF-β1-induced hepatic stellate cells activation (Wang et al., 2020). Also, miR-207-containing NK-EVs alleviate depression-like symptoms in mice (Li et al., 2020).

Interestingly, recent studies have identified the role of biologically active NK-EV miRNAs, such as miR-186, which impaired neuroblastoma tumour growth and inhibited immune escape mechanisms by targeting the TGF-β pathway (Neviani et al., 2019); or miR-3607-3p, which inhibited pancreatic cancer, presumably by targeting its putative target IL-26 (Sun et al., 2019). These reports suggest the modulatory role of NK-EV-miRNAs to inhibit cancer progression. However, little is known regarding the overall small RNA composition of human NK-EVs, and their impact on the regulation of immune responses remains far from being fully elucidated.

In this study, we have set up a model to study human primary NK-EVs. We have analysed the small RNA content of resting and in vitro-activated NK cells and their secreted EVs by next-generation sequencing (NGS). We show that NK-EVs have specific miRNA repertoire and post-transcriptional modification (PtM) patterns, which differ from that of their parental cells. Analyses of the NK-EV miRNA signature revealed an enrichment of Th1 function-related miRNAs that target key T cell mRNA molecules. One example is GATA3, as its downregulation leads to T-bet de-repression. Other identified miRNAs are involved in dendritic cell (DC) presentation and costimulatory functions. We further show that NK-EVs promote T cell activation followed by IFN-γ and IL-2 production and induce DC expression of MHC-II and CD86 in DCs. Finally, in vivo nanoparticle-based delivery of the NK-EV-enriched miRNAs miR-10b-5p, miR-92a-3p, and miR-155-5p partially reproduces the effects of NK-EV treatment in T cell responses, suggesting an involvement of these miRNAs in effector functions. These findings shed light on the antitumour effects of NK-EVs, that among other effects, skew the balance towards inflammatory Th1 T cells, reinvigorating antitumoural responses and, therefore, support their use as immunotherapeutic tools.

Results

NK-EVs bear a specific miRNA signature different from their secreting cells

To identify the miRNA repertoire of resting- and in vitro-activated NK cells and their load into EVs, we set up the protocol shown in Figure 1—figure supplement 1A. Briefly, NK cells were enriched from isolated peripheral blood mononuclear cells (PBMCs) of human healthy donor’s buffy coats by adding a mixture of IL-12 and IL-18 together with irradiated feeder cells. Six days after, cells were kept in culture with IL-2 for a further 48 hr, in the absence of feeder cells, and NK cell expansion was tested by flow cytometry before and after NK cell isolation (Figure 1—figure supplement 1B). EVs accumulated for 72 hr from 15 × 106 NK cells were purified by serial centrifugation as previously described (Ashiru et al., 2010) and tracked (EV-TRACK ID: EV210234). RNA was isolated from resting NK cells (directly isolated without being cultured), in vitro-activated NK cells, and small EVs released from activated NK cells (Figure 1—figure supplement 1A,C). Vesicles isolated from activated NK cells were characterized using NanoSight showing a mode size ranging from 165 to 209 nm among donors (Figure 1—figure supplement 1D-F). Also, biochemical analyses showed the NK-EV expression of the exosomal markers CD63 and Tsg101 and the absence of the EV-excluded marker Calnexin (Figure 1—figure supplement 1G). In line with this, electron microscopy of isolated NK-EVs confirmed the presence of nano-sized membranous vesicles with their typical cup-shaped morphology (Figure 1—figure supplement 1H). Analyses of the small EVs released from either resting or activated NK cells showed increased EV release upon activation (Figure 1—figure supplement 1I,J). Indeed, EVs released from resting NK cells were barely detected using nanoparticle-tracking analysis (NTA) and dot blot techniques, for this reason they were not included in the study.

Small RNA sequencing analyses showed that resting and activated cells display a distinct miRNA profile that differs to that of cultured activated NK cells-secreted EVs, as shown in heatmap and principal component plots (Figure 1, Figure 1—figure supplement 1K, and Supplementary file 1Supplementary file 1). A total of 130 miRNAs were differentially expressed between activated NK cells and NK-EV released miRNAs; 96 miRNAs being enriched in NK-EVs and 34 miRNAs being more abundant in NK cells than in NK-EVs (Figure 1B). Such differential expression suggested the existence of mechanisms of specific miRNAs sorting into EVs derived from NK cells, in agreement with published data (Mateescu et al., 2017; Villarroya-Beltri et al., 2013; Szostak et al., 2014; Batagov et al., 2011; Mittelbrunn et al., 2011). Also, the repertoire found in resting NK cells was different from that of in vitro-activated NK cells (Figure 1A, Figure 1—figure supplement 2, and Supplementary file 1). A total of 70 miRNAs were upregulated upon activation, while 98 miRNAs decreased their levels after cytokine stimulation (Figure 1—figure supplement 2A). These data are in agreement with extensive miRNA remodelling occurring upon T lymphocyte activation (Rodríguez-Galán et al., 2021).

Figure 1 with 2 supplements see all

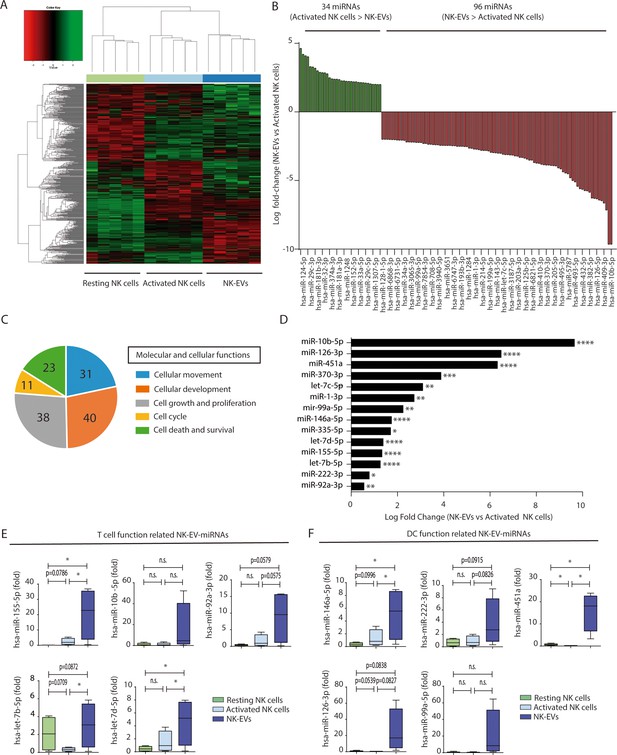

Natural killer-derived extracellular vesicles (NK-EVs) have a specific microRNA (miRNA) signature and are enriched in miRNAs related with Th1 functions.

(A) Heatmap showing small RNA sequencing analysis of miRNAs differentially expressed in resting and activated human NK cells and their secreted EVs. Data are from NK cells isolated from five healthy donors. Significance was assessed using the Benjamini-Hochberg procedure and only miRNAs with an adjusted p-value < 0.05 are shown. (B) Histogram plot showing logarithmic fold-increase expression between activated NK cells and their released EVs. Only fold-changes with adjusted p-value < 0.05 and log fold-change > 2 are represented. MiRNAs significantly more expressed in cells than in their secreted exosomes are shown in green, while miRNAs significantly more represented in the EV fraction are shown in red. (C) Summary of molecular and cellular functions targeted by NK-EV miRNAs identified by unbiased ingenuity pathway analysis (IPA). The numbers indicate the molecules targeted by miRNAs over-represented in NK-EVs compared to NK cells. (D) Log fold-change in the small RNASeq expression of miRNAs significantly overexpressed in NK-EVs compared to their secreting cells, related to Th1 functions. Significance was assessed using Benjamini-Hochberg adjusted p-values; *p<0.05,**p<0.01, ***p<0.001, ****p<0.0001. (E,F) Quantitative real-time PCR of NK-EV upregulated miRNAs in resting NK cells, activated NK cells, and secreted EVs. Bars represent the mean ± SEM of cells and vesicles obtained from five healthy donors, normalized to the small nucleolar RNU5G. Data show the validation of CD4+ T cell (E) and dendritic cell (DC) (F) function-related miRNAs, obtained by the 2-∆∆Ct method, using Biogazelle software. Significance was assessed by paired t-test; *p<0.05.

Unbiased analysis of the pathways potentially affected by miRNAs shuttled into NK-EVs using the ingenuity pathway analysis (IPA) revealed that the putative mRNA targets of NK-EV-enriched miRNAs were involved in cellular development and movement, cell growth and proliferation, cell death, survival, and cell cycle (Figure 1C). In silico mRNA target analyses for NK-EV-miRNAs identified putative target molecules related to immune signalling and Th1 responses, targeting CD4+ T lymphocytes and DCs among other immune effectors (Supplementary file 2). Selected miRNAs identified in this screening (Figure 1D, and Figure 1—figure supplement 2B, C) were validated by qPCR (Figure 1E and F).

PtMs in NK cells and EV miRNAs

Since changes in the miRNA repertoire during lymphocyte activation have been linked to their PtMs (Rodríguez-Galán et al., 2021; Gutiérrez-Vázquez et al., 2017), we analysed the global PtMs signatures of miRNAs from resting NK cells, activated NK cells, and released NK-EVs (Figure 2A and B and Figure 2—figure supplement 1). These analyses revealed a complex pattern of miRNA PtMs in human NK cells and released small EVs. Most PtMs appeared at the edges of the canonical sequence, particularly at the terminal nucleotide (position 0) and the two flanking nucleotide positions (–1 and +1). The 3p-end of miRNAs was significantly more prone to PtMs (Figure 2A) than the 5p-end in every sample (Figure 2—figure supplement 1A-C). Also, non-templated mono-additions of nucleotides were much more abundant than poly-additions (Figure 2C, and Figure 2—figure supplement 1C). Thus, we focused our analyses on the 3p-end miRNA’s PtMs, in particular single nucleotide additions accumulated in positions –1 to +1. Interestingly, miRNAs from the different fractions (resting NK cells, activated NK cells, and NK-EVs) exhibited clear PtM signature differences (Figure 2B and C). Cytosine addition was the most common modification, followed by adenine terminal insertions. Upon NK cell activation, miRNAs displayed reduced adenylation (positions −1, +1) and cytosylation (positions −1, +1). Comparing activated NK cells with the NK-EVs they release, we detected increased levels of cytosylated miRNA reads (positions 0, +1), and a decrease in guanosine additions (positions –1, 0). Although other significant changes in miRNA PtMs were observed in the different groups under study, they are supported by fewer number of reads.

Figure 2 with 3 supplements see all

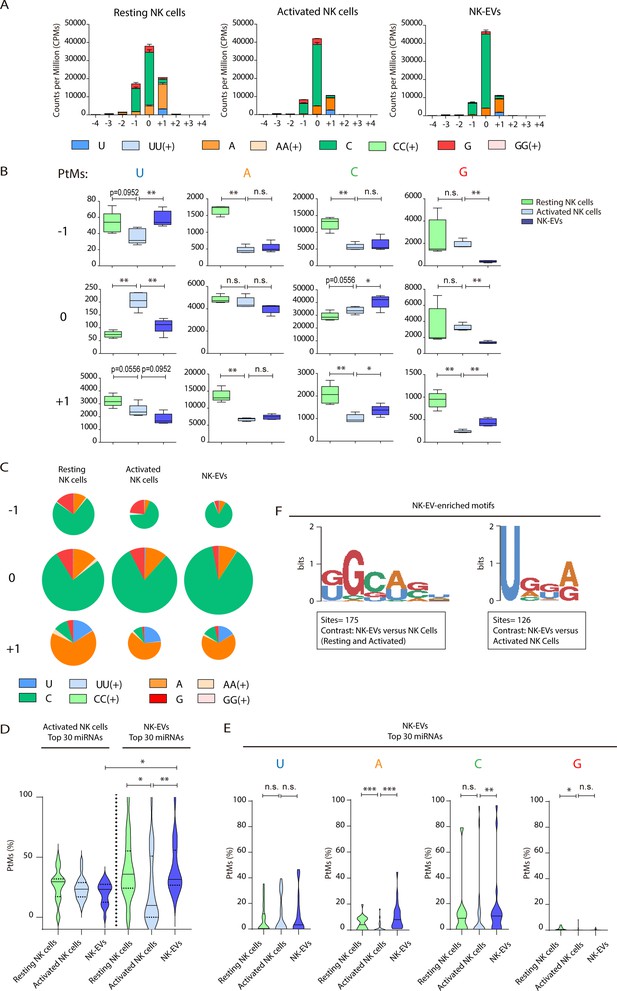

Resting natural killer (NK) cells, activated NK cells, and their released extracellular vesicles (EVs) contain microRNAs (miRNAs) with a different post-transcriptional modification (PtM) signature.

(A) Bar charts showing the PtM profile of miRNAs from resting NK cells, activated NK cells, and NK-derived EVs (NK-EVs), expressed in normalized counts per million (CPMs) at the 3p-end. Modifications from the canonical sequence (either additions or substitutions) in positions ranging from –4 to +4 are represented. (B) Box and whiskers plots show the additions of U, A, C, and G at the indicated positions (ranging from –1 to +1) in miRNAs from resting NK cells, activated NK cells, and NK-EVs. Significance was assessed, comparing resting and activated NK cells and activated NK cells with their released small EVs using non-parametric t-test; *p<0.05, **p<0.01. (C) Pie charts show the proportion of the different modifications (U, A, C, and G) for each position (from –1 to +1) for resting NK cells, activated NK cells, and NK-EV miRNAs, respectively. The area of each pie chart is proportional to the total number of reads bearing the specified PtMs at the indicated positions. (D) Violin plots represent the fraction of miRNA reads with PtMs. Analysis was performed comparing the most differentially expressed miRNAs in activated NK cells compared to NK-EVs. The left panel summarizes the data obtained from the 30 miRNAs most expressed in activated NK cells, while the right panel shows the percentage of reads with PtMs from the 30 miRNAs with a higher expression in NK-EVs compared to their secreting activated NK cells. Individual miRNAs with less than 10 reads were excluded from the analysis. The median value is shown as a solid line and quartiles represented as dotted lines. Significance was assessed with the Kruskal-Wallis test; *p<0.05, **p<0.01. (E) Violin plots represent the fraction of miRNA reads with U, A, C, or G mono-additions at positions –1, 0, and +1. Analysis was performed for the 30 miRNAs more enriched in NK-EVs, comparing the PtM signature in resting cells and activated cells, and activated cells and their released NK-EVs. Significance was assessed with the non-parametric t-test Wilcoxon matched-pairs signed ranked test; *p<0.05, **p<0.01,***p<0.001. (F) Over-represented motifs in NK-EV-miRNAs, using the ZOOPS model. For each data set, all miRNAs annotated in miRBase 21 were used as background. Short motifs with adjusted E-value<0.2 are shown.

Given that the number of detected isomiRs are influenced by the level of expression of individual miRNAs, we next studied the fraction of reads with PtMs within individual miRNAs. Remarkably, by analysing the percentage of reads with PtMs for the miRNAs specifically enriched in NK-EVs (Figure 2D, right panel), we found a significantly higher proportion of isomiRs in NK-EVs than in their secreting-activated NK cells. This suggests that miRNA molecules with PtMs are more likely to be included into EVs. In fact, five out of six of the most enriched NK-EV miRNAs show a higher number of reads with PtMs in NK-EVs compared to activated NK cells (Figure 2—figure supplement 2A). We next analysed the specific nucleotide mono-additions in miRNAs preferentially targeted into NK-EVs (Figure 2E). We found that both adenylation and cytosylation of canonical miRNA sequences accounted for the observed accumulation of PtMs in the NK-EV fraction. The levels of guanosylated miRNAs were very low in all samples, although more represented in resting NK cells, while no significant differences were observed in the levels of uridine additions, among the samples analysed.

Altogether, accumulation of PtMs in miRNAs enriched in NK-EVs suggests an active PtMs-dependent mechanism of specific miRNA sorting into EVs. However, the accumulation of modified miRNAs in NK-EVs was not observed in the case of the most expressed NK-EV miRNAs (Figure 2—figure supplement 2B), indicating additional layers of complexity in NK-EV-miRNA-specific packaging, for example passive sorting of the most abundant miRNAs.

Specific short sequence miRNA motifs are over-represented in EVs (Figure 2F). Binding of these motifs to RNA binding proteins, for example heterogeneous nuclear ribonucleoprotein A2/B1 (hnRNPA2B1), promotes miRNA sorting into EVs (Villarroya-Beltri et al., 2013). Bioinformatics sequence analyses showed over-represented short motifs in resting NK cells (UGCUG, Figure 2—figure supplement 2C), activated NK cells (UGCA, Figure 2—figure supplement 2D), and released NK-EVs (GGCAGU and UGGA, Figure 2F), respectively. Interestingly, the short EV-associated motif identified in T cell-derived small EVs GGAG was over-represented in NK-EV-miRNAs, and the tetra-nucleotide motif UGCA was also identified as a ‘cell retention motif’ in T cells, pointing towards similar mechanisms of miRNA sorting in lymphocytes(Garcia-Martin et al., 2022).

Our analyses of NK-EV-enriched specific miRNAs suggest that specific miRNAs packaging into NK-EVs may involve different mechanisms, including non-templated nucleotide additions to miRNA canonical sequences and short-motif miRNA recognition by RNA-binding proteins. Active targeting of specific miRNAs for EV release implies a putative role for these NK-EV-miRNAs in intercellular communication and regulatory functions.

NK-EVs promote Th1-like responses with increased T-bet expression and IFN-γ and IL-2 release

To dissect the putative immunomodulatory effects of shuttled NK-EV miRNAs, analyses of the individual miRNAs, either more abundant in the NK-EV fraction (Figure 2—figure supplement 3A) or more differentially enriched in NK-EVs as compared to activated NK producing cells (Figure 2—figure supplement 3B), and their in silico-predicted mRNA targets (Supplementary file 2) were carried out. As previously pointed out, miRNAs with key roles in immune function regulation, in particular with T cell responses, such as miR-10b-5p, miR-155-5p, or miR-92a-3p were highly expressed in NK-EVs.

To unravel the effects of NK-EVs on T cell function, CD4+ T cells were isolated from human buffy coats and cultured either in the presence or absence of purified NK-EVs. An initial profiling of the cytokines secreted by NK-EV-treated CD4+ T cells in non-cytokine polarizing conditions showed high levels of Th1 function-related cytokines, including IFN-γ and IL-2 (Figure 3A and B; Figure 3—figure supplement 1A). Unbiased IPA had identified cell death and survival as pathways potentially affected by NK-EV-enriched miRNAs, hence we evaluated CD4+ T cell survival (Figure 3—figure supplement 1B, C). We found no significant differences in overall CD4+ T cell survival after NK-EV treatment.

Figure 3 with 3 supplements see all

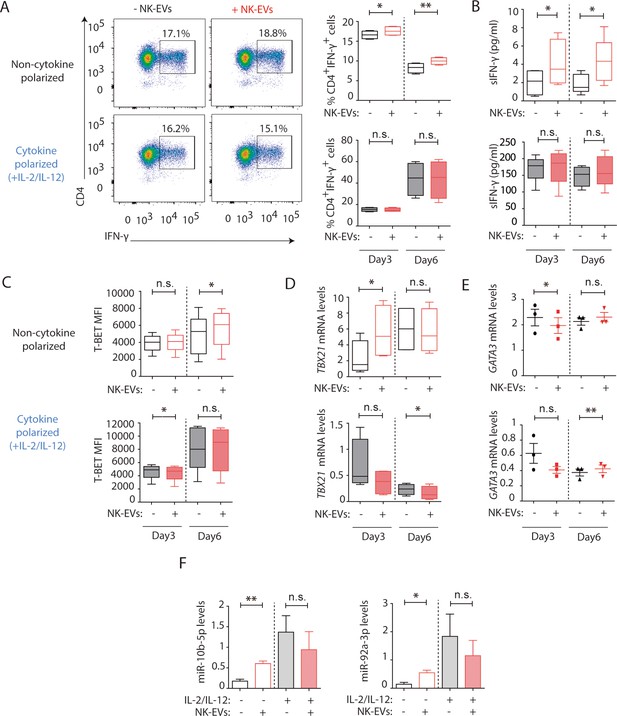

Natural killer-derived extracellular vesicles (NK-EVs) promote Th1 differentiation via Gata3 downmodulation and T-bet de-repression correlating with increased levels of miR-10b-5p and miR-92a-3p.

CD4+ T cells isolated from healthy human buffy coats were cultured either in non-polarizing or in cytokine Th1-polarizing conditions, with a mixture of IL-2 and IL-12, in the presence or absence of NK-EVs. (A) Flow cytometry analysis of isolated CD4+ T lymphocytes incubated under non-cytokine polarizing (upper panels) and Th1 cytokine-polarizing (with a mixture of IL-2 and IL-12, lower panels) conditions. A representative experiment is shown. Box and whiskers plots show the expression of CD4 and IFN-γ in gated live cells (min to max and median values), after addition of NK-EVs(Right panel). Plots show the quantification of n≥4 independent experiments. Significance was assessed with paired Student’s t-test; *p<0.05, **p<0.01. (B) ELISA quantification of soluble IFN-γ in supernatants from cultured cells in the indicated conditions (unpolarized, upper panel; cytokine polarized, lower panel). The chart shows the median concentration from n≥4 independent experiments. Significance was assessed with paired Student’s t-test; *p<0.05. (C) Flow cytometry analysis of isolated CD4+ T cells cultured in the different conditions. Graphs show the mean fluorescence intensity of T-BET in gated live single CD4+ T cells after 3 and 6 days of culture, respectively. Significance was assessed with paired Student’s t-test; *p<0.05. (D,E) Quantitative real-time PCR at days 3 and 6 showing mRNA levels of TBX21 (D) and GATA3 (E), respectively, normalized to GAPDH and ACTB. Significance was assessed by paired Student’s t test; *p<0.05. (F) Quantitative real-time PCR at day 3 to detect microRNA (miRNA) levels in CD4+ T cells after culture in the indicated conditions. MiR-10b-5p (left panel) and miR-92a-3p (right panel) relative expression is shown, and normalized to RNU1A1 and RNU5G. Significance was assessed by paired Student’s t test; *p<0.05.

Further in vitro studies were performed to address the effects of NK-EV addition in non-polarizing and Th1-skewing conditions using a mixture of IL-2 and IL-12. Cultured CD4+ T cells were analysed after 3 and 6 days, respectively. Flow cytometry analysis of cultured CD4+ T cells showed an increase in the percentage of IFN-γ-producing T cells in the presence of NK-EVs in non-polarizing conditions. However, the effects were not evident in Th1-polarizing conditions (Figure 3A). Sandwich-ELISA analysis of cultured cells’ supernatants revealed an increase in the levels of soluble IFN-γ in NK-EV-treated T cells in a non-cytokine-polarizing milieu (Figure 3B). In addition, incubation with NK-EVs also induced T-BET expression in non-cytokine-polarized T cells (Figure 3C and D and Figure 3—figure supplement 1D), correlating with a downregulation of the NK-EV miRNA target GATA3 mRNA levels at day 3, which acts as a TBX21 suppressor (Figure 3D,E; Gagliani and Huber, 2017). The increase of T-BET protein levels and downregulation of GATA3 were confirmed by flow cytometry analyses after incubation with NK-EVs (Figure 3—figure supplement 1E), although very low levels of GATA3 were detected. The increase of the NK-EV identified miRNAs miR-10b-5p and miR-92a-3p, which have crucial functions in T cell responses (Supplementary file 2), was confirmed by RT-qPCR in non-polarized culture conditions but not in cytokine Th1-polarizing cultures, after 3 days of incubation with NK-EVs (Figure 3F). Moreover, to confirm the involvement of NK-EV-miRNAs in GATA3 downregulation and subsequent T-bet de-repression and Th1 reprogramming in T cells, gold nanoparticles (AuNPs) bearing a combination of miR-10b-5p and miR-92a-3p, that specifically target this molecule, were synthesized and incubated with isolated CD4+ T cells (Figure 3—figure supplement 1F). Three days after incubation with miRNA-bearing nanoparticles, the effects of NK-EVs in T-BET and GATA3 expression were partially recapitulated, indicating the involvement of these miRNAs in the observed phenotype.

Since ultracentrifugation of cell culture supernatants does not allow to fully rule out the involvement of other molecules in the activated NK secretome that may account for the observed effects, for example effector proteins including IFN-γ (Choi et al., 2020), several additional experiments were performed. NK-EV T cell uptake blockade using Dynasore abolished NK-EV-driven increase of IFN-γ expression (Figure 3—figure supplement 2A,B), indicating the involvement of EV-uptake in promoting Th1-like responses. Moreover, small EVs were isolated from activated NK cells using size-exclusion chromatography (SEC), to exclude the contamination of protein complexes, lipoparticles, etc. Briefly, supernatants were added onto a chromatography column and fractions recovered and analysed for small EV markers expression. Fractions containing the CD81 and Tsg101 exosomal markers and lacking most protein aggregates were pooled (Figure 3—figure supplement 2C,D), and the effects of SEC-isolated NK-EVs on T cells were addressed, as above. Despite a significant loss of NK-EV material during the SEC purification steps (Figure 3—figure supplement 2E,F), confirmed by a reduction of the exosomal markers CD81 and Tsg101 to around 20% of the levels obtained by ultracentrifugation, a similar impact for SEC-isolated NK-derived small EVs in IFN-γ expression was observed (Figure 3—figure supplement 2G,H).

Finally, to rule out the non-specific effects of isolated EVs on T cell function, small EVs were isolated from two distinct human cell lines (namely the HEK-293, human epithelial kidney cells, and the Raji B lymphoblast cell lines), using our standard ultracentrifugation procedure. These vesicles showed no impact on IFN-γ secretion, that even decreased 6 days after incubation with Raji B cell-derived EVs, indicating the specificity of NK-EVs in skewing Th1 responses (Figure 3—figure supplement 3).

The activation of CD4+ T cells by NK-EVs was also evaluated. NK-EVs promoted T cell activation, as revealed by increased CD25 expression in non-polarizing conditions; whereas these effects were not further increased in a Th1 cytokine-polarized milieu (Figure 4A). Increased IL-2 release upon incubation with NK-EVs was confirmed by ELISA, 3 days after culture (Figure 4B). Since CD25 is also a hallmark of regulatory T cells (Treg), we next analysed the expression of FOXP3 and IL10 production in NK-EV-treated T lymphocytes (Figure 4C). Although no significant differences were found, increased FOXP3 levels (p-value < 0.1) in non-polarized NK-EV-treated cells were observed compared to non-EV-treated cells. However, IL10 secretion was not affected by NK-EV treatment, and was even reduced 3 days after culture in polarizing conditions. These data suggest that additional levels of regulation participate in T cell responses, and that NK-EVs may limit suppressive Treg functions in Th1-skewing conditions.

Figure 4 with 2 supplements see all

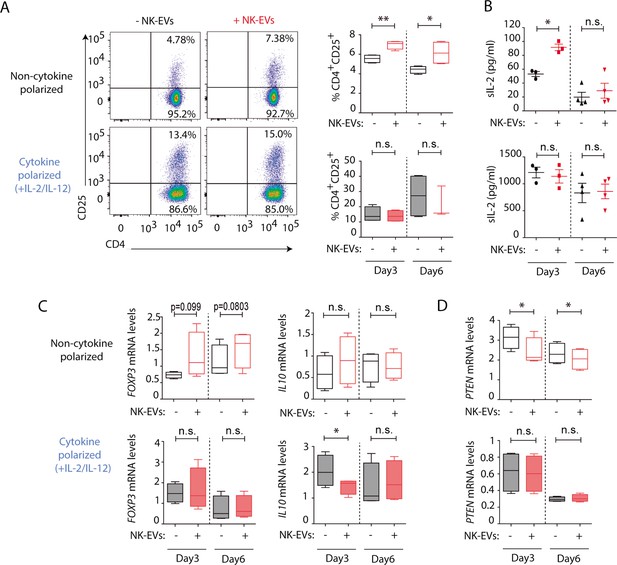

Natural killer-derived extracellular vesicles (NK-EVs) promote CD4+ T cell activation and IL-2 release but not regulatory T cell (Treg) responses.

(A) Flow cytometry analysis of isolated CD4+ T cells incubated under non-cytokine-polarizing (upper panel) and Th1 cytokine-polarizing (with a mixture of IL-2 and IL-12, lower panel) conditions. Dot plots show the expression of CD4 and CD25 in gated single live cells ± SEM, after addition of NK-EVs. Plots show the quantification of n≥4 independent experiments. Significance was assessed with paired Student’s t-test; *p<0.05, **p<0.01. (B) ELISA quantification of soluble IL-2 in supernatants from CD4+ cultured T cells in the indicated conditions (unpolarized, upper panel; cytokine polarized, lower panel). The graph shows the mean concentration from n≥3 independent experiments. Significance was assessed by paired Student’s t-test; *p<0.05. (C,D) Quantitative real-time PCR showing FOXP3 (C, left); IL10 (D, right) and PTEN (D) mRNA levels at days 3 and 6 in CD4+ T cells after culture in the indicated conditions. Relative expression is shown, normalized to GAPDH and ACTB. Significance was assessed by paired Student’s t test; *p<0.05.

Analysis of additional putative NK-EV miRNA targets described in Supplementary file 2 was carried out (Figure 4D and Figure 4—figure supplement 1). Functional regulatory molecules were downregulated by NK-EVs, including PTEN (Figure 4D), which is involved in T cell homeostasis; IL6, which was reduced after NK-EV incubation (p-value <0.1); TGFB and INPP5D gene that encodes the SHIP1 protein (Figure 4—figure supplement 1A, D, F). On the contrary, the pleiotropic TNFA cytokine was upregulated shortly after NK-EV incubation in non-polarizing conditions, but decreased in Th1 cytokine-polarizing conditions (Figure 4—figure supplement 1E). The specific involvement of NK-EVs in T cell activation was further confirmed after dynamin-dependent endocytosis blockade using Dynasore (Figure 4—figure supplement 2A,B) and reproduced with SEC-purified NK-EVs, despite the loss of material with this procedure (Figure 4—figure supplement 2C,D). Also, incubation of T cells with either HEK or Raji-derived small EVs failed to reproduce NK-EV effects, confirming the specificity of the observed phenotype (Figure 4—figure supplement 2E,F). Interestingly, Raji-derived small EVs promoted a reduction in CD25 expression, indicating that NK-EV effects on T cells are not driven by small EVs from any lymphocyte.

Altogether our data indicate a complex regulation of T cells responses mediated by NK-EVs.

NK-EVs promote DC-mediated Th1 responses, enhancing monocytes and moDC presentation and costimulatory functions

Dendritic cells are critical for the establishment of effective T cell responses (Sallusto and Lanzavecchia, 2002). To ascertain the role of NK-EVs in DC function, human monocytes were obtained, and cultured either in DC-polarizing conditions (supplemented with a mixture of GM-CSF and IL-4) or without cytokines (Sallusto and Lanzavecchia, 1994). The effects of the addition of NK-EVs were assessed in both experimental conditions (monocytes and monocyte-derived DCs [moDCs]). Flow cytometry analyses revealed that, although no significant differences were observed in cell survival and apoptosis (Figure 5—figure supplement 1A,B), the presentation and costimulatory capacities of DCs were enhanced by NK-EVs exposure (Figure 5A–E). Indeed, both NK-EV-treated monocytes and moDCs showed increased levels of MHC-II (Figure 5A) and the costimulatory CD86 molecule (Figure 5B). Additionally, non-cytokine-polarized monocytes exhibited a higher DC polarization, marked by an increased percentage of CD11c+DC-SIGN+ cells after incubation with NK-EVs (Figure 5C). Interestingly, NK-EVs’ addition correlated with increased levels of IFN-γ and IL-12 secretion in monocytes, but not in moDCs that exhibited very low levels of these cytokines (Figure 5D and E).

Figure 5 with 1 supplement see all

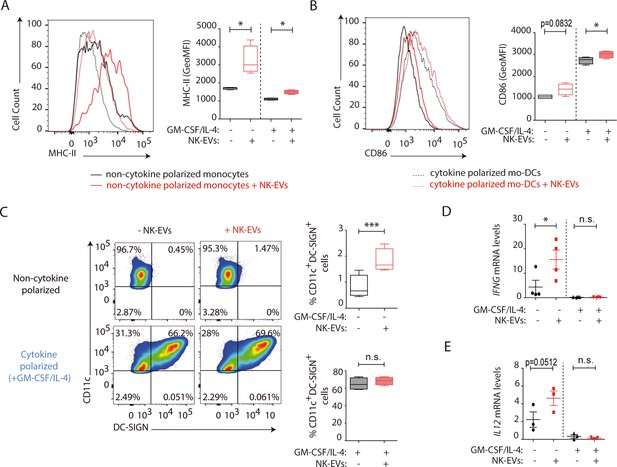

Natural killer-derived extracellular vesicles (NK-EVs) enhance monocyte and monocyte-derived dendritic cells (moDCs) polarization, costimulatory and presentation activities.

CD14+ monocytes isolated from buffy coats from healthy donors were cultured under non-polarizing and cytokine monocyte-derived DC-polarizing conditions, with a mixture of GM-CSF and IL-4, with or without NK-EVs. (A,B) Flow cytometry analysis of isolated CD14+ monocytes in the different culture conditions. Histogram plots show the expression of MHC-II (A) and CD86 (B), after 6 days of culture in the indicated conditions, either in the presence (dotted line) or absence (solid line) of polarizing cytokines. A representative plot of n≥4 experiments of the mean fluorescence intensity (MFI) of these proteins in live cultured cells (left panel), and their quantification (right panel) are shown. Significance was assessed by paired Student’s t test; *p<0.05. (C) Flow cytometry analysis of isolated CD14+ monocytes in the different culture conditions. Dot plots show the expression of CD11c and DC-SIGN in the indicated culture conditions (left panel) and their quantification (right panel). Significance was assessed by paired Student’s t test; ***p<0.001. (D,E) Quantitative real-time PCR showing IFNG (D) and IL12 (E) mRNA levels in CD14+ cells 6 days after culture in the indicated conditions. Relative expression is shown, normalized to GAPDH and ACTB. Significance was assessed by paired Student’s t test; *p<0.05.

Several putative targets for NK-EV miRNAs with important functions in DCs (Supplementary file 2) were analysed after treatment with NK-EVs, including KLF13, FOXO1, NOTCH1, and VEGFR2, but no significant expression differences were found (Figure 5—figure supplement 1C-F).

NK-EV miRNAs partially recapitulate NK-EV-polarizing functions

To address whether miRNAs contained in NK-EVs may account for the observed Th1 immune deviation, the effects of in vivo footpad administration of nanoparticles carrying the NK-EV-miRNAs miR-10b-5p, miR-92a-3p, and miR-155-5p (Figure 6—figure supplement 2A) were analysed. Interestingly, splenocytes isolated from nanoparticle-treated mice activated in vitro with anti-CD3 and anti-CD28 antibodies showed increased T cell activation after miRNA-bearing treatment compared to control nanoparticles, assessed by increased CD25 expression in CD4+ lymphocytes (Figure 6A and B). qPCR analysis of total splenocytes (Figure 6C) and popliteal draining lymph nodes (Figure 6D) showed increased mRNA levels of the Th1 hallmark Ifng after footpad administration of NK-EV miRNAs, in particular with miR-155 and a mixture of all three NK-EV miRNAs. Increased secretion of IFN-γ was also confirmed in supernatants from in vitro-activated splenocytes by sandwich-ELISA (Figure 6E). Although no significant differences were found in the percentage of IFN-γ expressing CD4+ T cells (Figure 6F, lower panel), we could observe a similar tendency in T cells from mice treated with miR-10b-5p and miR-92a-3p, which exhibited a significantly enhanced expression of this cytokine upon TCR-stimulation, compared to non-miRNA-treated cells (Figure 6F, upper panel). The effects of miR-10b-5p, miR-92a-3p, and miR-155-5p delivery in CD8+ T cells IFN-γ secretion of this cytokine were more robust (Figure 6G). The levels of Tbx21 were slightly increased in miRNA-treated mice (Figure 6—figure supplement 1A), although the differences were not significant, likely due to the kinetics of T-bet upregulation after Th1 commitment (Szabo et al., 2000). Importantly, as observed in the experiments after NK-EV treatment in vitro, no differences were observed in the Treg compartment upon nanoparticle-based miRNA delivery, as addressed by the percentage of CD4+CD25+Foxp3+ cells (Figure 6—figure supplement 1B) and the levels of Il10, neither in the spleen (Figure 6—figure supplement 1C), nor in the popliteal draining lymph nodes (Figure 6—figure supplement 1D). ELISA analysis of supernatants splenocytes from treated mice showed no significant differences in the levels of IL-2 secretion (Figure 6—figure supplement 1E). Low levels of both IFN-γ and IL-2 cytokines were detected in serum from treated mice, however miR-10b-5p and miR-155-5p bearing nanoparticles promoted a slight increase of these cytokines (Figure 6—figure supplement 1F,G). To further confirm the specificity of NK-EV-enriched miRNAs in promoting Th1 polarization and activation, AuNPs bearing three miRNAs preferentially excluded from the NK-EV fraction, namely hsa-miR-124, hsa-miR-3667, and hsa-miR-4518 were generated (Figure 6—figure supplement 2B), and their effects after footpad administration in immunocompetent C57BL/6 mice were evaluated, as for NK-EV miRNAs. These experiments showed no effects of these nanoparticles, as observed for NK-EV-enriched miRNAs. Neither activation nor IFN-γ secretion (Figure 6H) were affected by non-NK-EV miRNAs, further confirming the specificity of NK-EV miRNAs in the observed phenotype.

Figure 6 with 2 supplements see all

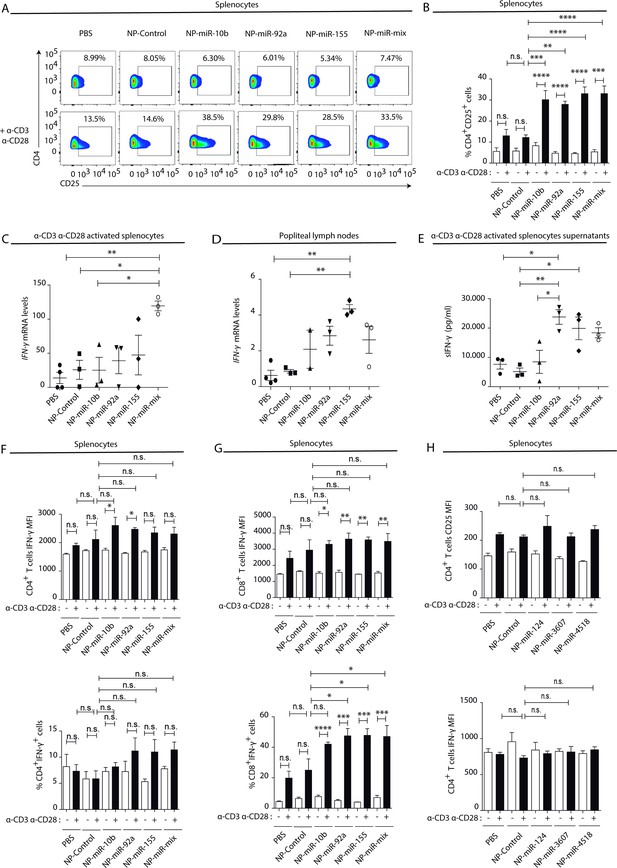

Natural killer-derived extracellular vesicle (NK-EV) T cell function-related microRNAs (miRNAs) partially mimic NK-EV-mediated effects in vivo.

Nanoparticles (NPs) bearing the identified NK-EV miRNAs (miR-10b, miR-92a, and miR-155) were generated and their functional effects were evaluated in vivo after footpad injection of control and miRNA-loaded NPs in wild-type C57BL/6 mice. (A) Flow cytometry analysis of live splenocytes isolated 6 days after footpad injection with the indicated control or miRNA-loaded NPs. Isolated cells were either left unstimulated (upper panel) or incubated for 16 hr with anti-CD3 and anti-CD28 antibodies (lower panel) before analysis. Density plots show the expression of CD4 and CD25 in TCRβ+CD4+-gated live T lymphocytes. A representative plot of n≥3 mice is shown. (B) Bars summarize the quantification of the percentage of CD4+CD25+T cells shown in (A) from n≥3 mice in untreated splenocytes (white) and anti-CD3 plus anti-CD28 stimulated splenocytes (black). Significance was assessed by two-way ANOVA, followed by Tukey’s test; **p<0.01, ***p<0.001, ****p<0.0001. (C,D) Quantitative real-time PCR showing Ifng mRNA levels in anti-CD3 and anti-CD28-activated splenocytes (C) and draining popliteus lymph nodes (D), 6 days after footpad nanoparticle-based miRNA delivery. Relative expression is shown, normalized to Gapdh and Actb. Significance was assessed by one-way ANOVA Bonferroni test; *p<0.05, **p<0.01. (E) ELISA quantification of soluble IFN-γ in supernatants from splenocytes harvested and isolated 6 days after miRNA delivery and cultured with anti-CD3 and anti-CD28 antibodies for 16 hr. The graph shows the mean concentration from n≥3 independent experiments. Significance was assessed by one-way ANOVA Bonferroni test; *p<0.05, **p<0.01. (F,G). Upper panel bar charts show the mean fluorescence intensity (MFI) expression of IFN-γ and lower panels the percentage of IFN-γ expressing cells, analysed by flow cytometry in CD4+ T cells (F), CD8+ T cells (G). Splenocytes were either left unstimulated (white) or stimulated with anti-CD3 plus anti-CD28 antibodies for 16 hr (black). Significance was assessed by two-way ANOVA, followed by Tukey’s test; *p<0.05,**p<0.01, ***p<0.001, ****p<0.0001. (H) The effects of the non-NK-EV-associated control miRNAs (hsa-miR-124, hsa-miR-3607, and hsa-miR-4518) were also evaluated in vivo after footpad injection of control and miRNA-loaded NPs in immunocompetent wild-type C57BL/6 mice. Bar charts show the MFI expression of CD25 (upper panel) IFN-γ (lower panel), respectively, analysed by flow cytometry in CD4+ T cells. Significance was assessed by two-way ANOVA, followed by Tukey’s test.

In summary, activated NK cells release a specific set of EV-miRNAs, likely by mechanisms involving PtMs and specific-short miRNA motifs recognition, which are related with Th cells effector functions and may therefore contribute to orchestrate the immune response (Figure 7).

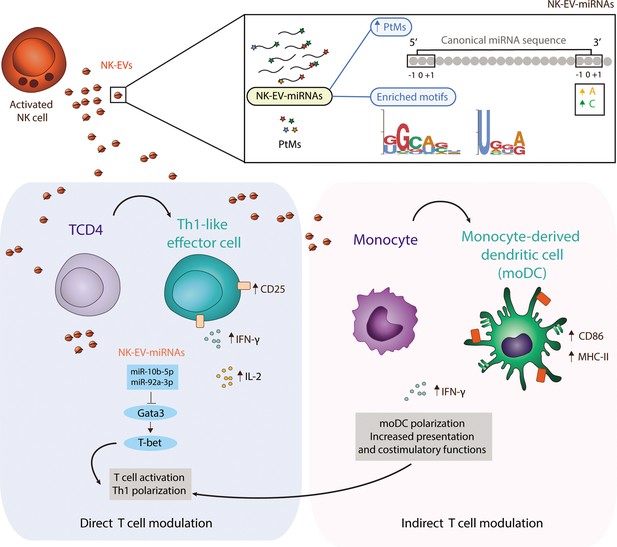

Natural killer-derived extracellular vesicle (NK-EV) microRNAs (miRNAs) promote Th1-like responses.

NK cells release small EVs that are enriched in post-transcriptionally modified miRNAs and specific short motifs. NK-EVs have a direct impact on T cells fate and function, promoting Th1-like responses, marked by increased levels of IFN-γ and IL-2 release. NK-EV-miRNAs miR-10b-5p and miR-92a-3p may account, at least partially, for the observed effects, via GATA3 downmodulation and subsequent T-bet de-repression that drives Th1 skewing. Additionally, NK-EVs promote monocyte polarization to monocyte-derived dendritic cells (moDCs) and enhance their presentation and costimulatory capacities, by upregulating MHC-II and CD86, respectively. This pathway also may contribute to the regulation of Th1-like responses mediated by NK-EVs.

Discussion

In recent years, the potential of EVs as tools for the treatment, diagnosis, and prognosis of several diseases has been intensively studied. Most studies to date suggest that EV miRNA cargo can be exploited to specifically target pathological recipient cells, including immune cells.

NK cells play a pivotal role in the recognition and killing of pathological cells, and recent evidence supports the potential of NK-secreted EVs for therapy (Del Vecchio et al., 2021). Several reports have described the modulation of NK cell effector functions by EVs, including exosomes. Tumour-derived EVs exert immune suppressive functions, dampening lymphocyte cytotoxicity (Ashiru et al., 2010; Fernández-Messina et al., 2010; Sharma et al., 2018). Studies aimed at characterizing the biological effect of DC-derived EVs have indicated that they can boost NK and T cell effector functions (Pitt et al., 2014; Sobo-Vujanovic et al., 2014; Munich et al., 2012; Radomski et al., 2019). In fact, DC-derived exosomes capabilities are being used in clinical trials for immune maintenance after chemotherapy (Besse et al., 2016) and cancer immunotherapy (Fernández-Delgado et al., 2020).

NK-EVs can kill target cells directly (Lugini et al., 2012) due to the presence of cytotoxic proteins amongst the cargo, as shown using proteomics assays (Wu et al., 2019; Korenevskii et al., 2018). Recently, specific NK-EV miRNAs were shown to exert antitumoural effects in neuroblastoma (Neviani et al., 2019) and pancreatic cancer progression (Sun et al., 2019). In particular miR-186-5p identified as a downmodulated miRNA in patients with a high risk of developing neuroblastoma was found to inhibit key components of the TGF-β pathway limiting tumour immune evasion. However, the specific NK-EV miRNA repertoire and the impact of NK-EV-miRNAs in the immune response remains far from being fully elucidated.

In this study, we identify a specific miRNA signature of human NK cells (resting and activated) and their secreted EVs by small RNA NGS. Also, we show that a distinct pattern of PtMs is found in resting NK cells, activated NK cells, and NK-EVs. Global analysis of miRNA PtMs also identified a higher proportion of reads with PtMs for the miRNAs more highly expressed in the NK-EV fraction compared to both the relative levels of PtMs in these miRNAs at their parental cells, and to the percentage of PtMs found in NK-EVs of activated NK-cell-enriched miRNAs. Also, in this context, activated NK cells miRNAs exhibited significantly decreased levels of PtMs compared to resting cells. Indeed, several miRNAs, for example miR-122-5p, miR-409-3p, and miR-451a, are highly modified in resting NK cells, and in activated NK cell-derived EVs, while absent in activated NK cells. Thus, it is tempting to speculate that upon activation, post-transcriptionally modified NK-EV-miRNAs are preferentially targeted to small EVs. These results strongly suggest a PtM-dependent mechanism of miRNA-specific shuttling into NK- EVs.

Analyses of the specific nucleotide additions to the canonical miRNA sequences at different positions also highlighted a different signature for miRNAs in resting and activated NK cells and their released EVs. The post-transcriptional addition of non-templated nucleotides, particularly to the 3′ends of RNA molecules, is the most frequent and conserved RNA PtM. Interestingly, these modifications have an impact on miRNA stability, and gene regulation, thus on its regulatory capacities (Yu and Kim, 2020). Furthermore, 3′uridylation is related to miRNA turnover during T cell activation (Gutiérrez-Vázquez et al., 2017). Non-templated addition of nucleotides has been differentially detected in diverse body fluids. PtMs of miRNAs have been previously reported to determine RNA fate and 3′ adenylation has been found to be over-represented in cells, while uridylation in exosomes from B cells suggesting a PtM-dependent specific cargo of miRNAs into small EVs (Koppers-Lalic et al., 2014).

In our human NK cell model, we observed that the fraction of both adenylated and cytosylated miRNAs was abundant in resting NK cells and decreased upon activation. Remarkably, a significant enrichment of miRNAs with non-templated 3′-end additions of adenines and cytosines was found in the NK-EV fraction. It is therefore conceivable that cytosylated and adenylated miRNAs are preferentially sorted into small EVs upon NK cell activation.

Moreover, over-represented short sequence motifs were found in NK-EV-miRNAs. In particular, the previously identified GGAG exosomal-sorting motif in T cell-derived small EVs (Villarroya-Beltri et al., 2013) was also enriched in NK-EV-miRNAs, indicating that binding of sumoylated ribonucleoproteins may also be involved in the control of NK-EV-miRNAs sorting. Altogether, our data indicate that a complex regulation, including miRNA PtMs and short motif recognition patterns, may determine the inclusion of specific miRNAs with potential regulatory effects into NK-EVs.

Interestingly, NK-EVs are enriched in miRNAs with important functions in the regulation of immune responses, in particular related to Th1 responses. Other miRNAs with immunomodulatory functions are also abundantly expressed in NK cell-derived EVs, for example miR-20a-5p and miR-25-3p. These two miRNA are transferred through the immune synapse, with an impact on germinal centre reaction and antibody production (Fernández-Messina et al., 2020). Incubation of CD4+ T cells with NK-EVs induced an increase of IFN-γ secretion and T-bet expression. This effect correlated with increased levels of the NK-EV-associated miR-10b-5p and miR-92a-3p and reduced levels of the T-bet suppressor GATA3, which is a putative target for these miRNAs (Yu and Kim, 2020). Since NK-EVs isolated by ultracentrifugation may associate with other molecules from the secretome, such as IFN-γ, additional experiments blocking EV uptake and isolating NK-EVs by SEC confirmed that the observed effects were mediated by NK-EVs. Moreover, EVs from other cell types, including the lymphoblast B cell line Raji did not show any enhancing effect on T cell function, indicating the specificity of NK-EVs promoting the observed phenotype.

In addition, nanoparticle-based delivery of NK-EV-miRNAs miR-92a and miR-155 in vivo promoted IFN-γ production. Thus, NK-EV miRNAs miR-10b-5p and miR-92a-3p uptake may promote GATA3 downregulation and subsequent T-bet de-repression, reprogramming recipient T cells towards the Th1 phenotype. In addition, NK-EVs drive CD4+ T cell activation, marked by increased CD25 expression and IL-2 production, but do not significantly affect the Treg compartment. Indeed, although slightly increased levels of Foxp3 were found in T cells after incubation with NK-EVs, no increase in IL-10 secretion was observed and a reduction of this cytokine was found in polarizing conditions, suggesting that NK-EVs may be limiting Treg anti-inflammatory functions in these conditions. A similar trend was observed in vivo after nanoparticle delivery of NK-EV-specific miRNAs. In this regard, we detected reduced levels of the pro-inflammatory cytokine IL-6 and TGF-β in T cells upon NK-EV addition. However, the tumour necrosis factor (TNF)-α was found to be increased in T cells shortly after NK-EV addition, in agreement with its presence in the NK92 cell line-derived exosomes (Zhu et al., 2017). It is important to highlight that EVs do not only contain miRNAs, but also lipids and proteins that also may contribute to the immunomodulatory effects of the NK-EVs. The presence of these non-miRNA bioactive molecules in NK-EVs may account for some of the differences observed between the effects of synthetic miRNAs and NK-EVs.

Our data also show that NK-EVs may impact on T cell responses indirectly by increasing the polarization of monocytes to moDCs, and enhancing their presentation and costimulatory capacities, upregulating MHC-II and CD86, respectively. Hence, NK-EVs promote Th1 responses, both by directly targeting CD4+ T cells and by increasing APCs stimulating functions, necessary for the establishment of effective T cells responses. In this regard, many tumours dampen Th effector cell-mediated immunosurveillance, and many immunotherapeutic approaches have focused in restoring Th1 responses (Knutson and Disis, 2005). Immune therapy has revolutionized the treatment of cancer, however, long-lasting effects are only observed in about 15% of the patients. This might be due to the variety of cancer immune evasion mechanisms, including immune-suppressive mediators in the tumour microenvironment, impairment of CTL responses, promotion of T cell tolerance, and/or exhaustion and polarization from Th1 to Th2, among others (Marron et al., 2021). Thus, we propose that NK-EV-mediated immune deviation towards Th1 may be exploited and taken into account when designing EV-based therapies. Interestingly, although primary human NK-EVs isolation may be tedious and time-consuming, a large-scale NK-EV isolation protocol has been set up and may help translate into clinical therapies (Jong et al., 2017).

In summary, here, we provide new insights on the miRNA composition and impact of NK-EVs on immune responses, promoting both directly and indirectly (via APCs) Th1 responses. Unravelling the effects and mechanisms underlying NK-EV-mediated immune targeting, in particular Th2 to Th1 immune deviation, may help to improve therapeutic strategies.

Materials and methods

In vitro cell culture, antibodies, and reagents

Request a detailed protocol

Primary human NK cells were obtained from healthy donor’s buffy coats, using a protocol modified from Roda-Navarro et al., 2006. Briefly, PBMCs were isolated by centrifugation in Ficoll-hypaque and allowed to adhere for 30 min. Thereafter, resting NK cells were obtained using the human NK cell isolation kit (MACS Miltenyi Biotec), following the manufacturer’s instructions, and lysed in QIAZOL (QIAGEN) buffer for RNA extraction and analysis. For activated NK cultures, PBMCs (seeded at 1.5 × 106 cells/well) were incubated for 5–6 days in RPMI medium (containing 2 mM L-glutamine, 1 mM sodium pyruvate, 0.1 mM non-essential amino acids, 100 U/ml penicillin-streptomycin [Biowest], 50 μM β-mercaptoethanol [Merck], 10 mM HEPES [Lonza]) supplemented with 10% human serum (HS), 10% foetal bovine serum (FBS), a mixture of irradiated feeder cells (721.221 and RPMI8866, at 0.5 × 106 per well) and a combination of NK-polarizing cytokines; 10 U/ml IL-12 (Peprotech) and 25 ng/ml IL-18 (MBL). Then, cells were allowed to proliferate for two additional days by activation with 50 U/ml IL-2 (Peprotech) and 10% HS and 10% FBS. NK cell-enriched cultures were analysed by flow cytometry to confirm the expansion of the NK cell population (CD3-CD56+). NK cells were purified using the NK isolation kit. Isolated NK cells were cultured for 72 hr in RPMI supplemented with 10% EV-depleted FBS and 50 U/ml IL-2 (by ultracentrifugation at 100,000× g for 16 hr) for EV accumulation.

The human cell lines HEK and Raji were maintained in DMEM and RPMI medium, respectively (containing 2 mM L-glutamine, 1 mM sodium pyruvate, 0.1 mM non-essential amino acids, 100 U/ml penicillin-streptomycin [Biowest], 10 mM HEPES [Lonza]) supplemented with 10% FBS. Cell lines were purchased from ATCC and tested negative for mycoplasma contamination.

Antibodies and primers are summarized in Supplementary file 3. Primers for specific mature miRNAs detection were purchased from EXIQON-QIAGEN.

Animals

Wild-type C57BL/6 mice were housed in specific pathogen-free conditions according to European Commission recommendations at the Centro Nacional de Investigaciones Cardiovasculares (CNIC) animal facility in Madrid. Experiments were performed with male mice aged 10–12 weeks. All experimental methods and protocols were approved by the CNIC and the Comunidad Autónoma de Madrid and conformed to European Commission guidelines and regulations.

NK-EV isolation and characterization

Request a detailed protocol

EVs were purified from supernatants after accumulating for 72 hr from 15 × 106 NK cells (2 × 106 cells/ml in RPMI supplemented with 10% small EV-free FBS and 50 U/ml IL-2), by serial centrifugation as previously described (Fernández-Messina et al., 2010). EVs were resuspended either in EXO-free RPMI for functional analysis, PBS for EV characterization by NanoSight (Fernández-Messina et al., 2020), or in Laemmli loading buffer for Western blot. For resting NK cell-derived EVs analysis, NK cells were isolated from healthy human buffy coats and the obtained resting NK cells (up to 5 × 106 cells) were allowed to secrete EVs for 72 hr in small EV-free medium before NK-EV isolation.

For small RNA sequencing and qPCR analysis, EV pellets obtained after 100,000× g ultracentrifugation of NK cell supernatants were lysed in QIAZOL (QIAGEN) and RNA was isolated using the miRNeasy Mini Kit, as described above. Culture medium pellet after 100,000× g ultracentrifugation alone was analysed by SEC to rule out possible serum contaminations in NK-EV samples, as previously described (Fernández-Messina et al., 2020).

Additionally, size-exclusion (SEC) small EV isolation was performed using qEV/35 nm SEC columns (IZON), following the manufacturer’s instructions. Collected fractions were analysed by dot blot for small EV markers expression and protein concentration was determined by Nanodrop. Fractions that included the exosomal markers Tsg101 and CD81 and low levels of protein aggregates were pooled and ultracentrifuged at 100,000× g with PBS before functional analyses.

All the relevant data of our experiments were submitted to the EV-TRACK knowledgebase (EV-TRACK ID: EV210234) (Van Deun et al., 2017).

Electron microscopy

Request a detailed protocol

Isolated NK-EVs were analysed by electron microscopy (EM). Briefly, isolated NK-EV pellets were resuspended and fixed in PBS containing 2% PFA. Briefly, EM analyses was performed by floating a Formvar-carbon EM grid on top of one drop of freshly prepared NK-EVs (5 µl) for 20 min. The grid was then washed with PBS and floated on 50 μl of 1% glutaraldehyde in PBS for 5 additional mi. The grid was washed with deionized water and incubated with 2% uranyl-oxalate on ice. Excess of reagents was removed and dried at room temperature (RT). Samples were examined using a JEOL Jem1010 operating at 100 kV, and acquired with a digital camera Gatan SC200, using the DigitalMicrograph software.

RNA extraction, real-time PCR, small RNA NGS, and data analysis

Request a detailed protocol

RNA from purified human NK cells, both resting and activated in vitro (as described above), and their secreted small EVs were extracted using the miRNeasy Mini Kit (QIAGEN).

For small RNA sequencing, RNA integrity was checked using an Agilent 2100 Bioanalyzer (Agilent) for total RNA (RNA nano-chips) and for small RNA (small RNA chips), and concentrations were measured in a Nanodrop-1000 and using the Quantifluor RNA system (Promega). Samples from five healthy donors were analysed, and small RNA libraries were generated using the NEBNext Small RNA Library Prep Set from Illumina. Single read NGS was performed using an Illumina HiSeq 2500 System. Small RNASeq data were analysed by the Bioinformatics Unit at CNIC. Sequencing reads were processed as previously described (Fernández-Messina et al., 2020). Changes in small RNA expression were considered significant when Benjamini and Hochberg adjusted p-value < 0.05.

For qPCR analysis, isolated RNA was retro-transcribed using either the miRCURY LNA Universal RT miRNA PCR System (EXIQON) for miRNA or the Promega RT kit for mRNA, as described in Fernández-Messina et al., 2020. Real-time PCR was performed in a CFX384 Real-time System (Bio-Rad) using SYBR Green PCR Master Mix (Applied Biosystems). Reactions were analysed with Biogazelle QbasePlus software. Mature miRNA levels were normalized to the small nucleolar RNAs RNU5G and RNU1A1, whereas mRNA levels were normalized to glyceraldehyde-3-phosphate dehydrogenase (GAPDH) and β-actin and expressed as a relative variation from control levels. All primers for miRNA analysis were purchased from EXIQON, and primers used for mRNA detection (Metabion) are listed in supplementary methods.

In silico target analysis

Request a detailed protocol

Putative mRNA targets for human miRNAs overexpressed in small EVs compared to secreting NK cells were identified using the prediction algorithm miRTarBase and are summarized in Supplementary file 2.

Functional unbiased analysis of EV-enriched miRNAs (compared to secreting NK cells) was performed using the IPA.

NK-EVs functional assays

NK-EVs and CD4+ T cell function assays

Request a detailed protocol

CD4+ T cells were isolated from non-adherent PBMCs, using the human CD4+ T cell isolation kit (MACS Miltenyi Biotec). Isolated T helper cell purity was checked by flow cytometry CD4 staining and they were then cultured in CD3 (5 µg/ml) and CD28 (2 µg/ml) coated plates either in the presence or absence of NK-EVs and both in non-polarizing (RPMI supplemented with 10% EV-free FBS) and Th1-polarizing conditions, adding a mixture of cytokines (20 U/ml IL-2 and 20 ng/ml IL-12). NK-EVs obtained from 25 × 106 NK cells supernatants, as described above, were resuspended in 100 µl of EXO-free RPMI and 20 µl were added to 5 × 106 CD4+ T cells per condition. On days 3 and 6 post-coculture, cells in the different conditions and their supernatants were analysed as described below. NK-EVs isolated from three different healthy donors were cocultured with Th cells from at least two different donors.

For EV-uptake blockade experiments, isolated CD4+ T cells were supplemented with 80 µM Dynasore (Sigma-Aldrich) before NK-EV incubation.

NK-EVs and monocyte/moDC function assays

Request a detailed protocol

Human moDCs were obtained as described (Sallusto and Lanzavecchia, 1994). Briefly, CD14+ monocytes were isolated from total PBMCs, using a positive selection kit (StemCell) and cultured in RPMI medium supplemented with 10% EV-free FBS, either in the presence or absence of DC-polarizing cytokines (50 ng/ml GM-CSF and 1000 U/ml IL-4). The effects of NK-EVs addition (25 µl of isolated NK-EVS were used to treat 3 × 106 CD14+ cells) were analysed 6 days after culture. NK-EVs isolated from three different healthy donors were cocultured with CD14+ cells from at least two different donors.

Flow cytometry

Request a detailed protocol

Cultured cells were stained with the antibodies listed in Supplementary file 3 and analysed by flow cytometry in a BD FACSCanto cytometer. For all analysis, only live single cells were included and analysed with the FlowJov10 software. Dead cells were excluded by DAPI or Live/Dead Fixable Yellow (Thermo Fisher) staining. Murine cells were incubated with mouse CD16/CD32/Fc shield and human cells with 100 µg/ml γ-globulin before antibody staining.

Immunoblotting

Request a detailed protocol

For Western blot analyses, cell lysates were prepared by incubation in TNE buffer containing 1% NP-40 and a protease inhibitor cocktail (Complete, Roche). Nuclei were eliminated by centrifugation at 13,000× g. Lysates and membrane-soluble fractionations were run on 10% SDS-PAGE gels and transferred to Immobilon-P (Millipore) membrane. The membrane was blocked using PBS containing 0.1% Tween-20 (PBS-T) and 5% non-fat dry milk. Detection of proteins was performed by incubation with the appropriate specific primary and secondary antibodies (Supplementary file 3). Proteins were visualized using the ECL system (Amersham Pharmacia) and chemoluminiscence was measured with LAS-3000 (Fujifilm).

For dot blot analyses, 2 µl of isolated NK EVs were blotted onto nitrocellulose membranes (Amersham) and proteins were visualized as described for Western blot analyses. Protein concentration was quantified using the ImageJ software.

Cytokine arrays

Request a detailed protocol

CD4+ T cells were isolated as described above from human buffy coats. A total of 5 × 106 cells were incubated for 16 hr with NK-EVs isolated from 5 × 106 72 hr NK cell cultures in RPMI supplemented with 10% EV-free FBS. Culture supernatants were analysed using the Proteome Profiler Human Cytokine Array Kit (R&D Systems), following the manufacturer’s instructions.

Cytokine analysis of cell culture supernatants by ELISA

Request a detailed protocol

Cytokine production was detected in cell culture supernatants using ELISA kits purchased from DIACLONE (IL-2) and eBioscience (IFN-γ), respectively, following the manufacturer’s instructions. Absorbance was measured at 450 nm, with a reference wavelength of 570 nm.

Nanoparticle-miRNAs synthesis

Request a detailed protocol

AuNPs were synthesized following the Turkevich method (Turkevich, 1951). Rounded 12 nm AuNPs at 25.2 nM were obtained and modified with oligonucleotides (IDT) containing the proper thiol modifications (Supplementary file 4). MiRNA duplex formation was performed using the same volume and concentration of both strands diluted in annealing buffer (10 mM Tris, pH 7.5–8.0, 50 mM NaCl, 1 mM EDTA), according to Sigma Aldrich’s protocol (https://www.sigmaaldrich.com/ES/es/technical-documents/protocol/genomics/pcr/annealing-oligos). The mixture was incubated for 10 min at 95°C and then cooled down to RT slowly. Before conjugation, the miRNA duplexes were deprotected by incubation with ×100 excess TCEP for 2 hr at RT. For the functionalization reaction, 4 pmol/ µl AuNPs of deprotected miRNA duplex were added to 1 ml AuNP for each condition. AuNP miR-mix contains 4 pmol/µl of each miRNA duplex; AuNP control contains 4 pmol/µl poli T-thiol (TTTTTTTTTTTT/3ThioMC3-D/). After oligonucleotide addition, NaCl was added in small volumes until 0.3 M final concentration. Finally, the AuNPs were incubated 16 hr in agitation, light protected at RT. After this step, three washes were performed by 40 min 16,100× g centrifugation at 4°C. In the last washing step, AuNPs were resuspended in sterile ×1 PBS and filtered with 0.2 µm syringe-filter in a laminar hood.

Nanoparticle-miRNAs analysis

Request a detailed protocol

Nanoparticles in PBS were injected into the footpad (30 µl) of wild-type C57BL/6 mice. On day 5, animals were sacrificed and splenocytes isolated and analysed by flow cytometry and qRT-PCR before and after stimulation with anti-CD3 and anti-CD28 antibodies. All cells were incubated with PMA (50 ng/ml) and ionomycin (500 ng/ml) 4 hr before analysis, and Brefeldin A (5 µg/ml) was added to block secretion in flow cytometry experiments. Supernatants from cultured cells after 16 hr culture were also analysed by ELISA.

Small RNASeq analyses

Request a detailed protocol

Small RNASeq data were analysed by the Bioinformatics Unit at CNIC. Sequencing reads were pre-processed by means of a pipeline that used FastQC (http://www.bioinformatics.babraham.ac.uk/projects/fastqc/), to asses read quality, and Cutadapt to trim sequencing reads, eliminating Illumina adaptor remains, and to discard those that were shorter than 20 nucleotides after trimming. Around 60% of the reads from any of the samples were retained. Resulting reads were aligned against a collection of 2657 human, mature miRNA sequences extracted from miRBase (release 21), to obtain expression estimates with RSEM (Gutiérrez-Vázquez et al., 2017). Percentages of reads participating in at least one reported alignment were around 22%. Expected expression counts were then processed with an analysis pipeline that used Bioconductor package Limma (Koyano et al., 2021) for normalization (using TMM method) and differential expression testing, considering only 708 miRNA species for which expression was at least 1 count per million (CPM) in three samples. Changes in gene expression were considered significant if the Benjamini-Hochberg adjusted p-value < 0.05.

miRNA PtMs analyses

Request a detailed protocol

Epi-transcriptomic modifications were detected with Chimira (Koppers-Lalic et al., 2014), an online tool that, after alignment of miRNASeq reads against miRBAse21 records, identifies mismatched positions to classify them and to quantify multiple types of 3'-modifications (e.g. uridylation), as well as internal and 5'-modifications. Count tables produced by Chimira were further processed with ad hoc produced R-scripts to calculate summary statistics across groups of replicate samples.

Motif enrichment analysis

Request a detailed protocol

Over-represented motifs in miRNA collections were detected with MEME (Bailey et al., 2015), using the differential enrichment method and complementary miRBAse21 miRNA collections as background references. Both types of input were previously processed with USEARCH to make them non-redundant at 80% identity (Edgar, 2010). Motif searches were performed only in the forward strand, using a motif size of 4–8 nt, zero-order Markov model for nucleotide distributions, and expecting zero or one motif occurrence per sequence (ZOOPS).

Statistical analyses

Request a detailed protocol

All data were analysed with GraphPad Prism 5.0 and 8.0 (GraphPad Software, San Diego, CA). All data were included in the analysis, unless identified as outliers, using GraphPad algorithms. Appropriate statistical tests were used, for each experiment, as indicated. Significance was set at *p<0.05, **p<0.01, ***p<0.001.

Data availability

Sequencing data have been deposited in the Gene Expression Omnibus and are available to readers under record GSE185171. EV isolation procedures are available at EV-TRACK knowledgebase (EV-TRACK ID: EV210234).

The following data sets were generated
    1. Sánchez Madrid F
    (2022) NCBI Gene Expression Omnibus
    ID GSE185171. Natural killer (NK) cell-derived extracellular-vesicle shuttled microRNAs control T cell responses.

References

Decision letter

  1. Shimon Sakaguchi
    Reviewing Editor; Osaka University, Japan
  2. Tadatsugu Taniguchi
    Senior Editor; Institute of Industrial Science, The University of Tokyo, Japan
  3. Michiel Pegtel
    Reviewer

Our editorial process produces two outputs: (i) public reviews designed to be posted alongside the preprint for the benefit of readers; (ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Decision letter after peer review:

Thank you for submitting your article "Natural killer (NK) cell-derived extracellular-vesicle shuttled microRNAs control T cell responses" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Tadatsugu Taniguchi as the Senior Editor. The following individual involved in the review of your submission has agreed to reveal their identity: Michiel Pegtel (Reviewer #2).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1) Because the authors have not performed size-exclusion or density gradient separation before applying their functional experiments with purified EVs, they cannot rule out that other molecules in the activated NK secretome are responsible for the observed effects. For example, NK-EVs contain several effector proteins including IFN-γ (Choi et al., Molecules, 2020;25(21)). The authors should therefore exclude the possibility of contamination of IFN-γ derived from NK-EVs in Figure 4. Blocking EV uptake with dynasore for example could rule out a major contribution from other soluble factors. Since differential ultracentrifugation only is prone to have contamination of protein complexes, lipoparticles etc, can the authors show EM data of their EVs? In addition, how do the authors exclude the presence of feeder cell EVs in their EV-preps?

2) The suppl data shows some Western blotting of EVs from activated NK cells. Apart from their DE miRNA analysis between EVs from resting vs activated NK cells, it is possible that resting NK cells secrete much less EVs, it would behove the authors to demonstrate this with Western and NTA or TPRS.

The authors validated selected miRNAs expression by qPCR in Figure 1E. However, no miRNAs were significantly enriched in NK-EVs compared with activated NK cells. To support the author's proposal, the statistical significance of their expression between activated NK cells and NK-EVs should be confirmed.

Maybe the authors can include a separate table of the miRNAs that change in the activated NKs cells? In addition, log fold changes (alone) can be deceiving. Maybe the authors can show (relative) abundance data of their EV-enriched miRNAs?

3) Because the authors have not used control EVs from other cell types it remains somewhat unclear whether all EVs or specifically EVs from (activated) NK cells have the polarizing effects on the recipient cells. Furthermore, the authors proposed that NK-EV-associated miRNAs promote Th1-like responses via T-bet de-repression by downregulating Gata3 mRNA. To support their proposal, double-staining of T-bet and GATA3 by flow cytometry should be conducted in Figure 4 and Figure 7. In Figure 8, the authors claimed that NK-EV-associated miRNAs promoted Th1-like responses. However, it seems to be an overestimation because they did not show the downregulation of GATA3 by NK-EV-associated miRNAs and T-bet de-repression as well as IFN-γ induction from CD4+ T cells by treatment with NK-EV-associated miRNAs. This fails to support the story of this manuscript.

Perhaps the authors could use an irrelevant control cell type that does not express much less of their miRNAs. As the nanoparticle experiments strongly suggest the involvement of miRNAs (in vivo), the authors should use their nanogold particles with miRNAs as controls for some of the crucial in vitro NK-EVs experiments discussed above and to determine what candidate miRNAs have the effect.

4) Template-independent terminal ribonucleotide transferases (TENTs) catalyze the addition of nucleotide monophosphates to the 3′-end of RNA molecules. While their efforts in their pMT (isomiR may be better) analysis are appreciated, global analysis of all miRNAs are not very informative. It is surprising that so many cytosine additions are found whereas adenylation and uridylation are known to be caused by uridylases and adenylases. Is there evidence of 3' tagging of mature mammalian miRNAs by cytidylation. Obviously, it would be interesting if this type of modification is somehow NK cell function related.

5) Despite a large body of independent evidence, the biological relevance of many Isomirs as found in sequencing data has recently been scrutinized (Hu et al., Nature Biotech 2021). Perhaps the authors can comment in their paper why their results are unlikely the result of artifacts during library preparation?

6) Their analysis of the NTAs, though comprehensive, makes little sense to me. The authors state that they analyzed variations from position -4 to +4. If the average mature miRNA is 21nts long, they thus examined sequences of 17-25 nucleotides, yet in their methods, they stated that they 'filter' the reads from 20nts? Please clarify.

How is it possible that position 0 (the last nucleotide on the 3' end of the miRNA) has a nucleotide addition if anything it should be a substitution? The authors should show the percentage of fully mature (untagged) canonical miRNAs in their graphs. The first NTA should be position +1, etc.

7) Figure 3B is interesting in that some miRNAs such miR122-5p is for 50% modified in resting cells yet not at all in activated cells, yet the (activated) NK cell EVs do contain modified miRNAs. What are the absolute or relative levels of these miRNAs in the NK cells? Can the authors provide an explanation?

The authors demonstrated that NK-EV-associated miRNAs possessed unique post-transcriptional modifications and short motifs in Figure 2 and Figure 3. Since the conclusions from both figures are similar, it would be better to combine Figure 2 and Figure 3 together.

Reviewer #1 (Recommendations for the authors):

Because it is unclear that the features of NK-EVs described in this paper is specific to NK-EVs, I recommend that the authors include data showing how NK cell-derived EVs are characterized compared to EVs derived from other cells. The followings are specific points that may improve the paper.

1. Are there differences in the repertoire of miRNAs among different subsets of lymphocytes?

2. Is the promotion of Th1-like responses specific to NK-EVs?

3. Similarly, is the down-modulation of Gata-3 and T-bet specific to NK EVs?

4. EVs are produced by many cell types. Is it possible to estimate the proportion of NK-EVs in total EVs?

Reviewer #2 (Recommendations for the authors):

1) The authors isolated EVs with differential ultracentrifugation only which is prone to contamination of protein complexes, lipoparticles etc. Can the authors show EM data of their EVs.

2) Because the authors have not performed size-exclusion nor density gradient separation before applying their functional experiments with purified EVs they cannot rule out that other molecules in the activated NK secretome are responsible for the observed effects? Blocking EV uptake with dynasore for example could rule out a major contribution from other soluble factors.

3) The suppl data shows some western blotting of EVs from activated NK cells. Apart from their DE miRNA analysis between EVs from resting vs activated NK cells, it is possible that resting NK cells secrete much less EVs, it would behove the authors to demonstrate this with western and NTA or TPRS.

4) How do the authors exclude the presence of feeder cell EVs in their EV-preps?

5) Because the authors have not used control EVs from other cell types it remains somewhat unclear whether all EVs or specifically EVs from (activated) NK cells have the polarizing effects on the recipient cells. Perhaps the authors could use an irrelevant control cell type that does not express much less of their miRNAs. I do appreciate that the nanoparticle experiments strongly suggest the involvement of miRNAs (in vivo). The authors should use their nanogold particles with miRNAs as controls for some of the crucial the in vitro NK-EVs experiments. Do their nanoparticles have similar effects on CD4+ Th1 polarization and what candidate miRNAs have this effect? Ideally, the authors would examine the effects of NK-EVs in mice but I find that not required.

6) Maybe the authors can include a separate table of the miRNAs that change in the activated NKs cells?

7) Log fold changes (alone) can be deceiving. Maybe the authors can show (relative) abundance data of their EV-enriched miRNAs?

8) Template-independent terminal ribonucleotide transferases (TENTs) catalyze the addition of nucleotide monophosphates to the 3′-end of RNA molecules. While I appreciate their efforts in their pMT (I prefer isomiR) analysis, global analysis of all miRNAs are in my view not very informative. It is surprising that so many cytosine additions are found whereas adenylation and uridylation are known to be caused by uridylases and adenylases. Is there evidence of 3' tagging of mature mammalian miRNAs by cytidylation. Obviously, it would be interesting if this type of modification is somehow NK cell function related.

9) Despite a large body of independent evidence, the biological relevance of many Isomirs as found in sequencing data has recently been scrutinized (Hu et al., Nature Biotech 2021). Perhaps the authors can comment in their paper why their results are unlikely the result of artifacts during library preparation?

10) Their analysis of the NTAs, though comprehensive, makes little sense to me. The authors state that they analyzed variations from position -4 to +4. If the average mature miRNA is 21nts long, they thus examined sequences of 17-25 nucleotides, yet in their methods, they stated that they 'filter' the reads from 20nts? Please clarify.

11) How is it possible that position 0 (the last nucleotide on the 3' end of the miRNA) has a nucleotide addition if anything it should be a substitution? The authors should show the percentage of fully mature (untagged) canonical miRNAs in their graphs. The first NTA should be position +1, etc.

12) Figure 3B is interesting in that some miRNAs such miR122-5p is for 50% modified in resting cells yet not at all in activated cells, yet the (activated) NK cell EVs do contain modified miRNAs. What are the absolute or relative levels of these miRNAs in the NK cells? Can the authors provide an explanation?

Reviewer #3 (Recommendations for the authors):

In the report entitled "Natural killer (NK) cell-derived extracellular-vesicle shuttled microRNAs control T cell responses", Dosil et al., identified NK-extracellular-vesicle (EV)-associated microRNAs and their post-transcriptional modifications signature by small RNA next-generation sequencing. They also found that NK-EVs promoted Th1 polarization and activation of monocyte and moDCs. They suggested that the identified NK-EV-associated microRNAs partially recapitulated NK-EV effects in T cells in vivo.

The study contains some interesting findings. However, the impacts of NK-EVs and NK-EV-associated microRNAs on Th1 differentiation are not impressive. In addition, their evidence is not sufficient to support their proposal that NK-EV-associated microRNAs promote Th1-like responses via T-bet de-repression by down-regulation of GATA3.

1. The authors validated selected microRNAs expression by qPCR in Figure 1E. However, no microRNAs were significantly enriched in NK-EVs compared with activated NK cells. To support the author's proposal, statistical significance of their expression between activated NK cells and NK-EVs should be confirmed.

2. The authors demonstrated that NK-EV-associated microRNAs possessed unique post-transcriptional modifications and short motifs in Figure 2 and Figure 3. Since the conclusions from both figures are similar, it would be better to combine Figure 2 and Figure 3 together.

3. As mentioned above, the impact of NK-EVs on Th1 polarization was quite minor in Figure 4. Furthermore, the authors failed to induce IFN-γ production from CD4+ T cells by administration of selected microRNAs in Figure 7F.

NK-EVs contain several effector proteins including IFN-γ (Choi et al., Molecules, 2020;25(21)). So, they should exclude the possibility of contamination of IFN-γ derived from NK-EVs in Figure 4.

4. The authors proposed that NK-EV-associated microRNAs promote Th1-like responses via T-bet de-repression by downregulating Gata3 mRNA. To ensure their proposal, double-staining of T-bet and GATA3 by flow cytometry should be conducted in Figure 4 and Figure 7.

5. In Figure 8, the authors represent that NK-EV-associated microRNAs promote Th1-like responses. However, it seems to be an overestimation because they did not show the downregulation of GATA3 by NK-EV-associated microRNAs and T-bet de-repression as well as IFN-γ induction from CD4+ T cells by treatment of NK-EV-associated microRNAs. This fails to support the story of this manuscript.

https://doi.org/10.7554/eLife.76319.sa1

Author response

Essential revisions:

1) Because the authors have not performed size-exclusion or density gradient separation before applying their functional experiments with purified EVs, they cannot rule out that other molecules in the activated NK secretome are responsible for the observed effects. For example, NK-EVs contain several effector proteins including IFN-γ (Choi et al., Molecules, 2020;25(21)). The authors should therefore exclude the possibility of contamination of IFN-γ derived from NK-EVs in Figure 4. Blocking EV uptake with dynasore for example could rule out a major contribution from other soluble factors. Since differential ultracentrifugation only is prone to have contamination of protein complexes, lipoparticles etc, can the authors show EM data of their EVs? In addition, how do the authors exclude the presence of feeder cell EVs in their EV-preps?

We agree with the reviewers that ultracentrifugation of cell culture supernatants does not allow to fully rule out the involvement of other molecules, such as IFN-γ in the observed effects. To address this issue we have performed additional experiments, using different approaches, as suggested by the reviewers.

First, we analyzed the effects of NK-derived EVs on isolated T lymphocytes pre-treated with Dynasore to block EV uptake. As included in the new figure (new Figure 3—figure supplement 2A,B and Figure 4—figure supplement 2A,B), after dynamin-dependent endocytosis blockade, the upregulation of IFN-γ and CD25 and driven by NK-EVs were abolished, indicating that the observed effects on T cell function are mediated by NK-derived EVs. It is worthwhile mentioning, that since dynasore has been shown to enhance the formation of mitochondrial antiviral signalling aggregates and promote endocytosis-independent NF-κB activation, this may interfere with lymphocyte activation (1).

To further rule out the involvement of soluble factors co-precipitating with the small EV pellet after 100,000 g ultracentifugation, we isolated small EVs from NK cell culture supernatants, using size-exclusion chromatography (SEC) (new Figure 3—figure supplement 2C-H and new Figure 4figure supplement 2C,D). Fractions 8-11, that expressed the exosomal markers CD81 and Tsg101 and low levels of protein aggregates (new Figure 3—figure supplement 2C,D), were pooled and ultracentrifuged before functional analysis. Despite a significant loss of NK-EV material during the SEC purification steps (new Figure 3—figure supplement 2E,F), confirmed by a reduction of the exosomal markers CD81 and Tsg101 to around 20% of the levels obtained by ultracentrifugation, a similar impact for SEC-isolated NK-derived small EVs on T cell function was observed, both in IFN-γ (Figure 3—figure supplement 2G,H) and more significantly in CD25 expression (Figure 4—figure supplement 2C,D).

Altogether, experiments using either Dynasore or SEC, confirmed that NK-EVs account for the observed effects, although we cannot completely rule out that the presence of soluble factors may also play a partial role. These experiments have been added to the manuscript as supplementary materials, as indicated, and the main text, discussion and material methods have been modified accordingly, as highlighted in the revised version of the manuscript.

Additionally, as suggested by the reviewers, we have performed Electron microscopy from NKEVs isolated from NK cell culture supernatants by differential ultracentrifugation, as described in Figure 1—figure supplement 1A and methods. Electron microscopy confirmed the average size range of small EVs (between 50-200nm) and their typical cup-shape morphology and membranous structure by negative staining (Figure 1—figure supplement 1H). The main text of the manuscript and the material and methods section have been modified accordingly.

Concerning the reviewer´s comment, we acknowledge that the presence of feeder cell-derived EVs in the vesicle preparation needs to be avoided. For this reason, our protocol rules out this possibility by isolating NK cells expanded in the presence of the cytokine cocktail and feeder cells, as described in methods, before small EV accumulation and isolation. After NK cell isolation, using the appropriate Miltenyi kit, following the manufacturer´s indications, the purity of isolated NK cells was checked by flow cytometry (CD3- CD56+), before incubating the cells in EV-depleted medium for small EV accumulation and further isolation by ultracentrifugation. This has been further clarified in the main text of the revised manuscript.

2) The suppl data shows some Western blotting of EVs from activated NK cells. Apart from their DE miRNA analysis between EVs from resting vs activated NK cells, it is possible that resting NK cells secrete much less EVs, it would behove the authors to demonstrate this with Western and NTA or TPRS.

The authors validated selected miRNAs expression by qPCR in Figure 1E. However, no miRNAs were significantly enriched in NK-EVs compared with activated NK cells. To support the author's proposal, the statistical significance of their expression between activated NK cells and NK-EVs should be confirmed.

Maybe the authors can include a separate table of the miRNAs that change in the activated NKs cells? In addition, log fold changes (alone) can be deceiving. Maybe the authors can show (relative) abundance data of their EV-enriched miRNAs?

Resting NK cells were isolated form healthy donor´s buffy coats and, in parallel, activated NK cells were generated using our standard procedure, as described in the methods section. Small EVs were isolated from both resting and activated NK cells by ultracentrifugation, as described in the manuscript. It is important to highlight that resting CD3-CD56+ NK cells are a small proportion of peripheral-blood mononuclear cells, representing according to Angelo et al., 0.61 – 16.87% in healthy adults, with a mean of 6.47% (2). Thus, the number of resting NK cells that we could isolate from buffy coats were very limited (up to 5x106 total cells) and therefore the amounts of small EVs that we could isolate were very low, even from activated NK cells, and unfortunately below the limit of detection of our western blotting techniques.

Nevertheless, using Nanoparticle-tracking analysis (NTA), we could detect small EVs derived from 5x106 either resting or in vitro activated NK cells, although at very low levels, and confirmed that activated NK cells release significantly more small EVs than their resting cell counterparts (Figure 1—figure supplement 1I). Indeed, very few particles were detected in resting NK cell-derived small EVs. Moreover, dot blot analyses allowed to detect CD81 and Tsg101 exosomal markers in small EVs purified from activated NK cells, while EVs released by the same number of resting NK cells could not be detected (Figure 1—figure supplement 1J). Altogether our data confirm that resting NK cells release much less EVs than activated NK cells.

Following the reviewers comments we have included a separate table where we show the relative abundance of EV-miRNAs in secreting activated NK cells and their secreted EVs from small RNA sequencing data, and the corresponding plots, including statistics (new Figure 1—figure supplement 2B,C). Also, we have re-analyzed the qPCR data and show Paired t-test analysis, comparing Resting vs Activated cells, Activated cells vs NK-EVs and Resting cells vs NK-EVs (Figure 1E,F). These analyses confirm the results from the sequencing data, showing differences between Activated NK cells and their released NK-EVs, that reach statistic significance in most cases. For hsa-miR-10b-5p and hsa-miR-99a-5p validations by qPCR, comparing activated cells and their released EVs, t-tests yields p-values slightly above 0.1 (0.1656 and 0.1302, respectively), due to the variability among donors. However, the enrichment of these miRNAs in NK-EVs compared to their parental cells is consistent within individuals, as shown in Figure 1—figure supplement 2 and Supplementary Table S1.

3) Because the authors have not used control EVs from other cell types it remains somewhat unclear whether all EVs or specifically EVs from (activated) NK cells have the polarizing effects on the recipient cells. Furthermore, the authors proposed that NK-EV-associated miRNAs promote Th1-like responses via T-bet de-repression by downregulating Gata3 mRNA. To support their proposal, double-staining of T-bet and GATA3 by flow cytometry should be conducted in Figure 4 and Figure 7. In Figure 8, the authors claimed that NK-EV-associated miRNAs promoted Th1-like responses. However, it seems to be an overestimation because they did not show the downregulation of GATA3 by NK-EV-associated miRNAs and T-bet de-repression as well as IFN-γ induction from CD4+ T cells by treatment with NK-EV-associated miRNAs. This fails to support the story of this manuscript.

Perhaps the authors could use an irrelevant control cell type that does not express much less of their miRNAs. As the nanoparticle experiments strongly suggest the involvement of miRNAs (in vivo), the authors should use their nanogold particles with miRNAs as controls for some of the crucial in vitro NK-EVs experiments discussed above and to determine what candidate miRNAs have the effect.

To address this key point raised by the reviewers, several new experiments were performed.

First, small EVs from two distinct human cell lines (namely the HEK-293, human epithelial kidney cells and the Raji B lymphoblast cells) were isolated, following the differential ultracentrifugation protocol, as described in the methods section. Their effects in primary T cells isolated from human healthy donors showed no impact, neither in IFN-γ secretion (new Figure 3—figure supplement 3), nor in activation, measured by CD25 expression (Figure 4—figure supplement 2E,F), that even decreased upon Raji B cell EV-treatment under Th1-polarizing conditions.

Also, three microRNAs that are preferentially excluded from the NK-EV fraction were selected, namely hsa-miR-124, hsa-miR-3667 and hsa-miR-4158 and loaded onto gold-nanoparticles (new Figure 6—figure supplement 2), and their effects were evaluated in immunocompetent C57/BL6 mice after footpad injection. These experiments showed no effects of these nanoparticles, as observed for NK-EV enriched microRNAs, neither in activation, nor in IFN-γ secretion (new Figure 6H).

Furthermore, we have analyzed the effects of the addition of a mixture of hsa-miR-92a-3p and hsa-miR-10b-5p AuNPs to CD4+ T cells, that putatively target GATA-3 (Supplementary Table 2). Three days after incubation, we found that, as observed for mRNA transcript levels (Figure 3E), GATA-3 protein levels were reduced while T-bet expression increased, compared to CD4+ T cells incubated with Control-AuNPs by western blot (Figure 3—figure supplement 1F) and a similar trend was observed by flow cytometry analyses after NK-EV incubation (Figure 3—figure supplement 1E).However, since it is well documented that miRNAs target several mRNAs, very likely other targets may contribute to the observed effects.

4) Template-independent terminal ribonucleotide transferases (TENTs) catalyze the addition of nucleotide monophosphates to the 3′-end of RNA molecules. While their efforts in their pMT (isomiR may be better) analysis are appreciated, global analysis of all miRNAs are not very informative. It is surprising that so many cytosine additions are found whereas adenylation and uridylation are known to be caused by uridylases and adenylases. Is there evidence of 3' tagging of mature mammalian miRNAs by cytidylation. Obviously, it would be interesting if this type of modification is somehow NK cell function related.

Following the reviewer´s suggestion we have modified in the text to refer to modified miRNAs as isomiRs. As the reviewer points out, uridylation and adenylation are the most typical 3′ end modifications across animal miRNAs (3-6).

Several studies evaluating PtMs have found guanidinylation and cytosilation to be barely represented. However, cytosine addition was found to be the second most abundant 3´modification in mouse primordial germ cells and gonadal somatic cells at various embryonic stages (7) and was also described in Arabidopsis (8).

Moreover, in a recent paper from our group, cytosylation was found to be a significant posttranscriptional modification in human T cells (9), suggesting that cytosine additions may be relevant for human lymphocyte function.

5) Despite a large body of independent evidence, the biological relevance of many Isomirs as found in sequencing data has recently been scrutinized (Hu et al., Nature Biotech 2021). Perhaps the authors can comment in their paper why their results are unlikely the result of artifacts during library preparation?

We acknowledge that ligation bias has been well documented in conventional small RNA-seq methods. It has thus been suggested that non-canonical “modification tails” may be an artifact due to the specific 3’ adaptor sequence and/or ligation chemistry used for library preparation.

In our case, the adaptor remains cannot contribute to the presence of non-templated "C" residues at the 3' end of miRNAs, as described in Rodríguez-Galan et al., (9). Briefly, in our experimental settings, adaptors used in the current experiments are standard Illumina TruSeq adaptors that start with the sequence "AGATCGGAAGAGCACACGTCT". Adaptor sequences were removed with cutadapt, using the following line of code, for each fastq file:

cutadapt -m 15-M35-O7-o trimmed.fq --untrimmed-output=untrimmed.fq --too-shortoutput=tooshort.fq -a AGATCGGAAGAGCACACGTCTGAACTCCAGTCAC input.fq

Regarding the possibility of ligation bias, we are aware that this may affect any library preparation strategy. While it is true that some bias might exist in the absolute quantification of miRNAs with a specific nucleotide composition, in our manuscript, we focus on comparing this composition across different types of samples (resting NK cells, activated NK cells and NK-derived EVs). Thus, this bias would be affecting every sample and our comparisons would still be valid.

6) Their analysis of the NTAs, though comprehensive, makes little sense to me. The authors state that they analyzed variations from position -4 to +4. If the average mature miRNA is 21nts long, they thus examined sequences of 17-25 nucleotides, yet in their methods, they stated that they 'filter' the reads from 20nts? Please clarify.

How is it possible that position 0 (the last nucleotide on the 3' end of the miRNA) has a nucleotide addition if anything it should be a substitution? The authors should show the percentage of fully mature (untagged) canonical miRNAs in their graphs. The first NTA should be position +1, etc.

We agree with the reviewer that our analysis is based on non-templated modifications, being either substitutions within the canonical sequence (mainly positions -1, 0), or additions, from position +1 onwards. For the sake of clarity, we have modified the nomenclature in the main text and refer to each specific modification as either nucleotide “additions” or “substitutions”, as suggested by the reviewer.

The average size of mature miRNAs is 22 nt and more than 90% of those described in miRBAse21 have lengths equal to 20 nt and/or higher. For the current study, read pre-processing was performed with a pipeline that used cutadapt and FastQC: the first to remove Illumina adapters and to select trimmed reads with lengths equal or larger than 20, and the second to perform quality checks on the reads.

To identify PtMs, we used Chimira to align pre-processed reads against miRNA hairpin sequences from the human component of miRBase, with the aim of identifying nucleotide sequences diverging from the reference sequence (modifications).

To provide a common, unified framework for visualization and PtM summarization, Chimira adjusts the alignments on the 3'end, mapping everything to a length of 23 nt, using a zero-based coordinate system.

In that context, the initial position (5'end) is referred as "zero", and modification positions located before or after the 5'end are identified with negative and positive indices, respectively. The end position (3'end) is numbered as position "22", independently of the real length of miRNAs. As it happened on the 5'ends, modification positions located before or after the 3'end are identified with negative and positive indices, respectively.

Therefore, by focusing on positions -4 to +4, we were searching for sequence variations, relative to each reference sequence in miRBAse, in a 9 nt long region that was centered on the 3'end of miRNAs, independently of their length.

7) Figure 3B is interesting in that some miRNAs such miR122-5p is for 50% modified in resting cells yet not at all in activated cells, yet the (activated) NK cell EVs do contain modified miRNAs. What are the absolute or relative levels of these miRNAs in the NK cells? Can the authors provide an explanation?

We agree with the reviewer that it is interesting that certain miRNAs, namely miR-122-5p, but also miR-409-3p and miR-451a that follow a similar trend, are highly modified in resting NK cells, and in activated NK-derived EVs, while absent y activated NK cells. We believe, that a possible explanation for this observation is, that upon activation, modified miRNAs, e.g. miR-122-5p are more prone to be sorted into EVs. In this sense, it was described that uridylation may promote exosome loading, while adenylated miRNA isoforms were relatively enriched in B cells (10). Thus, a similar mechanism might be occurring in human activated NK cells for modified miRNAs, that could be tagged for EV packaging. This has been added to the Discussion section of the revised manuscript. Concerning the relative values of these miRNAs, for miR-122-5p, these levels are relatively low but very similar in both resting and activated NK cells, while high in NK-EVs (Relative Counts Per Million; REST: 0,57, ACT: 0,52 and NK-EVs: 313,94).

The authors demonstrated that NK-EV-associated miRNAs possessed unique post-transcriptional modifications and short motifs in Figure 2 and Figure 3. Since the conclusions from both figures are similar, it would be better to combine Figure 2 and Figure 3 together.

Figures 2 and 3 have been combined in New Figure 2 as suggested by the reviewers and supplementary panels organized in the corresponding figure supplements.

Reviewer #1 (Recommendations for the authors):

Because it is unclear that the features of NK-EVs described in this paper is specific to NK-EVs, I recommend that the authors include data showing how NK cell-derived EVs are characterized compared to EVs derived from other cells. The followings are specific points that may improve the paper.

1. Are there differences in the repertoire of miRNAs among different subsets of lymphocytes?

Please refer to the revision reply to reviewer points 1 and 2.

2. Is the promotion of Th1-like responses specific to NK-EVs?

Please refer to the revision reply to reviewer points 1 and 2. Indeed, EVs derived from other cell types, including the lymphocyte-like cell line Raji, do not promote Th1 responses.

3. Similarly, is the down-modulation of Gata-3 and T-bet specific to NK EVs?

The effects of the NK-EV miRNAs miR-92a and miR-10b on CD4+T cells were analyzed, showing similar effects on GATA-3 and T-BET expression levels by western blot than incubation with NKEVs (Figure 3—figure supplement 1E). As indicated in the previous points, other EVs (HEK or Raji) or non-NK-EV miRNAs (hsa-miR-124, hsa-miR-3667 and hsa-miR-4158, new Figure 6—figure supplement 2), had no effect on T cell function.

4. EVs are produced by many cell types. Is it possible to estimate the proportion of NK-EVs in total EVs?

Estimating the proportion of a specific subset of EVs would be very interesting, but quite challenging technically. Different approaches, such as the use of specific markers for serum analyses (e.g. perforin, Granzyme B) may be addressed, however this would not allow to discriminate from other cytotoxic cell-derived EVs, and the amounts of these vesicles in serum from healthy donors is low for these kind of analyses.

Reviewer #2 (Recommendations for the authors):

1) The authors isolated EVs with differential ultracentrifugation only which is prone to contamination of protein complexes, lipoparticles etc. Can the authors show EM data of their EVs.

As suggested by the reviewer, we have performed Electron microscopy from NK-EVs isolated from NK cell culture supernatants by differential ultracentrifugation, as described in Figure 1figure supplement 1A and methods. Electron microscopy confirmed the average size range of small EVs (between 50-200nm) and their typical cup-shape morphology and membranous structure by negative staining (Figure 1—figure supplement 1H). EM analyses showed isolated vesicles with little non-small EV material. The main text of the manuscript and the material and methods section have been modified accordingly.

2) Because the authors have not performed size-exclusion nor density gradient separation before applying their functional experiments with purified EVs they cannot rule out that other molecules in the activated NK secretome are responsible for the observed effects? Blocking EV uptake with dynasore for example could rule out a major contribution from other soluble factors.

First, we analyzed the effects of NK-derived EVs on isolated T lymphocytes pre-treated with Dynasore to block EV uptake. As included in the new figure (new Figure 3—figure supplement 2A,B and Figure 4—figure supplement 2A,B), after dynamin-dependent endocytosis blockade, the upregulation of IFN-γ and CD25 and driven by NK-EVs were abolished, indicating that the observed effects on T cell function are mediated by NK-derived EVs. It is worthwhile mentioning, that since dynasore has been shown to enhance the formation of mitochondrial antiviral signalling aggregates and promote endocytosis-independent NF-κB activation, this may interfere with lymphocyte activation (1).

To further rule out the involvement of soluble factors co-precipitating with the small EV pellet after 100,000 g ultracentifugation, we isolated small EVs from NK cell culture supernatants, using size-exclusion chromatography (SEC) (new Figure 3—figure supplement 2C-H and new Figure 4figure supplement 2C,D). Fractions 8-11, that expressed the exosomal markers CD81 and Tsg101 and low levels of protein aggregates (new Figure 3—figure supplement 2C,D), were pooled and ultracentrifuged before functional analysis. Despite a significant loss of NK-EV material during the SEC purification steps (new Figure 3—figure supplement 2E,F), confirmed by a reduction of the exosomal markers CD81 and Tsg101 to around 20% of the levels obtained by ultracentrifugation, a similar impact for SEC-isolated NK-derived small EVs on T cell function was observed, both in IFN-γ (Figure 3—figure supplement 2G,H) and more significantly in CD25 expression (Figure 4—figure supplement 2C,D).

Altogether, experiments using either Dynasore or SEC, confirmed that NK-EVs account for the observed effects, although we cannot completely rule out that the presence of soluble factors may also play a partial role. These experiments have been added to the manuscript as supplementary materials, as indicated, and the main text, discussion and material methods have been modified accordingly, as highlighted in the revised version of the manuscript.

3) The suppl data shows some western blotting of EVs from activated NK cells. Apart from their DE miRNA analysis between EVs from resting vs activated NK cells, it is possible that resting NK cells secrete much less EVs, it would behove the authors to demonstrate this with western and NTA or TPRS.

Resting NK cells were isolated form healthy donor´s buffy coats and, in parallel, activated NK cells were generated using our standard procedure, as described in the methods section. Small EVs were isolated from both resting and activated NK cells by ultracentrifugation, as described in the manuscript. It is important to highlight that resting CD3-CD56+ NK cells are a small proportion of peripheral-blood mononuclear cells, representing according to Angelo et al., 0.61 – 16.87% in healthy adults, with a mean of 6.47% (2). Thus, the number of resting NK cells that we could isolate from buffy coats were very limited (up to 5x106 total cells) and therefore the amounts of small EVs that we could isolate were very low, even from activated NK cells, and unfortunately below the limit of detection of our western blotting techniques.

Nevertheless, using Nanoparticle-tracking analysis (NTA), we could detect small EVs derived from 5x106 either resting or in vitro activated NK cells, although at very low levels, and confirmed that activated NK cells release significantly more small EVs than their resting cell counterparts (Figure 1—figure supplement 1I). Indeed, very few particles were detected in resting NK cell-derived small EVs. Moreover, dot blot analyses allowed to detect CD81 and Tsg101 exosomal markers in small EVs purified from activated NK cells, while EVs released by the same number of resting NK cells could not be detected (Figure 1—figure supplement 1J). Altogether our data confirm that resting NK cells release much less EVs than activated NK cells.

4) How do the authors exclude the presence of feeder cell EVs in their EV-preps?

Concerning the reviewer´s comment, we acknowledge that the presence of feeder cell-derived EVs in the vesicle preparation needs to be avoided. For this reason, our protocol rules out this possibility by isolating NK cells expanded in the presence of the cytokine cocktail and feeder cells, as described in methods, before small EV accumulation and isolation. After NK cell isolation, using the appropriate Miltenyi kit, following the manufacturer´s indications, the purity of isolated NK cells was checked by flow cytometry (CD3- CD56+), before incubating the cells in EV-depleted medium for small EV accumulation and further isolation by ultracentrifugation. This has been further clarified in the main text of the revised manuscript.

5) Because the authors have not used control EVs from other cell types it remains somewhat unclear whether all EVs or specifically EVs from (activated) NK cells have the polarizing effects on the recipient cells. Perhaps the authors could use an irrelevant control cell type that does not express much less of their miRNAs. I do appreciate that the nanoparticle experiments strongly suggest the involvement of miRNAs (in vivo). The authors should use their nanogold particles with miRNAs as controls for some of the crucial the in vitro NK-EVs experiments. Do their nanoparticles have similar effects on CD4+ Th1 polarization and what candidate miRNAs have this effect? Ideally, the authors would examine the effects of NK-EVs in mice but I find that not required.

To address this key point several new experiments were performed.

First, small EVs from two distinct human cell lines (namely the HEK-293, human epithelial kidney cells and the Raji B lymphoblast cells) were isolated, following the differential ultracentrifugation protocol, as described in the methods section. Their effects in primary T cells isolated from human healthy donors showed no impact, neither in IFN-γ secretion (new Figure 3—figure supplement 3), nor in activation, measured by CD25 expression (Figure 4—figure supplement 2E,F), that even decreased upon Raji B cell EV-treatment under Th1-polarizing conditions.

Also, three microRNAs that are preferentially excluded from the NK-EV fraction were selected, namely hsa-miR-124, hsa-miR-3667 and hsa-miR-4158 and loaded onto gold-nanoparticles (new Figure 6—figure supplement 2), and their effects were evaluated in immunocompetent C57/BL6 mice after footpad injection. These experiments showed no effects of these nanoparticles, as observed for NK-EV enriched microRNAs, neither in activation, nor in IFN-γ secretion (new Figure 6H).

6) Maybe the authors can include a separate table of the miRNAs that change in the activated NKs cells?

Following the reviewer´s comment we have included a separate table where we show the relative abundance of EV-miRNAs in secreting activated NK cells and their secreted EVs from small RNA sequencing data, and the corresponding plots, including statistics (new Figure 1figure supplement 2B,C).

7) Log fold changes (alone) can be deceiving. Maybe the authors can show (relative) abundance data of their EV-enriched miRNAs?

Besides the new figure mentioned above, individual values can be found in Supplementary Table S1.

8) Template-independent terminal ribonucleotide transferases (TENTs) catalyze the addition of nucleotide monophosphates to the 3′-end of RNA molecules. While I appreciate their efforts in their pMT (I prefer isomiR) analysis, global analysis of all miRNAs are in my view not very informative. It is surprising that so many cytosine additions are found whereas adenylation and uridylation are known to be caused by uridylases and adenylases. Is there evidence of 3' tagging of mature mammalian miRNAs by cytidylation. Obviously, it would be interesting if this type of modification is somehow NK cell function related.

Following the reviewer´s suggestion we have modified in the text to refer to modified miRNAs as isomiRs. As the reviewer points out, uridylation and adenylation are the most typical 3′ end modifications across animal miRNAs (3-6).

Several studies evaluating PtMs have found guanidinylation and cytosilation to be barely represented. However, cytosine addition was found to be the second most abundant 3´modification in mouse primordial germ cells and gonadal somatic cells at various embryonic stages (7) and was also described in Arabidopsis (8).

Moreover, in a recent paper from our group, cytosylation was found to be a significant posttranscriptional modification in human T cells (9), suggesting that cytosine additions may be relevant for human lymphocyte function.

9) Despite a large body of independent evidence, the biological relevance of many Isomirs as found in sequencing data has recently been scrutinized (Hu et al., Nature Biotech 2021). Perhaps the authors can comment in their paper why their results are unlikely the result of artifacts during library preparation?

We acknowledge that ligation bias has been well documented in conventional small RNA-seq methods. It has thus been suggested that non-canonical “modification tails” may be an artifact due to the specific 3’ adaptor sequence and/or ligation chemistry used for library preparation.

In our case, the adaptor remains cannot contribute to the presence of non-templated "C" residues at the 3' end of miRNAs, as described in Rodríguez-Galan et al., (9). Briefly, in our experimental settings, adaptors used in the current experiments are standard Illumina TruSeq adaptors that start with the sequence "AGATCGGAAGAGCACACGTCT". Adaptor sequences were removed with cutadapt, using the following line of code, for each fastq file:

cutadapt -m 15 -M 35 -O 7-o trimmed.fq --untrimmed-output=untrimmed.fq --too-shortoutput=tooshort.fq -a AGATCGGAAGAGCACACGTCTGAACTCCAGTCAC input.fq

Regarding the possibility of ligation bias, we are aware that this may affect any library preparation strategy. While it is true that some bias might exist in the absolute quantification of miRNAs with a specific nucleotide composition, in our manuscript, we focus on comparing this composition across different types of samples (resting NK cells, activated NK cells and NK-derived EVs). Thus, this bias would be affecting every sample and our comparisons would still be valid.

10) Their analysis of the NTAs, though comprehensive, makes little sense to me. The authors state that they analyzed variations from position -4 to +4. If the average mature miRNA is 21nts long, they thus examined sequences of 17-25 nucleotides, yet in their methods, they stated that they 'filter' the reads from 20nts? Please clarify.

We agree with the reviewer that our analysis is based on non-templated modifications, being either substitutions within the canonical sequence (mainly positions -1, 0), or additions, from position +1 onwards. For the sake of clarity, we have modified the nomenclature in the main text and refer to each specific modification as either nucleotide “additions” or “substitutions”, as suggested by the reviewer.

The average size of mature miRNAs is 22 nt and more than 90% of those described in miRBAse21 have lengths equal to 20 nt and/or higher. For the current study, read pre-processing was performed with a pipeline that used cutadapt and FastQC: the first to remove Illumina adapters and to select trimmed reads with lengths equal or larger than 20, and the second to perform quality checks on the reads.

To identify PtMs, we used Chimira to align pre-processed reads against miRNA hairpin sequences from the human component of miRBase, with the aim of identifying nucleotide sequences diverging from the reference sequence (modifications).

To provide a common, unified framework for visualization and PtM summarization, Chimira adjusts the alignments on the 3'end, mapping everything to a length of 23 nt, using a zero-based coordinate system.

In that context, the initial position (5'end) is referred as "zero", and modification positions located before or after the 5'end are identified with negative and positive indices, respectively. The end position (3'end) is numbered as position "22", independently of the real length of miRNAs. As it happened on the 5'ends, modification positions located before or after the 3'end are identified with negative and positive indices, respectively.

Therefore, by focusing on positions -4 to +4, we were searching for sequence variations, relative to each reference sequence in miRBAse, in a 9 nt long region that was centered on the 3'end of miRNAs, independently of their length.

11) How is it possible that position 0 (the last nucleotide on the 3' end of the miRNA) has a nucleotide addition if anything it should be a substitution? The authors should show the percentage of fully mature (untagged) canonical miRNAs in their graphs. The first NTA should be position +1, etc.

Please refer to the previous point. We have modified the nomenclature as suggested by the reviewer as highlighted in the main manuscript text.

12) Figure 3B is interesting in that some miRNAs such miR122-5p is for 50% modified in resting cells yet not at all in activated cells, yet the (activated) NK cell EVs do contain modified miRNAs. What are the absolute or relative levels of these miRNAs in the NK cells? Can the authors provide an explanation?

We agree with the reviewer that it is interesting that certain miRNAs, namely miR-122-5p, but also miR-409-3p and miR-451a that follow a similar trend, are highly modified in resting NK cells, and in activated NK-derived EVs, while absent y activated NK cells. We believe, that a possible explanation for this observation is, that upon activation, modified miRNAs, e.g. miR-122-5p are more prone to be sorted into EVs. In this sense, it was described that uridylation may promote exosome loading, while adenylated miRNA isoforms were relatively enriched in B cells (10). Thus, a similar mechanism might be ocurrying in human activated NK cells for modified miRNAs, that could be tagged for EV packaging. This has been added to the Discussion section of the revised manuscript. Concerning the relative values of these miRNAs, for miR-122-5p, these levels are relatively low but very similar in both resting and activated NK cells, while high in NK-EVs (Relative Counts Per Million; REST: 0,57, ACT: 0,52 and NK-EVs: 313,94).

Reviewer #3 (Recommendations for the authors):

In the report entitled "Natural killer (NK) cell-derived extracellular-vesicle shuttled microRNAs control T cell responses", Dosil et al., identified NK-extracellular-vesicle (EV)-associated microRNAs and their post-transcriptional modifications signature by small RNA next-generation sequencing. They also found that NK-EVs promoted Th1 polarization and activation of monocyte and moDCs. They suggested that the identified NK-EV-associated microRNAs partially recapitulated NK-EV effects in T cells in vivo.

The study contains some interesting findings. However, the impacts of NK-EVs and NK-EV-associated microRNAs on Th1 differentiation are not impressive. In addition, their evidence is not sufficient to support their proposal that NK-EV-associated microRNAs promote Th1-like responses via T-bet de-repression by down-regulation of GATA3.

1. The authors validated selected microRNAs expression by qPCR in Figure 1E. However, no microRNAs were significantly enriched in NK-EVs compared with activated NK cells. To support the author's proposal, statistical significance of their expression between activated NK cells and NK-EVs should be confirmed.

We thank the reviewer for highlighting this point. We have now included a separate table where we show the relative abundance of EV-miRNAs in secreting activated NK cells and their secreted EVs from small RNA sequencing data, and the corresponding plots, including statistics (new Figure 1—figure supplement 2B,C).

Also, we have re-analyzed the qPCR data and show Paired t-test analysis, comparing Resting vs Activated cells, Activated cells vs NK-EVs and Resting cells vs NK-EVs (Figure 1E,F). These analyses confirm the results from the sequencing data, showing differences between Activated NK cells and their released NK-EVs, that reach statistic significance in most cases. For hsa-miR-10b-5p and hsa-miR-99a-5p validations by qPCR, comparing activated cells and their released EVs, t-tests yields p-values slightly above 0.1 (0.1656 and 0.1302, respectively), due to the variability among donors. However, the enrichment of these miRNAs in NK-EVs compared to their parental cells is consistent within individuals, as shown in Figure 1—figure supplement 2 and Supplementary Table S1.

2. The authors demonstrated that NK-EV-associated microRNAs possessed unique post-transcriptional modifications and short motifs in Figure 2 and Figure 3. Since the conclusions from both figures are similar, it would be better to combine Figure 2 and Figure 3 together.

We have now merged these two figures as new Figure 2, and added the additional panels as figure supplements in the revised manuscript, and modified the text accordingly.

3. As mentioned above, the impact of NK-EVs on Th1 polarization was quite minor in Figure 4. Furthermore, the authors failed to induce IFN-γ production from CD4+ T cells by administration of selected microRNAs in Figure 7F.

NK-EVs contain several effector proteins including IFN-γ (Choi et al., Molecules, 2020;25(21)). So, they should exclude the possibility of contamination of IFN-γ derived from NK-EVs in Figure 4.

To address this issue, and since ultracentrifugation of cell culture supernatants does not allow to fully rule out the involvement of other molecules, such as IFN-γ in the observed effects, we have performed additional experiments, using different approaches.

First, we analyzed the effects of NK-derived EVs on isolated T lymphocytes pre-treated with Dynasore to block EV uptake. As included in the new figure (new Figure 3—figure supplement 2A,B and Figure 4—figure supplement 2A,B), after dynamin-dependent endocytosis blockade, the upregulation of IFN-γ and CD25 and driven by NK-EVs were abolished, indicating that the observed effects on T cell function are mediated by NK-derived EVs. It is worthwhile mentioning, that since dynasore has been shown to enhance the formation of mitochondrial antiviral signalling aggregates and promote endocytosis-independent NF-κB activation, this may interfere with lymphocyte activation (1).

To further rule out the involvement of soluble factors co-precipitating with the small EV pellet after 100,000 g ultracentifugation, we isolated small EVs from NK cell culture supernatants, using size-exclusion chromatography (SEC) (new Figure 3—figure supplement 2C-H and new Figure 4figure supplement 2C,D). Fractions 8-11, that expressed the exosomal markers CD81 and Tsg101 and low levels of protein aggregates (new Figure 3—figure supplement 2C,D), were pooled and ultracentrifuged before functional analysis. Despite a significant loss of NK-EV material during the SEC purification steps (new Figure 3—figure supplement 2E,F), confirmed by a reduction of the exosomal markers CD81 and Tsg101 to around 20% of the levels obtained by ultracentrifugation, a similar impact for SEC-isolated NK-derived small EVs on T cell function was observed, both in IFN-γ (Figure 3—figure supplement 2G,H) and more significantly in CD25 expression (Figure 4—figure supplement 2C,D).

Altogether, experiments using either Dynasore or SEC, confirmed that NK-EVs account for the observed effects, although we cannot completely rule out that the presence of soluble factors may also play a partial role. These experiments have been added to the manuscript as supplementary materials, as indicated, and the main text, discussion and material methods have been modified accordingly, as highlighted in the revised version of the manuscript.

4. The authors proposed that NK-EV-associated microRNAs promote Th1-like responses via T-bet de-repression by downregulating Gata3 mRNA. To ensure their proposal, double-staining of T-bet and GATA3 by flow cytometry should be conducted in Figure 4 and Figure 7.

To address this point raised by the reviewer two strategies have been carried out. First, we have analyzed the effects of the addition of a mixture of hsa-miR-92a-3p and hsa-miR-10b-5p AuNPs to CD4+ T cells, that putatively target GATA-3 (Supplementary Table 2). Three days after incubation, we found that, as observed for mRNA transcript levels (Figure 3E), GATA-3 protein levels were reduced while T-bet expression increased, compared to CD4+ T cells incubated with Control-AuNPs by western blot (Figure 3—figure supplement 1F).

Also, a similar trend was observed by flow cytometry analyses after NK-EV incubation (Figure 3figure supplement 1E), although GATA-3 levels were low. However, since it is well documented that miRNAs target several mRNAs, very likely other targets may contribute to the observed effects.

5. In Figure 8, the authors represent that NK-EV-associated microRNAs promote Th1-like responses. However, it seems to be an overestimation because they did not show the downregulation of GATA3 by NK-EV-associated microRNAs and T-bet de-repression as well as IFN-γ induction from CD4+ T cells by treatment of NK-EV-associated microRNAs. This fails to support the story of this manuscript.

Please refer to the previous point.

References

M. Ailenberg, C. Di Ciano-Oliveira, K. Szaszi, Q. Dan, M. Rozycki, A. Kapus, O. D. Rotstein, Dynasore enhances the formation of mitochondrial antiviral signalling aggregates and endocytosis-independent NF-kappaB activation. British journal of pharmacology 172, 3748-3763 (2015); published online EpubAug (10.1111/bph.13162).

L. S. Angelo, P. P. Banerjee, L. Monaco-Shawver, J. B. Rosen, G. Makedonas, L. R. Forbes, E. M. Mace, J. S. Orange, Practical NK cell phenotyping and variability in healthy adults. Immunol Res 62, 341-356 (2015); published online EpubJul (10.1007/s12026-015-8664y).

A.M. Burroughs, Y. Ando, M. J. de Hoon, Y. Tomaru, T. Nishibu, R. Ukekawa, T. Funakoshi, T. Kurokawa, H. Suzuki, Y. Hayashizaki, C. O. Daub, A comprehensive survey of 3' animal miRNA modification events and a possible role for 3' adenylation in modulating miRNA targeting effectiveness. Genome Res 20, 1398-1410 (2010); published online EpubOct (10.1101/gr.106054.110).

H. R. Chiang, L. W. Schoenfeld, J. G. Ruby, V. C. Auyeung, N. Spies, D. Baek, W. K. Johnston, C. Russ, S. Luo, J. E. Babiarz, R. Blelloch, G. P. Schroth, C. Nusbaum, D. P. Bartel, Mammalian microRNAs: experimental evaluation of novel and previously annotated genes. Genes and development 24, 992-1009 (2010); published online EpubMay 15 (10.1101/gad.1884710).

P. Landgraf, M. Rusu, R. Sheridan, A. Sewer, N. Iovino, A. Aravin, S. Pfeffer, A. Rice, A. O. Kamphorst, M. Landthaler, C. Lin, N. D. Socci, L. Hermida, V. Fulci, S. Chiaretti, R. Foa, J. Schliwka, U. Fuchs, A. Novosel, R. U. Muller, B. Schermer, U. Bissels, J. Inman, Q. Phan, M. Chien, D. B. Weir, R. Choksi, G. De Vita, D. Frezzetti, H. I. Trompeter, V. Hornung, G. Teng, G. Hartmann, M. Palkovits, R. Di Lauro, P. Wernet, G. Macino, C. E. Rogler, J. W. Nagle, J. Ju, F. N. Papavasiliou, T. Benzing, P. Lichter, W. Tam, M. J. Brownstein, A. Bosio, A. Borkhardt, J. J. Russo, C. Sander, M. Zavolan, T. Tuschl, A mammalian microRNA expression atlas based on small RNA library sequencing. Cell 129, 1401-1414 (2007); published online EpubJun 29 (10.1016/j.cell.2007.04.040).

H. Muller, M. J. Marzi, F. Nicassio, IsomiRage: From Functional Classification to Differential Expression of miRNA Isoforms. Frontiers in bioengineering and biotechnology 2, 38 (2014) (10.3389/fbioe.2014.00038).

D. M. Kruger, S. Neubacher, T. N. Grossmann, Protein-RNA interactions: structural characteristics and hotspot amino acids. Rna 24, 1457-1465 (2018); published online EpubNov (10.1261/rna.066464.118).

M. T. Chou, B. W. Han, C. P. Hsiao, P. D. Zamore, Z. Weng, J. H. Hung, Tailor: a computational framework for detecting non-templated tailing of small silencing RNAs. Nucleic acids research 43, e109 (2015); published online EpubSep 30 (10.1093/nar/gkv537).

Rodriguez-Galan, S. G. Dosil, M. J. Gomez, I. Fernandez-Delgado, L. FernandezMessina, F. Sanchez-Cabo, F. Sanchez-Madrid, MiRNA post-transcriptional modification dynamics in T cell activation. iScience 24, 102530 (2021); published online EpubJun 25 (10.1016/j.isci.2021.102530).

D. Koppers-Lalic, M. Hackenberg, I. V. Bijnsdorp, M. A. J. van Eijndhoven, P. Sadek, D. Sie, N. Zini, J. M. Middeldorp, B. Ylstra, R. X. de Menezes, T. Wurdinger, G. A. Meijer, D. M. Pegtel, Nontemplated nucleotide additions distinguish the small RNA composition in cells from exosomes. Cell reports 8, 1649-1658 (2014); published online EpubSep 25 (10.1016/j.celrep.2014.08.027).

R. Garcia-Martin, G. Wang, B. B. Brandao, T. M. Zanotto, S. Shah, S. Kumar Patel, B. Schilling, C. R. Kahn, MicroRNA sequence codes for small extracellular vesicle release and cellular retention. Nature 601, 446-451 (2022); published online EpubJan (10.1038/s41586-021-04234-3).

https://doi.org/10.7554/eLife.76319.sa2

Article and author information

Author details

  1. Sara G Dosil

    1. Immunology Service, Hospital de la Princesa, Universidad Autónoma de Madrid, Instituto Investigación Sanitaria Princesa, Madrid, Spain
    2. Intercellular Communication in the Inflammatory Response. Vascular Pathophysiology Area, National Center for Cardiovascular Research (CNIC), Madrid, Spain
    3. Universidad Autónoma de Madrid, Madrid, Spain
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Writing – original draft
    Competing interests
    No competing interests declared
  2. Sheila Lopez-Cobo

    Department of Immunology and Oncology, National Centre for Biotechnology, Spanish National Research Council, Madrid, Spain
    Present address
    INSERM U932, Institut Curie, PSL Research University, Paris, France
    Contribution
    Conceptualization, Investigation, Methodology, Writing – review and editing
    Competing interests
    No competing interests declared
  3. Ana Rodriguez-Galan

    1. Immunology Service, Hospital de la Princesa, Universidad Autónoma de Madrid, Instituto Investigación Sanitaria Princesa, Madrid, Spain
    2. Intercellular Communication in the Inflammatory Response. Vascular Pathophysiology Area, National Center for Cardiovascular Research (CNIC), Madrid, Spain
    3. Universidad Autónoma de Madrid, Madrid, Spain
    Contribution
    Data curation, Formal analysis, Investigation, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6209-782X
  4. Irene Fernandez-Delgado

    1. Immunology Service, Hospital de la Princesa, Universidad Autónoma de Madrid, Instituto Investigación Sanitaria Princesa, Madrid, Spain
    2. Intercellular Communication in the Inflammatory Response. Vascular Pathophysiology Area, National Center for Cardiovascular Research (CNIC), Madrid, Spain
    3. Universidad Autónoma de Madrid, Madrid, Spain
    Contribution
    Investigation, Methodology, Writing – review and editing
    Competing interests
    No competing interests declared
  5. Marta Ramirez-Huesca

    1. Immunology Service, Hospital de la Princesa, Universidad Autónoma de Madrid, Instituto Investigación Sanitaria Princesa, Madrid, Spain
    2. Intercellular Communication in the Inflammatory Response. Vascular Pathophysiology Area, National Center for Cardiovascular Research (CNIC), Madrid, Spain
    3. Universidad Autónoma de Madrid, Madrid, Spain
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  6. Paula Milan-Rois

    Instituto Madrileño de Estudios Avanzados en Nanociencia (IMDEA Nanociencia) & Nanobiotecnología (IMDEA-Nanociencia), Unidad Asociada al Centro Nacional de Biotecnología (CSIC), Madrid, Spain
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7043-2920
  7. Milagros Castellanos

    Instituto Madrileño de Estudios Avanzados en Nanociencia (IMDEA Nanociencia) & Nanobiotecnología (IMDEA-Nanociencia), Unidad Asociada al Centro Nacional de Biotecnología (CSIC), Madrid, Spain
    Contribution
    Conceptualization, Investigation, Methodology, Writing – review and editing
    Competing interests
    No competing interests declared
  8. Alvaro Somoza

    Instituto Madrileño de Estudios Avanzados en Nanociencia (IMDEA Nanociencia) & Nanobiotecnología (IMDEA-Nanociencia), Unidad Asociada al Centro Nacional de Biotecnología (CSIC), Madrid, Spain
    Contribution
    Conceptualization, Funding acquisition, Methodology, Writing – review and editing
    Competing interests
    No competing interests declared
  9. Manuel José Gómez

    Intercellular Communication in the Inflammatory Response. Vascular Pathophysiology Area, National Center for Cardiovascular Research (CNIC), Madrid, Spain
    Contribution
    Data curation, Software, Formal analysis, Methodology
    Competing interests
    No competing interests declared
  10. Hugh T Reyburn

    Department of Immunology and Oncology, National Centre for Biotechnology, Spanish National Research Council, Madrid, Spain
    Contribution
    Conceptualization, Methodology, Writing – review and editing
    Competing interests
    No competing interests declared
  11. Mar Vales-Gomez

    Department of Immunology and Oncology, National Centre for Biotechnology, Spanish National Research Council, Madrid, Spain
    Contribution
    Conceptualization, Methodology, Writing – review and editing
    Competing interests
    No competing interests declared
  12. Francisco Sánchez Madrid

    1. Immunology Service, Hospital de la Princesa, Universidad Autónoma de Madrid, Instituto Investigación Sanitaria Princesa, Madrid, Spain
    2. Intercellular Communication in the Inflammatory Response. Vascular Pathophysiology Area, National Center for Cardiovascular Research (CNIC), Madrid, Spain
    3. Universidad Autónoma de Madrid, Madrid, Spain
    4. CIBER de Enfermedades Cardiovasculares (CIBERCV), Madrid, Spain
    Contribution
    Conceptualization, Supervision, Funding acquisition, Writing – original draft, Project administration, Writing – review and editing
    For correspondence
    fsmadrid@salud.madrid.org
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5303-0762
  13. Lola Fernandez-Messina

    1. Immunology Service, Hospital de la Princesa, Universidad Autónoma de Madrid, Instituto Investigación Sanitaria Princesa, Madrid, Spain
    2. Intercellular Communication in the Inflammatory Response. Vascular Pathophysiology Area, National Center for Cardiovascular Research (CNIC), Madrid, Spain
    3. Universidad Autónoma de Madrid, Madrid, Spain
    4. CIBER de Enfermedades Cardiovasculares (CIBERCV), Madrid, Spain
    Contribution
    Conceptualization, Formal analysis, Validation, Investigation, Methodology, Writing – original draft, Writing – review and editing
    For correspondence
    lfernandezmessina@gmail.com
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2163-8746

Funding

Spanish National Plan for Scientific and Technical Research and Innovation (PD1-2020-120412RB-100)

  • Francisco Sánchez Madrid

Fundación BBVA

  • Francisco Sánchez Madrid

Comunidad de Madrid

  • Francisco Sánchez Madrid

Ministry of Economy

  • Francisco Sánchez Madrid

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

NGS experiments were performed in the CNIC Genomics Unit (Centro Nacional de Investigaciones Cardiovasculares, Madrid, Spain) and analysed by the CNIC Bioinformatics Unit. This manuscript was funded by grants PDI-2020-120412RB-I00 and PDC2021- 121719-I00 (FS-M) and PID2020-119352RB-I00 (AS) from the Spanish Ministry of Economy and Competitiveness; CAM (S2017/BMD-3671-INFLAMUNE-CM) from the Comunidad de Madrid (FS-M). CIBERCV (CB16/11/00272) and BIOIMID PIE13/041 from the Instituto de Salud Carlos. The current research has received funding from 'la Caixa' Foundation under the project code HR17-00016. Grants from Ramón Areces Foundation 'Ciencias de la Vida y de la Salud' (XIX Concurso-2018) and from Ayuda Fundación BBVA y Equipo de Investigación Científica (BIOMEDICINA-2018) (to FSM). The CNIC is supported by the Ministerio de Ciencia, Innovacion y Universidades and the Pro-CNIC Foundation, and is a Severo Ochoa Center of Excellence (SEV-2015–0505). IMDEA Nanociencia acknowledges support from the ‘Severo Ochoa’ Programme for Centres of Excellence in R&D (MINECO, CEX2020-001039-S). SGD is supported by a grant from the Spanish Ministry of Universities. Authors thank Dr Miguel Vicente-Manzanares for critical review and editing. We also thank Dr Francisco Urbano and Dr Covadonga Aguado for their support with EM (TEM facilities, Universidad Autónoma de Madrid).

Ethics

All experimental methods and protocols were approved by the CNIC and the Comunidad Autónoma de Madrid and conformed to European Commission guidelines and regulations (PROEX-206.1/20).

Senior Editor

  1. Tadatsugu Taniguchi, Institute of Industrial Science, The University of Tokyo, Japan

Reviewing Editor

  1. Shimon Sakaguchi, Osaka University, Japan

Reviewer

  1. Michiel Pegtel

Publication history

  1. Received: December 13, 2021
  2. Preprint posted: January 7, 2022 (view preprint)
  3. Accepted: July 17, 2022
  4. Accepted Manuscript published: July 29, 2022 (version 1)
  5. Version of Record published: August 10, 2022 (version 2)

Copyright

© 2022, Dosil et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 772
    Page views
  • 339
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Sara G Dosil
  2. Sheila Lopez-Cobo
  3. Ana Rodriguez-Galan
  4. Irene Fernandez-Delgado
  5. Marta Ramirez-Huesca
  6. Paula Milan-Rois
  7. Milagros Castellanos
  8. Alvaro Somoza
  9. Manuel José Gómez
  10. Hugh T Reyburn
  11. Mar Vales-Gomez
  12. Francisco Sánchez Madrid
  13. Lola Fernandez-Messina
(2022)
Natural killer (NK) cell-derived extracellular-vesicle shuttled microRNAs control T cell responses
eLife 11:e76319.
https://doi.org/10.7554/eLife.76319

Further reading

    1. Immunology and Inflammation
    Sara E Vazquez, Sabrina A Mann ... Joseph L DeRisi
    Research Advance Updated

    Phage immunoprecipitation sequencing (PhIP-seq) allows for unbiased, proteome-wide autoantibody discovery across a variety of disease settings, with identification of disease-specific autoantigens providing new insight into previously poorly understood forms of immune dysregulation. Despite several successful implementations of PhIP-seq for autoantigen discovery, including our previous work (Vazquez et al., 2020), current protocols are inherently difficult to scale to accommodate large cohorts of cases and importantly, healthy controls. Here, we develop and validate a high throughput extension of PhIP-seq in various etiologies of autoimmune and inflammatory diseases, including APS1, IPEX, RAG1/2 deficiency, Kawasaki disease (KD), multisystem inflammatory syndrome in children (MIS-C), and finally, mild and severe forms of COVID-19. We demonstrate that these scaled datasets enable machine-learning approaches that result in robust prediction of disease status, as well as the ability to detect both known and novel autoantigens, such as prodynorphin (PDYN) in APS1 patients, and intestinally expressed proteins BEST4 and BTNL8 in IPEX patients. Remarkably, BEST4 antibodies were also found in two patients with RAG1/2 deficiency, one of whom had very early onset IBD. Scaled PhIP-seq examination of both MIS-C and KD demonstrated rare, overlapping antigens, including CGNL1, as well as several strongly enriched putative pneumonia-associated antigens in severe COVID-19, including the endosomal protein EEA1. Together, scaled PhIP-seq provides a valuable tool for broadly assessing both rare and common autoantigen overlap between autoimmune diseases of varying origins and etiologies.

    1. Immunology and Inflammation
    2. Structural Biology and Molecular Biophysics
    Rui Liu, Kangcheng Song ... Lei Chen
    Research Article Updated

    Phagocyte oxidase plays an essential role in the first line of host defense against pathogens. It oxidizes intracellular NADPH to reduce extracellular oxygen to produce superoxide anions that participate in pathogen killing. The resting phagocyte oxidase is a heterodimeric complex formed by two transmembrane proteins NOX2 and p22. Despite the physiological importance of this complex, its structure remains elusive. Here, we reported the cryo-EM structure of the functional human NOX2-p22 complex in nanodisc in the resting state. NOX2 shows a canonical 6-TM architecture of NOX and p22 has four transmembrane helices. M3, M4, and M5 of NOX2, and M1 and M4 helices of p22 are involved in the heterodimer formation. Dehydrogenase (DH) domain of NOX2 in the resting state is not optimally docked onto the transmembrane domain, leading to inefficient electron transfer and NADPH binding. Structural analysis suggests that the cytosolic factors might activate the NOX2-p22 complex by stabilizing the DH in a productive docked conformation.
