Cd59 and inflammation regulate Schwann cell development
Abstract
Efficient neurotransmission is essential for organism survival and is enhanced by myelination. However, the genes that regulate myelin and myelinating glial cell development have not been fully characterized. Data from our lab and others demonstrates that cd59, which encodes for a small GPI-anchored glycoprotein, is highly expressed in developing zebrafish, rodent, and human oligodendrocytes (OLs) and Schwann cells (SCs), and that patients with CD59 dysfunction develop neurological dysfunction during early childhood. Yet, the function of Cd59 in the developing nervous system is currently undefined. In this study, we demonstrate that cd59 is expressed in a subset of developing SCs. Using cd59 mutant zebrafish, we show that developing SCs proliferate excessively and nerves may have reduced myelin volume, altered myelin ultrastructure, and perturbed node of Ranvier assembly. Finally, we demonstrate that complement activity is elevated in cd59 mutants and that inhibiting inflammation restores SC proliferation, myelin volume, and nodes of Ranvier to wildtype levels. Together, this work identifies Cd59 and developmental inflammation as key players in myelinating glial cell development, highlighting the collaboration between glia and the innate immune system to ensure normal neural development.
Editor's evaluation
This work investigates the function of the small GPI-anchored protein Cd59, a protein known to suppress complement-mediated inflammation, in Schwann cell development and myelination, using zebrafish as a model system. This article will be of interest to developmental biologists, glial biologists, and immunologists as it suggests the interesting and novel findings that Cd59 regulates Schwann cell development, mainly by modulating Schwann cell proliferation.
https://doi.org/10.7554/eLife.76640.sa0eLife digest
The nervous system of vertebrates is made of up of complex networks of nerve cells that send signals to one another. In addition to these cells, there are a number of supporting cells that help nerves carry out their role. Schwann cells, for example, help nerve cells to transmit information faster by wrapping their long extensions in a fatty membrane called myelin. When myelin is not produced properly, this can disturb the signals between nerve cells, leading to neurological defects.
Schwann cells mature simultaneously with nerve cells in the embryo. However, it was not fully understood how Schwann cells generate myelin during development. To investigate, Wiltbank et al. studied the embryos of zebrafish, which, unlike other vertebrates, are transparent and develop outside of the womb. These qualities make it easier to observe how cells in the nervous system grow in real-time using a microscope.
First, the team analyzed genetic data collected from the embryo of zebrafish and mice to search for genes that are highly abundant in Schwann cells during development. This led to the discovery of a gene called cd59, which codes for a protein that also interacts with the immune system. To find out whether Schwann cells rely on cd59, Wiltbank et al. deleted the cd59 gene in zebrafish embryos. Without cd59, the Schwann cells produced too many copies of themselves and this, in turn, impaired the appropriate production of myelin.
Since the protein encoded by cd59 normally balances inflammation levels, it was possible that losing this gene overactivated the immune system in the zebrafish embryos. In support of this hypothesis, when the cd59 mutant embryos were treated with an anti-inflammatory drug, this corrected Schwann cell overproduction and restored myelin formation.
Taken together, these findings reveal how inflammation helps determine the number of Schwann cells produced during development, and that cd59 prevents this process from getting carried away. This suggests that the nervous system and immune system may work together to build the nervous system. In the future, it will be interesting to investigate whether cd59 acts in a similar way during the development of the human nervous system.
Introduction
Myelin is a highly specialized, lipid-rich membrane that insulates axons in the nervous system to enhance neurotransmission (Ritchie, 1982) while preserving axon health (Stadelmann et al., 2019). Myelin is produced and maintained by myelinating glial cells such as motor exit point glia (Fontenas and Kucenas, 2021; Fontenas and Kucenas, 2018; Smith et al., 2014) and myelinating Schwann cells (SCs; Figure 1A; Ackerman and Monk, 2016; BEN GEREN, 1954; Jessen and Mirsky, 2005) in the peripheral nervous system (PNS) as well as oligodendrocytes (OLs) in the central nervous system (CNS) (Figure 1B; Ackerman and Monk, 2016; Maturana, 1960; Nave and Werner, 2014; Peters, 1960a; Peters, 1960b). Normal myelin and myelinating glial cell development facilitate an efficient and effective nervous system, ensuring precise motor, sensory, and cognitive function (Almeida and Lyons, 2017; Berger et al., 2006; Stadelmann et al., 2019; Wei et al., 2019). When this process is impaired, as seen with inherited disorders that cause abnormal myelination, patients present with neurological dysfunction that often leads to severe physical and intellectual disabilities (Berger et al., 2006; Stadelmann et al., 2019; van der Knaap and Bugiani, 2017; Wei et al., 2019).
Despite the importance of myelin, we still lack a complete understanding of myelin and myelinating glial cell development. With the recent boon of transcriptomic and proteomic analyses, many genes and proteins have been highlighted as differentially expressed during myelinating glial cell development, yet their precise functions remain unknown. For example, cd59, a gene that encodes for a small, glycosylphosphotidylinositol (GPI)-anchored glycoprotein, is a particularly interesting candidate for exploration. This gene features in several RNA sequencing (RNAseq) and proteomic analyses of zebrafish and rodent myelinating glial cells (Gerber et al., 2021; Howard et al., 2021; Marisca et al., 2020; Marques et al., 2018; Marques et al., 2016; Piller et al., 2021; Saunders et al., 2019; Siems et al., 2021; Wolbert et al., 2020; Zhu et al., 2019), all of which demonstrate high expression of cd59 in developing oligodendrocyte lineage cells (OLCs) and SCs. cd59 continues to be expressed in juvenile and adult zebrafish (Saunders et al., 2019; Siems et al., 2021; Sun et al., 2013) and becomes the fourth most abundant CNS myelin protein in adult zebrafish (Siems et al., 2021). Phylogenetic analysis demonstrates that Cd59 is conserved within vertebrate evolution (Siems et al., 2021), and accordingly, CD59 protein is also found in developing and adult human myelin (Erne et al., 2002; Koski et al., 2002; Scolding et al., 1998; Zajicek et al., 1995). Collectively, these data indicate that cd59 is a key component of the genetic program that orchestrates myelinating glial cell development. However, despite this knowledge of Cd59 expression, little is known about the function of Cd59 in the developing nervous system.
Outside of the nervous system, Cd59 is best known as a complement inhibitory protein. Complement is a molecular cascade within the innate immune system that aids in cell lysis of invading pathogens or aberrant cells in the body (Merle et al., 2015). This process lacks specificity and requires inhibitory proteins, such as Cd59, to protect healthy cells from lytic death (Davies et al., 1989). Cd59, specifically, acts at the end of the complement cascade where it binds to complement proteins 8 and 9 (C8 and C9, respectively) to prevent the polymerization of C9 and the subsequent formation of lytic pores (also known as membrane attack complexes [MACs] or terminal complement complexes [TCCs]) in healthy cell membranes (Meri et al., 1990; Ninomiya and Sims, 1992; Rollins et al., 1991). This interaction is important throughout the adult body, including the nervous system, where CD59a is neuroprotective in models of multiple sclerosis (Mead et al., 2004) and neuromyelitis optica (Yao and Verkman, 2017). Beyond complement-inhibitory functions, Cd59 can also facilitate vesicle signaling in insulin-producing pancreatic cells (Golec et al., 2019; Krus et al., 2014), suppress cell proliferation in T cells responding to a viral infection (Longhi et al., 2005) or smooth muscle cells in models of atherosclerosis (Li et al., 2013), and orchestrate proximal-distal cell identity during limb regeneration (Echeverri and Tanaka, 2005). Like complement inhibition, these processes are critical to normal nervous system function (Almeida et al., 2021; Baron and Hoekstra, 2010; Reiter and Bongarzone, 2020; White and Krämer-Albers, 2014). However, it is unclear exactly what role Cd59 is playing in myelinating glial cell development.
Though the precise function is unknown, it is clear that CD59 does impact human nervous system development. Patients with CD59 dysfunction, such as those with congenital CD59 deficiency (Haliloglu et al., 2015; Höchsmann and Schrezenmeier, 2015; Karbian et al., 2018; Solmaz et al., 2020) or germline paroxysmal nocturnal hemoglobinuria (Johnston et al., 2012), present with polyneuropathies during infancy and continue to have nervous system dysfunction throughout their lives. Intriguingly, these neurological symptoms persist even with complement inhibition, the most common treatment for congenital CD59 deficiency (Höchsmann and Schrezenmeier, 2015). Together, these observations further indicate that CD59 has an additional role in the developing nervous system and requires further investigation.
Here, utilizing the zebrafish model, we examined the role of Cd59 in the developing nervous system. In this study, we found that cd59 is highly expressed in a subset of developing SCs in addition to mature OLs and myelinating and nonmyelinating SCs. We chose to focus on SCs and found that cd59 mutant zebrafish have excessive SC proliferation. These mutants also have impaired myelin and node of Ranvier development. Finally, we demonstrate that complement activity increases in cd59 mutants and that unregulated inflammation contributes to SC overproliferation and mutant larvae may also have aberrant myelin and node of Ranvier formation. Overall, this data demonstrates that developmental inflammation stimulates SC proliferation and that this process is balanced by Cd59 to ensure normal SC and myelinated nerve development.
Results
Cd59 is expressed in myelinating glial cells during nervous system development

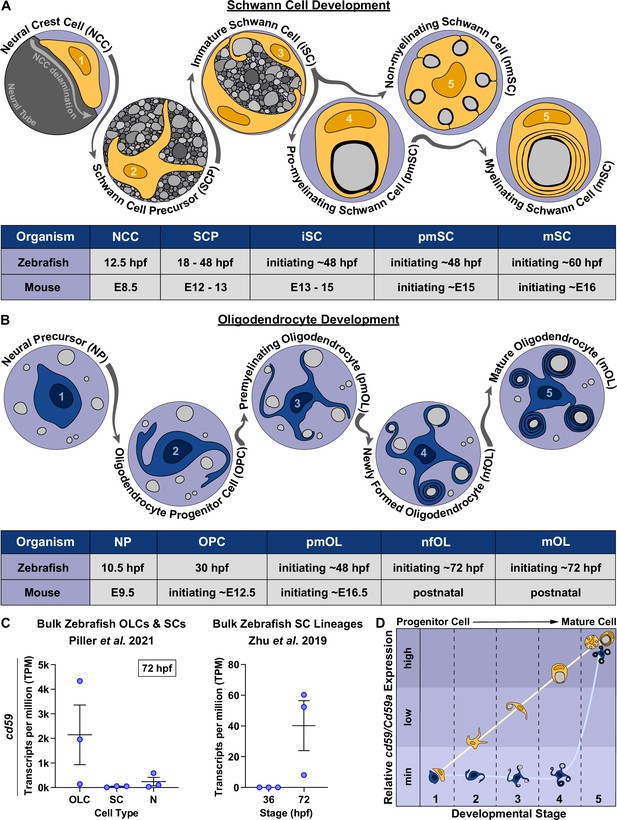

Myelinating glial cell development is a complex process (Figure 1A and B) orchestrated by a genetic program that is not yet fully elucidated. To identify unexplored genes that may impact myelinating glial cell or myelin development, we evaluated bulk and single-cell (sc) RNAseq datasets that assessed myelinating glial cells during nervous system development (Gerber et al., 2021; Howard et al., 2021; Marisca et al., 2020; Marques et al., 2018; Marques et al., 2016; Piller et al., 2021; Saunders et al., 2019; Wolbert et al., 2020; Zhu et al., 2019). Across multiple datasets, cd59 (zebrafish) or Cd59a (mouse), which encodes for a small, GPI-anchored glycoprotein that has no known function in the developing nervous system, is expressed in SCs and OLCs (Figure 1C, Figure 1—figure supplement 1).
When looking at SCs, data from developing zebrafish and mice indicated that cd59/Cd59a, respectively, is minimally expressed in neural crest cells (NCCs; the multipotent progenitors that give rise to SCs; Figure 1—figure supplement 1A; Howard et al., 2021; Zhu et al., 2019) but increases in expression in SC precursors (SCPs; Figure 1—figure supplement 1B.1,B.2; Gerber et al., 2021), immature SCs (iSCs; Figure 1—figure supplement 1B.1,B.2; Gerber et al., 2021), pro-myelinating SCs (pmSCs; Figure 1—figure supplement 1B.1,B.2; Gerber et al., 2021), and mature myelinating SCs (MSCs) and non-myelinating SCs (MSCs and NMSCs; Figure 1C, Figure 1—figure supplement 1B.3,C.1,C.2; Gerber et al., 2021; Piller et al., 2021; Saunders et al., 2019; Wolbert et al., 2020). This data indicates that Cd59 may be important during early stages of SC development as well as in mature MSCs and NMSCs (Figure 1D).
In contrast, bulk RNAseq of zebrafish oligodendrocyte progenitor cells (OPCs) and OLs indicated that cd59 is expressed near the onset of myelination (72 hours post fertilization [hpf]; Figure 1C; Piller et al., 2021). scRNAseq (Marisca et al., 2020; Marques et al., 2018; Marques et al., 2016) and in situ hybridization (ISH; Siems et al., 2021) of zebrafish and mouse OLCs showed that cd59/CD59a is mostly expressed in mature OLs and not OPCs (Figure 1—figure supplement 1D). CD59 protein is also present within newly formed human myelin sheaths as is evident in immunostaining of third trimester fetal brains (Zajicek et al., 1995). Based on these findings, it is likely that Cd59 does not play a role in early stages of OLC development but could influence mature, myelinating OL function (Figure 1D).

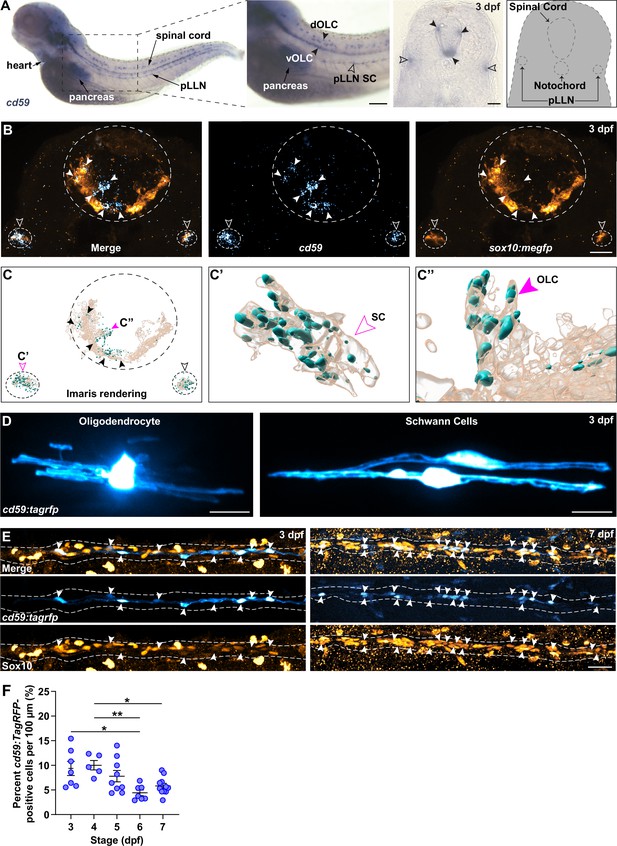

Intrigued by this elevated expression of cd59 in developing myelinating glial cells, we verified that cd59 RNA was expressed in OLCs and SCs with chromogenic ISH (CISH) and fluorescent ISH (FISH) at 3 days post fertilization (dpf) (Figure 2A–C). Morphology, location, and co-expression with sox10:megfp, which is a marker for both OLCs and SCs, showed that cd59 RNA is expressed in both cell types at 3 dpf (Figure 2A–C). Beyond expression in the heart and pancreas, cd59 expression is largely confined to developing myelinating glial cells at this stage.
To study these cells in vivo, we created a transcriptional reporter zebrafish line for cd59 (herein referred to as cd59:tagrfp). This line utilizes 5 kb of the cd59 promoter as well as the first exon and intron, the latter containing an enhancer that is important for cd59 expression (Tone et al., 1999), to drive cytoplasmic expression of TagRFP in cd59-expressing cells. With in vivo, confocal imaging, mosaic labeling with our cd59:tagrfp construct revealed labeling of OLs and SCs with myelin-like processes (Figure 2D), indicating that cd59 is expressed in mature myelinating glial cells.
Bulk and scRNAseq data indicated that cd59 is expressed during early stages of SC development whereas cd59 expression was restricted to mature OLs. To verify this expression pattern, we looked at cd59 RNA expression at earlier stages in the SC lineage. At 24 hpf, using CISH and FISH, we did not observe cd59 expression in sox10:megfp-positive NCCs, though we did see it in the hypochord and floor plate of the spinal cord at this stage (Figure 2—figure supplement 1A and B). At 36 and 48 hpf, when NCCs begin to develop into SCPs and iSCs, we detected sporadic expression of cd59 with FISH in sox10:megfp-positive cells along the posterior lateral line nerve (pLLN) in the PNS (Figure 2—figure supplement 1C and D). By 72 hpf, we observed robust cd59 expression within sox10:megfp-positive SCs along the pLLN (Figure 2—figure supplement 1C and D). These data demonstrate that cd59 is expressed in developing SCs, confirming the expression patterns seen in the RNAseq datasets we analyzed (Figure 1—figure supplement 1).
From our ISH data, we noticed that cd59 was not expressed in every SC. Notably, SCs associated with spinal motor nerves did not express cd59 (Figure 2A–C). Rather, cd59 expression was largely confined to SCs along the pLLN (Figure 2A–C). To investigate this expression further, we utilized our stable cd59:tagrfp line. This transgenic line provides clear, in vivo labeling of cd59-expressing pLLN SCs, which we confirmed using FISH with a cd59 probe in cd59:tagrfp-positive SCs (Figure 2—figure supplement 2A,B, B'). To verify that cd59:tagrfp-positive SCs expressed canonical SC markers, including SRY-box transcription factor 10 (sox10), erb-b2 receptor tyrosine kinase 3b (erbb3b), and myelin basic protein a (mbpa), we examined pLLN SCs in transgenic and gene trap larvae co-expressing these markers with in vivo confocal imaging. As expected, cd59:tagrfp expression was observed in sox10, erbb3b, and mbp-positive SCs at 72 and 7 dpf (Figure 2—figure supplement 2C–E), confirming that cd59:tagrfp-positive SCs express other known SC genes.
To determine whether cd59 was expressed in all pLLN SCs, we used immunofluorescence (IF) to co-label cd59:tagrfp-positive SCs with an antibody against Sox10, which labels all SCs along the pLLN. Strikingly, when looking at SCs from 3 to 7 dpf, cd59:tagrfp was only expressed in a subset of pLLN SCs (average of 4.4 ± 1.5% to 9.4 ± 3.8% of pLLN SCs; Figure 2E and F). We also noted that cd59 expression was only expressed in a subset of OLs (Figure 2B, C, C'') and was completely lacking in MEP glia. Taken together, these data demonstrate that cd59 expression is heterogeneous in developing myelinating glial cells.
Generation of cd59 mutant zebrafish with CRISPR/Cas9 genome editing
Our findings demonstrate that cd59 is expressed in a subset of developing SCs. However, it is unclear how Cd59 influences SC development. In other cells, Cd59 has many different functions, including preventing complement-dependent cell lysis (Davies et al., 1989), facilitating vesicle-dependent signaling (Golec et al., 2019; Krus et al., 2014), suppressing cell proliferation (Dashiell et al., 2000; Hila et al., 2001; Li et al., 2013; Longhi et al., 2005), and orchestrating proximal-distal cell identity (Echeverri and Tanaka, 2005). There is little known about Cd59 in the developing nervous system, however.

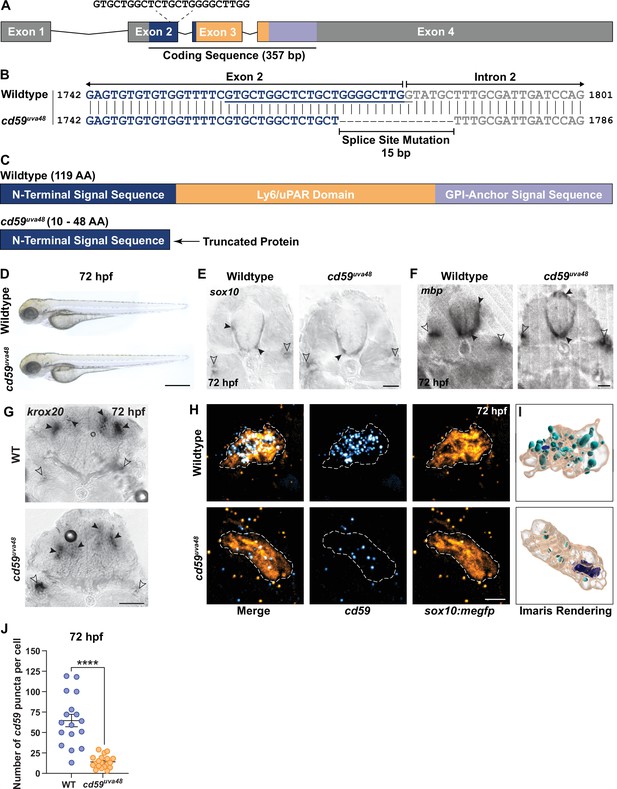

To evaluate the function of Cd59 in SC development, we generated cd59 mutant zebrafish with CRISPR/Cas9 genome editing. Targeting the end of the first coding exon (exon 2; Figure 3A), we recovered an allele with a 15 bp deletion that occurred across the exon 2–intron 2 splice site, generating a splice mutation (herein referred to as mutant cd59uva48; Figure 3B). RT-PCR and Sanger sequencing analysis of mutant cd59uva48 transcripts revealed that multiple splice variants were produced compared to wildtype cd59, which produced a single transcript (Figure 3—figure supplement 1A and E). Analysis of the mutant transcripts indicated that an early stop codon was generated in the N-terminal signal sequence, producing a severely truncated protein (10–48 AA compared to the 119 AA wildtype protein; Figure 3—figure supplement 1E and G). Furthermore, the predicted proteins lacked the Ly6/uPAR domain and GPI-anchor signal sequence (Figure 3—figure supplement 1E and G). Therefore, the mutant Cd59 protein was expected to be nonfunctional. We also recovered an additional cd59 mutant allele, cd59uva47, which was produced with the same single-guide RNA (sgRNA). This mutant had a 6 bp deletion near the end of exon 2 that did not affect the splice site (Figure 3—figure supplement 1B and D) and therefore produced a single mutant transcript (Figure 3—figure supplement 1B). Sequencing of the mutant cd59uva47 transcript predicted the absence of two amino acids (AA) in the N-terminal signal sequence, which would yield a slightly smaller protein (117 AA) compared to wildtype Cd59 (119 AA; Figure 3—figure supplement 1E and G). Though the protein was not severely truncated, we predicted that interfering with the N-terminal signal sequence would prevent protein trafficking to the endoplasmic reticulum and interrupt proper protein function. Collectively, mutant cd59uva48 larvae have perturbed RNA splicing that results in premature termination codon (PTC) formation and probable protein truncation, and mutant cd59uva47 larvae have a disrupted N-terminal sequence. Considering these results, both mutants were suspected to have impaired Cd59 function.
To begin our initial evaluation of these mutants, we sought to compare general developmental characteristics between cd59 mutant larvae and their wildtype siblings. Both cd59uva48 and cd59uva47 homozygous adults were viable and produced embryos with no anatomical, behavioral, or reproductive defects (Figure 3D, Figure 3—figure supplement 1C). Next, we wanted to know if SCs were present in mutant cd59uva48 larvae, which were utilized in the majority of our studies. Using CISH, we labeled wildtype and mutant cd59uva48 larvae with RNA probes against sox10, krox20 (also known as early growth response 2b or egr2b), and mbp at 72 hpf. Both wildtype and mutant larvae had sox10, mbp, and krox20-positive SCs along the pLLN (Figure 3E–G), indicating that Cd59 was not necessary for SC genesis or expression of genes necessary for SC maturation and myelination.
Knowing that SCs were present, we were then curious how cd59 expression was affected in cd59uva48 mutant SCs. According to our RT-PCR analysis, mutant cd59uva48 embryos produced RNA transcripts with PTCs (Figure 3—figure supplement 1E). RNA transcripts with PTCs can sometimes undergo nonsense-mediated decay (NMD), a process by which normal and mutant gene expression is controlled through RNA degradation (Bruno et al., 2011; Chang et al., 2007; Karam and Wilkinson, 2012; Lou et al., 2014). To determine if mutant cd59uva48 RNA transcripts underwent NMD, we used FISH to label wildtype and mutant cd59uva48;sox10:megfp larvae with a probe against cd59 (Figure 3H and I). Quantification of cd59 RNA puncta showed that cd59 expression was significantly reduced in mutant SCs compared to wildtype SCs (Figure 3J), indicating that cd59uva48 mutant RNA was being degraded through NMD and therefore could result in a loss of protein. Due to the lack of a zebrafish-specific antibody for Cd59, we were unable to determine if these changes in RNA were reflected at the protein level and therefore cannot confirm if we have produced a null allele for cd59. However, our findings indicate that cd59uva48 mutants can be used as a loss-of-function model in which to study the role of Cd59 in developing SCs.
Cd59 regulates developing SC proliferation

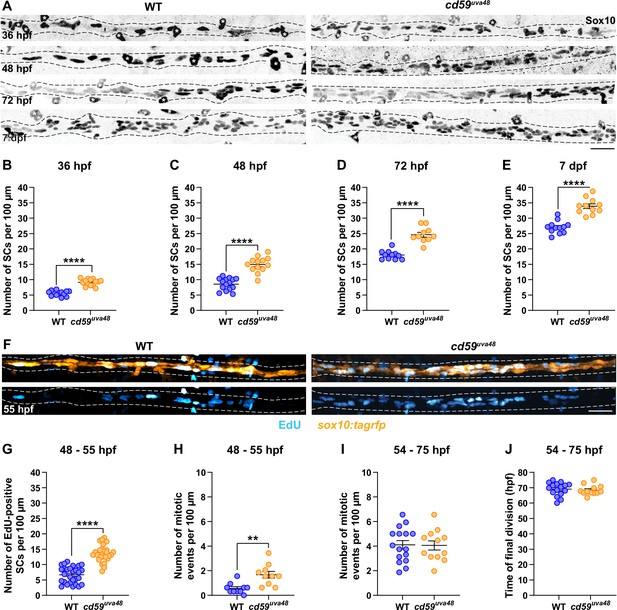

With our new cd59 mutants, we began to explore the possible roles Cd59 could play in SC development. Previous studies demonstrate that CD59a can prevent overproliferation of T cells during a viral infection (Longhi et al., 2005). Similarly, CD59a is important for limiting deleterious smooth muscle cell proliferation during atherosclerosis (Li et al., 2013). Because we observed cd59 expression during the proliferative phases of SC development, we hypothesized that Cd59 could be involved in developmental SC proliferation. To test our hypothesis, we labeled SCs with a Sox10 antibody and quantified the number of Sox10-positive SCs along the pLLN in wildtype and cd59uva48 mutant larvae at various stages during SC development (36 hpf to 7 dpf) (Figure 4A). At all stages we investigated, there were significantly more SCs in mutant embryos and larvae compared to wildtype siblings (Figure 4A). We observed this excess early in SC development during the SCP stage (36 hpf; Figure 4B) through the iSC and pmSC stages (~48 hpf, Figure 4C) and into mature MSC stages (72 hpf, Figure 4D; 7 dpf, Figure 4E; Ackerman and Monk, 2016). To rule out the possibility of off-target effects from CRISPR/Cas9 genome editing, we evaluated cd59uva47 mutants as well. Similarly, we observed the same phenotype in mutant cd59uva47 embryos at 48 hpf (Figure 4—figure supplement 1A and B), demonstrating that mutation of cd59 was responsible for this phenotype. Together, these data demonstrate that Cd59 functions to limit overproliferation of SCs during development.
-
Figure 4—source data 1
- https://cdn.elifesciences.org/articles/76640/elife-76640-fig4-data1-v2.xlsx
-
Figure 4—source data 2
- https://cdn.elifesciences.org/articles/76640/elife-76640-fig4-data2-v2.xlsx
-
Figure 4—source data 3
- https://cdn.elifesciences.org/articles/76640/elife-76640-fig4-data3-v2.xlsx
-
Figure 4—source data 4
- https://cdn.elifesciences.org/articles/76640/elife-76640-fig4-data4-v2.xlsx
-
Figure 4—source data 5
- https://cdn.elifesciences.org/articles/76640/elife-76640-fig4-data5-v2.xlsx
-
Figure 4—source data 6
- https://cdn.elifesciences.org/articles/76640/elife-76640-fig4-data6-v2.xlsx
-
Figure 4—source data 7
- https://cdn.elifesciences.org/articles/76640/elife-76640-fig4-data7-v2.xlsx
-
Figure 4—source data 8
- https://cdn.elifesciences.org/articles/76640/elife-76640-fig4-data8-v2.xlsx
To independently confirm this excessive proliferation phenotype seen in SCs, we used EdU to label mitotically active SCs during SC development. Specifically, we incubated sox10:tagrfp embryos in EdU from 48 to 55 hpf. The embryos were then fixed and the number of EdU-positive SCs on the pLLN was quantified with confocal imaging. As we hypothesized, the total number of EdU-positive SCs was increased in cd59uva48 mutant embryos compared to wildtypes (Figure 4F and G). From these data, we confirmed that there was more SC proliferation occurring in cd59uva48 mutant larvae when compared to wildtype larvae. Consistent with this finding, in vivo, time-lapse imaging of sox10:tagrfp-positive SCs along the pLLN showed cd59uva48 mutant SCs undergoing significantly more mitotic events than their wildtype siblings, with most of the increased cell divisions occurring between 48 and 55 hpf (Figure 4H, Videos 1 and 2). Between 54 and 75 hpf, however, the number of divisions was similar between wildtype and cd59uva48 mutant larvae with no difference in the timing of terminal division (Figure 4I and J, Videos 3 and 4), demonstrating that, although Schwann proliferation is initially amplified in cd59uva48 mutant larvae, they are capable of terminating proliferation at the same developmental stage as wildtype larvae.
Taken together, these data demonstrate that Cd59 restricts developmental SC proliferation and that excess SCs generated in cd59 mutant larvae persist past developmental stages. To rule out changes in cell death as a contributor to SC number, we used acridine orange (AO) incorporation and TUNEL staining to quantify the number of dying SCs at 48 hpf. Co-labeling of sox10:tagrfp-positive SCs with AO revealed no changes in SC death between wildtype and mutant cd59uva48 embryos (Figure 4—figure supplement 2A, B). When we assayed death more broadly in the trunk ventral to the pLLN, we also did not observe any increase in AO labeling, indicating that cell death in the embryo did not increase with cd59 mutation (Figure 4—figure supplement 2A and C). Similarly, TUNEL staining combined with Sox10 labeling at 48 hpf on sectioned tissue showed that apoptotic SC death on the pLLN was unaltered in mutant cd59uva48 embryos (Figure 4—figure supplement 2D and E). There was also no difference in the number of TUNEL-positive cells in the spinal cord (Figure 4—figure supplement 2D and F). Finally, in agreement with this data, we observed no SC death during in vivo imaging of sox10:tagrfp-positive SCs from 48 to 75 hpf in both wildtype and cd59uva48 larvae (Videos 1–4). Overall, these findings show that cd59 mutation does not perturb SC death.
Finally, we wanted to determine if cd59 mutation affected the proliferation of other neural cells in addition to SCs. Looking at CNS neurons labeled with a HuC/HuD antibody, we observed that spinal cord neuron density was indistinguishable between wildtype and mutant cd59uva48 embryos at 48 hpf (Figure 4—figure supplement 1C), supporting our observations that cell death does not change in the spinal cord (Figure 4—figure supplement 2D, F). To determine if this was also the case in the PNS, we used the same HuC/HuD antibody to label posterior lateral line ganglia (pLLG) neurons and found that the number of HuC/HuD-positive pLLG neurons was the same between wildtype and cd58uva48 mutant embryos at 24 hpf (Figure 4—figure supplement 1D, E). These data indicate the neuronal proliferation is unaffected by cd59 mutation. We also investigated whether NCC development was affected in our cd59 mutant embryos. In accordance with the lack of cd59 expression seen by RNAseq and ISH (Figure 1—figure supplement 1A, Figure 2—figure supplement 1A and B), we saw no difference in the number of cranial NCCs associated with the pLLG (Figure 4—figure supplement 1D and F) nor in the number of migrating spinal motor nerve NCCs (Figure 4—figure supplement 1G and H). Overall, these data show that Cd59 does not influence NCC proliferation. Furthermore, the increase in SC number during development was not due to an increase in the NCCs that give rise to SCs.
In addition to neurons and NCCs, we were interested in seeing whether motor nerve-associated SCs or MEP glia, which do not express cd59 by ISH (Figure 1—figure supplement 1A and B), also show an overproliferation phenotype in cd59uva48 mutants. To investigate this, we labeled 72 hpf olig2:dsred larvae with a Sox10 antibody to visualize and quantify motor nerve-associated myelinating glia (Figure 4—figure supplement 1J). Accuracy of this quantification was verified with quantification of sox10:nls-eos-positive cells along olig2:dsred-positive motor nerves (representative images shown in Figure 4—figure supplement 1I). Comparing wildtype and cd59uva48 larvae, there was no significant difference between the number of Sox10-positive cells (MEP glia and SCs) along spinal motor nerves (Figure 4—figure supplement 1I and J). Collectively, these data show that Cd59 does not regulate proliferation of myelinating glia associated with the motor nerve.
Another important aspect of the pLLN is that it innervates neuromasts, which are sensory organs that detect water movement (Ghysen and Dambly-Chaudière, 2007). Trunk neuromast number and positioning changes as the zebrafish grows in length, initially starting with 5–6 primary neuromasts (deposited from 20 to 40 hpf) that eventually expand into nearly 600 neuromasts in adults (Ghysen and Dambly-Chaudière, 2007). Developing SCs can impact the number of neuromasts, as is evident by inappropriate neuromast formation in erbb pathway and sox10 mutants which lack SCs (Grant et al., 2005; Lush and Piotrowski, 2014; Perlin et al., 2011; Rojas-Muñoz et al., 2009). To determine if excess SCs also affect neuromast formation, we labeled neuromasts with an acetylated α-Tubulin antibody and quantified the number of truncal neuromasts. Interestingly, there was no change in truncal neuromast number when comparing wildtype and cd59uva48 mutant larvae at 7 dpf (Figure 4—figure supplement 1K), indicating that an increase in SC number does not alter neuromast formation. Combined, these data demonstrate that Cd59 is playing an early role in SC development by limiting proliferation and that this proliferative effect does not extend to other neural cells in the CNS or PNS.

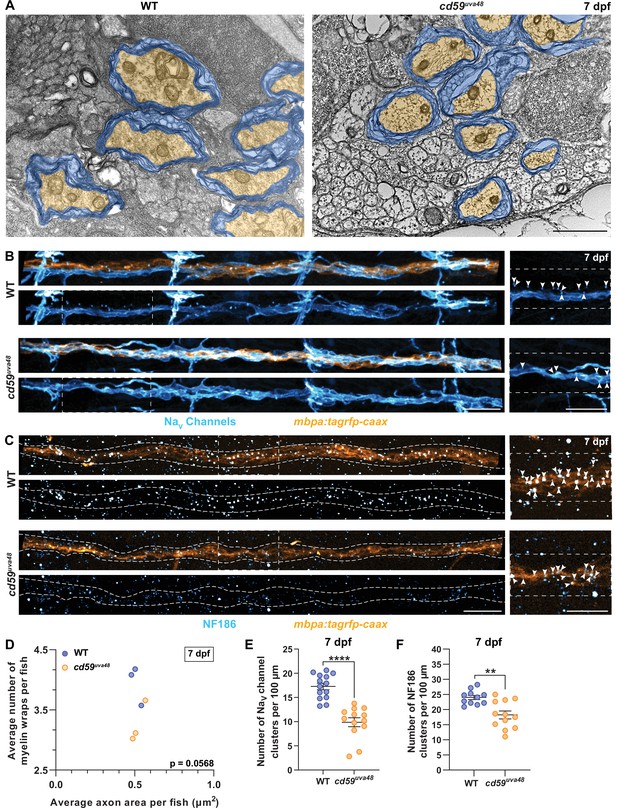

cd59 mutant larvae may have perturbed myelin and node of Ranvier formation in the PNS
From our observations, we saw that Cd59 functions to prevent overproliferation of developing SCs. Therefore, we next wanted to understand how an increase in SC number would impact myelin and pLLN development. Proliferation is a critical aspect of radial sorting, the process by which iSCs segregate large caliber axons that require myelination, and is necessary for nerve development (Feltri et al., 2016). When proliferation is dysregulated, either through insufficient or excessive Schwann cell division, radial sorting can be delayed, arrested, or improperly executed, resulting in myelination that is incomplete or inappropriate, such as instances of polyaxonal myelination of small caliber axons (Feltri et al., 2016; Gomez-Sanchez et al., 2009). Therefore, we were curious how limiting SC proliferation through Cd59 influences myelinated nerve development. ISH for mbp (Figure 3F), confocal imaging of mbpa:tagrfp-caax-positive pLLN SCs (Figure 5—figure supplement 1A and C), and transmission electron microscopy (TEM) (Figure 5A) showed that cd59uva48 mutant SCs were capable of producing myelin. Additionally, mosaic myelin labeling with mbpa:tagrfp-caax or mbpa:tagrfp-caax and mbp:egfp-caax constructs, injected into one-cell embryos, indicated that the myelin sheath length at 7 dpf did not vary between wildtype and cd59uva48 mutant larvae (Figure 5—figure supplement 1A and E) nor was there any evidence of overlapping sheaths at the same age (data not shown). However, when looking in mbpa:tagrfp-caax larvae, we observed that myelinated nerve volume was significantly reduced in 7 dpf cd59uva48 mutant larvae (Figure 5—figure supplement 1B and F). Because axon volume as well as area of axon cross-sections were unaltered, as indicated by acetylated α-Tubulin labeling (Figure 5—figure supplement 1C and G) and TEM (Figure 5A, Figure 5—figure supplement 1I), we hypothesized that myelination was affected in cd59uva48 mutants. Utilizing TEM, we compared the myelin ultrastructure in pLLNs from wildtype and cd59uva48 mutant larvae at 7 dpf. From these data, we observed a nonsignificant decrease in the average number of myelin wraps around each axon relative to the average area of the axon cross-section in cd59uva48 mutant larvae compared to wildtype siblings (Figure 5A and D). Notably, the average axon area did not change between wildtype and mutant nerves (Figure 5A and D) nor was there a change in the total number of myelinated axons (Figure 5—figure supplement 1H). Therefore, although the decrease in myelin wrapping was not statistically significant, it indicates that the decrease in myelinated nerve volume observed in Figure 5—figure supplement 1B and F could be related to a decrease in the number of myelin wraps on each axon. More work will be needed to determine if there is a direct relationship between myelin development and Cd59 or if this phenotype is due to Cd59-regulated SC proliferation.
-
Figure 5—source data 1
- https://cdn.elifesciences.org/articles/76640/elife-76640-fig5-data1-v2.xlsx
-
Figure 5—source data 2
- https://cdn.elifesciences.org/articles/76640/elife-76640-fig5-data2-v2.xlsx
-
Figure 5—source data 3
- https://cdn.elifesciences.org/articles/76640/elife-76640-fig5-data3-v2.xlsx
In addition to producing myelin, myelinating SCs collaborate with axons to construct nodes of Ranvier, which occur between adjacent myelin sheaths and are essential for rapid neurotransmission along myelinated axons (Rasband and Peles, 2021). Therefore, we were curious if reduced myelin volume in cd59uva48 mutant larvae would also impact nodal development. An important aspect of node construction is the clustering of axonal sodium channels, which assists in the saltatory conduction of action potentials along the nerve and is facilitated by interactions between SC-associated gliomedin and neuronal cell adhesion molecule (NrCAM) and axonal neurofascin 186 (NF186) (Eshed et al., 2005; Feinberg et al., 2010; Rasband and Peles, 2021; Susuki et al., 2013). To investigate assembly of the node, we labeled mbpa:tagrfp-caax larvae with antibodies to visualize sodium channels and NF186 at 7 dpf. These studies revealed that cd59uva48 mutant larvae had fewer discrete sodium channel clusters along the pLLN (Figure 5B and E). Accordingly, mutant nerves also had fewer clusters of NF186 (Figure 5C and F). To confirm that our quantification was reliable, we co-labeled NF186 and sodium channels along mbpa:tagrfp-caax-positive nerves and observed that NF186 and sodium channels always colocalized along the myelinated nerve in wildtype larvae (Figure 5—figure supplement 1D), indicating that these clusters of NF186 and sodium channels are bona fide nodes of Ranvier. Considered together, these data indicate that cd59uva48 mutant larvae do not form nodes of Ranvier normally, though at this time it is unclear if this phenotype is a direct or indirect result of cd59 mutation, secondary to Cd59-regulated SC proliferation, or a consequence of changes in myelin formation.

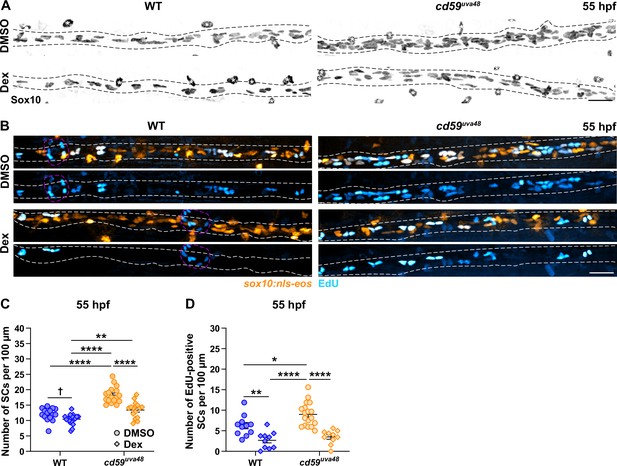

Developmental inflammation stimulates SC proliferation and is regulated by Cd59
Cd59 is best known for its ability to inhibit complement-dependent cell lysis, protecting healthy cells from premature death during times of inflammation, such as during an infection or after an injury (Davies et al., 1989; Mead et al., 2004; Stahel et al., 2009; Yao and Verkman, 2017). Interestingly, at sublytic levels, complement can stimulate SC and OLC proliferation in vitro without inducing cell death (Dashiell et al., 2000; Hila et al., 2001; Rus et al., 1997; Rus et al., 1996; Tatomir et al., 2020). Complement is also a potent driver of inflammation, which is also known to drive cell proliferation (Kiraly et al., 2015; Larson et al., 2020; Morgan, 2016; Morgan and Harris, 2015; Silva et al., 2020). Although complement is present (Magdalon et al., 2020; Zhang and Cui, 2014), it is unclear if developmental levels of complement or inflammation could impact SC proliferation in vivo and whether this process is Cd59-dependent.

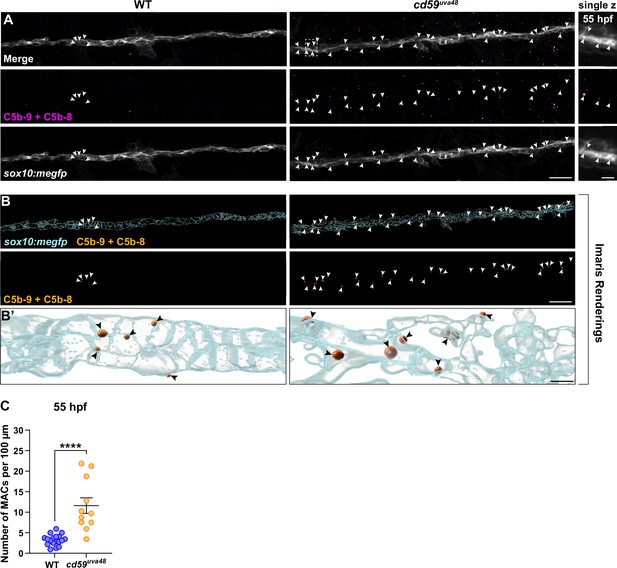

To determine if complement activity is increased in cd59uva48 mutant larvae, we first looked at changes in MAC-binding in developing SCs. MACs are comprised of complement proteins C5b, C6, C7, C8, and C9 and represent the culmination of the three complement pathways (classical, lectin, and alternative) (Bayly-Jones et al., 2017). During MAC formation, C9 will polymerize to form pores in the cell membrane, inducing cell proliferation or cell death depending on the concentration of pores (Bayly-Jones et al., 2017; Morgan, 1989; Tegla et al., 2011b). In healthy cells, Cd59 will bind to C8 and C9 and prevent polymerization of C9 as well as subsequent pore formation (Meri et al., 1990; Ninomiya and Sims, 1992; Rollins et al., 1991). Considering these mechanisms, we hypothesized that if Cd59 was dysfunctional, we would see an increase in MAC formation in SC membranes. Using an antibody against C5b8-C5b9, which recognizes assembled MACs, we observed that cd59uva48 mutant larvae had more MACs localized to sox10:megfp-positive SC membranes compared to wildtype controls at 55 hpf (Figure 6A–C), indicating that developing SCs are no longer protected from complement in cd59uva48 mutants. In the future, these results will require further investigation to confirm that this quantification reflects an increase in MAC formation after cd59 mutation. However, these data provide preliminary evidence that there is increased MAC binding on SC membranes in cd59uva48 mutant embryos.
Given limited tool availability in zebrafish, we were unable to directly inhibit MAC formation in developing embryos. However, using dexamethasone (Dex), a steroid agonist that inhibits inflammation and associated complement activity (Engelman et al., 1995; Silva et al., 2020), we sought to investigate the role of developmental inflammation in Cd59-regulated SC proliferation. To do this, wildtype and mutant embryos were incubated in 1% DMSO or 1% DMSO plus 100 μM Dex from 24 to 55 hpf. This treatment method had no notable impacts on anatomical or behavioral development (Figure 7—figure supplement 1A). After fixing the embryos, the number of pLLN SCs was quantified using a Sox10 antibody. Excitingly, Dex treatment in cd59uva48 mutant embryos restored SC numbers to wildtype levels (Figure 7A and C). Furthermore, when compared alone, the number of SCs in wildtype larvae was also significantly reduced by Dex treatment (Figure 7A and C), indicating that developmental inflammation plays a role in homeostatic SC development. In support of these findings, EdU incorporation in cd59uva48 mutant SCs from 48 to 55 hpf also returned to wildtype levels with Dex treatment from 24 to 55 hpf (Figure 7B and D), confirming that Dex treatment does suppress SC proliferation. Interestingly, EdU incorporation in Dex-treated, wildtype SCs was also reduced compared to DMSO-treated, wildtype controls (Figure 7B and D), showing that Dex can also alter homeostatic SC proliferation. Future investigations will be needed to rule out other effects of glucocorticoid signaling in this process as well as whether or not sublytic MAC formation has a direct effect on SC proliferation in vivo; however, these data indicate that developmental inflammation aids in normal SC proliferation and that this process is amplified when cd59 is mutated.

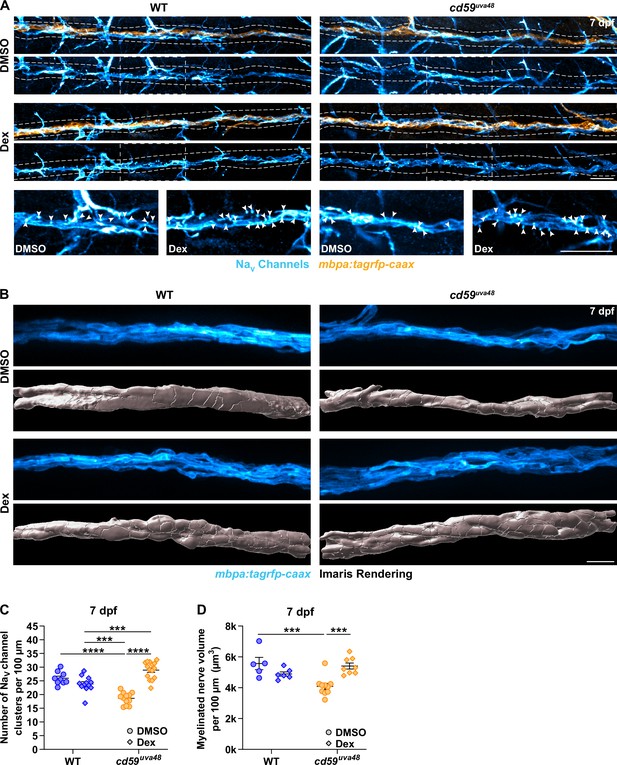

Previously, we showed that mutants with Cd59 dysfunction may have abnormal myelin and node of Ranvier development (Figure 5, Figure 5—figure supplement 1). Though it is still unclear if this phenotype is a direct effect of Cd59 dysfunction or secondary to overproliferation of SCs, we were curious if inhibiting inflammation-induced SC proliferation could rescue these aspects of nerve development. To investigate this hypothesis, we treated cd59uva48 mutant embryos with 1% DMSO or 1% DMSO plus 100 μM Dex from 24 to 75 hpf to encompass most developmental SC proliferation. The larvae were then transferred to PTU-egg water and raised until 7 dpf. Labeling with a Sox10 antibody confirmed that this treatment regimen restored SC proliferation similarly to that described in Figure 7A and C (Figure 8—figure supplement 1A and B). We then repeated the same treatment procedure in wildtype and cd59uva48 mutant mbpa:tagrfp-caax embryos and quantified sodium channel antibody labeling at 7 dpf. Remarkably, we observed that Dex treatment dramatically increased the number of sodium channel clusters in cd59uva48 mutant larvae, achieving cluster levels similar to wildtype siblings (Figure 8A and C). Similarly, when comparing myelinated nerve volume in mbpa:tagrfp-caax larvae at 7 dpf, we saw that Dex could also restore cd59uva48 mutant nerve volume to wildtype levels (Figure 8B and D). Collectively, these data indicate that inflammation-induced SC proliferation contributes to perturbed myelin and node of Ranvier development. Although more work will be needed to determine where Cd59 and MACs fit into this process, these experiments provide preliminary evidence that inhibition of developmental inflammation can protect nerve development after cd59 mutation.
Discussion
Myelination during nervous system development is essential for neural function, providing trophic and structural support to axons as well as quickening electrical conduction (Ritchie, 1982; Stadelmann et al., 2019). Consequently, impairment of this process can be devastating to patient quality of life (Stadelmann et al., 2019; van der Knaap and Bugiani, 2017). For this reason, the genetic mechanisms that orchestrate myelinating glial cell development requires continued exploration. Over the past few decades, we and others have noted expression of cd59 that is conserved in developing myelinating glial cells across multiple organisms, including zebrafish, rodents, and humans (Gerber et al., 2021; Howard et al., 2021; Marisca et al., 2020; Marques et al., 2018; Marques et al., 2016; Piller et al., 2021; Saunders et al., 2019; Siems et al., 2021; Sun et al., 2013; Wolbert et al., 2020; Zajicek et al., 1995; Zhu et al., 2019). Despite these observations, there had been little exploration into the function of Cd59 in the developing nervous system. In this study, we demonstrate that cd59 is expressed in a subset of developing SCs as well as mature OLs and SCs, revealing transcriptional heterogeneity among myelinating glial cells during development. Focusing on SCs, we demonstrated that Cd59 regulates SC proliferation induced by developmental inflammation. Furthermore, embryos with Cd59 dysfunction may have abnormal myelin and node of Ranvier formation during development. Overall, these findings illuminate the intersection of the innate immune system and glial cells and how they collaborate to establish a functioning nervous system during development.
Considering the importance of myelination, our investigation revealed some interesting myelin defects in response to cd59 dysfunction. With the increase in SC proliferation in cd59 mutant embryos, we hypothesized that the myelin sheath lengths would shorten in order to accommodate the excess SCs and maintain the same amount of myelin on the nerve. Unexpectedly, we noted that with Cd59 dysfunction, the myelin sheath length was unaffected. Additionally, myelin volume was reduced, which may be related to a nonsignificant decrease in the average number myelin wraps around each axon. At this point, it is unclear if the decrease in myelin volume is directly due to Cd59 dysfunction, secondary to SC excess, or simply an indirect consequence of developmental inflammation. That said, from these data we can imagine a couple of potential hypotheses as to why myelin volume is decreased. First, it is possible that Cd59, in addition to regulating SC proliferation, is also necessary for myelinogenesis. Past investigations demonstrate that CD59a helps facilitate vesicle signaling, which is important during insulin release and is implicated in diabetic patients (Golec et al., 2019; Krus et al., 2014). Within the nervous system, vesicle-dependent signaling is also important for myelin formation as well as trafficking within the myelin sheath (Baron and Hoekstra, 2010; Reiter and Bongarzone, 2020; White and Krämer-Albers, 2014). Electron micrographs show that CD59a is positioned throughout the myelin sheath in oligodendrocytes (Siems et al., 2021). Notably, CD59a molecules are observed deep within compacted myelin (Siems et al., 2021). Because Cd59 is unlikely to encounter complement when it is so isolated from the extracellular environment, it is possible that Cd59 is playing an additional role in mature myelinating glial cells, possibly by regulating vesicle signaling within the myelin sheath. In future work, it will be interesting to identify if Cd59 has any direct role in SC and/or oligodendrocyte myelinogenesis. That said, it is important to note that cd59 mutant SCs continue to express molecules necessary for SC development and subsequent myelination, including sox10, mbp, and krox20 (Bremer et al., 2011; Gould et al., 1995; Jessen and Mirsky, 2005; Takada et al., 2010; Topilko et al., 1994), as well as produce myelin at the appropriate developmental stage. Therefore, these SCs are able to make myelin without Cd59. These facts considered, it is also possible that Cd59 is not directly involved in SC myelinogenesis. With this in mind, another possibility is that the excess SCs themselves are responsible for the reduction in myelin through a contact inhibition mechanism. In support of this idea, prior work in vitro demonstrates that SCs produce a glycoprotein called contactinhibin when the cells reach a high density (Casella et al., 2000). Contactinhibin and its receptor, contactinhibin receptor, mediate contact-dependent inhibition of growth in SCs and fibroblasts (Casella et al., 2000; Gradl et al., 1995; Wieser et al., 1990), demonstrating that SCs have methods to restrict overgrowth under homeostatic conditions. Interestingly, contactinhibin also interacts with vimentin (Wieser et al., 1990), which is known to collaborate with TACE to negatively regulate NRG1 type III expression and subsequent myelin production (Triolo et al., 2012). Without vimentin and TACE, SCs hypermyelinate nerves (Triolo et al., 2012). Considering these findings, it is possible that overproliferation of SCs in cd59 mutant larvae leads to activation of these growth-inhibiting molecules, such as contactinhibin, vimentin, and TACE, and consequently decreases NRG1 type III expression and myelinogenesis. Finally, as mentioned previously, it is also possible that Cd59 or Cd59-regulated SC proliferation has nothing to do with changes in myelin development. Dex treatment indicates that developmental inflammation (or possibly other effects of glucocorticoid signaling) contributes to abnormal myelin formation in cd59 mutant larvae. Therefore, it is possible that this altered myelination is an indirect effect of developmental inflammation and not relevant to Cd59 or Cd59-regulated SC proliferation, indicating that we have more to learn about the role of developmental inflammation in myelinogenesis. Utilizing the cd59 mutant model established in this article, future studies can investigate these hypotheses to learn more about the molecular mechanisms that regulate myelin development.
While evaluating myelination, we were also curious about the SCs that were not contributing to myelination. Because the number of myelinated axons as well as myelin sheath length is similar between wildtype and mutant nerves, this indicates that the extra SCs are not producing myelin. It is unclear if this extra population of SCs are NMSCs or undifferentiated iSCs, which is a question worth exploring in a future study. Fortunately, a recent transcriptomic analysis of developing SCs revealed several new markers in which to better differentiate iSCs, NMSCs, and MSCs (Tasdemir-Yilmaz et al., 2021), which have historically been difficult to distinguish. Using these new cell-specific markers, future investigations will be able to determine the fate of these extra SCs on cd59 mutant nerves.
Beyond changes in myelination, in this study we showed that Cd59-limited proliferation is elicited by developmental inflammation. This finding provokes many interesting questions. First, these data reiterate the idea that the innate immune system and genes traditionally active in immune cells are first used during development to guide nervous system assembly and formation. In the CNS, there is evidence that complement aids in stimulating synaptic pruning of developing dendrites, directing cell polarity in the ventricular zone, guiding cortical neuron migration, and fostering neural progenitor cell proliferation (Coulthard et al., 2018; Coulthard et al., 2017; Denny et al., 2013; Gorelik et al., 2017; Magdalon et al., 2020; Paolicelli et al., 2011; Stevens et al., 2007). Similarly, inflammasome signaling was recently shown to be a necessary asset in Purkinje neuron development and mutations in this pathway are associated with increased DNA damage and behavioral deficits (Lammert et al., 2020). Finally, microglia, the resident innate immune cell of the CNS, have several roles in CNS development, including phagocytosing cell debris as well as pruning developing synapses and myelin (Hughes and Appel, 2020; Mazaheri et al., 2014; Silva et al., 2021; Stevens et al., 2007; Villani et al., 2019). To our knowledge, our study is the first examination of the role of inflammation and complement signaling in PNS development beyond the NCC stage (Carmona-Fontaine et al., 2011). These data prompt future exploration into this relationship between the nervous and immune systems during PNS formation.
To further this point, our data indicate that MACs may be involved in enhancing SC proliferation during development. Previous findings in vitro demonstrated that sublytic MACs could stimulate SC proliferation through activation of the MAPK/ERK and PKC pathways (Dashiell et al., 2000; Hila et al., 2001). These and other mitogenic pathways are also activated in other cells that undergo MAC-stimulated proliferation (Tegla et al., 2011b), such as smooth muscle cells, T cells, and oligodendrocytes (Chauhan and Moore, 2011; Rus et al., 1997; Rus et al., 1996; Tegla et al., 2011b; Zwaka et al., 2003). Collectively, these data have established that MACs induce cell proliferation through activation of Gi protein and Ras/Raf1, which go onto activate MEK1 and ERK1 that then facilitate transcription of cell cycle-related genes, such as CDK4 and CDK2 (Dashiell et al., 2000; Niculescu et al., 1999; Niculescu et al., 1997; Tegla et al., 2011b). Simultaneously, PI3K and Akt activate mTOR, P70S6, and KV1.3 to induce DNA and protein synthesis that aids in cell cycle activation (Badea et al., 2002; Hila et al., 2001; Rus et al., 2001; Tegla et al., 2011a; Tegla et al., 2011b). At this point, it is unclear whether increased MAC formation in cd59 mutant SCs leads to activation of these pathways in vivo and whether this mechanism contributes to developmental SC proliferation. Utilizing the tools developed in this study, we look forward to future investigations of these pathways and their role in SC development.
During our investigation, we also show that cd59 is expressed in a subset of SCs and OLs and is not expressed in other myelinating glial cells, including MEP glia and SCs that associate with spinal motor nerves. This expression pattern persists at least until 7 dpf in SCs, indicating that developmental heterogeneity lingers in the mature SCs. Furthermore, we show that Cd59 regulates proliferation of sensory SCs on the pLLN but not motor nerve-associated SCs, indicating that these differences in cd59 expression are associated with functional heterogeneity as well. These findings provoke many topics for further investigation. First, how do cd59-positive SCs differ from cd59-negative SCs? Does this imply that a subset of SCs is more sensitive to complement activity, or are there other implications for these expression differences? Related, why do motor SCs lack cd59? Recent RNAseq analysis of developing satellite glial cells (SGCs) and SCs showed that glial cell precursors, SGCs, and iSCs are heterogenous and that this transcriptional diversity depended on the type of nerve/ganglia they associated with (Tasdemir-Yilmaz et al., 2021; Wiltbank and Kucenas, 2021). Motor neurons and sensory neurons are transcriptionally and functionally distinct and likely have different demands of the SCs that they are intimately associated with. Therefore, it follows that sensory SC functionality may require Cd59 whereas motor SCs do not. It will be interesting to explore the consequences of this heterogeneity in future investigations.
We are also curious if Cd59 function is multifaceted in the nervous system. Our findings demonstrated that Cd59 prevents overproliferation of SCs during development by shielding them from developmental inflammation. Similar observations have been noted in T cells and smooth muscle cells (Li et al., 2013; Longhi et al., 2005). That said, many other functions beyond proliferation control have been documented for CD59. For example, CD59 is required to instruct proximal-distal cell identity, a process that is necessary for proper cell positioning during limb regeneration (Echeverri and Tanaka, 2005). In our study, we noted that floor plate and hypochord cells express cd59. During neural tube development, floor plate cells play an important role in determining cell fate as well as dorsal-ventral patterning in the spinal cord (Hirano et al., 1991; Yu et al., 2013), whereas the hypochord orchestrates midline blood vessel pattering (Cleaver and Krieg, 1998). Considering the role of CD59 in dictating proximal-distal cell identity during limb regeneration (Echeverri and Tanaka, 2005), it would be interesting to see if Cd59 participated in similar signaling pathways in floor plate and hypochord cells. Alternatively, Cd59’s role in dictating proximal-distal cell identity could also be useful during nerve regeneration. Like limb regeneration, there needs to be an appropriate distribution of cells along the proximal-distal axis of the regenerating nerve. With this idea in mind, it would be interesting to examine how Cd59 dysfunction impacts SC distribution after nerve regeneration.
Finally, our study revealed that Cd59 plays a role in nervous system development. Previous case studies of patients with CD59 dysfunction, such as those with germline PNH and congenital CD59 deficiency, noted early-onset neurological dysfunction in these patients (Haliloglu et al., 2015; Höchsmann and Schrezenmeier, 2015; Johnston et al., 2012; Karbian et al., 2018; Solmaz et al., 2020). These neurological symptoms were generally attributed to damage from overactivation of complement and excess inflammation (Höchsmann and Schrezenmeier, 2015). In support of this idea, eculizumab treatment, which inhibits complement protein 5 (C5) and limits formation of MACs, slowed the progression of severe neurological symptoms, including bulbar symptoms, focal seizures, impaired respiration, and muscular hypotonia. However, eculizumab could not restore full neurological function in these patients (Höchsmann and Schrezenmeier, 2015). In light of our recent findings, we propose that CD59 dysfunction could be interfering with nervous system development in these human patients, likely through inflammation-induced overproliferation of SCs and subsequent malformation of myelin and nodes of Ranvier. However, because developmental SC proliferation has completed by the time these patients receive eculizumab (Cravioto, 1965; Höchsmann and Schrezenmeier, 2015), it is likely too late to restore SC proliferation and preserve nerve development. In future case studies of these patients, it would be interesting to confirm with nerve biopsies whether these patients also have excess SCs and abnormal myelin volume like we have observed in our zebrafish model. In support of this idea, neutrophils isolated from patients with PNH also overproliferate (Li et al., 2019), indicating that SCs may do the same. Ultimately, there remain many areas of exploration to fully characterize the role of Cd59 in the developing and mature nervous system.
Materials and methods
Zebrafish husbandry
Request a detailed protocolAll animal studies were approved by the University of Virginia Institutional Animal Care and Use Committee. Adult zebrafish were housed in tanks of 8–10 fish/L in 28.5°C water. Pairwise mating of adult zebrafish generated zebrafish embryos for all experiments. The embryos were raised in egg water (0.3 g instant ocean sea salt per L reverse osmosis water) contained in 10 cm Petri dishes and incubated at 28.5°C. Embryos used for experiments were staged by hpf or dpf (Kimmel et al., 1995). To minimize visual obstruction by pigmentation, egg water was exchanged for 0.004% 1-phenyl-2-thiourea (PTU; Sigma) in egg water at 24 hpf. Tricaine-S (MS-222; The Pond Outlet) was utilized as an anesthetic for embryos and larvae used in live imaging and euthanasia. Embryo and larvae sex were undetermined for all experiments because sex cannot be ascertained until ~25 dpf in zebrafish (Takahashi, 1977). To maintain genetic diversity, transgenic lines were renewed through outcrossing.
Zebrafish transgenic lines
Request a detailed protocolAll transgene descriptions and abbreviations are included in the Key resources table. Transgenic lines produced during this study include Tg(cd59(5.0):tagrfp)uva52 and Tg(mbpa(6.6):tagrfp-caax)uva53. The methods used to generate these lines are described in ‘Generation of transgenic lines.’ Previously published strains used in this study include AB*, Tg(sox10(7.2):megfp)sl3 (Kirby et al., 2006), Tg(sox10(4.9):tagrfp)uva5 (Zhu et al., 2019), Gt(erbb3b:gal4);Tg(uas:egfp) (Brown et al., 2022), Tg(olig2:dsred2)vu19 (Shin et al., 2003), Tg(sox10(4.9):nls-eos)w18 (McGraw et al., 2012), and Tg(mbp(2.0):egfp-caax)ue2 (Almeida et al., 2011). All transgenic lines described are stable and incorporated into the germline. In addition to the stable lines, cd59:tagrfp, mbpa:tagrfp-caax and mbp:egfp-caax were also injected into embryos at the one-cell stage to create mosaic labeling (Kawakami, 2004).
Zebrafish mutant lines
Request a detailed protocolMutant lines generated in the course of this study are as follows: cd59uva47 (BX957297.10:g.45_50delGCTGGG) and cd59uva48 (BX957297.10:g.44_58delTGCTGGGGCTTGGTA). The methods used to generate these lines are described in ‘Generation of mutant lines.’ Mutant and wildtype fish were distinguished with PCR amplification and gel electrophoresis of the mutant allele (see ‘Generation of mutant lines’). Descriptions of all mutant lines and their abbreviations can be found Key resources table.
Generation of transgenic lines
Request a detailed protocolThe Tol2kit Gateway-based cloning system was used to produce transgenic constructs (Kwan et al., 2007). The following entry and destination vectors were used in the creation of these constructs: p5E-cd59 (this article), p5E-mbpa (this article), pME-tagrfp-caax (Auer et al., 2015), pME-tagrfp (Don et al., 2017), p3E-polya (Kwan et al., 2007), pDestTol2pA2 (Kwan et al., 2007), and pDestTol2pA2cryegfp. These constructs were then used to produce the Tg(cd59:tagrfp) and Tg(mbpa:tagrfp-caax) zebrafish lines.
The Tg(cd59(5.0):tagrfp) line was generated as follows: PCR amplification of wildtype genomic DNA with forward primer, 5′-TCAGATCACATCACACCTGA-3′, and reverse primer, 5′-AATGCCTTCAGTTTACCAGTCT-3′, was used to clone 5 kb of the sequence upstream to the cd59 gene (BX957297.10). The PCR product was purified through with the QIAquick gel extraction kit after gel electrophoresis (QIAGEN). The PCR product was subcloned into a pENTR 5′-TOPO vector (Invitrogen) to create the p5E-cd59(–5.0) vector. The resulting p5E-cd59(5.0) vector was transformed into chemically competent Escherichia coli for amplification, isolated with the QIAprep spin miniprep kit (QIAGEN), and Sanger sequenced to verify accurate assembly. All Sanger sequencing described in the article were conducted through GENEWIZ (Azenta Life Sciences; https://www.genewiz.com/en). LR reaction (Ashton et al., 2012) was used to ligate p5E-cd59(5.0) (this article), pME-tagrfp (Don et al., 2017), p3E-polya (Kwan et al., 2007), and pDestTol2pA2 (Kwan et al., 2007). The resulting cd59(5.0):tagrfp expression vector was transformed into chemically competent E. coli for amplification, isolated with the QIAprep spin miniprep kit (QIAGEN), and Sanger sequenced to verify accurate assembly. The stable Tg(cd59(5.0):tagrfp) line was established through co-microinjections of cd59(5.0):tagrfp expression vector (50 ng/µL) and Tol2 transposase mRNA (20 ng/µL; mRNA synthesis described in ‘Generation of synthetic mRNA’) in one-cell stage embryos (Kawakami, 2004). Founders were screened for germline incorporation of the transgene.
Similarly, the Tg(mbpa(6.6):tagrfp-caax) line was as described for the Tg(cd59(5.0):tagrfp) line except: PCR amplification of wildtype genomic DNA with forward primer, 5′-ATGTCGAGTAATATCGAGCAGC-3′ (this article), and reverse primer, 5′-GTTGATCTGTTCAGTGGTCTACA-3′ (Almeida et al., 2011), was used to clone 6.59 kb of the sequence upstream to the mbpa gene (CU856623.7). The PCR product was subcloned into a pENTR 5′-TOPO vector (Invitrogen) to create the p5E-mbpa(–6.6) vector. LR reaction (Ashton et al., 2012) was used to ligate p5E-mbpa(–6.6) (this article), pME-tagrfp-caax (Auer et al., 2015), p3E-polya (Kwan et al., 2007), and pDestTol2pA2cryegfp (Kwan et al., 2007). The final mbpa(6.6):tagrfp-caax construct and stable zebrafish lines were generated as described for cd59(5.0):tagrfp.
Generation of mutant lines
Request a detailed protocolcd59 mutant lines generated during the course of this study were produced using CRISPR/Cas9 genome editing according to the methods described in Gagnon et al., 2014 except: the sgRNA targeting 5′-GTGCTGGCTCTGCTGGGGCTTGG-3′ in the second exon of cd59 was identified with CRISPRscan (Moreno-Mateos et al., 2015) and Chop Chop (Labun et al., 2016; Labun et al., 2019; Gagnon et al., 2014) and synthesized through PCR amplification with the following primers: forward primer, 5′-taatacgactcactataGGGCTGGCTCTGCTGGGGCTgttttagagctagaaATAGCAAG-3′, and constant oligonucleotide reverse primer, 5′-AAAAGCACCGACTCGGTGCCACTTTTTCAAGTTGATAACGGACTAGCCTTATTTTAACTTGCTATTTCTAGCTCTAAAAC-3′ (Gagnon et al., 2014). All sgRNA synthesis and cleanup were performed as described in Gagnon et al., 2014.
To generate a mutation in cd59, the sgRNA (200 ng/µL) was co-microinjected with Cas9 protein (600 ng/µL; PNA Bio) into embryos at the one-cell stage. Successful insertion and deletion mutation (INDEL) generation was verified according to the Gagnon et al., 2014 protocol using the following primers: forward primer, 5′-TGGTAAACTGAAGGCATTATGAAA-3′, and reverse primer, 5′-GCAGGCATCATCATAGTAGCAG-3′.
To establish stable mutant lines, injected embryos were raised to adulthood and outcrossed with wildtype zebrafish. Founder offspring were screened for germline mutations through PCR amplification of cd59 with the same genotyping primers listed above. To identify mutant alleles, the resulting PCR product was cloned into pCR4-TOPO TA vector (Invitrogen). Vectors containing cd59 mutant alleles were amplified in chemically competent E. coli, isolated through miniprep (QIAGEN), and sequences were evaluated for INDELs. Founder offspring containing 6 bp (cd59uva47; BX957297.10:g.45_50delGCTGGG) and 15 bp deletions (cd59uva48; BX957297.10:g.44_58delTGCTGGGGCTTGGTA) in the cd59 gene were selected for further experimentation and raised to establish stable mutant lines. All subsequent generations were genotyped as described in Fontenas and Kucenas, 2021 with the same genotyping primers listed above, and the resulting PCR products were screen with gel electrophoresis on a 2.5% agarose gel.
Generation of synthetic mRNA
Request a detailed protocolTo aid in transgenic fish creation, Tol2 transposase mRNA was transcribed from linearized pCS2FA-transposase (Kwan et al., 2007) with the mMESSAGE mMACHINE sp6 transcription kit (Invitrogen). The resulting mRNA was co-injected (20 ng/µL) with the transgenic constructs described in ‘Generation of transgenic lines’.
RT-PCR analysis
Request a detailed protocolRNA was extracted with the RNeasy mini kit (QIAGEN) from 72 hpf cd59uva48, cd59uva47, and AB* embryos. cDNA libraries were generated from the RNA using the high-capacity cDNA reverse transcription kit (Thermo Fisher). Using the cDNA as a template, PCR amplification was performed with the following primers: forward primer, 5′-ATGAAAGCTTCTGTCGGAGTGT-3′, reverse primer, 5′-ATGAAAGCTTCTGTCGGAGTGT-3′. The resulting PCR products were visualized with gel electrophoresis on a 2.5% agarose gel.
To sequence the multiple mutant RNA transcripts found in the cd59uva48 mutant, the PCR product was cloned into a pCR4-TOPO TA cloning vector (Invitrogen) as described in ‘Generation of mutant lines.’ The isolated vectors were sequenced and analyzed for INDELs and PTCs with the Expasy protein translation tool (https://web.expasy.org/translate/; Duvaud et al., 2021). Cd59uva48 protein sequences were compared to sequences from cd59uva47 and AB* larvae.
Confocal imaging
Request a detailed protocolAll embryos were treated with egg water containing PTU (0.004%; Sigma) at 24 hpf to minimize pigmentation obstruction. For in vivo imaging, embryos and larvae (1–7 dpf) were dechorionated manually, if necessary, and anesthetized with 0.01% tricaine-S (MS-222) (The Pond Outlet). Low gelling temperature agarose (0.8%; Sigma) was used to immobilize the anesthetized fish in a 35 mm glass-bottom dish (Greiner). Egg water containing PTU (0.004%; Sigma) and tricaine-S (MS-222) (0.01%; The Pond Outlet) was added to the dish prior to imaging to maintain anesthesia and suppress pigment production. For whole-mount imaging of fixed fish (see ‘Immunofluorescence’), fixed embryos and larvae were immobilized with agarose in a glass-bottom dish prior to imaging. For imaging tissue sections, sections were adhered to microscope slides prior to staining and imaging (see ‘Cryosectioning’ and ‘Immunofluorescence’).
All fluorescent images were acquired with a ×40 water immersion objective (NA = 1.1) mounted on a motorized Zeiss AxioObserver Z1 microscope equipped with a Quorum WaveFX-XI (Quorum Technologies) or Andor CSU-W (Andor Oxford Instruments plc.) spinning disc confocal system. Time-lapse experiments were imaged every 10 min for 7–24 hr, depending on the experiment. Z stacks were acquired at each time point for time-lapse imaging as well as single-time point imaging for fixed whole-mount and sectioned tissue (see ‘Immunofluorescence,’ ‘In situ hybridization,’ and ‘Cryosectioning’).
All experiments involving whole embryos and larvae were imaged with the 12th somite at the center of the acquisition window to control for stage of anterior–posterior development. Exceptions include (1) images of mosaic labeling with transgenic constructs, which were acquired regardless of anterior–posterior position, (2) images of NaV channels and NF183, which were acquired from the 3rd to the 13th somite to ensure accurate assessment of nodes of Ranvier that are not evenly distributed along nerves, (3) images of the pLLG, which is anterior to the pLLN. All imaging of mosaic labeling as well as myelin volume quantification were obtained in live fish.
Images and videos were processed with either Metamorph (Molecular Devices) or IQ3 (Oxford Instruments). Fiji (ImageJ; imageJ.nih.gov), Imaris 9.8 (Oxford Instruments), and Illustrator (Adobe) were used for annotating videos and images, adjusting contrast and brightness, and data analysis.
Cryosectioning
Request a detailed protocolFixed larvae were mounted in sectioning agar (1.5% agar; Fisher Scientific; 5% sucrose; Sigma; 100 mL ultrapure water) and cryopreserved in 30% sucrose in ultrapure water (Sigma) overnight at 4°C. The agar blocks were frozen by placing them on a small raft floating on 2-methylbutane (Fisher Scientific), the container of which was submerged in a bath of liquid nitrogen. The blocks were sectioned to 20 µm with a cryostat microtome and mounted on microscope slides (VWR). The sections were stored at –20°C until needed for immunofluorescence, ISH, or confocal imaging.
Prior to sectioning the offspring of heterozygous cd59 mutant parents, the larvae were anesthetized in egg water with 0.01% tricaine-s (MS-222; The Pond Outlet). The heads were removed with a razor blade. The heads were kept for genotyping, and the trunks were fixed for sectioning.
Immunofluorescence
Request a detailed protocolLarvae (24 hpf to 7 dpf) were fixed in 4% paraformaldehyde (PFA; Sigma) for 1 hr shaking at room temperature (RT) for all experiments except NaV channel and NF186 staining, in which samples were fixed for 30 min.
For whole-mount imaging of embryo and larvae, the samples were prepared as described in Fontenas and Kucenas, 2021. The following antibodies were used for whole-mount immunofluorescence staining: mouse anti-acetylated tubulin (1:10,000; Sigma), rabbit anti-sox10 (1:5000) (Binari et al., 2013), chicken anti-GFP (1:500; Abcam), mouse anti-sodium channel (1:500; Sigma), rabbit anti-TagRFP (1:500; Invitrogen), rabbit anti-neurofascin 186 (1:200; gift from Dr. Matthew Rasband), mouse anti-C5b-8+C5b-9 (1:500; Abcam), Alexa Fluor 488 goat anti-chicken IgG(H+L) (1:1000; Thermo Fisher), Alexa Fluor 647 goat anti-rabbit IgG(H+L) (1:1000; Thermo Fisher), Alexa Fluor 647 goat anti-mouse IgG(H+L) (1:1000; Thermo Fisher), Alexa Fluor 488 goat anti-mouse IgG(H+L) (1:1000; Thermo Fisher), and Alexa Fluor 568 goat anti-rabbit IgG(H+L) (1:1000; Thermo Fisher). Fish were immobilized and imaged in glass-bottom dishes as described in ‘Confocal imaging’.
For imaging of tissue sections, the samples were prepared as described in Fontenas and Kucenas, 2021. The following antibodies were used for staining tissue sections: mouse anti-HuC/HuD (1:500; Invitrogen), rabbit anti-sox10 (1:5000) (Binari et al., 2013), Alexa Fluor 488 goat anti-mouse IgG(H+L) (1:1000; Thermo Fisher), and Alexa Fluor 647 goat anti-rabbit IgG(H+L) (1:1000; Thermo Fisher). After staining, all slides were mounted in DAPI fluoromount-G (Southern Biotech) and were coverslipped (VWR). The slides were stored in the dark until they were imaged as described in ‘Confocal imaging’.
In situ hybridization
Probe synthesis
Request a detailed protocolThe cd59 RNA probe for CISH was designed and synthesized in our lab. RNA was isolated from 3 dpf larvae with the RNeasy mini kit (QIAGEN). A cDNA library was generated from the 3 dpf RNA using the high-capacity cDNA reverse transcription kit (Thermo Fisher). This cDNA was used as a template for the cd59 RNA probe. The primers used to generate the cd59 RNA probe were as follows: forward primer, 5'-GCCTGCTTGTCTGTCTACGA-3', and reverse primer plus T7 sequence, 5'-TAATACGACTCACTATAGAGGTGACGAGATTAGCTGCG-3'. In addition to the cd59 RNA probe, we also used previously published probes targeting sox10 (Park and Appel, 2003) and mbpa (Brösamle and Halpern, 2002). CISH probe synthesis was performed as described in Fontenas and Kucenas, 2021. For fluorescent in situ hybridization experiments (FISH), the cd59 RNA probe (RNAscope probe-Dr-cd59-C2) was purchased from Advanced Cell Diagnostics (ACD).
Chromogenic in situ hybridization
Request a detailed protocolEmbryos and larvae (1–7 dpf) were dechorionated, if necessary, and fixed in 4% PFA for 1 hr shaking at RT and then transferred to 100% MeOH overnight at –20°C. CISH was performed as described in Hauptmann and Gerster, 2000. Images were obtained either using a Zeiss AxioObserver inverted microscope equipped with Zen, using a ×40 oil immersion objective, or a Zeiss AxioObserver Z1 microscope equipped with a Quorum WaveFX-XI (Quorum Technologies) or Andor CSU-W (Andor Oxford Instruments plc.) spinning disc confocal system. Fiji (ImageJ; imageJ.nih.gov) and Illustrator (Adobe) were used for annotating images, adjusting contrast and brightness, and data analysis.
Fluorescent in situ hybridization
Request a detailed protocolLarvae (1–7 dpf) were dechorionated, if necessary, and fixed with 4% PFA (Sigma) for 1 hr shaking at RT, dehydrated in 100% MeOH overnight at –20°C, and cryosectioned (see ‘Cryosectioning’). The agar was gently removed by soaking the slides in 1× DEPC PBS (1:1000 diethyl pyrocarbonate [DEPC; Sigma] in 1× PBS; DEPC inactivated by autoclave).
To perform FISH, we used the RNAscope fluorescent multiplex reagent kit (ACD) with the following protocol modified from Gross-Thebing et al., 2014: for all of subsequent steps, the slides kept in the dark and were coverslipped (VWR) during incubations except for during washes. To permeabilize the tissue, the sections were treated with Protease III (two drops) and incubated at RT for 20 min. The tissue was gently rinsed three times with 1× DEPC PBS and washed with 1× DEPC PBS for 10 min at RT followed by an addition three rinses in 1× DEPC PBS. The sections were then hybridized with cd59 probe (1:100 RNAscope probe-Dr-cd59-C2 in RNAscope probe diluent; ACD) in a 40°C water bath overnight. The tissue was rinsed three times with 1× DEPC PBS and washed in 0.2× SSCT (0.2× SSC [Quality Biological] and 0.1% Triton X-100 [Sigma] in DEPC water [1:1000 DEPC in ultrapure water; DEPC inactivated by autoclave]) for 10 min and then rinsed again three times with 1× DEPC PBS. This rinse/wash routine was repeated between the following fixation and amplification steps: 4% PFA (5 min at RT), Amp1 (two drops, 30 min at 40°C), Amp2 (two drops, 15 min at 40°C), Amp3 (two drops, 30 min at 40°C), Amp4C (two drops, 15 min at 40°C), and DAPI (two drops, 30 min at RT). After a final rinse/wash, the slides were coverslipped (VWR) with 0.2× SSCT and stored at 4°C until imaged. Sections were imaged as described in ‘Confocal imaging’.
Cell death assays
AO incorporation assay
Request a detailed protocolTo label cell death, 48 hpf embryos were labeled with AO according to the protocol in Lyons et al., 2005. Fish were immobilized and imaged in glass-bottom dishes as described in ‘Confocal imaging’.
TUNEL assay
Request a detailed protocolTo label cell death, 48 hpf embryos were fixed in 4% PFA for 1 hr shaking at RT and then sectioned (see ‘Cryosectioning’). TUNEL staining was performed with the ApopTag red in situ apoptosis detection kit (Sigma) and followed by immunofluorescence for Sox10 (see ‘Immunofluorescence’). Sections were imaged as described in ‘Confocal imaging’.
EdU incorporation assay
Request a detailed protocolTo label mitotically active cells, embryos were incubated in EdU (0.4 mM EdU [Invitrogen], 4% DMSO [Sigma], and egg water containing 0.004% PTU [Sigma]) from 48 to 55 hpf. The embryos were then fixed in 4% PFA for 1 hr shaking at RT and permeabilized as described in ‘Immunofluorescence.’ We stained for EdU with the Click-it EdU cell proliferation kit for imaging (Alexa Fluor 647 dye; Invitrogen) as described in the kit protocol. The Click-it reaction was performed for 1 hr shaking at RT. The embryos were washed overnight shaking at 4°C in 1× PBSTx. Additional washes were performed as necessary until the yolk sacs were no longer blue. Fish were immobilized and imaged in glass-bottom dishes as described in ‘Confocal imaging’.
Dexamethasone treatment
Request a detailed protocolTo inhibit inflammation, embryos were incubated in 1% DMSO (Sigma) or 1% DMSO plus 100 µM Dex (Sigma) at 28.5°C. Dex concentration was chosen based on a previously published dose–response study in zebrafish larvae (Wilson et al., 2016; Wilson et al., 2013). For embryos fixed at 55 hpf, the embryos were treated with DMSO or Dex from 24 to 55 hpf. For larvae fixed at 7 dpf, the embryos were treated from 24 to 75 hpf and then transferred to egg water containing PTU (0.004%; Sigma).
Transmission electron microscopy
Request a detailed protocolHeadless larvae (7 dpf) were fixed for 3 days at 4oC in EM fixation buffer (2% EM-grade glutaraldehyde [Sigma], 2% PFA [Sigma], 0.1 M sodium cacodylate trihydrate, pH 7.3 [SCT; Sigma] in ultrapure water) and washed three times for 10 min each in 0.1 M SCT. The samples were post-fixed in 1% osmium tetroxide (Sigma) in 0.1 M SCT for 1 hr at 4°C and washed three times for 5 min each in ultrapure water at RT. Contrast was initiated with 2% uranyl acetate for 1 hr at RT and washed four times for 5 min each in ultrapure water at RT. The samples were dehydrated as follows: 40% EtOH (2 × 10 min), 60% (2 × 10 min), 80% (2 × 10 min), 100% (2 × 10 min), acetone (2 min), and acetone/EPON (1:1, 15 min). The samples were then incubated in EPON at 4°C overnight with the lid open to allow for gas to escape. Samples were mounted in EPON and polymerized at 60°C for 48 hr. Tissue blocks were sectioned transversely, stained, and imaged according to the methods described in Morris et al., 2017. Sections were collected from three parts of the larvae, separated by 100 µm (according to the myelin length data noted in Figure 5—figure supplement 1D, most myelin sheaths are less than 100 µm; separating each section by 100 µm would therefore enable quantification of three separate groups of SCs per pLLN) to enable quantification of three groups of SCs per pLLN.
RNAseq analysis
Request a detailed protocolPublished bulk and scRNAseq datasets from zebrafish and rodents were evaluated for cd59 expression. The chosen datasets included analysis of some or many stages of myelinating glial cell development. Visualization and quantification of cd59 expression were obtained through the applications included with the publications when possible (publications cited in Figure 1—figure supplement 1) with the following exceptions: (1) TPM quantification of bulk RNAseq of zebrafish myelinating glial cells was acquired from data analyzed in Piller et al., 2021; Zhu et al., 2019. (2) analysis of NCC lineage scRNAseq in zebrafish from the dataset presented in Saunders et al., 2019 was performed as follows: tissue collection, FACS, RT-PCR, single-cell collection, library construction, sequencing, read alignment to Ensembl GRCz11, and preliminary data processing were performed as described by Saunders et al., 2019, and the data were accessed through GEO via accession GSE131136. Dimensionality reduction and projection of cells in two dimensions were performed using uniform manifold approximation and projection (UMAP) (McInnes et al., 2018) and Louvain clustering (Blondel et al., 2008). Cell cluster visualization and analysis were performed using the FindMarkers, FeaturePlot, DimPlot, and VlnPlot functions of Seurat package 4.0.0 (Hao et al., 2021).
Quantification and statistical analysis
Nerve volume quantification
Request a detailed protocolMyelinated nerve and axon volume were quantified by creating a surface rendering of the imaged nerve using Imaris 9.8 (Oxford Instruments). The total volume of each surface rendering was quantified with Imaris 9.8 (Oxford Instruments).
Myelin length quantification
Request a detailed protocolMyelin length was measured from images of mosaic mbpa:tagrfp-caax labeling using Fiji (ImageJ; imageJ.nih.gov). Specifically, the length of the myelin sheath was traced with the ‘freehand line’ tool. The length was then quantified with the ‘measure’ tool.
Axon myelination quantification
Request a detailed protocolThe number of myelin wraps around an axon, as well as the number of myelinated axons per pLLN, was measured in electron micrographs of pLLNs using Fiji (ImageJ; imageJ.nih.gov). Counting was performed with the ‘multi-point’ and ‘measure’ tools.
NaV channel, NF186, cd59 RNAscope, and MAC quantification
Request a detailed protocolPuncta quantification (specifically for quantification of NaV channels, NF186, cd59 RNAscope, and MAC quantification) was performed either in Fiji (ImageJ; imageJ.nih.gov) or Imaris (Oxford Instruments). To ensure only puncta within the pLLN were quantified, each z plane was quantified manually.
Cell number quantification
Request a detailed protocolSC, neuron, and NCC images on the pLLN and in the CNS were quantified in Fiji (ImageJ; imageJ.nih.gov) by creating z projections and counting the number of cells with the ‘multi-point’ and ‘measure’ tools. pLLG neurons and NCCs were counted manually in Imaris 9.8 (Oxford Instruments).
Mitotic event quantification
Request a detailed protocolTime-lapse images of developing SCs were evaluated for mitotic events (cell divisions) of sox10:tagrfp-positive SCs along the pLLN using Fiji (ImageJ; imageJ.nih.gov). Mitotic events were defined as follows: SC rounds up, chromatic condenses (darkening of the SC), and division of the daughter cells. The number of mitotic events was quantified with the ‘multi-point’ and ‘measure’ tools. Mitotic events in the representative videos were annotated arrows using the ‘draw arrow in movies’ plugin (Daetwyler et al., 2020).
Statistical analysis
Request a detailed protocolStudent’s t-tests, as well as one-way and two-way ANOVAs followed by Tukey’s multiple-comparison tests, were performed using Prism 9.2 (GraphPad Software). The data in plots and the text are presented as means ± SEM.
Data blinding
Request a detailed protocolFor offspring of heterozygous parents, embryos chosen for experimentation were blindly selected (wildtype and mutant embryos are indistinguishable by eye). Embryo genotype was revealed after imaging and before quantification. For offspring of homozygous parents, embryo genotype was known throughout the entire experiment.
Artwork
Request a detailed protocolAll artworks were created in Illustrator (Adobe) by Ashtyn T. Wiltbank. SC and OL development figures (Figure 1A and B) were based on previous schematics and electron micrographs shown in Ackerman and Monk, 2016; Cunningham and Monk, 2018; Jessen and Mirsky, 2005.
Data availability
All data generated and analyzed during this study are included in the manuscript and supporting source files for Figures 1 to 8. All previously published datasets analyzed, including RNAseq and proteomics, are cited in the manuscript.
-
NCBI Gene Expression OmnibusID GSE152906. An atlas of neural crest lineages along the posterior developing zebrafish at single-cell resolution.
-
NCBI Gene Expression OmnibusID GSE135237. Migratory Neural Crest Cells Phagocytose Dead Cells in the Developing Nervous System.
-
NCBI Gene Expression OmnibusID GSE137870. Transcriptional profiling of mouse peripheral nerves to the single-cell level to build a sciatic nerve ATlas (SNAT).
-
NCBI Gene Expression OmnibusID GSE132166. Functionally distinct subgroups of oligodendrocyte precursor cells integrate neural activity and execute myelin formation.
-
NCBI Gene Expression OmnibusID GSE75330. Oligodendrocyte heterogeneity in the mouse juvenile and adult central nervous system.
-
NCBI Gene Expression OmnibusID GSE95194. Transcriptional Convergence of Oligodendrocyte Lineage Progenitors during Development.
-
NCBI Gene Expression OmnibusID GSE174486. Glutamate Signaling via the AMPAR Subunit GluR4 Regulates Oligodendrocyte Progenitor Cell Migration in the Developing Spinal Cord.
-
NCBI Gene Expression OmnibusID GSE131136. Thyroid hormone regulates distinct paths to maturation in pigment cell lineages.
-
NCBI Gene Expression OmnibusID GSE142541. Redefining the heterogeneity of peripheral nerve cells in health and autoimmunity.
-
ProteomeXchangeID PXD023037. Proteome Profile of Myelin in the Zebrafish Brain.
References
-
Individual axons regulate the myelinating potential of single oligodendrocytes in vivoDevelopment (Cambridge, England) 138:4443–4450.https://doi.org/10.1242/dev.071001
-
On Myelinated Axon Plasticity and Neuronal Circuit Formation and FunctionThe Journal of Neuroscience 37:10023–10034.https://doi.org/10.1523/JNEUROSCI.3185-16.2017
-
Astrocytes regulate adult hippocampal neurogenesis through ephrin-B signalingNature Neuroscience 15:1399–1406.https://doi.org/10.1038/nn.3212
-
RGC-32 increases p34CDC2 kinase activity and entry of aortic smooth muscle cells into S-phaseThe Journal of Biological Chemistry 277:502–508.https://doi.org/10.1074/jbc.M109354200
-
The mystery behind membrane insertion: a review of the complement membrane attack complexPhilosophical Transactions of the Royal Society of London. Series B, Biological Sciences 372:20160221.https://doi.org/10.1098/rstb.2016.0221
-
The formation from the Schwann cell surface of myelin in the peripheral nerves of chick embryosExperimental Cell Research 7:558–562.https://doi.org/10.1016/s0014-4827(54)80098-x
-
Perineurial glia require Notch signaling during motor nerve development but not regenerationThe Journal of Neuroscience 33:4241–4252.https://doi.org/10.1523/JNEUROSCI.4893-12.2013
-
Fast unfolding of communities in large networksJournal of Statistical Mechanics 2008:10008.https://doi.org/10.1088/1742-5468/2008/10/P10008
-
The nonsense-mediated decay RNA surveillance pathwayAnnual Review of Biochemistry 76:51–74.https://doi.org/10.1146/annurev.biochem.76.050106.093909
-
T cell activation by terminal complex of complement and immune complexesThe Journal of Biological Chemistry 286:38627–38637.https://doi.org/10.1074/jbc.M111.266809
-
Complement: The Emerging Architect of the Developing BrainTrends in Neurosciences 41:373–384.https://doi.org/10.1016/j.tins.2018.03.009
-
The role of Schwann cells in the development of human peripheral nerves. An electron microscopic studyJournal of Ultrastructure Research 12:634–651.https://doi.org/10.1016/s0022-5320(65)80053-3
-
Transmission Electron Microscopy for Zebrafish Larvae and Adult Lateral Line NerveMethods in Molecular Biology (Clifton, N.J.) 1739:385–400.https://doi.org/10.1007/978-1-4939-7649-2_26
-
Fiji plugin for annotating movies with custom arrowsBiology Open 9:bio056200.https://doi.org/10.1242/bio.056200
-
CD59, an LY-6-like protein expressed in human lymphoid cells, regulates the action of the complement membrane attack complex on homologous cellsThe Journal of Experimental Medicine 170:637–654.https://doi.org/10.1084/jem.170.3.637
-
C5a receptor signaling prevents folate deficiency-induced neural tube defects in miceJournal of Immunology (Baltimore, Md 190:3493–3499.https://doi.org/10.4049/jimmunol.1203072
-
Expasy, the Swiss Bioinformatics Resource Portal, as designed by its usersNucleic Acids Research 49:W216–W227.https://doi.org/10.1093/nar/gkab225
-
Proximodistal patterning during limb regenerationDevelopmental Biology 279:391–401.https://doi.org/10.1016/j.ydbio.2004.12.029
-
Influence of steroids on complement and cytokine generation after cardiopulmonary bypassThe Annals of Thoracic Surgery 60:801–804.https://doi.org/10.1016/0003-4975(95)00211-3
-
How Schwann Cells Sort Axons: New ConceptsThe Neuroscientist 22:252–265.https://doi.org/10.1177/1073858415572361
-
Motor Exit Point (MEP) Glia: Novel Myelinating Glia That Bridge CNS and PNS MyelinFrontiers in Cellular Neuroscience 12:333.https://doi.org/10.3389/fncel.2018.00333
-
Sustained axon-glial signaling induces Schwann cell hyperproliferation, Remak bundle myelination, and tumorigenesisThe Journal of Neuroscience 29:11304–11315.https://doi.org/10.1523/JNEUROSCI.1753-09.2009
-
Developmental activities of the complement pathway in migrating neuronsNature Communications 8:15096.https://doi.org/10.1038/ncomms15096
-
The number of Schmidt-Lanterman incisures is more than doubled in shiverer PNS myelin sheathsJournal of Neurocytology 24:85–98.https://doi.org/10.1007/BF01181552
-
Multicolor whole-mount in situ hybridizationMethods in Molecular Biology (Clifton, N.J.) 137:139–148.https://doi.org/10.1385/1-59259-066-7:139
-
The effect of the floor plate on pattern and polarity in the developing central nervous systemScience (New York, N.Y.) 251:310–313.https://doi.org/10.1126/science.1987648
-
Congenital CD59 DeficiencyHematology/Oncology Clinics of North America 29:495–507.https://doi.org/10.1016/j.hoc.2015.01.006
-
Microglia phagocytose myelin sheaths to modify developmental myelinationNature Neuroscience 23:1055–1066.https://doi.org/10.1038/s41593-020-0654-2
-
The origin and development of glial cells in peripheral nervesNature Reviews. Neuroscience 6:671–682.https://doi.org/10.1038/nrn1746
-
The phenotype of a germline mutation in PIGA: the gene somatically mutated in paroxysmal nocturnal hemoglobinuriaAmerican Journal of Human Genetics 90:295–300.https://doi.org/10.1016/j.ajhg.2011.11.031
-
Molecular pathogenesis of human CD59 deficiencyNeurology. Genetics 4:e280.https://doi.org/10.1212/NXG.0000000000000280
-
Transgenesis and gene trap methods in zebrafish by using the Tol2 transposable elementMethods in Cell Biology 77:201–222.https://doi.org/10.1016/s0091-679x(04)77011-9
-
Stages of embryonic development of the zebrafishDevelopmental Dynamics 203:253–310.https://doi.org/10.1002/aja.1002030302
-
The Tol2kit: A multisite gateway-based construction kit for Tol2 transposon transgenesis constructsDevelopmental Dynamics 236:3088–3099.https://doi.org/10.1002/dvdy.21343
-
CHOPCHOP v2: a web tool for the next generation of CRISPR genome engineeringNucleic Acids Research 44:W272–W276.https://doi.org/10.1093/nar/gkw398
-
CHOPCHOP v3: expanding the CRISPR web toolbox beyond genome editingNucleic Acids Research 47:W171–W174.https://doi.org/10.1093/nar/gkz365
-
Abnormal expression and mutation of the RBPJ gene may be involved in CD59- clonal proliferation in paroxysmal nocturnal hemoglobinuriaExperimental and Therapeutic Medicine 17:4536–4546.https://doi.org/10.3892/etm.2019.7475
-
Cutting edge: murine CD59a modulates antiviral CD4+ T cell activity in a complement-independent mannerJournal of Immunology (Baltimore, Md 175:7098–7102.https://doi.org/10.4049/jimmunol.175.11.7098
-
Complement System in Brain Architecture and Neurodevelopmental DisordersFrontiers in Neuroscience 14:23.https://doi.org/10.3389/fnins.2020.00023
-
Oligodendrocyte heterogeneity in the mouse juvenile and adult central nervous systemScience (New York, N.Y.) 352:1326–1329.https://doi.org/10.1126/science.aaf6463
-
The fine anatomy of the optic nerve of anurans--an electron microscope studyThe Journal of Biophysical and Biochemical Cytology 7:107–120.https://doi.org/10.1083/jcb.7.1.107
-
UMAP: Uniform Manifold Approximation and ProjectionJournal of Open Source Software 3:861.https://doi.org/10.21105/joss.00861
-
Deficiency of the complement regulator CD59a enhances disease severity, demyelination and axonal injury in murine acute experimental allergic encephalomyelitisLaboratory Investigation; a Journal of Technical Methods and Pathology 84:21–28.https://doi.org/10.1038/labinvest.3700015
-
Human protectin (CD59), an 18,000-20,000 MW complement lysis restricting factor, inhibits C5b-8 catalysed insertion of C9 into lipid bilayersImmunology 71:1–9.
-
Complement System Part II: Role in ImmunityFrontiers in Immunology 6:257.https://doi.org/10.3389/fimmu.2015.00257
-
Complement membrane attack on nucleated cells: resistance, recovery and non-lethal effectsThe Biochemical Journal 264:1–14.https://doi.org/10.1042/bj2640001
-
Complement, a target for therapy in inflammatory and degenerative diseasesNature Reviews. Drug Discovery 14:857–877.https://doi.org/10.1038/nrd4657
-
The membrane attack complex as an inflammatory triggerImmunobiology 221:747–751.https://doi.org/10.1016/j.imbio.2015.04.006
-
Transmission electron microscopy of zebrafish spinal motor nerve rootsDevelopmental Dynamics 246:956–962.https://doi.org/10.1002/dvdy.24529
-
Myelination of the nervous system: mechanisms and functionsAnnual Review of Cell and Developmental Biology 30:503–533.https://doi.org/10.1146/annurev-cellbio-100913-013101
-
Activation of Ras and mitogen-activated protein kinase pathway by terminal complement complexes is G protein dependentJournal of Immunology (Baltimore, Md 158:4405–4412.
-
The human complement regulatory protein CD59 binds to the alpha-chain of C8 and to the “b”domain of C9The Journal of Biological Chemistry 267:13675–13680.https://doi.org/10.1016/S0021-9258(18)42266-1
-
Synaptic pruning by microglia is necessary for normal brain developmentScience (New York, N.Y.) 333:1456–1458.https://doi.org/10.1126/science.1202529
-
Delta-Notch signaling regulates oligodendrocyte specificationDevelopment (Cambridge, England) 130:3747–3755.https://doi.org/10.1242/dev.00576
-
Neuronal Neuregulin 1 type III directs Schwann cell migrationDevelopment (Cambridge, England) 138:4639–4648.https://doi.org/10.1242/dev.068072
-
The formation and structure of myelin sheaths in the central nervous systemThe Journal of Biophysical and Biochemical Cytology 8:431–446.https://doi.org/10.1083/jcb.8.2.431
-
The structure of myelin sheaths in the central nervous system of Xenopus laevis (Daudin)The Journal of Biophysical and Biochemical Cytology 7:121–126.https://doi.org/10.1083/jcb.7.1.121
-
Mechanisms of node of Ranvier assemblyNature Reviews. Neuroscience 22:7–20.https://doi.org/10.1038/s41583-020-00406-8
-
The Role of Vesicle Trafficking and Release in Oligodendrocyte BiologyNeurochemical Research 45:620–629.https://doi.org/10.1007/s11064-019-02913-2
-
On the relation between fibre diameter and conduction velocity in myelinated nerve fibresProceedings of the Royal Society of London. Series B, Biological Sciences 217:29–35.https://doi.org/10.1098/rspb.1982.0092
-
Inhibition of homologous complement by CD59 is mediated by a species-selective recognition conferred through binding to C8 within C5b-8 or C9 within C5b-9Journal of Immunology (Baltimore, Md) 146:2345–2351.
-
Sublytic complement attack induces cell cycle in oligodendrocytesJournal of Immunology (Baltimore, Md) 156:4892–4900.
-
Role of the C5b-9 complement complex in cell cycle and apoptosisImmunological Reviews 180:49–55.https://doi.org/10.1034/j.1600-065x.2001.1800104.x
-
The expression of complement regulatory proteins by adult human oligodendrocytesJournal of Neuroimmunology 84:69–75.https://doi.org/10.1016/s0165-5728(97)00241-5
-
Neural cell fate analysis in zebrafish using olig2 BAC transgenicsMethods in Cell Science 25:7–14.https://doi.org/10.1023/B:MICS.0000006847.09037.3a
-
Proteome Profile of Myelin in the Zebrafish BrainFrontiers in Cell and Developmental Biology 9:640169.https://doi.org/10.3389/fcell.2021.640169
-
Myelin in the Central Nervous System: Structure, Function, and PathologyPhysiological Reviews 99:1381–1431.https://doi.org/10.1152/physrev.00031.2018
-
Zebrafish CD59 has both bacterial-binding and inhibiting activitiesDevelopmental and Comparative Immunology 41:178–188.https://doi.org/10.1016/j.dci.2013.05.008
-
Diversity of developing peripheral glia revealed by single-cell RNA sequencingDevelopmental Cell 56:2516–2535.https://doi.org/10.1016/j.devcel.2021.08.005
-
Histone Deacetylase SIRT1 Mediates C5b-9-Induced Cell Cycle in OligodendrocytesFrontiers in Immunology 11:619.https://doi.org/10.3389/fimmu.2020.00619
-
C5b-9-activated, K(v)1.3 channels mediate oligodendrocyte cell cycle activation and dedifferentiationExperimental and Molecular Pathology 91:335–345.https://doi.org/10.1016/j.yexmp.2011.04.006
-
High level transcription of the complement regulatory protein CD59 requires an enhancer located in intron 1The Journal of Biological Chemistry 274:710–716.https://doi.org/10.1074/jbc.274.2.710
-
Vimentin regulates peripheral nerve myelinationDevelopment (Cambridge, England) 139:1359–1367.https://doi.org/10.1242/dev.072371
-
Emerging Role of Schwann Cells in Neuropathic Pain: Receptors, Glial Mediators and MyelinationFrontiers in Cellular Neuroscience 13:116.https://doi.org/10.3389/fncel.2019.00116
-
Axon-glia interaction and membrane traffic in myelin formationFrontiers in Cellular Neuroscience 7:284.https://doi.org/10.3389/fncel.2013.00284
-
Early-life glucocorticoids programme behaviour and metabolism in adulthood in zebrafishThe Journal of Endocrinology 230:125–142.https://doi.org/10.1530/JOE-15-0376
-
Diversity and convergence within peripheral glia developmentTrends in Neurosciences 44:930–932.https://doi.org/10.1016/j.tins.2021.10.004
-
Floor plate-derived sonic hedgehog regulates glial and ependymal cell fates in the developing spinal cordDevelopment (Cambridge, England) 140:1594–1604.https://doi.org/10.1242/dev.090845
-
Human oligodendrocytes are not sensitive to complement. A study of CD59 expression in the human central nervous systemLaboratory Investigation; a Journal of Technical Methods and Pathology 73:128–138.
-
Complement system in zebrafishDevelopmental and Comparative Immunology 46:3–10.https://doi.org/10.1016/j.dci.2014.01.010
Article and author information
Author details
Funding
National Institute of Neurological Disorders and Stroke (R01NS107525)
- Sarah Kucenas
Owens Family Foundation
- Sarah Kucenas
The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.
Acknowledgements
We thank Lori Tocke for zebrafish care and members of the Kucenas Lab for valuable discussions. We thank Drs. Laura Fontenas, Xiaowei Lu, Sarah E Siegrist, John R Lukens, and Scott Zeitlin for helpful suggestions and training. We thank Drs. Laura Fontenas, Alev Erisir, Stacey J Criswell, Natalia Dworak, and the Advanced Microscopy Facility for assistance with EM sample preparation and microscope training. We thank Dr. Matthew N Rasband for the NF186 antibody. We thank Dr. David M Parichy for his advice and for sharing scRNAseq data from (Saunders et al., 2019). This work was funded by the NIH/National Institutes of Neurological Disorders and Stroke (NINDS): R01NS107525 (SK) and The Owens Family Foundation (SK).
Ethics
All animal studies were approved by the University of Virginia Institutional Animal Care and Use Committee, protocol #3782.
Copyright
© 2022, Wiltbank et al.
This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.
Metrics
-
- 1,665
- views
-
- 248
- downloads
-
- 6
- citations
Views, downloads and citations are aggregated across all versions of this paper published by eLife.
Download links
Downloads (link to download the article as PDF)
Open citations (links to open the citations from this article in various online reference manager services)
Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)
Further reading
-
- Developmental Biology
Dysfunction of primary cilia leads to genetic disorder, ciliopathies, which shows various malformations in many vital organs such as brain. Multiple tongue deformities including cleft, hamartoma, and ankyloglossia are also seen in ciliopathies, which yield difficulties in fundamental functions such as mastication and vocalization. Here, we found these tongue anomalies in mice with mutation of ciliary protein. Abnormal cranial neural crest-derived cells (CNCC) failed to evoke Hh signal for differentiation of mesoderm-derived cells into myoblasts, which resulted in abnormal differentiation of mesoderm-derived cells into adipocytes. The ectopic adipose subsequently arrested tongue swelling formation. Ankyloglossia was caused by aberrant cell migration due to lack of non-canonical Wnt signaling. In addition to ciliopathies, these tongue anomalies are often observed as non-familial condition in human. We found that these tongue deformities could be reproduced in wild-type mice by simple mechanical manipulations to disturb cellular processes which were disrupted in mutant mice. Our results provide hints for possible future treatment in ciliopathies.
-
- Developmental Biology
- Genetics and Genomics
Cilia defects lead to scoliosis in zebrafish, but the underlying pathogenic mechanisms are poorly understood and may diverge depending on the mutated gene. Here, we dissected the mechanisms of scoliosis onset in a zebrafish mutant for the rpgrip1l gene encoding a ciliary transition zone protein. rpgrip1l mutant fish developed scoliosis with near-total penetrance but asynchronous onset in juveniles. Taking advantage of this asynchrony, we found that curvature onset was preceded by ventricle dilations and was concomitant to the perturbation of Reissner fiber polymerization and to the loss of multiciliated tufts around the subcommissural organ. Rescue experiments showed that Rpgrip1l was exclusively required in foxj1a-expressing cells to prevent axis curvature. Genetic interactions investigations ruled out Urp1/2 levels as a main driver of scoliosis in rpgrip1 mutants. Transcriptomic and proteomic studies identified neuroinflammation associated with increased Annexin levels as a potential mechanism of scoliosis development in rpgrip1l juveniles. Investigating the cell types associated with annexin2 over-expression, we uncovered astrogliosis, arising in glial cells surrounding the diencephalic and rhombencephalic ventricles just before scoliosis onset and increasing with time in severity. Anti-inflammatory drug treatment reduced scoliosis penetrance and severity and this correlated with reduced astrogliosis and macrophage/microglia enrichment around the diencephalic ventricle. Mutation of the cep290 gene encoding another transition zone protein also associated astrogliosis with scoliosis. Thus, we propose astrogliosis induced by perturbed ventricular homeostasis and associated with immune cell activation as a novel pathogenic mechanism of zebrafish scoliosis caused by cilia dysfunction.
