Structural motifs for subtype-specific pH-sensitive gating of vertebrate otopetrin proton channels

  1. Bochuan Teng
  2. Joshua P Kaplan
  3. Ziyu Liang
  4. Zachary Krieger
  5. Yu-Hsiang Tu
  6. Batuujin Burendei
  7. Andrew B Ward
  8. Emily R Liman  Is a corresponding author
  1. Section of Neurobiology, Department of Biological Sciences, University of Southern California, United States
  2. Program in Neuroscience, University of Southern California, United States
  3. Diabetes, Endocrinology, and Obesity Branch, National Institute of Diabetes and Digestive and Kidney Diseases, National Institutes of Health, United States
  4. Department of Integrative Structural and Computational Biology, The Scripps Research Institute, United States
https://doi.org/10.7554/eLife.77946
Share this article
Cite this article
  1. Bochuan Teng
  2. Joshua P Kaplan
  3. Ziyu Liang
  4. Zachary Krieger
  5. Yu-Hsiang Tu
  6. Batuujin Burendei
  7. Andrew B Ward
  8. Emily R Liman
(2022)
Structural motifs for subtype-specific pH-sensitive gating of vertebrate otopetrin proton channels
eLife 11:e77946.
https://doi.org/10.7554/eLife.77946
  2. Download BibTeX
  3. Download .RIS

Abstract

Otopetrin (OTOP) channels are proton-selective ion channels conserved among vertebrates and invertebrates, with no structural similarity to other ion channels. There are three vertebrate OTOP channels (OTOP1, OTOP2, and OTOP3), of which one (OTOP1) functions as a sour taste receptor. Whether extracellular protons gate OTOP channels, in addition to permeating them, was not known. Here, we compare the functional properties of the three murine OTOP channels using patch-clamp recording and cytosolic pH microfluorimetry. We find that OTOP1 and OTOP3 are both steeply activated by extracellular protons, with thresholds of pHo <6.0 and 5.5, respectively, and kinetics that are pH-dependent. In contrast, OTOP2 channels are broadly active over a large pH range (pH 5 pH 10) and carry outward currents in response to extracellular alkalinization (>pH 9.0). Strikingly, we could change the pH-sensitive gating of OTOP2 and OTOP3 channels by swapping extracellular linkers that connect transmembrane domains. Swaps of extracellular linkers in the N domain, comprising transmembrane domains 1–6, tended to change the relative conductance at alkaline pH of chimeric channels, while swaps within the C domain, containing transmembrane domains 7–12, tended to change the rates of OTOP3 current activation. We conclude that members of the OTOP channel family are proton-gated (acid-sensitive) proton channels and that the gating apparatus is distributed across multiple extracellular regions within both the N and C domains of the channels. In addition to the taste system, OTOP channels are expressed in the vertebrate vestibular and digestive systems. The distinct gating properties we describe may allow them to subserve varying cell-type specific functions in these and other biological systems.

Editor's evaluation

The manuscript shows that OTOP proton channels are proton-gated with distinct pH sensitivities, and identifies regions on the proteins that alter pH-dependent gating. The main claims are well supported by the data. These findings are likely to be of interest to researchers studying acid/base physiology, sensory physiology, and ion channel biophysics.

https://doi.org/10.7554/eLife.77946.sa0

Introduction

The activity of ion channels is often tightly controlled through a change in conformation, known as gating, that opens and closes the ion permeation pathway (Hille, 2001). Gating can be in response to voltage (voltage-dependent), chemical stimuli (ligand-gated), or membrane deformation (mechanically-gated). Understanding the gating of an ion channel is critical to understanding its physiological function. Recently, a new family of ion channels that are selective for protons and with little or no structural similarity to other ion channels was identified, collectively named the Otopetrins or OTOPs (Tu et al., 2018). These ion channels mediate proton influx in response to acid stimuli, but whether protons also gate them was unknown. Notably, while the structures of vertebrate OTOP1 and OTOP3 channels were recently solved (Chen et al., 2019; Saotome et al., 2019), it is not known if these structures are in open or closed states due to the lack of information regarding the gating of the channels.

OTOP1 currents were first characterized in taste receptor cells, where pH sensitivity, proton selectivity, and inhibition by Zn2+ were described (Chang et al., 2010; Bushman et al., 2015). The founding member of the OTOP family, mOTOP1, was identified as the product of a gene mutated in a murine vestibular disorder (Hurle et al., 2003; Hughes et al., 2004) and was subsequently shown to form a proton channel that functions as a receptor for sour taste in vertebrates (Tu et al., 2018; Teng et al., 2019; Zhang et al., 2019). Most vertebrate genomes encode two related proteins, OTOP2 and OTOP3, that also form proton channels (Tu et al., 2018) and are expressed in a diverse array of tissues, including in the digestive tract, where mutations in the corresponding genes have been linked to disease (Tu et al., 2018; Parikh et al., 2019; Qu et al., 2019; Yang et al., 2019a). Functional OTOP channels are conserved across species, including in invertebrates, where they play roles in acid sensing and biomineralization (Hurle et al., 2011; Tu et al., 2018; Chang et al., 2021; Ganguly et al., 2021; Mi et al., 2021).

Ion channels selective for protons are rare in nature, comprising just a small subset of the hundreds of types of ion channels that have been described over the last 80 years (Hille, 2001). The two best characterized proton-selective ion channels are M2, a viral protein involved in the acidification of the influenza virus interior, and Hv1, a voltage-gated ion channel that extrudes protons during the phagocyte respiratory burst to maintain pH (Pinto et al., 1992; Ramsey et al., 2006; Sasaki et al., 2006; Morgan et al., 2009). OTOP1 channels, unlike HV1, are not gated by voltage (Bushman et al., 2015; Tu et al., 2018) but might instead be gated by protons, like Hv1 and M2 (Cherny et al., 1995; Liang et al., 2016). However, establishing that the permeant ion gates an ion channel is not trivial. For example, an increase in current magnitudes as pH is lowered could be attributed to the opening of channels or an increase in the driving force for proton entry. Here we describe the biophysical response properties of the three murine OTOP channels to varying extracellular pH. By focusing on parameters that are independent of the driving force, we show that extracellular protons gate the three channels in a subtype-specific manner and that the extracellular linker between transmembrane domains eleven and twelve plays a role in gating.

Results

Differential current response profiles of three murine OTOP channels to acidic and basic stimuli

We previously reported that all three murine OTOP channels conduct inward proton currents in response to acid stimuli, but show differences in their current as a function of pH (I-pH) relations (Tu et al., 2018). We reasoned that these differences likely reflect differences in gating. To test this hypothesis, we performed a careful comparative analysis of the response properties of murine OTOP1, OTOP2, and OTOP3.

We used patch-clamp recording from HEK-293 cells transfected with cDNAs encoding each of the three channels for these experiments. If not otherwise stated, the intracellular solution was pH 7.4 (Cs-Aspartate-based), and the holding potential was –80 mV. All three channels carried inward currents in response to lowering pHo in a Na+-free solution, as previously reported (Tu et al., 2018). The magnitude of the OTOP1 currents increased as the extracellular pH (pHo) was lowered over a range of pH 6 to pH 4.5, while the magnitude of OTOP2 currents changed very little over the same pH range (Figure 1A). OTOP3 currents increased more steeply over the same range, with little or no inward currents in response to pH 6 (Figure 1A and C). For all three channels, currents decayed in response to prolonged acid exposure, and the rate of current decay was faster as the pHo was lowered (Figure 1A), likely due in part to intracellular accumulation of protons (DeCoursey and Cherny, 1996; Bushman et al., 2015; De-la-Rosa et al., 2016; Tu et al., 2018) (discussed below).

Figure 1
Download asset Open asset

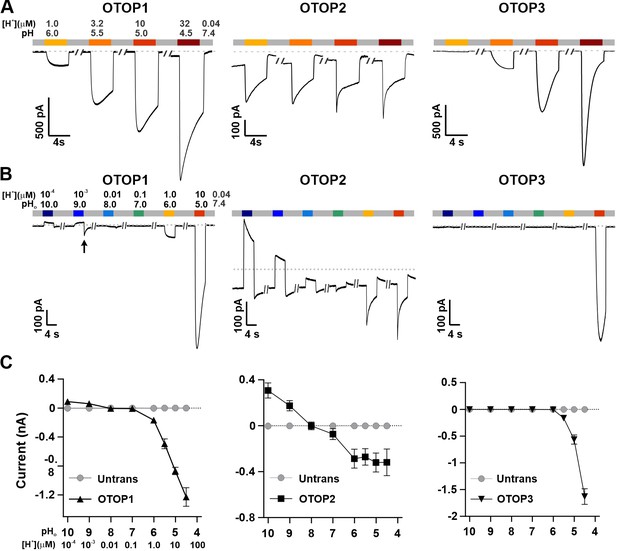

Three vertebrate OTOP channels vary in their I-pH response profile across a broad pH range.

(A) Proton currents elicited in response to acidic stimuli (pH 6–4.5) in the absence of extracellular Na+ measured from HEK-293 cells expressing each of the three OTOP channels as labeled (Vm = -80 mV). (B) Proton currents in response to solutions that varied in pH (pH 10–5) were measured from HEK-293 cells expressing each of the three OTOP channels as labeled (Vm = -80 mV). (C) Average data showing the peak current magnitude in response to stimuli of varying pHo, measured from experiments as in (A) and (B). OTOP3 currents are only observed in response to solutions of pH <5.5, while OTOP1 currents are evoked by solutions of <pH 6 and alkaline stimuli, and OTOP2 currents are evoked in response to all stimuli. Data represent mean ± s.e.m. of biological replicates where for each data point n=5–10 for OTOP1, n=6–10 for OTOP2, and n=4–10 for OTOP3.

Figure 1—source data 1

Source data for Figure 1C.

https://cdn.elifesciences.org/articles/77946/elife-77946-fig1-data1-v1.xlsx

To further investigate the I-pH response profile of the three channels, we extended the pH range of the test solutions, now including neutral and alkaline solutions (Figure 1B and C). In OTOP1-expressing cells, we observed a small outward current in response to the alkaline solutions (pH 9–10) that was not observed in untransfected cells, which we, therefore, attribute to currents through OTOP1 channels. In response to the pH 9, but not pH 10 solution, we observed a ‘tail current’ upon return to neutral pH (for pH 9, Itail = –123+/-20 pA, n=5; for pH 10, Itail = –36+/-11 pA); this may reflect cytosolic H+ depletion during the pH 9 stimulus, creating a driving force for proton entry through open OTOP1 channels that subsequently close when the pH was restored to 7.4. In response to pH 8 and 7 solutions, no measurable change in the baseline currents was observed.

A very different pH-response profile was observed in OTOP2-expressing cells (Figure 1B and C). Quite surprisingly, large outward currents were evoked in response to alkaline solutions of pH 9 and pH 10, which were similar in magnitude to the inward currents evoked in response to the acidic solutions. We also observed changes in the holding current in response to solutions at near-neutral pH (pH 8 or 7), suggesting that the channels are open at the resting pHo. Overall, we observed changes in OTOP2 currents in response to changes in extracellular pH over the entire pH range tested. The magnitude and direction of the responses were generally proportional to the driving force on the proton. This relationship broke down over the more acidic pH range, where a change of 10-fold in ion concentration (e.g. pH 6 versus pH 5; Figure 1) did not lead to a substantial increase in current magnitude. Although we do not yet understand this phenomenon, we suspect that it may be due in part to the rapid decay kinetics of the currents in response to acid stimuli and the consequent attenuation of the peak currents as well as possible inhibition of the channels by intracellular acidification.

OTOP3 currents were active over a narrower pH range than OTOP1 and OTOP2 currents (Figure 1B and C). They were activated steeply below pH 6, and no outward currents were observed in response to any of the alkaline stimuli.

These data suggest a sharp threshold for activating OTOP1 and OTOP3 channels of ~pH 6 (OTOP1) and pH 5.5. (OTOP3). In contrast, OTOP2 channels are active over the entire pH range. They also show that both OTOP1 and OTOP2 channels can conduct outward currents, which may be physiologically relevant under some circumstances.

OTOP2 is selective for protons and open at neutral pH

The unusual response properties of OTOP2 raise the question of whether OTOP2 is selective for protons. OTOP1 is highly selective for H+ over Na+, by a factor of at least 105 fold (Tu et al., 2018), and currents carried by OTOP3 follow the expectations for a proton-selective current, such as a shift in the reversal potential that follows the equilibrium potential for the H+ ion (Tu et al., 2018; Chen et al., 2019). OTOP2 is known to permeate protons (Tu et al., 2018), but selectivity for protons was not previously measured. To address this question, we first performed ion substitution experiments. We observed no change in the magnitude of the currents when the concentrations of either Na+ or Cl- in the extracellular solution were changed (Figure 2A), indicating that OTOP2 is not permeable to either ion. We also measured the reversal potential of OTOP2 currents as a function of ΔpH (pHo – pHi) under conditions designed to minimize H+ ion accumulation (see methods) (Cherny and DeCoursey, 1999; Ramsey et al., 2006; Tu et al., 2018). These experiments showed that Erev changed ~59 mV/pH as expected for an H+-selective ion channel (Figure 2B). Thus, we conclude that OTOP2 is selective for protons.

Figure 2
Download asset Open asset

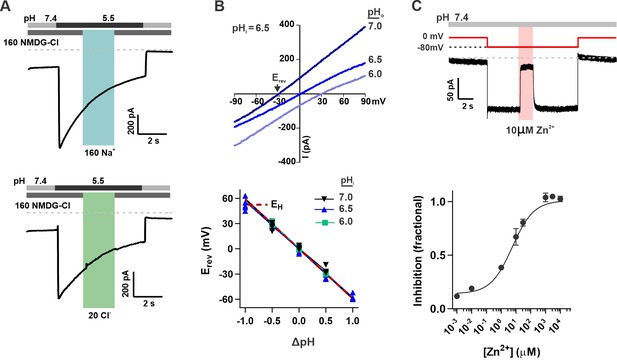

OTOP2 is a proton selective ion channel that is open at neutral pHo.

(A) Representative OTOP2 current elicited in response to a pH 5.5 solution with 160 mM Na+ replacing NMDG+ (top) or 140 mM Methane sulfonate-/ 20 mM Cl- replacing 160 mM Cl- (bottom) in the extracellular solutions at times indicated. Vm was held at –80 mV. (B) The I-V relationship (top) of the Zn2+ sensitive component of OTOP2 current in response to different pHo stimuli was obtained from ramp depolarizations in the presence and absence of Zn2+. pHi was adjusted to 6.5. Bottom: Erev measured as a function of ΔpH (pHo – pHi). pHi was adjusted to 6.0, 6.5, or 7.0 as indicated. The red dotted line is the predicted equilibrium potential for H+, EH. (C) Extracellular Zn2+ inhibits resting OTOP2 currents in a dose-dependent manner. Trace (top) shows inhibition of resting current in OTOP2-expressing HEK-293 cells by 10 μM Zn2+. Vm as indicated. Fractional inhibition was fit with a Hill slope = 0.6 and IC50=5.6 µM. Data represent mean ± s.e.m of biological replicates where n=3–4 for each data point.

Figure 2—source data 1

Source data for Figure 2B and C.

https://cdn.elifesciences.org/articles/77946/elife-77946-fig2-data1-v1.xlsx

The unusual response properties of OTOP2 suggested that it might be open when pHo = 7.4. Consistent with this possibility, we routinely observed a large resting current at –80 mV in OTOP2-expressing cells. We reasoned that if this resting current is due to open OTOP2 channels, it should be inhibited by Zn2+, a blocker of OTOP1 and other proton channels (Tu et al., 2018). Indeed, OTOP2 currents at neutral pH were inhibited by Zn2+ with an IC50 of 5.6 μM (Figure 2C). Note that because the inhibition of OTOP1 by Zn2+ is pH-dependent (Bushman et al., 2015; Teng et al., 2019), the sensitivity of OTOP2 currents at neutral pH to micromolar concentrations Zn2+ as compared with the requirement of millimolar concentrations of Zn2+ to inhibit OTOP1 currents evoked in response to acid stimuli is as to be expected.

Thus, we concluded that OTOP2 is a proton-selective ion channel open at neutral pH.

Different pH-response profiles of three murine OTOP channels measured with pH imaging

Inward and outward currents carried by protons through OTOP channels are expected to cause a change in intracellular pH. Thus, to confirm the results described above, we assessed the activity of each OTOP channel by monitoring intracellular pH. For these experiments we co-transfected HEK-293 cells with a pH-sensitive fluorescent protein – pHluorin, a variant of GFP whose fluorescence emission changes as a function of the intracellular pH (Miesenböck et al., 1998). As a control to confirm the expression and activity of pHluorin, all cells were exposed at the end of the experiment to acetic acid, which crosses cell membranes and causes intracellular acidification (Figure 3A-D, dark red bar) (Wang et al., 2011).

Figure 3
Download asset Open asset

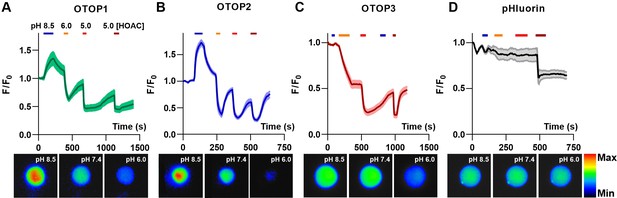

OTOP channels mediate the influx and efflux of protons as measured with intracellular pH imaging.

(A–D) Changes in intracellular fluorescence emission upon exposure to changing extracellular pH, as indicated, were measured from HEK-293 cells co-expressing OTOP channels and the pH-sensitive indicator pHluorin (A–C) or pHluorin alone (D). Data are shown as the mean ± SEM for n=7, 7, 11, and 3 cells for (A), (B), (C), and (D), respectively. Acetic acid, which is permeable through cell membranes and acidifies cell cytosol directly, served as a positive control. Only OTOP1 and OTOP2 conducted protons out of the cell cytosol in response to alkalinization, while all three channels conducted protons into the cell cytosol in response to acidification, albeit at different rates. The lower panel shows images of a single cell in the field of view used for these experiments taken at the pH indicated (pseudo color is arbitrary units).

Figure 3—source data 1

Source data for Figure 3A–D.

https://cdn.elifesciences.org/articles/77946/elife-77946-fig3-data1-v1.xlsx

Cells expressing each of the three OTOP channels responded to the acidic solutions with large changes in intracellular pH, a response not observed in control cells (Figure 3A – D). Strikingly, we also observed changes in intracellular pH in response to an alkaline solution (pHo = 8.5) in both OTOP1- and OTOP2-expressing cells but not in OTOP3-expressing cells. This data is consistent with the patch-clamp data showing that OTOP1 and OTOP2, but not OTOP3, conduct outward proton currents in response to alkaline extracellular stimuli.

We also noted differences in the time course of the response to acidic solutions (pH 6 or pH 5) in cells expressing the three OTOP channels. Notably, the response of OTOP3-expressing cells appeared slower than that of OTOP1 or OTOP2-expressing cells (compare Figure 3C with 3 A and 3B). This is likely a consequence of the smaller currents that are evoked by these stimuli in OTOP3 cells and the slower kinetics of channel activation (see below).

Together these data support the conclusion that OTOP1 and OTOP2 can conduct outward proton currents in response to alkaline extracellular solution solutions, while all three channels carry inward proton currents in response to acidic stimuli.

Kinetics of OTOP channels provide direct evidence of pH-dependent gating

In patch-clamp recordings such as those shown in Figure 1, we noted differences in the kinetics of the currents elicited in response to acidic solutions among the three channels. For example, OTOP2 currents showed faster activation than OTOP1 currents, while OTOP3 currents were considerably slower. These differences likely reflect differences in activation of the channels by protons. In particular, for a channel that is open at neutral pH (OTOP2), we expect the currents to change in response to an increase or decrease in the concentration of the permeant ion (H+) with a time course that reflects the speed of the solution exchange. In contrast, for a channel that is closed at neutral pH (OTOP1 and OTOP3), currents may increase more slowly, with kinetics determined by the rates of agonist binding and opening of the channels.

The rate of activation of each channel in response to acid stimuli was measured by fitting the time course of the current upon solution exchange with a single exponential (Figure 4A), excluding the first few milliseconds where responses deviated from an exponential time course due to a lag in the solution exchange. We also measured the rate of decay of the currents after return to neutral pH in a similar manner.

Figure 4 with 1 supplement see all
Download asset Open asset

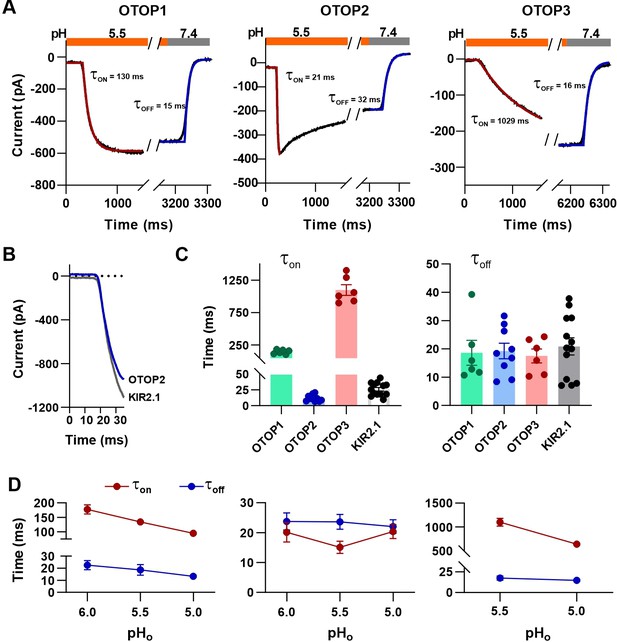

Activation kinetics vary dramatically between OTOP channels.

(A) Representative current traces (black) from cells expressing each of the three OTOP channels in response to the application and the removal of pH 5.5 solutions. The activation and the decay kinetics of the currents were fitted with a single exponential (red and blue curves, respectively). (B) Solution exchange kinetics measured with an open K+ channel KIR2.1 are similar to the kinetics of OTOP2 currents. (C) Summary data for τon (left panel) and toff (right panel) of the three OTOP channels (OTOP1: green, OTOP2: blue, OTOP3: red) and KIR2.1 (black) in response to the application and removal of pH 5.5 extracellular solution. n=6, 5–6, 6 for OTOP1, OTOP2 and OTOP3 respectively. (D) Time constants for activation (τon, red) and deactivation (τoff, blue) of OTOP1, OTOP2, and OTOP3 currents in response to acidic stimuli (pH 6.0, 5.5, and 5.0) measured from experiments as in A. Note that the data at pH 5.5. is also shown in Panel C. n=6,5–6, and 6 for OTOP1, OTOP2, and OTOP3, respectively.

Figure 4—source data 1

Source data for Figure 4C and D.

https://cdn.elifesciences.org/articles/77946/elife-77946-fig4-data1-v1.xlsx

In response to the pH 5.5 stimulus, the activation kinetics of the three OTOP channels varied over nearly two orders of magnitude (Figure 4A and C). The time constant for activation of OTOP2 was 12.0±1.6ms (n=10) which was slightly faster than the rate of solution exchange as measured using cells expressing an inward rectifier K+ channel and solutions that varied in potassium concentration (Figure 4B and C; τ=26.1 ± 2.9ms). Time constants for activation of OTOP1 and OTOP3 were 142.7±13.5ms (n=6) and 1098.0±83.0ms (n=6), respectively, considerably slower than the solution exchange suggesting that both are gated by extracellular protons. In contrast, the time constant for deactivation of OTOP1, OTOP2, and OTOP3 currents were similar to the rate of the solution exchange (τ=18.6 ± 4.4ms, n=6, 19.3±2.8ms, n=9, and 20.9±3.0ms, n=13, respectively; Figure 4A and C). The off-rates of the OTOP currents likely reflect the rate of removal of the permeant ion and not the closing rates of the channels (which could be slower). This also confirms that the differences in on-rates were not artifacts of varying solution exchange times between groups of cells.

We also measured the kinetics of the currents carried by all three channels in response to solutions that varied in pHo. The activation rate of OTOP1 and OTOP3 currents increased as the pHo was lowered (Figure 4D and Figure 4—figure supplement 1). This is as expected if protons gate the channels. In contrast, the activation rate of the OTOP2 currents was insensitive to the extracellular pH over this range, consistent with an interpretation that the channels are open at neutral pH, and lowering the pH does not further increase channel open probability (Figure 4D and Figure 4—figure supplement 1). The decay rate of the currents upon return to neutral pH did not vary as a function of the pH of the stimulus for any of the three channels (Figure 4D).

Together, the slow, pH-dependent kinetics of currents carried by OTOP1 and OTOP3 channels provides strong evidence that they are gated by extracellular protons.

Effect of extracellular pH on slope conductance

To provide further evidence that extracellular protons gate OTOP channels, we measured the slope conductance as a function of pHo for all three channels. The slope conductance (ΔI/ΔV) was measured from responses to ramp depolarizations at or near the peak of the response to the stimulus (pHo = 10–5) (Figure 5A and B) using a range of Vm from –80 mV to 0 mV, where the currents were generally linear and not contaminated by endogenous currents. Slope conductance (G) is related to the channel’s open probability (Po) by G=N*g*Po, where N is the number of channels and g is the single-channel conductance. Since the number of channels is constant, the slope conductance is a measure of Po*g. Importantly, this provides a measure of open probability, even when the holding potential is close to the equilibrium potential for H+ where currents are small (e.g. for stimuli at 8.0).

Figure 5 with 1 supplement see all
Download asset Open asset

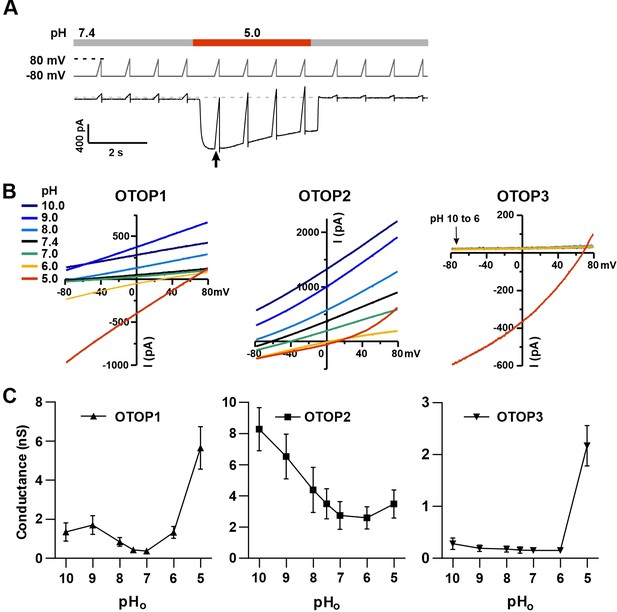

Changes in the slope conductance of OTOP channels as a function of extracellular pH.

(A) Voltage and solution exchange protocol used to measure the slope conductance in response to changing extracellular pH. Vm was held at –80 mV and ramped to +80 mV (1 V/s at 1 Hz). The first ramp after the currents peaked was used for later measurements. (B) Representative I-V relationship from HEK-293 cells expressing each of the three OTOP channels in response to alkaline or acidic stimuli (pH 10–5) from experiments described in (A). The conductance was measured from the slope of the I-V curve between –80 mV and 0 mV to avoid contamination from outwardly rectifying Cl- currents. (C) Average slope conductance measured from cells expressing each of the three OTOP channels in response to different pHo stimuli from data as in (B). Data represent mean ± s.e.m. of biological replicates where for each data point n=5 for OTOP1, n=6–7 for OTOP2, and n=5–7 for OTOP3.

Figure 5—source data 1

Source data for Figure 5C.

https://cdn.elifesciences.org/articles/77946/elife-77946-fig5-data1-v1.xlsx

In OTOP1-expressing cells, the slope conductance varied as a function of extracellular pH, dramatically increasing when the extracellular pH was lowered below pHo = 6.0 (Figure 5B and C). We also observed an increase in the slope conductance when the pHo was made more alkaline, consistent with data in Figure 1 showing that an alkaline pHo of 9.0 can be activating. In OTOP2-expressing cells, the slope conductance was highest in alkaline pH (pHo = 10) and decreased as the pHo was lowered (Figure 5B and C). The response of OTOP3-expressing cells was more similar to that of OTOP1, but with some clear differences (Figure 5B and C). The slope conductance remained very small when extracellular pH was between 10 and 6 and increased drastically when pHo was 5. These data support the conclusion that OTOP1 and OTOP3 are gated by extracellular protons, while OTOP2 is conductive over a broad pH range.

This series of experiments also provided an opportunity to test the extent to which intracellular acidification accounts for the decay of the macroscopic currents. In particular, we noted that the decay of the currents was often accompanied by a shift in Erev (Figure 5—figure supplement 1A, B). Although in these experiments the currents were not leak-subtracted and, consequently, Erev cannot be used to precisely measure ΔpH, shifts in Erev can, nonetheless, be considered as evidence of a relative change in intracellular pH. For OTOP1, the observation that Erev shifted by –42.5+/-10.4 mV (n=5) between the first and the fourth ramp depolarization (4 seconds apart) suggests that the cytosol acidified by ~0.7 pH units (Figure 5—figure supplement 1B). A more modest shift of –27.9+/-3.4 mV (n=3) was observed for OTOP2 currents, while for slowly activating OTOP3 currents, Erev shifted slightly but significantly in the positive direction (6.82+/-2.5 mV, n=7; p=0.03, two-tailed paired Student’s T-test comparing t=0 s and t=4 s). To test whether acidification of the cytosol could account for the decay of OTOP1 and OTOP2 currents, we calculated the expected effect of the change in driving force (Vm-Erev) on the current magnitude at 1 s timepoints as the currents decayed and compared this to the observed current magnitudes at these times. As seen in Figure 5—figure supplement 1C, the shift in driving force mostly accounts for the decay of OTOP1 currents. For OTOP2, the decays in current magnitudes is much greater than can be explained by a change in driving force, suggesting that intracellular acidification may directly inhibit OTOP2 channel activity or conductance. We could not perform a similar analysis of OTOP3 currents, which in these experiments did not decay significantly during the stimulus.

Extracellular linkers are key determinants for pH-sensitive gating

The difference in pHo sensitivity of the three murine OTOP channels suggested that structural domains that vary among the channels contribute to the gating apparatus and that these domains could be identified using chimeric channels. Specifically, we generated chimeras between mOTOP2 and mOTOP3, which, as described above, are the most divergent functionally of the three murine OTOP channels. OTOP channels contain twelve transmembrane domains (S1-S12), with N and C termini located intracellularly. The transmembrane domains 1–6 and 7–12 respectively constitute the structurally homologous ‘N’ and ‘C’ domains. Reasoning that the residues involved in sensing the extracellular pH and gating the channels would be located on the extracellular surface of the channels, we swapped each of the six extracellular linkers that connect transmembrane helices (Figure 6—figure supplement 1). Each of the twelve chimeric channels was then tested over a range from pH 10 to pH 5. To simplify the analysis, we divided the chimeras into four categories: OTOP2 N domain (OTOP2 backbone with OTOP3 linkers), OTOP2 C domain, OTOP3 N domain, and OTOP3 C domain.

Of the three OTOP2 N domain chimeras, two were functional. Strikingly, the replacement of the OTOP2 S5-S6 linker (L5-6) with that from OTOP3 nearly eliminated the outward currents in response to alkaline stimuli and reduced the response to the mildly acidic stimulus (pH 6) but had little effect on the magnitude or kinetics of the inward currents elicited in response to the pH 5 stimulus (Figure 6A–C; OTOP2/OTOP3(L5-6)). Replacement of the OTOP2 S1-2 linker with that from OTOP3 reduced current magnitudes (possibly due to effects on trafficking) but did not significantly change relative responses to the stimuli of varying pH. In contrast to the OTOP2 N domain chimeras, the two functional C domain chimeras (L7-8 and L11-12) showed a similar pH dependence as WT OTOP channels, suggesting that the mutations did not specifically affect channel gating (Figure 6A and D–E). None of the chimeras showed a significant change in kinetics (Figure 7A, B and E).

Figure 6 with 1 supplement see all
Download asset Open asset

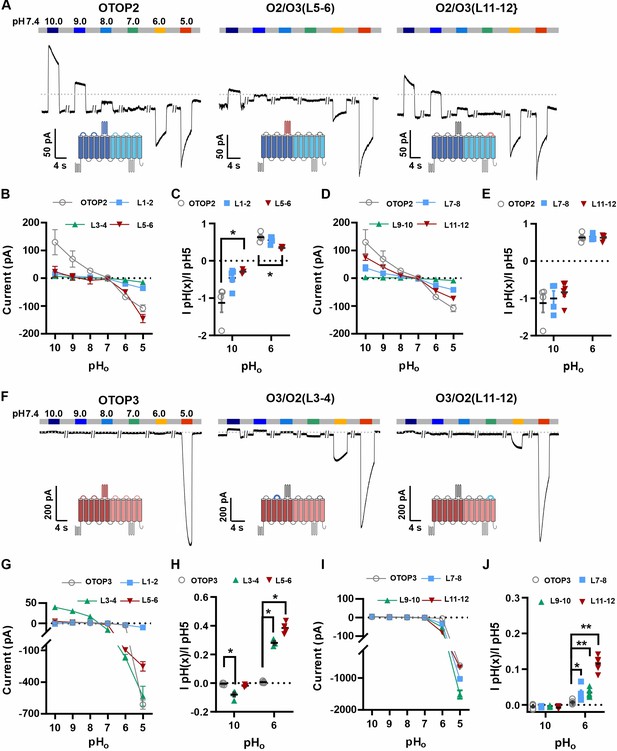

Chimeric channels with external linkers swapped reveal potential gating modules.

(A-F) Representative current traces in response to varying pH from 10 to 5 measured from HEK-293 cells expressing OTOP2 channels and chimeras with an OTOP2 backbone (A) or OTOP3 channels and chimeras with an OTOP3 backbone (F) where numbers refer to linkers between corresponding transmembrane domains. Membrane potential was held at –80 mV. (B, D, G, I) Current magnitude (mean +/-s.e.m.) for OTOP2 N-domain chimeras (n=4–5) (B), OTOP2 C-domain chimeras (n=4–10) (D), OTOP3 N-domain chimeras (n=3–5) (G), and OTOP3 C-domain chimeras (n=4–6) (I) from experiments such as in (A) and (F). (C, E, H, J) Same data for pH 10 and pH 6, normalized to the response to pH 5.0 to control for differences in expression. Significance was tested using the Mann-Whitney test. The p-values and n are given in Figure 6—source data 2.

Figure 6—source data 1

Source data for Figure 6B–E and G–J.

https://cdn.elifesciences.org/articles/77946/elife-77946-fig6-data1-v1.xlsx
Figure 6—source data 2

Statistical tests comparing chimeric channels with wildtype channels with Mann-Whitney U test.

P values and sample size are indicated.

https://cdn.elifesciences.org/articles/77946/elife-77946-fig6-data2-v1.docx
Figure 7
Download asset Open asset

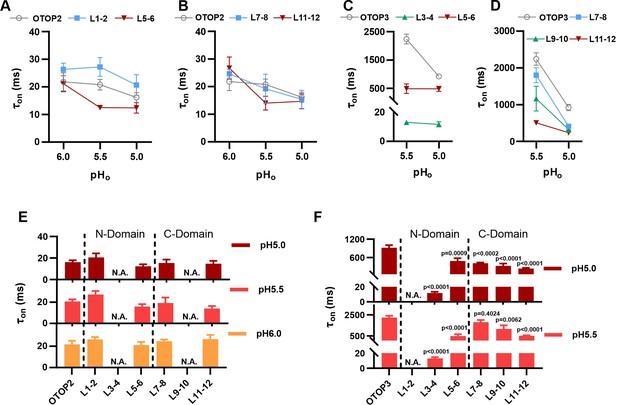

Increase in activation kinetics of mOTOP3 chimeric channels.

(A–D) Time constants for activation of chimeric as compared with wildtype channels, measured from traces as in Figure 6A and F, using methods as in Figure 4. The τon of OTOP2 and its chimeras (A, B) was not pH dependent and followed the rate of the solution exchange. Data are mean ± s.e.m, (n=3–4). The τon of OTOP3 chimeras bearing OTOP2 linkers (C, D) was generally faster than that of the wildtype channels (n=3–4). Same nomenclature as in Figure 6. (E, F) Same data as in A-D, plotted to allow comparison across all chimeras at the same pH (as indicated; note that because wildtype OTOP3 is not activated by pH 6, data using a pH 6 stimulus is not included in the analysis). Statistical results report the comparison between chimeric channels and the wildtype channel using ANOVA and Dunnett’s multiple comparisons tests.

Figure 7—source data 1

Source data for Figure 7A–D.

https://cdn.elifesciences.org/articles/77946/elife-77946-fig7-data1-v1.xlsx

Next, we examined OTOP3 channels containing extracellular linkers from OTOP2. Of these, the most striking was an OTOP3 N domain chimera with the L3-4 of OTOP2, which conducted outward currents in response to extracellular alkalinization (Figure 6F–H). Moreover, this chimera activated at a more mild pH than OTOP3 channels and with faster kinetics (Figure 7C and F). Thus, the simple swap of the 3–4 linker conferred a partial gating phenotype of the donor, OTOP2. The chimera containing the L5-6 from OTOP2 was more similar to OTOP3, while the L1-2 chimera appeared to be non-functional. Interestingly, the C domain chimeras also produced apparent changes in gating (Figure 7D and F): all three chimeras activated more rapidly and at higher pH, adopting some features from the donor channel (OTOP2). But they retained the steep pH sensitivity of the OTOP3 channels and did not support proton efflux in response to alkaline stimuli like OTOP2.

The structure of OTOP2 channels has not yet been resolved experimentally, and the cryo-EM structures of OTOP1 and OTOP3 channels do not allow the visualization of the S5-6 linker (Chen et al., 2019; Saotome et al., 2019), possibly because the linker adopts multiple conformations. Thus, to gain structural insight into the possible mechanisms by which extracellular linker regions could contribute to gating, we examined the structures of murine OTOP1, OTOP2, and OTOP3 channels predicted by AlphaFold (Jumper et al., 2021; Varadi et al., 2022). We first verified that the AlphaFold structures were reliable by comparing them to the cryoEM structures where available (e.g. for DrOTOP1 and GgOTOP3). This analysis revealed excellent agreement between the observed and expected structures (Figure 8—figure supplement 1). Inspection of the predicted structures of the three mammalian OTOP channels shows the putative location of the extracellular linker and associated transmembrane domains (Figure 8). Interestingly, the 5–6 linker of OTOP2 is longer, and transmembrane domain 5 (TM5) of OTOP2 adopts a helical structure with a pronounced kink, whereas that of OTOP3 is straight and rod-like. Thus, it is possible that the introduction of the OTOP3 S5-6 linker onto OTOP2, which disrupts conduction at alkaline pH, may do so through a structural rearrangement of transmembrane helices within the N domain of the channel. In contrast, differences between OTOP2 and OTOP3 in the 3–4 and C terminal linkers and associated transmembrane domains are less pronounced, suggesting that single amino acids that differ between the channels may tune the pH dependence of gating. Together, we conclude that extracellular linkers participate in the gating of OTOP channels and that the gating apparatus is distributed across multiple extracellular regions within both the N and C domains.

Figure 8 with 1 supplement see all
Download asset Open asset

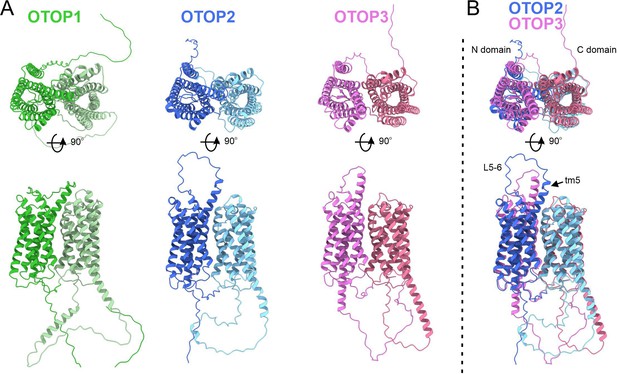

Predicted structures of mOTOP1.

mOTOP2 and mOTOP3. (A) Top views (top) and side views (bottom) of AlphaFold predicted structural models of mOTOP1, mOTOP2, and mOTOP3. The N- and C- domain halves of mOTOP1, mOTOP2, and mOTOP3 are colored green and light green, blue and light blue, and magenta and hot pink, respectively. (B) A superimposed overlay of mOTOP2 and mOTOP3 highlights the different orientations of the transmembrane 5 helices and S5-6 linkers.

Discussion

Unlike other ion channels where functional descriptions of functional properties largely preceded their molecular identification, for OTOP1 and related proteins, such descriptions were limited to a few studies of native OTOP1 channels in taste receptor cells (Chang et al., 2010; Bushman et al., 2015). Thus, while ion selectivity of vertebrate and invertebrate OTOP channels has been well established (Tu et al., 2018; Chen et al., 2019), descriptions of basic gating mechanisms have been limited. For example, previous studies showed that the channels are not voltage-sensitive (Tu et al., 2018), but whether they are ligand-gated was not known. Here we provide the first direct evidence that the three murine OTOP channels are gated by extracellular protons in a subtype-specific manner (Figure 9). OTOP1 and OTOP3 show no or little activity at neutral pHo and are activated by lowering pH, while OTOP2 is active at neutral and alkaline pHo, and lowering pHo appears to inhibit the channel. The varying pH sensitivity of the three vertebrate OTOP channels may allow them to subserve different functions in the cells within which they are expressed and is reminiscent of the varying temperatures sensitivities of thermo-TRP channels (Dhaka et al., 2006).

Figure 9
Download asset Open asset

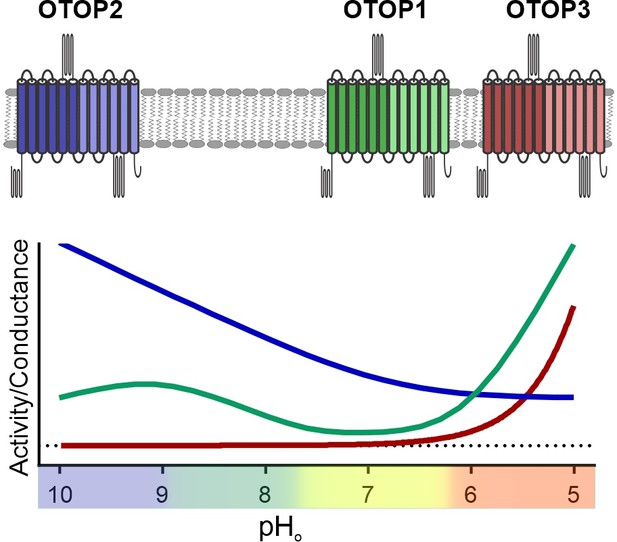

pH tuning of OTOP channels.

Lowering extracellular pH increases the slope conductance of OTOP1 and OTOP3 channels while it lowers the slope conductance of OTOP2 channels. OTOP1 also has a peak of activity at mildly alkaline pH.

Gating in response to changes in extracellular pH

The gating of ion channels by protons has been described previously. For example, the thermosensitive ion channel TRPV1, the acid-sensing ion channels (ASIC), and proton-activated chloride channels (PAC) are all activated by protons acting on extracellular sites (Waldmann et al., 1997; Jordt et al., 2000; Lambert and Oberwinkler, 2005; Ullrich et al., 2019; Yang et al., 2019b; Ruan et al., 2020; Deng et al., 2021). Others are gated by protons acting on the intracellular side of the membrane (Cuello et al., 2010; Wang et al., 2010). Notably, the only other plasmalemma proton channel in eukaryotes, the voltage-gated proton channel Hv1, shows a shift in voltage dependence as a function of pH (Ramsey et al., 2006; Decoursey, 2012), while a lysosomal K+ channel, TMEM175 was recently shown to function as a proton-activated proton channel (Cang et al., 2015; Hu et al., 2022; Zheng et al., 2022). For channels in which the proton is not the primary permeant ion, the effect of pH on gating can be measured simply by comparing current magnitudes as extracellular pH is varied. In contrast, because changing pH will also change the driving force for proton entry and, therefore, the magnitude of proton currents, establishing an effect of pH (protons) on the gating of a proton channel is more difficult. Such an analysis is further complicated by the exceedingly small conductance of proton channels at physiological or even acid pH (Decoursey, 2012), which makes it hard, if not impossible, to measure the effects of pH on the gating of single channels.

The magnitude of OTOP currents was previously shown to vary as a function of pHo (Tu et al., 2018). We confirmed the effects of pHo and extended the pH range of test solutions, allowing us to observe that OTOP2 and, to a lesser extent, OTOP1 channels can carry outward proton currents in response to extracellular alkalization. The differences in currents suggest underlying differences in gating. To provide direct evidence for differential gating of the vertebrate OTOP channels, we devised a strategy that avoids confounds introduced by the changing driving force for proton movement inherent in these experiments. Taking advantage of differences in the three murine OTOP channels, we provide three independent pieces of evidence that extracellular protons gate the OTOP channels. First, we found that OTOP1 and OTOP3 currents activated slowly in response to acid stimuli, with rates that increased as the extracellular pH was lowered. These results can be explained if lowering the pH opens the channels. Second, the slope conductance of the OTOP channels, which is independent of driving force, varied as a function of pHo for all three channels. Consistent with the kinetic data, the slope conductance of both OTOP1 and OTOP3 currents increased dramatically upon lowering the pH below 6.0 (OTOP1) and 5.5 (OTOP3), while the slope conductance of OTOP2 increased with alkalization above pH 8.0. Finally, these results are consistent with pH imaging experiments where proton efflux in response to extracellular alkalinization was only observed for OTOP1 and OTOP2 and not for OTOP3-expressing cells. Together these data allow us to conclude that the three murine OTOP channels are gated differentially by extracellular protons.

Structure of OTOP channels and role of extracellular linkers

The recent cryo-EM structures of OTOP1 and OTOP3 channels have revealed that the channels adopt a novel fold, with twelve transmembrane alpha-helices organized into two structurally homologous six-helix domains (N and C domains) (Chen et al., 2019; Saotome et al., 2019). Thus, as a dimer, the channels adopt a pseudo-tetrameric structure. However, in contrast to most ion channels where the subunits come together to form a shared pore, the central cavity of OTOP channels is filled with cholesterol-like molecules and, therefore, cannot mediate ion conduction (Saotome et al., 2019). Three putative pathways for protons have been identified in the structures: one each in the N and C domains and another at the interface of N and C domains (intrasubunit interface). Mutations in each putative permeation pathway that cause loss of function have been identified, including mutations of conserved residues (E267 and H574 in ZfOTOP1) at the intrasubunit interface that are required for function but not subunit assembly or trafficking (Saotome et al., 2019). Whether these residues mediate gating or permeation of the channels is still not known, and it is possible they participate in both (Tombola et al., 2008; Musset et al., 2011). Moreover, with three possible routes for proton permeation, there may be multiple pores that open under different conditions. For example, our observation that OTOP1 channels show a biphasic response to extracellular pH could be explained by two pores that open over different pH ranges, a hypothesis that would need to be tested.

Our data also provide a framework for understanding the structural basis for the gating of OTOP channels by protons. Swapping extracellular loops of OTOP2 and OTOP3 selectively changed the gating of the channels in a predictable manner. Swapping loops in the N domain of the channels selectively affected the outward currents elicited in response to alkalinization, such that OTOP2/OTOP3 (L5-6) channels carried less outward current, while OTOP3/OTOP2(L3-4) channels carried more outward current than the respective wildtype channels. They also showed rapid activation kinetics to acid stimuli like OTOP2. This suggests that the N domain either contains the pore that is active over a broad pH range or contains a sensor that opens a common pore over a large pH range (for example, at the intrasubunit interface). In contrast, swapping loops within the C domain had no discernable effect on OTOP2 but changed the gating of OTOP3 channels such that they opened faster and at higher pH (like OTOP2). This suggests that activation of OTOP3 may involve a pH-dependent conformational change within the C domain linkers that otherwise inhibit its activity.

How the structure of the extracellular linkers participate in gating and whether they function as pH sensors or allosterically modulate gating remains to be determined. Structural predictions of MmOTOP2 from AlphaFold (Jumper et al., 2021; Varadi et al., 2022) point to intriguing differences in the position of S5 domain and the S5-6 linker between OTOP2 and OTOP3 that may underlie differences in gating. In contrast, AlphaFold predicted similar conformations of the L3-L4 loop for both channels, so that we do not presently have a structural basis for the phenotype of the OTOP3/OTOP2(L3-4) chimera. It is worth noting that the chemical makeup of this linker is very variable; for example, OTOP3 has three positively charged residues (two His and one Lys) and three negatively charged residues, while OTOP2 has just one positively and one negatively charged residues (conserved in OTOP1) and several aromatic residues.

Together our description of the differential gating of the three mammalian OTOP channels by protons provides the basis for a deeper understanding of this new ion channel family and will lead to a better understanding of how OTOP channels contribute to a wide range of physiological processes, from gravity senses and taste to digestion, both in health and disease. Further understanding of the mechanism by which protons gate OTOP channels will require a combination of structure-guided mutagenesis and the resolution of the structure of OTOP channels in different states.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Gene (M. musculus)Otop1, Otop2 and Otop3Tu et al., 2018. PMID:29371428
Cell line (Homo-sapiens)HEK293ATCCCRL-1573
Cell line (Homo-sapiens)PAC-KO HEK293 cellsYang et al., 2019a. PMID:31023925
Recombinant DNA reagentOtop1, Otop2, and Otop3 in pcDNA3.1Tu et al., 2018. PMID:29371428
Recombinant DNA reagentOtop1, Otop2, and Otop3 – GFPSaotome et al., 2019. PMID:31160780
Recombinant DNA reagentmO2_O3 loop swap mutationsThis papercDNAs encode chimeric channels (see methods and Figure 6—figure supplement 1). Available upon request
Recombinant DNA reagentmO3_O2 loop swap mutationsThis papercDNAs encode chimeric channels (see methods and Figure 6—figure supplement 1). Available upon request
Recombinant DNA reagentpHluorin in pcDNA3Miesenböck et al., 1998. PMID:9671304
Chemical compound, drugCHESSigmaC2885
Chemical compound, drugPIPESSigmaP6757
Chemical compound, drugHomopiperazine-1,4-bis(2-ethanesulfonic acid)Sigma53,588
Software, algorithmGraphPad Prism 8 and 9GraphPadRRID:SCR_002798
Software, algorithmpClamp and clampfitMolecular DevicesRRID:SCR_011323
Software, algorithmOriginOriginLab corporationRRID:SCR_002815
Software, algorithmCorelDrawCorelRRID:SCR_014235
Software, algorithmSimplePCIHCImagehttps://hcimage.com/simple-pci-legacy/

Clones, cell lines, and transfection

Request a detailed protocol

Mouse Otop1, Otop2, and Otop3 cDNAs were cloned into the pcDNA3.1 vector as previously described (Tu et al., 2018). For experiments in Figures 6 and 7, both mOtop2 and mOtop3 cDNAs were cloned into the pcDNA3.1 vector with an N-terminal fusion tag consisting of an octahistidine tag followed by eGFP, a Gly-Thr-Gly-Thr linker, and 3 C protease cleavage site (LEVLFQGP) as previously described (Saotome et al., 2019). Chimeras were generated using In-Fusion Cloning (Takara Bio) and were confirmed by Sanger sequencing (Genewiz).

HEK293 cells were purchased from ATCC (CRL-1573). PAC-KO cells were a kind gift from Dr. Zhaozhu Qiu (Yang et al., 2019b). The cells were cultured in a humidified incubator at 37 C in 5% CO2 and 95% O2 using a high glucose DMEM (ThermoFisher) containing 10% fetal bovine serum (Life Technology) and 1% Penicillin-streptomycin antibiotics. Cells were passaged every 3–4 days. Cells were tested and found free of mycoplasma using a PCR detection kit (Sigma-Aldrich, USA).

Cells used for patch-clamp recordings were transfected in 35 mm Petri dishes with ~600 ng DNA and 2 µL TransIT-LT1 transfection reagents (Mirus Bio Corporation) following the manufacturer’s protocol. OTOP channels were co-transfected with GFP or pHluorin at a ratio of 5:1. The cells were lifted using Trypsin-EDTA 24 h after transfection, plated onto a coverslip, and used within 3–4 hr for patch-clamp recordings.

Patch-clamp electrophysiology

Request a detailed protocol

Whole-cell patch-clamp recording was performed as previously described (Tu et al., 2018). Currents were filtered at 1 KHz and digitized at 5 kHz using an Axonpatch 200B amplifier and Digidata 1322 a 16-bit data acquisition system. Acquisition control and analysis were performed with pClamp 8.2 and Clampfit 9 (Molecular Devices). Patch pipettes with a resistance of 2–4 MΩ were fabricated from borosilicate glass (Sutter instrument) and fire polished. Only cells with stable giga-ohm seals were used for data collection and subsequent analysis. Records were analog filtered at 1 kHz before digital sampling at 5 kHz. Millisecond solution exchange was achieved with a fast-step perfusion system (Warner instrument, SF-77B) custom modified to hold seven microcapillary tubes in a linear array.

The holding potential was –80 mV unless otherwise indicated. For experiments in Figure 5, the voltage was held at –80 mV and ramped to +80 m at 1 V/s once per second. The slope of the first ramp after the peak current in response to acids was measured to determine the conductance.

Patch-clamp electrophysiology solutions

Request a detailed protocol

Tyrode’s solution contained 145 mM NaCl, 5 mM KCl, 1 mM MgCl2, 2 mM CaCl2, 20 mM dextrose, 10 mM HEPES (pH adjusted to 7.4 with NaOH). Standard pipette solution contained 120 mM Cs-aspartate, 15 mM CsCl, 2 mM Mg-ATP, 5 mM EGTA, 2.4 mM CaCl2 (100 nM free Ca2+), and 10 mM HEPES (pH adjusted to 7.3 with CsOH; 290 mosm). Standard Na +free extracellular solutions contained 160 mM NMDG-Cl, 2 mM CaCl2, and 10 mM buffer based on pH (CHES for pH 10–9, HEPES for pH 8–7.4, PIPES for pH 7, Bis-tris for pH 6.5, MES for pH 6–5.5 and HomoPIPES for pH 5–4.5).

For sodium solution in Figure 2A, 160 mM NMDG-Cl was replaced by an equimolar concentration of NaCl. For the low chloride solution in Figure 2B, 120 mM HCl was replaced by methane sulfonic acid (CH3SO3H). In these experiments, 200 µM Amiloride was added to block endogenous ASIC channels.

pH imaging for transfected HEK-293 cells

Request a detailed protocol

HEK-293 cells were cultured in 35 mm Petri dishes. OTOP channels and the pH-sensitive indicator pHluorin were co-transfected into the cells. After 24 hr, the cells were lifted and plated on poly-D-lysine-coated coverslips at room temperature. The cells were incubated in standard Tyrodes' solutions before experiments, and the pHluorin fluorescence intensity in response to different solutions was measured. All stimulating solutions were modified from the standard Tyrodes' solution, containing 10 mM of different buffer salt based on the pH (CHES for pH 8.5, MES for pH 6.0, Homo-PIPES for pH 5.0, and Acetic acid for pH 5.0 [HOAC] group). Excitation was 488 nm, and emission was detected at 510 nm using a U-MNIBA2 GFP filter cube (Olympus). Images were acquired on a Hamamatsu digital CCD camera attached to an Olympus IX71 microscope using Simple PCI software. The fluorescence intensity of each cell was normalized to its baseline in Tyrodes' solutions (F0) before the first test stimulus was given to the cells.

Quantification, statistical analysis, and generation of AlphaFold models

Request a detailed protocol

All data are presented as mean ± SEM if not otherwise noted. Statistical analysis was performed using Graphpad Prism 8 or 9 (Graphpad Software Inc). The sample sizes of 3–10 independent recordings from individual cells per data point are similar to those in the literature for similar studies. All data are biological replicates. In some cases where technical replicates were performed (e.g. re-running the test protocol a second time on the same cell), we typically used the first series unless there was a loss of seal resistance and recovery, in which case we used the second replicate. Selection, in this case, was blind to the result/outcome. Representative electrophysiology traces shown in the figures were acquired with pClamp, and in some cases, the data was decimated 10-fold before exporting into graphic programs, Origin (Microcal) and Coreldraw (Corel).

The predicted structural models of mOTOP1, mOTOP2, and mOTOP3 were downloaded from the AlphaFold Protein Structure Database https://alphafold.ebi.ac.uk (Jumper et al., 2021; Varadi et al., 2022). Figures of the models were generated using UCSF ChimeraX https://www.rbvi.ucsf.edu/chimerax/ (Goddard et al., 2018).

Data availability

Figure 1-7 - Source Data -1-7 contain the numerical data used to generate the figures.

References

  16. Book
    1. Hille B
    (2001)
    Ionic Channels of Excitable Membranes
    Sunderland, MA: Sinauer Associates Inc.

Decision letter

  1. Jon T Sack
    Reviewing Editor; University of California Davis School of Medicine, United States
  2. Richard W Aldrich
    Senior Editor; The University of Texas at Austin, United States
  3. Jon T Sack
    Reviewer; University of California Davis School of Medicine, United States
  4. Ian Scott Ramsey
    Reviewer; Virginia Commonwealth University School of Medicine, United States

Our editorial process produces two outputs: (i) public reviews designed to be posted alongside the preprint for the benefit of readers; (ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Decision letter after peer review:

Thank you for submitting your article "Structural motifs for subtype-specific pH-sensitive gating of vertebrate otopetrin proton channels" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Jon Sack as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Richard Aldrich as the Senior Editor. The following individual involved in the review of your submission has agreed to reveal their identity: Ian Scott Ramsey (Reviewer #3).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1) Provide additional data to assess pH at the cell membrane during whole-cell patch-clamp experiments. It seems important to distinguish whether channel responses, such as the current decay are caused by pH changes or channel gating. See comments by reviewers #1 and #3. We suggest this could be achieved by: measurement of OTOP current reversal potentials at a series of time points during the rise and fall of OTOP currents; replacement of aspartate in the pipette with an anion that is less likely to be subject to transmembrane diffusion in its neutral form; changing the intracellular pH.

2) Provide additional data to establish what solution exchange times are. See comments by reviewers #1 and #3. We suggest this could be achieved by open tip potential measurements.

3) The section describing the effect of extracellular pH on slope conductance needs to be revised and the value of the slope conductance measurements clarified. See comments by reviewers #2 and #3.

4) Discuss which titratable residues could potentially be pH sensors. Experiments with point mutations of titratable residues could greatly increase the impact of this study.

5) Address each of the comments of the reviewers by revision of the manuscript or explain in the response letter why not.

Reviewer #1 (Recommendations for the authors):

Abstract

line 5 "permeated by"?

Results

line 75 "the rate of current decay was faster as the pHo was lowered." Could this be a result of H+ accumulation/depletion?

line 83 "this suggests that channels had opened in response to the pH 9 stimulus and subsequently closed over a period of several seconds upon return to neutral pH. In response to pH 8 and 7 solutions, no change in the baseline currents was observed." Could this be a result of H+ accumulation/depletion?

line 144 "Notably, the response of OTOP3-expressing cells was significantly slower than that of OTOP1 or OTOP2-expressing cells." I suggest more clearly pointing out in Figure 3 the basis for this conclusion.

Figure 4D – A log Y scale might help readers assess the relative pH-dependence of tau-off.

line 164 "Note that we excluded the first few milliseconds where responses deviated from an exponential time course, likely due to the non-instantaneous rate of solution exchange." Confusing, as the manuscript seems to soon state that the 15ms tau was the time of solution exchange.

line 183 "the deactivation rate of the currents upon return to neutral pH did not vary as a function of pH for any of the three channels and instead reflected the exchange time for the solutions, as expected (Figure 4D). " Independent evidence of the exchange time is needed.

Figure 5 – The repetitive ramp currents in Figure 5A as well as the reversal potentials in slope-conductance measurements seem consistent with H+ accumulation in patched cells. Assessment of whether H+ accumulation/depletion impacts currents seems needed. Could H+ accumulation in cells account for all of the current decay after acid stimuli?

Figure 5C – n-values missing.

Figure 9 – What does 1.0 conductance mean? Why doesn't OTOP3 go to 1.0? Could it be that all OTOPs have lower single-channel conductance at low pH, but this is obscured by the increase in Popen at lower pH for OTOP1 and 3?

Reviewer #2 (Recommendations for the authors):

This is an interesting manuscript investigating the basic mechanism of OTOPs gating. It provides evidence that protons gate the channels in a subtype-specific manner and identifies two extracellular loops in the protein as important contributors to pH-dependent gating. Overall, the experiments are well justified, and the results are explained clearly. The conclusions are supported by the data but there are several points that need to be addressed.

The section describing the effect of extracellular pH on slope conductance needs to be revised. Slope conductance is defined as dI/dV and can be positive or negative depending on the voltage range of activation of the channel and the current reversal potential. The connection between slope conductance and N*Po*g indicated by the authors is unclear, as Po is usually the open probability at a given V, and g is the single channels chord conductance. If the authors really wanted to measure a parameter that does not depend on the driving force for proton entry, they should have just calculated the conductance as G = I/(V-Erev), not I/V.

The I/V ratio for OTOP2 varies with pHo in a confusing way (Figure 5C). It decreases going from pHo = 10 to pHo = 6, and then increases going to pHo = 5 (while the current remains constant between pHo = 6 and pHo = 5, Figure 1C). This seems inconsistent with the statement that "OTOP2 is constitutively open" which implies that Po does not depend on pH in this channel.

The authors state that the pH imaging data in Figure 3 provide the first direct evidence that the three murine OTOP channels are gated by extracellular protons in a subtype-specific manner. But what about the current data in Figure 1. Why is that data not sufficient to make the claim?

In Figure 4A, for OTOP1 and OTOP3, a k(on) connects a closed state in low H+ conc. to an open state in high H+ conc., but the k(off) does not connect the open state to the closed state. So, in what state is the channel right after returning to neutral pH? Did the authors try to open the channels with two consecutive acid pulses?

The structural differences in the L5-6 loops of the three OTOPs predicted by AlphaFold are interesting but what about the L3-4 loops? How are these differences helpful in understanding the experimental data on loop swapping? How do AlphaFold predictions compare with the Cryo-EM structures in the resolved transmembrane region?

While the 3D structure of the loops is expected to affect function, what about the number/nature of charged and titratable residues? For instance, the L3-4 loop of OTOP2 contains three positive charges, of which two are His residues, while OTOP1 and OTOP2 have a net negative charge carried by a conserved Glu residue. It would be useful to discuss this kind of difference in light of the results of loop swapping.

Reviewer #3 (Recommendations for the authors):

1. Currents shown in Figure 1 at nearly all pHo tested show a pronounced decay that is reported to be faster when pHo is lower (lines 74-76). However, it is not clear whether currents plotted in Figure 1C were measured at the peak vs. some other time during the pHo change. Do the authors do not offer any insight into the mechanism underlying current decay? For example, the relatively large current amplitudes suggest that despite pipette solution pH buffering, pHi could change as a result of current flowing through open Otop channels; alternatively, Otops might exhibit a form of desensitization or inactivation. If the former is the case, are the authors confident that current amplitudes are accurately measured and that the imposed change in pHo has been achieved at the time when currents were measured? (See also comments about solution exchange time below).

2. Intracellular pH is 7.4 in all experiments (except Figure 2, where only Otop2 was measured), and the effect of changing pHi does not appear to have been tested. Why not?

3. pHluorin imaging shown in Figure 3 is indirect and, due to lack of voltage clamp and lack of good pHi buffering, an intrinsically less robust method than electrophysiology; perhaps this data is better suited to Supplementary material? Experiments demonstrating net inward vs. outward proton fluxes during voltage ramps applied at various pHo (Figure 5B) appear to be a more appropriate method for tracking the direction of permeant ion movement.

4. The fastest gating transition measured in Figure 4 is limited by solution exchange time, as the authors note, but it's not clear that solution exchange times were independently measured (i.e., by open-tip potential changes) using the same apparatus. Is the off-time constant for Otop2 (32 ms; Figure 4C, middle panel) substantially slower than the solution exchange time (if so, then the simplified scheme proposed in Figure 4A would not hold for Otop 2)?. Alternatively, the relatively slow current deactivation rate measured in Figure 4C might not be representative of the average behavior (as suggested by summary data shown in Figure 4D, middle panel). Furthermore, the kinetic schemes shown in Figure 4A do not consider that proton binding or unbinding from its putative binding site(s) might be rate-limiting for gating transitions; is this assumption supported by the experimental data?

5. What new information is gleaned from measuring slope conductance (Figure 5C)? The G vs. pHo graphs appear to have the same shape as I vs. pHo graphs in Figure 1C, suggesting that the two methods report the same pH-dependent gating transitions. Could channel numbers be estimated (i.e., via current variance analysis) to calculate unitary conductances for Otop 1-3?

6. Otop2/3 chimera data (Figure 6) are interesting, but leave open the question as to whether discrete titratable residues are responsible for low- vs. high-pH dependent gating. It would seem that the chimeras would help narrow the range of candidates, allowing the authors to focus on just a few. Additional data in single- or double-mutant channels would greatly enhance the strength of the manuscript. Why are no Otop1 chimeras shown?

7. The reliability of AlphaFold-generated models is not independently established (i.e., during MD simulations), and it remains unclear whether the structural differences shown in Figure 8 are truly representative of physiologically meaningful differences in protein structure. How does the data in Figure 8 contribute to knowledge about the structural basis of pH-dependent gating in Otop channels? Do models identify specific titratable residues that could be experimentally tested (see item 6 above)?

https://doi.org/10.7554/eLife.77946.sa1

Author response

Essential revisions:

1) Provide additional data to assess pH at the cell membrane during whole-cell patch-clamp experiments. It seems important to distinguish whether channel responses, such as the current decay are caused by pH changes or channel gating. See comments by reviewers #1 and #3. We suggest this could be achieved by: measurement of OTOP current reversal potentials at a series of time points during the rise and fall of OTOP currents; replacement of aspartate in the pipette with an anion that is less likely to be subject to transmembrane diffusion in its neutral form; changing the intracellular pH.

We now provide additional data to assess pH at the cell membrane and its contribution to current decay (Figure 5- supplementary figure 1).

Figure 5- supplementary figure 1A, B shows that Erev shifts negative for OTOP1 and OTOP2 during the pH 5 acid stimuli (consistent with acid loading of the cells). For OTOP3 currents, which are slowly activating (over several seconds), the shift in Erev is in the positive direction, consistent with a larger fraction of the current coming from OTOP channels (as compared with leak current) at later time points. From these experiments, it is clear that the intracellular pH decreases during the acid stimuli for OTOP1 and OTOP2. It is for this reason that we collected data for OTOP1 and OTOP2 at early time points (usually at 1 second after the onset of the stimulus for I-V curves).

To determine if the change in intracellular pH might account for the decay of the currents in response to sustained stimuli, we compared the observed magnitudes of the currents with that expected if the driving force for proton entry changed as measured from Erev. We used the equation: I(t) = I(1) * (Vm-Erev(t))/(Vm-Erev(1)), where I(1) and I(x) are the currents at times 1 second (the first measurement we could make) and x seconds, Erev (1) and Erev(x) are the reversal potential of the current at times 1 and x, and Vm was the membrane potential at which I was measured (-80 mV for these experiments). The results are shown in Figure 5- supplementary figure 1C. We can account for most of the decay of the OTOP1 currents by the change in driving force (this is also evident in panel A, where the slope of the currents changes little during the stimulus). In contrast, we noted that there was a large deviation for OTOP2 currents between the magnitudes of the currents as predicted from the shift in Erev, and what was measured. This suggests that the decay of OTOP2 currents might be attributed to changes in gating during the stimulus application. Whether this reflects an inactivation of the channels or inhibition by intracellular pH remains an open question.

Note that we do not agree that aspartate as the anion in the intracellular solution is a concern as its pKa is 3.9 and previously we did not observe the intracellular pH to drop below pH 5 in unperturbed cells (Tu et al., 2018). Moreover, if aspartate did shuttle protons out of the cell, this would help stabilize the intracellular pH in response to the acid stimuli. We have also tested the effects of changing pHi on whole-cell OTOP currents, but as these experiments require additional validation (e.g. with excised patches) and are not central to the main argument of the manuscript, that the channels are gated by extracellular protons acting on linker domains, we feel adding this data would detract from the manuscript.

2) Provide additional data to establish what solution exchange times are. See comments by reviewers #1 and #3. We suggest this could be achieved by open tip potential measurements.

This is a good point and we now included data that allowed us to estimate the kinetics of the solution exchange (Figure 4B,C). Note that the open tip method works for excised patches but is not a good estimate of solution exchange time for whole-cell recording, where the cell will disrupt laminar solution flow and slow down exchange rates (Li et al., 2000). We, therefore, adopted a variation of the method described in Li et al., 2000, estimating solution exchange time using the response of an open K+ channel (KIR2.1) to changes K+ concentrations. In these experiments, the K+ channel was either transfected alone or co-transfected with OTOP2, to allow measurement of currents through both channels in the same cell (in response to different solutions). The results show that OTOP2 currents are activated as quickly as the K+ currents, consistent with an open channel, and that decay rates for all channels are not different the expected decay rate due to removal of the permeant ion.

3) The section describing the effect of extracellular pH on slope conductance needs to be revised and the value of the slope conductance measurements clarified. See comments by reviewers #2 and #3.

Reviewer 2 preferred a measurement of slope conductance as I/(V-Vrev). We now explain that we measured DI/DV = ((I1-I2)/(V1-V2)) which is formally identical to I/(V-Vrev) for the case where V2=Vrev (so I2=0). Reviewer #3 asked “What new information is gleaned from measuring slope conductance” as compared to measuring current (at V = -80 mV).” We now explain that measuring slope conductance allows us to assess channel activity when the holding potential is close to Erev, and it normalizes for driving force.

Lines 203-211 now read “The slope conductance (DI/DV) was measured from response to ramp depolarizations at or near the peak of the response to the stimulus (pHo = 10 to 5) (Figure 5A, B) using a range of Vm from -80 mV to 0 mV, where the currents were generally linear and not contaminated by endogenous currents. Slope conductance (G) is related to the open probability (Po) of the channel by G = N*g*Po, where N is the number of channels and g is the single-channel conductance. Since the number of channels is constant, the slope conductance is a measure of Po*g. Importantly, this provides a measure of open probability, even where the holding potential is close to the equilibrium potential for H+ and therefore currents are small (e.g. for stimuli at 8.0).

4) Discuss which titratable residues could potentially be pH sensors. Experiments with point mutations of titratable residues could greatly increase the impact of this study.

A main conclusion of the paper is that the gating apparatus is distributed across multiple (if not all) extracellular linkers, which contain dozens of titratable residues. Thus, until we are able to resolve more clearly (e.g. with cryo-EM) the gating transition, we believe that discussion of such residues is premature. Moreover, we have found in unpublished work that mutations of residues that are not considered titratable can change pH-dependent gating, underscoring our hesitation to make any such claims and highlighting the difficulty in distinguishing between effects on ligand binding (where H+ is the ligand) from allosteric effects on gating (e.g. lowing the energy for the channel to open). A limited discussion of some of these points is included in lines 377-386.

“How the structure of the extracellular linkers participate in gating and whether they function as pH sensors or allosterically modulate gating remains to be determined. Structural predictions of mOTOP2 from AlphaFold (Jumper et al., 2021; Varadi et al., 2022) point to intriguing differences in the position of S5 domain and the S5-6 linker between OTOP2 and OTOP3 that may underlie differences in gating. In contrast, AlphaFold predicted similar conformations of the L3-L4 loop for both channels so that we do not presently have a structural basis for the phenotype of the OTOP3/OTOP2(L3-4) chimera. It is worth noting that the chemical makeup of this linker is very variable; for example, OTOP3 has three positively charged residues (two His and one Lys) and three negatively charged residues, while OTOP2 has just one positively and one negatively charged residue (conserved in OTOP1) and several aromatic residues. “

5) Address each of the comments of the reviewers by revision of the manuscript or explain in the response letter why not.

We have thoroughly revised the manuscript to address the reviewer’s comments.

Reviewer #1 (Recommendations for the authors):

Abstract

line 5 "permeated by"?

Changed as suggested.

Results

line 75 "the rate of current decay was faster as the pHo was lowered." Could this be a result of H+ accumulation/depletion?

Yes, we now add the following to indicate that this is likely the case, with appropriate references. …” likely due in part to intracellular accumulation of protons (Bushman et al., 2015; De-la-Rosa et al., 2016; DeCoursey and Cherny, 1996; Tu et al., 2018) (see below)”

line 83 "this suggests that channels had opened in response to the pH 9 stimulus and subsequently closed over a period of several seconds upon return to neutral pH. In response to pH 8 and 7 solutions, no change in the baseline currents was observed." Could this be a result of H+ accumulation/depletion?

Yes, we have now added “this may reflect cytosolic H+ depletion during the pH 9 stimulus, creating a driving force for proton entry through open OTOP1 channels that subsequently close when the pH was restored to 7.4”

line 144 "Notably, the response of OTOP3-expressing cells was significantly slower than that of OTOP1 or OTOP2-expressing cells." I suggest more clearly pointing out in Figure 3 the basis for this conclusion.

“Notably, the response of OTOP3-expressing cells was significantly slower than that of OTOP1 or OTOP2-expressing cells (compare Figure 3C with 3A and 3B).

Figure 4D – A log Y scale might help readers assess the relative pH-dependence of tau-off.

This is a good point. We have now used a split Y-scale to allow the reader to see the pH dependence of tau-off. We preferred this over a log scale which compressed the scale, making it hard to see any trends.

line 164 "Note that we excluded the first few milliseconds where responses deviated from an exponential time course, likely due to the non-instantaneous rate of solution exchange." Confusing, as the manuscript seems to soon state that the 15ms tau was the time of solution exchange.

The solution exchange shows a lag that depends as compared with the signal generated by the computer that depends in part on the distance that needs to be traveled to the perfusion tube. We only eliminated the lag, to fit the current kinetics. We did not eliminate the time for the solution exchange per se. To clarify this point, we changed the text to read “Note that we excluded the first few milliseconds where responses deviated from an exponential time course, due to a lag in the solution exchange.”

line 183 "the deactivation rate of the currents upon return to neutral pH did not vary as a function of pH for any of the three channels and instead reflected the exchange time for the solutions, as expected (Figure 4D). " Independent evidence of the exchange time is needed.

We now show measurements of solution exchange times using an open K+ channel and changing the concentration of K+ in the solution. See above.

Figure 5 – The repetitive ramp currents in Figure 5A as well as the reversal potentials in slope-conductance measurements seem consistent with H+ accumulation in patched cells. Assessment of whether H+ accumulation/depletion impacts currents seems needed. Could H+ accumulation in cells account for all of the current decay after acid stimuli?

We measured the reversal potentials from experiments as in 5A as a function of time and the results are shown in Figure 5 – supplementary figure 1. As described above, this showed that indeed there is H+ accumulation during the 4 s stimulus. For OTOP1, the change in driving force can account for much of the current decay. This is not true for OTOP2. We could not measure this for OTOP3 as in this series of experiments we did not observe a shift in Erev that indicated that H+ accumulated and did not observe current decay. In addition to the new supplementary figure, we modified the text to describe these results. See above for more details.

Figure 5C – n-values missing.

Added.

Figure 9 – What does 1.0 conductance mean? Why doesn't OTOP3 go to 1.0? Could it be that all OTOPs have lower single-channel conductance at low pH, but this is obscured by the increase in Popen at lower pH for OTOP1 and 3?

This is a conceptual diagram meant to illustrate the activity/conductance of each channel as a function of pH. We now removed the scale (which was arbitrary). The activity of OTOP3 is lower at the most acidic pH to illustrate the concept that OTOP3 activation is shifted to the right.

Reviewer #2 (Recommendations for the authors):

This is an interesting manuscript investigating the basic mechanism of OTOPs gating. It provides evidence that protons gate the channels in a subtype-specific manner and identifies two extracellular loops in the protein as important contributors to pH-dependent gating. Overall, the experiments are well justified, and the results are explained clearly. The conclusions are supported by the data but there are several points that need to be addressed.

The section describing the effect of extracellular pH on slope conductance needs to be revised. Slope conductance is defined as dI/dV and can be positive or negative depending on the voltage range of activation of the channel and the current reversal potential. The connection between slope conductance and N*Po*g indicated by the authors is unclear, as Po is usually the open probability at a given V, and g is the single channels chord conductance. If the authors really wanted to measure a parameter that does not depend on the driving force for proton entry, they should have just calculated the conductance as G = I/(V-Erev), not I/V.

The reviewer is correct that for voltage-sensitive ion channels the slope conductance can be negative (e.g. in the range where the channels gate). For OTOP channels, which are not voltage-sensitive (Tue et al., 2018), the slope of the I/V curve (DI/DV) is always positive (or zero) and is not dependent on the reversal potential of the channels, or the voltage. The reason we can use the slope conductance from the macroscopic I-V curve is that Po does not change as a function of voltage (nor does N), and thus it is in principle, a measure of G. Note that we measured (DI/DV) not I/V (this was a typo that has been corrected on line 194), and this is formally the same as I/(V-Erev). Importantly, G as defined by DI/DV does not require that we know Erev (which was out of range for most of the experiments).

The new text reads “The slope conductance (DI/DV) was measured from ramp depolarizations at or near the peak of the response to the stimulus (pHo = 10 to 5) (Figure 5 A, B) using a range of Vm from -80 mV to 0 mV, where the currents were generally linear and not contaminated by endogenous currents.”

The I/V ratio for OTOP2 varies with pHo in a confusing way (Figure 5C). It decreases going from pHo = 10 to pHo = 6, and then increases going to pHo = 5 (while the current remains constant between pHo = 6 and pHo = 5, Figure 1C). This seems inconsistent with the statement that "OTOP2 is constitutively open" which implies that Po does not depend on pH in this channel.

We changed the text (Line 207) to read “In OTOP2-expressing cells, the slope conductance was highest in alkaline pH (pHo = 10) and decreased as the pHo was lowered” and in several instances changed the wording to state that OTOP2 is open at neutral pHo. We agree that for OTOP2, the changes in conductance are not straightforward to interpret in terms of gating of the channels by pHo, and that the most conservative interpretation is that the channels are open over a large pH range. This could be considered constitutive activity, which does not imply that it cannot be regulated.

The authors state that the pH imaging data in Figure 3 provide the first direct evidence that the three murine OTOP channels are gated by extracellular protons in a subtype-specific manner. But what about the current data in Figure 1. Why is that data not sufficient to make the claim?

We changed the wording (we presume the reviewer was referring to the discussion). We believe the pH imaging provides important corroboration of a central finding of the paper, that OTOP2, and to a lesser extent OTOP1, mediates proton efflux to alkalinizing pHo. It also describes a methodology that may be useful for future studies of the channels.

In Figure 4A, for OTOP1 and OTOP3, a k(on) connects a closed state in low H+ conc. to an open state in high H+ conc., but the k(off) does not connect the open state to the closed state. So, in what state is the channel right after returning to neutral pH? Did the authors try to open the channels with two consecutive acid pulses?

We did not study the closing rates of the channels (e.g. with two pulses). Regardless of closing rates, Tau off should reflect the removal of H+ as the permeant ion (it is unlikely, although formally possible that closing could be faster than the change in currents due to the reduction in the permeant ion, but we do not have any evidence for this). Regarding the diagram, we considered that this might be more confusing than helpful, and removed it.

The structural differences in the L5-6 loops of the three OTOPs predicted by AlphaFold are interesting but what about the L3-4 loops? How are these differences helpful in understanding the experimental data on loop swapping?

AlphaFold predicted similar conformations in the L3-L4 loop so we do not have a structural basis for the phenotype at this point. This is now described in the manuscript (Lines 291-293)

How do AlphaFold predictions compare with the Cryo-EM structures in the resolved transmembrane region?

This is an excellent question. We now show in Figure 8 – supplementary figure 1 that the TM domains of the AlphaFold predicted and the cryoEM resolved structures show a high degree of similarity, over both the N domain helices and C domain helices. This gives us more confidence in the AlphaFold models and their utility in predicting novel structures (e.g. OTOP2) and predicting regions of the channels that could not be resolved in the cryoEM structures, such as the loops.

While the 3D structure of the loops is expected to affect function, what about the number/nature of charged and titratable residues? For instance, the L3-4 loop of OTOP2 contains three positive charges, of which two are His residues, while OTOP1 and OTOP2 have a net negative charge carried by a conserved Glu residue. It would be useful to discuss this kind of difference in light of the results of loop swapping.

I believe the reviewer meant that OTOP3 (not OTOP2) has two His residues. Of the 12 amino acids that we swapped, 9 varied between OTOP2 and OTOP3. Six of the swaps changed a charged residue. We do not know which of these changes are responsible for the change in gating of OTOP3 and whether the charge on these residues is the relevant parameter. We now mention this in the discussion (Lines 384-386).

Reviewer #3 (Recommendations for the authors):

1. Currents shown in Figure 1 at nearly all pHo tested show a pronounced decay that is reported to be faster when pHo is lower (lines 74-76). However, it is not clear whether currents plotted in Figure 1C were measured at the peak vs. some other time during the pHo change. Do the authors do not offer any insight into the mechanism underlying current decay? For example, the relatively large current amplitudes suggest that despite pipette solution pH buffering, pHi could change as a result of current flowing through open Otop channels; alternatively, Otops might exhibit a form of desensitization or inactivation. If the former is the case, are the authors confident that current amplitudes are accurately measured and that the imposed change in pHo has been achieved at the time when currents were measured? (See also comments about solution exchange time below).

The currents were measured at their peak (now stated in the figure legend). Regarding the question of whether the “imposed change in pHo has been achieved at the time when currents were measured?” this is clearly the case for OTOP1 and OTOP3 that have time constants for activation of >100 ms, more than 5-fold slower than the solution exchange times of ~20 ms. For OTOP2, the activation kinetics are similar to the rate of the solution exchange, and they decay rapidly thereafter. Thus, it is possible that the currents might have been larger if the solution exchange was faster (see below). We tried to see if we would get larger OTOP2 currents (meaning we missed the peak) by holding Vm at EH and then changing Vm to -80 mV after the stimulus was applied, but we could only do this for the condition where the difference of pHi and pHo was one pH unit (meaning EH was +60 mV), and this protocol had little effect on the current magnitudes. Thus, we agree that for OTOP2, we might have missed the peak current, but we do not believe that this changes any of the conclusions of the paper.

2. Intracellular pH is 7.4 in all experiments (except Figure 2, where only Otop2 was measured), and the effect of changing pHi does not appear to have been tested. Why not?

We chose to focus on the role of extracellular pH in gating the OTOP channels, and its structural basis as this is an important way in which the channels may be regulated under physiological conditions, and it is more tractable.

The effect of intracellular pH on gating of the channels is an important but thorny issue. As researchers who work on Hv1 well know, controlling the intracellular pH in a cell with large proton currents is notoriously difficult and the problem is compounded for OTOP channels that cannot be closed by voltage to limit proton flux. Moreover, we are not able to do the kind of detailed analyses that we could in measuring effects of extracellular pH (e.g. looking at the kinetics of responses). Thus, while we have done preliminary experiments to measure OTOP currents with solutions of varying intracellular pH, we feel that including these experiments, which are not germane to the main conclusion of the manuscript, would be premature.

3. pHluorin imaging shown in Figure 3 is indirect and, due to lack of voltage clamp and lack of good pHi buffering, an intrinsically less robust method than electrophysiology; perhaps this data is better suited to Supplementary material? Experiments demonstrating net inward vs. outward proton fluxes during voltage ramps applied at various pHo (Figure 5B) appear to be a more appropriate method for tracking the direction of permeant ion movement.

The pHlourin imaging data corroborates data in Figure 1. It also provides a method for observing activity of OTOP channels with fluorometry which may be applicable to investigators working in vivo or with cells that are difficult to patch. As an example of this, note that (Parikh et al., Nature 2019) used imaging approaches to validate expression of OTOP2 in the colon; these investigators can now use alkalizing as well as acidifying stimuli to provide evidence for OTOP2 expression.

4. The fastest gating transition measured in Figure 4 is limited by solution exchange time, as the authors note, but it's not clear that solution exchange times were independently measured (i.e., by open-tip potential changes) using the same apparatus. Is the off-time constant for Otop2 (32 ms; Figure 4C, middle panel) substantially slower than the solution exchange time (if so, then the simplified scheme proposed in Figure 4A would not hold for Otop 2)?. Alternatively, the relatively slow current deactivation rate measured in Figure 4C might not be representative of the average behavior (as suggested by summary data shown in Figure 4D, middle panel). Furthermore, the kinetic schemes shown in Figure 4A do not consider that proton binding or unbinding from its putative binding site(s) might be rate-limiting for gating transitions; is this assumption supported by the experimental data?

We now included data that allows us to estimate the kinetics of the solution exchange in a realistic scenario – that is in whole-cell recording, using an open K+ channel (KIR2.1) and changes in potassium concentrations (see above). Please note that there was some variation from cell to cell in the solution exchange time (as estimated with the K+ channel), likely due to the placement of the cell in relation to the solution flow through the microcapillary tubes (three of the nine cells had similarly slow decay rates).

5. What new information is gleaned from measuring slope conductance (Figure 5C)? The G vs. pHo graphs appear to have the same shape as I vs. pHo graphs in Figure 1C, suggesting that the two methods report the same pH-dependent gating transitions. Could channel numbers be estimated (i.e., via current variance analysis) to calculate unitary conductances for Otop 1-3?

We now more clearly explain that the slope conductance allows a measurement of gating near the neutral pH, where driving force is diminished and thus currents will not be detected. The fact that the conductance measurements and current measurements are related (but not the same) should be reassuring. Regarding estimating single-channel conductance with noise analysis, this is difficult for a channel that is gated by its permeant ion (usually this experiment is done by varying Po, by changing the voltage, while keeping the permeant ion concentration fixed). Moreover, while it would be interesting to know the single-channel conductance of the OTOPs, this would not change the interpretation of the data or the main conclusion of the paper.

New text reads “Slope conductance is related to the open probability (Po) of the channel by G = N*g*Po, where N is the number of channels and g is the single-channel conductance. Since the number of channels is constant, the slope conductance is a measure of Po*g. Importantly, this provides a measure of open probability, even where the holding potential is close to the equilibrium potential for H+ and therefore currents are small (e.g. for stimuli at 8.0).” (lines 206-211).

6. Otop2/3 chimera data (Figure 6) are interesting, but leave open the question as to whether discrete titratable residues are responsible for low- vs. high-pH dependent gating. It would seem that the chimeras would help narrow the range of candidates, allowing the authors to focus on just a few. Additional data in single- or double-mutant channels would greatly enhance the strength of the manuscript. Why are no Otop1 chimeras shown?

Because we did not find one extracellular loop to be a key determinant of gating, and rather found that gating in response to changes in pH are distributed among the loops, our results do not allow us to hone in on single amino acid residues. Indeed, we do not believe such residues exist, but rather the “pH sensor” may consist of multiple titratable residues, not necessarily on the same linker. OTOP1 was not used in the chimera study because its functional properties are intermediate, so that it would be harder to resolve a change in gating in chimeras with OTOP2 or OTOP3.

7. The reliability of AlphaFold-generated models is not independently established (i.e., during MD simulations), and it remains unclear whether the structural differences shown in Figure 8 are truly representative of physiologically meaningful differences in protein structure. How does the data in Figure 8 contribute to knowledge about the structural basis of pH-dependent gating in Otop channels? Do models identify specific titratable residues that could be experimentally tested (see item 6 above)?

We have now tested the reliability of the Alphafold model by comparing them with the cryoEM structures, and they perform very well (Figure 8 – supplementary figure 1). The main take-home message from the comparison of the structures in Figure 8 is that they predict a large difference in the overall topology of the S5-6 linker between mOTOP2 and mOTOP3. We prefer to include these models in the manuscript, and let the reader decide if they are useful.

https://doi.org/10.7554/eLife.77946.sa2

Article and author information

Author details

  1. Bochuan Teng

    1. Section of Neurobiology, Department of Biological Sciences, University of Southern California, Los Angeles, United States
    2. Program in Neuroscience, University of Southern California, Los Angeles, United States
    Contribution
    Conceptualization, Formal analysis, Investigation, Visualization, Methodology, Writing – original draft
    Contributed equally with
    Joshua P Kaplan
    Competing interests
    No competing interests declared

  2. Joshua P Kaplan

    1. Section of Neurobiology, Department of Biological Sciences, University of Southern California, Los Angeles, United States
    2. Program in Neuroscience, University of Southern California, Los Angeles, United States
    Contribution
    Conceptualization, Formal analysis, Investigation, Writing – review and editing
    Contributed equally with
    Bochuan Teng
    Competing interests
    No competing interests declared

  3. Ziyu Liang

    1. Section of Neurobiology, Department of Biological Sciences, University of Southern California, Los Angeles, United States
    2. Program in Neuroscience, University of Southern California, Los Angeles, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared

  4. Zachary Krieger

    Section of Neurobiology, Department of Biological Sciences, University of Southern California, Los Angeles, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared

  5. Yu-Hsiang Tu

    Diabetes, Endocrinology, and Obesity Branch, National Institute of Diabetes and Digestive and Kidney Diseases, National Institutes of Health, Bethesda, United States
    Contribution
    Conceptualization, Investigation, Visualization
    Competing interests
    No competing interests declared

  6. Batuujin Burendei

    Department of Integrative Structural and Computational Biology, The Scripps Research Institute, La Jolla, United States
    Contribution
    Investigation, Visualization, Writing – review and editing
    Competing interests
    No competing interests declared

  7. Andrew B Ward

    Department of Integrative Structural and Computational Biology, The Scripps Research Institute, La Jolla, United States
    Contribution
    Supervision, Visualization, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7153-3769

  8. Emily R Liman

    1. Section of Neurobiology, Department of Biological Sciences, University of Southern California, Los Angeles, United States
    2. Program in Neuroscience, University of Southern California, Los Angeles, United States
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Visualization, Methodology, Writing – original draft, Project administration, Writing – review and editing
    For correspondence
    liman@usc.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4765-5496

Funding

National Institute of General Medical Sciences (R01GM131234)

  • Emily R Liman

National Institute on Deafness and Other Communication Disorders (R01DC013741)

  • Emily R Liman

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Jackson Walker and Anne Tran for expert technical support and all members of the Liman and Ward labs for helpful discussions. We also thank M Goldschen-ohm for critical reading of the manuscript and Z Qui for generously sharing cell lines.

Senior Editor

  1. Richard W Aldrich, The University of Texas at Austin, United States

Reviewing Editor

  1. Jon T Sack, University of California Davis School of Medicine, United States

Reviewers

  1. Jon T Sack, University of California Davis School of Medicine, United States
  2. Ian Scott Ramsey, Virginia Commonwealth University School of Medicine, United States

Publication history

  1. Received: February 17, 2022
  2. Preprint posted: March 1, 2022 (view preprint)
  3. Accepted: July 19, 2022
  4. Version of Record published: August 3, 2022 (version 1)

Copyright

© 2022, Teng, Kaplan et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 642
    Page views
  • 158
    Downloads
  • 2
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Bochuan Teng
  2. Joshua P Kaplan
  3. Ziyu Liang
  4. Zachary Krieger
  5. Yu-Hsiang Tu
  6. Batuujin Burendei
  7. Andrew B Ward
  8. Emily R Liman
(2022)
Structural motifs for subtype-specific pH-sensitive gating of vertebrate otopetrin proton channels
eLife 11:e77946.
https://doi.org/10.7554/eLife.77946

Categories and tags

Research organisms

Further reading

    1. Neuroscience

    THINGS-data, a multimodal collection of large-scale datasets for investigating object representations in human brain and behavior

    Martin N Hebart, Oliver Contier ... Chris I Baker
    Tools and Resources Updated

    Understanding object representations requires a broad, comprehensive sampling of the objects in our visual world with dense measurements of brain activity and behavior. Here, we present THINGS-data, a multimodal collection of large-scale neuroimaging and behavioral datasets in humans, comprising densely sampled functional MRI and magnetoencephalographic recordings, as well as 4.70 million similarity judgments in response to thousands of photographic images for up to 1,854 object concepts. THINGS-data is unique in its breadth of richly annotated objects, allowing for testing countless hypotheses at scale while assessing the reproducibility of previous findings. Beyond the unique insights promised by each individual dataset, the multimodality of THINGS-data allows combining datasets for a much broader view into object processing than previously possible. Our analyses demonstrate the high quality of the datasets and provide five examples of hypothesis-driven and data-driven applications. THINGS-data constitutes the core public release of the THINGS initiative (https://things-initiative.org) for bridging the gap between disciplines and the advancement of cognitive neuroscience.

    1. Neuroscience

    Locomotion: Unraveling the roles of cerebrospinal fluid-contacting neurons

    Claire Wyart
    Insight

    Sensory neurons previously shown to optimize speed and balance in fish by providing information about the curvature of the spine show similar morphology and connectivity in mice.

    1. Neuroscience

    Spatiotemporal organization of human sensorimotor beta burst activity

    Catharina Zich, Andrew J Quinn ... Sven Bestmann
    Research Article

    Beta oscillations in human sensorimotor cortex are hallmark signatures of healthy and pathological movement. In single trials, beta oscillations include bursts of intermittent, transient periods of high-power activity. These burst events have been linked to a range of sensory and motor processes, but their precise spatial, spectral, and temporal structure remains unclear. Specifically, a role for beta burst activity in information coding and communication suggests spatiotemporal patterns, or travelling wave activity, along specific anatomical gradients. We here show in human magnetoencephalography recordings that burst activity in sensorimotor cortex occurs in planar spatiotemporal wave-like patterns that dominate along two axes either parallel or perpendicular to the central sulcus. Moreover, we find that the two propagation directions are characterised by distinct anatomical and physiological features. Finally, our results suggest that sensorimotor beta bursts occurring before and after a movement can be distinguished by their anatomical, spectral and spatiotemporal characteristics, indicating distinct functional roles.
