The evolution of a counter-defense mechanism in a virus constrains its host range

  1. Sriram Srikant
  2. Chantal K Guegler
  3. Michael T Laub  Is a corresponding author
  1. Department of Biology, Massachusetts Institute of Technology, United States
  2. Department of Biology, Howard Hughes Medical Institute, Massachusetts Institute of Technology, United States

Abstract

Bacteria use diverse immunity mechanisms to defend themselves against their viral predators, bacteriophages. In turn, phages can acquire counter-defense systems, but it remains unclear how such mechanisms arise and what factors constrain viral evolution. Here, we experimentally evolved T4 phage to overcome a phage-defensive toxin-antitoxin system, toxIN, in Escherichia coli. Through recombination, T4 rapidly acquires segmental amplifications of a previously uncharacterized gene, now named tifA, encoding an inhibitor of the toxin, ToxN. These amplifications subsequently drive large deletions elsewhere in T4’s genome to maintain a genome size compatible with capsid packaging. The deleted regions include accessory genes that help T4 overcome defense systems in alternative hosts. Thus, our results reveal a trade-off in viral evolution; the emergence of one counter-defense mechanism can lead to loss of other such mechanisms, thereby constraining host range. We propose that the accessory genomes of viruses reflect the integrated evolutionary history of the hosts they infected.

Editor's evaluation

This manuscript will be of interest to researchers in the phage-microbial host interaction field. Notably, the interplay between bacteria and their viral predators has regained broad interest in recent years given the discovery of numerous innate immunity-like phage defense systems. The identification of phage-mediated counter-defense strategies is therefore not only of prime importance for our basic understanding of predator-prey arms races but also for medical applications such as phage therapy.

https://doi.org/10.7554/eLife.79549.sa0

Introduction

Bacteria face the frequent threat of phage predation and have consequently evolved a diverse arsenal of anti-phage defense systems (Bernheim and Sorek, 2020; Tal and Sorek, 2022; Wein and Sorek, 2022). These defense systems have, in turn, driven the selection of counter-defense mechanisms in phage, underscoring the intense arms race between phages and their bacterial hosts (Samson et al., 2013; Hampton et al., 2020). There are several well-characterized examples of anti-restriction modification (RM) and anti-CRISPR proteins (Stanley and Maxwell, 2018). However, there is an ever-growing inventory of phage defense mechanisms in bacteria and how phages counteract these diverse systems is poorly understood (Samson et al., 2013). More generally, it remains unclear how phages can rapidly acquire resistance when confronted with a new defense system and what types of mutations and mechanisms are responsible. Probing how phage overcome bacterial defense systems will help reveal the molecular basis of bacteria–phage coevolution and may inform efforts to develop phage therapies for treating antibiotic-resistant bacterial infections.

An emerging class of potent phage defense genes are toxin–antitoxin (TA) systems, which typically comprise a protein toxin that is directly neutralized by its cognate antitoxin (Harms et al., 2018). For defensive TA systems, phage infection activates or triggers the release of the toxin, which can then block phage development (Guegler and Laub, 2021). Although the initially infected cell typically does not survive, particularly if the toxin also inhibits host cell processes during infection, these defensive TA systems prevent the release of new, mature virions, thereby preventing spread of an infection through a population.

How can a phage evolve to overcome a defensive TA system? There are three general possibilities: (1) a phage prevents activation of the TA system, (2) a phage becomes resistant to the action of the toxin, or (3) a phage acquires or modifies a factor that can inhibit or degrade the toxin. As TA systems may be activated by and target core phage processes, the latter is a potentially powerful mechanism because it does not require mutations in essential phage genes. Notably, like eukaryotic viruses, phages often harbor many ‘accessory genes’ that are not formally required for phage propagation in a naïve host in permissive conditions. For instance, T4 encodes nearly 300 proteins, only 62 of which are required to produce a new virion in common laboratory conditions (Miller et al., 2003). The remaining genes are mostly of unknown function, but their presence in many related T4-like phages suggests they may play key roles in host specificity by overcoming host defense systems or enabling replication in specific growth conditions.

There are several examples of phage-encoded anti-TA factors. The T4 gene dmd encodes a direct inhibitor of the RnlA toxin from the Escherichia coli K12 type II TA system RnlAB (Otsuka and Yonesaki, 2012; Wan et al., 2016). Consequently, RnlAB only protects E. coli against T4 phage lacking dmd (gene 61.5). More recently, T-even phages including T4 were shown to encode an inhibitor (AdfA, encoded by gene 61.2 in T4) of DarT toxins (LeRoux et al., 2022). In Pectobacterium atrosepticum, the type III TA system toxIN, involving an endoribonuclease toxin and RNA antitoxin, protects against infection by several phages, including ΦTE and ΦA2. Selection for ΦTE mutants that overcome the P. atrosepticum toxIN system identified phages that either expressed additional copies of a locus resembling the toxI antitoxin or that had acquired toxI from the toxIN system directly (Blower et al., 2012). This study indicates that phages may be poised to readily evolve mechanisms to overcome defensive TA systems.

Here, we evolved T4 phage to overcome a toxIN homolog from a natural plasmid in an environmental E. coli isolate that can provide E. coli MG1655 with potent defense (Fineran et al., 2009; Guegler and Laub, 2021). Using an experimental evolution approach adapted from that used in early phage therapy initiatives (Appelmans, 1921; Burrowes et al., 2019), we find that T4 can rapidly overcome toxIN through the segmental amplification and increased expression of tifA (previously 61.4), which encodes a protein inhibitor of ToxN. Strikingly, these segmental amplifications led to T4 genome instability, likely because an increased genome size is incompatible with the fixed capsid size of T4. The evolved phages subsequently acquired compensatory deletions that restored genome size, with the set of deleted genes varying among replicate evolved populations. These deletions compromise the ability of T4 to infect other strains of E. coli, often because the lost genes encode factors that overcome other, strain-specific defense systems. In sum, our work reveals the genome dynamics underlying the emergence of an anti-defense mechanism in T4 and demonstrates an evolutionary trade-off in which selection to infect one host can compromise infection of others.

Results

T4 can evolve to overcome toxIN-mediated defense in E. coli

We previously identified and characterized toxINEc (hereafter toxIN for simplicity), a type III TA system from an environmental isolate of E. coli that strongly protects E. coli MG1655 against T4 infection (Figure 1A; Guegler and Laub, 2021). To evolve T4 to overcome toxIN, we adapted the Appelmans protocol originally developed in phage therapy to evolve phage to replicate on resistant pathogenic hosts (Appelmans, 1921; Burrowes et al., 2019; Mapes et al., 2016). Briefly, our approach involved replicating T4 on both a sensitive host (-toxIN), which maintains the phage population size and generates diversity, and on a resistant host (+toxIN) to select for phages that can overcome the defense system (Figure 1B). During each round of evolution, serial dilutions of the phage population (six serial tenfold dilutions producing a range of 107–101 phage) were each inoculated with 105 host cells to produce a range of multiplicities of infection (MOIs, defined as the ratio of phages to bacteria) from 102 to 10–4 in 96-well plates and then grown for 16–20 hr. This protocol allows phage to evolve by a combination of point mutations and recombination events within a phage genome, as well as recombination between co-infecting phage. The clearing of cultures across MOIs provided a visual readout of the phage population evolving to infect the resistant host (Figure 1B, Figure 1—figure supplement 1A). Throughout the evolution protocol, the T4 population titer remained at 105–106 pfu/µL, with an estimated 1–3 phage infection generations occurring in wells from high to low MOI within a single round of evolution (see ‘Materials and methods’). We set up five replicate evolutions of T4 to overcome toxIN carried on a medium-copy plasmid in E. coli MG1655 (+toxIN), and a control population replicating only on -toxIN cells (MG1655 with an empty vector) (Figure 1—figure supplement 1A). We plated serial dilutions of the phage populations after each round on lawns of +toxIN cells to identify toxIN-resistant phage clones as they arose and fixed (Figure 1—figure supplement 1B).

Figure 1 with 2 supplements see all

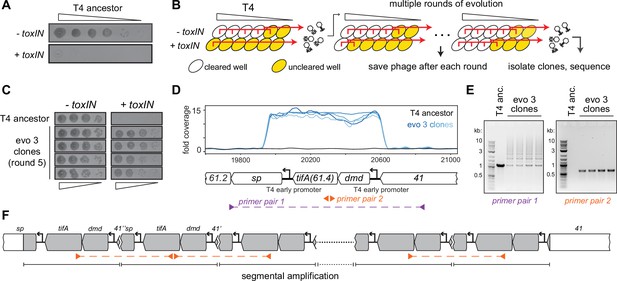

T4 rapidly evolves to overcome toxIN by segmental amplification of the dmd-tifA(61.4) locus.

(A) T4 is restricted by +toxIN E. coli. Serial dilution plaquing assay of T4 spotted on -toxIN and +toxIN cells. (B) Phage evolution protocol to select for T4 that overcomes toxIN-mediated defense. Serial dilutions of T4 are used to infect +toxIN and -toxIN cells at multiple multiplicities of infection (MOIs). The ancestral T4 only clears wells containing -toxIN cells. Phage from all cleared wells, and the last uncleared well, are pooled and used to inoculate the next round of evolution. As the population evolves, it can also infect and clear +toxIN cells. Phage populations from each round are saved to maintain a fossil record; individual clones are isolated on +toxIN cells and sequenced to identify mutations, leading to toxIN resistance. (C) Comparison of plaquing efficiency for ancestral T4 and T4 isolates from one of the evolved populations after five rounds on -toxIN and +toxIN cells. (D) Read coverage at the dmd-tifA(61.4) locus following genome sequencing of multiple clones from one of the evolved populations. Primer pairs used in panel (E) to interrogate the segmental amplification are shown below the locus map. (E) PCR products using the primer pairs indicated in panel (D) for ancestral T4 and evolved clones. (F) Schematic of segmental amplification of dmd-tifA locus in evo 3 clones highlighting binding of primer pair 2 producing a cross-repeat product.

Figure 1—source data 1

Uncropped and labeled gel for Figure 1E, left (primer pair 1).

https://cdn.elifesciences.org/articles/79549/elife-79549-fig1-data1-v2.zip
Figure 1—source data 2

Uncropped and labeled gel for Figure 1E, right (primer pair 2).

https://cdn.elifesciences.org/articles/79549/elife-79549-fig1-data2-v2.zip

For one of the populations (evo 3), phage that could form plaques on lawns of +toxIN cells arose after five rounds of evolution, an estimated 5–15 infection generations. From this population, we isolated phages from four individual plaques on +toxIN lawns and confirmed that these evolved phages plaque as efficiently on +toxIN cells as on the control strain -toxIN (Figure 1C). To identify the mutations responsible for overcoming toxIN, we fully sequenced the genomes of these four evolved clones. No individual gene was mutated in all of the evolved clones. However, our sequencing revealed increased read coverage of a two-gene locus in the genome of each evolved clone (Figure 1D). This locus consists of two genes, dmd (61.5) and 61.4, driven by an early T4 promoter (Liebig and Rüger, 1989; Miller et al., 2003). As noted above, Dmd is an inhibitor of the RnlA toxin of the RnlAB TA system (Otsuka and Yonesaki, 2012) and 61.4 encodes a putative 85 amino acid protein of unknown function, which we have renamed tifA (ToxN inhibitory factor A) based on the studies below.

The increased read coverage of the dmd-tifA locus could indicate the presence of multiple copies of this locus scattered throughout the T4 genome or a local, segmental amplification of this locus. PCR using primers flanking this locus produced a ladder of products, indicating a segmental amplification generating tandem repeats (Figure 1E,F, Figure 1—figure supplement 2B). PCR using divergent primers in the middle of the amplified region generated a band for the evolved clones but not the T4 ancestor (Figure 1E). This band is produced by primers annealing to neighboring repeats and thus reflects the size of a single repeat in the amplification.

TifA is a protein inhibitor of ToxN

We hypothesized that the segmental amplifications in our T4 escape mutants led to increased expression of either dmd or tifA, allowing the phage to overcome toxIN. To determine which gene was responsible, we cloned dmd and tifA separately into a vector containing an inducible promoter and transformed each plasmid into +toxIN cells. We then infected both strains with the ancestral, wild-type T4 in the presence of inducer and compared their efficiency of plaquing (EOP) (Figure 2A). The ability of toxIN to inhibit T4 infection was completely lost following induction of tifA, suggesting that this gene was sufficient to prevent ToxN-mediated defense. Overexpressing dmd did not allow T4 to replicate in the presence of toxIN, indicating that this gene did not contribute to escape, but was likely included in the segmental amplification as the promoter for tifA lies upstream of dmd (Figure 1D).

Figure 2 with 2 supplements see all

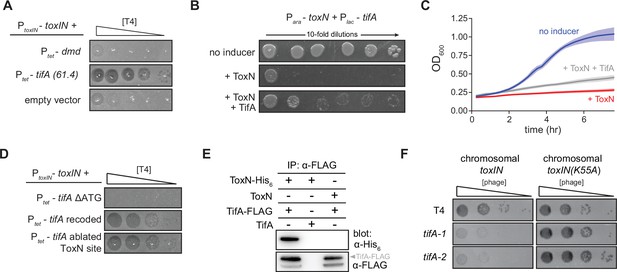

TifA (gp61.4) inhibits ToxN toxicity.

(A) Serial dilution plaquing assay of T4 ancestor spotted on +toxIN cells also harboring a plasmid containing dmd or tifA(61.4), or an empty plasmid. Anhydrotetracycline was added to the plates to induce dmd or tifA. (B, C) Representative plating assay (B) and growth curves (C) showing TifA rescue of ToxN. Plasmids harboring toxN and tifA under arabinose- and IPTG-inducible promoters, respectively, were transformed into E. coli MG1655. ToxN, ToxN, and TifA, or neither were induced as indicated. For growth curves in (C), data are the average of three technical replicates each of four biological replicates, with shaded areas indicating standard deviation. (D) Serial dilution plaquing assay of T4 ancestor spotted on +toxIN cells containing plasmids expressing the tifA variants indicated. (E) Western blot of ToxN-His6 and TifA-FLAG (or untagged controls) following an anti-FLAG coimmunoprecipitation of T4-infected cells co-producing ToxN and TifA. The arrowhead highlights the band with a molecular weight matching that expected for TifA-FLAG. The identity of the band below is unknown but may represent a processed or truncated portion of TifA-FLAG. (F) Serial dilution plaquing assay of T4 ancestor and two tifA mutants on E. coli MG1655 with chromosomally encoded toxIN or toxIN(K55A), which harbors an active-site mutation in ToxN.

Figure 2—source data 1

Uncropped and labeled chemiluminescent Western blot for Figure 2E, top (anti-His6 blot).

https://cdn.elifesciences.org/articles/79549/elife-79549-fig2-data1-v2.zip
Figure 2—source data 2

Uncropped and labeled chemiluminescent Western blot (low and high contrast) for Figure 2E, bottom (anti-FLAG blot).

https://cdn.elifesciences.org/articles/79549/elife-79549-fig2-data2-v2.zip

Our results suggested that tifA is a phage-encoded factor that, upon overexpression, can offset ToxN activity during T4 infection. To test whether tifA encodes an antitoxin for ToxN, we cloned toxN into a vector that allowed for its inducible expression and co-transformed this plasmid into E. coli MG1655 with a plasmid containing tifA controlled by a separate, inducible promoter. As expected for a bacteriostatic toxin, inducing ToxN in uninfected cells inhibited the growth of E. coli. Co-induction of tifA was sufficient to partially rescue this toxicity, on both solid media and in culture (Figure 2B,C), indicating that tifA is a T4-encoded antitoxin for ToxN.

Given that the native antitoxin toxI is an untranslated RNA that binds and neutralizes ToxN, we sought to determine whether tifA encodes a protein or an RNA antitoxin of ToxN (Figure 2D). Expressing a version of tifA in which the start codon was deleted (tifA ΔATG) could no longer restore T4 infection of cells harboring toxIN, suggesting that tifA must be translated to function. Additionally, we found that a recoded variant of tifA that has a different mRNA sequence (55 of 258 nucleotides changed) but produces the same protein sequence could still restore T4 infection of +toxIN cells, indicating that the protein product of tifA was sufficient for ToxN inhibition. Finally, to verify that the tifA mRNA does not act as a competitive substrate for inhibition of ToxN, an endoribonuclease, we ablated a putative ToxN cleavage site at the 3′ end of tifA. Expression of this variant did not interfere with inhibition of ToxN, confirming that it is the protein product, and not the mRNA, of tifA that counters toxIN in our evolved T4 clones. It is these results that prompted us to rename gene 61.4 to tifA.

TifA interacts with ToxN in vivo

To test whether TifA interacts directly with ToxN, we generated a strain producing ToxN from the toxIN locus with a C-terminal His6 tag and TifA with a C-terminal FLAG tag. We first verified that these tags did not affect activity of either protein (Figure 2—figure supplement 1). We then infected cells with T4, lysed the cells, and performed an immunoprecipitation with anti-FLAG antibodies to isolate TifA and any interacting proteins. Western blotting with an anti-FLAG antibody confirmed that TifA was present, as expected, and blotting with an anti-His6 antibody demonstrated that ToxN was also recovered (Figure 2E). These results suggest that TifA interacts with ToxN, either directly or indirectly, in vivo.

If T4 encodes an inhibitor of ToxN, why is toxIN normally able to defend against wild-type T4? We reasoned that, because toxIN is encoded on a medium-copy (~20/cell) plasmid in our system, the single, native copy of tifA in T4 might not be sufficient to overcome ToxN. To test this idea, we introduced either toxIN or toxIN(K55A), which produces an enzymatically dead ToxN, into the E. coli MG1655 chromosome and infected both strains with T4 (Figure 2F). In this case, toxIN was no longer sufficient to protect against wild-type T4 infection. To confirm that this infection requires tifA, we used a CRISPR-Cas9 system to generate two mutant strains of T4 (see ‘Materials and methods’) containing either a 98 bp deletion or 5 bp insertion disrupting the tifA open-reading frame (Figure 2—figure supplement 2). Both T4 mutant strains exhibited an ~100-fold decrease in plaquing efficiency on a strain containing chromosomal toxIN, but were comparable to the wild-type T4 when tested on a toxIN(K55A) control strain (Figure 2F). These results suggest that native tifA expression is sufficient to overcome ToxN produced from the chromosome and that the segmental amplification that arose during our evolution experiments reflects a pressure to overcome the stronger expression of plasmid-borne toxIN.

TifA homologs from other T4-like coliphage inhibit ToxN

Homologs of tifA are found adjacent to dmd homologs in the genomes of the coliphage T2, T6, and RB69, all of which are closely related to T4 (Figure 3A), and in other types of phages that infect a diverse set of bacterial hosts (Figure 3—figure supplement 1). TifA homologs share a common architecture, with a central region containing a cluster of positively charged residues (Figure 3B, Figure 3—figure supplement 1). Although the T2, T4, and T6 homologs are nearly identical to one another, RB69 TifA is more divergent (56% identity) and lacks the C-terminal extension shared by the other three (Figure 3B). Interestingly, plasmid-borne toxIN strongly protects E. coli against T2, T4, and T6 infection, but offers substantially less protection against RB69, as measured by plaquing efficiency and cell death in shaking cultures (Figure 3B, C, Figure 3—figure supplement 2A, B). Thus, we hypothesized that the more divergent TifA from RB69 may be a more potent inhibitor of ToxN.

Figure 3 with 2 supplements see all

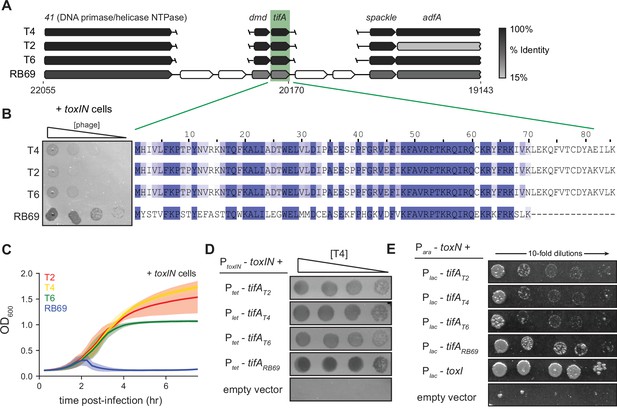

RB69 TifA is a more potent inhibitor of ToxN than the T4 homolog.

(A) Schematic of syntenic region containing tifA in closely related T-even phages. Homologous genes are aligned vertically and colored by % identity to the homolog in T4. (B) (Left) Serial dilution plaquing assays of T4, T2, T6, RB69 on +toxIN cells. (Right) Multiple-sequence alignment of TifA homologs from T4, T2, T6, and RB69. (C) Growth curves following infection of +toxIN cells with T4, T2, T6, or RB69 phage, each at a multiplicity of infection (MOI) of 10–3. Data are the average of three biological replicates, with shaded areas indicating standard deviation. (D) Serial dilutions of T4 ancestor spotted on +toxIN cells expressing tifA homologs from T2, T4, T6, RB69, or harboring an empty vector. (E) Serial dilutions of E. coli cells expressing toxN and the tifA homolog from T2, T4, T6, or RB69, toxI, or alone.

To test this hypothesis, we cloned each tifA homolog from T2, T4, T6, and RB69 into a plasmid with an inducible promoter and transformed those plasmids into +toxIN cells. We then compared the ability of wild-type T4 to infect each strain (Figure 3C). Overexpressing any of the four TifA variants allowed T4 to form plaques on +toxIN lawns (Figure 3D), with cells producing RB69 TifA producing the clearest plaques. We also tested each variant for protection against T2 infection, again finding that RB69 TifA produced the clearest plaques and led to the highest EOP on +toxIN lawns (Figure 3—figure supplement 2C). Finally, we expressed each tifA homolog in uninfected cells ectopically producing ToxN and found that all the TifA homologs rescued cells from ToxN-mediated toxicity to some extent (Figure 3E). We conclude that the TifA homolog from each of these T-even phages is a ToxN inhibitor, but that RB69 may encode a more potent inhibitor, enabling RB69 phage to be least affected by the toxIN system we tested.

T4 genome evolution proceeds through frequent recombination events

For the phages from population 3 that were initially isolated and sequenced after five rounds of evolution, we noticed that individual plaques exhibited substantial variability in size (Figure 1—figure supplement 2A), suggestive of some genomic variation during isolation. We therefore continued the evolution for this and the other four replicate populations for 20 additional rounds, maintaining selection for infection of +toxIN cells. By plating serial dilutions of the evolving populations on +toxIN lawns, we could track, as they arose, T4 clones that could infect +toxIN cells in each population (Figure 4A–C, Figure 4—figure supplement 1). ToxIN-resistant phages emerged at a different round in each population, but with comparable levels of resistance stabilizing after 25 rounds (Figure 4A ,B, Figure 4—figure supplement 1). We then sequenced the genome of one phage clone isolated from each population (Figure 4C). There were no point mutations in common across all five evolved phage clones. However, as with the first clones sequenced (Figure 1D), each of these sequenced genomes had an amplification of the dmd-tifA locus, as manifested by an approximately tenfold increase in read counts in this region (Figure 4D, Figure 4—figure supplement 2A). For the clone from population 5, dmd is included in the amplification but not the promoter upstream. However, in this case there is a promoter downstream of tifA that ends up oriented in a manner that would allow it to drive expression of the dmd-tifA cistron following amplification (Figure 4—figure supplement 2B).

Figure 4 with 2 supplements see all

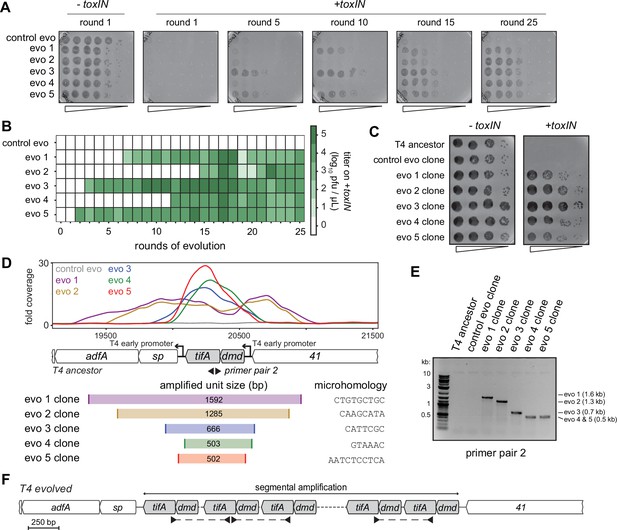

Unique recombination events generate dmd-tifA amplifications in replicate T4 evolution experiments.

(A) Serial dilutions of evolving populations (one control evolution and five replicate populations) after rounds 1, 5, 10, 15, and 25 spotted on +toxIN cells. (B) Heat map summarizing the titer of toxIN-resistant T4 as they arise in the independent evolving populations. Titer was estimated by serial dilutions of evolving populations spotted on +toxIN cells (as in panel A). (C) Serial dilutions of isolated clones from evolved populations spotted on -toxIN and +toxIN cells. (D) Fold coverage from genome sequencing of evolved T4 isolates around dmd and tifA. (E) PCR with divergent primers, indicated in panel (D), used to map the size of the repeated unit in the tandem segmental amplifications. (F) Schematic of segmental amplification of dmd-tifA locus in evo clones highlighting binding of primer pair 2 producing a cross-repeat product that depends on the specific location of the microhomology.

The precise boundaries of the segmental amplification differed in each evolved population. This finding indicates that the same adaptive solution, the amplification of the dmd-tifA locus, occurred independently in each evolved population. We performed a PCR with divergent primers that would only amplify a product following a segmental amplification to confirm the size of the amplified region in each population (Figure 4D–F). The different sizes of the band in clones from different populations confirmed that the repeat region was unique in clones of each population (Figure 4—figure supplement 2A). Sanger sequencing of the PCR products revealed that the boundaries of each segmental amplification coincided with unique, short (typically 6–10 bp) regions of microhomology that normally flank the dmd-tifA locus (Figure 4D, Figure 4—figure supplement 2C). In the evolved clones, only one of the two regions of microhomology remain between neighboring repeats (Figure 4—figure supplement 2C). Thus, the segmental amplifications observed likely arose through homologous recombination between these regions of microhomology, as also seen previously in T4 (Kumagai et al., 1993; Mosig, 1987; Wu et al., 1991; Wu et al., 2021).

Strikingly, in addition to an amplification of the dmd-tifA locus, each evolved clone of T4 also had large deletions elsewhere in its genome (Figure 5A and B). Individual deletions were different in each clone and ranged from 0.7 to 6 kb in length, for a total of 5–11 kb lost in each genome (Figure 5C). We confirmed the absence of each deletion by PCR using primers that flank the deleted region inferred by genome sequencing (Figure 5—figure supplement 1A). These deletions likely enable T4 to maintain a constant genome size by acquiring deletions that compensate for the amplifications selected during evolution. The T4 genome is packaged by a headful mechanism in which 172 kb from a genomic concatemer is inserted into a pro-head. The inserted DNA represents 102% of the T4 genome (168 kb), with ~3.3 kb of terminal redundancy (Grossi et al., 1983; Kim and Davidson, 1974; Rao and Black, 2005). To ensure stable packaging and inheritance of the genome, the segmental amplifications that arose following selection on +toxIN cells likely required the genome to contract elsewhere. Consistent with this interpretation, the size of the deleted region in each evolved clone was roughly proportional to the size of the segmental amplification, as estimated from the increased read coverage across the dmd-tifA region (Figure 5C).

Figure 5 with 1 supplement see all

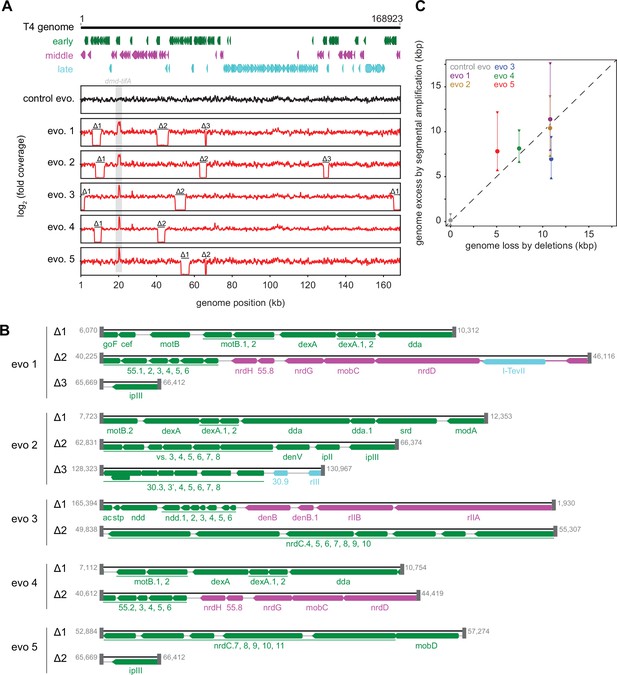

Segmental amplifications in the T4 genome are compensated by large genomic deletions.

(A) Fold coverage calculated from genome sequencing of clones from replicate evolved populations plotted across the entire genome, showing regions of increased coverage (dmd-tifA locus) and large genomic deletions manifesting as a loss of coverage. Genes are colored based on their regulation during the phage life cycle; early (green), middle (magenta), and late (cyan). (B) Summary of deleted regions in each evolved clone showing the flanking regions of microhomology (gray rectangles). (C) Scatter plot of increase in genome size estimated from fold coverage across dmd-tifA repeat region (circle represents median and triangles represent interquartile range of coverage) against the size of genome deletion in clones from each population.

Our results indicate that T4 rapidly evolves through recombination between short regions of microhomology within its genome (Kumagai et al., 1993; Mosig, 1987; Wu et al., 2021). To overcome the toxIN system, such recombination events cause the segmental amplification of dmd and tifA. The resulting genome is then likely too big to be stably maintained, giving rise to the variability in genome coverage seen during intermediate rounds of our evolution, with different individual plaques containing different deletions that restore genome size (Figure 1—figure supplement 2A, Figure 5—figure supplement 1B). At later rounds, one of these genome configurations rises to a high frequency in the population (Figure 5, Figure 5—figure supplement 1B, C).

Genome deletions prevent T4 from infecting other strains of E. coli

None of the 62 genes that are essential for producing new virions during infection of E. coli in rich media at 37°C (Figure 6—figure supplement 1A) were included in the deletions identified in our evolved clones (Miller et al., 2003). However, we hypothesized that the genes lost in our evolved clones may compromise infection of other strains of E. coli.

One of the deletions that arose in evolved phage population 3 (evo 3) contained the rII locus (Figure 5B). The rIIA and rIIB genes allow T4 to replicate in E. coli strains harboring a λ-lysogen (Benzer, 1955). The RexAB system of λ allows it to exclude T4 rII mutants by a mechanism that remains poorly characterized (Wong et al., 2021). As predicted, the T4 clones that have deletions spanning rII lost the ability to replicate on a λ-lysogen of MG1655 (Figure 6A, Figure 6—figure supplement 1B). Spot assays and whole-genome sequencing of clones isolated from different time points during the evolution confirmed that this population of phage first acquired the ability to infect +toxIN cells and then subsequently lost the ability to replicate in a λ-lysogen once the genomic deletions including rII had fixed in the population (Figure 5—figure supplement 1A–C, Figure 6—figure supplement 1B). Expressing rIIA and rIIB from plasmids in a MG1655 λ-lysogen partially restored the infectivity of an evolved T4 clone, confirming the causal nature of the rII deletion (Figure 6A). These results suggest that the genes lost to compensate for dmd-tifA amplification may include genes that help T4 overcome other defense and exclusion mechanisms, like RexAB.

Figure 6 with 1 supplement see all

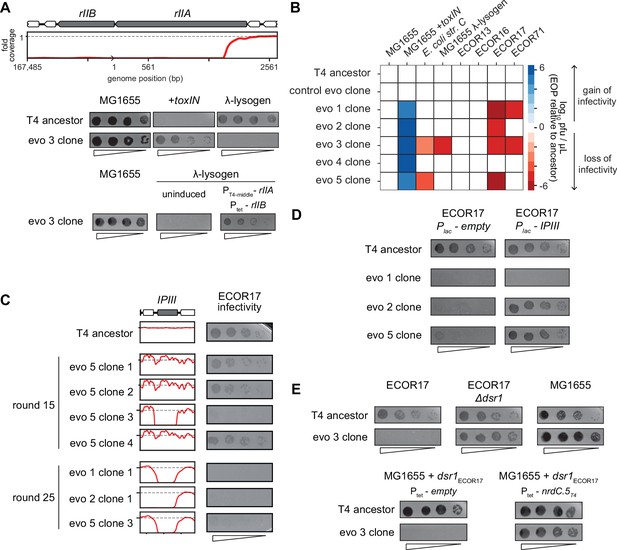

T4 genes lost during evolution are essential for replication in alternate hosts.

(A) (Top) Fold coverage map for rIIA and rIIB locus in a clone from population 3 (evo 3). (Bottom) Serial dilutions of the T4 ancestor and evo 3 clone 1 on the strains indicated. (B) Heat map quantifying the relative efficiency of plaquing (EOP) of each evolved clone compared to the T4 ancestor for the indicated E. coli strains evaluated as the average of three biological replicates. (C) Fold coverage maps for the IPIII gene in the indicated clones of T4 from evolved populations evo 1, 2, and 5, with the corresponding serial dilutions of each clone on ECOR17. (D) Serial dilutions of evolved isolates with IPIII deletions on ECOR17 and ECOR17 +IPIII cells. (E) (Top) Serial dilutions of T4 ancestor and evo 3 clone 1 on ECOR17, ECOR17 Δdsr1, and MG1655 lawns. (Bottom) Serial dilutions of T4 ancestor and evo 3 clone 1 on MG1655 with plasmid-borne dsr1ECOR17 also harboring a plasmid expressing nrdC.5T4 or empty vector.

The rII deletions were only found in clones from one of the five evolved populations and specifically affect infection of λ-lysogens. We therefore tested the evolved T4 clones for their ability to infect strains from the ECOR collection, a set of E. coli strains isolated from diverse environments that have similar core genomes but widely varying accessory genomes (Ochman and Selander, 1984). We focused on strains that can be infected by our ancestral T4 phage, which included four strains from this collection, ECOR13, ECOR16, ECOR17, and ECOR71, as well as E. coli str. C (Figure 6B, Figure 6—figure supplement 1C). Clones from populations 1, 2, 3, and 5 (evo 1, 2, 3, and 5) failed to infect ECOR17 and clones from populations 1 and 3 (evo 1 and 3) failed to infect ECOR71 (Figure 6B). The loss-of-replication phenotype arose in each population after they had acquired the ability to overcome toxIN, indicating that deletions that compensate for the segmental amplifications led to the loss of genes required for infecting these hosts (Figure 6—figure supplement 1B and D).

To identify the gene(s) responsible for loss-of-replication, we asked which phage gene deletions correlated with the inability to infect ECOR17. The only gene lost in common across clones in evo 1, 2, and 5 was ipIII, implying that it enables T4 to infect ECOR17 (Figure 5B and Figure 6C). T-even phages encode a set of proteins – including IPIII – called internal proteins: they contain a sequence motif that drives packaging into mature virions such that the proteins are injected into a host with the phage genome (Kutter et al., 1995; Leiman et al., 2003; Mullaney and Black, 1996). IPI inhibits the restriction-modification system gmrSD (Bair and Black, 2007), but the function of the other internal proteins is not known. We hypothesized that IPIII may also be an anti-defense protein that targets a host defense system. Indeed, providing ipIIIT4 on a plasmid in ECOR17 restored the ability of clones from evo 2 and 5 to infect this host (Figure 6D). We also found that having the host cells express a variant of IPIII lacking the capsid-targeting sequence (ipIIIT4ΔCTS) restored infectivity of clones from evo 2 and 5, indicating that IPIII functions in the cytoplasm of ECOR17 to enable T4 replication (Figure 6—figure supplement 1E). For the clone from evo 1, ipIII on a plasmid did not restore infectivity, suggesting that phages in this population lack an additional gene required to infect ECOR17.

To identify the relevant host defense systems in ECOR17, we used available annotation pipelines (Payne et al., 2021; Tesson et al., 2022) to predict phage-defensive operons in the ECOR17 genome, finding six potential systems, which we deleted, individually, from ECOR17 (Figure 6—figure supplement 1F). None of these deletions restored the infectivity of phage that lack IPIII, suggesting that an unknown defense system exists in ECOR17 and that IPIII enables T4 to overcome this system. Though the evo 3 clone also lost the ability to infect ECOR17, its deletions do not include IPIII. For this clone, a disruption of dsr1 in ECOR17 restored infection (Figure 6E, Figure 6—figure supplement 1F). Dsr1 contains a Sirtuin domain and likely blocks phage replication by disrupting cytoplasmic NAD+ levels (Garb et al., 2021). Expression of the ECOR17 dsr1 gene from its native promoter on a medium-copy plasmid conferred protection to MG1655 against the evo 3 clone (Figure 6E). Thus, a T4 gene deleted in the evo 3 clone must overcome Dsr1 in the context of T4 ancestor infection. Expressing the uncharacterized T4 early gene nrdC.5 under an inducible promoter restored infectivity of the evo 3 clone on MG1655 carrying dsr1 (Figure 6E). Thus, the T4 genome contains multiple genes (including ipIII and nrdC.5) that enable the infection of multiple hosts by overcoming the suite of defense systems in these hosts. Our results support the notion that phage genomes are flexible and can rapidly amplify genetic material allowing them to overcome a specific defense system, but at the cost of losing genes that enable infection of other hosts (Figure 6B).

Discussion

TifA and an anti-TA island in T4-like phage

Bacteria and phages are locked in an ongoing coevolutionary battle, with extant genomes of each reflecting the outcomes of the underlying molecular arms race (Hampton et al., 2020; Koskella and Brockhurst, 2014). Given the fast generation times of bacteria and phages, experimental evolution offers an opportunity to study this arms race as it unfolds. Here, using an adapted version of Appelmans protocol (Appelmans, 1921; Burrowes et al., 2019; Mapes et al., 2016), we evolved T4 to overcome the type III TA system toxIN. Genome sequencing of evolved clones identified a two-gene operon dmd-tifA that was independently amplified in five replicate populations. We demonstrated that tifA, which encodes an 85 amino acid protein, inhibits ToxN, and that the amplification of tifA allows T4 to overcome plasmid-borne toxIN (Figure 7). Homologs of TifA are found in many T4-like phage, suggesting that these phages may frequently encounter hosts harboring toxIN-like systems. However, these homologs vary in both their sequence and their ability to inhibit ToxN, suggesting that each TifA may be ‘tuned’ to inhibit a particular, cognate ToxN of an ecologically relevant host.

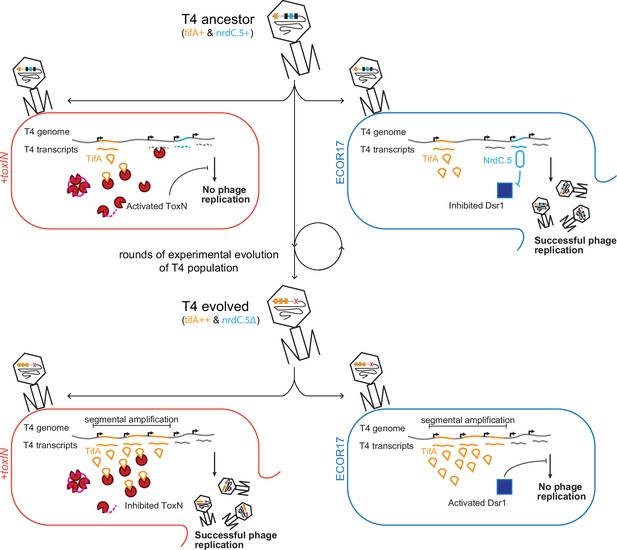

Model of T4 evolving to overcome toxIN by genomic variation affecting host range.

The genome of T4 contains a number of accessory genes (tifA, nrdC.5, etc.) that enable infection of hosts by overcoming hosts defenses (toxIN, dsr1, etc.). T4 ancestor is unable to infect +toxIN cells due to inability to inhibit the action of ToxN but can infect an alternate host (ECOR17) using nrdC.5 to overcome the bacterial defense gene dsr1. Experimental evolution to infect +toxIN cells produce T4 evolved clones that have segmental amplifications of the tifA locus and compensatory deletions of nonessential genes like accessory genes needed to infect alternate hosts. A T4 evolved clone can thus infect +toxIN cells by having enough TifA to inhibit ToxN, but has lost nrdC.5 in a deletion, and thus lost the ability to infect ECOR17.

TifA is analogous to the co-operonic gene dmd, which encodes a direct inhibitor of RnlA, the toxin of the rnlAB system in E. coli. Additionally, the nearby and conserved gene 61.2 (now adfA) was recently found to overcome the type IV TA system darTG (LeRoux et al., 2022). Thus, this region of the T4 genome may be an anti-TA island, similar to the anti-RM and anti-CRISPR islands found in other phages (Pinilla-Redondo et al., 2020). Other genes in this region of the T4 genome are attractive anti-toxin candidates.

Recombination-mediated amplifications and deletions drive T4 genome evolution

T4 evolved to overcome toxIN by amplifying dmd-tifA, likely via recombination between short homologous sequences that flank this locus. These recombination events may arise during replication of the T4 genome or during the repair of DNA breaks. The unique amplifications that arose independently in our five replicates highlight the high rates of recombination-based mutagenesis in phage evolution. Similar recombination events between short (2–10 bp) regions of homology in T4 have been seen previously in studies of the rII locus (Kumagai et al., 1993), genes 16–18 (Wu et al., 1991), and escape from CRISPR-Cas defense (Wu et al., 2021).

Our work also indicates that T4 can undergo large genomic changes through recombination between short regions of homology, leading to loss of the intervening region (Figure 5A, Figure 5—figure supplement 1A). Genome packaging in T4 proceeds via a headful mechanism (Rao and Black, 2005), so any substantial gain in DNA must be offset by comparably sized losses. Thus, the gains in genetic material resulting from amplification of dmd-tifA likely necessitated the loss of other, nonessential DNA to maintain a genome that could be fully packaged into the head. A similar pattern of gene amplification in the 16–18 region of T4 followed by deletion of the gene alt was previously reported (Wu et al., 1991).

Gene amplification is a major source of evolutionary innovation. For instance, antibiotic resistance in bacteria frequently arises through gene amplification. Seminal studies of Salmonella demonstrated that spontaneous tandem duplications arise frequently in bacterial genomes and can be present in as much as 3% of a population (Anderson and Roth, 1981; Anderson and Roth, 1977). Gene duplications can provide intrinsic advantages, as with antibiotic resistance genes or in our case of tifA. Additionally, duplications create additional copies of a gene and hence provide a larger target for point mutations; if a beneficial mutation arises in any copy of the gene, it can provide a selective advantage and be maintained while other copies are lost by subsequent recombination. Such a scenario explains the apparently high rates of lac- reversions measured by Cairns and Foster when selecting for restoration of LacZ activity in strains harboring a point mutation in lacZ (Andersson et al., 1998; Cairns and Foster, 1991; Hendrickson et al., 2002). Similarly, a selection for poxviruses that can overcome the host restriction factor protein kinase R revealed an initial segmental amplification of the anti-host factor K3L, followed by subsequent acquisition of a beneficial point mutation in one copy K3L and subsequent loss of additional copies of the gene (Elde et al., 2012).

In the case of tifA, the entire T4 ancestor population likely contains a single copy of the dmd-tifA locus, which is insufficient to overcome plasmid-borne toxIN. Thus, the segmental amplifications that increase tifA copy number could not have been identified through a direct, one-step selection for escape mutants. However, the recombination events leading to these amplifications arose within several rounds in each of our replicate populations, indicating that this is a readily available pathway to overcoming toxIN. We did not observe point mutations in tifA early on that improve its inhibition of ToxN, likely because segmental amplifications via recombination arise more frequently. We also did not observe beneficial point mutations arising after the segmental amplifications, leading to subsequent collapse of the amplification, as with protein kinase R. We speculate that the fitness gains and number of beneficial point mutations in tifA are likely too small to arise and fix.

The evolution of phage host range

The genes deleted in our evolved T4 phage are all nonessential for infection of E. coli MG1655 grown in laboratory conditions but may be crucial for T4 to infect other hosts. Indeed, we found that the deletions in four of our five replicate populations compromised infection of other strains of E. coli. The loss of rII led to an inability to infect λ lysogens, consistent with prior work showing that rII is required to neutralize the λ-encoded anti-T4 system RexAB. Similarly, we found that IPIII, which was lost in three populations, is required for T4 to infect E. coli strain ECOR17. Internal proteins, including IPIII, are packaged with and then subsequently injected with the T4 genome. These proteins likely act against ‘first-response’ defense systems like RM systems in each host. For instance, IPI is known to inhibit the E. coli type IV RM system gmrSD. Which defense system IPIII inhibits remains to be determined.

The accessory genomes of phages likely include a broad range of anti-defense genes that profoundly influence their host ranges. The set of anti-defense genes in a phage genome at a given time will reflect, in part, those that have recently been selected for based on the hosts that phage has infected. As our experimental evolution demonstrates, if selection to infect a host and overcome its defense systems is not maintained, the corresponding anti-defense genes, which are not essential for phage replication, can be lost following pressure to infect new and different hosts (Figure 7). Such genome dynamics, which stem from the relentless coevolution of phage with their hosts, may help to explain the staggering diversity of accessory genes within phage genomes (Pope et al., 2015) and their sometimes narrow host ranges across hosts with varied and dynamic immune profiles (Hussain et al., 2021; Kauffman et al., 2022).

Concluding remarks

Our experimental evolution approach enabled the identification of new anti-phage defense and phage counter-defense mechanisms. In addition to finding TifA as a novel inhibitor of ToxN, the characterization of our evolved T4 isolates indicated that IPIII likely antagonizes a novel, as-yet unknown defense system in ECOR17. Additionally, we discovered a homolog of the recently identified Dsr1 system in ECOR17 that can be counteracted by the nonessential gene nrdC.5 in wild-type T4. Collectively, these findings underscore how much remains to be discovered about the molecular arms race between bacteria and phages, which has profoundly shaped the genomes of both.

Phages evolve rapidly, but the forces and mechanisms that drive this evolution are poorly understood. Experimental evolution helps to reveal the tempo and mutations critical to phage genome evolution. Efforts to dissect how phages evolve to overcome a range of host barriers, including different defense systems, promise to provide further insights into how phage evolution occurs and the mechanisms responsible. In addition, such studies may also inform practical efforts to engineer phages and develop phage therapeutics.

Materials and methods

Strains and growth conditions

Request a detailed protocol

All strains, plasmids, and primers used in this study are listed in Supplementary file 1. For all phage experiments in liquid media and all phage spotting experiments, E. coli MG1655 strains were grown in Luria broth (LB) medium. For pBAD33-ToxN induction experiments, cells were grown in M9 (10× stock made with 64 g/L Na2HPO4-7H2O, 15 g/L KH2PO4, 2.5 g/L NaCl, 5.0 g/L NH4Cl) medium supplemented with 0.1% casamino acids, 0.4% glycerol, 0.4% glucose, 2 mM MgSO4, and 0.1 mM CaCl2 (M9-glucose). For plasmid construction, E. coli DH5α and TOP10 cells were grown in LB medium. Antibiotics were used at the following concentrations (liquid; plates): carbenicillin (50 μg/mL; 100 μg/mL) and chloramphenicol (20 μg/mL; 30 μg/mL).

Plasmid construction

pKVS45-tifA and pKVS45-dmd

Request a detailed protocol

T4 tifA and dmd were individually PCR-amplified from purified T4 genomic DNA with primer pairs SS-5/SS-6 and SS-7/SS-8, respectively, which also add flanking BamHI and KpnI sites. These PCR products were then cloned into the BamHI and KpnI sites of the anhydrotetracycline (aTc)-inducible pKVS45 vector (pKVS45-tifA and pKVS45-dmd). pKVS45-tifA-FLAG was constructed via round-the-horn PCR on pKVS45-tifA using the primer pair SS-9/10. pKVS45-tifA ΔATG was constructed via round-the-horn PCR on pKVS45-tifA using the primer pairs SS-31/32 followed by blunt-end ligation. pKVS45-tifA ablated ToxN-site was constructed via round-the-horn PCR on pKVS45-tifA using the primer pairs SS-33/34 followed by Gibson Assembly using the 2× HiFi DNA Assembly Master Mix (NEB E2621). TifA codons were recoded using Geneious and ordered as a gene-block fragment from IDT (with 46 of 85 codons recoded with 55 nucleotide changes) and cloned into pKVS45 by Gibson Assembly at the same site as pKVS45-tifA. For pKVS45-tifA-homologs, tifA homologs from T2, T6, and RB69 were each PCR-amplified from purified phage genomic DNA with primer pairs SS-11/12, SS-13/14, and SS-15/16, respectively, which also add sequences that overlap the aTc-inducible pKVS45 vector. pKVS45 was digested with BamHI and KpnI, and then the PCR-amplified tifA variants were inserted into the digested plasmid using Gibson assembly.

pEXT20-tifA

Request a detailed protocol

The tifA homologs from T2, T4, T6, and RB69 were each PCR-amplified from purified phage genomic DNA with primer pairs SS-17/18, SS-19/20, SS-21/22, and SS-23/24, respectively, which also add sequences that overlap the isopropylthio-β-galactoside (IPTG)-inducible pEXT20 vector. pEXT20 was digested with SacI and SalI, and then the PCR-amplified tifA variants were inserted into the digested plasmid using Gibson Assembly.

pEXT20-ipIIIT4

Request a detailed protocol

The ipIIIT4 gene was PCR-amplified from T4 genomic DNA with primer pair SS-35/36, which add sequences that overlap the IPTG-inducible pEXT20 vector. pEXT20 was digested with SacI and SalI, and ipIIIT4 was inserted into the digested plasmid using Gibson Assembly.

pBR322-rIIAT4

Request a detailed protocol

The rIIA gene including the upstream native promoter was PCR-amplified from T4 genomic DNA with primer pair SS-37/38, which add sequences that overlap with the pBR322 vector. The pBR322 backbone was amplified with primer pair SS-39/40, and the rIIA gene was inserted using Gibson Assembly.

pKVS45-rIIBT4

Request a detailed protocol

The rIIB gene (only the coding sequence) was PCR-amplified from T4 genomic DNA with primer pair SS-41/42, which add flanking BamHI and KpnI sites. This PCR product was then cloned into the BamHI and KpnI sites of the aTc-inducible pKVS45 vector.

pBR322-Dsr1ECOR17

Request a detailed protocol

The Dsr1ECOR17 gene including the upstream promoter (300 bp) was PCR-amplified from ECOR17 genomic DNA with primer pair SS-43/44, which add sequences that overlap with the pBR322 vector. The pBR322 backbone was amplified with primer pair SS-39/40, and the Dsr1ECOR17 gene was inserted using Gibson Assembly.

pKVS45-nrdC.5T4

Request a detailed protocol

The nrdC.5T4 gene (only the coding sequence) was PCR-amplified from T4 genomic DNA with primer pair SS-45/46, which add flanking BamHI and KpnI sites. This PCR product was then cloned into the BamHI and KpnI sites of the aTc-inducible pKVS45 vector.

Strain construction

E. coli MG1655 attBλ::toxIN and E. coli MG1655 attBλ::toxIN(K55A)

Request a detailed protocol

To construct these strains, toxIN or toxIN(K55A) was inserted into the E. coli MG1655 chromosome using the CRIM system (Haldimann and Wanner, 2001). The toxIN locus, along with its native promoter and transcription terminators, was PCR-amplified from pBR322-toxIN with the primer pair SS-25/26. The CRIM plasmid pAH150 was linearized using PCR with SS-27/28 to remove the araBAD promoter and rrnB T1 and rrnB T2 terminators. toxIN was then inserted into linearized pAH150 using Gibson Assembly to yield pAH150-toxIN. pAH150-toxIN(K55A) was then constructed via round-the-horn PCR of pAH150-toxIN with SS-29/30. CRIM insertion of these plasmids into the attBλ locus of E. coli MG1655 was then performed as previously described (Haldimann and Wanner, 2001) using the pINT-ts helper plasmid. Single insertions were confirmed by PCR and Sanger sequencing.

ECOR17 gene deletions

Request a detailed protocol

To construct these strains, the open-reading frames of the candidate defense systems (RM-typeI, RM-typeIII, abi2, hhe, dsr1, cas3) were designed to be replaced by a kanamycin resistance cassette (kanR) using the λ-red recombinase system (Datsenko and Wanner, 2000). Briefly, >70 bp homologous regions flanking the ORFs were added to the resistance cassette and electroporated into ECOR17 containing pKD46 plasmid that expresses the λ-red recombinase genes. Deletion of the ORFs was confirmed by PCR across the locus.

Phage T4 tifA gene disruptions

Request a detailed protocol

T4 mutants were generated using a CRISPR-Cas system for targeted mutagenesis described previously (Duong et al., 2020). Briefly, sequences for RNA guides to target Cas9-mediated cleavage in the tifA open-reading frame (but nowhere else in the T4 genome) were designed using the toolbox in Geneious Prime 2021.2.2. Guides were chosen based on a high activity score that may have a loose correlation with their efficiency of cutting of the T4 genome (Duong et al., 2020). The guides were inserted into the pCas9 plasmid (Addgene #42876) and tested for their ability to target the T4 genome by measuring the restriction of T4 spotting (Figure 2—figure supplement 2). Specifically, though wild-type T4 is not strongly restricted by any of the guides, a clone of T4 with a mutation in the β-glucosyltransferase gene, bgt(II/5-6Δ), showed strong sensitivity to one of the guides. We expect the deletion to cause a deficiency in β-glucosyltransferase activity, leading to the loss of β-glucose modification of about 30% of the hydroxymethylcytosines (Lehman and Pratt, 1960). pCas9-containing guide tifAT4-cr4 (AATTCCACTCGACCAAATGGAGG, constructed with primers SS-47/48) was selected because it had the strongest effect on plaquing efficiency of T4(bgt(II/5-6Δ)) (Figure 2—figure supplement 2). Escape plaques were isolated by plating T4(bgt(II/5-6Δ)) at high titer onto a lawn of MG1655 harboring the plasmid pCas9-tifAT4-cr4. The tifA locus from escape plaques was then PCR-amplified and Sanger-sequenced to identify two unique clones that had a 98 bp deletion and a 5 bp insertion in tifA that disrupt its coding sequence (Figure 2—figure supplement 2). Finally, the clones were isolated to purity and submitted for whole-genome sequencing to confirm that no other mutations were present.

Phage experiments in solid and liquid media

Request a detailed protocol

Phage spotting assays were conducted as described in Guegler and Laub, 2021 and were conducted at least three times independently, with representative experiments shown in the figures. Briefly, phage stocks isolated from single plaques were propagated in E. coli MG1655 at 37°C in LB. To titer phage, stocks were mixed with E. coli MG1655 and melted LB + 0.5% agar and spread on LB + 1.2% agar plates at 37°C. For phage spotting assays, the bacterial strain of interest was mixed with LB + 0.5% agar and spread on an LB + 1.2% agar + antibiotic plate. For experiments in which expression of tifA was induced with aTc (Ptet-tifA), 100 ng/μL aTc was added to LB + 0.5% agar at a final concentration of 100 ng/mL prior to mixing with bacterial cells. For the experiment inducing rIIA and rIIB, aTc was added to 10 ng/mL to minimize the toxicity of the rII system. For experiments in which expression of genes was induced with IPTG (Plac-genes), 100 mM IPTG was added to LB + 0.5% agar to a final concentration of 100 μM prior to mixing with bacterial cells. Phage stocks were then serially diluted in 1× FM buffer (20 mM Tris–HCl pH 7.4, 100 mM NaCl, 10 mM MgSO4), and 2–3 μL of each dilution was spotted on the bacterial lawn. Plates were then grown at room temperature or 37°C overnight and plaques quantified the following day. EOP was calculated by comparing the ability of the phage to form plaques on an experimental strain relative to the control strain.

Phage experiments in liquid culture were conducted at 37°C. Single colonies were grown overnight in LB. Overnight cultures were back-diluted to OD600 = 0.01 and grown to OD600 = 0.3 in fresh LB such that cells re-entered exponential growth. Cultures were then back-diluted to OD600 = 0.01 in fresh LB, and phage was added to each culture. Growth following phage infection was measured in 24-well plates at 15 min intervals with orbital shaking at 37°C on a plate reader (BioTek). Data points reported are the mean of three independent biological replicate growth curve experiments. Raw data are provided on GitHub.

High-throughput evolution of T4 to infect resistant E. coli

Request a detailed protocol

Phage populations are evolved to infect resistant hosts using a modification of the Appelmans protocol originally developed to generate phage therapy cocktails (Appelmans, 1921). This protocol was more recently used to modify the host range of phage (Burrowes et al., 2019; Mapes et al., 2016). Briefly, a population of phage is propagated on a sensitive host to maintain phage population size and generate genetic diversity, and also a resistant host to select for phage that can infect the novel host. In our experiment, the resistant host was MG1655 with a toxIN-containing plasmid (ML3328), and the sensitive host was MG1655 with an empty plasmid (ML3330). Thus, T4 needs to overcome the defense conferred by toxIN to successfully invade the resistant host. To visually track the progress of evolution, the evolution experiment was setup in 96-well plates with phage populations inoculated with host cells at a range of MOI (Figure 1—figure supplement 1). A phage blank well was also maintained to confirm there is no cross-contamination during the setup of each round of evolution.

T4 (106 pfu/µL) lysate prepared in MG1655 was then serial-diluted tenfold in FM buffer to generate inoculum samples from 106 to 1 pfu/µL. 10 µL of each the phage inoculums were added to the corresponding wells in a row. Each well contains 100 µL of supplemented LB (LB + 15 µg/mL l-tryptophan + 5 µg/mL thiamine) with 105 bacterial cells. Bacterial culture was back-diluted from overnight growth of single colonies in LB (or M9) at 37°C using OD600 of 1 as an estimated cell density of 7 × 108 cells/mL. The bacterial cells are ML3328 (+toxIN) and ML3330 (-toxIN) in two separate rows. The first wells of each row are inoculated with only 10 µL of FM buffer as a no-phage control check against phage cross-contamination during the setup of evolution plate. The second to eighth wells of each row receive inoculum from the phage serial dilutions to setup wells with phage-to-bacteria rations (MOI) of 102 to 10–4. Each pair of rows correspond to an independent evolving population, with the top two rows in the plate being a control evolution with T4 infecting two rows of ML3330 to identify mutations that arise when T4 is passaged on just MG1655 with no toxIN. The remaining rows on the plate accommodate five independent evolving populations of T4. For the first round, the same clonal population of T4 is used to start all the evolving populations. After inoculating the cell culture with phage, the evolution plate is sealed with breathable film and incubated at 37°C on a plate shaker at 1000 RPM overnight (16– 20 hr). The plate is harvested by pooling all cleared wells and the first uncleared well (up to a total of five wells per row from the highest MOI) in every pair of rows to generate the population of phage at the end of the round. In a round of evolution, phage in the highest MOI well lyse all cells in a single infection generation, while at the lowest MOI (one phage particle inoculated into 105 bacteria) about three rounds of phage infection (with an estimated T4 burst of 100) are needed to lyse all the bacteria. Thus, a phage population after a round of evolution contains particles that have gone through 1–3 infection generations from a phage at the start of the round. The cell debris and unlysed cells in pooled samples were pelleted (4000 RPM at 4°C for 25 min) and the supernatant phage lysate was transferred to 96-deep-well blocks for long-term storage (with 40 µL chloroform to prevent bacterial growth). Pooled samples generated six populations – five replicate populations evolving on ML3328 and ML3330, and one control population evolving on ML3330 alone. Twenty-five rounds of evolution were performed saving a total of 150 populations (six populations at each of 25 rounds of evolution). The evolution was performed in supplemented LB for the first 18 rounds and was then switched to supplemented M9 for 7 rounds to increase the selective pressure of toxIN on T4 replication. Evolving populations were stored as lysates at 4°C, and also as glycerol stocks of infected hosts snap-frozen and left at –80°C.

Evolved clones were isolated by plating to single plaques from the evolved populations on lawns of ML3328 for T4 that can overcome toxIN. These evolved clones were saved as phage lysates at 4°C and as glycerol stocks of infected hosts for long-term storage.

ToxN and TifA overexpression plating assays on solid media

Request a detailed protocol

Overexpression plating assays were conducted as described in Guegler and Laub, 2021. Briefly, single colonies were grown to saturation overnight in M9-glucose. 1 mL of each overnight culture was then pelleted by centrifugation at 4000 × g for 5 min, washed twice in 1× phosphate-buffered saline (PBS), and resuspended in 500 μL 1× PBS. Cultures were then serially diluted tenfold in 1× PBS and spotted on M9L plates (M9-glycerol supplemented with 5% LB [v/v]) further supplemented with 0.4% glucose (toxin-repressing), 0.2% arabinose (toxin inducing), or 0.2% arabinose and 100 μM IPTG (toxin and antitoxin inducing). Plates were then incubated at 37°C for 48 hr before imaging. Images shown are representative of at least three independent biological replicates.

ToxN and TifA overexpression growth curves in liquid culture

Request a detailed protocol

Single colonies of E. coli MG1655 harboring pBAD33-toxN and pEXT20-tifAT4 were grown to saturation overnight in M9-glucose. These cultures were then back-diluted 100-fold in fresh M9-glycerol supplemented with 0.8% glucose and grown to OD600 ~ 0.3 at 37°C in a shaking water bath; additional glucose was added to these cultures to suppress leaky toxicity of ToxN. Cells were pelleted by centrifugation at 4°C and 4000 × g for 5 min. Pellets were washed twice in ice-cold M9-glycerol and then resuspended in fresh M9-glycerol. Cells were then back-diluted in fresh M9-glycerol to OD600 = 0.2; for cultures in which TifA expression was induced, 100 μM IPTG was also added at this point. Cultures were then grown for an additional 45 min at 37°C in a shaking water bath before being back-diluted to OD600 = 0.1 in fresh M9-glycerol. To these back-diluted cultures, 100 μM IPTG and 0.2% arabinose were added to induce TifA and ToxN, respectively, when appropriate. Growth was then measured in 24-well plates at 15 min intervals with orbital shaking at 37°C on a plate reader (Bio-Tek). Data reported are the mean of three technical replicates each of four independent growth curve experiments.

ToxN–TifA interaction assays with co-immunoprecipitation (co-IP)

Request a detailed protocol

50 mL cultures of E. coli MG1655 containing pBR322-toxIN(+/-His6) and pKVS45-tifA(+/-FLAG) were grown to OD600 = 0.4 at 37°C in LB supplemented with 15 μg/mL l-tryptophan and 1 μg/mL thiamine in a water bath shaker and infected with T4 at MOI = 5. To induce expression of TifA, aTc was added to each culture at a final concentration of 100 ng/mL 30 min prior to phage infection. Then, 15 min post-T4 infection, 40 mL of cells from each culture were pelleted by centrifugation at 4000 × g for 5 min at 4°C. Pellets were then flash-frozen and stored at –80°C.

For anti-FLAG co-IP experiments, each cell pellet was resuspended in 500 μL of lysis buffer (25 mM Tris–HCl pH 8, 150 mM NaCl, 1 mM EDTA pH 8, 1% Triton X-100, cOmplete Protease Inhibitor Cocktail [Roche], 1 μL/mL ReadyLyse [Novagen], 1 μL/mL DNase I [TakaraBio], 5% glycerol). Cells were lysed by two freeze–thaw cycles, followed by incubation at 30°C for 1 hr. Lysates were clarified by centrifugation at 14,000 × g for 10 min at 4°C and then incubated with anti-FLAG-M2 magnetic beads (Sigma) on an end-to-end rotor for 1 hr at 4°C. Beads were then washed three times with 400 μL wash buffer (25 mM Tris–HCl pH 8, 150 mM NaCl, 1 mM EDTA pH 8, cOmplete Protease Inhibitor Cocktail [Roche], 5% glycerol). To elute protein, beads were incubated with 40 μL of 1× Laemmli buffer, vortexed briefly, and boiled at 95°C for 5 min.

Samples from co-IP experiments were analyzed by Western blot as described previously (Guegler and Laub, 2021). Briefly, samples were resolved by 4–20% SDS-PAGE and transferred to a PVDF membrane. Membranes were then incubated with rabbit anti-His6 and anti-FLAG primary antibodies (from Abcam and Cell Signaling Technologies, respectively) at a final concentration of 1:5000 to avoid cross-reactivity with the anti-FLAG-M2 beads. Next, membranes were incubated with horseradish peroxidase (HRP)-conjugated anti-rabbit secondary antibodies (Thermo Fisher) at a final concentration of 1:5000. Blots were developed using the SuperSignal West Femto Maximum Sensitivity Substrate (Thermo Fisher Scientific) and imaged with a FluorChem R Imager (ProteinSimple). Blots shown are representative of three independent replicates.

Phage genome isolation, Illumina library preparation, and analysis

Request a detailed protocol

Phage genomes were prepared by treating high titer lysates (>106 pfu/µL) with DNAse I (0.001 U/µL) and RNAse A (0.05 mg/mL) at 37°C for 30 min to hydrolyze any host nucleic acid that remains in the lysate. EDTA is added to a final of 10 mM to inactivate nucleases. The lysate is then incubated with Proteinase K at 50°C for 30 min to disrupt phage capsids and release genomes. The phage genomes are recovered by ethanol precipitation. Briefly, NaOAc pH 5.2 was added to 300 mM followed by 100% ethanol to a final volume fraction of 70%. The samples were left at –80°C for 2 hr to precipitate genomic material. The genomic material was pelleted at 21,000 × g for 15 min, and the supernatant is discarded. The pellet was washed in series with 100 µL isopropanol, and 200 µL 70% (v/v) ethanol by pelleting and discarding supernatants for each wash. The pellet was air-dried at room temperature for 30 min and then resuspended in 20–100 µL TE (10 mM Tris–HCl, 0.1 mM EDTA, pH 8) overnight at room temperature. Genomic material was resuspended by flicking the Eppendorf, and concentration was measured using a NanoDrop spectrophotometer.

Illumina sequencing libraries were prepared starting from 100 to 200 ng of genomic DNA (gDNA). Briefly, the gDNA was sheared by sonication in a Bioruptor. Fragmented gDNA was purified using AmpureXP beads, followed by sequential enzymatic reactions for end repair, 3′ adenylation, and adapter ligation. Barcodes were added to both 5′ and 3′ ends by PCR-amplifying with primers that anneal to the Illumina PE adapters. The libraries were cleaned by Ampure XP clean up using a double cut to elute fragment sizes matching the read lengths of the sequencing run. Libraries were sequenced on either an Illumina MiSeq or NextSeq at the MIT BioMicroCenter after qPCR and fragment analyzer quality control for concentration and size distribution.

Illumina reads were analyzed using custom Python scripts provided on GitHub along with assembled reference genomes. Briefly, the reads were cleaned of adapter sequences using Cutadapt before they are aligned to a reference genome using BWA and SAMtools. Per-position coverage maps were generated using SAMtools depth, and variant single-nucleotide polymorphisms were called using BCFtools. Coverage maps in figures were plotted by using a moving window average of per-nucleotide coverage, with the window size defined as the read length of sequencing run. The ancestral T4 was sequenced to generate a reference genome against which all evolved clones were compared. Illumina reads were also assembled to reference genomes using the assembly pipeline in Geneious Prime 2021.2.2 for cross-checks and visual inspection.

Homology search and alignment of TifA

Request a detailed protocol

Homologs of TifA were first identified by jackhmmer using a Hidden Markov Model built on a small subset of TifA homologs among reference proteomes on UniProt. The overwhelming majority of homologs with full query coverage were in viruses that are members of the phage clade Caudovirales. These 57 sequences were aligned using MUSCLE (with default settings), and a maximum likelihood phylogenetic tree was constructed with FastTree. The Tree separated TifA homologs from different phage genomes into clusters by similarity (color coded, Figure 3—figure supplement 1).

Appendix 1

Appendix 1—key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Strain, strain background (Escherichia coli)DH5aInvitrogenN/ACloning strain
Strain, strain background (E. coli)MG1655Maintained by Laub labML-6N/A
Strain, strain background (E. coli)C (13706)Félix d’Hérelle Reference Center for Bacterial Viruses, Université LavalHER #1036; ML-3793Original source: ATCC
Strain, strain background (E. coli)ECOR17Thomas S. Whittam STEC Center at Michigan State UniversityML-3794N/A
Strain, strain background (E. coli)ECOR17 ΔRM-typeIThis studyML-3797Derivative of ML-3794
Strain, strain background (E. coli)ECOR17 ΔRM-typeIIIThis studyML-3798Derivative of ML-3794
Strain, strain background (E. coli)ECOR17 Δabi2This studyML-3799Derivative of ML-3794
Strain, strain background (E. coli)ECOR17 Δdsr1This studyML-3800Derivative of ML-3794
Strain, strain background (E. coli)ECOR17 ΔhheThis studyML-3801Derivative of ML-3794
Strain, strain background (E. coli)ECOR17 Δcas3This studyML-3802Derivative of ML-3794
Strain, strain background (E. coli)ECOR71Thomas S. Whittam STEC Center at Michigan State UniversityML-3803N/A
Strain, strain background (E. coli)ECOR13Thomas S. Whittam STEC Center at Michigan State UniversityML-3804N/A
Strain, strain background (E. coli)ECOR16Thomas S. Whittam STEC Center at Michigan State UniversityML-3805N/A
Strain, strain background (E. coli)MG1655 λ-lysogenThis studyML-3971Derivative of ML-6
Strain, strain background (E. coli)MG1655 attBl::toxINThis studyML-3789Derivative of ML-6
Strain, strain background (E. coli)MG1655 attBl::toxI-toxN(K55A)This studyML-3790Derivative of ML-6
Strain, strain background (T4)T4 ancestorGuegler and Laub, 2021phML-31Maintained by Laub lab
Strain, strain background (T4)T4 control evo round 25 clone 1This studyphML-32Derivative of phML-31
Strain, strain background (T4)T4 evo 1 round 25 clone 1This studyphML-33Derivative of phML-31
Strain, strain background (T4)T4 evo 2 round 25 clone 1This studyphML-34Derivative of phML-31
Strain, strain background (T4)T4 evo 3 round 25 clone 1This studyphML-35Derivative of phML-31
Strain, strain background (T4)T4 evo 4 round 25 clone 1This studyphML-36Derivative of phML-31
Strain, strain background (T4)T4 evo 5 round 25 clone 3This studyphML-37Derivative of phML-31
Strain, strain background (T4)T4 tifA-1This studyphML-41N/A
Strain, strain background (T4)T4 tifA-2This studyphML-42N/A
Strain, strain background (T2)T2ATCCCat# 11303-B2; phML-38N/A
Strain, strain background (T6)T6ATCCCat# 11303-B6; phML-40N/A
Strain, strain background (RB69)RB69Félix d’Hérelle Reference Center for Bacterial Viruses, Université LavalHER# 158; phML-39N/A
AntibodyAnti-FLAG M2 magnetic beads (mouse monoclonal)SigmaCat# M8823; RRID:AB_2637089Used 20 mL beads per 40 mL cells
AntibodyRecombinant anti-6X His tag rabbit antibody (rabbit monoclonal)AbcamCat# AB200537Used at 1:5000× concentration
AntibodyDYKDDDDK tag rabbit mAb (rabbit monoclonal)Cell Signaling TechnologyCat# 14793; RRID:AB_2572291Used at 1:5000× concentration
AntibodyGoat anti-rabbit IgG (H+L) secondary antibody, HRP (goat polyclonal)Thermo Fisher ScientificCat# 32460; RRID:AB_1185567Used at 1:5000× concentration
Recombinant DNA reagentpBAD33-toxN (plasmid)Guegler and Laub, 2021ML-3343N/A
Recombinant DNA reagentpEXT20-toxI (plasmid)Guegler and Laub, 2021ML-3345N/A
Recombinant DNA reagentpEXT20 (plasmid)E. coli Genetic Stock CenterCat# 12325; ML-1978N/A
Recombinant DNA reagentpBR322 empty vector (plasmid)Guegler and Laub, 2021ML-3348Derivative of pBR322 with pTet removed
Recombinant DNA reagentpBR322-toxIN (plasmid)Guegler and Laub, 2021ML-3346Derivative of ML-3348
Recombinant DNA reagentpBR322-toxI-toxN-His6 (plasmid)Guegler and Laub, 2021ML-3349Derivative of ML-3346
Recombinant DNA reagentpKVS45-dmdT4 (plasmid)This studyML-3809Gene amplified from phML-31
Recombinant DNA reagent (plasmid)pKVS45-tifAT4This studyML-3810Gene amplified from phML-31
Recombinant DNA reagentpKVS45-tifAT2 (plasmid)This studyML-3811Gene amplified from phML-38
Recombinant DNA reagentpKVS45-tifAT6 (plasmid)This studyML-3812Gene amplified from phML-40
Recombinant DNA reagentpKVS45-tifARB69 (plasmid)This studyML-3813Gene amplified from phML-39
Recombinant DNA reagentpEXT20-tifAT2 (plasmid)This studyML-3814Gene amplified from phML-38
Recombinant DNA reagentpEXT20-tifAT4 (plasmid)This studyML-3815Gene amplified from phML-31
Recombinant DNA reagentpEXT20-tifAT6 (plasmid)This studyML-3816Gene amplified from phML-40
Recombinant DNA reagentpEXT20-tifARB69 (plasmid)This studyML-3817Gene amplified from phML-39
Recombinant DNA reagentpKVS45-tifAT4 DATG (plasmid)This studyML-3818Derivative of ML-3810
Recombinant DNA reagentpKVS45-tifAT4 recoded (plasmid)This studyML-3819Derivative of ML-3810
Recombinant DNA reagentpKVS45-tifAT4 ablated ToxN-site (plasmid)This studyML-3820Derivative of ML-3810
Recombinant DNA reagentpKVS45-tifAT4-FLAG (plasmid)This studyML-3821Derivative of ML-3810
Recombinant DNA reagentpBR322-rIIAT4 (plasmid)This studyML-3822Gene amplified from phML-31
Recombinant DNA reagentpKVS45-rIIBT4 (plasmid)This studyML-3823Gene amplified from phML-31
Recombinant DNA reagentpEXT20-ipIIIT4 (plasmid)This studyML-3824Gene amplified from phML-31
Recombinant DNA reagentpEXT20-ipIIIT4DCTS (plasmid)This studyML-3825Derivative of ML-3824
Recombinant DNA reagentpBR322-Dsr1ECOR17 (plasmid)This studyML-3826Gene amplified from ML-3794
Recombinant DNA reagentpKVS45-nrdC.5T4 (plasmid)This studyML-3827Gene amplified from phML-31
Recombinant DNA reagentpCas9-tifAT4-cr4 (plasmid)This studyML-3828Cas9 with guide targeting tifAT4
Commercial assay or kitSuperSignal West Femto Maximum Sensitivity SubstrateThermo Fisher ScientificCat# 34095N/A
Commercial assay or kitChameleon Duo Pre-Stained Protein LadderLI-CORCat# 928-60000N/A
Software, algorithmImageJ (v1.48)NIHhttps://imagej.nih.gov/ij/N/A
Software, algorithmBowtie2 (v2.1.0)Langmead and Salzberg, 2012http://bowtie-bio.sourceforge.net/bowtie2/index.shtmlN/A
Software, algorithmSAMtools (v0.1.19)Li et al., 2009http://samtools.sourceforge.net/N/A
Software, algorithmNumPy (v1.13.1)Charles, 2022, RRID:SCR_008633https://github.com/numpy/numpyN/A
Software, algorithmBiopython (v1.65)Cock, 2022, RRID:SCR_007173https://github.com/biopython/biopythonN/A
Software, algorithmSciPy (v0.18.1)Reddy, 2022, RRID:SCR_008058https://github.com/scipy/scipyN/A
Software, algorithmJupyter NotebookPerez, 2022, RRID:SCR_018315https://github.com/jupyterN/A
Software, algorithmjackhmmerRRID:SCR_005305https://www.ebi.ac.uk/Tools/hmmer/search/jackhmmerN/A
Software, algorithmMUSCLERRID:SCR_011812https://www.ebi.ac.uk/Tools/msa/muscle/N/A
Software, algorithmFastTreeRRID:SCR_015501http://www.microbesonline.org/fasttree/N/A
Software, algorithmCutadapt (v4.1)RRID:SCR_011841https://pypi.org/project/cutadapt/N/A
Software, algorithmBWALi, 2022https://github.com/lh3/bwaN/A
Software, algorithmBCFtoolsDanecek, 2022, RRID:SCR_005227https://github.com/samtools/bcftoolsN/A
Software, algorithmGeneious Prime 2021.2.2DotmaticsN/AN/A
Software, algorithmCustom Python scriptsN/Ahttps://github.com/sriramsrikant/2022_T4-toxIN-evo; Srikant, 2022N/A
OtherAgencourt AMPure XPBeckman CoulterA63880Magnetic beads used for sequencing library preparation
OtherSynergy H1 Hybrid Multi-Mode Microplate ReaderBioTekN/APlate reader used for growth curves in Figures 2C and 3C, and Figure 3—figure supplement 2B
OtherNextSeq 500 Sequencing SystemIlluminaCat# SY-415-1001Instrument at MIT BioMicro Center used for DNA sequencing
OtherMiSeq Sequencing SystemIlluminaCat# SY-410-1003Instrument at MIT BioMicro Center used for DNA sequencing
OtherBioruptor PlusDiagenodeCat# B01020001Sonicator used to shear phage gDNA prior to Illumina sequencing library preparation
OtherDTS-4 Digital Thermo ShakerELMIN/A96-Well plate shaking incubator used for high-throughput phage evolution experiments

Data availability

DNA sequencing data is available at SRA (BioProject ID: PRJNA824875). Scripts used for sequencing data processing and analysis are available at https://github.com/sriramsrikant/2022_T4-toxIN-evo, (copy archived at swh:1:rev:4c0ba4f8ca73988717d1478e3fde7f44378c1b02). Raw data for relevant figures also available at Github.

The following data sets were generated
    1. Srikant S
    2. Guegler CK
    3. Laub MT
    (2022) NCBI BioProject
    ID PRJNA824875. Experimental evolution of T4 to overcome E. coli toxIN.

References

    1. Appelmans R
    (1921)
    Le dosage du bactériophage
    Compt Rend Soc Biol 85:701.
  1. Book
    1. Rao VB
    2. Black LW
    (2005) DNA Packaging in Bacteriophage T4
    In: Catalano CE, editors. Viral Genome Packaging Machines: Genetics, Structure, and Mechanism. Boston, MA: Springer US. pp. 40–58.
    https://doi.org/10.1007/0-387-28521-0

Decision letter

  1. Melanie Blokesch
    Reviewing Editor; Ecole Polytechnique Fédérale de Lausanne, Switzerland
  2. Sara L Sawyer
    Senior Editor; University of Colorado Boulder, United States
  3. Melanie Blokesch
    Reviewer; Ecole Polytechnique Fédérale de Lausanne, Switzerland

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Decision letter after peer review:

Thank you for submitting your article "The evolution of a counter-defense mechanism in a virus constrains its host range" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Melanie Blokesch as Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Gisela Storz as the Senior Editor.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission. Please note that no additional experiments will be required (the reviewer group agreed that the short reads combined with the distinctive PCR amplification pattern and Sanger sequencing are sufficient to support the claim of this study and that the suggested experiment to further increase ToxN abundance would be a nice add-on but isn't strictly required).

Essential revisions:

1) Figures need revisions for clarity (missing labels, low resolution, etc).

2) The authors should carefully update their Materials and methods section.

3) A few points need better discussion.

4) The accessibility of raw data on github, as stated in the manuscript, should be double-checked.

Reviewer #2 (Recommendations for the authors):

The manuscript is well written and the storyline is easy to follow. We also appreciate the schemes to explain more difficult points (e.g. Figure S1D and Figure S4D).

We find it remarkable that the acquisition of resistance in the toxin-expressing host was acquired in 5 evolved clones through segmental amplification of the dmd-tifA locus (versus mutations in the promoter sequence to increase transcription levels for example). This illustrates the extent of recombination within phage genomes thanks to regions of microhomology, in comparison to the pervasiveness of point mutations in bacterial genomes.

Interestingly, tifA is surrounded by further genes encoding anti-TA systems suggesting the clustering in anti-TA islands – an observation that could guide further investigations.

Overall, this is without question an interesting example, but it describes a very specific phenomenon, namely the adaptation of phage T4 to an E. coli strain expressing a plasmid-based toxN. Their results also show that native tifA expression is sufficient to overcome ToxN production from the chromosome.

1. It is puzzling that the control evolved clone (without toxin) showed no resistance clones appearing, even after 25 rounds of infection (figure S4A). Is the emergence of resistance so rare in T4?

2. It would be maybe advisable to be precise that RnlAB is a type II TA system. This was not clear in the manuscript.

3. The relative amounts of ToxN and TifA seem to be a strong determinant of the success of infection. Would the evolved clones still show infection of an E. coli expressing toxN on higher copies?

l. 27-38, insights in bacterial immune systems are currently exploding. Therefore, I would suggest citing some even more recent literature (e.g. doi: 10.1038/s41577-022-00705-4, doi: 10.1016/j.cell.2021.12.029)

Reviewer #3 (Recommendations for the authors):

The authors show plenty of agarose gel electrophoresis pictures. However, the ladder and the size of the expected PCR products are not annotated.

The data points of the growth curves should be ba accessible at github. However, I cannot find them. The authors should add clear titles to the datasets to improve data transparency.

Figure S3A has a poor resolution which hampers readability.

https://doi.org/10.7554/eLife.79549.sa1

Author response

Reviewer #2 (Recommendations for the authors):

The manuscript is well written and the storyline is easy to follow. We also appreciate the schemes to explain more difficult points (e.g. Figure S1D and Figure S4D).

We find it remarkable that the acquisition of resistance in the toxin-expressing host was acquired in 5 evolved clones through segmental amplification of the dmd-tifA locus (versus mutations in the promoter sequence to increase transcription levels for example). This illustrates the extent of recombination within phage genomes thanks to regions of microhomology, in comparison to the pervasiveness of point mutations in bacterial genomes.

Interestingly, tifA is surrounded by further genes encoding anti-TA systems suggesting the clustering in anti-TA islands – an observation that could guide further investigations.

Overall, this is without question an interesting example, but it describes a very specific phenomenon, namely the adaptation of phage T4 to an E. coli strain expressing a plasmid-based toxN. Their results also show that native tifA expression is sufficient to overcome ToxN production from the chromosome.

1. It is puzzling that the control evolved clone (without toxin) showed no resistance clones appearing, even after 25 rounds of infection (figure S4A). Is the emergence of resistance so rare in T4?

We were never able to observe toxIN resistance by T4 in the absence of our evolution experiment, suggesting that without serial passaging these mutations are exceptionally rare.

2. It would be maybe advisable to be precise that RnlAB is a type II TA system. This was not clear in the manuscript.

We have adjusted the text in the introduction to clarify this point.

3. The relative amounts of ToxN and TifA seem to be a strong determinant of the success of infection. Would the evolved clones still show infection of an E. coli expressing toxN on higher copies?

This is an interesting idea and seems likely given the results shown here though we did not formally test it.

l. 27-38, insights in bacterial immune systems are currently exploding. Therefore, I would suggest citing some even more recent literature (e.g. doi: 10.1038/s41577-022-00705-4, doi: 10.1016/j.cell.2021.12.029)

These citations have been added to the introduction.

Reviewer #3 (Recommendations for the authors):

The authors show plenty of agarose gel electrophoresis pictures. However, the ladder and the size of the expected PCR products are not annotated.

We have clarifying labels to the agarose gels throughout the figures to annotate relevant ladder positions. When possible, we have also added labels to PCR bands. Because each evolved T4 clone has differently-sized deleted and amplified regions, it is difficult to do this in some figures without making them hard to read. To help the reader better interpret the remaining agarose gels, we have added scale bars above our diagrams when the scale is not demonstrated elsewhere (i.e., in neighboring read coverage diagrams).

The data points of the growth curves should be ba accessible at github. However, I cannot find them. The authors should add clear titles to the datasets to improve data transparency.

Raw data for the growth curves in Figures 2C, 3C, and S3C are indeed accessible on Github, in a document called ‘220426_CKG_growthcurve_rawdata.xlsx’ in the sub-directory data/plot_data. Upon crafting our reviewer responses, we verified that this document is accessible and that the data are clearly labeled. We apologize if the reviewer was unable to find them. To make titles clearer, we have added a table of contents document to the Github repository to detail the type of data and the figure that each dataset corresponds to in the manuscript.

Figure S3A has a poor resolution which hampers readability.

We have uploaded a higher-resolution version of this figure.

https://doi.org/10.7554/eLife.79549.sa2

Article and author information

Author details

  1. Sriram Srikant

    Department of Biology, Massachusetts Institute of Technology, Cambridge, United States
    Contribution
    Conceptualization, Resources, Data curation, Software, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Chantal K Guegler
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3904-0336
  2. Chantal K Guegler

    Department of Biology, Massachusetts Institute of Technology, Cambridge, United States
    Contribution
    Conceptualization, Resources, Data curation, Software, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Sriram Srikant
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0818-4222
  3. Michael T Laub

    1. Department of Biology, Massachusetts Institute of Technology, Cambridge, United States
    2. Department of Biology, Howard Hughes Medical Institute, Massachusetts Institute of Technology, Cambridge, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Investigation, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    laub@mit.edu
    Competing interests
    Reviewing editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8288-7607

Funding

Howard Hughes Medical Institute

  • Michael T Laub

National Science Foundation (Graduate Research Fellowship)

  • Chantal K Guegler

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank A Murray, K Gozzi, I Frumkin, C Vassallo, and T Zhang for comments on the manuscript, S Jones and C Eickmann for assistance in constructing plasmids, and all members of the Laub lab for helpful discussions. We thank the MIT BioMicro Center and its staff for their support in sequencing. This work was supported by an NSF predoctoral graduate fellowship to CKG. MTL is an Investigator of the Howard Hughes Medical Institute.

Senior Editor

  1. Sara L Sawyer, University of Colorado Boulder, United States

Reviewing Editor

  1. Melanie Blokesch, Ecole Polytechnique Fédérale de Lausanne, Switzerland

Reviewer

  1. Melanie Blokesch, Ecole Polytechnique Fédérale de Lausanne, Switzerland

Publication history

  1. Preprint posted: April 14, 2022 (view preprint)
  2. Received: April 17, 2022
  3. Accepted: August 3, 2022
  4. Accepted Manuscript published: August 4, 2022 (version 1)
  5. Version of Record published: August 19, 2022 (version 2)

Copyright

© 2022, Srikant, Guegler et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,121
    Page views
  • 587
    Downloads
  • 3
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Sriram Srikant
  2. Chantal K Guegler
  3. Michael T Laub
(2022)
The evolution of a counter-defense mechanism in a virus constrains its host range
eLife 11:e79549.
https://doi.org/10.7554/eLife.79549

Further reading

    1. Ecology
    2. Evolutionary Biology
    James P Higham
    Insight

    By spending more time around infants which physically resemble their own, mandrill mothers may increase how frequently their offspring interact with their paternal half siblings.

    1. Evolutionary Biology
    2. Genetics and Genomics
    Yi Feng, Rafik Neme ... Laura F Landweber
    Research Article

    Ciliates are microbial eukaryotes that undergo extensive programmed genome rearrangement, a natural genome editing process that converts long germline chromosomes into smaller gene-rich somatic chromosomes. Three well-studied ciliates include Oxytricha trifallax, Tetrahymena thermophila and Paramecium tetraurelia, but only the Oxytricha lineage has a massively scrambled genome, whose assembly during development requires hundreds of thousands of precise programmed DNA joining events, representing the most complex genome dynamics of any known organism. Here we study the emergence of such complex genomes by examining the origin and evolution of discontinuous and scrambled genes in the Oxytricha lineage. This study compares six genomes from three species, the germline and somatic genomes for Euplotes woodruffi, Tetmemena sp., and the model ciliate Oxytricha trifallax. To complement existing data, we sequenced, assembled and annotated the germline and somatic genomes of Euplotes woodruffi, which provides an outgroup, and the germline genome of Tetmemena sp.. We find that the germline genome of Tetmemena is as massively scrambled and interrupted as Oxytricha's : 13.6% of its gene loci require programmed translocations and/or inversions, with some genes requiring hundreds of precise gene editing events during development. This study revealed that the earlier-diverged spirotrich, E. woodruffi, also has a scrambled genome, but only roughly half as many loci (7.3%) are scrambled. Furthermore, its scrambled genes are less complex, together supporting the position of Euplotes as a possible evolutionary intermediate in this lineage, in the process of accumulating complex evolutionary genome rearrangements, all of which require extensive repair to assemble functional coding regions. Comparative analysis also reveals that scrambled loci are often associated with local duplications, supporting a gradual model for the origin of complex, scrambled genomes via many small events of DNA duplication and decay.
