Cytoplasmic dynein crosslinks and slides anti-parallel microtubules using its two motor domains

  1. Marvin E Tanenbaum
  2. Ronald D Vale  Is a corresponding author
  3. Richard J McKenney
  1. Howard Hughes Medical Institute, University of California, San Francisco, United States
Research Article
  • Cited 35
  • Views 1,713
  • Annotations
Cite this article as: eLife 2013;2:e00943 doi: 10.7554/eLife.00943

Abstract

Cytoplasmic dynein is the predominant minus-end-directed microtubule (MT) motor in most eukaryotic cells. In addition to transporting vesicular cargos, dynein helps to organize MTs within MT networks such as mitotic spindles. How dynein performs such non-canonical functions is unknown. Here we demonstrate that dynein crosslinks and slides anti-parallel MTs in vitro. Surprisingly, a minimal dimeric motor lacking a tail domain and associated subunits can cause MT sliding. Single molecule imaging reveals that motors pause and frequently reverse direction when encountering an anti-parallel MT overlap, suggesting that the two motor domains can bind both MTs simultaneously. In the mitotic spindle, inward microtubule sliding by dynein counteracts outward sliding generated by kinesin-5, and we show that a tailless, dimeric motor is sufficient to drive this activity in mammalian cells. Our results identify an unexpected mechanism for dynein-driven microtubule sliding, which differs from filament sliding mechanisms described for other motor proteins.

https://doi.org/10.7554/eLife.00943.001

eLife digest

When cells divide, they must also divide their contents. In particular, both ‘mother’ and ‘daughter’ cells require full sets of chromosomes, which must first be duplicated, and then evenly distributed between the cells. Protein filaments called microtubules form a network that helps to accurately segregate the chromosomes. Microtubules emanate from structures at each end of the dividing cell known as spindle poles; after the chromosomes have duplicated, the microtubules latch onto them and align the pairs in the middle of the cell. As the two cells separate, microtubules at opposite spindle poles reel in one chromosome from each pair.

Microtubules are composed of alternating copies of two different types of a protein called tubulin, and have ends with distinct properties. The ‘minus’ ends are directed outwards, away from the chromosomes; the ‘plus’ ends—which can actively add tubulin—grow toward the middle of the cell, and can also bind to chromosomes. Microtubules can be manipulated by motor proteins that ‘walk’ along them carrying cargoes, which can include other microtubules. The combined actions of many motor proteins rearrange the microtubule network into a configuration that enables the chromosomes, and other cellular structures, to partition equally between the mother and daughter cells.

Motor proteins such as dynein and kinesin transport cargoes along microtubules; each motor is composed of two identical copies of the protein bound to each other. Kinesin walks toward the plus end of a microtubule, propelling itself using ‘feet’ that are called motor domains; it binds cargoes (including other microtubules) through additional regions located at the opposite end of the protein. In contrast, dynein walks toward the minus end of a microtubule. Although dynein is known to carry certain cargoes through regions outside its motor domain, how it transports other microtubules is not well understood.

Tanenbaum et al. now show that regions outside the motor domain of dynein are unnecessary to transport microtubule cargoes. When two dynein motor domains are isolated and linked to each other in vitro, each can bind to a separate microtubule. By walking toward the minus ends of their respective microtubules, the motor domains drive the microtubules in opposite directions, sliding them apart. These studies thus provide insight into the mechanism through which dynein works with additional motor proteins (such as kinesin) to rearrange microtubules during cell division—and also to ensure that chromosomes segregate evenly between mother and daughter cells.

https://doi.org/10.7554/eLife.00943.002

Introduction

Cytoplasmic dynein is a 1.2 MDa, multisubunit microtubule motor complex that belongs to the AAA family of molecular machines (Ogura and Wilkinson, 2001; Allan, 2011). The dynein complex is composed of a dimer of two heavy chains. Each heavy chain contains a C-terminal motor domain, and an N-terminal tail domain that binds to accessory chains and adaptor proteins, which are needed to link the motor to its cargo (Kardon and Vale, 2009). Dynein transports a plethora of cargoes towards MT minus-ends, including many types of organelles, mRNAs and proteins.

In addition to its well-studied role in cargo transport, cytoplasmic dynein has been implicated in the organization of the MT cytoskeleton itself, particularly during cell division. When mammalian cells enter mitosis, dynein is needed to remodel the prophase MT network (Rusan et al., 2002), and at later stages dynein assists in organizing MTs to form focused spindle poles (Heald et al., 1996; Merdes et al., 1996). Dynein also generates an inward force within the spindle that counteracts an outward force generated by kinesin-5 and kinesin-12 motors (Mitchison et al., 2005; Tanenbaum et al., 2008, 2009; Ferenz et al., 2009; Vanneste et al., 2009). The balance of these forces is important for normal spindle assembly (Tanenbaum and Medema, 2010). In cell extracts, dynein also has been shown to organize MTs into aster-like structures (Verde et al., 1991; Gaglio et al., 1996), drive the fusion of two closely positioned spindles into a single bipolar spindle (Gatlin et al., 2009), and transport stabilized MT seeds to the spindle pole (Heald et al., 1996). Collectively, these results show that dynein plays an important role in organizing the MT network during cell division.

In contrast to cargo transport, which involves a well-studied walking mechanism of the two dynein motor domains along a MT (Gennerich and Vale, 2009; DeWitt et al., 2012; Qiu et al., 2012), the mechanism by which dynein organizes MTs in a MT network has not been established. One possibility is that dynein is anchored at fixed subcellular sites through its tail domain and moves processively along MTs through the cytoplasm. However, since the ‘cargo’ is sufficiently large in this instance, the MT themselves would move, rather than the cargo (Wühr et al., 2009). Such a mechanism may also function during spindle positioning, where cortically-anchored dynein pulls on spindle MTs (Galli and van den Heuvel, 2008; Kiyomitsu and Cheeseman, 2012; Kotak et al., 2012; Laan et al., 2012), as well as during centrosome separation, where dynein is anchored to the nuclear envelope (Splinter et al., 2010; Bolhy et al., 2011; Raaijmakers et al., 2012).

Alternatively, dynein could physically crosslink two MTs and slide them relative to each other. To generate sliding between two MTs, an individual dynein motor, a dimer of two heavy chains, could use its two motor domains to walk along one MT and employ a second MT binding domain to transport a ‘cargo MT’. Axonemal dyneins function in this manner to produce MT sliding in cilia and flagella. Several classes of kinesin utilize a similar mechanism for crosslinking and sliding MTs (Straube et al., 2006; Braun et al., 2009; Fink et al., 2009; Seeger and Rice, 2010; Su et al., 2011; Weaver et al., 2011). However, there is currently no evidence suggesting that cytoplasmic dynein contains a secondary MT binding site outside of the motor domain. A second model is that dynein could crossbridge and slide MTs by forming small oligomers or co-complexes with other proteins. Kinesin-5, which forms a bipolar tetramer of motor domains, crossbridges and slides MTs by such a mechanism (Kashina et al., 1996; Kapitein et al., 2005). A third model is that dynein’s two motor domains bind to and move along two separate MTs.

Here using an in vitro assay, we demonstrate that both native rat, and recombinant yeast cytoplasmic dynein can drive sliding of anti-parallel MTs in the absence of additional proteins. Single molecule data of dynein in a MT overlap zone is most consistent with a model in which the two dynein motor domains walk along different MTs to generate sliding. We also show in vivo that a minimal dynein dimer, lacking expected cargo binding interactions, can substitute for native dynein in generating an inward force within the spindle that antagonizes outward MT sliding forces generated by kinesin-5 and kinesin-12. Together, these results show that dynein can slide and organize MTs, using a sliding mechanism that differs from that described for other motor proteins.

Results

Dynein crosslinks and slides MTs within bundles

Previous work has reported that purified brain cytoplasmic dynein crosslinks and bundles MTs (Amos, 1989; Toba and Toyoshima, 2004), but the mechanism has remained unclear. We similarly found that purified rat brain dynein induces the formation of large bundles of purified MTs (Figure 1A–D). Since cytoplasmic dynein can crossbridge MTs, we next investigated whether it can slide two MTs relative to each other. To test for MT sliding, we incubated brain dynein in solution with both green- and red-labeled fluorescent MTs; the green MTs in the MT bundles were also biotinylated, allowing their immobilization onto a streptavidin-coated coverslip (Figure 1D,E). Addition of ATP into the assay chamber induced the red MTs to slide within the bundles relative to the stationary green biotin-MTs (Figure 1E; Video 1).

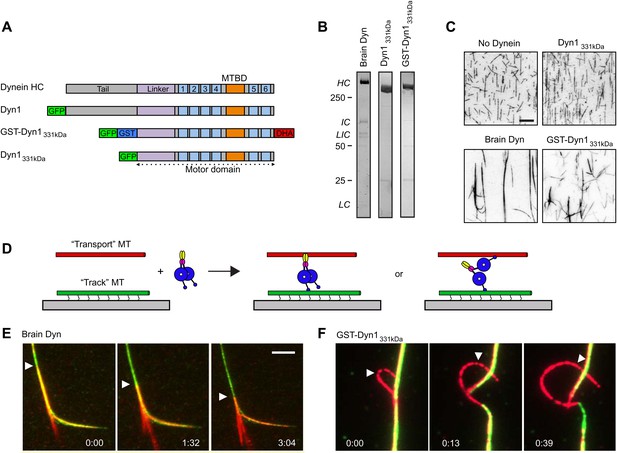

Dynein crosslinks and slides MTs in bundles.

(A) Schematic overview of the dynein constructs used in this study. The N-terminal tail is shown in gray, the linker in purple, the six numbered AAA+ domains are in light blue and the stalk and MT binding domain are depicted in orange. GFP and GST tags are shown in green and blue, respectively. The Halo tag (DHA, Promega) is shown in red. (B) Coomassie brilliant blue stained gels showing purified dynein constructs used in this study. The associated subunits of the brain cytoplasmic dynein complex are labeled; HC–heavy chain, IC–intermediate chain, LIC–light intermediate chain, LC–light chain. Recombinant yeast dynein constructs do not contain associated subunits. Molecular weight markers are indicated. (C) MTs incubated in the absence or presence of dynein are visualized by attachment to a streptavidin-coated coverslip via a biotin tag. Brain dynein and GST-Dyn1331kDa crosslink MTs into large bundles, while the dynein monomer, Dyn1331kDa does not. Scale bar, 10 µm. (D) Cartoon depicting two different mechanisms by which dynein could crosslink MTs, either using its two motor domains or through the tail domain. Alexa-568 and Alexa-488 labeled MTs are crosslinked by dynein. The green MTs are attached to the coverslip through a biotin-streptavidin linkage and perfusion of 1 mM ATP induces sliding between the MTs. (E and F) Example of rat (E) and GST-Dyn1331kDa (F) dynein-driven sliding of red-labeled MTs within the bundle after 1 mM ATP addition. Arrowhead tracks the sliding MT within the bundle. The time relative to the start is noted in min:s at the bottom of each image. Scale bar, 5 µm.

https://doi.org/10.7554/eLife.00943.003
Video 1
Rat brain cytoplasmic dynein bundles and slides MTs.

Red-labeled MTs are slid and extruded from a bundle of red- and green-labled MT bundles by rat brain cytoplasmic dynein upon addition of ATP. Total time of the video is 551 s. Playback is 30 fps.

https://doi.org/10.7554/eLife.00943.004

To crosslink and slide MTs, dynein could bind one MT with its motor domains and potentially another with a non-motor MT-binding domain (Figure 1D). Alternatively, the two motor domains of the dynein dimer could each bind a different MT (Figure 1D). To distinguish between these possibilities, we tested a well characterized, GST-dimerized, truncated yeast dynein construct, GST-Dyn1331kDa, which contains the motor domain but lacks the non-motor tail domain and other dynein subunits (Reck-Peterson et al., 2006) (Figure 1A,B). This minimal, dimeric dynein was affinity purified, followed by gel filtration to remove any potential oligomers or aggregates. GST-Dyn1331kDa crosslinked MTs, while a monomeric version lacking the GST dimerizing domain did not (Figure 1A–C). Similar to rat brain dynein, the GST-Dyn1331kDa motor induced sliding of MTs within the bundles, when ATP was added (Figure 1F; Video 2). These results provide the first direct in vitro demonstration that cytoplasmic dynein can slide MTs within bundles. They also reveal that sliding does not require dynein associated subunits or any potential second MT binding domain in the dynein heavy chain tail domain.

Video 2
GST-Dyn1331kDa slides MTs within bundles.

Red-labeled MTs are extruded from a bundle of red- and green-labeled MTs by GST-Dyn1331kDa upon addition of ATP, indicating the dynein motor domains alone are sufficient for this activity. Total time of the video is 84 s. Playback is 5 fps.

https://doi.org/10.7554/eLife.00943.005

Cytoplasmic dynein slides two anti-parallel MTs

We next sought to develop an improved MT sliding assay in which the relative movement of two MTs could be more easily observed. To achieve this, we first bound GST-Dyn1331kDa in the absence of ATP to an immobilized ‘track’ MT on the coverslip surface, and then introduced ‘transport’ MTs, which became crosslinked to the ‘track’ MT by dynein. After addition of ATP, GST-Dyn1331kDa drove robust sliding of transport MTs along the immobilized track MTs (Figure 2A, Video 3). The transport MTs frequently moved until they reached the end of the track MT, where they swiveled around an end point on the track MT (asterisk Figure 2A). The speed of MT-MT sliding (53 ± 24 nm/s; mean ± SD; Figure 2A) was similar to the velocity observed in MT gliding assays (47 ± 11 nm/s; Figure 2A) with this dynein construct. We found that purified rat brain dynein also produced MT-MT sliding using this same assay, although the movement was slower than surface gliding (10 ± 5 nm/s vs 615 ± 200 nm/s) and characterized by more frequent pausing than MT gliding by surface-bound brain dynein (Figure 2B, Video 4). The slower motility may be a result of the much weaker processivity and directionality observed for individual mammalian dyneins in vitro compared to yeast dynein (Ross et al., 2006; Cho et al., 2008; Miura et al., 2010; Ori-McKenney et al., 2010; Trokter et al., 2012). Other proteins (such as LIS1 and Ndel1) that directly modify these properties of mammalian dynein may be needed for more robust processivity and sliding, consistent with the requirement of these proteins for dynein-dependent MT organization in vivo (Raaijmakers et al., 2013). Nonetheless, the finding that rat dynein alone is capable of crosslinking and sliding MTs in our assays, shows that this type of motility is an intrinsic ability of the motor.

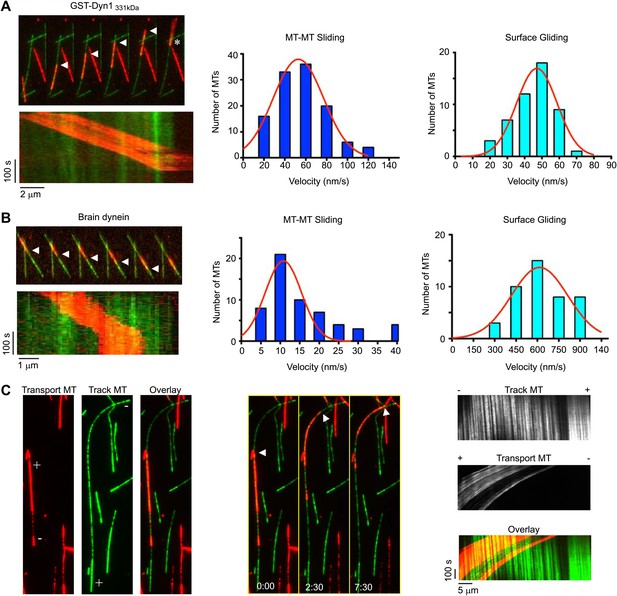

Dynein crosslinks and slides single MT overlaps.

(A) Example of single MT-MT sliding driven by GST-Dyn1331kDa. Successive frames, separated by 52 s, from the video and corresponding kymograph show the sliding. The transport MT is captured and aligned onto the track MT by GST-Dyn1331kDa. Arrowheads follow the transport MT as it slides along the track MT. Asterisk marks where the transport MT remains attached at the end of the track MT. Right, histograms of the MT-MT sliding and surface gliding velocities driven by GST-Dyn1331kDa with Gaussian fitting. (B) Example of rat brain dynein driven sliding in a single MT-MT overlap. Successive frames, separated by 46 s from the video are shown with corresponding kymograph below. The transport MT pauses before reaching the end of the track MT, which was frequently observed for rat dynein-driven movement. Velocity histograms for rat dynein driven MT-MT sliding and surface gliding are shown to the right with Gaussian fitting. (C) Polarity-marked MTs with long, brightly labeled plus-ends were used to determine the orientation of MT-MT sliding. The plus- and minus-ends of both MTs are indicated. Arrowhead shows the red transport MT slides with its minus-end away from the plus-end of the track MT, indicating that sliding is anti-parallel. Kymograph analysis of the anti-parallel sliding event is shown to the right.

https://doi.org/10.7554/eLife.00943.006
Video 3
Rat brain cytoplasmic dynein slides single MT overlaps.

A red-labeled ‘transport’ MT is slid over a green-labeled ‘track’ MT by rat brain cytoplasmic dynein. The transport MT pauses before reaching the end of the track MT. Total time of the video is 271 s. Playback is 30 fps.

https://doi.org/10.7554/eLife.00943.007
Video 4
GST-Dyn1331kDa slides single MT overlaps.

A red-labeled ‘transport’ MT is slid over a green-labeled ‘track’ MT by GST-Dyn1331kDa, indicating that the dynein motor domains alone are sufficient for this activity. The transport MT slides to the end of the track MT and swivels around a nodal attachment point. Total time of the video is 306 s. Playback is 30 fps.

https://doi.org/10.7554/eLife.00943.008

To determine the orientation of MT-MT sliding driven by dynein, we repeated the assay described above using polarity-marked MTs and GST-Dyn1331kDa. These experiments revealed that the large majority of MT sliding events involved MTs in an anti-parallel configuration (18 of 21 events, Figure 2C). To confirm this, we also analyzed MT polarity using the direction of movement of single GFP-tagged dynein motors on the track and transport MT, in cases where the transport MT moved past the end of the track MT. In 21 of 22 cases, the transport and track MTs were anti-parallel to one another. This result is consistent with a model in which dynein binds to an anti-parallel MT overlap with one motor domain on each MT in the overlap. In this configuration, both motor domains walk towards the minus-end of their respective MT, thereby driving sliding of the crosslinked pair of MTs (Figure 1D).

A natively dimerized, minimal dynein crosslinks, and slides MTs

The above results demonstrate that GST-dimerized yeast dynein, and the native rat dynein complex, both can crosslink and slide MTs. However, in the case of the minimal, GST-dimerized dynein (Cho and Vale, 2012), it is possible that the artificial, anti-parallel dimerization may allow the two motor domains to crosslink MTs in a manner that would not occur in native dynein dimer. Additionally, the native dynein dimer may utilize a different mechanism, in which it crossbridges MTs through an additional MT binding site, either in the tail of the heavy chain or in one of the dynein accessory subunits. To rigorously examine these possibilities, we tested a truncated dynein molecule that includes its native dimerization domain, but lacks any of its associated subunits. GST-Dyn1331kDa, is monomeric in the absence of GST (Reck-Peterson et al., 2006), so we reasoned that a larger portion of the tail domain was necessary for dynein heavy chain dimerization. Prior unpublished observations from our lab indicated that a dynein with a slightly longer N-terminus (Dyn1387kD, Figure 3A) was processive when fused to GFP (S Reck-Peterson and A Carter, unpublished observations), and processivity is an attribute of a dynein dimer (Reck-Peterson et al., 2006). We overexpressed Dyn1387kD from a Gal promoter, and the purified protein revealed no co-purifying accessory subunits by silver staining after SDS-PAGE (Figure 3B). In sucrose gradients, purified Dyn1387kD sedimented at approximately 19S (Figure 3C), which is similar in size to the full dynein complex (Paschal et al., 1987), as well as a truncated dimeric dynein (Trokter et al., 2012). Consistent with it being a dimer, single molecule assays revealed robust processive motion of Dyn1387kD along microtubules with an average speed of 75 ± 40 nm/s (n = 95) (Figure 3D). Analysis of moving Dyn1387kD molecules revealed a very similar single molecule intensity distribution to the entire Dyn1387kD population (Figure 3E), indicating that the moving particles were not a minor subset of aggregated or oligomerized molecules. Further excluding the presence of multimers, the fluorescence intensities of single gel-filtered Dyn1387kD molecules were comparable or even lower in brightness to GST-Dyn1331kD (Figure 3F). The reason for the lower brightness of GFP in Dyn1387kD is not clear, although it might be due to fluorescence quenching of nearby fluorphores. Regardless, this result argues that the molecules are not aggregated, and movement is due to dimers and not higher order molecular entities.

Figure 3 with 1 supplement see all

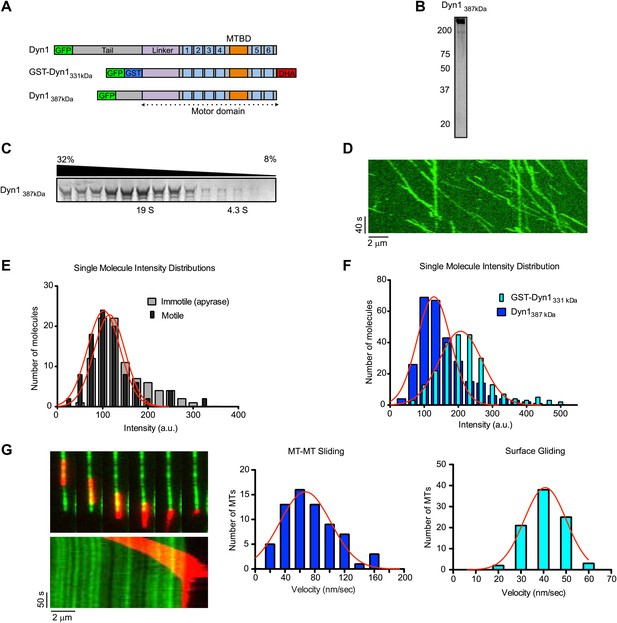

Natively dimerized dynein can drive MT-MT sliding in the absence of associated factors.

(A) Schematic overview of the Dyn1387kD construct compared to Dyn1 and GST-Dyn331kDa, with labels as in Figure 1A. (B) Gel-filtered Dyn1387kD was run on a denaturing gel and proteins were visualized by silver staining. Note the lack of detectable bands at the lower molecular weights expected for dynein accessory subunits. (C) Coomassie blue stained gel of sucrose gradient fractions showing sedimentation behavior of Dyn1387kD. Position of 19S and 4.3S standards and sucrose concentrations are indicated. (D) Kymograph of single Dyn1387kD molecule motility along a MT immobilized on the glass surface. (E) Cy5-labeled MTs were surface-immobilized in flow chambers. Dyn1387kD was added either in the presence of ATP or apyrase. Fluorescence intensities of single motors was determined either of all MT-bound molecules in the presence of apyrase (light gray bars), or of the motile motors in the presence of ATP (dark gray bars). (F) Flow chambers were prepared as in (E), but MTs were incubated with either Dyn1387kD or GST-Dyn1331kD for 5 min in the presence of apyrase. Intensities of GFP spots were quantified after background subtraction. (G) Example of Dyn1387kD driven sliding in a single MT-MT overlap. Successive frames, separated by 34 s from the video are shown with corresponding kymograph below. Velocity histograms for MT-MT sliding and surface gliding are shown to the right with Gaussian fitting.

https://doi.org/10.7554/eLife.00943.009

Dyn1387kD bundled MTs in the absence of ATP (Figure 3—figure supplement 1A), demonstrating that it can crosslink MTs, similar to GST-Dyn1331kD. Addition of ATP to MT bundles resulted in MT sliding of MTs in the bundle (Figure 3—figure supplement 1B; Video 5). Similarly, Dyn1387kD drove efficient MT-MT sliding in single MT overlaps, at comparable speeds to its surface gliding motility (Figure 3G; Video 6). Thus, Dyn1387kD behaves very similarly to GST-Dyn1331kD. Further, the fluorescent dynein molecules appeared homogenous during the sliding event (Video 7), ruling out the presence of aggregates within the sliding overlaps.

Video 5
Dyn1387kDa slides MTs within bundles.

Red-labeled MTs are extruded from a bundle of red- and green-labeled MTs by Dyn1387kDa upon addition of ATP. Total time of the video is 250 s. Playback is 12 fps.

https://doi.org/10.7554/eLife.00943.011
Video 6
Dyn1387kDa slides single MT overlaps.

A red-labeled ‘transport’ MT is slid over a green-labeled ‘track’ MT by Dyn1387kDa. Total time of the video is 198 s. Playback is 12 fps.

https://doi.org/10.7554/eLife.00943.012
Video 7
Observation of single Dyn1387kDa molecules in sliding MT-MT overlaps.

Single GFP-labeled Dyn1387kDa molecules visualized during a MT-MT sliding event show homogenous fluorescence, further ruling out protein aggregation as a cause of the sliding behavior. Track MT is blue, transport MT is red. Total time of the video is 120 s. Playback is 6 fps.

https://doi.org/10.7554/eLife.00943.013

Finally, we wished to determine if Dyn1387kD might cause MT-MT sliding by employing a second type of MT binding site outside of the canonical MT binding domain (MTBD) in its motor domain (Figure 3A) (Carter et al., 2008; Redwine et al., 2012). To test this possibility, we deleted the canonical MTBD and expressed the protein (Dyn1387kD ΔMTBD). Dyn1387kD ΔMTBD showed no specific association with MTs in a cosedimentation assay (Figure 3—figure supplement 1C,D) and was unable to crosslink MTs (Figure 3—figure supplement 1E). Thus, Dyn1387kD ΔMTBD does not possess a MT binding region outside of the motor domain. Together, these results show that a natively dimerized dynein can crosslink and slide MTs in vitro, and that associated chains or an additional MT binding site is not required for this activity. These results strongly support a model in which dynein slides MTs in vitro using only its two motor domains (Figure 1D).

Dimeric dynein molecules can bind two MTs simultaneously

The previous experiments suggest that a dimer of two motor domains can bind two different MTs simultaneously and generate anti-parallel sliding. This model would predict that individual dimeric dynein motors would be approximately stationary in a MT overlap zone, as each motor domain generates opposing pulling forces on the two MTs. To test this model, we imaged individual, fluorescently-labeled dynein molecules within an anti-parallel MT overlap. To generate stable anti-parallel overlaps, we crosslinked MTs with GFP-Ase1 (Janson et al., 2007), a protein that crosslinks MTs into anti-parallel bundles with an inter-MT spacing of around 15–40 nm (Gaillard et al., 2008; Roque et al., 2010; Subramanian et al., 2010). This inter-MT distance is within the size range expected for MT crosslinking by a dimeric dynein motor (Vallee et al., 1988; Burgess et al., 2003). We found that GFP-Ase1 specifically localized to regions of MT overlap (data not shown), as previously described (Loïodice et al., 2005; Yamashita et al., 2005; Janson et al., 2007). Quantitative imaging of MT fluorescence revealed that 2–3 MTs were typically present in each bundle.

As expected from prior work (Reck-Peterson et al., 2006), individual TMR-labeled GST-Dyn1331kDa moved unidirectionally and highly processively on single MTs. However, GST-Dyn1331kDa appeared largely immobile in MT overlaps (Figure 4A). Interestingly, when individual molecules moving processively along a single MT reached the MT overlap zone, they would appear to stop moving (Figure 4B). However, when individual molecules were tracked with ∼10 nm precision, it was apparent that individual dynein molecules were not completely immobile in MT overlap zones, but rather frequently moved bidirectionally with long pauses between each run (Figure 4C). While yeast dynein occasionally takes backwards steps (Reck-Peterson et al., 2006), such long distance directional switching and frequent prolonged pausing were never observed when dynein moved along single MTs (Figure 4C).

Figure 4 with 1 supplement see all

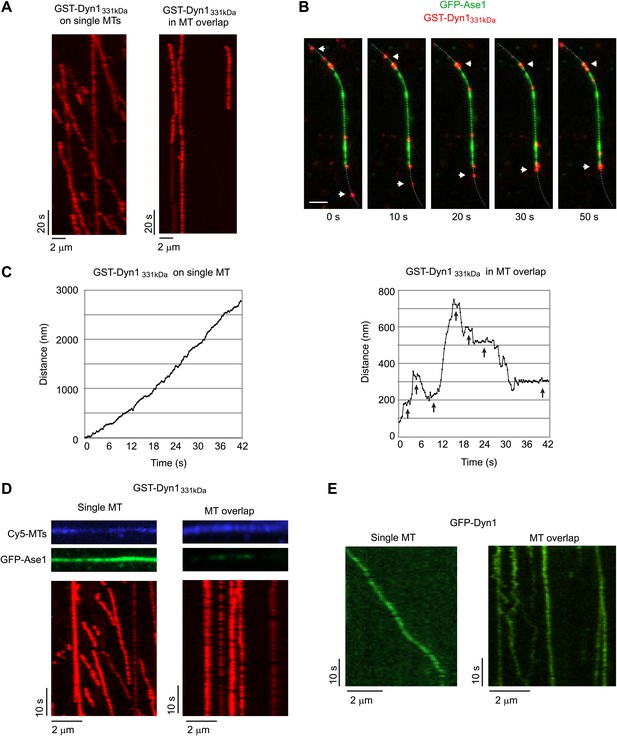

Dynein can bind two MTs simultaneously.

(AE) Biotinylated Cy5-MTs were incubated with 2 nM GFP-Ase1 or with buffer for 5 min. MTs were then bound to glass slides using surface-bound streptavidin. After washing unbound MTs, TMR-labeled GST-Dyn1331kDa (AD) or GFP-tagged Dyn1 (E) was introduced into the flow cell. (A) Kymographs of TMR-GST-Dyn1331kDa on single MTs (left panel) and on anti-parallel MT overlaps (right panel). (B) Images from a time series in which individual TMR-GST-Dyn1331kDa molecules can be observed walking into an overlap (visualized by GFP-Ase1) and halting their unidirectional movement. Dotted line indicates the MT. Arrowheads indicate motors that walk from a single MT into an MT overlap. Scale bar is 2 μm. (C) High resolution tracking of individual motors on either single MTs (left) or in an anti-parallel MT overlap (right). Arrows indicate long pauses in motility. Tracking precision was ∼10 nm. (D) Slides were prepared as in (A), but 100 nM of GFP-Ase1 was added to single MTs together with TMR-labeled GST-Dyn1331kDa. GST-Dyn1331kDa shows unidirectional processive movement on Ase1-coated single MTs, but not in Ase1-generated MT overlaps. (E) Slides were prepared as in (A), but full-length yeast Dyn1 was used. Kymographs show dynein moving on a single MT (left) or in a MT overlap created by Ase1 (right).

https://doi.org/10.7554/eLife.00943.014

To rule out that the unusual motility of dynein in MT overlaps was due to the presence of GFP-Ase1 on MTs, we loaded single, surface-immobilized MTs with 10- to 20-fold higher concentrations of GFP-Ase1 than was present in MT overlaps. Despite the high concentration of GFP-Ase1, single dynein molecules moved unidirectionally and processively (Figure 4D). Thus, we conclude that bidirectional switching and pausing are due to the presence of a MT overlap, not to the presence of GFP-Ase1 on MTs. To exclude the possibility that the artificial GST-dimerization of the dynein motor domains was affecting dynein motility within the MT overlaps, we repeated these experiments using GFP-tagged full-length yeast dynein (Dyn1) (Gennerich et al., 2007) and Dyn1387kD. Dyn1 showed processive, unidirectional motility along single MTs (Figure 4E), but transitioned to frequent bidirectional switching and pausing within MT overlaps (Figure 4E). Similar results were found for Dyn1387kD (Figure 4—figure supplement 1).

Taken together, these results strongly suggest that the dynein motor domains have sufficient flexibility to allow two distinct modes of stepping. The two motor domains of the dimer can bind to the same MT track, most likely in a compact, side-by-side configuration of the two AAA ring domains (Cho and Vale, 2012), and exhibit persistent unidirectional motion. Alternatively, they can bind to neighboring MTs within a MT overlap and produce a force that acts to slide the two MTs relative to each other (Figure 1D).

A minimal dynein dimer induces spindle collapse in vivo

We next set out to test whether dynein can slide anti-parallel MTs in vivo using only its motor domains. In human cells, kinesin-5, and kinesin-12 motors promote spindle bipolarity by generating an outward force within the spindle (Blangy et al., 1995; Tanenbaum et al., 2009; Vanneste et al., 2009). In the absence of both kinesins, a dynein-dependent inward force causes the rapid collapse of the metaphase spindle to a monopolar structure (Tanenbaum et al., 2008, 2009; Ferenz et al., 2009; Vanneste et al., 2009). While it is still unknown how dynein produces this inward force, it has been speculated to do so by sliding apart anti-parallel MTs (Tanenbaum et al., 2008; Ferenz et al., 2009). If this is true, then a minimal dynein dimer that elicits anti-parallel MT sliding in vitro might be able to antagonize the outward forces of kinesin-5 and kinesin-12 motors.

To test this hypothesis, we generated a GST-dimerized, GFP-tagged human dynein construct lacking the tail domain (GST-hDyn), similar to yeast GST-Dyn1331kDa construct. GST-hDyn lacks the consensus binding sites for other dynein subunits (Vallee et al., 2012), which we confirmed by immunoprecipitation (Figure 5—figure supplement 1A). When expressed in HEK293 cells, GST-hDyn partially localized to the spindle (Figure 5—figure supplement 1B), indicating that it is a functional MT-binding protein.

To test whether GST-hDyn is able to generate an inward force within the spindle, we designed two types of assays. In the first assay, we evaluated dynein’s ability to drive monopolar spindle formation when kinesin-5 is inhibited before the onset of mitosis. Kinesin-5 inhibition results in the formation of monopolar spindles (Blangy et al., 1995; Mayer et al., 1999), but this effect is prevented and bipolar spindle formation is restored when dynein is depleted by RNAi (Tanenbaum et al., 2008; Ferenz et al., 2009). This result has been interpreted as kinesin-5 and dynein producing counteracting sliding forces during spindle formation; when kinesin-5 is inhibited, dynein-induced sliding forces produce an unbalanced inward force that results in the formation of monopolar spindes. We tested whether GST-hDyn could produce this inward sliding force when expressed in cells depleted of dynein heavy chain by RNAi. We monitored dynein RNAi by blotting for the intermediate chain (IC), which is co-depleted with the heavy chain upon knockdown and found that dynein was robustly depleted from cells upon RNAi (Figure 5A). Strikingly, GST-hDyn expression substantially increased the number of monopolar spindles in dynein-depleted, kinesin-5 inhibited cells (Figure 5B). These results reveal that GST-hDyn can recapitulate the inward force, normally produced by the endogenous dynein, providing further support that the motor domains alone are sufficient for this function.

Figure 5 with 1 supplement see all

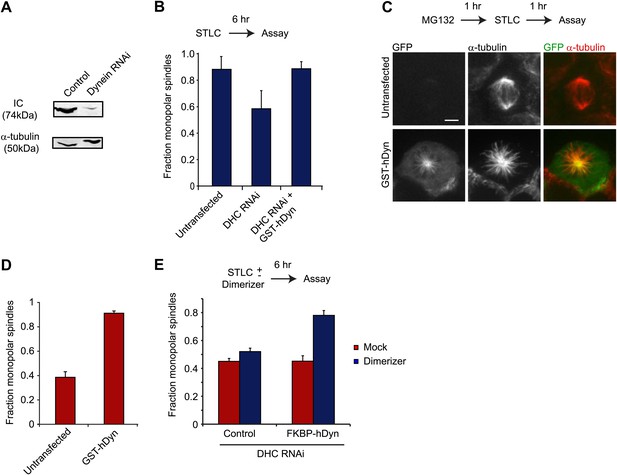

Dynein’s motor domains are sufficient to produce an inward force in the spindle.

(A) HEK293 cells were either mock transfected or transfected with siRNA targeting the dynein heavy chain. After 24 hr cells were re-transfected with siRNA. 72 hr after initial transfection, cells were harvested and the level of dynein expression was determined by western blot. Note that the blot was probed for IC, which is co-depleted when dynein heavy chain is depleted. (B) Cells were either mock transfected or transfected with siRNA targeting the N-terminus of dynein. After 24 hr, cells were washed and transfected with GFP-tagged GST-hDyn. 48 hr after the first transfection, cells were re-transfected with dynein siRNA. 68 hr after the first transfection, cells were treated with 1 µM STLC for 6 hr and were then fixed and stained for α-tubulin. The fraction of mitotic cells with monopolar spindles was then scored. (C and D) Cells were transfected with GFP-tagged GST-hDyn. After 24 hr, cells were treated with MG132 for 1 hr and subsequently with 20 µM STLC for 1 hr where indicated. Cells were then fixed and stained for α-tubulin and the percentage of mitotic cells with monopolar spindles was scored. (C) shows representative images and (D) shows the quantification. (E) Cells were treated as in (C), except GFP-tagged FKBP-hDyn was transfected instead of GST-hDyn. In addition, 200 nM AP20187 was added together with STLC where indicated. Scale bars, 5 µm. Error bars represent standard deviations. All graphs are averages of three independent experiments with 40–120 cells scored per experiment.

https://doi.org/10.7554/eLife.00943.016

In a second assay, we tested dynein-driven MT sliding forces in metaphase-arrested spindle (cells treated with the proteosome inhibitor MG132). During metaphase, two kinesins (kinesin-5 and kinesin-12) provide an outward force on the spindle, which is counterbalanced by an inward force produced by dynein (Tanenbaum et al., 2009; Vanneste et al., 2009). Thus, unlike in early stages of mitosis, when a kinesin-5 inhibitor is applied at metaphase, it only results in a collapse of the spindle to a monopolar structure in a low percentage of the cells (38 ± 5%) since kinesin-12 can still effectively oppose dynein (Figure 5C,D). However, in metaphase-arrested cells expressing GST-hDyn, kinesin-5 inhibition resulted in a much greater percentage (88 ± 2%) of cells with monopolar spindles (Figure 5C,D). While treatment of cells with MG132 might alter the abundance of other MT binding proteins as well in this assay (Song and Rape, 2010), this result suggests that the expression of GST-hDyn increased the total inward force, tipping the balance of forces and resulting in spindle collapse. Furthermore, overexpression of GST-hDyn, did not result in spindle collapse in the presence of both kinesin-5 and kinesin-12 activity (Figure 5—figure supplement 1C).

Our two assays together suggest that GST-hDyn is sufficient to generate an inward force, which is most likely the product of anti-parallel MT sliding. To determine if dimerization of the motor domains is required for the inward force generation by dynein in vivo, we fused dynein to FKBP (FKBP-hDyn), which homodimerizes upon addition of the small molecule dimerizer AP20187 (inducing processivity of yeast dynein [Reck-Peterson et al., 2006]), and then performed RNAi rescue experiments. Control cells treated with STLC to inhibit kinesin-5 mostly formed monopolar spindles (87.7 ± 4.5%). As described earlier, depletion of endogenous dynein by RNAi in the presence of STLC decreased the number of monopolar spindles to 46.5 ± 1.5%, consistent with a role for dynein in antagonizing kinesin-5 in bipolar spindle assembly (Figure 5E). As a control, the dimerizer AP20187 did not significantly affect spindle bipolarity (50.7 ± 1.8% monopolar spindles, p=0.16) in STLC-treated, dynein-depleted cells in the absence of FKBP-hDyn (Figure 5E). Next, cells expressing FKBP-hDyn were depleted of endogenous dynein by RNAi and treated with STLC. Expression of FKBP-hDyn in the absence of AP20187 did not alter the fraction of monopolar spindles (47.8 ± 2.7%; mean ± SD), indicating that the monomeric version of dynein was unable to reconstitute the function of native dynein. However, addition of AP20187 to cells expressing FKBP-hDyn substantially increased in the fraction of cells with monopolar spindles (Figure 5E, 75.5 ± 2.5%). This result demonstrates that dimerization of two dynein motor domains robustly activates the ability of dynein to generate an inward force in the spindle. Together, our results suggest that a minimal, dimeric motor can slide anti-parallel MTs to generate an inward force during spindle assembly.

In addition to its role in generating an inward force in the spindle, dynein also is important for focusing MT minus ends at the spindle pole (Walczak and Heald, 2008). To test whether the GST-hDyn was able to support spindle pole focusing, we compared spindle pole focusing in control cells, cells depleted of dynein, and cells depleted of dynein that express GST-hDyn. Depletion of dynein increased the percentage of spindles with unfocused poles and detached centrosomes; however, this pole focusing defect was not rescued by GST-hDyn (Figure 5—figure supplement 1D). These results show that a minimal dynein is able to generate an inward force in the spindle, which likely involves anti-parallel MT sliding, but is unable to fulfill other mitotic functions of dynein.

Discussion

The mechanism of dynein-mediated MT sliding

In this study, we show that cytoplasmic dynein can slide anti-parallel MTs in vitro and provide evidence that this mechanism can occur in vivo. Several kinesin motors have the ability to crosslink and slide MTs in vitro. However, these motors either form a tetrameric complex (Kashina et al., 1996; Kapitein et al., 2008), or contain a second MT binding domain within their tail domain, which facilitates MT crosslinking (Jolly et al., 2010) (Figure 6). In contrast, our results show that MT crosslinking and sliding by dynein dimers does not require its tail domain, accessory subunits, regulatory proteins, or further oligomerization. Rather, our results indicate that the two motor domains of a dynein dimer can bind to separate MTs and each motor domain can walk independently on the MT to which it is bound. To accomplish this, the two motor domains likely splay apart, allowing the dimer to bind to the two MTs simultaneously (Figure 6).

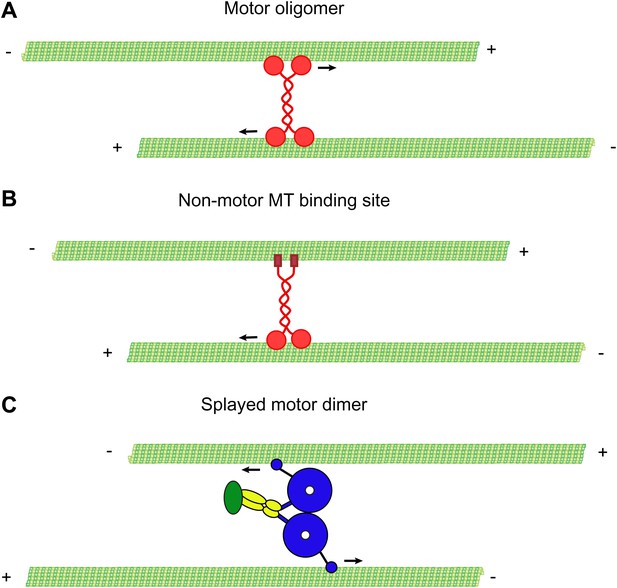

Mechanisms of MT-MT sliding.

(A) Kinesin-5 forms tetrameric molecules, allowing them to crosslink and slide MTs using motor domains at opposite ends of the tetramer. (B) Kinesin-1 and kinesin-14 utilize a secondary, non-motor, MT binding site located in their tail domains to crosslink and slide MTs. (C) Our data suggest that cytoplasmic dynein utilizes a novel mechanism for crosslinking and sliding MTs. The motor domains of a single dynein dimer splay apart and bind to separate MTs. The motor domains then move on opposite MTs, causing sliding of anti-parallel MTs.

https://doi.org/10.7554/eLife.00943.018

Our single molecule results also reveal that the two dynein motor domains can switch abruptly from walking along the same MT to walking on separate MTs when the motor encounters a MT-MT overlap. Inside the overlap, dynein often pauses and switches directions, suggesting the motor spends a fraction of time stepping with both motor domains on a single MT in the overlap, and some fraction with each motor domain bound simultaneously to opposite MTs. This behavior was observed for both GST-dimerized dynein, as well as two natively dimerized dyneins (Dyn1 and Dyn1387kD), indicating that it was not an effect of artificial dimerization. These results suggest that the two motor domains have considerable flexibility, allowing them to explore space on a rapid time scale, making frequent transitions between one and two MT bound states.

The ability of native or artificially dimerized dynein to walk on the same or different MTs suggests that the dynein motor domains work in a more autonomous fashion than kinesin-1. Consistent with this notion, recent data suggests that dynein’s two motor domains step in a relatively stochastic and independent fashion (DeWitt et al., 2012; Qiu et al., 2012). Furthermore, a dynein dimer made of one active and one inactive motor domain, still moves processively on a single MT (DeWitt et al., 2012), suggesting that a single active head can step forward, provided that it remains tethered to the MT track. The relatively uncoupled motion of dynein’s two motor domains likely allows for them to step independently on oppositely oriented MTs in an overlap and promote MT-MT sliding.

MT sliding in vivo

Dynein has a key role in minus-end-directed cargo transport along MTs in mammalian cells. In addition, a large body of evidence suggests that dynein controls MT organization during mitosis by sliding MTs within the spindle (Verde et al., 1991; Rusan et al., 2002; Tanenbaum et al., 2008; Ferenz et al., 2009; Gatlin et al., 2009). In these earlier studies, this MT sliding in vivo was speculated to occur between anti-parallel MTs, generating an inward force that opposes the outward forces of kinesin-5 and kinesin-12 acting upon these overlapping MTs. This model agrees well with our in vitro data showing that dynein virtually always slides MTs in an anti-parallel configuration. Our in vivo experiments also demonstrate that a minimal dimer is able to generate an inward force in the spindle that can reconstitute the function of the endogenous motor. This activity was observed using two different dimerization methods, indicating that the MT-MT sliding ability is independent of the method of dimerization. As we cannot directly observe MT-MT sliding in the spindle, we cannot exclude that the minimal dynein collapses the spindle through an alternative mechanism, for example through interaction with additional proteins. However, our in vivo analysis is consistent with the notion that dynein slides MTs in the spindle using only its motor domains, which is further supported by the in vitro experiments. These results suggest that sliding of MTs in the spindle reflects an inherent activity of the dynein motor domains alone, consistent with a model in which the two motor domains of dynein walk on two distinct MTs in the spindle, driving their relative movement. However, the situation with native dynein may be more complicated, since other dynein subunits, as well as additional dynein-associated proteins, such as Lis1 and Nde1 contribute to inward force generation in vivo (Tanenbaum et al., 2008; Raaijmakers et al., 2013). These factors could change the fundamental sliding mechanism of native dynein in vivo, so that the two motor domains do not crossbridge two overlapping microtubules, as described in our model. However, we feel that this is unlikely and rather these factors preserve the fundamental mechanism described (Figure 6), but may be necessary for promoting dynein stability, efficient targeting to the spindle, and/or modify dynein’s force production (McKenney et al., 2010; Trokter et al., 2012).

In addition to the sliding mechanism described in this study, dynein may act through multiple parallel mechanisms to control proper MT organization in the spindle. For example, Wühr and Mitchison (Wühr et al., 2010) provide evidence that dynein anchored at cytoplasmic sites may also contribute to MT sliding in the spindle in large embryonic cells. Additionally, we show that spindle pole focusing cannot be restored by expression of the minimal dynein dimer. While generation of an inward force likely involves sliding of anti-parallel MTs in the middle of the spindle, pole focusing occurs in a region where most microtubules are expected to have a parallel orientation, perhaps explaining why the minimal dynein is unable to support pole-focusing activity. It is currently unclear how dynein controls pole focusing; however interactions of dynein with NuMA may be important for this activity (Merdes et al., 1996, 2000), Kinesin-14 motors play an important role in pole focusing through MT crossbridging and MT sliding as well (Figure 6) (Mountain et al., 1999; Braun et al., 2009; Fink et al., 2009).

MT sliding has also been observed in other cellular systems. While kinesin-1 is best characterized for such activities (Navone et al., 1992; Straube et al., 2006; Jolly et al., 2010), dynein may contribute as well. Anterograde transport of MTs was observed in nerve axons and shown to be dependent upon dynein activity (He et al., 2005), although the mechanism by which dynein moved MTs in the axon was unclear. Similarly, loss of dynein in Drosophila neurons results in a loss of uniform MT polarity within axons, suggesting that dynein actively sorts MTs based on their polarity (Zheng et al., 2008). The mechanism of MT-MT sliding described here provides a model for how dynein may achieve such MT sorting in neuronal cells. Thus, dynein driven MT-MT sliding could be a more generally used mechanism to organize and sort MTs in the cell.

Materials and methods

Protein preparation

Rat brain cytoplasmic dynein was purified as described (Paschal et al., 1991). The peak dynein-containing fractions from the final sucrose gradient were collected, pooled and frozen in LiN2. This preparation of dynein contains no detectable dynactin (Figure 1A) (Ori-McKenney et al., 2010). Recombinant yeast dynein constructs were purified and labeled with the Halo-TMR ligand as described (Reck-Peterson et al., 2006). Dyn1387kD was created by inserting the Gal promoter and ZZ-TEV-HA-GFP cassette (Reck-Peterson et al., 2006) into the yeast dynein heavy chain sequence immediately prior to the sequence 732SYTFYTN. The construct encodes amino acids 732–4092 of the dynein heavy chain. Yeast dynein was gel filtered using a Superose 6 column in gel filtration buffer (50 mM Tris-HCl, pH 8.0, 150 mM K-acetate, 2 mM Mg-acetate, 1 mM EGTA, 10% glycerol, 0.1 mM ATP), except for the full-length dynein which was too low of a concentration and was thus used directly after TEV release.

Flow chamber preparation

Glass coverslips were acid washed as described (http://labs.bio.unc.edu/Salmon/protocolscoverslippreps.html). A ∼10 µl flow chamber was assembled using double-sided sticky tape and a glass slide. The chamber was coated sequentially with the following solutions: 5 mg/ml BSA-biotin (Sigma, St. Louis, MO), 60 µl BC buffer (BRB80, 1 mg/ml BSA, 1 mg/ml casein, 0.5% Pluronic F-168, pH 6.8), 20 µl 0.5 mg/ml streptavidin (Vector Labs, Burlingame, CA), and 60 µl BC buffer to remove excess streptavidin. The chamber was finally washed into assay buffer (30 mM Hepes pH 7.4, 50 mM K-acetate, 2 mM Mg-acetate, 1 mM EGTA, 10% glycerol) containing an oxygen scavenging system (0.5 mg/ml glucose oxidase, 0.1 mg/ml catalase, 25 mM glucose, 70 mM β-mercaptoethanol), 0.2 mg/ml κ-casein, and 0.1% Pluronic F-168.

MT bundling

Pig brain tubulin was purified and labeled as described (Castoldi and Popov, 2003). MTs were assembled using GMP-CPP, centrifuged at 16,000×g and resuspended in BRB80 buffer containing 10 µM taxol. MTs were labeled with ∼10% fluorescent tubulin and ∼10% biotin tubulin where applicable. For bundling experiments, equal volumes of red- or green-labeled MTs were mixed together and then incubated with dynein constructs for 10 min at room temperature. The solution was then perfused into a streptavidin-coated chamber and incubated for 10 min to allow binding to the coverslip surface. The chamber was then washed with BC buffer to remove unbound MTs and imaged using TIRF microscopy. For sliding experiments, assay buffer with 1 mM ATP was added to the chamber and videos were acquired to capture the MT sliding.

MT sliding

For MT sliding on single overlaps, chambers were first coated with BSA-biotin and streptavidin. Biotinylated track MTs were bound to the surface and the chamber was washed extensively to remove unbound MTs. Dynein was then introduced and allowed to bind to the track MTs for 5 min at room temperature. Rat brain dynein at ∼100 nM or GST-Dyn1331kDaa at ∼200 nM was used. Unbound dynein was removed by washing with BC buffer, followed by introduction of transport MTs diluted in BC buffer. After a 10 min incubation, unbound track MTs were washed out with BC buffer and the chamber was equilibrated in assay buffer containing 2 mM ATP and an oxygen scavenger system. Sliding was imaged in TIRF mode. Data was acquired and subsequently analyzed by making kymographs of the sliding events using µManager. Polarity-marked MTs were made essentially as described previously (Goodwin and Vale, 2010), but the GMP-CPP seeds were first capped at their minus ends by incubation with 0.3 µM NEM-treated tubulin. Sliding between MTs was observed in the same buffer with a final concentration of 100 mM K-acetate. At 200 mM K-acetate, no annealing between transport and track MTs was observed.

High-resolution tracking of single molecules

To track single molecules of dynein with high resolution, the Localization Microscopy plugin of µManager (developed by Nico Stuurman) was used (http://valelab.ucsf.edu/∼MM/MMwiki/index.php/ Localization_Microscopy).

Expression of hDyn in HEK293 cells

To express a minimal human dynein constructs in mammalian cells, the pTON vector (a modified version of pcDNA4TO with N-terminal GFP (Tanenbaum et al., 2011) was modified to include either N-terminal GFP-Halo-HA-GST tags (GST-hDyn) or GFP-FKBP (F36V) tags (FKBP-hDyn). The C-terminal ∼380 kDa motor domain of human dynein (nucleotides 3850-13,938 of clone KIAA1997) was then inserted downstream of either the GST or the FKBP. This boundary was chosen to be similar to the previously published motor domain constructs of rat (Höök et al., 2005), Dictyostelium, and yeast dyneins (Reck-Peterson et al., 2006). HEK293 cells were transfected with either GST-hDyn or FKBP-hDyn and cells were analyzed ∼24 hr after transfection. Expression of FKBP-hDyn at very high expression levels disrupted chromosome alignment and resulted in defects in spindle morphology, independently of AP20187 addition. Very high expressing cells also had an increased tendency to form monopolar spindles. Therefore, for all experiments we focused our analysis on the ∼70% of cells within the population with low to moderate expression levels of FKBP-hDyn.

Sucrose gradient

Step gradients were made by carefully layering 250 μl each of 8, 16, 24, or 32% sucrose in Pipes-Hepes buffer (50 mM Pipes, 50 mM Hepes, 2 mM MgSO4, 1 mM EDTA, pH 7.0) in a TLS-55 tube. A 250 μl solution of either TEV released GFP-Dyn1387kD, or gradient standards, was layered on top. The gradients were centrifuged in a TLS-55 rotor at 55K rpm (200,000×g) for 3 hr at 4°C. Standards used were thyroglobulin (19S; Sigma) or BSA (4.3S; Sigma). Gradients were fractionated by carefully pipetting 100 μl from the top.

Quantification of single molecule GFP intensities

Cy5-and biotin-labeled MTs were surface-immobilized using biotin-BSA and streptavidin. GFP-tagged motors were incubated with or without ATP or apyrase in the flow chamber for 5 min, after which images were taken using identical microscopy settings. The density of motors was kept at around 2–4 motors per MT to ensure spots represented a single motor. GFP fluorescence was measured in ImageJ and background signal was subtracted.

Cell culture, transfection, and drug treatments

HEK293 cells were cultured in DMEM supplemented with 10% FCS and antibiotics. siRNA transfections were performed with Hiperfect (Qiagen, Valencia, CA) according to manufacturer’s guidelines. DNA was transfected using polyethyleneimine (PEI). MG132 (Sigma) was dissolved in DMSO and was used at 5 µM final concentration. STLC (Sigma) was dissolved in DMSO and was used at indicated concentrations. AP20187 (Clontech, Mountain View, CA) was dissolved in ethanol and used at a final concentration of 200 nM.

Immunofluorescence

Cells were grown in glass bottom 96-well plates. At the time of fixation, culture medium was removed and cells were fixed in PBS with 3.7% formaldehyde and 1% Triton X-100 for 5 min. Cells were then washed with PBS and post-fixed with cold methanol for 5 min. Fixed cells were incubated with anti-α-tubulin antibody (1:5000; Sigma) overnight. Secondary antibody was goat-anti-mouse-AlexaFluor555 (1:1000; Invitrogen, Grand Island, NY), which was incubated for 1 hr. Cells were imaged on a Zeiss spinning disc confocal with a 100 × 1.45 NA objective and a Hamamatsu EM-CCD camera. The microscope was controlled by µManager software (Edelstein et al., 2010).

References

  1. 1
  2. 2
    Brain dynein crossbridges microtubules into bundles
    1. LA Amos
    (1989)
    J Cell Sci 93:19–28.
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76

Decision letter

  1. Tony Hyman
    Reviewing Editor; Max Planck Institute of Molecular Cell Biology and Genetics, Germany

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

[Editors’ note: a previous version of this study was rejected after peer review after concerns that the experiments needed for publication that would represent a substantial amount of work. After completing appropriate revisions, the authors asked for reconsideration. Both decision letters are shown below.]

Thank you for choosing to send your work entitled “Cytoplasmic Dynein Crosslinks and Slides Anti-parallel Microtubules Using Its Two Motor Domains” for consideration at eLife. Your article has now been peer reviewed and we regret to inform you that your work will not be considered further for publication. Your submission has been evaluated by 2 reviewers and a member of our Board of Reviewing Editors, and the decision has been discussed further with one of eLife's Senior editors.

The Reviewing editor and the outside reviewers discussed their comments before we reached this decision, and the Reviewing editor has assembled the following comments based on the reviewers' reports.

The paper has been seen by three referees. Over all they find the idea that a minimal, GST-dimerized human dynein motor lacking the tail domain and the ability to bind to its adaptor proteins is capable of producing an inward force in the spindle that can substitute for endogenous dynein. These findings are novel. They indeed raise the possibility that dynein-driven MT-MT sliding may be propelled by the two dynein motor domains binding to and walking along two individual MTs.

However, the referees agree that there is one major potential problem in interpreting your data, which comes from artificial dimerization by GST or native rat brain dynein including the three accessory chains and potentially other accessory proteins. The sliding mechanism that the authors present might be an artifact of the artificial dimerization (for example allowing for additional flexibility between the two motor domains), while the native motor could slide the MTs by a different mechanism, for example using a second MT binding site. To show that native dynein slides MTs using the proposed mechanism, the authors could use 'minimal-dimeric-motor' recombinant yeast heavy chains dimerized natively.

We are rejecting the paper because experiments that would be a substantial amount of work should result in a rejection at eLife. However, if you feel that you can perform the experiment with the minimal dimeric motor, then we would encourage you to submit your interesting paper again to eLife.

A second problem identified by the reviewers concerned whether GST-dynein rescues spindle assembly upon DHC knock-down. This is never shown; rather you show the sensitivity to kinesin-5 inhibition. No data are shown in the absence of the drug, and it is not discussed whether the rescued spindles are positioned correctly and functional to segregate chromosomes, with poles focused, chromosomes aligned, etc. While we would not insist that these data are included, you should more fully discuss the other major functions of dynein in the spindle, and whether they might be accomplished by an anti-parallel sliding mechanism. For example, can this mechanism generate a spindle pole. Again a schematic would help, and ideally some data showing whether or not GST-dynein can generate asters or mediate pole focusing.

Minor comments:

- Binding of dynein to MTs without ATP in solution might impair further functionality of the motors. The authors could address this by performing a single molecule no-ATP to ATP switching experiment on single MTs and quantify the percentage of processively moving dynein molecules.

- The native dynein slides MTs very slowly and with pauses. Are the pauses accounted for in the average velocity in the histogram in Figure 2A, B? What is the explanation of the slow sliding speed compared to the fast speed of the surface gliding?

- The fact that the GST-hDyn slides MTs in vivo doesn't clarify the mechanism of the native dynein sliding.

- Using polarity-marked MTs an anti-parallel MT orientation was inferred for 18 out of 21 events. Were the other 3 events parallel sliding? How good was the polarity marking? Please quantify.

- What influence did the ionic strength of the assay buffer have on the results?

- The role of kinesin-14 as minus-end directed, MT-MT sliding motor in spindle assembly and integrity should be discussed.

- In the Introduction, it is stated that there is no evidence that dynein could directly cross link and slide MTs relative to one another. This may be true for pure motor domains in vitro, but movements of MT seeds on the spindle in Xenopus egg extracts, and spindle pole focusing, have been shown to require dynein. Similarly, “These results provide the first direct demonstration that cytoplasmic dynein can slide MTs within bundles” seems to be a bit of an overstatement.

- One issue that speaks to whether dynein could carry microtubules as cargo is the presence of non-motor microtubule binding domains. While perhaps not present on the dynein motor itself, doesn't the fact that rat dynein possesses a much slower velocity on bundled MTs compared to single microtubules indicate there is another MT binding domain on the heavy chain? Furthermore, spindle dynein is known to function together with dynactin, which does have a MT binding domain. The authors show convincingly that just a motor dimer can mediate one aspect of spindle morphogenesis, the inward sliding, but without examining the other functions they should soften their statements about the sufficiency of this mechanism.

[Editors’ note: what now follows is the decision letter after additional work had been performed.]

Thank you for giving us another opportunity to evaluate your work entitled “Cytoplasmic dynein crosslinks and slides anti-parallel microtubules using its two motor domains” for consideration at eLife. Your article has been favorably evaluated by a Senior editor, a Reviewing editor, and 2 reviewers, one of whom, Stefan Diez, wants to reveal his identity.

The Reviewing editor and the two reviewers discussed their comments before we reached this decision, and the Reviewing editor has assembled the following comments to help you prepare a revised submission.

Although the results are much stronger [than those in the previous submission], we still have some concerns about the experiments that we would like you to address before publication. These address both the in vitro and the in vivo experiments.

On the side of the cell work:

1) The authors switch to using GST-GFP-hDyn for the cell experiments but do not describe this construct very well beyond which nucleotides were sub cloned in the Materials and methods section. How similar/identical is it to the yeast protein? Why can it be assumed to behave the same? Does it associate with any other proteins within cells? How does it run on a sucrose gradient/gel filtration? Does the yeast protein behave similarly when introduced? Does the dimerized yeast construct rescue a yeast dynein mutant?

2) To what degree is endogenous dynein depleted? Blots should be shown also to show how much overexpression there is of the introduced proteins.

3) The two assays in Figure 5 are basically showing the same thing twice. The authors should note that MG132 treatment does more than just arrest at metaphase as it influences turnover of MAPs (Song and Rape, Mol. Cell 2011).

4) In Figure 5C, the fraction of monopolar spindles in response to STLC in an RNAi control should be shown.

5) In Figure 5—figure supplement 1, the spindles appear more multipolar than with “split poles” and the chromosomes are misaligned. How is it determined whether the cells are in metaphase or prometaphase and does dynein RNAi cause chromosome misalignment?

On the in vitro work:

1) In order to exclude dynein aggregation as a potential cause for MT bundling and sliding, the authors should still investigate and show the dynein-GFP signal during the MT–MT sliding experiments (Figures 1D, E, and Figure 2B). Does the signal look homogeneous ruling out the possibility of clustering? The authors probably already have the data to answer this question.

To exclude the protein aggregation, the authors now did look already at single GFP labelled dynein molecules (new Figures 3D–F). However, the dynein concentration in single molecule experiments is most likely much lower than in sliding experiments, so the lack of aggregates in single molecule experiments still doesn’t rule out that there are clusters in the sliding assay.

https://doi.org/10.7554/eLife.00943.019

Author response

[Editors’ note: the author responses to the first round of peer review follow.]

The paper has been seen by three referees. Over all they find the idea that a minimal, GST-dimerized human dynein motor lacking the tail domain and the ability to bind to its adaptor proteins is capable of producing an inward force in the spindle that can substitute for endogenous dynein. These findings are novel. They indeed raise the possibility that dynein-driven MT-MT sliding may be propelled by the two dynein motor domains binding to and walking along two individual MTs.

However, the referees agree that there is one major potential problem in interpreting your data, which comes from artificial dimerization by GST or native rat brain dynein including the three accessory chains and potentially other accessory proteins. The sliding mechanism that the authors present might be an artifact of the artificial dimerization (for example allowing for additional flexibility between the two motor domains), while the native motor could slide the MTs by a different mechanism, for example using a second MT binding site. To show that native dynein slides MTs using the proposed mechanism, the authors could use 'minimal-dimeric-motor' recombinant yeast heavy chains dimerized natively.

We are rejecting the paper because experiments that would be a substantial amount of work should result in a rejection at eLife. However, if you feel that you can perform the experiment with the minimal dimeric motor, then we would encourage you to submit your interesting paper again to eLife.

We have now addressed this critical point in full in two new figures (Figure 3 and Figure 3—figure supplement 1). As suggested by the reviewers, we expressed and purified a natively dimerized recombinant minimal dynein (Dyn387kD). We show that Dyn387kD sediments at ∼19S on a sucrose gradient, similar to other dimeric dyneins, and does not contain additional subunits. By deleting its canonical MT binding domain, we also find no evidence for a second “cryptic” MT binding site that might crosslink microtubules. Functionally, single Dyn387kD molecules move processively along MTs. Next, we show that Dyn387kD can bundle MTs, slide MTs within the bundles, and slide MTs within single MT-MT overlaps, very similar to GST-Dyn331kD. While Dyn387kD walks processively and unidirectionally on single MTs, it frequent pauses and reverses direction in anti-parallel MT overlaps. Taken together, these results show that a minimal, natively dimerized motor can slide MTs using only its two motor domains. We should also note that transition from unidirectional motion along a single microtubule, to pauses and bidirectional runs within an overlap is most likely a single molecule signature of the two motors domains binding to two different microtubules in an overlap region. This behavior is noted for native yeast dynein, again underscoring that this behavior is not an artifact of truncating the heavy chain.

A second problem identified by the reviewers concerned whether GST-dynein rescues spindle assembly upon DHC knock-down. This is never shown; rather you show the sensitivity to kinesin-5 inhibition. No data are shown in the absence of the drug, and it is not discussed whether the rescued spindles are positioned correctly and functional to segregate chromosomes, with poles focused, chromosomes aligned, etc. While we would not insist that these data are included, you should more fully discuss the other major functions of dynein in the spindle, and whether they might be accomplished by an anti-parallel sliding mechanism. For example, can this mechanism generate a spindle pole. Again a schematic would help, and ideally some data showing whether or not GST-dynein can generate asters or mediate pole focusing.

We thank the referees for this clarification, as we did not describe our results and views adequately. We never meant to imply that a minimal dynein dimer can fully compensate for all dynein functions in spindle assembly. Our results show that GST-dynein (or chemically dimerized FKBP-FRB-dynein) can counteract the outward microtubule sliding forces generated by kinesin-5 and kinesin-12, which strongly suggests that this construct produces anti-parallel microtubule sliding in vivo. However, we agree that other dynein functions in mitosis are unlikely to be replicated by this minimal dynein dimer, including pole focusing which occurs mainly between parallel microtubules. We have now tested this directly and show that GST-dynein does not rescue spindle pole focusing after dynein heavy chain RNAi. The spindle pole focusing mechanism likely involves the dynein tail domain, as well as associated molecules such as NuMa. We have clarified these points in the Discussion. We also have expanded the Discussion with recent data showing that the inward sliding forces produced by native dynein in the spindle require associated chains. While we feel that native dynein and the minimal GST-dynein slide anti-parallel MTs by the same mechanism, these results illustrate that native dynein has additional requirements for in vivo function, which may include stability of the entire heavy chain by associated proteins, as well as regulation of its force-generating activities. Thus, between our new in vivo data and new Discussion section, we feel that we have better represented the broader activities of dynein in the spindle. We experimented with a schematic but felt that it did not enhance the paper. We have added a schematic of our model for dynein-driven sliding and how it differs from mechanisms proposed for other motor proteins.

Minor comments:

- Binding of dynein to MTs without ATP in solution might impair further functionality of the motors. The authors could address this by performing a single molecule no-ATP to ATP switching experiment on single MTs and quantify the percentage of processively moving dynein molecules.

While this is an interesting suggestion, we are unfortunately unable to do such experiments because we do not have a setup to add ATP to our flow chamber while performing simultaneous imaging. We note that the majority of dynein molecules appear to be motile in our assays.

- The native dynein slides MTs very slowly and with pauses. Are the pauses accounted for in the average velocity in the histogram in Figure 2A, B? What is the explanation of the slow sliding speed compared to the fast speed of the surface gliding?

MTs that were stationary for prolonged periods of time were not included in the average speed. However, since our time between images in these experiments was 3-5 sec, pauses of less than 3 sec are likely included in the average speed. Nonetheless, these pauses cannot explain the slow speed of MT-MT sliding. We currently do not fully understand why rat brain dynein slides MTs faster in surface gliding experiments than in MT-MT sliding. One possible explanation is that mammalian dyneins have a low MT affinity, much lower processivity, and show birectional movements in vitro (Trokter et al., 2012; Ori-McKenney et al. 2010, and our own unpublished results), while yeast dynein is more processive and unidirectional. This point is now discussed in the manuscript.

- The fact that the GST-hDyn slides MTs in vivo doesn't clarify the mechanism of the native dynein sliding.

Our findings that native rat bovine brain dynein and four different recombinant dimerized dyneins (two yeast and two human) all can slide MTs make it reasonable to propose a model in which native dynein slides MTs by a similar mechanism. However, we cannot exclude the possibility that native dynein uses a sliding mechanism that differs from what we have observed in our in vitro assay. We have noted this possibility in the Discussion.

- Using polarity-marked MTs an anti-parallel MT orientation was inferred for 18 out of 21 events. Were the other 3 events parallel sliding? How good was the polarity marking? Please quantify.

Polarity marked MT can be problematic, since occasionally they fragment or anneal to yield a spurious result. In this revision, we have included an additional method of assessing polarity- direct single molecule observation of the direction of movement of individual GFP-dynein molecules on the track and transport MTs. Using this approach we found 21/22 sliding events to be anti-parallel. The one parallel event showed very slow sliding. This analysis is now included in the manuscript. Collectively, these two methods reveal predominant anti-parallel MT sliding with an occasional MT sliding event.

- What influence did the ionic strength of the assay buffer have on the results?

We tested MT-MT sliding at a higher ionic strength (100 mM KAc) and observed very similar sliding activity. At 200mM KAc, we observed no crosslinking or sliding of MTs. We included this information in the Materials and methods section.

- The role of kinesin-14 as minus-end directed, MT-MT sliding motor in spindle assembly and integrity should be discussed.

We added a sentence indicating kinesin-14’s important role in pole focusing to the Discussion.

- In the Introduction, it is stated that there is no evidence that dynein could directly cross link and slide MTs relative to one another. This may be true for pure motor domains in vitro, but movements of MT seeds on the spindle in Xenopus egg extracts, and spindle pole focusing, have been shown to require dynein. Similarly, “These results provide the first direct demonstration that cytoplasmic dynein can slide MTs within bundles” seems to be a bit of an overstatement.

It is true that previous studies found that dynein is required for MT movement and organization in the spindle (which we stated in the text, including references). However, it has never been shown that dynein alone is sufficient for sliding of MTs in the spindle, as it could be indirect and require additional factors. Nonetheless, we have changed the text to specify that our results are the first fully reconstituted in vitro demonstration of dynein-dependent sliding and have added a reference to the study that shows transport of stabilized seeds to the spindle pole by dynein (Heald et al., 1996).

- One issue that speaks to whether dynein could carry microtubules as cargo is the presence of non-motor microtubule binding domains. While perhaps not present on the dynein motor itself, doesn't the fact that rat dynein possesses a much slower velocity on bundled MTs compared to single microtubules indicate there is another MT binding domain on the heavy chain?

We have now included new data, as described above, showing that a minimal, natively dimerized yeast dynein molecule can drive MT-MT sliding in the absence of associating factors and without an additional MT binding site. We do not fully understand why rat dynein possesses a slower MT-MT sliding speed. It is possible that this is due to an additional MT-binding site somewhere in the complex (which may be regulated in vivo), but it is also possible that this is due to the short dwell time and low processivity of mammalian dynein in vitro (Trokter et al., 2012 PNAS, Miura et al. 2010 FEBS Letters, our unpublished results) and we have added these possible reasons to the Results section.

- Furthermore, spindle dynein is known to function together with dynactin, which does have a MT binding domain.

As noted above, we cannot completely exclude that the native dynein complex has an extra MT binding site, but MT-MT sliding in the spindle appears to be independent of dynactin (Raaijmakers et al., 2013, JCB).

- The authors show convincingly that just a motor dimer can mediate one aspect of spindle morphogenesis, the inward sliding, but without examining the other functions they should soften their statements about the sufficiency of this mechanism.

As discussed above, we have now included additional data examining the ability of the minimal dimer to rescue spindle pole focusing. We have adjusted our statements in the abstract and main text regarding the role of dynein-dependent MT sliding in spindle morphogenesis accordingly.

[Editors’ note: the author responses to the re-review follow.]

On the side of the cell work:

1) The authors switch to using GST-GFP-hDyn for the cell experiments but do not describe this construct very well beyond which nucleotides were sub cloned in the Methods section. How similar/identical is it to the yeast protein? Why can it be assumed to behave the same? Does it associate with any other proteins within cells? How does it run on a sucrose gradient/gel filtration? Does the yeast protein behave similarly when introduced? Does the dimerized yeast construct rescue a yeast dynein mutant?

We now provide more detailed information on this construct in the Materials and methods. The GST-GFP-hDyn construct is based on previously published boundaries for the minimal motor domains in yeast, Dictyostelium, and rat (Reck-Peterson et al. 2006, Koonce and Samso, 1996, and Hook et al. 2005). The human and yeast constructs used in this study are truncated at similar points relative to the motor domain (human residue number 1284 and yeast residue number 1219) and fused to GST. This truncation lies 189 and 145 residues N-terminal to the beginning of linker subdomain 1 in human and yeast respectively. This construct lacks the tail domain of dynein, and thus is not expected to associate with any other dynein subunits. To demonstrate this, we have now included a pull-down experiment demonstrating that the GST-GFP-hDyn construct indeed does not associate with other dynein subunits (Figure 5—figure supplement 1A). In other ongoing work in our lab, we have expressed a similar human GST-dynein construct using the baculovirus system and show by hydrodynamic studies (sucrose gradient/gel filtration) and negative stain EM that it is indeed a dimer, as expected based upon its fusion to a GST dimer. We believe the other suggestions, while interesting, are beyond of the scope of our study. Also, the truncated GST-dynein dimer will not have the associated subunits needed to rescue dynein function in spindle positioning in yeast (Markus et al. 2009).

2) To what degree is endogenous dynein depleted? Blots should be shown also to show how much overexpression there is of the introduced proteins.

We have now included a western blot showing that dynein is strongly down regulated by ∼87% upon RNAi (Figure 5A). This result agrees with prior work on dynein reduction by RNAi (Tanenbaum et al., 2008). Unfortunately, we are unable to determine the precise level of overexpression because the minimal dimer lacks the N-terminal domain, which is targeted by all commercially available antibodies to dynein heavy chain. Furthermore, because the transfection efficiency in our overexpression experiments is only 5–10%, and varies between cells, blotting cell lysates from the total population would not be very informative on the amount of overexpression per cell. We state in the Materials and methods section that we focused on cells with moderate expression levels and exclude the cells with very high expression.

3) The two assays in Figure 5 are basically showing the same thing twice. The authors should note that MG132 treatment does more than just arrest at metaphase as it influences turnover of MAPs (Song and Rape, Mol. Cell 2011).

We have now included the reference to the turnover of MAPs in response to MG132 treatment. We included two different assays, exactly for this reason. As each assays has its specific pitfalls, we performed two assays to be sure that the ability of dynein to collapse the spindle was not due to a specific type of assay.

4) In Figure 5C, the fraction of monopolar spindles in response to STLC in an RNAi control should be shown.

This information is presented in Figure 5B.

5) In Figure 5—figure supplement 1, the spindles appear more multipolar than with “split poles” and the chromosomes are misaligned. How is it determined whether the cells are in metaphase or prometaphase and does dynein RNAi cause chromosome misalignment?

The multipolar spindles are due to centrosomes that detach from the spindle, which is a well-known phenotype of dynein depletion. Similarly, dynein depletion is known to cause chromosome alignment defects (Draviam et al., 2006; Raaijmakers et al., 2013). Cells in metaphase and prometaphase were distinguished based on chromosome alignment to the metaphase plate, as visualized by DNA staining.

On the in vitro work:

1) In order to exclude dynein aggregation as a potential cause for MT bundling and siding, the authors should still investigate and show the dynein-GFP signal during the MT-MT sliding experiments (Figures 1D, E and Figure 2B). Does the signal look homogeneous ruling out the possibility of clustering? The authors probably already have the data to answer this question.

To exclude the protein aggregation, the authors now did look already at single GFP labeled dynein molecules (new Figures 3D-F). However, the dynein concentration in single molecule experiments is most likely much lower than in sliding experiments, so the lack of aggregates in single molecule experiments still doesn't rule out that there are clusters in the sliding assay.

We have included a representative Video 7 to show the GFP-dynein signal during a MT sliding event. The dynein signal is homogenous and does not show any evidence of aggregation.

https://doi.org/10.7554/eLife.00943.020

Article and author information

Author details

  1. Marvin E Tanenbaum

    Department Cellular and Molecular Pharmacology, Howard Hughes Medical Institute, University of California, San Francisco, San Francisco, United States
    Contribution
    MET, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Richard J McKenney
    Competing interests
    The authors declare that no competing interests exist.
  2. Ronald D Vale

    Department Cellular and Molecular Pharmacology, Howard Hughes Medical Institute, University of California, San Francisco, San Francisco, United States
    Contribution
    RDV, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    vale@cmp.ucsf.edu
    Competing interests
    The authors declare that no competing interests exist.
  3. Richard J McKenney

    Department Cellular and Molecular Pharmacology, Howard Hughes Medical Institute, University of California, San Francisco, San Francisco, United States
    Contribution
    RJM, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Marvin E Tanenbaum
    Competing interests
    The authors declare that no competing interests exist.

Funding

National Institutes of Health (F32GM096484)

  • Richard J McKenney

Howard Hughes Medical Institute

  • Ronald D Vale

European Molecular Biology Organization (EMBO ALTF 720-2011)

  • Marvin E Tanenbaum

KWF – Dutch Cancer Society

  • Marvin E Tanenbaum

National Institutes of Health (R01GM097312)

  • Ronald D Vale

National Institutes of Health (R37GM038499)

  • Ronald D Vale

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Nico Stuurman for help with microscopy and for developing the localization microscopy plugin for µManager. We would also like to thank the Vale lab for helpful discussions.

Reviewing Editor

  1. Tony Hyman, Max Planck Institute of Molecular Cell Biology and Genetics, Germany

Publication history

  1. Received: November 15, 2012
  2. Accepted: July 29, 2013
  3. Version of Record published: September 3, 2013 (version 1)

Copyright

© 2013, Tanenbaum et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,713
    Page views
  • 215
    Downloads
  • 35
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Structural Biology and Molecular Biophysics
    Qiong Guo et al.
    Research Advance
    1. Structural Biology and Molecular Biophysics
    Carolina Alvadia et al.
    Research Article
