A dynamin 1-, dynamin 3- and clathrin-independent pathway of synaptic vesicle recycling mediated by bulk endocytosis

  1. Yumei Wu
  2. Eileen T O'Toole
  3. Martine Girard
  4. Brigitte Ritter
  5. Mirko Messa
  6. Xinran Liu
  7. Peter S McPherson
  8. Shawn M Ferguson
  9. Pietro De Camilli  Is a corresponding author
  1. Yale University School of Medicine, United States
  2. Howard Hughes Medical Institute, Yale University School of Medicine, United States
  3. University of Colorado, United States
  4. Montreal Neurological Institute, McGill University, Canada
Research Article
  • Cited 35
  • Views 4,899
  • Annotations
Cite this article as: eLife 2014;3:e01621 doi: 10.7554/eLife.01621

Abstract

The exocytosis of synaptic vesicles (SVs) elicited by potent stimulation is rapidly compensated by bulk endocytosis of SV membranes leading to large endocytic vacuoles (‘bulk’ endosomes). Subsequently, these vacuoles disappear in parallel with the reappearance of new SVs. We have used synapses of dynamin 1 and 3 double knock-out neurons, where clathrin-mediated endocytosis (CME) is dramatically impaired, to gain insight into the poorly understood mechanisms underlying this process. Massive formation of bulk endosomes was not defective, but rather enhanced, in the absence of dynamin 1 and 3. The subsequent conversion of bulk endosomes into SVs was not accompanied by the accumulation of clathrin coated buds on their surface and this process proceeded even after further clathrin knock-down, suggesting its independence of clathrin. These findings support the existence of a pathway for SV reformation that bypasses the requirement for clathrin and dynamin 1/3 and that operates during intense synaptic activity.

https://doi.org/10.7554/eLife.01621.001

eLife digest

Neurons propagate electrical signals from one cell to the next using small molecules called neurotransmitters. These molecules are held inside small compartments called synaptic vesicles. Once a neuron receives an electrical stimulus, the membranes that enclose the synaptic vesicles fuse with the plasma membrane that encloses the neuron. This releases the neurotransmitters, which then trigger an electrical signal in the neighboring cell. Once the neurotransmitters are released, the vesicle membrane is rapidly reinternalized from the plasma membrane in a process called endocytosis and then recycled, ready for the next round of signal transmission.

The process of synaptic vesicle membrane endocytosis and recycling has been studied extensively, and several different mechanisms by which it occurs have been identified. The best understood relies on a protein called clathrin, and is thought to be essential for nervous system function. Recently, however, a mechanism of vesicle membrane endocytosis that does not involve clathrin was identified. This mechanism, called bulk endocytosis, involves reinternalizing large regions of the cell plasma membrane to generate large compartments called vacuoles, from which new synaptic vesicles eventually form. This mechanism has been observed when neurons fire at high frequency. The cellular processes underlying bulk endocytosis are not well understood, although several studies suggest proteins called dynamins are important.

Wu et al. simulated the conditions a cell experiences during high levels of activity in neurons that lacked the two major dynamins present at the synapses between neurons—dynamin 1 and dynamin 3. In these neurons, robust bulk endocytosis occurred, suggesting that these two major neuronal dynamins do not play a role in this process. Furthermore, formation of vesicles from the vacuoles generated by bulk endocytosis appeared to be clathrin-independent. These findings point to the occurrence of a pathway of synaptic vesicle recycling that bypasses the need for dynamin 1 and 3 as well as for clathrin.

To reconcile these results with previously published work, Wu et al. propose that dynamins may only be required for processes that also require clathrin. But how are vesicles recycled during bulk endocytosis if dynamins are not involved? There are currently few leads to base alternative mechanisms on. Further work is required to unravel this mystery, and to provide insights into how clathrin-dependent and independent recycling processes are linked during high neuronal activity.

https://doi.org/10.7554/eLife.01621.002

Introduction

Synaptic vesicles (SVs) are the specialized organelles that store and secrete non-peptide neurotransmitters at synapses. Following exocytosis, their membranes are rapidly recaptured by endocytosis and recycled for the generation of new fusion-competent SVs (Ceccarelli et al., 1973; Heuser and Reese, 1973; Betz and Bewick, 1992). Strong evidence indicates that clathrin-mediated endocytosis (CME) plays a key role in this endocytic traffic (Heuser and Reese, 1973; Maycox et al., 1992; Granseth et al., 2006; Heerssen et al., 2008; Kasprowicz et al., 2008; Saheki and De Camilli, 2012). Endocytic vesicles generated by CME have a small homogenous size, in the same range of SVs (Shupliakov et al., 1997; Raimondi et al., 2011). While it had been originally hypothesized that such vesicles transit through an endosomal station (Heuser and Reese, 1973), subsequent studies have suggested that they may mature directly into SVs, a possibility consistent with their size (Takei et al., 1996). However, CME does not account for all SV recycling and the mechanisms of alternative pathways have been the object of intense debate.

One proposed alternative recycling mechanism is so-called ‘kiss-and-run’, a process whereby SVs fuse only very transiently with the plasma membrane without collapsing into it, so that the SVs reform directly by the immediate closure of the fusion pore (Fesce et al., 1994; Alabi and Tsien, 2013). Yet another mechanism is bulk endocytosis, a high capacity pathway of plasma membrane internalization involving patches of membrane larger than the membrane of individual SVs. This mechanism predominates under intense neuronal activity (Miller and Heuser, 1984; Holt et al., 2003; Wu and Wu, 2007; Hayashi et al., 2008; Cousin, 2009; Wenzel et al., 2012; Kittelmann et al., 2013). Endocytic intermediates generated by bulk endocytosis, henceforth defined as ‘bulk’ endosomes, eventually disappear as new SVs appear, suggesting a precursor-product relationship and possibly a direct formation of SVs from bulk endosomes (Heuser and Reese, 1973).

Studies in Caenorhabditis elegans have opened new questions on SV recycling mechanisms. Mutations expected to result in loss or strong defect of the function of clathrin or of its endocytic adaptor AP-2 were shown not to abolish synaptic function (Gu et al., 2008, 2013; Sato et al., 2009). Additionally, studies of worm synapses expressing channelrhodopsin and subjected to a very brief photostimulus revealed an ultrafast endocytic reaction mediated by uncoated invaginations larger than SVs (Watanabe et al., 2013a). More recently, similar results – an ultrafast endocytic reaction mediated by large uncoated invaginations in response to a single optogenetic stimulus – were observed at synapses of mouse hippocampal neurons in primary culture (Watanabe et al., 2013b).

Both the molecular mechanisms underlying bulk endocytosis and those through which SVs are generated from bulk endosomes remain poorly understood. Like any other form of endocytosis, bulk endocytosis involves membrane remodeling and membrane fission. Thus, several studies of bulk endocytosis have addressed the potential involvement of dynamin, a GTPase known to mediate endocytic membrane fission in multiple contexts including, most prominently, endocytic fission at neuronal synapses (Koenig and Ikeda, 1989; Ramaswami et al., 1994; Ferguson and De Camilli, 2012). However, conflicting results have been reported. A role for dynamin, and more specifically for dynamin 1 has been supported by some studies (Clayton et al., 2009, 2010; Xue et al., 2011; Nguyen et al., 2012). Interestingly, dynamin 1 is constitutively phosphorylated in resting nerve terminals and its Ca2+ triggered dephosphorylation upon synaptic stimulation results in its binding to the F-BAR domain containing protein syndapin/pacsin (Anggono et al., 2006; Clayton et al., 2009; Koch et al., 2011), which has also been implicated in bulk endocytosis (Andersson et al., 2008). However, studies of dynamin 1 knock-out (KO) neurons have indicated the occurrence of robust bulk endocytosis even in the absence of dynamin 1 (Hayashi et al., 2008), in spite of a strong impairment of CME (Ferguson et al., 2007; Lou et al., 2008). It remains possible that other dynamins, dynamin 3 in particular, which is the other predominantly neuronal dynamin, may substitute for dynamin 1 in these neurons (Ferguson et al., 2007; Raimondi et al., 2011). Drugs (dyngo-4a and dynasore) that impair dynamin activity were reported to block bulk endocytosis (Nguyen et al., 2012). However, the interpretation of such results is questioned by the more recent demonstration that these drugs can robustly affect plasma membrane dynamics by dynamin-independent mechanisms (Park et al., 2013).

Concerning the conversion of ‘bulk’ endosomes into SVs, precise mechanisms have yet to emerge. Based on a study of ‘broken’ synaptosomes it was proposed that such a conversion occurs via the same clathrin-mediated budding reaction that drives clathrin-mediated budding from the plasma membrane (Takei et al., 1996). However, in that study bulk endosomes were exposed to conditions that can induce ectopic production of PI(4,5)P2 (incubation with ATP and GTP or GTPγS) (Seaman et al., 1993; Takei et al., 1996; Krauss et al., 2003). Subsequent evidence that assembly of endocytic coats critically requires PI(4,5)P2 in the membrane from which they originate (Cremona et al., 1999; Höning et al., 2005; Zoncu et al., 2007; Idevall-Hagren et al., 2012) challenged these results as PI(4,5)P2, which is selectively concentrated at the plasma membrane, is generally rapidly depleted from endocytic membranes and is thus not expected to be concentrated on bulk endosomes (Cremona et al., 1999; Chang-Ileto et al., 2011; Milosevic et al., 2011).

The goal of this study was to gain new information into the recycling of SV membranes via bulk endocytosis. To this aim we examined the impact of manipulations that affect dynamin-dependent endocytosis on this process using electron microscopy (EM) in combination with endocytic tracers. We demonstrate that the rapid, bulk endocytic recapture of SV membranes induced by a strong stimulus, either KCl or high frequency stimulation, is not impaired at synapses lacking both of the two predominant neuronal dynamins, dynamin 1 and dynamin 3, that is synapses where CME is severely perturbed (Ferguson et al., 2007; Raimondi et al., 2011; Ferguson and De Camilli, 2012). Conversion of bulk endosomes into new SVs does occur in these synapses, although less efficiently than in wild-type (WT) synapses. The partial impairment of this conversion is not further aggravated by the additional knock-down (KD) of clathrin, indicating the clathrin-independence of this process. These observations provide evidence for a pathway of SV reformation that predominates after strong stimulation and does not require clathrin mediated budding or dynamin 1 and 3.

Results

Robust bulk endocytosis at dynamin 1 and 3 double KO synapses following high K+ stimulation

A previous study had suggested that stimulation of SV endocytosis by high extracellular K+-induced depolarization results in a prominent burst of bulk endocytosis even in the absence of dynamin 1 (the major neuronal dynamin isoform, which is encoded by the DNM1 gene) (Hayashi et al., 2008). To assess the contribution to bulk endocytosis of the other neuronal dynamin, dynamin 3, which is encoded by the DNM3 gene, and to monitor reformation of SVs from bulk endosomes, we performed experiments with primary cultures of WT, dynamin 1 KO (Dyn1 KO), dynamin 3 KO (Dyn3 KO) and dynamin 1 and 3 double KO (Dyn1/3 DKO) mice. In order to reduce the contribution of genotypic variability, comparisons were made between cultures derived from littermates: (1) Dyn1 KO mice and WT mice within the litters obtained from the breeding of DNM1+/− mice and 2) Dyn1/3 DKO mice and Dyn3 KO mice within the litters obtained from the breeding of DNM1+/−; DNM3−/− mice.

Spontaneous network activity drives the accumulation of endocytic clathrin coated pits (CCPs) in cultures of Dyn1 KO or Dyn1/3 DKO neurons (Ferguson et al., 2007; Hayashi et al., 2008; Raimondi et al., 2011). However, silencing neuronal activity by an overnight incubation with the Na+ channel blocker tetrodotoxin (TTX, 1 μM) nearly completely reverses this phenotype, as lack of dynamin 1 and 3 only severely delays, but does not completely block CME (Raimondi et al., 2011). Thus, in order to minimize functional and ultrastructural variability among synapses due to pre-existing activity, neuronal cultures were pre-treated overnight with TTX, briefly rinsed and then washed for 5 min in buffer without TTX (and devoid of Ca2+ to prevent SV exocytosis) prior to stimulation. Cultures were then stimulated for 90 s with 90 mM KCl to evoke maximal SV exocytosis and rapidly washed and further incubated in resting buffer (see below) for the analysis of SV recovery. To visualize endocytic organelles, cholera toxin-horseradish peroxidase (CTX-HRP) was added to the cultures both during stimulation and during the recovery. This probe binds the ganglioside GM1 on the cell surface and is an efficient marker of endocytic membranes (Ferguson et al., 2007; Raimondi et al., 2011).

Analysis of samples fixed at the end of the 90 s stimulation revealed that in WT synapses the number of SVs per synapse (number per μm2 of synapse cross-section) was reduced to about 20% of the starting value (Figures 1A and 2A). Such reduction was accompanied by a massive appearance of endocytic vacuoles much larger than SVs, that is bulk endosomes (as defined by a diameter greater than 80 nm), nearly all of which were positive for CTX-HRP, as assessed by HRP cytochemistry (Figures 1A and 2A,C). Similar changes were observed in Dyn3 KO synapses (Figure 1A, Figure 2B,D). In contrast, in both Dyn1 KO synapses and Dyn1/3 DKO synapses, SVs were nearly completely depleted at the end of the stimulus (Figures 1A, 2A,B), indicating that SV reformation is blocked in these genotypes during stimulation. This difference was accompanied by a greater number of large endocytic intermediates (diameter >80 nm) in these genotypes, relative to WT and to Dyn3 KO synapses (Figures 1A and 2B,D). Importantly, these findings demonstrate that bulk endocytosis is not impaired, and perhaps is even enhanced, in the absence of both Dyn1 and Dyn3.

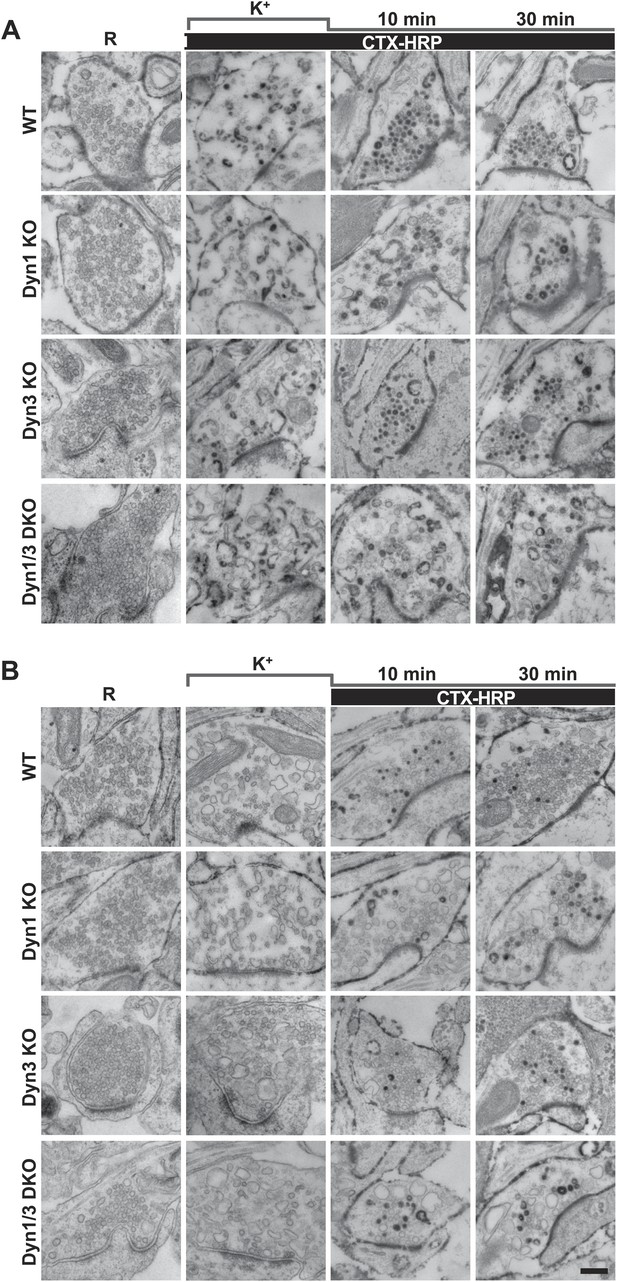

High K+ stimulation induces bulk endocytosis, as assessed by CTX-HRP, at both WT and dynamin mutant synapses.

Following incubation in resting buffer (R), neurons were stimulated with 90 mM K+ for 90 s, then incubated in resting buffer for 10 and 30 min. CTX-HRP, added either during or after the stimulus (A), or selectively after the stimulus (B), was used as an endocytic tracer. In all genotypes, loss of SVs during the stimulus is compensated by the appearance of numerous bulk endosomes. Most these organelles are HRP-reaction product-positive only in samples expose to CTX-HRP also during the high K+ incubation, indicating that bulk endocytosis occurs primarily during the stimulus. During the recovery period bulk endosomes are converted to SVs. Scale bar = 100 nm.

https://doi.org/10.7554/eLife.01621.003

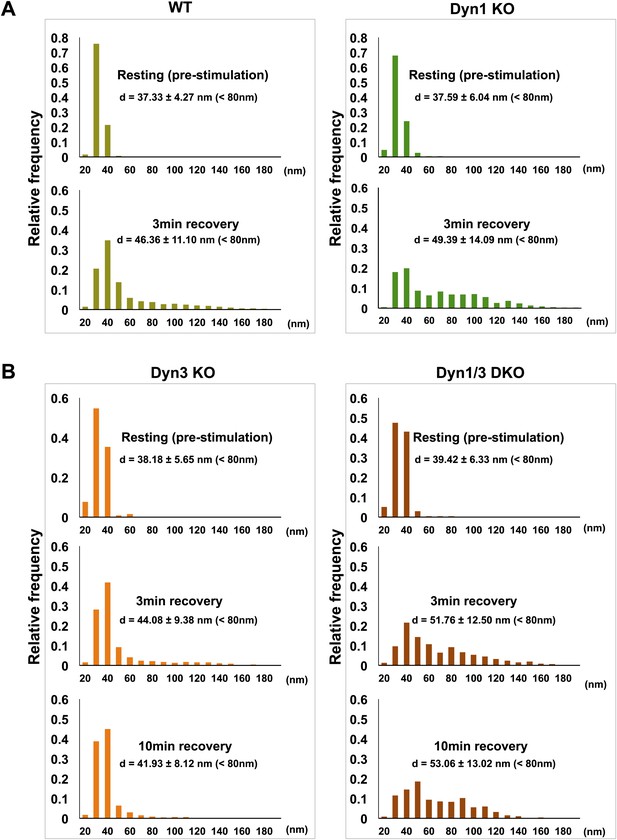

Quantification of SV number and bulk endosome dynamics, as assessed by CTX-HRP labeling, in WT and dynamin mutant neurons in response to high K+ stimulation.

These data represent a quantification of the experiments used for Figure 1. CTX-HRP was present both during and after stimulation in (AD), in order to maximize labeling of all endocytic structures, and only after stimulation in (EH) to monitor selectively post-stimulation endocytosis. (A, B, E and F) Analysis of SV number per cross-sectional area of nerve terminal under resting conditions (R), at the end of the 90 s high K+ stimulus (K+), and after 10 and 30 min recovery. SVs positive for HRP reaction product are indicated by the dark portion of each bar. (C, D, G and H) Analysis of the membrane area of CTX-HRP-positive bulk endosomes per cross-sectional area of nerve terminal in each of the conditions investigated. In fields (AH) as well as in the following figures, error bars represent mean ± S.E. of values obtained at individual synapses. (I) Pie charts integrating results of different experiments and summarizing putative contributions of (i) direct endocytosis from the plasma membrane and (ii) conversion of bulk endosomes to the recovery of SVs at 10 and 30 min as extrapolated from the data of fields (A and B) and (E and F). The entire pie represents the SV pool before stimulation. The black section of each pie indicates HRP-reaction positive SVs at the end of the stimulus. The striped sections indicate HRP-reaction positive SVs generated during recovery (dark portion of the ‘recovery’ bars in field A and B, subtracted by the dark portion of the ‘K+’ bars in the same fields), with red stripes showing SVs labeled when CTX-HRP had been added selectively after the stimulus (dark portions of the bars in fields E and F). As very few bulk endosomes are generated when CTX-HRP is added selectively after the stimulus (fields E and F), most likely these vesicles (red stripes) were derived directly from the plasma membrane. Thus, black striped sections represent SVs putatively derived from bulk endosomes. The white sections represent SVs unlabeled by HRP and the missing section represents the vesicle pool that had not recovered at the time points indicated. The pie clearly demonstrates a delay in SV recovery in the Dyn1 KO and Dyn1/3 DKO genotypes. It further shows that in these genotypes the predominant defect is in the reformation of SVs during the stimulus and from bulk endosomes, with no obvious impact on their reformation from the plasma membrane after stimulation. ****, ***, **, * indicate p-values of <0.0001, <0.001, <0.01 and <0.05, respectively. n.s., ‘not significant’. Black asterisks refer to comparisons between total vesicles, colored asterisks to comparisons between HRP-labeled vesicles. Bars: standard error of the mean.

https://doi.org/10.7554/eLife.01621.004

Reformation of SVs from bulk endosomes as revealed by CTX-HRP labeling

Reformation of SVs following interruption of the stimulus was monitored in either Ca2+ free buffer or TTX in Tyrode buffer, two conditions that block further exocytosis and that pilot experiments revealed to result in a similar recovery of SVs. Following the stimulus, a very robust recovery of SV number was already observed after 10 min of recovery in WT and Dyn3 KO synapses (Figures 1A and 2A,B), with a corresponding decrease of HRP reaction product-positive large vacuoles (Figure 2C,D), and this recovery continued thereafter (Figures 1A, 2A–D). Recovery (both an increase in SV number and a decrease in larger endocytic intermediates) was also observed in Dyn1 KO and Dyn1/3 DKO synapses, although both SV reformation and endocytic vacuole clearance were delayed relative to littermate controls (WT and Dyn3 KO respectively; Figure 2A–D). Note that the overall similar results for WT and Dyn3 KO cultures and for Dyn1 KO and Dyn1/3 DKO cultures, confirm previously reported evidence for the predominant role of dynamin 1 in SV recycling.

In all samples exposed to this experimental protocol, the majority of newly reformed SVs were labeled (dark portions of each bar in Figure 2). Interestingly, even at the end of the 90 s stimulation, the majority of the remaining SVs in WT and Dyn3 KO synapses were labeled, indicating that they had formed by endocytic recycling during the stimulus (Figure 1, Figure 2A,B). As SVs had been nearly depleted in Dyn1 KO and Dyn1/3 DKO synapses at this time point (Figure 2A,B), one can conclude that in all four genotypes the high K+ stimulus induces the exocytosis of all SVs, but that only at synapses containing dynamin 1 SV reformation occur during the stimulus, thus partially counteracting the loss of SVs (see also Ferguson et al., 2007; Raimondi et al., 2011). The occurrence of newly reformed CTX-HRP reaction product-negative SVs after 10 and 30 min of recovery in synapses that lack Dyn1 (Figure 2A,B) was surprising. In principle, nearly every new SV formed after the stimulus should be peroxidase reaction product positive as the contribution of new vesicle membrane delivered from the cell body is expected to be minimal over the time course of these experiments. Such occurrence may be explained by the stochastic nature of SV labeling and/or the all-or-none nature of the formation of peroxidase reaction product.

The conversion of bulk endosomes to SVs could in principle occur by two mechanisms. Bulk endosomes could be the direct source of SVs, or they may first fuse back to the plasma membrane from which new SVs could then bud by CME. To discriminate between these possibilities, cultures of all four genotypes were exposed to CTX-HRP only during the recovery phase, following a 90 s stimulus, and then analyzed at the 10 and 30 min time points (Figure 1B, Figure 2E–H). In these samples, only very few large vacuoles were HRP labeled (Figure 2G,H), indicating that bulk endocytosis occurs nearly exclusively during the high K+ stimulation. If the conversion of bulk endosomes to SVs during stimulation requires their prior fusion with the plasma membrane, using this protocol the majority of newly reformed SVs should be labeled. This was not the case, as the fraction of CTX-HRP labeled newly reformed SVs, relative to all SVs, was much lower than in samples incubated with CTX-HRP both during and after the stimulus (compare the solid to empty portions of the bars in Figure 2E,F and in Figure 2A,B, respectively, see also Figure 2I). These findings imply that during recovery a large pool of SVs reforms directly from the bulk endosomes that were generated during the stimulus. Note that the number of CTX-HRP positive SVs, that is SVs generated during post-stimulus endocytosis, was only modestly decreased in Dyn1 KO and Dyn1/3 DKO synapses relative to their controls (Figure 2E,F), suggesting that either clathrin/dynamin-dependent SV endocytosis is not involved in their formation or that dynamin/clathrin-mediated endocytosis occurring during the recovery can be sustained by dynamin 2 even though the levels of this dynamin isoform in neurons are very low compared to either dynamin 1 or 3 (Ferguson et al., 2007; Raimondi et al., 2011).

From the analysis of the data presented so far, one can draw the conclusions summarized in the pie charts of Figure 2I concerning the reformation of SVs at 10 and 30 min following the high K+ stimulus. For each condition, the entire pie (calculated by the data of fields A and B) represents the global SV pool that is present in nerve terminals before the stimulus, and which undergoes massive exocytosis with the stimulation. The sector delineated by a dotted line reflects the pool of SVs that was still missing at the time point of recovery examined, revealing a delay in SV reformation in the absence of the neuronal dynamins. The white sector of the pie represents SVs that are unlabeled by CTX-HRP. In spite of the absence of HRP reaction product, even these SVs are likely to be of endocytic origin given the complete depletion of SVs produced by the stimulus. As stated above, these vesicles are most likely unlabeled due to the less than 100% efficiency of labeling, as supported by the observation that the size of this pool roughly correlates with the number of recovered SVs. The black sector shows the CTX-HRP-labeled SVs reformed during the 90 s stimulus, while the striped sectors represent the labeled SVs generated during recovery (solid portions of the bars during recovery in fields A and B, subtracted by the solid portion of the K+ bars). Within the striped sectors, the portion with red stripes represents the fractions of SVs that become labeled when CTX-HRP is added only after the stimulus (calculated from the solid portions of the bars of fields E and F), thus implying that the portion with black stripes represents SVs that form from bulk endosomes generated during the stimulus. Our conclusions from these comparisons are as follows: (1) SV reformation occurs even in the absence of Dyn1 and Dyn3, but this process is substantially delayed as shown by the missing portion of the pie; (2) No SV reformation occurs during the stimulus in the absence of Dyn1 or both Dyn1 and 3 (solid black sections), leading to complete SV depletion; (3) Reformation of SVs by endocytosis that occurs after the interruption of the stimulus is surprisingly similar in all genotypes (red stripes sector); (4) Most of the delay in recovery in dynamin KO neurons is due to a delay in the conversion from bulk endosomes to SVs (black stripes).

Fluid phase HRP labeling confirms direct budding of SVs from bulk endosomes

To further assess the delay in the generation of new SVs from bulk endosomes and the consequences of the absence of dynamin 1 and 3 on this process, further experiments were performed that employed fluid phase HRP (rather than CTX-HRP) to follow SV recycling. While this probe labels endocytic vesicles less efficiently than CTX-HRP, as it is not bound to, and therefore concentrated at, membranes, it can be rapidly washed away from the cell surface, and thus can be used to better analyze endocytosis in a specific time window. Neuronal cultures were prepared and stimulated as described above, but with the presence of free HRP during the stimulation and with the immediate wash of HRP at the end of the stimulation.

As observed in experiments with CTX-HRP, SV number was strongly decreased, but not abolished in WT and Dyn3 KO nerve terminals at the end of the stimulus (Figures 3 and 4A,B), when numerous HRP reaction product-positive vacuoles had accumulated (Figure 4C,D). Additionally, a fraction of such vesicles was HRP reaction product-positive, consistent with the occurrence of SV reformation even during stimulation (Figures 3 and 4A,B). Importantly, there was a further increase of HRP-labeled SVs during the recovery in the HRP-free medium, and a corresponding decrease of larger vacuoles, indicating a contribution of HRP reaction product-positive vacuoles formed during the stimulus to SV reformation (Figures 3 and 4A,C). In Dyn1 KO and Dyn1/3 DKO synapses, SVs were depleted at the end of the stimulus (Figures 3 and 4A,B) and the accumulation of vacuolar intermediates (HRP labeled) was larger than in controls (Figures 3 and 4C,D). In the post-stimulation period, SVs reformed and vacuoles were consumed, but with some delay relative to controls (Figure 4A) consistent with results of experiments with CTX-HRP. Collectively, these experiments demonstrate that neither Dyn1 nor Dyn3 is required for bulk endocytosis and that their absence delays, but does not abolish, SV reformation from internal membranes.

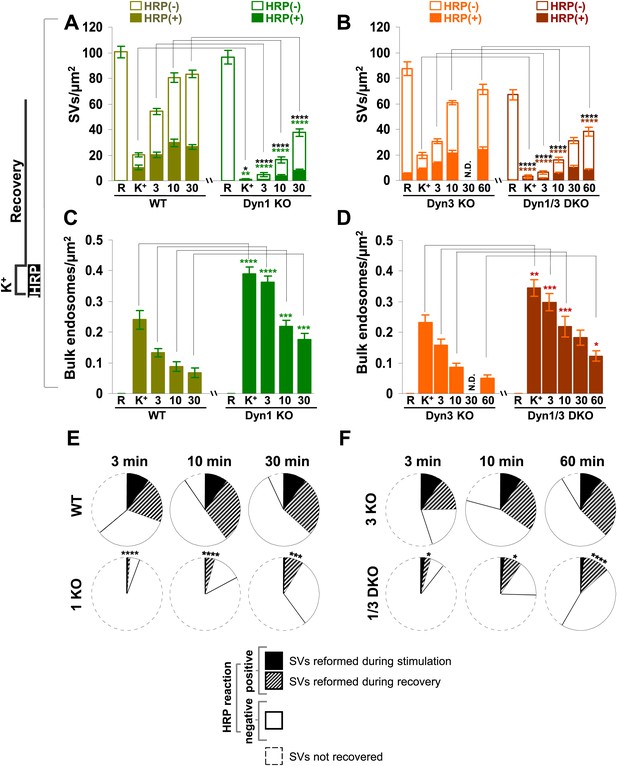

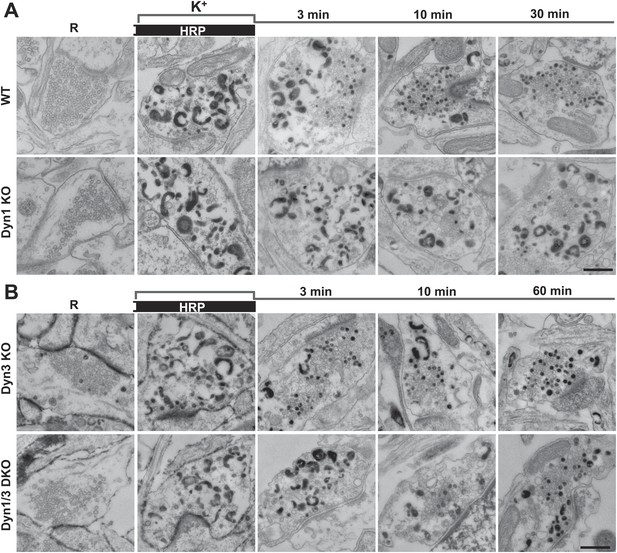

Bulk endocytosis and conversion of bulk endosomes into SVs analyzed with soluble HRP labeling after high K+ stimulation in WT and dynamin mutant synapses.

Neurons of the indicated genotypes (A, WT and Dyn1 KO; B, Dyn3 KO and Dyn1/3 DKO respectively) were stimulated with 90 mM K+ for 90 s in the presence of HRP, followed by wash-out of HRP and recovery in resting buffer. Massive bulk endocytosis is observed during stimulation. The large fraction of HRP reaction product-positive SVs observed in all genotypes during the recovery period documents formation of these vesicles from HRP reaction product-positive bulk endosomes formed during stimulation. Scale bar = 500 nm.

https://doi.org/10.7554/eLife.01621.005
Quantification of SV number and bulk endosome dynamics, as assessed by soluble HRP labeling, in WT and dynamin KO neurons in response to high K+ stimulation.

These data represent a quantification of the experiments used for Figure 3. (A and B) Analysis of SV number per cross-sectional area of nerve terminal under resting conditions (R), at the end of the 90 s high K+ stimulus (K+), and after recovery for the times indicated. SVs positive for HRP reaction product are indicated by the dark portion of each bar. (C and D) Analysis of the membrane area of HRP reaction product-positive bulk endosomes per cross-sectional area of nerve terminal in each of the conditions investigated. (E and F) Pie charts summarizing results of fields A and B concerning the reformation of SVs at different times after recovery. Entire pie: total SVs before stimulation; white sector: unlabeled SVs; black sector: labeled SVs after stimulation; striped section: total labeled SVs subtracted by the SVs formed during stimulation. ****, ***, **, * indicate p-values of <0.0001, <0.001, <0.01, and <0.05, respectively. N.D., ‘not determinated’. Black asterisks refer to comparisons between total vesicles, colored asterisks to comparisons between HRP-labeled vesicles. Bars: standard error of the mean.

https://doi.org/10.7554/eLife.01621.006

Results with fluid phase HRP are summarized in the pie charts of Figure 4E,F, which shows SV number at various time points. Sectors delimited by a dotted line reflect the SV pool that did not reform, while white sectors delineated by a continuous black line indicate unlabeled SVs (the fraction of unlabeled vesicles is higher than with CTX-HRP as the endocytic probe is not pre-enriched at the membrane). The black sectors represent the HRP-labeled SVs that reformed during the stimulus, when extracellular HRP was present (solid portions of the high K+ bars in Figure 4A,B), while the striped sectors indicate the additional HRP-labeled SVs formed during recovery when extracellular HRP was absent (solid portions of the bars during recovery subtracted by solid portion of the high K+ bars), and thus derived from bulk endosomes. As in the case of experiments with CTX-HRP, one can conclude that SV reformation is blocked during stimulation and delayed during recovery, with at least a portion of this delay being explained by a delay in the conversion of bulk endosomes to SVs.

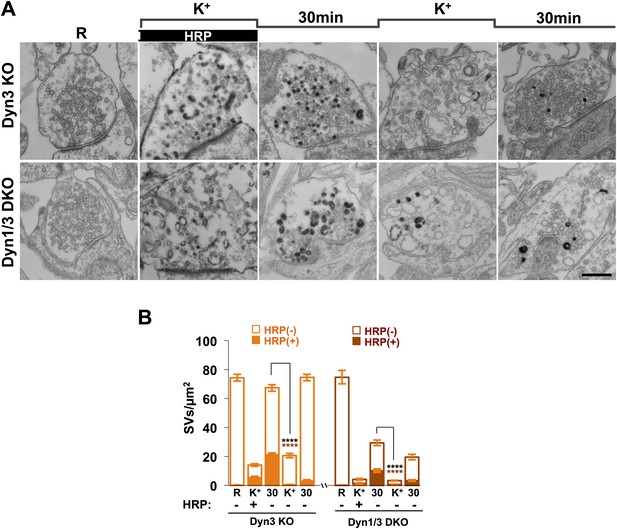

HRP-labeled recycled vesicles can undergo a new round of secretion

It was important to show that vesicles labeled by the endocytic tracer are indeed bona fide SVs, that is that they are competent for a new cycle of stimulated secretion. To address this issue, Dyn1/3 DKO cultures, and Dyn3 KO cultures as controls, were exposed to high K+ stimulation in the presence of soluble HRP, then washed and further incubated for 30 min in resting medium in the absence of HRP, exposed to a second high K+ stimulus, and finally rested again for 30 min, always in the absence of HRP. As shown by EM analysis at the end of each period (Figure 5), the second stimulus was as effective as the first in inducing exocytosis of both labeled and unlabeled SVs.

SVs reformed from bulk endosomes can undergo exocytosis upon stimulation.

(A) Control (Dyn3 KO) and Dyn1/3 DKO neurons were stimulated by a 90 s high K+ stimulation in the presence of HRP, rested for 30 min in the absence of HRP and then subjected to a second round of high K+ stimulation and recovery, always in the absence of HRP. Loss of HRP-labeled SVs during the second stimulus, and the subsequent recovery of unlabeled SVs, demonstrates that vesicles generated from bulk endosomes are functional SVs. (B) Quantification of the results shown in A. Scale bar = 500 nm. **** indicates p-values of <0.0001. Black asterisks refer to comparisons between total vesicles, colored asterisks to comparisons between HRP-labeled vesicles. Bars: standard error of the mean.

https://doi.org/10.7554/eLife.01621.007

Results obtained with high K+ depolarization can be replicated by high frequency electrical stimulation

Synapse stimulation with high K+-induced depolarization for 90 s offered the opportunity to monitor reformation of SVs after their massive depletion. However, depolarization by high K+ represents a non-physiological stimulus. Thus, to assess the physiological relevance of our results, we performed a morphological analysis on neuronal cultures from Dyn3 KO and Dyn1/3 DKO synapses exposed to a 10 s electrical stimulation at 80 Hz (Wenzel et al., 2012) and then allowed to recover for 30 min. For this analysis, the CTX-HRP labeling protocol was used: cultures were incubated with CTX-HRP both during stimulation and during recovery, or during the recovery only (Figure 6A,B).

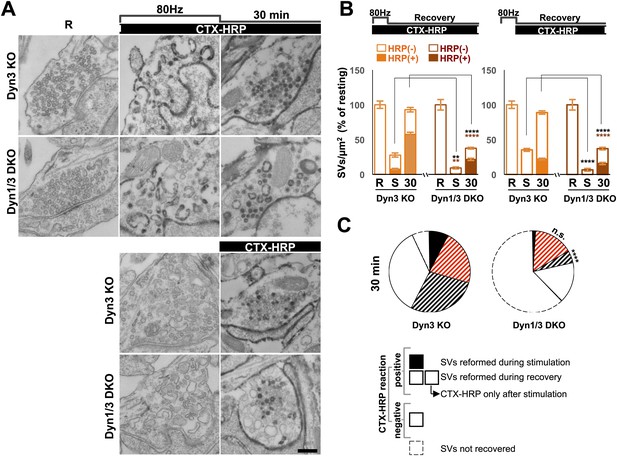

Bulk endocytosis and SV recovery after high frequency electrical stimulation.

(A) Neuronal cultures were stimulated at 80 Hz for 10 s and then allowed to recovery in resting buffer for 30 min. CTX-HRP was added either during both stimulation and recovery, or during recovery only, as indicated. The endocytic intermediates observed under these conditions, as well as their labeling pattern, were similar to those observed upon high K+ stimulation. (B) quantification of the results shown in A. (C) Pie charts illustrating SVs observed under the various conditions, based on the results shown in panel B, with sectors coded as indicated in the legend of Figure 2I. As in the case of high K+ stimulation (Figure 2), SV reformation during the stimulus was virtually abolished in Dyn1/3 DKO neurons (black sectors). Concerning the recovery of SVs after the stimulus (striped sectors), the major defect was observed in the reformation of labeled SVs from bulk endosomes (black stripes), this value was extrapolated (as for Figure 2I) by subtracting from the total striped area the fraction of SVs that become labeled when CTX-HRP was added only after the stimulus. Scale bar = 100 nm. ****, ** indicate p-values of <0.0001 and <0.01, respectively. n.s., ‘not significant’. Black asterisks refer to comparisons between total vesicles, colored asterisks to comparisons between HRP-labeled vesicles. Bars: standard error of the mean.

https://doi.org/10.7554/eLife.01621.008

80 Hz electrical stimulation yielded results very similar to those produced by high K+ stimulation. A robust reduction in SV number was observed immediately after stimulation, and this effect was stronger at Dyn1/3 DKO synapses. Even in this case, when CTX-HRP labeling was present during stimulation, some labeled SVs were observed at the end of the stimulus, but only in the control (Dyn3 KO) cultures (Figure 6A,B, and black sector in the pie chart of Figure 6C). Furthermore, the percentage of recovered vesicles and the fraction of CTX-HRP-labeled vesicles at the end of recovery in both labeling modes and for both genotypes, was similar to those observed for high K+ stimulation (Figure 6A,B). As the pie chart of Figure 6C shows (labeling of the sectors is the same as in Figure 2I), the strongest defects observed at Dyn1/3 DKO synapses relative to controls concern the reformation of SVs during the stimulus (black sector) and the recovery of SVs from CTX-HRP labeled bulk endosomes generated during the stimulus (sector with black stripes).

Clathrin-independent budding from bulk endosomes

Given evidence for a robust contribution of bulk endosomes to the reformation of SVs, the potential role of clathrin to the budding of new SVs from such organelles during recovery from an acute stimulation was explored. CCPs were nearly absent before stimulation in synapses of all genotypes, including Dyn1 KO and Dyn1/3 DKO synapses (Figure 7A–D), as spontaneous network activity prior to the stimulation had been silenced by an overnight treatment with TTX.

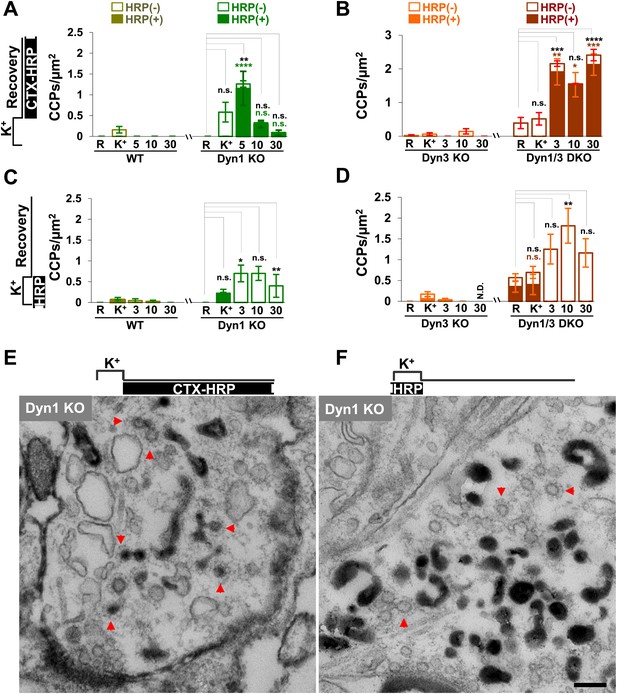

CCP number following stimulation is drastically elevated at dynamin mutant synapses, but in both WT and KO synapses they are selectively localized in the plasma membrane.

(A and B) CCP number in cultures incubated with CTX-HRP selectively after the high K+ stimulation. CCPs positive for HRP reaction product are indicated by the dark portion of each bar. Note that in these samples, where only very few vacuoles are labeled (see Figure 1G,H), nearly all CCPs are labeled, indicating their localization on the plasma membrane. (C and D) CCP number in cultures stimulated in the presence of soluble HRP and washed at the end of the stimulus. Note that CCPs observed after stimulation are negative for HRP reaction product (dark portion of each bar), once again indicating their selective localization on the plasma membrane. The HRP-positive CCPs in the resting (R) and stimulated (K+) samples reflect accessibility to the extracellular medium of arrested plasma membrane CCPs in dynamin KO synapses. (E) Electron micrograph of a Dyn1 KO synapse incubated for 5 min with CTX-HRP selectively during recovery (as for field A). Most CCPs are HRP reaction product positive (red arrows). (F) Dyn1 KO synapse incubated with soluble HRP during stimulation and then washed and examined at 3 min (as for field C). All CCPs are HRP reaction product negative. Scale bar = 100 nm. ****, ***, **, * indicate p-values of <0.0001, <0.001, <0.01, and <0.05, respectively. n.s., ‘not significant’, N.D., ‘not determinated’. The standard error of the mean is shown in each graph. Black asterisks refer to comparisons between total vesicles, colored asterisks to comparisons between HRP-labeled vesicles. Bars: standard error of the mean.

https://doi.org/10.7554/eLife.01621.009

Upon stimulation, CCP number increased only slightly in WT and Dyn3 KO synapses, but more strongly in Dyn1 KO and Dyn1/3 DKO synapses (Figure 7A–D), where numerous CCPs located deep inside nerve terminals were observed. Such CCPs were accessible to CTX-HRP added during recovery, as reflected by the presence of HRP reaction product in their core (Figure 7A,B,E). If these CCPs represent buds on bulk endosomes, at least some of them should also become HRP reaction product-labeled in samples incubated with fluid-phase HRP during the 90 s stimulation and then immediately washed. Under these conditions, only CCPs on endosomal membranes, but not plasma membrane-connected CCPs, are expected to exhibit HRP signal. However, in these samples, CCPs were observed only on HRP reaction product-negative membranes (Figure 7B,D,F). These results indicate that CCP formation in response to high K+ stimulation predominantly occurs on the plasma membrane and not on endocytic intermediates formed by bulk endocytosis.

EM tomography further confirmed that CCPs present deep inside terminals were connected to the plasma membrane. 3D models from the tomographic reconstruction of WT and Dyn1 KO synapses incubated with fluid-phase HRP during the stimulus and then allowed to recover for 1 min are shown in Figure 8A–D. SVs (blue) were strongly depleted at the Dyn1 KO synapse. No CCPs (green) were observed on bulk endosomes (yellow, identified by an HRP reaction product-positive core and anatomical separation from the plasma membrane) in either WT or Dyn1 KO. Furthermore, the overall appearance and distribution of HRP reaction product-positive vacuoles (yellow) was similar in the two genotypes: irregular cisternae, which in some cases had tubulated portions. (Figure 8A,C and selected examples in Figure 8E,F). CCPs were frequently found in Dyn1 KO synapses and massively abundant at a subset of Dyn1 KO synapses, but in these synapses they were selectively localized on deep, narrow invaginations of the plasma membrane (Figure 8D) (a connection between one such invagination and the plasma membrane is shown in the inset of Figure 8D).

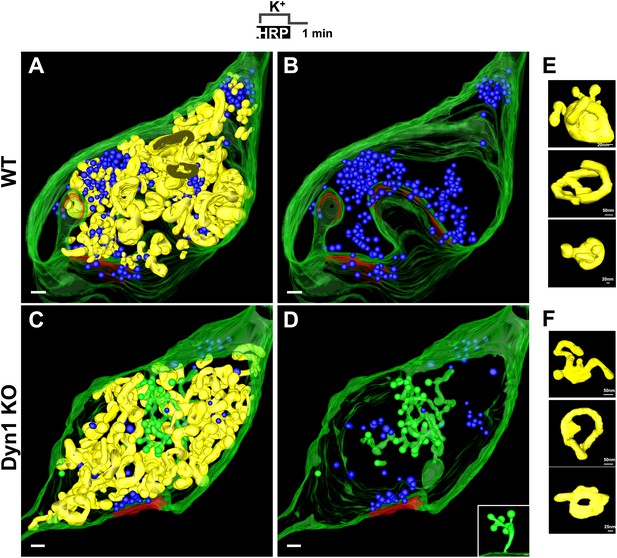

3D models based on electron microscopy tomograms of WT and Dyn1 KO synapses following high K+ stimulation.

The models illustrate the abundance and morphology of HRP-labeled bulk endosomes (yellow) in nerve terminals from WT (A and B, a 600 nm thick volume) and Dyn1 KO (C and D, an 800 nm volume) neuronal cultures stimulated for 90 s with high K+ in the presence of soluble HRP and recovered for 1 min in HRP-free buffer. PM is shown in green. B and D show the same nerve terminals of A and B after subtraction of bulk endosomes to reveal SVs (blue) and CCPs (green). CCPs are shown in the same green as the plasma membrane as they are all connected to this membrane by long narrow tubules (see a direct connection to the plasma membrane in the inset of D). No CCPs are present on bulk endosomes. The postsynaptic density is shown in red. Scale bars: AD, 100 nm. (E and F) Gallery of individual bulk endosomes in WT and Dyn1 KO nerve terminals, respectively.

https://doi.org/10.7554/eLife.01621.010

To assess in more detail the potential occurrence of budding intermediates on bulk endosomes under conditions that optimally preserve their native ultrastructure, we performed high pressure freezing/freeze-substitution on neuronal cultures from Dyn1/3 DKO mice and from their control (cultures from Dyn3 KO siblings) cultured on sapphire disks and exposed to resting, stimulatory (90 s high K+) and recovery (3 and 10 min) conditions.

EM analysis of these preparations revealed a more compact texture of the neuronal cytoplasm and a different view of endocytic structures induced by stimulation relative to conventionally fixed material. The great majority of bulk endosomes, which had an electron-lucent lumen, had smoother rounded or oval-shaped profiles (Figure 9A, see also tomographic reconstructions at 3 min recovery in Figure 9—figure supplement 1). This was in contrast to the highly irregular shapes of bulk endosomes observed in conventionally fixed specimens, even more so when they were filled by HRP reaction product (Figures 1 and 3). Only occasionally (WT: 8 of 275; Dyn1 KO: 15 of 249; Dyn3 KO: 8 of 235; Dyn1/3 DKO: 32 of 258 synapses) were coated buds observed on vacuolar structures (Figure 9B) and, with only one exception, when the entire profile of these structures was re-constructed within tomograms, they were found to be continuous with the plasma membrane (Figure 9B, field B4 and Figure 9C, field C4). As expected, CCP ‘trees’ were only observed in recovered Dyn 1/3 DKO synapses (Figure 9C).

Figure 9 with 1 supplement see all

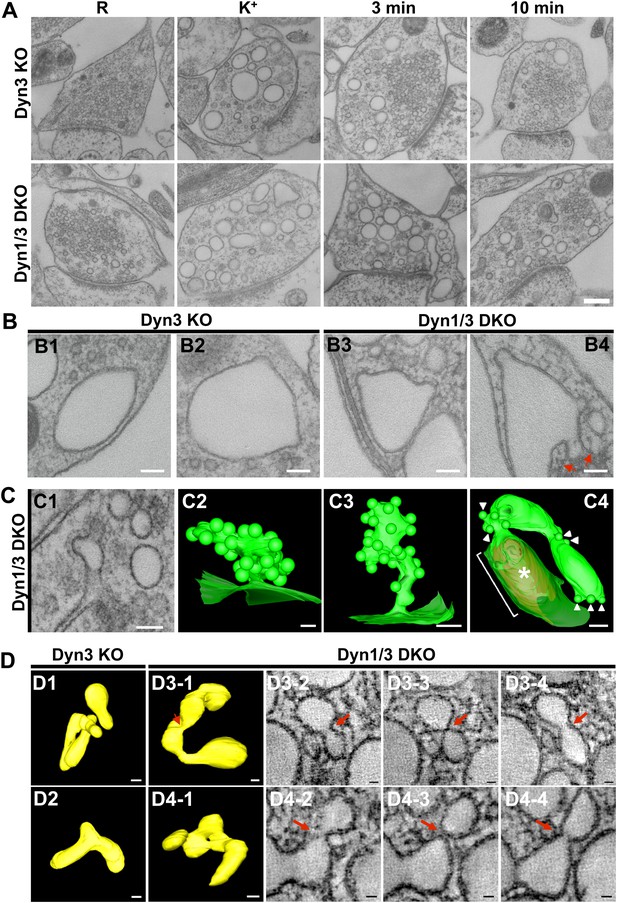

EM analysis of bulk endosomes from high pressure-frozen/freeze-substituted specimens.

Neuronal cultures were incubated overnight in TTX and then exposed to 90 s stimulation in high K+ and recovered for 3 and 10 min. (A) Representative examples of Dyn3 KO (control) and Dyn1/3 DKO synapses. (B) Gallery of coated buds on vacuole-like structures: note the connection to the plasma membrane in B4 (red arrows). (C) CCPs on PM invaginations at Dyn1/3 DKO synapses. C1, EM micrograph; C2-C3, 3-D models from tomograms illustrating CCP trees; C4, CCPs (white arrowheads) on a dilated PM invagination. A white bracket and an asterisk indicates the portion of the PM directly apposed to the postsynaptic membrane (red) which is visible through the transparent green presynaptic plasma membrane. (D) Constricted bulk endosomes. Serial images D3-2 to D3-4 show constrictions and serial images D4-2 to D4-4 show constrictions and a fenestration. Red arrows point to membrane discontinuities. Scale bars: A, 250 nm; B and C1, 3 and 4, 100 nm; C2, 50 nm; D, 50 nm (3D), 20 nm (single images).

https://doi.org/10.7554/eLife.01621.011

Tubulated, beaded extensions of some bulk endosomes were also visible in these preparations (Figure 9—figure supplement 1, Figure 9D), suggesting the potential occurrence of new SVs by progressive fragmentation. If this was the case, one would expect vesicles generated from bulk endosomes to be more irregular in size than vesicles derived from the classical CME at synapses, as CCPs and CCVs of nerve terminals typically have very homogeneous size. In fact, a morphometric analysis of thin sections from high-pressure frozen and freeze-substituted specimens revealed a narrow range of SV diameters that peaked at 30 nm at resting synapses (Figure 10A,B). After stimulation and 3 or 10 min recovery (Figure 10A,B) not only was there a very striking increase in the number of vesicles above 80 nm (our set point to define vesicles as bulk endosome), but a broader distribution of smaller vesicles with a general shift towards larger diameters was observed.

SVs reformed after a wave of bulk endocytosis have a larger and more heteregenous average diameter.

Neuronal cultures of the indicated genotypes were stimulated with high K+ for 90 s and processed by high pressure-freezing/freeze-substitution EM. The diameter of all vesicles (within the 20–200 nm range) in sections of individual nerve terminals before stimulation and after 3 and/or 10 min recovery were analyzed. (A) WT and Dyn1 KO nerve terminals. (B) Dyn3 KO and Dyn1/3 DKO nerve terminals. Diameters were binned at 10 nm intervals and the average diameters (± SD) of vesicles smaller than 80 nm (i.e., vesicles considered as SVs) are indicated in each field. Note (a) the shift of the peak of SV diameter from the 30 to the 40 nm bin, (b) the larger average SV size and (c) the larger SD during the recovery after the stimulus in all genotypes. Nerve terminals analyzed: 21 for WT R, 106 for WT 3 min, 18 for Dyn1 KO R, 123 for Dyn1 KO 3 min, 20 for Dyn3 KO R, 86 for Dyn3 KO 3 min, 27 for Dyn3 KO 10 min, 17 for Dyn1/3 DKO R, 114 for Dyn1/3 DKO 3 min, 42 for Dyn1/3 DKO 10 min.

https://doi.org/10.7554/eLife.01621.013

Clathrin knock-down does not further impair SV reformation at Dyn1/3 DKO synapses

To directly address a potential clathrin independence of SV reformation form bulk endosomes, we performed clathrin heavy chain (CHC) KD experiments using a lentivirus based strategy (Thomas et al., 2009; Ritter et al., 2013). CHC was knocked down in Dyn1/3 DKO neurons by transducing them with lentivirus encoding CHC shRNAmiR or control shRNAmiR. Based on the analysis of GFP co-expressed by the shRNAmiR encoding virus, approximately 90% of the neurons were transduced and massive KD of CHC was confirmed by western blotting (Figure 11A). As expected, a dramatic reduction in CCP abundance in cultures of Dyn1/3 DKO neurons maintained under spontaneous levels of network activity was observed following CHC depletion (Figure 11B).

Clathrin heavy chain (CHC) depletion does not further impair bulk endosome conversion to SVs in Dyn1/3 DKO neurons.

(A) Western blotting of extracts of Dyn1/3 DKO neuronal cultures showing depletion of CHC by transduction with lentivirus encoding CHC shRNAmiR but not by lentivirus encoding control shRNAmiR. (B) Drastic reduction in CCP number in axon terminals of Dyn1/3 DKO neurons maintained under spontaneous network activity upon CHC KD. (CF) Impact of CHC KD on the ultrastructure of Dyn1/3 DKO neurons preincubated overnight in TTX, stimulated with high K+ for 90 s in the presence of soluble HRP and then allowed to recover for 30 min in HRP-free medium. (C) Electron micrographs showing that the KD of CHC does not prevent the reformation of SVs after stimulation in Dyn1/3 DKO neurons. (D) High K+ stimulation induces an increase of CCPs number in Dyn1/3 DKO neurons that express control shRNAmiR but not in neurons that express CHC shRNAmiR (CCPs had already been reduced to very low level also in the control treated cultures before stimulation by the overnight treatment in TTX). (E) The recovery of SV number is similar in control and CHC KD conditions. (F) The reduction of bulk endosomes during recovery at 30 min is not affected by CHC KD. The values of SVs, CCPs and bulk endosomes per μm2 were calculated by averaging the corresponding values calculated at individual synapses. Scale bar = 200 nm. ****, **, * indicate p-values of <0.0001, <0.01 and <0.05, respectively. n.s., ‘not significant’. Black asterisks refer to comparisons between total vesicles, colored asterisks to comparisons between HRP-labeled vesicles. Bars: standard error of the mean.

https://doi.org/10.7554/eLife.01621.014

To test the contribution of clathrin to the recovery of SVs from bulk endosomes, CHC depleted Dyn1/3 DKO neurons (and Dyn1/3 DKO neurons as controls) were exposed to the same protocol used for Figures 3 and 4 (overnight silencing with TTX, 90 s stimulation in HRP containing high K+ buffer and finally recovery in HRP-free resting medium) with analysis by EM. Prior to stimulation, only occasional CCPs were observed at synapses of both genotypes [overnight silencing of electrical activity nearly abolished CCPs, even in neurons not exposed to CHC KD (Raimondi et al., 2011)]. As expected, the increase in CCP number produced by the 90 s high K+ stimulation in Dyn1/3 DKO neurons was not observed in cells that had also been depleted of CHC (Figure 11D). However, the total recovery of SVs following 30 min of high K+ stimulation was similar at synapses of Dyn1/3 DKO neurons transduced with either the control or CHC KD conditions (Figure 11C,E). Stimulation-dependent formation of bulk endosomes and their progressive disappearance during recovery was also similar in the two groups of neurons (Figure 11F). In summary, KD of CHC in Dyn1/3 DKO neurons does not enhance the inhibitory effect on SV recovery when bulk endocytosis is the predominant form of endocytosis.

It was proposed that formation of SVs from nerve terminal endosomes could occur via AP-1 and/or AP-3-mediated pathways sensitive to brefeldin A (Faúndez et al., 1998; Glyvuk et al., 2010; Cheung and Cousin, 2012). However, generation of SVs from bulk endosomes during 1 hr recovery still occurred robustly in the presence of brefeldin A (25 μg/ml) (Figure 12). Likewise, SV reformation in the presence of latrunculin B (5 μM) argues against an essential role of F-actin (Figure 12), although actin may be important for bulk endocytosis.

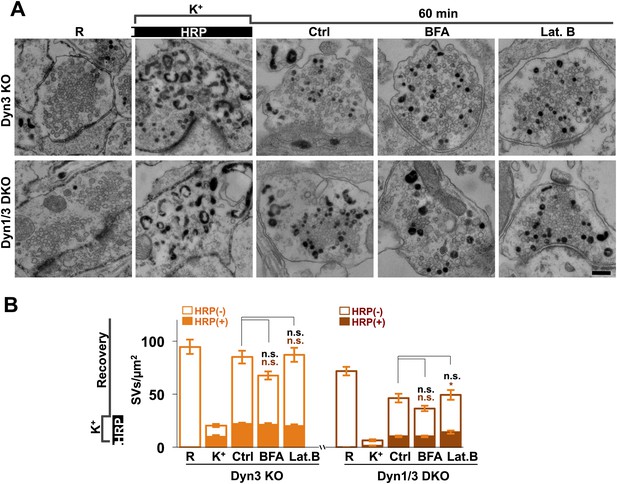

No major effect of Brefeldin A and Latrunculin B treatments on SV recovery in Dyn3 KO and Dyn1/3 DKO neurons.

Ultrastructure of Dyn1/3 DKO neurons preincubated overnight in TTX, stimulated with high K+ for 90 s in the presence of soluble HRP and then allowed to recover for 60 min in HRP-free medium. (A) Representative EM micrographs and (B) quantification of the results showing that recovery of SVs after 1 hr is similar in controls and in the presence of BFA (25 μg/ml) or Lat. B (5 μM), though a modest statistical significance was found for total SVs recovery in BFA-treated neurons and HRP-labeled SVs in Lat.B treated conditions. SVs positive for HRP reaction product are indicated by the dark portion of each bar. Scale bar = 200 nm. *p<0.05, n.s., ‘not significant’. Black asterisks refer to comparisons between total vesicles, colored asterisks to comparisons between HRP-labeled vesicles. Bars: standard error of the mean.

https://doi.org/10.7554/eLife.01621.015

Discussion

Our results demonstrate that SV reformation following a strong, acute, secretory stimulus (either high K+ depolarization or high frequency electrical activity) occurs predominantly via the budding of SVs from endosomal intermediates generated by bulk endocytosis (bulk endosomes). They show that formation of bulk endosomes robustly occurs in the absence of the two dynamin isoforms (dynamin 1 and 3) that collectively account for the overwhelming majority of neuronal dynamin (Ferguson et al., 2007; Raimondi et al., 2011). They further strongly suggest that clathrin is not essential for the formation of SVs from bulk endosomes (Figure 13).

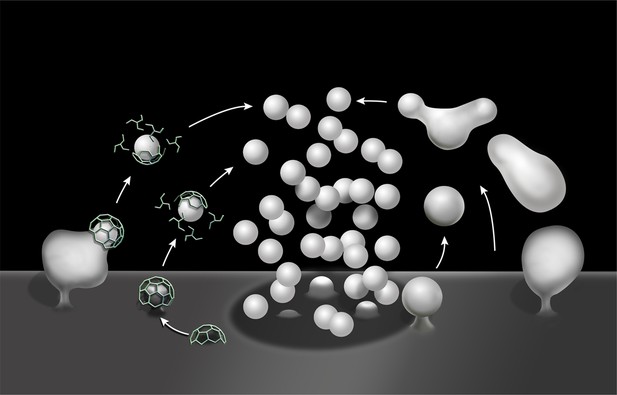

Schematic drawing illustrating clathrin-mediated and clathrin independent endocytosis of synaptic vesicle membranes.

At left is CME. At right is bulk endocytosis followed by fragmentation of bulk endosomes to generate new vesicles. As membranes of bulk endosomes are expected to be enriched in SV proteins, functional SVs may be generated by this mechanism. The uncoated invaginations occurring near active zones and described by Watanabe et al. (2013a and 2013b) may represent a form of this type of clathrin-independent endocytosis. At subsequent exo–endocytic cycles, however, CME may help reestablish SV reformation with high fidelitiy.

https://doi.org/10.7554/eLife.01621.016

By extension, these data rule out an essential role for the phosphorylation–dephosphorylation cycle of dynamin 1 in bulk endocytosis (Anggono et al., 2006; Armbruster et al., 2013), a process that controls the interaction of dynamin 1 with syndapin/pacsin (Anggono et al., 2006). This was surprising, as previous studies had proposed a role of the calcineurin-dependent dephosphorylation of dynamin 1 in bulk endocytosis (Clayton et al., 2009, 2010; Xue et al., 2011). Since dynamin 2 is expressed in Dyn1/3 DKO neurons, dynamin 2 could in principle account for the bulk endocytosis occurring in these cells. However, dynamin 2 represents only a very minor fraction of total brain dynamin and its levels are not enhanced in Dyn1/3 DKO neurons (Raimondi et al., 2011). While this issue could be solved by the conditional disruption of all the dynamins in neurons, the generation of dynamin triple KO synapses has so far proven unfeasible due to the very long half-life of dynamin in axon endings and to the neuronal death that occurs before nerve endings are completely depleted of dynamin 2 (our unpublished observations). The complete KO of all three dynamins was achieved in fibroblasts, as these cells can survive for weeks without any dynamin (Park et al., 2013). Even in triple KO fibroblasts, other forms of endocytosis were not affected, while CME was blocked (Ferguson et al., 2009; Park et al., 2013). We suggest that the two neuronal dynamins are specially adapted to support CME during stimulation, and that dynamin 2 may account for CME under resting conditions. This would explain why the massive accumulation of clathrin coated pits observed in Dyn1/3 KO cultures slowly disappear upon electrical silencing of the cultures.

The occurrence of robust SV membrane endocytosis at Dyn1/3 DKO synapses in spite of the dramatic reduction of dynamin levels also contrasts with the potent global block of the endocytic retrieval of SV membranes in shibirets (dynamin) mutant flies at the restrictive temperature (Kosaka and Ikeda, 1983; Koenig and Ikeda, 1989; Ramaswami et al., 1994). One potential explanation is that mutant dynamin produces a potent dominant negative effect by sequestering dynamin interactors. Likewise, the reported strong global blocking effect on SV endocytosis of drugs that impair dynamin action (Newton et al., 2006; McCluskey et al., 2013) may be explained by the prominent off-target effects of such drugs (Park et al., 2013). Our results do suggest the involvement of dynamin 1, and by extension its stimulation-dependent dephosphorylation at synapses, in the reformation of SVs that occurs during stimulation, as this process, but not bulk endocytosis, is strikingly abolished by the absence of dynamin 1. This effect could be explained by a complete block of CME during stimulation, as our studies of dynamin mutant cells have consistently supported a critical role of dynamin in CME (Ferguson et al., 2007, 2009; Hayashi et al., 2008; Raimondi et al., 2011). Since a block of SV endocytosis, as detected by a synaptopHluorin assay (Sankaranarayanan and Ryan, 2001) was observed at Dyn1 KO and Dyn1/3 DKO synapses during moderate frequency electrical stimulation (300 stimuli at 10 Hz), bulk endocytosis was likely not triggered by those experimental conditions.

Concerning clathrin, its essential role in SV reformation (in pathways other than kiss-and-run) was challenged by genetic studies in C. elegans, as synaptic transmission was not abolished in clathrin mutant worms (Sato et al., 2009). Furthermore, recent studies of C. elegans (Kittelmann et al., 2013; Watanabe et al., 2013a) and mouse synapses (Watanabe et al., 2013b) expressing channelrhodopsin and subjected to photostimulation revealed clathrin-independent forms of endocytosis mediated by vacuolar invaginations larger than SVs (Figure 13). The endocytic reaction described by Kittelmann et al. (2013) following strong photostimulation is reminiscent of the bulk endocytosis described here. Interestingly, in that study the disappearance of the large vacuoles produced by the intense stimulus was delayed in a dynamints mutant at the restrictive temperature, reminiscent of the delay in the conversion of bulk endosome to SVs observed here at Dyn1/3 DKO synapses. In contrast, the ultrafast endocytic reaction reported by Watanabe et al. (2013a, 2013b) in either C. elegans or mouse neurons following a very short photostimulus was reported to be dependent on dynamin, at variance with the endocytic reaction observed in our study.

The mechanisms through which membranes of bulk endosomes are converted to SVs remain elusive. SVs are a highly specialized form of small vesicular carriers present in all cells. The prevailing general mechanism for vesicle budding in the secretory and endocytic pathways is the assembly on the donor membrane compartments of a ‘coat’, whose core and accessory subunits are responsible for two major functions: induction of bilayer deformation and protein cargo selection (Faini et al., 2013). Among the well characterized coats, the only one so far for which there is evidence in SV generation from genetic, biochemical and microscopic observations, is the clathrin coat (Heuser and Reese 1973; Maycox et al., 1992; Shupliakov et al., 1997; Nonet et al., 1999; Verstreken et al., 2002; Heerssen et al., 2008). However, our study suggests that clathrin-mediated buds are present only, or at least by far predominantly, on the nerve terminal plasma membrane. Furthermore, SV reformation from bulk endosomes occurs at Dyn1/3 DKO synapses is not further delayed after CHC KD.

Several membrane-associated scaffolds that mediate budding at the surface of endosomes have been described in recent years (Bonifacino and Rojas, 2006; Schellmann and Pimpl, 2009), but none of them, so far, has been shown to have a critical function in synaptic transmission. The membranes of bulk endosomes are expected to be highly enriched in SV proteins, as they form by compensatory endocytosis after SV fusion. Thus, protein cargo selection may not be a critical function in this process and mechanisms that force membrane curvature may be sufficient to induce SV formation, albeit perhaps leading to SVs with a non-optimal protein composition and size. For example, proteins containing BAR domains (Frost et al., 2009; Campelo et al., 2010) or other membrane deforming proteins for which there is evidence in SV recycling may be involved. Direct reformation of SVs from beading and ‘imprecise’ cutting of tubular structures is a possibility, as supported by the slightly larger and more heterogeneous size of the SVs upon recovery from a massive stimulation. Peripheral membrane proteins such as the synapsins, which are enriched at the surface of SVs (De Camilli et al., 1983), but are shed during the endocytic phase of their recycling, may also help budding of SVs from bulk endosomes via their bilayer penetrating ALPS motifs (Krabben et al., 2011). Lipid-mediated mechanisms, that is metabolic changes in the bilayer leading to its spontaneous acquisition of curvature should also be considered. Importantly, however, we suggest that this mode of SV recycling functions only as a back-up mechanism during intense activity. At subsequent exo-endocytic cycles, CME may help regenerate SVs with precise size and molecular composition.

An important open question is why the conversion of bulk endosomes into SVs is delayed in mammalian synapses that lack dynamin 1 and 3 (our study) and in dynamin mutant worms (Kittelmann et al., 2013). A direct role for dynamin in this process cannot be excluded, since in yeast the dynamin homologue Vps1 was implicated in endosomal sorting (Ekena et al., 1993; Chi et al., 2014) and some studies have suggested roles for dynamin on endosomes in mammalian cells (Hayden et al., 2013). However, the conversion of bulk endosomes into SVs still occurs, albeit less efficiently, even in the absence of the two major neuronal dynamin isoforms, pointing to potential dynamin independent mechanisms. It is also possible that the delay in the conversion from bulk endosomes to SVs observed in Dyn1/3 DKO synapses may be an indirect effect of impaired dynamin function. For example, the overload of this pathway in the absence of CME may saturate it. Alternatively, the absence of dynamin may produce changes in signaling pathways that regulate SV formation from bulk endosomes. This possibility is supported by the changes that we previously observed in synapsin phosphorylation in Dyn1/3 DKO synapse (Raimondi et al., 2011), which may in turn affect bulk endosome dynamics. Elucidating the mechanisms underlying the conversion of bulk endosomes into SVs will not only advance the field of synaptic transmission but also provide key new insight in fundamental mechanisms in vesicle biogenesis.

Addendum

While the revision of this manuscript was being finalized, a paper by Kononenko et al. (2014) reported that bulk endocytosis in response to a strong stimulus is dynamin 1/3 dependent (based on RNA interference) and proposed an important role for clathrin in SV budding from endosomes. Our results, which are based on studies of dynamin 1/3 double KO synapses and on the ultrastructrual analysis of the time course of SV recovery from bulk endosomes in the presence or near depletion of clathrin lead to different conclusions.

Materials and methods

Gene targeting strategies

Request a detailed protocol

The generation of DNM1−/−, DNM3−/−, and DNM1−/−; 3−/− mice was described previously (Ferguson et al., 2007; Raimondi et al., 2011).

Neuronal cultures and their stimulation

Request a detailed protocol

Primary cultures of cortical neurons were prepared from E18 day mouse brains as described (Ferguson et al., 2007) and analyzed after 2–3 weeks in vitro. Neurons were maintained in Neurobasal medium supplemented with B27 (2%), Glutamax (2 mM) and penicillin/streptomycin at 37°C (all media components were from Gibco, Life Technologies, Grand Island, NY). Prior to stimulation and labeling experiments, cultures were incubated overnight with 1 μM TTX to silence synaptic activity and thus to reverse the accumulation of endocytic CCPs which is characteristic of neurons defective in dynamin function (see Ferguson et al., 2007; Hayashi et al., 2008; Raimondi et al., 2011). After a rinse with Tyrode buffer without Ca2+ (119 mM NaCl, 2.5 mM KCl, 2 mM MgCl2, 25 mM Hepes, and 30 mM glucose, pH 7.4) to wash out TTX, cultures were pre-incubated for 5 min with HRP (10 mg/ml, Sigma-Aldrich, St. Louis, MO) or CTX-HRP (10 μg/ml, Molecular Probes, Life Technologies, Eugene, Oregon) in the same buffer. Subsequently, they were stimulated by incubation for 90 s, this time with 2 mM Ca2+, but with a high concentration of K+ (90 mM) and a corresponding reduction in Na+. Alternatively, after a rinse with Tyrode buffer, coverslips were placed into a Chamlide stimulation chamber (Live Cell Instrument, Seoul, South Korea) and neuronal cultures were subjected to 10 s electrical field stimulation at 80 Hz (100 mAmp, 1 ms pulse) using a Master-8 pulse stimulator (AMPI, Jerusalem, Israel). Cultures were then washed rapidly three times in Ca2+-free Tyrode buffer and subsequently allowed to recover under conditions that prevent synaptic activity, either Ca2+ free Tyrode buffer also containing 0.5 mM EGTA or Tyrode buffer containing 1 μM TTX. HRP or CTX-HRP were present during the stimulus, the recovery period of both, as described in the text. All procedures involving mice were approved by the Yale University Institutional Animal Care and Use Committee.

Electron microscopy and electron tomography

Request a detailed protocol

Cells were chemically fixed with 1.2% glutaraldehyde in 0.1 M sodium cacodylate buffer, postfixed with 1% OsO4, 1.5% K4Fe(CN)6, (Sigma-Aldrich, St. Louis, MO), in the same buffer, en bloc stained with 0.5% uranyl magnesium acetate, dehydrated, and embedded in Embed 812 (all EM experiment components are from EMS, Hatfield, PA). The HRP reaction was developed with diaminobenzidene and H2O2 after the glutaraldehyde fixation step. Ultrathin sections were observed in a Philips CM10 microscope at 80 kV and images were taken with a Morada 1 k × 1 k CCD camera (Olympus). Synapses were selected based on the presence of an active zone. SV number and the membrane area of HRP-labeled bulk endosomes within the 60 nm thick section (endosome perimeter multiplied by 60) were measured from 30 to 100 synapses for each condition (1–3 pups for each condition depending on the genotypes found in the litter) and experiments. These values were normalized to the cross-sectional area of the presynaptic terminal. Results of the morphometric analysis are presented as average ± SEM, with the exceptions of data shown in Figure 10 which are shown as average ± SD. Significance for Figures 2, 4, 6 and 11 was evaluated using two-way ANOVA followed by Sidak's multiple comparisons test. Significance for Figures 1, 5 and 11B, 12 was evaluated with one-way ANOVA followed by Dunnett's or Tukey multiple comparisons test.

Electron tomography was performed as described (Hayashi et al., 2008) on 200–250 nm thick sections using either a TECNAI F20 or a F30 intermediate-voltage microscope operating at 200 kV or 300 kV (Boulder Laboratory for 3-D Electron Microscopy of Cells, University of Colorado). For the generation of the final models, contours of membranes were traced manually, but small vesicular structures SVs, CCVs, and CCPs were displayed as spheres.

High-pressure freezing and freeze substitution

Request a detailed protocol

Neurons were cultured on the opposite side of 20 nm carbon-coated 3 mm sapphire discs (TECHNOTRAD, Manchester, NH) (scratched with a unsymmetric symbol to distinguish sidedness). For freezing, discs were removed from the culture dishes, sandwiched between the 100 μm side of an A hat and the flat side of a B hat (TED PELLA, Red, CA) and flash frozen under high pressure with a Leica EM HPM100 machine with or without 20% BSA (Sigma-Aldrich, St. Louis, MO). All these manipulations were performed within 20–30 s. Frozen neurons were transferred to liquid nitrogen for storage. For freeze substitution (Watanabe et al., 2013b), samples were transferred to a Leica EM AFS2 apparatus, where they were first immersed in acetone containing 1% OsO4, 1% glutaraldehyde and 1% H2O at −90°C for 1-3 hr. Subsequently, they were slowly shifted (with temperature increases of 10°C/hr) to −20°C, kept for 12 hr at this temperature, and then further shifted to +20°C (again with temperature increases of 10°C/hr). Samples were then washed in acetone containing 1% H2O (10 min × 3), incubated with 0.1% uranyl acetate +1% H2O in acetone for 0.5–1 hr at room temperature (RT), washed in pure acetone at RT (10 min × 3) and infiltrated at RT with epon using the following sequence: 1 hr epon/acetone 1:2 (vol/vol); 1 hr epon/acetone 2:1 (vol/vol); 2 hr pure epon at RT. Finally, embedded samples were polymerized at 60°C for 48 hr.

Lentivirus construction

Request a detailed protocol

For CHC KD, a target sequence for mouse CHC (5′-GAAGATAAGCTGGAATGTTCT) was designed using the Block-iT RNAi Designer (Invitrogen, Life Technologies, Canada) and subcloned into pcDNA6.2/GW-EmGFP-miR (Invitrogen, Life Technologies, Canada) following manufacturer's instructions. The EmGFP-miR cassette was amplified by PCR and subcloned into the pRRLsinPPT vector to generate the lentiviral expression vector. The control virus has been described previously (Thomas et al., 2009). VSV-G pseudo-typed lentiviral particles were prepared as described previously (Ritter et al., 2013).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
    The VPS1 protein is a dynamin-like GTPase required for sorting proteins to the yeast vacuole
    1. K Ekena
    2. CA Vater
    3. CK Raymond
    4. TH Stevens
    (1993)
    Ciba Foundation Symposium 176:198–211.
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
    Bulk membrane retrieval in the synaptic terminal of retinal bipolar cells
    1. M Holt
    2. A Cooke
    3. MM Wu
    4. L Lagnado
    (2003)
    Journal of Neuroscience 23:1329–1339.
  34. 34
  35. 35
    Optogenetic control of phosphoinositide metabolism
    1. O Idevall-Hagren
    2. EJ Dickson
    3. B Hille
    4. DK Toomre
    5. P De Camilli
    (2012)
    Proceedings of the National Academy of Sciences of United States of America 109:E2316–E2323.
    https://doi.org/10.1073/pnas.1211305109
  36. 36
  37. 37
  38. 38
  39. 39
    Disappearance and reformation of synaptic vesicle membrane upon transmitter release observed under reversible blockage of membrane retrieval
    1. JH Koenig
    2. K Ikeda
    (1989)
    Journal of Neuroscience 9:3844–3860.
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
    Rapid bulk endocytosis and its kinetics of fission pore closure at a central synapse
    1. W Wu
    2. LG Wu
    (2007)
    Proceedings of the National Academy of Sciences United States of America 104:10234–10239.
    https://doi.org/10.1073/pnas.0611512104
  69. 69
  70. 70

Decision letter

  1. Reinhard Jahn
    Reviewing Editor; Max Planck Institute for Biophysical Chemistry, Germany

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for sending your work entitled “A clathrin and dynamin-independent pathway of synaptic vesicle recycling mediated by bulk endocytosis” for consideration at eLife. Your article has been favorably evaluated by a Senior editor and 3 reviewers, one of whom is a member of our Board of Reviewing Editors.

The Reviewing editor and the other reviewers discussed their comments before we reached this decision, and the Reviewing editor has assembled the following comments to help you prepare a revised submission.

In this work, De Camilli and coworkers take advantage of the mice deficient in dynamin 1 and dynamin 3 to address an old and still controversially discussed problem of synaptic vesicle recycling, namely the role of bulk endocytosis (observed as early as in the seventies) in synaptic vesicle recycling and its relationship to the clathrin- and dynamin-dependent pathway. The authors use cultured neurons that are subjected to a massive, vesicle-depleting stimulus and then allowed to recover exocytosed membranes by endocytosis, partially in the presence of extracellular tracers. Analysis is carried out by quantitative EM, with conventional fixation/staining protocols being complemented by cryo-EM following high-pressure freezing.

All referees agreed that the manuscript makes an interesting contribution to a longstanding and controversial debate. However, several of us had substantial concerns, and while in the end we decided to allow for revision, the following points should be addressed:

1) Stimulation by KCl is highly non-physiological and thus the intermediate structures described here may only become apparent at extreme stimulation conditions. We therefore suggest repeating at least some of the key experiments using stimulation by action potentials (at least for Figure 1).

2) There was considerable debate among the referees whether the remaining proteins (dynamin 2, residual clathrin) may not be sufficient to maintain some function despite very low protein levels. There are precedents for this: e.g. in MEFs, Parkin is only detectable by Q-RT-PCR and it is undetectable by western, yet this very low amount of Parkin is enough to support mitophagy (in parkin null MEFs mitophagy is blocked). While we realize that this issue is not easy to deal with, there should be at least an open discussion of this possibility. Also, the authors may try to carry out knockdown of dynamin 2 for further reduction of dynamin levels.

3) While the authors state that synaptic vesicles are being re-formed from the endosomal intermediates, the morphological distinction between endosomes and synaptic vesicles is not clear (most of them appear larger – were the diameters quantified, and where is the cutoff?). Also, evidence should be provided that these regenerated synaptic vesicles are capable of undergoing exocytosis.

In the following, we include some of the original referee comments to explain the concerns listed above in more detail:

Reviewer #1:

1) (...) The conclusion that synaptic vesicles are able to recycle without clathrin or without dynamin largely stems from the observation that bulk endosomes resolve into small synaptic vesicles in dynamin 1/3 double knock outs or upon additional clathrin knock down. However, not all dynamin function is absent and dynamin 2 is still present in these experiments. The authors argue that dynamin2 is present at low levels, but is very difficult to infer function simply from protein levels. Maybe a couple of percent of dynamin 2 are enough to support the very slow vesicle recycling the authors are observing. This point is further substantiated by the fact that triple knock out neurons do not survive while dynamin 1/3 double knock outs do, indicating an important function for the dynamin 2 protein despite the fact that it is present at only very low levels. A similar argument holds true for clathrin knock down: some clathrin is still persisting; there are even a few clathrin coated pits still observed after knock down, underscoring the presence of some clathrin protein upon knock down (Figure 8D). I understand that it is at present not possible to generate neurons that lack dynamin (or clathrin) completely, but because of this, the interpretation that synaptic vesicles can be formed in the absence of either protein lacks experimental support and the alternative interpretation that slow 'classical' endocytosis mediates the recycling of the synaptic vesicles seems possible and even more realistic.

2) I don't follow the argumentation that in dynamin1/3 KOs many of the synaptic like vesicles that form during the recovery period are not HRP labeled? The authors argue that stochastic labeling of all-or-non DAB conversion could explain this observation. In controls the same issues would be at play, yet there, almost all synaptic vesicles are labeled?

3) The HPF EM data shows bulk endosomes that sometimes display tubular extensions. Based on these morphological features the authors argue that these extensions my yield synaptic vesicles. The authors observe a dense coat at the tips of these extensions and claim this is not clathrin. This qualitative statement is not convincing and additional evidence that this is or is not clathrin is needed to make a convincing argument. In addition, it seems that the diameter of these structures does not match the diameter of an average synaptic vesicle.

Reviewer #2:

The authors suggest that synaptic vesicles form after stimulation of DKO synapses. In their analysis figures (for example Figure 2), the authors present separate graphs for bulk endosomes and synaptic vesicles. It is not clear how the authors decided whether a specific organelle is a synaptic vesicle or a bulk endosome. I used some of the PDF images provided in the submission, and analyzed the diameters of labeled organelles in DKO and WT synapses. I performed this for two figures in which numerous such organelles are included, Figure 1A and Figure 3. I only analyzed the 30 minute recovery images. In Figure 1A, I found that 57 of 60 organelles in the WT synapse had diameters of 10 pixels or below, corresponding to synaptic vesicles. In contrast, 18 of the 19 organelles I analyzed in the DKO synapse from Figure 1A had diameters of more than 10 pixels. I would interpret this as an indication that these synapses do not form synaptic vesicles, but rather smaller endosomes. This discrepancy is not as large in Figure 3, where about one third of the labeled DKO organelles are within the size range of the labeled WT organelles. Nevertheless, one can still conclude that the organelles forming in the DKO synapses are typically larger than synaptic vesicles. The authors should therefore include a characterization of the sizes of the vesicles forming during recovery after stimulation, and should indicate the amount of such vesicles that are within the size range of normal, WT synaptic vesicles.

Based on these measurements, a clear cutoff should be defined between synaptic vesicles and bulk endosomes (to be used in analysis figures such as Figure 2).

Along the same lines, the authors need to determine whether the small vesicles forming in DKO synapses exhibit the physiological characteristics of synaptic vesicles. For example, can these vesicles exocytose upon stimulation? If not, then this pathway cannot be suggested to form true synaptic vesicles. A number of strategies could be tried here, including pHluorin experiments and FM dye uptake and release.

https://doi.org/10.7554/eLife.01621.017

Author response

As we were about to finalize our material for resubmission, a paper on a similar topic appeared in Neuron: Clathrin/AP-2 Mediate Synaptic Vesicle Reformation from Endosome-like Vacuoles but Are Not Essential for Membrane Retrieval at Central Synapses. 2014. Kononenk, Puchkov, Classen,Walter, Pechstein, Sawade, Kaempf, Trimbuch, Lorenz, Rosenmund, Maritzen and Haucke. Neuron 82, 981–988.

Their major conclusions are quite contrary to what our experiments have revealed. While they show, like us, that high frequency stimulation triggers bulk endocytosis, they conclude, based on RNA interference, that bulk endocytosis requires both dynamin 1 and 3 and that reformation of synaptic vesicles from bulk endosomes is a clathrin-dependent process. We note the following:

1) Our data proves beyond any reasonable doubt (we use double KO mice) that dynamin 1 and 3 are not needed for bulk endocytosis; this process is actually enhanced in the complete absence (germline KO) of these two neuronal dynamins, possibly because clathrin-mediated endocytosis is impaired. In contrast, Kononenk et al based their conclusions about the requirement for dynamin 1 and 3 in bulk endocytosis on RNA interference experiments that lacked even minimal controls to establish that the observed phenotypes were due to on target effects of the shRNA. Furthermore, their conclusions are indirect, based on pHluorin experiments, and not supported by ultrastructural studies.

2) While the manuscript by Kononenk et al concludes that clathrin is required for the conversion of bulk endosomes to SVs, it does not provide direct evidence for the presence of clathrin on bulk endosomes. They show that after clathrin knockdown, stimulation is followed by the accumulation of endosome-like vacuoles (bulk endosomes). In contrast to their conclusion that clathrin must be required for the conversion of bulk endosomes to SVs, this observation is equally consistent with the possibility that bulk endosomes form more extensively when clathrin mediated budding of SVs from the plasma membrane is impaired.

As this other paper just appeared (June 4), we did not include it in our review of “prior knowledge”. We have made a reference to it in an Addendum at the end of our manuscript:

Addendum: While the revision of this manuscript was being finalized, a paper by Kononenko et al. (2014) reported that bulk endocytosis in response to a strong stimulus is dynamin 1/3 dependent (based on RNA interference and pHluorin based experiments) and proposed an important role for clathrin in SV budding from endosomes. Our results, which are based on ultrastructural studies of dynamin 1/3 double KO synapses and on the ultrastructrual analysis of the time course of SV recovery from bulk endosomes in the presence or near depletion of clathrin, lead to different conclusions.

Response to the comments of the reviewers:

We found the review to be very constructive and we have now addressed all the comments with new experimentation. The delay in responding relative to the time when we received the decision letter is explained by the long-term nature of the work involved in this research. Experiments rely on i) the breeding of mice that must be kept at the heterozygous state for the dynamin 1 allele, ii) 2-3 weeks for each preparation of neuronal primary cultures to mature and iii) a time consuming analysis by EM (morphometry and reconstruction of EM tomograms).

New data include: 1) evidence the SVs reformed by bulk endocytosis are available for a new round of release, thus indicating that they are bona fide functional synaptic vesicles; 2) quantitative analysis of endocytic intermediates following action potential stimulation in addition to high K+ stimulation; 3) new high pressure freezing experiments, providing improved morphological preservation (with corresponding new tomographic analysis); 4) analysis of synaptic vesicle size. In addition 5) statistical data have been added to all the figures reporting morphometric data. Figure 5, Figure 6, Figure 9, Figure 10 and supplemental Figure 1 to Figure 9 are completely new. We have also added a final cartoon to summarize our findings (new Figure 13).

Two new authors have been added, Mirko Messa and Xinran Liu, as they contributed to the new electrical stimulation and tomographic experiments.

Points that needed to be addressed based on the editorial letter.

1) Stimulation by KCl is highly non-physiological and thus the intermediate structures described here may only become apparent at extreme stimulation conditions. We therefore suggest repeating at least some of the key experiments using stimulation by action potentials (at least for Figure 1).

We performed these experiments. We stimulated dyn3KO (CTRL) and dyn1/3DKO cultures at 80 Hz for 10 s in the presence of CTX-HRP. EM analysis revealed that the bulk endocytosis and recovery occurring under these conditions had similar properties to that observed with high K+ stimulation. These data are now shown in revised Figure 5

2) There was considerable debate among the referees whether the remaining proteins (dynamin 2, residual clathrin) may not be sufficient to maintain some function despite very low protein levels. There are precedents for this: e.g. in MEFs, Parkin is only detectable by Q-RT-PCR and it is undetectable by western, yet this very low amount of Parkin is enough to support mitophagy (in parkin null MEFs mitophagy is blocked). While we realize that this issue is not easy to deal with, there should be at least an open discussion of this possibility. Also, the authors may try to carry out knockdown of dynamin 2 for further reduction of dynamin levels.

We invested great effort (even before submitting this manuscript) toward the generation or “null” dynamin synapses. We have in our lab the conditional KO mice of the appropriate genotype needed to achieve this goal and we used such mice to generate conditional triple KO fibroblasts (reported in Park et al. “Dynamin triple knockout cells reveal off target effects of commonly used dynamin inhibitors”. J Cell Sci. 2013:5305-12). However, we found that while mouse fibroblasts survive for weeks, even after all dynamin alleles have been disrupted and all dynamin was lost, neurons die very rapidly when all dynamin alleles are disrupted. For example, expression of Cre (either via the Cre-ER-tamoxifen methodology or via viral transduction) in cultured dynamin 1/ dynamin 3 double KO neurons harboring floxed dynamin 2 alleles resulted in neuronal death within few days, before all dynamin 2 could disappear from nerve terminals (Given the distance of nerve terminals from cell bodies and dendrites, loss of cytosolic proteins occurs with some delay relative to the loss of the same proteins in perikarya and dendrites). In principle, we could have used pharmacological inhibition to block residual dynamin, as several “anti-dynamin” drugs, primarily dynasore or dyngo, have been reported in the literature.

However, our studies of triple KO fibroblasts demonstrated major off-target effects of these drugs, thus making the use of these drugs unreliable. Thus, we could not answer the question raised here. Similar considerations apply to clathrin as we observed neuronal death before clathrin could completely disappear. Thus, we agree with reviewer 1 that we cannot exclude that slow 'classical' clathrin-mediated endocytosis from the plasma membrane, mediated by dynamin 2, could play a role in mediating the recycling of the synaptic vesicles during recovery from stimulation in the absence of dynamin 1 and 3. To comply with these comments, we have now better addressed this issue in the Discussion.

We have also changed the title to “A dynamin 1-, dynamin 3- and clathrin-independent pathway of synaptic vesicle recycling mediated by bulk endocytosis”.

(The original title was “A clathrin and dynamin-independent pathway of synaptic vesicles recycling mediated by bulk endocytosis”.)

3) While the authors state that synaptic vesicles are being re-formed from the endosomal intermediates, the morphological distinction between endosomes and synaptic vesicles is not clear (most of them appear larger – were the diameters quantified, and where is the cutoff?). Also, evidence should be provided that these regenerated synaptic vesicles are capable of undergoing exocytosis.

This point deals with the more general issue of what should be defined as an endosome in nerve terminals. The word “endosome” was first introduced by Helenius et al in 1983 (“Endosomes”. Helenius, Mellman, Wall and Hubbard, Trends Bioch, Sci. July 1983: 245-250) to define “a heterogeneous population of endocytic vacuoles through which molecules internalized during pinocytosis pass en route to lysosomes”, and in which molecular sorting occurs. The morphological, biochemical and functional heterogeneity of endosomes has become even more apparent during the last 30 years. In our study we have frequently used the terms “endosomal intermediates” or “bulk endosomes” to emphasize the unique nature of the nerve terminal compartments that form and then disappear in response to massive stimulation. Here we have used size to distinguish such intermediates from synaptic vesicles. We recognize that needs to be precisely defined in the text. We have now defined endosomes as organelles bigger than 80 nm. We have also carried out a new morphometric analysis of vesicular profiles with diameters (in the plane of the section) comprised between 20 and 200 nm at WT and mutant synapses at rest and during recovery. This analysis indicated a slightly larger and more heterogenous diameter of synaptic vesicles in dyn1 KO and dyn1/3 DKO synapses.

We also now provide evidence that SVs regenerated from bulk endosomes are functional by showing that SVs labeled by HRP during a 90 sec high K+ stimulation can undergo exocytosis after a 30 min recovery period upon a second round of high K+ stimulation. Newly formed (as defined by HRP labeling) SVs are releasable from both CTRL and dyn1/3DKO neurons.

Although we understand that the points outlined in the editorial letter (above) were the critical ones, we have also addressed to our best additional specific points raised by the reviewers

Reviewer #1:

1) (...) The conclusion that synaptic vesicles are able to recycle without clathrin or without dynamin largely stems from the observation that bulk endosomes resolve into small synaptic vesicles in dynamin 1/3 double knock outs or upon additional clathrin knock down. However, not all dynamin function is absent and dynamin 2 is still present in these experiments. The authors argue that dynamin2 is present at low levels, but is very difficult to infer function simply from protein levels. Maybe a couple of percent of dynamin 2 are enough to support the very slow vesicle recycling the authors are observing. This point is further substantiated by the fact that triple knock out neurons do not survive while dynamin 1/3 double knock outs do, indicating an important function for the dynamin 2 protein despite the fact that it is present at only very low levels. A similar argument holds true for clathrin knock down: some clathrin is still persisting; there are even a few clathrin coated pits still observed after knock down, underscoring the presence of some clathrin protein upon knock down (Figure 8D). I understand that it is at present not possible to generate neurons that lack dynamin (or clathrin) completely, but because of this, the interpretation that synaptic vesicles can be formed in the absence of either protein lacks experimental support and the alternative interpretation that slow 'classical' endocytosis mediates the recycling of the synaptic vesicles seems possible and even more realistic.

We have addressed this question within point 2 of the compiled editorial comments (see above). We agree with this reviewer that residual dynamin, dynamin 2, could play a role in the recycling occurring in the absence of dynamin 1 and 3. In fact, we do believe that it may play some role in clathrin-mediated endocytosis from the plasma membrane still occurring in these cells. However, our data argue against a clathrin/dynamin-dependent classical mechanism from bulk endosomes in dyn1/3DKO neurons, as we do not see clathrin coated pit accumulation on bulk endosomes at synapses of these neurons, in contrast to the robust accumulation of CCPs at the plasma membrane. Tomographic analysis demonstrated that CCPs localized deep into axon endings were in fact localized on deep plasma membrane invaginations. In any case, we have now changed the following sentence of the Abstract by replacing “showing” with “suggesting”: “Conversion of bulk endosomes into SVs during recovery was delayed, but not blocked, even after further clathrin knockdown, <strike>showing</strike> suggesting that this process is independent of clathrin-mediated budding. We have modified the title and we have been very cautious throughout the text. For example the last sentence of the Introduction (which we have not changed from the original submission) states: “These observations provide evidence for a pathway of SV reformation that does not require dynamin/clathrin mediated endocytosis and that predominates after strong stimulation”.

2) I don't follow the argumentation that in dynamin1/3 KOs many of the synaptic like vesicles that form during the recovery period are not HRP labeled? The authors argue that stochastic labeling of all-or-non DAB conversion could explain this observation. In controls the same issues would be at play, yet there, almost all synaptic vesicles are labeled?

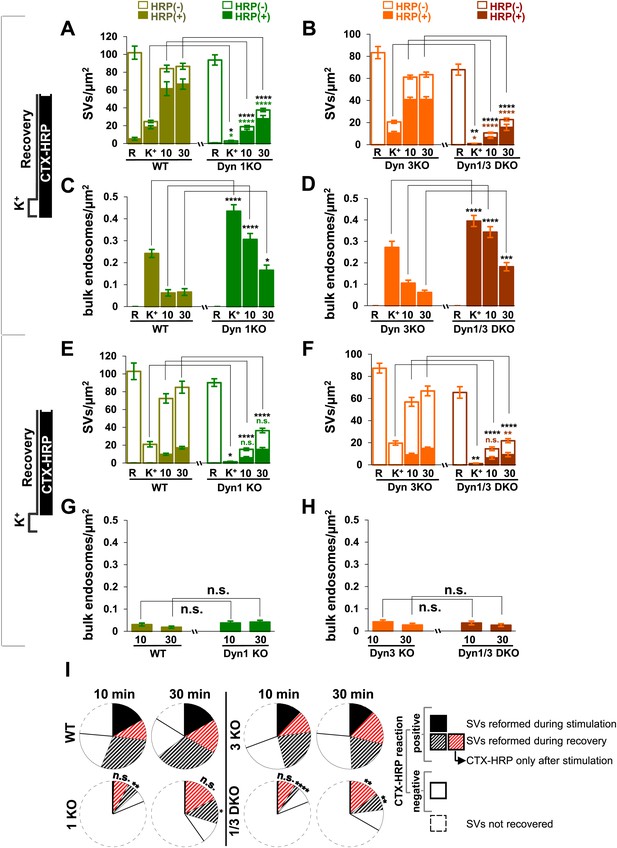

There is some heterogeneity in the fraction of labeled SVs, but, as the quantification data show (Figure 2A and B), such fraction is approximately similar in controls and dynamin 1 KO and dynamin 1/3 DKO synapses. We realize that the original 30 min WT field of Figure 1A could have been misleading (we had chosen samples where most vesicles were labeled to emphasize the occurrence of recycling) and we replaced them.

3) The HPF EM data shows bulk endosomes that sometimes display tubular extensions. Based on these morphological features the authors argue that these extensions my yield synaptic vesicles. The authors observe a dense coat at the tips of these extensions and claim this is not clathrin. This qualitative statement is not convincing and additional evidence that this is or is not clathrin is needed to make a convincing argument. In addition, it seems that the diameter of these structures does not match the diameter of an average synaptic vesicle.

We thank the reviewer for this comment. Those tubular structures were indeed very rare and could not be observed in new samples that we have generated with improved morphology. All high pressure-freezing/freeze-substitution images presented are new. The only coated buds observed in vacuolar structures had the characteristic texture of clathrin-coated pits, but these were very few (numbers are now given in results at the description of Figure 9). Furthermore, when tomographic analysis was performed and when the entire ”vacuolar” structure was contained within the tomogram such vacuoles were in fact found to be still connected to the cell surface.

Reviewer #2:

The authors suggest that synaptic vesicles form after stimulation of DKO synapses. In their analysis figures (for example Figure 2), the authors present separate graphs for bulk endosomes and synaptic vesicles. It is not clear how the authors decided whether a specific organelle is a synaptic vesicle or a bulk endosome. (…) The authors should therefore include a characterization of the sizes of the vesicles forming during recovery after stimulation, and should indicate the amount of such vesicles that are within the size range of normal, WT synaptic vesicles.

Based on these measurements, a clear cutoff should be defined between synaptic vesicles and bulk endosomes (to be used in analysis figures such as Figure 2).

This question was answered above.

Along the same lines, the authors need to determine whether the small vesicles forming in DKO synapses exhibit the physiological characteristics of synaptic vesicles. For example, can these vesicles exocytose upon stimulation? If not, then this pathway cannot be suggested to form true synaptic vesicles. A number of strategies could be tried here, including pHluorin experiments and FM dye uptake and release.

We addressed this question with a new experimentation (as answered above), and found that the vesicles can undergo exocytosis.

https://doi.org/10.7554/eLife.01621.018

Article and author information

Author details

  1. Yumei Wu

    1. Department of Cell Biology, Yale University School of Medicine, New Haven, United States
    2. Program in Cellular Neuroscience, Neurodegeneration and Repair, Yale University School of Medicine, New Haven, United States
    3. Howard Hughes Medical Institute, Yale University School of Medicine, New Haven, United States
    Contribution
    YW, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  2. Eileen T O'Toole

    Department of MCD Biology, University of Colorado, Boulder, United States
    Contribution
    ETO'T, Helped with electron tomography, Acquisition of data
    Competing interests
    The authors declare that no competing interests exist.
  3. Martine Girard

    Department of Neurology and Neurosurgery, Montreal Neurological Institute, McGill University, Montreal, Canada
    Contribution
    MG, Generated and validated viral vectors, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  4. Brigitte Ritter

    Department of Neurology and Neurosurgery, Montreal Neurological Institute, McGill University, Montreal, Canada
    Present address
    Department of Biochemistry, Boston University School of Medicine, Boston, United States
    Contribution
    BR, Generated and validated viral vectors, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  5. Mirko Messa

    1. Department of Cell Biology, Yale University School of Medicine, New Haven, United States
    2. Program in Cellular Neuroscience, Neurodegeneration and Repair, Yale University School of Medicine, New Haven, United States
    3. Howard Hughes Medical Institute, Yale University School of Medicine, New Haven, United States
    Contribution
    MM, Electrical stimulation experiments, Acquisition of data
    Competing interests
    The authors declare that no competing interests exist.
  6. Xinran Liu

    Department of Cell Biology, Yale University School of Medicine, New Haven, United States
    Contribution
    XL, Helped with electron tomography, Acquisition of data
    Competing interests
    The authors declare that no competing interests exist.
  7. Peter S McPherson

    Department of Neurology and Neurosurgery, Montreal Neurological Institute, McGill University, Montreal, Canada
    Contribution
    PSM, Drafting or revising the article, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  8. Shawn M Ferguson

    1. Department of Cell Biology, Yale University School of Medicine, New Haven, United States
    2. Program in Cellular Neuroscience, Neurodegeneration and Repair, Yale University School of Medicine, New Haven, United States
    Contribution
    SMF, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  9. Pietro De Camilli

    1. Department of Cell Biology, Yale University School of Medicine, New Haven, United States
    2. Program in Cellular Neuroscience, Neurodegeneration and Repair, Yale University School of Medicine, New Haven, United States
    3. Howard Hughes Medical Institute, Yale University School of Medicine, New Haven, United States
    Contribution
    PDC, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    pietro.decamilli@yale.edu
    Competing interests
    The authors declare that no competing interests exist.

Funding

National Institutes of Health (NS36251, DK45735, DA018343)

  • Pietro De Camilli

Canadian Institutes of Health Research (CIHR MOP-13461)

  • Peter S McPherson

Brain and Behavior Research Foundation

  • Pietro De Camilli

Howard Hughes Medical Institute

  • Pietro De Camilli

Ellison Medical Foundation

  • Pietro De Camilli

National Institutes of Health (P41GM103431)

  • Eileen T O'Toole

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Ruben Fernandez-Busnadiego, Andrea Raimondi, Abel Alcazar and Summer Paradise for discussion and help, Frank Wilson, Louise Lucast and Lijuan Liu for outstanding technical assistance, and Morven Graham (Yale Center for Cell and Molecular Imaging) for assistance with EM. This work was supported in part by grants from the NIH (NS36251, DK45735, and DA018343 to PDC and P41GM103431 to A Honger), from the Howard Hughes Medical Institute (HHMI), the Brain and Behavior Research Foundation (formerly NARSAD) and the Ellison Medical Foundation to PDC and from the Canadian Institute of Health Research (MOP-13461) to PSM.

Ethics

Animal experimentation: The present study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All of the animals were handled according to approved institutional animal care and use committee (IACUC) protocols (#07422-2012) of Yale university. All animals were euthanized with CO2 and embryos were used for primary neuron culture.

Reviewing Editor

  1. Reinhard Jahn, Max Planck Institute for Biophysical Chemistry, Germany

Publication history

  1. Received: October 1, 2013
  2. Accepted: June 24, 2014
  3. Accepted Manuscript published: June 24, 2014 (version 1)
  4. Accepted Manuscript updated: June 30, 2014 (version 2)
  5. Version of Record published: July 29, 2014 (version 3)

Copyright

© 2014, Wu et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 4,899
    Page views
  • 689
    Downloads
  • 35
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
