The Brm-HDAC3-Erm repressor complex suppresses dedifferentiation in Drosophila type II neuroblast lineages

  1. Chwee Tat Koe
  2. Song Li
  3. Fabrizio Rossi
  4. Jack Jing Lin Wong
  5. Yan Wang
  6. Zhizhuo Zhang
  7. Keng Chen
  8. Sherry Shiying Aw
  9. Helena E Richardson
  10. Paul Robson
  11. Wing-Kin Sung
  12. Fengwei Yu
  13. Cayetano Gonzalez
  14. Hongyan Wang  Is a corresponding author
  1. National University of Singapore, Singapore
  2. Duke-NUS Graduate Medical School Singapore, Singapore
  3. Institute for Research in Biomedicine, Spain
  4. Temasek Life Sciences Laboratory, Singapore
  5. Peter MacCallum Cancer Centre, Australia
  6. University of Melbourne, Australia
  7. University of Melbourne, Parkville, Australia
  8. Genome Institute of Singapore, Singapore
  9. Institució Catalana de Recerca i Estudis Avançats (ICREA), Spain
https://doi.org/10.7554/eLife.01906
Share this article
Cite this article
  1. Chwee Tat Koe
  2. Song Li
  3. Fabrizio Rossi
  4. Jack Jing Lin Wong
  5. Yan Wang
  6. Zhizhuo Zhang
  7. Keng Chen
  8. Sherry Shiying Aw
  9. Helena E Richardson
  10. Paul Robson
  11. Wing-Kin Sung
  12. Fengwei Yu
  13. Cayetano Gonzalez
  14. Hongyan Wang
(2014)
The Brm-HDAC3-Erm repressor complex suppresses dedifferentiation in Drosophila type II neuroblast lineages
eLife 3:e01906.
https://doi.org/10.7554/eLife.01906
  2. Download BibTeX
  3. Download .RIS

Abstract

The control of self-renewal and differentiation of neural stem and progenitor cells is a crucial issue in stem cell and cancer biology. Drosophila type II neuroblast lineages are prone to developing impaired neuroblast homeostasis if the limited self-renewing potential of intermediate neural progenitors (INPs) is unrestrained. Here, we demonstrate that Drosophila SWI/SNF chromatin remodeling Brahma (Brm) complex functions cooperatively with another chromatin remodeling factor, Histone deacetylase 3 (HDAC3) to suppress the formation of ectopic type II neuroblasts. We show that multiple components of the Brm complex and HDAC3 physically associate with Earmuff (Erm), a type II-specific transcription factor that prevents dedifferentiation of INPs into neuroblasts. Consistently, the predicted Erm-binding motif is present in most of known binding loci of Brm. Furthermore, brm and hdac3 genetically interact with erm to prevent type II neuroblast overgrowth. Thus, the Brm-HDAC3-Erm repressor complex suppresses dedifferentiation of INPs back into type II neuroblasts.

https://doi.org/10.7554/eLife.01906.001

eLife digest

Stem cells show great promise for repairing damaged tissue, and maybe even generating new organs, but stem cell therapies will only be successful if researchers can understand and control the behaviour of stem cells in the lab. Neural stem cells or ‘neuroblasts’ from the brains of larval fruit flies have become a popular model for studying these processes, and one type of neuroblast—known as a ‘type II’ neuroblast—is similar to mammalian neural stem cells in many ways.

When type II neuroblasts divide, they generate another neuroblast and a second cell called an intermediate neural progenitor (INP) cell. This progenitor cell then matures and undergoes a limited number of divisions to generate more INP cells and cells called ganglion mother cells. The process by which stem cells and INP cells become specific types of cells is known as differentiation. However, under certain circumstances, the INP cells can undergo the opposite process, which is called dedifferentiation, and become ‘ectopic neuroblasts’. This can give rise to tumors, so cells must employ a mechanism to prevent dedifferentiation. Researchers have known that a protein specifically expressed in INP cells called Earmuff is involved in this process, but many of the details have remained hidden.

Now, Koe et al. have discovered that a multi-protein complex containing Earmuff and a number of other proteins—Brahma and HDAC3—have important roles in preventing dedifferentiation. All three proteins are involved in different aspects of gene expression: Earmuff is a transcription factor that controls the process by which the genes in DNA are transcribed to make molecules of messenger RNA; Brahma and HDAC3 are both involved in a process called chromatin remodeling. The DNA inside cells is packaged into a compact structure known as chromatin, and chromatin remodeling involves partially unpacking this structure so that transcription factors and other proteins can have access to the DNA.

Koe et al. also showed that Earmuff, Brahma and HDAC3 combine to form a complex that prevents dedifferentiation. An immediate priority is to identify those genes whose expression is regulated by this complex in order to prevent dedifferentiation.

https://doi.org/10.7554/eLife.01906.002

Introduction

The mechanism by which self-renewal and differentiation are balanced is a crucial issue in stem cell and cancer biology. The neural stem cells, or neuroblasts, of the Drosophila larval brain have emerged as a new model for studying stem cell self-renewal and tumorigenesis. In Drosophila larval central brains, there are at least two classes of neuroblast lineages (Bello et al., 2008; Boone and Doe, 2008; Bowman et al., 2008). A type I neuroblast that expresses both Deadpan (Dpn) and Asense (Ase) divides asymmetrically to generate a self-renewing neuroblast and a ganglion mother cell (GMC), which is committed to a differentiation pathway. In contrast, a type II neuroblast that expresses Dpn, but not Ase, divides asymmetrically to generate a neuroblast and a transient amplifying cell known as an intermediate neural progenitor (INP) (Bello et al., 2008; Boone and Doe, 2008; Bowman et al., 2008). Following maturation, the INP undergoes a limited number of asymmetric divisions to self-renew and to produce multiple GMCs (Weng et al., 2010). In both types of lineages, asymmetric division is dependent on apically localized proteins, including atypical protein kinase C (aPKC); basally localized proteins, such as Miranda and Numb; as well as several cell cycle regulators (Chang et al., 2012; Gonzalez, 2013). The failure of asymmetric division in either type of neuroblast can result in the hyperproliferation of these cells and the induction of brain tumors (Caussinus and Gonzalez, 2005; Wang et al., 2006, 2007, 2009, 2011; Lee et al., 2006a, 2006b; Cabernard and Doe, 2009; Chabu and Doe, 2009, 2011; Chang et al., 2010).

The type II neuroblast lineage is highly analogous to the mammalian neural stem cell lineages, because both involve transient amplifying cells that are used to expand the progenitor cell population. It is prone to impaired neuroblast homeostasis, if the limited self-renewing potential of INPs is unrestrained. Brain tumor (Brat) and the Notch antagonist Numb function cooperatively to ensure that immature INPs undergo maturation and commit to the INP fate (Boone and Doe, 2008; Bowman et al., 2008). Notch signaling maintains neuroblast identity and its overactivation leads to dedifferentiation of INPs to ectopic neuroblasts (Wang et al., 2006; Bowman et al., 2008; Weng et al., 2010). A small number of transcription factors have been implicated in the control of INP identity and proliferative potential (Carney et al., 2012). Specifically expressed in INPs, a Zinc-finger transcription factor Earmuff (Erm) plays a critical role in maintaining the restricted developmental potential of the INPs (Weng et al., 2010). The Ets transcription factor Pointed (PntP1) is specifically expressed in type II neuroblasts and INPs and is both necessary and sufficient for the suppression of Ase in type II neuroblasts and the generation of INPs (Zhu et al., 2011). Prospero that is basally localized in mitotic type I neuroblast, but absent from type II neuroblasts, triggers cell cycle exit and GMC differentiation (Bello et al., 2006; Betschinger et al., 2006; Choksi et al., 2006; Lee et al., 2006c). However, the underlying mechanism by which Erm prevents dedifferentiation is poorly understood.

ATP-dependent chromatin-remodeling factors are critical for the expression of the eukaryotic genome. Four major classes of ATP-dependent chromatin remodeling complexes have been identified, including the extensively studied SWI/SNF complexes (Narlikar et al., 2002; Reisman et al., 2009). The mammalian SWI/SNF complex termed the Brahma (Brm or Brg1) complex regulates critical cellular processes such as differentiation and cell cycle arrest (Klochendler-Yeivin et al., 2002). Drosophila Brm complex acts similarly to control cell proliferation (Brumby et al., 2002) and differentiation (Marenda et al., 2003). A genome-wide RNAi study in Drosophila neuroblasts showed that the knockdown of genes encoding several core subunits of the SWI/SNF Brahma (Brm) remodeling complex may lead to neuroblast overproliferation (Neumuller et al., 2011). However, the precise role of the Brm remodeling complex during neuroblast self-renewal and the mechanism that underlying underlies this effect mechanism remain to be elucidated. Besides ATP-dependent chromatin remodeling complexes, the other major class of chromatin remodelers is histone modifiers. Histone deacetylases (HDACs) remove acetyl groups from the tails of core histones in the nucleosome and are often associated with transcriptional co-repressors (Dokmanovic et al., 2007). However, despite the critical role for histone modifiers in transcriptional regulation, it is unknown whether histone modifications play any role in Drosophila larval brain neuroblasts.

In this study, we report the critical role of a central chromatin remodeler, the Brm complex in preventing the formation of ectopic neuroblasts in type II lineages. We show that another chromatin remodeling factor, HDAC3 functions cooperatively with the Brm complex to suppress the formation of ectopic type II neuroblasts. Interestingly, multiple components of the Brm complex and HDAC3 physically associate with Erm. brm and hdac3 interact genetically with erm to prevent type II neuroblast overgrowth. Thus, the Brm-HDAC3-Erm complex is a novel repressor complex that suppresses dedifferentiation of INPs back into type II neuroblasts.

Results

The Brm complex suppresses the formation of ectopic neuroblasts in type II neuroblast lineages

We independently identified brm from a RNA interference (RNAi) screen in which brm RNAi knockdown in larval brains resulted in an increase of Miranda-positive neuroblast-like cells in larval central brains (Figure 1—figure supplement 1A), showing a phenotype similar to one previously reported (Neumuller et al., 2011). Brm is a DNA-dependent ATPase and a major component of a multi-protein SWI/SNF chromatin remodeling complex, which controls gene expression by altering chromatin structure (Klochendler-Yeivin et al., 2002). The number of cells expressing the proto-oncogene dMyc was significantly increased upon brm RNAi knockdown (Figure 1—figure supplement 1B), consistent with the neuroblast overgrowth phenotype. To determine the function of Brm in different neuroblast lineages, we generated MARCM clones in two brm loss-of-function alleles. Type I wild-type (wt) clones always contained one neuroblast that is positive for both Dpn and Ase (data not shown). Similarly, only one neuroblast was present in both amorphic brm2 and hypomorphic brmT362 type I clones (data not shown), indicating that Brm has no significant effect on type I neuroblast numbers. Each wt type II MARCM clone also possessed only one neuroblast that was positive for Dpn, but negative for Ase (Figure 1A; n = 25). Unlike the wt control, 6.4 ± 3.3 and 4.5 ± 2.6 ectopic neuroblasts were observed in brm2 (Figure 1B,B′,D; 88.6%, n = 34) brmT362 (Figure 1C,C′,D; 75.9%, n = 58) type II clones, respectively. These phenotypes in brm alleles could be rescued by expressing a wild-type brm transgene (Figure 1—figure supplement 1C). Consistent with phenotypes in brm clones, knockdown of brm by RNAi using a type II neuroblast-specific neuroblast driver worniu (wor)-Gal4, ase-Gal80 (henceforth referred to as ‘type II driver’; ‘Materials and methods’) was sufficient to produce ectopic neuroblasts in 97.4% of type II neuroblast lineages (Figure 1F,K; 7 ± 3.4 neuroblasts/lineage, n = 38), while each control clone always has one neuroblast (Figure 1E,K; n = 80). We therefore conclude that Brm suppresses the formation of ectopic neuroblasts in type II neuroblast lineages.

Figure 1 with 1 supplement see all
Download asset Open asset

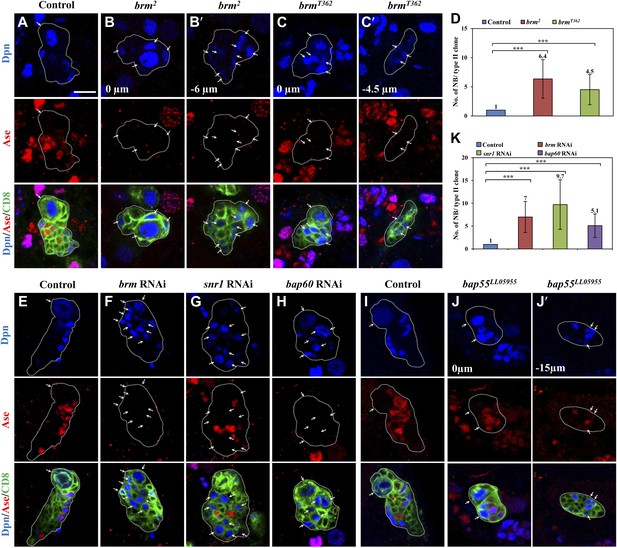

The Brm complex suppresses the formation of ectopic type II neuroblasts.

(A–C) Type II MARCM clones of control (the MARCM driver; D), brm2 (B, B′) and brmT362 (C, C′) were labeled with Dpn (blue), Ase (red) and CD8::GFP (green). (D) Quantification of neuroblast number per type II MARCM clone for A–C. (E–H) Type II neuroblast lineage from control (‘the type II driver’: wor-Gal4 ase-Gal80; E), brm knockdown (F), snr1 knockdown (108599 KK; G), and bap60 knockdown (H) were labeled with Dpn (blue), Ase (red) and CD8 (green). (I–J′) type II MARCM clone of control (I) and bap55LL05955 (J, J′) were labeled with Dpn (blue), Ase (red) and CD8 (green). (K) Quantification of neuroblast number per type II lineage for E–I. Arrows indicate neuroblasts. Clones are marked by CD8::GFP and indicated by white dotted line. Scale bars, 10 µm. *** indicates p<0.001.

https://doi.org/10.7554/eLife.01906.003

Concomitantly with the formation of supernumerary neuroblasts, the number of mature INPs that are positive for Dpn and Ase were dramatically reduced in both brm2 (Figure 2B,B′,D; 5.3 ± 4.3/clone, n = 39) and brmT362 (Figure 2C,C′,D; 9.6 ± 4.6/clone, n = 56), compared with the control type II clones (Figure 2A,A′,D; 18.9 ± 3.7, n = 22). The number of Dpn− PntP1+ immature INPs and early mature INPs appeared to be normal or slightly increased in brm2 (Figure 2F; 8.4 ± 2.5, n = 26) and brmT362 (Figure 2G; 7.1 ± 2.1, n = 33) clones compared with the control (Figure 2E; 5.9 ± 1.1, n = 26). These results suggested that ectopic neuroblasts in brm− clones likely originate from INPs that fail to undergo maturation. To further determine whether INPs undergo dedifferentiation back into neuroblast, we used INP-specific RNAi to knock down brm in INPs by erm-Gal4, an INP-specific driver. In 42.5% of INP clones with brm knockdown, ectopic Dpn+ Ase− neuroblasts were observed (Figure 2I,I′; 1.2 ± 1.6 neuroblasts /INP clone, n = 40). In contrast, none of the INP clones from the driver control contained any neuroblasts (Figure 2H; 0 neuroblast/INP clone, n = 53). The relatively weak phenotype is likely due to incomplete knockdown of Brm, as shown by the reduced Brm staining in the INP clones (Figure 2—figure supplement 1). Thus, our data suggest that Brm functions in INPs to prevent INP dedifferentiation back into neuroblasts.

Figure 2 with 1 supplement see all
Download asset Open asset

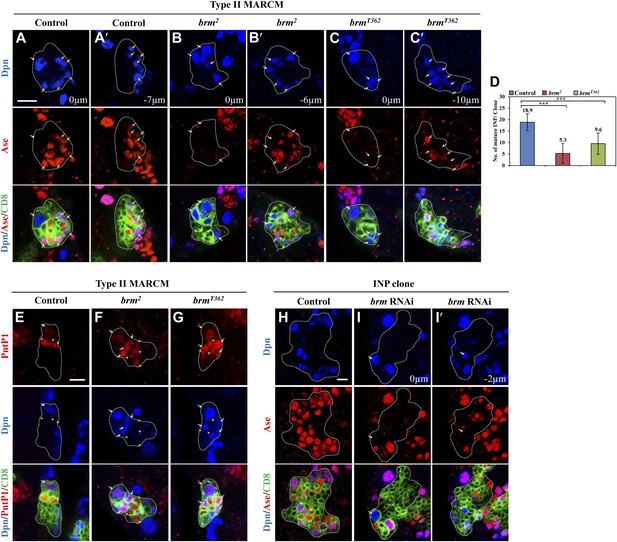

The Brm complex suppresses INP dedifferentiation into type II neuroblasts.

(A–C′) Type II MARCM clones of control (the MARCM driver; A, A′), brm2 (B, B′) and brmT362 (C, C′) were labeled with Dpn (blue), Ase (red) and CD8::GFP (green). (D) Quantifications of INP number per type II clone for A–C′. *** indicates p<0.001. (E–G) Type II MARCM clones of control (E), brm2 (F) and brmT362 (G) were labeled with Dpn (blue), PntP1 (red) and CD8::GFP (green). (H–I′) INP clones of a control (driver: erm-Gal4 [II]; erm-Gal4 [III]; (H) and brm RNAi under erm-Gal4 (II); erm-Gal4 (III) with UAS-Dcr2 UAS-CD8-GFP (I, I′) were labeled with Dpn (blue), Ase (red) and CD8 (green). White arrows indicate neuroblasts, yellow arrows indicate Dpn+ Ase+ mature INPs and yellow arrowheads indicate Dpn− PntP1+ INPs. Clones are marked by CD8::GFP and indicated by white dotted line. Scale bars, 10 µm (A–G) and 5 µm (H–I′).

https://doi.org/10.7554/eLife.01906.005

To assess whether Brm was affecting apico-basal cell polarity, we examined the localization of aPKC, Numb and Brat, which are asymmetrically localized in wild-type neuroblasts in prometaphase/metaphase. brm2 MARCM clones did not show any defects in the localization of these markers (Figure 3—figure supplement 1A–C), suggesting that Brm is not important for the apical-basal polarity regulation in neuroblasts.

We then assessed the function of other core subunits of the Brm remodeling complex using RNAi knockdown in larval brains. Knock down either of the three core components snr1 (Figure 1G,K, 9.5 ± 5.5 neuroblasts/lineage, 64.5%, n = 34), bap60 (Figure 1H,K, 5.1 ± 2.8 neuroblasts/lineage, 87.0%, n = 52), and moira (data not shown; also reported in Neumuller et al. (2011)) resulted in prominent phenotypes with ectopic Dpn+ Ase− neuroblasts in type II neuroblast lineages. Two additional snr1 RNAi lines under the control of the type II driver also displayed excess type II neuroblasts (Figure 1—figure supplement 1D). Furthermore, bap55LL5955 MARCM clones also showed ectopic neuroblasts in type II (Figure 1J,J′, 2.3 ± 1.7 neuroblasts/clone; 30.5%, n = 57), but not type I neuroblast lineages (Figure 1—figure supplement 1F; n = 20). The number of Dpn+ Ase+ mature INPs in bap55LL5955 was significantly reduced (13.8 ± 4.1; n = 49) compared with the control (18.9 ± 3.7, n = 22), while the number of Dpn− PntP1+ immature and early mature INPs (4.2 ± 1.9, n = 26) was similar to the control (5.9 ± 1.1, n = 26). In various mutants and RNAi lines described above, we also observed an increased number of Dpn+ PntP1+ cells (data not shown), which serves as an independent set of marker for type II neuroblasts. This data further supports that loss-of-function of the Brm complex caused the phenotype of ectopic type II neuroblasts. We conclude that core components of the Brm remodeling complex are required to suppress ectopic neuroblast formation in type II neuroblast lineages.

Next, we ascertained whether other chromatin remodeling complexes such as Nucleosome remodeling factor (NURF) and ACF complex (ATP-utilizing chromatin assembly and remodeling factor), play any role during neuroblast self-renewal. RNAi knockdown of nurf301 or ACF complex components iswi and acf1 (Figure 1—figure supplement 1G) in the type II neuroblast lineages did not result in any obvious neuroblast overgrowth. These data suggest that they may not be important for type II neuroblast lineages or their RNAi targeting was insufficient to induce an effect.

HDAC3 acts cooperatively with the Brm complex to suppress the formation of ectopic type II neuroblasts

To assess the involvement of histone modifications in type II neuroblast lineages, we screened a collection of 43 histone modifiers (Table 1; Kirilly et al., 2011) by RNAi under the control of a type II-specific driver but failed to identify any RNAi lines with ectopic neuroblasts. We reasoned that histone modifiers may act cooperatively with the Brm complex in type II neuroblast lineages and the phenotype may be masked due to the presence of the functional Brm complex. We therefore re-screened the same collection of potential histone modifiers in a brm RNAi background and showed that the simultaneous knockdown of both brm and hdac3 under the control of the type II driver resulted in a more severe phenotype of ectopic neuroblasts (Figure 3D,E; 22.1 ± 7.4 neuroblasts/clone, n = 21) compared with brm RNAi (Figure 3B,E; 10.3 ± 5.6 neuroblasts/clone, n = 30) or hdac3 RNAi knockdown alone (Figure 3C,E; 1.1 ± 0.5 neuroblasts/clone, n = 85). This finding suggests that HDAC3 functions cooperatively with Brm to regulate type II neuroblast lineages. Next, we took advantage of an existing deletion mutant snr16c hdac36c, which removes the entire snr1 coding region and the C-terminal region of hdac3. Type II neuroblast MARCM clones from snr16c hdac36c homozygotes possessed a large number of ectopic neuroblasts (Figure 3G,H, 22 ± 11.5 neuroblasts/clone, 83.0%, n = 22). The number of mature Dpn+ Ase+ INPs in each snr16c hdac36c type II neuroblast clone was modestly reduced to 15.6 ± 4.4 (n = 22) compared with 20.3 ± 3/clone (n = 20) in control, while the number of Dpn− PntP1+ immature and early mature INPs (6.3 ± 3/clone, n = 21) are slightly greater compared with the control clones (4.1 ± 0.9, n = 21). In contrast, type I neuroblast clones of this double mutant appeared normal, as there was only one neuroblast per clone (Figure 3—figure supplement 1D, n = 17). Similar to hdac3 RNAi (Figure 3C), neither type I nor type II neuroblast mutant clones of a loss-of-function hdac3N allele had ectopic neuroblasts (Figure 3—figure supplement 1E and data not shown). Despite that ectopic neuroblasts were observed in multiple snr1 RNAi lines (Figure 1—figure supplement 1D), snr1R3 MARCM clones did not show obvious ectopic type II neuroblasts (Figure 1—figure supplement 1E). Because Snr1 protein was speculated to have extended perdurance in somatic clones of its null allele (Marenda et al., 2004), the lack of phenotype in snr1R3 is likely due to protein perdurance in the neuroblast clones. Our data suggest that HDAC3 acts cooperatively with the Brm complex to suppress the formation of ectopic type II neuroblasts. To ascertain whether snr16c hdac36c causes tumorigenesis, larval brain tissues carrying snr16c hdac36c MARCM clones were transplanted into the abdomen of wild-type hosts. A significant portion of the mutant tissue (Figure 3J; 21%, n = 14) proliferated massively and formed malignant tumors, whilst control clones did not proliferate after the implantation (Figure 3I; n = 25). In subsequent rounds of transplantation, 70% (T1, n = 10) and 80% (T2, n = 5) of the snr16c hdac36c mutant brain tissues developed tumors, suggesting that snr16c hdac36c can induce malignant tumor-like growth after allograft culture.

Table 1

Histone modifiers and their RNAi lines

https://doi.org/10.7554/eLife.01906.007
S/No.Gene nameFull nameCG #Main functionVDRC RNAi lines
1enokEnoki mmushroomCG11290HATKK108400, GD37527
2nejNejire/CBPCG15319HATKK105115
3CG1894CG1894HATGD41575, GD41574
4CG2051CG2051HATGD33458
5MofMales absent on the firstCG3025HATKK105370
6Rpb4Rpb4CG33520HATGD21985, GD23308
7PcafGcnCG4107HATKK108943, GD21786
8YL-1YL-1CG4621HATGD21903
9ChmChameauCG5229HATKK105542
10DikDisketteCG7098HATGD46320
11lidLittle imaginal discsCG9088HATGD42203, KK103830
12Ada2bCG9638HATGD24076
13Sirt7CG11305HDACGD18043, GD18045
14HDAC4CG1770HDACGD20522
15HDAC3CG2128HDACKK107073
16HDACXCG31119HDACKK108098
17Sirt4CG3187HDACGD40295, KK110639
18Sirt2CG5085HDACKK103790
19Sir2CG5216HDACGD23199, KK108241, KK105502
20Bin1Bicoid interacting proteinCG6046HDACKK105352, GD15710
21Sirt6CG6284HDACGD22483
22GugGrungeCG6964HDACGD13687
23Rpd3HDAC1CG7471HDACGD46929, GD30600, GD46929
24Sin3aCG8815HDACKK105852
25Rtf1CG10955Methyl transferaseKK110392
26Vig2CG11844Methyl transferaseKK107081, GD17245
27eggegglessCG12196Methyl transferaseKK101677, GD33730
28escextra sexcombsCG14941Methyl transferaseGD5690, GD5692
29set2CG1716Methyl transferaseGD30707
30g9aCG2995Methyl transferaseGD25474
31pr-set7CG3307Methyl transferaseKK105422
32trrtrithorax-relatedCG3848Methyl transferaseGD10749, KK110276
33CG40351CG40351Methyl transferaseGD40683, GD10833, GD45267
34CG4565CG4565Methyl transferaseGD5665
35mes-4CG4976Methyl transferaseGD10836
36Art4Arginine methyl transferase 4CG5358Methyl transferaseKK107009
37Su(var)3–9auppressor of variegation 3–9CG6476Methyl transferaseGD39377
38Art1Arginine methyl transferase 11CG6554Methyl transferaseGD40388, KK110391
39ash2absent, small or homeotic discs 2CG6677Methyl transferaseKK100718
40LKRLysine ketoglutarate reductaseCG7144Methyl transferaseGD51346
41Su(z)12Suppressor of Zeste 205CG8013Methyl transferaseGD42422, GD42423
42Su(var)205Suppressor of variegation 205CG8409Methyl transferaseKK107477
43Ash1Absent, small or homeotic discs 1CG8887Methyl transferaseGD28928
Figure 3 with 1 supplement see all
Download asset Open asset

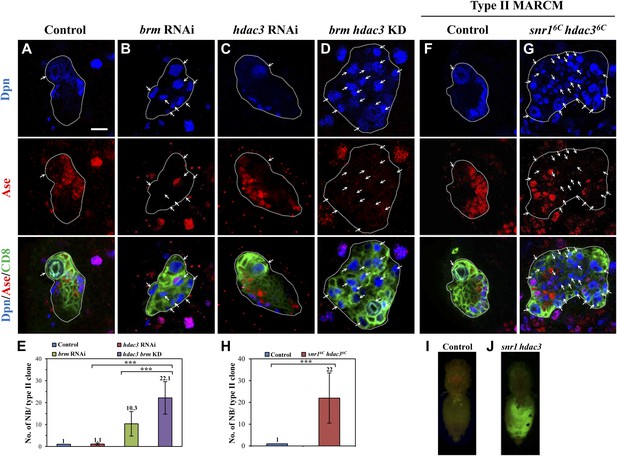

HDAC3 acts cooperatively with the Brm complex to suppress the formation of ectopic type II neuroblasts.

(A–D) The driver control (A), brm RNAi (B), hdac3 RNAi (C), brm hdac3 double knockdown (D) under the type II driver were labeled with Dpn, Ase, and CD8. (E) Quantification of neuroblast number per type II MARCM clone in A–D. (F–G) Type II MARCM clones from the driver control (F) and snr16c hdac36c (G) homozygous MARCM clones were labeled with Dpn, Ase and CD8. Arrows indicate neuroblasts. (H) Quantification of neuroblast number per type II MARCM clone in F–G. *** indicates p<0.001. (I–J) Clones are marked by CD8::GFP and indicated by white dotted line. Larval brain tissues from the wild-type MARCM clones (I) and snr16c hdac36c MARCM clones (J) were implanted into the abdomen of wild-type hosts. Scale bar, 10 µm.

https://doi.org/10.7554/eLife.01906.008

The Brm remodeling complex physically associates with Erm and HDAC3

Given that Brm is ubiquitously expressed in various cell types of larval brains, including neuroblasts, INPs, GMCs and neurons (Figure 2—figure supplement 1 and data not shown), it is conceivable that the Brm complex may associate with regulatory protein(s) or co-factor(s) that is/are specifically expressed in type II neuroblast lineages to suppress the formation of ectopic neuroblasts. We therefore assessed whether Brm could associate with two such type II-specific transcription factors, Erm and PntP1. Flag-tagged Brm was co-transfected with Myc-tagged Erm in S2 cells. Following immunoprecipitation (IP) of Flag-Brm, Erm can be specifically detected in the immune complex (Figure 4A). Consistently, Flag-Brm was detected in the immune complex following the IP of Myc-Erm (Figure 4A). In contrast, Myc-Brm did not associate with Flag-PntP1 in similar co-IP experiments (Figure 4—figure supplement 1A), suggesting that Brm specifically associates in a protein complex with Erm, but not with PntP1. Since full-length Erm had very low expression levels in S2 cells, we expressed two truncated proteins, Erm N-terminal 1-441aa (Erm-N containing N-terminal region and four of six zinc-finger domains) and Erm C-terminal 332-611aa (Erm-C containing the last four zinc-finger domains and its C-terminus), and used them for the subsequent co-IP analysis (Figure 4B). In co-IP experiments, Myc-Brm associated strongly with Flag-Erm-N and weakly with Flag-Erm-C (Figure 4C). Furthermore, we ascertained whether Brm could associate with Erm in a protein pull-down assay. Full-length Erm could not be efficiently expressed when fused with Maltose-Binding Protein (MBP) in bacteria; we therefore expressed truncated MBP-Erm-N or MBP-Erm-C. These fusion proteins were then bound to amylose resin, and subsequently incubated with protein extracts from S2 cells transfected with Myc-Brm. Following the pull-down of amylose resin, Myc-Brm associated intensely with MBP-Erm-N and weakly with Erm-C, but not with the MBP control (Figure 4H). These data suggest that Brm physically associates with Erm and Erm N-terminus appears to be more important for this association.

Figure 4 with 1 supplement see all
Download asset Open asset

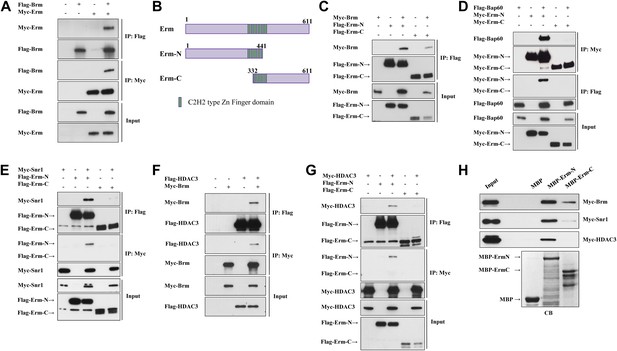

The Brm remodeling complex physically associates with Erm and HDAC3.

(A) Co-immunoprecipitation (Co-IP) between Flag-Brm and Myc-Erm. (B) An illustration of Erm domains and truncated constructs. (C) Co-IP between Myc-Brm and Flag-Erm-N or Flag-Erm-C. (D) Co-IP between Flag-Bap60 and Myc-Erm-N or Myc-Erm-C. (E) Co-IP between Myc-Snr1 and Flag-Erm-N or Flag-Erm-C. (F) Co-IP was Flag-HDAC3 and Myc-Brm. (G) Co-IP between Flag-HDAC3 and Myc-Erm-N or Myc-Erm-C. IP was performed using anti-Flag or anti-Myc antibodies. Western blot was performed using anti-Flag and anti-Myc antibodies. (H) Protein pull-down assay. MBP, MBP-Erm-N and MBP-ErmC bound beads were incubated with protein extracts from S2 cells expressing Myc-Brm, Myc-Snr1 or Myc-HDAC3. Western blot was performed using an anti-Myc antibody. Coomassie blue (CB) staining showed 10% input of various purified MBP or MBP fusion proteins.

https://doi.org/10.7554/eLife.01906.010

We next ascertained whether Erm associates with other components of the Brm remodeling complex, such as BAP60 and Snr1. In co-IP experiments, Flag-BAP60 was detected in the immune complex following IP of Myc-Erm-N but not Myc-Erm-C (Figure 4D). Likewise, Myc-Erm-N was detected in the immune complex when IP was performed using Flag-BAP60 (Figure 4D). Moreover, Myc-Snr1 associated with Flag-Erm-N or Flag-Erm-C in co-IP experiments (Figure 4E). Consistently, Myc-Snr1 associated with MBP-Erm-N and weakly with MBP-Erm-C in protein pull-down assays (Figure 4H). Therefore, we conclude that the several components of the Brm remodeling complex specifically associates with Erm.

Given that HDAC3 functions cooperatively with the Brm complex to suppress the generation of ectopic neuroblasts, we ascertained whether HDAC3 can physically associate with both Brm and Erm. Flag-HDAC3 and Myc-Brm were co-transfected in S2 cells. Following immunoprecipitation of Flag-HDAC3, Myc-Brm was clearly detected in the immune complex (Figure 4F). Similarly, Flag-HDAC3 was detected in the immune complex after IP of Myc-Brm (Figure 4F). Interestingly, HDAC3 also physically associates with Erm-N, but not Erm-C, in both co-IP (Figure 4G) and protein pull-down assay (Figure 4H). Taken together, these results show that Brm physically associates with Erm and HDAC3 in the protein complex.

brm and hdac3 genetically interact with erm to prevent dedifferentiation of INPs to neuroblasts

Given that Brm and Erm associate in a protein complex, and both of them suppress the formation of ectopic neuroblasts, we assessed whether brm genetically interacts with erm to prevent dedifferentiation of INPs to neuroblasts. First, we ascertained whether erm knockdown can exacerbate the brm RNAi phenotype in type II neuroblast lineages. The simultaneous knockdown of brm and erm resulted in a much more severe phenotype with a large number of ectopic neuroblasts in each lineage (Figure 5D,E; 37.1 ± 7.6 neuroblasts/lineage, n = 20), in contrast to brm knockdown alone (Figure 5B,E; 9.5 ± 2.8, n = 32). It was reported that in erm- mutants, dedifferentiated neuroblasts can establish ectopic type II neuroblast lineages and form ectopic glial chambers (Weng et al., 2010). Presumably due to incomplete knockdown of erm that only led to weak ectopic type II neuroblasts phenotypes, erm RNAi under the type II driver resulted in ectopic type II lineages with each lineage containing one type II neuroblast (Figure 5C,E; 1 neuroblast/lineage, n = 60). This dramatic enhancement suggests that brm and erm genetically interact to prevent the dedifferentiation of INPs back to neuroblasts. Furthermore, knock down of erm by RNAi in the brmT362 MARCM clones (Figure 5—figure supplement 1A,B; 9.9 ± 5.5 neuroblasts/clone, n = 32) also significantly enhanced neuroblast overgrowth compared with brmT362 clones (Figure 5—figure supplement 1A,B; 4.1 ± 2.4 neuroblasts/clone, n = 30). However, the size of the brmT362 clones with erm knockdown remained smaller than the control clones, probably due to the reduced number of INPs that are required to expand the clonal size. Erm overexpression has previously been shown to result in premature differentiation of type II neuroblasts (Weng et al., 2010). Similarly, we found that overexpression of Erm in type II MARCM clones caused 100% of the neuroblasts to undergo premature differentiation; 29.3% of the clones contained a neuroblast that gained Ase expression and 41.5% of the clones contained a neuroblast that had gained Ase expression with strongly reduced Dpn expression, while the rest of the clones showed no obvious neuroblasts (Figure 5G and data not shown; n = 41). To assess whether this effect is dependent on its association with Brm, we overexpressed Erm in brm2 type II neuroblast clones. The premature differentiation of type II neuroblasts was dramatically suppressed in a brm loss-of-function mutant background, as there were still 37.8% of clones contained ectopic neuroblasts (Figure 5I), while 62.2% of type II neuroblasts underwent premature differentiation (Figure 5H; n = 37). Similarly, the simultaneous knockdown of both erm and snr1 resulted in a more severe phenotype of ectopic neuroblasts (Figure 5M–N; 862 ± 106.8 neuroblasts/brain lobe, n = 20) compared with either erm knockdown (Figure 5K,N; 76.6 ± 14.2 neuroblasts/brain lobe, n = 20) or snr1 knockdown (Figure 5L,N; 219.5 ± 52.2 neuroblasts/brain lobe, n = 20). Thus, we conclude that brm and snr1 genetically interact with erm to prevent dedifferentiation of INPs to neuroblasts. Furthermore, the simultaneous knockdown of hdac3 and erm under the control of type II driver also resulted in a more dramatic increase of ectopic type II neuroblasts (Figure 5Q,R; 565.4 ± 68.1 type II neuroblasts/brain lobe, n = 20) compared with either erm knockdown (Figure 5P,R; 76.0 ± 7.7 type II neuroblasts/brain lobe, n = 20) or hdac3 knockdown (Figure 5R; 8 type II neuroblasts/brain lobe, n = 20), suggesting that hdac3 and erm genetically interact in type II neuroblast lineages. Taken together, these results indicate that Brm, HDAC3, and Erm function as a repressor complex to prevent INP dedifferentiation into type II neuroblasts.

Figure 5 with 1 supplement see all
Download asset Open asset

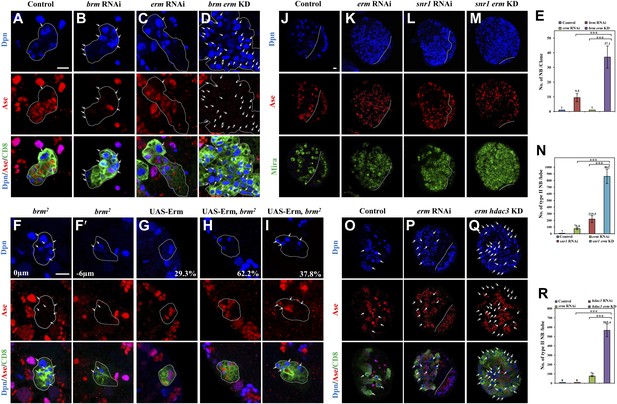

Brm genetically interacts with Erm to prevent dedifferentiation of INPs to neuroblasts.

(A–D) Type II clones of control (the type II driver; A), brm knockdown (B), erm knockdown (C) and brm erm double knockdown (D) were labeled with Dpn (blue), Ase (red) and CD8 (green). (E) Quantifications of neuroblast number per type II neuroblast lineage for A–D. (F–I) Type II MARCM clones of brm2 (F, F′), UAS-Erm (G) and UAS-Erm, brm2 (H–I) were labeled with Dpn (blue), Ase (red) and CD8 (green). (J–M) Larval brains of control (J, elav-Gal4 driver), erm knockdown (K), snr1 knockdown (L) and erm snr1 double knockdown (M) were labeled with Dpn (blue), Ase (red) and Mira (green). (N) Quantifications of the number of type II neuroblasts per brain hemisphere in various genotypes in J–M. Control (elav-Gal4), 7 ± 0; erm RNAi, 76.6 ± 14.2; snr1 RNAi, 219.5 ± 52.2; erm snr1 double knockdown (KD), 862.0 ± 106.7. (O–Q) Larval brains of control (driver; O), erm knockdown (P) and erm hdac3 double knockdown (Q) under the type II driver were labeled with Dpn (blue), Ase (red) and CD8 (green). (R) Quantifications of neuroblast number per brain hemisphere in O–Q. Central brain is to the left of white dotted lines. Arrows indicate neuroblasts. Clones were indicated by white dotted lines. Scale bars, 10 µm. *** indicates p<0.001.

https://doi.org/10.7554/eLife.01906.012

Discussion

Here, we report a critical function of the Drosophila Brm remodeling complex in suppressing the formation of ectopic type II neuroblasts in larval brains. Mutants of major components of the Brm complex, including Brm and Bap55, and RNAi targeting of several Brm components formed ectopic type II neuroblasts. Therefore, the Drosophila Brm remodeling complex displays a tumor suppressor-like function in larval brains. Multiple subunits of the SWI/SNF complex are associated with various cancers. BAP47 (homologous to Snr1) is a bona fide tumor suppressor and the gene is deleted in pediatric rhabdoid tumors (Reisman et al., 2009). Mutations in epigenetic regulators are found in approximately half of hepatocellular carcinoma and bladder cancers, and represent a significant portion of mutated genes in medulloblastoma (Gui et al., 2011; Fujimoto et al., 2012; Pugh et al., 2012). Drosophila Brm complex is essential for intestinal stem cell proliferation and commitment in the adult intestine (Jin et al., 2013; Zeng et al., 2013). Two other chromatin remodeling factors, Iswi and Domino control germline stem cell and somatic stem cell self-renewal in the ovary (Xi and Xie, 2005).

We have demonstrated that Brm physically associates with Erm, a type II-specific transcription factor that prevents the dedifferentiation of INPs back into neuroblasts. Furthermore, Bap60 and Snr1, two other components of the Brm complex, also physically associate with Erm in a protein complex. Therefore, we have provided the first molecular link during the regulation of type II neuroblast lineages. We speculate that the association with Erm may provide functional specificity of the Brm remodeling complex in type II neuroblast lineages. We have also shown that brm genetically interacts with the type II-specific transcription factor erm. Ectopic neuroblast phenotype resulting from brm knockdown was dramatically enhanced by simultaneous knockdown of erm. Furthermore, brm knockdown, similar to erm− (Weng et al., 2010), can be partially suppressed by loss of notch (Figure 5—figure supplement 1C,D). These functional data suggest that Erm is a co-factor of the Brm remodeling complex in type II neuroblast lineages. However, it is uncertain how the Brm–Erm protein complex functions to prevent dedifferentiation in type II neuroblast lineages.

Our bioinformatic analysis has identified a 14 bp-long motif as the de novo Erm DNA-binding motif (Figure 4—figure supplement 1B–D; and Supplementary methods) and 202 sites out of the 270 known genomic loci harboring Brm (Negre et al., 2011) also contain the de novo Erm DNA-binding motif (Table 2, Gene list). As there are many genes that are potentially co-occupied by Brm and Erm, it is possible that Brm–Erm complex results in a unique configuration of the chromatin ‘landscape’ in INPs to prevent INP dedifferentiation into neuroblasts. Therefore, disruption of chromatin remodelers may cause widespread changes to the transcriptome, thus amplifying the effect of the single genetic mutation.

Table 2

Predicted common target genes of Brm and Erm

https://doi.org/10.7554/eLife.01906.014
S/No.CG nameGene name
1CG10033for
2CG10117ttv
3CG10137CG10137
4CG10159BEAF-32
5CG10388Ubx
6CG10610ECSIT
7CG1071E2f2
8CG10844RyR
9CG1100Rpn5
10CG11228hpo
11CG11309CG11309
12CG11589VhaM9.7-c
13CG12165Incenp
14CG12321CG12321
15CG12333CG12333
16CG12387zetaTry
17CG12797Ciao1
18CG12818CG12818
19CG12819sle
20CG12855HPS1
21CG12994CG12994
22CG13004CG13004
23CG13016CG13016
24CG13018CG13018
25CG13117CG13117
26CG1322zfh1
27CG13316Mnt
28CG13350Ctf4
29CG13366CG13366
30CG13432qsm
31CG13472CG13472
32CG13688Ipk2
33CG13900CG13900
34CG13919CG13919
35CG14291CG14291
36CG14463CG14463
37CG1453Klp10A
38CG14813deltaCOP
39CG14814CG14814
40CG14938crol
41CG14939CycY
42CG15010ago
43CG15027CG15027
44CG15120CG15120
45CG15387CG15387
46CG15701CG15701
47CG15706CG15706
48CG15845Adf1
49CG1600Drat
50CG1616dpa
51CG17033elgi
52CG17035GXIVsPLA2
53CG17052obst-A
54CG17233CG17233
55CG17249CG17249
56CG17259CG17259
57CG17260CG17260
58CG1765EcR
59CG17803CG17803
60CG1785CG1785
61CG1817Ptp10D
62CG18292CG18292
63CG1845Br140
64CG18660Nckx30C
65CG18675CG18675
66CG2004CG2004
67CG2019disp
68CG2051CG2051
69CG2146didum
70CG2189Dfd
71CG2446Amun
72CG2698CG2698
73CG2720Hop
74CG2813cold
75CG2977Inx7
76CG3059NTPase
77CG3127Pgk
78CG31481pb
79CG3157gammaTub23C
80CG3165CG3165
81CG3166aop
82CG31712CG31712
83CG31713Apf
84CG3178Rrp1
85CG31794Pax
86CG31852Tap42
87CG31855CG31855
88CG31911Ent2
89CG32022CG32022
90CG32556chas
91CG32592hiw
92CG33116CG33116
93CG33162SrpRbeta
94CG3587CG3587
95CG3666Tsf3
96CG3842CG3842
97CG3857CG3857
98CG3920Reph
99CG42254CG42254
100CG42311grh
101CG42334comm3
102CG42362CG42362
103CG42363CG42363
104CG42365CG42365
105CG42379CG42379
106CG42380CG42380
107CG42381CG42381
108CG4400CG4400
109CG4590Inx2
110CG4619CG4619
111CG4645CG4645
112CG4798l(2)k01209
113CG4996CG4996
114CG5229chm
115CG5393apt
116CG5505scny
117CG5548CG5548
118CG5588Mtl
119CG5599CG5599
120CG5611CG5611
121CG5613CG5613
122CG5824l(3)07882
123CG5836SF1
124CG6022Cchl
125CG6202Surf4
126CG6218CG6218
127CG6235tws
128CG6241CG6241
129CG6272CG6272
130CG6322U4-U6-60K
131CG6343ND42
132CG6401CG6401
133CG6511CG6511
134CG6556cnk
135CG6565CG6565
136CG6604H15
137CG6634mid
138CG6829Ark
139CG6948Clc
140CG6951CG6951
141CG6983CG6983
142CG7082papi
143CG7085l(2)s5379
144CG7186SAK
145CG7191CG7191
146CG7372CG7372
147CG7379CG7379
148CG7564CG7564
149CG7597Cdk12
150CG7632CG7632
151CG7685CG7685
152CG7734shn
153CG7771sim
154CG7828APP-BP1
155CG7845CG7845
156CG7849CG7849
157CG7957MED17
158CG7961alphaCop
159CG8067CG8067
160CG8241pea
161CG8287Rab8
162CG8360CG8360
163CG8372CG8372
164CG8396Ssb-c31a
165CG8409Su(var)205
166CG8481CG8481
167CG8790Dic1
168CG8798Lon
169CG8817lilli
170CG9042Gpdh
171CG9054Ddx1
172CG9063Rich
173CG9065CG9065
174CG9243CG43345
175CG9243CG43346
176CG9244Acon
177CG9249CG9249
178CG9250Mpp6
179CG9305CG9305
180CG9376CG9376
181CG9473MED6
182CG9596CG9596
183CG9635RhoGEF2
184CG9641CG9641
185CG9730mRpL21
186CG9750rept
187CG9829poly
188CG9865CG9865

Most class I HDACs are recruited into large multi-subunit co-repressor complexes for maximal activity (Wen et al., 2000). HDAC1 and 2 are found in multiple co-repressor complexes, while to date HDAC3 appears to be uniquely recruited to the Silencing mediator of retinoic and thyroid receptors (SMRT)/Nuclear receptor co-repressor (N-CoR) complex (Guenther et al., 2000; Li et al., 2000). Here, we report that Drosophila HDAC3 is recruited to a novel multi-subunit complex containing Brm and Erm and that this co–repressor complex prevents dedifferentiation of INPs into type II neuroblasts. The SMRT complex appears not to be important for type II neuroblasts, as knockdown of smrter that encodes a core component of the SMRT complex (Heck et al., 2012) neither resulted in any ectopic type II neuroblasts nor enhanced the phenotype of ectopic neuroblasts by brm knockdown (data not shown). We also showed that HDAC3 dramatically enhanced the phenotype of ectopic neuroblast upon loss of brm or snr1, two core components of the Brm complex. By identifying this novel repressor complex, we have provided a mechanistic link between transcriptional repression and histone deacetylation during the suppression of dedifferentiation. HDACs are typically recruited by oncogenic protein complexes in lymphoma and leukemia and HDAC3 inhibitors are synergistic or additive with anticancer agents for therapeutics (Dokmanovic et al., 2007). Our finding that HDAC3 functions cooperatively with the Brm complex in suppressing suppressing dedifferentiation of INPs into neuroblasts and induces tumors in the allograph transplantation revealed an unexpected potential involvement of HDAC3 in tumor suppression in brain tissue. It will be of interest to determine whether this effect is conserved in the mammalian central nervous system and whether it occurs in tissues other than the brain.

Materials and methods

Fly stocks and antibodies

Request a detailed protocol

The following flies were used in this study: brmT362 is from J Treisman; erm1, erm2, UAS-ErmCTHA, UAS-Brm (AK Dingwall), 9D11-Gal4 (erm-Gal4; GM Rubin). brm2, bap55LL05905, Erm RNAi (#26778; BDSC) are from Bloomington Drosophila stock center. VDRC RNAi lines used: Brm (GD37720 and 37721GD), Bap60 (KK103634), Snr1 (KK108599, GD12645, and BDRC#32372), Bap55 (GD24704), Moira (GD6969), Bap180 (KK108618), dMi-2 (KK107204), nurf301 (GD46645), Acf1 (GD33446) and ISWI (GD24505). The type II neuroblast driver: w; UAS-Dicer 2, wor-Gal4, ase-Gal80/CyO; UAS-mCD8-GFP/TM3, Ser (Neumuller et al., 2011).

The primary antibodies used were: guinea-pig anti-Dpn (1:1000, J Skeath), anti-Insc (1:1000); rabbit anti-aPKCζ C20 (1:100; Santa Cruz Biotechnologies, Dallas, TX); guinea-pig anti-Numb (1:1000; J Skeath); mouse anti-Mira (1:50; F Matsuzaki); rat anti-CD8 (1:250; Caltag laboratories, United Kingdom); rabbit anti-GFP (1:500; Molecular Probes, Eugene, OR); rabbit anti-Asense (1:1000; YN Jan); rabbit anti-PntP1 (1:100; J Skeath); rabbit anti-Brm (1:100; L Zhang); rat anti-phospho-Histone H3 (1:1000; Cell Signaling, Danvers, MA); rabbit anti-phospho-Histone H3 (1:200; Sigma, St Louis, MO); mouse anti-dMyc (1:5; B Edgar). Antibodies for western blotting used were: mouse anti-Myc (1:2000; Abcam, United Kingdom) and mouse anti-Flag (1:1000; Sigma).

Immunohistochemistry and immunoblotting

Request a detailed protocol

Third instar larval brains were dissected and fixed with 3.7% formaldehyde in PBS. Fixed brains were blocked with 3% BSA for one hour and then incubated with primary antibody in 3% BSA (in 0.3% PBS-T) over night at 4°C. Following three times washing (10 min each), larval brains were incubated with secondary antibody diluted in 0.3% PBS-T for 1.5 hr. After two times washing (10 min each), DNA was labeled by ToPro-3 (1:5000; Invitrogen, Carlsbad, CA) in 0.3% PBS-T for 20 min. Larval brains were mounted in vector shield (Vector Laboratory, Burlingame, CA) for confocal microscopy. Images were obtained using a Zeiss LSM 700 confocal microscope and processed with Adobe Photoshop CS5.1.

Clonal analysis

Request a detailed protocol

MARCM clones were generated as previously described (Lee and Luo, 1999). Briefly, larvae were heat shocked at 37°C for 90 min at 24 hr ALH and at 10–16 hr after the first heat shock. Larvae were further aged for 3 days at 25°C, and larval brains were dissected and processed for immunohistochemistry. To generate type II neuroblast clones, UAS lines were crossed to the type II driver at 25°C and shifted to 29°C at 24 hr ALH. Wandering third instar larvae were dissected after incubation for 3 or 4 days at 29°C.

S2 cell culture, transfection and co-immunoprecipitation

Request a detailed protocol

Drosophila S2 cells were cultured in Shields and Sang M3 insect medium (Sigma-Aldich), and supplemented with 10% fetal bovine serum (FBS; Hyclone, Logan, UT). Flag-Erm or Myc-Brm generated by Gateway cloning was transfected into S2 cells using Effectene Transfection Reagent (QIAGEN, The Netherlands). S2 cells were collected 48 hr after transfection for protein homogenization. 80 μg S2 cells are homogenized with lysis buffer (25 mM Tris pH8/27.5 mM NaCl/20 mM KCl/25 mM sucrose/10 mM EDTA/10 Mm EGTA/1 mM DTT/ 10% (vol/vol) glycerol/0.5% Nonidet P40) with Proteases inhibitors (Complete, Boeringher; PMSF 10 μg/ml, Sodium orthovanadate 10 μg/ml). The supernatants were used for immunoprecipitation with anti-Myc or anti-Flag for overnight at 4°C, followed by incubation with protein A/G beads for two hours (Pierces, Rockford, IL). Protein A/G beads were washed with cold PBS for three times. Bound proteins were separated by SDS-PAGE and analyzed by western blotting.

Protein pull-down assay

Request a detailed protocol

MBP or MBP fusion proteins were expressed in BL21 cells and bound on amylose resin (Cart# E8021L; NEW ENGLAND Biolabs Inc., United Kingdom). 50 μg of purified MBP fusion proteins bound on amylose resin were incubated for 3 hr at 4°C with protein extracts from 100 μg S2 cells that were homogenized in lysis buffer with proteases inhibitors. After washing amylose resin three times for 7 min each with 1 ml lysis buffer, bound proteins were separated by SDS-PAGE and analyzed by western blotting.

Transplantation

Request a detailed protocol

Allograft culture of larval brain tissue was carried out as previously described (Castellanos et al., 2008). Third instar larval brains are dissected and the tissue is cut into pieces. A piece of tissue is collected with the tip of a glass needle and injected in the mid-ventral abdomen of a young female fly.

Generation of plasmid constructs

Request a detailed protocol

Plasmid constructs were generated using either pENTR Directional TOPO Cloning Kit (Invitrogen) or In-Fusion HD Cloning Kit (Clontech, Mountain View, CA). ESTs used in this study were GH14092 (Erm), LD36356 (Brm), LD09078 (Bap60), GH08712 (Snr1) (Drosophila Genomics Resource Centre [DGRC], Bloomington, IN). Briefly, coding region of genes were amplified by PCR, inserted into the pENTR/D-TOPO vector (Invitrogen) and destination vectors (pAMW or PAFW) were generated by LR recombination.

Bioinformatics

Request a detailed protocol

From the previously reported ChIP–chip data, we obtained a list of 270 Brm binding sites. To determine if Erm also binds to these binding sites, we first analyzed the DNA binding domains of Erm, which contain 6 zinc fingers. Each zinc-finger domain was assigned a DNA binding preference (position weighted matrix) based on published methods (Kaplan et al., 2005). We then scanned these six DNA binding preferences of approximately +/−200 bp around the 270 Brm binding sites and found the DNA binding preferences of the 1st zinc-finger ‘GTAG’ and the 4th zinc-finger ‘RAAA’ are enriched in the 270 Brm binding sites. The sites enriched with these two binding preferences were subjected to further analysis using the de novo motif-finding program SEME (Zhang et al., 2013), and a 14 bp-long motif was identified as the de novo Erm DNA-binding motif. We scanned +/−200 bp around the 270 Brm binding sites with the de novo Erm DNA-binding motif. Among them, 202 sites (FDR<0.0001) were identified as putative Erm-binding sites with an AUC score of 0.73, which is significantly higher than the AUC score computed for random motifs (0.5). As a negative control, the same approach was also applied to predict the motif of Zinc-finger protein (Zif), which regulates asymmetric division of neuroblasts and therefore is unlikely to be a co-factor with Brm. The predicted Zif DNA-binding motif differs dramatically with the predicted Erm DNA-binding motif in sequence. Furthermore, it was not significantly enriched in the 270 Brm binding sites and had an AUC score of 0.54, similar to the AUC score (0.5) for random motifs. Thus, our data suggests that Brm and Erm can potentially regulate a set of common downstream targets.

References

    1. Guenther MG
    2. Lane WS
    3. Fischle W
    4. Verdin E
    5. Lazar MA
    6. Shiekhattar R
    (2000)
    A core SMRT corepressor complex containing HDAC3 and TBL1, a WD40-repeat protein linked to deafness
    Genes & Development 14:1048–1057.

Article and author information

Author details

  1. Chwee Tat Koe

    1. NUS Graduate School for Integrative Sciences and Engineering, National University of Singapore, Singapore, Singapore
    2. Neuroscience and Behavioral Disorders Program, Duke-NUS Graduate Medical School Singapore, Singapore, Singapore
    Contribution
    CTK, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.

  2. Song Li

    1. NUS Graduate School for Integrative Sciences and Engineering, National University of Singapore, Singapore, Singapore
    2. Neuroscience and Behavioral Disorders Program, Duke-NUS Graduate Medical School Singapore, Singapore, Singapore
    Contribution
    SL, Acquisition of data, Analysis and interpretation of data
    Contributed equally with
    Fabrizio Rossi, Jack Jing Lin Wong and Yan Wang
    Competing interests
    The authors declare that no competing interests exist.

  3. Fabrizio Rossi

    Cell Division Group, Institute for Research in Biomedicine, Barcelona, Spain
    Contribution
    FR, Acquisition of data, Analysis and interpretation of data
    Contributed equally with
    Song Li, Jack Jing Lin Wong and Yan Wang
    Competing interests
    The authors declare that no competing interests exist.

  4. Jack Jing Lin Wong

    1. Neuroscience and Behavioral Disorders Program, Duke-NUS Graduate Medical School Singapore, Singapore, Singapore
    2. Temasek Life Sciences Laboratory, Singapore, Singapore
    Contribution
    JJLW, Acquisition of data, Analysis and interpretation of data
    Contributed equally with
    Song Li, Fabrizio Rossi and Yan Wang
    Competing interests
    The authors declare that no competing interests exist.

  5. Yan Wang

    1. Neuroscience and Behavioral Disorders Program, Duke-NUS Graduate Medical School Singapore, Singapore, Singapore
    2. Temasek Life Sciences Laboratory, Singapore, Singapore
    Contribution
    YW, Acquisition of data, Analysis and interpretation of data
    Contributed equally with
    Song Li, Fabrizio Rossi and Jack Jing Lin Wong
    Competing interests
    The authors declare that no competing interests exist.

  6. Zhizhuo Zhang

    Department of Computer Science, National University of Singapore, Singapore, Singapore
    Contribution
    ZZ, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.

  7. Keng Chen

    1. NUS Graduate School for Integrative Sciences and Engineering, National University of Singapore, Singapore, Singapore
    2. Neuroscience and Behavioral Disorders Program, Duke-NUS Graduate Medical School Singapore, Singapore, Singapore
    Contribution
    KC, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.

  8. Sherry Shiying Aw

    NUS Graduate School for Integrative Sciences and Engineering, National University of Singapore, Singapore, Singapore
    Present address
    Institute of Molecular and Cell Biology, Singapore, Singapore
    Contribution
    SSA, Conception and design, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.

  9. Helena E Richardson

    1. Peter MacCallum Cancer Centre, East Melbourne, Australia
    2. Biochemistry and Molecular Biology Department, University of Melbourne, Parkville, Australia
    3. Sir Peter MacCallum Department of Oncology, University of Melbourne, Parkville, Australia
    4. Anatomy and Neuroscience Department, University of Melbourne, Parkville, Australia
    Contribution
    HER, Conception and design, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.

  10. Paul Robson

    1. Genome Institute of Singapore, Singapore, Singapore
    2. Department of Biological Sciences, National University of Singapore, Singapore, Singapore
    Contribution
    PR, Conception and design, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.

  11. Wing-Kin Sung

    1. Genome Institute of Singapore, Singapore, Singapore
    2. Department of Computer Science, National University of Singapore, Singapore, Singapore
    Contribution
    W-KS, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.

  12. Fengwei Yu

    1. NUS Graduate School for Integrative Sciences and Engineering, National University of Singapore, Singapore, Singapore
    2. Neuroscience and Behavioral Disorders Program, Duke-NUS Graduate Medical School Singapore, Singapore, Singapore
    3. Temasek Life Sciences Laboratory, Singapore, Singapore
    4. Department of Biological Sciences, National University of Singapore, Singapore, Singapore
    Contribution
    FY, Conception and design, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.

  13. Cayetano Gonzalez

    1. Cell Division Group, Institute for Research in Biomedicine, Barcelona, Spain
    2. Institució Catalana de Recerca i Estudis Avançats (ICREA), Barcelona, Spain
    Contribution
    CG, Conception and design, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.

  14. Hongyan Wang

    1. NUS Graduate School for Integrative Sciences and Engineering, National University of Singapore, Singapore, Singapore
    2. Neuroscience and Behavioral Disorders Program, Duke-NUS Graduate Medical School Singapore, Singapore, Singapore
    3. Department of Physiology, Yong Loo Lin School of Medicine, National University of Singapore, Singapore, Singapore
    Contribution
    HW, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    hongyan.wang@duke-nus.edu.sg
    Competing interests
    The authors declare that no competing interests exist.

Funding

Duke-NUS Signature Research Program funded by A*STAR

  • Hongyan Wang

Singapore National Research Fondation (NRF2008NRF-RF001-117)

  • Chwee Tat Koe
  • Song Li
  • Keng Chen
  • Hongyan Wang

NUS Graduate School for Integrative Sciences and Engineering Scholarship

  • Chwee Tat Koe
  • Song Li
  • Jack Jing Lin Wong
  • Yan Wang

Spanish Ministerio de Economía y Competitividad (MEC) (BFU2012-32522)

  • Fabrizio Rossi
  • Cayetano Gonzalez

European Research Council (ERC) (ERC-2011-adG 294603-FliesCan)

  • Fabrizio Rossi
  • Cayetano Gonzalez

Genealitat de Catalunya (CG041413)

  • Fabrizio Rossi
  • Cayetano Gonzalez

Senior Research Fellowship from the National Health and Medical Research Council (NHMRC) Australia

  • Helena E Richardson

National Health and Medical Research Council (APP1011320)

  • Helena E Richardson

Temasek Life Sciences Laboratory

  • Jack Jing Lin Wong
  • Yan Wang
  • Fengwei Yu

School of Computing, National University of Singapore

  • Zhizhuo Zhang
  • Wing-Kin Sung

Genome Institute of Singapore

  • Paul Robson
  • Wing-Kin Sung

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank J Treisman, AK Dingwall, GM Rubin, J Skeath, B Edgar, C Doe, F Matsuzaki, J Knoblich, CY Lee, B Edgar, T Lee, H Steller, A Swan, YN Jan, L Zhang, the Hybridoma Bank, the Bloomington Drosophila Stock Center, Vienna Drosophila RNAi Center for fly stocks and antibodies, SY Chia for technical assistance and Groth C. for critical reading of this manuscript.

Copyright

© 2014, Koe et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,069
    views
  • 263
    downloads
  • 56
    citations

Views, downloads and citations are aggregated across all versions of this paper published by eLife.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Chwee Tat Koe
  2. Song Li
  3. Fabrizio Rossi
  4. Jack Jing Lin Wong
  5. Yan Wang
  6. Zhizhuo Zhang
  7. Keng Chen
  8. Sherry Shiying Aw
  9. Helena E Richardson
  10. Paul Robson
  11. Wing-Kin Sung
  12. Fengwei Yu
  13. Cayetano Gonzalez
  14. Hongyan Wang
(2014)
The Brm-HDAC3-Erm repressor complex suppresses dedifferentiation in Drosophila type II neuroblast lineages
eLife 3:e01906.
https://doi.org/10.7554/eLife.01906

Share this article

https://doi.org/10.7554/eLife.01906

Categories and tags

Research organism

Further reading

    1. Developmental Biology

    CCDC113 stabilizes sperm axoneme and head-tail coupling apparatus to ensure male fertility

    Bingbing Wu, Chenghong Long ... Chao Liu
    Research Article

    The structural integrity of the sperm is crucial for male fertility, defects in sperm head-tail linkage and flagellar axoneme are associated with acephalic spermatozoa syndrome (ASS) and the multiple morphological abnormalities of the sperm flagella (MMAF). Notably, impaired head-tail coupling apparatus (HTCA) often accompanies defects in the flagellum structure, however, the molecular mechanisms underlying this phenomenon remain elusive. Here, we identified an evolutionarily conserved coiled-coil domain-containing (CCDC) protein, CCDC113, and found the disruption of CCDC113 produced spermatozoa with disorganized sperm flagella and HTCA, which caused male infertility. Further analysis revealed that CCDC113 could bind to CFAP57 and CFAP91, and function as an adaptor protein for the connection of radial spokes, nexin-dynein regulatory complex (N-DRC), and doublet microtubules (DMTs) in the sperm axoneme. Moreover, CCDC113 was identified as a structural component of HTCA, collaborating with SUN5 and CENTLEIN to connect sperm head to tail during spermiogenesis. Together, our studies reveal that CCDC113 serve as a critical hub for sperm axoneme and HTCA stabilization in mice, providing insights into the potential pathogenesis of infertility associated with human CCDC113 mutations.

    1. Cell Biology
    2. Developmental Biology

    Ciliary length regulation by intraflagellar transport in zebrafish

    Yi Sun, Zhe Chen ... Chengtian Zhao
    Short Report

    How cells regulate the size of their organelles remains a fundamental question in cell biology. Cilia, with their simple structure and surface localization, provide an ideal model for investigating organelle size control. However, most studies on cilia length regulation are primarily performed on several single-celled organisms. In contrast, the mechanism of length regulation in cilia across diverse cell types within multicellular organisms remains a mystery. Similar to humans, zebrafish contain diverse types of cilia with variable lengths. Taking advantage of the transparency of zebrafish embryos, we conducted a comprehensive investigation into intraflagellar transport (IFT), an essential process for ciliogenesis. By generating a transgenic line carrying Ift88-GFP transgene, we observed IFT in multiple types of cilia with varying lengths. Remarkably, cilia exhibited variable IFT speeds in different cell types, with longer cilia exhibiting faster IFT speeds. This increased IFT speed in longer cilia is likely not due to changes in common factors that regulate IFT, such as motor selection, BBSome proteins, or tubulin modification. Interestingly, longer cilia in the ear cristae tend to form larger IFT compared to shorter spinal cord cilia. Reducing the size of IFT particles by knocking down Ift88 slowed IFT speed and resulted in the formation of shorter cilia. Our study proposes an intriguing model of cilia length regulation via controlling IFT speed through the modulation of the size of the IFT complex. This discovery may provide further insights into our understanding of how organelle size is regulated in higher vertebrates.

    1. Developmental Biology
    2. Genetics and Genomics

    Caspar specifies primordial germ cell count and identity in Drosophila melanogaster

    Subhradip Das, Sushmitha Hegde ... Girish S Ratnaparkhi
    Research Article

    Repurposing of pleiotropic factors during execution of diverse cellular processes has emerged as a regulatory paradigm. Embryonic development in metazoans is controlled by maternal factors deposited in the egg during oogenesis. Here, we explore maternal role(s) of Caspar (Casp), the Drosophila orthologue of human Fas-associated factor-1 (FAF1) originally implicated in host-defense as a negative regulator of NF-κB signaling. Maternal loss of either Casp or it’s protein partner, transitional endoplasmic reticulum 94 (TER94) leads to partial embryonic lethality correlated with aberrant centrosome behavior, cytoskeletal abnormalities, and defective gastrulation. Although ubiquitously distributed, both proteins are enriched in the primordial germ cells (PGCs), and in keeping with the centrosome problems, mutant embryos display a significant reduction in the PGC count. Moreover, the total number of pole buds is directly proportional to the level of Casp. Consistently, it’s ‘loss’ and ‘gain’ results in respective reduction and increase in the Oskar protein levels, the master determinant of PGC fate. To elucidate this regulatory loop, we analyzed several known components of mid-blastula transition and identify the translational repressor Smaug, a zygotic regulator of germ cell specification, as a potential critical target. We present a detailed structure-function analysis of Casp aimed at understanding its novel involvement during PGC development.
