Abstract

The evolutionarily conserved Crumbs protein is required for epithelial polarity and morphogenesis. Here we identify a novel role of Crumbs as a negative regulator of actomyosin dynamics during dorsal closure in the Drosophila embryo. Embryos carrying a mutation in the FERM (protein 4.1/ezrin/radixin/moesin) domain-binding motif of Crumbs die due to an overactive actomyosin network associated with disrupted adherens junctions. This phenotype is restricted to the amnioserosa and does not affect other embryonic epithelia. This function of Crumbs requires DMoesin, the Rho1-GTPase, class-I p21-activated kinases and the Arp2/3 complex. Data presented here point to a critical role of Crumbs in regulating actomyosin dynamics, cell junctions and morphogenesis.

https://doi.org/10.7554/eLife.07398.001

eLife digest

A layer of epithelial cells covers the body surface of animals. Epithelial cells have a property known as polarity; this means that they have two different poles, one of which is in contact with the environment. Midway through embryonic development, the Drosophila embryo is covered by two kinds of epithelial sheets; the epidermis on the front, the belly and the sides of the embryo, and the amnioserosa on the back. In the second half of embryonic development, the amnioserosa is brought into the embryo in a process called dorsal closure, while the epidermis expands around the back of the embryo to encompass it.

One of the major activities driving dorsal closure is the contraction of amnioserosa cells. This contraction depends on the highly dynamic activity of the protein network that helps give cells their shape, known as the actomyosin cytoskeleton. One major question in the field is how changes in the actomyosin cytoskeleton are controlled as tissues take shape (a process known as “morphogenesis”) and how the integrity of epithelial tissues is maintained during these processes.

A key regulator of epidermal and amnioserosa polarity is an evolutionarily conserved protein called Crumbs. The epithelial tissues of mutant embryos that do not produce Crumbs lose polarity and integrity, and the embryos fail to develop properly.

Flores-Benitez and Knust have now studied the role of Crumbs in the morphogenesis of the amnioserosa during dorsal closure. This revealed that fly embryos that produce a mutant Crumbs protein that cannot interact with a protein called Moesin (which links the cell membrane and the actomyosin cytoskeleton) are unable to complete dorsal closure. Detailed analyses showed that this failure of dorsal closure is due to the over-activity of the actomyosin cytoskeleton in the amnioserosa. This results in increased and uncoordinated contractions of the cells, and is accompanied by defects in cell-cell adhesion that ultimately cause the amnioserosa to lose integrity. Flores-Benitez and Knust’s genetic analyses further showed that several different signalling systems participate in this process.

Flores-Benitez and Knust’s results reveal an unexpected role of Crumbs in coordinating polarity, actomyosin activity and cell-cell adhesion. Further work is now needed to understand the molecular mechanisms and interactions that enable Crumbs to coordinate these processes; in particular, to unravel how Crumbs influences the periodic contractions that drive changes in cell shape. It will also be important to investigate whether Crumbs is involved in similar mechanisms that operate in other developmental events in which actomyosin oscillations have been linked to tissue morphogenesis.

https://doi.org/10.7554/eLife.07398.002

Introduction

Dorsal closure (DC) in the Drosophila embryo is an established model for epithelial morphogenesis. The power of Drosophila genetics and cell biological tools have contributed to understand how signalling pathways, cell polarity and cell adhesion regulate the coordinated movements of two epithelial sheets, the epidermis and the amnioserosa (AS), a transient extraembryonic tissue [reviewed in (Ríos-Barrera and Riesgo-Escovar, 2013)]. More recently, elaborate biophysical techniques combined with high resolution imaging have elucidated how contractile forces are coordinated between cells in order to drive coherent changes in tissue morphology (Sokolow et al., 2012; Jayasinghe et al., 2013; Fischer et al., 2014; Wells et al., 2014; Eltsov et al., 2015; Saias et al., 2015). DC is a complex morphogenetic process taking about 2 hr, during which the epidermis expands dorsally to encompass the embryo. The process can be subdivided into three phases: i) elongation of the dorsal-most epidermal cells (DME) along the dorso-ventral axis; ii) contraction of AS cells and migration of the lateral epidermal cells towards the dorsal midline; iii) “zippering”, i.e. adhesion of the epidermal cells from both sides on the dorsal midline [reviewed in (Gorfinkiel et al., 2011)]. Several forces contribute to these processes. First, pulsed contraction of AS cells produces a pulling force. These pulsed contractions are correlated with dynamic apical actomyosin foci, which transiently form in the apical medial cytocortex (Kiehart et al., 2000; Hutson et al., 2003; Solon et al., 2009; Gorfinkiel et al., 2009; Blanchard et al., 2010; Heisenberg and Bellaiche, 2013). Cells delaminating from the AS contribute additional pulling forces (Muliyil et al., 2011; Sokolow et al., 2012; Toyama et al., 2008). Second, a supracellular actomyosin cable, formed in the DME cells, surrounds the opening and provides contractile forces (Hutson et al., 2003; Rodriguez-Diaz et al., 2008). Finally, “zippering” of the two lateral epithelial sheets occurs, mediated by dynamic filopodia and lamellipodia (Eltsov et al., 2015; Jacinto et al., 2000).

A plethora of proteins contribute to coordinate this highly dynamic morphogenetic process. Beside transcription factors, these include adhesion molecules and signalling pathways, a variety of cytoskeletal proteins and their regulators. Non-muscle myosin-II heavy chain (MHC) and the non-muscle myosin regulatory light chain (MRLC), encoded by zipper (zip) and spaghetti-squash (sqh), respectively, are, together with the essential light chain, part of a force-producing molecular motor during DC [reviewed in (Vicente-Manzanares et al., 2009; Liu and Cheney, 2012)]. The small G-proteins of the Rho family, namely Rho1, Rac1, Rac2, Mtl, and Cdc42, regulate actomyosin activity and cell-cell adhesion (Abreu-Blanco et al., 2014; Magie et al., 1999; 2002). These GTPases stimulate myosin contraction through Rho-kinase (Rok) (Mizuno et al., 1999; Harden et al., 1999) or p21-activated kinase (DPak) (Harden et al., 1996; Conder et al., 2004; Hofmann et al., 2004). They also modulate the Arp2/3 complex, which consists of seven subunits conserved in almost all eukaryotes (Rotty et al., 2013; Veltman and Insall, 2010). The Arp2/3 complex promotes the formation of densely branched, rapidly treadmilling actin filament arrays that, together with the Wiskott-Aldrich syndrome protein (WASP) and the WASP-family verprolin-homologous protein (WAVE), coordinate membrane-cytoskeleton dynamics (Lecuit et al., 2011; Kurisu and Takenawa, 2009; Blanchoin et al., 2014). The Arp2/3 complex also regulates endocytosis of DE-cadherin (Georgiou et al., 2008; Leibfried et al., 2008) and thus contributes to the regulation of the zonula adherens (ZA), an adhesion belt encircling the apex of epithelial cells (Tepass et al., 1996; McEwen et al., 2000; Sarpal et al., 2012). Moreover, the Drosophila WAVE homolog SCAR, the main activator of Arp2/3 in fly embryos (Zallen et al., 2002), is a downstream effector of Rac, Cdc42 and DPak (Lecuit et al., 2011; Kurisu and Takenawa, 2009). DPak, in turn, can also activate the Arp2/3 complex independently of SCAR (Lecuit et al., 2011; Kurisu and Takenawa, 2009; Zallen et al., 2002). Thus, the regulation of cell-cell adhesion and cytoskeleton activity is closely linked to each other.

During epithelial morphogenesis, mechanisms controlling cell polarity have to be set in place to ensure tissue integrity. One of the key regulators of epithelial cell polarity in the Drosophila embryo is the Crumbs protein complex. Its core components are the type I transmembrane protein Crumbs (Crb) and the scaffolding proteins Stardust (Sdt), DLin-7 and DPATJ, which are conserved from flies to mammals [reviewed in (Bulgakova and Knust, 2009; Tepass, 2012)]. Drosophila embryos mutant for crb or sdt are unable to maintain apico-basal polarity in most of their epithelia (Tepass and Knust, 1990; 1993; Bachmann et al., 2001; Hong et al., 2001). This leads to a complete breakdown of tissue integrity due to failure in positioning and maintaining the ZA, followed by apoptosis in many tissues, e.g. the epidermis and the AS (Grawe et al., 1996; Tepass and Knust, 1990; 1993; Tepass, 1996). Comparable defects in epithelial integrity are observed in mice lacking Crb2 or Crb3 (Whiteman et al., 2014; Xiao et al., 2011; Szymaniak et al., 2015). Conversely, over-expression of Drosophila Crb can lead to an expansion of the apical membrane domain, both in embryonic epithelial cells (Wodarz et al., 1995) and in photoreceptor cells (Muschalik and Knust, 2011; Pellikka et al., 2002; Richard et al., 2009). These results define Crb as an important apical determinant of epithelial cells. Besides a role in epithelial cell polarity, Drosophila crb controls tissue size in imaginal discs by acting upstream of the Hippo pathway [reviewed in (Boggiano and Fehon, 2012; Genevet and Tapon, 2011)], regulates morphogenesis of photoreceptor cells and prevents light-dependent retinal degeneration [reviewed in (Bazellières et al., 2009; Bulgakova and Knust, 2009)].

Crb contains in its extracellular domain an array of epidermal growth factor-like repeats, interspersed by four laminin A globular domain-like repeats. Its small cytoplasmic portion of only 37 amino acids contains two highly conserved motifs, a C-terminal PDZ (Postsynaptic density/Discs large/ZO-1) domain-binding motif (PBM), -ERLI, which can bind the PDZ-domain of Sdt and DPar-6 (Li et al., 2014; Roh et al., 2002; Bulgakova et al., 2008; Bachmann et al., 2001; Hong et al., 2001; Kempkens et al., 2006; Ivanova et al., 2015), and a FERM (protein 4.1/ezrin/radixin/moesin) domain-binding motif (FBM) (Klebes and Knust, 2000), which can directly interact with the FERM-domain of Yurt (Yrt), Expanded (Ex) and Moesin (Moe) (Laprise et al., 2006; Ling et al., 2010; Wei et al., 2015). Our previous structure-function analysis of Crb using a fosmid-based approach revealed that the PBM is essential for the maintenance of cell polarity in embryonic epithelia (Klose et al., 2013). In contrast, the FBM is non-essential for normal development of most embryonic epithelia. At later stages of development, however, embryos with a mutation in the FBM fail to undergo DC (Klose et al., 2013). This phenotype now provides access to unravel additional functions of this highly conserved polarity regulator. Using live imaging and genetic analysis we elucidate a novel function of Crb as a key negative regulator of actomyosin dynamics during DC. Our results also further our understanding on the mechanisms that couple the regulation of the cytoskeleton and cell-cell adhesion with the control of embryonic morphogenesis.

Results

The FBM of Crb is essential for dorsal closure

We previously showed (Klose et al., 2013) that a fosmid covering the entire crb locus, named foscrb, completely rescues the lethality caused by the lack of endogenous crb. We also showed that a variant, in which the conserved tyrosine₁₀ in the FERM-domain binding motif (FBM) is replaced by an alanine (foscrb_Y10A variant) does not rescue embryonic lethality. Interestingly, the fosCrb_Y10A variant properly localises at the apical domain in most embryonic epithelia, which undergo normal morphogenesis (i.e. germ band elongation, salivary gland invagination). But later in development, germ band (GB) retraction, dorsal closure (DC) and head involution fail to occur properly (Klose et al., 2013). This indicated that the FBM of Crb fulfils a tissue- and stage-specific morphogenetic function in the embryo. Moreover, these defects appear to be independent of a putative Tyr phosphorylation, because another variant, in which the Y10 is replaced by a phenylalanine (foscrb_Y10F), completely rescues the embryonic lethality of crb mutants (Klose et al., 2013). To get a better understanding of the mechanisms by which Crb regulates these morphogenetic processes, we performed detailed in vivo analyses of embryos expressing the different fosmid variants together with a DE-cad::GFP or a DE-cad::mTomato knock-in allele (Huang et al., 2009) in a crb null background (crb^GX24 or crb^11A22) (for simplicity, these are called foscrb, foscrb_Y10A and foscrb_Y10F from now on).

Because staging of embryos depends on morphological criteria, and foscrb_Y10A mutant embryos show morphological defects, we imaged control and mutant embryos always in parallel, and stages were classified according to elapsed time after egg collection, i.e., after equal developmental times (see Materials and methods for details about staging and imaging). By the time foscrb embryos finish GB retraction (Figure 1A, Video 1), foscrb_Y10A embryos (Figure 1B, Video 2) exhibit major defects in GB retraction, as revealed by a highly disorganised amnioserosa (AS) in which individual AS cells could hardly be followed. While foscrb embryos proceed through DC (Figure 1C,E, Video 1), those expressing the foscrb_Y10A variant progressively lose the AS (Figure 1D,F) and ultimately fail to complete DC (Video 2). Embryos expressing the foscrb_Y10F variant complete DC similar as foscrb embryos (Figure 1—figure supplement 1), indicating that the Y10A mutation specifically affects the progress of DC.

Figure 1 with 1 supplement see all

Download asset Open asset

The FERM-binding domain motif (FBM) of Crb is essential for dorsal closure (DC).

(**A-F**) Stills from dorsal views of live imaging of embryos expressing DE-cad::GFP. In all images the anterior part is towards the left. A, C and E, *w;foscrb,DE-cad::GFP;crb^GX24* (Video 1). B, D and F, *w;foscrb_Y10A,DE-cad::GFP;crb^GX24* (Video 2). All embryos were collected at the same time (1 hr collection), incubated at 28ºC for 7 hr and imaged together. Numbers in (B,**D and F**) indicate the time in minutes for the corresponding row. While DC is completed in *foscrb* embryos (E), in *foscrb_Y10A* embryos, the amnioserosa (AS) is disorganised and progressively lost (F). Scale bar: 100 μm. (**G-J’**) Localisation of phosphotyrosine (PY), Crb and DPatj in the dorsal epidermis at the beginning of DC. In all images the AS is at the top (see reference axis in G and in the scheme K). (G, I,I’) *w;foscrb;crb^GX24*. (H, J,J’) *w;foscrb_Y10A;crb^GX24*. (K) Schematic representation of the dorsal epidermis at the beginning of DC indicating that the leading edge (LE) of the dorsal most epidermal (DME) cells is in contact with the AS. Arrows in (G,H) indicate LE of the DME (row of cells marked by brackets). The arrowheads indicate where the corresponding protein is absent from the LE (**I-J’**). The asterisks mark LE membranes positive for Crb (J) and DPatj (J’) in *foscrb_Y10A* mutant. Scale bar: 10 μm. Representative images from 8–12 different embryos for each genotype.

https://doi.org/10.7554/eLife.07398.003

Video 1

Download asset

posterframe for video — Dorsal closure (DC) in a *w;foscrb,DE-cad::GFP;crb^GX24* embryo.

Note that the granules from the yolk are visible because of their strong auto-fluorescence in the green part of the spectrum. Time-lapse: 3.5 min; 12 fps.

https://doi.org/10.7554/eLife.07398.005

Video 2

Download asset

Various mechanisms have been documented to contribute to DC, including elongation of the dorsal most epidermal (DME) cells (Riesgo-Escovar et al., 1996). This elongation occurs normally in foscrb embryos, as revealed by phosphotyrosine (PY) staining associated with the ZA (Figure 1G). In contrast the DME cells of foscrb_Y10A embryos do not elongate co-ordinately (Figure 1H). We analysed the localisation of Crb and DPatj at this stage. Both proteins are expressed at higher levels in the epidermis compared to the AS (Figure 1I–J'). In foscrb embryos, Crb (Figure 1I) and DPatj (Figure 1I') are mostly absent from the leading edge (LE –Figure 1I–I' arrowheads) of the DME cells. In contrast, in foscrb_Y10A embryos both Crb_Y10A (Figure 1J, asterisks) and DPatj (Figure 1J', asterisks) are detected at the LE, particularly in those cells that remain short, while both are removed in cells that elongate properly (Figure 1J,J', arrowheads). Thus proper elongation of the DME cells fails in foscrb_Y10A embryos.

The FBM of Crb regulates filopodia formation and organisation of the supracellular actomyosin cable in the DME cells

Besides elongation of the DME cells, a complex actomyosin machinery is established at their LE. The DME cells extend filopodia and lamellipodia that are essential for correct ‘zippering’ (Young et al., 1993; Edwards et al., 1997; Jacinto et al., 2000; Eltsov et al., 2015). These filopodia, revealed by staining with an antibody against Stranded at Second [Sas (Denholm et al., 2005)], extend dorsally in foscrb embryos (Figure 2A arrow). In contrast, filopodia in foscrb_Y10A embryos are disorganised and often absent (Figure 2B, empty arrowhead and arrowhead, respectively). This is confirmed by live imaging of embryos expressing a Venus-tagged Sas protein (Video 3). Filopodia of foscrb_Y10A embryos are erratic, and some even appear to move out of the plane (Video 3, arrow in foscrb_Y10A embryo), probably because of the loss of contact with the AS.

Figure 2 with 5 supplements see all

Download asset Open asset

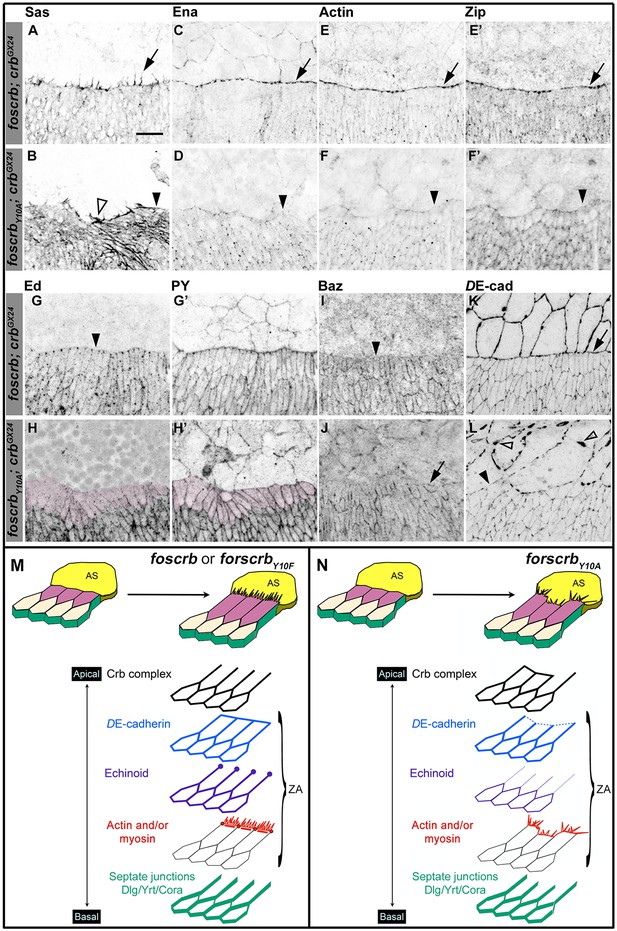

The FBM of Crb is important the establishment of the supracellular actomyosin cable at the LE of the DME cells during DC.

(A-L) Localisation of Stranded at second (Sas, A,B), Enabled (Ena, C,D), Actin (E,F), Zipper (Zip, E’,F’), Echinoid (Ed, G,H), phosphotyrosine (PY, G’,H’), Bazooka (Baz, I,J), and DE-cadherin (DE-cad, K,L) at the beginning of stage 14. In all images the AS is at the top half, for the genotypes *w;foscrb;crb^GX24* and *w;foscrb_Y10A;crb^GX24*. Filopodia extend dorsally in *foscrb* embryos (A, arrow), but in *foscrb_Y10A* embryos filopodia are absent (B, arrowhead) or disorganised (B, empty arrowhead). Ena, Actin and Zip concentrate at the LE in *foscrb* embryos (C,E and E’, arrows), but these proteins are almost absent from the LE in *foscrb_Y10A* embryos (D,F and F’, arrowheads). Ed is absent from the LE of *foscrb* embryos (G, arrowhead), but the DME cells of *foscrb_Y10A* embryos show an important decrease of the protein (H, magenta overlay) though the PY staining is still clearly associated with the ZA in the same cells (H’, magenta overlay). Similarly, Baz decreases at the LE of *foscrb* embryos (I, arrowhead), but in *foscrb_Y10A* embryos, the cells that do not elongate keep Baz at the LE (J, arrow), while other DME cells show a reduction of Baz (J, and Figure 2—figure supplement 3). DE-cad (mTomato signal) localises at all cell-cell contacts in *foscrb* embryos (K). However, in *foscrb_Y10A*, the DE-cad localisation is affected in both the dorsal epidermis (L, solid arrowhead) and the AS (L, empty arrowheads). Scale bar: 10 μm. (M) Schematic representation of the changes in DME cells at the beginning of DC in embryos expressing either fosCrb or fosCrb_Y10F. The elongation of the DME cells is accompanied by the removal of the Crb protein complex, Ed, Baz and the septate junction components from the LE. At the LE a supracellular actomyosin cable is established and filopodia extend dorsally and attach to the AS cells. Representative images from 8–12 different embryos for each genotype. (N) Schematic representation of the defects in the DME cells of embryos expressing the fosCrb_Y10A variant. At the beginning of DC, the DME cells do not elongate uniformly. In the cells that do not elongate, the Crb protein complex and Baz remain at the LE. Reduced DE-cad suggest defects in the ZA function. Ed is dramatically reduced in DME cells, probably contributing to the absence of the supracellular actomyosin cable. Also, the DME cells exhibit disorganised filopodia. Nevertheless, the septate junction components are properly removed from the LE. The Crb protein complex is apical to the ZA, but Ed and the actomyosin cable are associated with the ZA.

https://doi.org/10.7554/eLife.07398.007

Video 3

Download asset

A key regulator of the number and length of filopodia during DC is the actin-elongation promoting protein Enabled (Ena) (Gates et al., 2007; Nowotarski et al., 2014; Bilancia et al., 2014; Homem and Peifer, 2009). Ena concentrates at the LE of DME cells in foscrb embryos (Figure 2C, arrows). In contrast, Ena is strongly reduced at the LE of foscrb_Y10A embryos (Figure 2D, arrowhead). Localisation of Ena at the LE depends on the ZA–associated protein Polychaetoid (Pyd) (Choi et al., 2011). However, Pyd localisation at the ZA shows no major difference in foscrb and foscrb_Y10A embryos (Figure 2—figure supplement 1A–B'''). The localisation of the formins Dia and DAAM, both involved in the growth of actin-based protrusions (Matusek et al., 2006; Homem and Peifer, 2008; Liu et al., 2010), is also similar in foscrb and foscrb_Y10A embryos (Figure 2—figure supplement 1C–F). This suggests that different regulators of Ena are affected in foscrb_Y10A mutant embryos.

In addition to filopodia, forces produced by a supracellular actomyosin cable at the LE contribute to DC (Franke et al., 2005; Hutson et al., 2003; Kiehart et al., 2000; Jacinto et al., 2002; Young et al., 1993). This supracellular cable, which contains actin (Figure 2E) and the non-muscle myosin II Zipper (Zip, Figure 2E'), is correctly formed in foscrb embryos (Figure 2E,E' arrows). However, it is virtually absent in foscrb_Y10A embryos (Figure 2F,F', arrowheads). Live imaging experiments using a zipper::GFP protein trap line (Buszczak et al., 2007; Morin et al., 2001) reveal that Zip::GFP appears homogenously along the LE in foscrb embryos. In contrast, it randomly concentrates in some segments along the LE of foscrb_Y10A embryos (Figure 2—figure supplement 2). Together, these results show that the FBM of Crb is important for the generation and maintenance of actin-based protrusions and the correct organisation of the supracellular actomyosin cable at the LE.

The formation of the actomyosin cable at the LE depends on the removal of the adhesion protein Echinoid (Ed) from the LE and the AS cells (Laplante and Nilson, 2011; Lin et al., 2007). As expected, Ed in foscrb embryos is distributed as in wild type embryos (Figure 2G, arrowheads mark Ed absence at the LE). However, in foscrb_Y10A embryos, Ed levels are strongly reduced in the DME cells (Figure 2H, magenta overlay), even though the DME cells are still in contact with the AS, as revealed by PY staining (Figure 2H'). It has been suggested that the asymmetric distribution of Ed is essential to exclude the polarity protein Bazooka (Baz) away from the LE (Laplante and Nilson, 2011; Pickering et al., 2013). We found that, in contrast to foscrb embryos (Figure 2I, arrowhead), foscrb_Y10A embryos preserve Baz at the LE of those cells that fail to elongate (Figure 2J, arrow). In addition, there is a general reduction of Baz at the junctions of the DME cells of foscrb_Y10A embryos (Figure 2—figure supplement 3). Together, these results suggest that the FBM of Crb is important for Ed stability and hence Baz redistribution and amount in DME cells.

The asymmetric distribution of different proteins in the DME cells reflects the planar cell polarity of these cells, a feature that also includes the removal of septate junction (SJ) components from the LE (Kaltschmidt et al., 2002). We found that removal of Coracle (Cora), Discs Large (Dlg) and Yurt (Yrt) from the LE appears normal in the different fosmid variants (Figure 2—figure supplement 4), suggesting that not all aspects of the planar polarisation of the DME cells are affected in embryos expressing the foscrb_Y10A variant.

Ed, Baz and DE-cadherin (DE-cad) are all proteins associated with the ZA, which is essential in maintaining adhesion between the dorsal epidermis and the AS and for transmitting the forces generated during DC (Gorfinkiel and Arias, 2007; Heisenberg and Bellaiche, 2013; Lecuit et al., 2011). In foscrb, DE-cad localises at all cell-cell contacts, including the LE (Figure 2K, arrow). In foscrb_Y10A embryos, however, the DE-cad signal is strongly reduced at the LE (Figure 2L, solid arrowhead). Moreover, disruption of DE-cad suggests a discontinuous adhesion belt in the AS cells of these embryos (Figure 2L, empty arrowheads). The loss of DE-cad from the LE in the foscrb_Y10A embryos at this early stage is different from the normal redistribution of DE-cad that occurs at late stages during the zippering phase (Gorfinkiel and Arias, 2007). As expected, in foscrb_Y10F embryos, all proteins mentioned above localise as in foscrb embryos (Figure 2—figure supplement 5).

Taken together, these results show that the DC phenotype in foscrb_Y10A embryos is accompanied by defects in the establishment of the complex actomyosin apparatus at the LE of the DME cells and by the disturbance or even loss of different components of the ZA (schematised in Figure 2M,N).

The FBM of Crb is essential for adhesion of the AS

As described above, GB retraction is defective and the AS is strongly disorganised in foscrb_Y10A embryos (Figure 1F). Because the AS is required during GB retraction (Lamka and Lipshitz, 1999; Lynch et al., 2013; Scuderi and Letsou, 2005), we analysed by live imaging whether the AS is affected before GB retraction.

In foscrb and foscrb_Y10A embryos, at the beginning of stage 11, AS cells are elongated along the antero-posterior axis (Figure 3A,D), highlighted by DE-cad::mTomato along the ZA (Figure 3B,E, arrows). In foscrb_Y10A embryos, however, the continuity of DE-cad::mTomato is frequently disrupted (Figure 3E, arrowhead) and DE-cad::mTomato additionally appears in large intracellular clusters of unknown identity (Figure 3E, concave arrowheads), which are never observed in foscrb embryos. As GB retraction proceeds, fragmentation of the ZA continues in the AS of foscrb_Y10A embryos and the tissue disintegrates (Figure 3F arrowheads and Video 4; and for a dorsal view of a different set of embryos see Video 5), while the dorsal aspect of foscrb embryos is covered by a continuous epithelial sheet (Figure 3C).

Figure 3 with 1 supplement see all

Download asset Open asset

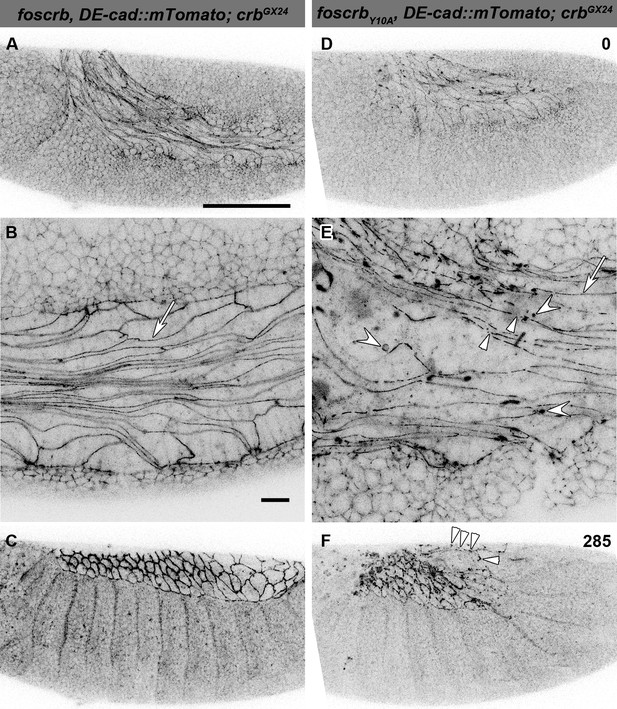

The FBM of Crb is important for the maintenance of the AS.

(A-F) Stills from lateral views of live imaging of DE-cad::mTomato knock-in at the beginning of germ band (GB) retraction (Video 4). In all images the anterior part is towards the left, for the genotypes *w;foscrb,DE-cad::mTomato;crb^GX24* and *w;foscrb_Y10A,DE-cad::mTomato;crb^GX24*. All embryos were collected at the same time (1 hr collection), incubated at 28ºC for 5 hr and imaged together. The numbers in (D,F) indicate the time in min. for the corresponding row. At stage 11 (A,B,D,E), the AS cells are elongated along the AP-axis, and DE-cad::mTomato localises along the ZA (B,E, arrows); in *foscrb_Y10A* mutant, the continuity of DE-cad::mTomato along the ZA is lost (E, arrowhead) and DE-cad::mTomato is also found in large clusters (E, white concave arrowhead). At the end of GB retraction the AS covers the dorsal aspect of *foscrb* embryos (E), but in *foscrb_Y10A* (F), GB retraction is impaired and DE-cad::mTomato signal is fragmented in the AS (F, arrowheads). Scale bar: 100 μm, except for (B,E) 10 μm.

https://doi.org/10.7554/eLife.07398.014

Video 4

Download asset

Video 5

Download asset

The defects of the AS in foscrb_Y10A embryos become very obvious in scanning electron micrographs (Figure 3—figure supplement 1). At stage 14, the AS forms a flat monolayer of epithelial cells in foscrb embryos (Figure 3—figure supplement 1A,A'). In contrast, in foscrb_Y10A embryos developed for the same period of time, the AS is completely disorganised. Large processes form, some of which extend over the caudal end of the embryos (Figure 3—figure supplement 1B,B', arrow). Some isolated cells are visible over the epidermis (whether these are detached AS cells or migrating haemocytes was not determined –Figure 3—figure supplement 1B, arrowhead), while others have the appearance of apoptotic cells (Figure 3—figure supplement 1B', concave arrowhead).

Together, these observations suggest that cell-cell adhesion in the AS is strongly disrupted in foscrb_Y10A embryos, and define the FBM of Crb as an important regulator of cytoskeletal organisation and cell-cell adhesion of the AS.

The FBM of Crb is essential for the integrity of the AS

Our scanning electron microscopy analyses suggest that the AS of foscrb_Y10A embryos undergo apoptosis. In order to determine whether apoptosis contributes to the disruption of the AS, we used the apoptotic reporter Apoliner, an RFP-GFP fusion protein localising at cell membranes of live cells. Caspase activation releases the GFP moiety, which is relatively unstable after cleavage, so dying cells have a stronger red appearance (Bardet et al., 2008; Kolahgar et al., 2011). Apoliner expression in the AS (specifically driven by the line GAL4^332.3) of foscrb embryos (Video 6) revealed some apoptotic cells at the posterior canthus at the end of GB retraction (Figure 4A, arrow). In foscrb_Y10A embryos developed for the same period of time, more apoptotic cells are visible, some of which detach (Figure 4B, arrowheads), while others remain attached to the posterior edge of the remaining AS (Figure 4B, arrow). As DC progresses in foscrb embryos, some apoptotic cells delaminate from the AS and are easily distinguished (Video 6, blinking arrows –some of these cells could be hemocytes with engulfed apoptotic debris, as reported previously [Bardet et al., 2008]). At this stage, almost all AS cells in foscrb_Y10A embryos are apoptotic (Video 6, compare embryos at 210 min). Finally, at the end of DC, the internalised AS cells are localised in a central rod-like structure in foscrb embryos and subsequently die by apoptosis (Figure 4C) [as has been reported for wild type embryos (Reed et al., 2004; Shen et al., 2013)], while in foscrb_Y10A embryos at this time point the remaining AS cells are completely disaggregated (Figure 4D). To summarise, the AS in foscrb_Y10A embryos breaks apart and undergoes premature apoptosis (Video 6), supporting the conclusion that an intact FBM is required for maintaining the integrity of the AS.

Video 6

Download asset

Figure 4 with 4 supplements see all

Download asset Open asset

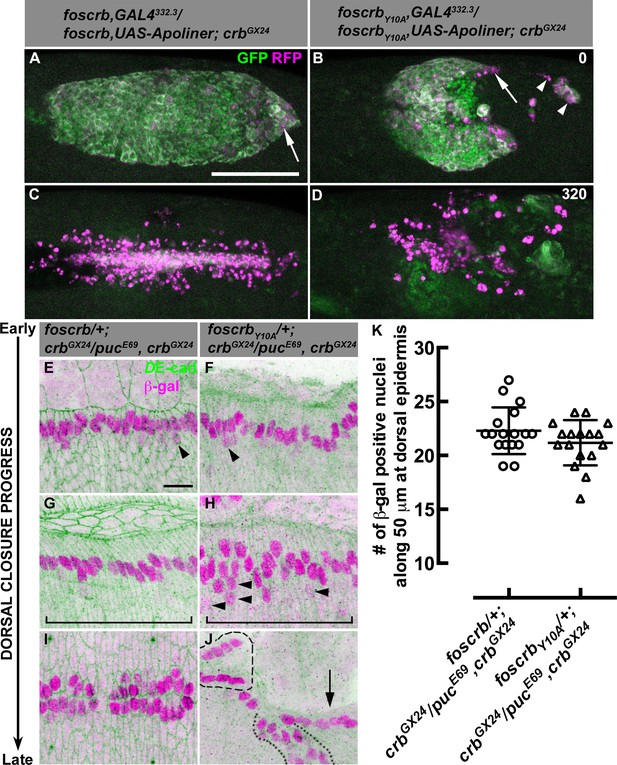

AS detachment in *foscrb_Y10A* embryos is accompanied by premature apoptosis.

(A-D) Stills from dorsal views of live imaging of embryos in which the apoptotic reporter Apoliner is driven in the AS with the line GAL4^332.3 (Video 6). Apoptotic cells in magenta appear more intense than their neighbours. In all images the anterior part is towards the left for the genotypes *w;foscrb,GAL4^332.3/foscrb,UAS-Apoliner;crb^GX24*, and *w;foscrb_Y10A,GAL4^332.3/foscrb_Y10A,UAS-Apoliner;crb^GX24*. All embryos were collected at the same time (1 hr collection), incubated at 28ºC for 7 hr and imaged together. The numbers in (B,D) indicate the time in minutes for the corresponding row. After GB retraction in *foscrb* embryos (A), some apoptotic cells are found mainly at the posterior canthus (A, arrow). In comparison, in *foscrb_Y10A* embryos, some of the cells that have detached from the AS (B, arrowheads), as well as those in the posterior edge of the AS (B, arrow), are apoptotic. As DC is completed in *foscrb* embryos (C), a significant portion of the internalised AS cells are apoptotic, while the remaining internalised cells are still localised in a rod-like structure along the dorsal part of the embryo. In contrast, in *foscrb_Y10A* embryos (D) all the remaining AS cells are apoptotic cells (the GFP signal in (D) does not belong to the AS). Scale bar: 100 μm. Representative images from 8–12 different embryos for each genotype. (E-K) Activation of the JNK pathway in the DME cells analysed with the enhancer trap *puc^E69* (β–galactosidase staining). DE-cad staining is in green. In all images anterior is to the left for the genotypes *w;foscrb/+;crb^GX24/puc^E69,crb^GX24* and *w;foscrb_Y10A/+;crb^GX24/puc^E69,crb^GX24*. From the beginning to the end of DC, Puc expression is normally induced on each side of the embryo in the single row of DME cells in both genotypes, and few positive β–gal nuclei appear below the row of DME cells (**E,F**, arrowheads). In *foscrb_Y10A* embryos at middle DC some β–gal positive cells appear below the DME cells (H, arrowheads). When DC is completed in *foscrb* embryos (I), a single row of cells on each side of the embryo is β–gal positive, even in *foscrb_Y10A* embryos, independently of whether the epidermis contacted the corresponding segment of the epidermis on the dorsal midline (J, dashed line), bunched on the same side of the embryo (J, dotted line) or fail to touch the complementing segment (J, arrow). Scale bar: 10 μm. (K) No significant difference in the number of β–gal positive nuclei at middle DC along 50 μm at the dorsal epidermis (indicated by the brackets in G,H), mean ± SD, n= 17 embryos per genotype.

https://doi.org/10.7554/eLife.07398.019

Several other processes are required for proper DC and integrity of the AS. At early stages, specification of the AS requires the U-shaped-group of genes (hindsight –hnt, tail-up –tup, u-shaped –ush, and serpent –srp), mutations in which produce phenotypes similar to those observed in foscrb_Y10A embryos (Frank and Rushlow, 1996; Lamka and Lipshitz, 1999; Yip et al., 1997; Scuderi and Letsou, 2005; Lynch et al., 2013). Hnt shows a strong and comparable expression pattern in the AS of foscrb and foscrb_Y10A embryos at early and late stages (Figure 4—figure supplement 1), even in the detached AS cells of foscrb_Y10A embryos (Figure 4—figure supplement 1D, arrowhead). This indicates that fate specification is not affected in foscrb_Y10A embryos.

AS integrity also requires integrin-mediated attachment to the yolk sac membrane (Reed et al., 2004). Therefore, we analysed the localisation of integrin-β_PS, and found no major differences between foscrb and foscrb_Y10A embryos (Figure 4—figure supplement 2A,B).

Yrt function is also important during DC, and zygotic yrt mutants have DC defects (Hoover and Bryant, 2002), similar to the ones observed upon Crb over-expression in the AS (Harden et al., 2002; Wodarz et al., 1995). Because Yrt is a FERM protein that negatively regulates Crb by directly interacting with its FBM (Laprise et al., 2006), Yrt appeared as a likely candidate in mediating the foscrb_Y10A mutant phenotype. Yrt localises at the lateral domain and concentrates towards the apical aspect in a Crb-dependent manner from stage 13 onwards (Laprise et al., 2006). We found that independently of the fosmid genotype, Yrt concentrates correctly towards the apical aspect of the cells (Figure 4—figure supplement 3). Moreover, embryos expressing foscrb and lacking zygotic yrt show defects in DC mainly after GB retraction, when a failure in the zippering at the posterior canthus is patent (Video 7, arrow in the upper embryo). Despite this, the overall AS integrity is preserved during DC and most of the zippering is completed, leaving a hole only at the posterior canthus. This phenotype is completely different from the phenotype of foscrb_Y10A embryos described above (Video 2). Significantly, embryos with both the zygotic yrt mutant allele and the foscrb_Y10A variant do not show amelioration of the foscrb_Y10A phenotype (Video 7, bottom embryo). These embryos show strong defects in GB retraction, and the integrity of the AS is lost as development progresses. These results show that the DC phenotype of foscrb_Y10A embryos starts earlier in development and is more complex than that in yrt mutants, as the former fail in germ band retraction, lose the AS and do not progress on the zippering process. Thus, Yrt seems not to be involved in the phenotype of foscrb_Y10A embryos.

Video 7

Download asset

The AS regulates aspects of DME differentiation (Stronach and Perrimon, 2001) and embryos carrying mutations in components of the JNK signalling pathway show defective elongation of DME cells and fail to establish the supracellular actomyosin cable at the LE (Riesgo-Escovar et al., 1996; Martín-Blanco et al., 1998; Ricos et al., 1999; Glise et al., 1995; Hou et al., 1997; Kockel et al., 1997; Reed et al., 2001; Ríos-Barrera and Riesgo-Escovar, 2013). The mutant phenotype described here is characterised by defects in both the AS and the DME cells. To assess whether defects in the DME observed in foscrb_Y10A embryos are the result of impaired JNK signalling, we used the reporter line puc-lacZ (Martín-Blanco et al., 1998; Ring and Martinez Arias, 1993). At the beginning of DC, the DME cells of foscrb and foscrb_Y10A embryos are β-gal positive (Figure 4E,F), with few lacZ-positive nuclei in the row of cells ventral to DME cells (Figure 4E,F, arrowheads). At advanced DC, foscrb embryos still show a single row of β-gal positive cells (Figure 4G), while in foscrb_Y10A embryos β-gal positive nuclei can also be found at positions more ventral to the DME cells (Figure 4H, arrowheads). However, given that there is no significant difference in the number of β-gal positive nuclei along 50 μm of the dorsal epidermis between these genotypes (Figure 4G,H, brackets and 4K), we suggest that this phenotype is the result of aberrant elongation of the DME cells in foscrb_Y10A embryos (see for example Figure 1H). Accordingly, at the time when foscrb embryos complete DC, these embryos (Figure 4I) and foscrb_Y10A embryos exhibit a single row of β-gal positive cells on each side of the dorsal epidermis (Figure 4J). This is independent of whether the epidermis fuses on the dorsal midline (Figure 4J, encircled by dashed line), closes on the same side of the epidermis, thus causing bunching of the tissue (Figure 4J, encircled by dotted line) or does not touch any contra-lateral epidermis (Figure 4J, arrow). A normal activation of JNK signalling is also observed in foscrb_Y10F embryos (Figure 4—figure supplement 4), showing that JNK signalling appears to be normal in the DME cells of foscrb_Y10A embryos.

Taken together, these results support the conclusion that the FBM of Crb is an important regulator of the integrity and morphogenesis of the AS without affecting its specification during development.

The FBM of Crb controls actomyosin dynamics in the AS

It has been previously shown that perturbing actomyosin dynamics of the AS cells interferes with normal DC (Solon et al., 2009; Gorfinkiel et al., 2009; Fischer et al., 2014). These dynamics, which are evident in stage 13 foscrb embryos (Video 8) similar as in wild-type embryos, is characterised by pulsed contractions of the AS cells. In foscrb_Y10A embryos, however, the pulsed contraction are difficult to follow, since individual cells can hardly be distinguished due to the highly disrupted ZA (Video 8, compare Figure 5A and 5B). Pulsed-contraction of wild-type AS cells has been correlated with a regular appearance and disappearance of medial actomyosin foci (Blanchard et al., 2010; David et al., 2010; Solon et al., 2009). These actomyosin foci are observed in foscrb embryos as revealed by Zip::GFP (Video 9 and Figure 5C). Kymographs show that these foci are transient and disassemble after contraction (Figure 5C’,D’). In contrast, the AS of foscrb_Y10A embryos shows more Zip::GFP foci (Figure 5D), some of which are more prominent (Figure 5D’, and Figure 5—figure supplement 1 and Video 10). A similar behaviour was observed for F-actin (labelled with Utrophin::GFP (Rauzi et al., 2010) -data not shown). Importantly, analysis of the periodicity of foci formation shows that foscrb and foscrb_Y10F embryos have similar pulsed contractions, while foscrb_Y10A embryos have aberrant contractions, in that foci are more persistent (Figure 5E). These observations support the hypothesis that the AS of embryos expressing the Crb_Y10A variant is under both constant and uncoordinated contraction.

Video 8

Download asset

Figure 5 with 1 supplement see all

Download asset Open asset

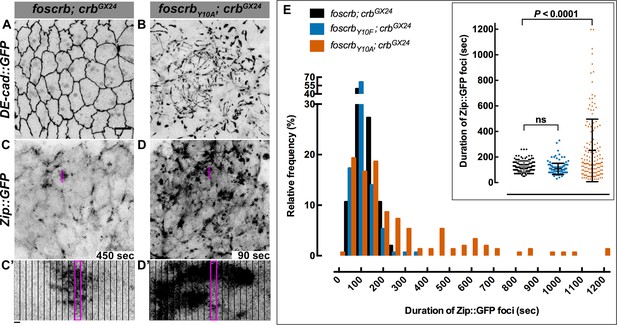

The FBM of Crb is essential for the regulation of actomyosin activity in the AS.

Stills from views of the AS in live imaging of embryos expressing DE-cad::GFP knock-in (A,B, Video 8) or Zip::GFP (C-D’, Video 9). In all images the anterior part is towards the left. Scale bar: 10 μm. (A) *w;foscrb,DE-cad::GFP;crb^GX24*. (B) *w;foscrb_Y10A,DE-cad::GFP;crb^GX24*. (C) *w;foscrb/Zip::GFP;crb^GX24*. (D) *w;foscrb_Y10A/Zip::GFP;crb^GX24*. The embryos were collected during 30 min, incubated at 28ºC for 7 hr and imaged under the same conditions. The numbers in (C,D) indicate the time in seconds for the corresponding frame in Video 9. In *foscrb* embryos (A), DE-cad::GFP is localised at cell-cell junctions; but in *foscrb_Y10A* (B) embryos DE-cad::GFP continuity is strongly disturbed. (C’,D’) Kymographs of the Zip::GFP foci in the magenta box in (**C,D**). Scale bar in (C’) 10 sec. (E) Histogram of the relative frequency of Zip::GFP foci duration during the pulsed contractions of the AS in *w;foscrb/Zip::GFP;crb^GX24, w;foscrb_Y10F/Zip::GFP;crb^GX24* and *w;foscrb_Y10A/Zip::GFP;crb^GX24* embryos. The graph in the insert shows all data points collected, and indicates the mean ± SD. ANOVA test followed by a Dunnett’s multiple-comparison test; ns-not significant difference. n = 150 foci collected from each of the three different embryos.

https://doi.org/10.7554/eLife.07398.026

Video 9

Download asset

Video 10

Download asset

Video 11

Download asset

The activity of non-muscle myosin-II (Zip) is mainly regulated by the phosphorylation state of the myosin-regulatory light chain [reviewed in (Tan et al., 1992)], encoded by the gene spaghetti squash (sqh). Thus, if over-active actomyosin is responsible for the DC defects of foscrb_Y10A embryos, we expect that expressing Flapwing (flw), the major Drosophila Sqh phosphatase (Vereshchagina et al., 2004), may suppress the DC defects. In fact, UAS-driven expression of Flw in the AS of foscrb_Y10A embryos leads to a suppression of the DC phenotype (Figure 6D–F, Video 11), while it does not produce any evident dominant phenotype in foscrb or foscrb_Y10F embryos (Figure 6A–C, and Figure 6—figure supplement 1). Interestingly, Flw over-expression also suppresses the disruption of the ZA in the AS (Video 12, compare B vs. D). This result supports our hypothesis that the FBM of Crb negatively regulates actomyosin activity in the AS.

Figure 6 with 1 supplement see all

Download asset Open asset

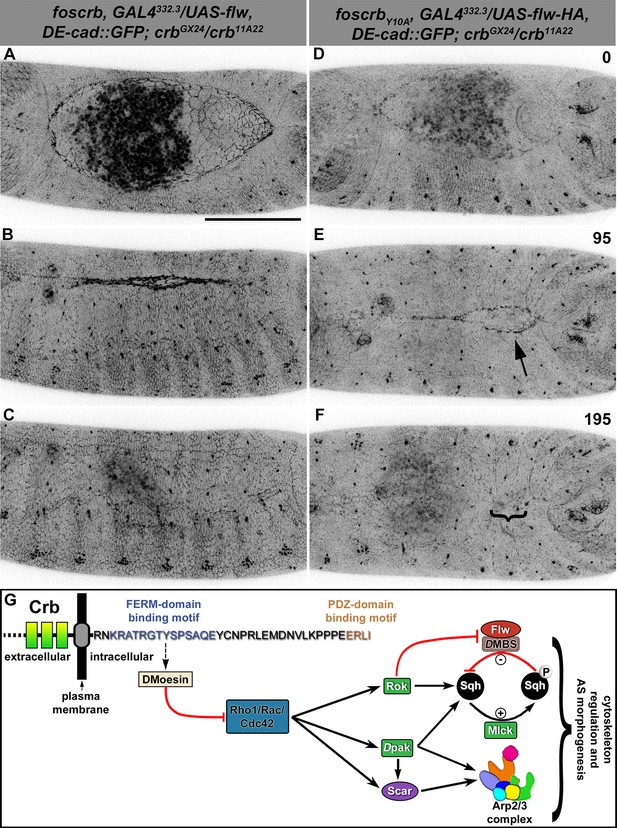

Expression of the myosin phosphatase Flapwing in the AS of *foscrb_Y10A* embryos suppresses the DC defects.

(A-F) Stills from dorsal views of live imaging of embryos expressing DE-cad::GFP knock-in and Flw-HA in the AS cells under the control of the GAL4^332.3 driver (Video 11), for the genotypes *w;foscrb,GAL4^332.3/UAS-flw-HA,DE-cad::GFP;crb^GX24/crb^11A22,UAS-Act::RFP* and *w;foscrb_Y10A,GAL4^332.3/UAS-flw-HA,DE-cad::GFP;crb^GX24/crb^11A22,UAS-Act::RFP*. All embryos were collected at the same time (1 hr collection), incubated at 28ºC for 7 hr and imaged together. The numbers on (**D-F**) indicate the time in minutes for the corresponding row. The over-expression of Flw-HA in the AS cells does not produce any obvious phenotype in *foscrb* (**A-C**) embryos, and it suppresses the DC defects in *foscrb_Y10A* (**D-F**) embryos; some defects found include an irregular zippering at the posterior canthus (E, arrow) as well as bunching of the dorsal epidermal (F, bracket). Scale bar: 100 μm. Representative images from 6–9 different embryos for each genotype. (G) Scheme of the possible pathways regulated by the FBM of Crb in the AS. Crb: Crumbs; Rok: Rho-kinase; Dpak: *Drosophila* p21-activated kinase; Flw: Flapwing; DMBS: *Drosophila* myosin-binding-subunit; Sqh: spaghetti-squash; Mlck: myosin-light chain kinase.

https://doi.org/10.7554/eLife.07398.031

Video 12

Download asset

Rho GTPases have been shown to stimulate myosin contraction by activating Rho-kinase (Rok) or the p21-activated kinase (DPak), and are required for proper DC (Mizuno et al., 1999; Harden et al., 1999; 1996; Conder et al., 2004; Magie et al., 1999; 2002). To test whether Rho-GTPases are involved in the Crb-mediated DC phenotype, we expressed different versions of established Rho family effectors (see working model in Figure 6G) and examined their effects on DC in the embryonic cuticle, a suitable read-out of DC. We grouped the embryos according to their cuticle phenotype into two major categories (Figure 7A): 1) embryos with “DC-defect”, which exhibit a range of defects from extensive dorsal opening (in which the mouthparts are exposed), to embryos with complete DC, which, however, still failed to hatch; and 2) embryos with “WT-like” cuticle, which includes all those that hatch (for more details about the different categories and phenotypes see Figure 7—figure supplement 1). Depending on the crb allelic combination, 89–98% of embryos expressing the foscrb_Y10A variant fall into the “DC-defect” category (Figure 7A, 1^st-6^th black bars).

Figure 7 with 3 supplements see all

Download asset Open asset

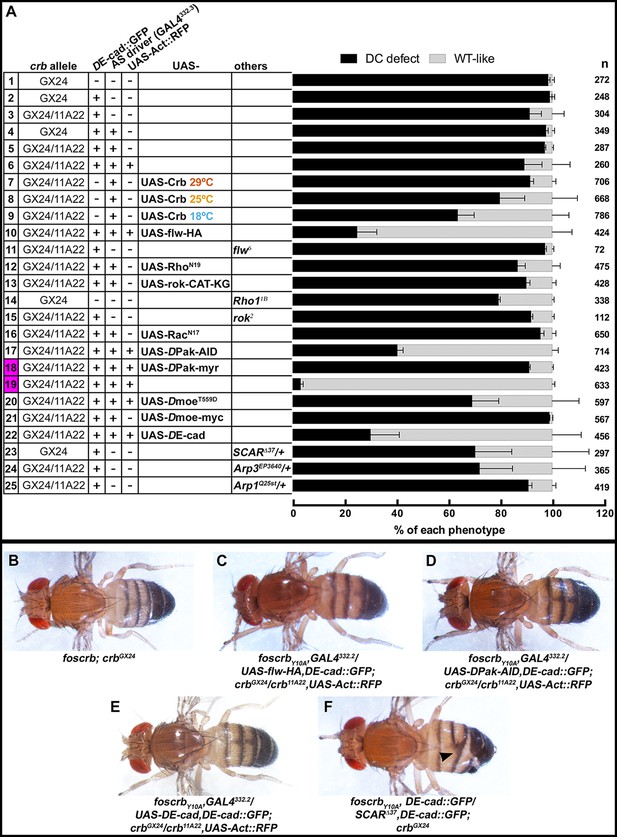

Reduction in actomyosin activity suppresses the DC defects in embryos expressing the *foscrb_Y10A* variant.

(A) Quantification of the defects observed in cuticle preparations from the genotypes indicated in the graph. For the complete genotype see Figure 7—figure supplement 1. The category “DC defect” includes a range of defects ranging from cuticles of embryos that completed DC but do not hatch, to cuticles with large DC openings. The category “WT-like” includes all larvae that hatch. For details about the classifications see Figure 7—figure supplement 1. Note that all the genotypes have the *foscrb_Y10A* background, except the ones highlighted in magenta, numbers 18 and 19, that have the *foscrb* background. mean ± SD from 2–4 independent crosses. n = total number of cuticles counted for the indicated genotype. Note that suppression of the DC phenotype in *foscrb_Y10A* embryos is particularly evident upon expression of Flw-HA (10), Pak-AID (17), and DE-cad (22). (B-F) Adult flies of the indicated genotypes. In (F), the arrowhead marks the defects in the dorsal abdomen.

https://doi.org/10.7554/eLife.07398.034

Table 1

Statistical analyses of the results shown in the Figure 7—figure supplement 1.

https://doi.org/10.7554/eLife.07398.038

			Open cuticle	Dorsal hole	Closed but not hatched	Kinked larvae	WT-like
	1	foscrb_Y10A;crb^GX24
vs	14	foscrb_Y10A/Rho1^1B;crb^GX24	∗∗	ns	ns	∗	∗∗∗

	2	foscrb_Y10A,DE-cad::GFP;crb^GX24
vs	23	foscrb_Y10A,DE-cad::GFP/SCAR^∆37,DE-cad::GFP;crb^GX24	∗∗∗∗	ns	ns	∗∗∗∗	∗∗∗∗
vs	25	foscrb_Y10A,DE-cad::GFP/Arpc^1Q25st,DE-cad::GFP;crb^GX24	ns	ns	ns	ns	ns

	3	foscrb_Y10A,DE-cad::GFP/+;crb^11A22/crb^GX24
vs	11	flw⁶/Y/w^;foscrb_Y10A,DE-cad::GFP/+;crb^11A22/crb^GX24*	∗∗∗∗	∗∗	∗∗	ns	ns
vs	15	rok²/Y/w^;foscrb_Y10A,DE-cad::GFP/+;crb^11A22/crb^GX24*	∗	ns	ns	ns	ns
vs	24	foscrb_Y10A,DE-cad::GFP/+;crb^11A22,Arp3^EP3640/crb^GX24	ns	ns	ns	ns	∗∗

	5	foscrb_Y10A,GAL4^332.3/DE-cad::GFP;crb^GX24/crb^11A22
vs	7	29ºC foscrb_Y10A,GAL4^332.3/UAS-Crb^{full length};crb^GX24/crb^11A22	ns	ns	ns	ns	ns
vs	8	25ºC foscrb_Y10A,GAL4^332.3/UAS-Crb^{full length};crb^GX24/crb^11A23	ns	ns	ns	ns	∗∗∗∗
vs	9	18ºC foscrb_Y10A,GAL4^332.3/UAS-Crb^{full length};crb^GX24/crb^11A24	ns	ns	ns	ns	∗∗∗∗
vs	12	foscrb_Y10A,GAL4^332.3/DE-cad::GFP;crb^GX24/crb^11A22,UAS-Rho^N19	∗∗	ns	ns	ns	∗∗
vs	13	foscrb_Y10A,GAL4^332.3/DE-cad::GFP;crb^GX24/crb^11A22,UAS-rok.CAT-KG	ns	ns	ns	ns	∗
vs	16	foscrb_Y10A,GAL4^332.3/DE-cad::GFP;crb^GX24/crb^11A22,UAS-Rac^N17	ns	ns	ns	ns	ns
vs	21	foscrb_Y10A,GAL4^332.3/DE-cad::GFP;crb^GX24/crb^11A22,UAS-Dmoe-myc	ns	ns	ns	ns	ns
vs	22	foscrb_Y10A,GAL4^332.3/UAS-DE-cad,DE-cad::GFP;crb^GX24/crb^11A22	∗∗∗∗	∗∗∗	ns	ns	∗∗∗∗

	6	foscrb_Y10A,GAL4^332.3/DE-cad::GFP;crb^GX24/crb^11A22,UAS-Act::RFP
vs	10	foscrb_Y10A,GAL4^332.3/UAS-flw-HA,DE-cad::GFP;crb^GX24/crb^11A22,UAS-Act::RFP	ns	∗∗∗∗	ns	∗	∗∗∗∗
vs	17	foscrb_Y10A,GAL4^332.3/UAS-DPak-AID,DE-cad::GFP;crb^GX24/crb^11A22,UAS-Act::RFP	ns	∗∗∗∗	ns	ns	∗∗∗∗
vs	20	foscrb_Y10A,GAL4^332.3/UAS-Dmoe^T559D,DE-cad::GFP;crb^GX24/crb^11A22,UAS-Act::RFP	ns	∗	ns	ns	∗∗∗∗

	18	foscrb,GAL4^332.3/UAS-Dpak-myr,DE-cad::GFP;crb^GX24/crb^11A22,UAS-Act::RFP
vs	19	foscrb,GAL4^332.3/DE-cad::GFP;crb^GX24/crb^11A22,UAS-Act::RFP	∗∗	∗∗∗	∗∗∗∗	ns	∗∗∗∗

One-way-ANOVA analysis followed by a Dunnet’s multiple comparisons test between the indicated categories of the different genotypes. Statistical significant difference indicated as follows: ns p>0.05; *p≤0.05; **p≤0.01; ***p≤0.001; ****p≤0.0001.

Using this read-out, we confirm that over-expression of the myosin phosphatase Flw in the AS strongly suppresses the DC defects of foscrb_Y10A embryos. In fact, >75% hatch (Figure 7A, 10^th vs. 6^th bars) and even some foscrb_Y10A adults eclose with no obvious defect (Figure 7C). Interestingly, cuticles from foscrb_Y10A and hemi- or homozygous for the flw⁶ allele show an enhanced DC phenotype in comparison with the foscrb_Y10A with a wild type flw allele (Figure 7A, 3^rd vs. 11^th black bars: 91.2% to 97.1%; and Figure 7—figure supplement 1, 3^rd vs. 11^th black bars, completely open cuticle from 27.7% to 73.5%). These results support the conclusion that the FBM of Crb regulates the AS actomyosin dynamics by regulating myosin activity.

In line with this conclusion we found that over-expression of dominant-negative Rho (Rho^N19) or a kinase-dead Rok (Rok-CAT-KG) in the AS of foscrb_Y10A increases the number of hatched larvae (Figure 7A, 5^th vs. 12^th and 13^th gray bars: from 2.9% to 13.4% and 10.0%, respectively), and the proportion of embryos with open cuticles is reduced (Figure 7—figure supplement 1, 5^th vs 12^th and 13^th black bars, from 52.7% to 23.6% and 28.5%, respectively). Moreover, Rho1^1B hemizygosity effectively suppresses the DC defects of foscrb_Y10A embryos (Figure 7A, 14^th bar vs. 1^st black bars, 79.2 vs. 98.3%). In contrast, foscrb_Y10A embryos hemi- or homozygous for rok² show no suppression of the DC phenotypes (Figure 7A, 15^th vs. 3^rd bars), which suggests that rok deficiency may be deleterious in the foscrb_Y10A background and that other morphological processes dependent on Rok could be affected (Simões et al., 2010; Krajcovic and Minden, 2012; Mason et al., 2013; Bertet et al., 2004). Similarly, over-expression of dominant-negative Rac1 (Rac1^N17) in the AS of foscrb_Y10A embryos does not suppress the DC phenotype (Figure 7A, 16^th vs. 5^th bars) and even appears to increase the proportion of embryos with open cuticles (Figure 7—figure supplement 1, 5^th vs. 16^th black bars, from 52.7% to 72.9%). We assume that the phenotypic enhancement is due to an additive effect, since over-expression of Rac1^N17 in wild-type embryos results in DC defects (Harden et al., 2002).

An important regulator of cytoskeleton activity downstream of Rho GTPases is DPak (Hofmann et al., 2004). Interestingly, over-expression of the auto-inhibitory domain of DPak [DPak-AID -(Conder et al., 2004)] in the AS of foscrb_Y10A embryos leads to a very strong suppression of the DC phenotype, as 59% of those embryos hatch (Figure 7A, 17^th vs. 6^th bars), and even adult flies eclose (Figure 7D). Accordingly, over-expression of constitutive active DPak (DPak-myr) in the AS of otherwise viable foscrb embryos leads to embryonic lethality with >90% of embryos with a DC-defect (Figure 7A, 18^th vs. 19^th bars). These results indicate that unregulated activation of DPak in the AS is sufficient to produce defects in DC, and that this kinase plays a major role in the defects observed in the foscrb_Y10A embryos.

DMoe has been shown to antagonise the activity of the Rho pathway (Speck et al., 2003; Neisch et al., 2010; Hipfner et al., 2004). The participation of DMoe in the process under discussion here is supported by the fact that the FBM of Crb can recruit DMoesin (DMoe) to the membrane (Médina et al., 2002) and physically interacts with it (Wei et al., 2015), and that phosphorylated-DMoe (P-DMoe) is reduced in stage 11 foscrb_Y10A embryos (Klose et al., 2013). This reduction in P-DMoe persists during DC (Figure 7—figure supplement 2). In line with this, over-expression of the phosphomimetic form DMoe^T559D in the AS of foscrb_Y10A embryos notably increases the number of larvae that hatch (Figure 7A, 6^th vs. 20^th gray bars, from 10.8% to 30.9%), while over-expression of DMoe does not ameliorate the DC defects in those embryos (Figure 7A, 21^st bar). This suggests that the regulation of the cytoskeleton dynamics by Crb is mediated in part by the active form of DMoe. Together these results let us to conclude, that the FBM of Crb regulates actomyosin dynamics in the AS during DC by down-regulating the activity of the Rho1 pathway.

We wanted to exclude the possibility that the phenotypes observed are due to a dominant effect of the Y10A mutation. In fact, over-expression of full-length Crb^WT in the AS of wild-type embryos leads to premature contraction of the AS and a DC phenotype (Harden et al., 2002; Wodarz et al., 1995). Driving the expression of UAS-Crb^WT in the AS of foscrb_Y10Aembryos leads to a suppression of the DC phenotype, as >36% hatch at 18ºC (Figure 7A, 8^th and 9^th bars vs. 5^th gray bars), while inducing a stronger over-expression by maintaining embryos at 29°C does not ameliorate the foscrb_Y10Aphenotype (Figure 7A, 5^th vs. 7^th bars). These results show that the DC phenotype of foscrb_Y10A embryos is due to loss of Crb function.

The FBM of Crb is essential for the stability of DE-cadherin in the AS

Besides an over-active actomyosin network, foscrb_Y10A embryos exhibit interruptions in DE-cad distribution (Figures 2L, 3F and 5B). In addition some embryos show weak head-involution defects (Figure 7—figure supplement 3), a phenotype reminiscent to that of weak alleles of shotgun (shg) (the gene encoding DE-cad) (Tepass et al., 1996), armadillo (arm) (the gene encoding β-catenin) (McEwen et al., 2000) or α-Cat (Sarpal et al., 2012). Therefore we asked whether the DC phenotype of foscrb_Y10A embryos could be rescued by restoring a functional adhesion belt. Over-expression of DE-cad in the AS of these embryos indeed can suppress the DC phenotype, as 70% of the larvae hatched (Figure 7A, 22^nd vs. 6^th bars), and even adult animals are obtained (Figure 7E).

A likely candidate of DE-cad regulation is the Arp2/3 complex, which has been shown to regulate endocytosis of DE-cad (Georgiou et al., 2008; Leibfried et al., 2008). In addition, reducing the activity of the Arp2/3 complex suppresses the DC phenotype of α-Cat mutants (Sarpal et al., 2012). Therefore, we tested the effects of removing one copy of SCAR, Arp3 or Arpc1 on the DC phenotype of foscrb_Y10A embryos. Strikingly, foscrb_Y10A embryos that are heterozygous for SCAR^∆37 exhibit only minor defects in GB retraction (Figure 8B), partially restore DE-cad::GFP localisation in the AS (compare Figure 8H with Figure 5B) and completed DC (Figure 8F, Video 13). In fact, ~28% of these larvae hatch, as revealed by the cuticle phenotype (Figure 7A, 23^rd vs. 2^nd bar), and even some of the w;foscrb_Y10A,DE-cad::GFP/SCAR^∆37,DE-cad::GFP;crb^GX24 develop into adult flies that exhibit defects in abdominal development (Figure 7F, arrowhead). A similar suppression was obtained in foscrb_Y10A embryos heterozygous for Arp3^EP3640 (Video 14) (Figure 7A, 24^th vs. 3^rd bar). foscrb embryos heterozygous for SCAR^∆37 or Arp3^EP3640 show normal DC (Figure 8E and Video 14).

Figure 8

Download asset Open asset

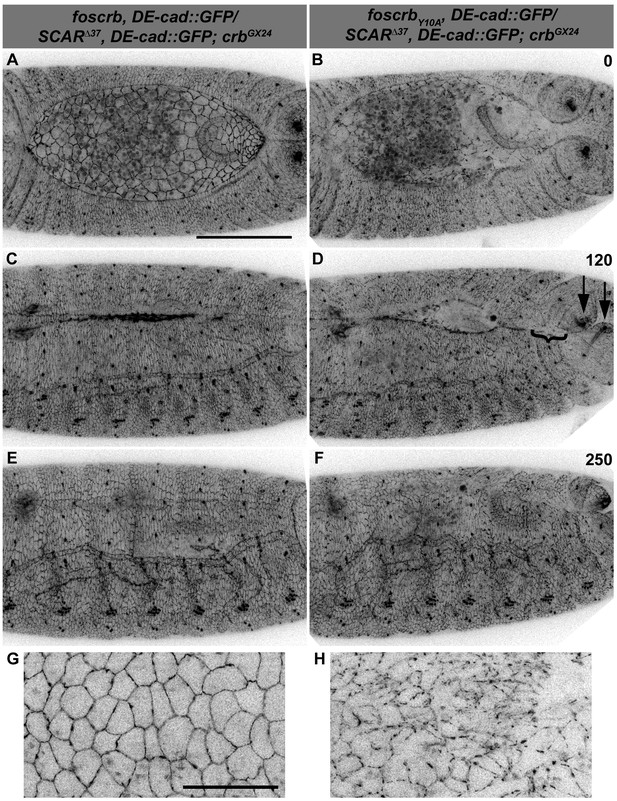

Reduction of the SCAR-Arp complex activity suppresses the DC defects and ameliorates the loss of DE-cadherin in the AS of embryos expressing the *foscrb_Y10A* variant.

(A-F) Stills from dorsal views of live imaging of embryos expressing DE-cad::GFP knock-in and heterozygous for the *SCAR^∆37* loss of function allele (Video 13). In all images the anterior is to the left, for the genotypes *w;foscrb,DE-cad::GFP/SCAR^∆37,DE-cad::GFP;crb^GX24* and *w;foscrb_Y10A,DE-cad::GFP/SCAR^∆37,DE-cad::GFP;crb^GX24*. All embryos were collected at the same time (1 hr collection), incubated at 28ºC for 7 hr and imaged together. The numbers in (B,D,F) indicate the time in minutes for the corresponding row. DC occurs normally in *foscrb* (A,C,D) embryos heterozygous for the *SCAR^∆37* allele, and DC defects are suppressed in *foscrb_Y10A* (B,D,F) embryos; some defects still visible include the impaired GB retraction (compare B with A), asymmetric position of the posterior spiracles (D, arrows), and bunching of the dorsal epidermis (D, bracket). Scale bar: 100 μm. (G,H) Magnified views of AS from (A,B, respectively). Note that, in order to make the localisation of DE-cad::GFP more perceptible, the autofluorescence of the yolk (visible in A,B) was removed from the original stack by hand using Fiji. Scale bar: 100 μm. Representative images from 6–9 different embryos for each genotype.

https://doi.org/10.7554/eLife.07398.039

Video 13

Download asset

Video 14

Download asset

In summary we could demonstrate that the DC phenotype of embryos expressing Crb_Y10A is due to enhanced Rho-mediated actomyosin activity and reduced adhesion. Whether these two processes are linked or independent functions downstream of Crb remains to be discussed.

Discussion

Dorsal closure is an ideal model to study how coordinated behaviour of epithelial sheets controls morphogenesis. Here we present data to show that a mutation in the FERM-domain binding motif of the polarity determinant Crb affects major steps during DC, namely elongation of the DME cells, proper formation of the actomyosin cable at the LE, and regulated constriction of the AS cells. In addition, impaired DE-cad localisation suggest impaired adhesion. Overall, our results define a novel role of the FBM of Crb as an essential negative regulator of actomyosin dynamics in the AS during DC in Drosophila. This function is not allele-specific, since embryos carrying a crb allele, in which Y10, P12 and E16 in the FBM are replaced by alanines (Huang et al., 2009) develop a similar DC phenotype as foscrb_Y10A embryos (data not shown). Genetic interaction studies revealed that this function of the FBM is mediated by DMoesin, members of the Rho family, the p21 activated kinase DPak, and the SCAR-Arp2/3 complex (Figure 6G).

One phenotype observed upon complete loss of function of crb is a failure to maintain an intact ZA, a phenotype associated with the loss of polarity of many embryonic epithelia (Tepass et al., 1990; Tepass and Knust, 1990; 1993; Grawe et al., 1996; Tepass, 1996). In fact, the AS is the tissue that is affected earliest (late stage 7/early stage 8) in crb mutant embryos (Tepass, 1996). However, foscrb_Y10A embryos exhibit disrupted DE-cad staining in the AS only from stage 11 onward. Therefore, we suggest that the way how Crb controls maintenance of ZA integrity in the AS at later stages is different from its early function, which depends on a functional PBM (Wodarz, et al., 1993; Klose et al., 2013) and its interactions with the Par complex (Morais-de-Sá et al., 2010; Harris and Peifer, 2005). However, whether Crb, and in particular its FBM, regulates ZA integrity during DC by a different mechanism, or whether defects in the ZA are a secondary consequence of impaired actomyosin activity, remains to be determined.

Several of our results are compatible with the assumption that Crb regulates actomyosin dynamics, but since foscrb_Y10A mutant embryos show defects both in the AS and the DME cells, we cannot distinguish in which of the tissues Crb activity is primarily required and whether defects observed in the DME of foscrb_Y10A mutant embryos are secondary consequences of excessive contraction of the AS cells. Previous results clearly show that the activity of one tissue affects the behaviour of the respective other (Kiehart et al., 2000; Hutson et al., 2003; Gorfinkiel et al., 2009; Solon et al., 2009). For example, zip mutants have DC and head involution defects, and restoring zip function in either the dorsal epidermis or the AS is sufficient to rescue dorsal-open phenotypes (Franke et al., 2005). Similarly, expression of Pak-AID in the AS of foscrb_Y10A mutants is sufficient to recover proper elongation of the DME (data not shown). However, the multitude of phenotypes observed in the DME cells of foscrb_Y10A mutant embryos, such as persistence of Crb_Y10A, DPatj and Baz proteins and decrease of Ed expression at the LE, as well as disruption of the supracellular actomyosin cable and disorganised filopodia, suggest that Crb performs also specific functions in the DME. One possibility is that Crb influences actomyosin activity and filopodia formation in the DME cells by regulating the stability and localisation of Ena, the major regulator of protrusive activity at the LE (Nowotarski et al., 2014). Another possibility is that Crb regulates the LE actomyosin by modulating the localisation of Baz. In wild-type embryos, the removal of Baz from the LE (Laplante and Nilson, 2011) allows the relocation of the lipid phosphatase Pten, which, in turn, results in a localised accumulation of phosphatidylinositol-3,4,5-trisphosphate at the LE, promoting the formation of filopodia along the LE (Pickering et al., 2013).

Crb regulates actomyosin dynamics

The most prominent phenotype of foscrb_Y10A embryos is the over-contraction of AS cells, most likely mediated by DPak. In fact, cortical localisation of DPak in the AS of foscrb_Y10A embryos appears to be increased in some cells (data not shown). In addition, over-expression of Pak-AID in the AS of foscrb_Y10A suppresses the GB retraction and DC phenotypes. A similar degree of suppression was observed upon over-expression of Flw, a negative regulator of Sqh. Members of the Rho GTPase family are well-established upstream regulators of actomyosin dynamics. Our data suggest that Rho1 plays a crucial role downstream of Crb, since heterozygosity of Rho1^1B partially suppresses the DC phenotype of foscrb_Y10A embryos. Previous data showed that over-expression of the constitutively active or dominant-negative form of Rac1 in the AS of wild-type embryos results in AS disruption (Harden et al., 2002). Our observation that the phenotype of foscrb_Y10A embryos is enhanced upon expression of a dominant negative form of Rac1 in the AS of foscrb_Y10A embryos suggests that Rac1 may act upstream of Crb or in a parallel pathway. Since the effects of dominant negative Cdc42^N17 could not be studied due to technical difficulties (see Materials and methods), we cannot exclude any contribution of Cdc42 in this process. Therefore, our data so far support a role of Rho1 in the Crb-mediated control of actomyosin dynamics in the AS (Figure 6G).

The FERM protein DMoe is a likely candidate to link the FBM of Crb to Rho1 activity. Dmoe mutant imaginal epithelial cells lose epithelial markers and intercellular adhesion, become motile and show invasive behaviour (Speck et al., 2003). In addition, lack of DMoe activates the Rho1-Rok-myosin cascade and JNK-mediated apoptosis in imaginal discs (Warner et al., 2010; Neisch et al., 2010). In fact, the FBM of Crb can recruit Moe to the cell membrane, a process that fails upon replacement of Tyr10 or Arg7 by Ala in the FBM of Crb (Neisch et al., 2010; Médina et al., 2002). Similarly, mutating Tyr10 in the FBM of the intercellular adhesion molecule (ICAM)-2 or the equivalent Tyr residue in the FBM of the neural cell adhesion molecule L1 impairs interaction with the FERM proteins radixin and ezrin, respectively (Hamada et al., 2003; Cheng et al., 2005). Moreover, it has been shown recently that the FBM of Crb is necessary for organising DMoe, aPKC and the actin cytoskeleton at the marginal zone in the developing follicular epithelium (Sherrard and Fehon, 2015). And in cervical carcinoma cells, over-expression of the mammalian CRB3 protein restores an epithelial-like morphology by organising a cortical actomyosin network through the regulation of the p114RhoGEF-RhoA-ROCK1/2 pathway via the FERM protein Ehm2 (Loie et al., 2015). Finally, recent works documented direct binding between Moesin and Crb, which was abolished upon Y10A substitution (Wei et al., 2015).

It is unlikely that one of the other two established binding partners of the FBM of Crb, Ex and Yrt (Ling et al., 2010; Robinson et al., 2010; Laprise et al., 2006), mediates the Crb function in the AS. So far, no role of Ex during DC has been reported, and ex mutant embryos reach stage 16 of development without showing major morphogenetic defects (Marcinkevicius and Zallen, 2013). Yrt is expressed in the AS and the epidermis, but this is not affected in foscrb_Y10A embryos. In addition, the DC phenotype of zygotic yrt^∆75a mutants is less severe than the one observed in foscrb_Y10A embryos. Finally, we do not observe increased Crb protein levels in foscrb_Y10A embryos, which would be expected if the interaction between Yrt and Crb is impaired (Laprise et al., 2006).

Further support for a more direct role of Crb in regulating the actomyosin network comes from the observation that Crb co-localises with DPar-6, aPKC and Baz at the medial actomyosin foci in the AS (David et al., 2010; 2013). Given the known interactions between members of the Crb complex with members of the Par complex [reviewed in (Bulgakova and Knust, 2009; Tepass, 2012; Rodriguez-Boulan and Macara, 2014)], David et al. (David et al., 2010) suggest that Crb in apical medial foci provides an anchor for PAR proteins. They go on to show that Baz and Par6-aPKC have opposite effects on foci duration, in that Baz promotes and Par6-aPKC complex inhibits the duration of foci. The interplay between these polarity complexes and the actomyosin system seems to establish a delayed negative feedback that promotes the cyclic contractions in the AS (David et al., 2010; 2013). In fact, Crb::GFP also exhibits a similar pulsation as Zip::GFP in the AS (own unpublished observations), so it will be important to analyse whether Crb_Y10A::GFP mutant proteins have different dynamics in comparison to the wild type Crb.

Crb–a regulator of ZA integrity via actomyosin dynamics?

Given the observation that at early stages of embryonic development the PBM is required for ZA stability, and that the Crb_Y10A mutant protein has an intact PBM, it is possible that during DC, Crb-mediated regulation of actomyosin dynamics impacts on ZA stability. Interestingly, DPak is not only a regulator of actomyosin dynamics, but is also involved in supporting ZA stability, both in Drosophila and in mammalian cells (Lozano et al., 2008; Braga et al., 2000; Akhtar and Hotchin, 2001; Pirraglia et al., 2010; Menzel et al., 2007; 2008). The role of DPak itself in DC morphogenesis is still controversial. Previous work showed that cell shape changes in the AS occur normally in embryos lacking maternal and zygotic Dpak and that inhibition of DPak in the AS does not prevent apical constriction of amnioserosa cells (Conder et al., 2004). However, wild-type embryos expressing Pak-AID in the AS show defects in head involution and DC, which are stronger than those of embryos devoid of maternal and zygotic DPak. This led the authors to suggest that Pak-AID may also affect the activity of a second kinase, Pak3, in the AS (Conder et al., 2004). Thus, whether inhibition of DPak, Pak3 or both upon expression of Pak-AID in foscrb_Y10A embryos accounts for the rescuing effect of the DC phenotype, including rescue of the ZA, remains to be clarified.

How can DPak regulate ZA integrity? ZA remodelling is essential for morphogenesis, and this remodelling is driven by the endocytosis and recycling of junctional components (Harris, 2012; Matsubayashi et al., 2015). DPak can activate the Arp2/3 complex directly or via the Drosophila WAVE homolog SCAR (Lecuit et al., 2011; Kurisu and Takenawa, 2009; Zallen et al., 2002). Arp2/3, in turn, has been implicated in the regulation of ZA stability, e.g. in the Drosophila notum, where it maintains ZA stability by regulating the endocytosis of junctional components (Watanabe et al., 2009; Quiros and Nusrat, 2014; Lecuit et al., 2011; Georgiou et al., 2008; Leibfried et al., 2008). Moreover, reducing the activity of the Arp2/3-complex suppresses the DC phenotype of α-Cat mutants (Sarpal et al., 2012), and the Arp2/3–WAVE/SCAR complexes associate with E-cad clusters and regulate their endocytosis (Verma et al., 2012; Kovacs et al., 2002; Lecuit and Yap, 2015). In fact, DE-cad endocytosis is enhanced in a Rho1-dependent manner when junctions are under stress and DE-cad clusters are also down-regulated via inhibition of Par3 by Rok (Levayer et al., 2011; Lecuit and Yap, 2015). Our results are in agreement with a role of Arp2/3 in regulating ZA stability in the AS. Heterozygosity of SCAR^∆37, Arp1^Q25st or Arp3^EP3640 not only partially restored DE-cad::GFP localisation at the ZA in the AS of foscrb_Y10A embryos and suppressed DC defects, but even rescued the lethality of foscrb_Y10A flies. Fusion of abdominal segments in adult escapers suggest that Crb may also be involved in histoblast fusion during metamorphosis (Madhavan and Madhavan, 1980; Ninov et al., 2007). Myosin-II activity itself has also been shown to be essential for the maintenance of AJs in some cases. Mice ablated for NMHC II-A die by E7.5 due to massive defects in cell-cell contacts and epithelial multi-layering accompanied by loss of E-cad and β-catenin from adhesion sites (Conti et al., 2004). Similarly, ZA stability in the Drosophila embryonic ectoderm depends on myosin-II contractility and requires interactions with actin (Engl et al., 2014; Truong Quang et al., 2013). Finally, Rok and myosin-II activities participate in ZA remodelling in the Drosophila pupal eye by regulating the formation of DE-cad recycling endosomes (Yashiro et al., 2014). Because the SCAR-Arp2/3 complex is an important enhancer of actin protrusions (Wood et al., 2002; Abreu-Blanco et al., 2012; Georgiou and Baum, 2010), it is also plausible that reducing its activity in foscrb_Y10A embryos stabilises the ZA indirectly.

On the other hand, misregulation of actomyosin activity is not always associated with defects in ZA stability and integrity of the AS. Expressing a constitutively active form of MLCK to increase myosin II activity or over-expression of RhoGEF2, an activator of Rho1, results in an increase in the number and density of actin foci without affecting the integrity of the AS (Azevedo et al., 2011; Fischer et al., 2014), which could be due to the use of a weak GAL4 driver. Alternatively, the difference to our results could be explained by the fact that these authors performed the over-expression in a background with more than two copies of E-cad (using a ubi-DE-cad::GFP line), while we performed the experiments in a knock-in DE-cad::GFP line (Huang et al., 2009; 2011), which thus may represent a more sensitive background.

Crb–an organiser of a platform to link the ZA with the actomyosin network?

Another possibility to interpret our results is that Crb, or an interacting protein, couples the actomyosin network and the ZA. During gastrulation in C. elegans a molecular clutch has been postulated to connect the myosin network with the adhesion sites to transmit the force generated by the actomyosin contractions (Roh-Johnson et al., 2012). In Drosophila, the actomyosin contractions in the AS are initially uncoupled from apical contractions and hence the ZA (Solon et al., 2009; Gorfinkiel et al., 2009; Blanchard et al., 2010). Successive rows of amnioserosa cells are then sequentially stabilised in a contracted state, driving further contraction of the tissue. The surface stabilization mechanism is not known, but is likely to involve an increase in cellular stiffness [reviewed in (Paluch and Heisenberg, 2009)]. In foscrb_Y10A embryos the actomyosin foci in the AS emerge prematurely before the onset of germ band retraction, whereas in wild-type these foci are more abundant after the end of germ band retraction (Figure 2—figure supplement 2 and data not shown). Thus, the early over-contraction of the actomyosin in foscrb_Y10A embryos may induce a premature coupling to the ZA, thus disrupting germ band retraction and DC. An interesting candidate for this coupling is the protein Canoe, which binds to α-catenin (Sawyer et al., 2009; Pokutta et al., 2002), and whose absence results in a DC phenotype (Jürgens et al., 1984; Takahashi et al., 1998; Boettner et al., 2003; Choi et al., 2011). Absence of Canoe induces the detachment of the actomyosin apparatus from cell-cell junctions during Drosophila mesoderm invagination (Sawyer et al., 2009; 2011).

In conclusion, we show a novel function of the FBM of Crb as an essential regulator of cytoskeleton dynamics and tissue integrity during DC. Different lines of evidence show that Crb regulation of AS morphogenesis involves DMoesin, Rho-GTPases, class-I Pak, and the SCAR-Arp2/3 complex. Further work will determine at which level Crb regulates actomyosin dynamics and why it is just the morphogenesis of the AS that depends on the FBM of Crb, while all other embryonic epithelia are not affected.

Materials and Methods

Fly stocks (see Table 2)

Request a detailed protocol

Table 2

List of fly stocks used in this study.

https://doi.org/10.7554/eLife.07398.042

Fly stock	Description
w	All stocks have the w* or w¹¹¹⁸ background
w;foscrb w;foscrb_Y10F w;foscrb_Y10A	Flies expressing fosmid variants of crb under the control of the endogenous promoter and inserted into the landing site attP40 on 2^nd chromosome; described in (Klose et al., 2013)
w;;crb^11A22/TTG	crb null allele; BSC 3448
w;;crb^GX24/TTG	crb null allele (Huang et al., 2009)
w;;yrt^∆75acrb^11A22/TTG	yrt protein null allele recombined with the crb^11A22 allele (Laprise et al., 2006)
w;;puc^E69/TTG	lacZ enhancer trap in the puc locus, a read-out of JNK signalling (Ring and Martinez Arias, 1993; Martín-Blanco et al., 1998)
w;SCAR^∆37/CTG	Loss of function allele (Zallen et al., 2002); BSC 8754
w;;Arp3^EP3640/TTG	generated by Berkeley Drosophila Genome Project (Hudson and Cooley, 2002); BSC 17149
w;ex⁶⁹⁷/CTG	lacZ enhancer trap in the ex locus; kindly provided by Nick Tapon
w;nub¹Arpc1^Q25st FRT40A/CTG	Nonsense mutation at Gln25 (CAG→TAG); behaves as a null mutant (Hudson and Cooley, 2002); BSC 9135
w flw⁶/FTG	Amorphic allele (Raghavan et al., 2000); BSC 23693
y w rok² FRT19A/FTG	Encodes the first 21 amino acids of rok followed by a 35 aa random peptide and a stop codon (Winter et al., 2001); BSC 6666
w;Rho1^1B/CTG	Rho1 loss of function allele; BSC 9477
w;DE-cad::GFP	DE-cadherin fused with GFP knock-in allele; homozygous viable (Huang et al., 2009)
w;DE-cad::mTomato	DE-cadherin fused with mTomato knock-in allele; homozygous viable (Huang et al., 2009)
w;Zipper::GFP	Protein trap line: Zipper fused with GFP under endogenous promoter; homozygous viable; BSC 51564.
w;sqh::Utrophin::GFP	Actin binding domain of human Utrophin fused with GFP under the control of the sqh promoter (Rauzi et al., 2010).
w;;Sas::Venus	On 3^rd; Stranded at Second fused with Venus under tubulin promoter (Firmino et al., 2013)
w; GAL4^332.2	On 2^nd; expresses GAL4 in amnioserosa; BSC 5398
w; UAS-Apoliner	On 2^nd; engineered apoptotic reporter (Bardet et al., 2008); BSC 32122
w; UAS-flw-HA	On 2^nd; HA-tagged flw protein under UAS control; BSC 23703
w;; UAS-Rho1^N19	On 3^rd; dominant negative Rho1 under the control of UAS; BSC 7328
w;; UAS-Rac^N17	On 3^rd; dominant negative Rac under the control of UAS; BSC 6292
w; UAS-Cdc47^N17	On 2^nd; negative Cdc42 under the control of UAS; BSC 6288. The stock w;DE-cad::GFP,UAS-Cdc42^N17/(CTG);crb^11A22,UAS-Actin::RFP/TM6B-YFP or TTG was not possible to obtain, probably because the expression of Cdc^N17, induced by the GAL4 from the balancer chromosome is detrimental.
w;; UAS-moe^T559D-myc	On 2^rd; phosphomimetic Moesin under the control of UAS; BSC 8630
w;; UAS-moe-myc	On 3^rd; myc-tagged Moesin under the control of UAS; BSC 52236
w; UAS-Pak-myr	On 2^nd: constitutively-active, membrane-bound Pak under UAS control; BSC 8804
w; UAS-Pak-AID	On 2^nd; Pak autoinhibitory domain under UAS control; kindly provided by Nicholas Harden (Conder et al., 2004)
w;; UAS-Act::RFP	On 3^rd; RFP-tagged Act5C under UAS control; BSC 24779
w;; UAS-rok-CAT-KG	On 3^rd; a kinase-dead rok under UAS control; BSC 6671
FTG	Balancer on 1^st FM7c, twi-GAL4 UAS-EGFP; from BSC 6873
CTG	Balancer on 2^ndCyO, twi-GAL4 UAS-EGFP; from BSC 6662
TTG	Balancer on 3^rdTM3, twi-GAL4 UAS-EGFP Sb¹ Ser¹; from BSC 6663
TM6B-YFP	Balancer on 3^rdTM6B, Dfd-EYFP, Sb¹ Tb¹ ca¹; from BSC 8704

BSC - Bloomington stock center; DGRC - Drosophila Genetic Resource Center.

Flies were maintained at 25ºC on standard food. All the mutant alleles where balanced over fluorescent balancers to identify the homozygous mutants in fixed embryos or live imaging microscopy (see below). All crosses and analyses were carried in a crb null background (crb^GX24 or crb^11A22, homozygous or trans-heterozygous), so the expression of the different variants of Crb is exclusively provided by the fosmid (Klose et al., 2013). The different UAS-lines where recombined with the DE-cad::GFP knock-in allele or the null crb^11A22 allele. The driver line GAL4^332.3 was recombined with each of the different fosmid alleles.

Embryo collection and antibody staining

Request a detailed protocol

Embryo stage refers to the foscrb;crb^GX24 genotype morphology accordingly to (Campos-Ortega and Hartenstein, 1985). All genotypes (foscrb;crb^GX24, foscrb_Y10F;crb^GX24 and foscrb_Y10A;crb^GX24) were collected under the same conditions, at the same time and during the same period (indicated in the respective figure legend). In this way, the comparison between foscrb or foscrb_Y10F and foscrb_Y10A mutant phenotypes show the differences observed at a specific time after egg laying. Embryos were collected on apple juice plates at 25ºC and then incubated for the appropriate times at 25ºC or 28ºC, dechorionated in 3% sodium hypochlorite for 3 min, fixed for 20 min in 4% formaldehyde in phosphate-buffered saline (PBS) solution/heptane V/V 1:1. Vitelline membrane was removed by strong shaking in heptane/methanol v/v 1:1, except for the staining of actin in which the vitelline membrane was removed by strong shaking in 80% ethanol. Embryos were blocked for 2 hr at room temperature in PBT (PBS + 0.1% Triton X-100) + 5% normal horse serum (Sigma-Aldrich H1270, St. Louis, Missouri, USA). Embryos were incubated for 2 hr at room temperature or overnight at 4ºC with primary antibodies (see Table 3). For analysis of Zipper localisation, we used the protein trap line Zipper::GFP (see Table 2) and the staining was done using the anti-GFP antibody. Incubations with the appropriate secondary antibodies were performed for 1 hr at room temperature. Stained embryos were mounted in glycerin propyl gallate (75% glycerol, 50 mg/mL propyl gallate) and visualized using a Zeiss LSM 780 NLO confocal microscope (ZEISS Microscopy, Jena, Germany) with a C-Apochromat 40x/1.2W Corr objective with the correction collar at 0.18 (at this position the brightness and contrast was enhanced). To distinguish homozygous embryos, in all the stainings an anti-GFP antibody was included to stain for the balancer-provided GFP. All images for a given marker in different genotypes were taken under the same settings for laser power, PMT gain and offset. Maximal projections, merging and LUT-pseudocolor assignment was performed using Fiji (Schindelin et al., 2012). For the FIRE-LUT pseudocolor 0 is black and 255 is white. Mounting was done in Adobe Photoshop CC 2015.0.1 and when brightness and contrast was adjusted, the modifications were equally applied to all the set of images for a given marker.

Table 3

Antibodies and probes employed.

https://doi.org/10.7554/eLife.07398.043

	Dilution	Source
Phalloidin Alexa Fluor 555	1:500	Invitrogen
Alexa Fluor 488-, 568-, and 647-conjugated	1:500	Invitrogen

Rat antibodies
anti-Crb2.8	1:500	(Richard et al., 2006)
anti-DE-cadherin	1:20	DSHB DCAD2
anti-Yurt	1:100	(Laprise et al., 2006)

Mouse antibodies
anti-α-Spectrin	1:25	DSHB 3A9
anti-β-galactosidase	1:200	DSHB 40-1a
anti-Coracle	1:25	DSHB C566.9
anti-Crb-Cq4	1:300	DSHB Cq4
anti-Disc large	1:100	DSHB 4F3
anti-Enabled	1:100	DSHB 5G2
anti-GFP	1:500	Roche 11814460001 (Mannheim, Germany)
anti-Hindsight	1:100	DSHB 1G9
anti-Integrin β_PS	1:2	DSHB CF.6G11
anti-Phosphotyrosine	1:100	BD Transduction Laboratories cat. no. 610000
anti-SCAR	1:25	DSHB P1C1

Rabbit antibodies
anti-Bazooka	1:500	kindly provided by A. Wodarz
anti-DAAM	1:3000	kindly provided by József Mihály (unpublished)
anti-Diaphanous	1:5000	kindly provided by Steven A. Wasserman (Afshar et al., 2000)
anti-DPatj	1:1000	(Richard et al., 2006)
anti-Echinoid	1:5000	kindly provided by Laura Nilson (Laplante and Nilson, 2006)
anti-Expanded	1:300	(Boedigheimer and Laughon, 1993)
anti-GFP	1:500	Invitrogen
anti-DPak	1:8000	kindly provided by Nicholas Harden (Harden et al., 1996)
anti-Polychaetoid	1:5000	kindly provided by Sarah Bray (Djiane et al., 2011)
anti-Phospho-Moesin	1:100	Cell Signaling Technology 3150 (Danvers, Massachusetts, USA)
anti-Stranded at second	1:500	kindly provided by E. Organ and D. Cavener

Invitrogen, Molecular Probes (Eugene, Oregon, USA); DSHB - Developmental Studies Hybridoma Bank (Iowa city, Iowa, USA)

Cuticle preparation

Request a detailed protocol

Embryos were collected overnight on apple juice plates at 25ºC and then incubated for > 6 hr at 28ºC. All the GFP or YFP positive eggs (the GFP or YFP is provided by the balancer) were removed and the remaining eggs where maintained at 25ºC. The next day, the plates were screened again to remove remaining GFP/YFP positive eggs/larvae. Thus, all the remaining eggs/larvae had a crb null background (crb^GX24 or crb^11A22, homozygous or trans-heterozygous). These eggs/larvae were collected, dechorionated in 3% sodium hypochlorite for 3 min, mounted on Hoyer’s medium (gum arabic 30 g, chloral hydrate 200 g, glycerol 20 g, H₂O 50 ml), and the slide was incubated overnight at 60ºC. In this way, all the eggs laid in the plate were at least >28 hr at 25º, enough time to let the larvae hatch when they are viable. The preparations were analysed by phase contrast with a Zeiss Axio Imager.Z1 microscope with an EC Plan-NEOFLUAR 10X/0.3 objective.

Scanning electron microscopy (SEM)

Request a detailed protocol

Embryos were collected on apple juice plates for 1 hr at 25ºC and then incubated for 8 hr at 28ºC, dechorionated in 3% sodium hypochlorite for 2 min 30 sec, and fixed for 30 min in 25% glutaraldehyde/heptane v/v 1:1. Devitellinization was done by hand in 25% glutaraldehyde. Then, the embryos were postfixed in modified Karnovsky (2% paraformaldehyde/2% glutaraldehyde in 50 mM HEPES) followed by 1% osmium tetroxide in PBS, dehydrated in a graded series of ethanol, transferred to microporous capsules (78 μm pore size, Plano Cat. 4614) and critical point dried using the Leica CPD 300 (Leica Microsystems GmbH, Wetzlar, Germany). Embryos were mounted on 12 mm aluminium stubs and sputter coated with gold using a Leica Baltec SCD 050. Samples were analysed with a Jeol JSM 7500F cold field emission SEM (JEOL Ltd, Tokyo, Japan) at 10 kV acceleration voltage.

Live imaging

Request a detailed protocol

Embryos were collected and incubated as describe above (see 'Embryo collection and antibody staining'). In the analysis of pulsed contractions in the AS, sequential collections of 30 min interspaced by 1 hr between each genotype allowed us to analyse 2–3 embryos of each genotype on the same session, so the acquisition conditions for all the genotypes were identical. To eliminate crb^GX24 or crb^11A22 heterozygous embryos, all GFP or YFP positive embryos were removed. The remaining eggs were dechorionated by hand or in 3% sodium hypochlorite for 2 min, mounted and oriented in a bottom glass Petri dish (MatTek P35G-1.5.14-C, Ashland, Massachusetts, USA). Previously, the glass was cover with a thin layer of glue (adhesive dissolved from double sided tape in heptane). The embryos were covered with water and visualized by multi-position scanning using a Zeiss LSM 780 NLO confocal microscope with a W Plan-Apochromat 40x/1.0 objective. Excitation was performed with 488 nm for GFP or YFP, and 561 nm for RFP or mTomato from an Argon Multiline Laser. The pinhole was adjusted for faster acquisition, so the step sizes correspond to 2.01 μm (Videos 1, 2, 7, 11, 13, 14), 2.3 μm (Videos 4, 5, 6), 1.2 μm (Video 8, 12), 1.46 μm (Videos 3 and 9). 4D-Hyperstacks were processed with Fiji (Schindelin et al., 2012) and the movies were rendered with Adobe Photoshop CC 2015.0.1. Under these conditions we observed that w;foscrb,DE-cad::GFP;crb^GX24 embryos imaged for >7 hr at 5 min time lapse hatched and survived without showing any obvious damage (data not shown).

Statistical analyses

Request a detailed protocol

Statistical analyses were performed with GraphPad Prism 6. Results are expressed as means ± SD. Statistical significance was evaluated in a one-way analysis of variance (ANOVA) followed by a Dunnett’s multiple-comparison test. In the analysis of the statistical significance of the data presented in the Figure 7—figure supplement 1, the percentages were first converted to arcsin values and then analysed by a one-way-ANOVA followed by a Dunnet’s multiple comparisons test.

References

(2012) Drosophila embryos close epithelial wounds using a combination of cellular protrusions and an actomyosin purse string
Journal of Cell Science 125:5984–5997.

https://doi.org/10.1242/jcs.109066
- PubMed
- Google Scholar
(2014) Coordination of rho family GTPase activities to orchestrate cytoskeleton responses during cell wound repair
Current Biology 24:144–155.

https://doi.org/10.1016/j.cub.2013.11.048
- PubMed
- Google Scholar
(2000)
Functional analysis of the drosophila diaphanous FH protein in early embryonic development

Development 127:1887–1897.
- PubMed
- Google Scholar
1. Akhtar N
2. Hotchin NA
(2001)
RAC1 regulates adherens junctions through endocytosis of e-cadherin

Molecular Biology of the Cell 12:847–862.
- PubMed
- Google Scholar
1. Azevedo D
2. Antunes M
3. Prag S
4. Ma X
5. Hacker U
6. Brodland GW
7. Hutson MS
8. Solon J
9. Jacinto A
(2011) DRhoGEF2 regulates cellular tension and cell pulsations in the amnioserosa during drosophila dorsal closure
PloS One 6:e23964.

https://doi.org/10.1371/journal.pone.0023964
- PubMed
- Google Scholar
(2001) Drosophila stardust is a partner of crumbs in the control of epithelial cell polarity
Nature 414:638–643.

https://doi.org/10.1038/414638a
- PubMed
- Google Scholar
1. Bardet PL
2. Kolahgar G
3. Mynett A
4. Miguel-Aliaga I
5. Briscoe J
6. Meier P
7. Vincent JP
(2008) A fluorescent reporter of caspase activity for live imaging
Proceedings of the National Academy of Sciences of the United States of America 105:13901–13905.

https://doi.org/10.1073/pnas.0806983105
- PubMed
- Google Scholar
(2009)
Crumbs proteins in epithelial morphogenesis

Frontiers in Bioscience 14:2149–2169.
- Google Scholar
(2004) Myosin-dependent junction remodelling controls planar cell intercalation and axis elongation
Nature 429:667–671.

https://doi.org/10.1038/nature02590
- PubMed
- Google Scholar
1. Bilancia CG
2. Winkelman JD
3. Tsygankov D
4. Nowotarski SH
5. Sees JA
6. Comber K
7. Evans I
8. Lakhani V
9. Wood W
10. Elston TC
11. Kovar DR
12. Peifer M
(2014) Enabled negatively regulates diaphanous-driven actin dynamics in vitro and in vivo
Developmental Cell 28:394–408.

https://doi.org/10.1016/j.devcel.2014.01.015
- PubMed
- Google Scholar
(2010) Cytoskeletal dynamics and supracellular organisation of cell shape fluctuations during dorsal closure
Development 137:2743–2752.

https://doi.org/10.1242/dev.045872
- PubMed
- Google Scholar
(2014) Actin dynamics, architecture, and mechanics in cell motility
Physiological Reviews 94:235–263.

https://doi.org/10.1152/physrev.00018.2013
- PubMed
- Google Scholar
1. Boedigheimer M
2. Laughon A
(1993)
Expanded: a gene involved in the control of cell proliferation in imaginal discs

Development 118:1291–1301.
- PubMed
- Google Scholar
1. Boettner B
2. Harjes P
3. Ishimaru S
4. Heke M
5. Fan HQ
6. Qin Y
7. van Aelst L
8. Gaul U
(2003)
The AF-6 homolog canoe acts as a Rap1 effector during dorsal closure of the drosophila embryo

Genetics 165:159–169.
- PubMed
- Google Scholar
1. Boggiano JC
2. Fehon RG
(2012) Growth control by committee: intercellular junctions, cell polarity, and the cytoskeleton regulate hippo signaling
Developmental Cell 22:695–702.

https://doi.org/10.1016/j.devcel.2012.03.013
- PubMed
- Google Scholar
(2000)
Activation of the small GTPase rac is sufficient to disrupt cadherin-dependent cell-cell adhesion in normal human keratinocytes

Molecular Biology of the Cell 11:3703–3721.
- PubMed
- Google Scholar
(2008) Multiple domains of stardust differentially mediate localisation of the crumbs-stardust complex during photoreceptor development in drosophila
Journal of Cell Science 121:2018–2026.

https://doi.org/10.1242/jcs.031088
- PubMed
- Google Scholar
1. Bulgakova NA
2. Knust E
(2009) The crumbs complex: from epithelial-cell polarity to retinal degeneration
Journal of Cell Science 122:2587–2596.

https://doi.org/10.1242/jcs.023648
- Google Scholar
1. Buszczak M
2. Paterno S
3. Lighthouse D
4. Bachman J
5. Planck J
6. Owen S
7. Skora AD
8. Nystul TG
9. Ohlstein B
10. Allen A
11. Wilhelm JE
12. Murphy TD
13. Levis RW
14. Matunis E
15. Srivali N
16. Hoskins RA
17. Spradling AC
(2007) The carnegie protein trap library: a versatile tool for drosophila developmental studies
Genetics 175:1505–1531.

https://doi.org/10.1534/genetics.106.065961
- PubMed
- Google Scholar
Book
1. Campos-Ortega JA
2. Hartenstein V
(1985) The embryonic development of drosophila melanogaster
Berlin, Heidelberg: Springer Berlin Heidelberg.

https://doi.org/10.1007/978-3-662-02454-6
- Google Scholar
1. Cheng L
2. Itoh K
3. Lemmon V
(2005) L1-mediated branching is regulated by two ezrin-radixin-moesin (eRM)-binding sites, the RSLE region and a novel juxtamembrane ERM-binding region
Journal of Neuroscience 25:395–403.

https://doi.org/10.1523/JNEUROSCI.4097-04.2005
- PubMed
- Google Scholar
1. Choi W
2. Jung KC
3. Nelson KS
4. Bhat MA
5. Beitel GJ
6. Peifer M
7. Fanning AS
(2011) The single drosophila ZO-1 protein polychaetoid regulates embryonic morphogenesis in coordination with canoe/afadin and enabled
Molecular Biology of the Cell 22:2010–2030.

https://doi.org/10.1091/mbc.E10-12-1014
- PubMed
- Google Scholar
1. Conder R
2. Yu H
3. Ricos M
4. Hing H
5. Chia W
6. Lim L
7. Harden N
(2004) DPak is required for integrity of the leading edge cytoskeleton during drosophila dorsal closure but does not signal through the JNK cascade
Developmental Biology 276:378–390.

https://doi.org/10.1016/j.ydbio.2004.08.044
- PubMed
- Google Scholar
1. Conti MA
2. Even-Ram S
3. Liu C
4. Yamada KM
5. Adelstein RS
(2004) Defects in cell adhesion and the visceral endoderm following ablation of nonmuscle myosin heavy chain II-a in mice
The Journal of Biological Chemistry 279:41263–41266.

https://doi.org/10.1074/jbc.C400352200
- PubMed
- Google Scholar
(2010) The PAR complex regulates pulsed actomyosin contractions during amnioserosa apical constriction in drosophila
Development 137:1645–1655.

https://doi.org/10.1242/dev.044107
- PubMed
- Google Scholar
1. David DJ
2. Wang Q
3. Feng JJ
4. Harris TJ
(2013) Bazooka inhibits aPKC to limit antagonism of actomyosin networks during amnioserosa apical constriction
Development 140:4719–4729.

https://doi.org/10.1242/dev.098491
- PubMed
- Google Scholar
1. Denholm B
2. Brown S
3. Ray RP
4. Ruiz-Gómez M
5. Skaer H
6. Hombría JC
(2005) Crossveinless-c is a RhoGAP required for actin reorganisation during morphogenesis
Development 132:2389–2400.

https://doi.org/10.1242/dev.01829
- PubMed
- Google Scholar
1. Djiane A
2. Shimizu H
3. Wilkin M
4. Mazleyrat S
5. Jennings MD
6. Avis J
7. Bray S
8. Baron M
(2011) Su(dx) E3 ubiquitin ligase-dependent and -independent functions of polychaetoid, the drosophila ZO-1 homologue
The Journal of Cell Biology 192:189–200.

https://doi.org/10.1083/jcb.201007023
- PubMed
- Google Scholar
(1997) GFP-moesin illuminates actin cytoskeleton dynamics in living tissue and demonstrates cell shape changes during morphogenesis in drosophila
Developmental Biology 191:103–117.

https://doi.org/10.1006/dbio.1997.8707
- PubMed
- Google Scholar
(2015) Quantitative analysis of cytoskeletal reorganization during epithelial tissue sealing by large-volume electron tomography
Nature Cell Biology 17:605–614.

https://doi.org/10.1038/ncb3159
- PubMed
- Google Scholar
1. Engl W
2. Arasi B
3. Yap LL
4. Thiery JP
5. Viasnoff V
(2014) Actin dynamics modulate mechanosensitive immobilization of e-cadherin at adherens junctions
Nature Cell Biology 16:587–594.

https://doi.org/10.1038/ncb2973
- PubMed
- Google Scholar
(2013) Crumbs affects protein dynamics in anterior regions of the developing drosophila embryo
PloS One 8:e58839.

https://doi.org/10.1371/journal.pone.0058839
- PubMed
- Google Scholar
1. Fischer SC
2. Blanchard GB
3. Duque J
4. Adams RJ
5. Arias AM
6. Guest SD
7. Gorfinkiel N
(2014) Contractile and mechanical properties of epithelia with perturbed actomyosin dynamics
PloS One 9:e95695.

https://doi.org/10.1371/journal.pone.0095695
- PubMed
- Google Scholar
1. Frank LH
2. Rushlow C
(1996)
A group of genes required for maintenance of the amnioserosa tissue in drosophila

Development 122:1343–1352.
- PubMed
- Google Scholar
(2005) Nonmuscle myosin II generates forces that transmit tension and drive contraction in multiple tissues during dorsal closure
Current Biology 15:2208–2221.

https://doi.org/10.1016/j.cub.2005.11.064
- PubMed
- Google Scholar
1. Gates J
2. Mahaffey JP
3. Rogers SL
4. Emerson M
5. Rogers EM
6. Sottile SL
7. van Vactor D
8. Gertler FB
9. Peifer M
(2007) Enabled plays key roles in embryonic epithelial morphogenesis in drosophila
Development 134:2027–2039.

https://doi.org/10.1242/dev.02849
- PubMed
- Google Scholar
1. Genevet A
2. Tapon N
(2011) The hippo pathway and apico-basal cell polarity
The Biochemical Journal 436:213–224.

https://doi.org/10.1042/BJ20110217
- PubMed
- Google Scholar
1. Georgiou M
2. Baum B
(2010) Polarity proteins and rho GTPases cooperate to spatially organise epithelial actin-based protrusions
Journal of Cell Science 123:1089–1098.

https://doi.org/10.1242/jcs.060772
- PubMed
- Google Scholar
1. Georgiou M
2. Marinari E
3. Burden J
4. Baum B
(2008) Cdc42, Par6, and aPKC regulate Arp2/3-mediated endocytosis to control local adherens junction stability
Current Biology 18:1631–1638.

https://doi.org/10.1016/j.cub.2008.09.029
- PubMed
- Google Scholar
(1995)
Hemipterous encodes a novel drosophila MAP kinase kinase, required for epithelial cell sheet movement

Cell 83:451–461.
- PubMed
- Google Scholar
1. Gorfinkiel N
2. Arias AM
(2007) Requirements for adherens junction components in the interaction between epithelial tissues during dorsal closure in drosophila
Journal of Cell Science 120:3289–3298.

https://doi.org/10.1242/jcs.010850
- PubMed
- Google Scholar
(2009) Mechanical control of global cell behaviour during dorsal closure in drosophila
Development 136:1889–1898.

https://doi.org/10.1242/dev.030866
- PubMed
- Google Scholar
(2011) Integrative approaches to morphogenesis: lessons from dorsal closure
Genesis 49:522–533.

https://doi.org/10.1002/dvg.20704
- PubMed
- Google Scholar
1. Grawe F
2. Wodarz A
3. Lee B
4. Knust E
5. Skaer H
(1996)
The drosophila genes crumbs and stardust are involved in the biogenesis of adherens junctions

Development 122:951–959.
- PubMed
- Google Scholar
1. Hamada K
2. Shimizu T
3. Yonemura S
4. Tsukita S
5. Tsukita S
6. Hakoshima T
(2003) Structural basis of adhesion-molecule recognition by ERM proteins revealed by the crystal structure of the radixin-ICAM-2 complex
The EMBO Journal 22:502–514.

https://doi.org/10.1093/emboj/cdg039
- PubMed
- Google Scholar
1. Harden N
2. Lee J
3. Loh HY
4. Ong YM
5. Tan I
6. Leung T
7. Manser E
8. Lim L
(1996) A drosophila homolog of the rac- and Cdc42-activated serine/threonine kinase PAK is a potential focal adhesion and focal complex protein that colocalizes with dynamic actin structures
Molecular and Cellular Biology 16:1896–1908.

https://doi.org/10.1128/MCB.16.5.1896
- PubMed
- Google Scholar
1. Harden N
2. Ricos M
3. Ong YM
4. Chia W
5. Lim L
(1999)
Participation of small GTPases in dorsal closure of the drosophila embryo: distinct roles for rho subfamily proteins in epithelial morphogenesis

Journal of Cell Science 112 (Pt 3):273–284.
- PubMed
- Google Scholar
1. Harden N
2. Ricos M
3. Yee K
4. Sanny J
5. Langmann C
6. Yu H
7. Chia W
8. Lim L
(2002)
Drac1 and crumbs participate in amnioserosa morphogenesis during dorsal closure in drosophila

Journal of Cell Science 115:2119–2129.
- PubMed
- Google Scholar
1. Harris TJ
2. Peifer M
(2005) The positioning and segregation of apical cues during epithelial polarity establishment in drosophila
The Journal of Cell Biology 170:813–823.

https://doi.org/10.1083/jcb.200505127
- PubMed
- Google Scholar
1. Harris TJ
(2012) Adherens junction assembly and function in the drosophila embryo
International Review of Cell and Molecular Biology 293:45–83.

https://doi.org/10.1016/B978-0-12-394304-0.00007-5
- PubMed
- Google Scholar
1. Heisenberg CP
2. Bellaïche Y
(2013) Forces in tissue morphogenesis and patterning
Cell 153:948–962.

https://doi.org/10.1016/j.cell.2013.05.008
- PubMed
- Google Scholar
(2004) Slik sterile-20 kinase regulates moesin activity to promote epithelial integrity during tissue growth
Genes & Development 18:2243–2248.

https://doi.org/10.1101/gad.303304
- PubMed
- Google Scholar
(2004) The genetics of pak
Journal of Cell Science 117:4343–4354.

https://doi.org/10.1242/jcs.01392
- PubMed
- Google Scholar
1. Homem CC
2. Peifer M
(2008) Diaphanous regulates myosin and adherens junctions to control cell contractility and protrusive behavior during morphogenesis
Development 135:1005–1018.

https://doi.org/10.1242/dev.016337
- PubMed
- Google Scholar
1. Homem CC
2. Peifer M
(2009) Exploring the roles of diaphanous and enabled activity in shaping the balance between filopodia and lamellipodia
Molecular Biology of the Cell 20:5138–5155.

https://doi.org/10.1091/mbc.E09-02-0144
- PubMed
- Google Scholar
1. Hong Y
2. Stronach B
3. Perrimon N
4. Jan LY
5. Jan YN
(2001) Drosophila stardust interacts with crumbs to control polarity of epithelia but not neuroblasts
Nature 414:634–638.

https://doi.org/10.1038/414634a
- PubMed
- Google Scholar
1. Hoover KB
2. Bryant PJ
(2002) Drosophila yurt is a new protein-4.1-like protein required for epithelial morphogenesis
Development Genes and Evolution 212:230–238.

https://doi.org/10.1007/s00427-002-0231-6
- PubMed
- Google Scholar
(1997) Drosophila jun relays the jun amino-terminal kinase signal transduction pathway to the decapentaplegic signal transduction pathway in regulating epithelial cell sheet movement
Genes & Development 11:1728–1737.

https://doi.org/10.1101/gad.11.13.1728
- PubMed
- Google Scholar
1. Huang J
2. Huang L
3. Chen YJ
4. Austin E
5. Devor CE
6. Roegiers F
7. Hong Y
(2011) Differential regulation of adherens junction dynamics during apical-basal polarization
Journal of Cell Science 124:4001–4013.

https://doi.org/10.1242/jcs.086694
- PubMed
- Google Scholar
1. Huang J
2. Zhou W
3. Dong W
4. Watson AM
5. Hong Y
(2009) From the cover: directed, efficient, and versatile modifications of the drosophila genome by genomic engineering
Proceedings of the National Academy of Sciences of the United States of America 106:8284–8289.

https://doi.org/10.1073/pnas.0900641106
- PubMed
- Google Scholar
1. Hudson AM
2. Cooley L
(2002) A subset of dynamic actin rearrangements in drosophila requires the Arp2/3 complex
The Journal of Cell Biology 156:677–687.

https://doi.org/10.1083/jcb.200109065
- PubMed
- Google Scholar
1. Hutson MS
2. Tokutake Y
3. Chang MS
4. Bloor JW
5. Venakides S
6. Kiehart DP
7. Edwards GS
(2003) Forces for morphogenesis investigated with laser microsurgery and quantitative modeling
Science 300:145–149.

https://doi.org/10.1126/science.1079552
- PubMed
- Google Scholar
(2015) Structures of the human Pals1 PDZ domain with and without ligand suggest gated access of crb to the PDZ peptide-binding groove
Acta Crystallographica. Section D, Biological Crystallography 71:555–564.

https://doi.org/10.1107/S139900471402776X
- PubMed
- Google Scholar
(2000) Dynamic actin-based epithelial adhesion and cell matching during drosophila dorsal closure
Current Biology 10:1420–1426.

https://doi.org/10.1016/S0960-9822(00)00796-X
- PubMed
- Google Scholar
1. Jacinto A
2. Wood W
3. Woolner S
4. Hiley C
5. Turner L
6. Wilson C
7. Martinez-Arias A
8. Martin P
(2002) Dynamic analysis of actin cable function during drosophila dorsal closure
Current Biology 12:1245–1250.

https://doi.org/10.1016/S0960-9822(02)00955-7
- PubMed
- Google Scholar
(2013) Apical oscillations in amnioserosa cells: basolateral coupling and mechanical autonomy
Biophysical Journal 105:255–265.

https://doi.org/10.1016/j.bpj.2013.05.027
- PubMed
- Google Scholar
(1984)
Mutations affecting the pattern of the larval cuticle in drosophila melanogaster

Dev Genes Evol 193:283–295.
- Google Scholar
(2002) Planar polarity and actin dynamics in the epidermis of drosophila
Nature Cell Biology 4:937–944.

https://doi.org/10.1038/ncb882
- PubMed
- Google Scholar
(2006) Computer modelling in combination with in vitro studies reveals similar binding affinities of drosophila crumbs for the PDZ domains of stardust and DmPar-6
European Journal of Cell Biology 85:753–767.

https://doi.org/10.1016/j.ejcb.2006.03.003
- PubMed
- Google Scholar
(2000)
Multiple forces contribute to cell sheet morphogenesis for dorsal closure in drosophila

The Journal of Cell Biology 149:471–490.
- PubMed
- Google Scholar
1. Klebes A
2. Knust E
(2000) A conserved motif in crumbs is required for e-cadherin localisation and zonula adherens formation in drosophila
Current Biology 10:76–85.

https://doi.org/10.1016/S0960-9822(99)00277-8
- PubMed
- Google Scholar
(2013) Fosmid-based structure-function analysis reveals functionally distinct domains in the cytoplasmic domain of drosophila crumbs
G3 (Bethesda, Md.) 3:153–165.

https://doi.org/10.1534/g3.112.005074
- PubMed
- Google Scholar
(1997)
Jun in drosophila development: redundant and nonredundant functions and regulation by two MAPK signal transduction pathways

Genes & Development 11:1748–1758.
- PubMed
- Google Scholar
(2011) Apical deficiency triggers JNK-dependent apoptosis in the embryonic epidermis of drosophila
Development 138:3021–3031.

https://doi.org/10.1242/dev.059980
- PubMed
- Google Scholar
1. Kovacs EM
2. Goodwin M
3. Ali RG
4. Paterson AD
5. Yap AS
(2002)
Cadherin-directed actin assembly: E-cadherin physically associates with the Arp2/3 complex to direct actin assembly in nascent adhesive contacts

Current Biology 12:379–382.
- PubMed
- Google Scholar
1. Krajcovic MM
2. Minden JS
(2012) Assessing the critical period for rho kinase activity during drosophila ventral furrow formation
Developmental Dynamics : An Official Publication of the American Association of Anatomists 241:1729–1743.

https://doi.org/10.1002/dvdy.23859
- PubMed
- Google Scholar
1. Kurisu S
2. Takenawa T
(2009) The WASP and WAVE family proteins
Genome Biology 10:226.

https://doi.org/10.1186/gb-2009-10-6-226
- PubMed
- Google Scholar
1. Lamka ML
2. Lipshitz HD
(1999) Role of the amnioserosa in germ band retraction of the drosophila melanogaster embryo
Developmental Biology 214:102–112.

https://doi.org/10.1006/dbio.1999.9409
- PubMed
- Google Scholar
1. Laplante C
2. Nilson LA
(2006) Differential expression of the adhesion molecule echinoid drives epithelial morphogenesis in drosophila
Development 133:3255–3264.

https://doi.org/10.1242/dev.02492
- PubMed
- Google Scholar
1. Laplante C
2. Nilson LA
(2011) Asymmetric distribution of echinoid defines the epidermal leading edge during drosophila dorsal closure
The Journal of Cell Biology 192:335–348.

https://doi.org/10.1083/jcb.201009022
- PubMed
- Google Scholar
(2006) The FERM protein yurt is a negative regulatory component of the crumbs complex that controls epithelial polarity and apical membrane size
Developmental Cell 11:363–374.

https://doi.org/10.1016/j.devcel.2006.06.001
- PubMed
- Google Scholar
(2011) Force generation, transmission, and integration during cell and tissue morphogenesis
Annual Review of Cell and Developmental Biology 27:157–184.

https://doi.org/10.1146/annurev-cellbio-100109-104027
- PubMed
- Google Scholar
1. Lecuit T
2. Yap AS
(2015) E-cadherin junctions as active mechanical integrators in tissue dynamics
Nature Cell Biology 17:533–539.

https://doi.org/10.1038/ncb3136
- PubMed
- Google Scholar
(2008) Drosophila Cip4 and WASp define a branch of the Cdc42-Par6-aPKC pathway regulating e-cadherin endocytosis
Current Biology 18:1639–1648.

https://doi.org/10.1016/j.cub.2008.09.063
- PubMed
- Google Scholar
(2011) Spatial regulation of dia and myosin-II by RhoGEF2 controls initiation of e-cadherin endocytosis during epithelial morphogenesis
Nature Cell Biology 13:529–540.

https://doi.org/10.1038/ncb2224
- PubMed
- Google Scholar
1. Li Y
2. Wei Z
3. Yan Y
4. Wan Q
5. du Q
6. Zhang M
(2014) Structure of crumbs tail in complex with the PALS1 PDZ-SH3-GK tandem reveals a highly specific assembly mechanism for the apical crumbs complex
Proceedings of the National Academy of Sciences of the United States of America 111:17444–17449.

https://doi.org/10.1073/pnas.1416515111
- PubMed
- Google Scholar
1. Lin HP
2. Chen HM
3. Wei SY
4. Chen LY
5. Chang LH
6. Sun YJ
7. Huang SY
8. Hsu JC
(2007) Cell adhesion molecule echinoid associates with unconventional myosin VI/Jaguar motor to regulate cell morphology during dorsal closure in drosophila
Developmental Biology 311:423–433.

https://doi.org/10.1016/j.ydbio.2007.08.043
- PubMed
- Google Scholar
1. Ling C
2. Zheng Y
3. Yin F
4. Yu J
5. Huang J
6. Hong Y
7. Wu S
8. Pan D
(2010) The apical transmembrane protein crumbs functions as a tumor suppressor that regulates hippo signaling by binding to expanded
Proceedings of the National Academy of Sciences of the United States of America 107:10532–10537.

https://doi.org/10.1073/pnas.1004279107
- PubMed
- Google Scholar
1. Liu KC
2. Cheney RE
(2012) Myosins in cell junctions
Bioarchitecture 2:158–170.

https://doi.org/10.4161/bioa.21791
- PubMed
- Google Scholar
(2010) Formins in development: orchestrating body plan origami
Biochimica Et Biophysica Acta 1803:207–225.

https://doi.org/10.1016/j.bbamcr.2008.09.016
- PubMed
- Google Scholar
1. Loie E
2. Charrier LE
3. Sollier K
4. Masson JY
5. Laprise P
(2015) CRB3A controls the morphology and cohesion of cancer cells through Ehm2/p114RhoGEF-dependent signaling
Molecular and Cellular Biology 35:3423–3435.

https://doi.org/10.1128/MCB.00673-15
- PubMed
- Google Scholar
1. Lozano E
2. Frasa MA
3. Smolarczyk K
4. Knaus UG
5. Braga VM
(2008) PAK is required for the disruption of e-cadherin adhesion by the small GTPase rac
Journal of Cell Science 121:933–938.

https://doi.org/10.1242/jcs.016121
- PubMed
- Google Scholar
1. Lynch HE
2. Crews SM
3. Rosenthal B
4. Kim E
5. Gish R
6. Echiverri K
7. Hutson MS
(2013) Cellular mechanics of germ band retraction in drosophila
Developmental Biology 384:205–213.

https://doi.org/10.1016/j.ydbio.2013.10.005
- PubMed
- Google Scholar
1. Madhavan MM
2. Madhavan K
(1980)
Morphogenesis of the epidermis of adult abdomen of drosophila

Journal of Embryology and Experimental Morphology 60:1–31.
- PubMed
- Google Scholar
(1999)
Mutations in the Rho1 small GTPase disrupt morphogenesis and segmentation during early drosophila development

Development 126:5353–5364.
- PubMed
- Google Scholar
(2002)
Rho1 interacts with p120ctn and alpha-catenin, and regulates cadherin-based adherens junction components in drosophila

Development 129:3771–3782.
- PubMed
- Google Scholar
1. Marcinkevicius E
2. Zallen JA
(2013) Regulation of cytoskeletal organization and junctional remodeling by the atypical cadherin fat
Development 140:433–443.

https://doi.org/10.1242/dev.083949
- PubMed
- Google Scholar
(1998)
Puckered encodes a phosphatase that mediates a feedback loop regulating JNK activity during dorsal closure in drosophila

Genes & Development 12:557–570.
- PubMed
- Google Scholar
(2013) Apical domain polarization localizes actin-myosin activity to drive ratchet-like apical constriction
Nature Cell Biology 15:926–936.

https://doi.org/10.1038/ncb2796
- PubMed
- Google Scholar
(2015) Endocytosis-dependent coordination of multiple actin regulators is required for wound healing
The Journal of Cell Biology 210:419–433.

https://doi.org/10.1083/jcb.201411037
- PubMed
- Google Scholar
1. Matusek T
2. Djiane A
3. Jankovics F
4. Brunner D
5. Mlodzik M
6. Mihály J
(2006) The drosophila formin DAAM regulates the tracheal cuticle pattern through organizing the actin cytoskeleton
Development 133:957–966.

https://doi.org/10.1242/dev.02266
- PubMed
- Google Scholar
(2000)
The canonical wg and JNK signaling cascades collaborate to promote both dorsal closure and ventral patterning

Development 127:3607–3617.
- PubMed
- Google Scholar
1. Menzel N
2. Melzer J
3. Waschke J
4. Lenz C
5. Wecklein H
6. Lochnit G
7. Drenckhahn D
8. Raabe T
(2008) The drosophila p21-activated kinase mbt modulates DE-cadherin-mediated cell adhesion by phosphorylation of armadillo
The Biochemical Journal 416:231–241.

https://doi.org/10.1042/BJ20080465
- PubMed
- Google Scholar
(2007) The drosophila p21 activated kinase mbt regulates the actin cytoskeleton and adherens junctions to control photoreceptor cell morphogenesis
Mechanisms of Development 124:78–90.

https://doi.org/10.1016/j.mod.2006.09.007
- PubMed
- Google Scholar
1. Mizuno T
2. Amano M
3. Kaibuchi K
4. Nishida Y
(1999) Identification and characterization of drosophila homolog of rho-kinase
Gene 238:437–444.

https://doi.org/10.1016/S0378-1119(99)00351-0
- PubMed
- Google Scholar
(2010) APKC phosphorylation of bazooka defines the apical/lateral border in drosophila epithelial cells
Cell 141:509–523.

https://doi.org/10.1016/j.cell.2010.02.040
- PubMed
- Google Scholar
1. Morin X
2. Daneman R
3. Zavortink M
4. Chia W
(2001) A protein trap strategy to detect GFP-tagged proteins expressed from their endogenous loci in drosophila
Proceedings of the National Academy of Sciences of the United States of America 98:15050–15055.

https://doi.org/10.1073/pnas.261408198
- PubMed
- Google Scholar
(2011) Spatial, temporal and molecular hierarchies in the link between death, delamination and dorsal closure
Development 138:3043–3054.

https://doi.org/10.1242/dev.060731
- PubMed
- Google Scholar
1. Muschalik N
2. Knust E
(2011) Increased levels of the cytoplasmic domain of crumbs repolarise developing drosophila photoreceptors
Journal of Cell Science 124:3715–3725.

https://doi.org/10.1242/jcs.091223
- PubMed
- Google Scholar
(2002) Crumbs interacts with moesin and beta(Heavy)-spectrin in the apical membrane skeleton of drosophila
The Journal of Cell Biology 158:941–951.

https://doi.org/10.1083/jcb.200203080
- PubMed
- Google Scholar
1. Neisch AL
2. Speck O
3. Stronach B
4. Fehon RG
(2010) Rho1 regulates apoptosis via activation of the JNK signaling pathway at the plasma membrane
The Journal of Cell Biology 189:311–323.

https://doi.org/10.1083/jcb.200912010
- PubMed
- Google Scholar
(2007) Extrinsic and intrinsic mechanisms directing epithelial cell sheet replacement during drosophila metamorphosis
Development 134:367–379.

https://doi.org/10.1242/dev.02728
- PubMed
- Google Scholar
(2014) The actin regulators enabled and diaphanous direct distinct protrusive behaviors in different tissues during drosophila development
Molecular Biology of the Cell 25:3147–3165.

https://doi.org/10.1091/mbc.E14-05-0951
- PubMed
- Google Scholar
1. Paluch E
2. Heisenberg CP
(2009) Biology and physics of cell shape changes in development
Current Biology 19:R790–799.

https://doi.org/10.1016/j.cub.2009.07.029
- PubMed
- Google Scholar
1. Pellikka M
2. Tanentzapf G
3. Pinto M
4. Smith C
5. Mcglade CJ
6. Ready DF
7. Tepass U
(2002) Crumbs, the drosophila homologue of human CRB1/RP12, is essential for photoreceptor morphogenesis
Nature 416:143–149.

https://doi.org/10.1038/nature721
- PubMed
- Google Scholar
(2013) Par3/Bazooka and phosphoinositides regulate actin protrusion formation during drosophila dorsal closure and wound healing
Development 140:800–809.

https://doi.org/10.1242/dev.089557
- PubMed
- Google Scholar
(2010) Pak1 control of e-cadherin endocytosis regulates salivary gland lumen size and shape
Development 137:4177–4189.

https://doi.org/10.1242/dev.048827
- PubMed
- Google Scholar
1. Pokutta S
2. Drees F
3. Takai Y
4. Nelson WJ
5. Weis WI
(2002) Biochemical and structural definition of the l-afadin- and actin-binding sites of alpha-catenin
The Journal of Biological Chemistry 277:18868–18874.

https://doi.org/10.1074/jbc.M201463200
- PubMed
- Google Scholar
1. Quiros M
2. Nusrat A
(2014) RhoGTPases, actomyosin signaling and regulation of the epithelial apical junctional complex
Seminars in Cell & Developmental Biology 36:194–203.

https://doi.org/10.1016/j.semcdb.2014.09.003
- PubMed
- Google Scholar
1. Raghavan S
2. Williams I
3. Aslam H
4. Thomas D
5. Szöőr B
6. Morgan G
7. Gross S
8. Turner J
9. Fernandes J
10. VijayRaghavan K
11. Alphey L
(2000) Protein phosphatase 1 is required for the maintenance of muscle attachmentss
Current Biology 10:269–272.

https://doi.org/10.1016/S0960-9822(00)00364-X
- Google Scholar
(2010) Planar polarized actomyosin contractile flows control epithelial junction remodelling
Nature 468:1110–1114.

https://doi.org/10.1038/nature09566
- PubMed
- Google Scholar
(2001) Downregulation of jun kinase signaling in the amnioserosa is essential for dorsal closure of the drosophila embryo
Current Biology 11:1098–1108.

https://doi.org/10.1016/S0960-9822(01)00318-9
- PubMed
- Google Scholar
1. Reed BH
2. Wilk R
3. Schöck F
4. Lipshitz HD
(2004) Integrin-dependent apposition of drosophila extraembryonic membranes promotes morphogenesis and prevents anoikis
Current Biology 14:372–380.

https://doi.org/10.1016/j.cub.2004.02.029
- PubMed
- Google Scholar
(2006) DPATJ plays a role in retinal morphogenesis and protects against light-dependent degeneration of photoreceptor cells in the drosophila eye
Developmental Dynamics : An Official Publication of the American Association of Anatomists 235:895–907.

https://doi.org/10.1002/dvdy.20595
- PubMed
- Google Scholar
1. Richard M
2. Muschalik N
3. Grawe F
4. Ozüyaman S
5. Knust E
(2009) A role for the extracellular domain of crumbs in morphogenesis of drosophila photoreceptor cells
European Journal of Cell Biology 88:765–777.

https://doi.org/10.1016/j.ejcb.2009.07.006
- PubMed
- Google Scholar
1. Ricos MG
2. Harden N
3. Sem KP
4. Lim L
5. Chia W
(1999)
Dcdc42 acts in TGF-beta signaling during drosophila morphogenesis: distinct roles for the Drac1/JNK and Dcdc42/TGF-beta cascades in cytoskeletal regulation

Journal of Cell Science 112 ( Pt 8):1225–1235.
- PubMed
- Google Scholar
(1996) The drosophila jun-n-terminal kinase is required for cell morphogenesis but not for DJun-dependent cell fate specification in the eye
Genes & Development 10:2759–2768.

https://doi.org/10.1101/gad.10.21.2759
- PubMed
- Google Scholar
1. Ring JM
2. Martinez Arias A
(1993)
Puckered, a gene involved in position-specific cell differentiation in the dorsal epidermis of the drosophila larva

Development. Supplement pp. 251–259.
- PubMed
- Google Scholar
1. Robinson BS
2. Huang J
3. Hong Y
4. Moberg KH
(2010) Crumbs regulates Salvador/Warts/Hippo signaling in drosophila via the FERM-domain protein expanded
Current Biology 20:582–590.

https://doi.org/10.1016/j.cub.2010.03.019
- PubMed
- Google Scholar
1. Rodriguez-Boulan E
2. Macara IG
(2014) Organization and execution of the epithelial polarity programme
Nature Reviews. Molecular Cell Biology 15:225–242.

https://doi.org/10.1038/nrm3775
- PubMed
- Google Scholar
(2008) Actomyosin purse strings: renewable resources that make morphogenesis robust and resilient
HFSP Journal 2:220–237.

https://doi.org/10.2976/1.2955565
- PubMed
- Google Scholar
1. Roh MH
2. Makarova O
3. Liu CJ
4. Shin K
5. Lee S
6. Laurinec S
7. Goyal M
8. Wiggins R
9. Margolis B
(2002) The maguk protein, Pals1, functions as an adapter, linking mammalian homologues of crumbs and discs lost
The Journal of Cell Biology 157:161–172.

https://doi.org/10.1083/jcb.200109010
- PubMed
- Google Scholar
1. Roh-Johnson M
2. Shemer G
3. Higgins CD
4. Mcclellan JH
5. Werts AD
6. Tulu US
7. Gao L
8. Betzig E
9. Kiehart DP
10. Goldstein B
(2012) Triggering a cell shape change by exploiting preexisting actomyosin contractions
Science 335:1232–1235.

https://doi.org/10.1126/science.1217869
- PubMed
- Google Scholar
1. Rotty JD
2. Wu C
3. Bear JE
(2013) New insights into the regulation and cellular functions of the ARP2/3 complex
Nature Reviews. Molecular Cell Biology 14:7–12.

https://doi.org/10.1038/nrm3492
- PubMed
- Google Scholar
1. Ríos-Barrera LD
2. Riesgo-Escovar JR
(2013) Regulating cell morphogenesis: the drosophila jun n-terminal kinase pathway
Genesis 51:147–162.

https://doi.org/10.1002/dvg.22354
- PubMed
- Google Scholar
1. Saias L
2. Swoger J
3. D'Angelo A
4. Hayes P
5. Colombelli J
6. Sharpe J
7. Salbreux G
8. Solon J
(2015) Decrease in cell volume generates contractile forces driving dorsal closure
Developmental Cell 33:611–621.

https://doi.org/10.1016/j.devcel.2015.03.016
- PubMed
- Google Scholar
1. Sarpal R
2. Pellikka M
3. Patel RR
4. Hui FY
5. Godt D
6. Tepass U
(2012) Mutational analysis supports a core role for drosophila α-catenin in adherens junction function
Journal of Cell Science 125:233–245.

https://doi.org/10.1242/jcs.096644
- PubMed
- Google Scholar
1. Sawyer JK
2. Choi W
3. Jung KC
4. He L
5. Harris NJ
6. Peifer M
(2011) A contractile actomyosin network linked to adherens junctions by canoe/afadin helps drive convergent extension
Molecular Biology of the Cell 22:2491–2508.

https://doi.org/10.1091/mbc.E11-05-0411
- PubMed
- Google Scholar
1. Sawyer JK
2. Harris NJ
3. Slep KC
4. Gaul U
5. Peifer M
(2009) The drosophila afadin homologue canoe regulates linkage of the actin cytoskeleton to adherens junctions during apical constriction
The Journal of Cell Biology 186:57–73.

https://doi.org/10.1083/jcb.200904001
- PubMed
- Google Scholar
1. Schindelin J
2. Arganda-Carreras I
3. Frise E
4. Kaynig V
5. Longair M
6. Pietzsch T
7. Preibisch S
8. Rueden C
9. Saalfeld S
10. Schmid B
11. Tinevez JY
12. White DJ
13. Hartenstein V
14. Eliceiri K
15. Tomancak P
16. Cardona A
(2012) Fiji: an open-source platform for biological-image analysis
Nature Methods 9:676–682.

https://doi.org/10.1038/nmeth.2019
- PubMed
- Google Scholar
1. Scuderi A
2. Letsou A
(2005) Amnioserosa is required for dorsal closure in drosophila
Developmental Dynamics : An Official Publication of the American Association of Anatomists 232:791–800.

https://doi.org/10.1002/dvdy.20306
- PubMed
- Google Scholar
1. Shen W
2. Chen X
3. Cormier O
4. Cheng DC
5. Reed B
6. Harden N
(2013) Modulation of morphogenesis by egfr during dorsal closure in drosophila
PloS One 8:e60180.

https://doi.org/10.1371/journal.pone.0060180
- PubMed
- Google Scholar
1. Sherrard KM
2. Fehon RG
(2015) The transmembrane protein crumbs displays complex dynamics during follicular morphogenesis and is regulated competitively by moesin and aPKC
Development 142:1869–1878.

https://doi.org/10.1242/dev.115329
- PubMed
- Google Scholar
(2010) Rho-kinase directs Bazooka/Par-3 planar polarity during drosophila axis elongation
Developmental Cell 19:377–388.

https://doi.org/10.1016/j.devcel.2010.08.011
- PubMed
- Google Scholar
(2012) Cell ingression and apical shape oscillations during dorsal closure in drosophila
Biophysical Journal 102:969–979.

https://doi.org/10.1016/j.bpj.2012.01.027
- PubMed
- Google Scholar
(2009) Pulsed forces timed by a ratchet-like mechanism drive directed tissue movement during dorsal closure
Cell 137:1331–1342.

https://doi.org/10.1016/j.cell.2009.03.050
- PubMed
- Google Scholar
(2003) Moesin functions antagonistically to the rho pathway to maintain epithelial integrity
Nature 421:83–87.

https://doi.org/10.1038/nature01295
- PubMed
- Google Scholar
1. Stronach BE
2. Perrimon N
(2001)
Investigation of leading edge formation at the interface of amnioserosa and dorsal ectoderm in the drosophila embryo

Development 128:2905–2913.
- PubMed
- Google Scholar
(2015) Crumbs3-mediated polarity directs airway epithelial cell fate through the hippo pathway effector yap
Developmental Cell 34:283–296.

https://doi.org/10.1016/j.devcel.2015.06.020
- PubMed
- Google Scholar
1. Takahashi K
2. Matsuo T
3. Katsube T
4. Ueda R
5. Yamamoto D
(1998)
Direct binding between two PDZ domain proteins canoe and ZO-1 and their roles in regulation of the jun n-terminal kinase pathway in drosophila morphogenesis

Mechanisms of Development 78:97–111.
- PubMed
- Google Scholar
(1992) Control of nonmuscle myosins by phosphorylation
Annual Review of Biochemistry 61:721–759.

https://doi.org/10.1146/annurev.bi.61.070192.003445
- PubMed
- Google Scholar
(1996) Shotgun encodes drosophila e-cadherin and is preferentially required during cell rearrangement in the neurectoderm and other morphogenetically active epithelia
Genes & Development 10:672–685.

https://doi.org/10.1101/gad.10.6.672
- Google Scholar
1. Tepass U
2. Knust E
(1990)
Phenotypic and developmental analysis of mutations at the crumbs locus, a gene required for the development of epithelia in drosophila melanogaster

Roux's Arch Dev Biol 199:189–206.
- Google Scholar
1. Tepass U
2. Knust E
(1993) Crumbs and stardust act in a genetic pathway that controls the organization of epithelia in drosophila melanogaster
Developmental Biology 159:311–326.

https://doi.org/10.1006/dbio.1993.1243
- PubMed
- Google Scholar
(1990) Crumbs encodes an EGF-like protein expressed on apical membranes of drosophila epithelial cells and required for organization of epithelia
Cell 61:787–799.

https://doi.org/10.1016/0092-8674(90)90189-L
- Google Scholar
1. Tepass U
(1996) Crumbs, a component of the apical membrane, is required for zonula adherens formation in primary epithelia of drosophila
Developmental Biology 177:217–225.

https://doi.org/10.1006/dbio.1996.0157
- PubMed
- Google Scholar
1. Tepass U
(2012) The apical polarity protein network in drosophila epithelial cells: regulation of polarity, junctions, morphogenesis, cell growth, and survival
Annual Review of Cell and Developmental Biology 28:655–685.

https://doi.org/10.1146/annurev-cellbio-092910-154033
- PubMed
- Google Scholar
(2008) Apoptotic force and tissue dynamics during drosophila embryogenesis
Science 321:1683–1686.

https://doi.org/10.1126/science.1157052
- PubMed
- Google Scholar
(2013) Principles of E-cadherin supramolecular organization in vivo
Current Biology 23:2197–2207.

https://doi.org/10.1016/j.cub.2013.09.015
- PubMed
- Google Scholar
1. Veltman DM
2. Insall RH
(2010) WASP family proteins: their evolution and its physiological implications
Molecular Biology of the Cell 21:2880–2893.

https://doi.org/10.1091/mbc.E10-04-0372
- PubMed
- Google Scholar
1. Vereshchagina N
2. Bennett D
3. Szöor B
4. Kirchner J
5. Gross S
6. Vissi E
7. White-Cooper H
8. Alphey L
(2004) The essential role of PP1beta in drosophila is to regulate nonmuscle myosin
Molecular Biology of the Cell 15:4395–4405.

https://doi.org/10.1091/mbc.E04-02-0139
- PubMed
- Google Scholar
1. Verma S
2. Han SP
3. Michael M
4. Gomez GA
5. Yang Z
6. Teasdale RD
7. Ratheesh A
8. Kovacs EM
9. Ali RG
10. Yap AS
(2012) A WAVE2-Arp2/3 actin nucleator apparatus supports junctional tension at the epithelial zonula adherens
Molecular Biology of the Cell 23:4601–4610.

https://doi.org/10.1091/mbc.E12-08-0574
- PubMed
- Google Scholar
(2009) Non-muscle myosin II takes centre stage in cell adhesion and migration
Nature Reviews. Molecular Cell Biology 10:778–790.

https://doi.org/10.1038/nrm2786
- PubMed
- Google Scholar
(2010) The Cdc42/Par6/aPKC polarity complex regulates apoptosis-induced compensatory proliferation in epithelia
Current Biology : CB 20:677–686.

https://doi.org/10.1016/j.cub.2010.03.025
- PubMed
- Google Scholar
(2009) Cadherin-mediated intercellular adhesion and signaling cascades involving small GTPases
Cold Spring Harbor Perspectives in Biology 1:a003020.

https://doi.org/10.1101/cshperspect.a003020
- PubMed
- Google Scholar
1. Wei Z
2. Li Y
3. Ye F
4. Zhang M
(2015) Structural basis for the phosphorylation-regulated interaction between the cytoplasmic tail of cell polarity protein crumbs and the actin-binding protein moesin
The Journal of Biological Chemistry 290:11384–11392.

https://doi.org/10.1074/jbc.M115.643791
- PubMed
- Google Scholar
1. Wells AR
2. Zou RS
3. Tulu US
4. Sokolow AC
5. Crawford JM
6. Edwards GS
7. Kiehart DP
(2014) Complete canthi removal reveals that forces from the amnioserosa alone are sufficient to drive dorsal closure in drosophila
Molecular Biology of the Cell 25:3552–3568.

https://doi.org/10.1091/mbc.E14-07-1190
- PubMed
- Google Scholar
1. Whiteman EL
2. Fan S
3. Harder JL
4. Walton KD
5. Liu CJ
6. Soofi A
7. Fogg VC
8. Hershenson MB
9. Dressler GR
10. Deutsch GH
11. Gumucio DL
12. Margolis B
(2014) Crumbs3 is essential for proper epithelial development and viability
Molecular and Cellular Biology 34:43–56.

https://doi.org/10.1128/MCB.00999-13
- PubMed
- Google Scholar
1. Winter CG
2. Wang B
3. Ballew A
4. Royou A
5. Karess R
6. Axelrod JD
7. Luo L
(2001) Drosophila rho-associated kinase (drok) links frizzled-mediated planar cell polarity signaling to the actin cytoskeleton
Cell 105:81–91.

https://doi.org/10.1016/S0092-8674(01)00298-7
- PubMed
- Google Scholar
1. Wodarz A
2. Grawe F
3. Knust E
(1993) CRUMBS is involved in the control of apical protein targeting during drosophila epithelial development
Mechanisms of Development 44:175–187.

https://doi.org/10.1016/0925-4773(93)90066-7
- PubMed
- Google Scholar
1. Wodarz A
2. Hinz U
3. Engelbert M
4. Knust E
(1995) Expression of crumbs confers apical character on plasma membrane domains of ectodermal epithelia of drosophila
Cell 82:67–76.

https://doi.org/10.1016/0092-8674(95)90053-5
- PubMed
- Google Scholar
1. Wood W
2. Jacinto A
3. Grose R
4. Woolner S
5. Gale J
6. Wilson C
7. Martin P
(2002) Wound healing recapitulates morphogenesis in drosophila embryos
Nature Cell Biology 4:907–912.

https://doi.org/10.1038/ncb875
- PubMed
- Google Scholar
1. Xiao Z
2. Patrakka J
3. Nukui M
4. Chi L
5. Niu D
6. Betsholtz C
7. Pikkarainen T
8. Pikkarainan T
9. Vainio S
10. Tryggvason K
(2011) Deficiency in crumbs homolog 2 (crb2) affects gastrulation and results in embryonic lethality in mice
Developmental Dynamics : An Official Publication of the American Association of Anatomists 240:2646–2656.

https://doi.org/10.1002/dvdy.22778
- PubMed
- Google Scholar
(2014) Rho1 regulates adherens junction remodeling by promoting recycling endosome formation through activation of myosin II
Molecular Biology of the Cell 25:2956–2969.

https://doi.org/10.1091/mbc.E14-04-0894
- PubMed
- Google Scholar
(1997)
Control of germ-band retraction in drosophila by the zinc-finger protein HINDSIGHT

Development 124:2129–2141.
- PubMed
- Google Scholar
(1993) Morphogenesis in drosophila requires nonmuscle myosin heavy chain function
Genes & Development 7:29–41.

https://doi.org/10.1101/gad.7.1.29
- PubMed
- Google Scholar
1. Zallen JA
2. Cohen Y
3. Hudson AM
4. Cooley L
5. Wieschaus E
6. Schejter ED
(2002) SCAR is a primary regulator of Arp2/3-dependent morphological events in drosophila
The Journal of Cell Biology 156:689–701.

https://doi.org/10.1083/jcb.200109057
- PubMed
- Google Scholar

Article and author information

Author details

David Flores-Benitez

Max-Planck-Institute of Molecular Cell Biology and Genetics, Dresden, Germany

Contribution
DF-B, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article

Competing interests
The authors declare that no competing interests exist.
Elisabeth Knust

Max-Planck-Institute of Molecular Cell Biology and Genetics, Dresden, Germany

Contribution
EK, Conception and design, Analysis and interpretation of data, Drafting or revising the article

For correspondence
knust@mpi-cbg.de

Competing interests
The authors declare that no competing interests exist.

Funding

Max-Planck-Gesellschaft

Elisabeth Knust

Max-Planck-Gesellschaft (Postdoc Stipend)

David Flores-Benitez

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

Stocks obtained from the Bloomington Drosophila Stock Center (NIH P40OD018537) were used in this study. Antibodies obtained from the Developmental Studies Hybridoma Bank, created by the NICHD of the NIH and maintained at The University of Iowa, Department of Biology, Iowa City, IA 52242. We thank Thomas Kurth (Biotec Dresden) for the scanning electron microscopy analysis and the LMF facility of MPI-CBG for microscopy support. We thank Sarita Hebbar and Johanna Lattner for critical reading of the manuscript, and Perla Zerial for her advice on the statistical analysis. The work was supported by funding from the Max-Planck Society.

Copyright

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

3,344

views
724

downloads
41

citations

Views, downloads and citations are aggregated across all versions of this paper published by eLife.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Mendeley

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

David Flores-Benitez
Elisabeth Knust

(2015)

Crumbs is an essential regulator of cytoskeletal dynamics and cell-cell adhesion during dorsal closure in Drosophila

eLife 4:e07398.

https://doi.org/10.7554/eLife.07398

Categories and tags

Research organism

D. melanogaster

Share this article

Cite this article

The FERM-binding domain motif (FBM) of Crb is essential for dorsal closure (DC).

Dorsal closure (DC) in a w;foscrb,DE-cad::GFP;crbGX24 embryo.

Defective germ band (GB) retraction and DC phenotype in a w;foscrbY10A,DE-cad::GFP;crbGX24 embryo.

The FBM of Crb is important the establishment of the supracellular actomyosin cable at the LE of the DME cells during DC.

Filopodia movement at the leading edge (LE) of the dorsal most epidermal (DME) cells in w;foscrb;crbGX24,Sas::Venus (top) and w;foscrbY10A;crbGX24,Sas::Venus (bottom) embryos.

The FBM of Crb is important for the maintenance of the AS.

Lateral views during germ band (GB) retraction in w;foscrb,DE-cad::mTomato;crbGX24 (top) and w;foscrbY10A,DE-cad::mTomato;crbGX24 (bottom) embryos.

Dorsal views during GB retraction and the beginning of DC in w;foscrb,DE-cad::GFP;crbGX24 (top) and w;foscrbY10A,DE-cad::GFP;crbGX24 (bottom) embryos.

Dorsal views during DC in w;foscrb,GAL4332.3/foscrb,UAS-Apoliner;crbGX24 (first row), and two examples of w;foscrbY10A,GAL4332.3/foscrbY10A,UAS-Apoliner;crbGX24 (second and third rows) embryos.

AS detachment in foscrbY10A embryos is accompanied by premature apoptosis.

DC in yrt∆75a zygotic mutants expressing the different fosmids. w;foscrb,DE-cad::GFP;yrt∆75acrb11A22 (top) and w;foscrbY10A,DE-cad::GFP;yrt∆75acrb11A22 (bottom) embryos.

Dorsal views during the pulsed contractions of AS cells in w;foscrb,DE-cad::GFP;crbGX24 (left) and w;foscrbY10A,DE-cad::GFP;crbGX24 (right).

The FBM of Crb is essential for the regulation of actomyosin activity in the AS.

Dorsal views during the pulsed contractions of AS cells in w;foscrb/Zip::GFP;crbGX24 (left) and w;foscrbY10A/Zip::GFP;crbGX24 (right).

Magnifications of a small group of cells shown in the Video 11 to see in more detail the medial foci accumulation of Zip::GFP during the cell contraction.

Dorsal views during DC in embryos expressing the phosphatase Flw in the AS cells under the control of the GAL4332.3 driver.

Expression of the myosin phosphatase Flapwing in the AS of foscrbY10A embryos suppresses the DC defects.

Flw expression in the AS of foscrbY10A embryos suppresses the disruption of the ZA.

Reduction in actomyosin activity suppresses the DC defects in embryos expressing the foscrbY10A variant.

Reduction of the SCAR-Arp complex activity suppresses the DC defects and ameliorates the loss of DE-cadherin in the AS of embryos expressing the foscrbY10A variant.

Dorsal views during DC in embryos heterozygous for the SCAR∆37 allele.

Dorsal views during DC in embryos heterozygous for the Arp3EP3640 allele.

Author details

David Flores-Benitez

Contribution

Competing interests

Elisabeth Knust

Contribution

For correspondence

Competing interests

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

Categories and tags

Research organism

Further reading

Dorsal closure (DC) in a w;foscrb,DE-cad::GFP;crb^GX24 embryo.

Defective germ band (GB) retraction and DC phenotype in a w;foscrb_Y10A,DE-cad::GFP;crb^GX24 embryo.

Filopodia movement at the leading edge (LE) of the dorsal most epidermal (DME) cells in w;foscrb;crb^GX24,Sas::Venus (top) and w;foscrb_Y10A;crb^GX24,Sas::Venus (bottom) embryos.

Lateral views during germ band (GB) retraction in w;foscrb,DE-cad::mTomato;crb^GX24 (top) and w;foscrb_Y10A,DE-cad::mTomato;crb^GX24 (bottom) embryos.

Dorsal views during GB retraction and the beginning of DC in w;foscrb,DE-cad::GFP;crb^GX24 (top) and w;foscrb_Y10A,DE-cad::GFP;crb^GX24 (bottom) embryos.

Dorsal views during DC in w;foscrb,GAL4^332.3/foscrb,UAS-Apoliner;crb^GX24 (first row), and two examples of w;foscrb_Y10A,GAL4^332.3/foscrb_Y10A,UAS-Apoliner;crb^GX24 (second and third rows) embryos.

AS detachment in foscrb_Y10A embryos is accompanied by premature apoptosis.

DC in yrt^∆75a zygotic mutants expressing the different fosmids. w;foscrb,DE-cad::GFP;yrt^∆75acrb^11A22 (top) and w;foscrb_Y10A,DE-cad::GFP;yrt^∆75acrb^11A22 (bottom) embryos.

Dorsal views during the pulsed contractions of AS cells in w;foscrb,DE-cad::GFP;crb^GX24 (left) and w;foscrb_Y10A,DE-cad::GFP;crb^GX24 (right).

Dorsal views during the pulsed contractions of AS cells in w;foscrb/Zip::GFP;crb^GX24 (left) and w;foscrb_Y10A/Zip::GFP;crb^GX24 (right).

Dorsal views during DC in embryos expressing the phosphatase Flw in the AS cells under the control of the GAL4^332.3 driver.

Expression of the myosin phosphatase Flapwing in the AS of foscrb_Y10A embryos suppresses the DC defects.

Flw expression in the AS of foscrb_Y10A embryos suppresses the disruption of the ZA.

Reduction in actomyosin activity suppresses the DC defects in embryos expressing the foscrb_Y10A variant.

Reduction of the SCAR-Arp complex activity suppresses the DC defects and ameliorates the loss of DE-cadherin in the AS of embryos expressing the foscrb_Y10A variant.

Dorsal views during DC in embryos heterozygous for the SCAR^∆37 allele.

Dorsal views during DC in embryos heterozygous for the Arp3^EP3640 allele.
